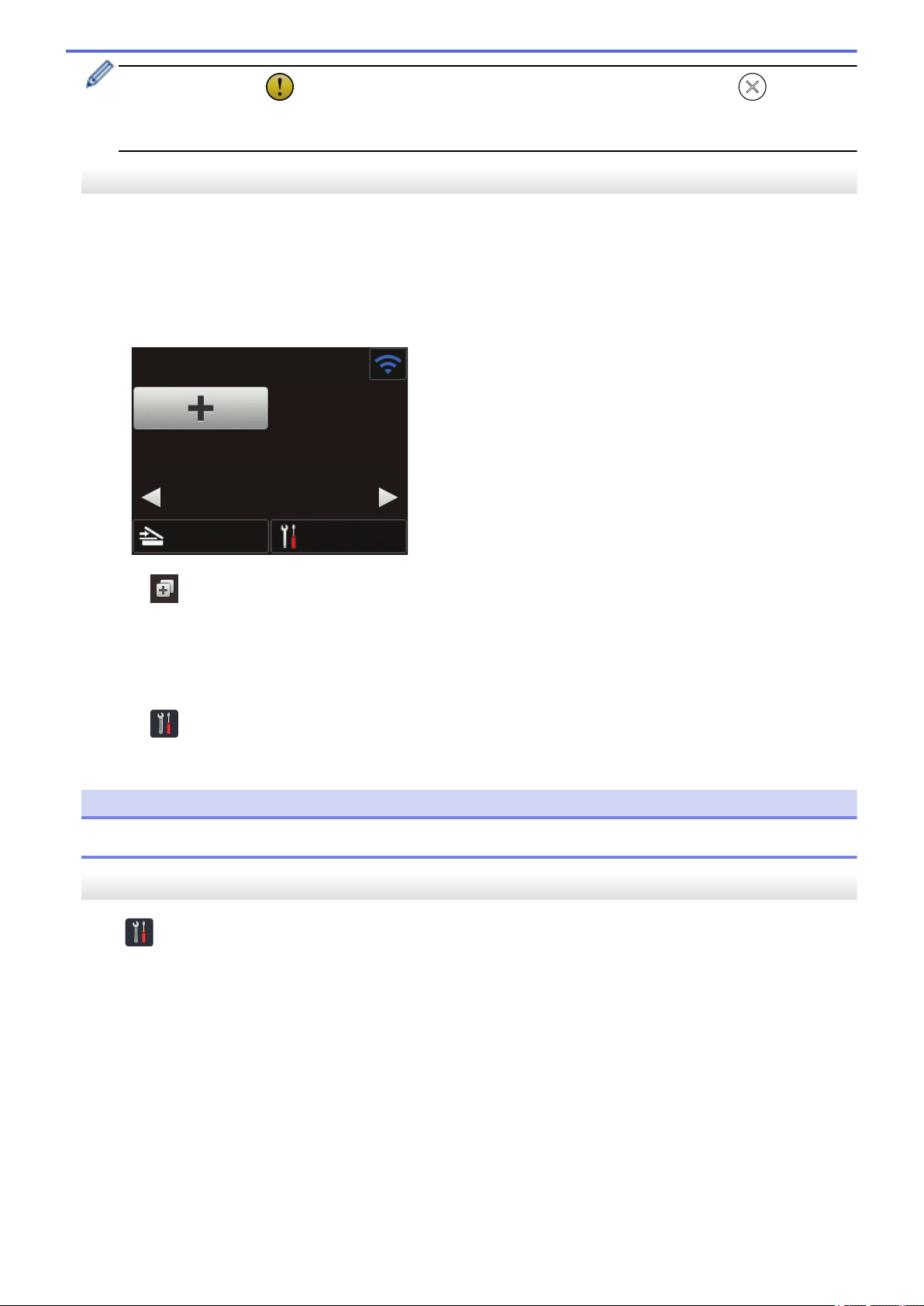

Touchscreen LCD Overview......................................................................................................................... 11
USB Port and Cable Overview..................................................................................................................... 15
Paper Handling.................................................................................................................................... 16
Document Specifications.............................................................................................................................. 17
Acceptable Documents ...................................................................................................................... 18
Unacceptable Documents .................................................................................................................. 19
Load Documents .......................................................................................................................................... 21
Load Standard Size Documents......................................................................................................... 22
Load Business Cards ......................................................................................................................... 24
Load a Plastic Card ............................................................................................................................ 25
Load Documents Longer than Standard Size .................................................................................... 26
Scan...................................................................................................................................................... 27
Before Scanning........................................................................................................................................... 28
Scan Using Bus Power Mode ...................................................................................................................... 29
Scan Using the Scan Functions on Your Brother Machine .......................................................................... 30
Save Scanned Documents on Your Computer................................................................................... 31
Save Scanned Documents Using Scan to Workflow Function........................................................... 32
Save Scanned Documents to a USB Flash Drive .............................................................................. 33
Send Scanned Data to an Email Server............................................................................................. 36
Set Up the Address Book ................................................................................................................... 38
Scan to FTP ....................................................................................................................................... 41
Scan to SFTP ..................................................................................................................................... 45
Scan to Network ................................................................................................................................. 49
Web Services for Scanning on Your Network (Windows 7, Windows 8 and Windows 10) ................ 53
Scan Options Using the Touchscreen ................................................................................................ 57
Restrict Scan Functions from External Devices ................................................................................. 58
Scan from Your Computer (Windows) ......................................................................................................... 59
Scan Using Nuance
™
PaperPort
™
14 or Other Windows Applications ............................................. 60
Scan Using Windows Photo Gallery or Windows Fax and Scan........................................................ 66
Scan Using Nuance
™
Power PDF ..................................................................................................... 69
Scan Using Brother iPrint&Scan (Windows) ...................................................................................... 70
Scan from Your Computer (Mac).................................................................................................................. 71
Scan Using Brother iPrint&Scan (Mac) .............................................................................................. 72
Scan Using TWAIN-Compliant Applications (Mac)............................................................................. 73

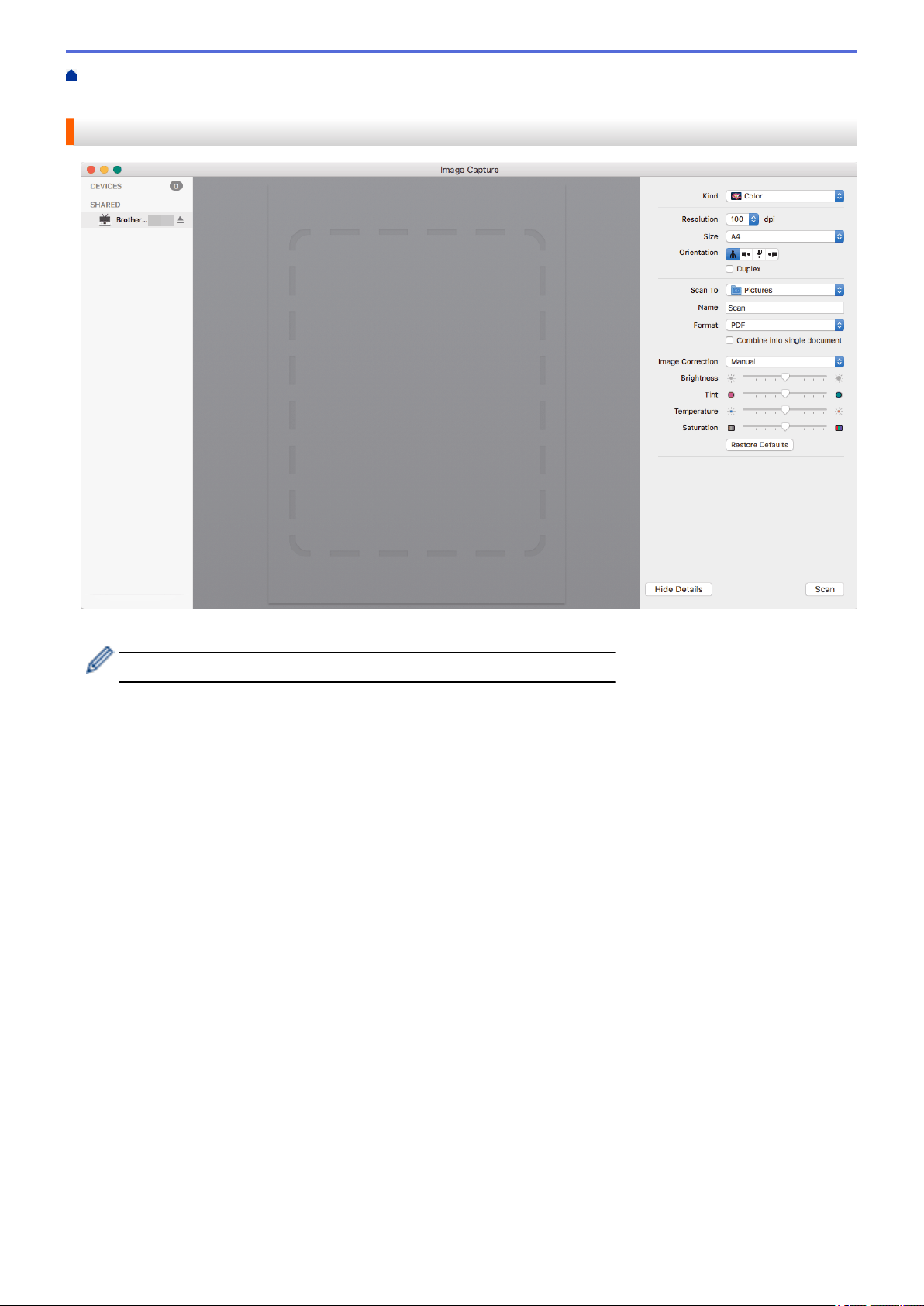

Scan Using Apple Image Capture (ICA Driver) .................................................................................. 76
Network ................................................................................................................................................ 80
Home > Table of Contents
i
Supported Basic Network Features ............................................................................................................. 81
Network Management Software and Utilities ............................................................................................... 82
Learn about Network Management Software and Utilities ................................................................. 83
Additional Methods of Configuring Your Brother Machine for a Wireless Network ...................................... 84
Before Configuring Your Brother Machine for a Wireless Network..................................................... 85
Configure Your Machine for a Wireless Network Using the One-Push Method of Wi-Fi Protected
Setup
™
(WPS).................................................................................................................................... 86
Configure Your Machine for a Wireless Network Using the PIN Method of Wi-Fi Protected
Setup
™
(WPS).................................................................................................................................... 87
Configure Your Machine for a Wireless Network Using the Machine's Control Panel Setup Wizard . 89
Use Wi-Fi Direct
®
............................................................................................................................... 91
Use Wireless Direct.......................................................................................................................... 101
Advanced Network Features...................................................................................................................... 104
Synchronize Time with the SNTP Server Using Web Based Management ..................................... 105
Technical Information for Advanced Users................................................................................................. 110
Wireless LAN Error Codes ................................................................................................................111
Security ...............................................................................................................................................112
Lock the Machine Settings ......................................................................................................................... 113
Setting Lock Overview...................................................................................................................... 114
Network Security Features......................................................................................................................... 117
Secure Function Lock 3.0................................................................................................................. 118
Manage Your Network Machine Securely Using SSL/TLS............................................................... 122
Send an Email Securely ................................................................................................................... 133
Brother iPrint&Scan for Windows and Mac.................................................................................... 135
Brother iPrint&Scan Overview.................................................................................................................... 136
Configure Scan to Workflow Settings Using Brother iPrint&Scan.............................................................. 137
Troubleshooting ................................................................................................................................ 138
Error and Maintenance Messages ............................................................................................................. 139

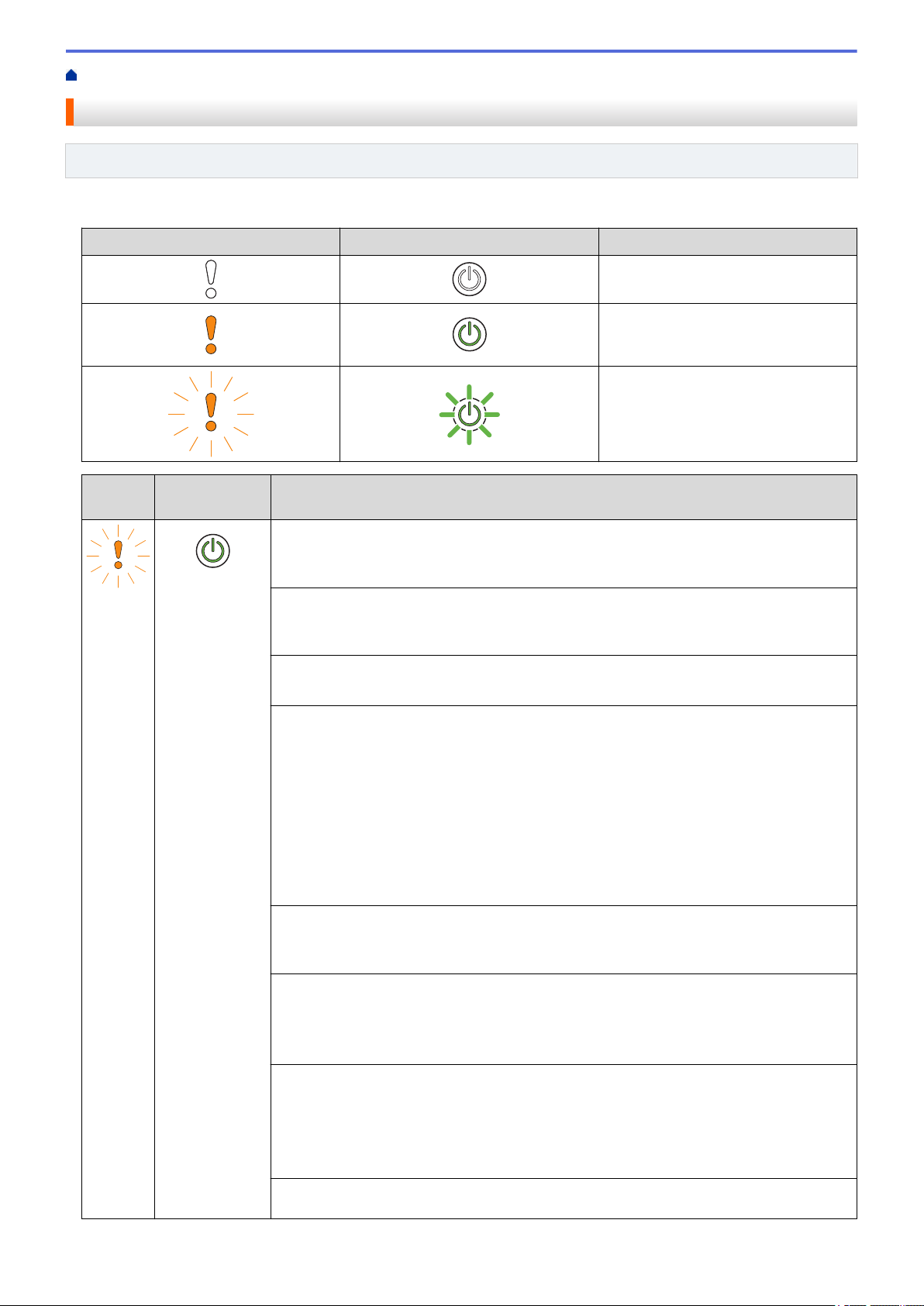

Error and Maintenance Indications ............................................................................................................ 144
Service Call Indications .................................................................................................................... 147
Document Jam ........................................................................................................................................... 148
Card Jam.................................................................................................................................................... 150
If You Are Having Difficulty with Your Machine .......................................................................................... 151
Scanning and Other Problems ......................................................................................................... 152
Network Problems ............................................................................................................................ 157
Check the Serial Number ........................................................................................................................... 164
Reset Your Brother Machine ...................................................................................................................... 166
Reset the Usage Counters......................................................................................................................... 167
Routine Maintenance ........................................................................................................................ 168
Clean Your Brother Machine ...................................................................................................................... 169
Clean the Outside of the Machine .................................................................................................... 170
Clean the Scanner and Rollers ........................................................................................................ 171
Clean the Sensors............................................................................................................................ 174
Replace Supplies ....................................................................................................................................... 175
Supplies............................................................................................................................................ 176
Check Supplies Replacement Cycle ................................................................................................ 177
Replace the Pick Up Roller .............................................................................................................. 179
Home > Table of Contents
ii
Replace the Separation Pad ............................................................................................................ 181
Pack and Ship Your Brother Machine ........................................................................................................ 183
Machine Settings............................................................................................................................... 185
Change Machine Settings from the Control Panel ..................................................................................... 186
In the Event of Power Failure (Memory Storage) ............................................................................. 187
Change the General Settings from the Control Panel ...................................................................... 188
Save Your Favorite Settings as a Shortcut....................................................................................... 190
Change Machine Settings from Your Computer......................................................................................... 193
Change Machine Settings Using Web Based Management ............................................................ 194
Change the Machine Settings Using Remote Setup ........................................................................ 198
Appendix............................................................................................................................................ 207
Specifications ............................................................................................................................................. 208
Enter Text on Your Brother Machine .......................................................................................................... 213
Home > Table of Contents
iii
Home > Before You Use Your Brother Machine > Definitions of Notes
Definitions of Notes
We use the following symbols and conventions throughout this User's Guide:
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injuries.
IMPORTANT
IMPORTANT indicates a potentially hazardous situation which, if not avoided, may
result in damage to property or loss of product functionality.
NOTE
NOTE specifies the operating environment, conditions for installation, or special
conditions of use.
Tips icons indicate helpful hints and supplementary information.
Bold Bold style identifies buttons on the machine's control panel or computer screen.
Italics Italicized style emphasizes an important point or refers you to a related topic.
(ADS-1700W)
Courier New
Courier New font identifies messages shown on the machine's LCD.
Related Information
• Before You Use Your Brother Machine
2
Home > Before You Use Your Brother Machine > Trademarks
Trademarks
Brother is either a trademark or a registered trademark of Brother Industries, Ltd.
Microsoft, Windows, Windows Server, Internet Explorer, Word, Excel and PowerPoint are either registered
trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Apple, Mac, Safari, iPad, iPhone, iPod touch and macOS and Safari are trademarks of Apple Inc., registered in
the United States and other countries.
Nuance, PaperPort and Power PDF are trademarks or registered trademarks of Nuance Communications, Inc. or
its affiliates in the United States and/or other countries.
Wi-Fi
®
, Wi-Fi Alliance
®
and Wi-Fi Direct
®
are registered trademarks of Wi-Fi Alliance
®
.
WPA
™
, WPA2
™
, Wi-Fi Protected Setup
™
and Wi-Fi Protected Setup
™
logo are trademarks of Wi-Fi Alliance
®
.
Android and Google Play are trademarks of Google, Inc. Use of these trademarks are subject to Google
Permissions.
Adobe is a registered trademark or trademark of Adobe Systems Incorporated in the United States and/or other
countries.
Each company whose software title is mentioned in this manual has a Software License Agreement specific to its
proprietary programs.
Any trade names and product names of companies appearing on Brother products, related documents
and any other materials are all trademarks or registered trademarks of those respective companies.
Related Information
• Before You Use Your Brother Machine
3
Home > Before You Use Your Brother Machine > Important Note
Important Note
• The latest manuals are available on the Brother Solutions Center at support.brother.com/manuals. Select
your model to download your model's other manuals.
• Check support.brother.com for Brother driver and software updates.
• To keep your machine performance up to date, check
support.brother.com for the latest firmware upgrade.
Otherwise, some of your machine's functions may not be available.
• Do not use this product outside the country of purchase as it may violate the wireless telecommunication and
power regulations of that country.
• Not all models are available in all countries.
• In this User's Guide, the illustrations of the ADS-1700W are used unless otherwise specified.
• The screens in this User's Guide are for illustration purposes only and may differ from the actual screens.
• Unless otherwise specified, the screens in this manual are from Windows 7 and macOS v10.12.x. Screens on
your computer may vary depending on your operating system.
• If the LCD messages, control panel button names, and other indications are different depending on the
country, the indications for each country will be shown.
• The contents of this guide and the specifications of this product are subject to change without notice.
Related Information
• Before You Use Your Brother Machine
4
Home > Introduction to Your Brother Machine > About This Machine
About This Machine
1
2
3
5
7
8
9
10
11
12
13
4
4
6
1. Document Support Arms
2. Top Cover
3. Automatic Document Feeder (ADF)
4. Paper Guides
5. Front Cover
6. Feed Selector
7. Touchscreen LCD (ADS-1700W)
8. Control Panel
9. Card Slot
10. Security Slot
11. AC Adapter Connector
12. USB 2.0 Port (for connecting a USB flash drive)
13. Micro USB 2.0/3.0 Port (for connecting to a computer)
1
Related Information
• Introduction to Your Brother Machine
1 Use of a USB 3.0 (Micro) cable connected to a USB 3.0 port on your computer is recommended to scan in Bus Power Mode (ADS-1200/
ADS-1250W).
6
Home > Introduction to Your Brother Machine > Set Up Your Scanner
Set Up Your Scanner
1. Open the Top Cover (1) and push the flap of the Top Cover (2) firmly back until it sets into place.
1
2
2. Lift the Paper Guides (1) and the Document Support Arms (2).
2
1
1
CAUTION
Do not use the ADF as a handle to carry the scanner.
Related Information
• Introduction to Your Brother Machine
7
Home > Introduction to Your Brother Machine > Control Panel Overview
Control Panel Overview
ADS-1200
21
3456
1. Error Indicator (with LED)
Blinks when the machine detects an error.
2.
(Power On/Off) (with LED)
Press to turn on the machine.
Press and hold
to turn off the machine.
3. (Scan to PC)
Press to scan to the computer.
Install a scanning application (for example, Brother iPrint&Scan) and configure the settings within the
application before scanning from the machine.
4. (Scan to USB)
Press to scan to a USB flash drive.
5.
(Stop)
Press to stop or cancel your current action and return to Ready Mode.
6. Feed Selector ( (ADF Mode)/ (Plastic Card Mode) )
Slide to select the scanner feed mode.
8
ADS-1250W
321
4567
1. Wi-Fi Indicator (with LED)
Blinks when the wireless network is active.
2. Error Indicator (with LED)
Blinks when the machine detects an error.
3.
(Power On/Off) (with LED)
Press to turn on the machine.
Press and hold to turn off the machine.
4.
(Scan to PC)
Press to scan to the computer.
• Install a scanning application (for example, Brother iPrint&Scan) and configure the settings within the
application before scanning from the machine.
• When the machine and computer are connected wirelessly, configure the Scan to PC settings using
Remote Setup.
5. (Scan to USB)
Press to scan to a USB flash drive.
6.
(Stop)
Press to stop or cancel your current action and return to Ready Mode.
7. Feed Selector ( (ADF Mode)/ (Plastic Card Mode) )
Slide to select the scanner feed mode.
9
ADS-1700W
3456
2 1
1. (Power On/Off) (with LED)
Press
to turn on the machine.
Press and hold to turn off the machine. The touchscreen displays [Shutting Down] and stays on for a
few seconds before turning off.
2. (Back)
Press to go back to the previous screen or menu.
3.
(Home Button)
Press to return to the Home Screen and Ready Mode.
4.
(Stop)
Press to stop or cancel your current action and return to Ready Mode.
5. Touchscreen LCD
Access the menus and options by pressing the touchscreen.
6. Feed Selector (
(ADF Mode)/ (Plastic Card Mode) )
Slide to select the scanner feed mode.
Related Information
• Introduction to Your Brother Machine
• Add Shortcuts
10
Home > Introduction to Your Brother Machine > Touchscreen LCD Overview
Touchscreen LCD Overview
Related Models: ADS-1700W
Home Screens
There are three Home screens that you can access by pressing d or c.
The following screens display the machine’s status when the machine is idle:
Home Screen 1
5
1 2 3 4
6
Home Screen 1 provides access to Scan to PC, Scan to
Workflow, and Scan to Network operations.
Home Screen 2
7 8 9
Home Screen 2 provides access to Scan to FTP/SFTP,
Scan to Email Server, and Scan to USB operations.
Home Screen 3
10
Home Screen 3 provides access to WS Scan operation.
11
1. [to PC]
Press to access the Scan to PC function.
2. [to Workflow]
Press to access the Scan to Workflow function.
Settings must be configured in iPrint&Scan in advance.
3. [to Network]
Press to access the Scan to Network function.
4. (Wireless Status)
A four-level indicator on the Ready Mode screen displays the current wireless signal strength when using a
wireless connection.
0
1 2 Max
You can configure wireless settings by pressing the Wireless Status button.
5. ([Shortcuts])
Press [Shortcuts] and then
, to create Shortcuts for frequently-used operations such as Scan to PC,
Scan to Email Server, Scan to USB, or other functions.
You can quickly scan using the options set as Shortcuts.
-1/5-
SettingsScan
Shortcuts
To display the other Shortcuts screens, press d or c.
Five Shortcut screens are available with up to four Shortcuts on each tab. A total of 20 Shortcuts can be
created.
6. ([Settings])
Press to access the Settings menu.
7. [to FTP/SFTP]
Press to access the Scan to FTP/SFTP function.
8. [to Email Server]
Press to access the Scan to Email Server function.
9. [to USB]
Press to access the Scan to USB function.
10. [WS Scan]
Press to access the WS Scan function.
12
• The warning icon appears when there is an error or maintenance message; press to return to
Ready Mode.
• This product adopts the font of ARPHIC TECHNOLOGY CO., LTD.
Auto Start Scan
The Auto Start Scan feature allows you to start scanning automatically as soon a document is placed in the ADF.
To use Auto Start Scan, you must first create an Auto Start Scan Shortcut and then enable the Auto Start Scan
setting in General Setup:
1. Press [Shortcuts].
2. Press d once to display [Auto Start Scan].
Auto Start Scan
SettingsScan
Shortcuts
3. Press to add the Auto Start Scan Shortcut.
4. Select the Shortcut function (for example, Scan to PC).
5. Press [Save as Shortcut]. When the LCD displays [This settings will be saved as a
shortcut.], press [OK].
6. Enter the Shortcut Name. When the LCD displays [Make this a One Touch Shortcut?], press [OK].
7. Press
([Settings]) to access the Settings menu. Press [General Setup] > [Auto Start Scan
Mode] and select [On].
NOTE
Only one Auto Start Scan profile can be saved at a time.
Settings Menu
Press ([Settings]) to check and access all the machine’s settings.
• [General Setup]
Press to access the Settings menu.
• [Shortcut Settings]
Press to set Shortcuts. This option is unavailable and cannot be selected if you have not added Shortcuts.
• [Network]
Press to access Network settings.
• [Machine Info.]
Press to check the machine’s information.
• [Initial Setup]
Press to access the [Date & Time], [Reset], and [Local Language] menus.
13
Home > Introduction to Your Brother Machine > USB Port and Cable Overview
USB Port and Cable Overview
Your machine has a Micro USB port
for connecting to a computer.
You must purchase the correct USB
cable (USB 3.0 (Micro)). This USB
cable is included with some models.
A USB 2.0 (Micro) cable can also be
used to connect to a computer with
the same port.
• (ADS-1200/ADS-1250W)
Bus Power Mode is not
available when using the
USB 2.0 (Micro) cable.
• There are two ports for
input but only the left side
needs to be connected to
function with your
computer.
Related Information
• Introduction to Your Brother Machine
15
Home > Paper Handling > Document Specifications > Acceptable Documents
Acceptable Documents
Do not load documents of varying page thickness or paper quality at the same time.
Standard Paper
Width
2 in. to 8.5 in. (51 mm to 215.9 mm)
Length Single Paper: 2 in. to 34 in. (51 mm to 863 mm)
Multiple Paper: 2.76 in. to 11.7 in. (70 mm to 297 mm)
Weight 13.8 lb to 34.1 lb (51.8 g/㎡ to 128 g/㎡) (Plain Paper, Long Paper)
34.1 lb to 53.3 lb (128 g/㎡ to 200 g/㎡) (Thick Paper)
Thickness 3.15 mil to 5.51 mil (0.08 mm to 0.14 mm)
Maximum Number of Pages Up to 20 pages
Standard Paper Size A4 8.3 in. x 11.7 in. (210 mm x 297 mm)
A5 5.8 in. x 8.3 in. (148 mm x 210 mm)
A6 4.1 in. x 5.8 in. (105 mm x 148 mm)
B5 7.2 in. x 10.1 in. (182 mm x 257 mm)
B6 5 in. x 7.2 in. (128 mm x 182 mm)
Legal 8.5 in. x 14 in. (215.9 mm x 355.6 mm)
Mexican Legal 8.5 in. x 13.38 in. (215.9 mm x 339.9 mm)
India Legal 8.46 in. x 13.58 in. (215 mm x 345 mm)
Letter 8.5 in. x 11 in. (215.9 mm x 279.4 mm)
Executive 7 1/4 in. x 10 1/2 in. (184.1 mm x 266.7 mm)
Folio 8 1/2 in. x 13 in. (215.9 mm x 330.2 mm)
Plastic Card
Size (ISO)
3.37 in. x 2.13 in. (85.6 mm x 54 mm)
Material Plastic (PET)
Type Plastic card such as a store card.
Thickness 29.92 mil (0.76 mm) to 48.81 mil (1.24 mm) (with embossing)
29.92 mil (0.76 mm) to 40.16 mil (1.02 mm) (without embossing)
Maximum Number of Cards One card
• A plastic card can be scanned and saved to your computer as an image file. Configure the scanning
application settings and then enable Plastic Card Mode.
• Certain types of embossed cards may not scan correctly.
Related Information
• Document Specifications
18
Home > Paper Handling > Document Specifications > Unacceptable Documents
Unacceptable Documents
The following types of documents may not be scanned successfully:
• Documents with a carbon sheet attached
• Documents written in pencil
• Documents of uneven thickness, such as envelopes
• Documents with large wrinkles or curls
• Documents that use tracing paper
• Documents that use coated paper
• Photographs (photographic paper)
• Documents printed on perforated paper
• Documents printed on unusually-shaped paper (not square or rectangle)
• Documents with photos, notes, or stickers affixed to them
• Documents that use carbonless paper
• Documents that use loose-leaf paper or any paper with holes in it
• Documents with paper clips or staples
• Documents with wet ink
• Fabrics, metallic sheets, or overhead projector sheets
• Glossy or mirrored media
• Documents that exceed recommended thicknesses
IMPORTANT
• Carbonless papers contain chemical substances that may damage the rollers (for example, the Pick Up
Roller). If paper jams occur frequently, clean the Separation Pad and Pick Up Roller. The life of the
Separation Pad and Pick Up Roller may be reduced compared to scanning paper with high wood content.
• When scanning paper with high wood content, the life of the Separation Pad and Pick Up Roller may be
reduced compared to scanning wood-free paper.
• The Separation Pad and Pick Up Roller may become damaged when a photo or sticky note on the
document touches these parts during scanning.
• The surface of the document may be damaged when scanning glossy papers such as photographs.
• The damage caused by using any unacceptable documents with your Brother machine may not be
covered under warranty.
Related Information
• Document Specifications
• Area Not to be Perforated
• Clean the Scanner and Rollers
19
Home > Paper Handling > Document Specifications > Unacceptable Documents > Area Not to be
Perforated
Area Not to be Perforated
An error may occur if your document has punched holes in the area shaded in light blue in the following figure:
1
2
3
4
7
6
5
1
1. 1.08 in. (27.5 mm)
2. Top
3. Bottom
4. Center
5. Feed direction
6. Front side
7. Reference point
This condition applies when the document is set in the center of the Pick Up Roller.
Related Information
• Unacceptable Documents
20
Home > Paper Handling > Load Documents
Load Documents
The ADF can hold up to 20 pages and feeds each sheet individually. Use 20 lb (80 g/㎡) paper and always fan
the pages before placing them in the ADF.
IMPORTANT
• Make sure documents with ink or correction fluid are completely dry.
• DO NOT pull on the document while it is feeding.
• DO NOT use paper that is curled, wrinkled, folded, ripped, stapled, paper-clipped, pasted, or taped.
• DO NOT use cardboard or fabric.
• Load Standard Size Documents
• Load Business Cards
• Load a Plastic Card
• Load Documents Longer than Standard Size
21
Home > Paper Handling > Load Documents > Load Standard Size Documents
Load Standard Size Documents
1. Gently adjust the Paper Guides (1) to fit the width of your document.
1
2. Fan the pages several times along both the long edge and the short edge.
3. Align the edges of the pages.
4. Position the pages so that the leading edges are aligned at a slight angle in the feed direction.
5. Slide the Feed Selector to the left and confirm that it is in ADF Mode. Place your document, face down, top
edge first in the ADF between the Paper Guides until you feel it touch the inside of the machine. Feed thin
pages slowly and carefully to keep the edge from folding.
22
Home > Paper Handling > Load Documents > Load Business Cards
Load Business Cards
1. Gently adjust the Paper Guides (1) to fit the width of your document.
1
2. Slide the Feed Selector to the left and confirm that it is in ADF Mode. Place the card, face down, top edge
first in the ADF between the Paper Guides until you feel it touch the inside of the machine.
• You can load only one business card at a time.
• The Card Slot reader is not designed to scan business cards. We recommend using the Automatic
Document Feeder (ADF) for this purpose.
Related Information
• Load Documents
24
Home > Paper Handling > Load Documents > Load a Plastic Card
Load a Plastic Card
1. Open the Top Cover and slide the Feed Selector to the right.
2. Insert the plastic card into the Card Slot (1) face up and bottom edge first, according to the guidelines. The
card is fed into the machine.
1
• Do not load plastic cards into the ADF.
• Load plastic card lengthwise or short edge first.
• Load only one plastic card at a time.
• Certain types of plastic cards may be scratched when scanned.
• If the surface of the card is dirty with grease marks (for example, fingerprints) or similar, wipe the dirt off
before scanning.
• Certain types of embossed cards may not scan correctly.
Related Information
• Load Documents
25
Home > Paper Handling > Load Documents > Load Documents Longer than Standard Size
Load Documents Longer than Standard Size
Make sure documents with ink or correction fluid are completely dry.
1. Gently adjust the Paper Guides (1) to fit the width of your document.
1
2. Slide the Feed Selector to the left and confirm that it is in ADF Mode. Place your document, face down, top
edge first in the ADF between the Paper Guides until you feel it touch the inside of the machine. Feed thin
pages slowly and carefully to keep the edge from folding.
• Load only one document at a time.
• Support the document with your hand if the document is longer than the extended ADF.
• Long paper is available for scanning at resolutions below 300 x 300 dpi.
• Long paper is not available for 2-sided scanning.
Related Information
• Load Documents
26
Home > Scan > Before Scanning
Before Scanning
Before scanning, confirm the following:
• Make sure you have installed the scanner driver. To install the scanner driver, see the Quick Setup Guide.
• If your Brother machine is connected via a USB cable, make sure the interface cable is physically secure.
When using the wireless feature, make sure the scanner is turned on and is connected to the same network
as your computer.
28
Home > Scan > Scan Using Bus Power Mode
Scan Using Bus Power Mode
Related Models: ADS-1200/ADS-1250W
In Bus Power mode, the machine can be powered from a computer's USB port, allowing you to scan in locations
where no AC power outlet is available.
• Bus Power Mode is not supported when using a USB 2.0 (Micro) cable, a USB 3.0 (Micro) cable is
required.
• Bus Power Mode is not supported when using the wireless network.
• Scanning speed will be slower in Bus Power Mode.
• Long Paper and Thick Paper cannot be scanned in Bus Power Mode.
• Scan to USB is not supported when using Bus Power Mode.
Related Information
• Scan
29
Home > Scan > Scan Using the Scan Functions on Your Brother Machine
Scan Using the Scan Functions on Your Brother Machine
• Save Scanned Documents on Your Computer
• Save Scanned Documents Using Scan to Workflow Function
• Save Scanned Documents to a USB Flash Drive
• Send Scanned Data to an Email Server
• Set Up the Address Book
• Scan to FTP
• Scan to SFTP
• Scan to Network
• Web Services for Scanning on Your Network (Windows 7, Windows 8 and Windows 10)
• Scan Options Using the Touchscreen
• Restrict Scan Functions from External Devices
30
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Save Scanned Documents on
Your Computer
Save Scanned Documents on Your Computer
>> ADS-1200/ADS-1250W
>> ADS-1700W
ADS-1200/ADS-1250W
Use Brother iPrint&Scan to change scan settings, such as resolution, file size or scan type. Go to your model's
Downloads page on the Brother Solutions Center at support.brother.com to download the latest application.
(ADS-1250W) If the machine and computer are connected wirelessly, configure the Scan to PC settings
using Remote Setup.
1. Load your document.
2. Press
(Scan to PC) on the control panel.
The machine starts scanning.
ADS-1700W
To change scan settings, such as resolution, file size, or scan type, follow the steps below.
1. Load your document.
2. Press d or c to display [to PC], and press it.
3. If multiple computers are connected to the machine, press a or b to display the destination computer you
want to save to, and press it.
4. To change the scan settings, press [Options]. Configure the following settings, and then press [OK]:
• [Scan Settings]
• [2-sided Scan]
• [Scan Type]
• [Resolution]
• [File Type]
• [Document Size]
• [Skip Blank Page]
• [Advanced Settings]
• To configure other settings, press [Advanced Settings].
• To save the settings as a shortcut, press [Save as Shortcut].
5. Press [Start].
The machine starts scanning.
Related Information
• Scan Using the Scan Functions on Your Brother Machine
• Brother iPrint&Scan for Windows and Mac
31
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Save Scanned Documents
Using Scan to Workflow Function
Save Scanned Documents Using Scan to Workflow Function
Related Models: ADS-1700W
It is necessary to set up the Scan to Workflow settings using Brother iPrint&Scan (for Windows and Mac) in
advance.
1. Load your document.
2. Press d or c to display [to Workflow], and press it.
3. Select the destination where you want to save your scanned documents. If multiple computers are connected
to the machine, press a or b to display the destination computer you want to save to, and press it.
4. Select the workflow.
5. Press [Start].
• To save the settings as a shortcut, press [Save as Shortcut].
The machine starts scanning.
Related Information
• Scan Using the Scan Functions on Your Brother Machine
• Brother iPrint&Scan for Windows and Mac
32
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Save Scanned Documents to a
USB Flash Drive
Save Scanned Documents to a USB Flash Drive
To avoid damaging the drive or the data stored on the USB flash drive, DO NOT remove it while the machine is
scanning to it.
>> ADS-1200/ADS-1250W
>> ADS-1700W
ADS-1200/ADS-1250W
To change scan settings, such as resolution, file size, or scan type, follow the steps below.
1. Do one of the following:
• Windows
Click Brother Utilities on your desktop, and then click the drop-down list and select your model
name (if not already selected). Click Tools in the left navigation bar, and then click Remote Setup.
• Mac
In the Finder menu bar, click Go > Applications > Brother > ADS1200_1250W_1700W, and then
double-click the Remote Setup icon.
When your machine is connected via a Network, type the password if required.
2. Select Scan to USB in the navigation tree, and then configure scan settings as needed.
Windows
33
Mac
3. Click OK to close the Remote Setup window.
4. Insert a USB flash drive into the machine.
5. Load your document.
6. Press
(Scan to USB) on the control panel.
The machine starts scanning, and then the scanned data is saved on the USB flash drive.
ADS-1700W
• To change scan settings, such as resolution, file size, or scan type, follow the steps below.
• This procedure explains how to change the settings each time you scan documents. To use the same
settings every time, change the settings using Remote Setup.
1. Load your document.
2. Insert a USB flash drive into the machine.
The Scan to USB screen appears automatically. If the Scan to USB screen does not appear, press [to
USB] in the Home screen.
3. To change the scan settings, press [Options]. Configure the following settings, and then press [OK]:
• [2-sided Scan]
• [Scan Type]
• [Resolution]
• [File Type]
• [Document Size]
• [File Size]
34
• [Edge Fill For Plastic Card]
• [Skip Blank Page]
• [Advanced Settings]
• [Set New Default]
• [Factory Reset]
• [Set New Default]
• [Factory Reset]
• To configure other settings, press [Advanced Settings].
• To save the settings as a shortcut, press [Save as Shortcut].
• To select [Long Paper (Narrow)] or [Long Paper (Normal)] for [Document Size], use the
following settings:
- [2-sided Scan]: [Off]
- [Scan Type]: Other than [Auto] ([Color], [Gray] or [Black and White])
- [Resolution]: Lower than 300 dpi
- [Skip Blank Page]: [Off]
• If signed PDF was selected from the [File Type] drop-down list, you must configure the certificate
settings using Web Based Management.
• [Edge Fill For Plastic Card] is only available when scanning from the Card Slot.
4. Press [Start].
The machine starts scanning, and then the scanned data is saved on the USB flash drive.
Related Information
• Scan Using the Scan Functions on Your Brother Machine
35
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Send Scanned Data to an
Email Server
Send Scanned Data to an Email Server
Related Models: ADS-1700W
Before using this feature, you must first configure your Email Server settings using Web Based Management.
See Related Information:Send an Email Securely.
1. Load your document.
2. Press d or c to display [to Email Server], and press it.
3. Do one of the following to enter the destination email address:
• Manually enter the email address.
• Select an email address from the Address Book:
a. Press [Address Book].
b. Press a or b until you find the name you are looking for.
c. Press the name from the result.
d. Press [OK].
4. Press [OK].
5. To change the scan settings, press [Options]. Configure the following settings, and then press [OK]:
• [2-sided Scan]
• [Scan Type]
• [Resolution]
• [File Type]
• [Document Size]
• [File Size]
• [Edge Fill For Plastic Card]
• [Skip Blank Page]
• [Advanced Settings]
• [Set New Default]
• [Factory Reset]
• To configure other settings, press [Advanced Settings].
• To save the settings as a shortcut, press [Save as Shortcut].
• If signed PDF was selected from the [File Type] drop-down list, you must configure the certificate
settings using Web Based Management.
• [Edge Fill For Plastic Card] is only available when scanning from the Card Slot.
6. Press [Start].
The machine starts scanning, and then sends the scanned document to the email address directly.
Related Information
• Scan Using the Scan Functions on Your Brother Machine
• Use TX Verification Mail
• Send an Email Securely
36
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Send Scanned Data to an
Email Server > Use TX Verification Mail
Use TX Verification Mail
Related Models: ADS-1700W
Use TX Verification Mail to request notification from the destination computer that your email was received and
processed. Use Web Based Management to turn on the verification feature. When Request Delivery
Notification is On, your email contains an additional field that is automatically populated with the email’s arrival
date and time.
1. Start your web browser.
2. Type "https://machine's IP address" in your browser's address bar (where "machine's IP address" is the
machine's IP address).
For example:
https://192.168.1.2
If the machine prompts you for a password, type it, and then click
.
3. Click the E-mail tab.
4. Click E-mail Send.
5. In the Request Delivery Notification field, click On.
6. Click Submit.
• Message Disposition Notification (MDN)
This field requests the status of the email message after delivery through the Simple Mail Transfer
Protocol (SMTP) transport system. After the recipient has received the message, this data is used when
the machine or user reads the received email. For example, if the message is opened and read, the
receiver sends back a notification to the original sending machine or user.
The recipient must activate the MDN field to be able to send a notification report; otherwise the request
will be ignored.
• This Brother machine cannot receive email messages. To use the TX Verification feature, you must
redirect the return notification to a different email address. Configure the email address using Web
Based Management. Access Web Based Management, click the E-mail tab, click SMTP and confirm
Device E-mail Address. Enter the email address that you want to receive the notification.
Related Information
• Send Scanned Data to an Email Server
37
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Set Up the Address Book
Set Up the Address Book
Related Models: ADS-1700W
The Address Book feature lets you select an email address to send the scanned data directly.
Configure the Address Book using Remote Setup or Web Based Management.
Related Information
• Scan Using the Scan Functions on Your Brother Machine
• Register an Email Address Using Remote Setup
• Register an Email Address Using Web Based Management
38
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Set Up the Address
Book > Register an Email Address Using Remote Setup
Register an Email Address Using Remote Setup
Related Models: ADS-1700W
You can register up to 300 email addresses and enter a name for each address.
1. Do one of the following:
• Windows
Click
Brother Utilities on your desktop, and then click the drop-down list and select your model
name (if not already selected). Click Tools in the left navigation bar, and then click Remote Setup.
• Mac
In the Finder menu bar, click Go > Applications > Brother > ADS1200_1250W_1700W, and then
double-click the Remote Setup icon.
When your machine is connected via a Network, type the password if required.
2. Select Address Book in the navigation tree.
3. Click + in the Contact area.
4. Enter a name and an email address.
5. Click Create.
6. Click OK.
To create a group, click + in the Group area and then configure settings as needed.
Related Information
• Set Up the Address Book
39
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Set Up the Address
Book > Register an Email Address Using Web Based Management
Register an Email Address Using Web Based Management
Related Models: ADS-1700W
You can register up to 300 email addresses and enter a name for each address.
1. Start your web browser.
Type "https://machine's IP address" in your browser's address bar (where "machine's IP address" is the
machine's IP address). For example: https://192.168.1.2
If the machine prompts you for a password, type it, and then click
.
2. Click the Address Book tab.
3. In the E-mail Address field, type an email address.
4. In the Name field, type a name.
5. Click Submit.
Related Information
• Set Up the Address Book
• Access Web Based Management
40
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Scan to FTP
Scan to FTP
Related Models: ADS-1700W
Scan documents directly to an FTP server when you need to share the scanned information. For added
convenience, configure different profiles to save your favorite Scan to FTP destinations.
Related Information
• Scan Using the Scan Functions on Your Brother Machine
• Set up a Scan to FTP Profile
• Upload Scanned Data to an FTP Server
41
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Scan to FTP > Set up a Scan
to FTP Profile
Set up a Scan to FTP Profile
Related Models: ADS-1700W
Set up a Scan to FTP Profile to scan and upload the scanned data directly to an FTP location.
We recommend using Microsoft Internet Explorer 8/10/11 for Windows or Safari 8.0 for Mac. Make sure that
JavaScript and Cookies are always enabled in whichever browser you use. If a different web browser is used,
make sure it is compatible with HTTP 1.0 and HTTP 1.1.
1. Start your web browser.
Type "https://machine's IP address" in your browser's address bar (where "machine's IP address" is the
machine's IP address). For example: https://192.168.1.2
If the machine prompts you for a password, type it, and then click
.
2. Click the Scan tab.
3. Click the Scan to FTP/SFTP/Network menu in the left navigation bar.
4. Select the FTP option, and then click Submit.
5. Click the Scan to FTP/SFTP/Network Profile menu in the left navigation bar.
6. Select the profile you want to set up or change. Using the following characters: ?, /, \, ", :, <, >, |, or * may
cause a sending error.
The Profile setting screen appears.
7. In the Profile Name field, type a name for this server profile (up to 14 alphanumeric characters).
The machine will display this name on the LCD.
8. In the Host Address field, type the Host Address (for example: ftp.example.com; up to 64 characters) or the
IP address (for example: 192.23.56.189), and type the path (up to 255 characters) to the folder on the FTP
server where you want to send your scanned data. Do not type a slash symbol at the beginning of the path.
9. In the Username field, type a user name (up to 32 characters) that has permission to write data to the FTP
server.
10. In the Password field, type the password (up to 33 characters) associated with the user name you entered in
the Username field. Type the password again in the Retype password field.
11. In the Store Directory field, type the path (up to 255 characters) to the folder on the FTP server where you
want to send your scanned data. Do not type a slash symbol at the beginning of the path.
42
12. Click the Quality drop-down list, and then select a quality setting. When Auto is selected, you can adjust the
detection level of color from the Auto Color detect adjust drop-down list.
13. Click the File Type drop-down list, and then select the file type you want to use for the scanned document.
14. Click the Document Size drop-down list, and then select your document size from the list. This is necessary
to make sure the scanned file is the correct size.
15. Turn on the Edge Fill For Plastic Card option to add a white edge around the border of your scanned image.
Edge Fill For Plastic Card is only available when scanning from the Card Slot.
16. In the Margin Settings, enter a value between -4 and 2 to add or remove a specific margin at the edge of the
image.
17. Click the File Size drop-down list, and then select your file size from the list.
18. Select On from the Skip Blank Page option, to remove blank pages of the document from the scanning
results.
19. Click the Skip blank page sensitivity drop-down list, and then select a sensitivity level.
20. Turn On the 2-sided Scan setting to scan both sides of the document.
21. Click the Brightness drop-down list, and then select the brightness level.
22. Click the Contrast drop-down list, and then select the contrast level.
23. Select On from the Continuous Scan option to continue scanning.
24. Set the Passive Mode option to off or on depending on your FTP server and network firewall configuration.
The default setting is on. In most cases, this setting does not need to be changed.
25. Change the Port Number setting used to access the FTP server. The default for this setting is port 21. In
most cases, this setting does not need to be changed.
26. Click Submit.
You can set the scanned file name and file name style in the Scan File Name menu in the left navigation
bar.
Related Information
• Scan to FTP
43
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Scan to FTP > Upload
Scanned Data to an FTP Server
Upload Scanned Data to an FTP Server
Related Models: ADS-1700W
1. Load your document.
2. Press d or c to display [to FTP/SFTP], and press it.
3. Press a or b to select one of the FTP server profiles listed.
4. If the Scan to FTP profile is not complete, press [Options]. Configure the following settings, and then press
[OK]:
• [2-sided Scan]
• [Scan Type]
• [Resolution]
• [File Type]
• [Document Size]
• [File Size]
• [Edge Fill For Plastic Card]
• [Skip Blank Page]
• [Advanced Settings]
• To configure other settings, press [Advanced Settings].
• To save the settings as a shortcut, press [Save as Shortcut].
• If signed PDF was selected from the [File Type] drop-down list, you must configure the certificate
settings using Web Based Management.
• [Edge Fill For Plastic Card] is only available when scanning from the Card Slot.
5. Press [Start].
The LCD displays the message [Connecting]. When the connection to the FTP server is successful, the
machine starts scanning.
Related Information
• Scan to FTP
44
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Scan to SFTP
Scan to SFTP
Related Models: ADS-1700W
Scan documents directly to an SFTP server when you need to share the scanned information. For added
convenience, configure different profiles to save your favorite Scan to SFTP destinations.
Related Information
• Scan Using the Scan Functions on Your Brother Machine
• Set up a Scan to SFTP Profile
• Upload Scanned Data to an SFTP Server
45
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Scan to SFTP > Set up a Scan
to SFTP Profile
Set up a Scan to SFTP Profile
Related Models: ADS-1700W
Set up a Scan to SFTP Profile to scan and upload the scanned data directly to an SFTP location.
We recommend using Microsoft Internet Explorer 8/10/11 for Windows or Safari 8.0 for Mac. Make sure that
JavaScript and Cookies are always enabled in whichever browser you use. If a different web browser is used,
make sure it is compatible with HTTP 1.0 and HTTP 1.1.
1. Start your web browser.
Type "https://machine's IP address" in your browser's address bar (where "machine's IP address" is the
machine's IP address). For example: https://192.168.1.2
If the machine prompts you for a password, type it, and then click
.
2. Click the Scan tab.
3. Click the Scan to FTP/SFTP/Network menu in the left navigation bar.
4. Select the SFTP option, and then click Submit.
5. Click the Scan to FTP/SFTP/Network Profile menu in the left navigation bar.
6. Select the profile you want to set up or change. Using the following characters: ?, /, \, ", :, <, >, |, or * may
cause a sending error.
The Profile setting screen appears.
7. In the Profile Name field, type a name for this server profile (up to 14 alphanumeric characters).
The machine will display this name on the LCD.
8. In the Host Address field, type the Host Address (for example: sftp.example.com; up to 64 characters) or the
IP address (for example: 192.23.56.189), and type the path (up to 255 characters) to the folder on the SFTP
server where you want to send your scanned data. Do not type a slash symbol at the beginning of the path.
9. In the Username field, type a user name (up to 32 characters) that has permission to write data to the SFTP
server.
10. In the Auth. Method field, select Password or Public Key.
46
11. Do one of the following:
• If you have selected Password, type the password (up to 33 characters) associated with the user name
you typed in the Username field. Type the password again in the Retype password field.
• If you have selected Public Key, select the authentication type from the Client Key Pair drop-down list.
12. Select the authentication type from the Server Public Key drop-down list.
13. In the Store Directory field, type the path (up to 255 characters) to the folder on the SFTP server where you
want to send your scanned data. Do not type a slash symbol at the beginning of the path.
14. Click the Quality drop-down list, and then select a quality setting. When Auto is selected, you can adjust the
detection level of color from the Auto Color detect adjust drop-down list.
15. Click the File Type drop-down list, and then select the file type you want to use for the scanned document.
16. Click the Document Size drop-down list, and then select your document size from the list. This is necessary
to make sure the scanned file is the correct size.
17. Turn on the Edge Fill For Plastic Card option to add a white edge around the border of your scanned image.
Edge Fill For Plastic Card is only available when scanning from the Card Slot.
18. In the Margin Settings, enter a value between -4 and 2 to add or remove a specific margin at the edge of the
image.
19. Click the File Size drop-down list, and then select your file size from the list.
20. Select On from the Skip Blank Page option, to remove blank pages of the document from the scanning
results.
21. Click the Skip blank page sensitivity drop-down list, and then select a sensitivity level.
22. Turn On the 2-sided Scan setting to scan both sides of the document.
23. Click the Brightness drop-down list, and then select the brightness level.
24. Click the Contrast drop-down list, and then select the contrast level.
25. Select On from the Continuous Scan option to continue scanning.
26. Change the Port Number setting used to access the SFTP server. The default for this setting is port 22. In
most cases, this setting does not need to be changed.
27. Click Submit.
You can set the scanned file name and file name style in the Scan File Name menu in the left navigation
bar.
Related Information
• Scan to SFTP
• Access Web Based Management
47
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Scan to SFTP > Upload
Scanned Data to an SFTP Server
Upload Scanned Data to an SFTP Server
Related Models: ADS-1700W
1. Load your document.
2. Press d or c to display [to FTP/SFTP], and press it.
3. Press a or b to select one of the SFTP server profiles listed.
4. If the Scan to SFTP profile is not complete, press [Options]. Configure the following settings, and then
press [OK]:
• [2-sided Scan]
• [Scan Type]
• [Resolution]
• [File Type]
• [Document Size]
• [File Size]
• [Edge Fill For Plastic Card]
• [Skip Blank Page]
• [Advanced Settings]
• To configure other settings, press [Advanced Settings].
• To save the settings as a shortcut, press [Save as Shortcut].
• If signed PDF was selected from the [File Type] drop-down list, you must configure the certificate
settings using Web Based Management.
• [Edge Fill For Plastic Card] is only available when scanning from the Card Slot.
5. Press [Start].
The LCD displays the message [Connecting]. When the connection to the SFTP server is successful, the
machine starts scanning.
Related Information
• Scan to SFTP
48
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Scan to Network > Set up a
Scan to Network Profile
Set up a Scan to Network Profile
Related Models: ADS-1700W
Set up a Scan to Network Profile to scan and upload scanned data directly to a folder on a Mapped Network
Drive (CIFS) server.
We recommend using Microsoft Internet Explorer 8/10/11 for Windows or Safari 8.0 for Mac. Make sure that
JavaScript and Cookies are always enabled in whichever browser you use. If a different web browser is used,
make sure it is compatible with HTTP 1.0 and HTTP 1.1.
1. Start your web browser.
Type "https://machine's IP address" in your browser's address bar (where "machine's IP address" is the
machine's IP address). For example: https://192.168.1.2
If the machine prompts you for a password, type it, and then click
.
2. Click the Scan tab.
3. Click the Scan to FTP/SFTP/Network menu in the left navigation bar.
4. Select the Network option, and then click Submit.
5. Click the Scan to FTP/SFTP/Network Profile menu in the left navigation bar.
6. Select the profile you want to set up or change. Using the following characters: ?, /, \, ", :, <, >, |, or * may
cause a sending error.
The Profile setting screen appears.
7. In the Profile Name field, type a name for this server profile (up to 14 alphanumeric characters).
The machine will display this name on the LCD.
8. In the Network Folder Path field, type the path to the folder on the Mapped Network Drive (CIFS) server
where you want to send your scanned data.
9. Click the Quality drop-down list, and then select a quality setting. When Auto is selected, you can adjust the
detection level of color from the Auto Color detect adjust drop-down list.
10. Click the File Type drop-down list, and then select the file type you want to use for the scanned document.
11. Click the Document Size drop-down list, and then select your document size from the list. This is necessary
to make sure the scanned file is the correct size.
12. Turn on the Edge Fill For Plastic Card option to add a white edge around the border of your scanned image.
Edge Fill For Plastic Card is only available when scanning from the Card Slot.
13. In the Margin Settings, enter a value between -4 and 2 to add or remove a specific margin at the edge of the
image.
14. Click the File Size drop-down list, and then select your file size from the list.
50
15. Select On from the Skip Blank Page option, to remove blank pages of the document from the scanning
results.
16. Click the Skip blank page sensitivity drop-down list, and then select a sensitivity level.
17. Turn On the 2-sided Scan setting to scan both sides of the document.
18. Click the Brightness drop-down list, and then select the brightness level.
19. Click the Contrast drop-down list, and then select the contrast level.
20. Select On from the Continuous Scan option to continue scanning.
21. In the Username field, type a user name (up to 96 characters) that has permission to write data to the folder
specified in the Network Folder Path field. If the user name is part of a domain, type the user name in one of
the following styles:
user@domain
domain\user
22. In the Password field, type the password (up to 33 characters) associated with the user name you entered in
the Username field. Type the password again in the Retype password field.
23. Click Submit.
24. You must configure the SNTP (network time server) or you must set the date, time and time zone correctly on
the control panel.
You can set the scanned file name and file name style in the Scan File Name menu in the left navigation
bar.
Related Information
• Scan to Network
51
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Scan to Network > Upload
Scanned Data to a Mapped Network Drive (CIFS) Server
Upload Scanned Data to a Mapped Network Drive (CIFS) Server
Related Models: ADS-1250W/ADS-1700W
To upload scanned data directly to a folder on a Mapped Network Drive (CIFS) server, you must set up a
Scan to Network Profile.
1. Load your document.
2. Press d or c to display [to Network], and press it.
3. Press a or b to select one of the Network server profiles listed.
4. If the Scan to Network profile is not complete, press [Options]. Configure the following settings, and then
press [OK]:
• [2-sided Scan]
• [Scan Type]
• [Resolution]
• [File Type]
• [Document Size]
• [File Size]
• [Edge Fill For Plastic Card]
• [Skip Blank Page]
• [Advanced Settings]
• To configure other settings, press [Advanced Settings].
• To save the settings as a shortcut, press [Save as Shortcut].
• If signed PDF was selected from the [File Type] drop-down list, you must configure the certificate
settings using Web Based Management.
• [Edge Fill For Plastic Card] is only available when scanning from the Card Slot.
5. Press [Start].
The LCD displays the message [Connecting]. When the connection to the Network server is successful,
the machine starts scanning.
Related Information
• Scan to Network
52
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Web Services for Scanning on
Your Network (Windows 7, Windows 8 and Windows 10)
Web Services for Scanning on Your Network (Windows 7, Windows 8
and Windows 10)
The Web Services protocol enables Windows 7, Windows 8 and Windows 10 users to scan using a Brother
machine on the network. You must install the driver via Web Services.
• Use Web Services to Install Drivers Used for Scanning (Windows 7, Windows 8 and
Windows 10)
• Scan Using Web Services from the Brother Machine (Windows 7, Windows 8 and
Windows 10)
• Configure Scan Settings for Web Services
53
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Web Services for Scanning on
Your Network (Windows 7, Windows 8 and Windows 10) > Use Web Services to Install Drivers Used for
Scanning (Windows 7, Windows 8 and Windows 10)
Use Web Services to Install Drivers Used for Scanning (Windows 7,
Windows 8 and Windows 10)
Related Models: ADS-1250W/ADS-1700W
Use Web Services to monitor scanners on the network.
• Make sure you have installed the Brother software and drivers.
• Verify that the host computer and the Brother machine are on the same subnet, or that the router is
correctly configured to pass data between the two devices.
• You must configure the IP address on your Brother machine before you configure this setting.
1. Do one of the following:
• Windows 10
Click
> Windows System > Control Panel. In the Hardware and Sound group, click Add a device.
• Windows 8.1
Move your mouse to the lower right corner of your desktop. When the menu bar appears, click Settings >
Change PC settings > PC and devices > Devices > Add a device.
The machine's Web Services Name appears.
• Windows 8
Move your mouse to the lower right corner of your desktop. When the menu bar appears, click Settings >
Change PC settings > Devices > Add a device.
The machine's Web Services Name appears.
• Windows 7
Click
(Start) > Control Panel > Network and Internet > View network computers and devices.
The machine's Web Services Name appears with the scanner icon.
Right-click the machine you want to install.
• The Web Services Name for the Brother machine is your model name and the MAC Address (Ethernet
Address) of your machine (for example, Brother ADS-XXXXX (model name) [XXXXXXXXXXXX] (MAC
Address / Ethernet Address)).
• Windows 8/Windows 10
Move your mouse over the machine name to display the machine's information.
2. Do one of the following:
• Windows 8/Windows 10
Select the machine you want to install, and then follow the on-screen instructions.
• Windows 7
Click Install in the displayed menu.
To uninstall drivers, click Uninstall or (Remove device).
Related Information
• Web Services for Scanning on Your Network (Windows 7, Windows 8 and Windows 10)
54
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Web Services for Scanning on
Your Network (Windows 7, Windows 8 and Windows 10) > Scan Using Web Services from the Brother
Machine (Windows 7, Windows 8 and Windows 10)
Scan Using Web Services from the Brother Machine (Windows 7,
Windows 8 and Windows 10)
Related Models: ADS-1700W
If you have installed the driver for scanning via Web Services, you can access the Web Services scanning menu
on your Brother machine's LCD.
Certain characters in the messages displayed on the LCD may be replaced with spaces if the language
settings of your OS and your Brother machine are different.
1. Load your document.
2. Press d or c to display [WS Scan], and press it.
3. Press the type of scan you want to perform.
4. Press a or b to display the computer name where you want to send the data, and then press the computer
name.
5. Press [Start].
The machine starts scanning.
Related Information
• Web Services for Scanning on Your Network (Windows 7, Windows 8 and Windows 10)
55
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Web Services for Scanning on
Your Network (Windows 7, Windows 8 and Windows 10) > Configure Scan Settings for Web Services
Configure Scan Settings for Web Services
Related Models: ADS-1250W/ADS-1700W
1. Do one of the following:
• Windows 10
Click
> Windows System > Control Panel. In the Hardware and Sound group, click View devices
and printers.
• Windows 8
Move your mouse to the lower right corner of your desktop. When the menu bar appears, click Settings,
and then click Control Panel. In the Hardware and Sound group, click View devices and printers.
• Windows 7
Click
(Start) > Devices and Printers.
2. Right-click the machine icon, and then select Scan profiles....
The Scan profiles... dialog box appears.
3. Select the scan profile you want to use.
4. Make sure the scanner selected in the Scanner list is a Brother machine that supports Web Services for
scanning, and then click the Set as Default button.
5. Click Edit....
The Edit Default Profile dialog box appears.
6. Select the Source, Paper size, Color format, File type, Resolution (DPI), Brightness and Contrast
settings.
7. Click the Save Profile button.
These settings will be applied when you scan using the Web Services protocol.
If you are prompted to select a scanning application, select Windows Fax and Scan or Windows Photo Gallery
from the list.
Related Information
• Web Services for Scanning on Your Network (Windows 7, Windows 8 and Windows 10)
56
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Scan Options Using the
Touchscreen
Scan Options Using the Touchscreen
Related Models: ADS-1700W
To change scan settings, press [Options].
Option Description
2-sided Scan
When using 2-sided scanning, select 2-sided Scan: Long Edge so the layout of the
data file’s pages matches your original.
Scan Type
Select the scan type for your document.
When Auto is selected, the machine automatically detects whether the document uses
color and generates a scanned image of the document. For documents that mix color
and black and white pages, color pages are scanned in the Color mode, and black and
white pages are scanned in the Black and White mode.
Resolution
Select a scanning resolution. Higher resolutions produce a finer scanned image but
consume more memory and increase transfer time.
File Type
Select the file type you want to use for the scanned data.
Document Size
Select the exact size of your document.
File Size
Select Small, Medium, or Large for the file size.
Edge Fill For
Plastic Card
When On is selected, the four edges of the scanned plastic card image are filled with
white space.
Edge Fill For Plastic Card is only available when scanning from the
Card Slot.
Skip Blank Page
When On is selected, blank pages are skipped.
Use the slider to adjust the sensitivity level for detecting blank pages in the scanned
data. The higher the sensitivity, the easier it is for the machine to detect blank pages.
Advanced Settings Continuous Scan
Scan more pages than the maximum capacity of the ADF and save them as one data
file.
After scanning the first batch of documents, press Continue to scan additional pages.
When you are finished scanning, press Complete.
Color Tone Adjustment
Adjust the brightness and contrast.
Adjust Auto Color Detect
When the Scan Type is set to Auto, you can adjust the detection level of color.
Skip Blank Page Sensitivity
Select the sensitivity level for detecting blank pages in the scanned data. The higher the
sensitivity, the easier it is for the machine to detect blank pages.
Margin Settings
Adjust the scanning position of documents if the output position of the images has
shifted or if the images are squeezed together or stretched vertically.
Set New Default
Returns the settings to the default settings.
Factory Reset
Returns the settings to the factory settings.
Related Information
• Scan Using the Scan Functions on Your Brother Machine
57
Home > Scan > Scan Using the Scan Functions on Your Brother Machine > Restrict Scan Functions from
External Devices
Restrict Scan Functions from External Devices
Related Models: ADS-1700W
This feature allows you to restrict scan functions from external devices. When you restrict scan functions from
external devices, an error message appears on the device and users cannot use those scan functions.
We recommend using Microsoft Internet Explorer 8/10/11 for Windows or Safari 8.0 for Mac. Make sure that
JavaScript and Cookies are always enabled in whichever browser you use. If a different web browser is used,
make sure it is compatible with HTTP 1.0 and HTTP 1.1.
1. Start your web browser.
Type "https://machine's IP address" in your browser's address bar (where "machine's IP address" is the
machine's IP address). For example: https://192.168.1.2
If the machine prompts you for a password, type it, and then click
.
2. Click the Scan tab.
3. Click the Scan from PC menu in the left navigation bar.
4. Disable the Pull Scan option.
5. Click Submit.
Related Information
• Scan Using the Scan Functions on Your Brother Machine
58
Home > Scan > Scan from Your Computer (Windows)
Scan from Your Computer (Windows)
There are several ways you can use your computer to scan documents on your Brother machine. Use the
software applications provided by Brother, or use your favorite scanning application.
•
Scan Using Nuance
™
PaperPort
™
14 or Other Windows Applications
• Scan Using Windows Photo Gallery or Windows Fax and Scan
•
Scan Using Nuance
™
Power PDF
• Scan Using Brother iPrint&Scan (Windows)
59
Home > Scan > Scan from Your Computer (Windows) > Scan Using Nuance
™
PaperPort
™
14 or Other
Windows Applications
Scan Using Nuance
™
PaperPort
™
14 or Other Windows Applications
You can use the Nuance
™
PaperPort
™
14 application, which is included in the scanner driver, for scanning.
For detailed instructions on using each application, click the application's Help menu, and then click Getting
Started Guide in the Help ribbon.
The instructions for scanning in these steps are for Nuance
™
PaperPort
™
14. For other Windows
applications, the steps will be similar. Nuance
™
PaperPort
™
14 supports both TWAIN and WIA drivers; the
TWAIN driver (recommended) is used in these steps.
1. Load your document.
2. Start Nuance
™
PaperPort
™
14. Do one of the following:
• Windows 7
Click
(Start) > All Programs > Nuance PaperPort 14 > PaperPort.
• Windows 8
Click
(PaperPort).
• Windows 10
Click
> Nuance PaperPort 14 > PaperPort.
3. Click the Desktop menu, and then click Scan Settings in the Desktop ribbon.
The Scan or Get Photo panel appears on the left side of the screen.
4. Click Select.
5. From the available Scanners list, select TWAIN: TW-Brother ADS-XXXXX (where ADS-XXXXX is the model
name of your machine). To use the WIA driver, select the Brother driver that has "WIA" as the prefix.
6. Select the Display scanner dialog box check box in the Scan or Get Photo panel.
7. Click Scan.
The Scanner Setup dialog box appears.
60
8. Adjust the settings in the Scanner Setup dialog box, if needed.
9. Click the Document Size drop-down list, and then select your document size.
10. Click PreScan to preview your image and crop unwanted portions before scanning.
11. Click Start.
The machine starts scanning.
Related Information
• Scan from Your Computer (Windows)
• TWAIN Driver Settings (Windows)
61
Home > Scan > Scan from Your Computer (Windows) > Scan Using Nuance
™
PaperPort
™
14 or Other
Windows Applications > TWAIN Driver Settings (Windows)
TWAIN Driver Settings (Windows)
• Note that the item names and assignable values will vary depending on the machine.
• Load only one document per scanning sequence when Long Paper is selected.
1. Scan
Select the Photo, Web, or Text option depending on the type of document you want to scan.
Scan (Image Type)
Resolution Scan Type
Photo Use for scanning photo images. 300 x 300 dpi 24bit Color
Web Use for attaching the scanned
image to web pages.
100 x 100 dpi 24bit Color
Text Use for scanning text
documents.
200 x 200 dpi Black & White
2. Resolution
Select a scanning resolution from the Resolution drop-down list. Higher resolutions produce a finer scanned
image but consume more memory and increase transfer time.
Long Paper is available for scanning at resolutions below 300 x 300 dpi.
62
3. Scan Type
Select from a range of scan color depths.
• Auto
Automatically detects whether the document uses color and generates a scanned image of it. For
documents that mix color and black and white pages, color pages will be scanned in Color mode, while
black and white pages will be scanned in Black & White mode.
• Black & White
Use for text or line art images.
• Gray (Error Diffusion)
Use for photographic images or graphics. (Error Diffusion is a method for creating simulated grayscale
images without using true gray dots. Black dots are put in a specific pattern to give a gray
appearance.)
• True Gray
Use for photographic images or graphics. This mode is more accurate because it uses up to 256
shades of gray.
• 24bit Color
Use to create an image with the most accurate color reproduction. This mode uses up to 16.8 million
colors to scan the image, but it requires the most memory and has the longest transfer time.
4. Document Size
Select the exact size of your document from a selection of preset scan sizes. If you select Custom, the
Custom Document Size dialog box appears and you can specify the document size.
(ADS-1200) Auto is not available for scanning at resolutions greater than 400 x 400 dpi.
5. 2-sided Scanning
Scan both sides of the document. Select Long-edge binding or Short-edge binding depending on the
layout of your original to make sure the data file created appears correctly in the scanned document.
2-sided Scanning is not available for Long Paper.
2-sided Scan Setting Original Layout Scan Result
Long-edge binding
Short-edge binding
6. Advanced Settings...
Configure advanced settings by clicking the Advanced Settings... button in the Scanner Setup dialog box.
• Document Correction
- Cropping
63
• Auto Deskew
Set the machine to correct document skewing automatically.
- Auto Deskew feature is automatically set to On if you select Auto for the Document Size.
- (ADS-1200) Auto Deskew is not available for scanning at resolutions greater than 400 x 400 dpi.
• Detect End of Page
Detects the end of page and automatically adjusts the size of a page when the length of the
document is shorter than the Document Size selected.
• Margin Settings
This feature allows you to add or remove a specific margin (from -0.12 in. to 0.12 in. (-4 mm to 2
mm)) at the edge of the image. A positive value decreases the size of the scanned image when it
is output and a negative value increases the size of the scanned image when it is output.
Margin Settings is available only when Document Size is set to Auto.
- Rotate Image
Changes the direction of the document based on the text orientation when Auto is selected.
- Edge Fill
Fill in the edges on four sides of the scanned image using the selected color and range.
- Punch Hole Removal
This feature removes the punch hole markings by filling hole marks with white or the surrounding
color.
- Auto Color Detect Adjust
When scan type Auto is selected, you can adjust the detection level of color. Increasing the slider
value makes the machine more likely to determine that a given document is a color document.
- Skip Blank Page
Remove the document's blank pages from the scanning results.
• Image Quality
- Diffusion Adjustment -Gray
This function adjusts the brightness and contrast to create gray images.
Only effective when the Scan Type is Gray (Error Diffusion).
Brightness
Set the Brightness level by moving the slider to the right or left to lighten or darken the image. If
the scanned image is too light, set a lower brightness level and scan the document again. If the
image is too dark, set a higher brightness level and scan the document again. You can also type a
value in the field to set the brightness.
Contrast
Increase or decrease the Contrast level by moving the slider to the right or left. An increase
emphasizes dark and light areas of the image, while a decrease reveals more details in gray areas.
You can also type a value in the field to set the contrast.
- Color Tone Adjustment
Allows you to adjust the brightness, contrast and gamma during True gray and color scanning.
- Background Processing
• Remove Bleed-through / Pattern
Prevent bleed-through.
• Remove Background Color
Remove the base color of documents to make the scanned data more legible.
- Color Drop
Select a color to remove from the scanned image.
64
- Edge Emphasis
Make the characters of the original sharper.
The following items can be selected when scanning color or gray images:
- Color Tone Adjustment
- Edge Emphasis
• B&W Image Quality
- B&W Threshold Adjustment
This setting allows you to adjust the image quality when scanning in Black & White mode. Larger
values increase the amount of black in the scanned image, while smaller values increase the amount
of white.
- Character Correction
Correct any broken or incomplete characters in the original to make them easier to read.
Character Correction can be selected when scanning black and white images.
• Feed Control
- 2in1
Merges two scanned images into one.
- Single Page Scan
Scans one page at a time from the ADF, regardless of the number of pages in the ADF.
- Continuous Scan
Select this option to scan additional documents using the same settings when a scan has been
completed. It is useful when you are scanning more documents than the ADF can hold or when you
are scanning several documents at once.
• Recognition
- Barcode Detection
The machine reads the barcode printed on the scanned image. Specify the barcode type and
detection area.
• Barcode Detection is available when 2in1 is Off.
• Use of a 3rd party application is necessary to read barcodes, the TWAIN driver by itself cannot translate
the barcode into data.
Related Information
• Scan Using Nuance
™
PaperPort
™
14 or Other Windows Applications
65
Home > Scan > Scan from Your Computer (Windows) > Scan Using Windows Photo Gallery or Windows
Fax and Scan
Scan Using Windows Photo Gallery or Windows Fax and Scan
Windows Photo Gallery or Windows Fax and Scan applications are other options that you can use for scanning.
These applications use the WIA scanner driver.
1. Load your document.
2. Launch your scanning application. Do one of the following:
• Windows Photo Gallery
Click File > Import from Camera or Scanner.
• Windows Fax and Scan
Click File > New > Scan.
3. Select the scanner you want to use.
4. Click Import or OK.
The New Scan dialog box appears.
5. Adjust the settings in the Scanner Setup dialog box, if needed.
6. Click Scan.
The machine starts scanning.
Related Information
• Scan from Your Computer (Windows)
• WIA Driver Settings (Windows)
66
Home > Scan > Scan from Your Computer (Windows) > Scan Using Windows Photo Gallery or Windows
Fax and Scan > WIA Driver Settings (Windows)
WIA Driver Settings (Windows)
1. Paper source
You can select Document Feeder only.
2. Picture Type (Image Type)
Select Color picture, Grayscale picture, Black and white picture or text, or Custom Settings for the type
of document you want to scan.
To change advanced settings, click the Adjust the quality of the scanned picture link.
67
1. Brightness
Set the Brightness level by moving the slider to the right or left to lighten or darken the image. If the scanned
image is too light, set a lower brightness level and scan the document again. If the image is too dark, set a
higher brightness level and scan the document again.
2. Contrast
Increase or decrease the Contrast level by moving the slider to the right or left. An increase emphasizes dark
and light areas of the image, while a decrease reveals more details in gray areas. You can also type a value
in the field to set the contrast level.
3. Resolution (DPI)
Select a scanning resolution from the Resolution (DPI) list. Higher resolutions produce a finer scanned
image but consume more memory and increase transfer time.
4. Picture type
Select or change the type of document you want to scan.
Related Information
• Scan Using Windows Photo Gallery or Windows Fax and Scan
68
Home > Scan > Scan from Your Computer (Windows) > Scan Using Nuance
™
Power PDF
Scan Using Nuance
™
Power PDF
You can use the Nuance
™
Power PDF application for scanning. It converts the scanned PDF data into other
formats including Microsoft Word, Microsoft Excel, Microsoft PowerPoint, images and more. If you are asked to
enter the serial number when installing the software, check the label attached to the scanner. See the Nuance
™
Power PDF Help menu for more information.
Related Information
• Scan from Your Computer (Windows)
69
Home > Scan > Scan from Your Computer (Windows) > Scan Using Brother iPrint&Scan (Windows)
Scan Using Brother iPrint&Scan (Windows)
Use Brother iPrint&Scan for Windows to scan from your computer. Go to your model's Downloads page on the
Brother Solutions Center at support.brother.com to download the latest application.
1. Start Brother iPrint&Scan. Do one of the following:
• Windows 10
Click
> Brother > Brother iPrint&Scan.
• Windows 8
Click Brother iPrint&Scan.
• Windows 7
Click
(Start) > All Programs > Brother iPrint&Scan.
2. If your Brother machine is not selected, click the Select your Machine button, and then follow the on-screen
instructions to select your Brother machine.
3. Click the Scan icon, and then follow the on-screen instructions to scan your documents.
Related Information
• Scan from Your Computer (Windows)
70
Home > Scan > Scan from Your Computer (Mac)
Scan from Your Computer (Mac)
There are several ways you can use your Mac to scan documents on your Brother machine. Use the software
applications provided by Brother or your favorite scanning application.
• Scan Using Brother iPrint&Scan (Mac)
• Scan Using TWAIN-Compliant Applications (Mac)
• Scan Using Apple Image Capture (ICA Driver)
71
Home > Scan > Scan from Your Computer (Mac) > Scan Using Brother iPrint&Scan (Mac)
Scan Using Brother iPrint&Scan (Mac)
Use Brother iPrint&Scan for Mac to scan from your computer. Download and install Brother iPrint&Scan from the
App Store.
1. In the Finder menu bar, click Go > Applications, and then double-click the iPrint&Scan icon.
The Brother iPrint&Scan screen appears.
2. If your Brother machine is not selected, click the Select your Machine button, and then follow the on-screen
instructions to select your Brother machine.
3. Click the Scan icon, and then follow the on-screen instructions to scan your documents.
Related Information
• Scan from Your Computer (Mac)
• Brother iPrint&Scan Overview
72
Home > Scan > Scan from Your Computer (Mac) > Scan Using TWAIN-Compliant Applications (Mac)
Scan Using TWAIN-Compliant Applications (Mac)
You can scan using TWAIN-compliant applications. For more information about the scanning procedure, see the
manual for your application.
1. Start your graphics application, and then select the scan operation.
The scanner setup dialog box appears.
2. Adjust the settings in the Scanner Setup dialog box, if needed.
3. Select your document size from Document Size drop down list.
4. Click the PreScan option to preview your image and crop unwanted portions before scanning.
5. Click Start.
The machine starts scanning.
Related Information
• Scan from Your Computer (Mac)
• TWAIN Driver Settings (Mac)
73
Home > Scan > Scan from Your Computer (Mac) > Scan Using TWAIN-Compliant Applications
(Mac) > TWAIN Driver Settings (Mac)
TWAIN Driver Settings (Mac)
The options and settings available vary depending on the machine.
1. Resolution
Select a scanning resolution from the Resolution pop-up menu. Higher resolutions produce a finer scanned
image but consume more memory and increase transfer time.
2. Scan Type
Select from a range of scan color depths.
• Black & White
Use for text or line art images.
• Gray (Error Diffusion)
Use for photographic images or graphics. (Error Diffusion is a method for creating simulated grayscale
images without using true gray dots. Black dots are put in a specific pattern to give a gray
appearance.)
• True Gray
Use for photographic images or graphics. This mode is more accurate because it uses up to 256
shades of gray.
• 24bit Color
Use to create an image with the most accurate color reproduction. This mode uses up to 16.8 million
colors to scan the image, but it requires the most memory and has the longest transfer time.
74
3. Document Size
Select the exact size of your document from a selection of preset scan sizes. If you select Custom, you can
specify the document size.
4. Adjust Image
Click the Adjust Image button for adjusting the image.
• Brightness
Set the Brightness level by moving the slider to the right or left to lighten or darken the image.If the
scanned image is too light, set a lower brightness level and scan the document again. If the image is
too dark, set a higher brightness level and scan the document again. You can also type a value in the
field to set the brightness.
• Contrast
Increase or decrease the Contrast level by moving the slider to the right or left. An increase
emphasizes dark and light areas of the image, while a decrease reveals more details in gray areas.
You can also type a value in the field to set the contrast.
The Contrast setting is available only when setting Scan Type to Gray (Error Diffusion), True Gray or
24bit Color.
• Reduce Noise
You can improve and enhance the quality of your scanned images with this selection. The Reduce
Noise setting is available when using 24bit Color and scan resolutions of 300 x 300 dpi, 400 x 400 dpi
or 600 x 600 dpi.
5. 2-sided Scanning
Scan both sides of the document.
6. Rotate Image
Rotate the scanned image.
7. PreScan
Click PreScan to preview your image and crop unwanted areas before scanning. Cropping is available when
2-sided Scanning setting is off.
Related Information
• Scan Using TWAIN-Compliant Applications (Mac)
75
Home > Scan > Scan from Your Computer (Mac) > Scan Using Apple Image Capture (ICA Driver)
Scan Using Apple Image Capture (ICA Driver)
You can scan a document using the ICA driver. Download and install the ICA driver from Brother Solutions
Center at support.brother.com. You can also scan directly using the Image Capture application.
Related Information
• Scan from Your Computer (Mac)
• Scan Using Apple Image Capture
• ICA Driver Settings
76
Home > Scan > Scan from Your Computer (Mac) > Scan Using Apple Image Capture (ICA Driver) > Scan
Using Apple Image Capture
Scan Using Apple Image Capture
1. Launch the Image Capture application.
2. Select the machine from the list on the left side of the screen.
If you connected the Brother machine to your Mac with a USB cable, you will see the machine in the
DEVICES area. If connected via a network, you will see it in the SHARED area.
3. Load your document.
4. Select the size of your document.
5. Select the destination folder or destination application from the Scan To pop-up menu.
6. Click Scan.
The machine starts scanning.
Related Information
• Scan Using Apple Image Capture (ICA Driver)
77
Home > Scan > Scan from Your Computer (Mac) > Scan Using Apple Image Capture (ICA Driver) > ICA
Driver Settings
ICA Driver Settings
To adjust image capture settings, click Show Details.
Item names and assignable values may vary depending on the machine.
1. Kind
Allows you to select from Color, Black&White, or Text.
2. Resolution
Specifies the document resolution you want.
3. Scan Size/Size
Specifies the paper size of the document.
4. Orientation
Specifies the orientation of the document.
5. Duplex
Allows you to select the Duplex check box to perform 2-sided (duplex) scanning.
6. Scan To
Specifies the destination folder or destination application.
7. Name
Allows you to enter the prefix text used for the name of the scanned image.
8. Format
Specifies the file format of the scanned data.
9. Combine into single document
Allows you to scan a document as one item and save it as one file when selecting PDF or TIFF for the file
format.
10. Image Correction
Depending on the Kind option selected, it allows you to configure the following settings:
78
Home > Network > Supported Basic Network Features
Supported Basic Network Features
Related Models: ADS-1250W/ADS-1700W
The machine supports various features depending on the operating system. Use this table to see which network
features and connections are supported by each operating system.
Operating Systems
Windows 7 (SP1)
Windows 8
Windows 8.1
Windows 10
Windows Server 2008 R2
(SP1)/2012/2012 R2/2016
macOS v10.11.6
macOS v10.12.x
macOS v10.13.x
Scanning Yes Yes Yes
BRAdmin Light
1 2
Yes Yes
Web Based Management
(supported models only)
2
Yes Yes Yes
Remote Setup
2
Yes Yes
Related Information
• Network
1
BRAdmin Light is available as a download from your model's Downloads page at support.brother.com.
2
The default login password to manage machine settings is initpass. We recommend you change it to protect your machine from
unauthorized access.
81
Home > Network > Network Management Software and Utilities > Learn about Network Management
Software and Utilities
Learn about Network Management Software and Utilities
Related Models: ADS-1250W/ADS-1700W
Web Based Management (supported models only)
Web Based Management is a utility that uses a standard web browser to manage your machine using the Hyper
Text Transfer Protocol (HTTP) or Hyper Text Transfer Protocol over Secure Socket Layer (HTTPS). Type your
machine's IP address into your web browser to access and change your scanner settings.
BRAdmin Light (Windows) (supported models only)
BRAdmin Light is a utility for the initial setup of Brother network-connected devices. This utility can search for
Brother products on your network, view the status and configure the basic network settings, such as IP address.
Go to your model's Downloads page on the Brother Solutions Center at support.brother.com to download the
latest version of Brother's BRAdmin Light.
• If using Windows Firewall, or the firewall function of an anti-spyware or antivirus application, temporarily
disable them. When you are sure you can scan, configure the software settings by following the
manufacturer's instructions.
Remote Setup (Windows and Mac)
Remote Setup is a program for configuring many machine and network settings from either a Windows or a Mac
application. When you start this application, the settings on your machine are automatically downloaded to your
computer and displayed on your computer screen. If you change the settings, you can upload them directly to the
machine.
This utility can be used with either a USB or a network connection.
Related Information
• Network Management Software and Utilities
83
Home > Network > Additional Methods of Configuring Your Brother Machine for a Wireless Network
Additional Methods of Configuring Your Brother Machine for a Wireless
Network
• Before Configuring Your Brother Machine for a Wireless Network
• Configure Your Machine for a Wireless Network Using the One-Push Method of Wi-Fi
Protected Setup
™
(WPS)
• Configure Your Machine for a Wireless Network Using the PIN Method of Wi-Fi Protected
Setup
™
(WPS)
• Configure Your Machine for a Wireless Network Using the Machine's Control Panel
Setup Wizard
•
Use Wi-Fi Direct
®
• Use Wireless Direct
84
Home > Network > Additional Methods of Configuring Your Brother Machine for a Wireless
Network > Before Configuring Your Brother Machine for a Wireless Network
Before Configuring Your Brother Machine for a Wireless Network
Related Models: ADS-1250W/ADS-1700W
Before attempting to configure a wireless network, confirm the following:
• Before configuring wireless settings, you must know your Network name (SSID) and Network Key
(Password).
If you do not know this security information, contact the router manufacturer, your system administrator, or
your Internet provider.
• To achieve optimum results with normal everyday document scanning, place the Brother machine as close to
the wireless access point/router as possible with minimal obstructions. Large objects and walls between the
two devices and interference from other electronic devices can affect the data transfer speed of your
documents.
Due to these factors, wireless may not be the best method of connection for all types of documents and
applications.
Related Information
• Additional Methods of Configuring Your Brother Machine for a Wireless Network
85
Home > Network > Additional Methods of Configuring Your Brother Machine for a Wireless
Network > Configure Your Machine for a Wireless Network Using the One-Push Method of Wi-Fi Protected
Setup
™
(WPS)
Configure Your Machine for a Wireless Network Using the One-Push
Method of Wi-Fi Protected Setup
™
(WPS)
Related Models: ADS-1700W
If your wireless access point/router supports Wi-Fi Protected Setup
™
(WPS), you can use WPS from your
machine's control panel menu to configure your wireless network settings.
Routers or access points that support WPS are marked with this symbol:
1. Press [Settings] > [Network] > [WLAN] > [WPS].
2. When [Enable WLAN? Do you want to continue?] appears, press [Yes].
The wireless setup wizard starts. To cancel, press [No].
3. When the touchscreen instructs you to start WPS, press the WPS button on your wireless access point/
router. Press [OK], and then your machine automatically tries to connect to your wireless network.
If your wireless device is connected successfully, the LCD displays [Connected].
You have completed the wireless network setup. To install drivers and software necessary for operating your
device, go to your model's Downloads page on the Brother Solutions Center at support.brother.com.
To configure additional Network Settings, use the Web Based Management. See Related Information: Access
Web Based Management.
Related Information
• Additional Methods of Configuring Your Brother Machine for a Wireless Network
• Access Web Based Management
86
Home > Network > Additional Methods of Configuring Your Brother Machine for a Wireless
Network > Configure Your Machine for a Wireless Network Using the PIN Method of Wi-Fi Protected Setup
™
(WPS)
Configure Your Machine for a Wireless Network Using the PIN Method
of Wi-Fi Protected Setup
™
(WPS)
Related Models: ADS-1700W
If your wireless access point/router supports WPS, you can use the Personal Identification Number (PIN) Method
to configure your wireless network settings.
The PIN Method is one of the connection methods developed by the Wi-Fi Alliance
®
. By submitting a PIN
created by an Enrollee (your machine) to the Registrar (a device that manages the wireless LAN), you can set up
the wireless network and security settings. For more information on how to access WPS mode, see the
instructions provided with your wireless access point/router.
Type A
Connection when the wireless access point/router (1) doubles as the Registrar.
Type B
Connection when another device (2), such as a computer, is used as the Registrar.
Routers or access points that support WPS are marked with this symbol:
1. Press [Settings] > [Network] > [WLAN] > [WPS w/ PIN Code].
2. When [Enable WLAN? Do you want to continue?] appears, press [Yes].
The wireless setup wizard starts. To cancel, press [No].
3. The LCD displays an eight-digit PIN and the machine starts searching for a wireless access point/router.
87
4. Using a computer connected to the network, in your browser's address bar, type the IP address of the device
you are using as the Registrar. (For example: http://192.168.1.2)
5. Go to the WPS settings page and type the PIN, and then follow the on-screen instructions.
• The Registrar is usually the wireless access point/router.
• The settings page will differ depending on the brand of wireless access point/router. For more detailed
information, see the instructions supplied with your wireless access point/router.
If using a Windows 7, Windows 8, Windows 8.1, or Windows 10 computer as a Registrar, complete the
following steps:
6. Do one of the following:
• Windows 10
Click
> Windows System > Control Panel. In the Hardware and Sound group, click Add a device.
• Windows 8 and Windows 8.1
Move your mouse to the lower right corner of your desktop. When the menu bar appears, click Settings >
Control Panel > Hardware and Sound > Devices and Printers > Add a device.
• Windows 7
Click
(Start) > Devices and Printers > Add a device.
• To use Windows 7, Windows 8, Windows 8.1, or Windows 10 computer as a Registrar, you must
register it to your network in advance. For more detailed information, see the instructions supplied with
your wireless access point/router.
• If you use Windows 7, Windows 8, Windows 8.1, or Windows 10 as a Registrar, you can install the
scanner driver after the wireless configuration by following the on-screen instructions. To install the full
driver and software package, see the Quick Setup Guide.
7. Select your machine and click Next.
8. Type the PIN displayed on the machine's LCD, and then click Next.
9. (Windows 7 only) Select your network, and then click Next.
10. Click Close.
If your wireless device is connected successfully, the LCD displays [Connected].
You have completed the wireless network setup. To install drivers and software necessary for operating your
device, go to your model's Downloads page on the Brother Solutions Center at
support.brother.com.
To configure additional Network Settings, use the Web Based Management. See Related Information: Access
Web Based Management.
Related Information
• Additional Methods of Configuring Your Brother Machine for a Wireless Network
• Access Web Based Management
88
Home > Network > Additional Methods of Configuring Your Brother Machine for a Wireless
Network > Configure Your Machine for a Wireless Network Using the Machine's Control Panel Setup Wizard
Configure Your Machine for a Wireless Network Using the Machine's
Control Panel Setup Wizard
Related Models: ADS-1700W
Before configuring your machine, we recommend writing down your wireless network settings. You will need
this information before you continue with the configuration.
1. Check and write down the current wireless network settings.
Network Name (SSID)
Network Key (Password)
For example:
Network Name (SSID)
HELLO
Network Key (Password)
12345
If your router uses WEP encryption, enter the Network Key (Password) used as the first WEP key. Your
Brother machine supports the use of the first WEP key only.
2. Press [Settings] > [Network] > [WLAN] > [Setup Wizard].
3. When [Enable WLAN? Do you want to continue?] appears, press [Yes].
The wireless setup wizard starts. To cancel, press [No].
4. The machine searches for your network and displays a list of available SSIDs. Press a or b to display the
SSID you want to connect to, and then press it.
5. Press [OK].
6. Do one of the following:
• If using an authentication and encryption method that requires a Network Key (Password), enter the
Network Key (Password) you wrote down in the first step.
When you have entered all the characters, press [OK].
• If your authentication method is Open System and your encryption mode is None, go to the next step.
7. The machine attempts to connect to the wireless device you have selected.
If your wireless device is connected successfully, the LCD displays [Connected].
You have completed the wireless network setup. To install drivers and software necessary for operating your
device, go to your model's Downloads page on the Brother Solutions Center at
support.brother.com.
To configure additional Network Settings, use the Web Based Management. See Related Information: Access
Web Based Management.
Related Information
• Additional Methods of Configuring Your Brother Machine for a Wireless Network
89
Home > Network > Additional Methods of Configuring Your Brother Machine for a Wireless Network > Use
Wi-Fi Direct
®
> Scan from Your Mobile Device Using Wi-Fi Direct
Scan from Your Mobile Device Using Wi-Fi Direct
Related Models: ADS-1700W
Wi-Fi Direct is one of the wireless configuration methods developed by the Wi-Fi Alliance
®
. It allows you to
configure a secured wireless network between your Brother machine and a mobile device, such as an Android
™
device, Windows device, iPhone, iPod touch, or iPad, without using an access point. Wi-Fi Direct supports
wireless network configuration using the one-push or PIN Method of Wi-Fi Protected Setup
™
(WPS). You can
also configure a wireless network by manually setting a SSID and password. Your Brother machine's Wi-Fi Direct
feature supports WPA2
™
security with AES encryption.
1. Mobile device
2. Your Brother machine
Related Information
• Use Wi-Fi Direct
®
92
Home > Network > Additional Methods of Configuring Your Brother Machine for a Wireless Network > Use
Wi-Fi Direct
®
> Configure Your Wi-Fi Direct Network
Configure Your Wi-Fi Direct Network
Configure your Wi-Fi Direct network settings from your machine's control panel.
• Wi-Fi Direct Network Configuration Overview
• Configure Your Wi-Fi Direct Network Using the One-Push Method
• Configure Your Wi-Fi Direct Network Using the One-Push Method of Wi-Fi Protected
Setup
™
(WPS)
• Configure Your Wi-Fi Direct Network Using the PIN Method
•
Configure Your Wi-Fi Direct Network Using the PIN Method of Wi-Fi Protected Setup
™
(WPS)
• Configure Your Wi-Fi Direct Network Manually
93
Home > Network > Additional Methods of Configuring Your Brother Machine for a Wireless Network > Use
Wi-Fi Direct
®
> Configure Your Wi-Fi Direct Network > Wi-Fi Direct Network Configuration Overview
Wi-Fi Direct Network Configuration Overview
Related Models: ADS-1700W
The following instructions offer five methods for configuring your Brother machine in a wireless network
environment. Select the method you prefer for your environment.
Check your mobile device for configuration.
1. Does your mobile device support Wi-Fi Direct?
Option Description
Yes Go to Step 2
No Go to Step 3
2. Does your mobile device support one-push configuration for Wi-Fi Direct?
Option Description
Yes See Related Information:Configure Your Wi-Fi Direct Network Using the One-
Push Method.
No See Related Information:Configure Your Wi-Fi Direct Network Using the PIN
Method.
3. Does your mobile device support Wi-Fi Protected Setup
™
(WPS)?
Option Description
Yes Go to Step 4
No See Related Information:Configure Your Wi-Fi Direct Network Manually.
4. Does your mobile device support one-push configuration for Wi-Fi Protected Setup
™
(WPS)?
Option Description
Yes See Related Information:Configure Your Wi-Fi Direct Network Using the One-
Push Method of Wi-Fi Protected Setup
™
(WPS).
No See Related Information:Configure Your Wi-Fi Direct Network Using the PIN
Method of Wi-Fi Protected Setup
™
(WPS).
To use Brother iPrint&Scan functionality in a Wi-Fi Direct network configured by one-push configuration using Wi-
Fi Direct, or by PIN Method configuration using Wi-Fi Direct, the device you use to configure Wi-Fi Direct must be
running Android
™
4.0 or greater.
Related Information
• Configure Your Wi-Fi Direct Network
• Configure Your Wi-Fi Direct Network Using the One-Push Method
• Configure Your Wi-Fi Direct Network Using the PIN Method
• Configure Your Wi-Fi Direct Network Manually
• Configure Your Wi-Fi Direct Network Using the One-Push Method of Wi-Fi Protected Setup
™
(WPS)
94
Home > Network > Additional Methods of Configuring Your Brother Machine for a Wireless Network > Use
Wi-Fi Direct
®
> Configure Your Wi-Fi Direct Network > Configure Your Wi-Fi Direct Network Using the One-
Push Method
Configure Your Wi-Fi Direct Network Using the One-Push Method
Related Models: ADS-1700W
If your mobile device supports Wi-Fi Direct, follow these steps to configure a Wi-Fi Direct network:
When the machine receives the Wi-Fi Direct request from your mobile device, the message [Wi-Fi
Direct Connection request received. Press [OK] to connect. Device Name:] appears
on the LCD. Press [OK] to connect.
1. Press [Settings] > [Network] > [Wi-Fi Direct] > [Push Button].
2. Activate Wi-Fi Direct on your mobile device (see your mobile device's user's guide for instructions) when
[Activate Wi-Fi Direct on other device. Then Press [OK].] appears. Press [OK] on your
Brother machine.
This will start the Wi-Fi Direct setup.
If your mobile device connects successfully, the machine displays [Connected]. You have completed the Wi-Fi
Direct network setup.
Related Information
• Configure Your Wi-Fi Direct Network
96
Home > Network > Additional Methods of Configuring Your Brother Machine for a Wireless Network > Use
Wi-Fi Direct
®
> Configure Your Wi-Fi Direct Network > Configure Your Wi-Fi Direct Network Using the One-
Push Method of Wi-Fi Protected Setup
™
(WPS)
Configure Your Wi-Fi Direct Network Using the One-Push Method of Wi-
Fi Protected Setup
™
(WPS)
Related Models: ADS-1700W
If your mobile device supports Wi-Fi Protected Setup
™
(WPS), follow these steps to configure a Wi-Fi Direct
network:
When the machine receives the Wi-Fi Direct request from your mobile device, the message [Wi-Fi
Direct Connection request received. Press [OK] to connect. Device Name:] appears
on the LCD. Press [OK] to connect.
1. Press [Settings] > [Network] > [Wi-Fi Direct] > [Push Button].
2. Activate your mobile device's WPS one-push configuration method (see your mobile device's user's guide for
instructions) when [Activate Wi-Fi Direct on other device. Then Press [OK].] appears on
the machine's LCD. Press [OK] on your Brother machine.
This will start the Wi-Fi Direct setup.
If your mobile device connects successfully, the machine displays [Connected]. You have completed the Wi-Fi
Direct network setup.
Related Information
• Configure Your Wi-Fi Direct Network
97
Home > Network > Additional Methods of Configuring Your Brother Machine for a Wireless Network > Use
Wi-Fi Direct
®
> Configure Your Wi-Fi Direct Network > Configure Your Wi-Fi Direct Network Using the PIN
Method
Configure Your Wi-Fi Direct Network Using the PIN Method
Related Models: ADS-1700W
If your mobile device supports the PIN Method of Wi-Fi Direct, follow these steps to configure a Wi-Fi Direct
network:
When the machine receives the Wi-Fi Direct request from your mobile device, the message [Wi-Fi
Direct Connection request received. Press [OK] to connect. Device Name:] appears
on the LCD. Press [OK] to connect.
1. Press [Settings] > [Network] > [Wi-Fi Direct] > [PIN Code].
2. Activate Wi-Fi Direct on your mobile device (see your mobile device's user's guide for instructions) when
[Activate Wi-Fi Direct on other device. Then Press [OK].] appears. Press [OK] on your
Brother machine.
This will start the Wi-Fi Direct setup.
3. The machine will wait for a connection request from your mobile device. When [PIN Code] appears, enter
the PIN displayed on your mobile device in the machine. Press [OK]. Follow the instructions.
If the PIN is displayed on your Brother machine, enter the PIN in your mobile device.
If your mobile device connects successfully, the machine displays [Connected]. You have completed the Wi-Fi
Direct network setup.
Related Information
• Configure Your Wi-Fi Direct Network
98
Home > Network > Additional Methods of Configuring Your Brother Machine for a Wireless Network > Use
Wi-Fi Direct
®
> Configure Your Wi-Fi Direct Network > Configure Your Wi-Fi Direct Network Using the PIN
Method of Wi-Fi Protected Setup
™
(WPS)
Configure Your Wi-Fi Direct Network Using the PIN Method of Wi-Fi
Protected Setup
™
(WPS)
Related Models: ADS-1700W
If your mobile device supports the PIN Method of Wi-Fi Protected Setup
™
(WPS), follow these steps to configure
a Wi-Fi Direct network:
When the machine receives the Wi-Fi Direct request from your mobile device, the message [Wi-Fi
Direct Connection request received. Press [OK] to connect. Device Name:] appears
on the LCD. Press [OK] to connect.
1. Press [Settings] > [Network] > [Wi-Fi Direct] > [PIN Code].
2. When [Activate Wi-Fi Direct on other device. Then Press [OK].] is displayed, activate
your mobile device's WPS PIN configuration method (see your mobile device's user's guide for instructions),
and then press [OK] on your Brother machine.
This will start the Wi-Fi Direct setup.
3. The machine will wait for a connection request from your mobile device. When [PIN Code] appears, enter
the PIN displayed on your mobile device in the machine. Press [OK].
If your mobile device connects successfully, the machine displays [Connected]. You have completed the Wi-Fi
Direct network setup.
Related Information
• Configure Your Wi-Fi Direct Network
99
Home > Network > Additional Methods of Configuring Your Brother Machine for a Wireless Network > Use
Wi-Fi Direct
®
> Configure Your Wi-Fi Direct Network > Configure Your Wi-Fi Direct Network Manually
Configure Your Wi-Fi Direct Network Manually
Related Models: ADS-1700W
If your mobile device does not support Wi-Fi Direct or WPS, you must configure a Wi-Fi Direct network manually.
1. Press [Settings] > [Network] > [Wi-Fi Direct] > [Manual].
2. The machine will display the SSID name and Password. Go to your mobile device's wireless network settings
screen and enter the SSID name and password.
If your mobile device connects successfully, the machine displays [Connected]. You have completed the Wi-Fi
Direct network setup.
Related Information
• Configure Your Wi-Fi Direct Network
100
Home > Network > Additional Methods of Configuring Your Brother Machine for a Wireless Network > Use
Wireless Direct > Scan from Your Mobile Device Using Wireless Direct
Scan from Your Mobile Device Using Wireless Direct
Related Models: ADS-1250W
Wireless Direct is one of the wireless configuration methods developed by the Wi-Fi Alliance
®
. It allows you to
configure a secured wireless network between your Brother machine and a mobile device, such as an Android
™
device, Windows device, iPhone, iPod touch, or iPad, without using an access point. You can configure a
wireless network by manually setting a SSID and password.
1. Mobile device
2. Your Brother machine
Related Information
• Use Wireless Direct
102
Home > Network > Additional Methods of Configuring Your Brother Machine for a Wireless Network > Use
Wireless Direct > Configure Your Wireless Direct Network Manually
Configure Your Wireless Direct Network Manually
Related Models: ADS-1250W
Configure a Wireless Direct network manually.
1. Open the Front Cover and push
for five seconds. Confirm that the LED indicators blink for one second,
and then close the Front Cover.
2. Activate the Wi-Fi function on your device and search for the scanner.
3. Select the scanner SSID (Network Name) on your device (DIRECT-xxADS-1250W_BRxxxx).
4. Enter the Network Key (Password) when prompted.
• SSID and Network Key are printed on the label attached to the scanner.
• To connect your scanner (used as a standalone device) to a router, a computer connection is required.
Download the full driver and software package from the Brother Solutions Center at
support.brother.com
and follow the instructions.
Related Information
• Use Wireless Direct
103
Home > Network > Advanced Network Features > Synchronize Time with the SNTP Server Using Web
Based Management
Synchronize Time with the SNTP Server Using Web Based Management
The Simple Network Time Protocol (SNTP) is used to synchronize the time used by the machine for
authentication with the SNTP time server. (This is not the time displayed on the machine's LCD.) You can
automatically or manually synchronize the machine's time with the Coordinated Universal Time (UTC) provided
by the SNTP time server.
• Configure Date and Time Using Web Based Management
• Configure the SNTP Protocol Using Web Based Management
105
Home > Network > Advanced Network Features > Synchronize Time with the SNTP Server Using Web
Based Management > Configure Date and Time Using Web Based Management
Configure Date and Time Using Web Based Management
Related Models: ADS-1700W
Configure the date and time to synchronize the time used by the machine with the SNTP time server.
This feature is not available in some countries.
1. Start your web browser.
2. Type "https://machine's IP address" in your browser's address bar (where "machine's IP address" is the
machine's IP address).
For example:
https://192.168.1.2
If the machine prompts you for a password, type it, and then click
.
3. Click the Administrator tab.
4. Click Date&Time in the left navigation bar.
5. Select the time difference between your location and UTC from the Time Zone drop-down list.
For example, the time zone for Eastern Time in the USA and Canada is UTC-05:00.
6. Select the Synchronize with SNTP server check box.
106
Home > Network > Advanced Network Features > Synchronize Time with the SNTP Server Using Web
Based Management > Configure the SNTP Protocol Using Web Based Management
Configure the SNTP Protocol Using Web Based Management
Related Models: ADS-1700W
Configure the SNTP protocol to synchronize the time the machine uses for authentication with the time kept by
the SNTP time server.
This feature is not available in some countries.
1. Start your web browser.
2. Type "https://machine's IP address" in your browser's address bar (where "machine's IP address" is the
machine's IP address).
For example:
https://192.168.1.2
If the machine prompts you for a password, type it, and then click
.
3. Click the Network tab.
4. Click the Protocol menu in the left navigation bar.
5. Select the SNTP check box to activate the settings.
6. Restart your Brother machine to activate the configuration.
7. Next to the SNTP check box, click Advanced Setting and configure your settings as needed.
Option Description
Status Displays whether the SNTP protocol is enabled or disabled.
Synchronization Status Confirm the latest synchronization status.
SNTP Server Method Select AUTO or STATIC.
• AUTO
108
Option Description
If you have a DHCP server in your network, the SNTP server will obtain
the address from that server automatically.
• STATIC
Type the address you want to use.
Primary SNTP Server
Address
Secondary SNTP Server
Address
Type the server address (up to 64 characters).
The secondary SNTP server address is used as a backup to the primary
SNTP server address. If the primary server is unavailable, the machine will
contact the secondary SNTP server.
Primary SNTP Server Port
Secondary SNTP Server
Port
Type the port number (1-65535).
The secondary SNTP server port is used as a backup to the primary SNTP
server port. If the primary port is unavailable, the machine will contact the
secondary SNTP port.
Synchronization Interval Type the number of hours between server synchronization attempts (1-168
hours).
8. Click Submit.
Related Information
• Synchronize Time with the SNTP Server Using Web Based Management
109
Home > Network > Technical Information for Advanced Users > Wireless LAN Error Codes
Wireless LAN Error Codes
Related Models: ADS-1700W
If the LCD displays an error message, locate the message in the table and use the recommended solution to
correct the error.
Error Message
Problem and Recommended Solutions
Connection
Fail
The wireless access point/router cannot be detected.
1. Check the following:
• Make sure the wireless access point/router is powered on.
• Move your machine to an obstruction-free area, or closer to the wireless access point/
router.
• Temporarily place your machine within about 3.3 feet (1 meter) from the wireless access
point/router when you are configuring the wireless settings.
• If your wireless access point/router is using MAC address filtering, confirm that the MAC
address of the Brother machine is allowed in the filter.
2. If you manually entered the SSID and security information (SSID/authentication method/
encryption method/Network Key (Password)), the information may be incorrect.
Confirm the SSID and security information, and re-enter the correct information as
necessary.
This device does not support a 5 GHz SSID/ESSID and you must select a 2.4 GHz SSID/
ESSID. Make sure the wireless access point/router is set to 2.4 GHz or 2.4 GHz/5 GHz
mixed mode.
Two or more wireless access points that have WPS enabled are detected.
• Confirm that only one wireless access point/router within range has the WPS method active
and try again.
• Try again after a few minutes to avoid interference from other access points.
Wrong Network
Key
The security information (SSID/Network Key (Password)) is incorrect.
Confirm the Network Name (SSID) and the Network Key (Password).
If your router uses WEP encryption, enter the Network Key (Password) used as the first WEP
key. Your Brother machine supports the use of the first WEP key only.
Related Information
• Technical Information for Advanced Users
111
Home > Security > Lock the Machine Settings > Setting Lock Overview
Setting Lock Overview
Use the Setting Lock feature to block unauthorized access to machine settings.
When Setting Lock is set to On, you cannot access the machine settings without entering the password.
Remote Setup will not launch when Setting Lock is set to On.
• Set or Change the Setting Lock Password
• Turn Setting Lock On or Off
114
Home > Security > Lock the Machine Settings > Setting Lock Overview > Set or Change the Setting Lock
Password
Set or Change the Setting Lock Password
Related Models: ADS-1700W
1. Press [Settings] > [General Setup] > [Setting Lock].
To change the password, press [Settings] > [General Setup] > [Setting Lock] > [Set
Password], and then enter your existing four-digit password.
2. Enter a four-digit number for the password using numbers 0-9. Press [OK].
3. When the touchscreen displays [Verify:], re-enter the new password. Press [OK].
4. Press
.
Related Information
• Setting Lock Overview
115
Home > Security > Lock the Machine Settings > Setting Lock Overview > Turn Setting Lock On or Off
Turn Setting Lock On or Off
Related Models: ADS-1700W
Use the Setting Lock feature to block unauthorized access to machine settings.
When Setting Lock is set to On, you cannot access the machine settings without entering the password.
1. Press [Settings] > [General Setup] > [Setting Lock] > [Lock Off=>On].
2. Enter the current four-digit password. Press [OK].
To turn off Setting Lock, press on the touchscreen, enter the current four-digit password, and then
press [OK].
Related Information
• Setting Lock Overview
116
Home > Security > Network Security Features > Secure Function Lock 3.0 > Before Using Secure Function
Lock 3.0
Before Using Secure Function Lock 3.0
Related Models: ADS-1700W
Secure Function Lock lets you restrict public access to the following machine operations:
• Scan to PC/Scan to Workflow
• Scan to FTP/SFTP
• Scan to Network
• Scan to USB
• Scan to Email Server
• Scan to WSS (Web Service Scan)
Secure Function Lock also prevents users from changing the default settings from the machine by limiting
access to the machine’s settings.
Before using the security features you should first enter an administrator password. The administrator can set up
restrictions for individual users along with a user password. Carefully write down your password. If you forget it,
you will have to reset the password stored in the machine. For more information about how to reset the
password, contact Brother Customer Service.
• Only administrators can set limitations and make changes for each user.
• For Windows users only:
Secure Function Lock can be set using Web Based Management.
Related Information
• Secure Function Lock 3.0
119
Home > Security > Network Security Features > Secure Function Lock 3.0 > Configure Secure Function
Lock 3.0 Using Web Based Management
Configure Secure Function Lock 3.0 Using Web Based Management
Related Models: ADS-1700W
1. Start your web browser.
2. Type "https://machine's IP address" in your browser's address bar (where "machine's IP address" is the
machine's IP address).
For example:
https://192.168.1.2
If the machine prompts you for a password, type it, and then click
.
3. Click the Administrator tab.
4. Click the User Restriction Function menu in the left navigation bar.
5. Click the Secure Function Lock menu.
6. Click Submit.
7. Click the User List menu in the left navigation bar.
8. In the User List field, type the user name.
9. In the PIN Number field, type a four-digit password.
10. Select User List / Restricted Functions from the drop-down list for each user.
11. Click Submit.
Related Information
• Secure Function Lock 3.0
120
Home > Security > Network Security Features > Secure Function Lock 3.0 > Configure Public Mode for
Secure Function Lock 3.0
Configure Public Mode for Secure Function Lock 3.0
Related Models: ADS-1700W
Use the Secure Function Lock screen to set up Public Mode, which limits the functions available to public users.
Public users will not need to enter a password to access the features made available through Public Mode
settings.
1. Start your web browser.
2. Type "https://machine's IP address" in your browser's address bar (where "machine's IP address" is the
machine's IP address).
For example:
https://192.168.1.2
If the machine prompts you for a password, type it, and then click
.
3. Click the Administrator tab.
4. Click the Restricted Functions menu.
5. Select Secure Function Lock.
6. Click Submit.
7. Click the Restricted Functions menu.
8. In the Public Mode row, select a check box to allow or clear a check box to restrict the function listed.
9. Click Submit.
Related Information
• Secure Function Lock 3.0
121
Home > Security > Network Security Features > Manage Your Network Machine Securely Using SSL/
TLS > Certificates and Web Based Management
Certificates and Web Based Management
• Supported Security Certificate Features
• Import and Export a CA Certificate
• Manage Multiple Certificates
• Create a Self-signed Certificate
• Install the Self-signed Certificate for Windows users with Administrator Rights
• Import and Export the Self-signed Certificate on your Brother Machine
123
Home > Security > Network Security Features > Manage Your Network Machine Securely Using SSL/
TLS > Certificates and Web Based Management > Supported Security Certificate Features
Supported Security Certificate Features
Related Models: ADS-1700W
Your Brother machine supports the use of multiple security certificates, which allows secure management,
authentication, and communication with the machine. The following security certificate features can be used with
the machine:
• SSL/TLS communication
• SSL communication for SMTP
The Brother machine supports the following:
• Pre-installed certificate
Your machine has a pre-installed self-signed certificate. This certificate enables you to use SSL/TLS
communication without creating or installing a different certificate.
The pre-installed self-signed certificate protects your communication up to a certain level. We recommend
using a certificate that is issued by a trusted organization for better security.
• Self-signed certificate
This machine issues its own certificate. Using this certificate, you can easily use the SSL/TLS communication
without creating or installing a different certificate from a CA.
• Certificate from a Certificate Authority (CA)
There are two methods for installing a certificate from a CA. If you already have a certificate from a CA or if
you want to use a certificate from an external trusted CA:
- When using a Certificate Signing Request (CSR) from this machine.
- When importing a certificate and a private key.
• Certificate Authority (CA) Certificate
To use a CA certificate that identifies the CA and owns its private key, you must import that CA certificate
from the CA before configuring the security features of the Network.
• If you are going to use SSL/TLS communication, we recommend contacting your system administrator
first.
• When you reset the machine back to its default factory settings, the certificate and the private key that
are installed will be deleted. If you want to keep the same certificate and the private key after resetting
the machine, export them before resetting, and then reinstall them.
Related Information
• Certificates and Web Based Management
124
Home > Security > Network Security Features > Manage Your Network Machine Securely Using SSL/
TLS > Certificates and Web Based Management > Import and Export a CA Certificate
Import and Export a CA Certificate
Related Models: ADS-1700W
1. Start your web browser.
2. Type "https://machine's IP address" in your browser's address bar (where "machine's IP address" is the
machine's IP address).
For example:
https://192.168.1.2
If the machine prompts you for a password, type it, and then click
.
3. Click the Network tab.
4. Click the Security tab.
5. Click CA Certificate.
6. Do one of the following:
• To import a CA Certificate, click Import CA Certificate. Browse to the file you want to import.
• To export a CA Certificate, select the certificate you want to export and click Export.
7. Click Submit.
Related Information
• Certificates and Web Based Management
125
Home > Security > Network Security Features > Manage Your Network Machine Securely Using SSL/
TLS > Certificates and Web Based Management > Manage Multiple Certificates
Manage Multiple Certificates
Related Models: ADS-1700W
The multiple certificate feature allows you to use Web Based Management to manage each certificate installed
on your machine. In Web Based Management, navigate to the CA Certificate screen to view certificate content,
delete, or export your certificates.
You can store up to three CA certificates to use SSL.
We recommend storing one certificate fewer than allowed, reserving an empty spot in case of certificate
expiration. When a certificate expires, import a new certificate into the reserved spot, and then delete the expired
certificate. This ensures that you avoid configuration failure.
When you use SSL for SMTP communications, you do not have to select a certificate. The necessary
certificate is selected automatically.
Related Information
• Certificates and Web Based Management
126
Home > Security > Network Security Features > Manage Your Network Machine Securely Using SSL/
TLS > Certificates and Web Based Management > Create a Self-signed Certificate
Create a Self-signed Certificate
Related Models: ADS-1700W
1. Start your web browser.
2. Type "https://machine's IP address" in your browser's address bar (where "machine's IP address" is the
machine's IP address).
For example:
https://192.168.1.2
If the machine prompts you for a password, type it, and then click
.
3. Click the Network tab.
4. Click the Security tab.
5. Click the Certificate menu in the left navigation bar.
6. Click Create Self-Signed Certificate.
7. Enter a Common Name and a Valid Date.
• The length of the Common Name is less than 64 bytes. Enter an identifier, such as an IP address, node
name, or domain name to use when accessing this machine through SSL/TLS communication. The node
name is displayed by default.
• A warning will appear if you use the IPPS or HTTPS protocol and enter a different name in the URL than
the Common Name that was used for the self-signed certificate.
8. Select your setting from the Public Key Algorithm drop-down list. The default setting is RSA(2048bit).
9. Select your setting from the Digest Algorithm drop-down list. The default setting is SHA256.
10. Click Submit.
11. Click the Network tab.
12. Click the Protocol menu in the left navigation bar.
13. Click HTTP Server Settings.
14. Select the certificate you want to configure from the Select the Certificate drop-down list.
15. Click Submit.
16. Click Yes to restart your machine.
The self-signed certificate is created and saved in your machine's memory.
To use SSL/TLS communication, the self-signed certificate must be installed on your computer.
Related Information
• Certificates and Web Based Management
127
Home > Security > Network Security Features > Manage Your Network Machine Securely Using SSL/
TLS > Certificates and Web Based Management > Install the Self-signed Certificate for Windows users with
Administrator Rights
Install the Self-signed Certificate for Windows users with Administrator
Rights
Related Models: ADS-1700W
The following steps are for Microsoft Internet Explorer. If you use another web browser, consult the
documentation for your web browser to get help with installing certificates.
1. Do one of the following:
• (Windows 7 and Windows Server 2008)
Click
(Start) > All Programs.
• (Windows 8 )
Right-click the
(Internet Explorer) icon on the taskbar.
• (Windows 10 and Windows Server 2016)
Click > Windows Accessories.
• (Windows Server 2012 and Windows Server 2012 R2)
Click
(Internet Explorer), and then right-click the (Internet Explorer) icon that appears on the
taskbar.
2. Right-click Internet Explorer, and then click Run as administrator.
If the More option appears, click More.
If the User Account Control screen appears, click Yes.
3. Type "https://machine's IP address" in your browser's address bar to access your machine (where "machine's
IP address" is the machine's IP address or the node name that you assigned for the certificate).
4. Click Continue to this website (not recommended).
5. Click Certificate error, and then click View certificates.
128
6. Click Install Certificate….
7. When the Certificate Import Wizard appears, click Next.
8. Select Place all certificates in the following store, and then click Browse….
9. Select Trusted Root Certification Authorities, and then click OK.
10. Click Next.
11. Click Finish.
12. Click Yes, if the fingerprint (thumbprint) is correct.
13. Click OK.
The self-signed certificate is now installed on your computer, and SSL/TLS communication is available.
Related Information
• Certificates and Web Based Management
129
Home > Security > Network Security Features > Manage Your Network Machine Securely Using SSL/
TLS > Certificates and Web Based Management > Import and Export the Self-signed Certificate on your
Brother Machine
Import and Export the Self-signed Certificate on your Brother Machine
You can store the self-signed certificates on your Brother machine and manage them by importing and exporting.
• Import the Self-signed Certificate
• Export the Self-signed Certificate
130
Home > Security > Network Security Features > Manage Your Network Machine Securely Using SSL/
TLS > Certificates and Web Based Management > Import and Export the Self-signed Certificate on your
Brother Machine > Import the Self-signed Certificate
Import the Self-signed Certificate
Related Models: ADS-1700W
1. Start your web browser.
2. Type "https://machine's IP address" in your browser's address bar (where "machine's IP address" is the
machine's IP address).
For example:
https://192.168.1.2
If the machine prompts you for a password, type it, and then click
.
3. Click the Network tab.
4. Click the Security tab.
5. Click the Certificate menu in the left navigation bar.
6. Click Import Certificate and Private Key.
7. Browse to the file you want to import.
8. Type the password if the file is encrypted, and then click Submit.
The self-signed certificate is imported to your machine.
To use SSL/TLS communication, the self-signed certificate must also be installed on your computer. For more
information, contact your network administrator.
Related Information
• Import and Export the Self-signed Certificate on your Brother Machine
131
Home > Security > Network Security Features > Manage Your Network Machine Securely Using SSL/
TLS > Certificates and Web Based Management > Import and Export the Self-signed Certificate on your
Brother Machine > Export the Self-signed Certificate
Export the Self-signed Certificate
Related Models: ADS-1700W
1. Start your web browser.
2. Type "https://machine's IP address" in your browser's address bar (where "machine's IP address" is the
machine's IP address).
For example:
https://192.168.1.2
If the machine prompts you for a password, type it, and then click
.
3. Click the Network tab.
4. Click the Security tab.
5. Click the Certificate menu in the left navigation bar.
6. Click Export shown with Certificate List.
7. If you want to encrypt the file, type a password in the Enter password field.
If the Enter password field is blank, your output file will not be encrypted.
8. Type the password again in the Retype password field, and then click Submit.
9. Click Save.
The self-signed certificate is exported to your computer.
You can also import the self-signed certificate to your computer.
Related Information
• Import and Export the Self-signed Certificate on your Brother Machine
132
Home > Security > Network Security Features > Send an Email Securely
Send an Email Securely
Related Models: ADS-1700W
1. Start your web browser.
2. Type "https://machine's IP address" in your browser's address bar (where "machine's IP address" is the
machine's IP address).
For example:
https://192.168.1.2
If the machine prompts you for a password, type it, and then click
.
3. Click the Network tab.
4. Click the Protocol menu in the left navigation bar.
5. In the SMTP field, click Advanced Settings and make sure the status of SMTP is Enabled.
6. Configure the SMTP settings.
• Confirm that the email settings are correct after configuration by sending a test email.
• If you do not know the SMTP server settings, contact your network administrator or Internet Service
Provider (ISP).
7. When finished, click Submit.
The Test Send E-mail Configuration dialog box appears.
8. Follow the instructions in the dialog box to test the current settings.
Sending an Email with User Authentication
Your Brother machine supports the SMTP-AUTH method to send email via an email server that requires user
authentication. This method prevents unauthorized users from accessing the email server. You can use Web
Based Management to configure these settings. You can use SMTP-AUTH for email notification, email reports
and Scan to Email Server.
• Email Client Settings
- You must match the SMTP authentication method settings with the method used by your email
application.
- Contact your network administrator or your ISP about the email client configuration.
- You must select the SMTP-AUTH check box of Server Authentication Method to enable SMTP server
authentication.
• SMTP settings
- You can change the SMTP port number using Web Based Management. This is useful if your ISP
(Internet Service Provider) implements the “Outbound Port 25 Blocking (OP25B)” service.
- By changing the SMTP port number to a specific number that your ISP is using for the SMTP server (for
example, port 587), you can send an email via the SMTP server.
Sending an Email Securely Using SSL/TLS
This machine supports TLS to send an email via an email server that requires secure TLS communication. To
send email via an email server that is using TLS communication, you must configure TLS correctly.
• Port Number
- If you selected SSL/TLS, the Port value is changed to match the protocol. To change the port number
manually, type the port number.
- You must configure the SMTP communication method to match the email server. For more information
about the email server settings, contact your network administrator or ISP (Internet Service Provider).
In most cases, the secured webmail services require the following settings:
SMTP
Port 587
Server Authentication Method SMTP-AUTH
133
Home > Brother iPrint&Scan for Windows and Mac > Brother iPrint&Scan Overview
Brother iPrint&Scan Overview
The following screen shows an example of Brother iPrint&Scan for Windows. You can use it to scan documents
and check your machine’s status. The actual screen may differ depending on the version of the application.
• For Windows
Go to your model's Downloads page on the Brother Solutions Center at
support.brother.com to download the
latest application.
• For Mac
Download and install Brother iPrint&Scan from the App Store.
Related Information
• Brother iPrint&Scan for Windows and Mac
• Scan Using Brother iPrint&Scan (Mac)
136
Home > Brother iPrint&Scan for Windows and Mac > Configure Scan to Workflow Settings Using Brother
iPrint&Scan
Configure Scan to Workflow Settings Using Brother iPrint&Scan
The following conditions must be satisfied to use Scan to Workflow:
• Windows
- The scanner driver is installed.
Download and install the driver from Brother Solutions Center at
support.brother.com.
- Default settings have been configured for scanning from the machine.
Configure the settings by following the on-screen directions in the Machine Scan Settings screen.
• Mac
- iPrint&Scan Push Scan Tool is installed.
Download and install the iPrint&Scan Push Scan Tool from Brother Solutions Center at
support.brother.com.
- Default settings have been configured for scanning from the machine.
In the Brother iPrint&Scan home screen, click Machine Scan Settings > Select folder..., and save
where applicable. Complete the process by following the on-screen instructions.
>> Create a Workflow
>> Configure Workflows
>> Edit or delete the Workflow
Create a Workflow
1. In the Brother iPrint&Scan home screen, click Create Workflow.
2. Create a workflow by following the on-screen instructions.
Configure Workflows
1. In the Brother iPrint&Scan home screen, click Machine Scan Settings > Workflow.
2. Select the workflow you want to display when the Workflow button is pressed on the machine, and click OK.
Edit or delete the Workflow
1. In the Brother iPrint&Scan home screen, click Application Setting > Workflow Management.
2. Select the workflow you want to edit or delete, and push either Edit or Delete.
Related Information
• Brother iPrint&Scan for Windows and Mac
137
Home > Troubleshooting > Error and Maintenance Messages
Error and Maintenance Messages
Related Models: ADS-1700W
As with any sophisticated office product, errors may occur and supply items must be replaced eventually. If this
happens, your machine identifies the error or required routine maintenance and displays the appropriate
message. The most common error and maintenance messages are shown in the table below.
You can correct most errors and clear routine maintenance messages yourself. If you need further information,
go to your model's FAQs & Troubleshooting page on the Brother Solutions Center at support.brother.com.
Error Message
Cause Action
Access Denied
Secure Function Lock is On. Contact your administrator to check your
Secure Function Lock settings.
See Related Information: Secure Function
Lock 3.0.
Authenticate Err
The password entered in Scan to Network
was incorrect.
Enter the correct password. If you forgot
it, you must reset it.
See Related Information: Set up a Scan to
Network Profile.
Both Document and
Card set
The ADF and the Card Slot are both
loaded with a document and a card.
Load either the ADF or the Card Slot,
whichever one you want to scan from.
Cannot Start Workflow
The Cloud Service access right has
expired.
In Brother iPrint&Scan, authenticate the
Cloud Service access again.
Card JAM
• The power came on when the plastic
card was inserted in the machine.
• The embossed card was inserted in
the Card Slot with the embossed side
down.
• The card was inserted diagonally.
• The plastic card is not inserted
according to the guidelines.
• Remove the plastic card. To prevent
the card from getting jammed again,
do not leave the card inserted in the
machine.
• Remove the plastic card. Insert the
embossed card, embossed side up,
into the Card Slot.
• Remove the plastic card. Insert the
plastic card straight according to the
guidelines.
See Related Information:Card Jam.
Check Connection
The machine is not connected to the
network.
Check the network connection.
The computer and machine are not
connected using a USB cable.
Connect the USB cable. If a USB flash
drive is inserted into the machine, remove
it.
Clean Document
Position Sensor /Clean
Card Sensor
The sensor is dirty with paper dust. Clean the sensor.
See Related Information:Clean the
Sensors.
Confirm the following
and try again. -
Check the network
connection. - Set the
correct Date&Time.
There is a problem with the settings in the
machine and/or server.
Make sure your machine is connected to
a network with Internet access. Verify that
the date and time are set correctly on your
machine.
The computer and machine are not
connected using a USB cable.
Connect the USB cable. If a USB flash
drive is inserted into the machine, remove
it.
Connection Failed
The machine could not connect to the
network.
Check the following:
• The PIN is correct.
• You did not press the WPS button on
more than one wireless access point/
router.
139
Error Message Cause Action
• The wireless access point/router is
turned on.
• Restart the machine and the wireless
access point/router.
Document Jam
• The Paper Guides are not set to the
correct document size.
• The settings are not appropriate for
your document.
• Paper dust has accumulated on the
surface of the Pick Up Roller or
Separation Pad.
• The document was curled.
Clear the document jam, and then do the
following:
• Gently adjust the Paper Guides to fit
the width of your document. When
Scan Size is set to Auto and you are
scanning a document that contains
multiple page sizes, insert narrow
pages straight and as close to the
center of the machine as possible. If
the document does not feed straight,
use the continuous scan option.
• Confirm the settings.
See Related Information: Document
Jam.
• Clean the Pick Up Roller and
Separation Pad.
See Related Information: Clean the
Scanner and Rollers.
• Straighten the curled document and
scan again.
Error
• An error occurred when you used the
to Workflow feature.
• Brother iPrint&Scan was not installed
correctly.
• Restart Brother iPrint&Scan.
• Restart the computer.
• Update the machine's firmware.
• Uninstall Brother iPrint&Scan and
install it again.
Feed Selector Error
Feed Selector is set incorrectly. Set the Feed Selector to the left side
when scanning from the ADF, and to the
right side when scanning from the Card
Slot.
Incorrect PIN
The PIN Number entered in Secure
Function Lock was incorrect.
Enter the correct PIN Number. Contact
your administrator to check your Secure
Function Lock settings.
See Related Information: Secure Function
Lock 3.0.
Insufficient USB
Storage
The inserted USB flash drive is full. Press Close, and then do one of the
following:
• Delete unused files or folders from the
USB flash drive, and then try again.
• Use a USB flash drive that has more
free space.
No Access Point:
The machine cannot detect a wireless
access point/router that has an active
WPS function.
Check the following:
• You did not press the WPS button on
two or more wireless access point/
routers.
• Restart the machine and the wireless
access point/router.
No Certificate
The certificate does not exist, or is
corrupted.
Configure the settings under Signed PDF
in the Administrator tab in Web Based
Management.
See Related Information: Upload Scanned
Data to an FTP Server.
140
Error Message Cause Action
See Related Information: Upload Scanned
Data to a Mapped Network Drive (CIFS)
Server.
No Document / Card
• No document or card is loaded.
• The Feed Selector is set incorrectly.
• Load a document or card.
See Related Information:Load
Documents.
• Confirm whether the Feed Selector is
set correctly.
No PC found
The machine is not connected to your
computer.
Connect the machine to your computer,
and then try again.
No Profile found
No Scan to FTP/SFTP profile or Scan to
Network profile is registered.
Configure the Scan to FTP/SFTP profile
or the Scan to Network profile before
using Scan to FTP or Scan to Network.
See Related Information: Set up a Scan to
FTP Profile.
See Related Information: Set up a Scan to
SFTP Profile.
See Related Information: Set up a Scan to
Network Profile.
Not Registered
(Scan)
The email address or SMTP server
address of the scan destination is not
registered.
Make sure the email address or SMTP
server address is correctly configured.
(Secure Function Lock)
A user not registered in Secure Function
Lock is accessing the machine.
Contact your administrator to check your
Secure Function Lock settings.
See Related Information: Secure Function
Lock 3.0.
Remove documents.
Auto Start Scan Mode was enabled
while a document was loaded.
Remove the document, and then reload it.
Replace Pickup Roller
Pick Up Roller has been used over
100,000 times.
Replace the Pick Up Roller with a new
one. Scanning errors may occur if you do
not replace the part.
See Related Information: Replace the
Pick Up Roller.
Replace Separation
Pad
The Separation Pad has been used more
than 10,000 times.
Replace the Separation Pad with a new
one.
See Related Information:Replace the
Separation Pad.
Scheduled Maintenance
Alert
The Pick Up Roller and Separation Pad
have been used over 5,000 times.
Clean the Separation Pad and Pick Up
Roller. Paper jams and reduced scan
quality issues may occur if you do not
clean them.
See Related Information: Clean the
Scanner and Rollers.
Sending Error
The Scan to FTP/SFTP profile, Scan to
Network profile or Scan to Email Server is
not configured correctly.
Make sure the Scan to FTP/SFTP profile,
Scan to Network profile or Scan to Email
Server is configured correctly.
Configure the Network Settings.
Server Time out
The machine was disconnected from the
Scan to FTP/SFTP profile, Scan to
Network profile or Scan to Email Server.
Make sure the Scan to FTP/SFTP profile,
Scan to Network profile or Scan to Email
Server is configured correctly.
Configure the Network Settings.
Setting Lock
Adding a new shortcut was attempted
while the Setting Lock was turned on.
Disable the Setting Lock.
141
Error Message Cause Action
Unsupported security
information
(Authentication
method/Encryption
method). Confirm
supported security
mode and try again.
The security settings are incorrect. Confirm the security settings and try
again.
Unusable Device
An unusable device is inserted in the USB
port.
Remove the device. Turn the machine off
and on by unplugging the machine from
the AC power outlet, and then plugging
the machine in again.
USB Access Error
The USB flash drive was removed while it
was being accessed.
Insert the USB flash drive.
USB Hub Not Supported
A USB flash drive with a hub is inserted in
the USB port.
Remove the unsupported device from the
USB port.
USB Write-protected
The inserted USB flash drive is write-
protected.
Remove the write-protected USB flash
drive, press Close, and then do one of
the following:
• Turn off the USB flash drive’s write-
protection, and then try again.
• Use a USB flash drive that is not write-
protected.
Workflow not found
• Workflow was not created.
• Workflow was deleted.
• Workflow was not configured correctly.
Make sure that Workflow is created and
configured correctly in Brother
iPrint&Scan (for Windows and Mac).
See Related Information:Configure Scan
to Workflow Settings Using Brother
iPrint&Scan.
Wrong Network Key
The Network Key is incorrect. Confirm the Network Key and try again.
Wrong Password
The password entered in Setting Lock
was incorrect.
Enter the correct password. If you forgot
it, you must reset it.
See Related Information: Set or Change
the Setting Lock Password.
Related Information
• Troubleshooting
• Secure Function Lock 3.0
• Clean the Scanner and Rollers
• Replace the Pick Up Roller
• Replace the Separation Pad
• Set up a Scan to Network Profile
• Upload Scanned Data to an FTP Server
• Upload Scanned Data to a Mapped Network Drive (CIFS) Server
• Set up a Scan to FTP Profile
• Set up a Scan to SFTP Profile
• Set or Change the Setting Lock Password
• Document Jam
• Load Documents
• Card Jam
• Clean the Sensors
142
Home > Troubleshooting > Error and Maintenance Indications
Error and Maintenance Indications
Related Models: ADS-1200/ADS-1250W
The LED indications on the control panel are explained in this table.
Error Indicator
Power Indicator Description
The LED is off.
The LED is on.
The LED is blinking.
Error
Indicator
Power
Indicator
Machine Status
Document Jam
Clear the document jam. If scanning a long document, select Long Paper from the
Scan Size or Document Size drop-down list.
Pick Up Document Error
The machine cannot pick up the document. Open the Front Cover and remove the
document. Close the Front Cover and reload your document.
Front Cover Open
The Front Cover is open.
Access Error
• Scan to PC
- The USB cable is not connected to the machine. Connect the USB cable.
- (ADS-1250W) When the machine and computer are connected wirelessly, you
must configure the Scan to PC settings using Remote Setup.
• Scan to USB
- A USB flash drive is not inserted into the machine. Insert a USB flash drive.
- The USB flash drive was removed while it was being accessed. Reinsert the USB
flash drive.
Unusable USB Device
USB flash drives cannot be used in Bus Power Mode. Connect your scanner to an AC
power outlet, and then try to scan.
Unusable Device
• An unsupported USB device is inserted in the USB port. Remove the device.
• USB flash drives cannot be used in Bus Power Mode. Connect your scanner to an
AC power outlet, and then try to scan.
Too Many Files on USB (Scan to USB)
Your machine cannot save to a USB flash drive if it contains too many files. Remove the
USB flash drive, and then do one of the following:
• Delete unused files or folders from the USB flash drive, and then try again.
• Use a USB flash drive that has available space.
Feed Selector is set incorrectly, or the ADF and the Card Slot are both loaded with
a document and a card.
144
Error
Indicator
Power
Indicator
Machine Status
• Set the Feed Selector to the left side when scanning from the ADF, and to the right
side when scanning from the Card Slot.
• Load either the ADF or the Card Slot, whichever one you want to scan from.
Plastic Card Jam
Clear the card jam. Adjust the Card Slot Guide to fit the width of the plastic card before
inserting the card into the machine. If you inserted an embossed card, make sure to
insert it embossed side up, into the Card Slot.
• Network Connection Error (ADS-1250W)
Press and hold down
and for five seconds to restart the wireless
network.
• Wireless Direct Connection Error (ADS-1250W)
Press and hold down
for five seconds to restart the Wireless Direct.
• Wireless Network Connection Error (ADS-1250W)
Press and hold down
for five seconds to restart the wireless network.
Updating the Firmware
Firmware update in progress. Wait for the update to complete.
The Scheduled Maintenance counter has exceeded 5,000.
Confirm the remaining life in the Machine Info dialog box using Remote Setup.
If the Scheduled Maintenance counter has exceeded the limit, clean the machine
promptly. If you do not, document jams and paper feed problems may occur. After
cleaning the machine, reset the Scheduled Maintenance Counter using Remote Setup.
See Related Information:Clean the Scanner and Rollers.
The Pick Up Roller has been used more than 100,000 times.
The Separation Pad has been used more than 10,000 times.
Confirm the remaining life in the Machine Info dialog box using Remote Setup.
If the Pick Up Roller or Separation Pad have been exceeded their usage limit, replace
them and then reset the Roller Counter using Remote Setup. See Related
Information:Reset the Usage Counters.
Replace the Separation Pad.
See Related Information:Replace the Separation Pad.
Clean the Sensors.
See Related Information:Clean the Sensors.
For more information about errors, check your machine’s status in Brother iPrint&Scan (for Windows and
Mac).
Related Information
• Troubleshooting
• Service Call Indications
• Document Jam
• Reset the Usage Counters
• Clean the Scanner and Rollers
• Clean the Sensors
• Replace the Pick Up Roller
• Replace the Separation Pad
145
Home > Troubleshooting > Error and Maintenance Indications > Service Call Indications
Service Call Indications
If there is an error that you cannot clear yourself, the machine will indicate the need for a service call by lighting
up the Power Indicator and blinking the Error Indicator as shown.
Error Indicator Power Indicator
If you see the service call indication shown, contact your Brother dealer or Brother Customer Service.
Related Information
• Error and Maintenance Indications
147
Home > Troubleshooting > Document Jam
Document Jam
Documents can jam in the ADF unit if they are not inserted or fed correctly, if they are too long, or if multiple
pages are fed at the same time (multifeed).
1. Remove any paper from the ADF that is not jammed.
2. Open the Top Cover (1) and the Front Cover (2).
1
2
3. Gently pull the jammed document out of the machine.
Check for ripped paper inside the machine. Remove any paper scraps you find inside the machine.
4. Close the Front Cover.
5. Press
.
When clearing the multifeed, confirm that the data scanned before the multifeed was detected has been
saved, and then start scanning again from the next page or the beginning of the document.
IMPORTANT
• To avoid damage to the jammed document, DO NOT pull the document out before opening the Front
Cover.
• Take out any paper from the ADF before closing the Front Cover.
• To avoid future document jams, do the following:
- Close the Front Cover correctly by pushing it gently in the center.
- Configure the settings for your document correctly.
- Fan the paper to help prevent document jams and multi-feeding documents.
- Clean the Separation Pad and Pick Up Roller. See Related Information: Clean the Scanner and
Rollers.
- Stagger the pages and then load your document.
148
- Make sure your document is acceptable for the machine.
- Load your document correctly.
- Load no more than 20 pages at a time.
- When using long paper, to avoid a paper jam, you must select the Long Paper option from the
Document Size menu.
Related Information
• Troubleshooting
• Error and Maintenance Indications
• Clean the Scanner and Rollers
• Acceptable Documents
• Load Documents
149
Home > Troubleshooting > If You Are Having Difficulty with Your Machine
If You Are Having Difficulty with Your Machine
You can correct most problems yourself. If you think there is a problem with your machine, check the topics
below. If you need additional help, the Brother Solutions Center offers the latest FAQs & Troubleshooting tips at
support.brother.com.
Using non-Brother supplies may affect the scan quality, hardware performance, and machine reliability.
• Scanning and Other Problems
• Network Problems
151
Home > Troubleshooting > If You Are Having Difficulty with Your Machine > Scanning and Other Problems
Scanning and Other Problems
Scanning Difficulties
Difficulties Cause Suggestions
TWAIN or WIA errors
appear when starting to
scan. (Windows)
The TWAIN or WIA driver has not
been selected as the primary source
in your scanning application.
Make sure the Brother TWAIN or WIA driver is
selected as the primary source in your scanning
application. For example, in Nuance
™
PaperPort
™
14SE, click Scan Settings > Select. Select the
Brother TWAIN/WIA driver.
TWAIN errors appear
when starting to scan.
(Mac)
The TWAIN driver has not been
selected as the primary source in
your scanning application.
Make sure the Brother TWAIN driver is selected as
the primary source in your application.
You can also scan documents using the ICA
Scanner Driver.
Vertical lines are seen in
the scanned image.
Paper dust has accumulated on the
surface of the glass strips.
Clean the glass strips inside the machine.
See Related Information: Clean the Scanner and
Rollers.
The scanned image is
missing.
The Paper Guides are not adjusted to
fit the width of the document.
Gently adjust the Paper Guides to fit the width of
your document. When Scan Size is set to Auto and
you are scanning a document that contains
multiple page sizes, insert narrow pages straight
and as close to the center of the machine as
possible. If the document does not feed straight,
use the continuous scan option.
The settings are not appropriate for
your document. For example, a
Letter/A4-sized document was fed
when Executive/A5 Letter was
selected as the document size.
Make sure the document size settings are
appropriate for your document.
Configure the margin settings and adjust the
scanning position.
- Configure the margin settings and adjust the
scanning position.
The scanned image is
skewed.
(ADS-1700W)
If you use a preset document size,
the document skewing cannot be
corrected automatically.
Select Auto for Document Size.
The scanned image is
skewed.
The Paper Guides are not adjusted to
fit the width of the document.
Gently adjust the Paper Guides to fit the width of
your document. When Scan Size is set to Auto and
you are scanning a document that contains
multiple page sizes, insert narrow pages straight
and as close to the center of the machine as
possible. If the document does not feed straight,
use the continuous scan option.
The Long Paper setting is selected.
Select a setting other than Long Paper.
• The plastic card is not inserted
straight.
• The plastic card is not inserted
according to the guidelines.
Insert the plastic card straight according to the
guidelines.
The document was curled. Straighten the curled document and scan again.
The embossed card was inserted in
the Card Slot with the embossed side
down.
Insert the embossed card, embossed side up, into
the Card Slot.
Scanning is too slow. The resolution is not appropriate for
your document.
Decrease the scanner resolution.
You are scanning in Bus Power
Mode. (ADS-1200/ADS-1250W)
Connect your machine to an AC power outlet, and
then try to scan.
152
Difficulties Cause Suggestions
The document was not
fed.
Paper dust has accumulated on the
surface of the Pick Up Roller or
Separation Pad.
Clean the Separation Pad and Pick Up Roller. See
Related Information: Clean the Scanner and
Rollers.
Too many documents are loaded in
the ADF at a time.
Make sure you do not exceed the ADF's capacity.
See Related Information: Acceptable Documents.
There are foreign objects in the ADF. Remove any foreign objects or ripped paper from
the ADF.
Your media is too thin or too thick. Make sure your media is acceptable for the
machine.
See Related Information: Acceptable Documents.
Remote Setup is in process. Cancel Remote Setup.
Paper ejection has paused. Remove any paper from the ADF.
Plastic Card Mode is selected in the
Feed Selector.
Slide the Feed Selector to the ADF Mode side.
A plastic card is inserted in the Card
Slot.
Remove the plastic card.
The document was curled. Straighten the curled document and scan again.
The Pick Up Roller cover film is
folded or removed.
Contact your Brother dealer or Brother Customer
Service to replace the Pick Up Roller Cover.
The Separation Pad is not set
correctly or the rubber part of the
Separation Pad is folded.
Make sure the Separation Pad is set correctly.
The leading edges of the document
are aligned straight.
Fan the paper and position the pages so that the
leading edges are aligned at a slight angle in the
feed direction.
The document is
jammed.
Paper dust has accumulated on the
surface of the Pick Up Roller or
Separation Pad.
Clean the Separation Pad and Pick Up Roller. See
Related Information: Clean the Scanner and
Rollers.
There are foreign objects in the ADF. Remove any foreign objects or ripped paper from
the ADF.
Your document is not acceptable for
the machine.
Make sure your document is acceptable for the
machine. See Related Information: Acceptable
Documents.
The document was curled. Straighten the curled document and scan again.
The Separation Pad is not set
correctly or the rubber part of the
Separation Pad is folded.
Make sure the Separation Pad is set correctly.
The paper dust has accumulated on
the sensors.
Clean the sensors.
The Pick Up Roller cover film is
folded or removed.
Contact your Brother dealer or Brother Customer
Service to replace the Pick Up Roller Cover.
The leading edges of the document
are aligned straight.
Fan the paper and position the pages so that the
leading edges are aligned at a slight angle in the
feed direction.
The scan quality is poor. Paper dust has accumulated on the
surface of the Pick Up Roller or
Separation Pad.
Clean the Separation Pad and Pick Up Roller. See
Related Information: Clean the Scanner and
Rollers.
Paper dust has accumulated on the
surface of the glass strips inside the
machine.
Clean the glass strips inside the machine.
See Related Information: Clean the Scanner and
Rollers.
The scanner resolution is too low. Increase the scanner resolution.
153
Difficulties Cause Suggestions
Bleedthrough is seen in
the scanned data.
The settings are not appropriate for
the type of document being scanned.
Select the Remove Bleed-through / Pattern /
Remove Background Color check box.
Colors in the scanned
data are dark.
The settings are not appropriate for
the type of document being scanned.
Do one of the following:
• Select the Remove Bleed-through / Pattern /
Remove Background Color check box, and then
scan from your computer.
• Increase the Brightness, and then scan from
your computer.
• Increase the Contrast, and then scan from your
computer.
• Change the Scan Type to Gray or Color, and
then scan from your computer.
A page that is not a
blank page is skipped.
• The document is too faint.
• Skip Blank Page is set to On.
Set Skip Blank Page to Off.
Alternatively, reduce the Skip Blank Page
sensitivity.
Cannot scan a long
document.
Long Paper is not selected for the
document size.
Select Long Paper for the document size. If you
cannot select Long Paper, when scanning from the
machine’s Control Panel, set Skip Blank Page to
Off, set 2-sided Scan to Off and set Scan Type to
an option other than Auto. Then, you can select
Long Paper for the document size.
A multifeed occurs. The document is not loaded correctly. Load your document correctly, and then try again.
The leading edges of the document
are aligned straight.
Fan the paper and position the pages so that the
leading edges are aligned at a slight angle in the
feed direction.
The document was curled. Straighten the curled document and scan again.
The Separation Pad is not set
correctly or the rubber part of the
Separation Pad is folded.
Make sure the Separation Pad is set correctly.
The Pick Up Roller cover film is
folded or removed.
Contact your Brother dealer or Brother Customer
Service to replace the Pick Up Roller Cover.
Cannot scan.
(ADS-1700W)
Secure Function Lock is on. Contact your administrator to check your Secure
Function Lock settings.
See Related Information: Secure Function Lock
3.0.
The Pull Scan option in the Scan
from PC dialog box in Web Based
Management is disabled.
Enable the Pull Scan option.
Cannot scan to a
computer from the
machine.
• Scanning application (for example,
Brother iPrint&Scan) is not
installed on the computer.
• The settings are not configured
within the scanning application (for
example, Brother iPrint&Scan).
• (ADS-1250W) The Scan to PC
settings were not configured in
Remote Setup.
• Install a scanning application (for example,
Brother iPrint&Scan).
• Configure the settings using a scanning
application (for example, Brother iPrint&Scan).
• (ADS-1250W) Configure the Scan to PC
settings in Remote Setup.
Auto Start Scan
does not start.
(ADS-1700W)
The settings for Auto Start Scan
(Shortcut 21) are incorrect.
Confirm the settings for Auto Start Scan
(Shortcut 21).
154
Difficulties Cause Suggestions
The plastic card is
jammed.
The power came on when the plastic
card was inserted in the machine.
Remove the plastic card. To prevent the card from
getting jammed again, do not leave the card
inserted in the machine.
The embossed card was inserted in
the Card Slot with the embossed side
down.
Insert the embossed card, embossed side up, into
the Card Slot.
• The plastic card is not inserted
straight.
• The plastic card is not inserted
according to the guidelines.
Insert the plastic card straight according to the
guidelines.
The paper dust has accumulated on
the sensors.
Clean the sensors.
See Related Information:Clean the Sensors.
The plastic card was not
fed.
A document was set on the ADF. Remove the document from the ADF.
See Related Information: Card Jam.
ADF Mode is selected in the Feed
Selector.
Slide the Feed Selector to the Plastic Card Mode
side.
The embossed card was inserted in
the Card Slot with the embossed side
down.
Insert the embossed card, embossed side up, into
the Card Slot.
Cannot scan to a USB
flash drive in Bus Power
Mode.
Scan to USB is not supported when
using Bus Power Mode.
Connect your scanner to an AC power outlet, and
then try to scan.
Cannot Scan to
Workflow from the
machine.
The Scan to Workflow settings are not
configured within Brother iPrint&Scan
(for Windows and Mac).
Configure the settings using Brother iPrint&Scan
(for Windows and Mac).
See Related Information: Configure Scan to
Workflow Settings Using Brother iPrint&Scan.
Software Difficulties
Difficulties
Cause Suggestions
Cannot save the settings
in Remote Setup or Web
Based Management.
The machine is processing. Wait until the machine finishes processing, and
then try again.
The machine is being configured from
the machine’s Control Panel.
Stop configuring the machine from the Control
Panel and use Remote Setup or Web Based
Management instead.
Cannot start Remote
Setup.
The machine is turned off. Turn on the machine, and then try again.
The machine is not connected to your
computer.
Connect the machine to your computer, and then
try again.
An error is occurring. Clear all errors, check the status is Ready on
Remote Setup and then try again.
The machine is scanning. Wait until scanning has finished and try again.
The machine is being configured from
the machine’s Control Panel.
Stop configuring the machine from the Control
Panel.
Because you pressed the button
on the machine before saving the
Remote Setup settings, the machine
went into Sleep Mode.
Access Remote Setup again and save the settings.
A USB flash drive is inserted into the
machine.
Remove the USB flash drive.
155
Difficulties Cause Suggestions
Cannot enter the IP
address and Subnet
Mask.
(ADS-1700W)
"000.000.000.000." has already been
entered.
Press the button to delete the entered
information, and then enter the correct information.
The computer has
detected a USB flash
drive.
A USB flash drive is inserted into the
machine and the computer is
connected to the machine using a
USB cable.
The computer detects the USB flash drive that is
inserted into the machine. Remove the USB flash
drive so that the computer does not detect it.
I want to restrict to
change setting from
Remote Setup.
(ADS-1700W)
- When you set Security Function Lock or Setting
Lock on, Remote Setup cannot start by any user.
I want to prevent users
from changing settings
using Remote Setup.
(ADS-1700W)
- When you turn on the Secure Function Lock or
Setting Lock, the users cannot use Remote Setup.
Other Difficulties
Difficulties
Cause Suggestions
The machine is in Sleep
Mode (power save
mode).
The machine is idle and the amount
of time specified by the Sleep Mode
setting has elapsed.
Do one of the following:
• Press
.
• Press . (ADS-1700W)
• Scan using your computer.
• Open the Front Cover.
• Load your document.
• Touch the screen. (ADS-1700W)
• Insert/disconnect the USB flash drive.
• Insert/disconnect the USB cable from the
machine or PC.
The machine is not
turned on.
The machine was plugged in within
60 seconds after pulling out the plug.
Turn off the machine, wait 60 seconds, and then
turn it on again.
Your computer cannot
find the machine via
USB interface.
The scanner driver is not installed. Install the scanner driver.
Related Information
• If You Are Having Difficulty with Your Machine
• Clean the Scanner and Rollers
• Secure Function Lock 3.0
• Acceptable Documents
• Card Jam
• Clean the Sensors
• Brother iPrint&Scan for Windows and Mac
• Configure Scan to Workflow Settings Using Brother iPrint&Scan
156
Home > Troubleshooting > If You Are Having Difficulty with Your Machine > Network Problems
Network Problems
• If You Cannot Complete the Wireless Network Setup Configuration
• Your Scanner Cannot Be Detected on the Network During Installation
• Your Brother Machine Cannot Scan over the Network
• If You Want to Check that Your Network Devices are Working Correctly
157
Home > Troubleshooting > If You Are Having Difficulty with Your Machine > Network Problems > If You
Cannot Complete the Wireless Network Setup Configuration
If You Cannot Complete the Wireless Network Setup Configuration
Related Models: ADS-1250W/ADS-1700W
Turn your wireless router off and back on. If that does not resolve the problem, try to configure the wireless
settings again. If this still does not resolve the problem, use the Actions listed in this table.
Cause
Action Interface
Your security settings (SSID/
Network Key (Password))
are not correct.
Confirm your security settings.
• The manufacturer’s name or model number of the wireless
access point/router may be used as the default security settings.
• See the instructions supplied with your wireless access point/
router for information on how to find the security settings.
• Ask the manufacturer of your wireless access point/router, your
Internet provider, or your network administrator.
Wireless
Your Brother machine's MAC
address is not allowed.
Confirm that the Brother machine's MAC Address is allowed in the
filter. You can find the MAC address using the Brother machine’s
control panel.
Wireless
Your wireless access point/
router is in stealth mode (not
broadcasting the SSID).
• Enter the correct Network Name (SSID) and Network Key
(Password) manually.
• Check the Network Name (SSID) and Network Key (Password)
in the instructions supplied with your wireless access point/router
and reconfigure the wireless network setup.
Wireless
Your security settings (SSID/
Password) are not correct.
Confirm the Network Name (SSID) and Network Key (Password).
When you are configuring the network manually, the SSID and
password are displayed on your Brother machine. If your mobile
device supports the manual configuration, the SSID and password
will be displayed on your mobile device’s screen.
Wi-Fi Direct
Your Brother machine is
placed too far from your
mobile device.
Move your Brother machine within about 3.3 feet (1 meter) of the
mobile device when you configure the Wi-Fi Direct network settings.
Wi-Fi Direct
There are some obstructions
(walls or furniture, for
example) between your
machine and the mobile
device.
Move your Brother machine to an obstruction-free area. Wi-Fi Direct
There is a wireless
computer, Bluetooth-
supported device,
microwave oven, or digital
cordless phone near the
Brother machine or the
mobile device.
Move other devices away from the Brother machine or the mobile
device.
Wi-Fi Direct
If you have checked and
tried all of the actions, but
still cannot complete the Wi-
Fi Direct configuration.
Turn your Brother machine off and back on. Then try to configure the
Wi-Fi Direct settings again.
Wi-Fi Direct
Your machine is in Sleep
Mode and cannot configure
the network settings on Web
Based Management.
(ADS-1700W)
Turn off the Sleep Mode. Wireless
158
Home > Troubleshooting > If You Are Having Difficulty with Your Machine > Network Problems > Your
Scanner Cannot Be Detected on the Network During Installation
Your Scanner Cannot Be Detected on the Network During Installation
Related Models: ADS-1250W/ADS-1700W
Cause Action
Your computer is not connected to
the network.
Make sure your computer is connected to a network, for example, a Wireless
LAN environment or has Internet access. For further support, contact your
network administrator.
Your machine is not connected to
the network.
• ADS-1250W
If the Wi-Fi light on the Control Panel does not light up, the LEDs will indicate
an error status. Make a note of the error status and then correct the error.
See Related Information:Error and Maintenance Indications.
• ADS-1700W
Press Settings > Network > WLAN > WLAN Status > Status. If the
LCD displays Connection Failed, ask your network administrator whether
your IP address is valid or not.
You use security software.
• In the installer dialog box, search for the Brother machine again.
• Allow access when the alert message of the security software appears during
the Brother Device installation.
• The following port numbers are used for Brother network features:
- Network scanning, Remote Setup
Port number 5566/Protocol TCP
- Network scanning (Brother iPrint&Scan)
Port number 54921/Protocol TCP
- BRAdmin Light
Port number 161/Protocol UDP
• For more information about security software, see Related Information: Your
Brother Machine Cannot Scan over the Network .
You use a Wi-Fi router.
The privacy separator on your Wi-Fi router may be enabled. Disable the privacy
separator.
Your Brother machine is placed
too far from the Wireless access
point/router.
Place your Brother machine within about 3.3 feet (1 meter) of the Wireless
access point/router when you configure the wireless network settings.
There are some obstructions
(walls or furniture, for example)
between your machine and the
Wireless access point/router.
Move your Brother machine to an obstruction-free area, or closer to the Wireless
access point/router.
There is a wireless computer,
Bluetooth-supported device,
microwave oven, or digital
cordless phone near the Brother
machine or the Wireless access
point/router.
Move all the devices away from the Brother machine or Wireless access point/
router.
Related Information
• Network Problems
• Your Brother Machine Cannot Scan over the Network
• If You Want to Check that Your Network Devices are Working Correctly
• Error and Maintenance Indications
160
Home > Troubleshooting > If You Are Having Difficulty with Your Machine > Network Problems > Your
Brother Machine Cannot Scan over the Network
Your Brother Machine Cannot Scan over the Network
Related Models: ADS-1250W/ADS-1700W
Cause Action
You did not select Accept in the
security alert dialog box during
the Brother Device installation,
applications’ start-up process,
or when using the scanning
features.
If you did not select Accept in the security alert dialog box, the firewall function of
your security software may be denying access. Some security software may block
access without showing a security alert dialog box.
To allow access, see your security software instructions or ask the manufacturer.
Your security software blocks
your machine's access to the
network. (The Network
scanning feature does not
work. )
• Windows
Configure the third-party Security/Firewall Software to allow Network scanning.
To add port 54925 for Network scanning, type the information below:
- in Name:
Type any description, for example Brother NetScan.
- in Port number:
Type 54925.
- in Protocol:
UDP is selected.
See the instruction manual that came with your third-party Security/Firewall
Software or contact the software manufacturer.
• Mac
Reinstall the driver.
Your security software blocks
your machine's access to the
network.
The following port numbers are used for Brother network features:
• Network scanning, Remote Setup
Port number 5566/Protocol TCP
• Network scanning (Brother iPrint&Scan)
Port number 54921/Protocol TCP
• BRAdmin Light
Port number 161/Protocol UDP
For information about how to open the port, see the security software instructions or
ask the manufacturer.
Your Brother machine was not
assigned an available IP
address.
Confirm the IP address and the Subnet Mask.
Verify that both the IP addresses and Subnet Masks of your computer and the
Brother machine are correct and located on the same network.
For more information about how to verify the IP address and the Subnet Mask, ask
your network administrator.
You cannot connect the Brother
machine to the network using
wireless capabilities.
• ADS-1250W
If the Wi-Fi light on the Control Panel does not light up, the LEDs will indicate an
error status. Make a note of the error status and then correct the error.
See Related Information:Error and Maintenance Indications.
• ADS-1700W
Press Settings > Network > WLAN > WLAN Status > Status. If the
LCD displays Connection Failed, ask your network administrator whether
your IP address is valid or not.
Because the machine does not
support Kerberos
authentication, Network
scanning cannot be used.
Change the server settings or change the destination folder where your document
will be stored in the Scan to Network Profile from Web Based Management.
161
If you have checked and tried all of the actions, but your Brother machine still cannot scan, uninstall the Brother
software and drivers and reinstall them.
Related Information
• Network Problems
• Your Scanner Cannot Be Detected on the Network During Installation
• If You Want to Check that Your Network Devices are Working Correctly
• Error and Maintenance Indications
162
Home > Troubleshooting > If You Are Having Difficulty with Your Machine > Network Problems > If You
Want to Check that Your Network Devices are Working Correctly
If You Want to Check that Your Network Devices are Working Correctly
Related Models: ADS-1250W/ADS-1700W
Check Action
Check that your Brother
machine, access point/router,
or network hub is turned on.
Check the following:
• The power cord is connected correctly and the Brother machine is turned on.
• The access point/router or hub is turned on and its link button is blinking.
• All protective packaging has been removed from the machine.
• The Front Cover, Separation Pad Cover and Pick-up Roller Cover are completely
closed.
Check your Brother
machine’s network settings,
such as IP address, or the
link status.
• For Web Based Management (supported models only)
Start Web Based Management and access your Brother machine. When the Web
Based Management screen appears, click the Network tab, and then click
Network Status in the left navigation bar.
• ADS-1250W
If the Wi-Fi light on the Control Panel does not light up, the LEDs will indicate an
error status. Make a note of the error status and then correct the error.
See Related Information:Error and Maintenance Indications.
• ADS-1700W
Press Settings > Network > WLAN > WLAN Status > Status. If the LCD
displays Connection Failed, ask your network administrator whether your IP
address is valid or not.
Check that you can "ping" the
Brother machine from your
computer.
Ping the Brother machine from your computer using the IP address or the node name
in the Windows command prompt or Mac Terminal application:
ping <ipaddress> or <nodename>.
• Successful: Your Brother machine is working correctly and connected to the same
network as your computer.
• Unsuccessful: Your Brother machine is not connected to the same network as your
computer.
• Confirm that the IP address and the Subnet Mask are set correctly.
If you have checked and tried all of the actions but you are still having problems, see the instructions supplied
with your wireless access point/router to find the SSID and the Network Key (Password) information and set
them correctly.
Related Information
• Network Problems
• Your Brother Machine Cannot Scan over the Network
• Your Scanner Cannot Be Detected on the Network During Installation
• Error and Maintenance Indications
163
Home > Troubleshooting > Check the Serial Number
Check the Serial Number
>> ADS-1200/ADS-1250W
>> ADS-1700W
ADS-1200/ADS-1250W
1. Do one of the following:
• Windows
Click Brother Utilities on your desktop, and then click the drop-down list and select your model
name (if not already selected). Click Tools in the left navigation bar, and then click Remote Setup.
• Mac
In the Finder menu bar, click Go > Applications > Brother > ADS1200_1250W_1700W, and then
double-click the Remote Setup icon.
When your machine is connected via a Network, type the password if required.
2. Click the Machine Info menu in the left navigation pane.
The window displays the Serial No. (the example below uses Windows).
ADS-1700W
1. Press [Settings] > [Machine Info.] > [Serial No.].
The touchscreen displays [Serial No.].
164
Home > Troubleshooting > Reset Your Brother Machine
Reset Your Brother Machine
The following reset functions are available:
• Network （ADS-1250W）
Open the Front Cover, press and hold
and for five seconds.
• Network (ADS-1700W)
Use Network reset if you want to restore the network settings, such as the password and IP address
information, to the default factory settings.
• Address Book (ADS-1700W)
You can reset the Address Book and delete all existing contact information.
Unplug the interface cable before you perform a Network reset.
>> ADS-1200/ADS-1250W
>> ADS-1700W
ADS-1200/ADS-1250W
1. Do one of the following:
• Windows
Click Brother Utilities on your desktop, and then click the drop-down list and select your model
name (if not already selected). Click Tools in the left navigation bar, and then click Remote Setup.
• Mac
In the Finder menu bar, click Go > Applications > Brother > ADS1200_1250W_1700W, and then
double-click the Remote Setup icon.
When your machine is connected via a Network, type the password if required.
2. Click the Machine Info menu in the left navigation pane.
3. Click the Reset button in Factory Reset.
4. Click OK to close the Remote Setup window.
ADS-1700W
1. Press [Settings] > [Initial Setup] > [Reset].
2. Press the reset option you want to use.
3. Press [OK] for two seconds to restart the machine.
Related Information
• Troubleshooting
166
Home > Troubleshooting > Reset the Usage Counters
Reset the Usage Counters
After replacing any machine parts, reset the usage counter so that you can start counting from 0.
>> ADS-1200/ADS-1250W
>> ADS-1700W
ADS-1200/ADS-1250W
1. Do one of the following:
• Windows
Click
Brother Utilities on your desktop, and then click the drop-down list and select your model
name (if not already selected). Click Tools in the left navigation bar, and then click Remote Setup.
• Mac
In the Finder menu bar, click Go > Applications > Brother > ADS1200_1250W_1700W, and then
double-click the Remote Setup icon.
When your machine is connected via a Network, type the password if required.
2. Click the Machine Info menu in the left navigation pane.
3. In the Remaining Life section, under Pickup Roller and Separation Pad, click the Reset button.
4. Click OK to close the Remote Setup window.
ADS-1700W
1. Press [Settings] > [Machine Info.] > [Usage Counters].
2. To reset the Roller Counter, press [Pickup Roller Count].
3. To reset the Separation Pad Counter, press [Separation Pad Count].
4. When the touchscreen displays a confirmation message, press [Yes].
5. Press
.
Related Information
• Troubleshooting
• Error and Maintenance Indications
167
Home > Routine Maintenance > Clean Your Brother Machine > Clean the Outside of the Machine
Clean the Outside of the Machine
1. Turn off and unplug the machine from the AC power outlet.
2. Wipe the Top Cover and the Control Panel with a dry, soft, lint-free cloth to remove dust.
Related Information
• Clean Your Brother Machine
170
Home > Routine Maintenance > Clean Your Brother Machine > Clean the Scanner and Rollers
Clean the Scanner and Rollers
A spot of dirt or correction fluid on the glass strip may cause poor quality scans. Clean the scanner and rollers if
a vertical line appears in the scanned data or if areas are missing in the scanned data.
1. Turn off and unplug the machine from the AC power outlet.
2. Open the Top Cover (1) and the Front Cover (2).
1
2
3. In the document feeder unit, clean the glass strips (1) (2) with a soft lint-free cloth moistened with water.
1
2
Be careful when touching the Separation Pad and its surrounding area in the machine. Otherwise, you
could cause serious damage to the machine.
4. Pinch the Pick Up Roller Cover (1) and then pull the cover up and remove.
171
1
5. Slide the Pick Up Roller(1) to the right edge.
1
6. Pinch and pull the Pick Up Roller out of the machine.
7. Clean the Pick Up Roller with a soft, lint-free cloth slightly moistened with water.
8. Place the Pick Up Roller into the machine.
Confirm the left and right sides of the Pick Up Roller before attaching it.
9. Slide the Pick Up Roller(1) to the left edge while turning the Pick Up Roller.
172
1
10. Close the Pick Up Roller Cover.
11. Close the Front Cover and the Top Cover.
(ADS-1700W)
When [Scheduled Maintenance Alert] appears on the machine’s LCD, you must clean the machine
promptly. If you do not, document jams and paper feed problems may occur.
First, run your fingertip over the glass to see if you feel anything (dirt or debris). Clean the glass strips with
a lint-free cloth. You may have to repeat the cleaning process three or four times. To test, scan a document
after each cleaning attempt.
When there is a spot of dirt or
correction fluid on the glass strip,
the scanned sample shows a
vertical line.
After the glass strip is cleaned, the
vertical line is gone.
Related Information
• Clean Your Brother Machine
• Error and Maintenance Indications
• Document Jam
• Scanning and Other Problems
173
Home > Routine Maintenance > Clean Your Brother Machine > Clean the Sensors
Clean the Sensors
1. Turn off and unplug the machine from the AC power outlet.
2. Open the Top Cover (1) and the Front Cover (2).
1
2
3. Wipe off the paper dust accumulated on the Document Scanning Position Sensor (1) with a soft lint-free cloth
moistened with water.
1
4. Wipe off the paper dust accumulated on the Card Sensor (1) with a soft lint-free cloth moistened with water.
1
5. Close the Front Cover and the Top Cover.
Related Information
• Clean Your Brother Machine
• Error and Maintenance Indications
174
Home > Routine Maintenance > Replace Supplies > Supplies
Supplies
No. Part Name Part No. Standard Replacement
Cycle
1 Separation Pad SP-2001C 10,000 sheets
2 Pick Up Roller PUR-2001C 100,000 sheets
The Standard Replacement Cycle may vary depending on the usage environment, type of documents, and
how often documents are scanned.
These parts are available through Brother retailers. If you cannot find the part you need and you have a Visa,
MasterCard, Discover, or American Express credit card, you can order parts directly from Brother. Visit us online
for a complete selection of the Brother parts and supplies that are available for purchase.
In USA:
1-877-552-MALL (1-877-552-6255)
1-800-947-1445 (assistance via fax)
www.brothermall.com
Related Information
• Replace Supplies
176
Home > Routine Maintenance > Replace Supplies > Check Supplies Replacement Cycle
Check Supplies Replacement Cycle
>> ADS-1200/ADS-1250W
>> ADS-1700W
ADS-1200/ADS-1250W
1. Do one of the following:
• Windows
Click Brother Utilities on your desktop, and then click the drop-down list and select your model
name (if not already selected). Click Tools in the left navigation bar, and then click Remote Setup.
• Mac
In the Finder menu bar, click Go > Applications > Brother > ADS1200_1250W_1700W, and then
double-click the Remote Setup icon.
When your machine is connected via a Network, type the password if required.
2. Click the Machine Info menu in the left navigation pane.
The window displays the remaining life of the Pick Up Roller and the Separation Pad (the example below
uses Windows).
ADS-1700W
1. Press [Settings] > [Machine Info.] > [Usage Counters].
The touchscreen displays [Pickup Roller Count].
177
Home > Routine Maintenance > Replace Supplies > Replace the Pick Up Roller
Replace the Pick Up Roller
Your machine is equipped with a scan counter that automatically counts how many times the machine has
scanned. After approximately 100,000 scans, you may have to replace the Pick Up Roller.
1. Open the Top Cover (1) and the Front Cover (2).
1
2
2. Pinch the Pick Up Roller Cover (1) and then pull the cover up and remove.
1
3. Slide the Pick Up Roller(1) to the right edge.
1
4. Pinch and pull the Pick Up Roller out of the machine.
5. Place a new Pick Up Roller into the machine.
179
Confirm the left and right sides of the Pick Up Roller before attaching it.
6. Slide the Pick Up Roller(1) to the left edge while turning the Pick Up Roller.
1
7. Close the Pick Up Roller Cover.
8. Close the Front Cover.
9. Reset the Pick Up Roller Counter. See Related Information:Reset the Usage Counters.
Confirm the following:
• The Pick Up Roller Count value is 0.
Related Information
• Replace Supplies
• Reset the Usage Counters
180
Home > Routine Maintenance > Replace Supplies > Replace the Separation Pad
Replace the Separation Pad
Your machine is equipped with a scan counter that automatically counts how many times the machine has
scanned. After approximately 10,000 scans, you may have to replace the Separation Pad.
1. Open the Top Cover (1) and the Front Cover (2).
1
2
2. Pinch and pull the Separation Pad upward.
Be careful when touching the Separation Pad and its surrounding area in the machine. Otherwise, you
could cause serious damage to the machine.
3. Attach a new Separation Pad.
181
Home > Routine Maintenance > Pack and Ship Your Brother Machine
Pack and Ship Your Brother Machine
When you transport the machine, use the packing materials that came with your machine. If you do not pack the
machine correctly, any damage that may occur in transit may not be covered by your warranty.
The machine should be adequately insured with the carrier.
1. Fold the Paper Guides (1), Document Support Arms (2) and then close the Top Cover (3) gently.
2
1
3
1
2. Wrap the machine in the original bag.
3. Pack the machine and the printed materials in the original carton with the original packing material as shown.
183
Home > Machine Settings > Change Machine Settings from the Control Panel > In the Event of Power
Failure (Memory Storage)
In the Event of Power Failure (Memory Storage)
Related Models: ADS-1700W
• Your menu settings are stored permanently and, in the event of a power failure, will not be lost.
• Temporary settings will be lost.
• During a power failure, the machine will keep the date and time for approximately 24 hours.
Related Information
• Change Machine Settings from the Control Panel
187
Home > Machine Settings > Change Machine Settings from the Control Panel > Change the General
Settings from the Control Panel
Change the General Settings from the Control Panel
Related Models: ADS-1700W
Purpose Operation Description
Adjust the LCD Backlight Brightness
Settings > General Setup >
LCD Settings > Backlight
Adjust the brightness of the
touchscreen backlight.
Change How Long the LCD Backlight
Stays On
Settings > General Setup >
LCD Settings > Dim Timer
Set how long the touchscreen
backlight stays on after the Home
Screen appears.
Set the Home Screen
Settings > General Setup >
Screen Settings > Home Screen
Set the Home screen to either Scan
1-2 or Shortcut 1-5.
When the machine is idle or you
press
, the touchscreen will return
to the screen you have set.
Set Sleep Mode Countdown
Settings > General Setup >
Ecology > Sleep Time
Select how long the machine must be
idle before it goes into Sleep Mode.
The Sleep Mode setting can reduce
power consumption. When the
machine is in Sleep Mode, it acts as
though it is turned off.
The timer will restart if any operation
is carried out on the machine.
The machine will not enter
Sleep Mode in the following
situations:
• A USB flash drive is
inserted into the machine.
• A machine error has
occurred.
Set the Machine to Power Off
Automatically
Settings > General Setup >
Ecology > Auto Power off
Select how long the machine must
wait before it automatically turns itself
off after entering Sleep Mode. The
Auto Power Off feature can save
power consumption. When this
feature is set to Off, you must power
off the machine manually. To turn on
the machine after the Auto Power Off
feature has turned it Off, press .
The timer will restart if you do one of
the following:
• Press .
• Press any buttons.
188
Purpose Operation Description
Auto Power Off will be
activated when all of these
conditions are met:
• Auto Power Off setting is
not set to Off.
• The machine has been in
Sleep Mode for more than
the preset period.
Turn the Auto Start Scan Mode On
Settings > General Setup >
Auto Start Scan Mode > On
Scanning starts automatically using
the settings saved as the auto scan
shortcut (Shortcut 21) when you place
a document in the ADF. It is not
necessary to press the Scan Button.
The auto scan shortcut can be
registered from Shortcuts, which is
used to register the regular shortcuts.
Turn the wireless network connection
On
Settings > Network > WLAN >
WLAN Enable
Turn the wireless network connection
On or Off.
Change the Language Displayed on
the LCD
Settings > Initial Setup >
Local Language
Change your LCD language.
Change for Daylight Saving Time
Automatically
Settings > Initial Setup >
Date & Time > Auto Daylight
Set the machine to change
automatically for Daylight Saving
Time. It will reset itself forward one
hour in the spring and backward one
hour in the fall. Make sure you have
set the correct date and time in the
Date and Time setting.
Related Information
• Change Machine Settings from the Control Panel
189
Home > Machine Settings > Change Machine Settings from the Control Panel > Save Your Favorite
Settings as a Shortcut > Add Shortcuts
Add Shortcuts
Related Models: ADS-1700W
Use the Shortcuts feature to create Shortcuts for frequently-used operations, such as Scan to USB, Scan to
Email Server, Scan to Network and Scan to FTP/SFTP. You can recall and apply these settings as and when
required.
These instructions describe how to add a Scan to USB Shortcut. The steps for adding other Scan Shortcuts are
very similar.
To add a shortcut for Scan to FTP/SFTP or Scan to Network, you must have added the profile name
beforehand.
1. Press ([Shortcuts]) .
2. Press d or c to display the Shortcut screens.
3. Press
to add a new Shortcut.
4. Press a or b to display the [to USB] menu.
5. Press [to USB].
6. Press [Options].
7. Press a or b to display the available settings, and then press the setting you want to change.
8. Press a or b to display the available options for the setting, and then press the options you want.
Repeat these steps to add additional Shortcuts. When finished, press [OK].
9. Press [Save as Shortcut].
10. Read and confirm the displayed list of settings you have selected. Press [OK].
11. Enter a name for the Shortcut. Press [OK].
You will be asked if you want to make this a One Touch Shortcut. Follow the LCD instructions.
Related Information
• Save Your Favorite Settings as a Shortcut
191
Home > Machine Settings > Change Machine Settings from the Control Panel > Save Your Favorite
Settings as a Shortcut > Change or Delete Shortcuts
Change or Delete Shortcuts
Related Models: ADS-1700W
1. Press [Settings] > [Shortcut Settings], and select the Shortcut you want to change.
2. Press [Edit].
To delete the Shortcut, press [Delete]. To edit the name of the Shortcut, press [Rename] and follow the
LCD.
3. Change the settings for the Shortcut you selected.
4. When finished, press [Save as Shortcut].
5. Press [OK] to confirm.
Related Information
• Save Your Favorite Settings as a Shortcut
192
Home > Machine Settings > Change Machine Settings from Your Computer > Change Machine Settings
Using Web Based Management > What is Web Based Management?
What is Web Based Management?
Related Models: ADS-1700W
Web Based Management is a utility that uses a standard web browser to manage your machine using the Hyper
Text Transfer Protocol (HTTP) or Hyper Text Transfer Protocol over Secure Socket Layer (HTTPS).
• We recommend using Microsoft Internet Explorer 8/10/11 for Windows or Safari 8.0 for Mac. Make sure
that JavaScript and Cookies are always enabled in whichever browser you use.
• You must use the TCP/IP protocol on your network and have a valid IP address registered to the scan
server and your computer.
• Your screen may differ slightly from the screen shown.
Related Information
• Change Machine Settings Using Web Based Management
195
Home > Machine Settings > Change Machine Settings from Your Computer > Change Machine Settings
Using Web Based Management > Access Web Based Management
Access Web Based Management
Related Models: ADS-1700W
• We recommend using the HTTPS security protocol when configuring settings using Web Based
Management.
• When you use HTTPS for Web Based Management configuration, your browser will display a warning
dialog box. To avoid displaying the warning dialog box, you can install a self-signed certificate to use
SSL/TLS communication. For more detailed information, see Related Information.
• The default login password to manage machine settings is initpass. We recommend you change it to
protect your machine from unauthorized access.
1. Start your web browser.
2. Type "https://machine's IP address" in your browser's address bar (where "machine's IP address" is the
machine's IP address).
For example:
https://192.168.1.2
If the machine prompts you for a password, type it, and then click
.
You can now change your machine settings.
IMPORTANT
If you change the protocol settings, you must restart the machine after clicking Submit to activate the new
configuration.
Related Information
• Change Machine Settings Using Web Based Management
• Certificates and Web Based Management
• Create a Self-signed Certificate
• Install the Self-signed Certificate for Windows users with Administrator Rights
196
Home > Machine Settings > Change Machine Settings from Your Computer > Change Machine Settings
Using Web Based Management > Set a Login Password for Web Based Management
Set a Login Password for Web Based Management
Related Models: ADS-1700W
We recommend setting a login password to prevent unauthorized access to Web Based Management.
1. Start your web browser.
2. Type "https://machine's IP address" in your browser's address bar (where "machine's IP address" is the
machine's IP address).
For example:
https://192.168.1.2
3. Do one of the following:
• If you have previously set your own password, type it, and then click
.
• If you have not previously set your own password, type initpass, and then click
.
4. Click Administrator.
5. Type the password you want to use in the Enter New Password field (8 to 32 characters).
6. Retype the password in the Confirm New Password field.
7. Click Submit.
In the future, every time you access Web Based Management, type the password in the Login field, and then
click
.
8. After configuring the settings, click to log off.
You can also set a password by clicking the Please configure the password button on the machine's web
page (if you have not previously set a login password).
Related Information
• Change Machine Settings Using Web Based Management
197
Home > Machine Settings > Change Machine Settings from Your Computer > Change the Machine Settings
Using Remote Setup
Change the Machine Settings Using Remote Setup
The Remote Setup program lets you configure many of your Brother machine's settings from your computer.
When you start Remote Setup, the settings on your Brother machine will be downloaded to your computer and
displayed on your screen. If you change the settings on your computer, you can upload them directly to the
machine.
• Remote Setup (Windows)
• Remote Setup (Mac)
198
Home > Machine Settings > Change Machine Settings from Your Computer > Change the Machine Settings
Using Remote Setup > Remote Setup (Windows) > Set Up the Brother Machine Using Remote Setup
(Windows)
Set Up the Brother Machine Using Remote Setup (Windows)
1. Click Brother Utilities on your desktop, and then click the drop-down list and select your model name (if
not already selected). Click Tools in the left navigation bar, and then click Remote Setup.
When your machine is connected via a Network, type the password if required.
2. Configure the settings as needed.
• Your screen may differ from the screen shown.
• (ADS-1250W) When the machine and computer are connected wirelessly, select Scan to PC in the
navigation tree and configure scan settings to enable scanning from Scan to PC button on the machine.
Export
Click to save the current configuration settings to a file.
Import
Click to read the settings from a file.
OK
Click to start uploading data to the machine, and then exit the Remote Setup Program. If an error message
appears, confirm that your data is correct, and then click OK.
Cancel
Click to exit the Remote Setup Program without uploading data to the machine.
200
Apply
Click to upload data to the machine without exiting the Remote Setup Program.
3. Click OK.
• If your computer is protected by a firewall and is unable to use Remote Setup, you may need to configure the
firewall settings to allow communication through port numbers 52515-52614.
• If using Windows Firewall and you installed the scanner driver, the necessary firewall settings have already
been set.
Related Information
• Remote Setup (Windows)
201
Home > Machine Settings > Change Machine Settings from Your Computer > Change the Machine Settings
Using Remote Setup > Remote Setup (Windows) > Change the General Settings Using Remote Setup
Change the General Settings Using Remote Setup
Purpose Operation (Windows/Mac) Description
Set the Date and Time General Setup > Date and Time Set the date and time. If you set Auto
Daylight to On, the time will be
adjusted forward one hour in the
spring and adjusted backward one
hour in the fall.
Set Sleep Mode Countdown General Setup > Sleep Time Select how long the machine must be
idle before it goes into Sleep Mode.
The Sleep Mode setting can reduce
power consumption. When the
machine is in Sleep Mode, it acts as
though it is turned off.
• The timer will restart if any
operation is carried out on the
machine.
• The default setting is ten minutes.
Change the Language
General Setup > Local Language Change your language.
Related Information
• Remote Setup (Windows)
• Remote Setup (Mac)
202
Home > Machine Settings > Change Machine Settings from Your Computer > Change the Machine Settings
Using Remote Setup > Remote Setup (Mac) > Set Up the Brother Machine Using Remote Setup (Mac)
Set Up the Brother Machine Using Remote Setup (Mac)
1. In the Finder menu bar, click Go > Applications > Brother > ADS1200_1250W_1700W, and then double-
click the Remote Setup icon.
When your machine is connected via a Network, type the password if required.
2. Select your model name in the Discover Devices dialog box, and then click Connect.
The Remote Setup Program window appears.
When your machine is connected via a Network, type the password if required.
3. Configure the settings as needed.
• Your screen may differ from the screen shown.
• (ADS-1250W) When the machine and computer are connected wirelessly, select Scan to PC in the
navigation tree and configure scan settings to enable scanning from Scan to PC button on the machine.
Export
Click to save the current configuration settings to a file.
Import
Click to import a file and read its settings.
OK
Click to start uploading data to the machine, and then exit the Remote Setup Program. If an error message
appears, enter the correct data again, and then click OK.
204
Home > Machine Settings > Change Machine Settings from Your Computer > Change the Machine Settings
Using Remote Setup > Remote Setup (Mac) > Change the General Settings Using Remote Setup
Change the General Settings Using Remote Setup
Purpose Operation (Windows/Mac) Description
Set the Date and Time General Setup > Date and Time Set the date and time. If you set Auto
Daylight to On, the time will be
adjusted forward one hour in the
spring and adjusted backward one
hour in the fall.
Set Sleep Mode Countdown General Setup > Sleep Time Select how long the machine must be
idle before it goes into Sleep Mode.
The Sleep Mode setting can reduce
power consumption. When the
machine is in Sleep Mode, it acts as
though it is turned off.
• The timer will restart if any
operation is carried out on the
machine.
• The default setting is ten minutes.
Change the Language
General Setup > Local Language Change your language.
Related Information
• Remote Setup (Windows)
• Remote Setup (Mac)
206
Home > Appendix > Specifications
Specifications
General Specifications
Memory Capacity Standard ADS-1200: 256 MB
ADS-1250W/ADS-1700W: 512 MB
Power Source 100 - 120 V AC 50/60 Hz
220 - 240 V AC 50/60 Hz
Touchscreen LCD (Liquid Crystal Display)
1
(ADS-1700W)
Touchscreen 2.8 in. (71.1 mm) TFT Color LCD
Approx. Power Consumption
2
Scanning
3
ADS-1200: 8 W
ADS-1250W: 9 W
ADS-1700W: 9 W
Ready
4
ADS-1200: 3.2 W
ADS-1250W: 4.2 W
ADS-1700W: 4.5 W
Sleep ADS-1200: 1.3 W
ADS-1250W: 1.4 W
ADS-1700W: 1.6 W
Power Down ADS-1200: 0.1 W
ADS-1250W: 0.1 W
ADS-1700W: 0.1 W
208
Dimensions
3.28 in.
(83 mm)
11.81 in.
(300 mm)
4.06 in.
(103 mm)
8.15 in.
(207.1 mm)
11.81 in.
(300 mm)
8.16 in.
(207.2 mm)
Approx. Weights ADS-1200: 3 lb (1.36 kg)
ADS-1250W: 3.02 lb (1.37 kg)
ADS-1700W: 3.11 lb (1.41 kg)
Temperature Operating 41 °F to 95 °F (5 °C to 35 °C)
Storage 32 °F to 104 °F (0 °C to 40 °C)
Humidity Operating 20% to 80%
Storage 10% to 90%
ADF (Automatic Document Feeder) Up to 20 pages
(Paper: 20 lb (80 g/㎡) Legal size, or less than 0.2 in. (5 mm))
1
Measured diagonally.
2
Measured when the machine is connected to your computer.
3
When using 2-sided (duplex) scanning.
4
When the USB port is connected.
Document Specifications
Paper Type
Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Business Card,
Plastic Card
Document Size Width 2 in. to 8.5 in. (51 mm to 215.9 mm)
Length Single Paper: 2 in. to 34 in. (51 mm to 863 mm)
209
Document Size Multiple Paper: 2.76 in. to 11.7 in. (70 mm to 297 mm)
Scanner Specifications
Color/Black Yes/Yes
TWAIN Compliant Windows Windows 7 (SP1) / Windows 8 / Windows 8.1 / Windows 10
Windows Server 2008 R2 (SP1) / Windows Server 2012 / Windows Server 2012
R2 / Windows Server 2016
Mac
macOS v10.11.6 / 10.12.x / 10.13.x
1
WIA Compliant Windows Windows 7 (SP1) / Windows 8 / Windows 8.1 / Windows 10
ICA Compliant Mac
macOS v10.11.6 / 10.12.x / 10.13.x
1
Color Depth Input 48 bit color processing
Output 24 bit color processing
Resolution Interpolated Up to 1200 x 1200 dpi
Optical Up to 600 x 600 dpi
Scanning Width Up to 8.5 in. (215.9 mm)
Gray Scale 256 levels
Max. Speed For detailed specifications, visit www.brother.com.
1
For the latest driver updates for the version of macOS you are using, visit support.brother.com.
Direct Scan Feature (Scan to USB) Specifications
Compatible Media
USB flash drive
1
Interface Interface USB 2.0 Hi Speed
1
USB Mass Storage standard up to 128 GB
Supported formats: FAT12/FAT16/FAT32/exFAT
Interface Specifications
USB
USB 3.0
1
Use a USB 3.0 cable (Standard A/Micro B) or USB 2.0 interface cable (Standard A/Micro B)
2
that is no more than 6 feet (2.0 meters) long.
Wireless LAN
(ADS-1250W/
ADS-1700W)
IEEE 802.11b/g/n (Infrastructure Mode)
IEEE 802.11g (Wi-Fi Direct or Wireless Direct)
1
Your machine has a USB 3.0 interface. The machine can also be connected to a computer that has a USB 1.0/1.1/2.0 interface.
Third-party USB ports are not supported.
2
Use of a USB 3.0 (Micro) cable connected to a USB 3.0 port on your computer is recommended to scan in Bus Power Mode (ADS-1200/
ADS-1250W).
Network Specifications (ADS-1250W/ADS-1700W)
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
Setup Support Utility WPS (ADS-1700W)
WLAN Assistant
210
Supported Protocols and Security Features (ADS-1250W/ADS-1700W)
Protocol (IPv4) ADS-1250W: DHCP, APIPA (Auto IP), WINS/NetBIOS name resolution, DNS Resolver,
mDNS, SNMPv1/v2c, ICMP, Web Services (Scan)
ADS-1700W: DHCP, APIPA (Auto IP), WINS/NetBIOS name resolution, DNS Resolver,
mDNS, LLMNR responder, SMTP Client, FTP Client, CIFS Client, SNMPv1/v2c/v3, HTTP/
HTTPS server, ICMP, SNTP Client, Web Services (Scan)
Protocol (IPv6)
(ADS-1700W)
RA, DNS Resolver, mDNS, LLMNR responder, SMTP Client, FTP Client, CIFS Client, HTTP/
HTTPS server, ICMP, SNTP Client, Web Services (Scan)
Network Security
(Wireless)
SMTP-AUTH, SSL/TLS (HTTPS/SMTP), SNMP v3, SSH
Network Security
(Email)
SMTP-AUTH, SSL/TLS (SMTP)
Wireless
Certification
ADS-1250W: Wi-Fi Certification Mark License (WPA
™
/WPA2
™
- Personal)
ADS-1700W: Wi-Fi Certification Mark License (WPA
™
/WPA2
™
- Personal), Wi-Fi Protected
Setup
™
(WPS) Identifier Mark License, Wi-Fi CERTIFIED Wi-Fi Direct
®
Computer Requirements Specifications
Computer Platform &
Operating System Version
Supported PC
Software
Functions
PC Interface Processor Minimum
Speed
Hard Disk Space to
Install
For Drivers For
Applicatio
ns
Windows
Operating
System
1 2
Windows 7
(SP1)
Scanning USB
(ADS-1200)
USB/Wireless
802.11b/g/n
(ADS-1250W/
ADS-1700W)
32bit (x86) or 64bit
(x64) processor
70 MB Drivers,
Installer
and
Software:
700 MB
RemoteSet
up:
15 MB
iPrint&Sca
n for
Windows:
550 MB
PaperPort:
300 MB
PowerPDF:
700 MB
Windows 8
Windows 8.1
Windows 10
Windows
Server 2008
R2
64bit (x64) processor 70 MB
Windows
Server 2012
Windows
Server 2012
R2
Windows
Server 2016
Mac Operating
System
macOS
v10.11.6
Intel
®
Processor
30 MB Drivers and
Software:
600 MB
RemoteSet
up:
50 MB
iPrint&Sca
n for
macOS:
490 MB
macOS
v10.12.x
macOS
v10.13.x
1
PaperPort
™
14SE supports Windows 7, Windows 8, Windows 8.1 and Windows 10.
2
Power PDF supports Windows 7 SP1, Windows 8, Windows 8.1 and Windows 10.
For the latest driver updates, visit support.brother.com. All trademarks, brand and product names are property of their respective
companies.
211
Home > Appendix > Enter Text on Your Brother Machine
Enter Text on Your Brother Machine
Related Models: ADS-1700W
When you must enter text on your Brother machine, a keyboard appears on the touchscreen.
• The characters that are available may differ depending on your country.
• The keyboard layout may differ depending on the function you are setting.
Q
Network Key
W
A
.
Z X C V B N M @
OK
E R T Y U I O P
LKJHGFDS
• Press to select letters, numbers and special characters.
• Press to select lowercase and uppercase letters.
Inserting spaces
• To enter a space, press
.
Making corrections
• If you entered an incorrect character and want to change it, press
, and then enter the correct character.
Related Information
• Appendix
213
