BOX WALL COOKER HOOD
HC60BCXB2, HC90BCXB2
& HC120BCXB2 models
1
CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to
our website www.fisherpaykel.com or
contact your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
www.fisherpaykel.com
Introduction 3
Safety and warnings 4
Installation instructions 7
About your cooker hood – Energy efficiency 17
Operating instructions 18
Cleaning and maintenance 19
Parts and accessories 21
Manufacturer’s Warranty 22
Customer Care 23
3
INTRODUCTION
Thank you for purchasing a Fisher & Paykel product.
Thousands of hours go into the design, engineering, testing and perfecting of each
Fisher & Paykel appliance. The care and attention given to creating these beautiful
products doesn’t stop once it has found its home with you.
This use and care manual will answer most of your questions about the set-up, use and
on-going maintenance of your Fisher & Paykel product; however if you require further
information about your product and its use please consult our website for solutions
and further contact information to discuss with a service representative.
To ensure you receive all relevant product updates and the best service possible,
please register your Fisher & Paykel products through our website.
5

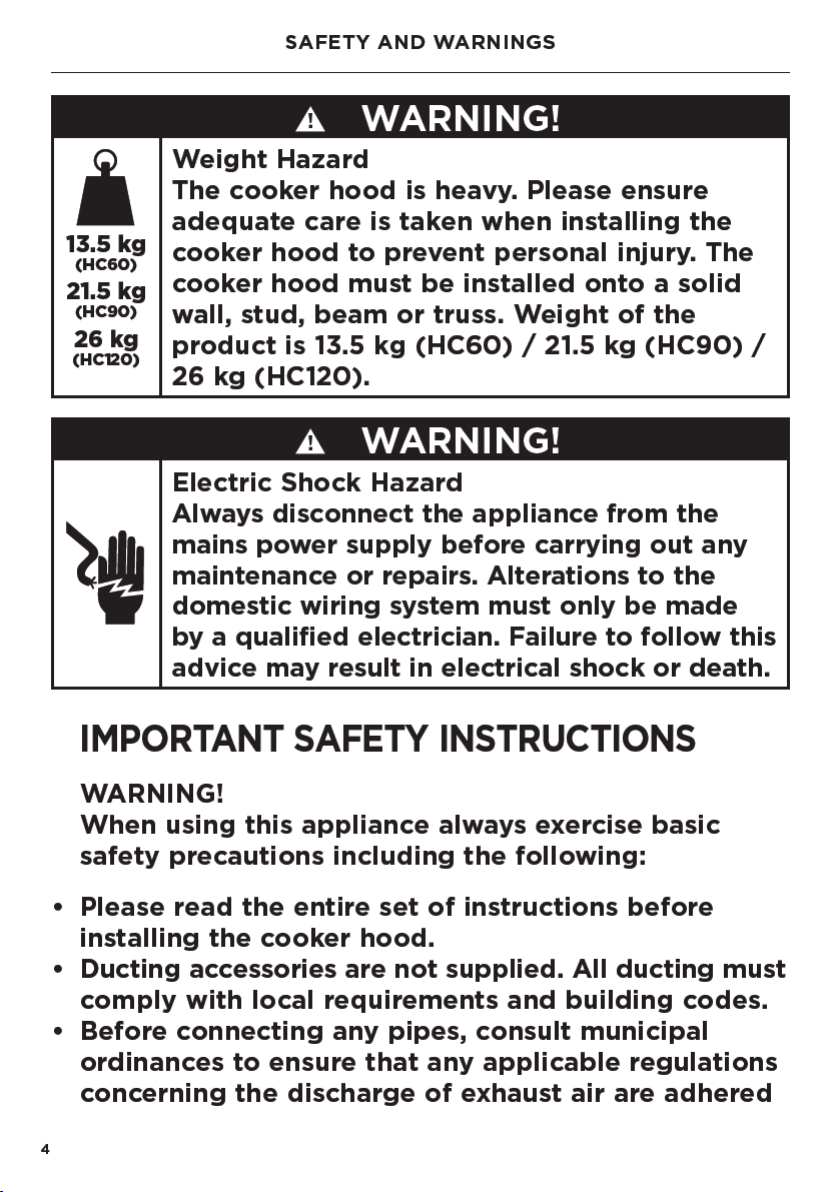

SAFETY AND WARNINGS
to and request permission from the person in
charge of the building.
• Exhaust air must not be discharged into a flue
that is used for exhausting fumes from appliances
burning gas or other fuels.
• There shall be adequate ventilation of the room
when the cooker hood is used at the same time
asappliances burning gas or other fuels.
• The minimum distance between the supporting
surface for cooking vessels on the hob and the
lowest part of the cooker hood shall be 600mm,
or 650mm if installed over a gas hob.
• Stainless steel is very easily damaged during
installation if abraded or knocked by tools. It is
recommended to protect the top of the cooker hood
with cardboard or polystyrene during the installation
to minimise the risk of damage occurring.
• To reduce the risk of damage occurring to the hob,
it is recommended that the surface of the hob is
protected with cardboard or a similar object during
installation of the cooker hood.
• Attention should be given to ensure that any
applicable regulations concerning the discharge
ofexhaust air are fulfilled.
• To comply with electrical safety regulations, the
cooker hood must be plugged into a socket near
the appliance. The socket must be accessible, or
have an accessible isolating switch, to enable the
end user to isolate the cooker hood from the power
for the purpose of internal cleaning or maintenance.
• A power outlet should be within 750mm of the
motor assembly and can be either on the wall,
behind the chimney or in the ceiling.
6
SAFETY AND WARNINGS
• Always switch the power off prior to installation,
servicing or cleaning the cooker hood.
• If the supply cord of this equipment is damaged
it must only be replaced by the manufacturer, its
service agent or similarly qualified person in order
toavoid a hazard.
• This appliance can be used by children aged from
8years or above and persons with reduced physical,
sensory or metal capabilities or lack of experience
or knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
• You must read the details concerning the method and
frequency of cleaning.
• There is a fire risk if cleaning is not carried out in
accordance with the instructions.
• Never leave frying food unattended since grease
can overheat and catch fire. The risk of fire is even
greater in the case of used oil.
• Do not flambé under the cooker hood.
• Never use the cooker hood without the filters in place.
• During climatic conditions causing electrical
interference, it is possible that the device may stop
working. By switching the device off and on the
device will resume normal operation safety.
• During an electrostatic discharge (ESD) it is possible
that the device will stop working. By switching the
device off and on the device will again work as
intended. There will be no risk of hazard presenting
in the product.
• CAUTION: Accessible parts may become hot when
used with cooking appliances.
8
INSTALLATION INSTRUCTIONS
Product dimensions
G
F
B
A
max
A
min
E D
K
L
C
I
H
Power cord location
Ø
J
9
INSTALLATION INSTRUCTIONS
HC60BCXB2 HC90BCXB2 HC120BCXB2
PRODUCT DIMENSIONS mm
A
Overall height of product 595 – 1035 595 – 1035 595 – 1035
B
Overall width of product 598 898 1198
C
Overall depth of product 500 500 500
D
Height of hood 55 55 55
E
Height of stainless strip 27 27 27
F
Width of flue 320 320 320
G
Depth of flue 290 290 290
H
Distance from centre of ducting
outlet to back of product
105 105 105
I
Distance from centre of ducting
outlet to side of flue
160 160 160
J
Diameter of ducting outlet 150 150 150
K
Distance between centre of lights 230 230 230
L
Distance from centre of lights to
back of product
45 45 45
Length of power cord 1500 1500 1500
IMPORTANT!
Actual product dimensions may vary by ± 2mm.
10
INSTALLATION INSTRUCTIONS
Height of cooker hood
N
M
INSTALLATION DIMENSIONS mm
M
Installation height
Ducted
Recirculation
min. 635 – max. 1035
min. 675 – max. 1035
N
Height top of hob to base of product
Electric hob
Gas hob
min. 600 – max. 750
min. 650 – max. 750
11
INSTALLATION INSTRUCTIONS
Venting options
Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air are fulfilled.
The cooker hood can be installed to operate with the exhaust air ducted externally from
the kitchen, or installed to operate with the exhaust air recirculating within the kitchen.
Ducted
For ducted installation it is recommended that 150mm diameter, rigid or semi-rigid
ducting is used. This will require a 160mm (min) round hole in the ceiling or wall.
Careshould be taken to position the hole correctly.
For optimal efficiency, use rigid or semi-rigid ducting for reduced noise and increased
airflow. Flexible ducting should only be used as a last resort (ie in difficult installations)
and if used, ensure that it is pulled tight.
Recirculating
To enable the product to operate with the air recirculating, please purchase a
recirculation diverter and carbon filters (refer to the ‘Parts and accessories’ section).
Therecirculation diverter is required to channel the air out the side vents at the top
ofthe flue and the carbon filters are required to remove odours.
Note: a ducting hole is not required in the wall or ceiling if the cooker hood is
installed to operate with exhaust air recirculating.
13
INSTALLATION INSTRUCTIONS
Fig.2
250 mm
20 mm
A
B
250 mm
235 mm
C
D
Upper chimney extension
bracket attachment points
Chimney bracket
attachment points
Upper hood
attachment points
Lower hood
attachment points
HC60BCXB2 HC90BCXB2 HC120BCXB2
mm
A
420 580 900
B
559 559 556
C
286 286 288
D
36 36 42.5
14
INSTALLATION INSTRUCTIONS
Fig.3
3
Attach ducting adapter
●
Place the ducting adapter
onto the hood and screw it in
place using the 10mm screws.
16
INSTALLATION INSTRUCTIONS
Fig.5
●
Hang hood off upper hood mounting screws with 2mm gap. Hang off the keyhole
attachment points on the back of the hood (see Fig.5). Tighten screws.
●

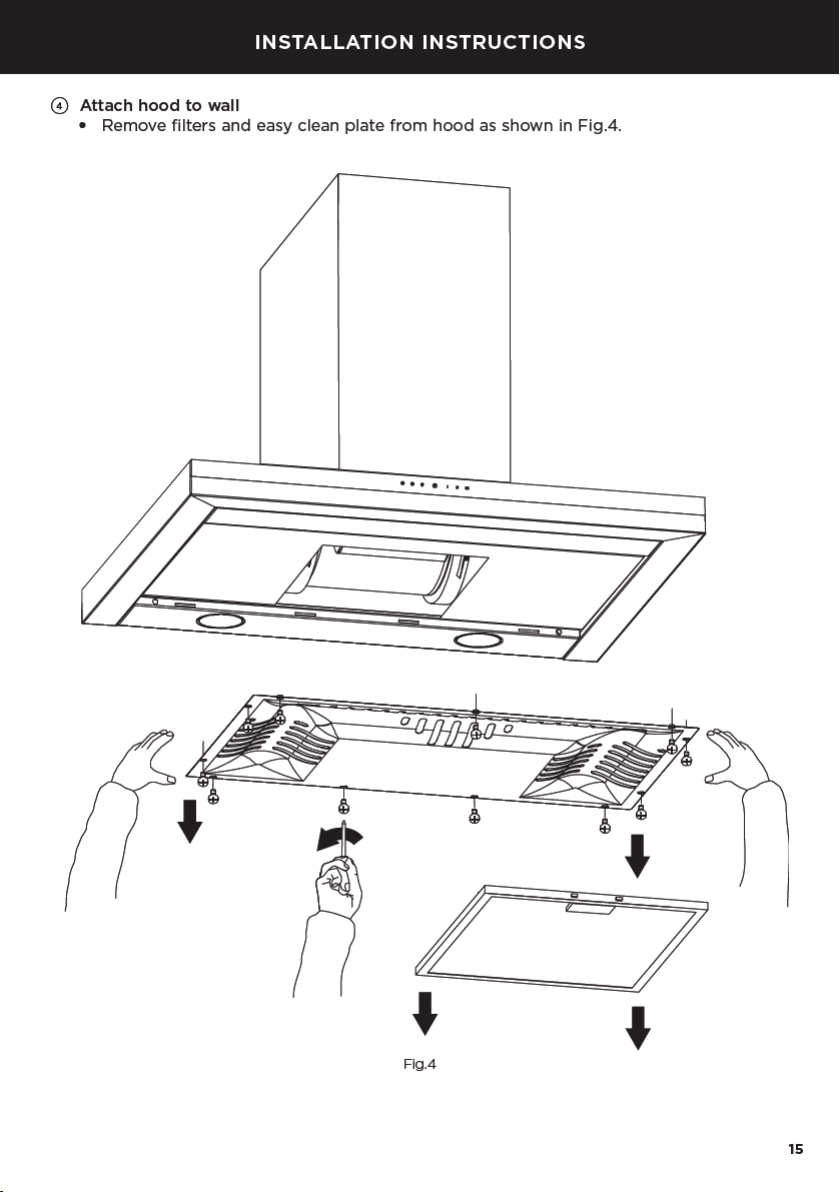

Attach lower hood mounting screws to fix hood to wall.
●
Reattach easy clean plate and filters.
5
Attach ducting
●
Attach ducting to ducting adapter and vent outside.
6
Attach chimney
●
Place chimney around the hood chassis and attach to the chimney bracket.
●
Extend the upper chimney and attach to the upper chimney bracket with 10mm
screws (if using upper chimney).
17
ABOUT YOUR COOKER HOOD – ENERGY EFFICIENCY
Product Fiche
EN61591
MODEL
HC60BCXB2
HC90BCXB2
HC120BCXB2
Annual Energy Consumption (kWh/annum) 26
Time Increase Factor 0.8
Energy Efficiency Index 44.8
Energy Efficiency Class A+
Fluid Dynamic Efficiency 33.1
Fluid Dynamic Efficiency Class A
Lighting Efficiency 36
Lighting Efficiency Class A
Grease Filtering Efficiency 91.2
Grease Filtering Efficiency Class B
Airflow at Min. Speed (m³/hr) 200
Airflow at Max. Speed (m³/hr) 525
Airflow at Boost Speed (m³/hr) 710
Airborne noise at minimum (dB) 40
Airborne noise at maximum (dB) 64
Airborne noise at Boost (dB) 67
Airflow At Best Efficiency Point (m³/hr) 344.8
Electrical Power Input At Best Efficiency Point (W) 70.8
Lighting Nominal Power (W) 7
Lighting Average Illumination (lux) 252
Power consumption in Off mode (W) 0.41
Power consumption in Standby mode (W) 0.41
19
CLEANING AND MAINTENANCE
IMPORTANT!
Never use abrasive or oil based cleaners
Maintenance
Before performing any cleaning or maintenance on your cooker hood, ensure that the
power supply is switched off to the hood.
The cooker hood should be cleaned regularly using a mild, liquid detergent to avoid a
build up of grease occurring. Grease deposits are corrosive which can cause damage to
your cooker hood.
Note: in areas of high humidity or coastal environments, cleaning should be carried out
more frequently.
Aluminium filters
●
Depending on use, and at least once a month, the aluminium grease filters should be
removed and cleaned with hot soapy water or in a dishwasher.
●
If washed in a dishwasher, the filters should be placed in an upright position to prevent
food from falling on them.
●
After rinsing and drying, replace the filters.
Note: some discolouration of the frames may occur.
Removing the aluminium filters:
1
Pull the relative catch, tilting it downwards until it disengages from the supports.
2
Reverse these instructions when refitting the filters.
20
CLEANING AND MAINTENANCE
Carbon filters – for use in recirculation mode
Active carbon filters are disposable items designed to remove grease and odours from
cooking vapours before the air is channelled back into the kitchen. The active carbon
filters must be replaced periodically to work properly, at least once every three months,
depending on the frequency with which the cooker hood is used.
Note: fully saturated carbon filters can become a barrier to air movement therefore
limiting cooker hood performance. In the event of fire, grease laden filters could be
flammable and therefore regular replacement is recommended.
Replacing the light bulb
Please note replacement bulbs are not covered by warranty.
1
Before changing the light bulb, ensure the cooker hood is disconnected from the
power supply.
2
Remove the aluminium grease filters.
3
Unscrew and remove the easy clean interior panel.
4
Replace light bulbs.
5
Refit the easy clean interior panel and the aluminium filters.
21
PARTS AND ACCESSORIES
ITEM REFERENCE NUMBER
LED bulb x2 792556
Aluminium filter 791938
Recirculation carbon filter 50031
Recirculation diverter 50032
Ducting kit 150mm (eaves) 50033
Ducting kit 150mm (wall) 50034
22
MANUFACTURER’S WARRANTY
You automatically receive a 2 year Manufacturer’s Warranty with the purchase of
this cooker hoodcovering parts and labour for servicing within the United Kingdom
andIreland.
Fisher & Paykel undertakes to:
Repair or, at its option, replace without cost to the owner either for material or labour
any part of the product, the serial number of which appears on the product, which is
found to be defective within TWO YEARS of the date of purchase.
Note: this Manufacturer’s Warranty is an extra benefit and does not affect your
legalrights.
This Manufacturer’s Warranty DOES NOT cover
A
Service calls which are not related to any defect in the product. The cost of a service
call will be charged if the problem is not found to be a product fault. For example:
1
Correcting the installation of the product.
2
Instructing you how to use the product.
3
Replacing house fuses or correcting house wiring or plumbing.
4
Correcting fault(s) caused by the user.
5
Noise or vibration that is considered normal, eg drain/fan sounds, refrigeration
noises oruserwarning beeps.
6
Correcting damage caused by pests, eg rats, cockroaches, etc.
7
Replacement light bulbs.
B
Defects caused by factors other than:
1
Normal domestic use; or
2
Use in accordance with the product’s user guide.
C
Defects to the product caused by accident, neglect, misuse or ‘act of God’.
D
The cost of repairs carried out by non-authorised repairers or the cost of correcting
such unauthorised repairs.
E
Normal recommended maintenance as set out in the product’s user guide.
F
Repairs when the appliance has been dismantled, repaired or serviced by other than
aFisher&Paykel Authorised Repairer or the selling dealer.
G
Pick-up and delivery.
H
Transportation or travelling costs involved in the repair when the product is installed
outside the Fisher&Paykel Authorised Repairer’s normal service area.
This product has been designed for use in a normal domestic (residential) environment.
This product is not designed for commercial use (whatsoever). Any commercial use by
acustomer will affect this product’s Manufacturer’s Warranty.
Service under this Manufacturer’s Warranty must be provided by a Fisher&Paykel
Authorised Repairer (refer to the ‘Customer Care’ section at the back of this book).
Suchservice shall be provided during normal business hours. This Manufacturer’s
Warranty certificate should be shown when making any claim.
Please keep this user guide in a safe place.
23
CUSTOMER CARE
Before you call for service or assistance...
Check the things you can do yourself. Refer to your user guide and check that:
1
Your product is correctly installed.
2
You are familiar with its normal operation.
If after checking these points you still need assistance or parts, please refer to your
nearest Authorised Service Centre, Customer Care, or contact us through our local
website listed on the back cover.
In United Kingdom if you need assistance…*
Call the Fisher & Paykel Customer Care Centre and talk to one of our Customer
CareConsultants.
Phone: 08000 886 605
Fax: 08000 886 606
Website: www.fisherpaykel.com
Postal address: Fisher & Paykel Appliances Ltd, Maidstone Road, Kingston,
MiltonKeynes, Buckinghamshire, MK10 0BD
In Ireland if you need assistance…*
Phone: 1800 625 174 or 01-8077960
Fax: 1800 635 012
Website: www.fisherpaykel.com
Postal address: Fisher & Paykel Appliances, Unit D2, North Dublin Corporate Park,
Swords, Co. Dublin
*If you call, write or contact our website please provide: your name and address, model
number, serial number, date of purchase and a complete description of the problem.
This information is needed in order to better respond to your request for assistance.
Product details can be found on the easy clean plate underneath the filters.
Registration
Register your product with us so we can provide you with the best service possible.
To register your product visit our website: www.fisherpaykel.com
24
CUSTOMER CARE
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer
Suburb
Town
Country
GB IE
10409B 09.17
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2017. All rights reserved.
The product specifications in this booklet apply to the specific products
and models described at the date of issue. Under our policy of continuous
product improvement, these specifications may change at any time. You
should therefore check with your Dealer to ensure this booklet correctly
describes the product currently available.
