DVD Player/ Recorder
DVDR3400
User Manual
2
Important notes for users in the U.K.
Mains plug
This apparatus is tted with an approved 13
Amp plug. To change a fuse in this type of
plug proceed as follows:
1 Remove fuse cover and fuse.
2 Fix new fuse which should be a BS1362
5 Amp, A.S.T.A. or BSI approved type.
3 Re t the fuse cover.
If the tted plug is not suitable for your socket
outlets, it should be cut off and an
appropriate plug tted in its place.
If the mains plug contains a fuse, this should
have a value of 5 Amp. If a plug without a
fuse is used, the fuse at the distribution board
should not be greater than 5 Amp.
Note: The severed plug must be disposed of to
avoid a possible shock hazard should it be
inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with
the following code: blue = neutral (N),
brown = live (L).
As these colours may not correspond with
the colour markings identifying the terminals
in your plug, proceed as follows:
– Connect the blue wire to the terminal
marked N or coloured black.
– Connect the brown wire to the terminal
marked L or coloured red.
– Do not connect either wire to the earth
terminal in the plug, marked E (or e) or
coloured green (or green and yellow).
Before replacing the plug cover, make certain
that the cord grip is clamped over the sheath
of the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may
require consent. See Copyright Act 1956 and
The Performer’s Protection Acts 1958 to
1972.
For Customer Use:
Read carefully the information located at the
bottom or rear of your DVD Recorder and
enter below the Serial No. Retain this
information for future reference.
Model No. DVD RECORDER
DVDR3400
Serial No. _______________
Norge
Typeskilt nnes på apparatens underside.
Observer: Nettbryteren er sekundert
innkoplet. Den innebygde netdelen er
derfor ikke frakoplet nettet så lenge
apparatet er tilsluttet nettkontakten.
For å redusere faren for brann eller elektrisk
støt, skal apparatet ikke utsettes for regn eller
fuktighet.
Italia
DICHIARAZIONE DI CONFORMITA’
Si dichiara che l’apparecchio DVDR3400,
Philips risponde alle prescrizioni dell’art. 2
comma 1 del D.M. 28 Agosto 1995 n. 548.
Fatto a Eindhoven
Philips Consumer Electronics
Philips, Glaslaan 2
5616 JB Eindhoven, The Netherlands
English
3
CAUTION
VISIBLE AND INVISIBLE LASER
RADIATION WHEN OPEN.
AVOID EXPOSURE TO BEAM
ADVARSEL
SYNLIG OG USYNLIG LASERSTRÅLING
VED ÅBNING UNDGÅ UDSÆTTELSE FOR
STRÅLING
VARNING
SYNLIG OCH OSYNLIG
LASERSTRÅLNING NÄR DENNA DEL ÄR
ÖPPNAD BETRAKTA EJ STRÅLEN
VARO!
AVATTAESSA OLET ALTTIINA
NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE
LASER SÄTEILYLLE. ÄLÄ KATSO
SÄTEESEEN
VORSICHT
SICHTBARE UND UNSICHTBARE
LASERSTRAHLUNG WENN ABDECKUNG
GEÖFFNET NICHT DEM STRAHL
AUSSETZEN
ATTENTION
RAYONNEMENT LASER VISIBLE ET
INVISIBLE EN CAS D’OUVERTURE
EXPOSITION DANGEREUSE AU
FAISCEAU
DK
Advarsel: Usynlig laserstråling ved åbning
når sikkerhedsafbrydere er ude af funktion.
Undgå utsættelse for stråling.
Bemærk: Netafbryderen er sekundært
indkoblet og ofbryder ikke strømmen fra
nettet. Den indbyggede netdel er derfor
tilsluttet til lysnettet så længe netstikket
sidder i stikkontakten.
S
Klass 1 laseraparat
Varning! Om apparaten används på annat
sätt än i denna bruksanvisning speci cerats,
kan användaren utsättas för osynlig
laserstrålning, som överskrider gränsen för
laserklass 1.
Observera! Stömbrytaren är sekundärt
kopplad och bryter inte strömmen från
nätet. Den inbyggda nätdelen är därför
ansluten till elnätet så länge stickproppen
sitter i vägguttaget.
SF
Luokan 1 laserlaite
Varoitus! Laitteen käyttäminen muulla kuin
tässä käyttöohjeessa mainitulla tavalla
saattaa altistaa käyttäjän
turvallisuusluokan 1 ylittävälle
näkymättömälle lasersäteilylle.
Oikeus muutoksiin varataan. Laite ei saa
olla alttiina tippu-ja roiskevedelle.
Huom. Toiminnanvalitsin on kytketty
toisiopuolelle, eikä se kytke laitetta irti
sähköverkosta. Sisäänrakennettu verkko-osa
on kytkettynä sähköverkkoon aina silloin,
kun pistoke on pistorasiassa.
Disposal of your old product
Your product is designed and manufactured with high quality materials
and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it
means the product is covered by the European Directive 2002/96/EC.
Please inform yourself about the local separate collection system for
electrical and electronic products.
Please act according to your local rules and do not dispose of your old products with
your normal household waste. The correct disposal of your old product will help
prevent potential negative consequences for the environment and human health.
‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH
DEFINITION TELEVISION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE
ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN
CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE
PROBLEMS, IT IS RECOMMENDED THAT THE USER
SWITCH THE CONNECTION TO THE ‘STANDARD
DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS
REGARDING OUR TV SET COMPATIBILITY WITH THIS
MODEL 525p AND 625p DVD PLAYER, PLEASE
CONTACT OUR CUSTOMER SERVICE CENTER.’
4
5
This product incorporates copyright protection
technology that is protected by US patents. Use
of this copyright protection technology must be
authorised by Macrovision, and is intended for
home and other limited viewing uses only unless
otherwise authorised by Macrovision. Reverse
engineering or disassembly is prohibited.
U.S. Patent Number 4,631,603; 4,819,098;
4,907,093; 5,315,448; and 6,516,132
Manufactured under license from Dolby
Laboratories. “Dolby” and the double-D symbol
are trademarks of Dolby Laboratories.
VIDEO Plus+
®
and PlusCode are registered
trademarks of Gemstar Development
Corporation. The
VIDEO Plus+
®
system is
manufactured under license from Gemstar
Development Corporation.
DivX®, DivX Certi ed, and associated logos are
trademarks of DivX Networks, Inc and are used
under license.
HDMI, and HDMI logo and High-De nition
Multimedia Interface are trademarks or registered
trademarks of HDMI licensing LLC.
LASER
Type Semiconductor laser
InGaAlP (DVD)
AIGaAs (CD)
Wave length 658 nm (DVD)
790 nm (CD)
Output Power 30 mW (DVD+RW write)
1.0 mW (DVD read)
1.0 mW (CD read)
Beam divergence 84 degrees (DVD)
61 degrees (CD)
This product complies with the radio
interference requirements of the
European Community.
This product complies with
the requirements of the
following directives and
guidelines: 73/23/EEC +
89/336/EEC + 93/68/EEC
English
6
Table of Contents
General
Care and Safety Information .......................................................................................... 8
Setup precautions .................................................................................................................................................8
Cleaning discs ........................................................................................................................................................8
About recycling .....................................................................................................................................................8
Product Information ........................................................................................................9
In troductio n ...........................................................................................................................................................9
Accessories supplied ...........................................................................................................................................9
Region codes ..........................................................................................................................................................9
Copyright notice ...................................................................................................................................................9
Special Features ..................................................................................................................................................10
Product Overview

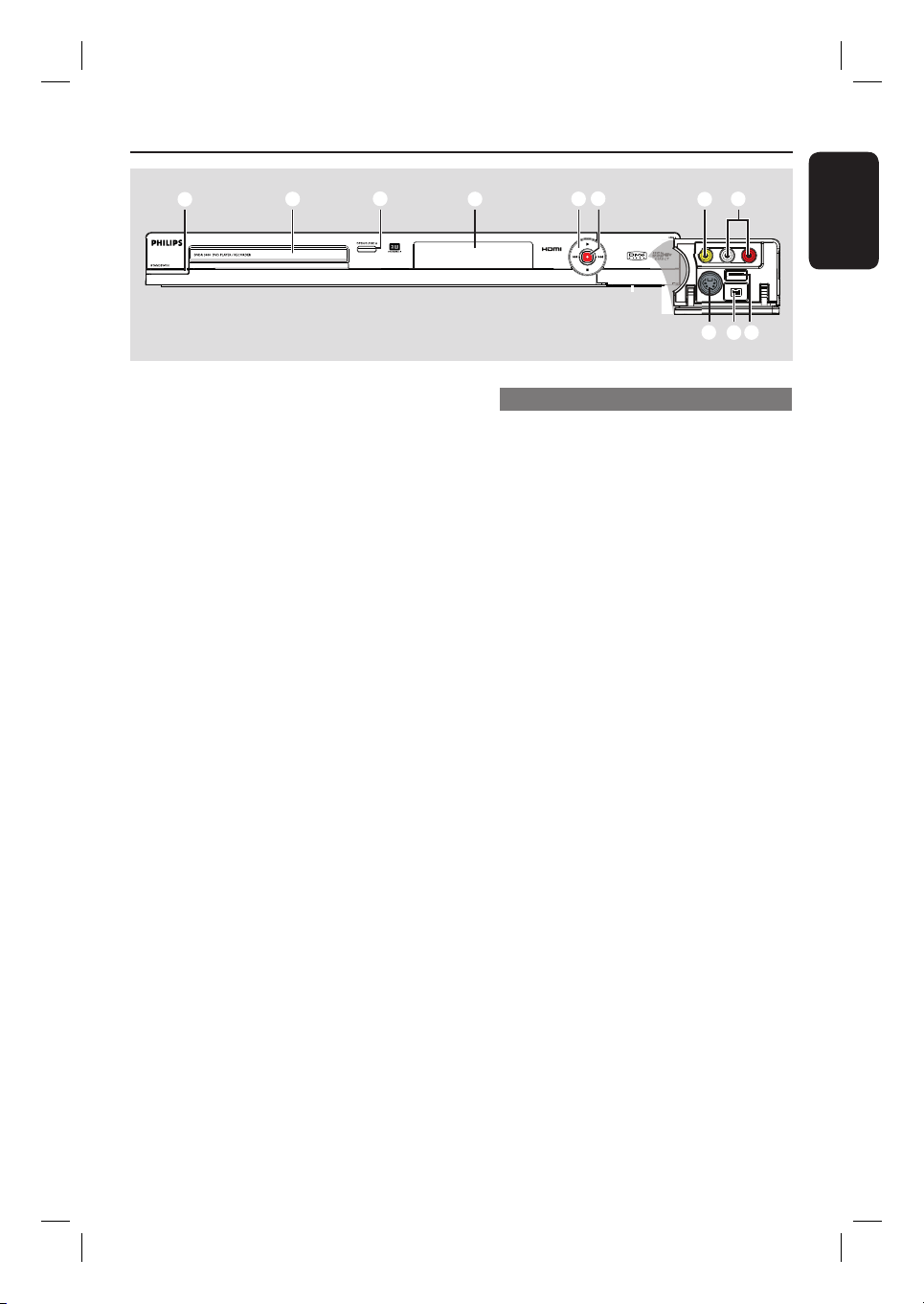

Main Unit ......................................................................................................................... 11

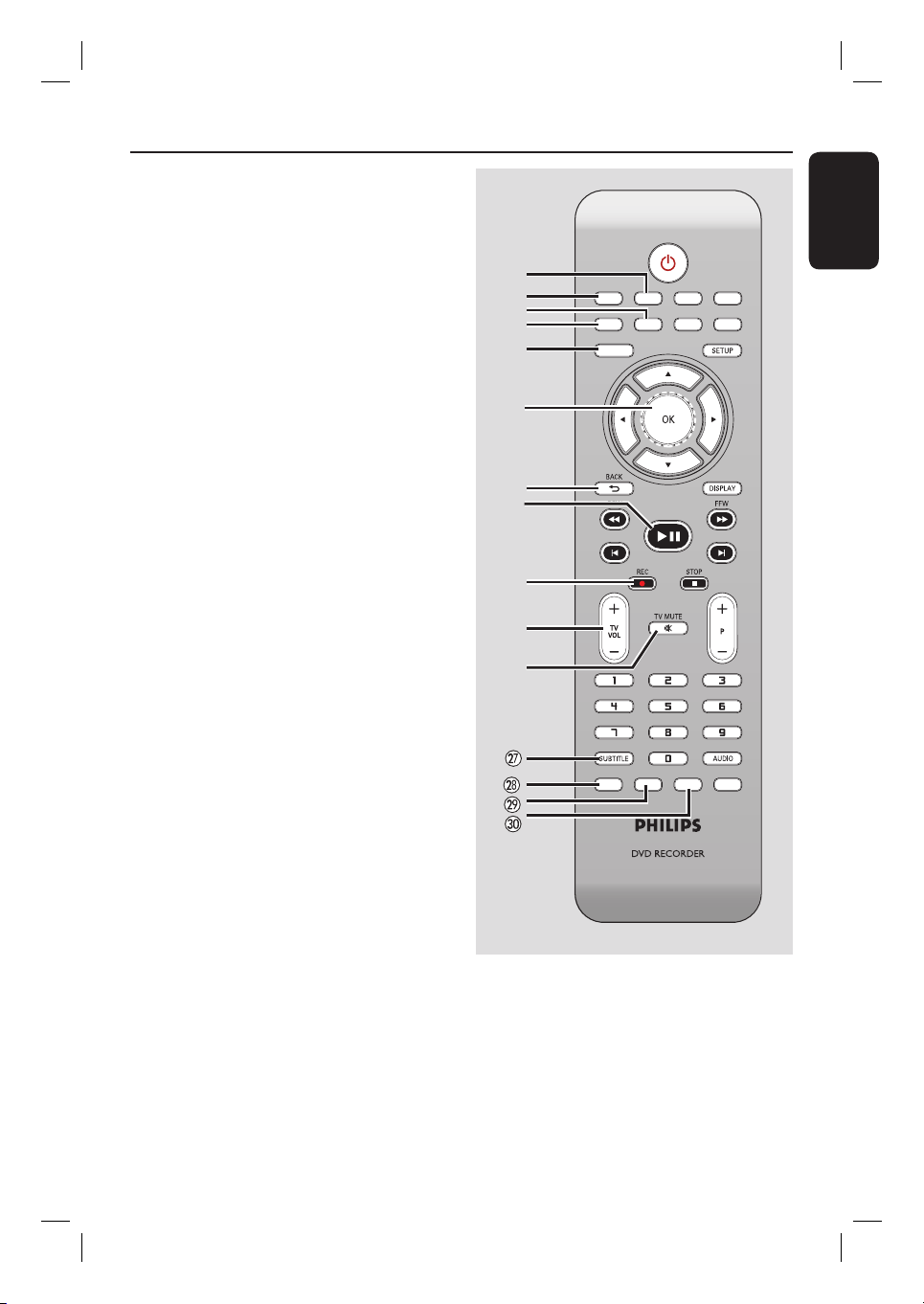

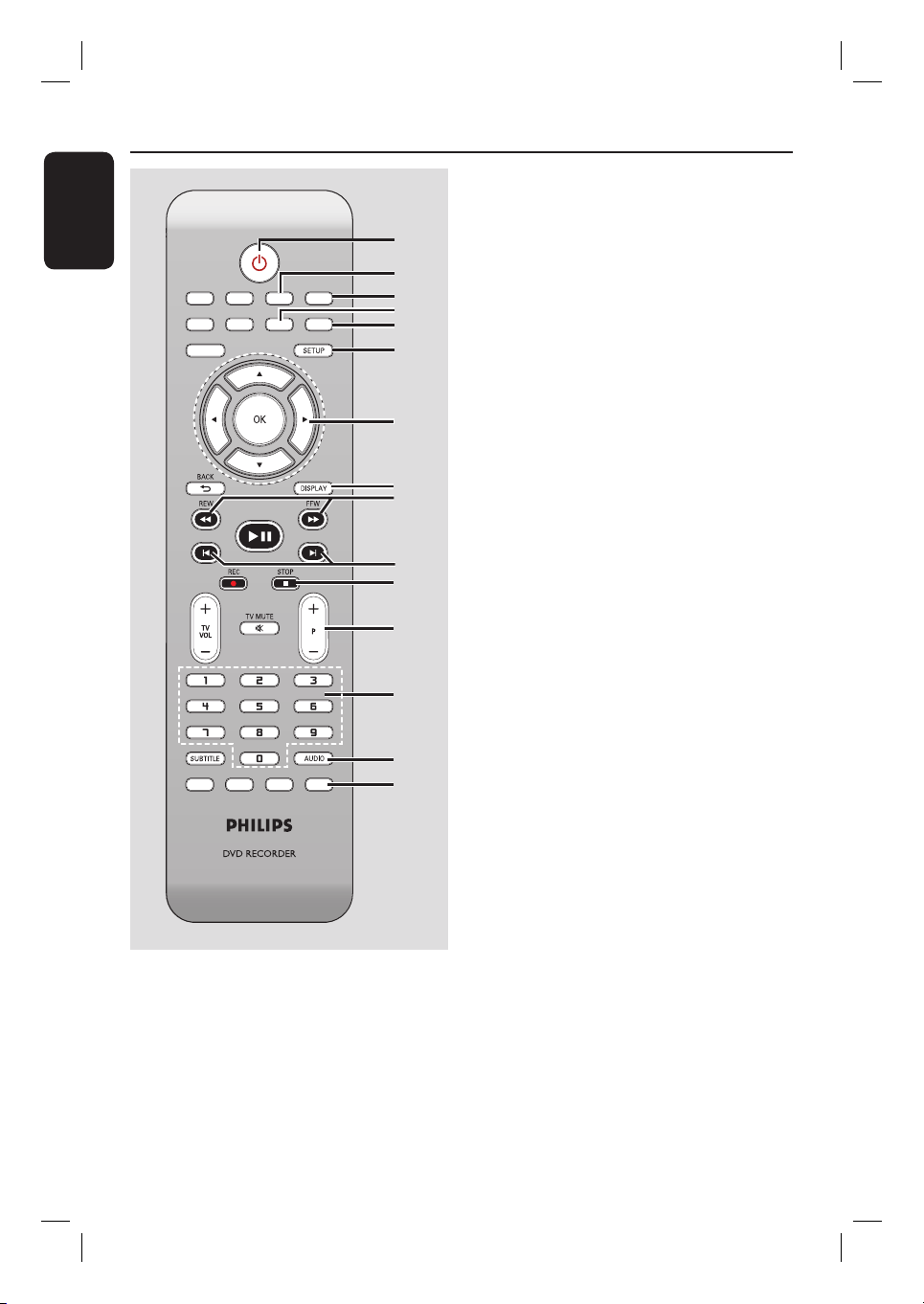

Remote Control ............................................................................................................. 12
Using the remote control ................................................................................................................................14
Connections
Step 1: Basic Recorder Connections ............................................................................ 15

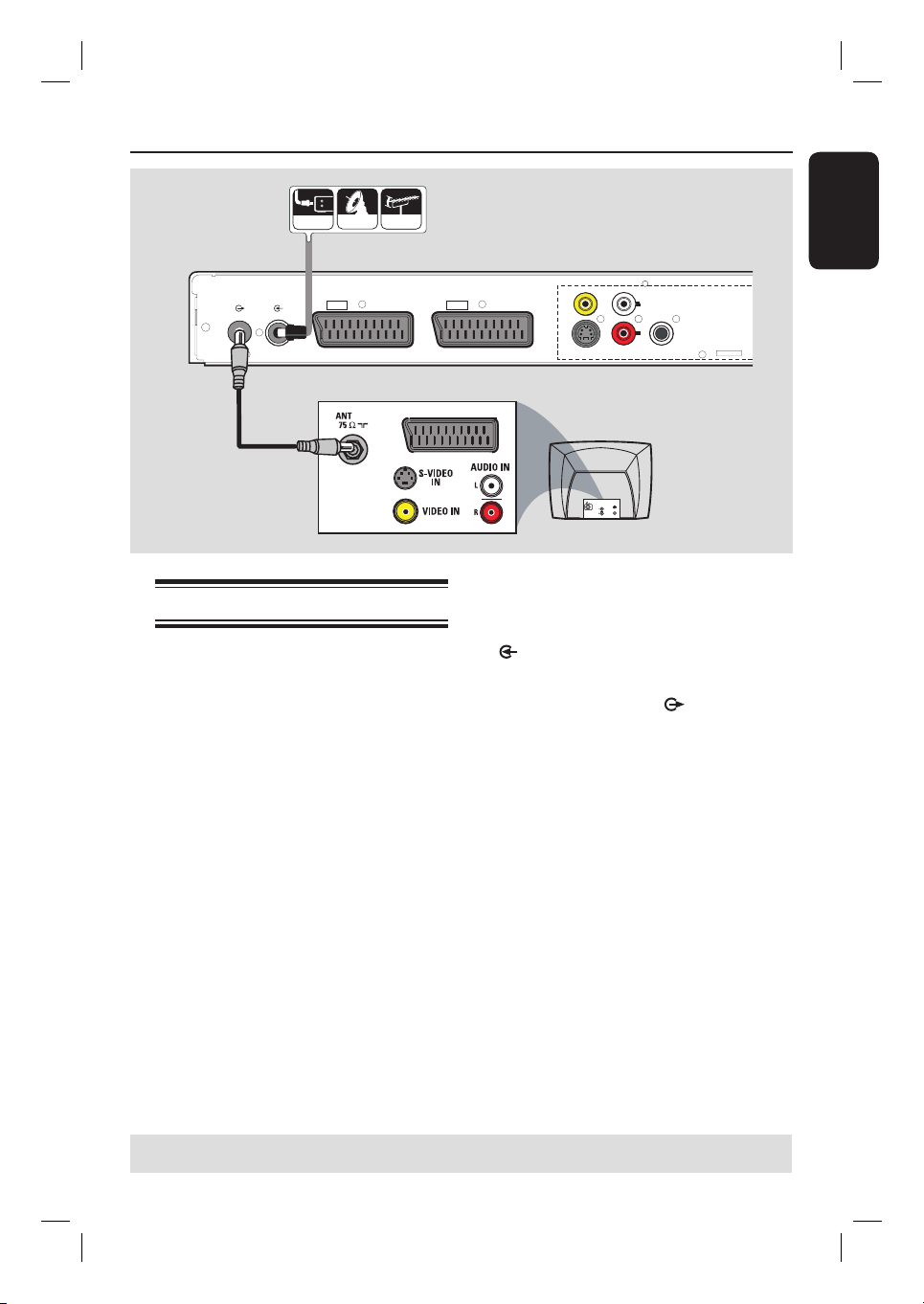

Connecting the aerial cables ...........................................................................................................................15
Connecting the video cable .............................................................................................................................16
Connecting the audio cables ...........................................................................................................................18
Step 2: Optional Connections ....................................................................................... 19
Connecting to a Cable Box or Satellite Receiver .....................................................................................19
Connecting to a VCR or other similar device ........................................................................................... 20
Connecting to a VCR and Cable Box/Satellite Receiver .........................................................................21

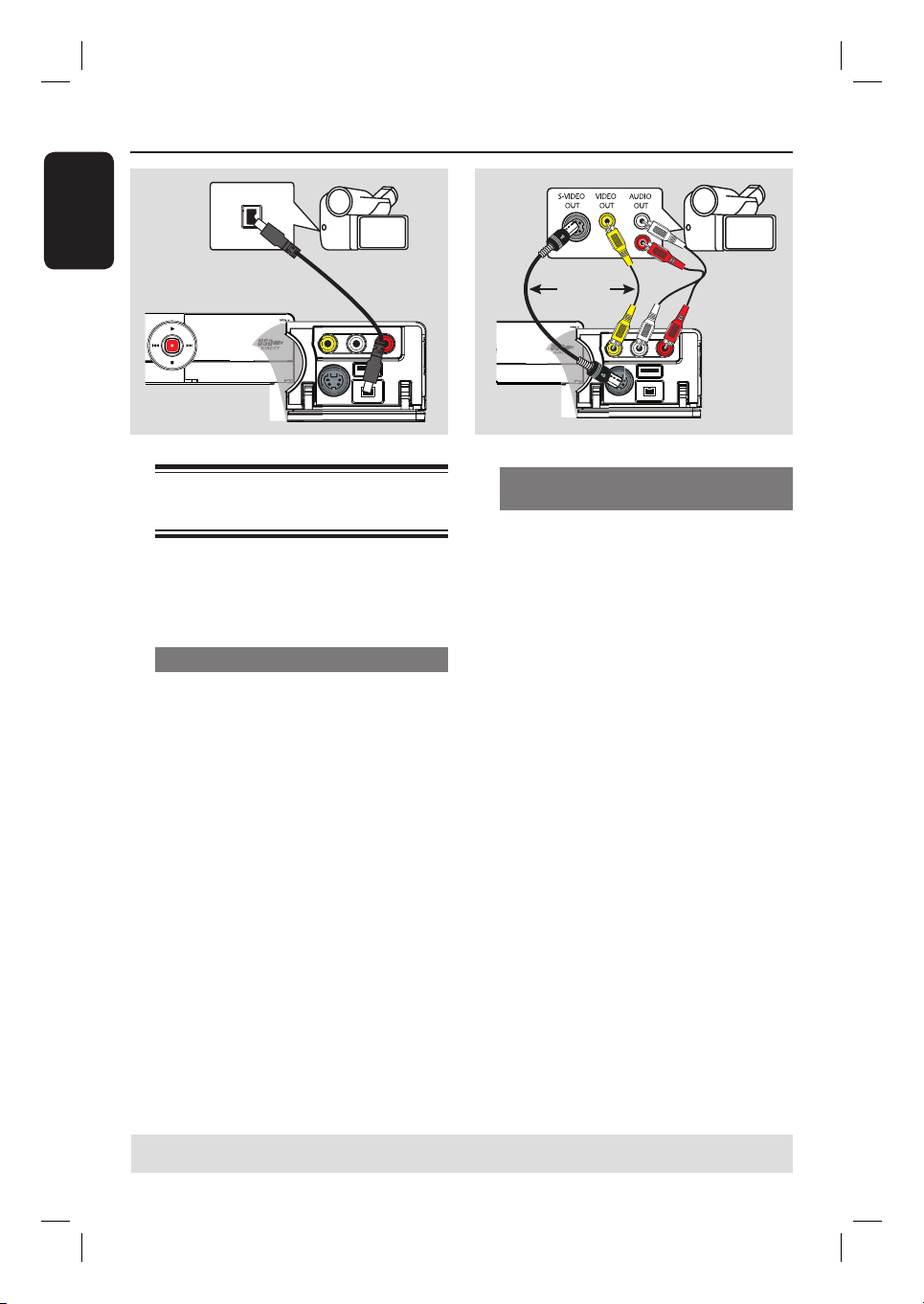

Connecting a camcorder to the front sockets ......................................................................................... 22
Connecting a USB ash drive or USB memory card reader ................................................................. 23
Step 3: Installation and Setup ....................................................................................... 24
Finding the correct viewing channel .............................................................................................................24
Setting the OSD language ................................................................................................................................24
Select the country of your residence .......................................................................................................... 25
Setting your TV channel programmes ......................................................................................................... 25
Setting the date & time .................................................................................................................................... 26
Recording
Recording .........................................................................................................................27
Discs for recording ............................................................................................................................................27

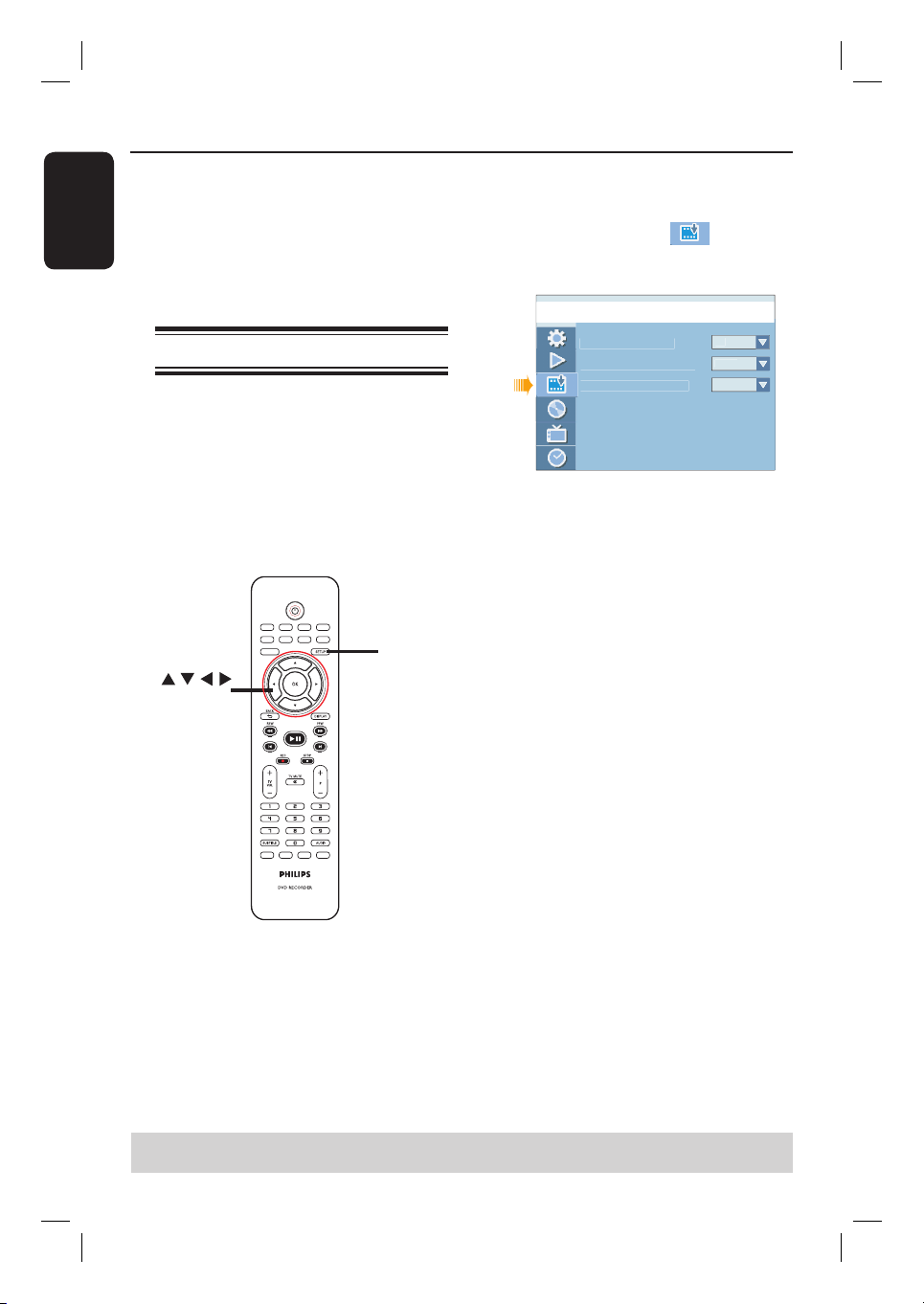

Recording settings ........................................................................................................................................... 28
RECORD settings ......................................................................................................................................29
Recording from various sources ................................................................................................................... 30
Archiving from a USB ash drive or USB memory card reader ...........................................................32
Instant time-off recording ................................................................................................................................33
Watching another TV programme during recording ...............................................................................33
Timer Recording ............................................................................................................. 34
About timer recording ..................................................................................................................................... 34
Timer recording (VIDEO PLUS+® System) ................................................................................................ 34
Timer recording (manually) ............................................................................................................................ 35
Changing/ Deleting a timer recording ..........................................................................................................37
English
7
Table of Contents
Playback
Playback ...........................................................................................................................38
Playable discs ...................................................................................................................................................... 38
Starting disc playback ........................................................................................................................................39
Additional Playback Features ....................................................................................... 43
Changing to another chapter/track .............................................................................................................. 43
Pausing playback ................................................................................................................................................ 43
Searching forwards/backwards ..................................................................................................................... 43
Using the TOOLS options .............................................................................................................................. 44
Edit Recordings
Editing/ Finalising Recording .........................................................................................47
About disc editing ..............................................................................................................................................47
Accessing disc editing menu ............................................................................................................................47
Playing your recordings on other DVD players (DVD±R only) ......................................................... 49
About title editing ............................................................................................................................................. 50
Accessing title editing menu ........................................................................................................................... 50
About video editing ...........................................................................................................................................52
Accessing video editing menu .........................................................................................................................52
Other Information
DVD Setup Menu Options .............................................................................................55

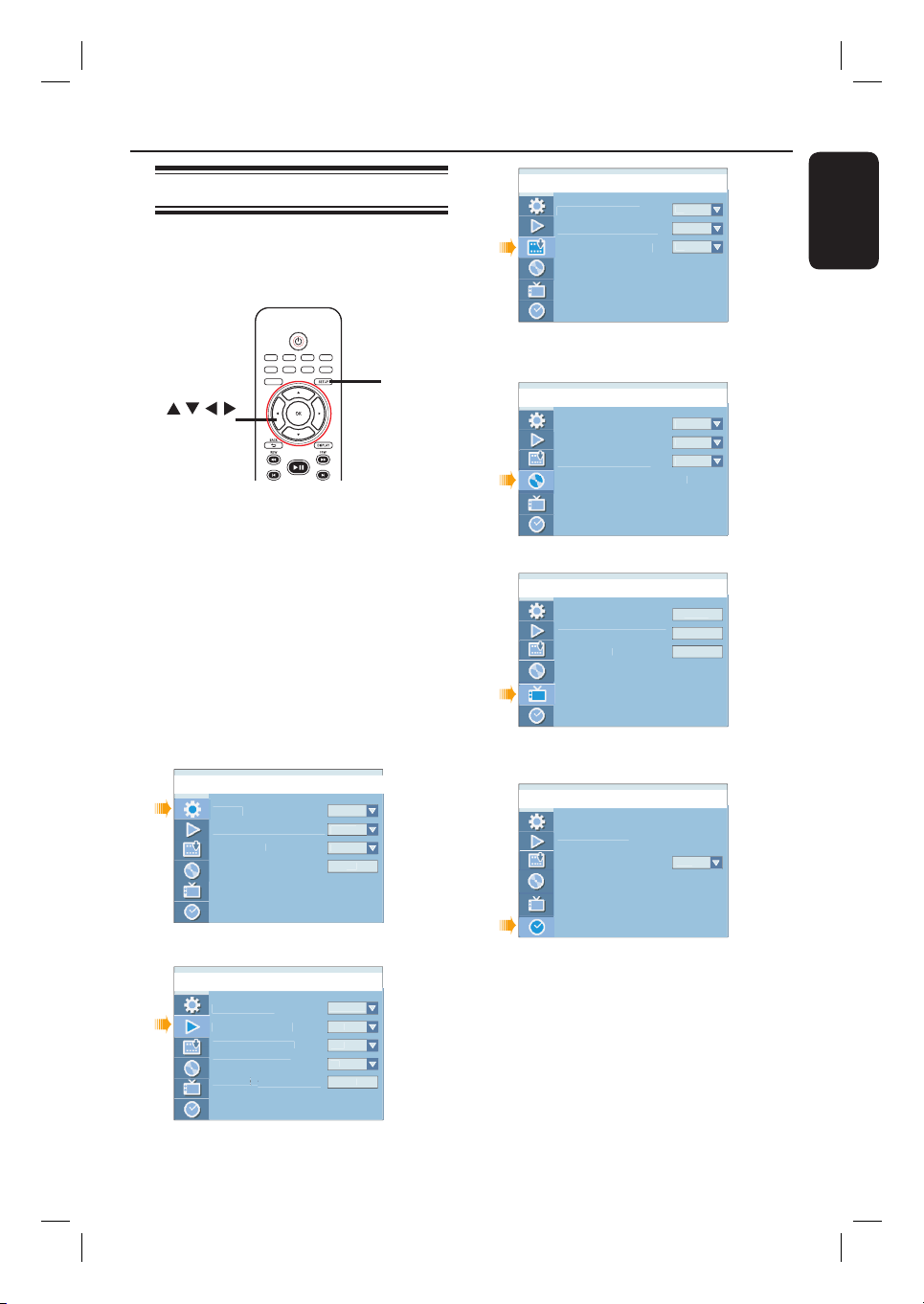

Accessing the Setup Menu ...............................................................................................................................55
GENERAL settings .................................................................................................................................... 56
PLAYBACK settings ...................................................................................................................................57
DVD settings ................................................................................................................................................59
CHANNEL SETUP settings ....................................................................................................................61
CLOCK settings ......................................................................................................................................... 63
Software Upgrade .......................................................................................................... 64
Installing the latest software .......................................................................................................................... 64
Speci cations .................................................................................................................. 65
Troubleshooting .............................................................................................................. 66
Frequently Asked Questions ......................................................................................... 70
Glossary ........................................................................................................................... 72
Display panel symbols/ messages ................................................................................. 74
TV System Guide ............................................................................................................ 76
English
8
Care and Safety Information
CAUTION!
High voltage! Do not open the
device. You run the risk of getting
an electric shock.
The machine does not contain any
user-serviceable parts. Please leave
all maintenance work to quali ed
personnel.
Setup precautions
Finding a suitable location
– Place the set on a at, hard and stable
surface. Do not place the set on a carpet.
– Do not position the set on top of
other equipment that might heat it up
(e.g., receiver or ampli er).
– Do not put anything above or under
the set (e.g., CDs, magazines).
– Install this unit near the AC outlet and
where the AC power plug can be
reached easily.
Space for ventilation
– Place the apparatus in a location with
adequate ventilation to prevent internal
heat build up. Allow at least 10 cm (4”)
clearance from the rear and the top of
the set and 5cm (2”) from the left and
right to prevent overheating.
Avoid high temperatures, moisture,
water and dust
– Apparatus shall not be exposed to
dripping or splashing.
– Do not place any sources of danger
on the apparatus (e.g., liquid lled
objects, lighted candles).
Cleaning discs
Some problems occur (frozen picture,
sound disruptions, picture distortions)
because the disc inside the unit is dirty.
To avoid these problems, discs should be
cleaned on a regular basis.
To clean a disc, use a micro bre cleaning
cloth and wipe the disc from the center
to the edge in a straight line.
CAUTION!
Do not use solvents such as benzene,
thinner, commercially available cleaners,
or anti-static sprays intended for discs.
Since the optical unit (laser) of the
recorder operates at a higher power than
regular DVD or CD players, cleaning
CDs intended for DVD or CD players
may damage the optical unit (laser).
Therefore, refrain from using a cleaning
CD.
About recycling
These operating instructions have been
printed on non-polluting paper. This
electronic equipment contains a large
number of materials that can be recycled.
If you are disposing of an old machine,
please take it to a recycling center. Please
observe the local regulations regarding
disposal of packaging materials, exhausted
batteries, and old equipment.
English
9
Introduction
Your Philips recorder allows you to
record TV programmes or duplicate
camcorder recordings to a DVD±RW or
DVD±R and play pre-recorded DVDs.
The recordings you make with this
recorder will playback on DVD players
and DVD-ROM drives. DVD±R discs
have to be nalised before they can be
played back on other DVD players.
Before you start using this recorder,
complete the basic connections and
set-up in three easy steps.
Step 1: Basic recorder connections
Step 2: Optional connections for
other devices
Step 3: Basic installation and
set-up
Please take time to read this user manual
before using your recorder. It contains
important information and notes
regarding operations of the recorder.
Helpful Hints:
– If you have questions or if problems occur
during operation, see the chapter
‘Troubleshooting’.
– If you need further assistance, please call
the customer support service for your
country. The corresponding telephone
numbers and e-mail addresses are given in
the guarantee booklet.
– Refer to the type plate on the rear or
bottom of the product for identi cation and
supply ratings.
Accessories supplied
– Remote control and batteries
– SCART cable
– RF coaxial cable
– Quick Start Guide
Region codes
DVD lms are usually not released at the
same time in all regions of the world,
thus all DVD players are keyed to a
speci c region code.
This device will only play
Region 2 DVDs or DVDs
manufactured to be played in
all regions (‘ALL’). DVDs from
other regions cannot be
played on this recorder.
Copyright notice
The making of unauthorised copies of
copy-protected material, including
computer programmes, les, broadcasts
and sound recordings, may be an
infringement of copyrights and constitute
a criminal offence. This equipment should
not be used for such purposes.
Product Information
ALL
2
English
10
Special Features
This is a simple programming system for
recorders. To use it, enter the
programming number associated with
your television programme. You can nd
this number in your favourite listings
magazine.
VIDEO Plus+® and PlusCode are
registered trademarks of Gemstar
Development Corporation. The VIDEO
Plus+® system is manufactured under
license from Gemstar Development
Corporation.
i.Link is also known as ‘FireWire’ and
‘IEEE1394’. This connection is used for
the transfer of high bandwidth digital
signals as used by digital video (DV)
camcorders. It carries all audio and video
signals via a single cable.
HDMI (High-De nition Multimedia
Interface) is a high-speed digital interface
that can transmit uncompressed high
de nition video and digital multichannel
audio. It delivers perfect picture and
sound quality, completely free from
noise. HDMI is fully backward-compatible
with DVI.
‘Copy USB to DVD’
This function allows you to copy your
content in your USB ash drive/USB
memory card reader to a recordable
DVD disc.
Product Information (continued)
A surround sound system
developed by Dolby Laboratories
containing up to six channels of digital
audio
The DivX code is a video codec
developed by DivX Networks Inc., that
compresses digital video to small sizes
while retaining relatively high visual
quality.
Philips DVD recorders support ‘dual
media’ recording – the ability to create
recordings on + and - discs
(DVD+R/+RW, DVD+R DL,
DVD-R/-RW).
English
11
Main Unit
a
b
c
d
e
f
g
h
i
j
k
a
STANDBY-ON
– Turns on the recorder or switch to
standby mode.
b
Disc tray
c
OPEN/CLOSE ç
– Opens/closes the disc tray.
d
System display panel
– Show information about the current
status of the recorder.
e
.(PREV) / > (NEXT)
– Go to the previous/next chapter or track.
Press and hold to make a forward/
reverse search.
É
(PLAY)
– Plays a disc.
(STOP)
– Stops playback/recording.
f
(RECORD)
– Starts recording the current TV channel
or the current video input source.
– Press repeatedly to set up a One Touch
Recording at 30, 60 or 90 minutes
interval.
Sockets behind the ap
Flip down the door as indicated by the
OPEN X label at the right hand corner.
g
VIDEO
– Video input for camcorders or video
recorders.
Press SOURCE on the remote control
to select ‘CAM1’ in order to view the
input source.
h
L/R AUDIO
– Audio input for camcorders or video
recorders.
i
S-VIDEO
– S-video input for SVHS/Hi8 camcorders
or SVHS/Hi8 video recorders.
Press SOURCE on the remote control
to select ‘CAM2’ in order to view the
input source
j
DV IN
– Input for digital camcorders or other
suitable devices using this connector.
Press SOURCE on the remote control
to select ‘DV’ in order to view the input
source.
k
USB
– Input for USB ash drive/ USB memory
card reader.
Press USB to view the contents of the
USB ash drive/ USB memory card
reader.
English
12
Remote Control
a
2
– Turns on the recorder or switch to
standby mode.
b
TV/DVD
– Switch between playback from the
additional devices (connected via EXT2
AUX I/O socket) and playback from the
recorder.
SOURCE
SOURCE
SELECT
SELECT
TOOLS
TOOLS
DISC MENU
DISC MENU
USB
USB
TV/DVD
TV/DVD
CLEAR
CLEAR
REPEAT
REPEAT
ç
PLAY/PAUSE
PLAY/PAUSE
REC MODE
REC MODE
TIMER
TIMER
EDIT
EDIT
VIDEO Plus+
VIDEO Plus+
OPEN/CLOSE
OPEN/CLOSE
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
c
OPEN/CLOSE
ç
– Opens/closes the disc tray.
d
CLEAR
– Clears a track/ le in the selection playlist/
copylist.
– Clears a timer entry.
e
REPEAT
– Repeat playback of title, chapter, track or
disc in DVD mode.
f
SETUP
– Enters/exits the setup menu.
g
W X : Cursor buttons for moving to the
left or right, do a forward/reverse search.
ST : Cursor buttons for moving
up/down or changing the recorder’s TV
tuner channel.
h
DISPLAY
– Displays/removes the status bar.
i
REW à/ FFW á
– Fast reverse or fast forward search.
j
PREVí/ NEXTë
– Skips to previous or next chapter/track.
k
STOP
– Stops playback/recording.
l
P +/-
– While in tuner, selects the next or
previous TV channel.
m
Numeric keypad
– Selects a chapter/track number to play.
– Selects the recorder’s preset TV tuner
channel.
n
AUDIO
– Selects an audio language (DVD, VCD) or
an audio channel.
o
VIDEO Plus+
– Enters/exits the VIDEO Plus+® menu.
English
13
Remote Control (continued)
SOURCE
SOURCE
SELECT
SELECT
TOOLS
TOOLS
DISC MENU
DISC MENU
USB
USB
TV/DVD
TV/DVD
CLEAR
CLEAR
REPEAT
REPEAT
ç
PLAY/PAUSE
PLAY/PAUSE
REC MODE
REC MODE
TIMER
TIMER
EDIT
EDIT
VIDEO Plus+
VIDEO Plus+
OPEN/CLOSE
OPEN/CLOSE
p
q
r
s
t
u
v
w
x
y
z
p
USB
– Accesses the contents of the connected
USB ash drive/ USB memory card
reader.
q
SOURCE
– Selects the recorder’s input source (DV,
EXT1, EXT2, CAM1, CAM2 or Tuner).
r
SELECT
– Selects a track/chapter/ le in the
programme menu.
s
TOOLS
– Enters/exits the tools or disc/title editing
menu.
t
DISC MENU
– Press to access the DVD disc menu or
Index Picture screen of a DVD disc.
– Press to access the VCD disc menu when
PBC is turned on.
u
OK
– Stores/con rms an entry.
v
BACK2
– Returns to the previous menu of a video
CD (VCD).
w
PLAY/PAUSE
u
– Plays a disc.
– Pauses the playback or recording.
x
REC
– Starts recording the current TV channel
or the current video input source.
– Press repeatedly to set up a One Touch
Recording at 30, 60 or 90 minutes
interval.
y
TV VOL +/ -
– Adjusts the volume of the TV set (Philips
TV only).
z
TV MUTE H
– Mutes the volume of the TV set (Philips
TV only).
wj
SUBTITLE
– Selects a DVD subtitle language.
wk
REC MODE
– Toggles between recording modes :
HQ, SP, SPP, LP, EP or SLP.
This determines the quality of the
recording and the amount/length of time
you can record onto a recordable DVD.
wl
TIMER
– Enters/exits the timer recording menu.
e;
EDIT
– Enters/exits the video editing menu.
English
14
Remote Control (continued)
Using the remote control
A
Open the battery compartment.
B
Insert two batteries type R03 or AAA,
following the indications (+-) inside
the compartment.
C
Close the cover.
D
Aim the remote control directly at the
remote sensor (IR) on the front panel.
SOURCE
SOURCE
SELECT
SELECT
TOOLS
TOOLS
DISC MENU
DISC MENU
USB
USB
TV/DVD
TV/DVD
CLEAR
CLEAR
REPEAT
REPEAT
ç
PLAY
PLAY
REC MODE
REC MODE
TIMER
TIMER
EDIT
EDIT
SHOWVIEW
SHOWVIEW
E
Select the source you want to control by
pressing the SOURCE button on the
remote control.
F
Select the desired function (for example
à, á).
CAUTION!
– Remove batteries if they are
exhausted or if the remote control
is not to be used for a long time.
– Do not mix batteries (old and new
or carbon and alkaline, etc.).
– Batteries contain chemical
substances, so they should be
disposed of properly.
A
C
B
English
15
Step 1: Basic Recorder Connections
Connecting the aerial cables
These connections enable you to watch
and record TV programmes using this
recorder. If the aerial signal is connected
via a VCR, Cable Box or Satellite
Receiver, ensure that these devices are
turned on in order to watch or record
the cable programmes.
If you want to connect to a VCR
and/or Cable Box/Satellite Receiver,
see the chapter “Step 2 : Optional
Connections” for the complete
connections to your TV.
A
Connect the existing Aerial/Satellite
Receiver/Cable TV signal (labelled as RF
OUT or TO TV) to the ANTENNA-IN
socket on the recorder.
B
Use the supplied RF coaxial cable to
connect the TV-OUT socket on the
recorder to the aerial input socket (or
labelled as VHF/UHF RF IN) on your TV.
Helpful Hint:
– Depending on how you have currently
connected your TV channel (directly from an
off-air aerial or Cable box or VCR), you may
have to disconnect some of the cables before
you make the aerial connection.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
COAXIAL
(DIGITAL AUDIO)
VIDEO (CVBS)
S-VIDEO (Y/C)
AUDIO
R
L
OUT 2
OUT 1
ANTENNA-IN
TV-OUT
TO TV - I/O
EXT
1
AUX - I/O
EXT
2
CABLE
SATELLITE
ANTENNA
AU D IO
OUT
S-V ID E O
IN
VIDEO IN
TV
A
B
English
16
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
Step 1: Basic Recorder Connections (continued)

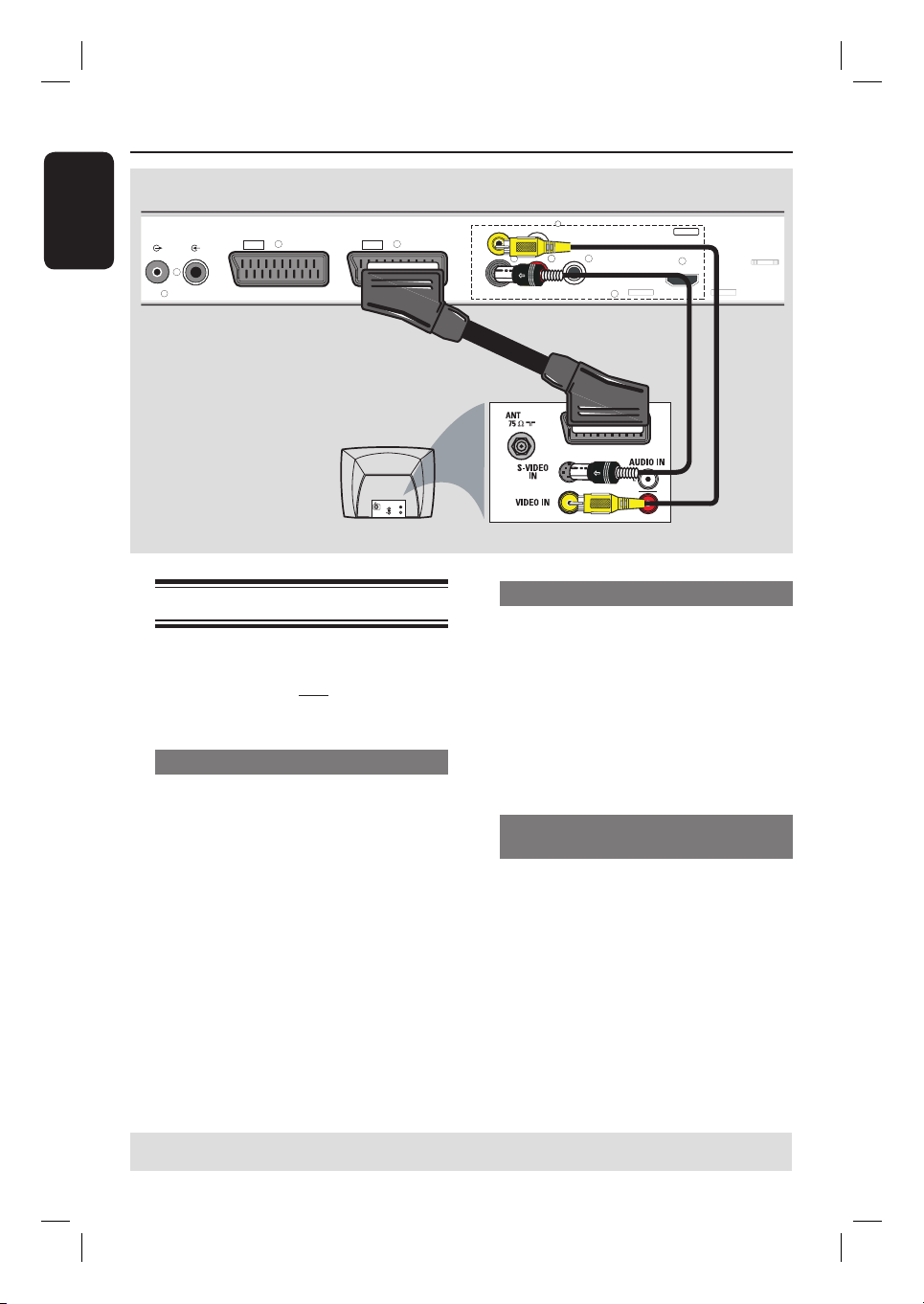

Connecting the video cable
This connection enables you to view the
disc playback from this recorder. You
need to choose only one of the options
below to make your video connection.
Option 1: Using a SCART cable
Use the SCART cable to connect the
EXT1 TO TV-I/O socket on the
recorder to the corresponding SCART
input socket on the TV.
Helpful Hints:
– If your TV set has several SCART sockets,
select the SCART socket that is suitable for
both video output and video input.
– If your TV set displays a selection for the
SCART socket, select ‘VCR’ as the source for
the SCART socket.
– The EXT2 AUX-I/O socket is intended
only for additional devices.
Option 2: Using an S-Video cable
Use an S-video cable (not supplied) to
connect the S-VIDEO OUTPUT
socket on the recorder to the S-Video
input socket (or labelled as Y/C or
S-VHS) on the TV.
Audio connection is required in order
to hear the sound, see next section
“Connecting the audio cables”.
Option 3: Using a Video (CVBS)
cable
Use a composite video cable (yellow -
not supplied) to connect the VIDEO
(CVBS) OUTPUT socket on the
recorder to the video input socket (or
labelled as A/V In, Video In, Composite
or Baseband) on the TV.
Audio connection is required in order
to hear the sound, see next section
“Connecting the audio cables”.
COAXIAL
(DIGITAL AUDIO)
VIDEO (CVBS)
S-VIDEO (Y/C)
AUDIO
HDMI
R
L
OUTPUT
OUT 2
OUT 3
OUT 1
ANTENNA-IN
TV-OUT
TO TV - I/O
EXT
1
AUX - I/O
EXT
2
AU D IO
OUT
S-V ID E O
IN
VIDEO IN
TV
Option 1
Option 2
Option 3
English
17
Step 1: Basic Recorder Connections (continued)
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.

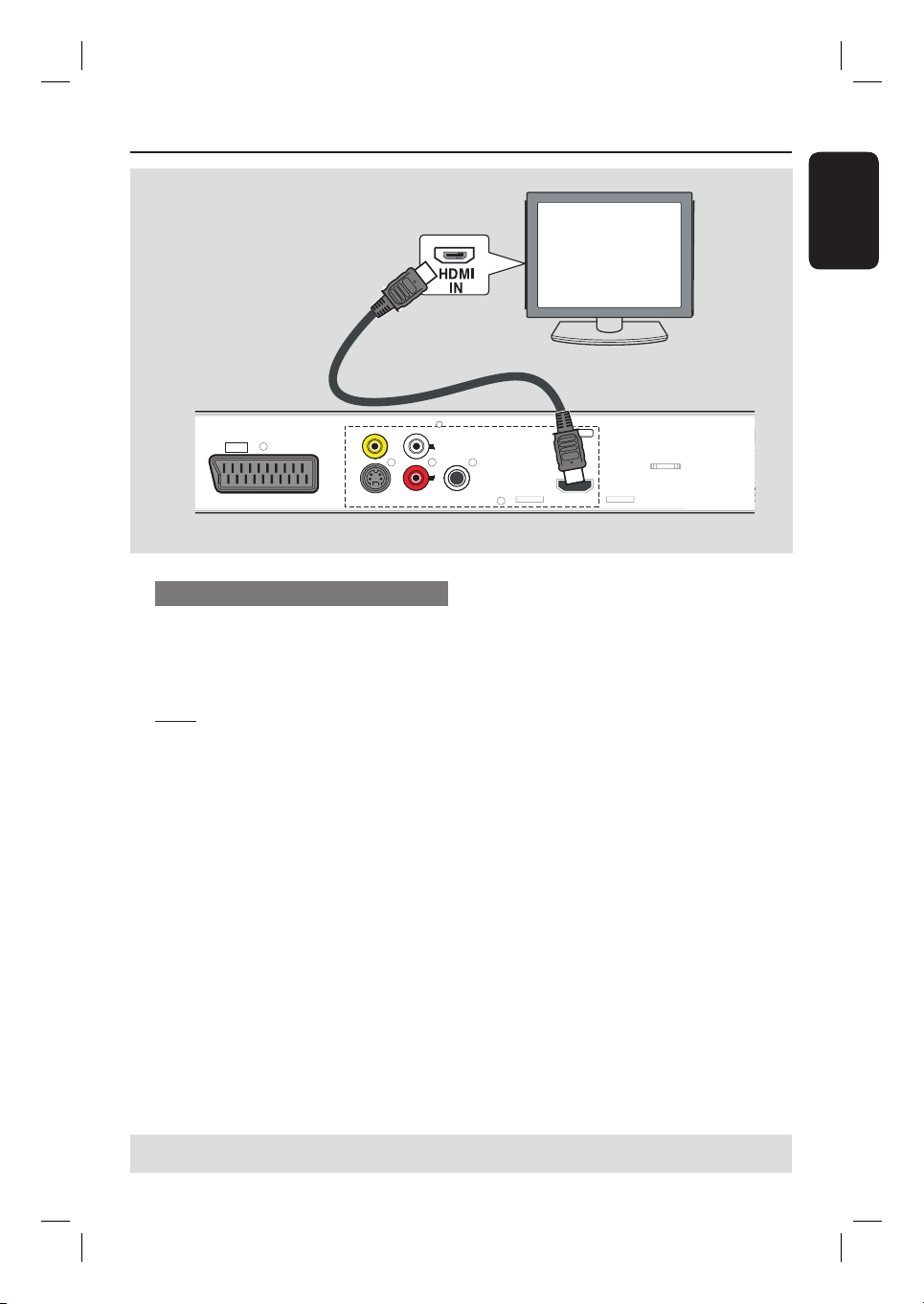

Option 4: Using a HDMI cable
HDMI (High De nition Multimedia
Interface) is a digital interface that allows
pure digital video transmission without
the loss of image quality.
Note:
– Proper working is guaranteed with
HDMI compliant products.
– When the HDMI cable is unplugged,
the { HDMI Video Resolution } setting
will automatically switch to default value
{576i}.
A
Use an HDMI cable (not supplied) to
connect the HDMI OUTPUT socket
on this recorder to the HDMI IN on a
HDMI compatible device (e.g. HDMI TV,
HDCP compliant DVI TV).
COAXIAL
(DIGITAL AUDIO)
VIDEO (CVBS)
S-VIDEO (Y/C)
AUDIO
HDMI
R
L
OUTPUT
OUT 2
OUT 3
OUT 1
Apparatus Claims of U.S. Pate
n
4,908,713; 4,751,578; 4,706,121
;
6,430,359; 6,091,882; 6,049,652
;
limited viewing uses only.
TO TV - I/O
EXT
1
Designed and developed by
Philips, Europe
Option 4
B
Once you have completed the necessary
connections, installation and set-up, see
chapter “DVD Setup Menu Options –
PLAYBACK Settings”.
Helpful Hints:
– Digital devices from different
manufacturers have the possibility of
differing output standards which may cause
dif culties for the television to properly
display.
– The HDMI connector is only compatible
with HDMI compliant devices and DVI-TV.
English
18

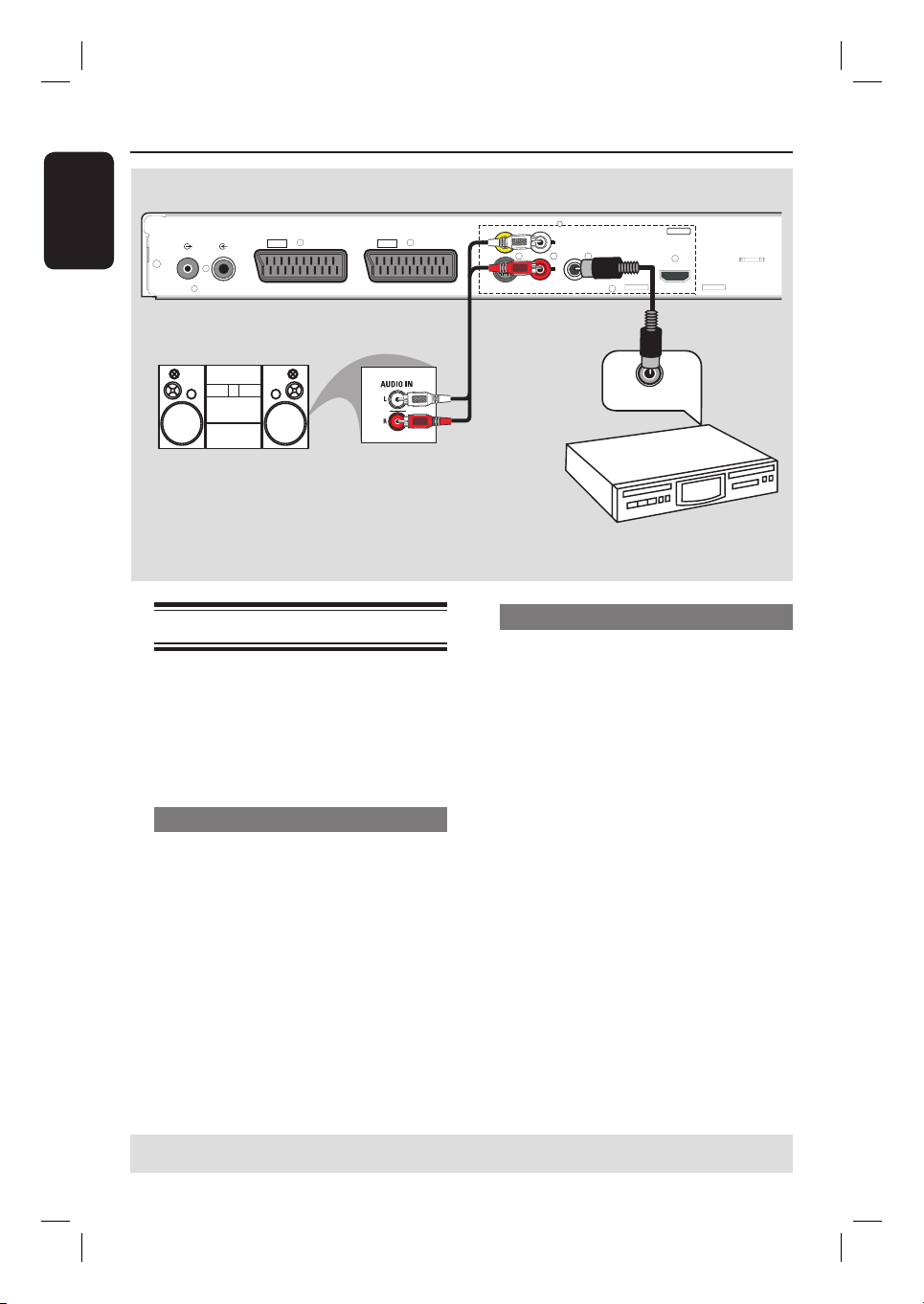

Connecting the audio cables
This connection enables you to listen to
the playback from this recorder.
However, this connection is not required
if this recorder is connected to the TV
using the SCART or HDMI cable.
Option 1: Using an audio cable
You can connect the recorder to a two
channel stereo system (mini system, TV)
or receiver in order to enjoy the stereo
sound system.
Use an audio cable (red/white ends - not
supplied) to connect the AUDIO L/R
OUTPUT sockets to the audio input
sockets of the connected device.
Step 1: Basic Recorder Connections (continued)
Option 2: Using a coaxial cable
You can connect the recorder to an AV
ampli er/receiver with a digital
multichannel sound decoder in order to
enjoy multichannel surround sound.
Use a coaxial cable (not supplied).
Connect the COAXIAL (DIGITAL
AUDIO OUT) socket on the recorder
to the digital input of the receiver/
ampli er.
Before you start operating, set the digital
audio output settings accordingly (see the
chapter “DVD Setup Menu Options -
PLAYBACK settings). If the audio setting
does not match your stereo’s capabilities,
the stereo may produce a strong,
distorted sound or no sound at all.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
COAXIAL
(DIGITAL AUDIO)
VIDEO (CVBS)
S-VIDEO (Y/C)
AUDIO
HDMI
R
L
OUTPUT
OUT 2
OUT 3
OUT 1
ANTENNA-IN
TV-OUT
TO TV - I/O
EXT
1
AUX - I/O
EXT
2
DIGITAL IN
S
T
E
R
E
O / TV
Option 2
Option 1
AV ampli er/
receiver
English
19

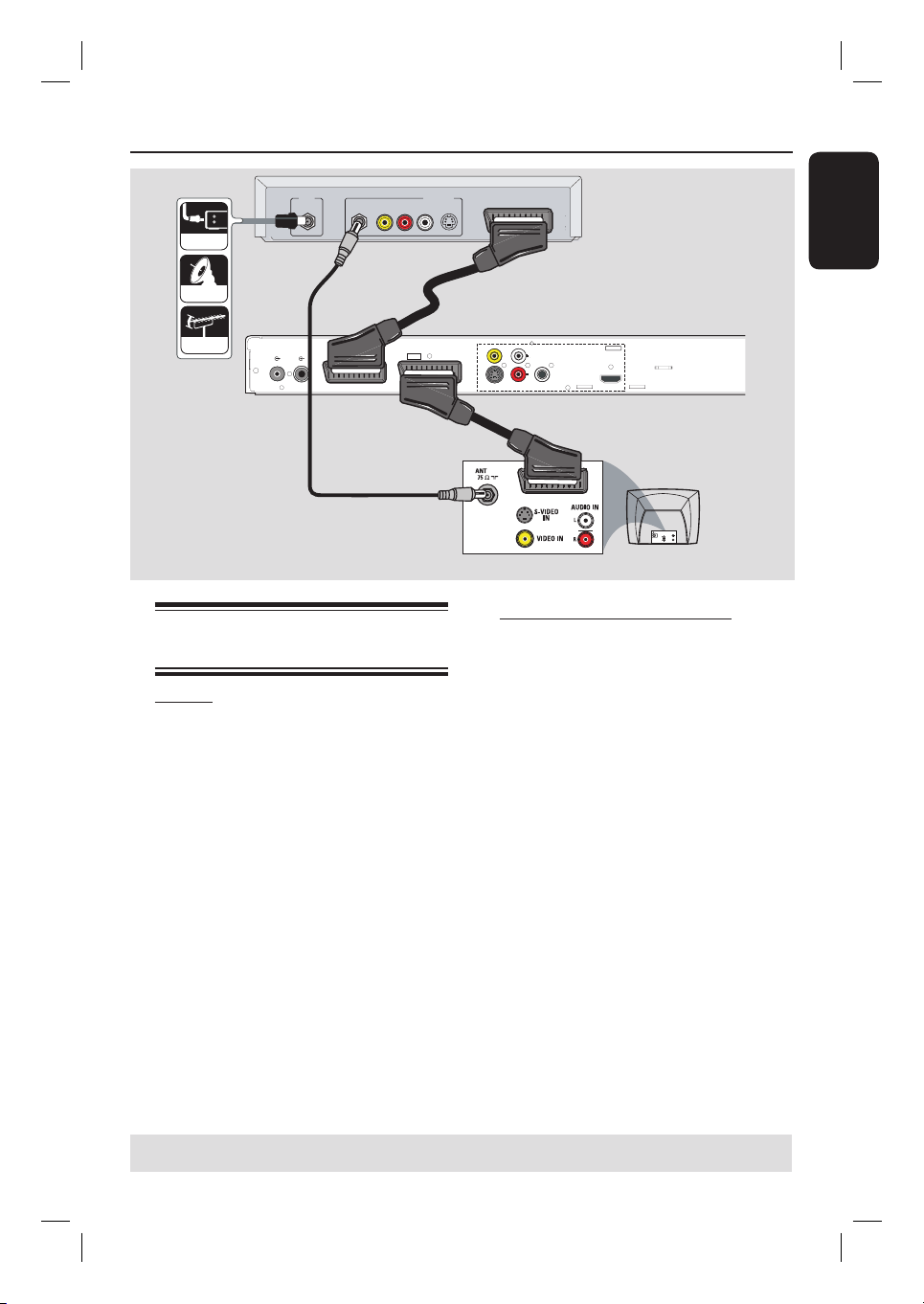

Step 2: Optional Connections
Connecting to a Cable Box or
Satellite Receiver
Option 1
If your Cable Box/Satellite Receiver
has only an aerial output socket
(RF OUT or TO TV),
see “Step 1: Basic Recorder Connections
– Connecting the aerial cables” for the
complete connections to your TV.
Option 2 (see the above illustration)
If your Cable Box/Satellite Receiver
has a SCART output socket
A
Keep the existing aerial connection from
the Cable Box/Satellite Receiver to your
TV.
B
Use the SCART cable to connect the
EXT1 TO TV-I/O scart socket on the
recorder to the SCART input socket on
the TV.
C
Use another SCART cable to connect the
EXT2 AUX-I/O scart socket on the
recorder to the SCART output socket
(or labelled as TV OUT or TO TV) on
the Cable Box/Satellite Receiver.
To start playback, select the TV channel
directly on the Cable Box/Satellite
Receiver. To view the picture from a
connected external device, press the
TV/DVD key on the remote control.
TIPS: Refer to the respective connected device’s user manual for other possible connections.
A
B
C
COAXIAL
(DIGITAL AUDIO)
VIDEO (CVBS)
S-VIDEO (Y/C)
AUDIO
HDMI
R
L
OUTPUT
OUT 2
OUT 3
OUT 1
ANTENNA-IN
TV-OUT
TO TV - I/O
EXT
1
AUX - I/O
EXT
2
AUD IO
OUT
S-VID EO
IN
VIDEO IN
TV
RF
S-VIDEO
OUT
IN
AUDIO
R L
VIDEO
TO TV
CABLE
SATELLITE
ANTENNA
Rear of a Cable Box
or Satellite Receiver
(Example only)
English
20
TIPS: Refer to the respective connected device’s user manual for other possible connections.

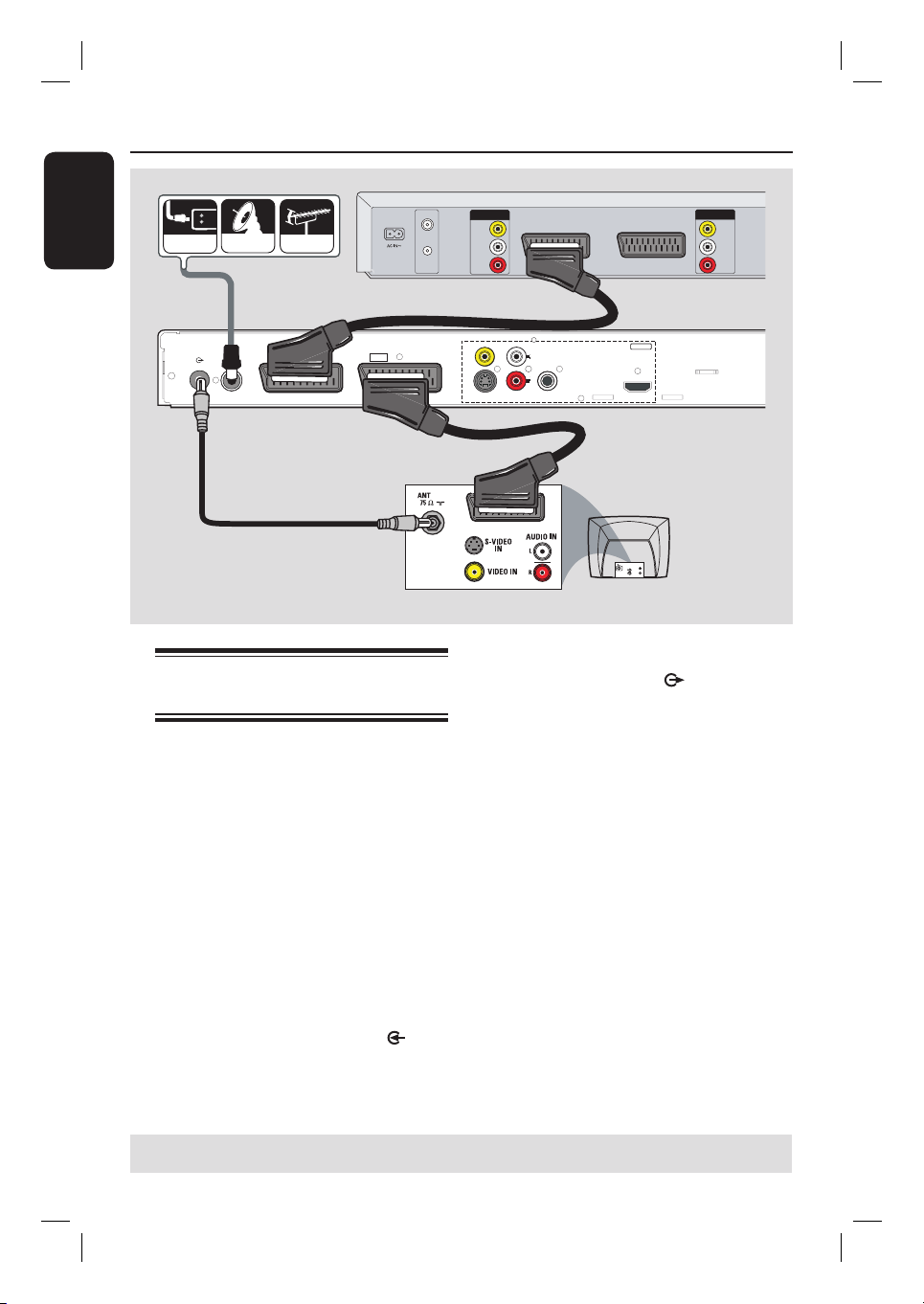

Step 2: Optional Connections (continued)
A
B
Back of a VCR
(Example only)
C
Connecting to a VCR or
other similar device
This connection enables you to record
from a video tape to a recordable DVD
and allows the VCR to be used for
playback even if the recorder is turned
off.
IMPORTANT!
Your new recorder can replace the
VCR for all your recording needs.
Just unplug all the connections to
your VCR.
A
Connect the existing Aerial/Satellite/
Cable TV signal (or from the Cable Box/
Satellite Receiver, labelled as RF OUT or
TO TV) to the ANTENNA-IN
socket on the recorder.
B
Use the supplied RF coaxial cable to
connect the TV-OUT socket on the
recorder to the aerial input socket (or
labelled as VHF/UHF RF IN) on your TV.
C
Use the SCART cable to connect the
EXT1 TO TV-I/O socket on the
recorder to the corresponding SCART
input socket on the TV.
D
Use another SCART cable to connect the
EXT2 AUX-I/O socket on the recorder
to the SCART output socket (or labelled
as TV OUT or TO TV) on the VCR.
Helpful Hints:
– Most commercial video cassettes and
DVDs are copy-protected and therefore
cannot be recorded.
– Connect the recorder directly to the TV. If
there is a VCR or an additional device in
between, the picture quality may be poor
because of the copy protection system built
into the recorder.
COAXIAL
(DIGITAL AUDIO)
VIDEO (CVBS)
S-VIDEO (Y/C)
AUDIO
HDMI
R
L
OUTPUT
OUT 2
OUT 3
OUT 1
ANTENNA-IN
TV-OUT
TO TV - I/O
EXT
1
AUX - I/O
EXT
2
AUD IO
OUT
S-VID E O
IN
VIDEO IN
TV
VIDEO
IN
O
U
T
I
N
AUDIO
L
AUDIO
R
VIDEO
OUT
AUDIO
L
AUDIO
R
VHF/UHF
RF IN
VHF/UHF
RF OUT
TV OUT
TV IN
CABLE
SATELLITE
ANTENNA
D
English
21
COAXIAL
(DIGITAL AUDIO)
VIDEO (CVBS)
S-VIDEO (Y/C)
AUDIO
HDMI
R
L
~
MAINS
OUTPUT
OUT 2
OUT 3
OUT 1
ANTENNA-IN
TV-OUT
TO TV - I/O
EXT
1
AUX - I/O
EXT
2
AUD IO
OUT
S-VID EO
IN
VIDEO IN
TV
VIDEO
IN
O
U
T
I
N
AUDIO
L
AUDIO
R
VIDEO
OUT
AUDIO
L
AUDIO
R
VHF/UHF
RF IN
VHF/UHF
RF OUT
TV OUT
TV IN
RF
S-VIDEO
OUT
IN
AUDIO
R L
VIDEO
TO TV
CABLE
SATELLITE
ANTENNA
Step 2: Optional Connections (continued)

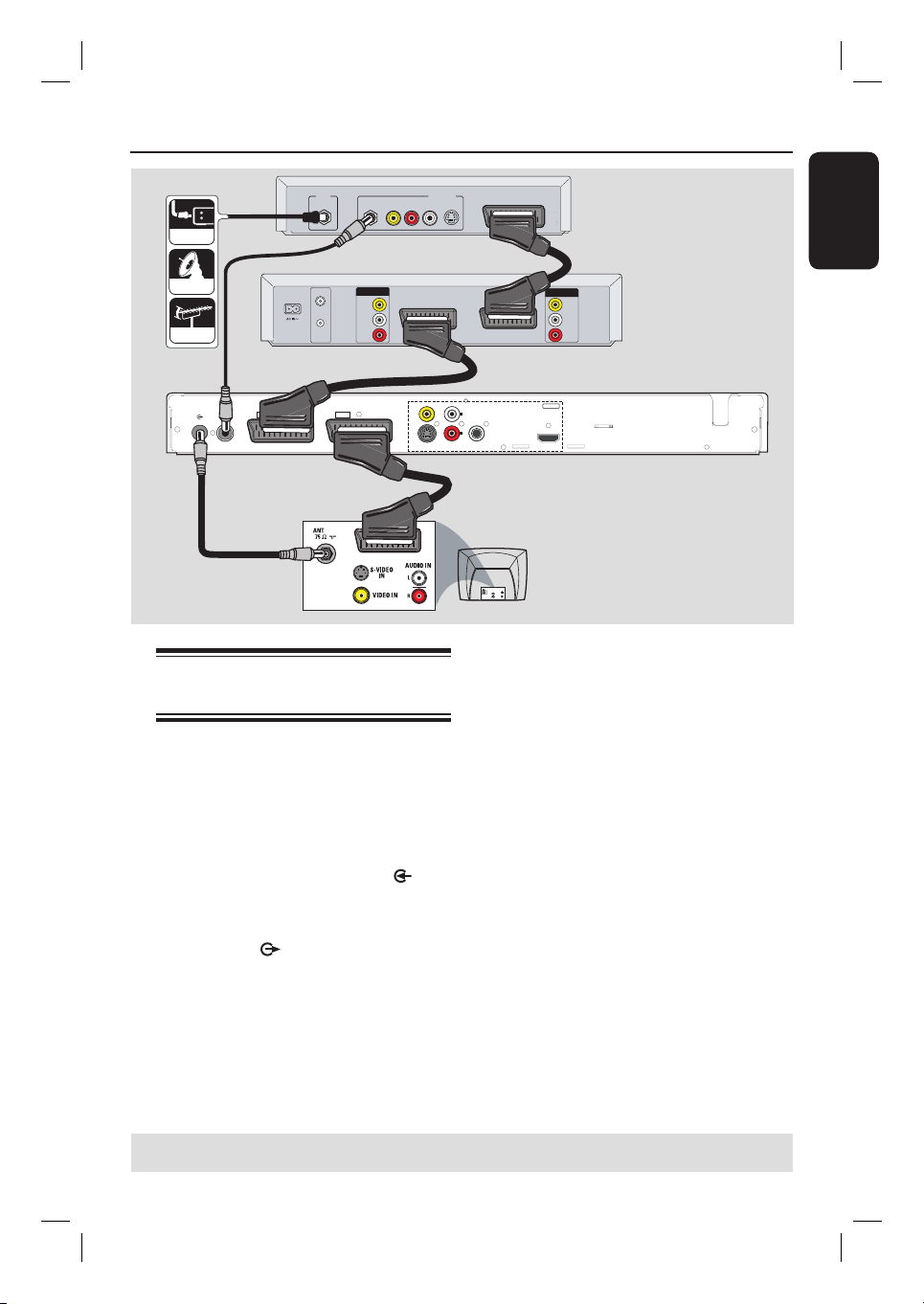

Connecting to a VCR and
Cable Box/Satellite Receiver
A
Connect the Aerial/Cable TV signal to the
aerial input (RF IN) socket on the Cable
Box/Satellite Receiver.
B
Use the supplied RF coaxial cable to
connect the aerial output (RF OUT)
socket on the Cable Box/Satellite
Receiver to the ANTENNA-IN
socket on the recorder.
C
Use another RF coaxial cable to connect
the TV-OUT
socket on the recorder
to the aerial input socket on the TV.
D
Use the SCART cable to connect the
EXT1 TO TV-I/O socket on the
recorder to the corresponding SCART
input socket on the TV.
E
Use another SCART cable to connect the
EXT2 AUX-I/O socket on the
recorder to the SCART output socket
(or labelled as TV OUT or TO TV) on
the VCR.
F
Use another SCART cable to connect the
SCART input (TV IN) socket on the VCR
to the SCART output socket (or labelled
as TV OUT or TO TV) on the Cable
Box/Satellite Receiver.
TIPS: Refer to the respective connected device’s user manual for other possible connections.
C
A
D
F
Rear of aVCR
(Example only)
E
Rear of a Cable Box
or Satellite Receiver
(Example only)
B
English
22
TIPS: Refer to the respective connected device’s user manual for other possible connections.
Step 2: Optional Connections (continued)
Connecting a camcorder to
the front sockets
You can use the front sockets to copy
camcorder recordings. These sockets are
located behind the ap on the right which
provides convenient connections.
Option 1: Using the DV IN socket
Use this connection if you have a Digital
Video or Digital 8 camcorder. The DV
socket conforms to the i.LINK standard.
Use an i.LINK 4-pin cable (not supplied)
to connect the DV IN socket at the
front panel of the recorder to the
appropriate DV OUT socket on the
camcorder.
Before you start operating, press
SOURCE on the remote control
repeatedly to select ‘DV’ as the input
channel.
Helpful Hints:
– The DV IN socket does not support
a connection to a Personal Computer.
– It is not possible to record from the
recorder to your camcorder via the DV IN
socket on your recorder.
Option 2: Using the VIDEO In or
S-VIDEO In sockets
Use this connection if you have a Hi8 or
S-VHS(C) camcorder or if your
camcorder has only a single video output
socket (Composite Video, CVBS).
A
Use a video cable (not supplied) to
connect the CAM 1 socket at the front
panel of the recorder to the Video
output socket on the connected video
device.
Alternatively, use an S-Video cable to
connect the CAM 2 socket if the
connected video device has the S-Video
output socket. It provides better picture
quality.
B
Use an audio cable (not supplied) to
connect the AUDIO L/R sockets at the
front panel of the recorder to the audio
output sockets on the connected video
device.
Before you start operating, press
SOURCE on the remote control
repeatedly to select ‘CAM1’ or ‘CAM2’
as the input channel, depending on your
connections.
DV OUT
L
R
A
B
OR
English
23
Step 2: Optional Connections (continued)

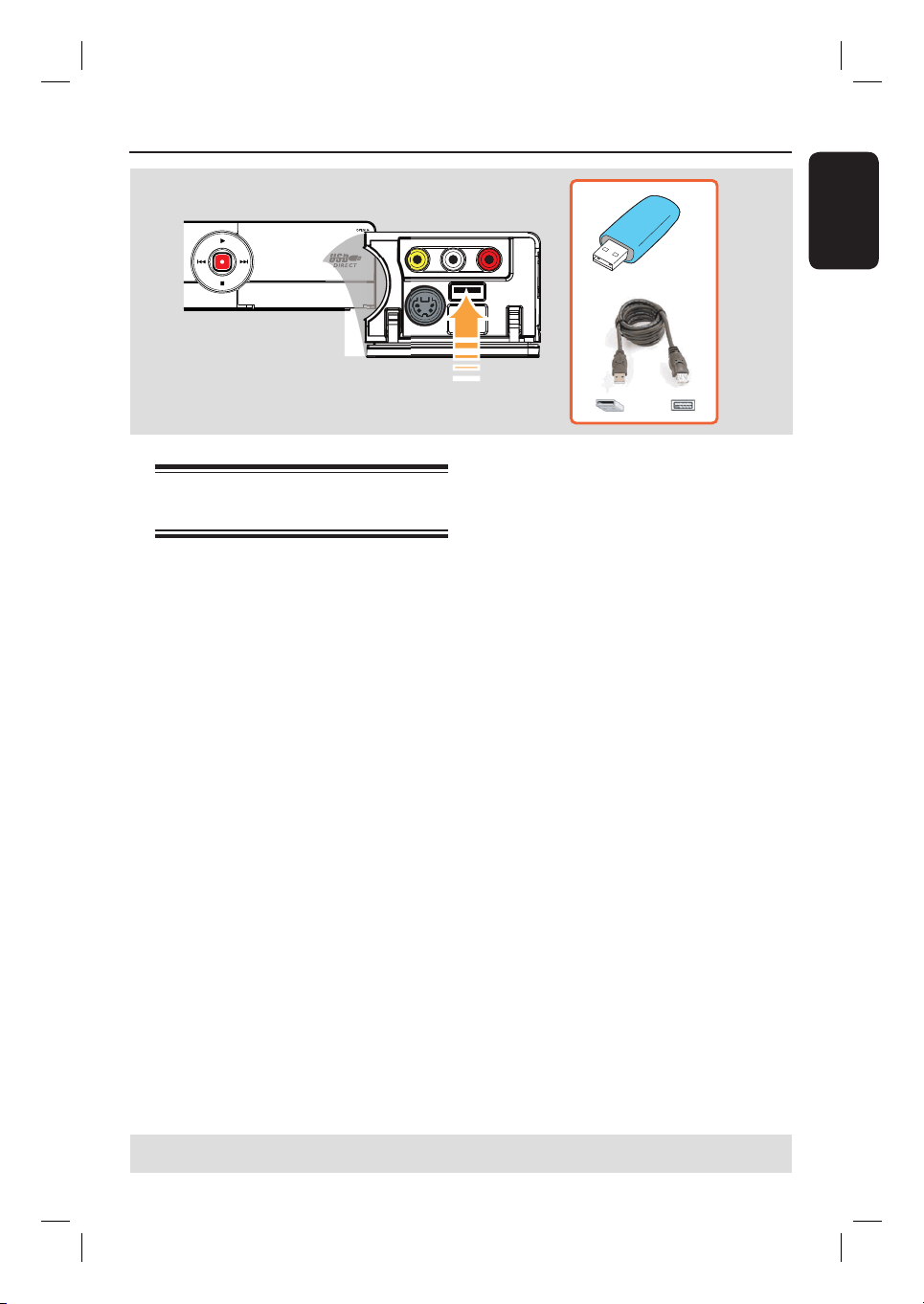

Connecting a USB ash drive
or USB memory card reader
You can view the contents of a USB ash
drive / USB memory card reader through
this recorder and record the contents
onto a recordable DVD. See the chapter
“Recording – Archiving from a USB ash
drive or USB memory card.”
A
Connect the USB ash drive / USB
memory card reader directly to the USB
port on the front panel (as shown in the
above illustration).
B
Press USB on the remote control to
view the les stored in the USB ash
drive or USB memory card reader.
C
To stop playback, press STOP
or
remove the USB ash drive / USB
memory card reader from the USB port.
Helpful Hints:
– The USB port only supports the playback
of JPEG/MP3/WMA les.
– The USB port does not support the
connection of other USB devices except to a
USB ash drive / USB memory card reader.
– When the USB device does not t into the
USB port, a USB extension cable is required.
TIPS: Refer to the respective connected device’s user manual for other possible connections.
English
24
Step 3: Installation and Setup
Before you start...
When you complete the
connections and turn on the
recorder for the rst time, it is
advisable that you make several
basic settings.
Please see the following pages on using
the system setup menu features to
programme TV channels, menu language
and system clock settings. This will
optimise the performance of this
recorder.
Finding the correct viewing
channel
A
Press STANDBY-ON on the recorder
to switch it on.
B
Switch on the TV and set it to the
correct video-in channel. You should see
the blue DVD background screen.
You may go to Channel 1 on your TV,
then press the Channel Down button on
your TV’s remote control until you see
the Video In channel.
You may press ° button repeatedly
on your TV’s remote control.
Usually this channel is between the
lowest and highest channels and may be
called FRONT, A/V IN, VIDEO. See your
TV manual for more details.
Setting the OSD language
Select the menu language for this
recorder’s on-screen display. The
language options are different depending
on your country or region. It may not
correspond to the illustrations shown in
the user manual.
Language settings can only be changed
when there is no disc in the disc tray.
SOURCE
SOURCE
SELECT
SELECT
TOOLS
TOOLS
DISC MENU
DISC MENU
USB
USB
TV/DVD
TV/DVD
CLEAR
CLEAR
REPEAT
REPEAT
OPEN/CLOSE
OPEN/CLOSE
ç
PLAY
PLAY
REC MODE
TIMER
EDIT
VIDEO Plus+
SETUP
OK
A
Press SETUP.
The setup menu appears.
B
Use ST keys to highlight
{ Setup Menu - General } and press X
to access the menu.
Countr
y
On Screen Dis
p
la
y
Lan
g
ua
ge
Screen Save
r
Reset Menu Settin
g
s
Setu
p
Menu - Genera
l
German
y
En
g
lis
h
On
OK
C
Use ST keys to highlight { On Screen
Display Language } and press OK to
access its options.
D
Use ST keys to highlight the desired
language and press OK to con rm.
TIPS: Press X to access the options of an item in the menu.
Press SETUP to exit the menu.
English
25
Step 3: Installation and Setup (continued)
Select the country of your
residence
Select the country of your area for auto
channel tuning.
A
In setup menu, use ST keys to highlight
{ Setup Menu - General } and
press X to access the menu.
Countr
y
On Screen Dis
p
la
y
Lan
g
ua
ge
Screen Save
r
Reset Menu Settin
g
s
Setu
p
Menu - Genera
l
German
y
En
g
lis
h
On
OK
B
Select { Country } and press OK.
C
Use ST keys to select the country of
your residence and press OK to con rm.
Setting your TV channel
programmes
Before the recorder can start recording
the TV channel programmes, you need to
search for the available TV channels and
store them in the recorder.
Tuner settings can only be changed
when there is no disc in the disc tray.
Before you start ...
Make sure you have successfully made all
the required connections to the
recorder, the TV and Satellite Receiver/
Cable Box (if any) and turned them on.
A
In setup menu, use ST keys to highlight
{ Setup Menu - Channel
Setup } and press X.
Setu
p
Menu - Channel Setu
p
Searc
h
E
d
i
t
Sor
t
Channel Searc
h
Modif
y
Channel Informatio
n
Sort Channels
B
Select { Channel Search } and press
OK.
The automatic TV channel search starts.
This process may take several minutes.
Once complete, the total number of
channels found and stored appears on the
TV.
To modify or sort the TV channels,
see the chapter “DVD Setup Menu
Options – CHANNEL SETUP settings.”
TIPS: Press X to access the options of an item in the menu.
Press SETUP to exit the menu.
English
26
Setting the date & time
This recorder has an automatic date and
time setting feature. If the recorder has
not set the time and date correctly, you
can further adjust the clock settings.
A
In setup menu, use ST keys to highlight
{ Setup Menu - Clock } and
press X to con rm.
Setu
p
Menu - Cloc
k
01
/
01
/
0
6
00
:
05
:
08
A
u
t
o
Date (dd / mm /
yy)
Time
(
hh : mm : ss
)
Date-Time Settin
g
B
Select { Date-Time Setting } and press
X.
Use ST keys to highlight { Manual }
and press OK.
C
Select { Date (dd/mm/yy) } and press
OK to edit the date elds.
Use ST keys to change number and
use WX keys to select different entry
elds, then press OK to con rm.
You can also use the numeric keypad
0-9 on the remote control to key in the
numbers.
D
Press OK to con rm.
E
To set { Time (hh:mm:ss) }, repeat
step
C
~
D
.
F
Press SETUP to exit the menu.
The basic installation is complete.
Step 3: Installation and Setup (continued)
TIPS: Press X to access the options of an item in the menu.
Press SETUP to exit the menu.
English
27
Recording
Discs for recording
Several different types of recordable
DVD discs can be used with this
recorder:
DVD±RW (DVD Rewritable)
– Discs that are rewritable can be used
for multiple recordings once the existing
data is erased.
DVD±R (DVD Recordable)
– Discs can only be used for a single
recording. Each new recording is always
added at the end of all previous
recordings as existing recordings cannot
be overwritten.
– Editing can be done on DVD±R discs
as long as they have not been nalised.
– To play a DVD±R on other DVD
player, it must be nalised (see the
chapter “Editing/ Finalising Recording –
Playing your recordings (DVD±R) on
other DVD players”). After this is done,
no more data can be added to the disc.
DVD+R DL (DVD+R Double Layer)
– Like the DVD+R, these discs can only
be used for a single recording. The only
difference is the capacity- 8.5GB. It offers
two recordable layers on a single DVD
disc. The layers are accessible from the
same side of the disc, so recording can
occur completely uninterrupted.
Supported disc type and media
speeds
Disc
Media speeds
DVD+R 1x - 16x
DVD+RW 2.4x - 4x
DVD-R 1x - 16x
DVD-RW 2.4x - 4x
DVD+R DL 2.4x
English
28
IMPORTANT!
Unrecordable contents
Contents with copy protection cannot be
recorded on this recorder. When the
recorder receives a copy guard signal,
recording will be paused.
Recording settings
The default recording settings allow you
to set the auto chapter markers,
preferred recording input source and
recording mode. Any change made using
the remote control will only apply to the
current recording settings. The default
recording settings will remain unchanged
for the next recording.
SOURCE
SOURCE
SELECT
SELECT
TOOLS
TOOLS
DISC MENU
DISC MENU
USB
USB
TV/DVD
TV/DVD
CLEAR
CLEAR
REPEAT
REPEAT
OPEN/CLOSE
OPEN/CLOSE
ç
PLAY
PLAY
REC MODE
REC MODE
TIMER
TIMER
EDIT
EDIT
VIDEO Plus+
VIDEO Plus+
SETUP
OK
Recording (continued)
A
Press SETUP on the remote control.
The setup menu appears on the TV.
B
Use ST keys to select
{ Setup
Menu - Record } and press X to
con rm.
Setu
p
Menu - Recor
d
On
T
u
n
er
S
P
Auto Cha
p
ter Marke
r
Default Recordin
g
Sourc
e
Default Recordin
g
Mod
e
C
Use ST keys to select the setting you
wish to change and press OK to con rm.
Instructions and explanations of the
options are provided in the following
pages.
D
To exit, press SETUP.
TIPS: Press W to go back to previous menu item.
Press SETUP to exit the menu item.
English
29
Recording (continued)
RECORD settings (underlined options are the factory default settings)
Auto Chapter
Marker
Automatically divides a recording (title) into chapters by inserting
chapter markers at a speci c interval. This enables you to access a
speci c point in the recording quickly.
{ On } – Chapter markers will automatically be
inserted within the title during recording at
every 5 minutes interval.
{ Off } – No chapter marker is inserted in the
recording.
Default Recording
Source
De ne your frequent source of recording. The recorder will
switch to this default source whenever it is turned on.
{ Tuner } – Input source from TV programmes.
{ CAM1 } – Input source from the device connected to
the CAM1 and AUDIO L/R sockets at the
front panel.
{ CAM2 } – Input source from the device connected to
the CAM2 and AUDIO L/R sockets at the
front panel.
{ DV } – Input source from the device connected to
DV IN socket on the front panel.
{ EXT 1 } – Input source from the device connected to
the EXT1 TO TV-I/O SCART socket at the
rear panel.
{ EXT 2 } – Input source from the device connected to
the EXT2 AUX-I/O SCART socket at the
rear panel.
Note: To change the current recording source without changing the
default setting, you can press the SOURCE button on the remote
control.
Default Recording
Mode
The recording mode de nes the preferred picture quality of
recordings and the maximum recording time on a disc.
The factory default setting is SP.
Maximum Recording
Time per Disc (hours)
Picture Quality
Record Mode
1
2
2.5
3
4
6
High Quality
Standard Play
Standard Play Plus
Long Play
Extended Play
Super Long Play
HQ
SP
SPP
LP
EP
SLP
English
30
Recording (continued)
Recording from various
sources
You can record a TV programme or copy
the content from an external device to a
recordable DVD disc. The storage
capacity of the disc depends on the
recording mode selected.
SOURCE
SOURCE
SELECT
SELECT
TOOLS
TOOLS
DISC MENU
DISC MENU
USB
USB
TV/DVD
TV/DVD
CLEAR
CLEAR
REPEAT
REPEAT
OPEN/CLOSE
OPEN/CLOSE
ç
PLAY
PLAY
REC MODE
TIMER
EDIT
SHOWVIEW
SOURCE
STOP
REC
P+/-
Recording TV programmes
A
Switch on the TV to the correct viewing
channel for the recorder (e.g. ‘EXT’, ‘0’,
‘AV’).
B
Insert a recordable DVD into the
recorder.
C
Press SOURCE on the remote control
to select { Tuner }, then use P +/-
keys to select the TV channel you wish to
record.
D
Press REC z to start recording.
If the disc contains some prior
recordings, the new recording will
automatically start after the last recording
on the disc.
To pause the recording, press PLAY/
PAUSE u. To continue recording,
press REC z.
You can use this function to avoid
recording commercials.
E
To stop the recording, press STOP x.
Recording from an DV camcorder
Record video directly from a connected
DV camcorder to a recordable DVD disc.
A
Connect the DV camcorder to DV IN
socket at the front of the recorder.
B
Find the footage on the DV camcorder
that you want to start recording and set
the camcorder to pause mode.
C
Switch on the TV to the correct viewing
channel for the recorder (e.g. ‘EXT’, ‘0’,
‘AV’).
D
Insert a recordable DVD into the
recorder.
E
Press SOURCE on the remote control
to select { DV }.
F
Press REC z to start recording and
press the PLAY button on the DV
camcorder to start playback.
To pause the recording, press PLAY/
PAUSE u
once. To continue
recording, press REC z
again
G
To stop the recording, press STOP x.
A new title will be created when you
begin another recording.
TIPS: Ensure that there is enough space on the recordable DVD before recording. Before you playback the
DVD±R on another player, nalise the disc. See “Playing your recordings (DVD±R) on other DVD players”.
English
31
Recording (continued)
Recording from an external device
(Camcorder/ VCR/DVD Player)
Record video directly from an external
device to a recordable DVD disc.
Before you start...
Set the preferred mode of recording
before proceeding. See the section
“Recording Settings” in this chapter.
A
Connect the external device to this
recorder. See the chapter “Step 2:
Optional Connections”.
B
Switch on the TV to the correct viewing
channel for the recorder (e.g. ‘EXT’, ‘0’,
‘AV’).
C
Insert a recordable DVD into the
recorder.
D
Press SOURCE repeatedly to select the
correct input channel that matches the
connected socket of the device.
{ EXT 1 }
Input source from the device connected
to the EXT1 TO TV-I/O SCART socket
at the rear panel.
{ EXT 2 }
Input source from the device connected
to the EXT2 AUX-I/O SCART socket at
the rear panel.
{ CAM1 }
Input source from the device connected
to the VIDEO and AUDIO L/R sockets at
the front panel.
{ CAM2 }
Input source from the device connected
to the S-VIDEO and AUDIO L/R sockets
at the front panel.
E
Press REC z to start recording.
Press REC z repeatedly to toggle
between OTR 30, 60 or 90- minutes
recording options.
F
Start playback on the connected device.
To pause the recording, press PLAY/
PAUSE u
once. To continue
recording, press REC z
again.
You can use this function to avoid any
unwanted recording.
G
To stop the recording, press STOP x.
TIPS: Ensure that there is enough space on the recordable DVD before recording. Before you playback the
DVD±R on another player, nalise the disc. See “Playing your recordings (DVD±R) on other DVD players”.
English
32
Archiving from a USB ash
drive or USB memory card
reader
Archive the contents from a USB device
to a recordable DVD disc.
SOURCE
SOURCE
SELECT
SELECT
TOOLS
TOOLS
DISC MENU
DISC MENU
USB
USB
TV/DVD
TV/DVD
CLEAR
CLEAR
REPEAT
REPEAT
ç
PLAY/PAUSE
PLAY/PAUSE
REC MODE
TIMER
EDIT
SHOWVIEW
OPEN/CLOSE
OPEN/CLOSE
OK
REC
USB
TOOLS
CLEAR
SELECT
A
Switch on the TV to the correct viewing
channel for the recorder (e.g. ‘EXT’, ‘0’,
‘AV’).
B
Insert a recordable DVD into the
recorder. (Use a DVD disc only for data
archiving. Do not use a disc with video
recordings).
C
Connect the USB ash drive / USB
memory card reader to the USB port at
the front panel of the recorder.
D
Press USB on the remote control to
view the les stored in the USB ash
drive or USB memory card reader.
E
Press TOOLS on the remote control.
The USB mode appears.
Audio
T
yp
e A
ud
i
o
M
ode
N
o
rm
al
A
ud
i
o
Stere
o
Searc
h
00
:
00
:
00
-
00
:
00
:
00
US
B
Co
py
to DV
D
F
Use ST keys to select { Copy to
DVD } and press OK.
The USB drive content menu appears.
Archiving from USB to DVD
Directory Copy List
Japan trip
Bryan Bday
My songs
Hot Hits
Archiving from USB to DVD
Directory Copy List
Song1.mp3
Music.mp3
1
2
3
4
5
6
7
8
..\Move up directory
Music.mp3
1
2
G
Use ST keys to navigate within the
menu and press OK to access the
folder/ album.
H
To create a copylist, highlight the track/
le and press SELECT.
The selected tracks/ les will appear
on the right { Copy List } screen.
To remove the track/ le from the
copy list, press CLEAR.
I
Once the copy list selection is complete,
press REC z to start archiving.
A message will appear. Select
OK
in the menu and press OK to proceed.
Helpful Hints:
– The USB port supports the playback of
JPEG/MP3/WMA/DivX les.
– The USB port does not support the
connection of other USB devices except to a
USB ash drive / USB memory card reader.
– If the USB device does not t into the USB
port, a USB extension cable is required.
– It is not possible to record content from a
DVD disc to the USB drive.
Recording (continued)
TIPS: Ensure that there is enough space on the recordable DVD before recording. Before you playback the
DVD±R on another player, nalise the disc. See “Playing your recordings (DVD±R) on other DVD players”.
English
33
Instant time-off recording
This function allows you to make a
recording with a preset length easily
without using the timer programming.
A
Press REC z repeatedly to toggle
between OTR 30, 60 or 90- minutes
recording options.
B
The recorder will stop recording at the
designated end time and switch off to
standby mode automatically.
If you wish to stop the recording before
the scheduled time, press STOP x.
Recording (continued)
Watching another TV
programme during recording
While recording is in progress, you can
watch another TV channel or the
playback from another audio/video device
which is connected to this recorder.
SOURCE
SOURCE
SELECT
SELECT
TOOLS
TOOLS
DISC MENU
DISC MENU
USB
USB
TV/DVD
TV/DVD
CLEAR
CLEAR
REPEAT
REPEAT
ç
PLAY
REC MODE
TIMER
EDIT
SHOWVIEW
TV/DVD
Watching playback from another
device
This is only possible if the recorder is
connected to the TV using the EXT1 TO
TV-I/O socket.
Press TV/DVD to view the picture from
the device which is connected to the
EXT2 AUX-I/O socket of this DVD
recorder.
Watching another TV channel
If there is no device connected to the
EXT2 AUX-I/O socket, pressing
TV/DVD will switch to TV mode.
Use the TV’s remote control to change
the channels.
The message “TV/LOOP” will be
displayed on the recorder’s system
display panel.
To switch back to recorder mode, press
TV/DVD on the remote control.
Helpful Hint:
– Remember to switch the TV back to its
video input channel if you want to watch the
TV channel through the recorder or playback
the recorded disc.
TIPS: Ensure that there is enough space on the recordable DVD before recording. Before you playback the
DVD±R on another player, nalise the disc. See “Playing your recordings (DVD±R) on other DVD players”.
English
34
Timer Recording
Timer recording (VIDEO
P
LUS+® System)
This is a simple timer programming
system. To use it, enter the PlusCode
programming number associated with
your television programme. You can nd
this number in your TV listings magazine.
All the information required by this
recorder for programming is contained in
the programming number.
A
Switch on the TV to the correct viewing
channel for the recorder (e.g. ‘EXT’, ‘0’,
‘AV’).
B
Press VIDEO Plus+ on the remote
control.
The VIDEO Plus+
®
System menu
appears.
VIDEO Plus+ System
OK
CANCELCONFIRM
Enter the PlusCode programming
number for the show wish to record.
C
Use the numeric keypad 0-9 to enter
the PlusCode programming number for
the show you wish to record.
(e.g. : 5-312-4 or 5,312 4, key in ‘53124’).
To clear the PlusCode programming
number, press CLEAR on the remote
control.
To cancel the PlusCode programming,
use ST keys to select
CANCEL
in the
menu and press OK.
About timer recording
Use the timer recording to automatically
start and stop a recording at a later
date/time. The recorder will tune to the
right programme channel and begin
recording at the speci ed time.
With this recorder, you can schedule up
to 8 recordings at a time. During timer
recording, changing the channel that is
being recorded is not possible.
There are two ways to programme
a timer recording
– Using the VIDEO Plus+
®
system.
– Using manual timer schedule.
SOURCE
SELECT
TOOLS
DISC MENU
USB
TV/DVD
CLEAR REPEAT
ç
PLAY
REC MODE
REC MODE
TIMER
TIMER
EDIT
EDIT
VIDEO Plus+
VIDEO Plus+
TIMER
About ‘VPS/PDC’
‘VPS’ (Video Programming System) or
‘PDC’ (Programme Delivery Control) is
used to control the start and duration of
TV channel recordings. If a TV
programme starts earlier or ends later
than was scheduled, the recorder will
then turn on and off at the correct time.
VPS/PDC is intended to record the entire
programme. To set a timer that is longer/
shorter than the VPS/PDC broadcast
time, you must turn off the VPS/PDC.
TIPS: Ensure that there is enough space on the recordable DVD before recording. Before you playback the
DVD±R on another player, nalise the disc. See “Playing your recordings (DVD±R) on other DVD players”.
English
35
Timer Recording (continued)
D
To con rm your entry, select
CONFIRM
in
the menu and press OK.
The VIDEO Plus+
®
programme
information will be shown on the timer
editor menu.
Timer Editor 09 : 05 : 56
OK
OK CANCEL
Rec Mode
Mode
Date
Start
End
SP
Once
Source
Ch003
01 / 01 / 06
10 : 33
11 : 03
VPS/PDC
Off
If the channel number of the TV
programme has not been assigned to the
programming number, you will have to
manually key in the channel number that
is assigned to the PlusCode. Follow the
instructions on the TV.
E
Press TIMER to exit the menu.
F
Insert a recordable DVD into the
recorder.
G
Press STANDBY-ON to turn off the
recorder to standby mode.
The ‘TIMER’ icon will light up on the
display panel if a timer recording is set.
If the recorder is not in standby mode,
a noti cation message will appear three
minutes before the recording begins.
Timer recording (manually)
A
Switch on the TV to the correct viewing
channel for the recorder (e.g. ‘EXT’, ‘0’,
‘AV’).
B
Press TIMER on the remote control.
The timer schedule appears.
Timer Schedule 09 : 05 : 56
1
2
3
4
5
6
Source Rec Mode Date Start End VPS
CH003
SP
05/01/06
14.00 15.30
CH010
CH005
CH008
EP
SP
SP
25/01/06
30/01/06
31/01/06
02.00
17.00
12.30
06.30
18.15
14.00
On
Off
On
Off
C
Select an empty eld and press OK.
The timer editor menu appears.
Timer Editor 09 : 05 : 56
OK
OK CANCEL
Rec Mode
Mode
Date
Start
End
SP
Once
Source
Ch003
01 / 01 / 06
10 : 33
11 : 03
VPS/PDC
Off
D
Use ST keys or the numeric keypad
0-9 to select or enter the recording
information, then press OK to con rm.
TIPS: Ensure that there is enough space on the recordable DVD before recording. Before you playback the
DVD±R on another player, nalise the disc. See “Playing your recordings (DVD±R) on other DVD players”.
English
36
{ Source }
Select the TV channel or the correct
input source (DV, EXT1, EXT2, CAM1
or CAM2) which you have used to
connect the external device.
{ Rec Mode }
Select the mode of recording.
See the chapter “Recording – RECORD
settings - Default Recording mode” for
more information.
{ Mode }
Select a desired repeat recording mode
(Once, Daily, Weekly, Mon-Fri, Mon-Sat
or Weekend).
{ Date }
Enter the date for recording (Day/Month/
Year).
{ Start }
Enter the start time of recording (hours :
minutes).
{ End }
Enter the end time of recording (hours :
minutes).
{ VPS/PDC }
Turn on or off the VPS/PDC setting. (See
the section “About timer recording –
About VPS/PDC”).
Note: VPS/PDC settting is not available
for the external receiver.
E
Use ST keys to select
OK
in the
menu and press OK.
The system will store the timer entry
and return to the timer schedule list.
To cancel the above timer setting, move
to
CANCEL
in the menu and press OK.
F
Press TIMER to exit the menu.
G
Insert a recordable DVD into the
recorder.
H
Press STANDBY-ON to turn off the
recorder to standby mode.
The ‘TIMER’ icon will light up on the
display panel if a timer recording is set.
If the recorder is not in standby mode,
a noti cation message will appear three
minutes before the recording begins.
Helpful Hint:
– Set the timer recording one minute
ahead of the programme’s start time. This
helps ensure the entire programme is
recorded as the disc requires about 30
seconds to prepare for recording.
Timer Recording (continued)
TIPS: Ensure that there is enough space on the recordable DVD before recording. Before you playback the
DVD±R on another player, nalise the disc. See “Playing your recordings (DVD±R) on other DVD players”.
English
37
Setting a timer recording from
an external Cable Box/ Satellite
Receiver
If you have a Satellite Receiver/Cable Box
connected to this recorder via the EXT2
AUX-I/O SCART connection (see “Step
2: Optional Connections”), follow the
steps described below to programme the
recordings.
A
Select the channel you want to record at
the Satellite Receiver/Cable Box.
B
Programme the recording with the
required information. Follow the steps
A
~
H
of “Timer Recording (manually)”
on the previous page.
Note: In { Source } entry, select
{ EXT2 } as the input source for
recording.
C
Leave the Satellite Receiver/Cable Box
turned on for the recording.
Changing/ Deleting a timer
recording
A
Switch on the TV to the correct viewing
channel for the recorder (e.g. ‘EXT’, ‘0’,
‘AV’).
B
Press TIMER on the remote control.
The timer schedule appears.
Timer Schedule 09 : 05 : 56
1
2
3
4
5
6
Source Rec Mode Date Start End VPS
CH003
SP
05/01/06
14.00 15.30
CH010
CH005
CH008
EP
SP
SP
25/01/06
30/01/06
31/01/06
02.00
17.00
12.30
06.30
18.15
14.00
On
Off
On
Off
C
Use ST keys to select a timer
programme which you want to change/
delete.
D
To delete the timer entry, press
CLEAR on the remote control.
E
To change the timer schedule, press
OK to enter the timer editor menu of
the selected timer programme.
Timer Editor 09 : 05 : 56
OK
OK CANCEL
Rec Mode
Mode
Date
Start
End
SP
Once
Source
Ch003
01 / 01 / 06
10 : 33
11 : 03
VPS/PDC
Off
F
Select the entry eld and make the
necessary changes.
G
Once complete, select
OK
in the
menu and press OK.
H
Press TIMER to exit the menu.
Timer Recording (continued)
TIPS: Ensure that there is enough space on the recordable DVD before recording. Before you playback the
DVD±R on another player, nalise the disc. See “Playing your recordings (DVD±R) on other DVD players”.
English
38
Playback
Playable discs
Using this recorder, you can playback and
record on the following discs:
Recording and Playback
DVD±RW
(DVD Rewritable);
can be recorded on
over and over again.
DVD±R
(DVD Recordable);
can be recorded
only once.
DVD+R DL
(DVD+R Double
Layer); can be recorded only
once.
Playback only:
DVD Video (Digital Versatile
Disc)
CD-RW (CD-Rewritable)
Audio/ MP3/WMA JPEG contents
CD-R (CD-Recordable)
Audio/ MP3/WMA JPEG contents
Audio CD (Compact Disc
Digital Audio)
MP3/WMA-Disc
Video CD
(Formats 1.0, 1.1, 2.0)
Super Video CD
DivX Disc
(DivX 3.11, 4.x, 5.x, 6)
IMPORTANT!
– If the inhibit icon (Error) appears
on the TV screen when a button is
pressed, it means the function is not
available on the current disc or at
the current time.
– DVD discs and players are
designed with regional restrictions.
Before playing a disc, make sure the
disc is for the same region as your
player.
– Do not push on the disc tray or
put any objects other than discs
on the disc tray. It may cause the
disc player to malfunction.
ReWritable
Recordable
TIPS: Some discs cannot be played on this recorder due to the con guration and characteristics of
the disc, or due to the condition of recording and authoring software.
English
39
Starting disc playback
A
Press STANDBY-ON to switch on the
recorder.
B
Press OPEN/CLOSE ç.
The disc tray opens.
C
Place the disc onto the tray with the label
facing up, then press OPEN/CLOSEç.
D
Switch on the TV to the correct viewing
channel for the recorder (e.g. ‘EXT’, ‘0’,
‘AV’).
E
Playback may start automatically or a
dialogue box will appear on the TV (see
next page).
If the pin code entry dialogue appears on
the TV, this means that the parental
control was activated for the inserted
disc. You have to enter your four-digit
pin code (see “DVD Setup Menu Options
– DVD Settings”).
For more playback features, see
“Additional Playback Features”.
Playing a DVD video disc
The DVD disc is usually formatted with a
disc menu. You may have to make your
selection (e.g., subtitle or audio language)
within the disc menu.
A
Insert a DVD disc.
If the disc menu appears, use the
numeric keypad 0-9 to input your
selection or use ST keys to select a
play option and press OK to start
playback.
To access te disc menu
Press DISC MENU on the remote
control.
To select the previous or next
chapter
During playback, pressí or ë.
B
To stop playback, press STOP x.
Playing an audio CD
A
Insert an audio CD.
Playback starts automatically.
The track number and elapsed playing
time appear on the display panel.
B
To stop playback, press STOP x.
Playback (continued)
TIPS: Some discs cannot be played on this recorder due to the con guration and characteristics of
the disc, or due to the condition of recording and authoring software.
English
40
Playing a (Super) Video CD
(Super) Video CDs may feature ‘PBC’
(Play Back Control). This allows you to
play the video CDs interactively by
following the menu on the display.
A
Insert a (Super) Video CD.
If the ‘PBC’ is on, the disc index
menu will appear on the TV
B
Use numeric keypad 0-9 to input your
selection or to select a play option.
To return to the previous menu, press
BACK2 on the remote control.
To turn on/off the Playback Control
mode, press TOOLS on the remote
control during playback to access the
VCD menu. Then use ST keys to select
{ PBC On } or { PBC Off }.
C
To stop playback, press STOP x.
Playing a recordable DVD disc
A
Insert a recordable DVD disc.
The Index Picture screen appears.
B
Use ST keys to select a title to play,
then press PLAY/PAUSE u.
C
To stop playback, press STOP x.
Helpful Hint:
– If the message ‘BLANK’ appears on the
display panel, this means that there are no
recordings on this disc.
Playing an MP3/WMA disc
A
Insert an MP3/WMA CD.
The disc content menu appears.
Audio Stop 0:00:00 - 0:00:00
Directory Playlist
Bee Gees
Phil Collins
Bryan Adams
Collin Raye
Nat King Cole
UB40
Eric Clapton
Faith Hill
Note: It may require a longer time for
the recorder to display the disc content
menu on the TV due to the large number
of songs/pictures compiled into one disc.
B
Use ST keys to navigate within the
menu and press OK to access the folder/
album.
C
Use ST keys to select the track/ le to
play.
To move up to the previous level, press
BACK2.
D
To create a playlist, highlight the track/ le
and press SELECT.
The selected tracks/ les will appear
on the right screen.
To remove the track/ le from the
playlist, press CLEAR.
E
To start playback from the playlist, move
the cursor to the right selection screen
and press u.
F
During playback, you can press í/ë to
select the next/previous track.
G
To stop playback, press STOP x.
Helpful Hints:
– Only the rst session of a multi-session CD
will playback.
– This recorder does not support MP3PRO
audio format.
Playback (continued)
TIPS: Some discs cannot be played on this recorder due to the con guration and characteristics of
the disc, or due to the condition of recording and authoring software.
English
41
Playback (continued)
Playing a picture disc (or musical
slide show)
You can display JPEG pictures in the
selected roll automatically one after the
other.
A
Insert a JPEG picture disc (CD,
CD-R/RW, recordable DVD).
The disc content menu appears.
B
Use ST keys to navigate within the
menu and press OK to access the
folder/ album.
C
To create a playlist, highlight the track/ le
and press SELECT.
The selected tracks/ les will appear
on the right screen.
To remove the track/ le from the
playlist, press CLEAR.
D
You can select to playback from the
original disc content or from the playlist.
Use W X keys to move to the correct
screen before selecting the track/ le for
playback.
PIC Normal
Directory Picture Playlist
Japan trip
Bryan Bday
My songs
Hot Hits
Program Stop
Directory
1
2
3
4
5
6
7
8
..\Move up directory
Picture Playlist
If the disc contains MP3/WMA
music and JPEG picture les, you
can start a musical slide show
playback,
Select an MP3/WMA le and press OK
to start playback, then select a picture le
in the menu and press OK to start the
musical slide show playback.
E
During playback, press TOOLS twice on
the remote control to access various
settings for the slide show playback.
File Play
PIC
Normal
Top to bottom
Fitscreen
Clockwise 0
Type
Mode
Wipe
Zoom
Rotate
Top to bottom
Down to top
Left to right
Right to left
Extend center V.
F
To stop playback, press STOP x.
Playable JPEG picture disc
File format:
– The le extension has to be ‘.JPG,’
‘.JPE’ or ‘.JPEG.’
– Only DCF-standard still pictures or
JPEG pictures e.g. TIFF are supported.
– Moving pictures, Motion JPEG,
progressive JPEG, pictures in non-JPEG
formats and including pictures associated
with sound are not supported.
TIPS: Some discs cannot be played on this recorder due to the con guration and characteristics of
the disc, or due to the condition of recording and authoring software.
English
42
Playing a DivX disc
This recorder supports the playback of
DivX movies which you can copy from
your computer onto a CD-R/RW,
recordable DVD or USB ash drive.
A
Insert a DivX disc.
The disc content menu appears.
If the DivX movie contains external
subtitles, you have to rst select the
subtitle le from the le list.
B
Press PLAY/PAUSE u to start
playback.
During playback, you can press TOOLS
to display the disc content menu.
To select another character set for
the subtitle le,
During playback, press TOOLS once to
show the disc content menu. Press
TOOLS again to access various settings
for the slide show playback.
File Pla
y
Western European
Standard
Central European
Cyrillic
Greek
T
ype
M
ode
C
haracte
r
A
ud
i
o
Tim
e
LANG
Vi
deo
N
o
rm
al
Standard Se
t
Stere
o
0:01:31
/
0:41:35
Lan
g
ua
g
e
1
Use ST keys to select { Character }
and press X to access the options. Select
the preferred subtitle set and press OK
to con rm.
Helpful Hints:
– Subtitle les with the following lename
extensions (.srt, .smi, .sub, .sami) are
supported.
– It is normal to experience an occasional
pixelation during DivX playback due to poor
clarity of digital contents during internet
downloading.
Playing from a USB ash drive
/USB memory card reader
This USB port supports the playback of
JPEG/MP3/WMA and DivX les.
A
Insert a USB ash drive or USB memory
card reader into the USB port.
B
Press USB on the remote control to
access the data in the drive.
The content menu appears on the TV.
C
Use ST keys to navigate within the
menu and select the le you want to play,
then press OK.
For more playback information, refer
to the previous sections on MP3/WMA
and DivX playback in this user manual.
D
To stop playback, press STOP x or
remove the USB ash drive / USB
memory card reader from the USB port.
Playback (continued)
TIPS: Some discs cannot be played on this recorder due to the con guration and characteristics of
the disc, or due to the condition of recording and authoring software.
English
43
Additional Playback Features
Changing to another chapter/
track
When a disc contains more than one
chapter or track, you can change to a
different chapter or track as follows.
During playback,
Press ë (NEXT) to go to the next
chapter/track.
Pressí (PREV) to return to the start of
the previous chapter/track.
Alternatively,
Use the numeric keypad 0-9 to input
the title/chapter/track number.
Alternatively,
Press TOOLS to enter the le play
(DVD, VCD) menu and use ST keys to
select { Title } or { Chapter } and use
numeric keypad 0-9 to input the title/
chapter/track number.
Pausing playback
A
During playback, press PLAY/PAUSE
u to pause playback.
B
To resume normal playback, press
u again.
Searching forwards/
backwards
You can search forward or backward on
a disc at two, four, sixteen or thirty two
times the normal playback speed.
A
During playback, press à (REW) or
á (FFW) to switch to the search
function.
The search status bar appears. It
displays the search speed.
The sound will be muted.
B
Press à (REW) or á (FFW) to cycle
through the search speeds.
C
To resume normal playback, press
PLAY/PAUSE u.
TIPS: The operating features described here might not be possible for certain discs.
Always refer to the instructions supplied with the discs.
English
44
Using the TOOLS options
SOURCE
SOURCE
SELECT
SELECT
TOOLS
TOOLS
DISC MENU
DISC MENU
USB
USB
TV/DVD
TV/DVD
OPEN/CLOSE
OPEN/CLOSE
CLEAR
CLEAR
REPEAT
REPEAT
ç
PLAY
PLAY
REC MODE
TIMER
EDIT
SHOWVIEW
REC
TOOLS
OK
SETUP
SELECT
DISPLA
Y
Menu options displayed may differ
depending on the disc type.
A
During disc playback, press TOOLS on
the remote control.
The Tools menu appears.
DVD
00:22:03 / 01:30:26
Normal
01/02
03/12
01/02 - OTH
Off
01/03
00:22:03 / 01:30:26
Mode
Title
Chapter
Audio
Subtitle
Angle
Title
B
Use ST keys to select the setting you
want to adjust.
Instructions and explanations of the
options are provided in the following
pages.
If the selection in the menu is greyed
out, that means the feature is not
available or cannot be changed in the
current state.
Press DISPLAY on the remote control
to hide or show the DVD menu.
C
To exit, press TOOLS.
Selecting various repeat/ shuf e
functions
You can select various repeat play or
random play mode during playback.
During disc playback, press REPEAT
repeatedly to toggle through the options
on the disc.
Alternatively,
A
During disc playback, press TOOLS on
the remote control.
The Tools menu appears.
B
Use ST keys to select { Mode } and
press OK.
C
Use ST keys to select one of the repeat
options.
{ Repeat A-B } (DVD/VCD)
Repeat the playback of a speci c segment
within a title/chapter/track. Press OK to
mark the start and end of the segment
you want to repeat.
{ Repeat Chapter }
Repeat playback of the current chapter
(DVD, recorded DVD only).
{ Repeat Track/Title }
Repeat playback of the current track/title.
{ Repeat Directory }
Repeat playback of the current folder/
directory (MP3, JPEG, picture disc only).
{ Repeat Disc }
Repeat playback of the entire disc. (MP3,
JPEG, SVCD and CDDA discs only).
{ Shuf e }
Randomly playback all the tracks within
the disc (MP3/DivX/WMA and audio
CDs).
{ Normal }
Cancel the repeat or programmed modes
and return to normal playback.
D
To cancel repeat playback, press STOP
x or select { Normal } and press OK.
Additional Playback Features (continued)
TIPS: The operating features described here might not be possible for certain discs.
Always refer to the instructions supplied with the discs.
English
45
Creating a playlist
You can play the contents of the disc in
the order you want by creating a playlist.
A
During disc playback, press TOOLS on
the remote control.
The Tools menu appears.
B
Select { Mode } > { Program }.
The programme menu appears.
Edit Program Play List
Title Playlist
Title 01
Title 02
Title 03
Title 04
Title 05
Title 06
Title 07
Title 08
C
If the disc is recorded with Titles/Folders/
Albums, press OK to access the tracks/
les/chapters.
D
Use ST keys to select the track/ le/
chapter and press SELECT on the
remote control.
The selected track/ le/ title will
appear in the { Playlist } screen at the
right.
To remove from the playlist
E
Move to the right screen, select the item
to remove and press CLEAR on the
remote control.
F
To start playback from the playlist, move
to the right screen and press OK.
Playback will start from the selected
track/ le/ chapter according to the order
of the playlist.
G
To exit playlist play, press STOP x.
Changing the audio language
This operation works only on DVDs with
multiple soundtrack language or VCDs
with multiple audio channels.
During disc playback, press AUDIO
repeatedly to toggle through the audio
channels on the disc.
Alternatively,
A
During disc playback, press TOOLS on
the remote control.
The Tools menu appears.
B
Use ST keys to select { Audio } and
press X to access its options.
C
Use ST keys to select the audio
language and press OK to con rm.
The languages may be numbered or
abbreviated, such as “En” for English.
If the language selected is not available
on the disc, the disc’s default setting for
language will be used instead.
Helpful Hint:
– Some DVDs allow soundtrack language
changes only via the DVD disc menu. To
access the disc menu, press DISC MENU.
Additional Playback Features (continued)
T
t
c
U
b
s
TIPS: The operating features described here might not be possible for certain discs.
Always refer to the instructions supplied with the discs.
English
46
Additional Playback Features (continued)
Changing subtitle languages
This operation works only on DVDs with
multiple subtitle languages, you can to
change the language you want during
playback of the DVD.
During disc playback, press SUBTITLE
repeatedly to toggle through the language
options on the disc.
Alternatively,
A
During disc playback, press TOOLS on
the remote control.
The Tools menu appears.
B
Use ST keys to select { Subtitle } and
press X to access its options.
C
Use ST keys to select the language and
press OK to con rm.
The languages may be numbered or
abbreviated, such as “En” for English.
If the language selected is not available
on the disc, the disc’s default setting
language will be used instead.
Helpful Hint:
– Some DVDs discs allow subtitle language
changes only via the DVD disc menu. To
access the disc menu, press DISC MENU.
Switching camera angles
This option is only available with DVDs
that contain sequences recorded from
different camera angles. This allows you
to view the picture from different angles.
A
During disc playback, press TOOLS on
the remote control.
The Tools menu appears.
B
Use ST keys to select { Angle } and
press X to enter its options.
The camera angles available for
selection appears.
C
Use ST keys to select the camera angle
you want to switch to, and press OK to
con rm.
Searching by time
This option allows you to skip to a
speci c point on the current disc.
A
During disc playback, press TOOLS on
the remote control.
The Tools menu appears.
B
Use ST keys to select { Search } and
press X to time eld (hours : minutes :
seconds).
C
Use the numeric keypad 0-9 to enter
the time where playback should start and
press OK.
Playback skips to the time entered.
TIPS: The operating features described here might not be possible for certain discs.
Always refer to the instructions supplied with the discs.
English
47
Editing/ Finalising Recording
TIPS: No further recording and editing can be carried out on a full or nalised DVD±R.
Press W to go back to the previous menu. Press DISC MENU to exit.
About disc editing
This recorder offers various disc edit
options for various disc types. You can
change the disc content and settings of a
recorded DVD from the disc editing
menu. The edited contents may not be
available when you play the disc on an
another DVD player.
The displayed options in the disc editing
menu differ depending on the type of
disc.
{ Play }
Start playback from the beginning of the
disc.
{ Rename Disc }
Change the name of the disc.
{ Erase Disc } - DVD±RW only
Erase all the recordings on the disc.
{ Record New Title }
Start recording from the last empty title
on the disc.
{ Overwrite Disc } - DVD±RW only
Start a new recording from the beginning
of the disc, all the recorded content will
be overwritten.
{ Make Compatible } - DVD±RW only
To ensure the edited changes remain
when the disc is played back on another
DVD player. (eg., hidden chapters to
remain hidden).
{ Lock/Unlock Disc } - DVD±RW only
Lock or unlock a disc to prevent
accidental erasure or changes being
made.
{ Finalize Disc } - DVD±R only
Finalise the disc to enable playback on
other DVD players. Further recording
and editing to the disc are not allowed. It
is not possible to un nalise the disc.
Accessing disc editing menu
A
Insert a recorded DVD±R/±RW into the
recorder.
The Index Picture screen appears on
the TV.
B
Select the rst title on the disc, press S
on the remote control.
The disc editing menu appears.
C
Press X on the remote control to display
the disc editing options.
The available editing options are
different for DVD±R and DVD±RW
discs.
R
e
n
a
m
e
Di
sc
Er
ase
Di
sc
R
eco
r
d
N
e
w Titl
e
O
verwrite dis
c
Make Com
p
atible
Lock Disc
Finalize Disc
Play
D
Use ST keys to access different options
and OK to select.
Instructions and explanations of the
options are provided in the following
pages.
E
To exit from the disc editing menu, press
W once to exit from the disc editing
menu. Press T to return to the disc
Index Picture menu.
English
48
Editing/ Finalising Recording (continued)
Rename disc
The original disc name is generated
automatically by the recorder. You can
change the disc name by following the
steps below.
A In disc editing menu, use ST keys to
select { Rename Disc } and press OK.
The keyboard screen appears.
B
Use W XST keys to highlight a
character on the keyboard and press OK
to select.
The maximum input is up to 20
characters.
You can use the following keys on the
keyboard screen to edit your input:
BkSp
: to remove the character to
the left of the cursor.
Delete
: to remove the character to
the right of the cursor.
Space
: to create a space between
characters.
Caps
: to toggle between upper and
lower case characters.
Clear
: to clear the entry eld
completely.
C
To con rm your entry, select
OK
on
the keyboard and press OK.
The info panel is now updated.
To cancel the changes, select
EXIT
on
the keyboard and press OK.
Erase disc (DVD±RW only)
This erases the content of the DVD±RW
including those that was not recorded on
this recorder. Once the existing content
is erased, it can be used for recording
again.
A In disc editing menu, use ST keys to
select { Erase Disc } and press OK.
A warning message will appear.
B
Select
YES
in the menu to proceed or
NO
to abort, then press OK to
con rm.
Record new title
This function allows you to start a new
recording at the remaining empty space
in the DVD±RW.
A
In disc editing menu, use ST keys to
select { Record New Title } and press
OK.
B
Select the source you want to record
from and press REC z to start
recording.
Overwrite disc (DVD±RW only)
This function allows you to start a new
recording from the beginning of a
DVD±RW regardless of the contents of
the disc.
A
In disc editing menu, use ST keys to
select { Overwrite disc } and press OK.
B
Select the source you want to record
from and press REC z to start
recording.
TIPS: No further recording and editing can be carried out on a full or nalised DVD±R.
Press W to go back to the previous menu. Press DISC MENU to exit.
English
49
Make compatible (DVD±RW only)
The edited DVD±RW may still display
the original titles or hidden scenes when
played back on other DVD players. This
function enures that the edited changes
of the DVD±RW remain when played
back on other players.
In disc editing menu, use ST keys to
select { Make Compatible } and press
OK to con rm.
Helpful Hint:
– If the option {Compatible} is not available
for selection, it means that the disc is already
compatible.
Lock/Unlock disc (DVD±RW only)
You can choose to protect the recorded
DVD±RW in order to prevent accidental
loss of recordings.
A In disc editing menu, use ST keys to
select { Lock Disc } and press OK.
The disc is locked for this DVD
recorder only.
When the disc is locked, the option in
the disc editing menu will change to
{ Unlock Disc }.
B
If you want to overwrite or edit on the
protected disc, select { Unlock Disc }.
Playing your recordings on
other DVD players (DVD±R
only)
It is necessary to nalise a DVD±R disc
before you can play it on another DVD
player. Otherwise, the DVD±R will only
playback on this recorder.
After a DVD±R disc has been
nalised, no further recordings or
editing can be made to it. Make sure
that you have completed all the
recordings and editing before
nalising the disc.
A In disc editing menu, use ST keys to
select { Finalise Disc } and press OK.
A warning message will appear.
B
Select
YES
in the menu and press OK
to start the process.
Finalisation will take a few minutes,
depending on the length of recordings.
Do not try to open the disc tray or
turn off the power as this may render the
disc unusable.
Otherwise, select
NO
in the menu
and press OK to abort the operation.
Editing/ Finalising Recording (continued)
TIPS: No further recording and editing can be carried out on a full or nalised DVD±R.
Press W to go back to the previous menu. Press DISC MENU to exit.
English
50
About title editing
You can change the individual title
information or delete a title (recording)
in a recorded DVD. If a DVD±R has been
nalised, it cannot be edited.
The displayed options in the title editing
menu differ depending on the type of
disc.
{ Play Title }
Start playing a recording.
{ Edit Title }
Access the video editing menu.
{ Rename Title }
Change the name of the recording.
{ Erase Title } - DVD±RW only
Delete the title (recording).
{ Overwrite Title } - DVD±RW only
Start a new recording, the existing title
(recording) will be overwritten.
{ Overwrite Disc } - DVD±RW only
Overwrite from the selected title
onwards to the end of the disc.
{ Append Title }
Insert a new recording to the last existing
recording.
Accessing title editing menu
A
Insert a recorded DVD±R/±RW into the
recorder.
The Index Picture screen appears on
the TV.
During playback, press DISC MENU to
access the Index Picture screen.
B
Use ST keys to highlight a title
(recording), and press X.
The title editing menu appears.
1. My movie
01 / 01 / 2006
01 : 31 : 53
HQ 00 : 05 : 59
2. Nature
03 / 02 / 2006
00 : 30 : 00
SP 01: 05 : 59
Empty Title
SP 01:30:50
Edit Title
Rename Title
Erase Title
Overwrite Title
Play Title
Overwrite Disc
Append Title
C
Use ST keys to access different options
and OK to select.
Instructions and explanation of the
options are provided in the following
pages.
D
To exit, press W.
Video editing
This feature allows access to the video
editing menu. See the chapter “Editing/
Finalising Recording – About video
editing” for more information.
In title editing menu, use ST keys to
select { Edit Title } and press OK.
The video editing menu appears.
The recorder will play the selected
title.
Editing/ Finalising Recording (continued)
TIPS: No further recording and editing can be carried out on a full or nalised DVD±R.
Press W to go back to the previous menu.
English
51
Rename title
The original title name is generated
automatically by the recorder. You can
give a new name to the title by following
the steps below.
A
In title editing menu, use ST keys to
select { Rename Title } and press OK.
The keyboard screen appears.
B
Use W X ST keys to highlight a
character and press OK to select.
The maximum input is up to 9
characters.
You can use the following keys on the
keyboard screen to edit your input:
BkSp
: to remove the character to the
left of the cursor.
Delete
: to remove the character to the
right of the cursor.
Space
: to create a space between
characters.
Caps
: to toggle between upper and
lower case characters.
Clear
: to clear the entry eld completely.
C
To con rm your entry, select
OK
on
the keyboard and press OK.
The info panel is now updated.
To cancel the changes, select
EXIT
on
the keyboard and press OK.
Erase title (DVD±RW only)
You can delete a speci c title (recording)
from the disc.
A
In title editing menu, use ST keys to
select { Erase Title } and press OK.
A warning message will appear.
B
Select
YES
in the menu to proceed or
NO
to abort, then press OK.
Overwrite title (DVD±RW only)
This function allows you to overwrite the
selected title in the DVD±RW. The other
titles will not be affected.
A
In title editing menu, use ST keys to
select { Overwrite Title } and press OK.
B
Select the source you want to record
from and press REC z to start
overwriting.
Overwrite from the selected title
You can select to overwrite only the
recordings from the selected title to the
end of the disc.
In title editing menu, use ST keys to
select { Overwrite Disc } and press OK
to con rm.
Append recording
This function allows you to append
recording to the last existing title.
A
In title editing menu, use ST keys to
select { Append Title } and press OK.
B
Press SOURCE to select the input
channel to append.
C
Press REC z to start append recording.
D
To stop append recording, press
STOP x.
Editing/ Finalising Recording (continued)
TIPS: No further recording and editing can be carried out on a full or nalised DVD±R.
Press W to go back to the previous menu.
English
52
Editing/ Finalising Recording (continued)
About video editing
After a recording has been made, this
recorder allows you to edit the video
content. You can add/delete chapter
markers, hide unwanted scenes, change
the picture in the index picture screen
and split a title (recording) into two.
When you playback a recording in
video edit mode, the entire recording will
be played back including hidden scenes.
The edit functions available in the disc
editing menu are:
{ Title }
Select a title (recording) to play.
{ Chapter }
Select a chapter within the selected title.
{ Chapter Marker }
Insert a chapter marker in the recording
or erase a chapter marker to combine
two chapters.
{ Hide Chapter }
Hide the unwanted scene in the
recording.
{ Index Picture }
Select a scene in the recording as the
index picture screen.
{ Split Title } – DVD±RW only
Divide the recording into two separate
titles.
Accessing video editing menu
SOURCE
SELECT
TOOLS
DISC MENU
USB
TV/DVD
CLEAR REPEAT
ç
PLAY
REC MODE
REC MODE
TIMER
TIMER
EDIT
EDIT
VIDEO Plus+
VIDEO Plus+
EDIT
A
Insert a recorded DVD±R/±RW into the
recorder.
The Index Picture screen appears on
the TV.
B
Use ST keys to select a title (recording).
C
Press u to start playback.
D
Press EDIT on the remote control.
The video editing menu appears.
Edit Mode 0:03:28
Title 02
/
0
6
Cha
p
ter 01/10
Cha
p
ter Marke
r
Hide Cha
p
te
r
In
de
x Pi
c
t
u
r
e
S
p
lit Titl
e
E
Use ST keys to access different options
and press OK to select.
Instructions and explanations of the
options are provided in the following
pages.
F
To exit, press EDIT.
TIPS: No further recording and editing can be carried out on a full or nalised DVD±R.
Press W to go back to the previous menu.
English
53
Selecting a title
This option shows the current title and
the total number of titles in the disc. It
also allows you to select a speci c title.
A
During playback, press EDIT to display
the video editing menu.
B
Use ST keys to select { Title } and
press OK.
C
Use the numeric keypad 0-9 to key in
a title and press OK.
The recorder will play the selected
title.
Selecting a chapter
This option shows the current chapter
and the total number of chapters in the
title. It also allows you to select a speci c
chapter within the title.
A
During playback, press EDIT to display
the video editing menu.
B
Use ST keys to select { Chapter } and
press OK.
C
Use the numeric keypad 0-9 to key in
the chapter and press OK.
The recorder will play the selected
chapter.
Creating chapter marker
You can create a chapter by inserting
chapter markers at any point within a
title during playback. This will allow you
to access a speci c point in the recording
easily or set a chapter you wish to hide.
Title
Chapter Chapter Chapter Chapter
chapter markers
A
During playback, press EDIT to display
the video editing menu.
B
Use ST keys to select
{ Chapter
Marker } and press OK.
C
Use ST keys to select one of the
options and press OK to con rm.
{ Insert Marker }
Select this to insert a new chapter
marker at the current point of playback.
{ Delete Marker }
Select this to delete the current chapter
marker (it refers to the closest marker
before the current point of playback).
{ Delete All Markers }
Select this to delete all the chapter
markers in the current title.
Editing/ Finalising Recording (continued)
TIPS: No further recording and editing can be carried out on a full or nalised DVD±R.
Press W to go back to the previous menu.
English
54
Editing/ Finalising Recording (continued)
Hiding unwanted scenes
You can choose to hide certain scenes
from playback (e.g. skipping a commercial
scene) or make it visible again.
A
Create a chapter marker at the start and
end of the scene you want to hide. (See
previous page on “Creating Chapter
Marker”).
B
Select the chapter you want to hide and
start playback. (See previous page on
“Selecting a chapter”).
C
During playback, press EDIT to display
the video editing menu.
D
Use ST keys to select { Hide Chapter }
and press OK.
The current chapter will be hidden.
To unhide a chapter
A
Press EDIT on the remote control
during playback.
The video editing menu appears.
While in editing mode, the hidden
chapter/chapters will be played back.
B
Wait for the chapter you want to unhide
to occur or use à á keys on the
remote control to make a fast search.
C
Use ST keys to select { Unhide
Chapter } and press OK.
The current chapter will be visible
during playback.
Helpful Hints:
– All the hidden chapters will be played back
while in video editing mode.
– To locate a speci c frame during playback,
press u and the X key to forward search
to the frame that you want.
Changing Index Picture
The index picture is the picture of the
title you will see when the recorder loads
up the Index menu. Normally, the rst
frame of a recording is shown as the
title’s index picture.
A
During playback, press EDIT to display
the video editing menu, then use ST
keys to highlight { Index Picture }.
B
Press u to pause playback.
C
Press X to search for the desired frame
and press OK to select the current frame
as the index picture for the title.
Splitting a title (DVD±RW only)
You can divide the current title into two
new titles. Each of these titles is
characterised by its own index picture.
Warning! Once a title is divided, the
process cannot be reversed.
A
During playback, press EDIT to display
the video editing menu, then use ST
keys to highlight { Split Title }.
B
Press u to pause playback.
C
Press X to search for the desired frame,
and press OK to divide the title at the
current frame.
A new title will be shown at the Index
Picture screen.
TIPS: No further recording and editing can be carried out on a full or nalised DVD±R.
Press W to go back to the previous menu.
English
55
DVD Setup Menu Options
Accessing the Setup Menu
The setup menu provides various options
for you to adjust the recorder to suit
your preferences.
SOURCE
SOURCE
SELECT
SELECT
TOOLS
TOOLS
DISC MENU
DISC MENU
USB
USB
TV/DVD
TV/DVD
CLEAR
CLEAR
REPEAT
REPEAT
OPEN/CLOSE
OPEN/CLOSE
ç
PLAY
PLAY
REC MODE
TIMER
EDIT
VIDEO Plus+
SETUP
OK
A
Press SETUP on the remote control.
The setup menu appears on TV.
B
Use ST keys to highlight a menu item
and press X to access its options.
C
Use ST keys to highlight the setting you
wish to change and press OK to con rm
and go back to the previous menu item.
Instructions and explanations of the
options are provided in the following
pages.
D
To exit, press SETUP.
Countr
y
On Screen Dis
p
la
y
Lan
g
ua
ge
Screen Save
r
Reset Menu Settin
g
s
Setu
p
Menu - Genera
l
German
y
En
g
lis
h
On
OK
See this chapter – “GENERAL Settings”
TV As
p
ect Rati
o
Video Out
p
ut Forma
t
HDMI Vi
deo
R
eso
l
u
ti
on
Di
g
ital Audio Out
p
u
t
Show DivX
®
X®
Registration Code
®
Setu
p
Menu - Pla
y
bac
k
4:
3
Letterbo
x
PAL
5
7
6i
OK
All
See this chapter – “PLAYBACK Settings”
Setu
p
Menu - Recor
d
On
T
u
n
er
S
P
Auto Cha
p
ter Marke
r
Default Recordin
g
Sourc
e
Default Recordin
g
Mod
e
See Recording chapter – “RECORD
Settings”
Setu
p
Menu - DV
D
En
g
lis
h
O
f
f
En
g
lis
h
O
f
f
Default Disc Menu Lan
g
ua
ge
Default Subtitle Lan
g
ua
ge
Default Audio Lan
g
ua
ge
Parental Ratin
g
Level
See this chapter – “DVD Settings”
Setu
p
Menu - Channel Setu
p
Searc
h
E
d
i
t
Sor
t
Channel Searc
h
Modif
y
Channel Informatio
n
Sort Channels
See this chapter “CHANNEL SETUP
Settings”
Setu
p
Menu - Clock
01
/
01
/
0
6
00
:
05
:
08
Au
t
o
Date (dd / mm /
yy)
Time
(
hh : mm : ss
)
Date-Time Settin
g
See this chapter “CLOCK Settings”
English
56
DVD Setup Menu Options (continued)
GENERAL settings (underlined options are the factory default settings)
Country
Select the country of your area for auto channel tuning. (See
section “Step 3: Installation and Setup - Select the country of your
residence”).
On-Screen Display
Language
Select the menu language for this recorder on-screen display.
Screen Saver
The screen saver prevents damage to the TV screen by avoiding
exposure to a static image for too long.
{ On } – Switches to TV screen saver mode when
playback has been stopped or paused for
longer than 15 minutes.
{ Off } – Turns off the screen saver function.
Reset Menu
Settings
Restore all the settings of this recorder, except for the PIN code.
Reset Menu settings can only be changed when there is no
disc in the disc tray.
1) Press OK to con rm the default restore.
2) A warning message will appear. Select
OK
in the menu to
proceed or
CANCEL
to abort, then press OK to con rm.
English
57
PLAYBACK settings (underlined options are the factory default settings)
DVD Setup Menu Options (continued)
TV Aspect Ratio
Set the aspect ratio of the recorder according to the TV type you
have connected.
{ 16:9 } – Select this for wide screen TV
(frame ratio 16:9).
{ 4:3 Letterbox } – Select this for a ‘wide screen’
display with black bands on the upper
and lower portions of the TV screen.
{ 4:3 Panscan } – Select this for a full-height
picture with both side trimmed.
Video Output
Format
The colour system of the DVD system, DVD and TV should
match. Only then will it be possible to play a DVD on this system.
Before changing the TV system, determine the colour system of
your TV.
{ NTSC } – Select this if the connected TV has the NTSC
colour system. It will change the video signal
of a PAL disc and output it to NTSC format.
{ PAL } – Select this if the connected TV has the PAL
colour system. It will change the video signal
of an NTSC disc and output it to PAL format.
Note: If a blank/distorted TV screen appears, wait for 15 seconds for the
auto recovery.
HDMI Video
Resolution
This feature is only applicable if you have connected a HDMI
device. Select the video resolution depending on the capability of
the connected HDMI TV/device: { 480i }, { 480p }, { 576i },
{ 576p }
Digital Audio
Output
Adjust the digital output setting only if you have connected other
devices to the coaxial socket on the recorder.
{ All } – Select this if you have used the COAXIAL
socket on the recorder to connect to a
stereo receiver that has a built in multichannel
decoder.
{ LPCM } – Select this if the connected audio equipment
is not capable of decoding multichannel audio
Dolby Digital and MPEG-2 multi-channel
signals are converted to PCM (Pulse Code
Modulation).
English
58
DVD Setup Menu Options (continued)
PLAYBACK settings (underlined options are the factory default settings)
Show DivX®
Registration code
Display the DivX® VOD (Video On Demand) registration code
that allows you to rent and purchase videos using the DivX®
VOD service. For more information, visit www.divx.com/vod.
1) Press X to display the registration code.
2) Use the registration code to purchase or rent videos from
DivX® VOD service at www.divx.com/vod. Follow the
instructions and copy the video from your computer onto a
CD-R/RW or recordable DVD disc for playback on this
recorder.
English
59
* * * *
Enter Password
OK
CANCELOK
DVD Setup Menu Options (continued)
DVD settings (underlined options are the factory default settings)
Default Disc Menu
Language
Select the preferred disc menu language for DVD playback.
Default Subtitle
Language
Select the preferred subtitle language for DVD playback.
Default Audio
Language
Select the preferred audio language for DVD playback
.
Notes:
– If the selected audio/subtitle language is not available on the disc, the
disc’s default setting language will be used instead.
– For some DVDs, the subtitle/audio language can only be changed via
the DVD disc menu.
Parental Rating
Level
Some DVDs may have a parental level assigned to the complete
disc or to certain scenes on the disc. This feature lets you set a
playback limitation level.
1) Use ST keys to select { Parental Rating Level } and
press OK.
2) Use the numeric keypad 0-9 to enter your four-digit pin
code.
Note: When doing this for the rst time or if you forget your four-
digit pin code, enter the default password '3308'.
3) Move to
OK
in the menu and press OK on the remote
control. The set rating level menu appears.
4) Use ST keys to select the desired parental level, then
move to
OK
in the menu and press OK on the remote
control to con rm.
Notes:
– The rating levels range from 1 to 8 and are country
dependent. DVDs that are rated higher than the level you
have selected will not play unless you enter your four-digit
pin code.
– To disable parental controls and allow all discs to play,
select { Off }.
– VCD, SVCD, CDs have no level indication, so parental
control has no effect on these type of discs. This also applies
to most illegal DVDs.
– Some DVDs are not coded with a rating though the movie
rating may be printed on the disc cover. The rating level
feature does not prohibit playback of such discs.
Set Rating Level
New password
4. PG 13
5. PG R
4. PG 13
OK
New
OK
English
60
New password
Confirm password
* * * *
New Password
OK
CANCEL
OK
DVD Setup Menu Options (continued)
DVD settings
Parental Rating
Level
To change/ reset the password
1) Use ST keys to select { Parental Rating Level } and
press OK.
2) Use the numeric keypad 0-9 to enter your four-digit pin
code.
3) Move to
OK
in the menu and press OK on the remote
control. The set rating level menu appears.
4) Move to
New
in the menu and press OK to access new
password menu.
5) Use the numeric keypad 0-9 to enter your new four-digit
pin code, then press T to select the next entry eld and
enter the same pin code a second time.
6) Move to
OK
in the menu and press OK to con rm.
Note: To abort the change, select
CANCEL
and press OK.
English
61
DVD Setup Menu Options (continued)
CHANNEL SETUP settings
Setu
p
Menu - Channel Setu
p
E
d
i
t
Sor
t
Channel Searc
h
Modif
y
Channel Informatio
n
Sort Channels
Searc
h
Channel
Frequency
TV System
NICAM
Audio
OK
Frequency
PAL B/G
Name
On
OK
DUAL A
Off
Skip
Fine-tune
585.26MHz
CANCEL
Decoder
No
Scan mode
P001/Ch003
Channel Search
Automatically scans all the receivable analogue local TV channels
and stores these channels on the recorder.
Press OK on the remote control to start the automatic TV
channel search process and replace all previously stored analogue
TV channels. This process may take several minutes.
Modify Channel
Information
Adjust a stored TV channel to your preference and improve the
reception and the sound quality of that TV channel.
1) Use ST keys to highlight
{ Modify Channel Information }
and press OK to view the channel menu.
2) Use ST keys to select one of the options and press OK.
{ Name } – Use the numeric keypad 0-9 to select the
channel preset number that you wish to
change.
– To rename the channel, press X.
– Use W X ST keys to highlight a character
in the keyboard screen and press OK to
select.
The maximum input is up to 5 ( ve)
characters.
– Select
OK
on the keyboard to con rm
your entry or
EXIT
to abort, then press
OK to exit.
{ Scan Mode } – Select TV channel search mode based on
channel allocation or frequency (Channel,
S-Channel or Frequency) and press OK to
con rm.
{ Frequency } – Show the frequency of the current TV
channel. If required, use W X keys to
manually search and press OK to con rm.
{ TV System } – Use ST keys to select a suitable TV system
that produces the least distortion of picture
and sound, then press OK to con rm.
(See chapter “TV System Guide” at the back
of this manual for more information).
English
62
DVD Setup Menu Options (continued)
CHANNEL SETUP settings
Modify Channel
Information
Adjust a stored TV channel to your preference and improve the
reception and the sound quality of that TV channel.
{ NICAM } – NICAM is a digital sound transmission
system. It can transmit either one stereo
channel or two separate mono channels.
{ On } – Improve the sound transmission
of the TV channel.
{ Off } – Select this if the reception is poor
and the sound is distorted.
{ Audio } – For bilingual TV programmes, you can switch
between stereo (original) and additional
audio language.
{ DUAL A } – Original broadcast language.
{ DUAL B } – Additional audio language.
{ Decoder } – If the current TV channel is transmitted by
coded TV signals that can only be viewed
properly with a decoder which is connected
to the EXT2 AUX-I/O scart socket, you need
to activate the connected decoder.
{ On } – Select this to allocate the connected
decoder to this TV channel.
{ Off } – Turn off the decoder feature.
{ Skip } – Select this to set the channel to be skipped.
{ No } – The TV channel can be accessed
using the P
+ − on the remote
control.
{ Yes } – The TV channel can only be
accessed by pressing the
corresponding number button on
the remote control.
{ Fine-Tune } – Select this to ne-tune the TV channel
manually if the reception is poor. Use WX
keys to adjust the frequency and press OK
to con rm.
Channel
Frequency
TV System
NICAM
Audio
OK
Frequency
PAL B/G
Name
On
OK
DUAL A
Off
Skip
Fine-tune
585.26MHz
CANCEL
Decoder
No
Scan mode
P001/Ch003
English
63
DVD Setup Menu Options (continued)
CLOCK settings (underlined options are the factory default settings)
Date (dd/mm/yy)
Use ST keys to change the number and use W
X keys to select
different entry elds, then press OK to con rm.
Time (hh:mm:ss)
Use ST keys to change the number and use W X keys to select
different entry elds, then press OK to con rm.
Date-Time Setting
Enable/disable the automatic setting of date and time.
This feature
is dependent on your local broadcaster.
{ Auto } – Select to activate automatic setting of date
and time.
{ Manual } – Select this to manually set the date and time.
CHANNEL SETUP settings
Sort Channels
Rearrange the stored TV channels.
1) Use ST keys to highlight { Sort Channels } and press OK
to show a list of TV channel programmes.
2) Use ST keys to highlight the channel you want to change
and press OK.
3) Use ST keys to shift the TV channel to the desired position
and press OK again. The selected channel will be inserted
before the current position.
Note: Press
BACK2
on the remote control to go back to the previous
menu.
Sort Channels
P001
P002
P003
P004
P005
P006
P007
P008
BC020
SW006
CH008
CH004
CH006
CH010
CH012
CH005
Skip
Unskip
Unskip
Unskip
Skip
Unskip
Unskip
Unskip
P003 CH008 Unskip
English
64
Software Upgrade
Installing the latest software
The software installed in your recorder is
continuously being re ned for greater
stability and compatibility of the set.
Periodically, Philips will issue upgrades for
the software which you copy onto a CD
and install the software of your recorder.
Caution! Power supply must not be
interrupted during upgrade!
Visit Philips’ website at
‘www.philips.com/support’ to check for
the availability of the latest software
upgrade.
Note: When checking for the latest
software upgrade, please also check for
any accompanying instructions on
installing the software.
English
65
Picture/Display
• Aspect ratio: 4:3, 16:9
• D/A converter: 10 bit, 54 MHz
• A/D converter: 10 bit, 27 MHz
Sound
• D/A converter: 24 bit, 192 kHz
• A/D converter: 24 bit, 96 kHz
• Signal to noise ratio: 102 dB
• Crosstalk (1kHz): 105 dB
• Dynamic Range (1kHz): 90 dB
Video Recording
• Recording system: PAL
• Compression formats: MPEG2
• Recording modes:
High Quality : HQ
Standard Play : SP
Standard Play Plus : SPP
Long Play : LP
Extended Play : EP
Super Long Play : SLP
• Audio compression: Dolby Digital
Video Playback
• Disc playback media: CD, CD-R/-RW,
DVD, DVD-Video, DVD+R/+RW,
DVD-R/-RW SVCD, Video CD
• Compression formats: MPEG2, MPEG1,
DivX
• Video disc playback system: NTSC, PAL
Audio Playback
• Disc playback media: CD, CD-R/-RW,
MP3-CD, MP3-DVD, WMA
• Compression formats: Dolby Digital,
DTS, MP3, MPEG2 Multichannel, PCM
• MP3 bit rates: 32~256 kbps and VBR
Still Picture Playback
• Disc formats: DVD+R/+RW,
DVD-R/-RW, Picture CD
• Picture compression formats: JPEG
• Picture enhancement: Rotate
Storage Media
• Recording media: DVD+R, DVD+RW,
DVD+R DL, DVD-R, DVD-RW,
Tuner/Reception/Transmission
• TV system: PAL
• Aerial Input: 75 Ohm coaxial (IEC75)
Connectivity
Front Connections:
• i.LINK DV in (IEEE 1394 4-pin)
• CVBS In (CAM 1)
• S-Video In (CAM 2)
• Audio left/right In
• USB
Rear Connections:
• SCART EXT1
• SCART EXT2
• Composite video (CVBS) Out
• S-Video Out
• HDMI Out
• Video (CVBS) Out
• Audio left/right Out
• Digital audio out (coaxial)
• RF aerial In
• RF TV Out
• Mains
Convenience
• Programming/Timer Enhancements:
Daily/Weekly, Repeat Timer Programme,
Manual Timer, One Touch Recording,
VIDEO P
LUS+®
• Programmable events: 8
Power
• Power supply: 220 – 240V; 50 Hz
• Consumption: 25 W (typical)
• Standby power consumption: < 3W
Cabinet
• Dimensions (wxhxd) : 435 x 43 x 322mm
• Net Weight : 3 kg
Speci cations
English
66
Troubleshooting
Problem (General) Solution
WARNING
Under no circumstances should you try to repair the system yourself, as this
will invalidate the warranty. Do not open the system as there is a risk of
electric shock.
If a fault occurs, rst check the points listed below before taking the system for
repair. If you are unable to remedy a problem by following these hints, consult
your dealer or Philips for help.
No power.
Remote control does not
work.
No picture.
No sound.
No TV signal received
from the recorder.
– Press STANDBY-ON button on the front of the
recorder to switch on the system.
– Make sure the AC outlet has power.
– Aim the remote control directly at the sensor on the
front of the DVD recorder (not towards TV).
– Remove any obstacles between the recorder and the
remote control. Aim the remote control towards the
set at different angles and/or distances.
– Batteries are weak, replace the batteries.
– Press SOURCE on the remote control to select an input
source.
– Switch on your TV and set to the correct Video In
channel. Switch the TV channel until you see the DVD
screen. Read chapter “Step 3 - Installation and Setup –
Finding the correct viewing channel” for details.
– Check the video connection between the recorder and
the TV.
– Check the audio connections, the red and white
sockets. Read chapter “Step 1: Basic Recorder
Connections - Connecting the audio cables” for details.
– Set the Digital output correctly, based on the equipment
you connected to the DVD recorder. Read chapter
“DVD Setup Menu Options – PLAYBACK settings –
Digital Audio Output” for details.
– Have your aerial or cable TV signal checked.
– Install the TV channel. Read chapter “Step 3: Installation
and Setup - Setting your TV channel programmes” for
details.
English
67
Problem (General) Solution
Troubleshooting (continued)
A TV channel installed
during the DVD
recorder’s automatic TV
channel search is fuzzy or
distorted.
Unable to eject disc tray.
The contents of the USB
ash drive cannot be
read.
Slow operation of the
USB ash drive.
No HDMI audio output.
No HDMI video output.
No display on the TV
screen.
– Check the video connection between the DVD recorder
and the TV.
– You can further ne-tune the signal of the TV channel.
Read chapter on “DVD Setup Menu Options -
CHANNEL SETUP Settings – Modify Channel
Information.”
– Press P +/– to search for the same TV channel which
may have a clearer picture.
– Exit from any system or recording setup menu until you
see the Philips wallpaper on the screen.
– Press STOP to stop any playback or recording. Then
press EJECT on the set or press OPEN/CLOSE on the
remote control to eject the disc tray.
– The USB ash drive format is not compatible with the
system.
– Drive is formatted with a different le system which is
not supported by this DVD system (e.g. NTFS).
– Large le size or high memory USB ash drive takes
longer time to read and display on the TV.
– You will not hear any sound from the HDMI output if
the source device is only DVI/HDCP (High-bandwidth
Digital Content Protection)-compatible.
– It is not possible to output SACD or copy-controlled
DVD-Audio sources from the HDMI connection.
– HDMI connection can only be made to HDMI-equipped
devices with HDCP (High Bandwidth Digital Content
Protection). If you wish to connect to a DVI connector
(equipped with HDCP), you will need a separate adaptor
(DVI to HDMI).
– Make sure the resolution of this DVD system matches
the device you have connected using the HDMI. See
HDMI setting.
– When the HDMI and the scart/ S-Video/Video(CVBS)
sockets are used to connect to a TV at the same time,
there may be no picture output from the video
connection. Disconnect the HDMI cable from the TV.
English
68
Problem (Playback) Solution
Troubleshooting (continued)
Disc does not play.
Distorted sound coming
from a connected hi-
system or ampli er.
Unable to play DivX
movies.
The picture is distorted
or black and white during
playback.
There is picture or sound
interference with the TV
reception.
The message
‘UNKNOWN DISC’
appears.
– Insert the disc with the label facing up.
– Wrong region code. The DVD must be coded for ALL
regions or Region 2 in order to play on this DVD
recorder.
– There is no recording on the disc or wrong disc type.
Read chapter “Playback - Playable discs” for details.
– Make sure the disc is not scratched or warped. Clean
the disc or replace a new one.
– Check if the disc is defective by trying another disc.
– Do not connect any cables from the recorder to the
‘Phono’ input of your ampli er.
– If you are playing a DTS CD, you have to connect the
COAXIAL socket of this recorder to a Hi-Fi system or
ampli er.
– Ensure that the DivX le is encoded according to the
‘Home Theatre Pro le’ with the DivX encoder.
– Check that the DivX movie downloaded is a complete
le.
– The disc does not match with the TV colour system
standard (PAL/NTSC). Change the { Video Output
format } in { Setup Menu – General }.
– The disc is dirty, clean the disc.
– Sometimes a small amount of picture distortion may
appear. This is not a malfunction.
– Have your aerial or cable TV signal checked.
– Do not tie the cables of the connected equipments
together.
– Fine-tune your TV channel. Read chapter “Installation
and Setup - Setting your TV channel programs” for
details.
– This message may appear if you insert a disc that may
have encountered one of the following:
– Error during recording: The title may be missing.
– Error while changing the title/index picture: The original
title/index picture may be visible.
– Error while nalizing or the disc has not been nalised.
English
69
Problem (Recording) Solution
Troubleshooting (continued)
The wrong TV channel
was decoded (recorded)
after you programmed a
recording using the
VIDEO Plus+® system.
Picture is fuzzy and
brightness varies when
copying DVD Video discs
or prerecorded video
tapes.
Recordings are not
occurring as scheduled.
New recordings cannot be
made.
A DVD±R/±RW, DVD+R
DL disc recorded on this
DVD recorder does not
playback on a DVD player.
The picture on my decoder
appears to be distorted
during recording.
1) Press the VIDEO Plus+ key on the remote control,
enter the PlusCode programming number of the desired
TV channel.
2) Press OK to con rm.
3) Check the channel number in the {Program #} input
eld. If this does not correspond to the desired TV
channel, select this entry eld and change the channel
number.
4) Press OK to con rm.
– This happens if you try to copy DVDs or video tapes
that have been copy-protected. Even though the picture
on the TV is ne, but the recording on the recordable
DVD disc is faulty. This interference is unavoidable with
copy-protected DVDs or video tapes.
– The recordable DVD disc has a limited recording
lifetime, please change a new disc for recording.
– The TV channel you want to record is not stored or
you selected the wrong program number. Check TV
channels stored.
– If you adjust the clock after you set a timer recording,
you have to reset the timer recording.
– If the recorder cannot read the disc, you cannot record.
– You cannot use the recorder to duplicate copyrighted
materials (DVDs or videotapes) onto a DVD±R/±RW.
– A nalised recordable DVD has been inserted. Change
disc.
– If a recording is too short, it is possible that a DVD player
cannot detect it. Please observe the following ‘minimum
recording times’. Mode of record quality: {High Quality -
HQ} – 5 minutes, {Standard Play - SP} – 10 minutes,
{Standard Play Plus - SPP} – 13 minutes, {Long Play - LP} –
15 minutes, {Extended Play - EP} – 20 minutes, {Super Long
Play - SLP} – 30 minutes.
– You have to nalise the DVD±R. Refer to chapter “Playing
your recordingson other DVD players (DVD±R) ” for
details.
– If you are recording a programme from your decoder box, you
can view the same programme by pressing TV/DVD on the
recorder’s remote control.
English
70
What kind of disc should I use for
recording?
You can only record on DVD±R,
DVD±RW or DVD+R DL discs. They are
compatible with DVD-Video players and
DVD-ROM drives in computers.
What is the capacity of a DVD±R/
+RW disc?
4.7GB, or equivalent to six CDs. You can
store only one hour of recordings on a
single disc at the highest quality (DVD
standard) and about 6 hours recording at
the lowest quality (VHS standard).
What is the difference between
DVD±R and DVD±RW?
DVD±R is “recordable” and DVD±RW is
“rewritable”. With a DVD±R, you can
record multiple sessions on the same
disc, but when the disc is full, you cannot
record any more on the disc. The
DVD±RW allows you to record over the
same disc repeatedly.
How do I check the remaining space
available on a recordable DVD disc?
In disc menu mode, press REC MODE on
the remote control to display the
remaining time available. (The length if
time available depends on the mode of
recording quality).
What is DV?
Using DV, also known as i.LINK, you can
connect a DV-equipped camcorder to
this recorder using a single DV cable for
input and output of audio, video, data and
control signals.
– This recorder is only compatible with
DV-format (DVC-SD) camcorders.
Digital satellite tuners and Digital VHS
video recorders are not compatible.
– You cannot connect more than one
DV camcorder at a time to this recorder.
– You cannot control this recorder from
external equipment connected via the DV
IN socket.
Can I copy a VHS tape or DVD
from an external player?
Yes, but only if the VHS tape or DVD is
not copy protected.
What are Titles and Chapters?
A DVD disc contains Titles and Chapters,
which are similar to the Titles and
Chapters of a book. A Title is often a
complete movie and is broken down into
Chapters, or individual scenes from the
movies.
Title
Chapter
Title
Chapter Chapter Chapter Chapter
cha
p
ter markers
Programmes are recorded as a single
title, it may consist of one chapter or a
few chapters within a title, depending on
the recording settings.
How do I set up Titles and
Chapters?
The recorder automatically creates a new
Title every time you start a new
recording. You can then add Chapters to
these recordings manually or have them
automatically inserted at 5-minute
intervals.
What does “ nalising” a disc do?
Finalising a disc locks the disc so it can no
longer be recorded, only required for
DVD±R. It will then be compatible with
any DVD player. To close a disc without
nalising it, simply stop recording and
eject the disc. You will still be able to
record on the disc if there is room for
more recordings.
Frequently Asked Questions
English
71
Frequently Asked Questions (continued)
How good is the quality of the
recording?
There are a few quality levels to choose
from, ranging from “1 hour mode” (High
Quality) to “6 hours mode” (Super Long
Play). Press the REC MODE button on
the remote control to choose the quality
level that best suits your purpose and the
length of material.
Maximum Recording
Time per Disc (hours)
Picture Quality
Record Mode
1
2
2.5
3
4
6
High Quality
Standard Play
Standard Play Plus
Long Play
Extended Play
Super Long Play
HQ
SP
SPP
LP
EP
SLP
What is HDMI?
High-De nition Multimedia Interface
(HDMI) is a high-speed digital interface
that can transmit uncompressed high de
nition video and digital multichannel
audio. It delivers perfect picture and
sound quality, completely free from
noise. HDMI is fully backward-compatible
with DVI.
As required by the HDMI standard,
connecting to HDMI or DVI products
without HDCP (High-bandwidth Digital
Content Protection) will result in no
video or audio output.
English
72
Analogue: Sound that has not been turned
into numbers. Analogue sound varies, while
digital sound has speci c numerical values.
These sockets send audio through two
channels, the left and right.
Aspect ratio: The ratio of vertical and
horizontal sizes of a displayed image. The
horizontal vs. vertical ratio of conventional
TVs. is 4:3, and that of wide-screens is 16:9.
AUDIO OUT Sockets: Red and white
sockets on the back of the system that send
audio to another system (TV, Stereo, etc).
Chapter: Sections of a picture or a music
piece on a DVD that are smaller than titles.
A title is composed of several chapters. Each
chapter is assigned a chapter number
enabling you to locate the chapter you want.
Digital: Sound that has been converted into
numerical values. Digital sound is available
when you use the DIGITAL AUDIO OUT
COAXIAL. These sockets send audio
through multiple channels, instead of just
two channels as analogue does.
Disc menu: A screen display prepared for
allowing selection of images, sounds,
subtitles, multi-angles, etc recorded on a
DVD.
DivX: The DivX code is a patent pending,
MPEG-4 based video compression
technology, developed by DivXNetworks
Inc., that can shrink digital video to sizes
small enough to be transported over the
internet, while maintaining high visual quality.
Dolby Digital: A surround sound system
developed by Dolby Laboratories containing
up to six channels of digital audio (front left
and right, surround left and right, centre and
subwoofer).
DTS: Digital Theatre Systems. This is a
surround sound system, but it is different
from Dolby Digital. The formats were
developed by different companies.
HDMI: High-De nition Multimedia
Interface (HDMI) is a high-speed digital
interface that can transmit uncompressed
high de nition video and digital multichannel
audio. It delivers perfect picture and sound
quality, completely free from noise. HDMI is
fully backward-compatible with DVI.
As required by the HDMI standard,
connecting to HDMI or DVI products
without HDCP (High-bandwidth Digital
Content Protection) will result in no Video
or Audio output.
Index Picture Screen: A screen that gives
an overview of a recorded DVD disc. An
Index Picture represents each recording.
JPEG: A very common digital still picture
format. A still-picture data compression
system proposed by the Joint Photographic
Expert Group, which features small decrease
in image quality in spite of its high
compression ratio.
MP3: A le format with a sound data
compression system. “MP3” is the
abbreviation of Motion Picture Experts
Group 1 (or MPEG-1) Audio Layer 3. By
using the MP3 format, one CD-R or CD-RW
can contain about 10 times more data then a
regular CD.
MPEG: Motion Picture Experts Group. A
collection of compression systems for digital
audio and video.
Multichannel: DVDs are formatted to have
each sound track constitute one sound eld.
Multichannel refers to a structure of sound
tracks having three or more channels.
Glossary
English
73
PBC: Playback Control. Refers to the signal
recorded on video CDs or SVCDs for
controlling playback. By using menu screens
recorded on a Video CD or SVCD that
supports PBC, you can enjoy interactive
playback and searching.
PCM: Pulse Code Modulation. A digital
audio encoding system.
Parental control: Limits disc play according
to the age of the users or the limitation level
in each country. The limitation varies from
disc to disc; when it is activated, playback will
be prohibited if the software’s level is higher
than the user-set level.
Region code: A system allowing discs to be
played only in the region designated. This
unit will only play discs that have compatible
region codes. You can nd the region code
of your unit by looking on the product label.
Some discs are compatible with more than
one region (or ALL regions).
S-Video: Produces a clear picture by
sending separate signals for the luminance
and the colour. You can use S-Video only if
your TV has an S-Video In socket.
Surround: A system for creating realistic
three dimensional sound elds full of realism
by arranging multiple speakers around the
listener.
Title: The longest section of a movie or
music feature on DVD. Each title is assigned
a title number, enabling you to locate the
title you want.
VIDEO OUT socket: Yellow socket on
the back of the DVD system that sends the
DVD picture video to a TV.
Glossary (continued)
WMA : WMA is short for Windows Media
Audio and refers to an audio compression
technology developed by Microsoft
Corporation. WMA data can be encoded by
using Windows Media Player version 9 or
Windows Media Player for Windows XP.
Files are recognised by their le extension”.
wma” or “.WMA”.
English
74
Display panel symbols/ messages
The following symbols/ messages may
appear on your recorder display:
00:00:00
Multifunction display/ text line
– Title/ track number
– Total/ elasped/remaining title/track time
– Disc/title name
– Additional information regarding the
disc
– TV channel number or source of video
– Clock (This is displayed in Standby
mode).
– TV program title
BLANK
There are no recordings in the disc on
the tray.
FULL
Disc is full. There is no more storage
space for new recordings.
HDMI TV ERROR
The TV connected is non-HDCP
compliant. No video can be displayed via
the HDMI connection.
LOADING
Disc is being recognised by the recorder.
MENU
The setup menu, disc menu, title menu or
timer menu display is on.
NO DISC
No disc has been inserted. If a disc has
been inserted, then it is possible that the
disc cannot be read.
OPEN
Disc tray is opening or opened.
A picture disc has been inserted.
STARTUP
The recorder has been turned on.
REGION
When the DVD inserted is in a wrong
region code as the recorder.
STOP
When playback / recording is stopped.
X TIMER
A timer recording has been programmed
or is active.
UPDATE
The recorder is writing to the disc.
UNKNOWN
The recorder has encountered an error
in handling the disc inserted.
SET CLOCK
The system clock has to be set.
UNRECORDABLE DISC
The disc inserted cannot be used for
recording.
COPY PROTECT
The content is copy- protected.
FINALIZED DISC
The disc inserted has been nalised. No
further recordings can be made on the
disc.
RECORDING
A recording is in progress.
English
75
English
76
TV System Guide
COUNTRY VHF UHF DVD REGIONS
AFGHANISTAN PAL/SECAM B
5
ALBANIA PAL B PAL G 2
ALGERIA PAL B PAL G 5
ANGOLA PAL I 5
ARGENTINA PAL N PAL N 4
AUSTRALIA PAL B PAL H 4
AUSTRIA PAL B PAL G 2
AZORES PAL B
BAHAMAS NTSC M 4
BAHRAIN PAL B PAL G 2
BANGLADESH PAL B 5
BARBADOS NTSC M 4
BELGIUM PAL B PAL H 2
BERMUDA NTSC M
BOLIVIA NTSC M NTSC M 4
BOTSWANA PAL I 5
BRAZIL PAL M PAL M 4
BRUNEI PAL B PAL B
BULGARIA SECAM D SECAM K 2
BURKINA FASO SECAM K1 5
BURMA NTSC M
BURUNDI SECAM K1 5
CAMBODIA NTSC M 3
CAMEROON PAL B PAL G 5
CANADA NTSC M NTSC M 1
CANARY ISLANDS PAL B 2
CHAD SECAM K1 5
CHILE NTSC M NTSC M 4
CHINA PAL D 6
COLOMBIA NTSC M NTSC M 4
COSTA RICA NTSC M NTSC M 4
CROATIA PAL B PAL G 2
CUBA NTSC M NTSC M 4
CYPRUS PAL B PAL G
CZECH REPUBLIC PAL D PAL K 2
DAHOMEY SECAM K1
DENMARK PAL B PAL G 2
DJIBOUTI SECAM B SECAM G 5
DOMINICAN REP NTSC M NTSC M 4
ECUADOR NTSC M NTSC M 4
EGYPT SECAM B/PAL B SECAM G/PAL G 2
EL SALVADOR NTSC M NTSC M 4
EQUAT. GUINEA PAL B 5
ESTONIA PAL B (was SECAM) PAL D 5
ETHIOPIA PAL B PAL G 5
FIJI PAL B
FINLAND PAL B PAL G 2
FRANCE SECAM L SECAM L 2
FRENCH POLYNESIA SECAM K1
GABON SECAM K1 5
GAMBIA PAL I 5
GERMANY PAL B PAL G 2
GHANA PAL B PAL G 5
GIBRALTAR PAL B PAL H 2
GREECE PAL B (was SECAM) PAL G 2
GREENLAND NTSC/PAL B 2
GUADELOUPE SECAM K1
GUAM NTSC M 1
GUATEMALA NTSC M NTSC M 4
GUINEA PAL K 5
GUYANA (FRENCH) SECAM K1 4
HONDURAS NTSC M NTSC M 4
English
77
TV System Guide (continued)
COUNTRY VHF UHF DVD REGIONS
LIBYA SECAM B SECAM G 5
LITHUANIA PAL D (was SECAM) PAL K 5
LUXEMBOURG PAL B/SECAM L PAL G/SEC L 2
MADAGASCAR SECAM K1 5
MADEIRA PAL B
MALAGASY SECAM K1
MALAWI PAL B PAL G 5
MALAYSIA PAL B 3
MALI SECAM K1 5
MALTA PAL B PAL H 2
MARTINIQUE SECAM K1
MAURITANIA SECAM B 5
MAURITIUS SECAM B 5
MEXICO NTSC M NTSC M 4
MONACO SECAM L 2
MONGOLIA SECAM D 5
MOROCCO SECAM B 5
MOZAMBIQUE PAL B 5
NAMIBIA PAL I 5
NEPAL PAL B
NETHERLANDS PAL B PAL G 2
NETH. ANTILLES NTSC M NTSC M
NEW CALEDONIA SECAM K1
NEW GUINEA PAL B PAL G 4
NEW ZEALAND PAL B PAL G 4
NICARAGUA NTSC M NTSC M 4
NIGER SECAM K1 5
NIGERIA PAL B PAL G 5
NORWAY PAL B PAL G 2
OMAN PAL B PAL G 2
PAKISTAN PAL B 5
PANAMA NTSC M NTSC M 4
PARAGUAY PAL N PAL N 4
PERU NTSC M NTSC M 4
PHILIPPINES NTSC M NTSC M 3
POLAND PAL D PAL K 2
PORTUGAL PAL B PAL G( was SECAM D ) 2
PUERTO RICO NTSC M NTSC M 1
QATAR PAL B 2
REUNION SECAM K1
RUMANIA PAL D PAL K 2
RUSSIA SECAM D SECAM K 5
RWANDA SECAM K1 5
SABAH/SAWARA PAL B
ST. KITTS NTSC M NTSC M
SAMOA (US) NTSC M 1
SAUDI ARABIA SECAM-B/PAL-B SECAM G 2
SENEGAL PAL 5
SEYCHELLES PAL B PAL G 5
SIERRA LEONE PAL B PAL G 5
SINGAPORE PAL B PAL G
SLOVAK REPUBLIC PAL PAL 2
SOMALIA PAL B PAL G 5
SOUTH AFRICA PAL I PAL I 2
SPAIN PAL B PAL G 2
SRI LANKA PAL B 5
SUDAN PAL B PAL G 5
SURINAM NTSC M NTSC M 4
SWAZILAND PAL B PAL G
SWEDEN PAL B PAL G 2
SWITZERLAND PAL B PAL G 2
SYRIA SECAM B 2
CLASS 1
LASER PRODUCT
