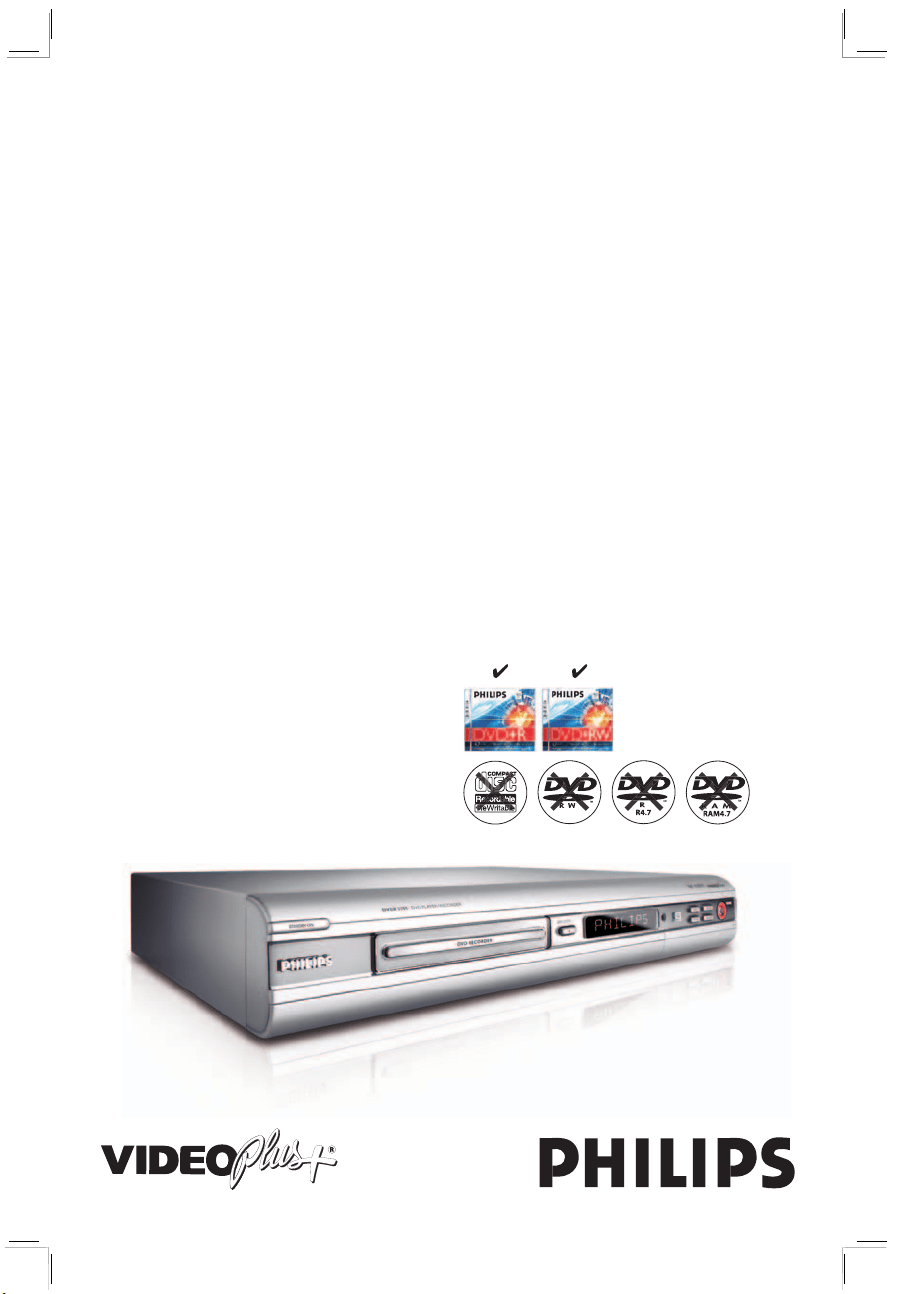

DVD Player/ Recorder
Thank you for choosing Philips.
Need help fast?
Read your Quick Use/Start Guide and/or User Manual first for quick
tips that make using your Philips product more enjoyable.
If you have read your instructions and still need assistance,
you may access our online help at www.philips.com/support
DVDR3305
User Manual
Make your own DVDs
16861_dvdr3305_05_eng5.indd 1 2005-06-29 4:08:35 PM
2
3
Important notes for users in the U.K.
Mains plug
This apparatus is fitted with an approved 13
Amp plug. To change a fuse in this type of plug
proceed as follows:
1 Remove fuse cover and fuse.
2 Fix new fuse which should be a BS1362
5 Amp, A.S.T.A. or BSI approved type.
3 Refit the fuse cover.
If the fitted plug is not suitable for your socket
outlets, it should be cut off and an appropriate
plug fitted in its place.
If the mains plug contains a fuse, this should
have a value of 5 Amp. If a plug without a fuse
is used, the fuse at the distribution board
should not be greater than 5 Amp.
Note: The severed plug must be disposed of to
avoid a possible shock hazard should it be
inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with
the following code: blue = neutral (N),
brown = live (L).
As these colours may not correspond with the
colour markings identifying the terminals in your
plug, proceed as follows:
– Connect the blue wire to the terminal
marked N or coloured black.
– Connect the brown wire to the terminal
marked L or coloured red.
– Do not connect either wire to the earth
terminal in the plug, marked E (or e) or
coloured green (or green and yellow).
Before replacing the plug cover, make certain
that the cord grip is clamped over the sheath of
the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may require
consent. See Copyright Act 1956 and The
Performer’s Protection Acts 1958 to 1972.
For Customer Use:
Read carefully the information located at
the bottom or rear of your DVD Recorder
and enter below the Serial No. Retain this
information for future reference.
Model No. DVD RECORDER
DVDR3305
Serial No. _______________
Norge
Typeskilt finnes på apparatens underside.
Observer: Nettbryteren er sekundert
innkoplet. Den innebygde netdelen er
derfor ikke frakoplet nettet så lenge
apparatet er tilsluttet nettkontakten.
For å redusere faren for brann eller elektrisk
støt, skal apparatet ikke utsettes for regn eller
fuktighet.
Italia
DICHIARAZIONE DI CONFORMITA’
Si dichiara che l’apparecchio DVDR3305,
Philips risponde alle prescrizioni dell’art. 2
comma 1 del D.M. 28 Agosto 1995 n. 548.
Fatto a Eindhoven
Philips Consumer Electronics
Philips, Glaslaan 2
5616 JB Eindhoven, The Netherlands
DK
Advarsel: Usynlig laserstråling ved
åbning når sikkerhedsafbrydere er ude
af funktion. Undgå utsættelse for
stråling.
Bemærk: Netafbryderen er sekundært
indkoblet og ofbryder ikke strømmen
fra nettet. Den indbyggede netdel er
derfor tilsluttet til lysnettet så længe
netstikket sidder i stikkontakten.
S
Klass 1 laseraparat
Varning! Om apparaten används på
annat sätt än i denna bruksanvisning
specificerats, kan användaren utsättas
för osynlig laserstrålning, som
överskrider gränsen för laserklass 1.
Observera! Stömbrytaren är sekundärt
kopplad och bryter inte strömmen från
nätet. Den inbyggda nätdelen är därför
ansluten till elnätet så länge
stickproppen sitter i vägguttaget.
SF
Luokan 1 laserlaite
Varoitus! Laitteen käyttäminen muulla
kuin tässä käyttöohjeessa mainitulla
tavalla saattaa altistaa käyttäjän
turvallisuusluokan 1 ylittävälle
näkymättömälle lasersäteilylle.
Oikeus muutoksiin varataan. Laite ei
saa olla alttiina tippu-ja roiskevedelle.
Huom. Toiminnanvalitsin on kytketty
toisiopuolelle, eikä se kytke laitetta irti
sähköverkosta. Sisäänrakennettu
verkko-osa on kytkettynä
sähköverkkoon aina silloin, kun pistoke
on pistorasiassa.
16861_dvdr3305_05_eng5.indd 2 2005-06-29 4:08:35 PM
3
DK
Advarsel: Usynlig laserstråling ved
åbning når sikkerhedsafbrydere er ude
af funktion. Undgå utsættelse for
stråling.
Bemærk: Netafbryderen er sekundært
indkoblet og ofbryder ikke strømmen
fra nettet. Den indbyggede netdel er
derfor tilsluttet til lysnettet så længe
netstikket sidder i stikkontakten.
S
Klass 1 laseraparat
Varning! Om apparaten används på
annat sätt än i denna bruksanvisning
specificerats, kan användaren utsättas
för osynlig laserstrålning, som
överskrider gränsen för laserklass 1.
Observera! Stömbrytaren är sekundärt
kopplad och bryter inte strömmen från
nätet. Den inbyggda nätdelen är därför
ansluten till elnätet så länge
stickproppen sitter i vägguttaget.
SF
Luokan 1 laserlaite
Varoitus! Laitteen käyttäminen muulla
kuin tässä käyttöohjeessa mainitulla
tavalla saattaa altistaa käyttäjän
turvallisuusluokan 1 ylittävälle
näkymättömälle lasersäteilylle.
Oikeus muutoksiin varataan. Laite ei
saa olla alttiina tippu-ja roiskevedelle.
Huom. Toiminnanvalitsin on kytketty
toisiopuolelle, eikä se kytke laitetta irti
sähköverkosta. Sisäänrakennettu
verkko-osa on kytkettynä
sähköverkkoon aina silloin, kun pistoke
on pistorasiassa.
16861_dvdr3305_05_eng5.indd 3 2005-06-29 4:08:36 PM
4
5
LASER
Type Semiconductor laser
InGaAlP (DVD)
AIGaAs (CD)
Wave length 658 nm (DVD)
790 nm (CD)
Output Power 30 mW (DVD+RW write)
1.0 mW (DVD read)
1.0 mW (CD read)
Beam divergence 84 degrees (DVD)
61 degrees (CD)
This product complies with the
radio interference requirements of
the European Community.
This product complies with
the requirements of the
following directives and
guidelines: 73/23/EEC +
89/336/EEC + 93/68/EEC
Disposal of your old product
Your product is designed and manufactured with high quality materials
and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it
means the product is covered by the European Directive 2002/96/EC.
Please inform y
ourself about the local separate collection system for
electrical and electronic products.
Please act according to your local rules and do not dispose of your old products with
yo
ur normal household waste. The correct disposal of your old product will help
prevent potential negative consequences for the environment and human health.
Se débarrasser de votre produit usagé (Français)
Votre produit est conçu et fabriqué avec des matériaux et des
composants de haute qualité, qui peuvent être recyclés et utilisés de
nouveau
.
Lorsque ce symbole d'une poubelle à roue barrée est attaché à un
produit, cela signifie que le produit est couvert par la Directive
Européenne 2002/96/EC.
Veuillez vous informer du système local de séparation des déchets
électriques et électroniques.
Veuillez agir selon les règles locales et ne pas jeter vos produits usagés avec les déchets
domestiques usuels. Jeter correctement votre produit usagé aidera à prévenir les
conséquences négatives potentielles contre l'environnement et la santé humaine.
Cómo deshacerse del producto usado
(Español)
Su producto ha sido diseñado y fabricado con materiales y componentes de
alta calidad, que pueden ser reciclados y reutilizados.
Cuando vea este símbolo de una papelera con ruedas tachada junto a un
producto,
esto significa que el producto está bajo la Directiva Europea
2002/96/EC
Deberá informarse sobr
e el sistema de reciclaje local separado para
productos eléctricos y electrónicos.
Siga las normas locales y no se deshaga de los productos usados tirándolos en la basura
normal de su hogar. El reciclaje correcto de su producto usado ayudará a evitar
consecuencias negativas para el medio ambiente y la saludde las persona.
Entsorgung Ihres Altgerätes (Deutsch)
Ihr Produkt ist aus hochqualitativen Materialien und Bestandteilen hergestellt,
die dem Recycling zugeführt und wiederverwertet werden können.
Falls dieses Symbol eines durchgestrichenen Müllcontainers auf Rollen auf
diesem Produkt angebracht ist, bedeutet dies, dass es von der Europäischen
Richtlinie 2002/96/EG erfasst wird.
Bitte informieren Sie sich über die örtlichen Sammelstellen für Elektroprodukte
und elektronische Geräte
.
Bitte beachten Sie die lokalen Vorschriften und entsorgen Sie Ihre Altgeräte nicht mit dem
normalen Haushaltsmüll. Die korrekte Entsorgung Ihres Altgerätes ist ein Beitrag zur
Vermeidung möglicher negativer Folgen für die Umwelt und die menschliche Gesundhei.
Wegwerpen van uw afgedankt apparaat
(Nederlands)
Uw apparaat werd ontworpen met en vervaardigd uit onderdelen en
materialen van superieure kwaliteit, die gerecycleerd en opnieuw gebruikt
kunnen wo
rden.
Wanneer het symbool van een doorstreepte vuilnisemmer op wielen op
een product is bevestigd, betekent dit dat het product conform is de
Europese Richtlijn 2002/96/EC
Gelieve u te informeren in verband met het plaatselijke inzamelingsysteem
voor elektrische en elektronische apparaten.
Gelieve u te houden aan de plaatselijke reglementering en apparaten niet met het gewone
huisvuil mee te geven. Door afgedankte apparaten op een correcte manier weg te werpen
helpt u mogelijke negatieve gevolgen voor het milieu en de gezondheid te voorkomen.
Smaltimento del prodottot (Italiano)
Questo prodotto è stato progettato e fabbricato con materiali e
componenti di alta qualità, che possono essere riciclati e riutilizzati.
Quando ad un prodotto è attaccato il simbolo del bidone con le ruote
segnato da una croce, significa che il prodotto è tutelato dalla Direttiva
Europea 2003/96/EC
Si prega di informarsi in merito al sistema locale di raccolta differenziata per
i prodotti elettrici ed elettronici.
Rispettare le norme locali in vigore e non smaltire i prodotti vecchi nei normali rifiuti
domestici. Il corretto smaltimento del prodotto aiuta ad evitare possibili conseguenze
negative per la salute dell'ambiente e dell'uomo.
Undangörande av din gamla produk (Svenska)
Din produkt är designad och tillverkad med material och komponenter av
högsta kvalitet, vilka kan återvinnas och återanvändas.
När den här överstrukna sopkorgen på hjul finns tryckt på en produkt,
betyder det att produkten täcks av Europeiska Direktiv 2002/96/EC
Informera dig själv om lokala återvinnings och sophanteringssystem för
elektriska och elektroniska produkter.
Agera i enlighet med dina lokala regler och släng inte dina gamla produkter tillsammans
med ditt normala hushållsavfall. Korrekt sophantering av din gamla produkt kommer att
hjälpa till att förebygga potentiell negative konsekvens för naturen och människors häls.
CAUTION
VISIBLE AND INVISIBLE LASER RADIATION
WHEN OPEN AVOID EXPOSURE TO BEAM
ADVARSEL
SYNLIG OG USYNLIG LASERSTRÅLING VED
ÅBNING UNDGÅ UDSÆTTELSE FOR
STRÅLING
VARNING
SYNLIG OCH OSYNLIG LASERSTRÅLNING
NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA
EJ STRÅLEN
VARO!
AVATTAESSA OLET ALTTIINA NÄKYVÄLLE
JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE.
ÄLÄ KATSO SÄTEESEEN
VORSICHT
SICHTBARE UND UNSICHTBARE
LASERSTRAHLUNG WENN ABDECKUNG
GEÖFFNET NICHT DEM STRAHL
AUSSETSEN
ATTENTION
RAYONNEMENT LASER VISIBLE ET
INVISIBLE EN CAS D’OUVERTURE
EXPOSITION DANGEREUSE AU FAISCEAU
16861_dvdr3305_05_eng5.indd 4 2005-06-29 4:08:39 PM
English
5
Index
English ------------------------------------------7
LASER
Type Semiconductor laser
InGaAlP (DVD)
AIGaAs (CD)
Wave length 658 nm (DVD)
790 nm (CD)
Output Power 30 mW (DVD+RW write)
1.0 mW (DVD read)
1.0 mW (CD read)
Beam divergence 84 degrees (DVD)
61 degrees (CD)
This product complies with the
radio interference requirements of
the European Community.
This product complies with
the requirements of the
following directives and
guidelines: 73/23/EEC +
89/336/EEC + 93/68/EEC
16861_dvdr3305_05_eng5.indd 5 2005-06-29 4:08:40 PM
6
7
This product incorporates copyright
protection technology that is protected by
US patents and other intellectual property
rights. Use of this copyright protection
technology must be authorized by
Macrovision, and is intended for home and
other limited viewing uses only unless
otherwise authorized by Macrovision.
Reverse engineering or disassembly is
prohibited.
U.S. Patent Numbers 4,631,603; 4,819,098;
4,907,093; 5,315,448 and 6,516,132.
Manufactured under license from Dolby
Laboratories. “Dolby” and the double-D
symbol are trademarks of Dolby
Laboratories.
This is a simple programming system for
DVD recorders. To use it, enter the
programming number associated with your
television programme. You can find this
number in your favourite listings magazine.
VIDEO P
lus+
®
is a registered trademark of
Gemstar Development Corporation.
VIDEO Plus+
®
is manufactured under license
from Gemstar Development Corporation.
16861_dvdr3305_05_eng5.indd 6 2005-06-29 4:08:41 PM
English
7
What kind of disc should I use for
recording?
You can only record on DVD+R and
DVD+RW discs. DVD+R/+RW is the most
compatible recordable DVD format on the
market today. They are fully compatible to
most of the existing DVD-Video players and
DVD-ROM drives in computers.
What is the capacity of a DVD+R/+RW
disc?
4.7GB, or equivalent to 6CDs. You can store
only one hour of recordings on a single disc at
the highest quality (DVD standard) and about
6 hours recordings at the lowest quality (VHS
standard).
The recording mode indicates the number of
hours that will fit on a single disc.
What is the difference between DVD+R
and DVD+RW?
DVD+R is “recordable” and DVD+RW is
“erasable” and “rewritable”. With a DVD+R,
you can record multiple sessions on the same
disc, but when the disc is full, you cannot
record any more on the disc. The DVD+RW
allows you to record over the same disc
repeatedly.
Can I copy a VHS tape or DVD from an
external player?
Yes, but only if the VHS tape or DVD is not
copy protected.
What are Titles and Chapters?
A DVD disc contains Titles and Chapters,
which are similar to the Titles and Chapters of
a book. A Title is often a complete movie and
is broken down into Chapters, or individual
scenes from the movies.
Title
Chapter
Title
Chapter Chapter Chapter Chapter
chapter markers
Programmes are recorded as a single title, it
may consist of one chapter or a few chapters
within a title, depending on the recording
settings.
How do I set up Titles and Chapters?
The DVD recorder automatically creates a
new Title every time you start a new
recording. You can then add Chapters to these
recordings manually or have them
automatically inserted at 5-minutes intervals.
What does “finalising” a disc do?
Finalising a disc locks the disc so it can no
longer be recorded, only required for DVD+R.
It will then be compatible with virtually any
DVD player. To close a disc without finalising
it, simply stop recording and eject the disc.
You will still be able to record on the disc if
there is storage space for more recordings.
How good is the quality of the
recording?
There are a few picture quality levels to
choose from, ranging from “1 hour mode”
(High Quality) to “6 hours mode” (VHS
quality). Press REC MODE button on the
remote control to choose the quality level that
best suits your purpose and the length of
material.
Record
Mode
Picture Quality
Maximum Recording
Time per Disc
1 Hour Mode
2 Hour Mode
4 Hour Mode
6 Hour Mode
High quality
DV
D quality-Standard Play
VHS quality-Extended Play
VHS quality-Super Long Play
1 hour
2 hours
4 hours
6 hours
Frequently Asked Questions
16861_dvdr3305_05_eng5.indd 7 2005-06-29 4:08:44 PM
English
8
9
Contents
Frequently Asked Questions ........ 7
Care and Safety Information
Setup precautions ....................................
10
Cleaning discs ...........................................
10
About recycling ........................................
10
General Information ....................
11
Introduction ...............................................
11
Accessories supplied ................................
11
Region codes ..............................................
11
Basic Connections - DVD recorder
Step 1: Connecting the antenna cables 1
2

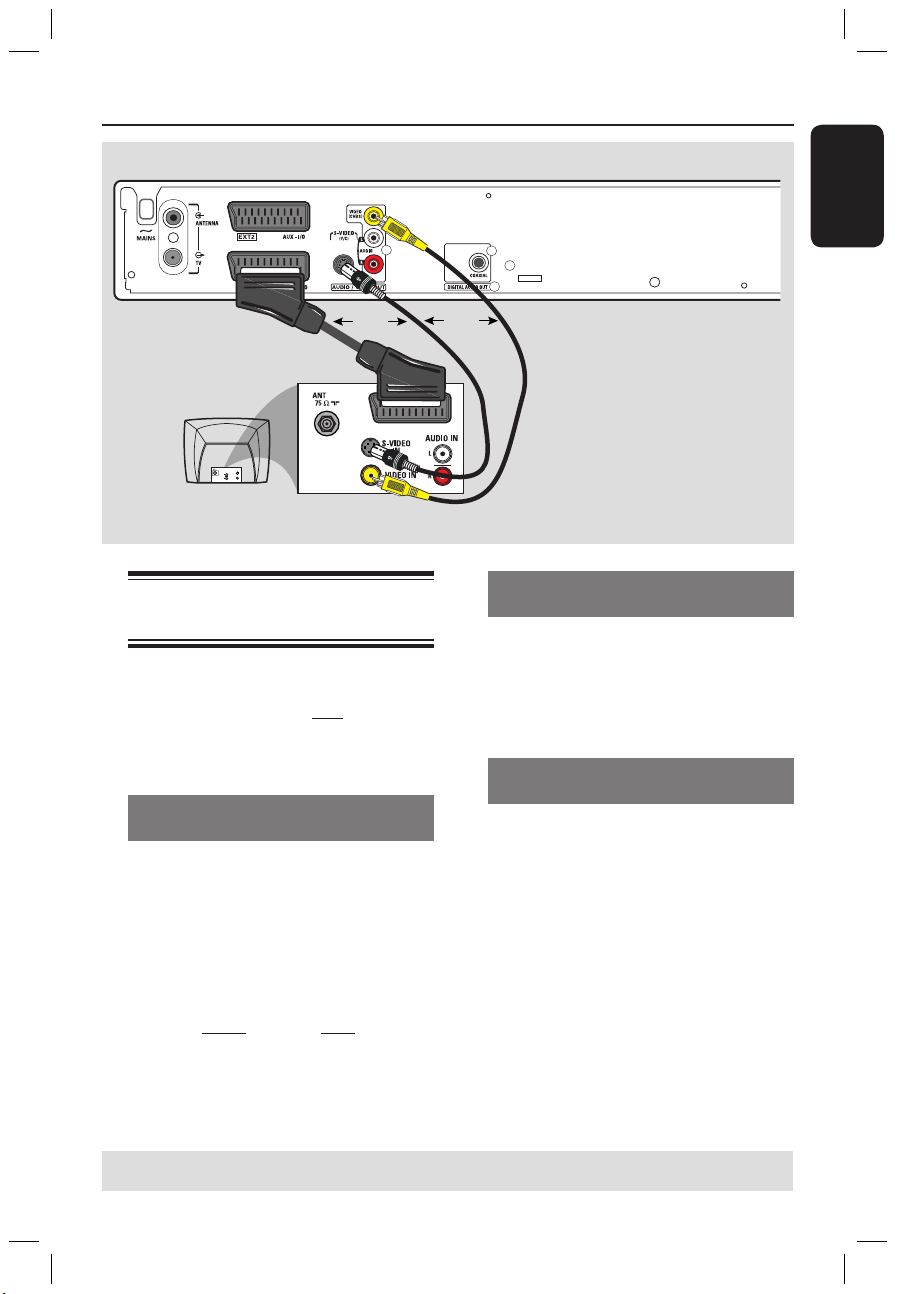

Step 2: Connecting the video cable .....
13
Option 1: Using Scart socket ...................13
Option 2: Using S-Video socket ..............
13
Option 3: Using Video (CVBS) socket .
13
Step 3: Connecting the audio cables ...14
Option 1: Using an audio cable ................14
Option 2: Using a coaxial cable ...............14
Optional Connections
Connecting to a Cable Box or
Satellite Receiver ......................................
15
Connecting to a VCR or other
similar device .............................................
16

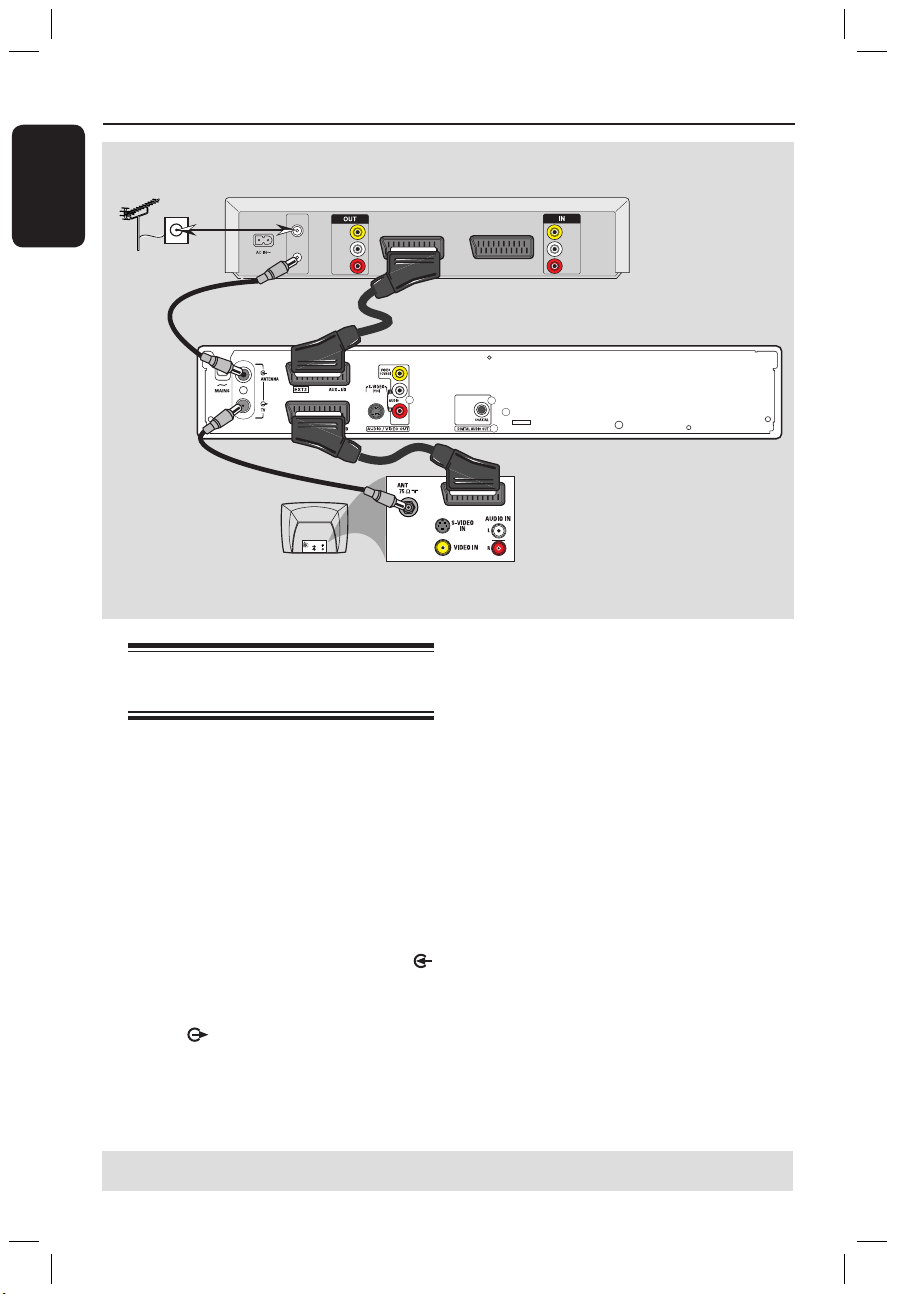

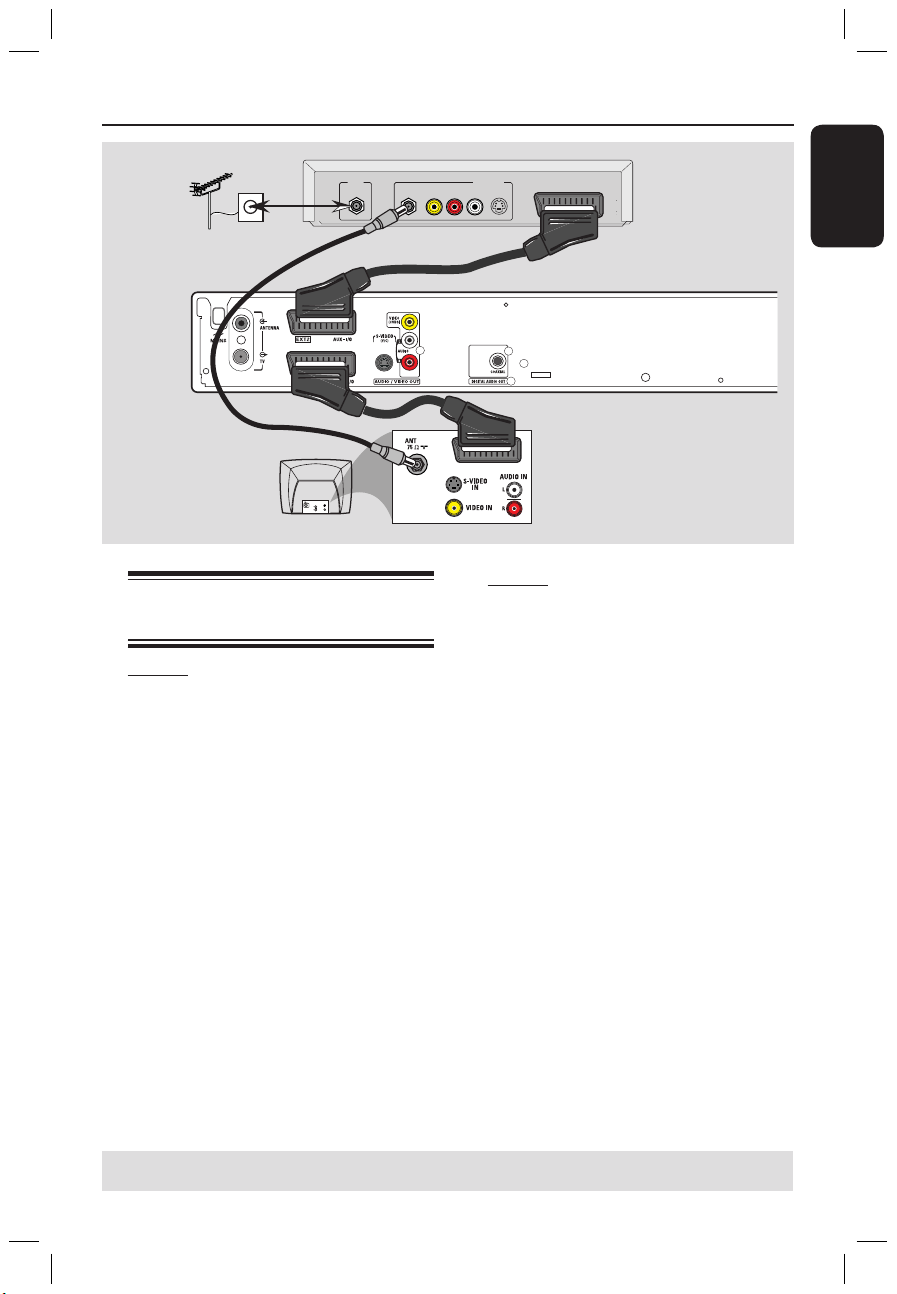

Connecting to a VCR and Cable Box/
Satellite Receiver ......................................
17

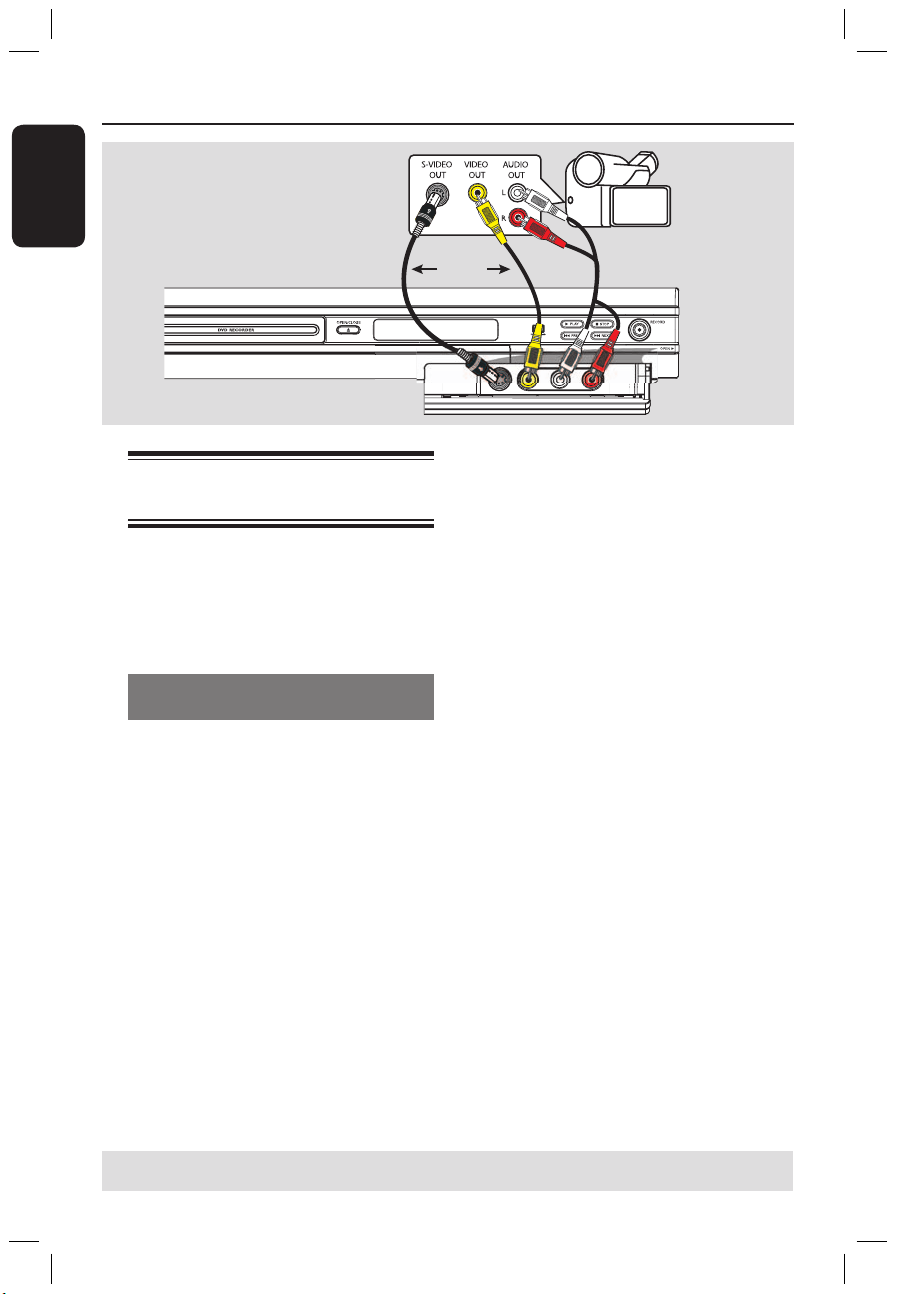

Connecting a camcorder to the
front sockets .............................................
18
Using S-VIDEO In or VIDEO In socket .18

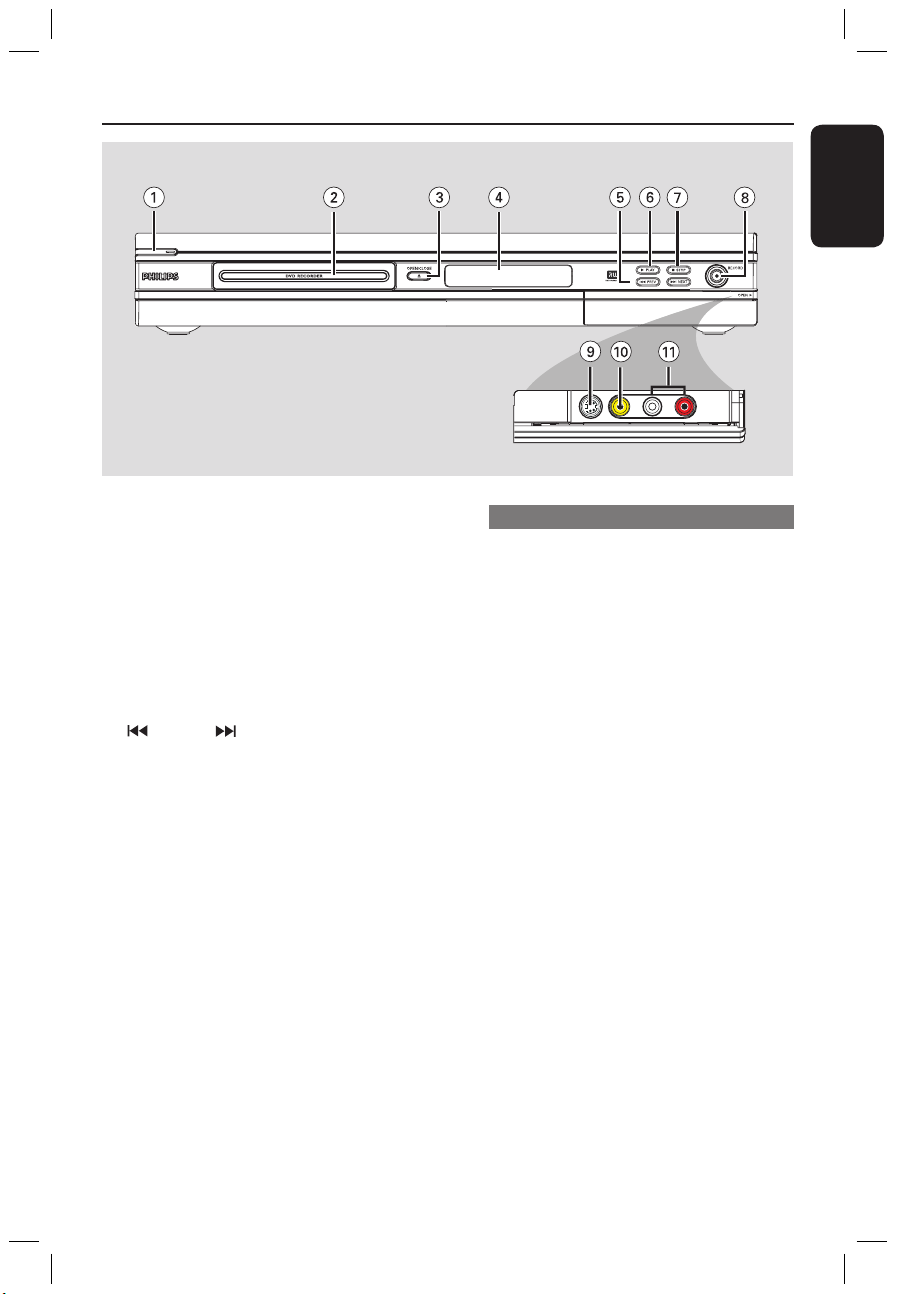

Main Unit ....................................... 19
Sockets behind the flap ..............................19

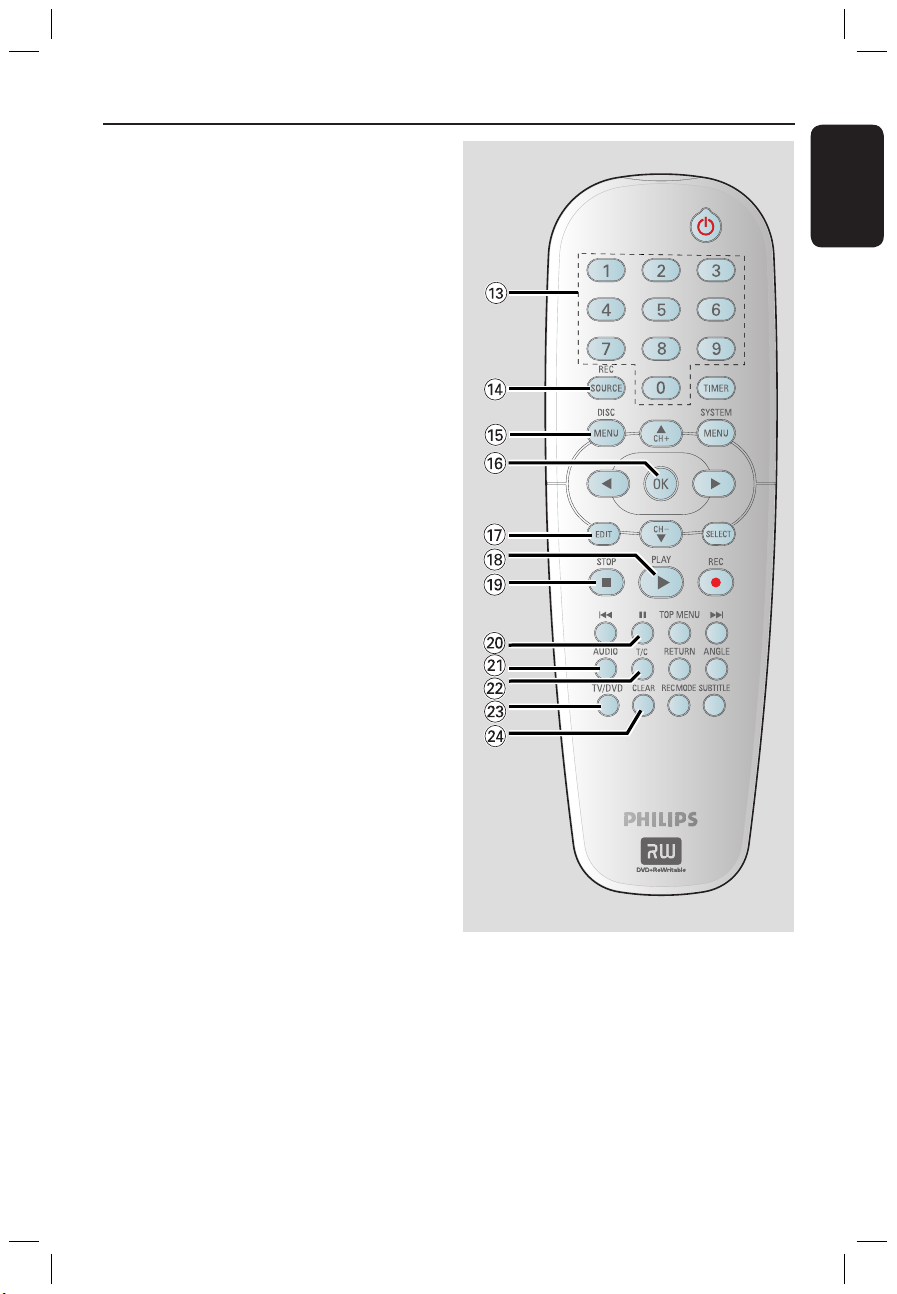

Remote Control ................... 20~21
Getting Started

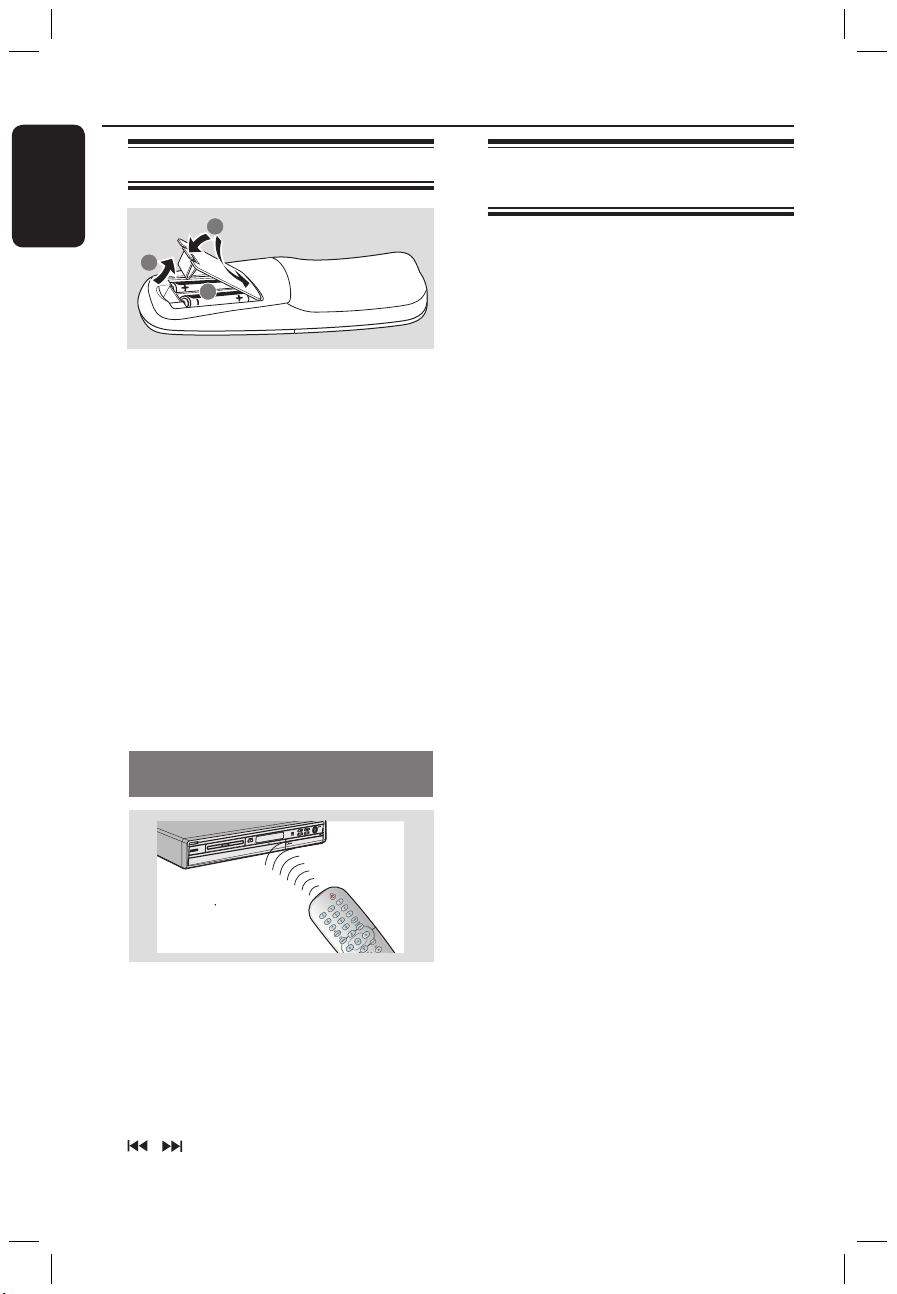

Step 1: Inserting Batteries ..................... 22
Using the remote control to operate
the system ......................................................
22
Step 2: Finding your viewing channel .. 22
Step 3: Select the country of your
residence ....................................................
23
Step 4: TV channel programming ........
23
Automatic TV channel search ..................23
Modifying Channel Information ...............
24
Sorting the TV channels .............................
25
Step 5: Setting the language .................. 25
Step 6: Setting the time & date ............
26
Recordin
g
Discs for recording .................................. 27
Recording settings
.................................. 27
Auto Chapter Markers ...............................28
Default Source ..............................................28
Default Recording Mode ............................
28
Manual recording ..................................... 29
One Touch Recording - automatic
turn-off .......................................................
29
About timer recording ...........................
30
Timer recording (manually) ..................
30
Setting a timer recording from an
external Cable Box/Satellite Receiver ...
31
Timer recording (VIDEO Plus+
®
System) .......................................................
32
Changing/Deleting a timer recording .
33
Simultaneous recording and playback
33
Editing/Finalising Recordin
g
About disc editing .................................... 34
Accessing disc editing menu ..................
34
Rename disc ...................................................35
Erase disc (DVD+RW only) ......................
35
Record new title ...........................................
35
Overwrite disc (DVD+RW only) ............
35
Make compatible (DVD+RW only) ........36
Lock/Unlock disc (DVD+RW only) .......
36
Playing your recordings (DVD+R) on
other DVD players ..................................
36
16861_dvdr3305_05_eng5.indd 8 2005-06-29 4:08:44 PM
English
9
Contents
About title editing ................................... 37
Accessing title editing menu .................
37
Video editing .................................................37
Rename title ..................................................38
Erase title .......................................................
38
Overwrite title (DVD+RW only) ...........
38
Overwrite from the selected title ..........
38
Append recording
.......................................38
About video editing ................................. 39
Accessing video editing menu ..............
39
Selecting a title ............................................. 40
Selecting a chapter ......................................
40
Creating chapter marker ..........................
40
Hiding an unwanted chapter .....................
41
Changing Index Picture ..............................
41
Splitting a title (DVD+RW only) .............41
Playback
Playable discs .............................................
42
Inserting a disc ..........................................
42
Starting disc playback .............................
43
Playing a DVD video disc ...........................43
Playing a (Super) Video CD .......................
43
Playing an audio CD ....................................
43
Playing a DVD+R/+RW disc .................... 44
Playing a MP3 disc .......................................
44
Playing a picture disc (or musical
slide show) .....................................................
45
Additional Playback Features
Changing to another title/chapter/
track ............................................................
46
Pausing playback and step play
............ 46
Searching forwards/backwards ............
46
Using T/C options ...................................
47
Selecting various repeat/shuffle
functions .........................................................
47
Programming disc tracks ........................... 48
Changing the audio soundtrack
language ......................................................... 48
Changing subtitle language ........................
49
Switching camera angles .............................
49
Time search ...................................................49
DVD System Menu Options
Accessing System Menu - General
..... 50
Screen Saver ..................................................50
Country ..........................................................
50
Video Output Format .................................
51
Restore Factory settings ............................51
Accessing System Menu -Playback ...... 52
TV Aspect Ratio ...........................................52
Parental rating level .....................................
53
Setting or changing the password ...........
54
Digital Audio Output ..................................
54
Accessing System Menu - Record ....... 55
Accessing System Menu - Language ....
55
Accessing System Menu - Channel
Setup ...........................................................
55
Accessing System Menu - Clock ..........
55
Date and Time ..............................................55
Troubleshooting .................... 56~57
Specifications ................................
58
Glossary .........................................
59
16861_dvdr3305_05_eng5.indd 9 2005-06-29 4:08:44 PM
English
10
11
Cleaning discs
Some problems occur because the disc
inside the recorder is dirty (frozen picture,
sound disruptions, picture distortions). To
avoid these problems, discs should be
cleaned on a regular basis.
To clean a disc, use a micro fibre cleaning
cloth and wipe the disc from the center
to the edge in a straight line.
CAUTION!
Do not use solvents such as benzene,
thinner, commercially available cleaners,
or anti-static sprays intended for analog
discs.
Since the optical unit (laser) of the DVD
recorder operates at a higher power than
regular DVD or CD players, cleaning CDs
intended for DVD or CD players may
damage the optical unit (laser). Therefore,
refrain from using a cleaning CD.
About recycling
These operating instructions have been
printed on non-polluting paper. This
electronic equipment contains a large
number of materials that can be recycled.
If you are disposing of an old machine,
please take it to a recycling center. Please
observe the local regulations regarding
disposal of packaging materials, exhausted
batteries, and old equipment.
Care and Safety Information
CAUTION!
High voltage! Do not open the
device. You run the risk of getting
an electric shock.
The machine does not contain any
user-serviceable parts. Please leave
all maintenance work to qualified
personnel.
Setup
Finding a suitable location
– Place the set on a flat, hard and stable
surface. Do not place the set on a carpet.
– Do not position the set on top of
other equipment that might heat it up
(e.g., receiver or amplifier).
– Do not put anything under or above
the set (e.g., CDs, magazines).
– Install this unit near the AC outlet and
where the AC power plug can be reached
easily.
Space for ventilation
– Place the apparatus in a location with
adequate ventilation to prevent internal
heat build up. Allow at least 10 cm (4.5”)
clearance from the rear and the top of
the set and 5 cm (2.3”) from the left and
right to prevent overheating.
10cm (4.5")
10cm (4.5")
5cm (2.3")
5cm (2.3")
Avoid high temperatures, moisture,
water and dust
– Apparatus shall not be exposed to
dripping or splashing.
– Do not place any sources of danger on
the apparatus (e.g., liquid filled objects,
lighted candles).
16861_dvdr3305_05_eng5.indd 10 2005-06-29 4:08:46 PM
English
11
General Information
Introduction
Your Philips DVD recorder allows you to
record the TV programmes or duplicate
camcorder recordings to a DVD+RW or
DVD+R and play pre-recorded DVDs.
The recordings you make on the
recorder will play on most of the DVD
players and DVD-ROM drives. The
DVD+R discs have to be finalised before
they can be played on other DVD players.
Please take time to read this user manual
before using your DVD recorder. It
contains important information and notes
regarding operations of the recorder.
Helpful Hints:
– If you have questions or if problems come
up during operation, please see the chapter
‘Troubleshooting’.
– If you need further assistance, please call
the customer support service for your
country. The corresponding telephone
numbers and e-mail addresses are given in
the guarantee booklet.
– Refer to the type plate on the rear or
bottom of the product for identification and
supply ratings.
Accessories supplied
– Remote control and batteries
– Scart cable
– RF coaxial cable
– Quick Use Guide
– User Manual
Region codes
DVD films are usually not released at the
same time in all regions of the world,
thus all DVD players are keyed to a
specific region code.
This device will only play
Region 2 DVDs or DVDs
manufactured to be played in
all regions ‘ALL’. DVDs from
other regions cannot be
played on this DVD recorder.
ALL
2
16861_dvdr3305_05_eng5.indd 11 2005-06-29 4:08:49 PM
English
12
13
Basic Connections - DVD recorder
AUD IO
O U
T
S-VID E O
IN
VID E O IN
TV
A
B
VCR/Cable Box/
Satellite Receiver
Antenna/
cable TV signal

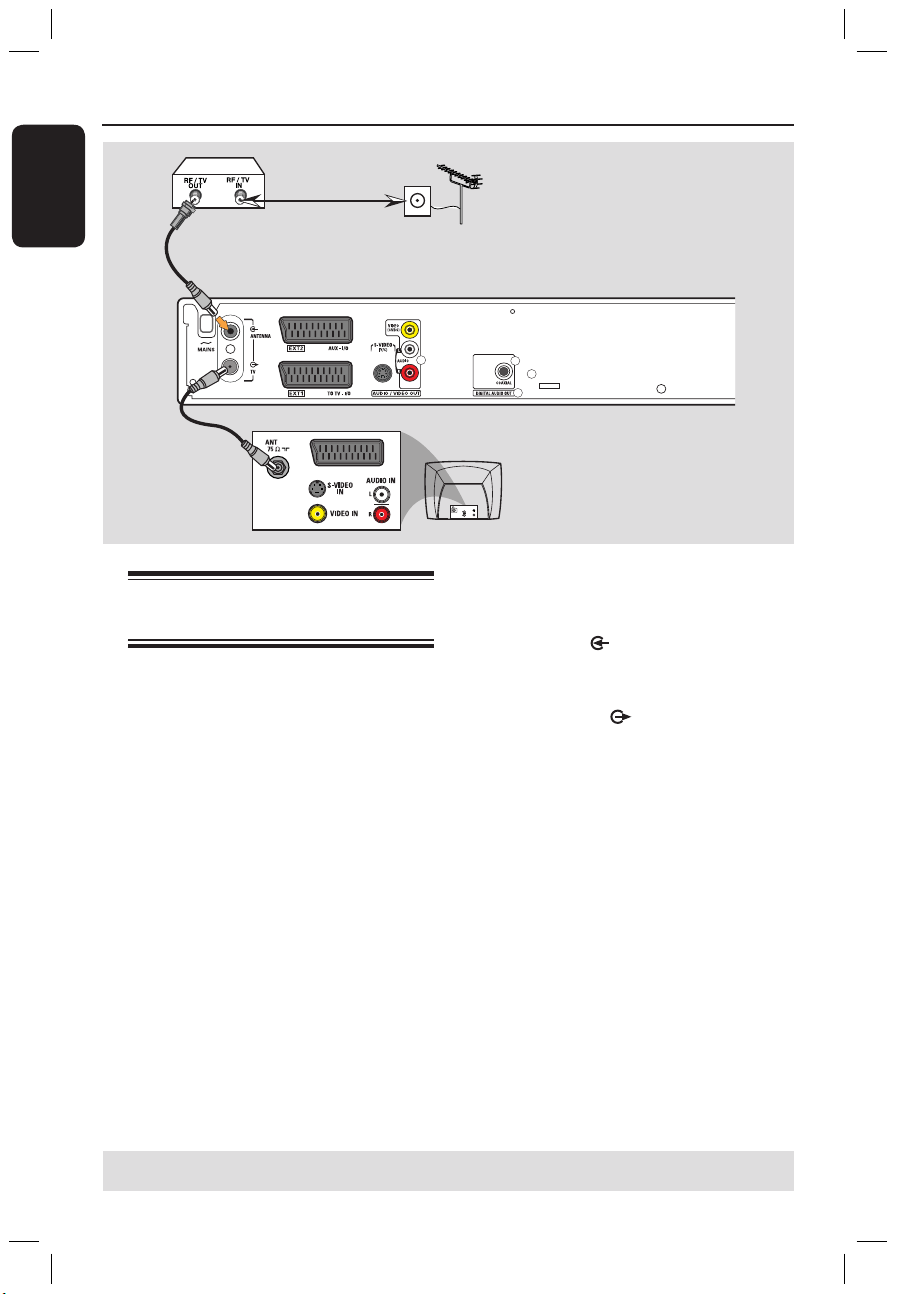

Step 1: Connecting the
antenna cables
These connections enable you to
watch and record TV programmes using
the DVD recorder. If the antenna signal is
connected via a VCR, Cable Box or
Satellite Receiver, ensure that these
devices are turned on in order to watch
or record the cable programmes.
If you want to connect to a VCR
and/or Cable Box/Satellite Receiver,
see page 15~17 for the complete
connection to your TV.
A Connect the existing Antenna/Cable TV
signal (or from the Cable Box/Satellite
Receiver {RF OUT or TO TV}) to the
ANTENNA
socket on the DVD
recorder.
B Use the supplied RF coaxial cable to
connect the TV socket on the DVD
recorder to the antenna input socket on
your TV (VHF/UHF RF IN).
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
16861_dvdr3305_05_eng5.indd 12 2005-06-29 4:08:53 PM
English
13
Basic Connections - DVD recorder (continued)
OR
OR
Step 2: Connecting the
video cable
This connection enables you to view the
disc playback from the DVD recorder.
You only need to choose one of the
options below to make your video
connection.
Option 1: Using Scart socket (best
picture quality)
Use the scart cable to connect the EXT1
TO TV-I/O socket on the DVD
recorder to the corresponding SCART
input socket on the TV.
Helpful Hints:
– If your TV set has several SCART sockets,
select the SCART socket that is suitable for
both video output and video input.
– If your TV set display a selection for the
SCART socket, select ‘VCR’ as the source for
the SCART socket.
– The EXT2 AUX-I/O socket is intended
only for additional devices.
Option 2: Using S-Video socket
(excellent picture quality)
Use a S-video cable (not supplied) to
connect the S-VIDEO (Y/C) socket on
the DVD recorder to the S-Video input
socket (possibly labelled as Y/C or
S-VHS) on the TV.
Option 3: Using Video (CVBS)
socket (good picture quality)
Use a composite video cable (yellow -
not supplied) to connect the VIDEO
(CVBS) socket on the DVD recorder to
the video input socket (possibly labelled
as A/V In, Video In or Composite) on the
TV.
AUD IO
O U
T
S-VID EO
IN
VID EO IN
TV
Option 1
Option 2
Option
3
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
16861_dvdr3305_05_eng5.indd 13 2005-06-29 4:08:57 PM
English
14
15
Antenna/ cable
TV signals
Basic Connections - DVD recorder (continued)
STEREO / TV
DIGITAL IN
Option 2
Option 1
OR
AV amplifier/
receiver
Step 3: Connecting the
audio cables
This connection enables you to listen to
the sound. This connection is not required
if the DVD recorder is connected to the
TV using the scart cable.
Option 1: Using an audio cable
You can connect the DVD recorder to a
two channel stereo system or receiver in
order to enjoy the stereo sound system.
Use an audio cables (red/white ends - not
supplied) to connect the AUDIO L/R
sockets to one of the following devices
with the same input sockets.
– a stereo system (for example, TV or
mini system).
– a receiver with two channel analog
stereo.
Option 2: Using a coaxial cable
You can connect the DVD recorder to
an AV amplifier/receiver in order to
enjoy multichannel surround sound.
Use a coaxial cable (not supplied) to
connect the COAXIAL socket on the
DVD recorder to the digital input on the
AV amplifier/ receiver with a digital
multi-channel sound decoder.
Before you start operating, set the Digital
Audio Output accordingly (see page 54).
If the Digital Output setting does not
match your stereo’s capabilities, the
stereo may produce a strong, distorted
sound or no sound at all.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
16861_dvdr3305_05_eng5.indd 14 2005-06-29 4:09:02 PM
English
15
Optional Connections
A
B
C
Antenna/ cable
TV signals
Connecting to a Cable Box or
Satellite Receiver
Option 1
If your Cable Box/Satellite Receiver
has only an antenna output socket
(RF OUT or TO TV),
refer to “Connecting the antenna cables”
on page 12 for the complete connection
to your TV.
Option 2
If your Cable Box/Satellite Receiver
has Scart output socket
A Keep the existing antenna connection
from the Cable Box/Satellite Receiver to
your TV.
B Use the scart cable to connect the EXT1
TO TV-I/O socket on the DVD
recorder to the corresponding SCART
input socket on the TV.
C Use another scart cable to connect the
EXT2 AUX-I/O socket on the DVD
recorder to the Scart output socket
(possibly labelled as TV OUT or TO TV)
on the Cable Box/Satellite Receiver.
To start playback, select the TV channel
directly on the Cable Box/Satellite
Receiver. The DVD recorder will
automatically send the video/audio signals
from the EXT2 AUX-I/O socket to the
EXT1 TO TV-I/O socket. You will see
the picture from the additional device on
your TV, even if the DVD recorder is
turned off.
RF
S-VIDEO
OUT
IN
AUDIO
R
L
VIDEO
TO TV
AUD IO
OU
T
S-VID E O
IN
VID E O IN
TV
Back of a Cable Box
or Satellite Receiver
(Example only)
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
16861_dvdr3305_05_eng5.indd 15 2005-06-29 4:09:07 PM
English
16
17
Optional Connections (continued)
VIDEO
IN
AUDIO
L
AUDIO
R
VIDEO
OUT
AUDIO
L
AUDIO
R
VHF/UHF
RF IN
VHF/UHF
RF OUT
TV OUT
TV IN
AUD IO
OU
T
S-VID E O
IN
VID E O IN
TV
A
B
C
Antenna/cable
TV signals
Back of aVCR
(Example only)
E
D
Connecting to a VCR or
other similar device
This connection enables you to record
from video tape to a DVD+R/+RW and
allows the VCR to be used for playback if
the DVD recorder is turned off.
A Connect the Antenna/Cable TV signal to
the antenna input (RF IN) socket on the
VCR.
B Use the supplied RF coaxial cable to
connect the antenna output (RF OUT)
socket on the VCR to the ANTENNA
socket on the DVD recorder.
C Use another RF coaxial cable to connect
the TV socket on the DVD recorder
to the antenna input socket on the TV.
D Use the scart cable to connect the EXT1
TO TV-I/O socket on the DVD
recorder to the corresponding SCART
input socket on the TV.
E Use another scart cable to connect the
EXT2 AUX-I/O socket on the DVD
recorder to the Scart output socket
(possibly labelled as TV OUT or TO TV)
on the VCR.
Helpful Hints:
– Most commercial video cassettes and
DVDs are copy-protected and therefore
cannot be recorded.
– Connect the DVD recorder directly to the
TV. If there is a VCR or an additional device
in between, the picture quality may be poor
because of the copy protection system built
into the DVD recorder.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
16861_dvdr3305_05_eng5.indd 16 2005-06-29 4:09:13 PM
English
17
Optional Connections (continued)
C
A
B
D
Antenna/cable
TV signals
Optional Connections (continued)
VIDEO
IN
AUDIO
L
AUDIO
R
VIDEO
OUT
AUDIO
L
AUDIO
R
VHF/UHF
RF IN
VHF/UHF
RF OUT
TV OUT
TV IN
AUD IO
OU
T
S-VID E O
IN
VID E O IN
TV
F
Back of aVCR
(Example only)
E
Connecting to a VCR and
Cable Box/Satellite Receiver
A Connect the Antenna/Cable TV signal to
the antenna input (RF IN) socket on the
Cable Box/Satellite Receiver.
B Use the supplied RF coaxial cable to
connect the antenna output (RF OUT)
socket on the Cable Box/Satellite
Receiver to the ANTENNA
socket
on the DVD recorder.
C Use another RF coaxial cable to connect
the TV
socket on the DVD recorder
to the antenna input socket on the TV.
D Use the scart cable to connect the EXT1
TO TV-I/O socket on the DVD
recorder to the corresponding SCART
input socket on the TV.
E Use another scart cable to connect the
EXT2 AUX-I/O socket on the DVD
recorder to the Scart output socket
(possibly labelled as TV OUT or TO TV)
on the VCR.
F Use another scart cable to connect the
scart input (TV IN) socket on the VCR to
the Scart output socket (possibly labelled
as TV OUT or TO TV) on the Cable
Box/Satellite Receiver.
D Use the scart cable to connect the EXT1
TO TV-I/O socket on the DVD
recorder to the corresponding SCART
input socket on the TV.
E Use another scart cable to connect the
EXT2 AUX-I/O socket on the DVD
recorder to the Scart output socket
(possibly labelled as TV OUT or TO TV)
on the VCR.
Helpful Hints:
– Most commercial video cassettes and
DVDs are copy-protected and therefore
cannot be recorded.
– Connect the DVD recorder directly to the
TV. If there is a VCR or an additional device
in between, the picture quality may be poor
because of the copy protection system built
into the DVD recorder.
RF
S-VIDEO
OUT
IN
AUDIO
R
L
VIDEO
TO TV
AUD IO
OU
T
S-VID E O
IN
VID E O IN
TV
VIDEO
IN
AUDIO
L
AUDIO
R
VIDEO
OUT
AUDIO
L
AUDIO
R
VHF/UHF
RF IN
VHF/UHF
RF OUT
TV OUT
TV IN
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
Back of a Cable Box
or Satellite Receiver
(Example only)
16861_dvdr3305_05_eng5.indd 17 2005-06-29 4:09:18 PM
English
18
19
Optional Connections (continued)
B
OR
Connecting a camcorder to
the front sockets
You can use the front sockets to copy
camcorder recordings. These sockets are
located behind the flap on the right hand
side which provides convenient
connections for a camcorder.
Using S-VIDEO In or VIDEO In
socket
Use the S-VIDEO connection if you have
a Hi8 or S-VHS(C) camcorder. It
provides better picture quality.
Alternatively, you can use VIDEO
connection if your camcorder has only a
single video output (Composite Video,
CVBS).
A Connect the S-VIDEO or VIDEO
socket at the front panel of the DVD
recorder to the corresponding S-VHS or
Video output socket on the camcorder.
B Use an audio cable (red/white ends) to
connect the AUDIO L/R sockets at the
front panel of the DVD recorder to the
audio output sockets on the camcorder.
Before you start operating, press REC
SOURCE on the remote control
repeatedly to select ‘Front S-VIDEO’ or
‘Front CVBS’ as the input channel,
depending on your connections.
For recording, see pages 27~29.
A
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
16861_dvdr3305_05_eng5.indd 18 2005-06-29 4:09:19 PM
English
19
Main Unit
a STANDBY-ON 2
– Turns on or off the DVD recorder.
b Disc tray
c OPEN CLOSE ç
– Opens/closes the disc tray.
d System display panel
– Show information about the current
status of the DVD recorder.
e PREV / NEXT
– Go to the previous/next chapter or track,
do a forward/reverse search.
f
É
PLAY
– Play a disc.
g
STOP
– Stop playback/recording.
h RECORD
– Start recording the current TV channel
or the current video input source.
– Press repeatedly to set up a One Touch
Recording at 30 minutes interval.
Sockets behind the flap
Flip down the door as indicated by the
OPEN label at the right hand corner.
i S-VIDEO
– S-video input for SVHS/Hi8 camcorders
or SVHS/Hi8 video recorders.
Press
REC SOURCE on the remote
control to select ‘Front S-Video’ in order
to view the input source.
j VIDEO
– Video input for camcorders or video
recorders.
Press
REC SOURCE on the remote
control to select ‘Front CVBS’ in order
to view the input source.
k L/R AUDIO
– Audio input for camcorders or video
recorders.
16861_dvdr3305_05_eng5.indd 19 2005-06-29 4:09:20 PM
English
20
21
Remote Control
1
2
3
4
5
6
7
8
9
0
!
@
a STANDBY-ON 2
– Turns on the DVD recorder or to
standby mode.
b TIMER
– Enters/exits the timer recording menu.
c SYSTEM-MENU
– Enters/exits the system menu.
d : Cursor buttons for moving to the
left or right, do a forward/reverse search.
: Cursor buttons for moving up/
down or changing the recorder’s TV
tuner channel.
e SELECT
– Selects a track/chapter/file in the
programme menu.
f REC
– Starts recording the current TV channel
or the current video input source.
g
– Skips to previous or next Chapter/Track.
h TOP MENU (For DVD+R/+RW discs only)
– Enters the disc editing menu.
i ANGLE
– Selects a DVD disc camera angle
(if available).
j RETURN
– Returns to the previous menu of a video
CD (VCD) or some DVDs.
k SUBTITLE
– Selects a DVD subtitle language.
l REC MODE
– Toggles between recording modes :
1, 2, 4 and 6 hour mode.
This determines the quality of the
recording and the amount/length of time
you can record on a DVD+R/+RW.
16861_dvdr3305_05_eng5.indd 20 2005-06-29 4:09:22 PM
English
21
Remote Control (continued)
m Numeric keypad
– Selects a chapter/track number to play.
– Selects the recorder’s preset TV tuner
channel.
n REC SOURCE
– Selects the recorder’s input source.
o DISC-MENU
– Access DVD disc menu or Index Picture
screen of a DVD+R/+RW.
– Access VCD disc menu when PBC is
turned on.
p OK
– Stores/confirms an entry.
– Confirms a selection.
q EDIT (For DVD+R/+RW discs only)
– Enters/exits the video editing menu.
r PLAY
É
– Plays a disc.
s STOP
– Stops playback/recording.
– Holding down the button will open/close
the disc tray.
t
Å
– Pauses the playback or recording.
– Press repeatedly to advance a paused
picture one frame at a time.
u AUDIO
– Selects an audio language (DVD, VCD) or
an audio channel.
v T/C (Title/Chapter)
– Enters/exits the T/C menu.
w TV/DVD
– Switch between playback from the
additional devices (connected via the EXT2
AUX I/O socket) and playback from the
DVD recorder.
x CLEAR
– Clears a track/chapter/file in the
programme menu.
– Clears a timer entry.
16861_dvdr3305_05_eng5.indd 21 2005-06-29 4:09:24 PM
English
22
23
Getting Started
Step 1: Inserting Batteries
1
3
2
A Open the battery compartment.
B Insert two batteries type R06 or AA,
following the indications (+-) inside
the compartment.
C Close the cover.
CAUTION!
– Remove batteries if they are
exhausted or if the remote is not to
be used for a long time.
– Do not use old and new or
different types of batteries in
combination.
– Batteries contain chemical
substances, so they should be
disposed of properly.
Using the remote control to
operate the system
A Aim the remote control directly at the
remote sensor (IR) on the front panel.
B Press REC SOURCE on the remote
control to select the mode you wish to
control (for example TUNER,
Front-CVBS).
C Select the desired function (for example
, ).
Step 2: Finding your viewing
channel
A Press STANDBY-ON 2 on the DVD
recorder to turn it on.
B Turn on the TV and set it to the correct
video-in channel. You should see the blue
DVD background screen.
Usually this channel is between the
lowest and highest channels and may be
called FRONT, A/V IN, VIDEO. See your
TV’s manual for more details.
You may go to Channel 1 on your
TV, then press the Channel down button
repeatedly until you see the Video In
channel.
The TV remote control may have a
button or switch that chooses different
video modes.
IMPORTANT!
When you complete the
connections and turn on the DVD
recorder for the first time, it is
advisable that you make several
basic settings.
Please see the following pages on
using the System Menu features
to programme TV channels and
menu language settings. This will
improve the performance of this
DVD recorder considerably.
16861_dvdr3305_05_eng5.indd 22 2005-06-29 4:09:26 PM
English
23

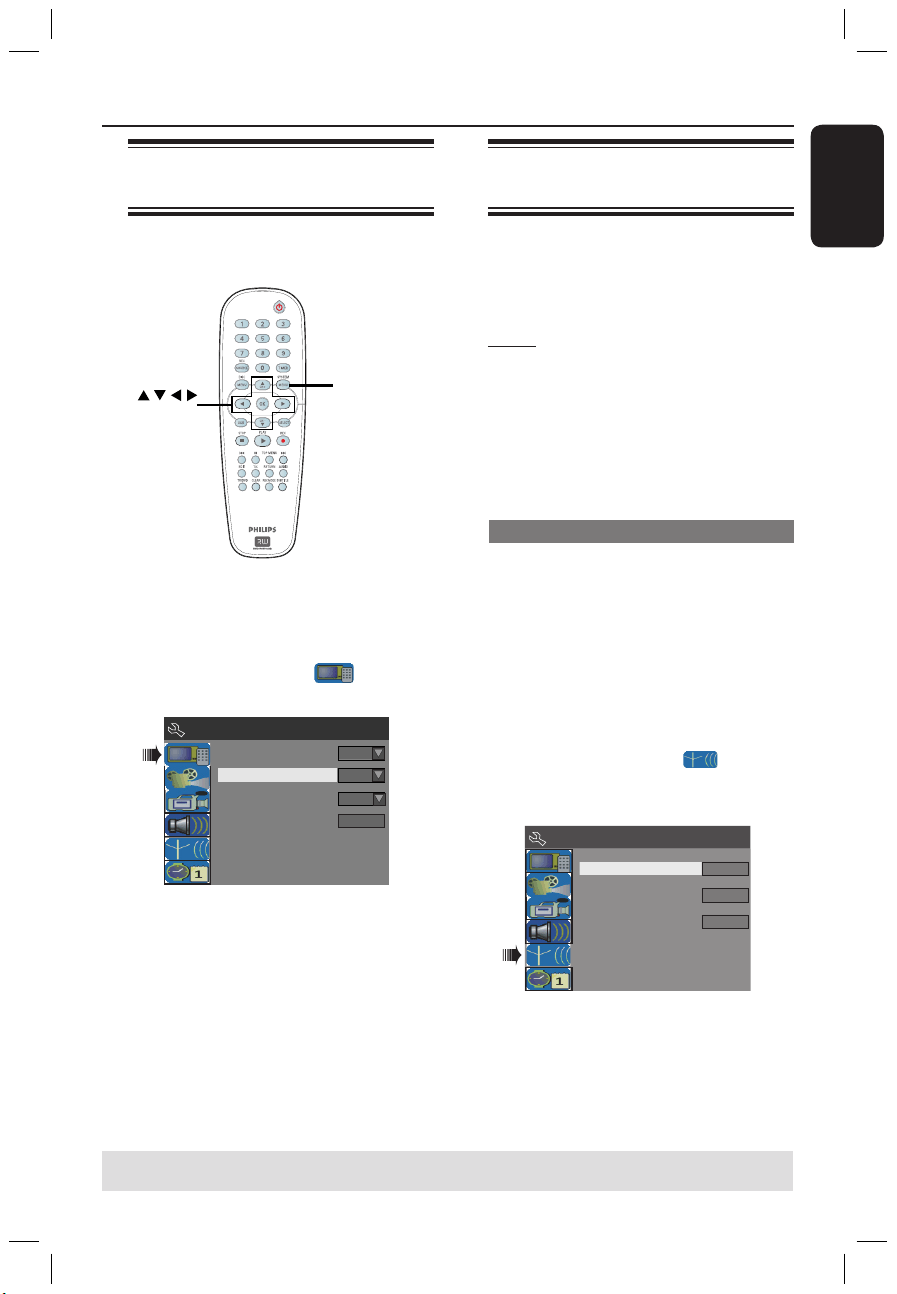

Getting Started (continued)
Step 3: Select the country of
your residence
Select the country of your area for auto
channel tuning.
SYSTEM
MENU
OK
A Press SYSTEM-MENU on the remote
control.
The system menu appears on the TV.
B Use keys to highlight
{ System Menu - General } and press
.
Video Output Format
Restore Factory Settings
Germany
PAL
OK
Screen Saver
On
System Menu - General
Country
C Use keys to highlight { Country }
and press OK.
D Use keys to select the country of
your residence and press OK to confirm.
Step 4: TV channel
programming
Before the DVD recorder can start
recording the TV channel programmes,
you need to search for the available TV
channels and store them in the recorder.
Note: Make sure you have successfully
made all the required connections to the
DVD recorder, the TV and Satellite
Receiver/ Cable Box (if any) and switched
them on before proceeding.
Tuner settings can only be changed
when there is no disc in the disc tray.
Automatic TV channel search
This option will automatically scan all the
receivable TV channels and the cable
programmes from the Cable Box/Satellite
Receiver and store these channels on the
DVD recorder.
A Press SYSTEM-MENU on the remote
control.
The system menu appears on the TV.
B Use keys to highlight
{ System Menu - Channel Setup }
and press .
System Menu - Channel Setup
Modify Channel Information
Sort Channel
Channel Search
Search
Edit
Sort
C Use keys to highlight { Channel
Search } and press OK.
The automatic TV channel search starts.
This process may take several minutes.
Once complete, the total number of
channels found will appear on the TV.
TIPS: Press to go back to previous menu item.
Press SYSTEM-MENU to exit the menu.
16861_dvdr3305_05_eng5.indd 23 2005-06-29 4:09:33 PM
English
24
25
Getting Started (continued)
Modifying Channel Information
You can set a TV channel to your
preference and improve the reception
and the sound quality of the TV channel.
A Press SYSTEM-MENU.
The system menu appears.
B Use keys to highlight
{ System
Menu - Channel Setup } and press .
C Use keys to highlight { Modify
Channel Information } and press OK.
The channel menu appears.
Channel
Scan mode
Frequency
TV System
NICAM
Audio
OK
Frequency
PAL I
Name
On
OK
Dual A
Off
Skip
Fine tune
P001/Ch003
55.26MHz
Cancel
Decoder
No
D Use keys to select one of the
options and press OK.
{ Name }
You can use the numeric keypad 0-9
to select the channel preset number
which you wish to change.
– Use keys to change alphabet/
number and use keys to select
different entry fields, then press
OK to
confirm.
{ Scan Mode }
Select TV channel search mode based on
channel allocation or frequency.
– Use keys to select { Channel },
{ S-Channel } (Special Channel) or
{ Frequency }, then press OK to confirm.
{ Frequency }
Shows the frequency of the current TV
channel.
– If required, use keys to start the
automatic frequency search and press
OK to confirm.
{ TV System }
Set the TV system that produces the
least distortion of picture and sound.
– Use keys to select a suitable sound
mode, then press OK to confirm.
(See chapter “TV System Guide” at the
back of this manual for more information).
{ NICAM }
Turn on or off the digital sound
transmission system which improves the
sound quality of the TV channel.
– Use
keys to select { On } or
{ Off }, then press OK to confirm.
{ Audio }
For bilingual TV programmes, you can
switch between stereo (original) and
additional audio language.
– Use keys to select { Dual A } or
{ Dual B }, then press OK to confirm.
{ Decoder }
If you have connected the DVD recorder
to an external decoder, select { On } and
press OK to confirm.
{ Skip }
Select this to set the channel to be
skipped.
The skipped channels can only be
accessed by pressing the corresponding
number button on the remote control.
– Use keys to choose { Yes } if you
wish to skip this channel, then press OK
to confirm.
{ Fine Tune }
Select this to fine-tune the TV channel
manually if the reception is poor.
– Use
keys to adjust the frequency.
E Once complete, select
OK
in the
menu and press OK to confirm and exit
to the previous menu page.
If you do not wish to save any
changes, select
CANCEL
and press OK.
TIPS: Press to go back to previous menu item.
Press SYSTEM-MENU to exit the menu.
Sorting the TV channels
You may not agree with the sequence in
which the individual TV channels have
been allocated to the programme
numbers. You can use this function to
rearrange all the stored TV channels.
A Press SYSTEM-MENU.
The system menu appears.
B Use keys to highlight
{ System Menu - Channel Setup }
and press .
C Use keys to highlight
{ Sort Channels } and press OK.
The list of TV channel programmes
appears.
Sort Channels
P001
P002
P003
P004
P005
P006
P007
P008
BC020
SW006
CH008
CH004
GG006
CH010
CH012
CH005
Skip
Unskip
Unskip
Unskip
Skip
Unskip
Unskip
Unskip
P003 CH008 Unskip
D Use keys to highlight the channel
you want to change and press OK.
The selected channel will move to the
right side of the screen.
E Use keys to shift the TV channel to
the desired position and press OK again.
The selected channel will be inserted
before the current position.
F Repeat steps D~E until you have sorted
all the TV channels you want.
G Press RETURN on the remote control
to go back to the previous menu.
16861_dvdr3305_05_eng5.indd 24 2005-06-29 4:09:37 PM
English
25
Getting Started (continued)
Sorting the TV channels
You may not agree with the sequence in
which the individual TV channels have
been allocated to the programme
numbers. You can use this function to
rearrange all the stored TV channels.
A Press SYSTEM-MENU.
The system menu appears.
B Use keys to highlight
{ System Menu - Channel Setup }
and press .
C Use keys to highlight
{ Sort Channels } and press OK.
The list of TV channel programmes
appears.
Sort Channels
P001
P002
P003
P004
P005
P006
P007
P008
BC020
SW006
CH008
CH004
GG006
CH010
CH012
CH005
Skip
Unskip
Unskip
Unskip
Skip
Unskip
Unskip
Unskip
P003 CH008 Unskip
D Use keys to highlight the channel
you want to change and press OK.
The selected channel will move to the
right side of the screen.
E Use keys to shift the TV channel to
the desired position and press OK again.
The selected channel will be inserted
before the current position.
F Repeat steps D~E until you have sorted
all the TV channels you want.
G Press RETURN on the remote control
to go back to the previous menu.
Step 5: Setting the language
You can select the language for subtitles
and audio for DVD playback. For some
DVDs, the subtitle/audio language can
only be changed via the DVD disc menu.
If the selected language is not available on
the disc, the disc’s default language will be
used instead.
The menu language (on-screen display)
for the system will remain as you set it.
Language settings can only be changed
when there is no disc in the disc tray.
A Press SYSTEM-MENU.
The system menu appears.
B Use keys to highlight
{ System Menu - Language } and
press to confirm.
Default Disc Menu Language
Default Subtitle Language
Off
On Screen Display Language
Default Audio Language
English
English
System Menu - Language
English
C Use keys to highlight one of the
options and press OK.
{ On Screen Display Language }
Select this to change the language of this
DVD recorder screen display menu.
{ Default Disc Menu Language }
Select this to change the language of the
Disc Menu.
{ Default Subtitle Language }
Select this to change the subtitle language.
{ Default Audio Language }
Select this to change the playback language.
D Use keys to highlight the desired
language and press OK to confirm.
TIPS: Press to go back to previous menu item.
Press SYSTEM-MENU to exit the menu.
16861_dvdr3305_05_eng5.indd 25 2005-06-29 4:09:38 PM
English
26
27
Getting Started (continued)
Step 6: Setting the time &
date
If the DVD recorder has not set the time
and date correctly, set the clock manually
by following the steps below.
A Press SYSTEM-MENU.
The system menu appears.
B Use keys to select
{ System Menu - Clock } and press
to confirm.
System Menu -
Clock
Time(hh:mm:ss)
Date(dd/mm/yy)
31/01/05
10 : 33 : 57
C Press OK to set { Date(dd/mm/yy) }.
D Use keys to change number and use
keys to select different entry fields,
then press OK to confirm.
Alternatively, you can key in the numbers
using the numeric keypad 0-9 on the
remote control.
E Press OK to confirm.
F Move to { Time (hh:mm:ss) } and
repeat step D~E.
TIPS: Press to go back to previous menu item.
Press SYSTEM-MENU to exit the menu.
16861_dvdr3305_05_eng5.indd 26 2005-06-29 4:09:41 PM
English
27
Recording
Discs for recording
Two different formats of DVD recordable
discs can be used with this DVD
recorder:
DVD+RW (DVD ‘plus’ ReWritable)
– Discs that are re-writable can be used
for multiple recordings once existing data
is erased.
DVD+R (DVD ‘plus’ Recordable)
– Discs can only be used for a single
recording. Each new recording is always
added at the end of all previous
recordings as existing recordings cannot
be overwritten.
– Editing can be made on any DVD+R
discs as long as they have not been
finalised. It is also possible to create
additional chapter markers.
– You can also delete unwanted
recordings. However, the disc space
occupied by the deleted recordings
cannot be recovered for further
recording.
– To play a DVD+R on other DVD
player, it must be finalised (
see page 36
“Playing your recordings (DVD+R) on
other DVD players”). After this is done,
no more data can be added to the disc.
IMPORTANT!
Unrecordable pictures
Television programmes, films, video tapes,
discs, and other materials may be
copy-protected and therefore cannot be
recorded on this recorder.
Recording settings
The default recording settings allow you
to set the auto chapter markers,
preferred recording input source and
recording mode. Any changes made using
the remote control will only apply to the
current recording settings, the default
recording settings will remain unchanged
for the next recording.
A Press SYSTEM-MENU on the remote
control.
The system menu appears on the TV.
B Use keys to select
{ System
Menu - Record } and press to
confirm.
System Menu - Record
Default Recording Source
Default Recording Mode
Off
1 Hour Mode
Auto Chapter Marker
On
C Use keys to select the setting you
wish to change and press OK to confirm.
Instructions and explanation of the
options are provided in the following
pages.
D To exit, press SYSTEM-MENU.
TIPS: Press to go back to previous menu item.
Press SYSTEM-MENU to exit the menu.
16861_dvdr3305_05_eng5.indd 27 2005-06-29 4:09:43 PM
English
28
29
Recording (continued)
Auto Chapter Markers
You can insert chapter markers within a
title during recording. This enables you to
access specific points on the recorded
disc as you would choose a chapter on
other DVDs.
A Use keys to select { Auto Chapter
Marker } and press to access its
options.
B Use keys to select one of the options.
{ Off }
Disable this feature.
{ On }
A chapter marker will be automatically
inserted during recording. The interval
depends on the recording mode selected.
C Press OK to confirm.
Default Source
You can define your preferred source of
recording. The default source is selected
when the DVD recorder is turned on.
To change the current recording source
without changing the default setting, you
can press REC SOURCE on the remote
control.
A Use keys to select { Default
Recording Source } and press to
access its options.
B Use keys to select one of the options.
{ Tuner }
Input source from TV programmes.
{ Front CVBS }
Input source from the device connected
to the VIDEO and AUDIO L/R sockets
on the front panel.
{ Front S-Video }
Input source from the device connected
to the S-VIDEO and AUDIO L/R sockets
on the front panel.
{ EXT 1 }
Input source from the device connected
to the EXT1 TO TV-I/O scart socket on
the back panel.
{ EXT 2 }
Input source from the device connected
to the EXT2 AUX-I/O scart socket on
the back panel.
C Press OK to confirm.
Default Recording Mode
The recording mode defines the picture
quality of recordings and the maximum
recording time for a disc.
This function can also be accessed via the
REC MODE button on the remote
control.
A Use keys to select { Default
Recording Mode } and press to
access its options.
B Use keys to select one of the
following recording mode.
Record
Mode
Picture Quality
Maximum Recording
Time per Disc
1 Hour Mode
2 Hour Mode
4 Hour Mode
6 Hour Mode
High quality
DV
D quality-Standard Play
VHS quality-Extended Play
VHS quality-Super Long Play
1 hour
2 hours
4 hours
6 hours
C Press OK to confirm.
TIPS: The underlined option is the factory default setting.
Press to go back to previous menu item. Press SYSTEM-MENU to exit the menu item.
16861_dvdr3305_05_eng5.indd 28 2005-06-29 4:09:43 PM
English
29
{ Front S-Video }
Input source from the device connected
to the S-VIDEO and AUDIO L/R sockets
on the front panel.
{ EXT 1 }
Input source from the device connected
to the EXT1 TO TV-I/O scart socket on
the back panel.
{ EXT 2 }
Input source from the device connected
to the EXT2 AUX-I/O scart socket on
the back panel.
C Press OK to confirm.
Default Recording Mode
The recording mode defines the picture
quality of recordings and the maximum
recording time for a disc.
This function can also be accessed via the
REC MODE button on the remote
control.
A Use keys to select { Default
Recording Mode } and press to
access its options.
B Use keys to select one of the
following recording mode.
Record
Mode
Picture Quality
Maximum Recording
Time per Disc
1 Hour Mode
2 Hour Mode
4 Hour Mode
6 Hour Mode
High quality
DV
D quality-Standard Play
VHS quality-Extended Play
VHS quality-Super Long Play
1 hour
2 hours
4 hours
6 hours
C Press OK to confirm.
Recording (continued)
Manual recording
Use this feature to start recording
immediately (e.g., to record a TV show
already in progress).
REC
SOURCE
STOP
REC
A Turn on the TV power. Select the
correct Video In channel at the TV.
B Insert a recordable DVD+R/+RW into
the DVD recorder.
C Press REC SOURCE on the remote
control to select { Tuner }, then use
keys to select the TV channel you
wish to record.
OR
To record from an external device, press
REC SOURCE repeatedly to select the
external channel that you wish to record
from.
{ Front CVBS }
Input source from the device connected
to the VIDEO and AUDIO L/R sockets
on the front panel.
{ Front S-Video }
Input source from the device connected
to the S-VIDEO and AUDIO L/R sockets
on the front panel.
{ EXT 1 }
Input source from the device connected
to the EXT1 TO TV-I/O scart socket on
the back panel.
{ EXT 2 }
Input source from the device connected
to the EXT2 AUX-I/O scart socket on
the back panel.
D Press REC
to start recording.
The recording will automatically start
after the last recording on the
DVD+R/+RW.
E To stop the recording, press STOP
.
Pausing a recording
A During a recording, press PAUSE
Å
.
You can use this function to avoid
recording commercials.
B To resume recording, press REC
.
One Touch Recording -
automatic turn-off
A Follow the steps A~C of “Manual
Recording” on page 29.
B Press REC
twice to start a 30 minutes
recording. Each time you press REC
after that, you will add 30 minutes to the
recording time.
The recorder will stop recording at
the designated end time and turn off
automatically.
Press STOP
if you wish to stop the
recording.
TIPS: Ensure that there is sufficient space available on the DVD+R/+RW before recording.
You have to finalise the DVD+R before it can be played on other players, see page 36.
16861_dvdr3305_05_eng5.indd 29 2005-06-29 4:09:46 PM
English
30
31
Recording (continued)
Timer recording (manually)
A Turn on the TV power. Select the
correct Video In channel at the TV.
B Press TIMER on the remote control.
The timer schedule list appears.
1
2
3
4
5
6
Source RecMode Date Start
End
Timer Schedule
VPS
C Press OK on the remote control.
The VIDEO PLUS+
®
System menu
appears.
VIDEO Plus+ System
OK
CancelConfirm
5
Enter the VIDEO Plus+ programming
number for the show you wish to
record. Press [RETURN] to return
to timer schedule or [TIMER] to
exit timer.
D Select
CANCEL
in the menu and press OK.
The timer editor menu appears.
Timer Editor
Rec Mode
Mode
Date
Start
End
2 Hour Mode
Once
Source
Ch003
31 / 01 / 05
10 : 33 : 57
11 : 03 : 57
OK
Cancel
OK
VPS/PDC
Off
E Use keys to select an entry in the
menu and press to enter its options.
About timer recording
Use ‘Timer Recording’ to automatically
start and stop a recording at a later date/
time. The DVD recorder will tune to the
right programme channel and begin
recording at the specified time.
With this DVD recorder, you can
preprogramme up to 8 recordings.
To make a timer recording, your
DVD recorder needs to know:
– The date you want to make the
recording.
– The recording input source.
– The start and stop time of the
recording.
– The recording mode, see page 28.
TIMER
OK
About ‘VPS/PDC’
‘VPS’ (Video Programming System) or
‘PDC’ (Programme Delivery Control) is
used to control the start and duration of
TV channel recordings. If a TV programme
starts earlier or ends later than was
scheduled, the DVD recorder will then
switch on and off at the correct time.
If you want to programme a time that is
different from the VPS/PDC time, you
must turn off VPS/PDC.
TIPS: Ensure that there is sufficient space available on the DVD+R/+RW before recording.
You have to finalise the DVD+R before it can be played on other players, see page 36.
16861_dvdr3305_05_eng5.indd 30 2005-06-29 4:09:54 PM
English
31
Recording (continued) Recording (continued)
{ Source }
– Use keys to select the recording
input source.
{ Rec Mode }
– Use
keys to select your option.
See pages 27~29 on “Recording settings -
Default Recording mode”.
{ Mode }
– Use
keys to select { Once },
{ Daily }, { Weekly }, { Mon-Fri }
(Monday to Friday, ) { Mon-Sat }
(Monday to Saturday) or { Weekend }
(Saturday and Sunday) recordings.
{ Date }
– Use
keys or the numeric
keypad 0-9 to enter the date for
recording.
{ Start }
– Use
keys or the numeric
keypad 0-9 to enter the start time of
recording.
{ End }
– Use
keys or the numeric
keypad 0-9 to enter the end time of
recording.
{ VPS/PDC }
– Use
keys to turn on/off the VPS/
PDC mode (see page 30 on “About VPS/
PDC”).
Note: If the Cable Box/ Satellite Receiver
is not turned on when the timer recording
is starting, the recording will proceed but
since there is no signal received from the
external source, the recording will be
blank.
F Select
OK
in the menu and press
OK.
The system will store the timer entry
and return to the timer schedule list.
To cancel the above timer setting, select
CANCEL
in the menu and press OK.
G Press TIMER to exit the menu.
H Insert a DVD+R/+RW into the DVD
recorder.
I Press STANDBY-ON to turn off the
DVD recorder.
If the DVD recorder is not in standby
mode, a warning message will appear
three minutes before the recording
starts.
If you ignore the warning message,
the DVD recorder will automatically
switch to standby mode to prepare for
timer recording at the designated time.
The ‘TIMER’ icon will light up on the
display panel if a timer recording is set.
Helpful Hint:
– Set the timer recording one minute ahead
of the programme’s start time. This helps
ensure the entire programme is recorded as
the disc requires about 30 seconds to
prepare for recording.
Setting a timer recording from
an external Cable Box/Satellite
Receiver
If you have a Satellite Receiver/Cable Box
connected to this DVD recorder via the
EXT2 AUX-I/O scart connection (see
page 15), follow the steps described
below to programme the recordings.
A Select the channel you want to record at
the Satellite Receiver/Cable Box.
B Programme the recording with the
required information. Follow the steps
A~I of “Timer Recording (manually)”
on pages 30~31.
{ Source }
– Use keys to select { EXT2 } as
the input channel and press OK to
confirm.
C Leave the Satellite Receiver/Cable Box on
for the recording.
TIPS: Ensure that there is sufficient space available on the DVD+R/+RW before recording.
You have to finalise the DVD+R before it can be played on other players, see page 36.
16861_dvdr3305_05_eng5.indd 31 2005-06-29 4:09:55 PM
English
32
33
Recording (continued)
Timer recording (VIDEO
Plus+
®
System)
This is a simple programming system for
DVD recorders. To use it, enter the
VIDEO P
lus+
®
programming number
associated with your television
programme. You can find this number in
your TV listings magazine.
All the information needed by the DVD
recorder for programming is contained in
the programming number.
A Turn on the TV power. Select the
correct Video In channel at the TV.
B Press TIMER on the remote control.
The timer schedule list appears.
1
2
3
4
5
6
Source RecMode Date Start
End
Timer Schedule
VPS
C Press OK to confirm.
Or, press key to go to the next
available empty slot and press OK.
The VIDEO Plus+
®
System menu
appears.
VIDEO Plus+ System
OK
CancelConfirm
5
Enter the VIDEO Plus+ programming
number for the show you wish to
record. Press [RETURN] to return
to timer schedule or [TIMER] to
exit timer.
D Use the numeric keypad 0-9 to enter
the VIDEO Plus+
®
programming number
for the show you wish to record.
(e.g. : 5-312-4 or 5,312 4, key in ‘53124’).
To clear the VIDEO Plus+
®
programming
number, press CLEAR on the remote
control.
To cancel the VIDEO Plus+
®
programming, use keys to select
CANCEL
in the menu and press OK.
E To confirm your entry, select
CONFIRM
in
the menu and press OK.
The system will store the timer entry
and return to the timer editor menu.
If the channel number of the TV channel
has not been assigned to the
programming number, you will have to
manually key in the channel number that
is assigned to the VIDEO Plus+
®
code.
Follow the instructions on the TV.
F Press TIMER to exit the menu.
G Insert a DVD+R/+RW into the DVD
recorder.
H Press STANDBY-ON to turn off the
DVD recorder.
If the DVD recorder is not in standby
mode, a warning message will appear
three minutes before the recording
starts.
If you ignore the warning message,
the DVD recorder will automatically
switch to standby mode to prepare for
timer recording at the designated time.
The ‘TIMER’ icon will light up on the
display panel if a timer recording is set.
TIPS: Ensure that there is sufficient space available on the DVD+R/+RW before recording.
You have to finalise the DVD+R before it can be played on other players, see page 36.
16861_dvdr3305_05_eng5.indd 32 2005-06-29 4:09:55 PM
English
33
Recording (continued)
Changing/ Deleting a timer
recording
A Turn on the TV power. Select the
correct Video In channel at the TV.
B Press TIMER on the remote control.
The timer schedule list appears.
1
2
3
4
5
6
Source RecMode Date Start
End
Timer Schedule
VPS
CH003
2 Hour Mode
14/01/05
14.00 15.30
CH010
CH005
CH008
1 Hour Mode
4 Hour Mode
2 Hour Mode
25/01/05
30/01/05
31/01/05
02.00
17.00
12.30
06.30
20.15
14.00
On
Off
On
Off
C Use keys to select a timer
programme which you want to change/
delete.
D To delete the timer entry, press
CLEAR on the remote control.
E To change the timer schedule, press
OK to enter the timer editor menu of
the selected timer programme.
Timer Editor
Rec Mode
Mode
Date
Start
End
2 Hour Mode
Once
Source
Ch003
31 / 01 / 05
10 : 33 : 57
11 : 03 : 57
OK
Cancel
OK
VPS/PDC
Off
F Select the entry field and make the
necessary changes.
G Once complete, select
OK
in the
menu and press OK to save the changes.
H Press TIMER to exit the menu.
Simultaneous recording and
playback
While recording is in progress, you can
watch another TV channel or the
playback from other audio/video device
which is connected to this DVD
recorder.
TV/DVD
Watching playback from other
device
This is only possible if the DVD recorder
is connected to the TV using the
EXT1 TO TV-I/O socket.
Press TV/DVD to view the picture from
the device which is connected to the
EXT2 AUX-I/O socket of this DVD
recorder.
Watching another TV channel
If there is no device connected to the
EXT2 AUX-I/O socket, pressing
TV/DVD will switch to TV mode.
Use the TV’s remote control to change
the channels.
Helpful Hint:
– Remember to switch the TV back to its
video input channel if you want to watch the
TV channel through the DVD recorder or
playback the recorded disc.
TIPS: Ensure that there is sufficient space available on the DVD+R/+RW before recording.
You have to finalise the DVD+R before it can be played on other players, see page 36.
16861_dvdr3305_05_eng5.indd 33 2005-06-29 4:10:00 PM
English
34
35

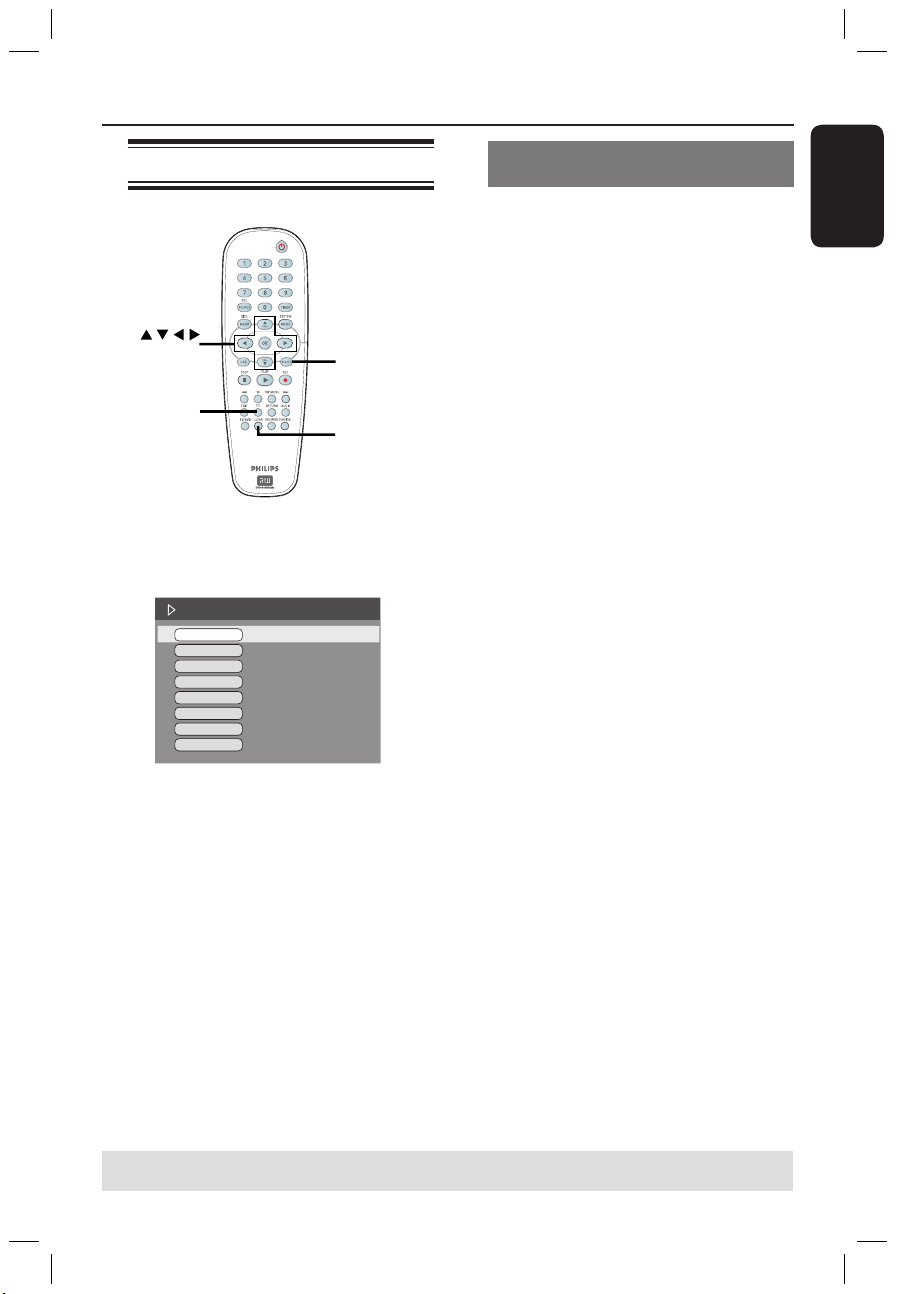

Accessing disc editing menu
TOP MENU
REC
OK
A Insert a recorded DVD+R/+RW into the
DVD recorder.
The Index Picture screen appears on
the TV.
B Press TOP MENU on the remote
control.
The disc editing menu appears. The
available editing options are different for
DVD+R and DVD+RW discs.
Rename Disc
Erase Disc
Record New Title
Overwrite disc
Play
PAL
DV
D
Make Compatible
LockDisc
C Use keys to access different options
and OK to select.
Instructions and explanation of the
options are provided in the following
pages.
D Press DISC MENU to go back to the
disc Index Picture screen.
Editing/Finalising Recording
About Disc editing
This DVD recorder offers various disc
edit options for various disc types. You
can change the disc content and settings
of a recorded DVD+R/+RW from the
disc editing menu. The edited contents
may not be available if you play the disc
on an another DVD player.
The displayed options in the disc editing
menu may differ depending on the type of
disc.
{ Play }
Start playing from the beginning of the
disc.
{ Rename Disc }
Change the name of the disc.
{ Erase Disc } - DVD+RW only
Erase all the recordings in the disc.
{ Record New Title }
Start recording from the last empty title
in the disc.
{ Overwrite Disc } - DVD+RW only
Start a new recording from the beginning
of the disc, all the recorded content will
be overwritten.
{ Make Compatible } - DVD+RW only
Make the recording contents compatible
on other DVD players.
{ Lock/Unlock Disc } - DVD+RW only
Lock or unlock a disc to prevent
accidental erasure or changes being
made.
{ Finalise Disc } - DVD+R only
Finalise the disc to enable playback on
other DVD players. Further recording
and editing to the disc are not allowed. It
is not possible to unfinalise the disc.
TIPS: No further recording and editing can be carried out on a finalised DVD+R.
Press to go back to previous menu item. Press DISC MENU to exit.
16861_dvdr3305_05_eng5.indd 34 2005-06-29 4:10:07 PM
English
35
Editing/Finalising Recording (continued)
TIPS: No further recording and editing can be carried out on a finalised DVD+R.
Press to go back to previous menu item. Press DISC MENU to exit.
Rename disc
The original disc name is generated
automatically by the DVD recorder. You
can change the disc name by following
the steps below.
A Press TOP MENU, use keys to
select { Rename Disc } and press OK
.
The keyboard screen appears.
B Use keys to highlight a
character on the keyboard and press OK
to select.
The maximum input is up to 9
characters.
You can use the following keys on the
keyboard screen to edit your input:
BkSp
: to remove the character to
the left of the cursor.
DELETE
: to remove the character to
the right of the cursor.
SPACE
: to create a space between
characters.
CAPS
: to toggle between upper and
lowercase characters.
CLEAR
: to clear the entry field
completely.
C To confirm your entry, select
OK
on
the keyboard and press OK.
The info panel is now updated.
To cancel the changes, select
EXIT
on
the keyboard and press OK.
Erase disc (DVD+RW only)
This erases the content of the
DVD+RW including those that was not
recorded on this DVD recorder. Once
the existing content is erased, it can be
used for recording.
A Press TOP MENU, use keys to
select { Erase Disc } and press OK.
A warning message will appear.
B Select
YES
in the menu to proceed or
NO
to abort, then press OK to
confirm.
Record new title
This function allows you to start a new
recording at the remaining empty space
in the DVD+RW.
A Press TOP MENU, use keys to
select { Record New Title } and press
OK.
B Select the source you want to record
from and press REC
to start
recording.
Overwrite disc (DVD+RW only)
This function allows you to start a new
recording from the beginning of a
DVD+RW regardless of the contents of
the disc.
A Press TOP MENU, use keys to
select { Overwrite disc } and press OK
.
B Select the source you want to record
from and press REC
to start
recording.
16861_dvdr3305_05_eng5.indd 35 2005-06-29 4:10:13 PM
English
36
37
Playing your recordings
(DVD+R) on other DVD
players
It is necessary to finalise a DVD+R disc
before you can play it on any other DVD
player. Otherwise, the DVD+R will only
playback on this DVD recorder.
After a DVD+R disc has been
finalised, no further recordings or
editing can be made to it. Make sure
that you have completed all the
recordings and editing before
finalising the disc.
A Press TOP MENU, use keys to
select { Finalise Disc } and press OK.
A warning message will appear.
B Select
YES
in the menu and press OK
to start the process.
Finalisation will take a few minutes.
Do not try to open the disc tray or turn
the power off as this may render the disc
unusable.
C Select
NO
to abort.
Editing/Finalising Recording (continued)
TIPS: No further recording and editing can be carried out on a finalised DVD+R.
Press to go back to previous menu item. Press DISC MENU to exit.
Make compatible (DVD+RW only)
The edited DVD+RW may still display
the original titles or hidden scenes when
played back on other DVD players. This
function allows you to make an edited
DVD+RW compatible with other players.
Press TOP MENU, use keys to
select { Make Compatible } and press
OK to confirm.
Helpful Hint:
– If the option {Compatible} is not available
for selection, it means that the disc is already
compatible.
Lock/Unlock disc (DVD+RW only)
You can choose to protect the recorded
DVD+RW in order to prevent accidental
loss of recordings.
A Press TOP MENU, use keys to
select { Lock Disc } and press OK.
The disc is locked for this DVD
recorder only.
When the disc is locked, the option in
the disc editing menu will change to
{ Unlock Disc }.
B If you want to overwrite or edit on the
protected disc, select { Unlock Disc }.
16861_dvdr3305_05_eng5.indd 36 2005-06-29 4:10:13 PM
English
37
About title editing
You can change the individual title
information or delete a title (recording)
on a recorded DVD+R/+RW. If a
DVD+R has been finalised, it cannot be
edited.
The displayed options in the title editing
menu differ depending on the situation
and disc type.
{ Play Title }
Start playing a recording.
{ Edit Title }
Access video editing menu.
{ Rename Title }
Change the name of the recording.
{ Erase Title } - DVD+RW only
Delete the title (recording).
{ Overwrite Title } - DVD+RW only
Start a new recording, the existing title
(recording) will be overwritten.
{ Overwrite Disc }
Overwrite from existing selected title
onwards to the end of the disc.
{ Append Title }
Insert a new recording to the last existing
recording.

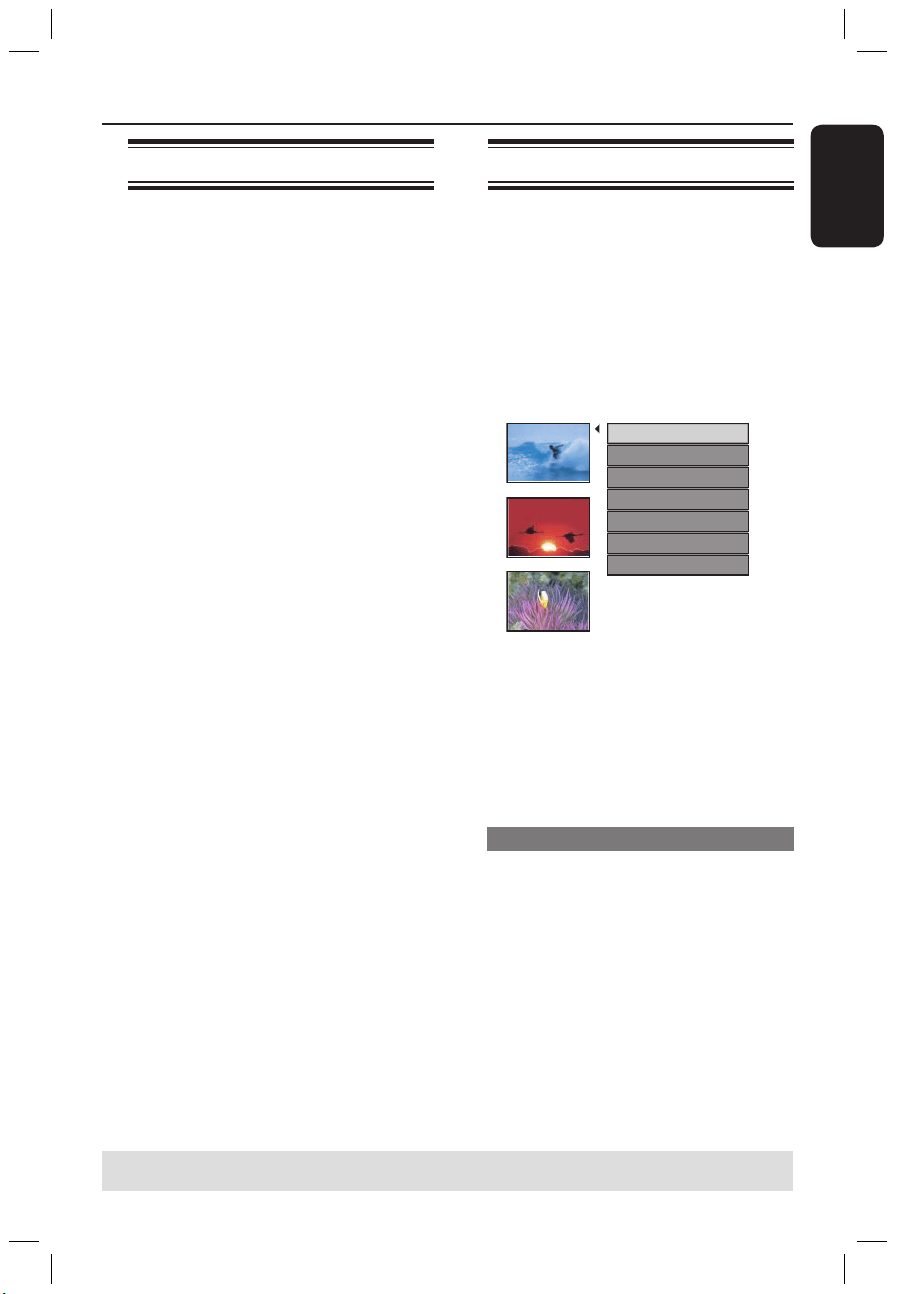

Accessing title editing menu
A Insert a recorded DVD+R/+RW into the
DVD recorder.
The Index Picture screen appears on
the TV.
During playback, press DISC MENU to
access the Index Picture screen.
B Use keys to highlight a title
(recording), and press .
The title editing menu appears.
3. My movie
11 / 04 / 2004
12 : 31 : 53
HQ 00 : 05 : 59
Edit Title
Rename Title
Erase Title
Overwrite Title
Play Title
Overwrite Disc
Append Title
C Use keys to access different options
and OK to select.
Instructions and explanation of the
options are provided in the following
pages.
D To exit, press .
Video editing
This feature allows access to the video
editing menu. See “About video editing”
on pages 39~41 for more information.
In title editing menu, use keys to
select { Edit Title } and press OK.
The video editing menu appears.
The DVD recorder will play the
selected title.
Editing/Finalising Recording (continued)
TIPS: No further recording and editing can be carried out on a finalised DVD+R.
Press to exit the menu.
16861_dvdr3305_05_eng5.indd 37 2005-06-29 4:10:16 PM
English
38
39
Overwrite title (DVD+RW only)
This function allows you to record a new
title from the beginning of the current
title in the DVD+RW.
A In title editing menu, use keys to
select { Overwrite Title } and press OK.
B Select the source you want to record
from and press REC
to start recording.
Overwrite from the selected title
You can select to overwrite only the
recordings from the selected title to the
end of the disc.
A In video editing menu, use keys to
select { Overwrite Disc } and press OK
to delete.
Append recording
This function allows you to append
recording to the last existing title.
A In title editing menu, use keys to
select { Append Title } and press OK.
B Press REC SOURCE to select the input
channel to append.
C Press REC
to start append recording.
Warning! Once the recording has
started, any prior recording from the
point of the playback onwards will be
overwritten.
D To stop append recording, press
STOP
.
Editing/Finalising Recording (continued)
Rename title
The original title name is generated
automatically by the DVD recorder. You
can give a new name to the title by
following the steps below.
A In title editing menu, use keys to
select { Rename Title } and press OK.
The keyboard screen appears.
B Use keys to highlight a
character and press OK to select.
The maximum input is up to 9
characters.
You can use the following keys on the
keyboard screen to edit your input:
BkSp
: to remove the character to
the left of the cursor.
DELETE
: to remove the character to
the right of the cursor.
SPACE
: to create a space between
characters.
CAPS
: to toggle between upper and
lowercase characters.
CLEAR
: to clear the entry field
completely.
C To confirm your entry, select
OK
on
the keyboard and press OK.
The info panel is now updated.
To cancel the changes, select
EXIT
on
the keyboard and press OK.
Erase title
You can delete a specific title (recording)
from the disc. However, for DVD+R, the
space deleted cannot be used for further
recording.
A In title editing menu, use keys to
select { Erase Title } and press OK.
A warning message will appear.
B Select
YES
in the menu to proceed or
NO
to abort, then press OK to
confirm.
TIPS: No further recording and editing can be carried out on a finalised DVD+R.
Press to exit the menu.
16861_dvdr3305_05_eng5.indd 38 2005-06-29 4:10:16 PM
English
39
About video editing
After a recording has been made, this
DVD recorder allows you to edit the
video content. You can add/delete chapter
markers, hide unwanted scenes, change
the picture in the index picture screen and
split one title (recording) into two.
When you playback a recording in video
edit mode, the entire recording will be
played back including hidden scenes.
The edit functions available in the disc
editing menu are:
{ Title }
Select a title (recording) to play.
{ Chapter }
Select a chapter within the selected title.
{ Chapter Marker }
Insert a chapter marker in the recording
or erase a chapter marker to combine
two chapters.
{ Hide Chapter }
Hide the unwanted scene in the
recording.
{ Index Picture }
Select a scene in the recording as the
index picture screen.
{ Split Title }
Divide the recording into two under
separate title.
Accessing video editing menu
EDIT
OK
PLAY
A Insert a recorded DVD+R/+RW into the
DVD recorder.
The Index Picture screen appears on
the TV.
B Use keys to select a title (recording).
C Press PLAY to start playback.
D Press EDIT on the remote control.
The video editing menu appears.
Edit Mode
Title 02/06
Chapter 01/10
Chapter Marker
Hide Chapter
Index Picture
Split Title
E Use keys to access different options
and press OK to select.
Instructions and explanation of the
options are provided in the following
pages.
F To exit, press EDIT.
Editing/Finalising Recording (continued)
TIPS: No further recording and editing can be carried out on a finalised DVD+R.
Press to exit the menu.
16861_dvdr3305_05_eng5.indd 39 2005-06-29 4:10:19 PM
English
40
41
Selecting a title
It shows the current title and the total
number of titles in the disc. It also allows
you to select another title.
A During playback, press EDIT to display
the video editing menu, then use
keys to select
{ Title } and press
OK.
B Use the numeric keypad 0-9 to key in
a title and press OK.
The DVD recorder will play the
selected title.
Selecting a chapter
It shows the current chapter and the
total number of chapters in the title. It
also allows you to select another chapter
within the title.
A During playback, press EDIT to display
the video editing menu, then use
keys to select { Chapter } and
press OK.
B Use the numeric keypad 0-9 to key in
the chapter and press OK.
The DVD recorder will play the
selected chapter.
Editing/Finalising Recording (continued)
Creating chapter marker
You can create a chapter by inserting
chapter marker at any point within a title
during playback. This will allow you to
access a specific point in the recording
easily or set a chapter you wish to hide.
Title
Chapter
Title
Chapter Chapter Chapter Chapter
chapter markers
A During playback, press EDIT to display
the video editing menu, then use
keys to select
{ Chapter
Marker } and press OK
.
B Use keys to select one of the
options and press OK to confirm.
{ Insert Chapter Marker }
Select this to insert a new chapter
marker at the current point of playback.
{ Delete Chapter Marker }
Select this to delete the current chapter
marker (it refers to the closest marker
before the current point of playback).
The current chapter will then combine
with the chapter before it.
{ Delete All Chapter Marker }
Select this to delete all the chapter
markers in the current title.
TIPS: No further recording and editing can be carried out on a finalised DVD+R.
Press to exit the menu.
Editing/Finalising Recording (continued)
16861_dvdr3305_05_eng5.indd 40 2005-06-29 4:10:19 PM
English
41
Hiding an unwanted chapter
You can choose to hide certain scene
from playback (e.g. skipping a commercial
scene) or make it visible again.
A Create a chapter marker at the scene you
are going to hide. (See previous page on
“Insert Chapter Marker”).
B Select the chapter you want to hide and
start playback. (See previous page on
“Selecting a chapter”).
C During playback, press EDIT to display
the video editing menu, then use
keys to select { Hide Chapter }
and press OK.
The current chapter will be hidden.
If the video editing menu does not show,
press EDIT on the remote control.
To unhide a chapter
A Press EDIT on the remote control
during playback.
The video editing menu appears.
While in editing mode, the hidden
chapter/chapters will play.
B Wait for the chapter you want to unhide
to occur or use keys on the remote
control to make a fast search.
C Use keys to select { Unhide
Chapter } and press OK.
The current chapter will be visible
during playback.
Helpful Hint:
– All the hidden chapters will be played
back while in video editing mode.
Changing Index Picture
The index picture is the picture of the
title you will see when the DVD recorder
loads up the Index menu. Normally, the
first frame of a recording is shown as the
title’s index picture.
A During playback, use keys on the
remote control to search for the scene
to use, then press
Å
.
Pressing
Å
again will move forward
to next pause scene.
B Press EDIT to display the video editing
menu, then use keys to select
{ Index Picture } and press OK
to select the current scene as the index
picture for the title.
Splitting a title (DVD+RW only)
You can divide the current title into two
new titles. Each of these titles is
characterised by its own index picture.
Warning! Once a title is divided, the
process cannot be reversed.
During playback, press EDIT to display
the video editing menu, then use
keys to select { Split Title } and
press OK to divide the title at the
current playback position.
A new title will be shown at the Index
Picture screen.
Editing/Finalising Recording (continued)
TIPS: No further recording and editing can be carried out on a finalised DVD+R.
Press to exit the menu.
16861_dvdr3305_05_eng5.indd 41 2005-06-29 4:10:20 PM
English
42
43
Playback
ReWritable
Recordable
Playable discs
Using this DVD Recorder, you can play
and record on the following discs:
Recording and Playback
DVD+RW (DVD ‘plus’
ReWritable); can be recorded
on over and over.
DVD+R (DVD ‘plus’
Recordable);
can be recorded only once.
Playback only:
DVD Video (Digital Versatile
Disc)
CD-RW (CD-ReWritable)
Audio/ MP3/ JPEG contents
CD-R (CD-Recordable)
Audio/ MP3/ JPEG contents
Audio CD (Compact Disc
Digital Audio)
MP3-Disc
Video CD
(Formats 1.0, 1.1, 2.0)
Super Video CD
IMPORTANT!
– If the inhibit icon (Error) appears
on the TV screen when a button is
pressed, it means the function is not
available on the current disc or at
the current time.
– DVD discs and players are
designed with regional restrictions.
Before playing a disc, make sure the
disc is for the same region as your
player.
– Do not push on the disc tray or
put any objects other than discs on
the disc tray. It may cause the disc
player to malfunction.
Inserting a disc
A Press STANDBY-ON to turn on the
DVD recorder.
B Press OPEN CLOSE ç on the front of
the DVD recorder.
The disc tray opens.
C Carefully place the disc into the tray with
the label facing up, then press OPEN
CLOSEç.
Make sure the disc label is facing up.
For double-sided discs, load the disc as
indicated on the label.
D Turn on the TV power. Select the
correct Video In channel at the TV (see
page 22).
E Playback will start automatically or a
dialog will appear on the TV (see next
page).
TIPS: Some discs cannot be played on this DVD recorder due to the configuration and characteristics
of the disc, or due to the condition of recording and authoring software.
Playback (continued)
16861_dvdr3305_05_eng5.indd 42 2005-06-29 4:10:26 PM
English
43
Starting disc playback
Playback will begin automatically. If the
disc has its own menu this will be loaded,
otherwise the DVD recorder will launch
an index screen.
If the pin code entry dialog appears on
the TV, this means that the parental
control was activated for the inserted
disc (see page 53).
Use the numeric keypad 0-9 on the
remote control to enter your pin code
(password).
For more playback features, see pages
46~49 “Additional Playback Features”.
Playing a DVD video disc
The DVD disc is usually formatted with a
disc menu. You may have to make your
selection (e.g., subtitle or audio language)
within the disc menu.
A Insert a DVD disc.
If the disc menu appears on the TV
Use numeric keypad 0-9 to input your
selection or use keys to select
a play option and press OK to start
playback.
To select the previous or next
chapter/title marker
During playback, press T/C on the
remote control to access the T/C menu.
Then use keys to select { Title } or
{ Chapter } and input your title/chapter
number using the numeric keypad 0-9.
B To stop playback, press STOP
.
Playback (continued)
TIPS: Some discs cannot be played on this DVD recorder due to the configuration and characteristics
of the disc, or due to the condition of recording and authoring software.
Playing a (Super) Video CD
(Super) Video CDs may feature ‘PBC’
(Play Back Control). This allows you to
play the video CDs interactively,
following the menu on the display.
A Insert a (Super) Video CD.
If the ‘PBC’ is on, the disc index
menu will appear on the TV
B Use numeric keypad 0-9 to input your
selection or to select a play option.
Press RETURN on the remote control
to return to the previous menu.
To turn on/off the Playback Control
mode, press T/C on the remote control
during playback to access the T/C menu.
Then use keys to select { PBC On }
or { PBC Off }.
C To stop playback, press STOP
.
Playing an audio CD
A Insert an audio CD.
Playback starts automatically.
B To stop playback, press STOP
.
The track number and elapsed playing
time appear on the display panel.
16861_dvdr3305_05_eng5.indd 43 2005-06-29 4:10:27 PM
English
44
45
Playback (continued)
Playing a DVD+R/+RW disc
A Insert a DVD+R/+RW disc.
The Index Picture screen appears.
B Use keys to select a title and press
PLAY to start playback.
C To stop playback, press STOP
.
Helpful Hint:
– If the message ‘BLANK’ appears on the
display panel, this means that there are no
recordings on this disc.
Playing a MP3 disc
A Insert a MP3 CD.
The disc content menu appears.
File Play - Stop 0:00:00/ 0:00:00
Directory Selection
Bee Gees
Phil Collins
Bryan Adams
Collin Raye
Nat King Cole
UB40
Jordan Hill
Faith Hill
1
2
3
4
5
6
7
8
Note: It may require longer time for the
DVD recorder to display the disc content
menu on the TV due to the large number
of songs/pictures compiled into one disc.
B Use keys to navigate within the
menu and press OK to access the folder/
album.
C Use keys to select the track/file to
play.
To go to the previous menu, press
RETURN.
D To create a playlist, highlight the track/file
and press SELECT.
The selected tracks/files will appear
on the right screen.
To remove the track/file from the
playlist, press CLEAR.
E You can select to playback from the
original disc content or from the playlist,
just use keys to move to the
correct screen before selecting the track/
file for playback.
F Press PLAY to start playback.
G During playback, you can press / to
select the next/previous track.
H To stop playback, press STOP
.
Helpful Hint:
– Only the first session of a multi-session
CD will play back.
TIPS: Some discs cannot be played on this DVD recorder due to the configuration and characteristics
of the disc, or due to the condition of recording and authoring software.
16861_dvdr3305_05_eng5.indd 44 2005-06-29 4:10:28 PM
English
45
Playback (continued)
Playing a picture disc (or musical
slide show)
You can display JPEG pictures in the
selected roll automatically one after the
other.
A Insert a JPEG picture disc (CD, CD-R/
RW, DVD+R/+RW).
The disc content menu appears.
B Use keys to navigate within the
menu and press OK to access the folder/
album.
C To create a playlist, highlight the track/file
and press SELECT.
The selected tracks/files will appear
on the right screen.
To remove the track/file from the
playlist, press CLEAR.
D You can select to playback from the
original disc content or from the playlist,
just use keys to move to the
correct screen before selecting the track/
file for playback.
File Play - Stop 0:00:00/ 0:00:00
Directory Selection
Japan trip
Bryan Bday
My songs
Hot Hits
1
2
3
4
File Play - Stop 0:00:00/ 0:00:00
Directory Selection
1
2
3
4
5
6
7
8
..\
If the disc contained MP3 music and
JPEG picture files, you can start a
musical slide show playback,
Select an MP3 file and press OK to start
the playback, select a picture file in the
menu and press OK to start the musical
slide show playback.
E During playback, you can press T/C on
the remote control to access various
settings for the slide show playback.
File Play
PIC
Normal
Play
Top to bottom
Fitscreen
Clockwise 0
Type
Mode
Trick
Wipe
Zoom
Rotate
Top to bottom
Down to top
Left to right
Right to left
Extend center V.
F To stop playback, press STOP
.
Playable JPEG picture disc
This DVD recorder can read JPEG
pictures stored on a CD-ROM, Picture
CD, or DVD.
File format:
– The file extension has to be ‘.JPG,’
‘.JPE’ or ‘.JPEG.’
– It can only display DCF-standard still
pictures or JPEG pictures e.g. TIFF. It
cannot play back moving pictures, Motion
JPEG, progressive JPEG and other
formats, or pictures in formats other than
JPEG, or pictures associated with sound.
TIPS: Some discs cannot be played on this DVD recorder due to the configuration and characteristics
of the disc, or due to the condition of recording and authoring software.
16861_dvdr3305_05_eng5.indd 45 2005-06-29 4:10:35 PM
English
46
47
Additional Playback Features
Changing to another title/
chapter/track
When a disc contains more than one
track, title or chapter, you can change to
a different track, title or chapter as
follows.
During playback,
Press to go to the next title/chapter/
track.
Press to return to the start of the
previous title/chapter/track.
OR
Use the numeric keypad 0-9 to input
the title/chapter/track number.
OR
Press T/C to enter the T/C menu and use
keys to select { Title } or
{ Chapter } and use numeric keypad
0-9 to input the title/chapter/track number.
Pausing playback and step
play
A During playback, press
Å
to pause
playback and display a still picture.
B Press
Å
again to move one frame
forward.
C To resume normal playback, press
PLAY .
Searching forwards/
backwards
You can fast forward or fast reverse a
disc at two, four, sixteen or thirty two
times the normal playback speed.
A During playback, press (reverse) or
(forward) to switch to the search
function.
The search status bar appears.
It displays the search speed (FREV x32,
FREV x16, FREV x4, FREV x2, FFWD x2,
FFWD x4, FFWD x16, FFWD x32)
The sound will be muted.
B Press (reverse) or (forward) to
cycle through the search speeds.
C To resume normal playback, press
PLAY .
TIPS: The operating features described here might not be possible for certain discs.
Always refer to the instructions supplied with the discs.
16861_dvdr3305_05_eng5.indd 46 2005-06-29 4:10:35 PM
English
47
Additional Playback Features (continued)
Using T/C options
T/C
OK
SELECT
CLEAR
A During playback, press T/C on the
remote control.
The T/C menu appears on the TV.
DVD
Trick mode
Title
Chapter
Audio
Subtitle
Angle
T-
Time
Normal
Play
02/05
01/22
01/02 - OTH
Off
01/03
00:22:03 - 00:27:24
Mode
B Use keys to select the setting you
want to adjust.
Instructions and explanation of the
options are provided in the following
pages.
C To exit, press T/C.
Selecting various repeat/shuffle
functions
You can select various repeat play or
random play mode during playback.
A During disc playback, press T/C on the
remote control.
The T/C menu appears.
B Use keys to select { Mode } and
press OK.
C Use keys to select one of the repeat
options.
{ Repeat A-B }
Select this to repeat the playback of a
specific segment within a title/chapter/
track. Press OK to mark the start and
end of the segment you want to repeat.
{ Repeat Chapter }
Select this to repeat playback of the
current chapter (DVD, DVD+R/+RW
only).
{ Repeat Track/Title }
Select this to repeat playback of the
current track/title.
{ Repeat Directory }
Select this to repeat playback of the
current folder/directory (MP3, JPEG,
picture disc only).
{ Repeat Disc }
Select this to repeat playback of the
entire disc.
{ Shuffle }
Select this to randomly playback all the
tracks within the disc (MP3 and audio CD
only).
{ Normal }
Select this to cancel the repeat mode and
return to normal playback.
D To cancel repeat playback, press STOP
or select { Normal } and press OK
.
TIPS: The operating features described here might not be possible for certain discs.
Always refer to the instructions supplied with the discs.
16861_dvdr3305_05_eng5.indd 47 2005-06-29 4:10:39 PM
English
48
49
Additional Playback Features (continued)
To start programme play
F Press key to move to the right screen
and press OK.
Playback will start from the selected
track/file/chapter according to the
programmed sequence.
To exit programme play
G Press STOP
to exit programme play.
Changing the audio soundtrack
language
This operation works only on DVDs with
multiple soundtrack language or VCDs
with multiple audio channels.
This function can also be accessed via the
AUDIO button on the remote control.
A Press T/C on the remote control.
The T/C menu appears.
B Use keys to select { Audio } and
press to access its options.
C Use keys to select the audio
language and press OK to confirm.
The languages may be numbered or
abbreviated, such as “En” for English.
If the language selected is not available
on the disc, the disc’s default setting for
language will be used instead.
Helpful Hint:
– Some DVDs allow soundtrack language
changes only via the DVD disc menu. To
access the Disc Menu, press DISC-MENU.
Programming disc tracks
You can play the contents of the disc in
the order you want by programming the
tracks to be played. Up to 20 tracks can
be stored.
A Press T/C on the remote control.
The T/C menu appears.
B Select { Mode } > { Program }.
The programme menu appears.
DVD
Title Selection
Title 1
Title 2
Title 3
Title 4
Title 5
Title 6
Title 7
Title 8
C If the disc is recorded with Titles/Folders/
Albums, press OK to access the tracks/
files/chapters.
Pressing OK at the highlighted track/file/
chapter will start playback.
Use keys to toggle between the left
and right screen.
To programme your favourite
track/file/chapter
D Use keys to select the track/file/
chapter to programme and press
SELECT on the remote control.
The selected track/file/title will appear
at the right screen.
The order on the right screen will be
the order of programme playback.
To remove the programmed item
from your selection
E Press key to move to the right screen.
Select the track/file/chapter and press
CLEAR on the remote control.
TIPS: The operating features described here might not be possible for certain discs.
Always refer to the instructions supplied with the discs.
16861_dvdr3305_05_eng5.indd 48 2005-06-29 4:10:41 PM
English
49
To start programme play
F Press key to move to the right screen
and press OK.
Playback will start from the selected
track/file/chapter according to the
programmed sequence.
To exit programme play
G Press STOP
to exit programme play.
Changing the audio soundtrack
language
This operation works only on DVDs with
multiple soundtrack language or VCDs
with multiple audio channels.
This function can also be accessed via the
AUDIO button on the remote control.
A Press T/C on the remote control.
The T/C menu appears.
B Use keys to select { Audio } and
press to access its options.
C Use keys to select the audio
language and press OK to confirm.
The languages may be numbered or
abbreviated, such as “En” for English.
If the language selected is not available
on the disc, the disc’s default setting for
language will be used instead.
Helpful Hint:
– Some DVDs allow soundtrack language
changes only via the DVD disc menu. To
access the Disc Menu, press DISC-MENU.
Additional Playback Features (continued)
Changing subtitle language
This option works only on DVDs with
multiple subtitle languages, you can
change the language you want while
playing the DVD.
This function can be also accessed via
SUBTITLE button on the remote control.
A Press T/C on the remote control.
The T/C menu appears.
B Use keys to select { Subtitle } and
press to enter the menu and find the
different available options.
C Use keys to select the language and
press OK to confirm.
The languages may be numbered or
abbreviated, such as “En” for English.
If the language selected is not available
on the disc, the disc’s default setting
language will be used instead.
Helpful Hint:
– Some DVDs discs allow subtitle language
changes only via the DVD disc menu. To
access the disc menu, press DISC-MENU.
Switching camera angles
This option is only available with DVDs
that contain sequences recorded from
different camera angles. This allows you
to view the picture from different angles.
This function can be also accessed via
ANGLE button on the remote control.
A Press T/C on the remote control.
The T/C menu appears.
B Use keys to select { Angle } and
press to enter the menu.
The camera angles available for
selection appears.
C Use keys to select the camera angle
you want to switch to, then press OK to
confirm.
TIPS: The operating features described here might not be possible for certain discs.
Always refer to the instructions supplied with the discs.
Time search
This option allows you to skip to a
specific point in the current disc.
A Press T/C on the remote control.
The T/C menu appears.
B Use keys to select { T-Time } and
use the numeric keypad (0-9) to enter
the time required.
Playback skips to the selected time.
16861_dvdr3305_05_eng5.indd 49 2005-06-29 4:10:41 PM
English
50
51

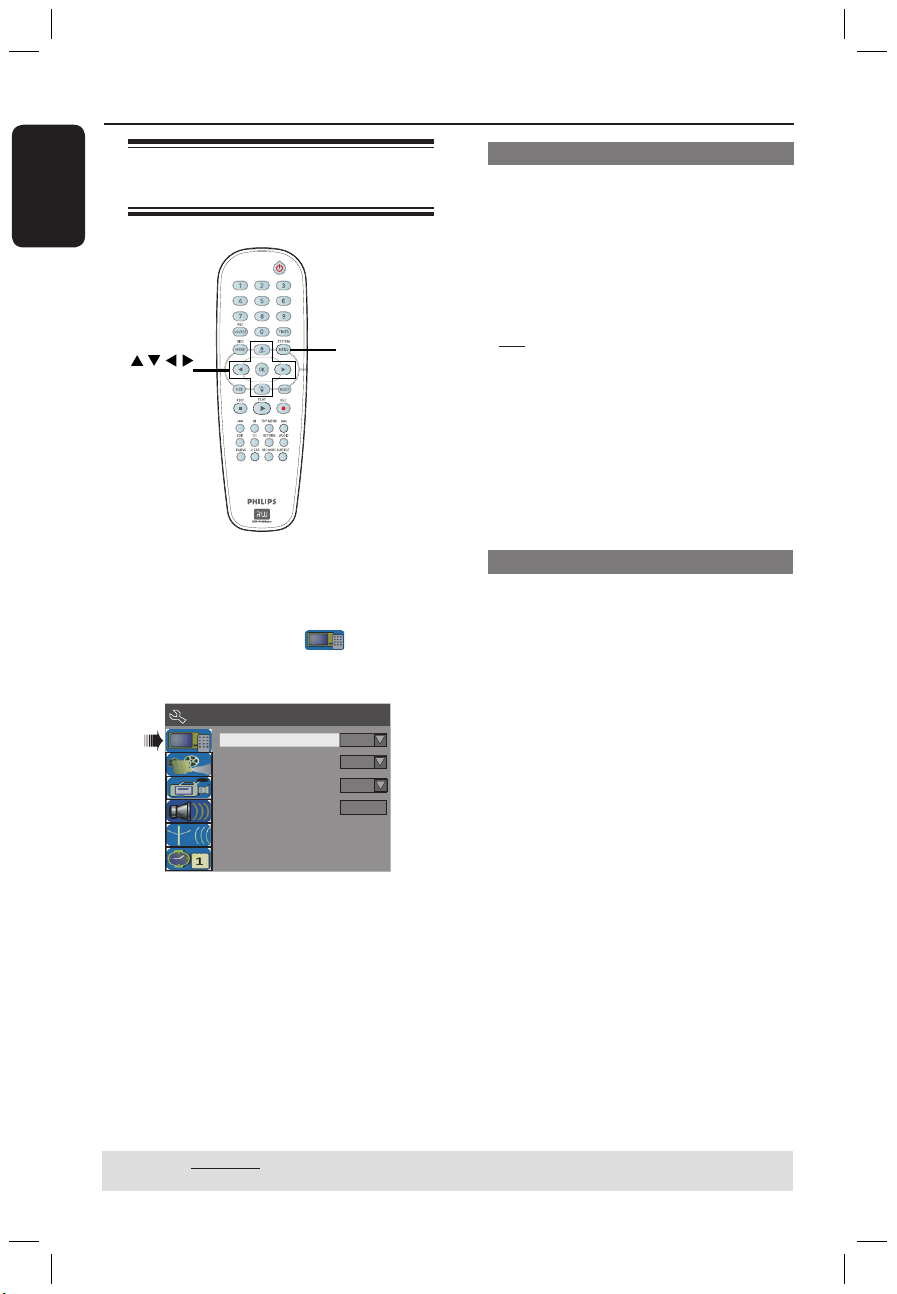

DVD System Menu Options
Accessing System Menu -
General
SYSTEM
MENU
OK
A Press SYSTEM-MENU on the remote
control.
The system menu appears on the TV.
B Use keys to select
{ System
Menu - General } and press to
access its options.
Country
Video Output Forma
t
Restore Factory Settings
Germany
PAL
OK
Screen Saver
On
System Menu - General
C Use keys to select the setting you
wish to change and press OK to confirm.
Instructions and explanation of the
options are provided in the following
pages.
D To exit, press SYSTEM-MENU.
Screen Saver
A screen saver prevents damage to the
TV screen by avoiding exposure to a
static image for too long.
A In ‘System Menu-General’, use keys
to highlight { Screen Saver } and press
OK.
{ On }
Select this if you wish to turn off the TV
screen, after play had been stopped or
paused for more than 15 minutes.
{ Off }
Select this to disable the screen saver.
B Use keys to select a setting and
press OK to confirm.
Country
Select the country of your area for auto
channel tuning.
A In ‘System Menu - General’, use keys
to select { Country } and press OK.
B Use keys to select the country of
your residence and press OK to confirm.
TIPS: The underlined option is the factory default setting.
Press to go back to previous menu item. Press SYSTEM MENU to exit the menu item.
16861_dvdr3305_05_eng5.indd 50 2005-06-29 4:10:43 PM
English
51
DVD System Menu Options
DVD System Menu Options (continued)
Video Output Format
The colour system of the DVD system,
DVD and TV should match. Only then
will it be possible to play a DVD on this
system. Before changing the TV system,
determine the colour system of your TV.
A In ‘System Menu-General’, use keys
to select { Video Output Format } and
press OK.
{ NTSC }
Select this if the connected TV has the
NTSC colour system. It will change the
video signal of a PAL disc and output it to
NTSC format.
{ PAL }
Select this if the connected TV has the
PAL colour system. It will change the
video signal of an NTSC disc and output
it to PAL format.
B Use keys to select a setting and
press OK to confirm.
Helpful Hint:
– If a blank/distorted TV screen appears,
wait for 15 seconds for the auto recovery.
Restore Factory settings
This will restore all the settings of this
DVD Recorder, except for the PIN code.
A In ‘System Menu-General’, use keys
to select { Restore Factory Settings }
and press OK.
A warning message will appear.
B Select
OK
in the menu to proceed or
CANCEL
to abort, then press OK to
confirm.
TIPS: The underlined option is the factory default setting.
Press to go back to previous menu item. Press SYSTEM MENU to exit the menu item.
16861_dvdr3305_05_eng5.indd 51 2005-06-29 4:10:43 PM
English
52
53

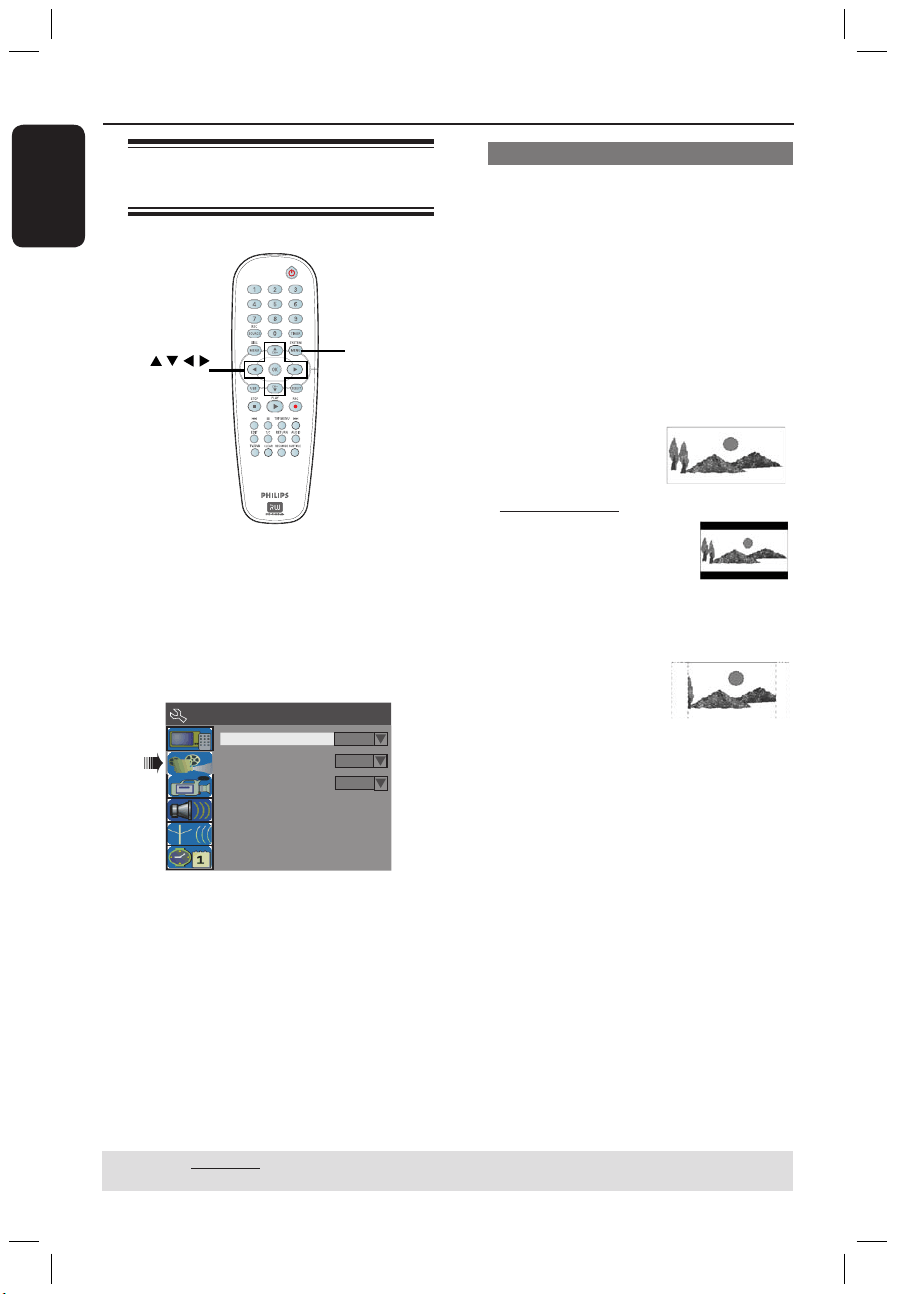

DVD System Menu Options (continued)
Accessing System Menu -
Playback
SYSTEM
MENU
OK
A Press SYSTEM-MENU on the remote
control.
The system menu appears on the TV.
B Use keys to select { System Menu
- Playback } and press to access its
options.
Parental Rating Level
Digital Audio Output
Off
All
TV Aspect Ratio
4:3Panscan
System Menu - Playback
C Use keys to select the setting you
wish to change and press OK to confirm.
Instructions and explanation of the
options are provided in the following
pages.
D To exit, press SYSTEM-MENU.
TV Aspect Ratio
Set the aspect ratio of the DVD recorder
according to the TV type you have
connected. The format you select must
be available on the disc. If it is not, the
setting for TV display will not affect the
picture during playback.
A In ‘System Menu-Playback’, use keys
to select { TV Aspect Ratio } and press
OK.
{ 16:9 }
Select this for wide
screen TV
(frame ratio 16:9).
{ 4:3 Letterbox }
Select this for a ‘wide
screen’ display with black
bands on the upper and
lower portions of the TV
screen.
{ 4:3 panscan }
Select this for a full-
height picture with
both side trimmed.
B Press to select a setting and press
OK to confirm.
TIPS: The underlined option is the factory default setting.
Press to go back to previous menu item. Press SYSTEM MENU to exit the menu item.
16861_dvdr3305_05_eng5.indd 52 2005-06-29 4:10:44 PM
English
53
TV Aspect Ratio
Set the aspect ratio of the DVD recorder
according to the TV type you have
connected. The format you select must
be available on the disc. If it is not, the
setting for TV display will not affect the
picture during playback.
A In ‘System Menu-Playback’, use keys
to select { TV Aspect Ratio } and press
OK.
{ 16:9 }
Select this for wide
screen TV
(frame ratio 16:9).
{ 4:3 Letterbox }
Select this for a ‘wide
screen’ display with black
bands on the upper and
lower portions of the TV
screen.
{ 4:3 panscan }
Select this for a full-
height picture with
both side trimmed.
B Press to select a setting and press
OK to confirm.
DVD System Menu Options (continued)
Parental rating level
Some DVDs may have a parental level
assigned to the complete disc or to
certain scenes on the disc. This feature
lets you set a playback limitation level.
The rating levels are from 1 to 8 and are
country dependent. You can prohibit the
playing of certain discs that are not
suitable for your children, or have certain
discs played with alternative scenes.
A In ‘System Menu-Playback’, use keys
to select { Parental Rating Level } and
press OK.
You will be prompted to enter your
four-digit pin code.
* * * *
Enter Password
OK
CancelOK
B Use the numeric keypad 0-9 to enter
your four-digit pin code.
When doing this for the first time,
enter the default password ‘3308’ .
The set rating level menu appears.
Set Rating Level
New password
4. PG 13
5. PG R
4. PG 13
OK
New
OK
If you forgot your four-digit pin code, the
default password is 3308.
C Use keys to select the top field and
press OK to confirm.
D Use keys to select the desired
parental level, then move to
OK
in
the menu and press OK on the remote
control to confirm.
To disable parental controls and allow
all discs to play, select { Off }.
Rating explanations
{ Off }
– Parental Control is not active.
{ 1. Kid Safe } ~ { 2. G }
– Childsafe; acceptable for viewers of all
ages.
{ 3. PG }
– Parental Guidance suggested.
{ 4. PG13 }
– Unsuitable for children under age 13.
{ 5. PG R } ~ { 6. R }
– Restricted; recommended that parents
restrict children under 17 from viewing
or allow to view only when supervised by
a parent or adult guardian.
{ 7. NC 17 }
– No children under age 17; not
recommended viewing for children under
age 17.
{ 8. Adult }
– Mature material; should be viewed only
by adults due to graphic sexual material,
violence or language.
DVDs that are rated higher than the level
you selected will not play unless you
enter your four-digit pin code.
Helpful hints:
– This feature will not limit viewing if the
disc manufacturer did not code the disc.
– VCD, SVCD, CD have no level indication,
so parental control has no effect on these
type of discs. This also applies to most illegal
DVDs.
– Some DVDs are not coded with a rating
though the movie rating may be printed on
the Disc cover. The rating level feature does
not prohibit play of such Discs.
TIPS: The underlined option is the factory default setting.
Press to go back to previous menu item. Press SYSTEM MENU to exit the menu item.
16861_dvdr3305_05_eng5.indd 53 2005-06-29 4:10:53 PM
English
54
55
DVD System Menu Options (continued)
Setting or changing the password
You need to enter your four-digit
password to play a prohibited disc or if
prompted for a pin code.
A In ‘System Menu-Playback’, use keys
to select { Parental Rating Level } and
press OK.
You will be prompted to enter your
four-digit pin code.
* * * *
Enter Password
OK
CancelOK
B Use the numeric keypad 0-9 to enter
your four-digit pin code and select
OK
in the menu and press OK on
the remote control to confirm.
The set rating level menu appears.
Set Rating Level
New password
4. PG 13
5. PG R
4. PG 13
OK
New
OK
C Move to
New
in the menu and press
OK to access new password menu.
New password
Confirm password
* * * *
New Password
OK
Cancel
OK
D Use the numeric keypad 0-9 to enter
your new four-digit pin code, then press
to select the next entry field and enter
the same pin code a second time.
E Move to
OK
in the menu and press
OK to confirm.
To abort the change, select
CANCEL
and press OK.
Digital Audio Output
After connecting the DVD recorder to
your TV and other devices, you may need
to change the digital output setting.
Adjust the Digital Output only if you used
the DVD recorder’s coaxial socket.
A In ‘System Menu Playback’, use keys
to select { Digital Audio Output } and
press OK.
{ ALL }
Select this if you use the COAXIAL jack
to connect the DVD recorder to a
stereo receiver that has a built in Multi-
Channel decoder.
{ LPCM }
Select this if the connected audio
equipment is not capable of decoding
multichannel audio Dolby Digital and
MPEG-2 multi - channel signals are
converted to PCM (Pulse Code
Modulation).
B Use keys to select a setting and
press OK to confirm.
TIPS: The underlined option is the factory default setting.
Press to go back to previous menu item. Press SYSTEM MENU to exit the menu item.
16861_dvdr3305_05_eng5.indd 54 2005-06-29 4:10:57 PM
English
55
DVD System Menu Options (continued)
Accessing System Menu -
Record
See pages 27~29 on “Recording settings”.
Accessing System Menu -
Language
See page 25 on “Setting the language”.
Accessing System Menu -
Channel Setup
See pages 23~25 on “TV channel
programming”.
Accessing System Menu
- Clock
Date and Time
See page 26 on “Setting the time & date”.
TIPS: The underlined option is the factory default setting.
Press to go back to previous menu item. Press SYSTEM MENU to exit the menu item.
16861_dvdr3305_05_eng5.indd 55 2005-06-29 4:10:58 PM
English
56
57
Troubleshooting
Problem Solution
WARNING
Under no circumstances should you try to repair the system yourself, as this will
invalidate the warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If
you are unable to remedy a problem by following these hints, consult your dealer or
Philips for help.
No power.
Remote control does not work.
Disc does not play.
No sound.
Distorted sound coming from a
connected hi-fi amplifier.
No picture.
– Press STANDBY-ON on the front of the DVD recorder
to switch on the system.
– Make sure the AC outlet has power.
– Aim the remote control directly at the sensor on the
front of the DVD recorder (not towards TV).
– Remove any obstacles between DVD recorder and the
remote control. Aim the remote control towards the
recorder from different angles and/or distances.
– Batteries are weak, replace the batteries.
– Press REC SOURCE on the remote control to select an
input source.
– Insert the disc with the label facing up.
– Wrong region code. The DVD must be coded for ALL
regions or Region 2 in order to play on this DVD
recorder.
– There is no recording on the disc or wrong disc type.
Read chapter “Playback - Playable discs” for details.
– Make sure the disc is not scratched or warped. Clean
the disc or replace a new one.
– Check if the disc is defective by trying another disc.
– Check the audio connections, the red and white sockets.
Read chapters “Getting Started - Connecting the audio
cables” for details.
– Set the Digital output correctly, based on the equipment
you connected to the DVD recorder. Read chapter
“Accessing System Menu - Digital Audio Output” for
details.
– Do not connect any cables from the DVD recorder to
the ‘Phono’ input of your amplifier.
– Do not connect the DVD recorder’s Coaxial DIGITAL
AUDIO OUT socket to an analogue socket (red/white)
on the connecting devices.
– Switch on your TV and set to the correct Video In
channel. Change the TV channel until you see the DVD
screen. Read chapter “Getting Started - Finding your
viewing channel” for details.
– Check the video connection between the DVD
recorder and the TV.
16861_dvdr3305_05_eng5.indd 56 2005-06-29 4:10:58 PM
English
57
Problem Solution
Problem Solution
Troubleshooting (continued)
The picture is distorted or
black and white during
playback.
Recordings are not
occurring as scheduled.
New recordings cannot be
made.
No TV signal received from
the DVD recorder.
A DVD+R/+RW recorded on
this DVD recorder does not
play on a DVD player.
Picture is fuzzy and
brightness varies when
copying DVD Video discs or
prerecorded video cassettes.
– The disc does not match with the TV colour system
standard (PAL/NTSC).
– The disc is dirty, clean the disc.
– Do not tie the cables of the connected equipments together.
– Sometimes a small amount of picture distortion may
appear. This is not a malfunction.
– If you set the Record Mode to a low-quality speed,
change to a higher-quality speed after you finish
recording. Leaving the DVD recorder set to a low-
quality speed may affect the picture quality when playing
DVDs later. Read chapter “Recording - Recording
settings” for details.
– The recording can be made in colour only when the TV
channels or the connected additional device sends a
colour signal. In some situations, programmes that are
broadcast in black and white cannot be recorded.
– The TV channel you want to record is not stored or
you selected the wrong programme number. Check TV
channels stored.
– If you adjust the clock after you set a timer recording,
you have to reset the timer recording.
– If the DVD recorder cannot read the disc, you cannot
record.
– You cannot use the DVD recorder to duplicate
copyrighted materials (DVDs or videotapes) onto a
DVD+R/+RW.
– A finalised DVD+R has been inserted. Change disc.
– Install the TV channel. Read chapter “Step 4 : TV
channel programming” for details.
– If a recording is too short, it is possible that a DVD
player cannot detect it. Please observe the following
‘minimum recording times’. Recording mode : {1 hour} –
5 minutes, {2 hours} – 10 minutes, {4 hours} – 20
minutes, {6 hours} – 30 minutes.
– You have to finalise the DVD+R. Refer to chapter
“Playing your recordings (DVD+R) on other DVD
players” for details.
– This happens if you try to copy DVDs or video cassettes
that have been copy-protected. Even though the picture
on the TV is fine, but the recording on a DVD+R/+RW
is faulty. This interference is unavoidable with copy-
protected DVDs or video cassettes.
– The DVD+R/+RW has recording lifetime, please change
a new disc for recording.
16861_dvdr3305_05_eng5.indd 57 2005-06-29 4:10:58 PM
English
58
59
Specifications
Picture/Display
• Aspect ratio: 4:3, 16:9
• D/A converter: 10 bit, 54 MHz
• A/D converter: 10 bit, 54 MHz
Sound
• D/A converter: 24 bit, 96 kHz
• A/D converter: 24 bit, 96 kHz
• Signal to noise ratio: 106
• Crosstalk (1kHz): 105 dB
• Dynamic Range (1kHz): 90 dB
Video Recording
• Recording system: PAL
• Compression formats: MPEG2
• Recording modes: 1 hour (high quality),
2 hours (DVD quality), 4 hours ( VHS quality),
6 hours (VHS quality)
• Audio compression: Dolby Digital
Video Playback
• Disc playback media: CD, CD-R/-RW, DVD,
DVD-Video, DVD+R/+RW, SVCD, Video CD
• Compression formats: MPEG2, MPEG1
• Video disc playback system: NTSC, PAL
Audio Playback
• Disc playback media: CD, CD-R/-RW,
MP3-CD, MP3-DVD
• Compression formats: Dolby Digital, DTS,
MP3, MPEG2 Multichannel, PCM
• MP3 bit rates: 32~256 kbps and VBR
Still Picture Playback
• Disc formats: DVD+R/+RW, Picture CD
• Picture compression formats: JPEG
• Picture enhancement: Rotate
Storage Media
• Recording media: DVD+R, DVD+RW
• Recording speed: 2.4x
Tuner/Reception/Transmission
• TV system: PAL
• Aerial Input: 75 Ohm coaxial (IEC75)
Connectivity
Rear Connections:
• Scart (2x)
• S- Video Out
• Video (CVBS) Out
• Audio left/right Out
• Digital audio out (coaxial)
• RF antenna in
• RF TV out
• Mains
Front Connections:
• S-Video In
• Video In
• Audio left/right In
Convenience
• Programming/Timer Enhancements: Daily/
Weekly, Repeat Programme, Manual Timer,
One Touch Recording, VIDEO Plus+
®
• Programmable events: 8
Power
• Power supply: 220 – 240 V; 50 Hz
• Consumption: 25 W (typical)
• Standby power consumption: < 3W
Cabinet
• Dimensions (wxhxd) : 435 x 65 x 285 mm
• Net Weight : 3.85 kg
16861_dvdr3305_05_eng5.indd 58 2005-06-29 4:10:58 PM
English
59
Analogue: Sound that has not been turned into
numbers. Analogue sound varies, while digital sound
has specific numerical values. These sockets send
audio through two channels, the left and right.
Aspect ratio: The ratio of vertical and horizontal
sizes of a displayed image. The horizontal vs.
vertical ratio of conventional TVs. is 4:3, and that
of wide-screens is 16:9.
AUDIO OUT Sockets: Red and white sockets
on the back of the system that send audio to
another system (TV, Stereo, etc).
Chapter: Sections of a picture or a music piece
on a DVD that are smaller than titles. A title is
composed of several chapters. Each chapter is
assigned a chapter number enabling you to locate
the chapter you want.
Component Video Out Sockets: Sockets on
the back of the DVD System that send high-quality
video to a TV that has Component Video In
sockets (R/G/B, Y/Pb/Pr, etc).
Digital: Sound that has been converted into
numerical values. Digital sound is available when you
use the DIGITAL AUDIO OUT COAXIAL. These
sockets send audio through multiple channels,
instead of just two channels as analogue does.
Disc menu: A screen display prepared for
allowing selection of images, sounds, subtitles,
multi-angles, etc recorded on a DVD.
Dolby Digital: A surround sound system
developed by Dolby Laboratories containing up to
six channels of digital audio (front left and right,
surround left and right, centre and subwoofer).
DTS: Digital Theatre Systems. This is a surround
sound system, but it is different from Dolby Digital.
The formats were developed by different companies.
Index Picture Screen: A screen that gives an
overview of a DVD+RW or DVD+R. An Index
Picture represents each recording.
JPEG: A very common digital still picture format.
A still-picture data compression system proposed
by the Joint Photographic Expert Group, which
features small decrease in image quality in spite of
its high compression ratio.
MP3: A file format with a sound data compression
system. “MP3” is the abbreviation of Motion
Picture Experts Group 1 (or MPEG-1) Audio
Layer 3. By using the MP3 format, one CD-R or
CD-RW can contain about 10 times more data
then a regular CD.
MPEG: Motion Picture Experts Group. A
collection of compression systems for digital audio
and video.
Multichannel: DVDs are formatted to have each
sound track constitute one sound field.
Multichannel refers to a structure of sound tracks
having three or more channels.
PBC: Playback Control. Refers to the signal
recorded on video CDs or SVCDs for controlling
playback. By using menu screens recorded on a
Video CD or SVCD that supports PBC, you can
enjoy interactive playback and searching.
PCM: Pulse Code Modulation. A digital audio
encoding system.
Parental control: Limits disc play according to
the age of the users or the limitation level in each
country. The limitation varies from disc to disc;
when it is activated, playback will be prohibited if
the software’s level is higher than the user-set level.
Region code: A system allowing discs to be
played only in the region designated. This unit will
only play discs that have compatible region codes.
You can find the region code of your unit by
looking on the product label. Some discs are
compatible with more than one region (or ALL
regions).
S-Video: Produces a clear picture by sending
separate signals for the luminance and the color.
You can use S-Video only if your TV has an S-
Video In socket.
Surround: A system for creating realistic
threedimensional sound fields full of realism by
arranging multiple speakers around the listener.
Title: The longest section of a movie or music
feature on DVD. Each title is assigned a title
number, enabling you to locate the title you want.
VIDEO OUT socket: Yellow socket on the back
of the DVD system that sends the DVD picture
video to a TV.
Glossary
16861_dvdr3305_05_eng5.indd 59 2005-06-29 4:10:58 PM
English
60
61
TV System Guide
COUNTRY VHF UHF DVD REGIONS
AFGHANISTAN PAL/SECAM B
5
ALBANIA PAL B PAL G
2
ALGERIA PAL B PAL G
5
ANGOLA PAL I 5
ARGENTINA PAL N PAL N
4
AUSTRALIA PAL B PAL H
4
AUSTRIA PAL B PAL G
2
AZORES PAL B
BAHAMAS NTSC M
4
BAHRAIN PAL B PAL G
2
BANGLADESH PAL B
5
BARBADOS NTSC M
4
BELGIUM PAL B PAL H
2
BERMUDA NTSC M
BOLIVIA NTSC M NTSC M
4
BOTSWANA PAL I
5
BRAZIL PAL M PAL M
4
BRUNEI PAL B PAL
B
BULGARIA SECAM D SECAM K
2
BURKINA FASO SECAM K1
5
BURMA NTSC M
BURUNDI SECAM K1
5
CAMBODIA NTSC M
3
CAMEROON PAL B PAL G
5
CANADA NTSC M NTSC M
1
CANARY ISLANDS PAL B 2
CHAD SECAM K1
5
CHILE NTSC M NTSC M
4
CHINA PAL D 6
COLOMBIA NTSC M NTSC M
4
COSTA RICA NTSC M NTSC M
4
CROATIA PAL B PAL G
2
CUBA NTSC M NTSC M
4
CYPRUS PAL B PAL G
CZECH REPUBLIC PAL D PAL K
2
DAHOMEY SECAM K
1
DENMARK PAL B PAL G
2
DJIBOUTI SECAM B SECAM G
5
DOMINICAN REP NTSC M NTSC M 4
ECUADOR NTSC M NTSC M
4
EGYPT SECAM B/PAL B SECAM G/PAL G
2
EL SALVADOR NTSC M NTSC M
4
EQUAT. GUINEA PAL B
5
ESTONIA PAL B (was SECAM) PAL D
5
ETHIOPIA PAL B PAL G
5
FIJI PAL B
FINLAND PAL B PAL G
2
FRANCE SECAM L SECAM L
2
FRENCH POLYNESIA SECAM K
1
GABON SECAM K1 5
GAMBIA PAL I
5
GERMANY PAL B PAL G
2
GHANA PAL B PAL G
5
GIBRALTAR PAL B PAL H
2
GREECE PAL B (was SECAM) PAL G
2
GREENLAND NTSC/PAL B
2
GUADELOUPE SECAM K
1
GUAM NTSC M
1
GUATEMALA NTSC M NTSC M
4
GUINEA PAL K
5
GUYANA (FRENCH) SECAM K1
4
HONDURAS NTSC M NTSC M
4
16861_dvdr3305_05_eng5.indd 60 2005-06-29 4:11:11 PM
English
61
TV System Guide
TV System Guide (continued)
COUNTRY VHF UHF DVD REGIONS
LIBYA SECAM B SECAM G 5
LITHUANIA PAL D (was SECAM) PAL K
5
LUXEMBOURG PAL B/SECAM L PAL G/SEC L
2
MADAGASCAR SECAM K1
5
MADEIRA PAL B
MALAGASY SECAM K
1
MALAWI PAL B PAL G
5
MALAYSIA PAL B
3
MALI SECAM K1
5
MALTA PAL B PAL H
2
MARTINIQUE SECAM K
1
MAURITANIA SECAM B
5
MAURITIUS SECAM B
5
MEXICO NTSC M NTSC M
4
MONACO SECAM L
2
MONGOLIA SECAM D
5
MOROCCO SECAM B
5
MOZAMBIQUE PAL B
5
NAMIBIA PAL I
5
NEPAL PAL B
NETHERLANDS PAL B PAL G
2
NETH. ANTILLES NTSC M NTSC M
NEW CALEDONIA SECAM K
1
NEW GUINEA PAL B PAL G
4
NEW ZEALAND PAL B PAL G 4
NICARAGUA NTSC M NTSC M
4
NIGER SECAM K1
5
NIGERIA PAL B PAL G
5
NORWAY PAL B PAL G 2
OMAN PAL B PAL G
2
PAKISTAN PAL B
5
PANAMA NTSC M NTSC M
4
PARAGUAY PAL N PAL N
4
PERU NTSC M NTSC M
4
PHILIPPINES NTSC M NTSC M
3
POLAND PAL D PAL K
2
PORTUGAL PAL B PAL G
2
PUERTO RICO NTSC M NTSC M
1
QATAR PAL B 2
REUNION SECAM K
1
RUMANIA PAL D PAL K
2
RUSSIA SECAM D SECAM K
5
RWANDA SECAM K1
5
SABAH/SAWARA PAL B
ST. KITTS NTSC M NTSC M
SAMOA (US) NTSC M
1
SAUDI ARABIA SECAM-B/PAL-B SECAM G
2
SENEGAL PAL
5
SEYCHELLES PAL B PAL G
5
SIERRA LEONE PAL B PAL G
5
SINGAPORE PAL B PAL
G
SLOVAK REPUBLIC PAL PAL
2
SOMALIA PAL B PAL G
5
SOUTH AFRICA PAL I PAL I
2
SPAIN PAL B PAL G
2
SRI LANKA PAL B
5
SUDAN PAL B PAL G
5
SURINAM NTSC M NTSC M
4
SWAZILAND PAL B PAL
G
SWEDEN PAL B PAL G
2
SWITZERLAND PAL B PAL G
2
SYRIA SECAM B
2
16861_dvdr3305_05_eng5.indd 61 2005-06-29 4:11:24 PM
English
CLASS 1
LASER PRODUCT
Meet Philips at the Internet
http://www.philips.com/support
3139 246 16861
SgpJP-0526/05-1
