Ed : 03/17 Rev : 00
INSTRUCTION
3
Input supply voltage：220V Working temperature: 0-40 ℃
Speed range: 0.8-14KM/H Incline range: 3-section manual incline
Max. user weight: 100kg Distance display range: 0.00-99.9km
Calories display range: 000-999
Time display range: 00：00-99：59 (min : sec)
Heart rate range: 50-200 (time / min) Running surface: 420*1250mm
Product size: 1630*745*1430mm Folding size: 250*745*1590mm
Technical Parameters

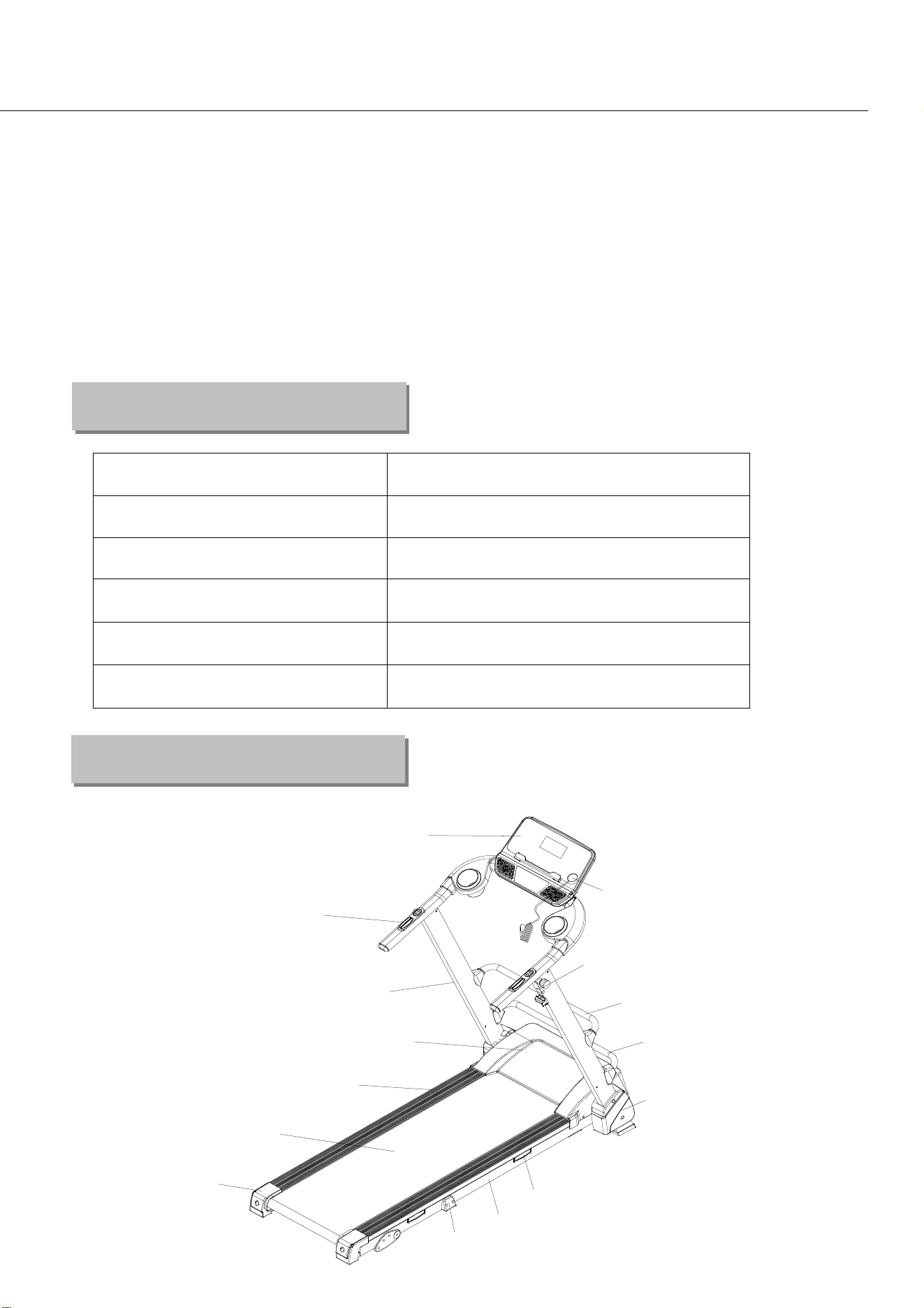

Product Overview
Computer
Upright
Handrail
Motor cover
End cap
Running belt
Side rail
Safety key
Cushion
Main frame
Plastic holding bracket
Supporting frame
Fixing bracket
Folding frame
Side cover
4
WHEN YOU OPEN THE CARTON, YOU WILL FIND THE BELOW SPARE PARTS:
STEP 1: Take out and prepare the below parts
Main frame 1 set
D85 Left knob
M16
1PC
B18 Silicon oil 1 PC
C13 Safety key 1
PC
D3 Allen wrench
5MM, 1 PC
D86 Right knob
M16
1PC
B49 Water bottle 2PCs
Note: Don't tighten bolts at once while assembling in the beginning. Please tighten
all the bolts after placing required parts to the correct position.
STEP 2: Plug in the left/right knobs M16 (D85/86) onto left/right uprights (A3L/A3R), and
then tighten the left knob M16 (D85). Then screw right knob M16 (D86) for 3 times, turn
fixing bracket 90 degree outward, and pull out the plug (B72).
Assembly
instruction
5

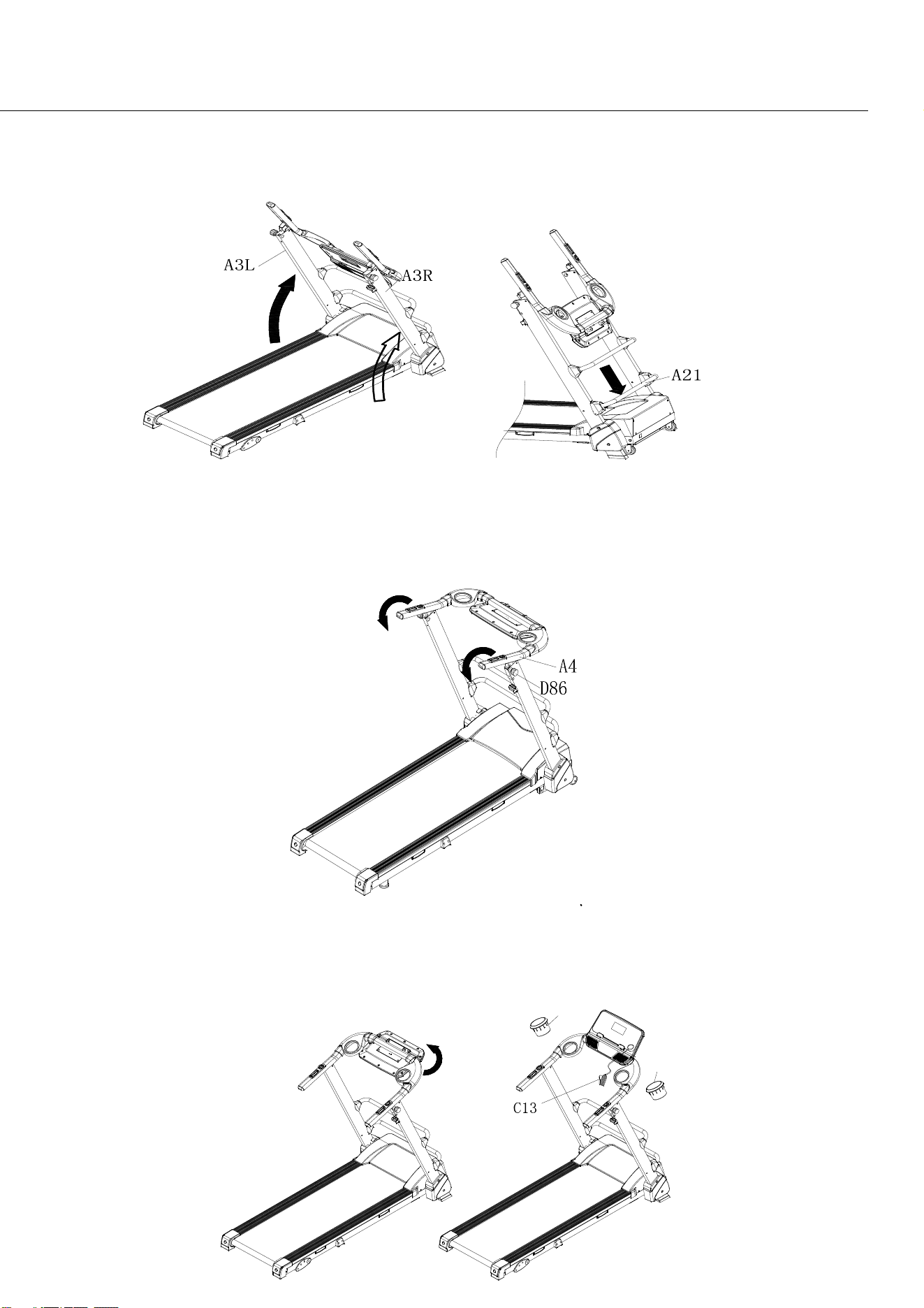

STEP 3: Lift up the left/right uprights (A3L/A3R) and push down the folding frame (A21).
Step 4: Lift up the console/handrail bracket (A4) and tighten the right knob M16 (D86) onto
upright and console/handrail bracket (A4).
Step 5: Turn the console to the front and push it down till you hear the “click” sound. Then
place on safety key (C13) and water bottle (B49).
B49
B49
6
Step 6: To check if the running belt runs correctly, placing treadmill in folding position and
tightening all the bolts. Then set speed under 3km/h and see if running belt runs without
problem.
7

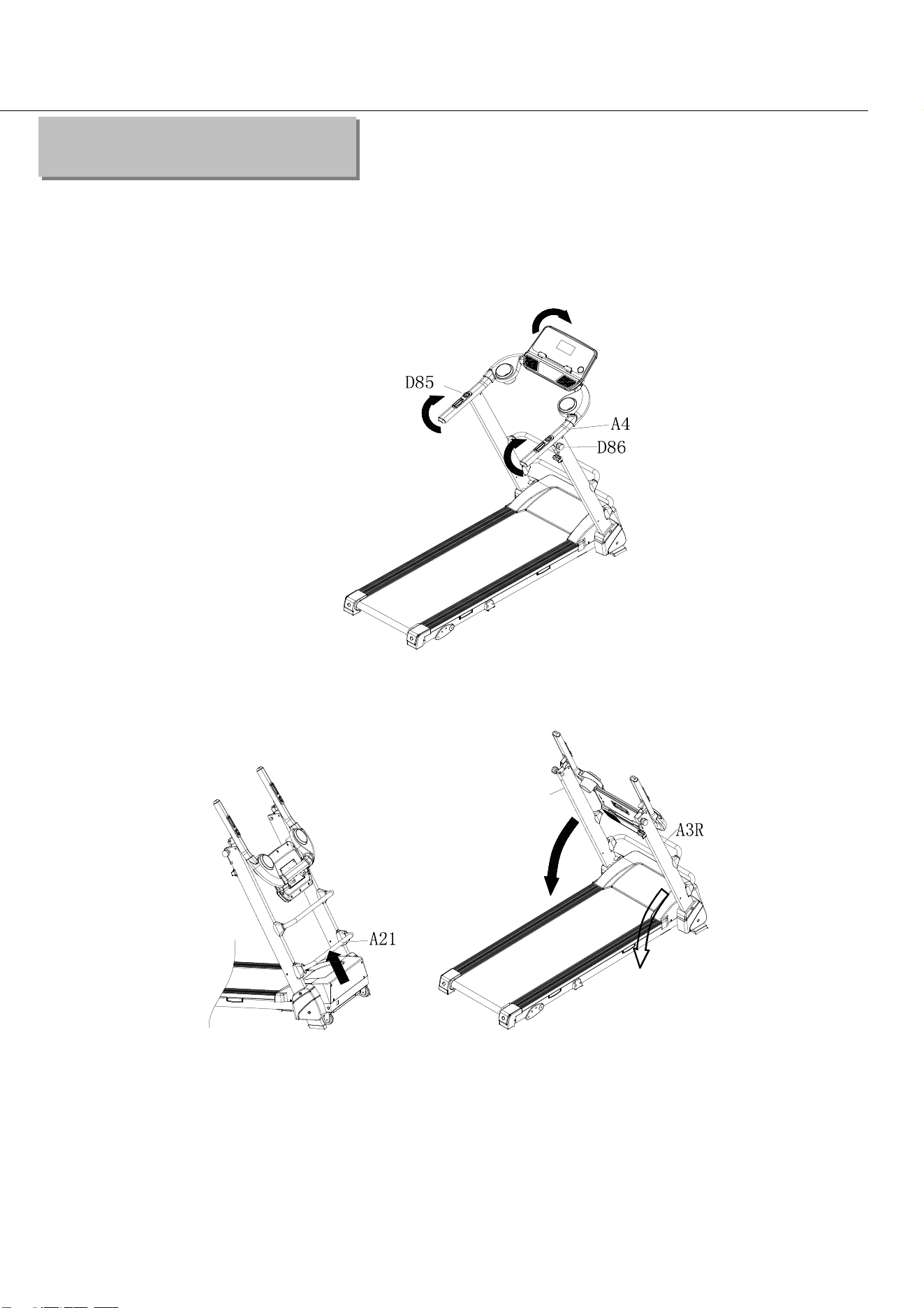

Step 1: Flick back the console, loose the knob M12 (D86), and pull out the knob M12 (D85).
Then flick back the whole handrail bracket, and tighten two knobs M12 (D85/86) back in
place.
Step 2: Pull up the folding frame (A21), and push both uprights (A3L/A3R) downward.
Step 3: Turn the fixing bracket 90 degree inward and hold the upright tightened.
F
olding
I
nstruction
A3L
8

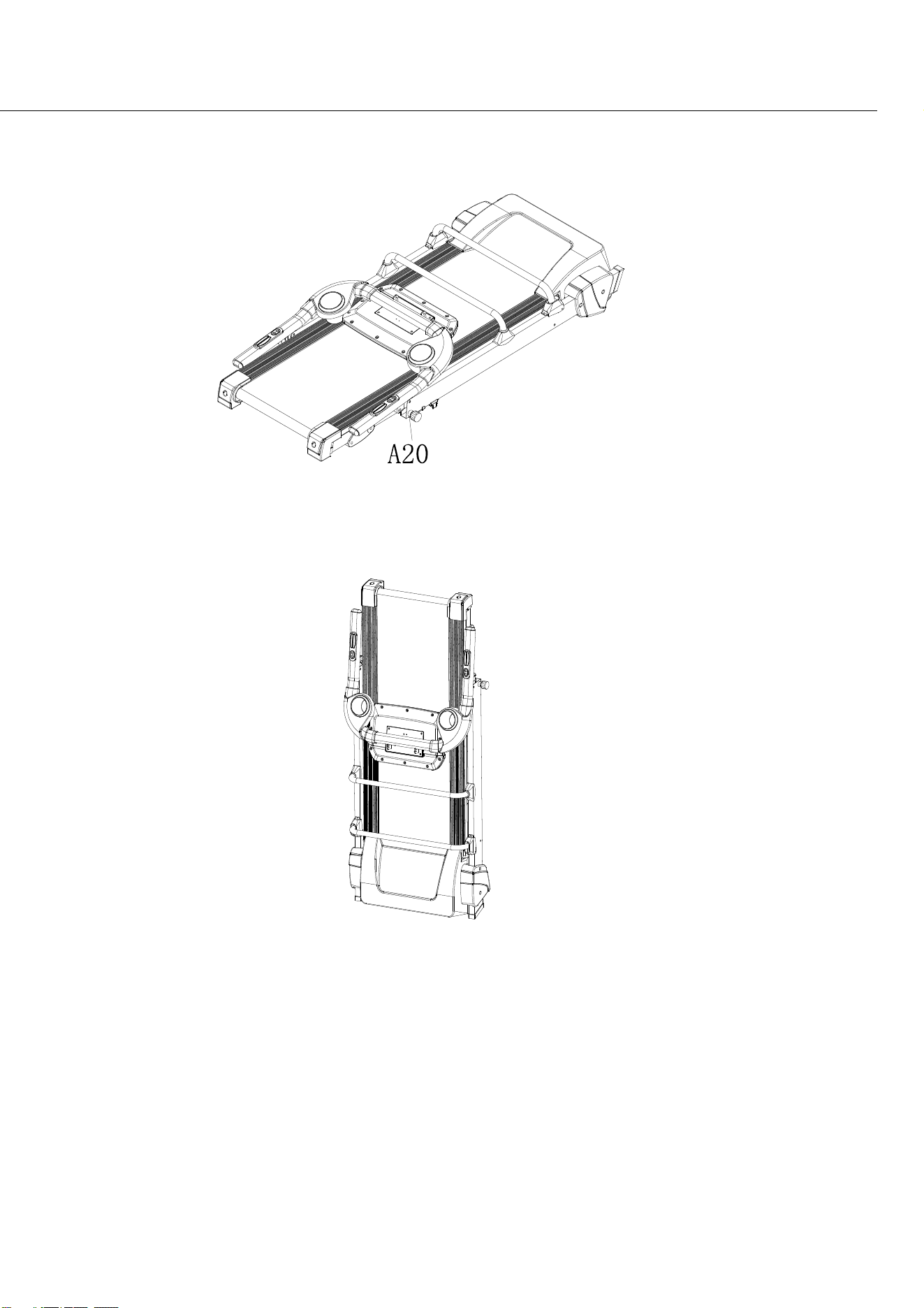

Step 3: Turn the fixing bracket 90 degree inward and hold the upright tightened.
Step 4: Place the treadmill in flat floor after complete the previous steps.
10
1.1. WINDOW DISPLAY

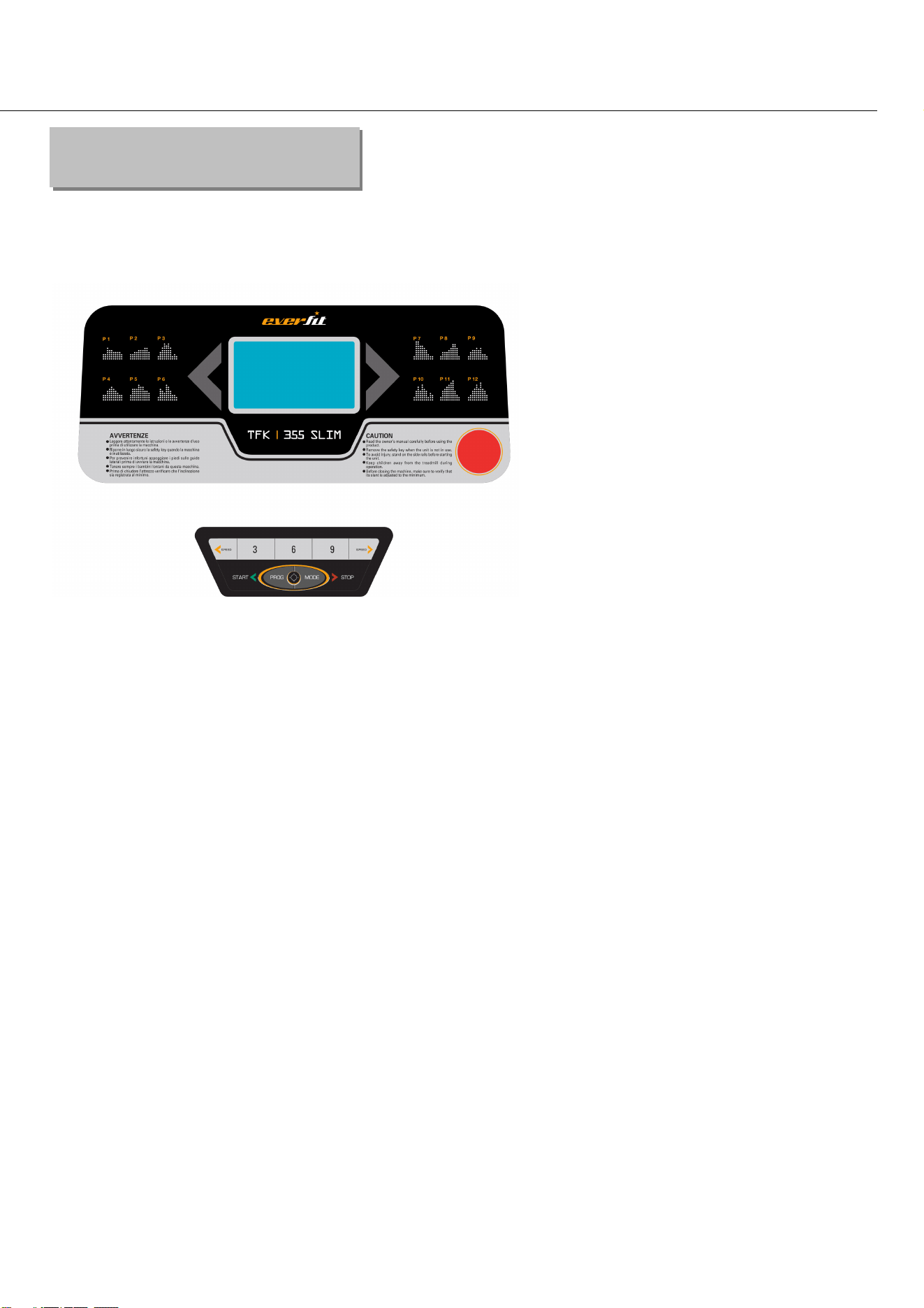

1.1. Console
1
.2. START
Normal start after 5 seconds countdown
1.3 PROGRAM
12 pre-set programs, 1 body fat program , 3 countdown function
1.4. SAFETY LOCK FUNCTION
The window shows"---" when take away the safety lock and the treadmill will stop quickly with "didi"
alarm noise. And put the safety lock on, the computer will display for 2 seconds and the date count
down to “0”
1.5.BUTTON FUNCTION
1.5.1. START/STOP
“START”--When the treadmill is not running, press this button to start, speed is “0.8”
“STOP”--When the treadmill is running, press this button to stop, then set program default and then
return to manual mode after stopped.
1.5.2 “PROGRAM” BUTTON
Operation Guide
11
When the treadmill is not running, press this button can choose from program circle mode to manual mode
(P1-P12). The lowest speed for manual mode is “0.8”, and the highest speed is “14”.
1.5.3 “MODE” BUTTON
When the treadmill is not running, press this button to choose countdown
modes:”H-1”,”H-2”,”H-3”.
H-1” is the time countdown mode, and “H-2” is the distance countdown
mode, “H-3” is the calories countdown mode.
Press the “SPEED+/-” button to adjust the data. After that, press the “START” button to start this treadmill
1.5.4 “SPEED +/- “BUTTON
SPEED +/– --Adjust speed when treadmill start, the increment is 0.1km/time in kilometer. Press the
button more than 2 seconds, and it will be up or down automatically.
1.5.5 SPEED QUICK BUTTON
Press the speed quick button 3kn/h, 6km/h, 9km/h to adjust the speed directly when the treadmill is running
1.6. DISPLAY FUNCTION
1.6.1 TIME
Display the running time or countdown time
1.6.2 SPEED
Display running speed
1.6.3 PULSE
Display pulse data
1.6.4 DISTANCE
Display the running total distance or distance countdown.
1.6.5 CALORIES
Display the calorie or calorie countdown
1.6.6 SPEED DIAGRAM
Display the diagram of the running speed
1.6.7 WINDOW DISPLAY DATA RAGNE
TIME：0:00 – 99.59(MIN)
12
DISTANCE: 0.00 – 99.9(KM)
CALORIES: 0.0 – 999 (C)
SPEED:1.0 -12 (km/h)
PULSE: 50 – 200 (BPM)
1.7 PULSE FUNCTION
When the treadmill is running, hold the hand pulse about 5 seconds, it will display pulse data. The
pulse data range is 50-200 times/ minute. It has heart-shaped graphics when testing pulse. This
data is only for reference, cannot be as medical data.
1.8 PROGRAM EXERCISE CHART
There are 10 sections in each program.
TIME
PROG
SET TIME/16 =TOTAL TIME IN EACH OPERATION
1 2 3 4 5 6 7 8 9 10
P1
SPEED
3 3 6 5 5 4 4 4 4 3
P2
SPEED
3 3 4 4 5 5 5 6 6 4
P3
SPEED
2 4 6 8 7 8 6 2 3 2
P4
SPEED
3 3 5 6 7 6 5 4 3 3
P5
SPEED
3 6 6 6 8 7 7 5 5 4
P6
SPEED
2 6 5 4 8 7 5 3 3 2
P7
SPEED
2 9 9 7 7 6 5 3 2 2
P8
SPEED
2 4 4 4 5 6 8 8 6 2
P9
SPEED
2 4 5 5 6 5 6 3 3 2
P10
SPEED
2 5 7 5 8 6 5 2 4 3
P11
SPEED
2 5 6 7 8 9 10 5 3 2
P12
SPEED
2 3 5 6 8 6 9 6 5 3
1.9 THREE COUNTDOWN FUNCTION PARAMETER DATA
Countdown time initial setting 10：00 minutes，setting range 5：00---99：00 minutes , each step 1：00.
Countdown calorie initial setting 50therm, setting range 20---990 term，each step 10.
Countdown distance initial setting 1.0km，setting range 1.0---99.9 km，each step 0.1
Cycle switch order is: manual, time, distance, calories.
13
1.10 BODY TESTER
（
FAT
）
At the beginning state, press “ PROGRAM” continually to enter “FAT“ body fat test，window display
“FAT”. Press “MODE” to enter (F1 SEX, F2 AGE, F3 HEIGHT, F4 WEIGHT). Press “SPEED+”,
“SPEED-” to set. After setting, the computer will display F5 and grasp the hand pulse, the window
will display your body quality index.
The body quality index is to test the relation between height and weight not the body scale.
The body FAT suits for any male and female to adjust the weight according together with other
body quality index. The ideal FAT should be between 20-25, if under 19, it means too thin. If
between 25 and 29, it means overweight, if over 30, it means obesity. (The data is just for
reference and can not be as medicinal data)
01 Sex 01 Male 02 Female
02 Age 10------99
03 Height 100----200
04 Weight 20-----150
05 FAT ≤19 Under weight
FAT = (20---25) Normal weight
FAT = (25---29) Over weight
FAT ≥30 Obesity
1.11 OTHERS
1.11.1 When the countdown mode is finished and “END” appears on screen, warning sound occurs.
Then it will be back to manual mode.
1.11.2 Countdown time, countdown calorie and countdown distance, you just can set one of them at
a time, press last item to set running, the setting parameter is countdown, others display normal
data.
1.11.3 You can set statistics at circled mode. Ex: When time is set at 5:00 – 99:00 and it hits 99:00,
press “+” button, it will start from 5:00 again.
1.11.4 Speed increases at 0.5km/s, and decreases at 0.5km/s.
19

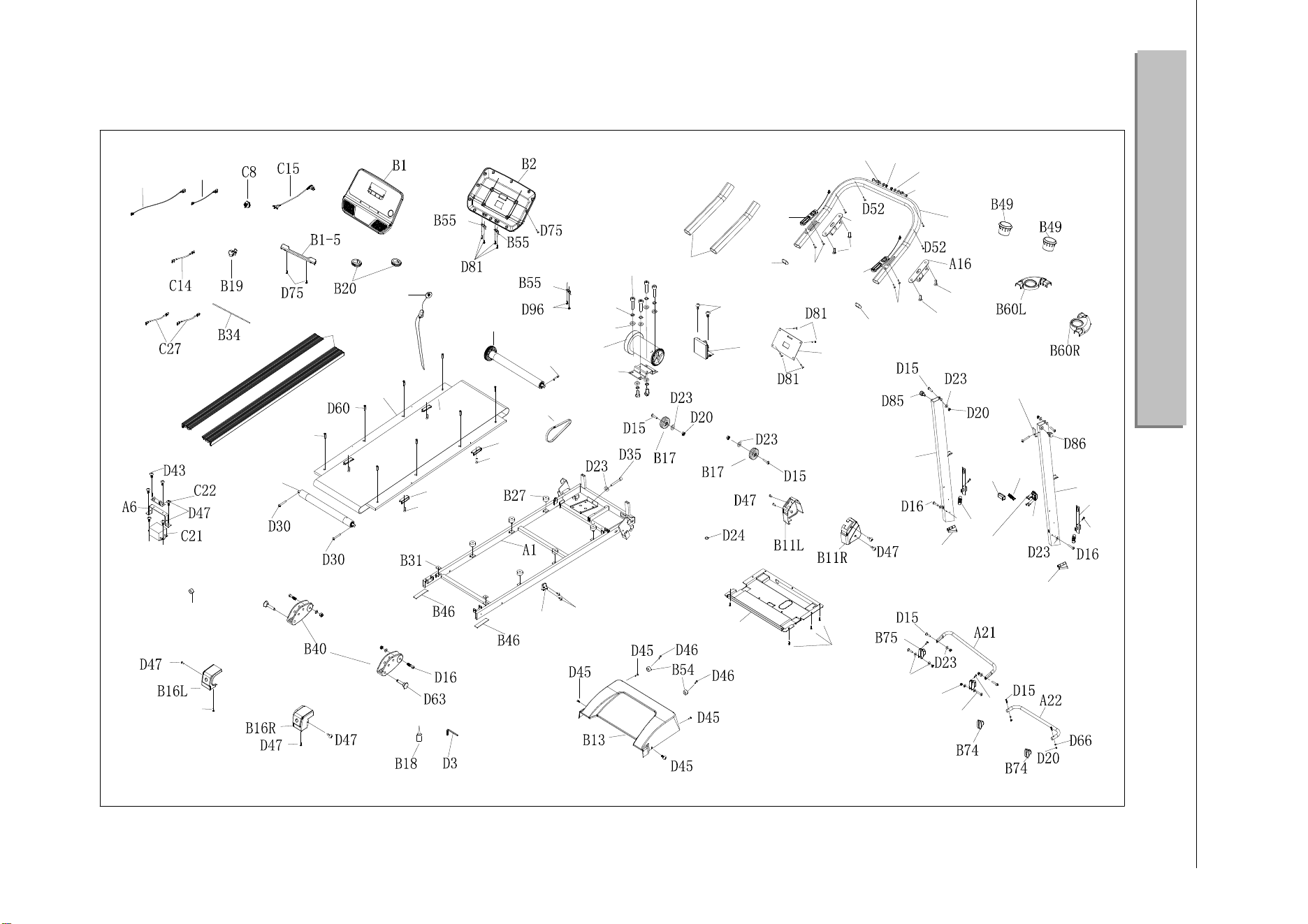

Exploded Drawing
D29
C9
D45
C3
C1
A11
D31
D25
D23
B14
B3
B4
B4
B15
C4
C18
C17
C7
C13
C5
C2
D36
D47
C10
A4
C11
D52
D52
A17
A16
D19
D81
D22
D71
D71
D71
D25
C20
D13
A20
B71
B72
D47
B32
D52
B32
D52
D91
A3L
A3R
B56
B56
A26
D96
D19
D22
B73
D97
D98
D99
D100
D96
20
A Welding parts
No. Description Qty
No. Description Qty
A1 Main frame
1 A16
Handrail connecting
frame
2
A3L Left upright
1 A17
Console supporting
frame
1
A3R Right upright
1 A20
Fixing bracket at folding
position
1
A4 Handrail bracket
1 A21 Folding handrail
1
A6 Filter bracket
1 A22 Supporting frame
1
A11 Motor base frame
1 A26 Hanging frame
2
B Plastic parts
No. Description Qty
No. Description Qty
B1 Console set
1 B20
Round plug
2
B1-1
Overlay
1
B27
New cushion
6
B1-2
Membrane key
1
B31
Rubber pad
2
B1-3
Console
1
B32
Oval shape cushion
4
B1-5
Tablet holder
1 B34
EVA pad (for table
holder)
1
B2
Console back cover
1 B40
3 sections manual incline
2
B3
Protecting foam
2 B46
Rubber pad (for B40)
2
B4
Handrail plug
2 B49
Water bottle
2
B11L
Left side cover
1 B54
Round cushion
2
B11R
Right side cover
1 B55
Fixing plastic for console
3
B13
Motor upper cover
1 B56
Squared shape plug
2
B14
Motor lower cover
1 B60L
Left water bottle holder
1
B15
Side rail
2 B60R
Right
water bottle holder
1
B16L
Left end cap
1 B71
Plastic holding bracket
1
B16R
Right end cap
1 B72
Fixing plug 1
1
B17
Adjusting wheel
2 B73
Fixing plug 2
1
B18
Silicon oil
1 B74
Plastic cover 1
2
B19
Cable organizer
1 B75
Plastic cover 2
2
C Electronic parts
No. Description Qty
No. Description Qty
C1 DC motor 1 C13 Safety key 1
C2 Running belt 1 C14 Single cord 1
C3 Rear roller 1 C15 Power cable 1
C4 Front roller 1 C17 Lower cable 1
C5 Running deck 1 C18 Connecting cable 1
C7 Drive belt 1 C20 Magnetic ring 1
C8 Power switch 1 C21 Inductor 1
C9 Controller 1 C22 Filter 1
C10
Wire for left handrail
button
1 C27 Single cord 2
Parts list
21
C11
Wire for right handrail
button
1
D Hardware parts
No. Description Qty
No. Description Qty
D3
Allen wrench
80X80XT5mm
1 D47
Cross self-tapping bolt
ST4.2X16, washer
21
D13
Round hex head bolt
M8X15
1 D52
Cross self-tapping bolt
ST4.2X16
12
D15
Round hex head bolt
M8X40
8 D60 Cross head bolt M6X20 6
D16
Round hex head bolt
M8X45
4 D63 Plug 2
D19 Nylon nut M6 4 D66 Washer 2
D20 Nylon nut M8 10 D71 Hex head bolt M8X15 4
D22 Flat washer M 6 6 D75
Cross self-tapping bolt
ST4.2X8
14
D23 Flat washer M8 15 D81 Cross head bolt M6X16 10
D24 Spring washer M5 1 D85 Left knob M16 1
D25 Spring washer M8 6 D86 Right knob M16 1
D29
Hex round head bolt
M6X45
1 D91
Cross self-tapping bolt
ST4.2X20
2
D30
Hex round head bolt
M6X60
2 D96 Cross head bolt M6X12 6
D31
Hex round head bolt
M8X20
4 D97 Cross head bolt M6X45 2
D35
Hex round head bolt
M8X80
1 D98 Spring 2
D36 Cross head bolt M6X25 2 D99 Spring 1
D43
Cross self-tapping bolt
M4X20
2 D100 Cross head bolt M5X16 4
D45
Cross head bolt M5X15,
washer
7
D46
Cross head bolt M5X20,
washer
2
