INSTRUCTION
11/19 GRLDEVETFK65001
- 5 -
PARTS LIST
PART NO
PART NAME
Q'TY

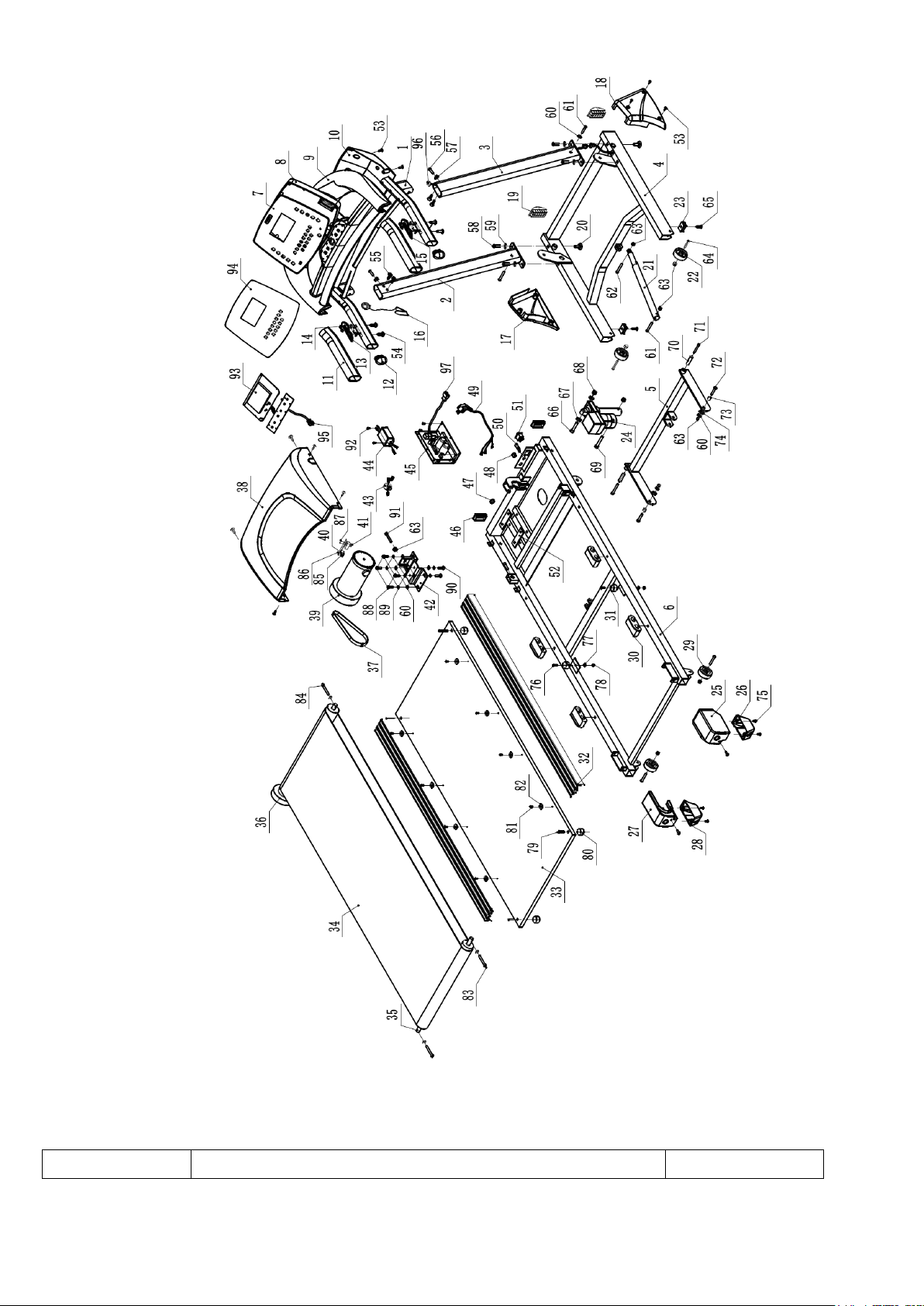

EXPLODED DRAWING
- 6 -
1 1
Computer frame
1
2
Left upright
1
3
Right upright
1
4
Base frame
1
5
Incline frame
1
6
Running platform
1
7
Computer panel
1
8
Down cover of Computer panel
1
9
Up cover of computer
1
10
Back cover of computer
1
11
Foam
2
12
30*60 Elliptical tube plug
2
13
Fixed base of incline shortcut key
1
14
Button of shortcut key
4
15
Fixed base of speed shortcut key
1
16
Safety key
1
17
Left protective cover of upright
1
18
Right protective cover of upright
1
19
40*80 Rectangle plug
2
20
Level frame
2
21
Damper
1
22
Move wheel
2
23
Rubber washer
2
24
Incline motor
1
25
Right end cap
1
26
Right move wheel cover
1
27
Left end cap
1
28
Left move wheel cover
1
29
Supportive wheel of running platform
2
30
Rubber cushion of running deck
4
31
Limit cushion of running deck
2
32
Side rail
2
33
Running deck
1
34
Running belt
1
35
Rear roller
1
36
Front roller with fly wheel
1
37
Motor belt
1
38
Motor cover
1
- 7 -
39
Motor
1
40
Frame of speed sensor
1
41
Speed sensor
1
42
Fix base of motor
1
43
Magnet ring
1
44
Filiter
1
45
Motor control board
1
46
40*40 rectangle tube plug
2
47
∮24 stopple plug
1
48
Power wire cushion
1
49
Power wire
1
50
Fuse
1
51
Power switch
1
52
Rubber cushion of motor
2
53
4.2*15 Screw
16
54
4.2*60 Screw
4
55
M8*20 Allen head bolt
4
56
M8*30 Allen head bolt
2
57
Ф8 Arc Washer
2
58
M10*20 Allen head bolt
4
59
Ф10 Washer
4
60
Ф8 Washer
15
61
M8*45 Allen head bolt
3
62
M8*35 Allen head bolt
1
63
M8 Nylon nut
7
64
M8*40 Allen head bolt
4
65
4.8*15 Screw
7
66
M10*50 Allen head bolt
1
67
∮12 Plastic washer
2
68
M10 Nylon nut
2
69
M10*60 Allen head bolt
1
70
∮13 Connective shaft sleeve of running platform
2
71
M8*50 Allen head bolt
2
72
M8*25 bolt
2
73
∮12 Connective shaft sleeve
2
74
∮10 Plastic washer
2
75
4.2*20 Screw
4
76
M6*22 Allen head bolt
2
- 8 -
77
Ф6 washer
2
78
M6 Nylon nut
2
79
M8*65 Allen head bolt
4
80
Support cushion of running deck
4
81
4.2*15 Screw
8
82
Side rail cushion
8
83
M8*85 Allen head bolt
2
84
M8*50 Allen head bolt
1
85
∮5 washer
2
86
M5*10 bolt
2
87
2.9*6 Screw
2
88
M8*20 Allen head bolt
4
89
Ф8 Spring washer
6
90
M8*12 bolt
2
91
M8*60 Allen head bolt
1
92
4.2*12 Screw
6
93
Computer display board
1
94
Overlay
1
95
Control wire of computer
1
96
Control wire of upright
1
97
Control wire of base frame
1

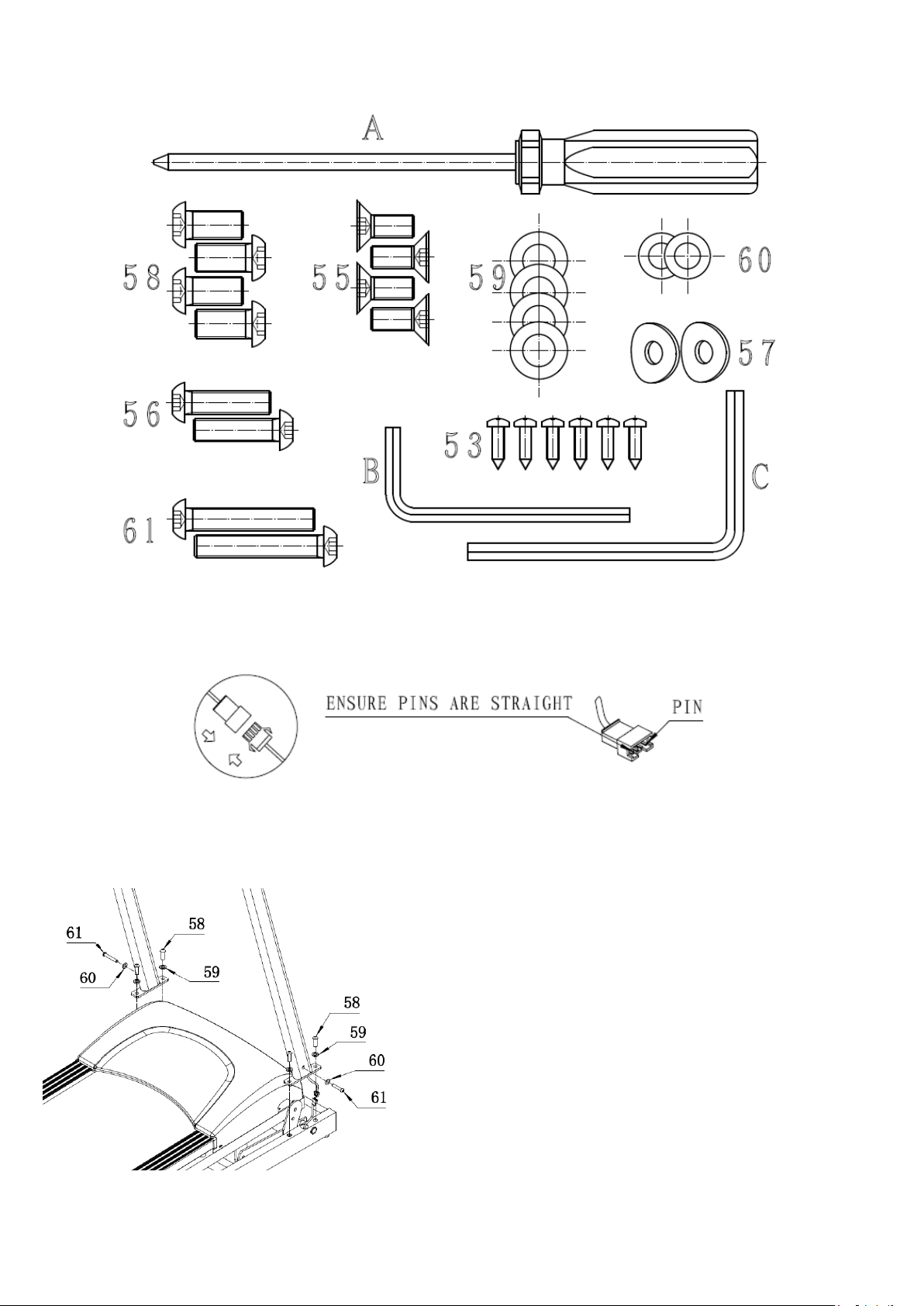

HARDWARE COMPARISON CHART
For your convenience, we have identified the hardware used in the assembly of this product. The chart below is
provided to help you to identify items that may be unfamiliar to you.
NO.
DESCRIPTION
Q'TY
53
4.2*15 Screw
6
55
M8*20 Allen head bolt
4
56
M8*30 Allen head bolt
2
57
Ф8 Arc Washer
2
58
M10*20 Allen head bolt
4
59
Ф10 Washer
4
60
Ф8 Washer
2
61
M8*45 Allen head bolt
2
A
SCREWDRIVER
1
B
5mm SOCKET HEAD WRENCH
1
C
6mm SOCKET HEAD WRENCH
1
- 9 -
ASSEMBLY INSTRUCTIONS:
WARNING: Please put on all the screws, washers and bolts then tighten them.
ATTENTION: Be careful when you connect the two console-controller wires. There are pins
inside connector, the pins must be straight, and otherwise it will cause problems.
STEP1:
First make sure to connect the
Emergency Wires.
Then fix the uprights on the base frame
withФ8 Washer 60、M8*45 Allen head bolt
61、M10*20 Allen head bolt 58 and Ф10
Washer 59.
- 10 -
STEP2:
1. First make sure to connect the
Computer Control wire and Control
wire of upright.

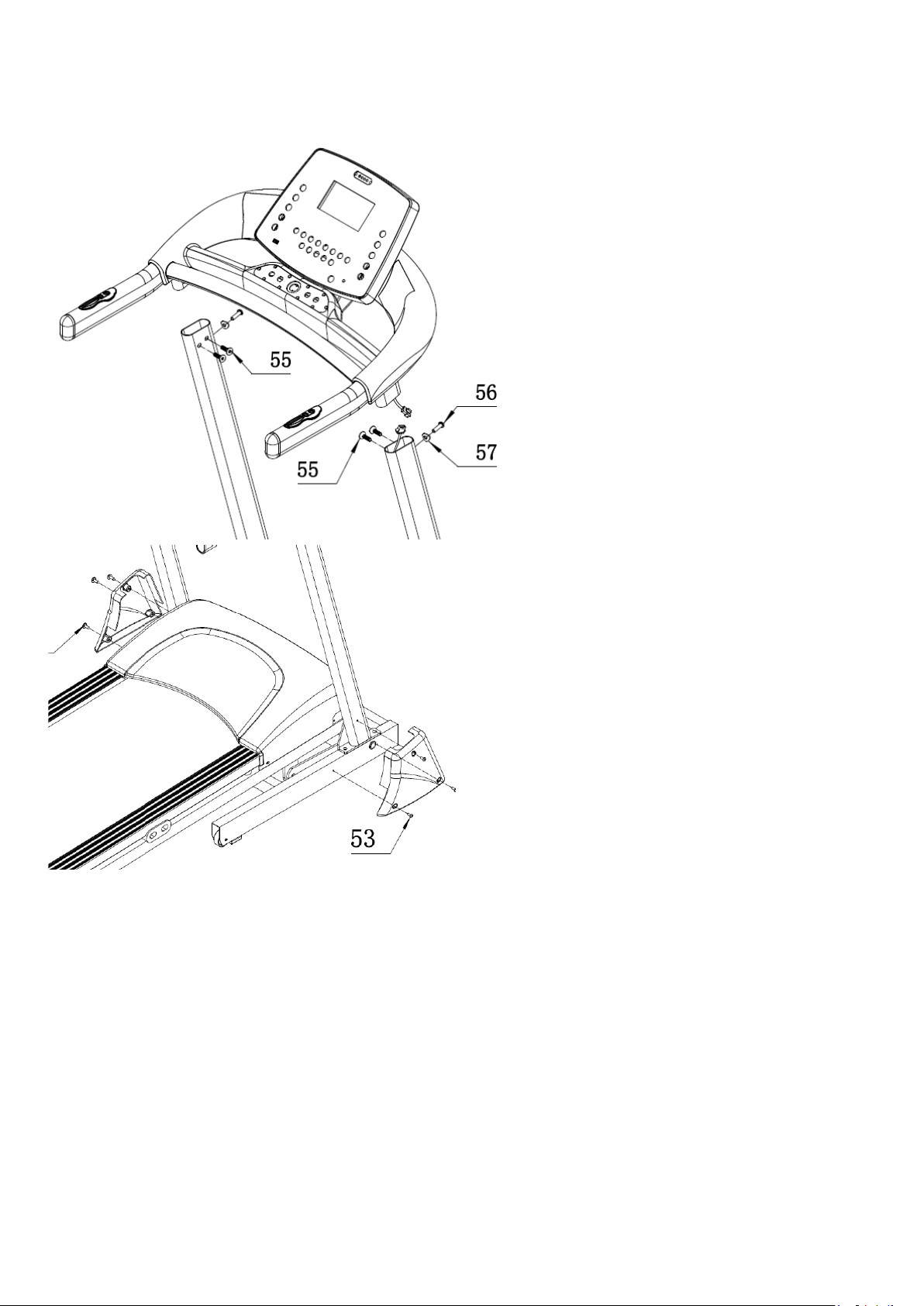

2. Then fix the computer on the
uprights with M8*20 Allen head bolt
55、M8*30 Allen head bolt 56 andФ8
Arc Washer 57.
STEP3:
Fix the left and right protective cover onto
uprights with 4.2*15 Screw 53.
Note: 4.2*15 Screw have fixed onto the base
frame and uprights already.
- 11 -
COMPUTER OPERATION

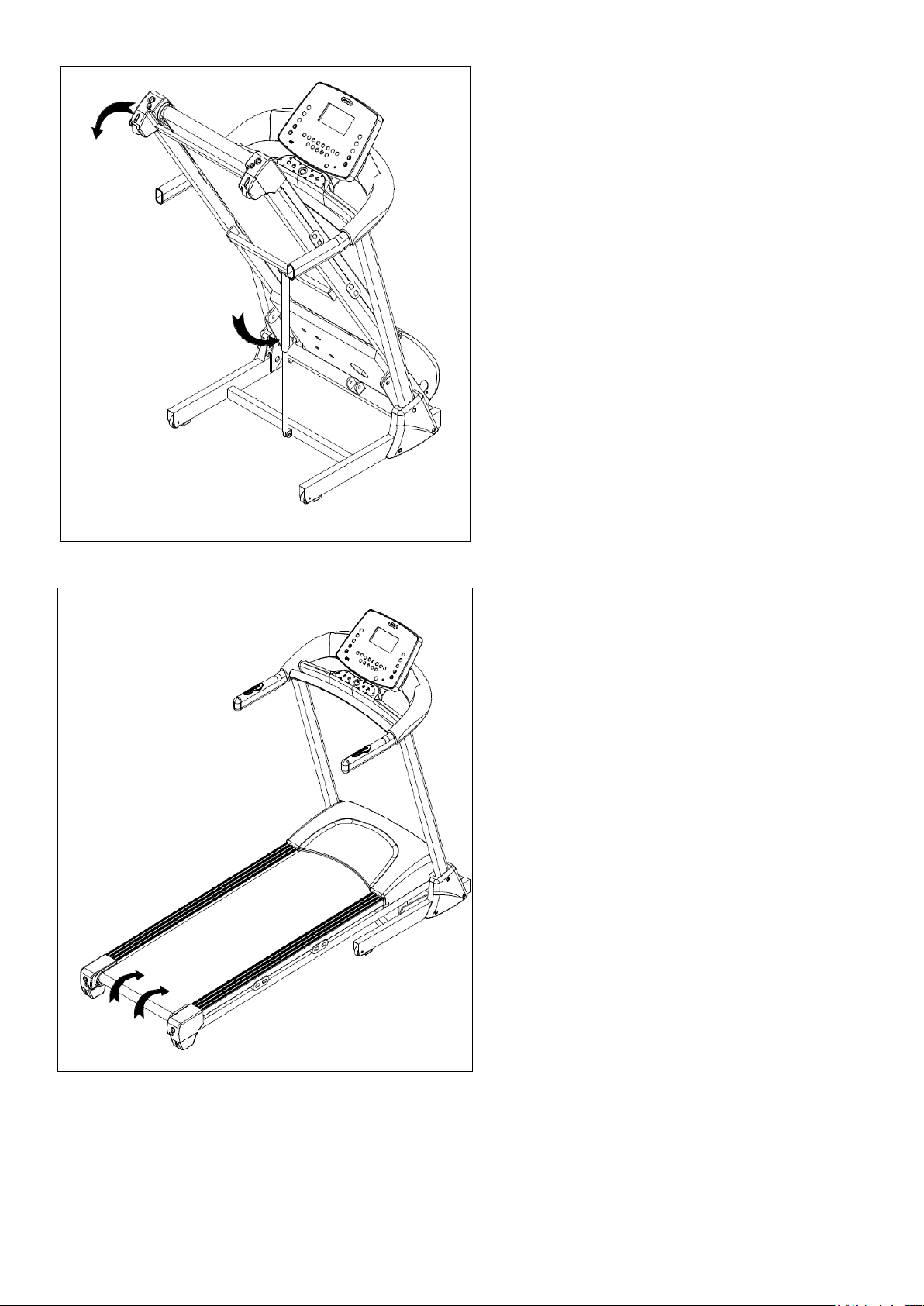

To unfold the treadmill:
1. Strike the damper by feet. (as shown by
the arrow on the left side).
2. Hold the top end covers (as shown by the
arrow on top left) and pull the treadmill
slowly down onto the ground.
To fold up the treadmill:
Hold the bottom end covers (arrows showing in
the left and right side) and lift the treadmill.
- 12 -

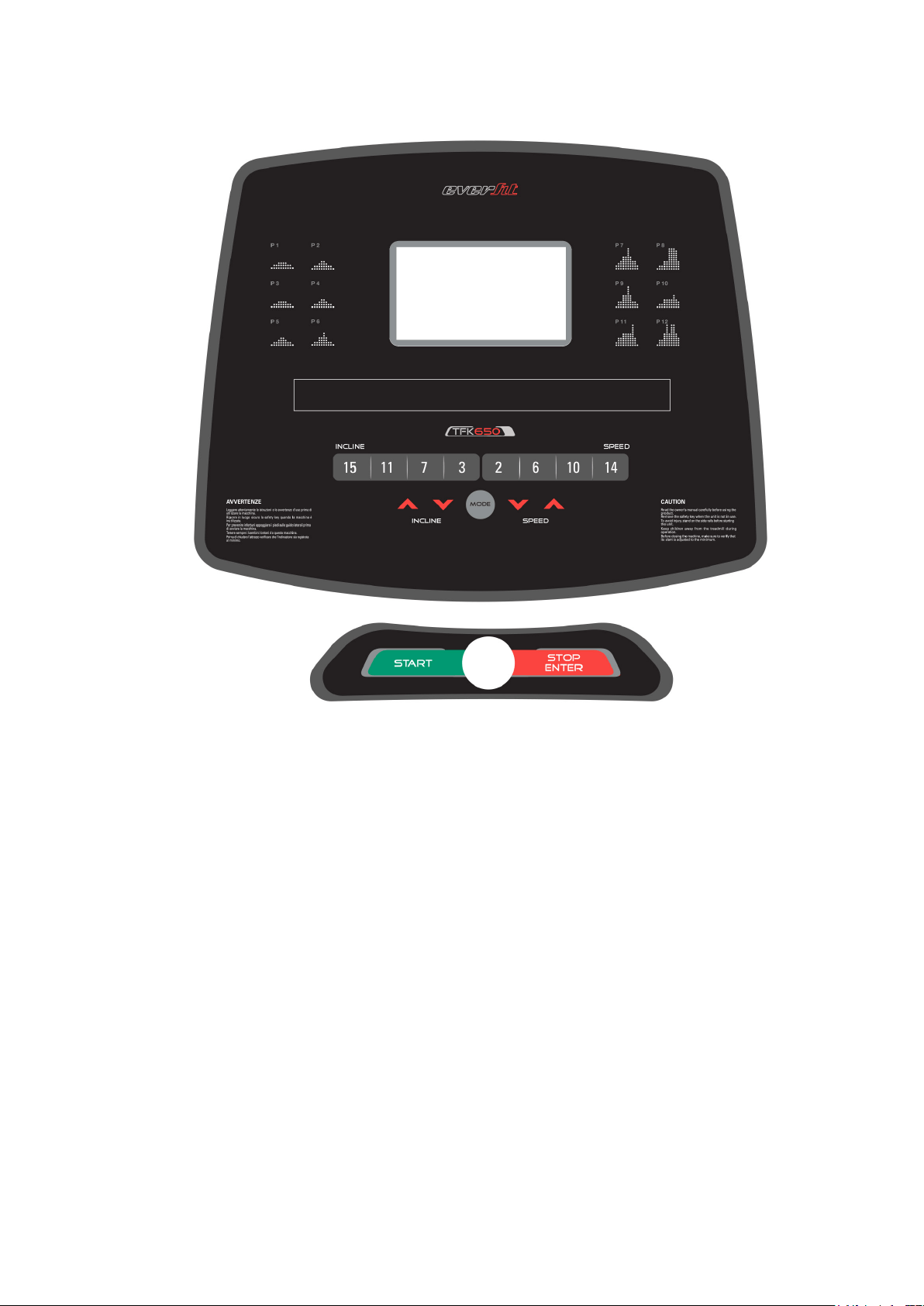

Panel layout
OPERATION INSTRUCTION
KEY INSTRUCTION：
START: Press this key to start treadmill.
STOP: Press this key to stop treadmill.
MODE: Press this key to choose the manual, countdown of time or the countdown of distance or
the countdown of calories or P1-P2…..-P12 cycle selection.
SPEED+: Press this key to increase speed or time or distance or calorie value.
SPEED-: Press this key to decrease speed or time or distance or calorie value.
INCLINE+: Press this key to increase incline value.
INCLINE-: Press this key to decrease incline value.
SAFETY KEY INSTRUCTION
When the motor is running, take off the safety key, the motor stop and the console prohibit start.
HEART RATE INSTRUCTION
- 13 -
In the case of a powered treadmill, his hands holding the steel disc of left &right handrail, in order
to obtain more accurate heartbeat value, standing on the treadmill and when the treadmill stop to
measurement, and holding time is not less than 30 seconds. Display range: 50-200 beats / min.
This data is for reference only, not as medical data
PROGRAM
TURN OFF TREADMILL
At any time by turning off the power switch to turn off the treadmill, this does not damage the
treadmill.
SECTION
PROGRAM
1
2
3
4
5
6
7
8
9
10
P1
SPEED
1
2
2
3
3
3
3
2
2
1
INCLINE
0
0
1
1
2
2
1
1
0
0
P2
SPEED
1
2
2
3
4
4
3
2
2
1
INCLINE
0
0
2
3
4
4
3
2
0
0
P3
SPEED
1
2
2
3
4
4
3
2
2
1
INCLINE
0
0
3
7
4
4
7
3
0
0
P4
SPEED
1
2
2
3
3
3
3
2
2
1
INCLINE
0
0
3
7
4
4
7
2
0
0
P5
SPEED
1
2
2
3
4
4
3
2
2
1
INCLINE
0
0
2
4
6
8
4
2
0
0
P6
SPEED
1
2
2
4
4
6
4
2
2
1
INCLINE
0
0
3
4
5
7
7
3
0
0
P7
SPEED
2
3
4
6
6
9
6
4
4
2
INCLINE
0
0
2
4
4
6
4
2
0
0
P8
SPEED
1
2
2
4
4
9
9
9
8
4
INCLINE
0
0
2
4
8
9
9
2
0
0
P9
SPEED
2
3
3
6
6
9
6
3
3
2
INCLINE
0
0
9
9
8
4
3
3
0
0
P10
SPEED
1
2
2
4
4
4
4
6
4
3
INCLINE
0
0
2
2
4
9
9
9
0
0
P11
SPEED
2
4
4
6
6
6
6
9
4
1
INCLINE
0
0
9
9
9
3
4
3
0
0
P12
SPEED
1
3
3
6
9
6
9
9
6
4
INCLINE
0
0
9
9
9
9
9
8
0
0
HRC
Total recording function, recording the total distance and time of electric control operation
1. Query the total distance and time:
Pull off the safety key ,press and hold the speed increase / decrease button at the same time for 3
seconds to enter the query mode. you will see the total time (display range: 1-99999h); you can switch to
the display of the total distance (display range: 1-999km) by pressing the mode button briefly.
2. Method to clear the total distance and time:
After entering the query mode, in the current display, for example, if you want to clear the total time, long
press the speed increase / decrease button for 5 seconds in the total time interface, the buzzer will ring
once, and you will see that the total time has all changed to 0; the total distance to clear is the same.
To exit the query mode, just close the safety key.
HRC
HRC: press the mode key to enter HP1, HP2 or HP3. The calorie window displays HP1, HP2 or HP3
fonts.
Parameter value in HRC:
1: age setting range: 13-80 years old, 25 by default.
2: target heart rate setting range: HP1: (220 -years old)X 0.60; HP2: (220- years old) X0.70; HP3: (220 -
years old)X 0.80
3: user's heart rate: 50-199
4: heart rate difference = (target heart rate - user's heart rate)
Program:
1: time flashes in HRC program, time can be set, press start key to run
2: if you press the Enter during time setting to enter the age setting, the setting range is
13-80 years old.
3: press the Enter to enter the target heart rate setting: the setting range is: HP1: (220-years old) ×
0.60; HP2: (220- years old) × 0.70; HP3: (220- years old) × 0.80
4: press the Enter to enter the time setting
1: when it is stopped, press the program key mode to enter HRC, the calorie window will display: HP1, HP2
or HP3 font, and the time window will flash.
2: press the Enter, the pulse window will display "25", and it will flash. Press the speed plus / minus
key speed + / - to set the user's age, setting range: 13-80 years old. Pressing the start key is invalid.
Upper and lower limit value of HRC: A: upper limit: 50
B: lower limit: 200
3: press stop / enter again. The pulse window displays the heart rate value of a moving target and flashes;
press the speed plus / minus key speed + / - to adjust the setting value of the moving target: setting
range: 50-200 times / min. pressing the start key is invalid.
4: press stop / enter, the time window will display "30:00" minutes, and flicker; press speed+ / - to set the
use time, setting range: 5:00-99:00.
HRC operation:
1: press the start key to start running the treadmill.
2: please try to use wireless heartbeat system
3: the initial speed is 1.0km/h (0.6m / h), and the slope is 0%;
4: speed change relationship
A: change frequency, HRC detects heart rate every 15 seconds (heart rate is displayed all the
time).
B: if the user's heart rate is 15 times / min lower than the target heart rate, the speed will
increase by 0.8km/h and the lift will increase by 1%. The speed and lift shall not exceed the
maximum value.
C: if the user's heart rate is 5 times / min lower than the target heart rate and no less than
15 times / min, the lift will increase by 1% when the speed increases by 0.4 km / h, and the
speed and lift shall not exceed the maximum value.
D: if the user's heart rate is not higher than the target heart rate 5 times / min and not
lower than 5 times / min, the speed rise will not change.
E: if the user's heart rate is 5 times / min higher than the target heart rate and no higher
than 15 times / min, the speed will be reduced by 0.4 km / h, the lift will be reduced by 1%, and
the speed lift will not be lower than the minimum value.
F: if the user's heart rate is 15 times / min higher than the target heart rate, the speed
will be reduced by 0.8km/h, the lift will be reduced by 2%, and the speed lift will not be lower
than the minimum value.
5: in case of the following conditions, slow down to the lowest speed, run at the lowest speed
for 15 seconds, then shut down, and make a sound every second.
A: heart rate is detected every 15 seconds, when heart rate is not detected twice in a row. B: when the
speed is 1km / h, the exercise heart rate is greater than the target heart rate,
resulting in deceleration.
6: press start / stop to stop running the treadmill
HRCfunction list ：
Age
Edad
BPM/PPM
Age
Edad
BPM/PPM
H
default
L
H
default
L
HP1
HP2
HP3
HP1
HP2
HP3
13
199
124
144
165
50
47
199
103
121
138
50
14
199
123
144
164
50
48
199
103
120
137
50
15
199
123
143
164
50
49
199
102
119
136
50
16
199
122
142
163
50
50
199
102
119
136
50
17
199
121
142
162
50
51
199
101
118
135
50
18
199
121
141
161
50
52
199
100
117
134
50
19
199
120
140
160
50
53
199
100
116
133
50
20
199
120
140
160
50
54
199
99
116
132
50
21
199
119
139
159
50
55
199
99
115
132
50
22
199
118
138
158
50
56
199
98
114
131
50
23
199
118
137
157
50
57
199
97
114
130
50
24
199
117
137
156
50
58
199
97
113
129
50
25
199
117
136
156
50
59
199
96
112
128
50
26
199
116
135
155
50
60
199
96
112
128
50
27
199
115
135
154
50
61
199
95
111
127
50
28
199
115
134
153
50
62
199
94
110
126
50
29
199
114
133
152
50
63
199
94
109
125
50
30
199
114
133
152
50
64
199
93
109
124
50
31
199
113
132
151
50
65
199
93
108
124
50
32
199
112
131
150
50
66
199
92
107
123
50
33
199
112
130
149
50
67
199
91
107
122
50
34
199
111
130
148
50
68
199
91
106
121
50
35
199
111
129
148
50
69
199
90
105
120
50
36
199
110
128
147
50
70
199
90
105
120
50
37
199
109
128
146
50
71
199
89
104
119
50
38
199
109
127
145
50
72
199
88
103
118
50
39
199
108
126
144
50
73
199
88
102
117
50
40
199
108
126
144
50
74
199
87
102
116
50
41
199
107
125
143
50
75
199
87
101
116
50
42
199
106
124
142
50
76
199
86
100
115
50
43
199
106
123
141
50
77
199
85
100
114
50
44
199
105
123
140
50
78
199
85
99
113
50
45
199
105
122
140
50
79
199
84
98
112
50
46
199
104
121
139
50
80
199
84
98
112
50
GARLANDO SPA
Via Regione Piemonte, 32 - Zona Industriale D1
15068 - Pozzolo Formigaro (AL) - Italy
www.evert.it - info@evert.it
