20222022
OWNER’S MANUALOWNER’S MANUAL
TRX680FA5TRX680FA5
FOURTRAX RINCONFOURTRAX RINCON
20222022
Read this manual carefully,
it contains important safety information.
Minimum recommended operator age: 16
Part Number
This manual should be considered a permanent part of the ATV and
should remain with the ATV when it is resold.
This publication includes the latest production information available
before printing. Honda Motor Co., Ltd. reserves the right to make
changes at any time without notice and without incurring any
obligation.
No part of this publication may be reproduced without written
permission.
This vehicle pictured in this owner’s manual may not match your
actual vehicle.
© Honda Motor Co., Ltd. 2021
21YM TRX680FA5_31HS2610.book 1 ページ ２０２１年３月８日 月曜日 午前９時４６分
FOR OFF-ROAD USE ONLY
This vehicle is designed and manufactured for off-road use only.
It conforms to US EPA Noise Emission regulations, but does not
conform to Federal Motor Vehicle Safety Standards or US EPA On
Highway Exhaust Emission regulations, and operation on public
streets, roads, or highways is illegal. The vehicle is equipped with a
USDA qualified spark arrester. Obey local laws and regulations.
It conforms to US EPA and California emission regulations for ATVs.
2022
Honda TRX680FA5
FOURTRAX RINCON
OWNER’S MANUAL
21YM TRX680FA5_31HS2610.book 2 ページ ２０２１年３月８日 月曜日 午前９時４６分
Introduction
Introduction
Introduction
Congratulations on choosing your Honda ATV.
When you own a Honda, you’re part of a worldwide family of
satisfied customers — people who appreciate Honda’s reputation
for building quality into every product.
Your Honda was designed as a recreational ATV for off-road use by
one rider only.
Before riding, take time to get acquainted with your ATV and how it
works. To protect your investment, we urge you to take
responsibility for keeping your ATV well maintained. Scheduled
service is a must, of course. But it’s just as important to observe the
break-in guidelines, and perform all pre-ride and other periodic
checks detailed in this manual.
We also recommend that you read this owner’s manual before you
ride. It’s full of facts, instructions, safety information, and helpful
tips. To make it easy to use, the manual contains a detailed list of
topics at the beginning of each section and an index at the back of
the book.
As you read this manual, you will find information that is preceded
by a symbol. This information is intended to help you avoid
damage to your Honda, other property, or the environment.
Read the Warranties Booklet (page 225) thoroughly so you
understand the coverages that protect your new Honda and are
aware of your rights and responsibilities.
Whenever you ride, tread lightly. By staying on established trails and
riding only in approved areas, you help protect the environment and
keep off-road riding areas open for the future.
NOTICE
21YM TRX680FA5_31HS2610.book 3 ページ ２０２１年３月８日 月曜日 午前９時４６分
Introduction
Introduction
If you have any questions, or if you ever need special service or
repairs, remember that your dealer knows your ATV best and is
dedicated to your complete satisfaction.
Please report any change of address or ownership to your dealer so
we will be able to contact you concerning important product
information.
You may also want to visit our website at
www.powersports.honda.com.
Happy riding!
21YM TRX680FA5_31HS2610.book 4 ページ ２０２１年３月８日 月曜日 午前９時４６分
Contents
Contents
Contents
These pages give an overview of the contents of your owner’s
manual.
The first page of each section lists the topics covered in that section.
ATV Safety ..................................................................................1
Important safety information you should know, plus a look at the
safety related labels on your ATV.
Instruments & Controls ..............................................................9
The location and function of indicators and controls on your ATV
and operating instructions for various controls and features.
Before Riding ............................................................................43
The importance of wearing a helmet and other protective gear,
how to make sure you and your ATV are ready to ride, and
important information about loading.
Basic Operation & Riding .........................................................59
How to start and stop the engine, shift gears, and brake. Also,
riding precautions.
21YM TRX680FA5_31HS2610.book 7 ページ ２０２１年３月８日 月曜日 午前９時４６分
Contents
Contents
Servicing Your Honda ..............................................................97
Why your ATV needs regular maintenance, what you need to
know before servicing your Honda, an owner maintenance
schedule, and instructions for specific maintenance and
adjustment items.
Tips ..........................................................................................175
How to store and transport your ATV and how to be an
environmentally responsible rider.
Taking Care of the Unexpected .............................................185
What to do if you have a flat tire, your engine won’t start, etc.
Technical Information ............................................................207
ID numbers, technical specifications, and other technical facts.
Consumer Information ...........................................................223
Information on warranties, emission controls, how to get Honda
service manuals.
Index........................................................................................230
Quick Reference
Handy facts about fuel, engine oil, tire sizes, and air pressures.
21YM TRX680FA5_31HS2610.book 8 ページ ２０２１年３月８日 月曜日 午前９時４６分
ATV Safety
3
Important Safety Information
Ride Off-road Only
Your ATV is designed and manufactured for off-road use only. The
tires are not made for pavement, and the ATV does not have turn
signals and other features required for use on public roads. If you
need to cross a paved or public road, get off and walk your ATV
across.
Take Time to Learn & Practice
Even if you have ridden other ATVs, take time to become familiar
with how this ATV works and handles. Practice in a safe area until
you build your skills and get accustomed to the ATV’s size and
weight.
Because many crashes involve inexperienced or untrained riders, we
urge all riders to take an ATV operator course approved by the ATV
Safety Institute (ASI). See page 46.
Contact an authorized ATV dealer or call 1-800-887-2887 to find
out about the training courses nearest you.
Be Alert for Off-road Hazards
The terrain can present a variety of challenges when you ride off-
road. Continually “read” the terrain for unexpected turns, drop-offs,
rocks, ruts, and other hazards. Always keep your speed low enough
to allow time to see and react to hazards.
21YM TRX680FA5_31HS2610.book 3 ページ ２０２１年３月８日 月曜日 午前９時４６分
ATV Safety
4
Important Safety Information
Ride within Your Limits
Pushing limits is another major cause of ATV crashes. Never ride
beyond your personal abilities or faster than conditions warrant.
Remember that alcohol, drugs, fatigue, and inattention can
significantly reduce your ability to make good judgments and ride
safely.
Don’t Drink and Ride
Alcohol and riding don’t mix. Even one drink can reduce your ability
to respond to changing conditions, and your reaction time gets
worse with every additional drink. So don’t drink and ride, and don’t
let your friends drink and ride either.
Keep Your Honda in Safe Condition
It’s important to keep your ATV properly maintained and in safe
riding condition. Having a breakdown can be difficult, especially if
you are stranded off-road far from your base. To help avoid
problems, inspect your ATV before every ride and perform all
recommended maintenance.
21YM TRX680FA5_31HS2610.book 4 ページ ２０２１年３月８日 月曜日 午前９時４６分
ATV Safety
5
Safety Labels
Your ATV comes with a hang tag and several labels containing
important safety information. Anyone who rides the vehicle should
read and understand this information before riding.
The labels should be considered permanent parts of the vehicle. If a
label comes off or becomes hard to read, contact your dealer for
replacements.
21YM TRX680FA5_31HS2610.book 5 ページ ２０２１年３月８日 月曜日 午前９時４６分
ATV Safety
6
Safety Labels
21YM TRX680FA5_31HS2610.book 6 ページ ２０２１年３月８日 月曜日 午前９時４６分
ATV Safety
7
Safety Labels
21YM TRX680FA5_31HS2610.book 7 ページ ２０２１年３月８日 月曜日 午前９時４６分
ATV Safety
8
Safety Labels
Towing an improperly loaded
trailer can cause loss of control.
Read towing instructions
in owner's manual
Tow weight limit : 850lbs. (385kg)
: 30lbs. ( 14kg)
Tongue weight
21YM TRX680FA5_31HS2610.book 8 ページ ２０２１年３月８日 月曜日 午前９時４６分
Instruments & Controls
9
Instruments & Controls
(cont’d)
Instruments & Controls
This section shows the location of all indicators and controls you
would normally use before or while riding your ATV.
The items listed on this page are described in this section.
Instructions for other components are presented in other sections of
this manual where they will be most useful.
Operation Component Locations ................................................ 11
Indicators & Displays................................................................... 14
Multi-function Display.............................................................. 19
Drive Mode Indicator ............................................................... 20
Gear Position Indicator............................................................. 21
Oil Change Indicator................................................................ 22
Odometer................................................................................ 23
Tripmeter................................................................................. 24
Hour meter.............................................................................. 25
Digital Clock ............................................................................ 26
Fuel Gauge .............................................................................. 27
21YM TRX680FA5_31HS2610.book 9 ページ ２０２１年３月８日 月曜日 午前９時４６分
Instruments & Controls
10
Instruments & Controls
Controls & Features .................................................................... 28
Ignition Switch......................................................................... 28
Shift Lever ............................................................................... 29
Drive Mode Select Switch ........................................................ 30
2WD/4WD Select Switch.......................................................... 31
Start Button............................................................................. 32
Engine Stop Switch.................................................................. 32
Headlight Switch ..................................................................... 33
Headlight Dimmer Switch ........................................................ 33
Recoil Starter ........................................................................... 34
Throttle Lever .......................................................................... 35
Gearshift Switch ...................................................................... 36
Front Brake Lever..................................................................... 37
Rear Brake Lever ...................................................................... 37
Rear Brake Pedal...................................................................... 37
Parking Brake .......................................................................... 38
Flag Pole Bracket ..................................................................... 39
Accessory Socket ..................................................................... 40
21YM TRX680FA5_31HS2610.book 10 ページ ２０２１年３月８日 月曜日 午前９時４６分
Instruments & Controls
13

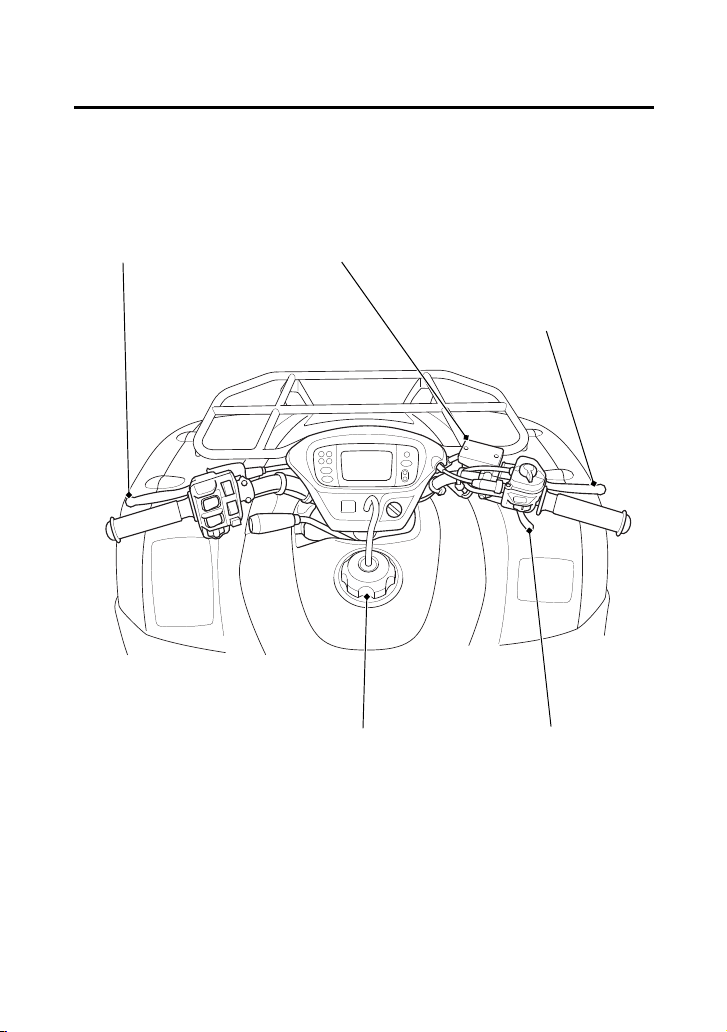

Operation Component Locations
flag pole bracketseat latch
21YM TRX680FA5_31HS2610.book 13 ページ ２０２１年３月８日 月曜日 午前９時４６分
Instruments & Controls
14
Indicators & Displays
The indicators and displays on your ATV keep you informed, alert
you to possible problems, and make your riding safer and more
enjoyable. Refer to the indicators frequently. Their functions are
described on the following pages.
(11)
(9)
(10)(7)
(8)
(2) (1)
(6)(5)
(4)
(3)
(11) PGM-FI indicator
(4) 4WD indicator
(6) neutral indicator
(3) reverse indicator
(8) hour select button
(9) minute select button
(5) high oil/coolant temperature indicator
(1) odometer/tripmeter select button
(7) multi-function display
(10) ADJ button
(2) RESET button
21YM TRX680FA5_31HS2610.book 14 ページ ２０２１年３月８日 月曜日 午前９時４６分
Instruments & Controls
15
Indicators & Displays
Lamp Check
The high oil/coolant temperature indicator, 4WD indicator, neutral
indicator, reverse indicator and PGM-FI indicator comes on for a few
seconds and then go off when you turn the ignition switch ON (q).
The indicators are identified in the table on page 16 with the words:
Lamp Check.
When applicable, the reverse or neutral indicators come on when
you turn the ignition switch ON (q) and remain on until you shift out
of reverse or neutral.
If one of these indicators does not come on when it should, have
your dealer check for problems.
Display Check
When the ignition switch is turned ON (q), the multi-function display
(1) will temporarily show all the modes and digital segments so you
can make sure the liquid crystal display is functioning properly.
The displays are identified in the table on page 17 with the words:
Display Check.
If any part of these displays does not come on when it should, have
your dealer check for problems.
(1)
(1) multi-function display
21YM TRX680FA5_31HS2610.book 15 ページ ２０２１年３月８日 月曜日 午前９時４６分
Instruments & Controls
20
Indicators & Displays
The drive mode indicator (1) shows the selected drive mode when
the ignition switch is in the ON (q) position.
The drive mode indicator (1) displays ESP when the manual shift
(ESP) mode is selected. The ESP display vanishes when the automatic
shift (AUTO) mode is selected.
Drive Mode Indicator
(1)
(1) drive mode indicator
21YM TRX680FA5_31HS2610.book 20 ページ ２０２１年３月８日 月曜日 午前９時４６分
Instruments & Controls
25
Indicators & Displays
The hour meter (1) shows accumulated hours while the ignition is
ON (q). The hour meter provides accurate service period
information for initial and regular maintenance.
Hour meter
(1) (2)
(1) hour meter (2) hour meter mark
21YM TRX680FA5_31HS2610.book 25 ページ ２０２１年３月８日 月曜日 午前９時４６分
Instruments & Controls
26
Indicators & Displays
Shows hour and minute while the ignition is ON (q).
To adjust the time, proceed as follows:
1.
Turn the ignition switch ON (q).
2.
To select the adjust mode, push the ADJ button (1) once.
3.
To advance the hour display one unit at a time, press and release
the hour select button (2).
To advance the hour display automatically, press and hold the
hour select button. After 2 seconds, the hour display will begin
advancing.
Release the button when the display reaches the desired hour.
4.
To advance the minute display one unit at a time, press and
release the minute select button (3).
To advance the minute display automatically, press and hold the
minute select button. After 2 seconds, the minute display will
begin advancing. Release the button when the display reaches
the desired minute.
To zero the minute display, press and hold both the hour and
minute select buttons simultaneously for 2 seconds.
5.
Press the ADJ button when the display reaches the desired
minute.
The display will stop flashing.
Digital Clock
(1)
(2) hour select button
(2)
(3)
(1) ADJ button (3) minute select button
21YM TRX680FA5_31HS2610.book 26 ページ ２０２１年３月８日 月曜日 午前９時４６分
Instruments & Controls
27
Indicators & Displays
The fuel gauge liquid crystal display (1) shows the approximate fuel
supply available. The fuel tank capacity is:
4.44 US gal (16.8 ℓ)
When segment E (2) and low fuel indicator (3) flash, you should refill
the tank as soon as possible. The amount of fuel remaining when the
flashing starts is approximately:
1.40 US gal (5.3 ℓ)
All segments will flash, when the fuel gauge function fails. See your
dealer.
Fuel Gauge
(1) fuel gauge
(2) segment E
(3)
(1)
(3) low fuel indicator
(2)
21YM TRX680FA5_31HS2610.book 27 ページ ２０２１年３月８日 月曜日 午前９時４６分
Instruments & Controls
29
Controls & Features
The shift lever (1) has three positions: drive (D), neutral (N), and
reverse (R).
See Shifting Gears (page 73) and Riding in Reverse (page 79).
Shift Lever
(1)
(1) shift lever
LEFT SIDE OF HANDLE COVER
21YM TRX680FA5_31HS2610.book 29 ページ ２０２１年３月８日 月曜日 午前９時４６分
Instruments & Controls
30
Controls & Features
The drive mode select switch (1) has two positions, AUTO and ESP.
See Shifting Gears page 73.
Drive Mode Select Switch
(1)
(1) drive mode select switch
RIGHT HANDLEBAR
21YM TRX680FA5_31HS2610.book 30 ページ ２０２１年３月８日 月曜日 午前９時４６分
Instruments & Controls
32
Controls & Features
The start button (1) is used for starting the engine. Pushing the
button in starts the engine. See Starting Procedure, page 68.
When the start button is pushed, the starter motor will crank the
engine. The starter motor will not operate if the engine stop switch
is in the OFF (r) position when the start button is pushed.
The engine stop switch (2) is used to stop the engine in an
emergency. To operate, slide the switch to the OFF (r) position. The
switch must be in the RUN (e) position to start the engine, and it
should normally remain in the RUN (e) position even when the
engine is OFF.
If your ATV is stopped with the ignition switch ON (q ) and the engine
stop switch OFF (r), the battery will discharge. Turn the ignition
switch OFF (w) to prevent battery discharge.
Start Button
o
Engine Stop Switch
e r
LEFT HANDLEBAR
(1)
(2)
(1) start button
(2) engine stop switch
o START
r OFF
e RUN
21YM TRX680FA5_31HS2610.book 32 ページ ２０２１年３月８日 月曜日 午前９時４６分
Instruments & Controls
33
Controls & Features
The headlight switch (1) is used to turn the headlight ON (y) or OFF
(t). To operate, turn the switch to ON (y) or OFF (t).
The headlight dimmer switch (2) is used to change between the high
and low beams of the headlight. To operate, turn the switch to HI
(u) for high beam, LO (i) for low beam.
Headlight Switch
y t
Headlight Dimmer Switch
u i
LEFT HANDLEBAR
(1)
(2)
(1) headlight switch y ON
t OFF
u HI
i LO
(2) headlight dimmer switch
21YM TRX680FA5_31HS2610.book 33 ページ ２０２１年３月８日 月曜日 午前９時４６分
Instruments & Controls
36
Controls & Features
Two gearshift switches are used in the ESP (manual shift) mode.
These switches are used to select the next higher or lower gear in the
transmission. To operate, press the upshift switch (1) to engage the
next higher gear or press the downshift switch (2) to engage the
next lower gear. See Shifting Gears, page 73.
Gearshift Switch
LEFT HANDLEBAR
(1) upshift switch
(1)
(2)
(2) downshift switch
21YM TRX680FA5_31HS2610.book 36 ページ ２０２１年３月８日 月曜日 午前９時４６分
Instruments & Controls
37
Controls & Features
The front brake lever is used to slow or stop your ATV. To operate,
pull the lever. For information on braking techniques, see page 81.
The rear brake lever/parking brake lever is used to slow or stop your
ATV. To operate, pull the lever. For information on braking
techniques, see page 81.
The rear brake pedal is used to slow or stop your ATV. To operate,
depress the pedal. For information on braking techniques, see
page 81.
Front Brake Lever
Rear Brake Lever
Rear Brake Pedal
21YM TRX680FA5_31HS2610.book 37 ページ ２０２１年３月８日 月曜日 午前９時４６分
Instruments & Controls
38
Controls & Features
The lock lever (1) on the rear brake lever/parking brake lever (2)
allows it to be used as a parking brake. To operate, first squeeze the
rear brake lever/parking brake lever using your left hand and then
lock it with the lock lever using your right hand. See Parking
page 95.
The brake lights are activated by applying the parking brake. When
using the parking brake, be sure to turn the ignition switch OFF (w)
to avoid discharging the battery.
Parking Brake
LEFT HANDLEBAR
(A)
(1) lock lever
(1)
(A) to lock
(2)
(2) rear brake lever/parking brake lever
21YM TRX680FA5_31HS2610.book 38 ページ ２０２１年３月８日 月曜日 午前９時４６分
Instruments & Controls
40
Controls & Features
The accessory socket (1) is attached to the right side of the meter
cover (2). You can use the accessory socket to power a trouble light,
CB radio, or cell phone, etc.
NOTICE
Do not plug in any heat-generating or high wattage accessory, such
as an automobile cigarette lighter or high-power spotlight, because
it can damage the socket.
To use the accessory socket, turn the ignition switch ON (q ) and start
the engine. Then, turn the headlights OFF (t) and open the accessory
socket cap (3).
Accessory Socket
RIGHT FRONT
(1) accessory socket
(1)
(2) meter cover
(2)
(3)
(3) cap
21YM TRX680FA5_31HS2610.book 40 ページ ２０２１年３月８日 月曜日 午前９時４６分
Instruments & Controls
42
21YM TRX680FA5_31HS2610.book 42 ページ ２０２１年３月８日 月曜日 午前９時４６分
Before Riding
44
Are You Ready to Ride?
Before you ride your ATV for the first time, we urge you to:
• Read this owner’s manual and the labels on your ATV carefully.
• Make sure you understand all the safety messages.
• Know how to operate all the controls.
Before each ride, be sure:
• You feel well and are in good physical and mental condition.
• You are wearing an approved motorcycle helmet (with chin strap
tightened securely), eye protection, and other protective
clothing.
• You don’t have any alcohol or drugs in your system.
For your safety, we strongly recommend that you always wear an
approved motorcycle helmet, eye protection, boots, gloves, long
pants, and a long-sleeved shirt or jacket whenever you ride.
Although complete protection is not possible, wearing proper gear
can reduce the chance of injury when you ride.
The following are suggestions to help you choose the proper gear.
Helmet and Eye Protection
Your helmet is your most important piece of riding gear because it
offers the best protection against head injuries. A helmet should fit
your head comfortably and securely.
Protective Apparel
21YM TRX680FA5_31HS2610.book 44 ページ ２０２１年３月８日 月曜日 午前９時４６分
Before Riding
47
Are You Ready to Ride?
The minimum recommended age for this ATV model is 16. For
safety, never let children under 16 years old operate this vehicle.
This ATV is designed as an operator-only vehicle. The long seat is
designed to allow the rider to change body position, not for carrying
a passenger. Never let a passenger ride on the seat or on the front or
rear cargo racks.
Age Recommendation
WARNING
3
WARNING
A child using an ATV that is not
recommended for their age could lose vehicle
control while riding, resulting in severe injury
or death.
A child under 16 should never operate an ATV
with engine size greater than 90cc.
No Passengers
WARNING
3
WARNING
Carrying a passenger on this ATV greatly
reduces your ability to balance and control
this ATV and could cause a crash and you or
your passenger could be injured or killed.
Never carry a passenger on this ATV.
21YM TRX680FA5_31HS2610.book 47 ページ ２０２１年３月８日 月曜日 午前９時４６分
Before Riding
49
(cont’d)
Is Your ATV Ready to Ride?
Before each ride, it’s important to inspect your ATV and make sure
any problem you find is corrected. A pre-ride inspection is a must,
not only for safety, but because having a breakdown, or even a flat
tire, can be a major inconvenience.
If your ATV has overturned or been involved in a collision, do not ride
the vehicle until it has been inspected by your dealer. There may be
damage or other problems you cannot see.
Check the following items before you get on the ATV:
WARNING
3
WARNING
Improperly maintaining this ATV or failing to
correct a problem before riding can cause a
crash in which you can be seriously hurt or
killed.
Always perform a pre-ride inspection before
every ride and correct any problems.
Pre-ride Inspection
Engine Oil Check the level and add oil if needed
(page 119).
Check for leaks.
Radiator Coolant Check the coolant level and add coolant if
needed (page 129).
Check for leaks.
21YM TRX680FA5_31HS2610.book 49 ページ ２０２１年３月８日 月曜日 午前９時４６分
Before Riding
51
Is Your ATV Ready to Ride?
(cont’d)
If you are carrying cargo, also check the following:
Check these items after you get on the ATV:
Cable Check the cable housings for wear. Check
the fittings for looseness. Replace or tighten
as needed.
Lights Make sure the headlight, brake light and
taillight are working properly.
Loading Limits Make sure you do not exceed the load
limits (page 53).
Cargo Check that all cargo is secure.
Throttle Check the freeplay and adjust if needed.
Press the throttle to make sure it moves
smoothly without sticking, and snaps shut
automatically when it is released, in all
steering positions (page 138).
Brakes Squeeze the front and rear brake levers
and step on the rear brake pedal to check
that the controls operate normally. Depress
the rear brake pedal several times, then
check for proper brake lever freeplay
(page 152). Make sure there is no brake
fluid leakage.
21YM TRX680FA5_31HS2610.book 51 ページ ２０２１年３月８日 月曜日 午前９時４６分
Before Riding
53
Load Limits & Guidelines
Your Honda was designed as a rider-only ATV. It was not designed
to carry a passenger. It can carry cargo on the cargo racks, however,
carrying cargo anywhere else or carrying a passenger could interfere
with your balance and control of the ATV.
In addition, exceeding the weight limits or carrying an unbalanced
load can seriously affect your ATV’s handling, braking and stability.
Adding accessories or making modifications that change this ATV’s
design and performance can also make it unsafe. Also, the weight of
any accessories will reduce the maximum load the ATV can carry.
More specific information on load limits, accessories, and
modifications follows.
How much weight you put on your ATV, and how you load it, are
important to your safety. If you decide to carry cargo, you should be
aware of the following information.
Loading
WARNING
3
WARNING
Overloading, improper loading, or carrying a
passenger can cause a crash and you can be
seriously hurt or killed.
Follow all load limits and other loading
guidelines in this manual.
21YM TRX680FA5_31HS2610.book 53 ページ ２０２１年３月８日 月曜日 午前９時４６分
Before Riding
55
Load Limits & Guidelines
The following are the load limits for your ATV:
Tongue weight can be measured with an ordinary bathroom scale.
Place the scale under the tongue, using either a tongue jack or other
support to keep the trailer level.
The weight of added accessories will reduce the maximum cargo
weight you can carry.
maximum weight capacity 485 lb (220 kg)
(includes the weight of the rider, all cargo, and accessories.)
front cargo rack weight limit
rear cargo rack weight limit
tow weight limit
= 66 lb (30 kg)
= 133 lb (60 kg)
= 850 lb (385 kg)
(Combined weight of the trailer
and all cargo in the trailer)
tongue weight = 30 lb (14 kg)
(Weight on the trailer tongue) recommended
tongue and rear cargo weight = 133 lb (60 kg) maximum
(Combined weight on the
trailer tongue and on the rear
cargo rack)
21YM TRX680FA5_31HS2610.book 55 ページ ２０２１年３月８日 月曜日 午前９時４６分
Before Riding
58
Accessories & Modifications
We strongly advise you not to remove any original equipment or
modify your ATV in any way that would change its design or
operation. Such changes could seriously impair your ATV’s handling,
stability, and braking, making it unsafe to ride.
We also advise you not to make any modifications or remove any
equipment (such as the USDA qualified spark arrester or emission
control system components) that would make your ATV illegal in
your area.
Removing or modifying your lights, exhaust system, emission control
system, or other equipment can also make your ATV illegal.
Modifications
21YM TRX680FA5_31HS2610.book 58 ページ ２０２１年３月８日 月曜日 午前９時４６分
Basic Operation & Riding
62
Safe Riding Precautions
You should never ride your ATV on public streets, roads or highways,
even if they are not paved. Drivers of street vehicles may have difficulty
seeing and avoiding you, which could lead to a collision. In many states
it is illegal to operate ATVs on public streets, roads and highways.
Always keep both hands on the handlebars and both feet on the footpegs
when riding your ATV. This is important to maintain your balance and to
control the vehicle. Removing even one hand from the handlebars or one
foot from the footpegs can reduce your ability to control the ATV or could
cause you to lose your balance and fall off the ATV.
WARNING
3
WARNING
Operating this ATV on public streets, roads or
highways could cause you to collide with
another vehicle.
Never operate this ATV on any public street,
road or highway, even a dirt or gravel one.
Keep Hands and Feet on Controls
WARNING
3
WARNING
Removing hands from handlebars or feet
from footpegs during operation can reduce
your ability to control the ATV or could cause
you to lose your balance and fall off of the
ATV.
Always keep both hands on the handlebars
and both feet on the footpegs of your ATV
during operation.
21YM TRX680FA5_31HS2610.book 62 ページ ２０２１年３月８日 月曜日 午前９時４６分
Basic Operation & Riding
63
Safe Riding Precautions
Riding at excessive speed increases the chance of a crash. In
choosing a proper speed, you need to consider the capability of your
vehicle, the terrain, visibility and other operating conditions, plus
your own skills and experience.
Control Speed
WARNING
3
WARNING
Operating this ATV at excessive speeds
increases your chances of losing control of the
ATV, which can result in an accident.
Always go at a speed that is proper for your
vehicle, the terrain, visibility and other
operating conditions, and your experience.
(1)
(1) footpeg
21YM TRX680FA5_31HS2610.book 63 ページ ２０２１年３月８日 月曜日 午前９時４６分
Basic Operation & Riding
65
Safe Riding Precautions
Never ride past the limit of visibility. Maintain a safe distance
between your ATV and other off-road vehicles. Always exercise
caution, and use extra care on rough, slippery and loose terrain.
You should always operate your ATV in a safe and reasonable
manner. When riding, always keep all four wheels on the ground.
WARNING
3
WARNING
Failure to use extra care when operating on
excessively rough, slippery or loose terrain
could cause loss of traction or vehicle control,
which could result in an accident, including an
overturn.
Do not operate on excessively rough, slippery
or loose terrain until you have learned and
practiced the skills necessary to control the
ATV on such terrain. Always be especially
cautious on these kinds of terrain.
Do Not Perform Stunts
WARNING
3
WARNING
Attempting wheelies, jumps, and other stunts
increases the chance of an accident, including
an overturn.
Never attempt stunts, such as wheelies or
jumps. Don’t try to show off.
21YM TRX680FA5_31HS2610.book 65 ページ ２０２１年３月８日 月曜日 午前９時４６分
Basic Operation & Riding
67
Starting & Stopping the Engine
1.
Before starting, select a level surface and lock the parking brake
(page 38).
2.
Turn the ignition switch (1) ON (q).
Confirm the following:
• The transmission is in neutral, and the neutral indicator (2) is ON.
• The engine stop switch (3) is set to RUN (e).
Preparation
(1)
(3)
(2)
(1) ignition switch
(2) neutral indicator
(3) engine stop switch
21YM TRX680FA5_31HS2610.book 67 ページ ２０２１年３月８日 月曜日 午前９時４６分
Basic Operation & Riding
69
Starting & Stopping the Engine
If the engine fails to start after repeated attempts, it may be flooded
with excess fuel. To clear a flooded engine:
1.
Leave the engine stop switch set to RUN (e).
2.
Open the throttle fully.
3.
Press the start button for 5 seconds (or operate the recoil starter
several times).
4.
Follow the normal starting procedure.
5.
If the engine starts, then open the throttle slightly if idling is
unstable.
If the engine does not start, wait 10 seconds, then follow steps 1
– 4 again.
If the engine still won’t start, refer to If Your Engine Quits or Won’t
Start, pages 189, 190.
Your vehicle’s banking (lean angle) sensor system is designed to
automatically stop the engine if the vehicle is overturned.
Before restarting the engine, you must turn the ignition switch to the
OFF (w) position and then back to ON (q). The engine will not restart
until you perform this procedure.
Flooded Engine
Bank Angle Sensor Ignition Cut-off System
21YM TRX680FA5_31HS2610.book 69 ページ ２０２１年３月８日 月曜日 午前９時４６分
Basic Operation & Riding
70
Starting & Stopping the Engine
If the engine stalls, shift into neutral (N) and restart the engine.
If you are unable to shift to neutral (N) from drive (D), you can restart
the engine by squeezing the front brake lever and pressing the start
button while the vehicle is stopped.
Do not press the throttle lever while starting in gear. Your ATV is
equipped with a start inhibitor system that will cut off the ignition if
the throttle is open while attempting to start in gear.
Once you have started the engine, release the front brake lever, then
apply throttle gradually.
Stalled Engine
21YM TRX680FA5_31HS2610.book 70 ページ ２０２１年３月８日 月曜日 午前９時４６分
Basic Operation & Riding
71
Starting & Stopping the Engine
Normal Engine Stop
To stop the engine, make sure the transmission is in neutral by
checking that the neutral indicator lights, then turn the ignition
switch OFF (w).
The engine stop switch should normally remain in the RUN (e)
position even when the engine is OFF.
If your ATV is stopped with the engine stop switch OFF (r) and the
ignition switch ON (q), the battery will discharge.
Emergency Engine Stop
To stop the engine in an emergency, use the engine stop switch. To
operate, slide the switch to the OFF (r) position.
How to Stop the Engine
21YM TRX680FA5_31HS2610.book 71 ページ ２０２１年３月８日 月曜日 午前９時４６分
Basic Operation & Riding
72
Starting & Stopping the Engine
The recoil starter is used to start the engine when the battery is low.
To operate the recoil starter:
1.
Check that the transmission is in neutral.
2.
Unsnap and remove the right side cover (1).
3.
Grasp the starter grip (2) firmly, then pull it out slowly
approximately 4 in (100 mm).
4.
Pull the grip up briskly and fully.
5.
After the engine starts, allow the starter grip to return slowly.
If the starter grip does not return smoothly, see your dealer.
The engine cannot be started if the battery is disconnected, low or
dead.
If the engine cannot be started with the connected battery, charge
the battery (page 168).
When the engine cannot be started even if the battery is charged,
see your dealer.
Using the Recoil Starter
RIGHT SIDE
(2)
(1) right side cover (2) starter grip
(1)
21YM TRX680FA5_31HS2610.book 72 ページ ２０２１年３月８日 月曜日 午前９時４６分
Basic Operation & Riding
73
Shifting Gears
Your ATV has three shift lever positions: neutral (N), drive (D), and
reverse (R).
Neutral (N)
Use neutral when you start and warm up the engine, or if it is
necessary to stop briefly with the engine idling.
Drive (D)
Use this position for normal riding. The following two modes can be
selected in the drive position; automatic shift (AUTO) mode and
manual shift (ESP) mode.
You can select the desired mode with the drive mode select switch
(page 30).
Automatic shift (AUTO) mode:
Use this mode for everyday riding. The transmission automatically
adjusts to keep the engine at the best speed for riding conditions.
The gear position indicator shows “D” and the drive mode indicator
disappears.
Manual shift (ESP) mode:
In this mode, you can shift gears much like a manual transmission,
but without operating a clutch.
You can select three forward shift positions by operating the shift
switches; 1, 2, and 3.
The gear position indicator shows the selected position and the drive
mode indicator shows “ESP.”
When you tow a trailer, select the 1st shift position for proper
performance.
Reverse (R)
Use this position to ride in reverse (page 79).
21YM TRX680FA5_31HS2610.book 73 ページ ２０２１年３月８日 月曜日 午前９時４６分
Basic Operation & Riding
75
Shifting Gears
AUTO Mode
When the drive mode is at AUTO, shifting the lever to “D” (drive)
provides a 3-speed automatic transmission.
1.
While pulling up the shift lever (1), shift to “D.”
2.
Pull down the shift lever and confirm that the lever is locked and
the gear position indicator (3) is showing “D.”
Shifting to “N” (neutral) or “R” (reverse) follows the same procedure
as above. For reverse, refer to the Riding In Reverse (page 79).
(1) shift lever
(3) gear position indicator
(1)
(3)
21YM TRX680FA5_31HS2610.book 75 ページ ２０２１年３月８日 月曜日 午前９時４６分
Basic Operation & Riding
79
Riding in Reverse
If you need to ride in reverse, make sure the area behind you is clear
and only operate the ATV at low speed.
1.
Bring the vehicle to a complete stop, then make sure the
transmission is in neutral.
2.
Depress and hold down the brake pedal.
3.
Be sure there are no obstacles or people in the way.
4.
Shift the shift lever into “R” (reverse) gear.
NOTICE
Your ATV is equipped with a reverse speed limiter, which helps the
vehicle to maintain a safe speed while riding in reverse gear.
NOTICE
If the shift lever is moved while the vehicle is moving, the
transmission may be damaged.
5.
Release the rear brake pedal.
6.
Open the throttle gradually and ride slowly. Do not open the
throttle suddenly or make abrupt turns.
WARNING
3
WARNING
Improperly operating in reverse could cause
you to hit an obstacle or person behind you,
resulting in serious injury.
Make sure there are no obstacles or people
behind you before selecting reverse gear.
When it is safe to proceed, go slowly.
21YM TRX680FA5_31HS2610.book 79 ページ ２０２１年３月８日 月曜日 午前９時４６分
Basic Operation & Riding
80
Riding in Reverse
7.
To stop, close the throttle and gradually apply both the front and
rear brakes. Do not abruptly apply the rear brake by itself.
8.
To shift out of reverse and into neutral, shift the shift lever into
“N” (neutral) gear.
WARNING
3
WARNING
Applying only the rear brake abruptly when
operating in reverse gear could cause the
front wheels to lift off the ground and the
ATV could overturn backwards.
Carefully apply both the front and rear brakes
when stopping in reverse gear.
21YM TRX680FA5_31HS2610.book 80 ページ ２０２１年３月８日 月曜日 午前９時４６分
Basic Operation & Riding
81
Braking
Your ATV is equipped with disc brakes on both front wheels which
are hydraulically activated by operating the right brake lever. The
single disc brake of the rear drivetrain is hydraulically activated by
pressing down on the brake pedal and mechanically activated by
operating the left brake lever.
Although the front and rear brakes have separate controls, all four
wheels are interconnected when your ATV is in the 4WD mode. So
operating any brake control in the 4WD mode will cause braking at
both the front and rear wheels.
As a general rule, the front braking system provides about 70
percent of total stopping power.
For full braking effectiveness, use both the pedal and lever
simultaneously. Using both braking systems will stop your ATV faster
with greater stability.
To slow or stop, apply the brake lever and brake pedal smoothly, while
downshifting to match your speed when your ATV is in the ESP mode.
Gradually increase braking as you feel the brakes slowing your
speed. The increase in engine compression from downshifting will
help slow your vehicle when your ATV is in the ESP mode.
Applying the brakes too hard may cause the wheels to lock and slide,
reducing control of your ATV. If this happens, release the brake
controls, steer straight ahead until you regain control, then reapply
the brakes more gently.
When possible, reduce your speed or complete braking before
entering a turn. Avoid braking or closing the throttle quickly while
turning. Either action may cause one or more wheels to slip and
reduce your control of your ATV.
21YM TRX680FA5_31HS2610.book 81 ページ ２０２１年３月８日 月曜日 午前９時４６分
Basic Operation & Riding
85
Riding Your ATV
The terrain surface can be a major factor affecting turns. Skidding
during a turn is more likely to occur on slippery surfaces, such as
snow, ice, mud and loose gravel. If you skid on ice, you may lose all
directional control. To avoid skidding on slippery terrain, keep your
speed low and ride with caution.
If your ATV skids sideways during a turn, steer in the direction of the
skid. Avoid hard braking or accelerating until you have regained
directional control.
Skidding or Sliding
WARNING
3
WARNING
Skidding or sliding improperly may cause you
to lose control of this ATV. You may also
regain traction unexpectedly, which may
cause the ATV to overturn.
Learn to safely control skidding by practicing
at low speeds and on level, smooth terrain.
21YM TRX680FA5_31HS2610.book 85 ページ ２０２１年３月８日 月曜日 午前９時４６分
Basic Operation & Riding
86
Riding Your ATV
The ATV’s ability to safely climb hills largely depends on the rider’s
skill and judgment. Begin by practicing on smooth, gentle slopes. As
you gain experience, you’ll learn the hazards and your own
limitations. You may then proceed to ride on more difficult terrain.
However, you must be able to decide which hills or hazards might
cause the ATV to overturn. Avoid excessively steep hills.
When climbing hills, you must shift weight toward the front wheels
to help keep them on the ground. To do this, shift your body slightly
forward on the seat and lean forward. For greater weight shift, move
your body farther forward and lean forward.
Riding Up Hills
WARNING
3
WARNING
Operating on excessively steep hills can cause
the vehicle to overturn more easily than
operating on level surfaces or small hills.
Never operate the ATV on hills too steep for
the ATV or for your abilities.
WARNING
3
WARNING
Climbing hills improperly could cause loss of
control or cause the ATV to overturn.
Always follow proper procedures for climbing
hills as described in this owner’s manual.
21YM TRX680FA5_31HS2610.book 86 ページ ２０２１年３月８日 月曜日 午前９時４６分
Basic Operation & Riding
87
Riding Your ATV
• Always check the terrain carefully before you start up any hill.
• Never climb hills with excessively slippery or loose surfaces.
• To climb a hill, take a running start in an appropriate gear and
speed for the conditions. Maintain a steady speed as you ascend
the hill.
• Never open the throttle suddenly or make sudden gear changes.
The ATV could flip over backward.
• Never go over the top of any hill at high speed. An obstacle, a
sharp drop, or another vehicle or person could be on the other
side of the hill.

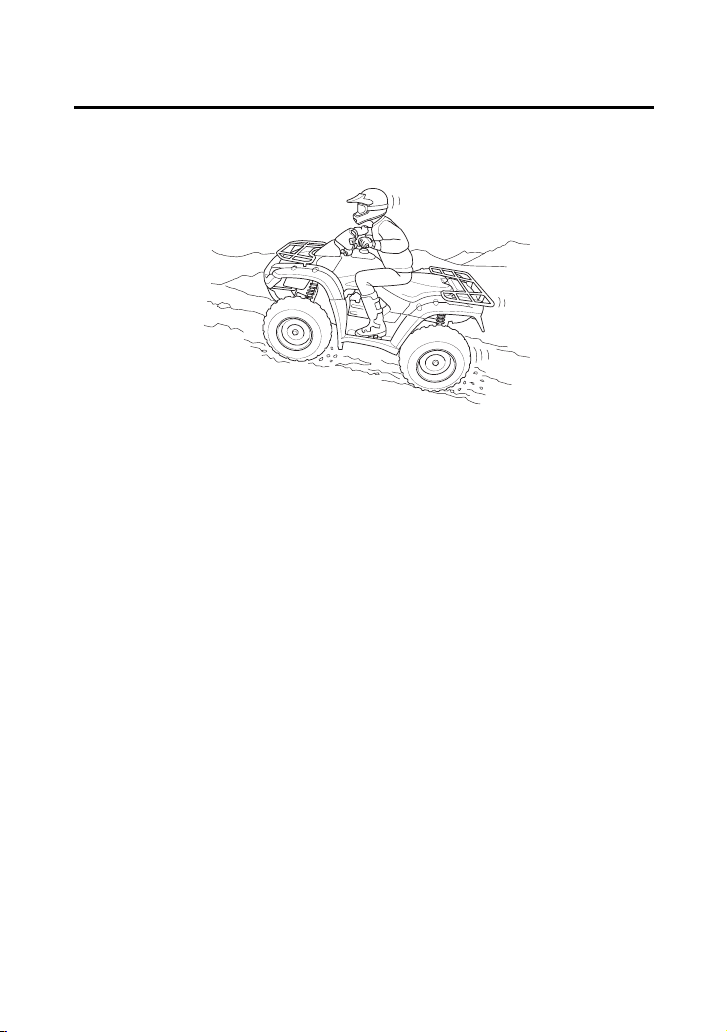

Shift weight forward when climbing hills.
21YM TRX680FA5_31HS2610.book 87 ページ ２０２１年３月８日 月曜日 午前９時４６分
Basic Operation & Riding
91
Riding Your ATV
When you’ve selected a safe downhill path, shift into a lower gear (in
the ESP mode), shift your weight back with your arms extended and
braced against the handlebar, then go down slowly with the throttle
closed.
Use mainly the rear brake to control speed. Avoid using either the
front brake or rear brake hard or abruptly when riding down hills.
Remember that operating any brake control in the 4WD mode will
cause braking at both the front and rear wheels.
Remember, braking effectiveness is reduced on any hill with a loose
surface.
Riding on hills or slopes is different from riding on level terrain. Be
careful when riding on any hill. Make sure that you practice on
gentle, smooth slopes before attempting to ride on steeper or more
difficult terrain.
Crossing or Turning on Hills or Slopes
WARNING
3
WARNING
Improperly crossing hills or turning on hills
could cause loss of control or cause the ATV to
overturn.
Always follow proper procedures for crossing
or turning on slopes as described in this
owner’s manual. Avoid crossing steep hills if
possible.
21YM TRX680FA5_31HS2610.book 91 ページ ２０２１年３月８日 月曜日 午前９時４６分
Basic Operation & Riding
92
Riding Your ATV
Crossing Hills or Slopes
• To maintain balance and stability when riding across a slope, you
need to shift weight toward the uphill side of the vehicle. To do
this, move your body off the center of the seat and lean toward
the uphill side.
• On a slippery or loose surface, you may also need to steer slightly
uphill to maintain a straight course across the slope.
• Avoid crossing hills that are excessively steep, slippery or rough.
Making Turns on Slopes
• Compared to riding on level ground, you may need to shift more
weight and lean more when making turns on slopes.
• Do not make turns on any slopes until you have first mastered the
techniques for making turns on level terrain.
Shift weight uphill when crossing slopes.
21YM TRX680FA5_31HS2610.book 92 ページ ２０２１年３月８日 月曜日 午前９時４６分
Basic Operation & Riding
94
Riding Your ATV
Your ATV is designed to travel through water up to approximately
10 inches (254 mm) deep. Before crossing a stream, make sure the
water is not too deep or flowing too fast.
1.
Choose a path where both banks have gradual slopes.
2.
Proceed through the water at a slow, steady speed.
3.
Watch out for submerged obstacles and slippery rocks.
4.
Avoid getting the spark plug or air cleaner wet, as this would
cause the engine to stop.
5.
After leaving the water, always test both the front and rear
brakes.
• Riding through water can make the brakes less effective than
normal, and may reduce stopping ability.
• If necessary, apply the brakes repeatedly until they dry out and
operate normally.
Riding Through Water
WARNING
3
WARNING
The ATV tires have some ability to float.
Operating this ATV through deep or fast-
flowing water may cause a loss of traction
and loss of control, which could lead to crash.
Never operate this ATV in fast-flowing water
or in water deeper than that specified in this
owner’s manual.
21YM TRX680FA5_31HS2610.book 94 ページ ２０２１年３月８日 月曜日 午前９時４６分
Basic Operation & Riding
95
Parking
1.
Look for level parking area. Make sure the ground surface is firm.
2.
After bringing your ATV to a stop, hold the brakes while you shift
into neutral.
3.
Set the parking brake.
4.
Turn the ignition switch OFF (w).
If it is necessary to start the engine when your ATV in gear and is
stopped on a grade, rock the vehicle back and forth to allow shifting
the transmission into neutral.
The brake lights are activated by applying the parking brake. When
using the parking brake, be sure to turn the ignition switch OFF (w)
to avoid discharging the battery.

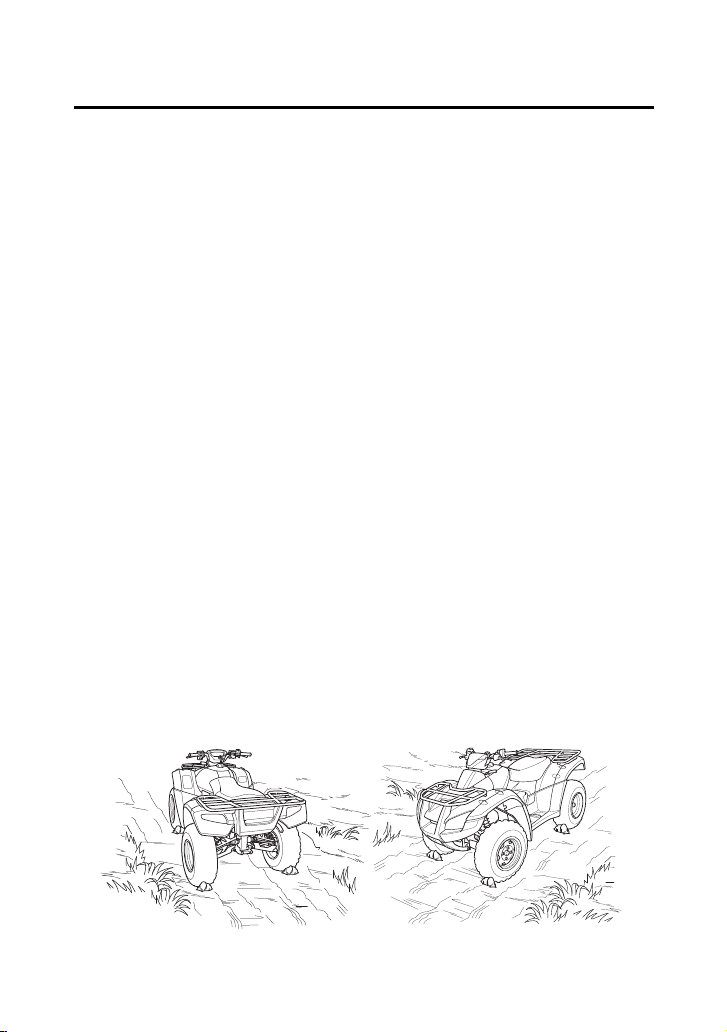

Parking on a Steep Incline or a Loose or Slippery Surface
If you must park your ATV on a steep incline or loose or slippery
surface, use the following procedure:
1.
While holding the brakes, set the parking brake.
2.
Turn the ignition switch OFF (w) and release the brakes.
3.
If the ATV begins to move, either while sitting on it or after you
dismount, find a better parking location.
4.
If rocks or other objects are available, you can block the wheels
as shown for additional security.
21YM TRX680FA5_31HS2610.book 95 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
99
Before You Service Your Honda
The Importance of Maintenance
A well-maintained ATV is essential for safe, economical, and trouble-
free riding. It will also help reduce air pollution. Careful pre-ride
inspections and good maintenance are especially important because
your ATV is designed to be ridden over rough off-road terrain.
To help you properly care for your ATV, this section of the manual
provides a Maintenance Schedule. The service intervals in this
schedule are based on average riding conditions.
Frequent servicing of the air cleaner is especially important to help
you avoid a possible costly engine repair.
If your ATV overturns or is involved in a crash, be sure your dealer
inspects all major parts, even if you are able to make some repairs.
WARNING
3
WARNING
Improperly maintaining this ATV or failing to
correct a problem before you ride can cause a
crash in which you can be seriously hurt or
killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner’s manual.
21YM TRX680FA5_31HS2610.book 99 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
100
Maintenance Safety
This section includes instructions on how to perform some important
maintenance tasks. If you have basic mechanical skills, you can
perform many of these tasks with the tools provided with your ATV.
Other tasks that are more difficult and require special tools are best
performed by professionals. Removing the wheels should normally
be handled only by a Honda technician or other qualified mechanic.
Instructions are included in this manual only to assist in emergency
service.
Some of the most important safety precautions follow. However, we
cannot warn you of every conceivable hazard that can arise in
performing maintenance. Only you can decide whether or not you
should perform a given task.
WARNING
3
WARNING
Failure to properly follow maintenance
instructions and precautions can cause you to
be seriously hurt or killed.
Always follow the procedures and
precautions in this owner’s manual.
21YM TRX680FA5_31HS2610.book 100 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
101
Maintenance Safety
• Make sure the engine is off before you begin any maintenance or
repairs. This will help eliminate several potential hazards:
Carbon monoxide poisoning from engine exhaust. Be sure
there is adequate ventilation whenever you operate the engine.
Burns from hot ATV parts. Let the engine and exhaust system
cool before touching.
Injury from moving parts. Do not run the engine unless
instructed to do so.
• Read the instructions before you begin, and make sure you have
the tools and skills required.
• To reduce the possibility of a fire or explosion, be careful when
working around gasoline. Use only non-flammable solvent, not
gasoline, to clean parts. Keep cigarettes, sparks, and flames away
from all fuel-related parts.
Remember that your Honda dealer knows your ATV best and is fully
equipped to maintain and repair it. To ensure the best quality and
reliability, use only new Honda Genuine Parts or other equivalents
for repair and replacement. If you have the tools and skills required
for additional maintenance jobs, you can purchase an official Honda
Service Manual (page 224).
Important Safety Precautions
21YM TRX680FA5_31HS2610.book 101 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
105
Maintenance Schedule
* Should be serviced by your dealer, unless you have the proper tools and service data, and are
mechanically qualified. Refer to the official Honda Service Manual (page 224).
** In the interest of safety, we recommend these items be serviced only by your dealer.
FREQUENCY
WHICHEVER
COMES FIRST
INITIAL REGULAR
Refer to
page
MAINT. MAINT. INTERVAL
mi 100 600 1200
km 150 1000 2000
MONTH
1612
ITEMS NOTE HOURS 20 100 200
DRIVETRAIN BOOTS I I 163
REAR FINAL GEAR CASE OIL
AND DIFFERENTIAL OIL
(R: EVERY
2 YEARS)
I 124
126
* BRAKE FLUID
NOTE 3
I I 147
* BRAKE PADS WEAR
NOTE 1, 2
I 150
* BRAKE LIGHT SWITCH I I I 154
BRAKE SYSTEM I I I 147
GUARDS I I 162
* SUSPENSION I I —
* SPARK ARRESTER C C 145
* NUTS, BOLTS, FASTENERS I I —
** WHEELS/TIRES I I I —
** TIE-ROD AND JOINT
BOOTS
III—
** STEERING SHAFT HOLDER
BEARINGS
I—
** STEERING SYSTEM I —
21YM TRX680FA5_31HS2610.book 105 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
106
Maintenance Record
Keeping an accurate maintenance record will help ensure that your
ATV is properly maintained. Retain detailed receipts to verify the
maintenance was performed. If the ATV is sold, these receipts should
be transferred with the ATV to the new owner. Make sure whoever
performs the maintenance completes this record. All scheduled
maintenance, including the 100 mile (150 km) or 1 month or 20
hours initial maintenance, is considered a normal owner operating
cost and will be charged for by your dealer. Use the space under
Notes to record anything you want to remind yourself about or
mention to your dealer.
Miles (km) or
months or hours
ODO or
HOUR
Date Performed
By:
Notes
100 (150) or
1 or 20
600 (1,000) or
6 or 100
1,200 (2,000) or
12 or 200
1,800 (3,000) or
18 or 300
2,400 (4,000) or
24 or 400
3,000 (5,000) or
30 or 500
3,600 (6,000) or
36 or 600
4,200 (7,000) or
42 or 700
4,800 (8,000) or
48 or 800
21YM TRX680FA5_31HS2610.book 106 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
107
Service Preparations
Maintenance Component
Locations
front brake fluid reservoir
front brake lever
rear brake
lever/parking
brake lever
fuel fill cap
throttle lever
21YM TRX680FA5_31HS2610.book 107 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
109
Maintenance Component
Locations
owner’s manual
tool kit
engine oil dipstick
spark plugs
engine oil fill cap engine oil drain bolt
gear case oil
drain bolt
gear case oil
fill cap
spark arrester
air pressure gauge
storage compartment
21YM TRX680FA5_31HS2610.book 109 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
110
Tool Kit
The tool kit (1) is stored in the tool kit compartment (2) under the
seat.
After using the tools, be sure to use the rubber band (3) to fasten the
tool kit securely.
To access the tool kit, remove the seat (see page 112), and then
remove the rubber band.
An optional, larger tool kit may be available. Check with your
dealer’s parts department.
UNDER SEAT
(1)
(2)
(1) tool kit
(2) tool kit compartment
(3)
(3) rubber band
21YM TRX680FA5_31HS2610.book 110 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
111
Owner’s Manual Storage
Your ATV provides storage for the owner’s manual so you’ll have it
with you for easy reference. Store your owner’s manual (1) in the
storage compartment (2) at the left side of the front fender.
To open the compartment, turn left the quick screw (3) and remove
the lid (4).
The owner’s manual and air pressure gauge (5) should be stored in
the plastic bag (6) and fastened with the rubber band (7).
Be careful not to flood this area when washing your ATV.
(3)
(2)
LEFT
(1) owner’s manual
(2) storage compartment
(3) quick screw
(4) lid
(5) air pressure gauge
(6) plastic bag
(7) rubber band
(1)
(5)
(6) (7)
(4)
21YM TRX680FA5_31HS2610.book 111 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
113
Service ProceduresFluids & Filters
Fuel
Refer to Safety Precautions on page 101.
Use only unleaded fuel in your Honda. If you ride your Honda in a
country where leaded fuel might be available, take precautions to
use only unleaded fuel.
Your engine is designed to use any unleaded gasoline that has a
pump octane number of 86 or higher. Gasoline pumps at service
stations normally display the pump octane number. For information
on the use of oxygenated fuels, see page 219.
Use of lower octane gasoline can cause persistent “pinging” or
“spark knock” (a loud rapping noise) which, if severe, can lead to
engine damage. Light pinging experienced while operating under a
heavy load, such as climbing a hill, is no cause for concern.
If pinging or spark knock occurs at a steady engine speed under
normal load, change brands of gasoline. If pinging or spark knock
persists, consult your dealer.
Never use stale or contaminated gasoline or an oil/gasoline mixture.
Avoid getting dirt, dust, or water in the fuel tank.
Fuel Recommendation
type unleaded
pump octane number 86 (or higher)
21YM TRX680FA5_31HS2610.book 113 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
116
Engine Oil & Filter
Engine oil quality is a major factor that affects both the performance
and the service life of the engine.
Using the proper oil (page 117) and filter, and regularly checking,
adding, and changing oil will help extend your engine’s life. Even the
best oil wears out. Changing oil helps get rid of dirt and deposits in
the engine. Operating the engine with old or dirty oil can damage
your engine. Running the engine with insufficient oil can cause
serious damage to the engine and transmission.
Change the engine oil as specified in the maintenance schedule on
page 104. When running in very dusty conditions, oil changes
should be performed more frequently than specified in the
maintenance schedule.
21YM TRX680FA5_31HS2610.book 116 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
117
Engine Oil & Filter
(cont’d)
*
Suggested oils are equal in performance to SJ oils that are not
labeled as energy conserving or resource conserving on the
circular API service label.
• Your ATV does not need oil additives. Use the recommended oil.
• Do not use oils with graphite or molybdenum additives. They may
adversely affect clutch operation.
• Do not use API SH or higher oils displaying a circular API “energy
conserving” or “resource conserving” service label on the
container. They may affect lubrication and clutch performance.
• Do not use non-detergent, vegetable, or castor based racing oils.
Oil Recommendation
API classification SG or higher except oils labeled as
energy conserving or resource
conserving on the circular API
service label
viscosity (weight) SAE 10W–30
JASO T 903
standard
MA
suggested oil
*
Pro Honda GN4 4-stroke oil or
Honda 4-stroke oil, or an
equivalent motorcycle oil.
NOT RECOMMENDED
RECOMMENDED
21YM TRX680FA5_31HS2610.book 117 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
118
Engine Oil & Filter
Other viscosities shown in the following chart may be used when the
average temperature in your riding area is within the indicated
range.
JASO T 903 standard
The JASO T 903 standard is an index for engine oils for 4-stroke
motorcycle engines.
There are two classes: MA and MB.
Oil conforming to the standard is labeled on the oil container. For
example, the following label shows the MA classification.
(1)
(2)
(1) oil code
(2) oil classification
21YM TRX680FA5_31HS2610.book 118 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
119
Engine Oil & Filter
(cont’d)
Refer to Safety Precautions on page 101.
Check the engine oil level each day before operating your ATV and
add if needed.
Before riding your ATV, check the engine oil level.
1.
Park your ATV on a firm, level surface.
2.
Start the engine in a well-ventilated area and let it idle for 3–5
minutes. Stop the engine and wait 2–3 minutes.
3.
Remove the dipstick (1) from the front crankcase cover and wipe
it clean.
4.
Insert the dipstick without screwing it in, then remove the
dipstick and check the oil level. The oil level should be between
the upper level mark (2) and the lower level mark (3) on the
dipstick.
Checking & Adding Oil
(3)
LEFT SIDE
(1) dipstick
(2) upper level mark
(3) lower level mark
(2)
(1)
21YM TRX680FA5_31HS2610.book 119 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
121
Engine Oil & Filter
(cont’d)
Refer to Safety Precautions on page 101.
Your ATV’s oil filter has very specific performance requirements. Use
a new Honda Genuine oil filter specified for your model or a filter of
equal quality.
NOTICE
Using the wrong oil filter may result in leaks or engine damage.
This procedure requires mechanical skill and professional tools such
as a torque wrench and oil filter wrench, as well as a means for
disposing of the drained fluid (page 184). If you do not have the
skills or the tools, see your dealer.
Drain the Engine Oil:
1.
With the ATV on level ground, remove the oil fill cap from the left
side of the crankcase.
2.
Place an oil drain pan under the crankcase and remove the
engine oil drain bolt (1).
Changing Engine Oil & Filter
UNDER ENGINE
(1) engine oil drain bolt
(1)
21YM TRX680FA5_31HS2610.book 121 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
122
Engine Oil & Filter
Install a New Engine Oil Filter:
3.
Remove the oil filter bolt (2) and oil filter cover (3).
Let the remaining oil drain out.
4.
Remove the oil filter (4) from the cover.
5.
Remove the spring and washer. Do not discard the washer with
the old oil filter.
6.
Discard the oil filter.
7.
Coat new O-rings (5) with oil and install them into the grooves in
the oil filter cover and oil filter bolt. Then, insert a new oil filter to
the oil filter cover.
Use only the Honda Genuine oil filter or a filter of equivalent
quality specified for your model. Using the wrong Honda filter or
a non-Honda filter which is not of equivalent quality may cause
engine damage.
8.
Install the oil filter cover and tighten the oil filter bolt. Make sure
the oil filter bolt is tightened securely to the specified torque.
Oil filter bolt torque:
13 lbf·ft (18 N·m , 1.8 kgf·m)
NOTICE
Improper installation of the oil filter can cause serious engine damage.
(5)
(4)
(2) oil filter bolt
(3) oil filter cover
(2)
(3)
(4) oil filter
(5) O-rings
21YM TRX680FA5_31HS2610.book 122 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
123
Engine Oil & Filter
9.
Pour the drained oil into a suitable container and dispose of it in
an approved manner (page 184).
NOTICE
Improper disposal of drained fluids is harmful to the environment.
Add Engine Oil:
10.
Install a new sealing washer (6) onto the drain bolt.
11.
Apply a thin coat of oil to a new O-ring (7) with oil and install into
the groove in the oil drain bolt.
12.
Reinstall the engine oil drain bolt and tighten it to the specified
torque:
18 lbf·ft (25 N·m , 2.5 kgf·m)
13.
Fill the crankcase with the recommended grade oil
approximately:
3.1 US qt (2.9 ℓ)
14.
Reinstall the oil fill cap.
15.
Start the engine and let it idle for 5 minutes.
16.
Stop the engine and after 2–3 minutes, check the oil level. Make
sure the oil is between the upper and lower level marks on the
dipstick. If necessary, add more oil but do not overfill.
17.
Reinstall the oil fill cap and dipstick.
18.
Check that there are no oil leaks.
If a torque wrench is not used for installation, see your dealer as
soon as possible to verify proper assembly.
(6)
(7)
(6) drain bolt sealing washer (7) O-ring
21YM TRX680FA5_31HS2610.book 123 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
124
Gear Case Oil
Refer to Safety Precautions on page 101.
Change the oil with the gear case at normal operating temperature
to assure complete and rapid draining.
Oil Recommendation
type hypoid gear oil
viscosity (weight) SAE 80W-90
suggested oil Honda shaft drive oil or equivalent
Changing Oil
21YM TRX680FA5_31HS2610.book 124 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
129
Coolant
(cont’d)
Increasing the concentration of antifreeze is not recommended
because it decreases cooling system performance. Higher
concentrations of antifreeze (up to 60%) should only be used to
provide additional protection against freezing. Check the cooling
system frequently during freezing weather.
Refer to Safety Precautions on page 101.
Check the engine coolant level each day before operating your ATV
and add if needed.
1.
Make sure the vehicle is on level ground.
2.
With the engine at normal operating temperature, check the
coolant level in the reserve tank (1). It should be between the
UPPER (2) and LOWER (3) level marks.
If the reserve tank is empty, or if coolant loss is excessive, check
for leaks and see your dealer for repair.
Checking & Adding Coolant
RIGHT FRONT
(2)
(3)
(1)
(1) reserve tank
(2) UPPER level mark
(3) LOWER level mark
21YM TRX680FA5_31HS2610.book 129 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
130
Coolant
3.
Remove the steering cover (4) and reserve tank cap (5).
Always add coolant to the reserve tank. Do not attempt to add
coolant by removing the radiator cap.
4.
Add coolant to the reserve tank as required to bring the coolant
level to the UPPER level mark.
5.
After adding coolant, install the reserve tank cap and steering
cover.
FRONT
(5)
(4) steering cover (5) reserve tank cap
(4)
21YM TRX680FA5_31HS2610.book 130 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
131
Coolant
Refer to Safety Precautions on page 101.
Coolant should be replaced by your dealer, unless you have the
proper tools and service data, and are mechanically qualified. Refer
to the official Honda Service Manual (page 224).
To properly dispose of drained coolant, refer to You & the
Environment, page 184.
NOTICE
Improper disposal of drained fluids is harmful to the environment.
Coolant Replacement
WARNING
3
WARNING
Removing the radiator cap while the engine is
hot can cause the coolant to spray out,
seriously scalding you.
Always let the engine and radiator cool down
before removing the radiator cap.
21YM TRX680FA5_31HS2610.book 131 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
132
Coolant
Refer to Safety Precautions on page 101.
Check the air passages for clogging or damage. Remove insects,
mud, or any obstruction with low water pressure. Have the radiator
checked by your dealer if the air flow is restricted over more than
20% of the radiator surface.
Clean the radiator core after riding the ATV in mud.

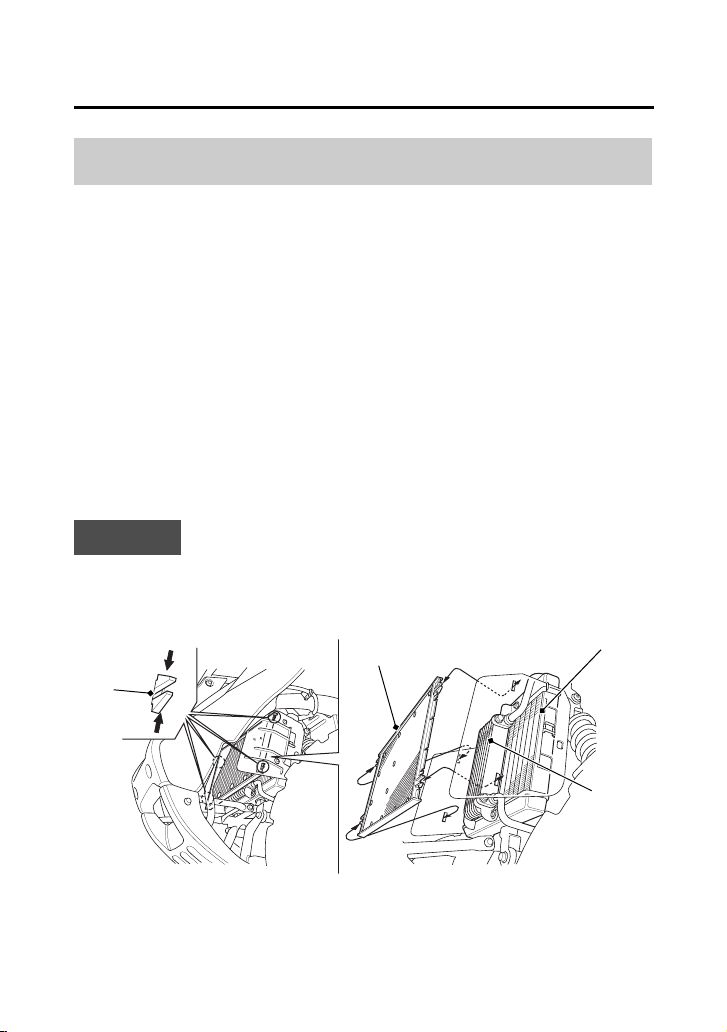

To clean the radiator core, oil cooler and radiator cover plate:
1.
Unhook the tabs (1).
2.
Remove the radiator cover plate (2).
3.
Wash the radiator core (3), oil cooler (4) and radiator cover plate.
NOTICE
Do not apply pressured water directly to the radiator core and oil
cooler. The pressured water can damage the radiator core.
Radiator Core
(4)
(1)
(1) tabs
(2) radiator cover plate
(3) radiator core
(4) oil cooler
FRONT
(3)
(2)
21YM TRX680FA5_31HS2610.book 132 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
134
Air Cleaner
1.
Remove the seat by pulling the seat latch (1) up.
2.
Unlatch the retainer clips (2).
3.
Remove the air cleaner housing cover (3).
Cleaning
UNDER SEAT
(1)
(1) seat latch
(2) retainer clips
(3) air cleaner housing cover
(2)
(3)
(2)
21YM TRX680FA5_31HS2610.book 134 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
135
Air Cleaner
(cont’d)

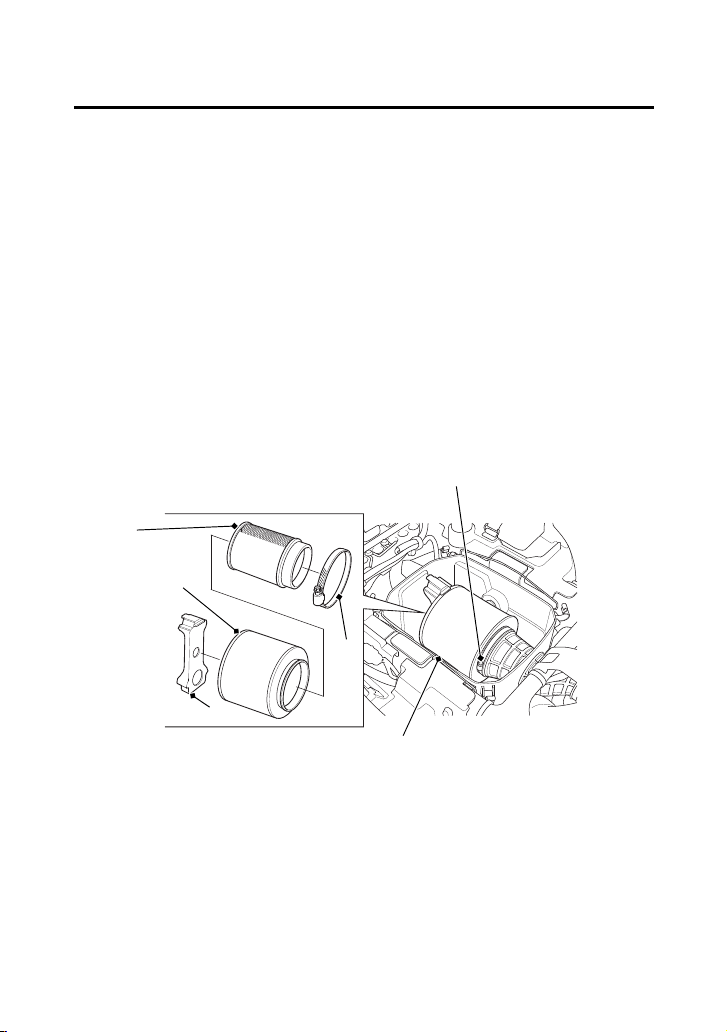

4.
Remove the element holder (4).
5.
Loosen the screw (5) and remove the air cleaner assembly (6)
from the air cleaner housing.
6.
Unscrew the clamp (7).
7.
Remove the air cleaner (8) from the air cleaner body (9).
8.
Gently wash the air cleaner in clean, non-flammable (high flash
point) solvent such as kerosene – not gasoline. After cleaning,
gently squeeze out the remaining solvent. Avoid twisting or
wringing the air cleaner. This can tear the foam.
9.
Inspect for tears or cracks in the foam or seams of the air cleaner.
Replace the air cleaner if it is damaged.
(4) element holder
UNDER SEAT
(8)
(7)
(6)
(5) screw
(6) air cleaner assembly
(7) clamp
(8) air cleaner
(9)
(4)
(9) air cleaner body
(5)
21YM TRX680FA5_31HS2610.book 135 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
138
Engine
Throttle
Refer to Safety Precautions on page 101.
Inspection
Check freeplay at the throttle lever (1).
Freeplay:
1/8 – 5/16 in (3 – 8 mm)
Adjustment
1.
Slide the rubber sleeve (2) back to expose the throttle cable
adjuster (3).
2.
Loosen the lock nut (4).
3.
Turn the adjuster to obtain the correct freeplay.
4.
Tighten the lock nut and reinstall the sleeve.
5.
After adjustment, check for smooth operation of the throttle
lever from fully closed to fully open in all steering positions.
Throttle Freeplay
RIGHT HANDLEBAR
1/8 – 5/16 in
(3 – 8 mm)
(2)
(1) throttle lever
(2) rubber sleeve
(3) throttle cable adjuster
(4) lock nut
(A) decrease freeplay
(B) increase freeplay
(A)
(B)
(3)
(4)
(1)
21YM TRX680FA5_31HS2610.book 138 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
139
Throttle
Refer to Safety Precautions on page 101.
1.
Check that the throttle assembly is positioned properly and the
securing bolts are tight.
2.
Check for smooth operation of the throttle lever from fully open
to fully closed in all steering positions. If there is a problem, see
your dealer.
3.
Inspect the condition of the throttle cables from the throttle lever
down to the throttle body. If the cable is kinked or chafed, have
it replaced.
4.
Check the cables for tension or stress in all steering positions.
5.
Lubricate the cables with a commercially available cable lubricant
to prevent premature wear and corrosion.
Throttle Inspection
21YM TRX680FA5_31HS2610.book 139 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
143
Spark Plugs
13.
With the plug washer attached, thread the spark plug in by hand
to prevent cross-threading.
14.
Tighten the spark plug:
• If the old plug is good:
1/8 turn after it seats.
• If installing a new plug, tighten it twice to prevent loosening:
a) First, tighten the plug:
1/2 turn after it seats.
b) Then, loosen the plug.
c) Next, tighten the plug again:
1/8 turn after it seats.
NOTICE
An improperly tightened spark plug can damage the engine. If a
plug is too loose, the piston may be damaged. If a plug is too tight,
the threads may be damaged.
15.
Reinstall the top spark plug cap and side spark plug cap. Take
care to avoid pinching any cables or wires.
16.
Install the remaining parts in the reverse order of removal.
21YM TRX680FA5_31HS2610.book 143 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
144
Valves
Refer to Safety Precautions on page 101.
Valve clearance should be:
Excessive clearance will cause noise. Insufficient clearance will cause
loss of power and possibly damage the valves.
For those who are mechanically proficient and have the proper tools,
instructions on adjusting valve clearances are given in the official
Honda Service Manual. Otherwise, the valves should be adjusted by
your dealer.
Valve Inspection
intake: 0.006 ± 0.001 in (0.15 ± 0.02 mm)
exhaust: 0.013 ± 0.001 in (0.32 ± 0.02 mm)
21YM TRX680FA5_31HS2610.book 144 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
145
Spark Arrester
Refer to Safety Precautions on page 101.
The spark arrester must be serviced every 100 operating hours to
maintain its efficiency.
Regular servicing prevents carbon build up (which can diminish
engine performance) and also complies with USDA regulations for
regular maintenance to assure proper function. The spark arrester
prevents random sparks from the combustion process in your engine
from reaching the environment.
1.
Allow the engine and muffler to cool.
2.
Remove the bolts (1), the spark arrester (2) and the gasket (3)
from the muffler (4).
(1)
(1) bolts
REAR
(2) spark arrester (4) muffler
(3) gasket
(2) (3) (4)
21YM TRX680FA5_31HS2610.book 145 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
146
Spark Arrester
3.
Use a brush to remove carbon deposits from the spark arrester
screen (5). Be careful to avoid damaging the spark arrester
screen. The spark arrester must be free of breaks and holes.
Replace, if necessary. Check the gasket. Replace, if necessary.
4.
Install the spark arrester and the gasket in the muffler and tighten
the bolts to the specified torque:
9 lbf·ft (12 N·m, 1.2 kgf·m)
(5)
(5) spark arrester screen
21YM TRX680FA5_31HS2610.book 146 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
148
Brakes
Refer to Safety Precautions on page 101.
Front Brake Fluid Level
If your inspection indicates a low fluid level, have your dealer add the
recommended fluid.
Do not add or replace brake fluid, except in an emergency. If you do
add fluid, have your dealer check the system as soon as possible.
NOTICE
Brake fluid can damage plastic and painted surfaces. Handle with
care.
With the ATV in an upright position, check the fluid level.
It should be above the LOWER level mark (1). If the level is at or
below the LOWER level mark, check the brake pads for wear
(page 150).
Worn brake pads should be replaced. If the pads are not worn, have
your brake system inspected for leaks.
Fluid Level Inspection
(1)
RIGHT HANDLEBAR
(1) LOWER level mark
21YM TRX680FA5_31HS2610.book 148 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
149
Brakes
Wipe up spills immediately. Avoid brake fluid contact with skin or
eyes. If it comes in contact with your eyes, wash them out with clean
water and immediately call a doctor. If it comes in contact with your
skin, wash with clean water and, if necessary, call a doctor.
Rear Brake Fluid Level
Remove the right side cover (page 72).
With the ATV in an upright position, check the fluid level.
It should be between the UPPER (2) and LOWER (3) level mark. If the
level is at or below the LOWER level mark, check the brake pads for
wear (page 150).
Worn brake pads should be replaced. If the pads are not worn, have
your brake system inspected for leaks.
• Make sure there are no fluid leaks.
• Check for deterioration or cracks in the hoses and fittings. If the
hoses are worn or cracked, have them replaced by your dealer.
Other Inspections
(2)
RIGHT SIDE
(3)
(3) LOWER level mark
(2) UPPER level mark
21YM TRX680FA5_31HS2610.book 149 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
152
Brakes
Inspection
1.
Press down on the rear brake pedal several times.
2.
Measure the distance the rear brake lever/parking brake lever (1)
moves before the brake starts to take hold. Freeplay
(measurement at the tip of the end of the brake lever) should be:
1 – 1 3/16 in (25 – 30 mm)
3.
If necessary, adjust to the specified range.
Rear Brake Lever Freeplay
(1)
LEFT HANDLEBAR
(1) rear brake lever/parking brake lever
1 – 1 3/16 in
(25 – 30 mm)
21YM TRX680FA5_31HS2610.book 152 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
153
Brakes
Adjustment
Turn the brake lever adjusting nut (2), located on the brake
operating rod at the brake caliper. Make sure the cutout on the
adjusting nut is properly seated on the brake arm pin (3).
• Check that the brake lever and brake pedal assemblies are
positioned properly and the securing bolts are tight.
• Make sure that the brake cables, brake arm, spring, and fasteners
are in good condition.
Other Inspections
(2)
RIGHT REAR
(2) brake lever adjusting nut
(3)
(3) brake arm pin
(B)
(A)
(A) increase freeplay
(B) decrease freeplay
21YM TRX680FA5_31HS2610.book 153 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
155
Tires
To safely operate your ATV, your tires must be the proper type and
size, in good condition with adequate tread, and correctly inflated.
This ATV is equipped with low pressure tubeless tires. Although the
tires are designed specifically for off-road use, they are not immune
to punctures. Always select your riding area with care.
The following pages give detailed information on how and when to
check your air pressure, how to inspect your tires for wear and
damage, and our recommendations for tire repair and replacement.
WARNING
3
WARNING
Using tires that are excessively worn or
improperly inflated can cause a crash in which
you can be seriously hurt or killed.
Follow all instructions in this owner’s manual
regarding tire inflation and maintenance.
21YM TRX680FA5_31HS2610.book 155 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
156
Tires
Refer to Safety Precautions on page 101.
Properly inflated tires provide the best combination of handling,
tread life, and riding comfort. Generally, underinflated tires wear
unevenly, adversely affect handling, and are more likely to fail from
being overheated. Overinflated tires make your ATV ride harshly, are
more prone to damage from surface hazards, and wear unevenly.
Make sure the air valve stem caps are secure. If necessary, install new
caps.
Air Pressure
21YM TRX680FA5_31HS2610.book 156 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
157
Tires
Always check air pressure when your tires are “cold.” If you check air
pressure when your tires are “warm” – even if your ATV has only
been ridden for a few miles – the readings will be higher. If you let
air out of warm tires to match the recommended cold tire pressures,
the tires will be underinflated. Be sure to check tire pressure at the
riding site, since changes in altitude can affect air pressure.
The recommended “cold” tire pressures are:
FRONT REAR
NO
CARGO
RECOMMENDED
PRESSURE
4.4 psi
(30.0 kPa)
3.6 psi
(25.0 kPa)
WITH
CARGO
RECOMMENDED
PRESSURE
4.4 psi
(30.0 kPa)
3.6 psi
(25.0 kPa)
21YM TRX680FA5_31HS2610.book 157 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
163
Drivetrain Boots
Refer to Safety Precautions on page 101.
Check the rubber driveshaft boots (1), rubber propeller shaft boots
(2) and rubber yoke joint boot (3) for cuts, damage or leaking grease.
If necessary, have your dealer replace them.
(1) rubber driveshaft boots
(1)
FRONT
REAR
(1)
(3) rubber yoke joint boot
(2) rubber propeller shaft boots
(2) (2)(3)
21YM TRX680FA5_31HS2610.book 163 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
165
Battery
Refer to Safety Precautions on page 101.
If you plan to store your ATV, we recommend you remove the
battery and store it where it can be charged at least every 30 days to
maintain its service life.
If you do not remove the battery, we recommend disconnecting the
battery cables (negative cable first).
You will get the best storage results from removing the battery and
slow charging it every 30 days (see Battery Charging, page 168).
Before you remove the battery, be sure to read all the information
that follows, as well as the information on the battery label.
Battery Storage
WARNING
3
WARNING
The battery gives off explosive hydrogen gas
during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or seriously
hurt you.
Wear protective clothing and a face shield, or
have a skilled mechanic do the battery
maintenance.
21YM TRX680FA5_31HS2610.book 165 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
166
Battery
The battery is located under the rear fender.
Removal
1.
Make sure the ignition switch is OFF (w).
2.
Remove the battery cover (1) by removing the bolts (2).
3.
Release the rings and remove the rubber band (3).
4.
Disconnect the negative (–) terminal lead (4) from the battery (5)
first, then disconnect the positive (+) terminal lead (6).
(3)
(1) battery cover
(3) rubber band
(2) bolts
(4) negative (-) terminal lead
REAR FENDER
(2)
(1)
(5) battery
(6) positive (+) terminal lead
(7) battery box
(6)
(5)
(4)
(7)
21YM TRX680FA5_31HS2610.book 166 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
167
Battery
5.
Remove the battery from battery box (7).
6.
Charge the battery (see following section).
7.
Store your battery in an easy-to-reach location off the floor, in an
area protected from freezing temperature and direct sunlight.
8.
Clean the battery box after removing the battery for storage. Dry
the battery box and, if paint is missing, re-paint the area.
9.
Slow charge the battery (see following section) once every 30
days.
Installation
1.
Reinstall in the reverse order of removal.
Be sure to connect the positive (+) terminal first, then the
negative (–) terminal.
2.
Make sure all bolts and other fasteners are secure.
21YM TRX680FA5_31HS2610.book 167 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
169
Appearance Care
Frequent cleaning and polishing will keep your Honda looking newer longer.
Frequent cleaning also identifies you as an owner who values his ATV.
A clean ATV is also easier to inspect and service.
Refer to Safety Precautions on page 101.
• To clean your ATV, you may use:
–water
– Hondabrite
– a mild, neutral detergent and water
– a mild spray and wipe cleaner/polisher
– a mild spray and rinse cleaner/degreaser and water
• Avoid products that contain harsh detergents or chemical
solvents that could damage the metal, paint, and plastic, and
camouflage coating on your ATV (Honda SxS).
• If your ATV is still warm from recent operation, give the engine
and exhaust system time to cool off.
• Park in a shady area. Washing your ATV in bright sunlight may
cause the finish to fade because water droplets intensify the sun’s
brightness.
• Spotting is also more likely because surface water can dry before
you have time to wipe it off.
• Clean your ATV regularly to protect surface finishes.
• We recommend the use of a low pressure garden hose to wash
your ATV. High pressure washers (like those at coin-operated car
washers) can damage certain parts of your ATV.
NOTICE
High pressure water (or air) can damage certain parts of your ATV.
Water entering the muffler may damage the oxygen sensor.
• After cleaning, inspect for damage, wear, and leaks (fuel, oil,
coolant and brake fluid).
General Recommendations
21YM TRX680FA5_31HS2610.book 169 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
170
Appearance Care
Refer to Safety Precautions on page 101.
1.
Cover or plug the exhaust outlet prior to washing your ATV.
2.
Rinse your ATV thoroughly with cool water to remove loose dirt.
3.
Fill a bucket with cool water. Mix in a mild, neutral detergent,
such as dish washing liquid or a product made especially for
washing motorcycles or automobiles.
4.
Wash your ATV with a sponge or soft towel. As you wash, check
for heavy grime. If necessary, use a mild cleaner/degreaser to
remove the grime.
5.
After washing, rinse your ATV thoroughly with plenty of clean
water to remove any residue. Detergent residue can corrode alloy
parts.
6.
Dry your ATV with a chamois or a soft towel. Leaving water on
the surface to air dry can cause dulling and water spots. As you
dry, inspect for chips and scratches.
7.
Remove the cover or the plug from exhaust outlet. Then, start the
engine and let it idle for several minutes. The engine heat will
help dry moist areas.
8.
As a precaution, ride your ATV at a slow speed and apply the
brakes several times. This will help dry the brakes and restore
normal braking performance.
The headlights' inside lens may fog temporarily after washing or
while riding in the rain. This does not impact the headlight
function.
Any condensation inside the headlight should dissipate after a
few minutes of running the engine with the headlight(s) on.
However, if you see a large amount of water or ice accumulated
inside the lens(es), have your vehicle inspected by your dealer.
Washing Your ATV with a Mild Detergent
21YM TRX680FA5_31HS2610.book 170 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
171
Appearance Care
Refer to Safety Precautions on page 101.
Avoid using spray cleaner products on the tires or suspension
components.
Suggestions for using spray cleaner(s) follow:
Spray Cleaning Your ATV
ATV condition Recommended Cleaning
Dust and fingerprint
smudges.
Apply a spray cleaner/polish
and wipe paint, chrome, glass,
and clear plastic.
Light road grimes. Spray any difficult-to-reach or
very dirty areas with a spray
cleaner/degreaser.
Rinse and dry.
Apply a spray cleaner/polish
and wipe with a non-abrasive
cloth.
Heavy grime. Oil leaks.
Brake dust.
Use a spray cleaner/degreaser.
If necessary, rub with a
sponge.
Rinse and dry.
Apply a spray cleaner/polish
and wipe with a non-abrasive
cloth.
Dull, corroded chrome
or aluminum.
Apply a high quality chrome/
aluminum polish and wipe
with a non-abrasive cloth.
21YM TRX680FA5_31HS2610.book 171 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
172
Appearance Care
Refer to Safety Precautions on page 101.
Aluminum may corrode from contact with dirt, mud, or road salt.
Clean the wheels after riding through any of these substances. Use
a wet sponge and mild detergent. Avoid stiff brushes, steel wool, or
cleaners containing abrasives or chemical compounds.
After washing, rinse with plenty of water and dry with a clean cloth.
Then, apply a mild, commercially available spray cleaner/polish or
wax.
For stained or dull-looking wheels, use a quality chrome/aluminum
polish to restore the finish.
Refer to Safety Precautions on page 101.
The exhaust pipe and muffler are stainless steel but may become
stained by mud or dust.
To remove mud or dust, use a wet sponge and a liquid kitchen
abrasive, then rinse well with clean water. Dry with chamois or a soft
towel.
If necessary, remove heat stains by using a commercially available
fine texture compound. Then, rinse by the same manner as removing
mud or dust.
Aluminum Wheel Maintenance
Exhaust Pipe and Muffler Maintenance
21YM TRX680FA5_31HS2610.book 172 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
173
Appearance Care
Refer to Safety Precautions on page 101.
After washing your ATV, consider using a commercially available
spray cleaner/polish or quality liquid or paste wax to finish the job.
Use only a non-abrasive polish or wax made specifically for
motorcycles or automobiles. Apply the polish or wax according to
the instructions on the container.
If a surface on your ATV is chipped or scratched, your dealer has
touch-up paint to match your ATV’s color. Be sure to use your ATV’s
color code (page 209) when you buy touch-up paint.
If the frame has a chip that exposes the metal, first apply primer (to
prevent corrosion) and then apply the touch-up paint. Several thin
layers of touch-up paint are better than one thick coat.
Finishing Touches
21YM TRX680FA5_31HS2610.book 173 ページ ２０２１年３月８日 月曜日 午前９時４６分
Servicing Your Honda
174
21YM TRX680FA5_31HS2610.book 174 ページ ２０２１年３月８日 月曜日 午前９時４６分
Tips
175
Tips
Tips
Here’s helpful advice on how to prepare for an off-road adventure,
how to transport and store your Honda, and how to be an
environmentally responsible ATV owner.
Preparing for a Ride.................................................................. 176
What to Take to the Riding Area............................................ 176
What to Take on the Trail ...................................................... 177
Transporting Your Honda ......................................................... 178
Storing Your Honda.................................................................. 180
Preparation for Storage.......................................................... 181
Removal from Storage ........................................................... 183
You & the Environment ............................................................ 184
21YM TRX680FA5_31HS2610.book 175 ページ ２０２１年３月８日 月曜日 午前９時４６分
Tips
181
Storing Your Honda
(cont’d)
Refer to Safety Precautions on page 101.
This procedure requires a means for draining and disposing of
drained fuel (page 184).
1.
Change the engine oil and filter (page 121).
2.
Make sure the cooling system is filled with a 50/50% antifreeze
solution (page 128).
3.
Fill the fuel tank. Make sure the fuel fill cap is properly installed.
4.
To prevent rusting in the cylinders, perform the following:
• Remove the spark plug caps from the spark plugs.
• Remove the spark plugs.
Do not connect the spark plugs to the spark plug caps.
• Pour a tablespoon (15 – 20 cc) of clean engine oil into the
cylinder and cover the spark plug holes with a piece of cloth.
• With the engine stop switch in the RUN (e ) position, press the
start button several times to crank the engine and distribute
the oil.
• Reinstall the spark plugs and spark plug caps.
Preparation for Storage
21YM TRX680FA5_31HS2610.book 181 ページ ２０２１年３月８日 月曜日 午前９時４６分
Tips
182
Storing Your Honda
5.
Remove the battery and charge it fully. Store it in an area
protected from freezing temperatures and direct sunlight. Slow
charge the battery (page 168) once a month.
6.
Wash and dry your ATV. Wax all painted surfaces.
7.
Inflate the tires to their recommended pressures (page 156).
8.
Store your ATV in an unheated area, free of dampness, away
from sunlight, with a minimum of daily temperature variation.
9.
Place your ATV on blocks to lift all tires off the floor.
10.
Cover your ATV with a porous material. Avoid using plastic or
similar non-breathing, coated materials that restrict air flow and
allow heat and moisture to accumulate.
NOTICE
Do not store your ATV in upright position for extended periods of
time. The ATV should be stored with all four tires on the ground. This
can damage the vehicle and leaking gasoline can be hazardous.
WARNING
3
WARNING
The battery gives off explosive hydrogen gas
during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or seriously
hurt you.
Wear protective clothing and a face shield, or
have a skilled mechanic do the battery
maintenance.
21YM TRX680FA5_31HS2610.book 182 ページ ２０２１年３月８日 月曜日 午前９時４６分
Tips
184
You & the Environment
Owning and riding an ATV can be enjoyable, but you must do your
part to protect nature. When you show respect for the land, wildlife,
and other people, you also help preserve the sport of off-road riding.
The following are tips on how you can be an environmentally
responsible ATV owner.
• Tread Lightly. Stay on existing roads and trails, avoid surfaces
that are easily damaged, and ride only in areas approved for off-
road vehicles.
• Keep the Noise Down. Loud vehicles can be offensive. Ride as
quietly as possible, don’t remove your spark arrester, and don’t
modify the muffler or any other part of your air intake and
exhaust systems. Such modifications not only increase noise, they
also reduce engine performance and may be illegal.
• Choose Sensible Cleaners. Use a biodegradable detergent
when you wash your ATV. Avoid aerosol spray cleaners that
contain chlorofluorocarbons (CFCs) which damage the
atmosphere’s protective ozone layer. Don’t throw cleaning
solvents away; see the following guidelines for proper disposal.
• Recycle Wastes. It’s illegal and thoughtless to put used engine
oil in the trash, down a drain, or on the ground. Used oil,
gasoline, and cleaning solvents contain poisons that can hurt
refuse workers and contaminate our drinking water, lakes, rivers,
and oceans. Before changing your oil, make sure you have the
proper containers. Put oil and other toxic wastes in separate
sealed containers and take them to a recycling center. Call your
local or state office of public works or environmental services to
find a recycling center in your area, and to get instructions on
how to dispose of non-recyclable wastes.
21YM TRX680FA5_31HS2610.book 184 ページ ２０２１年３月８日 月曜日 午前９時４６分
Taking Care of the Unexpected
187
Taking Care of the Unexpected
Should you ever have a problem while riding, please follow these
guidelines:
• Always put personal safety first.
• Take time to assess the situation and your options before
deciding what to do.
• If the problem is relatively minor and you have the tools, supplies,
and skills to make a temporary repair, be sure to have permanent
repairs made as soon as possible.
• Do not continue riding if you are hurt or your ATV is not in safe
riding condition.
Additional recommendations for specific problems follow.
21YM TRX680FA5_31HS2610.book 187 ページ ２０２１年３月８日 月曜日 午前９時４６分
Taking Care of the Unexpected
188
If Your Engine Quits or Won’t
Start
Proper operation and maintenance can prevent starting and engine
performance problems. In many cases, the cause of the problem may
be a simple operational oversight.
If you have a problem starting the engine – or experience poor
engine performance – the following information may help you. If
you can’t correct the problem, see your dealer.
If your ATV won’t start, listen as you press the start button. If you
don’t hear the starter motor turning, refer to the Starter motor
doesn’t operate symptom. If you can hear the starter motor working
normally, refer to the Starter motor works, but the engine won’t
start symptom.
21YM TRX680FA5_31HS2610.book 188 ページ ２０２１年３月８日 月曜日 午前９時４６分
Taking Care of the Unexpected
189
If Your Engine Quits or Won’t
Start
SYMPTOM: Starter motor doesn’t operate.
POSSIBLE CAUSE WHAT TO DO
ignition switch OFF Turn the ignition switch ON.
engine stop switch OFF Slide the engine stop switch to
RUN.
transmission not in
neutral
Shift into neutral.
blown fuse Replace with a new fuse of the
same rating (page 199).
battery terminal loose Tighten the battery terminal.
low (or dead) battery Charge the battery (page 168).
If charging doesn’t help, see
your dealer.
faulty starter motor If all possible causes are
negative, the starter motor
may be faulty. See your dealer.
SYMPTOM: Starter motor works, but the engine won’t
start.
POSSIBLE CAUSE WHAT TO DO
out of fuel Fill the fuel tank.
flooded engine See Flooded Engine (page 69).
loose or unconnected
spark plug caps
Install the spark plug caps
securely. If the engine still
won’t start, see your dealer.
loose battery cables Tighten the battery terminal
bolts.
weak battery Charge the battery (page 168).
If charging doesn’t help, see
your dealer.
21YM TRX680FA5_31HS2610.book 189 ページ ２０２１年３月８日 月曜日 午前９時４６分
Taking Care of the Unexpected
190
If Your Engine Quits or Won’t
Start
SYMPTOM: Engine starts, but runs poorly.
POSSIBLE CAUSE WHAT TO DO
high oil/coolant
temperature
Check the high oil/coolant
temperature indicator. Refer
to If the High Oil/Coolant
Temperature Indicator Lights,
page 197.
runs erratically, misfires May damage catalytic
converter. See your dealer.
blubbers (rich fuel
mixture)
See your dealer.
sooty exhaust (rich fuel
mixture)
See your dealer.
detonates or pings
under load
If applicable, switch to the
recommended octane gasoline
(page 113) or change your
brand of gasoline. If the
problem persists, see your
dealer.
afterfires (backfires) May damage catalytic
converter. See your dealer.
pre-ignition (runs on
after ignition switched
OFF)
May damage catalytic
converter. See your dealer.
SYMPTOM: Engine starts, but runs poorly or dies when
hot.
POSSIBLE CAUSE WHAT TO DO
poor or inadequate
fuel flow due to
clogged fuel filter
See your dealer.
(ensure clean fuel supply)
21YM TRX680FA5_31HS2610.book 190 ページ ２０２１年３月８日 月曜日 午前９時４６分
Taking Care of the Unexpected
192
If the Transmission Is Not
Functioning Properly
Although “--” is not blinking in the gear position indicator, the
vehicle does not move:
If your ATV won’t move, it is possible the transmission is locked. Use
the following procedure to unlock the transmission.
1.
Shift the shift lever in neutral (N) position.
2.
Apply the parking brake.
3.
Turn the ignition switch to the “OFF” (w) position.
4.
Loosen the screw (1) and release the lock plate (2).
5.
Turn the emergency valve (3) all the way in. With the engine
running, your ATV will move forward slowly at idle.
6.
See your dealer as soon as possible.
(3)
(1)
(2)
(1) screw
(2) lock plate
(3) emergency valve
LEFT SIDE
21YM TRX680FA5_31HS2610.book 192 ページ ２０２１年３月８日 月曜日 午前９時４６分
Taking Care of the Unexpected
193
If You Have a Flat Tire
How you handle a flat tire on the trail depends on how serious the
tire damage is, and what tools and supplies you have with you.
If you have a slow leak or a minor puncture, use the plug method to
make a temporary repair. (The plug method is applied from the
outside of the tire and is the same as that for conventional tubeless
tires.)
A plug-type repair kit, available at most auto parts stores or service
stations, provides a plug, an installation tool, tire cement, and an
instruction sheet. Follow the instructions provided with the repair kit
to make a temporary repair.
As soon as possible, have the tire permanently repaired by your
dealer. Any tire that cannot be repaired should be replaced.
Whenever the ATV is to be operated far from service facilities or
available transportation, we recommend that you carry a tire pump
and a repair kit with the vehicle.
If the leak is more serious, or a temporary repair doesn’t hold, the
tire must be replaced. The tire will also need to be replaced if it is
damaged (page 161). Replacing a tire involves removing and re-
installing the wheel (page 195).
If you are unable to repair a flat tire on the trail, you will need to send
for help. We strongly recommend that you do not try to ride with a
flat tire. The ATV will be hard to handle, and if the tire comes off the
rim, it may lock up the wheel and cause you to crash.
21YM TRX680FA5_31HS2610.book 193 ページ ２０２１年３月８日 月曜日 午前９時４６分
Taking Care of the Unexpected
194
If You Have a Flat Tire
WARNING
3
WARNING
Riding your ATV with a temporary tire repair
can be risky.
If the temporary repair fails, you can crash
and be seriously injured or killed. If you must
ride with a temporary tire repair, ride slowly
and carefully until the tire is permanently
repaired or replaced.
21YM TRX680FA5_31HS2610.book 194 ページ ２０２１年３月８日 月曜日 午前９時４６分
Taking Care of the Unexpected
197
(cont’d)
If the High Oil/Coolant
Temperature Indicator Lights
Normally, the high oil/coolant temperature indicator will only light
momentarily when you turn the ignition ON (q). Occasionally, it may
flicker at or near idling speed.
High oil/coolant temperature may be caused by restriction of air flow
to the radiator (such as mud caked on the radiator or oil cooler),
extended idling, an oil leak, a coolant leak, a low oil level, a low
coolant level, or extended operation under adverse conditions.
If the indicator comes on while you’re riding, don’t ignore it. Pull
safely to a stop. Stop the engine as soon as it’s safe to do so, and let
it cool.
NOTICE
Continuing to ride with low oil pressure or an overheated engine can
cause serious engine damage.
• A steaming engine indicates a coolant leak. Shut the engine off
and wait until the steaming stops. Look for a leak, but don’t
touch the engine or radiator system. Let everything cool off first.
• Check for any restriction of air flow to the radiator or oil cooler.
• If there’s no obvious problem, leave the engine on so the fan and
coolant circulating system can continue working. Monitor the
high coolant temperature indicator. The indicator may turn off
after a brief stop with no load on the engine.
• Check the radiator fan.
If the fan is not working, turn the engine off. Open the fuse box
(page 200) and check the radiator fan fuse. If the fuse is blown,
replace it with the proper (same rating) spare fuse. Start the
engine. If the high coolant temperature indicator comes on and
stays on, turn the engine off.
If the radiator fan is working, visually check the coolant level in
the reserve tank, located under the rear fender. It isn’t necessary
to touch the radiator system.
21YM TRX680FA5_31HS2610.book 197 ページ ２０２１年３月８日 月曜日 午前９時４６分
Taking Care of the Unexpected
201
If a Fuse Blows
Circuit Fuse Access
5.
To check or replace a circuit fuse (6), pull the old fuse out of its
retaining clips.
If the fuse is blown, replace it with a spare fuse (7) of the same
rating.
If you do not have a replacement fuse with the proper rating for the
circuit, install one with a lower rating.
NOTICE
Replacing a fuse with one that has a higher rating greatly increases
the chance of damage to the electrical system.
6.
Install the fuse box cover.
7.
Install the seat.
(6)
(7)
(6) circuit fuses (7) spare fuses
21YM TRX680FA5_31HS2610.book 201 ページ ２０２１年３月８日 月曜日 午前９時４６分
Taking Care of the Unexpected
203
If You Crash
Personal safety is your first priority after a crash. If you or anyone else
has been injured, take time to assess the severity of the injuries and
whether it is safe to continue riding. If you cannot ride safely, send
someone for help. Do not ride if you will risk further injury.
If you decide you are capable of riding safely, carefully inspect your
ATV for damage and determine if it is safe to ride. Check the
tightness of critical nuts and bolts securing such parts as the
handlebar, control levers, brakes, and wheels.
If there is minor damage, or you are unsure about possible damage
but decide to try riding the ATV back to your base, ride slowly and
cautiously.
Sometimes, crash damage is hidden or not immediately apparent.
When you get home, thoroughly check your ATV and correct any
problems you find. Also, be sure to have your dealer check the frame
and suspension after any serious crash.
21YM TRX680FA5_31HS2610.book 203 ページ ２０２１年３月８日 月曜日 午前９時４６分
Taking Care of the Unexpected
204
If You Lose Your Key
Be sure to record your key number (1). Store the spare key and
recorded key number in a safe location. You’ll need this number to
have a duplicate key made.
If you lose your key and aren’t carrying a duplicate, either get your
spare or have one made. If you don’t know your key number, call the
dealer where you purchased your Honda ATV. They may have it
listed in their records. If they don’t, transport your ATV to them or
the nearest dealer. The dealer will probably have to remove the
ignition switch assembly to find the key number so they can make a
key for you.
(1)
(1) key number
21YM TRX680FA5_31HS2610.book 204 ページ ２０２１年３月８日 月曜日 午前９時４６分
Technical Information
209
Vehicle Identification
The color label (1) is attached to the frame under the seat.
Remove the seat (page 112) to check the label.
The color code is helpful when ordering replacement parts. You may
record the color and code in the Quick Reference section at the rear
of this manual.
Color Label & Code
UNDER SEAT
(1)
(1) color label
21YM TRX680FA5_31HS2610.book 209 ページ ２０２１年３月８日 月曜日 午前９時４６分
Technical Information
210
Specifications
Dimensions
overall length 83.3 in (2,117 mm)
overall width 46.7 in (1,185 mm)
overall height 47.5 in (1,206 mm)
wheelbase 50.6 in (1,284 mm)
ground clearance 9.1 in (232 mm)
Fuel & Lubricants
fuel
recommendation
unleaded gasoline, pump octane
number of 86 or higher
fuel tank capacity 4.44 US gal (16.8 ℓ)
engine oil
capacity
after disassembly:
4.3 US qt (4.1 ℓ)
after draining:
2.9 US qt (2.7 ℓ)
after draining & oil filter change:
3.1 US qt (2.9 ℓ)
engine oil API Service Classification SG or
higher except oils labeled as energy
conserving or resource conserving
on the circular API service label, SAE
10W-30, JASO T 903 standard MA,
Pro Honda GN4 4-stroke oil or
Honda 4-stroke oil, or an equivalent
motorcycle oil
21YM TRX680FA5_31HS2610.book 210 ページ ２０２１年３月８日 月曜日 午前９時４６分
Technical Information
211
Specifications
Fuel & Lubricants (cont’d)
cooling system
recommendation
Pro Honda HP Coolant or an
equivalent high quality ethylene
glycol antifreeze containing
corrosion protection inhibitors
specifically recommended for use in
aluminum engines
cooling system
capacity
2.1 US qt (2.0 ℓ)
Capacities
passenger
capacity
operator only
maximum weight
capacity
485 lb (220 kg)
rider, all cargo and accessories
Engine Specifications
displacement 41.2 cu-in (675 cm
3
)
bore & stroke 4.02 × 3.25 in (102.0 × 82.6 mm)
compression ratio 9.2 : 1
spark plug
(standard)
CPR6EB-9 (NGK)
spark plug gap 0.031 – 0.035 in (0.80 – 0.90 mm)
valve clearance
(cold)
intake: 0.006 ± 0.001 in
(0.15 ± 0.02 mm)
exhaust: 0.013 ± 0.001 in
(0.32 ± 0.02 mm)
idle speed 1,400 ± 100 rpm NO ADJUSTMENT
21YM TRX680FA5_31HS2610.book 211 ページ ２０２１年３月８日 月曜日 午前９時４６分
Technical Information
216
Emission Control Systems
Source of Exhaust Emissions
The combustion process produces carbon monoxide (CO), oxides of
nitrogen (NOx) and hydrocarbons (HC). Control of hydrocarbons and
oxides of nitrogen is very important because, under certain
conditions, they react to form photochemical smog when subjected
to sunlight. Carbon monoxide does not react in the same way, but it
is toxic.
Honda Motor Co., Ltd. utilizes various systems to reduce carbon
monoxide, oxides of nitrogen and hydrocarbons.
Exhaust Emission Control System
The exhaust emission control system includes a PGM-FI system and
oxygen sensor.
No adjustment to this system should be made although periodic
inspection of the components is recommended.
The exhaust emission control system is separate from the crankcase
emission control system.
Crankcase Emission Control System
The engine is equipped with a closed crankcase system to prevent
discharging crankcase emissions into the atmosphere. Blow-by gas is
returned to the combustion chamber through the air cleaner.
21YM TRX680FA5_31HS2610.book 216 ページ ２０２１年３月８日 月曜日 午前９時４６分
Technical Information
220
Oxygenated Fuels
If you notice any undesirable operating symptoms, try another
service station or switch to another brand of gasoline.
Fuel system damage or performance problems resulting from the use
of an oxygenated fuel containing more than the percentages of
oxygenates mentioned above are not covered under warranty.
Oxygenated fuels can damage paint and plastic. Be careful not to
spill fuel when filling the fuel tank. Wipe up any spills immediately.
NOTICE
Oxygenated fuels can damage paint and plastic. Damage caused by
spilled fuel is not covered by warranty.
21YM TRX680FA5_31HS2610.book 220 ページ ２０２１年３月８日 月曜日 午前９時４６分
Technical Information
221
Catalytic Converter
This ATV is equipped with a three-way catalytic converter.
The catalytic converter contains precious metals that serve as
catalysts, promoting chemical reactions to convert the exhaust
gasses without affecting the metals.
The catalytic converter acts on HC, CO, and NOx. A replacement unit
must be an original Honda part or its equivalent.
The catalytic converter must operate at a high temperature for the
chemical reactions to take place. It can set fire to any combustible
materials that come near it. Park your ATV away from high grasses,
dry leaves, or other flammables.
A defective catalytic converter contributes to air pollution, and can
impair your engine’s performance. Follow these guidelines to protect
your ATV’s catalytic converter.
• Always use unleaded fuel. Even a small amount of leaded fuel
can contaminate the catalyst metals, making the catalytic
converter ineffective.
• Keep the engine in good running condition.
A poorly running engine can cause the catalytic converter to
overheat causing damage to the converter or the ATV.
• If your engine is misfiring, backfiring, stalling, or otherwise not
running properly, stop riding and turn off the engine. Have your
ATV serviced as soon as possible.
21YM TRX680FA5_31HS2610.book 221 ページ ２０２１年３月８日 月曜日 午前９時４６分
Technical Information
222
21YM TRX680FA5_31HS2610.book 222 ページ ２０２１年３月８日 月曜日 午前９時４６分
Consumer Information
223
Consumer Information
Consumer Informa tion
This section contains information on your warranty and how to get
an official Honda service manual.
Authorized Manuals ................................................................. 224
Warranty Coverage .................................................................. 225
Warranty Service ...................................................................... 226
Contacting Honda .................................................................... 227
Your Honda Dealer................................................................... 228
21YM TRX680FA5_31HS2610.book 223 ページ ２０２１年３月８日 月曜日 午前９時４６分
Consumer Information
226
Warranty Service
Please remember that recommended maintenance interval servicing
is not included in your warranty coverage. Additionally, your
warranty does not apply to the normal wear of items (such as brakes,
tires, etc.).
If you believe you have a problem with your ATV, call the service
department of your dealer. Make an appointment for an inspection
and diagnosis. Remember, as the owner of the ATV, you will be
asked to authorize that inspection. Your dealer will give you the
results of the inspection. If the problem is covered under warranty,
your dealer will perform the warranty repairs for you.
If you have questions about warranty coverage or the nature of the
repair, it is best to talk to the Service Manager of your dealer.
Sometimes, in spite of the best intentions of all concerned, a
misunderstanding may occur. If you aren’t satisfied with your
dealer’s handling of the situation, we suggest you discuss your
problem with the appropriate member of the dealership’s
management team. If the problem has already been reviewed with
the Service Manager, Parts Manager, Sales Manager, etc., contact
the Owner of the dealership or their designated representative.
21YM TRX680FA5_31HS2610.book 226 ページ ２０２１年３月８日 月曜日 午前９時４６分
Index
Index
230
Index
A
accessories .................................................................................57
accessory socket .........................................................................40
age recommendation .................................................................47
air cleaner,
filter ......................................................................................133
housing drain tube ................................................................137
air pressure,
gauge ....................................................................................111
tire ........................................................................................155
American Honda, contacting ....................................................225
apparel, protective ......................................................................44
appearance care .......................................................................169
authorized manuals ..................................................................222
21YM TRX680FA5_31HS2610.book 230 ページ ２０２１年３月８日 月曜日 午前９時４６分
Index
231
Index
B
bank angle sensor ignition cut-off system ...................................69
battery .....................................................................................162
brakes,
cables ....................................................................................151
fluid ......................................................................................147
front brake lever ......................................................................37
pad wear ...............................................................................150
parking ....................................................................................38
rear brake lever .......................................................................37
rear brake lever freeplay ........................................................152
rear brake pedal ......................................................................37
braking .......................................................................................81
break-in guidelines ...................................................................214
button,
ADJ .........................................................................................26
hour select ..............................................................................26
minute select ...........................................................................26
odometer/tripmeter select .......................................................23
RESET ......................................................................................24
21YM TRX680FA5_31HS2610.book 231 ページ ２０２１年３月８日 月曜日 午前９時４６分
Index
233
Index
D
differential oil ...........................................................................126
dimmer switch, headlight ...........................................................33
dipstick .....................................................................................119
display, multi-function ................................................................19
drive mode indicator ...................................................................20
drive mode select switch .............................................................30
drivetrain boots ........................................................................163
E
emission control systems ..........................................................215
engine,
flooded ...................................................................................69
guards ...................................................................................162
number .................................................................................208
oil ..........................................................................................116
pinging ..................................................................................113
starting ....................................................................................66
stop switch ..............................................................................32
stopping ..................................................................................71
won’t start ............................................................................188
environment .............................................................................184
21YM TRX680FA5_31HS2610.book 233 ページ ２０２１年３月８日 月曜日 午前９時４６分
Index
235
Index
H
headlight dimmer switch ............................................................33
headlight switch .........................................................................33
hills,
crossing or turning on slopes ...................................................90
riding down hills ......................................................................89
riding up hills ...........................................................................85
stopping on hills ......................................................................87
Honda service manual ..............................................................224
Honda,
contacting .............................................................................227
dealer ....................................................................................228
hour meter ...........................................................................25, 26
21YM TRX680FA5_31HS2610.book 235 ページ ２０２１年３月８日 月曜日 午前９時４６分
Index
236
Index
I
identification, vehicle ................................................................208
ignition switch ............................................................................28
indicators,
4WD indicator ...................................................................16, 31
drive mode indicator ................................................................20
gear position indicator .............................................................21
high oil/coolant temperature indicator .....................................16
neutral indicator ......................................................................17
oil change indicator .................................................................22
PGM-FI indicator ......................................................................18
reverse indicator ......................................................................16
inspection, pre-ride .....................................................................49
K
key, lost ....................................................................................204
kit, tool ....................................................................................110
21YM TRX680FA5_31HS2610.book 236 ページ ２０２１年３月８日 月曜日 午前９時４６分
Index
237
Index
L
labels, safety .................................................................................5
lamp check .................................................................................15
limit, weight ...............................................................................55
loading guidelines ......................................................................56
lubrication,
differential oil ........................................................................126
engine oil ..............................................................................116
gear case oil ..........................................................................124
M
maintenance,
importance ..............................................................................99
precautions ...........................................................................101
record ...................................................................................106
safety ....................................................................................100
schedule ................................................................................102
manual, service .........................................................................224
maximum weight limit ................................................................55
modifications ..............................................................................58
multi-function display .................................................................19
21YM TRX680FA5_31HS2610.book 237 ページ ２０２１年３月８日 月曜日 午前９時４６分
Index
239
Index
P
parking .......................................................................................95
passenger, no carrying ................................................................47
pavement, no riding on ..............................................................61
pinging, engine ........................................................................113
plugs, spark ..............................................................................140
pre-ride inspection ......................................................................49
problems, unexpected ..............................................................185
propeller shaft boots & yoke joint boot .....................................163
protective apparel .......................................................................44
R
rear final gear case oil ...............................................................124
recoil starter ...............................................................................34
removal, seat ............................................................................112
reverse,
gear, shifting into ....................................................................79
indicator ..................................................................................16
riding in ...................................................................................79
rider training ..............................................................................46
riding,
basic operation ........................................................................59
clothing ...................................................................................44
over obstacles ..........................................................................92
precautions .............................................................................61
preparing for .........................................................................176
safety ........................................................................................2
safety precautions ...................................................................61
through water .........................................................................94
21YM TRX680FA5_31HS2610.book 239 ページ ２０２１年３月８日 月曜日 午前９時４６分
Index
240
Index
S
safety,
important precautions .............................................................99
labels .........................................................................................5
riding precautions ....................................................................61
schedule, maintenance .............................................................102
seat removal .............................................................................112
serial numbers ..........................................................................206
service,
customer ...............................................................................227
manuals ................................................................................224
warranty ................................................................................226
shift lever ...................................................................................29
shifting gears ..............................................................................73
skid plate ..................................................................................170
skidding or sliding ......................................................................85
spark arrester ...........................................................................145
spark knock ..............................................................................113
spark plugs ...............................................................................140
specifications ............................................................................210
speedometer ..............................................................................17
stalling on a hill ..........................................................................88
start button ................................................................................32
21YM TRX680FA5_31HS2610.book 240 ページ ２０２１年３月８日 月曜日 午前９時４６分
Index
241
Index
starting,
engine .....................................................................................66
troubleshooting .....................................................................188
stop switch, engine ....................................................................32
stopping engine .........................................................................70
storage,
ATV .......................................................................................180
owner’s manual .....................................................................111
switch,
2WD/4WD select .....................................................................31
headlight .................................................................................33
headlight dimmer ....................................................................33
ignition ....................................................................................28
21YM TRX680FA5_31HS2610.book 241 ページ ２０２１年３月８日 月曜日 午前９時４６分
21YM TRX680FA5_31HS2610.book 246 ページ ２０２１年３月８日 月曜日 午前９時４６分
21YM TRX680FA5_31HS2610.book 247 ページ ２０２１年３月８日 月曜日 午前９時４６分
21YM TRX680FA5_31HS2610.book 248 ページ ２０２１年３月８日 月曜日 午前９時４６分
Quick Reference
Quick Reference
Quick Reference
The following is a brief, but important collection of information you
need to know about your Honda. You’ll also find space to record
important notes.
The engine of your Honda can be the most expensive component to
repair. Proper maintenance, especially the use of the recommended
fluids and filters, prevents premature wear and damage.
Frequent causes of costly repairs are:
• Engine oil — insufficient quantity, improper oil.
• Air cleaner — dirty, leaking because of improper installation
(poor seal).
Record important information on the following page:
How To Avoid Costly Repairs
21YM TRX680FA5_31HS2610.book 252 ページ ２０２１年３月８日 月曜日 午前９時４６分
Quick Reference
Quick Reference
Tires Front: AT25 × 8-1211
MAXXIS M975
Rear: AT25 × 10-1211
MAXXIS M978
Tire Pressure
(cold)
Front: 4.4 psi (30.0 kPa)
Rear: 3.6 psi (25.0 kPa)
Spark Plugs standard:
CPR6EB-9 (NGK)
Coolant ethylene glycol antifreeze (silicate-
free) for aluminum engines in 50/50
solution with Pro Honda HP Coolant
or an equivalent distilled water
Fuses main 1: 30 A
main 2: 30 A
others: 15 A × 2, 10 A × 3
21YM TRX680FA5_31HS2610.book 255 ページ ２０２１年３月８日 月曜日 午前９時４６分
Quick Reference
Quick Reference
These symbols are used in Controls & Features section:
SYMBOL COMPONENT SEE PAGE
q ON — ignition switch 28
w OFF — ignition switch 28
2WD/4WD select switch 31
4WD indicator — lights when the
4WD mode
31
o START button 32
e RUN — engine stop switch 32
r OFF — engine stop switch 32
y ON — headlight switch 33
t OFF — headlight switch 33
u HI — headlight dimmer switch 33
i LO — headlight dimmer switch 33
a upshift switch — gearshift switch 36
s downshift switch — gearshift switch 36
lock lever — parking brake 38
21YM TRX680FA5_31HS2610.book 256 ページ ２０２１年３月８日 月曜日 午前９時４６分
California Proposition 65 Warning
WARNING: Operating, servicing and
maintaining a passenger vehicle or off-highway
motor vehicle can expose you to chemicals including
engine exhaust, carbon monoxide, phthalates, and
lead, which are known to the State of California to
cause cancer and birth defects or other reproductive
harm. To minimize exposure, avoid breathing
exhaust, do not idle the engine except as necessary,
service your vehicle in a well-ventilated area and
wear gloves or wash your hands frequently when
servicing your vehicle. For more information go to
www.P65Warnings.ca.gov/passenger-vehicle.
