Contents
Contents
.......................................................................................ATV Safety .
...................................................................Instruments & Controls .
....................................................................................Before Riding .
...............................................................Basic Operation & Riding .
1
9
43
59
These pages give an overview of the contents of your owner’s manual.
The first page of each section lists the topics covered in that section.
Important safety information you should know, plus a look at the
safety related labels on your ATV.
The location and function of indicators and controls on your ATV
and operating instructions for various controls and features.
The importance of wearing a helmet and other protective gear,
how to make sure you and your ATV are ready to ride, and
important information about loading.
How to start and stop the engine, shift gears, and brake. Also,
riding precautions.
１０／０４／１９ １３：００：３２ ３１ＨＮ８６８０ ０００７
Contents
Contents
.....................................................................Servicing Your Honda .
....................................................................................................Tips .
......................................................Taking Care of the Unexpected .
.....................................................................Technical Information .
....................................................................Consumer Information .
..................................................................................................Index .
Quick Reference
95
171
181
203
217
226
Why your ATV needs regular maintenance, what you need to know
before servicing your Honda, an owner maintenance schedule, and
instructions for specific maintenance and adjustment items.
How to store and transport your ATV and how to be an
environmentally responsible rider.
What to do if you have a flat tire, your engine won’t start, etc.
ID numbers, technical specifications, and other technical facts.
Information on warranties, emission controls, how to get Honda
service manuals.
Handy facts about fuel, engine oil, tire sizes, and air pressures.
１０／０４／１９ １３：００：４４ ３１ＨＮ８６８０ ０００８
2011
Honda TRX680FA
FOURTRAX RINCON
OWNER’S MANUAL
FOR OFF-ROAD USE ONLY
This vehicle is designed and manufactured for off-road use only.
USA only:
It conforms to US EPA Noise Emission regulations, but does not
conform to Federal Motor Vehicle Safety Standards or US EPA On
Highway Exhaust Emission regulations, and operation on public streets,
roads, or highways is illegal. The vehicle is equipped with a USDA
qualified spark arrester. Obey local laws and regulations.
It conforms to US EPA, California, and Environment Canada emission
regulations for ATVs.
１０／０４／１９ １２：５９：５３ ３１ＨＮ８６８０ ０００２
−
Introduction
Introduction
Congratulations on choosing your Honda ATV.
When you own a Honda, you’re part of a worldwide family of satisfied
customers people who appreciate Honda’s reputation for building
quality into every product.
Your Honda was designed as a recreational ATV for off-road use by
one rider only.
Before riding, take time to get acquainted with your ATV and how it
works. To protect your investment, we urge you to take responsibility
for keeping your ATV well maintained. Scheduled service is a must, of
course. But it’s just as important to observe the break-in guidelines, and
perform all pre-ride and other periodic checks detailed in this manual.
We also recommend that you read this owner’s manual before you ride.
It’s full of facts, instructions, safety information, and helpful tips. To
make it easy to use, the manual contains a detailed list of topics at the
beginning of each section and an index at the back of the book.
As you read this manual, you will find information that is preceded by a
symbol. This information is intended to help you avoid damage
to your Honda, other property, or the environment.
Read the Warranties Booklet (page ) thoroughly so you understand
the coverages that protect your new Honda and are aware of your rights
and responsibilities.
Whenever you ride, tread lightly. By staying on established trails and
riding only in approved areas, you help protect the environment and
keep off-road riding areas open for the future.
221
１０／０４／１９ １３：００：０３ ３１ＨＮ８６８０ ０００３
Introduction
Introduction
WARNING:
California Proposition 65 Warning
This product contains or emits chemicals known to the
State of California to cause cancer and birth defects or other
reproductive harm.
If you have any questions, or if you ever need special service or repairs,
remember that your Honda dealer knows your ATV best and is
dedicated to your complete satisfaction.
You may also want to visit our website at www.honda.com.
Please report any change of address or ownership to your Honda dealer
so we will be able to contact you concerning important product
information.
Happy riding!
１０／０４／１９ １３：００：１０ ３１ＨＮ８６８０ ０００４
A Few Words About Safety
Safety Labels
Safety Messages
DANGER, WARNING, CAUTION
A Few Words About Safety
–– on the ATV.
–– preceded by a safety alert symbol and one of
three signal words: or .
Your safety, and the safety of others, is very important. And operating
this ATV safely is an important responsibility.
To help you make informed decisions about safety, we have provided
operating procedures and other information on labels and in this manual.
This information alerts you to potential hazards that could hurt you or
others.
Of course, it is not practical or possible to warn you about all hazards
associated with operating or maintaining an ATV. You must use your
own good judgment.
You will find important safety information in a variety of forms,
including:
１０／０４／１９ １３：００：１４ ３１ＨＮ８６８０ ０００５
YouWILLbeKILLEDor
SERIOUSLY HURT if you don’t
follow instructions.
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow
instructions.
You CAN be HURT if you don’t
follow instructions.
A Few Words About Safety
A Few Words About Safety
Safety Headings
Safety Section
Instructions
These signal words mean:
–– such as Important Safety Reminders or Important
Safety Precautions.
–– such as ATV Safety.
–– how to use this ATV correctly and safely.
This entire manual is filled with important safety information –– please
read it carefully.
１０／０４／１９ １３：００：２１ ３１ＨＮ８６８０ ０００６
1
ATV Safety
ATV Safety
This section presents some of the most important information and
recommendations to help you ride your ATV safely. Please take a few
moments to read these pages. This section also includes information
about the location of safety labels on your ATV.
.........................................................................................Safety Labels .
...............................................................Important Safety Information . 2
5
１０／０４／１９ １３：００：５２ ３１ＨＮ８６８０ ００１０
2
Important Safety Information
Follow the Age Recommendation
Never Carry a Passenger
Always Wear a Helmet
ATV Safety
Your ATV can provide many years of service and pleasure if you take
responsibility for your own safety and understand the challenges you
can meet while riding.
There is much that you can do to protect yourself when you ride. You’ll
find many helpful recommendations throughout this manual. The
following are a few that we consider to be most important.
The minimum recommended age for this ATV model is 16. Children
under age 16 should never operate this vehicle. Refer to the age
warnings provided in this manual and on the ATV.
Your ATV is designed for one person only. There are no handholds,
footrests, or seat for a second person, so never carry a passenger. A
passenger could interfere with your ability to move around to maintain
your balance and control of the ATV.
It’s a proven fact: helmets significantly reduce the number and severity
of head injuries. So always wear an approved motorcycle helmet. We
also recommend that you wear eye protection, sturdy boots, gloves, and
other protective gear (page ).44
１０／０４／１９ １３：０１：０１ ３１ＨＮ８６８０ ００１１
3
Important Safety Information
ATV Safety
Ride Off-road Only
Take Time to Learn & Practice
Be Alert for Off-road Hazards
Your ATV is designed and manufactured for off-road use only. The
tires are not made for pavement, and the ATV does not have turn signals
and other features required for use on public roads. If you need to cross
a paved or public road, get off and walk your ATV across.
The terrain can present a variety of challenges when you ride off-road.
Continually ‘‘read’’ the terrain for unexpected turns, drop-offs, rocks,
ruts, and other hazards. Always keep your speed low enough to allow
time to see and react to hazards.
Even if you have ridden other ATVs, take time to become familiar with
how this ATV works and handles. Practice in a safe area until you build
your skills and get accustomed to the ATV’s size and weight.
Because many crashes involve inexperienced or untrained riders, we
urge all riders to take a ATV operator course approved by the ATV
Safety Institute (ASI). See page .
Contact an authorized ATV dealer or call 1-800-887-2887 (USA only)
to find out about the training courses nearest you.
46
１０／０４／１９ １３：０１：０９ ３１ＨＮ８６８０ ００１２
4
Important Safety Information
ATV Safety
Ride within Your Limits
Keep Your Honda in Safe Condition
Don’t Drink and Ride
Pushing limits is another major cause of ATV crashes. Never ride
beyond your personal abilities or faster than conditions warrant.
Remember that alcohol, drugs, fatigue, and inattention can significantly
reduce your ability to make good judgments and ride safely.
Alcohol and riding don’t mix. Even one drink can reduce your ability to
respond to changing conditions, and your reaction time gets worse with
every additional drink. So don’t drink and ride, and don’t let your
friends drink and ride either.
It’s important to keep your ATV properly maintained and in safe riding
condition. Having a breakdown can be difficult, especially if you are
stranded off-road far from your base. To help avoid problems, inspect
your ATV before every ride and perform all recommended maintenance.
１０／０４／１９ １３：０１：１７ ３１ＨＮ８６８０ ００１３
5
ATV Safety

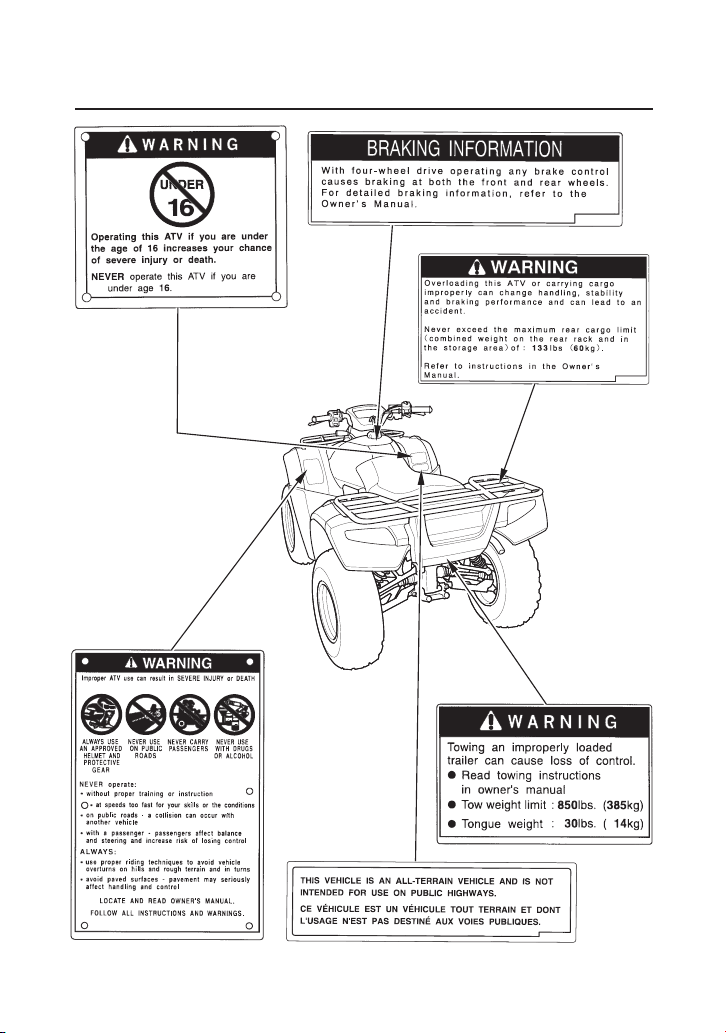

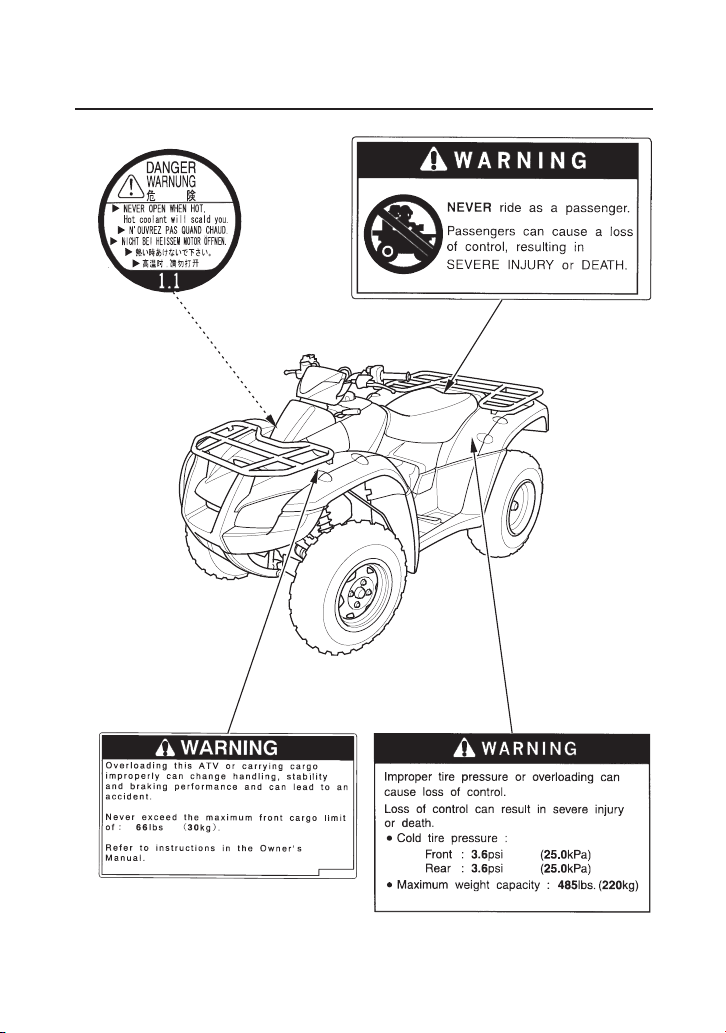

Safety Labels
The labels should be considered permanent parts of the vehicle. If a
label comes off or becomes hard to read, contact your Honda dealer for
replacements.

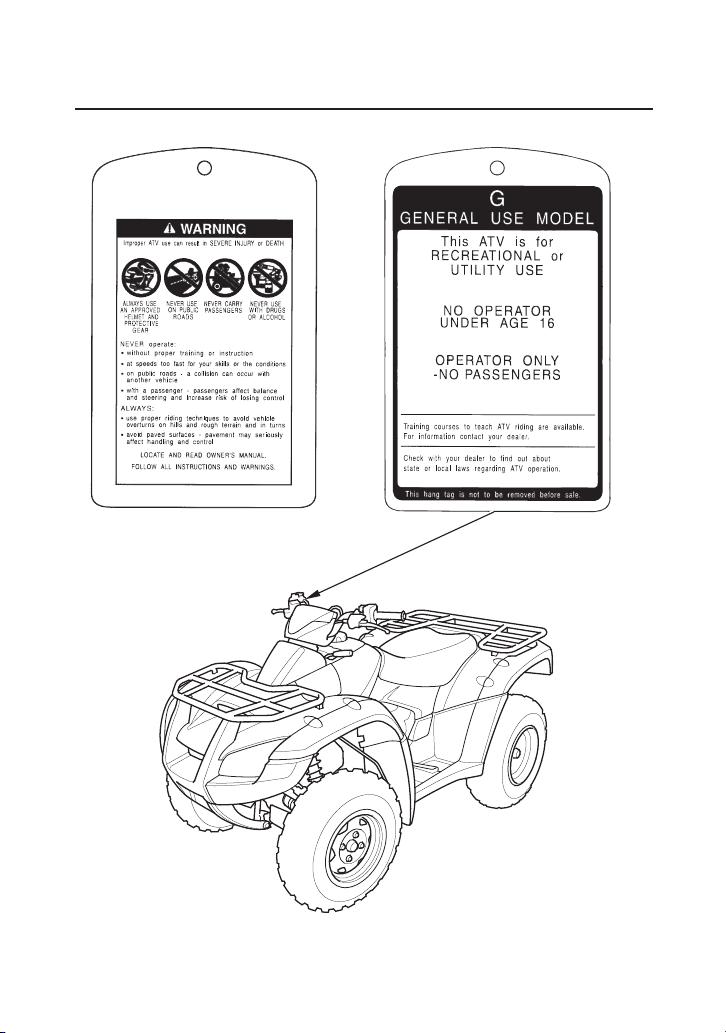

Your ATV comes with a hang tag and several labels containing
important safety information. Anyone who rides the vehicle should read
and understand this information before riding.
１０／０４／１９ １３：０１：２２ ３１ＨＮ８６８０ ００１４
6
Safety Labels
ATV Safety
１０／０４／１９ １３：０１：３５ ３１ＨＮ８６８０ ００１５
7
Safety Labels
ATV Safety
１０／０４／１９ １３：０１：４８ ３１ＨＮ８６８０ ００１６
(For Canada)
8
Safety Labels
ATV Safety
１０／０４／１９ １３：０２：０８ ３１ＨＮ８６８０ ００１７
9
Instruments & Controls
Instruments & Controls
This section shows the location of all indicators and controls you would
normally use before or while riding your ATV.
The items listed on this page are described in this section. Instructions
for other components are presented in other sections of this manual
where they will be most useful.
(cont’d)
............................................................................Indicators & Displays .
......................................................................Multi-function Display .
........................................................................Drive Mode Indicator .
......................................................................Gear Position Indicator .
.........................................................................Oil Change Indicator .
...........................................................................................Odometer .
...........................................................................................Tripmeter .
........................................................................................Fuel Gauge .
.........................................................................................Hourmeter .
.....................................................................................Digital Clock .
..........................................................Operation Component Locations .11
14
19
20
21
22
23
24
25
26
27
１０／０４／１９ １３：０２：２０ ３１ＨＮ８６８０ ００１８
10
Instruments & Controls
Instruments & Controls
..............................................................................Controls & Features .
..................................................................................Ignition Switch .
........................................................................................Shift Lever .
.................................................................Drive Mode Select Switch .
.................................................................2WD/4WD Select Switch .
.......................................................................................Start Button .
...........................................................................Engine Stop Switch .
...............................................................................Headlight Switch .
.................................................................Headlight Dimmer Switch .
.....................................................................................Recoil Starter .
...................................................................................Throttle Lever .
................................................................................Gearshift Switch .
.............................................................................Front Brake Lever .
..............................................................................Rear Brake Lever .
...............................................................................Rear Brake Pedal .
....................................................................................Parking Brake .
..............................................................................Flag Pole Bracket .
..............................................................................Accessory Socket .
28
28
29
30
31
32
32
33
33
34
35
36
37
37
37
38
39
40
１０／０４／１９ １３：０２：３７ ３１ＨＮ８６８０ ００１９
throttle lever
ignition switch
engine stop
switch
gearshift
switches
drive mode
select switch
front brake
lever
headlight switch
headlight dimmer switch
rear brake lever/
parking brake lever
parking brake
lock lever
2WD/4WD
select switch
shift lever
start button
11
Instruments & Controls
Operation Component Locations
１０／０４／１９ １３：０２：４４ ３１ＨＮ８６８０ ００２０
rear cargo rack
front cargo rack
accessory
socket
recoil starter
rear brake pedal
12
Instruments & Controls
Operation Component Locations
１０／０４／１９ １３：０２：４８ ３１ＨＮ８６８０ ００２１
flag pole bracket
seat latch
13
Instruments & Controls
Operation Component Locations
１０／０４／１９ １３：０２：５４ ３１ＨＮ８６８０ ００２２
(9)
(6)(4) (5) (11)
(3)
(1)
(3) reverse indicator
(4) 4WD indicator
(5) high oil/coolant temperature indicator
(7) (8) (10)
(2)
(1) odometer/tripmeter select button
(2) RESET button
(6) neutral indicator
(7) multi-function display
(8) hour select button
(9) minute select button
(10) ADJ button
(11) PGM-FI indicator
14
Indicators & Displays
Instruments & Controls
The indicators and displays on your ATV keep you informed, alert you
to possible problems, and make your riding safer and more enjoyable.
Refer to the indicators frequently. Their functions are described on the
following pages.
USA: Displays read in mph and miles.
Canada: Displays read in km/h and kilometers.
１０／０４／１９ １３：０３：０１ ３１ＨＮ８６８０ ００２３
(1) multi-function display
(1)
15
Indicators & Displays
Instruments & Controls
Lamp
Check.
Display Check.
Lamp Check
The high oil/coolant temperature indicator, 4WD indicator, neutral
indicator, reverse indicator and PGM-FI indicator comes on for a few
seconds and then go off when you turn the ignition switch ON ( ).
This indicator is identified in the table on page with the words:
When applicable, the reverse or neutral indicators come on when you
turn the ignition switch ON ( ) and remain on until you shift out of
reverse or neutral.
If one of these indicators does not come on when it should, have your
Honda dealer check for problems.
Display Check
The displays are identified in the table on page with the words:
If any part of these displays does not come on when it should, have your
Honda dealer check for problems.
When the ignition switch is turned ON ( ), the multi-function display
( ) will temporarily show all the modes and digital segments so you can
make sure the liquid crystal display is functioning properly.
1
16
16
１０／０４／１９ １３：０３：１２ ３１ＨＮ８６８０ ００２４
16
Indicators & Displays
Instruments & Controls
Lamp Check.
Lamp check.
Lamp check.
Odometer/tripmeter
select button
Selects display of the odometer or
tripmeter A or tripmeter B (page ).
This button also used to reset the oil
change indicator (page ).
RESET button Resets the tripmeter to zero (0)
(page ).
This button also used to reset the oil
change indicator (page ).
1
2
3
4
5
Reverse indicator
4WD indicator
High oil/coolant
temperature
indicator
Lights when the transmission is in
reverse.
Lights when the drive mode is in the
4WD mode. The 4WD indicator
blinks if there is a possible problem
with the 2WD/4WD select system.
See your Honda dealer as soon as
possible.
Lights when engine oil and/or
coolant temperature is high enough
to adversely affect the service life of
the engine.
If the high oil/coolant temperature
indicator comes on while you are
riding, immediately bring the vehicle
to a stop, turn the engine off and let
it cool. See page .
22
22
24
24
193
１０／０４／１９ １３：０３：２４ ３１ＨＮ８６８０ ００２５
17
Indicators & Displays
Instruments & Controls
Display Check.
Lamp Check
Shows the time (hours and minutes)
(page ).
Shows hours and tenths of hours of
engine operation (page ).
Shows mileage per trip (page ).
Shows accumulated mileage
(page ).
Lights when specified maintenance
interval for engine oil change is
reached (page ).
Shows approximate fuel supply
available (page ).
Shows the gear position (page ).
Shows the driving mode
(page ).
The display includes the following
functions.
Digital clock
Hourmeter
Tripmeter
Odometer
Gear position
indicator
Speedometer
Drive mode
indicator
Multi-function
display
Fuel gauge
Shows riding speed.
Oil change
indicator
6
7
Neutral indicator Lights when the transmission is in
neutral. .
22
25
26
20
21
27
23
24
１０／０４／１９ １３：０３：４３ ３１ＨＮ８６８０ ００２６
18
Indicators & Displays
Instruments & Controls
Lamp Check.
Hour select button Advances the hour displayed by the
digital clock (page ).
8
9
10
11
Minute select button Advances the minutes displayed by
the digital clock (page ).
Used to set the digital clock
(page ).
ADJ button
PGM-FI indicator Lights when there is any abnormality
in the PGM-FI (Programmed Fuel
Injection) system. Should also light
for a few seconds and then go off
when the ignition switch is turned
ON and use the start button. If the
indicator comes on at any other time,
reduce speed and take your vehicle to
a Honda dealer as soon as possible.
26
26
26
１０／０４／１９ １３：０３：５２ ３１ＨＮ８６８０ ００２７
(3)
(4) (9)
(5)
(2)
(6) (7) (8) (10)
(1) (13) (14) (11) (12)
(4) gear position indicator
(5) drive mode indicator
(1) multi-function display
(2) RESET button
(3) odometer/tripmeter select button
(12) odometer/tripmeter
(13) digital clock
(14) oil change indicator
(6) speedometer
(7) fuel gauge
(8) hour select button
(9) minute select button
(10) ADJ button
(11) hourmeter
19
Multi-function Display
Indicators & Displays
Instruments & Controls
The multi-function display ( ) includes the following functions:
The digital clock and tripmeter will reset if the battery is disconnected.
Speedometer
Odometer
Tripmeter
Drive mode indicator
Gear position indicator
Oil change indicator
Digital clock
Hourmeter
Fuel gauge
1
１０／０４／１９ １３：０４：０１ ３１ＨＮ８６８０ ００２８
(1)
(1) drive mode indicator
20
DriveModeIndicator
Indicators & Displays
Instruments & Controls
The drive mode indicator ( ) shows the selected drive mode when the
ignition switch is in the ON ( ) position.
The drive mode indicator ( ) displays ESP when the manual shift (ESP)
mode is selected. The ESP display vanishes when the automatic shift
(AUTO) mode is selected.
1
1
１０／０４／１９ １３：０４：０８ ３１ＨＮ８６８０ ００２９
−
(1)
(1) gear position indicator
21
Gear Position Indicator
Indicators & Displays
Instruments & Controls
The gear position indicator ( ) shows the gear position when the
ignition switch is in the ON ( ) position.
‘‘- -’’ will be displayed on the gear position indicator when the
transmission is not shifted into gear properly. Before riding, check that
the gear position is properly displayed on the gear position indicator.
The indicator displays: N for neutral, R for reverse, D for drive, and 1
3 for the three forward speed positions in the ESP mode.
1
１０／０４／１９ １３：０４：１５ ３１ＨＮ８６８０ ００３０
(1) oil change indicator
(2) odometer/tripmeter select button
(3) RESET button
(2)
(3) (1)
22
Oil Change Indicator
Indicators & Displays
Instruments & Controls
The oil change indicator ( ) appears in the display when the mileage or
operating hours on your ATV approaches the oil change interval
specified on the maintenance schedule.
Reset the indicator after each oil change.
To reset the indicator, press and hold both the odometer/tripmeter select
button ( ) and RESET button ( ) for more than 2 seconds. The
indicator will disappear.
If the oil is changed before the oil change indicator appears, be sure to
reset the oil change indicator after changing the oil. The indicator will
appears for 2 seconds, then disappear. This means the indicator is reset.
1
23
１０／０４／１９ １３：０４：２３ ３１ＨＮ８６８０ ００３１
(1) odometer
(2)
(1)
(2) odometer/tripmeter select button
23
Odometer
Indicators & Displays
Instruments & Controls
When selected, the odometer ( ) registers total distance traveled in
miles while the ignition is ON ( ). To change the display from tripmeter
to odometer, press and release the odometer/tripmeter select button ( ).
1
2
１０／０４／１９ １３：０４：３０ ３１ＨＮ８６８０ ００３２
(2)
(2)(2)
(5)
(5) RESET button
(3) tripmeter A
(4) tripmeter B
(3) (4)
24
Tripmeter
Indicators & Displays
Instruments & Controls
The tripmeter has two sub modes, A ( ) and B ( ).
To change the display from tripmeter A or tripmeter B to odometer,
press and release the odometer/tripmeter select button ( ).
To reset the tripmeter to zero, press and hold the RESET button ( ) for
more than 2 seconds with the display in the tripmeter A or tripmeter B
mode.
2
34
5
１０／０４／１９ １３：０４：３９ ３１ＨＮ８６８０ ００３３
(1)
(1) hourmeter
25
Hourmeter
Indicators & Displays
Instruments & Controls
The hourmeter ( ) shows accumulated hours while the ignition is ON
( ). The hourmeter provides accurate service period information for
initial and regular maintenance.
1
１０／０４／１９ １３：０４：４４ ３１ＨＮ８６８０ ００３４
(1)
(3)(2)
(3) minute select button(1) ADJ button
(2) hour select button
26
Digital Clock
Indicators & Displays
Instruments & Controls
Shows hour and minute while the ignition is ON ( ).
To adjust the time, proceed as follows:
Turn the ignition switch ON ( ).
To select the adjust mode, push the ADJ button ( ) once.
To advance the hour display one unit at a time, press and release the
hour select button ( ).
To advance the hour display automatically, press and hold the hour
select button. After 2 seconds, the hour display will begin advancing.
Release the button when the display reaches the desired hour.
To advance the minute display one unit at a time, press and release the
minute select button ( ).
To advance the minute display automatically, press and hold the
minute select button. After 2 seconds, the minute display will begin
advancing. Release the button when the display reaches the desired
minute.
To zero the minute display, press and hold both the hour and minute
select buttons simultaneously for 2 seconds.
Press the ADJ button when the display reaches the desired minute.
The display will stop flashing.
1.
2.
3.
4.
5.
1
2
3
１０／０４／１９ １３：０４：５７ ３１ＨＮ８６８０ ００３５
4.44 US gal (16.8 )
1.40 US gal (5.3
)
(1)
(1) fuel gauge
(2) segment E
(3) low fuel indicator
(3)
(2)
27
Fuel Gauge
Indicators & Displays
Instruments & Controls
The fuel gauge liquid crystal display ( ) shows the approximate fuel
supply available. The fuel tank capacity is:
When segment E ( ) and low fuel indicator ( ) flash, you should refill
the tank as soon as possible. The amount of fuel remaining when the
flashing starts is approximately:
All segments will flash, when the fuel gauge function is fails. See your
Honda dealer.
23
1
１０／０４／１９ １３：０５：０７ ３１ＨＮ８６８０ ００３６
OFF ( )
ON ( )
No electrical circuits function.
Electrical circuits on.
CENTER OF HANDLEBAR
(1) ignition switch
(1)
ON
OFF
ON
OFF
Key Position Function
28
Ignition Switch
Controls & Features
Instruments & Controls
The ignition switch ( ) is used for starting and stopping the engine
(page ). Insert the key and turn it to the right for the ON ( )
position.
1
66
１０／０４／１９ １３：０５：１８ ３１ＨＮ８６８０ ００３７
(1)
(1) shift lever
LEFT SIDE OF HANDLE COVER
29
Shift Lever
Controls & Features
Instruments & Controls
Shifting Gears Riding in Reverse
The shift lever ( ) has three positions: drive (D), neutral (N), and
reverse (R).
See (page ) and (page ).
1
7872
１０／０４／１９ １３：０５：２４ ３１ＨＮ８６８０ ００３８
(1)
(1) drive mode select switch
RIGHT HANDLEBAR
30
Drive Mode Select Switch
Controls & Features
Instruments & Controls
Shifting Gears
The drive mode select switch ( ) has two positions, AUTO and ESP.
See page .
1
72
１０／０４／１９ １３：０５：３０ ３１ＨＮ８６８０ ００３９
(1)
(1) 2WD/4WD select switch
(2)
(2) 4WD indicator
2WD MODE
4WD MODE
31
2WD/4WD Select Switch
Controls & Features
Instruments & Controls
To check your present drive mode, look at the 4WD indicator ( ).
2WD mode: the 4WD indicator goes off.
4WD mode: the 4WD indicator goes on.
4WD can only be engaged while the engine is running.
It remains engaged until the 2WD mode is selected or the engine is
stopped.
Upon starting, your ATV will be in the 2WD mode, regardless of the
2WD/4WD select switch position.
Your ATV is equipped with a 2WD/4WD select switch ( ), which
permits a choice between the ‘‘2WD’’ and ‘‘4WD’’ drive modes. Select
a drive mode that’s suitable for your riding.
The 2WD/4WD select switch is located above the throttle lever. To
select the drive mode, slide the 2WD/4WD select switch to the desired
position.
1
2
１０／０４／１９ １３：０５：３８ ３１ＨＮ８６８０ ００４０
LEFT HANDLEBAR
(1) start button
(2) engine stop switch
(1)
(2)
START
RUN
OFF
32
Start Button
Engine Stop Switch
Controls & Features
Instruments & Controls
Starting Procedure,
The start button ( ) is used for starting the engine. Pushing the button in
starts the engine. See page .
The engine stop switch ( ) is used to stop the engine in an emergency.
To operate, slide the switch to the OFF ( ) position. The switch must
be in the RUN ( ) position to start the engine, and it should normally
remain in the RUN ( ) position even when the engine is OFF.
When the start button is pushed, the starter motor will crank the engine.
The starter motor will not operate if the engine stop switch is in the OFF
( ) position when the start button is pushed.
If your ATV is stopped with the ignition switch ON ( ) and the
engine stop switch OFF ( ), the battery will discharge. Turn the
ignition switch OFF ( ) to prevent battery discharge.
1
67
2
１０／０４／１９ １３：０５：４７ ３１ＨＮ８６８０ ００４１
(1)
(2)
ON
OFF
LEFT HANDLEBAR
(1) headlight switch
(2) headlight dimmer switch
HI
LO
33
Headlight Switch
Headlight Dimmer Switch
Controls & Features
Instruments & Controls
The headlight switch ( ) is used to turn the headlight ON ( ) or OFF
( ).Tooperate,turntheswitchtoON( )orOFF( ).
The headlight dimmer switch ( ) is used to change between the high
and low beams of the headlight. To operate, turn the switch to HI ( )
for high beam, LO ( ) for low beam.
1
2
１０／０４／１９ １３：０５：５５ ３１ＨＮ８６８０ ００４２
RIGHT SIDE
(1)
(1) recoil starter
34
Recoil Starter
Controls & Features
Instruments & Controls
Using the Recoil Starter,
The recoil starter ( ) is used to start the engine when the battery is low.
See page .
1
71
１０／０４／１９ １３：０６：０１ ３１ＨＮ８６８０ ００４３
(A)
RIGHT HANDLEBAR
(1) throttle lever
(A) to open the throttle
(1)
35
Throttle Lever
Controls & Features
Instruments & Controls
The throttle controls engine rpm (speed). To increase engine rpm, press
the throttle lever ( ) with your thumb. To reduce engine rpm, release
pressure on the throttle lever. The throttle will automatically return to the
closed position (engine idle) when you remove your thumb.
1
１０／０４／１９ １３：０６：０７ ３１ＨＮ８６８０ ００４４
(1)
(2)
(1) upshift switch (2) downshift switch
LEFT HANDLEBAR
36
Gearshift Switch
Controls & Features
Instruments & Controls
Shifting Gears,
Two gearshift switches are used in the ESP (manual shift) mode.
These switches are used to select the next higher or lower gear in the
transmission. To operate, press the upshift switch ( ) to engage the next
higher gear or press the downshift switch ( ) to engage the next lower
gear. See page .
2
1
72
１０／０４／１９ １３：０６：１３ ３１ＨＮ８６８０ ００４５
37
Front Brake Lever
Rear Brake Lever
Rear Brake Pedal
Controls & Features
Instruments & Controls
The front brake lever is used to slow or stop your ATV. To operate, pull
the lever. For information on braking techniques, see page .
The rear brake lever/parking brake lever is used to slow or stop your
ATV. To operate, pull the lever. For information on braking techniques,
see page .
The rear brake pedal is used to slow or stop your ATV. To operate,
depress the pedal. For information on braking techniques, see page .
80
80
80
１０／０４／１９ １３：０６：２０ ３１ＨＮ８６８０ ００４６
(A)
(1)
(2)
(A) to lock
(1) lock lever
(2) rear brake lever/parking brake lever
LEFT HANDLEBAR
38
Parking Brake
Controls & Features
Instruments & Controls
Parking
The brakelights are activated by applying the parking brake. When using
the parking brake, be sure to turn the ignition switch OFF ( ) to avoid
discharging the battery.
The lock lever ( ) on the rear brake lever/parking brake lever ( )
allows it to be used as a parking brake. To operate, first squeeze the rear
brake lever/parking brake lever using your left hand and then lock it
with the lock lever using your right hand. See page .
1
94
2
１０／０４／１９ １３：０６：２８ ３１ＨＮ８６８０ ００４７
(1)
(1) flag pole bracket
RIGHT REAR
39
Flag Pole Bracket
Controls & Features
Instruments & Controls
Flag poles are optional equipment available from your Honda dealer. To
mount a pole in the bracket ( ), follow the instructions that come with
the flag pole kit.
Flag poles are required in some riding areas. Check local regulations
before riding.
1
１０／０４／１９ １３：０６：３４ ３１ＨＮ８６８０ ００４８
(1)
(2)
(3)
(3) cap(1) accessory socket
(2) meter cover
RIGHT FRONT
40
Accessory Socket
Controls & Features
Instruments & Controls
Do not plug in any heat-generating accessory, such as an automobile
cigarette lighter, because it can damage the socket.
The accessory socket ( ) is attached to the right side of the meter cover
( ). You can use the accessory socket to power a trouble light, spotlight,
CB radio, or cell phone, etc.
To use the accessory socket, turn the ignition switch ON ( ), start the
engine. Then turn the headlights OFF ( ), and open the accessory
socket cap ( ).
1
2
3
１０／０４／１９ １３：０６：４２ ３１ＨＮ８６８０ ００４９
41
Controls & Features
Instruments & Controls
If a Fuse Blows,
Be sure the engine is on and the headlights are turned off before using
the accessory socket, otherwise you may drain the battery.
The accessory socket’s rated capacity is DC 12V, 120 Watts (10A) or
less. If you exceed this limit, you may blow a fuse. See
page .
When you are done using an accessory, unplug it, and cover the socket
with the cap.
Be careful not to flood this accessory socket when washing your ATV.
195
１０／０４／１９ １３：０６：４７ ３１ＨＮ８６８０ ００５０
42
Instruments & Controls
１０／０４／１９ １３：０６：５０ ３１ＨＮ８６８０ ００５１
43
Before Riding
Before Riding
Before each ride, you need to make sure you and your Honda are both
ready to ride. To help get you prepared, this section discusses how to
evaluate your riding readiness, what items you should check on your
ATV, and adjustments to make for your comfort, convenience, or safety.
This section also includes important information about loading.
.......................................................................Are You Ready to Ride? .
.............................................................................Protective Apparel .
...................................................................................Rider Training .
.......................................................................Age Recommendation .
...................................................................................No Passengers .
.........................................................................No Alcohol or Drugs .
................................................................Is Your ATV Ready to Ride? .
............................................................................Pre-ride Inspection .
....................................................................................Modifications .
........................................................................................Accessories .
................................................................Accessories & Modifications .
...........................................................................Loading Guidelines .
..........................................................Cargo and Trailer Information .
.............................................................................................Loading .
.....................................................................Load Limits & Guidelines .
44
44
46
47
47
48
49
49
53
53
54
56
57
57
58
１０／０４／１９ １３：０７：０３ ３１ＨＮ８６８０ ００５２
44
Protective Apparel
Are You Ready to Ride?
Before Riding
Before you ride your ATV for the first time, we urge you to:
Read this owner’s manual and the labels on your ATV carefully.
Make sure you understand all the safety messages.
Know how to operate all the controls.
Before each ride, be sure:
You feel well and are in good physical and mental condition.
You are wearing an approved motorcycle helmet (with chin strap
tightened securely), eye protection, and other protective clothing.
You don’t have any alcohol or drugs in your system.
For your safety, we strongly recommend that you always wear an
approved motorcycle helmet, eye protection, boots, gloves, long pants,
and a long-sleeved shirt or jacket whenever you ride.
Although complete protection is not possible, wearing proper gear can
reduce the chance of injury when you ride.
Following are suggestions to help you choose the proper gear.
Helmet and Eye Protection
Your helmet is your most important piece of riding gear because it
offers the best protection against head injuries. A helmet should fit your
head comfortably and securely.
１０／０４／１９ １３：０７：１４ ３１ＨＮ８６８０ ００５３
Operating this ATV without wearing an
approved motorcycle helmet, eye protection,
and protective clothing could increase your
chances of severe injury or death in the event of
an accident.
Always wear an approved motorcycle helmet
that fits properly and wear eye protection
(goggles or face shield), gloves, boots,
long-sleeved shirt or jacket and long pants.
45
Are You Ready to Ride?
Before Riding
An open-face helmet offers some protection, but a full-face helmet
offers more. Regardless of the style, look for a DOT (Department of
Transportation) sticker on any helmet you buy (USA only). Always
wear a face shield or goggles to protect your eyes and help your vision.
Riding pants with knee and hip pads, a riding jersey with padded
elbows, and a chest/shoulder protector.
Off-road motorcycle gloves to help protect your hands.
Sturdy off-road motorcycle boots to help protect your feet, ankles,
and lower legs.
In addition to a helmet and eye protection, we also recommend:
Additional Riding Gear
１０／０４／１９ １３：０７：２２ ３１ＨＮ８６８０ ００５４
Operating this ATV without proper instruction
could increase your risk of an accident which
could lead to serious injury or death.
Beginning and inexperienced operators should
complete the certified training course offered by
Honda. They should then regularly practice the
skills learned in the course and the operating
techniques described in the owner’s manual.
46
Rider Training
Are You Ready to Ride?
Before Riding
Tips & Practice Guide for the ATV
Rider
Developing your riding skills is an on-going process. Even if you have
ridden other ATVs, take time to become familiar with how this ATV
works and handles. Practice riding the ATV in a safe area to build your
skills. Do not ride in rough terrain until you get accustomed to the
ATV’s controls, and feel comfortable with its size and weight.
We urge all riders to take a ATV operator course approved by the ATV
Safety Institute (ASI). For information about the ASI training course
nearest you, call the national toll-free number; (800) 887-2887 (USA
only).
Other riding tips can be found in the
booklet that came with your ATV (USA only).
１０／０４／１９ １３：０７：２９ ３１ＨＮ８６８０ ００５５
A child using an ATV that is not recommended
for their age could lose vehicle control while
riding, resulting in severe injury or death.
A child under 16 should never operate an ATV
with engine size greater than 90cc.
Carrying a passenger on this ATV greatly
reduces your ability to balance and control this
ATV and could cause a crash and you or your
passenger could be injured or killed.
Never carry a passenger on this ATV.
47
Age Recommendation
No Passengers
Are You Ready to Ride?
Before Riding
The minimum recommended age for this ATV model is 16. For safety,
never let children under 16 years old operate this vehicle.
This ATV is designed as an operator-only vehicle. The long seat is
designed to allow the rider to change body position, not for carrying a
passenger. Never let a passenger ride on the seat or on the front or rear
cargo racks.
１０／０４／１９ １３：０７：３６ ３１ＨＮ８６８０ ００５６
−
−
Operating this ATV after consuming alcohol or
drugs can seriously affect your judgement,
cause you to react more slowly, affect your
balance and perception, and result in serious
injury or death.
Never consume alcohol or drugs before or while
operating this ATV.
48
No Alcohol or Drugs
Before Riding
Are You Ready to Ride?
Alcohol, drugs and ATVs don’t mix. Even a small amount of alcohol
can impair your ability to operate an ATV safely. Likewise, drugs
even if prescribed by a physician can be dangerous while operating an
ATV. Consult your doctor to be sure it is safe to operate a vehicle after
taking medication.
１０／０４／１９ １３：０７：４１ ３１ＨＮ８６８０ ００５７
Improperly maintaining this ATV or failing to
correct a problem before riding can cause a
crash in which you can be seriously hurt or
killed.
Always perform a pre-ride inspection before
every ride and correct any problems.
49
Pre-ride Inspection
Is Your ATV Ready to Ride?
Before Riding
Engine Oil
Radiator
Coolant
Before each ride, it’s important to inspect your ATV and make sure any
problem you find is corrected. A pre-ride inspection is a must, not only
for safety, but because having a breakdown, or even a flat tire, can be a
major inconvenience.
If your ATV has overturned or been involved in a collision, do not ride
the vehicle until it has been inspected by your Honda dealer. There may
be damage or other problems you cannot see.
Check the following items before you get on the ATV:
Check the level and add oil if needed
(page ).
Check for leaks.
Check the coolant level and add coolant if
needed (page ).
Check for leaks.
(cont’d)
117
127
１０／０４／１９ １３：０７：５２ ３１ＨＮ８６８０ ００５８
50
Is Your ATV Ready to Ride?
Before Riding
Tires
Fuel
Drivetrain Boots
Guards
Nuts & Bolts
Underbody &
Exhaust System
Air Cleaner Housing
Drain Tube
Leaks, Loose Parts
Check for damage (page ).
Use a gauge to check the air pressure. Adjust if
needed. Also look for signs of damage or
excessive wear (page ).
Check the level and add fuel (page ) if
needed. Also make sure the fuel fill cap is
securely fastened.
Check for leaks.
Check for damage (page ).
Check the wheels to see that the axle nuts are
tightened. Use a wrench to make sure all
accessible nuts, bolts, and fasteners are tight.
Check for, and remove, any dirt, vegetation or
other debris that could be a fire hazard or
interfere with the proper operation of the
vehicle.
Check for deposits in the drain tube. If
necessary, clean the tube (page ) and check
the air cleaner housing.
Walk around your ATV and look for anything
that appears unusual, such as a leak or loose
cable.
112
155
160
159
135
１０／０４／１９ １３：０８：０６ ３１ＨＮ８６８０ ００５９
51
Is Your ATV Ready to Ride?
Before Riding
Brakes
Throttle
Cargo
Loading Limits
Cable
Lights
(cont’d)
Check the freeplay and adjust if needed. Press
the throttle to make sure it moves smoothly
without sticking, and snaps shut automatically
when it is released, in all steering positions
(page ).
Check these items after you get on the ATV:
Check that all cargo is secure.
Make sure you do not exceed the load limits
(page ).
If you are carrying cargo, also check the following:
Check the cable housings for wear. Check the
fittings for looseness. Replace or tighten as
needed.
Make sure the headlight, brakelight and
taillight are working properly.
Squeeze the front and rear brake levers and
step on the rear brake pedal to check that the
controls operate normally. Depress the rear
brake pedal several times, then check for
proper brake lever freeplay (page ).
Make sure there is no brake fluid leakage.
53
136
149
１０／０４／１９ １３：０８：２０ ３１ＨＮ８６８０ ００６０
52
Is Your ATV Ready to Ride?
Before Riding
Headlight and
Headlight Dimmer
Switch
Engine Stop Switch
Steering
Check for proper function (page ).
Check for proper function (page ).
Check that the wheels turn properly as you
steer the handlebar. Move the handlebar right
and left and check that there is no excessive
backlash.
Remember, be sure to take care of any problem you find, or have your
Honda dealer correct it before you ride.
33
32
１０／０４／１９ １３：０８：２８ ３１ＨＮ８６８０ ００６１
Overloading, improper loading, or carrying a
passenger can cause a crash and you can be
seriously hurt or killed.
Follow all load limits and other loading
guidelines in this manual.
53
Loading
Load Limits & Guidelines
Before Riding
Your Honda was designed as a rider-only ATV. It was not designed to
carry a passenger. It can carry cargo on the cargo racks, however,
carrying cargo anywhere else or carrying a passenger could interfere
with your balance and control of the ATV.
In addition, exceeding the weight limits or carrying an unbalanced load
can seriously affect your ATV’s handling, braking and stability. Adding
accessories or making modifications that change this ATV’s design and
performance can also make it unsafe. Also, the weight of any
accessories will reduce the maximum load the ATV can carry.
More specific information on load limits, accessories, and modifications
follows.
How much weight you put on your ATV, and how you load it, are
important to your safety. If you decide to carry cargo, you should be
aware of the following information.
１０／０４／１９ １３：０８：３６ ３１ＨＮ８６８０ ００６２
54
Cargo and Trailer Information
Load Limits & Guidelines
Before Riding
The following load limits apply to standard equipment only. Modifying
your ATV, using non-standard equipment, or riding on terrain that is not
flat and smooth could further reduce these limits.
The ATV was designed to carry you and a specific amount of cargo.
The ATV can be used to tow a trailer and a specific amount of cargo
with the installation of Honda Trailer Hitch.
The Hondaline Trailer Hitch Kit contains specific information regarding
trailer towing with the ATV. Towing a trailer without reading this
information is not recommended.
Cargo and/or the addition of a trailer will affect the acceleration,
braking and handling of the ATV. Do not exceed the recommended
limits listed below. Follow the guidelines (page ).
55
１０／０４／１９ １３：０８：４３ ３１ＨＮ８６８０ ００６３
front cargo rack weight limit
rear cargo rack weight limit
tow weight limit
tongue weight
tongue and rear cargo weight
maximum weight capacity 485 lb (220 kg)
66 lb (30 kg)
133 lb (60 kg)
30 lb (14 kg)
850 lb (385 kg)
133 lb (60 kg)
=
=
=
=
=
recommended
maximum
55
Load Limits & Guidelines
Before Riding
Tongue weight can be measured with an ordinary bathroom scale. Place
the scale under the tongue, using either a tongue jack or other support to
keep the trailer level.
The weight of added accessories will reduce the maximum cargo weight
you can carry.
(Combined weight of the trailer
and all cargo in the trailer)
(Weight on the trailer tongue)
(Combined weight on the trailer
tongue and on the rear cargo rack)
(includes the weight of the rider, all cargo, and accessories.)
Following are the load limits for your ATV:
１０／０４／１９ １３：０８：５５ ３１ＨＮ８６８０ ００６４
56
Loading Guidelines
Load Limits & Guidelines
Before Riding
Carrying cargo or pulling a trailer will affect how your ATV handles
and greatly reduce its ability in accelerating, braking and making turns
and other maneuvers.
Be sure to observe the weight limits and follow these guidelines:
Check that the tires are properly inflated.
Do not place cargo anywhere on the ATV other than on the front and
rear racks. Otherwise, operating stability may be adversely affected.
Never ride with a passenger on the front or rear cargo racks. The
ATV is not designed to carry a passenger.
Use the trailer hitch to tow another vehicle or trailer. Do not tow by
tying a rope or cable to the rear rack.
Load cargo on the rear rack as far forward as possible. Make sure
cargo on the front rack does not interfere with handlebar movement.
Do not allow cargo to extend beyond the edges of either the front or
rear racks.
Make sure all cargo is secured before riding.
Balance cargo weight evenly on both sides.
Never exceed the maximum weight limit.
When towing a trailer, take care to maintain balance and stability.
Distribute cargo between the front and rear of the trailer to obtain the
recommended tongue weight.
Never cross a slope when towing a trailer.
Avoid riding on steep slopes when carrying cargo or pulling a trailer.
Allow extra room for starting, stopping and turning whenever you
carry cargo or pull a trailer.
When towing a trailer, select the ESP mode (page ), and choose
the 1st shift position.
72
１０／０４／１９ １３：０９：０９ ３１ＨＮ８６８０ ００６５
Improper accessories or modifications can
cause a crash in which you can be seriously
hurt or killed.
Follow all instructions in this owner’s manual
regarding accessories and modifications.
57
Accessories
Accessories & Modifications
Before Riding
Modifying your ATV or using non-Honda accessories can make your
ATV unsafe.
Before you consider making any modifications or adding an accessory,
be sure to read the following information.
We strongly recommend that you use only Honda Genuine Accessories
that have been specifically designed and tested for your ATV. Because
Honda cannot test all other accessories, you must be personally
responsible for proper selection, installation, and use of non-Honda
accessories.
Check with your Honda dealer for assistance and always follow these
guidelines:
Make sure the accessory does not obscure any lights, reduce ground
clearance, limit suspension travel or steering travel, or interfere with
operating any controls.
Make sure the accessory does not interfere with your ability to shift
body position on the seat or operate hand and foot controls.
Do not add any electrical equipment that will exceed the vehicle’s
electrical system capacity (page ). A blown fuse can cause a loss
of lights or engine power (page ).
209
195
１０／０４／１９ １３：０９：１６ ３１ＨＮ８６８０ ００６６
58
Modifications
Accessories & Modifications
Before Riding
We strongly advise you not to remove any original equipment or modify
your ATV in any way that would change its design or operation. Such
changes could seriously impair your ATV’s handling, stability, and
braking, making it unsafe to ride.
We also advise you not to make any modifications or remove any
equipment (such as the USDA qualified spark arrester or emission
control system components) that would make your ATV illegal in your
area.
Removing or modifying your lights, exhaust system, emission control
system, or other equipment can also make your ATV illegal.
１０／０４／１９ １３：０９：２２ ３１ＨＮ８６８０ ００６７
59
Basic Operation & Riding
Basic Operation & Riding
This section gives basic riding instructions, including how to start and
stop your engine, and how to use the throttle and brakes. It also provides
important information on riding with cargo.
To protect your new engine and enjoy optimum performance and
service life, refer to Break-in Guidelines (page ).
(cont’d)
.................................................................................Flooded Engine .
....................................Bank Angle Sensor Ignition Cut-off System .
...................................................................................Stalled Engine .
.....................................................Keep Hands and Feet on Controls .
............................................................................Off-road Use Only .
........................................................................Safe Riding Precautions .
....................................................................................Control Speed .
........................................Use Care on Unfamiliar or Rough Terrain .
......................................................................Do Not Perform Stunts .
........................................................................................Preparation .
.............................................................................Starting Procedure .
............................................................Starting & Stopping the Engine .
....................................................................How to Stop the Engine .
....................................................................Using the Recoil Starter .
.......................................................................................Shifting Gears .
..................................................................................Riding in Reverse .
210
61
61
62
63
64
65
66
66
67
68
68
69
70
71
72
78
１０／０４／１９ １３：０９：３８ ３１ＨＮ８６８０ ００６８
60
Basic Operation & Riding
Basic Operation & Riding
..................................................................................................Braking .
.................................................................................Riding Your ATV .
....................................................................................Making Turns .
...........................................................................Skidding or Sliding .
.................................................................................Riding Up Hills .
............................................................................Riding Down Hills .
.............................................Crossing or Turning on Hills or Slopes .
......................................................................Riding Over Obstacles .
......................................................................Riding Through Water .
..................................................................................................Parking .
80
82
82
84
85
89
90
92
93
94
１０／０４／１９ １３：０９：４８ ３１ＨＮ８６８０ ００６９
Operating this ATV on paved surfaces may
seriously affect handling and control of the ATV,
and may cause the vehicle to go out of control.
Never operate the ATV on any paved surfaces,
including sidewalks, driveways, parking lots and
streets.
61
Off-road Use Only
Safe Riding Precautions
Basic Operation & Riding
ATV Safety
Before Riding
Before riding your ATV for the first time, please review the
section beginning on page 1, and the section beginning
on page .
Even if you have ridden other ATVs, take time to become familiar with
how this ATV works and handles. Practice in a safe area until you build
your skills and get accustomed to the ATV’s size and weight.
Your ATV and its tires are designed and manufactured for off-road use
only, not for pavement. Riding on pavement can affect handling and
control. You should not ride your ATV on pavement.
When riding off-road, also remember to always obey local off-road
riding laws and regulations. Obtain permission to ride on private
property. Avoid posted areas and obey ‘‘no trespassing’’ signs.
(cont’d)
43
１０／０４／１９ １３：０９：５５ ３１ＨＮ８６８０ ００７０
Operating this ATV on public streets, roads or
highways could cause you to collide with
another vehicle.
Never operate this ATV on any public street,
road or highway, even a dirt or gravel one.
Removing hands from handlebars or feet from
footpegs during operation can reduce your
ability to control the ATV or could cause you to
lose your balance and fall off of the ATV.
Always keep both hands on the handlebars and
both feet on the footpegs of your ATV during
operation.
62
Keep Hands and Feet on Controls
Safe Riding Precautions
Basic Operation & Riding
You should never ride your ATV on public streets, roads or highways,
even if they are not paved. Drivers of street vehicles may have difficulty
seeing and avoiding you, which could lead to a collision. In many states
it is illegal to operate ATVs on public streets, roads and highways.
Always keep both hands on the handlebars and both feet on the footpegs
when riding your ATV. This is important to maintain your balance and
to control the vehicle. Removing even one hand from the handlebars or
one foot from the footpegs can reduce your ability to control the ATV
or could cause you to lose your balance and fall off the ATV.
１０／０４／１９ １３：１０：０２ ３１ＨＮ８６８０ ００７１
Operating this ATV at excessive speeds
increases your chances of losing control of the
ATV, which can result in an accident.
Always go at a speed that is proper for your
vehicle, the terrain, visibility and other operating
conditions, and your experience.
(1) footpeg
(1)
63
Control Speed
Safe Riding Precautions
Basic Operation & Riding
Riding at excessive speed increases the chance of an accident. In
choosing a proper speed, you need to consider the capability of your
vehicle, the terrain, visibility and other operating conditions, plus your
own skills and experience.
１０／０４／１９ １３：１０：０９ ３１ＨＮ８６８０ ００７２
Failure to use extra care when operating this
ATV on unfamiliar terrain could result in the ATV
overturning or going out of control.
Go slowly and be extra careful when operating
on unfamiliar terrain. Always be alert to
changing terrain conditions when operating the
ATV.
64
Use Care on Unfamiliar or Rough Terrain
Safe Riding Precautions
Basic Operation & Riding
Before riding in a new area, always check the terrain thoroughly. Don’t
ride fast on unfamiliar terrain or when visibility is limited. (It’s
sometimes difficult to see obstructions like hidden rocks, bumps, or
holes in time to react.)
１０／０４／１９ １３：１０：１４ ３１ＨＮ８６８０ ００７３
Failure to use extra care when operating on
excessively rough, slippery or loose terrain
could cause loss of traction or vehicle control,
which could result in an accident, including an
overturn.
Do not operate on excessively rough, slippery
or loose terrain until you have learned and
practiced the skills necessary to control the ATV
on such terrain. Always be especially cautious
on these kinds of terrain.
Attempting wheelies, jumps, and other stunts
increases the chance of an accident, including
an overturn.
Never attempt stunts, such as wheelies or
jumps. Don’t try to show off.
65
Do Not Perform Stunts
Safe Riding Precautions
Basic Operation & Riding
Never ride past the limit of visibility. Maintain a safe distance between
your ATV and other off-road vehicles. Always exercise caution, and use
extra care on rough, slippery and loose terrain.
You should always operate your ATV in a safe and reasonable manner.
When riding, always keep all four wheels on the ground.
１０／０４／１９ １３：１０：２１ ３１ＨＮ８６８０ ００７４
(1)
(2)
(3)
(1) ignition switch
(2) neutral indicator
(3) engine stop switch
66
Preparation
Basic Operation & Riding
Starting & Stopping the Engine
Always follow the proper starting procedure described below.
For your safety, avoid starting or operating the engine in an enclosed
area such as a garage. Your ATV’s exhaust contains poisonous carbon
monoxide gas which can collect rapidly in an enclosed area and cause
illness or death.
Confirm the following:
The transmission is in neutral, and the neutral indicator ( ) is ON.
The engine stop switch ( ) is set to RUN ( ).
Before starting, select a level surface and lock the parking brake
(page ).
Turn the ignition switch ( ) ON ( ).
1.
2. 1
2
38
3
１０／０４／１９ １３：１０：３２ ３１ＨＮ８６８０ ００７５
67
Starting Procedure
Starting & Stopping the Engine
Basic Operation & Riding
Any Air Temperature
The engine will not start if the throttle is fully open (because the
electronic control module cuts off the fuel supply).
Press the start button with the throttle completely closed.
This vehicle has a fuel-injected engine with an automatic choke.
Follow the procedure indicated below.
１０／０４／１９ １３：１０：３８ ３１ＨＮ８６８０ ００７６
−
68
Flooded Engine
Bank Angle Sensor Ignition Cut-off System
Starting & Stopping the Engine
Basic Operation & Riding
If Your Engine Quits or Won’t
Start,
If the engine fails to start after repeated attempts, it may be flooded with
excess fuel. To clear a flooded engine:
Leave the engine stop switch set to RUN ( ).
Open the throttle fully.
Press the start button for 5 seconds (or operate the recoil starter
several times).
Follow the normal starting procedure.
If the engine starts, then open the throttle slightly if idling is unstable.
If the engine does not start, wait 10 seconds, then follow steps
again.
If the engine still won’t start, refer to
page , .
Your vehicle’s banking (lean angle) sensor system is designed to
automatically stop the engine if the vehicle is overturned.
Before restarting the engine, you must turn the ignition switch to the
OFF ( ) position and then back to ON ( ). The engine will not
restart until you perform this procedure.
1.
2.
3.
4.
5.
14
185 186
１０／０４／１９ １３：１０：４９ ３１ＨＮ８６８０ ００７７
69
Stalled Engine
Starting & Stopping the Engine
Basic Operation & Riding
If the engine stalls, shift into neutral (N) and restart the engine.
If you are unable to shift to neutral (N) from drive (D), you can restart
the engine by squeezing the front brake lever and pressing the start
button while the vehicle is stopped.
Do not press the throttle lever while starting in gear. Your ATV is
equipped with a start inhibitor system that will cut off the ignition if the
throttle is open while attempting to start in gear.
Once you have started the engine, release the front brake lever, then
apply throttle gradually.
１０／０４／１９ １３：１０：５３ ３１ＨＮ８６８０ ００７８
70
How to Stop the Engine
Starting & Stopping the Engine
Basic Operation & Riding
Normal Engine Stop
To stop the engine, make sure the transmission is in neutral by checking
that the neutral indicator lights, then turn the ignition switch OFF ( ).
The engine stop switch should normally remain in the RUN ( )
position even when the engine is OFF.
If your ATV is stopped with the engine stop switch OFF ( ) and the
ignition switch ON ( ), the battery will discharge.
Emergency Engine Stop
To stop the engine in an emergency, use the engine stop switch. To
operate, slide the switch to the OFF ( ) position.
１０／０４／１９ １３：１１：０１ ３１ＨＮ８６８０ ００７９
RIGHT SIDE
(1)
(2)
(1) right side cover (2) starter grip
71
Using the Recoil Starter
Starting & Stopping the Engine
Basic Operation & Riding
The recoil starter is used to start the engine when the battery is low.
To operate the recoil starter:
After the engine starts, allow the starter grip to return slowly.
Grasp the starter grip ( ) firmly, then pull it out slowly approximately
4in(100mm).
Pull the grip up briskly and fully.
Unsnap and remove the right side cover ( ).
Check that the transmission is in neutral.
If the starter grip does not return smoothly (because of dirt in the
assembly), see your Honda dealer.
The engine cannot be started if the battery is disconnected, low or dead.
If the engine cannot be started with connecting the battery, charge the
battery (page ).
When the engine cannot be started even if the battery is charged, see
your Honda dealer.
1.
2.
3.
4.
5.
1
2
165
１０／０４／１９ １３：１１：１３ ３１ＨＮ８６８０ ００８０
72
Shifting Gears
Basic Operation & Riding
Neutral (N)
Use neutral when you start the engine, or if it is necessary to stop briefly
with the engine idling.
Drive (D)
Reverse (R)
Manual shift (ESP) mode:
In this mode, you can shift gears much like a manual transmission, but
without operating a clutch.
You can select three forward shift positions by operating the shift
switches; 1, 2, and 3.
The gear position indicator shows the selected position and the drive
mode indicator shows ‘‘ESP.’’
When you tow a trailer, select the 1st shift position for proper
performance.
Automatic shift (AUTO) mode:
Use this mode for everyday riding. The transmission automatically
adjusts to keep the engine at the best speed for riding conditions.
The gear position indicator shows ‘‘D’’ and the drive mode indicator
disappears.
Your ATV has three shift lever positions: neutral (N), drive (D), and
reverse (R).
Use this position to ride in reverse (page ).
Use this position for normal riding. The following two modes can be
selected in the drive position; automatic shift (AUTO) mode and manual
shift (ESP) mode.
You can select the desired mode with the drive mode select switch
(page ).
78
30
１０／０４／１９ １３：１１：２２ ３１ＨＮ８６８０ ００８１
(2)(1)
(2) drive mode select
switch
(1) shift lever
73
Shifting Gears
Basic Operation & Riding
If the shift lever is moved while the vehicle is moving, the transmission
may be damaged.
To select the drive mode, operate the drive mode select switch.
With the throttle fully closed, the drive mode can be changed during
running.
The drive mode select switch ( ) is located on the right handlebar
switches.
The shift lever ( ) is located on the left side of the fuel tank.
To shift the shift lever, bring the ATV to a complete stop.
1
2
１０／０４／１９ １３：１１：３０ ３１ＨＮ８６８０ ００８２
(3)
(1)
(1) shift lever
(3) gear position indicator
74
Shifting Gears
Basic Operation & Riding
AUTO Mode
Riding In Reverse
Shifting to ‘‘N’’ (neutral) or ‘‘R’’ (reverse) is in the same manner as
above. For reverse, refer to the (page ).
When the drive mode is at AUTO, shifting the lever to ‘‘D’’ (drive)
provides a 3-speed automatic transmission.
While pulling up the shift lever ( ), shift to ‘‘D.’’
Pull down the shift lever and confirm that the lever is locked and the
gear position indicator ( ) is showing ‘‘D.’’
1.
2.
1
3
78
１０／０４／１９ １３：１１：３９ ３１ＨＮ８６８０ ００８３
UPSHIFTING SEQUENCE
DOWNSHIFTING SEQUENCE
(A)
(A)
(4)
(5)
(4) upshift switch
(5) downshift switch
(A) press
75
Shifting Gears
Basic Operation & Riding
ESP Mode
To upshift the transmission, press the upshift switch ( ) once.
To downshift the transmission, press the downshift switch ( ) once.
Two gearshift switches are located next to the left handlebar grip:
upshift ( ) and downshift ( ).
With the drive mode set at ESP, shifting the lever to ‘‘D’’ allows
manual shifting from 1st to 3rd using the gearshift switches.
4
5
１０／０４／１９ １３：１１：４８ ３１ＨＮ８６８０ ００８４
76
Shifting Gears
Basic Operation & Riding
If the shift lever is moved while the vehicle is moving, the transmission
may be damaged.
After starting the engine and letting it warm up, follow these
procedures:
Release the parking brake, but continue squeezing the rear brake lever.
Release the rear brake lever and increase engine speed by gradually
opening the throttle.
Learning when to shift gears in manual shift (ESP) mode comes with
experience. Keep the following tips in mind:
As a general rule, shift while moving in a straight line.
Close the throttle completely before shifting. Improper shifting may
damage the engine, transmission, and drivetrain.
Upshift to a higher gear or reduce throttle before engine rpm (speed)
gets too high. Learn the relationship between engine sound and the
normal shifting points.
Downshift to a lower gear before you feel the engine laboring
(lugging) at low rpm.
Avoid downshifting to help slow your ATV when engine rpm is high.
Downshifting when engine speed is near its allowable maximum may
over-rev the engine and possibly cause damage.
When speed increases, release the throttle and upshift to 2nd position
by pressing the upshift switch once.
Repeat this sequence to progressively upshift to 3rd (top) position.
To downshift, press the downshift switch once. Remember to close
the throttle each time you shift to the next lower position.
Bring your ATV to a complete stop, select the ESP mode and shift the
shift lever into the ‘‘D’’ position.
1.
2.
3.
4.
5.
6.
１０／０４／１９ １３：１２：０２ ３１ＨＮ８６８０ ００８５
77
Shifting Gears
Basic Operation & Riding
To prevent transmission damage, do not coast or tow the ATV for
long distances with the engine off.
Ride in the highest gear that lets the engine run and accelerate smoothly.
This will give you good fuel economy and effective emissions control.
Recommended Shift Points
１０／０４／１９ １３：１２：０７ ３１ＨＮ８６８０ ００８６
Improperly operating in reverse could cause you
to hit an obstacle or person behind you,
resulting in serious injury.
Make sure there are no obstacles or people
behind you before selecting reverse gear. When
it is safe to proceed, go slowly.
78
Riding in Reverse
Basic Operation & Riding
Your ATV may be equipped with a reverse speed limiter, which helps
the vehicle to maintain a safe speed while riding in reverse gear.
If the shift lever is moved while the vehicle is moving, the transmission
may be damaged.
If you need to ride in reverse, make sure the area behind you is clear and
only operate the ATV at low speed.
Bring the vehicle to a complete stop, then make sure the transmission
is in neutral.
Depress and hold down the brake pedal.
Be sure there are no obstacles or people in the way.
Shift the shift lever into ‘‘R’’ (reverse) gear.
Release the rear brake pedal.
Open the throttle gradually and ride slowly. Do not open the throttle
suddenly or make abrupt turns.
1.
2.
3.
4.
5.
6.
１０／０４／１９ １３：１２：１６ ３１ＨＮ８６８０ ００８７
Applying only the rear brake abruptly when
operating in reverse gear could cause the front
wheels to lift off the ground and the ATV could
overturn backwards.
Carefully apply both the front and rear brakes
when stopping in reverse gear.
79
Riding in Reverse
Basic Operation & Riding
To stop, close the throttle and gradually apply both the front and rear
brakes. Do not abruptly apply the rear brake by itself.
To shift out of reverse and into neutral, shift the shift lever into ‘‘N’’
(neutral) gear.
7.
8.
１０／０４／１９ １３：１２：２１ ３１ＨＮ８６８０ ００８８
80
Braking
Basic Operation & Riding
Your ATV is equipped with disc brakes on both front wheels which are
hydraulically activated by operating the right brake lever. The single
disc brake of the rear drivetrain is hydraulically activated by pressing
down on the brake pedal and mechanically activated by operating the
left brake lever.
When possible, reduce your speed or complete braking before entering a
turn. Avoid braking or closing the throttle quickly while turning. Either
action may cause one or more wheels to slip and reduce your control of
your ATV.
Applying the brakes too hard may cause the wheels to lock and slide,
reducing control of your ATV. If this happens, release the brake
controls, steer straight ahead until you regain control, then reapply the
brakes more gently.
Gradually increase braking as you feel the brakes slowing your speed.
The increase in engine compression from downshifting will help slow
your vehicle when your ATV is in the ESP mode.
To slow or stop, apply the brake lever and brake pedal smoothly, while
downshifting to match your speed when your ATV is in the ESP mode.
For full braking effectiveness, use both the pedal and lever
simultaneously. Using both braking systems will stop your ATV faster
with greater stability.
As a general rule, the front braking system provides about 70 percent of
total stopping power.
Although the front and rear brakes have separate controls, all four
wheels are interconnected when your ATV is in the 4WD mode. So
operating any brake control in the 4WD mode will cause braking at both
the front and rear wheels.
１０／０４／１９ １３：１２：３０ ３１ＨＮ８６８０ ００８９
81
Braking
Basic Operation & Riding
Riding Your ATV
Your ability to brake in a turn and to brake hard in an emergency
situation are important riding skills.
For information on how to apply the brakes in various riding situations,
see the following section, .
Riding with your foot resting on the brake pedal or your hands on the
brake levers may overheat the brakes, reducing effectiveness.
When descending a long, steep grade, use engine compression braking
by downshifting (in the ESP mode), with intermittent use of both brakes.
Continuous brake application can overheat the brakes and reduce their
effectiveness.
１０／０４／１９ １３：１２：３６ ３１ＨＮ８６８０ ００９０
Turning improperly can make the ATV go out of
control, causing a collision or overturn.
Always follow proper procedures for turning
as described in this owner’s manual.
Practice turning at low speeds before
attempting to turn at faster speeds.
Do not turn at excessive speeds.
82
Making Turns
Riding Your ATV
Basic Operation & Riding
Learn how to turn your ATV properly. Practice the techniques outlined
in this section on level ground and at low speeds until you are confident
in making turns.
１０／０４／１９ １３：１２：４２ ３１ＨＮ８６８０ ００９１
Lean your body to the inside of a turn and forward.
83
Riding Your ATV
Basic Operation & Riding
To make a turn from a full stop: Apply the throttle gradually when you
turn and start up at the same time. Remember to shift your body forward
to make sharp low-speed turns and whenever you turn while
accelerating from a full stop.
To make a sharp turn at low speed: It helps to shift your body slightly
forward on the seat, and lean inside, as you steer the handlebar. Shifting
weight forward allows the rear wheels to turn easier, and it also
improves front-wheel steering.
To make a turn on level ground: Steer the handlebar and lean your body
toward the inside of the turn. Leaning helps balance the vehicle, and it
feels more comfortable. Leaning into a turn is an important technique to
master in riding an ATV.
１０／０４／１９ １３：１２：５０ ３１ＨＮ８６８０ ００９２
Skidding or sliding improperly may cause you to
lose control of this ATV. You may also regain
traction unexpectedly, which may cause the
ATV to overturn.
Learn to safely control skidding by practicing at
low speeds and on level, smooth terrain.
84
Skidding or Sliding
Riding Your ATV
Basic Operation & Riding
The terrain surface can be a major factor affecting turns. Skidding
during a turn is more likely to occur on slippery surfaces, such as snow,
ice, mud and loose gravel. If you skid on ice, you may lose all
directional control. To avoid skidding on slippery terrain, keep your
speed low and ride with caution.
If your ATV skids sideways during a turn, steer in the direction of the
skid. Avoid hard braking or accelerating until you have regained
directional control.
１０／０４／１９ １３：１２：５６ ３１ＨＮ８６８０ ００９３
Operating on excessively steep hills can cause
the vehicle to overturn more easily than
operating on level surfaces or small hills.
Never operate the ATV on hills too steep for the
ATV or for your abilities.
Climbing hills improperly could cause loss of
control or cause the ATV to overturn.
Always follow proper procedures for climbing
hills as described in this owner’s manual.
85
Riding Up Hills
Riding Your ATV
Basic Operation & Riding
The ATV’s ability to safely climb hills largely depends on the rider’s
skill and judgment. Begin by practicing on smooth, gentle slopes. As
you gain experience, you’ll learn the hazards and your own limitations.
You may then proceed to ride on more difficult terrain. However, you
must be able to decide which hills or hazards might cause the ATV to
overturn. Avoid excessively steep hills.
When climbing hills, you must shift weight toward the front wheels to
help keep them on the ground. To do this, shift your body slightly
forward on the seat and lean forward. For greater weight shift, move
your body farther forward and lean forward.
１０／０４／１９ １３：１３：０３ ３１ＨＮ８６８０ ００９４
Shift weight forward when climbing hills.
86
Riding Your ATV
Basic Operation & Riding
Never climb hills with excessively slippery or loose surfaces.
Always check the terrain carefully before you start up any hill.
To climb a hill, take a running start in an appropriate gear and speed
for the conditions. Maintain a steady speed as you ascend the hill.
Never open the throttle suddenly or make sudden gear changes. The
ATV could flip over backward.
Never go over the top of any hill at high speed. An obstacle, a sharp
drop, or another vehicle or person could be on the other side of the
hill.
１０／０４／１９ １３：１３：１０ ３１ＨＮ８６８０ ００９５
Stalling, rolling backwards or improperly
dismounting while climbing a hill could result in
the ATV overturning.
Always follow proper procedures for climbing a
hill as described in this owner’s manual.
87
Stalling the ATV and/or Rolling Backwards:
Riding Your ATV
Basic Operation & Riding
If you incorrectly estimate climbing capability or terrain conditions, the
ATV may not have enough power or traction to continue uphill. If this
happen, the ATV can stall and/or roll backwards.
What to do if the ATV stalls or rolls backwards when climbing a hill:
If you are about to lose all forward speed:
Using the front and rear brakes together, bring the ATV to a stop
with the vehicle pointed straight uphill.
Get off the ATV while you continue holding the brakes.
Shift into neutral, set the parking brake and turn the engine off.
Then assess the situation.
If the ATV starts rolling backwards before you begin braking:
Keep your weight uphill.
Carefully apply the front brakes first, then carefully apply the
rear brake. Do not apply either brake abruptly if you are rolling
backwards, or the vehicle may overturn.
If the ATV continues sliding backwards:
After you’ve applied the brakes, get off and away from the vehicle.
Remember that operating any brake control in the 4WD mode will cause
braking at both the front and rear wheels.
1.
2.
1.
2.
3.
4.
１０／０４／１９ １３：１３：２１ ３１ＨＮ８６８０ ００９６
Body position for
backing down a hill.
Be sure your legs are
clear of the wheels.
88
Riding Your ATV
Basic Operation & Riding
If the hill is too steep or too slippery, or if you have any doubt whether
you can safely walk the ATV back down the hill, leave the vehicle
where it is and get help. If possible, block the wheels so the vehicle
doesn’t roll backwards.
If the hill is not too steep and you have good footing, you may be able
to walk the ATV back down the hill. Make sure your intended path is
clear in case you lose control of the ATV.
Stand with your body facing downhill, beside the vehicle so you can
reach the rear brake lever with your right hand.
Be sure your legs are clear of the wheels.
Check your footing.
Slowly and carefully back the ATV down the hill using the rear brake
lever to control speed.
If you lose control of the ATV, for your safety, get away from the
vehicle.
What to do after the ATV has stalled or rolled backwards:
1.
2.
3.
4.
１０／０４／１９ １３：１３：３０ ３１ＨＮ８６８０ ００９７
On downhills, shift your weight back.
Going down a hill improperly could cause loss
of control or cause the ATV to overturn.
Always follow proper procedures for going down
hills as described in this owner’s manual.
89
Riding Down Hills
Riding Your ATV
Basic Operation & Riding
It’s usually advisable to descend hills with the ATV pointed straight
downhill. Avoid angles that would cause the vehicle to lean sharply to
one side.
As you approach a downhill, stop and survey the terrain below. Never
ride past the limit of your visibility. Never go down a hill at high speed.
１０／０４／１９ １３：１３：３８ ３１ＨＮ８６８０ ００９８
Improperly crossing hills or turning on hills could
cause loss of control or cause the ATV to
overturn.
Always follow proper procedures for crossing or
turning on slopes as described in this owner’s
manual. Avoid crossing steep hills if possible.
90
Crossing or Turning on Hills or Slopes
Riding Your ATV
Basic Operation & Riding
Use mainly the rear brake to control speed. Avoid using either the front
brake or rear brake hard or abruptly when riding down hills.
Remember, braking effectiveness is reduced on any hill with a loose
surface.
Riding on hills or slopes is different from riding on level terrain. Be
careful when riding on any hill. Make sure that you practice on gentle,
smooth slopes before attempting to ride on steeper or more difficult
terrain.
Remember that operating any brake control in the 4WD mode will cause
braking at both the front and rear wheels.
When you’ve selected a safe downhill path, shift into a lower gear (in
the ESP mode), shift your weight back with your arms extended and
braced against the handlebar, then go down slowly with the throttle
closed.
１０／０４／１９ １３：１３：４５ ３１ＨＮ８６８０ ００９９
Shift weight uphill when crossing slopes.
91
Riding Your ATV
Basic Operation & Riding
Crossing Hills or Slopes
To maintain balance and stability when riding across a slope, you
need to shift weight toward the uphill side of the vehicle. To do this,
move your body off the center of the seat and lean toward the uphill
side.
On a slippery or loose surface, you may also need to steer slightly
uphill to maintain a straight course across the slope.
Avoid crossing hills that are excessively steep, slippery or rough.
Do not make turns on any slopes until you have first mastered the
techniques for making turns on level terrain.
Compared to riding on level ground, you may need to shift more
weight and lean more when making turns on slopes.
Making Turns on Slopes
１０／０４／１９ １３：１３：５５ ３１ＨＮ８６８０ ０１００
Improperly operating over obstacles could
cause loss of control or a collision and could
cause the ATV to overturn.
When you go over obstacles, always follow
proper procedures as described in this owner’s
manual.
92
Riding Over Obstacles
Riding Your ATV
Basic Operation & Riding
Before operating in a new area, check for obstacles. Watch out for
bumps, rain ruts, potholes and other obstacles in the terrain. When you
approach any obstacle, reduce your speed and be prepared to stop.
Never try to ride over large obstacles, such as large rocks or fallen logs.
１０／０４／１９ １３：１４：００ ３１ＨＮ８６８０ ０１０１
The ATV tires have some ability to float.
Operating this ATV through deep or fast-flowing
water may cause a loss of traction and loss of
control, which could lead to an accident.
Never operate this ATV in fast-flowing water or
in water deeper than that specified in this owner’s
manual.
93
Riding Through Water
Riding Your ATV
Basic Operation & Riding
If necessary, apply the brakes repeatedly until they dry out and
operate normally.
Riding through water can make the brakes less effective than
normal, and may reduce stopping ability.
After leaving the water, always test both the front and rear brakes.
Avoid getting the spark plug or air cleaner wet, as this would cause
the engine to stop.
Watch out for submerged obstacles and slippery rocks.
Proceed through the water at a slow, steady speed.
Choose a path where both banks have gradual slopes.
Your ATV is designed to travel through water up to approximately
10 inches (254 mm) deep. Before crossing a stream, make sure the water
is not too deep or flowing too fast.
1.
2.
3.
4.
5.
１０／０４／１９ １３：１４：１０ ３１ＨＮ８６８０ ０１０２
94
Parking
Basic Operation & Riding
Parking on a Steep Incline or a Loose or Slippery Surface
Look for level parking area. Make sure the ground surface is firm.
After bringing your ATV to a stop, hold the brakes while you shift
into neutral.
Set the parking brake.
Turn the ignition switch OFF ( ).
If it is necessary to start the engine when your ATV in gear and is
stopped on a grade, rock the vehicle back and forth to allow shifting the
transmission into neutral.
The brakelights are activated by applying the parking brake. When using
the parking brake, be sure to turn the ignition switch OFF ( ) to avoid
discharging the battery.
If you must park your ATV on a steep incline or loose or slippery
surface, use the following procedure:
While holding the brakes, set the parking brake.
If rocks or other objects are available, you can block the wheels as
shown for additional security.
If the ATV begins to move, either while sitting on it or after you
dismount, find a better parking location.
Turn the ignition switch OFF ( ) and release the brakes.
1.
2.
3.
4.
1.
2.
3.
4.
１０／０４／１９ １３：１４：２３ ３１ＨＮ８６８０ ０１０３
95
Servicing Your Honda
Servicing Your Honda
Maintenance, replacement or repair of the emission control devices
and systems may be performed by any ATV repair establishment or
individual using parts that are ‘‘certified’’ to EPA standards.
Service Preparations
Before You Service Your Honda
For information about replacing fuses, see page .
(cont’d)
To help keep your ATV in good shape, this section includes a
Maintenance Schedule for required service and step-by-step instructions
for specific maintenance tasks. You’ll also find important safety
precautions, information on fuels and oils, and tips for keeping your
Honda looking good.
For information about the exhaust emission and noise requirements of
the U.S. Environmental Protection Agency (EPA), the California Air
Resources Board (CARB), and Environment Canada (EC),
see page .
USA Only
......................................................................Maintenance Schedule .
..........................................................................Maintenance Record .
..................................................Maintenance Component Locations .
.............................................................................................Tool Kit .
...................................................................Owner’s Manual Storage .
....................................................................................Seat Removal .
...........................................................The Importance of Maintenance .
...............................................................................Maintenance Safety .
............................................................Important Safety Precautions .
211
97
98
99
100
104
105
108
109
110
195
１０／０４／１９ １３：１４：３８ ３１ＨＮ８６８０ ０１０４
96
Servicing Your Honda
Servicing Your Honda
Service Procedures
Fluids & Filters
Engine
Chassis
Electrical
...................................................................................................Fuel .
............................................................................Engine Oil & Filter .
....................................................................................Gear Case Oil .
..................................................................................Differential Oil .
..............................................................................................Coolant .
........................................................................................Air Cleaner .
..............................................................................................Throttle .
.........................................................................................Spark Plug .
................................................................................................Valves .
...................................................................................Spark Arrester .
................................................................................................Brakes .
..................................................................................................Tires .
...............................................................................................Battery .
...............................................................................Appearance Care .
...............................................................................................Guards .
................................................................................Drivetrain Boots .
111
114
122
124
126
131
136
138
141
142
144
152
159
160
161
166
１０／０４／１９ １３：１４：５４ ３１ＨＮ８６８０ ０１０５
Improperly maintaining this ATV or failing to
correct a problem before you ride can cause a
crash in which you can be seriously hurt or
killed.
Always follow the inspection and maintenance
recommendations and schedules in this owner’s
manual.
97
The Importance of Maintenance
Servicing Your Honda
Frequent servicing of the air cleaner is especially important to help you
avoid a possible costly engine repair.
If your ATV overturns or is involved in a crash, be sure your Honda
dealer inspects all major parts, even if you are able to make some repairs.
A well-maintained ATV is essential for safe, economical, and trouble-
free riding. It will also help reduce air pollution. Careful pre-ride
inspections and good maintenance are especially important because your
ATV is designed to be ridden over rough off-road terrain.
To help you properly care for your ATV, this section of the manual
provides a Maintenance Schedule. The service intervals in this schedule
are based on average riding conditions.
１０／０４／１９ １３：１５：０１ ３１ＨＮ８６８０ ０１０６
Failure to properly follow maintenance
instructions and precautions can cause you to
be seriously hurt or killed.
Always follow the procedures and precautions
in this owner’s manual.
98
Maintenance Safety
Servicing Your Honda
This section includes instructions on how to perform some important
maintenance tasks. If you have basic mechanical skills, you can perform
many of these tasks with the tools provided with your ATV.
Other tasks that are more difficult and require special tools are best
performed by professionals. Removing the wheels should normally be
handled only by a Honda technician or other qualified mechanic.
Instructions are included in this manual only to assist in emergency
service.
Some of the most important safety precautions follow. However, we
cannot warn you of every conceivable hazard that can arise in
performing maintenance. Only you can decide whether or not you
should perform a given task.
１０／０４／１９ １３：１５：０７ ３１ＨＮ８６８０ ０１０７
99
Important Safety Precautions
Maintenance Safety
Servicing Your Honda
Carbon monoxide poisoning from engine exhaust.
Burns from hot ATV parts.
Injury from moving parts.
Make sure the engine is off before you begin any maintenance or
repairs. This will help eliminate several potential hazards:
Be sure there is
adequate ventilation whenever you operate the engine.
Let the engine and exhaust system cool
before touching.
Do not run the engine unless instructed
to do so.
Read the instructions before you begin, and make sure you have the
tools and skills required.
To reduce the possibility of a fire or explosion, be careful when
working around gasoline. Use only non-flammable solvent, not
gasoline, to clean parts. Keep cigarettes, sparks, and flames away
from all fuel-related parts.
Remember that your Honda dealer knows your ATV best and is fully
equipped to maintain and repair it. To ensure the best quality and
reliability, use only new Honda Genuine Parts or other equivalents for
repair and replacement. If you have the tools and skills required for
additional maintenance jobs, you can purchase an official Honda
Service Manual (page ).218
１０／０４／１９ １３：１５：１４ ３１ＨＮ８６８０ ０１０８
100
Maintenance Schedule
Servicing Your Honda
The required Maintenance Schedule that follows specifies how often
you should have your ATV serviced, and what things need attention. It
is essential to have your ATV serviced as scheduled to maintain safe,
dependable performance and proper emission control.
The service intervals in this Maintenance Schedule are based on average
riding conditions. Some items will need more frequent service if you
ride in unusually wet or dusty areas or at full throttle. Consult your
Honda dealer for recommendations applicable to your individual needs
and use.
Some items in the Maintenance Schedule can be performed with basic
mechanical skills and hand tools. Procedures for these items are
provided in this manual. Other items involve more extensive procedures
and may require special training, tools, and equipment. We recommend
that you have your Honda dealer perform these tasks unless you have
advanced mechanical skills and the required tools and equipment.
Procedures for such items in this schedule are provided in an official
Honda Service Manual available for purchase (page ).
If you do not feel capable of performing a given task or need assistance,
remember that your Honda dealer knows your ATV best and is fully
equipped to maintain and repair it. If you decide to do your own
maintenance, use only Honda Genuine Parts or their equivalents for
repair or replacement to ensure the best quality and reliability.
218
１０／０４／１９ １３：１５：２１ ３１ＨＮ８６８０ ０１０９
＊＊＊
＊
＊＊
101
Maintenance Schedule
Servicing Your Honda
Summary of Maintenance Schedule Notes & Procedures:
Perform the pre-ride inspection (page ) and owner maintenance on
this section at each scheduled maintenance period.
Each item on the maintenance schedule requires some mechanical
knowledge. Certain items (particularly those marked and ) may
require more technical information and tools. Consult your Honda dealer.
Should be serviced by your Honda dealer, unless you have the
proper tools and service data, and are mechanically qualified. Refer
to the official Honda Service Manual (page ).
In the interest of safety, we recommend these items be serviced
only by your Honda dealer.
Service more frequently when riding in dusty areas, sand or snow.
Service more frequently after riding in very wet or muddy conditions.
Replace every 2 years. Replacement requires mechanical skill.
NOTES:
1.
2.
3.
49
218
１０／０４／１９ １３：１５：３１ ３１ＨＮ８６８０ ０１１０
−
−
FUEL LINE
THROTTLE OPERATION
AIR CLEANER
AIR CLEANER HOUSING
DRAIN TUBE
SPARK PLUG
VALVE CLEARANCE
ENGINE OIL
ENGINE OILFILTER
RADIATOR COOLANT
COOLING SYSTEM
Every 600 mi
(1,000km),
100 operating hours
or 12 months: R
600
1000
6
100
C
I
I
I
I
100
150
1
20
I
NOTE
NOTE 1
NOTE 2
NOTE 3
NOTE 2
100 mi (150 km),
20 operating hours
or 1 month: R
1200
2000
12
200
I
I
C
I
I
I
I
I
mi
km
Refer to
page
136
131
135
138
141
114
119
126
REGULAR
ITEMS
FREQUENCY
WHICHEVER
COMES
FIRST
INITIAL
INITIAL=
REGULAR=
MONTH
HOURS
MAINT. INTERVALMAINT.
102
Maintenance Schedule
Servicing Your Honda
Maintenance Procedures:
I: inspect and clean, adjust, lubricate, or replace, if necessary
C: clean
A: adjust
L: lubricate
R: replace
Should be serviced by your Honda dealer, unless you have the proper tools and service data, and
are mechanically qualified. Refer to the official Honda Service Manual (page ).218
１０／０４／１９ １３：１５：４２ ３１ＨＮ８６８０ ０１１１
−
−
−
−
−
−
NOTE
NOTE 3
DRIVETRAIN BOOTS
REAR FINAL GEAR CASE
OIL AND DIFFERENTIAL
OIL
BRAKE FLUID
BRAKE PADS WEAR
BRAKELIGHT SWITCH
BRAKE SYSTEM
GUARDS
SUSPENSION
SPARK ARRESTER
NUTS, BOLTS,
FASTENERS
WHEELS/TIRES
TIE-ROD AND JOINT
BOOTS
STEERING SHAFT
HOLDER BEARINGS
STEERING SYSTEM
1200
2000
12
200
I
I
I
I
I
I
I
I
C
I
I
I
I
I
600
1000
6
100
I
I
I
I
I
I
C
I
I
100
150
1
20
I
I
I
I
I
mi
km
Refer to
page
160
122
124
144
147
151
144
159
142
FREQUENCY
ITEMS
WHICHEVER
COMES
FIRST
REGULARINITIAL
NOTE 1,2
(R:EVERY
2 YEARS)
MAINT. INTERVALMAINT.
MONTH
HOURS
103
Servicing Your Honda
Maintenance Schedule
Should be serviced by your Honda dealer, unless you have the proper tools and service data, and
are mechanically qualified. Refer to the official Honda Service Manual (page ).
In the interest of safety, we recommend these items be serviced only by your Honda dealer.
218
１０／０４／１９ １３：１５：５２ ３１ＨＮ８６８０ ０１１２
104
Maintenance Record
Servicing Your Honda
Performed
By:
Date Notes
ODO or
HOUR
Miles (km) or
months or hours
Keeping an accurate maintenance record will help ensure that your ATV
is properly maintained. Retain detailed receipts to verify the
maintenance was performed. If the ATV is sold, these receipts should be
transferred with the ATV to the new owner. Make sure whoever
performs the maintenance completes this record. All scheduled
maintenance, including the 100 mile (150 km) or 1 month or 20 hours
initial maintenance, is considered a normal owner operating cost and
will be charged for by your dealer. Use the space under Notes to record
anything you want to remind yourself about or mention to your dealer.
100 (150) or
1or20
600 (1,000) or
6 or 100
1,200 (2,000) or
12 or 200
1,800 (3,000) or
18 or 300
2,400 (4,000) or
24 or 400
3,000 (5,000) or
30 or 500
3,600 (6,000) or
36 or 600
4,200 (7,000) or
42 or 700
4,800 (8,000) or
48 or 800
１０／０４／１９ １３：１６：００ ３１ＨＮ８６８０ ０１１３
front brake fluid reservoir
fuel fill cap
front brake lever
throttle lever
rear brake lever/
parking brake lever
105
Servicing Your Honda
Maintenance Component Locations
１０／０４／１９ １３：１６：０５ ３１ＨＮ８６８０ ０１１４
air cleaner
coolant
reserve
tank
rear brake pedal
battery
air cleaner
housing drain
tube
rear brake fluid
reservoir
front brake caliper
rear brakelight switch
engine oil filter
front brake caliper
fuse box
main fuse 1
main fuse 2
other fuses
differential oil fill cap
differential oil drain plug
106
Servicing Your Honda
Maintenance Component Locations
１０／０４／１９ １３：１６：１１ ３１ＨＮ８６８０ ０１１５
spark plug
tool kit
engine oil dipstick
engine oil drain plug
owner’s manual
storage compartment
air pressure gauge
engine oil fill cap
spark arrester
gear case oil
fill cap
gear case oil
drain plug
107
Servicing Your Honda
Maintenance Component Locations
１０／０４／１９ １３：１６：１６ ３１ＨＮ８６８０ ０１１６
(1) tool kit
(3)
(2)
(1)
(3) rubber band
(2) tool kit compartment
UNDER SEAT
108
Tool Kit
Servicing Your Honda
The tool kit ( ) is stored in the tool kit compartment ( ) under the seat.
After using the tools, be sure to use the rubber band ( ) to fasten the
tool kit securely.
To access the tool kit, remove the seat (see page ), and then remove
the rubber band.
An optional, larger tool kit may be available. Check with your Honda
dealer’s parts department.
12
3
110
１０／０４／１９ １３：１６：２３ ３１ＨＮ８６８０ ０１１７
(1)
(2)
(3)
(4)
(5)
(6)
LEFT
(7)
(1) owner’s manual
(2) storage compartment
(3) quick screw
(4) lid
(5) air pressure gauge
(6) plastic bag
(7) rubber band
109
Owner’s Manual Storage
Servicing Your Honda
Be careful not to flood this area when washing your ATV.
Your ATV provides storage for the owner’s manual so you’ll have it
with you for easy reference. Store your owner’s manual ( ) in the
storage compartment ( ) at the left side of the front fender.
To open the compartment, turn left the quick screw ( ) and remove the
lid ( ).
The owner’s manual and air pressure gauge ( ) should be stored in the
plastic bag ( ) and fastened with the rubber band ( ).
1
7
2
4
5
3
6
１０／０４／１９ １３：１６：３２ ３１ＨＮ８６８０ ０１１８
(1)
(2)
(5)
(3)
(4) hooks
(5) studs
(3)
(1) seat latch
(2) seat
(3) front prongs
((44))
110
Seat Removal
Servicing Your Honda
Safety PrecautionsRefer to on page .
Installation
Slide the seat ( ) back and lift it.
Removal
Pull the seat latch ( ) at the rear of the seat.
Insert the front prongs ( ) into the hooks ( ) and press the studs ( )
into the grommets on the rear fender.
Press down on the seat until it locks.
The seat must be removed for the air cleaner, spark plug and fuse
maintenance, and access to the tool kit.
1.
2.
1.
2.
1
2
34 5
99
１０／０４／１９ １３：１６：４２ ３１ＨＮ８６８０ ０１１９
unleaded
86 (or higher)
type
pump octane number
111
Fuel Recommendation
Servicing Your Honda
Fuel
Safety PrecautionsRefer to on page .
Use only unleaded fuel in your Honda. If you ride your Honda in a
country where leaded fuel might be available, take precautions to use
only unleaded fuel.
Never use stale or contaminated gasoline or an oil/gasoline mixture.
Avoid getting dirt, dust, or water in the fuel tank.
If pinging or spark knock occurs at a steady engine speed under normal
load, change brands of gasoline. If pinging or spark knock persists,
consult your Honda dealer.
Use of lower octane gasoline can cause persistent ‘‘pinging’’ or ‘‘spark
knock’’ (a loud rapping noise) which, if severe, can lead to engine
damage. Light pinging experienced while operating under a heavy load,
such as climbing a hill, is no cause for concern.
Your engine is designed to use any unleaded gasoline that has a pump
octane number of 86 or higher. Gasoline pumps at service stations
normally display the pump octane number. For information on the use
of oxygenated fuels, see page .
99
215
１０／０４／１９ １３：１６：５３ ３１ＨＮ８６８０ ０１２０
4.44 US gal (16.8 )
(1) fuel fill cap
(2) breather tube
(2)
(1)
(4)
(3)
(3) handlebar cover hole
(4) filler neck
112
Fuel Capacity
Refueling Procedure
Fuel
Servicing Your Honda
Safety PrecautionsRefer to on page .
Fuel tank capacity:
The tank should be refilled as soon as possible when the E segment in
the fuel gauge flashes.
99
１０／０４／１９ １３：１７：０２ ３１ＨＮ８６８０ ０１２１
Gasoline is highly flammable and explosive.
You can be burned or seriously injured when
handling fuel.
Stop the engine and keep heat, sparks and
flame away.
Handle fuel only outdoors.
Wipe up spills immediately.
113
Fuel
Servicing Your Honda
Add fuel until the level reaches the bottom of the filler neck ( ).
Avoid over filling the tank. There should be no fuel in the filler neck.
If you replace the fuel fill cap, use only a Honda Genuine replacement
part.
To open the fuel fill cap ( ), turn it counterclockwise.
Pull the breather tube ( ) out of the handlebar cover hole ( ).
After refueling, turn the fuel fill cap clockwise until it clicks.
Insert the breather tube into the handlebar cover hole.
1.
2.
3.
4.
5.
1
23
4
１０／０４／１９ １３：１７：１０ ３１ＨＮ８６８０ ０１２２
114
Engine Oil & Filter
Servicing Your Honda
Engine oil quality is a major factor that affects both the performance
and the service life of the engine.
Using the proper oil (page ) and filter, and regularly checking,
adding, and changing oil will help extend your engine’s life. Even the
best oil wears out. Changing oil helps get rid of dirt and deposits in the
engine. Operating the engine with old or dirty oil can damage your
engine. Running the engine with insufficient oil can cause serious
damage to the engine and transmission.
Change the engine oil as specified in the maintenance schedule on
page . When running in very dusty conditions, oil changes should be
performed more frequently than specified in the maintenance schedule.
115
102
１０／０４／１９ １３：１７：１５ ３１ＨＮ８６８０ ０１２３
＊
＊
OKNOT RECOMMENDED
API classification
viscosity (weight)
JASO T 903
standard
suggested oil
SG or higher except oils labeled as
energy conserving on the circular API
service label
MA
SAE 10W-30
Pro Honda GN4 4-stroke oil (USA &
Canada), or Honda 4-stroke oil
(Canada only), or an equivalent
motorcycle oil.
115
Oil Recommendation
Engine Oil & Filter
Servicing Your Honda
(cont’d)
Suggested oils are equal in performance to SJ oils that are not labeled
as energy conserving on the circular API service label.
Your ATV does not need oil additives. Use the recommended oil.
Do not use oils with graphite or molybdenum additives. They may
adversely affect clutch operation.
Do not use API SH or higher oils displaying a circular API ‘‘energy
conserving’’ service label on the container. They may affect
lubrication and clutch performance.
Do not use non-detergent, vegetable, or castor based racing oils.
１０／０４／１９ １３：１７：３１ ３１ＨＮ８６８０ ０１２４
(1) code number of the sales company of the oil
(2) oil classification
(1)
(2)
116
Engine Oil & Filter
Servicing Your Honda
Other viscosities shown in the following chart may be used when the
average temperature in your riding area is within the indicated range.
JASO T 903 standard
The JASO T 903 standard is an index for engine oils for 4-stroke
motorcycle engines.
There are two classes: MA and MB.
Oil conforming to the standard is labeled on the oil container. For
example, the following label shows the MA classification.
１０／０４／１９ １３：１７：４０ ３１ＨＮ８６８０ ０１２５
−
−
(1)
(2)
(3)
(1) dipstick
(2) upper level mark
LEFT SIDE
(3) lower level mark
117
Checking & Adding Oil
Engine Oil & Filter
Servicing Your Honda
Safety Precautions
Before riding your ATV, check the engine oil level.
Refer to on page .
Check the engine oil level each day before operating your ATV and add
if needed.
Insert the dipstick without screwing it in, then remove the dipstick and
check the oil level. The oil level should be between the upper level
mark ( ) and the lower level mark ( ) on the dipstick.
Remove the dipstick ( ) from the front crankcase cover and wipe it
clean.
Start the engine in a well-ventilated area and let it idle for 3 5
minutes. Stop the engine and wait 2 3 minutes.
Park your ATV on a firm, level surface.
(cont’d)
1.
2.
3.
4.
32
99
1
１０／０４／１９ １３：１７：５１ ３１ＨＮ８６８０ ０１２６
(4)
LEFT SIDE
(5)
(4) oil fill cap lid (5) oil fill cap
118
Engine Oil & Filter
Servicing Your Honda
Running the engine with an improper oil level can cause serious engine
damage.
If required, remove the oil fill cap lid ( ) and oil fill cap ( ) and add
the specified oil into the fill cap hole, up to the upper level mark on
the dipstick. Do not overfill.
Reinstall the oil fill cap, oil fill cap lid and dipstick.
5.
6.
54
１０／０４／１９ １３：１７：５８ ３１ＨＮ８６８０ ０１２７
(1)
UNDER ENGINE
(1) engine oil drain plug
119
Changing Engine Oil & Filter
Engine Oil & Filter
Servicing Your Honda
Safety Precautions
Using the wrong oil filter may result in leaks or engine damage.
Drain the Engine Oil:
Refer to on page .
Your ATV’s oil filter has very specific performance requirements. Use a
new Honda Genuine oil filter specified for your model or a filter of
equal quality.
(cont’d)
This procedure requires mechanical skill and professional tools such as a
torque wrench and oil filter wrench, as well as a means for disposing of
the drained fluid (page ). If you do not have the skills or the tools,
see your Honda dealer.
With the ATV on level ground, remove the oil fill cap from the left
side of crankcase.
Place an oil drain pan under the crankcase and remove the engine oil
drainplug( ).
1.
2.
1
99
180
１０／０４／１９ １３：１８：０８ ３１ＨＮ８６８０ ０１２８
13 lbf·ft (18 N·m , 1.8 kgf·m)
(5)
(4)
(3)
(2) oil filter bolt
(3) oil filter cover
(4) oil filter
(5) O-rings
(2)
120
Engine Oil & Filter
Servicing Your Honda
Improper installation of the oil filter can cause serious engine damage.
Install a New Engine Oil Filter:
Install the oil filter cover and tighten the oil filter bolt. Make sure the
oil filter bolt is tightened securely to the specified torque.
Oil filter bolt torque:
Check the O-rings ( ) are in good condition and then insert a new oil
filter to the oil filter cover.
Use only the Honda Genuine oil filter or a filter of equivalent quality
specified for your model. Using the wrong Honda filter or a non-
Honda filter which is not of equivalent quality may cause engine
damage.
Remove the spring and washer. Do not discard the washer with the
old oil filter.
Discard the oil filter.
Remove the oil filter bolt ( ) and oil filter cover ( ).
Let the remaining oil drain out.
Remove the oil filter ( ) from the cover.4
3.
4.
5.
6.
7.
8.
3
5
2
１０／０４／１９ １３：１８：１７ ３１ＨＮ８６８０ ０１２９
−
3.1 US qt (2.9
)
18 lbf·ft (25 N·m , 2.5 kgf·m)
(7)
(6)
(6) drain plug sealing washer
(7) O-ring
121
Engine Oil & Filter
Servicing Your Honda
Improper disposal of drained fluids is harmful to the environment.
Add Engine Oil:
Pour the drained oil into a suitable container and dispose of it in an
approved manner (page ).
Check that the drain plug sealing washer ( ) and O-ring ( ) are in
good condition. If necessary, replace them.
Apply a thin coat of engine oil to the O-ring.
Reinstall the engine oil drain plug and tighten it to the specified
torque:
If a torque wrench is not used for installation, see your Honda dealer as
soon as possible to verify proper assembly.
Check that there are no oil leaks.
Reinstall the oil fill cap.
Start the engine and let it idle for 5 minutes.
Fill the crankcase with the recommended grade oil approximately:
Stop the engine and after 2 3 minutes, check the oil level. Make
sure the oil is between the upper and lower level marks on the dipstick.
If necessary, add more oil but do not overfill.
Reinstall the oil fill cap and dipstick.
180
9.
10.
6
7
11.
12.
13.
14.
15.
16.
17.
18.
１０／０４／１９ １３：１８：３２ ３１ＨＮ８６８０ ０１３０
type
viscosity (weight)
hypoid gear oil
SAE 80
suggested oil Honda shaft drive oil or equivalent
122
Changing Oil
Oil Recommendation
Gear Case Oil
Servicing Your Honda
Safety PrecautionsRefer to on page .
Change the oil with the gear case at normal operating temperature to
assure complete and rapid draining.
99
１０／０４／１９ １３：１８：４３ ３１ＨＮ８６８０ ０１３１
9 lbf·ft (12 N·m , 1.2 kgf·m)
2.7 US oz (80 cm
)
(1)(2)
REAR
(3) lower edge of the inspection hole
(3)
(1) oil drain plug
(2) oil fill cap
123
Gear Case Oil
Servicing Your Honda
Park the ATV on level ground.
Place an oil drain pan under the oil drain plug ( ).
Remove the oil fill cap ( ) and the drain plug.
After the oil has completely drained, reinstall the drain plug and
tighten it to the specified torque:
Fill the gear case with the recommended oil.
Install the oil fill cap.
Make sure the oil level is at the lower edge of the inspection hole ( ).
1.
2.
3.
4.
5.
6.
7.
1
3
2
１０／０４／１９ １３：１８：５３ ３１ＨＮ８６８０ ０１３２
type
viscosity (weight)
hypoid gear oil
SAE 80
suggested oil Honda shaft drive oil or equivalent
124
Oil Recommendation
Changing Oil
Differential Oil
Servicing Your Honda
Safety PrecautionsRefer to on page .
Change the oil with the differential at normal operating temperature to
assure complete and rapid draining.
99
１０／０４／１９ １３：１９：０３ ３１ＨＮ８６８０ ０１３３
9 lbf·ft (12 N·m , 1.2 kgf·m)
6.1 US oz (180 cm
)
(2)
(1)
FRONT
(3) lower edge of the inspection hole
(3)
(1) oil drain plug
(2) oil fill cap
125
Differential Oil
Servicing Your Honda
After the oil has completely drained, reinstall the drain plug and
tighten it to the specified torque:
Fill the differential with the recommended oil.
Make sure the oil level is at the lower edge of the inspection hole ( ).
Install the oil fill cap.
Park the ATV on level ground.
Place an oil drain pan under the oil drain plug ( ).
Remove the oil fill cap ( ) and the drain plug.
1.
2.
3.
4.
5.
6.
1
3
2
１０／０４／１９ １３：１９：１３ ３１ＨＮ８６８０ ０１３４
126
Coolant Recommendation
Coolant
Servicing Your Honda
Using coolant with silicate inhibitors may cause premature wear of
water pump seals or blockage of radiator passages. Using tap water
may cause engine damage.
Your ATV’s liquid cooling system dissipates engine heat through the
coolant jacket that surrounds the cylinder and cylinder head.
Maintaining the coolant will allow the cooling system to work properly
and prevent freezing, overheating, and corrosion.
Use Pro Honda HP coolant or an equivalent high quality ethylene glycol
antifreeze containing corrosion protection inhibitors specifically
recommended for use in aluminum engines. Check the antifreeze
container label.
Use only distilled water as a part of the coolant solution. Water that is
high in mineral content or salt may be harmful to the aluminum engine.
The factory provides a 50/50 solution of antifreeze and water in this
ATV. This coolant solution is recommended for most operating
temperatures and provides good corrosion protection.
Decreasing the concentration of antifreeze to less than 40% will not
provide proper corrosion protection.
１０／０４／１９ １３：１９：２１ ３１ＨＮ８６８０ ０１３５
(1)
(1) reserve tank
(2) UPPER level mark
(2)
(3)
RIGHT FRONT
(3) LOWER level mark
127
Checking & Adding Coolant
Coolant
Servicing Your Honda
Safety Precautions
Increasing the concentration of antifreeze is not recommended because
it decreases cooling system performance. Higher concentrations of
antifreeze (up to 60%) should only be used to provide additional
protection against freezing. Check the cooling system frequently during
freezing weather.
Refer to on page .
Check the engine coolant level each day before operating your ATV and
add if needed.
With the engine at normal operating temperature, check the coolant
level in the reserve tank ( ). It should be between the UPPER ( )
and LOWER ( ) level marks.
If the reserve tank is empty, or if coolant loss is excessive, check for
leaks and see your Honda dealer for repair.
Make sure the vehicle is on level ground.
(cont’d)
1.
2.
1
99
2
3
１０／０４／１９ １３：１９：３２ ３１ＨＮ８６８０ ０１３６
FRONT
(4)
(5)
(4) steering cover (5) reserve tank cap
128
Servicing Your Honda
Coolant
Add coolant to the reserve tank as required to bring the coolant level
to the UPPER level mark.
Remove the steering cover ( ) and reserve tank cap ( ).
Always add coolant to the reserve tank. Do not attempt to add coolant
by removing the radiator cap.
After adding coolant, install the reserve tank cap and steering cover.
3.
4.
5
5.
4
１０／０４／１９ １３：１９：３８ ３１ＨＮ８６８０ ０１３７
Removing the radiator cap while the engine is
hot can cause the coolant to spray out, seriously
scalding you.
Always let the engine and radiator cool down
before removing the radiator cap.
129
Coolant Replacement
Servicing Your Honda
Coolant
Safety Precautions
You & the Environment,
Improper disposal of drained fluids is harmful to the environment.
Refer to on page .
Coolant should be replaced by your Honda dealer, unless you have the
proper tools and service data, and are mechanically qualified. Refer to
the official Honda Service Manual (page ).
To properly dispose of drained coolant, refer to
page .
99
218
180
１０／０４／１９ １３：１９：４５ ３１ＨＮ８６８０ ０１３８
(2)
(4)
(1)
(3)FRONT
(1) tabs
(2) radiator cover plate
(3) radiator core
(4) oil cooler
130
Radiator Core
Servicing Your Honda
Coolant
Safety Precautions
To clean the radiator core, oil cooler and radiator cover plate:
Do not apply pressured water directly to the radiator core and oil
cooler. The pressured water can damage the radiator core.
Refer to on page .
Check the air passages for clogging or damage. Remove insects, mud, or
any obstruction with low water pressure. Have the radiator checked by
your Honda dealer if the air flow is restricted over more than 20% of the
radiator surface.
Clean the radiator core after riding the ATV in mud.
Unhook the tabs ( ).
Remove the radiator cover plate ( ).
Wash the radiator core ( ), oil cooler ( ) and radiator cover plate.
1.
2.
3.
99
1
2
34
１０／０４／１９ １３：１９：５６ ３１ＨＮ８６８０ ０１３９
131
Air Cleaner
Servicing Your Honda
Safety Precautions
Using the wrong air cleaner may result in premature engine wear.
Improper or lack of proper air cleaner maintenance can cause poor
performance and premature engine wear.
Refer to on page .
Proper air cleaner maintenance is very important for off-road vehicles.
A dirty, water-soaked, worn-out, or defective air cleaner will allow dirt,
dust, mud, and other impurities to pass into the engine.
Service the air cleaner more frequently if you ride in unusually wet or
dusty areas. Your Honda dealer can help you determine the correct
service interval for your riding conditions.
Your ATV’s air cleaner has very specific performance requirements.
Use a new Honda Genuine air cleaner specified for your model or an air
cleaner of equal quality.
Proper air cleaner maintenance can prevent premature engine wear or
damage, expensive repairs, low engine power, poor gas mileage, and
spark plug fouling.
99
１０／０４／１９ １３：２０：０４ ３１ＨＮ８６８０ ０１４０
(1)
(2)
(1) seat latch
(2) retainer clips
(2)
(3) air cleaner housing cover
UNDER SEAT
(3)
132
Cleaning
Air Cleaner
Servicing Your Honda
Remove the seat by pulling the seat latch ( ) up.
Unlatch the retainer clips ( ).
Remove the air cleaner housing cover ( ).
1.
2.
3.
2
3
1
１０／０４／１９ １３：２０：１２ ３１ＨＮ８６８０ ０１４１
−
UNDER SEAT
(9)
(7) (5)
(8)
(4) element holder
(5) screw
(6) air cleaner assembly
(7) clamp
(8) air cleaner
(9) air cleaner body
(6)
(4)
133
Air Cleaner
Servicing Your Honda
(cont’d)
Unscrew the clamp ( ).
Remove the air cleaner ( ) from the air cleaner body ( ).
Loosen the screw ( ) and remove the air cleaner assembly ( ) from
the air cleaner housing.
Remove the element holder ( ).
Gently wash the air cleaner in clean, non-flammable (high flash
point) solvent such as kerosene not gasoline. After cleaning, gently
squeeze out the remaining solvent. Avoid twisting or wringing the air
cleaner. This can tear the foam.
Inspect for tears or cracks in the foam or seams of the air cleaner.
Replace the air cleaner if it is damaged.
4.
5.
6.
7.
8.
9.
4
5
7
89
6
１０／０４／１９ １３：２０：２３ ３１ＨＮ８６８０ ０１４２
UNDER SEAT
(11)
(10)
(10) FRONT mark
(11) tab
134
Air Cleaner
Servicing Your Honda
Allow the air cleaner to dry thoroughly before applying oil. A wet air
cleaner will not fully absorb the oil.
Pour clean Pro Honda Foam Filter Oil or an equivalent (Canada:
Honda Foam Filter Oil or an equivalent) over the entire surface of the
air cleaner. Use both hands to evenly spread the oil into the air cleaner.
Gently squeeze out any excess oil. (To keep your hands dry, place the
air cleaner in a clean plastic bag before spreading the oil into the air
cleaner.)
Install the air cleaner on the air cleaner body.
Apply a thin coat of grease to the sealing surface of the air cleaner
assembly.
Install the clamp.
Insert the air cleaner assembly into the air cleaner housing.
Install the element holder.
Fasten the screw.
Reassemble by reversing the disassembly sequence.
Install the air cleaner housing cover with the FRONT mark ( )
facing forward and fit the tab ( ) at the element holder.
10.
11.
12.
13.
14.
15.
16.
17.
18.
10
11
１０／０４／１９ １３：２０：３５ ３１ＨＮ８６８０ ０１４３
(1)
(2)
(3)
(1) drain tube
(2) clip
(3) air cleaner housing
REAR
135
Air Cleaner Housing Drain Tube
Air Cleaner
Servicing Your Honda
The air cleaner housing drain tube should be serviced in accordance with
the Maintenance Schedule. (Riding through water may require more
frequent inspection.) If deposits can be seen in the drain tube, the tube
must be cleaned before starting the vehicle.
Remove the drain tube ( ) by removing the clip ( ) under the air
cleaner housing ( ).
Drain the deposits.
Reinstall the drain tube, securing it with the clip.
1.
2.
3.
12
3
１０／０４／２３ １５：２５：４３ ３１ＨＮ８６８０ ０１４４
−−
−
−
1/8 5/16 in
(3 8 mm)
1/85/16in(38mm)
(1)(2) (4)(3)
(1) throttle lever
(2) rubber sleeve
(3) throttle cable adjuster
(4) lock nut
(A) decrease freeplay
(B) increase freeplay
RIGHT HANDLEBAR
((AA))
((BB))
136
Throttle Freeplay
Throttle
Servicing Your Honda
Safety PrecautionsRefer to on page .
After adjustment, check for smooth operation of the throttle lever
from fully closed to fully open in all steering positions.
Tighten the lock nut and reinstall the sleeve.
Loosen the lock nut ( ).
Turn the adjuster to obtain the correct freeplay.
Slide the rubber sleeve ( ) back to expose the throttle cable adjuster
().
Adjustment
Check freeplay at the throttle lever ( ).
Freeplay:
Inspection
1.
2.
3.
4.
5.
3
99
2
4
1
１０／０４／１９ １３：２０：５５ ３１ＨＮ８６８０ ０１４５
137
Throttle Inspection
Throttle
Servicing Your Honda
Safety PrecautionsRefer to on page .
Check that the throttle assembly is positioned properly and the
securing bolts are tight.
Check for smooth operation of the throttle lever from fully open to
fully closed in all steering positions. If there is a problem, see your
Honda dealer.
Lubricate the cables with a commercially available cable lubricant to
prevent premature wear and corrosion.
Check the cables for tension or stress in all steering positions.
Inspect the condition of the throttle cables from the throttle lever
down to the throttle body. If the cable is kinked or chafed, have it
replaced.
1.
2.
3.
4.
5.
99
１０／０４／１９ １３：２１：０３ ３１ＨＮ８６８０ ０１４６
IFR5L11 (NGK)
IFR6L11 (NGK)
VK16PRZ11 (DENSO)
VK20PRZ11 (DENSO)
or
or
standard spark plug
for extended high
speed riding
138
Spark Plug Recommendation
Spark Plug
Servicing Your Honda
Using spark plugs with an improper heat range can cause engine
damage.
Use only the recommended type of spark plug in the recommended heat
range.
This ATV uses spark plugs that have an iridium coated center electrode.
Be sure to observe the following when servicing the spark plugs.
Do not clean the spark plugs. If an electrode is contaminated with
accumulated objects or dirt, replace the spark plug with a new one.
To check the spark plug gap, use only a ‘‘wire-type feeler gauge.’’ To
prevent damaging the iridium coating of the center electrode, never
use a ‘‘leaf-type feeler gauge.’’
Do not adjust the spark plug gap. If the gap is out of specification,
replace the spark plug with a new one.
１０／０４／１９ １３：２１：１３ ３１ＨＮ８６８０ ０１４７
(4)
UNDER SEAT
(1) screw
(2) resonance chamber
(3) rubber cover
(4) spark plug cap
(2)
(1)
(3)
139
Spark Plug Inspection & Replacement
Servicing Your Honda
Spark Plug
Safety PrecautionsRefer to on page .
Loosen the screw ( ) and remove the resonance chamber ( ).
Remove the seat (page ).
Inspect the electrodes and center porcelain for deposits, corrosion, or
carbon fouling. If the corrosion or deposits are heavy, replace the
plug.
Using a spark plug wrench provided in the tool kit, remove the spark
plug.
Disconnect the spark plug cap ( ). Take care to avoid damaging the
spark plug wire when disconnecting the cap.
Clean any dirt from around the spark plug base.
Unhook the rubber cover ( ).
(cont’d)
Make sure that a 1.2 mm wire-type feeler gauge cannot be inserted
between the spark plug gap ( ). If the gauge fits in the gap, replace
the plug with a new one.
5.
4.
6.
1.
2.
3.
7.
1
8.
4
3
5
110
99
2
１０／０４／１９ １３：２１：２７ ３１ＨＮ８６８０ ０１４８
(5) spark plug gap
(5)
140
Spark Plug
Servicing Your Honda
An improperly tightened spark plug can damage the engine. If a plug is
too loose, a piston may be damaged. If a plug is too tight, the threads
may be damaged.
With the plug washer attached, thread the spark plug in by hand to
prevent cross-threading.
Tighten the spark plug:
If the old plug is good:
1/8 turn after it seats.
If installing a new plug, tighten it twice to prevent loosening:
First, tighten the plug:
NGK: turn after it seats.
DENSO: turn after it seats.
Then loosen the plug.
Next, tighten the plug again:
1/8 turn after it seats.
Reinstall the spark plug cap. Take care to avoid pinching any cables
or wires.
Install the remaining parts in the reverse order of removal.
1/2
3/4
a)
b)
c)
10.
11.
12.
9.
１０／０４／１９ １３：２１：３７ ３１ＨＮ８６８０ ０１４９
0.006 in (0.15 mm)
0.013 in (0.33 mm)
141
Valve Inspection
Valves
Servicing Your Honda
Safety PrecautionsRefer to on page .
For those who are mechanically proficient and have the proper tools,
instructions on adjusting valve clearances are given in the official
Honda Service Manual. Otherwise, the valves should be adjusted by
your Honda dealer.
Excessive clearance will cause noise. Insufficient clearance will cause
loss of power and possibly damage the valves.
Valve clearance should be:
intake:
exhaust:
99
１０／０４／１９ １３：２１：４５ ３１ＨＮ８６８０ ０１５０
REAR
(3) (4)(1) (2)
(1) bolts
(2) spark arrester
(3) gasket
(4) muffler
142
Servicing Your Honda
Spark Arrester
Safety PrecautionsRefer to on page .
Allow the engine and muffler to cool.
Regular servicing prevents carbon build up (which can diminish engine
performance) and also complies with USDA regulations for regular
maintenance to assure proper function. The spark arrester prevents
random sparks from the combustion process in your engine from
reaching the environment.
The spark arrester must be serviced every 100 operating hours to
maintain its efficiency.
Remove the bolts ( ), the spark arrester ( ) and the gasket ( ) from
the muffler ( ).
1.
2. 1
4
23
99
１０／０４／１９ １３：２１：５４ ３１ＨＮ８６８０ ０１５１
(5) spark arrester screen
(5)
143
Spark Arrester
Servicing Your Honda
Install the spark arrester and the gasket in the muffler and tighten the
bolts securely.
Use a brush to remove carbon deposits from the spark arrester screen
( ). Be careful to avoid damaging the spark arrester screen.
The spark arrester must be free of breaks and holes. Replace, if
necessary. Check the gasket. Replace, if necessary.
3.
4.
5
１０／０４／１９ １３：２２：００ ３１ＨＮ８６８０ ０１５２
Honda DOT 4 Brake Fluidbrake fluid
144
Brake Fluid Recommendation
Brakes
Servicing Your Honda
The hydraulic disc brakes (front) and a single hydraulic/mechanical disc
brake (rear) on your ATV dissipate the heat generated by the friction of
the brake pads on the disc as the wheels are slowed.
As the front brake pads wear, brake fluid level will drop. A leak in the
system will also cause the level to drop.
There are no adjustments to perform, but fluid level and pad wear must
be inspected periodically. The system must be inspected frequently to
ensure there are no fluid leaks.
If the brake lever or brake pedal freeplay does not feel within the
normal range while riding, check the brake pads for wear (page ).
Worn pads should be replaced. If the pads are not worn beyond the
recommended limit, there is probably air in the brake system. See your
Honda dealer to have the air bled from the system.
The recommended brake fluid is Honda DOT 4 Brake Fluid, or any
brake fluid of equal quality and performance. Use fresh brake fluid
from a sealed container. Be sure to read the label before opening the
sealed container. An opened container may be contaminated or may
have absorbed moisture from the air.
147
１０／０４／１９ １３：２２：０９ ３１ＨＮ８６８０ ０１５３
(1)
RIGHT HANDLEBAR
(1) LOWER level mark
145
Fluid Level Inspection
Brakes
Servicing Your Honda
Safety Precautions
Brake fluid can damage plastic and painted surfaces. Handle with care.
Refer to on page .
Front Brake Fluid Level
If your inspection indicates a low fluid level, have your Honda dealer
add the recommended fluid.
Do not add or replace brake fluid, except in an emergency. If you do
add fluid, have your Honda dealer check the system as soon as possible.
With the ATV in an upright position, check the fluid level.
It should be above the LOWER level mark ( ). If the level is at or
below the LOWER level mark, check the brake pads for wear
(page ).
(cont’d)
Worn brake pads should be replaced. If the pads are not worn, have your
brake system inspected for leaks.
1
99
147
１０／０４／１９ １３：２２：１９ ３１ＨＮ８６８０ ０１５４
RIGHT SIDE
(2)
(3)
(2) UPPER level mark (3) LOWER level mark
146
Other Inspections
Brakes
Servicing Your Honda
Wipe up spills immediately. Avoid brake fluid contact with skin or eyes.
If it comes in contact with your eyes, wash them out with clean water
and immediately call a doctor. If it comes in contact with your skin,
wash with clean water and, if necessary, call a doctor.
Rear Brake Fluid Level
It should be between the UPPER ( ) and LOWER ( ) level mark. If the
level is at or below the LOWER level mark, check the brake pads for
wear (page ).
Worn brake pads should be replaced. If the pads are not worn, have your
brake system inspected for leaks.
Make sure there are no fluid leaks.
Check for deterioration or cracks in the hoses and fittings. If the hoses
are worn or cracked, have them replaced by your Honda dealer.
With the ATV in an upright position, check the fluid level.
Remove the right side cover (page ).
2
147
71
3
１０／０４／１９ １３：２２：２９ ３１ＨＮ８６８０ ０１５５
(1)
(2)
(1) wear indicator (2) reference mark
FRONT
147
Brake Pad Wear
Brakes
Servicing Your Honda
Safety PrecautionsRefer to on page .
Brake pad wear will depend upon the severity of usage and riding
conditions. The pads will wear faster in wet or muddy conditions.
Inspect the pads visually during all regular service intervals to determine
the pad wear.
Always inspect both pads in both the right and left front brake calipers.
Check the wear indicator ( ). Remove the front wheels (page ). If
the wear indicator aligns with the reference mark ( ), both pads must be
replaced, see your Honda dealer for this replacement.
2
99
1 191
１０／０４／１９ １３：２２：３８ ３１ＨＮ８６８０ ０１５６
REAR
(4)
(3)
(3) wear indicator (4) reference mark
148
Brakes
Servicing Your Honda
Check the wear indicator. If the wear indicator ( ) aligns with the
reference mark ( ), replace both pads as a set, see your Honda dealer
for this service.
3
4
１０／０４／１９ １３：２２：４３ ３１ＨＮ８６８０ ０１５７
−−
−
−
1 1 3/16 in
(25 30 mm)
1 1 3/16 in (25 30 mm)
(1)
LEFT HANDLEBAR
(1) rear brake lever/parking brake lever
149
Rear Brake Lever Freeplay
Brakes
Servicing Your Honda
Inspection
Measure the distance the rear brake lever/parking brake lever ( )
moves before the brake starts to take hold. Freeplay (measurement at
the tip of the end of the brake lever) should be:
If necessary, adjust to the specified range.
Press down on the rear brake pedal several times.1.
2.
3.
1
１０／０４／１９ １３：２２：５３ ３１ＨＮ８６８０ ０１５８
(2)
(3)
RIGHT REAR
(2) brake lever adjusting nut
(3) brake arm pin
(B)
(A) increase freeplay
(B) decrease freeplay
(A)
150
Other Inspections
Brakes
Servicing Your Honda
Adjustment
Check that the brake lever and brake pedal assemblies are positioned
properly and the securing bolts are tight.
Make sure that the brake cables, brake arm, spring, parking, and
fasteners are in good condition.
Turn the brake lever adjusting nut ( ), located on the brake operating
rod at the brake caliper. Make sure the cutout on the adjusting nut is
properly seated on the brake arm pin ( ).
3
2
１０／０４／１９ １３：２３：００ ３１ＨＮ８６８０ ０１５９
(2)
RIGHT SIDE
((AA))
((BB))
(1)
(1) rear
brakelight switch
(2) adjusting nut
151
Brakelight Switch Adjustment
Brakes
Servicing Your Honda
Safety PrecautionsRefer to on page .
Rear Brake Only:
Check the operation of the rear brakelight switch ( ) at the right side
behind the engine from time to time. The brakelight should turn on at
0.6 in (15 mm) of pedal stroke. Adjustment is done by turning the
adjusting nut ( ). Turn the nut in direction ( ) if the switch operates too
late and in direction ( ) if the switch operates too soon.
99
1
2
B
A
１０／０４／１９ １３：２３：０８ ３１ＨＮ８６８０ ０１６０
Using tires that are excessively worn or
improperly inflated can cause a crash in which
you can be seriously hurt or killed.
Follow all instructions in this owner’s manual
regarding tire inflation and maintenance.
152
Tires
Servicing Your Honda
To safely operate your ATV, your tires must be the proper type and size,
in good condition with adequate tread, and correctly inflated.
This ATV is equipped with low pressure tubeless tires. Although the
tires are designed specifically for off-road use, they are not immune to
punctures. Always select your riding area with care.
The following pages give detailed information on how and when to
check your air pressure, how to inspect your tires for wear and damage,
and our recommendations for tire repair and replacement.
１０／０４／１９ １３：２３：１４ ３１ＨＮ８６８０ ０１６１
153
Air Pressure
Tires
Servicing Your Honda
Safety PrecautionsRefer to on page .
Properly inflated tires provide the best combination of handling, tread
life, and riding comfort. Generally, underinflated tires wear unevenly,
adversely affect handling, and are more likely to fail from being
overheated. Overinflated tires make your ATV ride harshly, are more
prone to damage from surface hazards, and wear unevenly.
Make sure the valve stem caps are secure. If necessary, install new caps.
99
１０／０４／１９ １３：２３：２１ ３１ＨＮ８６８０ ０１６２
−
−
3.6 psi
(25.0 kPa)
3.6 psi
(25.0 kPa)
3.6 psi
(25.0 kPa)
3.6 psi
(25.0 kPa)
WITH
CARGO
NO
CARGO
REAR
RECOMMENDED
PRESSURE
RECOMMENDED
PRESSURE
FRONT
154
Tires
Servicing Your Honda
The recommended ‘‘cold’’ tire pressures are:
Always check air pressure when your tires are ‘‘cold.’’ If you check air
pressure when your tires are ‘‘warm’’ even if your ATV has only been
ridden for a few miles the readings will be higher. If you let air out of
warm tires to match the recommended cold tire pressures, the tires will
be underinflated. Be sure to check tire pressure at the riding site, since
changes in altitude can affect air pressure.
１０／０４／１９ １３：２３：３０ ３１ＨＮ８６８０ ０１６３
Operating this ATV with improper tires, or with
uneven tire pressure may cause loss of control,
and you could be seriously injured or killed.
Always use the size and type tires specified in
this owner’s manual for this vehicle.
Always maintain proper tire pressure as
described in this owner’s manual.
155
Inspection
Tires
Servicing Your Honda
Safety Precautions
A manually operated tire pump should be used rather than the high
pressure system found in service stations. This will minimize the
possibility of tire damage from overinflation. If you use a high pressure
system at a service station, add air in small amounts and check the
pressure increase frequently to prevent possible tire damage from
overinflation.
Refer to on page .
Whenever you check the tire pressures, you should also look for:
Bumps or bulges in the side of the tire or the tread. Replace any tire
that has a bump or bulge.
Cuts, slits, or cracks in the tires. Replace the tire if you can see fabric
or cord.
Excessive tread wear.
Nails or other foreign objects embedded in the side of the tire or tread.
99
１０／０４／１９ １３：２３：３９ ３１ＨＮ８６８０ ０１６４
Replace
New
Replace
New
3/16 in
(4 mm)
3/16 in
(4 mm)
3/16 in (4 mm)
3/16 in (4 mm)front
rear
(1) groove depth
(2) wear indicator
(3) wear indicator
location mark
(1)
(3)
Front
Rear
(2)
156
Tires
Servicing Your Honda
Also, if you hit a pothole or other hard object while riding, stop as soon
as you safely can and carefully inspect the tires for damage.
Tread Wear
For best performance, you should replace a tire before the tread depth at
the center reaches the following limits:
To check the condition of a tire tread, measure the groove depth ( ) in
the center of the tire, or check the wear indicator ( ).
1
2
１０／０４／１９ １３：２３：５０ ３１ＨＮ８６８０ ０１６５
157
Tire Repair
Tires
Servicing Your Honda
Safety Precautions
If You Have a Flat Tire,
Refer to on page .
A temporary repair can sometimes be made in an emergency situation.
However, since a temporary repair may not hold, you must ride very
slowly, preferably without any cargo, and have the tire replaced or
permanently repaired as soon as possible. (For more information on
temporary repairs, see page .)
A tire that is repaired, either temporarily or permanently, will have lower
speed and performance limits than a new or undamaged tire.
If you have a tire professionally repaired at a non-Honda facility, we
recommend that you have the work checked by your Honda dealer.
A permanent repair, such as an internal plug patch, can be made if a tire
has only a small puncture in the tread area. However you may not be
able to safely carry as much weight. If you choose to have a tire repaired,
be sure the repair work is performed by a professional.
99
189
１０／０４／１９ １３：２３：５８ ３１ＨＮ８６８０ ０１６６
×★★
×★★
AT25 8R12
AT25 10R12
DUNLOP KT511
DUNLOP KT515
Installing improper tires on your ATV can affect
handling and stability. This can cause a crash in
which you can be seriously hurt or killed.
Always use the size and type of tires
recommended in this owner’s manual.
front
rear
158
Tire Replacement
Tires
Servicing Your Honda
Safety PrecautionsRefer to on page .
The tires that came on your ATV were designed to match the
performance capabilities of your ATV and provide the best combination
of handling, braking, and comfort.
It is best to replace all four tires, however if that is not possible, you
must replace the tires in pairs (front or rear) with tires of the same size
and type as the originals. Never replace just one tire.
The recommended tires for your ATV are:
When you replace a tire, remember:
Have the tire replaced by your Honda dealer if possible.
If you have a tire professionally replaced at a non-Honda facility, we
recommended that you have the work checked by your Honda dealer.
99
１０／０４／１９ １３：２４：１０ ３１ＨＮ８６８０ ０１６７
(2) (1)
(3) front boot guards
(4) front driveshaft guards
(3) (4)(4)
(1) engine guard
(2) skid plate
159
Servicing Your Honda
Guards
Safety PrecautionsRefer to on page .
The front boot guards ( ) protect the rubber driveshaft boots, and the
front driveshaft guards ( ) protect the front driveshaft.
The engine guard ( ) protects the engine crankcase.
The skid plate ( ) protects the frame. Check the skid plate and engine
guard for cracks, damage or looseness.
Tighten any loose fasteners. Replace the skid plate or engine guard as
required.
Have the engine guard and skid plate replaced if they are cracked or
damaged. If the guard and plate bolts are loose, tighten them securely.
1
2
3
99
4
１０／０４／１９ １３：２４：１９ ３１ＨＮ８６８０ ０１６８
FRONT
(1) rubber driveshaft boots
REAR
(3)(2)
(2) rubber propeller shaft boots
(3) rubber yoke joint boot
(2)
(1) (1)
160
Servicing Your Honda
Drivetrain Boots
Safety PrecautionsRefer to on page .
Check the rubber driveshaft boots ( ), rubber propeller shaft boots ( )
and rubber yoke joint boot ( ) for cuts, damage or leaking grease. If
necessary, have your Honda dealer replace them.
21
99
3
１０／０４／１９ １３：２４：２７ ３１ＨＮ８６８０ ０１６９
161
WARNING:
Wash your hands after handling.
Battery
Servicing Your Honda
Your battery is a maintenance-free type and can be permanently
damaged if the cap strip is removed.
Battery
Charging,
Battery Storage,
Your ATV has a maintenance-free type battery. You do not have to
check the battery electrolyte level or add distilled water as you would
with a conventional-type battery.
Electrical accessories use current from the battery, even when the
ignition is OFF. Limited operation also allows the battery to discharge.
If you have electrical accessories on your ATV or do not ride frequently,
we recommend that you charge the battery frequently (see
page ).
If you do not expect to ride your ATV for at least two weeks, we
recommend you remove the battery, or at least disconnect the battery
cables (negative cable first).
If you plan to store your ATV, see page .
If your battery seems weak and/or is leaking electrolyte (causing slow
starting or other electrical problems), see your Honda dealer.
Battery posts, terminals and related accessories contain
lead and lead compounds.
162
165
１０／０４／１９ １３：２４：３５ ３１ＨＮ８６８０ ０１７０
The battery gives off explosive hydrogen gas
during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or seriously
hurt you.
Wear protective clothing and a face shield, or
have a skilled mechanic do the battery
maintenance.
162
Battery Storage
Battery
Servicing Your Honda
Safety Precautions
Battery Charging,
Refer to on page .
If you plan to store your ATV, we recommend you remove the battery
and store it where it can be charged at least every 30 days to maintain its
service life.
If you do not remove the battery, we recommend disconnecting the
battery cables (negative cable first).
You will get the best storage results from removing the battery and slow
charging it every 30 days (see page ).
Before you remove the battery, be sure to read all the information that
follows, as well as the information on the battery label.
99
165
１０／０４／１９ １３：２４：４２ ３１ＨＮ８６８０ ０１７１
−
＋
−
＋
(6)(4)
(3)(5)
(2)
(1)(7)
(1) battery cover
(2) bolts
(3) rubber band
(4) negative ( ) terminal lead
(5) battery
(6) positive ( ) terminal lead
(7) battery box
REAR FENDER
163
Battery
Servicing Your Honda
The battery is located under the rear fender.
Disconnect the negative ( ) terminal lead ( ) from the battery ( )
first, then disconnect the positive ( ) terminal lead ( ).
Release the rings and remove the rubber band ( ).
Remove the battery cover ( ) by removing the bolts ( ).
Make sure the ignition switch is OFF ( ).
Removal
(cont’d)
1.
2.
3.
4.
3
4
6
12
5
１０／０４／１９ １３：２４：５３ ３１ＨＮ８６８０ ０１７２
＋
−
164
Battery
Servicing Your Honda
Charge the battery (see following section), unless you have been
riding regularly.
Store your battery in an easy-to-reach location off the floor, in an area
protected from freezing temperature and direct sunlight.
Clean the battery box after removing the battery for storage. Dry the
battery box and, if paint is missing, re-paint the area.
Slow charge the battery (see following section) once every 30 days.
Installation
Reinstall in the reverse order of removal.
Be sure to connect the positive ( ) terminal first, then the negative
( ) terminal.
Make sure all bolts and other fasteners are secure.
Remove the battery from battery box ( ).5.
6.
7.
8.
1.
2.
9.
7
１０／０４／１９ １３：２５：０３ ３１ＨＮ８６８０ ０１７３
(1)
(1) charger
165
Battery Charging
Battery
Servicing Your Honda
Safety PrecautionsRefer to on page .
Be sure to read the information that came with your battery charger and
follow the instructions on the battery. Improper charging may damage
the battery.
We recommend using a charger ( ) designed specifically for your
Honda, which can be purchased from your Honda dealer. These units
can be left connected for long periods without risking damage to the
battery. However, do not intentionally leave the charger connected
longer than the time period recommended in the charger’s instructions.
Avoid using an automotive-type battery charger. An automotive charger
can overheat an ATV battery and cause premature damage.
1
99
１０／０４／１９ １３：２５：１１ ３１ＨＮ８６８０ ０１７４
−
−
−
−
166
General Recommendations
Appearance Care
Servicing Your Honda
Safety Precautions
High pressure water (or air) can damage certain parts of your ATV.
Frequent cleaning and polishing will keep your Honda looking newer
longer.
Frequent cleaning also identifies you as an owner who values his ATV.
A clean ATV is also easier to inspect and service.
Refer to on page .
To clean your ATV, you may use:
water
a mild, neutral detergent and water
a mild spray and wipe cleaner/polisher
a mild spray and rinse cleaner/degreaser and water
Avoid products that contain harsh detergents or chemical solvents that
could damage the metal, paint, and plastic on your ATV.
If your ATV is still warm from recent operation, give the engine and
exhaust system time to cool off.
Park in a shady area. Washing your ATV in bright sunlight may cause
the finish to fade because water droplets intensify the sun’s brightness.
Spotting is also more likely because surface water can dry before you
have time to wipe it off.
Clean your ATV regularly to protect surface finishes.
We recommend the use of a garden hose to wash your ATV. High
pressure washers (like those at coin-operated car washers) can
damage certain parts of your ATV.
After cleaning, inspect for damage, wear, and leaks (fuel, oil, coolant
and brake fluid).
99
１０／０４／１９ １３：２５：２３ ３１ＨＮ８６８０ ０１７５
167
Washing Your ATV with a Mild Detergent
Appearance Care
Servicing Your Honda
Safety PrecautionsRefer to on page .
Rinse your ATV thoroughly with cool water to remove loose dirt.
Wash your ATV with a sponge or soft towel. As you wash, check for
heavy grime. If necessary, use a mild cleaner/degreaser to remove the
grime.
Dry your ATV with a chamois or a soft towel. Leaving water on the
surface to air dry can cause dulling and water spots. As you dry,
inspect for chips and scratches.
Start the engine and let it idle for several minutes. The engine heat
will help dry moist areas.
As a precaution, ride your ATV at a slow speed and apply the brakes
several times. This will help dry the brakes and restore normal
braking performance.
If the inside of the headlight lens appears clouded immediately after
washing, it should clear after a few minutes of riding.
Fill a bucket with cool water. Mix in a mild, neutral detergent, such as
dish washing liquid or a product made especially for washing
motorcycles or automobiles.
After washing, rinse your ATV thoroughly with plenty of clean water
to remove any residue. Detergent residue can corrode alloy parts.
1.
2.
3.
4.
5.
6.
7.
99
１０／０４／１９ １３：２５：３３ ３１ＨＮ８６８０ ０１７６
Apply a spray cleaner/polish and
wipe paint, chrome, glass, and
clear plastic.
Spray any difficult-to-reach or very
dirty areas with a spray cleaner/
degreaser.
Rinse and dry.
Apply a spray cleaner/polish and
wipe with a non-abrasive cloth.
Use a spray cleaner/degreaser. If
necessary, rub with a sponge.
Rinse and dry.
Apply a spray cleaner/polish and
wipe with a non-abrasive cloth.
Apply a high quality chrome/
aluminum polish and wipe with a
non-abrasive cloth.
Dull, corroded chrome
or aluminum.
Heavy grime. Oil leaks.
Brake dust.
Light road grimes.
Dust and fingerprint
smudges.
ATV condition Recommended Cleaning
168
Spray Cleaning Your ATV
Appearance Care
Servicing Your Honda
Safety PrecautionsRefer to on page .
Avoid using spray cleaner products on the tires or suspension
components.
Suggestions for using spray cleaner(s) follow:
99
１０／０４／１９ １３：２５：４６ ３１ＨＮ８６８０ ０１７７
169
Aluminum Wheel Maintenance
Appearance Care
Servicing Your Honda
Safety PrecautionsRefer to on page .
Aluminum may corrode from contact with dirt, mud, or road salt. Clean
the wheels after riding through any of these substances. Use a wet
sponge and mild detergent. Avoid stiff brushes, steel wool, or cleaners
containing abrasives or chemical compounds.
After washing, rinse with plenty of water and dry with a clean cloth.
Then apply a mild, commercially available spray cleaner/polish or wax.
For stained or dull-looking wheels, use a quality chrome/aluminum
polish to restore the finish.
99
１０／０４／１９ １３：２５：５１ ３１ＨＮ８６８０ ０１７８
170
Finishing Touches
Appearance Care
Servicing Your Honda
Safety PrecautionsRefer to on page .
If a surface on your ATV is chipped or scratched, your Honda dealer
has touch-up paint to match your ATV’s color. Be sure to use your
ATV’s color code (page ) when you buy touch-up paint.
After washing your ATV, consider using a commercially available spray
cleaner/polish or quality liquid or paste wax to finish the job. Use only a
non-abrasive polish or wax made specifically for motorcycles or
automobiles. Apply the polish or wax according to the instructions on
the container.
If the frame has a chip that exposes the metal, first apply primer (to
prevent corrosion) and then apply the touch-up paint. Several thin layers
of touch-up paint are better than one thick coat.
99
205
１０／０４／１９ １３：２５：５９ ３１ＨＮ８６８０ ０１７９
171
Tips
Tips
Here’s helpful advice on how to prepare for an off-road adventure, how
to transport and store your Honda, and how to be an environmentally
responsible ATV owner.
..........................................................................Preparing for a Ride .
.................................................................Transporting Your Honda .
....................................................................You & the Environment .
..........................................................................Storing Your Honda .
..................................................What to Take to the Riding Area .
.............................................................What to Take on the Trail .
172
172
173
174
176
180
１０／０４／１９ １３：２６：０７ ３１ＨＮ８６８０ ０１８０
172
What to Take to the Riding Area
Preparing for a Ride
Tips
Taking Care of the Unexpected,
A safe and enjoyable ride begins with good planning and preparation.
Always ride with at least one other person in case you have trouble, and
let someone know where you’re going and when you expect to return.
Before riding in an unfamiliar area, find out in advance if you need
special permits, get maps so you can study the terrain, and talk to other
riders who know the area. The Forest Service and the Bureau of Land
Management (USA only), the Ministry of Natural Resources (Canada
only), riding clubs, and off-road magazines are good sources of
information.
Along with your ATV and riding gear, you should take along some tools
and supplies in case you have a problem. For some of the difficulties
you might encounter, see which begins
on page .
We recommend that you always take water, food, a first aid kit, and
your owner’s manual. Other items you should consider loading on your
truck or trailer include:
a tool kit
tire repair supplies and tools, and tires
extra parts, control levers, cables, and spark plugs
wire, duct tape, and rope
extra gasoline
For safety, all refueling should be done at a gas station on the way to the
riding area or at your base camp.
181
１０／０４／１９ １３：２６：１８ ３１ＨＮ８６８０ ０１８１
173
What to Take on the Trail
Preparing for a Ride
Tips
What you take with you during a ride depends on the kind of terrain,
how long you expect to ride, how far you might go from your base
camp or help, and how experienced you or your companions are in
making repairs.
If you decide to take some tools, spare parts, or other supplies on the
trail, be sure you can carry them safely and know how to use them. Also,
be sure to follow the loading guidelines and weight limit (page ).55
１０／０４／１９ １３：２６：２３ ３１ＨＮ８６８０ ０１８２
174
Transporting Your Honda
Tips
Do not tow your ATV behind a car or other vehicle.
When you transport your ATV, we recommend that you carry the
vehicle in its normal operating position (on all four wheels). Do not
incline the vehicle upright on its rear end. This can damage the vehicle,
and leaking gasoline could be a hazard.
Follow these procedures:
Set the parking brake.1.
１０／０４／１９ １３：２６：２９ ３１ＨＮ８６８０ ０１８３
(2)
(1)
(2) rear cargo rack(1) front cargo rack
175
Transporting Your Honda
Tips
Secure the vehicle with tie-down straps in the areas shown.
Suitable tie-down straps are available from your Honda dealer.
Ordinary rope is not recommended because it can stretch under
load.
Rock the vehicle back and forth to make sure the tie-down straps are
tight and the vehicle is secure.
Using tie-down straps in any other areas can damage your ATV.
2.
3.
１０／０４／１９ １３：２６：３８ ３１ＨＮ８６８０ ０１８４
176
Storing Your Honda
Tips
Honda Winter Storage
Guide,
If you won’t be riding for an extended period, such as during the winter,
thoroughly inspect your ATV and correct any problem before storing it.
That way, needed repairs won’t be forgotten and it will be easier to get
your ATV running again.
For more information about storage, refer to the
available from your Honda dealer (USA only).
We suggest you perform the following procedures to keep your ATV in
top condition. These storage procedures will reduce the deterioration
that can occur during storage.
１０／０４／１９ １３：２６：４３ ３１ＨＮ８６８０ ０１８５
−
177
Preparation for Storage
Storing Your Honda
Tips
Safety PrecautionsRefer to on page .
This procedure requires a means for draining and disposing of drained
fuel (page ).
Change the engine oil and filter (page ).
Make sure the cooling system is filled with a 50/50% antifreeze
solution (page ).
Fill the fuel tank. Make sure the fuel fill cap is properly installed.
To prevent rusting in the cylinders, perform the following:
Remove the spark plug.
Do not connect the spark plug to the spark plug cap.
With the engine stop switch in the RUN ( ) position, press the
start button several times to crank the engine and distribute the oil.
Reinstall the spark plug and spark plug cap.
(cont’d)
Pour a tablespoon (15 20 cc) of clean engine oil into the cylinder
and cover the spark plug hole with a piece of cloth.
Remove the spark plug cap from the spark plug.
1.
2.
3.
4.
99
180
126
119
１０／０４／１９ １３：２６：５６ ３１ＨＮ８６８０ ０１８６
The battery gives off explosive hydrogen gas
during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or seriously
hurt you.
Wear protective clothing and a face shield, or
have a skilled mechanic do the battery
maintenance.
178
Storing Your Honda
Tips
Remove the battery and charge it fully. Store it in an area protected
from freezing temperatures and direct sunlight. Slow charge the
battery (page ) once a month.
Wash and dry your ATV. Wax all painted surfaces.
Inflate the tires to their recommended pressures (page ).
Store your ATV in an unheated area, free of dampness, away from
sunlight, with a minimum of daily temperature variation.
Place your ATV on blocks to lift all tires off the floor.
Cover your ATV with a porous material. Avoid using plastic or
similar non-breathing, coated materials that restrict air flow and allow
heat and moisture to accumulate.
165
1537.
10.
5.
6.
8.
9.
１０／０４／１９ １３：２７：０６ ３１ＨＮ８６８０ ０１８７
−
−
179
Removal from Storage
Storing Your Honda
Tips
Safety PrecautionsRefer to on page .
Uncover and clean your ATV.
If your ATV has been stored for more than two months ask your
Honda dealer to drain and replace the fuel.
Perform a pre-ride inspection (page ), then test-ride your ATV at
low speeds.
Charge the battery (page ) as required. Install the battery.
If your ATV has been stored for more than four months change
the engine oil (page ).
1.
2.
3.
4.
5.
99
119
165
49
１０／０４／１９ １３：２７：１５ ３１ＨＮ８６８０ ０１８８
180
Tread Lightly.
Keep the Noise Down.
Choose Sensible Cleaners.
Recycle Wastes.
You & the Environment
Tips
Owning and riding an ATV can be enjoyable, but you must do your part
to protect nature. When you show respect for the land, wildlife, and
other people, you also help preserve the sport of off-road riding.
Following are tips on how you can be an environmentally responsible
ATV owner.
Stay on existing roads and trails, avoid surfaces that
are easily damaged, and ride only in areas approved for off-road
vehicles.
Loud vehicles can be offensive. Ride as
quietly as possible, don’t remove your spark arrester, and don’t
modify the muffler or any other part of your air intake and exhaust
systems. Such modifications not only increase noise, they also reduce
engine performance and may be illegal.
Use a biodegradable detergent when you
wash your ATV. Avoid aerosol spray cleaners that contain
chlorofluorocarbons (CFCs) which damage the atmosphere’s
protective ozone layer. Don’t throw cleaning solvents away; see the
following guidelines for proper disposal.
It’s illegal and thoughtless to put used engine oil in
the trash, down a drain, or on the ground. Used oil, gasoline, and
cleaning solvents contain poisons that can hurt refuse workers and
contaminate our drinking water, lakes, rivers, and oceans. Before
changing your oil, make sure you have the proper containers. Put oil
and other toxic wastes in separate sealed containers and take them to a
recycling center. Call your local or state office of public works or
environmental services to find a recycling center in your area, and to
get instructions on how to dispose of non-recyclable wastes.
１０／０４／１９ １３：２７：２３ ３１ＨＮ８６８０ ０１８９
181
Taking Care of the Unexpected
Taking Care of the Unexpected
Preparing for a Ride
With all the challenges you can encounter off-road, there’s a chance that
sometime something may go wrong. This section gives practical advice
to help you deal with a wide range of problems. Take time to read this
section before you ride. Also review the tips in
(page ).
............................................................................General Guidelines .
.................................................If Your Engine Quits or Won’t Start .
..............................If the Transmission Is Not Functioning Properly .
.....................................................................If You Have a Flat Tire .
.....................If the High Oil/Coolant Temperature Indicator Lights .
.................................................................................IfaFuseBlows .
......................................................................................If You Crash .
......................................................................If You Lose Your Key .
.........................................................If the Battery Is Low (or Dead) .
.........................................................................If a Component Fails .
172
182
184
187
189
193
195
199
200
201
202
１０／０４／１９ １３：２７：３５ ３１ＨＮ８６８０ ０１９０
−
−
182
General Guidelines
Taking Care of the Unexpected
Taking Care of the Unexpected
Keeping your ATV well-maintained is the best way to reduce the
possibility of having a problem while riding. However, problems can
arise even with well-maintained machines.
Remember to take along your owner’s manual, the tool kit that came
with your ATV, and any other items (such as tire repair supplies and
additional tools) that might help you solve a problem on your own.
If something goes wrong during a ride, the first thing to do is stop as
soon as you safely can. Do not continue riding if you have a flat tire, or
you hear an unusual noise, or your ATV just doesn’t feel right. If you
continue riding, you could cause more damage and endanger your own
safety.
After stopping, take time to assess the situation. Carefully inspect your
ATV to identify the problem, then consider your options before you
decide what to do.
If a problem is relatively minor and you have the tools, supplies, and
skills to make a permanent repair, you may be able to fix it on the trail
and continue riding. Or, you may be able to make a temporary repair
that allows you to slowly ride back to your base where you can make a
permanent repair or get help.
When a problem is more serious or you don’t have the tools, supplies,
experience, or time to deal with it you need to choose the safest way to
get yourself and your ATV back to base. For example, if you are close
enough, you (or you and another person) might be able to push it back.
１０／０４／１９ １３：２７：４２ ３１ＨＮ８６８０ ０１９１
183
Taking Care of the Unexpected
Taking Care of the Unexpected
Should you ever have a problem while riding, please follow these
guidelines:
Always put personal safety first.
Take time to assess the situation and your options before deciding
what to do.
If the problem is relatively minor and you have the tools, supplies,
and skills to make a temporary repair, be sure to have permanent
repairs made as soon as possible.
Do not continue riding if you are hurt or your ATV is not in safe
riding condition.
Additional recommendations for specific problems follow.
１０／０４／１９ １３：２７：４９ ３１ＨＮ８６８０ ０１９２
−
−
184
Taking Care of the Unexpected
If Your Engine Quits or Won’t Start
Starter motor doesn’t operate
Starter motor works, but the engine won’t start
Proper operation and maintenance can prevent starting and engine
performance problems. In many cases, the cause of the problem may be
a simple operational oversight.
If you have a problem starting the engine or experience poor engine
performance the following information may help you. If you can’t
correct the problem, see your Honda dealer.
If your ATV won’t start, listen as you press the start button. If you don’t
hear the starter motor turning, refer to the
symptom. If you can hear the starter motor working normally, refer to
the symptom.
１０／０４／１９ １３：２７：５４ ３１ＨＮ８６８０ ０１９３
SYMPTOM:
POSSIBLE CAUSE
ignition switch OFF
engine stop switch
OFF
transmission not in
neutral
blown fuse
faulty starter motor
WHAT TO DO
Turn the ignition switch ON.
Turn the engine stop switch to RUN.
Shift into neutral.
Replace with a new fuse of the
same rating (page ).
Tighten the battery lead.
Charge the battery (page ).
If charging doesn’t help, see your
Honda dealer.
If all possible causes are negative,
the starter motor may be faulty. See
your Honda dealer.
SYMPTOM:
POSSIBLE CAUSE
out of fuel
flooded engine
loose or
unconnected spark
plug cap
loose battery cables
weak battery
WHAT TO DO
Fill the fuel tank.
See (page ).
Install the spark plug cap securely. If
the engine still won’t start, see your
Honda dealer.
Tighten the battery terminal bolts.
Charge the battery (page ). If
charging doesn’t help, see your
Honda dealer.
battery lead loose
low (or dead) battery
195
165
165
68
Starter motor doesn’t operate.
Starter motor works, but the engine won’t
start.
Flooded Engine
185
If Your Engine Quits or Won’t Start
Taking Care of the Unexpected
１０／０４／１９ １３：２８：１５ ３１ＨＮ８６８０ ０１９４
SYMPTOM:
POSSIBLE CAUSE WHAT TO DO
high oil/coolant
temperature
Check the high oil/coolant
temperature indicator. Refer to
page .
runs erratically,
misfires
See your Honda dealer.
blubbers (rich fuel
mixture)
See your Honda dealer.
sooty exhaust (rich
fuel mixture)
See your Honda dealer.
detonates or pings
under load
If applicable, switch to the
recommended octane gasoline
(page ) or change your brand of
gasoline. If the problem persists, see
your Honda dealer.
afterfires (backfires) See your Honda dealer.
pre-ignition (runs on
after ignition
switched OFF)
See your Honda dealer.
SYMPTOM:
POSSIBLE CAUSE WHAT TO DO
poor or inadequate
fuel flow due to
clogged fuel filter
See your Honda dealer.
(ensure clean fuel supply)
193
111
Engine starts, but runs poorly.
Engine starts, but runs poorly or dies when hot.
If
theHighOil/Coolant
Temperature Indicator Lights,
186
If Your Engine Quits or Won’t Start
Taking Care of the Unexpected
１０／０４／１９ １３：２８：３３ ３１ＨＮ８６８０ ０１９５
187
Taking Care of the Unexpected
If the Transmission Is Not
Functioning Properly
Manual Shift (ESP) Mode:
Automatic Shift (Auto) Mode:
(cont’d)
If one or both shift switches do not function, stop riding your ATV in
the ESP mode. Switch to riding in the AUTO (automatic shift) mode.
Have your ATV inspected and repaired by your Honda dealer.
Stop the ATV.
Turn the ignition switch to the ‘‘OFF’’ ( ) position.
After the engine stops, turn the ignition switch to the ‘‘ON’’ ( )
position.
Check the gear position indicator.
If the gear position indicator shows ‘‘- -’’ and blinks while riding,
perform the following:
When the automatic transmission is not shifting properly, the gear
position indicator will show ‘‘- -’’ and blink.
See your Honda dealer to check and restore the automatic transmission.
When the ‘‘- -’’ is blinking on the gear position indicator:
Restart the engine; drive the vehicle to a location where it can be loaded
and transported to a Honda dealer.
When the display on the gear position indicator returns to normal:
You may drive the vehicle as usual after restarting the engine.
However, we urge you to have your ATV inspected by your Honda
dealer.
1.
2.
3.
4.
１０／０４／１９ １３：２８：４３ ３１ＨＮ８６８０ ０１９６
(2)
(3)
(1)
(1) screw
(2) lock plate
LEFT SIDE
(3) emergency valve
188
Taking Care of the Unexpected
If the Transmission Is Not
Functioning Properly
Although ‘‘- -’’ is not blinking in the gear position indicator, the vehicle
does not move:
If your ATV won’t move, it is possible the transmission is locked. Use
the following procedure to unlock the transmission.
Shift the shift lever in neutral (N) position.
Apply the parking brake.
Turn the ignition switch to the ‘‘OFF’’ ( ) position.
Loosen the screw ( ) and release the lock plate ( ).
Turn the emergency valve ( ) all the way in. With the engine running,
your ATV will move forward slowly at idle.
See your Honda dealer as soon as possible.
1.
2.
3.
4.
5.
6.
21
3
１０／０４／１９ １３：２８：５１ ３１ＨＮ８６８０ ０１９７
189
If You Have a Flat Tire
Taking Care of the Unexpected
How you handle a flat tire on the trail depends on how serious the tire
damage is, and what tools and supplies you have with you.
If you have a slow leak or a minor puncture, use the plug method to
make a temporary repair. (The plug method is applied from the outside
of the tire and is the same as that for conventional tubeless tires.)
A plug-type repair kit, available at most auto parts stores or service
stations, provides a plug, an installation tool, tire cement, and an
instruction sheet. Follow the instructions provided with the repair kit to
make a temporary repair.
As soon as possible, have the tire permanently repaired by your Honda
dealer. Any tire that cannot be repaired should be replaced.
Whenever the ATV is to be operated far from service facilities or
available transportation, we recommend that you carry a tire pump and a
repair kit with the vehicle.
If the leak is more serious, or a temporary repair doesn’t hold, the tire
must be replaced. The tire will also need to be replaced if it is damaged
(page ). Replacing a tire involves removing and re-installing the
wheel (page ).
If you are unable to repair a flat tire on the trail, you will need to send
for help. We strongly recommend that you do not try to ride with a flat
tire. The ATV will be hard to handle, and if the tire comes off the rim, it
may lock up the wheel and cause you to crash.
156
191
１０／０４／１９ １３：２８：５９ ３１ＨＮ８６８０ ０１９８
Riding your ATV with a temporary tire repair can
be risky.
If the temporary repair fails, you can crash and
be seriously injured or killed. If you must ride
with a temporary tire repair, ride slowly and
carefully until the tire is permanently repaired or
replaced.
190
If You Have a Flat Tire
Taking Care of the Unexpected
１０／０４／１９ １３：２９：０３ ３１ＨＮ８６８０ ０１９９
−−
(1) wheel nuts
(2)
(2) wheel rim
(1)
(1)
191
Emergency Wheel Removal/Installation
If You Have a Flat Tire
Taking Care of the Unexpected
Safety PrecautionsRefer to on page .
Park your ATV on a firm, level surface.
Removal
(cont’d)
Avoid getting grease, oil, or dirt on the disc or pad surfaces when
removing and installing each wheel. Any contamination can cause
poor brake performance or rapid pad wear after reassembly.
Remove the wheel.
Remove the wheel nuts.
Raise the front (or rear) wheels off the ground and place a support
block under the vehicle.
Loosen but do not remove the wheel nuts ( ).1
1.
2.
3.
4.
5.
99
１０／０４／１９ １３：２９：１５ ３１ＨＮ８６８０ ０２００
47 lbf·ft (64 N·m , 6.5 kgf·m)
192
If You Have a Flat Tire
Taking Care of the Unexpected
Installation
Position the wheel.
Position the wheel nuts so that the tapered sides face the wheel
rim ( ).
Hand-tighten the wheel nuts on the wheel, then lower the ATV to the
ground before tightening the nuts in a crisscross (rather than circular)
pattern to the specified torque:
If a torque wrench was not used for installation, see your Honda dealer
as soon as possible to verify proper assembly. Improper assembly may
lead to loss of braking capability.
1.
2.
3.
2
１０／０４／１９ １３：２９：２３ ３１ＨＮ８６８０ ０２０１
193
If the High Oil/Coolant Temperature
Indicator Lights
Taking Care of the Unexpected
Continuing to ride with low oil pressure or an overheated engine can
cause serious engine damage.
Normally, the high oil/coolant temperature indicator will only light
momentarily when you turn the ignition ON ( ). Occasionally, it may
flicker at or near idling speed.
High oil/coolant temperature may be caused by restriction of air flow to
the radiator (such as mud caked on the radiator), extended idling, an oil
leak, a coolant leak, a low oil level, a low coolant level, or extended
operation under adverse conditions.
If the indicator comes on while you’re riding, don’t ignore it. Pull safely
to a stop. Stop the engine as soon as it’s safe to do so, and let it cool.
If there’s no obvious problem, leave the engine on so the fan and
coolant circulating system can continue working. Monitor the high
coolant temperature indicator. The indicator may turn off after a brief
stop with no load on the engine.
Check for any restriction of air flow to the radiator.
A steaming engine indicates a coolant leak. Shut the engine off and
wait until the steaming stops. Look for a leak, but don’t touch the
engine or radiator system. Let everything cool off first.
Check the radiator fan.
If the fan is not working, turn the engine off. Open the fuse box
(page ) and check the radiator fan fuse. If the fuse is blown,
replace it with the proper (same rating) spare fuse. Start the engine. If
the high coolant temperature indicator comes on and stays on, turn the
engine off.
If the radiator fan is working, visually check the coolant level in the
reserve tank, located under the rear fender. It isn’t necessary to touch
the radiator system.
(cont’d)
196
１０／０４／１９ １３：２９：３１ ３１ＨＮ８６８０ ０２０２
−
194
If the High Oil/Coolant Temperature
Indicator Lights
Taking Care of the Unexpected
If the reserve tank is low or empty, don’t ride without adding coolant
(page ). After adding coolant, turn the engine on and check the
high coolant temperature indicator.
If the indicator doesn’t turn off, do not ride. The engine needs repair.
Transport your ATV to a Honda dealer (page ).
If the temperature drops to normal, check the coolant level. If it has
gone down, add more coolant.
Check for an oil leak.
Check the oil level. If necessary, add the recommended oil (page )
to the upper level mark. If you must leave your ATV to get oil, secure
it as much as possible.
Start the engine, and check that the high oil/coolant temperature
indicator goes off.
If you are able to resume riding, continue to monitor the high coolant
temperature indicator frequently.
If there is an oil leak do not ride the ATV until the leak is repaired by
Honda dealer.
If there’s a mild coolant leak, you can ride for awhile, carefully
watching the indicator. Be prepared to stop and add more coolant or
water. If the leak is bad, transport your ATV to a Honda dealer
(page ).
127
174
115
174
１０／０４／１９ １３：２９：４０ ３１ＨＮ８６８０ ０２０３
××
30 A
30 A
15 A 2, 10 A 3
main fuse 1
main fuse 2
other fuses
(1)
(1) blown fuse
195
If a Fuse Blows
Taking Care of the Unexpected
All of the electrical circuits on your ATV have fuses to protect them
from damage caused by excess current flow (short circuit or overload).
If something electrical on your ATV stops working, the first thing you
should check for is a blown fuse ( ).
Check all the fuses before looking elsewhere for another possible cause
of the problem. Replace any blown fuses and check component
operation.
Recommended Fuses
The main fuse and the circuit fuses are located under the seat.
1
１０／０４／１９ １３：２９：５０ ３１ＨＮ８６８０ ０２０４
UNDER SEAT
(4)
(2)
(3)
(5)
(2) main fuse 1
(3) main fuse 2
(4) fuse box cover
(5) spare main fuse
196
If a Fuse Blows
Taking Care of the Unexpected
Main Fuse Access
To prevent an accidental short circuit, turn the ignition switch OFF
( ) before checking or replacing the fuses.
Remove the seat (page ).
To access the main fuse ( ) ( ), remove the fuse box cover ( ).
Pull the main fuse out.
If it is blown, install the spare main fuse ( ).
1.
2.
3. 2 4
4.
110
3
5
１０／０４／１９ １３：２９：５９ ３１ＨＮ８６８０ ０２０５
(7)
(6)
(7) spare fuses(6) circuit fuses
197
If a Fuse Blows
Taking Care of the Unexpected
Replacing a fuse with one that has a higher rating greatly increases the
chance of damage to the electrical system.
Circuit Fuse Access
To check or replace a circuit fuse ( ), pull the old fuse out of its
retaining clips.
If the fuse is blown, replace it with a spare fuse ( ) of the same rating.
If you do not have a replacement fuse with the proper rating for the
circuit, install one with a lower rating.
Install the seat.
Install the fuse box cover.
6
6.
7.
5.
7
１０／０４／１９ １３：３０：０７ ３１ＨＮ８６８０ ０２０６
198
If a Fuse Blows
Taking Care of the Unexpected
If you do not have a spare fuse and you cannot ride the ATV without
fixing the problem, take a fuse of the same rating or a lower rating from
one of the other circuits that you can do without temporarily.
If you replace a blown fuse with a spare fuse that has a lower rating,
replace the fuse with the correct rating as soon as you can. Also
remember to replace any spare fuses that were installed.
If the replacement fuse of the same rating burns out in a short time,
there is probably a serious electrical problem on your ATV. Leave the
blown fuse in that circuit and have your ATV checked by your Honda
dealer.
１０／０４／１９ １３：３０：１３ ３１ＨＮ８６８０ ０２０７
199
If You Crash
Taking Care of the Unexpected
Personal safety is your first priority after a crash. If you or anyone else
has been injured, take time to assess the severity of the injuries and
whether it is safe to continue riding. If you cannot ride safely, send
someone for help. Do not ride if you will risk further injury.
If you decide you are capable of riding safely, carefully inspect your
ATV for damage and determine if it is safe to ride. Check the tightness
of critical nuts and bolts securing such parts as the handlebar, control
levers, brakes, and wheels.
If there is minor damage, or you are unsure about possible damage but
decide to try riding the ATV back to your base, ride slowly and
cautiously.
Sometimes, crash damage is hidden or not immediately apparent. When
you get home, thoroughly check your ATV and correct any problems
you find. Also, be sure to have your Honda dealer check the frame and
suspension after any serious crash.
１０／０４／１９ １３：３０：１９ ３１ＨＮ８６８０ ０２０８
(1) key number
(1)
200
If You Lose Your Key
Taking Care of the Unexpected
Be sure to record your key number ( ) in the Quick Reference section
at the rear of the manual. You’ll need this number to have a duplicate
key made.
If you lose your key and aren’t carrying a duplicate, either get your
spare or have one made. If you don’t know your key number, call the
dealer where you purchased your Honda ATV. They may have it listed
in their records. If they don’t, transport your ATV to them or the nearest
Honda dealer. The dealer will probably have to remove the ignition
switch assembly to find the key number so they can make a key for you.
1
１０／０４／１９ １３：３０：２５ ３１ＨＮ８６８０ ０２０９
201
If the Battery Is Low (or Dead)
Taking Care of the Unexpected
Your ATV will operate even if the battery is low (or dead), as long as
the engine is running. If the engine is not running, it may be started
using the recoil starter.
Jump starting is not recommended, especially if you use an automobile
battery. The greater amperage of an automobile battery when the car
engine is running can damage your ATV’s electrical system.
Bump starting is also not recommended.
If you can’t charge the battery or it appears unable to hold a charge,
contact your Honda dealer.
Shift the shift lever in neutral (N) position.
Apply the parking brake.
Turn the ignition switch to the ON ( ) position.
Use the recoil starter (page ) to start the engine.
1.
2.
3.
4. 71
１０／０４／１９ １３：３０：３３ ３１ＨＮ８６８０ ０２１０
202
If a Component Fails
Taking Care of the Unexpected
The brake levers or pedal, control cables, and other components can be
damaged as you ride in dense brush or over rocky terrain. Making a
trailside repair depends on how serious the damage is and what tools and
supplies you have with you.
If any component of the brake system is damaged, you may be able to
ride carefully back to your base using the other brake components for
slowing or stopping.
If you damage a throttle cable or other critical component, your ATV
may be unsafe to ride. Carefully assess the damage and make any
repairs that you can. But if there is any doubt, it’s best to be
conservative and safe.
１０／０４／１９ １３：３０：３８ ３１ＨＮ８６８０ ０２１１
203
Technical Information
Technical Information
This section contains dimensions, capacities, and other technical data,
plus information on government requirements and how to break-in your
ATV.
........................................................................Vehicle Identification .
....................................................................................Specifications .
..........................................................................Break-in Guidelines .
.................................................................Emission Control Systems .
..............................................................................Oxygenated Fuels .
204
206
210
211
215
１０／０４／１９ １３：３０：４６ ３１ＨＮ８６８０ ０２１２
(1)
(2)
(2) engine number
FRONT
RIGHT SIDE
(1) VIN
204
Serial Numbers
Vehicle Identification
Technical Information
The VIN, engine serial number, and key number may be required when
ordering replacement parts. You may record these numbers in the Quick
Reference section at the rear of this manual.
The VIN ( ) is stamped on the front of the frame.
The engine number ( ) is stamped on the upper side of the rear
crankcase.
2
1
１０／０４／１９ １３：３０：５５ ３１ＨＮ８６８０ ０２１３
(1) color label
UNDER SEAT
((11))
205
Color Label & Code
Vehicle Identification
Technical Information
The color code is helpful when ordering replacement parts. You may
record the color and code in the Quick Reference section at the rear of
this manual.
The color label ( ) is attached to the frame under the seat. Remove the
seat (page ) to check the label.110
1
１０／０４／１９ １３：３１：０２ ３１ＨＮ８６８０ ０２１４
83.2 in (2,113 mm)
46.8 in (1,189 mm)
47.5 in (1,207 mm)
50.7 in (1,289 mm)
9.2 in (234 mm)
unleaded gasoline, pump octane
number of 86 or higher
4.44 US gal (16.8
)
4.3 US qt (4.1
)
2.9 US qt (2.7
)
API Service Classification SG or
higher except oils labeled as energy
conserving on the circular API
service label, SAE 10W-30, JASO T
903 standard MA,
Pro Honda GN4 4-stroke oil (USA &
Canada) or Honda 4-stroke oil
(Canada only), or an equivalent
motorcycle oil
3.1 US qt (2.9
)
after disassembly:
after draining:
after draining & oil filter change:
overall length
overall width
overall height
wheelbase
ground clearance
fuel
recommendation
fuel tank capacity
engine oil capacity
engine oil
Dimensions
Fuel & Lubricants
206
Specifications
Technical Information
１０／０４／１９ １３：３１：１７ ３１ＨＮ８６８０ ０２１５
××
±
−−
(cont’d)
Pro Honda HP Coolant or an
equivalent high quality ethylene
glycol antifreeze containing
corrosion protection inhibitors
specifically recommended for use
in aluminum engines
operator only
2.1 US qt (2.0
)
41.2 cu-in (675 cm
)
rider, all cargo and accessories
4.02 3.25 in (102.0 82.6 mm)
9.2 : 1
IFR5L11 (NGK)
IFR6L11 (NGK)
1,400 50 rpm
0.013 in (0.33 mm)
0.006 in (0.15 mm)
0.039 0.043 in (1.00 1.10 mm)
VK16PRZ11 (DENSO)
VK20PRZ11 (DENSO)
485 lb (220 kg)
or
or
intake:
exhaust:
cooling system
recommendation
cooling system
capacity
passenger capacity
maximum weight
capacity
displacement
bore & stroke
compression ratio
spark plug
(standard)
spark plug
(high speed riding)
idle speed
valve clearance
(cold)
spark plug gap
Fuel & Lubricants
Capacities
Engine Specifications
207
Specifications
Technical Information
１０／０４／１９ １３：３１：３４ ３１ＨＮ８６８０ ０２１６
°
×★★
×★★
2.000
2.375
1.333
2.053
3.231
3.154
1.375
0.933
2.138
shaft
1.6
0.08 in (2.1 mm)
AT25 10R12
AT25 8R12
DUNLOP KT511
DUNLOP KT515
3.6 psi (25.0 kPa)
3.6 psi (25.0 kPa)
forward
reverse
front
rear
front
rear
primary reduction
tire pressure,
front & rear (cold)
final drive
reverse
1st
2nd
3rd
secondary reduction
final reduction
transmission ratio
caster
trail
tire size, front
tire size, rear
Power Transmission
Chassis & Suspension
208
Specifications
Technical Information
１０／０４／１９ １３：３１：５３ ３１ＨＮ８６８０ ０２１７
×
×
−
××
12 V 21/5 W 2
12 V 40/40 W 2
12 V 18 Ah (10HR)
0.36 kW/5,000 rpm
LED
LED
47 lbf·ft (64 N·m , 6.5 kgf·m)
9 lbf·ft (12 N·m , 1.2 kgf·m)
9 lbf·ft (12 N·m , 1.2 kgf·m)
13 lbf·ft (18 N·m , 1.8 kgf·m)
18 lbf·ft (25 N·m , 2.5 kgf·m)
15 A 2, 10 A 3
30 A
30 A
LED
LED
LED
headlight
battery
generator
neutral indicator
reverse indicator
high oil/coolant
temperature indicator
brake/tail light
wheel nuts
differential oil drain
bolt
rear final gear case
oil drain bolt
other
main 2
main 1
PGM-FI indicator
engine oil drain bolt
engine oil filter bolt
4WD indicator
Lights
Electrical
Torque Specification
Fuses
209
Specifications
Technical Information
１０／０４／１９ １３：３２：１３ ３１ＨＮ８６８０ ０２１８
210
Break-in Guidelines
Technical Information
Help assure your ATV’s future reliability and performance by paying
extra attention to how you ride during the first operating day or 15 miles
(25 km).
During this period, avoid full-throttle starts and rapid acceleration.
１０／０４／１９ １３：３２：１７ ３１ＨＮ８６８０ ０２１９
(2)
(1)
(1) vehicle emission control information label
(2) vehicle emission control information label (Canada only)
211
Emission Control Systems
Technical Information
Exhaust Emission Requirements
The U.S. Environmental Protection Agency (EPA), the California Air
Resources Board (CARB), and Environment Canada (EC) require that
your ATV comply with applicable exhaust emissions standards during
its useful life, when operated and maintained according to the
instructions provided.
The Vehicle Emission Control Information Label ( ) is attached on the
left rear fender below the seat.
The Vehicle Emission Control Information Label ( ) is attached on the
left side of the frame.
1
2
１０／０４／１９ １３：３２：２４ ３１ＨＮ８６８０ ０２２０
212
Source of Exhaust Emissions
Crankcase Emission Control System
Exhaust Emission Control System
Emission Control Systems
Technical Information
The combustion process produces carbon monoxide (CO), oxides of
nitrogen (NOx) and hydrocarbons (HC). Control of hydrocarbons and
oxides of nitrogen is very important because, under certain conditions,
they react to form photochemical smog when subjected to sunlight.
Carbon monoxide does not react in the same way, but it is toxic.
Honda Motor Co., Ltd. utilizes various systems to reduce carbon
monoxide, oxides of nitrogen and hydrocarbons.
The exhaust emission control system includes a PGM-FI system.
No adjustment to this system should be made although periodic
inspection of the components is recommended.
The exhaust emission control system is separate from the crankcase
emission control system.
The engine is equipped with a closed crankcase system to prevent
discharging crankcase emissions into the atmosphere. Blow-by gas is
returned to the combustion chamber through the air cleaner.
１０／０４／１９ １３：３２：３１ ３１ＨＮ８６８０ ０２２１
213
Emission Control Systems
Technical Information
Problems That May Affect ATV Exhaust Emissions
If you are aware of any of the following symptoms, have the vehicle
inspected and repaired by your Honda ATV dealer.
Symptoms:
Hard starting or stalling after starting
Rough idle
Misfiring or backfiring during acceleration
After-burning (backfiring)
Poor performance (driveability) and poor fuel economy
Federal regulations prohibit removing or disabling a device or element
of design that may affect your engine’s emission performance unless
your ATV will be used exclusively in competition. If you modify your
engine for use in sanctioned competition events, you must deface or
destroy the emission control information label.
1.
2.
3.
4.
5.
１０／０４／１９ １３：３２：３７ ３１ＨＮ８６８０ ０２２２
214
Emission Control Systems
Noise Emission Control System
Fuel Permeation Emission Control System
Technical Information
TAMPERING WITH THE NOISE CONTROL SYSTEM IS
PROHIBITED:
State laws prohibit, or Canadian provincial laws may prohibit, the
following acts or the causing thereof: ( ) The removal or rendering
inoperative by any person, other than for purposes of maintenance,
repair or replacement, of any device or element of design incorporated
into any new vehicle for the purpose of noise control prior to its sale or
delivery to the ultimate purchaser or while it is in use; or ( ) the use of
the vehicle after such device or element of design has been removed or
rendered inoperative by any person.
AMONG THOSE ACTS PRESUMED TO CONSTITUTE
TAMPERING ARE THE FOLLOWING ACTS:
Removal of, or puncturing the muffler, baffles, header pipes or any
other component which conducts exhaust gases.
Removal of, or puncturing of any part of the intake system.
Lack of proper maintenance.
Replacing any moving parts of the vehicle, or parts of the exhaust or
intake system, with parts other than those specified by the
manufacturer.
This vehicle complies with the Fuel Permeation Emission Control
regulations of the U.S. Environmental Protection Agency (EPA), the
California Air Resources Board (CARB), and Environment Canada
(EC).
The fuel tank, fuel hoses, and fuel vapor charge hoses used on this
vehicle incorporate fuel permeation control technologies.
Tampering with the fuel tank, fuel hoses, or fuel vapor charge hoses to
reduce or defeat the effectiveness of the fuel permeation technologies is
prohibited by federal regulations.
1.
2.
3.
4.
1
2
１０／０４／１９ １３：３２：４６ ３１ＨＮ８６８０ ０２２３
215
Oxygenated Fuels
Technical Information
Some conventional gasolines are being blended with alcohol or an ether
compound. These gasolines are collectively referred to as oxygenated
fuels. To meet clean air standards, some areas of the United States and
Canada use oxygenated fuels to help reduce emissions.
If you use an oxygenated fuel, be sure it is unleaded and meets the
minimum octane rating requirement.
Before using an oxygenated fuel, try to confirm the fuel’s contents.
Some states/provinces require this information to be posted on the pump.
The following are the EPA-approved percentages of oxygenates:
ETHANOL (ethyl or grain alcohol) 10% by volume
You may use gasoline containing up to 10% ethanol by volume.
Gasoline containing ethanol may be marketed under the name
‘‘Gasohol’’.
MTBE (Methyl Tertiary Butyl Ether) 15% by Volume
You may use gasoline containing up to 15% MTBE by volume.
METHANOL (methyl or wood alcohol) 5% by Volume
You may use gasoline containing methanol containing up to 5%
methanol by volume as long as it also contains cosolvents and corrosion
inhibitors to protect the fuel system. Gasoline containing more than 5%
methanol by volume may cause starting and/or performance problems. It
may also damage metal, rubber, and plastic parts of your fuel system.
１０／０４／１９ １３：３２：５３ ３１ＨＮ８６８０ ０２２４
216
Oxygenated Fuels
Technical Information
Oxygenated fuels can damage paint and plastic. Damage caused by
spilled fuel is not covered by warranty.
If you notice any undesirable operating symptoms, try another service
station or switch to another brand of gasoline.
Fuel system damage or performance problems resulting from the use of
an oxygenated fuel containing more than the percentages of oxygenates
mentioned above are not covered under warranty.
Oxygenated fuels can damage paint and plastic. Be careful not to spill
fuel when filling the fuel tank. Wipe up any spills immediately.
１０／０４／１９ １３：３２：５８ ３１ＨＮ８６８０ ０２２５
217
Consumer Information
Consumer Information
This section contains information on your warranty and how to get an
official Honda service manual.
................................................The Honda Rider’s Club (USA only) .
...........................................................................Your Honda Dealer .
.............................................................................Contacting Honda .
..........................................................................Authorized Manuals .
...........................................................................Warranty Coverage .
...............................................................................Warranty Service .
218
221
222
223
224
225
１０／０４／１９ １３：３３：０７ ３１ＨＮ８６８０ ０２２６
＊
＊
Prices are subject to change without notice and without incurring obligation.
$48.00
$48.00
$16.00
61HN855
61CM002
31HN8680
Common Service Manual
2011 TRX680FA RINCON
Service Manual
2011 TRX680FA RINCON
Owner’s Manual
Publication Item No. Description Price Each
218
Authorized Manuals
Consumer Information
The Service Manual used by your authorized Honda dealer is available
from Helm, Inc. (USA only, Canada: See your Honda dealer to order
authorized manuals.)
Also available but not necessary to service your model is the Honda
Common Service Manual which explains theory of operation and basic
service information for various systems common to all Honda
motorcycles, motor scooters and ATVs.
These Honda manuals are written for the professional technician, but
most mechanically capable owners should find them easy to use if they
have the proper tools and observe proper safety standards. Special
Honda tools are necessary for some procedures.
１０／０４／１９ １３：３３：１５ ３１ＨＮ８６８０ ０２２７
−−
＊
＊
Prices are subject to change without notice and
without incurring obligation.
Orders are mailed within 10 days. Please allow
adequate time for delivery. $3.75
Publication
Item No.
Purchaser’s Sales Tax
Mich. add 6 %
Calif. add 8.25 %
Handling Charge
Grand Total
Sub Total
Item Description Qty. Price
Each
Total
Price
219
Order On-Line: www.helminc.com
Order Toll Free: 1-888-CYCLE93
OR
Consumer Information
(NOTE: For Credit Card Orders Only)
(1-888-292-5393)
Monday Friday 8:00 AM 6:00 PM EST
By completing this form you can order the materials desired. You can
pay by check or money order, or charge to your credit card. Mail to
Helm, Inc. at the address shown on the back of this order form (USA
only).
Canada: See your Honda dealer to order authorized manuals.
１０／０４／１９ １３：３３：２６ ３１ＨＮ８６８０ ０２２８
−
P. O. BOX 07280, DETROIT, MICHIGAN 48207
S
H
I
P
T
O
P
A
Y
M
E
N
T
NOTE: Dealers and Companies please provide dealer or company name, and also the nameof theperson to
whose attention the shipment should be sent.
Customer Name
Attention
Street address/P. O. BOX Apartment Number
City State Zip Code
Daytime Telephone Number
Check ormoney orderenclosed payable to Helm Inc. U. S. funds only. Do not send cash.
Check hereif yourbilling addressis different fromthe shippingaddress shown above.
VISA DiscoverMasterCard
Expiration: Mo. Yr.
Customer Signature Date
These Publications cannot be returned for credit without receiving advanceauthorization within 14days ofdelivery. For
returns, arestocking fee may beapplied against the original order.
Account Number
Security Code
()
HELM
220
Consumer Information
１０／０４／１９ １３：３３：４１ ３１ＨＮ８６８０ ０２２９
221
Warranty Coverage
Consumer Information
Your new Honda is covered by these warranties:
There are responsibilities, restrictions, and exclusions which apply to
these warranties. Please read the Warranties Booklet given to you by
your Honda dealer at the time of purchase. Be sure to keep your Honda
owner’s card with your Warranties Booklet (USA only).
It is important to realize that your warranty applies to defects in material
or workmanship of your Honda. Your warranty coverage does not apply
to normal wear or deterioration associated with using the ATV.
Your warranty coverage will not be voided if you choose to perform
your own maintenance. However, you should have the proper tools and
service information, and be mechanically qualified. Failures that occur
due directly to improper maintenance are not covered.
Almost all of your warranty coverage can be extended through the
Honda Protection Plan (USA only). For more information, see your
Honda dealer.
TRX Limited Warranty
Emission Control System Warranty
１０／０４／１９ １３：３３：４９ ３１ＨＮ８６８０ ０２３０
222
Warranty Service
Consumer Information
Please remember that recommended maintenance interval servicing is
not included in your warranty coverage. Additionally, your warranty
does not apply to the normal wear of items (such as brakes, tires, etc.).
If you believe you have a problem with your ATV, call the service
department of your Honda dealer. Make an appointment for an
inspection and diagnosis. Remember, as the owner of the ATV, you will
be asked to authorize that inspection. Your dealer will give you the
results of the inspection. If the problem is covered under warranty, your
dealer will perform the warranty repairs for you.
If you have questions about warranty coverage or the nature of the
repair, it is best to talk to the Service Manager of your Honda dealer.
Sometimes, in spite of the best intentions of all concerned, a
misunderstanding may occur. If you aren’t satisfied with your dealer’s
handling of the situation, we suggest you discuss your problem with the
appropriate member of the dealership’s management team. If the
problem has already been reviewed with the Service Manager, Parts
Manager, Sales Manager, etc., contact the Owner of the dealership or
their designated representative.
１０／０４／１９ １３：３３：５６ ３１ＨＮ８６８０ ０２３１
223
Contacting Honda
Consumer Information
Your owner’s manual was written to cover most of the questions you
might ask about your Honda. Any questions not answered in the owner’s
manual can be answered by your Honda dealer. If your dealer doesn’t
have the answer right away, they will get it for you.
If you have a difference of opinion with your dealer, please remember
that each dealership is independently owned and operated. That’s why
it’s important to work to resolve any differences at the dealership level.
If you wish to comment on your experiences with your Honda or with
your dealer, please send your comments to the following address (USA
only):
Motorcycle Division, American Honda Motor Co., Inc., P.O. Box 2200,
Torrance, CA 90509-2200, mailstop: 100-4C-7B, telephone: (866) 784-
1870.
Canada: Refer to the Warranties Booklet that was supplied with your
vehicle.
Please include the following information in your letter:
name, address, and telephone number
product model, year, and VIN
date of purchase
dealer name and address
We will likely ask your Honda dealer to respond, or possibly
acknowledge your comments directly.
１０／０４／１９ １３：３４：０４ ３１ＨＮ８６８０ ０２３２
224
Your Honda Dealer
Consumer Information
Once you purchase your new Honda, get familiar with the organization
of your Honda dealer so you can utilize the full range of services
available.
The service department is there to perform regular maintenance and
unexpected repairs. It has the latest available service information from
Honda. The service department will also handle warranty inspections
and repairs.
The parts department offers Honda Genuine Parts, Pro Honda products,
Honda Genuine Accessories (USA only), and Honda accessories and
products (Canada only). The same quality that went into your Honda can
be found in Honda Genuine replacement parts. You’ll also find
comparable quality in the accessories and products available from the
parts department.
The sales department offers the Honda Protection Plan to extend almost
all of your warranty coverage (USA only).
Your Honda dealer can inform you about competition and other riding
events in your area. You’ll also find that your dealer is a source of
information about safety training available in your local area and the
Honda Rider’s Club of America (USA only).
We’re sure you’ll be as pleased with the service your Honda dealer
continues to provide after the sale as you are with the quality and
dependability of your Honda.
１０／０４／１９ １３：３４：１０ ３１ＨＮ８６８０ ０２３３
225
The Honda Rider’s Club (USA only)
Consumer Information
www.hrca.honda.com.
You may be eligible for a Honda Rider’s Club of America (HRCA)
membership with the purchase of your new Honda. You can log on to
the HRCA Clubhouse website for details at
１０／０４／１９ １３：３４：１４ ３１ＨＮ８６８０ ０２３４
226
Index
Index
A
B
............................................................................................accessories . 57
...................................................................................accessory socket . 40
............................................................................age recommendation . 47
air cleaner,
................................................................................................filter . 131
..........................................................................housing drain tube . 135
air pressure,
..............................................................................................gauge . 109
..................................................................................................tire . 153
..............................................................American Honda, contacting . 223
apparel,
..........................................................................................protective . 44
..................................................................................appearance care . 166
.............................................................................authorized manuals . 218
...........................................Bank angle sensor ignition cut-off system . 68
................................................................................................Battery . 161
Brakes,
..............................................................................................cables . 150
................................................................................................fluid . 144
...............................................................................front brake lever . 37
.........................................................................................pad wear . 147
.............................................................................................parking . 38
.................................................................................rear brake lever . 37
................................................................rear brake lever freeplay . 149
................................................................................rear brake pedal . 37
１０／０４／１９ １３：３４：１９ ３１ＨＮ８６８０ ０２３５
227
Index
Index
C
.................................................................................................braking . 80
.............................................................................break-in guidelines . 210
button,
..................................................................................................ADJ . 26
........................................................................................hour select . 26
.....................................................................................minute select . 26
.................................................................odometer/tripmeter select . 23
.............................................................................................RESET . 24
......................................................................................capacity, fuel . 112
.................................................................................care, appearance . 166
cargo,
.................................................Loading and operational guidelines . 56
.....................................................................................Weight limit . 55
........................................................................................climbing hills . 85
...........................................................................................color label . 205
compartment,
..............................................................................owner’s manual . 109
............................................................................................tool kit . 108
..................................................................................component fails . 202
........................................................................consumer information . 217
........................................................................................crash, if you . 199
....................................................crossing or turning on hills or slopes . 90
.................................................................................customer service . 223
１０／０４／１９ １３：３４：２５ ３１ＨＮ８６８０ ０２３６
228
Index
Index
D
E
....................................................................................differential oil . 124
..........................................................................................digital clock . 26
......................................................................dimmer switch,headlight . 33
...............................................................................................dipstick . 117
.........................................................................display, multi-function . 19
...................................................................................drivetrain boots . 160
............................................................................drive mode indicator . 20
......................................................................drive mode select switch . 30
.....................................................................emission control system . 211
engine
.............................................................................................flooded . 68
..............................................................................................guard . 159
...........................................................................................number . 204
...................................................................................................oil . 114
...........................................................................................pinging . 111
..............................................................................................starting . 66
........................................................................................stop switch . 32
............................................................................................stopping . 70
......................................................................................won’t start . 184
.......................................................................................environment . 180
１０／０４／１９ １３：３４：３１ ３１ＨＮ８６８０ ０２３７
229
Index
Index
F
G
...................................................................................gap, spark plug . 139
...............................................................................................gasohol . 215
..............................................................................................gasoline . 111
........................................................................................gear case oil . 122
.........................................................................................gear shifting . 72
.................................................................................................guards . 159
...............................................................................final gear case oil . 122
...................................................................................flag pole bracket . 39
................................................................................................flat tire . 189
......................................................................................flooded engine . 68
................................................................................front boot guards . 159
.......................................................................front driveshaft guards . 159
fuel,
............................................................................................fill cap . 112
................................................................................................gauge . 27
.....................................................................................oxygenated . 215
.............................................................................recommendation . 111
..................................................................................tank capacity . 112
...................................................................................................fuses . 195
１０／０４／１９ １３：３４：３６ ３１ＨＮ８６８０ ０２３８
230
Index
Index
H
......................................................................headlight dimmer switch . 33
...................................................................................headlight switch . 33
hills,
............................................................crossing or turning on slopes . 90
..............................................................................riding down hills . 89
...................................................................................riding up hills . 85
...............................................................................stopping on hills . 87
Honda,
.......................................................................................contacting . 223
..............................................................................................dealer . 224
...................................................................................Rider’s Club . 225
........................................................................Honda service manual . 218
.............................................................................................hourmeter . 25
.................................................................................hour select button . 26
１０／０４／１９ １３：３４：４０ ３１ＨＮ８６８０ ０２３９
231
Index
Index
I
K
.........................................................................identification, vehicle . 204
......................................................................................ignition switch . 28
indicators
........................................................................drive mode indicator . 20
......................................................................gear position indicator . 21
.............................................high oil/coolant temperature indicator . 16
...............................................................................neutral indicator . 17
..........................................................................oil change indicator . 22
.............................................................................PGM-FI indicator . 18
...............................................................................reverse indicator . 16
............................................................................4WD indicator . 16, 31
...............................................................................inspection, pre-ride . 49
..............................................................................................key, lost . 200
...............................................................................................kit, tool . 108
１０／０４／１９ １３：３４：４５ ３１ＨＮ８６８０ ０２４０
232
Index
Index
L
M
...........................................................................................labels, safety . 5
...........................................................................................lamp check . 15
.........................................................................................limit, weight . 55
................................................................................loading guidelines . 56
lubrication
................................................................................differential oil . 124
........................................................................................engine oil . 114
....................................................................................gear case oil . 122
maintenance,
........................................................................................importance . 97
.......................................................................................precautions . 99
.............................................................................................record . 104
................................................................................................safety . 98
..........................................................................................schedule . 100
...................................................................................manual, service . 218
.........................................................................maximum weight limit . 55
........................................................................................modifications . 58
..........................................................................multi-function display . 19
１０／０４／１９ １３：３４：５０ ３１ＨＮ８６８０ ０２４１
233
Index
Index
N
O
...................................................................................neutral indicator . 17
..........................................................noise emission control systems . 214
...................................................................................numbers, serial . 204
...........................................................................obstacles, riding over . 92
...............................................................................................odometer . 23
..........................................................odometer/tripmeter select button . 23
oil,
......................................................................................differential . 124
.............................................................................................engine . 114
.........................................................................................gear case . 122
.............................................oil/coolant temperature indicator . 14, 193
......................................................................owner’s manual storage . 109
................................................................................oxygenated fuels . 215
１０／０４／１９ １３：３４：５５ ３１ＨＮ８６８０ ０２４２
234
Index
Index
P
R
........................................................................rear final gear case oil . 122
..........................................................................................recoil starter . 34
......................................................................................removal, seat . 110
reverse,
.............................................................................gear, shifting into . 78
...........................................................................................indicator . 16
............................................................................................riding in . 78
.........................................................................................rider training . 46
...........................................................................Rider’s Club, Honda . 225
.................................................................................................parking . 94
..........................................................................passenger, no carrying . 47
.........................................................................pavement, no riding on . 61
...................................................................................pinging, engine . 111
..........................................................................................plug, spark . 138
................................................................................pre-ride inspection . 49
.........................................................................problems, unexpected . 181
..............................................propeller shaft boots & yoke joint boot . 160
.................................................................................protective apparel . 44
１０／０４／１９ １３：３５：００ ３１ＨＮ８６８０ ０２４３
235
Index
Index
S
(cont’d)
riding,
................................................................................basic operations . 59
.............................................................................................clothing . 44
...................................................................................over obstacles . 92
.......................................................................................precautions . 61
..................................................................................preparing for . 172
..................................................................................................safety . 2
.............................................................................safety precautions . 61
...................................................................................through water . 93
safety,
.......................................................................important precautions . 99
..................................................................................................labels . 5
.............................................................................riding precautions . 61
........................................................................schedule, maintenance . 102
.......................................................................................seat removal . 110
....................................................................................serial numbers . 204
service,
.........................................................................................customer . 223
..........................................................................................manuals . 218
.........................................................................................warranty . 222
１０／０４／１９ １３：３５：０７ ３１ＨＮ８６８０ ０２４４
236
Index
Index
........................................................................................shifting gears . 72
........................................................................................shifting lever . 29
............................................................................................skid plate . 169
................................................................................skidding or sliding . 84
......................................................................................spark arrester . 142
........................................................................................spark knock . 111
...........................................................................................spark plug . 138
......................................................................................specifications . 206
.........................................................................................speedometer . 17
....................................................................................stalling on a hill . 87
............................................................................................start button . 32
starting,
...............................................................................................engine . 66
...............................................................................troubleshooting . 185
...............................................................................stop switch, engine . 32
....................................................................................stopping engine . 70
storage,
...............................................................................................ATV . 176
..............................................................................owner’s manual . 109
switch,
...........................................................................................headlight . 33
.............................................................................headlight dimmer . 33
.............................................................................................ignition . 28
.............................................................................2WD/4WD select . 31
１０／０４／１９ １３：３５：１１ ３１ＨＮ８６８０ ０２４５
237
Index
Index
T
V
...................................................................................valve clearance . 141
.........................................................vehicle identification no. (VIN) . 204
throttle
...............................................................................................cable . 136
..........................................................................................lever . 35, 136
tires,
.....................................................................................air pressure . 153
..................................................................................................flat . 189
.........................................................................................repairing . 157
.........................................................................................replacing . 158
............................................................................thread conditions . 155
................................................................................................tool kit . 108
trailer towing
......................................................................operational guidelines . 56
.....................................................................................weight limits . 55
........................................................................................training, rider . 46
.......................................................................transporting your ATV . 174
...............................................................................................tripmeter . 24
............................................................................trouble, unexpected . 183
.....................................................................troubleshooting, starting . 185
turning,
...............................................................................on hills or slopes . 90
.................................................................................on level ground . 82
１０／０４／１９ １３：３５：１７ ３１ＨＮ８６８０ ０２４６
238
Index
Index
W
........................................................................................warning labels . 5
warranty,
.........................................................................................coverage . 221
.........................................................................................extended . 221
............................................................................................service . 222
.............................................................................washing your ATV . 167
water,
...................................................................................riding through . 93
..........................................................................................weight limit . 55
.....................................................................................wheel removal .191
１０／０４／１９ １３：３５：２１ ３１ＨＮ８６８０ ０２４７
How To Avoid Costly Repairs
Quick Reference
Quick Reference
The following is a brief, but important collection of information you
need to know about your Honda. You’ll also find space to record
important notes.
The engine of your Honda can be the most expensive component to
repair. Proper maintenance, especially the use of the recommended
fluids and filters, prevents premature wear and damage.
Frequent causes of costly repairs are:
Engine oil –– insufficient quantity, improper oil.
Record important information on the following page:
Air cleaner –– dirty, leaking because of improper installation
(poor seal).
１０／０４／１９ １３：３５：４２ ３１ＨＮ８６８０ ０２５３
Quick Reference
Quick Reference
Engine No.
VIN
Ignition Key No.
Color Label
Owner’s Name
Address
City/State
Phone
Dealer’s Name
Address
City/State
Phone
Service Mgr.
１０／０４／１９ １３：３５：４６ ３１ＨＮ８６８０ ０２５４
4.44 US gal (16.8 )
485 lb (220 kg)
Quick Reference
Quick Reference
Scheduled
Maintenance
Pre-ride Inspection
Initial: 100 miles (150 km)
Regular: every 600 miles (1,000 km)
Check the following items each time
before you ride (page ): engine oil,
radiator coolant, fuel, tires, driveshaft
boots, nuts & bolts, underbody & exhaust
system, air cleaner housing drain tube,
leaks, loose parts, cables, lights, throttle,
brakes, switches, steering.
unleaded gasoline, pump octane number
86 or higher
Fuel/Capacity
Engine Oil API Service Classification SG or higher
except oils labeled as energy conserving
on the circular API service label,
SAE 10W-30, JASO T 903 standard MA,
Pro Honda GN4 4-stroke oil or equivalent
Maximum Weight
Capacity rider, all cargo and accessories
49
１０／０４／１９ １３：３５：５７ ３１ＨＮ８６８０ ０２５５
×★★
×★★
××
AT25 8R12
AT25 10R12
DUNLOP KT511
DUNLOP KT515
IFR5L11 (NGK)
VK16PRZ11 (DENSO)
IFR6L11 (NGK)
VK20PRZ11 (DENSO)
30 A
30 A
15 A 2, 10 A 3
3.6 psi (25.0 kPa)
3.6 psi (25.0 kPa)
or
standard:
or
Front:
Rear:
high speed riding:
Front:
Rear:
main 1:
main 2:
others:
Quick Reference
Quick Reference
Tires
Tire Pressure (cold)
Spark Plugs
Coolant ethylene glycol antifreeze (silicate-free)
for aluminum engines in 50/50 solution
with Pro Honda HP Coolant or an
equivalent distilled water
Fuses
１０／０４／１９ １３：３６：０８ ３１ＨＮ８６８０ ０２５６
−
−
−
−
−
−
−
−
−
−
−
−
Quick Reference
Quick Reference
These symbols are used in Controls & Features section:
SYMBOL COMPONENT SEE PAGE
ON ignition switch
OFF ignition switch
2WD/4WD select switch
START button
RUN engine stop switch
OFF engine stop switch
ON headlight switch
OFF headlight switch
HI headlight dimmer switch
LO headlight dimmer switch
upshift switch gearshift switch
downshift switch gearshift switch
lock lever parking brake
4WD indicator lights when
the 4WD mode
28
28
31
31
32
32
32
33
33
33
33
36
36
38
１０／０４／１９ １３：３６：２７ ３１ＨＮ８６８０ ０２５７
