English
EN
2
Note
To conform with the EMC directive •
(2004/108/EC), the mains plug on this product
must not be detached from the mains cord.
Trademarks
Manufactured under license under U.S. Patent #’s:
5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535
& other U.S. and worldwide patents issued & pending.
DTS and the Symbol are registered trademarks
& DTS Digital Surround and the DTS logos are
trademarks of DTS, Inc. Product includes software.
©
DTS, Inc. All Rights Reserved.
DivX
®
, DivX Certied
®
and associated logos are
registered trademarks of DivX, Inc. and are used
under license.
DivX Ultra
®
Certied to play DivX
®
video with
advanced features and premium content.
ABOUT DIVX VIDEO: DivX
®
is a digital video
format created by DivX, Inc. This is an ofcial
DivX Certied device that plays DivX video.
Visit www.divx.com for more information and
software tools to convert your les into DivX
video.
ABOUT DIVX VIDEO-ON-DEMAND: This
DivX Certied
®
device must be registered in
order to play DivX Video-on-Demand (VOD)
content. To generate the registration code,
locate the DivX VOD section in your device
setup menu. Go to vod.divx.com with this code
to complete the registration process and learn
more about DivX VOD..
Manufactured under license from Dolby
Laboratories. Dolby, Pro Logic and the double-D
symbol are trademarks of Dolby Laboratories.
1 Notice
Copyright
This item incorporates copy protection technology
that is protected by U.S. patents and other
intellectual property rights of Rovi Corporation.
Reverse engineering and disassembly are
prohibited.
Copyright in the UK
Recording and playback of material may require
consent. See Copyright Act 1956 and The
Performers Protection Acts 1958 to 1972.
Compliance
This product is in compliance with the essential
requirements and other relevant provisions of
Directives 2006/95/EC (Low Voltage), 2004/108/
EC (EMC).
Hereby, Philips Consumer Lifestyle, declares
that this Home Theater System HTS5120 is in
compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
Mains fuse (UK only)
This product is tted with an approved moulded
plug. Should it become necessary to replace the
mains fuse, this must be replaced with a fuse of
the same value as indicated on the plug (example
10A).
1 Remove fuse cover and fuse.
2 The replacement fuse must comply with BS
1362 and have the ASTA approval mark. If
the fuse is lost, contact your dealer in order
to verify the correct type.
3 Ret the fuse cover.
EN
3
Note
This equipment has been tested and found •
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
Reorient or relocate the receiving
•
antenna.
Increase the separation between the
•
equipment and receiver.
Connect the equipment into an outlet
•
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
•
radio/TV technician for help.
‘DVD Video’ is a trademark of DVD Format/
Logo Licensing Corporation.
HDMI, and HDMI logo and High-Denition
Multimedia Interface are trademarks or
registered trademarks of HDMI licensing LLC.
The USB-IF Logos are trademarks of Universal
Serial Bus Implementers Forum, inc.
Windows Media and the Windows logo are
trademarks, or registered trademarks of
Microsoft Corporation in the United States and/
or other countries.
CLASS 1
LASER PRODUCT
English
EN
4
For speakers with stands, use only the •
supplied stands. Secure the stands to the
speakers tightly. Place the assembled stands
on at, level surfaces that can support the
combined weight of the speaker and stand.
Never place the product or any objects
•
on power cords or on other electrical
equipment.
If the product is transported in
•
temperatures below 5°C, unpack the
product and wait until its temperature
matches room temperature before
connecting it to the power outlet.
Visible and invisible laser radiation when
•
open. Avoid exposure to beam.
Do not touch the disc optical lens inside the
•
disc compartment.
Risk of overheating!
Never install this product in a conned
•
space. Always leave a space of at least four
inches around the product for ventilation.
Ensure curtains or other objects never
cover the ventilation slots on the product.
Risk of contamination!
Do not mix batteries (old and new or
•
carbon and alkaline, etc.).
Remove batteries if they are exhausted or
•
if the remote control is not to be used for a
long time.
Batteries contain chemical substances, they
•
should be disposed of properly.
Product care
Do not insert any objects other than discs •
into the disc compartment.
Do not insert warped or cracked discs into
•
the disc compartment.
Remove discs from the disc compartment
•
if you are not using the product for an
extended period of time.
Only use microber cloth to clean the
•
product.
2 Important
Read and understand all instructions before you
use your home theater. If damage is caused by
failure to follow instructions, the warranty does
not apply.
Safety
Risk of electric shock or re!
Never expose the product and accessories
•
to rain or water. Never place liquid
containers, such as vases, near the product.
If liquids are spilt on or into the product,
disconnect it from the power outlet
immediately. Contact Philips Consumer
Care to have the product checked before
use.
Never place the product and accessories
•
near naked ames or other heat sources,
including direct sunlight.
Never insert objects into the ventilation
•
slots or other openings on the product.
Where the mains plug or an appliance
•
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
Disconnect the product from the power
•
outlet before lightning storms.
When you disconnect the power cord,
•
always pull the plug, never the cable.
Risk of short circuit or re!
Before you connect the product to the
•
power outlet, ensure that the power
voltage matches the value printed on the
back or bottom of the product. Never
connect the product to the power outlet if
the voltage is different.
Risk of injury or damage to the home theater!
For wall-mountable products, use only the
•
supplied wall mount bracket. Secure the
wall mount to a wall that can support the
combined weight of the product and the
wall mount. Koninklijke Philips Electronics
N.V. bears no responsibility for improper
wall mounting that results in accident, injury
or damage.
EN
5
3 Your home theater
Congratulations on your purchase, and welcome
to Philips! To fully benet from the support that
Philips offers, register your home theater at
www.philips.com/welcome.
Main unit
a Disc compartment
b (Open/Close)
Opens or closes the disc compartment.
c (Play/Pause)
Starts, pauses or resumes disc play.
d SOURCE
Selects an audio/video source for the home
theater.
e (Standby-On)
Switches the home theater on or to
standby.
f +/- (Volume)
Increases or decreases volume.
g Display panel
Disposal of your old product
and batteries
Your product is designed and manufactured with
high quality materials and components, which can
be recycled and reused.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC. Please inform yourself about the local separate
collection system for electrical and electronic
products.
Please act according to your local rules and do not
dispose of your old products with your normal
household waste.
Correct disposal of your old product helps to
prevent potential negative consequences for the
environment and human health.
Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot be
disposed with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries because correct
disposal helps to prevent negative consequences
for the environmental and human health.
English
EN
6
b OPEN/CLOSE
Opens or closes the disc compartment.
c Audio Source
• DISC: Switches to disc source.
• USB: Switches to USB storage device.
• RADIO: Switches to FM radio.
• AUDIO SOURCE: Selects an audio
input source.
• DOCK for iPod: Switches to Philips
Dock for iPod/iPhone.
d SETUP
Accesses or exits the setup menu.
e (Navigation buttons)
Navigate menus.•
In video mode, press left or right to •
fast backward or fast forward.
In radio mode, press left or right to
•
search a radio station; press up or
down to ne tune a radio frequency.
f (Fast Backward) (Fast Forward)
Fast backwards or fast forwards. Press
repeatedly to change the search speed.
g INFO
Displays information about what is playing.
h (Play/Pause)
Starts, pauses or resumes disc play.
i (Stop)
Stops disc play.•
In radio mode, erases the current •
preset radio station.
j TREBLE / BASS
Changes treble or bass. Use with +/-.
k Numeric buttons
Selects an item to play.
l AUDIO SYNC
Selects an audio language or channel. •
Press and hold to synchronize audio •
with video. Use with +/-.
m SOUND MODE
Selects a predened sound effect.
Remote control
a (Standby-On)
Switches the home theater on or to •
standby.
When EasyLink is enabled, press
•
and hold for at least three seconds
to switch all connected HDMI CEC
compliant devices to standby.
22
17
1
3
2
4
5
6
11
13
12
15
14
16
18
19
7
8
10
920
21
23
EN
7
4 Connect your home
theater
This section helps you connect your home theater to
a TV and other devices. The basic connections of the
home theater with its accessories are provided in the
Quick Start. For a comprehensive interactive guide, see
www.connectivityguide.philips.com.
Note
Refer to the type plate at the back or bottom •
of the product for identication and supply
ratings.
Before you make or change any connections,
•
ensure that all devices are disconnected from
the power outlet.
Connectors
Side connectors
a (USB)
Audio, video or picture input from a USB
storage device.
b MP3 LINK
Audio input from an MP3 player.
c DOCK for iPod
Connects to a Philips Dock for iPod/iPhone.
(Model: PHILIPS DCK3060, sold separately)
n REPEAT / PROGRAM
Selects a repeat or shufe mode.•
In radio mode, programs radio stations.•
o ZOOM
Zooms into a video scene or picture.
p HDMI / ANGLE
Selects video resolution of HDMI •
output from the home theater.
Displays options for different camera
•
angles.
q SUBTITLE
Selects subtitle language for video.
r SURROUND
Selects Dolby Virtual Speaker surround
sound.
s +/-
Increases or decreases volume.
t (Mute)
Mutes or restores volume.
u / (Previous/Next)
Skips to the previous or next track, chapter
or le.
v BACK
Returns to a previous menu screen.
w OK
Conrms an entry or selection.
English
EN
8
Option 1: Connect to the TV through
HDMI
Note
If the HDTV has a DVI connector, connect •
using an HDMI/DVI adapter.
If the TV supports EasyLink HDMI CEC,
•
control the home theater and TV with one
remote control (see ‘Use Philips EasyLink’ on
page 14).
Option 2: Connect to the TV through
YPbPr (component video)
Note
The component video cable or connector •
might be labeled Y Cb Cr or YUV.
TV
TV
Component Video In
Back connectors
a DC IN
Connects to the AC-DC adapter. (Model:
PHILIPS G721DA-270250)
b FM ANTENNA
Connects the FM antenna for radio reception.
c AUX IN
Connects to the analog audio output on the
TV or an analog device.
d VIDEO OUT
Connects to the composite video input on
the TV.
e COMPONENT VIDEO OUT
Connects to the component video input on
the TV.
f HDMI OUT
Connects to the HDMI input on the TV.
g COAXIAL IN
Connects to the coaxial audio output on
the TV or a digital device.
h OPTICAL IN
Connects to the optical audio output on
the TV or a digital device.
Connect to the TV
Connect your home theater directly to a TV through
one of the following connectors (from highest to basic
quality video):
a HDMI
b Component video
c Composite video
d SCART
EN
9

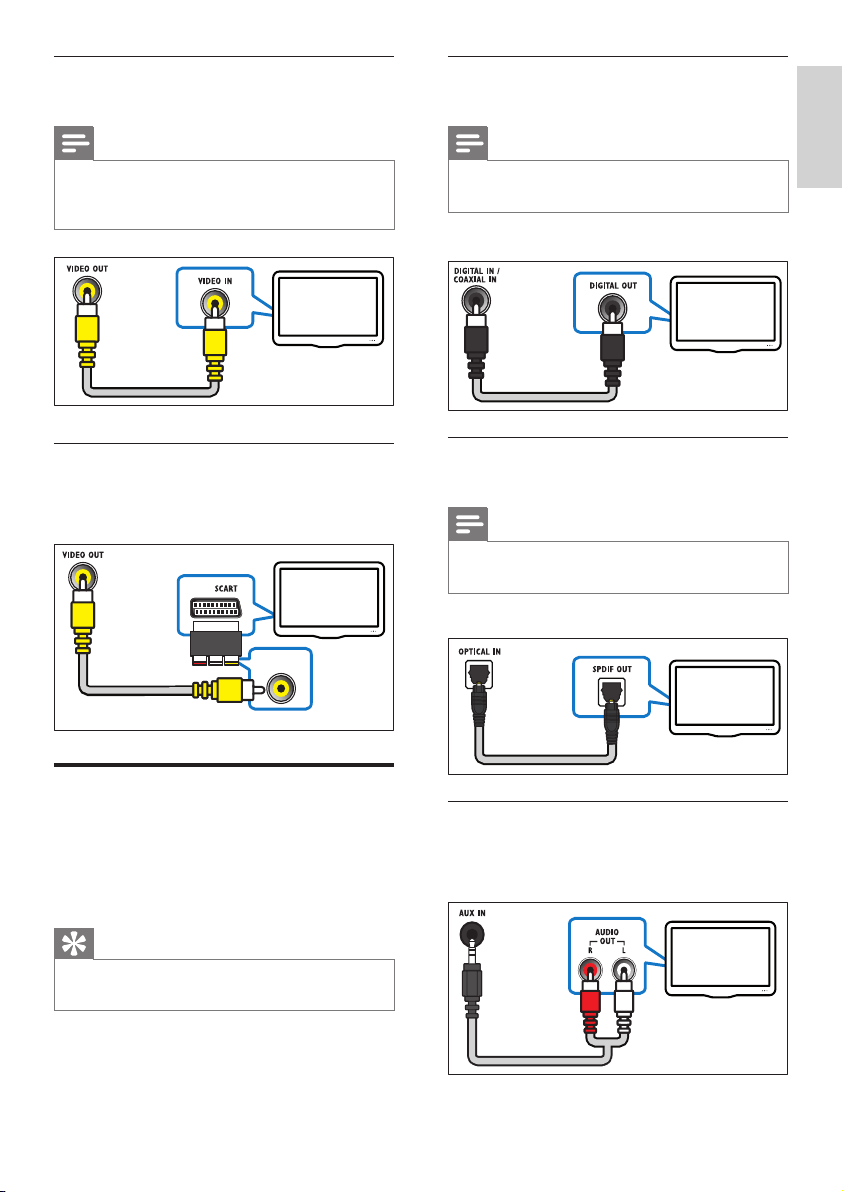

Option 1: Connect audio through a digital
coaxial cable
Note
The digital coaxial cable or connector might be •
labeled COAXIAL DIGITAL OUT or SPDIF OUT.
(Cable not supplied)
Option 2: Connect audio through a digital
optical cable
Note
The digital optical cable or connector might be •
labeled SPDIF OUT or OPTICAL OUT.
(Cable not supplied)
Option 3: Connect audio through analog
audio cables
(Cable not supplied)
TV
TV
TV
Option 3: Connect to the TV through
composite video (CVBS)
Note
The composite video cable or connector might •
be labeled AV IN, VIDEO IN, COMPOSITE or
BASEBAND.
Option 4: Connect to the TV through
SCART
Use the supplied scart adapter.
Connect audio from TV or
other devices
Use your home theater to play audio from the TV
or other devices such as a cable box. Choose from
the following connectors.
Tip
Press • AUDIO SOURCE repeatedly to select
the audio output of your connection.
TV
TV
English
EN
10
5 Use your home
theater
This section helps you use the home theater to
play media from a wide range of sources.
Before you start
Check that you:
Make the necessary connections and
•
complete the setup as described in the
Quick Start.
Switch the TV to the correct source for the
•
home theater.
Choose your sound
This section helps you choose the ideal sound for
your video or music.
Change treble or bass
Change the high frequency (treble) or low
frequency (bass) settings of the home theater to
suit your video or music.
1 Press TREBLE or BASS.
2 Press +/- within ve seconds to increase
or decrease treble or bass.
Change sound mode
Select predened sound modes to suit your
video or music.
Press SOUND MODE repeatedly to cycle
through the available sound modes.
Option 4: Connect audio through an
HDMI cable
Note
The • HDMI connector on the TV might be
labeled HDMI 1 or HDMI ARC. This feature
works with Audio Return Channel (ARC)
compatible devices only.
Connect a Philips Dock for
iPod/iPhone
Note
Philips iPod Dock is sold separately. •
You can use the iPod Dock to charge the iPod •
while the home theater is in iPod mode.
TV
DOCK for iPod
EN
11
3 Press the following buttons to control play:
Button Action
Navigation
buttons
Navigate menus.
OK Conrms an entry or selection.
Starts, pauses or resumes play.
Stops play.
/
Skips to the previous or next
track, chapter or le.
/
Fast backwards or fast forwards.
Press repeatedly to change the
search speed.
In pause mode, steps backward
(DVD only) or forward by one
frame.
ZOOM Zooms into a video scene or
picture.
Use video options
Access several useful features while viewing
video.
Available video options depend on the video
source.
Button Action
/
Searches slow-backward or
slow-forward. Press repeatedly to
change the search speed.
For VCD/SVCD, slow-backward
search is not available.
AUDIO
SYNC
Selects an audio language or
channel.
SUBTITLE Selects subtitle language for video.
INFO
Displays information about what
is playing.
REPEAT Repeats a chapter or title.
ANGLE Displays options for different
camera angles.
Sound mode Description
ACTION /
ROCK
Enhanced low and high-range.
Ideal for action movies and rock
or pop music.
DRAMA /
JAZZ
Clear mid and high-range. Ideal
for drama movies and jazz music.
CONCERT /
CLASSIC
Neutral sound. Ideal for live
concerts and classical music.
SPORTS Moderate mid-range and
surround effects for clear vocals
and the atmosphere of a live
sport venue.
NIGHT Dynamically controlled sound
mode suitable for watching
movies at night or for non-
intrusive background music.
Change surround mode
DVS (Dolby Virtual Speaker) technology
creates a highly compelling 5.1-channel listening
experience from as few as two speakers.
During play, press SURROUND to switch on or
off the surround sound effect.
Play a disc
The home theater can play a wide variety of
discs, including video, audio and mixed media (for
example, a CD-R that contains JPEG pictures and
MP3 music).
1 Insert a disc into the home theater.
2 Press DISC.
The disc plays or the disc main menu
»
appears.
English
EN
12
More play features for disc or
USB
Several advanced features are available for video
or picture playback from a disc or USB storage
device.
Play a musical slideshow
Play music and pictures simultaneously to create
a musical slideshow. The les must be stored on
the same disc or USB storage device.
1 Select a music track, then press OK.
2 Press BACK and go to the picture
folder.
3 Select a picture, then press OK to start
slideshow.
4 Press to stop slideshow.
5 Press again to stop music.
Synchronize audio with video
If the audio and video are not synchronized, you
can delay the audio to match the video.
1 Press and hold AUDIO SYNC until the
audio sync message appears on the display
panel.
2 Press +/- within ve seconds to sync the
audio with your video.
Quick skip play to a specic time
Quick skip to a specic part of a video by
entering the time of a scene.
1 During video play, press INFO.
2 Press the Navigation buttons and OK to
select:
• [TT Time] : Title time.
• [Ch Time] : Chapter time.
• [Disc Time] : Disc time.
• [Track Time] : Track time.
3 Enter the time of the scene, then press OK.
Use picture options
Access several useful features while viewing
pictures.
Button Action
/
Rotates the picture counter-
clockwise or clockwise.
/
Skips to the previous or next
picture.
REPEAT Repeats a single le in the folder or
repeats the entire folder.
Shufes les in a folder.
INFO
Displays photo albums in a
thumbnail overview.
Use audio options
Access several useful features while audio is
played.
Button Action
REPEAT Repeats a track, the entire disc
or shufe tracks.
Play from a USB storage device
The home theater is tted with a USB connector
that allows you to view pictures, listen to music or
watch movies stored on a USB storage device.
1 Connect the USB storage device to the
home theater.
2 Press USB.
A content browser appears.
»
3 Select a le, then press OK.
4 Press the playback buttons to control play
(see ‘Play a disc’ on page 11).
Note
If the USB storage device does not t into the •
connector, use a USB extension cable.
The home theater does not support digital
•
cameras that need a computer program to
display photos.
The USB storage device must be FAT or DOS-
•
formatted, and Mass Storage Class compliant.
EN
13
Note
The home theater can store up to 40 radio •
stations.
Press
• to stop the installation.
AM and digital radio are not supported. •
If no stereo signal is detected, or if fewer than •
ve stations are found, you are prompted to
install the radio stations again.
For the best reception, place the antenna away
•
from the TV or other sources of radiation.
Play audio from TV or other
devices
Press AUDIO SOURCE repeatedly to select
the audio output of the connected device (see
‘Connect audio from TV or other devices’ on
page 9).
Play from an MP3 player
Connect and play audio les from an MP3 player
or other external audio devices.
1 Connect the MP3 player to the home
theater.
2 Press AUDIO SOURCE repeatedly until
‘MP3 LINK’ appears on the display panel.
3 Press the buttons on the MP3 player to
select and play audio les.
Repeat play a specic section
Select sections of audio or video for repeat
playback.
1 During playback, press INFO.
2 Select [Repeat] > [Repeat AB] in the menu.
3 Press OK to mark the start point.
4 Press OK again to mark the end point.
Repeat play starts.
»
To cancel repeat A-B, press
• INFO,
select [Repeat] > [Off], then press
OK.
Note
Repeat play is only possible within a track/ •
chapter.
Play from radio
1 Check that the FM antenna is connected.
2 Press RADIO.
“
» AUTO INSTALL...PRESS PLAY’ appears
on the display panel if you have not
installed any radio stations. Press
.
3 Press the following buttons to control play:
Button Action
/
Selects a preset radio station.
/
Searches for a radio station.
Fine tunes a radio frequency.
Press and hold to erase the
preset radio station.
PROGRAM Manual: Press once to access
program mode, press
/ to
assign a number to the radio
station, then press again to store
the radio station.
Automatic: Press and hold for
three seconds to reinstall radio
stations.
English
EN
14
Use Philips EasyLink
The home theater supports Philips EasyLink,
which uses the HDMI CEC (Consumer
Electronics Control) protocol. EasyLink-
compliant devices that are connected through
HDMI connectors can be controlled by a single
remote control.
Note
Philips does not guarantee 100% •
interoperability with all HDMI CEC devices.
1 Switch on the HDMI CEC operations on
the TV and other connected devices. See
the manual of the TV or other devices for
details.
2 Press SETUP.
3 Select [General Setup], then press OK.
4 Select [EasyLink Setup], then press OK.
5 Select and adjust the following settings:
• [EasyLink] : Enables or disables EasyLink.
• [One Touch Play] : Enables or disables
One Touch Play.
If enabled, you can use the remote
control to start disc play in the
home theater and the TV switches
automatically to the correct channel.
• [One Touch Standby] : Enables or
disables One Touch Standby.
If enabled, the home theater can
be switched off to standby by a
remote control from the TV or other
connected HDMI CEC devices.
• [System Audio Control] :Enables or
disables System audio control.
If enabled, follow the instructions on
the TV to map the connected devices
correctly to the audio connectors of
the home theater. The home theater
switches automatically to the audio
source of the connected device.
• [Audio Input Mapping] : Updates audio
input mapping if there are new devices
connected.
6 Press OK to conrm your choice.
Note
The connected devices must be connected •
through HDMI and switched on.
Play from an iPod or iPhone
By connecting and installing a Philips Dock for iPod/
iPhone, you can use the home theater to play music,
movies and photos from your iPod or iPhone.
Note
Philips Dock for iPod/iPhone is sold separately. •
You can charge your iPod/iPhone on the dock •
while the home theater is in iPod mode.
Dock your iPod or iPhone
1 Connect the dock to the home theater and
connect the yellow composite cable from
the dock to the TV. For more information,
see the Quick Start provided with the dock.
2 Switch on the iPod or iPhone and place it in
the dock.
Listen to music
1 Dock your iPod or iPhone (see ‘Dock your
iPod or iPhone’ on page 14).
2 Press DOCK for iPod on the home theater
remote control.
3 Browse on the iPod or iPhone screen to
select track.
4 Press OK to play the track.
Watch video or view slideshows
Note
On iPod, enable the TV ON setting. •
On iPhone, select the TV Out option. •
1 Dock your iPod or iPhone (see ‘Dock your
iPod or iPhone’ on page 14).
2 Press DOCK for iPod on the home theater
remote control.
3 Switch the TV to the AV/VIDEO source
(corresponding to the yellow composite
cable).
The TV screen goes blank.
»
4 Browse on the iPod or iPhone screen to
select videos or photos.
5 Press OK on the home theater remote
control or PLAY on the iPod/iPhone to play
the video or photos.
The picture is displayed on the TV.
»
EN
15
Change general settings
1 Press SETUP.
2 Select [General Setup], then press OK.
3 Select and adjust the following settings:
• [EasyLink Setup] : Sets up EasyLink to
enjoy easy controls of all the HDMI
CEC compliant devices using a single
remote control (see ‘Use Philips
EasyLink’ on page 14).
• [Disc Lock] : Restricts play to disc.
Password (PIN code) is required to
unlock the disc before play.
• [Display Dim] : Changes the brightness
of the display panel.
• [OSD Language] : Selects the on-
screen display menu language.
• [Screen Saver] : Enables or disables
screen saver mode. If enabled, the
screen enters idle mode after 10
minutes of inactivity (for example, in
pause or stop mode).
• [Sleep Timer] : Sets a sleep timer to
switch the home theater to standby
after a specic time.
• [DivX® VOD Code] : Displays the
DivX VOD registration code for the
home theater.
4 Press OK to conrm your choice.
Note
Before you purchase DivX videos and play •
them on the home theater, register the home
theater on www.divx.com using the DivX
VOD code.
6 Change settings
This section helps you to change the settings of
your home theater.
Caution
Most of the settings are already congured •
with the best value for the home theater.
Unless you have a specic reason to change a
setting, it is best to leave it at the default value.
Access the setup menu
1 Press SETUP.
The following menu appears.
»
Symbol Description
[General Setup]
[Audio Setup]
[Video Setup]
[Preference Setup]
2 Select a setup menu, then press OK.
See the following sections for information
about how to change the settings of your
home theater.
3 Press BACK to return to the previous
menu, or press
SETUP to exit.
Note
You cannot change a setting that is grayed out. •
English
EN
16
Change preference settings
1 Press SETUP.
2 Select [Preference Setup], then press OK.
3 Select and adjust the following settings:
• [Audio] : Selects audio language for
video.
• [Subtitle] : Selects subtitle language for
video.
• [Disc Menu] : Selects menu language
for video disc.
• [Parental] : Restricts access to discs
that are recorded with ratings. To
play all discs irrespective of the rating,
select level ‘8’.
• [PBC] : Displays or skips the content
menu for VCD and SVCD discs.
• [MP3/JPEG Display] : Displays the
MP3/JPEG folders or all the les.
• [Password] : Sets or changes a PIN
code to play a restricted disc. Enter
‘0000’ if you do not have a PIN or if
you have forgotten your PIN.
• [DivX Subtitle] : Selects a character
set that supports the DivX subtitle.
• [Version Info.] : Displays the software
version for the home theater.
• [Default] : Resets the home theater to
the default settings programmed at the
factory.
4 Press OK to conrm your choice.
Note
If you select a language that is not available •
on a disc, the home theater uses the default
language of the disc.
You cannot reset disc lock, password (PIN
•
code) and parental control settings to their
default values.
Change audio settings
1 Press SETUP.
2 Select [Audio Setup], then press OK.
3 Select and adjust the following setting:
[HDMI Audio] : Enables or disables HDMI
audio output for the TV.For settings related
to HDMI, the TV must be connected
through HDMI.
4 Press OK to conrm your choice.
Change video settings
1 Press SETUP.
2 Select [Video Setup], then press OK.
3 Select and adjust the following settings:
• [TV System] : Selects a TV system that
is compatible with the TV.
• [TV Display] : Selects a picture display
format to t the TV screen.
• [Picture Settings] : Selects a
predened color setting.
• [HDMI Setup] : Selects HDMI video
resolution and the wide screen display
format for the TV. The Wide Screen
Display option is only available for 16:9
wide screen TV display setting.
• [Progressive] : Enables or disables
progressive scan mode.
4 Press OK to conrm your choice.
Note
The best setting is automatically selected for •
the TV. If you need to change the setting,
ensure that the TV supports the new setting.
Some video settings depend on the video
•
source, ensure that the disc and the TV
support the setting or feature.
For settings related to HDMI, the TV must be
•
connected through HDMI.
For settings related to progressive scan
•
mode, the TV must be connected through
Component Video.
EN
17
8 Product specifications
Note
Specication and design are subject to change •
without notice.
Region code
For information about which region this home
theater supports, see the type plate on the back
or bottom.
Playback media
DVD-Video, DVD+R/+RW, DVD-R/-RW, DVD+R
DL, CD-R/CD-RW, Audio CD, Video CD/SVCD,
Picture CD, MP3-CD, WMA-CD, DivX-CD, USB
storage device
File Format
Audio: .mp3, .wma
•
Video: .avi, .divx, .wmv
•
Picture: .jpg
•
Country
DVD
Europe, United Kingdom
Latin America
Australia, New Zealand
Russia, India
China
Asia Pacific, Taiwan, Korea
7 Update software
To check for new updates, compare the current
software version of your home theater with the
latest software version (if available) on the Philips
web site.
Check software version
1 Press SETUP.
2 Select [Preference Setup] > [Version Info.],
then press OK.
The software version is displayed.
»
Update software from a CD-R
or USB
1 Check for the latest software version on
www.philips.com/support.
Search for your model and click on
•
‘software&drivers’.
2 Download the software onto a CD-R or
USB storage device.
3 Insert the CD-R or connect the USB
storage device to the home theater.
4 Follow the instructions on the TV to
conrm the update.
When complete, the home theater
»
automatically switches off and on again.
If not, disconnect the power cord for a
•
few seconds and then reconnect it.
Caution
Do not turn off the power or remove the •
CD-R or USB storage device when the
software update is in progress because you
might damage the home theater.
English
EN
18
Main Unit
Power supply: 27 Vdc; 2.5 A (External •
switching power adapter)
Power consumption: 35 W
•
Standby power consumption: < 1 W
•
Impedance: 8 ohm woofer, 8 ohm tweeter
•
Speaker drivers: 3” woofer, 1.5” tweeter
•
Frequency response: 150 Hz ~ 20 kHz
•
Dimensions (WxHxD): 790.6 x 145 x 57.4
•
(mm)
Weight: 2.23 kg
•
Switching power adapter (G721DA-270250)
Input: 100-240 Vac; 50-60 Hz; 1.35 A
•
Output: 27 Vdc; 2.5 A
•
Subwoofer
Power supply: 220-240 V; ~50 Hz
•
Power consumption: 45 W
•
Standby power consumption: < 1 W
•
System: Bass Reex System
•
Impedance: 8 ohm
•
Speaker driver: 6” woofer
•
Frequency response: 35 Hz ~ 200 Hz
•
Dimensions (WxHxD): 182 x 365 x 306
•
(mm)
Weight: 6 kg
•
Wall Mount
Dimensions (WxHxD): 440 x 60 x 23 (mm)
•
Weight: 0.54 kg
•
Laser specication
Type: Semiconductor laser GaAIAs (CD)
•
Wave length: 645 - 665 nm (DVD), 770 -
•
800 nm (CD)
Output power: 6 mW (DVD), 7 mW
•
(VCD/CD)
Beam divergence: 60 degrees.
•
Amplier
Total output power: 400 W RMS
•
Frequency response: 20 Hz-20 kHz / ±3dB
•
Signal-to-noise ratio: > 65 dB (CCIR) /
•
(A-weighted)
Input sensitivity:
•
AUX: 2 V
•
MP3 LINK: 1 V•
Video
Signal system: PAL / NTSC
•
Component video output: 480i/576i,
•
480p/576p, 720p, 1080i
HDMI output 480p, 576p, 720p, 1080i,
•
1080p
Audio
S/PDIF Digital audio input:
•
Coaxial: IEC 60958-3
•
Optical: TOSLINK•
Sampling frequency: •
MP3: 32 kHz, 44.1 kHz, 48 kHz
•
WMA: 44.1 kHz, 48 kHz•
Constant bit rate: •
MP3: 112 kbps - 320 kbps
•
WMA: 48 kbps - 192 kbps•
Radio
Tuning range: FM 87.5-108 MHz (50 kHz)
•
Signal-to-noise ratio: FM 50 dB
•
Frequency response: FM 180 Hz-10 kHz /
•
±6dB
USB
Compatibility: Hi-Speed USB (2.0)
•
Class support: UMS (USB Mass Storage
•
Class)
File system: FAT12, FAT16, FAT32
•
Maximum memory support: < 160GB
•
EN
19
2 Press and hold PAIR on the subwoofer
until the blue and green indicators on the
subwoofer ash alternately.
3 If the wireless connection succeeds, [PAIR
OK] is displayed and the green indicator on
the subwoofer lights up.
If the wireless connection fails,
• [PAIR
FAIL] is displayed, and the blue and green
indicators on the subwoofer remain lit.
Check whether there is any interference
from nearby electronic devices. Remove the
conict or strong interference, then repeat
the above procedures.
No sound.
Ensure that the audio cables are connected
•
and select the correct input source (for
example, AUDIO SOURCE, USB) for the
device you want to play.
No sound on HDMI connection.
You might not hear any sound if the
•
connected device is not HDCP (High-
bandwidth Digital Content Protection)
compliant or only DVI compatible. Use an
analog or digital audio connection.
Ensure that the
• [HDMI Audio] is enabled.
No sound from TV program.
Connect an audio cable from the audio
•
input on the home theater to the audio
output on the TV, then press AUDIO
SOURCE repeatedly to select the correct
audio source.
Distorted sound or echo.
Ensure that the TV volume is muted or set
•
to minimum if you are playing audio through
the home theater.
Audio and video are not synchronized.
1) Press and hold
• AUDIO SYNC. 2) Press
+/- within ve seconds.
Play
Disc cannot be played.
Clean the disc.
•
Ensure that the home theater supports the
•
disc (see ‘Product specications’ on page
17).
Ensure that the home theater supports the
•
region code of the disc.
For DVD±RW or DVD±R, ensure that the
•
disc is nalized.
9 Troubleshooting
Warning
Risk of electric shock. Never remove the •
casing of the product.
To keep the warranty valid, never try to repair the
product yourself.
If you have problems using this product, check the
following points before you request service. If you
still have a problem, register your product and get
support at www.philips.com/welcome.
If you contact Philips, you will be asked for the
model and serial number of your product. The
model number and serial number are on the back
or bottom of your product. Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
Main unit
The buttons on this home theater do not work.
Disconnect the home theater from the
•
power outlet for a few minutes, then
reconnect.
No picture.
Ensure that the TV is switched to the
•
correct source for the home theater.
No picture on HDMI connection.
Check if the HDMI cable is faulty. Replace
•
with a new HDMI cable.
If this happens when you change the HDMI
•
video resolution, press HDMI repeatedly
until picture appears.
Sound
No sound from subwoofer
1 In Standby, press and hold (Stop) on the
remote control until [PAIRING] ashes on
the main unit.
English
EN
20
10 Index
A
amplier 17
audio
connection 9
language 16
synchronize with video 12
audio input mapping
14
C
care 4
change settings
15
connect
audio from TV 9, 13
guide 7
other devices 9
TV 8
connectors
7
contact us
19
D
disc
play 11
supported discs 17
disposal of your product
5
DivX
registration code 15
subtitle 16
E
EasyLink
settings 14
F
le formats 17
H
HDMI CEC (see Easylink) 14
DivX video les cannot be played.
Ensure that the DivX le is encoded
•
according to the ‘Home Theater Prole’
with the DivX encoder.
Ensure that the DivX video le is complete.
•
DivX subtitles do not display correctly.
Ensure that the subtitle le name is the
•
same as the movie le name.
Select the correct character set: 1) Press
•
SETUP. 2) Select [Preference Setup].
3) Select [DivX Subtitle]. 4) Select a
supported character set. 5) Press OK.
The contents of a USB storage device cannot be
read.
Ensure that the format of the USB storage
•
device is compatible with the home theater
(see ‘Product specications’ on page 17).
Ensure that the USB storage device
•
is formatted with a le system that is
supported by the home theater (note that
NTFS is not supported).
‘No entry’ or ‘x’ sign appears on the TV.
The operation is not possible.
•
EasyLink feature does not work.
Ensure that the home theater is connected
•
to a Philips brand EasyLink TV and that
EasyLink is on.
I do not want my home theater to be switched
on when I switch on my TV.
This is the correct behavior for Philips
•
EasyLink (HDMI-CEC). To make the home
theater work independently, switch off
EasyLink.
The video (movies, photos, video clips, etc.)
contents of the iPod/iPhone do not display on TV.
Video and photo browsing is not supported,
•
you can only browse the video and photo
contents on the iPod/iPhone itself.
Cannot see pictures from my iPod/iPhone on the
TV.
Connect a yellow composite cable from the
•
dock to the TV.
Switch the TV to the
• AV/VIDEO source
(corresponding to the yellow composite
cable).
Press
• PL AY on the iPod or iPhone to start
the slideshow.
EN
21
R
radio
play 13
program 13
tune 13
recycle
5
region code
17
remote control
6
repeat
11, 13
rotate pictures
12
S
safety 4
settings
general 15
parental control 16
preferences 16
restore factory settings 16
slideshow
play musical slideshow 12
software
update 17
version 17
sound
mode 10
treble and bass 10
troubleshooting 19
system audio control
14
T
time search video 12
troubleshooting
19
TV
audio from TV 9, 13
connect 8
U
USB
play 12
software update 17
V
video
synchronize with audio 12
video on demand (VOD)
15
I
iPod
connect 10
play 14
L
language
audio 16
disc menu 16
on-screen display 15
subtitle 16
M
MP3
play 13
O
one-touch play 14
one-touch standby
14
overview
connectors 7
main unit 5
remote control 6
P
password 16
options 12
slide show 12, 12
thumbnail overview 12
troubleshooting 19
play
disc 11
MP3 player 13
options 11
radio 13
troubleshooting 19
USB storage device 12
product care
4
product specications
17
English
EN
Abkhazian 6566
Afar 6565
Afrikaans 6570
Amharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Avestan 6569
Aymara 6589
Azerhaijani 6590
Bahasa Melayu 7783
Bashkir 6665
Belarusian 6669
Bengali 6678
Bihari 6672
Bislama 6673
Bokmål, Norwegian 7866
Bosanski 6683
Brezhoneg 6682
Bulgarian 6671
Burmese 7789
Castellano, Español 6983
Catalán 6765
Chamorro 6772
Chechen 6769
Chewa; Chichewa; Nyanja 7889
9072
Chuang; Zhuang 9065
Church Slavic; Slavonic 6785
Chuvash 6786
Corsican 6779
Česky 6783
Dansk 6865
Deutsch 6869
Dzongkha 6890
English 6978
Esperanto 6979
Estonian 6984
Euskara 6985
6976
Faroese 7079
Français 7082
Frysk 7089
Fijian 7074
Gaelic; Scottish Gaelic 7168
Gallegan 7176
Georgian 7565
Gikuyu; Kikuyu 7573
Guarani 7178
Gujarati 7185
Hausa 7265
Herero 7290
Hindi 7273
Hiri Motu 7279
Hrwatski 6779
Ido 7379
Interlingua (International)7365
Interlingue 7365
Inuktitut 7385
Inupiaq 7375
Irish 7165
Íslenska 7383
Italiano 7384
Ivrit 7269
Japanese 7465
Javanese 7486
Kalaallisut 7576
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kernewek 7587
Khmer 7577
Kinyarwanda 8287
Kirghiz 7589
Komi 7586
Korean 7579
Kuanyama; Kwanyama 7574
Kurdish 7585
Lao 7679
Latina 7665
Latvian 7686
Letzeburgesch; 7666
Limburgan; Limburger 7673
Lingala 7678
Lithuanian 7684
Luxembourgish; 7666
Macedonian 7775
Malagasy 7771
Magyar 7285
Malayalam 7776
Maltese 7784
Manx 7186
Maori 7773
Marathi 7782
Marshallese 7772
Moldavian 7779
Mongolian 7778
Nauru 7865
Navaho; Navajo 7886
Ndebele, North 7868
Ndebele, South 7882
Ndonga 7871
Nederlands 7876
Nepali 7869
Norsk 7879
Northern Sami 8369
North Ndebele 7868
Norwegian Nynorsk; 7878
Occitan; Provencal 7967
Old Bulgarian; Old Slavonic 6785
Oriya 7982
Oromo 7977
Ossetian; Ossetic 7983
Pali 8073
Panjabi 8065
Persian 7065
Polski 8076
Português 8084
Pushto 8083
Russian 8285
Quechua 8185
Raeto-Romance 8277
Romanian 8279
Rundi 8278
Samoan 8377
Sango 8371
Sanskrit 8365
Sardinian 8367
Serbian 8382
Shona 8378
Shqip 8381
Sindhi 8368
Sinhalese 8373
Slovensky 8373
Slovenian 8376
Somali 8379
Sotho; Southern 8384
South Ndebele 7882
Sundanese 8385
Suomi 7073
Swahili 8387
Swati 8383
Svenska 8386
Tagalog 8476
Tahitian 8489
Tajik 8471
Tamil 8465
Tatar 8484
Telugu 8469
Thai 8472
Tibetan 6679
Tigrinya 8473
Tonga (Tonga Islands) 8479
Tsonga 8483
Tswana 8478
Türkçe 8482
Turkmen 8475
Twi 8487
Uighur 8571
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapuk 8679
Walloon 8765
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 8973
Yoruba 8979
Zulu 9085
中文
Language Code
1_HTS5220_12_EN-US.indd Sec2:331_HTS5220_12_EN-US.indd Sec2:33 4/14/2010 10:24:07 AM4/14/2010 10:24:07 AM
© 2010 Koninklijke Philips Electronics N.V.
All rights reserved.
sgptt_1039/12_v4
bk.indd Sec4:48bk.indd Sec4:48 1/12/2010 2:54:37 PM1/12/2010 2:54:37 PM
