Welcome
Congratulations on your purchase of a new
Honda motorcycle. Your selection of a
Honda makes you part of a worldwide family
of satisfied customers who appreciate
Honda's reputation for building quality into
every product.
To ensure your safety and riding pleasure:
● Read this owner's manual carefully.
● Follow all recommendations and
procedures contained in this manual.
● Pay close attention to safety messages
contained in this manual and on the
motorcycle.
To protect your investment, we urge you to
take responsibility for keeping your
motorcycle well serviced and maintained.
Also, observe the break-in guidelines, and
always perform the pre-ride inspection and
other periodic checks in this manual.
When service is required, remember that
your Honda dealer knows your motorcycle
best. If you have the required mechanical
“know-how” and tools, you can purchase an
official Honda Service Manual to help you
perform many maintenance and repair tasks.
2 P. 120
Read the warranty information thoroughly so
that you understand the warranty coverage
and that you are aware of your rights and
responsibilities. 2 P. 121
You may also want to visit our website at
www.powersports.honda.com.
Canada
www.honda.ca.
Happy riding!
20170404121238_31MJEC000_enu_BOOK Page 2 Tuesday, April 04 2017 12:17:25 JST
A Few Words About Safety
Your safety, and the safety of others, is very
important. Operating this motorcycle safely is
an important responsibility.
To help you make informed decisions about
safety, we have provided operating
procedures and other information on safety
labels and in this manual. This information
alerts you to potential hazards that could
hurt you or others.
Of course, it is not practical or possible to
warn you about all hazards associated with
operating or maintaining a motorcycle. You
must use your own good judgment.
You will find important safety information in a
variety of forms, including:
● Safety labels on the motorcycle
●
Safety Messages preceded by a safety alert
symbol and one of three signal words:
DANGER, WARNING, or CAUTION.
These signal words mean:
3DANGER
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3WARNING
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3CAUTION
You CAN be HURT if you don’t follow
instructions.
Other important information is
provided under the following titles:
NOTICE
Information to help you avoid
damage to your motorcycle,
other property, or the
environment.
20170404121238_31MJEC000_enu_BOOK Page 3 Tuesday, April 04 2017 12:17:25 JST
Safety Guidelines................................................. P. 3
Safety Labels.........................................................P. 7
Safety Precautions............................................... P. 9
Riding Precautions ............................................ P. 10
Accessories & Modifications........................... P. 14
Loading ................................................................ P. 15
20170404121238_31MJEC000_enu_BOOK Page 5 Tuesday, April 04 2017 12:17:25 JST
This section contains important information for safe riding of your motorcycle.
Please read this section carefully.
Motorcycle Safety
Safety Guidelines
Follow these guidelines to enhance your safety:
● Perform all routine and regular inspections
specified in this manual.
● Stop the engine and keep sparks and flame
away before filling the fuel tank.
● Do not run the engine in enclosed or partly
enclosed areas. Carbon monoxide in
exhaust gases is toxic and can kill you.
Always Wear a Helmet
It's a proven fact: helmets and protective
apparel significantly reduce the number and
severity of head and other injuries. So always
wear an approved motorcycle helmet and
protective apparel. 2 P. 9
Before Riding
Make sure that you are physically fit, mentally
focused and free of alcohol and drugs. Check
that you and your passenger are both wearing
an approved motorcycle helmet and protective
apparel. Instruct your passenger on holding
onto the seat strap or your waist, leaning with
you in turns, and keeping their feet on the
footpegs, even when the motorcycle is stopped.
Take Time to Learn & Practice
Even if you have ridden other motorcycles,
practice riding in a safe area to become familiar
with how this motorcycle works and handles,
and to become accustomed to the motorcycle's
size and weight.
20170404121238_31MJEC000_enu_BOOK Page 6 Tuesday, April 04 2017 12:17:25 JST
Safety Guidelines
Motorcycle Safety
3
Continued
We recommend that all riders take a certified
course approved by the Motorcycle Safety
Foundation (MSF). New riders should start with
the basic course, and even experienced riders
will find the advanced course beneficial.
For information about the MSF training course
nearest you, call the national toll-free number:
(800) 446-9227.
USA
Other riding tips can be found in the You
and Your Motorcycle Riding Tips booklet that
came with your motorcycle.
Ride Defensively
Always pay attention to other vehicles around
you, and do not assume that other drivers see
you. Be prepared to stop quickly or perform an
evasive maneuver.
Make Yourself Easy to See
Make yourself more visible, especially at night,
by wearing bright reflective clothing, positioning
yourself so other drivers can see you, signaling
before turning or changing lanes, and using
your horn when necessary.
Ride within Your Limits
Never ride beyond your personal abilities or
faster than conditions warrant. Fatigue and
inattention can impair your ability to use good
judgment and ride safely.
Don't Drink and Ride
Alcohol and riding don't mix. Even one alcoholic
drink can reduce your ability to respond to
changing conditions, and your reaction time
gets worse with every additional drink. Don't
drink and ride, and don't let your friends drink
and ride either.
20170404121238_31MJEC000_enu_BOOK Page 7 Tuesday, April 04 2017 12:17:25 JST
Safety Guidelines
Motorcycle Safety
4
Keep Your Honda in Safe Condition
It's important to keep your motorcycle properly
maintained and in safe riding condition.
Inspect your motorcycle before every ride and
perform all recommended maintenance. Never
exceed load limits (2 P. 15), and do not modify
your motorcycle or install accessories that
would make your motorcycle unsafe (2 P. 14).
If You are Involved in a Crash
Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether it
is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable laws
and regulations if another person or vehicle is
involved in the crash.
If you decide to continue riding, first turn the
ignition switch to the OFF position, and evaluate
the condition of your motorcycle. Inspect for
fluid leaks, check the tightness of critical nuts
and bolts, and check the handlebar, control
levers, brakes, and wheels. Ride slowly and
cautiously.
Your motorcycle may have suffered damage
that is not immediately apparent. Have your
motorcycle thoroughly checked at a qualified
service facility as soon as possible.
20170404121238_31MJEC000_enu_BOOK Page 8 Tuesday, April 04 2017 12:17:25 JST
Safety Guidelines
Motorcycle Safety
5
Continued
Carbon Monoxide Hazard
Exhaust contains poisonous carbon monoxide, a
colorless, odorless gas. Breathing carbon
monoxide can cause loss of consciousness and
may lead to death.
If you run the engine in confined or even partly
enclosed area, the air you breathe could
contain a dangerous amount of carbon
monoxide.
Never run your motorcycle inside a garage or
other enclosure.
3WARNING
Running the engine of your motorcycle
while in an enclosed or even partially
enclosed area can cause a rapid build-
up of toxic carbon monoxide gas.
Breathing this colorless, odorless gas
can quickly cause unconsciousness and
lead to death.
Only run your motorcycle's engine
when it is located in a well ventilated
area outdoors.
20170404121238_31MJEC000_enu_BOOK Page 9 Tuesday, April 04 2017 12:17:25 JST
Safety Guidelines
Motorcycle Safety
6

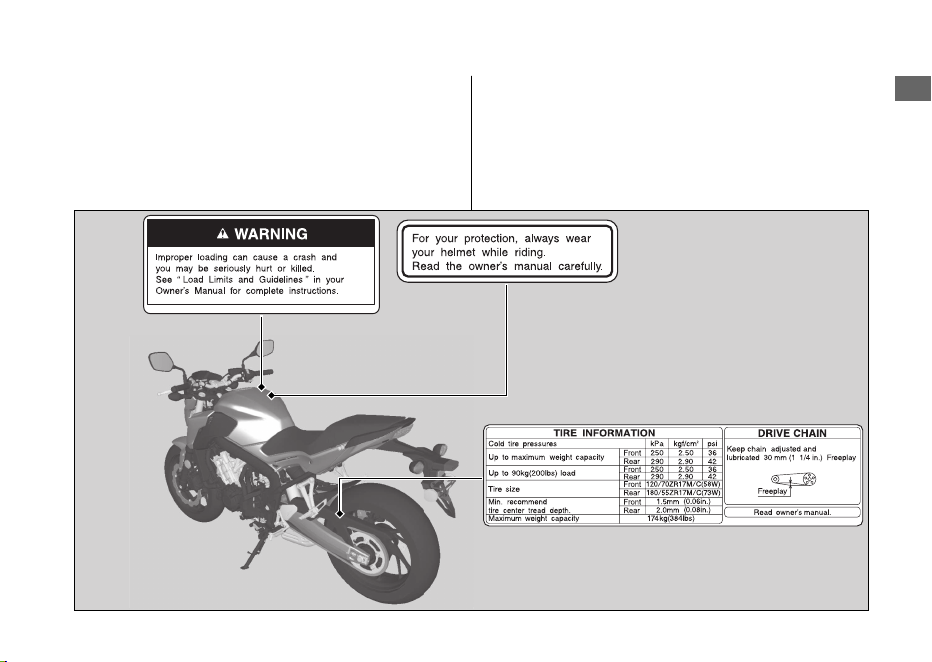

Safety Labels
Safety and information labels on your
motorcycle provide important safety
information and may warn you of potential
hazards that could cause serious injury. Read
these labels carefully and don't remove them.
If a label comes off or becomes hard to read,
contact your dealer for a replacement.
20170404121238_31MJEC000_enu_BOOK Page 10 Tuesday, April 04 2017 12:17:25 JST
Safety Labels
Motorcycle Safety
7
Continued
20170404121238_31MJEC000_enu_BOOK Page 11 Tuesday, April 04 2017 12:17:25 JST
Safety Labels
Motorcycle Safety
8
Safety Precautions
● Ride cautiously and keep your hands on the
handlebar and feet on the footpegs.
● Keep passenger's hands onto the seat strap
or your waist, passenger's feet on the
footpegs while riding.
● Always consider the safety of your
passenger, as well as other drivers and
riders.
Protective Apparel
Make sure that you and any passenger are
wearing an approved motorcycle helmet, eye
protection, and high-visibility protective
clothing. Ride defensively in response to
weather and road conditions.
#
Helmet
Should be safety-standard certified, high-
visibility, and correct size for your head
●
Must fit comfortably but securely, with the
chin strap fastened.
● Face shield with unobstructed field of vision
or other approved eye protection
USA
Look for a DOT (Department of
Transportation) certification label on any helmet
you buy.
3WARNING
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Make sure that you and any passenger
always wear an approved helmet and
protective apparel.
#
Gloves
Full-finger leather gloves with high abrasion
resistance
20170404121238_31MJEC000_enu_BOOK Page 12 Tuesday, April 04 2017 12:17:25 JST
Safety Precautions
Motorcycle Safety
9
Continued
#
Boots or Riding Shoes
Sturdy boots with non-slip soles and ankle
protection
#
Jacket and Pants
Protective, highly visible, long-sleeved jacket
and durable long pants for riding (or a
protective suit)
Riding Precautions
Break-in Period
During the first 300 miles (500 km) of running,
follow these guidelines to ensure your
motorcycle's future reliability and performance.
● Avoid full-throttle starts and rapid
acceleration.
● Avoid hard braking and rapid down-shifts.
● Ride conservatively.
Brakes
Observe the following guidelines:
●
Avoid excessively hard braking and
downshifting.
u Sudden braking can reduce the
motorcycle's stability.
u Where possible, reduce speed before
turning; otherwise you risk sliding out.
20170404121238_31MJEC000_enu_BOOK Page 13 Tuesday, April 04 2017 12:17:25 JST
Riding Precautions
Motorcycle Safety
10
● Exercise caution on low traction surfaces.
u The tires slip more easily on such
surfaces and braking distances are
longer.
● Avoid continuous braking.
u Repeated braking, such as when
descending long, steep slopes can
seriously overheat the brakes, reducing
their effectiveness. Use engine braking
with intermittent use of the brakes to
reduce speed.
● For full braking effectiveness, operate both
the front and rear brakes together.
#
Anti-lock Brake System (ABS)
CB650FA only
This model is equipped with an Anti-lock Brake
System (ABS) designed to help prevent the
brakes from locking up during hard braking.
● ABS does not reduce braking distance. In
certain circumstances, ABS may result in a
longer stopping distance.
● ABS does not function at speeds below 6
mph (10 km/h).
● The brake lever and pedal may recoil slightly
when applying the brakes. This is normal.
● Always use the recommended front/rear
tires and sprockets to ensure correct ABS
operation.
20170404121238_31MJEC000_enu_BOOK Page 14 Tuesday, April 04 2017 12:17:25 JST
Riding Precautions
Motorcycle Safety
11
Continued
#
Engine Braking
Engine braking helps slow your motorcycle
down when you release the throttle. For further
slowing action, downshift to a lower gear. Use
engine braking with intermittent use of the
brakes to reduce speed when descending long,
steep slopes.
#
Wet or Rainy Conditions
Road surfaces are slippery when wet, and wet
brakes further reduce braking efficiency.
Exercise extra caution when braking in wet
conditions.
If the brakes get wet, apply the brakes while
riding at low speed to help them dry.
Parking
● Park on a firm, level surface.
● If you must park on a slight incline or loose
surface, park so that the motorcycle cannot
move or fall over.
● Make sure that high-temperature parts
cannot come into contact with flammable
materials.
● Do not touch the engine, muffler, brakes
and other high-temperature parts until they
cool down.
● To reduce the likelihood of theft, always lock
the handlebar and remove the key when
leaving the motorcycle unattended.
Use of an anti-theft device is also
recommended.
20170404121238_31MJEC000_enu_BOOK Page 15 Tuesday, April 04 2017 12:17:25 JST
Riding Precautions
Motorcycle Safety
12
#
Parking with the Side Stand
1.
Stop the engine.
2.
Push the side stand down.
3.
Slowly lean the motorcycle to the left until its
weight rests on the side stand.
4.
Turn the handlebar fully to the left.
u Turning the handlebar to the right
reduces stability and may cause the
motorcycle to fall.
5.
Turn the ignition switch to the LOCK
position and remove the key. 2 P. 34
Refueling and Fuel Guidelines
Follow these guidelines to protect the engine,
fuel system and catalytic converter:
● Use only unleaded gasoline.
● Use recommended octane number. Using
lower octane gasoline will result in
decreased engine performance.
● Do not use fuels containing a high
concentration of alcohol. 2 P. 119
● Do not use stale or contaminated gasoline
or an oil/gasoline mixture.
● Avoid getting dirt or water in the fuel tank.
20170404121238_31MJEC000_enu_BOOK Page 16 Tuesday, April 04 2017 12:17:25 JST
Riding Precautions
Motorcycle Safety
13
Accessories &
Modifications
We strongly advise that you do not add any
accessories that were not specifically designed
or approved for your motorcycle by Honda or
make modifications to your motorcycle from its
original design. Doing so can make it unsafe.
Modifying your motorcycle may also void your
warranty and make your motorcycle illegal to
operate on public roads and highways. Before
deciding to install accessories on your
motorcycle be certain the modification is safe
and legal.
3WARNING
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner's
manual regarding accessories and
modifications.
Do not pull a trailer with, or attach a sidecar to,
your motorcycle. Your motorcycle was not
designed for these attachments, and their use
can seriously impair your motorcycle's handling.
20170404121238_31MJEC000_enu_BOOK Page 17 Tuesday, April 04 2017 12:17:25 JST
Accessories & Modifications
Motorcycle Safety
14
Loading
● Carrying extra weight affects your
motorcycle's handling, braking and stability.
Always ride at a safe speed for the load you
are carrying.
● Avoid carrying an excessive load and keep
within specified load limits.
Maximum weight capacity 2 P. 126
● Tie all luggage securely, evenly balanced
and close to the center of the motorcycle.
● Do not place objects near the lights or the
muffler.
3WARNING
Overloading or improper loading can
cause a crash and you can be seriously
hurt or killed.
Follow all load limits and other loading
guidelines in this manual.
20170404121238_31MJEC000_enu_BOOK Page 18 Tuesday, April 04 2017 12:17:25 JST
Loading
Motorcycle Safety
15

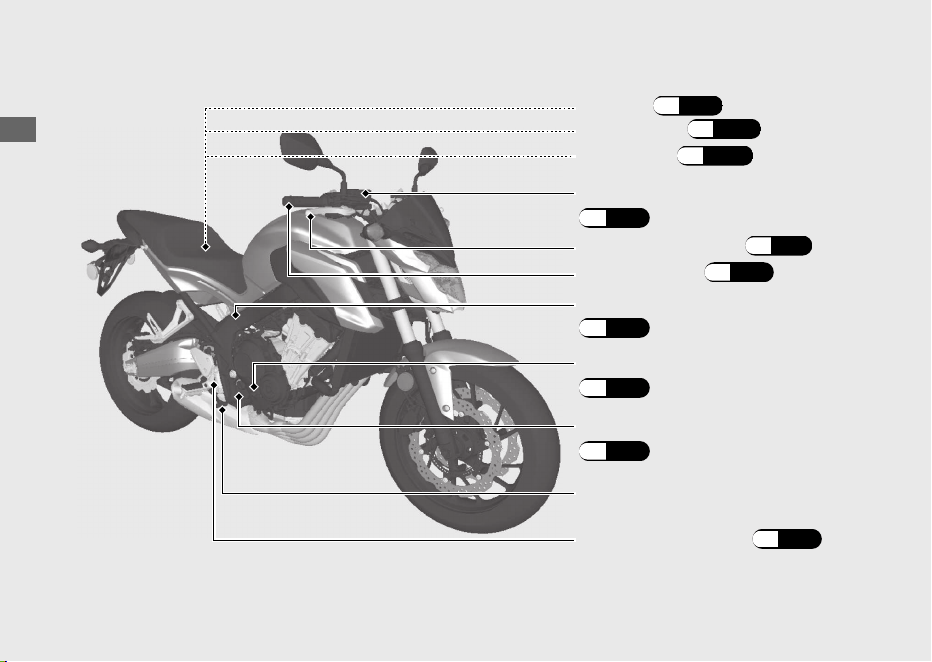

Parts Location
20170404121238_31MJEC000_enu_BOOK Page 19 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
16
Main fuse (P.102)

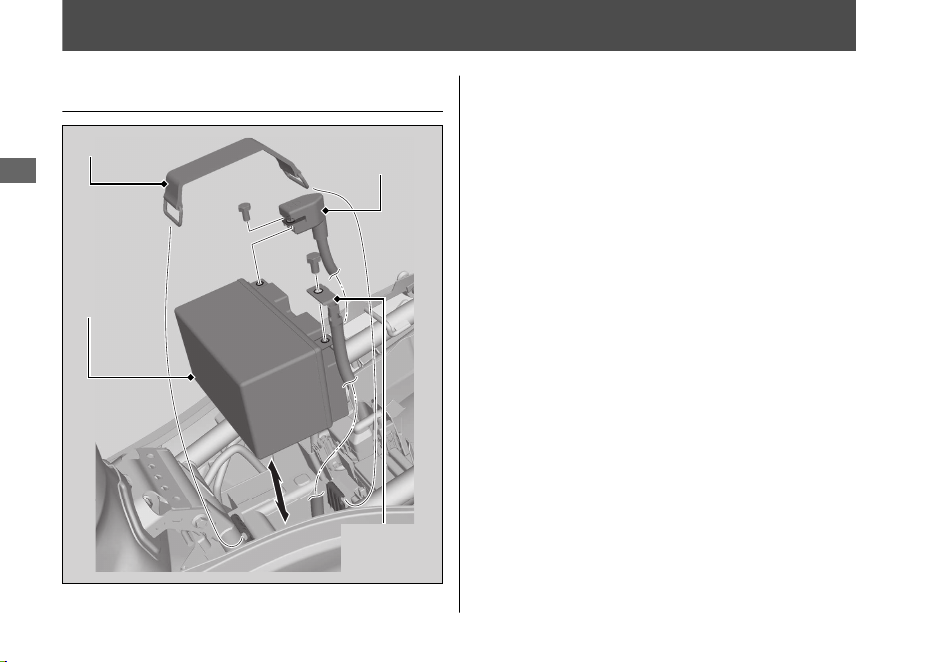

Battery (P.60)
Front brake lever (P.81)
Throttle grip (P.79)
Coolant reserve tank
(P.66
)
Rear brake fluid reservoir
(P.68
)

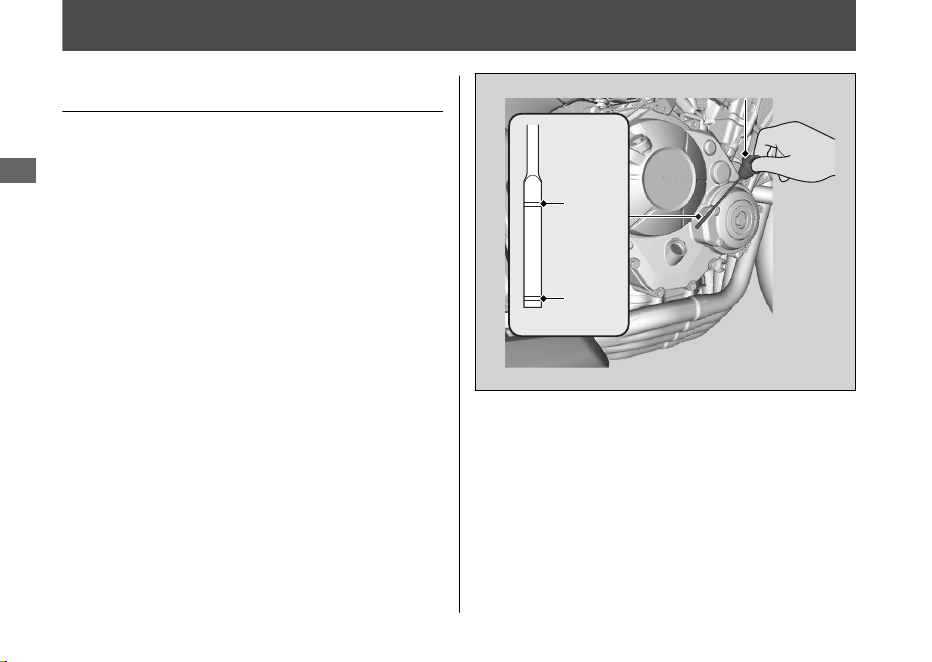

Engine oil fill cap/dipstick
(P.62
)

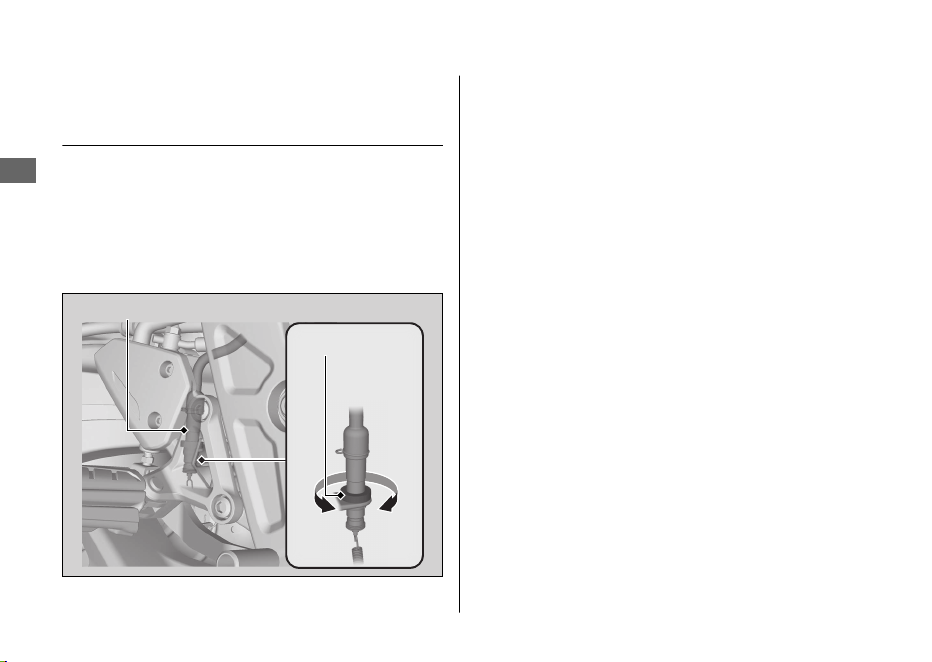

Brake light switch (P.70)
Front brake fluid reservoir
(P.68
)

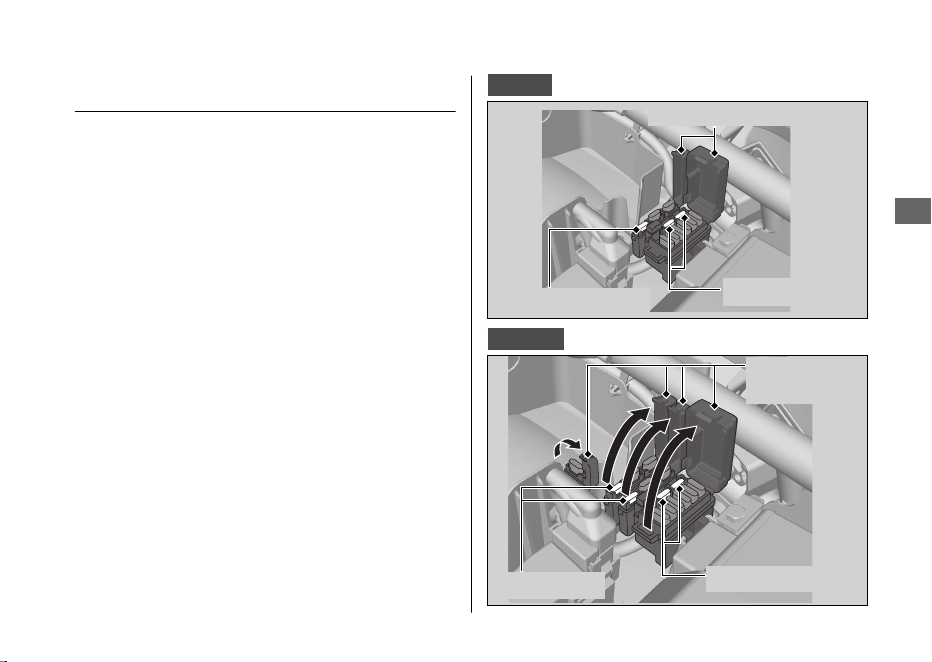

Fuse boxes (P.101)
Rear brake pedal
20170404121238_31MJEC000_enu_BOOK Page 20 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
17

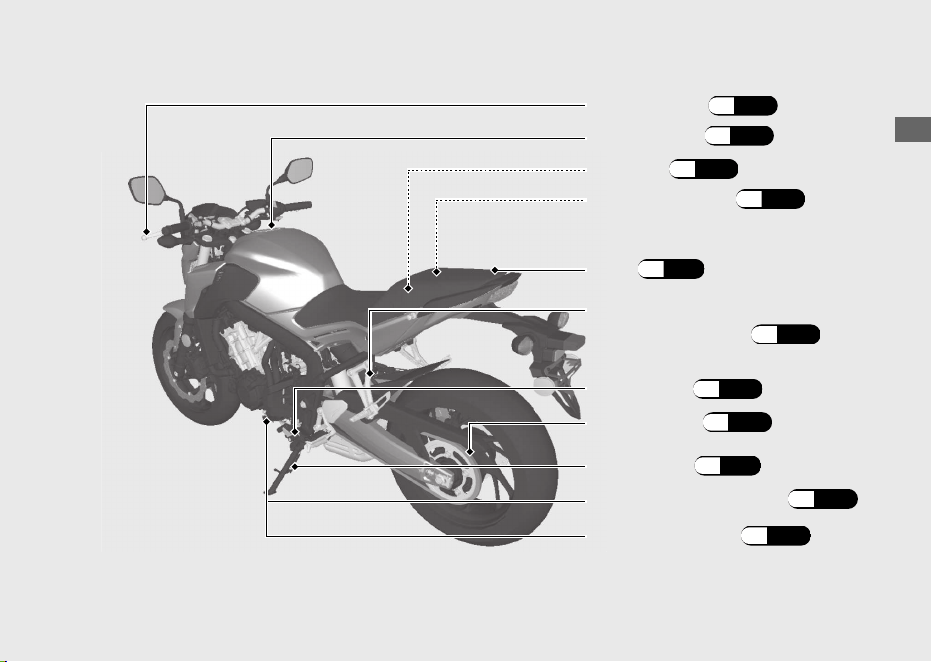

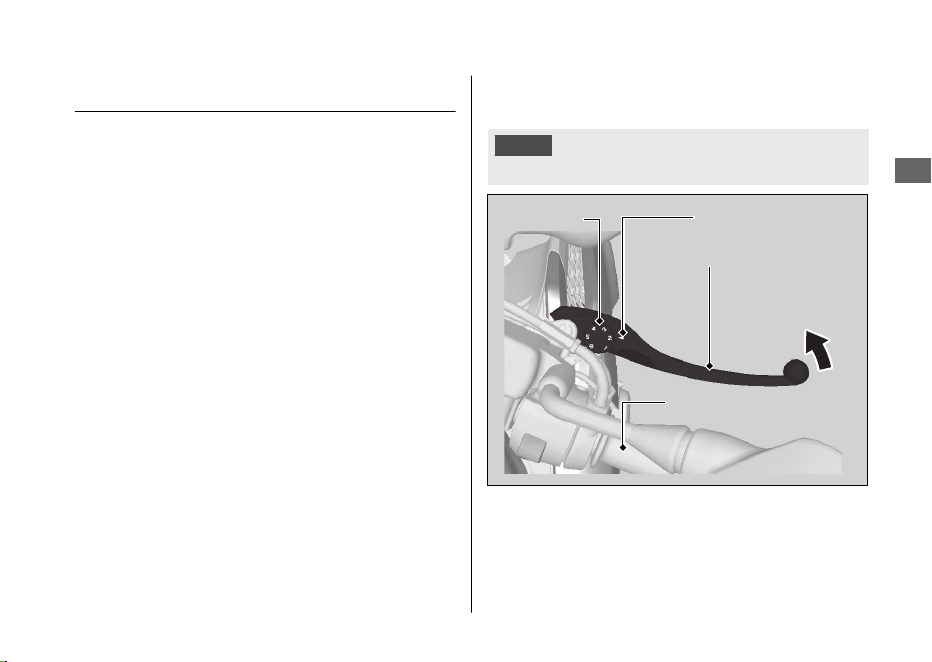

Clutch lever (P.76)

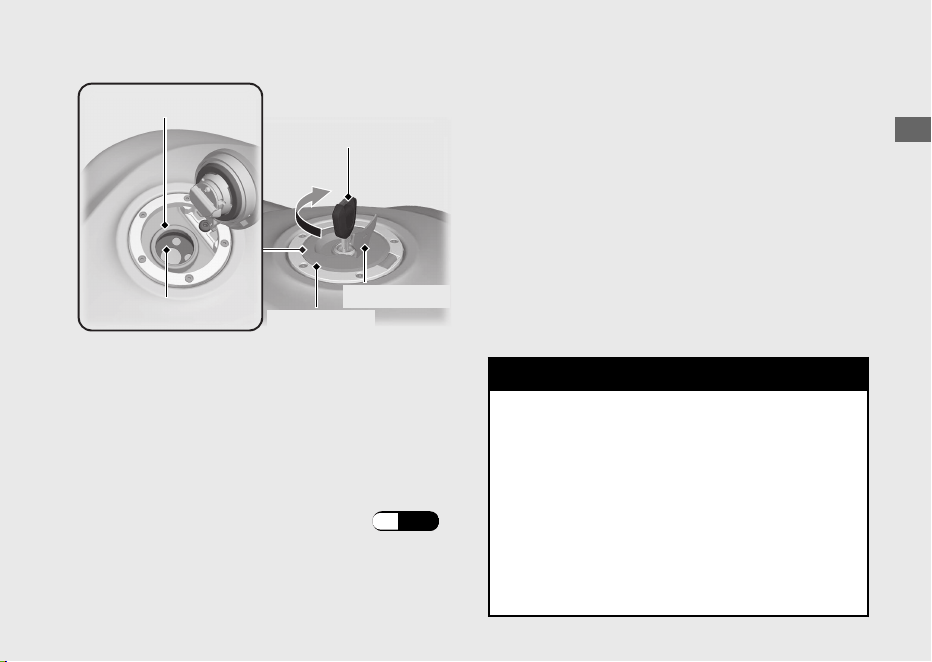

Fuel fill cap (P.37)

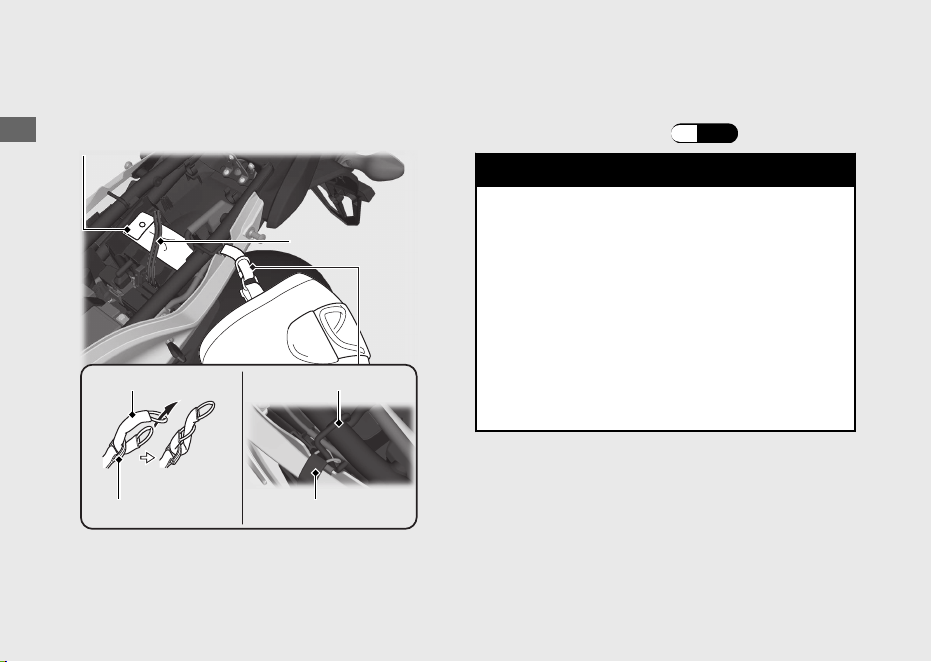

Document bag (P.38)
Tool kit (P.38)

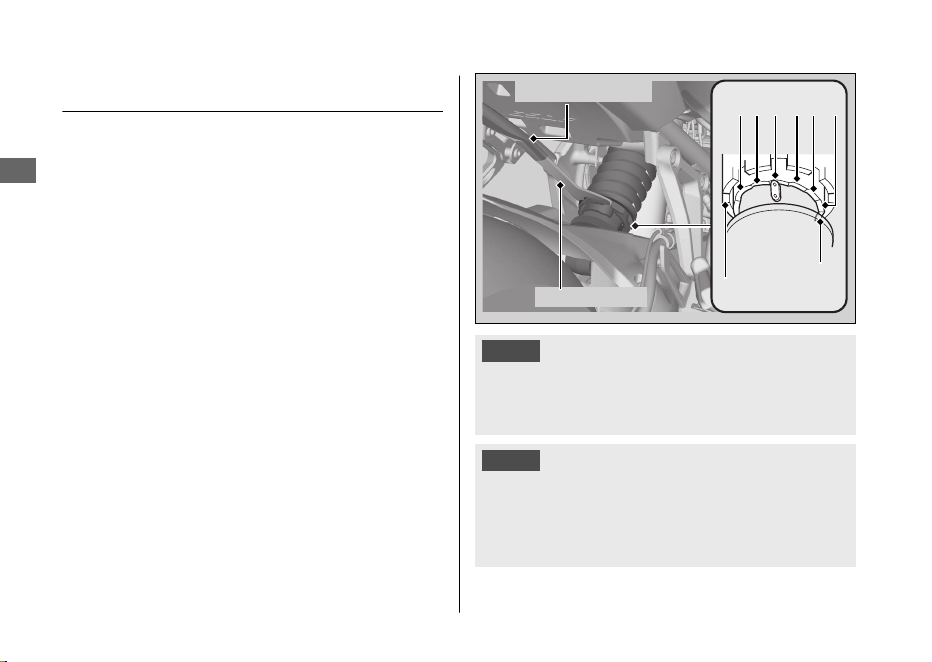

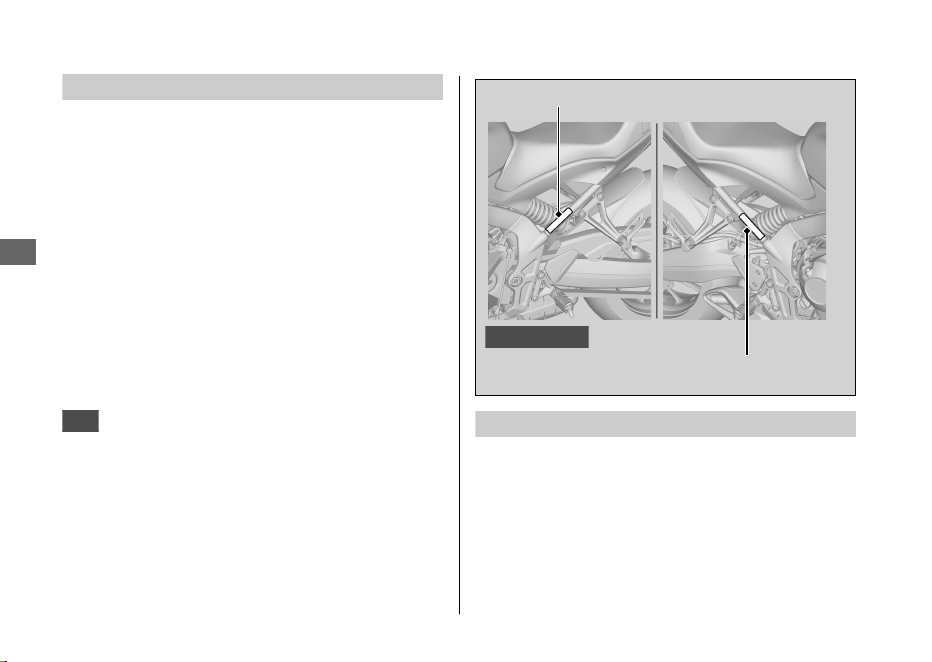

Rear suspension spring
preload adjuster
(P.82
)

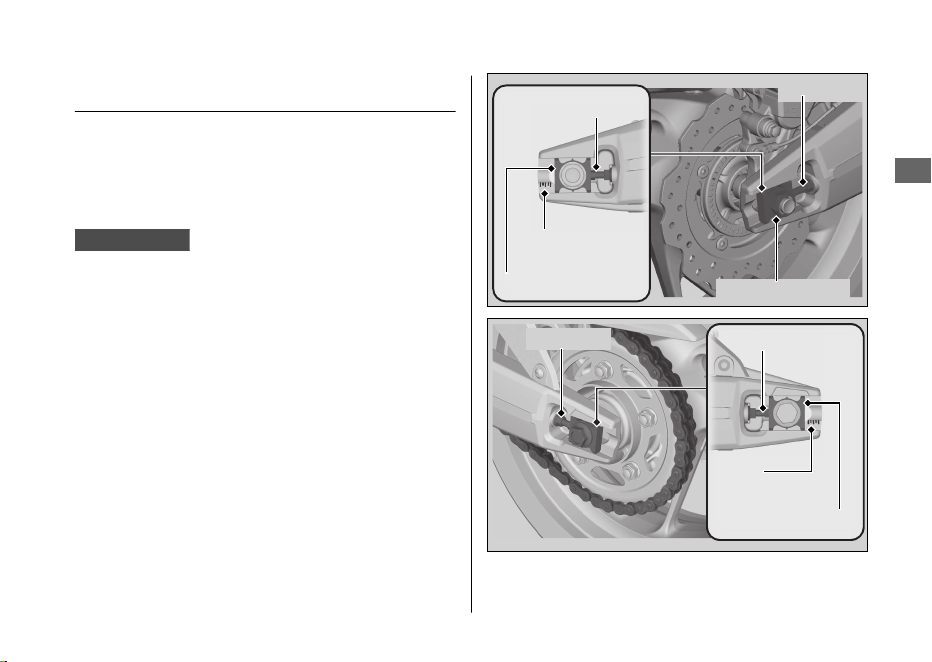

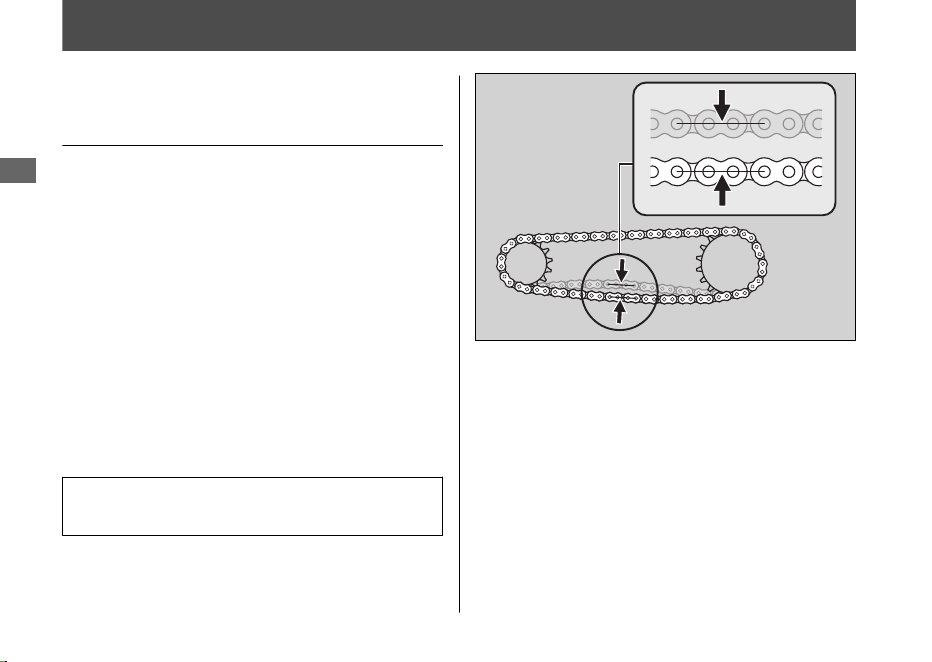

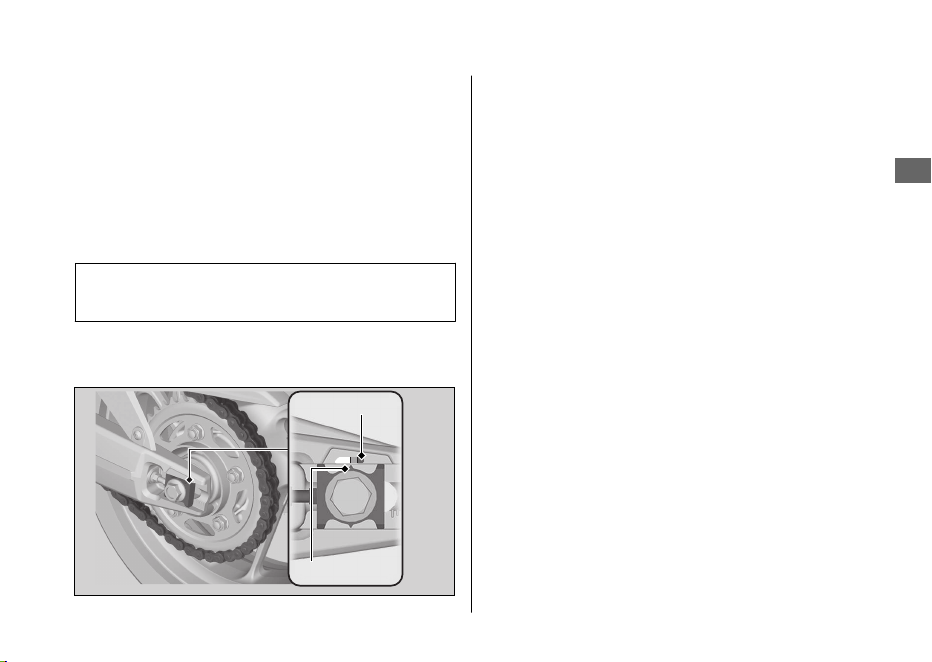

Drive chain (P.72)

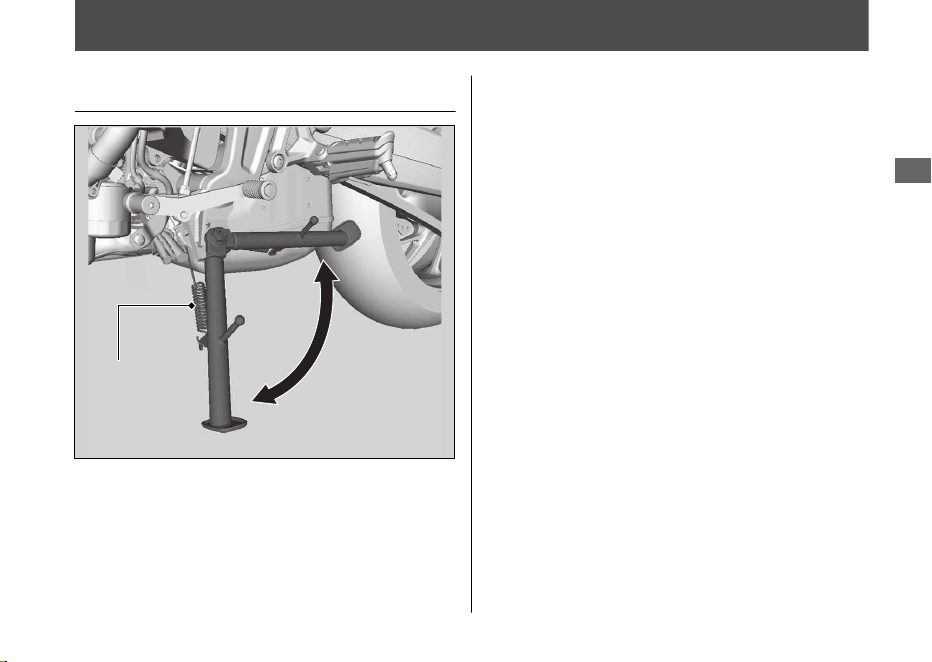

Side stand (P.71)
Shift lever (P.36)

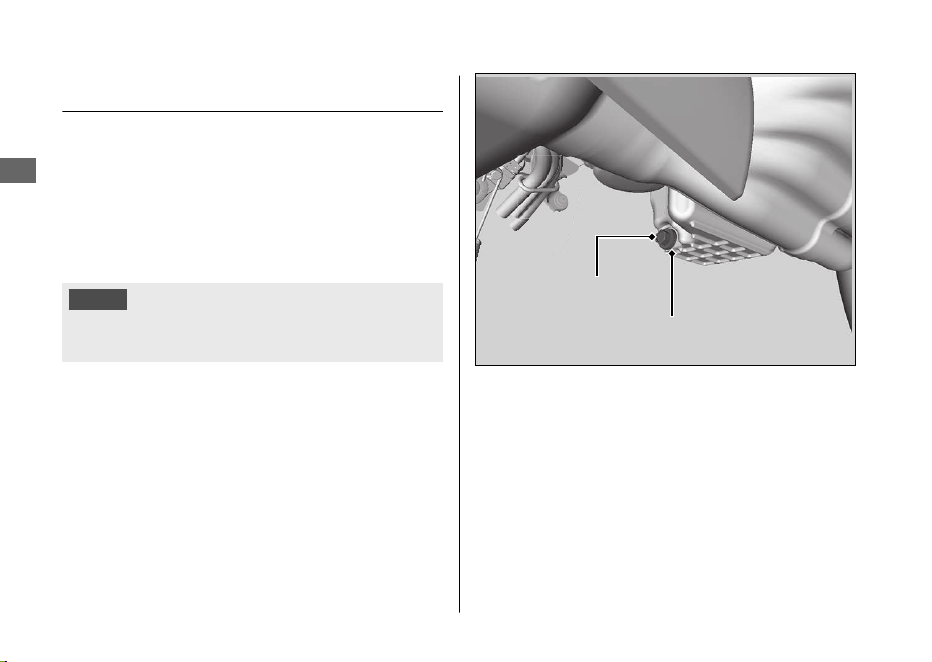

Engine oil drain bolt (P.64)
Seat (P.61)

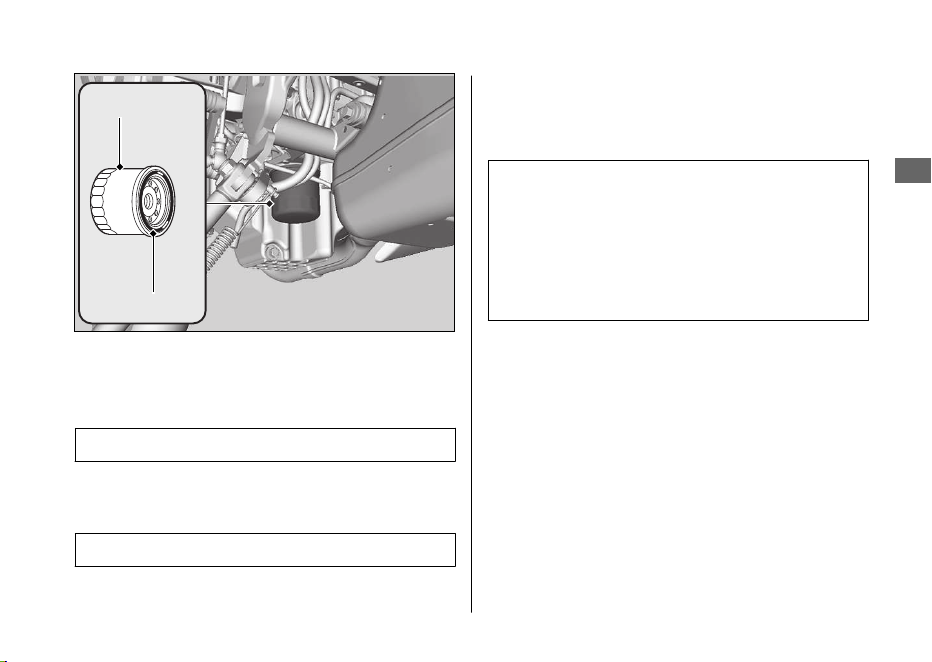

Engine oil filter (P.64)

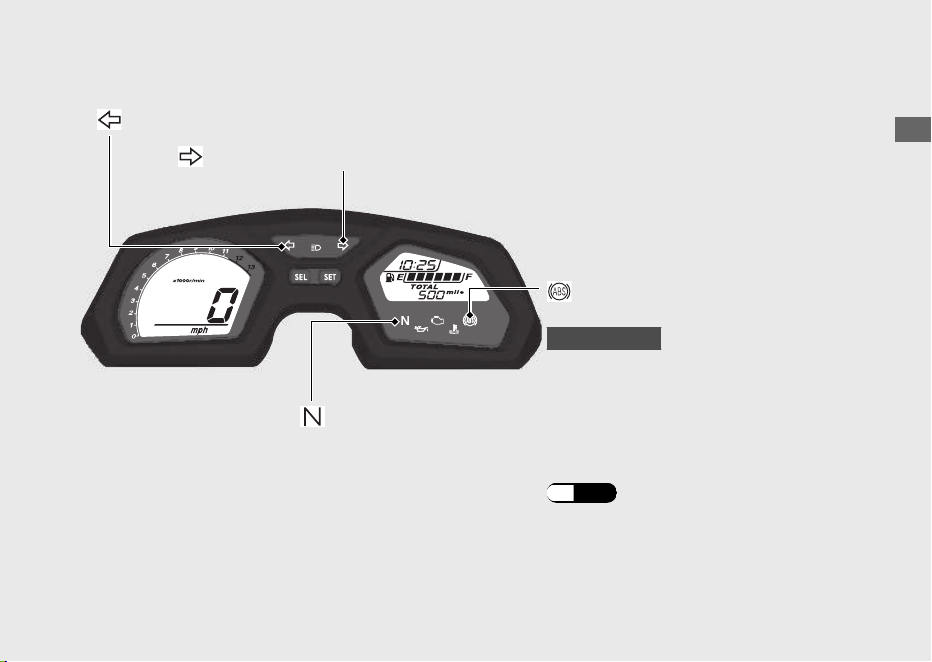

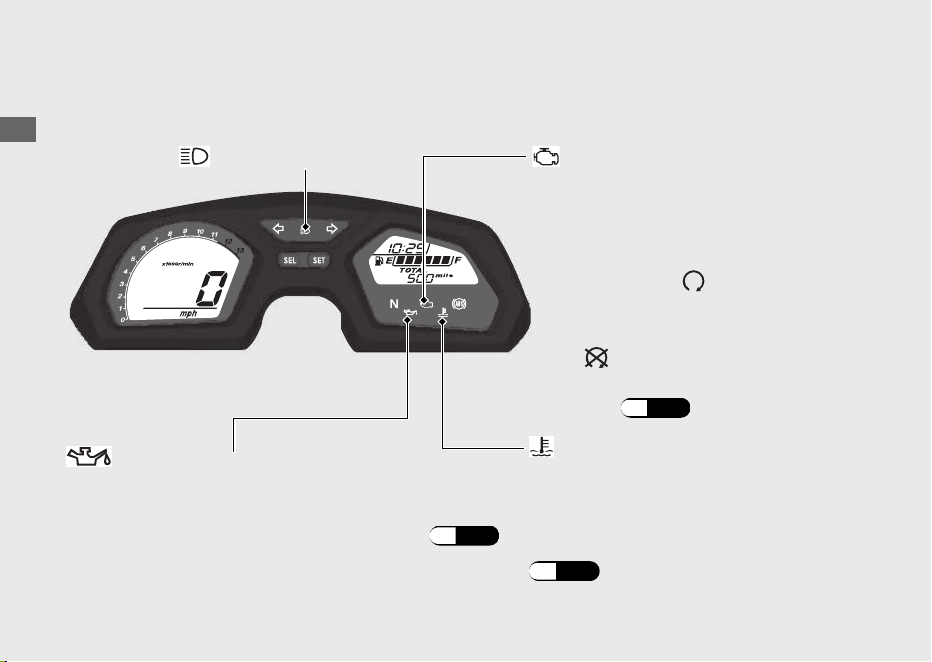

Instruments
20170404121238_31MJEC000_enu_BOOK Page 21 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
18
Tachometer red zone
(excessive engine rpm range)
SET
button
Display Check
When the ignition switch is turned on, the display will temporarily show all the modes and
digital segments.
SEL
button
If any part of these displays does not come on when it should, have your dealer check for
problems.
20170404121238_31MJEC000_enu_BOOK Page 22 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
19
Continued

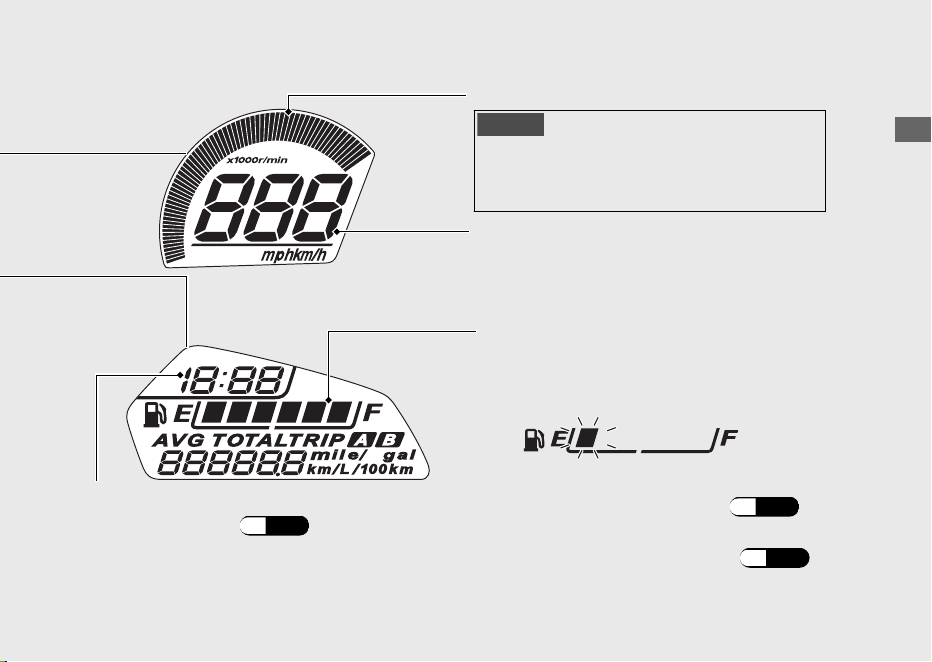

Remaining fuel when only 1st (E)
segment starts flashing: approximately
1.06 US gal (4.0 L)
Fuel gauge

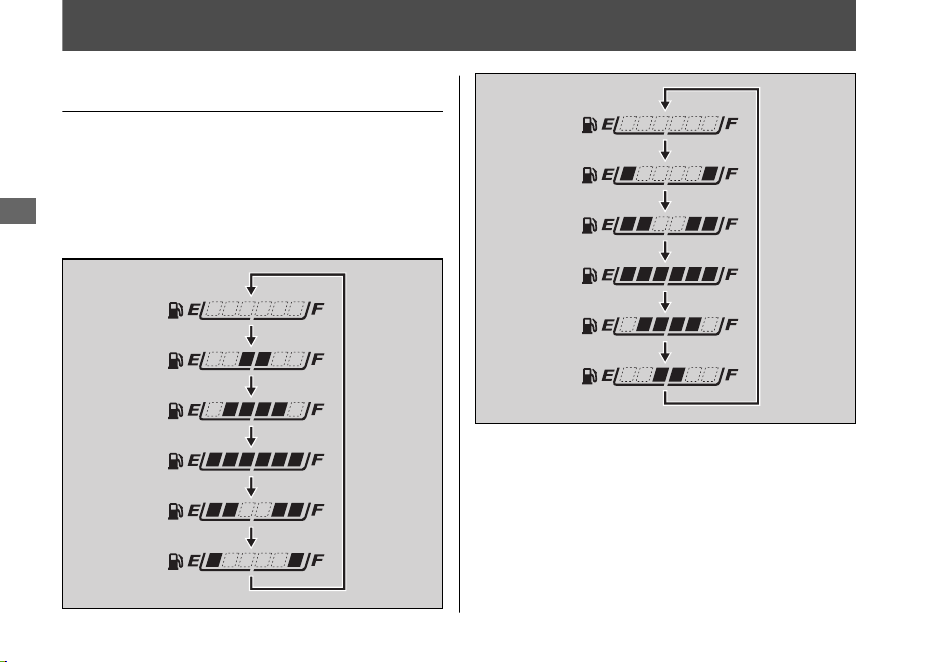

If the fuel gauge indicator flashes in a
repeat pattern or turns off:
(P.88
)
Clock (12-hour display)
Speedometer
To set the clock: (P.25)
NOTICE
Do not operate the engine in the tachometer
red zone. Excessive engine speed can
adversely affect engine life.
At the same time, the display switches to
the reserve fuel consumption.
(P.23
)
Tachometer
20170404121238_31MJEC000_enu_BOOK Page 23 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
20
Instruments (Continued)

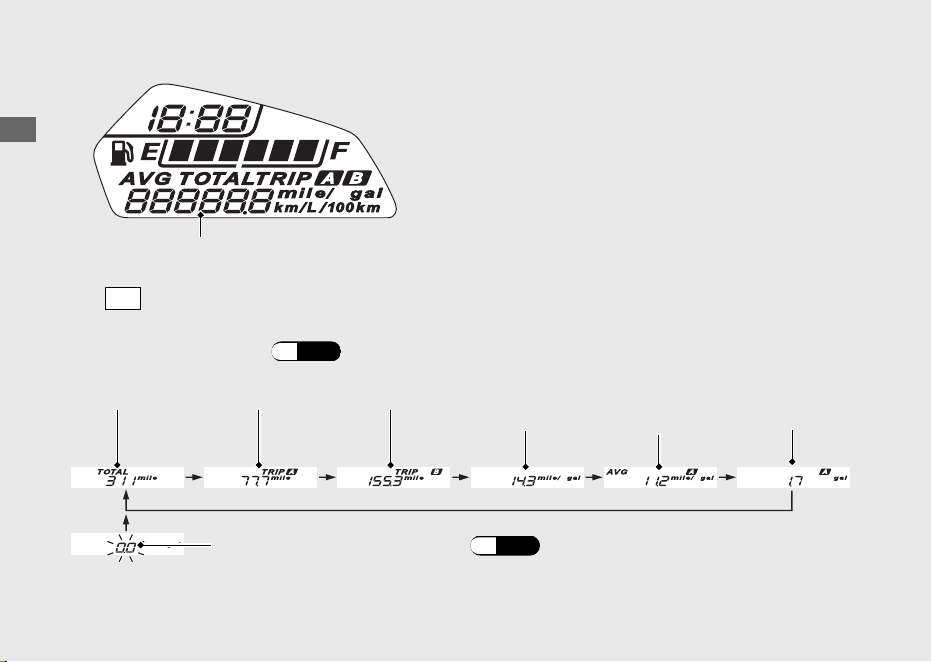

Odometer [TOTAL] & Tripmeter [TRIP A/B] & Fuel mileage meter & Fuel consumption
meter
The
SEL
button selects the odometer, tripmeter A, tripmeter B, current fuel mileage,
average fuel mileage and fuel consumption.
u To reset the tripmeter: (P.22)
Tripmeter AOdometer Tripmeter B
Current fuel
mileage
Average fuel
mileage
Fuel
consumption
Reserve fuel consumption: (P.23)
The average fuel mileage and fuel consumption will be based on tripmeter A.
• Current fuel mileage:
Current instant fuel mileage. If your speed is less than 5 mph (7 km/h), “ ” is
displayed.
When “ ” is displayed at speeds above 5 mph (7 km/h), go to your dealer for service.
•
Average fuel mileage:
Average fuel mileage since tripmeter A was reset. When “ ” is displayed, go to your
dealer for service.
• Fuel consumption:
Total fuel consumption since tripmeter A was reset. When “ ” is displayed, go to
your dealer for service.
• Reserve fuel consumption:
If the engine stop switch is in the (Stop) position, “ ” is displayed. When
“ ” is displayed in other cases, go to your dealer for service.
u To reset the average fuel mileage and fuel consumption: (P.22)
20170404121238_31MJEC000_enu_BOOK Page 24 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
21
Continued
#
To reset the tripmeter, average fuel
mileage and fuel consumption
a
To reset tripmeter A, average fuel mileage,
and fuel consumption together, press and
hold
SET
button with tripmeter A, average
fuel mileage, or fuel consumption displayed.
b
When they are reset, reset display appears
at each indication.
c
Then, the display returns to the last selected
indication.
d
To reset tripmeter B, press and hold
SET
button with tripmeter B displayed.
Also, the tripmeter A, average fuel mileage,
and fuel consumption will automatically reset
by refueling more than the reserve amount
and riding your motorcycle for 0.06 mile (0.1
km).
You can activate or deactivate the automatic
reset mode by refueling. (P.27)
20170404121238_31MJEC000_enu_BOOK Page 25 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
22
Instruments (Continued)
Tripmeter A
Average fuel
mileage
Fuel
consumption
or or
or or
Tripmeter B
Reserve fuel consumption meter
When the 1st (E) segment of the fuel gauge
starts flashing, the odometer, tripmeter, fuel
mileage meter and fuel consumption meter
switches to the reserve fuel consumption.
You should refill the tank as soon as possible.
• Flashes from “0.0” gal or L .
u When the amount of consumed fuel is
more than 0.55 US gal (2.1 L) the display
blinks faster.
u If you change the display to odometer,
tripmeter, fuel mileage meter and fuel
consumption meter and so on (P.20) ,
it will automatically return to the reserve
fuel consumption display if the buttons
are not pressed for about 10 seconds.
After refueling more than the reserve
amount, the display returns to normal when
your motorcycle travel 0.06 mile (0.1 km).
20170404121238_31MJEC000_enu_BOOK Page 26 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
23
Continued
Reserve fuel consumption meter
Display Setting
Following items to change sequentially.
• Clock setting
• Backlight brightness adjustment
• Activating/deactivating of tripmeter A,
average fuel mileage and fuel
consumption automatic reset mode
•
Changing of speed and mileage unit
• Changing of fuel mileage meter unit (only
when km unit system is selected)
20170404121238_31MJEC000_enu_BOOK Page 27 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
24
Instruments (Continued)
Ordinary display
Backlight brightness adjustment
Clock setting
Activating/deactivating of tripmeter A,
average fuel mileage and fuel
consumption automatic reset mode
Changing of speed and mileage unit
Changing of fuel mileage meter unit
(only when km unit system is selected)
Press and hold
SET
button and
SEL
button
Press
SET
button
In addition, to move the ordinary display at
display setting.
• The button is not pressed for about 30
seconds.
• Turn the ignition switch off and then on.
1 Clock setting:
a
Turn the ignition switch to the ON position.
b
Press and hold
SEL
button and
SET
button,
the hour digits start flashing.
c
Press
SEL
button until the desired hour is
displayed.
u
Press and hold to advance the hour fast.
d
Press
SET
button. The minute digits start
flashing.
e
Press
SEL
button until the desired minute is
displayed.
u
Press and hold to advance the minute
fast.
f
Press
SET
button. The clock is set, and then
the display moves to the backlight
brightness adjustment.
20170404121238_31MJEC000_enu_BOOK Page 28 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
25
Continued
2 Backlight brightness adjustment:
You can adjust the brightness to one of three
levels.
a
Press
SEL
button. The brightness is
switched.
b
Press
SET
button. The backlight is set, and
then the display moves to the activating/
deactivating of tripmeter A, average fuel
mileage and fuel consumption automatic
reset mode.
20170404121238_31MJEC000_enu_BOOK Page 29 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
26
Instruments (Continued)
3 Activating/deactivating of tripmeter A,
average fuel mileage and fuel
consumption automatic reset mode:
You can activate or deactivate the automatic
reset mode by refueling after the 1st (E)
segment of the fuel gauge starts flashing.
Deactivation is initially set.
a
Press
SEL
button to select “ ” (activate) or
“ ” (deactivate) in the automatic reset
mode.
b
Press
SET
button. The activation/
deactivation of automatic reset mode is set,
and then the display moves to the changing
of the speed and mileage unit.
20170404121238_31MJEC000_enu_BOOK Page 30 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
27
Continued
4 Changing of speed and mileage unit:
a
Press
SEL
button to select either “mph” and
“mile” or “km/h” and “km.”
When selecting the “mph” and “mile.”
• Fuel mileage unit shows “mile/gal.”
•
Fuel consumption unit shows “gal.”
When selecting the “km/h” and “km.”
• Fuel mileage unit shows “km/L” or “L/
100km.”
•
Fuel consumption unit shows “L.”
b
When selecting the “mph” and “mile.”
To end the selection, press
SET
button.
The established setting can also be set by
turning the ignition switch to the OFF
position.
The control is automatically switched from
the setting mode to the ordinary display if
the button is not pressed for about 30
seconds. Even in this case, established
setting is maintained.
When selecting the “km/h” and “km.”
Press the
SET
button. The speed and
mileage unit is set, and then the display
moves to the changing of fuel mileage
meter unit.
20170404121238_31MJEC000_enu_BOOK Page 31 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
28
Instruments (Continued)
5 Changing of fuel mileage meter unit:
a
Press the
SEL
button to select “L/100 km”or
“km/L.”
b
To end the selection, press the
SET
button.
The fuel consumption meter unit is set, and
then the display returns to ordinary display.
The established setting can also be set by
turning the ignition switch to the OFF
position
The control is automatically switched from
the setting mode to the ordinary display if
the button is not pressed for about 30
seconds. Even in this case, established setting
is maintained.
20170404121238_31MJEC000_enu_BOOK Page 32 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
29
Indicators
20170404121238_31MJEC000_enu_BOOK Page 33 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
30
Comes on when the ignition switch is turned on.
Goes off when the engine starts.
Comes on briefly when the
ignition switch is turned on.
If it comes on while engine is running: (P.86)
Comes on briefly when the ignition
switch is turned on with the engine
stop switch in the
(Run) position.
Comes on when the ignition switch is
turned on with the engine stop switch
in the
(Stop) position.
If it comes on while engine is
running:
(P.86
)
High beam indicator
Low oil pressure indicator
PGM-FI (Programmed Fuel
Injection) malfunction indicator
lamp (MIL)
High coolant temperature
indicator
If it comes on while running:
(P.85
)
If one of these indicators does not come on when it should, have your dealer check for
problems.
20170404121238_31MJEC000_enu_BOOK Page 34 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
31
Comes on when the ignition switch is
turned on.
Goes off when your speed reaches
approximately 6 mph (10 km/h).
If it comes on while riding:
(P.87
)
Right turn signal indicator
ABS (Anti-lock Brake System)
indicator
Left turn signal indicator
Neutral indicator
Comes on when the
transmission is in Neutral.
CB650FA only

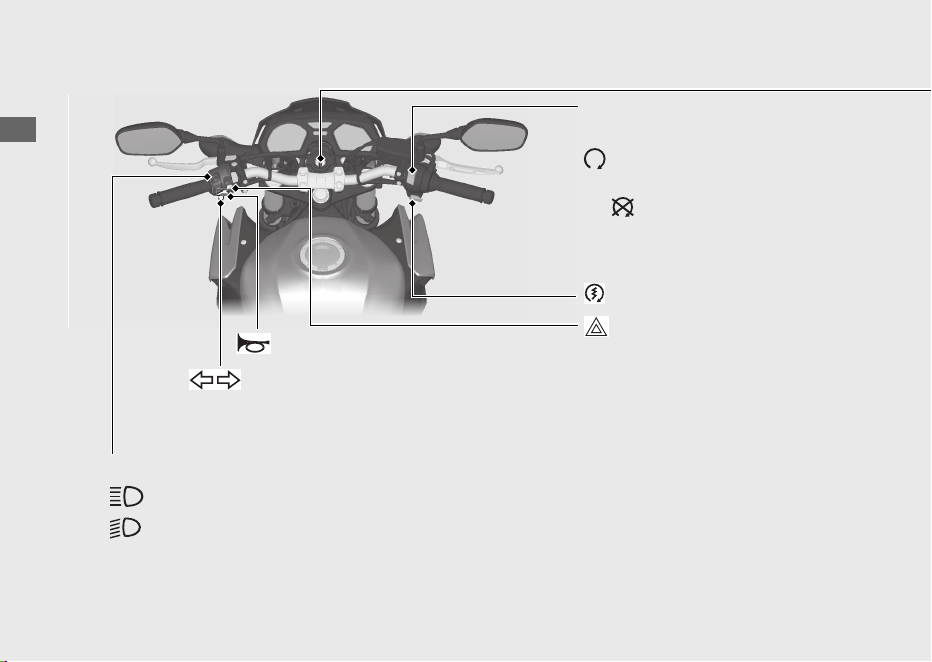

Switches
20170404121238_31MJEC000_enu_BOOK Page 35 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
32
Engine stop switch
Start button
Headlight dimmer switch
• : High beam
• : Low beam
u Pressing the switch turns the
turn signal off.
u The signals continue flashing
with the ignition switch is to the
OFF position or LOCK position
after the hazard switch is on.
u In an emergency, switch to the
(Stop) position (the starter
motor will not operate) to stop
the engine.
Turn signal switch
Should normally remain in the
(Run) position.
Hazard switch
Horn button
Switchable when the ignition
switch is on. Can be turned to
the OFF position off regardless
of the ignition switch position.
20170404121238_31MJEC000_enu_BOOK Page 36 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
33
Continued
Ignition switch
Switches the electrical system on/off, locks
the steering.
u Key can be removed when in the OFF or
LOCK position.
ON
OFF
LOCK
Turns electrical system
on for starting/riding.
Turns engine off.
Lock steering.

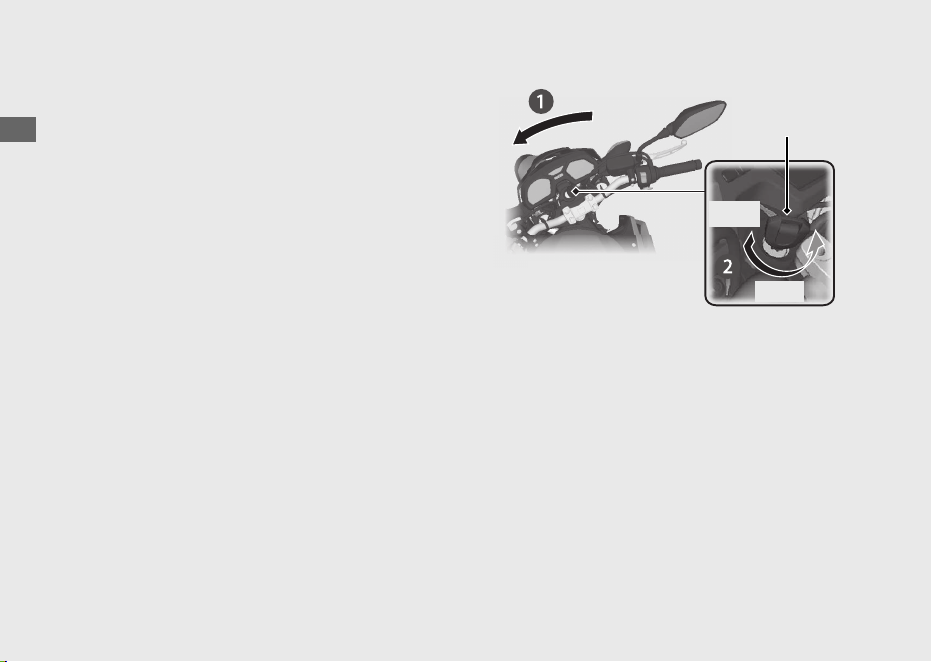

Steering Lock
Lock the steering when parking to help
prevent theft.
A U-shaped wheel lock or similar device is
also recommended.
#
Locking
a
Turn the handlebar all the way to the left.
b
Push the key down, and turn the ignition
switch to the LOCK position.
u Jiggle the handlebar if the lock is difficult
to engage.
c
Remove the key.
#
Unlocking
Insert the key, push it in, and turn the ignition
switch to the OFF position.
20170404121238_31MJEC000_enu_BOOK Page 37 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
34
Switches (Continued)
Push
Turn
Ignition key
Starting the Engine
Start your engine using the following
procedure, regardless of whether the engine
is cold or warm.
NOTICE
•
If the engine does not start within 5 seconds, turn
the ignition switch to the OFF position and wait 10
seconds before trying to start the engine again to
recover battery voltage.
•
Extended fast idling and revving the engine can
damage the engine, and the exhaust system.
•
Snapping the throttle or fast idling for more than about
5 minutes may cause exhaust pipe discoloration.
•
The engine will not start if the throttle is fully open.
a
Make sure the engine stop switch is in the
(Run) position.
b
Turn the ignition switch to the ON position.
c
Shift the transmission to Neutral (
N
indicator comes on). Alternatively, pull in the
clutch lever to start your motorcycle with the
transmission in gear so long as the side
stand is raised.
d
Press the start button with the throttle
completely closed.
If the engine does not start:
a
Open the throttle fully and press the start
button for 5 seconds.
b
Repeat the normal starting procedure.
c
If the engine starts, open the throttle slightly
if idling is unstable.
d
If the engine does not start, wait 10 seconds
before trying step a & b again.
#
If Engine Will Not Start (P.84
)
20170404121238_31MJEC000_enu_BOOK Page 38 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
35
Shifting Gears
Your motorcycle transmission has 6 forward
gears in a one-down, five-up shift pattern.
If you put the motorcycle in gear with the
side stand down, the engine will shut off.
#
Recommended Shift Points
Shifting Up
From 1st to 2nd 12 mph (20 km/h)
From 2nd to 3rd 19 mph (30 km/h)
From 3rd to 4th 25 mph (40 km/h)
From 4th to 5th 31 mph (50 km/h)
From 5th to 6th 37 mph (60 km/h)
Shifting Down
From 6th to 5th 28 mph (45 km/h)
From 5th to 4th 22 mph (35 km/h)
From 4th to 3rd 16 mph (25 km/h)
NOTICE
Improper shifting can damage the engine,
transmission, and drive train. Also, coasting or towing
the motorcycle for long distances with the engine off
can damage the transmission.
20170404121238_31MJEC000_enu_BOOK Page 39 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
36
2
3
4
5
6
1
N
Refueling
Do not fill with fuel above the level plate.
Fuel type: Unleaded gasoline only
Recommended fuel octane number:
Pump Octane Number (PON) 86 or higher.
Tank capacity:
4.57 US gal (17.3 L)
#
Refueling and Fuel Guidelines (P.13)
Opening the Fuel Fill Cap
Open the lock cover, insert the ignition key,
and turn it clockwise to open the fuel fill cap.
Closing the Fuel Fill Cap
a
After refueling, push the fuel fill cap closed
until it locks.
b
Remove the ignition key and close the lock
cover.
u The ignition key cannot be removed if
the cap is not locked.
3WARNING
Gasoline is highly flammable and
explosive. You can be burned or
seriously injured when handling fuel.
• Stop the engine, and keep heat,
sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
20170404121238_31MJEC000_enu_BOOK Page 40 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
37
Ignition key
Level plate
Fuel fill cap
Lock cover
Fuel filler opening
Storage Equipment
The helmet holder, the tool kit and helmet set wire
(in the tool kit) are located under the seat.
u Use the helmet holder only when parked.
#
Removing the Seat (P.61)
3WARNING
Riding with a helmet attached to the
holder can interfere with the rear wheel
or suspension and could cause a crash
in which you can be seriously hurt or
killed.
Use the helmet holder only while
parked. Do not ride with a helmet
secured by the holder.
20170404121238_31MJEC000_enu_BOOK Page 41 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
38
Helmet set wire
Helmet set wire Helmet holder
Helmet D-ring
Rubber strap
Tool kit
The document bag and luggage tie-down hooks are located on the underside of the seat.
Never use the tie-down hooks to tow or lift the motorcycle.
#
Removing the Seat (P.61
)
20170404121238_31MJEC000_enu_BOOK Page 42 Tuesday, April 04 2017 12:17:25 JST
Operation Guide
39
Document bag
Luggage tie-down hooks Luggage tie-down hooks
Importance of Maintenance ........................... P. 41
Maintenance Schedule.....................................P. 43
Maintenance Fundamentals ...........................P. 46
Removing & Installing Body Components..P. 60
Battery.................................................................... P. 60
Seat ......................................................................... P. 61
Engine Oil ............................................................ P. 62
Coolant.................................................................P. 66
Brakes................................................................... P. 68
Side Stand ........................................................... P. 71
Drive Chain..........................................................P. 72
Clutch ...................................................................P. 76
Throttle ................................................................ P. 79
Other Adjustments............................................ P. 80
Adjusting the Headlight Aim ............................ P. 80

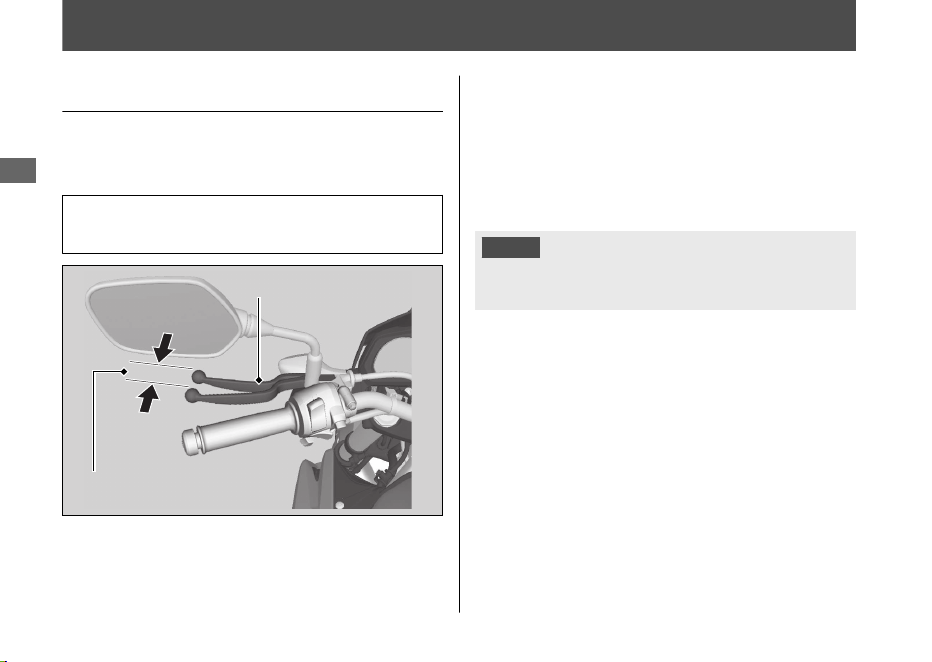

Adjusting the Brake Lever ................................. P. 81
Adjusting the Rear Suspension ........................ P. 82
20170404121238_31MJEC000_enu_BOOK Page 43 Tuesday, April 04 2017 12:17:25 JST
Please read “Importance of Maintenance” and “Maintenance Fundamentals” carefully
before attempting any maintenance. Refer to “Specifications” for service data.
An optional larger tool kit may be available.
Check with your Honda dealer's parts department.
Maintenance
Importance of Maintenance
Importance of Maintenance
Keeping your motorcycle well-maintained is
absolutely essential to your safety and to
protect your investment, obtain maximum
performance, avoid breakdowns, and reduce air
pollution. Maintenance is the owner's
responsibility. Be sure to inspect your
motorcycle before each ride, and perform the
periodic checks specified in the Maintenance
Schedule. 2 P. 43
3WARNING
Improperly maintaining your
motorcycle or failing to correct a
problem before you ride can cause a
crash in which you can be seriously hurt
or killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner's manual.
For information about the exhaust emission and
noise emission requirements of the U.S.
Environmental Protection Agency (EPA), the
California Air Resources Board (CARB), and the
Environment and Climate Change Canada
(ECCC). 2 P. 113
USA
Maintenance, replacement or repair of the
emission control devices and systems may
be performed by any motorcycle repair
establishment or individual using parts
that are “certified” to EPA standards.
20170404121238_31MJEC000_enu_BOOK Page 44 Tuesday, April 04 2017 12:17:25 JST
Maintenance
41
Maintenance Safety
Always read the maintenance instructions
before you begin each task, and make sure that
you have the tools, parts, and skills required.
We cannot warn you of every conceivable
hazard that can arise in performing
maintenance. Only you can decide whether or
not you should perform a given task.
Follow these guidelines when performing
maintenance.
● Stop the engine and remove the key.
● Place your motorcycle on a firm, level
surface using the side stand or a
maintenance stand to provide support.
● Allow the engine, muffler, brakes, and other
high-temperature parts to cool before
servicing as you can get burned.
● Run the engine only when instructed, and
do so in a well-ventilated area.
20170404121238_31MJEC000_enu_BOOK Page 45 Tuesday, April 04 2017 12:17:25 JST
Importance of Maintenance
Maintenance
42
Maintenance Schedule
The maintenance schedule specifies the
maintenance requirements necessary to
ensure safe, dependable performance, and
proper emission control.
Maintenance work should be performed in
accordance with Honda's standards and
specifications by properly trained and
equipped technicians. Your dealer meets all
of these requirements. Keep an accurate
record of maintenance to help ensure that
your motorcycle is properly maintained.
Make sure that whomever performs the
maintenance completes this record.
All scheduled maintenance is considered a
normal owner operating cost and will be
charged to you by your dealer. Retain all
receipts. If you sell the motorcycle, these
receipts should be transferred with the
motorcycle to the new owner.
20170404121238_31MJEC000_enu_BOOK Page 46 Tuesday, April 04 2017 12:17:25 JST
Maintenance
43
Continued
Items
Frequency
*1
× 1,000 mi 0.6 4 8 12 16 20 24
Regular
Replace
Refer to
page
× 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Emission-Related Items
Fuel Line –
Throttle Operation 79
Air Cleaner
*2
59
Spark Plug –
Valve Clearance –
Engine Oil 1 Year 64
Engine Oil Filter 64
Engine Idle Speed –
Radiator Coolant
*4
3 Years 66
Cooling System –
Secondary Air Supply System –
Evaporative Emission Control System
*3
–
Maintenance Level Maintenance Legend
:
Intermediate. We recommend service by your dealer, unless
you have the necessary tools and are mechanically skilled.
Procedures are provided in an official Honda Service Manual
(2 P. 120).
:
:
:
Inspect (clean, adjust, lubricate, or replace, if necessary)
Lubricate
Replace
: Technical. In the interest of safety, have your
motorcycle serviced by your dealer.
20170404121238_31MJEC000_enu_BOOK Page 47 Tuesday, April 04 2017 12:17:25 JST
Maintenance Schedule
Maintenance
44
Items
Frequency
*1
× 1,000 mi 0.6 4 8 12 16 20 24
Regular
Replace
Refer to
page
× 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Non-Emission-Related Items
Drive Chain
Every 600 mi (1,000 km):
72
Brake Fluid
*4
2 Years 68

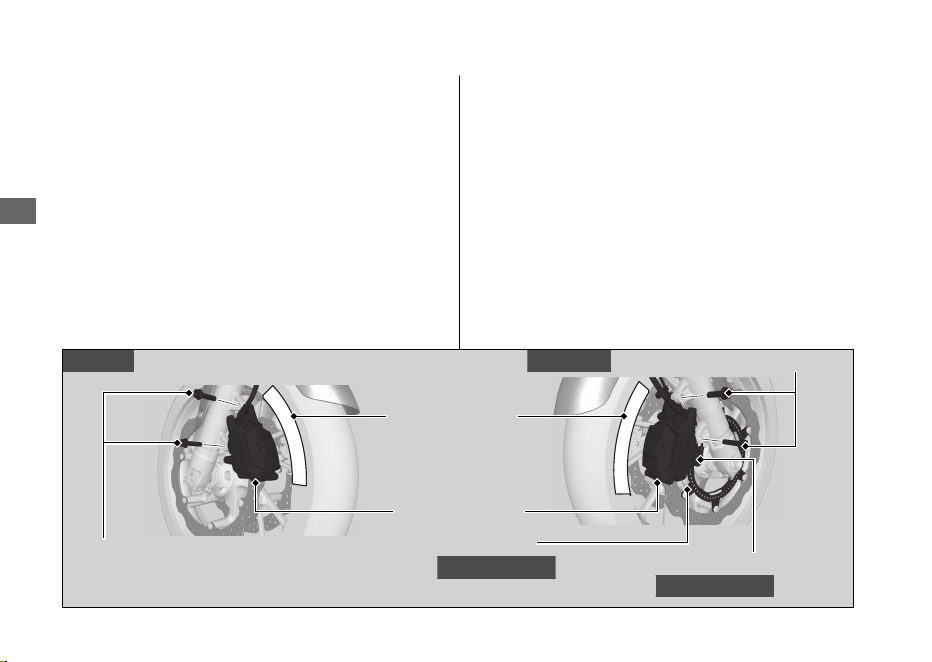

Brake Pads Wear 69
Brake System 46
Brake Light Switch 70
Headlight Aim 80
Clutch System 76
Side Stand 71
Suspension 82
Nuts, Bolts, Fasteners –
Wheels/Tires 56
Steering Head Bearings –
Notes:
*
1 : At higher odometer readings, repeat at the frequency interval established here.
*
2 : Service more frequently when riding in unusually wet or dusty areas.
*
3 : 50 STATE (meets California).
*
4 : Replacement requires mechanical skill.
20170404121238_31MJEC000_enu_BOOK Page 48 Tuesday, April 04 2017 12:17:25 JST
Maintenance Schedule
Maintenance
45
Maintenance Fundamentals
Pre-ride Inspection
To ensure safety, it is your responsibility to
perform a pre-ride inspection and make sure
that any problem you find is corrected. A pre-
ride inspection is a must, not only for safety, but
because having a breakdown, or even a flat tire,
can be a major inconvenience.
Check the following items before you get on
your motorcycle:
● Tire tread wear and air pressures are within
limits. 2 P. 56
●
Lights, horn, and turn signals operate
normally.
●
Check the condition of the drive chain.
Adjust slack and lubricate as needed. 2 P. 53
Check the following items if you are carrying a
passenger or cargo:
●
Combined weight is within load limits.
2 P. 126
●
Cargo is secured properly.
● Suspension is adjusted to suit load. 2 P. 82
Check the following items after you get on your
motorcycle:
● Throttle action moves smoothly without
binding. 2 P. 79
● Brake lever and pedal operate normally.
● Check the fuel level and refuel when
needed. 2 P. 13, 2 P. 37
● Engine stop switch functions properly.
2 P. 32
Check the following items at regular intervals:
●
Oil level is between the upper and lower
level marks. 2 P. 62
●
Brake fluid level is
Front: above the LOWER level mark. 2 P. 68
Rear: between the UPPER and LOWER level

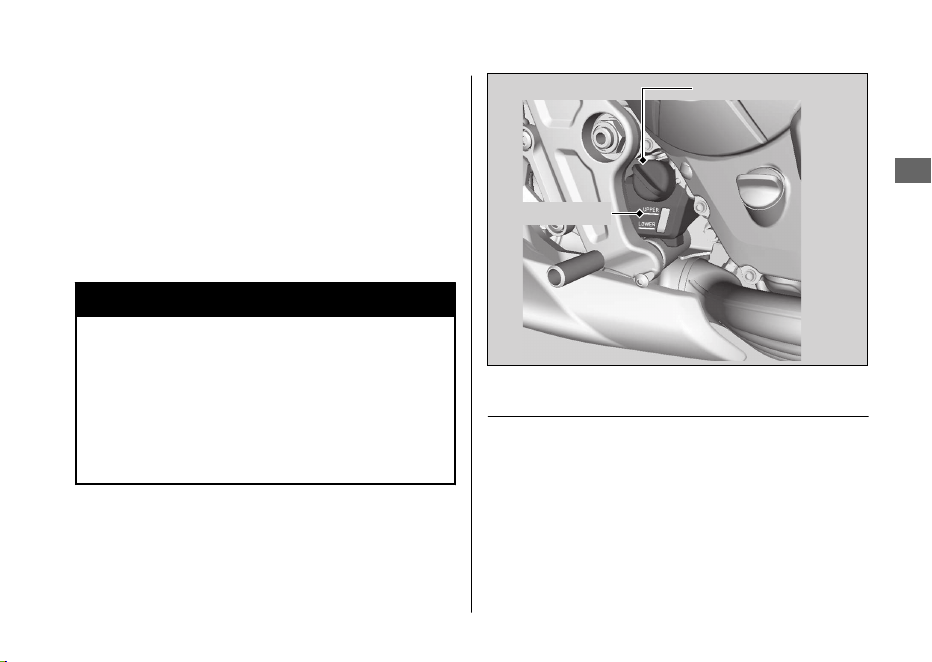

marks. 2 P. 68
●
Engine coolant level is between the UPPER
and LOWER level marks. 2 P. 66
●
Side stand functions properly. 2 P. 71
20170404121238_31MJEC000_enu_BOOK Page 49 Tuesday, April 04 2017 12:17:25 JST
Maintenance
46

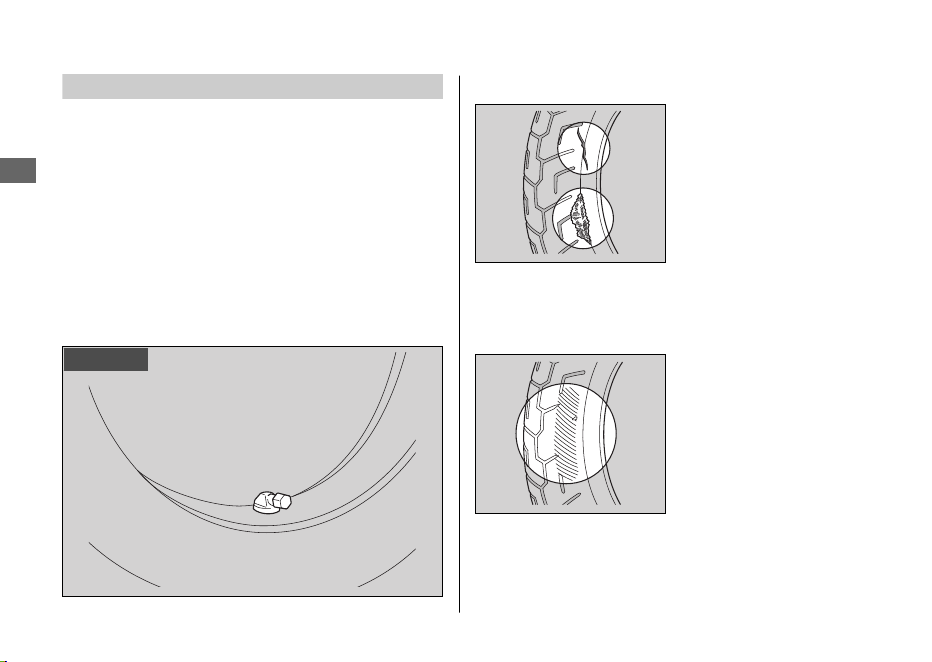

Tires and wheels
Check the air pressure (2 P. 56), examine tread for wear and damage
(2 P. 56), and check the wheels for damage.
Fluid levels
Check the engine oil level (2 P. 62), engine coolant level (2 P. 66),
and brake fluid level (2 P. 68).
Lights
Check that the headlight, position light, brake light, taillight, turn
signals and license plate light are working properly.
Controls

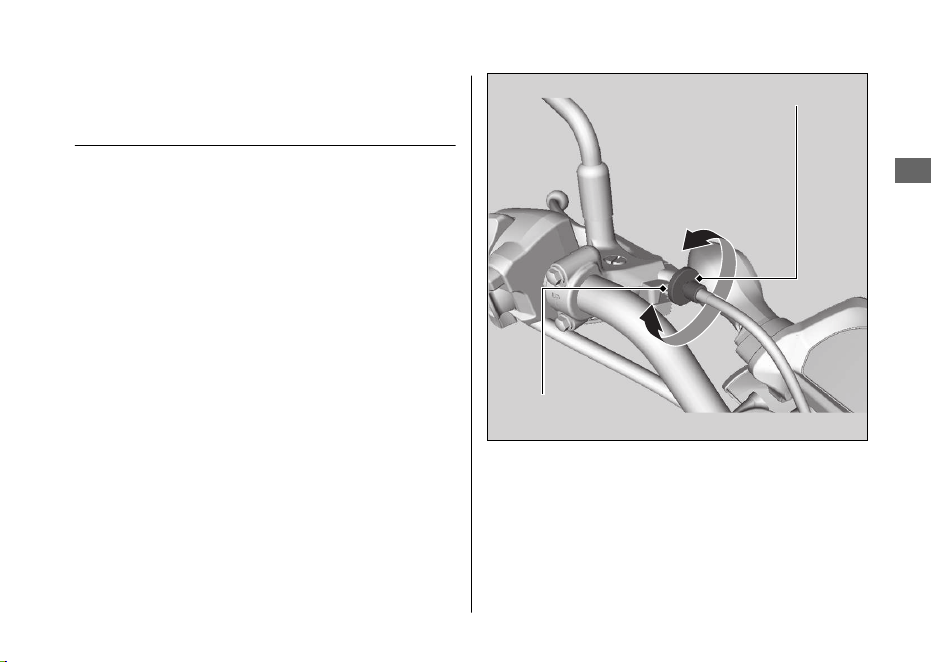

Check the freeplay of the clutch lever (2 P. 76) and throttle grip
(2 P. 79). Check the front brake lever (2 P. 81) and rear brake pedal
operate properly.

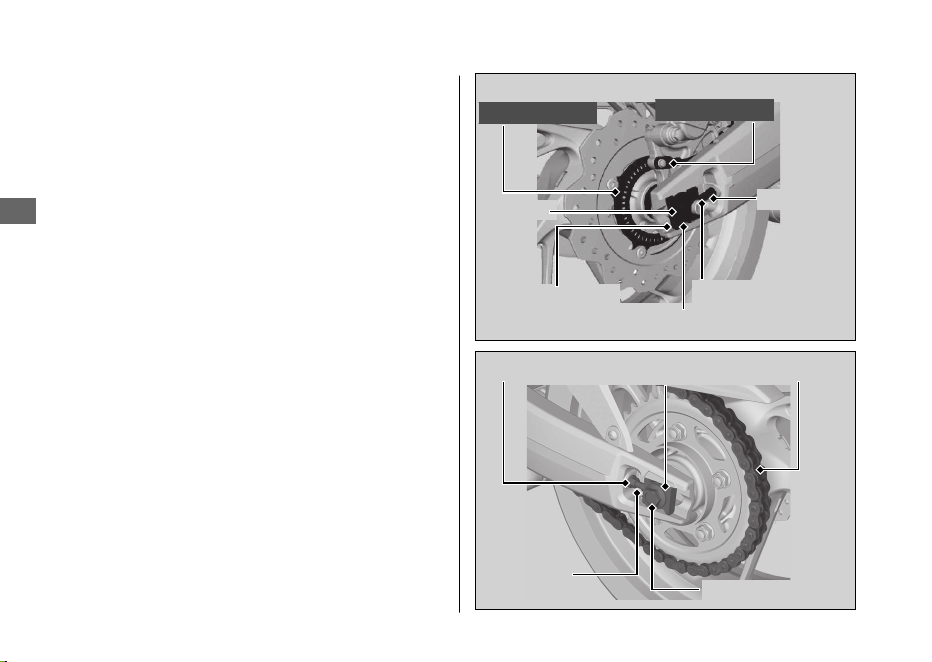

Drive chain
Check the slack (2 P. 72), adjust the slack (2 P. 73), and lubricate
(2 P. 54) as needed.
Fuses Check that you have a full supply of spare fuses.
Nuts & bolts Check the major nuts and bolts, and tighten as needed.
Periodic Checks
You should also perform other periodic
maintenance checks at least once a month
regardless of how often you ride, or more often
if you ride frequently.
Also, check the odometer reading against the
Maintenance Schedule and perform all
maintenance that is due. 2 P. 43
20170404121238_31MJEC000_enu_BOOK Page 50 Tuesday, April 04 2017 12:17:25 JST
Maintenance Fundamentals
Maintenance
47
Replacing Parts
Always use Honda Genuine Parts or their
equivalents to ensure reliability and safety.
When ordering colored components, specify
the model name, color, and code mentioned on
the color label. The color label is attached to the
frame under the seat. 2 P. 61
3WARNING
Installing non-Honda parts may make
your motorcycle unsafe and cause a
crash in which you can be seriously hurt
or killed.
Always use Honda Genuine Parts or
equivalents that have been designed
and approved for your motorcycle.
20170404121238_31MJEC000_enu_BOOK Page 51 Tuesday, April 04 2017 12:17:25 JST
Maintenance Fundamentals
Maintenance
48
Color label
Battery
Your motorcycle has a maintenance-free type
battery. You do not have to check the battery
electrolyte level or add distilled water. Clean the
battery terminals if they become dirty or
corroded.
Do not remove the battery cap seals. There is
no need to remove the cap when charging.
NOTICE
An improperly disposed of battery can be
harmful to the environment and human health.
Always confirm local regulations for proper
battery disposal instruction.
#
What to do in an emergency
If any of the following occur, immediately see your doctor.
●
Electrolyte splashes into your eyes:
u
Wash your eyes repeatedly with cool water for at
least 15 minutes. Using water under pressure can
damage your eyes.
●
Electrolyte splashes onto your skin:
u
Remove affected clothing and wash your skin
thoroughly using water.
●
Electrolyte splashes into your mouth:
u
Rinse mouth thoroughly with water, and do not
swallow.
3WARNING
The battery gives off explosive hydrogen gas
during normal operation.
A spark or flame can cause the battery to explode
with enough force to kill or seriously hurt you.
Wear protective clothing and a face shield, or
have a skilled mechanic do the battery servicing.
WARNING: Battery posts, terminals, and
related accessories contain lead and lead
compounds.
Wash your hands after handling.
20170404121238_31MJEC000_enu_BOOK Page 52 Tuesday, April 04 2017 12:17:25 JST
Maintenance Fundamentals
Maintenance
49
Continued
#
Cleaning the Battery Terminals
1.
Remove the battery. 2 P. 60
2.
If the terminals are starting to corrode and
are coated with a white substance, wash
with warm water and wipe clean.
3.
If the terminals are heavily corroded, clean
and polish the terminals with a wire brush or
sandpaper. Wear safety glasses.
4.
After cleaning, reinstall the battery.
The battery has a limited life span. Consult your
dealer about when you should replace the
battery. Always replace the battery with another
maintenance-free battery of the same type.
#
Charging
If you use electrical accessories that drain the
battery or you do not ride frequently, we
recommend that you charge the battery every
30 days using a charger designed specifically for
your Honda, which can be purchased from your
dealer. Read the information that came with
your battery charger and follow the instructions
on the battery. Avoid using an automobile-type
battery charger, as these can overheat a
motorcycle battery and cause permanent
damage.
Make sure the ignition switch is in the OFF
position before charging the battery.
NOTICE
Improper charging can damage the battery. If
you can’t charge the battery or it appears unable
to hold a charge, contact your dealer.
20170404121238_31MJEC000_enu_BOOK Page 53 Tuesday, April 04 2017 12:17:25 JST
Maintenance Fundamentals
Maintenance
50
NOTICE
Jump starting using an automobile battery can
damage your motorcycle's electrical system and
is not recommended. Bump starting is also not
recommended.
NOTICE
Installing non-Honda electrical accessories can
overload the electrical system, discharging the
battery and possibly damaging the system.
Fuses
Fuses protect the electrical circuits on your
motorcycle. If something electrical on your
motorcycle stops working, check for and
replace any blown fuses. 2 P. 101
#
Inspecting and Replacing Fuses
Turn the ignition switch to the OFF position to
remove and inspect fuses. If a fuse is blown,
replace with a fuse of the same rating. For fuse
ratings, see “Specifications.” 2 P. 128
NOTICE
Replacing a fuse with one that has a higher
rating greatly increases the chance of damage to
the electrical system.
If a fuse fails repeatedly, you likely have an
electrical fault. Have your motorcycle inspected
by your dealer.
20170404121238_31MJEC000_enu_BOOK Page 54 Tuesday, April 04 2017 12:17:25 JST
Maintenance Fundamentals
Maintenance
51
Blown fuse
Engine Oil
Engine oil consumption varies and oil quality
deteriorates according to riding conditions and
time elapsed.
Check the engine oil level regularly, and add the
recommended engine oil if necessary. Dirty oil or
old oil should be changed as soon as possible.
#
Selecting the Engine Oil
For recommended engine oil, see
“Specifications.” 2 P. 127
If you use non-Honda engine oil, check the
label to make sure that the oil satisfies all of the
following standards:
●
JASO T 903 standard
*1
: MA
● SAE standard
*2
: 10W-30
● API classification
*3
: SG or higher
*1.
The JASO T 903 standard is an index for engine
oils for 4-stroke motorcycle engines. There are
two classes: MA and MB. For example, the
following label shows the MA classification.
*2.
The SAE standard grades oils by their viscosity.
*3.
The API classification specifies the quality and
performance rating of engine oils. Use SG or
higher oils, excluding oils marked as “Energy
Conserving” or “Resource Conserving” on the
circular API service symbol.
20170404121238_31MJEC000_enu_BOOK Page 55 Tuesday, April 04 2017 12:17:25 JST
Maintenance Fundamentals
Maintenance
52
Oil code
Oil classification
Not recommended Recommended
Brake Fluid
Do not add or replace brake fluid, except in an
emergency. Use only fresh brake fluid from a
sealed container. If you do add fluid, have the
brake system serviced by your dealer as soon as
possible.
NOTICE
Brake fluid can damage plastic and painted
surfaces.
Wipe up spills immediately and wash thoroughly.
Recommended brake fluid:
Honda DOT 4 Brake Fluid or equivalent
3WARNING
Clean filler cap before removing. Use
only DOT 4 fluid from a sealed
container.
Drive Chain
The drive chain must be inspected and
lubricated regularly. Inspect the chain more
frequently if you often ride on bad roads, ride at
high speed, or ride with repeated fast
acceleration. 2 P. 72
If the chain does not move smoothly, makes
strange noises, has damaged rollers, has loose
pins, has missing O-rings, or kinks, have the
chain inspected by your dealer.
20170404121238_31MJEC000_enu_BOOK Page 56 Tuesday, April 04 2017 12:17:25 JST
Maintenance Fundamentals
Maintenance
53
Continued
Also inspect the drive sprocket and driven
sprocket. If either has worn or damaged teeth,
have the sprocket replaced by your dealer.
NOTICE
Use of a new chain with worn sprockets will cause
rapid chain wear.
#
Cleaning and Lubricating
After inspecting the slack, clean the chain and
sprockets while rotating the rear wheel. Use a dry
cloth with chain cleaner designed specifically for
O-ring chains, or neutral detergent. Use a soft
brush if the chain is dirty.
After cleaning, wipe dry and lubricate with the
recommended lubricant.
Recommended lubricant:
Pro Honda HP Chain Lube or equivalent
20170404121238_31MJEC000_enu_BOOK Page 57 Tuesday, April 04 2017 12:17:25 JST
Maintenance Fundamentals
Maintenance
54
Normal
(GOOD)
Worn
(REPLACE)
Damaged
(REPLACE)
Do not use a steam cleaner, a high pressure
cleaner, a wire brush, volatile solvent such as
gasoline and benzene, abrasive cleaner, chain
cleaner or lubricant NOT designed specifically
for O-ring chains as these can damage the
rubber O-ring seals.
Avoid getting lubricant on the brakes or tires.
Avoid applying excess chain lubricant to prevent
spray onto your clothes and the motorcycle.
Recommended Coolant
Pro Honda HP Coolant is a pre-mixed solution
of antifreeze and distilled water.
Concentration:
50% antifreeze and 50% distilled water
A concentration of antifreeze below 40% will
not provide proper corrosion and cold
temperature protection.
A concentration of up to 60% will provide better
protection in colder climates.
NOTICE
Using coolant not specified for aluminum
engines or tap/mineral water can cause
corrosion.
20170404121238_31MJEC000_enu_BOOK Page 58 Tuesday, April 04 2017 12:17:25 JST
Maintenance Fundamentals
Maintenance
55
Tires (Inspecting/Replacing)
#
Checking the Air Pressure
Visually inspect your tires and use an air
pressure gauge to measure the air pressure at
least once a month or any time you think the
tires look low. Always check air pressure when
your tires are cold.
Even if the direction of the valve stem is
changed, do not return it to the original
position. Have your motorcycle inspected by
your dealer.
#
Inspecting for Damage
Inspect the tires for
cuts, slits, or cracks that
exposes fabric or
cords, or nails or other
foreign objects
embedded in the side
of the tire or the tread.
Also inspect for any unusual bumps or bulges in
the side walls of the tires.
#
Inspecting for Abnormal Wear
Inspect the tires for
signs of abnormal wear
on the contact surface.
20170404121238_31MJEC000_enu_BOOK Page 59 Tuesday, April 04 2017 12:17:25 JST
Maintenance Fundamentals
Maintenance
56
Right side
#
Inspecting Tread Depth
Inspect the tread wear indicators. If they
become visible, replace the tires immediately.
For safe riding, you should replace the tires
when the minimum tread depth is reached.
3WARNING
Riding on tires that are excessively worn
or improperly inflated can cause a crash
in which you can be seriously hurt or
killed.
Follow all instructions in this owner's
manual regarding tire inflation and
maintenance.
Have your tires replaced by your dealer.
For recommended tires, air pressure and
minimum tread depth, see “Specifications.”
2 P. 127
Follow these guidelines whenever you replace
tires.
● Use the recommended tires or equivalents
of the same size, construction, speed rating,
and load range.
● Have the wheel balanced with Honda
Genuine balance weights or equivalent after
the tire is installed.
●
Do not install a tube inside a tubeless tire on
this motorcycle. Excessive heat build-up can
cause the tube to burst.
20170404121238_31MJEC000_enu_BOOK Page 60 Tuesday, April 04 2017 12:17:25 JST
Maintenance Fundamentals
Maintenance
57
Continued
Wear indicator
location mark
● Use only tubeless tires on this motorcycle.
The rims are designed for tubeless tires, and
during hard acceleration or braking, a tube-
type tire could slip on the rim and cause the
tire to rapidly deflate.
3WARNING
Installing improper tires on your
motorcycle can adversely affect
handling and stability, and can cause a
crash in which you can be seriously hurt
or killed.
Always use the size and type of tires
recommended in this owner's manual.
Tire Service Life
The service life of your tires is dependent on
many factors, including, but not limited to,
riding habits, road conditions, vehicle loading,
tire air pressure, maintenance history, speed,
and environmental conditions (even when the
tires are not in use).
In addition to your regular inspections and
maintenance, it is recommended that you have
annual inspections performed once the tires
reach 5 years old. It is also recommended that
all tires be removed from service after 10 years
from the date of manufacture, regardless of
their condition or state of wear.
The last four digits of the TIN (tire identification
number) indicate the date of manufacture.
20170404121238_31MJEC000_enu_BOOK Page 61 Tuesday, April 04 2017 12:17:25 JST
Maintenance Fundamentals
Maintenance
58
#
Tire Identification Number (TIN)
The tire identification number (TIN) is a group
of numbers and letters located on the sidewall
of the tire.
a b c
DOT XXXX XXXX 22 09
DOT: This indicates that the tire meets all
requirements of the U.S.
Department of Transportation.
a XXXX:
Factory code
b XXXX:
Tire type code
c 22 09: Date of manufacture (week & year).
Example: week 22 in year 09.
Air Cleaner
This motorcycle is equipped with a viscous type
air cleaner element which cannot be cleaned
with compressed air or otherwise without
degrading its performance.
If the filter becomes dirty, replace it with a new
one.
20170404121238_31MJEC000_enu_BOOK Page 62 Tuesday, April 04 2017 12:17:25 JST
Maintenance Fundamentals
Maintenance
59
Tire Labeling Example
Tire identification
number (TIN)
Removing & Installing Body Components
Battery
#
Removal
Make sure the ignition switch is in the OFF
position.
1.
Remove the seat. 2 P. 61
2.
Unhook the rubber strap from front side.
3.
Disconnect the negative - terminal from
the battery.
4.
Disconnect the positive + terminal from
the battery.
5.
Remove the battery taking care not to drop
the terminal nuts.
#
Installation
Install the parts in the reverse order of removal.
Always connect the positive
+
terminal first.
Make sure that bolts and nuts are tight.
Make sure the clock information is correct after
the battery is reconnected. 2 P. 25
For proper handling of the battery, see
“Maintenance Fundamentals.” 2 P. 49
“Battery Goes Dead.” 2 P. 97
20170404121238_31MJEC000_enu_BOOK Page 63 Tuesday, April 04 2017 12:17:25 JST
Maintenance
60
Rubber strap Positive
terminal
Negative
terminal
Battery
Seat
#
Removal
1.
Insert the ignition key into the seat lock,
and turn and hold the key clockwise to
unlock the seat.
2.
Pull the rear of the seat back and up.
#
Installation
1.
Insert the front prong into the front stay
on the frame.
2.
Insert the rear prongs into the rear stays
on the frame.
3.
Push forward and down on the rear of the
seat until it locks in place.
Make sure that the seat is locked securely
in position to pull it up lightly.
The seat locks automatically when installed.
Take care not to lock your key in the
compartment under the seat.
20170404121238_31MJEC000_enu_BOOK Page 64 Tuesday, April 04 2017 12:17:25 JST
Removing & Installing Body Components u Seat
Maintenance
61
Front stay
Front
Prong
Rear Prongs
Seat
Seat lock
Ignition key
Rear stays
Engine Oil
Checking the Engine Oil
1.
If the engine is cold, idle the engine for 3
to 5 minutes.
2.
Turn the ignition switch to the OFF
position and wait for 2 to 3 minutes.
3.
Place your motorcycle in an upright
position on a firm, level surface.
4.
Remove the oil fill cap/dipstick and wipe it
clean.
5.
Insert the oil fill cap/dipstick until it seats,
but don't screw it in.
6.
Check that the oil level is between the
upper level and lower level marks in the
oil fill cap/dipstick.
7.
Securely install the oil fill cap/dipstick.
20170404121238_31MJEC000_enu_BOOK Page 65 Tuesday, April 04 2017 12:17:25 JST
Maintenance
62
Oil fill cap/dipstick
Upper
level
Lower
level
Adding Engine Oil
If the engine oil is below or near the lower
level mark, add the recommended engine oil.
2 P. 52, 2 P. 127
1.
Remove the oil fill cap/dipstick. Add the
recommended oil until it reaches the
upper level mark.
u Place your motorcycle in an upright
position on a firm, level surface when
checking the oil level.
u
Do not overfill above the upper level
mark.
u
Make sure no foreign objects enter the
oil filler opening.
u
Wipe up any spills immediately.
2.
Securely reinstall the oil fill cap/dipstick.
NOTICE
Overfilling with oil or operating with insufficient
oil can cause damage to your engine. Do not mix
different brands and grades of oil. They may
affect lubrication and clutch operation.
For the recommended oil and oil selection
guidelines, see “Maintenance Fundamentals.”
2 P. 52
20170404121238_31MJEC000_enu_BOOK Page 66 Tuesday, April 04 2017 12:17:25 JST
Engine Oil u Adding Engine Oil
Maintenance
63
Changing Engine Oil & Filter
Changing the oil and filter requires special
tools. We recommend that you have your
motorcycle serviced by your dealer.
Use a new Honda Genuine oil filter or
equivalent specified for your model.
NOTICE
Using the wrong oil filter can result in serious
damage to the engine.
1.
If the engine is cold, idle the engine for 3
to 5 minutes.
2.
Turn the ignition switch to the OFF
position and wait for 2 to 3 minutes.
3.
Place your motorcycle on a firm, level
surface.
4.
Place a drain pan under the drain bolt.
5.
Remove the oil fill cap/dipstick, drain bolt,
and sealing washer to drain the oil.
6.
Remove the oil filter with a filter wrench
and let the remaining oil drain out. Make
sure the prior seal is not stuck to the
engine.
u
Discard the oil and oil filter at an
approved recycling center.
20170404121238_31MJEC000_enu_BOOK Page 67 Tuesday, April 04 2017 12:17:25 JST
Engine Oil u Changing Engine Oil & Filter
Maintenance
64
Sealing washer
Drain bolt
7.
Apply a thin coat of engine oil to the
rubber seal of a new oil filter.
8.
Install the new oil filter and tighten.
Torque: 19 lbf·ft (26 N·m, 2.7 kgf·m)
9.
Install a new sealing washer onto the
drain bolt. Tighten the drain bolt.
Torque: 22 lbf·ft (30 N·m, 3.1 kgf·m)
10.
Fill the crankcase with the recommended
oil (2 P. 52, 2 P. 127) and install the oil fill
cap/dipstick.
Required oil
When changing oil & engine oil
filter:
3.1 US qt (2.9 L)
When changing oil only:
2.7 US qt (2.6 L)
11.
Check the oil level. 2 P. 62
12.
Check that there are no oil leaks.
20170404121238_31MJEC000_enu_BOOK Page 68 Tuesday, April 04 2017 12:17:25 JST
Engine Oil u Changing Engine Oil & Filter
Maintenance
65
Rubber seal
Oil filter

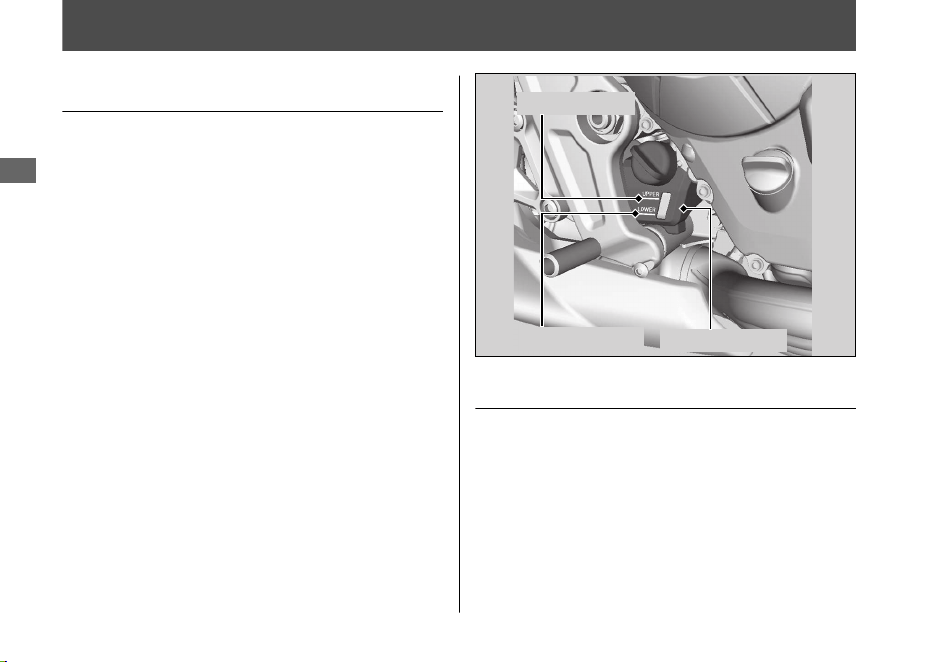

Coolant
Checking the Coolant
Check the coolant level in the reserve tank
while the engine is cold.
1.
Place your motorcycle on a firm, level
surface.
2.
Hold your motorcycle in an upright
position.
3.
Check that the coolant level is between
the UPPER level and LOWER level marks
in the reserve tank.
If the coolant level is dropping noticeably or
the reserve tank is empty, you likely have a
serious leak. Have your motorcycle inspected
by your dealer.
Adding Coolant
If the coolant level is below the LOWER level
mark, add the recommended coolant
(2 P. 55) until the level reaches the UPPER
level mark.
Add fluid only from the reserve tank cap and
do not remove the radiator cap.
20170404121238_31MJEC000_enu_BOOK Page 69 Tuesday, April 04 2017 12:17:25 JST
Maintenance
66
UPPER level
LOWER level
Reserve tank
1.
Remove the reserve tank cap and add
fluid while monitoring the coolant level.
u Do not overfill above the UPPER level
mark.
u Make sure no foreign objects enter the
reserve tank opening.
2.
Securely reinstall the reserve tank cap.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to
spray out, potentially scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Changing Coolant
Have your dealer change the coolant unless
you have the proper tools and are
mechanically qualified.
20170404121238_31MJEC000_enu_BOOK Page 70 Tuesday, April 04 2017 12:17:25 JST
Coolant u Changing Coolant
Maintenance
67
Reserve tank cap
UPPER level
Brakes
Checking Brake Fluid
1.
Place your motorcycle in an upright
position on a firm, level surface.
2.
Front
Check that the brake fluid reservoir
cap is horizontal and that the fluid level is
above the LOWER level mark.
Rear
Check that the brake fluid reservoir is
horizontal and that the fluid level is
between the LOWER level and UPPER level
marks.
If the brake fluid level in either reservoir is
below the LOWER level mark or the brake
lever and pedal freeplay becomes excessive,
inspect the brake pads for wear.
If the brake pads are not worn, you most
likely have a leak. Have your motorcycle
inspected by your dealer.
20170404121238_31MJEC000_enu_BOOK Page 71 Tuesday, April 04 2017 12:17:25 JST
Maintenance
68
Front brake fluid
reservoir
LOWER level mark
UPPER level
mark
LOWER level
mark
Rear brake fluid
reservoir
Front Rear
Inspecting the Brake Pads
Check the condition of the brake pad wear
indicators.
The pads need to be replaced if a brake pad
is worn to the indicator.
1.
Front
Inspect the brake pads from below
the brake caliper.
u Always inspect both left and right
brake calipers.
2.
Rear
Inspect the brake pads from the rear
right of the motorcycle.
If necessary have the pads replaced by your
dealer.
Always replace both left and right brake pads
at the same time.
20170404121238_31MJEC000_enu_BOOK Page 72 Tuesday, April 04 2017 12:17:25 JST
Brakes u Inspecting the Brake Pads
Maintenance
69
Front Rear
Brake Pad
Wear indicators
Disc
Brake Pad
Wear indicators
Disc
Brake Pad
Brake Pad
Adjusting the Brake Light
Switch
Check the operation of the brake light switch.
Hold the brake light switch and turn the
adjusting nut in the direction A if the switch
operates too late, or turn the nut in the
direction B if the switch operates too soon.
20170404121238_31MJEC000_enu_BOOK Page 73 Tuesday, April 04 2017 12:17:25 JST
Brakes u Adjusting the Brake Light Switch
Maintenance
70
Brake light switch
Adjusting nut
B A
Side Stand
Checking the Side Stand
1.
Check that the side stand operates
smoothly. If the side stand is stiff or
squeaky, clean the pivot area and
lubricate the pivot bolt with clean grease.
2.
Check the spring for damage or loss of
tension.
3.
Sit on the motorcycle, shift the
transmission to Neutral, and raise the side
stand.
4.
Start the engine, pull the clutch lever in,
and shift the transmission into gear.
5.
Lower the side stand all the way. The
engine should stop as you lower the side
stand. If the engine doesn't stop, have
your motorcycle inspected by your dealer.
20170404121238_31MJEC000_enu_BOOK Page 74 Tuesday, April 04 2017 12:17:25 JST
Maintenance
71
Side stand
spring
Drive Chain
Inspecting the Drive Chain
Slack
Check the drive chain slack at several points
along the chain. If the slack is not constant at
all points, some links may be kinked and
binding.
Have the chain inspected by your dealer.
1.
Shift the transmission to Neutral. Stop the
engine.
2.
Place your motorcycle on its side stand on
a firm, level surface.
3.
Check the slack in the lower half of the
drive chain midway between the
sprockets.
Drive chain slack:
1 - 1 3/8 in (25 - 35 mm)
u
Do not ride your motorcycle if the
slack exceeds 1 15/16 in (50 mm).
4.
Roll the motorcycle forward and check
that the chain moves smoothly.
5.
Inspect the sprockets. 2 P. 53
6.
Clean and lubricate the drive chain.
2 P. 54
20170404121238_31MJEC000_enu_BOOK Page 75 Tuesday, April 04 2017 12:17:25 JST
Maintenance
72
Adjusting the Drive Chain Slack
Adjusting the chain requires special tools.
Have the drive chain slack adjusted by your
dealer.
CB650FA only
When adjusting the drive chain slack, be
careful not to damage the wheel speed
sensor and pulser ring.
1.
Shift the transmission to Neutral. Stop the
engine.
2.
Place your motorcycle on its side stand on
a firm, level surface.
3.
Loosen the rear axle nut.
4.
Loosen the lock nuts on both adjusting
bolts.
20170404121238_31MJEC000_enu_BOOK Page 76 Tuesday, April 04 2017 12:17:25 JST
Drive Chain u Adjusting the Drive Chain Slack
Maintenance
73
Continued
Adjusting bolt
Scale
graduations
Adjusting plate
Rear axle nut
Lock nut
Adjusting bolt
Scale
graduations
Adjusting plate
Lock nut
5.
Turn both adjusting bolts an equal
number of turns until the correct drive
chain slack is obtained. Turn the adjusting
bolts counterclockwise to tighten the
chain. Turn the adjusting bolts clockwise
and push the rear wheel toward the front
to provide more slack.
Adjust the slack at a point midway
between the drive sprocket and the
driven sprocket.
Check the drive chain slack. 2 P. 72
6.
Check rear axle alignment by making sure
the end of the chain adjusting plate aligns
with the scale graduations on both sides
of the swingarm.
Both marks should correspond. If the axle
is misaligned, turn the right or left
adjusting bolt until the marks are aligned
and recheck chain slack.
7.
Tighten the rear axle nut.
Torque: 72 lbf·ft (98 N·m, 10.0 kgf·m)
8.
Hold the adjusting bolts and tighten the
lock nuts.
Torque: 20 lbf·ft (27 N·m, 2.8 kgf·m)
9.
Recheck drive chain slack.
If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.
20170404121238_31MJEC000_enu_BOOK Page 77 Tuesday, April 04 2017 12:17:25 JST
Drive Chain u Adjusting the Drive Chain Slack
Maintenance
74
#
Checking the Drive Chain Wear
Check the chain wear label when adjusting
the drive chain. If the index mark on the
adjusting plate enters the red zone on the
label after the chain has been adjusted to the
proper slack, the chain is excessively worn
and must be replaced.
Chain:
DID 525V11 or RK 525KRW
If necessary have the drive chain replaced by
your dealer.
20170404121238_31MJEC000_enu_BOOK Page 78 Tuesday, April 04 2017 12:17:25 JST
Drive Chain u Adjusting the Drive Chain Slack
Maintenance
75
Index mark
Red zone
Clutch
Checking the Clutch
#
Checking the Clutch Lever Freeplay
Check the clutch lever freeplay.
Freeplay at the clutch lever:
3/8 - 13/16 in (10 - 20 mm)
Check the clutch cable for kinks or signs of
wear. If necessary have it replaced by your
dealer.
Lubricate the clutch cable with a
commercially available cable lubricant to
prevent premature wear and corrosion.
NOTICE
Improper freeplay adjustment can cause
premature clutch wear.
20170404121238_31MJEC000_enu_BOOK Page 79 Tuesday, April 04 2017 12:17:25 JST
Maintenance
76
Clutch lever
Freeplay
Adjusting the Clutch Lever
Freeplay
#
Upper Adjustment
Attempt adjustment with the upper clutch
cable adjuster first.
1.
Loosen the upper lock nut.
2.
Turn the upper clutch cable adjuster until
the freeplay is 3/8 - 13/16 in (10 - 20 mm).
3.
Tighten the upper lock nut and check the
freeplay again.
#
Lower Adjustment
If the upper clutch cable adjuster is threaded
out near its limit, or the correct freeplay
cannot be obtained, attempt adjustment with
the lower clutch cable adjusting nut.
20170404121238_31MJEC000_enu_BOOK Page 80 Tuesday, April 04 2017 12:17:25 JST
Clutch u Adjusting the Clutch Lever Freeplay
Maintenance
77
Continued
Upper clutch cable
adjuster
Upper lock nut
+
-
1.
Loosen the upper lock nut and turn the
upper clutch cable adjuster all the way in
(to provide maximum freeplay). Tighten
the upper lock nut.
2.
Loosen the lower lock nut.
3.
Turn the lower adjusting nut until the
clutch lever freeplay is 3/8 - 13/16 in (10 -
20 mm).
4.
Tighten the lower lock nut and check the
clutch lever freeplay.
5.
Start the engine, pull the clutch lever in,
and shift into gear. Make sure the engine
does not stall and the motorcycle does
not creep. Gradually release the clutch
lever and open the throttle. Your
motorcycle should move smoothly and
accelerate gradually.
If proper adjustment cannot be obtained or
the clutch does not work correctly, see your
dealer.
20170404121238_31MJEC000_enu_BOOK Page 81 Tuesday, April 04 2017 12:17:25 JST
Clutch u Adjusting the Clutch Lever Freeplay
Maintenance
78
Lower lock nut
Lower adjusting nut
+
-
Throttle
Checking the Throttle
With the engine off, check that the throttle
rotates smoothly from fully closed to fully
open in all steering positions and throttle
freeplay is correct. If the throttle does not
move smoothly, close automatically, or if the
cable is damaged, have the motorcycle
inspected by your dealer.
Freeplay at the throttle grip flange:
1/16 - 1/4 in (2 - 6 mm)
20170404121238_31MJEC000_enu_BOOK Page 82 Tuesday, April 04 2017 12:17:25 JST
Maintenance
79
Freeplay
Flange
Other Adjustments
Adjusting the Headlight Aim
You can adjust vertical aim of the headlight
for proper alignment. Turn the pinion in or
out as necessary using a Phillips screwdriver.
Obey local laws and regulations.
20170404121238_31MJEC000_enu_BOOK Page 83 Tuesday, April 04 2017 12:17:25 JST
Maintenance
80
Raise
Lower
Pinion
Adjusting the Brake Lever
You can adjust the distance between the tip
of the brake lever and handle grip.
#
Adjustment method
Turn the adjuster until the numbers align with
the index mark while pushing the lever
forward in the desired position.
After adjustment, check that the lever
operates correctly before riding.
NOTICE
Do not turn the adjuster beyond its natural limit.
20170404121238_31MJEC000_enu_BOOK Page 84 Tuesday, April 04 2017 12:17:25 JST
Other Adjustments u Adjusting the Brake Lever
Maintenance
81
Adjuster Index mark
Forward
Brake lever
Handle grip
Adjusting the Rear Suspension
Adjusting the suspension requires a pin
spanner. We recommend that you have your
motorcycle serviced by your dealer.
#
Spring Preload
You can adjust the spring preload by the
adjuster to suit the load or the road surface.
Use a pin spanner and extension bar to turn
the adjuster.
Positions 1 to 2 are for a decrease spring
preload (soft), or turn the position 4 to 7
increase spring preload (hard).
The standard position is 3.
NOTICE
Attempting to adjust directly from 1 to 7 or 7 to 1
may damage the shock absorber.
Do not turn the adjuster beyond its limits.
NOTICE
The rear shock absorber damper unit contains
high pressure nitrogen gas. Do not attempt to
disassemble, service, or improperly dispose of
the damper. See your dealer.
20170404121238_31MJEC000_enu_BOOK Page 85 Tuesday, April 04 2017 12:17:25 JST
Other Adjustments u Adjusting the Rear Suspension
Maintenance
82
Adjuster
1 2 3 4 5 6
7
Pin spanner
Extension bar
Engine Will Not Start........................................ P. 84
Overheating (High coolant temperature
indicator is on) ................................................. P. 85
Warning Indicators On or Flashing...............P. 86
Low Oil Pressure Indicator ................................ P. 86
PGM-FI (Programmed Fuel Injection)
Malfunction Indicator Lamp (MIL).................P. 86
ABS (Anti-lock Brake System) Indicator ......... P. 87
Other Warning Indications.............................. P. 88
Fuel Gauge Failure Indication...........................P. 88
Tire Puncture ...................................................... P. 89
Electrical Trouble............................................... P. 97
Battery Goes Dead ..............................................P. 97
Burned-out Light Bulb........................................ P. 97
Blown Fuse..........................................................P. 101
20170404121238_31MJEC000_enu_BOOK Page 86 Tuesday, April 04 2017 12:17:25 JST
Troubleshooting
Engine Will Not Start
Starter Motor Operates But
Engine Does Not Start

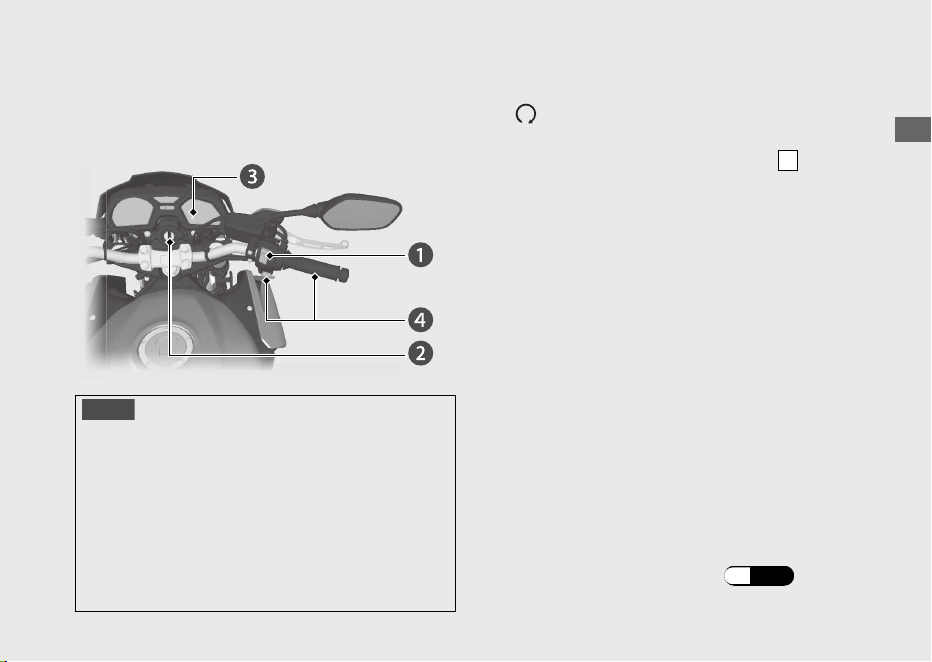

Check the following items:
● Check the correct engine starting
sequence. 2 P. 35
●
Check that there is gasoline in the fuel
tank.
● Check if the PGM-FI malfunction indicator
lamp (MIL) is on.
u If the indicator light is on, contact your
dealer as soon as possible.
Starter Motor Does Not
Operate
Check the following items:
● Check the correct engine starting
sequence. 2 P. 35
●
Make sure engine stop switch is in the
(Run) position. 2 P. 32
● Check for a blown fuse. 2 P. 101
●
Check for a loose battery connection or
battery terminal corrosion. 2 P. 60, 2 P. 49
● Check the condition of the battery.
2 P. 97
If the problem continues, have your
motorcycle inspected by your dealer.
20170404121238_31MJEC000_enu_BOOK Page 87 Tuesday, April 04 2017 12:17:25 JST
Troubleshooting
84
Overheating (High coolant temperature indicator is on)
The engine is overheating when the following
occurs:
● High coolant temperature indicator
comes on.
● Acceleration becomes sluggish.
If this occurs, pull safely to the side of the
road and perform the following procedure.
Extended fast idling may cause the high
coolant temperature indicator to come on.
NOTICE
Continuing to ride with an overheated engine
can cause serious damage to the engine.
1.
Stop the engine using the ignition switch,
and then turn the ignition switch to the
ON position.
2.
Check that the radiator fan is operating,
and then turn the ignition switch to the
OFF position.
If the fan is not operating:
Suspect a fault. Do not start the engine.
Transport your motorcycle to your dealer.
If the fan is operating:
Allow the engine to cool with the ignition
switch in the OFF position.
3.
After the engine has cooled, inspect the
radiator hose and check if there is a leak.
2 P. 66
If there is a leak:
Do not start the engine. Transport your
motorcycle to your dealer.
4.
Check the coolant level in the reserve
tank. 2 P. 66
u
Add coolant as necessary.
5.
If 1-4 check normal, you may continue
riding, but closely monitor the high
coolant temperature indicator.
20170404121238_31MJEC000_enu_BOOK Page 88 Tuesday, April 04 2017 12:17:25 JST
Troubleshooting
85
Warning Indicators On or Flashing
Low Oil Pressure Indicator
If the low oil pressure indicator comes on,
pull safely to the side of the road and stop
the engine.
NOTICE
Continuing to ride with low oil pressure can
cause serious damage to the engine.
1.
Check the engine oil level, and add oil as
necessary. 2 P. 62, 2 P. 63
2.
Start the engine.
u
Only continue riding if the low oil
pressure indicator goes off.
Rapid acceleration may momentarily cause
the low oil pressure indicator to come on,
especially if the oil is at or near the low level.
If the low oil pressure indicator stays on when
the oil level is at the proper level, stop the
engine and contact your dealer.
If the engine oil level goes down rapidly, your
motorcycle may have a leak or another
serious problem. Have your motorcycle
inspected by your dealer.
PGM-FI (Programmed Fuel
Injection) Malfunction
Indicator Lamp (MIL)
If the indicator comes on while riding, you
may have a serious problem with the PGM-FI
system. Reduce speed and have your
motorcycle inspected by your dealer as soon
as possible.
20170404121238_31MJEC000_enu_BOOK Page 89 Tuesday, April 04 2017 12:17:25 JST
Troubleshooting
86
ABS (Anti-lock Brake System)
Indicator
CB650FA only
If the indicator operates in one of the
following ways, you may have a serious
problem with the ABS. Reduce your speed
and have your motorcycle inspected by your
dealer as soon as possible.
● Indicator comes on or starts flashing while
riding.
● Indicator does not come on when the
ignition switch is in the ON position.
● Indicator does not go off at speeds above
6 mph (10 km/h).
If the ABS indicator stays on, your brakes will
continue to work as a conventional system,
but without the anti-locking function.
The ABS indicator may flash if you turn the
rear wheel while your motorcycle is lifted off
the ground. In this case, turn the ignition
switch to the OFF position, and then to the
ON position again. The ABS indicator will go
off after your speed reaches 19 mph (30
km/h).
20170404121238_31MJEC000_enu_BOOK Page 90 Tuesday, April 04 2017 12:17:25 JST
Warning Indicators On or Flashing u ABS (Anti-lock Brake System) Indicator
Troubleshooting
87
Other Warning Indications
Fuel Gauge Failure Indication
If the fuel system has an error, the fuel gauge
indicators will be displayed as shown in the
illustration.
If this occurs, see your dealer as soon as
possible.
20170404121238_31MJEC000_enu_BOOK Page 91 Tuesday, April 04 2017 12:17:25 JST
Troubleshooting
88
Tire Puncture
Repairing a puncture or removing a wheel
requires special tools and technical expertise.
We recommend you have this type of service
performed by your dealer.
After an emergency repair, always have the
tire inspected/replaced by your dealer.
Emergency Repair Using a Tire
Repair Kit
If your tire has a minor puncture, you can
make an emergency repair using a tubeless
tire repair kit.
Follow the instructions provided with the
emergency tire repair kit.
Riding your motorcycle with a temporary tire
repair is very risky. Do not exceed 30 mph
(50 km/h). Have the tire replaced by your
dealer as soon as possible.
3WARNING
Riding your motorcycle with a
temporary tire repair can be risky. If the
temporary repair fails, you can crash
and be seriously injured or killed.
If you must ride with a temporary tire
repair, ride slowly and carefully and do
not exceed 30 mph (50 km/h) until the
tire is replaced.
Removing Wheels
Follow these procedures if you need to
remove a wheel in order to repair a
puncture.
CB650FA only
When removing and installing the wheel, be
careful not to damage the wheel speed
sensor and pulser ring.
20170404121238_31MJEC000_enu_BOOK Page 92 Tuesday, April 04 2017 12:17:25 JST
Troubleshooting
89
Continued
#
Front Wheel
Removal
1.
Place your motorcycle on a firm, level
surface.
2.
Cover both sides of the front wheel and
brake calipers with protective tape or cloth.
3.
On the right side, remove the mounting
bolts and remove the brake caliper.
4.
On the left side, remove the mounting bolts
and remove the brake caliper.
u
Support the brake calipers so that it
doesn't hang from the brake hose. Do not
twist the brake hose.
u
Avoid getting grease, oil, or dirt on the
disc or pad surfaces.
u
Do not pull the brake lever while the brake
caliper is removed.
u
Take care to prevent the brake caliper
from scratching the wheel during removal.
20170404121238_31MJEC000_enu_BOOK Page 93 Tuesday, April 04 2017 12:17:25 JST
Tire Puncture u Removing Wheels
Troubleshooting
90
Mounting bolts
Tape or cloth
Wheel speed sensor
Brake calipers
Mounting bolts
Pulser ring
Left side Right side
CB650FA only
CB650FA only
5.
Loosen the right axle pinch bolt.
6.
Remove the front axle bolt.
7.
Support your motorcycle securely and
raise the front wheel off the ground using
a maintenance stand or a hoist.
8.
Loosen the left axle pinch bolt.
9.
On the left side, withdraw the front axle
shaft, and remove the side collars and
wheel.
20170404121238_31MJEC000_enu_BOOK Page 94 Tuesday, April 04 2017 12:17:25 JST
Tire Puncture u Removing Wheels
Troubleshooting
91
Continued

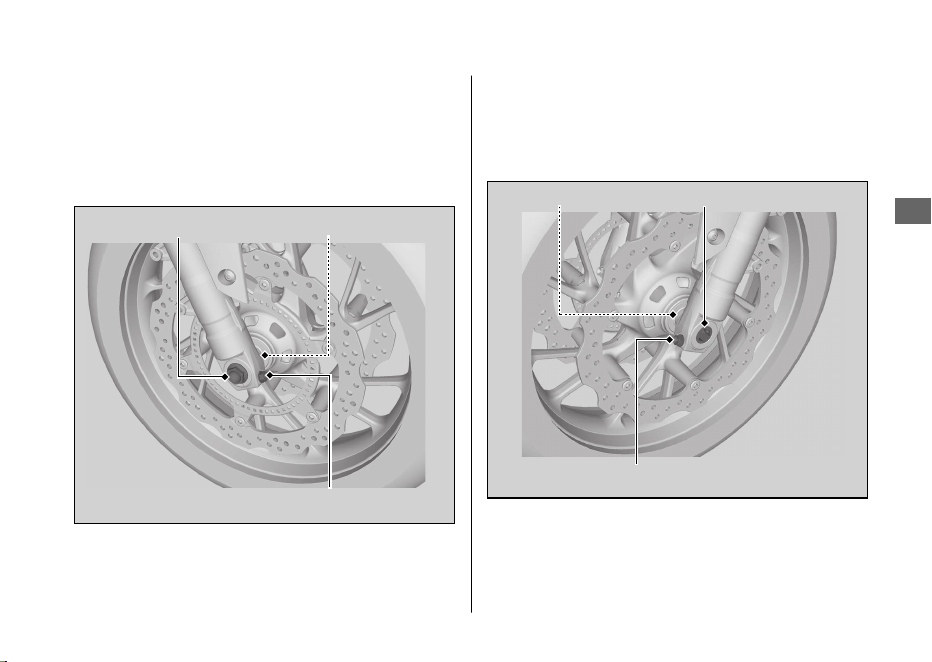

Axle pinch bolt
Front axle bolt
Side collar
Axle pinch bolt
Front axle shaftSide collar
Installation
1.
Attach the side collars to the wheel.
2.
On the left side, place the wheel between
the fork legs and insert the lightly greased
front axle shaft to the end, through the
left fork leg and wheel hub.
3.
Align the end of the front axle shaft with
the surface of the fork leg.
4.
Tighten the left axle pinch bolt to hold the
axle.
5.
Tighten the axle bolt.
Torque: 44 lbf·ft (59 N·m, 6.0 kgf·m).
6.
Loosen the left axle pinch bolt.
7.
Tighten the right axle pinch bolt.
Torque: 16 lbf·ft (22 N·m, 2.2 kgf·m).
8.
CB650FA only
Secure the wheel speed sensor wire with
the clamp.
20170404121238_31MJEC000_enu_BOOK Page 95 Tuesday, April 04 2017 12:17:25 JST
Tire Puncture u Removing Wheels
Troubleshooting
92

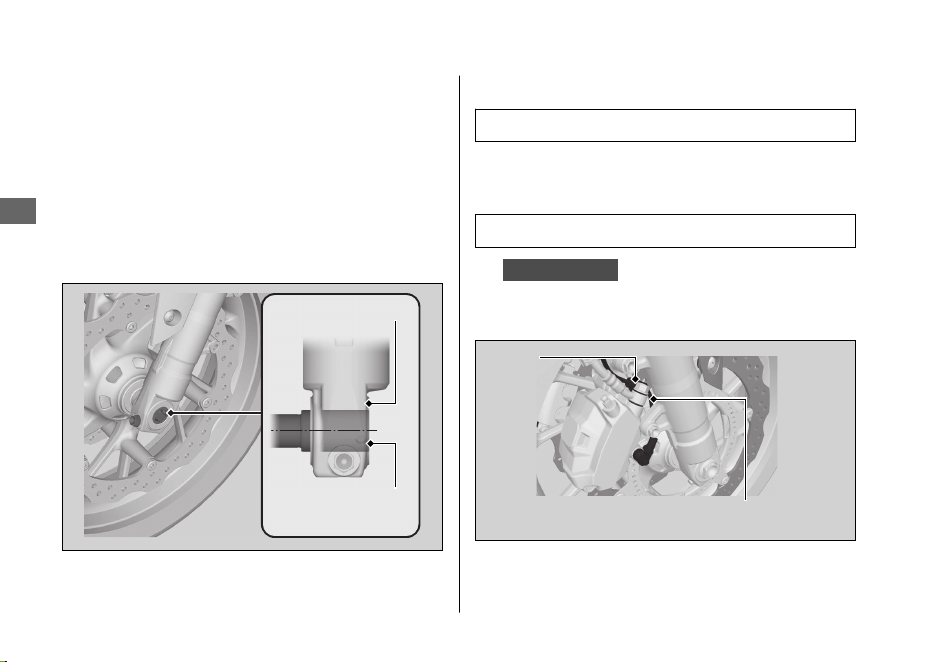

Surface of fork
leg
End of front
axle shaft
Wheel speed
sensor wire
Clamp
9.
Install the right brake caliper and tighten
new mounting bolts.
Torque: 22 lbf·ft (30 N·m, 3.1 kgf·m).
10.
Install the left brake caliper and tighten
new mounting bolts.
Torque: 22 lbf·ft (30 N·m, 3.1 kgf·m).
u Take care to prevent the brake caliper
from scratching the wheel during
installation.
u Use new mounting bolts when
installing the brake caliper.
NOTICE
When installing a wheel or caliper into original
position, carefully fit the brake disc between the
pads to avoid scratching them.
11.
Lower the front wheel on the ground.
12.
Apply the brake lever several times. Then,
pump the fork several times.
13.
Retighten the left axle pinch bolt.
Torque: 16 lbf·ft (22 N·m, 2.2 kgf·m).
14.
Raise the front wheel off the ground
again, and check that the wheel rotates
freely after you release the brake.
15.
Remove the protective tape or cloth.
If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.
20170404121238_31MJEC000_enu_BOOK Page 96 Tuesday, April 04 2017 12:17:25 JST
Tire Puncture u Removing Wheels
Troubleshooting
93
Continued
#
Rear Wheel
Removal
1.
Support your motorcycle securely and
raise the rear wheel off the ground using
a maintenance stand or a hoist.
2.
Loosen the rear axle nut, lock nuts and
turn the adjusting bolts so the rear wheel
can be moved all the way forward for
maximum drive chain slack.
3.
Remove the drive chain from the driven
sprocket by pushing the rear wheel
forward.
4.
Remove the rear axle nut and washer.
5.
Remove the rear axle shaft and adjusting
plates.
20170404121238_31MJEC000_enu_BOOK Page 97 Tuesday, April 04 2017 12:17:25 JST
Tire Puncture u Removing Wheels
Troubleshooting
94
Lock nut
Washer
Wheel speed sensor
Adjusting bolt
Rear axle nut
Adjusting plate
Pulser ring
CB650FA only
CB650FA only
Lock nut
Rear axle shaft
Adjusting plate Drive chain
Adjusting
bolt
6.
Remove the brake caliper bracket, rear
wheel and side collars.
u Support the brake caliper so that it
doesn’t hang from the brake hose. Do
not twist the brake hose.
u Avoid getting grease, oil, or dirt on the
disc to pad surfaces.
u Do not push the brake pedal while the
brake caliper is removed.
Installation
1.
To install the rear wheel, reverse the
removal procedure.
u Take care to prevent the brake caliper
from scratching the wheel during
installation.
NOTICE
When installing a wheel or caliper into original
position, carefully fit the brake disc between the
pads to avoid scratching them.
20170404121238_31MJEC000_enu_BOOK Page 98 Tuesday, April 04 2017 12:17:25 JST
Tire Puncture u Removing Wheels
Troubleshooting
95
Continued
2.
Make sure that the slot on the brake
caliper bracket is positioned in the lug on
the swingarm.
3.
Adjust the drive chain slack. 2 P. 73
4.
Install and tighten the rear axle nut.
Torque: 72 lbf·ft (98 N·m, 10.0 kgf·m).
5.
Hold the adjusting bolts and tighten the
lock nuts.
Torque: 20 lbf·ft (27 N·m, 2.8 kgf·m).
6.
After installing the wheel, apply the brake
pedal several times, then check if the
wheel rotates freely. Recheck the wheel if
the brake drags or if the wheel does not
rotate freely.
If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.
20170404121238_31MJEC000_enu_BOOK Page 99 Tuesday, April 04 2017 12:17:25 JST
Tire Puncture u Removing Wheels
Troubleshooting
96
Brake caliper bracket
Swingarm
Slot
Lug
Electrical Trouble
Battery Goes Dead
Charge the battery using a motorcycle
battery charger.
Remove the battery from the motorcycle
before charging.
Do not use an automobile-type battery
charger, as these can overheat a motorcycle
battery and cause permanent damage. If the
battery does not recover after recharging,
contact your dealer.
NOTICE
Jump starting using an automobile battery can
damage your motorcycle's electrical system and
is not recommended.
Bump starting is also not recommended.
Burned-out Light Bulb
Follow the procedure below to replace a
burned-out light bulb.
Turn the ignition switch to the OFF or LOCK
position.
Allow the bulb to cool before replacing it.
Do not use bulbs other than those specified.
Check the replacement bulb for correct
operation before riding.
For the light bulb wattage, see
“Specifications.” 2 P. 128
20170404121238_31MJEC000_enu_BOOK Page 100 Tuesday, April 04 2017 12:17:25 JST
Troubleshooting
97
Continued
#
Headlight
The headlight uses several LEDs.
If there is a LED which is not turned on, see
your dealer for servicing.
#
Position Light
The position lights use several LEDs.
If there is a LED which is not turned on, see
your dealer for servicing.
20170404121238_31MJEC000_enu_BOOK Page 101 Tuesday, April 04 2017 12:17:25 JST
Electrical Trouble u Burned-out Light Bulb
Troubleshooting
98
Headlight
Position lights
#

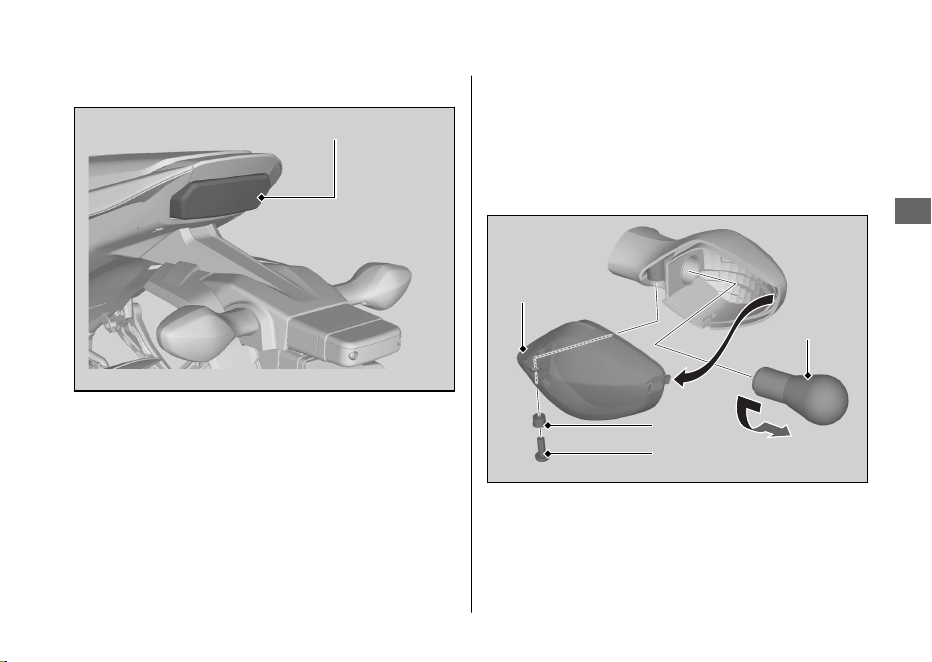

Brake light/Taillight
The brake light and taillight uses several
LEDs.
If there is a LED which is not turned on, see
your dealer for servicing.
#
Front/Rear Turn Signal Bulb
1.
Remove the screw and collar.
2.
Remove the turn signal lens.
3.
Slightly press the bulb and turn it
counterclockwise.
4.
Install a new bulb and parts in the reverse
order of removal.
20170404121238_31MJEC000_enu_BOOK Page 102 Tuesday, April 04 2017 12:17:25 JST
Electrical Trouble u Burned-out Light Bulb
Troubleshooting
99
Continued
Brake light/Taillight
Turn signal
lens
Screw
Collar
Bulb
#
License Plate Light Bulb
1.
Remove the screws, license light cover
and license light cover packing.
2.
Pull out the bulb without turning it.
3.
Install a new bulb and parts in the reverse
order of removal.
20170404121238_31MJEC000_enu_BOOK Page 103 Tuesday, April 04 2017 12:17:25 JST
Electrical Trouble u Burned-out Light Bulb
Troubleshooting
100
Cover packing
Screws
License light
cover
Bulb
Blown Fuse
Before handling fuses, see “Inspecting and
Replacing Fuses.” 2 P. 51
#
Fuse Box Fuses
1.
Remove the seat. 2 P. 61
2.
Open the fuse box covers.
3.
Pull the fuses out one by one with the
fuse puller in the tool kit and check for a
blown fuse.
Always replace a blown fuse with a spare
fuse of the same rating.
4.
Close the fuse box covers.
5.
Reinstall the seat.
CB650F
CB650FA
20170404121238_31MJEC000_enu_BOOK Page 104 Tuesday, April 04 2017 12:17:25 JST
Electrical Trouble u Blown Fuse
Troubleshooting
101
Continued
Fuse box covers
Spare fuses
Spare fuses
Fuse box
covers
Spare fuses
Spare fuses
#
Main Fuse
1.
Remove the seat. 2 P. 61
2.
Disconnect the wire connector of the
starter magnetic switch.
3.
Pull the main fuse out and check for a
blown fuse. Always replace a blown fuse
with a spare fuse of the same rating.
u Spare main fuse is provided in the
starter magnetic switch.
4.
Reinstall parts in the reverse order of
removal.
NOTICE
If a fuse fails repeatedly, you likely have an
electrical problem. Have your motorcycle
inspected by your dealer.
20170404121238_31MJEC000_enu_BOOK Page 105 Tuesday, April 04 2017 12:17:25 JST
Electrical Trouble u Blown Fuse
Troubleshooting
102
Starter magnetic
switch
Main fuse
Wire connector
Spare main fuse
Keys..................................................................... P. 104
Instruments, Controls, & Other Features... P. 105
Caring for Your Motorcycle ..........................P. 106
Storing Your Motorcycle ............................... P. 110
Transporting Your Motorcycle..................... P. 111
You & the Environment .................................P. 111
Vehicle Identification Number..................... P. 112
Emission Control Systems ............................. P. 113
Catalytic Converter ......................................... P. 118
Oxygenated Fuels............................................ P. 119
Authorized Manuals ....................................... P. 120
Warranty Coverage and Service .................. P. 121
Honda Contacts ............................................... P. 123
USA
Reporting Safety Defects ..................... P. 125
20170404121238_31MJEC000_enu_BOOK Page 106 Tuesday, April 04 2017 12:17:25 JST
Information
Keys
Ignition Key
This motorcycle has two ignition keys and a key
tag with a key number and a bar code. Store
the spare key and the key tag in a safe location.
To make a duplicate key, take the spare key and
the key tag to your dealer or a locksmith.
If you lose all keys and the key tag, the ignition
switch assembly will probably have to be
removed by your dealer to determine the key
number.
A metal key holder may cause damage to the
area surrounding the ignition switch.
20170404121238_31MJEC000_enu_BOOK Page 107 Tuesday, April 04 2017 12:17:25 JST
Keys
Information
104
Ignition key Key tag
Key number and bar code
Instruments, Controls, &
Other Features
Ignition Switch
Leaving the ignition switch in the ON position
with the engine stopped will drain the battery.
Do not turn the key while riding.
Engine Stop Switch
Do not use the engine stop switch except in an
emergency. Doing so when riding will cause the
engine to suddenly turn off, making riding
unsafe.
If you stop the engine using the engine stop
switch, turn the ignition switch to the OFF
position. Failing to do so will drain the battery.
Odometer
The display locks at 999,999 when the read-out
exceeds 999,999.
Tripmeter
The tripmeter A and B return to 0.0 when each
read-out exceeds 9,999.9.
Clock
The clock is displayed for 24 hours after the
ignition switch is turned to the OFF position.
Document Bag
The owner's manual, registration, and insurance
information can be stored in the plastic
document bag located underside of the seat.
2 P. 39
Ignition Cut-off System
A banking (lean angle) sensor automatically
stops the engine and fuel pump if the
motorcycle falls over. To reset the sensor, you
must turn the ignition switch to the OFF position
and back to the ON position before the engine
can be restarted.
20170404121238_31MJEC000_enu_BOOK Page 108 Tuesday, April 04 2017 12:17:25 JST
Instruments, Controls, & Other Features
Information
105
Caring for Your Motorcycle
Frequent cleaning and polishing is important to
ensure the life of your Honda. A clean
motorcycle makes it easier to spot potential
problems.
In particular, seawater and salts used to prevent
ice on roads promote the formation of
corrosion. Always wash your motorcycle
thoroughly after riding on coastal or treated
roads.
Washing
Allow the engine, muffler, brakes, and other
high-temperature parts to cool before washing.
1.
Rinse your motorcycle thoroughly using a
low pressure garden hose to remove loose
dirt.
2.
If necessary, use a sponge or a soft towel
with mild cleaner to remove road grime.
u Clean the headlight lens, panels, and
other plastic components with extra care
to avoid scratching them.
Avoid directing water into the air cleaner,
muffler, and electrical parts.
3.
Thoroughly rinse your motorcycle with
plenty of clean water and dry with a soft,
clean cloth.
4.
After the motorcycle dries, lubricate any
moving parts.
u Make sure that no lubricant spills onto
the brakes or tires. Brake discs, pads,
drum or shoes contaminated with oil will
suffer greatly reduced braking
effectiveness and can lead to a crash.
5.
Lubricate the drive chain immediately after
washing and drying the motorcycle.
6.
Apply a coat of wax to prevent corrosion.
u
Avoid products that contain harsh detergents
or chemical solvents. These can damage the
metal, paint, and plastic on your motorcycle.
Keep the wax clear of the tires and brakes.
u
If your motorcycle has any matte painted
parts, do not apply a coat of wax to the
matte painted surface.
20170404121238_31MJEC000_enu_BOOK Page 109 Tuesday, April 04 2017 12:17:25 JST
Caring for Your Motorcycle
Information
106
#
Washing Precautions
Follow these guidelines when washing:
● Do not use high-pressure washers:
u High-pressure water cleaners can
damage moving parts and electrical
parts, rendering them inoperable.
u Water in the air intake can be drawn into
the throttle body and/or enter the air
cleaner.
● Do not direct water at the muffler:
u Water in the muffler can prevent starting
and causes rust in the muffler.
● Dry the brakes:
u Water adversely affects braking
effectiveness. After washing, apply the
brakes intermittently at low speed to
help dry them.
● Do not direct water under the seat:
u Water in the underseat compartment
can damage your documents and other
belongings.
● Do not direct water at the air cleaner:
u Water in the air cleaner can prevent the
engine from starting.
● Do not direct water near the headlight:
u The headlight's inside lens may fog
temporarily after washing or while riding
in the rain. This does not impact the
headlight function.
However, if you see a large amount of
water or ice accumulated inside the
lens(es), have your vehicle inspected by
your dealer.
●
Do not use wax or polishing compounds on
matte painted surface:
u Use a soft cloth or sponge, plenty of
water, and a mild detergent to clean
matte painted surfaces. Dry with a soft
clean cloth.
20170404121238_31MJEC000_enu_BOOK Page 110 Tuesday, April 04 2017 12:17:25 JST
Caring for Your Motorcycle
Information
107
Continued
Aluminum Components
Aluminum will corrode from contact with dirt,
mud, or road salt. Clean aluminum parts
regularly and follow these guidelines to avoid
scratches:
● Do not use stiff brushes, steel wool, or
cleaners containing abrasives.
● Avoid riding over or scraping against curbs.
Panels
Follow these guidelines to prevent scratches
and blemishes:
● Wash gently using a soft sponge and plenty
of water.
● To remove stubborn stains, use diluted
detergent and rinse thoroughly with plenty
of water.
● Avoid getting gasoline, brake fluid, or
detergents on the instruments, panels, or
headlight.
20170404121238_31MJEC000_enu_BOOK Page 111 Tuesday, April 04 2017 12:17:25 JST
Caring for Your Motorcycle
Information
108
Exhaust Pipe and Muffler
The exhaust pipe and muffler are stainless steel
but may become stained by mud or dust.
To remove mud or dust, use a wet sponge and
a liquid kitchen abrasive, then rinse well with
clean water. Dry with chamois or a soft towel.
If necessary, remove heat stains by using a
commercially available fine texture compound.
Then rinse by the same manner as removing
mud or dust.
When the exhaust pipe and muffler are painted,
do not use a commercially available abrasive
kitchen cleaning compound. Use a neutral
detergent to clean the painted surface on the
exhaust pipe and muffler. If you are not sure if
your exhaust pipe and muffler are painted,
contact your dealer.
NOTICE
Even though the exhaust is made of stainless
steel, it can become stained. Remove all marks
and blemishes as soon as they are noticed.
20170404121238_31MJEC000_enu_BOOK Page 112 Tuesday, April 04 2017 12:17:25 JST
Caring for Your Motorcycle
Information
109
Storing Your Motorcycle
If you store your motorcycle outdoors, you
should consider using a full-body motorcycle
cover.
If you won't be riding for an extended period,
follow these guidelines:
● Wash your motorcycle and wax all painted
surfaces (except matte painted surfaces).
Coat chrome pieces with rust-inhibiting oil.
● Lubricate the drive chain. 2 P. 53
● Place your motorcycle on a maintenance
stand and position a block so that both tires
are off the ground.
●
After rain, remove the body cover and allow
the motorcycle to dry.
●
Remove the battery (2 P. 60) to prevent
discharge. Charge the battery in a shaded,
well-ventilated area.
u If you leave the battery in place,
disconnect the negative - terminal to
prevent discharge.
After removing your motorcycle from storage,
inspect all maintenance items required by the
Maintenance Schedule.
USA
For more information about storage, refer
to the Honda Winter Storage Guide, available
from your dealer.
Canada
For more information about storage,
visit our website at www.honda.ca and look up
“Storage Tips” under the “Honda Warranty” in
the Warranty tab for your Model.
20170404121238_31MJEC000_enu_BOOK Page 113 Tuesday, April 04 2017 12:17:25 JST
Storing Your Motorcycle
Information
110
Transporting Your
Motorcycle
If your motorcycle needs to be transported, it
should be carried on a motorcycle trailer or a
flatbed truck or trailer that has a loading ramp
or lifting platform, and motorcycle tie-down
straps. Never try to tow your motorcycle with a
wheel or wheels on the ground.
NOTICE
Towing your motorcycle can cause serious
damage to the transmission.
You & the Environment
Owning and riding a motorcycle can be
enjoyable, but you must do your part to protect
the environment.
Choose Sensible Cleaners
Use a biodegradable detergent when you wash
your motorcycle. Avoid aerosol spray cleaners that
contain chlorofluorocarbons (CFCs) which damage
the atmosphere's protective ozone layer.
Recycle Wastes
Put oil and other toxic wastes in approved
containers and take them to a recycling center.
Call your local or state office of public works or
environmental services to find a recycling center in
your area, and to get instructions on how to
dispose of non-recyclable wastes. Do not place
used engine oil in the trash, or pour it down a
drain or on the ground. Used oil, gasoline,
coolant, and cleaning solvents contain poisons
that can hurt refuse workers and contaminate
drinking water, lakes, rivers, and oceans.
20170404121238_31MJEC000_enu_BOOK Page 114 Tuesday, April 04 2017 12:17:25 JST
Transporting Your Motorcycle
Information
111
Vehicle Identification
Number
The VIN and engine serial number uniquely
identify your motorcycle and are required in
order to register your motorcycle. They may
also be required when ordering replacement
parts.
You should record these numbers and keep
them in a safe place.
20170404121238_31MJEC000_enu_BOOK Page 115 Tuesday, April 04 2017 12:17:25 JST
Vehicle Identification Number
Information
112
VIN
VIN
Emission Control Systems
Your motorcycle engine emits combustion
byproducts, including carbon monoxide (CO),
oxides of nitrogen (NOx), and hydrocarbons
(HC). Gasoline evaporation also emits
hydrocarbons. Controlling the production of
NOx, CO, and HC is important for the
environment.
20170404121238_31MJEC000_enu_BOOK Page 116 Tuesday, April 04 2017 12:17:25 JST
Emission Control Systems
Information
113
Continued
Engine number
Exhaust Emission Requirements
The U.S. Environmental Protection Agency
(EPA), the California Air Resources Board
(CARB), and Environment and Climate Change
Canada (ECCC) require that your motorcycle
comply with applicable exhaust, crankcase, and
fuel permeation emission standards during its
useful life, when operated and maintained
according to the instructions provided.
CARB also requires that your motorcycle
comply with applicable evaporative emission
requirements during its useful life, when
operated and maintained according to the
instructions provided.
USA
Compliance with the terms of the
Distributor's Warranties for Honda Motorcycle
Emission Control Systems is necessary in order
to maintain a valid emissions system warranty.
The Vehicle Emission Control Information label
is located on the frame.
Noise Emission Requirements
The EPA requires that motorcycles built after
January 1, 1983 comply with applicable noise
emission standards for one year or 3,730 miles
(6,000 km) after the time of purchase when
operated and maintained according to the
instructions provided.
20170404121238_31MJEC000_enu_BOOK Page 117 Tuesday, April 04 2017 12:17:25 JST
Emission Control Systems
Information
114
Vehicle emission control information label
Vehicle emission control information label
Canada only
Exhaust Emission Control System
The exhaust emission control system includes
the following components that should not need
adjustment, although periodic inspection by
your dealer is recommended.
#
PGM-FI System
The PGM-FI (programmed fuel injection) system
uses sequential multiport fuel injection, and is
comprised of air intake, engine control, fuel
control, and exhaust control subsystems. The
engine control module (ECM) uses sensors to
determine how much air enters the engine, and
then controls how much fuel to inject.
#
Ignition Timing Control System
The ignition timing control system adjusts the
ignition timing to reduce the amount of HC,
CO, and NOx produced.
#
Secondary Air Injection System
The secondary air injection system adds filtered
air into the exhaust gas to help improve
emission control performance.
#
Catalytic Converters
The exhaust system contains one or more
catalytic converters. Catalytic converters use a
catalyst to convert most of the harmful exhaust
gas compounds into harmless compounds.
Evaporative Emission Control System
50 STATE (meets California)
An evaporative emissions control system uses a
canister filled with charcoal to adsorb fuel vapor
from the fuel tank while the engine is off. The
vapor is drawn into the engine and burned
while riding.
20170404121238_31MJEC000_enu_BOOK Page 118 Tuesday, April 04 2017 12:17:25 JST
Emission Control Systems
Information
115
Continued
Crankcase Emissions Control System
The engine is equipped with a closed crankcase
system to prevent discharging crankcase
emissions into the atmosphere. Blow-by gas is
returned to the combustion chamber through
the air cleaner and throttle body.
Fuel Permeation Emission Control
The fuel tank, fuel hoses, and fuel vapor charge
hoses use fuel permeation control technologies
to prevent fuel vapor emissions. Tampering with
these components to reduce or defeat the
effectiveness of the fuel permeation
technologies is prohibited.
20170404121238_31MJEC000_enu_BOOK Page 119 Tuesday, April 04 2017 12:17:25 JST
Emission Control Systems
Information
116
Noise Emission Control System
#
TAMPERING WITH THE NOISE CONTROL
SYSTEM IS PROHIBITED:
U. S. federal law prohibits, and Canadian
provincial laws may prohibit, the following acts
or the causing thereof: (1) The removal or
rendering inoperative by any person, other than
for purposes of maintenance, repair or
replacement, of any device or element of
design incorporated into any new vehicle for
the purpose of noise control prior to its sale or
delivery to the ultimate purchaser or while it is
in use; or (2) the use of the vehicle after such
device or element of design has been removed
or rendered inoperative by any person.
#
AMONG THOSE ACTS PRESUMED TO
CONSTITUTE TAMPERING ARE THE
FOLLOWING ACTS:
● Removal of, or puncturing the muffler,
baffles, header pipes or any other
component which conducts exhaust gases.
● Removal of, or puncturing of any part of the
intake system.
● Lack of proper maintenance.
● Removing or disabling any emissions
compliance component, or replacing any
compliance component with a noncompliant
component.
Problems Affecting Motorcycle Exhaust
Emissions
Have your motorcycle inspected and repaired
by your dealer if you experience any of the
following symptoms:
● Hard starting or stalling after starting
● Rough idling
● Misfiring or backfiring during acceleration
● Poor engine performance and poor fuel
economy
20170404121238_31MJEC000_enu_BOOK Page 120 Tuesday, April 04 2017 12:17:25 JST
Emission Control Systems
Information
117
Catalytic Converter
This motorcycle is equipped with a three-way
catalytic converter. The catalytic converter
contains precious metals that serve as catalysts
in high temperature chemical reactions that
convert hydrocarbons (HC), carbon monoxide
(CO), and oxides of nitrogen (NOx) in the
exhaust gasses into safe compounds.
A defective catalytic converter contributes to air
pollution and can impair your engine's
performance. A replacement unit must be an
original Honda part or equivalent.
Follow these guidelines to protect your
motorcycle's catalytic converter.
● Always use unleaded gasoline. Leaded
gasoline will damage the catalytic converter.
● Keep the engine in good running condition.
A poorly running engine can cause the
catalytic converter to overheat causing
damage to the converter or the motorcycle.
● If your engine is misfiring, backfiring, stalling,
or otherwise not running properly, stop
riding and turn off the engine. Have your
motorcycle serviced as soon as possible.
20170404121238_31MJEC000_enu_BOOK Page 121 Tuesday, April 04 2017 12:17:25 JST
Catalytic Converter
Information
118
Oxygenated Fuels
Some conventional fuels blended with alcohol
or an ether compound are available in some
locales to help reduce emissions to meet clean
air standards. These gasolines are collectively
referred to as oxygenated fuels. If you plan to
use oxygenated fuel, check that it is unleaded
and meets the minimum octane rating and
blend requirement.
The following fuel blends are EPA-approved
and have been approved for use in your
motorcycle:
●
Ethanol (ethyl alcohol) up to 10% by volume.
u Gasoline containing ethanol may be
marketed under the name Gasohol.
●
Methanol (methyl alcohol) up to 5% by
volume that contain cosolvents and
corrosion inhibitors to protect the fuel
system. Never use a blend containing more
than 5%.
If you accidentally fill your fuel tank with an
oxygenated fuel containing higher percentages,
you may experience performance problems. To
resolve the problem, have your dealer drain the
fuel tank and replace with the correct fuel. Fuel
system or performance problems resulting from
the use of an oxygenated fuel containing higher
percentages are not covered by your warranty.
NOTICE
Improper use of oxygenated fuels can damage
metal, rubber, and plastic parts of your fuel
system.
Oxygenated fuel can also damage paint.
Damage caused by spilled fuel is not covered by
warranty.
If you notice any undesirable operating
symptoms or performance problems, try a
different brand of gasoline.
20170404121238_31MJEC000_enu_BOOK Page 122 Tuesday, April 04 2017 12:17:25 JST
Oxygenated Fuels
Information
119
Publication Item No. Description
61MJE03 2018 CBR650F/FA/CB650F/FA Service Manual
61CSM00 Common Service Manual
S9507
USA
Winter Storage Guide
31MJEC00 2018 CB650F/FA Owner’s Manual
Authorized Manuals
USA
The Service Manual used by your
authorized dealer is available from your Honda
dealer or Helm, Inc.
Canada
See your dealer to order authorized
manuals.
Also available, but not necessary to service your
model, is the Honda Common Service Manual,
which explains basic service information for
various systems on Honda motorcycles,
scooters, and ATV.
USA
The Winter Storage Guide in conjunction
with the Owner's Manual and Service Manual
can help you prepare your Honda motorcycle,
scooter, ATV, and SxS for winter storage.
These Honda manuals are written for the
professional technician. However, if you possess
the proper tools, observe the safety standards,
and are mechanically capable, you should find
them easy to use.
Special Honda tools are necessary for some
procedures.
USA
Order On-Line: www.helminc.com
Order Toll Free: 1-888-CYCLE93
(1-888-292-5393)
(NOTE: For Credit Card Orders Only)
Monday - Friday 8:00 AM - 6:00 PM EST
20170404121238_31MJEC000_enu_BOOK Page 123 Tuesday, April 04 2017 12:17:25 JST
Authorized Manuals
Information
120
Warranty Coverage and
Service
Coverage
Your new Honda is covered by the following
warranties:
● Motorcycle Limited Warranty
● Emission Control System Warranty
●
USA
Noise Control Warranty
The responsibilities, restrictions, and exclusions
that apply to these warranties are explained in
the Warranties Booklet given to you by your
Honda dealer at the time of purchase. Always
keep your Honda owner's card with your
Warranties Booklet.
Canada
Please refer to the Warranty Booklet
posted on our website at www.honda.ca.
It is important to realize that your warranty
applies only to defects in material or
workmanship of your Honda. Your warranty
coverage does not apply to the normal wear
and deterioration associated with use of the
motorcycle.
Your warranty coverage is not voided if you
perform your own maintenance. However,
failures that occur due directly to improper
maintenance are not covered by these
warranties.
USA
You can extend almost all of your warranty
coverage through the Honda Protection Plan.
For more information, see your Honda dealer.
20170404121238_31MJEC000_enu_BOOK Page 124 Tuesday, April 04 2017 12:17:25 JST
Warranty Coverage and Service
Information
121
Continued
Service
Please remember that maintenance
recommended in the Maintenance Schedule is
not included in your warranty coverage.
If you believe you have a problem with your
motorcycle, call the service department of your
Honda dealer. Make an appointment for an
inspection and diagnosis. You will be asked to
authorize that inspection, and your dealer will
return the results of the inspection. If a problem
exists and is covered under warranty, your
dealer will perform the warranty repairs. If you
have any questions about your warranty
coverage or the nature of the repair, talk to the
Service Manager of your Honda dealer.
If a misunderstanding occurs and you aren't
satisfied with your dealer's handling of the
situation, we suggest you discuss your problem
with the appropriate member of the
dealership's management team. If you are still
not satisfied, contact the owner of the
dealership or their designated representative.
20170404121238_31MJEC000_enu_BOOK Page 125 Tuesday, April 04 2017 12:17:25 JST
Warranty Coverage and Service
Information
122
Honda Contacts
American Honda Motor Co., Inc.
If you wish to contact Honda directly to
comment on your experiences with your
motorcycle or with your dealer, please send
your comments to the following address:
Motorcycle Division,
American Honda Motor Co., Inc.,
P.O. Box 2200, Torrance,
CA 90509-2200
Mailstop: 100-4C-7B,
Telephone: (866) 784-1870.
Canada
Honda Canada Inc.
Customer Relations Department,
180 Honda Boulevard
Markham, Ontario
L6C 0H9
Telephone: (888) 946-6329
Fax: (877) 939-0909
E-mail: [email protected]
Please include the following information in your
letter:
● Name, address, and telephone number
● Product model, year, and VIN
● Date of purchase
● Dealer name and address
We will likely ask your Honda dealer to respond,
or possibly acknowledge your comments
directly.
20170404121238_31MJEC000_enu_BOOK Page 126 Tuesday, April 04 2017 12:17:25 JST
Honda Contacts
Information
123
Continued
Your Honda Dealer
The service department of your Honda dealer
offers trained personnel to perform regular
maintenance and most repairs. It has the latest
available service information from Honda and
also handles warranty inspections and repairs.
The parts department offers Honda Genuine
Parts, Pro Honda products, Honda Genuine
Accessories (USA only), and Honda accessories
and products (Canada only) that provide the
same quality that went into your motorcycle.
USA
The sales department offers the Honda
Protection Plan to extend almost all of your
warranty coverage.
Your Honda dealer can also supply information
about, riding events, and information about
safety training available in your local area, and
the Honda Rider's Club of America (USA only).
Honda Rider's Club of America (HRCA)
The Honda Rider's Club of America (HRCA)
sponsors local riding chapters at Authorized
Honda Dealerships across the country.
20170404121238_31MJEC000_enu_BOOK Page 127 Tuesday, April 04 2017 12:17:25 JST
Honda Contacts
Information
124
USA
Reporting Safety
Defects
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition to
notifying American Honda Motor Co.,
Inc.
If NHTSA receives similar complaints, it
may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you, your
dealer, or American Honda Motor Co.,
Inc.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at:
1-888-327-4236
(TTY: 1-800-424-9153); go to
http://www.safercar.gov;
or write to:
Administrator, NHTSA,
1200 New Jersey Avenue, SE.,
Washington, DC 20590.
You can also obtain other information
about motor vehicle safety from:
http://www.safercar.gov.
20170404121238_31MJEC000_enu_BOOK Page 128 Tuesday, April 04 2017 12:17:25 JST
Reporting Safety Defects
Information
125
Specifications
■ Main Components
Overall length 83.1 in (2,110 mm)
Overall width 30.7 in (780 mm)
Overall height 42.3 in (1,075 mm)
Wheelbase 57.1 in (1,450 mm)
Minimum ground
clearance
5.9 in (150 mm)
Caster angle 25° 30’
Trail 4.0 in (101 mm)
Curb weight
CB650F
454 lb (206 kg)
*1
456 lb (207 kg)
*2
CB650FA
459 lb (208 kg)
*2
456 lb (207 kg)
*3
Maximum weight capacity
*4
384 lb (174 kg)
Passenger capacity Rider and 1 passenger
Minimum turning radius 9.2 ft (2.8 m)
*1 : 49 STATE
*2 : 50 STATE (meets California)
*3 : Canada model
*4 : Including rider, passenger, all luggage, and accessories.
Displacement 39.6 cu-in (649 cm
3
)
Bore x stroke 2.64 x 1.81 in (67.0 x 46.0 mm)
Compression
ratio
11.4 : 1
Fuel
Unleaded gasoline
Recommended fuel octane number:Pump
Octane Number (PON) 86 or higher
Tank capacity 4.57 US gal (17.3 L)
Battery
FTZ10S
12 V-8.6 Ah (10 HR)
YTZ10
12 V-8.6 Ah (10 HR)
Gear ratios
1st 3.071
2nd 2.352
3rd 1.888
4th 1.560
5th 1.370
6th 1.214
Reduction ratios
(primary / final)
1.690 / 2.800
20170404121238_31MJEC000_enu_BOOK Page 129 Tuesday, April 04 2017 12:17:25 JST
Specifications
126
■ Service Data
Tire size
Front 120/70ZR17M/C(58W)
Rear 180/55ZR17M/C(73W)
Tire type Radial, tubeless
Recommended
Tires
Front DUNLOP D222F M
Rear DUNLOP D222 M
Tire air pressure
Front 36 psi (250 kPa, 2.50 kgf/cm
2
)
Rear 42 psi (290 kPa, 2.90 kgf/cm
2
)
Minimum tread
depth
Front 0.06 in (1.5 mm)
Rear 0.08 in (2.0 mm)
Spark plug (standard)
CR9EH-9 (NGK) or
U27FER9 (DENSO)
Spark plug gap
0.03 - 0.04 in (0.8 - 0.9 mm)
Idle speed
(non-
adjustable)
1,250 ± 100 rpm
Recommended
engine oil
API Service Classification SG or higher
except oils labeled as energy conserving or
resource conserving on the circular API
service label, SAE 10W-30, JASO T 903
standard MA, Pro Honda GN4 4-stroke oil
(USA & Canada) or Honda 4-stroke oil, or
an equivalent motorcycle oil
Engine oil capacity
After draining
2.7 US qt (2.6 L)
After draining
& engine oil
filter change
3.1 US qt (2.9 L)
After
disassembly
3.7 US qt (3.5 L)
Recommended
brake fluid
Honda DOT 4 Brake Fluid
Recommended
coolant
Pro Honda HP Coolant
Cooling system
capacity
2.6 US qt (2.5 L)
Recommended
drive chain
lubricant
Pro Honda HP Chain Lube or equivalent
Drive chain slack 1 - 1 3/8 in (25 - 35 mm)
Standard drive
chain
DID 525V11 or RK 525KRW
No. of links 118
Standard sprocket
sizes
Drive sprocket 15T
Driven sprocket 42T
20170404121238_31MJEC000_enu_BOOK Page 130 Tuesday, April 04 2017 12:17:25 JST
Specifications
Specifications
127
■ Bulb
Headlight LED
Brake light/Taillight LED
Front turn signal light 12V-21/5W x 2
Rear turn signal light 12V-21W x 2
Position light LED
License plate light 12V-5W
■ Fuse
Main fuse 30A
Other fuse
CB650F
20A, 10A, 7.5A
CB650FA
30A, 20A, 10A, 7.5A
■ Torque Specifications
Oil filter 19 lbf·ft (26 N·m, 2.7 kgf·m)
Engine oil drain bolt 22 lbf·ft (30 N·m, 3.1 kgf·m)
Rear wheel axle nut 72 lbf·ft (98 N·m, 10.0 kgf·m)
Drive chain adjusting lock nut 20 lbf·ft (27 N·m, 2.8 kgf·m)
Front wheel axle bolt 44 lbf·ft (59 N·m, 6.0 kgf·m)
Front wheel axle pinch bolt 16 lbf·ft (22 N·m, 2.2 kgf·m)
Front wheel brake caliper
mounting bolt
22 lbf·ft (30 N·m, 3.1 kgf·m)
20170404121238_31MJEC000_enu_BOOK Page 131 Tuesday, April 04 2017 12:17:25 JST
Specifications
Specifications
128
Information Record
VIN
Engine No.
Color Label & Code
Owner's Name
Address
City/State
Phone
Dealer's Name
Address
City/State
Phone
Service Manager
20170404121238_31MJEC000_enu_BOOK Page 132 Tuesday, April 04 2017 12:17:25 JST
129
Index
A
ABS (Anti-lock Brake System)....................... 11
ABS (Anti-lock Brake System)
Indicator .................................................... 31, 87
Accessories........................................................ 14
Air Cleaner......................................................... 59
B
Battery.......................................................... 49, 60
Brake Light Switch........................................... 70
Brakes
Fluid....................................................... 53, 68, 127
Lever Adjustment............................................... 81
Pad Wear ............................................................. 69
Braking ............................................................... 10
Bulb
Brake/Tail Light................................................... 99
Front/Rear Turn Signal ..................................... 99
Headlight.............................................................. 98
License Plate Light........................................... 100
Position Light ...................................................... 98
C
Caring for Your Motorcycle ........................ 106
Clock ................................................................... 19
Clutch
Freeplay................................................................ 77
Coolant......................................................... 55, 66
Crash ..................................................................... 5
D
Digital Clock Adjustment ........................ 24, 25
Display Setting ................................................. 24
Drive Chain.................................................. 53, 72
E
Electrical Trouble ............................................. 97
Engine
Number.............................................................. 112
Oil.................................................................... 52, 62
Oil Filter ................................................................ 64
Overheats............................................................. 85
Starting ................................................................. 35
Stop Switch.......................................... 32, 35, 105
Stopping ............................................................ 105
Will Not Start....................................................... 84
Environment ................................................... 111
20170404121238_31MJEC000_enu_BOOK Page 133 Tuesday, April 04 2017 12:17:25 JST
Index
130
Equipment
Owner’s Manual........................................ 39, 105
Tool Kit.................................................................. 38
F
Flooded Engine ................................................ 35
Fuel
Consumption Meter .......................................... 20
Gauge ................................................................... 19
Mileage Meter .................................................... 20
Recommended................................................... 37
Remaining............................................................ 19
Tank Capacity ..................................................... 37
Fuses........................................................... 51, 101
G
Gasohol ............................................................ 119
Gasoline ............................................................. 37
H
Hazard Switch................................................... 32
Headlight Aim .................................................. 80
Headlight Dimmer Switch ............................. 32
Helmet Holder.................................................. 38
High Beam Indicator....................................... 30
High Coolant Temperature Indicator ... 30, 85
Honda Contacts ............................................. 123
Horn Button ...................................................... 32
I
Ignition Cut-off System
Banking Sensor................................................. 105
Side Stand............................................................ 71
Ignition Key..................................................... 104
Ignition Switch................................... 33, 35, 105
Indicators........................................................... 30
Information Record....................................... 129
Instruments ....................................................... 18
Instruments, Controls, ＆ Other
Features ......................................................... 105
L
Labels.................................................................... 7
Load Limits ........................................................ 15
Loading Guidelines.......................................... 15
Low Oil Pressure Indicator ...................... 30, 86
20170404121238_31MJEC000_enu_BOOK Page 134 Tuesday, April 04 2017 12:17:25 JST
Index
131
M
Maintenance
Fundamentals ..................................................... 46
Importance .......................................................... 41
Safety .................................................................... 42
Schedule............................................................... 43
Maximum Weight Limit ................................. 15
Modifications.................................................... 14
N
Neutral Indicator ............................................. 31
O
Odometer.................................................. 20, 105
Oil
Engine ............................................................ 52, 62
Overheating ...................................................... 85
Oxygenated Fuels.......................................... 119
P
Parking ............................................................... 12
Parts Location................................................... 16
Passing Light Control Switch ........................ 32
PGM-FI (Programmed Fuel Injection)
Malfunction Indicator Lamp (MIL)...... 30, 86
Protective Apparel............................................. 9
R
Rear Suspension............................................... 82
Recommended
Coolant................................................................. 55
Engine Oil ................................................... 52, 127
Fuel........................................................................ 37
Refueling............................................................ 37
Removal
Battery................................................................... 60
Seat........................................................................ 61
Repair Kit ........................................................... 89
Reporting Safety Defects............................. 125
Riding Precautions .......................................... 10
S
Safety Guidelines ............................................... 3
Safety Labels ....................................................... 7
Safety Precautions............................................. 9
Seat ..................................................................... 61
Shifting Gears ................................................... 36
20170404121238_31MJEC000_enu_BOOK Page 135 Tuesday, April 04 2017 12:17:25 JST
Index
132
Side Stand.......................................................... 71
Side Stand Ignition Cut-off System ............ 71
Specifications.................................................. 126
Speedometer .................................................... 19
