ENGLISH ESPANOL
LG
ROOM
AIR
CONDITIONER
OWNER'S
MANUAL
ACONDICIONADOR
DE
AIRE
DE
VENTANA
MANUAL
DEL
PROPIETARIO
LG
website
http://www.lgservice.com
e-mail
http://www.lgeservice.com/techsup.html
Please
read
the
operating
instructions
and
safety
precautions
carefully
and
thoroughly
before
installing
and
operating
your
room
air
conditioner.
Por
favor
lea
las
instrucciones
de
operacion
y
las
precauciones
de
seguridad
cuidadosa
y
totalmente
antes
de
instalar
y
operar
su
acondicionador
de
aire
de
ventana.
MODELS,
MODELOS:
LT1030H
LT1230H
2
Room
Air
Conditioner
FOR
YOUR
RECORDS
Write
the
model
and
serial
numbers
here:
Model
#
Serial
#
You
can
find
them
on a
label
on
the
side
of
each
unit.
Dealer's
Name
Date
Purchased
Staple
your
receipt
to
this
page
in
the
event
you
need
it
to
prove
date
of
purchase
or
for
warranty
issues.
READ
THIS
MANUAL
Inside
you
will
find
many
helpful
hints
on
how
to
use
and
maintain
your
air
conditioner
properly.
Just
a
little
preventive
care
on
your
part
can
save
you
a
great
deal
of
time
and
money
over
the
life
of
your
air
conditioner.
You'll
find
many
answers
to
common
problems
in
the
chart
of
troubleshooting
tips.
If
you
review
our
chart
of
Troubleshooting
Tips
first,
you
may
not
need
to
call
for
service
at
all.
PRECAUTION
?
Contact
the
authorized
service
technician
for
repair
or
maintenance
of
this
unit.
?
Contact
the
installer
for
installation
of
this
unit.
?
The
air
conditioner
is
not
intended
for
use
by
young
children
or
invalids
without
supervision.
?
Young
children
should be
supervised
to
ensure
that
they
do
not
play
with
the
air
conditioner.
?
When
the
power
cord
is
to
be
replaced,
replacement
work
shall
be
performed by
authorized
personnel
only
using
only
genuine
replacement
parts.
?
Installation
work
must
be
performed
in
accordance
with
the
National
Electric
Code
by
qualified
and
authorized
personnel
only.
Safety
Precautions
..........................3
Prior
to
Operation
...........................7
Introduction
.....................................8
Electrical
Safety
.............................9
Installation
....................................11
Operating
Instructions
.................18
Maintenance
and
Service
............20
Owner's
Manual
3
ENGLISH
Safety
Precautions
Safety
Precautions
To
prevent
injury
to
the
user
or
other
people
and
property
damage,
the
following
instructions
must
be
followed.
Incorrect
operation
due
to
ignoring
instruction
will
cause
harm
or
damage.
The
seriousness
is
classified
by
the
following
indications.
Meanings
of
symbols
used
in
this
manual
are
as
shown
below.
This
symbol
indicates
the
possibility
of
death
or
serious
injury.
This
symbol
indicates
the
possibility
of
injury
or
damage
to
properties
only.
Be
sure
not
to
do.
Be
sure
to
follow
the
instruction.
Installation
Don't
use
a
power
cord,
a
plug
or
a
loose
socket
which
is
damaged.
?
Otherwise,
it
may
cause
a
fire
or
electrical
shock.
Always
plug
into
a
grounded
outlet.
?
Otherwise,
it
may
cause
a
fire
or
electrical
shock.
Do
not
modify
or
extend
the
power
cord
length.
?
It
will
cause
electric
shock
or
fire
due
to
heat
generation.
Opea
t
on
The
stt
O
pto
Thmt
t
Do
not
disassemble
or
modify
products.
?
It
may
cause
failure
and
electric
shock.
Be
caution
when
unpacking
and
installing.
?
Sharp
edges
may
cause
injury.
Do
not
use
the
power
cord
near
flammable
gas
or
combustibles
such
as
gasoline,
benzene,
thinner,
etc.
?
It
may
cause
explosion
or
fire.
O
Op
hm
Gasolin
O
h
4
Room
Air
Conditioner
Safety
Precautions
Operation
Do
not
place
the
power
cord
near
a
heater.
?
It
may
cause
fire
and
electric
shock.
Do
not
allow
water
to
run
into
electric
parts.
?
It
will
cause
failure
of
machine
or
electric
shock.
Use
a
soft
cloth
to
clean.
Do
not
use
wax,
thinner,
or
a
strong
detergent.
?
The
appearance
of
the
air
conditioner
may
deteriorate,
change
color,
or
develop
surface
flaws.
O
Th
m
O
hm
Wax
Thinner
O
h
Ventilate
the
room
well
when
using
this
appliance
together
with
a
stove,
etc.
?
An
oxygen
shortage
may
occur.
Turn
off
the
power
and
breaker
firstly
when
cleansing
the
unit.
?
Since
the
fan
rotates
at
high
speed
during
operation,
it
may
cause
injury.
Turn
off
the
main
power
switch
when
not
using
it
for
a
long
time.
?
Prevent
accidental
startup
and
the
possibility
of
injury.
O
O
h
O
Unplug
the
unit
if
strange
sounds,
odors,
or
smoke
come
from
it.
?
Otherwise
it
may
cause
fire
and
electric
shock
accident.
Do
not
open
the suction
inlet
grill
of
the
product
during
operation.
?
Otherwise,
it
may
electrical
shock
and
failure.
If
water
enters
the
product,
turn
off
the the
power
switch
of
the
main
body
of
appliance.
Contact
service
center
after
taking
the
power-plug
out
from
the
socket.
O
hm
O
h
m
O
h
O
O
hm
Do
not
place
heavy
object
on
the
power
cord
and
take
care
so
that
the
cord
should
not
be
pressed.
?
There
is
danger
of
fire
or
electric
shock.
Do
not
share
the
outlet
with
other
appliances.
?
It
will
cause
electric
shock
or
fire
due
to
heat
generation.
Take
the
power
plug
out
if
necessary,
holding
the
head
of
the
plug
and
do
not
touch
it
with
wet
hands.
?
Otherwise,
it
may
cause
a
fire
or
electrical
shock.
Owner's
Manual
5
ENGLISH
Safety
Precautions
Installation
Do
not
operate
or
stop
the
unit
by
inserting
or
pulling
out
the
power
plug.
?
It
will
cause
electric
shock
or
fire
due
to
heat
generation.
Do
not
damage
or
use
an
unspecified
power
cord.
?
It
will
cause
electric
shock
or
fire.
Do
not
operate
with
wet
hands
or
in
damp
environment.
?
It
will
cause
electric
shock.
pt
T
hm
tt
Opto
hmtt
Hold
the
plug
by
the
head
when
taking
it
out.
?
It
may
cause
electric
shock
and
damage.
When
gas
leaks,
open
the
window
for
ventilation
before
operating
the
unit.
?
Otherwise,
it
may
cause
explosion,
and
a
fire.
Never
touch
the
metal
parts
of
the
unit
when
removing
the
filter.
?
They
are
sharp
and
may
cause
injury.
Op
t
Thm
tt
O
h
m
Install
the
product
so
that
the
noise
or
hot
wind
from
the
outdoor
unit
may
not
cause
any
damage
to
the
neighbors.
?
Otherwise,
it
may
cause
dispute
with
the
neighbors.
Keep
level
parallel
in
installing
the
product.
?
Otherwise,
it
may
cause
vibration
or
water
leakage.
Opat
h
e
otat
6
Room
Air
Conditioner
Safety
Precautions
Operation
O
p
ea
t
o
Th
e
tt
W
Opto
hmt
Op
t
Thm
tt
Be
cautious
not
to
touch
the
sharp
edges
when
installing.
?
It
may
cause
injury.
Avoid
excessive
cooling
and
perform
ventilation
sometimes.
?
Otherwise,
it
may
do
harm
to
your
health.
Do
not
insert
the
hands
or
bars
through
the
air
inlet
or
outlet
during
operation.
?
Otherwise,
it
may
cause
personal
injury.
Do
not
put
a
pet
or
house
plant
where
it
will
be
exposed
to
direct
air
flow.
?
It
may
cause
injury.
Do
not
block
the
inlet
or
outlet
of
air
flow.
?
It
may
cause
product
failure.
Use
a
soft
cloth
to
clean.
Do
not
use
wax,
thinner,
or
a
strong
detergent.
?
The
appearance
of
the
air
conditioner
may
deteriorate,
change
color,
or
develop
surface
flaws.
h
m
tt
Opt
T
hmt
Op
t
T
hmtt
Do
not
step
on
the
indoor/outdoor
unit
and
do
not
put
anything
on
it.
?
It
may
cause
an
injury
through
dropping
of
the
unit
or
falling
down.
Always
insert
the
filter
securely.
Clean
it
every
two
weeks.
?
Operation
without
filters
will
cause
failure.
Do
not
drink
water
drained
from
air
conditioner.
?
It
contains
containments
and
will
make
you
sick.
Opt
Thm
tt
Owner's
Manual
7
Prior
to
Operation
1.
Contact
an
installation
specialist
for
installation.
2.
Plug
in
the
power
plug
properly.
3.
Use
a
dedicated
circuit.
4.
Do
not
use
an
extension
cord.
5.
Do
not
start/stop
operation
by
plugging/unplugging
the
power
cord.
6.
If
the
cord/plug
is
damaged,
replace
it
with
only
an
authorized
replacement
part.
1.
Being
exposed
to
direct
airflow
for
an
extended
period
of
time
could
be
hazardous
to
your
health.
Do
not
expose
occupants,
pets,
or
plants
to
direct
airflow
for
extended
periods
of
time.
2.
Due
to
the
possibility
of
oxygen
deficiency,
ventilate
the
room
when
used
together
with
stoves
or
other
heating
devices.
3.
Do
not
use
this
air
conditioner
for
non-specified
special
purposes
(e.g.
preserving
precision
devices,
food,
pets,
plants,
and
art
objects).
Such
usage
could
damage
the
items.
1.
Do
not
touch
the
metal
parts
of
the
unit
when
removing
the
filter.
Injuries
can
occur
when
handling
sharp
metal
edges.
2.
Do
not
use
water
to
clean
inside
the
air
conditioner.
Exposure
to
water
can
destroy
the
insulation,
leading
to
possible
electric
shock.
3.
When
cleaning
the
unit,
first
make
sure
that
the
power
and
breaker
are
turned
off.
The
fan
rotates
at
a
very
high
speed
during
operation.
There
is
a
possibility
of
injury
if
the
unit's
power
is
accidentally
triggered
on
while
cleaning
inner
parts
of
the
unit.
For
repair
and
maintenance,
contact
your
authorized
service
dealer.
Prior
to
Operation
8
Room
Air
Conditioner
Introduction
Introduction
This
symbol
alerts
you
to
the
risk
of
electric
shock.
This
symbol
alerts
you
to
hazards
that
could
cause
harm
to
the
air
conditioner.
This
symbol
indicates
special
notes.
NOTICE
CABINET
FRONT
GRILLE
INLET
GRILLE
(Air
Intake)
AIR
FILTER
HORIZONTAL
AIR
DEFLECTOR
(Vertical
Louver)
VENT
CONTROL
VERTICAL
AIR
DEFLECTOR
(Horizontal
Louver)
AIR
DISCHARGE
SLEEVE
ASSEMBLY
(Including
Aluminum
Rear
grille)
THE
SLEEVE
AND
THE
REAR
GRILLE
(optionally
supplied
with
your
unit)
THE
UNIT
REAR
GRILLE
(Aluminum
Rear
grille)
Operation
O
Thermostat
Cooer
Wa
Symbols
Used
in
this
Manual
Features
This
appliance
should
be
installed
in
accordance
with
the
National
Electric
Code.
Owner's
Manual
9
Electrical
Safety
Electrical
Safety
115V~
230V~
Power
cord
may
include
a
current
interrupter
device.
A
test
and
reset
button
is
provided
on
the
plug
case.
The
device
should
be
tested
on
a
periodic
basis
by
first
pressing
the
TEST
button
and
then
the
RESET
button.
If
the
TEST
button
does
not
trip
or
if
the
RESET
button
will
not
stay
engaged,
discontinue
use
of
the
air
conditioner
and
contact
a
qualified
service
technician.
Use
Wall
Receptacle
Power
Supply
Standard
125V,
3-wire
grounding
receptacle
rated
15A,
125V
AC
Standard
250V,
3-wire
grounding
receptacle
rated
15A,
250V
AC
Use
15
AMP.
time
delay
fuse
or
15
AMP.
circuit
breaker.
Use
20
AMP.
time
delay
fuse
or
20
AMP.
circuit
breaker.
Standard
250V,
3-wire
grounding
receptacle
rated
20A,
250V
AC
Never
push
the
test
button
during
operation
Otherwise
this
plug
can
damaged.
This
device
contains
chemical,
including
lead,
known
to
the
State
of
California
to
cause
cancer,
and
birth
defects
or
other
reproductive
harm.
Wash
hands
after
handling.
Do
not
remove,
modify
or
immerse
this
plug.
If
this
device
trips,
the
cause
it
to
be
corrected
before
further
use.
The
conductors
inside
this
cord
are
surrounded
by
shields,
which
monitor
leakage
current.
These
shields
are
not
grounded.
<Made
in
Tower>
Periodically
examine
the
cord
for
any
damage.
Do
not
use
this
product
in
the
event
the
shields
become
exposed.
Avoid
shock
hazard,
this
unit
can
not
be
user
serviced
opening
the
tamper
resistant.
Sealed
portion
of
the
unit
voids
all
warranties
and
performance
claims.
This
unit
not
intended
for
use
as
an
on-off
switch.
The
shape
may
be
different
according
to
its
model.
DO
NOT
USE AN
EXTENSION
CORD
on
230,
208,
and
230/208
Volt
units.
All
wiring
should
be
made
in
accordance
with
local
electrical
codes
and
regulations.
Aluminum
house
wiring
may
pose
special
problems.
Consult
a
qualified
electrician.
10
Room
Air
Conditioner
Electrical
Safety
IMPORTANT
(PLEASE
READ
CAREFULLY)
FOR
THE
USER'S
PERSONAL
SAFETY,
THIS
APPLIANCE
MUST
BE
PROPERLY
GROUNDED
The
power
cord
of
this
appliance
is
equipped
with
a
three-prong
(grounding)
plug.
Use
this
with
a
standard
three-slot
(grounding)
wall
power
outlet
to
minimize
the
hazard
of
electric
shock.
The
customer
should
have
the
wall
receptacle
and
circuit
checked
by
a
qualified
electrician
to
make
sure
the
receptacle
is
properly
grounded.
DO
NOT
CUT
OR
REMOVE
THE
THIRD
(GROUND)
PRONG
FROM
THE
POWER
PLUG.
A.
SITUATIONS
WHEN
THE
APPLIANCE
WILL
BE
DISCONNECTED
OCCASIONALLY:
Because
of
potential
safety
hazards,
we
strongly
discourage
the
use
of
an
adapter
plug.
However,
if
you
wish
to
use
an
adapter,
a
TEMPORARY
CONNECTION
may
be
made.
Use
UL-listed
adapter,
available
from
most
local
hardware
stores.
The
large
slot
in
the
adapter
must
be
aligned
with
the
large
slot
in
the
receptacle
to
assure
a
proper
polarity
connection.
:
Attaching
the
adapter
ground
terminal
to
the
wall
receptacle
cover
screw
does
not
ground
the
appliance
unless
the
cover
screw
is
metal,
and
not
insulated,
and
the
wall
receptacle
is
grounded
through
the
house
wiring.
The
customer
should
have
the
circuit
checked
by
a
qualified
electrician
to
make
sure
the
receptacle
is
properly
grounded.
Disconnect
the
power
cord
from
the
adapter,
using
one
hand
on
each.
Otherwise,
the
adapter
ground
terminal
might
break.
DO
NOT
USE
the
appliance
with
a
broken
adapter
plug.
B.
SITUATIONS
WHEN
THE
APPLIANCE
WILL
BE
DISCONNECTED
OFTEN.
Do
not
use
an
adapter
plug
in
these
situations.
Unplugging
the
power
cord
frequently
can
lead
to
an
eventual
breakage
of
the
ground
terminal.
The
wall
power
outlet
should
be
replaced
by
a
three-slot
(grounding)
outlet
instead.
USE
OF
EXTENSION
CORDS
Because
of
potential
safety
hazards,
we
strongly
discourage
the
use
of
an
extension
cord.
However,
if
you
wish
to
use
an
extension
cord,
use a
CSA
certified/UL-listed
3-wire
(grounding)
extension
cord,
rated
at
15A,
125V.
Owner's
Manual
11
ENGLISH

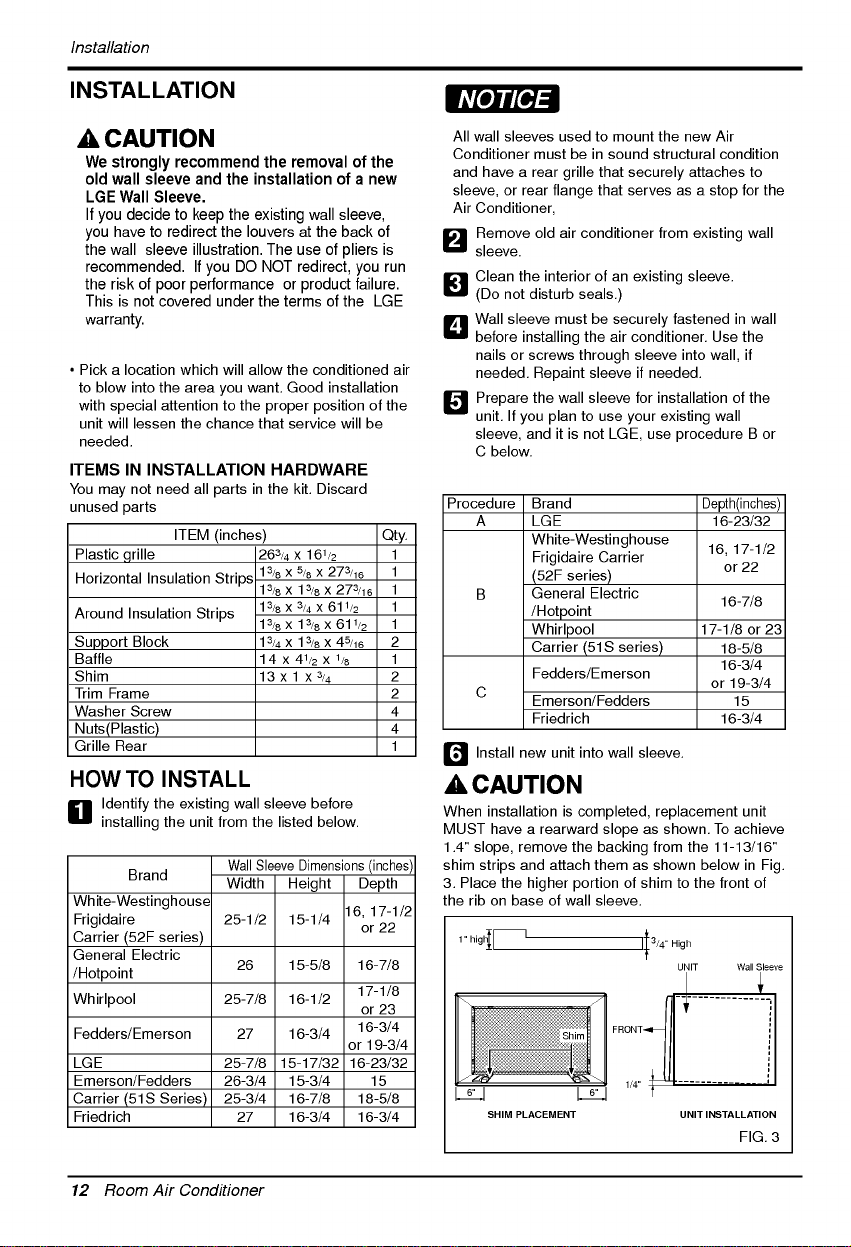

Installation
Installation
Remove
packing
sheet
from
the
back
of
the
sleeve,
and
packing
corner
and
blue
tape
from
the
air
conditioner.
INSTALLATION
REQUIREMENTS
If
you
use
an
existing
wall
sleeve,
you
should
measure
its
dimensions.
Install
the
new
air
conditioner
according
to
these
installation
instructions
to
achieve
the
best
performance.
All
wall
sleeves
used
to
mount
the
new
air
conditioner
must
be
in
good
structural
condition
and
have
a
rear
grille
to
securely
attach
the
new
air
conditioner.
(FIG.
1)
With
the
LGE
sleeve(optionally
supplied
with
your
unit),
you
can
maintain
the
best
performance
of
the
new
air
conditioner.
(FIG.
2)
ELECTRICAL
SERVICE
Check
your
available
electrical
service.
The
power
supply
available
must
be
the
same
as
that
shown
on
the
unit
nameplate
(found
on
left
side
of
cabinet).
All
models
are
equipped
with
a
3-prong
service
plug
to
provide
proper
service
and
safe
positive
grounding.
Do
not
change
plug
in
any
way.
Do
not
use
an
adapter
plug.
If
your
present
wall
outlet
does
not
match
your
plug,
call
a
qualified
electrician
to
make
the
necessary
corrections.
SAVE
CARTON
for
storage
and
this
OWNER'S
MANUAL
for
future
reference.
The
carton
is
the
best
way
to
store
unit
during
winter
or
when
not
in
use.
INSTALLATION
HARDWARE
14-13/32"
(366
mm)
24-21/32"
(626
mm)
18"(458
mm)
19-21/32"
(499
mm)
Operaton
O
hermostt
C
o
oe
r
Wr
1
4
5
6
7
3
2
8
2
Size
options
2
Size
options
9
To
avoid
risk
of
personal
injury,
property
damage,
or
product
damage
due
to
the
weight
of
this
device
and
sharp
edges
that
may
be
exposed:
?
Air
conditioners
covered
in
this
manual
pose
an
excessive
weight
hazard.
Two
or
more
people
are
needed
to
move
and
install
the
unit.
To
prevent
injury
or
strain,
use
proper
lifting
and
carrying
techniques
when
moving
unit.
?
Carefully
inspect
location
where
air
conditioner
will
be
installed.
Be
sure
it
will
support
the
weight
of
the
unit
over
an
extended
period
of
time.
?
Handle
air
conditioner
with
care.
Wear
protective
gloves
whenever
lifting
or
carrying
the
unit.
AVOID
the
sharp
metal
fins
of
front
and
rear
coils.
?
Make
sure
air
conditioner
does
not
fall
during
installation.
REQUIRED
TOOLS:
?
Tight
Fitting
gloves
?
Standard
screwdriver
?
Phillips
screwdriver
?
Pliers
?
Sharp
knife
?
3/8-inch
open
end
wrench
or
adjustable
wrench
?
1/4-inch
hex
socket
and
ratchet
?
Tape
measure
?
Electric
drill
?
1/4-inch
drill
bit
FIG.
1
Air
Conditioner
ITEM
NAME
OF
PARTS
Q'TY
1
PLASTIC GRILLE
1
2
HORIZONTAL
INSULATION
STRIPS
2
3
AROUND
INSULATION
STRIPS
2
4
SUPPORT
BLOCK
2
5
BAFFLE
1
6
TRIM
FRAME
2
7
SHIM
2
8
PLASTIC
NUTS
AND
WASHER
SCREWS
4
9
GRILLE
REAR
1
15-17/32"
(394
mm)
16-23/32"
(425
mm)
25-7/8"
(656
mm)
Expanded
aluminum
metal
grille
FIG.
2
LGE
Wall
Sleeve
12
Room
Air
Conditioner
Installation
INSTALLATION
?
Pick
a
location
which
will
allow
the
conditioned
air
to
blow
into
the
area
you
want.
Good
installation
with
special
attention
to
the
proper
position
of
the
unit
will
lessen
the
chance
that
service
will
be
needed.
ITEMS
IN
INSTALLATION
HARDWARE
You
may
not
need
all
parts
in
the
kit.
Discard
unused
parts
HOW
TO
INSTALL
Identify
the
existing
wall
sleeve
before
installing
the
unit
from
the
listed
below.
All
wall
sleeves
used
to
mount
the
new
Air
Conditioner
must
be
in
sound
structural
condition
and
have
a
rear
grille
that
securely
attaches
to
sleeve,
or
rear
flange
that
serves
as
a
stop
for
the
Air
Conditioner,
Remove
old
air
conditioner
from
existing
wall
sleeve.
Clean
the
interior
of
an
existing
sleeve.
(Do
not
disturb
seals.)
Wall
sleeve
must
be
securely
fastened
in
wall
before
installing
the
air
conditioner.
Use
the
nails
or
screws
through
sleeve
into
wall,
if
needed.
Repaint
sleeve
if
needed.
Prepare
the
wall
sleeve
for
installation
of
the
unit.
If
you
plan
to
use
your
existing
wall
sleeve,
and
it
is
not
LGE,
use
procedure
B
or
C
below.
Install
new
unit into
wall
sleeve.
When
installation
is
completed,
replacement
unit
MUST
have
a
rearward
slope
as
shown.
To
achieve
1.4"
slope,
remove
the
backing
from
the
11-13/16"
shim
strips
and
attach
them
as
shown
below
in
Fig.
3.
Place
the
higher
portion
of
shim
to
the
front of
the
rib
on
base
of
wall
sleeve.
1/4"
Wall
Sleeve
FRONT
UNIT
SHIM
PLACEMENT
UNIT
INSTALLATION
1"
high
3/4"
High
Shim
6"
6"
FIG.
3
We
strongly
recommend
the
removal
of
the
old
wall
sleeve
and
the
installation
of
a
new
LGE
Wall
Sleeve.
If
you
decide
to
keep
the
existing
wall
sleeve,
you
have
to
redirect
the
louvers
at
the
back
of
the
wall
sleeve
illustration.
The
use
of
pliers
is
recommended.
If
you
DO
NOT
redirect,
you
run
the
risk
of
poor
performance
or
product
failure.
This
is
not
covered
under
the
terms
of
the
LGE
warranty.
ITEM
(inches)
Qty.
Plastic
grille
263/4
x
161/2
1
Horizontal
Insulation
Strips
13/8
x
5/8
x
273/16
1
13/8
x
13/8
x
273/16
1
Around
Insulation
Strips
13/8
x
3/4
x
611/2
1
13/8
x
13/8
x
611/2
1
Support
Block
13/4
x
13/8
x
45/16
2
Baffle
14x41/2x1/8
1
Shim
13x1x3/4
2
Trim
Frame
2
Washer
Screw
4
Nuts(Plastic)
4
Grille
Rear
1
Wall
Sleeve
Dimensions
(inches)
Brand
Width
Height
Depth
White-Westinghouse
25-1/2
15-1/4
16,
17-1/2
Frigidaire
or
22
Carrier
(52F
series)
General
Electric
26
15-5/8 16-7/8
/Hotpoint
Whirlpool
25-7/8
16-1/2
17-1/8
or
23
Fedders/Emerson
27
16-3/4
16-3/4
or
19-3/4
LGE
25-7/8
15-17/32
16-23/32
Emerson/Fedders
26-3/4
15-3/4
15
Carrier
(51S
Series)
25-3/4
16-7/8 18-5/8
Friedrich
27
16-3/4 16-3/4
Procedure
Brand
Depth(inches)
A
LGE
16-23/32
White-Westinghouse
Frigidaire
Carrier
16,
17-1/2
(52F
series)
or
22
B
General
Electric
16-7/8
/Hotpoint
Whirlpool
17-1/8
or
23
Carrier
(51S
series)
18-5/8
Fedders/Emerson
16-3/4
or
19-3/4
C
Emerson/Fedders
15
Friedrich
16-3/4
Owner's
Manual
13
Installation
PROCEDURE
A
If
you
are
using
the
new
sleeve
(optionally
supplied
with
your
unit),skip
to
step
3.
Otherwise,
install
the
plastic
grille
from
the
kit.
Cut
the
plastic
grille
to
25-1/2"
wide
and
15-
1/4"
high.
Place
the
plastic
grille
to
the
inside
of
the
wall
sleeve
at
the
rear
flange.
Fasten
the
4
washer
screws
to
secure
the
grille
to
the
wall
sleeve.
If
you
need
plastic
nuts
to
mount
plastic
grille
to
the
inside
of
the
wall
sleeve,
there
are
plastic
nuts
in
the
installation
kit.
The
nuts
are
installed
from
the
inside
of
the
sleeve
and
are
pressed
into
the
square
holes
of
the
rear
flanges.
Remove
the
backing
from
the
Horizontal
Insulation
strip
13/8
x
3/8
x
273/16
and
attach
that
to
the
inside
bottom
of
the
sleeve
as
shown
below.
Remove
the
backing
from
the
Around
Insulation
strip
13/8
x
3/4
x
611/2
and
attach
that
to
the
inside
front
of
the
sleeve
as
shown
below.
Remove
the
metal
rear
grille
and
replace
it
with
the
plastic
rear
grille
to
improve
unit
energy
efficiency.
The
plastic
grille
reduces
the
amount
of
hot
air
discharge
that recirculates
through
the
unit.
Install
the
new
unit
into
the
wall
sleeve.
To
assemble
trim,
snap
the tab
of
each
piece
into
the
slot
of
the other
piece
as
shown
below.
Slide
trim
over
the
front
of
the
air
conditioner
until
trim
is
flush
with
sleeve
as
shown
below.
FIG.
4
Around
Insulation
Horizontal
Insulation
FIG.
6
or
FIG.
5
Wall
Trim
(2
ea)
Opeaton
O
Thermosat
Steel
rear
grille
Plastic
rear
grille
Op
e
ra
t
ionO
Thermost
a
t
Cl
Wm
FIG.
8
?
Air
conditioners
covered
in
this
manual
pose
an
excessive
weight
hazard.
Two
or
more
people
are
needed
to
move
and
install
the
unit.
To
prevent
injury
or
strain,
use
proper
lifting
and
carrying
techniques
when
moving
unit.
?
When
handling
the
air
conditioner,
be
careful
to
avoid
cuts
from
sharp
metal
fins
on
front
and
rear
coils.
?
Make
sure
air
conditioner
does
not
fall
during
removal.
FIG.
7
14
Room
Air
Conditioner
Installation
PROCEDURE
B
Redirect the
louvers
at
the
back
of
the
wall
sleeve
to 60°
angle
as
shown
in
the
FIG
9.
The
use
of
pliers
is
recommended.
If
the
wall
sleeve
already
has
a
rear
grille,
skip
to
step
4.
If
the
wall
sleeve
does
not
have
a
rear
grille
or
louvered
panel,
install
the
plastic
grille
from
the
kit.
Cut
the
plastic
grille
to
25-
1/2"
wide
and
15-1/4"
high.
Place
the
plastic
grille
to
the
inside
of
the
wall
sleeve
at
the
rear
flange.
Fasten
the
4
washer
screws
to
secure
the
grille
to
the
wall
sleeve.
If
you
need
plastic
nuts
to
mount
plastic
grille
to
the
inside
of
the
wall
sleeve,
there
are
plastic
nuts
in
the
installation
kit.
The
nuts
are
installed
from
the
inside
of
the
sleeve
and
are
pressed
into
the
square
holes
of
the
rear
flanges.
Remove
the
backing
from
the
Horizontal
Insulation
strip
13/8
x
5/8
x
273/16
and
attach
that
to
the
inside
bottom
of
the
sleeve
as
shown
below.
Remove
the
backing
from
the
Around
Insulation
strip
13/8
x
3/4
x
611/2
and
attach
that
to
the
inside
front of
the
sleeve
as
shown
below.
Remove
the
metal
rear
grille
and
replace
it
with
the
plastic
rear
grille
to
improve
unit
energy
efficiency.
The
plastic
grille
reduces
the
amount
of
hot
air
discharge
that recirculates
through
the
unit.
If
the
depth
of
your
existing
wall
sleeve
is
less
than
or
equal
to
18",
skip
to
step
7.
Otherwise,
cut
the
baffles
and
the
support
blocks
according
to
length
"A"
in
the
table
below.
1
4
2
3
FIG.
10
Around
Insulation
Horizontal
Insulation
FIG.
12
or
FIG.
11
Rear
Louvers
(Top
View)
60°
60°
7
5/16"
FIG.
9
Depth"D"
of
the
existing
wall
sleeve
(inches)
Length
"A"
(inches)
Support
Block
Baffle
A
A
3/4
1-3/4
4
18
D
18-5/8
18-5/8
D
19-3/4
19-3/4
D
22
5
6
Place
the
plastic
grille
Fasten
the
screws
FIG.
14
Steel
rear
grille
Plastic
rear
grille
Opra
i
onO
Th
e
rmosat
Cl
W
FIG.
13
Owner's
Manual
15
ENGLISH
Installation
Wall
Wall
Sleeve
Baffle
(7
5/16")
Front
Support
Block
FIG.
15
PROCEDURE
B
Remove
the
backing
from
the
support
blocks
and
attach
them
to
the
inside
of
the
wall
sleeve
as
shown
FIG
15.
Slide
the
baffle
into
slots
of
the
support
blocks.
Install
the
new
unit
into
the
wall
sleeve.
To
assemble
trim,
snap
the tab
of
each
piece
into
the
slot
of
the
other
piece
as
shown
below.
Slide
trim
over
the
front
of
the
air
conditioner
until
trim
is
flush
with
sleeve
as
shown
below.
7
9
8
Wall
Trim
(2
ea)
Op
e
raion
O
Themo
s
tat
FIG.
16
?
Air
conditioners
covered
in
this
manual
pose
an
excessive
weight
hazard.
Two
or
more
people
are
needed
to
move
and
install
the
unit.
To
prevent
injury
or
strain,
use
proper
lifting
and
carrying
techniques
when
moving
unit.
?
When
handling
the
air
conditioner,
be
careful
to
avoid
cuts
from
sharp
metal
fins
on
front
and
rear
coils.
?
Make
sure
air
conditioner
does
not
fall
during
removal.
16
Room
Air
Conditioner
Installation
PROCEDURE
C
Redirect the
louvers
at
the
back
of
the
wall
sleeve
to 60°
angle
as
shown
in
the
FIG
17.
The
use
of
pliers
is
recommended.
If
the
wall
sleeve
already
has
a
rear
grille,
skip
to
step
4.
If
the
wall
sleeve
does
not
have
a
rear
grille
or
louvered
panel,
install
the
plastic
grille
from
the
kit.
Cut
the
plastic
grille
to
26-
1/2"
wide
and
15-1/2"
high.
Place
the
plastic
grille
to
the
inside
of
the
wall
sleeve
at
the
rear
flange.
Fasten
the
4
washer
screws
to
secure
the
grille
to
the
wall
sleeve.
If
you
need
plastic
nuts
to
mount
plastic
grille
to
the
inside
of
the
wall
sleeve,
there
are
plastic
nuts
in
the
installation
kit.
The
nuts
are
installed
from
the
inside
of
the
sleeve
and
are
pressed
into
the
square
holes
of
the
rear
flanges.
Remove
the
backing
from
the
Horizontal
Insulation
strip
13/8
x
13/8
x
273/16
and
attach
that
to
the
inside
bottom
of
the
sleeve
as
shown
below.
Remove
the
backing
from
the
Around
Insulation
strip
13/8
x
13/8
x
611/2
and
attach
that
to
the
inside
front
of
the
sleeve
as
shown
below.
If
the
depth
of
your
existing
sleeve
is
less
than
or
equal
to
18",
skip
to
step
7.
Otherwise,
cut
the
baffles
and
the
support
blocks
according
to
Length
"A"
in
the
table
below.
Remove
the
backing
from
the
support
blocks
and
attach
them
to
the
inside
of
the
wall
sleeve
as
shown
FIG
22.
Slide
the
baffle
into
slots
of
the
support
blocks
Depth"D"
of
the
existing
wall
sleeve
(inches)
Length
"A"
(inches)
Support
Block
Baffle
A
A
3/4
1-3/4
4
18
D
18-5/8
18-5/8
D
19-3/4
19-3/4
D
22
Wall
Wall
Sleeve
Baffle
Front
Support
Block
(7
13/16")
FIG.
22
FIG.
21
1
4
2
3
FIG.
18
Around
Insulation
Horizontal
Insulation
FIG.
20
or
FIG.
19
Rear
Louvers
(Top
View)
60°
7
13/16"
60°
FIG.
17
5
6
Place
the
plastic
grille
Fasten
the
screws
Installation
Owner's
Manual
17
PROCEDURE
C
Remove
the
backing
from
the
13"
shim
strips
and
attach
them
as
shown
below
in
Fig.
24.
The
higher
portion
of
shim
is
to
be
placed
in
front
of
the
rib
on
the
base
of
wall
sleeve.
Remove
the
metal
rear
grille
and
replace
it
with
the
plastic
rear
grille
to
improve
unit
energy
efficiency.
The
plastic
grille
reduces
the
amount
of
hot
air
discharge
that recirculates
through
the
unit.
Install
the
new
unit
into
the
wall
sleeve
To
assemble
trim,
snap
the tab
of
each
piece
into
the
slot
of
the other
piece
as
shown
below.
Slide
trim
over
the
front
of
the
air
conditioner
until
trim
is
flush
with
sleeve
as
shown
below.
?
Air
conditioners
covered
in
this
manual
pose
an
excessive
weight
hazard.
Two
or
more
people
are
needed
to
move
and
install
the
unit.
To
prevent
injury
or
strain,
use
proper
lifting
and
carrying
techniques
when
moving
unit.
?
When
handling
the
air
conditioner,
be
careful
to
avoid
cuts
from
sharp
metal
fins
on
front
and
rear
coils.
?
Make
sure
air
conditioner
does
not
fall
during
removal.
Wall
Trim
(2
ea)
Ope
r
ati
on
O
Thermosat
FIG.
26
FIG.
23
1"
high
3/4"
High
Shim
(2EA)
6"
6"
FIG.
24
Steel
rear
grille
Plastic
rear
grille
Oera
t
onO
Thrmosat
C
l
W
FIG.
25
?
THE
AIR
CONDITIONER
This
automatically
controls
the
temperature
of
the
indoor
air.
The
compressor
will
turn
on
and
off
to
keep
the
room
at
the
setting
temperature.
In
the
heating
operation,
the
electric
heater
will
turn
on
and
off
to
keep
the
room
at
the
setting
temperature.
?
HEAT
PUMP
MODELS
When
the
outdoor
temperature
is
lower
than
-4°C
(24°F),
the
electric
heater
will
turn
on
instead
of
the
heat
pump.
18
Room
Air
Conditioner
Operating
Instructions
Operating
Instructions
Operation
O
Thermostat
Cooler
Warmer
When
the
air
conditioner
has
been
performed
its
cooling
or
heating operation
and
is
turned
off
or
set
to
the
fan
position,
wait
at
least
3
minutes
before
resetting
to
the
cooling
operation
again.
A
slight
heat
odor
may
come
from
the
unit
when
first
switching
to
HEAT
after
the
cooling
season
is
over.
This
odor,
caused
by
fine
dust
particles
on
the
heater,
will
disappear
quickly.
This
is
harmless.
The
controls
will
look
like
one
of
the
following:
Off
( )
:Turns
the
air
conditioner
off.
Fan
( )
:
The
low
fan
speed
operation
without
cooling
(heating).
Low
Cool
( )
:
Cooling
with
the
low
speed
fan
operation.
High
Cool
( )
:
Cooling
with
the
high
speed
fan
operation.
Low
Heat
( )
:
Heating
with
the
low
speed
fan
operation.
High
Heat
( )
:
Heating
with
the
high
speed
fan
operation.
Turn
the
thermostat
control
to
the
desired
setting.
The
central
position
is
a
normal
setting
for
average
conditions.
You
can
change
this
setting,
if
necessary,
in
accordance
with
your
temperature
preference.
The
thermostat
automatically
controls
cooling
or
heating,
but
the
fan
runs
continuously
whenever
the
air
conditioner
is
in
operation.
If
the
room
is
too
warm,
turn
the
thermostat
control
clockwise.
If
the
room
is
too
cool,
turn
the
thermostat
control
counterclockwise.
o
Owner's
Manual
19
Operating
Instructions
Additional
controls
and
important
information.
Push
the
lever
to
the
"CLOSE"
position
to
cool,
heat
or
recirculate
room
air
only.
Pull
the
lever
to
the
"OPEN"
position
to
exhaust
smoke
or
stale
air
from
the
room.
This
feature
is
best
used
in
conjunction
with
the
FAN
ONLY
position.
The
direction
of
air
can
be
controlled
by
adjusting
the
horizontal
and
vertical
louvers.
?
HORIZONTAL
AIR-DIRECTION
CONTROL
The
horizontal
air
direction
is
adjusted
by
moving
the
vertical
louver.
The
lever
for
the
vertical
louver
is
located
in
the
right
and
left
side
of
the
air
discharge.
?
VERTICAL
AIR-DIRECTION
CONTROL
The
vertical
air
direction
is
adjusted
by
moving
the
horizontal
louver.
Ope
Thermostat
Cooler
Warm
Operat
O
Thermostat
Cooler
Warm
PULL
OPEN
/
PUSH
CLOSE
Operaton
O
Thrmos
t
at
C
o
oe
r
Wa
Ope
r
aton
O
Thrmos
t
at
C
o
oe
r
Wa
Opea
tion
O
Thermostat
C
o
oer
Wam
O
p
erain
O
Thr
ost
a
t
er
War
mr
Opeaton
Themosa
t
lr
W
ame
Oper
tion
O
Thermost
t
oler
Wamer
20
Room
Air
Conditioner
Maintenance
and
Service
Maintenance
and
Service
TURN
THE
AIR
CONDITIONER
OFF
AND
REMOVE
THE
PLUG
FROM
THE
POWER
OUTLET.
The
air
filter
should
be
checked
at
least
twice
a
month
to
see
if
cleaning
is
necessary.
Trapped
particles
in
the
filter
will
build
up
and
block
the
airflow.
This
reduces
the
cooling
capacity
and
also
causes
an
accumulation
of
frost
on
the
cooling
coils.
If
the
filter
becomes
worn
or
damaged
you
should
replace
immediately.
Replacement
filters
are
available
from
your
salesperson,
dealer,
and
the
authorized
customer
service
centers.
1.
Open
the
inlet
grille
downward
by
pulling
out
the
top
of
the
inlet
grille.
2.
Remove
the
air
filter
from
the
front
grille
assembly
by
pulling
the
air
filter
up
slightly.
3.
Wash
the
filter
using
lukewarm
water
below
40°C
(104°F).
4.
Gently
shake
the
excess
water
from
the
filter
completely.
Replace
the
filter.
1.
Pull
down
front
grille
from
the
cabinet
top.
2.
Push
front
grille's
tips
toward
the
cabinet
in
order
to
insert
front
grille's
tabs
into
the
cabinet.
3.
Open
the
inlet
grille.
4.
Tighten
the
screw
through
the
front
grille
into
the
plate
of
control
box.
5.
Close
inlet
grille.
The
front
grille
can
be
removed
for
cleaning
or
to
check
the
model and
serial
numbers.
For
your
safety,
you
should
attach
the
front
grille
as
the
following
procedures.
