Parts Included
Materials Needed (Field Supplied Parts)
Installation Instructions
for your new
Before you begin - Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner’s Manual for future reference.
RAVWPT8
RAVWPT14
Wall Plenum
95303004 31-30817 11-16 GEA
GE is a trademark of the General Electric Company. Manufactured under trademark license.
Installation
Overview
Properly sized header
is required for structural
support. Proper caulking
and flashing is required.
Properly square
and level plenum.
Grille
Kit RAVAL2
(not included)
Exterior/
Outside Wall
Part B
Inside
Wall Plenum
Unit
RAVWPT8 – 5 1/2”- 8” D x 24 1/8” W x 30 3/8” H
RAVWPT14 – 8” - 14” D x 24 1/8” W x 30 3/8” H
NOTE: The plenum has
a wax cardboard weather
cover. Do not remove this
cover until ready to install
the grille (Kit # RAVAL2).
Inside
Plenum
Outside
Plenum
45° Drip Ledge
There are two parts to a Wall Plenum:
Part A - Outside Plenum
Installed so grille attachment flanges are on the outside of the building and 45°
drip ledge is at the bottom
Part B - Inside Plenum
Installed so the large opening on bottom and the 3/4” flanges are against the
inside wall of the building.
YOUR WALL PLENUM WILL ONLY WORK IF INSTALLED CORRECTLY. MAKE SURE
TO INSTALL IT IN THE CORRECT ORIENTATION AS SHOWN IN THE ILLUSTRATIONS.

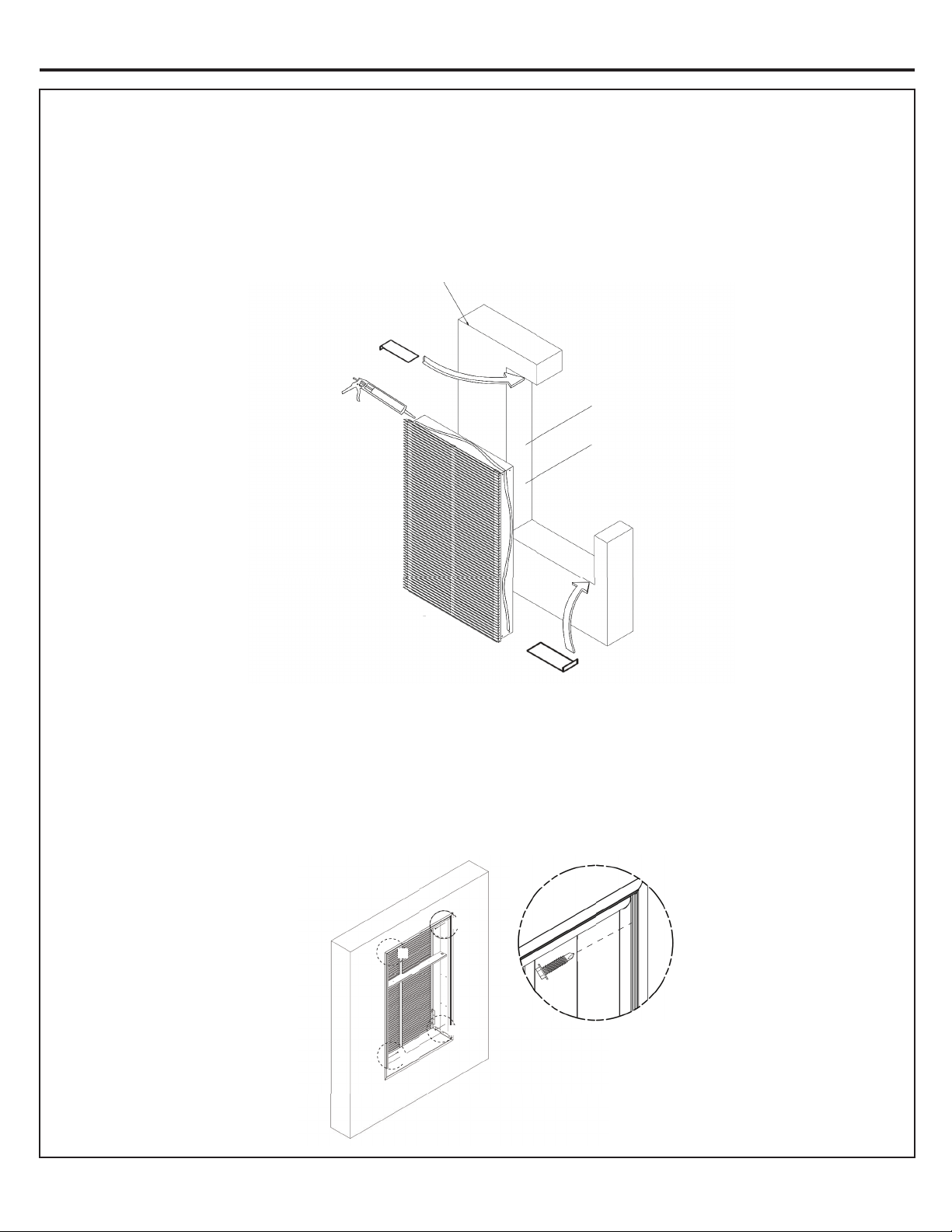

Select the proper plenum kit based on the wall thickness: RAVWPT8 adjusts for walls 5.5-8.0” thick or
RAVWPT14 adjusts for walls 8-14.0” thick. For ease of installation, Grille Kit RAVAL2 should be installed at time
of Wall Plenum Installation.
Part A
Outside
Wall Plenum
A
B
• Silicone Caulk (recommended)
• Flashing
• Shims
• Header Material/Wall Studs
• 1” - 3” Screws to attach the plenum assembly to the wall studs.
• Grille Kit RAVAL2 (sold separately)
Large
Opening
