TABLE OF CONTENTS
3 IMPORTANT PRECAUTIONS
3 Electrical Power Related Precautions
4 Precautions in installing the Product
4 Precautions in Moving the Product
5 Precautions in Using/Cleaning the
Product
5 On Disposal (Only, Hg lamp used LCD
Monitor)
6 LICENSES
7 ASSEMBLY AND PREPARATION
8 Optional Accessories
10 Parts and Buttons
10 Assembling the Memory Cover
11 Connecting the Stand

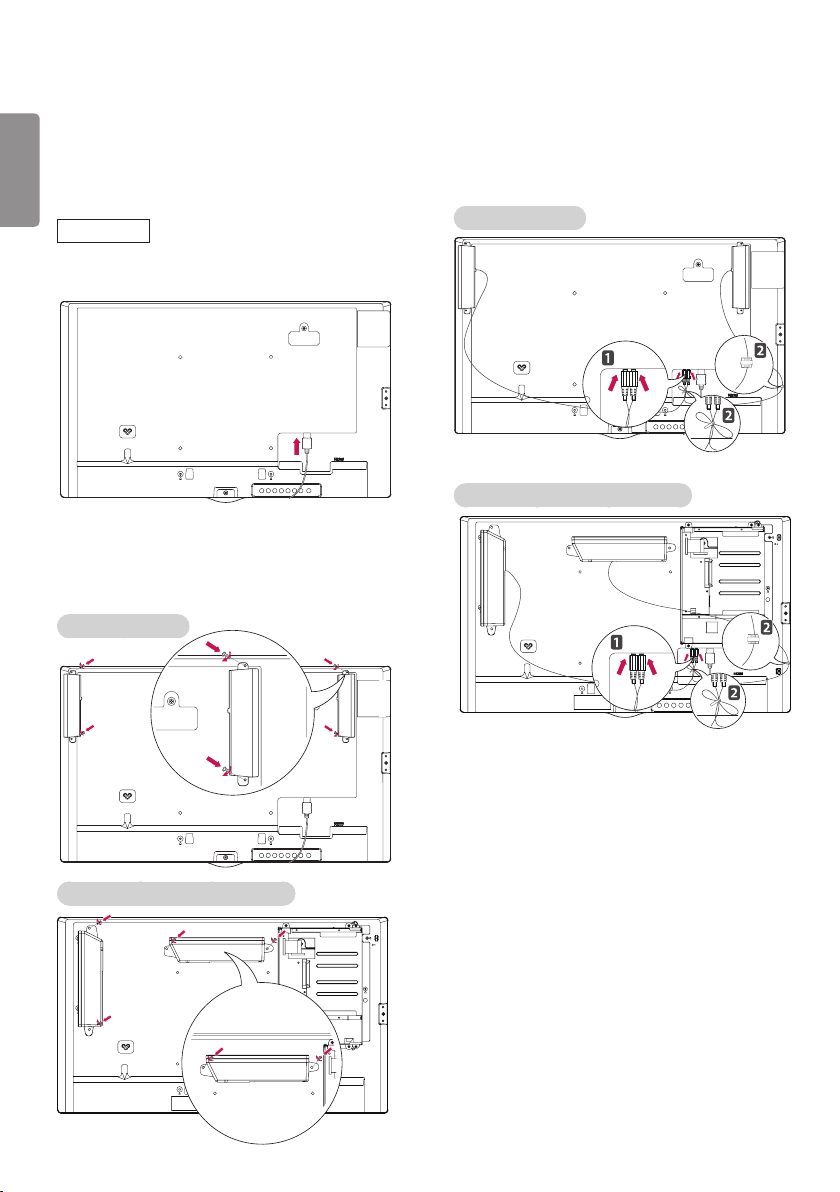

12 Connecting the Speakers
14 Connecting the IR Sensor

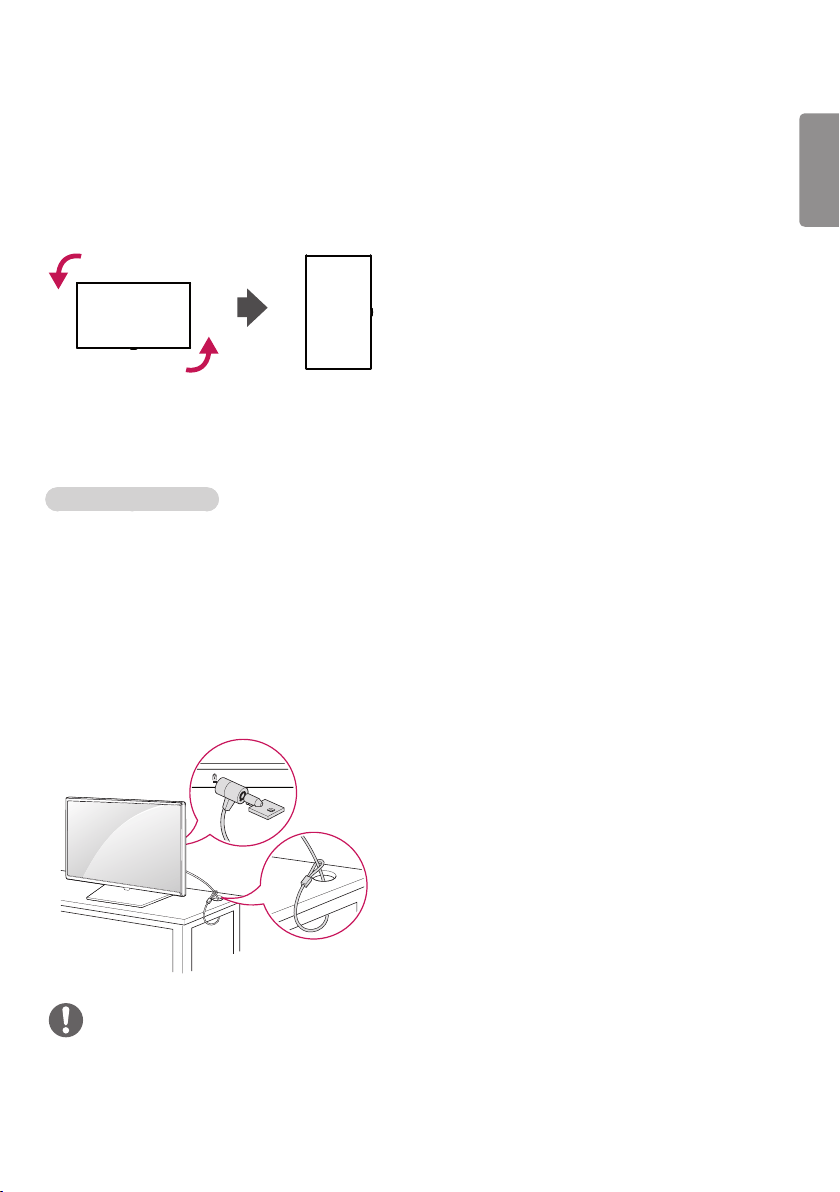

15 Portrait Layout
16 Attaching and removing the LG Logo
Bracket
17 Installing on a Wall

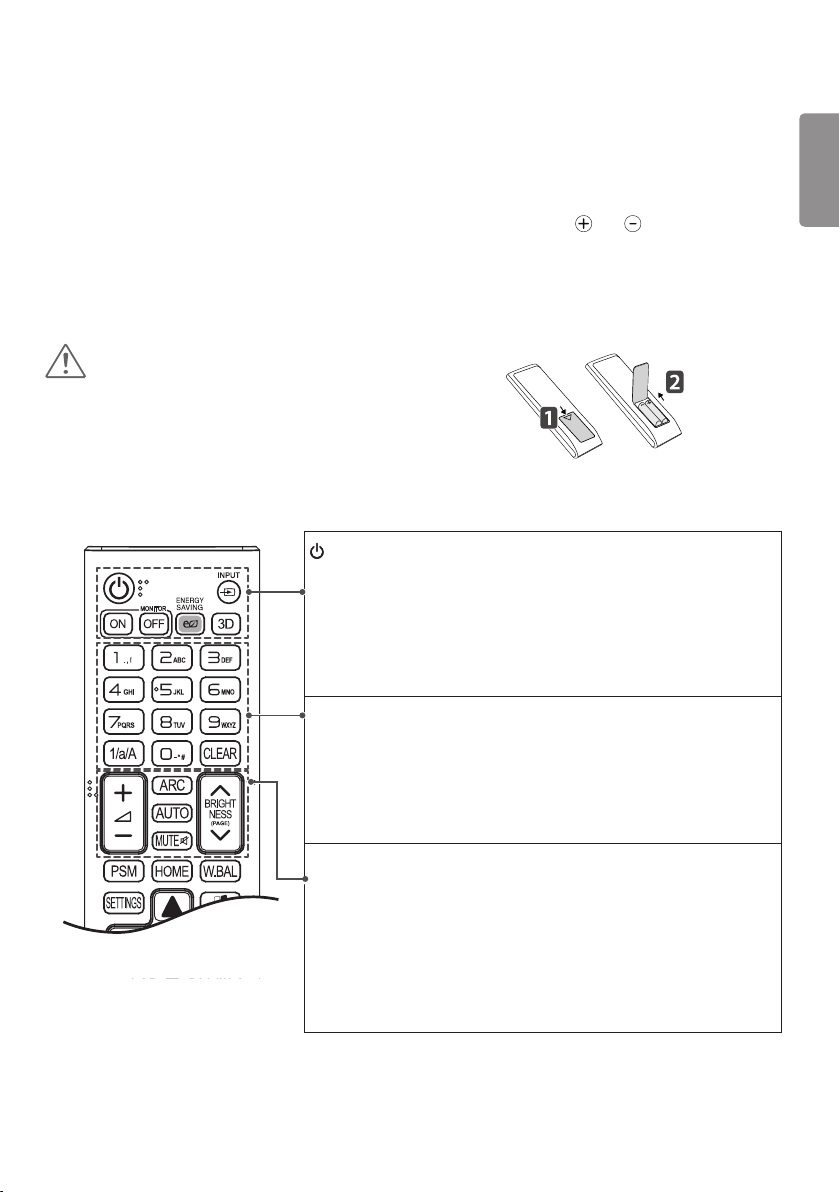

19 REMOTE CONTROL
21 MAKING CONNECTIONS
21 Connecting to a PC
21 External Device Connection
22 Using the Input List
23 TROUBLESHOOTING
26 PRODUCT SPECIFICATIONS
3
ENGLISH
Important Precautions
Please read these safety precautions carefully before using the
product.
WARNING
• Indoor Use Only.
WARNING
Failure to follow those warnings may result in death, serious
injury or damage to the product or other property.
Electrical Power Related Precautions
• Use only the power cord supplied with the unit or another
manufacturer's authorized cord.
► Failure to do so may result in fire or electrical shock or damage to
the product.
• Use only a properly grounded plug and receptacle.
► If you do not you may be electrocuted or injured. Or the product
might be damaged.
• Do not use a damaged or loose plug.
► This may cause electrical shock or fire.
• Operate the display only from a power source(i.e. voltage)
indicated in the product specification.
► Otherwise the product can be damaged, fire can occur or you may be
electrocuted. If you are not sure what type of power supply you have,
consult a certified electrician.
• In the presence of thunder and lightning, never touch the power
cord and signal cable because it can be very dangerous.
► It can cause electric shock.
• Do not connect several extension cords, electrical appliances
or electrical heaters to a single outlet. Use a power bar with a
grounding terminal designed for exclusive use with the computer.
► A fire can break out due to overheating
.
• Do not touch the power plug with wet hands. Additionally, if
the cord pin is wet or covered with dust, dry the power plug
completely or wipe dust off before plugging in the cord.
► You may be electrocuted due to excess moisture.
• If you don’t intend to use the product for a long time, unplug the
power cable from the product.
► Covering dust can cause a fire, or insulation deterioration can cause
electric leakage, electric shock or fire.
• Insert the power plug firm so it cannot come loose.
► A loose connection can cause fire.
• Hold the plug when pulling out the power cable. Do not pull the
plug out by the wire. Do not bend the power cord with excessive
force or put heavy objects on the power cord.
► The power line can be damaged, which may cause electric shock
or fire.
WARNING
• Do not insert metal or other conductive materials into the product
openings. Additionally, do not touch the power cable right after
plugging into the wall input terminal.
► You may be electrocuted.
• The appliance coupler is used as the disconnect device.
• Please make sure the device is installed near the wall outlet to
which it is connected and that the outlet is easily accessible.
• Do not unplug the power cord while the product is in use.
► Electrical shock can damage the product
.
• As long as this unit is connected to the AC wall outlet, it is not
disconnected from the AC power source even if the unit is turned
off.
4
ENGLISH
Precautions in installing the Product
• Keep away from heat sources like eaters or open flames.
► Electrical shock, fire, malfunction or deformation may occur.
• Keep the packing anti-moisture material or vinyl packing out of
the reach of children.
► Anti-moisture material is harmful if swallowed. If swallowed by
mistake, force the patient to vomit and visit the nearest hospital.
Additionally, vinyl packing can cause suffocation. Keep it out of the
reach of children.
• Do not put heavy objects on the product on sit upon it.
► If the product collapses or is dropped, you may be injured. Children
must pay particular attention.
• Do not leave the power or signal cable where someone can trip
over it.
► The passerby can falter, which can cause electrical shock, fire, product
breakdown or injury.
• Install the product in a neat and dry place. Do not use near water.
► Dust or moisture can cause electrical shock, fire or product damage.
• Do not add accessories that have not been designed for this
display.
• If you smell smoke or other odors or hear a strange sound from the
product unplug the power cord and contact LG Customer Service.
► If you continue to use without taking proper measures, electrical
shock or fire can occur.
• If you dropped the product or the case is broken, turn off the
product and unplug the power cord.
► If you continue to use without taking proper measures, electrical
shock or fire can occur. Contact LG Customer Service.
• Do not drop an object on or apply impact to the product. Do not
throw any toys or objects at the product.
► It can cause injury to humans, problems to the product and damage
the display.
• Keep out of reach of children and do not place toys near the
product.
• Make sure the product ventilation hole is not blocked. Install the
product more than 100 mm (3.9 inches) from the wall.
► If you install the product too close to the wall, it may be deformed or
fire can break out due to internal heat build-up.
• Do not cover the product with cloth or other material (eg. plastic)
while plugged in.
► The product can be deformed or fire can break out due to internal
overheating.
• Place the product on a flat and stable surface that is large enough
to support the product.
► If the product is dropped, you may be injured or the product may
be broken.
• Install the product where no Electromagnetic Interference occurs.
• Keep the product away from direct sunlight.
► The product can be damaged.
Precautions in Moving the Product
• Make sure to turn off the product.
► You may be electrocuted or the product can be damaged.
• Make sure to remove all cables before moving the product.
► You may be electrocuted or the product can be damaged.
• When lifting or moving the product, do not hold it upside down
while holding only the stand.
► This may cause the product to fall resulting in damage or injury.
• Do not shock the product when moving it.
► You may be electrocuted or the product can be damaged.
• Make sure the panel faces forward and hold it with both hands
to move.
► If you drop the product, the damaged product can cause electric
shock or fire.
• Do not place the product face down.
► This may damage the TFT-LCD screen.
WARNING
WARNING
• Do not place the product on the floor.
► Small Children and others may trip over it.
• Do not install this product on a wall if it could be exposed to oil
or oil mist.
► This may damage the product and cause it to fall.
• For displays with glossy bezels the user should consider the
placement of the display as the bezel may cause disturbing
reflections from surrounding light and bright surfaces.
5
ENGLISH
WARNING
Precautions in Using/Cleaning the
Product
• Do not attempt to disassemble, repair or modify the product
yourself.
► Fire or electric shock can occur.
► Contact LG Customer Service for repair.
• When cleaning the product, unplug the power cord and scrub
gently with a soft cloth to prevent scratching. Do not clean with a
wet cloth or spray water or other liquids directly onto the product.
An electric shock may occur. (Do not use chemicals such as
benzene, paint thinners or alcohol)
• Keep the product away from water.
► Fire or electric shock accident can occur.
• Avoid high temperatures and humidity.
• Do not put or store flammable substances near the product.
► There is a danger of explosion or fire.
• Keep the product clean at all times.
• Take a comfortable and natural position when working with the
product.
• Take a regular break when working with the product for a long
time.
• Do not press on the panel with a hand or sharp object such as nail,
pencil or pen, or make a scratch on it.
• Keep proper distance from the product and rest from time-to-time.
► Your vision may be impaired if you look at the product too closely
or for too long.
• Set the appropriate resolution by referring to the User’s Guide.
• Keep small accessories out of the reach of children.
• Displaying a still image for long time on the monitor may leave
persistent image or stain on the monitor screen. To avoid this
problem, use a screen saver and power off when this product is not
used. Persistent image or stain caused by long time usage are not
covered by the warranty on this product.
• Do not use products using high voltage around the Monitor. (ex.
Electrical Swatter)
► Monitor may have malfunction as its electrical shock.
• Spray water onto a soft cloth 2 to 4 times, and use it to clean the
front frame;wipe in one direction only. Too much moisture may
cause staining.
On Disposal (Only, Hg lamp used LCD
Monitor)
• The fluorescent lamp used in this product contains a small amount
of mercury.
• Do not dispose of this product with general household waste.
• Disposal of this product must be carried out in accordance to the
regulations of your local authority.
6
ENGLISH
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI
Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
This DivX Certified® device has passed rigorous testing to ensure it plays DivX®
video. To play purchased DivX movies, first register your device at vod.divx.com.
Find your registration code in the DivX VOD section of your device setup menu.
DivX Certified® to play DivX® video up to HD 1080p,including premium content.
DivX®, DivX Certified® and associated logos are trademarks of DivX, LLC and are
used under license.
Covered by DivX Patents 7,295,673; 7,515,710; RE45,052; and others available at
[www.divx.com/patents]
Manufactured under license from Dolby Laboratories. Dolby and the double-D
symbol are trademarks of Dolby Laboratories.
• The warranty will not cover any damage caused by using the product in an excessively dusty environment.
NOTE
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS
Licensing Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol
together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.
7
ENGLISH
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
ASSEMBLY AND PREPARATION
• Always use genuine components to ensure safety and product performance.
• The product warranty will not cover damage or injury caused by the use of counterfeit components.
CAUTION
• The accessories provided with your product may vary depending on the model or region.
• Product specifications or contents in this manual may be changed without prior notice due to upgrade of
product functions.
• SuperSign Software & Manual
- Download from the LG Electronics website.
- Visit the LG Electronics website (http://partner.lge.com) and download the latest software for your model.
NOTE
8
ENGLISH
Optional Accessories
Without prior notice, optional accessories are subject to change to improve the performance of the product,
and new accessories may be added. The illustrations in this manual may differ from the actual product and
accessories.
Stand kit
Speaker kit
Screws
Diameter 4.0 mm x Pitch 0.7 mm
(Diameter 0.1 inches x Pitch 0.02 inches)
Screws
Diameter 4.0 mm x Pitch 0.7 mm x
Length 8 mm (Diameter 0.1 inches x
Pitch 0.02 inches x Length 0.3 inches)
(including spring washer)
Screws
Diameter 4.0 mm x Pitch 1.6 mm x
Length 10 mm (Diameter 0.1 inches x
Pitch 0.06 inches x Length 0.3 inches)
Speakers
SP-5000
Stand
ST-322T 32SM5*
ST-432T 43SM5*/43SM3B
ST-492T
49SM5*/55SM5*
49SM3B/55SM3B
ST-652T 65SM5*
Model
Length
(including
spring washer)
Quantity
32SM5*
10 mm
(0.3 inches)
6 EA
43SM5*
43SM3B
14 mm
(0.5 inches)
8 EA
49SM5*
49SM3B
14 mm
(0.5 inches)
8 EA
55SM5*
55SM3B
14 mm
(0.5 inches)
8 EA
65SM5*
16 mm
(0.6 inches)
8 EA
Stand
Spacers
32SM5* -
43SM5*
43SM3B
2 EA
49SM5*
49SM3B
55SM5*
55SM3B
65SM5*
Cable holder/
Cable Tie
(Only for **SM5B, **SM3B model)
9
ENGLISH
Pixel sensor kit
KT-SP0
• Cable holder/cable tie may not be available in some areas or for some models.
• Optional accessories are available for some models. If necessary, please purchase them separately.
• Pixel sensor is sold separately. You can obtain additional accessories from your local retail store.
• Before you attach the OPS kit or Media Player, connect the cable to the port.
NOTE
Screws
Media Player kit
CD (Owner's Manual)/
Cards
Media Player
MP500/ MP700
( It may not be supported depending on the model.)
OPS kit
Card
(Easy Setup Guide)
Connecting
Cable
KT-OPSA
Screws
Power Cord
10
ENGLISH
Parts and Buttons
Buttons
y
:
Changes the input source.
y
:
Accesses the main menus, or saves your
input and exits the menus.
y
:
Adjust the up and down.
y
:
Moves left and right.
y
:
Displays the current signal and mode.
y
/I:
Turns the power on or off.
- The image may be different according to
the model
- The image may be different according to the
model.
Assembling the Memory Cover
Assemble the cover with a screw as illustrated to
prevent the USB memory from theft.
1
2
11
ENGLISH
- The image may be different according to
the model
Connecting the Stand
- For certain models only.
- The image may be different according to the
model.
2
32SM5*
1
3
2
1
43/49/55/65SM5* 43/49/55SM3B
12
ENGLISH
Connecting the Speakers
- For certain models only.
- The image may be different according to the
model.
32SM5B
1 Connect an input signal cable before installing
the speakers.
3 Then connect the speaker cable. After installing
your speakers, use holders and cable ties to
organize the speaker cables.
2 Mount the speakers by using screws as
shown below. Make sure the power cable is
disconnected before making a connection.
Basic installation
Installation with OPS connected
Basic installation
Installation with OPS connected
13
ENGLISH
1 Connect an input signal cable before installing
the speakers.
3 Then connect the speaker cable. After installing
your speakers, use holders and cable ties to
organize the speaker cables.
2 Mount the speakers by using screws as
shown below. Make sure the power cable is
disconnected before making a connection.
• Please turn off the power before removing the
cable. Connecting or removing the speaker
cable while turned on may result in no sound.
NOTE
43/49/55/65SM5B
43/49/55SM3B
14
ENGLISH
Basic installation
Landscape scene
Portrait scene
<Front>
<Front>
<Front>
<Rear>
<Rear>
<Rear>
Connecting the IR Sensor
When you connect the cable to the product, the feature for receiving remote control signals is activated. Rotate
the IR sensor according to the screen orientation (Landscape/Portrait).
- The image may be different according to the model.
15
ENGLISH
Portrait Layout
To install in portrait mode, rotate the set
counterclockwise 90 degrees when looking at from
the front.
(This is not available for all models.)
The Kensington security system connector is
located at the back of the monitor. For more
information on installation and use of this system,
refer to the manual provided with the Kensington
security system or visit
http://www.kensington.com
.
Connect the Kensington security system cable
between the monitor and a table.
Using Kensington Lock
• The Kensington security system is optional. You
can obtain additional accessories from most
electronics retail stores.
NOTE
16
ENGLISH
1 Lay a clean cloth on the floor, and then put the
monitor on it with the screen face down. Using
a screwdriver, remove the screw that secures
the LG Logo Bracket to the bottom rear of the
monitor.
2 After removing the screw, remove the LG
Logo Bracket. When re-attaching the LG Logo
Bracket, repeat the process in reverse order.
1 Lay a clean cloth on the floor, and then put the
monitor on it with the screen face down. Using
a screwdriver, remove the screw that secures
the LG Logo Bracket to the bottom rear of the
monitor.
2 After removing the screw, remove the LG Logo
Bracket. Attach the LG Logo Bracket with a
screw, aligning it with the hole on the right
side.
LG Logo Bracket
Attaching and removing the LG Logo Bracket
- For certain models only.
- The image may be different according to the model.
Removing the LG Logo Bracket
Attaching the LG Logo Bracket on the right side
17
ENGLISH
Installing on a Wall
For proper ventilation, allow a clearance of
100 mm (3.9 inches) on each side and from the
wall. Detailed installation instructions are available
from your dealer, see the optional Tilt Wall
Mounting Bracket Installation and Setup Guide.
To install your monitor on a wall, attach a wall
mounting bracket (optional part) to the back of the
monitor.
Make sure that the wall mounting bracket is
securely fixed to the monitor and to the wall.
1 Use only screws and wall mounting brackets
that conform to VESA standards.
2 Screws which are longer than standard length
may damage the inside of the monitor.
3 A non-VESA standard screw may damage
the product and cause the monitor to fall. LG
Electronics is not liable for any accidents related
to the use of non-standard screws.
4 Please use VESA standard as below.
• 785 mm (30.9 inches) and above
*
Fixing screws: Diameter 6.0 mm x Pitch 1.0 mm x
Length 12 mm (Diameter 0.2 inches x
Pitch 0.03 inches x Length 0.4 inches)
100 mm
100 mm (3.9 inches)
100 mm
100 mm
100 mm
• Disconnect the power cord before moving or installing the monitor to avoid risk of electric shock.
• If you install the monitor on a ceiling or slanted wall, it may fall and result in injury. Use an authorized LG wall
mount and contact your local dealer or qualified personnel to assist with the installation.
• Do not over tighten the screws as this may damage the monitor and void your warranty.
• Use only screws and wall mounting brackets that meet the VESA standard. Any damage or injuries caused by
misuse or use of improper accessories are not covered by the warranty.
CAUTION
• The wall mount kit includes the installation guide and all necessary parts.
• The wall mounting bracket is optional. You can obtain additional accessories from your local dealer.
• The length of screws required may differ depending on the wall mount. Be sure to use the correct length.
• For more information, please refer to the guide provided with the wall mount.
NOTE
785 mm (30.9 inches)
18
ENGLISH
Securing the monitor to a wall (optional)
(Procedure may differ depending on the model.)
1 Insert and tighten the eyebolts, or brackets and
bolts on the back of the monitor.
- If there are already bolts inserted in the
eyebolts’ position, remove the other bolts first.
2 Mount the wall brackets with the bolts to the
wall. Match the location of the wall bracket and
the eyebolts on the rear of the monitor.
3 Connect the eyebolts and wall brackets tightly
with a sturdy cord.
Make sure the securing cord is horizontal with
the flat surface.
• Make sure that children do not climb on or hang from the monitor.
CAUTION
• If the monitor is not positioned in a sufficiently stable location, there is a danger that it will fall. Many injuries,
particularly to children, can be avoided by taking simple precautions such as:
» Using cabinets or stands recommended by the manufacturer.
» Only using furniture that can safely support the monitor.
» Ensuring the monitor is not overhanging the edge of the supporting furniture.
» Not placing the monitor on tall furniture (for example, cupboards or bookcases) without anchoring both
the furniture and the monitor to a suitable support.
» Not placing cloth or other materials between the monitor and supporting furniture.
» Educating children about the dangers of climbing on furniture to reach the monitor or its controls.
WARNING
• Use a platform or cabinet that is large and strong enough to support the monitor securely.
• Brackets, bolts, and cords are sold separately. You can obtain additional accessories from your local retail
store.
• The illustration shows a general example of installation and may look different from the actual product.
NOTE
19
ENGLISH
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control. Please read this manual
carefully to use the monitor correctly.
To install batteries, open the battery cover, place batteries (1.5 V AAA) matching and terminals to the
labels inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse. The illustrations may differ from the actual
accessories.
• Do not mix old and new batteries, as this may
damage the remote control.
• Be sure to point the remote control toward the
remote control sensor on the monitor.
(POWER) Turns the monitor on or off.
MONITOR ON Turns the monitor on.
MONITOR OFF Turns the monitor off.
ENERGY SAVING Reduces power consumption by adjusting peak screen
brightness.
INPUT Selects the input mode.
3D Used for viewing 3D videos. (This model does not support this.)
1/a/A Toggles between numerical and alphabetical.
(Depending upon the model, this feature may not be supported.)
Number and Alphabet buttons
Enters numerical or alphabetical characters depending upon the setting.
(Depending upon the model, this feature may not be supported.)
CLEAR Deletes the entered numerical or alphabetical character.
(Depending upon the model, this feature may not be supported.)
Volume Up/Down Button Adjusts the volume.
ARC Selects the Aspect Ratio mode.
AUTO Automatically adjusts picture position and minimizes image
instability (available for RGB input only).(Depending upon the
model, this feature may not be supported.)
MUTE Mutes all sounds.
BRIGHTNESS Adjusts the brightness of the display. PAGE function is not
supported in this model. (Depending upon the model, this
feature may not be supported.)
CAUTION
20
ENGLISH
PSM Selects the Picture Mode.
HOME Activates the Launcher.
W.BAL Enters the White Balance menu.
SETTINGS Accesses the main menus or saves your input and exit menus.
S.MENU SuperSign menu key (Depending upon the model, this feature
may not be supported.)
Navigation Buttons Scrolls through menus or options.
OK Selects menus or options and confirms your input.
BACK Allows you to move back one step in the user interaction function.
EXIT Quit all OSD tasks and applications.
Allows you to control various multimedia devices to enjoy
multimedia simply by using the remote control through the
SimpLink menu. (Depending upon the model, this feature
may not be supported.)
TILE Selects the TILE Mode.
PICTURE ID ON/OFF When the Picture ID number matches the Set ID
number, you can control whichever monitor you
want in multi-display format.
USB Menu Control Buttons Controls media playback.
21
ENGLISH
MAKING CONNECTIONS
You can connect various external devices to your monitor. Change the input mode and select the external
device you want to connect. For more information about external device connections, see the user manual
provided with each device.
• Connect the signal input cable and tighten it by turning the screws clockwise.
• Do not press the screen with your finger for a prolonged period as this may result in temporary distortion on
the screen.
• Avoid displaying static images on the screen for a long period of time to prevent image burn. Use a
screensaver if possible.
• A wireless communication device near your monitor can affect the image.
CAUTION
• For the best image quality, using the monitor with HDMI connection is recommended.
• To comply with the specifications of the product, use a shielded interface cable with ferrite core, such as a
D-sub 15-pin cable and DVI-D/HDMI cable.
• If you turn the monitor on when the set is cold, the screen may flicker. This is normal.
• Sometimes red, green, or blue spots may appear on the screen. This is normal.
• Use a High Speed HDMI®/
TM
cable.
• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may
not display or a connection error may occur.
• Recommended HDMI Cable Types
- High-Speed HDMI®/
TM
Cable
- High-Speed HDMI®/
TM
Cable with Ethernet
• If you cannot hear any sound in HDMI mode please check your PC settings. Some PCs require you to
manually change the default audio output to HDMI.
• If you want to use HDMI-PC mode, you must set your PC/DTV to PC mode.
• You may experience compatibility issues if you use HDMI-PC mode.
• Make sure the power cable is disconnected.
• If you connect a gaming device to the monitor, use the cable provided with the gaming device.
• It is recommended to use the speakers that are provided as optional accessories.
• High Speed HDMI®/
TM
cables transmit a HD signal up to 1080p and higher.
NOTE
Connecting to a PC
Some of the cables are not provided.
This monitor supports the Plug and Play* feature.
* Plug and Play: a feature that enables a PC to recognize devices attached by the user without device
configuration or user intervention when powering up.
External Device Connection
Connect a HD receiver, DVD, or VCR player to the monitor and select an appropriate input mode.
Some of the cables are not provided. For the best picture and sound quality, connecting external devices to
your monitor using HDMI cables is recommended.
22
ENGLISH
Using the Input List
y RGB -> HDMI -> DVI-D -> DISPLAYPORT -> OPS
23
ENGLISH
TROUBLESHOOTING
No image is displayed
Problem Action
Is the product power cord connected? y Check if the power cord is correctly plugged into the power
outlet.
Does the Out of range message
appear?
y The signal from the PC (graphic card) is out of the vertical or
horizontal frequency range of the product. Adjust the frequency
range by referring to the Specifications in this manual.
* Maximum resolution: 1920 x 1080 (60 Hz)
Does the Check signal cable message
appear?
y The signal cable between PC and product is not connected.
Check the signal cable.
y Access the input menu to check the input signal.
The Unknown Product message appears when the product is connected.
Problem Action
Did you install the driver? y Check if the Plug and Play function is supported by referring to
the graphic card user manual.
The screen image looks abnormal.
Problem Action
Is the screen position wrong? y Check if the graphic card resolution and frequency are supported
by the product. If the frequency is out of range, set to the
recommended resolution in the Control Panel Display Setting
menu.
The screen is displayed abnormally. y The proper input signal is not connected to the signal port.
Connect the signal cable that matches with the source input
signal.
After-image appears on the product.
Problem Action
After-image appears when the
product is turned off.
y If you use a fixed image for a long time, the pixels may be
damaged. Use the screen-saver function.
y When a dark image is displayed on the screen after an image
with high contrast (black and white or gray), this may cause
image sticking. This is normal for LCD screen products.
24
ENGLISH
Screen color is abnormal.
Problem Action
Screen has poor color resolution (16
colors).
y Set the number of colors to more than 24 bits (true color). Select
Control Panel - Display - Settings - Color Table menu in Windows.
Screen color is unstable or
mono-colored.
y Check the connection status of the signal cable. Or, re-insert the
PC graphic card.
Do black spots appear on the screen? y Several pixels (red, green, white, or black color) may appear
on the screen, which can be attributable to the unique
characteristics of the LCD panel. This is not a malfunction of the
LCD.
The operation does not work normally.
Problem Action
The power suddenly turned off. y Is the Timer set?
y Check the power control settings. Power interrupted.
The audio function does not work.
Problem Action
No sound? y See if the audio cable is connected properly.
y Adjust the volume.
y See if the sound is set properly.
Sound is too dull. y Select the appropriate equalizer sound.
Sound is too low. y Adjust the volume.
25
ENGLISH
What is image sticking?
When the LCD panel displays a static image for an
extended period of time, it can cause a voltage
difference between the electrodes that operate
the liquid crystals. When the voltage difference
between the electrodes builds up over time, liquid
crystals have a tendency to remain aligned in
one direction. During this process, a previously
displayed image remains visible. This phenomenon
is referred to as image sticking.
BM BM BM
CFCFCF
OC
PI
PI
TFT Layers
Glass
Glass
LC
CF
I D : UPM123
PW : ******
I D : UPM123
PW : ******
ITO or MoTi Pixel Layer
Recommended operating conditions
1
Change the background and the character
colors using the same time interval.
When changing colors, using complementary
colors helps to prevent image sticking.
2
Change the image using the same time
interval.
Make sure that the characters or images before
changing the image remain in the same location
after changing the image.
• Image sticking does not occur when using constantly changing images but may occur when using a fixed
image for an extended period of time. Therefore, it is recommended that you use the instructions below
to decrease the likelihood of image sticking occurring when using a fixed image. It is recommended that
you change the screen at least once every 12 hours at the very minimum; if done more frequently, the
prevention of image sticking is more effective.
CAUTION
ID: UPM 123
PW: ****
ID: UPM 123
PW: ****
26
ENGLISH
PRODUCT SPECIFICATIONS
The product specifications below may be changed without prior notice due to upgrade of product functions.
LCD screen Screen type Thin Film Transistor (TFT)
Liquid Crystal Display (LCD) Screen
Video signal Maximum resolution 1920 x 1080 @ 60 Hz
- This may not be supported on some OS or graphic card
types.
Recommended
resolution
1920 x 1080 @ 60 Hz
- This may not be supported on some OS or graphic card
types.
Horizontal frequency RGB : 30 kHz to 83 kHz
HDMI/ DVI-D/ DisplayPort : 30 kHz to 83 kHz
Vertical frequency RGB : 56 Hz to 75 Hz
HDMI/ DVI-D/ DisplayPort : 56 Hz to 60 Hz
Synchronization Separate Sync, Digital
Input/output ports **SM5B/**SM3B
SD, USB, LAN, RGB IN, DP In/Out, DVI-D IN,
OPS, Speaker OUT, IR & Light sensor,
Pixel Sensor, HDMI, RS-232C In/Out,
Audio In/Out
**SM5KB SD, USB, LAN, RGB IN, DP In/Out,
DVI-D IN, OPS, IR & Light sensor,
Pixel Sensor, HDMI, RS-232C In/Out,
Audio In/Out
Embedded battery Applied
Environmental
Conditions
Operating Temperature
Operating Humidity
0 °C to 40 °C (32 °F to 104 °F)
10 % to 80 %
Storage Temperature
Storage Humidity
-20 °C to 60 °C (-68 °F to 140 °F)
5 % to 85 %
* Applicable only for models that support the speakers
Audio RMS Audio Output 10 W + 10 W (R + L)
Input Sensitivity 0.7 Vrms
Speaker Impedance 6 Ω
refers to alternating current (AC), and refers to direct current (DC).
27
ENGLISH
LCD screen Pixel pitch 0.36375 mm (H) x 0.36375 mm (V)
Power Rated power AC 100-240 V~ 50/60 Hz 1.4 A
Power consumption On Mode: 60 W (Typ.)
Sleep Mode (RGB, DVI-D, HDMI): ≤ 1.0 W
Sleep Mode(DISPLAYPORT): ≤ 0.5 W
Off Mode: ≤ 0.5 W
Dimensions (Width
x Height x Depth) /
Weight
Head 729.4 mm x 428.9 mm x 55.5 mm / 5.2 kg
(28.7 inches x 16.8 inches x 2.1 inches / 11.4 lbs)
Head + Stand 729.4 mm x 481 mm x 154.2 mm / 6 kg
(28.7 inches x 18.9 inches x 6.0 inches / 13.2 lbs)
Head + Speaker 729.4 mm x 428.9 mm x 95.7 mm / 5.7 kg
(28.7 inches x 16.8 inches x 3.7 inches / 12.5 lbs)
Head + Speaker + Stand 729.4 mm x 481 mm x 154.2 mm / 6.5 kg
(28.7 inches x 18.9 inches x 6.0 inches / 14.3 lbs)
32SM5B
LCD screen Pixel pitch 0.36375 mm (H) x 0.36375 mm (V)
Power Rated power AC 100-240 V~ 50/60 Hz 1.4 A
Power consumption On Mode: 60 W (Typ.)
Sleep Mode (RGB, DVI-D, HDMI): ≤ 1.0 W
Sleep Mode(DISPLAYPORT): ≤ 0.5 W
Off Mode: ≤ 0.5 W
Dimensions (Width
x Height x Depth) /
Weight
Head 729.4 mm x 428.9 mm x 55.5 mm / 5.4 kg
(28.7 inches x 16.8 inches x 2.1 inches / 11.9 lbs)
Head + Stand 729.4 mm x 481 mm x 154.2 mm / 6.2 kg
(28.7 inches x 18.9 inches x 6.0 inches / 13.6 lbs)
32SM5KB
28
ENGLISH
LCD screen Pixel pitch 0.4902 mm (H) X 0.4902 mm (V)
Power Rated power AC 100-240 V~ 50/60 Hz 0.9 A
Power consumption On Mode: 75 W (Typ.)
Sleep Mode (RGB, DVI-D, HDMI): ≤ 1.0W
Sleep Mode(DISPLAYPORT): ≤ 0.5 W
Off Mode: ≤ 0.5 W
Dimensions (Width
x Height x Depth) /
Weight
Head 969.6 mm x 563.9 mm x 38.6 mm / 9.8 kg
(38.1 inches x 22.2 inches x 1.5 inches / 21.6 lbs)
Head + Stand 969.6 mm x 622.2 mm x 193 mm / 12.3 kg
(38.1 inches x 24.4 inches x 7.5 inches / 27.1 lbs)
Head + Speaker 969.6 mm x 563.9 mm x 67.9 mm / 10.3 kg
(38.1 inches x 22.2 inches x 2.6 inches / 22.7 lbs)
Head + Speaker + Stand 969.6 mm x 622.2 mm x 193 mm / 12.8 kg
(38.1 inches x 24.4 inches x 7.5 inches / 28.2 lbs)
LCD screen Pixel pitch 0.4902 mm (H) X 0.4902 mm (V)
Power Rated power AC 100-240 V~ 50/60 Hz 0.9 A
Power consumption On Mode: 60 W (Typ.)
Sleep Mode (RGB, DVI-D, HDMI): ≤ 1.0 W
Sleep Mode(DISPLAYPORT): ≤ 0.5 W
Off Mode: ≤ 0.5 W
Dimensions (Width
x Height x Depth) /
Weight
Head 969.6 mm x 563.9 mm x 38.6 mm / 9.8 kg
(38.1 inches x 22.2 inches x 1.5 inches / 21.6 lbs)
Head + Stand 969.6 mm x 622.2 mm x 193 mm / 12.3 kg
(38.1 inches x 24.4 inches x 7.5 inches / 27.1 lbs)
Head + Speaker 969.6 mm x 563.9 mm x 67.9 mm / 10.3 kg
(38.1 inches x 22.2 inches x 2.6 inches / 22.7 lbs)
Head + Speaker + Stand 969.6 mm x 622.2 mm x 193 mm / 12.8 kg
(38.1 inches x 24.4 inches x 7.5 inches / 28.2 lbs)
LCD screen Pixel pitch 0.4902 mm (H) X 0.4902 mm (V)
Power Rated power AC 100-240 V~ 50/60 Hz 0.9 A
Power consumption On Mode: 75 W (Typ.)
Sleep Mode (RGB, DVI-D, HDMI): ≤ 1.0 W
Sleep Mode(DISPLAYPORT): ≤ 0.5 W
Off Mode: ≤ 0.5 W
Dimensions (Width
x Height x Depth) /
Weight
Head 969.6 mm x 563.9 mm x 54.0 mm / 10 kg
(38.1 inches x 22.2 inches x 2.1 inches / 22.0 lbs)
Head + Stand 969.6 mm x 622.2 mm x 193 mm / 12.5 kg
(38.1 inches x 24.4 inches x 7.5 inches / 27.5 lbs)
43SM5B
43SM3B
43SM5KB
29
ENGLISH
LCD screen Pixel pitch 0.55926 mm (H) X 0.55926 mm (V)
Power Rated power AC 100-240 V~ 50/60 Hz 1.0 A
Power consumption On Mode: 85 W (Typ.)
Sleep Mode (RGB, DVI-D, HDMI): ≤ 1.0 W
Sleep Mode(DISPLAYPORT): ≤ 0.5 W
Off Mode: ≤ 0.5 W
Dimensions (Width
x Height x Depth) /
Weight
Head 1102.2 mm x 638.5 mm x 38.6 mm / 14.1 kg
(43.3 inches x 25.1 inches x 1.5 inches / 31.0 lbs)
Head + Stand 1102.2 mm x 696.8 mm x 219.6 mm / 17.4 kg
(43.3 inches x 27.4 inches x 8.6 inches / 38.3 lbs)
Head + Speaker 1102.2 mm x 638.5 mm x 67.9 mm / 14.6 kg
(43.3 inches x 25.1 inches x 2.6 inches / 32.1 lbs)
Head + Speaker + Stand 1102.2 mm x 696.8 mm x 219.6 mm / 17.9 kg
(43.3 inches x 27.4 inches x 8.6 inches / 39.4 lbs)
LCD screen Pixel pitch 0.55926 mm (H) X 0.55926 mm (V)
Power Rated power AC 100-240 V~ 50/60 Hz 1.0 A
Power consumption On Mode: 70 W (Typ.)
Sleep Mode (RGB, DVI-D, HDMI): ≤ 1.0 W
Sleep Mode(DISPLAYPORT): ≤ 0.5 W
Off Mode: ≤ 0.5 W
Dimensions (Width
x Height x Depth) /
Weight
Head 1102.2 mm x 638.5 mm x 38.6 mm / 14.1 kg
(43.3 inches x 25.1 inches x 1.5 inches / 31.0 lbs)
Head + Stand 1102.2 mm x 696.8 mm x 219.6 mm / 17.4 kg
(43.3 inches x 27.4 inches x 8.6 inches / 38.3 lbs)
Head + Speaker 1102.2 mm x 638.5 mm x 67.9 mm / 14.6 kg
(43.3 inches x 25.1 inches x 2.6 inches / 32.1 lbs)
Head + Speaker + Stand 1102.2 mm x 696.8 mm x 219.6 mm / 17.9 kg
(43.3 inches x 27.4 inches x 8.6 inches / 39.4 lbs)
LCD screen Pixel pitch 0.55926 mm (H) X 0.55926 mm (V)
Power Rated power AC 100-240 V~ 50/60 Hz 1.0 A
Power consumption On Mode: 85 W (Typ.)
Sleep Mode (RGB, DVI-D, HDMI): ≤ 1.0 W
Sleep Mode(DISPLAYPORT): ≤ 0.5 W
Off Mode: ≤ 0.5 W
Dimensions (Width
x Height x Depth) /
Weight
Head 1102.2 mm x 638.5 mm x 54.0 mm / 14.3 kg
(43.3 inches x 25.1 inches x 2.1 inches / 31.5 lbs)
Head + Stand 1102.2 mm x 696.8 mm x 219.6 mm / 17.6 kg
(43.3 inches x 27.4 inches x 8.6 inches / 38.8 lbs)
49SM5B
49SM3B
49SM5KB
30
ENGLISH
LCD screen Pixel pitch 0.630 mm (H) x 0.630 mm (V)
Power Rated power AC 100-240 V~ 50/60 Hz 1.1 A
Power consumption On Mode: 100 W (Typ.)
Sleep Mode (RGB, DVI-D, HDMI): ≤ 1.0 W
Sleep Mode(DISPLAYPORT): ≤ 0.5 W
Off Mode: ≤ 0.5 W
Dimensions (Width
x Height x Depth) /
Weight
Head 1238 mm x 714.9 mm x 38.6 mm / 17.3 kg
(48.7 inches x 28.1 inches x 1.5 inches / 38.1 lbs)
Head + Stand 1238 mm x 773.4 mm x 219.6 mm / 20.6 kg
(48.7 inches x 30.4 inches x 8.6 inches / 45.4 lbs)
Head + Speaker 1238 mm x 714.9 mm x 67.9 mm / 17.8 kg
(48.7 inches x 28.1 inches x 2.6 inches / 39.2 lbs)
Head + Speaker + Stand 1238 mm x 773.4 mm x 219.6 mm / 21.1 kg
(48.7 inches x 30.4 inches x 8.6 inches / 46.5 lbs)
LCD screen Pixel pitch 0.630 mm (H) x 0.630 mm (V)
Power Rated power AC 100-240 V~ 50/60 Hz 1.1 A
Power consumption On Mode: 100 W (Typ.)
Sleep Mode (RGB, DVI-D, HDMI): ≤ 1.0 W
Sleep Mode(DISPLAYPORT): ≤ 0.5 W
Off Mode: ≤ 0.5 W
Dimensions (Width
x Height x Depth) /
Weight
Head 1238 mm x 714.9 mm x 54.0 mm / 17.5 kg
(48.7 inches x 28.1 inches x 2.1 inches / 38.5 lbs)
Head + Stand 1238 mm x 773.4 mm x 219.6 mm / 20.8 kg
(48.7 inches x 30.4 inches x 8.6 inches / 45.8 lbs)
LCD screen Pixel pitch 0.630 mm (H) x 0.630 mm (V)
Power Rated power AC 100-240 V~ 50/60 Hz 1.1 A
Power consumption On Mode: 85 W (Typ.)
Sleep Mode (RGB, DVI-D, HDMI): ≤ 1.0 W
Sleep Mode(DISPLAYPORT): ≤ 0.5 W
Off Mode: ≤ 0.5 W
Dimensions (Width
x Height x Depth) /
Weight
Head 1238 mm x 714.9 mm x 38.6 mm / 17.3 kg
(48.7 inches x 28.1 inches x 1.5 inches / 38.1 lbs)
Head + Stand 1238 mm x 773.4 mm x 219.6 mm / 20.6 kg
(48.7 inches x 30.4 inches x 8.6 inches / 45.4 lbs)
Head + Speaker 1238 mm x 714.9 mm x 67.9 mm / 17.8 kg
(48.7 inches x 28.1 inches x 2.6 inches / 39.2 lbs)
Head + Speaker + Stand 1238 mm x 773.4 mm x 219.6 mm / 21.1 kg
(48.7 inches x 30.4 inches x 8.6 inches / 46.5 lbs)
55SM5B
55SM5KB
55SM3B
31
ENGLISH
LCD screen Pixel pitch 0.744 mm (H) x 0.744 mm (V)
Power Rated power AC 100-240 V~ 50/60 Hz 1.4 A
Power consumption On Mode: 120 W (Typ.)
Sleep Mode (RGB, DVI-D, HDMI): ≤ 1.0 W
Sleep Mode(DISPLAYPORT): ≤ 0.5 W
Off Mode: ≤ 0.5 W
Dimensions (Width
x Height x Depth) /
Weight
Head 1456.9 mm x 838 mm x 41.1 mm / 27.7 kg
(57.3 inches x 32.9 inches x 1.6 inches / 61.0 lbs)
Head + Stand 1456.9 mm x 898.1 mm x 293.7 mm / 32.9 kg
(57.3 inches x 35.3 inches x 11.5 inches / 72.5 lbs)
Head + Speaker 1456.9 mm x 838 mm x 70.4 mm / 28.2 kg
(57.3 inches x 32.9 inches x 2.7 inches / 62.1 lbs)
Head + Speaker + Stand 1456.9 mm x 898.1 mm x 293.7 mm / 33.4 kg
(57.3 inches x 35.3 inches x 11.5 inches / 73.6 lbs)
LCD screen Pixel pitch 0.744 mm (H) x 0.744 mm (V)
Power Rated power AC 100-240 V~ 50/60 Hz 1.4 A
Power consumption On Mode: 120 W (Typ.)
Sleep Mode (RGB, DVI-D, HDMI): ≤ 1.0 W
Sleep Mode(DISPLAYPORT): ≤ 0.5 W
Off Mode: ≤ 0.5 W
Dimensions (Width
x Height x Depth) /
Weight
Head 1456.9 mm x 838 mm x 56.5 mm / 27.9 kg
(57.3 inches x 32.9 inches x 2.2 inches / 61.5 lbs)
Head + Stand 1456.9 mm x 898.1 mm x 293.7 mm / 33.1 kg
(57.3 inches x 35.3 inches x 11.5 inches / 72.9 lbs)
65SM5B
65SM5KB
Wireless module(LGSBW41) Specifications
Wireless LAN Bluetooth
Standard IEEE 802.11a/b/g/n Standard Bluetooth
Frequency range (MHz)
2400 to 2483.5
5150 to 5250
5725 to 5850
Frequency range (MHz) 2400 to 2483.5
Output power (Max.)
802.11a: 11.5 dBm
802.11b: 11 dBm
802.11g: 10.5 dBm
802.11n - 2.4 GHz: 11 dBm
802.11n - 5 GHz: 12.5 dBm
Output power (Max.) 10 dBm or Lower
• As band channels can vary per country, the user cannot change or adjust the operating frequency. This
product is configured for the regional frequency table.
• For consideration of the user, this device should be installed and operated with a minimum distance of
20 cm (7.8 inches )between the device and the body.
• Contains FCC ID: BEJLGSBW41 / Contains IC: 2703H-LGSBW41
32
ENGLISH
HDMI / DVI-D / DISPLAYPORT / OPS (PC)
Support Mode
Resolution
Horizontal
frequency (kHz)
Vertical frequency
(Hz)
640 x 480 31.469 59.94
800 x 600 37.879 60.317
1024 x 768 48.363 60
1280 x 720 44.772 59.855
1366 x 768 47.7 60
1280 x 1024 63.981 60.02
1680 x 1050 65.29 59.954
1920 x 1080 67.5 60
• PC resolutions available for the Input Label
option in RGB / HDMI / DVI-D / DISPLAYPORT
input modes: 640 x 480/60 Hz, 1280 x 720/60 Hz,
1920 x 1080/60 Hz; 480p, 720p, and 1080p DTV
resolutions.
• Vertical frequency: The product display
functions by the screen image changing dozens
of times every second like a fluorescent lamp.
The vertical frequency or refresh rate is the
number of image displays per second. The unit
is Hz.
• Horizontal frequency: The horizontal interval
is the time taken to display one horizontal line.
When 1 is divided by the horizontal interval,
the number of horizontal lines displayed every
second can be tabulated as the horizontal
frequency. The unit is kHz.
NOTE
RGB (PC) Support Mode
Resolution
Horizontal
frequency (kHz)
Vertical frequency
(Hz)
720 x 400 31.468 70.8
640 x 480 31.469 59.94
800 x 600 37.879 60.317
1024 x 768 48.363 60.0
1280 x 720 44.772 59.855
1600 x 900 60 60
1280 x 1024 63.981 60.02
1680 x 1050 65.29 59.954
1920 x 1080 67.5 60
HDMI / DISPLAYPORT / OPS (DTV) Support
Mode
Resolution
Horizontal
frequency (kHz)
Vertical frequency
(Hz)
480/60p 31.5 60
576/50p 31.25 50
720/50p 37.5 50
720/60p 45 60
1080/50i 28.1 50
1080/60i 33.75 60
1080/50p 56.25 50
1080/60p 67.5 60
Make sure to read the Safety Precautions
before using the product.
The model and serial numbers of the SET are
located on the back and one side of the SET.
Record it below should you ever need service.
MODEL
SERIAL
Temporary noise is normal when powering ON
or OFF this device.
WARNING - This equipment is compliant with
Class A of CISPR 32. In a residential environment
this equipment may cause radio interference.
y 32SM5B and 32SM5KB are not certified with
EPA’s ENERGY STAR.
NOTE
ENERGY STAR® is a set of power-saving
guidelines issued by the U.S.Environmental
Protection Agency (EPA).
As an ENERGY STAR® Partner LGE U. S. A., Inc. has
determined that this product meets the ENERGY
STAR® guidelines for energy efficiency. Refer to
ENERGYSTAR.gov for more information on the
ENERGY STAR® program.
