OWNER’S MANUAL
BUILT-IN REFRIGERATOR
Read this owner's manual thoroughly before operating the appliance
and keep it handy for reference at all times.
www.signaturekitchensuite.com
SKSFD3604P
Copyright © 2018 Signature Kitchen Suite. All Rights Reserved.
2 TABLE OF CONTENTS
3 PRODUCT FEATURES
4 SAFETY INSTRUCTIONS
4 IMPORTANT SAFETY INSTRUCTIONS
8 PRODUCT SPECIFICATIONS
9 PRODUCT OVERVIEW
9 Interior
10 OPERATION
10 Before Use
11 Control Panel
13 Internal Water Dispenser
13 Ice Compartment
14 Storing Food
16 Convertible Drawer
18 Freezer Drawer
20 Door Bins
20 Adjusting the Shelves
21 Crisper
22 SMART FUNCTIONS
22 SIGNATURE KITCHEN SUITE Application
24 Smart Grid Function
25 Smart Diagnosis™ Function
28 MAINTENANCE
28 Cleaning
29 Replacing the Water Filter
34 TROUBLESHOOTING
34 FAQs: Frequently Asked Questions
35 Before Calling for Service
41 LIMITED WARRANTY
TABLE OF CONTENTS
3PRODUCT FEATURES
ENGLISH
PRODUCT FEATURES
Depending on the model, some of the following functions may not be available.
FILTERED WATER
The water dispenser dispenses fresh, chilled water.
DOOR ALARM
The Door Alarm function is designed to prevent refrigerator malfunctioning that could occur if a door remains
open. If a door is left open for more than 60 seconds, a warning alarm sounds at 30-second intervals.
ICE PLUS
Ice production is increased when the freezer section is maintained at the coldest temperature for a 24-hour
period.
4 SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
follow all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or injure you and others.
All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.
These words mean:
WARNING
You may be killed or seriously injured if you do not follow instructions.
CAUTION
You may be injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and
tell you what may happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, re, death, electric shock, scalding or injury to
persons when using this product, follow basic precautions, including the following:
California Proposition 65 (USA only)
•
This product contains chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.
5SAFETY INSTRUCTIONS
ENGLISH
OPERATION
•
This product is not to be used for special purposes such as the storage of medicine or test materials or for
use on ships, etc.
•
DO NOT allow children to climb, stand, or hang on the refrigerator doors or on the shelves in the
refrigerator. They could damage the refrigerator and seriously injure themselves.
•
Do not allow children to climb into the refrigerator. They could be trapped and suffocated.
•
Children should be supervised to ensure that they do not play with the refrigerator.
•
Keep ngers out of pinch point areas when opening or closing doors. Be careful closing doors when
children are nearby.
•
Do not touch frozen food or the metal parts in the freezer compartment with wet or damp hands. Doing so
may cause frostbite.
•
Do not refreeze frozen food that has thawed completely. Doing so may result in a serious health hazard.
•
An individual properly grounded branch circuit or circuit breaker is recommended.
•
Do not use an adapter plug or plug the power plug into a multi-outlet extension cord.
•
Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector
end. Immediately have all power cords that have become frayed or otherwise damaged repaired or replaced
by qualied service personnel.
•
Do not operate the refrigerator or touch the power cord with wet hands.
•
Do not modify or extend the power cord.
•
Do not use an uncertied power outlet. Do not plug appliance into a damaged wall outlet.
•
Do not put hands, feet or other objects into the air vents or bottom of the refrigerator. Doing so could result
in personal injury or electric shock.
•
In the event of a gas leak (propane/LPG), ensure the area is adequately ventilated and contact an
authorized service center before resuming use. Do not touch the refrigerator or power button of the
refrigerator.
•
Turn off power to the appliance immediately and contact an authorized service center if there is a strange
noise, odor, or smoke coming from the appliance.
•
Do not use any fuse (such as copper, steel wire, etc.) other than a standard fuse.
•
Do not place or use an electrical appliance inside the refrigerator, unless it is of a type recommended by the
manufacturer.
•
Do not put animals inside the appliance.
•
Avoid contact with any moving parts of the ejector mechanism or with the heater that releases the ice
cubes. DO NOT place ngers in the automatic icemaker when the refrigerator is plugged in.
•
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their safety.
•
If connected to a circuit protected by fuses, use time delay fuse.
6 SAFETY INSTRUCTIONS
MAINTENANCE
•
Do not use a hair dryer to dry the inside of the refrigerator.
•
Do not light a candle to remove odors in the refrigerator.
•
In the event of a refrigerant leak, move ammable objects away from the refrigerator. Ensure the area is
adequately ventilated and contact an authorized service center.
•
Keep ammable materials and vapors, such as gasoline, away from the refrigerator.
•
This appliance is intended to be used in household and similar applications such as staff kitchen areas in
shops, ofces and other working environments; farm houses and by clients in hotels, motels and other
residential type environments; bed and breakfast type environments; catering and similar non-retail
applications.
•
Turn off power before cleaning or repairing the refrigerator.
•
The refrigerator and freezer compartment lights are interior LED lighting, and service should be performed
by a qualied technician.
•
Turn off power immediately in the event of a blackout or thunderstorm.
•
Turn the power off if water or dust penetrates into the refrigerator. Call a service agent.
•
Do not store, disassemble or repair the appliance yourself or allow unqualied personnel to do so.
•
If the electrical supply cord is damaged, it must only be replaced by the manufacturer or its service agent or
a similar qualied person in order to avoid a hazard.
•
Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.
DISPOSAL
•
Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days. When
disposing of the refrigerator, remove the packing materials from the door or take off the doors but leave the
shelves in place so that children may not easily climb inside.
•
If disposing of a refrigerator, make sure the refrigerant is removed for proper disposal by a qualied servicer.
If you release the refrigerant, you may be ned or imprisoned in accordance with the relevant environmental
law.
GROUNDING INSTRUCTIONS
•
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with
a qualied electrician or service person if you are in doubt whether the appliance is properly grounded. Do
not modify the plug provided with the appliance; if it will not t the outlet, have a proper outlet installed by a
qualied electrician.
•
Have a qualied electrician check the wall outlet and wiring for proper grounding.
7SAFETY INSTRUCTIONS
ENGLISH
CAUTION
To reduce the risk of minor or moderate injury to persons, malfunction, or damage
to the product or property when using this product, follow basic precautions,
including the following:
INSTALLATION
•
Do not install the refrigerator where there may be a danger of the unit falling.
•
The refrigerator must be properly installed in accordance with the Installation Instructions.
OPERATION
•
Do not use aerosols near the refrigerator.
•
This appliance is intended to be used only in domestic and similar applications.
•
Do not strike or apply excessive force to any glass surface. Do not touch glass surfaces if they are cracked
or broken.
•
Do not overll or pack items too tightly into door bins. Doing so may cause damage to the bin or personal
injury if items are removed with excessive force.
•
Do not overll the appliance with food. Doing so may cause personal injury or property damage.
MAINTENANCE
•
Do not use strong detergents like wax or thinners for cleaning. Clean with a soft cloth.
•
Remove foreign objects (such as dust and water) from the prongs of the power plug and contact areas. Do
not use a wet or damp cloth when cleaning the plug.
•
Do not spray water directly on the inside or outside of the refrigerator.
•
Do not clean glass shelves or covers with warm water when they are cold. They may break if exposed to
sudden temperature changes.
WARNING
•
Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
•
Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
•
Do not damage the refrigerant circuit.
•
Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of
the type recommended by the manufacturer.
•
The refrigerant and insulation blowing gas used in the appliance require special disposal procedures. When
disposing, please consult with service agent or a similarly qualied person.
This appliance contains a small amount of isobutane refrigerant (R600a), a natural gas with high
environmental compatibility which it is also combustible. When transporting and installing the appliance,
care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting
out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any open flames or potential
sources of ignition and air the room in which the appliance is standing for several minutes.
In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the
size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room
must be 1m
2
in size for every 8g of R600a refrigerant inside the appliance. The amount of refrigerant in
your particular appliance is shown on the identification plate inside the appliance. Never start up an
appliance showing any signs of damage. If in doubt, consult your dealer.
SAVE THESE INSTRUCTIONS
8 PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
The appearance and specifications listed in this manual may vary due to constant product improvements.
Electrical requirements: 115 V, 60 Hz
Min. / Max. water pressure: 20 - 120 psi (138 - 827 kPa)
Model SKSFD3604P
Description Built-in, Refrigerator
Net weight 483 lb (219 kg)
9PRODUCT OVERVIEW
ENGLISH

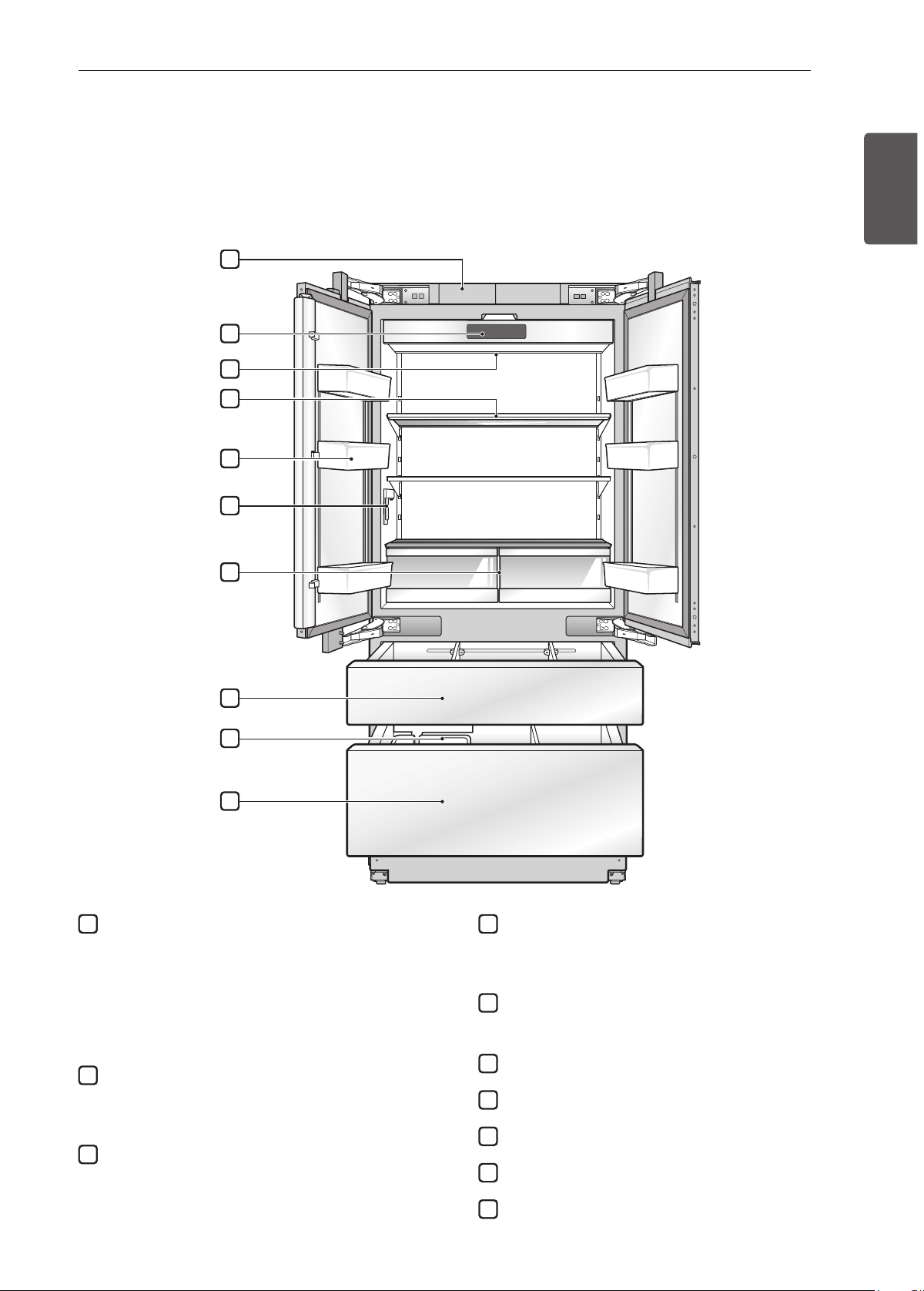

1
Water filter
Purifies water.
NOTE
•
The lter should be replaced every 6 months.
See the Replacing the Water Filter section in
this manual for details.
2
Control Panel
Sets the refrigerator temperature and the water
filter condition.
3
LED Interior Lighting
Lights up the inside of the refrigerator.
2
7
8
10
9
6
5
4
3
1
PRODUCT OVERVIEW
The images in this guide may be different from the actual components and accessories, which are subject to
change by the manufacturer without prior notice for product improvement purposes.
Interior
4
Adjustable Refrigerator Shelf
The refrigerator shelves are adjustable to meet
individual storage needs.
5
Movable Door Bin
Store chilled food or drinks.
6
Internal Water Dispenser
7
Crisper
8
Convertible Drawer
9
Icemaker
10
Freezer Drawer
10 OPERATION

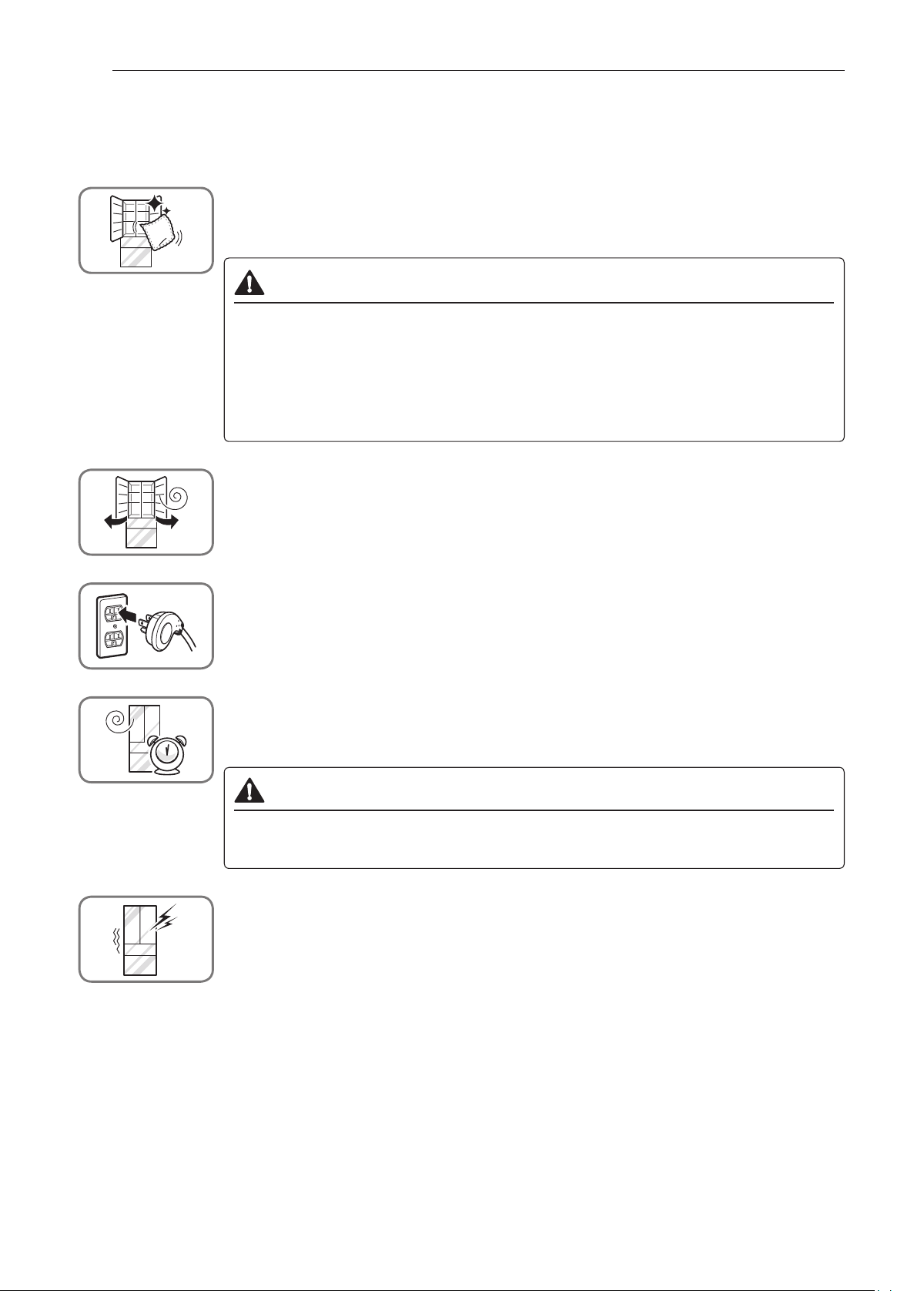

Before Use
Clean the refrigerator.
Clean the refrigerator thoroughly and wipe off all dust that accumulated during shipping.
CAUTION
•
Do not scratch the refrigerator with a sharp object or use a detergent that contains
alcohol, a ammable liquid or an abrasive when removing any tape or adhesive from
the refrigerator. Remove adhesive residue by wiping it off with your thumb or dish
detergent.
•
Do not peel off the model or serial number label or the technical information on the
rear surface of the refrigerator.
Open refrigerator door to ventilate the interior.
The inside of the refrigerator may smell like plastic at first. Remove any adhesive tape from
inside the refrigerator and open the refrigerator door for ventilation.
Connect the power supply.
Check if the power supply is connected before use.
Wait for the refrigerator to cool.
Allow the refrigerator to run for at least two to three hours before putting food in it.
CAUTION
•
Putting food in the refrigerator before it has cooled could cause the food to spoil, or a
bad odor to remain inside the refrigerator.
The refrigerator makes a loud noise after initial operation.
This is normal. The volume will decrease as the temperature decreases.
OPERATION
11OPERATION
ENGLISH
Control Panel
Depending on the model, some of the following functions may not be available.

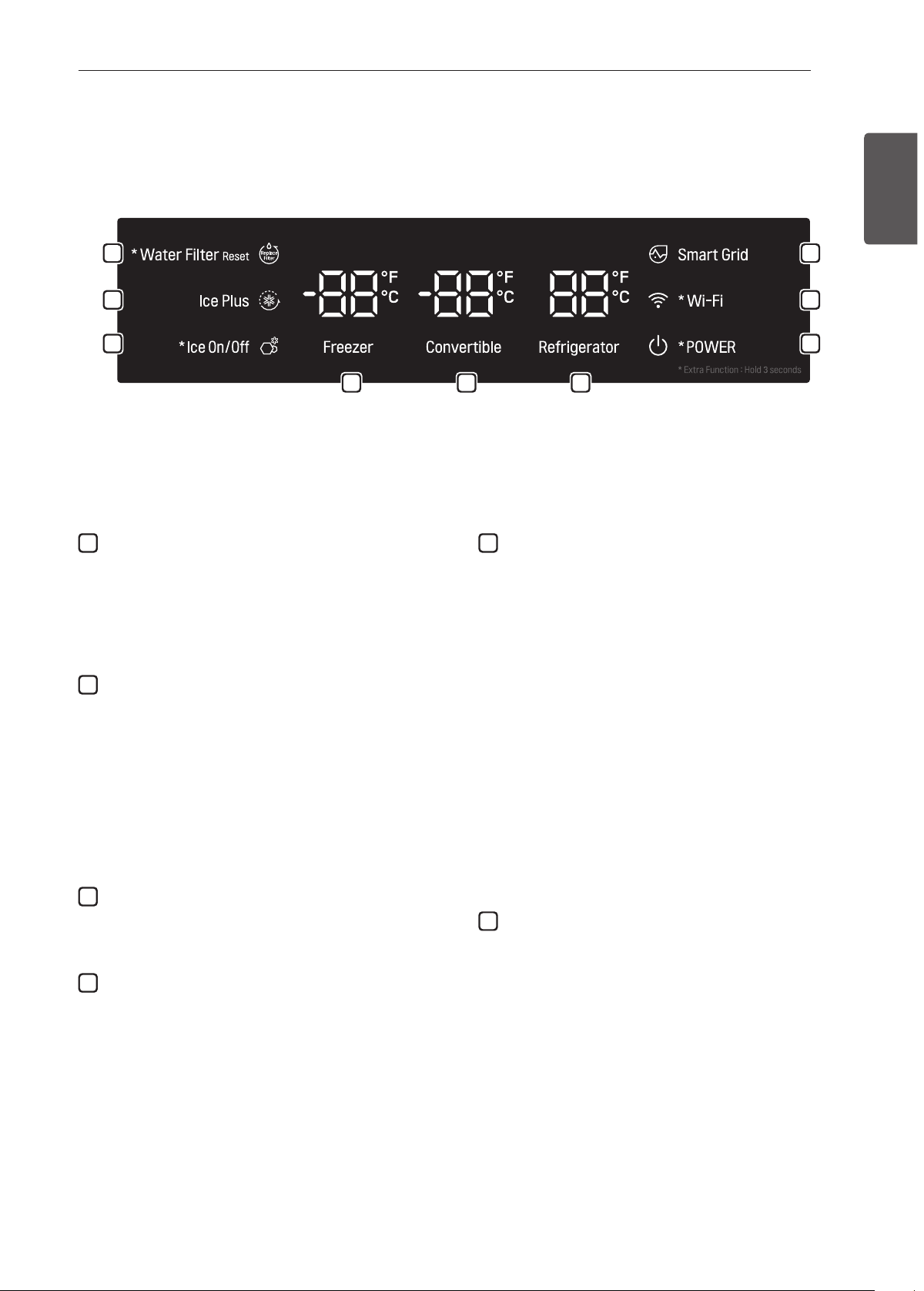

Control Panel Features
1 7
2 8
3 9
4 5 6
NOTE
•
When the refrigerator is in the Power Saving Mode, the display remains off until a door is opened or a button is
pressed. Once on, the display remains on for 20 seconds.
1
* Water Filter Reset
Replace the water filter when the Replace Filter
icon turns on. After replacing the water filter,
press and hold the Water Filter button for three
seconds to turn the icon light off. Replace the
water filter approximately every six months.
2
Ice Plus
This function increases both ice making and
freezing capabilities.
•
Press the Ice Plus button to illuminate the icon
and activate the function for 24 hours.
The function automatically shuts off after 24
hours.
•
Stop the function manually by pressing the
button once more.
3
* Ice On/Off
Press the Ice On/Off button for three seconds to
turn the icemaker on/off.
4
Freezer
Indicates the set temperature of the freezer
compartment in Celsius (°C) or Fahrenheit (°F).
The default freezer temperature is 0°F (-18 °C).
Press the Freezer button repeatedly to select a
new set temperature from -6 to 8 °F
(-24 to -16 °C).
5
Convertible
Variable temperature storage that can be set
either colder or warmer than the refrigerator.
Store meat and seafood at 30°F/-1°C, cold
drinks at 33°F/1°C, deli snacks at 37°F/3°C, or
chilled wine at 41°F/5°C.
To use the convertible drawer as a freezer,
select the current freezer temperature. For
example, if the freezer is set to 0°F, then 0°F
automatically appears in the Convertible display
as an option.
Once the convertible drawer is set to freezer
mode, its temperature matches the freezer
temperature. Changing the freezer temperature
automatically changes the drawer temperature.
Pressing the Convertible temperature button
unlinks the drawer and returns it to refrigeration
mode.
6
Refrigerator
Indicates the set temperature of the refrigerator
compartment in Celsius (°C) or Fahrenheit (°F).
The default refrigerator temperature is 37 °F
(3 °C). Press the Refrigerator button repeatedly
to select a new set temperature from 33 °F to
46 °F (1 °C to 8 °C)
12 OPERATION
7
Smart Grid
Press the Smart Grid button to turn the Smart
Grid function On/Off. When the function is on,
the icon illuminates. The Smart Grid function
automatically turns on when the refrigerator is
connected to the Wi-Fi network.
When the refrigerator is responding to a Demand
Response (DR) message from the electric
company, the Grid text illuminates.
8
* Wi-Fi
The Wi-Fi button, when used with the
SIGNATURE KITCHEN SUITE smart phone
app, allows the refrigerator to connect to a home
Wi-Fi network. Refer to the Smart Functions
section for information on the initial setup of the
application.
The Wi-Fi icon shows the status of the
refrigerator’s network connection. The icon
illuminates when the refrigerator is connected to
the Wi-Fi network.
Press and hold the Wi-Fi button for 3 seconds to
connect to the network. The icon blinks while the
connection is being made, then turns on once
the connection is successfully made.
9
* Power
The Power button turns off all electrical power to
the unit.
Press and hold the Power button for 3 seconds
to turn off the power. When the power is off, the
indicator light is off. There is no need to turn off
power at the circuit breaker or wall receptacle.
Use this function for service or extended
vacations.
4
and
9
SABBATH
Sabbath mode is used on the Jewish Sabbath
and holidays.
•
To turn Sabbath mode on, touch the display to
activate it, then press and hold the Freezer
and Power buttons for 3 seconds until Sb
appears in the display.
•
Sabbath mode automatically turns off after 96
hours.
•
To turn Sabbath mode off manually, press and
hold the Freezer and Power buttons for 3
seconds.
•
Once turned on, Sabbath mode is maintained
even after a power outage.
•
Selecting Sabbath mode automatically turns
off the Light and Alarm functions. The
dispenser is also disabled.
•
The interior display stays on during Sabbath
mode, but only “Sb” and the Freezer and
Power buttons are displayed.
NOTE
•
The Smart Grid function is automatically turned off
in Sabbath mode.
When Sabbath mode ends, the Smart Grid function
must be activated again manually.
CAUTION
Display Mode (For Store Use Only)
•
The Display Mode disables all cooling in the
refrigerator to conserve energy while on display
in a retail store. When activated, OF is displayed
on the control panel and the display remains on
for 20 seconds.
To deactivate / activate:
•
With the refrigerator door open, press and hold
the Refrigerator and Water Filter reset buttons at
the same time for ve seconds. The control
panel beeps and the temperature settings
display to conrm that Display Mode is
deactivated. Use the same procedure to activate
Display Mode.
13OPERATION
ENGLISH
Internal Water Dispenser
CAUTION
•
Keep children away from the dispenser. Children
may play with or damage the controls.
•
If water is dispensed unexpectedly, turn off the
water supply and contact a SIGNATURE
KITCHEN SUITE Customer Information Center.
•
After installation, dispense 2.5 gallons of water
(ush for approximately 5 minutes) to remove
trapped air and contaminants from the system.

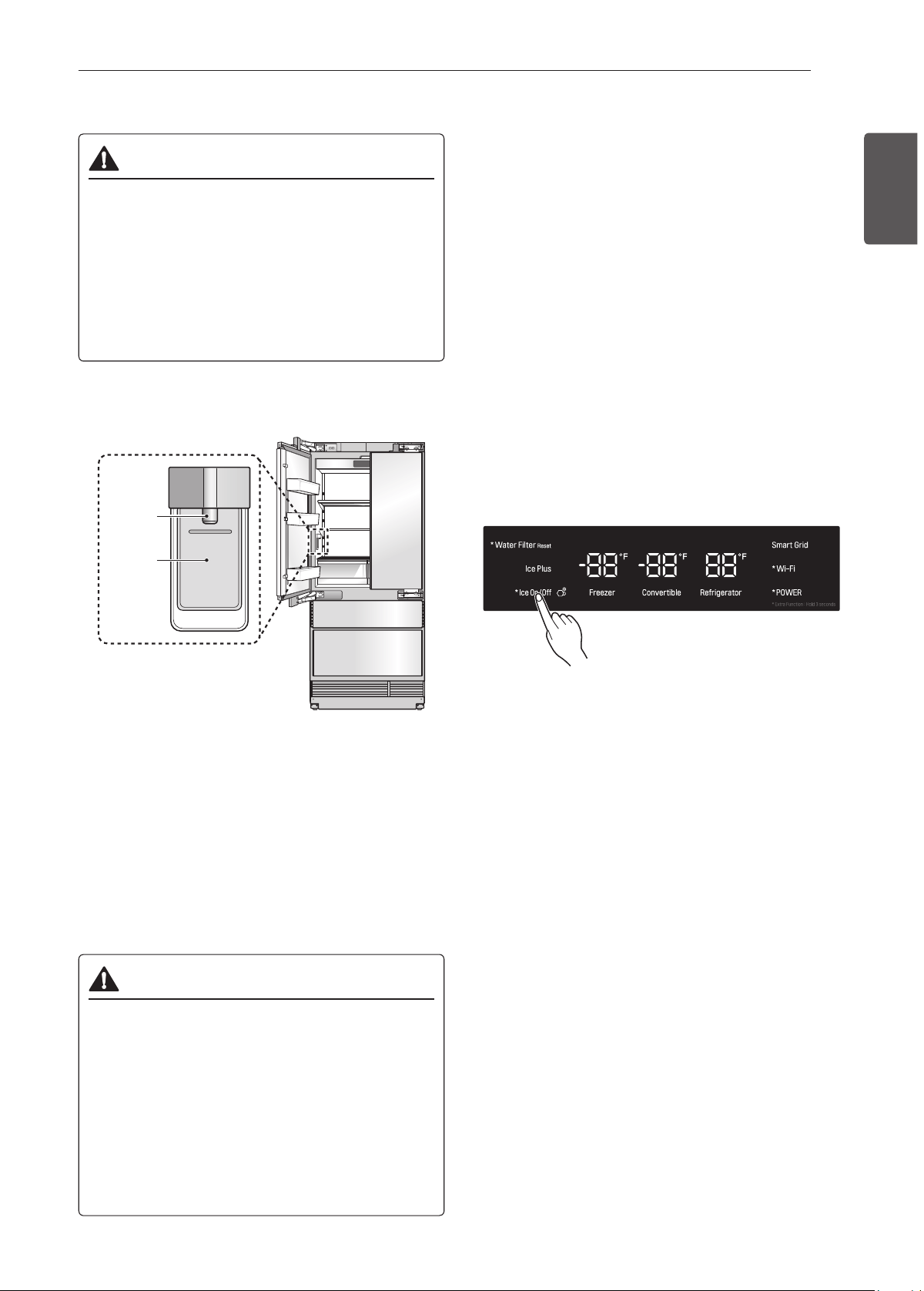

Dispenser Structure
Water
Nozzle
Water
Paddle
NOTE
•
To dispense water, push on the water paddle with a
glass.
•
Some dripping may occur after dispensing. Hold the
cup beneath the dispenser for a few seconds after
dispensing to catch all of the drops.
Ice Compartment
CAUTION
•
Keep hands and tools out of the ice
compartment. Failure to do so may result in
damage or personal injury.
•
Throw away the rst few batches of ice after
installation. This is also necessary if the freezer
has not been used for a long time.
•
Never store beverage cans or other items in the
ice bin for the purpose of rapid cooling. Doing so
may damage the icemaker or the containers may
burst.
Automatic Icemaker
The automatic icemaker can automatically make 12
cubes at a time. This quantity may vary due to
ambient temperature, frequency of door opening,
freezer load, etc.
•
It takes about 12 hours for a newly installed
refrigerator to begin making ice.
•
Icemaking stops when the ice bin is full.
•
Occasionally shake the ice bin to level the ice. If the
ice cubes pile up on the side nearest the shutoff
sensor, ice production will stop.
•
To increase ice production, use the Ice Plus
function. The function increases both ice making
and freezing capabilities.
Turning the Automatic Icemaker On
or Off
To turn off the automatic icemaker, press the ice On/
Off button on the display for three seconds.
Normal Sounds You May Hear
•
Keeping the power turned on to the icemaker before
the water line is connected can damage the
icemaker.
•
The icemaker water valve buzzes as the icemaker
lls with water. If the Ice On/Off button is in the ON
mode, it will buzz even if it has not yet been hooked
up to water. To stop the buzzing, press the Ice On/
Off button to turn it off.
•
You will hear the sound of cubes dropping into the
bin and water running in the pipes as the icemaker
rells.
Preparing for Vacation
Set the Ice On/Off button to OFF and shut off the
water supply to the freezer.
NOTE
•
The ice bin should be emptied any time the Ice On/
Off button is turned to the OFF mode.
If the ambient temperature will drop below freezing,
have a qualified technician drain the water supply
system to prevent serious property damage due to
flooding caused by ruptured water lines or
connections.
14 OPERATION
Storing Food
CAUTION
•
Do not overll or pack items too tightly into door
bins. Doing so may cause damage to the bin or
personal injury if items are removed with
excessive force.
NOTE
•
If you are leaving home for a short period, like a
short vacation, the refrigerator should be left on.
Refrigerated foods that are able to be frozen will
stay preserved longer if stored in the freezer.
•
If you are leaving the refrigerator turned off for an
extended period, remove all food and unplug the
power cord. Clean the interior, and leave the door
open to prevent fungi from growing in the
refrigerator.
•
Do not store food with high moisture content
towards the top of the refrigerator. The moisture
could come in direct contact with the cold air and
freeze.
•
Wash food before storing it in the refrigerator.
Vegetables should be washed, and food packaging
should be wiped down to prevent adjacent foods
from being contaminated.
•
If the refrigerator is kept in a hot and humid place,
frequent opening of the door or storing a lot of
vegetables in the refrigerator may cause
condensation to form. Wipe off the condensation
with a clean cloth or a paper towel.
•
If the refrigerator door is opened or closed too often,
warm air may penetrate the refrigerator and raise its
temperature. This can increase the running costs of
the unit.
Food Storage Tips
Wrap or store food in the refrigerator in airtight and
moisture-proof material unless otherwise noted. This
prevents food odor and taste transfer throughout the
refrigerator. For dated products, check date code to
ensure freshness.
Food How to
Butter or
Margarine
Keep opened butter in covered dish
or closed compartment. When storing
an extra supply, wrap in freezer
packaging and freeze.
Cheese
Store in original wrapping until used.
Once opened, rewrap tightly in
plastic wrap or aluminum foil.
Milk
Wipe milk cartons. For coldest milk,
place containers on an interior shelf.
Eggs
Store in original carton on interior
shelf, not in door bin.
Fruit
Do not wash or hull fruit until it is
ready to be used. Sort and keep fruit
in original container in a crisper, or
store in completely closed paper bag
on refrigerator shelf.
Leafy
Vegetables
Remove store wrapping, trim or tear
off bruised and discolored areas,
wash in cold water, and drain. Place
in plastic bag or plastic container and
store in crisper.
Vegetables
with skins
(carrots,
peppers)
Place in plastic bags or plastic
container and store in crisper.
Fish
Freeze fresh fish and shellfish if they
are not being eaten the same day
purchased. Eating fresh fish and
shellfish the same day purchased is
recommended.
Leftovers
Cover leftovers with plastic wrap or
aluminum foil, or store in plastic
containers with tight lids.
15OPERATION
ENGLISH
Storing Frozen Food
Check a freezer guide or a reliable cookbook for
further information about preparing food for freezing
or food storage times.
Freezing
Your freezer will not quick-freeze a large quantity of
food. Do not put more unfrozen food into the freezer
than will freeze within 24 hours (no more than 2 to 3
pounds of food per cubic foot of freezer space).
Leave enough space in the freezer for air to circulate
around packages. Be careful to leave enough room at
the front so the door can close tightly.
Storage times will vary according to the quality and
type of food, the type of packaging or wrap used (how
airtight and moisture-proof) and the storage
temperature. Ice crystals inside a sealed package are
normal. This simply means that moisture in the food
and air inside the package have condensed, creating
ice crystals.
NOTE
•
Allow hot foods to cool at room temperature for 30
minutes, and then package and freeze. Cooling hot
foods before freezing saves energy.
Packaging
Successful freezing depends on correct packaging.
When you close and seal the package, it must not
allow air or moisture in or out. If it does, you could
have food odor and taste transfer throughout the
freezer and could also dry out frozen food.
Packaging recommendations
•
Rigid plastic containers with tight-tting lids
•
Straight-sided canning/freezing jars
•
Heavy-duty aluminum foil
•
Plastic-coated paper
•
Non-permeable plastic wraps
•
Specied freezer-grade self-sealing plastic bags
Follow package or container instructions for proper
freezing methods.
Do not use
•
Bread wrappers
•
Non-polyethylene plastic containers
•
Containers without tight lids
•
Wax paper or wax-coated freezer wrap
•
Thin, semi-permeable wrap
Storing Food in the Convertible
Drawer
Press the Convertible button repeatedly to cycle
through the available temperature settings. For best
results, see the table below.
Temp. Stored Items
-6 to 8°F
(-24 to -16°C)
Frozen food
30°F/-1°C Meat and seafood
33°F/1°C Cold drinks
37°F/3°C Deli snacks
41°F/5°C Wine
16 OPERATION
Convertible Drawer

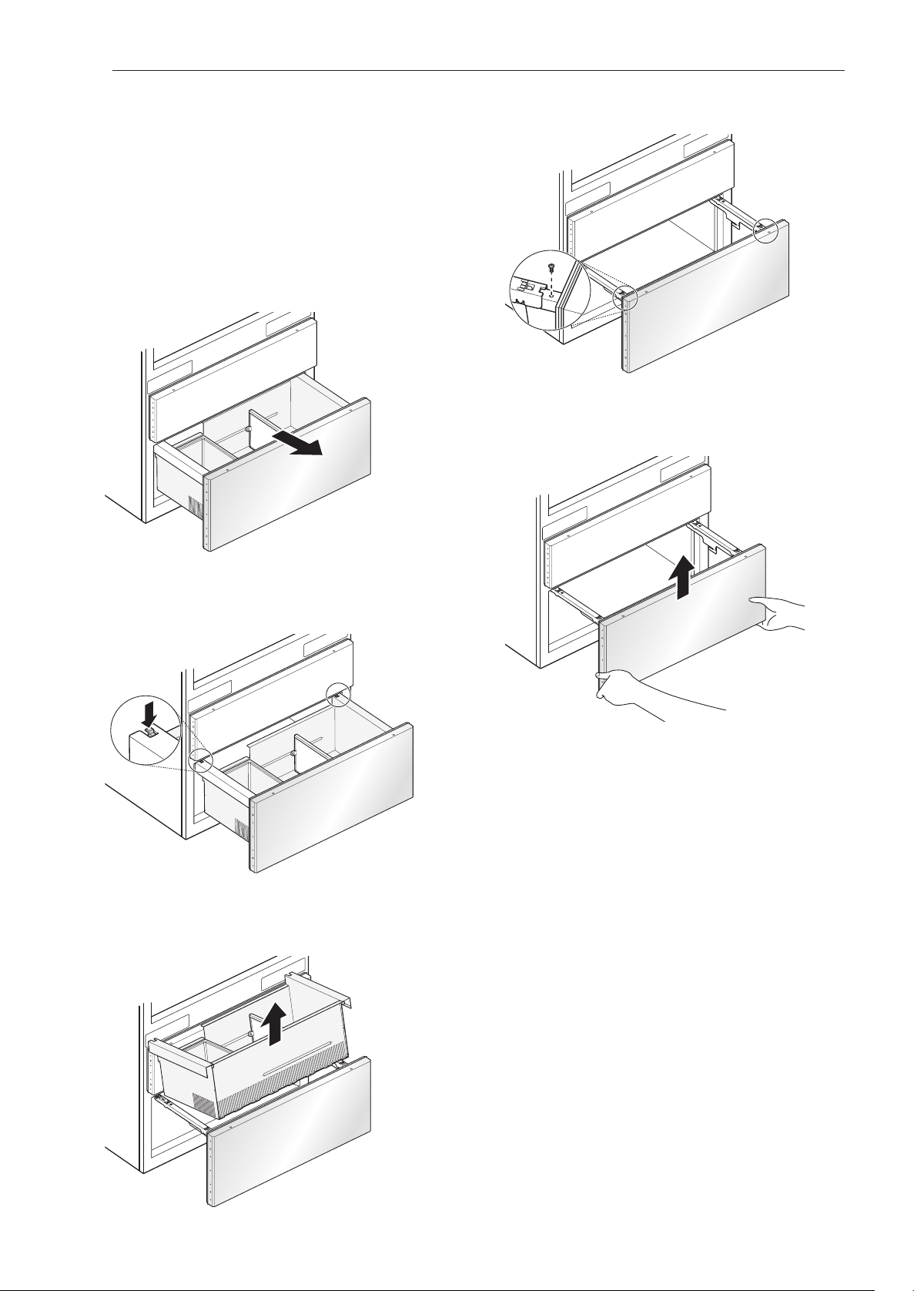

Removing the Convertible Drawer
1
Pull the drawer out until it stops.
Empty all contents out of the drawer before
removing it.
2
Push the button and disengage the stopper on
either side.
3
Remove the basket by lifting the basket from the
rail system.
4
Remove the screws from the rails at both sides.
5
Hold both sides of the door and lift it to remove it
from the rail system.
CAUTION
•
The drawers are heavy. Always use two hands
when removing or assembling the drawers to
avoid product damage or personal injury. Always
empty drawers before removing them.
•
Always open the door completely before
removing or assembling the drawers.
17OPERATION
ENGLISH

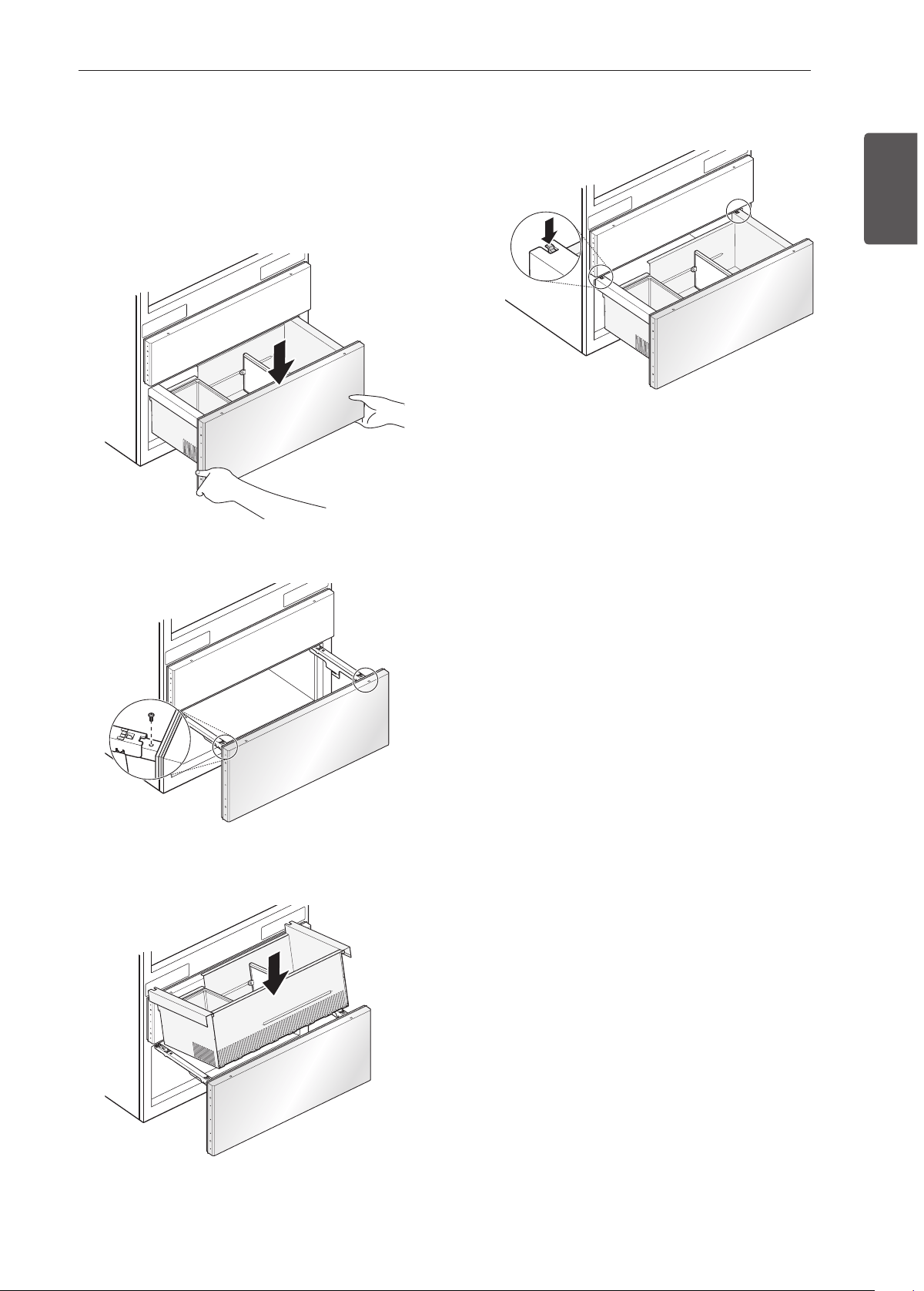

Assembling the Convertible Drawer
1
Grasp the door on each side and lower it into
place on the rail system.
2
Insert screws at the end of both rails.
3
Pull the drawer open to full extension.
Lower the basket onto the rail system.
4
Push the button and engage the stopper on
either side.
18 OPERATION
Freezer Drawer

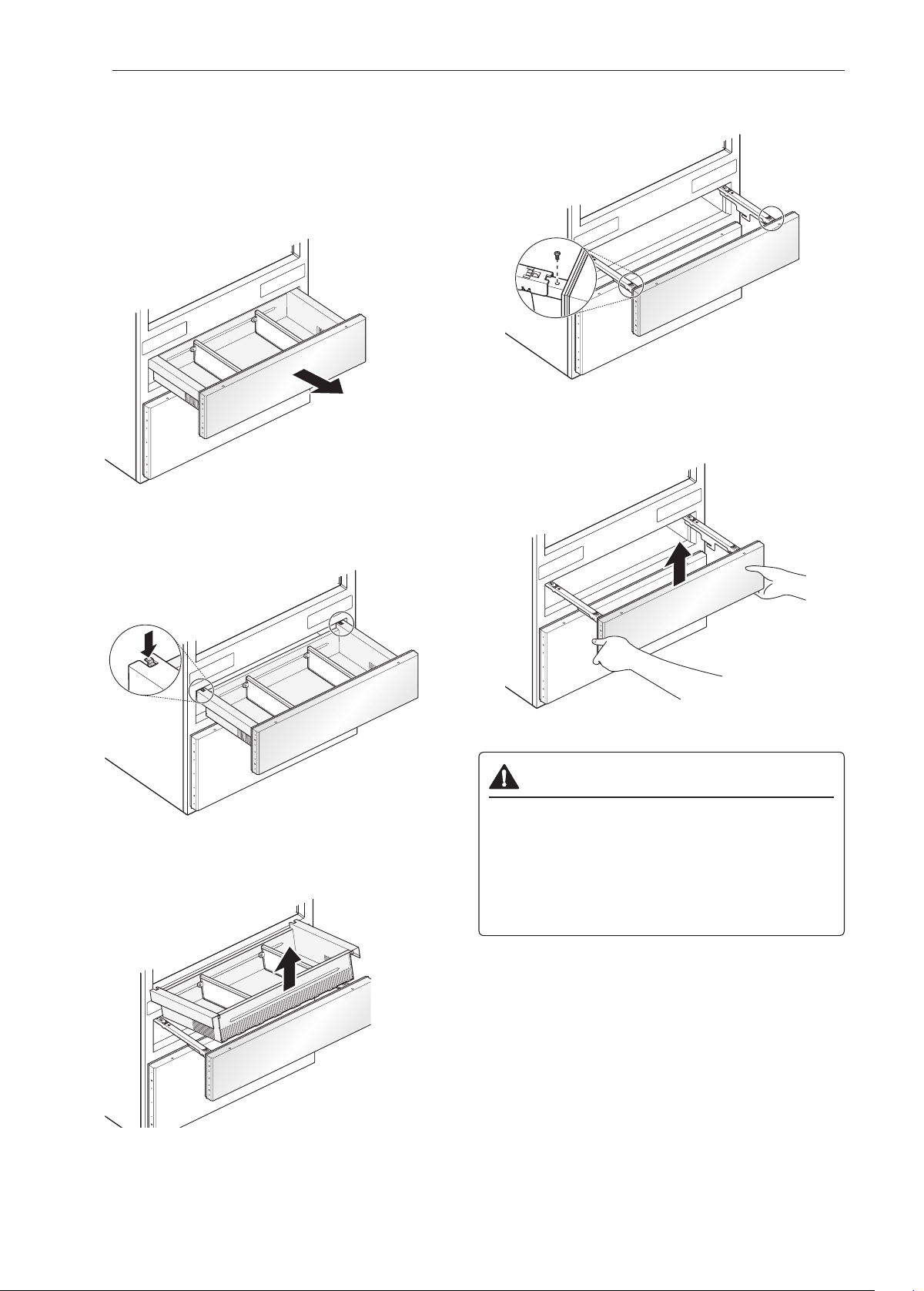

Removing the Freezer Drawer
NOTE
•
The convertible drawer must be removed before the
freezer drawer can be removed.
1
Pull the drawer out until it stops.
Empty all contents out of the drawer before
removing it.
2
Push the button and disengage the stopper on
either side.
3
Remove the basket by lifting the basket from the
rail system.
4
Remove the screws from the rails at both sides.
5
Hold both sides of the door and lift it to remove it
from the rail system.
19OPERATION
ENGLISH

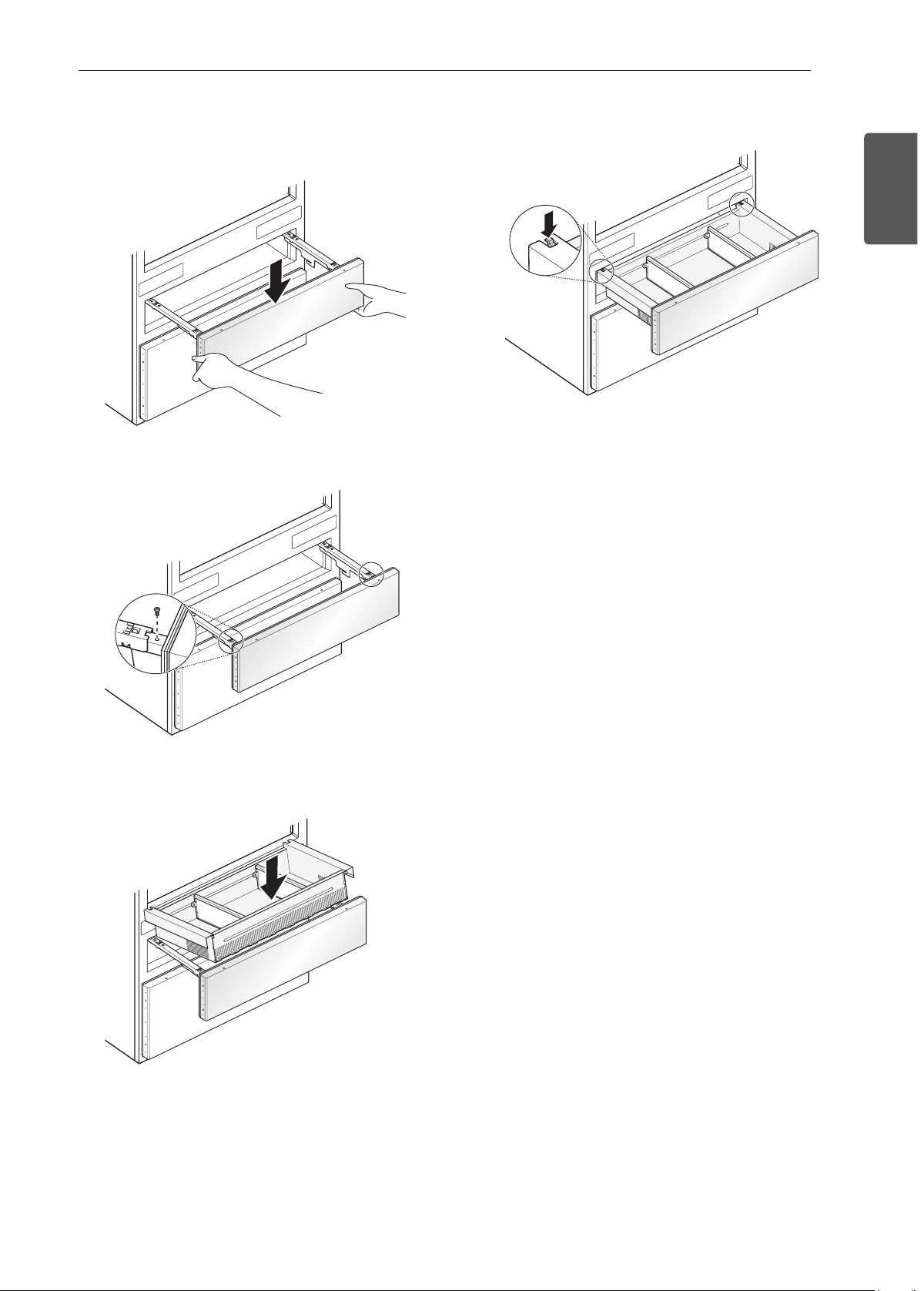

Assembling the Freezer Drawer
NOTE
•
The convertible drawer must be removed in order to
assemble the freezer drawer.
1
Grasp the door on each side and lower it into
place on the rail system.
2
Insert screws at the end of both rails.
3
Pull the drawer open to full extension.
Lower the basket onto the rail system.
4
Push the button and engage the stopper on
either side.
20 OPERATION

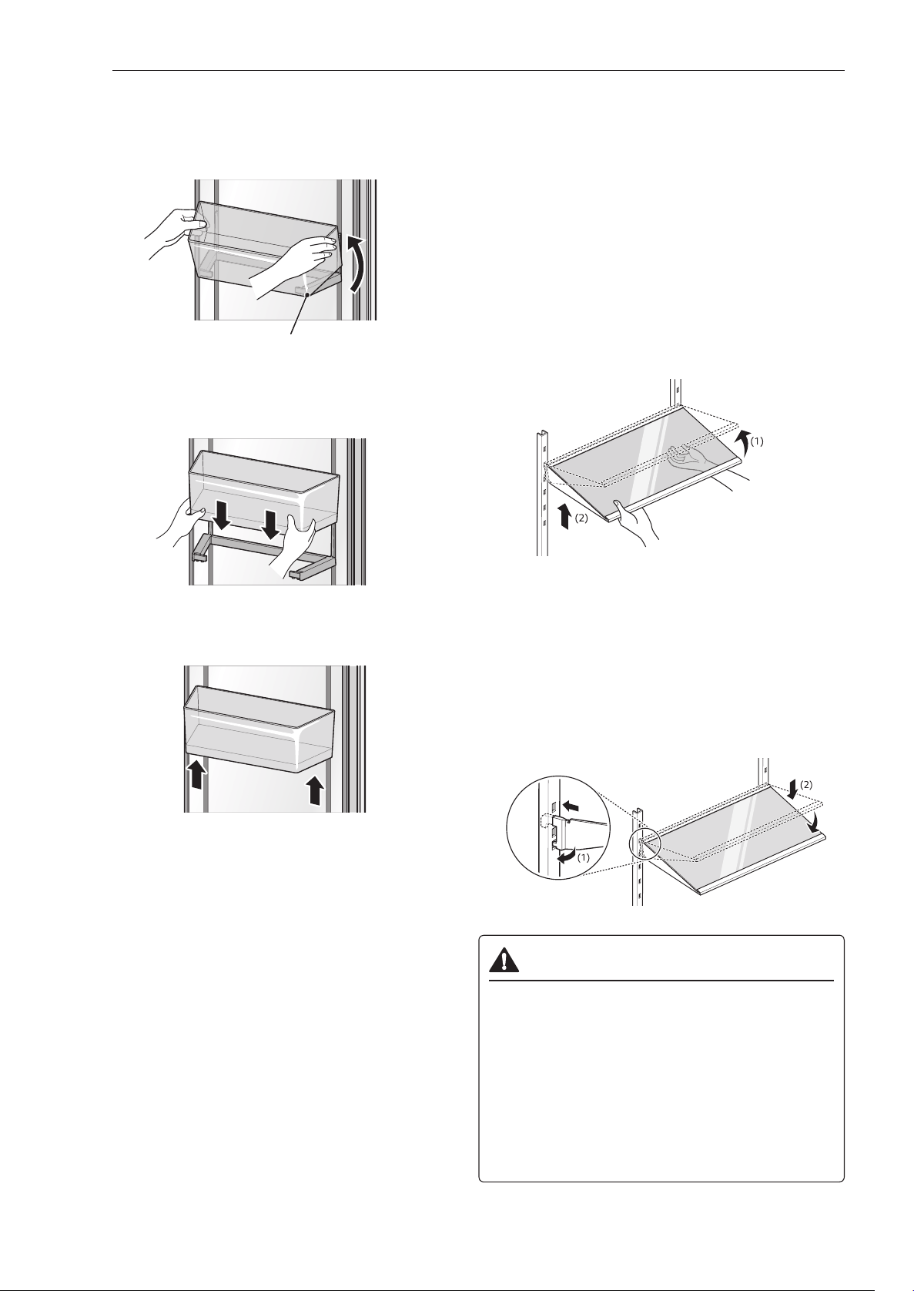

Door Bins
To remove the door bins, hold the bin with both hands
and tilt the back edge up.
the axis of rotation
To assemble the door bin, align both sides of the bin
with the guides and push the bin down until it snaps
into place.
To adjust the location of the bin, tilt the front of the bin
up and slide the bin up or down to the desired
location.
Adjusting the Shelves
The shelves in the refrigerator are adjustable to meet
individual storage needs.
Adjusting the shelves to fit items of different heights
will make finding the exact item you want easier.
Detaching the Shelf
1
Tilt up the front of the shelf and then lift the shelf
straight up.
2
Pull the shelf out.
Assembling the Shelf
1
Tilt the front of the shelf up and guide the shelf
hooks into the slots at a desired height.
2
Lower the front of the shelf so that the hooks
drop into the slots.
CAUTION
•
Make sure that shelves are level from one side
to the other. Failure to do so may result in the
shelf falling or spilled food.
•
Do not clean glass shelves with warm water
while they are cold. Shelves may break if
exposed to sudden temperature changes or
impact.
•
Glass shelves are heavy. Use special care when
removing them.
21OPERATION
ENGLISH

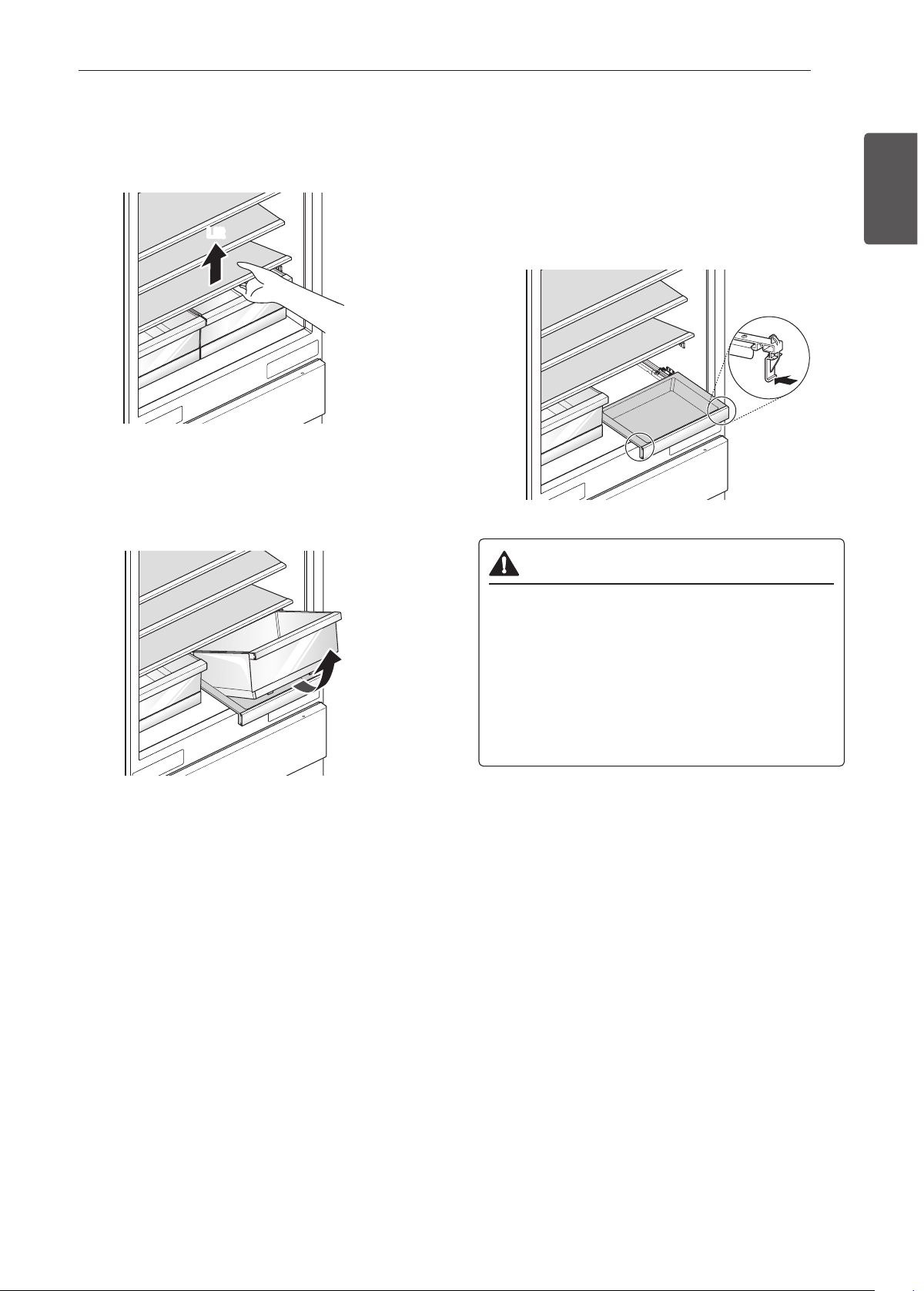

Crisper
Removing the Crisper Cover
•
Lift up the glass at the front and pull the cover out.
Lift
Removing the Crisper Drawers
•
Pull the crisper drawer out until it stops.
•
Lift the front of the drawer to remove it.
Removing the Crisper Drawer Frames
1
Remove the crisper drawer.
2
Pull the drawer frame out until it stops.
3
Press the release levers on either side of the
drawer frame and lift the drawer frame.
Release lever
CAUTION
•
Make sure that Crisper is level from one side to
the other. Failure to do so may result in the
Crisper falling or spilled food.
•
Do not clean the Crisper glass with warm water
while it is cold. Crisper may break if exposed to
sudden temperature changes or impact.
•
Crisper is heavy. Use special care when
removing it.
22 SMART FUNCTIONS
SMART FUNCTIONS
SIGNATURE KITCHEN SUITE
Application
The SIGNATURE KITCHEN SUITE application allows
you to communicate with the appliance using a
smartphone.
Before Using the Application
1
Check the strength of the wireless signal near the
appliance.
•
If the distance between the appliance and the
wireless router is too far, the signal strength
becomes weak. It may take a long time to
register or installation may fail.
2
Turn off the Mobile data or Cellular Data on
your smartphone.
3
Connect your smartphone to the wireless router.
NOTE
•
To verify the Wi-Fi connection, check that Wi-Fi
icon on the control panel is lit.
•
The appliance supports 2.4 GHz Wi-Fi networks
only. To check your network frequency, contact your
Internet service provider or refer to your wireless
router manual.
•
The SIGNATURE KITCHEN SUITE application is
not responsible for any network connection
problems or any faults, malfunctions, or errors
caused by network connection.
•
The surrounding wireless environment can make
the wireless network service run slowly.
•
If the appliance is having trouble connecting to the
Wi-Fi network, it may be too far from the router.
Purchase a Wi-Fi repeater (range extender) to
improve the Wi-Fi signal strength.
•
The network connection may not work properly
depending on the Internet service provider.
•
The Wi-Fi connection may not connect or may be
interrupted because of the home network
environment.
•
If the appliance cannot be registered due to
problems with the wireless signal transmission, turn
off the router and wait about a minute before turning
it back on and trying again.
•
If the rewall on your wireless router is enabled,
disable the rewall or add an exception to it.
•
The wireless network name (SSID) should be a
combination of English letters and numbers. (Do not
use special characters.)
•
Smartphone user interface (UI) may vary depending
on the mobile operating system (OS) and the
manufacturer.
•
If the security protocol of the router is set to WEP,
you may need to change it to WPA2 in order to
successfully register the product.
23SMART FUNCTIONS
ENGLISH
Installing SIGNATURE KITCHEN
SUITE Application
Search for the SIGNATURE KITCHEN SUITE
application from the Google Play Store or Apple App
Store on a smart phone. Follow instructions to
download and install the application.
NOTE
•
If you choose the simple login to access the
SIGNATURE KITCHEN SUITE application, you
must go through the appliance registration process
each time you change your smartphone or reinstall
the application.
SIGNATURE KITCHEN SUITE
Application Features
Manage Food
This feature helps track items in the refrigerator and
freezer, sends alerts when items are near their use by
dates, generates grocery lists, and links to related
recipes.
Energy Monitoring
This feature keeps track of the refrigerator’s power
consumption and the number of door openings.
Push Messages
If the door remains open for more than ten minutes,
you will receive a push message. When Ice Plus is
finished, you will receive a push message.
Smart Diagnosis™
This function provides useful information for
diagnosing and solving issues with the appliance
based on the pattern of use.
Settings
Allows you to set various options on the refrigerator
and in the application.
NOTE
•
If you change your wireless router, your Internet
service provider or your password after registering
the appliance, delete the product from the
SIGNATURE KITCHEN SUITE application under
Settings → Edit Product and register it again.
•
This information is current at the time of publication.
The application is subject to change for product
improvement purposes without notice to users.
24 SMART FUNCTIONS
Smart Grid Function
When the refrigerator operates in Smart Grid mode,
the Smart Refrigerator function can control energy
usage or delay the operation of some functions to
save energy during peak usage periods.
•
You can override the Smart Grid function at any
time (using the Smart Grid button or application).
•
To use the Smart Grid function, you need to register
your appliance with your electric utility company.
Smart Grid Application Features
Smart Saving_Demand Response
You can lower energy usage based on Demand
Response (DR) signals from the utility company. If the
refrigerator is operating in Smart Saving mode due to
a DR signal, you will see a pop up.
Seasonal Energy Savings
Lower energy usage based on time period.
Using the Smart Grid Function
This feature responds to notification events from your
utility company to run high energy consuming tasks
during off-peak periods when demand is lower. These
notification events are known as Demand Response
signals.
If the refrigerator receives a Demand Response
signal from the utility company, the refrigerator will
turn on the Grid LED on the refrigerator display and
control its power consumption according to the signal.
The refrigerator will respond to the signals received
from the utility company as long as product
performance is maintained.
If the refrigerator receives a Demand Response
signal, the refrigerator will operate in Delay Appliance
Load (DAL) or Temporary Appliance Load Reduction
(TALR) mode.
Delay Appliance Load (DAL)
The refrigerator responds to a DAL signal by providing
a moderate load reduction for the duration of the
delay period.
This mode controls functions that consume a lot of
energy such as adjusting the cooling system, running
the defrost cycle, and making ice.
•
When the refrigerator operates in DAL mode, the
Grid LED is illuminated on the refrigerator display.
•
DAL mode is automatically deactivated after the
period stipulated by the DAL signal (max. 4 hours)
or when you override the Smart Grid function.
Temporary Appliance Load Reduction (TALR)
The refrigerator responds to a TALR signal by
aggressively reducing the load for a short time period,
typically 10 minutes. This mode reduces energy
consumption by stopping the compressor and
controlling the functions that consume a lot of energy
such as the defrost cycle and fan.
•
When the refrigerator operates in TALR mode, the
Grid LED is illuminated on the refrigerator display.
•
TALR mode is automatically deactivated after the
received duration (max. 10 minutes), or when you
override the Smart Grid function. The mode is
immediately deactivated and the refrigerator returns
to its normal state when the door is opened or
closed, or the dispenser is used.
Override Smart Grid Mode
To ignore the Demand Response signal from the
utility company and override the Smart Grid function,
push the Smart Grid button while the refrigerator is in
Smart Grid mode.
When you override the Smart Grid function, the
refrigerator ignores the Demand Response signal and
is no longer controlled by the utility company until the
next Demand Response signal is sent. You can also
override the Smart Grid function using the smart
phone app.
SIGNATURE KITCHEN SUITE Open API
You can manage Smart Grid features for the
SIGNATURE KITCHEN SUITE refrigerator.
Please check the detailed specifications on the notice
page on www.signaturekitchensuite.com.
API list
Demand Response
•
Send demand response signal
Power Saving
•
Set saving mode
•
Get schedule of DR/Delay Defrost
Energy Monitoring
•
Get door open event
•
Get energy consumption
Delay Defrost Capability
•
Insert a delay defrost schedule event
•
Update a delay defrost schedule event
•
Delete a delay defrost schedule event
•
Get the delay defrost schedule
25SMART FUNCTIONS
ENGLISH
Smart Diagnosis™ Function
Should you experience any problems with the
appliance, it has the capability of transmitting data via
your telephone to the SIGNATURE KITCHEN SUITE
Information Center. NFC or Wi-Fi equipped models
can also transmit data to a smartphone using the
SIGNATURE KITCHEN SUITE application.
Smart Diagnosis™ through the
Customer Information Center
This method allows you to speak directly to our
trained specialists. The specialist records the data
transmitted from the appliance and uses it to analyze
the issue, providing a fast and effective diagnosis.
1
Call the SIGNATURE KITCHEN SUITE Customer
Information Center at:
(U.S.A) 1-855-790-6655
2
Open the refrigerator door.
3
Hold the mouthpiece of your phone in front of the
speaker that is located on the filter cover of the
refrigerator, when instructed to do so by the call
center.
4
Press and hold the Refrigerator button for three
seconds while continuing to hold your phone to
the speaker.
5
After you hear three beeps, release the
Refrigerator button.
6
Keep the phone in place until the tone
transmission has finished. The display will count
down the time. Once the countdown is over and
the tones have stopped, resume your
conversation with the specialist, who will then be
able to assist you in using the information
transmitted for analysis.
NOTE
•
For best results, do not move the phone while the
tones are being transmitted.
•
If the call center agent is not able to get an accurate
recording of the data, you may be asked to try
again.
•
The Smart Diagnosis™ function depends on the
local call quality.
•
Bad call quality may result in poor data transmission
from your phone to the call center, which could
cause Smart Diagnosis™ to malfunction.
Smart Diagnosis™
Use the Smart Diagnosis feature in the SIGNATURE
KITCHEN SUITE application for help diagnosing
issues with the appliance without the assistance of
the SIGNATURE KITCHEN SUITE Customer
Information Center.
Follow the instructions in the SIGNATURE KITCHEN
SUITE application to perform a Smart Diagnosis
using your smartphone.
NOTE
•
Smart Diagnosis™ cannot be activated unless the
appliance can be turned on using the Power button.
If the appliance cannot be turned on,
troubleshooting must be done without using Smart
Diagnosis™.
26 SMART FUNCTIONS
FCC Notice
The following notice covers the transmitter module
contained in this product.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules and also Part 18 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful interference in
a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
−
Reorient or relocate the receiving antenna.
−
Increase the separation between the equipment
and the receiver.
−
Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
−
Consult the dealer or an experienced radio/TV
technician for help.
This device complies with Part 15, Part 18 of the FCC
Rules. Operation is subject to the following two
conditions:
1) this device may not cause harmful interference and
2) this device must accept any interference received,
including interference that may cause undesired
operation of the device.
Any changes or modications in construction of this
device which are not expressly approved by the party
responsible for compliance could void the user’s
authority to operate the equipment.
FCC RF Radiation Exposure
Statement
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. This
transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
This equipment should be installed and operated with
a minimum distance of 20 cm (7.8 inches) between
the antenna and your body. Users must follow the
specific operating instructions for satisfying RF
exposure compliance.
Industry Canada Statement (For
transmitter module contained in this
product)
This device complies with Industry Canada’s
applicable licence- exempt RSSs. Operation is
subject to the following
two conditions:
1) This device may not cause interference; and
2) This device must accept any interference, including
interference that may cause undesired operation of
the device.
Industry Canada ICES-001 Compliance Label: CAN
ICES-1/NMB-1
IC Radiation Exposure Statement
This equipment complies with IC radiation exposure
limits set forth for an uncontrolled environment.
This equipment should be installed and operated with
a minimum distance of 20 cm (7.8 inches) between
the antenna and your body.
NOTE
•
The manufacturer is not responsible for any radio or
TV interference caused by unauthorized
modications to this equipment. Such modications
could void the user's authority to operate the
equipment.
Wireless LAN Module Specifications
Model LCW-003
Frequency Range 2412 MHz - 2462 MHz
Output Power
(Max)
IEEE 802.11b: 17.56 dBm
IEEE 802.11g: 25.53 dBm
IEEE 802.11n: 25.29 dBm
Open Source Software Notice
Information
To obtain the source code under GPL, LGPL, MPL,
and other open source licenses, that is contained in
this product, please visit http://opensource.
signaturekitchensuite.com.
In addition to the source code, all referred license
terms, warranty disclaimers and copyright notices are
available for download.
SIGNATURE KITCHEN SUITE will also provide open
source code to you on CD-ROM for a charge covering
the cost of performing such distribution (such as the
cost of media, shipping, and handling) upon email
request to [email protected].
This offer is valid for a period of three years after our
last shipment of this product. This offer is valid to
anyone in receipt of this information.
27SMART FUNCTIONS
ENGLISH
Wireless Power Transfer Specifications
Frequency 330 kHz ~ 370 kHz
Rated voltage DC 12 V
Delivered power Less than and equal to 3 W
per shelf
Transmission
mode
Electromagnetic induction
Transmitter
Receiver
NOTE
•
Foreign objects and dirt between the right side of
the shelf and the inner cabinet wall could prevent
the shelf light from turning on.
•
The shelf light turns on when the door is opened.
•
The shelf light turns off after seven minutes or when
the door is closed.
28 MAINTENANCE
MAINTENANCE
Cleaning
WARNING
•
Use non-ammable cleaner. Failure to do so can
result in re, explosion, or death.
CAUTION
•
Do not use an abrasive cloth or sponge when
cleaning the interior and exterior of the
refrigerator.
•
Do not place your hand on the bottom surface of
the refrigerator when opening and closing the
doors.
General Cleaning Tips
•
The refrigerator defrosts automatically; however,
clean it once a month to prevent odors.
•
Wipe up spills immediately.
•
Unplug the refrigerator or disconnect power before
cleaning.
•
Remove all removable parts, such as shelves.
•
Use a clean sponge or soft cloth and a mild
detergent in warm water. Do not use abrasive or
harsh cleaners.
•
Hand wash, rinse and dry all surfaces thoroughly.
•
When cleaning the inside or outside of the
appliance, do not wipe it with a rough brush,
toothpaste, or ammable materials. Do not use
cleaning agents containing ammable substances.
−
Doing so may cause discoloration or damage to
the appliance.
−
Flammable substances: alcohol (ethanol,
methanol, isopropyl alcohol, isobutyl alcohol,
etc.), thinner, bleach, benzene, ammable liquid,
abrasive, etc.
Inside Walls
To help remove odors, wash the inside of the
refrigerator with a mixture of baking soda and warm
water. Mix 2 tablespoons of baking soda to 1 quart of
water (26 g soda to 1 liter water.) Be sure the baking
soda is completely dissolved so it does not scratch
the surfaces of the refrigerator.
Door Liners and Gaskets
Use a clean sponge or soft cloth and a mild detergent
in warm water. Do not use cleaning waxes,
concentrated detergents, bleaches, or cleaners
containing petroleum on plastic refrigerator parts.
Plastic Parts (covers and panels)
Use a clean sponge or soft cloth and a mild detergent
in warm water. Do not use glass cleaners, abrasive
cleansers, or flammable fluids. These can scratch or
damage the material.

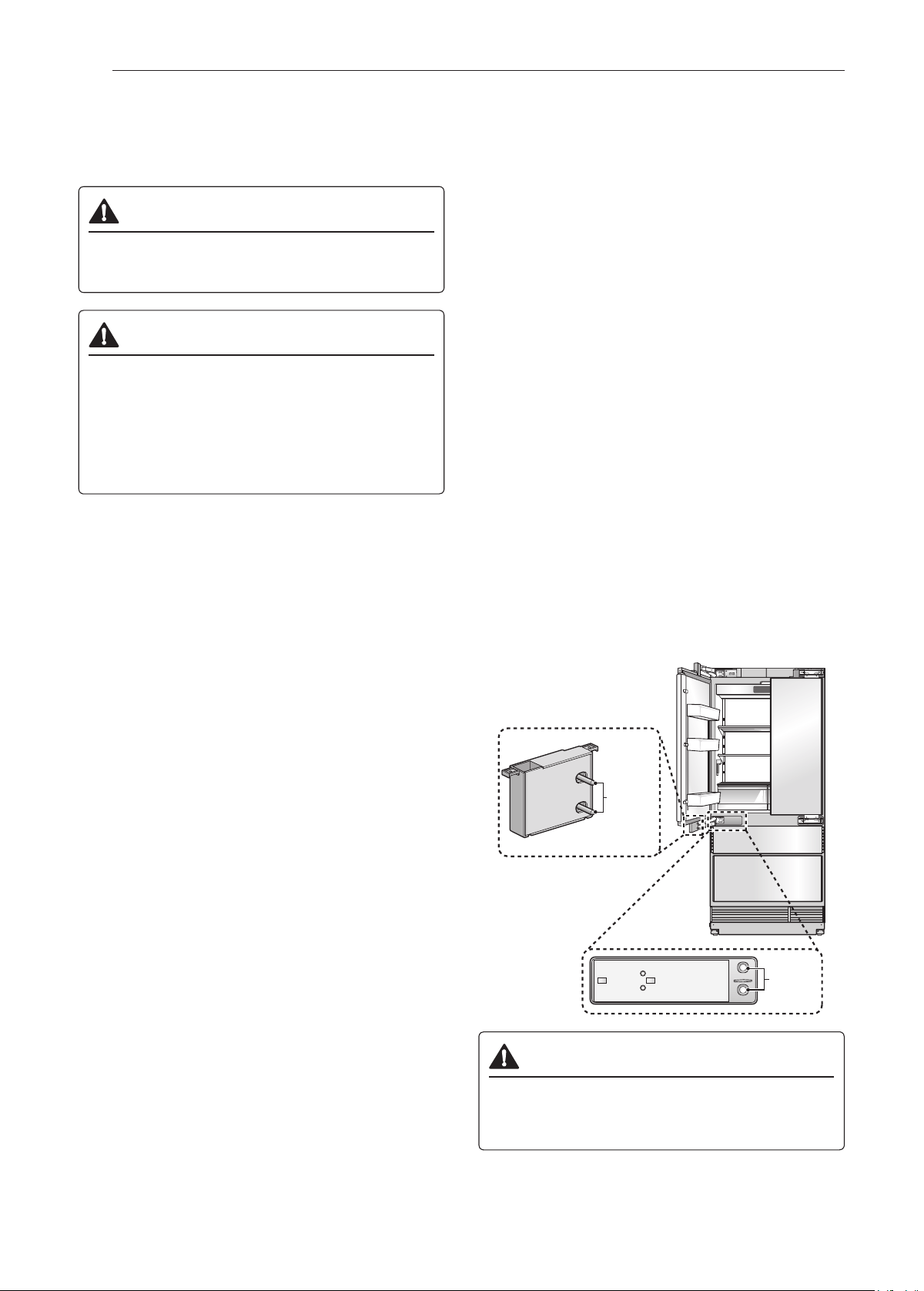

Mullion Heater Terminals
Use a clean sponge or soft cloth.
Do not use glass cleaners, abrasive cleansers, water,
or flammable fluids.
These can damage the terminals.
Terminal
Terminal
CAUTION
•
Use a clean sponge or soft cloth only.
Failure to do so can result in re, explosion, or
death.
29MAINTENANCE
ENGLISH

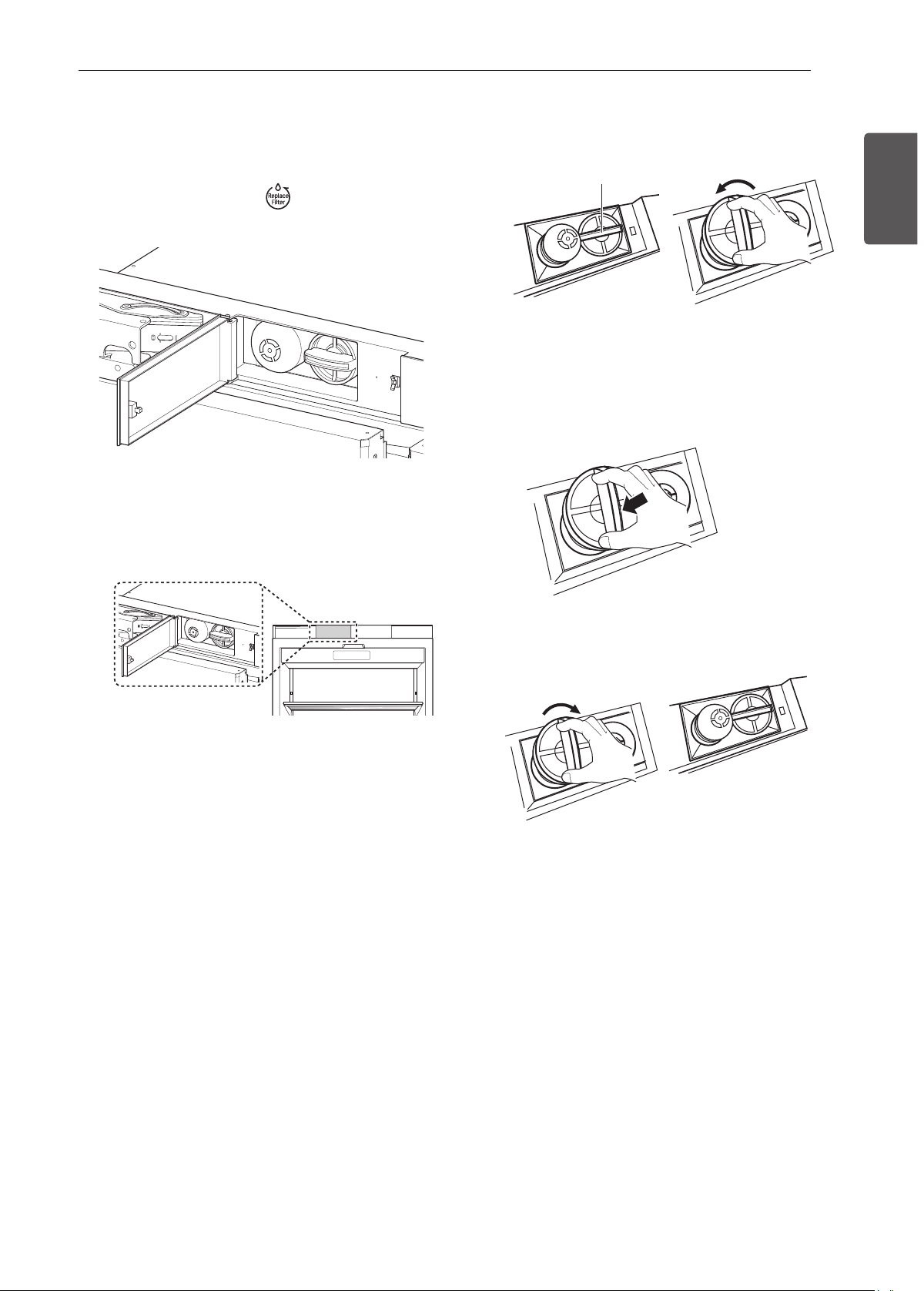

Replacing the Water Filter
Replace the Water Filter :
•
Approximately every six months.
•
When the Replace Filter
icon turns on.
•
When the icemaker output decreases.
1
Remove the old water filter.
Push to open the water filter cover at the top right
of the refrigerator.
NOTE
•
Replacing the water lter causes a small amount of
water (around 1 oz. or 25 cc) to drain.
•
Wrap a cloth around the front end of the water lter
cover to collect any leaking water. Hold the water
lter upright, once it is removed, to prevent any
remaining water from spilling out of the water lter.
2
Put the cap on the water filter, then grasp and
rotate it counterclockwise to remove the water
filter from the filter head.
Cap
3
Replace with a new water filter.
Take the new water filter out of its packing and
remove the protective cover from the o-rings. Put
the cap on the new water filter, then push it into
the manifold hole until it stops.
4
Grasp and rotate cap clockwise until it stops.
Replace the cap to the side of the water filter.
5
After the water filter is replaced, dispense 2.5
gallons of water (flush for approximately 5
minutes) to remove trapped air and contaminants
from the system.
NOTE
•
Do not dispense the entire 2.5 gallon amount
continuously. Press and release the dispenser pad
for cycles of 30 seconds ON and 60 seconds OFF.
30 MAINTENANCE
6
After changing the filter, press and hold the Water
Filter Reset button for three seconds to reset the
indicator light.
NOTE
To purchase a replacement water filter:
•
Visit your local dealer or distributor
•
Web : Find Parts & Accessories from Support
section of signaturekitchensuite.com
•
Call : 1-855-790-6655 (USA)
For further assistance, call:
1-855-790-6655 (USA)
•
Use replacement cartridge:
LT1000P-S (ADQ74793506)
31MAINTENANCE
ENGLISH
Performance Data Sheet
Model: LT1000P-S NSF System Trade Name Code : MDJ64844601
The concentration of the indicated substances in water entering the system was reduced to a concentration less
than or equal to the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42,
Standard 53 and Standard 401.
System tested and certified by NSF International against NSF/ANSI Standard 42, Standard
53 and Standard 401 for the reduction of substances listed below.
Substance
Reduction
Average
Influent
Challenge
NSF specified
Challenge
Concentration
Avg %
Reduction
Average
Product Water
Concentration
Max
Permissible
Product Water
Concentration
NSF
Reduction
Requirements
Chlorine Taste
and Odor
2.0 μg/L 2.0 μg/L± 10% >97.5% 0.050 μg/L N/A ≥ 50.00%
Nominal
Particulate
Class I, , ≥ 0.5
to < 1.0 μm
12,000,000
pts/mL
At least
10,000
particles/mL
99.80% 24,000 pts/ml N/A ≥ 85.00%
Asbestos 180 MFL
10
7
to 10
8
MFL; fibers
greater than
10 μg/Lin
length
>99.00% < 1 MFL N/A ≥ 99.00%
Atrazine 8.5 μg/L
9.0 μg/L ±
10%
>94.10% 0.500 μg/L 3.0 μg/L NA
Benzene 15.0 μg/L
15.0 μg/L ±
10%
>96.60% 0.510 μg/L 5.0 μg/L NA
Carbofuran 74.0 μg/L
80.0 μg/L ±
10%
98.30% 1.258 μg/L 40 μg/L NA
Lindane 1.9 μg/L
2.0 μg/L ±
10%
>99.00% 0.019 μg/L 0.2 μg/L NA
P-Dichlorobenzene
230.0 μg/L
225.0 μg/L ±
10%
>99.80% 0.460 μg/L 75.0 μg/L NA
2,4-D 210.0 μg/L
210.0 μg/L ±
10%
>99.90% 0.210 μg/L 70.0 μg/L NA
Lead pH @6.5 140.0 μg/L
150.0 μg/L ±
10%
99.60% 0.560 μg/L 10.0 μg/L NA
Lead pH @8.5 150.0 μg/L
150.0 μg/L ±
10%
>99.70% <0.500 μg/L 10.0 μg/L NA
Mercury @ pH
6.5
5.9 μg/L
6.0 μg/L ±
10%
91.00% 0.531 μg/L 2.0 μg/L NA
(Continued on next page)
32 MAINTENANCE
Substance
Reduction
Average
Influent
Challenge
NSF specified
Challenge
Concentration
Avg %
Reduction
Average
Product Water
Concentration
Max
Permissible
Product Water
Concentration
NSF
Reduction
Requirements
Mercury @ pH
8.5
5.6 μg/L
6.0 μg/L ±
10%
92.5% 0.420 μg/L 2.0 μg/L NA
Cyst*
100,000
cysts/L
Minimum
50,000 cysts/L
>99.99% 10 cysts/L N/A ≥ 99.95%
Atenolol 240 ng/L
200 ± 40%
ng/L
> 95.50% 10.80 ng/L 30 ng/L NA
Carbamazepine
1600 ng/L
1400 ± 40%
ng/L
98.40% 25.60 ng/L 200 ng/L NA
DEET 1600 ng/L
1400 ± 40%
ng/L
97.10% 46.40 ng/L 200 ng/L
NA
Trimethoprim 170 ng/L
140 ± 40%
ng/L
>96.80% 5.44 ng/L 20 ng/L
NA
Linuron 160 ng/L
140 ± 40%
ng/L
>96.60% 5.44 ng/L 20 ng/L
NA
Phenytoin 200 ng/L
200 ± 40%
ng/L
>94.80% 10.40 ng/L 30 ng/L
NA
Ibuprofen 400 ng/L
400 ± 40%
ng/L
>94.50% 22.00 ng/L 60 ng/L
NA
Naproxen 140 ng/L
140 ± 40%
ng/L
>96.10% 5.46 ng/L 20 ng/L
NA
Estrone 120 ng/L
140 ± 40%
ng/L
>96.10% 4.68 ng/L 20 ng/L
NA
Bisphenol A 2000 ng/L
2000 ± 40%
ng/L
>98.90% 22.00 ng/L 300 ng/L
NA
Nonyl Phenol 1600 ng/L
1400 ± 40%
ng/L
>97.10% 46.40 ng/L 200 ng/L
NA
•
Based on the use of Cryptosporidium parvum oocysts.
33MAINTENANCE
ENGLISH
Application Guidelines/Water Supply
Parameters
Service Flow 0.5 gpm (1.89 lpm)
Water Supply
Community or Private Well -
Potable Water
Water
Pressure
20 – 120 psi (138 – 827 kPa)
Water
Temperature
33 °F – 100 °F (0.6 °C – 37.8 °C)
Capacity 200 gallons (757 liters)
It is essential that the manufacturer’s recommended
installation, maintenance and filter replacement
requirements be carried out for the product to perform
as advertised.
NOTE
•
While the testing was performed under standard
laboratory conditions, actual performance may vary.
Replacement Cartridge: LT1000P-S
For replacement filters, visit your local dealer or
distributor or search under “water filters” on the
signaturekitchensuite.com website.
For further assistance, the SIGNATURE KITCHEN
SUITE Customer Information Center is open 24 hours
a day/7 days a week.
USA : 1-855-790-6655
NSF is trademark of NSF.
WARNING
To reduce the risk associated with choking:
•
Do not allow children under 3 years of age to
have access to small parts during the installation
of this product.
To reduce the risk associated with the
ingestion of contaminants:
•
Do not use with water that is microbiologically
unsafe or of unknown quality without adequate
disinfection before or after the system. Systems
certied for cyst reduction may be used on
disinfected water that may contain lterable
cysts. EPA Establishment # 070595-MEX-001
CAUTION
To reduce the risk associated with property
damage due to water leakage:
•
Read and follow Use Instructions before
installation and use of this system.
•
Installation and use MUST comply with all state
and local plumbing codes.
•
Do not install if water pressure exceeds 120 psi
(827 kPa). If your water pressure exceeds 80
psi, you must install a pressure limiting valve.
Contact a plumber if uncertain how to check your
water pressure.
•
Do not install where water hammer conditions
may occur. If water hammer conditions exist you
must install a water hammer arrester. Contact a
plumbing professional if you are uncertain how
to check for this condition.
•
Do not install on hot water supply lines. The
maximum operating water temperature of this
lter system is 100 °F (37.8 °C).
•
Protect lter from freezing. Drain lter when
temperatures drop below 40 °F (4.4 °C).
•
The disposable lter cartridge MUST be replaced
every 6 months, at the rated capacity or if a
noticeable reduction in ow rate occurs.
•
Protect from freezing, remove lter cartridge
when temperatures are expected to drop below
33 °F.
•
Do not install systems in areas where ambient
temperatures may go above 110° F (43.3 °C).
•
Where a backow prevention device is installed
on a water system, a device for controlling
pressure due to thermal expansion must be
installed.
•
Ensure all tubing and ttings are secure and free
of leaks.
34 TROUBLESHOOTING
TROUBLESHOOTING
FAQs: Frequently Asked Questions
Q: What are the best temperature settings for my freezer?
A: The default setting for the freezer is 0° Fahrenheit (-18° Celsius). Adjust these settings as necessary
to keep food at desired temperatures. Ice cream should be firm and ice cubes should not melt in the
freezer. To switch the display from Fahrenheit to Celsius, press the Freezer button first to wake the
display then press and hold the Freezer and Smart Grid buttons until you hear a beep and the settings
in the display change.
Q: What are the best temperature settings for my refrigerator?
A: The default setting for the refrigerator is 37° Fahrenheit (3° Celsius). Adjust these settings as
necessary to keep food at desired temperatures. To switch the display from Fahrenheit to Celsius,
press the Refrigerator button first to wake the display then press and hold the Refrigerator and Smart
Grid buttons until you hear a beep and the settings in the display change.
Q: How do I adjust the temperature?
A: Continually press the Refrigerator or Convertible or Freezer button on the control panel until the
desired temperature appears.
The numbers will cycle from highest to lowest and then return to the highest again with continuous
pressing.
Q: Why do I hear a buzzing noise from my freezer periodically?
A: This may happen if you do not have a water source attached to your freezer and the icemaker is
turned on. If you do not have a water source attached to the freezer you should turn the icemaker off
on the control panel.
Q: Why does the icemaker tray look crooked?
A: This is a normal part of the icemaker cycle. The icemaker tray may appear level or with a slight tilt.
The change in position is to assist in the freezing process.
Q: My freezer is powered on and the controls are working, but it’s not cooling and the display
shows “OF” (see below). What is wrong?
A: The freezer is in Display Mode. This mode disables cooling to save energy while the appliance is on
display in a store. To restore normal operation, press Freezer button first to wake the display then
press and hold the Freezer and Water Filter Reset buttons until you hear a beep and the temperature
setting appears in the display. Use the same procedure to return the freezer to Display Mode, if
desired.
35TROUBLESHOOTING
ENGLISH
Before Calling for Service
Review this section before calling for service; doing so will save you both time and money.
Cooling
Problem Possible Cause Solutions
Refrigerator and
Freezer section
are not cooling.
The refrigerator control is set
to OFF (some models).
Turn the control ON. Refer to the Setting the Controls
section for proper temperature settings.
Refrigerator is set to Display
Mode.
Display Mode allows the lights and control display to
work normally while disabling cooling, to save energy
while the refrigerator is on the showroom floor. See
the FAQs section of this manual for instructions on
how to disable Display Mode.
Refrigerator is in the defrost
cycle.
During the defrost cycle, the temperature of each
compartment may rise slightly. Wait 30 minutes and
confirm the proper temperature has been restored
once the defrost cycle has completed.
Refrigerator was recently
installed.
It may take up to 24 hours for each compartment to
reach the desired temperature.
Refrigerator was recently
relocated.
If the refrigerator was stored for a long period of time
or moved on its side, it is necessary for the refrigerator
to stand upright for 24 hours before connecting it to
power.
Cooling system
runs too much.
Refrigerator is replacing an
older model.
Modern refrigerators require more operating time but
use less energy due to more efficient technology.
Refrigerator was recently
plugged in or power
restored.
The refrigerator will take up to 24 hours to cool
completely.
The door is opened often or
a large amount of food / hot
food was added.
Adding food and opening the door warms the
refrigerator, requiring the compressor to run longer in
order to cool the refrigerator back down. In order to
conserve energy, try to get everything you need out of
the refrigerator at once, keep food organized so it is
easy to find, and close the door as soon as the food is
removed. (Refer to the Food Storage Guide.)
Doors are not closed
completely.
Firmly push the doors shut. If they will not shut all the
way, the "Doors will not close correctly or pop open"
section.
Refrigerator is installed in a
hot location.
The compressor will run longer under warm
conditions. At normal room temperatures (70 °F)
expect your compressor to run about 40 % to 80 % of
the time. Under warmer conditions, expect it to run
even more often. The refrigerator should not be
operated above 110 °F.
36 TROUBLESHOOTING
Cooling
Problem Possible Cause Solutions
Interior moisture
buildup.
Doors are opened often or
for long periods of time.
When the doors are opened often or for long periods
of time, warm, humid air enters the compartment. This
raises the temperature and moisture level within the
compartment. To lessen the effect, reduce the
frequency and duration of door openings.
Doors are not closed
correctly.
See the "Doors will not close correctly or pop open"
section.
Weather is humid.
Humid weather allows additional moisture to enter the
compartments when the doors are opened leading to
condensation or frost. Maintaining a reasonable level
of humidity in the home will help to control the amount
of moisture that can enter the compartments.
Defrost cycle recently
completed.
During the defrost cycle, the temperature of each
compartment may rise slightly and condensation may
form on the back wall. Wait 30 minutes and confirm
that the proper temperature has been restored once
the defrost cycle has completed.
Food is not packaged
correctly.
Food stored uncovered or unwrapped, and damp
containers can lead to moisture accumulation within
each compartment. Wipe all containers dry and store
food in sealed packaging to prevent condensation and
frost.
Food is freezing in
the refrigerator
compartment.
Food with high water content
was placed near an air vent.
Rearrange items with high water content away from
air vents.
Refrigerator temperature
control is set incorrectly.
If the temperature is too cold, adjust the control one
increment at a time and wait for the temperature to
stabilize. Refer to the Control Panel section for more
information.
Refrigerator is installed in a
cold location.
When the refrigerator is operated in temperature
below 41°F (5°C), food can freeze in the refrigerator
compartment. The refrigerator should not be operated
in temperature below 55°F (13°C).
Refrigerator is too
warm.
Refrigerator was recently
installed.
It may take up to 24 hours for each compartment to
reach the desired temperature.
The air vents are blocked.
Locate air vents by using your hand to sense airflow
and move all packages that block vents and restrict
airflow. Rearrange items to allow air to flow throughout
the compartment.
37TROUBLESHOOTING
ENGLISH
Cooling
Problem Possible Cause Solutions
Refrigerator is too
warm.
Doors are opened often or
for long periods of time.
When the doors are opened often or for long periods
of time, warm, humid air enters the compartment. This
raises the temperature and moisture level within the
compartment. To lessen the effect, reduce the
frequency and duration of door openings.
Unit is installed in a hot
location.
The refrigerator should not be operated in
temperatures above 110 °F.
A large amount of food or hot
food was added to the
compartment.
Adding food warms the compartment requiring the
cooling system to run. Allowing hot food to cool to
room temperature before putting it in the refrigerator
will reduce this effect.
Doors not closed correctly.
See the Doors will not close correctly or pop open
section in Parts & Features Troubleshooting.
Temperature control is not
set correctly.
If the temperature is too warm, adjust the control one
increment at a time and wait for the temperature to
stabilize.
Defrost cycle has recently
completed.
During the defrost cycle, the temperature of each
compartment may rise slightly and condensation may
form on the back wall. Wait 30 minutes and confirm
the proper temperature has been restored once the
defrost cycle has completed.
Refrigerator is too
cold.
Incorrect temperature control
settings.
If the temperature is too cold, adjust the control one
increment at a time and wait for the temperature to
stabilize. Refer to the Control Panel for more
information.
38 TROUBLESHOOTING
Parts & Features
Problem Possible Cause Solutions
Doors will not
close correctly or
pop open.
Food packages are blocking
the door open.
Rearrange food containers to clear the door and door
shelves.
Ice bin, crisper cover, pans,
shelves, door bins, or
baskets are out of position.
Push bins all the way in and put crisper cover, pans,
shelves and baskets into their correct positions. See
the Operation section for more information.
The doors were removed
during product installation
and not properly replaced.
Remove and replace the doors according to the
installation instructions.
Refrigerator is not leveled
properly.
See Door Alignment in the installation instructions to
level refrigerator.
Door is difficult to
open.
The gaskets are dirty or
sticky.
Clean the gaskets and the surfaces that they touch.
Rub a thin coat of appliance polish or kitchen wax on
the gaskets after cleaning.
Door was recently closed.
When you open the door, warmer air enters the
refrigerator. As the warm air cools, it can create a
vacuum. If the door is hard to open, wait one minute
to allow the air pressure to equalize, then see if it
opens more easily.
Lights do not
work.
LED interior lighting failure.
The refrigerator compartment lamp is LED interior
lighting, and service should be performed by a
qualified technician.
The interior of the
refrigerator is
covered with dust
or soot.
The refrigerator is located
near a fire source, such as a
fireplace, chimney, or candle.
Make sure that the refrigerator is not located near a
fire source, such as a fireplace, chimney or candle.
Condensation
forms on the
mullion on the left
door.
The contact points or
terminals for the mullion
heater may be blocked by
dirt.
Wipe the terminals and contact points clean using a
dry cloth. (See the Maintenance section for details.)
39TROUBLESHOOTING
ENGLISH
Noises
Problem Possible Cause Solutions
Clicking
The defrost control will click when the
automatic defrost cycle begins and
ends. The thermostat control (or
refrigerator control on some models)
will also click when cycling on and off.
Normal Operation
Rattling
Rattling noises may come from the flow
of refrigerant, the water line on the back
of the unit, or items stored on top of or
around the refrigerator.
Normal Operation
Refrigerator is not resting solidly on the
floor.
Floor is weak or uneven or leveling legs
need to be adjusted. See the Leveling and
Door Alignment section.
Refrigerator with linear compressor
was jarred while running.
Normal Operation
Whooshing
Evaporator fan motor is circulating air
through the refrigerator compartment.
Normal Operation
Air is being forced over the condenser
by the condenser fan.
Normal Operation
Gurgling
Refrigerant flowing through the cooling
system.
Normal Operation
Popping
Contraction and expansion of the inside
walls due to changes in temperature.
Normal Operation
Sizzling
Water dripping on the defrost heater
during a defrost cycle.
Normal Operation
Vibrating
If the side or back of the refrigerator is
touching a cabinet or wall, some of the
normal vibrations may make an audible
sound.
To eliminate the noise, make sure that the
sides and back cannot vibrate against any
wall or cabinet.
Dripping
Water running into the drain pan during
the defrost cycle.
Normal Operation
Pulsating or high-
pitched sound
Your refrigerator is designed to run
more efficiently to keep your food items
at the desired temperature. The high
efficiency compressor may cause your
new refrigerator to run longer than your
old one, but it is still more energy
efficient than previous models. While
the refrigerator is running, it is normal
to hear a pulsating or high-pitched
sound.
Normal Operation
40 TROUBLESHOOTING
Wi-Fi Network
Problem Possible Cause Solutions
Your home
appliance and
smartphone is not
connecting to the
Wi-Fi network.
The password for the Wi-Fi
that you are trying to connect
to is incorrect.
Find the Wi-Fi network connected to your smartphone
and remove it, then register your appliance on
SIGNATURE KITCHEN SUITE application.
Mobile data for your
smartphone is turned on.
Turn off the Mobile data of your smartphone and
register the appliance using the Wi-Fi network.
The wireless network name
(SSID) is set incorrectly.
The wireless network name (SSID) should be a
combination of English letters and numbers. (Do not
use special characters.)
The router frequency is not
2.4 GHz.
Only a 2.4 GHz router frequency is supported. Set the
wireless router to 2.4 GHz and connect the appliance
to the wireless router. To check the router frequency,
check with your Internet service provider or the router
manufacturer.
The router is too far from the
appliance.
If the distance between the appliance and the router
is too great, the signal may be weak and the
connection may not be configured correctly. Move the
router closer to the appliance or purchase and install
a Wi-Fi range extender.
41LIMITED WARRANTY
ENGLISH
LIMITED WARRANTY
FOR USA
Should your SIGNATURE KITCHEN SUITE (“Product”) fail due to a defect in materials or workmanship under
normal and proper use, during the warranty period set forth below, SIGNATURE KITCHEN SUITE will, at its
option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the
Product and applies only when purchased and used within the United States including U.S. Territories.
WARRANTY PERIOD
Refrigerator/
Freezer
Sealed System
(Condenser, Dryer,
Connecting Tube and
Evaporator)
Compressor
Three (3) years from
the date of original
retail purchase
Five (5) years from the date
of original retail purchase
Five (5) years from
the date of original
retail purchase
Linear / Inverter Compressor Only :
Parts Only for years 6-10 from the date
of original retail purchase (Consumer
will be charged for labor)
Parts and Labor
(internal/ functional
parts only)
Parts and Labor Parts and Labor
•
Replacement products and parts are warranted for the remaining portion of the original warranty period or
ninety (90) days, whichever is greater.
•
Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured.
•
Proof of original retail purchase specifying the Product model and date of purchase is required to obtain
warranty service under this limited warranty.
EXCEPT TO THE EXTENT PROHIBTED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THE PRODUCT IS LIMITED IN
DURATION TO THE DURATION OF THE ABOVE LIMITED WARRANTY. UNDER NO CIRCUMSTANCES
SHALL SIGNATURE KITCHEN SUITE OR ITS U.S. DISTRIBUTORS/DEALERS BE LIABLE FOR ANY
INDIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL, OR PUNITIVE DAMAGES, INCLUDING, WITHOUT
LIMITATION, LOST GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, IMPAIRMENT OF
OTHER GOODS, COST OF REMOVAL AND REINSTALLATION OF THE PRODUCT, LOSS OF USE, OR ANY
OTHER DAMAGES WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. SIGNATURE KITCHEN
SUITE’S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE
PRODUCT.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how
long an implied warranty lasts, so the above exclusions or limitations may not apply to you. This limited warranty
gives you specific legal rights and you may also have other rights that vary from state to state.
THIS LIMITED WARRANTY DOES NOT COVER:
•
Service trips to deliver, pick up, or install, educate how to operate, correct wiring, or correct unauthorized
repairs.
•
Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical
service.
•
Damage or failure caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate
or interrupted water supply or inadequate supply of air.
•
Damage resulting from operating the product in a corrosive atmosphere or contrary to the product owner’s
manual.
42 LIMITED WARRANTY
•
Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, re, oods, acts of
God, or any other causes beyond the control of SIGNATURE KITCHEN SUITE.
•
Damage or failure caused by unauthorized modication or alteration, or if used for other than the intended
purpose.
•
Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair
includes use of parts not authorized by SIGNATURE KITCHEN SUITE. Improper installation or maintenance
includes installation or maintenance contrary to the Product owner’s manual or installation manual.
•
Damage or failure caused by incorrect electrical current, voltage, or plumbing codes.
•
Damage or failure caused by transportation and handling, including scratches, dents, chips, and/or other
damage to the nish of the Product, unless such damage is reported within one (1) week of delivery.
•
Damage or missing items to any display, open box, or discounted Product.
•
Refurbished Product or any Product sold “As Is”, “Where Is”, “With all Faults”, or similar disclaimer.
•
Products with original serial numbers that have been removed, altered, or cannot be readily determined.
•
Increases in utility costs and additional utility expenses.
•
Any noises associated with normal operation.
•
Use of accessories (e.g., water lters, etc.), components, or consumable cleaning products that are not
authorized by SIGNATURE KITCHEN SUITE.
•
Replacement of light bulbs, lters, or any consumable parts.
•
When Product is used for other than normal and proper household use (e.g. commercial or industrial use,
ofces, and recreational facilities or vehicles) or contrary to the instructions outlined in the Product’s owner’s
manual.
•
Costs associated with removal and reinstallation of your Product for repairs.
•
Shelves, door bins, drawers, handle and accessories, except for internal/functional parts covered under this
limited warranty.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION
Call 1-855-790-6655 and select the appropriate option from the menu.
Or visit our website at http://www.signaturekitchensuite.com.
Or by mail: SIGNATURE KITCHEN SUITE Customer Service P.O. Box 240007 Huntsville, AL 35813 ATTN: CIC
Customer Information Center
For inquires or comments, call;
1-855-790-6655 USA, Consumer User
