PIZZA OVEN

OWNERS MANUAL

REVISED JUNE 3, 2019

MOBILE MODELS: PZ24-MB, PZ36-MB, PZ48-MB, PZ36-CB, PZ48-CB

PORTABLE MODELS: PZ24-TT, PZ36-TT, PZ48-TT

Loading ...

Summary of Contents for Crown Verity CV-PZ36-MB:

For your Safety3
- WARNING: This appliance shall be used only in a well ventilated space and shall not be used in a building, garage, or any other enclosed area. Ensure that the clearances to combustibles is adhered to as listed in this manual.3
California Proposition 65 Warning5
Unpacking5
Safely Operating Your Pizza Oven7
- WARNING: Certain surfaces of your pizza oven can get hot enough to cause severe burns. Never leave the appliance unattended when in use to prevent unintentional contact.7
- â¢ Be sure all control knobs are in the OFF position and the pizza oven is cool before using any aerosol cleaner on it or near it. The chemical used for aerosol propellant could ignite in the presence of heat. Never use aerosol cleaner on the cooking s...7
Important LP Tank Safety Information8
- Although safe to use when properly handled, careless handling of a propane gas cylinder could result in fire, explosion and/or serious injury.8
- WARNING: For safety reasons, the LP gas cylinder, if supplied with your pizza oven, has been shipped empty. The cylinder must be purged of air and filled prior to use.8
- â¢ Allow only a qualified LP gas dealer to fill or repair cylinders.8
- â¢ A liquid propane cylinder should never be âoverfilledâ beyond the cylinder filling capacity. âOverfilling may create a dangerous condition. âOverfilledâ tanks can build up excess pressure. The standard safety device on tanks is the safety relief va...8
- â¢ Make sure the gas dealer checks the cylinder for leaks after filling.9
- â¢ Do not store spare LP gas cylinders under the pizza oven.9
Installation10
- The installation of this appliance must be in accordance with:10
- A. All applicable local codes, or in the absence of local codes;10
- a. Canada: must conform to current National Standard CAN/CGA B149.1&.2 - natural gas/ propane installation code.10
- b. U.S.A.: must conform to national Fuel Gas Code, ANSI Z223.1/NFPA 54 edition.10
- B. Use only hoses, regulators and quick disconnects supplied by Crown Verity.10
- C. Maintain minimal clearances to combustible materials10
- a. 12 inches from side(s)10
- b. 12 Inches from back (see Figure 1)10
- D. This appliance is suitable for use on combustible floors.10
- E. Always level your pizza oven front to back & side to side.10
- F. Always keep the area surrounding your pizza oven clear of all combustible materials, gasoline, or other flammable liquids.10
- G. Use your pizza oven OUTDOORS ONLY and in a well-ventilated space, preferably 10 ft. from dwellings or outbuildings.11
- H. Casters must be locked when the appliance is in operation.11

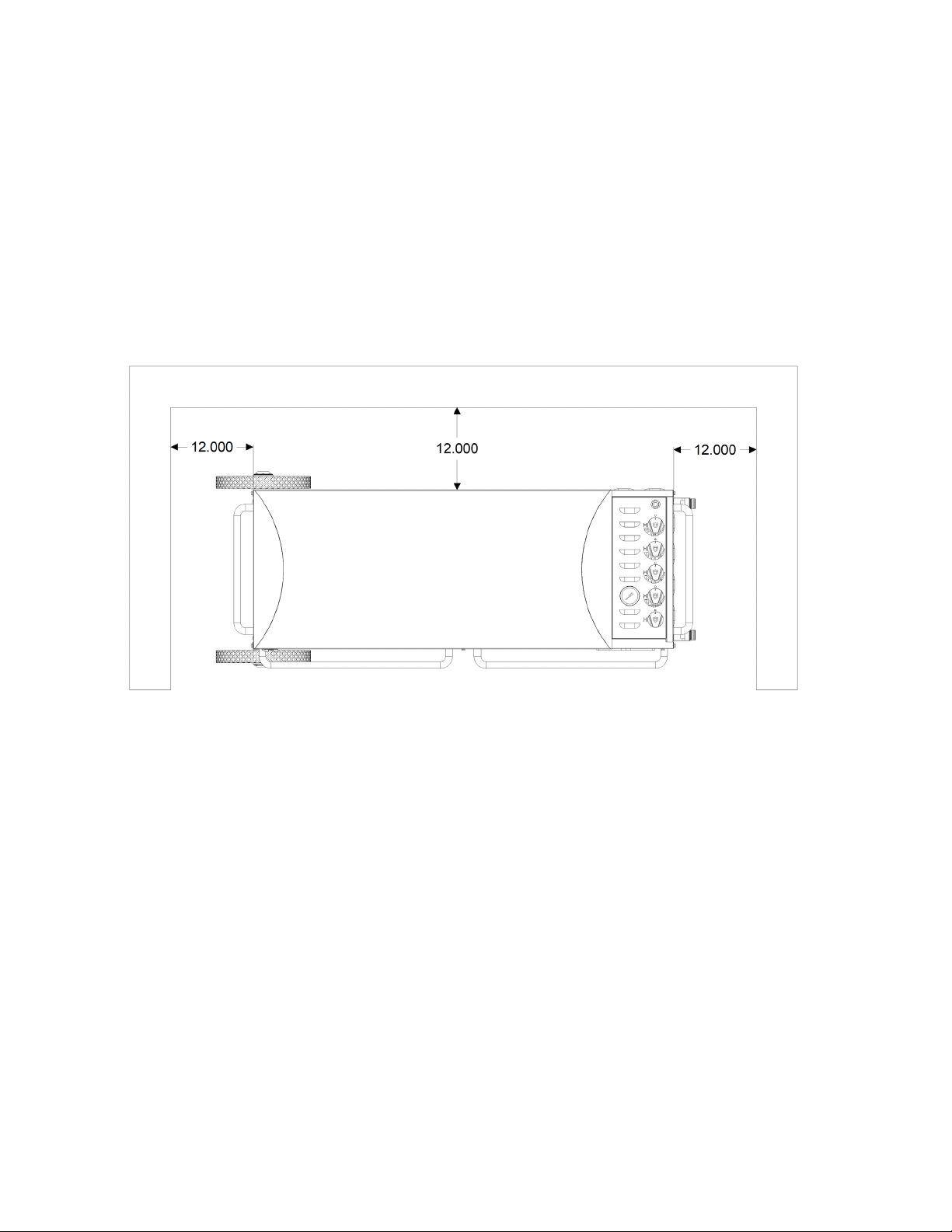

- FIGURE 1. CLEARANCES TO COMBUSTIBLES11
Note to Gas Technician11
- WARNING: DO NOT perform any pressure tests on this appliance or the regulator supplied in excess of 1/2 PSIG.11
- For fixed fuel supply systems. RE: Pressure tests11
- A. The appliance and its individual shut-off valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi. (3.45 kPa).11
- B. The appliance must be isolated from the gas supply piping system by closing itâs individual manual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi. (3.45kPa).11
- WARNING: DO NOT install any gas handling components/materials affected by elevated temperatures within 18â of any side of this appliance.12
- Make sure that the supply line is of adequate capacity to accommodate the higher inputs of the pizza oven before you begin. They are significantly higher inputs than average appliances of this type.12
- The use of a typical corrugated metallic appliance connector is recommended for connecting the appliance, with a minimum diameter of 1/2â.12
- Note: For LP (Liquid Propane) applications, the specified BTUâs are calculated at a manifold pressure of 11 inches W.C.. For NG (Natural Gas) applications, the specified BTUâs are calculated at a manifold pressure of 4 inches W.C..12
- For reference, orifice sizes and manifold pressures are indicated on the rating plate of the appliance.12
- You are encouraged to explain any provisions or concerns you may have regarding the placement of your equipment near or within the supporting structure and the surroundings. Please forward any suggestions you may have should the gas supply components ...12
Liquid Propane Gas Requirements (20/30-Pound Cylinders)12
- Verify the type of gas your pizza oven has been configured for by the factory by checking the rating plate on the oven. Pizza ovens configured for liquid propane (LP) gas are orificed differently than ovens configured for natural gas (NG). Pizza ovens...12
- WARNING: For Propane Gas Models: Your pizza oven is designed to operate on L.P. (propane) gas pressure regulated at 11â water column. The regulator(s) supplied with the pizza oven is set to this pressure and must be used.13
- Connection: The Type I (Q.C.C.1) cylinder valve is recognizable by the large external thread on the outlet part of the valve. Standard valves do not have these exterior threads. Any attempt to fit the regulator(s) with anything other than the mating T...13
- â¢ Will not allow gas to flow until a positive seal has been made.13
- â¢ Has a thermal element that will shut off the flow of gas if subjected to temperatures between 115 and 150 C (240 & 300 F).13
- â¢ Has a flow limiting device which, when activated, will restrict the flow of gas to 10 cubic feet per hour (25000 BTUs).13
Natural Gas Requirements15
- Verify the type of gas your pizza oven has been configured for by the factory by checking the rating plate on the oven. Pizza ovens configured for natural gas (NG) are orificed differently than ovens configured for liquid propane (LP) gas. Pizza ovens...15
- WARNING: For Natural Gas Models: Your pizza oven is designed to operate on natural gas (NG) pressure regulated at 4â water column. The regulator supplied with the pizza oven is set to this pressure and must be used.15
Bulk Supply Liquid Propane Gas Requirements16
- Verify the type of gas your pizza oven has been configured for by the factory by checking the rating plate on the oven. Pizza ovens configured for liquid16
Leak Testing16
- Although all gas connections on the pizza oven are leak tested at the factory prior to shipment, a complete test must be performed:16
- A. After installation due to possible mishandling during shipping or installation.16
- To Conduct the Test:17
Warning!- Natural Hazard - Spiders18
- Spiders and other insects are attracted by the smell of gas and could make webs or nests in the burners. This could partially or completely block the flow of gas through the venturis and is indicated by a smoky, yellow flame, and/or a burner that is d...18
Locating the Pizza Oven18
- The Crown Verity pizza oven is available in two versions. Depending on the model purchased, there are several factors to consider when placing the oven for use.18
- The mobile pizza oven models have an integrated base with large wheels. Options include mounting supports for 20 pound LP gas cylinders (not included) or integrated 30 pound LP gas cylinders that are included with the CB model option. It can also be...18
- The countertop versions are identical to the mobile versions with the exception of the mobile base. Countertop ovens are supplied with a shorter leg for countertop installations. They are available with LP gas cylinders connections up to 100 lbs. T...19
Before You Cook20
- A quick safety check should be performed before each time you use the pizza oven.20
General Operating Procedures21
While You are Cooking21
- The pizza oven surfaces get very hot as will the pizzas you are cooking. Follow these tips while operating the oven:21
Additional Cooking Tips21
- Here are some additional tips specific to cooking pizza with this appliance. We recommend you follow these tips to help ensure consistent results with your cooking experience.21

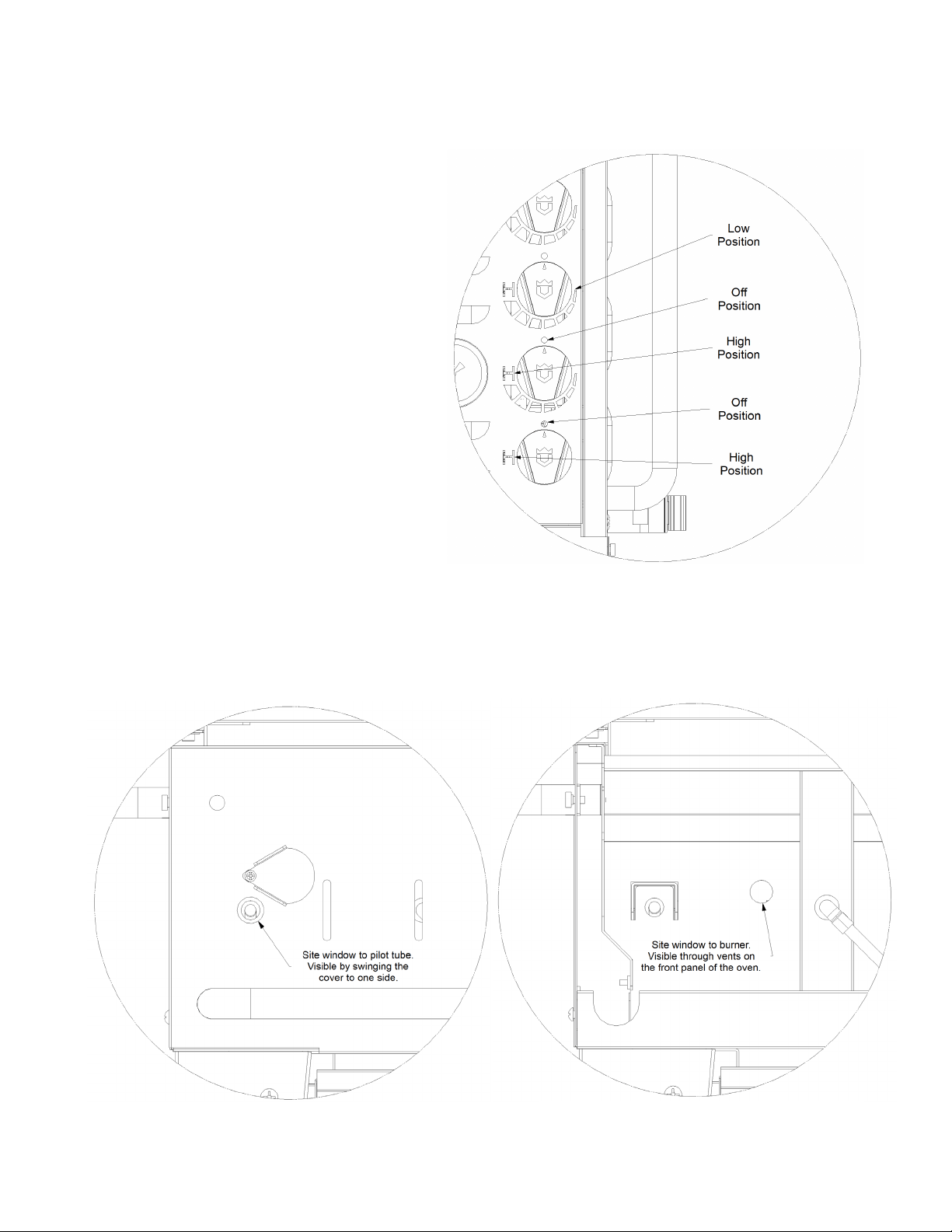

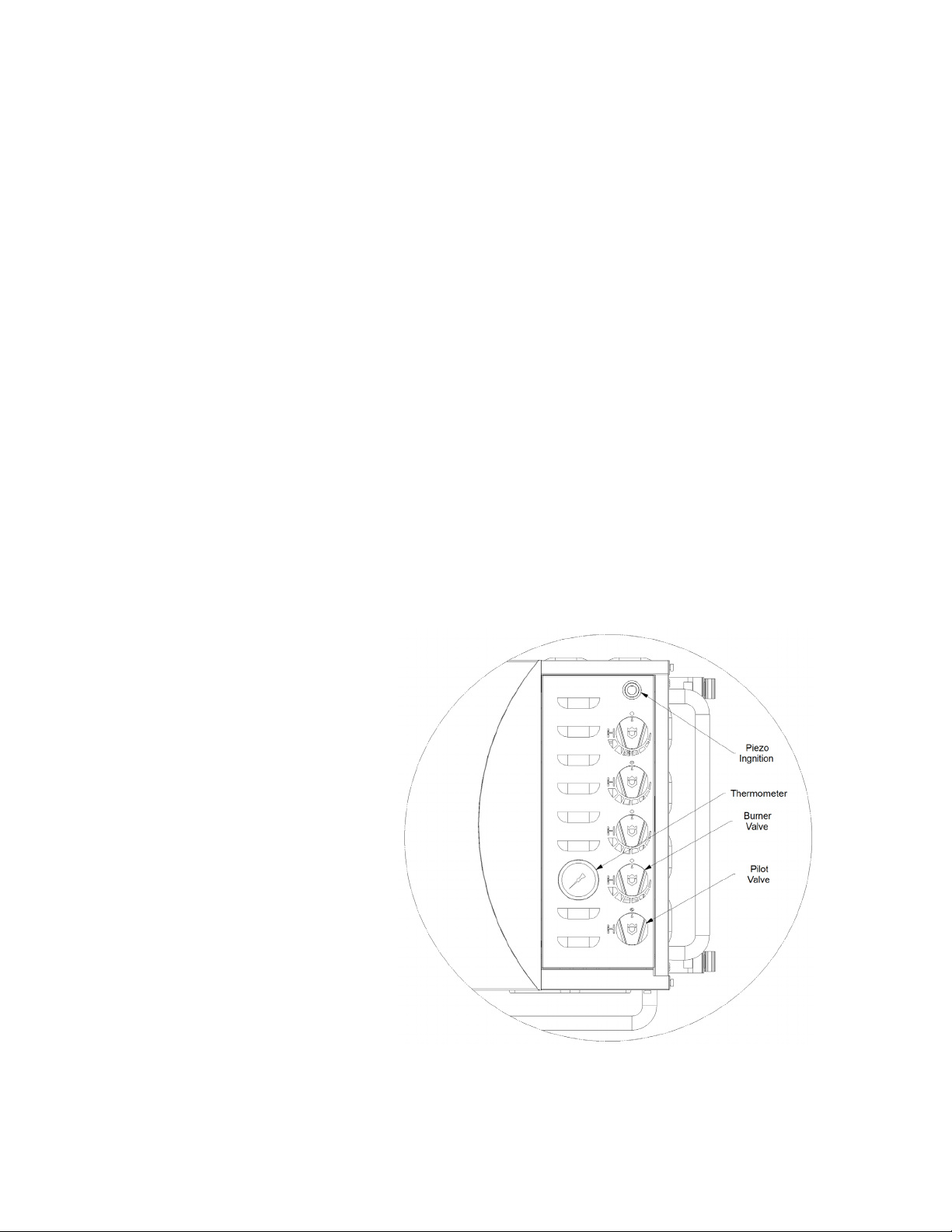

Lighting Your Pizza Oven23
- Before lighting your pizza oven, be sure you have followed the instructions in this manual regarding proper setup, placement, gas connections leak testing and safe operation, all of which precede this page.23
Burner Adjustments25
- Every burner is tested and adjusted at the factory for proper performance. If a burner is not operating properly, it may be due to variations in the local gas supply or because of an obstructed air shutter or orifice. Flames should be stable without l...25

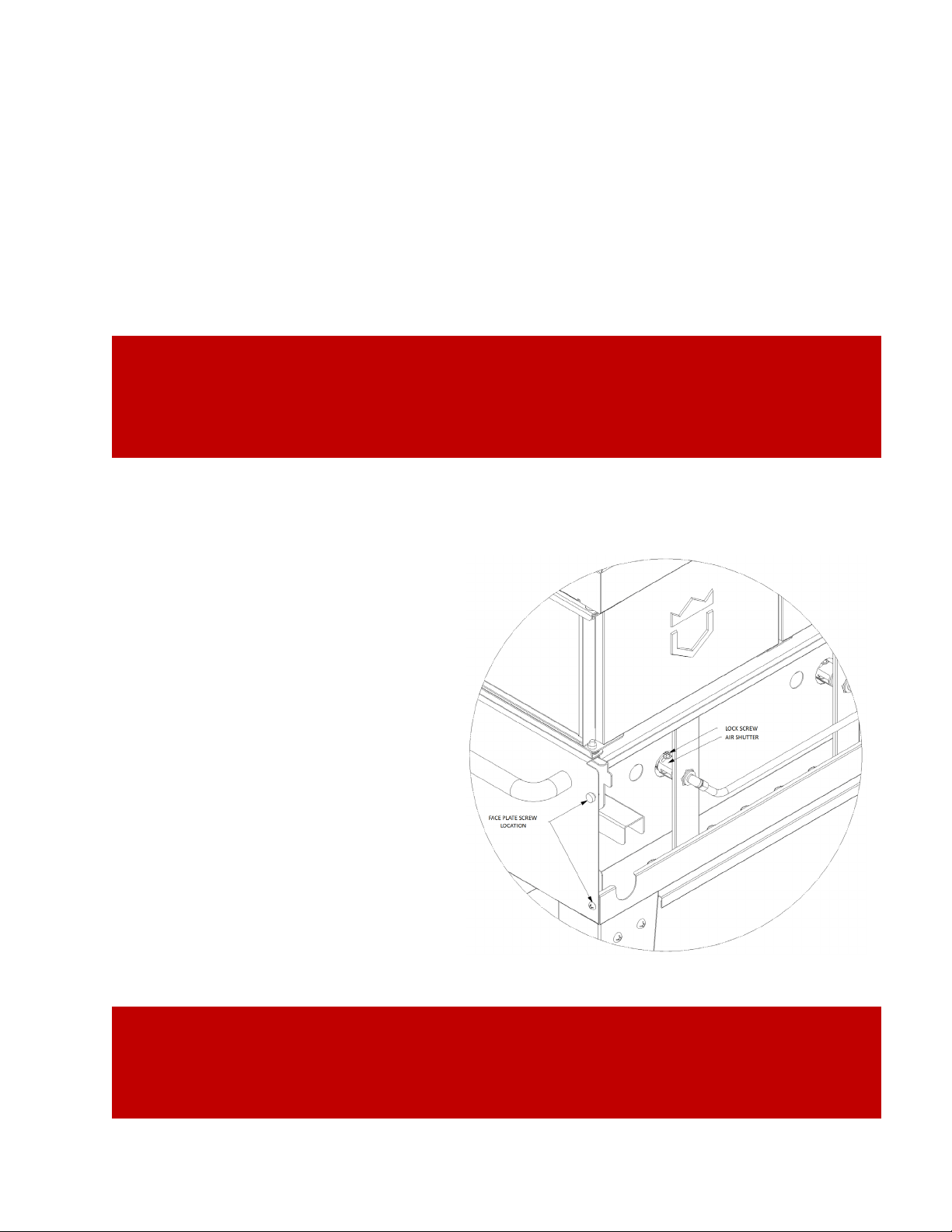

- To Clean the Air Shutter:25
- To Adjust the Air Shutter:25

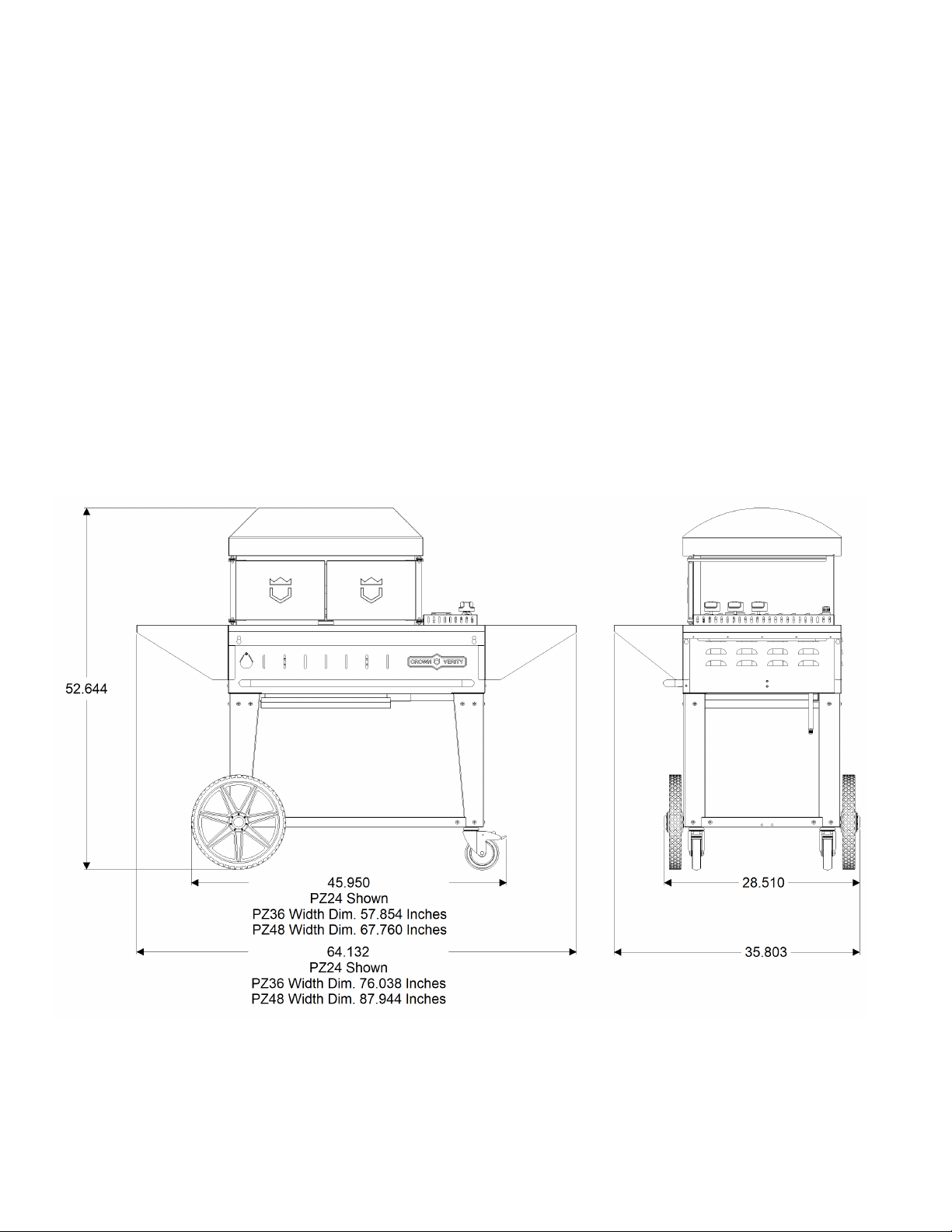

Pizza Oven Dimensions27
- ï· Do not âbuild-inâ the pizza oven.27

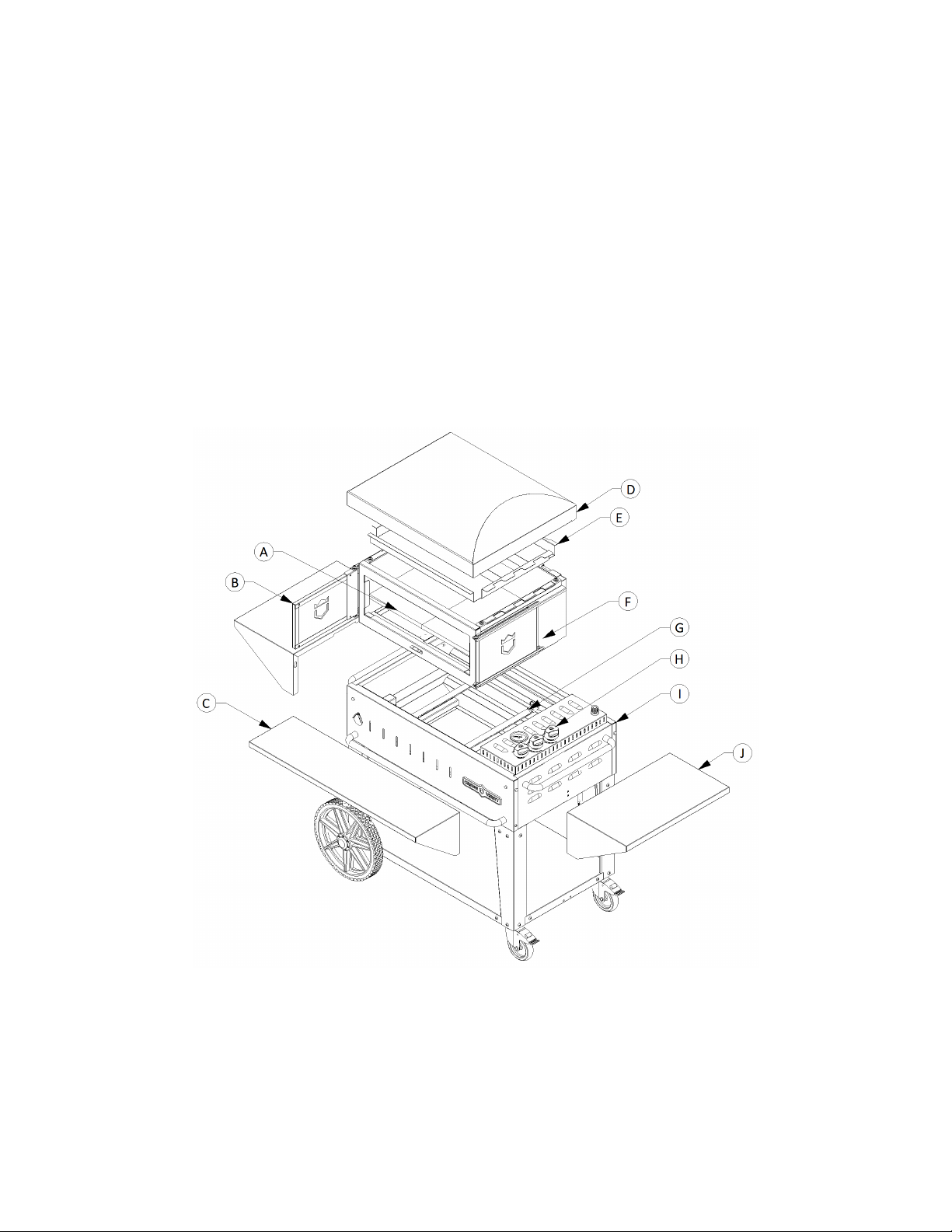

Oven Assembly28
- For easier care and service, your Pizza Oven stacks together. No tools are required for disassembly.28
Caring for Your Pizza Oven29

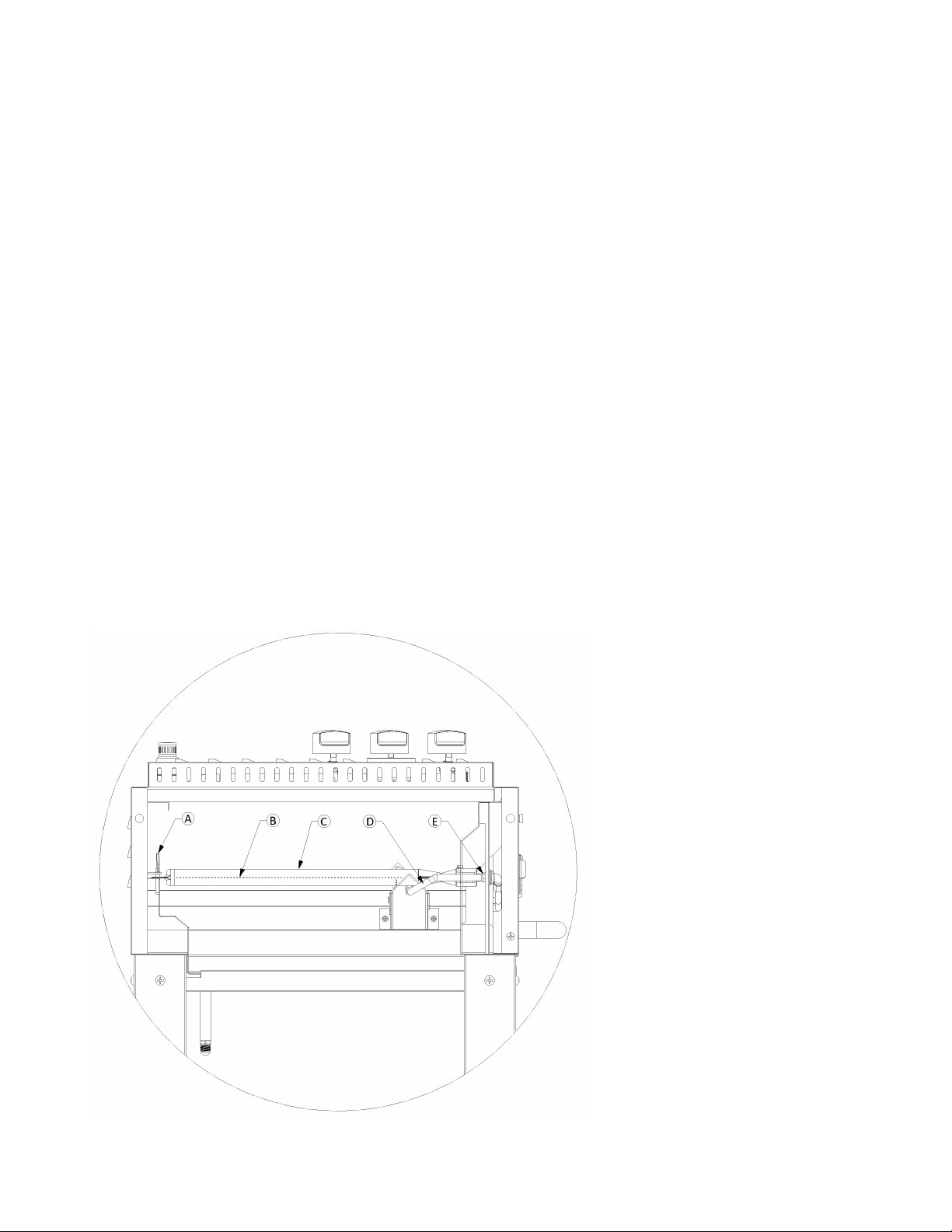

- Burner Care:30
- Orifice Cleaning:31

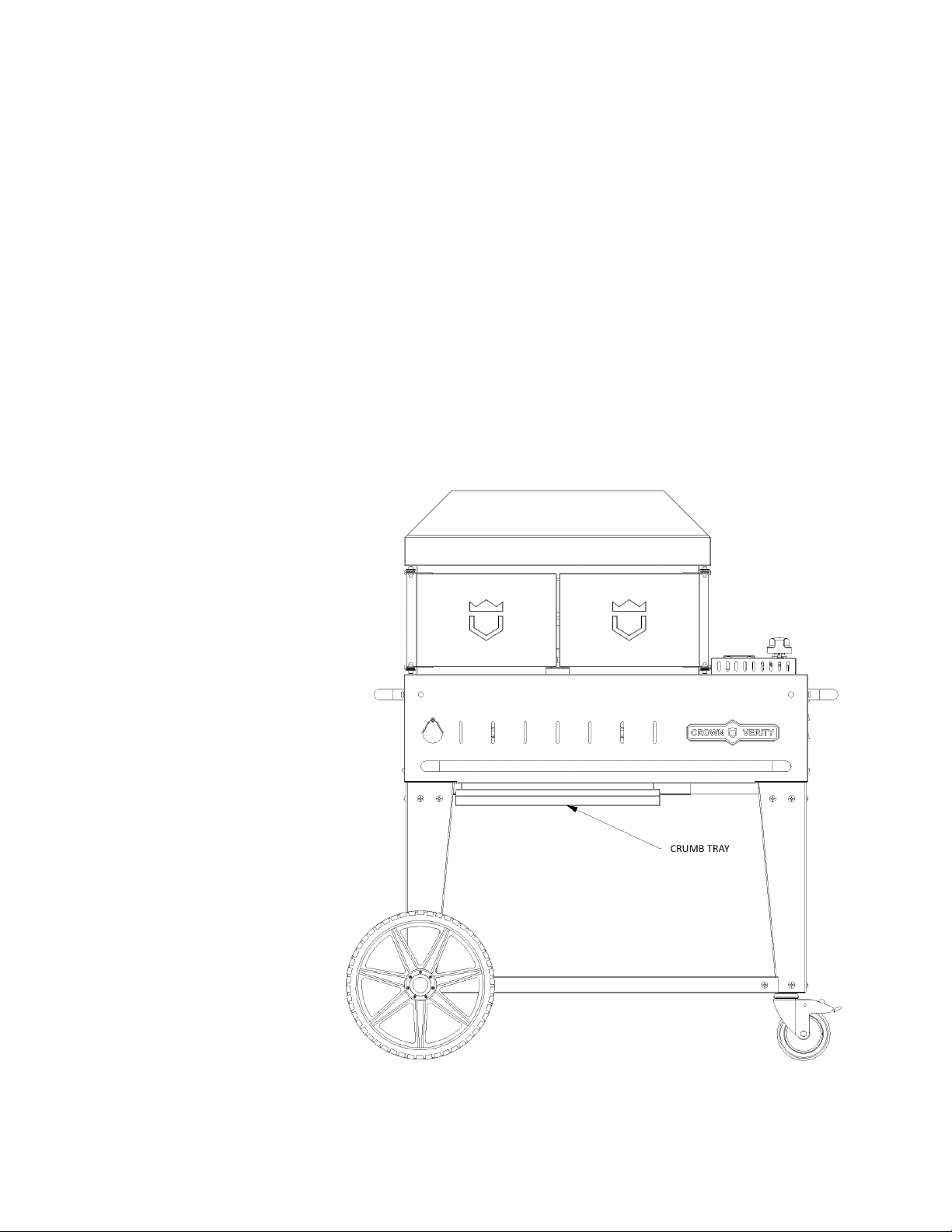

- Igniter Batteries: FIGURE 10. CRUMB TRAY31
- Emptying the Crumb Tray:31
Troubleshooting32
- The troubleshooting tips here are for general information only. The information may save you the trouble of a service call. If your pizza oven requires service, contact Crown Verity customer service at 1-888-505-7240.32
- Pizza oven wonât get to temperature:32
- Pizzas stick to the cooking deck:32
- The oven is producing a lot of smoke:32
Installation Checklist33
- Installer should initial next to each item:33
