Instructions for installation
and use
Extractor hood
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch DII31RU60/01:
[en] Instructions for installation and use
1
Extractor hood
1
Table of contents
2
[en] Instructions for installation and use
2
Instruction manual 2
2
8 Intended use 2
2
( Important safety information 3
2
7 Environmental protection 4
2
1 Operating the appliance 5
2
2 Cleaning and maintenance 6
2
3 Trouble shooting 9
2
4 Customer service 10
2
Installation instructions 11
2
( Important safety information 11
2
K General information 12
2
5 Installation 13
2
Instruction manual
2
Additional information on products, accessories, replacement parts and services can be found at www.bosch-home.com and in the online shop www.bosch-eshop.com
2
8 Intended use
2
Intended use
2
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
2
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
2
This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improp...
2
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
2
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised by someone who is responsible for their sa...
2
Children must not play with the appliance.Cleaning and user maintenance must not be performed by children unless they are over 15 years of age and are supervised.
2
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
2
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
2
This appliance is not designed to be used above gas-burning appliances.
2
This appliance is not intended for operation with an external clock timer or a remote control.
2
( Important safety information
3
Important safety information
3
: Warning
3
Danger of suffocation!
3
: Warning
3
Risk of fire!
3
: Warning
3
Risk of burns!
3
: Warning
3
Risk of injury!
3
: Warning
3
Risk of injury!
3
: Warning
3
Risk of electric shock!
3
Causes of damage
4
Caution!
4
Always replace faulty bulbs to prevent the remaining bulbs from overloading.
4
Risk of damage due to ingress of humidity into the electronic circuitry. Never clean operator controls with a wet cloth.
4
Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the direction of the grain only. Do not use any stainless steel cleaners for operator controls.
4
Surface damage due to strong or abrasive cleaning agents. Never use strong and abrasive cleaning agents.
4
Risk of damage as a result of incorrect loading of design elements. Do not pull design elements.Do not place objects on the design elements or hang objects from them.
4
7 Environmental protection
4
Environmental protection
4
Your new appliance is particularly energy-efficient. Here you can find tips on how to save even more energy when using the appliance, and how to dispose of your appliance properly.
4
Saving energy
4
Environmentally-friendly disposal
4
Dispose of packaging in an environmentally-friendly manner.
4
1 Operating the appliance
5
Operating the appliance
5
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
5
Note:
5
Switch on the extractor hood when you start cooking and switch it off again several minutes after you have finished cooking. This is the most effective way of removing the kitchen fumes.
5
Control panel
5
Symbol
5
Explanation
5
Display
5
Explanation
5
Setting the fan
5
Switching on
5
1. Touch the # symbol.
5
2. Use the rotary selector to select the fan setting.
5
Note:
5
Switching off
5
Touch the # symbol.
5
Intensive setting
5
You can use the intensive setting if there is a large build-up of odours and fumes/vapours.
5
Switching on
5
Turn the rotary selector until ˜‚ or ˜ƒ is displayed.
5
Note:
5
After approx. 6 minutes, the extractor hood automatically switches back to fan setting 3.
5
Switching off
5
If you want to end the intensive mode before the set time has elapsed, turn the rotary selector anti-clockwise.
5
Fan run-on time
5
Switching on
5
Touch the y symbol.
5
The fan runs at fan setting 1.
5
The remaining minutes of the run-on time are shown in the display.
5
After approx. 10 minutes, the fan switches off automatically.
5
Note:
5
You can use the rotary selector to adjust the run- on time (‚ to ŠŠ minutes).
5
Switching off
5
Touch the y symbol.
5
This immediately stops the fan run-on. The appliance switches to the fan setting that was previously set.
5
Lighting
6
The lighting can be switched on and off independently of the fan.
6
Touch the B symbol.
6
Setting the brightness
6
Press and hold the B symbol until the required brightness is reached.
6
Saturation display
6
If the metal grease filters or activated charcoal filter are/ is saturated, the corresponding symbols flash once the appliance has been switched off:
6
If you have not yet done so, the metal grease filters should now be cleaned or the activated charcoal filter replaced. ~ "Cleaning and maintenance" on page 6
6
The saturation displays can be reset while they are flashing. To do this, touch the E or F symbol.
6
Switching over the display for the air circulation mode
6
For air recirculation mode, the electronic controller must be switched over accordingly:
6
Audible signal
6
Switching on
6
Touch and hold the # and y symbols at the same time for approximately three seconds when the fan is switched off. As confirmation, an audible signal sounds and ‚ is shown in the display.
6
Switching off
6
Touch and hold the # and y symbols at the same time for approximately three seconds when the fan is switched off. As confirmation, ‹ is shown in the display.
6
2 Cleaning and maintenance
6
Cleaning and maintenance
6
: Warning
6
Risk of injury!
6
: Warning
6
Risk of electric shock!
6
: Warning
6
Risk of electric shock!
6
: Warning
6
Risk of injury!
6
: Warning
6
Risk of injury!
6
Cleaning agents
7
To ensure that the different surfaces are not damaged by using the wrong cleaning product, follow the instructions in the table. Do not use any of the following:
7
Note:
7
Wash new sponge cloths thoroughly before use.
7
Note:
7
Follow all instructions and warnings included with the cleaning products.
7
Area
7
Cleaning products
7

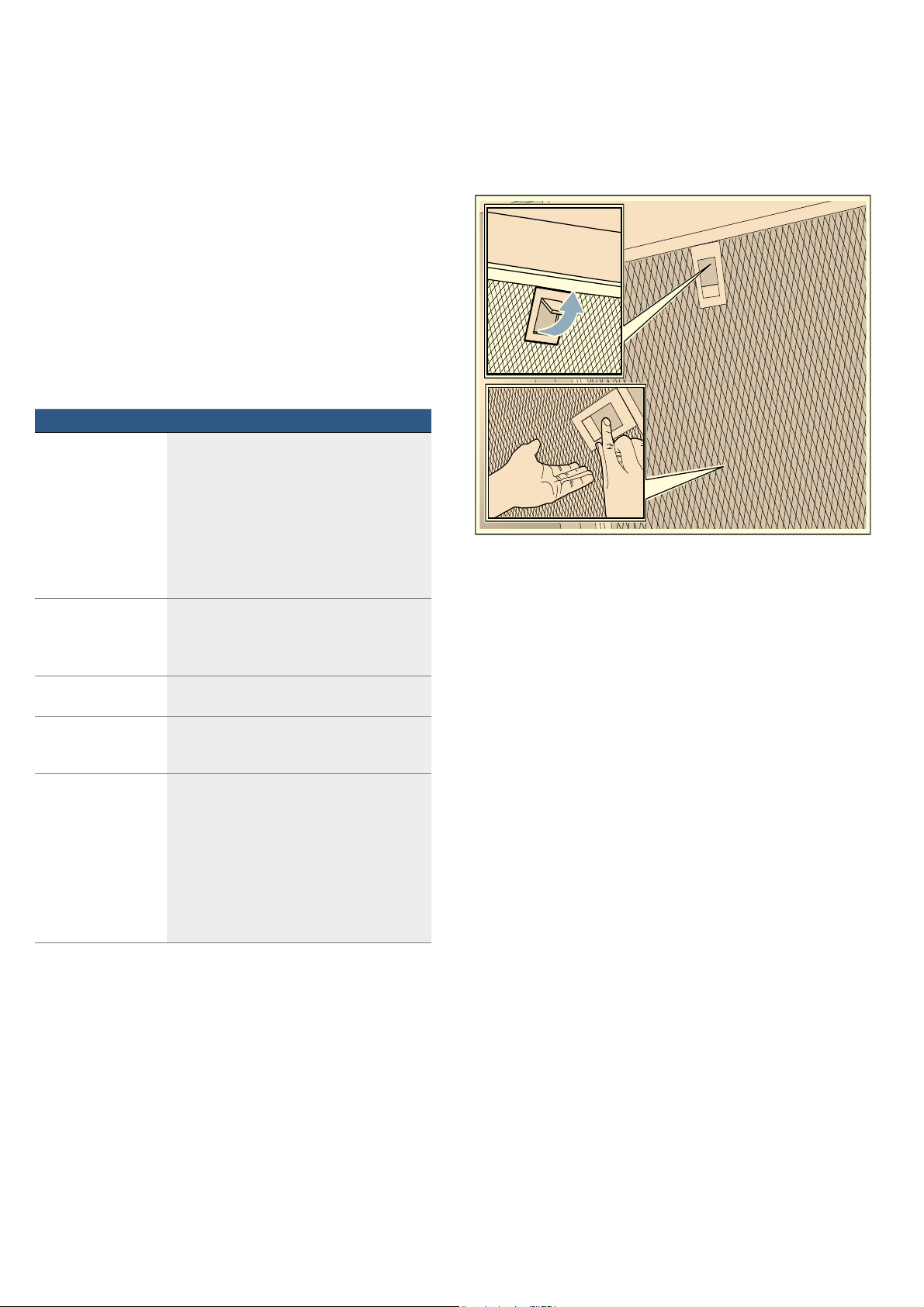

Removing metal grease filter
7

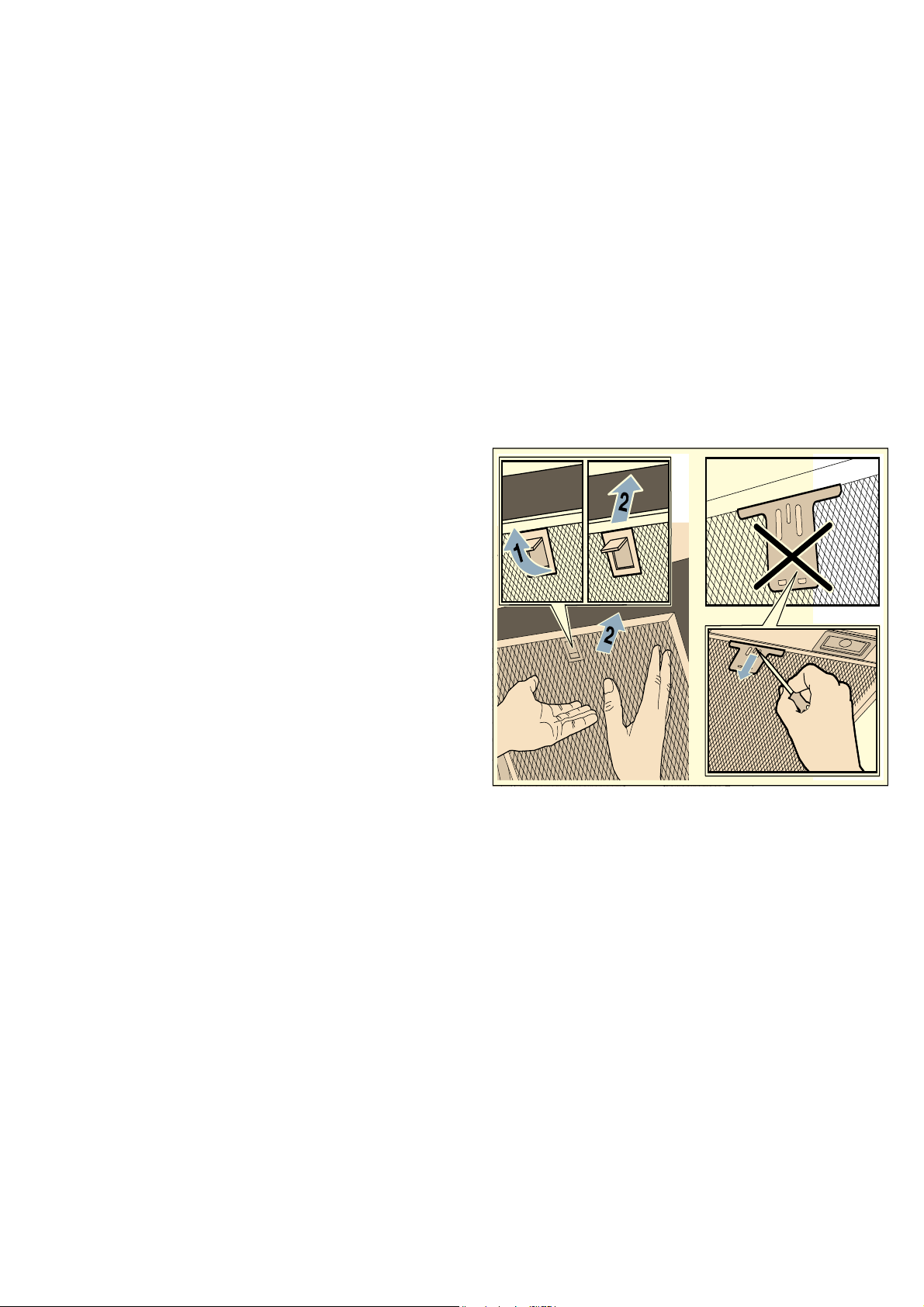

1. Open the lock and swing down the metal grease filter. When you do this, take hold of the metal grease filter from underneath with your other hand.
7
2. Take the metal grease filter out of the holder.
7
Notes
7
3. Clean the metal grease filter.
7
4. Clean the appliance support cables.
7
5. Clean the accessible parts of the housing. Clean the inside of the appliance.
7
: Warning
7
Risk of injury!
7
Cleaning the metal mesh grease filters
8
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
8
: Warning
8
Risk of fire!
8
Notes
8
By hand:
8
Note:
8
You can use a special degreaser to remove stubborn dirt. This can be ordered from the online shop.
8
In the dishwasher:
8
Note:
8
Slight discolouration may occur if the metal grease filters are cleaned in the dishwasher. This discolouration has no effect on the performance of the metal grease filters.
8
Installing the metal mesh grease filter
8
: Warning
8
Risk of injury!
8
Notes
8
1. Insert the metal grease filter. When you do this, take hold of the metal grease filter from underneath with your other hand.
8
Note:
8
2. Swing the metal grease filter up and click it into place.
8
3. If the metal grease filter has not been inserted correctly, open the lock and reinsert the metal grease filter correctly.
8
Replacing the activated charcoal filter
9
Note:
9
To bind odours in circulating-air mode, you must install an activated carbon filter. The different options for operating the appliance in circulating-air mode can be found in the brochure. Alternatively, ask your dealer. The required accessories are ...
9

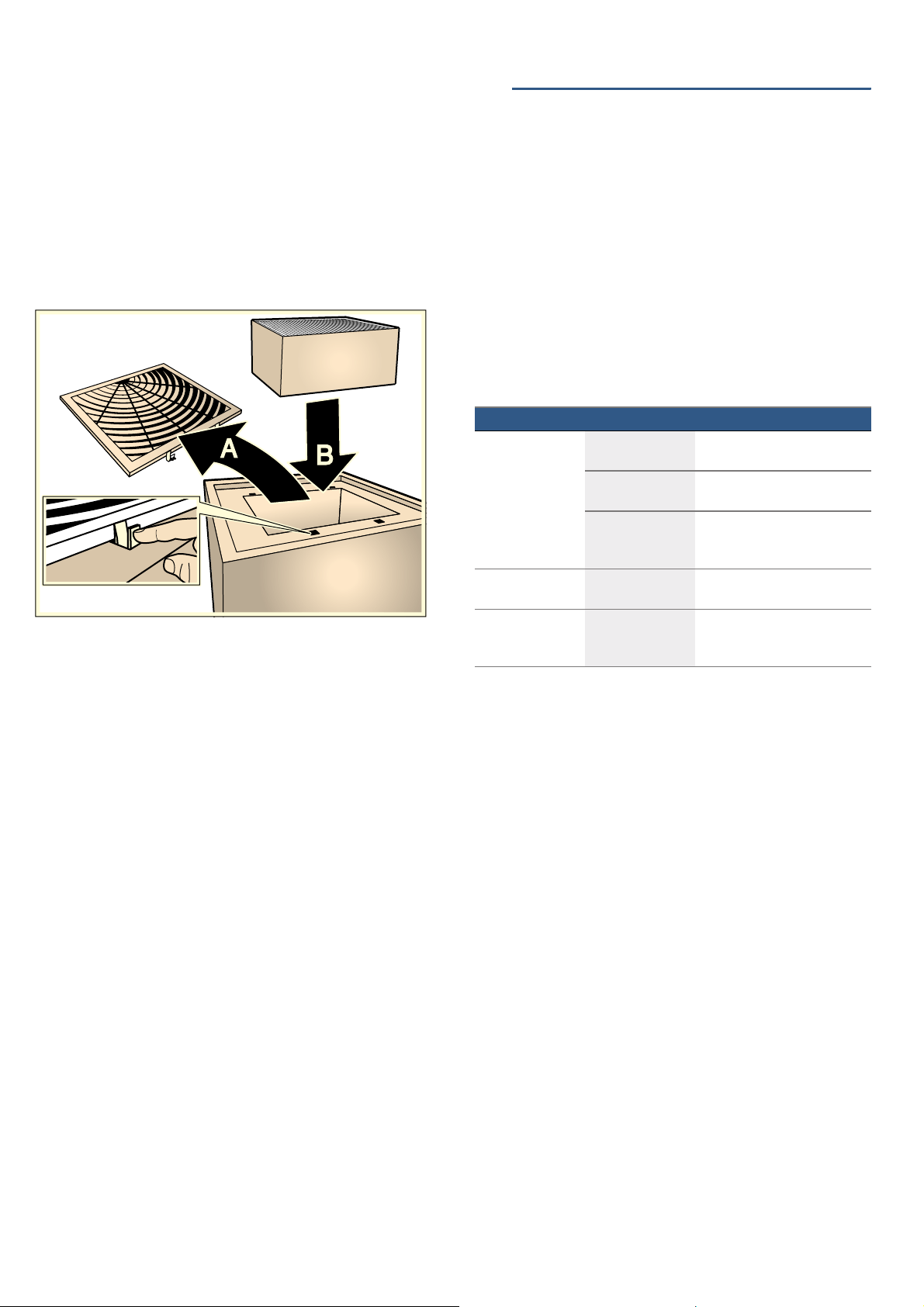

1. Open the cover on the top of the appliance.
9
2. Remove the old activated charcoal filter and insert the new one.
9
3. Close the cover.
9
4. Reset the saturation indicator.~ "Saturation display" on page 6
9
3 Trouble shooting
9
Trouble shooting
9
Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service.
9
: Warning
9
Risk of electric shock!
9
Malfunction table
9
Problem
9
Possible cause
9
Solution
9
LED lights
9
Defective LED lights may be replaced by the manufacturer, their customer service or a qualified technician (electrician) only.
9
: Warning
9
Risk of injury!
9
4 Customer service
10
Customer service
10
When calling us, please quote the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. These numbers can be found on the rating plate on the top of the appliance (to access it, you will need to...
10
You can make a note of the numbers of your appliance and the telephone number of the after-sales service in the space below to save time should it be required.
10
E no.
10
FD no.
10
Please be aware that a visit by an after-sales engineer will be charged if a problem turns out to be the result of operator error, even during the warranty period.
10
Please find the contact data of all countries in the enclosed customer service list.
10
To book an engineer visit and product advice
10
Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances.
10
Accessories
10
(not included in the scope of delivery)
10
Note:
10
These instructions apply to several appliance models. It may be the case that an optional accessory that is listed does not apply for your appliance.
10
Note:
10
Observe the installation instructions in the accessory.
10
Installation instructions
11
Installation instructions
11
( Important safety information
11
Important safety information
11
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
11
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
11
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
11
Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.
11
The surfaces of the appliance are easily damaged. Avoid damaging them during installation.
11
For the installation, observe the currently valid building regulations and the regulations of the local electricity and gas suppliers.
11
: Warning
11
Risk of fire!
11
: Warning
12
Risk of injury!
12
: Warning
12
Risk of electric shock!
12
: Warning
12
Risk of electric shock!
12
: Warning
12
Risk of electric shock!
12
: Warning
12
Danger of suffocation!
12
K General information
12
General information
12
Preparing the ceiling
12
Electrical connection
12
: Warning
12
Risk of electric shock!
12
: Warning
12
Risk of electric shock!
12
The required connection information can be found on the rating plate inside the appliance; to access it, you will need to remove the activated charcoal filter.
12
Length of the cable: approx. 1.30 m
12
This appliance complies with the EC interference suppression regulations.
12
The appliance must be disconnected from the power supply whenever installation work is being carried out.
12
When the appliance is installed, protection must be provided against accidental contact in the future.
12
5 Installation
13
Installation
13

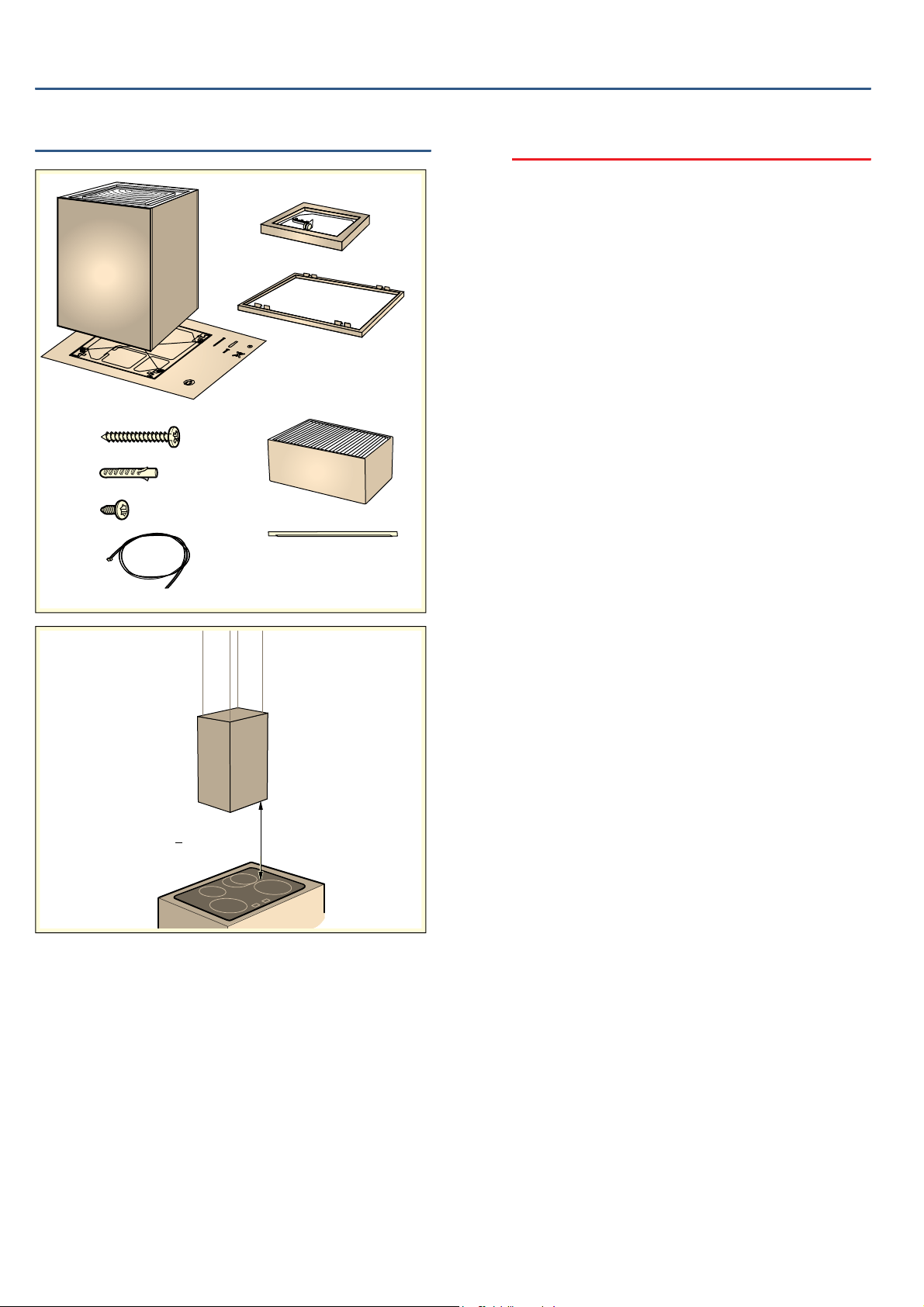

Preparing for installation
13
Caution!
13
1. Cover the hob to protect it from damage.
13
2. Mark where the centre of the extractor hood should be on the ceiling above the centre of the hob.
13
3. Using the template provided, mark the locations where the bolts should be inserted on the ceiling.
13

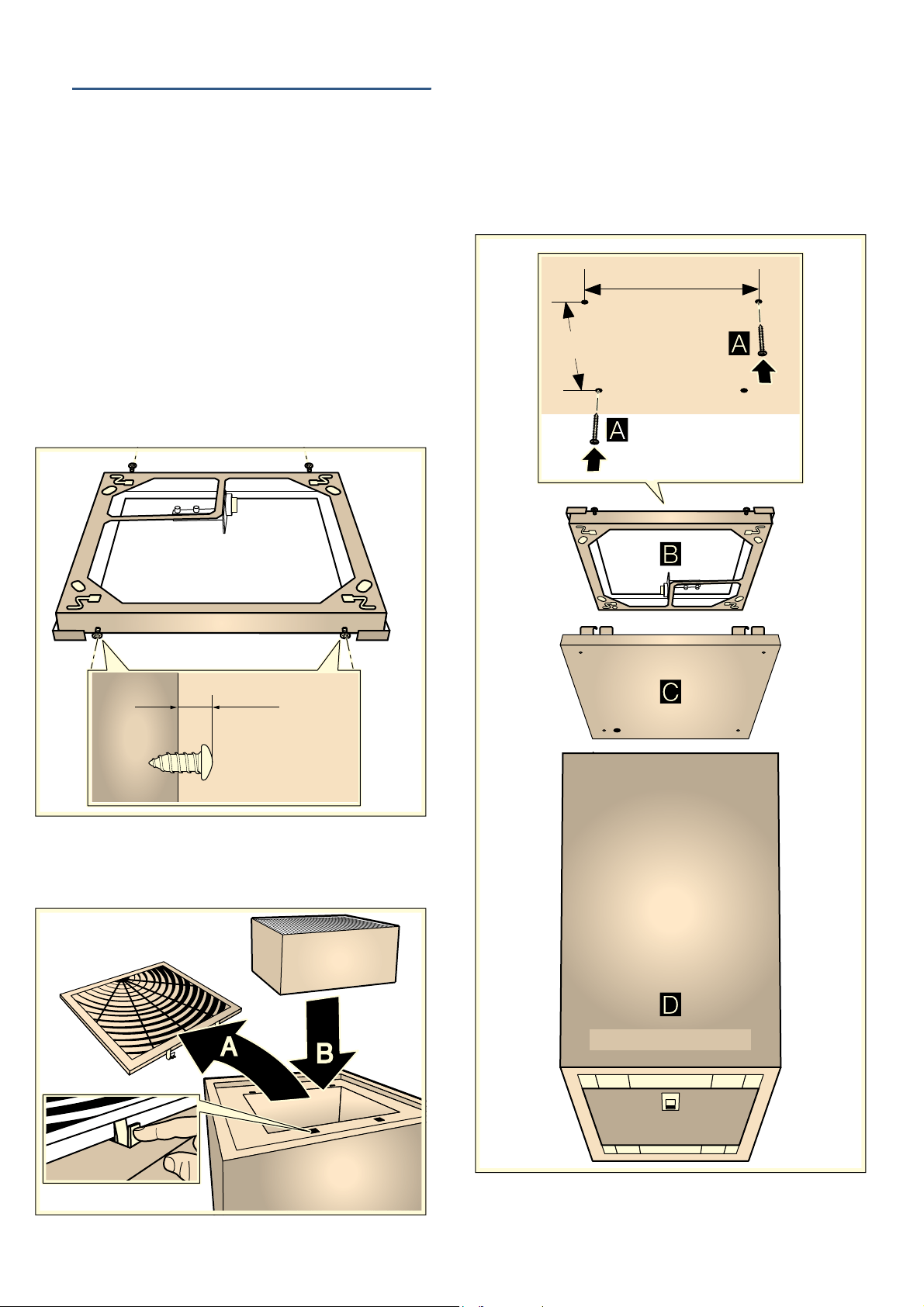

4. Drill four 8 mm diameter holes to a depth of 80 mm for fastening the appliance and press in the wall plugs flush with the wall.
13
Preparing the appliance
13
1. Screw in the four bolts on the edge of the frame at the marked locations, leaving them protruding out of the frame by approx. 5 mm.
13
2. Remove the film from the frame cover.
13
3. Remove the activated charcoal filter from the film.
13
4. Open the cover on the top of the appliance and remove it ¨, insert the activated charcoal filter © and then close the cover.
13
Fitting the frame
13

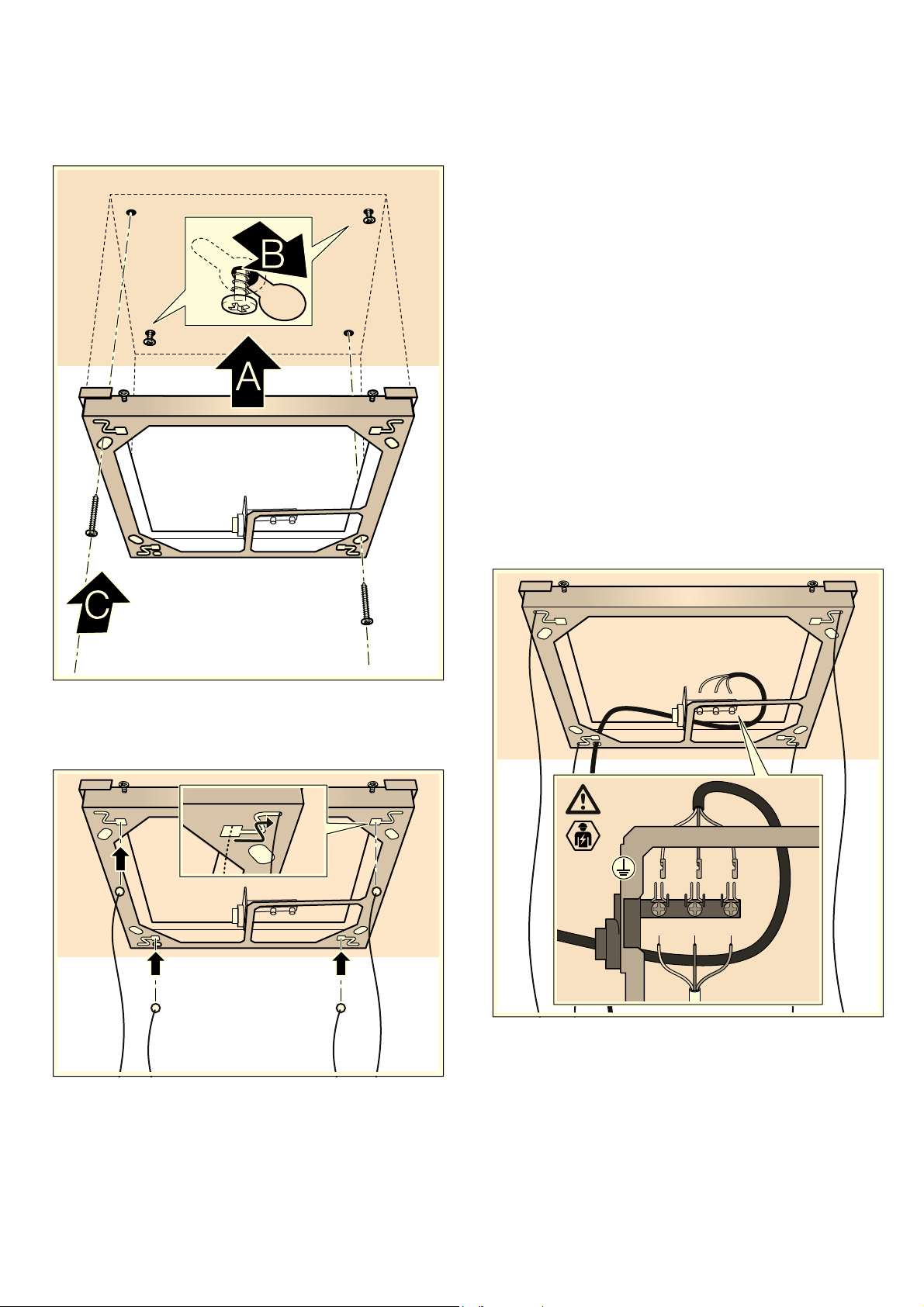

1. Screw in the two bolts, leaving them protruding out of the ceiling by 5 - 9 mm ¨.
13
Note:
13

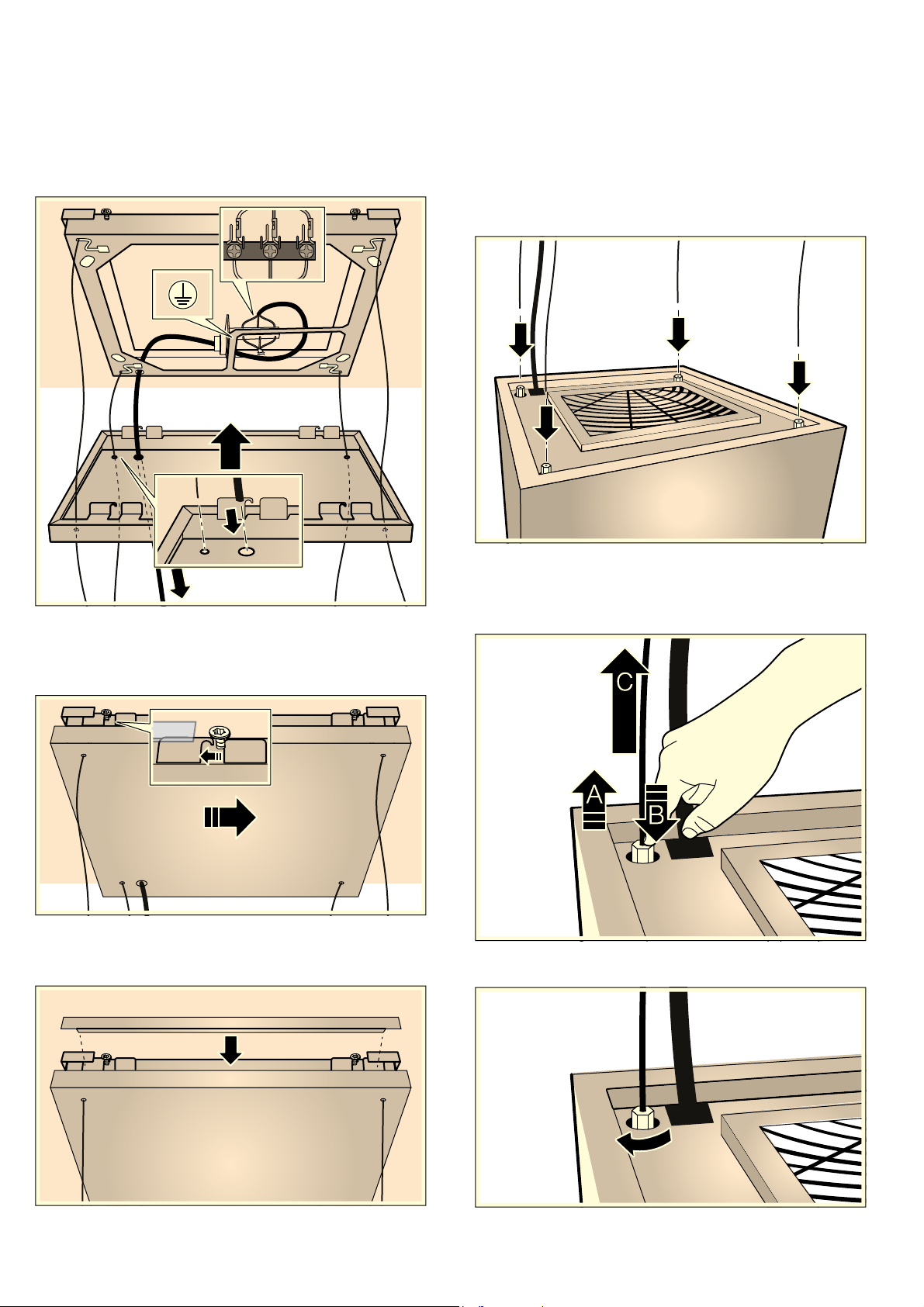

2. Insert the two bolts on the ceiling through the openings provided in the frame ¨. Move the frame to allow the bolts to be screwed into the keyhole openings ©.
14
3. Use two more bolts to screw the frame in place. ª Tighten all the bolts fully.
14
4. Insert the four cables into the openings provided in the frame and thread them through the labyrinth.
14
Establishing a connection to the mains
14
: Warning
14
Risk of electric shock!
14
Note:
14
To find out the correct fuse rating, see the total connected load (in watts) on the appliance's rating plate.
14
1. Position the appliance underneath the frame.
14
2. Carefully thread the cables and the mains power cable through the opening in the frame cover. Place the frame cover down onto the appliance.
14
3. Mount the appliance on the wall and level it; see the section entitled "Wall-mounting the appliance and levelling it".
14
4. Thread the mains power cable through the opening in the frame and then through the strain relief.
14
Caution!
14
5. Connect the appliance to the power supply.
14
Caution!
14
6. Use an open-ended spanner (WAF 17) to tighten the strain relief until the mains power cable is held firmly and cannot move.
14
Fitting the frame cover
15
1. Slide the frame cover up.
15
Note:
15
2. Fit the frame cover onto the four bolts at the edge of the frame.
15
Note:
15
3. Tighten the bolts at the edge of the frame.
15
4. Secure the covers to the magnets to hide the bolts at the edges of the frame.
15
Attaching and aligning the appliance
15
1. Manually open the cable tensioners until the cable can be inserted in it. Do not use any tools.
15
Note:
15
2. Enlist the help of a second person to lift the appliance and thread the cables into the cable tensioners on the top of the appliance.
15
Note:
15
3. Taking care to comply with the safety clearances, slide the appliance up and level it.
15
4. If you need to position the appliance lower down, lift it up ¨, push the cable tensioners down © and pull the cables back out of the cable tensioners ª.
15
5. After aligning, tighten the cable tensioners so that they are hand-tight. Do not use any tools.
15
File type: PDF
File name: 7242597_dii31ru60-01.pdf
File size: 2.02 MB
File Language: English
Pages: 16
Author: Bosch
File created: 2017-11-08
Published: 2021-05-08
Updated: 2023-05-10
Download File
Specifications
Brand:
Bosch
Model: DII31RU60/01
View in the file:
Full Specifications
See other models:
B18IF70NSP/01
NKP646E/01
MBA5785S0B/35
BLS612BLCK/01
SHP65T52UC/01
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Neff I38KHM2S0/02
Bosch DII31JR60/01
Bosch DIB97IM50/01
Bosch DIG97IM50/01
Bosch DIA093650/01
Bosch DID128R50/01
Bosch DIT109850/01
Bosch DIT099850/01
Bosch SHPM88Z75N
Bosch GTM26A00GB/06
Bosch WTE86300US/05
Bosch SHX5AVF5UC/22
Bosch WAP24200UC/11
Bosch HBLP751UCC/01
Bosch SMV46NX00G
Table of Contents
×
[en] Instructions for installation and use
1
Extractor hood
1
Table of contents
2
[en] Instructions for installation and use
2
Instruction manual 2
2
8 Intended use 2
2
( Important safety information 3
2
7 Environmental protection 4
2
1 Operating the appliance 5
2
2 Cleaning and maintenance 6
2
3 Trouble shooting 9
2
4 Customer service 10
2
Installation instructions 11
2
( Important safety information 11
2
K General information 12
2
5 Installation 13
2
Instruction manual
2
Additional information on products, accessories, replacement parts and services can be found at www.bosch-home.com and in the online shop www.bosch-eshop.com
2
8 Intended use
2
Intended use
2
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
2
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
2
This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improp...
2
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
2
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised by someone who is responsible for their sa...
2
Children must not play with the appliance.Cleaning and user maintenance must not be performed by children unless they are over 15 years of age and are supervised.
2
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
2
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
2
This appliance is not designed to be used above gas-burning appliances.
2
This appliance is not intended for operation with an external clock timer or a remote control.
2
( Important safety information
3
Important safety information
3
: Warning
3
Danger of suffocation!
3
: Warning
3
Risk of fire!
3
: Warning
3
Risk of burns!
3
: Warning
3
Risk of injury!
3
: Warning
3
Risk of injury!
3
: Warning
3
Risk of electric shock!
3
Causes of damage
4
Caution!
4
Always replace faulty bulbs to prevent the remaining bulbs from overloading.
4
Risk of damage due to ingress of humidity into the electronic circuitry. Never clean operator controls with a wet cloth.
4
Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the direction of the grain only. Do not use any stainless steel cleaners for operator controls.
4
Surface damage due to strong or abrasive cleaning agents. Never use strong and abrasive cleaning agents.
4
Risk of damage as a result of incorrect loading of design elements. Do not pull design elements.Do not place objects on the design elements or hang objects from them.
4
7 Environmental protection
4
Environmental protection
4
Your new appliance is particularly energy-efficient. Here you can find tips on how to save even more energy when using the appliance, and how to dispose of your appliance properly.
4
Saving energy
4
Environmentally-friendly disposal
4
Dispose of packaging in an environmentally-friendly manner.
4
1 Operating the appliance
5
Operating the appliance
5
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
5
Note:
5
Switch on the extractor hood when you start cooking and switch it off again several minutes after you have finished cooking. This is the most effective way of removing the kitchen fumes.
5
Control panel
5
Symbol
5
Explanation
5
Display
5
Explanation
5
Setting the fan
5
Switching on
5
1. Touch the # symbol.
5
2. Use the rotary selector to select the fan setting.
5
Note:
5
Switching off
5
Touch the # symbol.
5
Intensive setting
5
You can use the intensive setting if there is a large build-up of odours and fumes/vapours.
5
Switching on
5
Turn the rotary selector until ˜‚ or ˜ƒ is displayed.
5
Note:
5
After approx. 6 minutes, the extractor hood automatically switches back to fan setting 3.
5
Switching off
5
If you want to end the intensive mode before the set time has elapsed, turn the rotary selector anti-clockwise.
5
Fan run-on time
5
Switching on
5
Touch the y symbol.
5
The fan runs at fan setting 1.
5
The remaining minutes of the run-on time are shown in the display.
5
After approx. 10 minutes, the fan switches off automatically.
5
Note:
5
You can use the rotary selector to adjust the run- on time (‚ to ŠŠ minutes).
5
Switching off
5
Touch the y symbol.
5
This immediately stops the fan run-on. The appliance switches to the fan setting that was previously set.
5
Lighting
6
The lighting can be switched on and off independently of the fan.
6
Touch the B symbol.
6
Setting the brightness
6
Press and hold the B symbol until the required brightness is reached.
6
Saturation display
6
If the metal grease filters or activated charcoal filter are/ is saturated, the corresponding symbols flash once the appliance has been switched off:
6
If you have not yet done so, the metal grease filters should now be cleaned or the activated charcoal filter replaced. ~ "Cleaning and maintenance" on page 6
6
The saturation displays can be reset while they are flashing. To do this, touch the E or F symbol.
6
Switching over the display for the air circulation mode
6
For air recirculation mode, the electronic controller must be switched over accordingly:
6
Audible signal
6
Switching on
6
Touch and hold the # and y symbols at the same time for approximately three seconds when the fan is switched off. As confirmation, an audible signal sounds and ‚ is shown in the display.
6
Switching off
6
Touch and hold the # and y symbols at the same time for approximately three seconds when the fan is switched off. As confirmation, ‹ is shown in the display.
6
2 Cleaning and maintenance
6
Cleaning and maintenance
6
: Warning
6
Risk of injury!
6
: Warning
6
Risk of electric shock!
6
: Warning
6
Risk of electric shock!
6
: Warning
6
Risk of injury!
6
: Warning
6
Risk of injury!
6
Cleaning agents
7
To ensure that the different surfaces are not damaged by using the wrong cleaning product, follow the instructions in the table. Do not use any of the following:
7
Note:
7
Wash new sponge cloths thoroughly before use.
7
Note:
7
Follow all instructions and warnings included with the cleaning products.
7
Area
7
Cleaning products
7
Removing metal grease filter
7
1. Open the lock and swing down the metal grease filter. When you do this, take hold of the metal grease filter from underneath with your other hand.
7
2. Take the metal grease filter out of the holder.
7
Notes
7
3. Clean the metal grease filter.
7
4. Clean the appliance support cables.
7
5. Clean the accessible parts of the housing. Clean the inside of the appliance.
7
: Warning
7
Risk of injury!
7
Cleaning the metal mesh grease filters
8
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
8
: Warning
8
Risk of fire!
8
Notes
8
By hand:
8
Note:
8
You can use a special degreaser to remove stubborn dirt. This can be ordered from the online shop.
8
In the dishwasher:
8
Note:
8
Slight discolouration may occur if the metal grease filters are cleaned in the dishwasher. This discolouration has no effect on the performance of the metal grease filters.
8
Installing the metal mesh grease filter
8
: Warning
8
Risk of injury!
8
Notes
8
1. Insert the metal grease filter. When you do this, take hold of the metal grease filter from underneath with your other hand.
8
Note:
8
2. Swing the metal grease filter up and click it into place.
8
3. If the metal grease filter has not been inserted correctly, open the lock and reinsert the metal grease filter correctly.
8
Replacing the activated charcoal filter
9
Note:
9
To bind odours in circulating-air mode, you must install an activated carbon filter. The different options for operating the appliance in circulating-air mode can be found in the brochure. Alternatively, ask your dealer. The required accessories are ...
9
1. Open the cover on the top of the appliance.
9
2. Remove the old activated charcoal filter and insert the new one.
9
3. Close the cover.
9
4. Reset the saturation indicator.~ "Saturation display" on page 6
9
3 Trouble shooting
9
Trouble shooting
9
Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service.
9
: Warning
9
Risk of electric shock!
9
Malfunction table
9
Problem
9
Possible cause
9
Solution
9
LED lights
9
Defective LED lights may be replaced by the manufacturer, their customer service or a qualified technician (electrician) only.
9
: Warning
9
Risk of injury!
9
4 Customer service
10
Customer service
10
When calling us, please quote the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. These numbers can be found on the rating plate on the top of the appliance (to access it, you will need to...
10
You can make a note of the numbers of your appliance and the telephone number of the after-sales service in the space below to save time should it be required.
10
E no.
10
FD no.
10
Please be aware that a visit by an after-sales engineer will be charged if a problem turns out to be the result of operator error, even during the warranty period.
10
Please find the contact data of all countries in the enclosed customer service list.
10
To book an engineer visit and product advice
10
Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances.
10
Accessories
10
(not included in the scope of delivery)
10
Note:
10
These instructions apply to several appliance models. It may be the case that an optional accessory that is listed does not apply for your appliance.
10
Note:
10
Observe the installation instructions in the accessory.
10
Installation instructions
11
Installation instructions
11
( Important safety information
11
Important safety information
11
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
11
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
11
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
11
Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.
11
The surfaces of the appliance are easily damaged. Avoid damaging them during installation.
11
For the installation, observe the currently valid building regulations and the regulations of the local electricity and gas suppliers.
11
: Warning
11
Risk of fire!
11
: Warning
12
Risk of injury!
12
: Warning
12
Risk of electric shock!
12
: Warning
12
Risk of electric shock!
12
: Warning
12
Risk of electric shock!
12
: Warning
12
Danger of suffocation!
12
K General information
12
General information
12
Preparing the ceiling
12
Electrical connection
12
: Warning
12
Risk of electric shock!
12
: Warning
12
Risk of electric shock!
12
The required connection information can be found on the rating plate inside the appliance; to access it, you will need to remove the activated charcoal filter.
12
Length of the cable: approx. 1.30 m
12
This appliance complies with the EC interference suppression regulations.
12
The appliance must be disconnected from the power supply whenever installation work is being carried out.
12
When the appliance is installed, protection must be provided against accidental contact in the future.
12
5 Installation
13
Installation
13
Preparing for installation
13
Caution!
13
1. Cover the hob to protect it from damage.
13
2. Mark where the centre of the extractor hood should be on the ceiling above the centre of the hob.
13
3. Using the template provided, mark the locations where the bolts should be inserted on the ceiling.
13
4. Drill four 8 mm diameter holes to a depth of 80 mm for fastening the appliance and press in the wall plugs flush with the wall.
13
Preparing the appliance
13
1. Screw in the four bolts on the edge of the frame at the marked locations, leaving them protruding out of the frame by approx. 5 mm.
13
2. Remove the film from the frame cover.
13
3. Remove the activated charcoal filter from the film.
13
4. Open the cover on the top of the appliance and remove it ¨, insert the activated charcoal filter © and then close the cover.
13
Fitting the frame
13
1. Screw in the two bolts, leaving them protruding out of the ceiling by 5 - 9 mm ¨.
13
Note:
13
2. Insert the two bolts on the ceiling through the openings provided in the frame ¨. Move the frame to allow the bolts to be screwed into the keyhole openings ©.
14
3. Use two more bolts to screw the frame in place. ª Tighten all the bolts fully.
14
4. Insert the four cables into the openings provided in the frame and thread them through the labyrinth.
14
Establishing a connection to the mains
14
: Warning
14
Risk of electric shock!
14
Note:
14
To find out the correct fuse rating, see the total connected load (in watts) on the appliance's rating plate.
14
1. Position the appliance underneath the frame.
14
2. Carefully thread the cables and the mains power cable through the opening in the frame cover. Place the frame cover down onto the appliance.
14
3. Mount the appliance on the wall and level it; see the section entitled "Wall-mounting the appliance and levelling it".
14
4. Thread the mains power cable through the opening in the frame and then through the strain relief.
14
Caution!
14
5. Connect the appliance to the power supply.
14
Caution!
14
6. Use an open-ended spanner (WAF 17) to tighten the strain relief until the mains power cable is held firmly and cannot move.
14
Fitting the frame cover
15
1. Slide the frame cover up.
15
Note:
15
2. Fit the frame cover onto the four bolts at the edge of the frame.
15
Note:
15
3. Tighten the bolts at the edge of the frame.
15
4. Secure the covers to the magnets to hide the bolts at the edges of the frame.
15
Attaching and aligning the appliance
15
1. Manually open the cable tensioners until the cable can be inserted in it. Do not use any tools.
15
Note:
15
2. Enlist the help of a second person to lift the appliance and thread the cables into the cable tensioners on the top of the appliance.
15
Note:
15
3. Taking care to comply with the safety clearances, slide the appliance up and level it.
15
4. If you need to position the appliance lower down, lift it up ¨, push the cable tensioners down © and pull the cables back out of the cable tensioners ª.
15
5. After aligning, tighten the cable tensioners so that they are hand-tight. Do not use any tools.
15
Search:
×
Search
