[en] Instructions for installation and use
1
Extractor hood
1
Table of contents
2
[en] Instructions for installation and use
2
Instruction manual 2
2
8 Intended use 2
2
( Important safety information 3
2
7 Environmental protection 4
2
1 Operating the appliance 5
2
e Connecting to a hob 7
2
o Home Connect 8
2
2 Cleaning and maintenance 10
2
3 Trouble shooting 13
2
4 Customer service 13
2
Installation instructions 14
2
( Important safety information 14
2
K General information 15
2
5 Installation 16
2
Instruction manual
2
Additional information on products, accessories, replacement parts and services can be found at www.bosch-home.com and in the online shop www.bosch-eshop.com
2
8 Intended use
2
Intended use
2
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
2
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
2
This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improp...
2
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
2
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised by someone who is responsible for their sa...
2
Children must not play with the appliance.Cleaning and user maintenance must not be performed by children unless they are over 15 years of age and are supervised.
2
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
2
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
2
This appliance is not intended for operation with an external clock timer or a remote control.
2
( Important safety information
3
Important safety information
3
: Warning
3
Danger of suffocation!
3
: Warning
3
Risk of fire!
3
: Warning
3
Risk of burns!
3
: Warning
3
Risk of injury!
3
: Warning
3
Risk of injury!
3
: Warning
3
Risk of electric shock!
3
Causes of damage
4
Caution!
4
Always replace faulty bulbs to prevent the remaining bulbs from overloading.
4
Risk of damage due to ingress of humidity into the electronic circuitry. Never clean operator controls with a wet cloth.
4
Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the direction of the grain only. Do not use any stainless steel cleaners for operator controls.
4
Surface damage due to strong or abrasive cleaning agents. Never use strong and abrasive cleaning agents.
4
Risk of damage as a result of incorrect loading of design elements. Do not pull design elements.Do not place objects on the design elements or hang objects from them.
4
7 Environmental protection
4
Environmental protection
4
Your new appliance is particularly energy-efficient. Here you can find tips on how to save even more energy when using the appliance, and how to dispose of your appliance properly.
4
Saving energy
4
Environmentally-friendly disposal
4
Dispose of packaging in an environmentally-friendly manner.
4
1 Operating the appliance
5
Operating the appliance
5
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
5
Note:
5
Switch on the extractor hood when you start cooking and switch it off again several minutes after you have finished cooking. This is the most effective way of removing the kitchen fumes.
5
Control panel model 1
5
Symbol
5
Explanation
5
Setting the fan
5
Switching on
5
Touch the # symbol.
5
The fan will start at fan setting 2.
5
Selecting a fan setting
5
Select the fan setting.
5
Switching off
5
Touch the # symbol.
5
Intensive setting
5
You can use the intensive setting if there is a large build-up of odours and fumes/vapours.
5
Switching on
5
Touch the C or D symbol.
5
Note:
5
After approx. 6 minutes, the extractor hood automatically switches back to fan setting 3.
5
Switching off
5
If you want to end intensive mode before the preset time expires, touch the symbol for the required fan setting.
5
Fan run-on time
5
Switching on
5
Touch the y symbol.
5
The fan will run at fan setting 1.
5
After approximately 10 minutes, the fan will switch itself off automatically.
5
Switching off
5
Touch the y symbol.
5
This immediately stops fan run-on.
5
Automatic mode
5
Switching on
5
1. Touch the # symbol.
5
2. Touch the > symbol.
5
Switching off
5
Touch # or any fan setting to switch off automatic mode.
5
The fan switches itself off automatically if the PerfectAir sensor detects no further change in the air quality in the room.
5
Automatic mode can run for a maximum of 4 hours.
5
Sensor control
6
In automatic mode, the PerfectAir sensor in the extractor hood detects the intensity of the cooking and roasting odours. Depending on the setting of the PerfectAir sensor, the fan automatically switches itself to another fan setting.
6
Possible sensor settings:
6
Default sensitivity setting: „ (fan setting 3)
6
Lowest sensitivity setting: ‚ (fan setting 1)
6
Highest sensitivity setting: † (fan setting D)
6
If the sensor controller responds too strongly or not enough, it can be changed accordingly:
6
1. Touch and hold the > symbol when the fan is switched off. The setting will be displayed.
6
2. The sensor controller setting can be changed by touching symbols 1, 2, 3, C or D.
6
3. Take your finger off the > symbol.
6
Saturation display
6
If the metal grease filters or activated charcoal filter are/ is saturated, the corresponding symbols will flash once the appliance has been switched off:
6
If you have not yet done so, the metal grease filters should now be cleaned or the activated charcoal filter replaced. ~ "Cleaning and maintenance" on page 10
6
The saturation indicators can be reset while they are flashing. To do this, touch the # symbol.
6
Switching over the display for air recirculation mode
6
For air recirculation mode, the electronic controller must be switched over accordingly:
6
Lighting
6
The lighting can be switched on and off independently of the fan.
6
Touch the B symbol.
6
Setting the brightness
6
Press and hold the B symbol until the required brightness is reached.
6
Audible signal
6
Switching on
6
Touch and hold the # and y symbols at the same time for approximately 3 seconds when the fan is switched off. An audible signal will sound as an acknowledgement.
6
Switching off
6
Touch and hold the # and y symbols at the same time for approximately 3 seconds when the fan is switched off. An audible signal will sound as an acknowledgement.
6
e Connecting to a hob
7
Connecting to a hob
7
You can connect this appliance to a hob (if the hob supports connection to the appliance) and then control the functions of the hood via your hob.
7
Appliances can be connected to each other in different ways:
7
Home Connect
7
Two appliances can be connected using the Home Connect app provided that both of them are Home Connect compatible.
7
Refer to the Home Connect documents supplied for more information.
7
Connecting appliances directly
7
If the appliance is connected directly to a hob, it cannot be connected to your home network as well. The appliance will function as an extractor hood that is not connected to the network and you can continue to operate it via the control panel.
7
Connecting appliances via your home network
7
If the appliances are connected to each other via your home network, both the hood controls on the hob and Home Connect can be used to operate the appliance.
7
Notes
7
Setting up a connection
7
The hood must be switched off before you can connect the hob and extractor hood.
7
Connecting directly
7
Ensure that the hob is switched on and is in search mode.
7
To do this, refer to the section entitled "Connecting to the extractor hood" in the instruction manual for your hob.
7
Notes
7
Press and hold the D symbol until it starts to flash.
7
The extractor hood has been connected to the hob when the D stops flashing and remains continuously lit.
7
Connecting via your home network
7
Follow the instructions in the section entitled "Automatic login to your home network" or "Manually logging into your home network" ~ "Home Connect" on page 8
7
Once the extractor hood is connected to your home network, you can connect to the hob via the Home Connect app. To do this. follow the instructions on your mobile device.
7
o Home Connect
8
Home Connect
8
This appliance is Wi-Fi-capable and can be controlled using a mobile device.
8
If the appliance is not connected to your home network, it will function as an extractor hood with no network connection and can still be operated via the display.
8
The availability of the Home Connect function depends on the availability of Home Connect services in your country. Home Connect services are not available in every country.You can find more information on this at www.home-connect.com.
8
Notes
8
Setting up
8
To implement settings via Home Connect, you must have installed and set up the Home Connect app on your mobile device.
8
Refer to the Home Connect documents supplied for more information.
8
Follow the steps specified by the app to implement the settings.
8
The app must be open in order to perform the set-up process.
8
Note:
8
In the networked standby mode, your appliance requires a maximum of 2 W.
8
Automatic registration in the home network
8
Notes
8
1. Press and hold the D symbol until it starts to flash.
8
2. Press "1" to start automatic login to your home network.
8
3. Press the WPS button on the router within the next 2 minutes.
8
Note:
8
4. On your mobile device, follow the instructions for automatic network login.
8
Manual registration in the home network
8
Notes
8
1. Press and hold the D symbol until it starts to flash.
8
2. Press "2" to manually log into your home network.
8
3. Use the "Home Connect" SSID and the "Home Connect" key to log the mobile device into the extractor hood network.
8
4. On your mobile device, follow the instructions for manually logging into your network.
8
Connecting to the app
9
If the Home Connect app is installed on your mobile device, you can connect it to your extractor hood.
9
Notes
9
1. Press and hold the D symbol until the LED for fan setting 3 and the D symbol flash.
9
2. On your mobile device, follow the instructions in the Home Connect app.
9
Software update
9
Using the software update function, your extractor hood's software can be updated (e.g. for the purpose of optimisation, troubleshooting or security updates). To do this, you need to be a registered Home Connect user, have installed the app on your m...
9
As soon as a software update is available, you will be informed through the Home Connect app and will be able to start the software update via the app.
9
Once the update has been successfully downloaded, you can start installing it via the Home Connect app if you are on your local area network.
9
The Home Connect app will inform you once installation is complete.
9
Notes
9
Resetting the connection
9
You can reset the connections you have saved on your home network and on Home Connect at any time.
9
Press and hold the # and D symbols until the D symbol goes out. When the audible signal is switched on, an audible signal sounds.
9
About data protection
9
When your appliance is connected for the first time to a WLAN network, which is connected to the Internet, your appliance transmits the following categories of data to the Home Connect server (initial registration):
9
This initial registration prepares the Home Connect functions for use and is only required when you want to use these Home Connect functions for the first time.
9
Note:
9
Ensure that the Home Connect functions can be used only in conjunction with the Home Connect app. Information on data protection can be accessed in the Home Connect app.
9
Declaration of Conformity
9
Robert Bosch Hausgeräte GmbH hereby declares that the appliance which features Home Connect is in accordance with the basic requirements and the other relevant provisions of the directive 2014/53/EU.
9
A detailed RED Declaration of Conformity can be found online at www.bosch-home.com/de on the product page for appliance in the additional documents.
9
2 Cleaning and maintenance
10
Cleaning and maintenance
10
: Warning
10
Risk of injury!
10
: Warning
10
Risk of electric shock!
10
: Warning
10
Risk of electric shock!
10
: Warning
10
Risk of injury!
10
: Warning
10
Risk of injury!
10
Cleaning agents
10
To ensure that the different surfaces are not damaged by using the wrong cleaning product, follow the instructions in the table. Do not use any of the following:
10
Note:
10
Wash new sponge cloths thoroughly before use.
10
Note:
10
Follow all instructions and warnings included with the cleaning products.
10
Area
10
Cleaning products
10

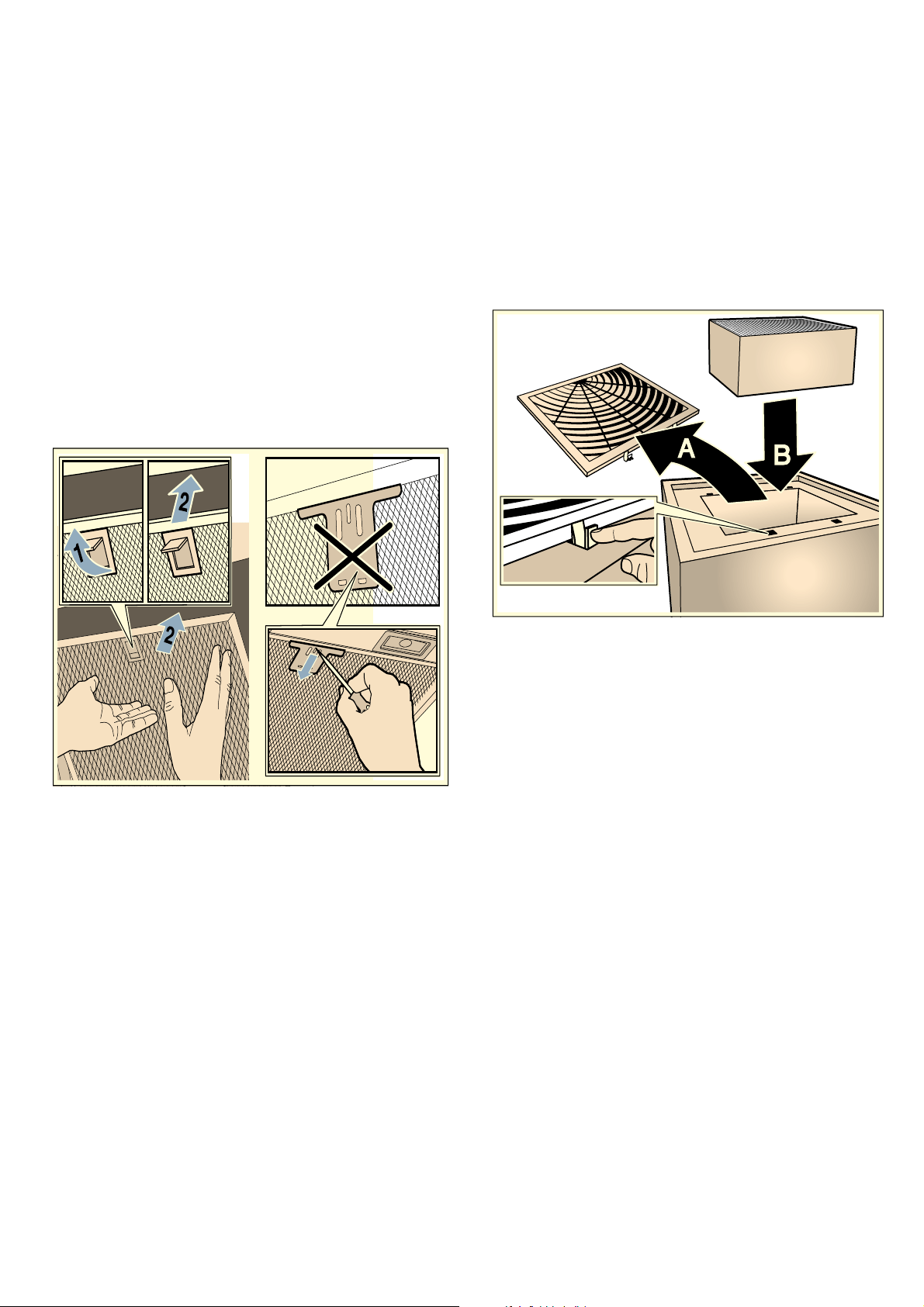

Removing metal grease filter
11
1. Open the lock and swing down the metal grease filter. When you do this, take hold of the metal grease filter from underneath with your other hand.
11
2. Take the metal grease filter out of the holder.
11
Notes
11
3. Clean the metal grease filter.
11
4. Clean the appliance support cables.
11
5. Clean the accessible parts of the housing. Clean the inside of the appliance.
11
: Warning
11
Risk of injury!
11

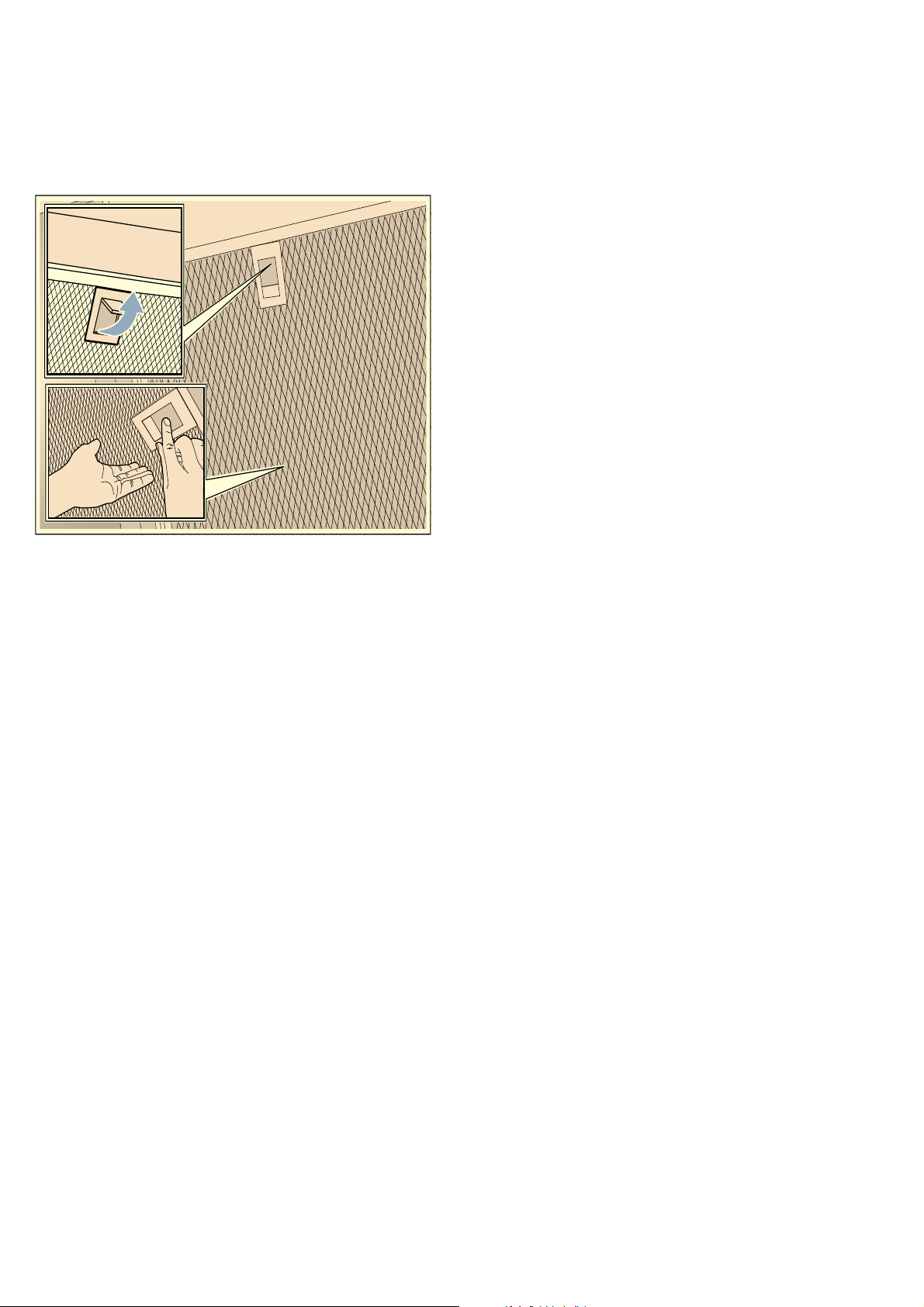

Cleaning the metal mesh grease filters
11
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
11
: Warning
11
Risk of fire!
11
Notes
11
By hand:
11
Note:
11
You can use a special degreaser to remove stubborn dirt. This can be ordered from the online shop.
11
In the dishwasher:
11
Note:
11
Slight discolouration may occur if the metal grease filters are cleaned in the dishwasher. This discolouration has no effect on the performance of the metal grease filters.
11
Installing the metal mesh grease filter
12
: Warning
12
Risk of injury!
12
Notes
12
1. Insert the metal grease filter. When you do this, take hold of the metal grease filter from underneath with your other hand.
12
Note:
12
2. Swing the metal grease filter up and click it into place.
12
3. If the metal grease filter has not been inserted correctly, open the lock and reinsert the metal grease filter correctly.
12
Replacing the activated charcoal filter
12
Note:
12
To bind odours in circulating-air mode, you must install an activated carbon filter. The different options for operating the appliance in circulating-air mode can be found in the brochure. Alternatively, ask your dealer. The required accessories are ...
12
1. Open the cover on the top of the appliance.
12
2. Remove the old activated charcoal filter and insert the new one.
12
3. Close the cover.
12
4. Reset the saturation indicator.~ "Saturation display" on page 6
12
3 Trouble shooting
13
Trouble shooting
13
Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service.
13
: Warning
13
Risk of electric shock!
13
Malfunction table
13
Problem
13
Possible cause
13
Solution
13
LED lights
13
Defective LED lights may be replaced by the manufacturer, their customer service or a qualified technician (electrician) only.
13
: Warning
13
Risk of injury!
13
4 Customer service
13
Customer service
13
When calling us, please quote the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. These numbers can be found on the rating plate on the top of the appliance (to access it, you will need to...
13
You can make a note of the numbers of your appliance and the telephone number of the after-sales service in the space below to save time should it be required.
13
E no.
13
FD no.
13
Please be aware that a visit by an after-sales engineer will be charged if a problem turns out to be the result of operator error, even during the warranty period.
13
Please find the contact data of all countries in the enclosed customer service list.
13
To book an engineer visit and product advice
13
Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances.
13

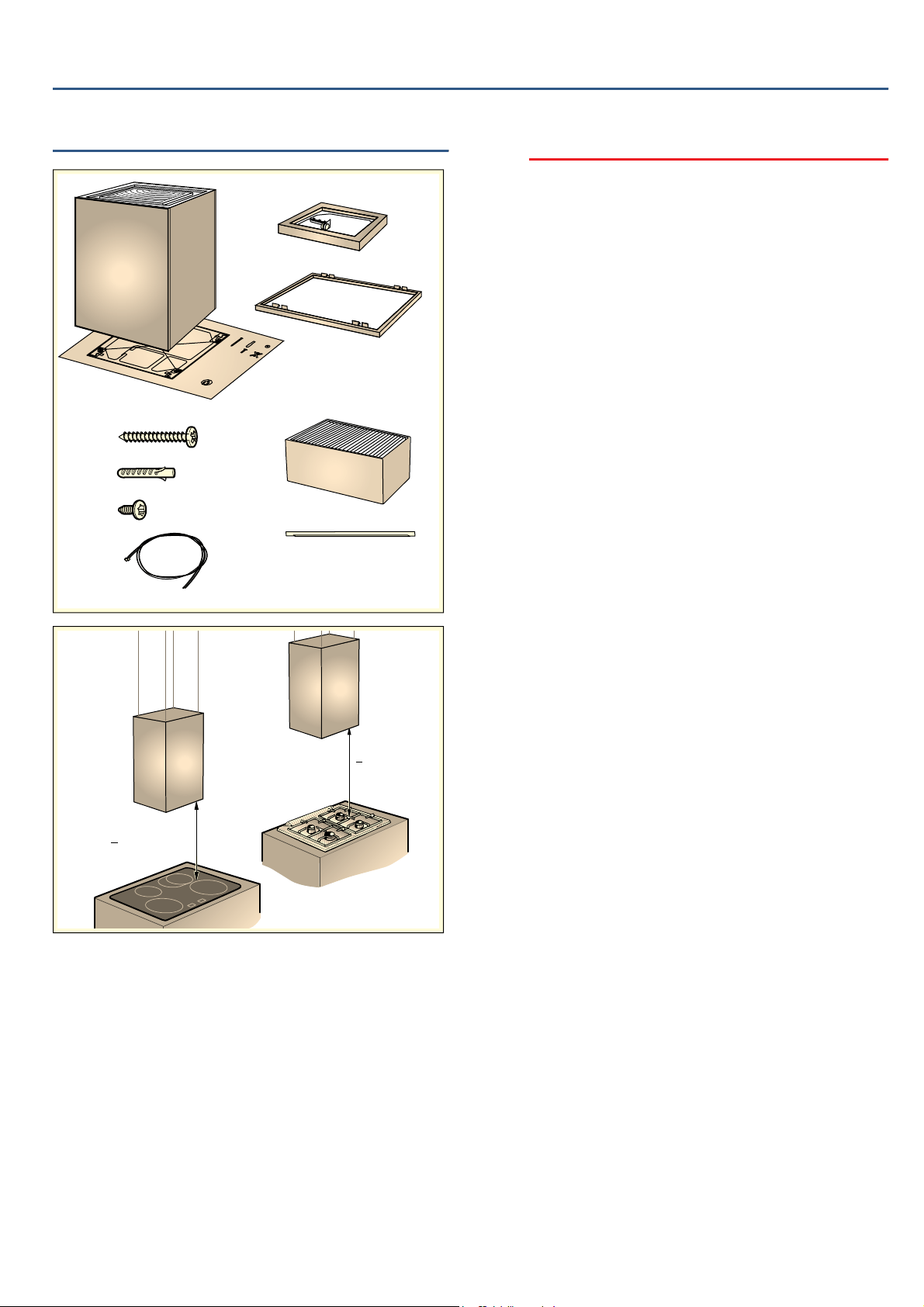

Accessories
13
(not included in the scope of delivery)
13
Note:
13
These instructions apply to several appliance models. It may be the case that an optional accessory that is listed does not apply for your appliance.
13
Note:
13
Observe the installation instructions in the accessory.
13
Installation instructions
14
Installation instructions
14
( Important safety information
14
Important safety information
14
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
14
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
14
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
14
Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.
14
The surfaces of the appliance are easily damaged. Avoid damaging them during installation.
14
For the installation, observe the currently valid building regulations and the regulations of the local electricity and gas suppliers.
14
: Warning
14
Risk of fire!
14
: Warning
15
Risk of injury!
15
: Warning
15
Risk of electric shock!
15
: Warning
15
Risk of electric shock!
15
: Warning
15
Risk of electric shock!
15
: Warning
15
Danger of suffocation!
15
K General information
15
General information
15
Preparing the ceiling
15
Electrical connection
15
: Warning
15
Risk of electric shock!
15
: Warning
15
Risk of electric shock!
15
The required connection information can be found on the rating plate inside the appliance; to access it, you will need to remove the activated charcoal filter.
15
Length of the cable: approx. 1.30 m
15
This appliance complies with the EC interference suppression regulations.
15
The appliance must be disconnected from the power supply whenever installation work is being carried out.
15
When the appliance is installed, protection must be provided against accidental contact in the future.
15
5 Installation
16
Installation
16
Preparing for installation
16
Caution!
16
1. Cover the hob to protect it from damage.
16
2. Mark where the centre of the extractor hood should be on the ceiling above the centre of the hob.
16
3. Using the template provided, mark the locations where the bolts should be inserted on the ceiling.
16
4. Drill four 8 mm diameter holes to a depth of 80 mm for fastening the appliance and press in the wall plugs flush with the wall.
16

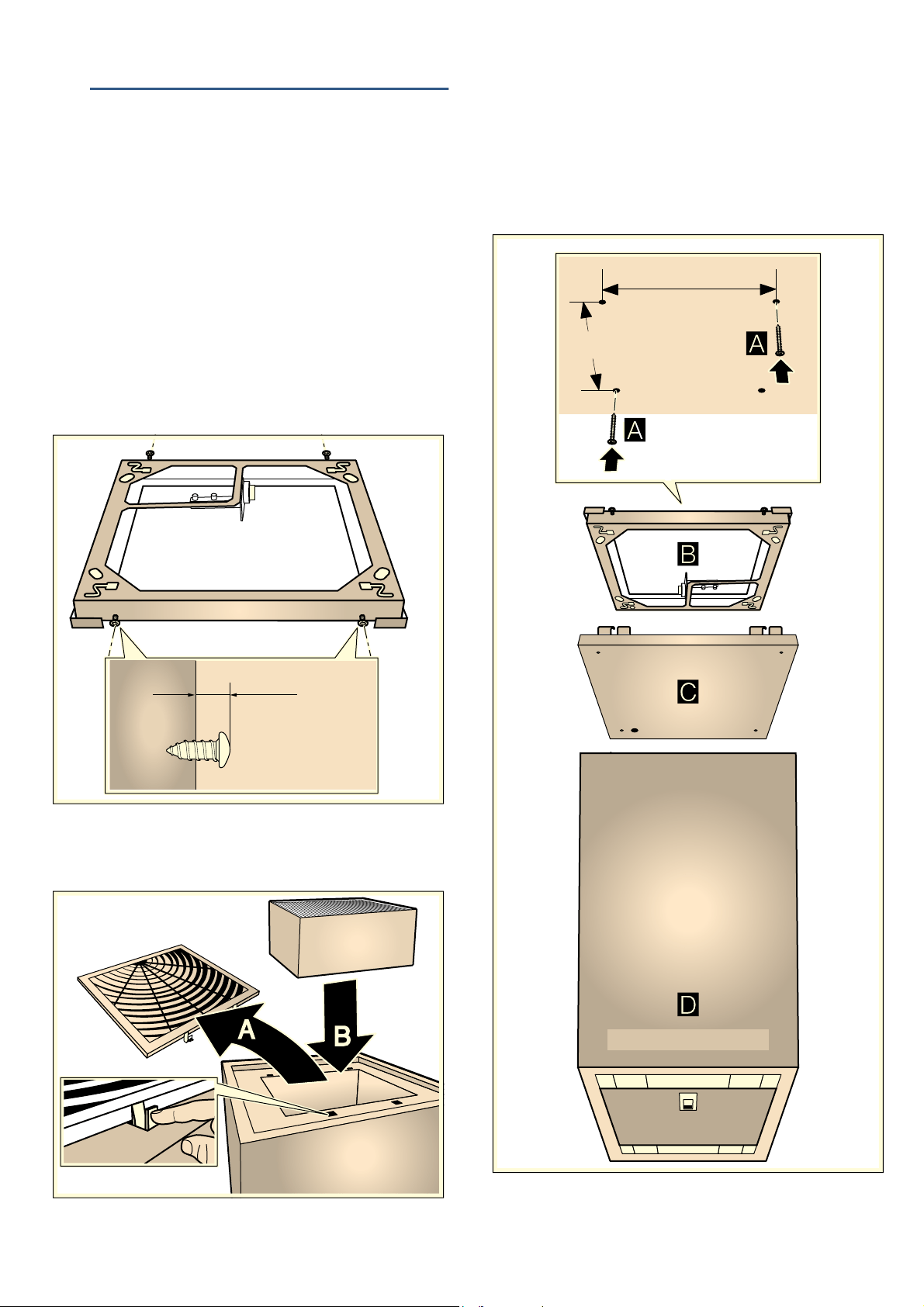

Preparing the appliance
16
1. Screw in the four bolts on the edge of the frame at the marked locations, leaving them protruding out of the frame by approx. 5 mm.
16
2. Remove the film from the frame cover.
16
3. Remove the activated charcoal filter from the film.
16
4. Open the cover on the top of the appliance and remove it ¨, insert the activated charcoal filter © and then close the cover.
16

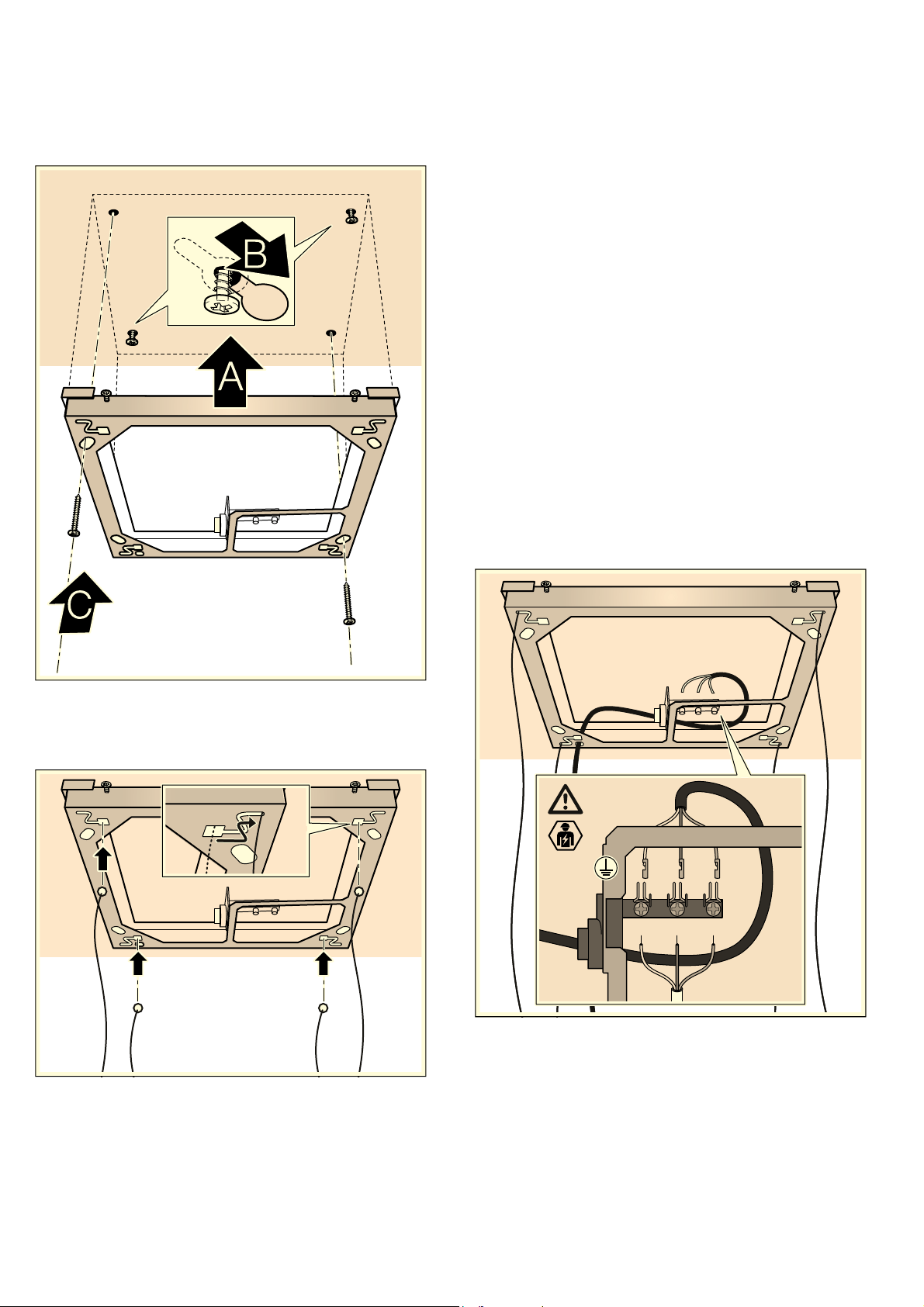

Fitting the frame
16
1. Screw in the two bolts, leaving them protruding out of the ceiling by 5 - 9 mm ¨.
16
Note:
16
2. Insert the two bolts on the ceiling through the openings provided in the frame ¨. Move the frame to allow the bolts to be screwed into the keyhole openings ©.
17
3. Use two more bolts to screw the frame in place. ª Tighten all the bolts fully.
17
4. Insert the four cables into the openings provided in the frame and thread them through the labyrinth.
17
Establishing a connection to the mains
17
: Warning
17
Risk of electric shock!
17
Note:
17
To find out the correct fuse rating, see the total connected load (in watts) on the appliance's rating plate.
17
1. Position the appliance underneath the frame.
17
2. Carefully thread the cables and the mains power cable through the opening in the frame cover. Place the frame cover down onto the appliance.
17
3. Mount the appliance on the wall and level it; see the section entitled "Wall-mounting the appliance and levelling it".
17
4. Thread the mains power cable through the opening in the frame and then through the strain relief.
17
Caution!
17
5. Connect the appliance to the power supply.
17
Caution!
17
6. Use an open-ended spanner (WAF 17) to tighten the strain relief until the mains power cable is held firmly and cannot move.
17

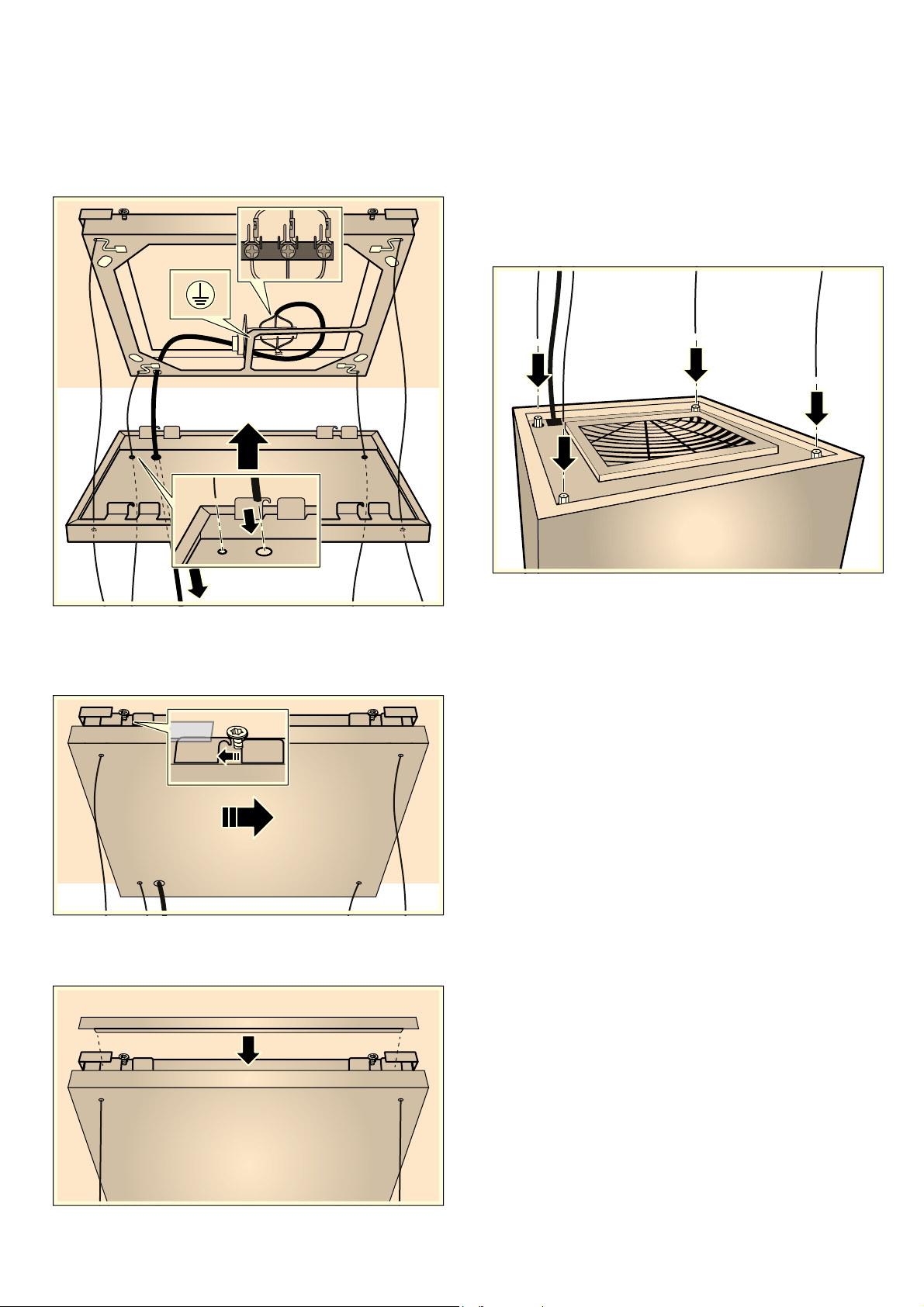

Fitting the frame cover
18
1. Slide the frame cover up.
18
Note:
18
2. Fit the frame cover onto the four bolts at the edge of the frame.
18
Note:
18
3. Tighten the bolts at the edge of the frame.
18
4. Secure the covers to the magnets to hide the bolts at the edges of the frame.
18
Attaching and aligning the appliance
18
1. Manually open the cable tensioners until the cable can be inserted in it. Do not use any tools.
18
Note:
18
2. Enlist the help of a second person to lift the appliance and thread the cables into the cable tensioners on the top of the appliance.
18
Note:
18
3. Taking care to comply with the safety clearances, slide the appliance up and level it.
18
4. If you need to position the appliance lower down, lift it up ¨, push the cable tensioners down © and pull the cables back out of the cable tensioners ª.
19
5. After aligning, tighten the cable tensioners so that they are hand-tight. Do not use any tools.
19
File type: PDF
File name: dii31jr60-01.pdf
File size: 2.18 MB
File Language: English
Pages: 20
Author: Bosch
Updated: 2023-06-09
Download File
Specifications
Brand:
Bosch
Model: DII31JR60/01
Category:
Kitchen & Bath Fixtures
View in the file:
Full Specifications
See other models:
CMG676BS1B/11
KIR18X30/03
BGL35MON2/01
HBG655BS1B/01
SHE68TL5UC/02
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch SMV45JX07E
Bosch HNG6764B1/24
Tefal CB210032
Bosch DII31RU60/01
Bosch DIB97IM50/01
Bosch DIG97IM50/01
Bosch DIA093650/01
Bosch DID128R50/01
Bosch SMS46GW01A
Bosch HMT75M551B
Bosch SMP66MX03A
Bosch SMU66MS02A
Bosch NGM8055UC/02
Bosch KAG90AI20G
Brand Name HSLP451UC
Table of Contents
×
[en] Instructions for installation and use
1
Extractor hood
1
Table of contents
2
[en] Instructions for installation and use
2
Instruction manual 2
2
8 Intended use 2
2
( Important safety information 3
2
7 Environmental protection 4
2
1 Operating the appliance 5
2
e Connecting to a hob 7
2
o Home Connect 8
2
2 Cleaning and maintenance 10
2
3 Trouble shooting 13
2
4 Customer service 13
2
Installation instructions 14
2
( Important safety information 14
2
K General information 15
2
5 Installation 16
2
Instruction manual
2
Additional information on products, accessories, replacement parts and services can be found at www.bosch-home.com and in the online shop www.bosch-eshop.com
2
8 Intended use
2
Intended use
2
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
2
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
2
This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improp...
2
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
2
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised by someone who is responsible for their sa...
2
Children must not play with the appliance.Cleaning and user maintenance must not be performed by children unless they are over 15 years of age and are supervised.
2
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
2
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
2
This appliance is not intended for operation with an external clock timer or a remote control.
2
( Important safety information
3
Important safety information
3
: Warning
3
Danger of suffocation!
3
: Warning
3
Risk of fire!
3
: Warning
3
Risk of burns!
3
: Warning
3
Risk of injury!
3
: Warning
3
Risk of injury!
3
: Warning
3
Risk of electric shock!
3
Causes of damage
4
Caution!
4
Always replace faulty bulbs to prevent the remaining bulbs from overloading.
4
Risk of damage due to ingress of humidity into the electronic circuitry. Never clean operator controls with a wet cloth.
4
Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the direction of the grain only. Do not use any stainless steel cleaners for operator controls.
4
Surface damage due to strong or abrasive cleaning agents. Never use strong and abrasive cleaning agents.
4
Risk of damage as a result of incorrect loading of design elements. Do not pull design elements.Do not place objects on the design elements or hang objects from them.
4
7 Environmental protection
4
Environmental protection
4
Your new appliance is particularly energy-efficient. Here you can find tips on how to save even more energy when using the appliance, and how to dispose of your appliance properly.
4
Saving energy
4
Environmentally-friendly disposal
4
Dispose of packaging in an environmentally-friendly manner.
4
1 Operating the appliance
5
Operating the appliance
5
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
5
Note:
5
Switch on the extractor hood when you start cooking and switch it off again several minutes after you have finished cooking. This is the most effective way of removing the kitchen fumes.
5
Control panel model 1
5
Symbol
5
Explanation
5
Setting the fan
5
Switching on
5
Touch the # symbol.
5
The fan will start at fan setting 2.
5
Selecting a fan setting
5
Select the fan setting.
5
Switching off
5
Touch the # symbol.
5
Intensive setting
5
You can use the intensive setting if there is a large build-up of odours and fumes/vapours.
5
Switching on
5
Touch the C or D symbol.
5
Note:
5
After approx. 6 minutes, the extractor hood automatically switches back to fan setting 3.
5
Switching off
5
If you want to end intensive mode before the preset time expires, touch the symbol for the required fan setting.
5
Fan run-on time
5
Switching on
5
Touch the y symbol.
5
The fan will run at fan setting 1.
5
After approximately 10 minutes, the fan will switch itself off automatically.
5
Switching off
5
Touch the y symbol.
5
This immediately stops fan run-on.
5
Automatic mode
5
Switching on
5
1. Touch the # symbol.
5
2. Touch the > symbol.
5
Switching off
5
Touch # or any fan setting to switch off automatic mode.
5
The fan switches itself off automatically if the PerfectAir sensor detects no further change in the air quality in the room.
5
Automatic mode can run for a maximum of 4 hours.
5
Sensor control
6
In automatic mode, the PerfectAir sensor in the extractor hood detects the intensity of the cooking and roasting odours. Depending on the setting of the PerfectAir sensor, the fan automatically switches itself to another fan setting.
6
Possible sensor settings:
6
Default sensitivity setting: „ (fan setting 3)
6
Lowest sensitivity setting: ‚ (fan setting 1)
6
Highest sensitivity setting: † (fan setting D)
6
If the sensor controller responds too strongly or not enough, it can be changed accordingly:
6
1. Touch and hold the > symbol when the fan is switched off. The setting will be displayed.
6
2. The sensor controller setting can be changed by touching symbols 1, 2, 3, C or D.
6
3. Take your finger off the > symbol.
6
Saturation display
6
If the metal grease filters or activated charcoal filter are/ is saturated, the corresponding symbols will flash once the appliance has been switched off:
6
If you have not yet done so, the metal grease filters should now be cleaned or the activated charcoal filter replaced. ~ "Cleaning and maintenance" on page 10
6
The saturation indicators can be reset while they are flashing. To do this, touch the # symbol.
6
Switching over the display for air recirculation mode
6
For air recirculation mode, the electronic controller must be switched over accordingly:
6
Lighting
6
The lighting can be switched on and off independently of the fan.
6
Touch the B symbol.
6
Setting the brightness
6
Press and hold the B symbol until the required brightness is reached.
6
Audible signal
6
Switching on
6
Touch and hold the # and y symbols at the same time for approximately 3 seconds when the fan is switched off. An audible signal will sound as an acknowledgement.
6
Switching off
6
Touch and hold the # and y symbols at the same time for approximately 3 seconds when the fan is switched off. An audible signal will sound as an acknowledgement.
6
e Connecting to a hob
7
Connecting to a hob
7
You can connect this appliance to a hob (if the hob supports connection to the appliance) and then control the functions of the hood via your hob.
7
Appliances can be connected to each other in different ways:
7
Home Connect
7
Two appliances can be connected using the Home Connect app provided that both of them are Home Connect compatible.
7
Refer to the Home Connect documents supplied for more information.
7
Connecting appliances directly
7
If the appliance is connected directly to a hob, it cannot be connected to your home network as well. The appliance will function as an extractor hood that is not connected to the network and you can continue to operate it via the control panel.
7
Connecting appliances via your home network
7
If the appliances are connected to each other via your home network, both the hood controls on the hob and Home Connect can be used to operate the appliance.
7
Notes
7
Setting up a connection
7
The hood must be switched off before you can connect the hob and extractor hood.
7
Connecting directly
7
Ensure that the hob is switched on and is in search mode.
7
To do this, refer to the section entitled "Connecting to the extractor hood" in the instruction manual for your hob.
7
Notes
7
Press and hold the D symbol until it starts to flash.
7
The extractor hood has been connected to the hob when the D stops flashing and remains continuously lit.
7
Connecting via your home network
7
Follow the instructions in the section entitled "Automatic login to your home network" or "Manually logging into your home network" ~ "Home Connect" on page 8
7
Once the extractor hood is connected to your home network, you can connect to the hob via the Home Connect app. To do this. follow the instructions on your mobile device.
7
o Home Connect
8
Home Connect
8
This appliance is Wi-Fi-capable and can be controlled using a mobile device.
8
If the appliance is not connected to your home network, it will function as an extractor hood with no network connection and can still be operated via the display.
8
The availability of the Home Connect function depends on the availability of Home Connect services in your country. Home Connect services are not available in every country.You can find more information on this at www.home-connect.com.
8
Notes
8
Setting up
8
To implement settings via Home Connect, you must have installed and set up the Home Connect app on your mobile device.
8
Refer to the Home Connect documents supplied for more information.
8
Follow the steps specified by the app to implement the settings.
8
The app must be open in order to perform the set-up process.
8
Note:
8
In the networked standby mode, your appliance requires a maximum of 2 W.
8
Automatic registration in the home network
8
Notes
8
1. Press and hold the D symbol until it starts to flash.
8
2. Press "1" to start automatic login to your home network.
8
3. Press the WPS button on the router within the next 2 minutes.
8
Note:
8
4. On your mobile device, follow the instructions for automatic network login.
8
Manual registration in the home network
8
Notes
8
1. Press and hold the D symbol until it starts to flash.
8
2. Press "2" to manually log into your home network.
8
3. Use the "Home Connect" SSID and the "Home Connect" key to log the mobile device into the extractor hood network.
8
4. On your mobile device, follow the instructions for manually logging into your network.
8
Connecting to the app
9
If the Home Connect app is installed on your mobile device, you can connect it to your extractor hood.
9
Notes
9
1. Press and hold the D symbol until the LED for fan setting 3 and the D symbol flash.
9
2. On your mobile device, follow the instructions in the Home Connect app.
9
Software update
9
Using the software update function, your extractor hood's software can be updated (e.g. for the purpose of optimisation, troubleshooting or security updates). To do this, you need to be a registered Home Connect user, have installed the app on your m...
9
As soon as a software update is available, you will be informed through the Home Connect app and will be able to start the software update via the app.
9
Once the update has been successfully downloaded, you can start installing it via the Home Connect app if you are on your local area network.
9
The Home Connect app will inform you once installation is complete.
9
Notes
9
Resetting the connection
9
You can reset the connections you have saved on your home network and on Home Connect at any time.
9
Press and hold the # and D symbols until the D symbol goes out. When the audible signal is switched on, an audible signal sounds.
9
About data protection
9
When your appliance is connected for the first time to a WLAN network, which is connected to the Internet, your appliance transmits the following categories of data to the Home Connect server (initial registration):
9
This initial registration prepares the Home Connect functions for use and is only required when you want to use these Home Connect functions for the first time.
9
Note:
9
Ensure that the Home Connect functions can be used only in conjunction with the Home Connect app. Information on data protection can be accessed in the Home Connect app.
9
Declaration of Conformity
9
Robert Bosch Hausgeräte GmbH hereby declares that the appliance which features Home Connect is in accordance with the basic requirements and the other relevant provisions of the directive 2014/53/EU.
9
A detailed RED Declaration of Conformity can be found online at www.bosch-home.com/de on the product page for appliance in the additional documents.
9
2 Cleaning and maintenance
10
Cleaning and maintenance
10
: Warning
10
Risk of injury!
10
: Warning
10
Risk of electric shock!
10
: Warning
10
Risk of electric shock!
10
: Warning
10
Risk of injury!
10
: Warning
10
Risk of injury!
10
Cleaning agents
10
To ensure that the different surfaces are not damaged by using the wrong cleaning product, follow the instructions in the table. Do not use any of the following:
10
Note:
10
Wash new sponge cloths thoroughly before use.
10
Note:
10
Follow all instructions and warnings included with the cleaning products.
10
Area
10
Cleaning products
10
Removing metal grease filter
11
1. Open the lock and swing down the metal grease filter. When you do this, take hold of the metal grease filter from underneath with your other hand.
11
2. Take the metal grease filter out of the holder.
11
Notes
11
3. Clean the metal grease filter.
11
4. Clean the appliance support cables.
11
5. Clean the accessible parts of the housing. Clean the inside of the appliance.
11
: Warning
11
Risk of injury!
11
Cleaning the metal mesh grease filters
11
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
11
: Warning
11
Risk of fire!
11
Notes
11
By hand:
11
Note:
11
You can use a special degreaser to remove stubborn dirt. This can be ordered from the online shop.
11
In the dishwasher:
11
Note:
11
Slight discolouration may occur if the metal grease filters are cleaned in the dishwasher. This discolouration has no effect on the performance of the metal grease filters.
11
Installing the metal mesh grease filter
12
: Warning
12
Risk of injury!
12
Notes
12
1. Insert the metal grease filter. When you do this, take hold of the metal grease filter from underneath with your other hand.
12
Note:
12
2. Swing the metal grease filter up and click it into place.
12
3. If the metal grease filter has not been inserted correctly, open the lock and reinsert the metal grease filter correctly.
12
Replacing the activated charcoal filter
12
Note:
12
To bind odours in circulating-air mode, you must install an activated carbon filter. The different options for operating the appliance in circulating-air mode can be found in the brochure. Alternatively, ask your dealer. The required accessories are ...
12
1. Open the cover on the top of the appliance.
12
2. Remove the old activated charcoal filter and insert the new one.
12
3. Close the cover.
12
4. Reset the saturation indicator.~ "Saturation display" on page 6
12
3 Trouble shooting
13
Trouble shooting
13
Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service.
13
: Warning
13
Risk of electric shock!
13
Malfunction table
13
Problem
13
Possible cause
13
Solution
13
LED lights
13
Defective LED lights may be replaced by the manufacturer, their customer service or a qualified technician (electrician) only.
13
: Warning
13
Risk of injury!
13
4 Customer service
13
Customer service
13
When calling us, please quote the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. These numbers can be found on the rating plate on the top of the appliance (to access it, you will need to...
13
You can make a note of the numbers of your appliance and the telephone number of the after-sales service in the space below to save time should it be required.
13
E no.
13
FD no.
13
Please be aware that a visit by an after-sales engineer will be charged if a problem turns out to be the result of operator error, even during the warranty period.
13
Please find the contact data of all countries in the enclosed customer service list.
13
To book an engineer visit and product advice
13
Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances.
13
Accessories
13
(not included in the scope of delivery)
13
Note:
13
These instructions apply to several appliance models. It may be the case that an optional accessory that is listed does not apply for your appliance.
13
Note:
13
Observe the installation instructions in the accessory.
13
Installation instructions
14
Installation instructions
14
( Important safety information
14
Important safety information
14
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
14
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
14
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
14
Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.
14
The surfaces of the appliance are easily damaged. Avoid damaging them during installation.
14
For the installation, observe the currently valid building regulations and the regulations of the local electricity and gas suppliers.
14
: Warning
14
Risk of fire!
14
: Warning
15
Risk of injury!
15
: Warning
15
Risk of electric shock!
15
: Warning
15
Risk of electric shock!
15
: Warning
15
Risk of electric shock!
15
: Warning
15
Danger of suffocation!
15
K General information
15
General information
15
Preparing the ceiling
15
Electrical connection
15
: Warning
15
Risk of electric shock!
15
: Warning
15
Risk of electric shock!
15
The required connection information can be found on the rating plate inside the appliance; to access it, you will need to remove the activated charcoal filter.
15
Length of the cable: approx. 1.30 m
15
This appliance complies with the EC interference suppression regulations.
15
The appliance must be disconnected from the power supply whenever installation work is being carried out.
15
When the appliance is installed, protection must be provided against accidental contact in the future.
15
5 Installation
16
Installation
16
Preparing for installation
16
Caution!
16
1. Cover the hob to protect it from damage.
16
2. Mark where the centre of the extractor hood should be on the ceiling above the centre of the hob.
16
3. Using the template provided, mark the locations where the bolts should be inserted on the ceiling.
16
4. Drill four 8 mm diameter holes to a depth of 80 mm for fastening the appliance and press in the wall plugs flush with the wall.
16
Preparing the appliance
16
1. Screw in the four bolts on the edge of the frame at the marked locations, leaving them protruding out of the frame by approx. 5 mm.
16
2. Remove the film from the frame cover.
16
3. Remove the activated charcoal filter from the film.
16
4. Open the cover on the top of the appliance and remove it ¨, insert the activated charcoal filter © and then close the cover.
16
Fitting the frame
16
1. Screw in the two bolts, leaving them protruding out of the ceiling by 5 - 9 mm ¨.
16
Note:
16
2. Insert the two bolts on the ceiling through the openings provided in the frame ¨. Move the frame to allow the bolts to be screwed into the keyhole openings ©.
17
3. Use two more bolts to screw the frame in place. ª Tighten all the bolts fully.
17
4. Insert the four cables into the openings provided in the frame and thread them through the labyrinth.
17
Establishing a connection to the mains
17
: Warning
17
Risk of electric shock!
17
Note:
17
To find out the correct fuse rating, see the total connected load (in watts) on the appliance's rating plate.
17
1. Position the appliance underneath the frame.
17
2. Carefully thread the cables and the mains power cable through the opening in the frame cover. Place the frame cover down onto the appliance.
17
3. Mount the appliance on the wall and level it; see the section entitled "Wall-mounting the appliance and levelling it".
17
4. Thread the mains power cable through the opening in the frame and then through the strain relief.
17
Caution!
17
5. Connect the appliance to the power supply.
17
Caution!
17
6. Use an open-ended spanner (WAF 17) to tighten the strain relief until the mains power cable is held firmly and cannot move.
17
Fitting the frame cover
18
1. Slide the frame cover up.
18
Note:
18
2. Fit the frame cover onto the four bolts at the edge of the frame.
18
Note:
18
3. Tighten the bolts at the edge of the frame.
18
4. Secure the covers to the magnets to hide the bolts at the edges of the frame.
18
Attaching and aligning the appliance
18
1. Manually open the cable tensioners until the cable can be inserted in it. Do not use any tools.
18
Note:
18
2. Enlist the help of a second person to lift the appliance and thread the cables into the cable tensioners on the top of the appliance.
18
Note:
18
3. Taking care to comply with the safety clearances, slide the appliance up and level it.
18
4. If you need to position the appliance lower down, lift it up ¨, push the cable tensioners down © and pull the cables back out of the cable tensioners ª.
19
5. After aligning, tighten the cable tensioners so that they are hand-tight. Do not use any tools.
19
Search:
×
Search
