RF605Q models
ICE & WATER, AUTOMATIC ICE
AND NON-ICE & WATER MODELS
USER GUIDE / INSTALLATION GUIDE
NZ AU UK
ACTIVESMART™ REFRIGERATOR
1
CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to our
website fisherpaykel.com or contact your
local Fisher&Paykel dealer.
Note that the word ‘refrigerator’, throughout
this user guide, refers to the combination of
refrigerator/freezer products.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
fisherpaykel.com
Introduction 3
Safety and warnings 4
Installation instructions 13
ActiveSmart™ special features 21

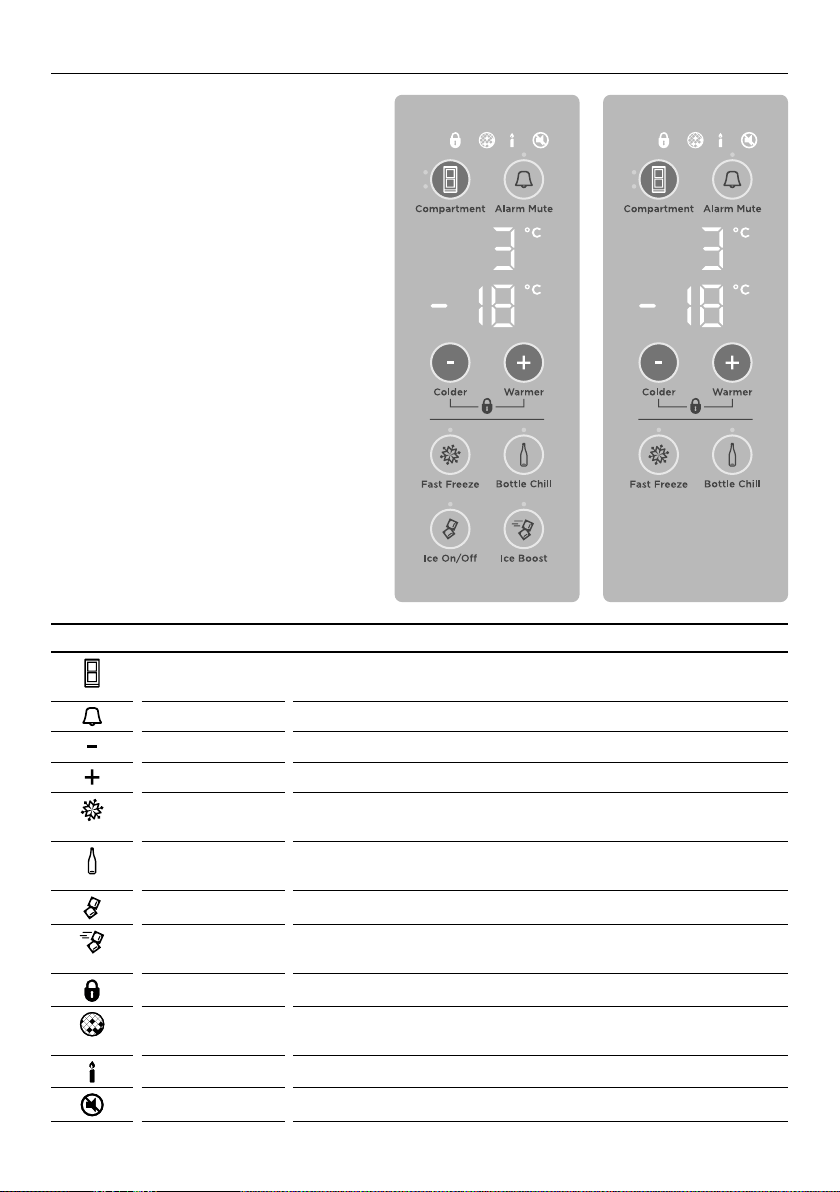

SmartTouch control panel 21
External display (Water dispensing models only) 22
Variable Temperature Zone 23
ActiveSmart™ operating instructions 24
Humidity control system 25
Door alarms 26
Alarm Mute 26
Key Mute 26
Key Lock 26
Sabbath mode activation 27
Using your water dispenser (Water dispensing models only) 27
Water filter (Ice & Water and Automatic Ice models only) 28
Using your ice maker (Ice & Water and Automatic Ice models only) 29
Bottle Chill 31
Fast Freeze 31

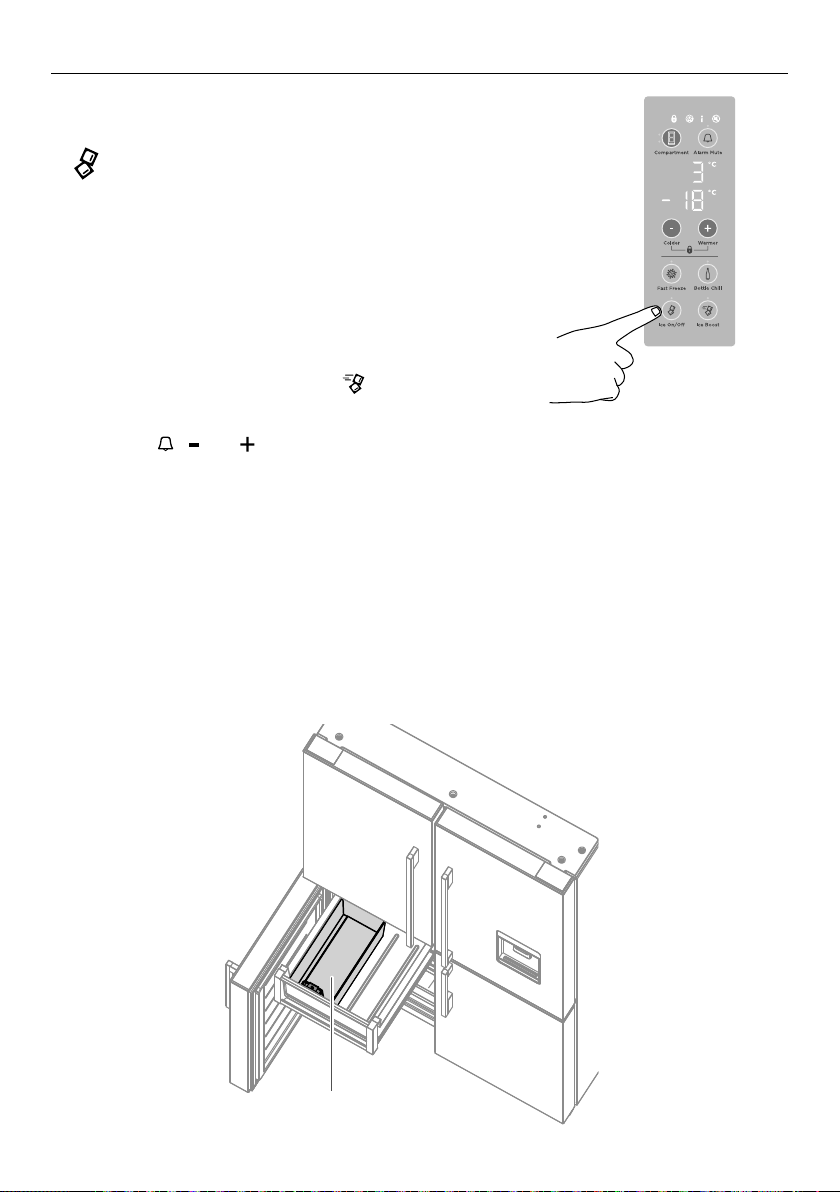

Ice boost function 31
Manual ice system (selected models only) 32
Cleaning and care 35
Exterior 35
Interior 36
Foodcare 40
Moving or storing your appliance 41
ActiveSmart™ sounds 42
Troubleshooting 43
Manufacturer’s Service & Warranty 48
European Directive 2012/19/EU on
Waste Electrical and Electronic Equipment (WEEE) 49
3
INTRODUCTION
Thank you for buying a Fisher&Paykel ActiveSmart™ refrigerator.
At Fisher&Paykel, we are very proud of this refrigerator. It offers a combination of size
and storage space with the latest features and functions.
Thousands of hours of food care research and refrigeration experience has been
programmed into your refrigerator to give you the best possible performance.
We hope you enjoy your new refrigerator.
RF605QDU
RF605QD
4
SAFETY AND WARNINGS
!
WARNING!
Electric Shock Hazard
Read and follow the safety and warnings
outlined in this User guide before operating
this appliance.
Failure to do so can result in death, electric
shock, fire or injury to persons.
WARNING: Risk of fire/flammable material
This refrigerator contains flammable
refrigerant isobutane (R600a).
Use this appliance only for the intended purpose as
described in the user guide.
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
When using this appliance always exercise basic
safety precautions including the following:
• This appliance can be used by children aged 8years
and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
• Children aged 3 to 8 years may load and unload this
appliance under supervision.
• Children should be supervised to ensure that they do
not play with the appliance.
• Cleaning and user maintenance shall not be made by
children without supervision.
5
SAFETY AND WARNINGS
• The manufacturer’s installation instructions for
product and cabinetry ventilation must be followed
when installing the appliance.
• To avoid hazard due to instability of the
appliance, it must be fixed in accordance with
installation instructions.
• WARNING: Keep ventilation openings, in the
appliance enclosure or the built-in structure, clear
of obstruction.
• WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other
than those recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• In case of damage to the refrigerant circuit, ventilate
the area by opening all windows. Do not operate
electrical equipment or any other equipment that
may produce arcs, sparks or flames in the area.
Contact your Fisher&Paykel trained and supported
service technician immediately to arrange for the
appliance to be repaired.
• It is hazardous for anyone other than a
Fisher&Paykel trained and supported service
technician to service thisappliance.
• In Queensland the authorised service person
must hold a gas work licence or authorisation for
hydrocarbon refrigerants to carry our service or
repairs which involve removal of covers.
• Opening the door for long periods can cause a
significant increase of the temperature in the
compartments of the appliance.
• WARNING: Connect to safe drinking water only.
6
SAFETY AND WARNINGS
Electrical WARNING
• This appliance must be installed in accordance with
the installation instructions before use.
• To allow disconnection of the appliance from the
supply after installation, incorporate a switch in the
fixed wiring in accordance with the wiring rules.
• Never unplug your refrigerator by pulling on the
power cord. Always grip the plug firmly and pull
straight out from the outlet.
• Do not plug in any other appliance at the same
power point as your refrigerator or use extension
cords or double adapters.
• Repair or replace immediately all electric service
cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks
or abrasion along its length or at either the plug
or appliance end.
• If the power supply cord is damaged, it must only
be replaced by your Fisher&Paykel trained and
supported service technician because special
purpose tools are required.
• When moving your appliance away from the wall, be
careful not to roll over or damage the power cord.
• WARNING: Do not use electrical appliances inside
the food storage compartments of the appliance,
unless they are of the type recommended by
the manufacturer.
• When positioning the appliance, ensure the power
cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
7
SAFETY AND WARNINGS
IMPORTANT!
Your refrigerator is designed to operate for
many years without the need for service checks.
However, if your refrigerator is malfunctioning,
have it attended to by your Fisher&Paykel trained
and supported service technician as soon as
possible. All electrical repairs must be carried out
by an adequately trained service technician or
qualified electrician.
Cleaning
• Many commercially available cleaning
products contain solvents that may attack the
plastic components of your refrigerator and
cause them tocrack.
• Avoid using anti-bacterial cleaning products on
either the interior or exterior of the cabinet as they
may cause rusting of metal components and cracking
of plastic components.
• Please refer to the ‘Cleaning and care’ section of this
user guide for further information.
Disposal
• Extreme care must be taken when disposing of your
old appliance to avoid hazards:
– The flammable refrigerant gas must be
safely removed.
– The thermal insulation foam in this appliance
contains flammable insulation blowing gases, any
exposed foam may be highly flammable and must
be carefully treated during disposal.
– The doors and panels should be removed and
the shelves left in place so that children may not
easily climb inside.
8
SAFETY AND WARNINGS
• Your Fisher&Paykel trained and supported
service technician will be able to give advice on
environmentally friendly methods of disposing of
your old refrigerator or freezer.
Food Safety
• Regularly clean accessible draining systems and
surfaces that come in contact with food.
• Store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip
onto other food.
• If the appliance will be left empty for long
periods, switch it off, defrost, clean, dry, and
leave the door open to prevent mould developing
within the appliance.
Storing food and drinks
• Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
• Never store volatile or flammable materials in your
refrigerator as they may explode.
• Never freeze liquids in glass containers. Liquid
expands during freezing, which may cause the
container to explode.
9
SAFETY AND WARNINGS
• Never freeze carbonated drinks. They may explode.
• Do not consume food if it is too cold. Food removed
from the freezer compartment may be cold enough
to cause damage when brought into contact with
bare skin, eg frozen ice cubes.
Power failure — food safety
• Do not refreeze frozen foods that have thawed
completely. The food may be dangerous to eat.
Follow the recommendations below if you discover
food in your freezer has thawed:
– Ice crystals still visible—food may be refrozen
but should be stored for a shorter period
than recommended.
– Thawed but refrigerator cold—refreezing
generally not recommended. Fruits and some
cooked food can be refrozen but use as soon as
possible. Meat, fish, poultry—use immediately or
cook then refreeze. Vegetables—discard as they
usually go limp and soggy.
– Thawed and warmer than 5°C—discard all food.
10
SAFETY AND WARNINGS
Water filter
IMPORTANT!
• The water connection to your Ice & water
refrigerator must be installed by a qualified plumber
or Fisher&Paykel trained and supported service
technician and comply with all state and local laws.
• Installation and use MUST comply with all state
and local plumbing codes. Checkwith your local
public works department for plumbing codes. You
must follow their guidelines as you install the water
filtration system.
• To avoid serious illness or death, only connect your
water filter to safe drinking water.
• The water filter cartridge needs to be changed when
the replacement indicator icon illuminates. This will
happen every 6 months.
• If the water filtration system has been allowed to
freeze, replace filter cartridge. Failure to replace
the disposable filter at recommended intervals
may lead to reduced filter performance and failure
of the filter, causing property damage from water
leakage or flooding.
• In cases of excessively reduced filter life—we
recommend that you consult a local plumber or
your water supplier for advice on suitable filtration
requirements for the water supplied to your home.
• Filter replacement is the consumer’s responsibility
and will not be covered by the warranty except
in the case of faulty parts or materials within the
filter cartridge.
11
SAFETY AND WARNINGS
• If the water has not created ice for some time or ice
has an unpleasant taste or odour dispose of ice and
refer to ‘Before you start using the Ice & Water or
Automatic Ice function’ for flushing instructions. If
unpleasant taste or odour persists, you may wish to
fit a new filter cartridge.
• Use new tubing supplied with the refrigerator.
DO NOT reuse old tubing from old water and
ice connections.
• Your water filtration system can withstand up to
120psi (827kPa) of water pressure. Ensure the
supplied pressure reducing valve is installed before
installing the water filtration system. DO NOT install
if water pressure exceeds 120psi (827kPa).
• To reduce the risk associated with property damage
due to water leakage or flooding:
• DO NOT install systems in areas where ambient
temperatures may go above 38°C (100°F) or drop
below 0.6°C (33°F).
• DO NOT install on hot water supply lines. The
maximum operating water temperature of this filter
system is 38°C (100°F).
• DO NOT install where water hammer conditions may
occur. If water hammer conditions exist, you must
install a water hammer arrester.
• Clean the water tanks if they have not been used for
48 hours. Flush the water system connected to the
water supply if water has not been used for 5 days.
12
SAFETY AND WARNINGS
Ice making
IMPORTANT!
• Avoid contact with the moving parts of the ice maker
ejector mechanism, and do not place your fingers
on the automatic ice-making mechanism while the
appliance is inoperation.
• Do not use ice cubes that may have become
discoloured, usually with a green-blue colour. If such
discolouration is noted, discard the ice cubes and
contact your Fisher&Paykel trained and supported
service technician.
13
INSTALLATION INSTRUCTIONS
Please follow the installation steps below to ensure your appliance operates correctly.
Before installation
Power
Install your appliance where the plug is easily accessible.
Connect your refrigerator to a separate power point. Avoid sharing the power point with
other appliances. Do not use extension cords and double adaptors as the combined
weight of two power cords can pull the double adaptor from the power outlet.
For power requirements, refer to the information on the serial plate located at the front
bottom right-hand side of the refrigerator when the door is open.
Ensure your appliance is properly grounded (earthed).
Connect the appliance to the electrical supply (220V – 240V 50Hz) with the
fitted plug and lead.
Connections to the mains supply should be in accordance with local regulations.
Ice & Water and Automatic Ice models
Your Ice & Water and Automatic Ice refrigerator must be installed by a qualified plumber
or Fisher&Paykel trained and supported service technician as incorrect plumbing can
lead to water leaks.
Fisher&Paykel Appliances does not accept responsibility for damage (including water
damage) caused by faulty installation or plumbing.
14
INSTALLATION INSTRUCTIONS
Product and cabinetry dimensions
Flush with refrigerator chassis — full door rotation Flush with refrigerator door — full door rotation
RF605QDVX1 AA/GB/SG
RF203QDJVX1 US
PRODUCT SIZE & GAPS
SOURCE:
FP CAD files: Victor Tan (dimensional), Stuart Smith (visual)
SCALE: 50% reduction of 1 : 10
DATE: 22.05.2017
PRODUCT DIMENSIONS (mm)
A Overall height of product 1790
b Overall width of product 905
c Overall depth of product (excludes handle) 688
r Depth with door open - from rear of fridge - 90° rotation 1084
s Depth with door open - from flush with door - 90° rotation 396
t Height to top of chassis 1754
u Height to top of hinge cover 1775
K Side clearance 20
L Side clearance - hinge side flush with door - full rotation 100
M Side clearance - hinge side flush with door - 90° rotation 100
N Rear clearance 30
O Vent (above refrigerator cabinet or around top of cupboard) 50
P Door clearance - hinge side flush with chassis - full rotation 320
Q Door clearance - hinge side flush with door - full rotation 235
CABINETRY DIMENSIONS (mm)
D Inside height of cavity 1810
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
E Inside width 945
F Inside depth 640
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
G Inside width 1105
H Inside depth flush to flat door 718
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
I Inside width 1105
J Inside depth flush to flat door 718
FRONT VIEW PROFILE VIEW
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
MODELS THAT DRAWING USED FOR:
MINIMUM CLEARANCES (mm)
A F G
B E C
H
S
SS
J
L
K M
PR P PR Q
R
I
OO
T
U
N
D
RF605QDVX1 AA/GB/SG
RF203QDJVX1 US
PRODUCT SIZE & GAPS
SOURCE:
FP CAD files: Victor Tan (dimensional), Stuart Smith (visual)
SCALE: 50% reduction of 1 : 10
DATE: 22.05.2017
PRODUCT DIMENSIONS (mm)
A Overall height of product 1790
b Overall width of product 905
c Overall depth of product (excludes handle) 688
r Depth with door open - from rear of fridge - 90° rotation 1084
s Depth with door open - from flush with door - 90° rotation 396
t Height to top of chassis 1754
u Height to top of hinge cover 1775
K Side clearance 20
L Side clearance - hinge side flush with door - full rotation 100
M Side clearance - hinge side flush with door - 90° rotation 100
N Rear clearance 30
O Vent (above refrigerator cabinet or around top of cupboard) 50
P Door clearance - hinge side flush with chassis - full rotation 320
Q Door clearance - hinge side flush with door - full rotation 235
CABINETRY DIMENSIONS (mm)
D Inside height of cavity 1810
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
E Inside width 945
F Inside depth 640
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
G Inside width 1105
H Inside depth flush to flat door 718
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
I Inside width 1105
J Inside depth flush to flat door 718
FRONT VIEW PROFILE VIEW
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
MODELS THAT DRAWING USED FOR:
MINIMUM CLEARANCES (mm)
A F G
B E C
H
S
SS
J
L
K M
PR P PR Q
R
I
OO
T
U
N
D
Flush with refrigerator door — 90° door rotation
RF605QDVX1 AA/GB/SG
RF203QDJVX1 US
PRODUCT SIZE & GAPS
SOURCE:
FP CAD files: Victor Tan (dimensional), Stuart Smith (visual)
SCALE: 50% reduction of 1 : 10
DATE: 22.05.2017
PRODUCT DIMENSIONS (mm)
A Overall height of product 1790
b Overall width of product 905
c Overall depth of product (excludes handle) 688
r Depth with door open - from rear of fridge - 90° rotation 1084
s Depth with door open - from flush with door - 90° rotation 396
t Height to top of chassis 1754
u Height to top of hinge cover 1775
K Side clearance 20
L Side clearance - hinge side flush with door - full rotation 100
M Side clearance - hinge side flush with door - 90° rotation 100
N Rear clearance 30
O Vent (above refrigerator cabinet or around top of cupboard) 50
P Door clearance - hinge side flush with chassis - full rotation 320
Q Door clearance - hinge side flush with door - full rotation 235
CABINETRY DIMENSIONS (mm)
D Inside height of cavity 1810
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
E Inside width 945
F Inside depth 640
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
G Inside width 1105
H Inside depth flush to flat door 718
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
I Inside width 1105
J Inside depth flush to flat door 718
FRONT VIEW PROFILE VIEW
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
MODELS THAT DRAWING USED FOR:
MINIMUM CLEARANCES (mm)
A F G
B E C
H
S
SS
J
L
K
M
PR P
PR Q
R
I
OO
T
U
N
D
RF605QDVX1 AA/GB/SG
RF203QDJVX1 US
PRODUCT SIZE & GAPS
SOURCE:
FP CAD files: Victor Tan (dimensional), Stuart Smith (visual)
SCALE: 50% reduction of 1 : 10
DATE: 22.05.2017
PRODUCT DIMENSIONS (mm)
A Overall height of product 1790
b Overall width of product 905
c Overall depth of product (excludes handle) 688
r Depth with door open - from rear of fridge - 90° rotation 1084
s Depth with door open - from flush with door - 90° rotation 396
t Height to top of chassis 1754
u Height to top of hinge cover 1775
K Side clearance 20
L Side clearance - hinge side flush with door - full rotation 100
M Side clearance - hinge side flush with door - 90° rotation 100
N Rear clearance 30
O Vent (above refrigerator cabinet or around top of cupboard) 50
P Door clearance - hinge side flush with chassis - full rotation 320
Q Door clearance - hinge side flush with door - full rotation 235
CABINETRY DIMENSIONS (mm)
D Inside height of cavity 1810
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
E Inside width 945
F Inside depth 640
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
G Inside width 1105
H Inside depth flush to flat door 718
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
I Inside width 1105
J Inside depth flush to flat door 718
FRONT VIEW PROFILE VIEW
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
MODELS THAT DRAWING USED FOR:
MINIMUM CLEARANCES (mm)
A F G
B E C
H
S
SS
J
L
K
M
PR P
PR Q
R
I
OO
T
U
N
D
15
INSTALLATION INSTRUCTIONS
PRODUCT DIMENSIONS mm
A
Overall height of product 1790
B
Overall width of product 905
C
Overall depth of product (excludes handle) 695
D
Depth with door open — from rear of fridge — 90° rotation 1084
E
Depth with door open — from flush with door — 90° rotation 396
F
Height to top of chassis 1754
G
Height to top of hinge cover 1775
CABINETRY DIMENSIONS (including minimum air clearances)
H
Inside height of cavity 1810
Flush with refrigerator chassis — full door rotation
I
Inside width 945
J
Inside depth 640
Flush with refrigerator door — full door rotation
K
Inside width 1105
L
Inside depth flush to flat door
718
Flush with refrigerator door — 90° door rotation
(for full drawer/shelf access, the doors need to be open past 90°)
M
Inside width
1105
N
Inside depth flush to flat door
718
MINIMUM CLEARANCES
O
Side clearance 20
P
Side clearance — hinge side flush with door — full rotation 100
Q
Side clearance — hinge side flush with door — 90° rotation 100
R
Rear clearance 30
S
Vent (above refrigerator cabinet or around top of cupboard) 50
T
Door clearance — hinge side flush with chassis — full rotation 320
U
Door clearance — hinge side flush with door — full rotation 235
16
INSTALLATION INSTRUCTIONS
Long tubing
A
B
D
C
E
Isolation tap
Water tap adaptor
Short tubing
Quick fitting
PLV

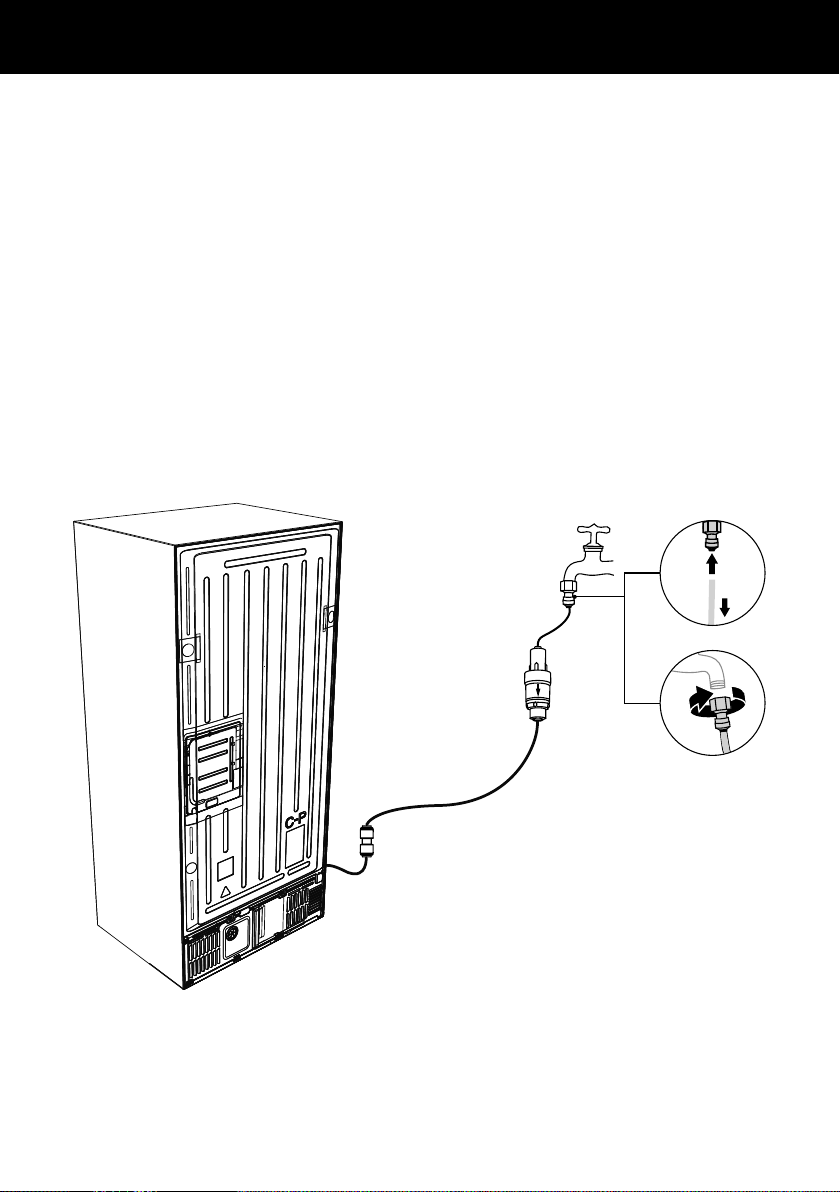

Connecting water (Water dispensing and Automatic Ice models)
1
Ensure the refrigerator is NOT plugged into a power supply. Locate the isolation tap for
cold water connection. (Tee and tap fitting not supplied).
2
Locate the water fitting kit to complete water connection installation.
3
Uncoil tubing from the back of the refrigerator and connect the quick fitting (A).
4
Connect one end of the long tubing (3.5m) to the quick fitting, and insert the other end
to the PLV (B).
– Ensure the short arrow on the PLV is pointing away from the tap. The arrow
indicates the direction of water flow.
5
Insert the short tubing into the water tap adaptor, push tubing in at least 16mm before
reaching the stop. Pull gently on the short tubing to ensure it is locked in place (C).
– If the short tubing is already attached to the water tape adaptor skip this step.
6
Insert the other end of the short tubing firmly to the PLV (D).
7
Fasten the water tap adaptor to the isolation tap. Take care not to over-tighten the
water tap adaptor (E).
8
Pull gently on all tubing connections to ensure they are locked in place. Turn isolation
tap on and check thatall connections are dry and free of drips.
17
INSTALLATION INSTRUCTIONS
Positioning your refrigerator
Your Fisher&Paykel ActiveSmart™
refrigerator is fitted with front and rear
rollers to allow you to easily move your
refrigerator forward and backward.
Avoid moving your refrigerator sideways to
prevent damaging the rollers or the floor
coveringsurface.
A
Your refrigerator will arrive with the front feet wound up making moving the product
into its final location a simple task.
B
Roll the refrigerator into its final position making sure there is the correct air gap
between the product and surrounding cabinetry. See minimum clearance in cabinetry
dimensions table.
C
Adjust the front feet down until the refrigerator is leaning backward with the front
approximately 10mm higher than the back. This will ensure a good door closing action.

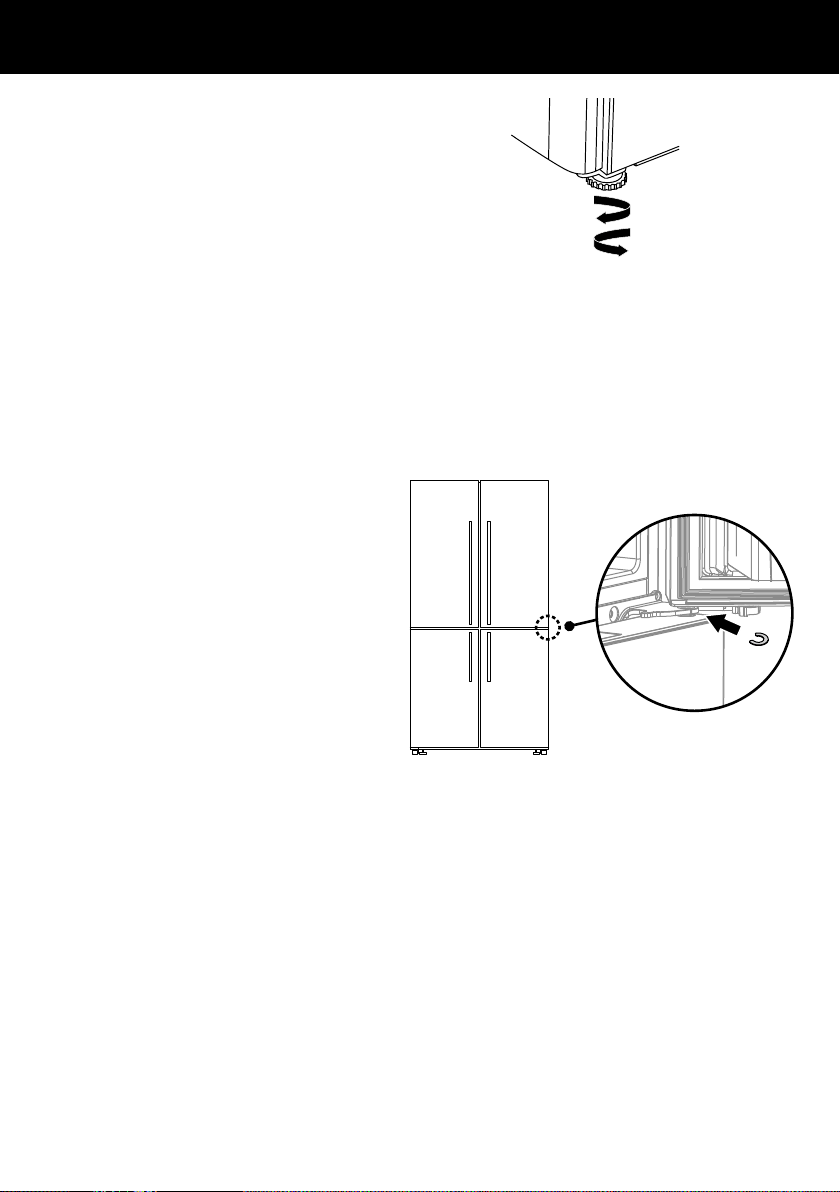

Levelling of refrigerator doors
Open the door that is out of alignment.
Lift the door upwards.
Clip the spacer onto the centre hinge
pin (refer to A).
Close the door to recheck alignment.
Raise the front of
the refrigerator
Lower the front of
the refrigerator
Refrigerator feet
A
18
INSTALLATION INSTRUCTIONS
What to do if your product is unstable
A
Gently push the refrigerator back until the rear
rollers contact the floor.
Measure the gap under the front foot, which has
come off the floor.
Obtain some solid packing material (hardwood,
plastic,etc) which fits firmly into the gap under
the foot.
Note: do not use metallic materials that may corrode,
stain and/or damage floor coverings.
B
Wind both front feet up and roll the product
out ofposition.
Place the packing material in the location
diagonally opposite the front roller that lifts off
the floor.
Make sure the packing material stays in place
when the product is pushed back into position.
Ideally, the packing material is large enough
to rest against the back wall to prevent it from
moving when the cabinet is pushed into position.
Wall behind refrigerator
For example: if this foot lifts off the floor when
pushing gently on the top front of the refrigerator
Packing material goes under rear roller
diagonally opposite front foot that lifts
Stabilising your refrigerator
C
Roll the refrigerator back into position and adjust front feet as per page 14 step
C
(check alignment and door closing action are satisfactory).
Make small adjustments to front feet where necessary.
Check that the product is stable (all four feet are on the floor).
If not, repeat
A
and
B
.
This foot lifts off the floor when
top front is gently pushed back
Example only
Unlevel floor
19
INSTALLATION INSTRUCTIONS
Before you start using the Ice & Water or Automatic Ice function
Before first use, you need to flush water through the filter to remove impurities or
trapped air in the water tank and filter system.
For Ice & Water
Press the water dispenser pad to dispense 4L of water.
– Wait for 4minutes before dispensing again.
Dispense 4L of water and then wait for another 4minutes.
– There may be carbon residue dispensed together with water. This is not harmful,
and is normal during the flushing process.
Dispense another 4L of water.
– This prevents excessive dripping of water from your dispenser.
There may be a few drips of water coming out of the dispenser for a few days after
installation. This is to clear the remaining trapped air in the dispenser.
Ensure your refrigerator has cooled for at least 2hours beforeuse.
For Automatic ice model
1
Press to turn on the ice maker. The light above the button will illuminate indicating
the ice maker is on.
2
Press , and together for 4 seconds then close the doors. The ice tray will empty
the water into the bin below. The ice tray will only empty after the doors are closed.
3
Repeat step
2
to remove dust in the ice tray collected during manufacture
and transport.
4
Empty the water, dry the bin and return it correctly.
5
Once your ice maker is turned on the first bin of ice may be discoloured. This is not
harmful and normal during the flushing process. Discard the first full bin of ice made.
Your ice maker is now ready for use.
Note: The performance of your water filter will increase with use, reaching optimum
performance after two to three full bins of ice.
Water dispenser
(Ice & Water model only)
20
INSTALLATION INSTRUCTIONS
Before placing food in the fresh food or freezer compartments
Remove all internal packaging. Ensure that all transit clips are removed from the
refrigerator. These are small rubber stoppers located at the back of the shelves.
Clean the inside of the appliance with a mix of warm water and a small amount of liquid
detergent. Use a soft cloth to remove dust collected during manufacture and transport.
Allow the refrigerator and freezer to run empty for 2 – 3 hours to allow each
compartment to cool to the appropriate temperature.
The appliance may have an odour on its initial operation, this will go when the
refrigerator and freezer have cooled sufficiently.
Energy efficiency
For the most energy efficient use of your appliance:
Ensure your refrigerator has adequate ventilation.
Do not cover your appliance with any material that will prevent air from flowing around
the cabinet sides.
Ensure you vacuum around the appliance to remove dust and accumulated debris. Keep
the appliance and its cabinetry free of dust by wiping down with a dry, lint-free cloth
(refer to section ‘Cleaning and care’).
Allow good clearances in front of air ducts within the cabinet for maximum cold
air distribution.
Cool down hot foods before placing them in the appliance.
Do not overfill the compartments.
Keep door openings to a minimum.
Select a temperature setting that isn’t too cold.
Check your door seals for leaks.
21
ACTIVESMART™ SPECIAL FEATURES
SmartTouch control panel
The control panel is located in the
inside front of the refrigerator. It
enables you to view and modify
all the features and options of
your refrigerator.
SmartTouch CONTROL PANEL FEATURES
Compartment Allows you to select which compartment to adjust the
temperature.
Alarm Mute Deactivates the door alarm for 20minutes.
Colder Reduces the temperature of compartments.
Warmer Increases the temperature of compartments.
Fast Freeze Boosts the freezing speed by dropping the freezer to its
coldest temperature for 12hours.
Bottle Chill Allows you to rapidly chill your beverage for a set time of
15minutes.
Ice On/Off Indicates when automatic ice maker is on or off.
Ice Boost Increases ice production up to 30% from standard ice
making.
Key lock Indicates when the buttons on the control panel are disabled.
Filter change
indicator
Icon will illuminate indicating when the water filter requires
changing.
Sabbath Mode All alarms, lights and displays are deactivated for 80hours.
Key Mute Deactivates sounds of all button presses.
SmartTouch control panel variants for
ActiveSmart™ refrigerators. Special features
available only on selected models.
22
ACTIVESMART™ SPECIAL FEATURES
External display (Water dispensing models only)
This display enables you to lock the water dispenser; indicates to you when ‘Bottle Chill’
is activated and when your water filter requires changing.
EXTERNAL DISPLAY FEATURES
Dispenser lock button
and LED light
Locks/unlocks the water dispenser.
When locked the LED above the button will
illuminate.
Bottle Chill indicator Icon will illuminate indicating when ‘Bottle Chill’ is
activated and flashes when beverage is ready.
Filter change
indicator
Icon will illuminate indicating when water filter
requires changing.
Electronic external display
23
ACTIVESMART™ SPECIAL FEATURES
Variable Temperature Zone
FOOD MODES CONTROL PANEL
Freezer
(-18°C)
‘Freezer’ mode is for general frozen
food items that require storage
between 1 – 12 months.
Meat, poultry, seafood,
pre-cooked foods and
leftovers, some fruits and
vegetable, ice cream, and
other frozen desserts.
Soft Freeze
(-7°C)
‘Soft Freeze’ mode is an extension
of your refrigerator, extending the
shelf life of perishable items while
maintaining the quality. ‘SoftFreeze’
mode allows easy portioning of
food and the ability to heat, cook
or serve foods straight from the
compartment without waiting for it
to thaw.
Meats, seafood, soups,
sauces, pureed foods,
bread, desserts and
pastries.
Note: ‘Soft Freeze’ mode
is not recommended for
storage of creamy desserts
such as ice cream.
Chill
(-0.5°C)
‘Chill’ mode is an extension of
‘Fridge’ mode, providing the perfect
storage zone for highly perishable
food to ensure they retain their
vital freshness and quality. These
items will last slightly longer
here compared with storage at
‘Fridge’ mode.
Note: Ensure these highly perishable
items are consumed within their
recommended storage times.
Highly perishable meats,
poultryand seafood.
Alcoholic beverages such
asbeer.
Fridge
(3°C)
The ideal mode for fresh foods
such as fruit and vegetables, dairy
products, meats and drinks.
Fruit and vegetables,
dairy products, jams and
chutneys/preserves, meats
and drinks.
Variable Temperature Zone control panel
24
ACTIVESMART™ OPERATING INSTRUCTIONS
Variable Temperature Zone
Selecting the Food Mode:
‘Food Mode’ enables you to change the setting of the Variable Temperature
Zone — Freezer, Soft Freeze, Chill, Fridge.
Changing the Food Mode:
Unlock the Variable Temperature Zone display by pressing and
together for 4seconds
Change the mode by pressing the
‘Food Mode’ scrolls from left to right (coldest setting to warmest setting)
The ‘Food Mode’ selected will illuminate
The Variable Temperature Zone display will automatically lock after 10 seconds or once
the compartment is closed.
Adjusting the temperature
Each ‘Food Mode’ will automatically default to the recommended temperature setting
for this food mode. Once you have selected the required ‘Food Mode’ the temperature
can be adjusted as desired.
The default temperature for each ‘Food
Mode’ will show as one illuminated light in
the centre of the scale.
To increase the temperature of your
selected ‘Food Mode’ press .
Each light displayed will increase the
temperature setting slightly. When all three
lights on the right are showing this is the
warmest setting.
To decrease the temperature of your
selected ‘Food Mode’ press .
Each light displayed will decrease the
temperature setting slightly. When all three
lights on the left are showing this is the
coldest setting.
Note: If you adjust the temperature for a ‘Food Mode’ this adjustment will be
remembered for the next time you use this ‘Food Mode’. For example if you select
freezer as the ‘Food Mode’ and adjust the temperature to the coldest setting, the next
time you use the compartment as freezer it will remember your setting.
Key Lock
The Variable Temperature Zone display can be locked by pressing and
together for 3seconds.
When locked the icon will illuminate.
Deactivate by pressing and together for 4seconds.
The display will automatically lock after 10seconds or once the compartment is closed.
25
ACTIVESMART™ OPERATING INSTRUCTIONS
Humidity control system
Humidity control lids
The control lids are fitted to the fruit and vegetable bins of your refrigerator.
These lids provide a humid microclimate to extend the storage times of fruit
and vegetables.
The lids have specially designed grooves that retain moisture to prevent condensation
from dripping onto the fruit and vegetables at times of high humidity.
Temperature control
Once you turn on your refrigerator for the first time, the cooling system will
automatically cool all compartments to their set temperatures.
– This will take between 2 – 3 hours.
The internal control panel enables you to change and control the temperature of the
fresh and frozen food compartments accurately and independently regardless of the
temperature or humidity of the surroundings whether it is summer or winter.
Check the operation of your refrigerator once every 4hours for the first 24hours.
If at any time you notice that the refrigerator is not cooling properly, call your installer/
Fisher&Paykel trained and supported service technician to verify the unit is operating
properly. Take immediate steps to prevent food from spoiling by storing in another
refrigerator or freezer.
The internal control panel default setting is to show the set temperature for the fresh
food compartment.
Adjusting the temperature—Fresh food compartment
Press once to adjust the fresh food compartment temperature.
The fresh food compartment light will illuminate.
Press to increase the temperature, press to decrease the temperature.
Adjusting the temperature—Frozen food compartment
Press twice to adjust the frozen food compartment temperature.
The frozen food compartment light will illuminate.
Press to increase the temperature, press to decrease the temperature.
Adjusting the temperature—Variable Temperature Zone
Please refer to ‘Variable Temperature Zone’ for details on how to adjust the temperature.
26
ACTIVESMART™ OPERATING INSTRUCTIONS
Door alarms
If the fresh food compartment door is left open, the alarm will beep after 90seconds, if
the freezer door is left open the alarm will beep after 60seconds.
If either of the doors remains open, subsequent beeps will sound every 30
seconds for 5minutes
If either door remains open for 5minutes or longer, an alarm will sound continuously
and the interior compartment light(s) will turn off.
Alarm Mute
To activate, press once.
The light above the button will illuminate to indicate the refrigerator is muted.
If the doors are left open for 5minutes or more, the compartment light turns off and
normal door alarms are suspended.
‘Alarm Mute’ will deactivate after 20minutes.
To deactivate manually, press again.
Closing the door also deactivates the ‘Alarm Mute’
Note: When the fresh food or freezer compartment door is left open for longer periods
of time, food quality and/or safety may be compromised.
Key Mute
‘Key Mute’ allows you to silence all button presses.
To activate ‘Key Mute’, press for 4seconds.
The icon on the internal control panel illuminates.
Once ‘Key Mute’ is activated, all key sounds are silenced.
Door alarms and the ‘Bottle Chill’ alarm are still operational.
Deactivate by pressing for 4 seconds, the icon will no longer illuminate.
Key Lock
‘Key Lock’ allows you to disable the buttons on the internal control panel. This is useful
when cleaning your refrigerator.
To activate ‘Key Lock’ press and for 4seconds.
The icon on the internal control panel will illuminate.
Pressing any of the buttons will sound several beeps to tell you that they are disabled.
‘Key Lock’ will not automatically deactivate. To deactivate, press and for 4seconds.
The icon will not illuminate.
27
ACTIVESMART™ OPERATING INSTRUCTIONS
Sabbath mode activation
In Sabbath mode, alarms, lights and displays are deactivated for 80 hours.
To activate Sabbath mode, press , and together for 4seconds.
– The icon on the internal control panel will illuminate.
Once in Sabbath mode:
The interior light will not turn on when you open the refrigerator.
The door alarms will not operate.
The display will not illuminate, except the Sabbath mode icon.
The internal and external control panels will not operate.
Sabbath mode automatically deactivates after 80 hours.
To deactivate manually, press , and for 4seconds.
– The icon on the internal control panel will not illuminate.
Note: If you turn off your refrigerator while in Sabbath mode it will resume automatically
once the refrigerator is switched on again.
Using your water dispenser (Water dispensing models only)
Ensure you have followed the steps outlined in ‘Before you
start using the Ice & Water or Automatic Ice function’ prior to
your first use of the water dispenser.
Dispensing
Your water dispenser is designed for one-handed operation.
To dispense water, gently press the dispensing pad with a
glass or container.
To stop the flow of water, simply pull your glass or container
away from the dispensing pad.
Pressing hard against the dispensing pad will not increase the
flow or dispense more water.
IMPORTANT!
To avoid damage to property or personal injury do not put
hands, fingers or objects up the dispenser opening.
Dispenser Lock
The ‘Dispenser Lock’ is located on the external display and
can be activated to prevent water from being dispensed. This
is useful when you are cleaning the external display or when
there are small children around.
To activate ‘Dispenser Lock’, press together for 4seconds.
The light above the button will illuminate.
When the dispenser pad is pressed, several beeps will sound
to alert the user that water cannot be dispensed.
To deactivate ‘Dispenser Lock’ and dispense water, press
for 4seconds. The light above the button will notilluminate.
Water dispenser
Dispenser Lock
28
ACTIVESMART™ OPERATING INSTRUCTIONS
Water filter (Ice & Water and Automatic Ice models only)
The water supplied to your refrigerator is filtered to remove impurities through a filter
located internally at the top right corner of the refrigerator. Replace your filter cartridge
every 6months.
There is a replacement indicator icon on the internal control panel (Ice & Water
and Automatic Ice models) and external display (Ice & Water models only) which
will appear when the filter needs replacing. The icon will flash, as a reminder, when
water isdispensed.
Replacement filter cartridges are available from your Fisher&Paykel dealer, online or
from a Fisher&Paykel service technician. The details of the replacement filter cartridge
are labelled on the cartridge.
Changing the water filter cartridge
Guidance of how to replace your water filter and reset your indicator icon can be
found at fisherpaykel.com/water-filter.
29
ACTIVESMART™ OPERATING INSTRUCTIONS
Using your ice maker (Ice & Water and Automatic Ice
models only)
Ice On/Off
Your ice maker is designed to automatically dispense ice
into the ice storage bin below until it detects the bin is
full. The more ice you use, the more it makes.
First use
The ice maker will be off when you turn your
refrigeratoron for the first time after installation.
Thelight above the ‘Ice On/Off’ icon will be off.
1
To turn your ice maker on press to turn on the
ice maker. The light above the button will illuminate
indicating the ice maker is on.
2
Press the , and together for 4 seconds then close the doors. The ice tray
will empty the water into the bin below. The ice tray will only empty after the
doors are closed.
3
Repeat step
2
to remove dust in the ice tray collected during manufacture
and transport.
4
Empty the water, dry the bin and return it correctly.
5
Once your ice maker is turned on the first bin of ice may be discoloured. This is not
harmful and normal during the flushing process. Discard the first full bin of ice made.
Your ice maker is now ready for use.
Carry out the above steps after a holiday/vacation or extended periods of not using ice.
Note: The performance of your water filter will increase with use, reaching optimum
performance after two to three full bins of ice.
Ice bin and scoop
Turning ice maker on
30
ACTIVESMART™ OPERATING INSTRUCTIONS
Turn your ice maker off if:
There is no water supply for several hours.
You are removing the ice storage bin for a period of time.
You are going on holiday/vacation.
Information about your ice maker
Your automatic ice maker will produce approximately eight cubes of ice every
3 – 4hours, depending on the freezer compartment temperature and the number
of door openings.
When the ‘Ice Boost’ function is activated, ice production will increase up to 30% from
standard ice making.
The ice cube tray will fill with water.
When cubes are frozen, they will be ejected from the ice tray into the ice storage bin.
Ice making will continue until the storage bin is full.
Ice making will resume once you start to use the stored ice.
Your Ice & Water product comes with a smaller ice bin inside the larger freezer bin.
Attached to the ice storage bin is the scoop for the ice. This scoop provides hygienic
access to the ice.
If a large amount of ice is required, remove an ice storage bin and allow ice to fall into
the larger bin.
For maximum ice storage, level the stored cubes with the ice scoop.
If ice is not used often, old cubes will become cloudy, taste stale, will shrink and may
stick together. Empty the ice storage bin periodically and wash in lukewarm water. Dry
thoroughly and place back into the correct position.
IMPORTANT!
Avoid contact with the moving parts of the ice maker ejector mechanism, and do
not place your fingers on the automatic ice making mechanism while the refrigerator
is inoperation.
Do not use ice cubes that may have become discoloured, usually with a green-
blue colour. If such discolouration is noted, discard the ice cubes and contact your
Fisher&Paykel trained and supported service technician.
Ensure the ice maker is connected to the filter and to a drinkable water supply only.
Installation of the water connection to the ice maker must be completed by a
Fisher&Paykel trained and supported service technician or a qualified plumber.
31
ACTIVESMART™ OPERATING INSTRUCTIONS
Bottle Chill
This function allows you to rapidly chill your beverages in the freezer for a set time
of 15minutes. The time taken to chill depends on the size of your beverage. If your
beverage is not cold enough after 15minutes, return it to the freezer and reset the
‘Bottle Chill’ function.
To activate, press on the internal display. The ‘Bottle Chill’ light will illuminate when the
function is activated. The icon will illuminate on the external display (Ice & Water and
Automatic Ice models only).
An alarm will sound after 15minutes to remind you to remove your beverage.
– For non-Ice & Water models: open the fresh food compartment door and press any
button on the internal control panel to silence the alarm.
– For Ice & Water models: the icon will flash on the external display. Press any
button on the external display to silence the alarm.
To deactivate ‘Bottle Chill’ before 15minutes, press again on the internal control panel.
When ‘Bottle Chill’ is deactivated, the light will not illuminate and the icon is not visible
on the external display (Ice & Water model only).
Fast Freeze
‘Fast Freeze’ boosts the freezing speed by dropping the freezer to its coldest
temperature for 12hours, which helps to retain freshness, texture and taste during the
freezing process.
To activate, press on the internal display. The ‘Fast Freeze’ light will illuminate when
the function is activated.
To deactivate before the 12hours has elapsed, press again. When ‘Fast Freeze’ is
deactivated the light is off.
For best results activate the function before it is required. Alternatively, activate it when
placing food into the freezer.
Ice Boost function
This function is for use when you require more ice, eg for a party. The ‘Ice Boost’
function increases ice production up to 30% from standard ice making and deactivates
automatically after 24 hours.
When you first turn your ice maker on, the ‘Ice Boost’ function is off.
To turn this function on, press . The light above the button will illuminate when
the ‘Ice Boost’ function is on.
The ‘Ice Boost’ function is paused once your ice bin is full.
To manually deactivate this feature press again. The light above the button will
not illuminate.
Activating the ‘Ice Boost’ function will automatically turn on ice making.
Deactivating ice making automatically deactivates the ‘Ice Boost’ function.
32
Manual ice system (selected models only)
An ice storage bin which sits inside the upper top freezer bin provides storage for and
gives you access to clean, clear ice cubes.
Information about your manual ice system
To make ice:
Take the ice tray and lid from the top of the ice storage bin. Remove the lid from the ice
tray and fill the tray with water. Place the lid back on the ice tray and carefully position
it back onto the ice storage bin.
Once the ice is solid, take the ice tray and lid off the ice storage bin, remove the lid from
the tray and twist the ice tray at each end in opposite directions. Turn the ice tray over
the ice storage bin to dislodge the cubes into the bin.
Fill the ice tray with clean water and repeat to fill the ice storage bin.
Attached to the ice storage bin is the ice scoop which provides hygienic access to ice.
To access ice cubes, take the ice tray and lid from the top of the ice storage bin and
place onto a flat surface. Take the scoop from the front of the bin, scoop cubes into
vessel and then replace the scoop, tray and lid back to the top of the bin.
For maximum ice storage, level the stored cubes around the bin with the ice scoop.
If ice is not used often, old cubes will become cloudy, taste stale, will shrink and may
stick together. Empty the ice storage bin periodically and wash in lukewarm water. Dry
thoroughly and place back in the correct position.
Ice scoop
Ice tray
ACTIVESMART™ OPERATING INSTRUCTIONS
33
ACTIVESMART™ OPERATING INSTRUCTIONS
Bottle holder (where fitted)
The bottle holders can be used to store a variety of bottles.
To position the bottle holder in your refrigerator, slot the back edge of the bottle holder
onto the back trim of any shelf in the fresh food compartment.
Unused bottle holders can be stacked up on top of one another so they do not take up
unnecessary shelf space.
Bottles are best stored with the neck of the beverage facing the front of the refrigerator.
Glass shelves
Standard glass shelves can not be repositioned in your refrigerator. Refer to ‘Cleaning
and care’ for details on how to remove the standard
glass shelves for cleaning.
Cantilever glass shelves — half-width and full-width
The cantilever glass shelves are designed to be
strong and versatile.
The half-width and full-width shelves are removable
and can be repositioned in your refrigerator.
Place the half-width shelves side-by-side when you
store large items such as platters.
Place the half-width shelves at different levels to
maximise the storage space when you store items of
varying heights.
To remove for repositioning:
1
Hold the front and back edge of the shelf
firmly (refer to A).
2
Push the shelf up vertically to dislodge from back
support lugs (refer to B).
3
Slide the shelf towards you (refer to C).
A
B
C
34
Drip tray
(Water dispensing models only)
The drip tray is designed to fit into the
bottom of the water dispenser panel.
To insert the tray ensure the
rounded sides are fitted into the
dispenser panel first.
The purpose of the tray is to
capture drips of water that may fall
after dispensing.
The tray can be removed for cleaning.
ACTIVESMART™ OPERATING INSTRUCTIONS
Drip tray
Glass shelves – Freezer
Some models have glass shelving under the freezer bins. These can be
removed if required.
To remove
1
Remove the bin above the glass shelf (refer to ‘Fixed bins’)
2
Push on the clips below the bin runners on both sides of the shelf (A)
3
Lift the shelf up to remove from the supports
A
35
CLEANING AND CARE
Exterior
Stainless exterior doors
Clean the exterior door with liquid dishwashing detergent dissolved in warm water
and a soft cloth.
Dry the door with a lint-free cloth.
Do not use any abrasive, stainless steel cleaners or solvents on the door surface.
Other exterior surfaces
Clean all other exterior surfaces with a mix of warm water and liquid dishwashing
detergent, and a soft cloth.
Rinse with clean water and dry with a clean, lint-free cloth.
Door gasket
Clean the magnetic door gasket every three months with a toothbrush, and liquid
detergent dissolved in warm water.
Apply petroleum jelly lightly on the hinge side of the gasket to ensure cleanliness and
maintain a good seal.
Cabinet surround
To maximise operating efficiency regularly
vacuum the flooring around your refrigerator.
Cleaning behind your refrigerator is required
once or twice a year.
Wind up the feet and carefully ease the
refrigerator out of its position. Switch
off andunplug.
Vacuum the flooring behind your refrigerator
and the rear compartment cover (where
fitted) to remove dust accumulation. Use a
dry lint-free cloth to clean the refrigerator
walls and surrounding cabinetry.
After cleaning, plug in and switch on. Push the
appliance into position and wind feet down.
WARNING!
Electric Shock Hazard. Do not remove rear compartment cover. This may expose you
to the risk of an electric shock.
Cleaning the rear compartment cover
36
CLEANING AND CARE
External display and water dispenser (Water dispensing models only)
Activate the ‘Dispenser Lock’ function to prevent water from dispensing when cleaning
refer ‘Dispenser Lock’ section for details.
Clean the pad and interface panel with a damp, soft lint-free cloth.
Drip tray (Water dispensing models only)
To clean, remove the drip tray from the dispenser panel.
Pull the two halves of the tray apart.
Clean with liquid detergent dissolved in water and a soft lint-free cloth.
Rinse with clean water and dry with a clean, lint-free cloth.
Securely clip the two halves together.
Re-insert the drip tray back into the dispenser panel.
Interior
It is important to keep the interior of the refrigerator and freezer clean to help prevent
food from becoming contaminated during storage.
The amount and types of food stored determines how often cleaning should be carried
out in the refrigerator (ideally once every 1 – 2 weeks).
Remove the shelves from cabinet and door. Wash shelves and storage bins in warm
water and detergent; rinse in clean water and dry before replacing.
Wipe all interior surfaces, including all door shelves, using only liquid dishwashing
detergent dissolved in warm water or baking soda dissolved in warm water (add 1tsp of
baking soda to every 500ml of water) and a soft lint-free cloth. Rinse with clean water
and dry with a clean, lint-free cloth.
Add a few drops of vanilla essence or vinegar to the water before cleaning to help
remove “stale refrigerator” smell.
Do not use harsh chemicals, abrasives, ammonia, chlorine, bleach, concentrated
detergents, solvents or abrasive scouring pads on any part of your refrigerator. Some of
these chemicals may dissolve, damage and/or discolour the interior of your refrigerator.
Glass shelves (including cantilever) and Bottle Holders
Clean with liquid detergent dissolved in warm water and a soft lint-free cloth.
Rinse with clean water and dry with a clean, lint-free cloth.
Bins
Clean with liquid detergent dissolved in warm water and a soft lint-free cloth.
Rinse with clean water and dry with a clean, lint-free cloth
37
CLEANING AND CARE
Ice storage bin
Clean your ice bin and discard any old ice in the bottom of the bin(s) regularly
Use only liquid detergent dissolved in warm water and a soft lint free cloth when
cleaning. Rinse with clean water and dry with a clean, lint-free cloth.
Ensure that the ice scoop is placed in correct position in the bin, right hand side or at
the front of the bin (model dependent).
It is important to regularly clean your ice bin and discard any old ice in the bottom of
the bin. Do not clean the ice maker components.
Turn OFF the ice maker before you leave for a vacation/holiday. Refer to ‘Using your ice
maker’ section.
On your return, turn on the ice maker and discard the first 24hours of ice harvest. Refer
to ‘Using your ice maker’ section.
IMPORTANT!
Many commercially available cleaning products contain solvents that may attack
the plastic components of your refrigerator and cause them to crack. It is important
to use only warm water and a small amount of liquid dishwashing detergent on any
components inside and outside your refrigerator. Avoid using anti-bacterial cleaning
products on either the interior or exterior of the cabinet as they may cause rusting of
metal components and cracking of plastic components.
How to remove shelving and bins for cleaning
Shelving
To remove a shelf:
1
Hold the shelf firmly and pull the shelf towards you (refer to A).
2
Lift the shelf up vertically (refer to B).
3
Slide the shelf towards you (refer to C).
Note: Refer to ‘Glass shelves’ in ‘ActiveSmart™ operating instructions’ section for details
on how to remove cantilever glass shelves.
A
C
B
38
CLEANING AND CARE
Cleaning the support lugs
1
Remove all shelving, follow the steps in ‘How to remove shelving and bins for
cleaning’ on page 37.
2
Clean the support lugs with liquid detergent dissolved in water and a tube brush or a
clean lint-free cloth.

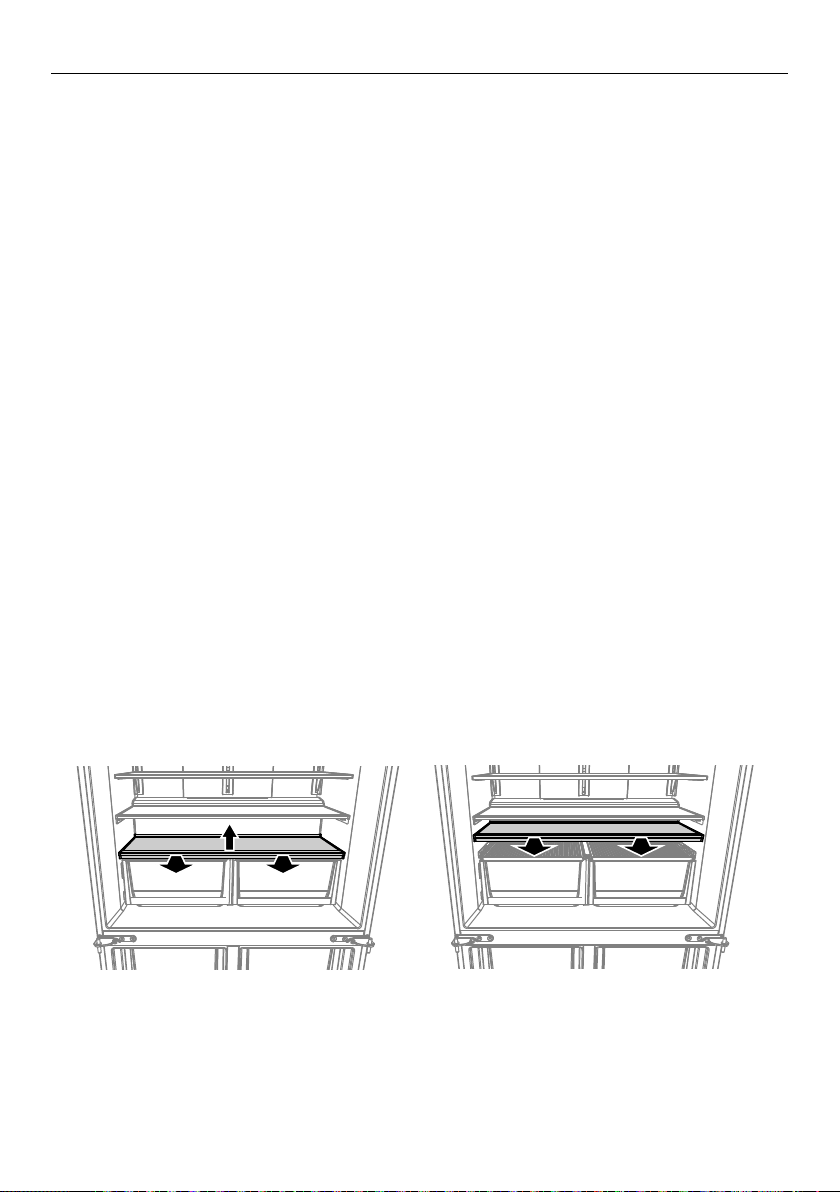

Humidity control lid
To remove:
1
Remove the shelf directly above the bins, follow the steps above.
2
Hold the lid firmly and lift the outside edge of the lid up vertically (refer to A).
3
Slide the lid towards the outside wall of the fridge until the lid unclips from the centre
bracket (refer to B).
4
Pull the shelf towards you.
A
B
39
CLEANING AND CARE

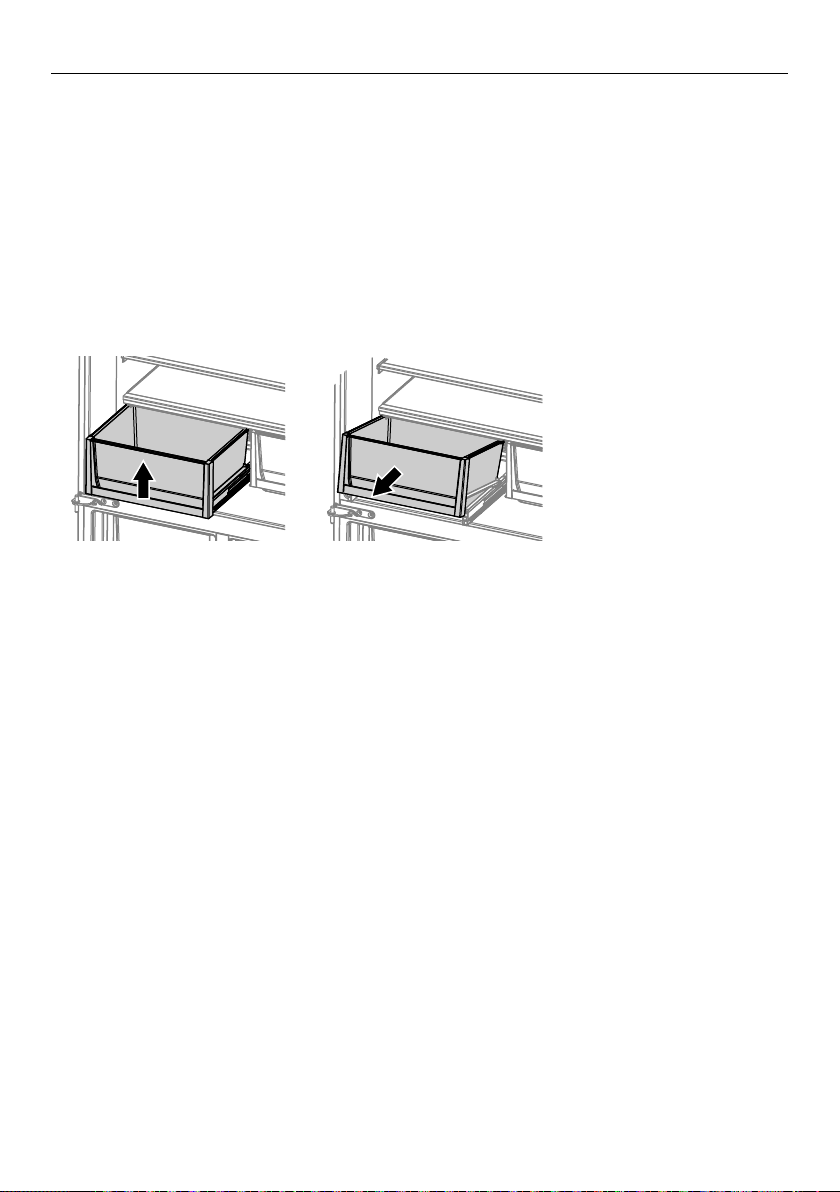

Fixed bins
To remove:
1
For ease of removal, empty food from the bin first.
2
Hold the centre front of the bin handle.
3
Lift vertically to unclip from the runners and pull bin towards you to remove (refer to A).
4
Push both runners back into refrigerator (refer to B).
To replace:
1
Extend the runners out from your refrigerator.
2
Place the bin on top of the runners.
3
Push the bin down slowly until you feel it clip.
IMPORTANT!
Ensure that bins are securely clipped onto the runners before use.
Bin runners are pre-lubricated, and will not need to be re-lubricated during their life.
Do not attempt to clean grease from the runners, as this will affect their ability to
function. Do not immerse runners in water.
Holiday/Vacation
Before leaving:
Turn the ice maker to OFF on the internal control panel.
Shut off the water supply to the refrigerator.
On return:
Refer to ‘Using your ice maker’ for details.
B
A
40
FOODCARE
For best food care
Store only high-quality, fresh food in your appliance.
Store perishable foods in the appliance immediately after purchase. Storingatroom
temperature increases the rate of deterioration and can allow harmfulmicrobialgrowth.
Foods such as meat, poultry and seafood should be well wrapped or sealed in
suitablepackaging to prevent dehydration, color deterioration, loss of flavor, and
transfer ofodor.
– We recommend storing these foods on the bottom shelf of your appliance
orinone of the bins to prevent potential spills and cross-contamination
with otherfoods.
Ensure hot foods and beverages are cooled sufficiently before placing them into
theappliance. Hot items may cause other foods to warm to unsafe temperatures. Hot
itemsmayalso cause sealed items to sweat/condensate — which is undesirable.
Beverages are best stored standing upright in the door shelves or on the bottle
racksprovided.
Ensure raw and cooked foods are stored separately to avoid cross-contamination.
Consume food items within the recommended storage times. Discard foods that
showsign of spoilage.
Keep door openings to a minimum to maintain optimum storage temperatures inside
your appliance.
We recommend using ‘Fast Freeze’ when you are adding food items toyour appliance,
such as after grocery shopping. This feature will ensure the food ischilled/frozen
within the shortest period of time, locking in the freshness andextending the shelf
life of your food.
Items stored in your refrigerator
Dairy items such as butter and cheeses should be stored in the covered door shelf
tominimize any transfer of odour or odour absorption from other foods.
Eggs should be stored in their carton to avoid absorption of strong odours through
theirporous shell structure.
Items stored in your freezer
We recommended cooling carbonated beverages only when the ‘Bottle Chill’
function isactive.
– Do not store carbonated drinks without this function in the freezer.
Failure toremove beverages could lead to freezing liquid and the likelihood
ofbottle/canexplosion.
Ensure air is removed from packaging to avoid large formation of ice crystals and
prevent freezer burn.
To maintain freshness and quality, we recommend defrosting foods in the refrigerator.
Ensure partially or fully defrosted foods are never re-frozen — cook immediately.
41
If your refrigerator is turned off for any reason, wait 10 minutes before turning it back
on. This will allow the refrigeration system pressures to equalise before restarting.
Moving your refrigerator
Turn off the refrigerator and unplug from the power point. Remove all food.
Turn the adjustable feet to the right as far as they will turn.
Ease the refrigerator out of its position. Tuck the power cord away, tape the shelves in
place and tape the doors closed. If the cabinet needs to be placed at an angle or laid
down, carefully lay it on its side (the left hand side when viewed from the front).
Relocate and install. If the appliance has been left on its side for any length of time,
leave it standing upright as long as you can (a few hours) before turning on.
Storing your refrigerator
When storing your cleaned appliance, leave the doors open. This allows air to circulate
and prevents the build up of bacteria and moulds.
Before using again, clean well using a mixture of warm water and a small amount of
liquid dishwashing detergent. Rinse with clean water and dry with a soft lint-free cloth.
Holiday/Vacation time
Leave your refrigerator operating while you are on holiday/vacation.
MOVING OR STORING YOUR APPLIANCE
42
ACTIVESMART™ SOUNDS
Normal refrigerator sounds
Your refrigerator is designed with innovative ActiveSmart™ features that can produce
sounds that may be different from your old refrigerator.
Normal operational sounds include:
Fan air flow sound. ActiveSmart™ refrigerators have fans which change speed
depending on demand. During cooling periods, such as after frequent door openings,
fans circulate the cold air in the refrigerator and freezer compartments producing some
air flow sound. This is quite normal.
Cracking or popping sound which may occur when the defrost function is operating.
Running water sound. This is the liquid refrigerant in the system and can be heard as a
boiling or gurgling noise.
An audible hissing sound after closing the freezer door. This is due to the pressure
difference between the warm air that has entered the cabinet and suddenly cooled, and
the outside air pressure.
Other sounds may be heard for the following reasons:
– Cabinet not level.
– Floor uneven or weak.
– Bottles or jars rattling on shelves.
If this is your first refrigerator with an ice maker, you will hear occasional sounds that
may be unfamiliar. They are normal ice making sounds and are not cause for concern.
The following sounds are normal with the operation of an ice maker:
– Motor operation (low humming).
– Running water as the ice maker and/or water tank fills.
– Water valve opening and closing (hissing sound).
– Ice being loosened from the ice moulding tray (cracking).
– Ice dropping into bin (clunking).
43
TROUBLESHOOTING
If there is a problem with your appliance, please check the following points before
contacting your local Fisher&Paykel trained and supported service technician or the
Customer Care Centre.
Product parts and accessories can be purchased through Fisher&Paykel Customer Care
Centre or online at fisherpaykel.com (this service is available to selected markets only).
All models
PROBLEM POSSIBLE CAUSES WHAT TO DO
Appliance does
not operate.
No electricity at power outlet. Check that the plug is correctly
connected and power switched on.
Check another appliance at the
same outlet.
Check house fuse.
Light not
working.
Light not functioning. The LED light cannot be serviced by
the user. Contact your Fisher&Paykel
Dealer or Fisher&Paykel trained
and supported service technician.
Refrigerator not working. Check refrigerator is turned on at wall.
Light and
display not
working.
Product in ‘Sabbath mode’.
Press and hold
, and together
for 4 seconds.
Motor operates
for long periods.
Hot weather. Minimise door openings to allow
temperature to stabilise.
Frequent door openings.
Large amount of food
recentlyadded.
Temperature control set
toolow.
Refer to section
‘Temperature control’.
Doors not sealing properly. Check that cabinet is level and
gasket seals are clean.
Storage
compartments
too warm.
Temperature setting
not correct.
Refer to section
‘Temperature control’.
Frequent door openings. Minimise door openings to allow
temperature to stabilise.
Large amount of food
recentlyadded.
Food freezing in
the refrigerator.
Temperature setting
not correct.
Refer to section
‘Temperature control’.
Food placed directly in front
of air outlets.
Move chill sensitive foods away from
the centre back of the shelves.
Unfamiliar
noises.
Cabinet not stable or level. Refer to sections
‘Installation instructions’ or
‘ActiveSmart™ sounds’.
Freezer is defrosting.
44
TROUBLESHOOTING
All models
PROBLEM POSSIBLE CAUSES WHAT TO DO
Water in the
vegetable bins.
Condensation is formed by
the water produced by fruit
and vegetables.
A small amount of condensation
is beneficial for fruit and
vegetable storage.
Wipe out water with a cloth.
Exterior of
cabinet is warm.
This is normal.
Warm spot on
central door
seal. (French
door models
only).
You may feel a warm spot
at times on the central
seal between the two
refrigerator doors.
This is perfectly normal and is part
of the normal refrigerator operation.
Condensation
on outside of
refrigerator/
freezer.
Not unusual during periods
of high humidity.
Wipe dry.
Condensation
inside fresh food
compartment.
Frequent or long
door openings.
Minimise door openings.
Door gasket leaking. Check that gasket is sitting flat and
sealing tightly.
Not unusual during periods
of high humidity.
Wipe dry.
Door handles
out of
alignment.
With time and usage,
movement may occur.
Refer to section
‘Installation instructions’.
Tray/bin does
not slide in and
out evenly.
Packaging trapped. Check to ensure no food or
packaging is trapped behind the
tray/bin.
Runners not extending fully. Holding onto sides of tray/bin,
extend the runners fully by using a
firm pull — this will reset the runner.
Appliance
operating
inefficiently.
Accumulation of dust on
or behind the rear
compartment cover.
Refer to section ‘Cleaning and care’.
If problem persists please contact
Customer Care.
Cannot adjust
temperature
in frozen food
compartment
Either Bottle Chill,
Fast Freeze or Ice Boost
is activated.
Deactivate Bottle Chill, Fast Freeze or
Ice Boost if function is not desired.
45
TROUBLESHOOTING
Ice & Water and Automatic Ice models only
PROBLEM POSSIBLE CAUSES WHAT TO DO
Automatic ice
maker does
notwork.
Ice maker has not been turned on. Switch on ice maker.
Bin is in the wrong way or there
is no bin in place.
Place bin so scoop is on the
left side.
Ice bin sits directly under ice
maker on top left side of freezer.
Water supply turned off or
not connected.
Connect water supply.
Freezer compartment not working. Contact Customer Care.
Water pressure too low. Check water pressure.
Water line kinked/squashed. Check water line for
kinks/squashing.
Filter clogged. Water filter may need replacing.
Ice cubes have
odour/taste.
Unsealed packages may be
transmitting odour/taste.
Old cubes need to be discarded.
Ensure food packaging is sealed.
Interior of freezer
needs cleaning.
Ice storage bin needs to be
emptied and washed.
Clean refrigerator.
Poor taste from incoming water. Filter may need to be replaced
with new one.
Force 2 – 3 ice tray flips.
Slow ice cube
freezing.
Door may have been left ajar. Close door.
Freezer compartment too warm. Turn temperature to a
colder setting.
46
TROUBLESHOOTING
Ice & Water and Automatic Ice models only
PROBLEM POSSIBLE CAUSES WHAT TO DO
Wet ice/
iceclumping.
Low water pressure. Check water pressure.
Filter blocked. Replace filter.
Long freezer door openings. Gently tap ice with scoop to
unstick or, if large clumps occur,
empty ice bin and make new ice.
High ambient temperature.
Ice bin left out of freezer
compartment for a length of time.
Ice will stick together over time.
Filter warning
light
is
flashing.
Filter needs replacing. Replace filter as soon as possible.
Ice buildup
inside freezer
compartment.
Freezer door not closing tightly. Arrange items in freezer so door
can close tightly.
Check and clean door gasket seal.
Ice maker makes
unfamiliar
sounds or seems
too loud.
Normal ice maker operation. Refer to section
‘ActiveSmart™ sounds’.
Ice boost
function not
increasing
rate of ice
production.
Ambient temperature very warm. Minimise door openings.
Refrigerator is in high usage.
47
TROUBLESHOOTING
Ice & Water models only
PROBLEM POSSIBLE CAUSES WHAT TO DO
Water has poor
taste/odour.
Refrigerator not used for an
extended period.
Dispense 4L of water so fresh
water supply is replenished.
New filter installed
Water dispenser
does not work.
Water supply turned off or
not connected.
Turn water on.
Press dispenser for 4 minutes to
remove trapped air from water
line and to fill the water system.
Supply line may be blocked. Check supply for kinks or leaks.
On first installation there may be
air in water system.
To remove air, run 3L of water
through the dispenser.
Filter may be blocked and
need replacing.
Replace filter (see your ‘Service
& Warranty’ booklet provided
with your refrigerator).
‘Dispenser Lock’ activated.
Press and hold
for 4seconds.
Water frozen in tank. Increase temperature to a
warmer setting in fresh food
compartment andfreezer.
Water in first
glass is warm.
Water dispenser not used for
extended period.
Discard first glass of
water dispensed.
Tank capacity used recently. Allow water time to cool.
Drips overflow
drip-shelf.
Air trapped in tank. Flush 3L water through dispenser,
stopping intermittently.
New filter installed. Dispense 4L of water through
the dispenser, and then another
4L after 4 minutes.
Water flow rate
has slowed down.
Filter cartridge is restricted. Replace filter as soon as possible.
48
MANUFACTURER’S SERVICE & WARRANTY
For details of your Manufacturer’s Warranty and contacts for servicing, please refer to
your separate ‘Service & Warranty’ book provided with your refrigerator.
This product has been designed for use in a normal domestic (residential environment).
This product is not designed for any commercial use. Any commercial use by the
customer will affect this products Manufacturer’s Warranty.
Complete and keep safe for reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer
Suburb
Town
Country
49
EUROPEAN DIRECTIVE 2012/19/EU ON
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)
GB This appliance is marked according to the European directive 2012/19/EU on Waste
Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate handling
of this product.
The symbol marked on the serial plate, or on the documents accompanying the
product, indicates that this appliance cannot be treated as household waste. It shall
be handed over to the applicable collection point for the recycling of electrical and
electronic equipment. Disposal of the appliance shall be carried out in accordance with
the local environment regulations for waste disposal and ensure the refrigerant circuit
is not damaged.
For more detailed information about treatment, recovery and recycling of this product,
please contact your local city office, your household waste disposal service or your
Fisher&Paykel retailer/dealer from whom you purchased this product.
NZ AU UK
84765C 06.19
FISHERPAYKEL.COM
© Fisher&Paykel Appliances 2019. All rights reserved.
The product specifications in this document apply to the specific
products and models described at the date of issue. Under our policy
of continuous product improvement, these specifications may change
at any time. You should therefore check with your Dealer to ensure this
document correctly describes the product currently available.
