Denon AVR-A110 110-Year Anniversary Edition Graphite 13.2 Channel 8K AV Receiver

Owner’s Manual - Transcript

• Page 1: AVRA110 INTEGRATED NETWORK AV RECEIVER Owners Manual Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 2 - English - : Accessories Inserting the batteries Operating range of the remote control unit Features High quality sound High performance Easy operation Part names and functions Front panel Display Rear panel Remote control unit Connections Speaker installation Connecting speakers Before connecting speakers Speaker configuration and Amp Assign settings Connecting 51channel speakers Connecting 71channel speakers Connecting 91channel speakers Connecting 131channel speakers Connecting 151channel speakers Biamp connection Connecting 111channel speakers Second pair of front speakers Connecting multizone speakers Connecting a TV Connection 1 TV equipped with an HDMI connector and compatible with the ARC Audio Return Channel eARC Enhanced Audio Return Channel Connection 2 TV equipped with an HDMI connector and incompatible with the ARC Audio Return Channel eARC Enhanced Audio Return Channel Connection 3 TV equipped without an HDMI connector Connecting a playback device Connecting a settop box Satellite tunercable TV Connecting a DVD player or Bluray Disc player Connecting a Bluray Disc player compatible with the Denon Link HD function Connecting a player device compatible with the 8K Connecting a video camcorder or game console Connecting a turntable Connecting a device with a multichannel output connector Connecting a USB memory device to the USB port Connecting FMAM antennas Connecting to a home network LAN Wired LAN Wireless LAN Connecting an external control device REMOTE CONTROL jacks TRIGGER OUT jacks Connecting the power cord Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 3 - English - : Playback Basic operation Turning the power on Selecting the input source Adjusting the volume Turning off the sound temporarily Muting Playback a DVD playerBluray Disc player Playing a USB memory device Playing files stored on USB memory devices Listening to music on a Bluetooth device Playing music from Bluetooth device Pairing with other Bluetooth devices Reconnecting to this unit from a Bluetooth device Listening to FMAM broadcasts Listening to FMAM broadcasts Tuning in by entering the frequency Direct Tune Changing the tune mode Tune Mode Tuning in to stations and presetting them automatically Auto Preset Memory Presetting the current broadcast station Preset Memory Listening to preset stations Specify a name for the preset broadcast station Preset Name Skipping preset broadcast stations Preset Skip Cancelling Preset Skip Listening to Internet Radio Listening to Internet Radio Playing back files stored on a PC or NAS Playing back files stored on a PC or NAS Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 4 - English - : Getting the HEOS App HEOS Account Playing from streaming music services Listening to the same music in multiple rooms AirPlay function Playing songs from your iPhone iPod touch or iPad Playing iTunes music with this unit Play a song from your iPhone iPod touch or iPad on multiple synced devices AirPlay 2 Spotify Connect function Playing Spotify music with this unit Convenience functions Adding to HEOS Favorites Playing back HEOS Favorites Deleting a HEOS Favorites Adjusting the audibility of dialog and vocals Dialog Enhancer Adjusting the volume of each channel to match the input source Channel Level Adjust Adjusting the tone Tone Displaying your desired video during audio playback Video Select Adjusting the picture quality for your viewing environment Picture Mode Playing the same music in all zones All Zone Stereo Selecting a sound mode Selecting a sound mode Direct playback Pure Direct playback Auto surround playback Description of sound mode types Sound mode that can be selected for each input signal HDMI Control function Setting procedure Smart Menu function Sleep timer function Using the sleep timer Quick select plus function Calling up the settings Changing the settings Panel lock function Disabling all key button operations Disabling all button operations except VOLUME Canceling the Panel lock function Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 5 - English - : Remote lock function Disabling the sensor function of the remote control unit Enabling the remote sensor function Web control function Controlling the unit from a web control Playback in ZONE2ZONE3 Another room Connecting ZONE Playback in ZONE2ZONE3 Settings Menu map Menu operations Audio Subwoofer Level Adjust Bass Sync Surround Parameter Restorer Audio Delay Volume Audyssey Graphic EQ Video Picture Adjust HDMI Setup Output Settings Analog Video Out On Screen Display 4K8K Signal Format TV Format Inputs Input Assign Source Rename Hide Sources Source Level Input Select Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 6 - English - : Speakers Audyssey Setup Procedure for speaker settings Audyssey Setup Error messages Retrieving Audyssey Setup settings Manual Setup Amp Assign Speaker Config Distances Levels Crossovers Bass Front Speaker 2ch Playback Network Information Connection WiFi Setup Settings Network Control Friendly Name Diagnostics HEOS Account You have not signed in You have already signed in General Language ECO ZONE2 Setup ZONE3 Setup Zone Rename Quick Select Names Trigger Out 1 Trigger Out 2 Front Display Firmware Information Remote ID Usage Data Save amp Load Setup Lock Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 7 - English - : Operating external devices with the remote control unit Registering preset codes Operating devices Operating learning function Operating macro function Specifying the zone used with the remote control unit Setting the Remote ID Setting the display time length of the remote control unit display Setting the back light Restoring all settings of the remote control unit to default Tips Tips Troubleshooting Power does not turn on Power is turned off Operations cannot be performed through the remote control unit Display on this unit shows nothing No sound comes out Desired sound does not come out Sound is interrupted or noise occurs No video is shown on the TV The menu screen is not displayed on the TV The color of the menu screen and operations content displayed on the television is different from normal AirPlay cannot be played back USB memory devices cannot be played back Bluetooth cannot be played back The Internet radio cannot be played back Music files on PC or NAS cannot be played back Various online services cannot be played The HDMI Control function does not work Cannot connect to a wireless LAN network When using HDMI ZONE2 the devices does not function properly Updateupgrade error messages Resetting factory settings Resetting network settings Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 8 - English - : Appendix About HDMI Video conversion function Playing back a USB memory devices Playing back a Bluetooth device Playing back a file saved on a PC or NAS Playing back Internet Radio Personal memory plus function Last function memory Explanation of terms Trademark information Specifications Index Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 9 - English - : Thank you for purchasing this Denon product To ensure proper operation please read this owners manual carefully before using the product After reading this manual be sure to keep it for future reference Accessories Check that the following parts are supplied with the product Quick Start Guide Safety Instructions Notes on radio Warranty for North America model only Cable labels Power cord FM indoor antenna AM loop antenna External antennas for Bluetoothwireless connectivity Sound calibration microphone Sound calibration microphone stand Remote control unit RC1221 LR6AA batteries Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 10 - English - : Inserting the batteries Slide the rear cover off the remote control unit in the arrow direction Insert two batteries correctly into the battery compartment as indicated Batteries Put the rear cover back on NOTE To prevent damage or leakage of battery fluid Do not use a new battery together with an old one Do not use two different types of batteries Remove the batteries from the remote control unit if it will not be in use for long periods If the battery fluid should leak carefully wipe the fluid off the inside of the battery compartment and insert new batteries Operating range of the remote control unit Point the remote control unit at the remote sensor when operating it 30 Approx 23 ft7 m 30 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 11 - English - : Features High quality sound Powerful 13channel Amplifier with the Latest Home Cinema Specs Featuring a sophisticated power amplifier design this unit delivers high power performance at 150 watts per channel 8 Ωohms 20 Hz 20 kHz THD 005 2ch driven to ensure a dynamic and precise entertainment experience Low impedance drivers provide operational stability for a wide range of speakers and create a balanced tonal sound Dolby Atmos v p 336 This unit is equipped with a decoder that supports Dolby Atmos audio format The placement or movement of sound is accurately reproduced by the addition of overhead speakers enabling you to experience an incredibly natural and realistic surround sound field Speaker Virtualizer v p 193 Speaker Virtualizer enables you to access a more immersive entertainment experience from traditional channel based speaker layouts through digital signal processing including Dolby Atmos height virtualization and surround virtualization Speaker Virtualizer is not for use when both height speakers and surround speakers are connected Height Virtualization may be applied when surround speakers are connected DTSX v p 339 This unit is equipped with the DTSX decoder technology DTSX brings the home theater experience to new heights with its immersive object based audio technology which removes the bounds of channels The flexibility of objects allows for sound to be scaled large or small and moved around the room with greater accuracy than ever before leading to a richer immersive audio experience DTS VirtualX v p 340 DTS VirtualX technology features DTSs proprietary virtual height and virtual surround processing to deliver an immersive sound experience from any type of input source stereo to 714 channel and speaker configuration DTS VirtualX is not for use when Height speakers are connected IMAX Enhanced v p 340 This IMAX Enhanced product have met stringent performance standards established by IMAX and DTS in order to create a consistent and higher bar for sound performance DTS has developed a special method for reproducing an IMAX signature sound experience in the consumers home This method combines a unique conversion process for IMAX theatrical audio mixes utilizing an enhanced DTS codec technology The IMAX theatrical audio format with point source surround speakers closely matches the speaker configuration most consumers have in their homes today Coupled with DTS audio technology IMAX Enhanced audio products will ensure the best and most accurate audio reproduction over 51 or more speaker channels Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 12 - English - : Audyssey LFC Low Frequency Containment v p 203 Audyssey LFC solves the problem of low frequency sounds disturbing people in neighboring rooms or apartments Audyssey LFC dynamically monitors the audio content and removes the low frequencies that pass through walls floors and ceilings It then applies psychoacoustic processing to restore the perception of low bass for listeners in the room The result is great sound that no longer disturbs the neighbors Discrete subwoofers and Audyssey Sub EQ HT v p 227 The unit has two subwoofer output capability and can adjust the level and delay for each subwoofer individually Audyssey Sub EQ HT makes the integration seamless by first compensating for any level and delay differences between the two subwoofers and then applying Audyssey MultEQ XT32 to both subwoofers together for improved deep bass response and detail Denons unique high quality playback technology Denon Link HD v p 344 This unit is equipped with our exclusive Denon Link HD technology When connected to a Denon disc player that has Denon Link HD the sound localization becomes more precise with increased detail and definition The system works by carrying the critical clock timing signals via the dedicated Denon Link HD connection minimizing the jitter caused by conventional digital connections This effect can be applied to an audio source of any media from a Bluray Disc player This technology enables the playback of 2channel source audio or 7151 multichannel source audio through a maximum 111channel speakers achieving an even broader soundstage Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 13 - English - : Auro3D This unit is equipped with an Auro3D decoder With Auro3D Front Height FHL FHR Surround Height SHL SHR Center Height CHoptional and Top Surround TSoptional are added to a conventional 51channel system to achieve a natural and realistic sound field that is threedimensional and fully immersive You will be able to fully enjoy Auro3D playback if you properly place the speakers for Auro3D 2 Auro3D playback FHL FHR SHL SHR TS CH FL FR SW SL SR C 2 Dolby Atmos playback FHL FHR SHL SHR TS FL FR SW SL SR C CH Auro3D does not support a Dolby Atmos configuration using Top Front Top Middle or Top Rear speakers But it is possible to support both an Auro3D and Dolby Atmos by adding Front Height and Rear Height speakers to a 51 configuration z For an optimum Auro3D experience Surround Height speakers are strongly recommended Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 14 - English - : High performance Masterful Home Theater Experience 8K Ready For 110 years Denon has strived to deliver the most cuttingedge audio and video technical achievements To honor that legacy and spirit of innovation the AVRA110 delivers an ultrapremium 8K home theater experience With 8K60Hz passthrough 4K120Hz passthrough for gaming and support for the latest HDMI specifications you can build the best 4K home theater today and relax in the comfort of knowing that your AV receiver is 8K ready when you are Enjoy the highest quality 3D audio and video for even the most demanding entertainment needs HDCP 23 This unit is compatible with HDCP 23 copyright protection standard Digital video processor upscales SD resolution or HD 720p 1080p 4K to 8K 8K Ultra HD 8K 8K Up to 1080p4K 60Hz 8K up scaling This unit is equipped with a 8K video upscaling function that allows SD Standard Definition or HD High Definition4K 60Hz video to be output via HDMI at 8K 7680 4320 pixels resolution This function enables the device to be connected to a TV using a single HDMI cable and produces high definition images for any video source Equipped with HDMI ZONE2 output v p 178 The ZONE2 multiroom output includes an HDMI output that lets you enjoy a different AV source in that room with another program playing in the main room Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 15 - English - : HDMI connections enable connection to various digital AV devices 8 inputs 3 outputs OutIn For connection to a broad range of digital sources this unit features 8 HDMI inputs including 1 on the front panel that lets you quickly and conveniently connect a camcorder game console or other HDMI equipped device There are dual HDMI outputs for the main room and a third HDMI output for another room eARC Enhanced Audio Return Channel function compatibility The eARC function is compatible with conventional ARC function compatible audio formats in addition to multichannel linear PCM Dolby TrueHD Dolby Atmos DTSHD Master Audio DTSX and other audio formats a conventional ARC function cannot transmit Additionally connecting to an eARC functioncompatible television enables enjoyment of higherquality surround playback of the audio content played from your television The device is equipped with a AirPlay function in addition to network functions such as Internet radio etc v p 138 You can enjoy a wide variety of content including listening to Internet Radio playing audio files stored on your PC This unit also supports Apple AirPlay which lets you stream your music library from an iPhone iPad iPod touch or iTunes Supports AirPlay 2 wireless audio Sync multiple AirPlay 2 compatible devicesspeakers for simultaneous playback This unit supports AirPlay 2 and requires iOS 114 or later Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index

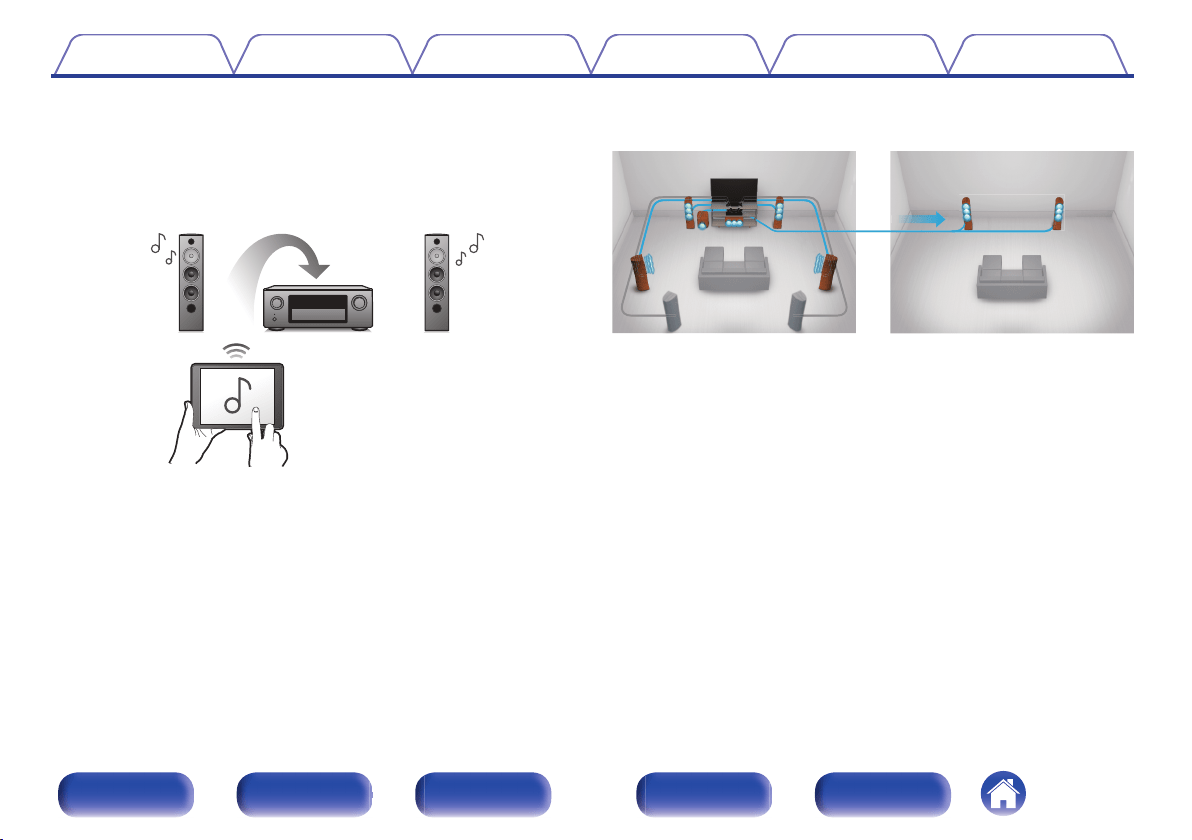

• Page 16 - English - : Playback of DSD and FLAC files via USB and networks This unit supports the playback of high resolution audio formats such as DSD 56 MHz and FLAC 192 kHz files It provides high quality playback of high resolution files Wireless connection with Bluetooth devices can be carried out easily v p 110 You can enjoy music simply by connecting wirelessly with your smartphone tablet PC etc MultiRoom audio v p 149 MAIN ZONEZONE2ZONE3 You can select and play back the respective inputs in MAIN ZONE ZONE2 and ZONE3 In addition when the All Zone Stereo function is used the music being played back in MAIN ZONE can be enjoyed in all the zones at the same time This is useful when you want to let the background music propagate throughout the whole house Energysaving design This unit is equipped with an ECO Mode function that allows you to enjoy music and movies while reducing the power consumption during use and also an autostandby function that automatically turns off the power supply when the unit is not in use This helps reduce unnecessary power use Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 17 - English - : Compatible with the Denon 2016 AVR Remote App z for performing basic operations of the unit with an iPad iPhone or Android devices Google Amazon Kindle Fire Along with many new features the graphics and user interface have been completely overhauled The new app gives you full control of this unit as well as access to its setup menu for detailed adjustments from your phones or tablets Denon 2016 AVR Remote App also gives you quick access to the receivers status display option menus Denon Blu ray Disc player control and online owners manual for your convenience z Download the appropriate Denon 2016 AVR Remote App for your iOS or Android devices This unit needs to be connected to the same LAN or WiFi wireless LAN network that the iPad iPhone or Android is connected to HEOS provides streaming music from your favorite online music sources HEOS wireless multiroom sound system that enables you to enjoy your favorite music anywhere and everywhere around your home By utilizing your existing home network and the HEOS App available for iOS Android and Amazon devices you can explore browse and play music from your own music library or from many online streaming music services When multiple products with HEOS Builtin are connected to the same network they can be grouped to play the same music on all products simultaneously or different music can be played on each one Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 18 - English - : Easy operation Setup Assistant provides easytofollow setup instructions First select the language when prompted Then simply follow the instructions displayed on the TV screen to set up the speakers network etc Easy to use Graphical User Interface This unit is equipped with a Graphical User Interface for improved operability Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 19 - English - : Part names and functions Front panel u rwqe yt For details see the next page Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 20 - English - : u wqret y A Power operation button X Used to turn the power of the MAIN ZONE room where this unit is located onoff standby v p 104 B Power indicator This is lit as follows according to the power status White Power on Off Normal standby Red When HDMI Pass Through is set to On v p 208 When HDMI Control is set to On v p 210 When Network Control is set to Always On v p 265 C SOURCE SELECT knob This selects the input source v p 104 D Remote control sensor This receives signals from the remote control unit v p 10 E Display This displays various pieces of information v p 23 F MASTER VOLUME knob This adjusts the volume level v p 105 G Door When you are using buttons andor connectors behind the door press the bottom of the door to open it Be careful not to catch your fingers when closing the door Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 21 - English - : With the door open io Q0qw r t y ue A ZONE2 ONOFF button This turns the power of ZONE2 another room onoff v p 183 B ZONE2 SOURCE button This selects the input source for ZONE2 v p 183 C ZONE3 ONOFF button This turns the power of ZONE3 another room onoff v p 183 D ZONE3 SOURCE button This selects the input source for ZONE3 v p 183 E STATUS button Each press of this switches the status information that is shown on the display F Information button INFO This displays the status information on the TV screen v p 280 G Cursor buttons uio p These select items H OPTION button This displays the option menu on the TV screen I DIMMER button Each press of this switches the brightness of the display v p 275 J QUICK SELECT buttons With a single press of any of these buttons you can call up various settings youve registered to each button such as the input source volume level and sound mode settings v p 170 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 22 - English - : Q Q Q Q Q Q Q K AUX1HDMI connector This is used to connect HDMI output compatible devices such as video camcorders and game consoles v p 92 L USB port T This is used to connect USB storages such as USB memory devices v p 95 M BACK button This returns to the previous screen N ENTER button This determines the selection O SETUP button This displays the menu on the TV screen v p 189 P SETUP MIC jack This is used to connect the supplied Sound calibration microphone v p 229 Q Headphones jack PHONES This is used to connect headphones When the headphones are plugged into this jack audio will no longer be output from the connected speakers or from the PRE OUT connectors NOTE To prevent hearing loss do not raise the volume level excessively when using headphones Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index

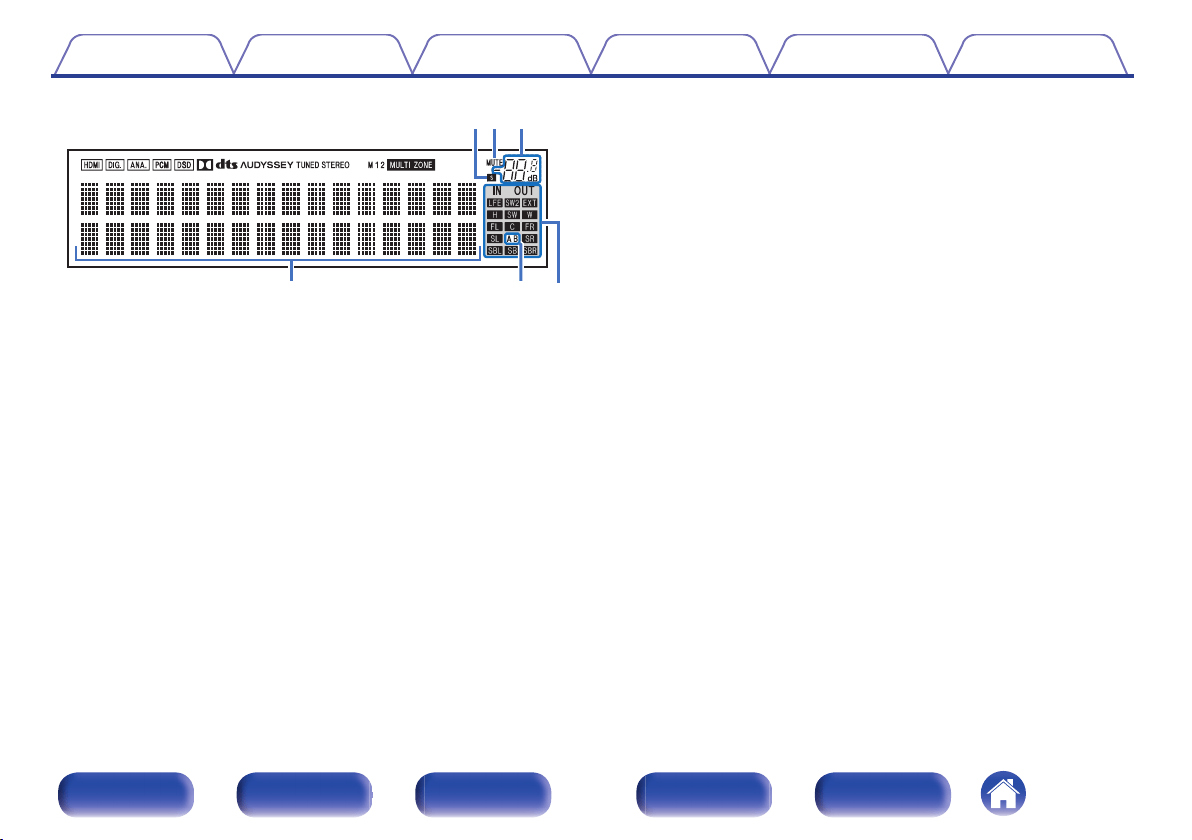

• Page 23 - English - : Display Q Q Q iuoyt rewq A Input signal indicators These light according to the audio input mode settings of each input source v p 225 B Decoder indicators These light when Dolby or DTS signals are input or when the Dolby or DTS decoder is running C Audyssey indicator This lights when MultEQ XT32 Dynamic EQ Dynamic Volume or Audyssey LFC TM has been set up v p 201 D Tuner reception mode indicators These light up according to the reception conditions when the input source is set to Tuner TUNED Lights up when the broadcast is properly tuned in STEREO Lights up when receiving FM stereo broadcasts E Monitor output indicator These light according to the HDMI monitor output setting When set to AutoDual the indicators light according to connection status F MULTI ZONE indicator This lights up when ZONE2 or ZONE3 another room power is turned on v p 183 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 24 - English - : Q0 Q1 Q2 iuo G Sleep timer indicator This lights when the sleep mode is selected v p 168 H MUTE indicator This blinks while the sound is muted v p 105 I Volume indicator J Information display The input source name sound mode setting values and other information are displayed here K Front speaker indicator This lights according to the setting of the front A and B speakers L Inputoutput signal channel indicators The channel for inputoutput signals is displayed according to the setting configured for Channel Indicators v p 276 When Channel Indicators is set to Output Default These light when audio signals are being output from the speakers When Channel Indicators is set to Input These light corresponding to the channels that include the input signals When playing HD Audio sources the A indicator lights when a signal from an extension channel a channel other than the front center surround surround back front height front wide or LFE channel is input Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index

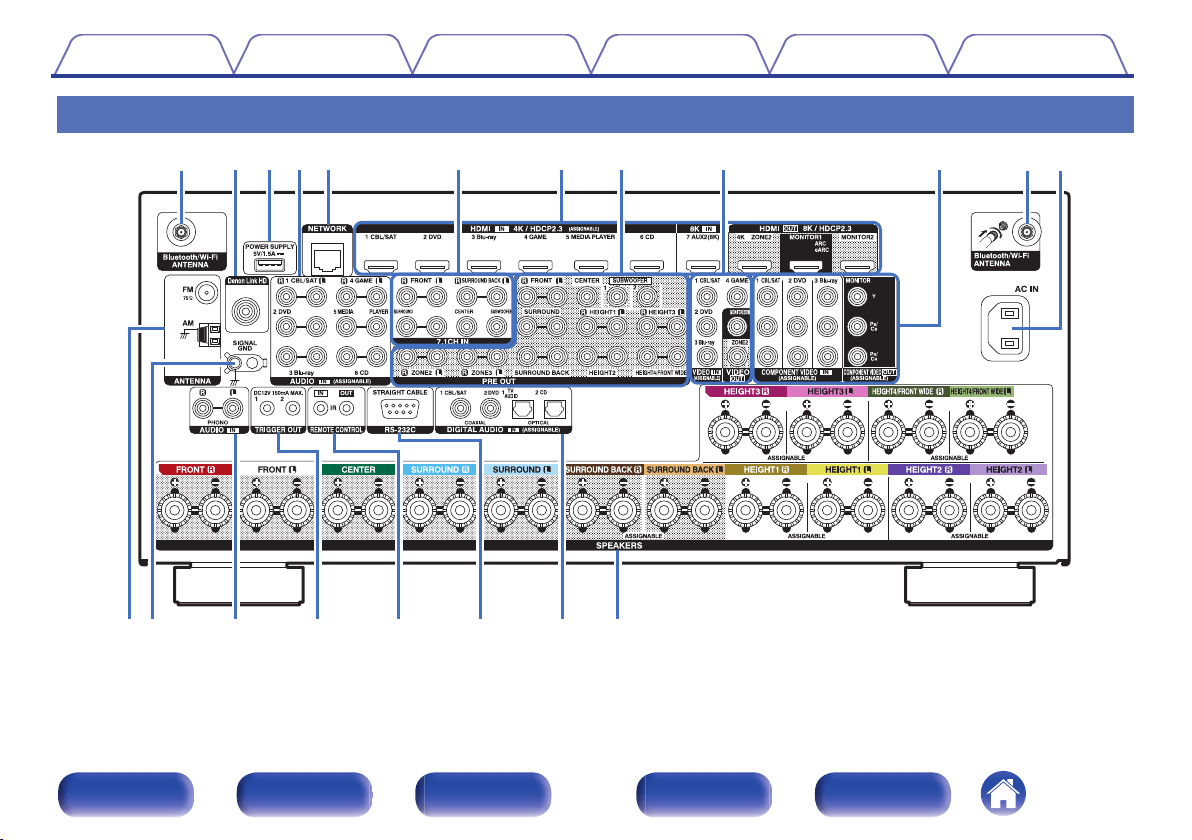

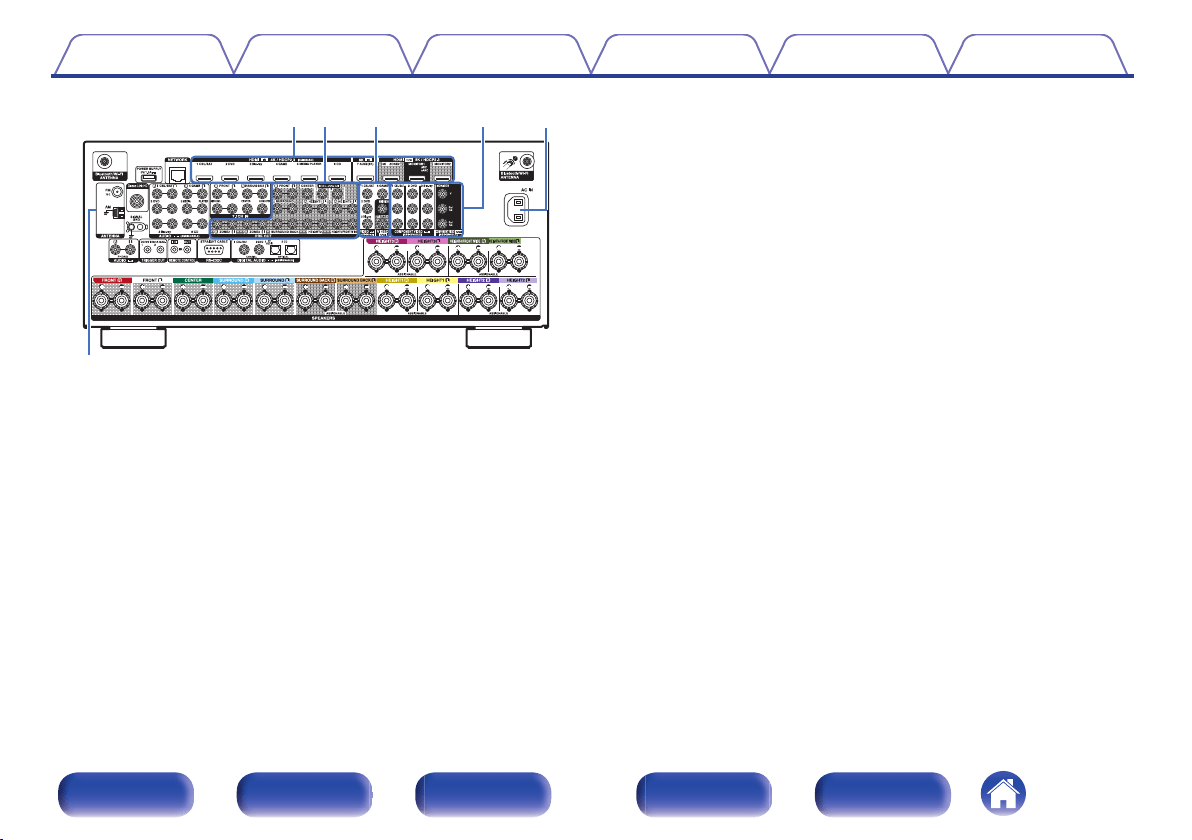

• Page 25 - English - : Rear panel etry iwu Q0 Q1q q Q rQ Q Q Q Q Q o For details see the next page Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 26 - English - : etrrwqq y A Bluetoothwireless LAN antenna connectors Used to connect the included external antennas for Bluetoothwireless connectivity when connecting to a network via wireless LAN or when connecting to a handheld device via Bluetooth v p 99 A Place the external antennas for Bluetoothwireless connectivity evenly over the screw terminal of rear B Turn clockwise until the antennas is fully connected C Rotate the antenna upwards for best reception qwe B Denon Link HD connector Used to connect a Denon Link HD compatible Bluray Disc player v p 90 C USB port POWER SUPPLY Can be used to power streaming media players etc Use a devices supplied AC adapter when a power supply of 5 V15 A or more is required Connect to the USB port on the front panel to play content from a USB memory device D Analog audio connectors AUDIO Used to connect devices equipped with analog audio connectors Connecting a settop box Satellite tunercable TV v p 88 Connecting a DVD player or Bluray Disc player v p 89 Connecting a turntable v p 93 E NETWORK connector Used to connect to a LAN cable when connecting to a wired LAN network v p 98 F 71channel input connectors 71CH IN Used to connect to a device that has multichannel audio output connectors v p 94 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 27 - English - : oiuQ0 Q1 Q G HDMI connectors Used to connect devices equipped with HDMI connectors Connection 1 TV equipped with an HDMI connector and compatible with the ARC Audio Return Channel eARC Enhanced Audio Return Channel v p 84 Connection 2 TV equipped with an HDMI connector and incompatible with the ARC Audio Return Channel eARC Enhanced Audio Return Channel v p 85 Connecting a settop box Satellite tunercable TV v p 88 Connecting a DVD player or Bluray Disc player v p 89 Connecting a player device compatible with the 8K v p 91 H PRE OUT connectors Used to connect a subwoofer with builtin amplifier or an external power amplifier Connecting the subwoofer v p 44 Connecting ZONE v p 178 I Video connectors VIDEO Used to connect devices equipped with video connectors Connection 3 TV equipped without an HDMI connector v p 86 Connecting a settop box Satellite tunercable TV v p 88 Connecting a DVD player or Bluray Disc player v p 89 J Component video connectors COMPONENT VIDEO Used to connect devices equipped with component video connectors Connection 3 TV equipped without an HDMI connector v p 86 Connecting a settop box Satellite tunercable TV v p 88 Connecting a DVD player or Bluray Disc player v p 89 K AC inlet AC IN Used to connect the power cord v p 102 L FMAM antenna terminals ANTENNA Used to connect FM antennas and AM loop antennas v p 96 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index

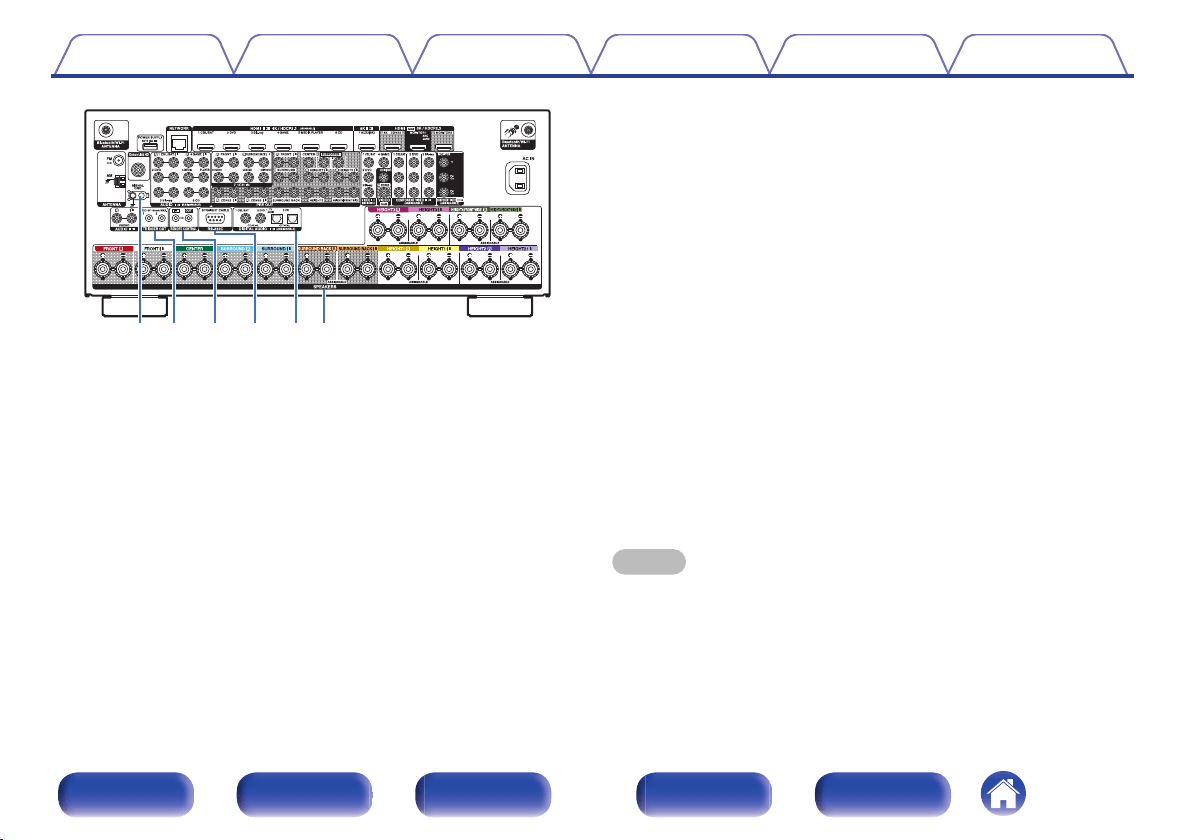

• Page 28 - English - : Q Q Q Q Q Q M SIGNAL GND terminal Used to connect a ground wire for the turntable v p 93 N TRIGGER OUT jacks Used to connect devices equipped with the trigger function v p 101 O REMOTE CONTROL jacks Used to connect infrared receiverstransmitters in order to operate this unit and external devices from a different room v p 100 P RS232C connector Used to connect home automation controller devices fitted with RS232C connectors Consult the owners manual of the home automation controller for more information about serial control of this unit Perform the operation below beforehand A Turn on the power of this unit B Turn off the power of this unit from the external controller C Check that the unit is in the standby mode Q Digital audio connectors DIGITAL AUDIO Used to connect devices equipped with digital audio connectors Connection 2 TV equipped with an HDMI connector and incompatible with the ARC Audio Return Channel eARC Enhanced Audio Return Channel v p 85 Connection 3 TV equipped without an HDMI connector v p 86 Connecting a settop box Satellite tunercable TV v p 88 Connecting a DVD player or Bluray Disc player v p 89 R Speaker terminals SPEAKERS Used to connect speakers v p 43 NOTE Do not touch the inner pins of the connectors on the rear panel Electrostatic discharge may cause permanent damage to the unit Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index

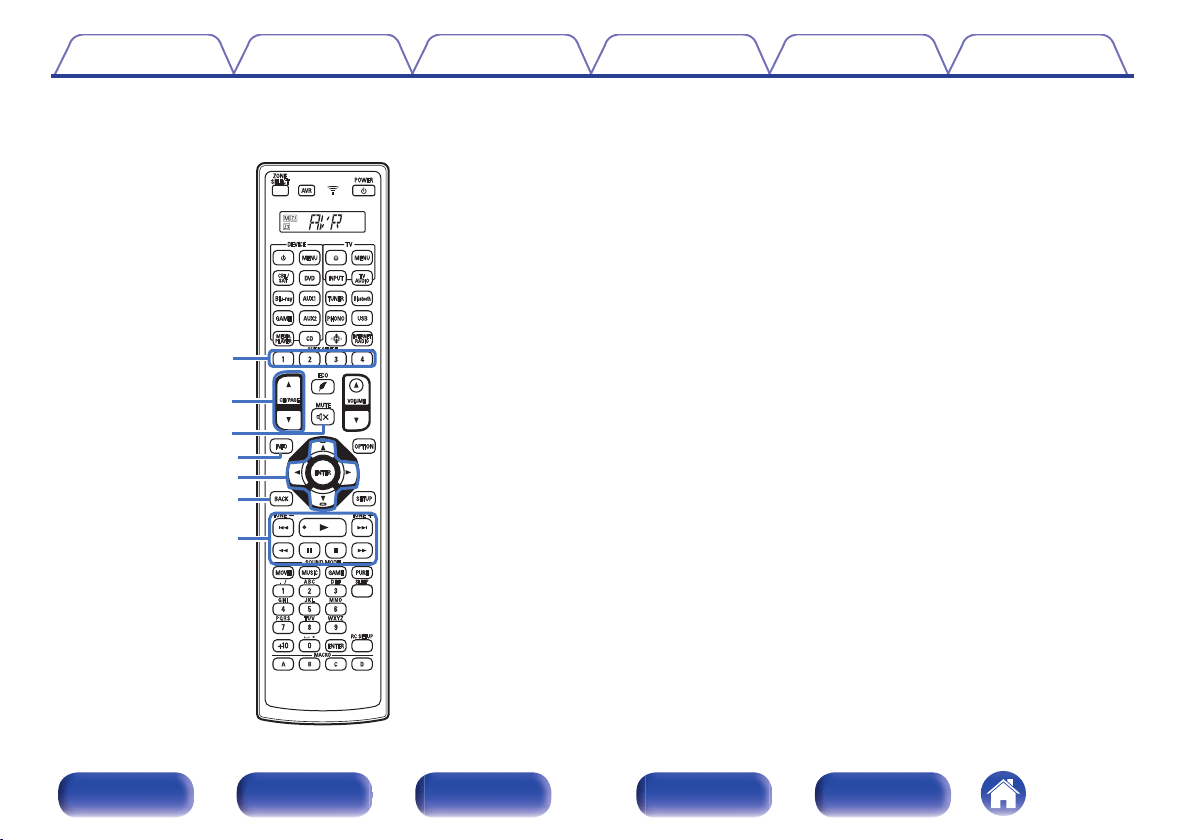

• Page 29 - English - : Remote control unit A p indicator This is lit when signals are sent from the remote control unit B AVR operation button When preset codes are registered to the remote control unit press this button and then operate the menu on the unit C Zone select button ZONE SELECT These switch the zone MAIN ZONE ZONE2 ZONE3 that is operated through the remote control unit v p 183 189 D Display A Zone select indicators B Information indicator This displays AVR when operating this unit This displays the input source name when operating an external device This displays TV when operating TV This displays details about the setting on the remote control unit E Device operation buttons DEVICE X DEVICE MENU These turn the power of external devices onoff and call up menus Preset codes need to be registered in order to use these buttons v p 283 F Input source select buttons These select the input source Selecting the input source v p 104 Playback in ZONE2ZONE3 v p 183 e w q r t y qw Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 30 - English - : G QUICK SELECT buttons 1 4 These call up settings registered to each button such as input source volume level and sound mode settings v p 170 H Channelpage search buttons CHPAGE df These select radio stations registered to presets or switch pages v p 119 I MUTE button This mutes the output audio Turning off the sound temporarily Muting v p 105 Turning off the sound temporarily Muting ZONE2 ZONE3 v p 184 J Information button INFO This displays the status information on the TV screen v p 280 K Cursor buttons uio p These select items L BACK button This returns to the previous screen M System buttons These perform playback related operations Tuning up Tuning down buttons TUNE These select either FM broadcast or AM broadcast v p 116 i o u Q3 Q2 Q1 Q0 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 31 - English - : N Number Character buttons These enter letters or numbers into the unit Listening to FMAM broadcasts v p 116 Operating external devices with the remote control unit v p 283 O Remote control signal transmitter This transmits signals from the remote control unit v p 10 P POWER button X This turns the power onoff Turning the power on v p 104 Playback in ZONE2ZONE3 v p 183 Q TV operation buttons TV X TV MENU TV INPUT These turn the TV power onoff switch the TV input and call up menus Preset codes need to be registered in order to use these buttons v p 288 R ECO Mode button G This switches to ECO Mode v p 268 S VOLUME buttons df These adjust the volume level Adjusting the volume v p 105 Adjusting the volume ZONE2ZONE3 v p 184 T OPTION button This displays the option menu on the TV screen U ENTER button This determines the selection Q7 Q5 Q6 W0 Q8 Q9 W1 W1 Q4 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 32 - English - : V SETUP button This displays the menu on the TV screen v p 189 W SOUND MODE buttons These select the sound mode v p 150 X SLEEP button This sets the sleep timer v p 168 Y RC SETUP button This used to set up the remote control unit v p 283 299 Z MACRO buttons A D These are used to turn on a TV or player and consecutive series of operations can be registered to each button v p 293 W3 W5 W2 W4 W6 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 33 - English - : o Contents Speaker installation 34 Connecting speakers 43 Connecting a TV 83 Connecting a playback device 87 Connecting a USB memory device to the USB port 95 Connecting FMAM antennas 96 Connecting to a home network LAN 98 Connecting an external control device 100 Connecting the power cord 102 NOTE Do not plug in the power cord until all connections have been completed However when the Setup Assistant is running follow the instructions in the Setup Assistant page 9 in the separate Quick Start Guide screen for making connections During Setup Assistant operation the inputoutput connectors do not conduct current Do not bundle power cords together with connection cables Doing so can result in noise o Cables used for connections Provide necessary cables according to the devices you want to connect Speaker cable Subwoofer cable HDMI cable Component video cable Video cable Coaxial digital cable Optical cable Audio cable R L R L LAN cable Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 34 - English - : Speaker installation Determine the speaker system depending on the number of speakers you are using and install each speaker and subwoofer in the room Speaker installation is explained using this example of a typical installation C FL FR SBL SBR SB SW1 SW2 FWL FWR SL SR FLFR Front speaker left right Place the FRONT left and right speakers an equal distance from the main listening position The distance between each speaker and your TV should also be the same C Center speaker Place the CENTER speaker in between the front speakers and above or below your TV SLSR Surround speaker left right Place the SURROUND left and right speakers an equal distance to the left and right sides of the main listening position If you dont have surround back speakers move the surround speakers slightly behind your listening position SBLSBR Surround back speaker leftright Place the SURROUND BACK left and right speakers an equal distance from the main listening position and directly behind the main listening position When using a single surround back speaker SB place it directly behind the listening position FWLFWR Front wide speaker leftright Place the FRONT WIDE left and right speakers outside of the front left and right speakers so that there is an equal distance between all front speakers SW 12 Subwoofer Place the SUBWOOFER at a convenient location near the front speakers If you have two subwoofers place them asymmetrically across the front of your room Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 35 - English - : FHL FHR TRR TRL TFR TFL RHL RHR TMR TML FHLFHR Front height speaker leftright Place the FRONT HEIGHT left and right speakers directly above the front speakers Mount them as close to the ceiling as possible and aim them towards the main listening position TFLTFR Top front speaker leftright Mount the TOP FRONT left and right speakers on the ceiling slightly in front of your main listening position and aligned with the left and right front speakers TMLTMR Top middle speaker leftright Mount the TOP MIDDLE left and right speakers directly above the main listening position and aligned with the left and right front speakers TRLTRR Top rear speaker leftright Mount the TOP REAR left and right speakers on the ceiling slightly behind your main listening position and aligned with the left and right front speakers RHLRHR Rear height speaker leftright Place the REAR HEIGHT left and right speakers directly behind the main listening position Mount them as close to the ceiling as possible and aligned with the left and right front speakers Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 36 - English - : SHL SHR TS CH SHLSHR Surround height speaker leftright Place the SURROUND HEIGHT left and right speakers directly above the surround speakers CH Center height speaker Place the CENTER HEIGHT speaker directly above the center speaker Mount them as close to the ceiling as possible and aim them towards the main listening position TS Top surround speaker Place the TOP SURROUND speaker directly above the main listening position and aligned with the center channel speaker For the best Auro3D experience Surround Height speakers are recommended however you may substitute Rear Height speakers from a Dolby Atmos speaker setup in place of Surround Height speakers Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 37 - English - : FDL FDR BDL BDR SDL SDR FDLFDR Front Dolby speaker leftright Place the FRONT Dolby Atmos Enabled speaker on the front speaker For a Dolby Atmos Enabled integrated with a front speaker place the Dolby Atmos Enabled speaker instead of the front speaker SDLSDR Surround Dolby speaker leftright Place the SURROUND Dolby Atmos Enabled speaker on the surround speaker For a Dolby Atmos Enabled speaker integrated with a surround speaker place the Dolby Atmos Enabled speaker instead of the surround speaker BDLBDR Back Dolby speaker leftright Place the BACK Dolby Atmos Enabled speaker on the surround back speaker For a Dolby Atmos Enabled speaker integrated with a surround back speaker place the Dolby Atmos Enabled speaker instead of the surround back speaker About Dolby Atmos Enabled speakers Dolby Atmos Enabled speakers reflect the sound off the ceiling to allow the sound to come from over your head by using a special upward pointing speaker that is placed on the floor You can enjoy the Dolby Atmos 3D sound even in an environment where speakers cannot be installed on the ceiling Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index

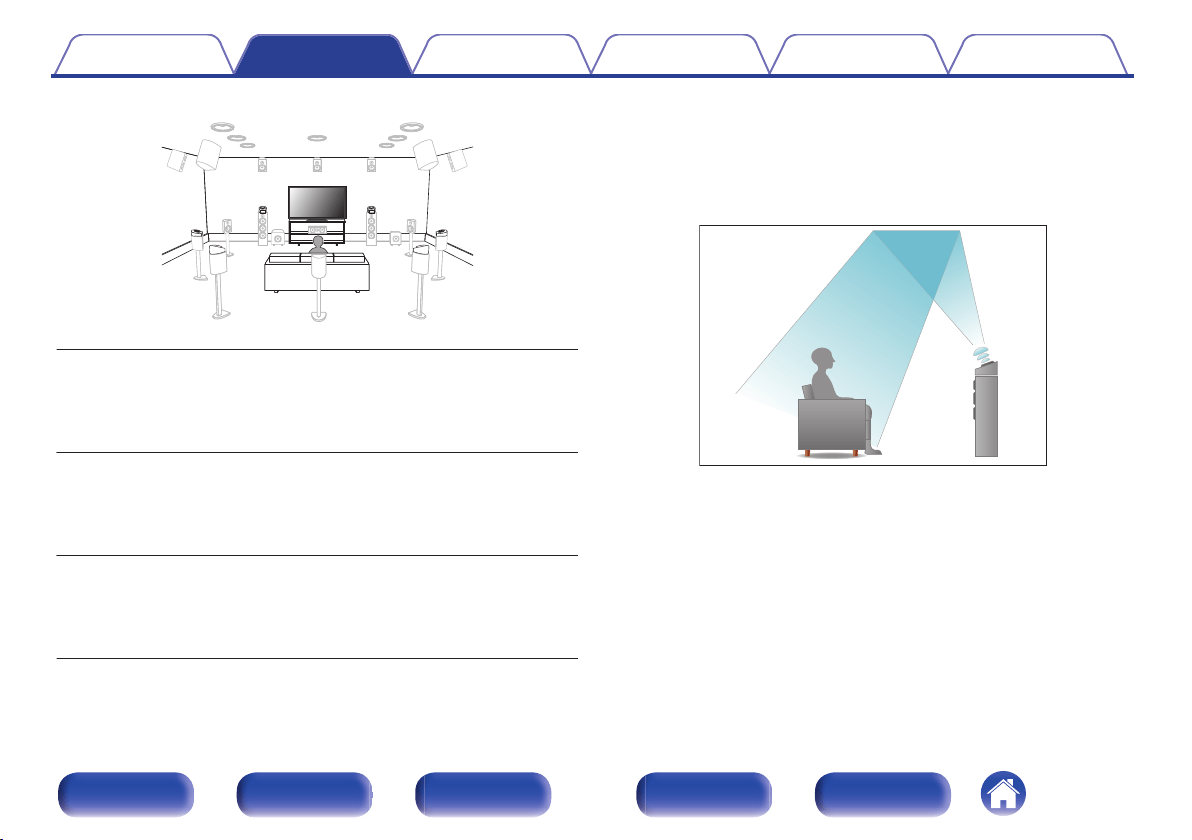

• Page 38 - English - : This unit is compatible with Dolby Atmos and DTSX which offers an even wider and deeper surround sensation The Speaker Virtualizer must be set to On for Dolby Atmos playback with 51 channel speaker configurations or less v p 193 IMAX DTSX DTSX can be selected regardless of the speaker configuration Auro3D recommends adding FRONT HEIGHT and SURROUND HEIGHT speakers to a 51 speaker configuration Optionally you may substitute REAR HEIGHT Dolby Atmos Enabled speakers instead of FRONT HEIGHT and SURROUND HEIGHT speakers for Dolby Atmos DTSX and Auro3D playback Use the illustration below as a guide for how high each speaker should be installed The height does not need to be exactly the same z z2 z3 z4 z5 Point slightly downwards z1 30 45 z4 125 150 z2 30 55 z3 65 100 z5 135 150 GViewed from the sideH Top front speaker Top rear speaker Front speaker Surround speaker Surround back speaker Point slightly downwards Rear height speaker Top middle Top surround speaker Surround height speaker Front height Center height speaker Front wide speaker TS SL TRL RHL RHR FHL TML TFL FL SR TRR FHRCH TMR TFR FR C Height speakers layout GViewed from the topH SHRSHL For the best Auro3D experience Surround Height speakers are recommended however you may substitute Rear Height speakers from a Dolby Atmos speaker setup in place of Surround Height speakers Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index

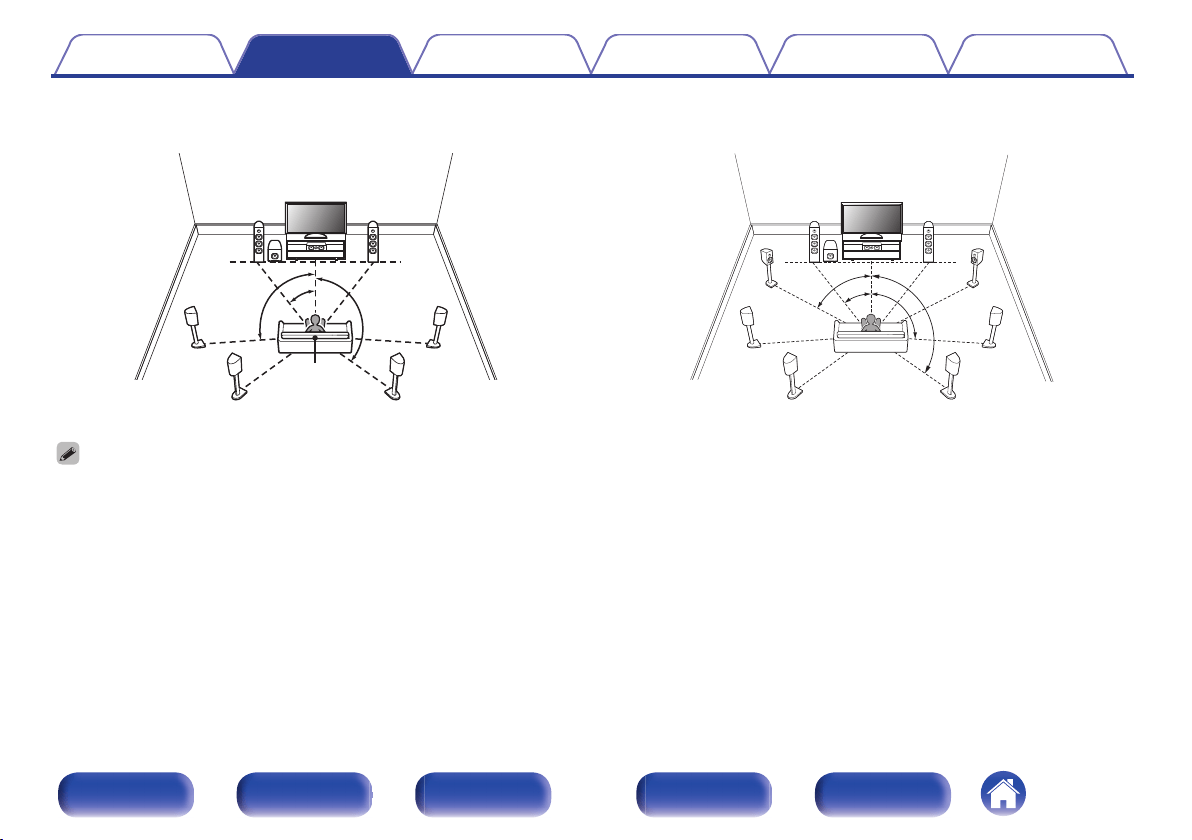

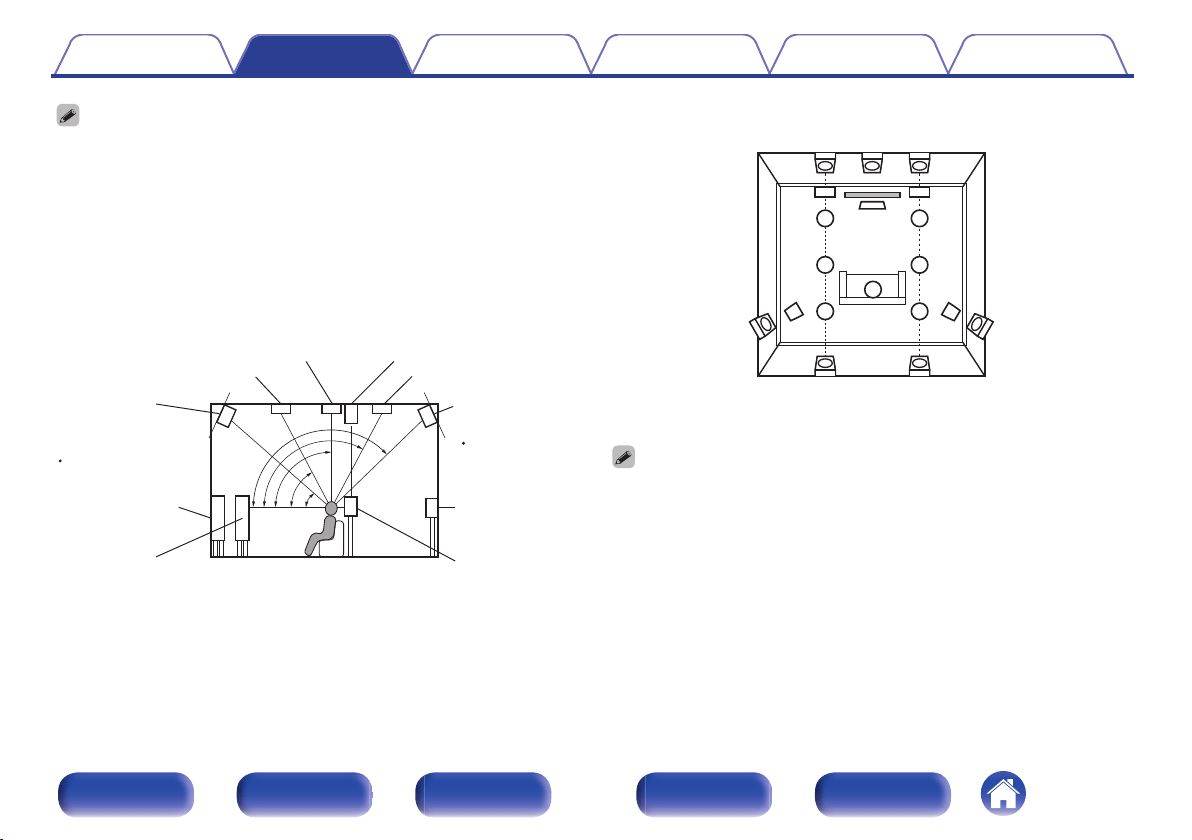

• Page 39 - English - : o When 71channel speakers are installed using surround back speakers z1 z2 z3 FL SW C SL SBL FR SR SBR Listening position z1 22 30 z2 90 110 z3 135 150 When using a single surround back speaker place it directly behind the listening position o When 91channel speakers are installed using front wide speakers z3 z2 z1 z4 SBL SBR FL SW C SL FR SR FWL FWR z 1 22 30 z 2 50 70 z 3 90 110 z 4 135 150 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 40 - English - : o When 51channel speakers are installed z1 z2 FL SW C SL FR SR z1 22 30 z2 120 o Layout including height speakers and ceiling speakers n Height speaker layout example Combination of 51channel layout and front heightrear heightcenter height speakers FHL FHR C FL FR SW SL SR RHL RHR CH Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 41 - English - : n Ceiling speaker layout example Combination of 51channel layout and top fronttop middletop rear speakers TRR TRL TFR TFL TMR TML C FL FR SW SL SR n Dolby Atmos Enabled speaker layout example Combination of 71channel layout and front Dolbysurround Dolby back Dolby speakers C FL FR FDL FDR SW SL SR SDL SDR SBL SBR BDL BDR Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 42 - English - : n Auro3D layout example Combination of 51channel speakers with front heightsurround height center heighttop surround speakers FHL FHR SHL SHR TS FL FR SW SL SR C CH For the best Auro3D experience Surround Height speakers are recommended however you may substitute Rear Height speakers from a Dolby Atmos speaker setup in place of Surround Height speakers Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 43 - English - : Connecting speakers Here we connect the speakers in the room to this unit Before connecting speakers NOTE Disconnect this units power plug from the power outlet before connecting the speakers Also turn off the subwoofer Connect so that the speaker cable core wires do not protrude from the speaker terminal The protection circuit may be activated if the core wires touch the rear panel or if the and sides touch each other Protection circuit v p 344 Never touch the speaker terminals while the power cord is connected Doing so could result in electric shock When the Setup Assistant page 9 in the separate Quick Start Guide is running follow the instructions in the Setup Assistant screen for making connections Power is not supplied to the speaker terminals while the Setup Assistant is running Use speakers with an impedance of 4 16 Ωohms NOTE Carry out the following settings when using a speaker with an impedance of 4 6 Ωohms 1 Press and hold the main units STATUS and ZONE3 SOURCE at the same time for at least 3 seconds zVideo Format ltNTSCgt appears on the display Use u or i on the main unit three times zSp Impedance lt8ohmsgt appears on the display Use o or p on the main unit to select the impedance 8ohms Default Select when the impedance for all of the connected speakers is 8 Ωohms or over 6ohms Select when the impedance for any of the connected speakers is 6 Ωohms 4ohms Select when the impedance for any of the connected speakers is 4 Ωohms 4 Press the main units ENTER to complete the setting Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index

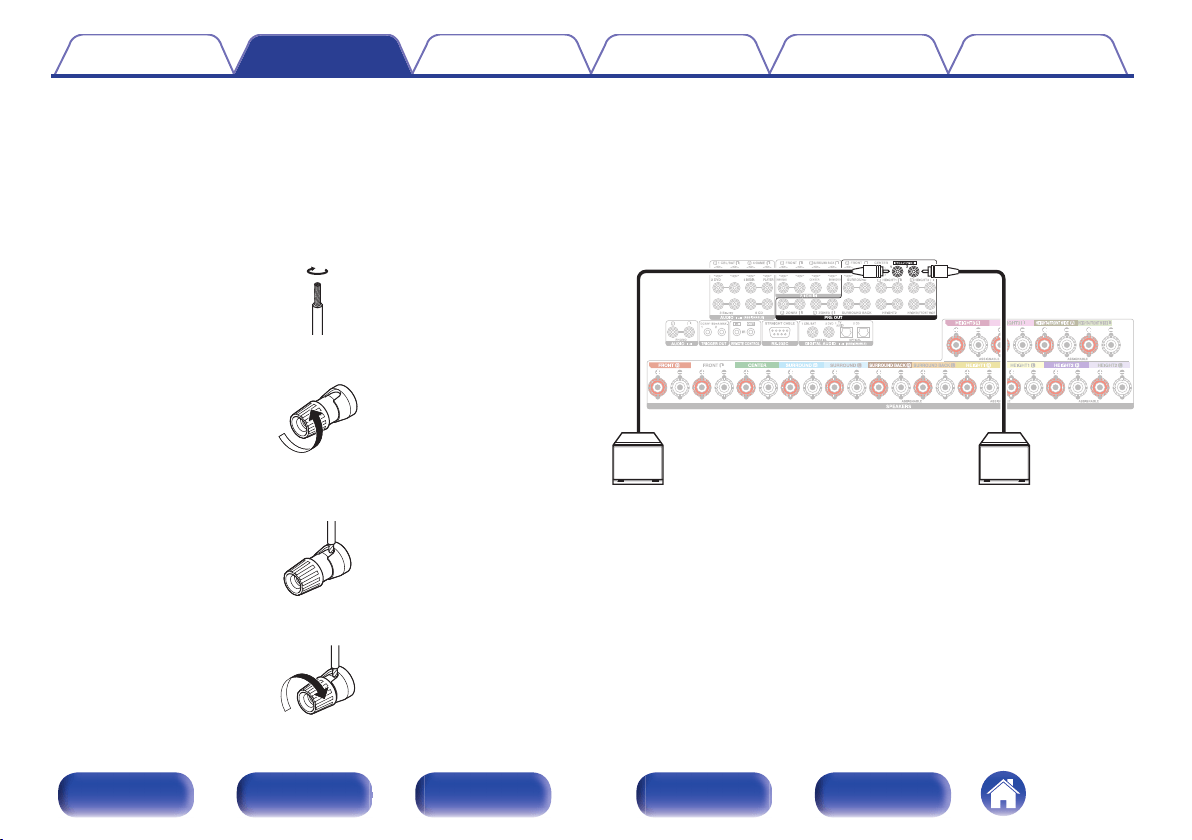

• Page 44 - English - : o Connecting the speaker cables Carefully check the left L and right R channels and red and black polarities on the speakers being connected to this unit and be sure to connect the channels and polarities correctly Peel off about 38 inch 10 mm of sheathing from the tip of the speaker cable then either twist the core wire tightly or terminate it Turn the speaker terminal counterclockwise to loosen it Insert the speaker cables core wire to the hilt into the speaker terminal Turn the speaker terminal clockwise to tighten it o Connecting the subwoofer Use a subwoofer cable to connect the subwoofer Two subwoofers can be connected to this unit To use two subwoofers set Subwoofer to 2 spkrs in the Speaker Config setting v p 247 The level and distance can be set separately for Subwoofer 1 and Subwoofer 2 SW1 SW2 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 45 - English - : o About the cable labels supplied for channel identification The channel display section for speaker terminals on the rear panel is colorcoded for each channel to be identifiable Attach the cable label corresponding to each speaker to each speaker cable This makes it easy to connect the correct cable to the speaker terminals on the rear panel Speaker Color FRONT L White FRONT R Red CENTER Green SURROUND L Light Blue SURROUND R Blue SURROUND BACK L Beige SURROUND BACK R Brown FRONT WIDE L Glass Green FRONT WIDE R Olive Green FRONT HEIGHT L Light Yellow FRONT HEIGHT R Yellow TOP FRONT L Light Yellow TOP FRONT R Yellow TOP MIDDLE L Pink TOP MIDDLE R Magenta TOP REAR L Light Purple TOP REAR R Purple Speaker Color SURROUND HEIGHT L Pink SURROUND HEIGHT R Magenta REAR HEIGHT L Light Purple REAR HEIGHT R Purple TOP SURROUND Glass Green CENTER HEIGHT Olive Green FRONT DOLBY L Light Yellow FRONT DOLBY R Yellow SURROUND DOLBY L Pink SURROUND DOLBY R Magenta BACK DOLBY L Light Purple BACK DOLBY R Purple SUBWOOFER 1 Black SUBWOOFER 2 Black Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 46 - English - : Attach the cable label for each channel to its speaker cable as shown in the diagram Refer to the table and attach the label to each speaker cable Then make connection so that the color of the speaker terminal matches that of the cable label G How to attach the cable labels H Speaker This unit Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 47 - English - : Speaker configuration and Amp Assign settings This unit has a builtin 13channel power amplifier In addition to the basic 51channel system a variety of speaker systems can be configured by changing the Amp Assign settings to suit the application such as 71channel systems biamp connections and 2channel systems for multizone playback v p 237 Perform Amp Assign settings to suit the number of rooms and speaker configuration to be installed v p 237 Playback speaker in each zone Amp Assign settings Connection page MAIN ZONE ZONE2 ZONE3 51channel playback 2channel Preout 2channel Preout Can be set in all Amp Assign modes 71channel playback Can be set in all Amp Assign modes except for 51ch Full BiAmp 91channel playback 55 131channel playback 131ch 64 131channel playback Dolby Atmos and Auro3D 131ch 69 111channel playback biamp connection of front speakers 111ch BiAmp 75 51channel playback biamp connection of front center and surround speakers 51ch Full BiAmp 76 Second front speakers 111ch Front B 77 111channel playback 2channel Speaker out 2channel Preout 111ch ZONE2 Default 78 111channel playback 2channel Preout 2channel Speaker out 111ch ZONE3 78 91channel playback biamp connection of front speakers 2channel Speaker out 2channel Preout 91ch BiAmp ZONE2 79 91channel playback 2channel Speaker out 2channel Speaker out 91ch ZONE23 80 111channel playback 1channel Speaker out 1channel Speaker out 111ch ZONE23MONO 81 131channel playback using this unit as a pre amplifier Not used Not used Pre Amplifier 82 The sound mode that can be selected varies according to the speaker configuration The following pages provide basic connection examples Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 48 - English - : Refer to the example connection for Example connection for the Auro3D 91channel system v p 62 when playing Auro3D with a 91 channel system using the basic 51channel system and the front height and surround height speakers Also refer to the connection example for Example connection for the Auro3D 131channel system v p 68 when playing Auro3D with a 131channel system by adding the Surround Back Top Surround and Center Height speakers In addition to the connections described in p49 81 this unit allows for various speaker connections with the Amp Assign setting Also refer to the menu screen in View Terminal Config on the Amp Assign setting screen which shows how to make connections in your environment CENTER SURROUND SURROUNDFRONTFRONT CENTER SURROUND SURRBACK SURROUNDFRONT SURRBACK FRONT HEIGHT1 HEIGHT1HEIGHT1 HEIGHT1 FHEIGHT RHEIGHTSURRBACKSURROUNDCENTERFRONT HEIGHT2 HEIGHT2 SUBWOOFER SUBWOOFER SPEAKERS SpeakersAmp Assign PRE OUT Assign Mode 131ch Back ZONE2 HEIGHT4HEIGHT3 HEIGHT3 HEIGHT4 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 49 - English - : Connecting 51channel speakers This serves as a basic 51channel surround system FL SW C SL FR SR SW FR FL C SR SL Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 50 - English - : Connecting 71channel speakers o Example connections when using surround back speakers This 71channel surround system is the same as a basic 51channel system but with surround back speakers FL SW C SL FR SR SBRSBL Set Floor Layout to 5ch amp SB in the menu when connecting in this configuration v p 240 SBR SBL SW FR FL C SR SL When using a single surround back speaker connect it to the SURROUND BACK L terminal Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
