1 Important
Safety and notice
Read and understand all instructions before you use this product. If damage is
caused by failure to follow the instructions, the warranty does not apply.
Safety
2QO\XVHDWWDFKPHQWVDFFHVVRULHVVSHFLÀHGE\WKHPDQXIDFWXUHU
Use only power supplies listed in the user manual.
The product shall not be exposed to dripping or splashing.
'RQRWSODFHDQ\VRXUFHVRIGDQJHURQWKHSURGXFWHJOLTXLGÀOOHGREMHFWV
lighted candles).
Batteries (battery pack or batteries installed) shall not be exposed to excessive
KHDWVXFKDVVXQVKLQHÀUHRUWKHOLNH
Danger of explosion if battery is incorrectly replaced. Replace only with the same
or equivalent type.
Where the plug of the Direct Plug-in Adapter is used as the disconnect device, the
disconnect device shall remain readily operable.
0RGLÀFDWLRQRIWKHSURGXFWFRXOGUHVXOWLQKD]DUGRXVUDGLDWLRQRI(0&RU
other unsafe operation.
4 EN
Warning
Never remove the casing of this product.
Never lubricate any part of this product.
Never place this product on other electrical equipment.
.HHSWKLVSURGXFWDZD\IURPGLUHFWVXQOLJKWQDNHGÁDPHVRUKHDW
Never look into the laser beam inside this product.
Ensure that you always have easy access to the power cord, plug or adaptor to disconnect the
product from the power.
Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect
device shall remain readily operable.
Hearing safety
A pleine puissance, l’écoute prolongée du baladeur peut endommager l’oreille
de l’utilisateur.
Warning
To prevent possible hearing damage, do not listen at high volume levels for long periods.
The maximum output voltage of the player is not greater than 150 mV.
Compliance
5EN
This product complies with the radio interference requirements of the European
Community.
This apparatus includes this label:
Note
The type plate is located on the bottom of the product.
Care of the environment
Environmental information
All unnecessary packaging has been omitted. We have tried to make the packaging
easy to separate into three materials: cardboard (box), polystyrene foam (buffer)
and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused if
disassembled by a specialized company. Please observe the local regulations
regarding the disposal of packaging materials, and old equipment.
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it means that
the product is covered by the European Directive 2002/96/EC.
6 EN
Please inform yourself about the local separate collection system for electrical and
electronic products.
Please act according to your local rules and do not dispose of your old products
with your normal household waste. Correct disposal of your old product helps to
prevent potential negative consequences for the environment and human health.
Your product contains batteries covered by the European Directive 2006/66/EC,
which cannot be disposed with normal household waste.Please inform yourself
about the local rules on separate collection of batteries because correct disposal
helps to prevent negative consequences for the environmental and human health.
Always bring your product to a professional to remove the built-in battery.
Copyright
This item incorporates copy protection technology that is protected by U.S.
patents and other intellectual property rights of Rovi Corporation. Reverse
engineering and disassembly are prohibited.
7EN
6SHFLÀFDWLRQVDUHVXEMHFWWRFKDQJHZLWKRXWQRWLFH7UDGHPDUNVDUHWKHSURSHUW\
RI.RQLQNOLMNH3KLOLSV(OHFWURQLFV19RUWKHLUUHVSHFWLYHRZQHUV3KLOLSVUHVHUYHV
WKHULJKWWRFKDQJHSURGXFWVDWDQ\WLPHZLWKRXWEHLQJREOLJHGWRDGMXVWHDUOLHU
supplies accordingly.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
$%287',9;9,'(2'LY;LVDGLJLWDOYLGHRIRUPDWFUHDWHGE\'LY;,QFD
VXEVLGLDU\RI5RYL&RUSRUDWLRQ7KLVLVDQRIÀFLDO'LY;&HUWLÀHGGHYLFHWKDWSOD\V
'LY;YLGHR9LVLWGLY[FRPIRUPRUHLQIRUPDWLRQDQGVRIWZDUHWRROVWRFRQYHUW
\RXUÀOHVLQWR'LY;YLGHRV
$%287',9;9,'(221'(0$1'7KLV'LY;&HUWLÀHGGHYLFHPXVWEH
UHJLVWHUHGLQRUGHUWRSOD\SXUFKDVHG'LY;9LGHRRQ'HPDQG92'PRYLHV
7RREWDLQ\RXUUHJLVWUDWLRQFRGHORFDWHWKH'LY;92'VHFWLRQLQ\RXUGHYLFH
setup menu. Go to vod.divx.com for more information on how to complete your
registration.
Warranty
1HYHUDWWHPSWWRUHSDLUWKHSURGXFWWKLVFRXOGOHDGWRWKHULVNRILQMXU\
damage to the product and will void your warranty.
Use the product and accessories only as intended by the manufacturer. The
caution sign printed on the back of the product indicates risk of electric
shock.
Never remove the cover of the product. Always contact Philips Customer
Support for service or repairs.
$Q\RSHUDWLRQH[SUHVVO\SURKLELWHGLQWKLVPDQXDORUDQ\DGMXVWPHQWVDQG
assembly procedures not recommended or authorized in this manual shall
void the warranty.
8 EN
2 Your portable DVD player
&RQJUDWXODWLRQVRQ\RXUSXUFKDVHDQGZHOFRPHWR3KLOLSV7RIXOO\EHQHÀWIURP
the support that Philips offers, register your product at www.philips.com/welcome.
Introduction
2QWKLVSRUWDEOH'9'SOD\HU\RXFDQSOD\WKHIROORZLQJGLVFVLQFOXGLQJ&'5
&'5:69&''9'5DQG'9'5:
'9'9LGHR
9LGHR&'
Audio CD
MP3 CD
Divx
'LVFVZLWK-3(*ÀOHV
What's in the box
Check and identify the contents of your package:
3RUWDEOH'9'SOD\HU
AC power adaptor, AY5808/05 or DSA-9PFB-09 FEU090100
Car adaptor
Short user manual
Safety and warranty sheet
9EN
Overview of the main unit
a
7XUQVRQRII'9'SOD\HU
SOURCE
Switches between DISC and USB.
SETUP
Accesses or exits the setup menu.
OPTIONS
Accesses options relating to the current activity or selection.
Accesses or exits the setup menu.
i
d
e
f
g
c
b
h
j
k
a
10 EN
STOP
Stops play.
DISC MENU
)RU'9'DFFHVVHVRUH[LWVGLVFPHQX
)RU9&'WXUQVRQRURII3%&3OD\EDFN&RQWUROPRGH
)RU9&'YHUVLRQRU69&'ZLWK3%&WXUQHGRQUHWXUQVWRWKH
menu.
,
Skips to the previous or next title, chapter, or track.
b 9-12V DC IN
Power supply socket.
c AV OUT
$XGLRYLGHRRXWSXWMDFN
d
+HDGSKRQHMDFN
e
USB socket.
f VOL +/-
Increases or decreases volume.
g RESET
When the player hangs up, press it with a ball-point pen or similar tool
to reset the player.
h
, , ,
Navigates menus.
,
Searches backward/forward at different speeds.
/OK
&RQÀUPVDQHQWU\RUVHOHFWLRQ
Starts, pauses or resumes disc play.
i CHR/IR/
Charging indicator/Remote control sensor/Power indicator.
11EN
j OPEN
Opens the disc compartment.
k Display panel
12 EN
3 Get started
Caution
Use the controls only as stated in this user manual.
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number of your
player. The model number and serial number are on the bottom of your player.
Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Prepare
Charge power
Charge through the AC adaptor
Caution
Risk of product damage. Ensure that the power supply voltage corresponds to the voltage printed
on the bottom of the player.
Use only the supplied adaptors to charge the battery.
Note
The type plate is located on the bottom of the player.
To fast charge the battery,
1 press to switch off the player.
13EN
2 Connect the supplied AC adaptor to the player and to the AC outlet.
» The CHR indicator turns on (red).
» When the battery is fully charged, the CHR indicator turns off.
Tip
You can also charge the battery during play.
To maximize battery life, recharge the battery immediately once the battery is fully discharged. If
you do not use the player for a long time, recharge the battery once every two months.
Power
14 EN
Charge through the car adaptor

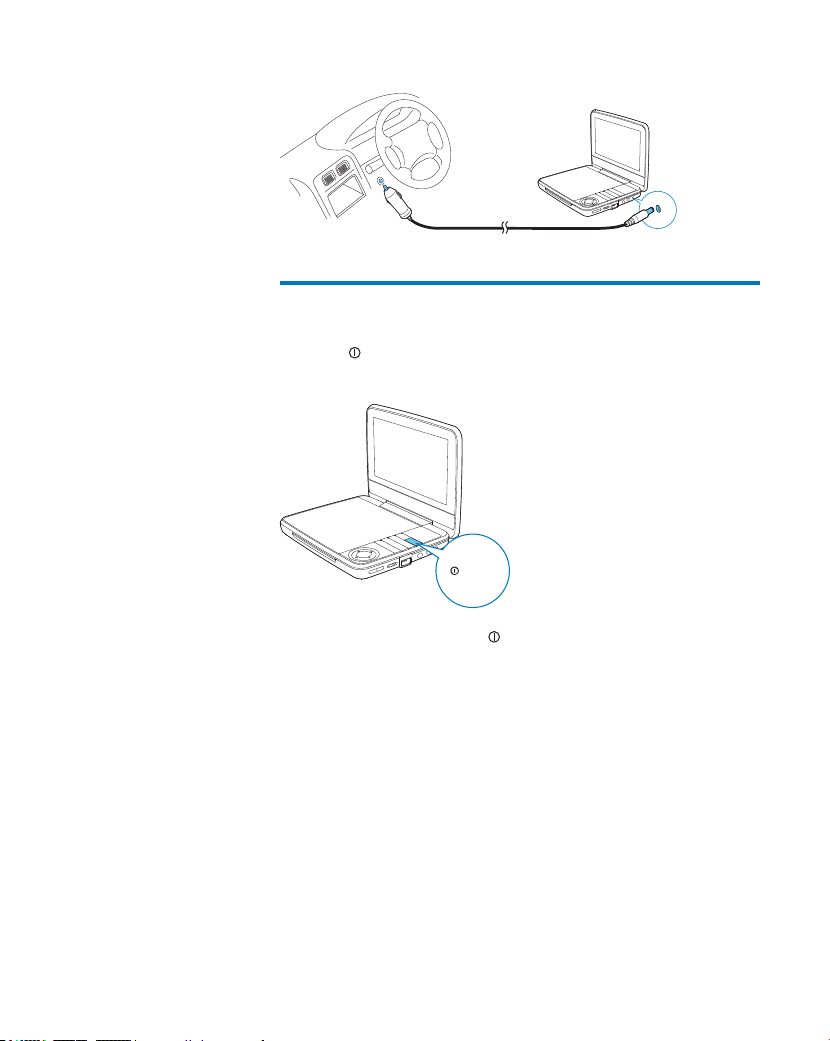

Connect the supplied car adaptor to the player and car cigarette lighter.
Switch on/off
1
Press to switch on the player.
» The power indicator turns on (green).
2 To switch off the player, press .
» The power indicator turns off.
Power
15EN
Select OSD language
You can choose a different language for the on-screen display text.
1 Press SETUP.
» The setup menu is displayed.
2 Go to [General] > [Language].
3 Press / to select a language option.
4 Press /OKWRFRQÀUP
5 Press SETUP to exit.
16 EN
4 Play music or movies
Play discs
1
Slide OPEN on the player.
2 Insert the disc with label side facing up.
3 Push down to close the disc compartment.
» Play starts automatically. If not, press
/OK.
If a menu is displayed, select an item, then press
/OK to start play.
To pause, press
/OK. Press again to resume play.
To stop, press STOP twice.
To select the previous/next item, press
or .
To start search within video/audio, press
or once or more.
Play options
Select a subtitle language
<RXFDQVHOHFWDVXEWLWOHODQJXDJHVRQ'9'V
1 Press OPTIONS.
» The option menu is displayed.
2 Select [Subtitles], then press /OK.
3 Press / to select a subtitle.
4 Press /OKWRFRQÀUP
5 Press OPTIONS to exit.
Select an audio language
<RXFDQVHOHFWDQDXGLRODQJXDJHRQ'9'VRU'LY;GLVFV
1 Press OPTIONS.
» The setup menu is displayed.
2 Select [Audio language], then press /OK.
3 Press / to select a language.
4 Press /OKWRFRQÀUP
17EN
Select an audio mode
:KHQ\RXSOD\9&'V\RXFDQVHOHFWDQDXGLRPRGH
1 Press OPTIONS.
» The option menu is displayed.
2 Select [ Audio], then press /OK.
3 Press / to select audio channel: [Stereo], [Left-mono] or [Right-mono].
Repeat
During play, you can select different repeat options.
1 Press OPTIONS.
» The option menu is displayed.
2 Select [Repeat] and press /OK.
» The repeat options are displayed.
)RU'9'
[Repeat A]: the start of the section to repeat
[Repeat B]: the end of the section to repeat
[Repeat Chapter]: repeat the current chapter
[Repeat Title]: repeat the current title or track
[Repeat all]: repeat all titles on the disc
[Repeat Off]: switch off the repeat mode
)RU9&'
[Repeat A]: the start of the section to repeat
[Repeat B]: the end of the section to repeat
[Repeat 1]: repeat the current track
[Repeat all]: repeat all tracks on the disc
[Repeat Off]: switch off the repeat mode
)RU03&''LY;
[Repeat 1]: repeat the current track
[Repeat Folder]: repeat all the tracks in current folder
[Off]: switch off the repeat mode
3 Select an option, then press /OKWRFRQÀUP
Tip
<RXFDQQRWUHSHDWLWHPVZKHQ3%&LVRQGXULQJ9&'69&'SOD\
18 EN
Random play
You can play all tracks in random order on CDs or MP3 CDs.
1 Press OPTIONS.
» The option menu is displayed.
2 Select >6KXIÁH$OO@ and press /OK.
3 Select [On] or [Off].
4 Press /OKWRFRQÀUP
Zoom
<RXFDQ]RRPLQDQGRXWIRUYLGHRLPDJHVRUSLFWXUHVRQ'9'V9&'VRU-3(*
CDs.
1 Press OPTIONS.
» The option menu is displayed.
2 Select [Zoom & Pan] and press /OK.
3 Press /OK repeatedly to zoom in and out.
4 When the video image or picture is enlarged, press
, , , to pan through it.
Display play information
<RXFDQYLHZWKHSOD\LQIRUPDWLRQGXULQJSOD\RQ'9'VRU9&'V
1 Press OPTIONS.
» The option menu is displayed.
2 Select [Display] and press /OKWRFRQÀUP
» )RU'9'VWLWOHQXPEHUFKDSWHUQXPEHUDQGHODSVHGSOD\WLPHLV
GLVSOD\HG)RU9&'VWUDFNQXPEHUDQGHODSVHGSOD\WLPHLVGLVSOD\HG
Rotate pictures
For JPEG CDs only. While the JPEG is displayed:
Press
WRÁLSXSGRZQ
Press
WRÁLSOHIWULJKW
19EN
Connect additional equipment
<RXFDQFRQQHFWWKHSOD\HUWRD79RUDQDPSOLÀHUWRHQMR\'9'V
Caution
Turn off your player before you connect it to any additional equipment.
1 &RQQHFWWKH$9FDEOHQRWVXSSOLHGWRWKHAV OUTMDFNRIWKHSOD\HU
2 0DWFKWKHFRORURIWKH$9FDEOHVQRWVXSSOLHGZLWKWKHMDFNVRQ\RXU79
WKH\HOORZFDEOHLVIRUWKH\HOORZYLGHRMDFN
WKHUHGRUZKLWHFDEOHLVIRUWKHUHGRUZKLWHDXGLRMDFNV
Play from USB
<RXFDQSOD\'LY;92%03RU-3(*ÀOHVWKDWDUHVWRUHGRQD86%VWRUDJH
device.
1 Connect the USB device to the player.
» The content menu is displayed.
L
R
VIDEO IN
not supplied
20 EN
2 Press SOURCE to switch to USB mode.
3 6HOHFWDÀOHWKHQSUHVV .
» Play starts.
4 To stop play, press STOP.
21EN
5 Set the main unit
To maximize your play experience, use SETUPWRÀQHWXQH\RXUVHWWLQJV
1 Press SETUP.
» The setup menu is displayed.
2 Use navigation keys to select an option and press /OKWRFRQÀUP
[General]
[Language] Select on-screen display language
[PBC settings] Set playback control function on/off.
[Power save] Set power saving mode.
[DivX (VOD)] *HW'LY;UHJLVWUDWLRQFRGH
[DivX subtitles] 6HOHFW'LY;VXEWLWOHODQJXDJH
[Parental(DVD)] Select parental options.
[Set password] Change existing password (3308 by default).
[Factory settings] Restore factory settings.
[Video]
[LCD Display] Set screen display aspect ratio.
[TV standard] 6HWYLGHRRXWSXWIRUPDWWR79V\VWHP
[Brightness] $GMXVWVFUHHQEULJKWQHVV
[Contrast] $GMXVWVFUHHQFRQWUDVW
[ Audio]
[Dolby] Set Dolby output.
[Version] Check the version information.
3 Press to go back to the previous menu.
4 Press SETUP to exit.
22 EN
6 Product information
Note
3URGXFWLQIRUPDWLRQLVVXEMHFWWRFKDQJHZLWKRXWSULRUQRWLFH
Dimensions 239 x 39 x 178 mm
Weight 1.1 kg
AC power adaptor UK: AY5808/05 or DSA-9PFB-09
FEU090100
EU: AY5808/12 or DSA-9PFB-09
FEU090100
Power supply ,QSXW9a+]
2XWSXW'&9
1.0A
Power consumption 11.5 W
Operating temperature range 0-45°C
Laser wavelength 650 nm
9LGHRRXWSXW
Format PAL & NTSC
Output level 9SS
Load impedance
75
Audio line out
Audio out (analog audio) 2XWSXWOHYHO9
Load impedance
10 K
Audio distortion + noise
-80 (1KHz)
Frequency response +].+]G%
Signal/noise ratio
80 dB
Channel separation
80 dB
Dynamic range
80 dB
Playable media
23EN
Disc '9''9'9LGHR9&'69&'$XGLR&'
'9'55:'9'55:'9'55'/
(Dual Layer)
&'5&'5:03PHGLD-3(*ÀOHV
File format
9LGHR .avi, .divx, .mp4, xvid
Audio .mp3
Picture MSJMSHJ
USB
Compatibility Hi-Speed USB (2.0)
Class support USB Mass Storage Class (UMS)
File system FAT16, FAT32
Support USB HDD (Hard Disc
Drive)
an external power source may be needed
24 EN
7 Troubleshooting
Warning
Risk of electric shock. Never remove the casing of the player.
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using the player, check the following points
before requesting service. If the problem remains unsolved, register your player
and get support at www.philips.com/support. When you contact Philips, ensure
that your apparatus is nearby and the model number and serial number are
available.
No power
Ensure that both plugs of the mains cord are properly connected.
Ensure that there is power at the AC outlet.
Check if the built-in battery is drained.
No sound
(QVXUHWKDWWKH$9FDEOHLVFRQQHFWHGFRUUHFWO\
Distorted picture
Clean the disc. With a clean, soft, lint-free cloth, wipe the disc outwards from
the center.
0DNHVXUHWKDWWKHYLGHRRXWSXWIRUPDWRIWKHGLVFLVFRPSDWLEOHZLWKWKH79
&KDQJHWKHYLGHRRXWSXWIRUPDWWRPDWFK\RXU79RUSURJUDP
The LCD is manufactured using high precision technology. You may, however,
see tiny black points and/or bright points(red, blue, green) that continuously
appear on the LCD. This is a normal result of the manufacturing process and
does not indicate a malfunction.
Cannot play disc
Ensure the disc label is upwards.
Clean the disc. With a clean, soft, lint-free cloth, wipe the disc outwards from
the center.
Check if the disc is defective by trying another disc.
No response to the remote control
25EN
Ensure that the path between the remote control and the player is clear
from obstacles.
From a close distance, point the remote control directly at the player.
Replace the remote control batteries.
The function does not work for this disc. Refer to the disc instructions.
1RWZRUNSURSHUO\RUIUHH]HXS
Press RESET with a ball-point pen or similar tool to switch off the player, and
press
to restart.
The player feels warm
When the player is in use for a long period of time, its surface will be heated.
This is normal.
Specifications are subject to change without notice
© 2013 Koninklijke Philips Electronics N.V.
All rights reserved. PD9010_05_UM_V2.0
