Accessories
4
Inserting the batteries
5
Operating range of the remote control unit
5
Part names and functions
6
Front panel
6
Display
9
Rear panel
10
Remote control unit
11
Connections

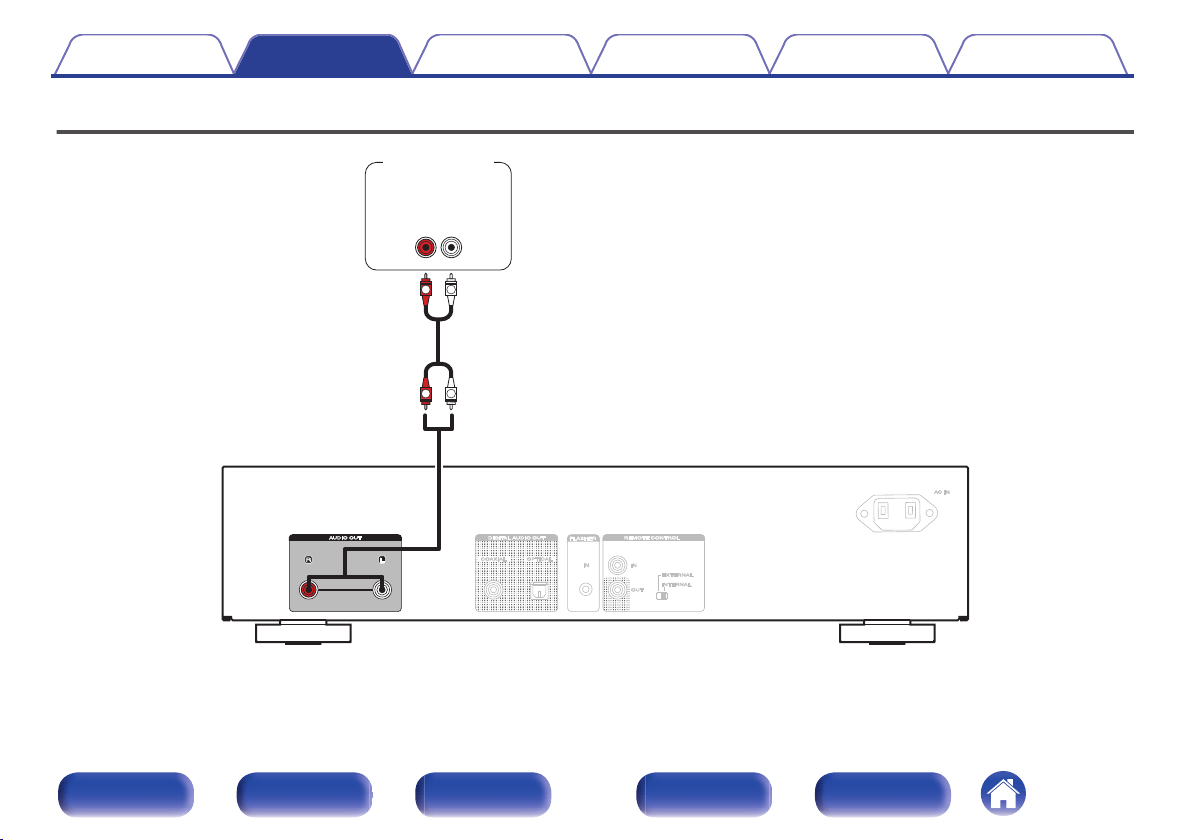

Connecting an amplifier
18
Connecting to a device with digital audio input connectors
19
Connecting a USB memory device to the USB port
20
Connecting devices with remote control connectors
21
Connection
21
Setting
21
Connecting the timer device
22
Connecting the power cord
23
Playback
Basic operation
25
Turning the power on
25
Switching the power to standby
25
Selecting the playback media mode
26
Switching the display’s brightness
26
Playing CDs
27
Playing CDs
27
Playing tracks in a specific order (Program playback)
29
Playing DATA CDs
30
Playing files
31
Playing a USB memory device
33
Playing files stored on USB memory devices
34
Contents Connections Playback Settings Tips Appendix
2
Front panel Display Rear panel Remote Index
Settings
Menu map
36

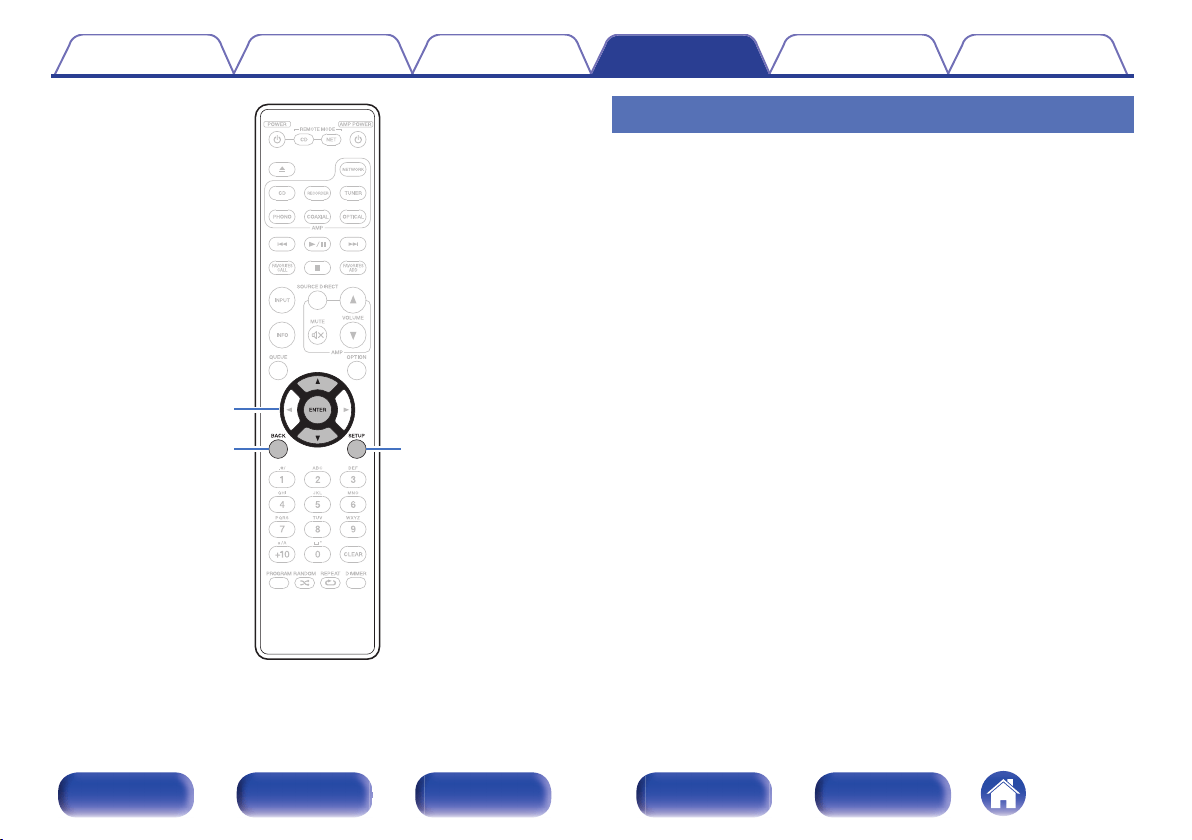

Menu operation
37
H/P AMP GAIN
38
Filter
38
Digital Out
39
Timer Play
39
Auto-Standby
40
Tips
Tips
42
Troubleshooting
43
Power does not turn on / Power is turned off
44
Operations cannot be performed through the remote control unit
45
Display on this unit shows nothing
45
No sound comes out
46
Sound is interrupted or noise occurs
46
Desired sound does not come out
46
USB memory devices cannot be played back
47
Cannot playback Discs
48
Appendix
Playing back Discs
49
Files
49
Playing back a USB memory devices
51

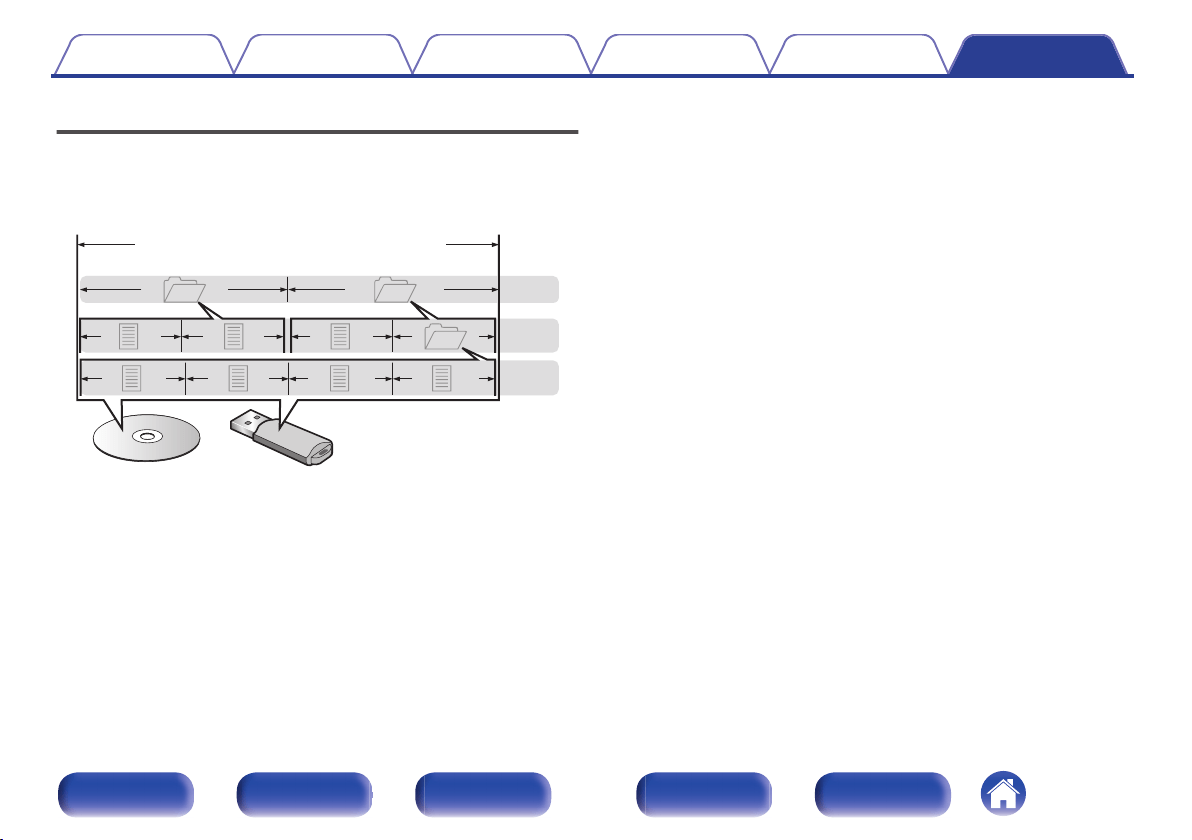

Playback order of music files
52
About discs and files
53
Cautions on using media
54
Loading discs
54
How to handle media
55
Cleaning discs
55
Explanation of terms
56
Trademark information
58
Specifications
59
Index
62
Contents Connections Playback Settings Tips Appendix
3
Front panel Display Rear panel Remote Index
Thank you for purchasing this Marantz product. To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
Quick Start Guide
CD-ROM
(Owner’s Manual)
Safety Instructions
Power cord
Remote control unit
(RC004PMCD)
R03/AAA batteries
Audio cable
Remote connector cable
Warranty
(for USA/for CANADA)
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index

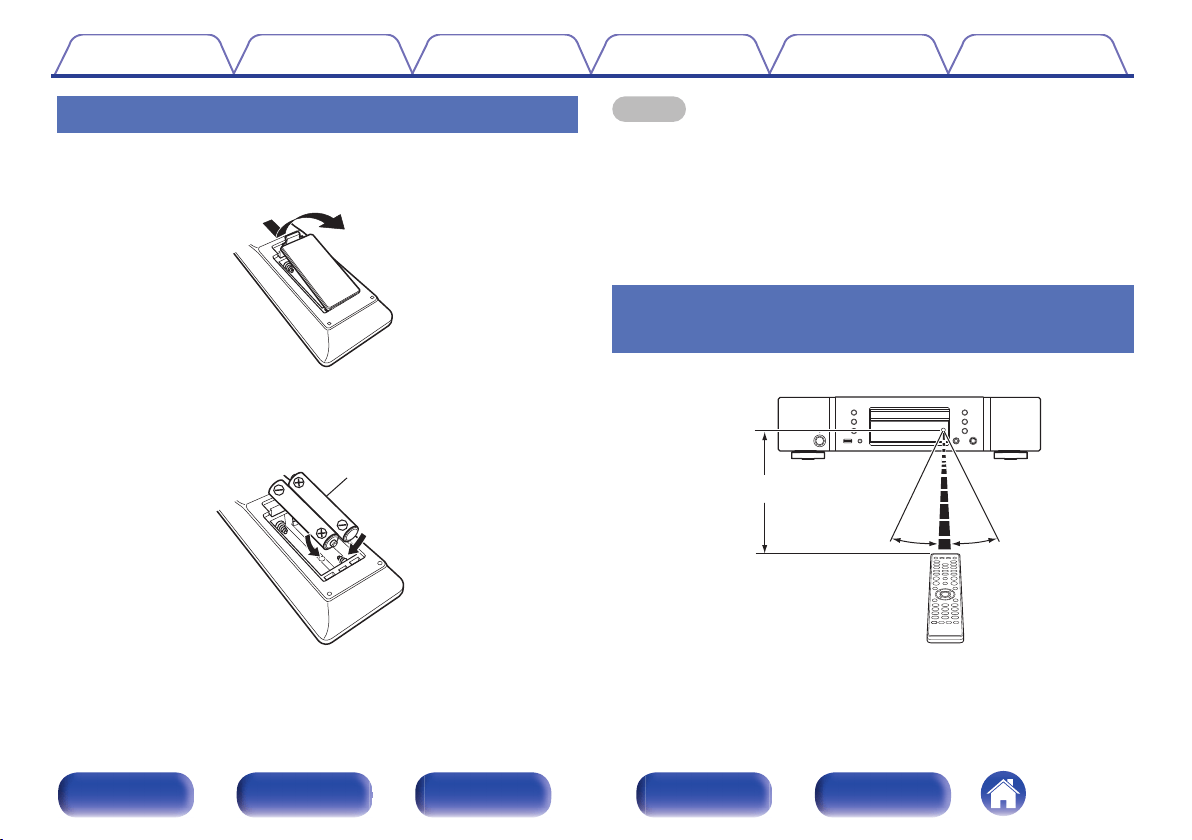

Inserting the batteries
1
Remove the rear lid in the direction of the arrow and
remove it.
.
2
Insert two batteries correctly into the battery
compartment as indicated.
.
Batteries
3
Put the rear lid back on.
NOTE
0
To prevent damage or leakage of battery fluid:
0
Do not use a new battery together with an old one.
0
Do not use two different types of batteries.
0
Remove the batteries from the remote control unit if it will not be in use for long
periods.
0
If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
Approx. 23 ft/7 m
30°
30°
Contents
Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index
.
or Q0ty uu iewq Q1 Q2
A
Power operation button (X)
This turns the power on/off (standby). (v p. 25)
B
Power indicator
This is lit as follows according to the power status:
0
Power on : Off
0
Standby : Red
C
Disc tray open/close button (5)
Opens and closes the disc tray. (v p. 27)
D
Forward-skip button (9)
Plays the next track. Press and hold to fast-forward the track.
E
Reverse-skip button (8)
Returns to the start of the currently playing track. Press and hold to fast-
reverse the track.
F
DISPLAY OFF indicator
Lights when the display is off. (v p. 26)
G
Display
Various information is displayed here. (v p. 9)
H
Disc tray
Used to insert a disc.
I
Remote control sensor
This receives signals from the remote control unit. (v p. 5)
J
Play button (1)
Playback starts.
K
Stop button (2)
Stops playback.
L
Pause button (3)
Pauses playback.
Contents
Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index
.
Q4 Q5
Q6
Q3
M
USB port
This is used to connect USB storages (such as USB memory devices).
(v p. 20)
N
DISC/INPUT button
Used to select the playback source. (v p. 26)
O
Headphones jack (PHONES)
Used to connect headphones.
P
Headphone volume control knob (LEVEL)
Adjusts the headphone volume.
NOTE
0
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index
Display
.
wq
ter
y
A
Information display
Displays various information or playback elapsed time and so on of the
disc.
B
Playback mode indicators
1 : Lights up during playback.
3 : Lights up during pause.
C
TOTAL indicator
Lights when the total number of tracks and total time of the CD are
displayed.
D
RANDOM indicator
Lights during random playback.
E
Repeat mode indicators
Lights to match the repeat mode settings.
F
Folder mode indicator
Lights up when the folder mode is set in the CD-R/CD-RW playback
range. (v p. 32)
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index
Rear panel
.
ywrt
q
e
A
AUDIO OUT connectors
Used to connect devices equipped with analog audio inputs connectors
or an external power amplifier. (v p. 18)
B
DIGITAL AUDIO OUT connectors (COAXIAL/OPTICAL)
Used to connect an Amplifier or D/A converter that has a digital input
connectors. (v p. 19)
C
FLASHER IN jack
Used when using a control BOX or other such control devices to control
this unit.
D
REMOTE CONTROL connectors
Used to connect to a Marantz amplifier that is compatible with the
remote control function. (v p. 21)
E
EXTERNAL/INTERNAL switch
Turn this switch to “EXTERNAL” to operate the unit by pointing the
remote control at the amplifier connected to this unit using the remote
control connection. (v p. 21)
F
AC inlet (AC IN)
Used to connect the power cord. (v p. 23)
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index
Remote control unit
e
q
w
r
t
The remote control provided with this unit can control a network audio
player in addition to a Marantz amplifier.
0
“Amplifier operations” (v p. 14)
0
“Network audio player operations” (v p. 15)
o
Operating this unit
To operate CD player, press REMOTE MODE CD button to switch the
remote control to the CD player operation mode.
A
Remote control signal transmitter
This transmits signals from the remote control unit. (v p. 5)
B
Power operation button (POWER X)
This turns the power on/off (standby). (v p. 25)
C
Remote mode select button
(REMOTE MODE CD)
This switches the remote control operating mode to CD player.
D
Disc tray open/close button (5)
Opens and closes the disc tray. (v p. 27)
E
System buttons
These perform playback related operations.
Contents Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index
Q0
o
i
u
y
Q3
Q1
Q2
F
Media mode select button (INPUT)
Used to select the playback source. (v p. 26)
G
Information button (INFO)
This switches the track information shown in the display during
playback.
H
ENTER button
This determines the selection.
I
Cursor buttons (uio p)
These select items.
J
BACK button
Returns to the previous item.
K
Number buttons (0 – 9)
These enter numbers into the unit.
L
PROGRAM button
This sets program playback. (v p. 29)
M
RANDOM button (P)
Switches the random playback.
Contents
Connections Playback Settings Tips Appendix
12

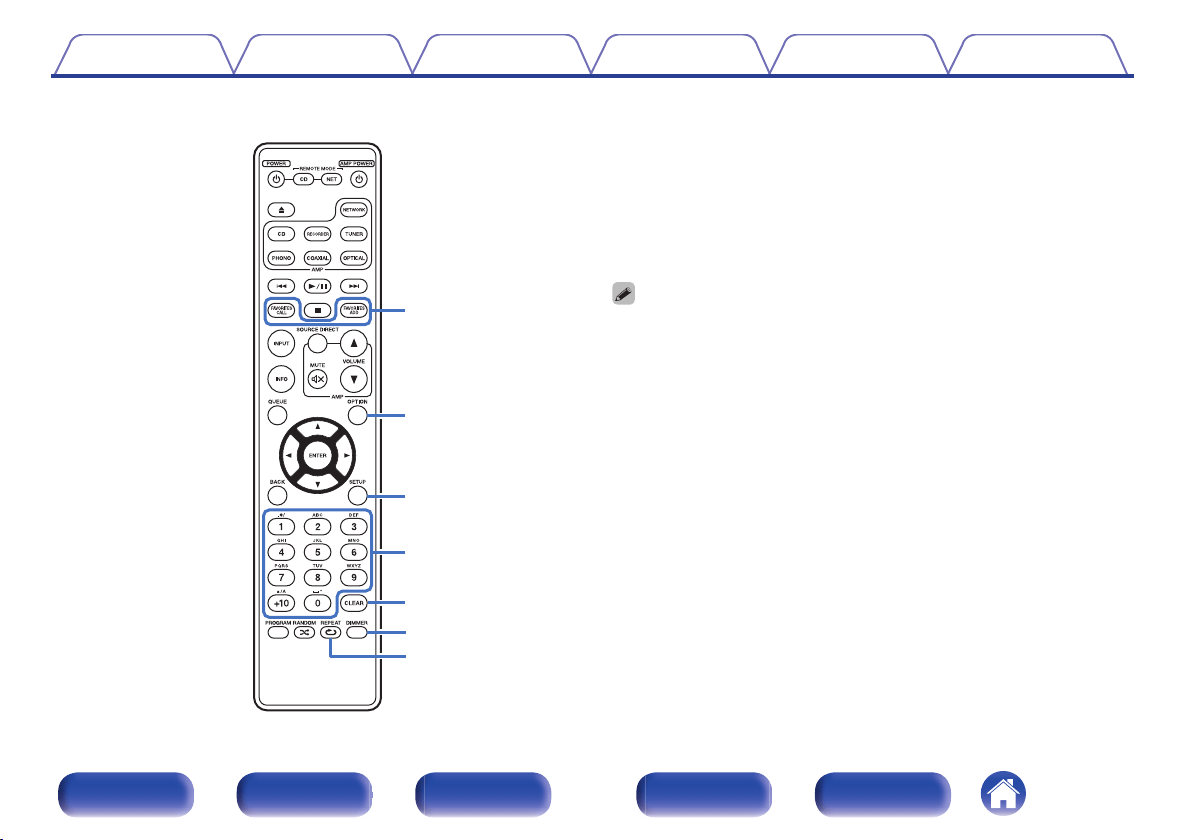

Front panel Display Rear panel Remote Index
Q6
Q7
Q8
Q4
Q5
N
OPTION button
Selects the playback range of the data CD. (v p. 32)
O
SETUP button
This displays the setting menu on the display. (v p. 37)
P
CLEAR button
This clears the program registration. (v p. 29)
Q
DIMMER button
This switches the brightness of the display. (v p. 26)
R
REPEAT button (L)
Switches to the repeat playback.
Contents Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index
r
t
e
w
q
o

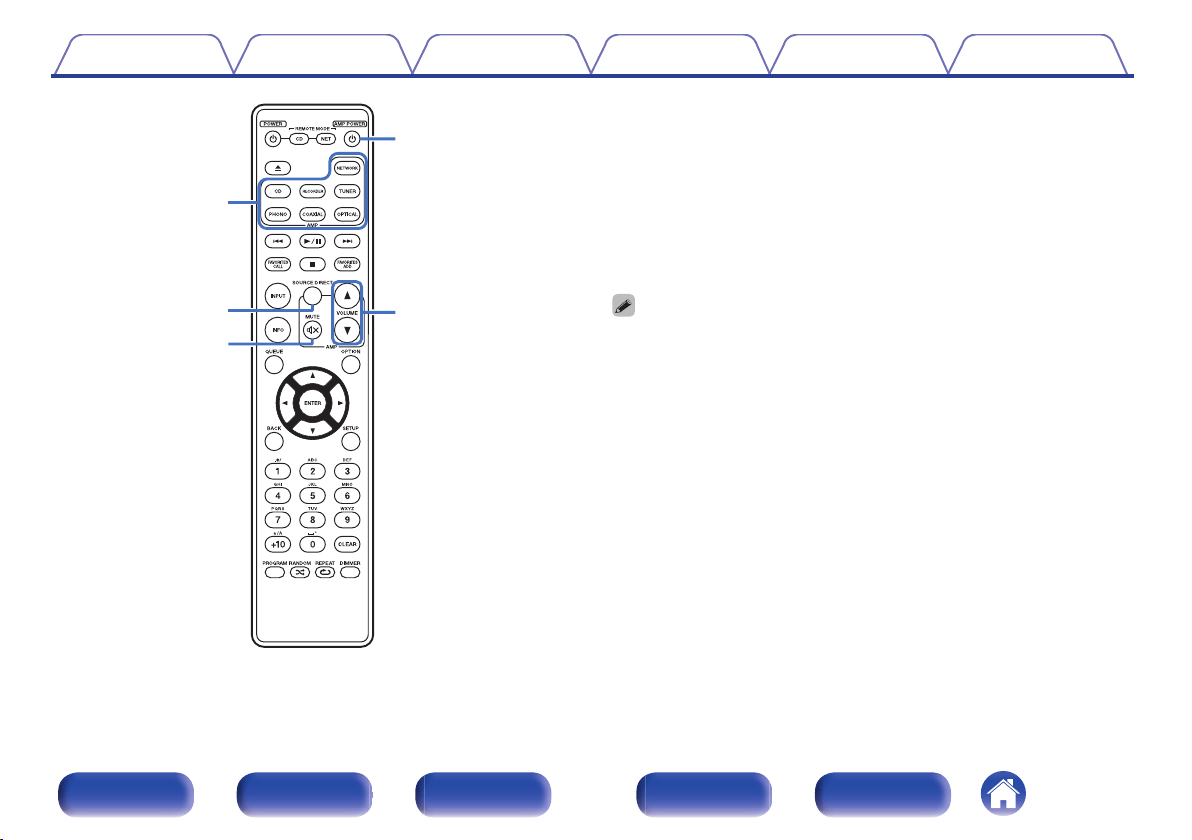

Amplifier operations
A Marantz amplifier can be operated.
A
Input source select buttons
B
SOURCE DIRECT button
C
MUTE button (:)
D
Power operation button (AMP POWER X)
E
VOLUME buttons (df)
0
The remote control may not operate some products.
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index
w
e
q
t
r
o
i
u
y
Q0
o
Network audio player operations
You can operate a Marantz network audio player.
To operate a Marantz network audio player, press the REMOTE
MODE NET button to switch the remote control to the network audio
player operation mode.
A
Power operation button (POWER X)
B
Remote mode select button
(REMOTE MODE NET)
C
System buttons
D
Media mode select button (INPUT)
E
Information button (INFO)
F
QUEUE button
G
ENTER button
H
Cursor buttons (uio p)
I
BACK button
J
RANDOM button (P)
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index
o
Contents
Connecting an amplifier
18
Connecting to a device with digital audio input connectors
19
Connecting a USB memory device to the USB port
20
Connecting devices with remote control connectors
21

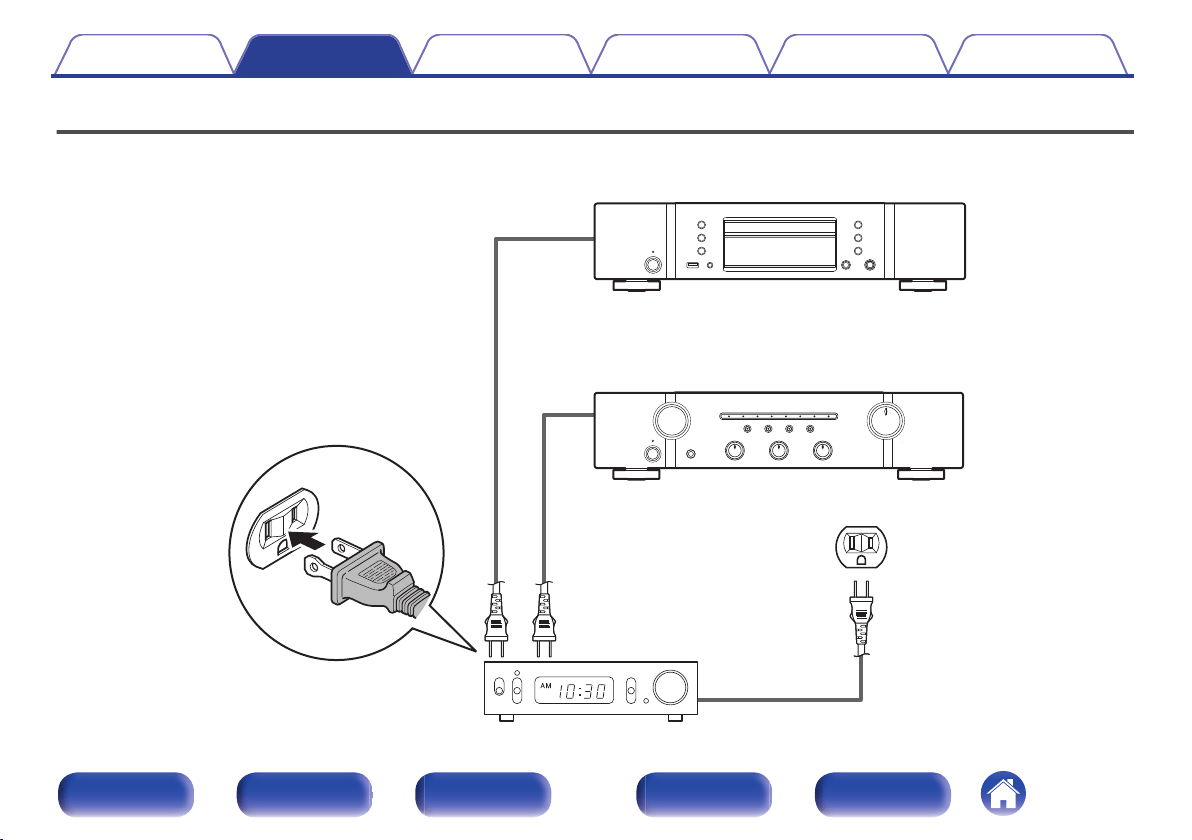

Connecting the timer device
22
Connecting the power cord
23
NOTE
0
Do not plug in the power cord until all connections have been completed.
0
Do not bundle power cords together with connection cables. Doing so can result in
humming or noise.
o
Cables used for connections
Provide necessary cables according to the devices you want to
connect.
Audio cable
(supplied)
.
R
L
R
L
Remote connector cable
(supplied)
.
Optical cable
.
Coaxial digital cable
.
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index

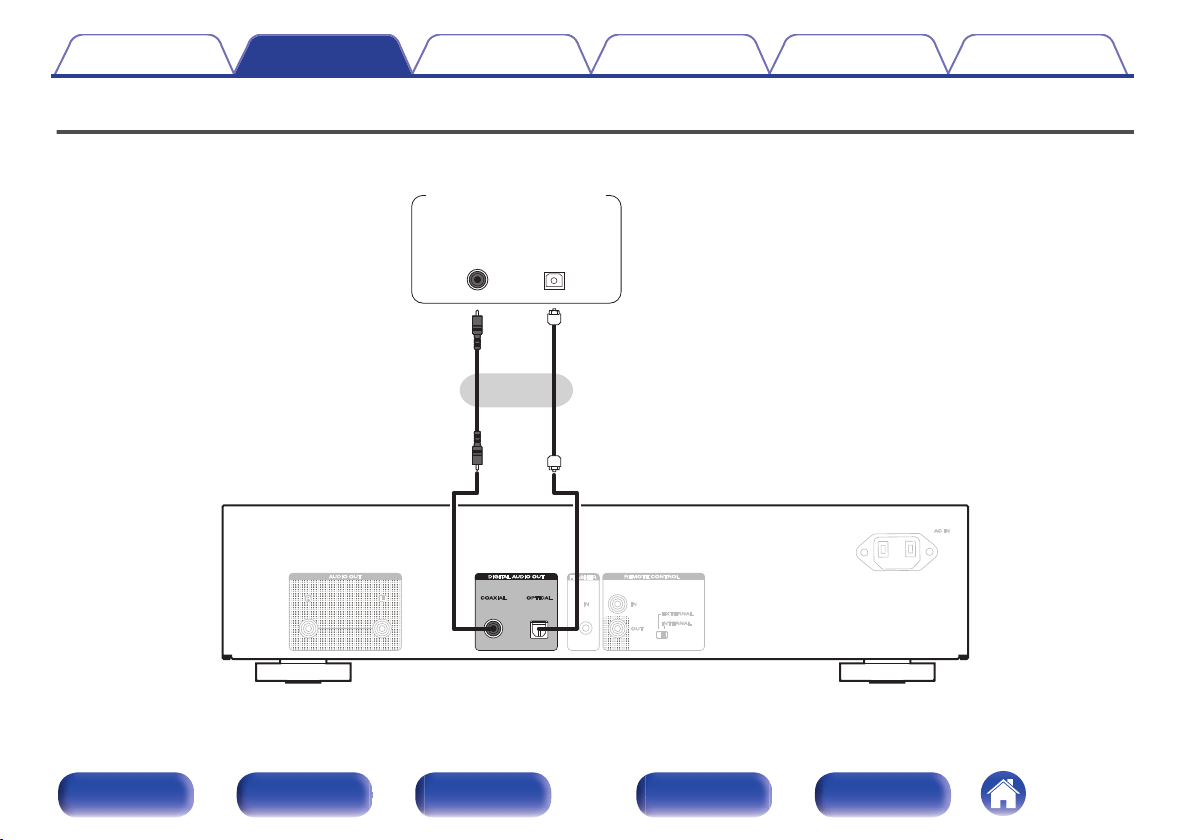

Connecting to a device with digital audio input connectors
You can enjoy digital audio playback by connecting an amplifier or D/A converter that has a digital audio connector to this unit.
.
or
OPTICAL
IN
COAXIAL
IN
Amplifier /
D/A converter
Contents
Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index

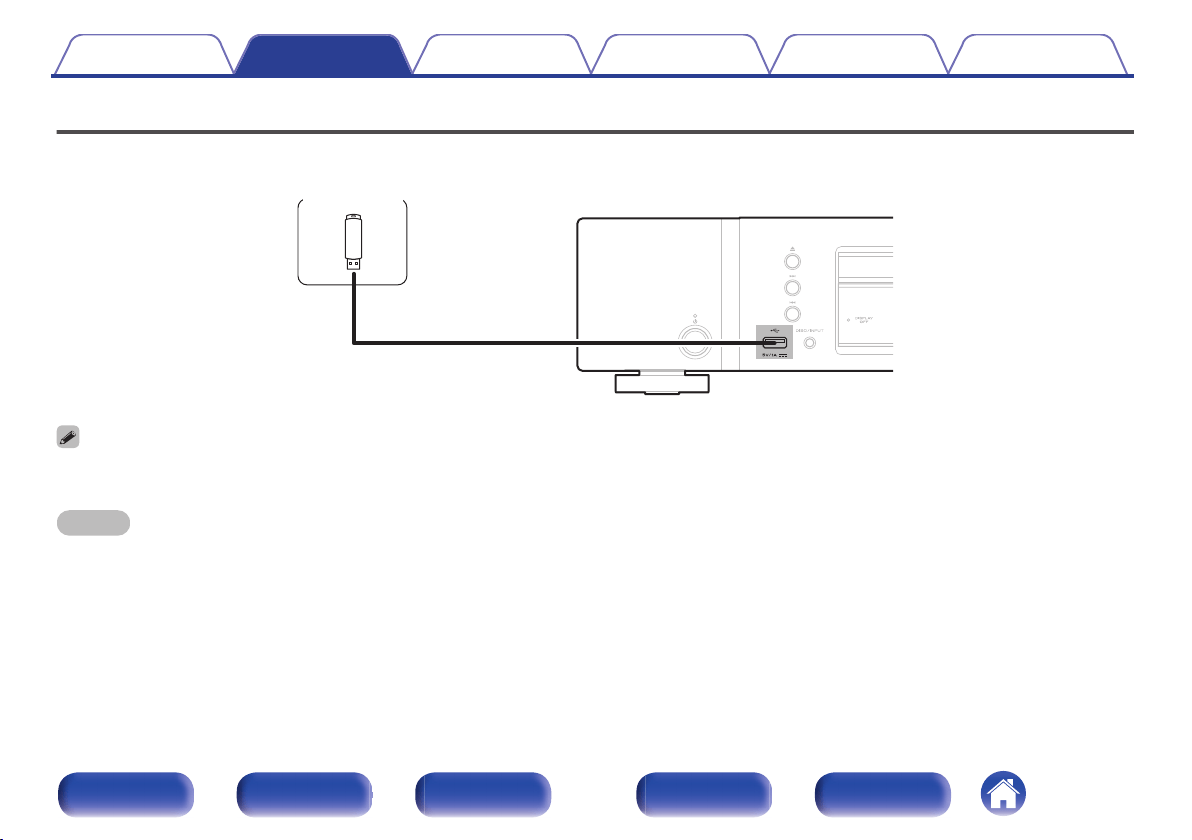

Connecting a USB memory device to the USB port
For operating instructions see “Playing a USB memory device”. (v p. 33)
.
USB memory
device
0
Marantz does not guarantee that all USB memory devices will operate or receive power. When using a portable USB hard disk drive (HDD) which came with an AC adapter,
use that device’s supplied AC adapter.
NOTE
0
USB memory devices will not work via a USB hub.
0
It is not possible to use this unit by connecting the unit’s USB port to a PC via a USB cable.
0
Do not use an extension cable when connecting a USB memory device. This may cause radio interference with other devices.
Contents Connections Playback Settings Tips Appendix
20
Front panel Display Rear panel Remote Index
Connecting devices with remote control connectors
When you use this unit connected to a Marantz amplifier, this unit receives operation signals sent from the amplifier and operates accordingly.
Next, configure the “Connection” and “Setting”.
Connection
Use the supplied remote connector cable to connect the REMOTE
CONTROL IN connector of this unit to REMOTE CONTROL OUT
connector of the amplifier.
Setting
Turn the EXTERNAL/INTERNAL switch on the unit to “EXTERNAL”.
0
This setting will disable remote sensor reception of this unit.
0
To operate the unit, point the remote control at the remote sensor of the
amplifier.
0
To use this unit by itself without connecting an amplifier, turn the switch to
“INTERNAL”.
.
This unit
Remote
connector
cable
(supplied)
Signal flow
Set to
“EXTERNAL”.
Amplifier
Contents
Connections Playback Settings Tips Appendix
21
Front panel Display Rear panel Remote Index
Connecting the timer device
This unit can perform timer play when an amplifier and timer device are connected to this unit. (“Timer Play” (v p. 39))
.
This unit
Amplifier
To household power outlet
(AC 120 V, 60 Hz)
Timer device
Contents
Connections Playback Settings Tips Appendix
22
Front panel Display Rear panel Remote Index
Basic operation
.
INPUT
POWER
X
DIMMER
Turning the power on
1
Press POWER X to turn on power to the unit.
0
You can also press X on the main unit to turn on power from standby mode.
0
You can also press 1/3 to turn on power from standby mode.
Switching the power to standby
1
Press POWER X.
The unit switches to standby mode, and the Power indicator lights
red.
0
You can also switch the power to standby by pressing X on the main unit.
NOTE
0
Power continues to be supplied to some of the circuitry even when the power is in
the standby mode. When leaving home for long periods of time or when going on
vacation, unplug the power cord from the power outlet.
Contents Connections Playback Settings Tips Appendix
25
Front panel Display Rear panel Remote Index
Selecting the playback media mode
1
Press INPUT to select the playback media mode.
Disc
(Default):
Select to playback a disc.
USB: Select to playback a USB memory device.
0
You can also select the playback media mode by pressing DISC/INPUT on the
main unit.
Switching the display’s brightness
The display brightness can be adjusted between four levels. Switching the
display off reduces a source of noise that affects sound quality, enabling
higher sound quality playback.
1
Press DIMMER.
0
The brightness of the display switches each time the button is
pressed.
0
The display brightness is set to most brightly by default.
0
If buttons are operated when the display is off, information is temporarily displayed
at the brightest setting.
Contents Connections Playback Settings Tips Appendix
26
Front panel Display Rear panel Remote Index
Playing CDs
.
INFO
RANDOM
PROGRAM
CLEAR
REPEAT
0 – 9
8
9
5
2
Playing CDs
1
Insert a disc. (v p. 54)
0
Press 5 to open/close the disc tray.
2
Press 1/3.
The 1 indicator lights on the display. Playback starts.
NOTE
0
Do not place any foreign objects in the disc tray. Doing so could damage the unit.
0
Do not push the disc tray in by hand when the power is turned off. Doing so could
damage the unit.
Contents
Connections Playback Settings Tips Appendix
27
Front panel Display Rear panel Remote Index
Operation buttons
Function
1/3
Playback / Pause
2
Stop
8 9
Skip to previous track / Skip to next track
(Press and hold) Fast-reverse / Fast-
forward
0 - 9 Select the track
RANDOM P
Random playback
REPEAT L
Repeat playback
0
Switching between All-track repeat,
Single-track repeat and Repeat off.
INFO
Time display switching
0
Switching between elapsed time of the
current track, remaining time of the
current track and remaining time of all
tracks.
0
The time displayed on this unit may differ
from this actual time, as it is calculated
by truncating to the nearest 1 second.
o
Discs that can be played back
0
See “About Playing Back Discs”. (v p. 49)
o
Playing a specific track (Direct searching)
1
Use 0 – 9 to select the tracks.
GExampleH
Track 4 :
Press number 4 to select track 4.
Track 12 :
Press numbers 1 and 2 consecutively to select track 12.
Contents Connections Playback Settings Tips Appendix
28
Front panel Display Rear panel Remote Index
Playing tracks in a specific order
(Program playback)
Up to 25 tracks can be programmed.
1
In the stop mode, press PROGRAM.
“Program” appears on the display.
2
Use 0 – 9 to select the tracks.
GExampleH
Track 4 :
Press number 4 to select track 4.
Track 12 :
Press numbers 1 and 2 consecutively to select track 12.
3
Press 1/3.
Playback starts in the programmed order.
0
The program is cleared when the disc tray is opened or the power is turned off.
0
When RANDOM P is pressed during program playback, the programmed tracks
are played in random order.
0
When REPEAT L is pressed during program playback, the tracks are played
repeatedly in the programmed order.
o
Checking the order of the programmed tracks
In the stop mode, press 9.
The tracks are shown in the programmed order in the display each
time 9 is pressed.
o
To clear the last track programmed
In the stop mode, press CLEAR.
The last track programmed is cleared each time the button is pressed.
0
You can also select a track to be cleared by pressing 9.
o
Clearing the all programmed track
In the stop mode, press PROGRAM.
Contents
Connections Playback Settings Tips Appendix
29
Front panel Display Rear panel Remote Index

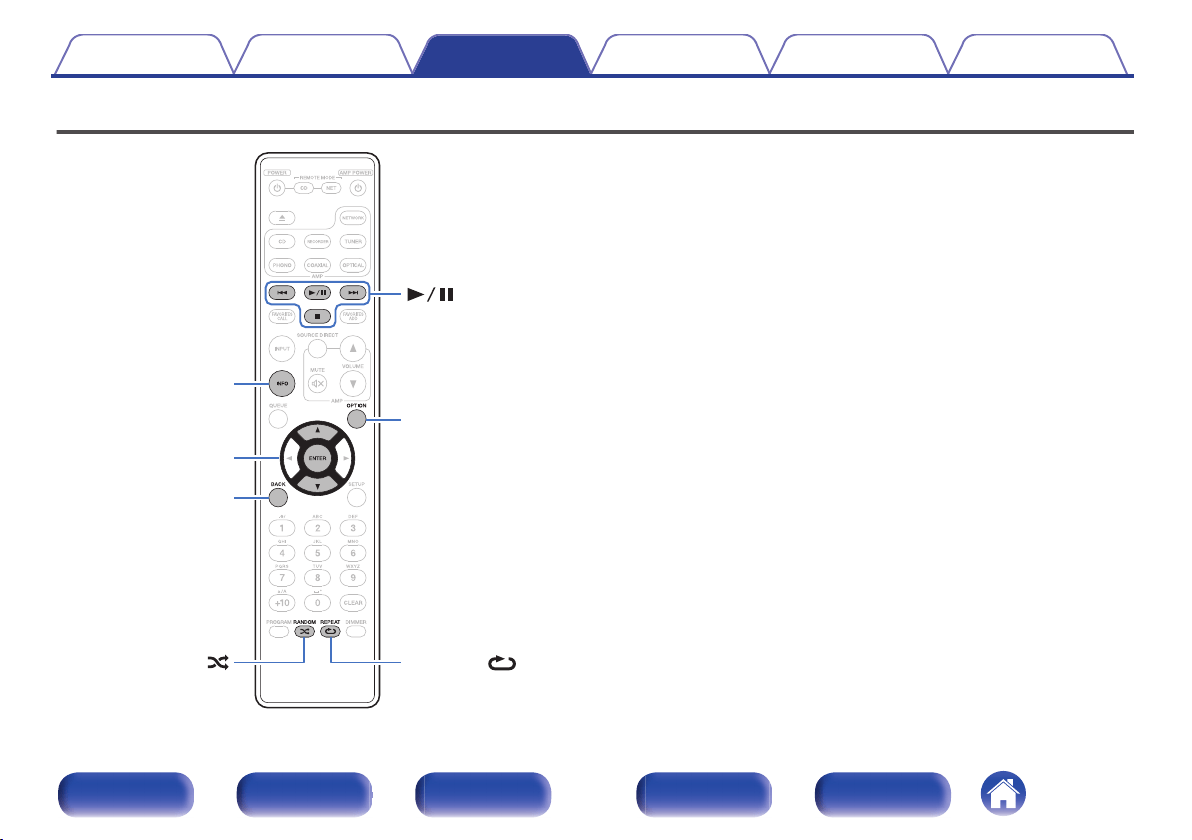

Playing DATA CDs
.
INFO
RANDOM
BACK
ui
ENTER
OPTION
5
8
9
2
REPEAT
0
This section explains how to playback music files that are recorded onto
a CD-R/CD-RW.
0
There are many music distribution sites on the Internet allowing you to
download music files in MP3 or WMA (Windows Media
®
Audio) format.
The music (files) downloaded from such sites can be stored on CD-
R/CD-RW discs and played on this unit.
0
The audio format types and specifications supported by this unit for
playback are as follows.
See “Playable files” for details. (v p. 49)
0
MP3
0
WMA
NOTE
0
Copyright-protected files cannot be played.
0
Note that depending on the software used for burning and other conditions, some
files may not play or display correctly.
“Windows Media” and “Windows” are the trademarks or registered
trademarks of Microsoft Corporation in the United States and other
countries.
Contents
Connections Playback Settings Tips Appendix
30
Front panel Display Rear panel Remote Index
Playing files
1
Load a CD-R/CD-RW disc containing music files into
the disc tray. (v p. 54)
0
Press 5 to open/close the disc tray.
2
Use ui to select the music file to be played from the
CD-R/CD-RW music data, then press ENTER.
Playback starts.
Operation buttons
Function
1/3
Playback / Pause
2
Stop
8 9
Skip to previous track / Skip to next track
(Press and hold) Fast-reverse / Fast-
forward
BACK Moving up a level in the folder tree
u i
Select the item
ENTER Enter the selected item / Playback
OPTION Select the playback range
RANDOM P
Random playback
REPEAT L
Repeat playback
0
Switching between All-track repeat,
Single-track repeat and Repeat off.
INFO
Switches the display between Title name /
Artist name, Title name / Album name and
File name.
0
To start playing another file during playback of a CD-R/CD-RW, first press BACK
to display the file tree. Next, use ui to select the file to be played and press
ENTER.
Contents Connections Playback Settings Tips Appendix
31
Front panel Display Rear panel Remote Index
o
Switching the display
During playback, press INFO.
0
Switches the display between Title name / Artist name, Title name /
Album name and File name.
0
If a file does not support text information or no track information is
recorded, the file name is displayed.
0
The player can display the following characters:
ABCDEFGHIJKLMNOPQRSTUVWXYZ
abcdefghijklmnopqrstuvwxyz
0123456789
! ” # $ % & : ; < > ? @ ＼ [ ] _ ` l { } ~ ^ ’( ) * + , - . / = space
0
Any characters that cannot be displayed are replaced with “.”
(period).
o
Switching the playback range
In the stop mode, press OPTION.
0
The playback range of a track can be set.
Folder mode:
All the files in the selected folder are
played. The “FLD” indicator on the
display lights at this time.
All mode: All the files in the disc are played.
Contents Connections Playback Settings Tips Appendix
32
Front panel Display Rear panel Remote Index
Playing a USB memory device
.
INFO
RANDOM
ui
ENTER
8
9
2
REPEAT
BACK
OPTION
0
Playing back music files stored on a USB memory device.
0
Only USB memory devices conforming to mass storage class standards
can be played on this unit.
0
The audio format types and specifications supported by this unit for
playback are as follows.
For details, see “Playing back a USB memory devices” (v p. 51).
0
WMA
0
MP3
0
WAV
0
MPEG-4 AAC
0
FLAC
0
Apple Lossless
0
AIFF
0
DSD
Contents
Connections Playback Settings Tips Appendix
33
Front panel Display Rear panel Remote Index
Playing files stored on USB memory
devices
1
Insert a USB memory device into the USB port.
When you insert a USB memory device into the USB port, the media
mode automatically switches to “USB”.
2
Use ui to select the folder to be played, then press
ENTER.
3
Use ui to select the file to be played, then press
ENTER.
Playback starts.
Operation buttons
Function
1/3
Playback / Pause
2
Stop
8 9
Skip to previous track / Skip to next track
(Press and hold) Fast-reverse / Fast-
forward
BACK Moving up a level in the folder tree
u i
Select the item
ENTER Enter the selected item / Playback
OPTION Select the playback range
RANDOM P
Random playback
REPEAT L
Repeat playback
0
Switching between All-track repeat,
Single-track repeat and Repeat off.
INFO
Switches the display between Title name /
Artist name, Title name / Album name and
File name.
0
To start playing another file during playback of a USB memory device, first press
BACK to display the file tree. Next, use ui to select the file to be played and
press ENTER.
Contents Connections Playback Settings Tips Appendix
34
Front panel Display Rear panel Remote Index
NOTE
0
Note that Marantz will accept no responsibility whatsoever for any problems
arising with the data on a USB memory device when using this unit in conjunction
with the USB memory device.
0
When a USB memory device is connected to this unit, the unit loads all of the files
on the USB memory device. Loading may take a while if the USB memory device
contains a large number of folders and/or files.
o
Switching the playback range
Press OPTION.
0
The playback range of a track can be set.
Folder mode:
All the files in the selected folder are
played. The “FLD” indicator on the
display lights at this time.
All mode:
All the files in the USB memory are
played.
Contents Connections Playback Settings Tips Appendix
35
Front panel Display Rear panel Remote Index
Menu map
For menu operations, see the following page.
By default, this unit has recommended settings defined. You can customize this unit based on your existing system and your preferences.
Setting items Description Page
H/P AMP Gain Set the gain of the headphone amplifier. 38
Filter This unit is equipped with a sound quality adjusting function which allows users to enjoy the desired
playback sound quality.
38
Digital Out Switched the digital audio output on/off. 39
Timer Play This unit can perform timer play by cooperating with your timer device. 39
Auto-Standby Sets whether to automatically switch the unit to the standby mode when the unit remains in the stop
mode for more than 30 minutes.
40
Contents Connections Playback Settings Tips Appendix
36
Front panel Display Rear panel Remote Index
.
ui
ENTER
SETUP
BACK
Menu operation
1
Press SETUP while playback is stopped.
The menu is displayed on the display.
2
Use ui to select the menu to be set or operated, then
press ENTER.
3
Use ui to change to desired setting.
4
Press ENTER to enter the setting.
0
To return to the previous item, press BACK.
0
Exiting the Menu, press SETUP while the menu is displayed. The
display returns to the normal display.
Contents Connections Playback Settings Tips Appendix
37
Front panel Display Rear panel Remote Index
H/P AMP GAIN
Set the gain of the headphone amplifier. Set this according to the
impedance of the connected headphones. It is recommended that this is
set on the “Low” side if the headphones have low impedance and on the
“High” side if they have high impedance.
High:
Set the gain of the headphone amplifier to
“High”. Set when there is insufficient volume,
even when the gain setting is “Mid”.
Mid:
Set the gain of the headphone amplifier to
“Mid”. Set when there is insufficient volume,
even when the gain setting is “Low”.
Low
(Default):
Set the gain of the headphone amplifier to
“Low”.
NOTE
0
The headphone volume varies depending on the “H/P AMP GAIN” setting.
Decrease the volume or mute the audio first if changing this setting while listening
to audio.
Filter
This unit is equipped with a sound quality adjusting function which allows
users to enjoy the desired playback sound quality. The unit supports PCM
signal.
Filter 1
(Default):
Offers a short impulse response for both
pre-echo and post-echo. Large amount of
audio information clearly reproduces deep
stereo imaging and the relative position of
the sound source.
Filter 2:
Both pre-echo and post-echo are slightly
longer. The sound characteristics is edge
and powerful.
Contents Connections Playback Settings Tips Appendix
38
Front panel Display Rear panel Remote Index
Digital Out
Switched the digital audio output on/off.
On
(Default):
Use the digital audio output connector.
Off: Do not use the digital audio output connector.
Timer Play
This unit can perform timer play by cooperating with your timer device.
(“Connecting the timer device” (v p. 22))
Disc: Set the media mode for timer play to “Disc”.
USB: Set the media mode for timer play to “USB”.
Off
(Default):
Timer play is not set.
o
Using the timer play function
1.
Turn on the power of the connected components. (v p. 22)
2. Load a disc or connect a USB memory device.
3. Switch the amplifier’s function to input from the connected unit.
4. Set the audio timer for the desired times.
5. Turn the timer on.
0
The power of the components connected to the timer turns off.
0
When the set time is reached, the power of the different components
automatically turns on and playback starts from the first track.
0
The timer play does not support the random play or program play.
Contents Connections Playback Settings Tips Appendix
39
Front panel Display Rear panel Remote Index
Auto-Standby
Sets whether to automatically switch the unit to the standby mode when
the unit remains in the stop mode for more than 30 minutes.
On: Enable Auto Standby mode.
Off
(Default):
Disable Auto Standby mode.
Contents Connections Playback Settings Tips Appendix
40
Front panel Display Rear panel Remote Index
o
Contents
Tips
I want to switch the filter to change the desired sound quality 42
I want to playback just the specified folder 42
I want to randomly play back all tracks on a CD-R/CD-RW 42
I want to playback WAV files 42
I want to use this unit’s remote control to operate a Marantz
network audio player 42
Troubleshooting
Power does not turn on / Power is turned off 44
Operations cannot be performed through the remote control unit 45
Display on this unit shows nothing 45
No sound comes out 46
Sound is interrupted or noise occurs 46
Desired sound does not come out 46
USB memory devices cannot be played back 47
Cannot playback Discs 48
Contents Connections Playback Settings Tips Appendix
41
Front panel Display Rear panel Remote Index
Tips
I want to switch the filter to change the desired sound quality
0
Switch the filter characteristics. (v p. 38)
I want to playback just the specified folder
0
Press the OPTION button to set the playback mode to folder playback mode. (v p. 32)
I want to randomly play back all tracks on a CD-R/CD-RW
0
Before playback, press the OPTION button to set the playback mode to “All Mode”, then press the RANDOMP for random playback. (v p. 32)
I want to playback WAV files
0
This unit can playback WAV files that are stored on a USB memory device. (v p. 51)
I want to use this unit’s remote control to operate a Marantz network audio player
0
Press the REMOTE MODE NET button on the remote control unit to switch the remote control unit to the network audio player operation mode.
(v p. 15)
0
Also, refer to the instruction manual of the network audio player.
Contents
Connections Playback Settings Tips Appendix
42
Front panel Display Rear panel Remote Index
Troubleshooting
If a problem should arise, first check the following:
1. Are the connections correct?
2. Is the set being operated as described in the owner’s manual?
3. Are the other devices operating properly?
If this unit does not operate properly, check the corresponding symptoms in this section.
If the symptoms do not match any of those described here, consult your dealer as it could be due to a fault in this unit. In this case, disconnect the power
immediately and contact the store where you purchased this unit.
Contents Connections Playback Settings Tips Appendix
43
Front panel Display Rear panel Remote Index
Power does not turn on / Power is turned off
Power is not turned on.
0
Check whether the power plug is correctly inserted into the power outlet. (v p. 23)
0
This unit is in standby mode. Press the POWER X button on the remote control. (v p. 25)
Power automatically turns off.
0
The auto standby mode setting is on. The auto standby mode automatically switches the unit to standby if there are no operations for more than 30
minutes. To disable the Auto Standby mode, set “Auto-Standby” on the menu to “Off”. (v p. 40)
The power turns off and the power indicator shows one long blink and three short blinks in red.
0
The protection circuit has been activated due to an error in the internal power supply. Unplug and reinsert the power cord, then press the X button to
turn on the power again. If the problem is not solved by turning the power off and on again, unplug the power cord and contact our customer service
center.
Contents
Connections Playback Settings Tips Appendix
44
Front panel Display Rear panel Remote Index
Operations cannot be performed through the remote control unit
Operations cannot be performed through the remote control unit.
0
Batteries are worn out. Replace with new batteries. (v p. 5)
0
Operate the remote control unit within a distance of about 23 ft/7 m from this unit and at an angle of within 30°. (v p. 5)
0
Remove any obstacle between this unit and the remote control unit.
0
Insert the batteries in the proper direction, checking the q and w marks. (v p. 5)
0
The unit’s remote control sensor is exposed to strong light (direct sunlight, inverter type fluorescent bulb light, etc.). Move the set to a place in which the
remote control sensor will not be exposed to strong light.
0
When using a 3D video device, the remote control unit of this unit may not function due to effects of infrared communications between units (such as TV
and glasses for 3D viewing). In this case, adjust the direction of units with the 3D communications function and their distance to ensure they do not
affect operations from the remote control unit of this unit.
0
Press the REMOTE MODE CD button to switch the remote control operating mode to “CD”. (v p. 11)
0
When using this unit independently, set the switch to “INTERNAL”. (v p. 21)
Display on this unit shows nothing
Display is off.
0
Press the DIMMER button, and change the setting to anything other than off. (v p. 26)
Contents
Connections Playback Settings Tips Appendix
45
Front panel Display Rear panel Remote Index
No sound comes out
No sound is produced. Or sound is distorted.
0
Check the connections for all devices. (v p. 17)
0
Insert connection cables all the way in.
0
Check that input connectors and output connectors are not reversely connected.
0
Check cables for damage.
0
Check the amplifier’s functions and controls and adjust as necessary.
Sound is interrupted or noise occurs
During playback from the CD-R/CD-RW, sound is occasionally interrupted.
0
This may be caused by poor recording conditions, or the disc itself may be of poor quality. Use a correctly recorded disc.
During playback from the USB memory device, sound is occasionally interrupted.
0
When the transfer speed of the USB memory device is slow, sound may occasionally be interrupted.
Desired sound does not come out
Headphone volume is low.
0
Switch “H/P AMP GAIN” to “Mid” or “High” if using headphones with high impedance or low sensitivity. (v p. 38)
Contents
Connections Playback Settings Tips Appendix
46
Front panel Display Rear panel Remote Index
USB memory devices cannot be played back
USB memory device is not recognized.
0
Disconnect and reconnect the USB memory device. (v p. 20)
0
Mass storage class compatible USB memory devices are supported.
0
This unit does not support a connection through a USB hub. Connect the USB memory device directly to the USB port.
0
The USB memory device must be formatted to FAT16 or FAT32.
0
Not all USB memory devices are guaranteed to work. Some USB memory devices are not recognized. When using a type of portable hard disc drive
compatible with the USB connection that requires power from an AC adapter, use the AC adapter that came with the drive.
Files on the USB memory device are not displayed.
0
Files of a type not supported by this unit are not displayed. (v p. 51)
0
This unit is able to display files in a maximum of eight folder layers. A maximum of 255 folders and 65025 files can be stored. Modify the folder structure
of the USB memory device.
0
When multiple partitions exist on the USB memory device, only files on the first partition are displayed.
iOS and Android devices are not recognized.
0
The USB port of this unit does not support playback from iOS and Android devices.
Files on a USB memory device cannot be played.
0
Files are created in a format that is not supported by this unit. Check the formats supported by this unit. (v p. 51)
0
You are attempting to play a file that is copyright protected. Files that are copyright protected cannot be played on this unit.
0
Playback may not be possible if the album art file size exceeds 2 MB.
Contents
Connections Playback Settings Tips Appendix
47
Front panel Display Rear panel Remote Index
Cannot playback Discs
Cannot playback when the play button is pressed, or cannot correctly play back a specific part of the disc.
0
The disc is dirty or scratched. Either clean the disc, or insert a different disc. (v p. 55)
Cannot playback CD-R/CD-RW.
0
Discs cannot be played back unless they have been finalized. Use a finalized disc. (v p. 49)
0
This may be caused by poor recording conditions, or the disc itself may be of poor quality. Use a correctly recorded disc.
0
Files are created in a format that is not supported by this unit. Check the formats supported by this unit. (v p. 49)
“No Disc” is displayed.
0
“No Disc” is displayed if the disc is loaded upside-down or if no disc is loaded. Check that the disc is loaded label side up.
“System Error” is displayed.
0
“System Error” is displayed when an error not caused by disc, format, etc., occurs. Contact our customer service center.
“Can't Read Disc” is displayed.
0
“Can't Read Disc” is displayed when the inserted disc cannot be read because it is not compatible with this unit or is dirty or scratched. Check the disc.
“Wrong Format” is displayed.
0
“Wrong Format” is displayed for files created in a format that is not supported by this unit. Check the formats supported by this unit. (v p. 49)
Contents
Connections Playback Settings Tips Appendix
48
Front panel Display Rear panel Remote Index
Playing back Discs
Playable media
CD
.
CD-R
.
CD-RW
.
NOTE
0
Some discs and some recording formats cannot be played.
0
Non-finalized discs cannot be played.
Files
o
Specifications of supported files
Sampling
frequency
Bit rate Extension
MP3 32/44.1/48 kHz 48 – 320 kbps .mp3
WMA 32/44.1/48 kHz 48 – 320 kbps .wma
o
Maximum number of playable files and folders
Maximum number of folders : 256
Total number of folders and files : 512
Contents
Connections Playback Settings Tips Appendix
49
Front panel Display Rear panel Remote Index
NOTE
0
Be sure to give files the extension. Files with any other extensions or files with no
extensions cannot be played.
0
Recordings you have made should only be used for your personal enjoyment, and
as per copyright laws may not be used in other ways without permission of the
copyright holder.
0
Only music files that are not copyright-protected can be played on this unit.
0
Content downloaded from pay sites on the Internet are copyright protected.
Also, files encoded in WMA format when ripped from a CD, etc. on a computer
may be copyright protected, depending on the computer’s settings.
0
The maximum number of files and folders that can be played differs depending on
conditions such as the length of the file name or folder name or the number of
levels in the folder hierarchy.
Contents Connections Playback Settings Tips Appendix
50
Front panel Display Rear panel Remote Index
Playing back a USB memory devices
0
This unit is compatible with MP3 ID3-Tag (Ver. 2) standard.
0
This unit is compatible with WMA META tags.
0
If the image size (pixels) of an album artwork exceeds 500 × 500 (WMA/MP3/Apple Lossless/DSD) or 349 × 349 (MPEG-4 AAC), then music may not
be played back properly.
o
Specifications of supported files
Sampling frequency Bit rate Extension
WMA
z
1
32/44.1/48 kHz 48 – 320 kbps .wma
MP3 32/44.1/48 kHz 48 – 320 kbps .mp3
WAV
32/44.1/48/88.2/
96/176.4/192 kHz
– .wav
MPEG-4 AAC
z
1
32/44.1/48 kHz 48 – 320 kbps .aac/.m4a/.mp4
FLAC
32/44.1/48/88.2/
96/176.4/192 kHz
– .flac
Apple Lossless
z
2
32/44.1/48/88.2/96 kHz – .m4a
AIFF
32/44.1/48/88.2/
96/176.4/192 kHz
– .aif/.aiff
DSD 2.8/5.6 MHz – .dsf/.dff
z1
Only files that are not protected by copyright can be played on this unit.
Content downloaded from pay sites on the Internet are copyright protected. Also, files encoded in WMA format when ripped from a CD, etc. on a computer may be
copyright protected, depending on the computer’s settings.
z2
The Apple Lossless Audio Codec (ALAC) decoder is distributed under the Apache License, Version 2.0 (http://www.apache.org/licenses/LICENSE-2.0).
Contents
Connections Playback Settings Tips Appendix
51
Front panel Display Rear panel Remote Index
o
Maximum number of playable files and folder
The limits on the number of folders and files that can be displayed by
this unit are as follows.
Media
Item
USB memory device
Number of folder directory levels
z
1
8 levels
Number of folders 255
Number of files
z
2
65025
z1
The limited number includes the root folder.
z2
The allowable number of files may differ according to the USB memory device
capacity and the file size.
Playback order of music files
When there are multiple folders containing music files, the playback order
of folders is automatically set when this unit reads the media. Files in each
folder are played in alphabetical order of file name.
CD-R/CD-RW and USB memory device
For playback of files on CD-R, CD-RW or USB memory device, files in all
folders on the first layer are played first, next on the second layer, then
next on the third layer, and so on in this order.
0
The playback order displayed on a PC may differ from the actual playback order.
0
The playback order with a CD-R/CD-RW may differ, depending on the writing
software.
0
The playback order may differ from the order in which the folders or files were
recorded if you delete or add a folder or file on USB. This occurs because of data
recording specifications and is not a malfunction.
Contents Connections Playback Settings Tips Appendix
52
Front panel Display Rear panel Remote Index
About discs and files
Music files recorded on CD-R/-RW and USB memory device are divided
into large segments (folders) and small segments (files).
Files are stored in folders, and folders can be placed for storage in a
hierarchy. The unit can recognize up to 8 levels of folders.
.
Folder 1 Folder 2
1st level
2nd level
3rd level
File 1 File 2 File 3 Folder 3
File 4 File 5 File 6 File 7
CD-R/CD-RW or USB memory device
0
When writing music files on a CD-R/CD-RW disc, set the writing
software’s format to “ISO9660”. The files may not play properly if they
are recorded in other formats. For details, refer to the instructions of
your writing software.
Contents
Connections Playback Settings Tips Appendix
53
Front panel Display Rear panel Remote Index
Cautions on using media
Loading discs
0
Set the disc in the tray label side up.
0
Make sure the disc tray is fully open when inserting the disc.
0
Place the discs flatly, 5 inch/12 cm discs in the outer tray guide (Figure
1), 3 inch/8 cm discs in the inner tray guide (Figure 2).
.
Outer tray guide Inner tray guide
5 inch/12 cm disc
3 inch/8 cm disc
Figure 2Figure 1
0
Place 3 inch/8 cm discs in the inner tray guide without using an adapter.
NOTE
0
Only load one disc at a time. Loading two or more discs can damage the unit or
scratch the discs.
0
Do not use cracked or warped discs or discs that have been repaired with
adhesive, etc.
0
Do not use discs on which the sticky part of cellophane tape or labels is exposed
or on which there are traces of where labels have been removed. Such discs can
get caught inside the player and damage it.
0
Do not use discs in special shapes, as they may damage the unit.
.
0
Do not push the disc tray in by hand when the power is off. Doing so could
damage the unit.
0
If the unit is left in a room full of smoke from cigarettes, etc., for long periods of
time, the surface of the optical pickup may get dirty, preventing it from receiving
signals properly.
Contents
Connections Playback Settings Tips Appendix
54
Front panel Display Rear panel Remote Index
How to handle media
0
Do not get fingerprints, oil or dirt on discs.
0
Take special care not to scratch discs when removing them from their
cases.
0
Do not bend or heat discs.
0
Do not enlarge the hole in the center.
0
Do not write on the labeled (printed) surface with ball-point pens,
pencils, etc., or stick new labels on discs.
0
Condensation may form on discs if they are moved suddenly from a
cold place (outdoors for example) to a warm place, but do not try to dry
discs with a hairdryer, etc.
0
Do not eject a USB memory device or turn off the unit while a USB
memory device is being played. This may result in malfunction or loss of
the USB memory device’s data.
0
Do not attempt to open or modify a USB memory device.
0
USB memory device and files can be damaged by static electricity. Do
not touch the metal contacts of a USB memory device with your fingers.
0
Do not use warped USB memory device.
0
After use, be sure to remove any disc or USB memory device, and store
it in its proper case, to avoid dust, scratches and deformation.
0
Do not store discs in the following places:
1. Places exposed to direct sunlight for long periods of time
2. Dusty or humid places
3. Places exposed to heat from heaters, etc.
Cleaning discs
0
If there are fingerprints or dirt on a disc, wipe them off before using the
disc.
0
Use a commercially available disc cleaning set or a soft cloth to clean
discs.
.
Gently wipe the disc from the
inside towards the outside.
Do not wipe with a circular
motion.
NOTE
0
Do not use record spray, antistatic agents, benzene, thinner or other solvents.
Contents Connections Playback Settings Tips Appendix
55
Front panel Display Rear panel Remote Index
Explanation of terms
AIFF （Audio Interchange File Format）
This is an uncompressed and lossless format for digital audio. Use AIFF
files to burn high-quality audio CDs from imported songs. AIFF files use
approximately 10 MB of disk space per minute.
Apple Lossless Audio Codec
This is a codec for lossless audio compression method developed by
Apple Inc. This codec can be played back on iTunes, iPod or iPhone. Data
compressed to approximately 60 – 70 % can be decompressed to exactly
the same original data.
DSD （Direct-Stream Digital）
One of the audio data recording methods, it is the signal aspect used to
store audio signals on a super audio CD, and is Δ-Σ modulated digital
audio.
FLAC (Free Lossless Audio Codec)
FLAC stands for Free lossless Audio Codec, and is a lossless free audio
file format. Lossless means that the audio is compressed without any loss
in quality.
The FLAC license is as shown below.
Copyright （C） 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008,
2009 Josh Coalson
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
0
Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
0
Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
0
Neither the name of the Xiph.org Foundation nor the names of its
contributors may be used to endorse or promote products derived from
this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND
CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES （INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION） HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT （INCLUDING NEGLIGENCE
OR OTHERWISE） ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
Contents
Connections Playback Settings Tips Appendix
56
Front panel Display Rear panel Remote Index
MP3 （MPEG Audio Layer-3）
This is an internationally standardized audio data compression scheme,
using the “MPEG-1” video compression standard. It compresses the data
volume to about one eleventh its original size while maintaining sound
quality equivalent to a music CD.
MPEG (Moving Picture Experts Group), MPEG-2, MPEG-4
These are the names for digital compression format standards used for
the encoding of video and audio. Video standards include “MPEG-1
Video”, “MPEG-2 Video”, “MPEG-4 Visual”, “MPEG-4 AVC”. Audio
standards include “MPEG-1 Audio”, “MPEG-2 Audio”, “MPEG-4 AAC”.
WMA (Windows Media Audio)
This is audio compression technology developed by Microsoft
Corporation.
WMA data can be encoded using Windows Media
®
Player.
To encode WMA files, only use applications authorized by Microsoft
Corporation. If you use an unauthorized application, the file may not work
properly.
Sampling frequency
Sampling involves taking a reading of a sound wave (analog signal) at
regular intervals and expressing the height of the wave at each reading in
digitized format (producing a digital signal).
The number of readings taken in one second is called the “sampling
frequency”. The larger the value, the closer the reproduced sound is to the
original.
Dynamic range
The difference between the maximum undistorted sound level and the
minimum discernible level above the noise emitted by the device.
Bit rate
This is the amount of audio data recorded on a disc that is read in one
second.
Finalizing
This process enables DVD/CD recorded with a recorder to be played by
other players.
Linear PCM
This is an uncompressed PCM (Pulse Code Modulation) signal. Unlike
lossy compression audio sources such as MP3, no audio quality or
dynamic range deteriorates.
Contents
Connections Playback Settings Tips Appendix
57
Front panel Display Rear panel Remote Index
Specifications
o
Audio section
0
Analog output [PCM] [DSD]
Channels: 2-channel 2-channel
Playable frequency range: 2 Hz – 96 kHz
(sampling frequency: 192 kHz)
2 Hz – 20 kHz
(sampling frequency: 44.1 kHz)
2 Hz – 100 kHz
Playable frequency response: 2 Hz – 50 kHz (-3 dB)
(sampling frequency: 192 kHz)
2 Hz – 20 kHz
(sampling frequency: 44.1 kHz)
2 Hz – 50 kHz (-3 dB)
S/N: 110 dB 110 dB (Audible range)
Dynamic range: 110 dB (24 bits)
100 dB (16 bits)
110 dB (Audible range)
Harmonic distortion: 0.0010 % (24 bits)
0.0016 % (16 bits)
0.0010 %
0
Output level
Signal type: 2.4 V RMS stereo 1.64 V RMS stereo
Headphone output: 28 mW/32 Ω/ohms (variable maximum)
Contents Connections Playback Settings Tips Appendix
59
Front panel Display Rear panel Remote Index
0
Optical readout system
Laser: AlGaAs
Wave length: 780 nm
Signal type: 16-bit linear PCM
Sampling frequency: 44.1 kHz
0
Digital output
Coaxial: 0.5 Vp-p / 75 Ω/ohms
Optical : –19 dBm
0
Digital input
USB (Front): USB Type A (USB 2.0 High speed)
o
General
Power supply: AC 120 V, 60 Hz
Power consumption: 32 W
Power consumption in standby mode: 0.3 W
Operating temperature: +5 ℃ - +35 ℃
Operating humidity: 5 – 90 % (without dew)
For the purpose of improvement, the specifications and design are subject to change without notice.
Contents
Connections Playback Settings Tips Appendix
60
Front panel Display Rear panel Remote Index
o
Dimensions (Unit : in. (mm))
.
13 (328)
13 1/2 (341)
8 7/8 (224)
2 3/8
(59)
1 7/8
(45)
5/8
(14)
3 5/8 (91)
4 1/4 (105)
17 3/8 (440)
13 1/2 (340)
2 (50)
3/8
(7)
1/4
(6)
2 1/4
(56)
5 1/8 (129)
5 1/4 (133)
2 (50)
o
Weight : 14 lbs 5 oz (6.5 kg)
Contents Connections Playback Settings Tips Appendix
61
Front panel Display Rear panel Remote Index
Index
v A
Amplifier ................................................... 18, 19
Auto-Standby ................................................. 40
v C
CD .................................................................. 27
v D
D/A converter ................................................. 19
DATA CD ....................................................... 30
Display ............................................................. 9
Display’s brightness ....................................... 26
v F
Front panel ....................................................... 6
v P
Program playback .......................................... 29
v R
Rear panel ...................................................... 10
Remote control unit ........................................ 11
v T
Timer device .................................................. 22
Tips ................................................................ 42
Troubleshooting ............................................. 43
Contents
Connections Playback Settings Tips Appendix
62
Front panel Display Rear panel Remote Index
.
3520 10766 10AM
© 2020 Sound United. All Rights Reserved.
63
