User Guide
Rio Ceiling Fan
Model #50195, 50514
INDEX
Package Contents .............................................................................................................2
Hardware Contents ............................................................................................................2
Safety Information .............................................................................................................3
Care and Maintenance ........................................................................................................3
Preparation ....................................................................................................................4
Initial Installation ..............................................................................................................4
Standard or Angle Mount Instructions .........................................................................................5
Closemount Instructions ......................................................................................................6
Final Installation ..............................................................................................................6
Operating Instructions ........................................................................................................8
Troubleshooting ...............................................................................................................9
Warranty .................................................................................................................... 10

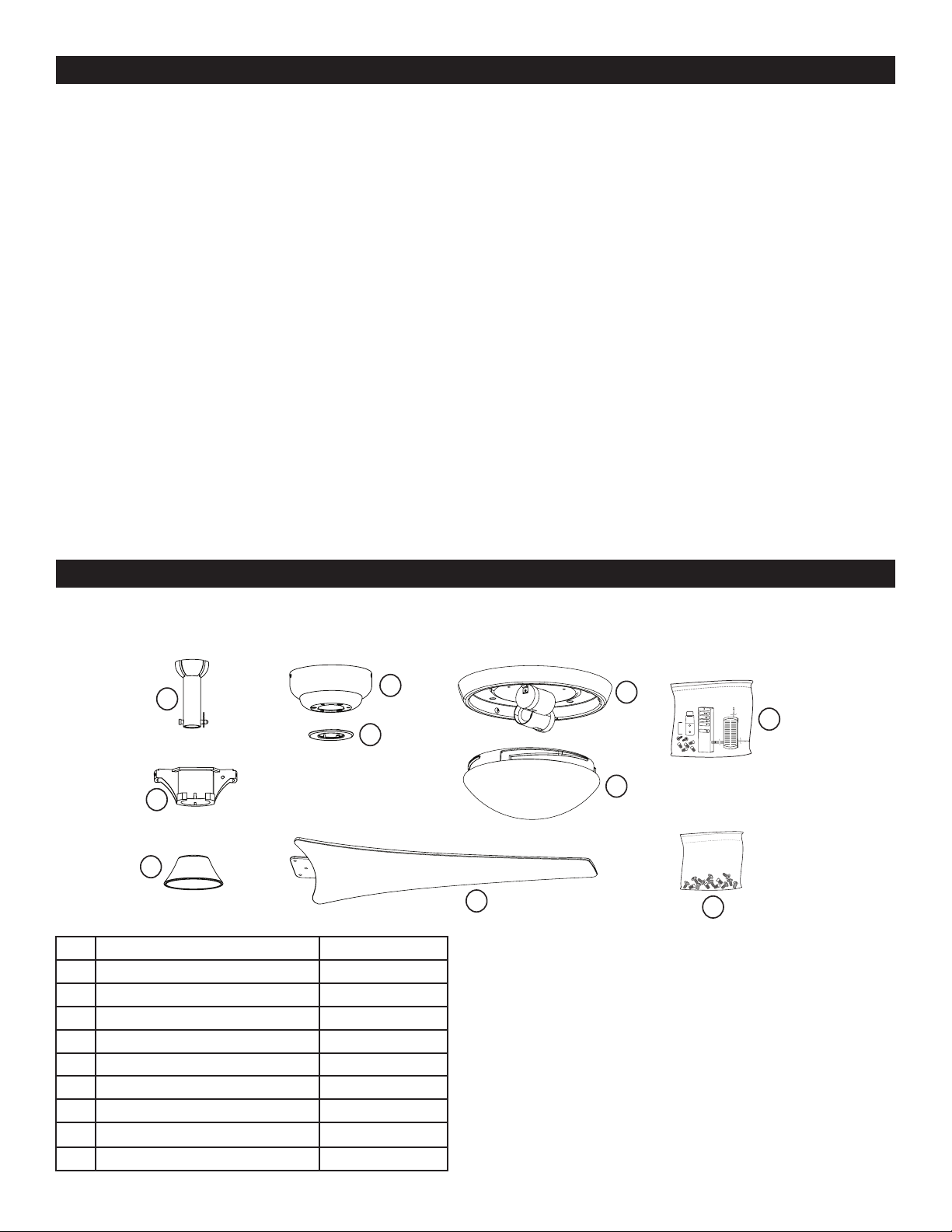

Replacement Parts List ...................................................................................................... 10
Home
2

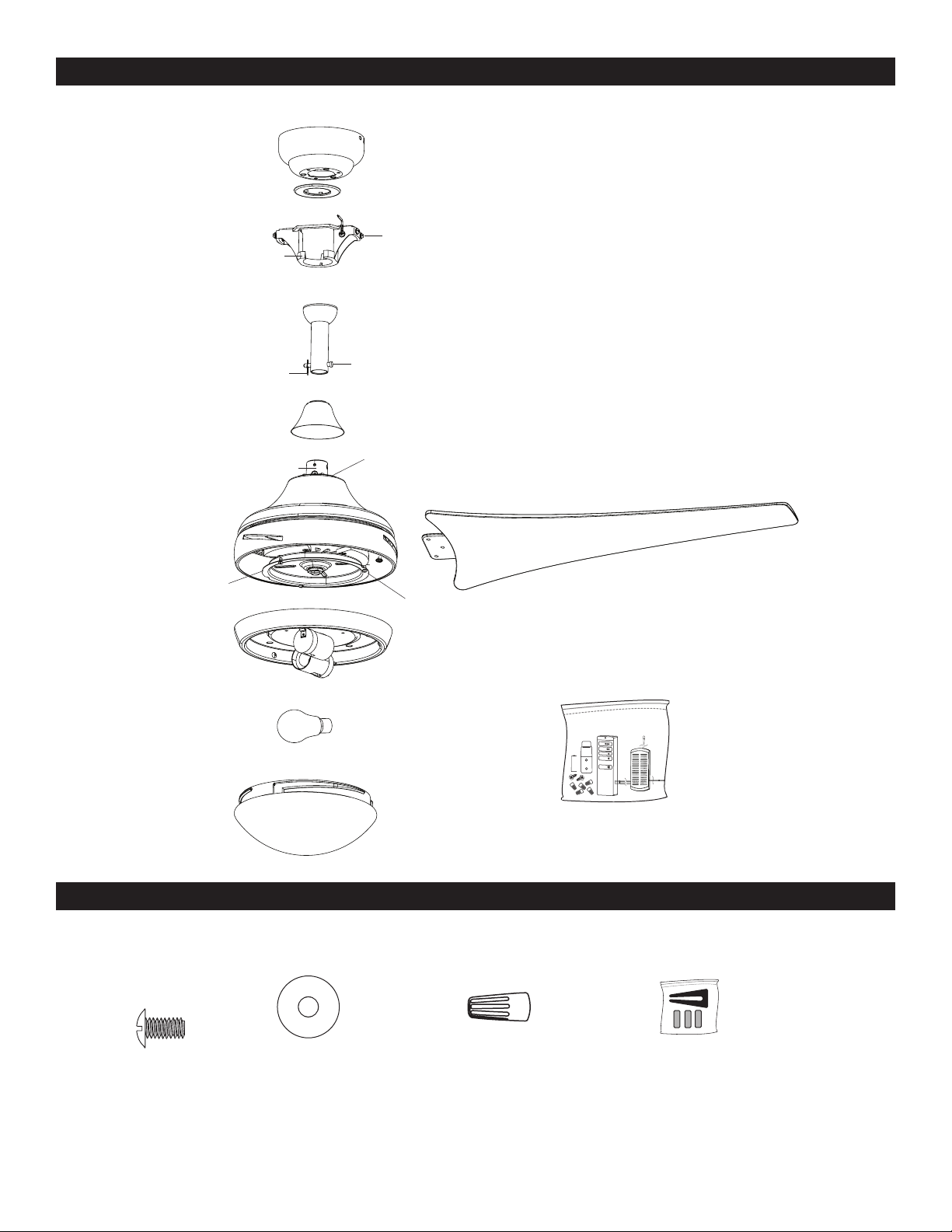

PACKAGE CONTENTS
HARDWARE CONTENTS
Mounting Bracket Screw (x 4)
Fitter Plate
Screw (x 3)
Fitter Plate
Bulb (x 2)
Mounting Bracket
Canopy
Canopy Cover
Downrod
Downrod Clip
Downrod Pin
Blade (x 3)
Yoke Cover
Yoke
Motor Assembly
Light Kit
Glass Bowl Remote Pack
Blade Balancing KitBlade Washer (x 9)
Blade Screw (x 9)
Wire Connector (x 6)
Closemount Screw (x 3)
3
SAFETY INFORMATION
CARE AND MAINTENANCE
Please read and understand this entire manual before attempting to assemble, operate or install the product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code and ANSI/NFPA 70-
199. Hire an electrician or consult a do-it-yourself handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum of 7 feet from the blades to the oor and at least 30 inches from
the tip of the blades to any obstruction.
• The weight of the fan is 15.76 pounds.
DANGER: When using an existing outlet box, make sure it is securely attached to the building structure and can support
the full weight of the fan. Failure to this can result in serious injury or death. The stability of the outlet box is essential in
minimizing wobble and noise in the fan after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a humming sound from the fan. To reduce the
risk of re or electric shock, do NOT use a full-range dimmer switch to control fan speed.
WARNING: To reduce the risk of fire, electric shock or personal injury, mount the fan to an outlet box marked
“ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with the outlet box. Most outlet boxes commonly
used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt. Secure the outlet box directly to the building structure. The outlet box and its support must be able to
support the moving weight of the fan (at least 35 lbs.).
WARNING: To reduce the risk of fire, electric shock or personal injury, wire connectors provided with this fan are designed to
accept only one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12-gauge and/or there is
more than one house wire to connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: To reduce the risk of fire, electric shock or personal injury, do not bend the blade arms when installing them,
balancing the blades or cleaning the fan. Do not insert objects between the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of parts other than those
provided with this fan will void the warranty.
CAUTION: Be sure the outlet box is properly grounded or a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts, and nuts on the fan assembly ensure they are secured.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into and outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
At least twice each year, lower the canopy to check the downrod assembly and tighten all screws on the fan. Clean the motor
housing and blades with a soft brush or lint-free cloth to avoid scratching the nish.
Important: Shut off the main power supply before you begin any maintenance task. Do NOT use water or a damp cloth to clean
the fan.
4
INITIAL INSTALLATION
PREPARATION
Before beginning the assembly of this product, ensure all parts are present. Compare all parts with the package contents list
and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated assembly time: 2 hours
Tools required (not included): Electrical tape, Phillips Screwdriver, Safety Glasses, Step Ladder, and Wire Strippers.

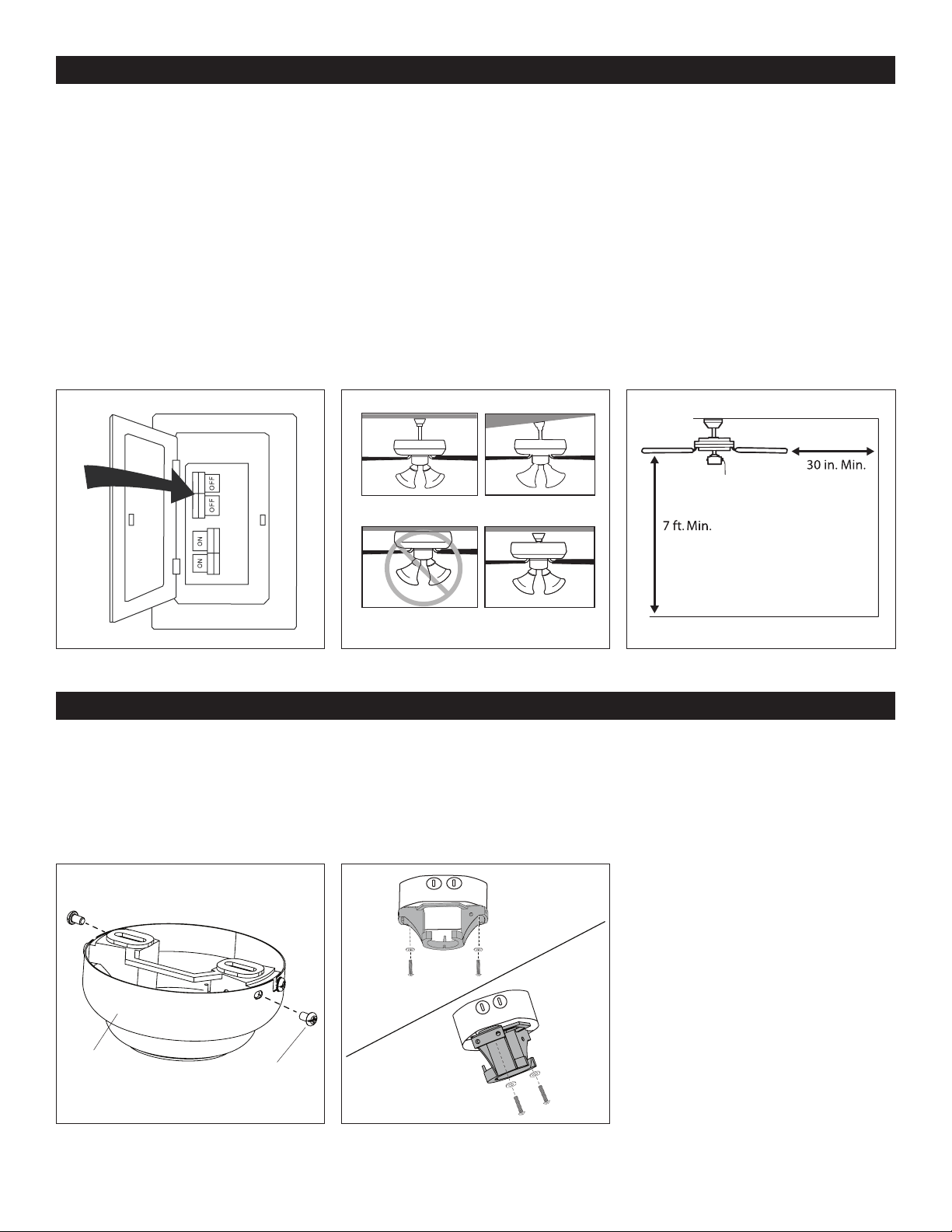

1. Turn off power to the fan at the breaker box and the wall switch (Figure 1.1). DANGER: Failure to disconnect the power supply
prior to installation may result in serious injury or death.
2. Choose one of the following mounting options (Figure 1.2) :
Standard Mount - best suited for ceilings 8 feet or higher. For very high ceilings, use a longer downrod (not included).
Angle Mount - best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to ensure proper blade
clearance. Ensure the ceiling angle is not steeper than 16 degrees.
Flushmount Installation - not available for this model.
Closemount Installation - best suited for ceilings 8 feet or lower.
3. Choose a suitable location - Ensure the blades will be at least 30 inches from any obstructions. Also check the downrod
length to ensure the blades will be at least 7 feet above the oor (Figure 1.3).
1. Loosen all four mounting bracket screws and completely remove the two screws from the round holes in the canopy. Then
remove mounting bracket from the canopy and save the for screws for later (Figure 2.1).
2. Install the mounting bracket to the outlet box (sold separately) using the screws and washers provided with the outlet box
(Figure 2.2).
For CLOSEMOUNT INSTRUCTIONS, skip to page 6.
D
Figure 1.1
Figure 2.1
Figure 1.2
Standard and
Closemount
Angle Mount
Figure 2.2
Figure 1.3
Standard Mount
Flushmount
Angle Mount
Closemount
Mounting
Bracket Screw
Canopy
5
STANDARD OR ANGLE MOUNT INSTRUCTIONS
1. Feed the fan wires through the yoke cover, canopy and downrod (Figure 3.1).
2. Slide the downrod into the yoke of the motor assembly. Align holes and reinstall the downrod pin and downrod clip and secure
with the two set screws (Figure 3.2).
3. Depending on the length of downrod you use, you may want to trim the fan wires to simplify wiring. After pulling the wires all
the way through the downrod, measure 8 inches of wire. Cut off the excess wire using wire cutters (not included). Then strip
1/2 inch of insulation from the end of each wire strand (Figure 3.3).
4. Install the ball end of the downrod into the opening of the mounting bracket (Figure 3.4). WARNING: Failure to align the slot
in the ball with the tap on the mounting bracket may cause the fan to fall, which could result in injury or death.
5. Insert the receiver into the mounting bracket with the at side facing the ceiling (Figure 3.5).
Skip to FINAL INSTALLATION, page 6.
Figure 3.1
Figure 3.4 Figure 3.5
Downrod Clip
Set Screw
Downrod
Downrod Pin
Downrod
Canopy
Yoke Cover
Figure 3.2 Figure 3.3
8 in.
Receiver
Mounting
Bracket
Mounting
Bracket
Downrod
Tab
Slot
6
FINAL INSTALLATION
Black (hot/power)
White (neutral)
Bare/Green
(ground)
Red
White
White
White
Black
Blue
Blue
Black
Green
Green
Receiver
Figure 4.2
Figure 5.2
Figure 4.1
Figure 5.1
Figure 4.3
Figure 5.3
WARNING: Do NOT wire the
fan motor to a variable-speed
(dimmer) wall control.
Mounting
Bracket Screw
Mounting
Bracket Screw
1. Use wire connnectors to connect household supply and fan wires according to the diagram (Figure 5.1) and the following
steps:
• Connect the green wire from the downrod and mounting bracket to the Bare/Green (ground) supply wire. Note: Closemount
installation does not use the downrod, so there will only be two Green wires to connect.
• Connect the White wire with red label from the receiver to the White (neutral) supply wire.
• Connect the Red wire with red label from the receiver to the Black (hot/power) supply wire.
• Connect the Black wire with white label from the receiver to the Black fan wire.
• Connect the Blue wire with white label from the receiver to the Blue fan wire.
• Connect the White wire with white label from the receiver to the White fan wire.
2. Align the canopy over the loosened mounting bracket screws. Place the L-slot of the canopy onto the mount bracket screws
and rotate counterclockwise (Figure 5.2).
3. Secure the canopy with the two previously removed mounting bracket screws. Tighten all the mounting bracket screws
securely (Figure 5.3).
Canopy Cover
Closemount
Screw
Mounting
Bracket
Receiver
Canopy
Canopy
Canopy
Hook
CLOSEMOUNT INSTRUCTIONS (optional)
1. Remove the canopy cover from the bottom of the canopy (Figura 4.1).
2. Remove the three Phillips-head closemount screws from the top of the motor assembly. Then align the canopy with the holes
in the top of the motor assembly. The larger holes in the canopy will encompass the remaining screws. Secure the canopy to
the top of the motor assembly with the previously removed closemount screws (Figura 4.2).
3. Raise the motor assembly and place the canopy on the hook of the mounting bracket to free hands during the wiring process.
Insert the receiver into the mounting bracket with the at side facing the ceiling (Figura 4.3).
Wire
Connector
7
FINAL INSTALLATION
Figure 5.5
Figure 5.8
Figure 5.4
Figure 5.7
Figure 5.6
Figure 5.9
Glass Bowl
LED Indicator
Fitter Plate Screw
Fitter Plate Screw
Light Kit
Single-pin
Connector
Blade
Blade Washer
Blade Screw
Bulb

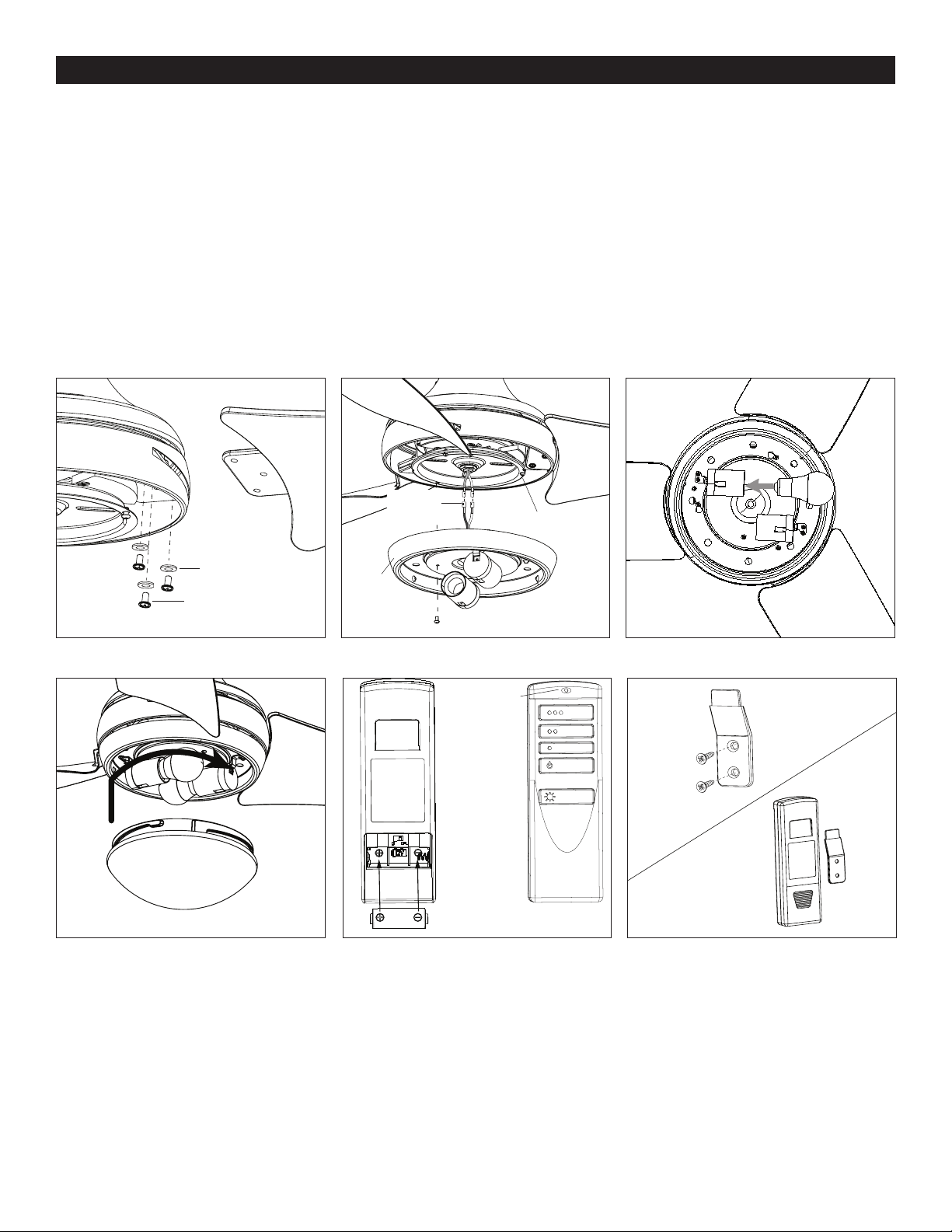

4. Insert blade through slot in the side of the motor assembly. Align the holes of one blade with three blade screw holes in underside
of the motor assembly. Secure with three blade screws and blade washers. Repeat this step for the remaining blades (Figura 5.4).
5. Remove one of the three fitter plate screws preassembled to the fitter plate and loosen the other two but do not remove. Connect
the single-pin connector from the tter plate to the single-pin connector from the light kit -- blue to black and white to white. Then,
align the two key slots in the light pan with the loosened fitter plate screws. Place the light pan over the two screws and turn the
light pan clockwise. Then tighten the two tter plate screws. Re-install the tter plate screw that was removed in the previous step,
and tighten firmly (Figure 5.5).
6. Install the two E26-base LED bulbs (Figure 5.6).
7. Attach the glass bowl to the light kit by twisting the glass bowl tightly in a clockwise direction until it is secure (Figure 5.7).
8. Remove the battery door from the back of the remote. Insert the battery from the remote pack into the remote; ensure polarity
of the battery matches the polarity indicated in the battery compartment -- positive (+) to positive (+) and negative (-) to
negative (-). Replace the battery door and press the Fan Power button to ensure the LED indicator illuminates and the remote
turns on the fan (Figure 5.8). Note: If the remote does not turn on the fan, see TROUBLESHOOTING (page 9)
9. If desired, the wall bracket in remote pack can be installed to a wall using the provided mounting screws. Store the remote on
the wall bracket when not in use (Figure 5.9).
Wall Bracket
Wall Bracket
Screw
Battery
8
Figure 5.10
FINAL INSTALLATION
A
B
C
D
E
F
Figure 6.2Figure 6.1
Reverse Switch
OPERATING INSTRUCTIONS
1. To operate the fan using the remote, press and release the following buttons:
A - High fan speed
B - Medium fan speed
C - Low fan speed
D - Fan Power - Turns the fan off. Light Delay Off mode - Press and hold the fan power button for ve seconds, which will
turn off light after one minute. The LED indicator on the remote will ash four times to conrm mode setting.
E - Light Control: Dimmable Bulbs - Press light control to turn lights off and on. Press and hold light control to dim or
brighten the lights. Non-dimmable Bulbs -Turns the lights on and off. Note: The dimmer function does not work with CFL
bulbs.
F - D/CFL Switch: Switch should be set to “D” to correspond with the included LED bulbs, which will enable the dimming
function. Flip to “CFL” if you change to non-dimmable bulbs. (Figure 6.1).
2. Use the reverse switch located on the switch housing to optimize your fan for seasonal performance. In warmer weather,
push the reverse switch left, which will result in downward airow creating a wind chill effect. In cooler weather, push the
reverse switch right and the fan to low, which will result in upward airow that can help move stagnant, hot air off the ceiling
area (Figure 6.2).
10. Turn on power to fan at breaker box and the wall switch (Figure 5.10). Assembly is complete.
9
TROUBLESHOOTING
The fan does not move.
The fan is noisy.
The fan wobbles
excessively.
The fan operates
correctly but the lights
are not working.
Remote control does not
work.
1. Firmly push the reverse switch completely left or right.
2. Make sure the wall switch is turned on.
3. Turn the power on or check the fuse (breaker).
4. Turn the power off and check all connections at the ceiling outlet box.
1. Check and tighten all screws that hold the fan blades to the blade arms and the motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer switch to control the fan speed.
4. Ensure the outlet box is secured to the building structure.
5. Ensure the mounting bracket is secured to the outlet box and that the screws are tight.
1. Ensure the single-pin connectors are properly secured.
2. Turn the power off and check all connections at the ceiling outlet box.
1.Power surge may have cleared the memory and remote needs to be resynced to the receiver.
Syncing instructions: Turn off the main power, then turn it back on. Within 30 seconds, press
and hold the high and low speed buttons on the remote at the same time for 5 seconds. The LED
indicator will ash 3 times, signaling a successful synchronization. Once complete, the fan will
start on the low speed with the light (if applicable) off.
2. Insert new 12V battery in battery compartment of the remote.
3. If there are several remote fans in close proximity, turn the power off to those fans and re-sync
the fan.
1. Check and tighten all screws that hold the fan blades to the blade arms and the blade arms to the
motor.
2. Switch one blade with a blade from the opposite side, or balance the fan using the blade
balancing kit.
3. Turn off the power. Loosen the canopy and verify that the mounting bracket is secure to the
electrical outlet box. The bracket must be ush without movement against the outlet box. Verify
the outlet box is secure.
4. Use a longer downrod (sold separately) or move the fan to another location.
5. Lift up the yoke cover and tighten the set screws on the yoke until secure.
PROBLEM CORRECTIVE ACTION
If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are
experiencing difculty in installation, please contact Customer Service: 1-877-361-3883.
Warning: Shut off the power supply before you begin any maintenance task.
10
LIMITED LIFETIME WARRANTY
Set forth below, the manufacturer, Hong Kong China Electric Appliance Company (HKC) warrants the fan motor for this ceiling
fan to be free from defects in workmanship and material for the life of the product. Also, subject to the limitations below, HKC
warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in whole or in part with glass) to be free
from defects in workmanship and material for a period of one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product through a store or
contractor. Ceiling fan part defects must be reported within the first year from the date of purchase. Parts made in whole or in
part with glass and the finishes of metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any part caused by ordinary
wear and tear, accident, misuse, or improper installation, is not covered by this warranty. HKC assumes no responsibility
whatsoever for fan installation. Any service performed by a non-licensed electrician will render the warranty invalid.
HKC’s sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated above. HKC shall not
be liable for any loss or damage of any kind, including any incidental or consequential damages resulting directly or indirectly,
from any breach of warranty, express or implied, or any other failure of this product. Some states do not allow the exclusion or
limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials within the warranty
period associated with the defective part, HKC agrees to replace the defective part without charge, or at its option, to replace the
ceiling fan with a comparable or superior model.
HKC’s warranties are limited to the written warranties set out in this HKC ceiling fan limited lifetime warranty. All other express
and implied warranties, including, without limitation, the implied warranty of fitness for a particular purpose and the implied
warranty of merchantability are disclaimed. Some states do not allow the disclaimer of implied warranties, so this disclaimer
may not apply to you.
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department (877-361-3883). Monday-Thursday 8am - 6pm, Friday
8am - 5pm, Eastern Standard Time.
A Downrod 4A000003970
B Canopy 4A000007390
C Canopy Cover 4A000002860
D Light Kit 4A000007110
E Glass Bowl 4L163970000
F Remote Pack 4L000007970
G Mounting Bracket 4L000006350
H Yoke Cover 4A000007400
I Blade (x 3) 4L000002880
HW Hardware Bag 4A000007260
A
B
C
D
E
F
G
H
I
HW
The Honeywell Trademark is used under license from
Honeywell International Inc ™.
Honeywell International Inc. makes no representations
or warranties with respect to this product.
This product is manufactured for
Hong Kong China Electric Appliance, LTD.
3350 Players Club Parkway, Suite 225
Memphis, TN 38125
1 (877) 361-3883
9307 • 031418
