• Page 1 - English - : Operating instructions Heat pump tumble dryer It is essential to read these operating instructions before installing and using the appliance This prevents both personal injury and damage to the appliance enAU NZ MNr 11 495 210
• Page 2 - English - : Contents Caring for the environment 5 Warning and Safety instructions 6 Operating the tumble dryer 17 Control panel 17 How the control panel works 18 Before using for the first time 20 Downtime after installation 20 Removing the protective foil and stickers 20 Energy saving tips 21 1 Notes on correct laundry care 22 Points to note regarding washed laundry 22 Preparing the laundry before drying 22 Drying 23 Care label symbols 23 Selecting the correct drying level 23 2 Loading the tumble dryer 24 Loading the laundry 24 3 Selecting a programme and starting it 25 Selecting a programme 25 Selecting a drying level with a drying programme 25 Selecting timed drying programmes and other programmes 26 Selecting Gentletumble 26 Selecting Delay start 27 4 Removing the laundry at the end of the programme 29 End of programmeAnticrease 29 Removing the laundry 29 Programme chart 30 Changing the programme sequence 33 Changing a programme after it has started 33 Adding or removing laundry 33 Condensed water container 34 Emptying the condensed water container 34 Fragrance flacon 35 FragranceDos 2 positions for inserting a fragrance flacon 35
• Page 3 - English - : Contents Using a fragrance flacon 35 Removing the protective seal from the fragrance flacon 35 Inserting the fragrance flacon 36 Opening the fragrance flacon 37 Closing the fragrance flacon 37 Removingreplacing the fragrance flacon 38 Cleaning and care 39 Fluff filters 39 Removing the fragrance flacon 39 Removing visible fluff 39 Cleaning the fluff filters and air flow openings thoroughly 40 Cleaning the fluff filters with water 41 Cleaning the plinth filter 42 Removing the plinth filter 42 Cleaning the plinth filter 43 Cleaning the plinth filter flap 44 Cleaning the dryer 44 Problem solving guide 45 Indicator lights or information in the time display 45 Unsatisfactory drying results 48 The drying process takes a long time 49 Other problems 50 Replacing the plinth filter 51 Regenerating the plinth filter 53 Checking the heat exchanger 53 Service 54 Contact in case of fault 54 Optional accessories 54 Warranty 54 Installation 55 Front view 55 Rear view 56 Transporting the tumble dryer 56 Transporting the tumble dryer to its installation site 56 Installation 57 Levelling the dryer 57 Downtime after installation 57 Ventilation 58 Before moving the tumble dryer again eg when moving house 58 Additional installation requirements 58
• Page 4 - English - : Contents Externally draining condensed water 59 Installation conditions requiring a nonreturn valve 59 Arranging the drain hose 60 Examples 60 Changing the door hinging 62 Changing the hinging over 62 Refitting 67 Electrical connection 68 Technical data 69 Consumption data 70 Programmable functions 71 Programming 71 Cottons drying levels 73 Minimum iron drying levels 73 Cooling temperature 73 Buzzer volume 73 Keypad tone 74 PIN Code 74 Conductivity 74 Control panel standby status 75 Memory 75 Anticrease 75 Buzzer is active 76 Airways indicator 76 Backlight brightness dimmed 76
• Page 5 - English - : Caring for the environment Disposal of the packing material The packaging is designed to protect the appliance from damage during transportation The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites Ensure that any plastic wrappings bags etc are disposed of safely and kept out of the reach of babies and young children Danger of suffocation Disposing of your old appliance Electrical and electronic appliances often contain valuable materials They also contain specific materials compounds and components which were essential for their correct function and safety These could be hazardous to human health and to the environment if disposed of with your domestic waste or if handled incorrectly Please do not therefore dispose of your old appliance with your household waste Please dispose of it at your local community waste collection recycling centre for electrical and electronic appliances You are also responsible for deleting any personal data that may be stored on the appliance prior to disposal Please ensure that your old appliance poses no risk to children while being stored prior to disposal
• Page 6 - English - : Warning and Safety instructions It is essential to read these instructions This tumble dryer complies with current local and national safety requirements Inappropriate use can however lead to personal injury and damage to property To avoid the risk of accidents and damage to the tumble dryer please read these instructions carefully before using it for the first time They contain important information on its safety installation use and maintenance Keep these instructions in a safe place and ensure that new users are familiar with the content Pass them on to any future owner Correct application This tumble dryer is designed for domestic use and for use in similar environments by guests in hotel or motel rooms bed amp breakfasts and other typical living quarters This does not include commonshared facilities or commercial facilities within hotels motels or bed amp breakfasts This tumble dryer is not suitable for outdoor use It must only be used to dry items which have been washed in a water solution and which are marked on the manufacturers care label as being suitable for tumble drying If using dry cleaning kits do so at your own risk and follow the instructions provided on the packaging Any other applications may be dangerous Miele cannot be held liable for damage resulting from incorrect or improper use or operation
• Page 7 - English - : Warning and Safety instructions This appliance is not intended for use by persons including children with reduced physical sensory or mental capabilities or lack of experience or knowledge unless they are supervised whilst using it or have been shown how to use it by a person responsible for their safety Safety with children Young children must not be allowed to use this appliance Older children may only use the appliance when its operation has been clearly explained to them and they are able to use it safely recognising the dangers of misuse Children must not be allowed to clean or maintain the tumble dryer unsupervised Please supervise children in the vicinity of the tumble dryer and do not let them play with it
• Page 8 - English - : Warning and Safety instructions Technical safety Before setting up the tumble dryer check it for any externally visible damage Do not install or use a damaged tumble dryer Before connecting the tumble dryer ensure that the connection data on the data plate fuse rating voltage and frequency matches the mains electricity supply If in any doubt consult a qualified electrician The electrical safety of this tumble dryer can only be guaranteed when correctly earthed It is essential that this standard safety requirement is met If in any doubt please have the household wiring system tested by a qualified electrician Miele cannot be held liable for the consequences of an inadequate earthing system eg electric shock Reliable and safe operation of this tumble dryer can only be assured if it has been connected to the mains electricity supply Do not connect the tumble dryer to the mains electricity supply by an extension lead Extension leads do not guarantee the required safety of the appliance eg danger of overheating If the connection cable is faulty it must only be replaced by a Miele authorised technician to protect the user from danger Unauthorised repairs could result in unforeseen dangers for the user for which Miele cannot accept liability Repairs should only be undertaken by a Miele authorised service technician otherwise any subsequent damage will not be covered by the warranty Faulty components must only be replaced by genuine Miele spare parts Miele can only guarantee the safety of the appliance when Miele replacement parts are used
• Page 9 - English - : Warning and Safety instructions In the event of a fault or for cleaning purposes the tumble dryer is only completely isolated from the electricity supply when it is switched off at the wall socket and the plug is withdrawn or it is switched off at the mains circuit breaker This tumble dryer must not be installed and operated in mobile installations eg on a ship Do not make any alterations to the tumble dryer unless authorised to do so by Miele Heat pump technology and refrigerant The heat pump in this tumble dryer uses a gaseous refrigerant The refrigerant which is brought to a higher temperature and liquefied by condensing is transferred in a closed circuit through the heat exchanger unit where heat exchange takes place with the circulating drying air Damage to the tumble dryer by switching it on too soon This can damage the heat pump After setting up the tumble dryer wait for at least one hour before switching it on The humming noises caused by the heat pump during the drying process are normal They do not impair the efficient functioning of the dryer The refrigerant is not flammable or explosive
• Page 10 - English - : Warning and Safety instructions Please observe the instructions in Installation and Technical data The plug and socket must be accessible at all times in order to be able to disconnect the tumble dryer from the power supply Do not block the gap between the bottom of the tumble dryer and the floor with plinth facings deep pile carpet etc This would hinder a sufficient flow of air to the tumble dryer Make sure the dryer door can be opened without hindrance after installation
• Page 11 - English - : Warning and Safety instructions Correct use Warning Risk of fire Flammable materials To avoid the possible danger of fire please read these warnings carefully A clogged filter is a fire hazard The fluff filter must be cleaned after every programme The maximum load for this tumble dryer is 80 kg dry weight See the Programme chart for the maximum recommended loads for individual programmes To prevent the risk of fire do not connect the tumble dryer via a controllable socket eg a timer or a peakload switchoff device If the drying programme is interrupted before the end of the cooling down phase this could cause the laundry to selfignite
• Page 12 - English - : Warning and Safety instructions To prevent the risk of fire the following textiles must not be dried in this tumble dryer Items which have not been washed Items which have been cleaned using chemicals eg professional drycleaning agents Items such as workwear which have not been thoroughly cleaned and which are still soiled with grease oil or other desposits such as cosmetics lotions etc If items have not been thoroughly cleaned there is a danger that these might ignite when heated even after they have been removed from the dryer at the end of the programme Items that have been soiled with substances such as cooking oil acetone petrol kerosene spot removers turpentine waxes wax removers and other chemicals eg mops and floor cloths Items which have been splashed with hair lacquer hair spray nail varnish remover or similar substances Fabrics which contain a large proportion of rubber foam rubber or rubberlike materials For example products made from latex foam rubber shower caps waterproof textiles rubberised articles and items of clothing and pillows with foam rubber filling Damaged fabrics which contain padding or fillings eg pillows jackets When damaged the filling can get out with the risk of it igniting in the dryer When washing such heavily soiled items ensure that you use sufficient detergent and select a high temperature If in doubt wash the items several times
• Page 13 - English - : Warning and Safety instructions Oilaffected items can ignite spontaneously especially when exposed to heat sources such as in a tumble dryer The items become warm causing an oxidation reaction in the oil Oxidation creates heat If the heat cannot escape the items can become hot enough to catch fire Piling stacking or storing oilaffected items can prevent heat from escaping and so create a fire hazard If it is unavoidable that fabrics contaminated with vegetable or cooking oil or hair care products be placed in a tumble dryer they should first be washed in hot water with extra detergent this will reduce but not eliminate the hazard Remove all items from pockets eg lighters matches Warning Ensure that you always wait until the end of the programme before removing the laundry If the drying programme is stopped prematurely remove the laundry immediately and hang it up or spread it out to cool it down Fabric softener and similar products must be used according to the instructions on the manufacturers packaging In many programmes the heating phase is followed by a cooling down phase to ensure that the items are not too hot to handle when you remove them this also avoids the danger of the laundry self igniting The programme is not finished until the cooling down phase has been completed As soon as the programme has finished remove all laundry from the drum Do not let anyone sit or lean on the door as this can cause the tumble dryer to tip up Always close the door after use This way you will avoid the danger of children climbing onto or into the dryer or hiding things in it pets or other small animals climbing into it
• Page 14 - English - : Warning and Safety instructions The tumble dryer must not be used without the fluff filters in place or with damaged fluff filters without the plinth filter in place or with a damaged plinth filter This would cause an excessive buildup of fluff which in turn would cause a fault The fluff filters must be cleaned after every drying cycle Fluff must not be allowed to accumulate around the tumble dryer The fluff filters and the plinth filter must be thoroughly dried after cleaning Do not replace them if they are damp or wet Damp or wet filters could cause operational faults Do not install the tumble dryer in a room where there is a risk of frost occurring At temperatures around freezing point the tumble dryer may not be able to operate properly There is a risk of damage if the condensed water is allowed to freeze in the pump and hoses If the water is drained externally through the drain hose instead of being collected in the condensed water container make sure the drain hose is securely attached if you hang it in a laundry tub to avoid the hose slipping and the water causing damage Condensed water is not drinking water It can cause health problems in both people and animals Always keep the area around the tumble dryer free of dust and fluff Dust drawn into the tumble dryer can cause blockages in the heat exchanger over time The tumble dryer must not be hosed down
• Page 15 - English - : Warning and Safety instructions Using a fragrance flacon optional accessory Only use genuine Miele original fragrance flacons The fragrance flacon must be stored in its packaging so please make sure you retain this Caution The fragrance can run out of the flacon Make sure that you always keep the flacon or the fluff filter with the flacon inserted in it upright when carrying and do not tip it or place it down on any surface Use an absorbent cloth immediately to wipe up any fragrance which has run out of the flacon onto the floor the dryer or any dryer components eg the fluff filter If fragrance which has run out of a flacon should come in contact with the skin wash the skin thoroughly with soap and water come in contact with the eyes rinse the eyes with clean water for at least 15minutes be swallowed rinse out the mouth thoroughly with clean water Seek medical advice in the case of contact with the eyes or if fragrance has been swallowed If fragrance which has run out of a flacon comes in contact with clothing change the clothing immediately Wash the clothing or any cloths used for mopping up fragrance thoroughly with plenty of water and detergent There is the risk of fire or damage to the tumble dryer if the following instructions are not observed Never refill a flacon with fragrance Never use a faulty fragrance flacon Dispose of an empty fragrance flacon with the household waste and never use it for any other purpose Please also observe the information supplied with the fragrance flacon
• Page 16 - English - : Warning and Safety instructions Accessories Only use genuine Miele spare parts and accessories with this appliance If spare parts or accessories from other manufacturers are used this will invalidate the warranty and Miele cannot accept liability A Miele tumble dryer can be stacked on top of a Miele washing machine using the appropriate stacking kit available as an optional accessory Please make sure you order the correct one for the Miele washing machine and Miele tumble dryer Miele cannot be held liable for damage caused by non compliance with these Warning and Safety instructions

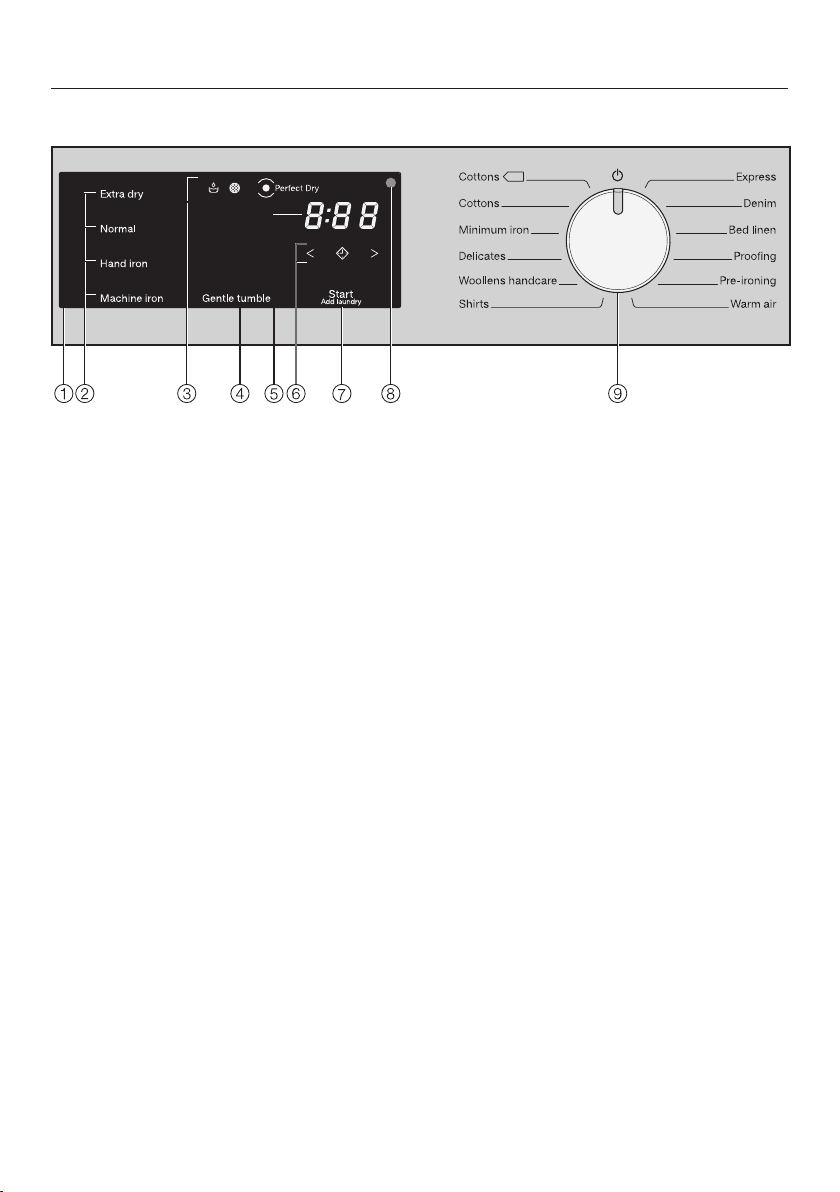

• Page 17 - English - : Operating the tumble dryer Control panel a Control panel b Sensors for the drying levels c Indicator lights light up when necessary d Gentletumble sensor for gentle drying e Time display for the programme duration f Sensors for time selection g StartAdd laundry sensor for programme start and adding laundry h Optical interface for service technicians i Programme selector for selecting programmes and for switching off The dryer is switched on by selecting a programme and switched off by turning the programme selector to the position
• Page 18 - English - : Operating the tumble dryer How the control panel works The and sensors react to fingertip contact Selection is possible as long as the respective sensor is illuminated If a sensor is brightly lit this means it is currently selected If a sensor is dimly lit this means it can be selected Sensors for the drying levels After selecting a drying programme with the programme selector the proposed drying level lights up Drying levels that can be selected are dimly lit Indicator lights lights up when the condensed water container needs to be emptied lights up when the plinth filter needs to be cleaned Perfect Dry The Perfect Dry system measures the residual moisture present in the laundry in programmes with selectable drying levels and provides a more precise drying result The PerfectDry display will flash until the programme duration has been determined and then go out will light up again when the selected drying level is reached and remain on until the end of the programme does not light up at all with the programmes Woollens handcare Warm air Gentletumble sensor For drying temperaturesensitive textiles with the symbol When the sensor is touched Gentletumble lights up brightly With some programmes Gentletumble is always active lights up brightly or inactive does not light up
• Page 19 - English - : Operating the tumble dryer Time display The remaining programme duration will be displayed in hours and minutes With most programmes the duration displayed may vary or jump The following factors among others affect the programme duration displayed the quantity of the laundry the type of fabric and the residual moisture in the laundry The electronics will continually assess the conditions and adjust the programme duration with increasing accuracy Sensor After touching the sensor a later start time for the programme Delay start can be selected Once selected lights up brightly The or sensors are used for selecting the duration of the Delay start period or the duration of the Warm air programme StartAdd laundry sensor Touching the StartAdd laundrysensor starts a programme The current programme can be interrupted to add laundry The programme can be started when the sensor is flashing on and off The sensor lights up constantly once the programme has started Drum lighting The lighting helps to ensure that all items are removed from the drum The drum lighting will go out automatically to save energy
• Page 20 - English - : Before using for the first time Downtime after installation Damage to the tumble dryer by switching it on too soon This can damage the heat pump After setting up the tumble dryer wait for at least one hour before switching it on Removing the protective foil and stickers Remove the protective foil from the door any stickers from the front and the lid Please do not remove any labels eg the data plate which are visible when you open the door Follow the procedure for using for the first time outlined in these instructions Refer to 1Notes on correct laundry care and 2Loading the tumble dryer You can then load the tumble dryer and select a programme as described in 3Selecting a programme and starting it
• Page 21 - English - : Energy saving tips This dryer with heatpump technology is designed for energysaving drying cycles You can save even more energy with the following measures because the drying time is not extended unnecessarily Make sure your laundry is spun at the maximum spin speed before drying The higher the spin speed the greater the savings that can be made in energy and time during drying eg approx 20 energy can be saved if spinning laundry at 1600rpm instead of 1000rpm Use the maximum load quantity for the drying programme being used This will mean that the energy consumption for the amount of laundry is the most economical Make sure that the room temperature is not too high If there are other heat producing appliances in the room in which the dryer is located make sure the room is well ventilated and switch the other appliances off if possible Clean the fluff filters in the door opening after every drying cycle Please refer to Cleaning and care for information on cleaning the fluff filters and the plinth filter If possible make use of time variable lowcost electricity tariffs Ask your energy supplier for information Your tumble dryers Delay start function will be useful as you can select when during the next 24hours you want drying to start automatically
• Page 22 - English - : 1 Notes on correct laundry care Points to note regarding washed laundry When washing very heavily soiled items ensure that you use sufficient detergent and select a high temperature If in doubt wash the items several times Do not put soaking wet items into the tumble dryer Make sure your laundry is thoroughly spun before drying The higher the spin speed the greater the savings that can be made in energy and time during drying New dark coloured garments should be washed and dried separately from light coloured garments to avoid the risk of colours running and discolouring other garments or even plastic components in the dryer Dark coloured fibres can also settle on light coloured garments and vice versa Starched laundry can be dried in the tumble dryer To achieve the usual finish double the amount of starch should be used Preparing the laundry before drying Damage due to foreign objects which were not removed from the laundry Foreign objects can melt burn or explode Ensure that any foreign objects eg detergent dispensing balls lighters etc have been removed from the laundry Risk of fire due to incorrect use and operation The laundry can burn and destroy the dryer and the surroundings See Warning and Safety instructions for further information Sort the laundry according to the type of fibre and weave size garment care label symbol and the drying level required Check seams and stitching to ensure that padding and linings are intact This way you will avoid the danger of fillings coming out These could catch fire when being dried Untangle the laundry Tie together textile belts and apron ties Fasten duvet covers and pillow cases to prevent small items from being rolled up inside them Fasten hooks and eyes Leave jackets open and undo any long zips so that textiles dry evenly Sew in or remove loosened underwiring from bras Reduce the size of the load Minimum iron fabric tends to crease more the larger the load This is particularly the case for garments made from very fine weave fabric such as shirts or blouses
• Page 23 - English - : 1 Notes on correct laundry care Drying Useful tip See the Programme chart It lists all programmes and their maximum load Always observe the maximum recommended load for each programme This will mean that the energy consumption for the amount of laundry is the most economical Downfilled garments have linings which have a tendency to shrink depending on the quality of the item Only use the Preironing programme for these textiles Pure linen should only be tumble dried if it is specified as suitable on the care label The surface of the fabric may otherwise become rough Only use the Preironing programme for these textiles Woollens and wool blends are susceptible to becoming matted or shrinking Only use the Woollens handcare programme for these textiles Loopknit garments eg TShirts underwear have a tendency to shrink after the first wash Do not overdry these fabrics to prevent further shrinking When buying loopknit garments it is advisable to take their shrinkage potential into account With fabrics that are particularly heat sensitive or susceptible to creasing reduce the drying load and select Gentle tumble Care label symbols Drying Normalhigher temperature Reduced temperature Select Gentle tumble Do not tumble dry Ironing Very hot Warm Hot Do not iron Selecting the correct drying level Extra dry for multilayered and very thick fabrics Normal for textiles that can shrink or for light cotton or jersey textiles Hand iron or Machine iron if you want to iron the laundry after drying Useful tip You can alter the drying levels damper or drier for the Cottons and Minimum iron programmes See Programmable functions
• Page 24 - English - : 2 Loading the tumble dryer Loading the laundry Textiles may be damaged Before loading the dryer read 1 Notes on correct laundry care Check that the drum is empty Remove any items that might be blocking the drum Unfold the laundry and load loosely into the drum Do not overload the drum Overloading can cause unnecessary wear and tear to the laundry and give a disappointing drying result It can also cause more creasing When closing the door make sure that laundry does not get trapped in the door opening This can result in damage to the laundry Two positions for inserting a fragrance flacon See the section Fragrance flacon for information on how to use fragrance flacons If you are not using a fragrance flacon push the tab down completely see arrow so that the socket is closed Otherwise lint will accumulate here Closing the door Shut the door with a gentle swing
• Page 25 - English - : 3 Selecting a programme and starting it Selecting a programme The dryer is switched on by selecting a programme and switched off by turning the programme selector to the position Turn the programme selector to a programme A drying level may light up and durations will appear in the time display Selecting a drying level with a drying programme Cottons Minimum iron Delicates Shirts Express Denim Bed linen Pre ironing The preset drying level for the programme can be changed if required Touch the sensor for the drying level you want It then lights up brightly Any drying level can be selected for the Cottons Express and Bed linen programmes A limited range is available with the other programmes
• Page 26 - English - : 3 Selecting a programme and starting it Selecting timed drying programmes and other programmes Warm air You can set the duration in tenminute increments fromminutes tohours Touch the or sensor repeatedly until the required programme duration appears in the time display Cottons Woollens handcare Proofing The drying level is preset by the dryer and cannot be altered Selecting Gentletumble Delicate fabrics with the symbol on the care label eg acrylic garments are dried at a lower temperature The programme duration is longer Touch the Gentle tumble sensor It then lights up brightly Gentle tumble can be selected with the following programmes Cottons Minimum iron Shirts Denim Warm air Gentle tumble is always activated cannot be deselected with Delicates Preironing
• Page 27 - English - : 3 Selecting a programme and starting it Selecting Delay start With Delay start you can delay the start of a programme from minutes up to However Delay start cannot be used with the Warm air programme Touch the sensor The sensor lights up brightly Touch the or sensor repeatedly until the required delayed start time appears in the time display Useful tip The time will count upwards and downwards automatically if you touch the or sensor continuously Altering Delay start If you would like to alter the Delay start function after starting a programme the function must be cancelled first Turn the programme selector to the position The tumble dryer is switched off and Delay start is cancelled Select a programme Select a Delay start time Delay start countdown Delay start times of more than will count down in hours and then in minutes until the start of the programme The drum will turn briefly every hour until the start of the programme to reduce laundry creasing Anticrease function Adding laundry during the Delay start period Follow the instructions in the sections Changing the programme sequence and Adding or removing laundry
• Page 28 - English - : 3 Selecting a programme and starting it Starting a programme Touch the flashing StartAdd laundry sensor The StartAdd laundry sensor lights up Programme sequence If Delay start has been selected the Delay start time will start to count down first The programme starts The Perfect Dry indicator will only flashlight up with programmes with selectable drying levels see also Operating the tumble dryer The dryer measures the residual moisture of the laundry and calculates the required programme duration If a small load or dry laundry is placed in the dryer it is driedaired for a preset duration In this case the Perfect Dry indicator does not light up at the end of the programme Laundry items and fabrics can wear out unnecessarily Avoid overdrying laundry and garments Before the programme finishes the laundry is cooled Energy savings After 10minutes the indicators dim The StartAdd laundry sensor flashes slowly Touch the StartAdd laundry sensor to switch the indicators on again this does not have any effect on a running programme Adding laundry You can add laundry after the programme has started Follow the instructions in the sections Changing the programme sequence and Adding or removing laundry
• Page 29 - English - : 4 Removing the laundry at the end of the programme End of programmeAnticrease End of programme lights up in the time display and the StartAdd laundry sensor goes out The end of the programme is followed by the Anticrease phase which will run for up to 2hours There is no Anti crease with Woollens handcare See Programmable functions Anticrease Removing the laundry Only open the door when the drying process has finished Otherwise the laundry will not be properly dried and cooled down Pull the door open at the side with the orange marker Remove the laundry Always remove all items from the drum Items left in the dryer could be damaged by overdrying when the dryer is used the next time Turn the programme selector to the position Remove the fluff from the 2 fluff filters in the door opening see Cleaning and care Fluff filters Shut the door with a gentle swing Empty the condensed water container
• Page 30 - English - : Programme chart All weights marked with are based on the weight of dry laundry Cottons Max load 80 kg Items Cotton items such as those described under Cottons Normal with normal residual moisture Notes Items are dried to a Normal level only Cottons Max load 80 kg Extra dry Normal Items Single and multilayered cotton fabrics For example towelling jerseywear Tshirts underwear baby clothes workwear covers aprons jackets bathrobes and flannelette bed linen Notes Select Extra dry for multilayered and very thick fabrics Do not use Extra dry for jersey fabrics eg Tshirts underwear baby clothes as they have a tendency to shrink Set programme Cottons Extra dry for test in accordance to ASNZS 24421 amp ASNZS 24422 Hand iron Machine iron Items Cotton or linen fabric requiring further processing For example ta ble linen bed linen or starched laundry Notes Roll up laundry that you want to machine iron to prevent it from drying out until you are ready for ironing Minimum iron Max load 4 kg Normal Hand iron Items Minimum iron items made of cotton synthetic or mixed fibre For example workwear overalls pullovers dresses trousers table linen and leggings Delicates Max load 25 kg Normal Hand iron Items Delicate items with the symbol on the care label made of synthetic fibre mixed fibre rayon and easy care cotton For example shirts blouses lingerie and appliquéd garments Notes The load should be reduced further for a particularly creasefree drying result
• Page 31 - English - : Programme chart Woollens handcare Max load20kg Items Woollen garments and fabric containing wool blends eg pullovers cardigans stockings Notes Wool and wool blend items are only fluffed up they are not dried completely Remove garments as soon as the programme has finished Shirts Max load 2 kg Normal Hand iron Items Shirts and blouses Express Max load 4 kg Extra dry Normal Hand iron Machine iron Items Hardwearing garments suitable for the Cottons programme Notes The programme duration is shorter Denim Max load 3 kg Normal Hand iron Items Denim garments eg jackets jeans shirts and skirts Bed linen Max load 4 kg Extra dry Normal Hand iron Machine iron Items Bed linen pillow cases Proofing Max load 25 kg Items Microfibre fabric skiwear outerwear fine close weave cotton garments poplin or tablecloths which are suitable for drying in a tumble dryer and have been treated to provide a water and dirt resistant finish Notes Items are dried to a Normal level only This programme includes a proofing fixing phase Only use proofing agents which are stated by the manufacturer as being suitable for use on membrane textiles These agents contain fluorochemical compounds Do not dry items which have been treated with proofing agents containing paraffin Fire hazard
• Page 32 - English - : Programme chart Preironing Max load 1 kg Normal Hand iron Items Cotton and linen fabrics Minimum iron items made of cotton synthetic or mixed fibre For example cotton trousers jackets anoraks and shirts Notes This programme smoothes out creasing caused during the spin cycle in the washing machine This programme is also suitable for dry fabrics Please remove the garments as soon as the programme has finished Warm air Max load 80 kg Items For completely drying multilayered fabrics whose layers have different drying characteristics eg jackets pillows sleeping bags and other voluminous items For drying individual items eg bath towels bathing suits tea towels and small loads Notes Do not select the longest drying time to start with Check the items as you are drying them to find the optimum time
• Page 33 - English - : Changing the programme sequence Changing a programme after it has started It is no longer possible to change the selected programme This prevents the appliance being operated unintentionally eg by children If you adjust the programme selector the symbol will light up in the time display The symbol goes out when you select the original programme Cancelling the current programme Turn the programme selector to the position The programme is cancelled You can now select a new programme Adding or removing laundry You have forgotten an item of laundry but the programme has already started Touch the StartAdd laundrysensor The wordAdd will appear in the time display The StartAdd laundry sensor flashes slowly Risk of burning when touching hot laundry in the drum You could burn yourself Open the door Add or remove laundry You can also change the programme selection Close the door Touch the StartAdd laundrysensor The programme will continue Exceptions to adding laundry In some cases eg during the cooling phase or in the Proofing programme you cannot add laundry In these cases the wordAdd is not displayed In exceptional cases the door can be opened while the programme is running

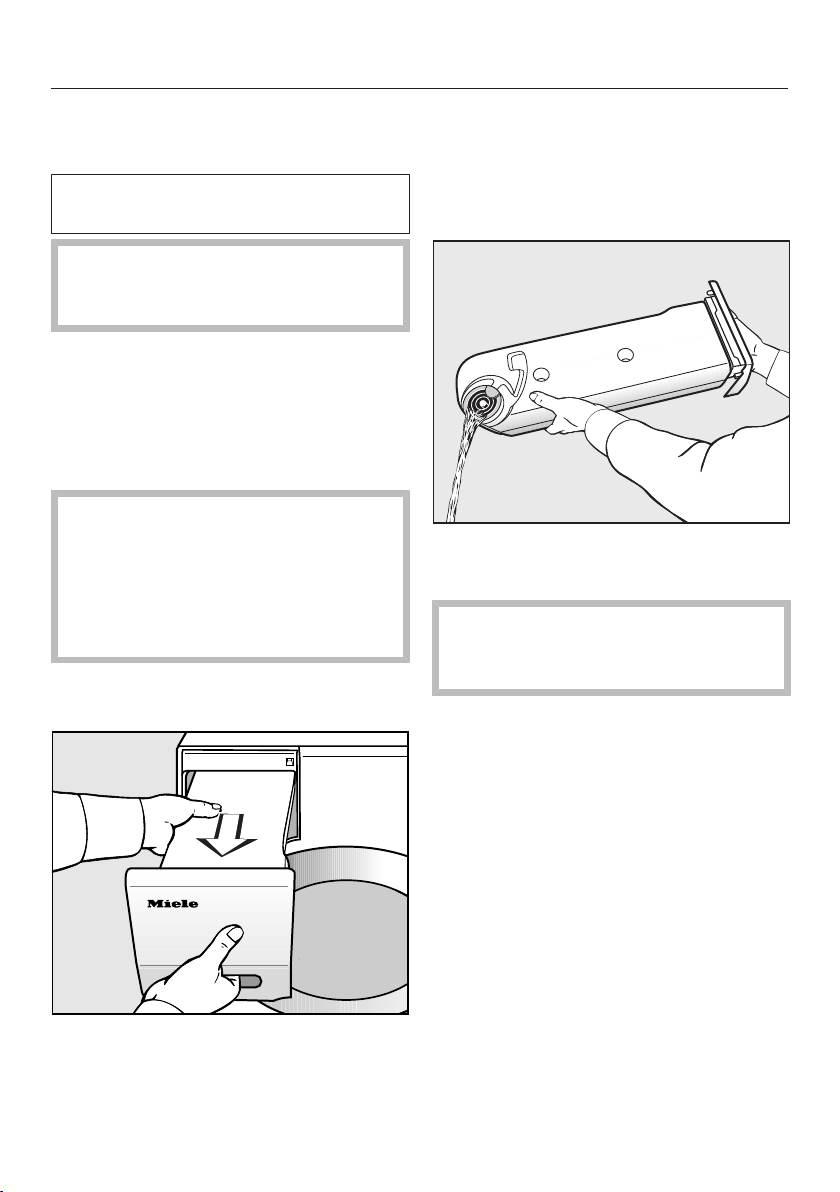

• Page 34 - English - : Condensed water container Emptying the condensed water container The condensed water is collected in the condensed water container Empty the condensed water container after every drying programme The indicator will light up when the maximum level in the condensed water container is reached To turn the indicator light off Open and close the door while the dryer is switched on Damage to the door and the fascia panel when removing the condensed water container The door and the fascia panel can get damaged Always close the door completely This does not apply to righthand hinged models Pull out the condensed water container To prevent water running out keep it in a horizontal position when carrying it Hold the condensed water container by the front panel and at the back Empty the container Replace the container in the dryer Condensed water can cause health problems in people and animals Do not drink condensed water Condensed water can be put to household use eg used in a steam iron or humidifier To ensure that any residual particles of fluff in the condensed water are removed before use pass it through a fine sieve or paper filter first
• Page 35 - English - : Fragrance flacon FragranceDos 2 positions for inserting a fragrance flacon Fragrance flacons optional accessories can be used to give your laundry a pleasant scent This dryer has 2 places for inserting fragrance flacons This gives you a choice of how to use them Use both positions if you wish to change from one scent to another You can close the fragrance flacon that you are not using Both positions can be used for a more intense scent of the same fragrance Use one socket only if you only want to use the one fragrance Risk of fire and harm to health if fragrance flacons are used incorrectly Leaked fragrance can be harmful to your health if it comes into contact with your body Leaked fragrance can cause a fire Before using a fragrance flacon please read the section quotUsing a fragrance flacon optional accessory in the Warning and Safety instructions Using a fragrance flacon Removing the protective seal from the fragrance flacon Only hold the fragrance flacon as illustrated Do not hold it at an angle or tip it as the fragrance will leak out Hold the fragrance flacon securely so that you do not open it by mistake Pull off the protective seal

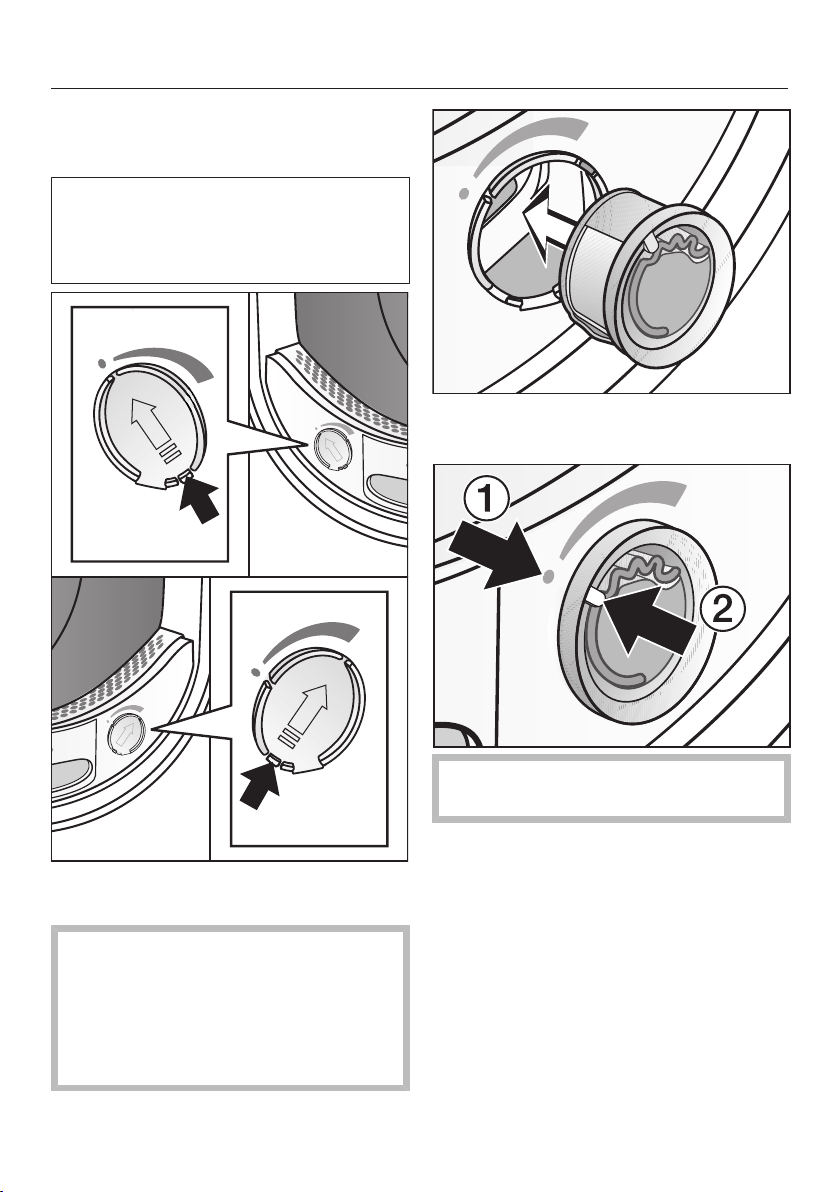

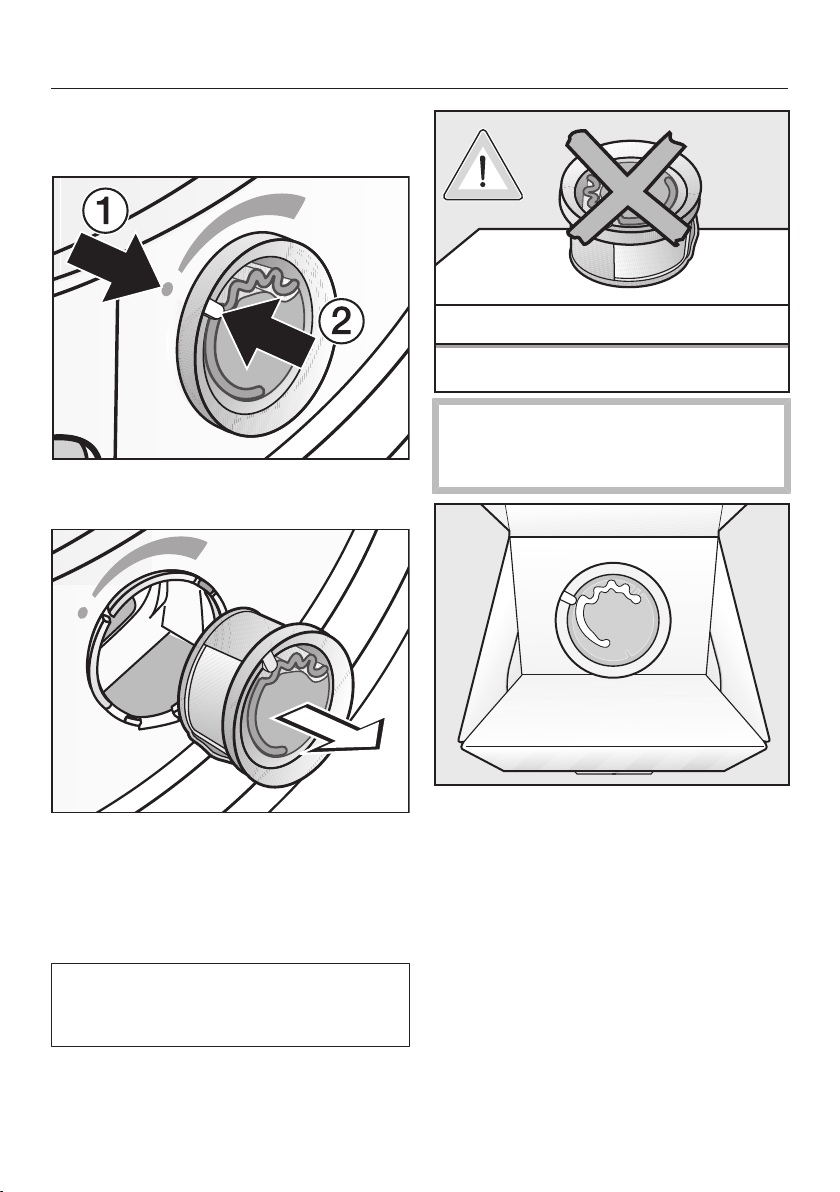

• Page 36 - English - : Fragrance flacon Inserting the fragrance flacon Open the door of the tumble dryer The fragrance flacon is inserted in the upper fluff filter It can be inserted on the left or the righthand side beside the grip Open the cover using the tab until the tab is right at the top as shown To prevent the accumulation of fluff the cover of the unused socket must remain closed Push the tab of the cover to the bottom see arrow until you hear it click into position Insert the fragrance flacon in the opening as far as it will go Markers and must line up with each other

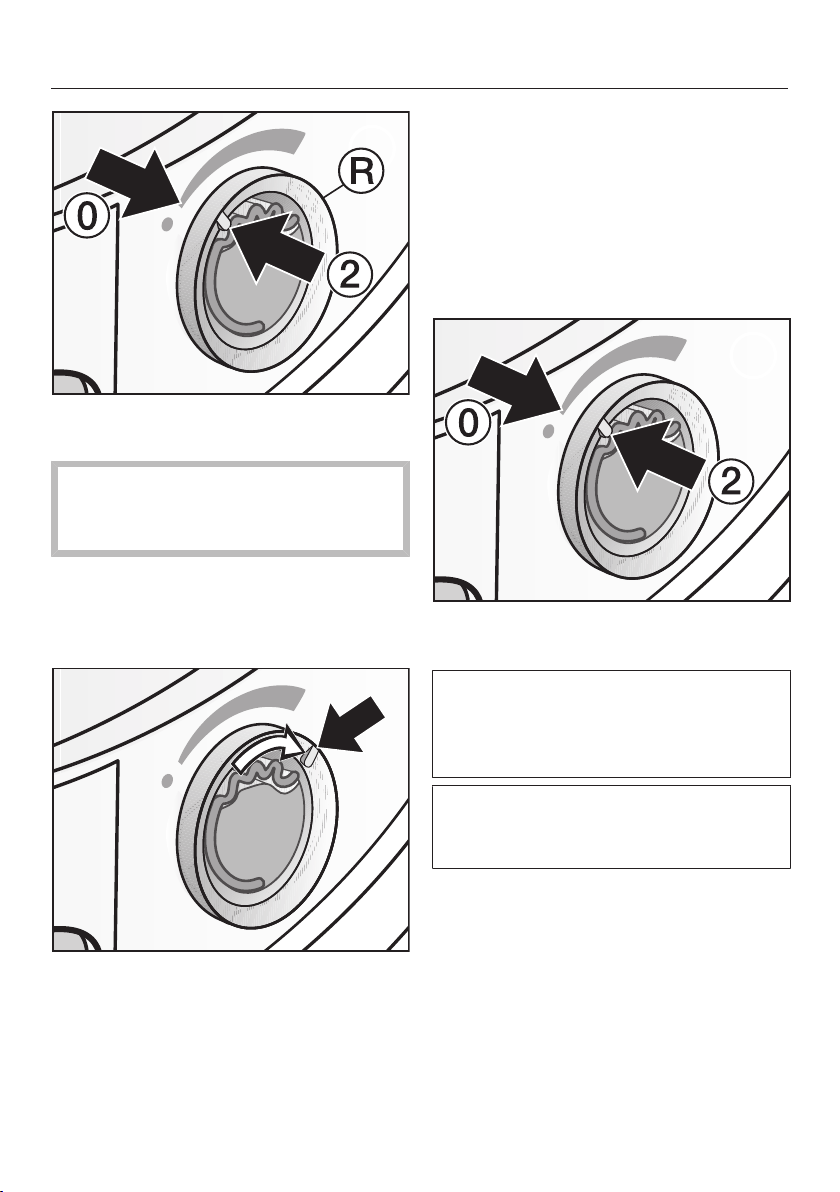

• Page 37 - English - : Fragrance flacon Turn the outer ring clockwise a little The fragrance flacon can slip out Turn the outer ring so that markers and line up Opening the fragrance flacon Before drying you can select the intensity of the fragrance Turn the outer ring clockwise the further you open the fragrance flacon the more intense the fragrance The fragrance is only released into the laundry effectively with damp laundry and longer drying times with sufficient heat transfer The fragrance will also be noticeable in the room air during the drying process Closing the fragrance flacon After drying the fragrance flacon should be closed to prevent the fragrance from escaping needlessly Turn the outer ring anticlockwise until marker b is in position If you wish to dry laundry without adding fragrance remove the fragrance flacon and store it in its original packaging When the intensity of the fragrance is no longer sufficient replace the fragrance flacon with a new one
• Page 38 - English - : Fragrance flacon Removingreplacing the fragrance flacon Turn the outer ring anticlockwise until markers a and b line up Replace the fragrance flacon with a new one When not in use you can store the fragrance flacon in its original packaging Fragrance flacons are available to order from Miele or online at wwwmieleshopcom Fragrance can leak Do not lay the fragrance flacon down If you are keeping the fragrance flacon in its original packaging do not store the packaging upright on its edge or upside down Otherwise the fragrance will leak out Always store in a cool dry place away from direct sunlight When purchasing new fragrance flacons only remove the protective seal just before use

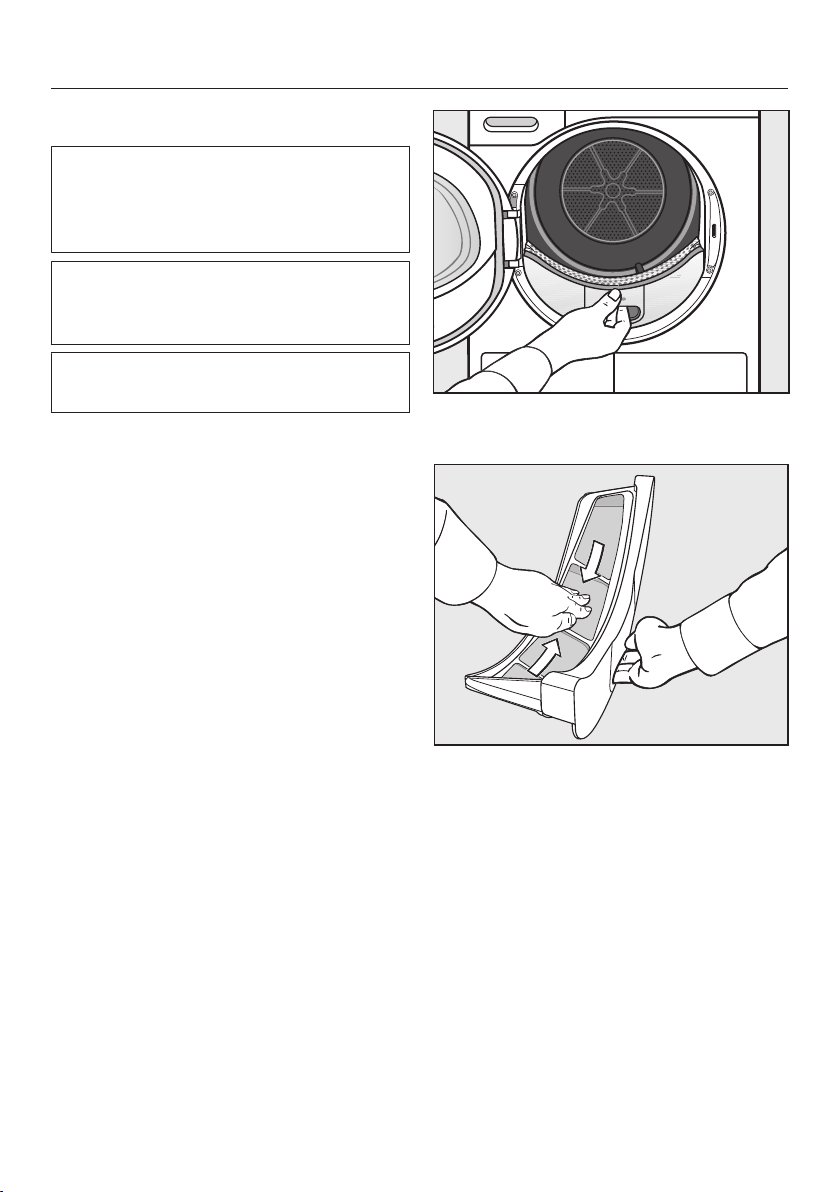

• Page 39 - English - : Cleaning and care Fluff filters This tumble dryer has 2 fluff filters in the door opening The upper and lower fluff filters trap fluff produced during the drying process Clean the fluff filters after each drying programme This prevents an extension of the programme duration Also clean the fluff filters when the indicator light comes on To turn the indicator light off Open and close the door while the dryer is switched on Removing the fragrance flacon The intensity of the fragrance will be diminished if the fluff filters and the plinth filter are not cleaned Remove the fragrance flacon See Fragrance flacon Removing replacing the fragrance flacon Removing visible fluff Useful tip You can use a vacuum cleaner so that you can remove the fluff without touching it Open the door Pull the upper fluff filter forwards to remove it Remove the fluff see arrows

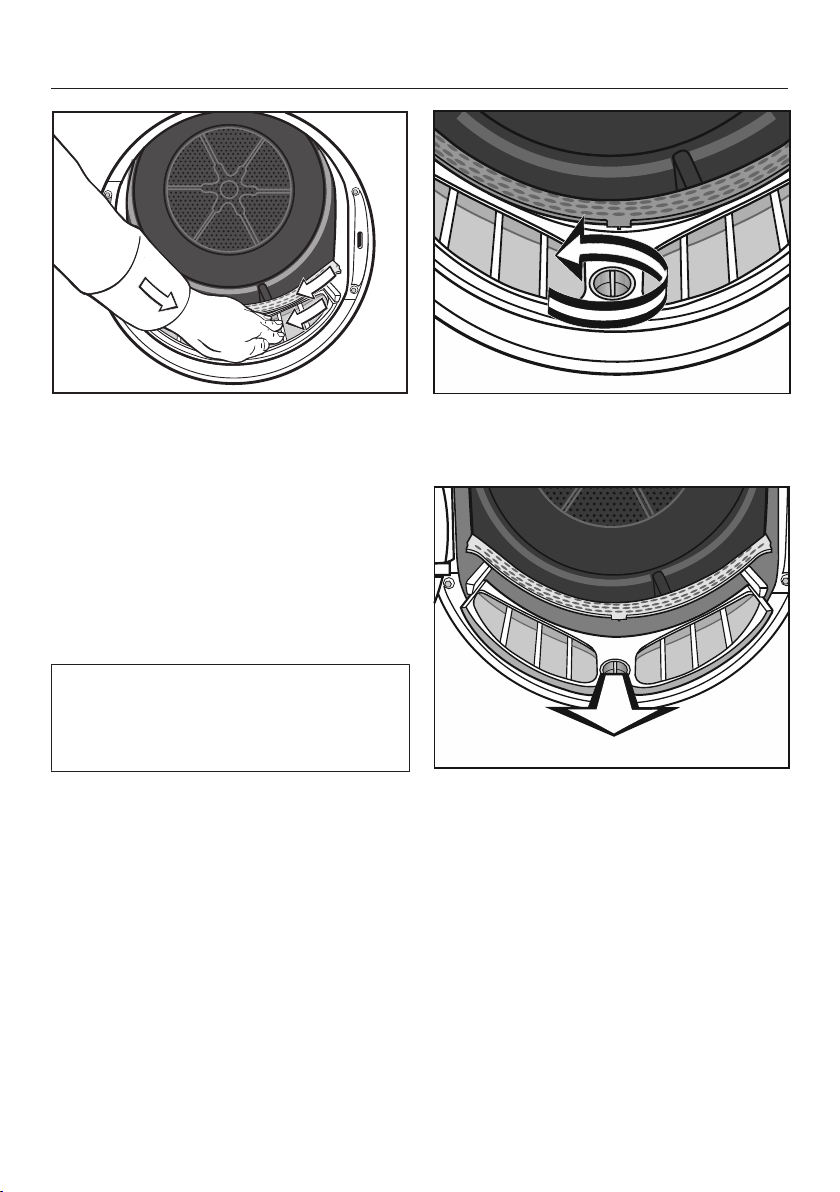

• Page 40 - English - : Cleaning and care Remove the fluff from the filter surface of all the fluff filters and the perforated laundry deflector see arrows Push the upper fluff filter back until it clicks into position Close the door Cleaning the fluff filters and air flow openings thoroughly If the drying duration has become longer or the surface of the filters is visibly compacted with fluff you should clean them thoroughly Remove the fragrance flacon See Fragrance flaconRemoving replacing the fragrance flacon Pull the upper fluff filter forwards to remove it Turn the yellow dial on the lower fluff filter in the direction of the arrow until you hear it click Hold the dial and pull the fluff filter forwards to remove it

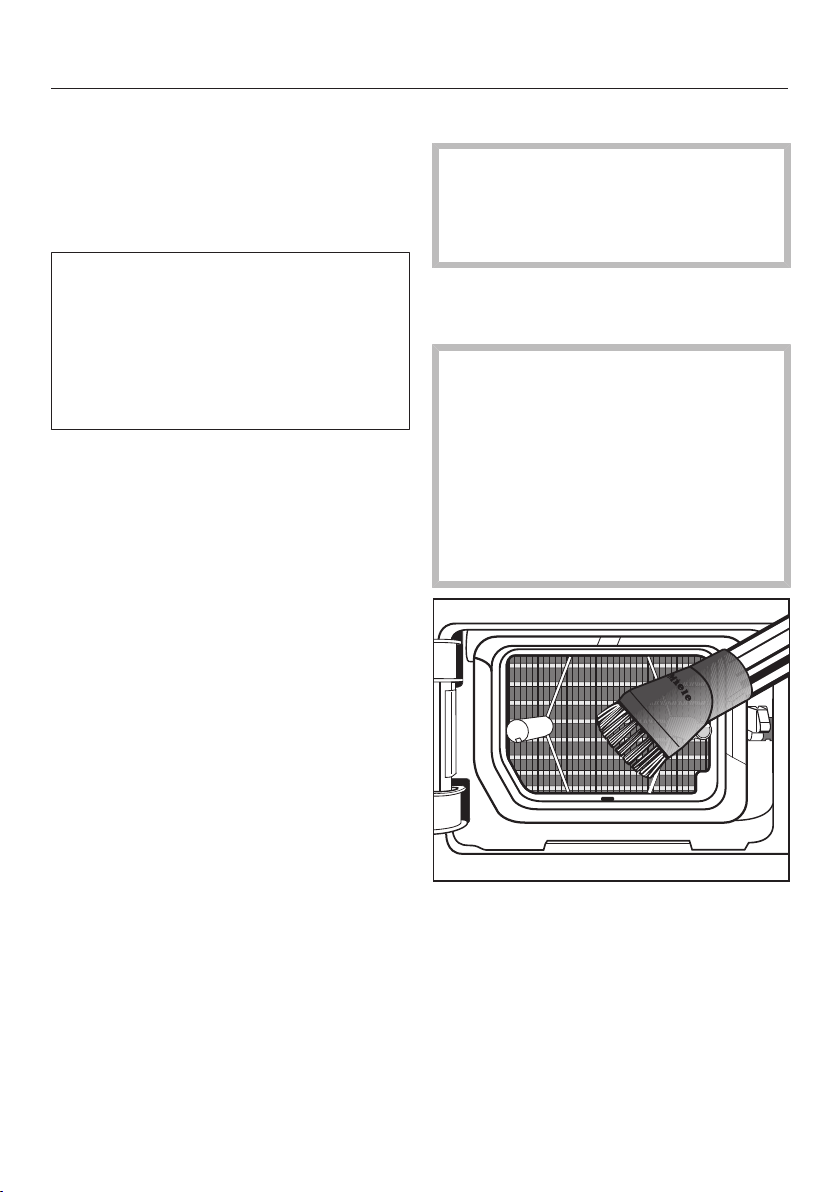

• Page 41 - English - : Cleaning and care Use a vacuum cleaner with a long crevice nozzle attached to remove any visible fluff from the upper air flow openings Finally clean the fluff filters with water Cleaning the fluff filters with water Wipe the smooth plastic surfaces of the fluff filters with a damp cloth to clean them Rinse the filters with warm running water Shake the fluff filters thoroughly and then dry them carefully Ensure the filters are dry before replacing them Wet filters could cause operational faults Push the lower fluff filter in completely and lock it with the yellow dial Push the upper fluff filter in completely Close the door

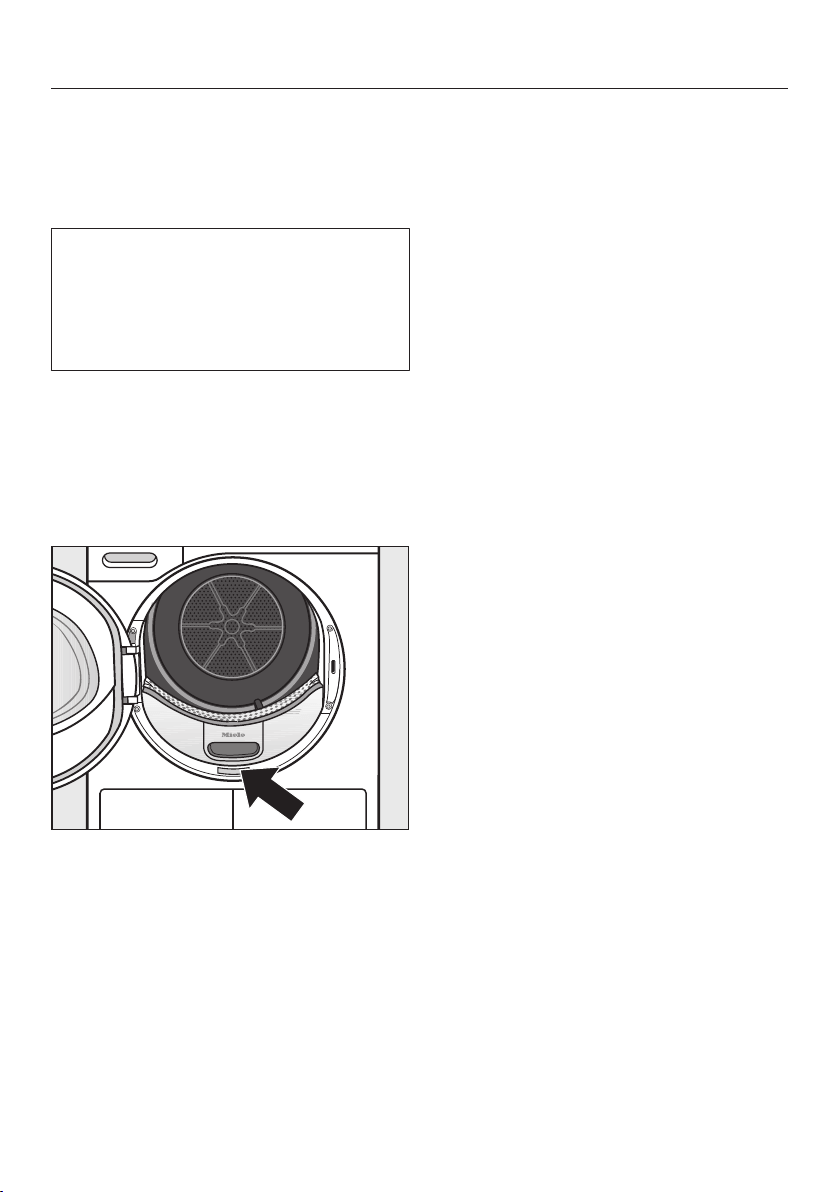

• Page 42 - English - : Cleaning and care Cleaning the plinth filter Clean the plinth filter whenever the indicator light comes on or when the programme duration is longer than usual To turn the indicator light off Open and close the door while the dryer is switched on Removing the plinth filter Press the round indented area on the heat exchanger access panel to open it The panel will spring open Pull the plinth filter out by the handle When the plinth filter is pulled out the right guide pin will slide out The guide pin prevents the flap from being closed without the plinth filter in place

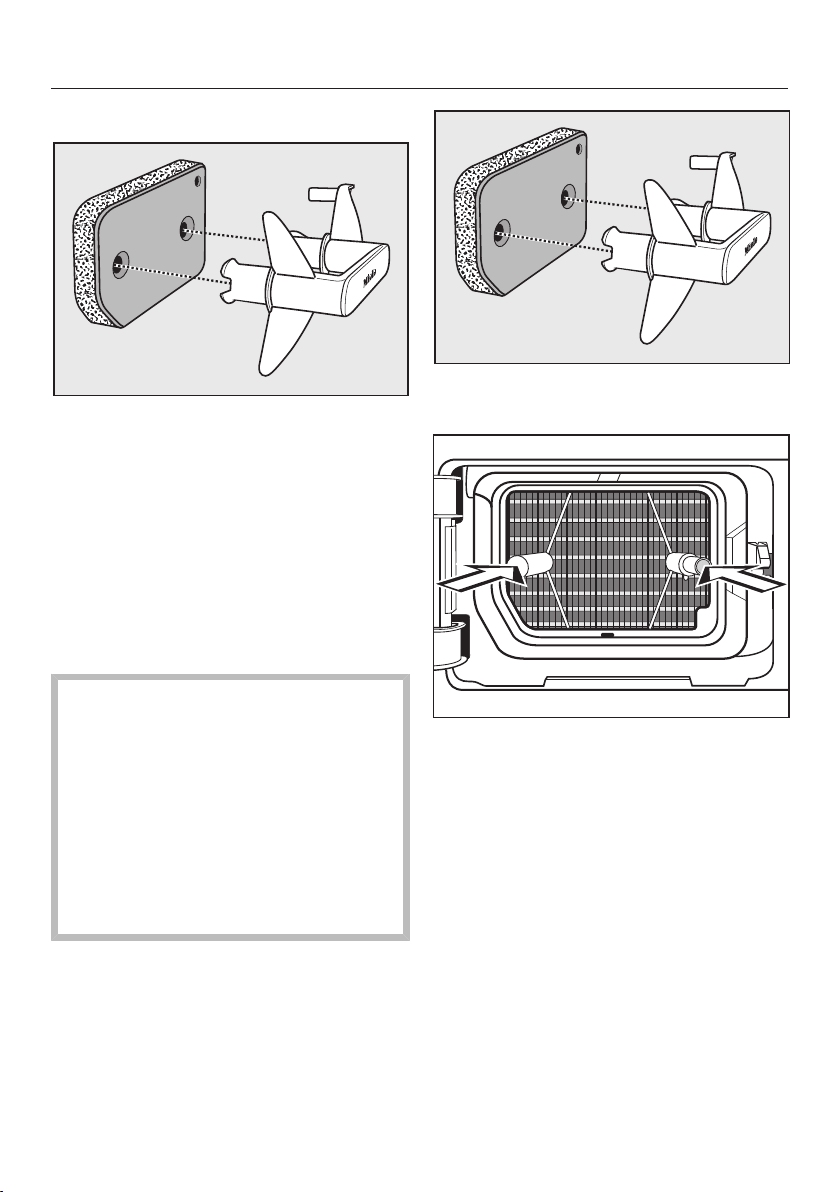

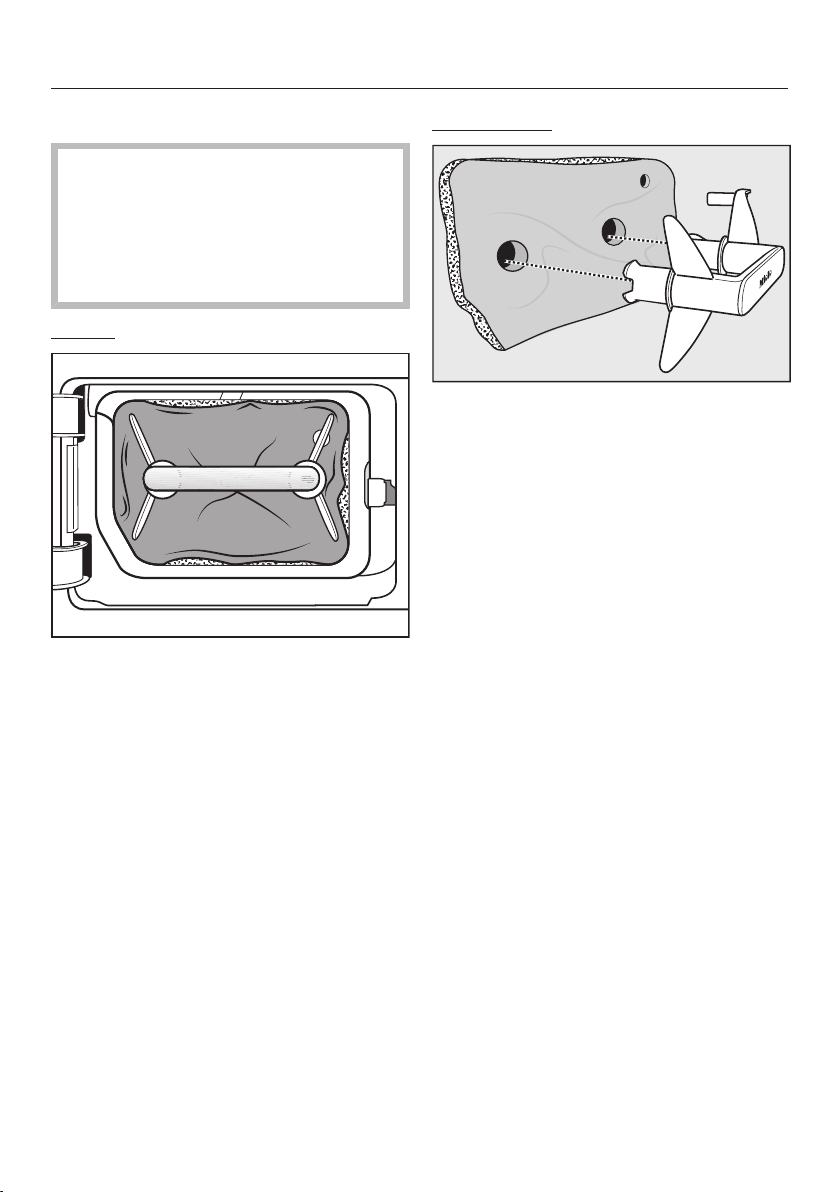

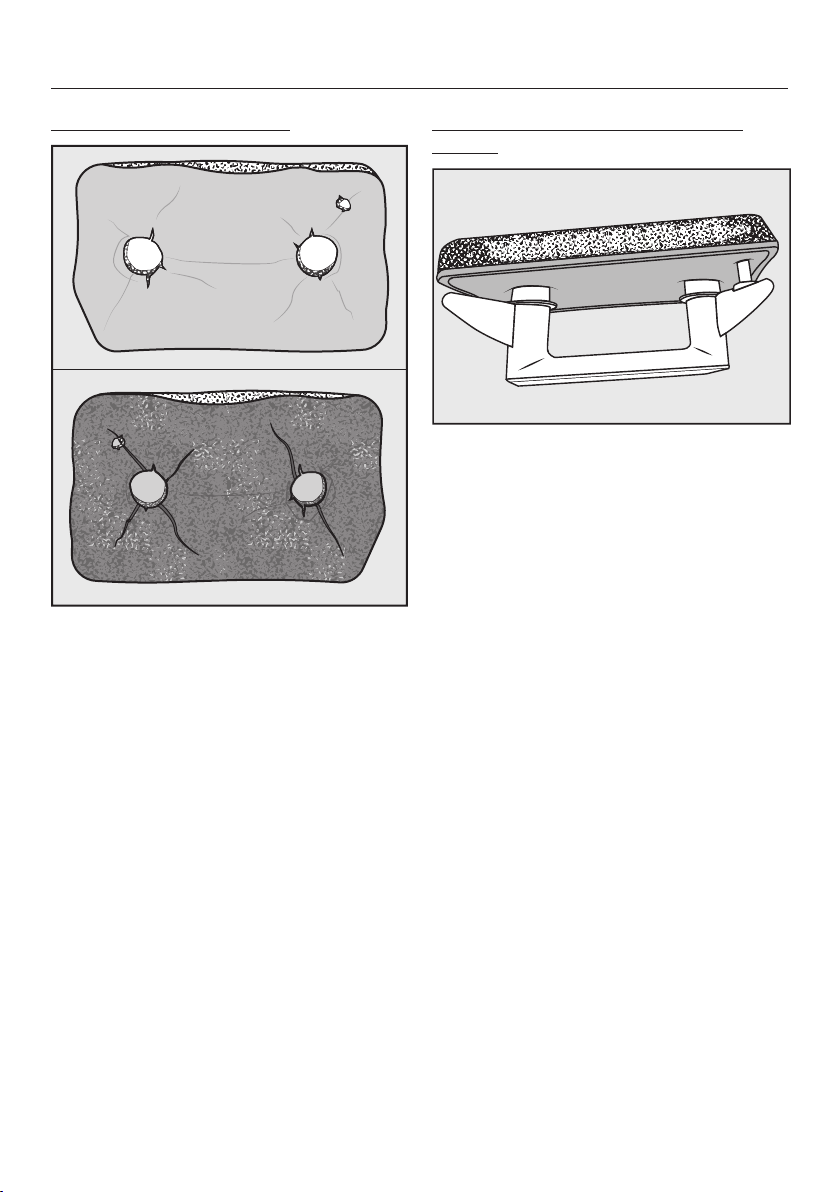

• Page 43 - English - : Cleaning and care Cleaning the plinth filter Pull the handle out of the plinth filter Clean the filter thoroughly under running water Squeeze the plinth filter very carefully several times as you rinse it Rinse the plinth filter until all visible residues have been removed Use a damp cloth to remove any fluff from the handle Damage caused by a damaged or worn filter If the plinth filter is not functioning properly the heat exchanger will be obstructed A fault may occur Check the plinth filter in accordance with the descriptions in quotProblem solving guide Replacing the plinth filterquot If necessary replace the plinth filter with a new one Fit the plinth filter back on the handle the right way round Push the plinth filter in completely Insert the right guide pin at the same time

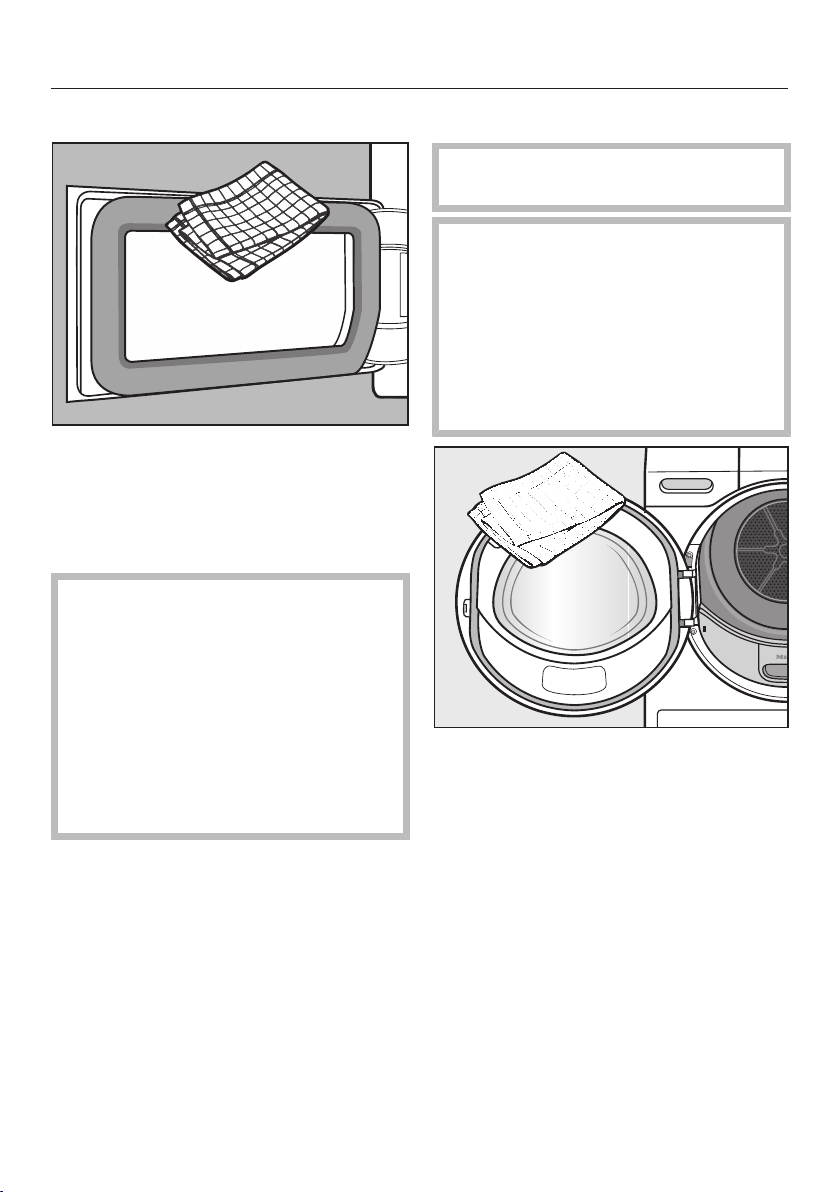

• Page 44 - English - : Cleaning and care Cleaning the plinth filter flap Use a damp cloth to remove any fluff Make sure that you do not damage the rubber seal when doing this Close the heat exchanger access panel Damage or ineffective drying when drying without a plinth filter or with the heat exchanger flap open An excessive accumulation of fluff can damage the dryer in the long term If the system is not leakproof this can lead to ineffective drying Only operate the dryer with the plinth filter fitted correctly and the heat exchanger access panel closed Cleaning the dryer Disconnect the dryer from the electricity supply Damage due to the use of unsuitable care products Unsuitable care products could damage plastic surfaces and other parts Do not use solvents abrasive cleaners glass cleaners or all purpose cleaners Clean the dryer and the seal on the inside of the door only with a slightly damp soft cloth and mild detergent or soapy water Dry all parts with a soft cloth
• Page 45 - English - : Problem solving guide With the help of the following guide minor faults in the performance of the appliance some of which may result from incorrect operation can be remedied without contacting Miele This will save you time and money because you wont need a service call Please note that a callout charge will be applied to unnecessary service visits where the problem could have been rectified as described in these operating instructions Indicator lights or information in the time display Problem Possible cause and remedy The indicator light comes on at the end of the programme The tumble dryer is not working correctly or economically Possible causes could be clogging caused by fluff or detergent residues Please see quotCleaning and carequot for notes on cleaning Clean the fluff filters Also check the plinth filter and clean it if necessary To turn the indicator light off Open and close the door while the dryer is switched on You can influence when the indicator light comes on Follow the instructions in quotProgrammable functions Airways indicatorquot and light up after a programme has been cancelled a signal sounds The system is clogged by fluff or detergent residues To switch off Switch the tumble dryer off and back on Clean the fluff filters and the plinth filter Please see quotCleaning and carequot for notes on cleaning Check that the fluff filters and the plinth filter are not damaged or worn If all fluff filters are damaged deformed or cannot be cleaned anymore they must be replaced For information on when to replace a plinth filter that is not functioning properly refer to quotProblem solving guide Replacing the plinth filterquot
• Page 46 - English - : Problem solving guide Problem Possible cause and remedy and flash again after a programme cancellation despite thorough cleaning The plinth filter looks clean after thorough cleaning However the programme is terminated again and the error message appears again There are probably still deeper residues which could not be removed To switch off Switch the tumble dryer off and back on Check all of the possible causes described below The heat exchanger is clogged Check the heat exchanger Follow the instructions in quotProblem solving guide Checking the heat exchangerquot The plinth filter is clogged on a deeper level Check the plinth filter Follow the instructions in quotProblem solving guide Replacing the plinth filterquot If the plinth filter is not deformed or defective you can regenerate it in the washing machine Follow the instructions in quotProblem solving guide Regenerating the plinth filterquot lights up after a programme has been cancelled and a signal sounds The condensed water container is full or there is a kink in the drain hose Empty the condensed water container Check the drain hose See Cleaning and care To switch off Open and close the door with the dryer switched on lights up The programme selector has been moved Select the original programme The time remaining will appear in the display again Bars flash in the display at the end of a programme The programme has finished but the laundry has not yet cooled down Either remove the laundry and spread it out to cool down or leave it in the tumble dryer to cool down during the cooling phase
• Page 47 - English - : Problem solving guide Problem Possible cause and remedy flasheslights up after the tumble dryer is switched on and a programme cannot be selected Access via a code has been activated See Programmable functions PIN Code and another number combination flash after a programme has been cancelled a signal sounds There is no obvious cause Switch the dryer off and then on again Start a programme If the programme terminates again with the same error message then there is a fault Contact Miele lights up and the programme has been cancelled a signal sounds The laundry is unevenly distributed or has rolled up Untangle the laundry and remove a few items if necessary Switch the dryer off and then on again Start a programme
• Page 48 - English - : Problem solving guide Unsatisfactory drying results Problem Possible cause and remedy The laundry is not sufficiently dry The load consisted of different types of fabric Finish drying using the Warm air programme Select a more suitable programme next time Useful tip You can alter the drying levels for some programmes See Programmable functions sections Cottons drying levels Minimum iron drying levels Laundry or feather filled pillows smell after drying The laundry was washed with insufficient detergent Feathers are a natural product and this is quite normal Laundry use sufficient detergent next time Pillows take out of the tumble dryer and aerate Use a fragrance flacon available as an optional accessory Items made of synthetic fibres are charged with static electricity after drying Synthetic fibres tend to attract static charge Static charge can be reduced by adding a fabric softener to the final rinse in the washing programme There is a buildup of fluff Fluff is principally the result of friction when garments are being worn and to some extent when they are being washed Machine drying hardly causes any fluff to form Fluff is collected by the fluff filters and the plinth filter and can be removed easily See Cleaning and care
• Page 49 - English - : Problem solving guide The drying process takes a long time Problem Possible cause and remedy The drying process goes on for too long or even switches off The room in which the tumble dryer is located is too warm Ventilate the room thoroughly Detergent residues hair and fine fluff can clog the filters Clean the fluff filters and the plinth filter Remove visible fluff from the heat exchanger The laundry is unevenly distributed or has rolled up The tumble dryer has been overloaded Untangle the laundry and remove a few items if necessary Start a programme The cool air intake bottom right grille is blocked Move any objects such as a laundry basket away from the dryer The laundry is too damp Spin the laundry using a higher spin speed in the washing machine Metallic components eg zippers have prevented the dryer from registering the correct moisture level Open the zippers next time If the problem recurs dry these items using the Warm air timed drying programme Switch the tumble dryer off and on again before starting a new programme
• Page 50 - English - : Problem solving guide Other problems Problem Possible cause and remedy There are humming noises The compressor is operating These noises are quite normal and do not indicate a fault A programme cannot be started There is no obvious cause Connect the tumble dryer to the mains electricity supply Turn on the tumble dryer Close the door Check whether the mains fuse has tripped Has there been a power cut When power is restored any previously running programme will restart automatically Only the StartAdd laundrysensor flashes slowly when the programme is running Once the programme has been running for 10minutes the indicators go out The StartAdd laundry sensor flashes slowly This is not a fault but a normal function to help save energy Touch a sensor to switch on the indicators See Programmable functions section Control panel standby status The tumble dryer is switched off The tumble dryer switches off automatically after 15minutes if no further selections are made This is not a fault but a normal function Select a programme The interior drum lighting does not come on The drum lighting will switch off automatically when the door is closed after a few minutes when the door is open to save energy If the dryer is switched on the drum lighting will come on when the door is opened
