• Page 2 - English - : Safety Precautions SAVE THESE INSTRUCTIONS Congratulations on your purchase of this Samsung washing machine These Owners Instructions contain valuable information on the installation use and care of this appliance Please take the time to read these instructions so that you can take full advantage of the washing machines features and enjoy this appliance for many years to come Before using the appliance Packing materials can be dangerous to children keep all packing material plastic bags polystyrene etc well out of the reach of children The appliance is designed for home use only Make sure that water and electrical connections are made by qualified technicians observing the manufacturers instructions see quotInstalling the Washing Machinequot on page 2 and local safety regulations All packaging and shipping bolts must be removed before the appliance is used Serious damage may occur if they are not removed See quotRemoving the shipping boltsquot on page 3 Before washing clothes for the first time you must run a complete cycle without clothes See quotWashing for the first timequot on page 7 This product is designed for low water consumption and effective washing performance The water level during wash and rinse cycles will not be visible in the front viewing windows This is normal and does not indicate malfunction Please dispose of the package for this product in an environmentally friendly manner Safety instructions Before cleaning or carrying out maintenance unplug the appliance from the electrical outlet or set the OnOff button to Off Make sure that the pockets of all clothing to be washed are empty Hard sharp objects such as coins safety pins nails screws or stones can cause extensive damage to the appliance Always unplug the appliance and turn off the water after use Before you open the door of the appliance check that the water has drained Do not open the door if you can still see water Pets and small children may climb into the appliance Check the appliance before each use The glass door becomes very hot during the washing cycle Keep children away from the appliance while it is in use Do not attempt to repair the appliance yourself Repairs made by inexperienced or unqualified persons may cause injury andor make more serious repairs to the appliance necessary If the plug power supply cord is damaged it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard This appliance should only be serviced by an authorized service center and only genuine spare parts should be used This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely Young children should be supervised to ensure that they do not play with the appliance If this appliance is supplied from a cord extension set or an electrical portable outlet device the cord extension set or electrical portable outlet device must be positioned so that it is not subject to splashing or ingress of moisture Additionally the cord extension set or electrical portable out let device must be of a current rating suitable for the appliance
• Page 3 - English - : SAMSUNG Washing Machine Owners Instructions 1 Safety Precautions inside cover lnstalling the Washing Machine 2 Unpacking the washing machine 2 Overview of the washing machine 2 Selecting a location 3 Adjusting the leveling feet 3 Removing the shipping bolts 3 Connecting the water supply hose 4 Connecting the water supply hoseoption 5 Positioning the drain hose 5 Plugging in the machine 6 Washing a Load of Laundry 7 Washing for the first time 7 Putting detergent in the washing machine 7 Overview of the control panel 8 Washing clothes using Fuzzy Logic 10 Washing clothes manually 11 Using delay start 11 Washing tips and hints 12 Maintaining the Washing Machine 13 Draining the washing machine in an emergency 13 Repairing a frozen washing machine 13 Cleaning the exterior 13 Cleaning the detergent drawer and recess 14 Cleaning the debris filter 14 Cleaning the water hose mesh filter 15 Troubleshooting 16 Problems and solutions 16 Understanding error messages 16 Cautions of Duvet course 17 Programme chart 18 Appendix 20 Fabric care chart 20 Electrical warnings 20 Protecting the environment 21 Declaration of conformity 21 Specification 21 Table of Contents

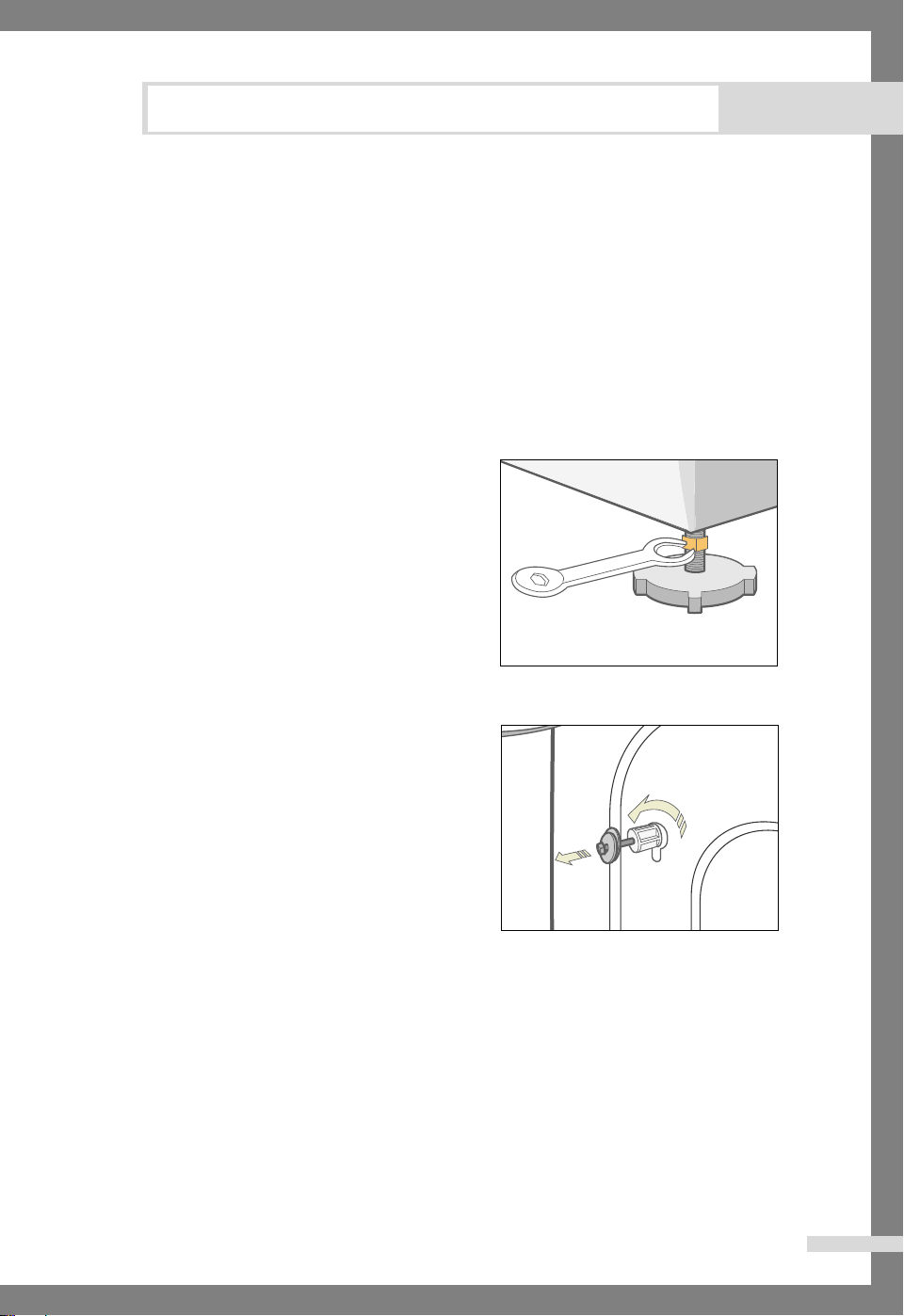

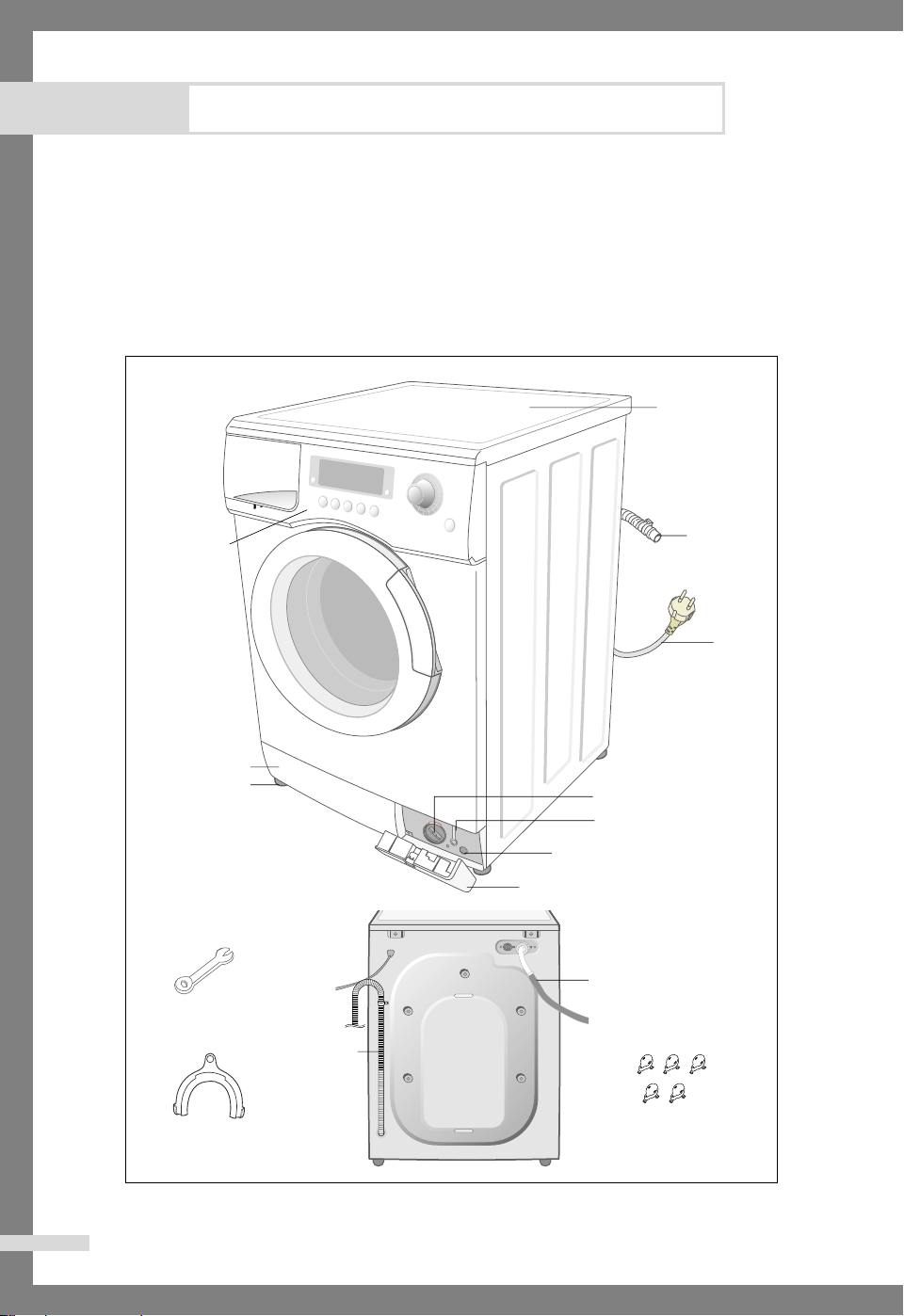

• Page 4 - English - : Installing the Washing Machine SAMSUNG Washing Machine Owners Instructions Unpacking the Washing Machine Unpack your washing machine and inspect it for shipping damage Also make sure that you have received all of the items shown below If the washing machine was damaged during shipping or you do not have all of the items contact your Samsung dealer immediately Overview of the washing machine Hose guide Plug Cold Water supply hose Bolt hole covers Drain Hose Drain Hose Detergent drawer Door Worktop Debris filter Door release Emergency drain tube Filtercover Base cover Adjustable feet Control panel Wrench
• Page 5 - English - : SAMSUNG Washing Machine Owners Instructions 3 Selecting a location Before you install the washing machine select a location with the following characteristics A hard level surface if the surface is uneven see quotAdjusting the leveling feetquot below Away from direct sunlight Adequate ventilation Room temperature that will not fall below 0 C Away from sources of heat such as coal or gas Make sure that the washing machine does not stand on its power cord Ventilation openings must not be obstructed by carpeting when the washing machine is installed on a carpeted floor Adjusting the leveling feet If the floor is uneven adjust the feet do not insert pieces of wood or any other objects under the feet 1 Loosen the leg bolt by turning it with your hand until it is at the desired height 2 Tighten the locking nut by turning it with the supplied wrench If the washer is placed on an uneven or weak surface noise or vibration occurs Only l degree angle is allowed Removing the shipping bolts Before using the washing machine you must remove the five shipping bolts from the back of the unit To remove the bolts 1 Loosen all bolts with the supplied wrench before removing them 2 Take each bolt head and pull it through the wide part of the hole Repeat for each bolt 3 Fill the holes with the supplied plastic covers 4 Keep the shipping bolts for future use Installing the Washing Machine

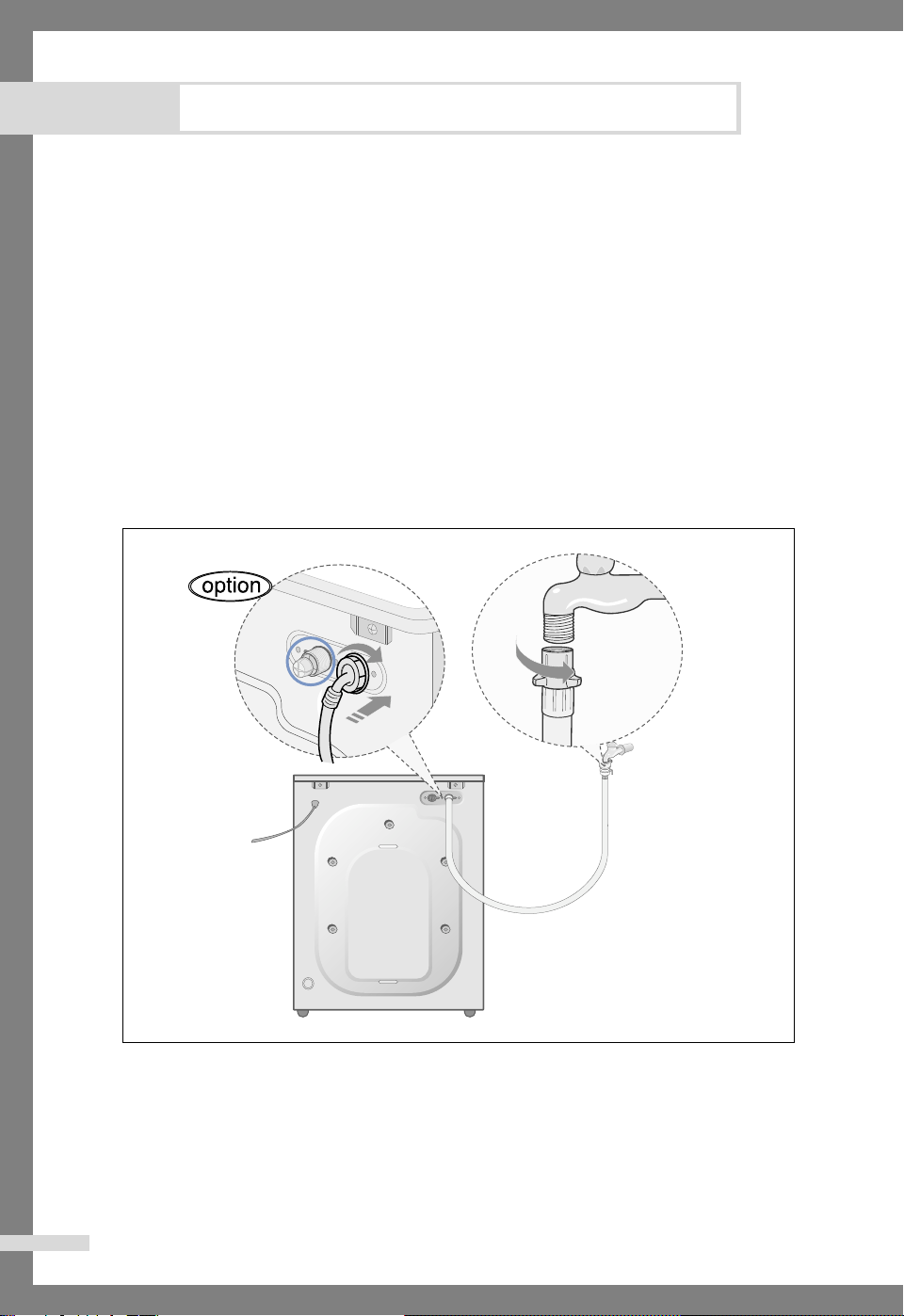

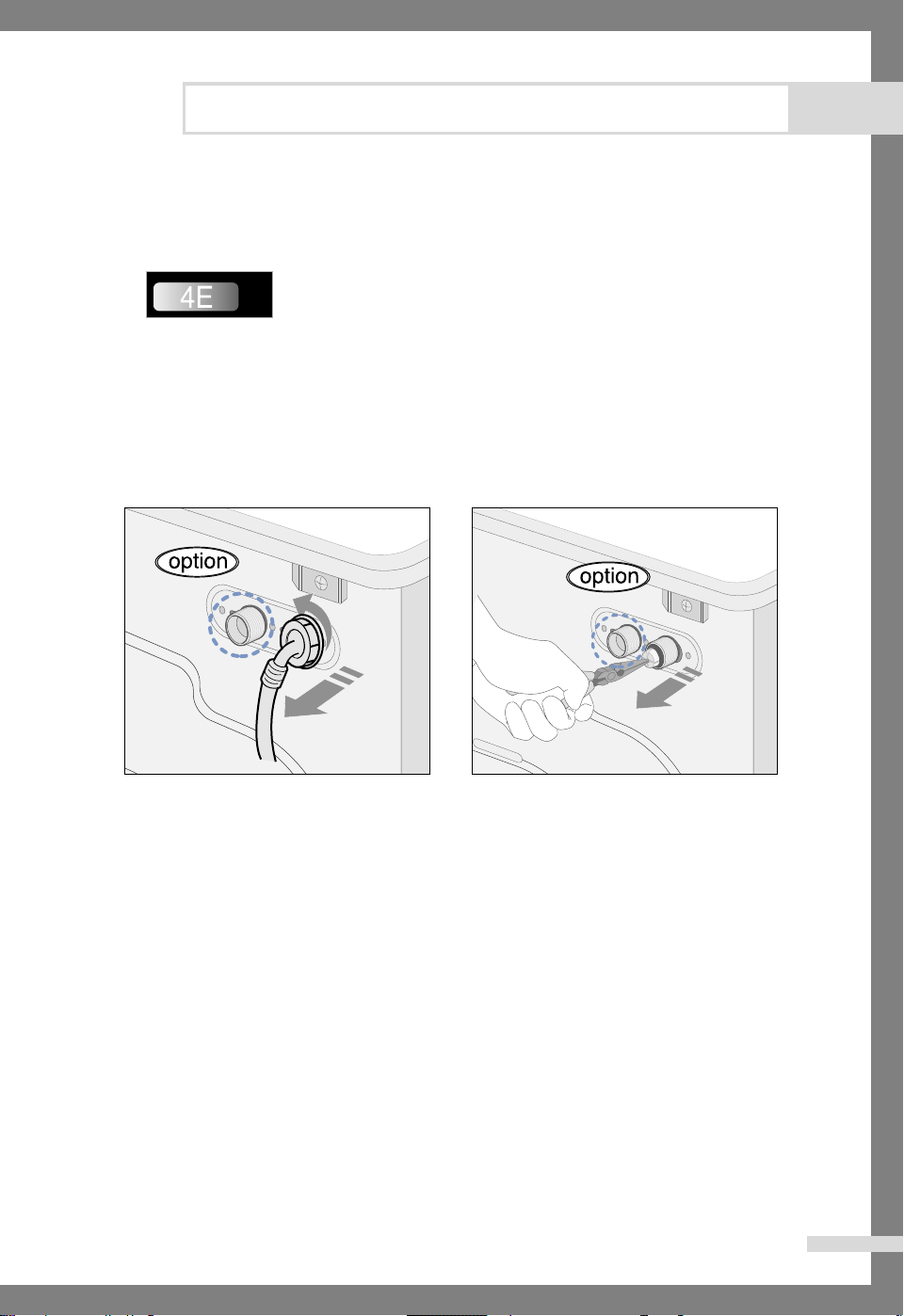

• Page 6 - English - : SAMSUNG Washing Machine Owners Instructions Connecting the water supply hose The water supply hose must be connected to the washing machine at one end and to the water faucet at the other Do not stretch the water supply hose If the hose is too short replace the hose with a longer high pressure hose To connect the water supply hose 1 Take the Lshaped arm fitting for the cold water supply hose and connect to the cold water supply intake on the back of the machine Tighten by hand 2 Connect the other end of the cold water supply hose to your sinks cold water faucet and tighten it by hand If necessary you can reposition the water supply hose at the washing machine end by loosening the fittingrotating the hose and retightening the fitting NOTICE The appliance is to be connected to the water mains using new hosesets and that old hose sets should not be used Option 1 Take the red Lshaped arm fitting for the hot water supply hose and connect to the red hot water supply intake on the back of the machine Tighten by hand 2 Connect the other end of the hot water supply hose to your sinks hot water faucet and tighten it by hand 3 Use a Ypiece if you only want to use cold water Installing the Washing Machine Hot water supply value

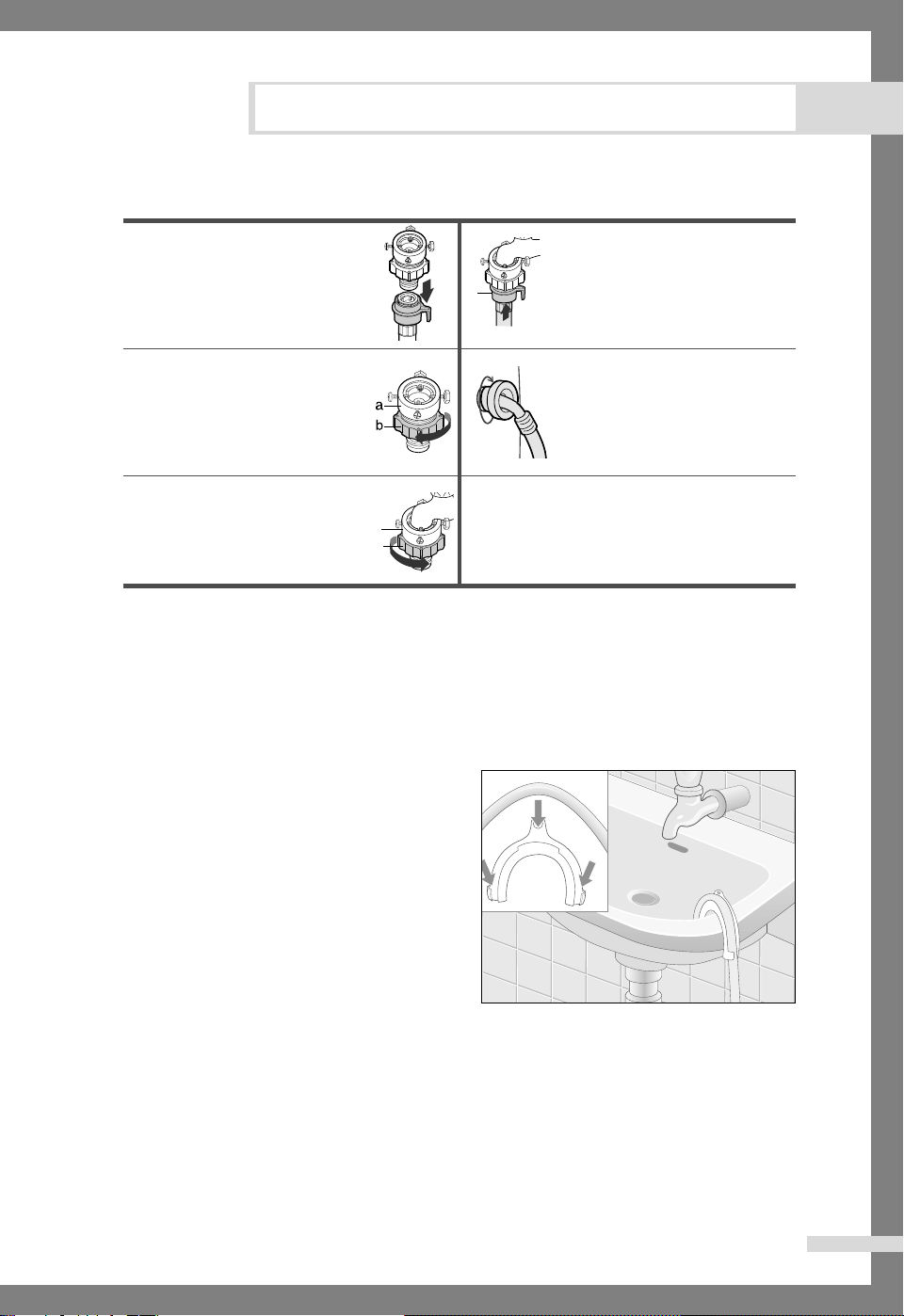

• Page 7 - English - : SAMSUNG Washing Machine Owners Instructions 5 Installing the Washing Machine Connecting the water supply hoseOption NOTICE After completing connection if water leaks from the hose then repeat the same steps Use the most conventional type of faucet for water supply In case the faucet is square or too big remove the spacing ring before inserting the faucet into the adaptor Positioning the drain hose The end of the drain hose may be positioned in three ways Over the edge of a wash basin The drain hose must be placed at a height of between 60 and 90 cm To keep the drain hose spout bent use the supplied plastic hose guide Secure the guide to the wall with a hook or to the faucet with a piece of string to prevent the drain hose from moving ln a sink drain pipe branch The drain pipe branch must be above the sink siphon so that the end of the hose is at least 60 cm above the ground ln a drain pipe Samsung recommends that you use a 65 cm high vertical pipe it must be no shorter than 60 cm and no longer than 90 cm c 2 First using a type screw driver loosen the four screws on the adaptor Next take the adaptor and turn partb following the arrow until there is a 5mm gap 4 Connect the water supply hose to the adaptor Pull down part c of the water supply hose When you release part c the hose automa tically connects to the adaptor making a click sound 5 Connect the other end of the water supply hose to the inlet water valve at the rear of the washer Screw the hose clockwise all the way in 3 Connect adaptor to the water tap by tightening the screws firmly Then turn part b following the arrow and puta and b together 1 Remove the adaptor from the water supply hose a b

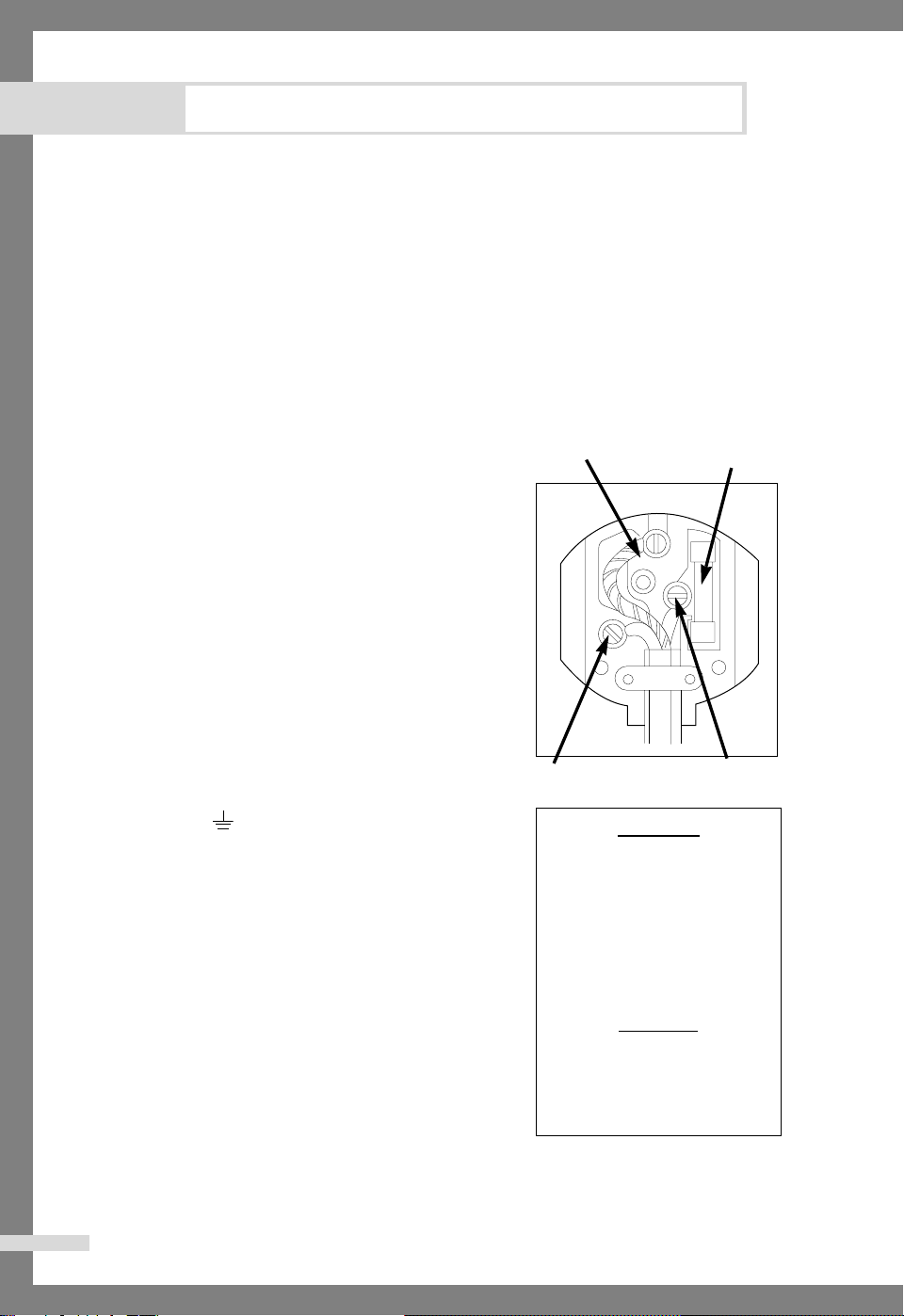

• Page 8 - English - : Installing the Washing Machine SAMSUNG Washing Machine Owners Instructions Plugging in the machine For European Users You will NOTneed to ground the plug of the washing machine For US Users You MUSTground the plug of the washing machine Check with a licensed electrician before using the machine to make sure it is properly grounded For UK Users Wiring lnstructions WARNING THIS APPLIANCE MUST BE EARTHED This appliance must be earthed In the event of an electrical short circuit earthing reduces the risk of electric shock providing an escape wire for the electric current The appliance is equipped with a mains lead which includes an earth wire for connecting to the earth terminal of your mains plug The plug must be plugged into a socket that is properly installed and earthed The wires in this mains lead are coloured in accordance with the following code Green and yellow Earth Blue Neutral Brown Live AS the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings indentifying the terminals in your plug proceed as follows Connect the green and yellow wire to the terminal in the plug marked with the letter E or the earth symbol or coloured green or greenand yellow Connect the blue wire to the terminal marked with the letter N or coloured black Connect the brown wire to the terminal marked with the letter L or coloured red Consult a qualified electrician or service technician if in doubt about any of these instructions The manufacturer of this washing machine will not accept any liability for damage to persons or material for non observance of these requirements There are no user serviceable parts inside the washing machine and if the mains lead of this appliance is damaged it must only be replaced by qualified service personnel approved by the manufacturer because special tools are required GREEN AND YELLOW 13 AMP FUSE BROWN BLUE WARNING Ensure that the plug and power cord are not damaged before use If you have any reason to remove the moulded plug from this appliance immediately remove the fuse and dispose of the plug Do not connect the plug to a mains socket under any circumstances as there is a danger of electric shock CIRCUITS Your washing machine should be operated on a separate circuit from other appliances Failure to do this may cause the circuit breaker to trip or the fuse to blow
• Page 9 - English - : Washing a Load of Laundry SAMSUNG Washing Machine Owners Instructions 7 Washing for the first time Before washing clothes for the first time you must run a complete cycle without clothes To do this 1 Press the OnOff button 2 Pour a little detergent into compartment in the detergent drawer 3 Turn on the water supply to the washing machine 4 Press the Temperature button repeatedly until 40 C is displayed 5 Press the StartPause button This will remove any water from the manufacturers test run remaining in the machine Dispender Detergent for prewash or starch Dispenser Detergent for main wash water softenerpresoaking agent bleach and stain removal product Dispenser Additivesegfabric softener or former fill no higher than lower edge of insert A Putting detergent in the washing machine 1 Pull out the detergent drawer 2 Add laundry detergent into compartment 3 Add softener into compartment if you desire 4 Add prewash detergent into compartment if you desire Caution Concentrated or thick fabric softener and conditioner must be diluted with a little water before being poured into the dispenser prevents the overflow from becoming blocked

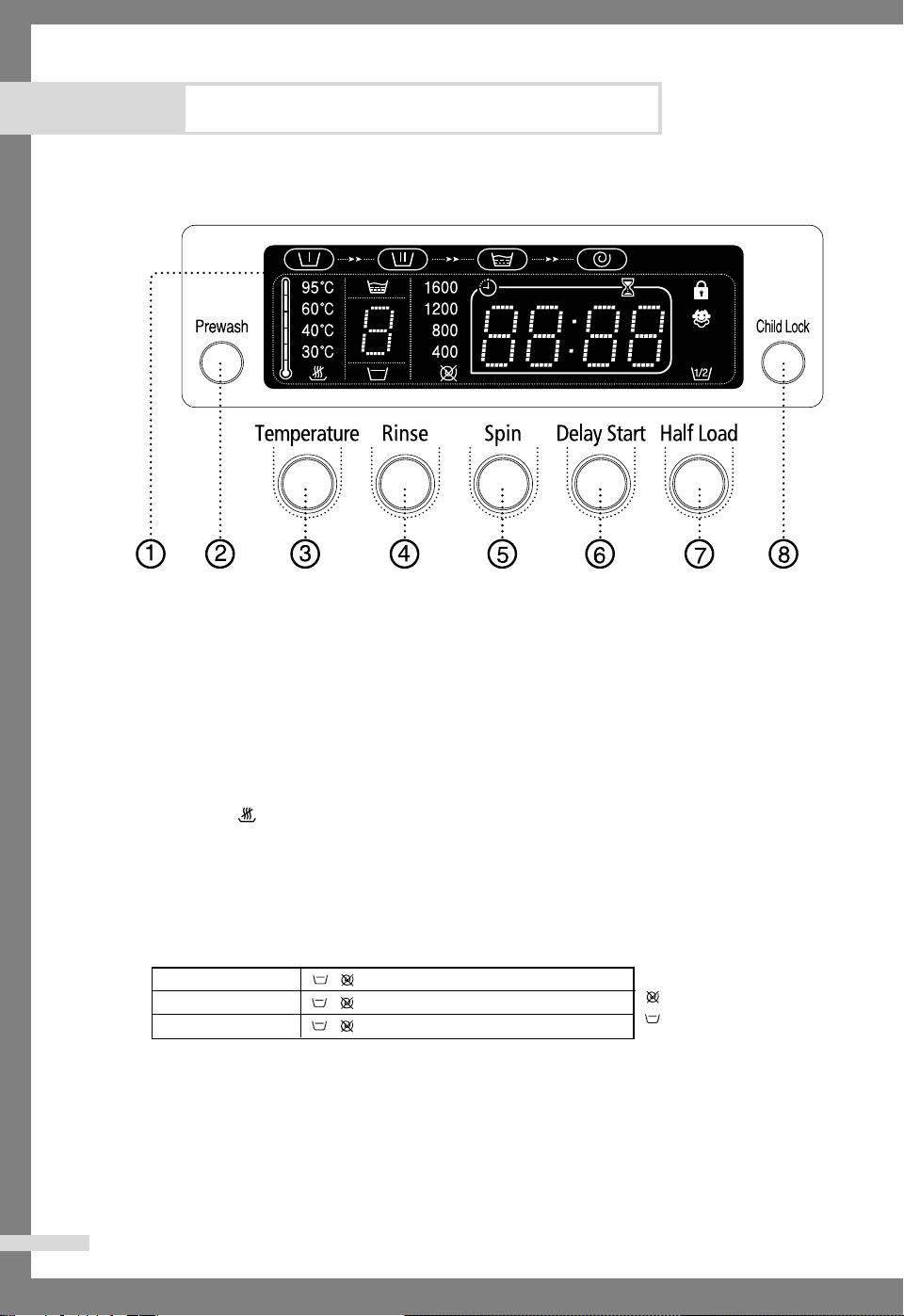

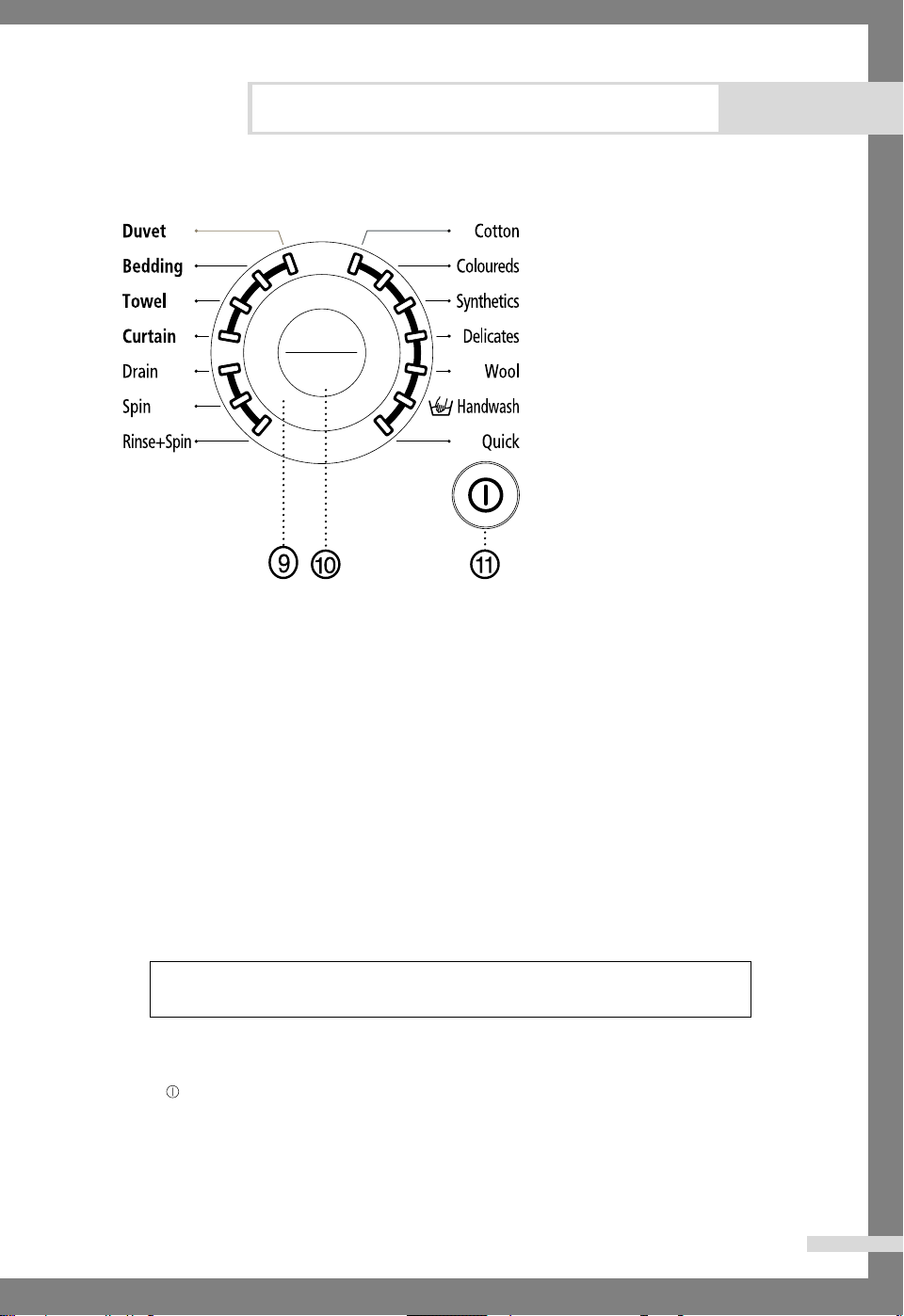

• Page 10 - English - : Washing a Load of Laundry SAMSUNG Washing Machine Owners Instructions Overview of the control panel Q1636Q1436Q1435Q1236Q1235 1 Digital graphic display Displays the remaining wash cycle timeall of washing information and error messages 2 Prewash selection button Press the button to select prewash Prewash is available only with Duvet Bedding Towel Curtain Cotton Coloureds Synthetics and Delicates programs 3 Temperature selection button Press the button repeatedly to cycle through the available water temperature options cold water 30 C 40 C 60 C and 95 C 4 Rinse selection button Press the rinse button to add rinse cycles Maximum number of rinse cycles is five 5 Spin selection button Press the button repeatedly to cycle through the available spin speed options No spin The laundry remains in the drum without being spun after the final drain Rinse Hold The laundry remains soaking in the final rinse water Before the laundry can be unloaded either Drain or the Spin program must be run Q1636 400 800 1200 1600 rpm Q1436Q1435 400 800 1200 1400 rpm Q1236Q1235 400 800 1000 1200 rpm no spin rinse hold
• Page 11 - English - : Washing a Load of Laundry SAMSUNG Washing Machine Owners Instructions 9 6 Delay Start selection button Press the button repeatedly to cycle through the available delayed start options from 3 hour to 24 hours in one hour increments Displayed hours means the time of finished washingcycle 7 Half Load selection button Press the button in case of half loadabout 14kg washing This function saves washing time and energy 8 Child Lock selection button Press the button for 23 seconds to prevent misoperation of child When child lock is on other buttons are not selected To cancel the child lock press the button for 23 seconds once more 9 Fuzzy Control dial Turn the dial to select one of the 14 available wash programs 10 StartPause selection button Press to pause and restart programs 11 OnOff selection button Press once to turn the washing machine on press again to turn the washing machine off If the washing machine power is left on for longer than 10 minutes without any buttons being touched the power automatically turns off Cotton Coloureds Synthetics Delicates Wool Hand wash Quick RinseSpin Spin Drain Curtain Towel Bedding Duvet Start Pause

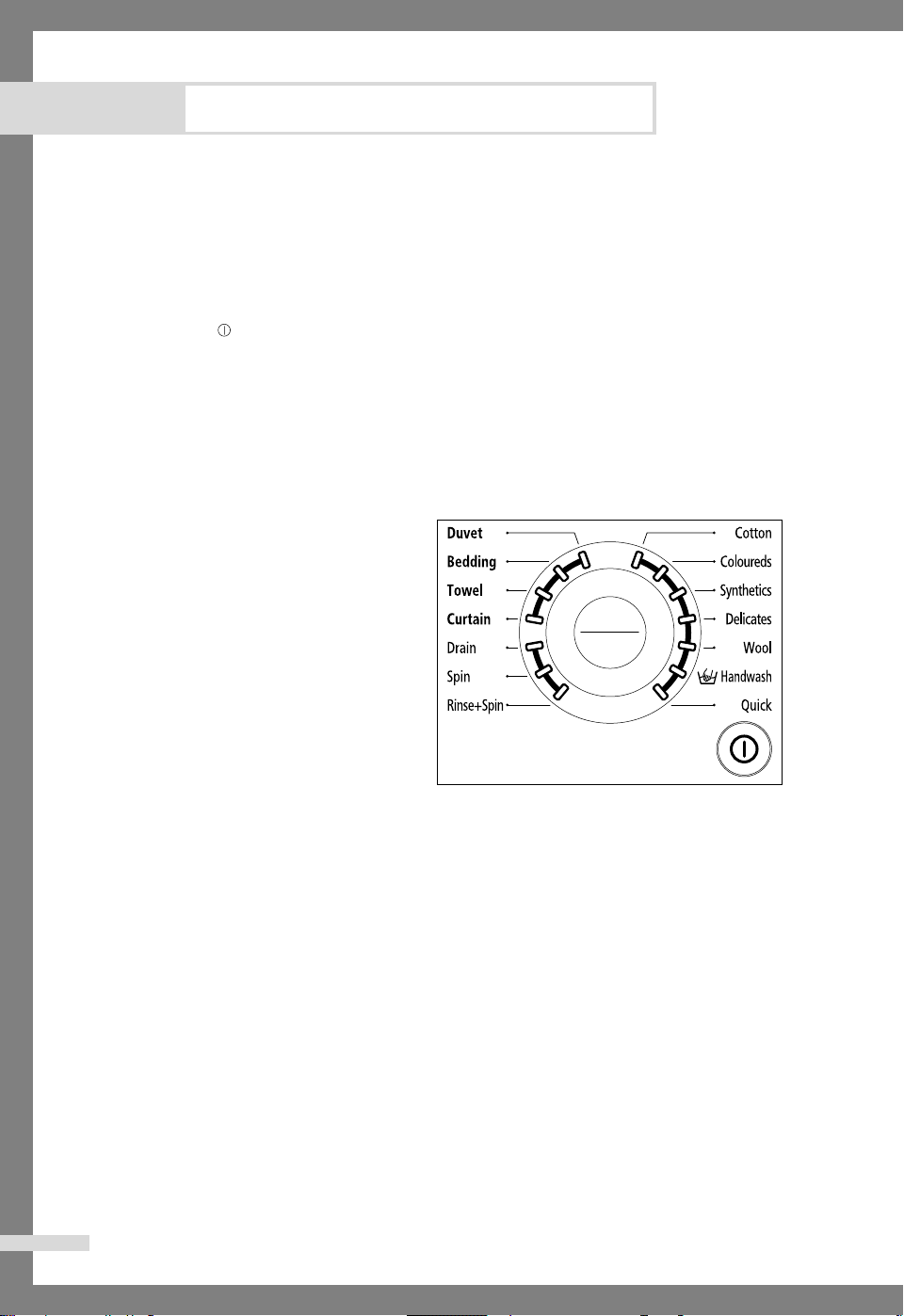

• Page 12 - English - : Washing a Load of Laundry SAMSUNG Washing Machine Owners Instructions Washing clothes using Fuzzy Logic Your new washing machine makes washing clothes easy using Samsungs quotFuzzy Logicquot automatic control system When you select a wash program the machine will set the correct temperature washing time and washing speed To wash clothes using the Fuzzy Logic programs 1 Turn on your sinks water faucet 2 Press the OnOff button 3 Open the door 4 Load the articles one at a time loosely into the drum without overfilling 5 Close the door 6 Add the detergent softener and prewash detergent if necessary into the appropriate compartment Note Prewash is only available when washing Duvet Bedding Towel Curtain Cotton Coloureds Synthetics and Delicates programs It is only necessary if your clothing is heavily soiled 7 Turn the Fuzzy Control dial to select the appropriate program for the type of clothes Cotton Coloureds Synthetics Delicates Wool Handwash Quick Duvet Bedding Towel Curtain You will see the indicators light up on the control panel 8 At this time you can control the wash temperature rinsing times spin speed delay time by pressing the appropriate option button 9 Press the StartPause button on the Fuzzy Control dial and the wash cycle will begin The process indicator will light up and the remaining time for the cycle will appear in the display Pause Option Q1636 Q1436 Q1435 1 Within 5 minutes of starting a wash it is possible to addremove laundry items to the load 2 By depressing the STARTPAUSE button the door is unlocked 3 The door can NOT be opened when the water is too HOT or the water level is too HIGH 4 After closed the door depressing the STARTPAUSE button again will restart the washing porcess When the cycle is finished After the total cycle has finished the power will turn off automatically 1 Open the door 2 Remove laundry Start Pause
• Page 13 - English - : SAMSUNG Washing Machine Owners Instructions 11 Washing a Load of Laundry Washing clothes manually You can wash clothes manually without using the Fuzzy Logic feature To do so 1 Turn the water supply on 2 Press the OnOff button on the washing machine 3 Open the door 4 Load the articles one at a time loosely into the drum without overfilling 5 Close the door 6 Put the detergent and if necessary softener or prewash detergent in the appropriate compartments 7 Press the Temperature button to select the temperature cold water 30C 40C 60C 95C 8 Press to rinse button to select the required number of rinse cycles Maximum number of rinse cycles is five The washing duration will be prolonged accordingly 9 Press the Spin button to select the spin speed Note The rinse hold program allows you to take clothes that are dripping wet out of the washing machine No Spin Rinse Hold 10 Press the button repeatedly to cycle through the available delayed start options from 3 hour to 24 hours in one hour increments Displayed hours means the time of finished washingcycle 11 Press the StartPause button and the machine will begin the cycle Using Delay Start You can set the washing machine to finish your wash automatically at a later time choosing from 3 to 24 hour delay in 1 hour increments Displayed hours means the time of finished washingcycle To do this 1 Manually or automatically set your washing machine for the type of clothes you are washing 2 Press the Delay Start button repeatedly until the delay time is set 3 Press the StartPause button The Delay Start indicator will light and the clock will begin counting down until it reaches your finish time 4 To cancel Delay Start press the OnOff button then turn the washing machine on again
• Page 14 - English - : Washing tips and hints Sorting your laundry Sort your laundry according to the following characteristics Type of fabric care label symbol Sort laundry into cottons mixed fibers synthetics silks wools and rayon Colour Divide whites and colours Wash new coloured items separately Size Placing items of different sizes in the same load will improve the washing action Sensitivity Wash delicate items separately using the Delicate wash program for pure new wool curtains and silk articles Check the labels on the items you are washing or refer to the fabric care chart in the appendix Emptying pockets Coins safety pins and similar items can damage linen the washing machine drum and the water tank Securing fasteners Close zippers and fasten buttons or hooks loose belts or ribbons should be tied together Prewashing cotton Your new washing machine combined with modern detergents will give perfect washing results thus saving energy time water and detergent However if your cotton is particularly dirty use a prewash with a proteinbased detergent Determining load capacity Do not overload the washing machine or your laundry may not wash properly Use the chart below to determine the load capacity for the type of laundry you are washing Fabric Type Load Capacity Cotton Coloured 80 kg Synthetics Towel 40 kg Quick 30 kg Delicates 25 kg Wools Handwash 20 kg Curtain Bedding 50 kg Duvet 1 king size 9 Tog Detergent tips The type of detergent you should use is based on the type of fabric cotton synthetic delicate items wool colour wash temperature degree and type of soiling Always use quotlow sudsquot laundry soap which is designed for automatic washing machines Follow the detergent manufacturers recommendations based upon the weight of the laundry the degree of soiling and the hardness of the water in your area If you do not know how hard your water is ask your water authority Note Keep detergents and additives in a safe dry place out of the reach of children SAMSUNG Washing Machine Owners Instructions Washing a Load of Laundry

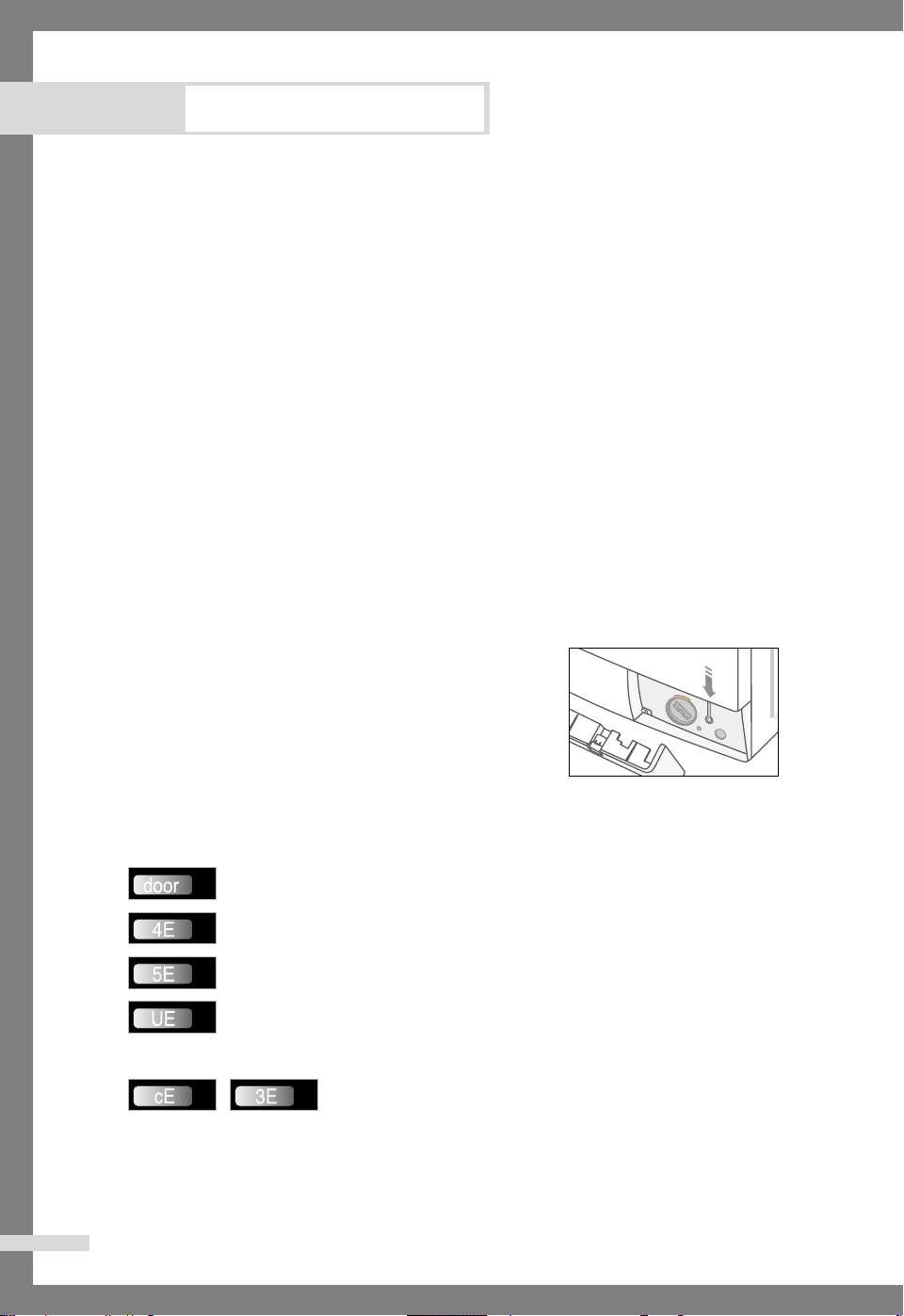

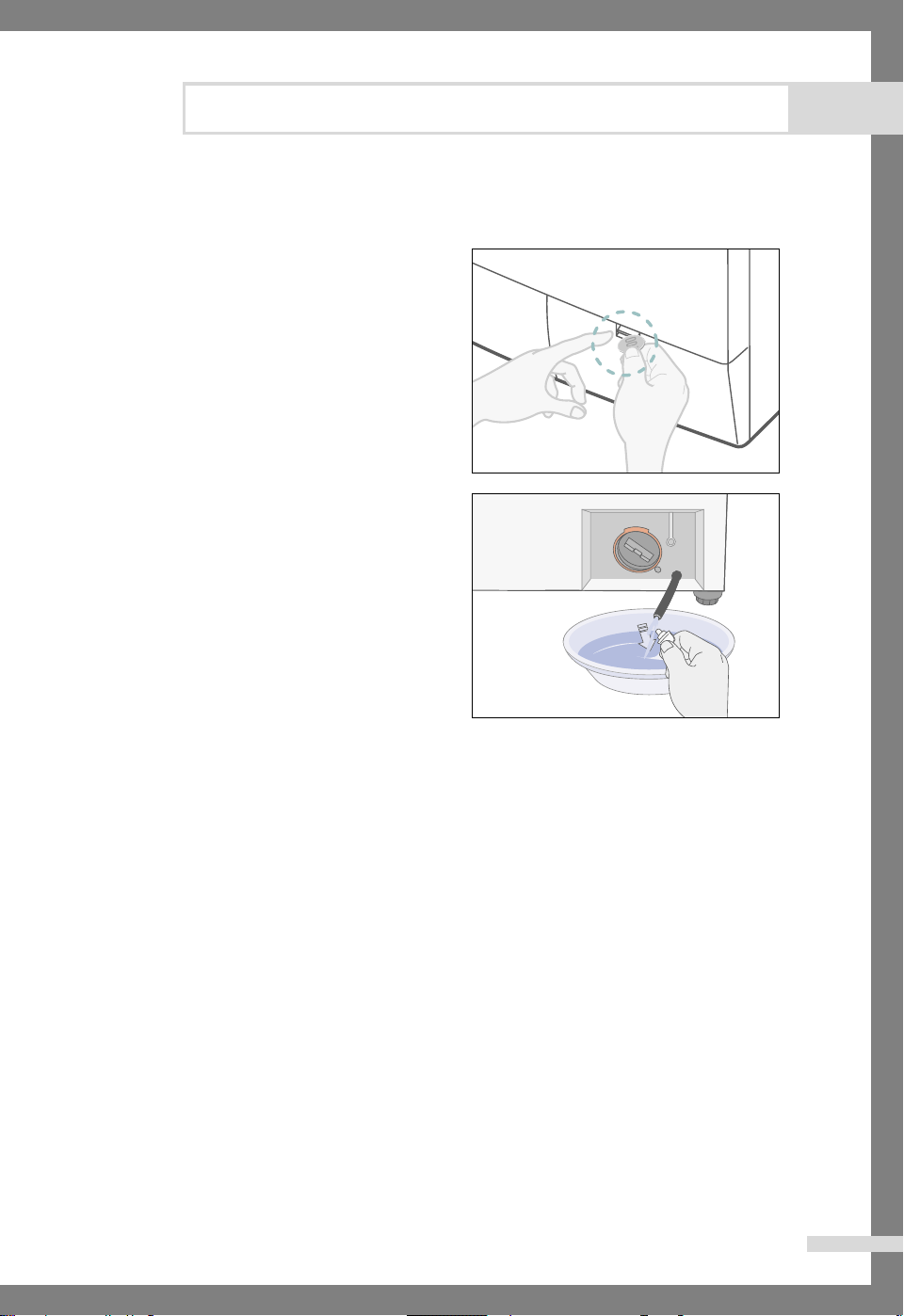

• Page 15 - English - : SAMSUNG Washing Machine Owners Instructions 13 Maintaining the Washing Machine Draining the washing machine in an emergency 1 Unplug the washing machine from the power supply 2 Open the filtercover by using a coin or a key 3 Unscrew the emergency drain cap by turning left Grip the cap on the end of the emergency drain tube and slowly pull it out about 15 cm 4 Allow all the water to flow into a bowl 5 Reinsert the drain tube and screw the cap back on 6 Replace the filtercover Repairing a frozen washing machine If the temperature drops below freezing and your washing machine is frozen 1 Unplug the washing machine 2 Pour warm water on the source faucet to loosen the water supply hose 3 Remove the water supply hose and soak it in warm water 4 Pour warm water into the washing machine drum and let it sit for 10 minutes 5 Reconnect the water supply hose to the water faucet and check if the water supply and drain operations are normal Cleaning the exterior 1 Wipe the washing machine surfaces including the control panel with a soft cloth and nonabrasive household detergents 2 Use a soft cloth to dry the surfaces 3 Do not pour water on the washing machine

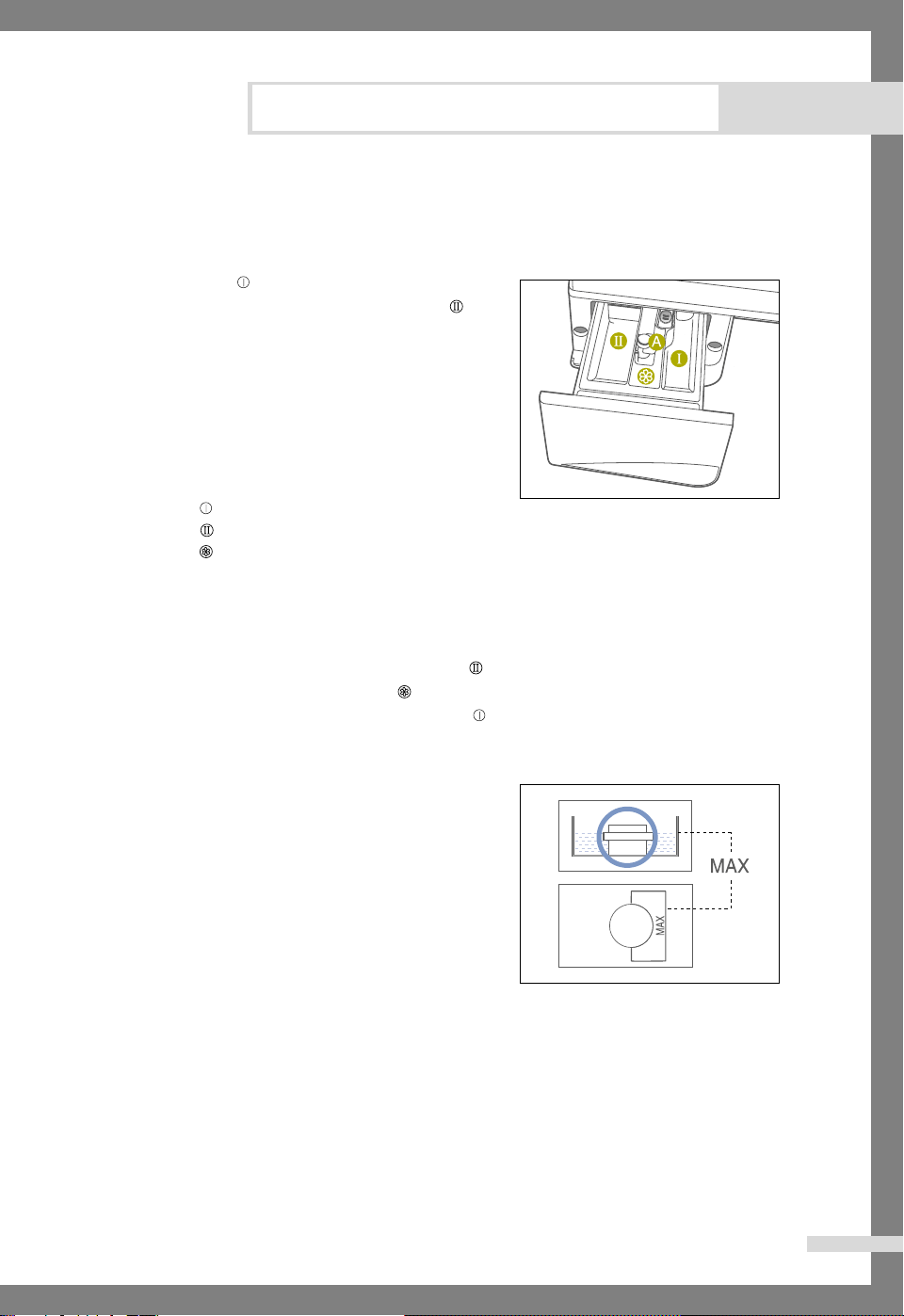

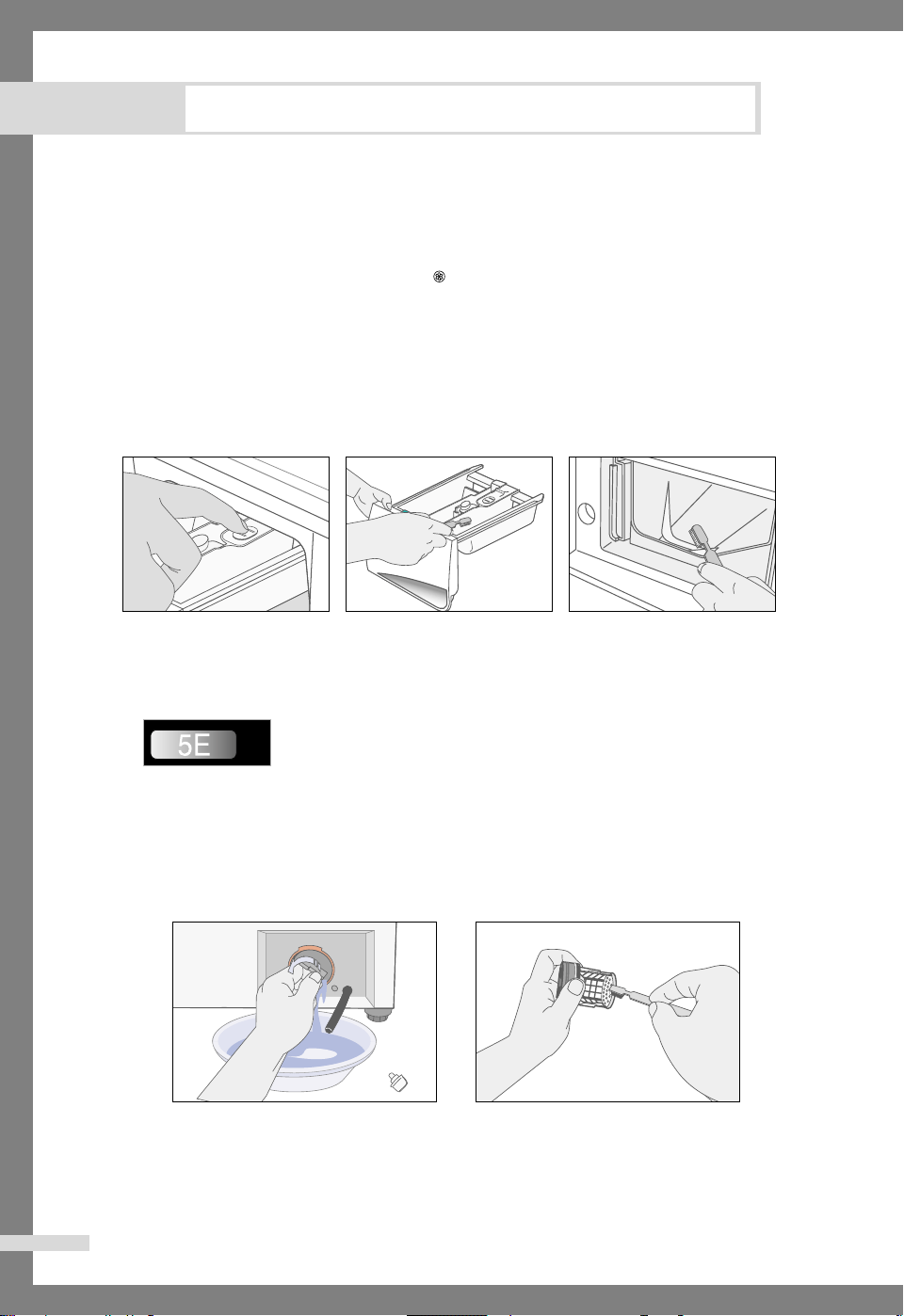

• Page 16 - English - : Maintaining the Washing Machine SAMSUNG Washing Machine Owners Instructions Cleaning the detergent drawer and recess 1 Press the release lever on the inside of the detergent drawer and pull it out 2 Remove the cap from compartment 3 Wash all of the parts under running water 4 Clean the drawer recess with an old toothbrush 5 Reinsert the cap Pushing it firmly into place and replace the liquid detergent divider into the drawer 6 Push the drawer back into place 7 Run a rinse program without any laundry in the drum Cleaning the debris filter Clean the debris filter 5 or 6 times a year or when you see the following error message on the display 1 Open the filtercover See Draining the washing machine in an emergencyquot on page 13 2 Unscrew emergency drain cap by turning left and drain off all the water See quotDraining the washing machine in an emergencyquot on page 13 3 Unscrew the filter cap and take it out 4 Wash any dirt or other material from the filter Make sure the drain pump propeller behind the filter is not blocked Replace the filter cap 5 Replace the filtercover
• Page 17 - English - : SAMSUNG Washing Machine Owners Instructions 15 Cleaning the water hose mesh filter You should clean the water hose mesh filter at least one time per year or when you see the following error message on the display To do this 1 Turn off the water source to the washing machine 2 Unscrew the hose from the back of the washing machine 3 With a pair of pliers gently pull out the mesh filter from the end of the hose and rinse it under water until clean Also clean the inside and outside of the threaded connector 4 Push the filter back into place 5 Screw the hose back onto the washing machine 6 Turn on the faucet and make sure the connections are watertight Maintaining the Washing Machine
• Page 18 - English - : Troubleshooting SAMSUNG Washing Machine Owners Instructions Problems and solutions The washing machine will not start Make sure the door is firmly closed Make sure the washing machine is plugged in Make sure the water source faucet is turned on Make sure to press the StartPause button No water or insufficient water supply Make sure the water source faucet is turned on Make sure the water source hose is not frozen Make sure the water intake hose is not bent Make sure the filter on the water intake hose is not clogged Detergent remains in the detergent drawer after the wash program is complete Make sure the washing machine is running with sufficient water pressure Put the detergents in the inner parts of the detergent draweraway from the outside edges Washing machine vibrates or is too noisy Make sure the washing machine is set on a level surface If the surface is not level adjust the washing machine feet to level the appliance see page 3 Make sure that the shipping bolts are removed see page 3 Make sure the washing machine is not touching any other object Make sure the laundry load is balanced The washing machine does not drain andor spin Make sure the drain hose is not squashed or bent Make sure the debris filter is not clogged see page 14 The Door does not open Q1636Q1436Q1435 1 Disconnect the power plug from the power supply 2 Remove the water from the washing machine 3 Open the filter cover using a coinsee page 13 4 Locate the orange plastic tab and pull forward to open the door Understanding error messages Error displayed Solution Before contacting AfterSales service 1 Try to remedy the problem See quotTroubleshootingquot on this page 2 Restart the programme to see if the fault is repeated 3 If the malfunction persists call aftersales service and describe the problem Close the door Make sure the source water faucet is turned on Check the water pressure Clean the debris filter Make sure the drainage hose is installed correctly Call aftersales service Laundry load is unbalanced loosen any tangled laundry If only one item of clothing needs washing such as a bathrobe or jeans the final spin result might be unsatisfactory and an quotUEquot error message will be shown in the display window

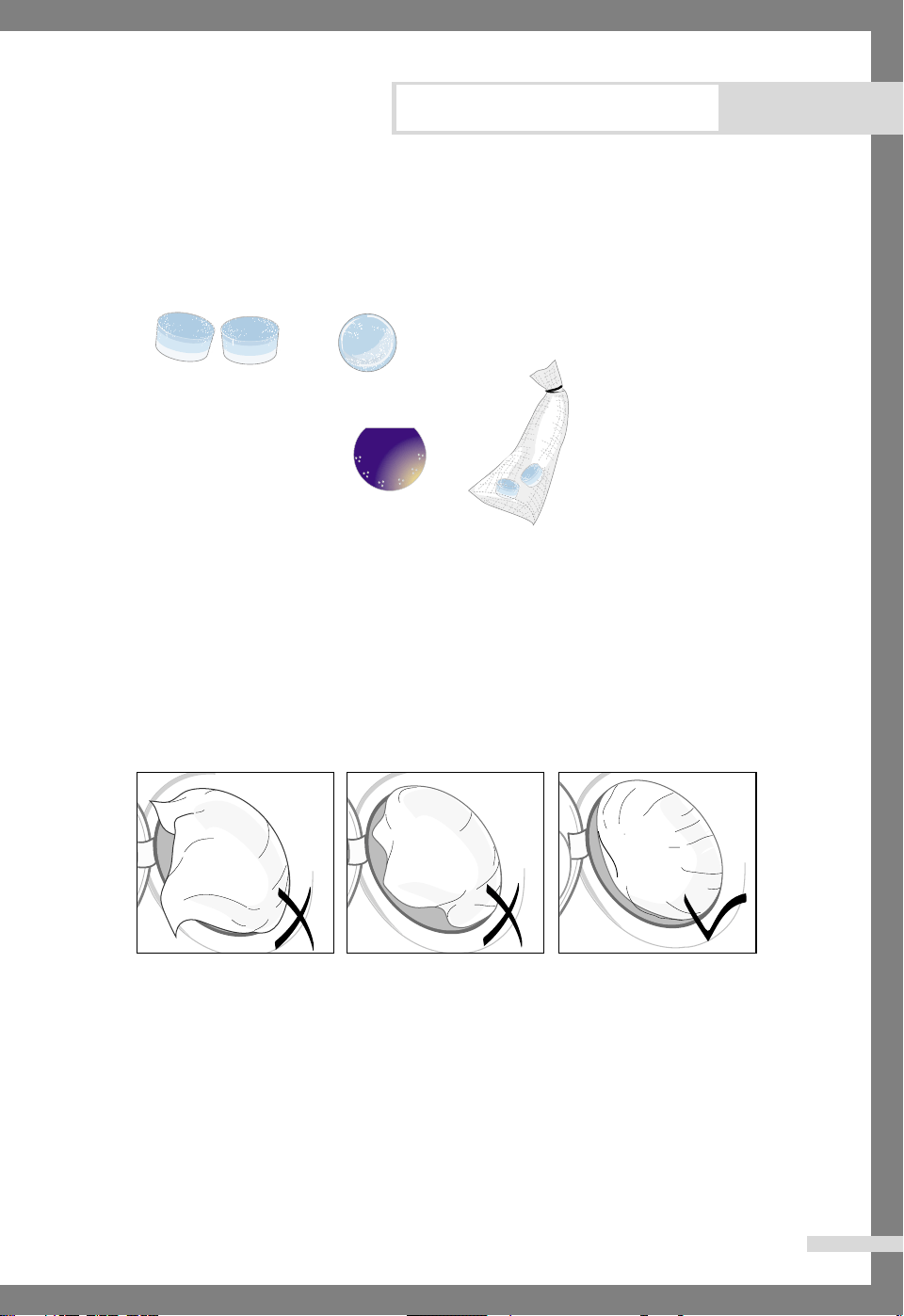

• Page 19 - English - : SAMSUNG Washing Machine Owners Instructions 17 Troubleshooting Caution When using the Duvet course Use of Detergents in Duvet Course When washing larger volume laundry items including duvet do not put the following detergents directly into the drum Tablet and capsule type detergents Detergents using ball and net Detergents not fully dissolved may bring about imperfect washing For dffective washing add detergent into the detergent drawer Do not wash a duvet by spreading detergent directly on it Cautions in Putting Duvet in the Drum 1 Do not use unnecessary force or too large Duvet 2 Make sure that a corner or folded part of the duvet directs inwards Picture of Being Put Properly
• Page 20 - English - : SAMSUNG Washing Machine Owners Instructions Programme Chart Cotton 80 yes 60 95 1600 1400 1200 60 142 Coloureds 80 yes 40 60 1600 1400 1200 60 142 Synthetics 40 yes 40 60 800 800 800 55 085 Delicates 25 yes 40 40 800 800 800 55 085 Wool 20 yes 30 40 400 400 400 65 075 Handwash 20 yes 30 40 400 400 400 65 075 Quick 30 yes 30 60 1200 1200 1000 45 045 PROGRAM Type of WASH Cotton Average or lightly soiled cottons bed linen table linen underwear towels shirts etc Coloureds Average or lightly soiled cottons bed linen table linen underwear towels shirts etc Synthetics Average or lightly soiled blouses shirts etc which are made of polyester diolen trevira polyamide perlon nylon or other similar blends Delicates Delicate curtains dresses skirts shirts and blouses Wool Only machine washable woolens with pure new wool label Handwash Very light wash course like hand wash Quick Lightly soiled cottons or linen blouses shirts dark coloured terry cloth coloured linen articles jeans etc 1 Programme with prewash lasts approx 15 minutes longer 2 The programme duration data has been measured under the conditions specified in Standard IEC 456 3 Consumption in individual homes may differ from the values given in the table due to variations in the pressure and temperature of the water supply the load and the type of laundry PRO GRAM DETERGENT AND ADDITIVES Spin SpeedMAXrpm Half Load Water l Tem C Max load kg Pre wash Sof tener Max de fault wash Q1636 Q1436 Q1435 Q1236 Q1235 Delay start Electri city kWh user option
• Page 21 - English - : SAMSUNG Washing Machine Owners Instructions 19 Programme Chart PROGRAM Type of WASH Duvet Cotton bedding with filling duvet pillow blanket sofa cover with light filling Bedding Cotton bedding bed linen bed sheet duvet cover pillow cover etc Towel Pile weave cotton towels bath towel bath gown Curtain Cotton or mixed cotton thick curtain towface curtainface lining lightly soiled furniture linen sofa cover without filling etc Duvet yes 40 60 800 800 800 75 050 Bedding 50 yes 60 95 1600 1400 1200 65 125 Towel 40 yes 60 95 1600 1400 1200 82 110 Curtain 50 yes 40 60 1200 1200 1000 82 070 PRO GRAM DETERGENT AND ADDITIVES Spin SpeedMAXrpm Water l Tem C Max load kg Pre wash Sof tener wash Q1636 Q1436 Q1435 Q1236 Q1235 Delay start Electri city kWh 1 king size 9 Tog user option Max de fault Half Load
• Page 22 - English - : SAMSUNG Washing Machine Owners Instructions Appendix Fabric care chart Electrical warnings To reduce the risk of fire electrical shock and other injuries keep these safety precautions in mind Operate the appliance only from the type of power source indicated on the marking label If you are not sure of the type of power supplied to your home consult your appliance dealer or local power company Use only a grounded or polarized outlet For your safety this appliance is equipped with a polarized alternating current line plug having one blade wider than the other This plug will fit into the power outlet only one way If you are unable to insert the plug fully into the outlet try reversing the plug If the plug still doesnt fit contact your electrician to replace your outlet Protect the power cord Power supply cords should be routed so that they are unlikely to be walked on or pinched by items placed on or against them Pay particular attention to cords at plugs convenience receptacles and the point where they exit from the unit Do not overload the wall outlet or extension cords Overloading can result in fire or electric shock Resistant material Delicate fabric Item may be washed at 95 C Item may be washed at 60 C Item may be washed at 40 C Item may be washed at 30 C Item may be hand washed Dry clean only Can be bleached in cold water Do not bleach Can be ironed at 200 C max Can be ironed at 150 C max Can be ironed at 100 C max Do not iron Can be dry cleaned using any solvent Dry clean with perchloride lighter fuel pure alcohol or R113 only Dry clean with aviation fuel pure alcohol or R113 only Do not dry clean Dry flat Can be hung to dry Dry on clothes hanger Tumble dry reduced heat Do not tumble dry Tumble dry normal heat
• Page 23 - English - : SAMSUNG Washing Machine Owners Instructions 21 Appendix Protecting the environment This appliance is manufactured from recyclable materials If you decide to dispose of this appliance please observe local waste disposal regulations Cut off the power cord so that the appliance cannot be connected to a power source Remove the door so that animals and small children cannot get trapped inside the appliance Do not exceed the detergent quantities recommended in the detergent manu facturers instructions Use stain removal products and bleaches before the wash cycle only when strictly necessary Save water and electricity by only washing full loads the exact amount depends upon the program used Declaration of conformity This appliance complies with European safety standards EC directive 9368 and EN Standard 60335 Specification TYPE FRONT LOADING WASHER DIMENSION W600mm D600mm H850mm WATER PRESSURE 50 kPa 800 kPa WEIGHT 75 kg WASH and SPIN CAPACITY 80kg DRY LAUNDRY WASHING 220V 150W 240V 150W POWER WASHING AND HEATING 220V 2000W CONSUMPTION 240V 2400W SPIN MODEL Q1636 Q1436 Q1435 Q1236Q1235 230V 700W 500W 400W PUMPING 34W WATER VOLUME 60l STANDARD COURSE SPIN REVOLUTION MODEL Q1636 Q1436 Q1435 Q1236Q1235 rpm 1600 1400 1200 PACKAGE Wt PAPER 25 kg PLASTIC 10 kg
• Page 24 - English - : IN CASE THE NEED FOR SERVICING ARISES Dont hesitate to call any AS center nearby with your name address telephone number model number and serial number of your machine when anything wrong with your product occurs Code No DC6801641D01 English Manufacturer SAMSUNG ELECTRONICS COLTD 12th FL Samsung Main Bldg250 2Ka TaepyungRoSeoul Korea TEL 82 31 200 6772 FAX 82 31 200 6986 LVD VDE Testing and Certification Institute Merianstrasse 28 D63069 Offenbach Germany TEL 49 69 83 06 425 FAX 49 69 83 06 320 EMC SAMSUNG Electronics CoLtd EMC Test Laboratry 416Maetang3Dong YeongtongGu SuwonKorea TEL 82 31 200 2185 FAX 82 31 200 2189
