Owner 's Manual for Vacuum Cleaner

About Your Robot

Main Body

Accessories in the Box

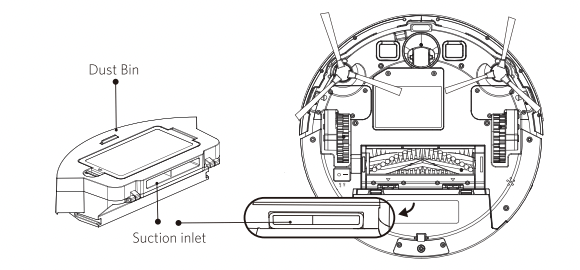

Dust Bin and Suction Inlet

Charging Base

Remote Control

Install 2 AAA batteries before using the remote control for the first time. Make sure the positive and negative ends are facing the correct polarity direction as marked in the battery compartment.

LED Indication

You can see the status of Robot from the LED indicator.

Using Your Robot

Important Tips Before Use

1. Remove power cords and small objects from the floor that may entangle robot.
2. Robot may climb on top of objects less than 0.63 in/16 mm in height. Remove these objects if possible.
3. Keep robot away from wet areas.
4. Keep robot away from spaces lower than 2.87 in/73 mm to prevent robot from getting stuck. If necessary, place a physical barrier to block off the problem areas.
5. Fold tasseled edges of area rugs underneath to prevent tangling robot. Avoid cleaning very dark-colored high-pile rugs or rugs thicker than 1.02 in/26 mm as they may cause robot to malfunction.
6. Anti-drop sensors prevent robot from tumbling down stairs and steep drops.They may work less effectively if dirty or used on reflective/very dark-colored floors. It is recommended to place physical barriers to block off areas where Robot may fall.

Place physical barriers in front of fireplaces and areas that may cause damage to robot if entered.

Preparation

1. Plug in the Charging Base, and take the rest wire into the trunking at the bottom of Charging Base.

Note: If you don't put the rest wire into the trunking, which may stuck the robot while charging or cleaning.

2. Charging Base Position

Place the Charging Base on a hard, level surface and against a wall.

3. Remove objects within 3 ft/1 m of the left and right side and within 6 ft/2 m of the front of the charging base.

4. Connect the round connector of the adapter into the power socket on the Charging Base and the other end into a wall outlet.

- Install the Charging Base in a location that Robot can easily access. It is recommended to place the Charging Base against a wall, and on a hard-level surface rather than on rugs or carpets.

- Always keep the Charging Base plugged In, otherwise Robot will not automatically return to it.

5. Install Side Brushes

Attach side brushes to the bottom of robot by pressing a brush into each slot.

6. Turn on the main power switch on the bottom of robot

Charge Your Robot

■ Robot has a pre-installed rechargeable battery that has to be fully charged before use.

■ Robot returns to the Charging Base at the end of a cleaning cycle or when its battery is running low.

Method 1: Attach Robotto the Charging Base by aligning its charging pins with the charging pins on the base.

Method 2: Press the remote control to return robot to the Charging Base.

Turn off the main power switch if Robot will not be used for a long period of time. To preserve the battery's lifespan, recharge at least once every 6 months.

Use Your Robot with the BG Home App

To enjoy all available features, it is recommended to control your robot via the BG Home app.

Before you start, make sure that:

• Your smartphone or tablet is connected to a Wi-Fi network.

• Your smartphone or tablet is running iOS 8.0 (or above) or Android 4.4 (or above).

• The 2.4GHz band wireless signal is enabled on your wireless router.

• The Wi-Fi status light on robot is slowly flashing blue.

• Robot is attached to the Charging Base to ensure it has enough power during setup.

1. Download the bg Home app from the App Store (iOS devices) or Google Play (Android devices).

2. Open the app and create a user account.

3. Tap the "+" icon in the top right corner to add your robot to your BG Home account.

4. Follow the instructions in the app to set up the Wi-Fi connection.

- After connecting successfully, you can control robot via the app.

- With the app, you can select a cleaning mode, set the time, schedule a cleaning, view the system status, receive notifications and access additional features.

Wifi Status Light

- If you have any problems during the Wi-Fi setup process, refer to the " Troubleshooting > Wi-Fi connection" section in this Manual.

- If robot gets stuck in any space, tap Find My Robot in the app to find the machine. This function is available in the app only.

Reset the Wi-Fi Connection

Press and hold on robot for 10 seconds to reset the Wi-Fi connection if necessary.

- You will hear a beep when the Wi-Fi connection has been reset and the Wi-Fi status light will slowly flash blue. Now you can follow the Wi-Fi instructions in the BG Home app to set up the Wi-Fi connection.

Schedule Cleaning

With the BG Home app, you can schedule robot to start cleaning at a particular time.

You can set the time and customize the cleaning schedules from Sunday to Saturday on the BG Home app. This function is available in the app only.

Start/Stop Cleaning

Start Cleaning Cycle

■ Press the power button once to wake up the Robot.

■ Press the power button again to start a cleaning cycle (or press the button on Remote Control).

If its battery gets low before finishing a cleaning cycle, robot will return to the Charging Base to recharge.

If the Charging Dock is inaccessible, robot will not be able to recharge.it will return to its starting location and the cleaning cycle will end, please place the robot manually on Charging Base for charging. (Refer Activate the Robot)

Note: Please refer to section 3.5 for more Cleaning Mode.

Pause

• To pause the robot during a cleaning cycle press the button or press the button on Remote Control.
• To resume the cleaning cycle, press button again.
• To send robot back to The Charging Base, press button.

Note: The actions listed above can also be managed from the Remote Control.

Power OFF

■ To end the cleaning cycle and put robot in standby mode, press and hold © button until robot indicators turn off.

Cleaning Mode

Auto Cleaning

• At the start of a cleaning cycle, robot will map out your home and cleaning them efficiently.
• At various times throughout the cleaning cycle, robot touches up around the edges of the room, as well as chair legs and other furniture.
• Robot continues this process until it has cleaned entire level of your home If its battery gets low before finishing a cleaning cycle, robot will auto returns to the Charging Base to recharge.
• Once robot finishes its cleaning cycle, it returns to the Charging Base to recharge.

Spot Cleaning

When you select Spot Cleaning, robot intensely cleans a localized area by spiraling outward about 3 feetO meter) in diameter and then spiraling inward to where it started.

When Spot Cleaning, robot boosts is vacuum power to provide th> best cleaning possible where you need it.

To use Spot Cleaning, place robot on top of the localized debris and press (Spot) on the Remote Control.

Max Vacuuming Cleaning

Robot increases its vacuum power to provide a deeper clean when press the button on Remote control, Max Vacuuming Cleaning if Off by default.

Edge Cleaning

After robot finishes cleaning the open areas of your floor, it uses Edge Clean to ensure that it has cleaned along walls and around furniture Legs, If you prefer a quicker edge cleaning, press the button on Remote Control.

Single room cleaning

When one specific room needs to be cleaned, press the on Remote control.

Note: Robot will clean and then stop after 30 minutes in this mode. Make sure confine robot to a room by closing the door.

Set Time and Scheduled Cleaning

Set Time

Make sure the time is set correctly to your local time before setting a scheduled cleaning.

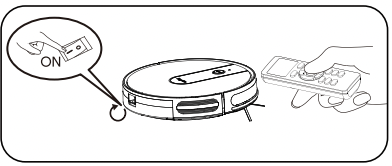

1. Make sure the main power switch on the bottom of robot is turned on.
2. Press on the remote control. The time will blink on the display.
3. Press to set the "hour" and "minute" . Note: Make sure AM/PM is set correctly.
4. Press or to save the setting. Robot will BEEP ONCE to indicate the time has been set.

To ensure the time is set successfully, make sure robot is turned on. You will hear a beep when the time has been set.

Set a Scheduled Cleaning

You can schedule robot to start cleaning at a specified time.

To cancel a previously scheduled cleaning, press and hold for 3 seconds until robot beeps twice and disappears.

Note: Before setting a scheduled cleaning, make sure the time has been set correctly to your local time; refer to the previous section "Set Time" for how to set the time.

1. Make sure the main power switch on the bottom of robot is turned on.
2. Press on the remote control. will blink on the display.
3. Press to set the "hour" and "minute". Note: Make sure AM/PM is set correctly.
4. Press or to save the setting. Robot will BEEP ONCE to indicate the schedule has been set.

To ensure the time is set successfully, make sure robot is turned on. You will hear a beep when the time has been set.

Use the Boundary Strip

With the Boundary Strip, you can keep robot away from any area or item you do not want robot to clean. Robot will recognize the Boundary Strip and will not cross into the blocked-off area.

1. Identify the area or item you do not want robotto get close to.

2. If necessary, use scissors to cut the Boundary Strip to a shorter length. Be sure to correctly measure the length before cutting.

3. Apply the supplied strips of adhesive tape to lay the Boundary Strip flat on the floor. Make sure the strip is placed FLAT on the floor or under an area rug.

- If the Boundary Strip is rolled up, remove and then re-apply on the floor with adhesive tape. Otherwise the Boundary Strip may not work well.

- Make sure the Boundary Strip is placed on the same surface plane robot is used on.

- Be careful not to damage the floor when using adhesive tape. It is not recommended for use on carpets.

- Keep the Boundary Strip away from objects that emit excessive heat.

Use Your Robot with Amazon Alexa / the Google Assistant

Amazon Alexa or the Google Assistant is a smart voice control device that enables you to control robot with your voice.

Before you start, make sure that:

• Robot is attached to the Charging Base to ensure there is enough power.

• Robot is connected with the BG Home app.

• You have an Alexa-enabled device (i.e. Amazon Echo, Echo Dot and Amazon Tap, Echo Show, Echo Spot) or a device enabled with the Google Assistant (i.e. Google Home, Google Home Mini). These devices are sold separately.

• The Amazon Alexa app or Google Home app is already installed on your smart device, and you have created an account.

To control Robot with Amazon Alexa

1. Open the Amazon Alexa app and select "Skills & Game" from the menu.
2. On the Skills screen, search for "Smart Lifd'.
3. Once you have found the "Smart Liftf skill, tap Enable.
4. Login with your BG Home account so that Alexa can control your robot
5. Say simple commands to Alexa.

To control robot with the Google Assistant

Robot now works with the Google Assistant on devices like the Google Home.

1. Open the Google Home app.
2. Say "Ok Google, talk to Robot' to the Google Assistant-enabled device to initiate the Google action for Robot.
3. Follow the instructions in the Google Home app to authorize the Google Assistant with your BG Home account.
4. To control Robot with your voice, say simple commands to Google Assistant.

Regular Robot Care

To keep robot running at peak performance, perform the following care procedures.lf you notice robot picking up less debris from your floor, then empty the bin, clean the filter and rolling brush.

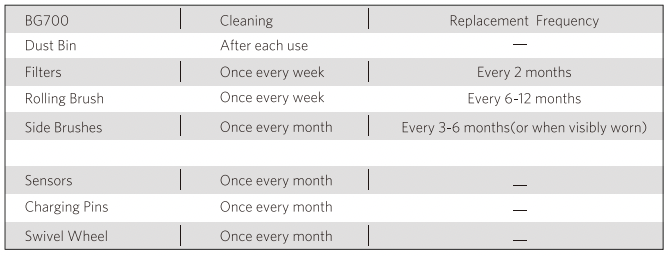

Recommended cleaning / replacement frequency :

Emptying Robot's Bin

1 Press bin release button to remove the bin.

2 Open bin's door to empty it.

Cleaning Robot's Filter

1 Remove filter by grasping the white tab.

2 Shake off debris by tapping the filter against your trash container.

Cleaning Robot's Rolling Brush,Side Brush, Swivel Wheel

1. Take out the rolling brush,clean the vacuuming aisle by a cloth.

2. Clean the rolling brush. Cut down the hair winded in the rolling brush with the provided cleaning tool's knife.

3. Remove the side brush,use a cloth to remove the dust from the brush

4. Pull out the swivel wheel, then clean the Swivel Wheel with the cleaning tool.

Clean the Sensors and Charging Pins

To maintain the best performance, clean the drop sensors and charging pins regularly.

• Dust off the drop sensors and charging contact pins using a cloth or cleaning brush.

Troubleshooting

Error Tones

When robot is in trouble, it will emit a series of short or long beeps and the red indicator on robot will be solid or flashing.

Frequently asked questions

Wi-Fi Connection

Before Wi-Fi setup, make sure robot and your Wi-Fi network meet the following requirements.

Wi-Fi Setup Requirements

• Robot:

- Robot is fully charged and the main power switch on the bottom of robot is turned on.

- Wi-Fi status light slowly flashes blue.

• Wi-Fi Network:

- Use the correct password for your network.

- Do not use a VPN (Virtual Private Network) or Proxy Server.

- Your Wi-Fi router supports 802.11b/g/n and IPv4 protocol.

- You are using a 2.4GPIz router or a dual-band router that is configured to support a 2.4GPIz frequency band. Robot does not support 5GFIz frequency band.

- If robot cannot connect to the Wi-Fi network and you are using a 2.4/5GPIz mixed network, switch to a 2.4GPIz network for Wi-Fi setup. You can switch back once your setup is complete.

- When connecting to a hidden network, make sure you enter the correct network name, SSID (case sensitive), and connecting to a 2.4GHz wireless network.

- When using a network extender/repeater, make sure the network name (SSID) and password are the same as your primary network.

- The firewall and port settings of your Wi-Fi router allow robot to connect with the Bagotte servers.

Network Security Requirement

- WPA and WPA2 using TKIP, PSK, AES/CCMP encryption.

- WEP EAP (Enterprise Authentication Protocol) is not supported.

Wi-Fi Channels

- The FCC requires that all wireless devices in the United States operate on the 1-11 wireless spectrum channels.

- Some countries outside North America can use spectrum channels higher than channel 11. Refer to your local regulatory agency to determine which channels are accessible.

- A future software release will support access to channels above 11 for users outside North America. Until then, use channels 1-11.

If you cannot control robot with your smartphone, try the solutions below to solve the problem. If the problem persists, contact the Bagotte service center for help.
