Register
your product
www.kaercher.com/welcome
86398800-D 12/16/19
Chariot 2 iGloss 20
English 02
2 86398800 Operator Manual - Chariot 2 iGloss 20
Machine Data Label
The Chariot iGloss 20 is a battery powered, ride-on, hard floor burnisher intended for commercial use. This
machine applies a high luster to hard floor surfaces.
MODELS:
CBPS20 1.002-031.0
CBPSC20 1.002-032.0
CBPL20 1.002-033.0
CBPLC20 1.002-034.0
CBAL20 1.002-035.0
CBALC20 1.002-036.0
Warranty Registration
Thank you for purchasing a Kärcher North America product. Warranty registration is quick
and easy. Your registration will allow us to serve you better over the lifetime of the product.
To register your product go to :
http://warranty.karcherna.com/
For customer assistance:
1-800-444-7654
3
Table of Contents
Machine Data Label . . . . . . . . . . . . . . . . . . . . . . . . . .2
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .3
How To Use This Manual . . . . . . . . . . . . . . . . . . . . .4
Safety
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . .5
HAZARD INTENSITY LEVEL . . . . . . . . . . . . . . . . . .7

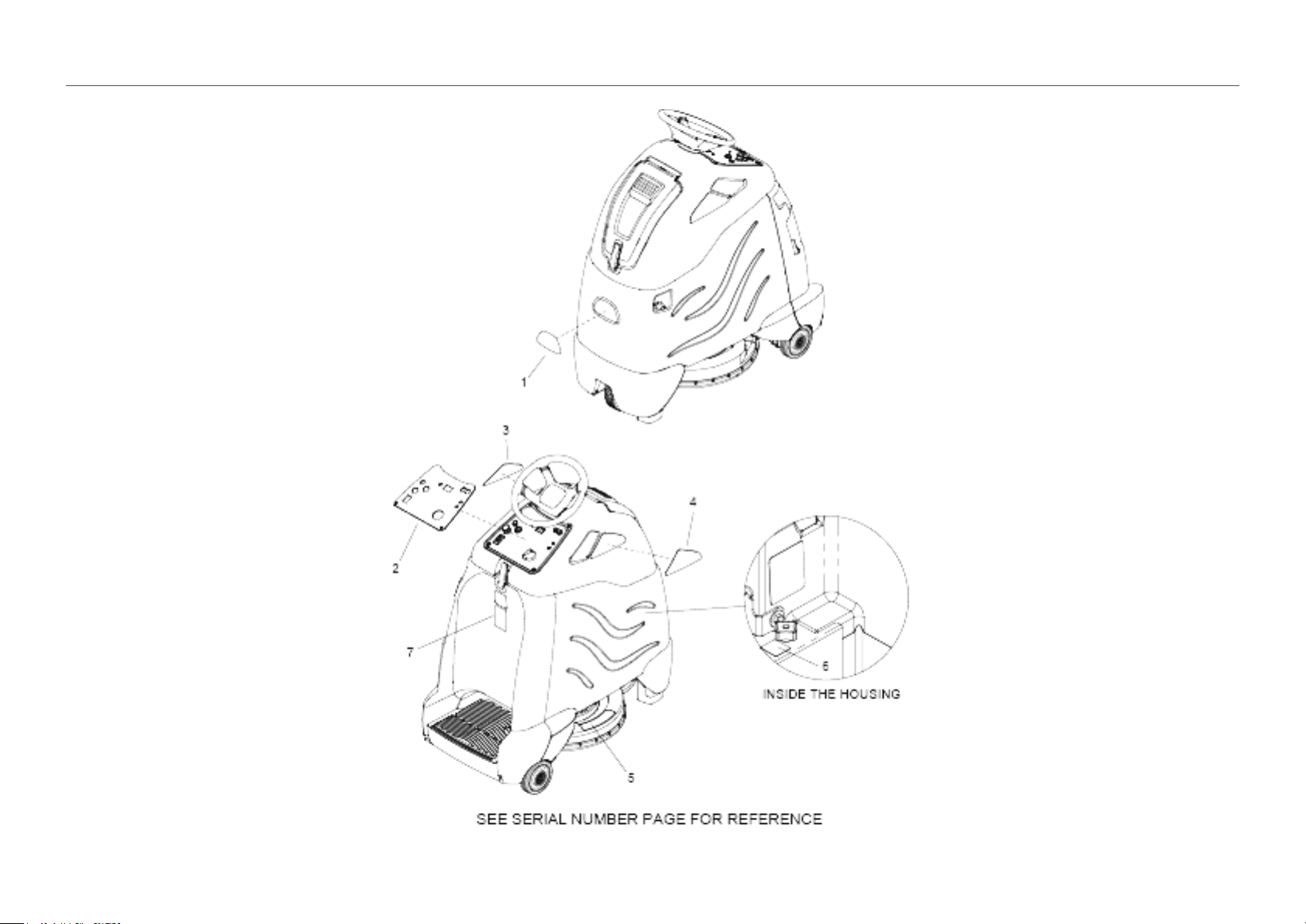

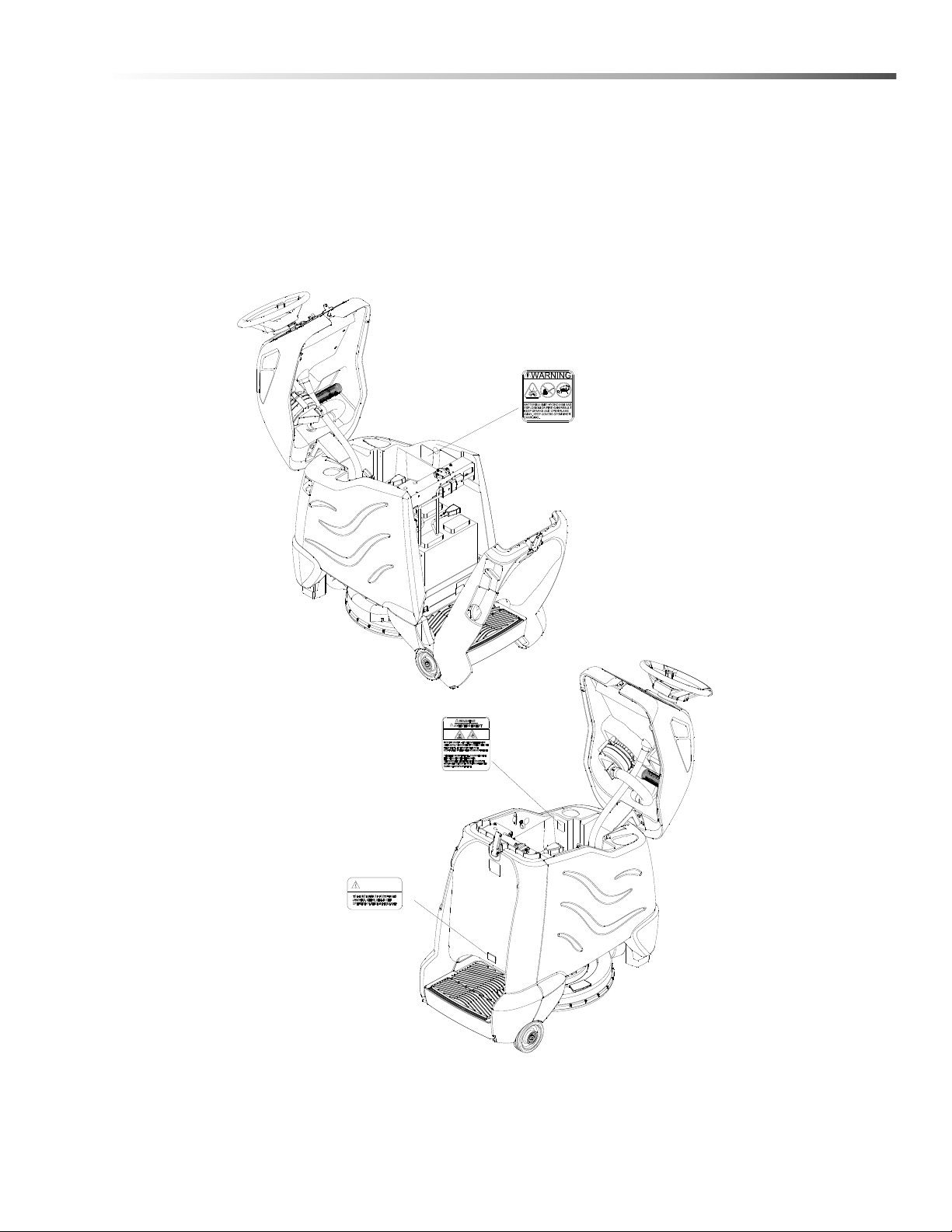

SAFETY LABEL LOCATIONS . . . . . . . . . . . . . . . . .9
Operation
Technical Specifications . . . . . . . . . . . . . . . . . . . . .10
How This Machine Works . . . . . . . . . . . . . . . . . . . .12

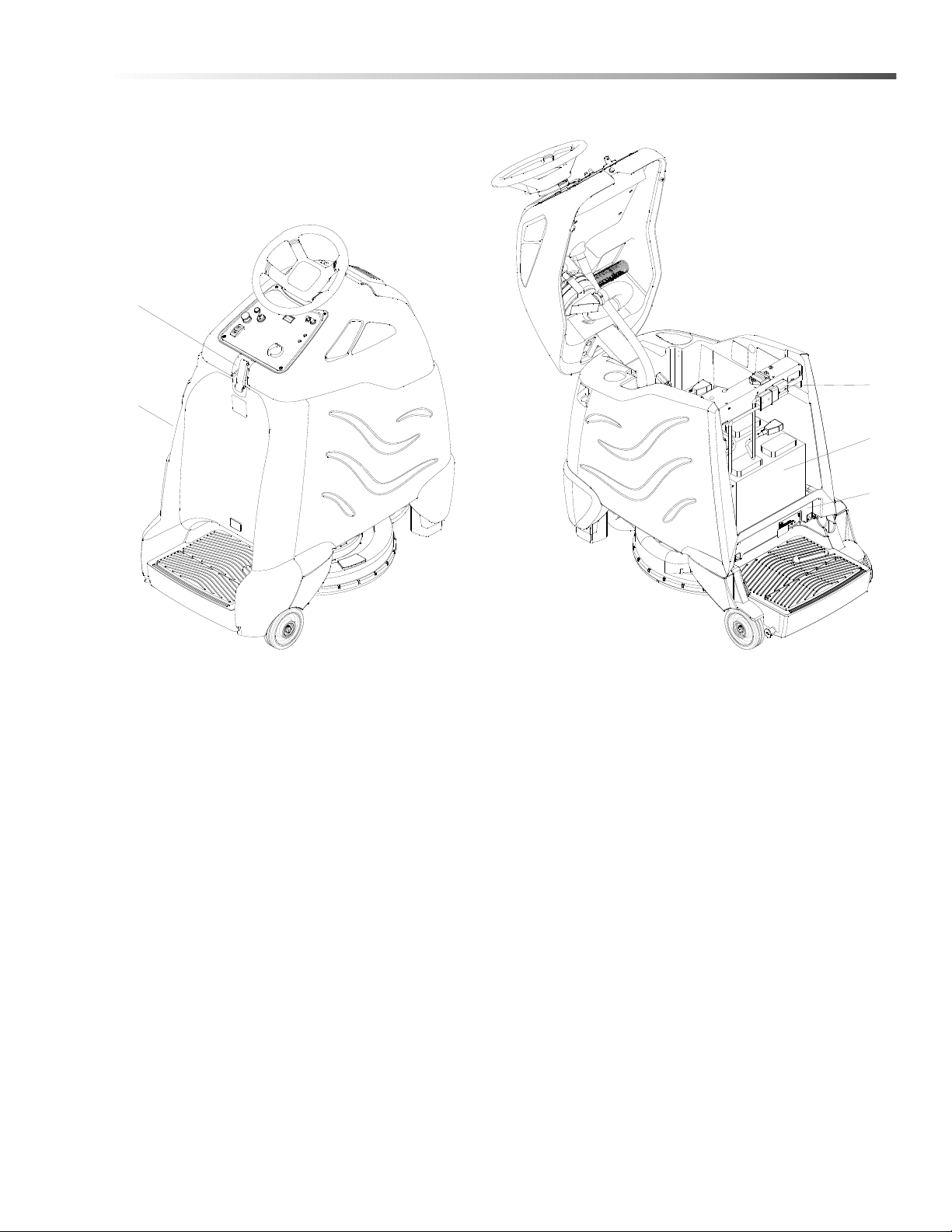

Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Drive Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Function Mode Switch. . . . . . . . . . . . . . . . . . . . . . .18
Pre-Run Machine Inspection. . . . . . . . . . . . . . . . . .20
Starting Machine . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Emergency Stop Procedure . . . . . . . . . . . . . . . . . .20
Operating the Machine . . . . . . . . . . . . . . . . . . . . . .21
Normal Burnishing . . . . . . . . . . . . . . . . . . . . . . . . .21
Maintenance
Service Schedule . . . . . . . . . . . . . . . . . . . . . . . . . .22

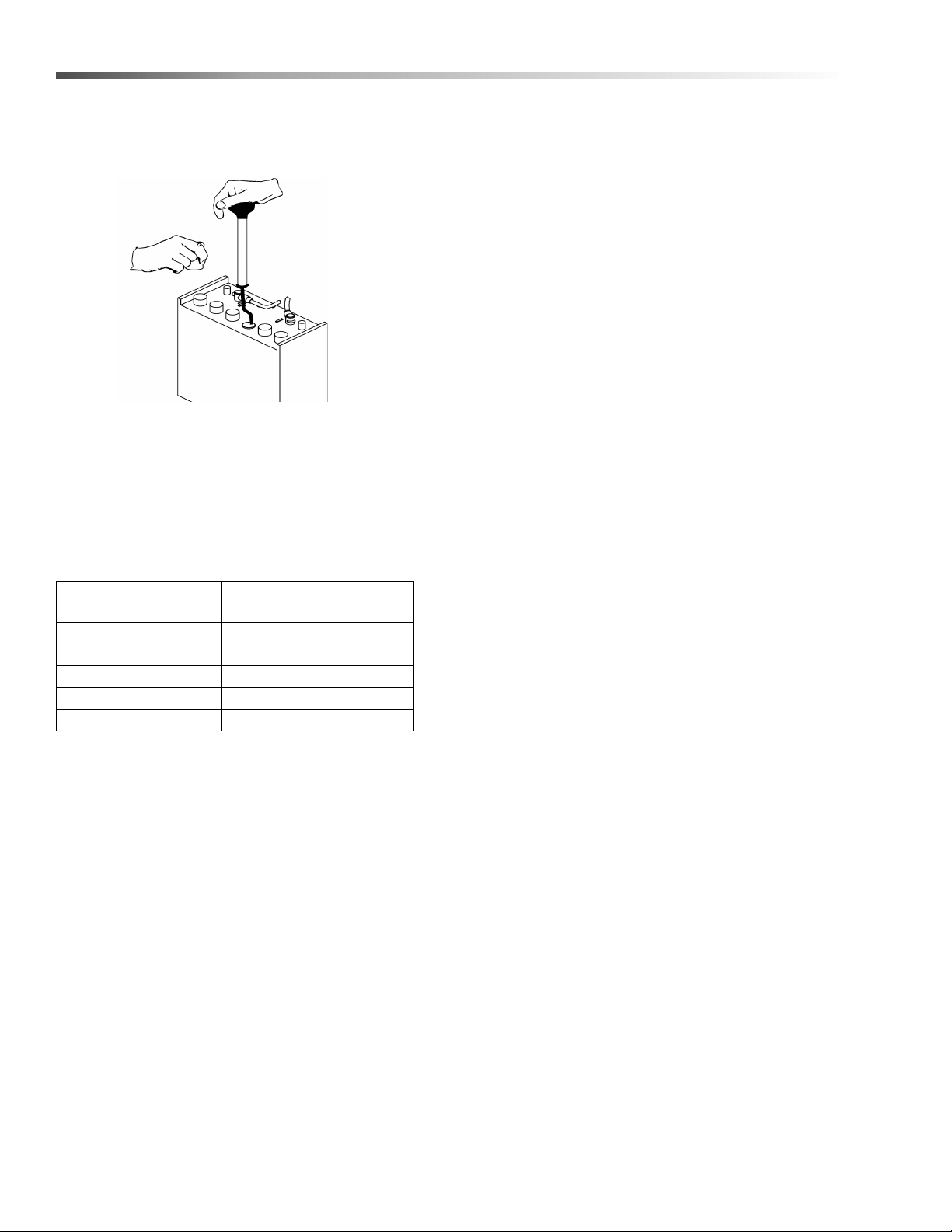

Checking Battery Specific Gravity. . . . . . . . . . . . . .26
Changing Batteries . . . . . . . . . . . . . . . . . . . . . . . . .28
Battery Charger Programming . . . . . . . . . . . . . . . .29

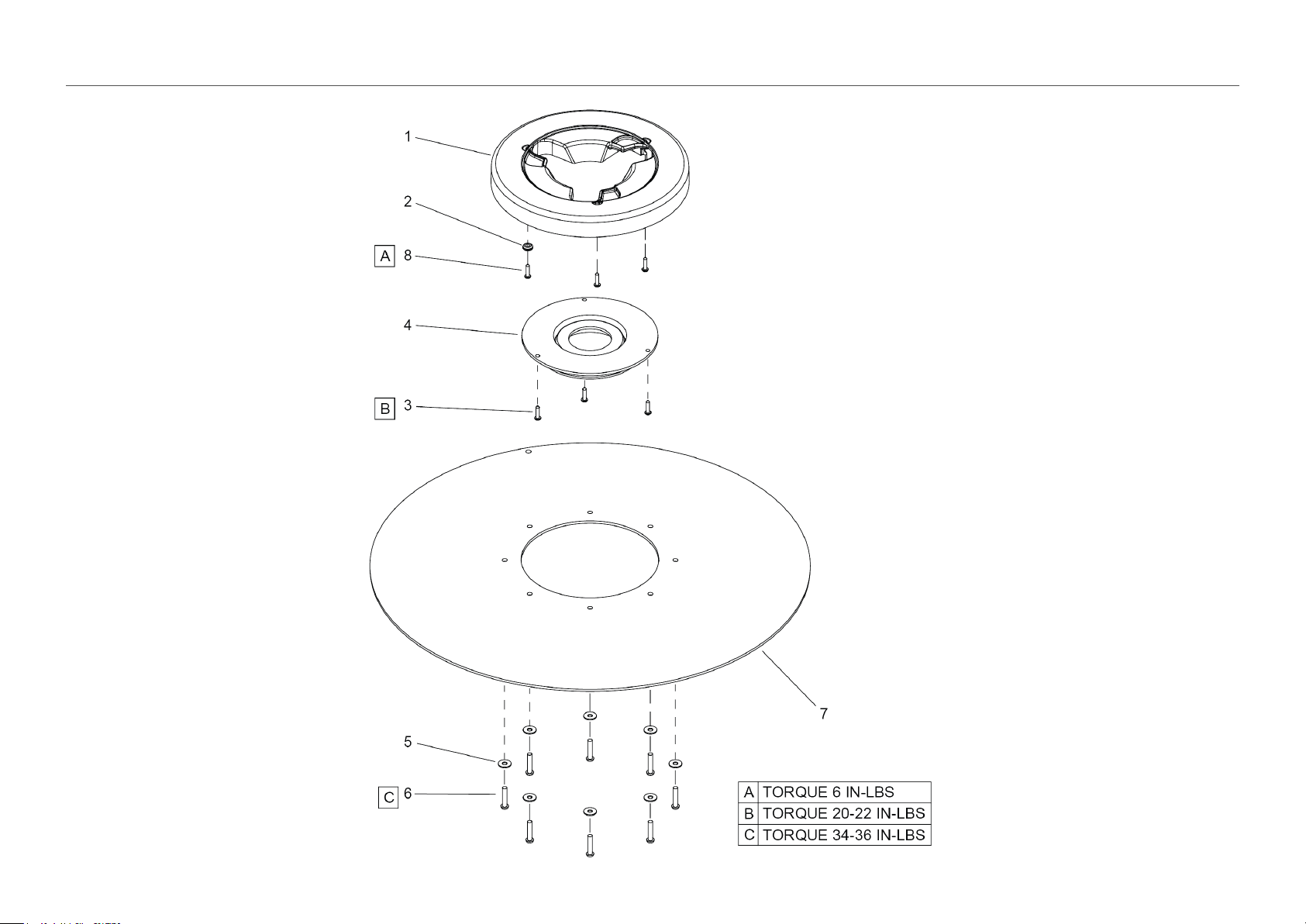

Burnishing Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Burnisher Motor Carbon Brush Ring Replacement.32
Deck Actuator Removal / Replacement . . . . . . . . .32

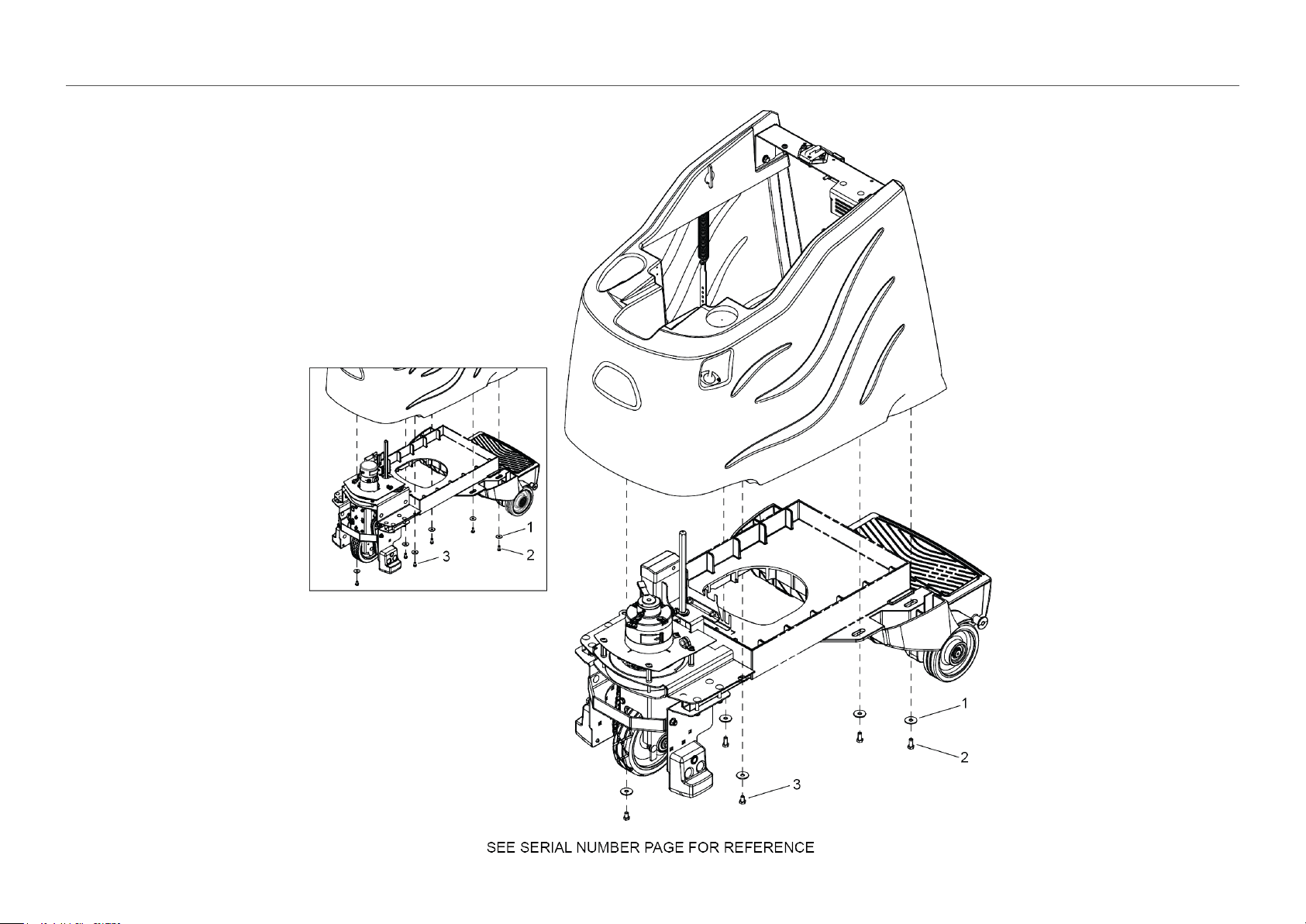

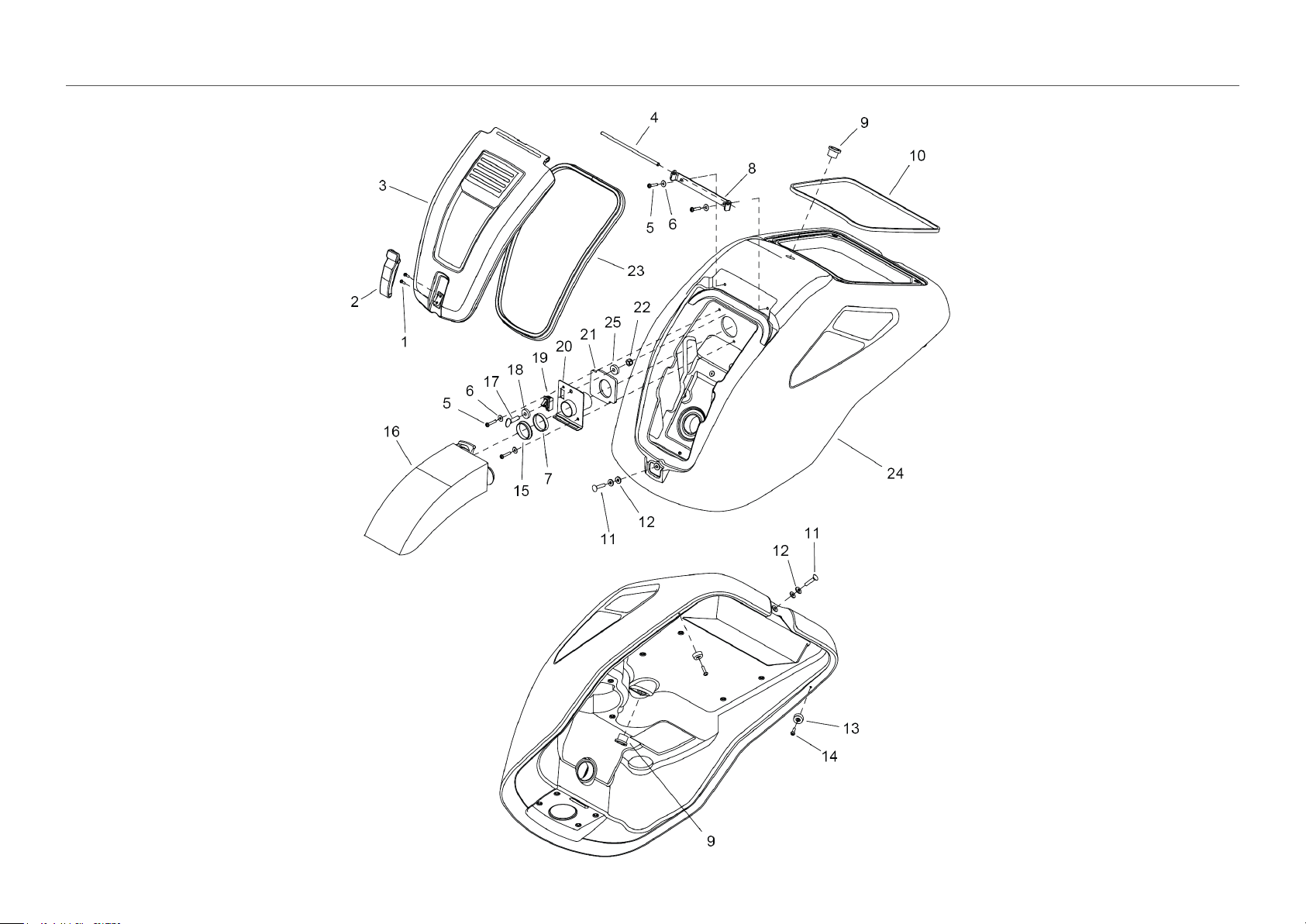

Body Assembly Removal . . . . . . . . . . . . . . . . . . . .34

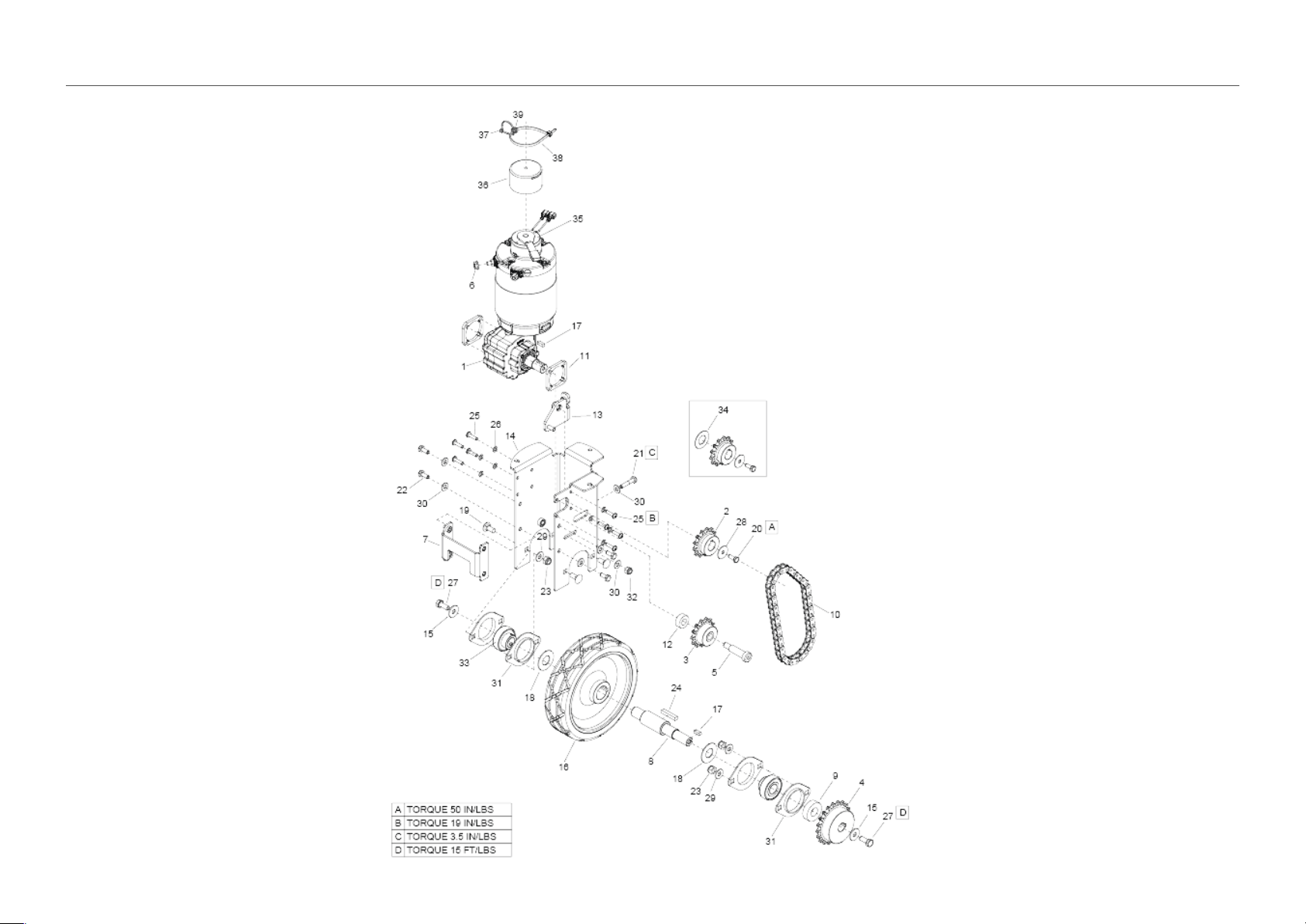

Drive Unit Removal . . . . . . . . . . . . . . . . . . . . . . . . .34
Vacuum - Optional . . . . . . . . . . . . . . . . . . . . . . . . .36
Drive Motor-From Serial Number (3*) . . . . . . . . . . .38
Drive Motor Carbon Brush Replacement . . . . . . . .38
Drive Chain Tension . . . . . . . . . . . . . . . . . . . . . . .38
Drive Motor-Prior to Serial Number (3*) . . . . . . . . .40
Drive Motor Carbon Brush Replacement . . . . . . . .40
Drive Chain Tension . . . . . . . . . . . . . . . . . . . . . . . .40

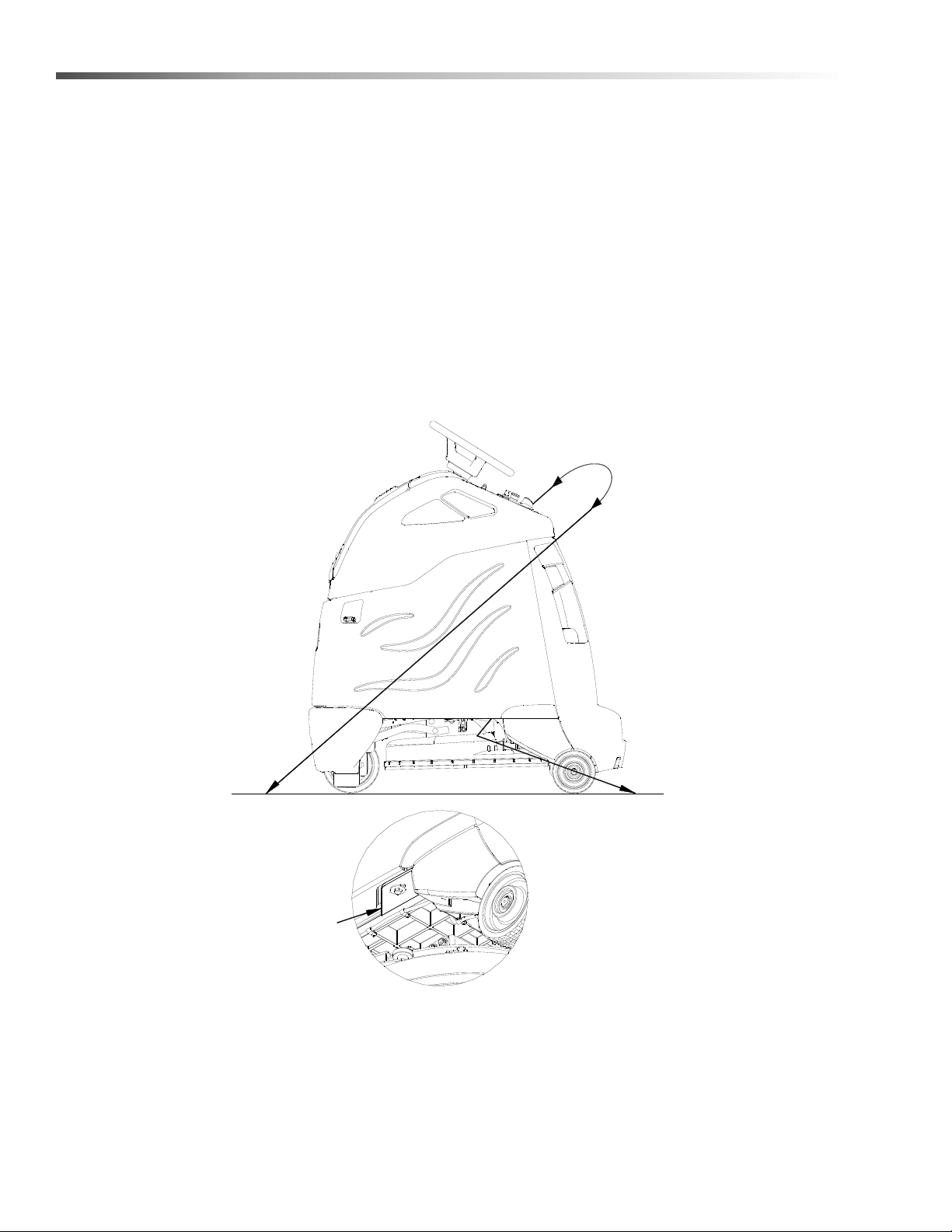

Machine Tie-Downs . . . . . . . . . . . . . . . . . . . . . . . .42
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Suggested Spare Parts. . . . . . . . . . . . . . . . . . . . . 46
86398800 Operator Manual - Chariot 2 iGloss 20
4
How To Use This Manual
This manual contains the following sections:
• HOW TO USE THIS MANUAL
• SAFETY
•OPERATIONS
• MAINTENANCE
• PARTS LIST
The HOW TO USE THIS MANUAL section will tell you
how to find important information for ordering correct
repair parts.
Parts may be ordered from authorized Kärcher North
America dealers. When placing an order for parts, the
machine model and machine serial number are

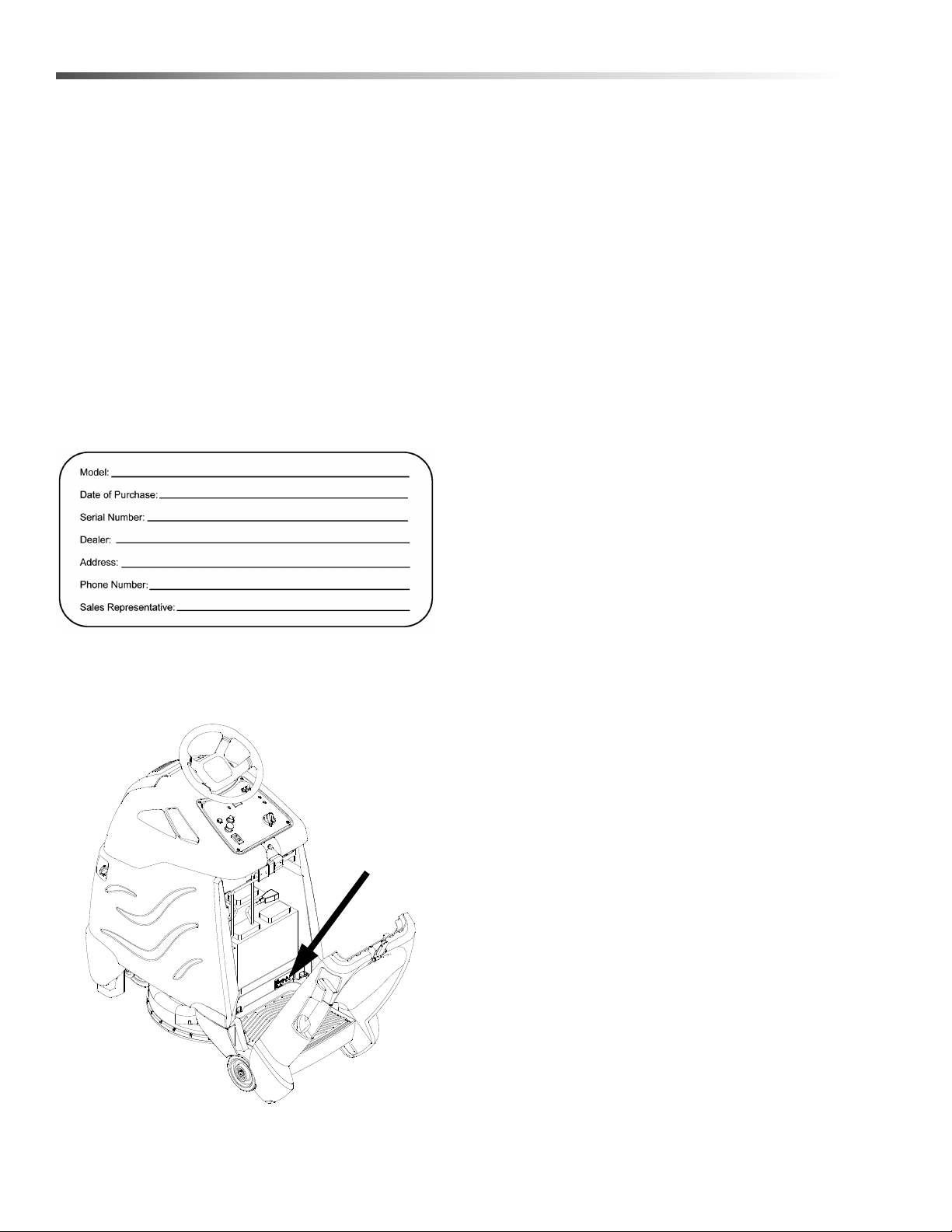

important. Refer to the MACHINE DATA box which is
filled out during the installation of your machine. The
MACHINE DATA box is located on the inside of the
front cover of this manual.
The model and serial number of your machine are
located below the battery compartment of the machine.
The SAFETY section contains important information
regarding hazard or unsafe practices of the machine.
Levels of hazards are identified that could
result in product or personal injury, or severe injury
resulting in death.
The OPERATIONS section is to familiarize the operator
with the operation and function of the machine.
The MAINTENANCE section contains preventive main-
tenance to keep the machine and its components in
good working condition. They are listed in this general
order:
• Batteries
•Brush Deck
• Circuit Protection
• Drive Motor and Brake
• Service Schedule
• Vacuum Motor
• Machine Troubleshooting
The number on the lower right corner of the front cover
is the part number for this manual.
86398800 Operator Manual - Chariot 2 iGloss 20
5
Safety
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
To reduce the risk of fire, electric shock, or injury:
Use only indoors. Do not use outdoors or expose to rain.
Use only as described in this manual. Use only manufacturer's recommended components and attachments.
If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water, return it to
an authorized service center.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.
This machine is not suitable for picking up hazardous dust.
Do not operate this machine near flammable fluids, dust or vapors.
Maintenance and repairs must be done by qualified personnel.
Disconnect battery before cleaning or servicing.
Before the machine is discarded, the batteries must be removed and properly disposed of.
Make sure all warning and caution labels are legible and properly attached to the machine.
During operation, attention shall be paid to other persons, especially children.
Before use all covers and doors shall be put in the positions specified in the instructions.
When leaving unattended, secure against unintentional movement.
The machine shall only be operated by instructed and authorized persons.
When leaving unattended, switch off or lock the main power switch to prevent unauthorized use.
This appliance has been designed for use with the pads specified by the manufacturer. The fitting of other pads
may affect its safety.
Do not use on surfaces having a gradient of over 10% (6 degrees).
SAVE THESE INSTRUCTIONS
86398800 Operator Manual - Chariot 2 iGloss 20
6
Safety
MESURES DE SÉCURITÉ IMPORTANTES
Lors de l'utilisation d'un appareil à batteries, il est nécessaire de respecter systématiquement des mesures de
sécurité de base, comme suit :
PRENEZ NOTE DE TOUTES CES MESURES AVANT D'UTILISER CETTE MACHINE.
Pour réduire les risques d'incendie, de chocs électriques, ou de blessures :
N'utiliser cette machine qu'en intérieur. Ne jamais l'utiliser à l'extérieur ou dans la pluie.
Utiliser cet appareil conformément aux instructions du présent manuel uniquement. N'utiliser que les composants
et les accessoires conseillés par le fabricant.
Lorsque la machine ne fonctionnant pas correctement, a fait l'objet d'une chute ou d'une détérioration, a été laissée
à l'extérieur, est tombée dans l'eau, la retourner au centre de service agréé.
Ne pas opérer la machine lorsque les conduits de ventilation sont bloquées. Débarrasser les débris des conduits,
car ils peuvent réduire l'écoulement d'air.
Cette machine n'est pas adaptée au ramassage de poussières dangereuses
Ne pas l'utiliser près de liquides, de poussières ou de vapeurs inflammables.
L'entretien et les réparations de la machine doivent être effectuées par un personnel qualifié.
Si de la mousse ou du liquide sort de la machine, la mettre hors tension immédiatement.
Déconnecter les batteries avant de nettoyer la machine ou de la soumettre à un entretien.
Avant de se débarrasser de la machine, il est nécessaire de retirer les batteries et de les jeter correctement.
S'assurer que toutes les plaques d'avertissement ou de précaution sont lisibles et fixées correctement sur la
machine.
Durant la manoeuvre de la machine, prendre garde aux personnes environnantes et notamment aux enfants.
Avant l'utilisation de la machine, veiller à positionner tous les couvercles et portes comme indiqué dans les instruc-
tions.
Lorsque la machine est laissée sans surveillance, s'assurer qu'elle ne se déplace pas de manière accidentelle.
Cette machine ne doit être manoeuvrée que par un personnel expérimenté et qualifié.
Lorsque la machine est laissée sans surveillance, la mettre hors tension ou verrouiller l'interrupteur principal afin
d'empêcher un emploi non autorisé.
Seuls les produits chimiques recommandés par le fabricant doivent être utilisés.
Cette machine a été conçue pour être utilisée avec des garnitures spécifiées par le fabricant.
L'utilisation d'autres garnitures peut affecter sa sûreté.
N'employez pas sur des surfaces ayant un gradient de plus de 10% (6 degrés).
CONSERVER CES INSTRUCTIONS
86398800 Operator Manual - Chariot 2 iGloss 20
7
Safety
The following symbols are used throughout this guide as indicated in their descriptions:
HAZARD INTENSITY LEVEL
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY.
The level of hazard intensity is determined by the following definitions:
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating
condition. Following is information that signals some potentially dangerous conditions to the operator or the equip-
ment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on the
machine. Please take the necessary steps to train the machine operating personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects.
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use
Kärcher North America approved replacement parts.
Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and open flame away. Keep battery
compartment open during charging. Keep sparks and flames away from the batteries. Do not smoke
around batteries.
Disconnect batteries before working on machine. Only qualified personnel should work inside machine.
Always wear eye protection and protective clothing when working on or near batteries. Avoid skin contact
with the acid contained in the batteries.
Never allow metal to lie across battery tops.
86398800 Operator Manual - Chariot 2 iGloss 20
8
Safety
Les symboles ci-dessous sont utilisés à travers ce manuel comme illustré dans leurs descriptions :
DEGRÉS DE RISQUES EN CAS DE DANGER
Il existe trois degrés de risques identifiés par les termes signalétiques -AVERTISSEMENT et ATTENTION et POUR
VOTRE SÉCURITÉ. Le degré de risque est défini de la manière suivante:
AVERTISSEMENT - Dangers ou méthodes dangereuses qui POURRAIENT provoquer de graves blessures ou
entraîner la mort.
ATTENTION - Dangers ou méthodes dangereuses qui pourraient provoquer des blessures légères ou une détério-
ration du produit ou des biens immobiliers.
POUR VOTRE SÉCURITÉ: ce signe permet d'identifier les mesures de précaution à prendre pour assurer un bon
fonctionnement du matériel.
Rendre compte immédiatement d'une défaillance ou d'une détérioration de la machine. Ne pas utiliser la machine
si celle-ci ne fonctionne pas correctement. Lire soigneusement les informations ci-dessous signalant certains
dangers potentiels pour l'opérateur de la machine. L'opérateur doit être absolument au courant de ces dangers
potentiels. Localiser tous les dispositifs de sécurité sur la machine. Il est conseillé de prendre les mesures néces-
saires pour former le personnel opérateur.
POUR VOTRE SÉCURITÉ:
NE PAS MANOEUVRER LA MACHINE:
Lorsqu'on n'est pas expérimenté ou qualifié.
Lorsque le guide d'utilisation n'est pas été lu ou compris.
Dans des zones inflammables ou explosives.
Dans des zones où des objets peuvent tomber.
LORS DE L'ENTRETIEN DE LA MACHINE:
Éviter les parties amovibles. Ne pas porter de vêtements amples, tels que des vestes, des chemises ou des
vêtements avec manches lors de l'utilisation de la machine. Utiliser les pièces détachées Kärcher North America
homologuées.
Les batteries émettent le gaz d'hydrogène. L'explosion ou le feu peut résulter. Étincelles de subsistance et
flamme nue loin. Compartiment de batterie de subsistance ouvert en chargeant. Étincelles et flammes de
subsistance loin des batteries. Ne fumez pas autour des batteries.
Déconnecter les batteries avant de travailler sur la machine. La machine ne doit être confiée qu'à un
personnel qualifié. Porter systématiquement des lunettes et des vêtements de protection lors d'une inter-
vention sur les batteries ou aux alentours. Éviter tout contact de la peau avec l'acide contenu dans les
batteries.
Ne jamais placer d'objets métalliques sur le dessus des batteries.
86398800 Operator Manual - Chariot 2 iGloss 20
9
Safety

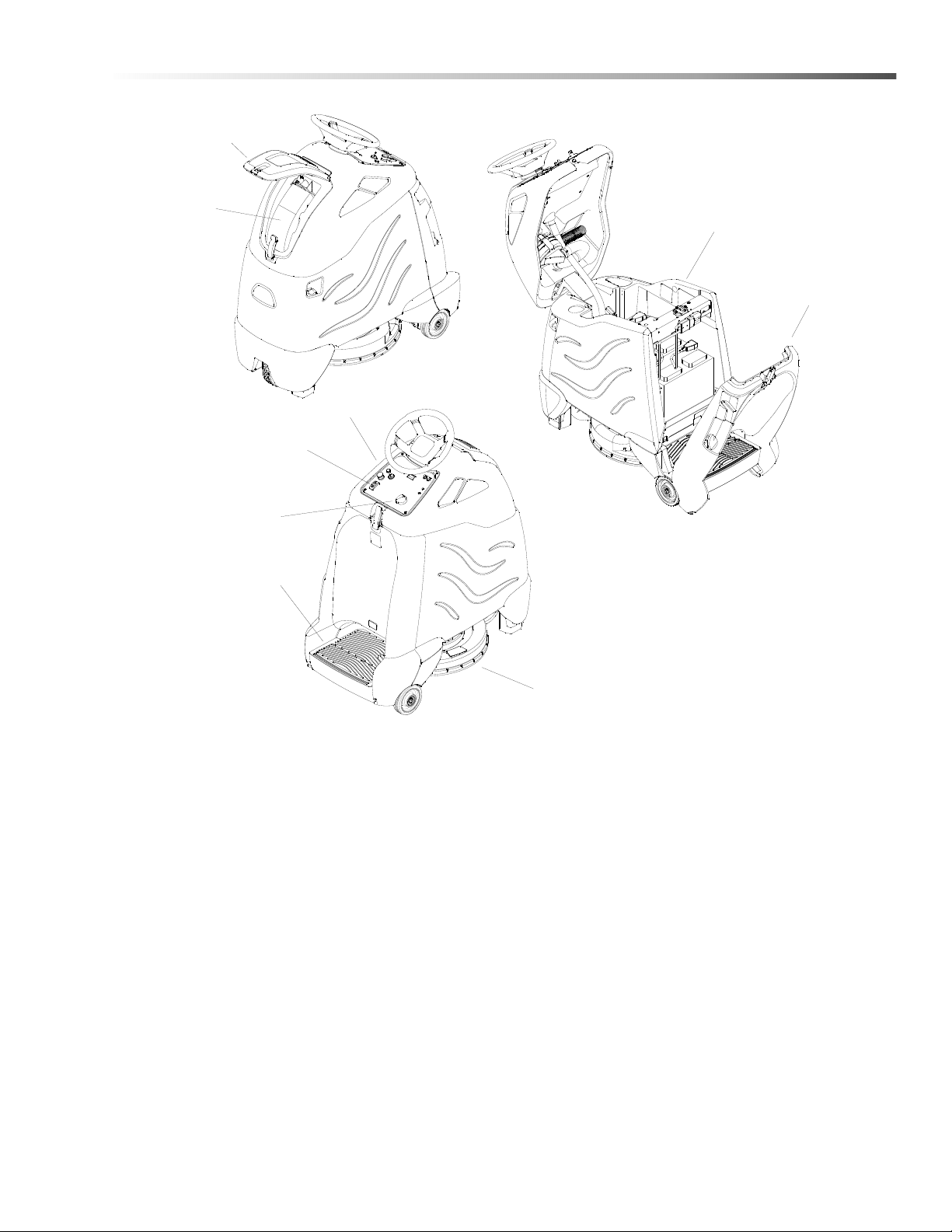

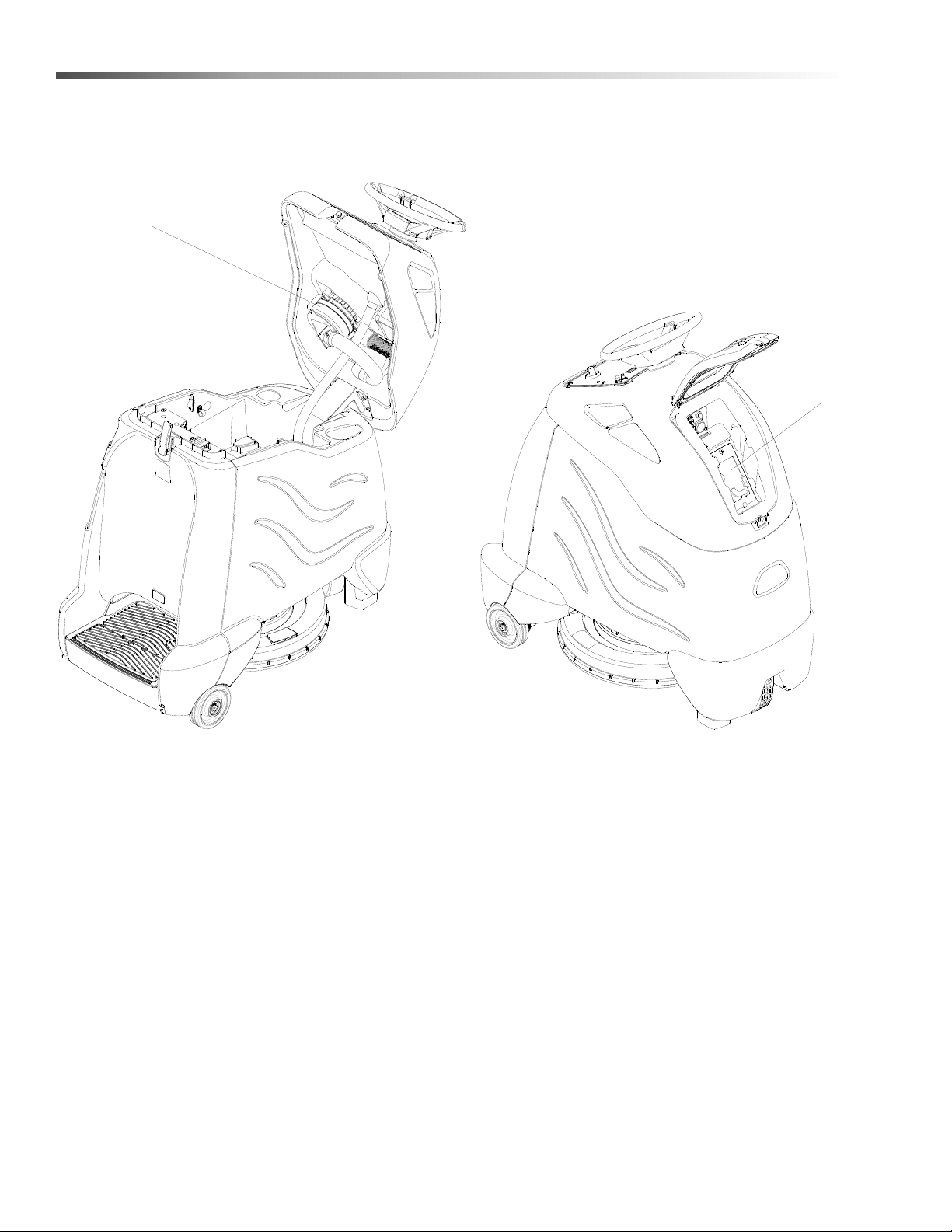

SAFETY LABEL LOCATIONS
These drawings indicate the location of safety labels on the machine. If at any time the labels become illegible,
promptly replace them.
EMPLACEMENT DE L'ÉTIQUETTE DE SÉCURITÉ
REMARQUE : Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. Si, à tout moment,
les étiquettes deviennent illisibles, contactez votre représentant autorisé pour un remplacement
rapide.
CAUTION
BATTERY
86252520
CAUTION
CAUTION LABEL
86244310
86385070
WARNING LABEL
86398800 Operator Manual - Chariot 2 iGloss 20
10
Operation
Technical Specifications
ITEM DIMENSION/CAPACITY
Nominal Power Passive Dust Control 2232W, Active Dust Control 2628W
Rated Voltage 36 Volts DC
Rated Amperage Passive Dust Control 62A, Active Dust Control 73A
Batteries 3 X12 Volt 114 AH, 130 AH, 225AH, or 234AH @ 20 hr. rate
Battery Compartment Dimensions 21.5 in. x 15.25 in. x 16 in. tall (546mm x 387mm x 406mm tall)
Burnisher Motor 3.0 HP, 36V, 2000RPM (2237W)
Vacuum Motor .63 HP (470 W)
Maximum flow rate of vacuum motor 72 cfm (33.98 liters per second)
Maximum suction of vacuum motor 47.3 inches of water (11.7 kPa)
Propelling Motor .38 HP (280W)
Mass (GVW) 838 lbs (380 kg)
Weight empty without batteries 231 lbs (105 kg)
Burnisher pad diameter 20 inch (508 mm)
Tires 8 in. (203mm) drive, 6 in. (156mm) rear, polyurethane
Maximum Speed 2.3 mph (3.7Km/hour)
Theoretical Coverage 19,800ft²/hr @ 2.5 mph with 2 in. overlap
Brake Electrical parking brake,sets automatically whenever operator stops.
Minimum aisle u-turn width 51in. (1295 mm)
Maximum rated climb and descent angle 10% (6 degrees)
Vibration, hands 1.58 m/s²
Vibration, feet 1.39 m/s²
Uncertainty 0.5 m/s²
Sound pressure level Passive Dust Control 59.7 dBA, Active Dust Control 62.2 dBA
Sound power level Passive Dust Control 76.3 dBA, Active Dust Control 80.1 dBA
Uncertainty 3.0 dBA
86398800 Operator Manual - Chariot 2 iGloss 20
11
Operation
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
Cet appareil n'est pas prévu à l'usage des personnes (enfants y compris) avec des possibilités physiques, sensori-
elles ou mentales réduites, ou le manque d'expérience et de connaissance, à moins qu'ils aient été donnés la
surveillance ou l'instruction au sujet de l'utilisation de l'appareil par une personne chargée de leur sûreté. Des
enfants devraient être dirigés pour s'assurer qu'ils ne jouent pas avec l'appareil.

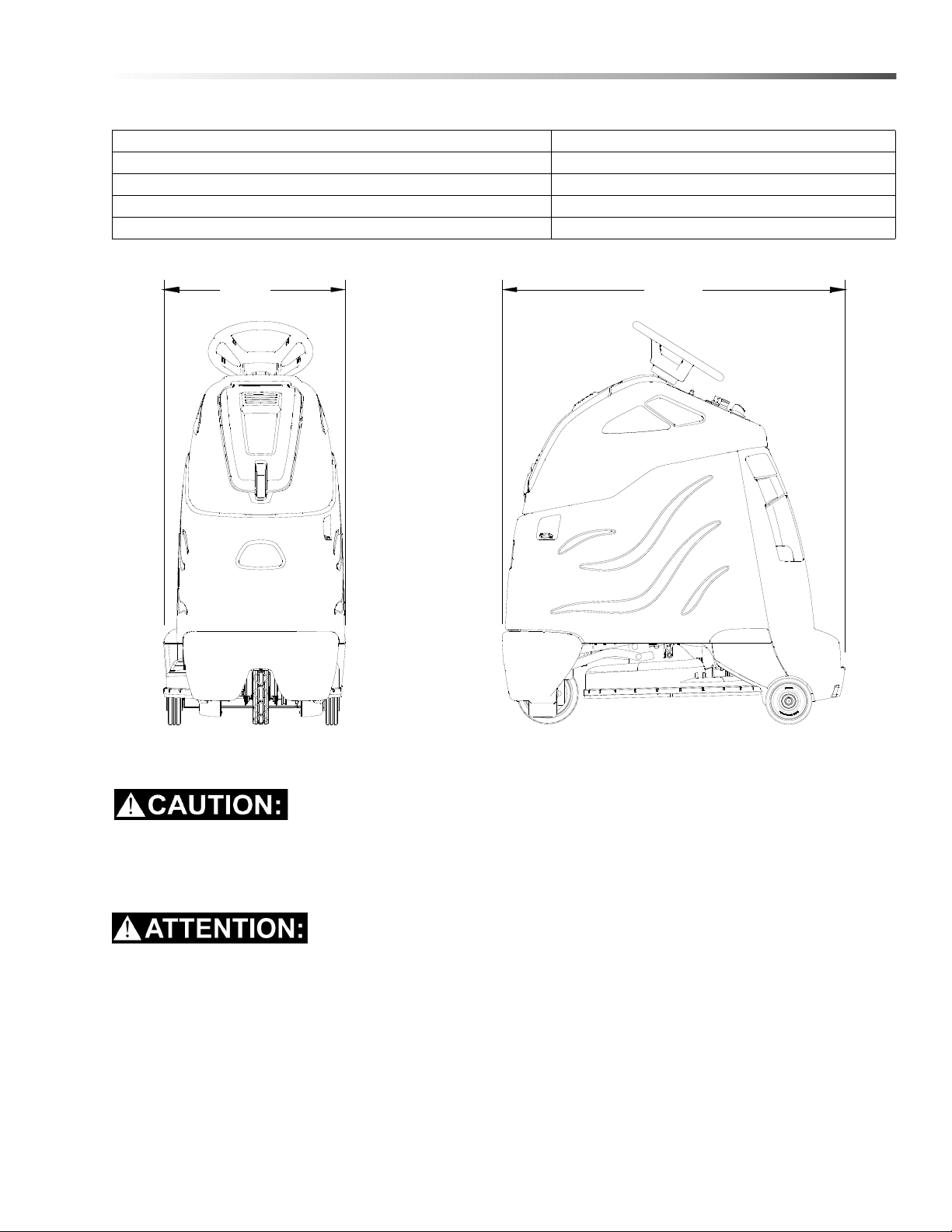

ITEM MEASURE
Height 51.8 in (1316mm)
Length 44.0 in (1118mm)
Width 23.4 in. (594mm)
Width of burnish path 20 in (508mm)
WIDTH
LENGTH
86398800 Operator Manual - Chariot 2 iGloss 20
12
Operation
How This Machine Works
The Chariot® iGloss 20 is a battery powered, self-
propelled, hard floor burnisher intended for commercial
use. The appliance spins a high-speed burnishing pad
in contact with the floor surface to produce a high luster
shine.
The machine's primary systems are the burnishing
system, the dust control system, and the operator
control system.
The function of the burnishing system is to spin a high-
speed burnishing pad in contact with a floor surface
that has had a burnishable floor finish applied. The
burnishing pad can be lowered to the floor and raised
by the operator. The burnishing pad will spin only when
the machine is directed to move by the operator.
The function of the dust control system is to collect the
dust that is created during the burnishing process. It is
normal for a portion of the floor finish to be removed in
the form of dust during the process. While burnishing,
air movement is created within the burnishing head by
the spinning pad. The dust that is also created is
entrained in the air stream and transported to a filter
bag where it is collected and separated from the air
stream. The filter bag can be easily changed without
releasing the collected dust. The optional active dust
control system uses a vacuum motor to improve dust
collection before, during, and after burnishing.
The function of the operator control system is to control
the direction and speed of the machine. The directional
control system consists of the direction control drive
reset switch, throttle pedal, emergency stop/brake
switch, steering wheel, propel controller, and drive
wheel. The directional control drive reset switch signals
forward or reverse direction and makes sure the
operator is on the platform before machine will propel.
The controller interprets signals from the throttle pedal
to command the drive wheel to propel or slow the
machine. The steering wheel points the drive wheel in
the direction desired by the operator. The parking brake
automatically engages when the operator stops the
machine. The emergency stop/brake can be used to
hold the machine on slopes.
86398800 Operator Manual - Chariot 2 iGloss 20
13
Operation
Components
1. Drive Control
2. Burnisher Controls
3. Control Console
4. Pedal Platform
5. Lower Body
6. Bag Enclosure
7. Bag Enclosure Cover
8. Burnisher Deck
9. Rear Cover
86398800 Operator Manual - Chariot 2 iGloss 20
1
2
3
4
5
6
7
8
9
14
Operation

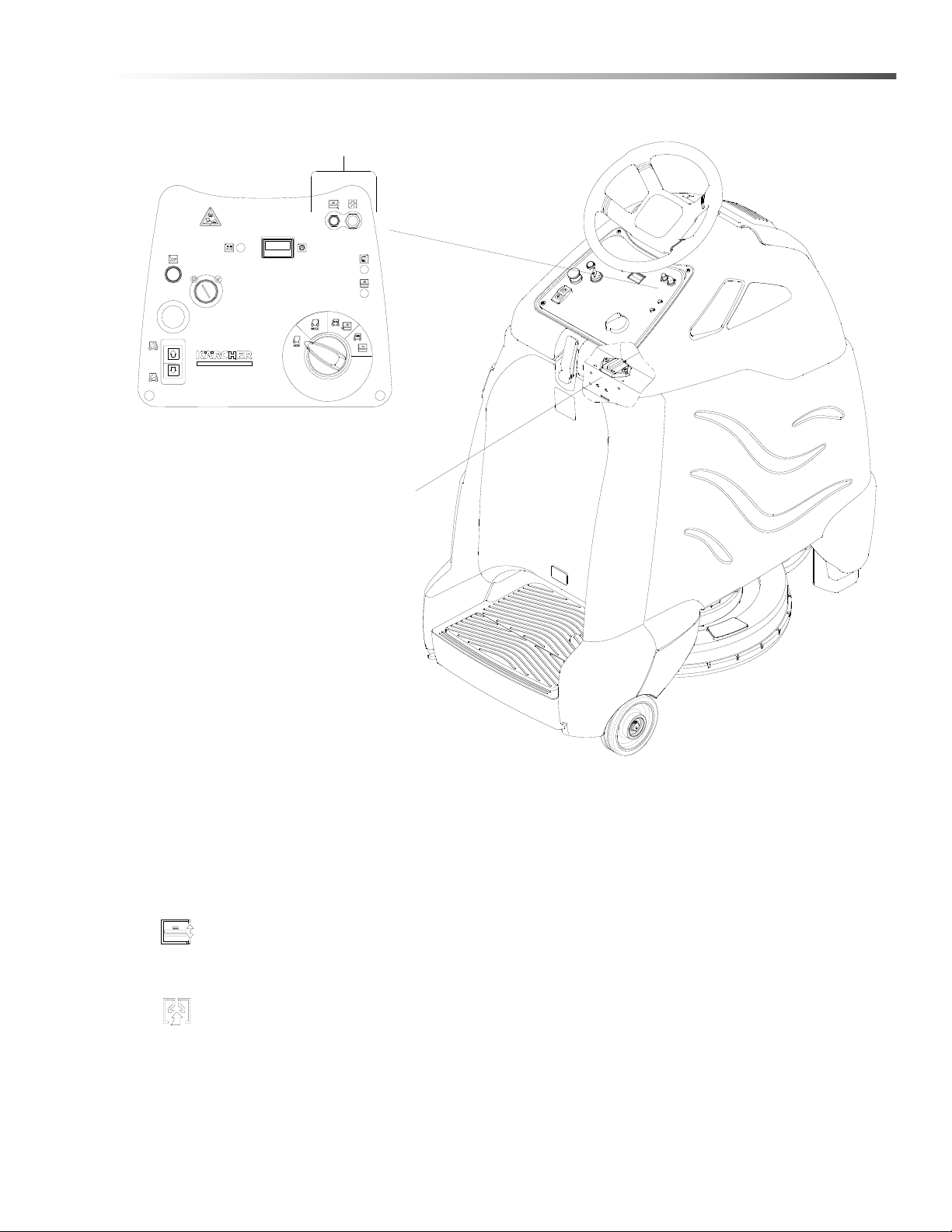

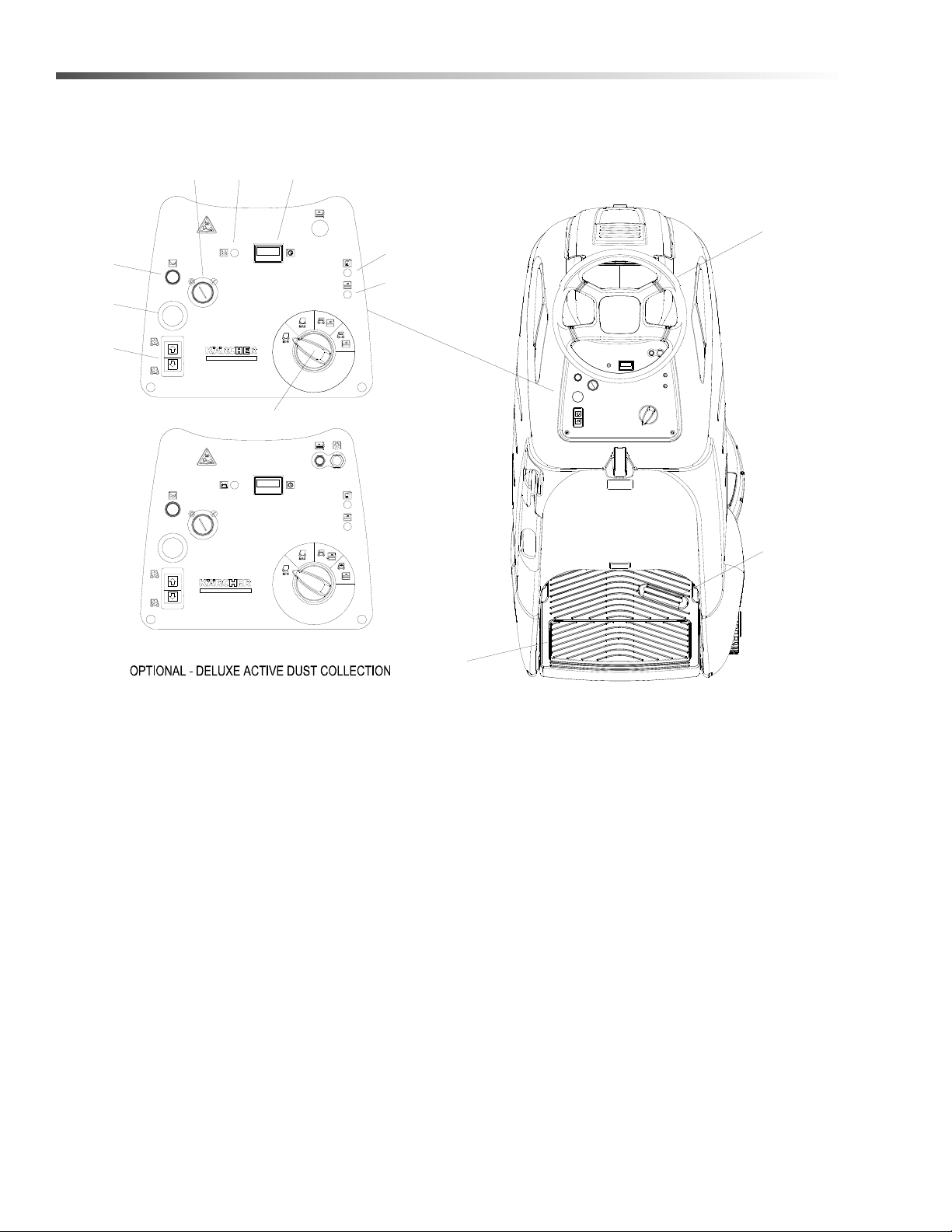

Drive Controls
1. Key Switch
2. Emergency Stop/Brake Switch
3. Directional Control / Drive Reset Switch
4. Throttle Pedal
5. Horn Button
6. Steering Wheel
7. Speed Control/Function Select
8. Battery Discharge Indicator
9. Hour Meter
10. Operator Presence Switch
11. Bag Present indicator
12. Check Pad Indicator
6
4
10
3
2
5
18 9
7
11
12
86398800 Operator Manual - Chariot 2 iGloss 20
15
Operation
1. KEY SWITCH
Controls the power for machine functions.
To turn the machine power on, rotate key clockwise.
To turn the machine off, rotate key counterclockwise.
When the key is turned on the battery symbol will flash once and stay on continuously.
2. EMERGENCY STOP/BRAKE SWITCH
This safety feature is designed to cut all power to the machine at any time and apply parking brake.
To shut the machine power off, push the Emergency Stop Switch, this will also engage the parking brake and
cause the machine to stop immediately.
To reset the machine, rotate the switch clockwise.
3. DIRECTIONAL CONTROL / DRIVE RESET SWITCH
This safety feature is designed to ensure safe engagement of propel drive. Each time the machine power is
turned on, or each time an operator steps on to the platform, the Drive Reset Switch must be pushed before
machine will propel.
The switch controls the direction of travel of the vehicle. The lighted arrow on the switch indicates direction of
travel.
To travel forward, press the top of the switch.
To travel in reverse, press the bottom of the switch.
86398800 Operator Manual - Chariot 2 iGloss 20
16
Operation
4. THROTTLE PEDAL
Controls the speed of the vehicle within the speed control setting selected. Pressing the pedal causes the
machine to travel in the direction selected by the Directional Control Switch.
To increase speed, increase pressure on the pedal.
To decrease speed, decrease pressure on the pedal.
5. HORN BUTTON
The horn is activated by pressing the horn button.
6. STEERING WHEEL
The steering wheel turns the front wheel causing the machine to change direction.
7. SPEED CONTROL
Controls the maximum speed of the machine. There are two settings, slow and fast.
To change speed, rotate the dial to either slow or fast position. The slow position is to the left (counterclock-
wise), fast to the right (top position).
The throttle pedal will always regulate the speed between 0 and maximum
86398800 Operator Manual - Chariot 2 iGloss 20
17
Operation
8. BATTERY DISCHARGE INDICATOR
Indicates the charge level of the batteries.
The indicator will be illuminated if the batteries have a sufficient charge. A slow, continuous flash indicates the
batteries require charging.
The Battery Lockout function will activate when the batteries are low.
Once active, the LED status indicator will begin to flash slowly and the controller will inhibit the burnisher motor.
The vacuum and drive remain functional. Return the unit to the charging station and charge the batteries.
NOTES: Continuing usage may damage the batteries.
When the machine is left overnight with less than a full charge, the display may initially indicate a full charge. It
will also indicate a full charge if the batteries are disconnected, then reconnected. After a few minutes of
operation the indicator will give the correct charge level.
9. HOUR METER
Records the number of hours the machine has been in burnishing operation. This information is useful in deter-
mining when to service the machine.
10. OPERATOR PRESENCE SWITCH
Must be pressed down prior to any machine functions enabled.
11. BAG PRESENT INDICATOR
Notifies operator if dust collection bag is missing. LED is red when bag is missing or not properly installed.
12. CHECK PAD INDICATOR
Notifies operator of potential problem with pad or missing pad. When LED is red, operator should remove pad
driver and verify pad condition and proper installation.
86398800 Operator Manual - Chariot 2 iGloss 20
18
Operation

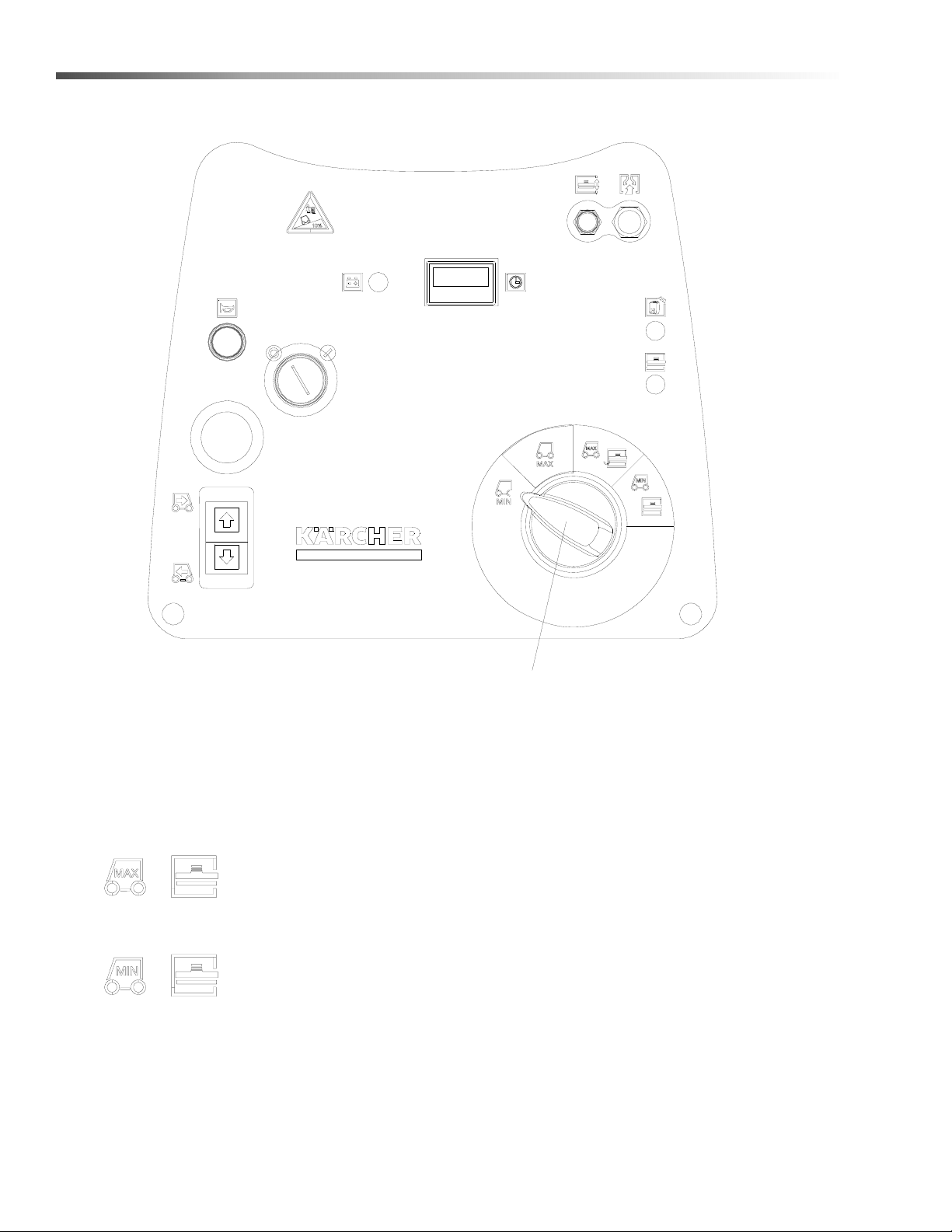

Function Mode Switch
1. Function Mode Switch
The first two positions are for transport only. See drive controls section.
Light burnishing
This mode is used for light burnishing. In this mode the machine will propel at fast
speed. The ‘floating’ burnisher deck is in the down position. When equipped with
optional active dust collection, vacuum motor will be on.
Deep burnishing
This mode is used for deep burnishing. In this mode the machine will propel at slow
speed. The ‘floating’ burnisher deck is in the down position. When equipped with
optional active dust collection, vacuum motor will be on.
1
86398800 Operator Manual - Chariot 2 iGloss 20
19
Notes:
86398800 Operator Manual - Chariot 2 iGloss 20
20
Operation
Machine Operation
Pre-Run Machine Inspection
Do a pre-run inspection to find possible problems that
could cause poor performance or lost time from break-
down. Follow the same procedure each time to avoid
missing steps.
NOTE: See maintenance section for pre-run machine
inspection checklist items.
Starting Machine
NOTE: Perform pre-run machine check before
operating machine.
FOR SAFETY: Before starting machine, make sure
that all safety devices are in place and operating
properly.
1. Disconnect or unplug battery charger.
2. Close the cover(s).
3. Verify condition of burnishing pad, replace if neces-
sary.
4. Verify removable pad driver is installed correctly
and pad rotation lock is released.
5. The operator should be on the pedal platform. The
throttle pedal must be in the neutral position.
6. Turn the machine power on by turning key switch
clockwise to the “ON” position.
7. Verify dust collection bag is installed.
8. Press the Drive Reset Directional Control Switch to
reset and set the intended direction for travel.
9. Press lightly on the throttle pedal with right foot
Emergency Stop Procedure
Push in emergency stop button. This will also engage
the parking brake and cause the machine to stop imme-
diately.
86398800 Operator Manual - Chariot 2 iGloss 20
21
Operation
Operating the Machine
When operating the machine around people, pay close
attention for unexpected movement. Use extra caution
around children.
1. Stand on the operator platform. Throttle pedal must
be in neutral position.
2. Turn machine power on.
3. Select transport speed from Function Mode Switch.
4. Press the Drive Reset/Directional Control Switch,
selecting the desired travel direction.
5. Select Light burnishing or Deep burnishing from
the Function Mode Switch. Deck will Lower.
6. The pad motor will only run when the burnishing
head is lowered to within 2 inches of the floor.
7. Occasionally verify “check pad” indicator light is
“green”. If not, stop machine, remove pad driver
and check pad. Replace or flip as needed.
NOTE: To prevent possible damage to the floor
surface, always keep the machine moving while the
pad is spinning.
8. When the head is down and the machine is
propelled, the pad motor runs.
9. When the battery light flashes it indicates
discharged batteries, stop operation and charge
batteries.
Normal Burnishing
Plan the burnishing pattern in advance. The longest
track is around the perimeter of the area to be
burnished. For efficient operation, the runs should be
the longest possible without turning, stopping, or
raising or lowering the burnisher head.
In order to achieve the best possible results, the area
which is to be burnished should be swept and auto
scrubbed before burnishing.

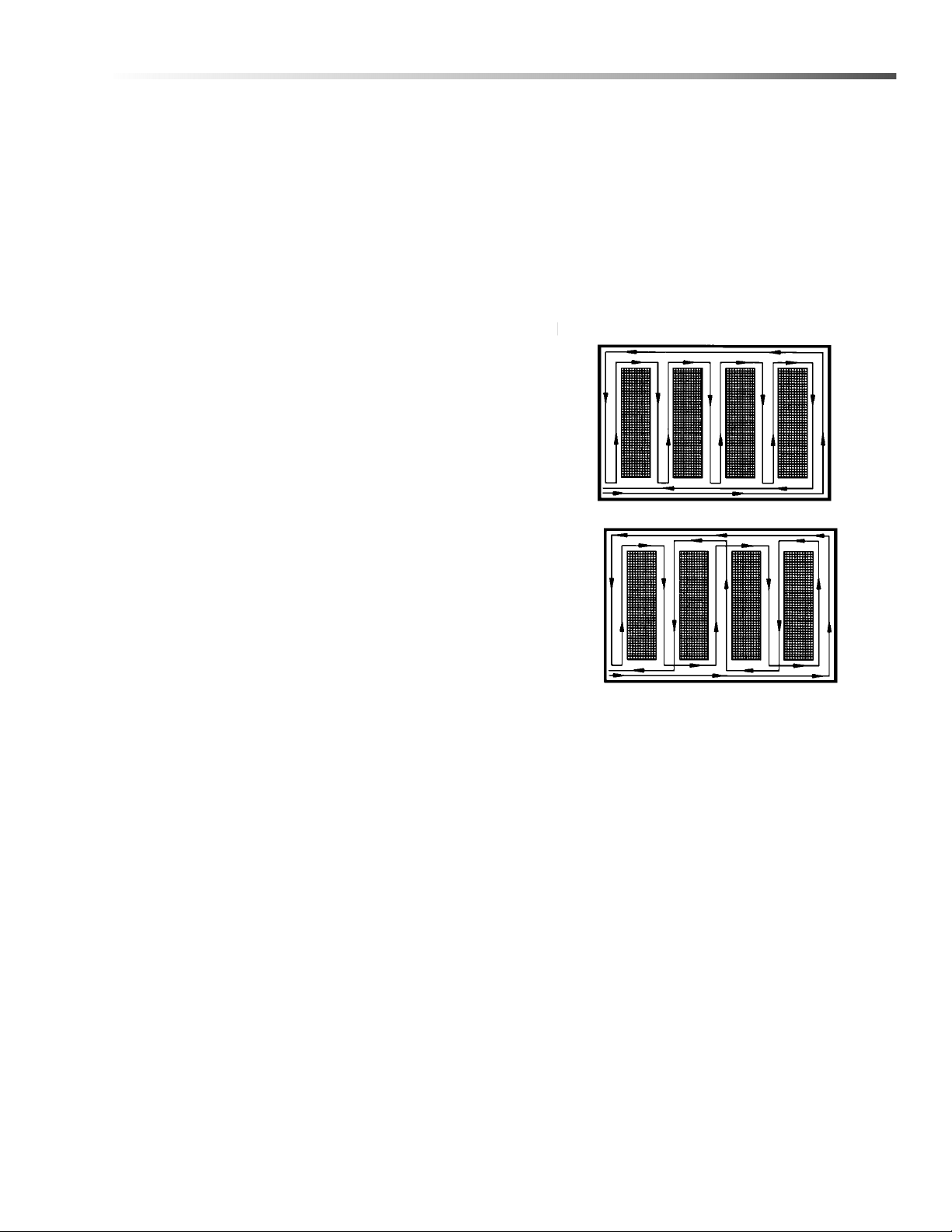

RECOMMENDED BURNISHING PATH
INEFFICIENT BURNISHING PATH
86398800 Operator Manual - Chariot 2 iGloss 20
22
Maintenance
Service Schedule
MAINTENANCE
BEFORE EACH
WORK PERIOD
AFTER EACH
WORK PERIOD
50
HRS
100
HRS
200
HRS
Check water level of batteries after charging; add
distilled water if necessary. (Wet cell only)
*
Visually check for damaged or worn tires. *
Check brush or pad for proper installation. *
Check vacuum hose connections. *
Check pedal, brake and steering for proper operation. *
Check dust bag. *
Charge batteries if needed. *
Clean off top of batteries. *
Check battery cells with hydrometer. (Wet cell only) *
Inspect deck skirt. *
Check battery connections are tight. *
Clean battery cases and battery compartment. *
Check parking brake. *
Clean pivot points on burnishing head. *
Check all motors for carbon brush wear. *
Check steering chain tension. *
Check drive chain tension. *
86398800 Operator Manual - Chariot 2 iGloss 20
23

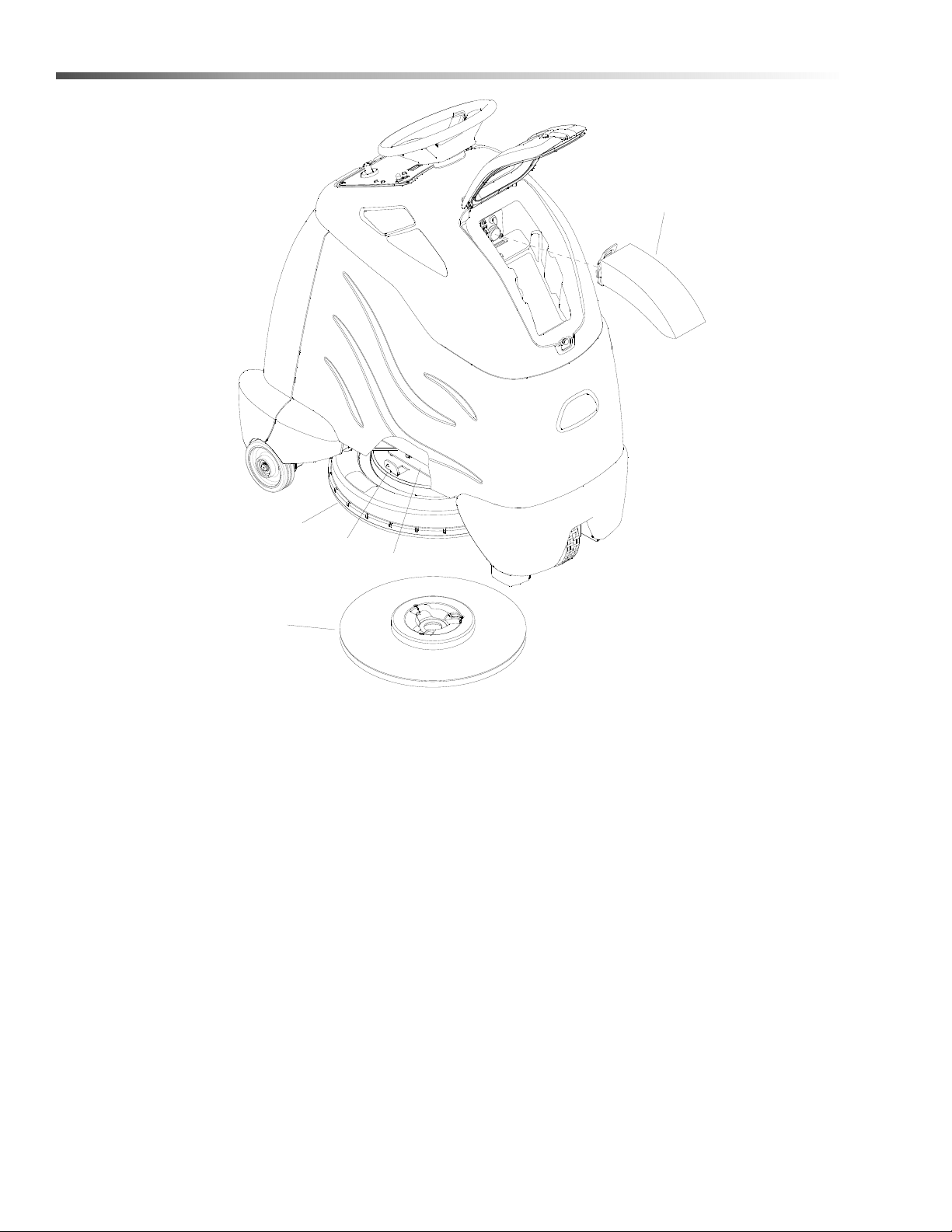

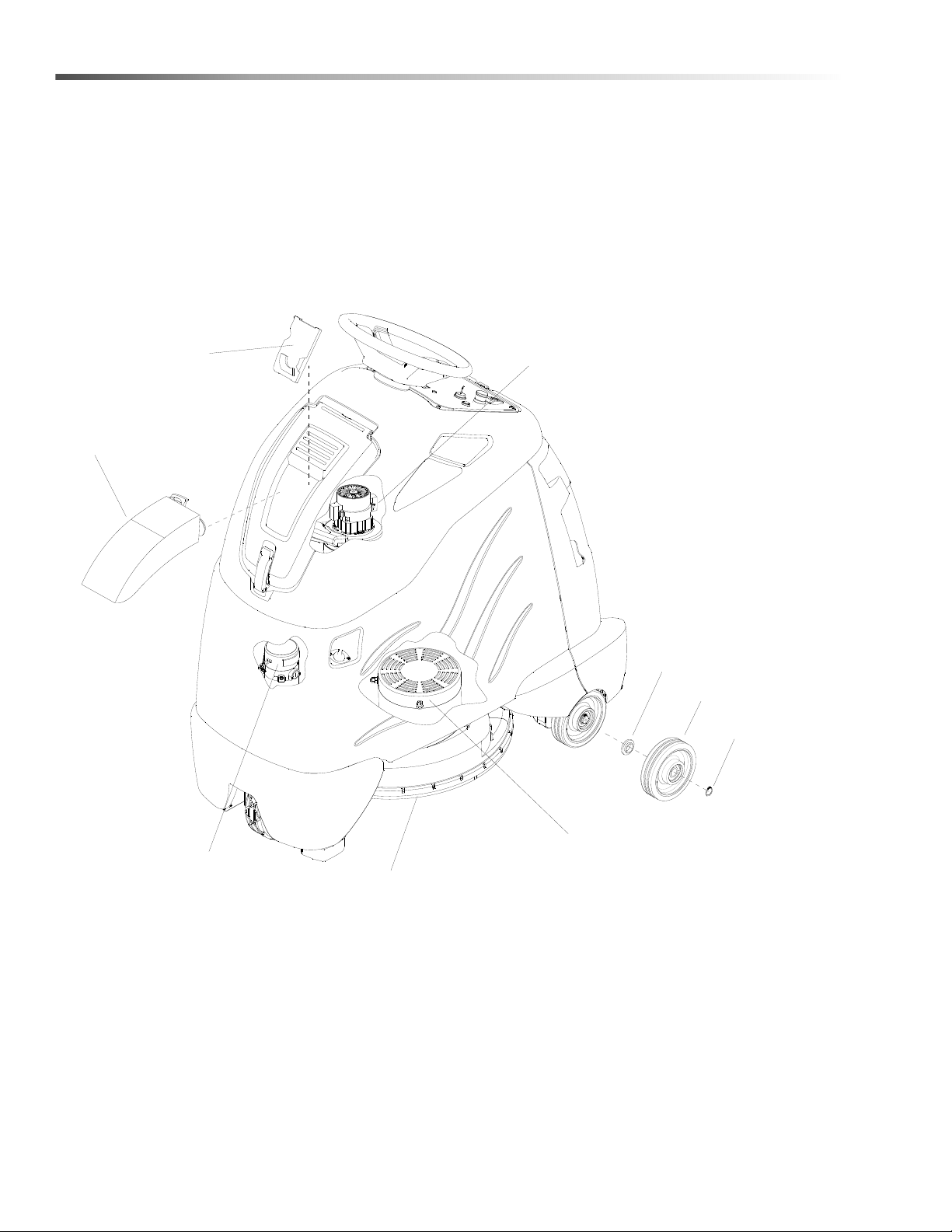

Maintenance

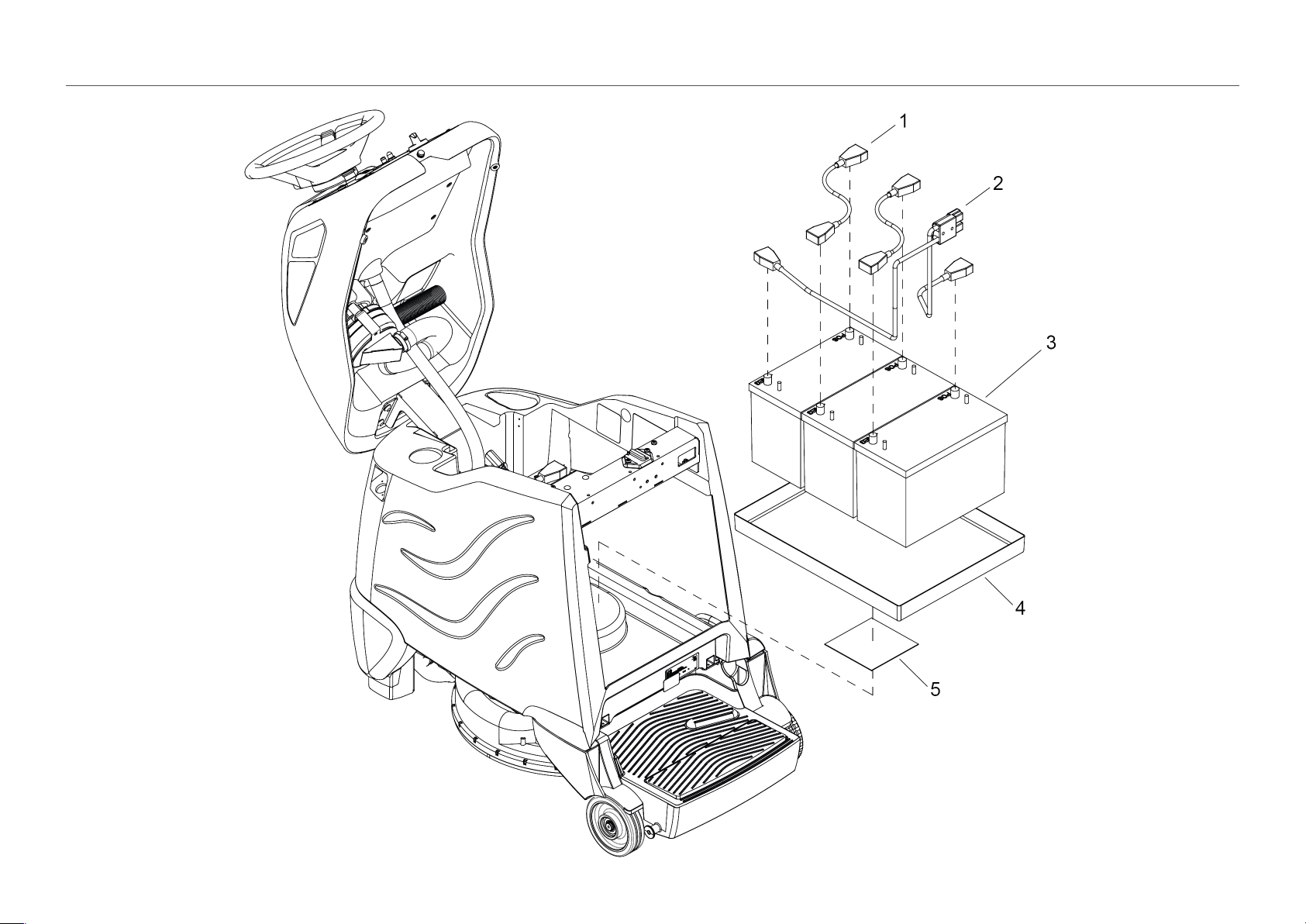

1. Cover Retainer Latch
2. Rear Cover
3. Battery Connector-Machine
4. Batteries
5. Battery Tray
4
5
3
1
2
86398800 Operator Manual - Chariot 2 iGloss 20
24
Maintenance
Batteries (Wet Cell)
The batteries provide the power to operate the
machine. The batteries require regular maintenance to
keep them operating at peak efficiency.
The machine batteries will hold their charge for long
periods of time, but they can only be charged a certain
number of times. To get the greatest life from the
batteries, charge them when their charge level reaches
25% of a full charge. Use a hydrometer to check the
charge level.
Do not allow the batteries to remain in a discharged
condition for any length of time. Never expose a
discharged battery to temperatures below freezing.
Discharged batteries will freeze causing cracked
cases. Do not operate the machine if the batteries are
in poor condition or if they have a charge level below
25% (specific gravity below 1.155).
Keep all metallic objects off the top of the batteries, as
they may cause a short circuit. Replace worn or
damaged cables and terminals.
Check the electrolyte level in each battery cell before
and after charging the batteries. Never add acid to the
batteries, use distilled water. Do not allow water level to
fall below the battery plates. Portions of plates exposed
to air will be destroyed. Do not overfill. Keep plugs
firmly in place at all times.
Not all batteries require maintenance. AGM
batteries are maintenance free. Do not attempt to
remove sealed caps from AGM batteries. Warranty
is void if caps are removed from AGM battery.
L’entretien n’est pas nécessaire pour toutes les
batteries. Les batteries AGM ne nécessitent pas
d’entretien. N'essayez pas d'enlever les bouchons
scellés des batteries AGM. La garantie est annulée
si les bouchons sont retirés des batteries AGM.
86398800 Operator Manual - Chariot 2 iGloss 20
25
Maintenance
When servicing machine, avoid contact with
battery acid.
Lors de l'entretien de la machine, évitez tout
contact avec l'acide de batterie.
Batteries emit hydrogen gas. Explosion or fire can
result. Keep sparks and open flame away. Keep
covers open when charging.
Les batteries émettent du gaz hydrogène. Une
explosion ou un incendie peut en résulter.
Maintenez les étincelles et les flammes nues à
l’écart. Gardez les carters ouverts lors du charge-
ment.
Wear eye protection and protective clothing when
working with batteries.
Portez des lunettes de protection et des vêtements
de protection lorsque vous travaillez avec des
batteries.
Charge batteries in a well ventilated area.
Chargez les batteries dans un endroit bien ventilé
Battery Maintenance
1. When cleaning the batteries, use a solution of
baking soda and water. Do not allow the cleaning
fluid to enter the battery cells, electrolyte will be
neutralized.
2. Maintain the proper electrolyte level in each battery
cell. If a cell should accidentally overflow, clean
immediately.
3. Wipe off the top of the batteries at least once a
week.
4. Test battery condition with a hydrometer at least
once a week.
5. Ensure that all connections are tight and all
corrosion removed.
6. Every 4 to 6 months, remove the batteries from the
machine and clean the battery cases and battery
compartment.
86398800 Operator Manual - Chariot 2 iGloss 20
26
Maintenance
Checking Battery Specific Gravity
Use a hydrometer to check the battery specific gravity.
CHECKING GRAVITY
a. Hydrometer Battery
b. Battery
NOTE: Do not take readings immediately after adding
distilled water, if the water and acid are not
thoroughly mixed, the reading may not be accurate.
Check the hydrometer readings against this chart.
NOTE: If the readings are taken when the battery
electrolyte is any temperature other than 80°F (27°C),
the reading must be temperature corrected.
To find the corrected specific gravity reading when the
temperature of the battery electrolyte is other than 80°F
(27°C): Add (+) to the specific gravity reading 0.004 (4
points), for each 10°F (6°C) above 80° (27°C). Subtract
(-) from the specific reading 0.004 (4 points), for each
10°F (6°C) below 80°F (27°C).
SPECIFIC GRAVITY
@ 80
F (27
C) BATTERY CONDITION
1.265 100% CHARGED
1.225 75% CHARGED
1.190 50% CHARGED
1.155 25% CHARGED
1.120 DISCHARGED
86398800 Operator Manual - Chariot 2 iGloss 20
27
Maintenance
Charging Batteries
When servicing machine, avoid contact with
battery acid.
Lors de l'entretien de la machine, évitez tout
contact avec l'acide de batterie.
Batteries emit hydrogen gas. Explosion or fire can
result. Keep sparks and open flame away. Keep
covers open when charging.
Les batteries émettent du gaz hydrogène. Une
explosion ou un incendie peut en résulter.
Maintenez les étincelles et les flammes nues à
l’écart. Gardez les carters ouverts lors du charge-
ment.
Wear eye protection and protective clothing when
working with batteries.
Portez des lunettes de protection et des vêtements
de protection lorsque vous travaillez avec des
batteries.
Charge batteries in a well ventilated area.
Chargez les batteries dans un endroit bien ventilé
Use a 36 volt, 20 amp maximum output DC charger
which will automatically shut off when the batteries are
fully charged.
1. Stop the machine in a clean, well ventilated area
next to the charger.
2. Turn “OFF” machine.
FOR SAFETY: Before leaving or servicing machine;
stop on level surface, turn off machine and remove
key.
3. Remove rear cover, unplug batteries from
machine.
Batteries emit hydrogen gas. Explosion or fire can
result. Keep sparks and open flame away. Keep
covers open when charging.
Les batteries émettent du gaz hydrogène. Une
explosion ou un incendie peut en résulter.
Maintenez les étincelles et les flammes nues à
l’écart. Gardez les carters ouverts lors du charge-
ment.
4. Check the electrolyte level in each battery cell.
Before charging, add just enough distilled water to
cover the plates. After charging is complete, add
just enough distilled water to bring up the level to
the indicator ring. If the water level is too high
before charging, normal expansion rate of the elec-
trolyte may cause an overflow resulting in a loss of
battery acid balance and damage the machine.
86398800 Operator Manual - Chariot 2 iGloss 20
28
Maintenance
5. Replace the battery caps, and leave them in place
while charging.
6. Unplug the battery connector from the machine.
FOR SAFETY: When charging, connect the charger
to the batteries before connecting the charger to
the AC wall outlet. Never connect the charger to the
AC wall outlet first. Hazardous sparks may result.
7. Plug the charger connector into the battery
connector. Connect the charger AC plug to a wall
outlet. The charger gauge should indicate that the
batteries are charging.
8. When the batteries are fully charged, disconnect
the charger from the AC wall outlet, then discon-
nect the charger from the batteries.
9. Connect the batteries to the machine connector.
10. Check the electrolyte level. It should be up to the
indicator ring. If necessary, add distilled water.
11. Install the rear cover.
Changing Batteries
Stop the machine in a clean area next to the charger.
Turn off machine.
FOR SAFETY: Before leaving or servicing the
machine; stop on level surface, turn off machine and
remove key.
1. Open the console cover.
2. Remove rear cover.
3. Disconnect battery pack from machine.
Use the proper size open end wrench to disconnect
main ground wire first and secure cable terminal away
from batteries.
4. Disconnect main positive lead and secure cable
terminals away from batteries.
5. Loosen both terminals on each jumper cable and
remove one at a time.
6. Prepare a suitable site to place the batteries.
Attach suitable battery lifting device and lift
batteries from the machine. Batteries are a
potential environmental hazard. Consult your
battery suppler for safe disposal methods.
Fixez le dispositif de levage de batterie approprié et
levez les batteries de la machine. Les batteries
constituent un danger potentiel pour l'environne-
ment. Consultez le fournisseur de votre batterie
pour connaître les méthodes d'élimination sûres.

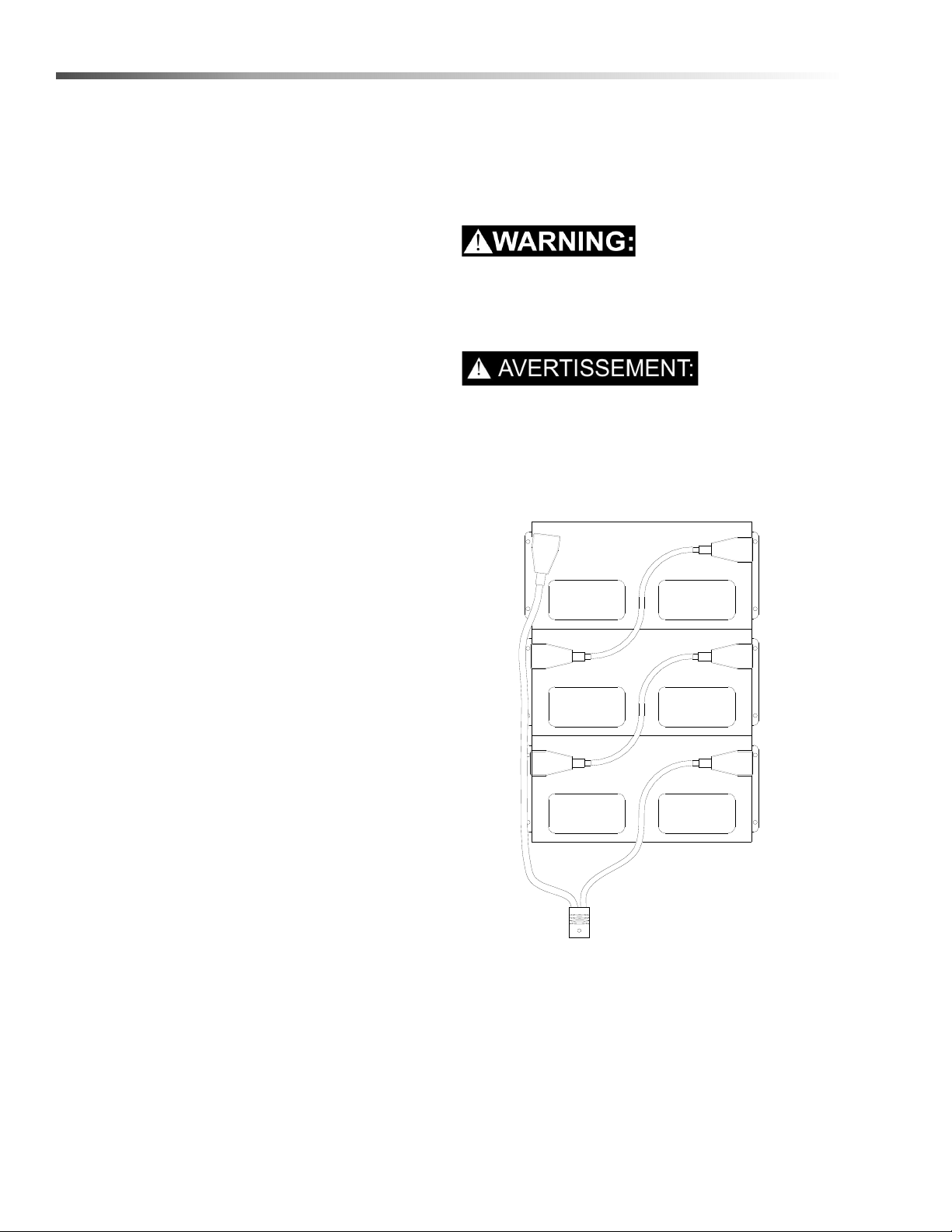

NOTE: Red (+) and Black (-) installed opposite for
225 AH (J185) battery configuration.
RED
BLACK
RED
BLACK
RED
BLACK
REAR OF MACHINE
86398800 Operator Manual - Chariot 2 iGloss 20
29
Maintenance
Battery Charger Programming
NOTE: For machines equipped with optional on-
board charger. When replacing batteries, charger
programming changes may be required. If replacing
batteries with same type, (e.g. maintenance free
batteries with maintenance free) no programming is
required. When batteries with different type
(e.g.maintenance free with wet cell), programming
changes are required. Failure to make programming
changes may lead to reduced battery life.
Programming Instructions
The charger is pre-loaded with the charge algorithms
shown below:
Check Default Charge Algorithm
Enter Algorithm Display Mode:
1. Disconnect AC Power.
2. Remove positive lead from battery pack.
3. Apply AC power and the charger will display the
algorithm number after the Power On Self Test:
a. All algorithms will display as a series of flashes
of the 80% LED.
b. Algorithms #1 - 6 will also be indicated by the
Ammeter LEDs (see Users Guide).
Examples:
☼☼☼ = Algorithm #3
☼☼ , Short Pause, ☼ = Algorithm #21
4. Algorithm number display repeats for 11 seconds,
then Algorithm Display Mode ends.
5. Remove AC Power and reconnect positive lead.
Check Default Charge Algorithm
1. Enter Algorithm Display Mode (as above).
2. While Algorithm Number is displayed (for 11
seconds), touch positive lead to the battery pack
positive terminal for 3.0 seconds (± 0.5s).
3. Remove lead from battery pack. Algorithm Number
will increment.
4. To increment the Algorithm Number again, repeat
Steps 2 and 3 within 30 seconds.
5. Touch positive lead to positive terminal and hold
until relay clicks (>10 seconds). The new default
algorithm is now stored.
6. Remove AC power and check default algorithm.
Contact your original equipment manufacturer if your
battery pack is not supported by the charge algorithms
loaded in your charger.
AlgID Description
1 Trojan J185H
5 Trojan 30XHS
42 Discover AGM EV31A-A
43 Discover AGM EV185A-A
86398800 Operator Manual - Chariot 2 iGloss 20
30
Maintenance

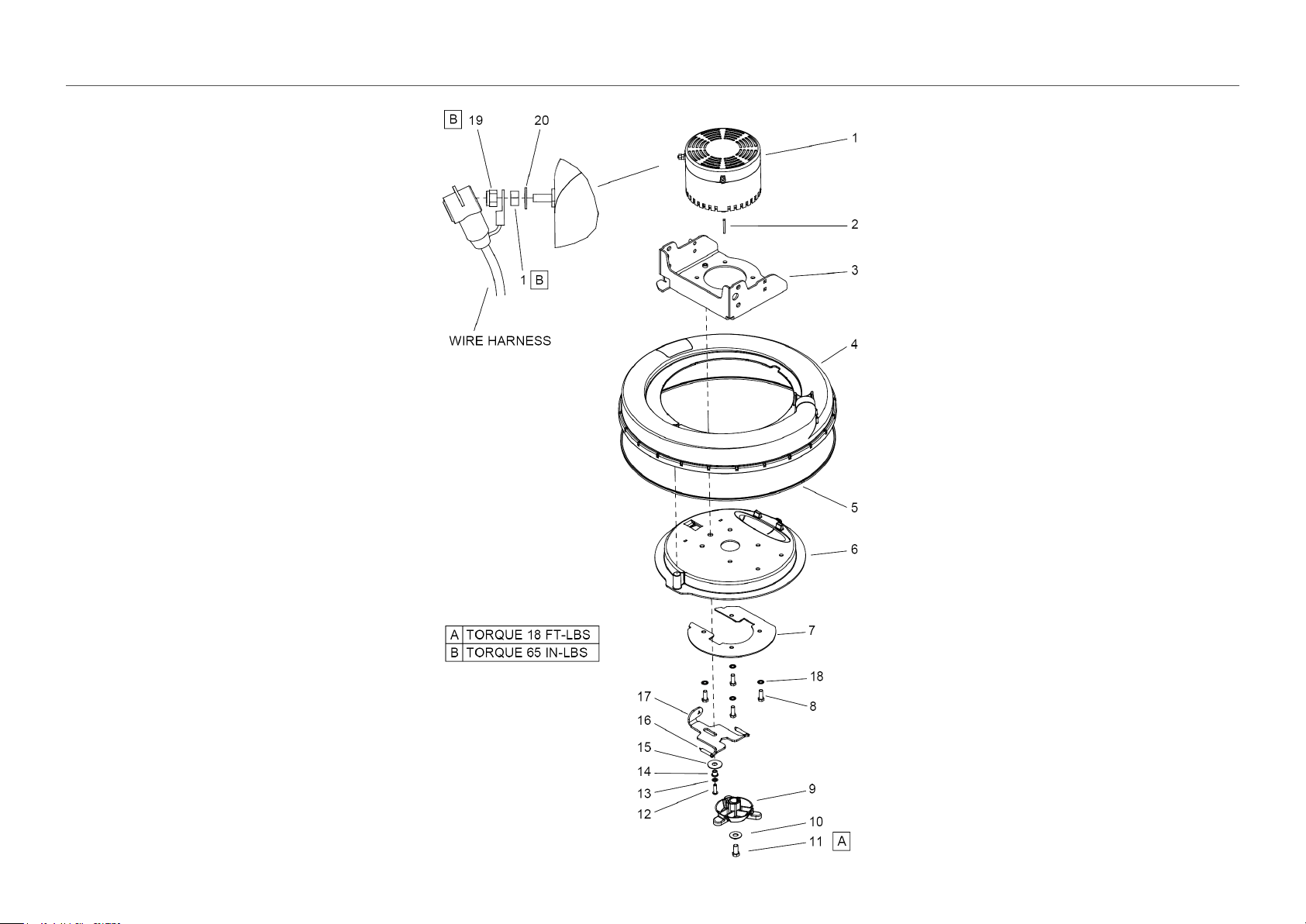

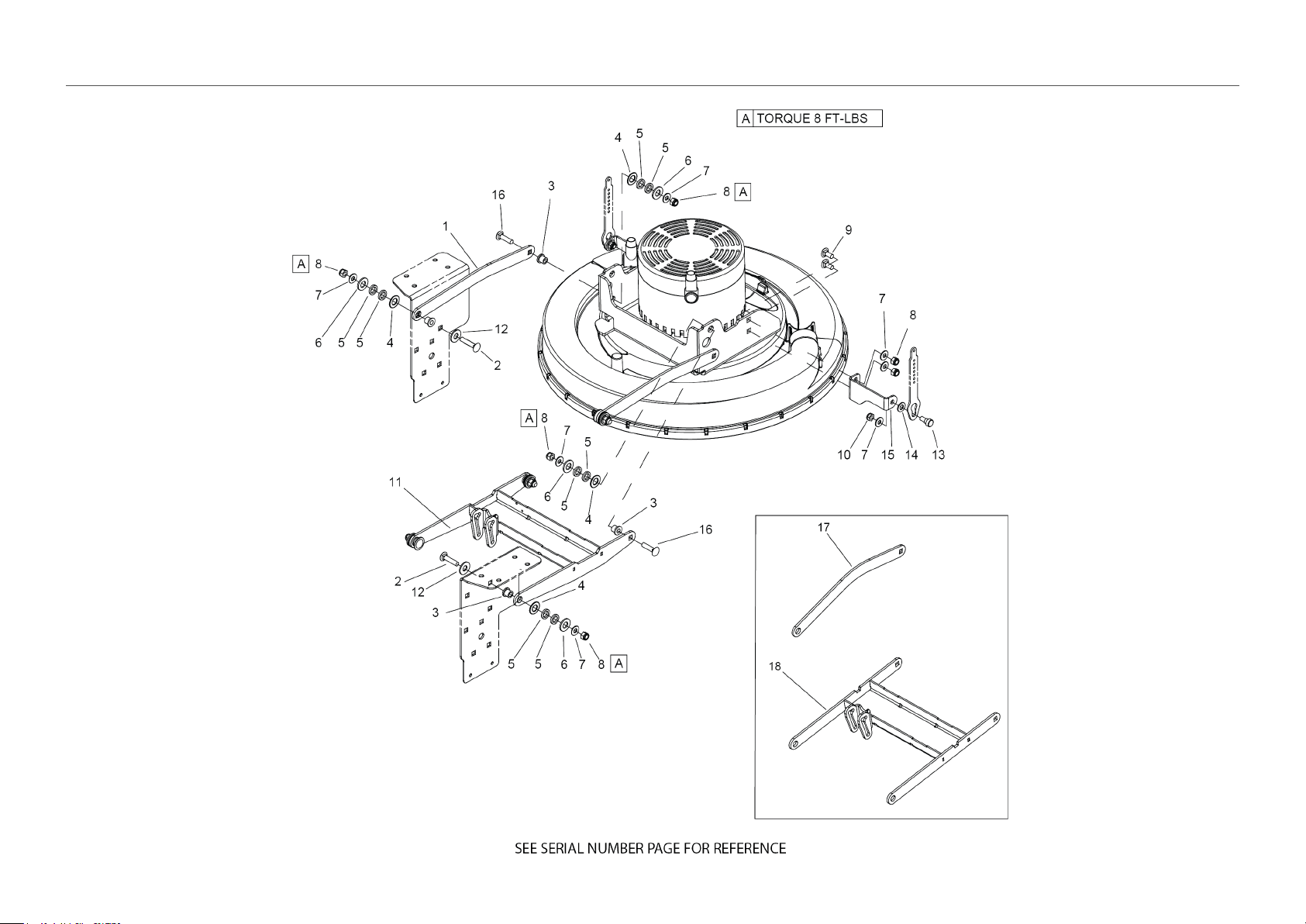

Burnishing Deck
1. Burnisher Motor
2. Skirt
3. Pad Driver/Pad
4. Pad Rotation Lock Lever
Dust Collection
5. Dust Bag
86398800 Operator Manual - Chariot 2 iGloss 20
1
4
2
3
5
31
Maintenance
Burnishing Pad
Many types of pads are available for floor burnishing.
Select a pad type based on floor type and floor finish for
best results.

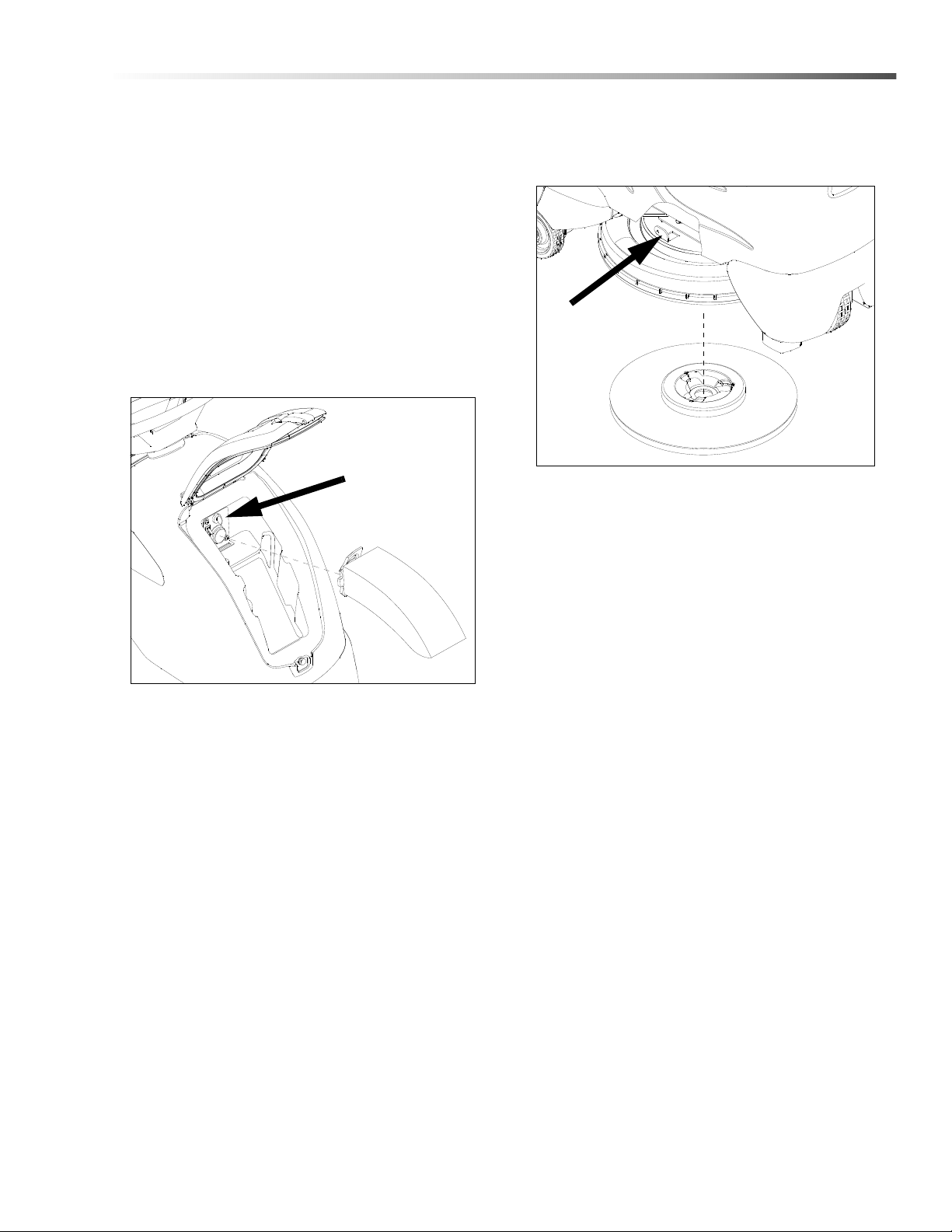

Dust Bag Replacement
1. Release latch and raise cover to access dust bag.
2. Turn thumb screw to horizontal position to release
dust bag.
3. Remove dust bag at the plastic frame from the bag
mounting bracket.
4. Reverse procedure to install new bag.
Dust Control Skirt Replacement
1. Raise burnisher deck with Function Mode Switch
set to transport mode.
2. Find ends of brush skirt. Pull down on one end to
release from shroud snap features. Once released
from two snaps, gently pull skirt parallel to the floor
to fully remove from shroud.
3. Install new skirt by pushing up into snaps one at a
time working around shroud diameter.
4. Where the ends meet, trim any excess skirt with
scissors or wire cutter.
Pad Replacement
1. Set the burnisher deck to the raised position.
2. To remove the pad driver:
• Push in and hold the Pad Rotation Lock lever.
• Grip the outside diameter of the pad and pad
driver.
• Rotate firmly counterclockwise. Pad driver will
disconnect from motor hub.
• Release Pad Rotation Lock lever.
3. To remove pad from pad driver:
• Set pad driver on flat surface with pad facing
up.
• Release pad retainer from center of pad using
retainer's wire clip.
• Peel pad off pad driver.
4. To install pad on pad driver:
• Center the pad on pad driver with pad facing up.
• Check the pad inner diameter where the pad fits
over the raised ring of the pad retainer.
• Install pad retainer making sure wire clips snap
in place. Pad will need to compress to engage
pad retainer clips
5. To install the pad driver:
• Push in and hold the Pad Rotation Lock lever.
• Hold the pad driver parallel to the floor under
the shroud.
• Lift pad driver up to contact hub keeping level
and centered with motor shaft.
• Rotate pad driver clockwise applying light
pressure up on the hub. Pad driver will align
with hub and move up.
• Continue rotating clockwise approximately 15
degrees to fully engage hub.
• Release Pad Rotation Lock lever.
NOTE: Final tensioning of the pad driver occurs as
the motor rotates during burnishing.
86398800 Operator Manual - Chariot 2 iGloss 20
32
Maintenance
Burnisher Motor Replacement
1. Remove the pad driver assembly.
2. Lower the burnisher deck using the Function Mode
Switch.
3. Turn the key to the off position.
4. Unplug the battery pack from the machine.
5. Disconnect the positive and negative wires from
the posts at the front of the motor. Note the
positions for reassembly. Isolate the ends of the
wires as batteries will be connected in step 6.
6. Unhook deck lift springs, one per side. Prevent
bracket from retracting inside body of machine by
using holes and temporary cross pin.
7. Remove the hardware (4X) connecting the linkage
to the motor mount. Note the stack arrangement of
the hardware for reassembly.
8. Plug in the battery pack. Turn on the key. Turn the
Function Mode Switch to transport to raise upper
linkage.
9. Slide the deck assembly from under the machine.
10. Flip the deck assembly over.
11. Slide Pad Rotation Lock lever in and hold while
removing bolt and washer from pad driver hub.
12. Release Pad Rotation Lock lever slide hub and key
off motor shaft.
13. Remove bolts and washers (4X) holding inner
shroud and plate. Remove motor from shrouds
and motor mount.
14. Reverse process to reinstall.
Burnisher Motor Carbon Brush Ring
Replacement
1. Follow steps 1-9 of “Burnisher Motor Replacement”
to access the top of the motor.
2. Remove flat head screws (4X) in the motor cover.
Remove the cover.
3. Remove hex head screws (4X) holding the brush
ring assembly to the motor casting.
4. Slide the brush ring assembly off the motor
commutator.
5. Clean excessive carbon deposits off motor compo-
nents with compressed air.
6. Prepare new brush assembly for use by inserting
individual brush springs into brush guides. Check
each brush to ensure proper movement after
installing springs.
7. Depress brushes as required to insert brush
housing over commutator.
8. Check area under cable lugs to make sure brush
ring is seated against casting fully.
9. Replace hex head screws (4X) holding the brush
ring assembly.
10. Rotate motor to check for smooth rotation.
11. Replace motor cover and flat head screws (4X).
12. Reverse steps in step 1 to reinstall to machine.

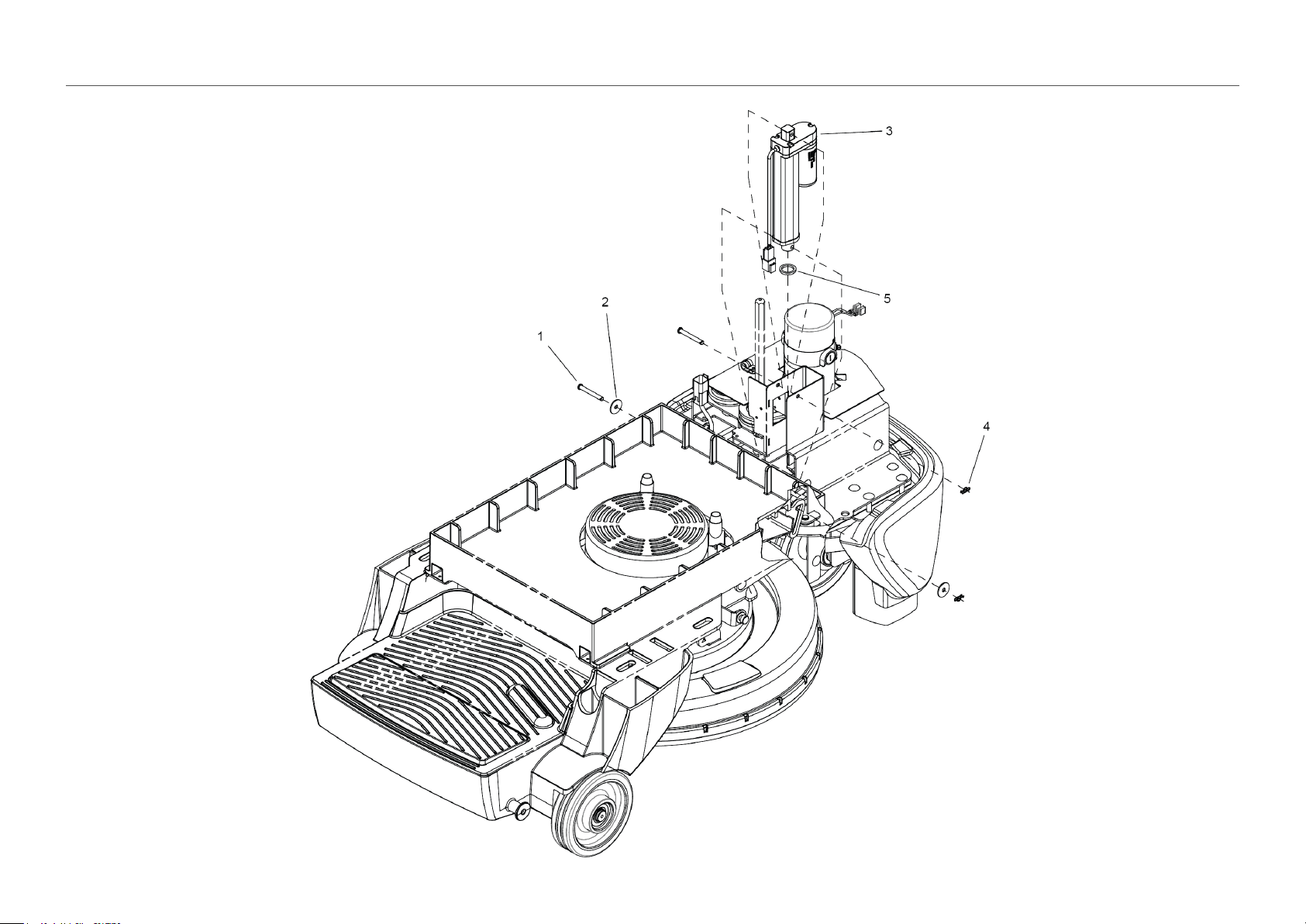

Deck Actuator Removal / Replacement
FOR SAFETY: Before leaving or servicing machine,
stop on a level surface. Turn off machine.
1. Support deck under pad driver so that actuator pins
can be removed.
2. Remove bumper screws (2).
3. Remove front battery.
4. Pull steering shaft.
5. Disconnect actuator from wiring harness.
6. From the underside of the machine, remove lower
lifting pin from actuator.
7. Remove clevis pin from actuator upper bracket.
8. Lift actuator upward and free from machine.
9. Reverse steps to install.
86398800 Operator Manual - Chariot 2 iGloss 20
33
Maintenance
86398800 Operator Manual - Chariot 2 iGloss 20

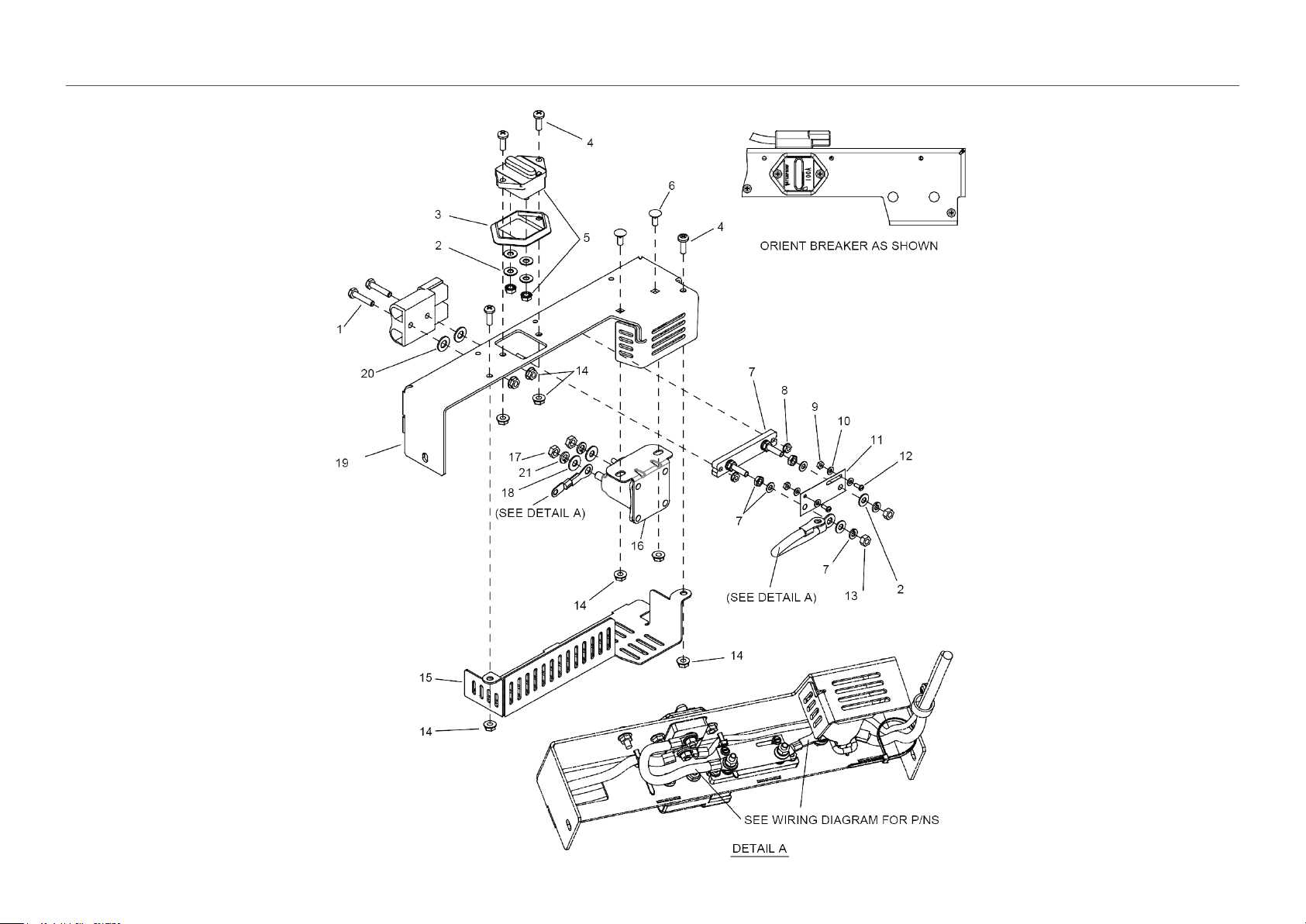

CIRCUIT BREAKERS
100A CIRCUIT BREAKER
Circuit Breakers
Circuit breakers interrupt the flow of power in the event of an electrical overload. When a circuit breaker is tripped,
reset it by pressing the exposed button. If a circuit breaker continues to trip, the cause of the electrical overload
should be found and corrected.
1.5 Amp protects the deck lift actuator, horn & controller.
18 Amp protects the vacuum motor.
100 Amp protects the burnisher motor.
34
Maintenance

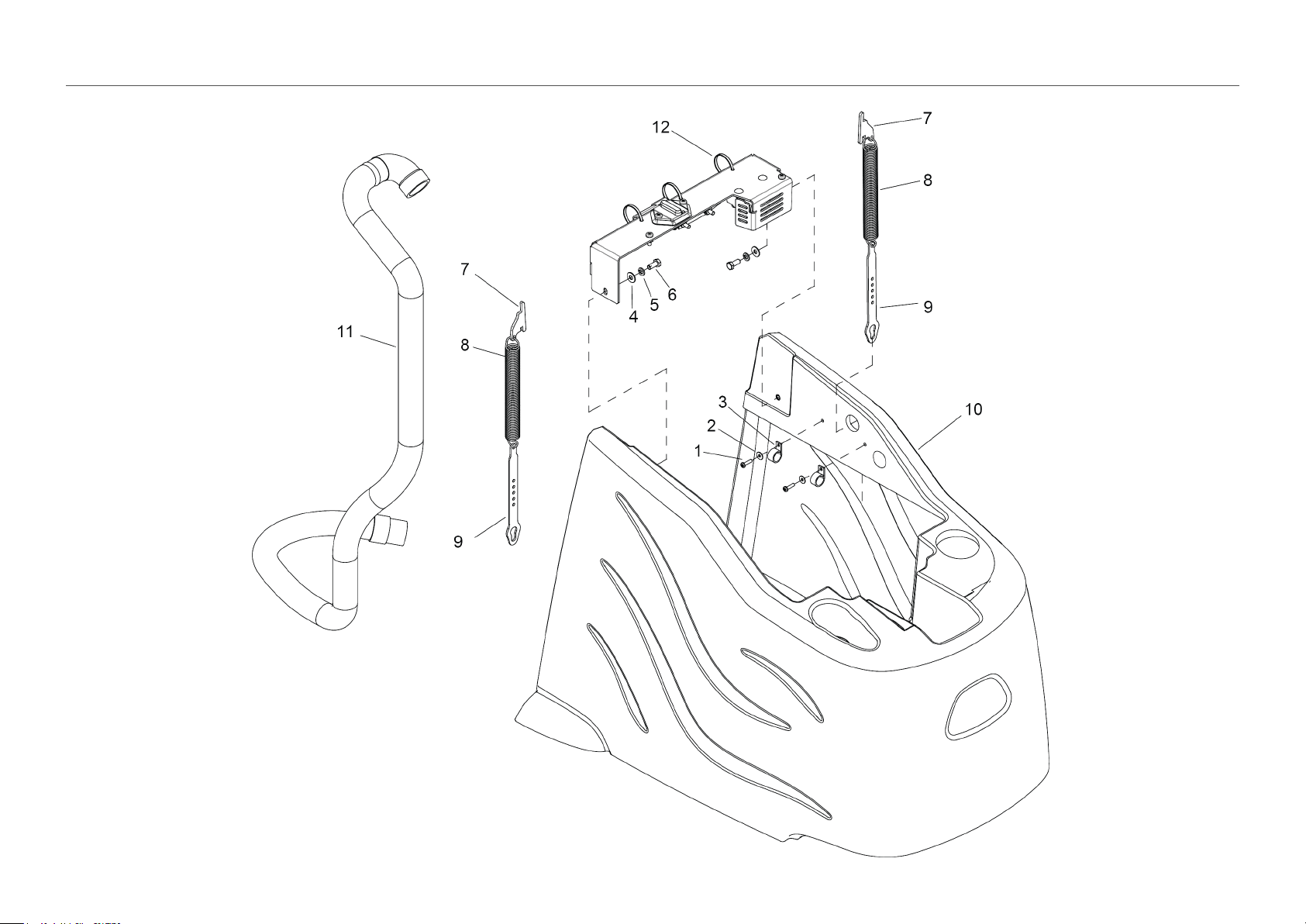

Body Assembly Removal
In order to access the frame or drive components, the
entire tank/console cover assembly can be removed as
a single unit.
Body Removal:
1. Open the console cover.
2. Remove back panel.
3. Grasp the lower end of the flexible steering shaft
and pull it straight up until it is disengaged with the
hex steering shaft.
4. Disconnect the five electrical plugs located just
forward of the battery tray. Access plugs through
front left hole in main body.
5. Remove the battery cable connection from the rear
cross member.
6. Close the console cover.
7. Remove the bumper. One mounting bolt per side is
located just above the tip pads on the inside.
8. Remove 6 bolts holding the body in place.
9. The body assembly can now be lifted off the
chassis and set aside.
10. Reverse the process for reassembly.

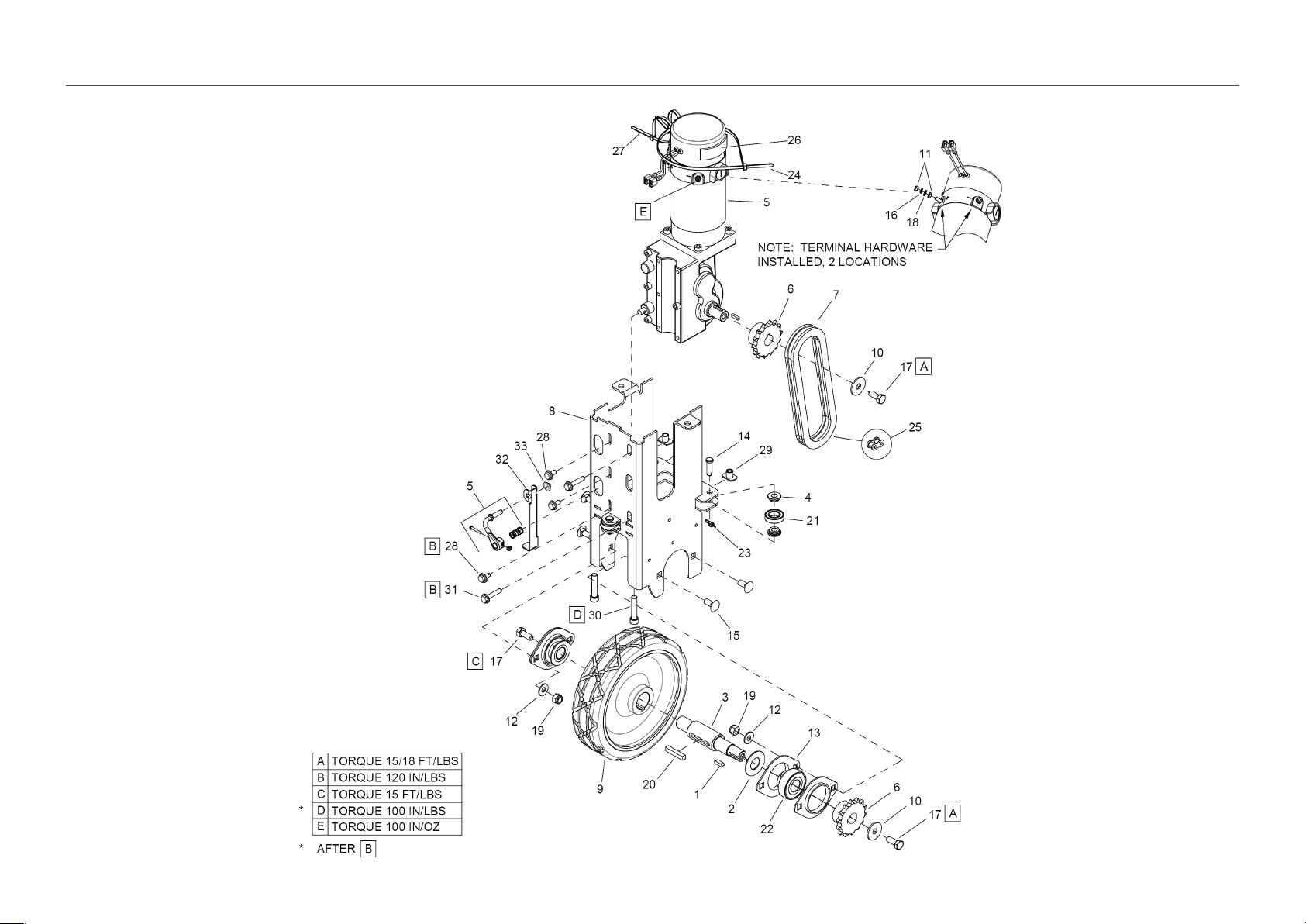

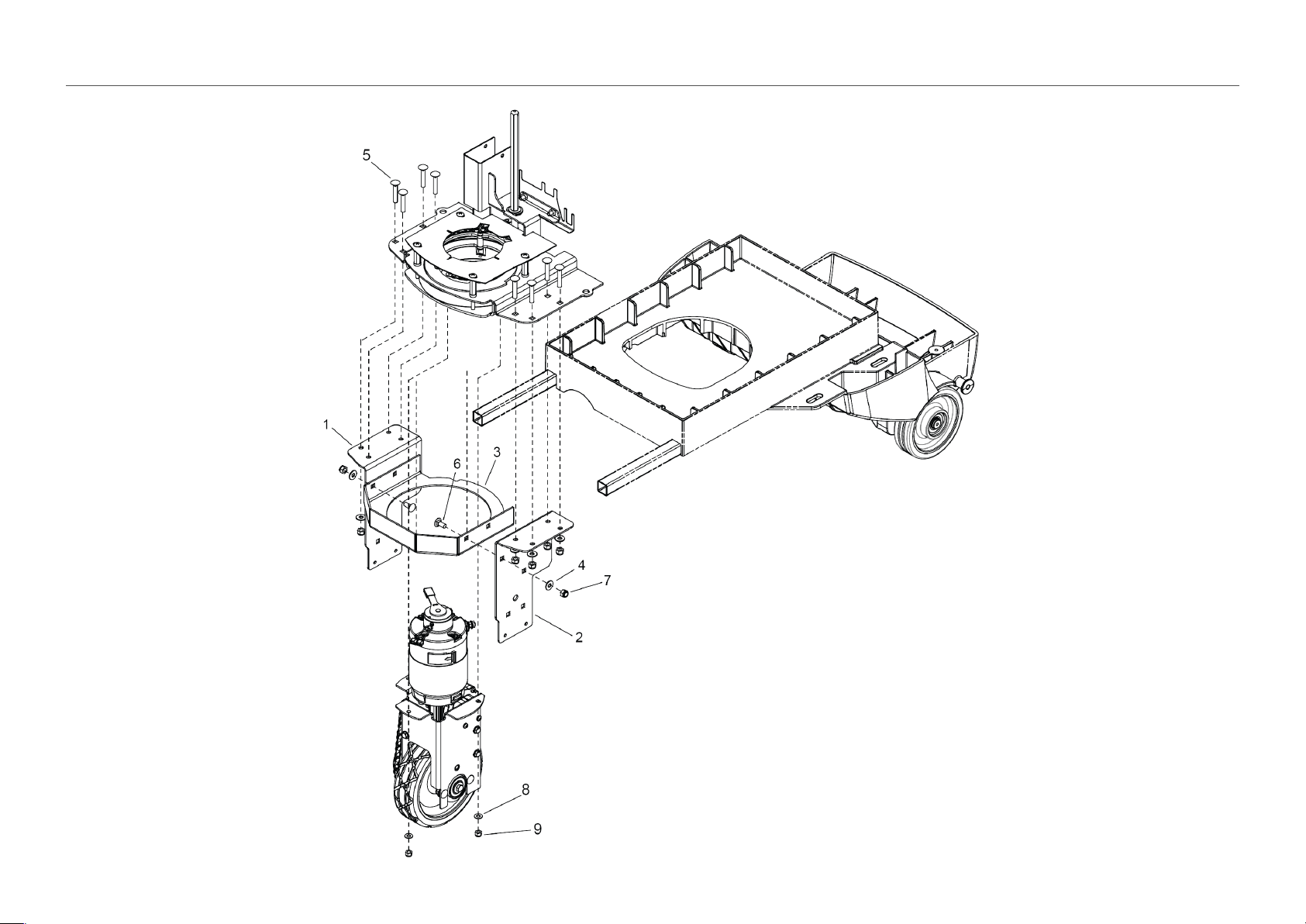

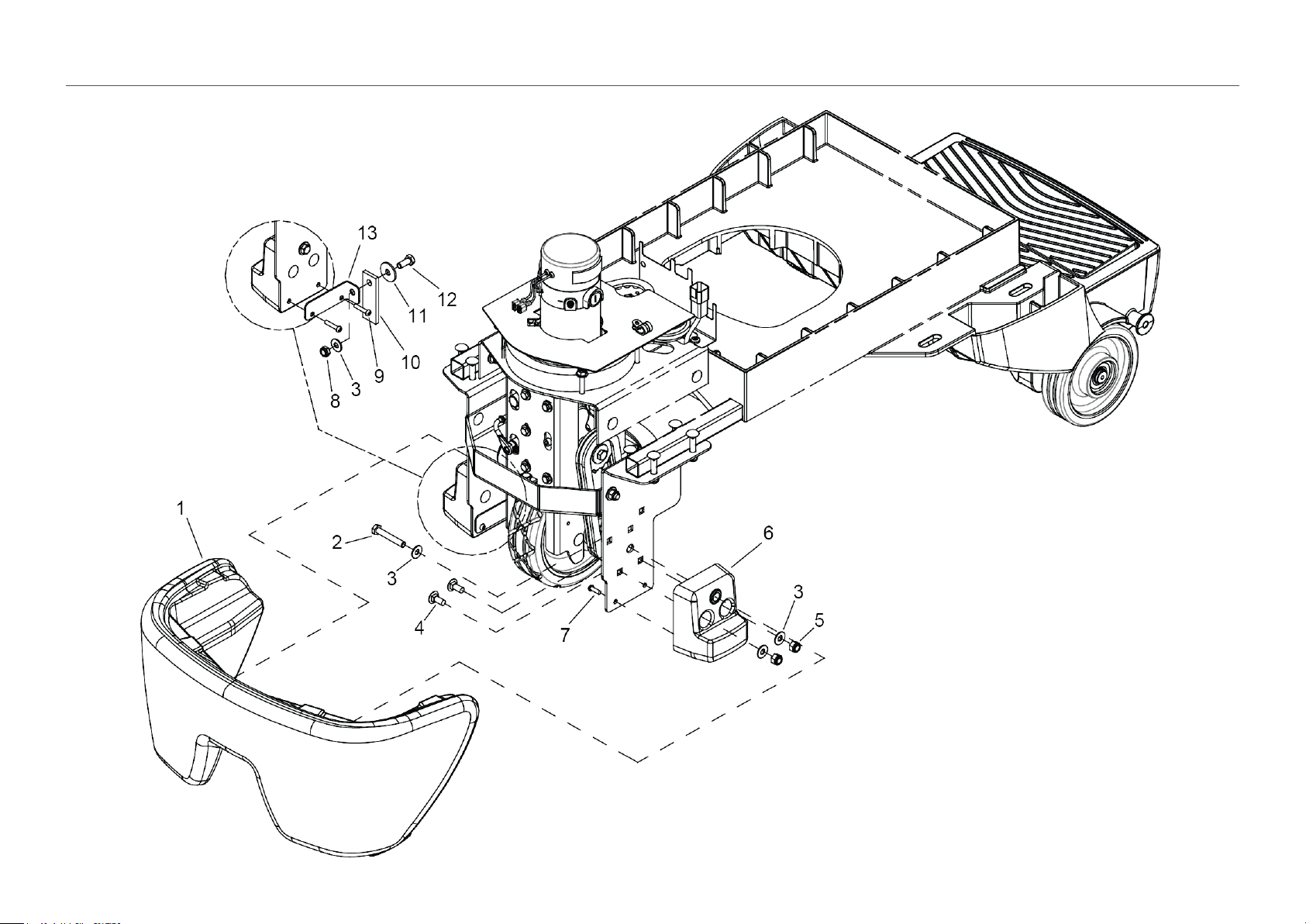

Drive Unit Removal
1. Remove tank assembly.
2. Pull the brake and drive electrical connectors off of
their support plate.
3. Remove the P-clamp holding the cable.
4. Lift the chain cover plate off of the motor.
5. Support the chassis on the tip pads so that the
front wheel is 10 inches off the floor.
6. Locate and remove two mounting nuts and remove
the drive unit from below.
7. To reinstall, reverse the process.
NOTE: The small tab at the front of the drive unit
frame should line-up with the notch in the mating
plate.
86398800 Operator Manual - Chariot 2 iGloss 20
35
Notes:
86398800 Operator Manual - Chariot 2 iGloss 20
36
Maintenance
Vacuum - Optional
1. Vacuum Motor
2. Vacuum Filter
1
2
86398800 Operator Manual - Chariot 2 iGloss 20
37
Maintenance
To Replace Vacuum Filter
1. Open dust bag cover.
2. Remove dust bag.
3. Unlock bottom of filter frame by bending it slightly
and slide from under the bolt head.
4. Lift filter out of housing.
5. Reverse steps to install.
Vacuum Motor Carbon Brush Replacement
FOR SAFETY: before leaving or servicing machine,
stop on a level surface, turn off machine and
disconnect power.

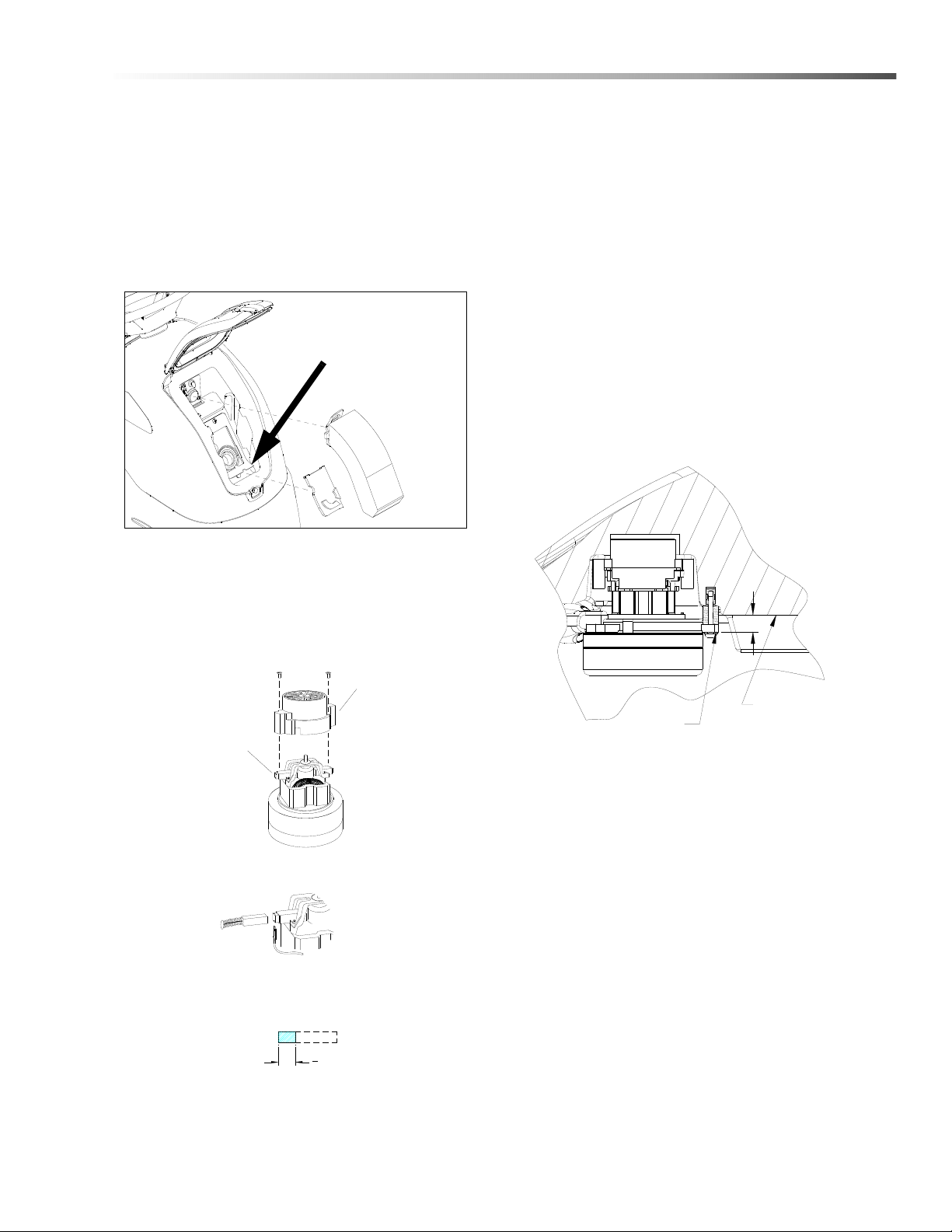

To Repair or Replace Vacuum Motor
1. Remove four (4) screws from top of control panel.
2. Tip control panel back from console to expose
vacuum motor wires.
3. Disconnect electrical connector from the vacuum
motor.
4. Replace control panel, attach with one (1) screw to
secure in place.
5. Open console.
6. Remove three (3) screws and mounting bracket
that secure vacuum motor.
7. Reverse steps to install.
NOTE: If vacuum motor is not mounted as shown,
vacuum may not seal properly, resulting in poor
performance.
86398800 Operator Manual - Chariot 2 iGloss 20
3
8
[9.5mm]
Vacuum Motor Carbon Brushes
Carbon
Brushes
End Cap
If armature commutator is grooved, extremely pitted or not
concentric, the motor will need to be replaced or sent to a
qualified service center.
Inportant:
These brushes wear quicker as the length shortens due to
increased heat. Spring inside brush housing will damage
motor if brushes are allowed to wear away completely.
Periodically check the length of the carbon brushes. Replace
both carbon brushes when either is less tan 3/8" (9.5mm)
long.
MOUNT .80" FROM SEALING SURFACE OF
CONSOLE TO THE TOP OF THE MOUNTING
TABS (3).
VACUUM
CONSOLE SEALING
.80"
MOUNTING TAB
SURFACE
38
Maintenance

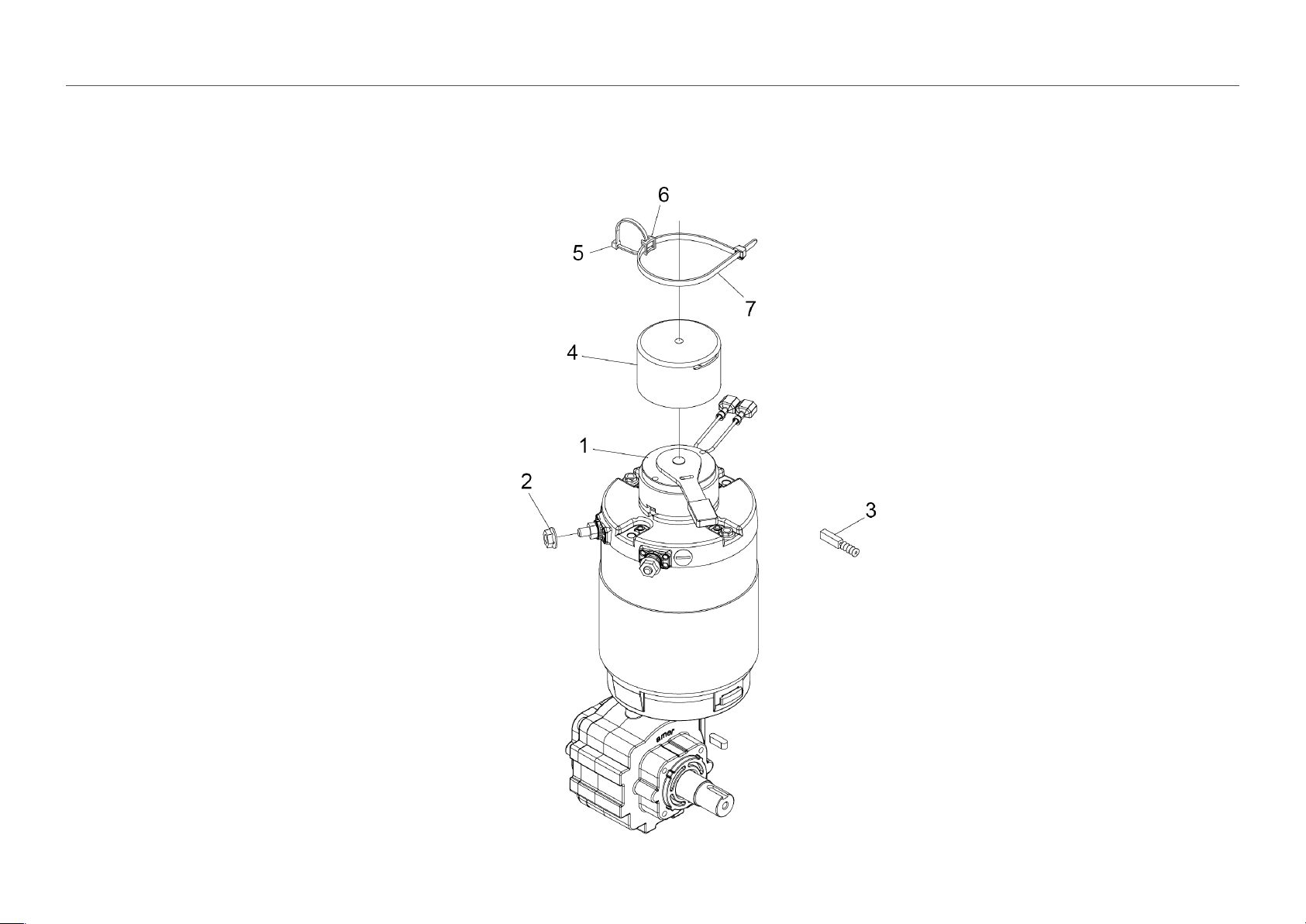

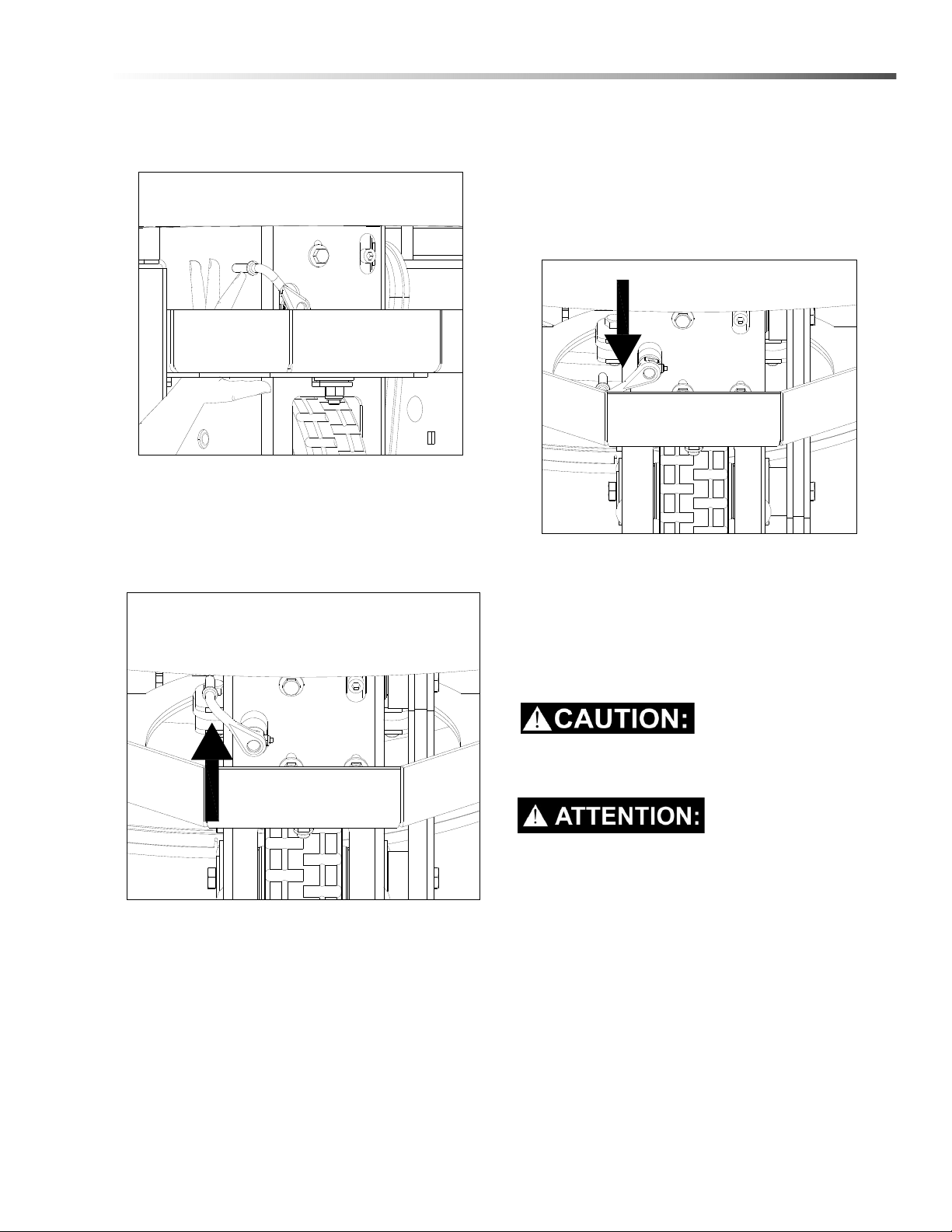

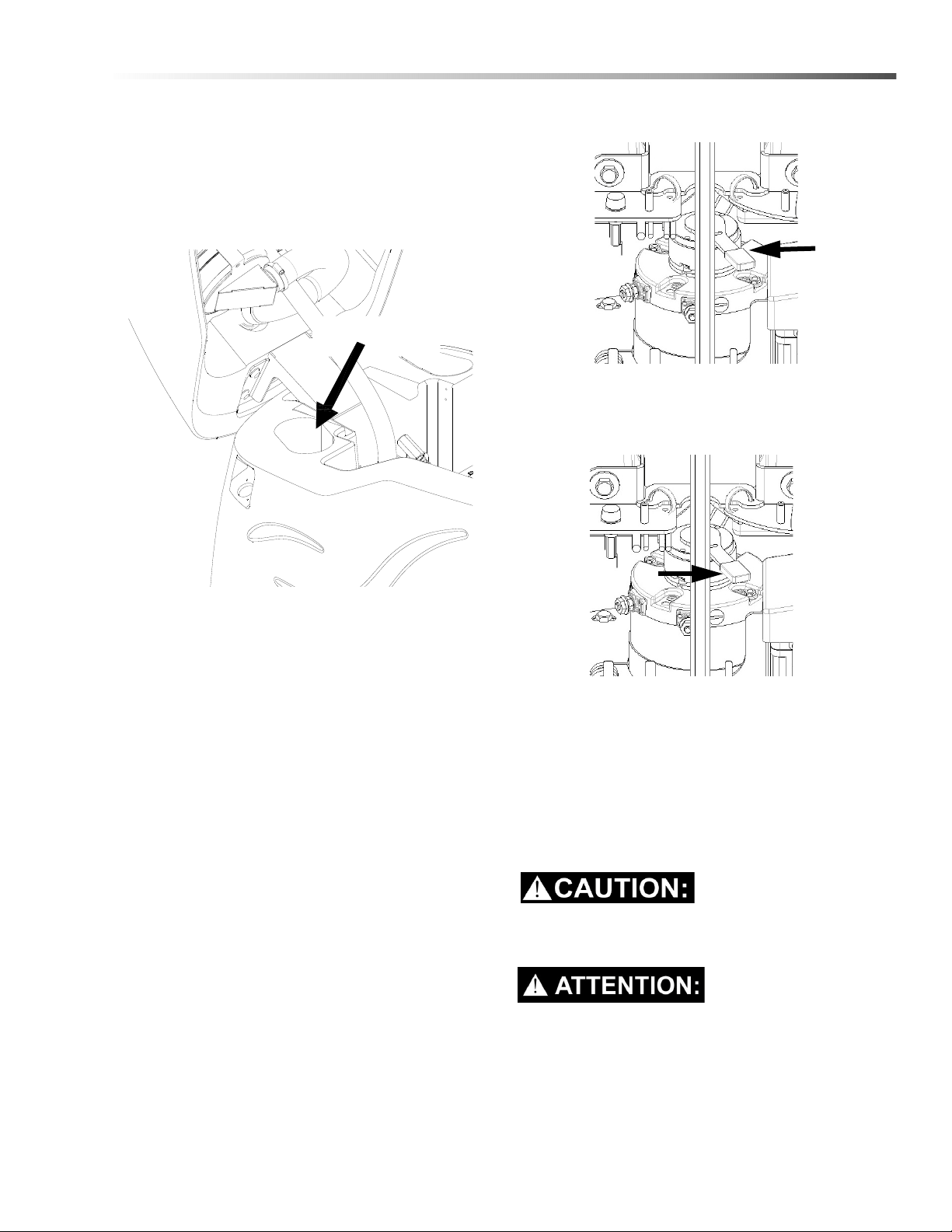

Drive Motor-From Serial Number (3*)
Drive Motor Carbon Brush Replacement
Do not use a pressure washer to clean around the
brush motors. Use tap pressure only.
N’utilisez pas de nettoyeur haute pression pour
nettoyer autour des moteurs des brosses. Utilisez
seulement la pression du robinet.
FOR SAFETY: Before leaving or servicing machine,
stop on a level surface, turn off machine and remove
motor carbon brushes.
1. Open the console cover.
2. Tilt the rear panel back until it stops on the lanyard.
3. Grasp the lower end of the flexible steering shaft
and pull it straight up until it is disengaged with the
hex steering shaft.
4. Remove the cover and gasket at the steering shaft
area.
5. Grasp the drive wheel by reaching under the front
bumper and turn it to near the left steering stop.
6. The drive motor carbon brushes are located under
the metal band. Remove the band to access the 4
brushes.
7. Remove the phillips screw that holds each lead.
Remove the brushes.
8. Install the new brushes and reinstall the band.
9. Replace the gasket and cover, set the drive wheel
straight ahead, set the steering wheel straight
ahead, and gently align the steering shaft coupling
and slide onto the lower shaft.
10. Slowly close the cover and make sure the shaft
slides without binding.
Drive Chain Tension
The drive chain should deflect about 1/4 inch on either
side of the loop when the opposite side is tight.
To adjust chain tension:
1. Remove bumper.
2. Loosen the 1/4” nut behind the idler sprocket.
3. Tighten the front screw to increase chain tension.
4. Re-tighten the 1/4” nut behind the idler.
5. Reinstall the bumper.
Transporting Machine
This machine is equipped with a drive gear engage-
ment/disengagement lever.
The brake automatically engages and keeps the
machine from moving whenever the operator stops the
machine.
The drive gear can be disengaged so the machine can
be pushed or towed (slowly).
When the drive gear is disengaged the machine cannot
be driven.
86398800 Operator Manual - Chariot 2 iGloss 20
39
Maintenance
Brake Override
1. Disconnect battery to prevent injury.
2. Turn wheel slightly to the right.
3. Access to the Brake lever is through the access
port on the front left side of the Lower Body.
4. Push the lever as indicated to disengage the
brake.
5. Push the machine slowly. Take care as voltage is
generated while pushing the machine and may
cause the controller to temporarily stop the
machine.
6. To re-engage the brake, push the lever as indi-
cated.
Inclines
When navigating an incline the machine may come to a
stop. Turn the machine off. Wait 5 minutes and start the
machine and proceed up the incline.
Overheating may occur if you do not wait the full 5
minutes.
Une surchauffe peut se produire si vous n'attendez
pas les 5 minutes complètes.
Access Port
86398800 Operator Manual - Chariot 2 iGloss 20
40
Maintenance

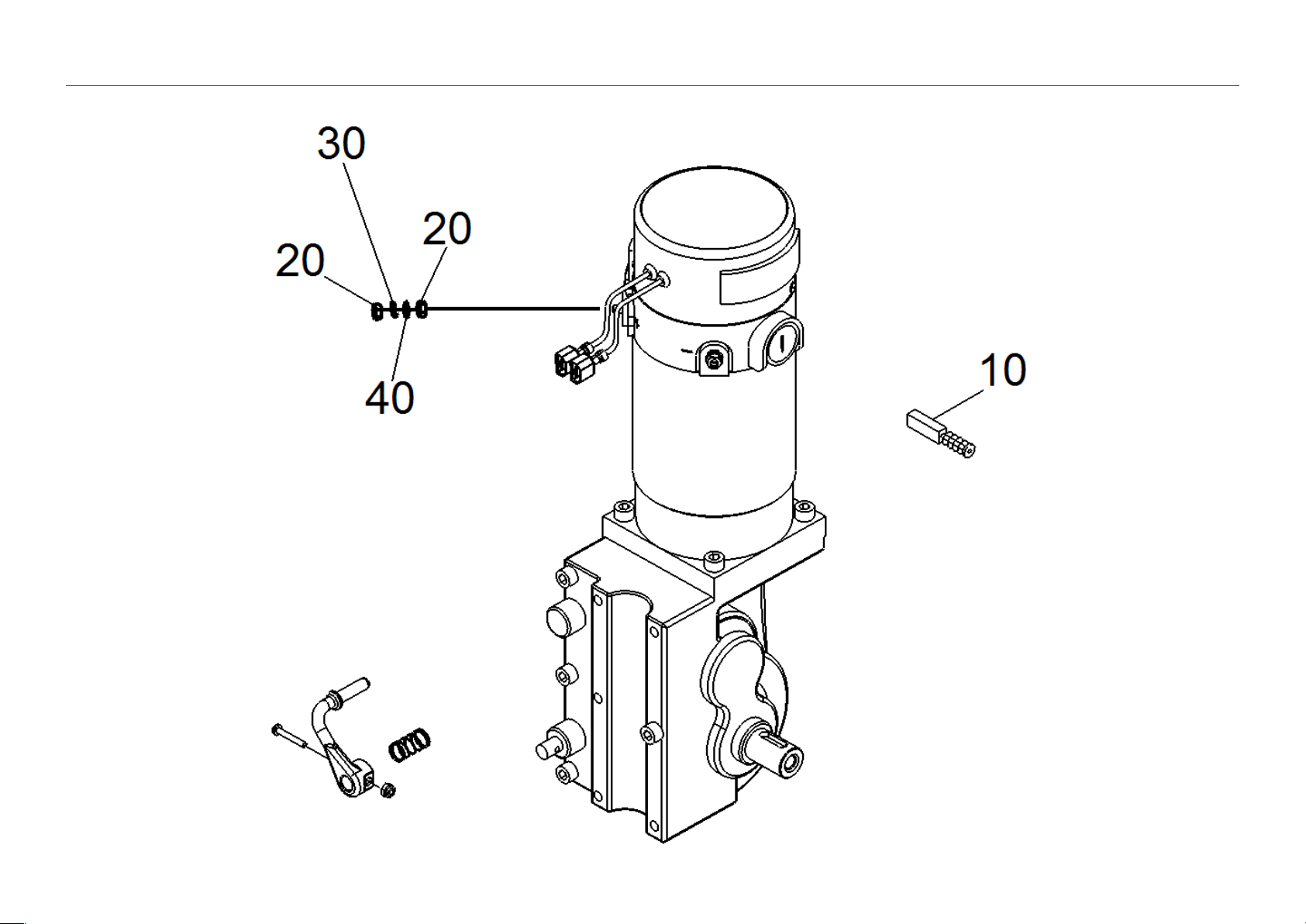

Drive Motor-Prior to Serial Number (3*)
Drive Motor Carbon Brush Replacement
Do not use a pressure washer to clean around the
brush motors. Use tap pressure only.
N’utilisez pas de nettoyeur haute pression pour
nettoyer autour des moteurs des brosses. Utilisez
seulement la pression du robinet.
FOR SAFETY: Before leaving or servicing machine,
stop on a level surface, turn off machine and remove
motor carbon brushes.
1. Open the console cover.
2. Tilt the rear panel back until it stops on the lanyard.
3. Grasp the lower end of the flexible steering shaft
and pull it straight up until it is disengaged with the
hex steering shaft.
4. Remove the cover and gasket at the steering shaft
area.
5. Grasp the drive wheel by reaching under the front
bumper and turn it to near the left steering stop.
6. The drive motor carbon brushes are located under
screw caps. The caps are accessible by gently
moving the harness aside.
7. Rotate the drive wheel to near the right hand stop
to access the right side carbon brush.
8. Replace the gasket and cover, set the drive wheel
straight ahead, set the steering wheel straight
ahead, and gently align the steering shaft coupling
and slide onto the lower shaft.
9. Slowly close the cover and make sure the shaft
slides without binding.

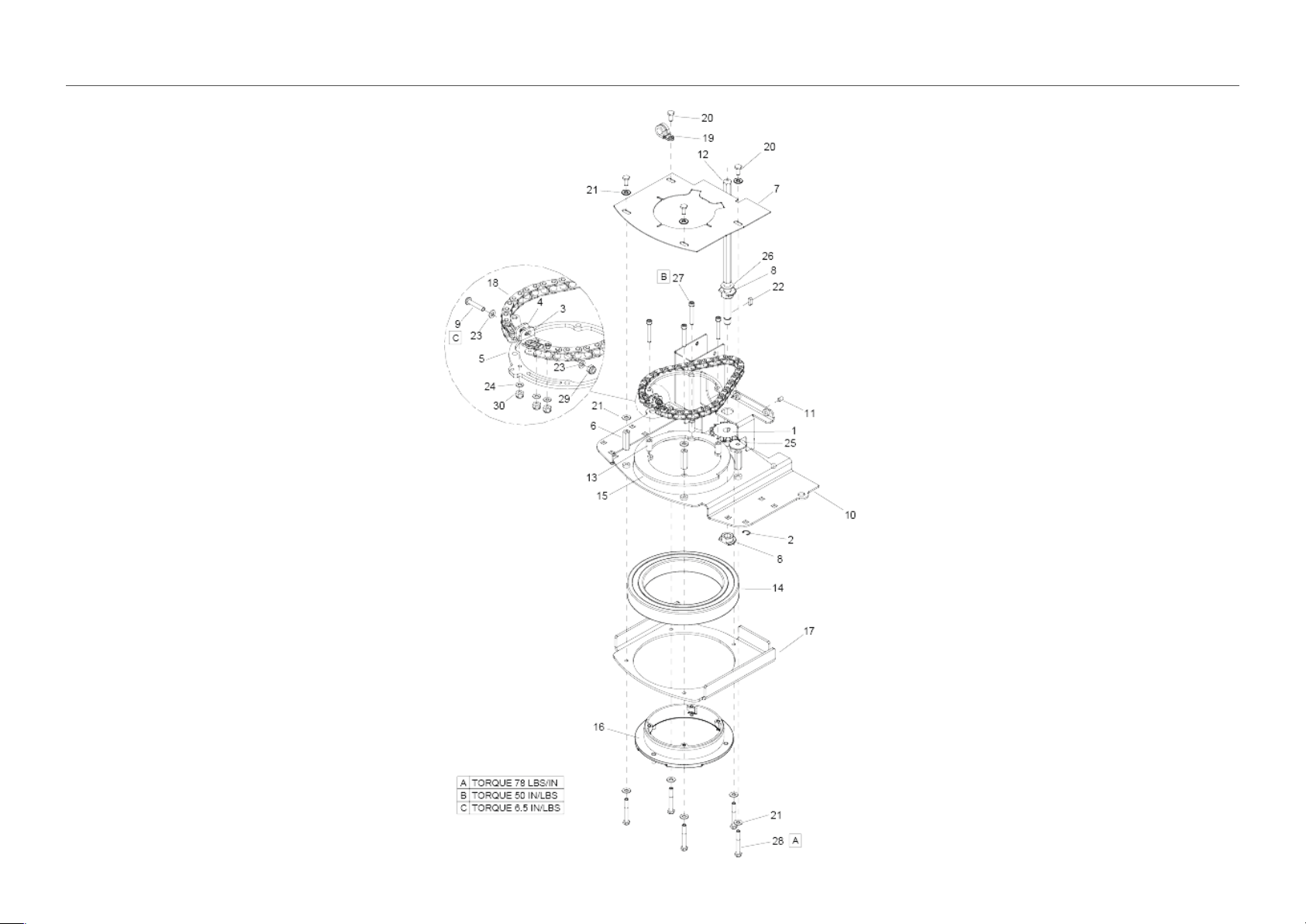

Drive Chain Tension
The drive chain should deflect about 1/4 inch on either
side of the loop when the opposite side is tight.
To adjust chain tension:
1. Remove bumper.
2. Loosen five (5) screws that hold the drive gear
motor and slide the gear motor up until the chain
tension is correct. Tighten the five (5) mounting
screws.
3. Models equipped with jack screw on front side of
drive should not use jack screw to apply tension.
Use only as a stop once chain is properly
tensioned.
4. Reinstall the bumper.
Transporting Machine
This machine is equipped with a drive gear engage-
ment/disengagement lever.
The brake automatically engages and keeps the
machine from moving whenever the operator stops the
machine.
The drive gear can be disengaged so the machine can
be pushed or towed (slowly).
When the drive gear is disengaged the machine cannot
be driven.
NOTE: Front bumper removed for clarity and to show
access to lever.
86398800 Operator Manual - Chariot 2 iGloss 20
41
Maintenance
Lever access
Turn wheel to left and reach up under bumper and steel
brake.
Drive gear engaged
Machine can be driven.
Rotate lever firmly in direction of arrow
Drive gear disengaged
Machine can be pushed or towed (slowly).
When disengaged the machine rolls easily. Disengage
on a level surface.
Rotate lever firmly in direction of arrow.
Inclines
When navigating an incline the machine may come to a
stop. Turn the machine off. Wait 5 minutes and start the
machine and proceed up the incline.
Overheating may occur if you do not wait the full 5
minutes.
Une surchauffe peut se produire si vous n'attendez
pas les 5 minutes complètes.
86398800 Operator Manual - Chariot 2 iGloss 20
42
Maintenance
Preparation for Loading/Unloading Trailer
Burnisher Deck must be in the up position before loading.
When transporting the machine on a trailer or in a truck, in addition to using tie-downs, be sure to block the tires to
prevent the machine from rolling.
Machine Tie-Downs
There are two tie points located in front of the rear wheels on the frame, and a Tie-down wrap point on the back
panel. Tie-down devices must be of the proper type and strength. The combined strength of all tie-downs must be
strong enough to lift two times the weight of the machine. Tie-downs must be positioned to prevent the machine
from moving forward, backward, or either side to side. Use all four corners of the machine with the tie-downs
running out opposite directions. Tie-downs must be attached to the transporting vehicle securely.
CONNECT
AT
FRAME
VIEW FROM
BOTTOM
Recommended Tie-Down Points
86398800 Operator Manual - Chariot 2 iGloss 20
43
Maintenance
Troubleshooting
PROBLEM CAUSE SOLUTION
No machine function Console lid is open Close console lid
No power to machine Battery disconnected Check all battery cable connections
Emergency shut-off activated Reset
Battery cables corroded Clean connections
Faulty key switch Replace switch
Batteries not plugged in Plug batteries in
On Board charger plugged in Un-plug and stow cord
Little or no propel Low battery charge Charge batteries
Tripped circuit breaker Reset controller circuit breaker
Controller protecting motor from overload
Controller limits motor amperage. Allow
unit to cool down for several minutes.
Machine is stalled against an obstacle
(threshold, curb, etc.)
Remove obstacle or push machine away
from obstacle
Controller overheated Allow cool down period
Loose motor connection
Check wires and connections from
controller to motor
Faulty throttle circuit or potentiometer
Check wires and connections from and
potentiometer resistance
Drive Lever disengaged Engage drive
Machine does not
change speeds
Faulty speed control circuit or switch Check wires & connections
Forward speed only
Reverse speed only
Faulty forward/reverse circuit Check wires & connections
Battery indicator light
flashing
Battery needs charged Charge Battery
Controller is indicating a fault code See fault code table
86398800 Operator Manual - Chariot 2 iGloss 20
44
Maintenance
PROBLEM CAUSE SOLUTION
Vacuum motor does not run, or
runs slowly
Faulty vacuum circuit or switch Check wires & connections
Worn vacuum motor brushes Replace brushes, check commutator
Vacuum circuit breaker tripped Reset circuit breaker
Poor burnishing performance Debris caught in pad Remove debris or change pad
Worn pad Replace pad or flip pad
Improper pad used
Contact equipment or application
specialists
Low battery charge Charge batteries
Burnisher motor does not run, or
runs slowly
Circuit breaker tripped Reset circuit beaker
Low battery charge Charge battery
Faulty brush circuit or motor Check wires, connections and motor
Worn brush motor brushes Replace brushes, check commutator
Deck does not go down Actuator circuit breaker tripped Reset actuator circuit breaker
86398800 Operator Manual - Chariot 2 iGloss 20
45
Maintenance
Battery Discharge Indicator Troubleshooting
The battery indicator flashes when a problem occurs. The table below list solutions for the indicated problems.
Number of
flashes
Problem Solution
1
The battery needs charging, there is a bad connection to
the battery or dependent on the programming, may
indicate that the battery lockout function is active and the
controller is in a restricted mode of operation. Check the
connections to the battery.
If the connections are good, try
charging the battery.
2
There is a bad connection to the drive motor. Check all connections between the
motor and the controller.
3
The drive motor has a short circuit to a battery connection. Contact your service agent.
4
The battery charge level has fallen below the battery
Lockout Level and the controller is inhibiting burnisher
motor function.
Charge the battery.
5 Not used. -
6
The controller is being inhibited from driving, this may be
because the battery charger is connected (on board
charger only).
Disconnect battery charger.
7
A throttle fault is indicated. Make sure that the throttle is in the
rest position before switching on the
machine.
8
A controller fault is indicated. Make sure that all connections are
secure.
9
The parking brake has a bad connection. Check the parking brake and motor
connections. Make sure the
controller connections are secure.
10
An excessive voltage has been applied to the controller.
This is usually caused by a poor battery connection.
Check the battery connections.
- Blinks once every 5 seconds Sleep mode, cycle key switch
86398800 Operator Manual - Chariot 2 iGloss 20
46
Suggested Spare Parts
86348010 BRUSH SET
86326980 BRUSH SET
86369160 WHEEL
86333980
86384090 BRUSH SET
DRIVE MOTOR
BURNISHER MOTOR
VACUUM MOTOR
86353780
FLEXIBLE STRIP BRUSH
FILTER BAG (10 PACK)
86143330
MOTOR FILTER
86326220 SPACER
86223470 RING
86398800 Operator Manual - Chariot 2 iGloss 20
86398810-AG 12/16/19
Spare Parts List
10061720

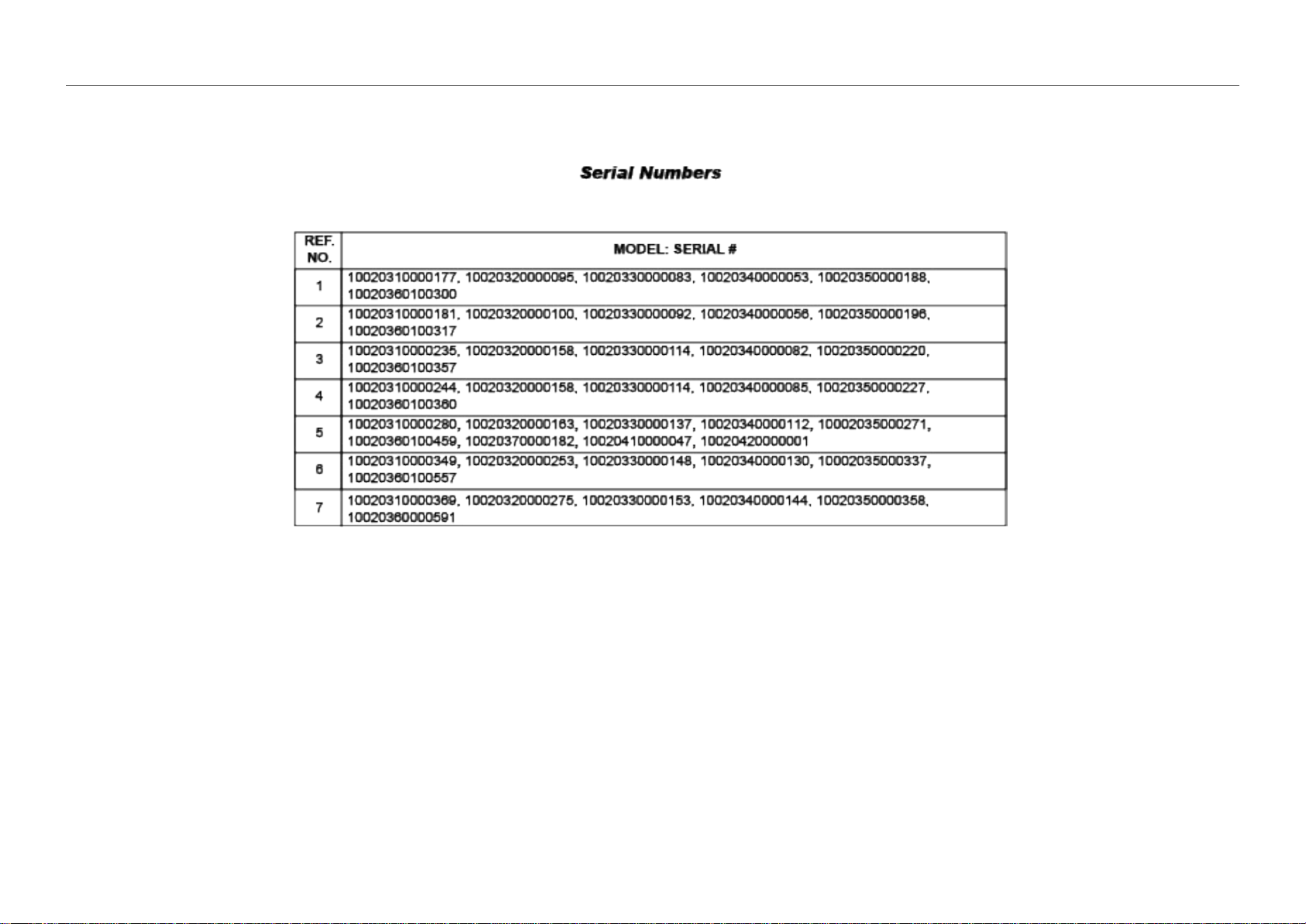

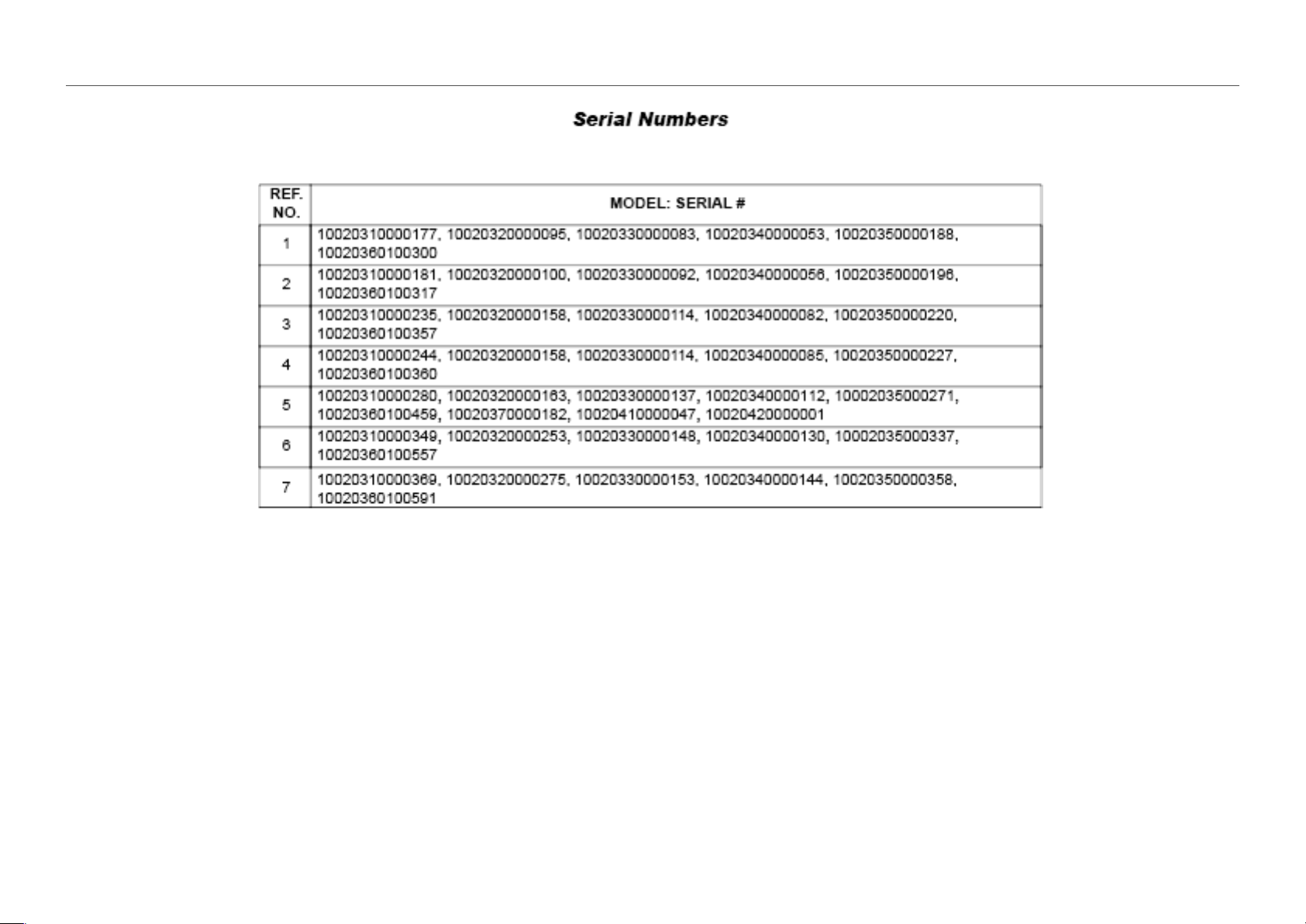

From Serial Number (Ref No. 1*)
* See Serial Number page
or call manufacturer.
1.002-031.0 CBPS20
1.002-032.0 CBPSC20
1.002-033.0 CBPL20
1.002-034.0 CBPLC20
1.002-035.0 CBAL20
1.002-036.0 CBALC20
Chariot 2 iGloss 20
Table of contents
Valid on 16.12.2019 Page 1 / 61
CHARIOT iGLOSS 20", SB, PASS, SHLF CHRGR (1.002-031.0) 2
40 BODY BRACE (0.250-162.0) 3

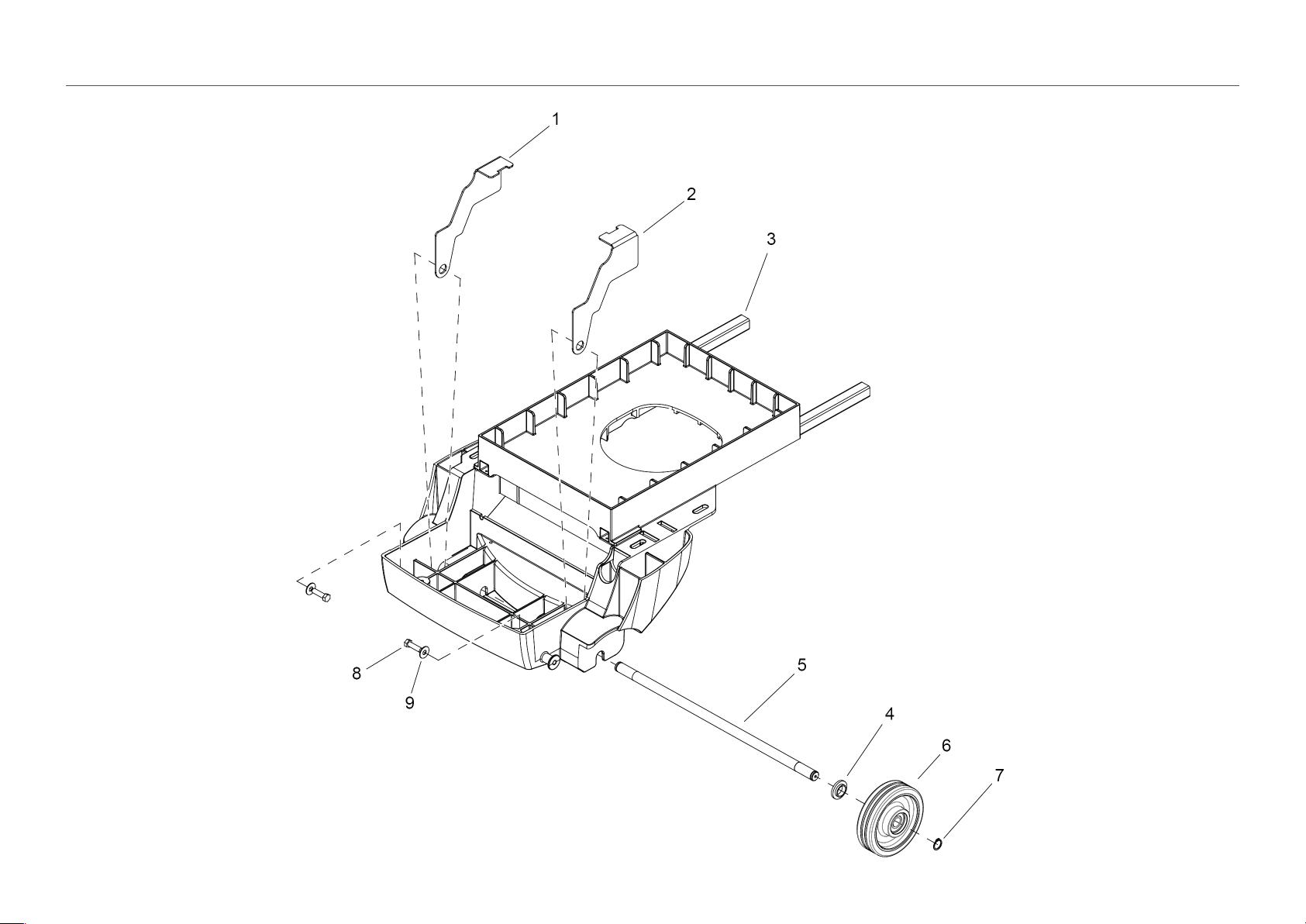

50 BODY LOWER (0.250-035.0) 5
60 BODY LOWER MOUNTING (0.250-034.0) 7
70 BUMPER (0.250-375.0) 9
80 BURNISHING DECK (0.250-377.0) 11
90 BURNISHING DECK MOUNTING (0.250-378.0) 13
100 BURNISHING DECK LIFT (0.250-379.0) 15
110 BURNISHING DECK - PAD DRIVER (0.250-392.0) 17
120 CONSOLE - BAG ENCLOSURE (0.250-393.0) 19
130 CONSOLE - HINGE (0.250-394.0) 21

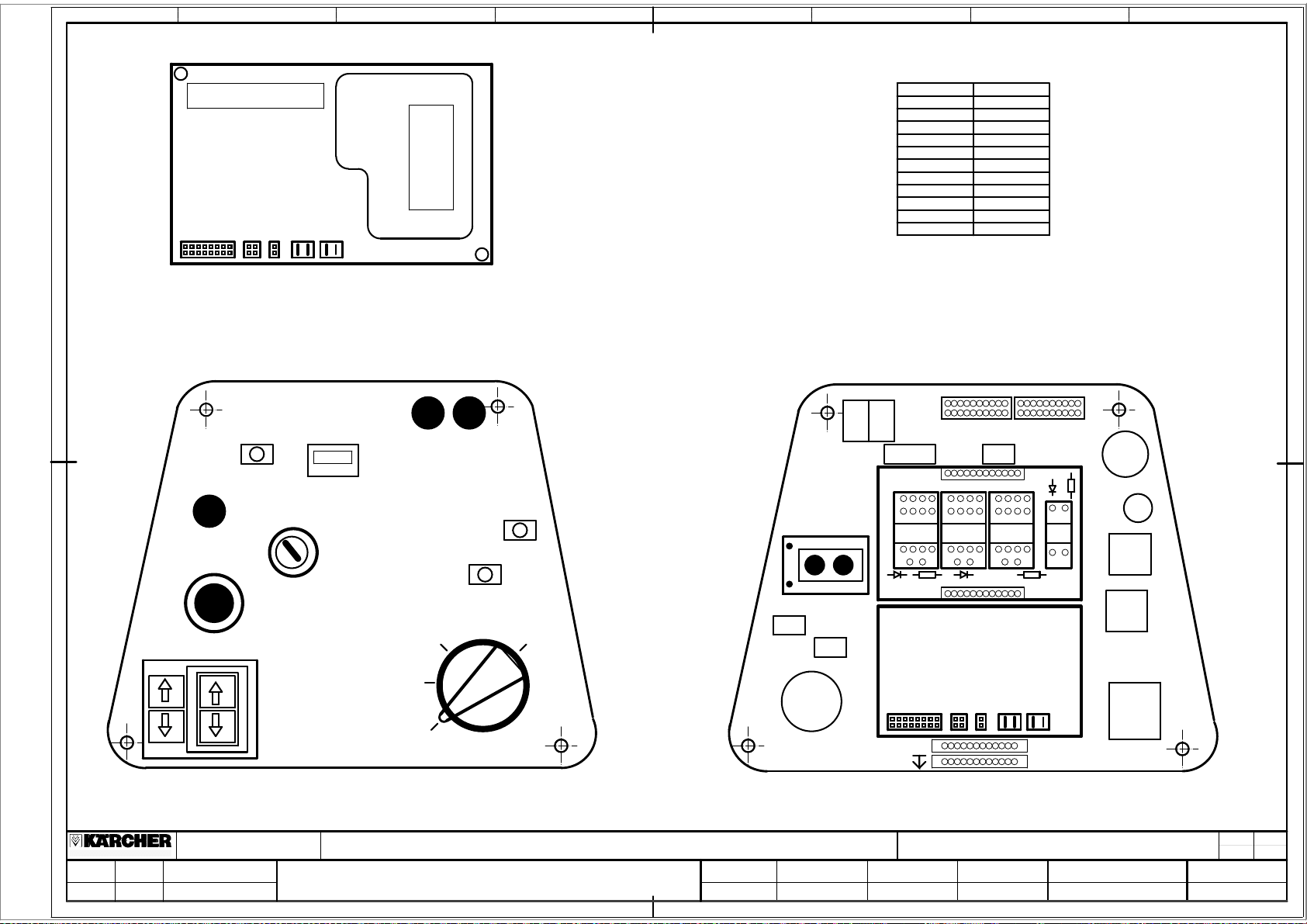

140 CONTROL PANEL 1 (0.250-395.0) 23
150 CONTROL PANEL 2 (0.250-402.0) 25
160 CHARGER - OPTIONAL (0.250-403.0) 27
170 DECALS (0.250-404.0) 29

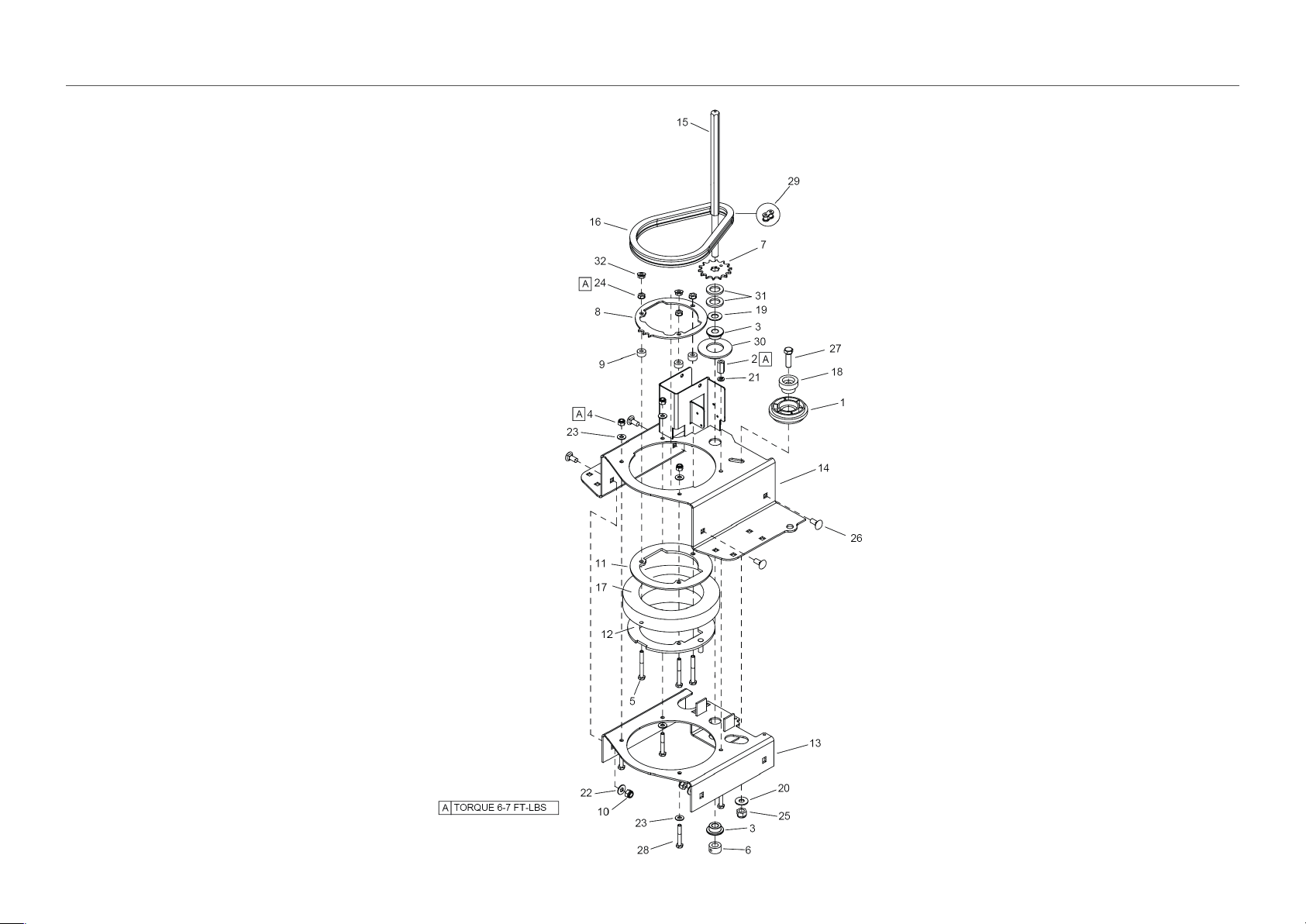

180 SLEW/STEERING-FROM SERIAL NUMBER (3*) (0.250-405.0) 31
190 DRIVE-CHAIN PRIOR TO SERIAL NUMBER (3*) (0.250-406.0) 33
200 DRIVE LOWER - FROM SERIAL NUMBER (3*) (0.250-411.0) 35
1 Traction motor C2 (8.641-117.0) 38
210 DRIVE-LOWER PRIOR TO SERIAL NUMBER (3*) (0.250-412.0) 40
5 Wheel drive motor (8.636-401.0) 43
220 FRAME & REAR WHEELS (0.250-417.0) 45
230 DRIVE MOUNTING - FROM SERIAL NUMBER (3*) (0.250-418.0) 47
240 DRIVE MOUNTING - PRIOR TO SN (3*) (0.250-419.0) 49
250 PEDAL PLATFORM (0.250-420.0) 51
260 PEDAL PLATFORM MOUNTING (0.250-421.0) 53
270 STEERING (0.250-461.0) 55
280 VACUUM - OPTIONAL (0.250-462.0) 57
290 WIRING - BATTERY (0.250-463.0) 58
9020 Chariot iGloss 20 Serial Numbers (0.250-921.0) 60
CHARIOT iGLOSS 20", SB, PASS, SHLF CHRGR (1.002-031.0)
Valid on 16.12.2019 Page 2 / 61
POS Article no. Description Quantity Unit
40 0.250-162.0 BODY BRACE 1.000 ST
50 0.250-035.0 BODY LOWER 1.000 ST
60 0.250-034.0 BODY LOWER MOUNTING 1.000 ST
70 0.250-375.0 BUMPER 1.000 ST
80 0.250-377.0 BURNISHING DECK 1.000 ST
90 0.250-378.0 BURNISHING DECK MOUNTING 1.000 ST
100 0.250-379.0 BURNISHING DECK LIFT 1.000 ST
110 0.250-392.0 BURNISHING DECK - PAD DRIVER 1.000 ST
120 0.250-393.0 CONSOLE - BAG ENCLOSURE 1.000 ST
130 0.250-394.0 CONSOLE - HINGE 1.000 ST
140 0.250-395.0 CONTROL PANEL 1 1.000 ST
150 0.250-402.0 CONTROL PANEL 2 1.000 ST

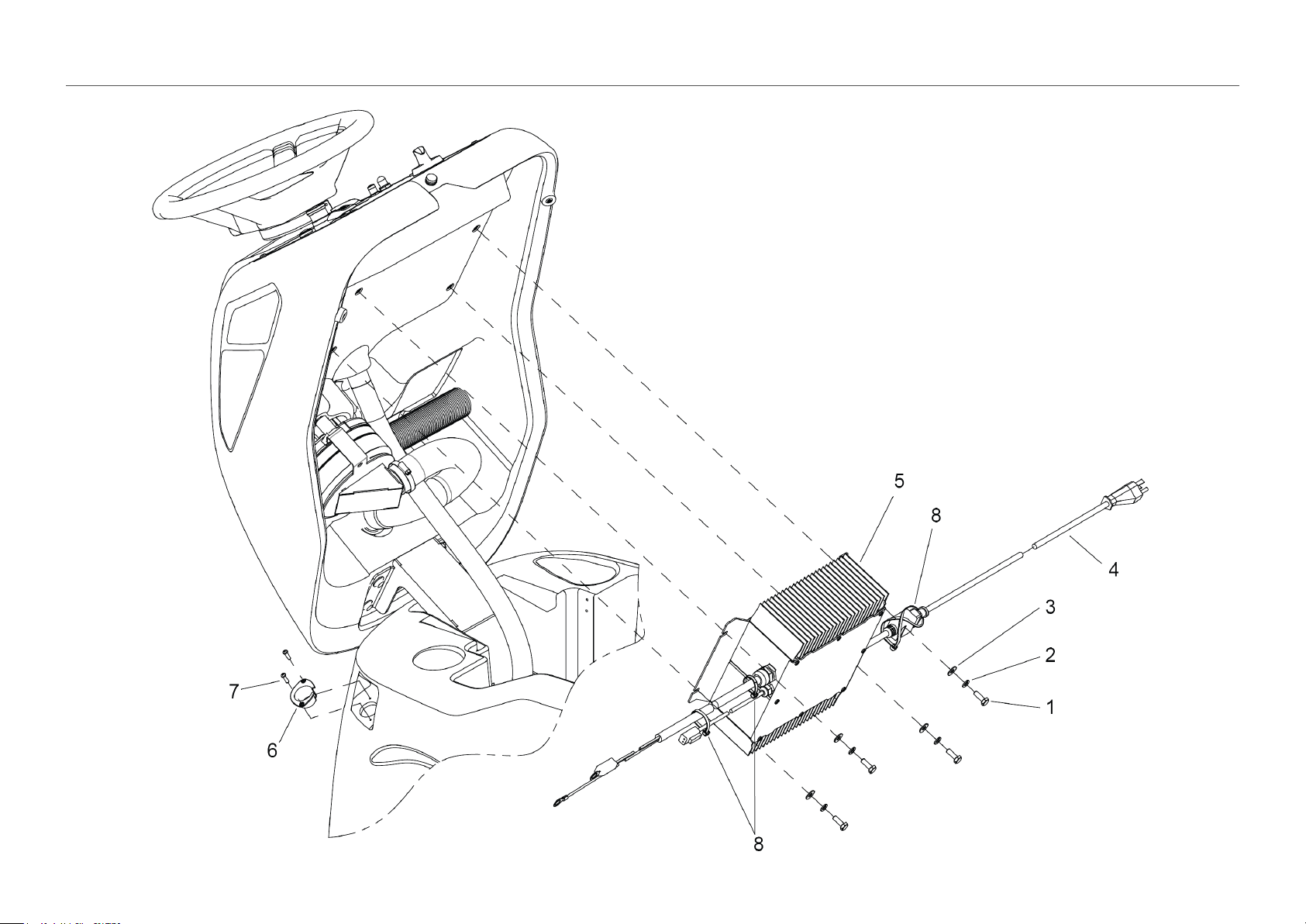

160 0.250-403.0 CHARGER - OPTIONAL 1.000 ST
170 0.250-404.0 DECALS 1.000 ST
180 0.250-405.0 SLEW/STEERING-FROM SERIAL NUMBER (3*) 1.000 ST
190 0.250-406.0 DRIVE-CHAIN PRIOR TO SERIAL NUMBER (3*) 1.000 ST
200 0.250-411.0 DRIVE LOWER - FROM SERIAL NUMBER (3*) 1.000 ST
210 0.250-412.0 DRIVE-LOWER PRIOR TO SERIAL NUMBER (3*) 1.000 ST
220 0.250-417.0 FRAME & REAR WHEELS 1.000 ST
230 0.250-418.0 DRIVE MOUNTING - FROM SERIAL NUMBER (3*) 1.000 ST
240 0.250-419.0 DRIVE MOUNTING - PRIOR TO SN (3*) 1.000 ST
250 0.250-420.0 PEDAL PLATFORM 1.000 ST
260 0.250-421.0 PEDAL PLATFORM MOUNTING 1.000 ST
270 0.250-461.0 STEERING 1.000 ST
280 0.250-462.0 VACUUM - OPTIONAL 1.000 ST
290 0.250-463.0 WIRING - BATTERY 1.000 ST
9020 0.250-921.0 Chariot iGloss 20 Serial Numbers 1.000 ST
40 BODY BRACE (0.250-162.0)
Valid on 16.12.2019 Page 3 / 61
40 BODY BRACE (0.250-162.0)
Valid on 16.12.2019 Page 4 / 61
POS Article no. Description Quantity Unit
1 8.627-382.0 SCREW, 1/4-20 X 1.25 HHMS SS 2.000 ST
2 8.601-063.0 WASHER, 1/4 SS 6.000 ST
3 8.634-002.0 COVER, PANEL MNT BREAKER 1.000 ST
4 8.627-512.0 SCREW, 1/4-20 X .75 PHPNHMS STL ZNPLT 4.000 ST
5 8.634-003.0 BREAKER, 100A CIRCUIT 1.000 ST
6 8.627-750.0 SCREW, 1/4-20 X .625 CARR SS 2.000 ST
7 8.622-977.0 BLOCK, SHUNT MOUNT 1.000 ST
8 8.600-570.0 NUT, 10-32 HEXSTRW LK STL ZNPLT 2.000 ST
9 8.627-179.0 NUT, 6-32 HEX BRS 2.000 ST
10 8.627-960.0 WASHER, 6 FLT BRS 4.000 ST
11 8.625-360.0 SHUNT, 50MV 70AMP 1.000 ST
12 8.627-625.0 SCREW, 6-32 X .375 SLTDPNHMS BRS 2.000 ST
13 8.627-077.0 NUT, 1/4-20 HEX SS 2.000 ST
14 8.627-137.0 NUT, 1/4-20 SERFLG STL ZNPLT 8.000 ST
15 8.635-327.0 BRACKET, CONTACTOR COVER 1.000 ST
16 8.637-145.0 RELAY 36VDC 100A HD 1.000 ST
17 8.627-112.0 NUT, 5/16-18 HEX BRS 2.000 ST
18 8.601-067.0 WASHER, 5/16 FLT SS 2.000 ST
19 8.635-326.0 BRACKET, SOL TANK BRACE 1.000 ST
20 8.601-068.0 WASHER, 3/8 NYL 2.000 ST
21 8.627-913.0 WASHER, 5/16 SPLT STL ZNPLT 2.000 ST
50 BODY LOWER (0.250-035.0)
Valid on 16.12.2019 Page 5 / 61

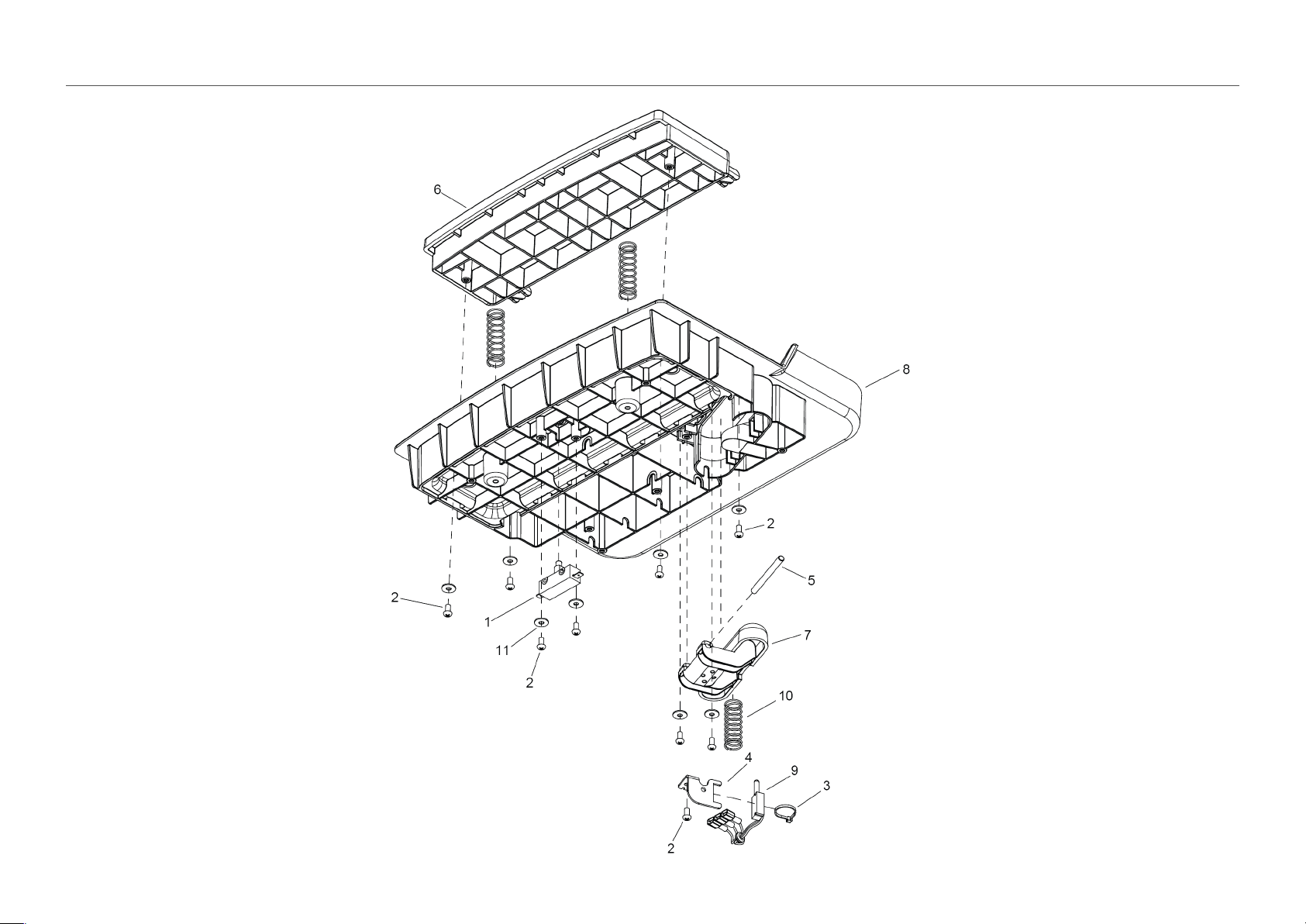

50 BODY LOWER (0.250-035.0)
Valid on 16.12.2019 Page 6 / 61
POS Article no. Description Quantity Unit
1 8.627-398.0 SCREW, 10-32 X .75 PHPNHMS SS 2.000 ST
2 8.601-065.0 WASHER, .203 X .562 X .040 FLT 2.000 ST
3 8.635-499.0 CLAMP, .75 DIA, FLEX LOOP, NYLON 2.000 ST
4 8.601-067.0 WASHER, 5/16 FLT SS 2.000 ST
5 8.627-913.0 WASHER, 5/16 SPLT STL ZNPLT 4.000 ST
6 8.627-678.0 SCREW, 5/16-18 X .75 HHCS SS 2.000 ST
7 8.635-457.0 BRACKET, SPRING, UPPER 2.000 ST
8 8.635-322.0 SPRING, EXTENSION 2.000 ST
9 8.635-372.0 BRACKET, SPRING, LOWER 2.000 ST
10 8.637-770.0 MAIN BODY, NO OBC, GRAY, TRIM 1.000 ST
Item text1: SHELF CHARGER MODELS ONLY,
Item text2: 1.002-033.0 AND 1.002-035.0
10 8.636-841.0 Main body 1.000 ST
11 8.635-328.0 Hose 1.000 ST
12 8.626-494.0 Cable tie 11.38" UL/CSA 3.000 ST
60 BODY LOWER MOUNTING (0.250-034.0)
Valid on 16.12.2019 Page 7 / 61
60 BODY LOWER MOUNTING (0.250-034.0)
Valid on 16.12.2019 Page 8 / 61
POS Article no. Description Quantity Unit Serial number from
1 8.627-963.0 WASHER, 5/16 X 1.13 X .09 FLT 5.000 ST *(3)
Item text1: QTY WAS 6
2 8.600-676.0 SCREW, 5/16-18 X .75 HHCS 3.000 ST *(3)
Item text1: QTY WAS 4
3 8.627-518.0 SCREW, 5/16-18 X .5 STL GR5 ZNPLT 2.000 ST
70 BUMPER (0.250-375.0)
Valid on 16.12.2019 Page 9 / 61
70 BUMPER (0.250-375.0)
Valid on 16.12.2019 Page 10 / 61
POS Article no. Description Quantity Unit
1 8.636-682.0 BUMPER, TRIM, BLACK 1.000 ST
2 8.627-698.0 SCREW, 5/16-18 X 2 HHCS SS 2.000 ST
3 8.601-067.0 WASHER, 5/16 FLT SS 7.000 ST
4 8.627-607.0 SCREW, 5/16-18 X .75 CARR SS 4.000 ST
5 8.627-083.0 NUT, 5/16-18 HEX NYLOCK SS 4.000 ST
6 8.632-395.0 PAD TIP 2.000 ST
7 7.303-104.0 Screw 5x16 -A2-70 (IN6RD) 2.000 ST
8 8.627-184.0 NUT, 5/16-18 HEXTHIN NYLOCK SS 1.000 ST
9 8.632-791.0 SCREW, KA50 X 25 PTOVHS STL WN1412 ZNPLT 2.000 ST
10 8.625-613.0 STRAP, STATIC, .2T X 1W X 3L 1.000 ST
11 8.627-963.0 WASHER, 5/16 X 1.13 X .09 FLT 1.000 ST
12 8.600-676.0 SCREW, 5/16-18 X .75 HHCS 1.000 ST
13 8.635-951.0 BRKT, STATIC STRAP 1.000 ST
80 BURNISHING DECK (0.250-377.0)
Valid on 16.12.2019 Page 11 / 61
80 BURNISHING DECK (0.250-377.0)
Valid on 16.12.2019 Page 12 / 61
POS Article no. Description Quantity Unit
- 8.634-801.0 Brush set 1.000 ST
1 8.635-498.0 MOTOR, 36VDC 3 HP 2000RPM 1.000 ST
2 8.628-685.0 KEY, 3/16 X 3/16 X 1.5 LCST GR1018 1.000 ST
3 8.635-347.0 BRACKET, MOTOR LIFT 1.000 ST
4 8.635-291.0 SHROUD, OUTER 1.000 ST
5 8.635-378.0 Brush 1.000 ST
6 8.635-290.0 SHROUD, INNER 1.000 ST
7 8.635-375.0 PLATE, SUPPORT, INNER SHROUD 1.000 ST
8 8.627-692.0 SCREW, 3/8-16 X 1 HHCS SS NP 4.000 ST
9 8.637-214.0 HUB, PAD DRIVER 1.000 ST
10 8.601-071.0 WASHER, 7/16 FLT STL YW ZNPLT 1.000 ST
11 8.627-754.0 SCREW, 7/16-20 X 1 HHCS STL GR5 ZNPLT 1.000 ST
12 8.600-693.0 SCREW, 5/16-18 X 1 SCHBTNHCS SS 1.000 ST
13 8.633-099.0 WASHER, 5/16 INTLK SS 1.000 ST
14 8.622-884.0 BUSHING, .314 X .502 X .5 FLG 1.000 ST
15 8.627-903.0 WASHER, .515 X 1.47 X .05 FLT NYL 1.000 ST
16 8.600-791.0 Spring EXT .31D X 2.0L X .03W 2.000 ST
17 8.635-376.0 BRACKET, MOTOR LOCK 1.000 ST
18 8.627-911.0 WASHER, 3/8 INTLK 4.000 ST
19 8.627-191.0 Nut 5/16-18 FLEX LK STL GRA ZNPLT 2.000 ST
20 8.601-067.0 WASHER, 5/16 FLT SS 2.000 ST
90 BURNISHING DECK MOUNTING (0.250-378.0)
Valid on 16.12.2019 Page 13 / 61
90 BURNISHING DECK MOUNTING (0.250-378.0)
Valid on 16.12.2019 Page 14 / 61
POS Article no. Description Quantity Unit Serial number from
1 8.638-852.0 DECK LINKAGE ARM 2.000 ST (5*)
2 8.627-747.0 SCREW, 5/16-18 X 1.5 CARR SS 4.000 ST
3 8.622-884.0 BUSHING, .314 X .502 X .5 FLG 8.000 ST
4 8.625-941.0 WASHER, .51 X 10 X .063 THR 8.000 ST
5 8.627-935.0 WASHER, 1/2 X .771 X .013 WV 16.000 ST
6 8.625-942.0 WASHER, .510 X 1 THR 8.000 ST
7 8.601-067.0 WASHER, 5/16 FLT SS 14.000 ST
8 8.627-083.0 NUT, 5/16-18 HEX NYLOCK SS 12.000 ST
9 8.627-607.0 SCREW, 5/16-18 X .75 CARR SS 2.000 ST
10 8.627-184.0 NUT, 5/16-18 HEXTHIN NYLOCK SS 2.000 ST
11 8.638-850.0 TOP LINK ASSY 1.000 ST (5*)
12 8.601-077.0 WASHER, 7/16 X1 X .08 FLT SS 4.000 ST
13 8.635-381.0 SHOULDER BOLT, 3/8 X .25L SS 2.000 ST
14 8.601-068.0 WASHER, 3/8 NYL 2.000 ST
15 8.635-380.0 Holder 2.000 ST
16 8.627-703.0 SCREW, 5/16-18 X 1.25 CARR SS 4.000 ST
17 8.635-379.0 BRACKET, LINKAGE ARM 2.000 ST
18 8.635-374.0 BRACKET, LIFT ASSY, TOP 1.000 ST
100 BURNISHING DECK LIFT (0.250-379.0)
Valid on 16.12.2019 Page 15 / 61
100 BURNISHING DECK LIFT (0.250-379.0)
Valid on 16.12.2019 Page 16 / 61
POS Article no. Description Quantity Unit
1 8.632-804.0 PIN, CLEVIS 1/4 X 2 STL ZNPLT 2.000 ST
2 8.635-475.0 WASHER, .264 X 1 X .07 NYL BLK 2.000 ST
3 8.632-088.0 ACT, 36VDC, 3.0" STK, 8.74 LNG 1.000 ST
4 8.600-865.0 PIN, COTTER RING 1/4 X .041 X .844 2.000 ST
5 8.634-224.0 SPACER, .81 X 1.06 X .125 1.000 ST
110 BURNISHING DECK - PAD DRIVER (0.250-392.0)
Valid on 16.12.2019 Page 17 / 61
110 BURNISHING DECK - PAD DRIVER (0.250-392.0)
Valid on 16.12.2019 Page 18 / 61
POS Article no. Description Quantity Unit
1 8.635-246.0 HUB, PAD DRIVER 1.000 ST
2 8.635-565.0 GROMMET, .155ID X .438OD X .188T 1.000 ST
3 8.617-314.0 SCREW, KA40 X 10 OVHCS STL WIN1412 ZNPLT 3.000 ST
4 8.635-562.0 RETAINER, PAD CENTER LOCK 1.000 ST
5 8.617-333.0 WASHER, M5 SS ISO7093 8.000 ST
6 8.632-791.0 SCREW, KA50 X 25 PTOVHS STL WN1412 ZNPLT 8.000 ST
7 8.635-561.0 Pad drive 1.000 ST
8 8.635-845.0 ASM, PAD DRIVER iGLOSS 20 1.000 ST
Item text1: NOT SHOWN
8 8.635-166.0 SCREW, 6-19 X .5 PHPNHSMS HL STL ZNPLT 3.000 ST
120 CONSOLE - BAG ENCLOSURE (0.250-393.0)
Valid on 16.12.2019 Page 19 / 61
120 CONSOLE - BAG ENCLOSURE (0.250-393.0)
Valid on 16.12.2019 Page 20 / 61
POS Article no. Description Quantity Unit
1 8.617-314.0 SCREW, KA40 X 10 OVHCS STL WIN1412 ZNPLT 2.000 ST
2 8.616-180.0 LATCH & CONCEALED KEEPER 1.000 ST
3 8.636-843.0 COVER, BAG ENCL, BLK 1.000 ST
4 8.635-365.0 SHAFT, .25 X 7.3, SS 1.000 ST
5 8.627-581.0 SCREW, 10-32 X 1 PHPNHMS STL BLKOX 4.000 ST
6 8.601-065.0 WASHER, .203 X .562 X .040 FLT 4.000 ST
7 8.635-926.0 WASHER, 1.5 X 1.7 X .19 NPRN 1.000 ST
8 8.635-317.0 BRKT, HINGE 1.000 ST
9 8.622-879.0 BUSHING, .753 X .875 X .75 FLG 2.000 ST
10 8.632-783.0 GASKET,.188X.31X41.0 1.000 ST
11 8.627-633.0 SCREW, 1/4-20 X 1.25 CARR 2.000 ST
12 8.627-952.0 WASHER, 1/4 FLT STL BLK ZNPLT 4.000 ST
13 8.635-613.0 BUMPER, 7/8OD X 13/32H, RUBBER 2.000 ST
14 8.600-660.0 SCREW, 10-16 X .75 PHPNH HL SS 2.000 ST
15 8.635-464.0 WASHER, 1.5ID SINK, RUBBER 1.000 ST
16 8.633-398.0 FILTER BAG (10/PK) 1.000 ZST
17 8.600-704.0 SCREW, 5/16-18 X 1 THUMB SS 1.000 ST
18 8.635-682.0 WASHER, .315 X .89 X .215 NYL 1.000 ST
19 8.632-768.0 SWITCH, INTERLOCK 1.000 ST
20 8.635-459.0 BRACKET, BAG MOUNT 1.000 ST
21 8.635-463.0 GASKET, BAG MOUNT 1.000 ST
22 8.627-184.0 NUT, 5/16-18 HEXTHIN NYLOCK SS 1.000 ST
23 8.635-366.0 GASKET, BAG COVER, 43.6" 1.000 ST
24 8.636-680.0 CONSOLE, iGLOSS 20 TRIMMED GRAY 1.000 ST
Item text1: ACTIVE DUST CONTROL
24 8.639-950.0 CONSOLE, PASSIVE, TRIMMED 1.000 ST
Item text1: PASSIVE DUST CONTROL
25 8.600-832.0 WASHER, .315 X .6 X .36 NYL 1.000 ST
130 CONSOLE - HINGE (0.250-394.0)
Valid on 16.12.2019 Page 21 / 61
130 CONSOLE - HINGE (0.250-394.0)
Valid on 16.12.2019 Page 22 / 61
POS Article no. Description Quantity Unit

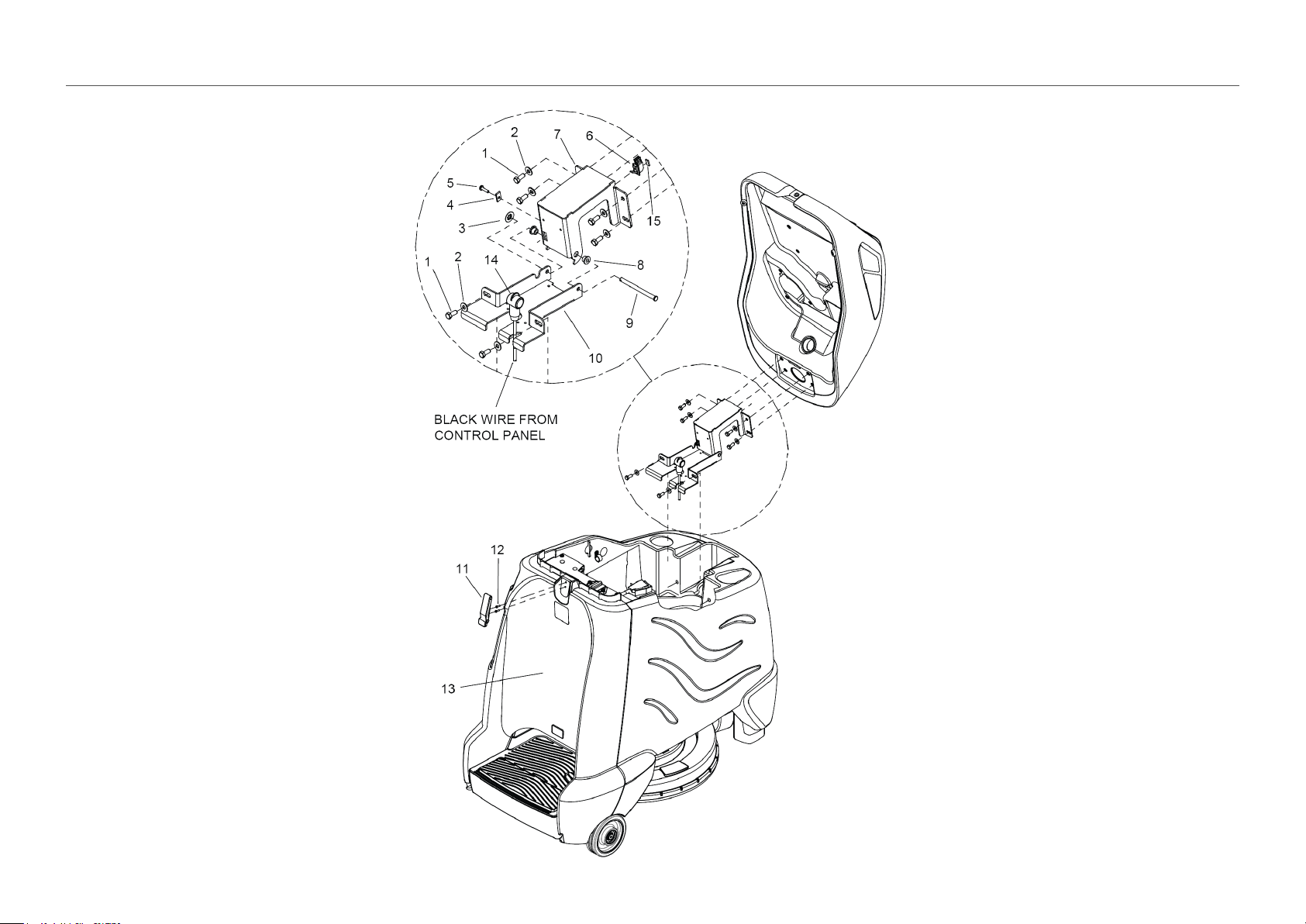

1 8.627-678.0 SCREW, 5/16-18 X .75 HHCS SS 6.000 ST
2 8.601-067.0 WASHER, 5/16 FLT SS 6.000 ST
3 8.632-886.0 NUT, 5/16 PUSH LK STL ZNPLT 1.000 ST
4 8.627-086.0 NUT, 10-24 TYPEU BLK 1.000 ST
5 8.627-711.0 SCREW, 10-24 X .75 PHPNHMS SS 1.000 ST
6 8.632-768.0 SWITCH, INTERLOCK 1.000 ST
7 8.632-632.0 BRACKET, HINGE UPPER 1.000 ST
8 8.622-899.0 BUSHING, .314 X .502 X .375 FLG BRZ 2.000 ST
9 8.632-634.0 PIN, CLEVIS 5/16 X 4 STL ZNPLT 1.000 ST
10 8.635-501.0 BRKT, HINGE LOWER 1.000 ST
11 8.616-180.0 LATCH & CONCEALED KEEPER 1.000 ST
12 8.617-314.0 SCREW, KA40 X 10 OVHCS STL WIN1412 ZNPLT 2.000 ST
13 8.636-836.0 PANEL, BACK TRIMMED, BLK 1.000 ST
14 8.600-892.0 BOOT, RUBBER TERM. ISOLATOR 1.000 ST

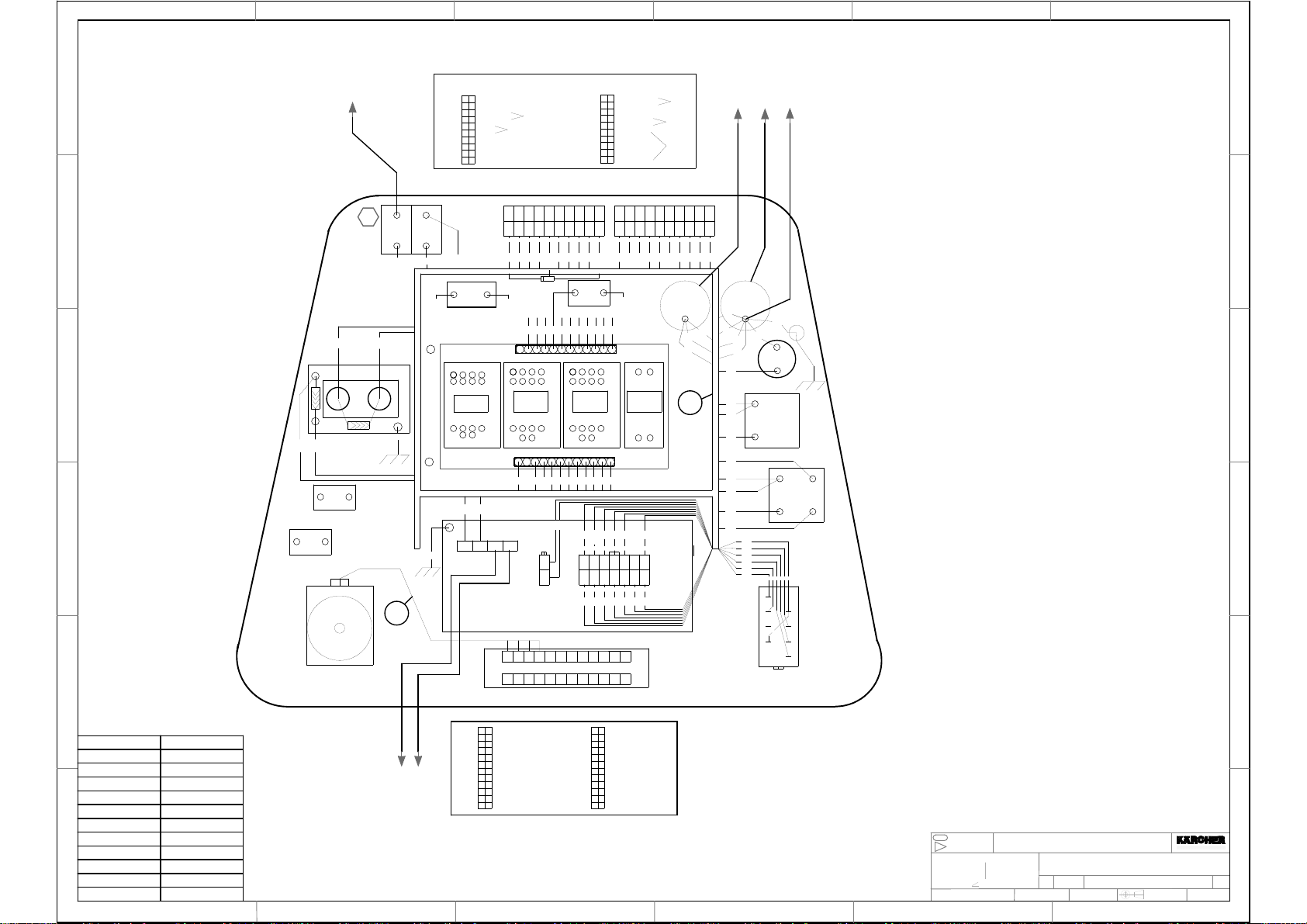

140 CONTROL PANEL 1 (0.250-395.0)
Valid on 16.12.2019 Page 23 / 61

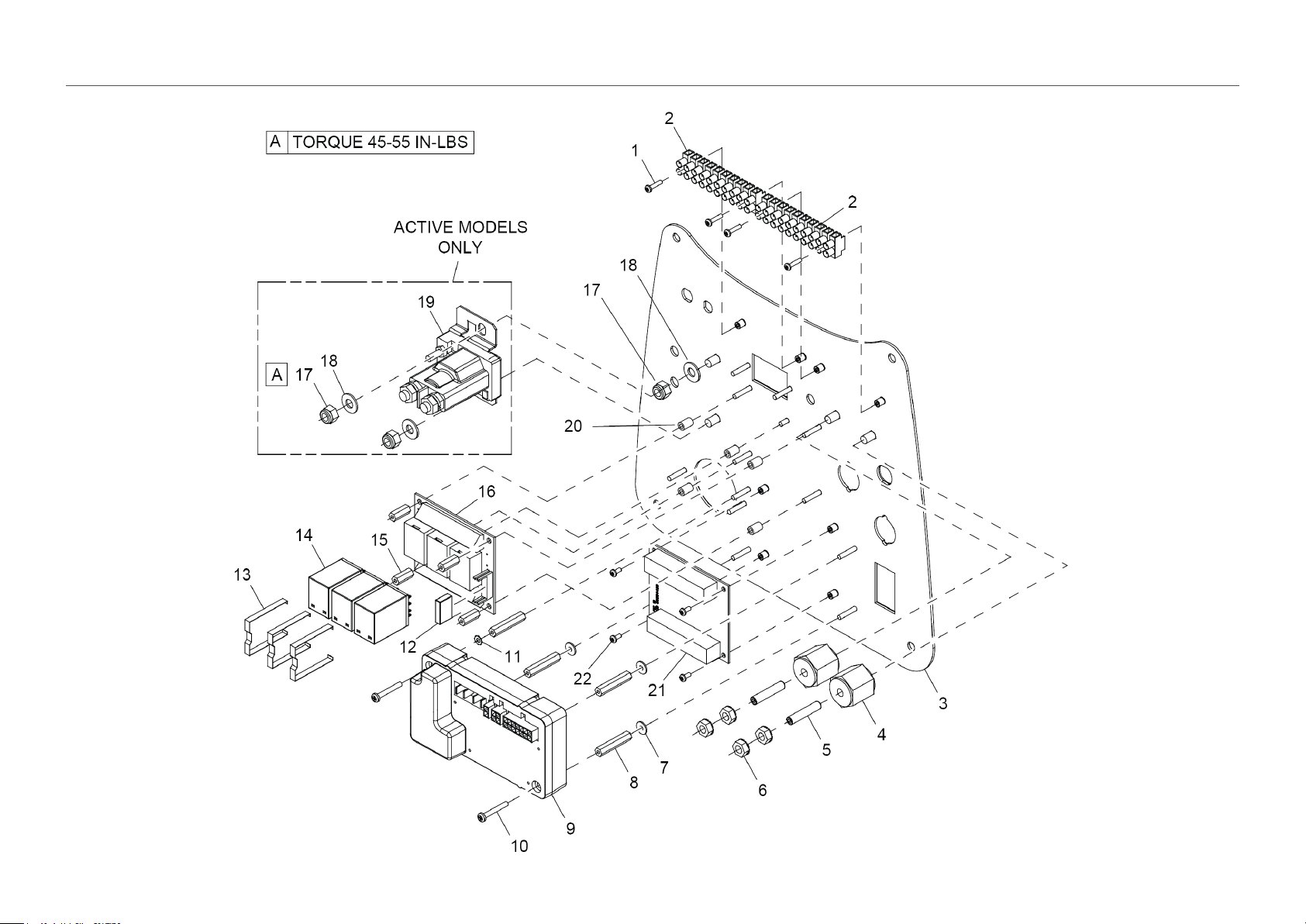

140 CONTROL PANEL 1 (0.250-395.0)
Valid on 16.12.2019 Page 24 / 61
POS Article no. Description Quantity Unit Serial number from Serial number to
1 8.627-526.0 SCREW, 4-40 X .5 PHPNHMS STL ZNPLT 4.000 ST
2 8.632-639.0 CONN, 8MM PITCH, 10 POS 2.000 ST
3 8.635-249.0 PANEL, CONTROL iGLOSS 20 1.000 ST
4 8.625-591.0 STANDOFF, 1/4-20 X 1.0 HEX INS 2.000 ST
5 8.600-685.0 SCREW, 1/4-20 X 1.25 SCHSET CP SS 1.000 ST
6 8.600-571.0 NUT, 1/4-20 HEXSTRW LK STL ZNPLT 4.000 ST
7 8.627-945.0 WASHER, 6 FLT STL ZNPLT 3.000 ST
8 8.635-486.0 Standoff 4.000 ST
9 8.638-597.0 Controller C2B 1.000 ST (*3)
9 8.635-632.0 CONTROLLER, iGLOSS 20 1.000 ST (3*)
10 8.627-555.0 SCREW, 6-32 X 1.25 PHPNHMS STL ZNPLT 2.000 ST
11 8.627-902.0 WASHER, 6 EXTLK SS 1.000 ST
12 8.633-611.0 RELAY, SPST-NO 1.000 ST
13 8.633-610.0 CLIP, RELAY 3.000 ST
14 8.631-390.0 RELAY, 5A, 24V, 4PDT 3.000 ST
15 8.625-590.0 STANDOFF, 6-32 X 5/8 HEX NYL 4.000 ST
16 8.633-609.0 CIRCUIT BOARD, 4 RELAY 1.000 ST
17 8.600-581.0 NUT, 1/4-20 HEX NYLOCK SS 1.000 ST
Item text1: ACTIVE MODEL - QTY 2
Item text2: PASSIVE MODEL - QTY 1
18 8.601-063.0 WASHER, 1/4 SS 1.000 ST
Item text1: ACTIVE MODEL - QTY 2
Item text2: PASSIVE MODEL - QTY 1
19 8.625-136.0 Relay 36VDC 100A 1.000 ST
Item text1: ACTIVE MODEL ONLY
20 8.633-721.0 SPACER, .14ID X .28OD X .38, NYL 5.000 ST
21 8.635-443.0 PCBA, ROTARY SWITCH 1.000 ST
22 8.627-457.0 SCREW, 4-40 X .25 PHPNHMS STL ZNPLT 4.000 ST
150 CONTROL PANEL 2 (0.250-402.0)
Valid on 16.12.2019 Page 25 / 61
150 CONTROL PANEL 2 (0.250-402.0)
Valid on 16.12.2019 Page 26 / 61
POS Article no. Description Quantity Unit
1 8.633-251.0 BOOT, SEAL PUSH BUTTON 11MM 1.000 ST
Item text1: ACTIVE MODEL ONLY
2 8.600-126.0 BOOT, CB 3/8-32 UNS 1.000 ST
3 8.634-864.0 LED, BAG FULL INDICATOR 2.000 ST
4 8.634-896.0 LED, BATTERY INDICATOR 1.000 ST
5 5.321-738.0 Handhold operational concept 1.000 ST
6 6.313-014.0 Spring element 1.000 ST
7 8.629-520.0 ASM, BUTTON, BLACK, W/BEZEL 1.000 ST
8 8.631-395.0 SWITCH, SPDT 3 POSN MOM, ARROW 1.000 ST
9 8.629-259.0 SWITCH, E-STOP AKW CHARIOT 1.000 ST
10 8.629-278.0 SWITCH, MICRO 1.000 ST
11 8.600-717.0 Switch KEY TWO POSITION 1.000 ST
12 8.635-843.0 SCREW, M4 X 12 FLHMS SS ISO7046 NP 2.000 ST
13 8.625-590.0 STANDOFF, 6-32 X 5/8 HEX NYL 4.000 ST
14 8.635-487.0 SWITCH, ROTARY 1.000 ST
15 8.635-456.0 BEZEL, ROTARY SWITCH 1.000 ST
16 8.631-547.0 METER, HOUR ICD 1.000 ST
17 8.635-481.0 GASKET, ROTARY SWITCH 1.000 ST
18 8.635-368.0 BREAKER, 1.5A CARLING MAGNETIC 1.000 ST
19 8.631-616.0 BREAKER, 18A, 250VAC, 32VDC 1.000 ST
Item text1: ACTIVE MODEL ONLY
20 8.637-141.0 SCREW, 10-32 X .75 TMS SS BLK 4.000 ST
21 8.635-844.0 O-RING, 4MM ID, 1.5MM THK, BUNA-N 2.000 ST
160 CHARGER - OPTIONAL (0.250-403.0)
Valid on 16.12.2019 Page 27 / 61
160 CHARGER - OPTIONAL (0.250-403.0)
Valid on 16.12.2019 Page 28 / 61
POS Article no. Description Quantity Unit
1 8.627-378.0 SCREW, 1/4-20 X .75 HHCS SS NP 4.000 ST
2 8.601-078.0 WASHER, 1/4 SPL STL ZNPLT 4.000 ST
3 8.601-063.0 WASHER, 1/4 SS 4.000 ST
4 8.623-439.0 CORD ASM, 16/3 SJTW X 2M IEC 1.000 ST
5 8.635-330.0 CHRGR, 36V 21A OBC ALG 1 1.000 ST
6 8.634-443.0 GROMMET, CHARGE PLUG 1.000 ST
7 8.617-314.0 SCREW, KA40 X 10 OVHCS STL WIN1412 ZNPLT 2.000 ST
8 8.626-494.0 Cable tie 11.38" UL/CSA 3.000 ST
170 DECALS (0.250-404.0)
Valid on 16.12.2019 Page 29 / 61
170 DECALS (0.250-404.0)
Valid on 16.12.2019 Page 30 / 61
POS Article no. Description Quantity Unit Serial number from
1 8.633-500.0 LABEL, AKW LOGO DOMED 1.000 ST
2 8.639-562.0 LABEL, PANEL iGLOSS 20 1.000 ST
Item text1: PASSIVE MODELS
2 8.639-561.0 LABEL, PANEL, iGLOSS 20, DLX 1.000 ST
Item text1: ACTIVE MODELS
3 8.639-563.0 LABEL, IGLOSS 20 LEFT 1.000 ST
4 8.639-564.0 LABEL, IGLOSS 20 RIGHT 1.000 ST
5 8.639-680.0 LABEL, BURNISHER SHROUD 1.000 ST
6 8.638-508.0 LABEL, MANUAL 1.000 ST (3*)
7 8.643-126.0 Label QR code iGloss 20 1.000 ST
180 SLEW/STEERING-FROM SERIAL NUMBER (3*) (0.250-405.0)
Valid on 16.12.2019 Page 31 / 61
180 SLEW/STEERING-FROM SERIAL NUMBER (3*) (0.250-405.0)
Valid on 16.12.2019 Page 32 / 61
POS Article no. Description Quantity Unit
1 8.641-014.0 Gear wheel ANSI 40 14T 1.000 ST
2 8.640-964.0 Clip .50 SHAFT SIDE RETAIN 1.000 ST
3 8.640-957.0 Angle joint chain 1.000 ST
4 8.640-956.0 Angle joint chain 1.000 ST
5 8.640-955.0 Support plate chain 1.000 ST
6 8.640-952.0 Nut 1/4-20 X 1.5 CPL SS 4.000 ST
7 8.640-882.0 Plate chain guide C2 1.000 ST
8 8.640-864.0 Flanged bushing .503X1.25X.470 FLG 'D' 2.000 ST
9 8.640-858.0 Screw 10-32 X 1 TPNHMS SS BLK ZNPLT 1.000 ST
10 8.640-559.0 Support plate control system 1.000 ST
11 8.600-661.0 SCREW, 1/4-20 X .25 SCHSET KCP BLKOX 1.000 ST
12 8.640-556.0 SHAFT, STEERING SPROCKET 1.000 ST
13 8.640-551.0 Distance holder .25ID X .430OD X.83LG 4.000 ST
14 8.640-549.0 Bearing control system C2 1.000 ST
15 8.640-548.0 Plate C2 1.000 ST
16 8.640-547.0 Bearing screw connector bottom 1.000 ST
17 8.640-546.0 Plate c2 1.000 ST
18 8.640-534.0 Chain ANSI#40 X 21.5" W/2 MASTER 1.000 ST
19 8.636-387.0 CLAMP, 5/8" OD CUSHIONED 1.000 ST
20 8.627-383.0 SCREW, 1/4-20 X .5 HHCS SS NP 4.000 ST
21 8.601-063.0 WASHER, 1/4 SS 13.000 ST
22 8.632-671.0 KEY, 5 X 5 X 16MM CS GR1045 1.000 ST
23 8.627-919.0 WASHER, 10 FLT STL ZNPLT 2.000 ST
24 8.627-899.0 WASHER, 8 FLT 3.000 ST
25 8.627-894.0 WASHER, 1/4 STL ZNPLT 2.000 ST
26 8.627-885.0 WASHER, .506 X .94 X .06 NYL 1.000 ST
27 8.627-539.0 Screw 1/4-20 X 1.625 SCHCS STL ZNPLT 4.000 ST
28 8.627-385.0 SCREW, 1/4-20 X 2 HHCS SS 5.000 ST
29 8.627-099.0 NUT, 10-32 HEX NYLOCK SS 1.000 ST
30 8.627-085.0 NUT, 8-32 HEX NYLOCK SS 3.000 ST
190 DRIVE-CHAIN PRIOR TO SERIAL NUMBER (3*) (0.250-406.0)
Valid on 16.12.2019 Page 33 / 61
190 DRIVE-CHAIN PRIOR TO SERIAL NUMBER (3*) (0.250-406.0)
Valid on 16.12.2019 Page 34 / 61
POS Article no. Description Quantity Unit
1 8.633-072.0 CHAIN TENSIONNER 1.000 ST
2 8.632-935.0 NUT, 1/4-20 CPL SS 1.000 ST
3 8.632-805.0 BUSHING, .480 X 1.25 X .485 FLG 2.000 ST
4 8.600-581.0 NUT, 1/4-20 HEX NYLOCK SS 3.000 ST
5 8.627-310.0 SCREW, 1/4-20 X 2.25 HHCS STL GR5 ZNPLT 3.000 ST
6 8.632-206.0 COLLAR, 12MM ID 1.000 ST
7 8.632-205.0 SPROCKET, STEERING, 14T 1.000 ST
8 8.632-204.0 Retaining plate 1.000 ST
9 8.632-203.0 Spacer 3.000 ST
10 8.627-083.0 NUT, 5/16-18 HEX NYLOCK SS 7.000 ST
11 8.631-974.0 PLATE, UPPER CLAMP 1.000 ST
12 8.631-968.0 PLATE, LOWER CLAMP 1.000 ST
13 8.631-961.0 BRACKET, BEARING CLAMP 1.000 ST
14 8.631-960.0 BRACKET, DRIVE MOUNT 1.000 ST
15 8.631-959.0 SHAFT, STEERING SPROCKET 1.000 ST
16 8.631-956.0 CHAIN, ISO 08B, 12.7MM PITCH 1.000 ST
17 8.601-444.0 BEARING DRIVE 1.000 ST
18 8.622-427.0 SLEEVE, CHAIN TENSIONER 1.000 ST
19 8.625-943.0 WASHER, M12 FLT 1.000 ST
20 8.627-951.0 WASHER, 3/8 FLT STL ZNPLT 1.000 ST
21 8.601-078.0 WASHER, 1/4 SPL STL ZNPLT 1.000 ST
22 8.601-067.0 WASHER, 5/16 FLT SS 4.000 ST
23 8.601-063.0 WASHER, 1/4 SS 7.000 ST
24 8.600-571.0 NUT, 1/4-20 HEXSTRW LK STL ZNPLT 3.000 ST
25 8.627-193.0 NUT HEX NYL LOC 3/8-16 1.000 ST
26 8.627-607.0 SCREW, 5/16-18 X .75 CARR SS 4.000 ST
27 8.627-519.0 SCREW, 3/8-16 X 1.25 HHCS SS 1.000 ST
28 8.627-415.0 SCREW, 1/4-20 X 1.75 HHCS STL GR5 ZNPLT 4.000 ST
29 8.623-278.0 Chain MASTERLINK 12.7MM 1.000 ST
30 8.636-860.0 X-REF TO 8.632-656.0 8/16 1.000 ST
31 8.627-942.0 WASHER, .765 X 1.25 X .08 FLT NYL 2.000 ST
32 8.627-137.0 NUT, 1/4-20 SERFLG STL ZNPLT 2.000 ST
200 DRIVE LOWER - FROM SERIAL NUMBER (3*) (0.250-411.0)
Valid on 16.12.2019 Page 35 / 61
200 DRIVE LOWER - FROM SERIAL NUMBER (3*) (0.250-411.0)
Valid on 16.12.2019 Page 36 / 61
POS Article no. Description Quantity Unit Serial number from
1 8.641-117.0 Traction motor C2 1.000 ST (4*)
2 8.640-996.0 Chain wheel transmission ANSI 40 13T 1.000 ST
3 8.640-995.0 Chain wheel transmission ANSI 40 13T IDLER 1.000 ST
4 8.640-994.0 Chain wheel transmission ANSI 40 20T 1.000 ST
5 8.640-591.0 Bolt 1/2 x 1.625 1.000 ST
6 8.638-411.0 Nut M6-1, HEX, SERFLG, DIN6923 2.000 ST
7 8.640-539.0 Retaining plate C2 1.000 ST
8 8.640-538.0 Axle drive wheel 1.000 ST
9 8.640-537.0 Distance holder C2 1.000 ST
10 8.640-536.0 Chain ANSI#40 X 21" W/MASTER 1.000 ST
11 8.640-535.0 Distance holder C2 MTR MNT HOUSING 2.000 ST
12 8.640-533.0 Distance holder C2 1.000 ST
13 8.640-532.0 Retaining plate C2 1.000 ST
14 8.640-531.0 Housing transmission C2 1.000 ST
15 7.312-289.0 Washer 8 -A2 ISO 7093-1 2.000 ST
16 8.636-917.0 Wheel 8.00 x 2.00, GRAY X-GRV 1.000 ST
17 8.632-671.0 KEY, 5 X 5 X 16MM CS GR1045 2.000 ST
18 8.632-167.0 WASHER, .748 SS 2.000 ST
19 8.627-607.0 SCREW, 5/16-18 X .75 CARR SS 4.000 ST
20 8.627-470.0 SCREW, M6 X 1 X 16 HHCS ZNPLT 1.000 ST
21 8.627-462.0 SCREW, 1/4-20 X 1.25 HHMS STL GR5 ZNPLT 1.000 ST
22 8.627-375.0 SCREW, 1/4-20 X .625 HHCS SS NP 4.000 ST
23 8.627-083.0 NUT, 5/16-18 HEX NYLOCK SS 4.000 ST
24 8.621-964.0 KEY, 1/4 X 1/4 X 1.5 LCSTL GR1018 1.000 ST
25 8.638-412.0 Screw M5-0.8 X 16, TPNHMSSS 8.000 ST
26 8.613-733.0 WASHER, M5 SHPRF STL ZNPLT 8.000 ST
27 8.613-664.0 SCREW, M8-1.25 X 20 HHMS ZNPLT 2.000 ST
28 8.601-081.0 WASHER, 1/4 FNDR SS 1.000 ST
29 8.601-067.0 WASHER, 5/16 FLT SS 4.000 ST
30 8.601-063.0 WASHER, 1/4 SS 6.000 ST
31 8.600-861.0 Flanged bearing PRESS STEEL 4.000 ST
32 8.600-581.0 NUT, 1/4-20 HEX NYLOCK SS 1.000 ST
33 8.600-103.0 BEARING, 3/4 SPH BALL 2.000 ST
200 DRIVE LOWER - FROM SERIAL NUMBER (3*) (0.250-411.0)
Valid on 16.12.2019 Page 37 / 61
POS Article no. Description Quantity Unit Serial number from
34 8.640-554.0 Spacer sleeve C2 1.000 ST
35 8.638-691.0 Brake traction motor C2 1.000 ST
36 8.642-686.0 Environmental brake cover 1.000 ST (6*)
37 8.626-493.0 CABLE TIE, 3.5" UL/CSA 1.000 ST (7*)
38 8.626-494.0 Cable tie 11.38" UL/CSA 1.000 ST (7*)
39 8.638-441.0 Cable spacer cross 1.000 ST (7*)
1 Traction motor C2 (8.641-117.0)
Valid on 16.12.2019 Page 38 / 61
1 Traction motor C2 (8.641-117.0)
Valid on 16.12.2019 Page 39 / 61
POS Article no. Description Quantity Unit
1 8.638-691.0 Brake traction motor C2 1.000 ST
2 8.638-411.0 Nut M6-1, HEX, SERFLG, DIN6923 2.000 ST
3 8.638-409.0 Carbon brush set AOMPI40 1.000 ST
4 8.642-686.0 Environmental brake cover 1.000 ST
5 8.626-493.0 CABLE TIE, 3.5" UL/CSA 1.000 ST
6 8.631-441.0 RELEASE BUTTON 1.000 ST
7 8.626-494.0 Cable tie 11.38" UL/CSA 1.000 ST
210 DRIVE-LOWER PRIOR TO SERIAL NUMBER (3*) (0.250-412.0)
Valid on 16.12.2019 Page 40 / 61
210 DRIVE-LOWER PRIOR TO SERIAL NUMBER (3*) (0.250-412.0)
Valid on 16.12.2019 Page 41 / 61
POS Article no. Description Quantity Unit
1 8.632-671.0 KEY, 5 X 5 X 16MM CS GR1045 1.000 ST
2 8.632-167.0 WASHER, .748 SS 2.000 ST
3 8.631-981.0 Axle drive wheel 1.000 ST
4 8.631-967.0 SLEEVE, BEARING 6.000 ST
5 8.637-844.0 KIT, BRUSHES, DRIVE MOTOR 1.000 ST
Item text1: NOT SHOWN - CCL motor use 8.633-199.0
Item text2: Linix motor use 8.637-841.0
5 8.636-984.0 KIT, BRAKE REPLACEMENT - SMALL STAND ON 1.000 ST
Item text1: NOT SHOWN
5 8.636-401.0 Wheel drive motor 1.000 ST
Item text1: For installation of 8.636-401.0
Item text2: order kit 8.636-900.0
6 8.631-965.0 SPROCKET, DRIVE, 14T 2.000 ST
7 8.631-964.0 CHAIN, ISO 08B, 12.7MM PITCH 1.000 ST
8 8.631-962.0 FRAME, LOWER DRIVE 1.000 ST
9 8.636-917.0 Wheel 8.00 x 2.00, GRAY X-GRV 1.000 ST
10 8.627-963.0 WASHER, 5/16 X 1.13 X .09 FLT 3.000 ST
11 8.628-850.0 NUT, M4X.7 HEX STL CL8 ZNPLT 4.000 ST
12 8.601-067.0 WASHER, 5/16 FLT SS 4.000 ST
13 8.600-861.0 Flanged bearing PRESS STEEL 4.000 ST
14 8.627-255.0 PIN, CLEVIS 5/16 X 1 STL ZNPLT 3.000 ST
15 8.627-607.0 SCREW, 5/16-18 X .75 CARR SS 4.000 ST
16 8.613-485.0 WASHER, M4 SPRL SS DIN127B 2.000 ST
17 8.613-664.0 SCREW, M8-1.25 X 20 HHMS ZNPLT 3.000 ST
18 8.637-223.0 WASHER, M4 EXTLK STL DIN6797 TYPEA ZNPLT 2.000 ST
19 8.627-083.0 NUT, 5/16-18 HEX NYLOCK SS 4.000 ST
20 8.621-964.0 KEY, 1/4 X 1/4 X 1.5 LCSTL GR1018 1.000 ST
21 8.633-238.0 ROLLER, 1.1 OD 3.000 ST
22 8.600-103.0 BEARING, 3/4 SPH BALL 2.000 ST
23 8.600-866.0 Cotter 5/16" RING 3.000 ST
24 8.600-283.0 Cable tie .375 X 24.7 1.000 ST
25 8.623-278.0 Chain MASTERLINK 12.7MM 1.000 ST
Item text1: NOT SHOWN
210 DRIVE-LOWER PRIOR TO SERIAL NUMBER (3*) (0.250-412.0)
Valid on 16.12.2019 Page 42 / 61
POS Article no. Description Quantity Unit
26 8.636-204.0 TAPE CLOSED CELL 1/8 X 3/4 X 2 1/2 PSA 2.000 ST
27 8.626-492.0 CABLE TIE, 7" UL/CSA 2.000 ST
28 8.636-214.0 SCREW, M6-1 X 12 HEXFLGHSERFLG STL ZNPLT 3.000 ST
29 8.634-849.0 NUT, 5/16-18 X .38 WLD TAB STL 2.000 ST
30 8.636-213.0 SCREW, 5/16-18 X 1.5 SCHCS SS 2.000 ST
31 8.636-215.0 SCREW, M6-1 X 30 HEXFLGHSERFLG STL ZNPLT 2.000 ST
32 8.633-387.0 LEVER, DRIVE ENGAGEMENT 1.000 ST
33 8.627-124.0 NUT, 1/4 PAL STL ZNPLT 1.000 ST
5 Wheel drive motor (8.636-401.0)
Valid on 16.12.2019 Page 43 / 61
5 Wheel drive motor (8.636-401.0)
Valid on 16.12.2019 Page 44 / 61
POS Article no. Description Quantity Unit
10 8.637-844.0 KIT, BRUSHES, DRIVE MOTOR 1.000 ST
20 8.628-850.0 NUT, M4X.7 HEX STL CL8 ZNPLT 4.000 ST
30 8.613-485.0 WASHER, M4 SPRL SS DIN127B 2.000 ST
40 8.637-223.0 WASHER, M4 EXTLK STL DIN6797 TYPEA ZNPLT 2.000 ST
220 FRAME & REAR WHEELS (0.250-417.0)
Valid on 16.12.2019 Page 45 / 61
220 FRAME & REAR WHEELS (0.250-417.0)
Valid on 16.12.2019 Page 46 / 61
POS Article no. Description Quantity Unit
1 8.632-626.0 BRACKET, FRAME LEFT 1.000 ST
2 8.632-625.0 BRACKET, FRAME RIGHT 1.000 ST
3 8.636-850.0 FRAME ASM, BLK 1.000 ST
Item text1: INCLUDES ITEM 8 & 9
4 8.632-622.0 SPACER, FLG, .887ID X 1.055OD X .345LG 2.000 ST
5 8.631-803.0 AXLE, 20MM X 562MM 1.000 ST
6 8.636-916.0 WHEEL, 6.00X1.58, GRY W/BEARINGS 2.000 ST
7 8.622-347.0 RING, 20MM EXTERNAL SNAP 2.000 ST
8 8.627-891.0 WASHER, 3/8 SS 2.000 ST
9 8.634-095.0 SCREW, 3/8 X 1.5 HHLS STL ZNPLT 2.000 ST
230 DRIVE MOUNTING - FROM SERIAL NUMBER (3*) (0.250-418.0)
Valid on 16.12.2019 Page 47 / 61
230 DRIVE MOUNTING - FROM SERIAL NUMBER (3*) (0.250-418.0)
Valid on 16.12.2019 Page 48 / 61
POS Article no. Description Quantity Unit
1 8.634-462.0 BRACKET, LINKAGE MOUNT 1.000 ST
2 8.631-973.0 BRACKET, LINKAGE MOUNT, LEFT 1.000 ST
3 8.640-541.0 BRACKET, C2 LOWER SUPPORT 1.000 ST
4 8.601-067.0 WASHER, 5/16 FLT SS 10.000 ST
5 8.627-669.0 SCREW, 5/16-18 X 1.75 CARR SS 8.000 ST
6 8.627-607.0 SCREW, 5/16-18 X .75 CARR SS 2.000 ST
7 8.627-083.0 NUT, 5/16-18 HEX NYLOCK SS 10.000 ST
8 8.601-063.0 WASHER, 1/4 SS 3.000 ST
9 8.600-581.0 NUT, 1/4-20 HEX NYLOCK SS 3.000 ST
240 DRIVE MOUNTING - PRIOR TO SN (3*) (0.250-419.0)
Valid on 16.12.2019 Page 49 / 61
240 DRIVE MOUNTING - PRIOR TO SN (3*) (0.250-419.0)
Valid on 16.12.2019 Page 50 / 61
POS Article no. Description Quantity Unit
1 8.634-462.0 BRACKET, LINKAGE MOUNT 1.000 ST
2 8.631-973.0 BRACKET, LINKAGE MOUNT, LEFT 1.000 ST
3 8.633-163.0 BRACKET, ROLLER GUIDE 1.000 ST
4 8.601-067.0 WASHER, 5/16 FLT SS 12.000 ST
5 8.627-669.0 SCREW, 5/16-18 X 1.75 CARR SS 8.000 ST
6 8.627-607.0 SCREW, 5/16-18 X .75 CARR SS 2.000 ST
7 8.627-083.0 NUT, 5/16-18 HEX NYLOCK SS 12.000 ST
8 8.627-476.0 SCREW, 1/4-20 X .5 HHCS STL GR5 ZNPLT 1.000 ST
9 8.636-387.0 CLAMP, 5/8" OD CUSHIONED 1.000 ST
10 8.632-934.0 PLATE, CHAIN GUARD 1.000 ST
11 8.627-894.0 WASHER, 1/4 STL ZNPLT 1.000 ST
250 PEDAL PLATFORM (0.250-420.0)
Valid on 16.12.2019 Page 51 / 61
250 PEDAL PLATFORM (0.250-420.0)
Valid on 16.12.2019 Page 52 / 61
POS Article no. Description Quantity Unit
1 8.600-711.0 Switch 25A SPST 125-250V SNAP 1.000 ST
2 8.617-298.0 SCREW, KA50 X 10 OVHCS STL WN1412 ZNPLT 9.000 ST
3 8.626-493.0 CABLE TIE, 3.5" UL/CSA 1.000 ST
4 8.632-615.0 BRKT, LINEAR POT 1.000 ST
5 8.632-614.0 PIN, DOWEL 1/4 X 2.75 STL 1.000 ST
6 8.633-424.0 PEDAL, HEEL, BLK 1.000 ST
7 8.633-469.0 PEDAL, ACCELERATOR, YEL 1.000 ST
8 8.633-423.0 PLATFORM, OPERATOR, BLK 1.000 ST
9 8.631-156.0 POTENTIOMETER ASM, LINEAR 1.000 ST
10 8.625-497.0 SPRING, COMP 18MMOD X 83 X 2 3.000 ST
11 8.617-333.0 WASHER, M5 SS ISO7093 8.000 ST

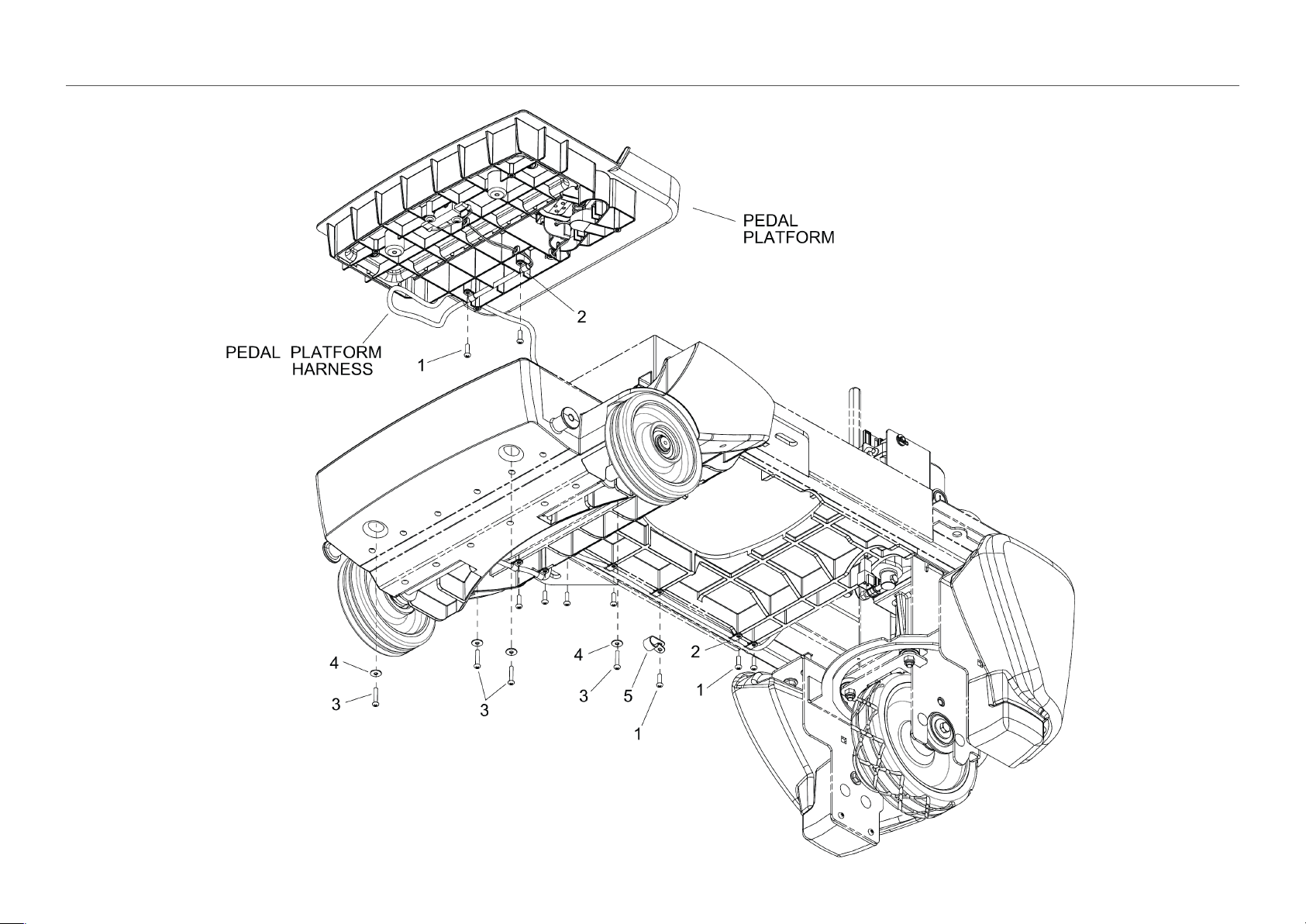

260 PEDAL PLATFORM MOUNTING (0.250-421.0)
Valid on 16.12.2019 Page 53 / 61
260 PEDAL PLATFORM MOUNTING (0.250-421.0)
Valid on 16.12.2019 Page 54 / 61
POS Article no. Description Quantity Unit
1 7.303-104.0 Screw 5x16 -A2-70 (IN6RD) 9.000 ST
2 8.619-844.0 CLAMP, 1/4 PLASTIC CABLE 9.000 ST
3 8.632-791.0 SCREW, KA50 X 25 PTOVHS STL WN1412 ZNPLT 4.000 ST
4 8.617-333.0 WASHER, M5 SS ISO7093 4.000 ST
5 8.619-847.0 Clamp 9/16 DIA NYLON 1.000 ST

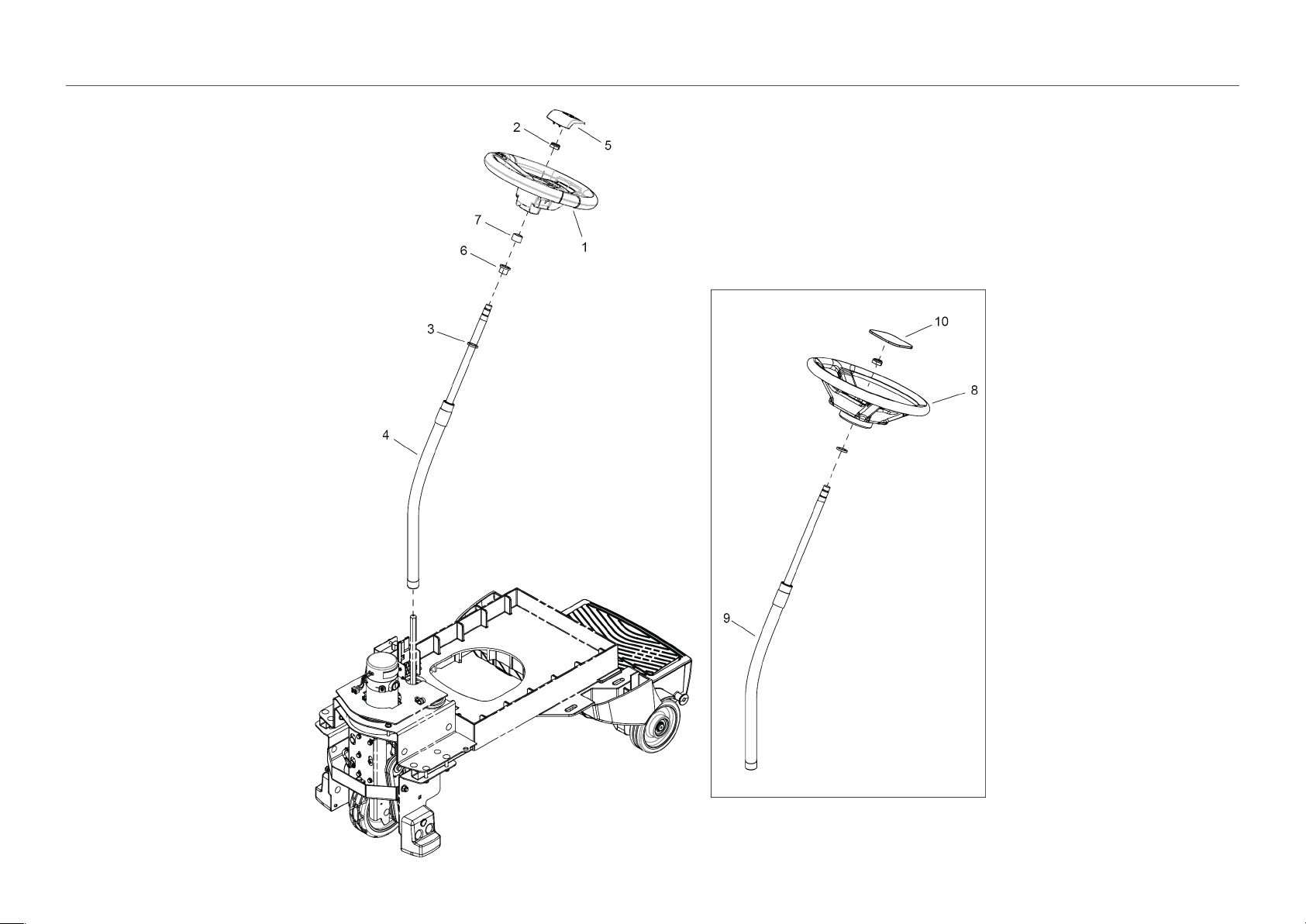

270 STEERING (0.250-461.0)
Valid on 16.12.2019 Page 55 / 61
270 STEERING (0.250-461.0)
Valid on 16.12.2019 Page 56 / 61
POS Article no. Description Quantity Unit
1 6.435-799.0 Steering wheel 1.000 ST
2 8.627-161.0 NUT, 5/8-18 HEXTHIN NYLOCK STL GR2 ZNPLT 1.000 ST
3 8.627-942.0 WASHER, .765 X 1.25 X .08 FLT NYL 1.000 ST
4 8.635-569.0 Steering shaft 1.000 ST
Item text1: COMPLETE
5 6.640-353.0 Cap steering wheel KÄRCHER 1.000 ST
6 8.622-879.0 BUSHING, .753 X .875 X .75 FLG 2.000 ST
7 8.633-395.0 BUSHING, .751 D X 1 X .625 FLG 1.000 ST
8 8.625-961.0 Wheel STEERING 40 SPLINE HUB 1.000 ST
9 8.637-837.0 ASM, SHAFT, STEERING, CHARIOT 2 1.000 ST
10 8.623-481.0 COVER, STEERING WHEEL 1.000 ST
280 VACUUM - OPTIONAL (0.250-462.0)
Valid on 16.12.2019 Page 57 / 61
POS Article no. Description Quantity Unit
1 8.627-392.0 SCREW, 1/4-20 X 1.75 PHPNHMS SS 3.000 ST
2 8.601-063.0 WASHER, 1/4 SS 3.000 ST
3 8.635-329.0 BRACKET, MOUNTING, VAC MOTOR 1.000 ST
4 8.631-292.0 GASKET, VAC MOTOR 1.000 ST
5 6.490-197.3 Turbine 2-level 36V 650W (CCL) 1.000 ST
6 8.626-494.0 Cable tie 11.38" UL/CSA 1.000 ST
7 8.632-750.0 BUSHING, .250 X .75 X 1 MOUNT VIBRATION 3.000 ST
8 8.600-240.0 Clamp 2.0" WORM GEAR X .312W 1.000 ST
9 8.632-033.0 HOSE ASM, 1.5 BLK VAC X12 1.000 ST
10 8.635-615.0 HOSE, 1.5" X 7.75", 4:1 STRETCH 1.000 ST
11 8.629-122.0 SCREW, KA40 X 16 FLT SS WN1413 2.000 ST
12 8.635-591.0 CLIP, 1-3/4", PLASTIC 1.000 ST
13 8.614-333.0 MOTOR FILTER U19836 1.000 ST
14 8.635-465.0 FRAME, FILTER 1.000 ST
15 8.627-764.0 SCREW, 1/4-20 X .75 PHTRHMS SS 2.000 ST
290 WIRING - BATTERY (0.250-463.0)
Valid on 16.12.2019 Page 58 / 61
290 WIRING - BATTERY (0.250-463.0)
Valid on 16.12.2019 Page 59 / 61
POS Article no. Description Quantity Unit
1 8.632-972.0 BATT, CBL, ASM, JUMPER 2.000 ST
2 8.635-612.0 CABLE, ASM, BATTERY 1.000 ST
3 8.628-341.0 BATTERY, 12V, 225AH (J185H-AC) 3.000 ST
Item text1: NOT SHOWN
3 8.632-863.0 BATTERY, 12V 114A/H AGM 3.000 ST
Item text1: NOT SHOWN
3 8.622-843.0 BATTERY, 12V AGM 234AH 3.000 ST
Item text1: NOT SHOWN
3 8.622-840.0 BATTERY, 12V, 130AH (30XHS) 3.000 ST
4 8.639-531.0 Tub battery 1.000 ST
Item text1: REQD. WITH 86283410 & 86228430
5 8.635-955.0 TAPE, 1/16" T X 6.0" SQ. 2 SIDE ADH 1.000 ST
9020 Chariot iGloss 20 Serial Numbers (0.250-921.0)
Valid on 16.12.2019 Page 60 / 61

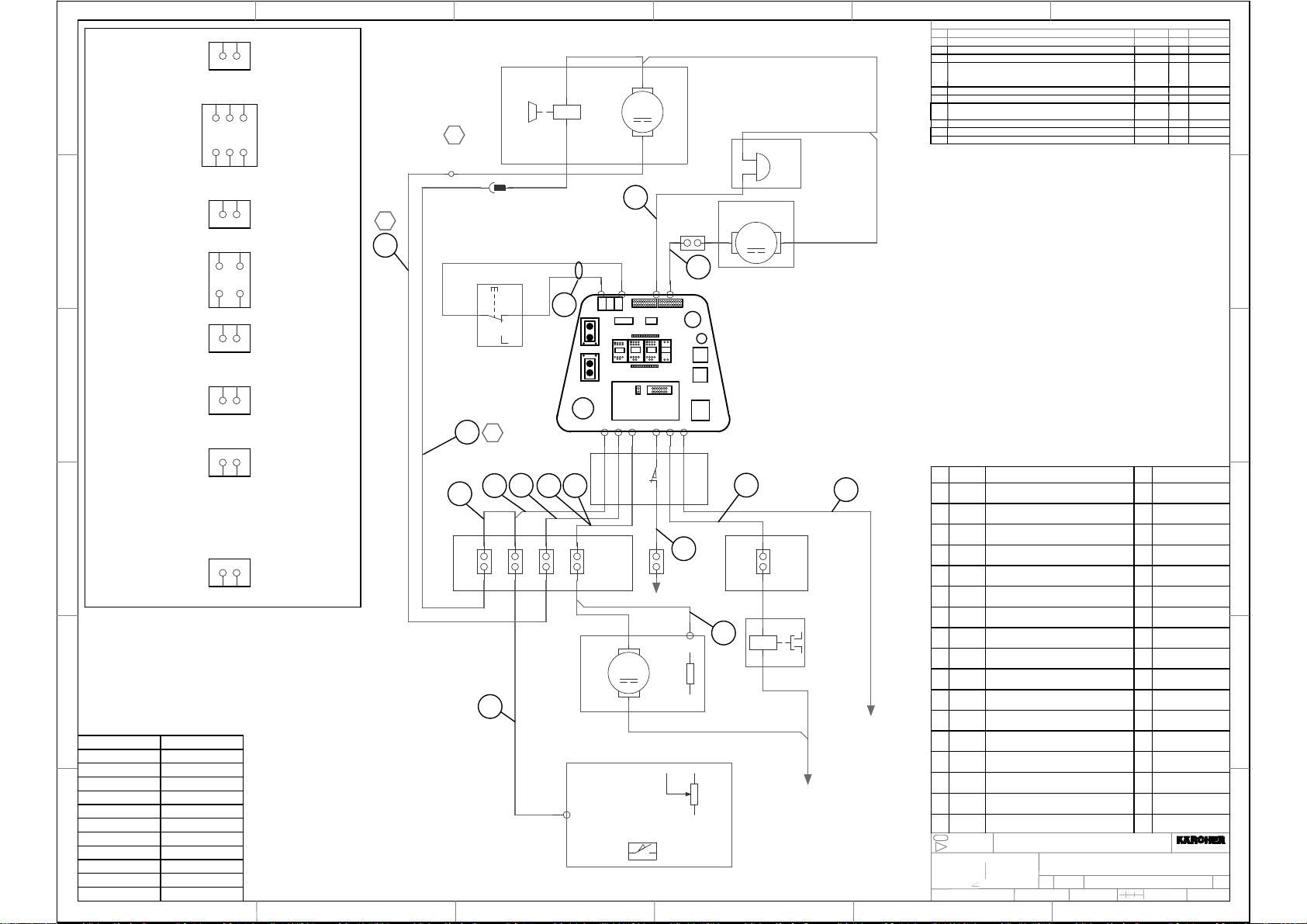

72/(5$1&(681/(6627+(5:,6(127('
5(9
6+((7
35235,(7$5<&21),'(17,$/7+(,1)250$7,21&217$,1(',17+,6'5$:,1*,6
35235,(7$5<$1'0$<&217$,175$'(6(&5(76$1'3$7(17$%/(68%-(&70$77(5:+,&+$5(
7+((;&/86,9(3523(57<2).$5&+(51257+$0(5,&$
7+,6'5$:,1*,63527(&7('%<7+(&23<5,*+7/$:62)7+(81,7('67$7(6
'(6&5,37,21
352-(&7,21
6,=(
&
7+,5'$1*/(
6&$/(
'5$:,1*180%(5
;
;;
;;;
'5$:,1*,6$33529('%<(/(&7521,&
6,*1$785(,13/06<67(0
'5$:1%<
'$7(
,1&+
;
;;
;;;
0,//,0(7(56
121(
%
$
5(9
'(6&5,37,21
(&1
5(9
%<
'$7(
5(9,6,21
&203/,$1&(:,7+7+(&855(179(56,212)7+(.$5&+(567$1'$5'.D1&2167,78(1768%67$1&(6%$12)/($'&$'0,80(7&0867%(*8$5$17(('
,163(&7,21',0(16,21
&
'
(
)
$
%
&
'
(
)
&5,7,&$/7248$/,7<
&4
+$51(663$1(/,*/266
5()
3$5712
'(6&5,37,21
47<
5(0$5.6
+$51(66,*/26623(5$7253/$7)250
+$51(660$,1$&78$725
+$51(66,*/2660$,1327$1'%5$.(
+$51(66,*/2660$,1&+$5*(5
+$51(66,*/2660$,175$&7,21
+$51(66,*/266%586+
+$51(66,*/2660$,132:(5
+$51(66&60$,1+251
.1$9(56,21
**
%5$.(
9$&880
75$&7,21
%586+
$&78$725
327
3/$7)250
;
;
;
;
;
;
57
6:
57
6:
:6
6:
57
:6
:6
6:
%1
:6
25
*1
%/
1&
,17(5/2&.8
6:
57
%1 :6
6:
*157
<
8
0
0
0
0
6
+251; :6
6:
3$1(/7%
; &+$5*(5 &6:
&57237,21
+
3$572)
3$572)
3$572)
3$572)
3$572)
3$572)
3$572)
+$51(66,*/266&855(176+817-803(5
+$51(66,*/266%$*35(6(17
3$572)
3$572)
$GHUIDUEHQ:LUHFRORU
UHG
VFKZDU]VZ EODFN
ZKLWH
EUDXQEQ EURZQ
EODXEO EOXH
JHOEJH \HOORZ
RUDQJHRU RUDQJH
JUDXJU JUD\
JUQJQ JUHHQ
YLRSOHWWYL YLROHW
URVDUV SLQN
YLROHW
JUXQJQ JUHHQ
JUDXJU JUD\
RUDQJHRU RUDQJH
JHOEJH \HOORZ
EODXEO EOXH
EUDXQEQ EURZQ
ZHL%ZV ZKLWH
VFKZDU]VZ EODFN
URWUW UHG
6
+$51(66527$5<6:,7&+
+$51(66,*/2666+8176(16(
3$572)
+$51(66&60$,19$&880
237,21
6+817
57
*1
+$51(666+817-803(5:,5(%5$,'('
3$572)
+$51(666+817-803(5:,5(
3$572)
&DEOHVHWORZHUWUDFWLRQ
*53+$51(66$60,*/266
.
6*
2)
$
5(/($6()25352'8&7,21
%
&255(&7',2'(326,7,21$1':,5,1*
3.
&
$'':,5($1'',2'(72'5$:,1*
6*
'
20,75287(72+2850(7(5
6*
(
029()520;72;
3.
)
$''%5$.(+$51(66
3.
*
:$6:$6%
99
+
$''75$&7,21+$51(66
99
-
:$6:$6
5-&
.
:$6
-$
20,7$1'
5(3/$&(:,7+$1'
:$6:$6%
.
+
.
0
0
0
0
8
[
[
+
0
0
8 8
[
[
<
75$&7,21
[
[
0
6
6
5
1&&
12
;
+251
9$&880
%$*35(6(17
; ; ; ; ; ;
%586+
$&78$725
3/$7)250
5
;
;
%$77(5<
&+$5*(5237,21
%$77
72/(5$1&(681/(6627+(5:,6(127('
5(9
6+((7
35235,(7$5<&21),'(17,$/7+(,1)250$7,21&217$,1(',17+,6'5$:,1*,6
35235,(7$5<$1'0$<&217$,175$'(6(&5(76$1'3$7(17$%/(68%-(&70$77(5:+,&+$5(
7+((;&/86,9(3523(57<2).$5&+(51257+$0(5,&$
7+,6'5$:,1*,63527(&7('%<7+(&23<5,*+7/$:62)7+(81,7('67$7(6
'(6&5,37,21
352-(&7,21
6,=(
&
7+,5'$1*/(
6&$/(
'5$:,1*180%(5
;
;;
;;;
'5$:,1*,6$33529('%<(/(&7521,&
6,*1$785(,13/06<67(0
'5$:1%<
'$7(
,1&+
;
;;
;;;
0,//,0(7(56
121(
%
$
&203/,$1&(:,7+7+(&855(179(56,212)7+(.$5&+(567$1'$5'.D1&2167,78(1768%67$1&(6%$12)/($'&$'0,80(7&0867%(*8$5$17(('
&
'
(
)
$
%
&
'
(
)
&4
,163(&7,21',0(16,21
&5,7,&$/7248$/,7<
:6
6:
6:
57
6:
57
6:
57
25
:6
6:
57
*1
6:
57
%/
*1
25
%1
:6
6+817+,*+
&+5,176:
6+817/2:
$&78$725
$&78$725
+251
+251
%586+*1'
%$*35(6(171&
%$*35(6(17&
&+5,176:
%586+32:(5
%5$.(62/
%5$.(62/
3/$7)250
3/$7)250
327
327:,3(5
327
&211(&725;720$,1+$51(66
;
;
6;
;
;
:6
*(
*1
%1
6:
6:
*5
25
527$5<,1387
527$5<,1387
527$5<,1387
527$5<,1387
23(1
23(1
6+817/2:
6+817+,*+
6/2:)$67,1+
,1+,%,7
$
6
6
6
) )
+
3
6
;
;
;
;
. .. .
;
.
*1'
6
527$5<
/'
+
;
$
%
3:5
+
,1+,%,76:
&21752//2:6:
6:
6:
6:
57
:6
6:
6:
*1
9
5(/$<*5281'
%$77(5<*1'
%$77(5<326
23(1
23(1
$&78$725
$&78$725
/('32:(5
/('*51
/('5('57
+%5,'*(,138757
57 6:
6:
57
6:
+2850(7(5
$
$
UHG
VFKZDU]VZ EODFN
ZKLWH
EUDXQEQ EURZQ
EODXEO EOXH
JHOEJH \HOORZ
RUDQJHRU RUDQJH
JUDXJU JUD\
JUQJQ JUHHQ
YLROHW
URVDUV SLQN
YLROHW
JUXQJQ JUHHQ
JUDXJU JUD\
RUDQJHRU RUDQJH
JHOEJH \HOORZ
EODXEO EOXH
EUDXQEQ EURZQ
ZHL%ZV ZKLWH
VFKZDU]VZ EODFN
UHG
$GHUIDUEHQ:LUHFRORU
YLRSOHWWYL
URWUW
:6
*53+$51(66$60,*/266
.
6*
2)
%
; ;
;
%
%
;
*53+$51(66$60,*/266
%5
(5
$
67520/$8)3/$1&,5&8,7',$*5$0
%
*H]HLFKQHW
GUDZQE\
'DWXP
GDWH
*HSUXHIW
FKHFNHGE\
1RUPJHSUIW
VWGFKHFNHGE\
RI
VKHHW
%HQHQQXQJ
GHVFULSWLRQ
$QODJH
SODQW
$XIWUDJ
RUGHU
%ODWWEHQHQQXQJ
VKHHWGHVFULSWLRQ
2UW
ORFDWLRQ
0DWHULDO1U
PDWHULDOQR
'DWHL
ILOH
*

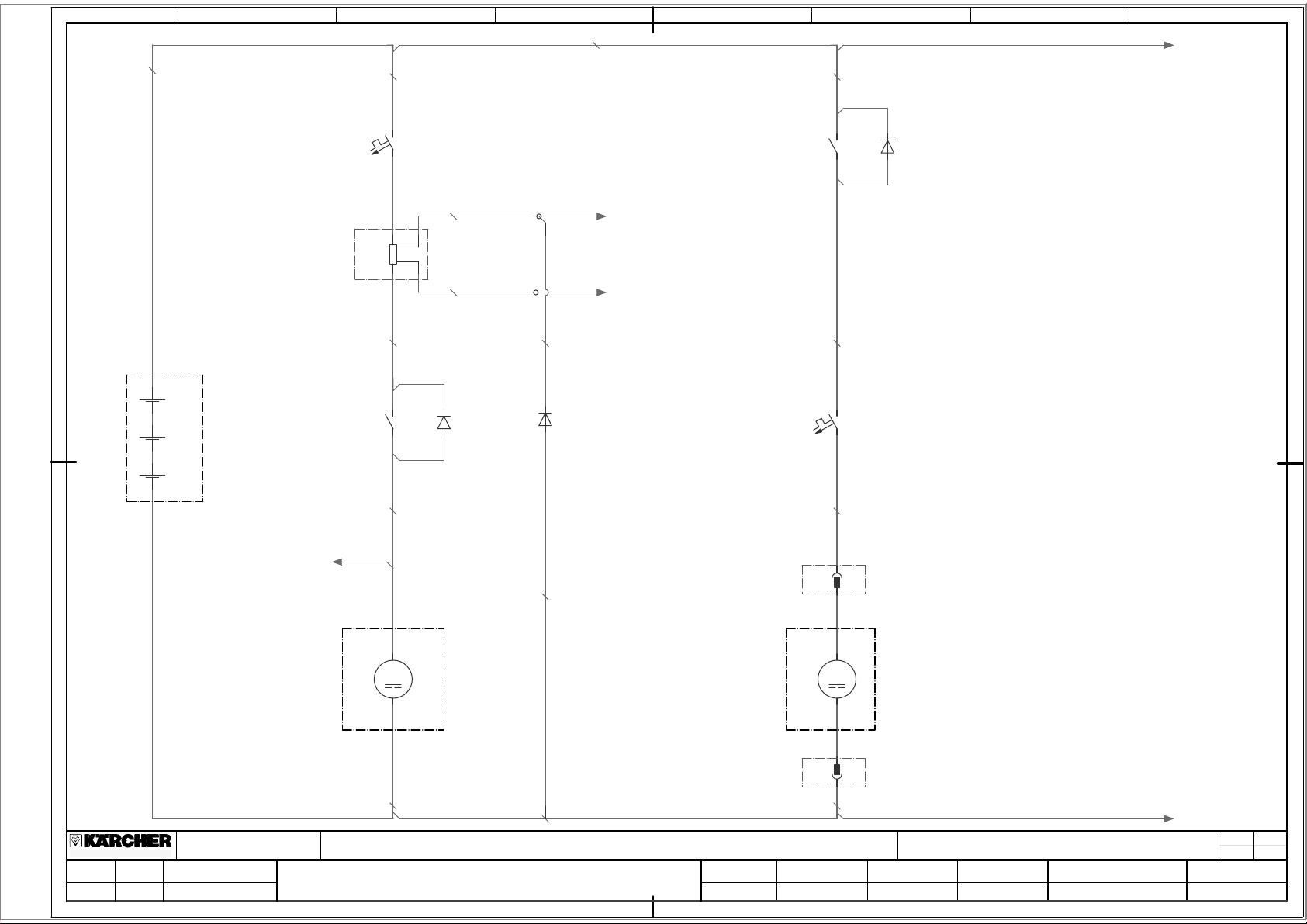

9$K
*
9$K
*
9$K
.
%
.
%
)
$
)
$
0
0
0
0
$
.
9
$
.
9
PPð
UW
PPð
UW
PPð
VZ
PPð
ZV
PPð
UW
PPð
UW
UW
;
;
3$&.$5'
3$&.$5'
5
6+817
PPð
UW
PPð
UW
PPð
VZ
PPð
VZ
PPð
VZ
;
PPð
VZ
$
.
9
PPð
VZ
;
8EDWW
%
*1'
%
2
%
3
%
6
%
*53+$51(66$60,*/266
%5
(5
$
67520/$8)3/$1&,5&8,7',$*5$0
%
*H]HLFKQHW
GUDZQE\
'DWXP
GDWH
*HSUXHIW
FKHFNHGE\
1RUPJHSUIW
VWGFKHFNHGE\
RI
VKHHW
%HQHQQXQJ
GHVFULSWLRQ
$QODJH
SODQW
$XIWUDJ
RUGHU
%ODWWEHQHQQXQJ
VKHHWGHVFULSWLRQ
2UW
ORFDWLRQ
0DWHULDO1U
PDWHULDOQR
'DWHL
ILOH

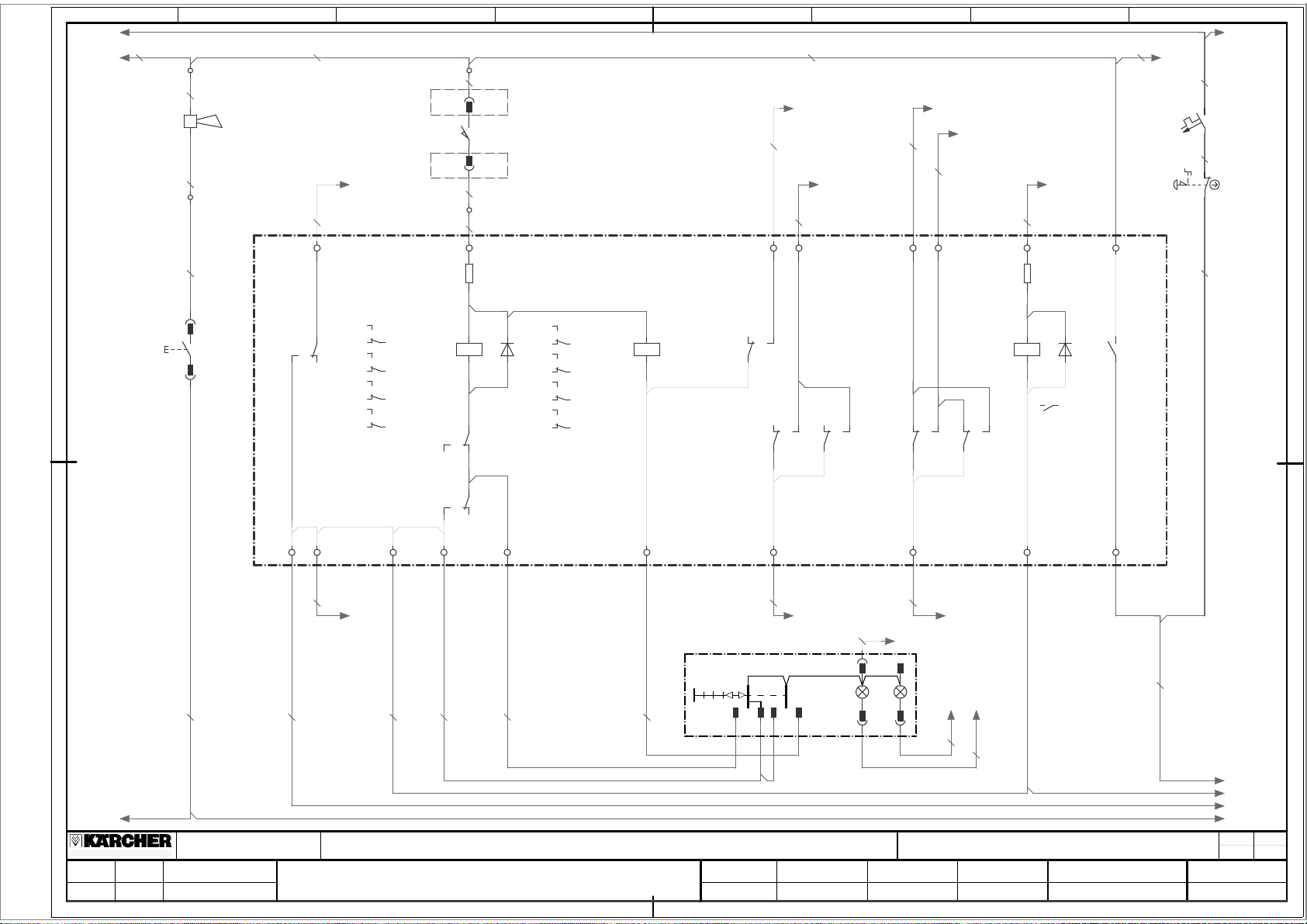

9'& 9'& 9'&
95
+
+
$
%
.
%
%
%
%
.
%
%
%
%
$
.
9
5
2KP
;
;
.
%
.
%
;
.
%
.
%
;
;
.
%
;
.
%
.
%
;
; ;
.
%
;
;
;/(' ;;
;
5
2KP
.
%
$
.
9
;
;
.
%
;
PPð
ZV
6
)
$
6
%
PPð
UW
PPð
ZV
PPð
ZV
;
PPð
EO
;
;
PPð
JQ
PPð
ZV
12
&
6
;
+
12
&
6
;
;
PPð
VZ
PPð
UW
PPð
UW
PPð
VZ
PPð
VZ
PPð
EO
PPð
VZ
PPð
UW
PPð
UW
PPð
ZV
PPð
JU
PPð
EO
PPð
VZ
PPð
YL
PPð
JQ
PPð
YL
PPð
YL
PPð
JQ
PPð
JH
PPð
RU
PPð
VZ
PPð
YL
PPð
RU
PPð
JH
'(876&+
'(876&+
PPð
UW
*1'
%
*1'
%
%
%
%
%
'
%
'
%
&
%
&
%
$
%
$9
%
8EDWW
%
8EDWW
%
-
%
.
%
,
%
*
%
+
%
(
%
)
%
'
%
5
%
*53+$51(66$60,*/266
%5
(5
$
67520/$8)3/$1&,5&8,7',$*5$0
%
*H]HLFKQHW
GUDZQE\
'DWXP
GDWH
*HSUXHIW
FKHFNHGE\
1RUPJHSUIW
VWGFKHFNHGE\
RI
VKHHW
%HQHQQXQJ
GHVFULSWLRQ
$QODJH
SODQW
$XIWUDJ
RUGHU
%ODWWEHQHQQXQJ
VKHHWGHVFULSWLRQ
2UW
ORFDWLRQ
0DWHULDO1U
PDWHULDOQR
'DWHL
ILOH

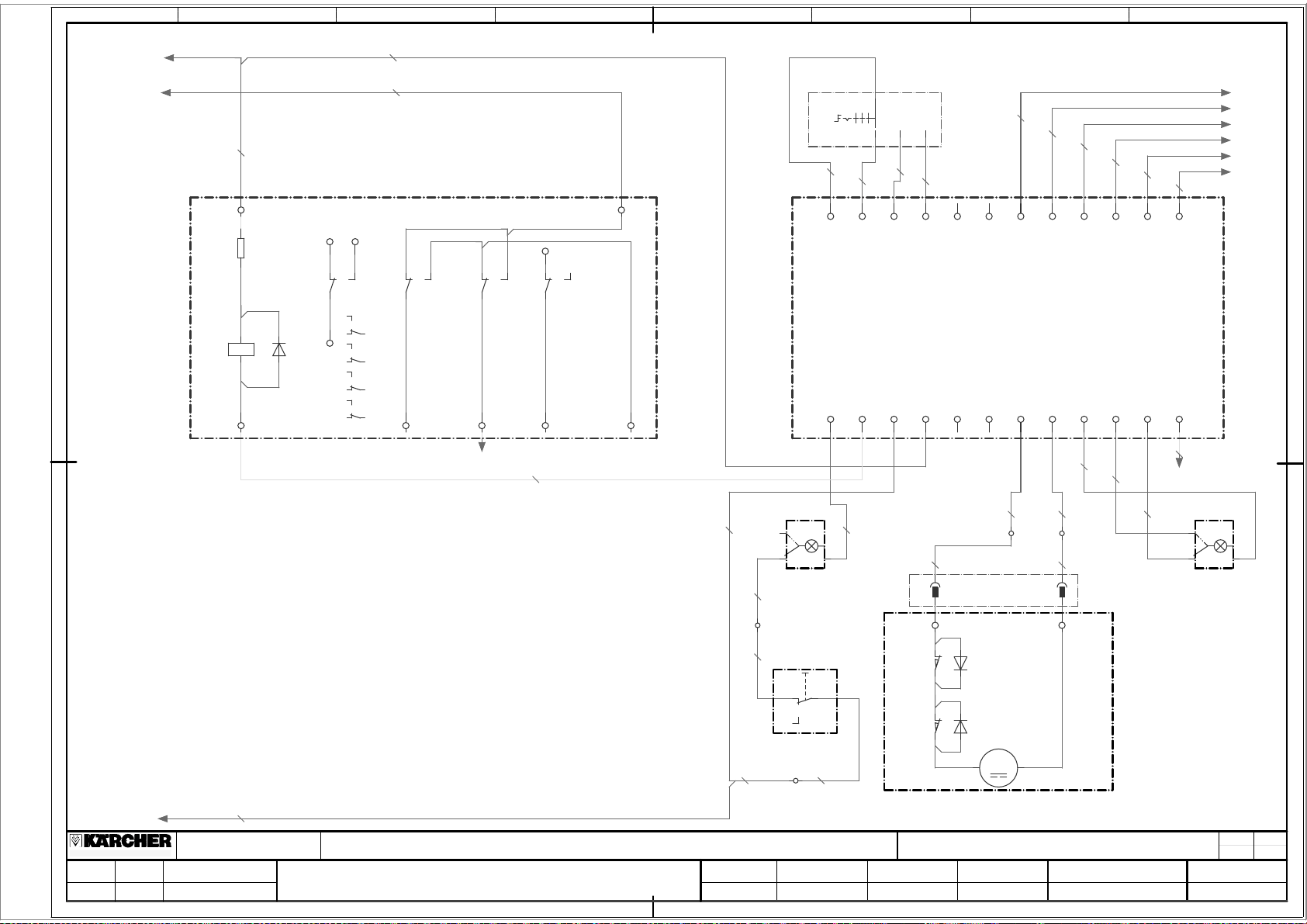

)XVHG%6XSSO\
2Q2II6ZLWFK
$X[LOODU\%UXVK
$X[LOODU\9DFXXP
63(('/,0,77,1*
327(17,20(7(5:,3(5
9'& 9'&
7+5277/(/2:
5()(5(1=
7+5277/(+,*+
5()(5(1=
7+5277/(:,3(5
L'5,9(
L
9'&$
.RKP
+
+
(
6
%
;
;
.
%
.
%
$
.
9
$
.
9
PPð
VZ
PPð
UW
PPð
EO
PPð
UV
PPð
EQ
PPð
JU
;
;
PPð
JU
PPð
UW
PPð
UW
PPð
VZ
12
&
6
*
0
6
$
%
;
%
0
0
;
%
[[
3/$7)5
.$
9
<
;
;
;
;
;
PPð
VZ
PPð
UW
PPð
VZ
PPð
VZ
PPð
RU
PPð
RU
PPð
RU
PPð
RU
PPð
EQ
;
;
;
;
;
PPð
UW
PPð
VZ
PPð
VZ
PPð
UW
PPð
UW
PPð
VZ
PPð
ZV
PPð
JQ
12
&
6
'(876&+
3$&.$5'
;
;
'(876&+
'(876&+
'(876&+
3
K
;
;
PPð
ZV
PPð
VZ
PPð
UW
PPð
JQ
PPð
UW
PPð
UW
PPð
EO
PPð
UW
PPð
VZ
; ;
; ;
,
%
8EDWW
%
+
%
(
%
)
%
*1'
%
*1'
%
.
%
6
%
*53+$51(66$60,*/266
%5
(5
$
67520/$8)3/$1&,5&8,7',$*5$0
%
*H]HLFKQHW
GUDZQE\
'DWXP
GDWH
*HSUXHIW
FKHFNHGE\
1RUPJHSUIW
VWGFKHFNHGE\
RI
VKHHW
%HQHQQXQJ
GHVFULSWLRQ
$QODJH
SODQW
$XIWUDJ
RUGHU
%ODWWEHQHQQXQJ
VKHHWGHVFULSWLRQ
2UW
ORFDWLRQ
0DWHULDO1U
PDWHULDOQR
'DWHL
ILOH

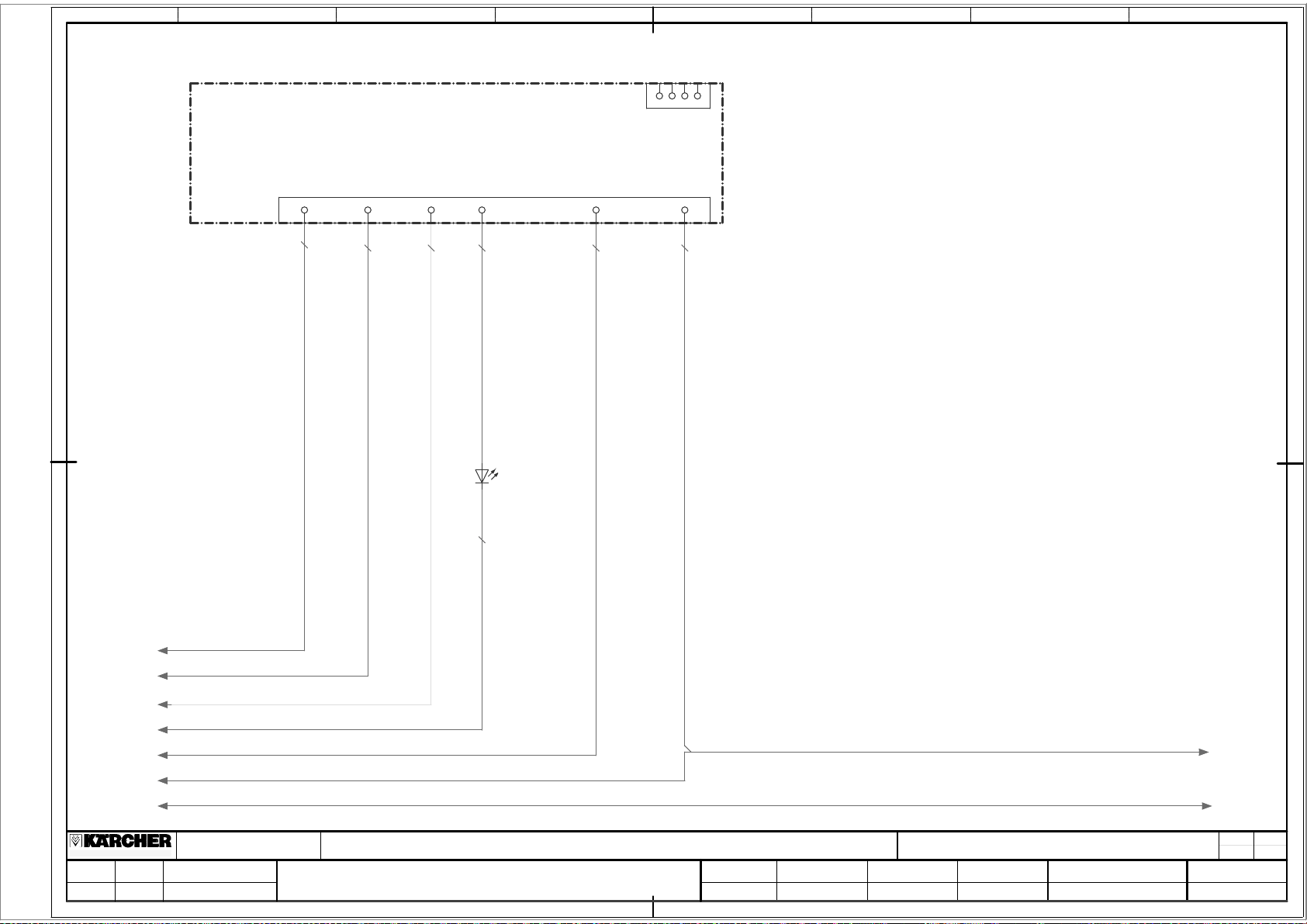

9
5(9(56(6:,7&+
67$786,1',&$725
,1+,%,7
,1+,%,7
6/22:)$676:,7&+
L'5,9(
L
9'&$
[
[
+
%$77
;
%
PPð
ZV
PPð
VZ
PPð
VZ
PPð
YL
PPð
VZ
PPð
JU
PPð
RU
$
%
;
%
$9
%
1
%
$
%
*
%
*1'
%
*1'
%
'
%
/
%
0
%
*53+$51(66$60,*/266
%5
(5
$
67520/$8)3/$1&,5&8,7',$*5$0
%
*H]HLFKQHW
GUDZQE\
'DWXP
GDWH
*HSUXHIW
FKHFNHGE\
1RUPJHSUIW
VWGFKHFNHGE\
RI
VKHHW
%HQHQQXQJ
GHVFULSWLRQ
$QODJH
SODQW
$XIWUDJ
RUGHU
%ODWWEHQHQQXQJ
VKHHWGHVFULSWLRQ
2UW
ORFDWLRQ
0DWHULDO1U
PDWHULDOQR
'DWHL
ILOH

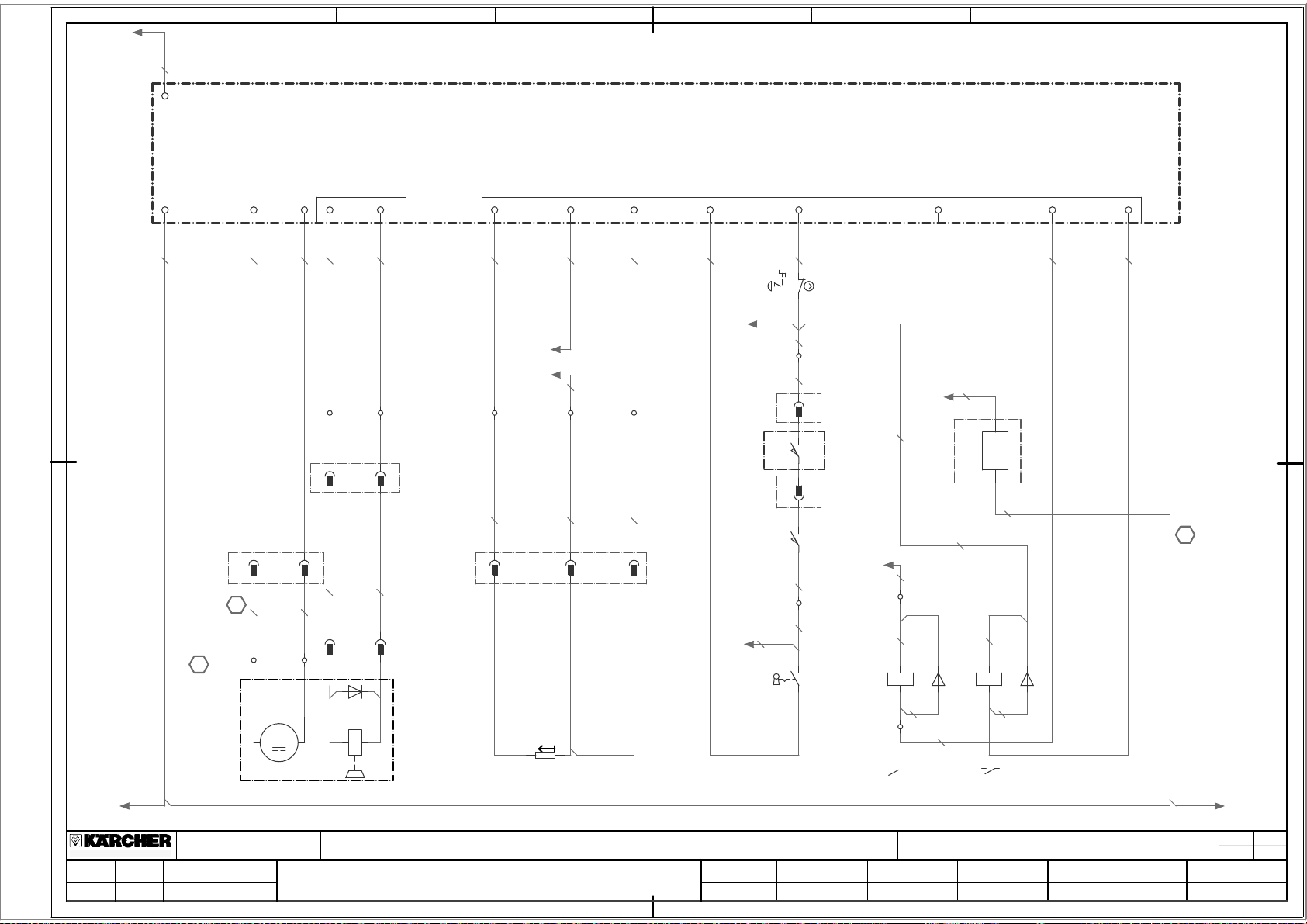

8%$77
9'&
0
0
.
%
%
%
%
PPð
VZ
;
;
PPð
UW
PPð
ZV
;
;
$
.
9XS
$
.
9GRZQ
UW JH
6XS
6GRZQ
$
.
9
$
%
;
5
2KP
;
.
%
.
%
.
%
;
.
%
'(876&+
$
*
5%
+
;
; ; ; ; ; ; ; ; ; ; ; ;
; ; ; ; ; ; ; ; ; ; ; ;
*
5%
+
&
% % %
4
1& &
12
6
;
;
PPð
UW
PPð
RU
PPð
UW
PPð
VZ
PPð
UW
PPð
ZV
PPð
JH
PPð
JQ
PPð
EQ?
PPð
VZ
PPð
JQ
PPð
UW
PPð
VZ
PPð
JQ
PPð
VZ
PPð
VZ
PPð
VZ
PPð
JU
PPð
RU
PPð
VZ
PPð
VZ
PPð
ZV
PPð
VZ
PPð
VZ
PPð
ZV
PPð
VZ
*1'
%
-
%
*
%
*
%
'
1
%
0
%
/
%
2
%
3
%
5
%
*53+$51(66$60,*/266
%5
(5
$
$8)%$8&216758&7,21
%
*H]HLFKQHW
GUDZQE\
'DWXP
GDWH
*HSUXHIW
FKHFNHGE\
1RUPJHSUIW
VWGFKHFNHGE\
RI
VKHHW
%HQHQQXQJ
GHVFULSWLRQ
$QODJH
SODQW
$XIWUDJ
RUGHU
%ODWWEHQHQQXQJ
VKHHWGHVFULSWLRQ
2UW
ORFDWLRQ
0DWHULDO1U
PDWHULDOQR
'DWHL
ILOH
; ; ;
$
+2856
) )
+
3
6
6
6
+
+
6
6/2:
)$67
$ $
)5217 %$&.
.
$
6
*1'
6
6
) )
6
++
;
+3
6
6
....
;
;
$
59 9 5
9
5
L'5,9(
L
9'&$
L'5,9(
L
9'&$
; ; ;
$GHUIDUEHQ:LUHFRORU
URWUW UHG
VFKZDU]VZ EODFN
ZHLZV ZKLWH
EUDXQEQ EURZQ
EODXEO EOXH
JHOEJH \HOORZ
RUDQJHRU RUDQJH
JUDXJU JUD\
JUQJQ JUHHQ
YLRSOHWWYL YLROHW
URVDUV SLQN
;
$
+
+
+
+
*53+$51(66$60,*/266
%5
(5
$
/(*(1'(/(*(1'
%
*H]HLFKQHW
GUDZQE\
'DWXP
GDWH
*HSUXHIW
FKHFNHGE\
1RUPJHSUIW
VWGFKHFNHGE\
RI
VKHHW
%HQHQQXQJ
GHVFULSWLRQ
$QODJH
SODQW
$XIWUDJ
RUGHU
%ODWWEHQHQQXQJ
VKHHWGHVFULSWLRQ
2UW
ORFDWLRQ
0DWHULDO1U
PDWHULDOQR
'DWHL
ILOH
$)$+567(8(581*
)6,&+(581*6$8720$76$8*785%,1(
)6,&+(581*6$8720$7)$+567(8(581*
.5(/$,6%h567(102725
.5(/$,66$8*785%,1(
.5(/$,6)$+575,&+781*925:
.5(/$,6)$+575,&+781*5h&.:
+0(/'(/$03()$+575,&+781*925:
+0(/'(/$03()$+575,&+781*5h&.:
++83(
+/('%$77
0%h567(102725
0027256$8*785%,1(
0)$+502725
0+8%02725%h567(1.23)6$8*/(,67(
6127$86
66&+/h66(/6&+$/7(5
67$67(5925:5h&.:
67$67(5+83(
60,&526&+$/7(53/$77)250
60,&526&+$/7(5+$8%(
6352*5$006&+$/7(5
.5(/$,6+8%02725
**%$77(5,(9$K
3%(75,(%66781'(1=b+/(5
999999999999',2'(
;./(00/(,67(
<0$*1(7%5(06(
$'5,9(&21752/
)&,5&8,7%5($.(59$&88002725
)&,5&8,7%5($.(5'5,9(&21752/
**%$77(5<9$K
+6,*1$//$036',5(&7,21)25:$5'
+6,*1$//$0365(9(56(',5(&7,21
++251
+/('%$77
.5(/$<65(9(56(',5(&7,21
.5(/$<6',5(&7,21)25:$5'
.5(/$<6%586+02725
.5(/$<69$&88002725
.5(/$<6$&78$725
0%586+02725
09$&88002725
075$&7,2102725
0/,1($5$&78$72502725%586+648(*((
6(0(5*(1&<6:,7&+
6.(<6:,7&+
60,&526:,7&+3/$7)250
6+251%87721
6%877215(9(56()25:$5'
60,&526:,7&+&29(5
6352*5$06:,7&+
3+28560(7(5
999999999999',2'(
;7(50,1$/%/2&.
;;;;'(876&+&211(&725
<%5$.(
*%'
.+$8375(/$,6 .5(/$<60$,1
$5(/$,63/$7,1( $5(/$<%2$5'
9839'2:1',2'(027250 9839'2:1',2'(027250
6%$*35(6(17 6%$*35(6(17
;;;3$&.$5'&211(&725
6&+$5*(56&+$5*(5
;;;;'(876&+&211(&725
;;;3$&.$5'&211(&725
$352&(6625 $352&(6625
;./(00/(,67( ;7(50,1$/%/2&.
+/(' +/('
+/(' +/('
56+81756+817
;)$67217(50,1$/6 ;)$67217(50,1$/6
;5,1*7(50,1$/6 ;5,1*7(50,1$/6
*53+$51(66$60,*/266
%5
(5
$
/(*(1'(/(*(1'
%
*H]HLFKQHW
GUDZQE\
'DWXP
GDWH
*HSUXHIW
FKHFNHGE\
1RUPJHSUIW
VWGFKHFNHGE\
RI
VKHHW
%HQHQQXQJ
GHVFULSWLRQ
$QODJH
SODQW
$XIWUDJ
RUGHU
%ODWWEHQHQQXQJ
VKHHWGHVFULSWLRQ
2UW
ORFDWLRQ
0DWHULDO1U
