Hisense HWFL1014V Washing Machine

User Manual - Transcript

• Page 3 - English - : The manufacturer reserves the right for any modifications on the product which might be deemed necessary or useful without informing about it in this IFU Before operating your new washing machine please read this instruction carefully and keep it for future reference If you have lost it accidentally ask customer service for e copy or hard copy Please make sure the socket is grounded securely the water source connection is reliable 4 This appliance is not to be used by persons including children with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved Children shall not play with the appliance Cleaning and user maintenance shall not be made by children without supervision Children should be supervised to ensure that they do not play with the appliance If the supply cord is damaged it must be replaced by the manufacturer its service agent or similarly qualified persons in order to avoid a hazard The new hosesets supplied with the appliance are to be used and that old hosesets should not be reused SAFETY INFORMATION

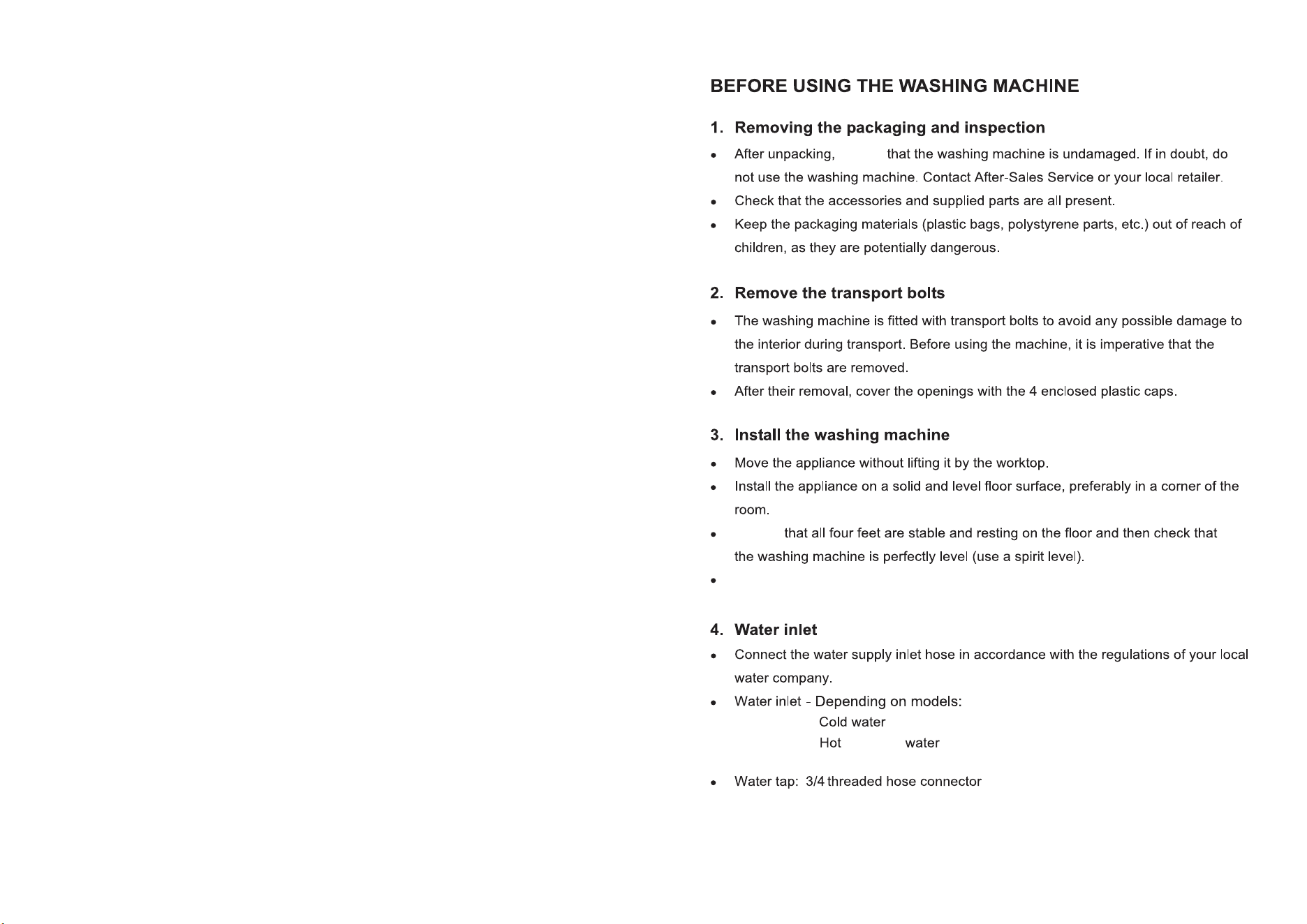

• Page 4 - English - : ensure Ensure Single inlet Dual inlet and cold only Ensure that the ventilation openings in the base of the washing machine if available on your model are not obstructed by a carpet or other material 2 3 For appliances with ventilation openings in the base that a carpet must not obstruct the openings Children of less than 3 years should be kept away unless continuously supervised The maximum permissible inlet water pressure 1 MPa for appliances intended to be connected to the water mains The minimum permissible inlet water pressure 01 MPa if this is necessary for the correct operation of the appliance The maximum washing capacity is 10 kg For private domestic use only This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops offices and other working environments farm houses by clients in hotels motels and other residential type environments bed and breakfast type environments areas for communal use in blocks of flats or in launderettes

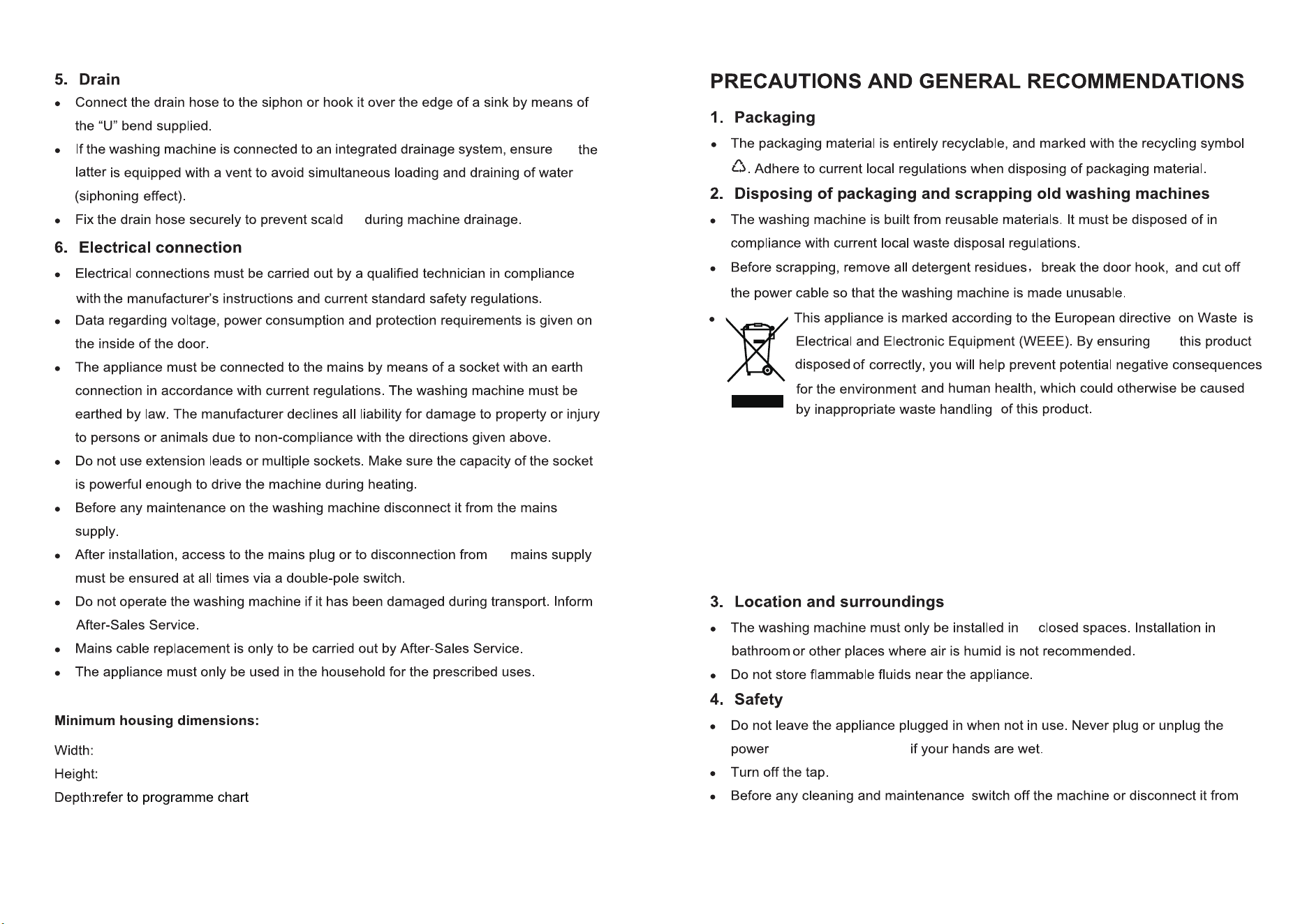

• Page 5 - English - : that the ing en the from the mains supply 615 mm 855 mm the mains The symbol on the product or on the documents accompanying the product indicates that this appliance may not be treated as household waste Instead it shall be handed over to the applicable collection point for there cyclingof electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal For more detailed information about treatment recovery and recycling of this product please contact your local city office your household waste disposal service or the shop where you purchased the product that

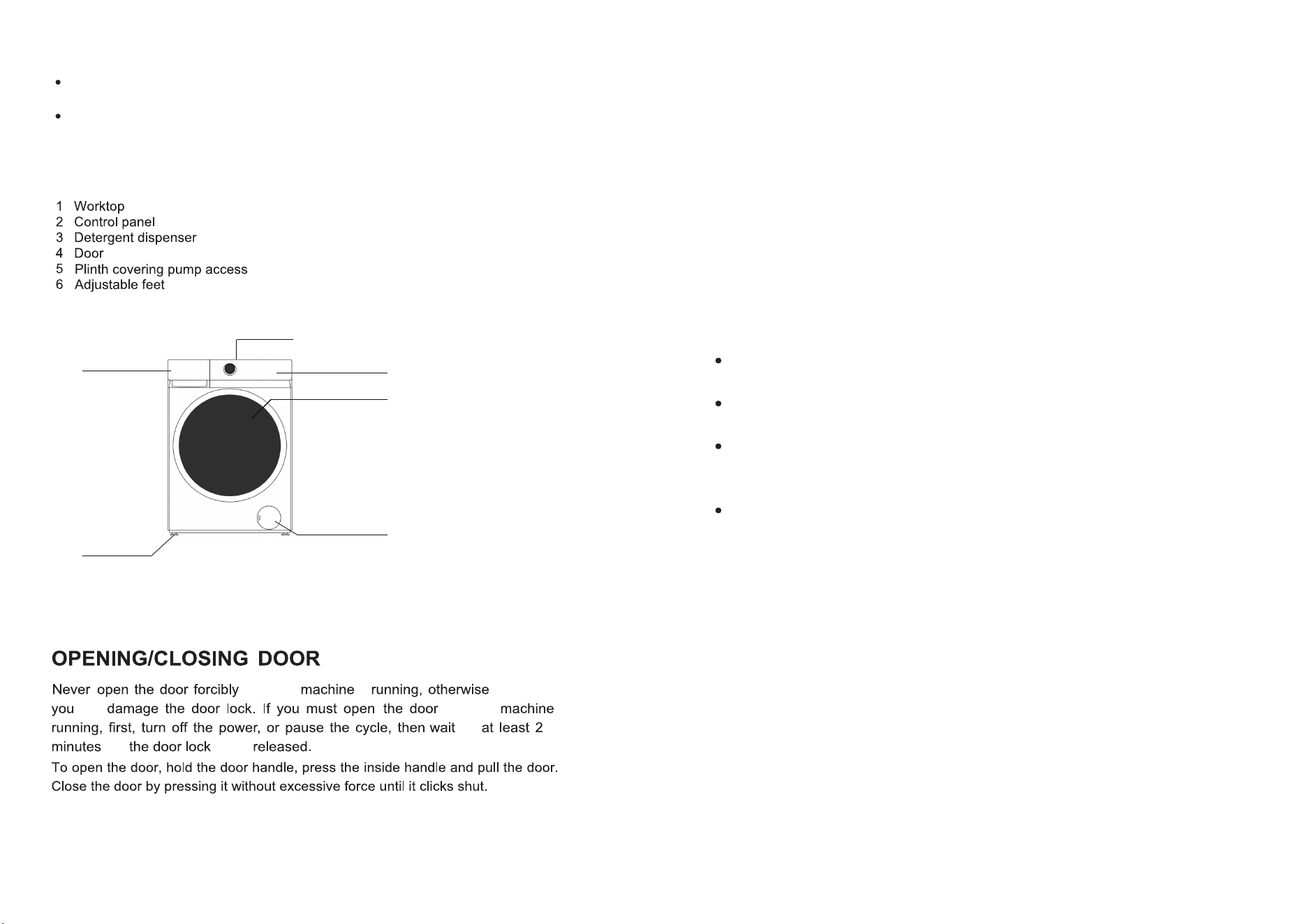

• Page 6 - English - : Control panel layout and appearance will depend on the model 6 7 Clean the outside of the washing machine with a damp cloth Do not use abrasive detergents Never open the door forcibly or use it as a step Sort the laundry according to Type of fabric care label symbol Cottons mixed fibres easy caresynthetics wool handwash items Colour Separate coloured and white items Wash new coloured articles separately Loading Wash items of different sizes in the same load to improve washing efficiency and distribution in the drum Delicates Wash small items eg nylon stockings belts etc and items with hooks eg bras in a cloth bag or pillow case with zip Always remove curtain rings or wash curtains with the rings inside a cotton bag 2 Empty all pockets Coins safety pins etc can damage your laundry as well as the appliance drum and tub 3 Fasteners Close zips and fasten buttons or hooks loose belts or ribbons should be tied together Stain removal Blood milk eggs etc are generally removed by the automatic enzyme phase of the programme To remove any residual water used during testing by the manufacturer we recommend that you carry out a short wash cycle without laundry 1 Open the tap 2 Close the door 3 Pour a little detergent about 30 ml into the middle detergent compartment 4 Select and start a short programme see separate quick reference guide BEFORE THE FIRST WASH CYCLE PREPARATION OF THE WASHING DESCRIPTION OF THE WASHING MACHINE while the while the is is can for for to be

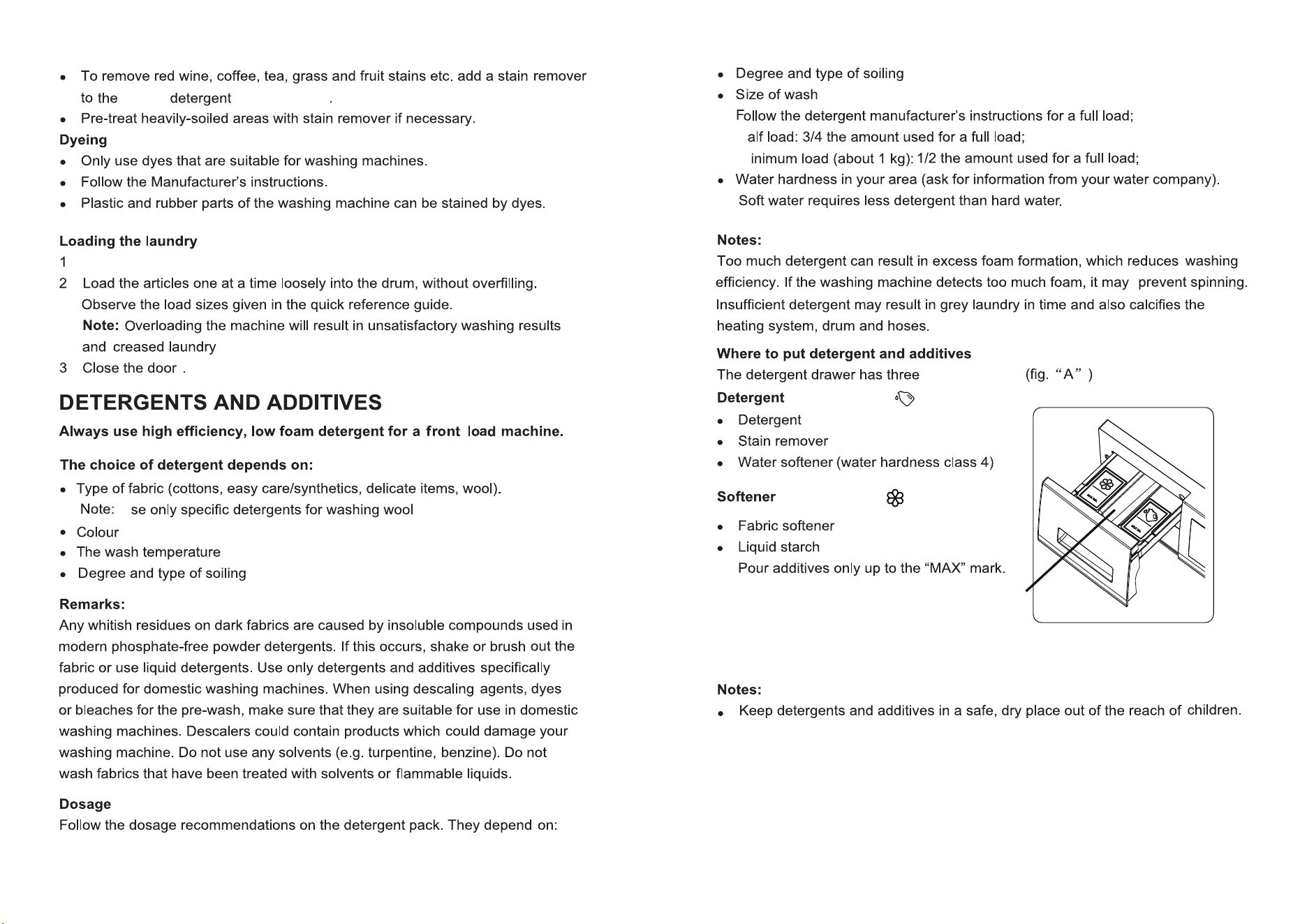

• Page 7 - English - : 8 9 U A Open the door Powder detergent compartmentMiddle When the auto dosing function is cancelled please place the detergent into this compartment compartment compartment compartments middle compartment H M

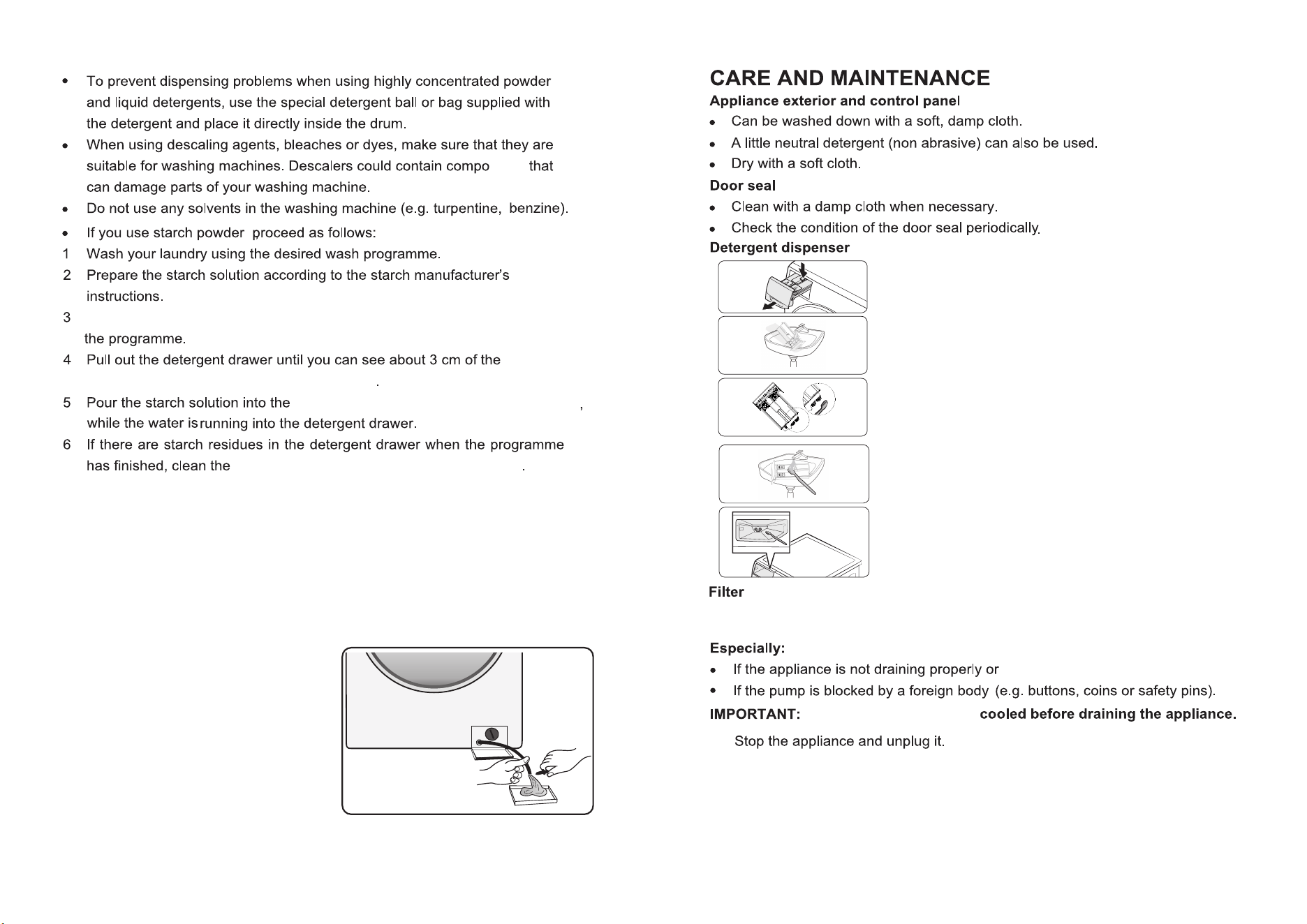

• Page 8 - English - : 10 11 unds Select the RinseSpin programmereduce the speed to 1000rpm and strat 2 Insert removal tool like slotted screwdriver into the small opening of bottom baffle press the bottom baffle downward with much strength and open it Before emptying the residual water switch the appliance off and unplug it fromthe mains socket Remove the plinthplace a container beneath it DRAINING RESIDUAL WATER depends on model 1 Pull out emergency drain pipe of machine 2 Put end of emergency drain pipe into a container 3 Rotate emergency drain pipe plug and remove it after it becomes loose 4 Until water runs off naturally 5 Reinstall emergency drain pipe plug 6 Fill detergent box with 1L water to check emergency drain pipeCheck if there is any leakage at connection of pipe plug 7 Put emergency drain pipe back if it fails to perform spin cycles Ensure that the water has We recommend that you check and clean the filter regularly at least two or three times a year While holding down the release lever on the inner of the drawer slide open the drawer and remove it from the machine Open the lids of both compartments add water and shake to loosenremove soap residue Repeat until clear Clean the cap valves of both compartments with a soft brush Clean the drawer components under running water using a soft brush Clean the drawer recess within the machine using a soft brush Make sure to clean the cap valves to prevent clogging Once cleaning is complete slide the drawer back into position ensuring it moves freely into its fully retracted position Powder detergent compartment Middle Powder detergent compartment Middle Powder detergent compartment Middle

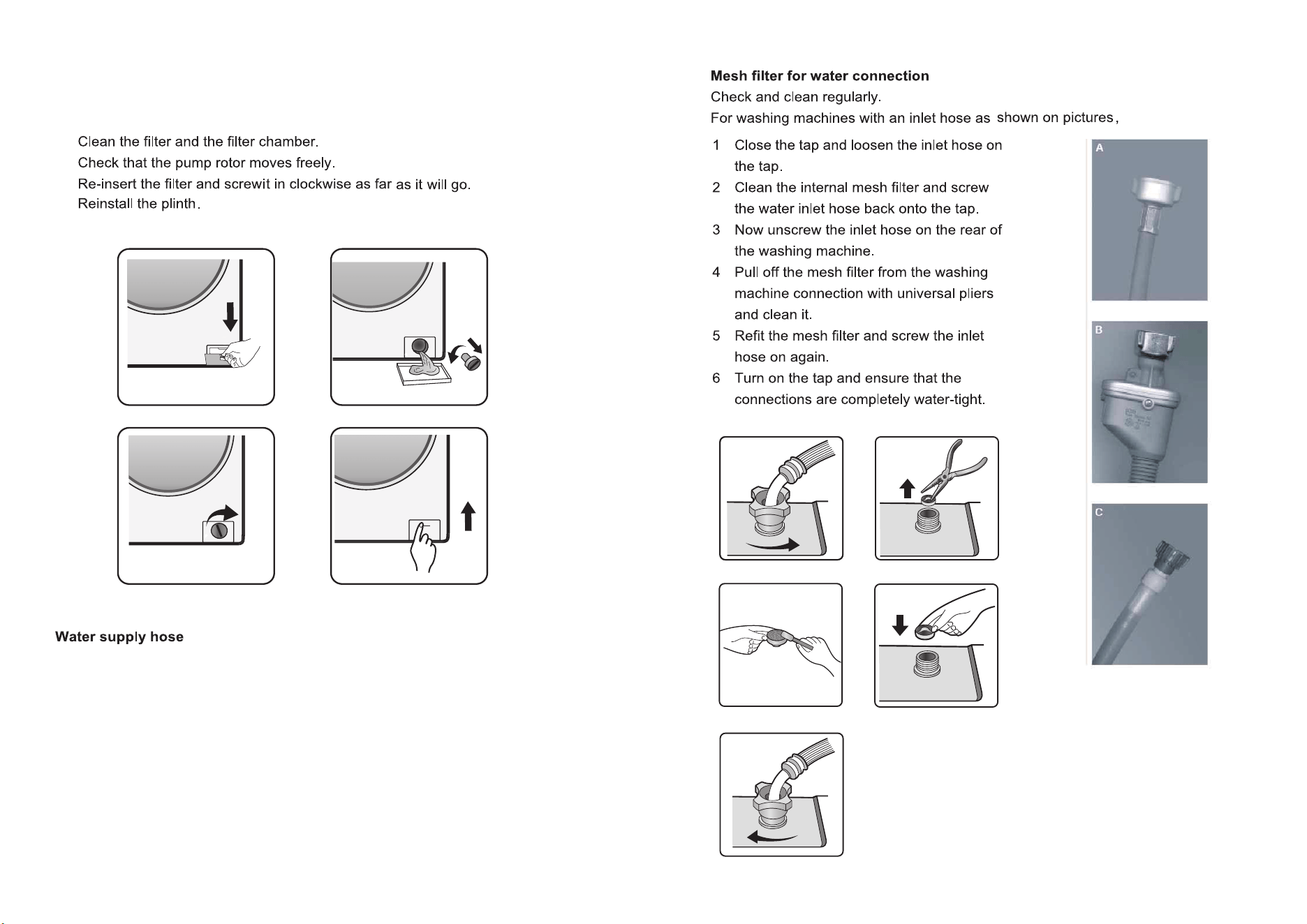

• Page 9 - English - : 12 13 3 Put a flat container under filter door and then drain with emergency drain pipe see draining residual water for specific operation methods Then loosen filter anticlockwise and completely unscrew and remove the filter Check the supply hose regularly for brittleness and cracks and replace it if necessary using a new hose of the same typeavailable from AfterSales Service or specialist dealer

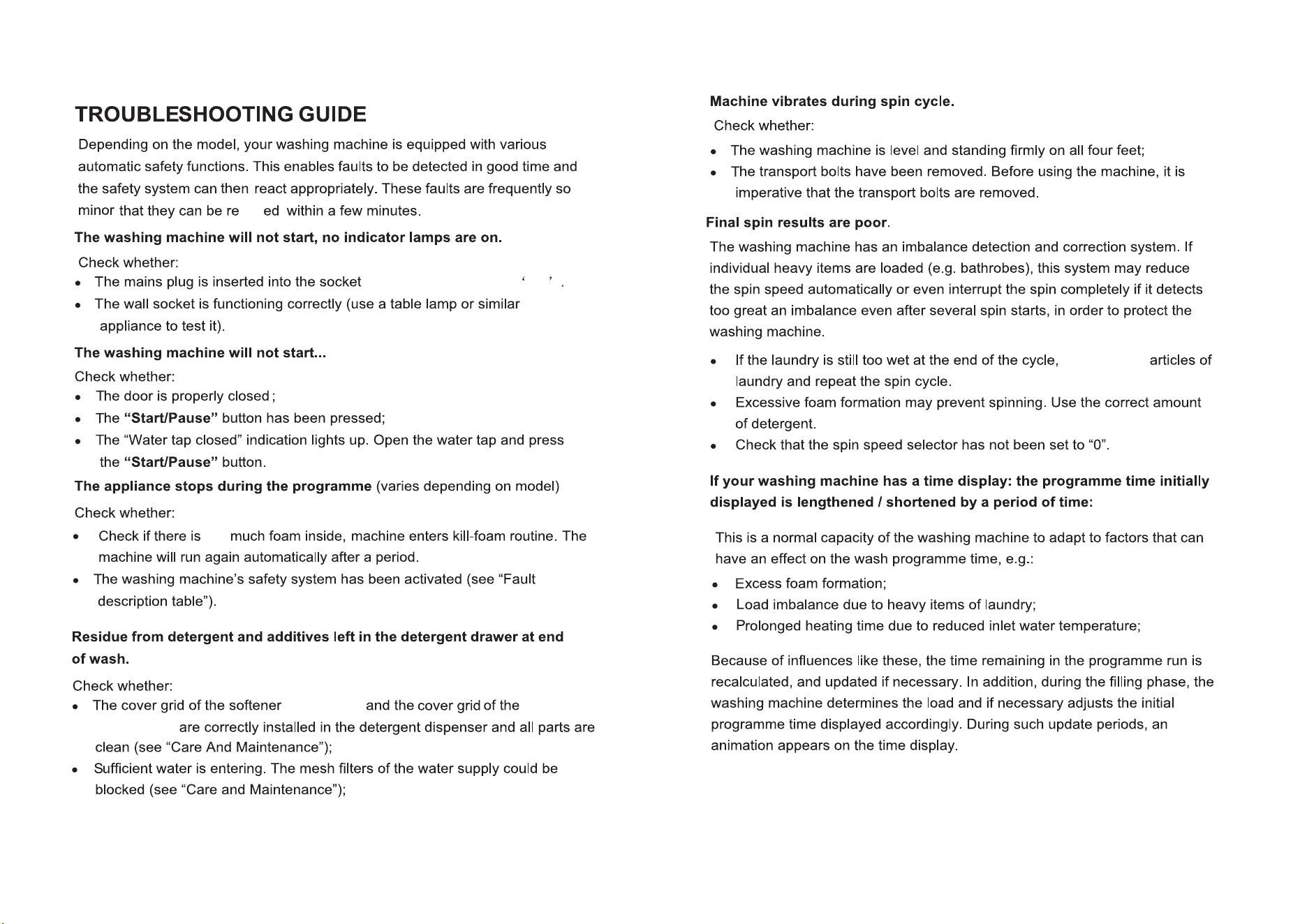

• Page 10: 14 15 solv and the power switched ON too remove some compartment detergent compartment

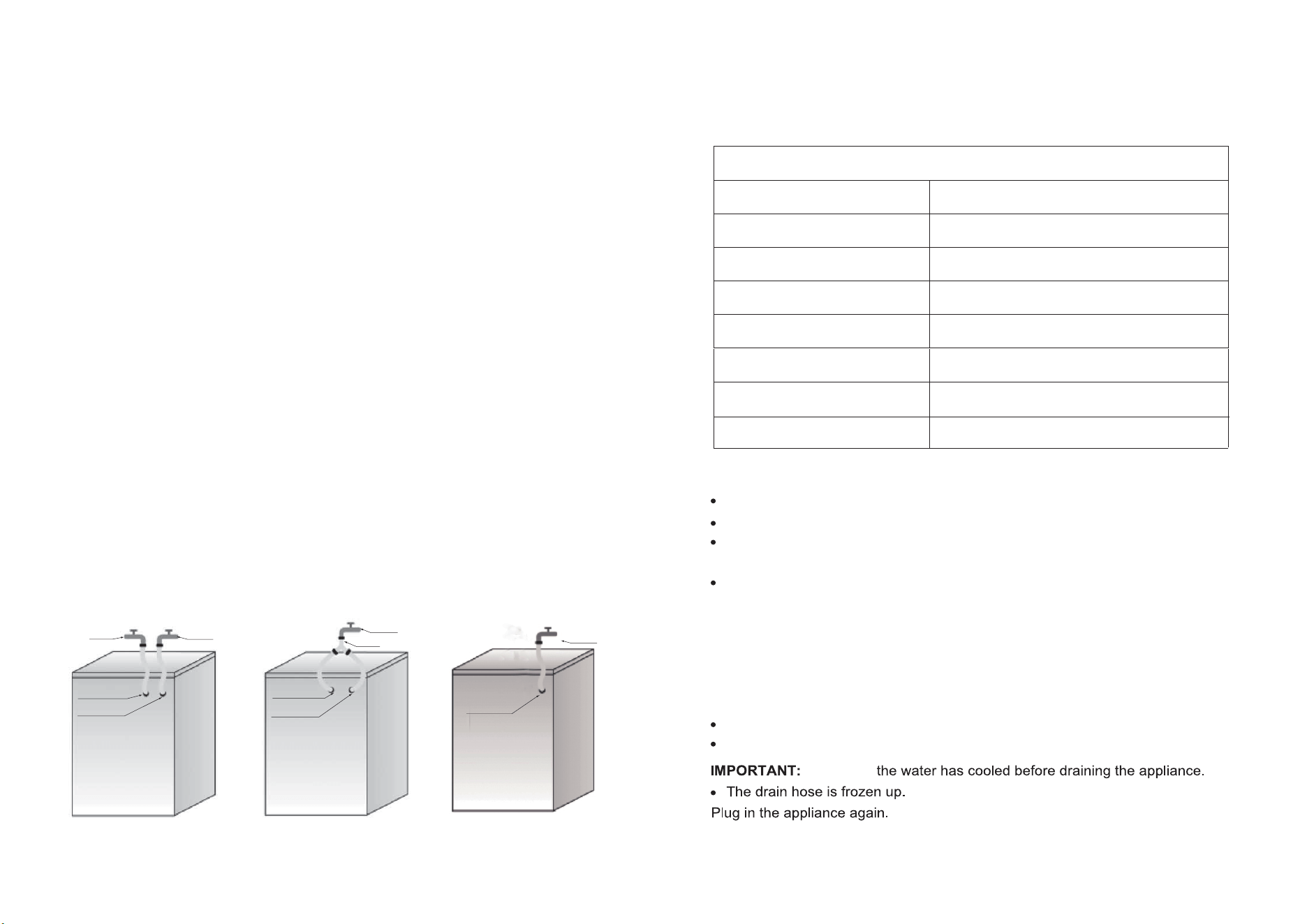

• Page 11 - English - : 16 17 If you wish to connect hot and cold water supply Fig1 1 Fix the red marked inlet hose to the hot water tap and to the inlet valve with the red filter on the rear side of machine 2 Fix the other inlet hose to the cold water tap and to the inlet valve with the blue filter on the rear side of the machine Make sure a The connections are tightly fixed b Do not invert their position for example cold fill into hot inlet valve and vice versa If you wish to connect only the cold fill follow the below instructions Fig 2 1 You will need a Ypiece connector This can be purchased from local hardware or plumbing supplier 2 Fix the Ypiece connector to the cold fill tap 3 Connect the two inlet valves present on the rear part of the machine to the Ypiece connector using the hoses provided Ensure that All connections are tightly fixed Do not allow children to operate crawl on be near or inside your washer Note that during the wash cycles the surface temperature of the porthole door may increase Close supervision of children is necessary when the appliance is used near children Hot Cold fill fault For Models with Dual Inlets Ensure that Fault Code List Displayed on Display Window Fault Description F01 Water inflow fault F03 Drainage fault Electronic module fault F13 Door lock fault F14 Door unlock fault F01 displayed on screen The machine is not fed with water or insufficient water Check Faucet is fully open and has enough water pressure Water inlet pipe is knotted or not Filtering net of water inlet pipe is blocked or not refer to maintenance and repair Water pipe is frozen or not Press StartPause key after fault is removed If fault occurs again please contact with aftersale service refer to aftersale service F03 displayed on screen The washer is not emptied The washer stops the program being executed Shut down the machine and disconnect power supply Check Drain pipe is knotted or not Filter in drain pump is blocked or not refer to the cleaning of filter in drain pump Unb Unbalance alarm Overflow or too much foam F24 else fault code F04F98 For Models with Single Inlet Fix the inlet hose to the cold water tap and to the inlet valve on the rear side of the machine as Fig 3 Fig1 Hot fill Red inlet valve Blue inlet valve Cold fill Red inlet valve Blue inlet valve Cold Y piece Fig2 Inlet valve Cold fill Fig3 fill Fault code The washer stops when the program is running The display window shows fault code F01F03 F13 F14 F24 else fault codes from F04 to F98 or Unb

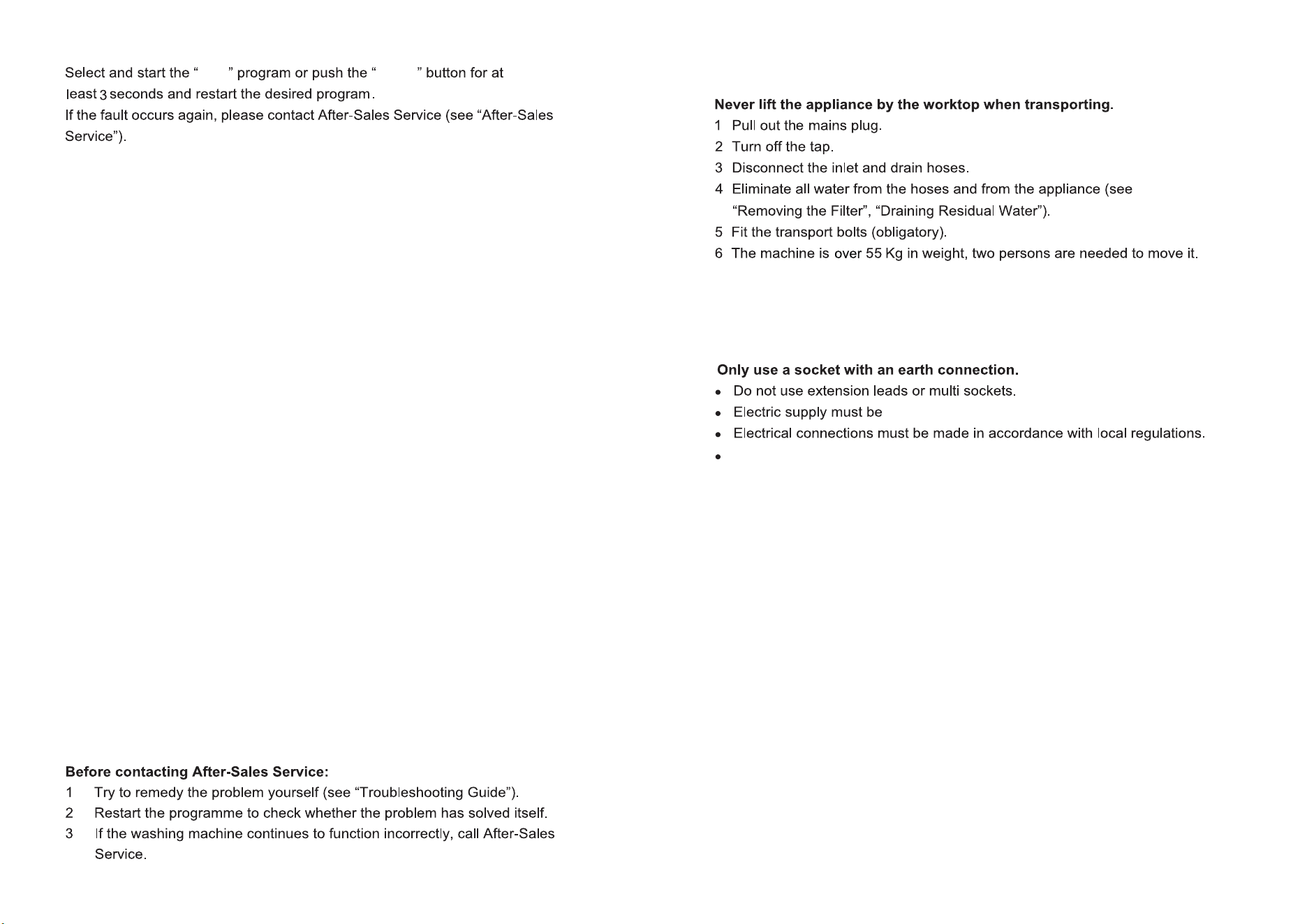

• Page 12 - English - : TRANSPORTHANDLING 18 19 adequate for the machines 10 A Current Rating The electrical power cable must be replaced exclusively by a licensed electrician ELECTRICAL CONNECTION Press the OnOff button for 2 seconds for shutdown open the door put in one or two towels and then select the spin program to dry again AFTERSALES SERVICE If fault code F13 is shown Door lock is abnormal Start program for 3 times to check whether the door is closed Open or close it again After fault is removed press StartPause key If fault occurs again disconnect power supply and contact with aftersale service If fault code F14 is shown Door open fault Action Press StartPause button The washing machine will try to open the door The alarm will not be removed until the door is unlocked Or press the OnOff button to restart the washing machine and the alarm will be removed If fault code F24 is shown Water level reaches overflow level Remove it by pressing StartPause button and drain away water Select and start required program If fault occurs again disconnect power supply and contact with aftersale service If else fault code F04 to F98 is shown Electronic module fails Press the Onoff button for 2 seconds to turn off the machine After fault is removed press Onoff button If fault occurs again disconnect power supply and contact with aftersale service If fault code Unb is shown Unbalance alarm shall be solved by the following methods 1Laundry winding Press the OnOff button for 2 seconds for shutdown open the door shake the clothes and put them back into the washing machine then select the spin program to dry again 2Too lightweighted laundry Spin Onoff
