• Page 3 - English - : 1 Important 1 Important This electronic users guide is intended for anyone who uses the Philips monitor Take time to read this user manual before you use your monitor It contains important information and notes regarding operating your monitor The Philips guarantee applies provided the product is handled properly for its intended use in accordance with its operating instructions and upon presentation of the original invoice or cash receipt indicating the date of purchase dealers name and model and production number of the product 11 Safety precautions and maintenance Warnings Use of controls adjustments or procedures other than those specified in this documentation may result in exposure to shock electrical hazards andor mechanical hazards Read and follow these instructions when connecting and using your computer monitor Excessive sound pressure from earphones and headphones can cause hearing loss Adjustment of the equalizer to maximum increases the earphones and headphones output voltage and therefore the sound pressure level Operation Please Keep the monitor out of direct sunlight very strong bright lights and away from any other heat source Lengthy exposure to this type of environment may result in discoloration and damage to the monitor Remove any object that could fall into ventilation holes or prevent proper cooling of the monitors electronics Do not block the ventilation holes on the cabinet When positioning the monitor make sure the power plug and outlet are easily accessible If turning off the monitor by detaching the power cable or DC power cord wait for 6 seconds before attaching the power cable or DC power cord for normal operation Please use approved power cord provided by Philips all the time If your power cord is missing please contact with your local service center Please refer to Service contact information listed in Important information manual Operate under the specified power supply Be sure to operate the monitor only with the specified power supply Use of an incorrect voltage will cause malfunction and may cause fire or electric shock Protect the cable Do not pull or bend the power cable and signal cable Do not place the monitor or any other heavy objects on the cables if damaged the cables may cause fire or electric shock Do not subject the monitor to severe vibration or high impact conditions during operation To avoid potential damage for example the panel peeling from the bezel ensure that the monitor does not tilt downward by more than 5 degrees If the 5 degree downward tilt angle maximum is exceeded the monitor damage will not be covered under warranty
• Page 4 - English - : 1 Important Do not knock or drop the monitor during operation or transportation Excessive usage of monitor can cause eye discomfort its better to take shorter breaks more often at your workstation than longer breaks and less often for example a 510 minute break after 5060minute continuous screen use is likely to be better than a 15minute break every two hours Try to keep your eyes from eye strain while using the screen for a constant period of time by Looking at something varying distances after a long period focusing on the screen Conscious Blinking often while you work Gently closing and rolling your eyes to relax Reposition your screen to ap propriate height and angle ac cording to your height Adjusting the brightness and contrast to appropriate level Adjusting the environment light ing similar to that of your screen brightness avoid the uorescent lighting and surfaces that dont reect too much light Seeing a doctor if your symp toms Maintenance To protect your monitor from possible damage do not put excessive pressure on the LCD panel When moving your monitor grasp the frame to lift do not lift the monitor by placing your hand or fingers on the LCD panel Unplug the monitor if you are not going to use it for an extensive period of time Unplug the monitor if you need to clean it with a slightly damp cloth The screen may be wiped with a dry cloth when the power is off However never use organic solvent such as alcohol or ammoniabased liquids to clean your monitor To avoid the risk of shock or permanent damage to the set do not expose the monitor to dust rain water or excessive moisture environment If your monitor gets wet wipe it with dry cloth as soon as possible If foreign substance or water gets in your monitor please turn the power off immediately and disconnect the power cord Then remove the foreign substance or water and send it to the maintenance center Do not store or use the monitor in locations exposed to heat direct sunlight or extreme cold In order to maintain the best performance of your monitor and use it for a longer lifetime please use the monitor in a location that falls within the following temperature and humidity ranges Temperature 040C 32104F Humidity 2080 RH Important information for Burnin Ghost image Always activate a moving screen saver program when you leave your monitor unattended Always activate a periodic screen refresh application if your monitor will display unchanging static content Uninterrupted display of still or static images over an extended period may cause burnin also known as afterimaging or ghost imaging on your screen
• Page 5 - English - : 1 Important Burnin afterimaging or ghost imaging is a wellknown phenomenon in LCD panel technology In most cases the burnin or afterimaging or ghost imaging will disappear gradually over a period of time after the power has been switched off Warning Failure to activate a screen saver or a periodic screen refresh application may result in severe burnin or after image or ghost image symptoms that will not disappear and cannot be repaired The damage mentioned above is not covered under your warranty Service The casing cover should be opened only by qualified service personnel If there is any need for any document for repair or integration please contact with your local service center Please refer to Service contact information listed in Important information manual For transportation information please refer to Technical Specifications Do not leave your monitor in a car trunk under direct sun light Note Consult a service technician if the monitor does not operate normally or you are not sure what procedure to take when the operating instructions given in this manual have been followed 12 Notational Descriptions The following subsections describe notational conventions used in this document Notes Cautions and Warnings Throughout this guide blocks of text may be accompanied by an icon and printed in bold or italic type These blocks contain notes cautions or warnings They are used as follows Note This icon indicates important information and tips that help you make better use of your computer system Caution This icon indicates information that tells you how to avoid either potential damage to hardware or loss of data Warning This icon indicates the potential for bodily harm and tells you how to avoid the problem Some warnings may appear in alternate formats and may not be accompanied by an icon In such cases the specific presentation of the warning is mandated by the relevant regulatory authority
• Page 6 - English - : 1 Important 13 Disposal of product and packing material Waste Electrical and Electronic EquipmentWEEE This marking on the product or on its packaging illustrates that under European Directive 201219EU governing used electrical and electronic appliances this product may not be disposed of with normal household waste You are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection To determine the locations for dropping off such waste electrical and electronic contact your local government office the waste disposal organization that serves your household or the store at which you purchased the product Your new monitor contains materials that can be recycled and reused Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of All redundant packing material has been omitted We have done our utmost to make the packaging easily separable into mono materials Please find out about the local regulations on how to dispose of your old monitor and packing from your sales representative Taking backRecycling Information for Customers Philips establishes technically and economically viable objectives to optimize the environmental performance of the organizations product service and activities From the planning design and production stages Philips emphasizes the important of making products that can easily be recycled At Philips end oflife management primarily entails participation in national takeback initiatives and recycling programs whenever possible preferably in cooperation with competitors which recycle all materials products and related packaging material in accordance with all Environmental Laws and taking back program with the contractor company Your display is manufactured with high quality materials and components which can be recycled and reused To learn more about our recycling program please visit httpwwwphilipscomawabout sustainabilityhtml
• Page 7 - English - : 2 Setting up the monitor 2 Setting up the monitor 21 Installation Package contents VGA DP Power Audio HDMI USB mini DP 272P CD K o n i n k l i j k e P h i l i p s N V A l l r i g h t s r e s e r v e d U n a u t h o r i z e d d u p l i c a t i o n i s a v i o l a t i o n o f a p p l i c a b l e l a w s M a d e a n d p r i n t e d i n C h i n a V e r s i o n This product was manufactured and brought to the market by or on behalf of Top Victory Investments Ltd or one of its aliates Top Victory Investments Ltd is the warrantor in relation to this product Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips NV used under license Contents Monitor drivers Users Manual Users Manual wwwphilipscomwelcome 使用产品前请阅读使用说明 保留备用 Monitor Register your product and get support at wwwphilipscomwelcome Quick Start 272P7 Brilliance Different according to region Install the base 1 Place the monitor face down on a smooth surface Pay attention not to scratch or damage the screen 2 Hold the stand with both hands 1 Gently attach the stand to the VESA mount area until the latch locks the stand 2 Gently attach the base to the stand 3 Use your fingers to tighten the screw located at the bottom of the base and secure the base to the stand tightly Warnings

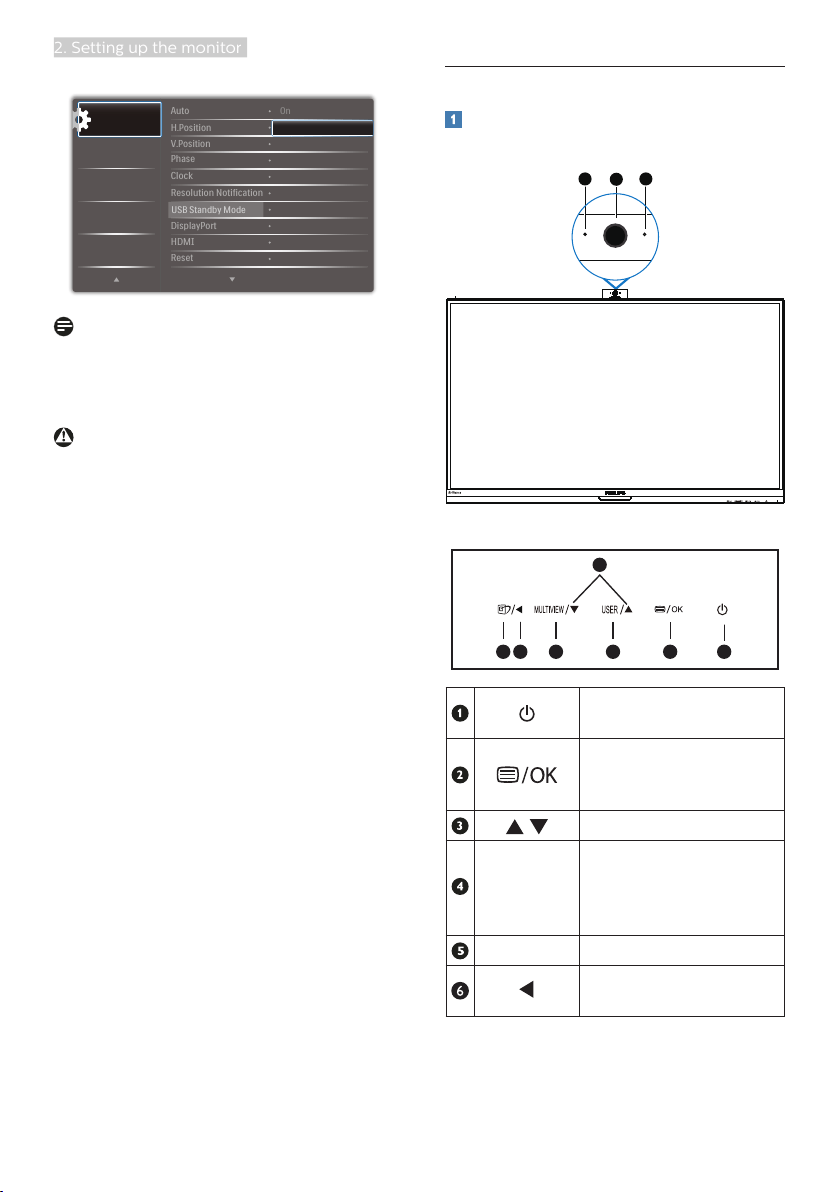

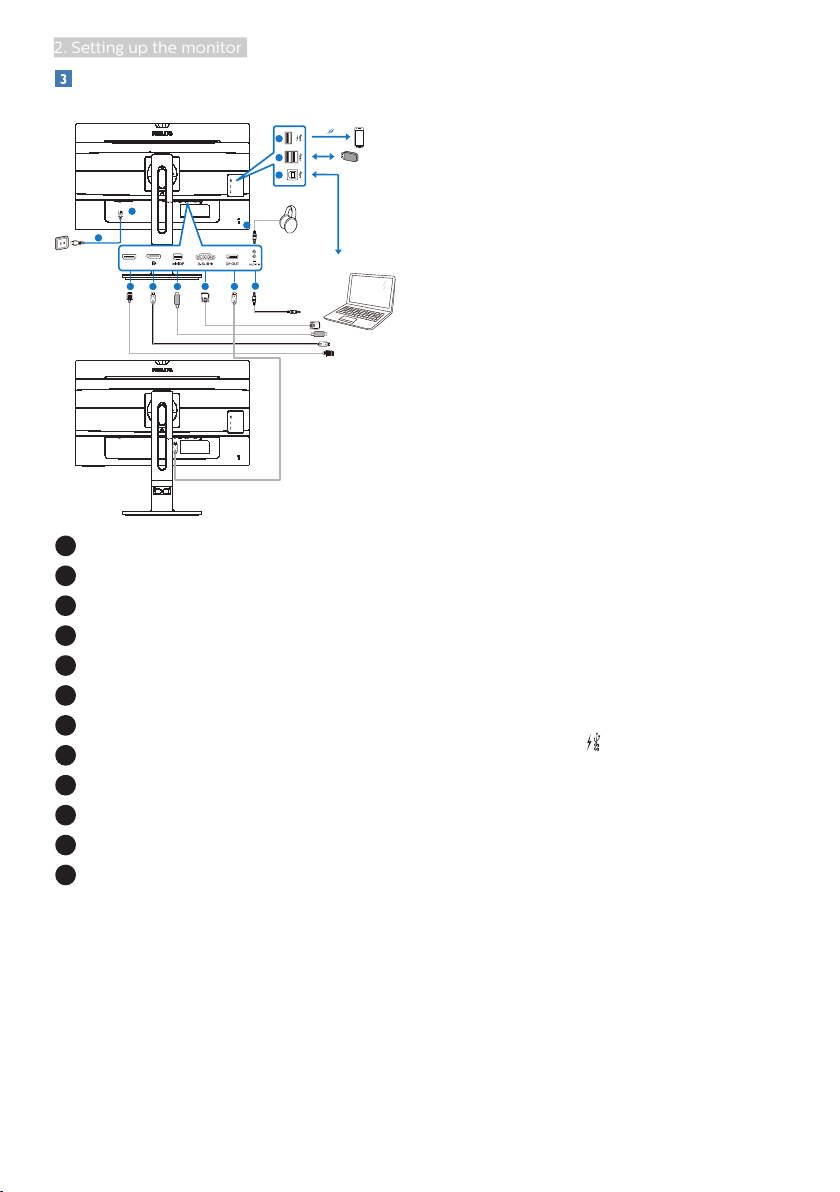

• Page 8 - English - : 2 Setting up the monitor Connecting to your PC MHLHDMI 3 4 5 USB Fast Charger AC power input Power Switch MHLHDMI input Display port input mini Display port input VGA input DisplayPort output Audio input Earphone jack USB upstream USB downstream USB fast chargerUSB downstream Kensington antitheft lock Connect to PC 1 Connect the power cord to the back of the monitor firmly 2 Turn off your computer and unplug its power cable 3 Connect the monitor signal cable to the video connector on the back of your computer 4 Plug the power cord of your computer and your monitor into a nearby outlet 5 Turn on your computer and monitor If the monitor displays an image installation is complete USB hub To comply with International energy standards the USB hubports of this display are disabled during Standby and Power Off modes Connected USB devices will not work in this state To permanently put the USB function in ON state please go to OSD Menu then select USB standby mode and switch it to ON state USB charging This display has USB ports capable of standard power output including some with USB Charging function identifiable with power icon You can use these ports to charge your Smart phone or power your external HDD for example The display must be powered ON at all times to be able to use this function Some select Philips displays may not Power or Charge your device when it enters to SleepStandby mode White power LED blinking In that case please enter to OSD Menu and select USB Standby Mode then turn the function to ON mode defaultOFF This will then keep the USB power and charging functions active even when the
• Page 9 - English - : 2 Setting up the monitor monitor is in sleepstandby mode Note If you turn off your monitor via the power switch at any given time all the USB ports will power OFF Warning USB 24Ghz wireless devices such as wireless mouse keyboard and headphones maybe have interference by the highspeed signal of USB 30 devices which may result in a decreased efficiency of the radio transmission Should this happen please try the following methods to help reduce the effects of interference Try to keep USB20 receivers away from USB30 connection port Use a standard USB extension cable or USB hub to increase the space between your wireless receiver and the USB30 connection port 22 Operating the monitor Description of the control buttons 272P Switch monitors power ON and OFF Access the OSD menu Confirm the OSD adjustment Adjust the OSD menu USER User preference key Customize your own preference function from OSD to become the user key MULTIVIEW PIPPBPOffSwap Return to previous OSD level
• Page 10 - English - : 2 Setting up the monitor SmartImage hot key There are 8 modes to select Office Photo Movie Game Economy LowBlue ModeSmartUniformity Off Webcam activity light 20 Megapixel Webcam Microphone Description of the On Screen Display What is OnScreen Display OSD OnScreen Display OSD is a feature in all Philips LCD monitors It allows an end user to adjust screen performance or select functions of the monitors directly through an onscreen instruction window A user friendly on screen display interface is shown as below Basic and simple instruction on the control keys In the OSD shown above you can press buttons at the front bezel of the monitor to move the cursor and press OK button to confirm the choice or change The OSD Menu Below is an overall view of the structure of the OnScreen Display You can use this as a reference when you want to work your way around the different adjustments later on Note If this display has quotDPSquot for ECO design the default setting is quotONquot mode it makes the screen looks slightly dim for optimum brightness enter to the OSD to set quotDPSquot to quotOFFquot mode
• Page 11 - English - : 2 Setting up the monitor OSD Settings Setup Language Color Audio Audio In MHLHDMI DisplayPort Mini DP Horizontal Vertical Transparency OSD Time Out Auto VPosition Phase Clock Resolution Notication HDMI English Deutsch Español Ελληνική Français Italiano Maryar Nederlands Português Português do Brasil Polski Русский Svenska Suomi Türkçe Čeština Українська 简体中文 繁體中文日本語한국어 Color Temperature sRGB User Dene USB Standby Mode HPosition StandAlone User Key Audio Source Volume Input 0100 0100 O 1 2 3 4 5s 10s 20s 30s 60s On O On O 14 20 0100 0100 0100 5000K 6500K 7500K 8200K 9300K 11500K Red 0100 Green 0100 Blue 0100 0100 0100 On O On O Volume Audio Source Mute Displayport 11 12 Picture Input LightSensor Picture Format Brightness Contrast VGA MHLHDMI Mini DP SmartResponse SmartContrast Gamma DPS available for selective models Pixel Orbiting DisplayPort On O Wide Screen 43 11 0100 0100 O Fast Faster Fastest On O 18 20 22 24 26 On O On O Over Scan On O Sharpness 0100 LowBlue Mode On O 1 2 3 Main menu Sub menu PowerSensor On O 0 1 2 3 4 PIPPBP PIP PBP Mode PIP PBP Input PIP Size Swap O PIP PBP VGA MHLHDMI DisplayPort Mini DP Small Middle Large PIP Position TopRight TopLeft BottomRight BottomLeft Reset Information Yes No
• Page 12 - English - : 2 Setting up the monitor Resolution notification This monitor is designed for optimal performance at its native resolution 3840 2160 60 Hz When the monitor is powered on at a different resolution an alert is displayed on screen Use 3840 2160 60 Hz for best results Display of the native resolution alert can be switched off from Setup in the OSD On Screen Display menu Physical Function Tilt Swivel Height adjustment 150mm Pivot 90 0 Warning To avoid potential screen damage such as panel peeling ensure that the monitor does not tilt downward by more than 5 degrees Do not press the screen while adjusting the angle of the monitor Grasp only the bezel

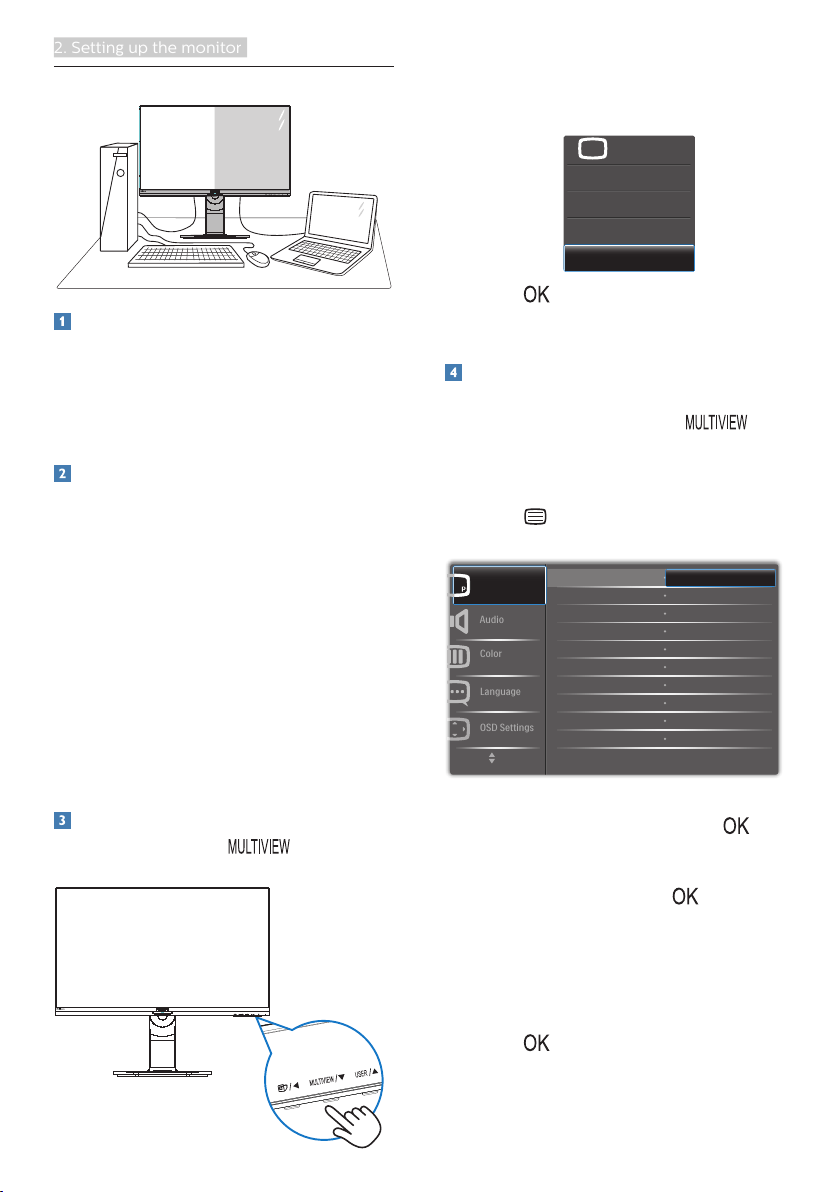

• Page 13 - English - : 2 Setting up the monitor 23 MultiView What is it Multiview enables active dual connect and view so that you can work with multiple devices like PC and Notebook sidebyside simultaneously making complex multitasking work a breeze Why do I need it With the ultra high resolution Philips MultiView display you can experience a world of connectivity in a comfortable way in the office or at home With this display you can conveniently enjoy multiple content sources at one screen For example You may want to keep an eye on the live news video feed with audio in the small window while working on your latest blog or you may want to edit an Excel file from your Ultrabook while logged into secured company intranet to access files from a desktop How to enable MultiView by hotkey 1 Press the hotkey directly on the front bezel 2 The MultiView selection menu appears Press or button to select 3 Press button to confirm your selection and then exit automatically How to enable MultiView by OSD menu Besides pressing the hotkey directly on the front bezel the MultiView function can also be selected in OSD menu 1 Press button on the front bezel to enter OSD Menu Screen 2 Press or button to select main menu PIP PBP then press button 3 Press or button to select PIP PBP Mode then press button 4 Press or button to select PIP or PBP 5 Now you can move backward to set the PIP PBP Input PIP Size PIP Position or Swap 6 Press button to confirm your selection
• Page 14 - English - : 2 Setting up the monitor MultiView in OSD menu PIP PBP Mode There are two modes for MultiView PIP and PBP PIP Picture in Picture Open up a subwindow of another signal source B A main When the sub source is not detected B A main PBP Picture by Picture Open up a subwindow sidebyside of another signal source A main B When the sub source is not detected A main B Note The black strip shows on the top and the bottom of the screen for the correct aspect ratio when in the PBP mode If you expect to see full screen side by side adjust your devices resolutions as pop up attention resolution you will able to see 2 devices source screen project to this display side by side without black strips Note the analog signal is not support this full screen in PBP mode PIP PBP Input There are four different video input to choose as the sub display source VGA MHL HDMI DisplayPort and Mini DP Please refer below table for compatibility of mainsub input source SUB SOURCE POSSIBILITY xl Inputs VGA MHL HDMI Display Port Mini DP MAIN SOURCE xl VGA MHLHDMI DisplayPort Mini DP PIP Size When PIP is activated there are three subwindow sizes to choose Small Middle Large B A main Small Middle Large PIP Position When PIP is activated there are four subwindow positions to choose TopLeft TopRight B A main B A main BottomLeft BottomRight B A main A main B Swap The main picture source and the sub picture source swapped on the display Swap A and B source in PIP mode B A main B main A
• Page 15 - English - : 2 Setting up the monitor Swap A and B source in PBP mode A main B B main A Off Stop MultiView function A main Note When you do the SWAP function the video and its audio source will swap at the same time

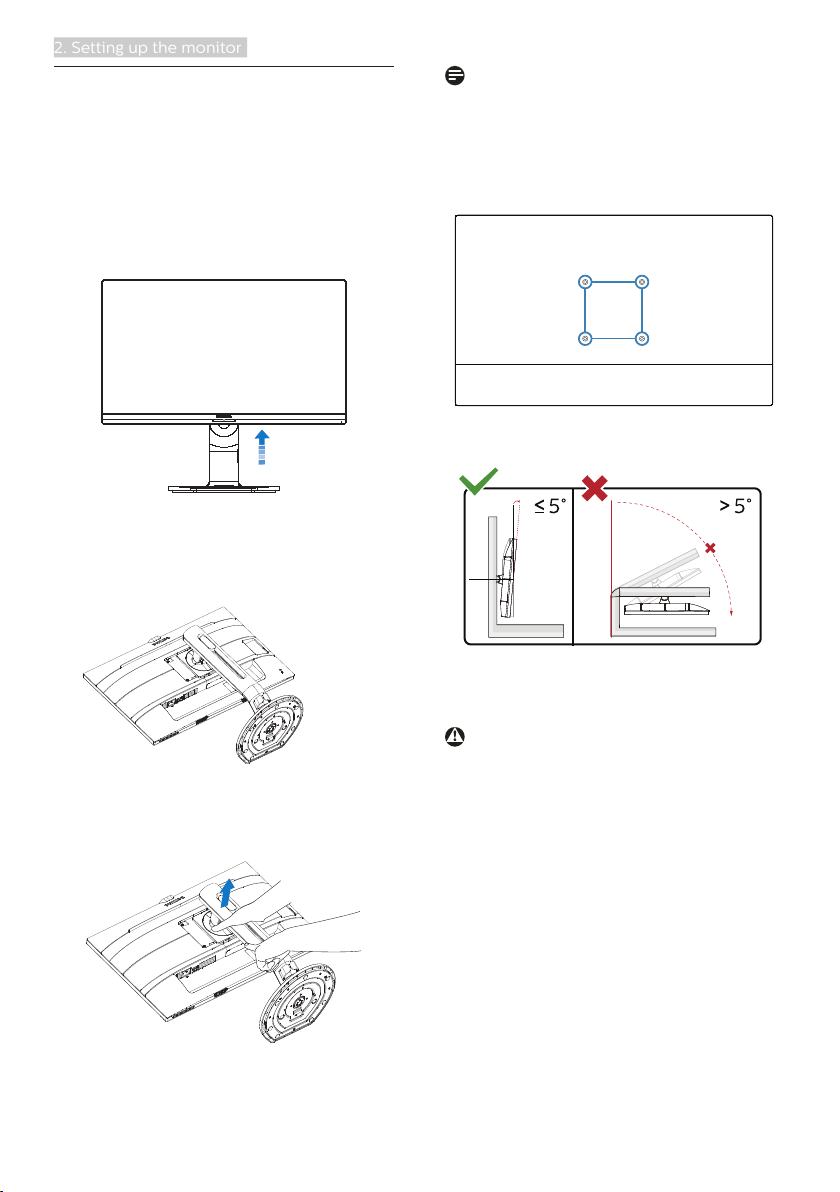

• Page 16 - English - : 2 Setting up the monitor 24 Remove the Base Assembly for VESA Mounting Before you start disassembling the monitor base please follow the instructions below to avoid any possible damage or injury 1 Extend the monitor base to its maximum height 2 Place the monitor face down on a smooth surface Pay attention not to scratch or damage the screen Then lift the monitor stand 3 While keeping the release button pressed tilt the base and slide it out Note This monitor accepts a 100mm x 100mm VESACompliant mounting interface VESA Mounting Screw M4 Always contact manufacturer for wallmount installation 100mm 100mm 5 0 90 Display design may differ from those illustrated Warning To avoid potential screen damage such as panel peeling ensure that the monitor does not tilt downward by more than 5 degrees Do not press the screen while adjusting the angle of the monitor Grasp only the bezel
• Page 17 - English - : 3 Image Optimization 3 Image Optimization 31 SmartImage What is it SmartImage provides presets that optimize display for different types of content dynamically adjusting brightness contrast color and sharpness in real time Whether youre working with text applications displaying images or watching a video Philips SmartImage delivers great optimized monitor performance Why do I need it You want a monitor that delivers optimized display all your favorite types of content SmartImage software dynamically adjust brightness contrast color and sharpness in real time to enhance your monitor viewing experience How does it work SmartImage is an exclusive leading edge Philips technology that analyzes the content displayed on your screen Based on a scenario you select SmartImage dynamically enhances the contrast color saturation and sharpness of images to enhance the contents being displayed all in real time with the press of a single button How to enable SmartImage 1 Press to launch the SmartImage on screen display 2 Keep pressing to toggle among Office Photo Movie Game Economy LowBlue Mode SmartUniformity Off 3 The SmartImage on screen display will remain on screen for 5 seconds or you can also press quotOKquot to make confirmation There are 8 modes to select Office Photo Movie Game Economy LowBlue Mode SmartUniformity Off Photo Movie Game Office SmartImage Economy ff SmartUniformity LowBlue Mode Office Enhances text and dampens brightness to increase readability and reduce eye strain This mode significantly enhances readability and productivity when youre working with spreadsheets PDF files scanned articles or other general office applications Photo This profile combines color saturation dynamic contrast and sharpness enhancement to display photos and other images with outstanding clarity in vibrant colors all without artifacts and faded colors Movie Ramped up luminance deepened color saturation dynamic contrast and razor sharpness
• Page 18 - English - : 3 Image Optimization displays every details in darker areas of your videos without color washout in brighter areas maintaining a dynamic natural values for the ultimate video display Game Turn on over drive circuit for best response time reduce jaggy edges for fast moving objects on screen enhance contrast ratio for bright and dark scheme this profile delivers the best gaming experience for gamers Economy Under this profile brightness contrast are adjusted and backlighting finetuned for just right display of everyday office applications and lower power consumption LowBlue Mode LowBlue Mode for easy ontheeyes productivity Studies have shown that just as ultraviolet rays can cause eye damage shortwave length blue light rays from LED displays can cause eye damage and affect vision over time Developed for wellbeing Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light SmartUniformity Fluctuations in brightness and color on different parts of a screen are a common phenomenon among LCD monitors Typical uniformity is measured around 7580 By enabling Philips SmartUniformity feature display uniformity is incr eased to above 95 This produces more consistent and true images Off No optimization by SmartImage Note Philips LowBlue mode mode 2 compliance with TUV Low Blue Light certification you can have this mode by simply press the hotkey then press to select LowBlue Mode see above SmartImage selection steps 32 SmartContrast What is it Unique technology that dynamically analyzes displayed content and automatically optimizes a Monitors contrast ratio for maximum visual clarity and viewing enjoyment stepping up backlighting for clearer crisper and brighter images or dimming backlighting for clear display of images on dark backgrounds Why do I need it You want the very best visual clarity and viewing comfort for every type of content SmartContrast dynamically controls contrast and adjusts backlighting for clear crisp bright gaming and video images or displays clear readable text for office work By reducing your monitors power consumption you save on energy costs and extend the lifetime of your monitor How does it work When you activate SmartContrast it will analyse the content you are displaying in real time to adjust colors and control backlight intensity This function will dynamically enhance contrast for a great entertainment experience when viewing videos or playing games 4 PowerSensor How does it work PowerSensor works on principle of transmission and reception of harmless infrared signals in order to detect userpresence When the user is in front of the monitor the monitor operates normally at the predetermined settings that the user has set ie brightness contrast color etc Assuming that the monitor was set to 100 of brightness for example when the user leaves his seat and is no longer in front of the monitor the monitor automatically reduces the power consumption upto 80 User present in front User not present ttaW Power consumption as illustrated above is for reference purpose only Setting Default settings PowerSensor is designed to detect the presence of the user located between 30 and 100 cm 12 and 40 inches from the display and within five degrees left or right of the monitor Custom settings If you prefer to be in 1a position outside the perimeters listed above choose a higher strength signal for optimal detection efficiency The higher the setting the stronger the detection signal For maximum PowerSensor efficiency and proper detection please position yourself directly in front of your monitor If you choose to position yourself more than 100 cm or 40 inches from the monitor use the maximum

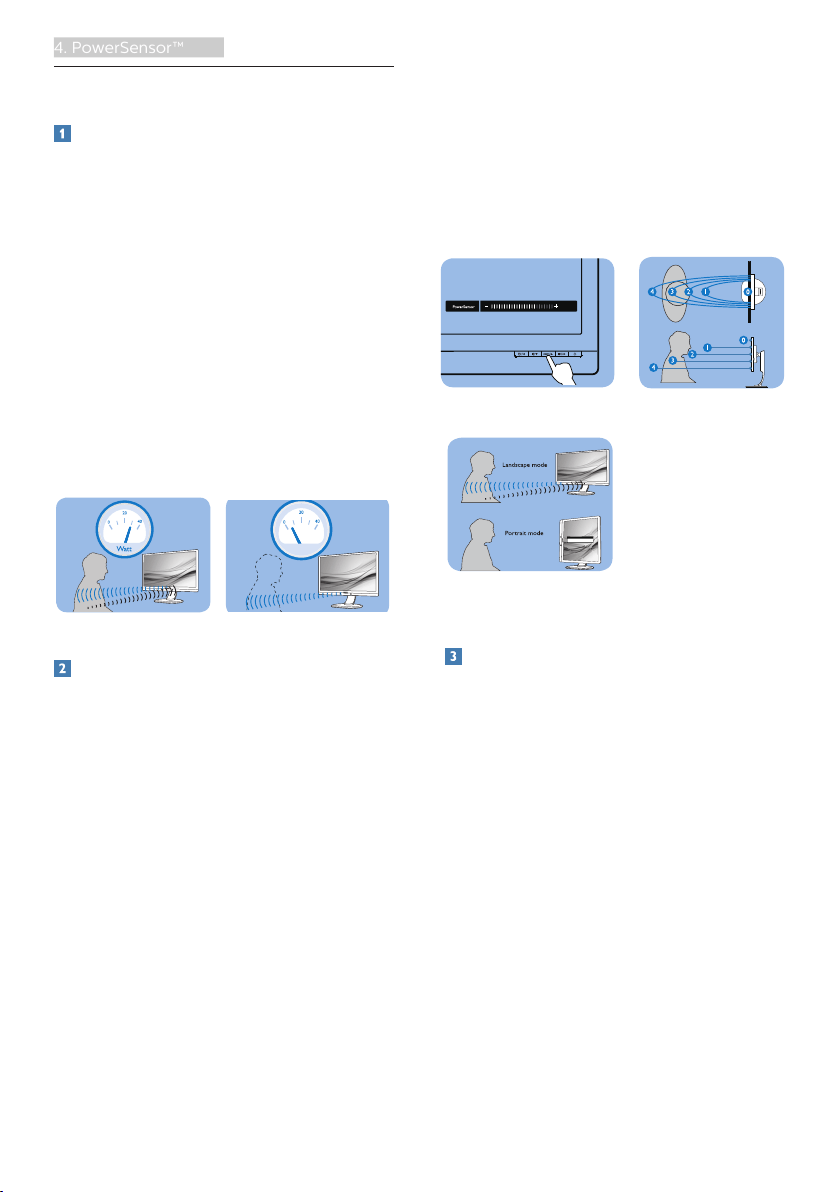

• Page 19 - English - : 4 PowerSensor 4 PowerSensor How does it work PowerSensor works on principle of transmission and reception of harmless infrared signals in order to detect userpresence When the user is in front of the monitor the monitor operates normally at the predetermined settings that the user has set ie brightness contrast color etc Assuming that the monitor was set to 100 of brightness for example when the user leaves his seat and is no longer in front of the monitor the monitor automatically reduces the power consumption upto 80 User present in front User not present ttaW Power consumption as illustrated above is for reference purpose only Setting Default settings PowerSensor is designed to detect the presence of the user located between 30 and 100 cm 12 and 40 inches from the display and within five degrees left or right of the monitor Custom settings If you prefer to be in 1a position outside the perimeters listed above choose a higher strength signal for optimal detection efficiency The higher the setting the stronger the detection signal For maximum PowerSensor efficiency and proper detection please position yourself directly in front of your monitor If you choose to position yourself more than 100 cm or 40 inches from the monitor use the maximum detection signal for distances up to 120 cm or 47 inches Setting 4 Since some dark colored clothing tends to absorb infrared signals even when the user is within 100 cm or 40 inches of the display step up signal strength when wearing black or other dark clothes Hot key Sensor distance LandscapePortrait mode ATTENTION PowerSensor off ATTENTION PowerSensor off Above illustrations are for reference purpose only may not reflect the exact display of this model How to adjust settings If PowerSensor is not operating correctly inside or outside the default range heres how to netune detection Press the PowerSensor hot key You will find the adjustment bar Adjust the PowerSensor detection adjustment to Setting 4 and press OK Test the new setup to see if PowerSensor properly detects you in your current position PowerSensor function is designed to work in Landscape mode horizontal position only After PowerSensor turn on it it will automatically turn Off if the monitor is used in Portrait mode 90 degreevertical position it will automatically turn ON if monitor is
• Page 20 - English - : 4 PowerSensor returned to its default Landscape position Note A manually selected PowerSensor mode will remain operational unless and until it is readjusted or the default mode is recalled If you find that the PowerSensor is excessively sensitive to nearby motion for some reason please adjust to a lower signal strength Keep sensor lens clean if the sensor lens is dirty wipe it with alcohol to avoid reducing of distance detection
• Page 21 - English - : 5Builtin Webcam with Microphone 5 Builtin Webcam with Microphone Note USB connection between the monitor and PC is required for the webcam to operate The webcam allows you to hold interactive video and audio conference calls over the internet It provides the most convenient and easiest way for Business persons to communicate with other colleagues around the world saving a lot time and money Depending on the software used it also allows you to take photos share files or use microphone only without enabling webcam The microphone and activity light are on the side of the webcam on the bezel of the display 272P 51 PC system requirements Operating system Microsoft Windows 7 Microsoft Windows Vista Microsoft Windows XP SP2 and any other OS whichever support UVCUAC USB Video Class compliant Audio Class compliant under USB 20 standard Processor 16GHz or above RAM 512MB for XP 1GBfor Vista and Windows7 Hard disk space minimum 200MB USB USB 20 or above UVCUAC support 52 Using the device Philips monitor with webcam device transmits video and sound data through USB port It can be enabled by simply connecting your USB cable from your PC to the USB upstream of USB hub on the side IO of monitor Connect your USB cable to upstream of USB hub on the side IO of monitor from PC side Turn on your PC and make sure your internet connection is working properly Download and enable free online chatting software such as Skype Internet Messenger or equivalent You can also subscribe to dedicated software in case of more sophisticated usage like multi conferencing etc The webcam is ready to be used for chat or make the phone call through internet service Make the call by following the instruction of the software program Note To set up a video call you must have a reliable Internet connection an ISP
• Page 22 - English - : 5Builtin Webcam with Microphone and software like Internet messenger or video phone call program Make sure the person that you are calling has compatible videocalling software The video and audio performance quality depends on the bandwidth available on both ends The person you are calling must have similar capability of devices and software
• Page 23 - English - : 6Daisychain function 6 Daisychain function Daisychain enables multiple monitor connections This Philips display is equipped with DisplayPort 12 interface which enables daisychaining to multiple displays Now you can daisy chain and use multiple monitors via a single cable from one display to the next How to daisy chain display Connect DisplayPort cable to mini DP or DP port from laptop To daisy chain to the 2nd display connect DisplayPort cable to min DP or DP port from the first display DP out port Repeat above steps you can daisy chain multiple displays miniDP or DP DP OUT miniDP or DP
• Page 24 - English - : 7Technical Specifications 7 Technical Specifications PictureDisplay Monitor Panel Type IPS Technology Backlight LED Panel Size 27quot W 685 cm Aspect Ratio 169 Pixel Pitch 0155H mm x 0155V mm SmartContrast 800000001 Optimum Resolution VGA1920x108060 HDMI143840x2160 30Hz HDMI20DP3840x2160 60Hz Viewing Angle 178 H 178 V CR gt 10 Display Colors 107Billion Flicker Free Yes Picture Enhancement SmartImage Vertical Refresh Rate 56Hz80 Hz VGA23 Hz 80 Hz HDMI14MHL HDMI20DP Horizontal Frequency 30KHz 99KHz VGA 30 KHz 99KHz HDMI14 MHL 30 KHz 160KHz HDMI20 30 KHz 160KHZDP MHL 1080P60Hz sRGB YES LowBlue Mode YES Connectivity Signal InputOutput VGA Analog HDMI 20Digital MHL HDMI20DigitalDisplayPort 12 mini DP 12 DisplayPort Out USB USB 303 includes 1 fast charger Input Signal Separate Sync Sync on Green Audio InOut PC audioinheadphone out Convenience Builtin speaker 2 W x 2 Builtin webcam 20 megapixel camera with Microphone and LED indicator MultiView PIPPBP mode 2x devices User Convenience OSD Languages English German Spanish Greek French Italian Hungarian Dutch Portuguese Brazil Portuguese Polish Russian Swedish Finnish Turkish Czech Ukranian Simplified Chinese Traditional Chinese Japanese Korean Other Convenience VESA mount100100mm Kensington Lock Plug amp Play Compatibility DDCCI sRGB Windows 108187 Mac OS X
• Page 25 - English - : 7Technical Specifications Stand Tilt 5 30 degree Swivel 175 175 degree Height adjustment 150mm Pivot 90 degree Power Consumption AC Input Voltage at 100VAC 50Hz AC Input Voltage at 115VAC 50Hz AC Input Voltage at 230VAC 50Hz Normal Operation 484W typ 479W typ 473W typ Sleep Standby mode lt03W lt03W lt03W Off mode lt03W lt03W lt03W Off modeAC switch 0 W 0 W 0 W Heat Dissipation AC Input Voltage at 100VAC 50Hz AC Input Voltage at 115VAC 50Hz AC Input Voltage at 230VAC 50Hz Normal Operation 1650 BTUhr typ 1636 BTUhr typ 1613 BTUhr typ Sleep Standby mode lt102 BTUhr lt102 BTUhr lt102 BTUhr Off mode lt102 BTUhr lt102 BTUhr lt102 BTUhr Off modeAC switch 0 BTUhr 0 BTUhr 0 BTUhr On ModeECO mode 28W typ PowerSensor 97W typ Power LED indicator On mode White StandbySleep mode White blinking Power Supply Builtin 100240V AC 5060Hz Dimensions Product with stand WxHxD 614 x 548 x 257 mm Product without stand WxHxD 614 x 372 x 56 mm Product with packaging WxHxD 690 x 458 x 252 mm Weight Product with stand 786 kg Product without stand 544 kg Product with packaging 1062 kg Operating Condition Temperature range operation 0C to 40 C Relative humidity operation 20 to 80
• Page 26 - English - : 7Technical Specifications Atmospheric pressure operation 700 to 1060hPa Temperature range Nonoperation 20C to 60C Relative humidity Nonoperation 10 to 90 Atmospheric pressure Nonoperation 500 to 1060hPa Environmental and energy ROHS YES Packaging 100 recyclable Specific Substances 100 PVC BFR free housing Cabinet Color SilverBlack Finish Texture Note 1 This data is subject to change without notice Go to wwwphilipscomsupport to download the latest version of leaflet 2 USB hub is only support mouse or keyboard to wake up the system while on power saving mode
• Page 27 - English - : 7Technical Specifications 71 Resolution amp Preset Modes Maximum Resolution 1920 x 1080 60 Hz analog input 3840x2160 60Hz digital input Recommended Resolution 3840 2160 60 Hz digital input H freq kHz Resolution V freq Hz 3147 720 x 400 7009 3147 640 x 480 5994 3500 640 x 480 6667 3786 640 x 480 7281 3750 640 x 480 7500 3788 800 x 600 6032 4688 800 x 600 7500 4836 1024 x 768 6000 6002 1024 x 768 7503 4477 1280 x 720 5986 60 1280 x 960 60 6389 1280 x 1024 6002 7998 1280 x 1024 7503 5547 1440 x 900 5990 5594 1440 x 900 5989 6529 1680 x 1050 5995 6750 1920 x 1080 6000 13329 1920 x 2160 5999 8879 2560 x 1440 5995 6750 3840 x 2160 3000 13500 3840 x 2160 6000 Note Please notice that your display works best at native resolution of 3840 x 2160 60Hz For best display qualityplease follow this resolution recommendation
• Page 28 - English - : 8Power Management 8 Power Management If you have VESA DPM compliance display card or software installed in your PC the monitor can automatically reduce its power consumption when not in use If an input from a keyboard mouse or other input device is detected the monitor will wake up automatically The following table shows the power consumption and signaling of this automatic power saving feature Power Management Definition VESA Mode Video Hsync Vsync Power Used LED Color Active ON Yes Yes 484 W typ 88 W max White Sleep Standby mode OFF No No 03W typ White blink Off mode AC switch OFF 0W typ OFF The following setup is used to measure power consumption on this monitor Native resolution 3840 2160 Contrast 50 Brightness 100 Color temperature 6500k with full white pattern Note This data is subject to change without notice
• Page 29 - English - : 9Customer care and warranty 9 Customer care and warranty 91 Philips Flat Panel Monitors Pixel Defect Policy Philips strives to deliver the highest quality products We use some of the industrys most advanced manufacturing processes and practice stringent quality control However pixel or sub pixel defects on the TFT Monitor panels used in flat panel monitors are sometimes unavoidable No manufacturer can guarantee that all panels will be free from pixel defects but Philips guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty This notice explains the different types of pixel defects and defines acceptable defect levels for each type In order to qualify for repair or replacement under warranty the number of pixel defects on a TFT Monitor panel must exceed these acceptable levels For example no more than 00004 of the sub pixels on a monitor may be defective Furthermore Philips sets even higher quality standards for certain types or combinations of pixel defects that are more noticeable than others This policy is valid worldwide subpixel pixel Pixels and Sub pixels A pixel or picture element is composed of three sub pixels in the primary colors of red green and blue Many pixels together form an image When all sub pixels of a pixel are lit the three colored sub pixels together appear as a single white pixel When all are dark the three colored sub pixels together appear as a single black pixel Other combinations of lit and dark sub pixels appear as single pixels of other colors Types of Pixel Defects Pixel and sub pixel defects appear on the screen in different ways There are two categories of pixel defects and several types of sub pixel defects within each category Bright Dot Defects Bright dot defects appear as pixels or sub pixels that are always lit or on That is a bright dot is a subpixel that stands out on the screen when the monitor displays a dark pattern There are the types of bright dot defects One lit red green or blue sub pixel Two adjacent lit sub pixels Red Blue Purple Red Green Yellow Green Blue Cyan Light Blue
• Page 30 - English - : 9Customer care and warranty Proximity of Pixel Defects Because pixel and sub pixels defects of the same type that are near to one another may be more noticeable Philips also specifies tolerances for the proximity of pixel defects Pixel Defect Tolerances In order to qualify for repair or replacement due to pixel defects during the warranty period a TFT Monitor panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables Three adjacent lit sub pixels one white pixel Note A red or blue bright dot must be more than 50 percent brighter than neighboring dots while a green bright dot is 30 percent brighter than neighboring dots Black Dot Defects Black dot defects appear as pixels or sub pixels that are always dark or off That is a dark dot is a subpixel that stands out on the screen when the monitor displays a light pattern These are the types of black dot defects
• Page 31 - English - : 9Customer care and warranty BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 3 2 adjacent lit subpixels 1 3 adjacent lit subpixels one white pixel 0 Distance between two bright dot defects gt15mm Total bright dot defects of all types 3 BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 5 or fewer 2 adjacent dark subpixels 2 or fewer 3 adjacent dark subpixels 0 Distance between two black dot defects gt15mm Total black dot defects of all types 5 or fewer TOTAL DOT DEFECTS ACCEPTABLE LEVEL Total bright or black dot defects of all types 5 or fewer Note 1 or 2 adjacent sub pixel defects 1 dot defect
• Page 32 - English - : 9Customer care and warranty 92 Customer Care amp Warranty For warranty coverage information and additional support requirements valid for your region please visit wwwphilipscomsupport website for details or contact your local Philips Customer Care Center For Warranty Period please refer to Warranty Statement in Important Information Manual For extended warranty if you would like to extend your general warranty period an Out of Warranty service package is offered via our Certified Service Center If you wish to make use of this service please be sure to purchase the service within 30 calendar days of your original purchase date During the extended warranty period the service includes pickup repair and return service however the user will be responsible for all costs accrued If the Certified Service Partner cannot perform the required repairs under the offered extended warranty package we will find alternative solutions for you if possible up to the extended warranty period you have purchased Please contact our Philips Customer Service Representative or local contact center by Consumer care number for more details Philips Customer Care Center number listed below Local Standard Warranty Period Extended Warranty Period Total Warranty Period Depend on different Regions 1 Year Local Standard warranty period 2 Years Local Standard warranty period 3 Years Local Standard warranty period Proof of original purchase and extended warranty purchase required Note Please refer to important information manual for regional service hotline which is available on the Philips website support page
• Page 33 - English - : 10Troubleshooting amp FAQs 10 Troubleshooting amp FAQs 101 Troubleshooting This page deals with problems that can be corrected by a user If the problem still persists after you have tried these solutions contact Philips customer service representative Common Problems No Picture Power LED not lit Make sure the power cord is plugged into the power outlet and into the back of the monitor First ensure that the power button on the front of the monitor is in the OFF position then press it to the ON position No Picture Power LED is White Make sure the computer is turned on Make sure the signal cable is properly connected to your computer Make sure the monitor cable has no bent pins on the connect side If yes repair or replace the cable The Energy Saving feature may be activated Screen says Make sure the monitor cable is properly connected to your computer Also refer to the Quick Start Guide Check to see if the monitor cable has bent pins Make sure the computer is turned on AUTO button doesnt function The auto function is applicable only in VGAAnalog mode If the result is not satisfactory you can do manual adjustments via the OSD menu Note The Auto Function is not applicable in DVIDigital mode as it is not necessary Visible signs of smoke or sparks Do not perform any troubleshooting steps Disconnect the monitor from mains power source immediately for safety Contact with Philips customer service representative immediately Imaging Problems Image is not centered Adjust the image position using the Auto function in OSD Main Controls Adjust the image position using the PhaseClock of Setup in OSD Main Controls It is valid only in VGA mode Image vibrates on the screen Check that the signal cable is properly securely connected to the graphics board or PC Vertical flicker appears Adjust the image using the Auto function in OSD Main Controls Eliminate the vertical bars using the PhaseClock of Setup in OSD Main Controls It is valid only in VGA mode
• Page 34 - English - : 10Troubleshooting amp FAQs Horizontal flicker appears Adjust the image using the Auto function in OSD Main Controls Eliminate the vertical bars using the PhaseClock of Setup in OSD Main Controls It is valid only in VGA mode Image appears blurred indistinct or too dark Adjust the contrast and brightness on OnScreen Display An quotafterimagequot quotburninquot or quotghost imagequot remains after the power has been turned off Uninterrupted display of still or static images over an extended period may cause quotburninquot also known as quotafterimagingquot or quotghost imagingquot on your screen quotBurninquot quotafterimagingquot or quotghost imagingquot is a wellknown phenomenon in LCD panel technology In most cases the quotburninquot or quotafter imagingquot or quotghost imagingquot will disappear gradually over a period of time after the power has been switched off Always activate a moving screen saver program when you leave your monitor unattended Always activate a periodic screen refresh application if your LCD monitor will display unchanging static content Failure to activate a screen saver or a periodic screen refresh application may result in severe burnin or afterimaging or ghost imaging symptoms that will not disappear and cannot be repaired The damage mentioned above is not covered under your warranty Image appears distorted Text is fuzzy or blurred Set the PCs display resolution to the same mode as monitors recommended screen native resolution Green red blue dark and white dots appears on the screen The remaining dots are normal characteristic of the liquid crystal used in todays technology Please refer the pixel policy for more detail The quotpower onquot light is too strong and is disturbing You can adjust power on light using the power LED Setup in OSD main Controls For further assistance refer to the Service contact information listed in Important information manual and contact Philips customer service representative Functionality different according to display 102 General FAQs Q1 When I install my monitor what should I do if the screen shows Cannot display this video mode Ans Recommended resolution for this monitor 3840 x 2160 60 Hz Unplug all cables then connect your PC to the monitor that you used previously In the Windows Start Menu select SettingsControl Panel In the Control Panel Window select the Display icon Inside the Display Control Panel select the Settings
• Page 35 - English - : 10Troubleshooting amp FAQs tab Under the setting tab in box labelled desktop area move the sidebar to 3840 x 2160 pixels Open Advanced Properties and set the Refresh Rate to 60 Hz then click OK Restart your computer and repeat step 2 and 3 to verify that your PC is set at 3840 x 2160 60 Hz Shut down your computer disconnect your old monitor and reconnect your Philips LCD monitor Turn on your monitor and then turn on your PC Q2 What is the recommended refresh rate for LCD monitor Ans Recommended refresh rate in LCD monitors is 60 Hz In case of any disturbance on screen you can set it up to 75 Hz to see if that removes the disturbance Q3 What are the inf and icm files on the CDROM How do I install the drivers inf and icm Ans These are the driver files for your monitor Follow the instructions in your user manual to install the drivers Your computer may ask you for monitor drivers inf and icm files or a driver disk when you first install your monitor Follow the instructions to insert the companion CDROM included in this package Monitor drivers inf and icm files will be installed automatically Q4 How do I adjust the resolution Ans Your video cardgraphic driver and monitor together determine the available resolutions You can select the desired resolution under Windows Control Panel with the quotDisplay propertiesquot Q5 What if I get lost when I am making monitor adjustments via OSD Ans Simply press the OK button then select Reset to recall all of the original factory settings Q6 Is the LCD screen resistant to scratches Ans In general it is recommended that the panel surface is not subjected to excessive shocks and is protected from sharp or blunt objects When handling the monitor make sure that there is no pressure or force applied to the panel surface side This may affect your warranty conditions Q7 How should I clean the LCD surface Ans For normal cleaning use a clean soft cloth For extensive cleaning please use isopropyl alcohol Do not use other solvents such as ethyl alcohol ethanol acetone hexane etc Q8 Can I change the color setting of my monitor Ans Yes you can change your color setting through OSD control as the following procedures Press quotOKquot to show the OSD On Screen Display menu Press quotDown Arrowquot to select the option quotColorquot then press quotOKquot to enter color setting there are three settings as below 1 Color Temperature The six settings are 5000K 6500K 7500K 8200K 9300K and 11500K With settings in the 5000K range the panel appears quotwarm with a redwhite color tonequot while a 11500K
• Page 36 - English - : 10Troubleshooting amp FAQs temperature yields quotcool bluewhite toningquot 2 sRGB This is a standard setting for ensuring correct exchange of colors between different device eg digital cameras monitors printers scanners etc 3 User Define The user can choose hisher preference color setting by adjusting red green blue color Note A measurement of the color of light radiated by an object while it is being heated This measurement is expressed in terms of absolute scale degrees Kelvin Lower Kevin temperatures such as 2004K are red higher temperatures such as 9300K are blue Neutral temperature is white at 6504K Q9 Can I connect my LCD monitor to any PC workstation or Mac Ans Yes All Philips LCD monitors are fully compatible with standard PCs Macs and workstations You may need a cable adapter to connect the monitor to your Mac system Please contact your Philips sales representative for more information Q10 Are Philips LCD monitors Plug and Play Ans Yes the monitors are Plugand Play compatible with Windows 108187 Mac OSX Q11 What is Image Sticking or Image Burnin or After Image or Ghost Image in LCD panels Ans Uninterrupted display of still or static images over an extended period may cause quotburn inquot also known as quotafterimagingquot or quotghost imagingquot on your screen quotBurninquot quotafter imagingquot or quotghost imagingquot is a wellknown phenomenon in LCD panel technology In most cases the quotburned inquot or quotatter imagingquot or quotghost imagingquot will disappear gradually over a period of time after the power has been switched off Always activate a moving screen saver program when you leave your monitor unattended Always activate a periodic screen refresh application if your LCD monitor will display unchanging static content Warning Failure to activate a screen saver or a periodic screen refresh application may result in severe burnin or after image or ghost image symptoms that will not disappear and cannot be repaired The damage mentioned above is not covered under your warranty Q12 Why is my Display not showing sharp text and is displaying jagged characters Ans Your LCD monitor works best at its native resolution of 3840 x 2160 60 Hz For best display please use this resolution Q13 How to unlocklock my hot key Ans Please press for 10 seconds to unlocklock the hot key by doing so your monitor pops out Attention to show the unlocklock status as shown below illustrators
• Page 37 - English - : 10Troubleshooting amp FAQs Q14 Where can I find Important Information manual mentioned in EDFU Ans Important Information manual can be download on the Philips website support page
