Model# GLF17UWED15/GLF17US1D15
CONVERTIBLE FREEZER/REFRIGERATOR
INSTRUCTION MANUAL
TROUBLESHOOTING
CARE & MAINTENANCE
OPERATING INSTRUCTIONS
INSTALLATION INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
CONTENT
CONTENT
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..... 11
12
LIMITED WARRANTY
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
WARRANTY REGISTRATION
PRODUCT SPECIFICATIONS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
. . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13
PACKING LIST
. . . . . . . . . . . .. .. . . . . .. . . .. . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAVE THESE INSTRUCTIONS 2
IMPORTANT SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
PRODUCT INTRODUCTION
IMPORTANT SAFEGUARDS
Your safety and the safety of others is very important.
We have provided many important safety messages
in this manual and on your appliance. Always read
and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt
you and others, All safety messages will be preceded
by the safety alert symbol and the word “Danger” or
“Warning”.
When using electrical appliances, basic safety
precautions should always be followed to reduce
the risk of fire, electric shock and/or injury to persons,
including the following:
in any manner. Supply cord replacement and repairs
must be conducted by the manufacturer,its service
agent, or similarly qualified persons in order to avoid
a hazard. Call the provided customer service number
for information on examination, repair, or adjustment.
• Do not use mechanical devices to defrost refrigerator.
• Consult repair manual or owner’s guide before
attempting to service this product.
All safety precautions must be followed.
• Disposal of this unit should be in accordance with
federal and local regulations.
• Follow handling instructions carefully.
• Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
•
Read all instructions before using appliance.
• Do not operate any appliance with a damaged
supply cord or plug, or after the appliance
malfunctions or has been dropped or damaged
Danger: Risk of fire or explosion. Flammable refrigerant
used. Do not puncture refrigerant tubing.
Warning: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
Warning: Do not use mechanical devices or other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
Warning: Do not damage the refrigerant circuit.
!
Warning: Do not use electrical appliances inside the
food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
Close supervision is necessary when any appliance is
used by or near children. Cleaning and user maintenance
SAVE THESE INSTRUCTIONS
3
IMPORTANT SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
shall not be made by children unless they are supervised.
Children should be supervised to ensure that they do not
play with the appliance.
Danger: Risk of child entrapment. Before throwing away
an old appliance:
• Remove the door or lid.
• Leave shelves in place so that children may not easily
climb inside.
other residential type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications.
Grounding Instructions
This appliance must be grounded. Grounding reduces
the risk of electrical shock by providing an escape
wire for the electrical current.
This appliance has a cord that has a grounding wire
with a 3-prong plug. The power cord must be plugged
into an outlet that is properly grounded. If the outlet
is a 2-prong wall outlet, it must be replaced with a
properly grounded 3-prong wall outlet. The serial
rating plate indicates the voltage and frequency the
appliance is designed for.
Warning: Improper use of the grounding plug can
result in a risk of electric shock. Consult a qualified
electrician or service agent if the grounding
instructions are not completely understood, or if
doubt exists as to whether
the appliance is properly grounded.
Do not connect your appliance to extension cords or
together with another appliance in the same wall outlet.
Do not splice the power cord.
Do not under any circumstances cut or remove the
third ground prong from the power cord. Do not use
extension cords or ungrounded (two prongs) adapters.
This appliance is not intended for use by persons
(including children) whose physical, sensory or mental
capabilities may be different or reduced,or who lack
experience or knowledge, unless such persons receive
supervision or training to operate the appliance by a
person responsible for their safety.
This appliance is intended to be used in household and
similar applications such as:
• Staff kitchen areas in shops, offices and other working
environments;
• Farm houses and by clients in hotels, motels and
SAVE THESE INSTRUCTIONS
4
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS

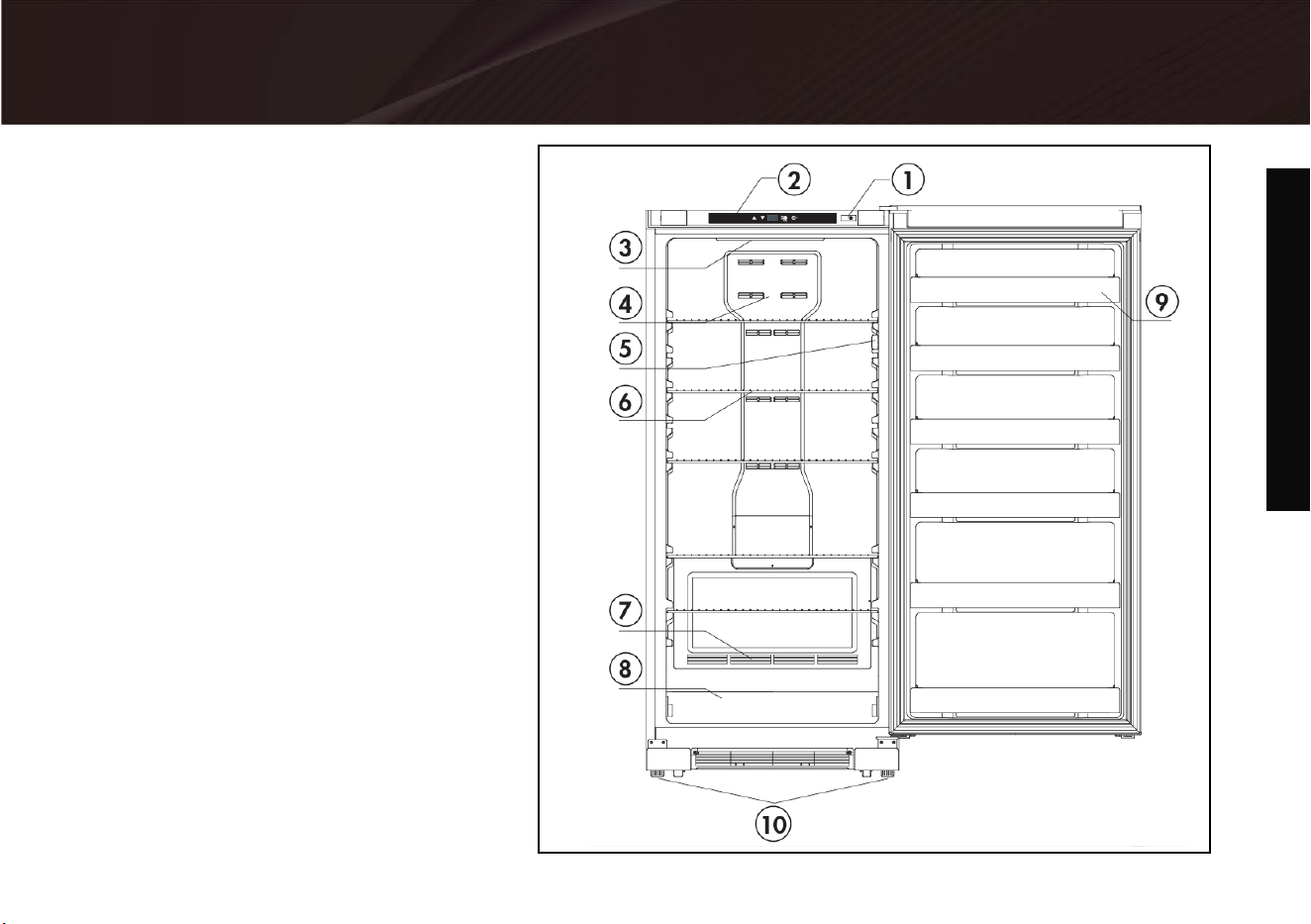

FEATURES
1. Light Switch
2. Control Panel
3. LED Light
4. Airflow Outlet
5.Temperature Sensor
6. Freezer Shelf
7. Airfow lnlet
8. Shelf Front
9. Door Shelf
10.Adjustable Feet
SAVE THESE INSTRUCTIONS
5
INSTALLATION INSTRUCTIONS
LOCATION
LEVELING INSTRUCTIONS
• Two people should be used when moving the appliance.
• Remove interior and exterior packaging prior
to installation. Wipe the outside of the appliance with a
soft,dry cloth and the inside with a luke warm wet cloth.
• Place the appliance on a floor that is strong enough
to support it when it is fully loaded.
• Do not place the appliance in direct sunlight
or near sources of heat, such as a stove or heater, as
this can increase electrical consumption. Extreme cold
ambient temperatures may also cause the appliance
to perform improperly.
• Do not use the appliance near water, for example
in a wet basement or near a sink.
• This appliance is intended for household use only.
It is not designed for outside installation, including
anywhere that is not temperature controlled (garages,
porches, vehicles, etc.).
• Before connecting the appliance to a power source,
let it stand upright for approximately 6 hours. This
will reduce the possibility of a malfunction in the cooling
system from handling during transportation.
• This appliance is 76.1 cm (29.96 inches) wide by
170.9 cm (67.28 inches) high by 72.4 cm (28.50 inches)
deep. Make sure that you leave the minimum amount
of space between the appliance and all surrounding
walls and vents.
• Allow 12.7 cm (5 inches) of space between the back,
sides and top of the appliance and all adjacent walls.
• This appliance is intended for free-standing
installation only and is not intended to be built into a
cabinet or counter. Building in this appliance can
cause it to malfunction.

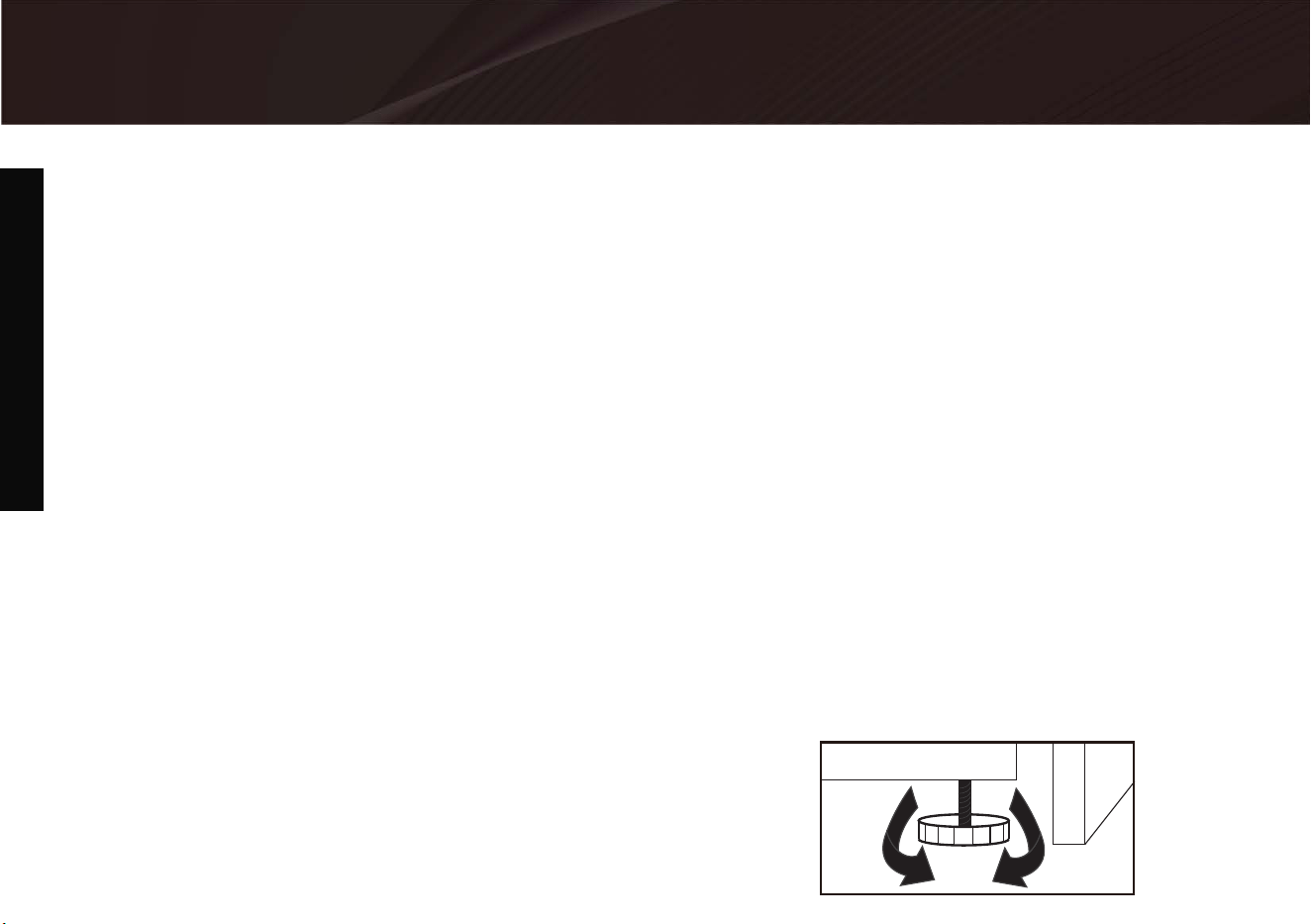

There are two adjustable legs on the bottom of the
appliance that can be turned up or down to ensure
that the appliance is level.
1. Turn the leveling leg counter-clockwise as far as it
will go, until the top of the foot is touching the
bottom of the chassis.
2. Slowly turn the leveling leg clockwise until the
appliance is level.
INSTALLATION INSTRUCTIONS
SAVE THESE INSTRUCTIONS
6
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS

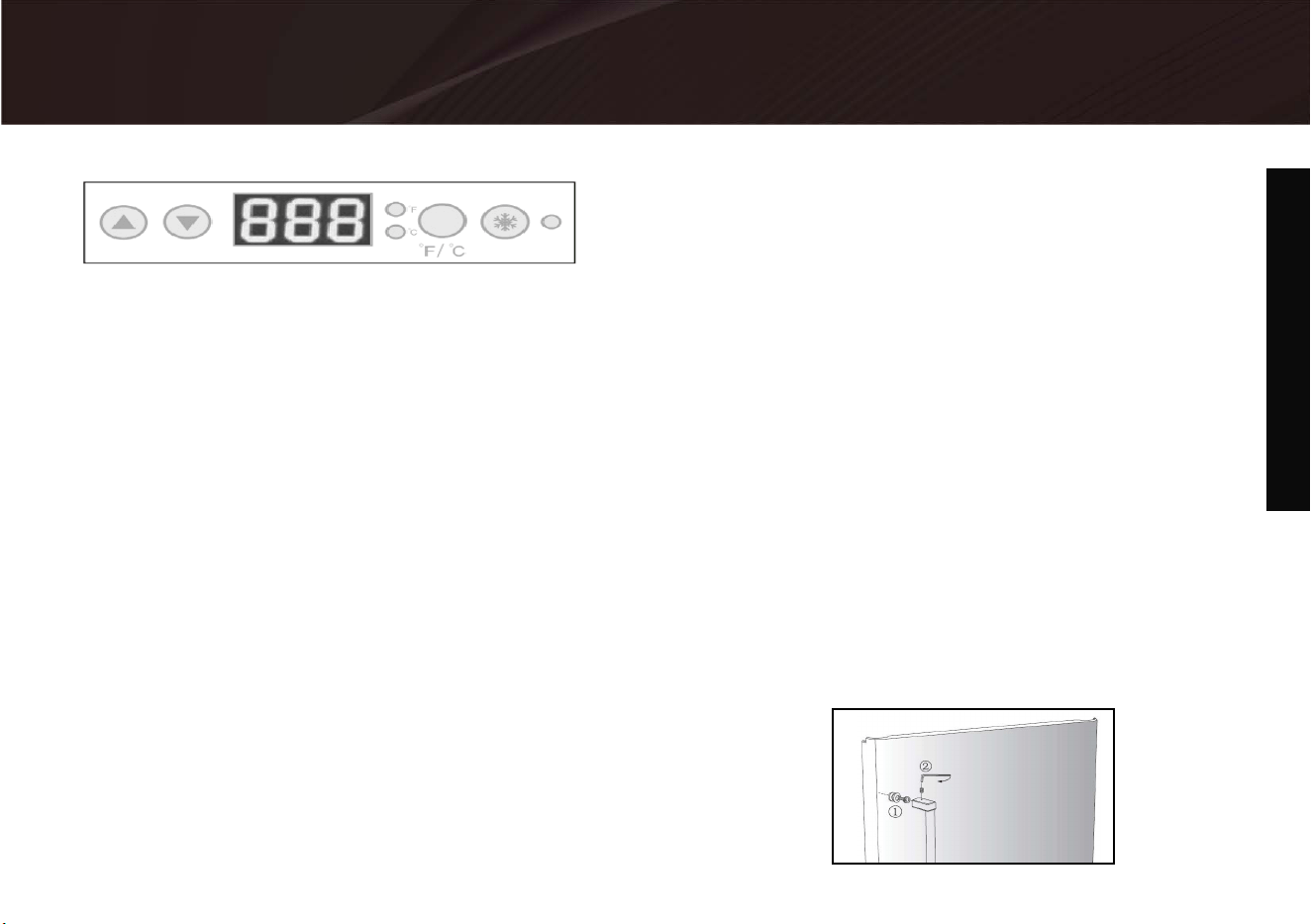

CONTROL PANEL
The appliance ships with the handle inside the cabinet.
It must be installed by the end user. The appliance
should be unplugged before installing the handle.
1. Position the handle over the exposed door handle
posts.
2. Insert screws into the handle bracket and tighten
them with the provided allen key. Tighten until snug.
Note: The handle may look slightly different based on
the color of the appliance.
HANDLE INSTALLATION
When the temperature display is flashing, you can set
Fast Freeze Function（Snow Flake Button）:
This function should be used when the appliance
is first turned on, when it has been filled with groceries
or if the door has been open for an extended period.
This function will run the compressor constantly to
reach the coldest temperature as quickly as possible.
Press and hold the fast freeze button （Snow Flake）
for three seconds to activate the fast freeze. The LED
indicator will illuminate.
To cancel the fast freeze function press and hold the
fast freeze button（Snow Flake） until the LED indicator
turns off.
When the fast freeze cycle has finished or is canceled
the appliance will revert back to the last set temperature.
Temperature scale: To switch between °C and °F,
press the °C/°F key, the corresponding indicator
light will illuminate.
Door Ajar Alarm: This appliance is equipped with a door
alarm that will sound if the door is left open for more
than 3minutes. The alarm will beep and the display will
flash continuously until the door is closed.
the fridge temperature between 0°C to 8°C (32°F
to 46°F) and freezer temperature between -24°C to
-14°C (-11°F to 7°F)the recommended temperature
setting is 3°C(37°F) and -18°C ( 0°F).
Temperature setting：The unit can be converted
from a Freezer to a Refrigerator by adjusting the
temperature using the arrow keys.
SAVE THESE INSTRUCTIONS
7
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS

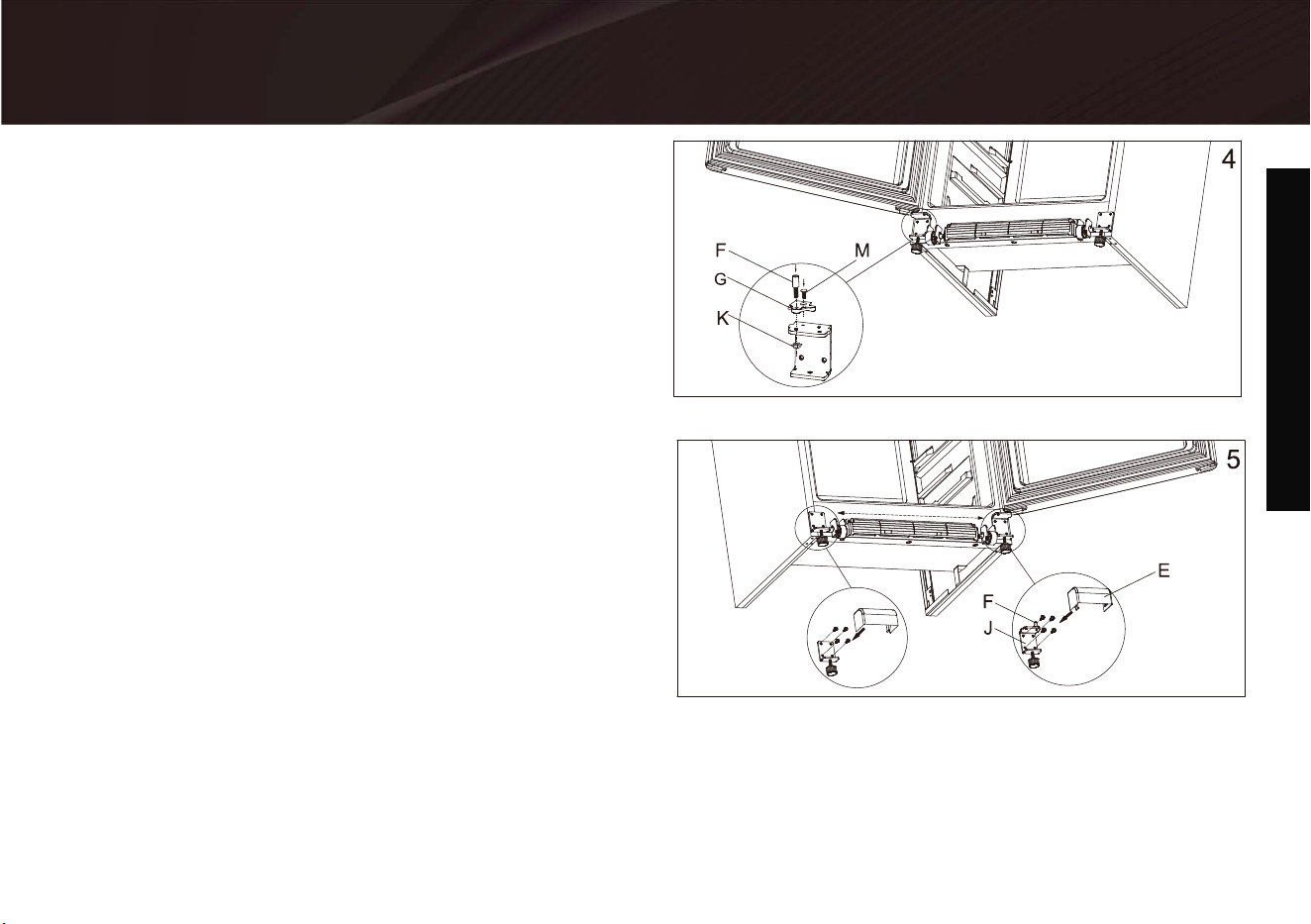

DOOR REVERSAL INSTRUCTIONS
If the appliance is placed on its back or side for any
length of time during this process, it must be allowed
to remain upright for 6 hours before plugging it in to
avoid damage to the internal components.

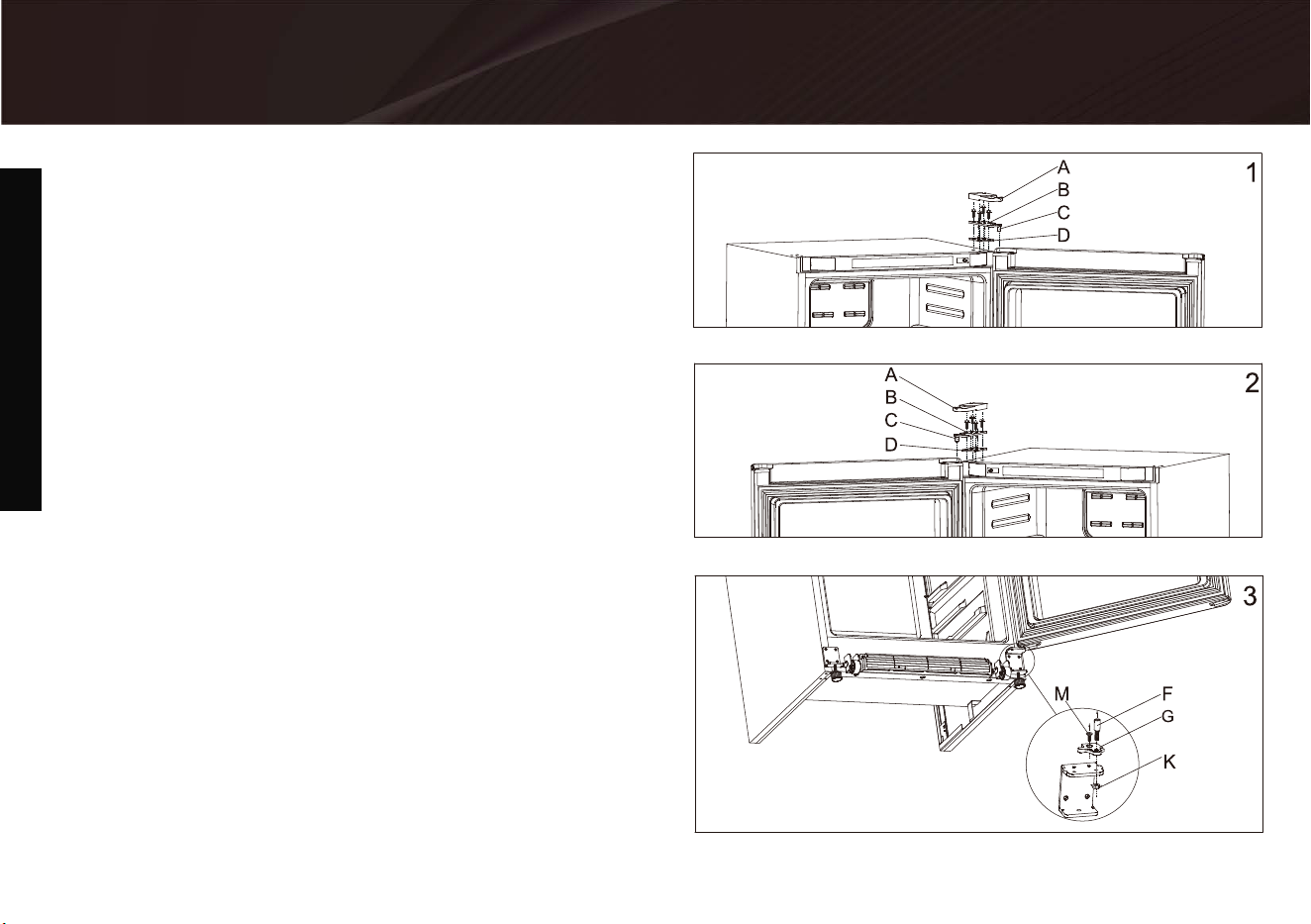

1. Remove one screw from top hinge cover (A) and
then remove top hinge cover.
2. Remove four screws from top hinge (B) and then
remove top hinge, top door spindle (C) and top
hinge spacer (D).
3. Remove door from unit and set aside. Ensure that
you do not damage the bottom door spindles (F).
4. Remove roller caps at bottom of unit (E).
(Diagram on next page)
5. Remove four screws each from both bottom
hinges and then swap the bottom hinges (J).
Ensure that the C-shaped hinge is on the
side of the unit opposite the handle.
(Diagram on next page)
SAVE THESE INSTRUCTIONS
8
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
6. Reinstall four screws each in both bottom hinges (F).
7. Reinstall the bottom door spindles(F and G).
8. Reinstall the roller caps at the bottom of the unit (E).
9. Reinstall the door and ensure that the bottom door
spindle (F) is placed in the hole in bottom hinge that
is closest to the outside of the unit.
10. Replace hinge spacer (D), replace top door
spindle (C), reinstall top hinge with four screws (B).
Ensure that you flip the top hinge to its opposite
side so that the top door spindle is in the correct
position
11. Reinstall the top hinge cover (A) with one screw.
A top hinge cover for the opposite side of the
unit can be found in the accessory bag inside
the unit.
Note: When installing the door, ensure that the top
of the door is level with the top of the cabinet. If the
door is not level, the rubber gasket will not make
a good seal with the cabinet which can cause the
appliance to malfunction.
SAVE THESE INSTRUCTIONS
9
CARE & MAINTENANCE
CARE & MAINTENANCE
CLEANING
DEFROST
ERROR CODES
POWER FAILURE
Ensure the appliance is unplugged before cleaning.
• To clean the inside of the appliance, use a soft
cloth and a solution of a tablespoon of baking
soda to one quart of water or a mild soap solution
or some mild detergent.
• Wash removable shelves in a mild detergent
solution, then dry and wipe with a soft cloth.
• Clean the outside with a soft, damp cloth and
some mild detergent.
• It is important to keep the area clean where the
door seals against the cabinet. Clean this area
with a soapy cloth. Rinse with a damp cloth and
let dry.
Note: Do not use cleaners containing ammonia or
alcohol on the appliance. Ammonia or alcohol can
damage the appearance of the appliance. Never
use any commercial or abrasive cleaners or sharp
objects on any part of the appliance.
Most power failures are corrected within a few
hours and should not affect the temperature of your
appliance if you minimize the number of times the
door is opened. If the power is going to be off for
a longer period of time, take the proper steps to
protect your contents
Note: Wait 3 to 5 minutes before attempting
to restart the refrigerator if operation has been
interrupted.
This unit is equipped with an automatic defrost
function and does not require manual defrosting.
Defrost water from the appliance is channeled into
a drip tray located above the compressor. Heat
transfer from the compressor causes the defrost
water to evaporate.
• E1: Sensor failure.
• E2: Defrosting sensor failure.
• E3: Sensor failure and defrosting sensor failure.
• H: High temperature.
SAVE THESE INSTRUCTIONS
10
CARE & MAINTENANCE
CARE & MAINTENANCE
VACATION
ENERGY SAVING TIP
DISPOSAL
MOVING
• Short vacations: Leave the appliance operating
during vacations of less than three weeks.
• Long vacations: If the appliance will not be used
for several months, remove all items and turn
off the appliance. Clean and dry the interior
thoroughly. To prevent odor and mold growth,
leave the door open slightly, blocking it open if
necessary.
The appliance should be located in the coolest area
of the room, away from heat producing appliances,
and out of direct sunlight. Do not overload the unit
or block any ventilation openings.
• Remove all items.
• Tape the door shut.
• Be sure the appliance stays secure in the upright
position during transportation. Also protect the
outside of the appliance with a blanket or similar
item.
• If the appliance is placed on its back or side
during transportation, upon reaching the
destination, allow it to remain in its operating
position for 6 hours to avoid damage to internal
components.
This appliance may not be treated as regular
household waste, it should be taken to the
appropriate waste collection point for recycling
of electrical components. For information on local
waste collection points, contact your local waste
removal agency or government office.
SAVE THESE INSTRUCTIONS
11
TROUBLESHOOTING
TROUBLESHOOTING
POSSIBLE CAUSEPPROBLEM
No power
• Temperature setting is too cold
• Parts are expanding and/or the refrigerant is circulating; this is normal
• Temperature setting is too warm
• Door is not shut properly or opened excessively
• Exhaust vent is obstructed
• Recently added a large quantity of warm food to the cabinet
• Close proximity to heat source or direct sunlight
• Ambient temperature or humidity is very high
• A fuse may be blown or the circuit breaker tripped
• Plug not fully inserted into the wall outlet
• Temperature setting is too cold
• Door not shut properly or opened excessively
• Exhaust vent is obstructed
• Recently added a large quantity of warm food to the cabinet
• Close proximity to heat source or direct sunlight
• Ambient temperature or humidity is very high
Internal temperature not cold
enough
Appliance runs continuously
Internal temperature is too cold
Noises
Model
Climate class
Electric shock protection type
Voltage(V)
Frequency(Hz)
Current(A)
Voice[dB(A)]
Yearly enegy consumption(kW.h)
Refrigerant
Weight(Lbs)
Interior
temperature
Dimension(inch)
Capacity(cu.ft)
Freezer
Refrigerator
Freezer
Refrigerator
Width
Depth
Height
GLF17UWED15/GLF17US1D15
T
I
115
16.7
16.7
60
3.5
50
481
R600a/72g(2.54oz)
188.94
30.0
28.5
67.3
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
12
0 C ~ 8 C(32 F~ 46 F)
-24 C ~ -14 C(-11 F~7 F)
Parts
Wire shelf
Door bins
Owner's manual
Drip Tray
Handle
Number
6 pcs
1 copy
PACKING LIST
PACKING LIST
13
Note: Products are subject to improve from time to time, any changes in parts without further notice.
5 pcs
1 pc
1 pc
LIMITED WARRANTY
14
LIMITED WARRANTY
Galanz product is warrantied for one year following
purchase for defects in material and workmanship.
Please save your receipt as proof of purchase is
required to make a warranty claim. During this
period,
we will provide the purchase price of this
product, a replacement or the equivalent per our ,
discretion or service in select cases. In the event that
service is determined to be agreeable to both parties,
then the product must be brought to the nearest
servicer by the consumer.
Galanz Americas Limited Company -
Product Warranty
•
•
•
•
•
•
•
•
•
•
•
•
•
This warranty does not cover and excludes
damage or defects caused by:
Every implied warranty, including any statutory warranty of
merchantability or fitness for a particular purpose is disclaime
except to the extent prohibited by law, in which case such
warranty is limited to the duration of this written warranty. This
warranty gives you specific legal rights. You may have other
legal rights that vary depending on where you live. Some states
do not allow limitations on implied warranties or special,
incidental, or consequential damaged, so the above limitations
may not apply to you.
Commercial use
Subjecting the product to any voltage outside the specified
range
Loss of parts
The affixing of any attachments not provided with the product
Accident, or
Use in a manner not intended and outlined in the user manual.
This warranty applies to products sold by Galanz
Americas in the U.S. This warranty is in lieu of any
other warranty and expressly applies to the individual
product only.
The warranty cannot be transferred through resale,
including the resale through a 3rd party unauthorized
retailer and is only bestowed upon the original consumer
purchaser upon purchase from an authorized retailer.
Consumer misuse
Abuse
Neglect including the failure to clean and/
or provide
adequate regular maintenance as outlined
in the user manual
Any subsequent damages caused by the above listed
exclusions will not be covered and any claims determined to
meet the above exclusions will be denied. All liability is limited
to the purchase price and does not include any:
Retail offered extended warranties
Tax
Other charges (including postage to send required materials)
Incidental and/or consequential damages associated with
the product in question.
If you have a claim under this warranty, please call our
Customer Service number: 1-800-562-0738.
For faster service, please have the model number, serial
number, and receipt ready for the operator to assist you.
Name
Address
City
Phone
Model Number
Purchase Location
Serial Number
Email
State ZIP
WARRANTY REGISTRATION
15
WARRANTY REGISTRATION
Please mail this warranty card to the address below within 30 days of purchase.
Or you can register your product on line by going to www.galanz.com\us.
Galanz Americas,55 Challenger Road, Suite 503,Ridgefield Park,NJ 07660.
PLEASE PRINT CLEARLY.
You must attach a copy of your purchase receipt to validate your registration.
©2021 Galanz Americas Limited Company
15
