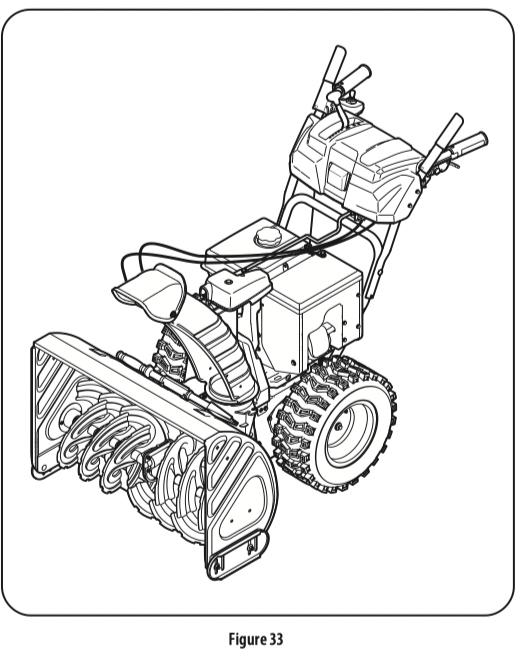

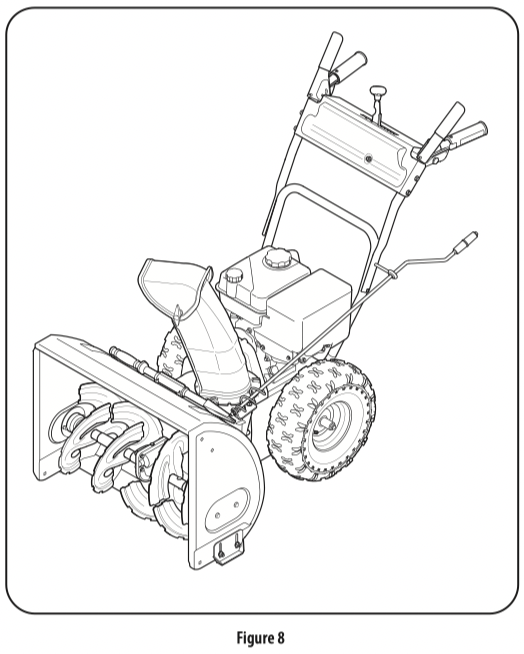

User manual Snow Blower for Craftsman CMXGBAM1054544

Table of contents

  • Safe Operation Practices

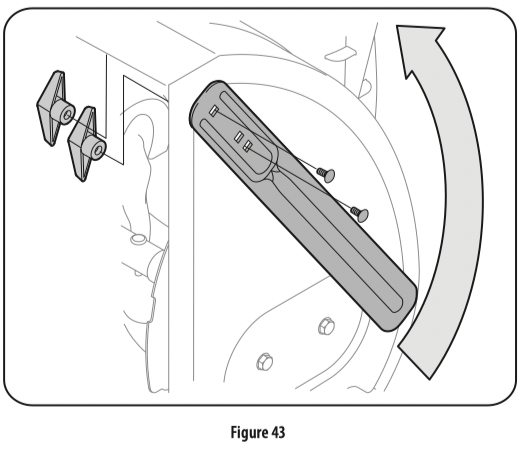

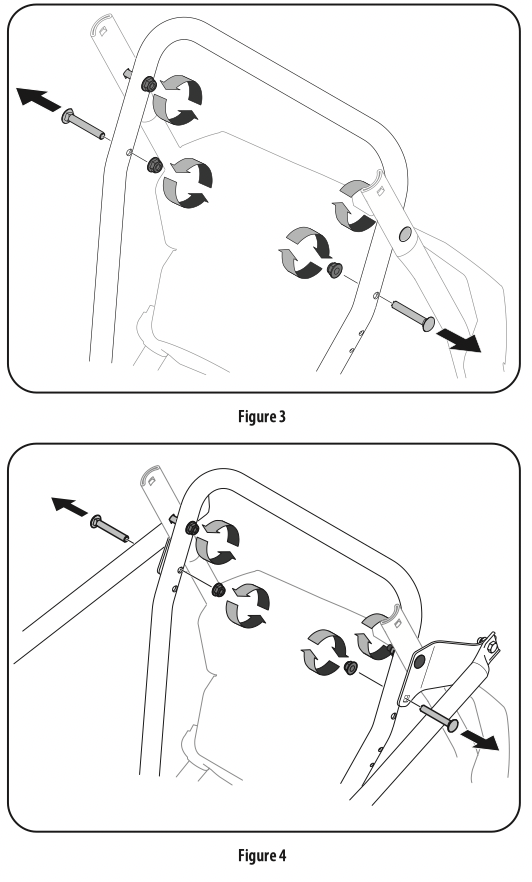

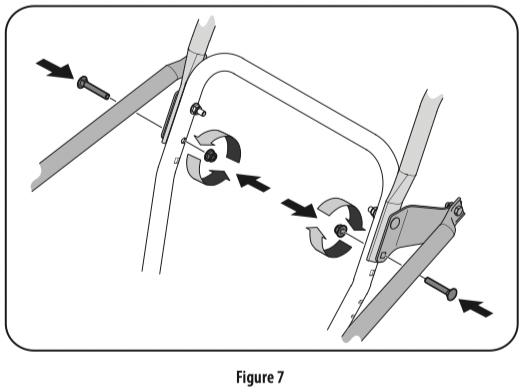

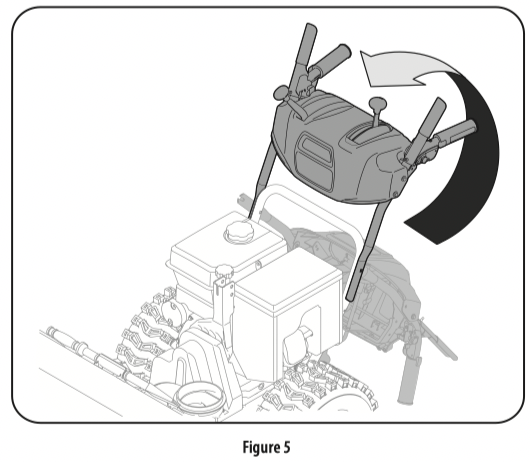

  • Assembly
  • Operation

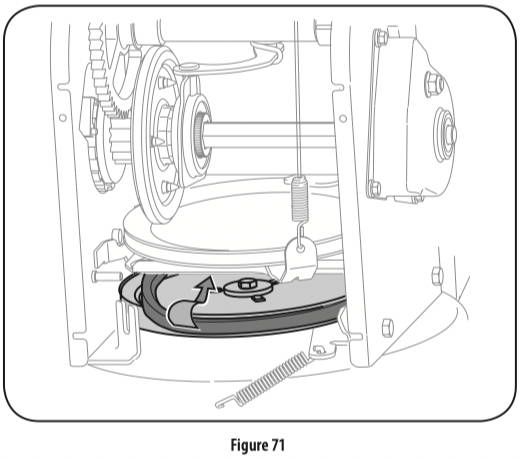

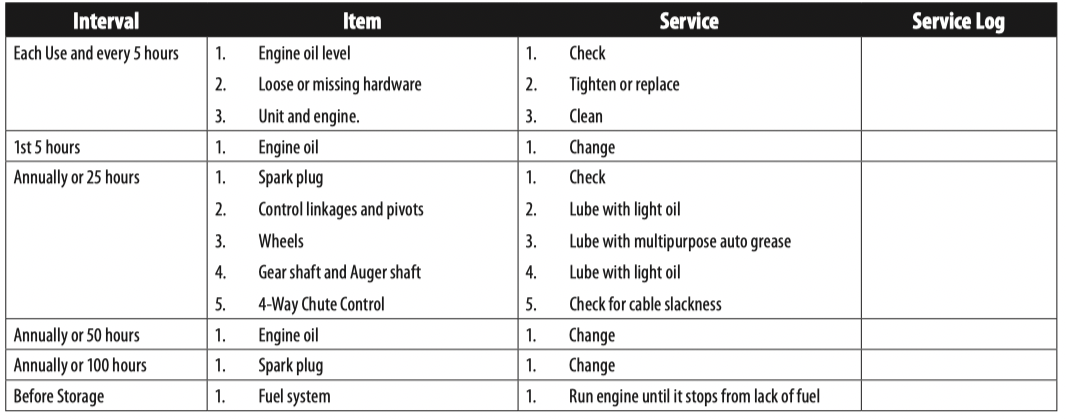

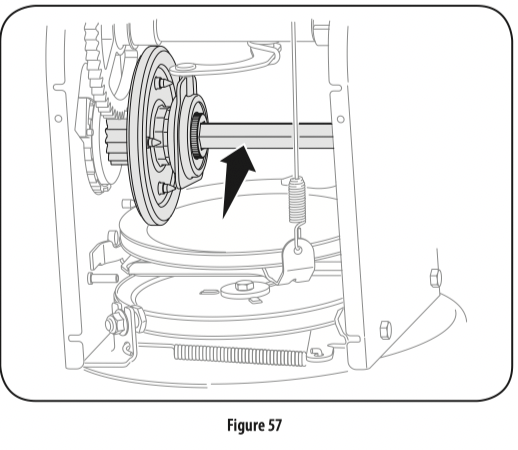

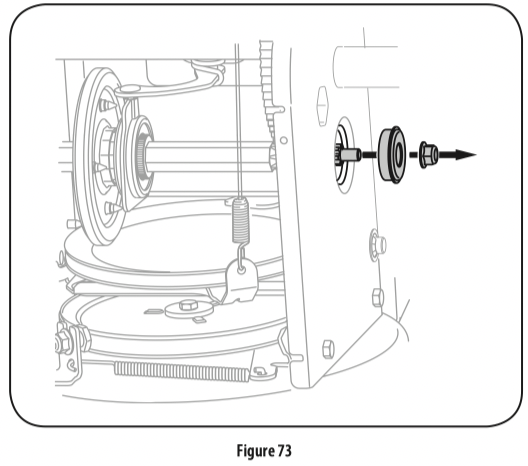

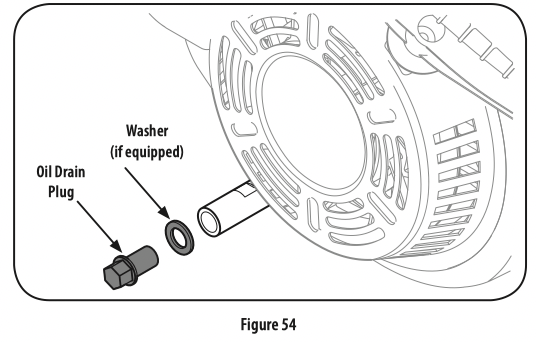

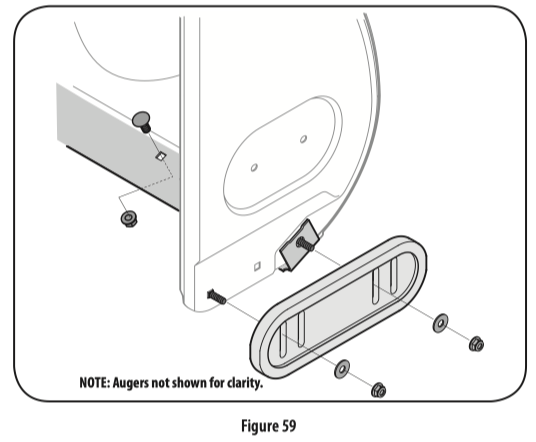

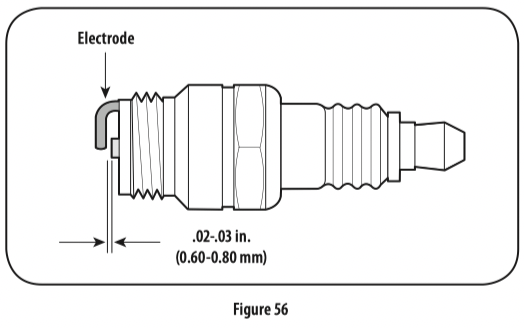

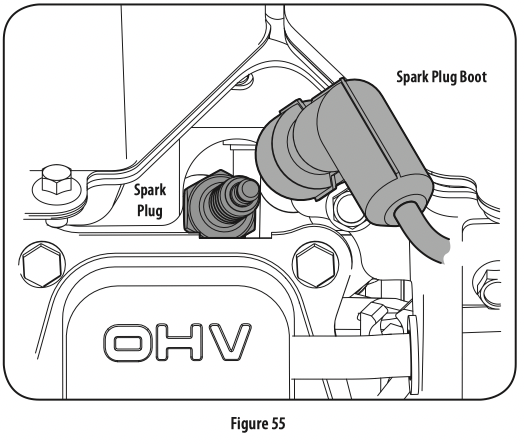

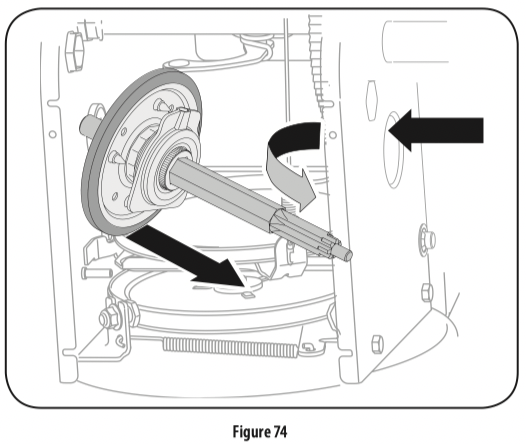

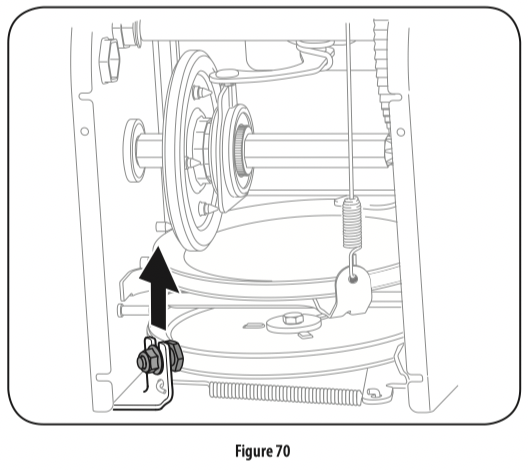

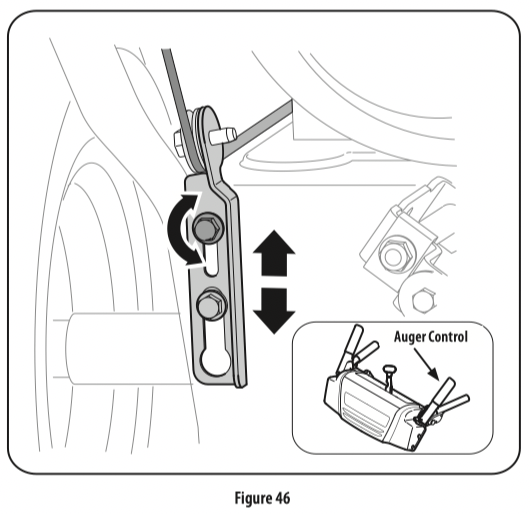

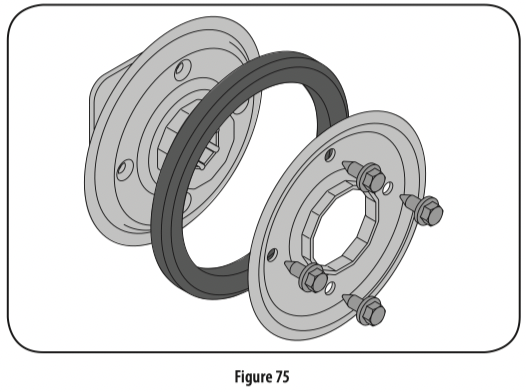

  • Service &Maintenance
  • Off-Season Storage
  • Troubleshooting
  • Warranty Statement

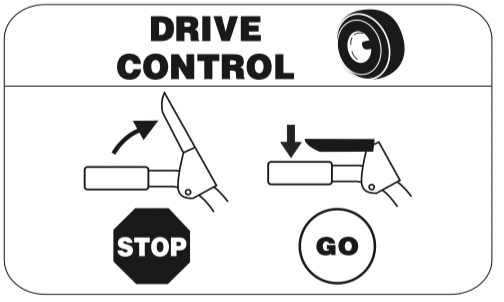

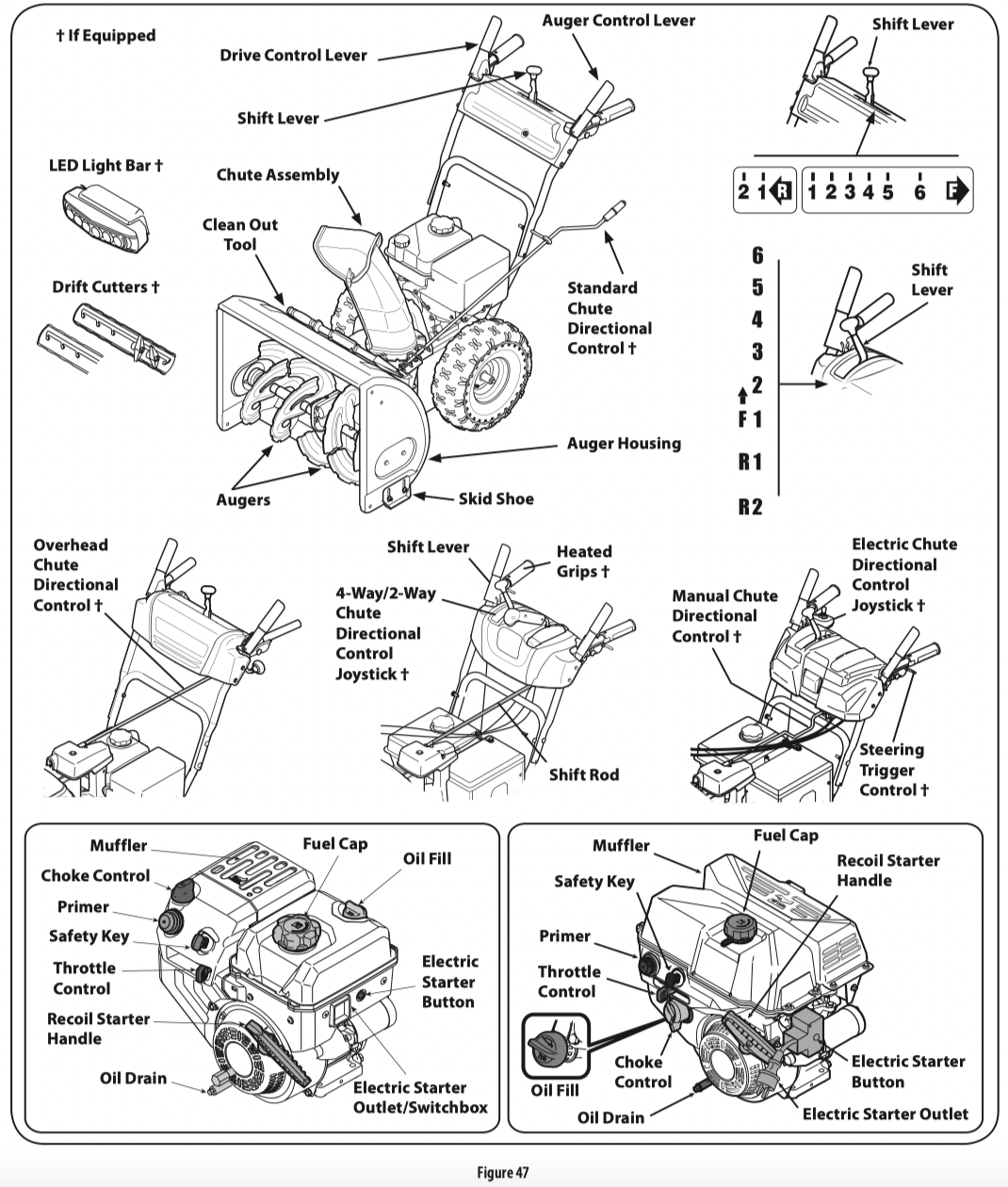

OPERATION

  • Do not put hands or feet near rotating parts, in the auger/impeller housing or chute assembly. Contact with the rotating parts can amputate hands and feet.

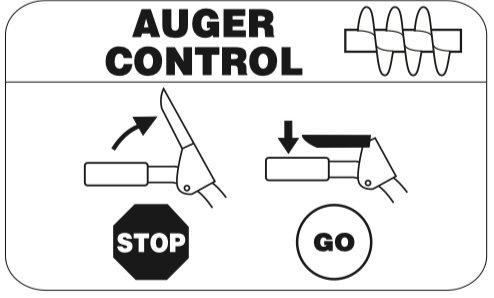

  • The auger/impeller control lever is a safety device. Never bypass its operation. Doing so makes the machine unsafe and may cause personal injury.
  • The control levers must operate easily in both directions and automatically return to the disengaged position when released.
  • Never operate with a missing or damaged chute assembly. Keep all safety devices in place and working.
  • Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless and deadly gas.
  • Do not operate machine while under the influence of alcohol or drugs.
  • Muffler and engine become hot and can cause a burn. Do not touch. Keep children away.
  • Exercise extreme caution when operating on or crossing gravel surfaces. Stay alert for hidden hazards or traffic.
  • Exercise caution when changing direction and while operating on slopes. Do not operate on steep slopes.
  • Plan your snow-throwing pattern to avoid discharge towards windows, walls, cars etc. Thus, avoiding possible property damage or personal injury caused by a ricochet.
  • Never direct discharge at children, bystanders and pets or allow anyone in front of the machine.

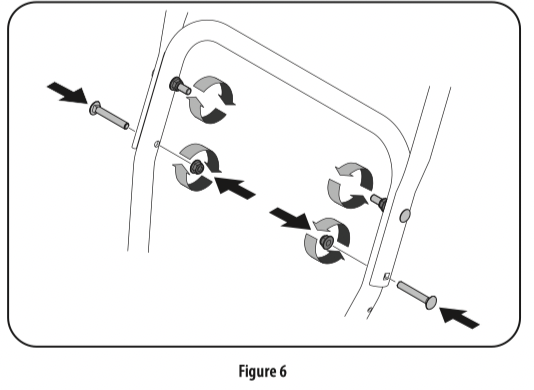

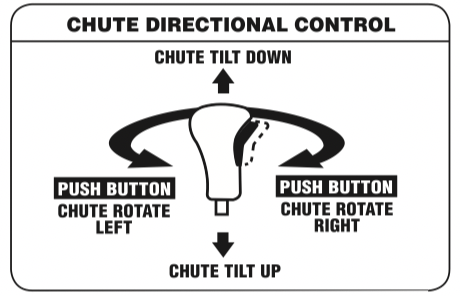

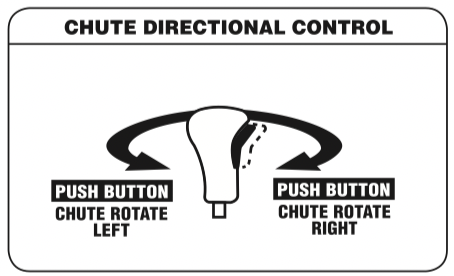

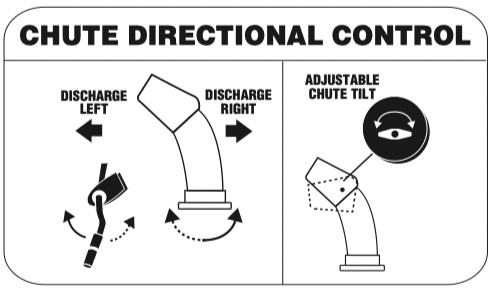

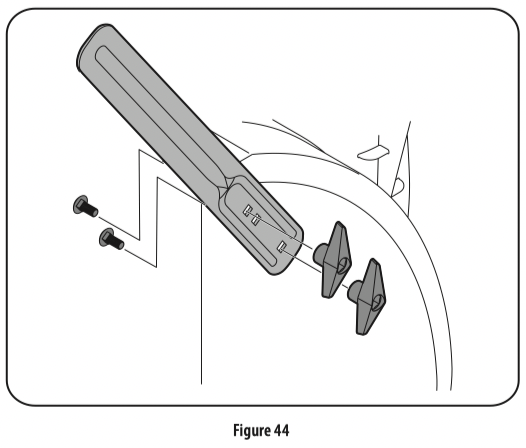

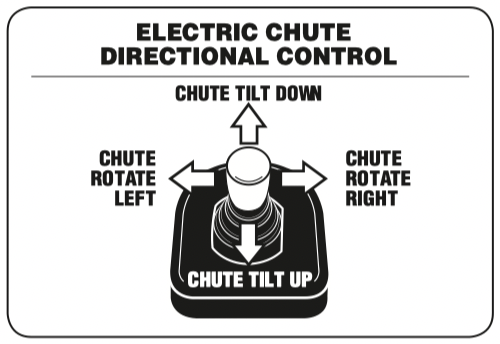

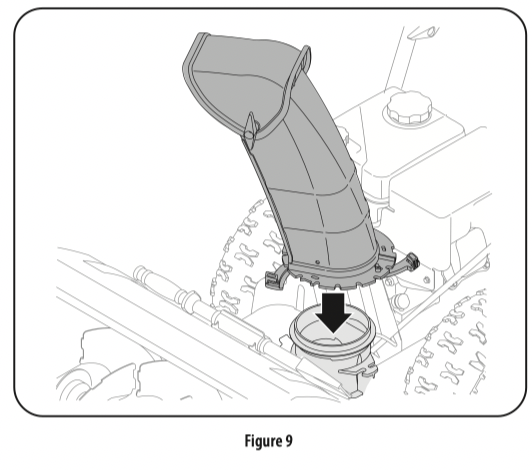

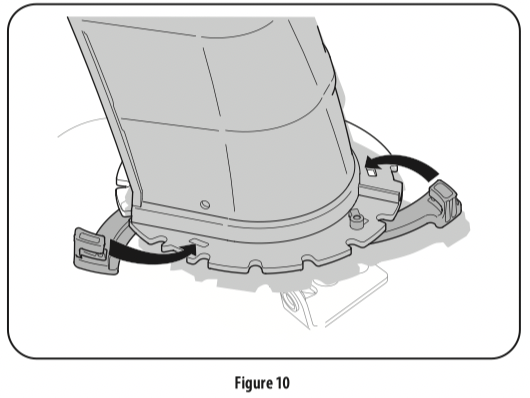

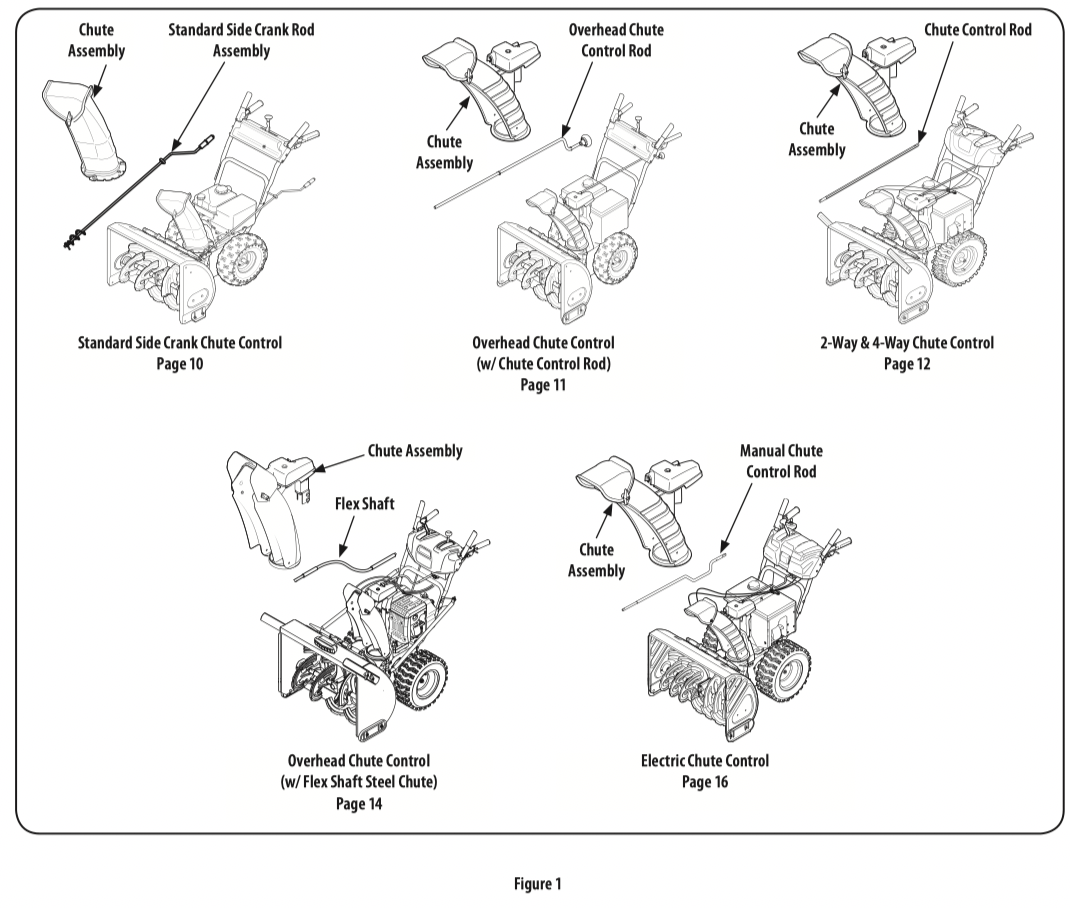

Chute Directional Control Assembly

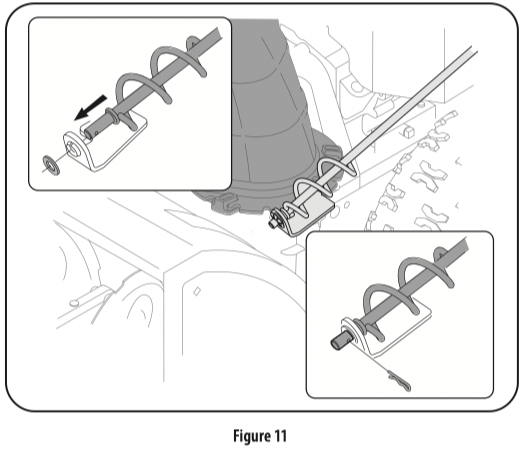

  • Remove plastic cap (if present), flat washer and hairpin clip from end of chute directional control assembly. See Figure 11.

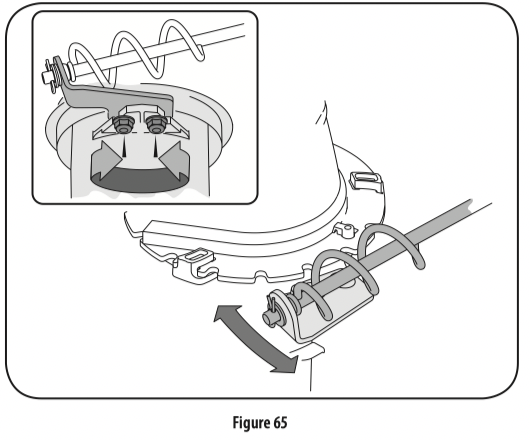

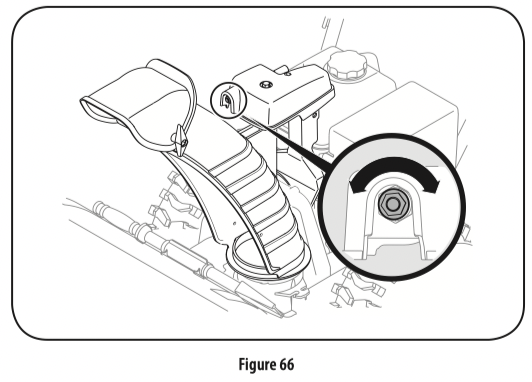

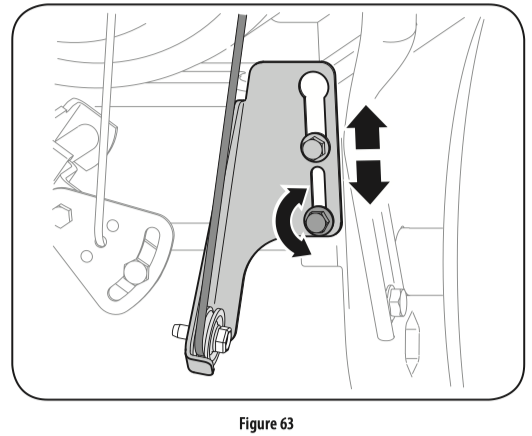

  • Insert end of chute directional control assembly into lower bracket and secure chute directional control assembly with flat washer and hairpin clip removed in Step 1. If necessary, lower bracket can be adjusted. Refer to Chute Bracket Adjustment in Service section on page 32.

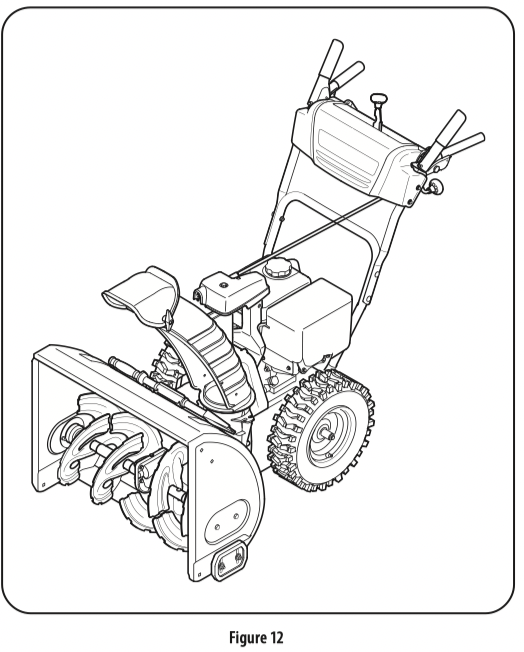

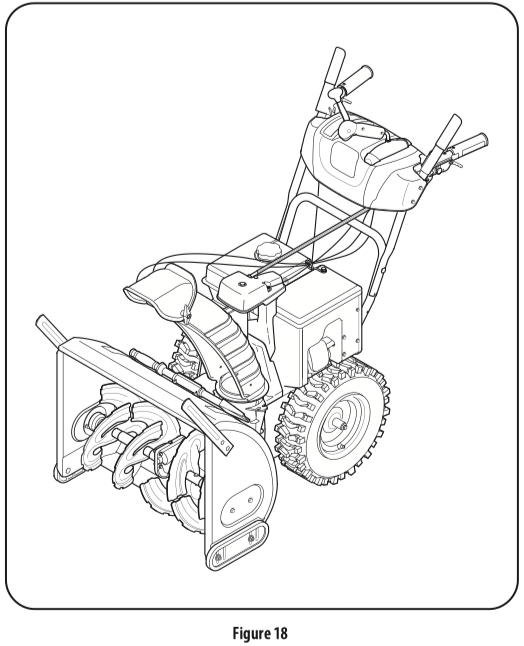

Overhead Chute Control (w/ Chute Control Rod)

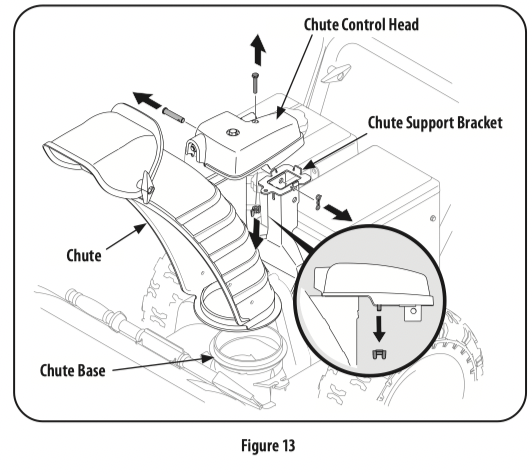

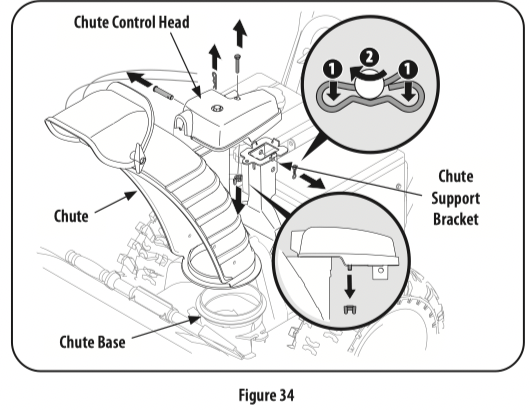

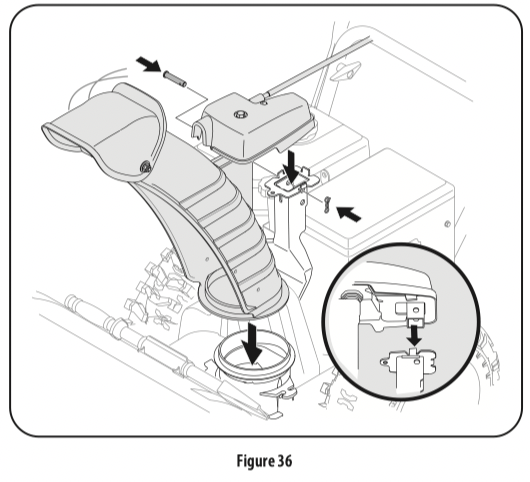

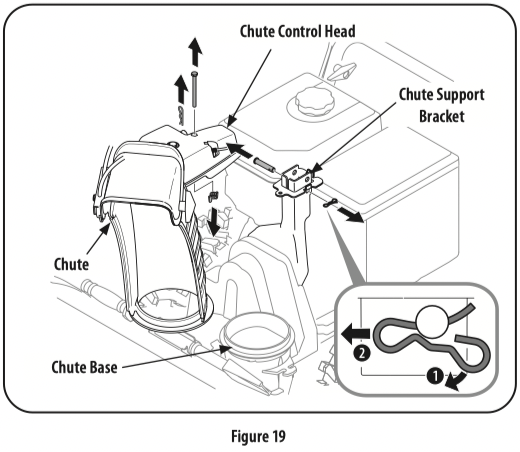

  • Remove wing nut and hex screw from chute control head and clevis pin and cotter pin from chute support bracket. Position chute assembly (forward- facing) over chute base. See Figure 13.

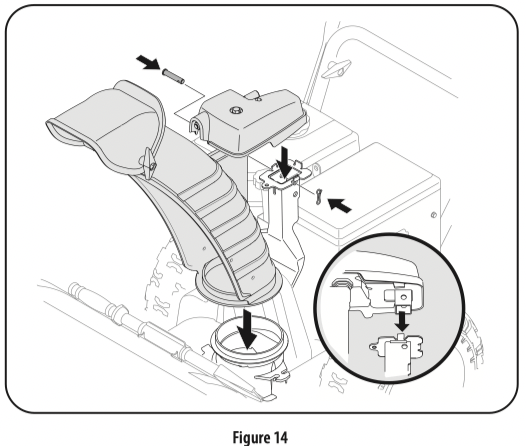

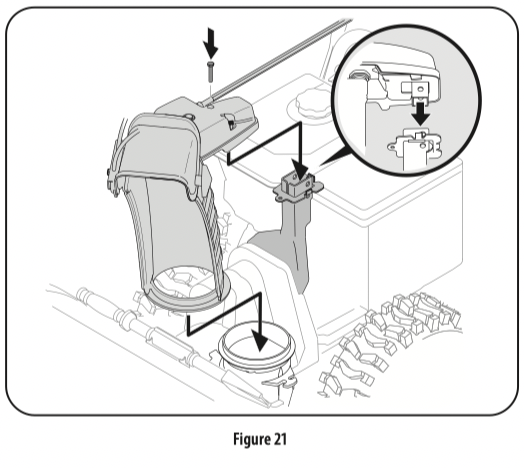

  • Place chute assembly onto chute base and secure chute control head to chute support bracket with clevis pin and cotter pin removed in Step 1. See Figure 14.

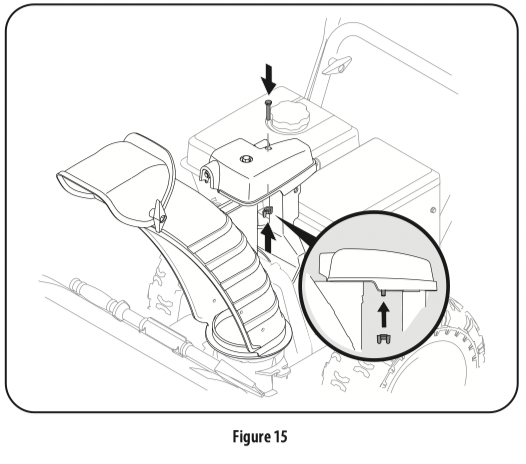

  • Finish securing chute control head to chute support bracket with wing nut (a) and hex screw (b) removed in Step 1. See Figure 15.

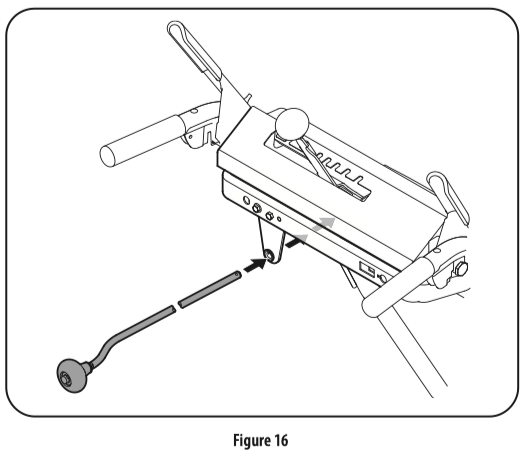

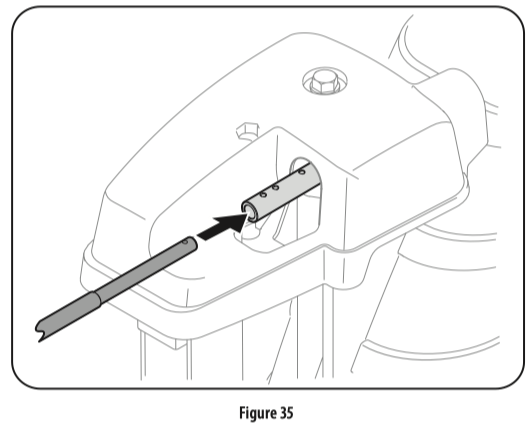

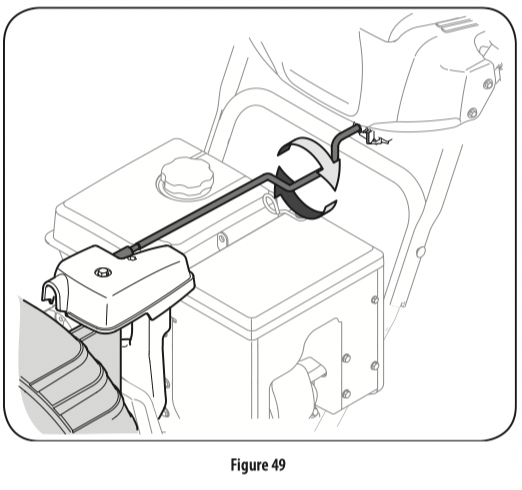

  • Insert chute control rod into the support bracket on rear of the dash panel. See Figure 16.

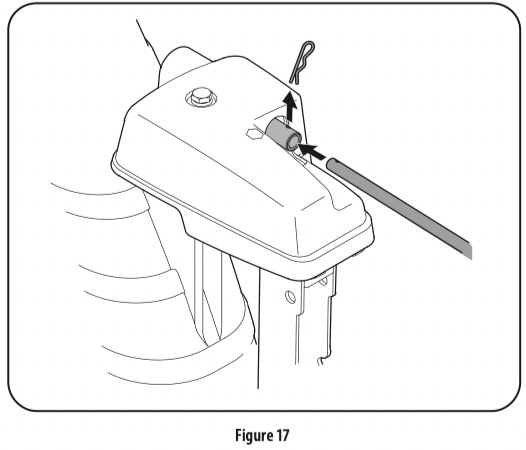

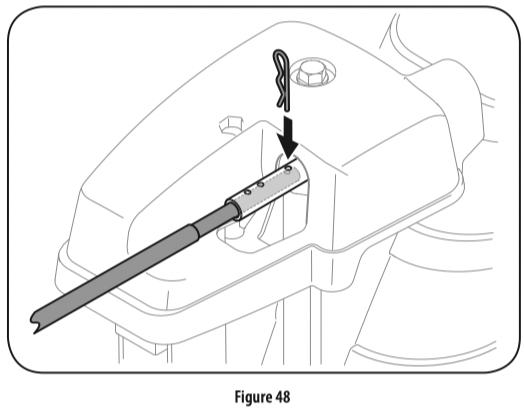

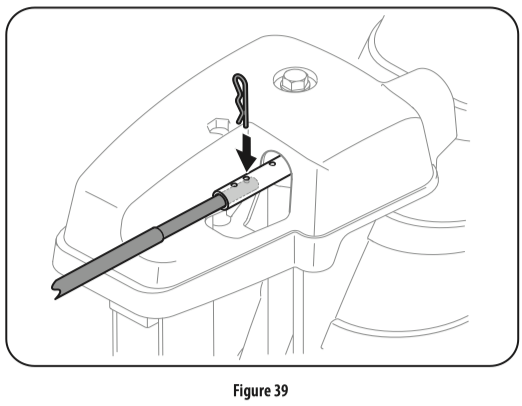

  • Remove hairpin clip (a) from rear of chute control head. See Figure 17.
  • Insert chute control rod (b) into rear of chute control head. See Figure 17. Secure chute control rod to chute control assembly with hairpin clip removed in Step 5.

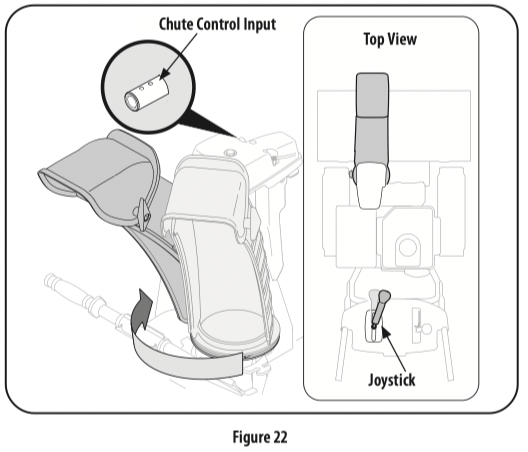

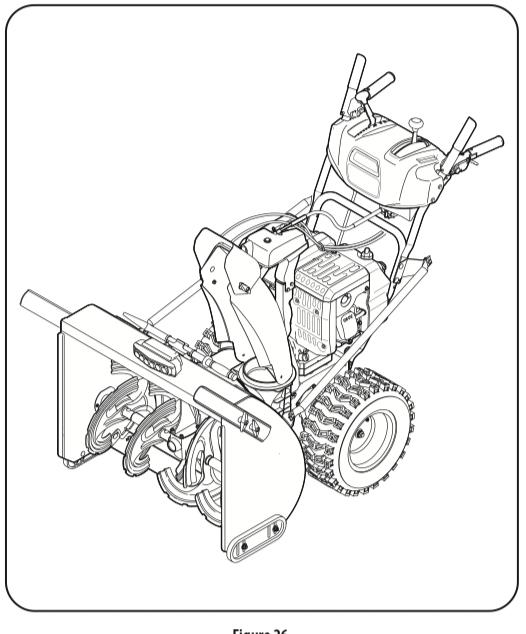

Overhead Chute Control (w/ Flex Shaft & Steel Chute)

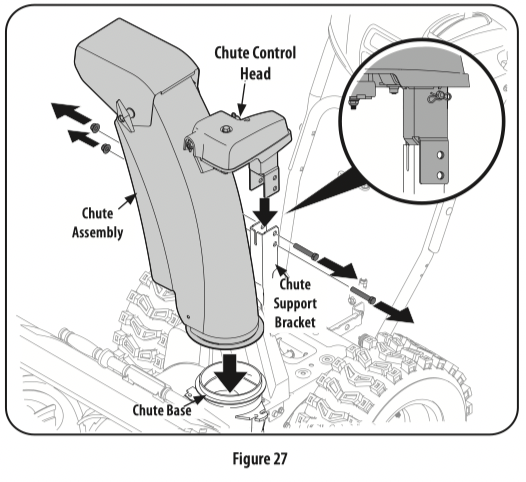

  • Remove lock nuts and hex screws from chute support bracket (this will require two wrenches). See Figure 27.
  • Place chute assembly onto chute base and chute control head onto chute support bracket. See Figure 27.

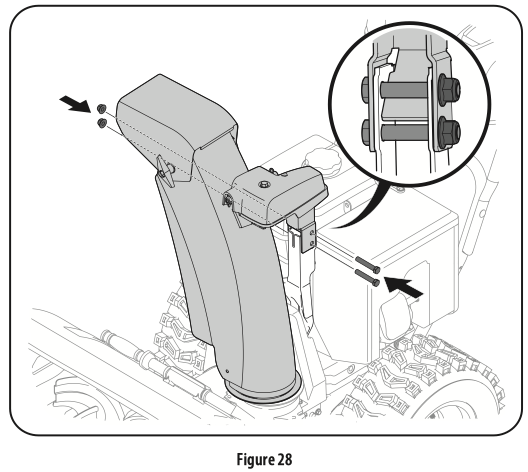

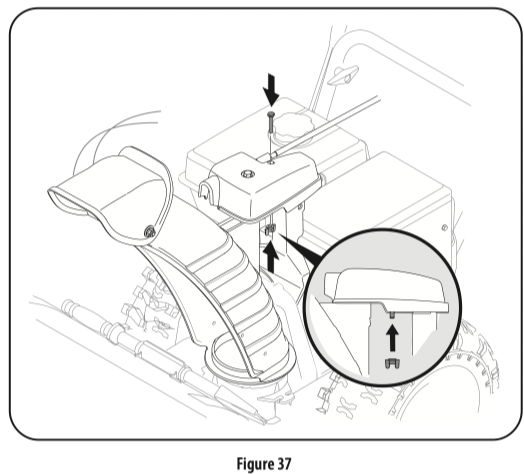

  • Secure chute control head to chute support bracket with lock nuts and hex screws removed in Step 1. See Figure 28.

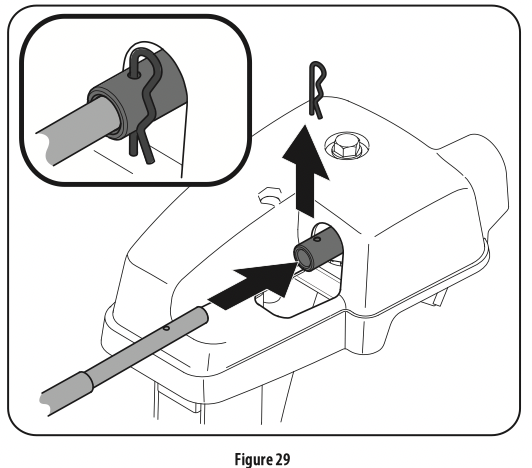

  • Remove hairpin clip from rear of chute control assembly. See Figure 29.

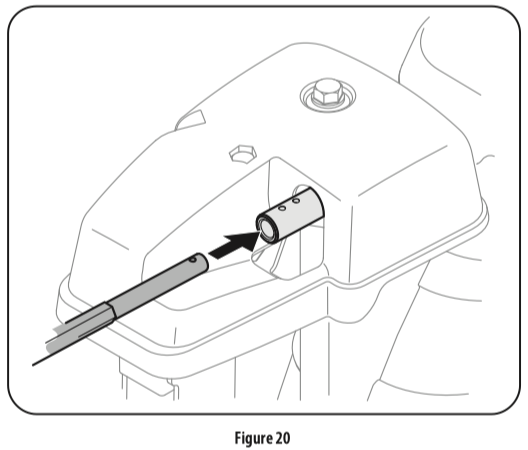

  • Insert flex shaft removed during handle assembly from lower handle into rear of chute directional control head. See Figure 29. Secure flex shaft to chute control head with hairpin clip removed in Step 4.

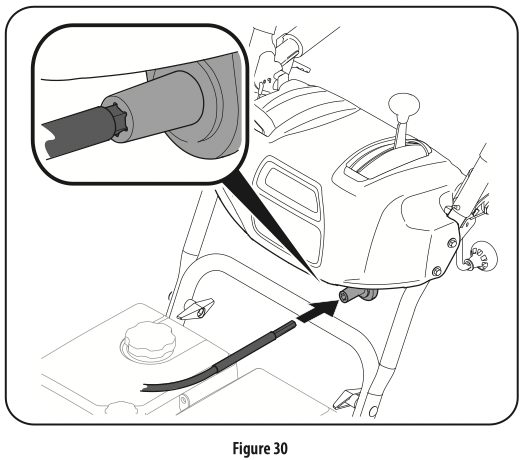

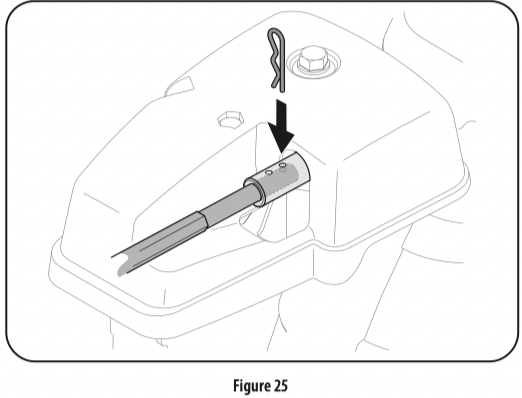

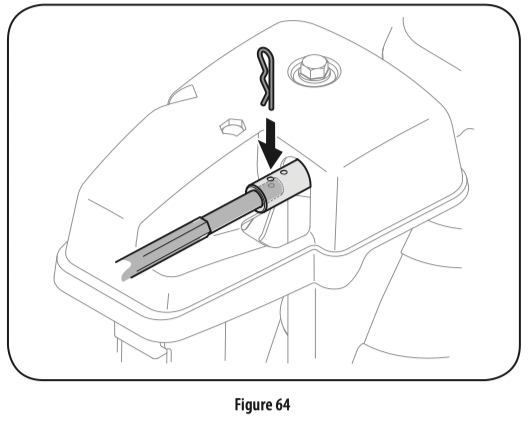

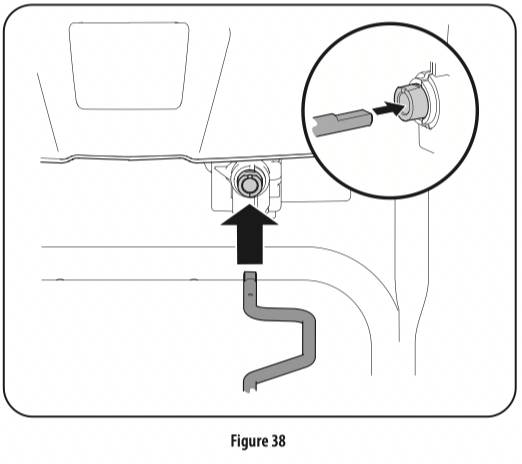

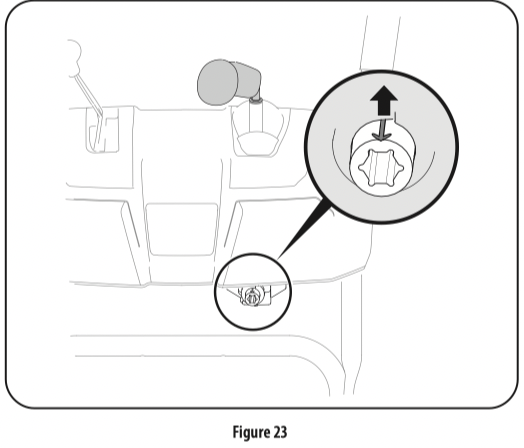

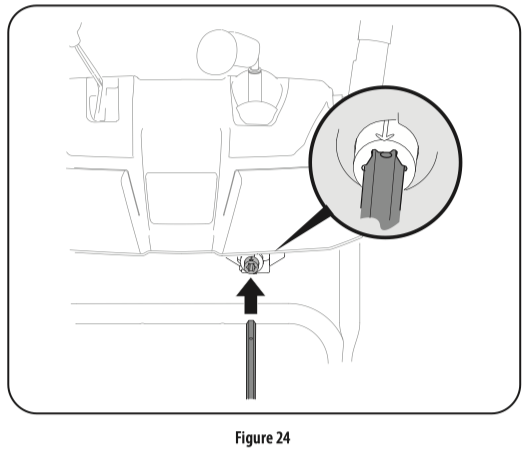

  • Insert hex end of flex shaft into chute control rod coupling under dash panel. See Figure 30.
  • Ensure speed selector is in fastest forward speed.

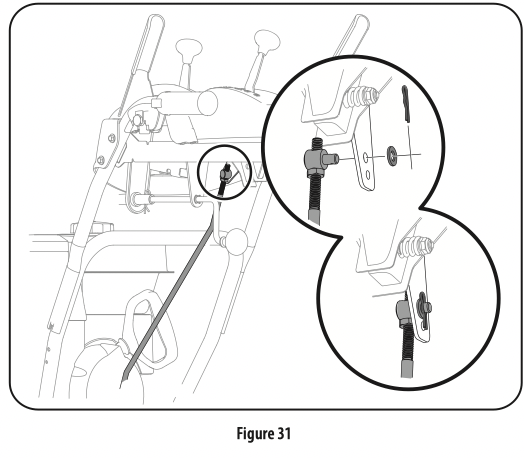

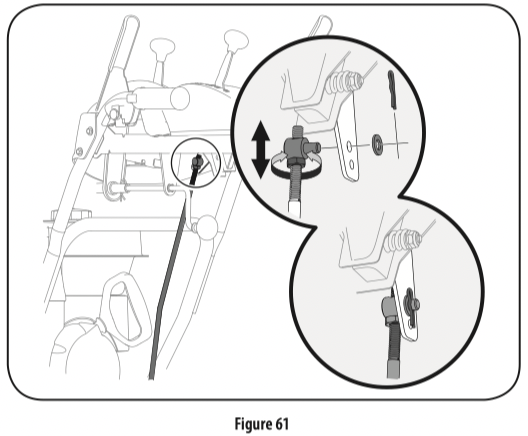

  • Remove cotter pin and washer from ferrule on end of shift rod. See “Figure 31” inset.

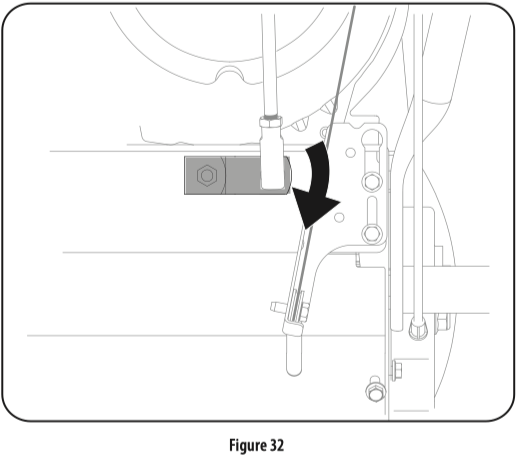

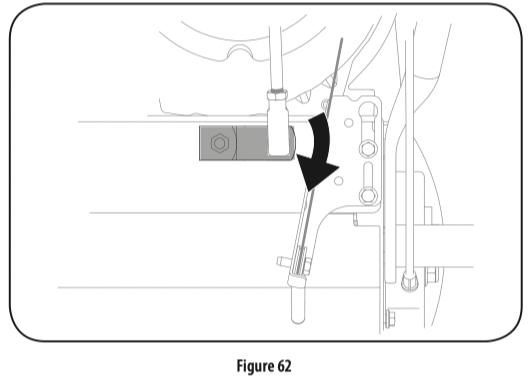

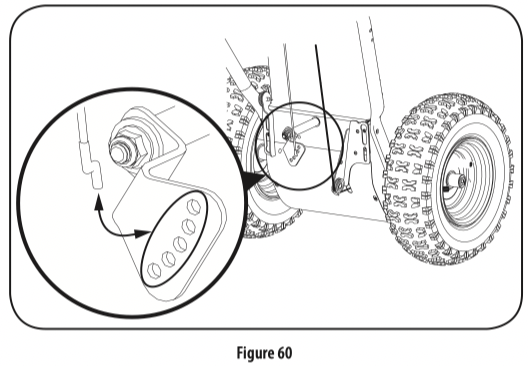

  • Make sure the shift lever on the back of the transmission is rotated downward to the full extent of its rotation. See Figure 32.
  • Insert ferrule into top hole of shift lever and secure with cotter pin (a) and washer (b) removed in Step 8. See Figure 31. Ferrule may need to be adjusted up or down.
