Welcome
Congratulations on your purchase of a new
Honda motorcycle. Your selection of a
Honda makes you part of a worldwide family
of satisfied customers who appreciate
Honda's reputation for building quality into
every product.
To ensure your safety and riding pleasure:
● Read this owner's manual carefully.
● Follow all recommendations and
procedures contained in this manual.
● Pay close attention to safety messages
contained in this manual and on the
motorcycle.
To protect your investment, we urge you to
take responsibility for keeping your
motorcycle well serviced and maintained.
Also, observe the break-in guidelines, and
always perform the pre-ride inspection and
other periodic checks in this manual.
When service is required, remember that your
Honda dealer knows your motorcycle best. If
you have the required mechanical “know-how”
and tools, you can purchase an official Honda
Service Manual to help you perform many
maintenance and repair tasks. 2 P. 127
Read the warranty information thoroughly so
that you understand the warranty coverage
and that you are aware of your rights and
responsibilities. 2 P. 128
You may also want to visit our website at
www.powersports.honda.com.
Canada
www.honda.ca.
Happy riding!
California Proposition 65 Warning
WARNING: This product contains or emits
chemicals known to the State of California to
cause cancer and birth defects or other
reproductive harm.
20161124110921_31K87A000_enu_BOOK Page 2 Thursday, November 24 2016 11:13:27 JST
A Few Words About Safety
Your safety, and the safety of others, is very
important. Operating this motorcycle safely is
an important responsibility.
To help you make informed decisions about
safety, we have provided operating
procedures and other information on safety
labels and in this manual. This information
alerts you to potential hazards that could
hurt you or others.
Of course, it is not practical or possible to
warn you about all hazards associated with
operating or maintaining a motorcycle. You
must use your own good judgment.
You will find important safety information in a
variety of forms, including:
● Safety labels on the motorcycle
●
Safety Messages preceded by a safety alert
symbol and one of three signal words:
DANGER, WARNING, or CAUTION.
These signal words mean:
3DANGER
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3WARNING
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3CAUTION
You CAN be HURT if you don’t follow
instructions.
Other important information is
provided under the following titles:
NOTICE
Information to help you avoid
damage to your motorcycle, other
property, or the environment.
20161124110921_31K87A000_enu_BOOK Page 3 Thursday, November 24 2016 11:13:27 JST
Safety Guidelines................................................. P. 3
Safety Labels.........................................................P. 7
Safety Precautions............................................... P.
9
Riding Precautions ............................................ P. 11
Accessories & Modifications........................... P. 15
Loading ................................................................ P. 16
20161124110921_31K87A000_enu_BOOK Page 5 Thursday, November 24 2016 11:13:27 JST
This section contains important information for safe riding of your motorcycle.
Please read this section carefully.
Motorcycle Safety
Safety Guidelines
Follow these guidelines to enhance your safety:
● Perform all routine and regular inspections
specified in this manual.
● Stop the engine and keep sparks and flame
away before filling the fuel tank.
● Do not run the engine in enclosed or partly
enclosed areas. Carbon monoxide in
exhaust gases is toxic and can kill you.
Always Wear a Helmet
It's a proven fact: helmets and protective
apparel significantly reduce the number and
severity of head and other injuries. So always
wear an approved motorcycle helmet and
protective apparel. 2 P. 9
Before Riding
Model not equipped with Optional Passenger Seat Kit
Make sure that you are physically fit, mentally
focused and free of alcohol and drugs. Check
that you are wearing an approved motorcycle
helmet and protective apparel.
Model equipped with Optional Passenger Seat Kit
Make sure that you are physically fit, mentally
focused and free of alcohol and drugs. Check
that you and your passenger are both wearing
an approved motorcycle helmet and protective
apparel. Instruct your passenger on holding
onto the seat strap or your waist, leaning with
you in turns, and keeping their feet on the
footpegs, even when the motorcycle is stopped.
20161124110921_31K87A000_enu_BOOK Page 6 Thursday, November 24 2016 11:13:27 JST
Safety Guidelines
Motorcycle Safety
3
Continued
Take Time to Learn & Practice
Even if you have ridden other motorcycles,
practice riding in a safe area to become familiar
with how this motorcycle works and handles,
and to become accustomed to the motorcycle's
size and weight.
We recommend that all riders take a certified
course approved by the Motorcycle Safety
Foundation (MSF). New riders should start with
the basic course, and even experienced riders
will find the advanced course beneficial.
For information about the MSF training course
nearest you, call the national toll-free number:
(800) 446-9227.
USA
Other riding tips can be found in the You
and Your Motorcycle Riding Tips booklet that
came with your motorcycle.
Ride Defensively
Always pay attention to other vehicles around
you, and do not assume that other drivers see
you. Be prepared to stop quickly or perform an
evasive maneuver.
Make Yourself Easy to See
Make yourself more visible, especially at night,
by wearing bright reflective clothing, positioning
yourself so other drivers can see you, signaling
before turning or changing lanes, and using
your horn when necessary.
Ride within Your Limits
Never ride beyond your personal abilities or
faster than conditions warrant. Fatigue and
inattention can impair your ability to use good
judgment and ride safely.
20161124110921_31K87A000_enu_BOOK Page 7 Thursday, November 24 2016 11:13:27 JST
Safety Guidelines
Motorcycle Safety
4
Never Carry a passenger
Model not equipped with Optional Passenger Seat Kit
There are no handholds, seat, or footrest to
carry a passenger.
Do not carry a passenger unless you have
purchased and installed the Honda Genuine
Accessory Passenger Seat Kit, or equivalent
parts specifically designed for this motorcycle,
which must include the passenger seat, seat
strap, footpegs, and the mounting hardware.
Don't Drink and Ride
Alcohol and riding don't mix. Even one alcoholic
drink can reduce your ability to respond to
changing conditions, and your reaction time
gets worse with every additional drink. Don't
drink and ride, and don't let your friends drink
and ride either.
Keep Your Honda in Safe Condition
It's important to keep your motorcycle properly
maintained and in safe riding condition.
Inspect your motorcycle before every ride and
perform all recommended maintenance. Never
exceed load limits (2 P. 16), and do not modify
your motorcycle or install accessories that
would make your motorcycle unsafe (2 P. 15).
If You are Involved in a Crash
Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether it
is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable laws
and regulations if another person or vehicle is
involved in the crash.
20161124110921_31K87A000_enu_BOOK Page 8 Thursday, November 24 2016 11:13:27 JST
Safety Guidelines
Motorcycle Safety
5
Continued
If you decide to continue riding, first turn the
ignition switch to the OFF position, and evaluate
the condition of your motorcycle. Inspect for
fluid leaks, check the tightness of critical nuts
and bolts, and check the handlebar, control
levers, brakes, and wheels. Ride slowly and
cautiously.
Your motorcycle may have suffered damage
that is not immediately apparent. Have your
motorcycle thoroughly checked at a qualified
service facility as soon as possible.
Carbon Monoxide Hazard
Exhaust contains poisonous carbon monoxide, a
colorless, odorless gas. Breathing carbon
monoxide can cause loss of consciousness and
may lead to death.
If you run the engine in confined or even partly
enclosed area, the air you breathe could
contain a dangerous amount of carbon
monoxide.
Never run your motorcycle inside a garage or
other enclosure.
3WARNING
Running the engine of your motorcycle
while in an enclosed or even partially
enclosed area can cause a rapid build-
up of toxic carbon monoxide gas.
Breathing this colorless, odorless gas
can quickly cause unconsciousness and
lead to death.
Only run your motorcycle's engine
when it is located in a well ventilated
area outdoors.
20161124110921_31K87A000_enu_BOOK Page 9 Thursday, November 24 2016 11:13:27 JST
Safety Guidelines
Motorcycle Safety
6
Safety Labels
Safety and information labels on your
motorcycle provide important safety
information and may warn you of potential
hazards that could cause serious injury. Read
these labels carefully and don't remove them.
If a label comes off or becomes hard to read,
contact your dealer for a replacement.
20161124110921_31K87A000_enu_BOOK Page 10 Thursday, November 24 2016 11:13:27 JST
Safety Labels
Motorcycle Safety
7
Continued

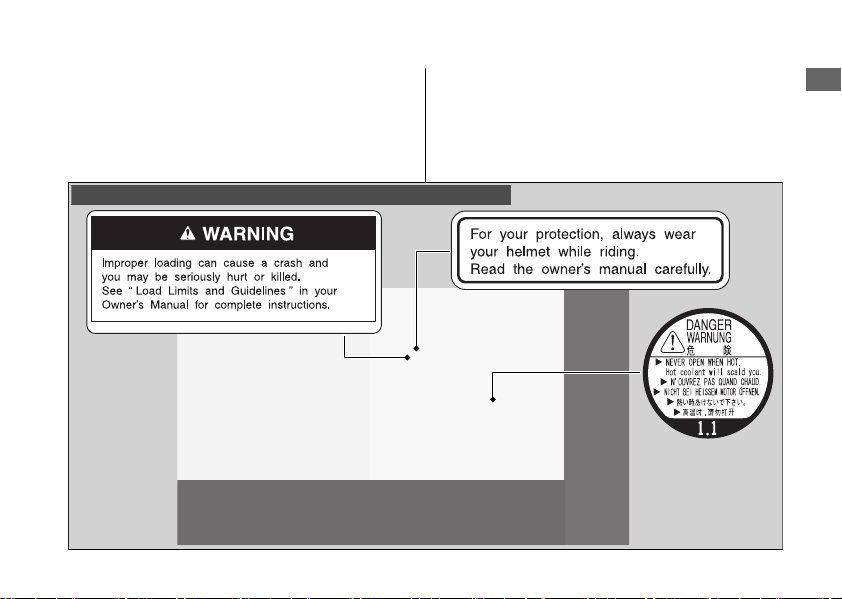

Model not equipped with Optional Passenger Seat Kit shown
20161124110921_31K87A000_enu_BOOK Page 11 Thursday, November 24 2016 11:13:27 JST
Safety Labels
Motorcycle Safety
8
Model not equipped with Optional Passenger Seat Kit shown
Safety Precautions
● Ride cautiously and keep your hands on the
handlebar and feet on the footpegs.
●
Model equipped with Optional Passenger Seat Kit
Keep passenger's hands onto the seat strap
or your waist, passenger's feet on the
footpegs while riding.
●
Model not equipped with Optional Passenger Seat
Kit
Always consider the safety of other drivers
and riders.
●
Model equipped with Optional Passenger Seat Kit
Always consider the safety of your
passenger, as well as other drivers and
riders.
Protective Apparel
Model not equipped with Optional Passenger Seat Kit
Make sure that you are wearing an approved
motorcycle helmet, eye protection, and high-
visibility protective clothing. Ride defensively in
response to weather and road conditions.
Model equipped with Optional Passenger Seat Kit
Make sure that you and any passenger are
wearing an approved motorcycle helmet, eye
protection, and high-visibility protective
clothing. Ride defensively in response to
weather and road conditions.
#
Helmet
Should be safety-standard certified, high-
visibility, and correct size for your head.
● Must fit comfortably but securely, with the
chin strap fastened.
● Face shield with unobstructed field of vision
or other approved eye protection.
20161124110921_31K87A000_enu_BOOK Page 12 Thursday, November 24 2016 11:13:27 JST
Safety Precautions
Motorcycle Safety
9
Continued
USA
Look for a DOT (Department of
Transportation) certification label on any helmet
you buy.
Model not equipped with Optional Passenger Seat Kit
3WARNING
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Make sure that you always wear an
approved helmet and protective
apparel.
Model equipped with Optional Passenger Seat Kit
3WARNING
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Make sure that you and any passenger
always wear an approved helmet and
protective apparel.
20161124110921_31K87A000_enu_BOOK Page 13 Thursday, November 24 2016 11:13:27 JST
Safety Precautions
Motorcycle Safety
10
#
Gloves
Full-finger leather gloves with high abrasion
resistance.
#
Boots or Riding Shoes
Sturdy boots with non-slip soles and ankle
protection.
#
Jacket and Pants
Protective, highly visible, long-sleeved jacket
and durable long pants for riding (or a
protective suit).
Riding Precautions
Break-in Period
During the first 300 miles (500 km) of running,
follow these guidelines to ensure your
motorcycle's future reliability and performance.
● Avoid full-throttle starts and rapid
acceleration.
● Avoid hard braking and rapid down-shifts.
● Ride conservatively.
Brakes
Observe the following guidelines:
● Avoid excessively hard braking and
downshifting.
u Sudden braking can reduce the
motorcycle's stability.
u Where possible, reduce speed before
turning; otherwise you risk sliding out.
20161124110921_31K87A000_enu_BOOK Page 14 Thursday, November 24 2016 11:13:27 JST
Riding Precautions
Motorcycle Safety
11
Continued
● Exercise caution on low traction surfaces.
u The tires slip more easily on such
surfaces and braking distances are
longer.
● Avoid continuous braking.
u Repeated braking, such as when
descending long, steep slopes can
seriously overheat the brakes, reducing
their effectiveness. Use engine braking
with intermittent use of the brakes to
reduce speed.
● For full braking effectiveness, operate both
the front and rear brakes together.
#
Anti-lock Brake System (ABS)
CMX300A only
This model is equipped with an Anti-lock Brake
System (ABS) designed to help prevent the
brakes from locking up during hard braking.
● ABS does not reduce braking distance. In
certain circumstances, ABS may result in a
longer stopping distance.
● ABS does not function at speeds below 6
mph (10 km/h).
● The brake lever and pedal may recoil slightly
when applying the brakes. This is normal.
● Always use the recommended front/rear
tires and sprockets to ensure correct ABS
operation.
20161124110921_31K87A000_enu_BOOK Page 15 Thursday, November 24 2016 11:13:27 JST
Riding Precautions
Motorcycle Safety
12
#
Engine Braking
Engine braking helps slow your motorcycle
down when you release the throttle. For further
slowing action, downshift to a lower gear. Use
engine braking with intermittent use of the
brakes to reduce speed when descending long,
steep slopes.
#
Wet or Rainy Conditions
Road surfaces are slippery when wet, and wet
brakes further reduce braking efficiency.
Exercise extra caution when braking in wet
conditions.
If the brakes get wet, apply the brakes while
riding at low speed to help them dry.
Parking
● Park on a firm, level surface.
● If you must park on a slight incline or loose
surface, park so that the motorcycle cannot
move or fall over.
● Make sure that high-temperature parts
cannot come into contact with flammable
materials.
● Do not touch the engine, muffler, brakes
and other high-temperature parts until they
cool down.
● To reduce the likelihood of theft, always lock
the handlebar and remove the key when
leaving the motorcycle unattended.
Use of an anti-theft device is also
recommended.
20161124110921_31K87A000_enu_BOOK Page 16 Thursday, November 24 2016 11:13:27 JST
Riding Precautions
Motorcycle Safety
13
Continued
#
Parking with the Side Stand
1.
Stop the engine.
2.
Push the side stand down.
3.
Slowly lean the motorcycle to the left until its
weight rests on the side stand.
4.
Turn the handlebar fully to the left.
u Turning the handlebar to the right
reduces stability and may cause the
motorcycle to fall.
5.
Turn the ignition switch to the OFF position
and remove the key.
6.
Lock the steering. 2 P. 31
Refueling and Fuel Guidelines
Follow these guidelines to protect the engine,
fuel system and catalytic converter:
● Use only unleaded gasoline.
● Use recommended octane number. Using
lower octane gasoline will result in
decreased engine performance.
● Do not use fuels containing a high
concentration of alcohol. 2 P. 126
● Do not use stale or contaminated gasoline
or an oil/gasoline mixture.
● Avoid getting dirt or water in the fuel tank.
20161124110921_31K87A000_enu_BOOK Page 17 Thursday, November 24 2016 11:13:27 JST
Riding Precautions
Motorcycle Safety
14
Accessories &
Modifications
We strongly advise that you do not add any
accessories that were not specifically designed
or approved for your motorcycle by Honda or
make modifications to your motorcycle from its
original design. Doing so can make it unsafe.
Modifying your motorcycle may also void your
warranty and make your motorcycle illegal to
operate on public roads and highways. Before
deciding to install accessories on your
motorcycle be certain the modification is safe
and legal.
3WARNING
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner's
manual regarding accessories and
modifications.
Do not pull a trailer with, or attach a sidecar to,
your motorcycle. Your motorcycle was not
designed for these attachments, and their use
can seriously impair your
motorcycle's handling.
20161124110921_31K87A000_enu_BOOK
Page 18
Thursday, November 24 2016 11:13:27 JST
Accessories & Modifications
Motorcycle Safety
15
Loading
●
Model not equipped with Optional Passenger Seat
Kit
Never carry a passenger. Your motorcycle
was not designed to carry a passenger.
● Carrying extra weight affects your
motorcycle's handling, braking and stability.
Always ride at a safe speed for the load you
are carrying.
● Avoid carrying an excessive load and keep
within specified load limits.
Maximum weight capacity 2 P. 133
● Tie all luggage securely, evenly balanced
and close to the center of the motorcycle.
● Do not place objects near the lights or the
muffler.
Model not equipped with Optional Passenger Seat Kit
3WARNING
Overloading, improper loading or
carrying a passenger can cause a crash
and you can be seriously hurt or killed.
Follow all load limits and other loading
guidelines in this manual.
Model equipped with Optional Passenger Seat Kit
3WARNING
Overloading or improper loading can
cause a crash and you can be seriously
hurt or killed.
Follow all load limits and other loading
guidelines in this manual.
20161124110921_31K87A000_enu_BOOK Page 19 Thursday, November 24 2016 11:13:27 JST
Loading
Motorcycle Safety
16
Your motorcycle comes from the factory with a
single seat for operator only, but ratings
capacity (subject to applicable weight ratings) to
also carry a passenger with the purchase and
installation of the optional Honda Genuine
Accessory Passenger Seat Kit, or equivalent
parts specifically designed for this motorcycle.
Do not carry a passenger unless a passenger
seat (with seat strap) and footpegs have been
securely installed on your motorcycle.
3WARNING
Carrying a passenger without a properly
designed and installed passenger seat
and footpegs can result in serious injury
or death to you and/or the passenger.
Never carry a passenger without first
installing a passenger seat (with seat
strap) and footpegs specifically
designed for this motorcycle. Further,
never carry more than one passenger.
20161124110921_31K87A000_enu_BOOK Page 20 Thursday, November 24 2016 11:13:27 JST
Loading
Motorcycle Safety
17
Continued
The vehicle GVWR, weight ratings and tire load
capacities can be found on the vehicle.
Single Seat as produced.
Optional Honda Genuine Accessory Passenger
Seat Kit shown.
20161124110921_31K87A000_enu_BOOK Page 21 Thursday, November 24 2016 11:13:27 JST
Loading
Motorcycle Safety
18
Single Seat
Passenger Seat Kit
20161124110921_31K87A000_enu_BOOK Page 22 Thursday, November 24 2016 11:13:27 JST
Motorcycle Safety
19
BLANK PAGE
Parts Location
20161124110921_31K87A000_enu_BOOK Page 23 Thursday, November 24 2016 11:13:27 JST
Operation Guide
20
Fuse box
(P.107)
Front brake fluid reservoir
(P.77)
Front brake lever
Throttle grip (P.88)
Engine oil filter (P.71)
Engine oil level inspection
window (P.69)
Fuel fill cap (P.36)
Rear brake fluid reservoir
(P.77)
Rear brake pedal
Rear suspension spring
preload adjuster (P.91)
Seat (P.64)
Side cover (P.65)
Engine oil fill cap (P.69)
Steering lock (P.32)
Model not equipped with Optional Passenger Seat Kit shown
20161124110921_31K87A000_enu_BOOK Page 24 Thursday, November 24 2016 11:13:27 JST
Operation Guide
21
Clutch lever
(P.85)
Rear suspension spring
preload adjuster (P.91)
Side stand (P.80)
Shift lever (P.35)
Battery (P.61)
Document bag (P.38) /
Tool kit (P.37)
Air cleaner (P.73)
Drive chain (P.81)
Crankcase breather (P.89)
Main fuse (P.109)
Coolant reserve tank (P.75)
Engine oil drain bolt (P.71)
Spark plug (P.66)
Ignition switch (P.31)

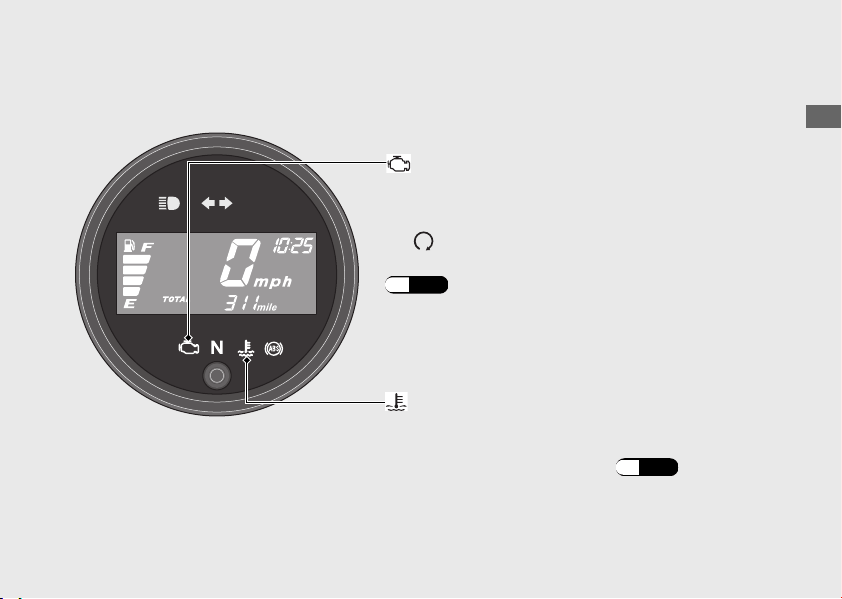

Instruments
20161124110921_31K87A000_enu_BOOK Page 25 Thursday, November 24 2016 11:13:27 JST
Operation Guide
22
Display Check
When the ignition switch is turned to the ON position, all the mode and digital
segments will show. If any part of these displays does not come on when it should,
have your dealer check for problems.
SEL button
20161124110921_31K87A000_enu_BOOK Page 26 Thursday, November 24 2016 11:13:27 JST
Operation Guide
23
Continued
Remaining fuel when only 1st (E)
segment starts flashing:
approximately 0.58 US gal (2.2 L)
Fuel gauge
If the fuel gauge indicator
flashes in a repeat pattern
or turns off:
(P.96)
Clock (12-hour or 24-hour display)
Speedometer
Tripmeter B
Tripmeter A
Odometer
• Tripmeter: Distance ridden since tripmeter
was reset.
u To reset the tripmeter A or B, press and hold
SEL button with each tripmeter displayed.
• Odometer: Total distance ridden.
SEL button selects the odometer, tripmeter A
and tripmeter B.
Odometer [TOTAL], Tripmeter [TRIP A/B]
To set the clock: (P.25)
Display Setting
Following items can be changed sequentially.
• Time format setting
• Clock setting
• Backlight brightness adjustment
• Changing of speed and mileage unit
In addition, to move the ordinary display at
display setting.
• The buttons is not pressed for about 30
seconds.
• Turn the ignition switch to the OFF
position and then to the ON position.
20161124110921_31K87A000_enu_BOOK Page 27 Thursday, November 24 2016 11:13:27 JST
Operation Guide
24
Instruments (Continued)
Ordinary display
Time format setting
Backlight brightness adjustment
Changing of speed and mileage unit
Setting Mode
Clock setting
Press and hold SEL button.
1 Time format setting:
You can switch the time format between 12
hour format or 24 hour format.
a
Turn the ignition switch to the ON position.
b
Press SEL button to select the odometer.
c
Press and hold SEL button until the current
time format start flashing.
d
Press SEL button to select “12 hr” or “24 hr”.
e
Press and hold SEL button. The time format
is set, and then the display moves to the
clock setting.
2 Clock setting:
a
Press SEL button until the desired hour is
displayed.
b
Press and hold SEL button. The minute digits
start flashing.
c
Press SEL button until the desired minute is
displayed.
d
Press and hold SEL button. The clock is set,
and then the display moves to the backlight
brightness adjustment.
20161124110921_31K87A000_enu_BOOK Page 28 Thursday, November 24 2016 11:13:27 JST
Operation Guide
25
Continued
3 Backlight brightness adjustment:
You can adjust the brightness to one of five
levels.
a
Press SEL button. The brightness is switched.
b
Press and hold SEL button. The backlight is
set, and then the display moves the
changing of the speed and mileage unit.
4 Changing of speed and mileage unit:
a
Press SEL button to select either “mph” and
“mile” or “km/h” and “km”.
b
Press and hold SEL button. The speed and
mileage unit is set, and then the display will
return to the ordinary display.
The established setting can also be set by
turning the ignition switch to the OFF
position.
The control is automatically switched from
the setting mode to the ordinary display if
the button is not pressed for about 30
seconds. Even in this case, established
setting is maintained.
20161124110921_31K87A000_enu_BOOK Page 29 Thursday, November 24 2016 11:13:27 JST
Operation Guide
26
Instruments (Continued)
Indicators
20161124110921_31K87A000_enu_BOOK Page 30 Thursday, November 24 2016 11:13:27 JST
Operation Guide
27
Continued
Comes on briefly when the ignition switch is turned
to the ON position with the engine stop switch in
the
(Run) position.
If one of these indicators does not come on when it should, have your dealer check for
problems.
If it comes on while engine is running:
(P.95)
PGM-FI (Programmed Fuel Injection)
malfunction indicator lamp (MIL)
High coolant temperature indicator
Comes on briefly when the ignition switch is
turned to the ON position.
If it comes on while riding: (P.94)
20161124110921_31K87A000_enu_BOOK Page 31 Thursday, November 24 2016 11:13:27 JST
Operation Guide
28
Indicators (Continued)
Turn signal indicator
High beam indicator
Neutral indicator
Comes on when the transmission is in Neutral.
ABS (Anti-lock Brake System) indicator
Comes on when the ignition switch is turned to
the ON position. Goes off when your speed
reaches approximately 6 mph (10 km/h).
If it comes on while riding: (P.95)
CMX300A only
20161124110921_31K87A000_enu_BOOK Page 32 Thursday, November 24 2016 11:13:27 JST
Operation Guide
29
BLANK PAGE
Switches
20161124110921_31K87A000_enu_BOOK Page 33 Thursday, November 24 2016 11:13:27 JST
Operation Guide
30
Should normally remain in the
(Run) position.
u In an emergency, switch to the
(Off) position (the starter
motor will not operate) to stop
the engine.
Engine stop switch
Headlight dimmer/
Passing light control switch
• : High beam
• : Low beam
Start button
Turn signal switch
u Pressing the switch turns
the turn signal off.
Horn button
Hazard switch
Switchable when the ignition switch is in the
ON position. Can be turned to off regardless
of the ignition switch position.
u The signals continue flashing when the
ignition switch is in the OFF position after
the hazard switch is on.
• : Flashes the high beam headlight.
20161124110921_31K87A000_enu_BOOK Page 34 Thursday, November 24 2016 11:13:27 JST
Operation Guide
31
Continued
Ignition switch
Switches the electrical system on/off.
u Key can be removed when in the OFF position.
ON
Turns electrical system
on for starting/riding.
OFF
Turns engine off.
Steering Lock
Lock the steering when parking to help
prevent theft.
An U-shaped wheel lock or similar device is
also recommended.
#
Locking
a
Turn the handlebar all the way to the left.
b
Insert the ignition key in the steering lock.
c
Push the ignition key down, and turn it 180
degrees clockwise.
d
Remove the ignition key.
#
Unlocking
Insert the ignition key, push it in, and turn it
180 degrees counterclockwise.
20161124110921_31K87A000_enu_BOOK Page 35 Thursday, November 24 2016 11:13:27 JST
Operation Guide
32
Switches (Continued)
a
b
Turn
Ignition key
Push
Steering lock
Starting the Engine
Start your engine using the following
procedure, regardless of whether the engine
is cold or warm.
NOTICE
• If the engine does not start within 5 seconds,
turn the ignition switch to the OFF
position
and wait 10 seconds before trying to start
the engine again to recover battery voltage.
• Extended fast idling and revving the engine
can damage the engine, and the exhaust
system.
a
Make sure the engine stop switch is in the
(Run) position.
b
Turn the ignition switch to the ON position.
c
Shift the transmission to Neutral (
N
indicator comes on). Alternatively, pull in the
clutch lever to start your motorcycle with the
transmission in gear so long as the side
stand is raised.
d
Press the start button with the throttle
completely closed.
20161124110921_31K87A000_enu_BOOK Page 36 Thursday, November 24 2016 11:13:27 JST
Operation Guide
33
Continued
a
b
c
d
If you cannot start the engine:
With the throttle slightly open (about 1/8 in (3
mm), without freeplay) while starting the
engine.
If the engine does not start:
a
Open the throttle fully and press the start
button for 5 seconds.
b
Repeat the normal starting procedure.
c
If the engine starts, open the throttle slightly
if idling is unstable.
d
If the engine does not start, wait 10 seconds
before trying steps a & b again.
#
If Engine Will Not Start
(P.93)
20161124110921_31K87A000_enu_BOOK Page 37 Thursday, November 24 2016 11:13:27 JST
Operation Guide
34
Starting the Engine (Continued)
About 1/8 in (3 mm), without freeplay
Shifting Gears
Your motorcycle transmission has 6 forward
gears in a one-down, five-up shift pattern.
If you put the motorcycle in gear with the
side stand down, the engine will shut off.
#
Recommended Shift Points
Shifting Up
From 1st to 2nd 12 mph (20 km/h)
From 2nd to 3rd 19 mph (30 km/h)
From 3rd to 4th 25 mph (40 km/h)
From 4th to 5th 31 mph (50 km/h)
From 5th to 6th 37 mph (60 km/h)
Shifting Down
From 6th to 5th 28 mph (45 km/h)
From 5th to 4th 22 mph (35 km/h)
From 4th to 3rd 16 mph (25 km/h)
NOTICE
Improper shifting can damage the engine,
transmission, and drive train. Also, coasting or
towing the motorcycle for long distances with
the engine off can damage the transmission.
20161124110921_31K87A000_enu_BOOK Page 38 Thursday, November 24 2016 11:13:27 JST
Operation Guide
35
6
5
4
3
2
N
1
Refueling
Do not fill with fuel above the level plate.
Fuel type: Unleaded gasoline only
Recommended fuel octane number:
Pump Octane Number (PON) 86 or higher.
Tank capacity: 2.96 US gal (11.2 L)
#
Refueling and Fuel Guidelines
(P.14)
Opening the Fuel Fill Cap
Open the lock cover, insert the ignition key,
and turn it clockwise to open the fuel fill cap.
Closing the Fuel Fill Cap
a
After refueling, push the fuel fill cap closed
until it locks.
b
Remove the ignition key and close the lock
cover.
u The ignition key cannot be removed if
the fuel fill cap is not locked.
3WARNING
Gasoline is highly flammable and
explosive. You can be burned or
seriously injured when handling fuel.
• Stop the engine, and keep heat,
sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
20161124110921_31K87A000_enu_BOOK Page 39 Thursday, November 24 2016 11:13:27 JST
Operation Guide
36
Lock cover
Level plate
Ignition key
Fuel fill cap
Storage Equipment
Tool Kit
The 5 mm Hex wrench is stored behind the
right side cover.
To remove the 5 mm Hex wrench, loosen the
screw with a coin.
#
Removing the Right Side Cover
(P.65)
The tool kit is stored on the underside of the
seat.
Store the tool kit with the document bag, and
secure them with the rubber strap.
#
Removing the Seat
(P.64)
20161124110921_31K87A000_enu_BOOK Page 40 Thursday, November 24 2016 11:13:27 JST
Operation Guide
37
Continued
5 mm Hex wrench
Screw
Rubber strap
Canada model
Document bag
USA model
Tool kitTool kit
Document bag
The screwdriver handle and fuse puller are
stored on the battery cover under the seat.
#
Removing the Seat
(P.64)
Document Bag
The document bag for the owner’s manual is
stored on the underside of the seat.
Store the document bag onto the tool kit,
and secure them with the rubber strap.
20161124110921_31K87A000_enu_BOOK Page 41 Thursday, November 24 2016 11:13:27 JST
Operation Guide
38
Storage Equipment (Continued)
Screwdriver handle
Fuse puller
Rubber strap
Document bag
Canada model shown
Importance of Maintenance ........................... P. 41
Maintenance Schedule.....................................P. 43
Maintenance Fundamentals ...........................P.
46
Removing & Installing Body Components..P. 61
Battery.................................................................... P. 61
Clip.......................................................................... P. 63
Harness Band Clip............................................... P. 63
Seat ......................................................................... P. 64
Side Cover.............................................................P. 65
Spark Plug ........................................................... P. 66
Engine Oil ............................................................ P. 69
Air Cleaner........................................................... P. 73
Coolant.................................................................P. 75
Brakes................................................................... P. 77
Side Stand ........................................................... P. 80
Drive Chain..........................................................P. 81
Clutch ................................................................... P. 85
Throttle ................................................................ P. 88
Crankcase Breather ........................................... P. 89
Other Adjustments............................................ P. 90
Adjusting the Headlight Aim ............................ P. 90
Adjusting the Rear Suspension ........................ P. 91
20161124110921_31K87A000_enu_BOOK Page 43 Thursday, November 24 2016 11:13:27 JST
Please read “Importance of Maintenance” and “Maintenance Fundamentals” carefully
before attempting any maintenance. Refer to “Specifications” for service data.
An optional larger tool kit may be available.
Check with your Honda dealer's parts department.
Maintenance
Importance of Maintenance
Importance of Maintenance
Keeping your motorcycle well-maintained is
absolutely essential to your safety and to
protect your investment, obtain maximum
performance, avoid breakdowns, and reduce air
pollution. Maintenance is the owner's
responsibility. Be sure to inspect your
motorcycle before each ride, and perform the
periodic checks specified in the Maintenance
Schedule. 2 P. 43
3WARNING
Improperly maintaining your
motorcycle or failing to correct a
problem before you ride can cause a
crash in which you can be seriously hurt
or killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner's manual.
For information about the exhaust emission and
noise emission requirements of the U.S.
Environmental Protection Agency (EPA), the
California Air Resources Board (CARB), and the
Environment Canada (EC). 2 P. 121
USA
Maintenance, replacement or repair of the
emission control devices and systems may
be performed by any motorcycle repair
establishment or individual using parts
that are “certified” to EPA standards.
20161124110921_31K87A000_enu_BOOK Page 44 Thursday, November 24 2016 11:13:27 JST
Maintenance
41
Maintenance Safety
Always read the maintenance instructions
before you begin each task, and make sure that
you have the tools, parts, and skills required.
We cannot warn you of every conceivable
hazard that can arise in performing
maintenance. Only you can decide whether or
not you should perform a given task.
Follow these guidelines when performing
maintenance.
● Stop the engine and remove the key.
● Place your motorcycle on a firm, level
surface using the side stand or a
maintenance stand to provide support.
● Allow the engine, muffler, brakes, and other
high-temperature parts to cool before
servicing as you can get burned.
● Run the engine only when instructed, and
do so in a well-ventilated area.
20161124110921_31K87A000_enu_BOOK Page 45 Thursday, November 24 2016 11:13:27 JST
Importance of Maintenance
Maintenance
42
Maintenance Schedule
The maintenance schedule specifies the
maintenance requirements necessary to ensure
safe, dependable performance, and proper
emission control.
Maintenance work should be performed in
accordance with Honda's standards and
specifications by properly trained and equipped
technicians. Your dealer meets all of these
requirements. Keep an accurate record of
maintenance to help ensure that your
motorcycle is properly maintained.
Make sure that whomever performs the
maintenance completes this record.
All scheduled maintenance is considered a
normal owner operating cost and will be
charged to you by your dealer. Retain all
receipts. If you sell the motorcycle, these
receipts should be transferred with the
motorcycle to the new owner.
20161124110921_31K87A000_enu_BOOK Page 46 Thursday, November 24 2016 11:13:27 JST
Maintenance
43
Continued
Items
Frequency
*1
× 1,000 mi 0.6 4 8 12 16 20 24
Regular
Replace
Refer to
page
× 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Emission-Related Items
Fuel Line
–
Throttle Operation 88
Air Cleaner
*2
73
Crankcase Breather
*3
89
Spark Plug
Every 16,000 mi (25,600 km):
Every 32,000 mi (51,200 km):
66
Valve Clearance –
Engine Oil 1 Year 71
Engine Oil Filter 71
Engine Idle Speed –
Radiator Coolant
*5
3 Years 75
Cooling System –
Secondary Air Supply System –
Evaporative Emission Control System
*4
–
Maintenance Level Maintenance Legend
: Intermediate. We recommend service by your
dealer, unless you have the necessary tools and are
mechanically skilled.
Procedures are provided in an official Honda Service
Manual (2 P. 127).
:
:
:
:
Inspect (clean, adjust, lubricate, or replace, if necessary)
Replace
Lubricate
Clean
: Technical. In the interest of safety, have your
motorcycle serviced by your dealer.
20161124110921_31K87A000_enu_BOOK Page 47 Thursday, November 24 2016 11:13:27 JST
Maintenance Schedule
Maintenance
44
Items
Frequency
*1
× 1,000 mi 0.6 4 8 12 16 20 24
Regular
Replace
Refer to
page
× 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Non-Emission-Related Items
Drive Chain
Every 600 mi (1,000 km):
81
Brake Fluid
*5
2 Years 77
Brake Pads Wear 78
Brake System 46
Brake Light Switch 79
Headlight Aim 90
Clutch System 85
Side Stand 80
Suspension –
Nuts, Bolts, Fasteners –
Wheels/Tires 56
Steering Head Bearings –
Notes:
*
1 : At higher odometer reading, repeat at the frequency interval established here.
*
2 : Service more frequently when riding in unusually wet or dusty areas.
*
3 : Service more frequently when riding in rain or at full throttle.
*
4 : 50 STATE (meets California).
*
5 : Replacement requires mechanical skill.
20161124110921_31K87A000_enu_BOOK Page 48 Thursday, November 24 2016 11:13:27 JST
Maintenance Schedule
Maintenance
45
Maintenance Fundamentals
Pre-ride Inspection
To ensure safety, it is your responsibility to
perform a pre-ride inspection and make sure
that any problem you find is corrected. A pre-
ride inspection is a must, not only for safety, but
because having a breakdown, or even a flat tire,
can be a major inconvenience.
Check the following items before you get on
your motorcycle:
● Tire tread wear and air pressures are within
limits. 2 P. 56
● Lights, horn, and turn signals operate
normally.
● Check the condition of the drive chain.
Adjust slack and lubricate as needed. 2 P. 54
Model not equipped with Optional Passenger Seat Kit
Check the following items if you are carrying a
cargo:
Model equipped with Optional Passenger Seat Kit
Check the following items if you are carrying a
passenger or cargo:
● Combined weight is within load limits.
2 P. 133
● Cargo is secured properly.
● Suspension is adjusted to suit load. 2 P. 91
Check the following items after you get on your
motorcycle:
● Throttle action moves smoothly without
binding. 2 P. 88
● Brake lever and pedal operate normally.
● Check the fuel level and refuel when
needed. 2 P. 14, 2 P. 36
● Engine stop switch functions properly.
2 P. 30
20161124110921_31K87A000_enu_BOOK Page 49 Thursday, November 24 2016 11:13:27 JST
Maintenance
46
Check the following items at regular intervals:
● Oil level is between the upper and lower
level marks. 2 P. 69
● Brake fluid level is
Front: above the LOWER level mark. 2 P. 77
Rear: between the UPPER and LOWER level
marks. 2 P. 77
● Engine coolant level is between the UPPER
and LOWER level marks. 2 P. 75
● Side stand functions properly. 2 P. 80
20161124110921_31K87A000_enu_BOOK Page 50 Thursday, November 24 2016 11:13:27 JST
Maintenance Fundamentals
Maintenance
47
Tires and wheels
Check the air pressure (2 P. 56), examine tread for wear and damage
(2 P. 56
), and check the wheels for damage.
Fluid levels
Check the engine oil level (
2 P. 69), engine coolant level (2 P. 75),
and brake fluid level (2 P. 77).
Lights
Check that the headlight, brake light, taillight and turn signals are
working properly.
Controls
Check the freeplay of the clutch lever (
2 P. 86) and throttle grip
(
2 P. 88
).
Drive chain
Check the slack (
2 P. 81), adjust the slack (2 P. 82), and lubricate
(2 P. 55) as needed.
Fuses Check that you have a full supply of spare fuses.
Nuts & bolts Check the major nuts and bolts, and tighten as needed.
Periodic Checks
You should also perform other periodic
maintenance checks at least once a month
regardless of how often you ride, or more often
if you ride frequently.
Also, check the odometer reading against the
Maintenance Schedule and perform all
maintenance that is due. 2 P. 43
20161124110921_31K87A000_enu_BOOK Page 51 Thursday, November 24 2016 11:13:27 JST
Maintenance Fundamentals
Maintenance
48
Replacing Parts
Always use Honda Genuine Parts or their
equivalents to ensure reliability and safety.
When ordering colored components, specify
the model name, color, and code mentioned on
the color label. The color label is attached to the
battery box under the seat. 2 P. 64
To check the color label, remove the regulator
stay by removing the bolts/washers.
3WARNING
Installing non-Honda parts may make
your motorcycle unsafe and cause a
crash in which you can be seriously hurt
or killed.
Always use Honda Genuine Parts or
equivalents that have been designed
and approved for your motorcycle.
20161124110921_31K87A000_enu_BOOK Page 52 Thursday, November 24 2016 11:13:27 JST
Maintenance Fundamentals
Maintenance
49
Color label
Bolts/
washers
Regulator stay
Battery
Your motorcycle has a maintenance-free type
battery. You do not have to check the battery
electrolyte level or add distilled water. Clean the
battery terminals if they become dirty or
corroded.
Do not remove the battery cap seals. There is
no need to remove the cap when charging.
#
What to do in an emergency
If any of the following occur, immediately see
your doctor.
● Electrolyte splashes into your eyes:
u Wash your eyes repeatedly with cool
water for at least 15 minutes. Using water
under pressure can damage your eyes.
● Electrolyte splashes onto your skin:
u Remove affected clothing and wash your
skin thoroughly using water.
● Electrolyte splashes into your mouth:
u Rinse mouth thoroughly with water, and
do not swallow.
3WARNING
The battery gives off explosive
hydrogen gas during normal operation.
A spark or flame can cause the battery
to explode with enough force to kill or
seriously hurt you.
Wear protective clothing and a face
shield, or have a skilled mechanic do
the battery servicing.
WARNING: Battery posts, terminals, and
related accessories contain lead and lead
compounds.
Wash your hands after handling.
20161124110921_31K87A000_enu_BOOK Page 53 Thursday, November 24 2016 11:13:27 JST
Maintenance Fundamentals
Maintenance
50
Continued
#
Cleaning the Battery Terminals
1.
Remove the battery. 2 P. 61
2.
If the terminals are starting to corrode and
are coated with a white substance, wash
with warm water and wipe clean.
3.
If the terminals are heavily corroded, clean
and polish the terminals with a wire brush or
sandpaper. Wear safety glasses.
4.
After cleaning, reinstall the battery.
The battery has a limited life span. Consult your
dealer about when you should replace the
battery. Always replace the battery with another
maintenance-free battery of the same type.
#
Charging
If you use electrical accessories that drain the
battery or you do not ride frequently, we
recommend that you charge the battery every
30 days using a charger designed specifically for
your Honda, which can be purchased from your
dealer. Read the information that came with
your battery charger and follow the instructions
on the battery. Avoid using an automobile-type
battery charger, as these can overheat a
motorcycle battery and cause permanent
damage.
Make sure the ignition switch is in the OFF
position before charging the battery.
NOTICE
Improper charging can damage the battery. If
you can’t charge the battery or it appears unable
to hold a charge, contact your dealer.
20161124110921_31K87A000_enu_BOOK Page 54 Thursday, November 24 2016 11:13:27 JST
Maintenance Fundamentals
Maintenance
51
NOTICE
Jump starting using an automobile battery can
damage your motorcycle's electrical system and
is not recommended. Bump starting is also not
recommended.
NOTICE
Installing non-Honda electrical accessories can
overload the electrical system, discharging the
battery and possibly damaging the system.
Fuses
Fuses protect the electrical circuits on your
motorcycle. If something electrical on your
motorcycle stops working, check for and
replace any blown fuses. 2 P. 107
#
Inspecting and Replacing Fuses
Turn the ignition switch to the OFF position to
remove and inspect fuses. If a fuse is blown,
replace with a fuse of the same rating. For fuse
ratings, see “Specifications.” 2 P. 135
NOTICE
Replacing a fuse with one that has a higher
rating greatly increases the chance of damage to
the electrical system.
If a fuse fails repeatedly, you likely have an
electrical fault. Have your motorcycle inspected
by your dealer.
20161124110921_31K87A000_enu_BOOK Page 55 Thursday, November 24 2016 11:13:27 JST
Maintenance Fundamentals
Maintenance
52
Blown fuse
Engine Oil
Engine oil consumption varies and oil quality
deteriorates according to riding conditions and
time elapsed.
Check the engine oil level regularly, and add the
recommended engine oil if necessary. Dirty oil
or old oil should be changed as soon as
possible.
#
Selecting the Engine Oil
For recommended engine oil, see
“Specifications.” 2 P. 134
If you use non-Honda engine oil, check the
label to make sure that the oil satisfies all of the
following standards:
● JASO T 903 standard
*1
: MA
● SAE standard
*2
: 10W-30
● API classification
*3
: SG or higher
*1.
The JASO T 903 standard is an index for engine
oils for 4-stroke motorcycle engines. There are
two classes: MA and MB. For example, the
following label shows the MA classification.
*2.
The SAE standard grades oils by their viscosity.
*3.
The API classification specifies the quality and
performance rating of engine oils. Use SG or
higher oils, excluding oils marked as “Energy
Conserving” or “Resource Conserving” on the
circular API service symbol.
20161124110921_31K87A000_enu_BOOK Page 56 Thursday, November 24 2016 11:13:27 JST
Maintenance Fundamentals
Maintenance
53
Oil code
Oil classification
Not recommended Recommended
Brake Fluid
Do not add or replace brake fluid, except in an
emergency. Use only fresh brake fluid from a
sealed container. If you do add fluid, have the
brake system serviced by your dealer as soon as
possible.
NOTICE
Brake fluid can damage plastic and painted surfaces.
Wipe up spills immediately and wash thoroughly.
Recommended brake fluid:
Honda DOT 4 Brake Fluid or equivalent
3WARNING
Clean filler cap before removing. Use
only DOT 4 fluid from a sealed
container.
Drive Chain
The drive chain must be inspected and
lubricated regularly. Inspect the chain more
frequently if you often ride on bad roads, ride at
high speed, or ride with repeated fast
acceleration. 2 P. 81
If the chain does not move smoothly, makes
strange noises, has damaged rollers, has loose
pins, has missing O-rings, or kinks, have the
chain inspected by your dealer.
Also inspect the drive sprocket and driven
sprocket. If either has worn or damaged teeth,
have the sprocket replaced by your dealer.
20161124110921_31K87A000_enu_BOOK Page 57 Thursday, November 24 2016 11:13:27 JST
Maintenance Fundamentals
Maintenance
54
Normal
(GOOD)
Worn
(REPLACE)
Damaged
(REPLACE)
NOTICE
Use of a new chain with worn sprockets will cause
rapid chain wear.
#
Cleaning and Lubricating
After inspecting the slack, clean the chain and
sprockets while rotating the rear wheel. Use a
dry cloth with chain cleaner designed
specifically for O-ring chains, or neutral
detergent. Use a soft brush if the chain is dirty.
After cleaning, wipe dry and lubricate with the
recommended lubricant.
Recommended lubricant:
Pro Honda HP Chain Lube or equivalent
Do not use a steam cleaner, a high pressure
cleaner, a wire brush, volatile solvent such as
gasoline and benzene, abrasive cleaner, chain
cleaner or lubricant NOT designed specifically
for O-ring chains as these can damage the
rubber O-ring seals.
Avoid getting lubricant on the brakes or tires.
Avoid applying excess chain lubricant to prevent
spray onto your clothes and the motorcycle.
Recommended Coolant
Pro Honda HP Coolant is a pre-mixed solution
of antifreeze and distilled water.
Concentration:
50% antifreeze and 50% distilled water
A concentration of antifreeze below 40% will
not provide proper corrosion and cold
temperature protection.
A concentration of up to 60% will provide better
protection in colder climates.
20161124110921_31K87A000_enu_BOOK Page 58 Thursday, November 24 2016 11:13:27 JST
Maintenance Fundamentals
Maintenance
55
Continued
NOTICE
Using coolant not specified for aluminum engines
or tap/mineral water can cause corrosion.
Crankcase Breather
Service more frequently when riding in rain, at
full throttle, or after the motorcycle is washed or
overturned. Service if the deposit level can be
seen in the transparent section of the drain
tube.
If the drain tube overflows, the air filter may
become contaminated with engine oil causing
poor engine performance. 2 P. 89
Tires (Inspecting/Replacing)
#
Checking the Air Pressure
Visually inspect your tires and use an air
pressure gauge to measure the air pressure at
least once a month or any time you think the
tires look low. Always check air pressure when
your tires are cold.
#
Inspecting for Damage
Inspect the tires for
cuts, slits, or cracks that
exposes fabric or
cords, or nails or other
foreign objects
embedded in the side
of the tire or the tread.
Also inspect for any unusual bumps or bulges in
the side walls of the tires.
#
Inspecting for Abnormal Wear
Inspect the tires for
signs of abnormal wear
on the contact surface.
20161124110921_31K87A000_enu_BOOK Page 59 Thursday, November 24 2016 11:13:27 JST
Maintenance Fundamentals
Maintenance
56
#
Inspecting Tread Depth
Inspect the tread wear indicators. If they
become visible, replace the tires immediately.
For safe riding, you should replace the tires
when the minimum tread depth is reached.
3WARNING
Riding on tires that are excessively worn
or improperly inflated can cause a crash
in which you can be seriously hurt or
killed.
Follow all instructions in this owner's
manual regarding tire inflation and
maintenance.
20161124110921_31K87A000_enu_BOOK Page 60 Thursday, November 24 2016 11:13:27 JST
Maintenance Fundamentals
Maintenance
57
Continued
Wear indicator
location mark
Have your tires replaced by your dealer.
For recommended tires, air pressure and
minimum tread depth, see “Specifications.”
2 P. 134
Follow these guidelines whenever you replace
tires.
● Use the recommended tires or equivalents
of the same size, construction, speed rating,
and load range.
● Have the wheel balanced with Honda
Genuine balance weights or equivalent after
the tire is installed.
● Do not install a tube inside a tubeless tire on
this motorcycle. Excessive heat build-up can
cause the tube to burst.
● Use only tubeless tires on this motorcycle.
The rims are designed for tubeless tires, and
during hard acceleration or braking, a tube-
type tire could slip on the rim and cause the
tire to rapidly deflate.
3WARNING
Installing improper tires on your
motorcycle can adversely affect
handling and stability, and can cause a
crash in which you can be seriously hurt
or killed.
Always use the size and type of tires
recommended in this owner's manual.
20161124110921_31K87A000_enu_BOOK Page 61 Thursday, November 24 2016 11:13:27 JST
Maintenance Fundamentals
Maintenance
58
Tire Service Life
The service life of your tires is dependent on
many factors, including, but not limited to,
riding habits, road conditions, vehicle loading,
tire air pressure, maintenance history, speed,
and environmental conditions (even when the
tires are not in use).
In addition to your regular inspections and
maintenance, it is recommended that you have
annual inspections performed once the tires
reach 5 years old. It is also recommended that
all tires be removed from service after 10 years
from the date of manufacture, regardless of
their condition or state of wear.
The last four digits of the TIN (tire identification
number) indicate the date of manufacture.
#
Tire Identification Number (TIN)
The tire identification number (TIN) is a group
of numbers and letters located on the sidewall
of the tire.
a b c
DOT XXXX XXXX 22 09
DOT: This indicates that the tire meets all
requirements of the U.S.
Department of Transportation.
a XXXX:
Factory code
b XXXX:
Tire type code
c 22 09: Date of manufacture (week & year).
Example: week 22 in year 09.
20161124110921_31K87A000_enu_BOOK Page 62 Thursday, November 24 2016 11:13:27 JST
Maintenance Fundamentals
Maintenance
59
Tire Labeling Example
Tire identification
number (TIN)
Air Cleaner
This motorcycle is equipped with a viscous type
air cleaner element which cannot be cleaned
with compressed air or otherwise without
degrading its performance.
If the filter becomes dirty, replace it with a new
one.
20161124110921_31K87A000_enu_BOOK Page 63 Thursday, November 24 2016 11:13:27 JST
Maintenance Fundamentals
Maintenance
60
Removing & Installing Body Components
Battery
#
Removal
Make sure the ignition switch is in the OFF
position.
1.
Remove the seat. 2 P. 64
2.
Remove the data link connector while
pressing its tab from the battery cover.
3.
Remove the connector holder from the
battery cover.
4.
Release the wire harness from the guide
on the battery cover.
5.
Remove the clips. 2 P. 63
6.
Disconnect the negative - terminal from
the battery.
7.
Pull up the battery cover.
20161124110921_31K87A000_enu_BOOK Page 64 Thursday, November 24 2016 11:13:27 JST
Maintenance
61
Continued
Connector holder
Negative terminal
Clip
Battery
cover
Data link
connector
Clip
Wire
harness
Guide
Tab
8.
Disconnect the positive + terminal from
the battery.
9.
Remove the battery taking care not to
drop the terminal nuts.
#
Installation
Install the parts in the reverse order of
removal. Always connect the positive +
terminal first. Make sure that bolts and nuts
are tight.
Make sure the clock information is correct
after the battery is reconnected. 2 P. 24
For proper handling of the battery, see
“Maintenance Fundamentals.” 2 P. 50
“Battery Goes Dead.” 2 P. 104
20161124110921_31K87A000_enu_BOOK Page 65 Thursday, November 24 2016 11:13:27 JST
Removing & Installing Body Components u Battery
Maintenance
62
Positive terminal
Battery
Clip
#
Removal
1.
Press down on the center pin to release
the lock.
2.
Pull the clip out of the hole.
#
Installation
1.
Push the bottom of the center pin.
2.
Insert the clip into the hole.
3.
Press down on the center pin to lock the
clip.
Harness Band Clip
#
Removal
Pull the harness band clip while pressing
both sides of the anchor.
#
Installation
Install the harness band clip until it seats
properly.
20161124110921_31K87A000_enu_BOOK Page 66 Thursday, November 24 2016 11:13:27 JST
Removing & Installing Body Components u Clip
Maintenance
63
Center pin
Anchor
Seat
#
Removal
1.
Pull the rear corners of the seat up, then
remove the mounting bolts using the
5 mm Hex wrench provided in the tool kit.
2 P. 37
2.
Pull the seat back and up.
#
Installation
1.
Insert the tab into the recess.
2.
Install and tighten the mounting bolts
securely.
Make sure that the seat is locked securely in
position by pulling it up lightly.
20161124110921_31K87A000_enu_BOOK Page 67 Thursday, November 24 2016 11:13:27 JST
Removing & Installing Body Components u Seat
Maintenance
64
TabSeat
Recess
Mounting bolts
Side Cover
The right and left side covers can be
removed in the same way.
#
Removal
1.
Grasp the side cover.
2.
Remove the prongs from the grommets.
3.
Remove the side cover.
#
Installation
Install the parts in the reverse order of
removal.
20161124110921_31K87A000_enu_BOOK Page 68 Thursday, November 24 2016 11:13:27 JST
Removing & Installing Body Components u Side Cover
Maintenance
65
Prongs
Grommets
Side cover
Spark Plug
Checking Spark Plug
For the recommended spark plug, see
“Specifications.” 2 P. 134
Use only the recommended type of spark
plug in the recommended heat range.
NOTICE
Using a spark plug with an improper heat range
can cause engine damage.
This motorcycle uses spark plug that have an
iridium coated center electrode.
Be sure to observe the following when
servicing the spark plug.
● Do not clean the spark plug. If an
electrode is contaminated with
accumulated objects or dirt, replace the
spark plug with a new one.
● To check the spark plug gap, use only a
“wire-type feeler gauge.” To prevent
damaging the iridium coating of the
center electrode, never use a “leaf-type
feeler gauge.”
● Do not adjust the spark plug gap. If the
gap is out of specification, replace the
spark plug with a new one.
20161124110921_31K87A000_enu_BOOK Page 69 Thursday, November 24 2016 11:13:27 JST
Maintenance
66
1.
Disconnect the spark plug cap from the
spark plug.
2.
Clean any dirt from around the spark plug
base.
3.
Remove the spark plug using a suitable
spark plug wrench.
4.
Inspect the electrodes and center
porcelain for deposits, erosion or carbon
fouling.
u If the erosion or deposit is heavy,
replace the plug.
5.
Make sure that a 1.0 mm wire-type feeler
gauge cannot be inserted between the
spark plug gap. If the gauge fits in the
gap, replace the plug with a new one.
6.
Make sure the plug washer is in good
condition.
20161124110921_31K87A000_enu_BOOK Page 70 Thursday, November 24 2016 11:13:27 JST
Spark Plug u Checking Spark Plug
Maintenance
67
Continued
Spark plug cap
Spark plug
Spark plug gap
Plug washer
7.
Install the spark plug. With the plug
washer attached, thread the spark plug in
by hand to prevent cross-threading.
8.
Tighten the spark plug:
● If the old plug is good:
1/8 turn after it seats.
● If installing a new plug, tighten it twice
to prevent loosening:
a) First, tighten the plug:
1/2 turn after it seats.
b) Then loosen the plug.
c) Next, tighten the plug again:
1/8 turn after it seats.
NOTICE
An improperly tightened spark plug can damage
the engine. If a plug is too loose, a piston may be
damaged. If a plug is too tight, the threads may
be damaged.
9.
Reinstall the spark plug cap. Take care to
avoid pinching any cables or wires.
20161124110921_31K87A000_enu_BOOK Page 71 Thursday, November 24 2016 11:13:27 JST
Spark Plug u Checking Spark Plug
Maintenance
68
Engine Oil
Checking the Engine Oil
1.
If the engine is cold, idle the engine for 3
to 5 minutes.
2.
Turn the ignition switch to the OFF
position and wait for 2 to 3 minutes.
3.
Place your motorcycle in an upright
position on a firm, level surface.
4.
Check that the oil level is between the
upper level and lower level marks in the
oil level inspection window.
20161124110921_31K87A000_enu_BOOK Page 72 Thursday, November 24 2016 11:13:27 JST
Maintenance
69
Upper level
Lower level
Oil fill cap
Oil level inspection
window
Adding Engine Oil
If the engine oil is below or near the lower
level mark, add the recommended engine oil.
2 P. 53, 2 P. 134
1.
Remove the oil fill cap. Add the
recommended oil until it reaches the
upper level mark.
u Place your motorcycle in an upright
position on a firm, level surface when
checking the oil level.
u Do not overfill above the upper level
mark.
u Make sure no foreign objects enter the
oil filler opening.
u Wipe up any spills immediately.
2.
Securely reinstall the oil fill cap.
NOTICE
Overfilling with oil or operating with insufficient
oil can cause damage to your engine. Do not mix
different brands and grades of oil. They may
affect lubrication and clutch operation.
For the recommended oil and oil selection
guidelines, see “Maintenance Fundamentals.”
2 P. 53
20161124110921_31K87A000_enu_BOOK Page 73 Thursday, November 24 2016 11:13:27 JST
Engine Oil u Adding Engine Oil
Maintenance
70
Changing Engine Oil & Filter
Changing the oil and filter requires special
tools. We recommend that you have your
motorcycle serviced by your dealer.
Use a new Honda Genuine oil filter or
equivalent specified for your model.
NOTICE
Using the wrong oil filter can result in serious
damage to the engine.
1.
If the engine is cold, idle the engine for 3
to 5 minutes.
2.
Turn the ignition switch to the OFF
position and wait for 2 to 3 minutes.
3.
Place your motorcycle on a firm, level
surface.
4.
Place a drain pan under the drain bolt.
5.
Remove the oil fill cap, drain bolt, and
sealing washer to drain the oil.
6.
Remove the oil filter cover, oil filter, spring
and gasket by removing the oil filter cover
bolts and let the remaining oil drain out.
u Discard the oil and oil filter at an
approved recycling center.
7.
Install the new oil filter with the OUT-SIDE
mark facing out.
20161124110921_31K87A000_enu_BOOK Page 74 Thursday, November 24 2016 11:13:27 JST
Engine Oil u Changing Engine Oil & Filter
Maintenance
71
Continued
Drain boltSealing washer
8.
Install the oil filter spring into the oil filter
cover, and then install the new gasket and
oil filter cover by tightening the oil filter
cover bolts.
Torque: 9 lbf·ft (12 N·m, 1.2 kgf·m)
9.
Install a new sealing washer onto the
drain bolt. Tighten the drain bolt.
Torque: 18 lbf·ft (24 N·m, 2.4 kgf·m)
10.
Fill the crankcase with the recommended
oil (2 P. 53, 2 P. 134) and install the oil fill
cap.
Required oil
When changing oil & engine oil
filter:
1.6 US qt (1.5 L)
When changing oil only:
1.5 US qt (1.4 L)
11.
Check the oil level. 2 P. 69
12.
Check that there are no oil leaks.
NOTICE
Improper installation of the oil filter can result in
serious damage to the engine.
20161124110921_31K87A000_enu_BOOK Page 75 Thursday, November 24 2016 11:13:27 JST
Engine Oil u Changing Engine Oil & Filter
Maintenance
72
Oil filter cover
Spring
OUT-SIDE mark
Gasket
Oil filter cover bolts
Oil filter
Air Cleaner
Changing Air Cleaner Element
Use a new Honda Genuine air cleaner
element or an equivalent specified for your
motorcycle.
NOTICE
Using the wrong air cleaner element may cause
premature engine wear or performance
problems.
1.
Remove the left side cover. 2 P. 65
2.
Disconnect the wire connector of the
starter magnetic switch. 2 P. 109
3.
Remove the harness band clip from the
air cleaner housing cover. 2 P. 63
4.
Remove the air cleaner housing cover by
removing the screws.
20161124110921_31K87A000_enu_BOOK Page 76 Thursday, November 24 2016 11:13:27 JST
Maintenance
73
Continued
Air cleaner
housing cover
Screws
Starter
magnetic
switch
Harness
band clip
5.
Remove the air cleaner element by
releasing the slots from the tabs.
6.
Thoroughly clean the inside of the air
cleaner housing.
7.
Install the new air cleaner element.
u Insert the air cleaner element at an
angle as shown in the illustration (a).
8.
Secure the air cleaner element by hooking
its slots with the tabs on the air cleaner
housing (b).
u Make sure the air cleaner element is
installed securely.
9.
Install the parts in the reverse order of
removal.
20161124110921_31K87A000_enu_BOOK Page 77 Thursday, November 24 2016 11:13:27 JST
Air Cleaner u Changing Air Cleaner Element
Maintenance
74
Air cleaner element
Air cleaner housing
Slots
Tabs
Air cleaner
element
a
b
Air cleaner
housing
Top view
Coolant
Checking the Coolant
Check the coolant level in the reserve tank
while the engine is cold.
1.
Place your motorcycle on a firm, level
surface.
2.
Hold your motorcycle in an upright
position.
3.
Check that the coolant level is between
the UPPER level and LOWER level marks
in the reserve tank.
If the coolant level is dropping noticeably or
the reserve tank is empty, you likely have a
serious leak. Have your motorcycle inspected
by your dealer.
Adding Coolant
If the coolant level is below the LOWER level
mark, add the recommended coolant
(2 P. 55) until the level reaches the UPPER
level mark.
Add fluid only from the reserve tank cap and
do not remove the radiator cap.
20161124110921_31K87A000_enu_BOOK Page 78 Thursday, November 24 2016 11:13:27 JST
Maintenance
75
Continued
UPPER level
LOWER level
Reserve tank
1.
Remove the reserve tank cap and add
fluid while monitoring the coolant level.
u Do not overfill above the UPPER level
mark.
u Make sure no foreign objects enter the
reserve tank opening.
2.
Securely reinstall the reserve tank cap.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to
spray out, potentially scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Changing Coolant
Have your dealer change the coolant unless
you have the proper tools and are
mechanically qualified.
20161124110921_31K87A000_enu_BOOK Page 79 Thursday, November 24 2016 11:13:27 JST
Coolant u Changing Coolant
Maintenance
76
Reserve tank cap
Brakes
Checking Brake Fluid
1.
Place your motorcycle in an upright
position on a firm, level surface.
2.
Check that the brake fluid reservoir is
horizontal and that the fluid level is:
Front
above the LOWER level mark.
Rear
between the LOWER level and
UPPER level marks.
If the brake fluid level in either reservoir is
below the LOWER level mark or the brake
lever and pedal freeplay becomes excessive,
inspect the brake pads for wear.
If the brake pads are not worn, you most
likely have a leak. Have your motorcycle
inspected by your dealer.
20161124110921_31K87A000_enu_BOOK Page 80 Thursday, November 24 2016 11:13:27 JST
Maintenance
77
Front brake fluid reservoir
UPPER level
mark
LOWER level
mark
Rear brake fluid reservoir
Front Rear
LOWER level mark
Inspecting the Brake Pads
Check the condition of the brake pad wear
indicators.
The pads need to be replaced if a brake pad
is worn to the indicator.
1.
Front
Inspect the brake pads from below
the brake caliper.
2.
Rear
Inspect the brake pads from the rear
right of the motorcycle.
If necessary have the pads replaced by your
dealer.
Always replace both left and right brake pads
at the same time.
20161124110921_31K87A000_enu_BOOK Page 81 Thursday, November 24 2016 11:13:27 JST
Brakes u Inspecting the Brake Pads
Maintenance
78
Front Rear
Brake pads
Disc
Wear indicators
Brake pads
Wear indicators
Disc
Adjusting the Brake Light
Switch
Check the operation of the brake light switch.
Hold the brake light switch and turn the
adjusting nut in the direction A if the switch
operates too late, or turn the nut in the
direction B if the switch operates too soon.
20161124110921_31K87A000_enu_BOOK Page 82 Thursday, November 24 2016 11:13:27 JST
Brakes u Adjusting the Brake Light Switch
Maintenance
79
Brake light switch
Adjusting nut
A
B
Side Stand
Checking the Side Stand
1.
Check that the side stand operates
smoothly. If the side stand is stiff or
squeaky, clean the pivot area and
lubricate the pivot bolt with clean grease.
2.
Check the spring for damage or loss of
tension.
3.
Sit on the motorcycle, shift the
transmission to Neutral, and raise the side
stand.
4.
Start the engine, pull the clutch lever in,
and shift the transmission into gear.
5.
Lower the side stand all the way. The
engine should stop as you lower the side
stand. If the engine doesn't stop, have
your motorcycle inspected by your dealer.
20161124110921_31K87A000_enu_BOOK Page 83 Thursday, November 24 2016 11:13:27 JST
Maintenance
80
Side stand
spring
Drive Chain
Inspecting the Drive Chain
Slack
Check the drive chain slack at several points
along the chain. If the slack is not constant at
all points, some links may be kinked and
binding.
Have the chain inspected by your dealer.
1.
Shift the transmission to Neutral. Stop the
engine.
2.
Place your motorcycle on its side stand on
a firm, level surface.
3.
Check the slack in the lower half of the
drive chain midway between the
sprockets.
Drive chain slack:
1 - 1 3/8 in (25 - 35 mm)
u Do not ride your motorcycle if the
slack exceeds 1 15/16 in (50 mm).
4.
Roll the motorcycle forward and check
that the chain moves smoothly.
5.
Inspect the sprockets. 2 P. 54
6.
Clean and lubricate the drive chain.
2 P. 55
20161124110921_31K87A000_enu_BOOK Page 84 Thursday, November 24 2016 11:13:27 JST
Maintenance
81
Adjusting the Drive Chain Slack
Adjusting the chain requires special tools.
Have the drive chain slack adjusted by your
dealer.
CMX300A only
When adjusting the drive chain slack, be
careful not to damage the wheel speed
sensor and pulser ring.
1.
Shift the transmission to Neutral. Stop the
engine.
2.
Place your motorcycle on its side stand on
a firm, level surface.
3.
Loosen the rear axle nut.
4.
Loosen the lock nuts on both sides of the
swingarm.
20161124110921_31K87A000_enu_BOOK Page 85 Thursday, November 24 2016 11:13:27 JST
Drive Chain u Adjusting the Drive Chain Slack
Maintenance
82
Adjusting bolt
Pulser ring
Rear axle nut
Wheel speed
sensor
Lock nut
CMX300A only
CMX300A only
Adjusting plate
Scale
gradua
tions
Lock nut Adjusting bolt
5.
Turn both adjusting bolts an equal
number of turns until the correct drive
chain slack is obtained. Turn the adjusting
bolts clockwise to tighten the chain. Turn
the adjusting bolts counterclockwise to
provide more slack. Adjust the slack at a
point midway between the drive sprocket
and the driven sprocket.
Check the drive chain slack. 2 P. 81
6.
Check rear axle alignment by making sure
the end of the chain adjusting plates align
with the scale graduations on both sides
of the swingarm.
Both marks should correspond. If the axle
is misaligned, turn the right or left
adjusting bolt until the marks are aligned
and recheck chain slack.
7.
Hold the adjusting bolts and tighten the
lock nuts.
u To hold the adjusting bolt, use the
5 mm Hex wrench provided in the tool
kit. 2 P. 37
Torque: 15 lbf·ft (21 N·m, 2.1 kgf·m)
8.
Tighten the rear axle nut.
Torque: 65 lbf·ft (88 N·m, 9.0 kgf·m)
9.
Recheck drive chain slack.
20161124110921_31K87A000_enu_BOOK Page 86 Thursday, November 24 2016 11:13:27 JST
Drive Chain u Adjusting the Drive Chain Slack
Maintenance
83
Continued
Adjusting bolt
Lock nut
Hex wrench
If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.
#
Checking the Drive Chain Wear
Check the chain wear label when adjusting
the drive chain. If the index mark on the
chain adjusting plate enters the red zone on
the label after the chain has been adjusted to
the proper slack, the chain is excessively worn
and must be replaced.
Chain: DID 520VF or RK 520KLO2
If necessary have the drive chain replaced by
your dealer.
20161124110921_31K87A000_enu_BOOK Page 87 Thursday, November 24 2016 11:13:27 JST
Drive Chain u Adjusting the Drive Chain Slack
Maintenance
84
Index mark
Red zone
Adjusting plate
Clutch
Checking the Clutch
#
Checking the Clutch Lever Freeplay
Check the clutch lever freeplay.
Freeplay at the clutch lever:
3/8 - 13/16 in (10 - 20 mm)
Check the clutch cable for kinks or signs of
wear. If necessary have it replaced by your
dealer.
Lubricate the clutch cable with a
commercially available cable lubricant to
prevent premature wear and corrosion.
NOTICE
Improper freeplay adjustment can cause
premature clutch wear.
20161124110921_31K87A000_enu_BOOK Page 88 Thursday, November 24 2016 11:13:27 JST
Maintenance
85
Freeplay
Clutch lever
Adjusting the Clutch Lever
Freeplay
#
Upper Adjustment
Attempt adjustment with the upper clutch
cable adjuster first.
1.
Loosen the upper lock nut.
2.
Turn the upper clutch cable adjuster until
the freeplay is 3/8 - 13/16 in (10 - 20 mm).
3.
Tighten the upper lock nut and check the
freeplay again.
#
Lower Adjustment
If the upper clutch cable adjuster is threaded
out near its limit, or the correct freeplay
cannot be obtained, attempt adjustment with
the lower clutch cable adjusting nut.
20161124110921_31K87A000_enu_BOOK Page 89 Thursday, November 24 2016 11:13:27 JST
Clutch u Adjusting the Clutch Lever Freeplay
Maintenance
86
Upper clutch cable adjuster
Upper lock nut
+
–
1.
Loosen the upper lock nut and turn the
upper clutch cable adjuster all the way in
(to provide maximum freeplay).
Tighten the upper lock nut.
2.
Loosen the lower lock nut.
3.
Turn the lower adjusting nut until the
clutch lever freeplay is 3/8 - 13/16 in (10 -
20 mm).
4.
Tighten the lower lock nut and check the
clutch lever freeplay.
5.
Start the engine, pull the clutch lever in,
and shift into gear. Make sure the engine
does not stall and the motorcycle does
not creep. Gradually release the clutch
lever and open the throttle. Your
motorcycle should move smoothly and
accelerate gradually.
If proper adjustment cannot be obtained or
the clutch does not work correctly, see your
dealer.
20161124110921_31K87A000_enu_BOOK Page 90 Thursday, November 24 2016 11:13:27 JST
Clutch u Adjusting the Clutch Lever Freeplay
Maintenance
87
Lower adjusting nut
Lower lock nut
+
–
Throttle
Checking the Throttle
With the engine off, check that the throttle
rotates smoothly from fully closed to fully
open in all steering positions and throttle
freeplay is correct. If the throttle does not
move smoothly, close automatically, or if the
cable is damaged, have the motorcycle
inspected by your dealer.
Freeplay at the throttle grip flange:
1/16 - 1/4 in (2 - 6 mm)
Adjusting the Throttle Freeplay
1.
Slide the cable boot.
2.
Loosen the lock nut.
3.
Turn the adjuster until the freeplay is 1/16
- 1/4 in (2 - 6 mm).
4.
Tighten the lock nut, return the cable
boot, and inspect the throttle action
again.
20161124110921_31K87A000_enu_BOOK Page 91 Thursday, November 24 2016 11:13:27 JST
Maintenance
88
Freeplay
Flange
Throttle grip
Lock nut
Adjuster
Cable boot
–
+
Crankcase Breather
Cleaning the Crankcase
Breather
1.
Place a suitable container under the
crankcase breather tube.
2.
Remove the crankcase breather tube plug
from the tube.
3.
Drain deposits into a suitable container.
4.
Install the crankcase breather tube plug.
20161124110921_31K87A000_enu_BOOK Page 92 Thursday, November 24 2016 11:13:27 JST
Maintenance
89
Crankcase breather tube plug
Other Adjustments
Adjusting the Headlight Aim
You can adjust vertical aim of the headlight
for proper alignment. Turn the screw in or
out as necessary using a Phillips screwdriver
provided in the tool kit. 2 P. 37
Obey local laws and regulations.
20161124110921_31K87A000_enu_BOOK Page 93 Thursday, November 24 2016 11:13:27 JST
Maintenance
90
Raise
Lower
Screw
Adjusting the Rear Suspension
Adjusting the suspension requires a pin
spanner. We recommend that you have your
motorcycle serviced by your dealer.
#
Spring Preload
You can adjust the spring preload by the
adjuster to suit the load or the road surface.
Use a pin spanner to turn the adjuster.
Position 1 is for a decrease spring preload
(soft), or turn the position 3 to 5 increase
spring preload (hard). The standard position
is 2.
NOTICE
Attempting to adjust directly from 1 to 5 or 5 to 1
may damage the shock absorber.
NOTICE
Do not turn the adjuster beyond its limits.
Adjust both left and right shock absorbers to the
same spring preload.
20161124110921_31K87A000_enu_BOOK Page 94 Thursday, November 24 2016 11:13:27 JST
Other Adjustments u Adjusting the Rear Suspension
Maintenance
91
Pin spanner
1 2 3 4 5
Engine Will Not Start........................................ P. 93
Overheating (High coolant temperature
indicator is on) ................................................. P. 94
Warning Indicators On or Flashing...............P.
95
PGM-FI (Programmed Fuel Injection)
Malfunction Indicator Lamp (MIL).................P. 95
ABS (Anti-lock Brake System) Indicator ......... P. 95
Other Warning Indications.............................. P. 96
Fuel Gauge Failure Indication...........................P. 96
Tire Puncture ...................................................... P. 97
Electrical Trouble............................................. P. 104
Battery Goes Dead............................................P. 104
Burned-out Light Bulb ..................................... P. 104
Blown Fuse.......................................................... P. 107
Unstable Engine Operation Occurs
Intermittently ................................................. P. 110
20161124110921_31K87A000_enu_BOOK Page 95 Thursday, November 24 2016 11:13:27 JST
Troubleshooting
Engine Will Not Start
Starter Motor Operates But
Engine Does Not Start
Check the following items:
● Check the correct engine starting
sequence. 2 P. 33
● Check that there is gasoline in the fuel
tank.
● Check if the PGM-FI malfunction indicator
lamp (MIL) is on.
u If the indicator light is on, contact your
dealer as soon as possible.
Starter Motor Does Not
Operate
Check the following items:
● Check the correct engine starting
sequence. 2 P. 33
● Make sure engine stop switch is in the
(Run) position. 2 P. 30
● Check for a blown fuse. 2 P. 107
● Check for a loose battery connection or
battery terminal corrosion. 2 P. 50, 2 P. 61
● Check the condition of the battery.
2 P. 104
If the problem continues, have your
motorcycle inspected by your dealer.
20161124110921_31K87A000_enu_BOOK Page 96 Thursday, November 24 2016 11:13:27 JST
Troubleshooting
93
Overheating (High coolant temperature indicator is on)
The engine is overheating when the following
occurs:
● High coolant temperature indicator
comes on.
● Acceleration becomes sluggish.
If this occurs, pull safely to the side of the
road and perform the following procedure.
Extended fast idling may cause the high
coolant temperature indicator to come on.
NOTICE
Continuing to ride with an overheated engine
can cause serious damage to the engine.
1.
Stop the engine using the ignition switch,
and then turn the ignition switch to the
ON position.
2.
Check that the radiator fan is operating,
and then turn the ignition switch to the
OFF position.
If the fan is not operating:
Suspect a fault. Do not start the engine.
Transport your motorcycle to your dealer.
If the fan is operating:
Allow the engine to cool with the ignition
switch in the OFF position.
3.
After the engine has cooled, inspect the
radiator hose and check if there is a leak.
2 P. 75
If there is a leak:
Do not start the engine. Transport your
motorcycle to your dealer.
4.
Check the coolant level in the reserve
tank. 2 P. 75
u Add coolant as necessary.
5.
If 1-4 check normal, you may continue
riding, but closely monitor the high
coolant temperature indicator.
20161124110921_31K87A000_enu_BOOK Page 97 Thursday, November 24 2016 11:13:27 JST
Troubleshooting
94
Warning Indicators On or Flashing
PGM-FI (Programmed Fuel
Injection) Malfunction
Indicator Lamp (MIL)
If the indicator comes on while riding, you
may have a serious problem with the PGM-FI
system. Reduce speed and have your
motorcycle inspected by your dealer as soon
as possible.
ABS (Anti-lock Brake System)
Indicator
CMX300A only
If the indicator operates in one of the
following ways, you may have a serious
problem with the ABS. Reduce your speed
and have your motorcycle inspected by your
dealer as soon as possible.
● Indicator comes on or starts flashing while
riding.
● Indicator does not come on when the
ignition switch is in the ON position.
● Indicator does not go off at speeds above
6 mph (10 km/h).
If the ABS indicator stays on, your brakes will
continue to work as a conventional system,
but without the anti-locking function.
The ABS indicator may flash if you turn the
rear wheel while your motorcycle is lifted off
the ground. In this case, turn the ignition
switch to the OFF position, and then to the
ON position again. The ABS indicator will go
off after your speed reaches 19 mph (30
km/h).
20161124110921_31K87A000_enu_BOOK Page 98
Thursday, November 24 2016 11:13:27 JST
Troubleshooting
95
Other Warning Indications
Fuel Gauge Failure Indication
If the fuel system has an error, the fuel gauge
indicators will be displayed as shown in the
illustrations.
If this occurs, see your dealer as soon as
possible.
20161124110921_31K87A000_enu_BOOK Page 99 Thursday, November 24 2016 11:13:27 JST
Troubleshooting
96
Tire Puncture
Repairing a puncture or removing a wheel
requires special tools and technical expertise.
We recommend you have this type of service
performed by your dealer.
After an emergency repair, always have the
tire inspected/replaced by your dealer.
Emergency Repair Using a Tire
Repair Kit
If your tire has a minor puncture, you can
make an emergency repair using a tubeless
tire repair kit.
Follow the instructions provided with the
emergency tire repair kit.
Riding your motorcycle with a temporary tire
repair is very risky. Do not exceed 30 mph
(50 km/h). Have the tire replaced by your
dealer as soon as possible.
3WARNING
Riding your motorcycle with a
temporary tire repair can be risky. If the
temporary repair fails, you can crash
and be seriously injured or killed.
If you must ride with a temporary tire
repair, ride slowly and carefully and do
not exceed 30 mph (50 km/h) until the
tire is replaced.
Removing Wheels
Follow these procedures if you need to
remove a wheel in order to repair a
puncture.
20161124110921_31K87A000_enu_BOOK Page 100 Thursday, November 24 2016 11:13:27 JST
Troubleshooting
97
Continued
CMX300A only
When removing and installing the wheel, be
careful not to damage the wheel speed
sensor and pulser ring.
#
Front Wheel
Removal
1.
Place your motorcycle on a firm, level
surface.
2.
Remove the front axle bolt.
3.
Loosen the right and left axle pinch bolts.
4.
Support your motorcycle securely and
raise the front wheel off the ground using
a maintenance stand or a hoist.
5.
Remove the front axle shaft, front wheel
and side collars.
u Avoid getting grease, oil, or dirt on the
disc or pad surfaces.
u Do not pull the brake lever while the
wheel is off the motorcycle.
20161124110921_31K87A000_enu_BOOK Page 101 Thursday, November 24 2016 11:13:27 JST
Tire Puncture u Removing Wheels
Troubleshooting
98
Right axle
pinch bolts
Front axle bolt
Wheel speed sensor Pulser ring
CMX300A only CMX300A only
Right side collar
Front axle shaft
Left axle pinch bolts
Left side collar
Installation
1.
Attach the side collars to the wheel.
2.
On the left side, place the wheel between
the fork legs and insert the front axle
shaft, through the left fork leg and wheel
hub.
NOTICE
When installing a wheel or caliper into original
position, carefully fit the brake disc between the
pads to avoid scratching them.
3.
Align the end of the front axle shaft with
the surface of the fork leg.
4.
Tighten the left axle pinch bolts to hold
the front axle shaft.
5.
Install and tighten the front axle bolt.
Torque: 38 lbf·ft (51 N·m, 5.2 kgf·m)
6.
Loosen the left axle pinch bolts.
7.
Tighten the right axle pinch bolts.
Torque: 16 lbf·ft (22 N·m, 2.2 kgf·m)
20161124110921_31K87A000_enu_BOOK Page 102 Thursday, November 24 2016 11:13:27 JST
Tire Puncture u Removing Wheels
Troubleshooting
99
Continued
End of front
axle shaft
Surface of
fork leg
8.
Lower the front wheel on the ground.
9.
Apply the brake lever and pump the fork
several times.
10.
Retighten the left axle pinch bolts.
Torque: 16 lbf·ft (22 N·m, 2.2 kgf·m)
11.
Raise the front wheel off the ground
again, and check that the wheel rotates
freely after you release the brake.
If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.
20161124110921_31K87A000_enu_BOOK Page 103 Thursday, November 24 2016 11:13:27 JST
Tire Puncture u Removing Wheels
Troubleshooting
100
#
Rear Wheel
When using a maintenance stand, be careful
not to damage the wheel speed sensor wire
(CMX300A only) and brake hose.
Removal
1.
Support your motorcycle securely and
raise the rear wheel off the ground using
a maintenance stand or a hoist.
2.
Loosen the rear axle nut, lock nuts and
turn the adjusting bolts so the rear wheel
can be moved all the way forward for
maximum drive chain slack.
3.
Remove the drive chain from the driven
sprocket by pushing the rear wheel
forward.
4.
Remove the rear axle nut and washer.
20161124110921_31K87A000_enu_BOOK Page 104 Thursday, November 24 2016 11:13:27 JST
Tire Puncture u Removing Wheels
Troubleshooting
101
Continued
Adjusting bolt
Pulser ring
Rear axle nut/Washer
Wheel speed
sensor
Lock nut
CMX300A only
CMX300A only
Adjusting plate
Drive chain
Rear axle shaft
Adjusting bolt
Lock nut
Adjusting plate
5.
Remove the rear axle shaft, chain
adjusting plates, brake caliper bracket,
rear wheel and side collars.
u Support the brake caliper assembly so
that it doesn’t hang from the brake
hose. Do not twist the brake hose.
u Avoid getting grease, oil, or dirt on the
disc to pad surfaces.
u Do not push the brake pedal while the
wheel is removed.
Installation
1.
Attach the right and left side collars in
their original locations on the rear wheel.
2.
To install the rear wheel, reverse the
removal procedure.
u Take care to prevent the brake caliper
from scratching the wheel during
installation.
NOTICE
When installing a wheel or caliper into original
position, carefully fit the brake disc between the
pads to avoid scratching them.
3.
Make sure that the lug on the swingarm is
positioned in the slot on the brake caliper
bracket.
20161124110921_31K87A000_enu_BOOK Page 105 Thursday, November 24 2016 11:13:27 JST
Tire Puncture u Removing Wheels
Troubleshooting
102
Brake caliper bracket
SwingarmSlot
Lug
4.
Adjust the drive chain. 2 P. 82
5.
Hold the adjusting bolts and tighten the
lock nuts.
u To hold the adjusting bolt, use the
5 mm Hex wrench provided in the tool
kit. 2 P. 37
Torque: 15 lbf·ft (21 N·m, 2.1 kgf·m)
6.
Tighten the rear axle nut.
Torque: 65 lbf·ft (88 N·m, 9.0 kgf·m)
7.
Recheck the drive chain slack and rear
axle alignment. 2 P. 81
8.
After installing the wheel, apply the brake
pedal several times, then check if the
wheel rotates freely. Recheck the wheel if
the brake drags or if the wheel does not
rotate freely.
If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.
20161124110921_31K87A000_enu_BOOK Page 106 Thursday, November 24 2016 11:13:27 JST
Tire Puncture u Removing Wheels
Troubleshooting
103
Adjusting bolt
Lock nut
Hex wrench
Electrical Trouble
Battery Goes Dead
Charge the battery using a motorcycle
battery charger.
Remove the battery from the motorcycle
before charging.
Do not use an automobile-type battery
charger, as these can overheat a motorcycle
battery and cause permanent damage. If the
battery does not recover after recharging,
contact your dealer.
NOTICE
Jump starting using an automobile battery is not
recommended, as this can damage your
motorcycle's electrical system.
Burned-out Light Bulb
Follow the procedure below to replace a
burned-out light bulb.
Turn the ignition switch to the OFF position.
Allow the bulb to cool before replacing it.
Do not use bulbs other than those specified.
Check the replacement bulb for correct
operation before riding.
For the light bulb wattage, see
“Specifications.” 2 P. 135
20161124110921_31K87A000_enu_BOOK Page 107 Thursday, November 24 2016 11:13:27 JST
Troubleshooting
104
#
Headlight Bulb
1.
Remove the bolts from the headlight
case.
2.
Release the headlight case from the hook
on the headlight holder, and pull up the
headlight case.
3.
Disconnect the connector.
4.
Remove the dust cover.
5.
Unhook the pin and remove the bulb.
6.
Install a new bulb and the parts in the
reverse order of removal.
u Install the dust cover with its TOP mark
facing up.
Do not touch the glass surface with your
fingers. If you touch the bulb with your bare
hands, clean it with a cloth moistened with
isopropyl (rubbing) alcohol.
20161124110921_31K87A000_enu_BOOK Page 108 Thursday, November 24 2016 11:13:27 JST
Electrical Trouble u Burned-out Light Bulb
Troubleshooting
105
Continued
Bolts
Headlight case
Dust cover
TOP mark
Pin
Bulb
Connector
#
Brake Light/Taillight Bulb
1.
Remove the taillight lens by removing the
screws.
2.
Slightly press the bulb in and turn it
counterclockwise.
3.
Install a new bulb and the parts in the
reverse order of removal.
u After putting the lens packing back in
place, install the taillight lens.
#
Front/Rear Turn Signal Bulb
1.
Remove the screw and collar.
2.
Remove the turn signal lens.
3.
Slightly press the bulb and turn it
counterclockwise.
4.
Install a new bulb and the parts in the
reverse order of removal.
20161124110921_31K87A000_enu_BOOK Page 109 Thursday, November 24 2016 11:13:27 JST
Electrical Trouble u Burned-out Light Bulb
Troubleshooting
106
Taillight lens
Screws
Bulb
Lens packing
Turn signal
lens
Screw
BulbCollar
Blown Fuse
Before handling fuses, see “Inspecting and
Replacing Fuses.” 2 P. 52
#
Fuse Box Fuses
1.
Remove the battery cover. 2 P. 61
2.
Open the fuse box covers.
3.
Pull the fuses out one by one with the
fuse puller and check for a blown fuse.
Always replace a blown fuse with a spare
fuse of the same rating.
u The fuse puller is stored on the battery
cover.
CMX300
u Spare fuses are provided in the fuse
box.
CMX300A
u Spare fuses are provided in the fuse
box and on the battery cover (to
access the spare fuse, open the cover).
4.
Close the fuse box covers.
5.
Reinstall parts in the reverse order of
removal.
20161124110921_31K87A000_enu_BOOK Page 110 Thursday, November 24 2016 11:13:27 JST
Electrical Trouble u Blown Fuse
Troubleshooting
107
Continued
Fuse pullerCover
30 A spare fuse
CMX300A only
CMX300 CMX300A
20161124110921_31K87A000_enu_BOOK Page 111 Thursday, November 24 2016 11:13:27 JST
Electrical Trouble u Blown Fuse
Troubleshooting
108
Fuse box
covers
Spare fuses
Fuse box
covers
Spare fuses
Fuse box covers
#
Main Fuse
1.
Remove the left side cover. 2 P. 65
2.
Remove the starter magnetic switch from
the air cleaner housing cover, then
disconnect the wire connector of the
starter magnetic switch.
3.
Pull the main fuse out and check for a
blown fuse. Always replace a blown fuse
with a spare fuse of the same rating.
u Spare main fuse is provided in the
starter magnetic switch.
4.
Reinstall parts in the reverse order of
removal.
NOTICE
If a fuse fails repeatedly, you likely have an
electrical problem. Have your motorcycle
inspected by your dealer.
20161124110921_31K87A000_enu_BOOK Page 112 Thursday, November 24 2016 11:13:27 JST
Electrical Trouble u Blown Fuse
Troubleshooting
109
Main fuse Wire connector
Starter magnetic
switch
Spare main fuse
Unstable Engine Operation Occurs Intermittently
If the fuel pump filter is clogged, unstable
engine operation will occur intermittently
while riding.
Even if this symptom occurs, you can
continue to ride your motorcycle.
If unstable engine operation occurs even if
sufficient fuel is available, have your
motorcycle inspected by your dealer as soon
as possible.
