Welcome
Congratulations on your purchase of a new
Honda motorcycle. Your selection of a
Honda makes you part of a worldwide family
of satisfied customers who appreciate
Honda’s reputation for building quality into
every product.
To ensure your safety and riding pleasure:
● Read this owner’s manual carefully.
● Follow all recommendations and
procedures contained in this manual.
● Pay close attention to safety messages
contained in this manual and on the
motorcycle.
To protect your investment, we urge you to
take responsibility for keeping your
motorcycle well serviced and maintained.
Also, observe the break-in guidelines, and
always perform the pre-ride inspection and
other periodic checks in this manual.
When service is required, remember that
your Honda dealer knows your motorcycle
best. If you have the required mechanical
“know-how” and tools, you can purchase an
official Honda Service Manual to help you
perform many maintenance and repair tasks.
2 P. 140
Read the warranty information thoroughly so
that you understand the warranty coverage
and that you are aware of your rights and
responsibilities.
2 P. 141
You may also want to visit our website at
www.powersports.honda.com.
www.honda.ca.
Happy riding!
California Proposition 65 Warning
WARNING: This product contains or emits
chemicals known to the State of California to
cause cancer and birth defects or other
reproductive harm.
Canada
A Few Words About Safety
Your safety, and the safety of others, is very
important. Operating this motorcycle safely is
an important responsibility.
To help you make informed decisions about
safety, we have provided operating
procedures and other information on safety
labels and in this manual. This information
alerts you to potential hazards that could
hurt you or others.
Of course, it is not practical or possible to
warn you about all hazards associated with
operating or maintaining a motorcycle. You
must use your own good judgement.
You will find important safety information in
a variety of forms, including:
● Safety labels on the motorcycle
● Safety Messages preceded by a safety alert
symbol and one of three signal words:
DANGER, WARNING, or CAUTION.
These signal words mean:
3
DANGER
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3
WARNING
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3
CAUTION
You CAN be HURT if you don’t follow
instructions.
Other important information is
provided under the following titles:
NOTICE
Information to help you avoid
damage to your motorcycle,
other property, or the
environment.
Motorcycle Safety
This section contains important information for safe riding of your motorcycle.
Please read this section carefully.
Safety Guidelines .........................................P. 3
Safety Labels ................................................P. 7
Safety Precautions .......................................P. 9
Riding Precautions .....................................P. 10
Accessories & Modifications......................P. 14
Loading .......................................................P. 15
Safety Guidelines
3
continued
Motorcycle Safety
Safety Guidelines
Follow these guidelines to enhance your safety:
● Perform all routine and regular inspections
specified in this manual.
● Stop the engine and keep sparks and flame
away before filling the fuel tank.
● Do not run the engine in enclosed or partly
enclosed areas. Carbon monoxide in exhaust
gases is toxic and can kill you.
It’s a proven fact: helmets and protective
apparel significantly reduce the number and
severity of head and other injuries. So always
wear an approved motorcycle helmet and
protective apparel.
2 P. 9
Make sure that you are physically fit, mentally
focused and free of alcohol and drugs. Check
that you and your passenger are both wearing
an approved motorcycle helmet and protective
apparel. Instruct your passenger on holding
onto the grab rails or your waist, leaning with
you in turns, and keeping their feet on the
footpegs, even when the motorcycle is stopped.
Even if you have ridden other motorcycles,
practice riding in a safe area to become familiar
with how this motorcycle works and handles,
and to become accustomed to the motorcycle’s
size and weight.
Always Wear a Helmet
Before Riding
Take Time to Learn & Practice
Safety Guidelines
4
Motorcycle Safety
We recommend that all riders take a certified
course approved by the Motorcycle Safety
Foundation (MSF). New riders should start with
the basic course, and even experienced riders
will find the advanced course beneficial.
For information about the MSF training course
nearest you, call the national toll-free number:
(800) 446-9227.
Other riding tips can be found in the You
and Your Motorcycle Riding Tips booklet that
came with your motorcycle.
Always pay attention to other vehicles around
you, and do not assume that other drivers see
you. Be prepared to stop quickly or perform an
evasive maneuver.
Make yourself more visible, especially at night,
by wearing bright reflective clothing,
positioning yourself so other drivers can see
you, signaling before turning or changing lanes,
and using your horn when necessary.
Never ride beyond your personal abilities or
faster than conditions warrant. Fatigue and
inattention can impair your ability to use good
judgement and ride safely.
Alcohol and riding don’t mix. Even one
alcoholic drink can reduce your ability to
respond to changing conditions, and your
reaction time gets worse with every additional
drink. Don’t drink and ride, and don’t let your
friends drink and ride either.
Ride Defensively
USA
Make Yourself Easy to See
Ride within Your Limits
Don’t Drink and Ride
Safety Guidelines
5
continued
Motorcycle Safety
It’s important to keep your motorcycle properly
maintained and in safe riding condition.
Inspect your motorcycle before every ride and
perform all recommended maintenance. Never
exceed load limits (
2 P. 15), and do not modify
your motorcycle or install accessories that
would make your motorcycle unsafe (
2 P. 14).
Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether it
is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable
laws and regulations if another person or
vehicle is involved in the crash.
If you decide to continue riding, first evaluate
the condition of your motorcycle. If the engine
is still running, turn it off. Inspect for fluid leaks,
check the tightness of critical nuts and bolts,
and check the handlebar, control levers, brakes,
and wheels. Ride slowly and cautiously.
Your motorcycle may have suffered damage
that is not immediately apparent. Have your
motorcycle thoroughly checked at a qualified
service facility as soon as possible.
Keep Your Honda in Safe Condition
If You are Involved in a Crash
Safety Guidelines
6
Motorcycle Safety
Unlike standard motorcycles, or its manual
transmission sibling, the NC700XD with dual-
clutch transmission does not have a clutch lever
that would provide you with an additional
means to control the engine power being
transmitted to the rear wheel. Thus, in the
unlikely event that you experience a stuck
throttle or other unintended application of
power to the rear wheel, you should shut down
the engine by use of the engine stop switch
(
2 P. 31). By moving this switch to the off
position, you will immediately stop the engine
but maintain all electrical system functions,
including lights and indicators.
Exhaust contains poisonous carbon monoxide,
a colorless, odorless gas. Breathing carbon
monoxide can cause loss of consciousness and
may lead to death.
If you run the engine in confined or even partly
enclosed area, the air you breathe could contain
a dangerous amount of carbon monoxide.
Never run your motorcycle inside a garage or
other enclosure.
Emergency Shut-down Procedure for
Motorcycles Equipped with Dual Clutch
Transmission (NC700XD only)
Carbon Monoxide Hazard
3
WARNING
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill you.
Avoid any areas or activities that
expose you to carbon monoxide.
Safety Labels
7
continued
Motorcycle Safety
Safety Labels
Safety and information labels on your
motorcycle provide important safety
information and may warn you of potential
hazards that could cause serious injury. Read
these labels carefully and don’t remove them.
If a label comes off or becomes hard to read,
contact your dealer for a replacement.
Safety Labels
8
Motorcycle Safety
Safety Precautions
9
continued
Motorcycle Safety
Safety Precautions
● Ride cautiously and keep your hands on the
handlebar and feet on the footpegs.
● Ensure your passenger’s hands are on the
grab rails and passenger’s feet are on the
footpegs while riding.
● Always consider the safety of your passenger,
as well as other drivers and riders.
Make sure that you and any passenger are
wearing an approved motorcycle helmet, eye
protection, and high-visibility protective
clothing. Ride defensively in response to
weather and road conditions.
❙
Helmet
Should be safety-standard certified, high-
visibility, and correct size for your head
● Must fit comfortably but securely, with the
chin strap fastened
● Face shield with unobstructed field of vision
or other approved eye protection
Look for a DOT (Department of
Transportation) certification label on any helmet
you buy.
❙
Gloves
Full-finger leather gloves with high abrasion
resistance
Protective Apparel
3
WARNING
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Make sure that you and any passenger
always wear an approved helmet and
protective apparel.
USA
Riding Precautions
10
Motorcycle Safety
❙
Boots or Riding Shoes
Sturdy boots with non-slip soles and ankle
protection
❙
Jacket and Pants
Protective, highly visible, long-sleeved jacket
and durable long pants for riding (or a
protective suit).
Riding Precautions
During the first 300 miles (500 km) of running,
follow these guidelines to ensure your
motorcycle’s future reliability and performance.
● Avoid full-throttle starts and rapid
acceleration.
● Avoid hard braking and rapid down-shifts.
● Ride conservatively.
Observe the following guidelines:
● Avoid excessively hard braking and down-
shifts.
u Sudden braking can reduce the
motorcycle’s stability.
u Where possible, reduce speed before
turning; otherwise you risk sliding out.
Break-in Period
Brakes
Riding Precautions
11
continued
Motorcycle Safety
● Exercise caution on low traction surfaces.
u The tires slip more easily on such surfaces
and braking distances are longer.
● Avoid continuous braking.
u Repeated braking, such as when
descending long, steep slopes can
seriously overheat the brakes, reducing
their effectiveness. Use engine braking
with intermittent use of the brakes to
reduce speed.
● For full braking effectiveness, operate both
the front and rear brakes together.
❙
Combined ABS (NC700XA/XD only)
Your motorcycle’s rear brake system is linked to
the front brake. This means that operating the
rear brake pedal applies the rear brake and a
portion of the front brake. Operating the front
brake lever applies only the front brake.
For full braking effectiveness, operate both the
lever and pedal together.
This model is also equipped with an Anti-lock
Brake System (ABS) designed to help prevent
the brakes from locking up during hard braking.
Always use the recommended tires to ensure
correct ABS operation.
● ABS does not reduce braking distance. In
certain circumstances, ABS may result in a
longer stopping distance.
● ABS does not function at speeds below 6
mph (10 km/h).
● The brake lever and pedal may recoil slightly
when applying the brakes. This is normal.
Riding Precautions
12
Motorcycle Safety
❙
Engine Braking
Engine braking helps slow your motorcycle
down when you release the throttle. For further
slowing action, downshift to a lower gear. Use
engine braking with intermittent use of the
brakes to reduce speed when descending long,
steep slopes.
❙
Wet or Rainy Conditions
Road surfaces are slippery when wet, and wet
brakes further reduce braking efficiency.
Exercise extra caution when braking in wet
conditions.
If the brakes get wet, apply the brakes while
riding at low speed to help them dry.
● Park on a firm, level paved surface.
● If you must park on a slight incline or loose
surface, park so that the motorcycle cannot
move or fall over.
● Make sure that high-temperature parts
cannot come into contact with flammable
materials.
● Do not touch the engine, muffler, brakes and
other high-temperature parts until they cool
down.
● To reduce the likelihood of theft, always lock
the handlebar and remove the key when
leaving the motorcycle unattended.
Use of an anti-theft device is also
recommended.
❙
Parking with the Side Stand
1.
Stop the engine.
2.
Push the side stand down.
3.
Slowly lean the motorcycle to the left until its
weight rests on the side stand.
Parking
Riding Precautions
13
Motorcycle Safety
4.

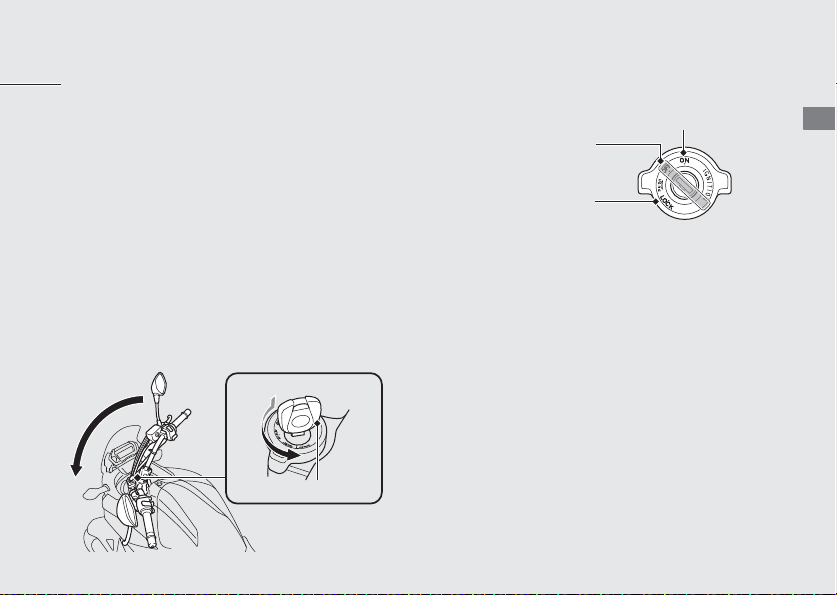

Turn the handlebar fully to the left.
u Turning the handlebar to the right reduces
stability and may cause the motorcycle to
fall.
5.
Turn the ignition switch to the LOCK position
and remove the key.
2 P. 29
Follow these guidelines to protect the engine
and catalytic converter:
● Use only unleaded gasoline.
● Use recommended octane number. Using
lower octane gasoline will result in decreased
engine performance.
● Do not use fuels containing a high
concentration of alcohol.
2 P. 139
● Do not use stale or contaminated gasoline or
an oil/gasoline mixture.
● Avoid getting dirt or water in the fuel tank.
Refueling and Fuel Guidelines
Accessories & Modifications
14
Motorcycle Safety
Accessories &
Modifications
We strongly advise that you do not add any
accessories that were not specifically designed
or approved for your motorcycle by Honda or
make modifications to your motorcycle from its
original design. Doing so can make it unsafe.
Modifying your motorcycle may also void your
warranty and make your motorcycle illegal to
operate on public roads and highways. Before
deciding to install accessories on your
motorcycle be certain the modification is safe
and legal.
Do not pull a trailer with, or attach a sidecar to,
your motorcycle. Your motorcycle was not
designed for these attachments, and their use
can seriously impair your motorcycle’s handling.
3
WARNING
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner’s
manual regarding accessories and
modifications.
Loading
15
Motorcycle Safety
Loading
● Carrying extra weight affects your
motorcycle’s handling, braking and stability.
Always ride at a safe speed for the load you
are carrying.
● Avoid carrying an excessive load and keep
within specified load limits.
2 Maximum weight capacity P. 146
● Tie all luggage securely, evenly balanced and
close to the center of the motorcycle.
● Do not place objects near the lights or the
muffler.
3
WARNING
Overloading or improper loading can
cause a crash and you can be seriously
hurt or killed.
Follow all load limits and other
loading guidelines in this manual.
16
Operation Guide

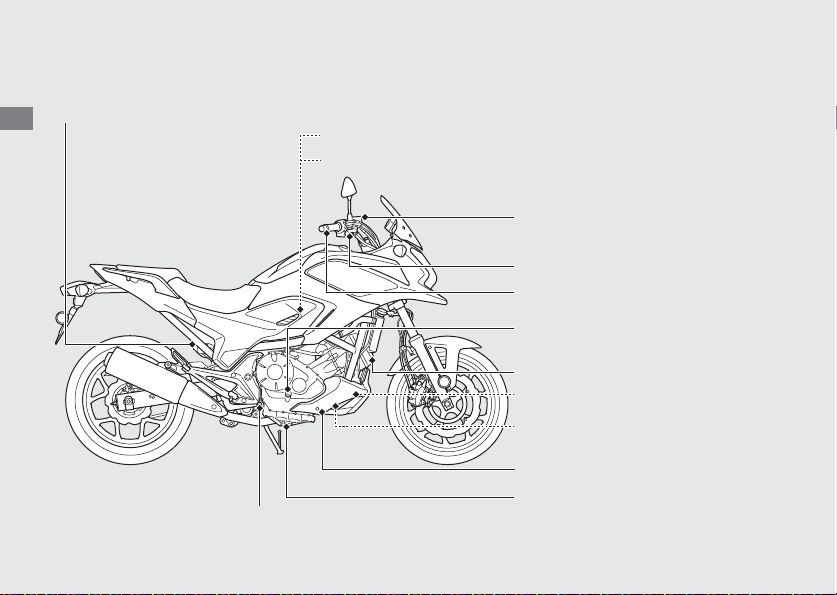

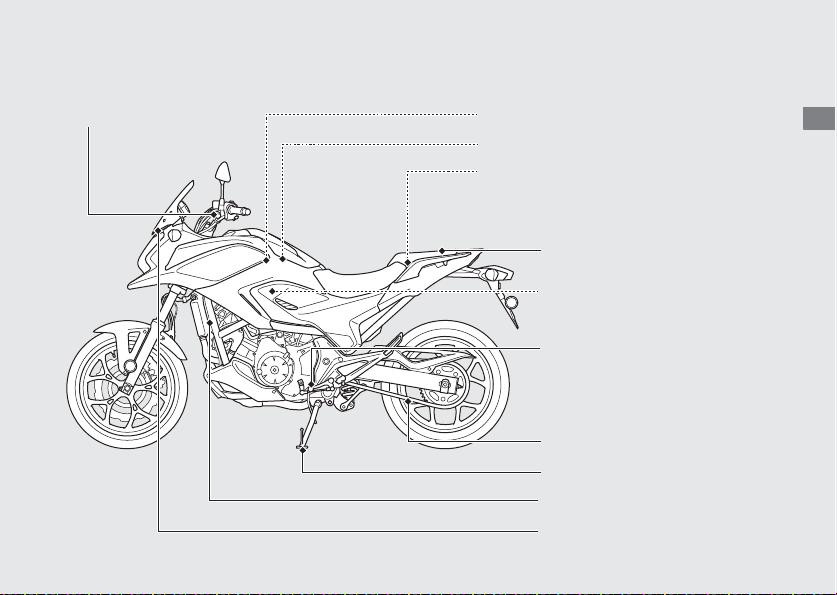

Parts Location
Rear brake fluid reservoir (P84)
Battery (P72)
Main fuse (P122)
Coolant reserve tank (P82)

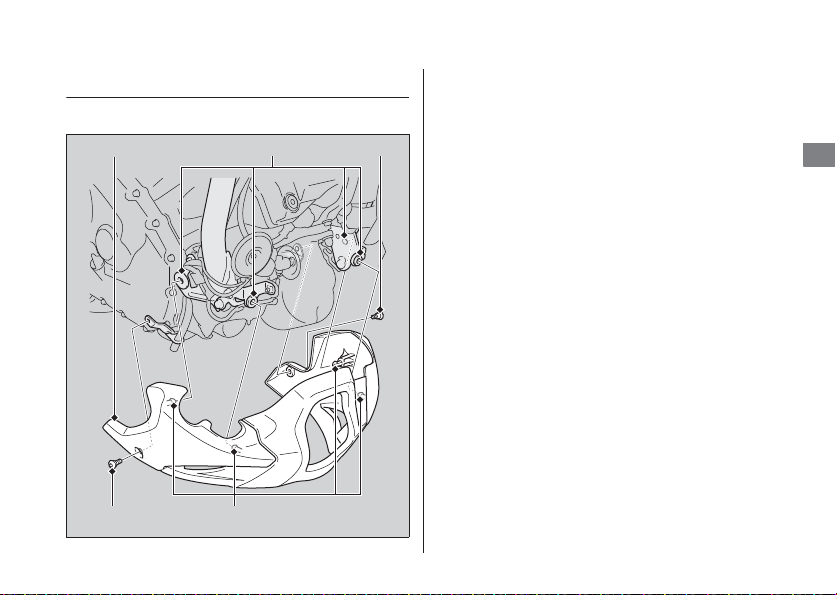

Lower fairing (P69)
Front brake fluid reservoir
(P84)
Front brake lever

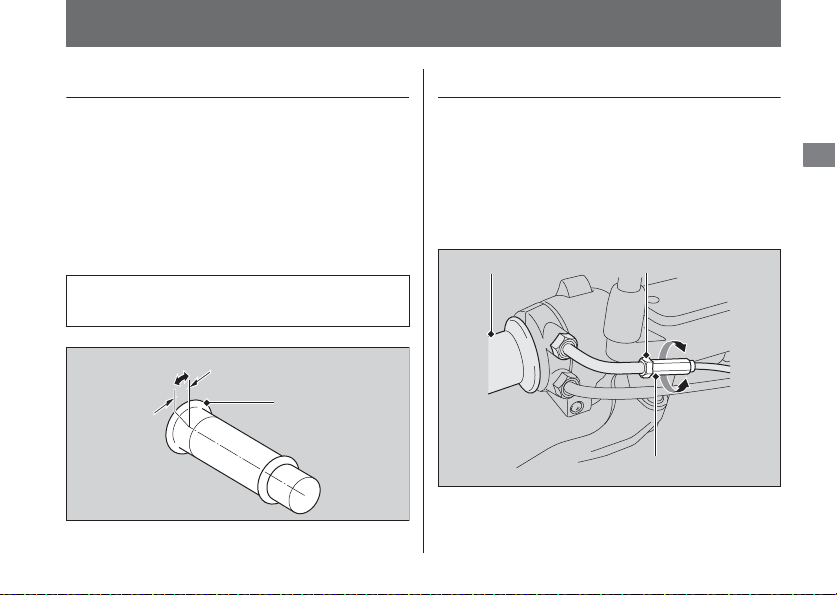

Throttle grip (P95 )
Engine oil fill cap/dipstick
(P76)
Engine oil filter (P78)
Engine oil drain bolt (P78)
(NC700X/XA)
Spark plugs
(P73)
Rear brake pedal
18
Parts Location (Continued)
Operation Guide
Rear brake fluid reservoir (P84)
Battery (P72)
Main fuse (P122)
Coolant reserve tank (P82)
Rear brake pedal
Front brake fluid reservoir
(P84)
Front brake lever
Throttle grip (P95 )
Clutch oil filter (P80)
Engine oil drain bolt (P78)
(NC700XD)
Engine oil fill cap/dipstick
(P76)
Spark plugs (P73)
Lower fairing (P70)
Engine oil filter (P78)
20
Operation Guide
Instruments
Display Check
When the ignition switch is turned on, all the mode and digital segments
will show, and the tachometer segment will progress to maximum scale
and then disappear.
If any part of these displays does not come on when it should, have your
dealer check for problems.
B button
A button
21
continued
Operation Guide
Odometer [TOTAL] & Tripmeter
[TRIP A/B]
A button switches between
odometer & tripmeters at the
ordinary display.
• Odometer: Total distance ridden.
• Tripmeter: Distance ridden since
tripmeter was reset (press and
hold B button to reset to 0.0 mile/
km).
Tachometer
NOTICE
Do not operate the engine in the tachometer
red zone. Excessive engine speed can
adversely affect engine life.
Clock (12-hour display)
To set the clock:
(P25)
Fuel gauge
Remaining fuel when only 1st (E)
segment starts flashing:
approximately
0.77 US gal (2.9 liters)
Speedometer
If the fuel gauge indicator repeat
flashing or turned off: (P 107 )
Tachometer red zone
(excessive engine rpm range)
(NC700X/XA)
22
Instruments (Continued)
Operation Guide
Clock (12-hour display)
To set the clock:
(P25)
(NC700XD)
Odometer [TOTAL] & Tripmeter
[TRIP A/B]
A button switches between
odometer & tripmeters at the
ordinary display.
• Odometer: Total distance ridden.
• Tripmeter: Distance ridden since
tripmeter was reset (press and
hold B button to reset to 0.0 mile/
km).
Tachometer
NOTICE
Do not operate the engine in the tachometer
red zone. Excessive engine speed can
adversely affect engine life.
Speedometer
If the fuel gauge indicator repeat
flashing or turned off:
(P107 )
Tachometer red zone
(excessive engine rpm range)
Fuel gauge
Remaining fuel when only 1st (E)
segment starts flashing:
approximately
0.77 US gal (2.9 liters)
23
continued
Operation Guide

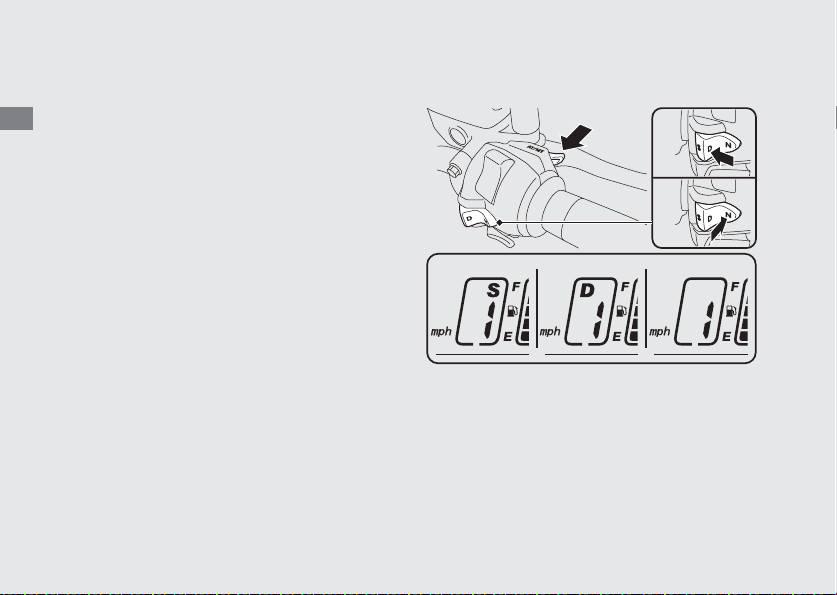

D indicator
Comes on when the D mode is selected in the AT MODE. (P39 )
S indicator
Comes on when the S mode is selected in the AT MODE. (P 39 )
Gear position indicator
The gear position is shown in the gear position indicator when the D, S mode or MT MODE
are selected.
u “-” appears for a few seconds and then goes off when the engine starts.
u “-” flashes when the engine stop switch position is changed from Run to Off position
with the ignition switch on.
u “-” flashes when the ignition switch is turned on with the engine stop switch Off position.
The indicator may flash if:
u The front wheel leaves the ground.
u You turn the wheel while the motorcycle is upright on the stand.
This is normal. To operate the system again, turn the ignition switch off, then on again.
If the “-” indicator is blinking in the gear position window while riding: (P106 )
24
Instruments (Continued)
Operation Guide
Display Setting
You can adjust the three settings.
• Backlight brightness adjustment
• Clock setting
• Changing of speed and mileage unit
In addition, to return to the ordinary display
at display setting.
• The button is not pressed for about 30
seconds
• Turn the ignition switch off and then on
Each setting will be cancelled if the A button
is not pressed.
1 Backlight brightness adjustment:
You can adjust the brightness three levels.
!a Turn the ignition switch to ON.
!b Press and hold A button and B button until
the minute digit displays the brightness
level.
!c Press B button. The brightness is switched.
!d Press A button. The backlight is set, and
then the display moves to the clock setting.
Ordinary display
Backlight brightness adjustment
Clock setting
Press and hold A button and B button
Press A button
Display setting
Changing of speed and mileage unit
25
Operation Guide
2 To set the clock:
!a After backlight brightness adjustment, the
hour digits start flashing.
!b Press B button until the desired hour and
AM/PM are displayed.
u Press and hold to advance the hour fast.
!c Press A button. The minute digits start
flashing.
!d Press B button until the desired minute is
displayed.
u Press and hold to advance the minute
fast.
!e Press A button. The clock is set, and then
the display moves to the changing of the
speed and mileage unit.
3 Changing the speed and mileage unit:
!a After clock setting, the speed and mileage
unit start flashing.
!b Press B button to select either “mph” and
“mile” or “km/h” and “km”.
!c Press A button. The speed and mileage unit
is set, and then the display returns to the
backlight brightness adjustment.
26
Operation Guide
Indicators
Low oil pressure indicator
Comes on when the ignition
switch is turned on.
Goes off when the engine starts.
If it comes on while engine is
running:
(P104)
PGM-FI (Programmed Fuel Injection)
malfunction indicator lamp (MIL)
High coolant
temperature indicator
If it comes on while riding:
(P103)
Comes on briefly when the ignition switch is turned on with the engine stop switch in
the Run position. Comes on when the ignition switch is turned on with the engine
stop switch in the Off position.
If it comes on while engine is running:
(P104)
ABS (Anti-lock Brake System) indicator
Comes on when the ignition switch is turned on.
Goes off when your speed reaches approximately
6 mph (10 km/h).
If it comes on while riding:
(P105)
(NC700XA/XD only)
27
Operation Guide
High beam indicator
Left turn signal indicator
Right turn signal indicator
Neutral indicator
Comes on when the transmission
is in Neutral.
Parking brake indicator
(NC700XD only)
Lights as a reminder that you
have not released the parking
brake lever.
28
Operation Guide
Switches
Engine stop switch
Should normally remain in the
Run position.
u In an emergency, switch to
the Off position to stop
the engine.
Hazard switch
Switchable when the ignition
switch is on. Can be turned to
off regardless of the ignition
switch position.
u The signals continue flashing
when the ignition switch is in
the OFF or LOCK position
after the hazard switch is on.
Start button
Horn button
Turn signal switch
u Pressing the switch turns
the turn signal off.
Headlight dimmer switch
• : High beam
• : Low beam
(NC700X/XA)
29
continued
Operation Guide
Steering Lock
Lock the steering when parking to help
prevent theft.
A U-shaped wheel lock or similar device is
also recommended.
❙
Locking
!a Turn the handlebar all the way to the left.
!b Push the key down, and turn the ignition
switch to the LOCK position.
u Jiggle the handlebar if the lock is difficult
to engage.
!c Remove the key.
❙
Unlocking
Insert the key, push it in, and turn the
ignition switch to the OFF position.
Ignition Switch
Switches the electrical system on/off, locks the
steering.
u Key can be removed when in the OFF or LOCK
position.
ON
Turns electrical system
on for starting/riding.
OFF
Turns engine off.
LOCK
Locks steering.
Push
Ignition key
!a
!b
Turn
30
Switches (Continued)
Operation Guide
Parking brake lever and Release button
Be sure the parking brake is applied while parking and
warming up the engine.
u Make sure the parking brake lever is released before riding.
To apply the parking brake lock
Pull the parking brake lever back to lock the rear wheel.
u Be sure the release button pops out and parking brake
lever is not released.
u The parking brake lock will not function if the parking
brake is not adjusted properly.
(P86)
To release the parking brake lock
Release the parking brake lever by
lightly pulling in the lever (!a) and
pressing the release button (!b).
u Before riding, check that the
parking brake indicator is turned
off and make sure that the parking
brake is fully released so there is no
drag on the rear wheel.
Hazard switch (P28)
Headlight dimmer
switch
• : High beam
• : Low beam
Shift up switch (+)
To shift up the gear.
(P41)
Turn signal switch
u Pressing the switch turns
the turn signal off.
Shift down switch (-)
To shift down the gear.
(P41)
!a
!b
(NC700XD)
31
Operation Guide
Ignition Switch
Switches the electrical system
on/off, locks the steering.
u Key can be removed when in
the OFF or LOCK position.
Start button
Horn button
N-D switch
To shift between Neutral and
AT MODE. (P40)
Steering Lock: (P29 )
AT/MT switch
To shift between the AT MODE
and MT MODE. (P40)
Engine stop switch
Should normally remain in the
Run position.
u In an emergency, switch to
the Off position to stop
the engine.
32
Operation Guide

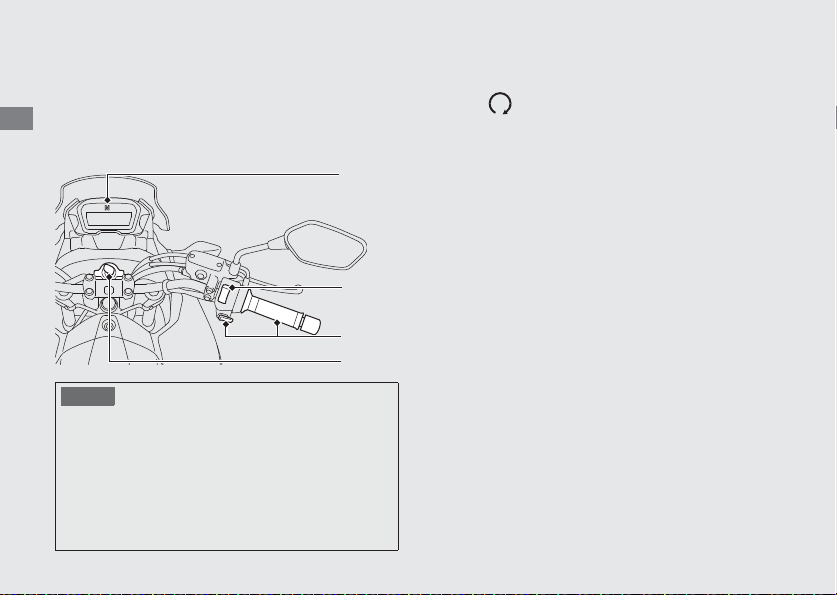

Starting the Engine
(NC700X/XA)
Start your engine using the following
procedure, regardless of whether the engine
is cold or warm.
!a Make sure the engine stop switch is in the
RUN position.
!b Turn the ignition switch to the ON position.
!c Shift the transmission to Neutral (N indicator
comes on). Alternatively, pull in the clutch
lever to start your motorcycle with the
transmission in gear so long as the side
stand is raised.
!d Press the start button with the throttle
completely closed.
If the engine does not start:
!a Open the throttle fully and press the start
button for 5 seconds.
!b Repeat the normal starting procedure.
!c If the engine starts, open the throttle slightly
if idling is unstable.
!d If the engine does not start, wait 10 seconds
before trying steps !a & !b again.
❙
If Engine Will Not Start (P102)
NOTICE
• If the engine does not start within 5 seconds, turn the
ignition off and wait 10 seconds before trying to start
the engine again to recover battery voltage.
• Extended fast idling and revving the engine can
damage the engine, and the exhaust system.
• Snapping the throttle or fast idling for more than about
5 minutes may cause exhaust pipe discoloration.
!c
!b
!a
!d
33
Operation Guide
continued
(NC700XD)
Start your engine using the following
procedure, regardless of whether the engine
is cold or warm.
NOTICE
• If the engine does not start within 5 seconds, turn the
ignition off and wait 10 seconds before trying to start
the engine again to recover battery voltage.
• Extended fast idling and revving the engine can
damage the engine, and the exhaust system.
• Snapping the throttle or fast idling for more than about
5 minutes may cause exhaust pipe discoloration.
!c
!b
!a
!d
!e
!a Make sure the engine stop switch is in the
Run position.
!b Turn the ignition switch to the ON position.
!c Check the transmission is in Neutral (N
indicator comes on).
!d Press the start button with the throttle
completely closed.
!e Make sure the parking brake lever is
released before riding.
❙
If Engine Does Not Start (P32 )
34
Starting the Engine (Continued)
Operation Guide
When you stop the engine
!a To stop the engine, put the transmission in
Neutral (N indicator comes on).
u If you turn the ignition switch to the OFF
position when the motorcycle in gear, the
engine will shut off with the clutch
disengaged.
!b Turn the ignition switch off.
!c Pull the parking brake lever when you park
the motorcycle.
35
continued
Operation Guide
Shifting Gears
(NC700X/XA)
Your motorcycle transmission has 6 forward
gears in a one-down, five-up shift pattern.
If you put the motorcycle in gear with the
side stand down, the engine will shut off.
❙
Recommended Shift Points
Shifting Up
From 1st to 2nd 12 mph (20 km/h)
From 2nd to 3rd 19 mph (30 km/h)
From 3rd to 4th 25 mph (40 km/h)
From 4th to 5th 31 mph (50 km/h)
From 5th to 6th 37 mph (60 km/h)
Shifting Down
From 6th to 5th 28 mph (45 km/h)
From 5th to 4th 22 mph (35 km/h)
From 4th to 3rd 16 mph (25 km/h)
NOTICE
Improper shifting can damage the engine, transmission,
and drive train. Also, coasting or towing the motorcycle
for long distances with the engine off can damage the
transmission.
36
Shifting Gears (Continued)
Operation Guide
(NC700XD)
NC700XD is equipped with an automatically
controlled 6-speed transmission. It can be
shifted automatically (by AT MODE) or
manually (by MT MODE).
❙
Recommended Shift Points
Shifting Up
From 1st to 2nd 12 mph (20 km/h)
From 2nd to 3rd 19 mph (30 km/h)
From 3rd to 4th 25 mph (40 km/h)
From 4th to 5th 31 mph (50 km/h)
From 5th to 6th 37 mph (60 km/h)
Shifting Down
From 6th to 5th 34 mph (55 km/h)
From 5th to 4th 25 mph (41 km/h)
From 4th to 3rd 19 mph (31 km/h)
From 3rd to 2nd 15 mph (24 km/h)
From 2nd to 1st 9 mph (15 km/h)
NOTICE
Improper shifting can damage the engine, transmission,
and drive train. Also, coasting or towing the motorcycle
for long distances with the engine off can damage the
transmission.
37
Operation Guide
continued
(NC700XD)
Dual Clutch Transmission
In order to respond to rider demands in a
broad range of situations, the transmission is
equipped with three operating modes, AT
MODE (including D mode for regular
operation and S mode for sport riding); and
MT MODE (MT mode for a 6-speed manual
operation), which delivers the same shift feel
as a manual transmission.
u Always use the recommended tires and
sprockets to ensure correct Dual Clutch
Transmission operation.
The Dual Clutch Transmission system runs a
self check immediately after starting the
engine. “-” appears in the gear position
indicator window for a few seconds, then
goes out.
While “-” appears, you cannot shift into
gear.
N-D switch
AT/MT switch
AT
MODE
MT
MODE
38
Shifting Gears (Continued)
Operation Guide
Neutral (N):
Neutral is selected automatically when you
turn the ignition switch to ON.
If neutral is not selected when you turn
the ignition switch to ON:
u Turn the ignition off and on again.
u If neutral is still not selected after turning the
engine off then on again.
2 P. 106
You may hear (click) noises when the
transmission shifts to Neutral (N). This is
normal.
When you can change between N and D
u Motorcycle is stopped and the engine is
idling.
u Throttle is completely off. It is not possible to
change from Neutral to D mode while the
throttle is applied.
u You cannot change between N and D mode
while the wheels are rotating.
u Side stand is raised.
NOTICE
• To prevent clutch damage, do not use the throttle to
keep the motorcycle stopped uphill.
39
Operation Guide
continued
AT MODE: In this mode the gears are shifted
automatically according to your riding
conditions.
And also using the shift up switch (+) or shift
down switch (-), you can temporarily shift up
or down. These switches are convenient
when you want to temporarily down-shift in
front of a curve, etc.
(P41)
You can choose between two modes within
AT MODE: D mode and S mode.
D mode (AT): This is the standard mode
when AT MODE is selected. Select D mode
for regular operation and efficient fuel
economy.
S mode (AT): Select this mode while riding
in AT MODE when you need more power,
such as when overtaking, climbing hills, or
pulling away.
MT MODE: MT MODE (6-speed manual
operation) You can choose between 6 gears
in this mode.
40
Shifting Gears (Continued)
Operation Guide
Changing between Neutral and AT/MT
Changing from Neutral (N) to AT MODE
Press the D/S side of the N-D switch (!a).
The D mode indicator comes on, ”1” is
shown in the gear position indicator and first
gear is selected.
Changing from AT or MT MODE to
Neutral
Press N on the N-D switch (!b).
Changing between D mode and S mode
while in AT MODE
Press the D/S side of the N-D switch. The S or
D mode indicator comes on (!c,!d).
Changing between AT MODE and MT
MODE
Press the AT/MT switch (!e).
The S or D indicator goes out while MT
MODE is selected (!f).
AT/MT
switch
!e
!a
!b
!c !d !f
N-D switch
41
Operation Guide
Riding in MT MODE
Shift up and down with the + and - switch.
The selected gear is shown on the gear
position indicator.
u If the MT MODE is selected, the transmission
does not shift up automatically. Do not allow
the engine revs to go into the red zone.
u The transmission automatically shifts down
when you slow down, even in MT MODE.
u You will start from 1st gear even if MT MODE
is selected.
Gear shift operation
Shifting Up:
Press the shift up switch (+) (!g).
Shifting Down:
Press the shift down switch (-) (!h).
You cannot continue shifting gears by
keeping the shift switch pressed.
To continue shifting gears release the switch
and press it again.
Shift Limit
You cannot downshift if the engine will
exceed the rev limit.
2 P. 22
!g
!h
42
Operation Guide

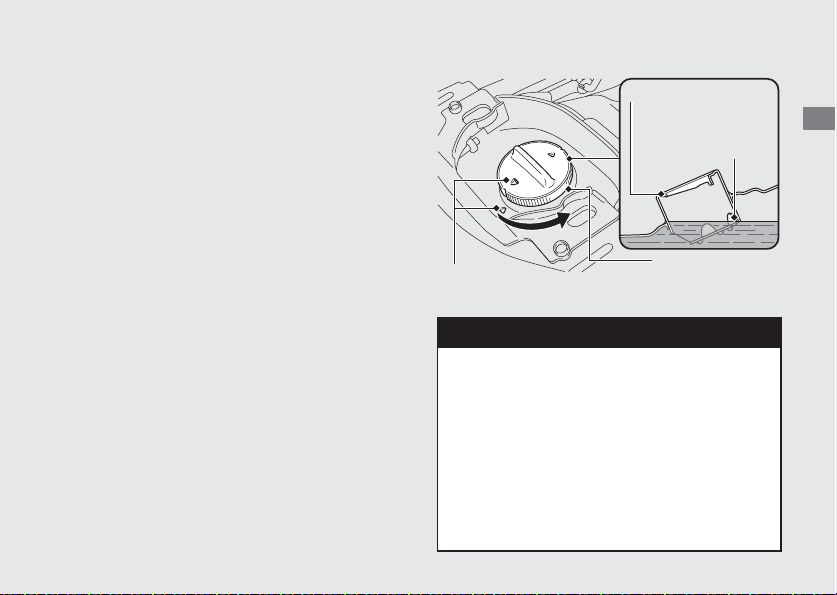

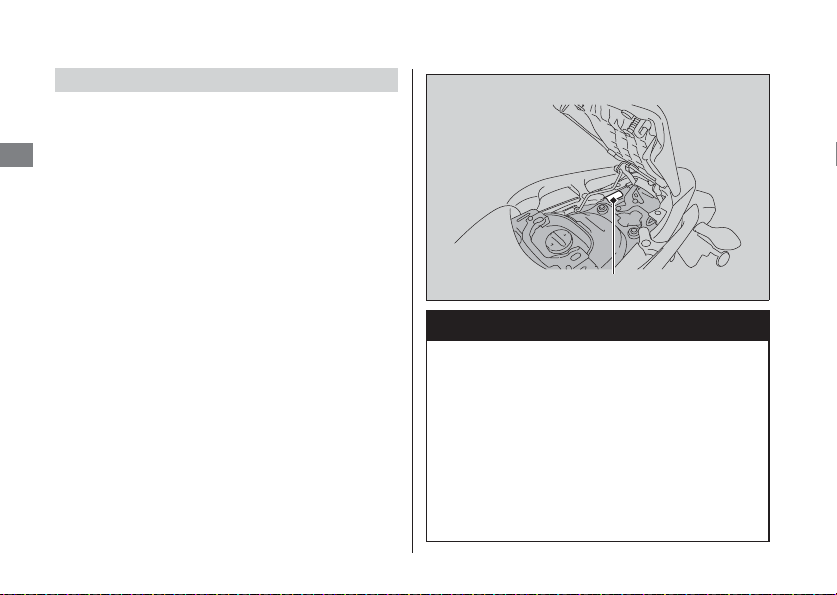

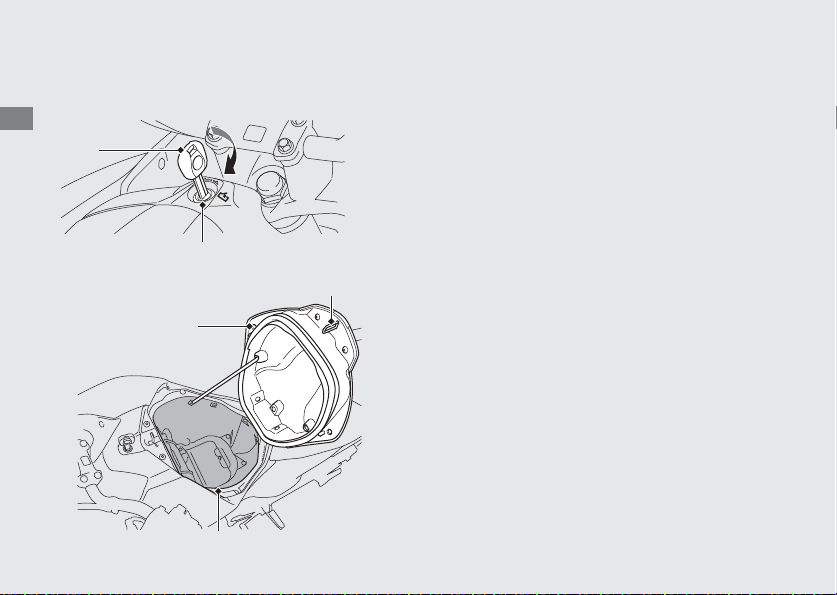

Refueling
This motorcycle’s rear seat must be opened
for refueling.
Rear Seat
Open
!a Insert the ignition key into the lock, and turn
the key counterclockwise.
!b Pull up the front of the rear seat.
Close
!a Pull the rod upward.
!b Push down on the front of the rear seat until
it locks in place.
u Make sure that the tabs are locked
securely in position by pulling up lightly
on the front of the rear seat.
u The seat locks automatically when closed.
Take care not to lock your key in the
compartment under the rear seat.
!c Remove the key.
Ignition key
Lock
Rod
Rear seat
Tabs
43
Operation Guide
Fuel type: Unleaded gasoline only
Fuel octane number: Your motorcycle is
designed to use Pump Octane Number (PON)
86 or higher.
Tank capacity: 3.73 US gal (14.1 liters)
❙
Refueling and Fuel Guideline (P15 )
Opening the Fuel Fill Cap
!a Open the rear seat. (P42 )
!b Turn the fuel fill cap counterclockwise until
it stops and remove the cap.
Closing the Fuel Fill Cap
!a Install and tighten the fuel fill cap firmly by
turning it clockwise.
u Make sure that the arrow marks on the
cap and fuel tank are aligned.
!b Close the rear seat.
Do not fill with fuel above the plate.
3
WARNING
Gasoline is highly flammable and
explosive. You can be burned or
seriously injured when handling fuel.
• Stop the engine, and keep heat,
sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Filler neck plate
Fuel level (max)
Arrow marks
Fuel fill cap
Fuel filler opening
44
Operation Guide
Storage Equipment
Luggage Box
Open
!a Insert the ignition key into the lock, and turn
the key clockwise.
!b Pull up the front of the luggage box lid.
Close
!a Push down the front of the luggage box lid
until it locks in place.
u Make sure that the tab is locked securely
in position by pulling up lightly on the
front of the luggage box lid.
u The lock automatically locks when closed.
Take care not to lock your key in the
luggage box.
!b Remove the key.
Never exceed the maximum weight limit.
Maximum Weight: 11.0 lb (5.0 kg)
u Do not store any items that are
flammable or susceptible to heat
damage.
Ignition
key
Lock
Luggage box lid
Tab
Luggage box
46
Storage Equipment (Continued)
Operation Guide

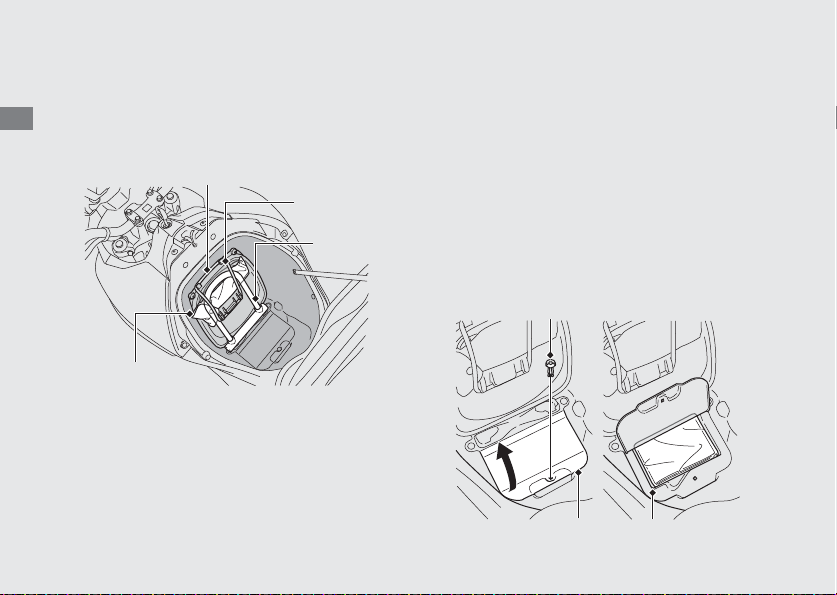

Tool Kit/U-shaped Lock

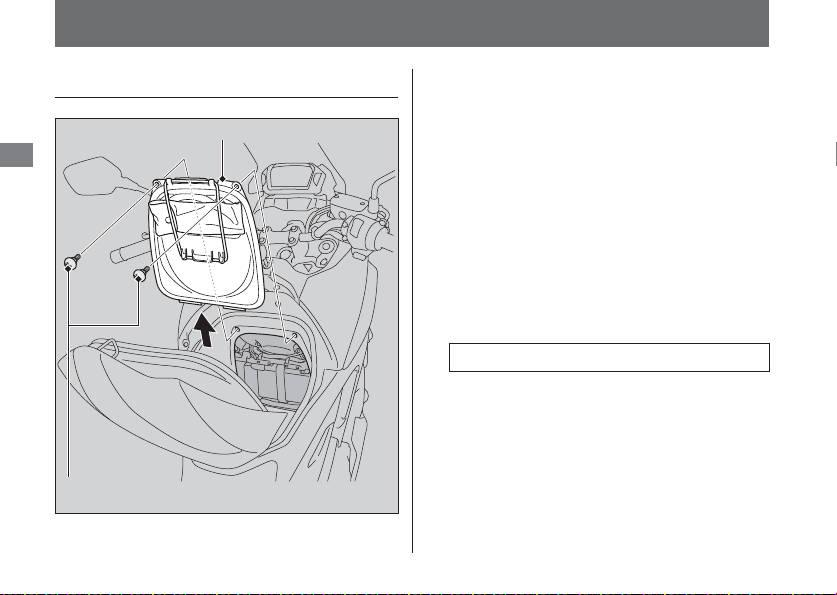

The tool kit is located on the maintenance lid
(in the luggage box) by the rubber strap.
There is also space to store a U-shaped lock.
u The tool kit/U-shaped lock are held in place
on the maintenance lid.
u Some U-shaped locks may not fit in the
compartment due to their size or design.
❙
Opening the luggage box. (P44 )
Document Bag
The document bag is located in the owner’s
manual box (in the luggage box).
Opening the owner’s manual Box
!a Remove the clip. (P71)
!b Open the owner’s manual box lid.
Closing owner’s manual Box
!a Close the owner’s manual box lid.
!b Install the clip.
Tool kit
Rubber
strap
U-shaped
lock
Maintenance lid
Clip
Owner’s manual
box lid
Document bag
47
Operation Guide
Helmet holder
The helmet holder is located under the rear
seat.
A helmet set wire is in the tool kit.
Helmet set wire
Helmet set wire
Helmet D-ring
Helmet holder
u Use the helmet holder only when parked.
❙
Opening the rear seat. (P42)
3
WARNING
Riding with a helmet attached to the
holder can interfere with the rear
wheel or suspension and could cause a
crash in which you can be seriously
hurt or killed.
Use the helmet holder only while
parked. Do not ride with a helmet
secured by the holder.
Maintenance
Please read “Importance of Maintenance” and “Maintenance Fundamentals”
carefully before attempting any maintenance. Refer to “Specifications” for service
data.
An optional tool kit may be available. Check with your Honda dealer’s parts
department.
Importance of Maintenance......................P. 49
Maintenance Schedule...............................P. 51
Maintenance Fundamentals ......................P. 54
Removing & Installing Body Components...
P. 68
Maintenance Lid........................................P. 68
Lower Fairing.............................................P. 69

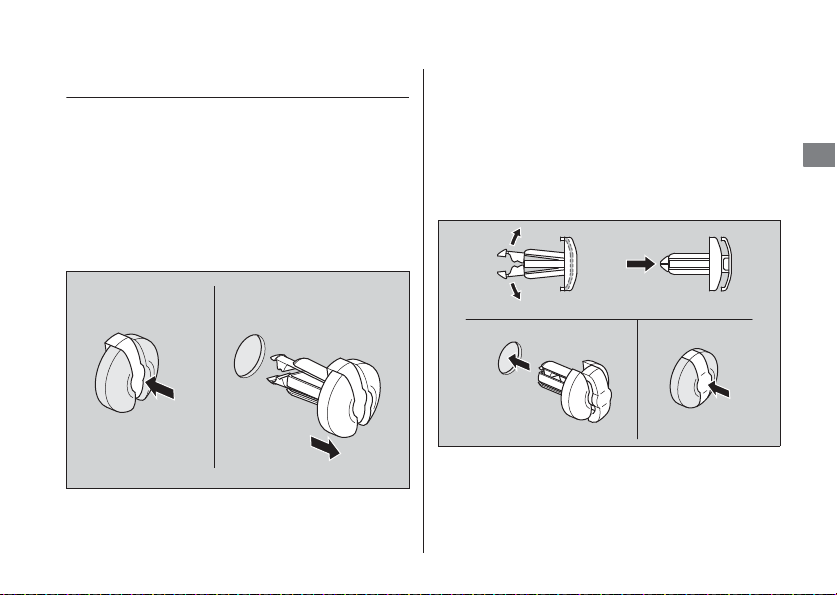

Clip ...........................................................P. 71
Battery ......................................................P. 72
Spark Plugs .................................................P. 73
Engine Oil ...................................................P. 76
Coolant........................................................P. 82
Brakes..........................................................P. 84
Side Stand .................................................. P. 87
Drive Chain................................................. P. 88
Clutch.......................................................... P. 92
Throttle....................................................... P. 95
Crankcase Breather.................................... P. 97
Other Adjustments .................................... P. 98
Headlight Aim........................................... P. 98
Brake Light Switch .................................... P. 98
Windscreen Height ................................... P. 99
49
Maintenance
Importance of Maintenance
Keeping your motorcycle well-maintained is
absolutely essential to your safety and to
protect your investment, obtain maximum
performance, avoid breakdowns, and reduce air
pollution. Maintenance is the owner’s
responsibility. Be sure to inspect your
motorcycle before each ride, and perform the
periodic checks specified in the Maintenance
Schedule.
2 P. 51
For information about the exhaust emission and
noise emission requirements of the U.S.
Environmental Protection Agency (EPA), the
California Air Resources Board (CARB), and
Environment Canada (EC).
2 P. 133
Maintenance, replacement or repair of the
emission control devices and systems may
be performed by any motorcycle repair
establishment or individual using parts
that are “certified“ to EPA standards.
Importance of Maintenance
3
WARNING
Improperly maintaining your
motorcycle or failing to correct a
problem before you ride can cause a
crash in which you can be seriously
hurt or killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner’s manual.
USA
Importance of Maintenance
50
Maintenance
Always read the maintenance instructions
before you begin each task, and make sure that
you have the tools, parts, and skills required.
We cannot warn you of every conceivable
hazard that can arise in performing
maintenance. Only you can decide whether or
not you should perform a given task.
Follow these guidelines when performing
maintenance.
● Stop the engine and remove the key.
● Park your motorcycle on a firm, level surface
using the side stand or a maintenance stand
to provide support.
● Allow the engine, muffler, brakes, and other
high-temperature parts to cool before
servicing as you can get burned.
● Run the engine only when instructed, and do
so in a well-ventilated area.
Maintenance Safety
51
continued
Maintenance
Maintenance Schedule
The maintenance schedule specifies the
maintenance requirements necessary to
ensure safe, dependable performance, and
proper emission control.
Maintenance work should be performed in
accordance with Honda’s standards and
specifications by properly trained and
equipped technicians. Your dealer meets all
of these requirements. Keep an accurate
record of maintenance to help ensure that
your motorcycle is properly maintained.
Make sure that whomever performs the
maintenance completes this record.
All scheduled maintenance is considered a
normal owner operating cost and will be
charged for by your dealer. Retain all
receipts. If you sell the motorcycle, these
receipts should be transferred with the
motorcycle to the new owner.
Maintenance Schedule
52
Maintenance
Maintenance Level
: Intermediate. We recommend service by your dealer, unless you
have the necessary tools and are mechanically skilled. Procedures
are provided in an official Honda Service Manual (
2 P. 140).
: Technical. In the interest of safety, have your motorcycle
serviced by your dealer.
Maintenance Legend
: Inspect (clean, adjust, lubricate, or replace, if necessary)
: Replace
: Lubricate
: Clean
Frequency
*1
Items × 1,000 mi 0.6 4 8 12 16 20 24
Refer to
page
× 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Emission-related Items
Fuel Line –
Throttle Operation 95
Air Cleaner
*2
–
Crankcase Breather
*3
97
Spark Plug Every 16,000 mi (25,600 km): Every 32,000 mi (51,200 km): 73
Valve Clearance –
Engine Oil
Initial = 600 mi (1,000 km) or 1 month:
Regular = Every 8,000 mi (12,800 km) or 12 months:
76
Engine Oil Filter 78

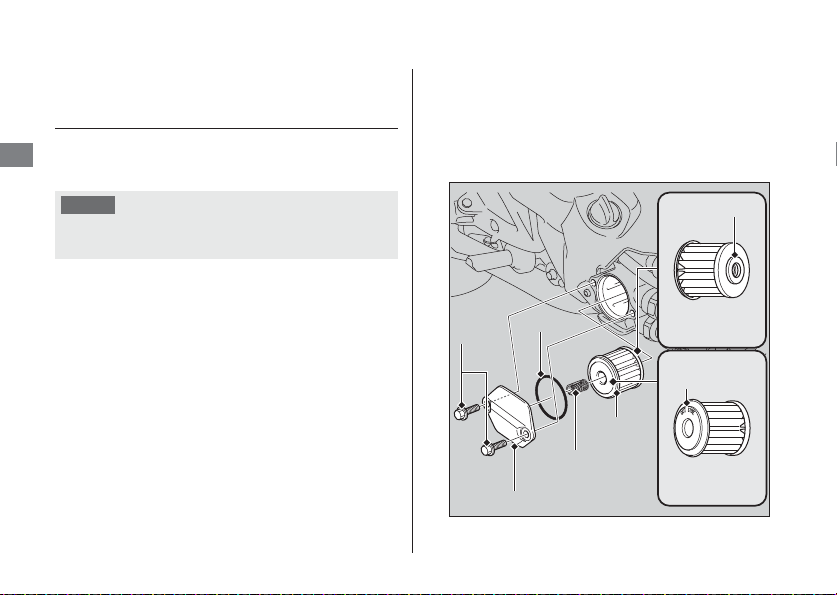

Clutch Oil Filter
NC700XD
80
Engine Idle Speed –
Radiator Coolant
*5
82
Cooling System –
Evaporative Emission Control System
*4
–
I I I
I I I
R R
I
R
I I I
R
R
R R R R
R R
I I I I I I I
I I
R
I I I
I I
I
R
Maintenance Schedule
53
Maintenance
Notes:
*1 : At higher odometer readings, repeat at the frequency interval established here.
*2 : Service more frequently when riding in unusually wet or dusty areas.
*3 : Service more frequently when riding in rain or at full throttle.
*4 : 50 STATE (meets California).
*5 : Replace every 2 years, or at indicated odometer intervals, whichever comes first. Replacement requires mechanical skill.
Frequency
*1
Items × 1,000 mi0.6 4 8 12162024
Refer to
page
× 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Non-Emission-Related Items

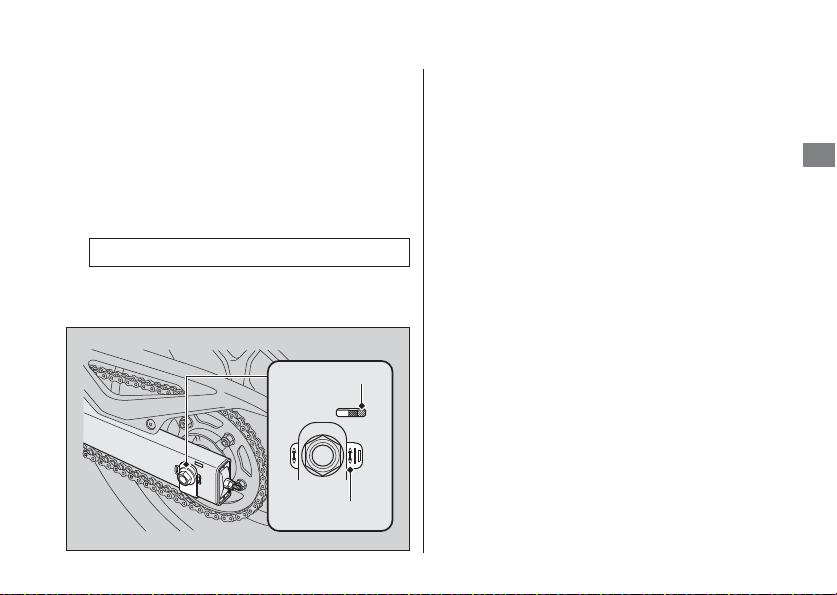

Drive Chain Every 500 mi (800 km): 88
Brake Fluid
*5
84
Brake Pads Wear 85
Brake System 84
Brake Light Switch 98
Brake Lock Operation
NC700XD
86
Headlight Aim 98
Clutch System
NC700X/XA
92
Side Stand 87
Suspension –
Nuts, Bolts, Fasteners –
Wheels/Tires 64
Steering Head Bearings –
I
I I
R
I I
R
I I I I I I
I I I I
I I I
I I I I I I I
I I I
I I I I I I I
I I I
I I I
I I I I
I I I
I I I I
54
Maintenance
Maintenance Fundamentals
To ensure safety, it is your responsibility to
perform a pre-ride inspection and make sure
that any problem you find is corrected. A pre-
ride inspection is a must, not only for safety, but
because having a breakdown, or even a flat tire,
can be a major inconvenience.
Check the following items before you get on
your motorcycle:
● Tire tread wear and air pressures are within
limits.
2 P. 64
● Lights, horn, and turn signals operate
normally.

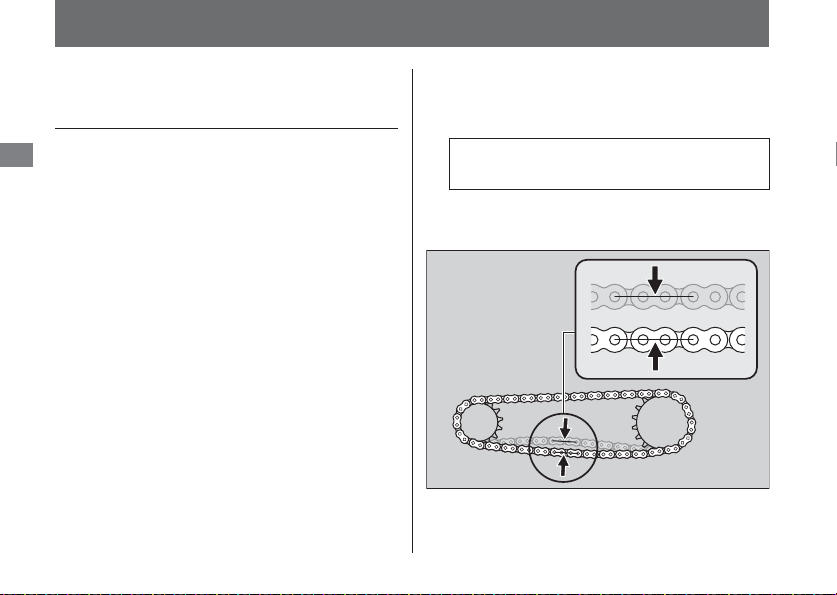

● Check the condition of the drive chain.
Adjust slack and lubricate as needed.
2 P. 88
Check the following items if you are carrying a
passenger or cargo:
● Combined weight is within load limits.
2 P. 146
● Cargo is secured properly.
Check the following items after you get on your
motorcycle:
● Throttle action moves smoothly without
binding.
2 P. 95
● Brake lever and pedal operate normally.
● Check the remaining fuel and refuel when
needed.
2 P. 42
● Engine stop switch functions properly.
2 P. 28, 31
Check the following items at regular intervals:
● Oil level is between the upper and lower
marks.
2 P. 76
● Brake fluid level is above the lower mark
(Front) and between the upper and lower
marks (Rear).
2 P. 84
● Engine coolant level is between the upper
and lower marks.
2 P. 82
● (NC700XD) Parking brake works properly.
2 P. 86
● Side stand function properly. 2 P. 87
Pre-ride Inspection
Maintenance Fundamentals
55
Maintenance
You should also perform other periodic
maintenance checks at least once a month
regardless of how often you ride, or more often
if you ride frequently.
Also, check the odometer reading against the
Maintenance Schedule and perform all
maintenance that is due.
2 P. 51
Periodic Checks
Tires and wheels
Check the air pressure (2 P. 64), examine tread for wear and
damage (
2 P. 64), and check the wheels for damage.
Fluid levels
Check the engine oil level (
2 P. 76), engine coolant level (2 P. 82),
and brake fluid level (
2 P. 84).
Lights
Check that the headlight, position light, brake light, taillight and
turn signals are working properly.
Controls
Check the freeplay of the clutch lever (NC700X/XA only) (
2 P. 92)
and throttle grip (
2 P. 95).
Drive chain
Check the slack (2 P. 88), adjust the slack (2 P. 89), and lubricate
(
2 P. 62) as needed.
Fuses Check that you have a full supply of spare fuses.
Nuts & bolts Check the major nuts and bolts, and tighten as needed.
Maintenance Fundamentals
56
Maintenance
Always use Honda Genuine Parts or their
equivalents to ensure reliability and safety.
When ordering colored components, specify
the model name, color, and code mentioned on
the color label. The color label is attached to the
frame under the rear seat.
2 P. 42
Replacing Parts
3
WARNING
Installing non-Honda parts may make
your motorcycle unsafe and cause a
crash in which you can be seriously
hurt or killed.
Always use Honda Genuine Parts or
equivalents that have been designed
and approved for your motorcycle.
Color label
Maintenance Fundamentals
57
continued
Maintenance
Your motorcycle has a maintenance-free type
battery. You do not have to check the battery
electrolyte level or add distilled water. Clean the
battery terminals if they become dirty or
corroded.
Do not remove the battery cap seals. There is no
need to remove the cap when charging.
❙
What to do in an emergency
If any of the following occur, immediately see
your doctor.
● Electrolyte splashes into your eyes:
u Wash your eyes repeatedly with cool water
for at least 15 minutes. Using water under
pressure can damage your eyes.
● Electrolyte splashes onto your skin:
u Remove affected clothing and wash your
skin thoroughly using water.
● Electrolyte splashes into your mouth:
u Rinse mouth thoroughly with water, and
do not swallow.
WARNING: Battery posts, terminals, and
related accessories contain lead and lead
compounds.
Wash your hands after handling.
Battery
3
WARNING
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the battery
to explode with enough force to kill or
seriously hurt you.
Wear protective clothing and a face
shield, or have a skilled mechanic do
the battery servicing.
Maintenance Fundamentals
58
Maintenance
❙
Cleaning the Battery Terminals
1.
Remove the battery. 2 P. 72
2.
If the terminals are starting to corrode and
are coated with a white substance, wash with
warm water and wipe clean.
3.
If the terminals are heavily corroded, clean
the terminals with a wire brush or sandpaper.
Wear safety glasses.
4.
After cleaning, reinstall the battery.
The battery has a limited life span. Consult your
dealer about when you should replace the
battery. Always replace the battery with
another maintenance-free battery of the same
type.
❙
Charging
If you use electrical accessories that drain the
battery or you do not ride frequently, we
recommend that you charge the battery every
30 days using a charger designed specifically for
your Honda, which can be purchased from your
dealer. Read the information that came with
your battery charger and follow the instructions
on the battery. Avoid using an automobile-type
battery charger, as these can overheat a
motorcycle battery and cause permanent
damage.
Make sure the ignition switch is in the OFF
position before charging the battery.
NOTICE
Improper charging can damage the battery. If you can’t
charge the battery or it appears unable to hold a charge,
contact your dealer.
Maintenance Fundamentals
59
Maintenance
Fuses protect the electrical circuits on your
motorcycle. If something electrical on your
motorcycle stops working, check for and
replace any blown fuses.
2 P. 120
❙
Inspecting and Replacing Fuses
Turn off the ignition switch to remove and
inspect fuses. If a fuse is blown, replace with a
fuse of the same rating. For fuse ratings, see
“Specifications.”
2 P. 148
If a fuse fails repeatedly, you likely have an
electrical fault. Have your motorcycle inspected
by your dealer.
NOTICE
Jump starting using an automobile battery can damage
your motorcycle’s electrical system and is not
recommended. Bump starting is also not recommended.
NOTICE
Installing non-Honda electrical accessories can overload
the electrical system, discharging the battery and possibly
damaging the system.
Fuses
NOTICE
Replacing a fuse with one that has a higher rating greatly
increases the chance of damage to the electrical system.
Blown fuse
Maintenance Fundamentals
60
Maintenance
Engine oil consumption varies and oil quality
deteriorates according to riding conditions and
time elapsed.
Check the engine oil level regularly, and add the
recommended engine oil if necessary. Dirty oil
or old oil should be changed as soon as
possible.
❙
Selecting the Engine Oil
For recommended engine oil, see
“Specifications.”
2 P. 147
If you use non-Honda engine oil, check the label
to make sure that the oil satisfies all of the
following standards:
● JASO T 903 standard
*1
: MA
● SAE standard
*2
: 10W-30
● API classification
*3
: SG or higher
*1.
The JASO T 903 standard is an index for engine
oils for 4-stroke motorcycle engines. There are
two classes: MA and MB. For example, the
following label shows the MA classification.
*2.
The SAE standard grades oils by their viscosity.
*3.
The API classification specifies the quality and
performance rating of engine oils. Use SG or
higher oils, excluding oils marked as “Energy
Conserving” or “Resource Conserving” on the
circular API service symbol.
Engine Oil
Oil code
Oil classification
Not recommended
Recommended
Maintenance Fundamentals
61
continued
Maintenance
Do not add or replace brake fluid, except in an
emergency. Use only fresh brake fluid from a
sealed container. If you do add fluid, have the
brake system serviced by your dealer as soon as
possible.
The drive chain must be inspected and
lubricated regularly. Inspect the chain more
frequently if you often ride on bad roads, ride at
high speed, or ride with repeated fast
acceleration.
If the chain does not move smoothly, makes
strange noises, has damaged rollers or loose
pins or missing O-rings, or kinks, have the chain
inspected by your dealer.
Brake Fluid
NOTICE
Brake fluid can damage plastic and painted surfaces.
Wipe up spills immediately and wash thoroughly.
Recommended brake fluid:
Honda DOT 4 Brake Fluid or equivalent
3
WARNING
Clean filler cap before removing. Use
only DOT 4 fluid from a sealed
container.
Drive Chain
Maintenance Fundamentals
62
Maintenance
Also inspect the front sprocket and rear wheel
sprocket. If either has worn or damaged teeth,
have the sprocket replaced by your dealer.
❙
Cleaning and Lubricating
After inspecting the slack, clean the chain and
sprockets while rotating the rear wheel. Use dry
cloth with chain cleaner designed specifically
for O-ring chains, or neutral detergent. Use a
soft brush if the chain is dirty.
After cleaning, wipe dry and lubricate with a
lubricant designed specifically for use on O-ring
chains.
NOTICE
Use of a new chain with worn sprockets will cause rapid
chain wear.
Normal
(GOOD)
Worn
(REPLACE)
Damaged
(REPLACE)
Recommended lubricant:
Pro Honda HP Chain Lube or equivalent
Maintenance Fundamentals
63
Maintenance
Do not use a steam cleaner, a high pressure
cleaner, a wire brush, volatile solvent such as
gasoline and benzene, abrasive cleaner, chain
cleaner or lubricant NOT designed specifically
for O-ring chains as these can damage the
rubber O-ring seals.
Avoid getting lubricant on the brakes or tires.
Avoid applying excess chain lubricant to prevent
spray onto your clothes and the motorcycle.
Pro Honda HP is a pre-mixed solution of
antifreeze and distilled water.
A concentration of antifreeze below 40% will
not provide proper corrosion and cold
temperature protection.
A concentration of up to 60% will provide
better protection in colder climates.
This motorcycle is equipped with a viscous type
air cleaner element.
Compressed air cleaning or any other cleaning
can degrade the viscous element performance
and cause the intake of dust.
Do not perform the maintenance.
Should be serviced by your dealer.
Service more frequently when riding in rain, at
full throttle, or after the motorcycle is washed
or overturned. Service if the deposit level can be
seen in the transparent section of the drain
tube.
2 P. 97
Recommended Coolant
Concentration:
50% antifreeze and 50% distilled water
NOTICE
Using coolant not specified for aluminium engines or
using ordinary tap water can cause corrosion.
Air Cleaner
Crankcase Breather
Maintenance Fundamentals
64
Maintenance
❙
Checking the Air Pressure
Visually inspect your tires and use an air
pressure gauge to measure the air pressure at
least once a month or any time you think the
tires look low. Always check air pressure when
your tires are cold.
2 P. 147
❙
Inspecting for Damage
Inspect the tires for
cuts, slits, or cracks
that exposes fabric or
cords, or nails or
other foreign objects
embedded in the side
of the tire or the
tread. Also inspect
for bumps or bulges in the side walls of the
tires.
❙
Inspecting for Abnormal Wear
Inspect the tires for
signs of abnormal
wear on the contact
surface.
Tires (Inspecting/Replacing)
Maintenance Fundamentals
65
continued
Maintenance
❙
Inspecting Tread Depth
Inspect the tread wear indicators. If they
become visible, replace the tires immediately.
For safe riding, you should replace the tires
when the minimum tread depth is reached.
Wear indicator
location mark
or TWI
3
WARNING
Riding on tires that are excessively
worn or improperly inflated can cause
a crash in which you can be seriously
hurt or killed.
Follow all instructions in this owner’s
manual regarding tire inflation and
maintenance.
Maintenance Fundamentals
66
Maintenance
Have your tires replaced by your dealer.
For recommended tires, air pressure and
minimum tread depth, see “Specifications.”
2 P. 147
Follow these guidelines whenever you replace
tires.
● Use the recommended tires or equivalents of
the same size, construction, speed rating,
and load range.
● Have the wheel balanced with Honda
Genuine balance weights or equivalent after
the tire is installed.
● Do not install a tube inside a tubeless tire on
this motorcycle. Excessive heat build-up can
cause the tube to burst.
● Use only tubeless tires on this motorcycle.
The rims are designed for tubeless tires, and
during hard acceleration or braking, a tube-
type tire could slip on the rim and cause the
tire to rapidly deflate.
3
WARNING
Installing improper tires on your
motorcycle can adversely affect
handling and stability, and can cause a
crash in which you can be seriously
hurt or killed.
Always use the size and type of tires
recommended in this owner’s manual.
Maintenance Fundamentals
67
Maintenance
The service life of your tires is dependent on
many factors, including, but not limited to,
riding habits, road conditions, vehicle loading,
tire air pressure, maintenance history, speed,
and environmental conditions (even when the
tires are not in use).
In addition to your regular inspections and
maintenance, it is recommended that you have
annual inspections performed once the tires
reach 5 years old. It is also recommended that
all tires be removed from service after 10 years
from the date of manufacture, regardless of
their condition or state of wear.
The last four digits of the TIN (tire identification
number) indicate the date of manufacture.
❙
Tire Identification Number (TIN)
The tire identification number (TIN) is a group of
numbers and letters located on the sidewall of
the tire.
Tire Service Life
DOT XXXX XXXX 22 09
DOT: This indicates that the tire meets
all requirements of the U.S.
Department of Transportation.
!
a XXXX: Factory code
!
b XXXX: Tire type code
!
c 22 09:
Date of manufacture (week & year).
Example: week 22 in year 09.
!a !b !c
Tire Labeling Example
Tire identification
number (TIN)
68
Maintenance
Removing & Installing Body Components
Maintenance Lid
The maintenance lid must be removed to
remove the battery, to service the main and
fuse box fuses.
❙
Removal
1.
Open the luggage box. 2 P. 44
2.
Remove the screws.
3.
Remove the maintenance lid.
❙
Installation
1.
Install the maintenance lid.
2.
Install and tighten the screws.
3.
Close the luggage box.
Maintenance lid
ScrewsScrews
Torque: 2.2 lbf·ft (3 N·m, 0.3 kgf·m).
Removing & Installing Body Components u Lower Fairing
69
continued
Maintenance
Lower Fairing
(NC700X/XA)
The lower fairing must be removed to service
the coolant reserve tank and spark plugs, to
replace the engine oil filter.
❙
Removal
1.
Remove the screws.
2.
Remove the lower fairing, then remove
the prongs from the grommets.
❙
Installation
Install the parts in the reverse order of
removal.
Lower fairing
Screw
Prongs
Grommets
Screw
Removing & Installing Body Components u Lower Fairing
70
Maintenance
(NC700XD) The lower fairing must be removed to service
the coolant reserve tank and spark plugs, to
replace the engine oil filter and clutch oil
filter.
❙
Removal
1.
Remove the screw A and B.
2.
Remove the lower fairing, then remove
the prongs from the grommets.
❙
Installation
Install the parts in the reverse order of
removal.
Lower fairing
Screw A
Prongs
Grommets
Screw B
Removing & Installing Body Components u Clip
71
Maintenance
Clip
The clip must be removed to open the
owner’s manual box.
❙
Removal
1.
Press down on the center pin to release
the lock.
2.
Pull the clip out of the hole.
❙
Installation
1.
Slightly open the retaining pawls and then
push them out.
2.
Insert the clip into the hole.
3.
Lightly press down on the center pin to
lock the clip.
!a
!b
!a
!b
!c
Removing & Installing Body Components u Battery
72
Maintenance
Battery
❙
Removal
Make sure the ignition switch is off.
1.
Open the luggage box. 2 P. 44
2.
Remove the maintenance lid. 2 P. 68
3.
Unhook the rubber strap.
4.
Disconnect the negative - terminal from
the battery.
5.
Disconnect the positive + terminal from
the battery.
6.
Remove the battery taking care not to
drop the terminal nuts.
❙
Installation
Install the parts in the reverse order of
removal. Always connect the positive +
terminal first. Make sure that bolts and nuts
are tight.
The clock will be reset AM 1:00 if the battery
is disconnected.
For proper handling of the battery, see
“Maintenance Fundamentals.“
2 P. 57
“Battery Goes Dead.“ 2 P. 116
Negative
terminal
Positive
terminal
Rubber strap
Battery
73
continued
Maintenance
Spark Plugs
Checking Spark Plugs
For the recommended spark plugs, see
“Specifications.”
2 P. 147
Use only the recommended type of spark
plugs in the recommended heat range.
This motorcycle uses spark plugs that have an
iridium coated center electrode.
Be sure to observe the following when
servicing the spark plugs.
● Do not clean the spark plugs. If an
electrode is contaminated with
accumulated objects or dirt, replace the
spark plug with a new one.
● To check the spark plug gap, use only a
‘‘wire-type feeler gauge.’’ To prevent
damaging the iridium coating of the center
electrode, never use a ‘‘leaf-type feeler
gauge.’’
● Do not adjust the spark plug gap. If the
gap is out of specification, replace the
spark plug with a new one.
NOTICE
Using spark plugs an improper heat range can cause
engine damage.
Spark Plugs u Checking Spark Plugs
74
Maintenance
1.
Remove the lower fairing. 2 P. 69
2.
Disconnect the spark plug caps.
3.
Clean any dirt from around the spark plug
bases.
4.
Remove the spark plugs using a spark
plug wrench.
5.
Inspect the electrodes and center
porcelain for deposits, erosion or carbon
fouling.
If the corrosion or deposit is heavy,
replace the plug.
6.
Make sure that a 1.1 mm wire-type feeler
gauge cannot be inserted between the
spark plug gap. If the gauge fits in the
gap, replace the plug with a new one.
7.
Make sure the plug washer is in good
condition.
Spark plug caps
Spark plug gap
Spark Plugs u Checking Spark Plugs
75
Maintenance
8.
With the plug washers attached, thread
the spark plugs in by hand to prevent
cross-threading.
9.
Tighten each spark plug:
● If the old plug is good:
● If installing a new plug, tighten it twice
to prevent loosening:
10.
Reinstall the spark plug caps. Avoid
pinching any cables or wires.
11.
Install the parts in the reverse order of
removal.
1/8 turn after it seats
a) First, tighten the plug:
NGK: 2/3 turn after it seats.
b) Then loosen the plug.
c) Next, tighten the plug again:
1/8 turn after it seats.
NOTICE
Improperly tightened spark plugs can damage the engine.
If a plug is too lose, a piston may be damaged. If a plug is
too tight, the threads may be damaged.
76
Maintenance

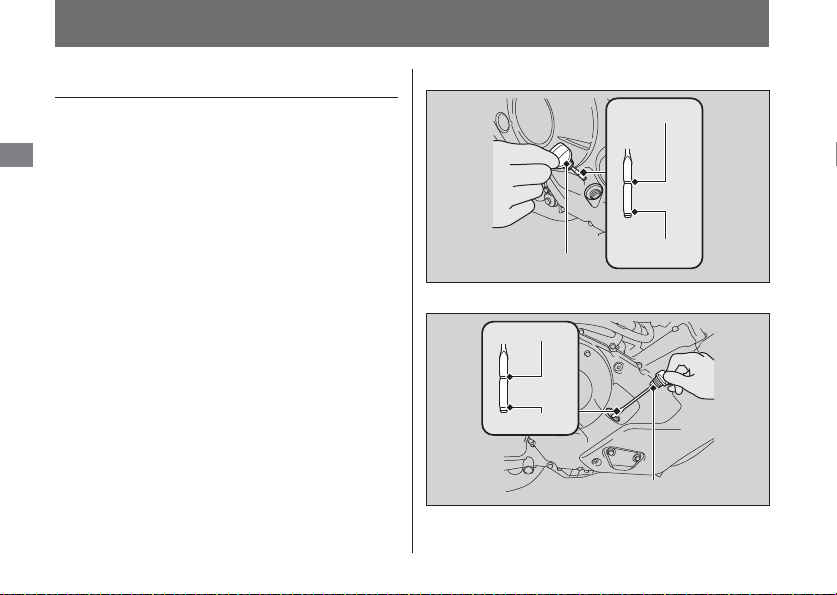

Engine Oil
Checking the Engine Oil
1.
If the engine is cold, idle the engine for 3
to 5 minutes.
2.
Turn the ignition switch off, stop the
engine and wait 2 to 3 minutes.
3.
Place your motorcycle in an upright
position on a firm, level surface.
4.
Remove the oil fill cap/dipstick and wipe it
clean.
5.
Insert the oil fill cap/dipstick until it seats,
but don’t screw it in.
Check that the oil level is between the
upper and lower level marks in the oil fill
cap/dipstick.
6.
Securely install the oil fill cap/dipstick.

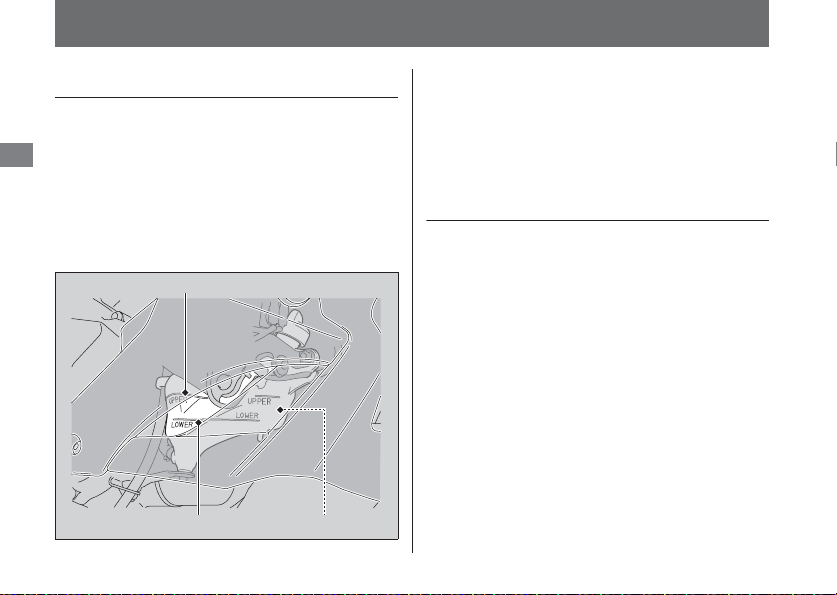

(NC700X/XA)
(NC700XD)
Oil fill cap/dipstick
Upper level
Lower level
Oil fill cap/dipstick
Upper level
Lower level
Engine Oil u Adding Engine Oil
77
Maintenance
Adding Engine Oil
If the engine oil is below or near the lower
level mark, add the recommended engine oil.
2 P. 60
1.
Add the recommended oil until it reaches
the upper level mark.
u Place your motorcycle in an upright
position on a firm, level surface when
checking the oil level.
u Do not overfill above the upper level
mark.
u Make sure no foreign objects enter the
oil filler opening.
u Wipe up any spills immediately.
2.
Securely reinstall the oil fill cap/dipstick.
For the recommended oil and oil selection
guidelines, see “Maintenance
Fundamentals.”
2 P. 60
NOTICE
Overfilling with oil or operating with insufficient oil can
cause damage to your engine. Do not mix different brands
and grades of oil. They may affect lubrication and clutch
operation.
Engine Oil u Changing Engine Oil & Filter
78
Maintenance
Changing Engine Oil & Filter
Changing the oil and filter requires special
tools. We recommend that you have your
motorcycle serviced by your dealer.
Use a new Honda Genuine oil filter or
equivalent specified for your model.
1.
Remove the lower fairing. 2 P. 69
2.
If the engine is cold, idle the engine for 3
to 5 minutes.
3.
Turn the ignition switch off, stop the
engine and wait for 2 to 3 minutes.
4.
Park on a firm, level surface and lower
the side stand.
5.
Place a drain pan under the drain bolt.
6.
Remove the oil fill cap/dipstick, drain bolt,
and sealing washer to drain the oil.
7.
Remove the oil filter with a filter wrench
and let the remaining oil drain out. Make
sure the prior seal is not stuck to the
engine.
u Discard the oil and oil filter at an
approved recycling center.
NOTICE
Using the wrong oil filter can result in serious damage to
the engine.
Drain bolt
Sealing washer
Engine Oil u Changing Engine Oil & Filter
79
Maintenance
8.
Apply a thin coat of engine oil to the
rubber seal of a new oil filter.
9.
Install a new oil filter and tighten.
10.
Install a new sealing washer onto the
drain bolt. Tighten the drain bolt.
11.
Fill the crankcase with the recommended
oil (
2 P. 60) and install the oil fill cap/
dipstick.
12.
Check the oil level. 2 P. 76
13.
Check that there are no oil leaks.
14.
Install the lower fairing.
Torque: 19 lbf·ft (26 N·m, 2.7 kgf·m).
Torque: 22 lbf·ft (30 N·m, 3.1 kgf·m).
Rubber seal
Oil filter
Required oil
When changing oil & engine oil
filter:
3.6 US qt (3.4 liters)
When changing oil only:
(NC700X/XA)
3.3 US qt (3.1 liters)
(NC700XD)
3.4 US qt (3.2 liters)
Engine Oil u Changing Clutch Oil Filter (NC700XD only)
80
Maintenance
Changing Clutch Oil Filter
(NC700XD only)
Use a new Honda Genuine clutch oil filter or
equivalent specified for your model.
1.
Follow the steps 1-7 of Changing Engine
Oil & Filter.
2 P. 78
2.
Remove the clutch oil filter cover, clutch
oil filter and spring by removing the
clutch oil filter cover bolts.
u Discard the oil and clutch oil filter at
an approved recycling center.
NOTICE
Using the wrong clutch oil filter can result in serious
damage to the transmission.
Clutch oil filter cover
O-ring
Spring
Clutch
oil
filter
OUT-SIDE
mark
Rubber seal
Bolts
Engine Oil u Changing Clutch Oil Filter (NC700XD only)
81
Maintenance
3.
Install the new clutch oil filter with the
rubber seal facing in, toward the engine.
You will see “OUT-SIDE“ mark on the
clutch oil filter body, toward the filter
cover.
4.
Replace the O-ring and apply a thin coat
of engine oil to the new O-ring before
installing it.
5.
Install the spring and the clutch oil filter
cover.
6.
Install the clutch oil filter cover bolts and
tighten.
7.
Apply a thin coat of engine oil to the
rubber seal of a new engine oil filter.
2 P. 79
8.
Install a new engine oil filter and tighten.
9.
Install a new sealing washer onto the
drain bolt. Install the drain bolt and
tighten.
10.
Fill the crankcase with the recommended
oil (
2 P. 60) and install the oil fill cap/
dipstick.
11.
Check the oil level. 2 P. 76
12.
Check that there are no oil leaks.
13.
Install the lower fairing.
Torque: 19 lbf·ft (26 N·m, 2.7 kgf·m).
Torque: 22 lbf·ft (30 N·m, 3.1 kgf·m).
Required oil
When changing oil, engine oil
filter & clutch oil filter:
3.6 US qt (3.4 liters)
82
Maintenance
Coolant

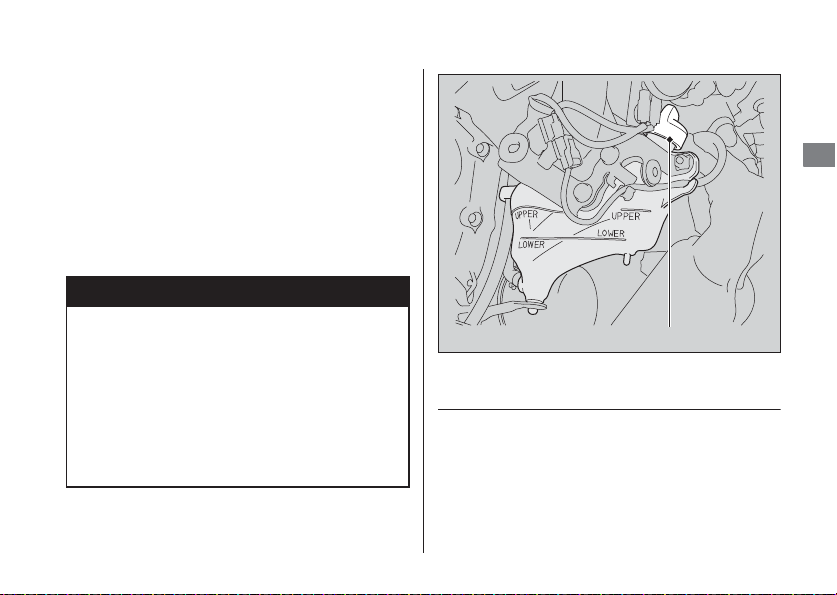

Checking the Coolant
1.
Place your motorcycle on a firm, level
surface.
2.
Hold your motorcycle in an upright
position.
3.
Check that the coolant level is between
the UPPER and LOWER level marks in the
reserve tank.
If the coolant level is dropping noticeably or
the reserve tank is empty, you likely have a
serious leak. Have your motorcycle inspected
by your dealer.
Adding Coolant
If the coolant level is below the LOWER level,
add the recommended coolant (2 P. 63) until
the level reaches the UPPER level mark.
Add fluid only from the reserve tank cap and
do not remove the radiator cap.
1.
Remove the lower fairing. 2 P. 69
LOWER level
UPPER level
Reserve tank
Coolant u Changing Coolant
83
Maintenance
2.
Remove the reserve tank cap and add
fluid while monitoring the coolant level.
u Do not overfill above the UPPER level
mark.
u Make sure no foreign objects enter the
reserve tank opening.
3.
Securely reinstall the cap.
4.
Install the lower fairing.
Changing Coolant
Have your dealer change the coolant unless
you have the proper tools and are
mechanically qualified.
3
WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to
spray out, potentially scalding you.
Always let the engine and radiator
cool down before removing the
radiator cap.
Reserve tank cap
84
Maintenance
Brakes
Checking Brake Fluid
1.
Place your motorcycle in an upright
position on a firm, level surface.
2.
Check that the brake fluid reservoir
is horizontal and that the fluid level is
above the LOWER level mark.
Check that the brake fluid reservoir
is horizontal and that the fluid level is
between the LOWER level and UPPER level
marks.
If the brake fluid level in either reservoir is
below the LOWER level mark, inspect the
brake pads for wear. If the brake pads are
not worn, you most likely have a leak. Have
your motorcycle inspected by your dealer.
Front
Rear
Front brake
fluid reservoir
Front
Rear
UPPER level
mark
Rear brake fluid reservoir
LOWER level
mark
LOWER level mark
Brakes u Inspecting the Brake Pads
85
Maintenance

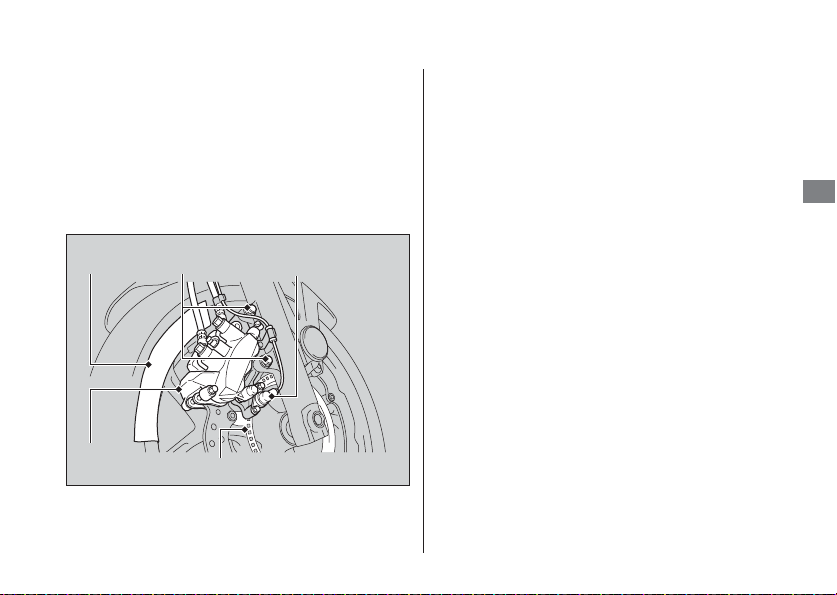

Inspecting the Brake Pads
Check the condition of the brake pad groove
wear indicators.
The pads need to be replaced if a
brake pad is worn to the indicator.
The pads need to be replaced if a
brake pad is worn to the indicator.
1.
Inspect the brake pads from below
the brake caliper.
2.
Inspect the brake pads from the
rear right of the motorcycle.
If necessary have the pads replaced by your
dealer.
Always replace both left and right brake pads
at the same time.
Front
Rear
Front
Rear
Pad
Disc
Front
Rear
Wear
indicator
Pad
Wear
indicator
Wear
indicator
Wear
indicator
Disc
Disc
(NC700XA/XD) (NC700X)
Brakes u Inspecting the Parking Brake (NC700XD only)
86
Maintenance

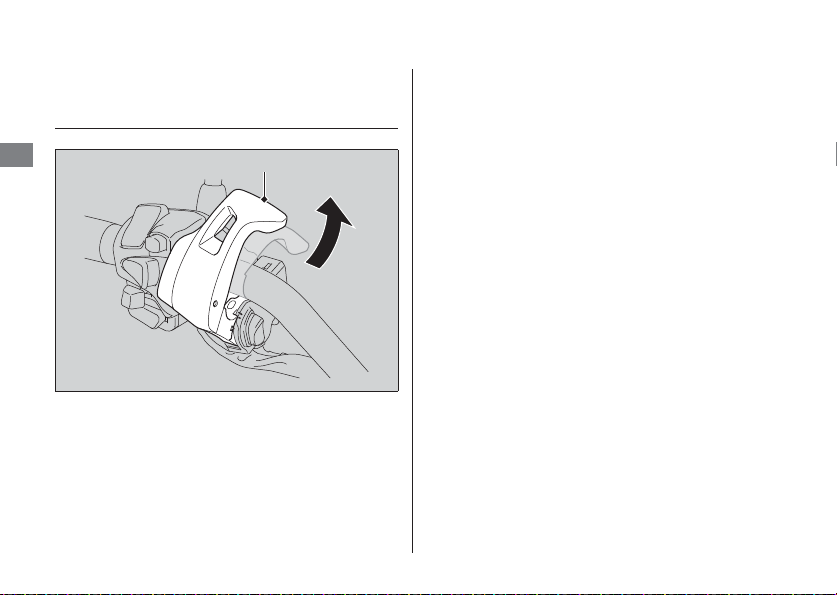

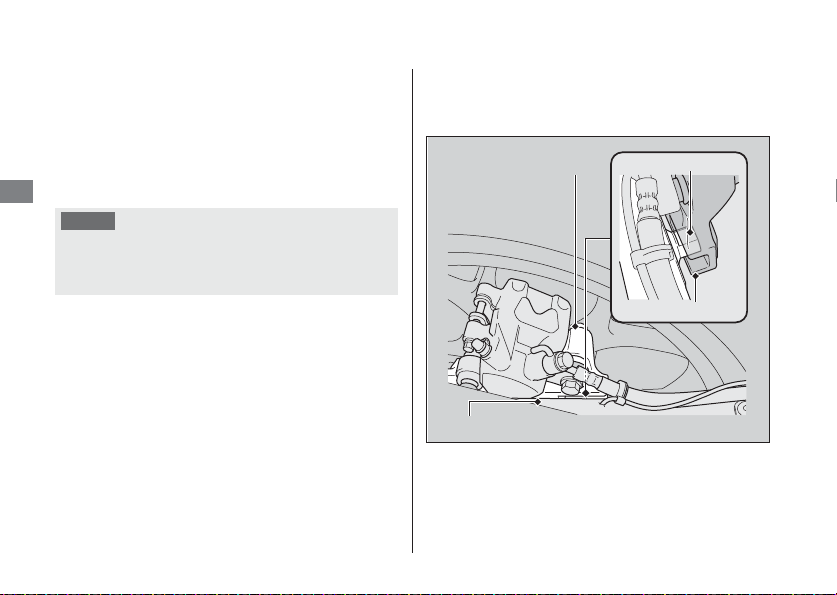

Inspecting the Parking Brake
(NC700XD only)
Place your motorcycle on a firm, level
surface. Stop the engine and push your
motorcycle while applying the parking brake
lever to check the efficacy of the parking
brake.
If the efficacy of the parking brake becomes
weak, have the brake adjusted by your
dealer.
Parking brake lever
87
Maintenance
Side Stand
1.
Check that the side stand operates
smoothly. If the side stand is stiff or
squeaky, clean the pivot area and
lubricate the pivot bolt with clean grease.
2.
Check the spring for damage or loss of
tension.
3.
(NC700X/XA)
Sit on the motorcycle, put the
transmission in Neutral, and raise the side
stand.
(NC700XD)
Sit on the motorcycle and raise the side
stand.
4.
(NC700X/XA)
Start the engine, pull the clutch lever in,
and shift the transmission into gear.
(NC700XD)
Start the engine and press the D/S side of
N-D switch to switch the transmission into
D mode.
5.
Lower the side stand all the way. The
engine should stop as you lower the side
stand. If the engine doesn’t stop, have
your motorcycle inspected by your dealer.
Side stand
spring
88
Maintenance
Drive Chain
Inspecting the Drive Chain
Slack
Check the drive chain slack at several points
along the chain. If the slack is not constant at
all points, some links may be kinked and
binding.
Have the chain inspected by your dealer.
1.
Place your motorcycle on the side stand
on a level surface.
2.
Stop the engine, place the gear in Neutral.
3.
Check the slack in the lower half of the
drive chain midway between the
sprockets.
u Do not ride your motorcycle if the slack
exceeds 2 3/8 in (60 mm).
4.
Roll the motorcycle forward and check
that the chain moves smoothly.
Drive chain slack:
1 3/16 to 1 9/16 in (30 to 40 mm)
Drive Chain u Adjusting the Drive Chain Slack
89
continued
Maintenance
5.
Inspect the sprockets. 2 P. 62
6.
Clean and lubricate the drive chain.
2 P. 62

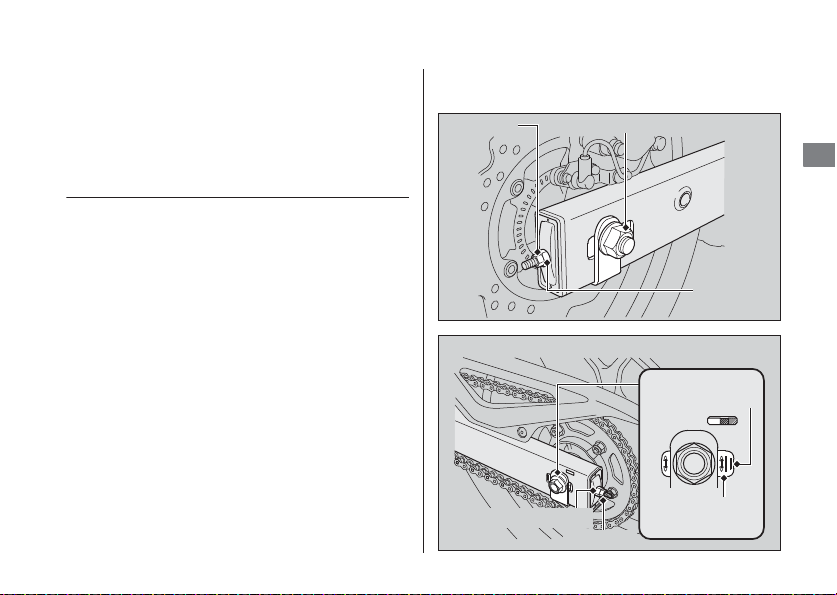

Adjusting the Drive Chain Slack
Adjusting the chain requires special tools.
Have the drive chain slack adjusted by your
dealer.
(NC700XA/XD only)
When adjusting the drive chain slack, be
careful not to damage the wheel speed
sensor and pulser ring.
1.
Place your motorcycle on the side stand
on a level surface.
2.
Stop the engine place the gear in Neutral.
3.
Loosen the rear axle nut.
4.
Loosen the lock nuts on both sides of the
swingarm.
Lock nut Rear axle nut
Adjusting
nut
Lock nut
Rear edge of
adjusting slot
Chain adjuster
index mark
Adjusting nut
Drive Chain u Adjusting the Drive Chain Slack
90
Maintenance
5.
Turn both adjusting nuts an equal number
of turns until the correct drive chain slack
is obtained. Turn the adjusting nuts
clockwise to tighten the chain. Turn the
adjusting nuts counterclockwise to
provide more slack.
Adjust the slack at a point midway
between the front sprocket and the rear
wheel sprocket.
Check the drive chain slack.
2 P. 88
6.
Check rear axle alignment by making sure
the chain adjuster index marks align with
the rear edge of the adjusting slots.
Both marks should correspond. If the axle
is misaligned, turn the right or left
adjusting nuts until the marks are aligned
and recheck chain slack.
7.
Tighten the rear axle nut.
8.
Tighten the drive chain adjusting nuts
lightly, then hold the adjusting nuts and
tighten the lock nuts.
9.
Recheck drive chain slack.
If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.
Torque: 72 lbf·ft (98 N·m, 10.0 kgf·m).
Torque: 15 lbf·ft (21 N·m, 2.1 kgf·m).
Drive Chain u Adjusting the Drive Chain Slack
91
Maintenance
❙

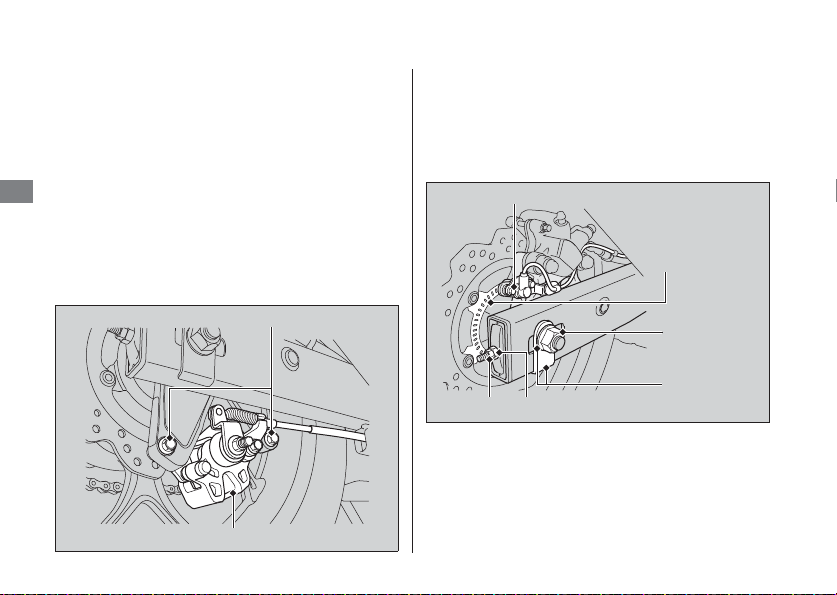

Checking the Drive Chain Wear
Check the chain wear label when adjusting
the drive chain. If the arrow mark on the
chain adjuster plate enters the red zone on
the label after the chain has been adjusted to
the proper slack, the chain is excessively
worn and must be replaced.
If necessary, have the drive chain replaced by
your dealer.
Chain: DID 520V0 or RK 520MKO
Arrow mark
Red zone
92
Maintenance
Clutch
Checking the Clutch
(NC700X/XA only)
❙
Checking the Clutch Lever Freeplay
Check the clutch lever freeplay.
Check the clutch cable for kinks or signs of
wear. If necessary have it replaced by your
dealer.
Lubricate the clutch cable with a
commercially available cable lubricant to
prevent premature wear and corrosion.
Freeplay at the clutch lever:
3/8 to 13/16 in (10 to 20 mm)
Freeplay
Clutch lever
Clutch u Adjusting the Clutch Lever Freeplay (NC700X/XA only)
93
continued
Maintenance

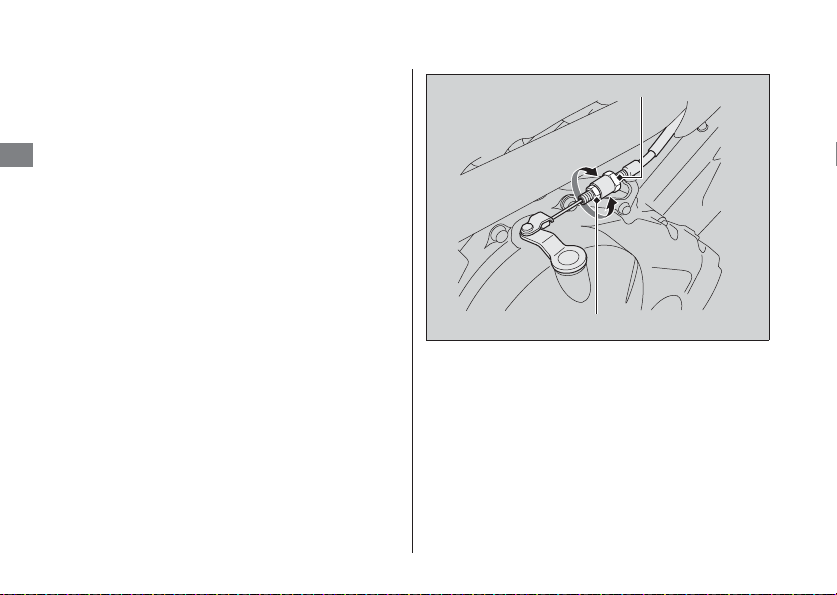

Adjusting the Clutch Lever
Freeplay (NC700X/XA only)
❙
Upper Adjustment
Attempt adjustment with the upper clutch
cable adjuster first.
1.
Loosen the upper lock nut.
2.
Turn the upper clutch cable adjuster until
the freeplay is 3/8 to 13/16 in (10 to 20
mm).
3.
Tighten the upper lock nut and check the
freeplay again.
❙
Lower Adjustment
If the upper clutch cable adjuster is threaded
out near its limit, or the correct freeplay
cannot be obtained, attempt adjustment
with the lower adjusting nut.
Upper lock nut
Upper clutch cable adjuster
+
–
Clutch u Adjusting the Clutch Lever Freeplay (NC700X/XA only)
94
Maintenance
1.
Loosen the upper lock nut and turn the
upper clutch cable adjuster all the way in
(to provide maximum freeplay).
Tighten the upper lock nut.
2.
Loosen the lower lock nut.
3.
Turn the adjusting nut until the clutch
lever freeplay is 3/8 to 13/16 in (10 to 20
mm).
4.
Tighten the lower lock nut and check the
clutch lever freeplay.
5.
Start the engine, pull the clutch lever in,
and shift into gear. Make sure the engine
does not stall and the motorcycle does not
creep. Gradually release the clutch lever
and open the throttle. Your motorcycle
should move smoothly and accelerate
gradually.
If proper adjustment cannot be obtained or
the clutch does not work correctly, see your
dealer.
Lower lock nut
Lower adjusting nut
+
–
95
continued
Maintenance
Throttle
Checking the Throttle
With the engine off, check that the throttle
rotates smoothly from fully closed to fully
open in all steering positions and throttle
freeplay is correct. If the throttle does not
move smoothly, close automatically, or if the
cable is damaged, have the motorcycle
inspected by your dealer.
Adjusting the Throttle Freeplay
(NC700X/XA)
1.
Loosen the lock nut.
2.
Turn the adjuster until the freeplay is 1/16
to 1/4 in (2 to 6 mm).
3.
Tighten the lock nut and inspect the
throttle action again.
Freeplay at the throttle grip flange:
1/16 to 1/4 in (2 to 6 mm).
Freeplay
Flange
Throttle grip
Adjuster
Lock nut
+
–
Throttle u Adjusting the Throttle Freeplay
96
Maintenance
(NC700XD)
1.
Slide the cable boot.
2.
Loosen the lock nut.
3.
Turn the adjuster until the freeplay is 1/16
to 1/4 in (2 to 6 mm).
4.
Tighten the lock nut, return the cable
boot, and inspect the throttle action
again.
Throttle grip
Adjuster
Lock nut
+
–
Cable boot
97
Maintenance

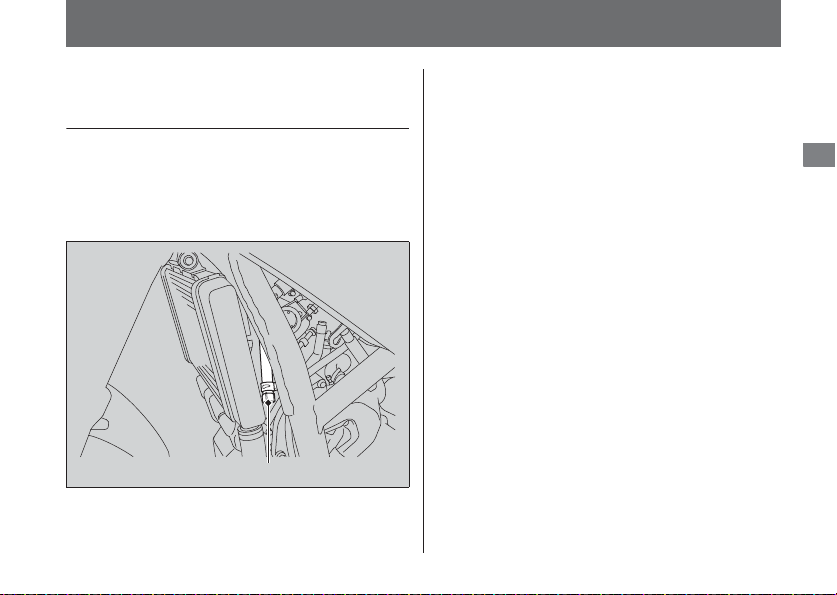

Crankcase Breather
Cleaning the Crankcase
Breather
1.
Remove the crankcase breather tube plug
from the tube.
2.
Drain deposits into a suitable container.
3.
Install the crankcase breather tube plug.
Crankcase breather tube plug
98
Maintenance
Other Adjustments
Adjusting the Headlight Aim
You can adjust vertical aim of the headlight
for proper alignment. Turn the pinion using a
Phillips screwdriver in or out as necessary.
Obey local laws and regulations.
Adjusting the Brake Light
Switch
Check the operation of the brake light
switch. Turn the adjusting nut in the
direction A if the switch operates too late, or
turn the nut in the direction B if the switch
operates too soon.
Lower
Raise
Pinion
Brake light switch
A
B
Adjusting nut
Other Adjustments u Adjusting the Windscreen Height
99
continued
Maintenance
Adjusting the Windscreen
Height
You can adjust the windscreen height in 2
positions.
1.
Remove the windscreen by removing the
screws and the washers.
2.
Remove the nuts and the adaptors.
Washers
Washers
Screws
Windscreen
Screws
Adaptors
Nuts
Other Adjustments u Adjusting the Windscreen Height
100
Maintenance
3.
Set the all adaptors to the low position
holes or high position holes.
4.
Install the nuts.
5.
Install the windscreen.
6.
Install and tighten the screws and
washers.
Adaptors
Nuts
Low position
High position
Troubleshooting
Engine Will Not Start............................... P. 102
Overheating (High coolant temperature
indicator is on) ....................................... P. 103
Warning Indicators On or Flashing ........ P. 104
Low Oil Pressure Indicator ....................... P. 104
PGM-FI (Programmed Fuel Injection)
Malfunction Indicator Lamp (MIL).......... P. 104
ABS (Anti-lock Brake System) Indicator
(NC700XA/XD only) .............................. P. 105
If the “-” Indicator is Blinking in the Gear
Position Window While Riding .............P. 106
Other Warning Indication .......................P. 107
Fuel Gauge Failure Indication...................P. 107
Tire Puncture ............................................P. 108
Electrical Trouble......................................P. 116
Battery Goes Dead ..................................P. 116
Burned-out Light Bulb .............................P. 116
Blown Fuse..............................................P. 120
102
Troubleshooting
Engine Will Not Start
❙
Starter Motor Operates But Engine
Does Not Start
Check the following items:
● Check the correct engine starting
sequence 2 P. 32, 33
● Check that there is gasoline in the fuel
tank
● Check if the PGM-FI malfunction indicator
lamp (MIL) is on
u If the indicator light is on, contact your
dealer as soon as possible.
❙
Starter Motor Does Not Operate
Check the following items:
● Make sure the engine stop switch is in the
RUN position
2 P. 28, 31
● Check for a blown fuse 2 P. 120
● Check for a loose battery connection or
battery terminal corrosion
2 P. 72
● Check the condition of the battery
2 P. 116
If the problem continues, have your
motorcycle inspected by your dealer.
103
Troubleshooting
Overheating (High coolant temperature indicator is on)
The engine is overheating when the
following occurs:
● High coolant temperature indicator comes
on
● Acceleration becomes sluggish
If this occurs, pull safely to the side of the
road and perform the following procedure.
Extended fast idling may cause the high
coolant temperature indicator comes on.
1.
Stop the engine using the ignition switch,
and then turn the ignition switch to the
ON position.
2.
Check that the radiator fan is operating,
and then turn the ignition switch to the
OFF position.
Suspect a fault. Do not start the engine.
Transport your motorcycle to your dealer.
Allow the engine to cool with the ignition
switch in the OFF position.
3.
After the engine has cooled, inspect the
radiator hose and check if there is a leak.
2 P. 82
Do not start the engine. Transport your
motorcycle to your dealer.
4.
Check the coolant level in the reserve
tank, and add coolant as necessary.
2 P. 82
5.
If 1-4 check normal, you may continue
riding, but closely monitor the high
coolant temperature indicator.
NOTICE
Continuing to ride with an overheated engine can cause
serious damage to the engine.
If the fan is not operating:
If the fan is operating:
If there is a leak:
104
Troubleshooting
Warning Indicators On or Flashing
Low Oil Pressure Indicator
If the low oil pressure indicator comes on,
pull safely to the side of the road and stop
the engine.
1.
Check the engine oil level, and add oil as
necessary. 2 P. 76
2.
Start the engine.
u Only continue riding if the low oil
pressure indicator goes off.
Rapid acceleration may momentarily cause
the low oil pressure indicator to come on,
especially if the oil is at or near the low level.
If the low oil pressure indicator stays on
when the oil level is at the proper level, stop
the engine and contact your dealer.
If the engine oil level goes down rapidly, your
motorcycle may have a leak or another
serious problem. Have your motorcycle
inspected by your dealer.
PGM-FI (Programmed Fuel
Injection) Malfunction Indicator
Lamp (MIL)
If the indicator comes on while riding, you
may have a serious problem with the PGM-FI
system. Reduce speed and have your
motorcycle inspected by your dealer as soon
as possible.
NOTICE
Continuing to ride with low oil pressure can cause serious
damage to the engine.
Warning Indicators On or Flashing u ABS (Anti-lock Brake System) Indicator (NC700XA/XD only)
105
Troubleshooting
ABS (Anti-lock Brake System)
Indicator (NC700XA/XD only)
If the indicator operates in one of the
following ways, you may have a serious
problem with the brake system. Reduce your
speed and have your motorcycle inspected by
your dealer as soon as possible.
● Indicator comes on or starts flashing while
riding.
● Indicator does not come on when the
ignition switch is in the ON position.
● Indicator does not go off at speeds above
6 mph (10 km/h).
If the ABS indicator stays on, your brakes will
continue to work as a conventional system,
but without the anti-locking function.
The ABS indicator may flash if you turn the
rear wheel while your motorcycle is lifted off
the ground. In this case, turn the ignition
switch off and then on again. The ABS
indicator will go off after your speed reaches
19 mph (30 km/h).
106
Troubleshooting
If the “-” Indicator is Blinking in the Gear Position Window While Riding
(NC700XD only)
If the “-” indicator is blinking while riding,
you may have a serious problem with the
Dual Clutch Transmission system.
Park your motorcycle in a safe place and have
your motorcycle inspected by a dealer
immediately.
There is a possibility for you to ride yourself
to a dealer, if you follow the procedure
below.
1.
Turn the ignition switch to OFF.
2.
Turn the ignition switch to ON and start
the engine.
Turn the ignition switch to OFF and move the
motorcycle back and forth slightly (to
disengage the gears).
Turn the ignition switch to ON again and
start the engine.
Start the engine while applying the brake
lever or pressing the brake pedal.
When a gear position is shown in the gear
position indicator, you can ride in that gear.
Take your motorcycle to your dealer riding at
a safe speed.
Damage is preventing you from riding. Have
your motorcycle inspected by your dealer
immediately.
If you cannot start the engine:
If you still cannot start the engine:
If you can shift from N to D mode:
If you can’t shift from N to D mode and the “-”
indicator is blinking:
107
Troubleshooting
Other Warning Indication
Fuel Gauge Failure Indication
If the fuel system has an error, the fuel gauge
indicators will be displayed as shown in the
illustration.
If this occurs, see your dealer as soon as
possible.
108
Troubleshooting
Tire Puncture
Repairing a puncture or removing a wheel
requires special tools and technical expertise.
We recommend you have this type of service
performed by your dealer.
After an emergency repair, always have the
tire inspected/replaced by your dealer.
Emergency Repair Using a Tire
Repair Kit
If your tire has a minor puncture, you can
make an emergency repair using a tubeless
tire repair kit.
Follow the instructions provided with the
emergency tire repair kit.
Riding your motorcycle with a temporary tire
repair is very risky. Do not exceed 30 mph (50
km/h). Have the tire replaced by your dealer
as soon as possible.
Removing Wheels
Follow these procedures if you need to
remove a wheel in order to repair a puncture.
3
WARNING
Riding your motorcycle with a
temporary tire repair can be risky. If
the temporary repair fails, you can
crash and be seriously injured or
killed.
If you must ride with a temporary tire
repair, ride slowly and carefully and
do not exceed 30 mph (50 km/h) until
the tire is replaced.
Tire Puncture u Removing Wheels
109
continued
Troubleshooting
(NC700XA/XD only)
When removing and installing the wheel, be
careful not to damage the wheel speed
sensor and pulser ring.
❙
Front Wheel
Removal
1.
Park on a firm, level surface.
2.
Cover right side of the front wheel and
brake caliper with protective tape or
cloth.
3.
On the right side, remove the mounting
bolts and remove the brake caliper.
u Support the brake caliper assembly so
that it doesn’t hang from the brake
hose. Do not twist the brake hose.
u Avoid getting grease, oil, or dirt on
the disc or pad surfaces.
u (NC700X)
Do not pull the brake lever while the
brake caliper is removed.
(NC700XA/XD)
Do not pull the brake lever or push the
brake pedal while the brake caliper is
removed.
u Take care to prevent the brake caliper
from scratching the wheel during
removal.
Mounting
bolts
Tape or
cloth
Wheel speed sensor
(NC700XA/XD only)
Brake
caliper
Pulser ring (NC700XA/XD only)
Tire Puncture u Removing Wheels
110
Troubleshooting
4.
Loosen the axle pinch bolt.
5.
Support your motorcycle securely and
raise the front wheel off the ground
using a maintenance stand or a hoist.
6.
On the left side, loosen and withdraw
the front axle shaft, and remove the side
collars and wheel.
Installation
1.
Attach the side collars to the wheel.
2.
On the left side, place the wheel
between the fork legs and insert the
front axle shaft to the end, through the
left fork leg and wheel hub.
3.
Tighten the axle shaft.
Front axle shaft
Axle pinch bolt
Torque: 55 lbf·ft (74 N·m, 7.5 kgf·m).
Tire Puncture u Removing Wheels
111
continued
Troubleshooting
4.
Install the brake caliper and tighten the
mounting bolts.
u Take care to prevent the brake caliper
from scratching the wheel during
installation.
u Use new mounting bolts when
installing the brake caliper.
5.
Lower the front wheel on the ground.
6.
Apply the brake lever and pump the fork
several times.
7.
Tighten the axle pinch bolt.
8.
Raise the front wheel off the ground
again, and check that the wheel rotates
freely after you release the brake.
9.
Uncover the protective tape or cloth.
If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.
Torque: 22 lbf·ft (30 N·m, 3.1 kgf·m).
NOTICE
When installing the brake caliper into position on the
fork legs, carefully fit the brake disc between the pads
to avoid scratching them.
Torque: 16 lbf·ft (22 N·m, 2.2 kgf·m).
Tire Puncture u Removing Wheels
112
Troubleshooting
❙
Rear Wheel
Removal
1.
Support your motorcycle securely and
raise the rear wheel off the ground using
a maintenance stand or a hoist.
2.
(NC700XD only)
Release the parking brake.
3.
(NC700XD only)
Remove the mounting bolts and remove
the parking brake caliper.
4.
Loosen the rear axle nut, lock nuts and
turn the adjusting nuts so the rear wheel
can be moved all the way forward for
maximum drive chain slack.
5.
Remove the rear axle nut.
Mounting bolts (NC700XD only)
Parking brake caliper (NC700XD only)
Wheel speed sensor (NC700XA/XD only)
Pulser ring
(NC700XA/XD
only)
Lock nut
Adjusting nut
Rear axle
nut
Washers
Tire Puncture u Removing Wheels
113
continued
Troubleshooting
6.
Remove the drive chain from the rear
wheel sprocket by pushing the rear wheel
forward.
7.
Remove the rear axle shaft, washers,
brake caliper bracket, rear wheel and side
collars.
u Support the brake caliper assembly so
that it doesn’t hang from the brake
hose. Do not twist the brake hose.
u Avoid getting grease, oil, or dirt on the
disc to pad surfaces.
u Do not push the brake pedal while the
wheel is removed.
u (NC700XD only)
Do not pull the parking brake lever
while the wheel is removed.
Rear axle shaft Lock nut
Drive
chain
Washer
Adjusting nut
Tire Puncture u Removing Wheels
114
Troubleshooting
Installation
1.
To install the rear wheel, reverse the
removal procedure.
u Take care to prevent the brake caliper
from scratching the wheel during
installation.
2.
Make sure that the slot on the brake
caliper bracket is positioned in the lug on
the swingarm.
NOTICE
When installing the brake caliper into position, carefully
fit the brake disc between the pads to avoid scratching
them.
Slot
Swingarm
Brake caliper
bracket
Lug
Tire Puncture u Removing Wheels
115
Troubleshooting
3.
Adjust the drive chain. 2 P. 89
4.
Install and tighten the rear axle nut.
5.
Tighten the drive chain adjusting nuts
lightly, then hold the adjusting nuts and
tighten the lock nuts.
6.
After installing the wheel, apply the brake
pedal several times, then recheck the
wheel rotates freely. Recheck the wheel if
the brake drags or if the wheel does not
rotate freely.
7.
(NC700XD only)
Install the parking brake caliper and
tighten the mounting bolts.
u Take care to prevent the brake caliper
from scratching the wheel during
installation.
u Use new mounting bolts when
installing the parking brake caliper.
If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.
Torque: 72 lbf·ft (98 N·m, 10.0 kgf·m).
Torque: 15 lbf·ft (21 N·m, 2.1 kgf·m).
Torque: 23 lbf·ft (31 N·m, 3.2 kgf·m).
NOTICE
When installing the brake caliper into position, carefully
fit the brake disc between the pads to avoid scratching
them.
116
Troubleshooting
Electrical Trouble
Battery Goes Dead
Charge the battery using a motorcycle
battery charger.
Remove the battery from the motorcycle
while charging.
Do not use an automobile-type battery
charger, as these can overheat a motorcycle
battery and cause permanent damage.
If the battery does not recover after
recharging, contact your dealer.
Burned-out Light Bulb
Follow the procedure below to replace a
burned-out light bulb.
Turn the ignition switch to the OFF or LOCK
position.
Allow the bulb to cool before replacing it. Do
not use bulbs other than those specified.
Check the replacement bulb for correct
operation before riding.
For the light bulb wattage, see
“Specifications.“
2 P. 148
NOTICE
Jump starting using an automobile battery is not
recommended, as this can damage your motorcycle’s
electrical system.
Electrical Trouble u Burned-out Light Bulb
117
continued
Troubleshooting
❙
Headlight Bulb
1.
Pull the socket off the bulb without
turning it.
2.
Remove the dust cover.
3.
Press the pin down and pull out the bulb
without turning it.
4.
Install a new bulb and parts in the reverse
order of removal.
u Install the dust cover with its “TOP“
mark facing up.
Do not touch the glass surface with your
fingers. If you touch the bulb with your bare
hands, clean it with a cloth moistened with
isopropyl (rubbing) alcohol.
Bulb
TOP mark
Socket
Dust cover
Pin
Electrical Trouble u Burned-out Light Bulb
118
Troubleshooting
❙

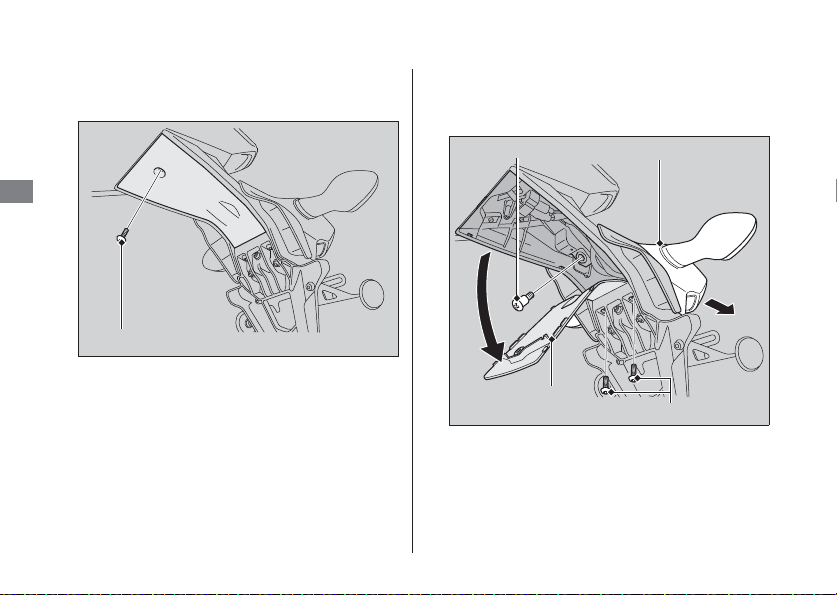

Brake/Tail Light Bulb
1.
Remove the screw A.
2.
Open the under side of the rear fender.
3.
Remove the screws B and the screw C.
4.
Remove the brake/tail light assembly.
5.
Turn the socket counterclockwise, and
remove it.
Screw A
Screw C
Brake/tail light assembly
Under side of
the rear fender
Screws B
Electrical Trouble u Burned-out Light Bulb
119
Troubleshooting

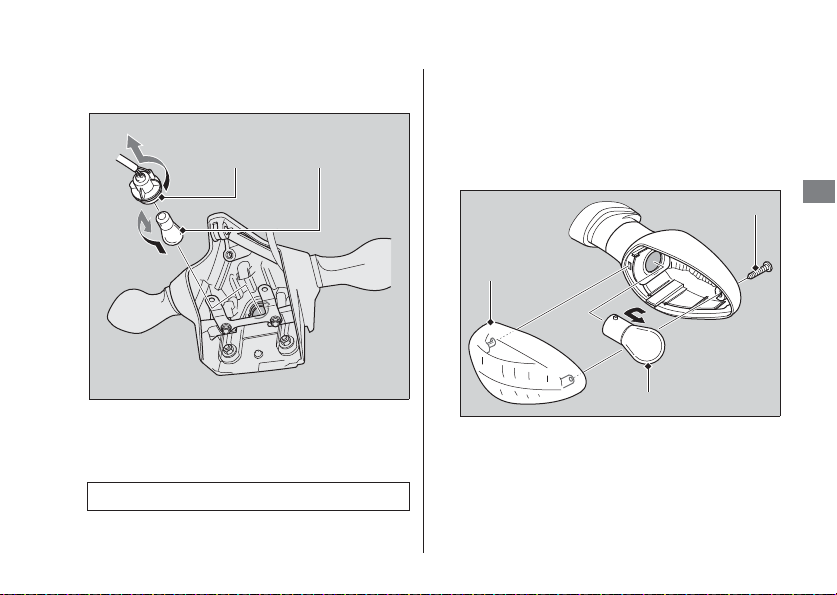

6.
Slightly press the bulb and turn it
counterclockwise.
7.
Install a new bulb and parts in the reverse
order of removal.
8.
Install and tighten the screw C.
❙
Front/Rear Turn Signal Bulb
1.
Remove the screw.
2.
Remove the turn signal lens.
3.
Slightly press the bulb and turn it
counterclockwise.
4.
Install a new bulb and parts in the reverse
order of removal.
Torque: 4.4 lbf·ft (6 N·m, 0.6 kgf·m).
Socket
Bulb
Screw
Turn signal
lens
Bulb
Electrical Trouble u Blown Fuse
120
Troubleshooting
Blown Fuse
Before handling fuses, see “Inspecting and
Replacing Fuses.”
2 P. 59
❙

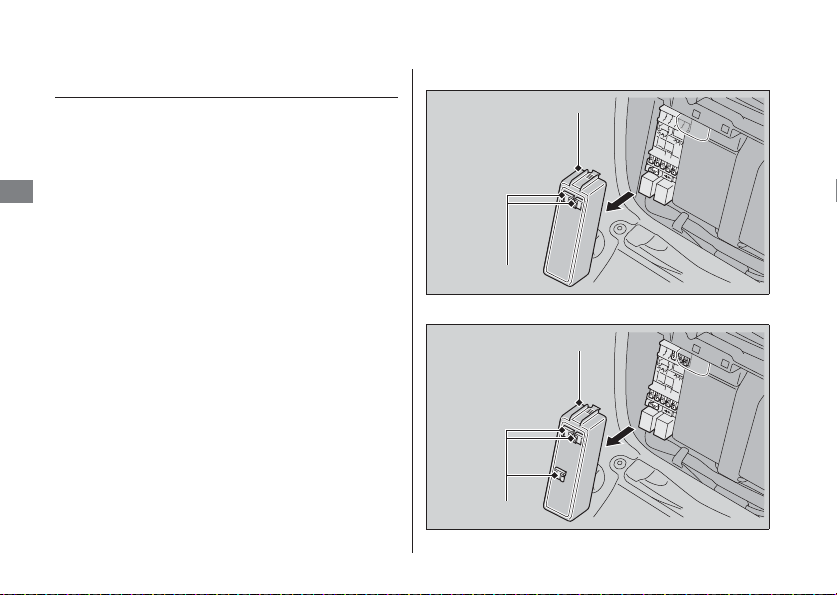

Fuse Box Fuses
1.
Open the luggage box. 2 P. 44
2.
Remove the maintenance lid. 2 P. 68
3.
Remove the fuse box cover.
4.
Pull the fuses out with the fuse puller in
the tool kit one by one check for a blown
fuse. Always replace a blown fuse with a
spare of the same rating.
u Spare fuses are provided on the back of
the fuse box cover.
5.
Reinstall the fuse box cover.
6.
Install the maintenance lid.
7.
Close the luggage box.
(NC700X)
(NC700XA)
Fuse box cover
Spare fuses
Fuse box cover
Spare fuses
Electrical Trouble u Blown Fuse
121
continued
Troubleshooting

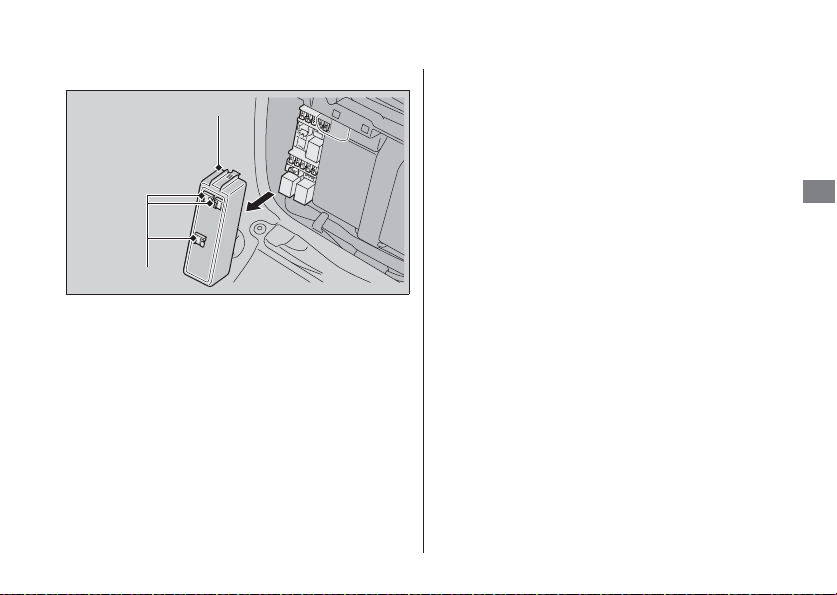

(NC700XD)
Fuse box cover
Spare fuses
Electrical Trouble u Blown Fuse
122
Troubleshooting
❙

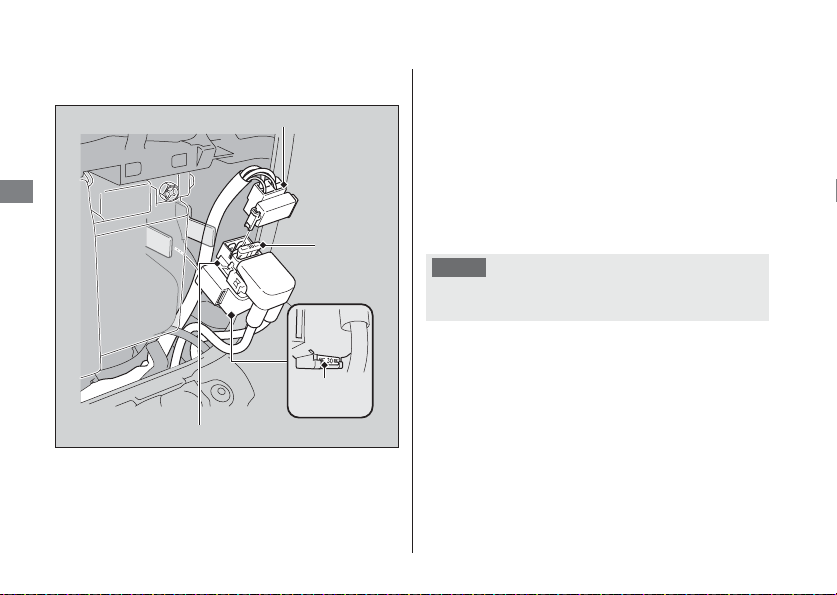

Main Fuse
1.
Open the luggage box. 2 P. 44
2.
Remove the maintenance lid. 2 P. 68
3.
Disconnect the wire connector of the
starter magnetic switch.
4.
Pull the main fuse out with the fuse puller
in the tool kit and check for a blown fuse.
Always replace a blown fuse with a spare
of the same rating.
u Spare main fuse is provided in the
starter magnetic switch.
5.
Reinstall parts in the reverse order of
removal.
Wire connector
Main
fuse
Spare
main fuse
Starter magnetic switch
NOTICE
If a fuse fails repeatedly, you likely have an electrical
problem. Have your motorcycle inspected by your dealer.
Information
Keys .......................................................... P. 124
Instruments, Controls, & Other Features ...
P. 125
Caring for Your Motorcycle .................... P. 127
Storing Your Motorcycle......................... P. 130
Transporting Your Motorcycle ............... P. 130
You & the Environment .......................... P. 131
Vehicle Identification Number................ P. 132
Emission Control Systems ....................... P. 133
Catalytic Converter.................................. P. 138
Oxygenated Fuels.................................... P. 139
Authorized Manuals................................ P. 140
Warranty Coverage and Service............. P. 141
Honda Contacts........................................P. 143
Reporting Safety Defects..............P. 145
USA
Keys
124
Information
Keys
Be sure to record the key number provided with
the key number plate. Store the spare key and
recorded key number in a safe location.
To make a duplicate, take the spare key or the
key number plate to a locksmith.
If you lose all keys and the key number plate,
the ignition switch assembly will probably have
to be removed by your dealer to determine the
key number.
A metal key holder may cause damage to the
area surrounding the ignition switch.
Ignition key
Instruments, Controls, & Other Features
125
continued
Information
Instruments, Controls, &
Other Features
The headlight is always on when the ignition
switch is on. Leaving the ignition switch on with
the engine stopped will drain the battery.
Do not turn the key while riding.
Do not use the engine stop switch except in an
emergency. Doing so when riding will cause the
engine to suddenly turn off, making riding
unsafe.
If you stop the engine using the engine stop
switch, turn the ignition switch off. Failing to do
so will drain the battery.
The display locks at 999999 when the readout
exceeds 999999.
The tripmeter A, B returns to 0.0 when the
readout exceeds 999.9.
The owner’s manual, registration, and
insurance information can be stored in the
plastic document bag located in the owner’s
manual box.
2 P. 46
Ignition Switch
Engine Stop Switch
Odometer
Tripmeter
Document Bag
Instruments, Controls, & Other Features
126
Information
A banking (lean angle) sensor automatically
stops the engine and fuel pump if the
motorcycle falls over. To reset the sensor, you
must turn the ignition switch to OFF and back
to the ON position before the engine can be
restarted.
Ignition Cut-off System
Caring for Your Motorcycle
127
continued
Information
Caring for Your Motorcycle
Frequent cleaning and polishing is important to
ensure the life of your Honda. A clean
motorcycle makes it easier to spot potential
problems.
In particular, seawater and salts used to prevent
ice on roads promote the formation of
corrosion. Always wash your motorcycle
thoroughly after riding on coastal or treated
roads.
Allow the engine, muffler, brakes, and other
high-temperature parts to cool before washing.
1.
Rinse your motorcycle thoroughly using a
garden hose to remove loose dirt.
2.
If necessary, use a sponge or a soft towel
with mild cleaner to remove road grime.
u Clean the windscreen, headlight lens,
panels, and other plastic components with
extra care to avoid scratching them.
Avoid directing water into the air cleaner,
muffler, and electrical parts.
3.
Thoroughly rinse your motorcycle with plenty
of clean water and dry with a soft, clean
cloth.
4.
After the motorcycle dries, lubricate any
moving parts.
u Make sure that no lubricant spills onto the
brakes or tires. Brake discs or pads
contaminated with oil will suffer greatly
reduced braking effectiveness and can
lead to a crash.
5.
Lubricate the drive chain immediately after
washing and drying the motorcycle.
6.
Apply a coat of wax to prevent corrosion.
u Avoid products that contain harsh
detergents or chemical solvents. These can
damage the metal, paint, and plastic on
your motorcycle.
Keep the wax clear of the tires and brakes.
u If your motorcycle has any matte painted
parts, do not apply a coat of wax to the
matte painted surface.
Washing
Caring for Your Motorcycle
128
Information
❙
Washing Precautions
Follow these guidelines when washing:
● Do not use high-pressure washers:
u High-pressure water cleaners can damage
moving parts and electrical parts,
rendering them inoperable.
● Do not direct water at the muffler:
u Water in the muffler can prevent starting
and causes rust in the muffler.
● Dry the brakes:
u Water adversely affects braking
effectiveness. After washing, apply the
brakes intermittently at low speed to help
dry them.
● Do not direct water in the luggage box:
u Water in the luggage box can damage
your documents and other belongings.
● Do not direct water at the air cleaner:
u Water in the air cleaner can prevent the
engine from starting.
● Do not direct water near the headlight:
u Any condensation inside the headlight
should dissipate after a few minutes of
running the engine.
● Do not use waxes containing compounds on
matte painted surface:
u Using plenty of water, clean the matte
painted surface with a soft cloth or
sponge.
u Use neutral detergent to clean matte
painted surface.
Aluminum will corrode from contact with dirt,
mud, or road salt. Clean aluminum parts
regularly and follow these guidelines to avoid
scratches:
● Do not use stiff brushes, steel wool, or
cleaners containing abrasives.
● Avoid riding over or scraping against curbs.
Aluminum Components
Caring for Your Motorcycle
129
Information
Follow these guidelines to prevent scratches
and blemishes:
● Wash gently using a soft sponge and plenty
of water.
● To remove stubborn stains, use diluted
detergent and rinse thoroughly with plenty of
water.
● Avoid getting gasoline, brake fluid, or
detergents on the instruments, windscreen,
panels, or headlight.
The exhaust pipe and muffler are stainless steel
but may become stained by mud or dust.
To remove mud or dust, use a wet sponge and
a liquid kitchen abrasive, then rinse well with
clean water. Dry with chamois or a soft towel.
If necessary, remove heat stains by using a
commercially available fine texture compound.
Then rinse by the same manner as removing
mud or dust.
Panels and Windscreen Exhaust Pipe and Muffler
NOTICE
Even though the exhaust is made of stainless steel, it can
become stained. Remove all marks and blemishes as soon
as they are noticed.
Storing Your Motorcycle
130
Information
Storing Your Motorcycle
If you store your motorcycle outdoors, you
should consider using a full-body motorcycle
cover.
If you won’t be riding for an extended period,
follow these guidelines:
● Wash your motorcycle and wax all painted
surfaces (except matte painted surfaces).
Coat chrome pieces with rust-inhibiting oil.
● Lubricate the drive chain. 2 P. 62
● Place your motorcycle on a maintenance
stand and position a block so that both tires
are off the ground.
● After rain, remove the body cover and allow
the motorcycle to dry.
● Remove the battery (2 P. 72) to prevent
discharge. Charge the battery in a shaded,
well-ventilated area.
u If you leave the battery in place,
disconnect the negative
- terminal to
prevent discharge.
After removing your motorcycle from storage,
inspect all maintenance items required by the
Maintenance Schedule.
For more information about storage,
refer to the Honda Winter Storage Guide,
available from your dealer.
Transporting Your
Motorcycle
If your motorcycle needs to be transported, it
should be carried on a motorcycle trailer or a
flatbed truck or trailer that has a loading ramp
or lifting platform, and motorcycle tie-down
straps. Never try to tow your motorcycle with a
wheel or wheels on the ground.
NOTICE
Towing your motorcycle can cause serious damage to the
transmission.
USA
You & the Environment
131
Information
You & the Environment
Owning and riding a motorcycle can be
enjoyable, but you must do your part to protect
the environment.
Use a biodegradable detergent when you wash
your motorcycle. Avoid aerosol spray cleaners
that contain chlorofluorocarbons (CFCs) which
damage the atmosphere’s protective ozone
layer.
Put oil and other toxic wastes in approved
containers and take them to a recycling center.
Call your local or state office of public works or
environmental services to find a recycling center
in your area, and to get instructions on how to
dispose of non-recyclable wastes. Do not place
used engine oil in the trash, or pour it down a
drain or on the ground. Used oil, gasoline,
coolant, and cleaning solvents contain poisons
that can hurt refuse workers and contaminate
drinking water, lakes, rivers, and oceans.
Choose Sensible Cleaners
Recycle Wastes
Vehicle Identification Number
132
Information
Vehicle Identification
Number
The VIN and engine serial numbers uniquely
identify your motorcycle and are required in
order to register your motorcycle. They may also
be required when ordering replacement parts.

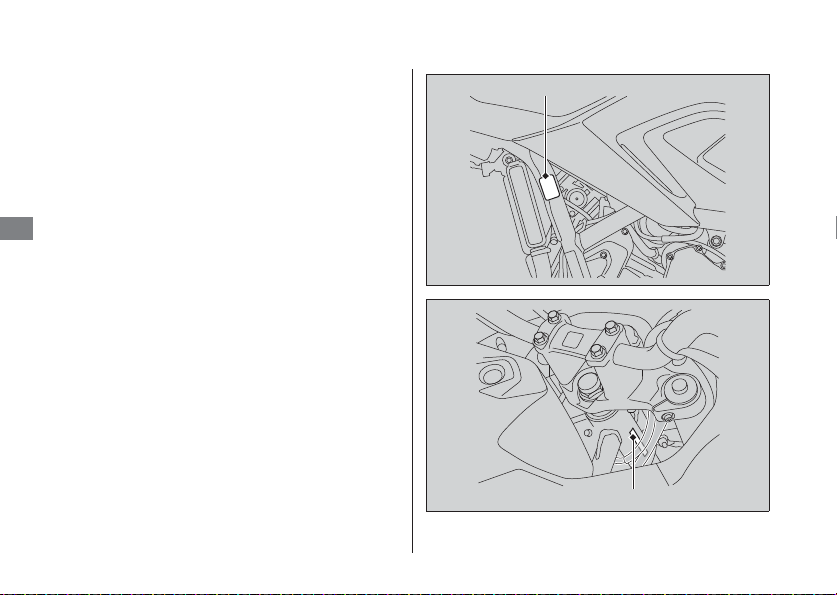

The VIN is stamped on the right side of the
steering head and also appears on the Safety
Certification Label attached to the left side of
the frame.
The engine number is stamped on the right rear
side of the crankcase.
You should record these numbers and keep
them in a safe place.
VIN
VIN
Emission Control Systems
133
continued
Information
Emission Control Systems
Your motorcycle engine emits combustion by-
products, including carbon monoxide (CO),
oxides of nitrogen (NOx), and hydrocarbons
(HC). Gasoline evaporation also emits
hydrocarbons. Controlling the production of
NOx, CO, and HC is important for the
environment.
Engine number
Emission Control Systems
134
Information
The U.S. Environmental Protection Agency
(EPA), the California Air Resources Board
(CARB), and Environment Canada (EC) require
that your motorcycle comply with applicable
exhaust, crankcase, and fuel permeation
emission standards during its useful life, when
operated and maintained according to the
instructions provided.
CARB also requires that your motorcycle comply
with applicable evaporative emission
requirements during its useful life, when
operated and maintained according to the
instructions provided.
Compliance with the terms of the Distributor’s
Warranties for Honda Motorcycle Emission
Control Systems is necessary in order to
maintain a valid emissions system warranty
(USA only).
The Vehicle Emission Control Information label
is located left side of the rear frame.
The Vehicle Emission Control
Information label is located right side of the rear
frame.
The EPA requires that motorcycles built after
January 1, 1983 comply with applicable noise
emission standards for one year or 3,730 miles
(6,000 km) after the time of purchase when
operated and maintained according to the
instructions provided.
Exhaust Emission Requirements
Noise Emission Requirements
Canada only
Vehicle emission control information
label (Canada only)
Vehicle emission control information label
Emission Control Systems
135
continued
Information
The exhaust emission control system includes
the following components that should not need
adjustment, although periodic inspection by
your Honda dealer is recommended.
❙
PGM-FI System
The PGM-FI (programmed fuel injection) system
uses sequential multiport fuel injection, and is
comprised of air intake, engine control, fuel
control, and exhaust control subsystems.
The engine control module (ECM) uses sensors
to determine how much air enters the engine,
and then controls how much fuel to inject.
❙
Ignition Timing Control System
The ignition timing control system adjusts the
ignition timing to reduce the amount of HC,
CO, and NOx produced.
❙
Catalytic Converters
The exhaust system contains one or more
catalytic converters. Catalytic converters use a
catalyst to convert most of the harmful exhaust
gas compounds into harmless compounds.
An evaporative emissions control system uses a
canister filled with charcoal to adsorb fuel vapor
from the fuel tank while the engine is off. The
vapor is drawn into the engine and burned
while riding.
Exhaust Emission Control System
Evaporative Emission Control System
50 STATE (meets California)
Emission Control Systems
136
Information
The positive crankcase ventilation system
prevents gases that build up in the engine’s
crankcase from being released into the
atmosphere. The gases are drawn into the
engine and burned while riding.
The fuel tank, fuel hoses, and fuel vapor charge
hoses use fuel permeation control technologies
to prevent fuel vapor emissions.
Tampering with these components to reduce or
defeat the effectiveness of the fuel permeation
technologies is prohibited.
❙
TAMPERING WITH THE NOISE CONTROL
SYSTEM IS PROHIBITED:
U. S. federal law prohibits, and Canadian
provincial laws may prohibit, the following acts
or the causing thereof: (1) The removal or
rendering inoperative by any person, other than
for purposes of maintenance, repair or
replacement, of any device or element of design
incorporated into any new vehicle for the
purpose of noise control prior to its sale or
delivery to the ultimate purchaser or while it is
in use; or (2) the use of the vehicle after such
device or element of design has been removed
or rendered inoperative by any person.
Crankcase Emissions Control System
Fuel Permeation Emission Control
Noise Emission Control System
Emission Control Systems
137
Information
❙
AMONG THOSE ACTS PRESUMED TO
CONSTITUTE TAMPERING ARE THE
FOLLOWING ACTS:
1.
Removal of, or puncturing the muffler,
baffles, header pipes or any other component
which conducts exhaust gases.
2.
Removal of, or puncturing of any part of the
intake system.
3.
Lack of proper maintenance.
4.
Removing or disabling any emissions
compliance component, or replacing any
compliance component with a non-
compliant component.
Have your motorcycle inspected and repaired by
your dealer if you experience any of the
following symptoms:
● Hard starting or stalling after starting
● Rough idling
● Misfiring or backfiring during acceleration
● Poor engine performance and poor fuel
economy
Problems Affecting Motorcycle Exhaust
Emissions
Catalytic Converter
138
Information
Catalytic Converter
This motorcycle is equipped with a three-way
catalytic converter. The catalytic converter
contain precious metals that serve as catalysts in
high temperature chemical reactions that
convert hydrocarbons (HC), carbon monoxide
(CO), and oxides of nitrogen (NOx) in the
exhaust gasses into safe compounds.
A defective catalytic converter contributes to air
pollution and can impair your engine’s
performance. A replacement unit must be an
original Honda part or equivalent.
Follow these guidelines to protect your
motorcycle’s catalytic converter.
● Always use unleaded gasoline. Leaded
gasoline will damage the catalytic converter.
● Keep the engine in good running condition.
A poorly running engine can cause the
catalytic converter to overheat causing
damage to the converter or the motorcycle.
● If your engine is misfiring, backfiring, stalling,
or otherwise not running properly, stop
riding and turn off the engine. Have your
motorcycle serviced as soon as possible.
Oxygenated Fuels
139
Information
Oxygenated Fuels
Some conventional fuels blended with alcohol
or an ether compound are available in some
locales to help reduce emissions to meet clean
air standards. These gasolines are collectively
referred to as oxygenated fuels. If you plan to
use oxygenated fuel, check that it is unleaded
and meets the minimum octane rating and
blend requirement.
The following fuel blends are EPA-approved
and have been approved use in your
motorcycle:
● Ethanol (ethyl alcohol) 10% by volume (max).
Gasoline containing ethanol may be
marketed under the name “Gasohol.”
● MTBE (Methyl Tertiary Butyl Ether) 15% by
volume (max)
● Methanol (methyl alcohol) 5% by volume
(max) that contain cosolvents and corrosion
inhibitors to protect the fuel system. Never
use a blend containing more than 5%.
If you accidentally fill your fuel tank with an
oxygenated fuel containing higher percentages,
you may experience performance problems. To
resolve the problem, have your dealer drain the
fuel tank and replace with the correct fuel. Fuel
system or performance problems resulting from
the use of an oxygenated fuel containing higher
percentages are not covered by your warranty.
If you notice any undesirable operating
symptoms or performance problems, try a
different brand of gasoline.
NOTICE
Improper use of oxygenated fuels can damage metal,
rubber, and plastic parts of your fuel system.
Oxygenated fuel can also damage paint. Damage caused
by spilled fuel is not covered by warranty.
Authorized Manuals
140
Information
Authorized Manuals
The Service Manual used by your authorized
dealer is available from your Honda dealer or
Helm, Inc.
(USA only, Canada: See your dealer to order
authorized manuals.)
Also available, but not necessary to service your
model, is the Honda Common Service Manual,
which explains basic service information for
various systems on Honda motorcycles,
scooters, and all-terrain vehicles.
These Honda manuals are written for the
professional technician. However, if you possess
the proper tools, observe the safety standards,
and are mechanically capable, you should find
them easy to use.
Special Honda tools are necessary for some
procedures.
Publication Item No. Description
61MGS01 2013 NC700X/XA/XD/SA Service Manual
61CM002 Common Service Manual
31MJJA00 2013 NC700X/XA/XD Owner’s Manual
Order On-Line: www.helminc.com
Order Toll Free: 1-888-CYCLE93
(1-888-292-5393)
(NOTE: For Credit Card Orders Only)
Monday – Friday 8:00 AM – 6:00 PM EST
Warranty Coverage and Service
141
continued
Information
Warranty Coverage and
Service
Your new Honda is covered by the following
warranties:
● Motorcycle Limited Warranty
● Emission Control System Warranty
● Noise Control Warranty
The responsibilities, restrictions, and exclusions
that apply to these warranties are explained in
the Warranties Booklet given to you by your
Honda dealer at the time of purchase. Always
keep your Honda owner’s card with your
Warranties Booklet.
Please refer to the Warranty Booklet
posted on our website at www.Honda.ca.
It is important to realize that your warranty
applies only to defects in material or
workmanship of your Honda. Your warranty
coverage does not apply to the normal wear
and deterioration associated with use of the
motorcycle.
Your warranty coverage is not voided if you
perform your own maintenance. However,
failures that occur due directly to improper
maintenance are not covered by these
warranties.
You can extend almost all of your warranty
coverage through the Honda Protection Plan
(USA only). For more information, see your
Honda dealer.
Coverage
Canada
Warranty Coverage and Service
142
Information
Please remember that maintenance
recommended in the Maintenance Schedule is
not included in your warranty coverage.
If you believe you have a problem with your
motorcycle, call the service department of your
Honda dealer. Make an appointment for an
inspection and diagnosis. You will be asked to
authorize that inspection, and your dealer will
return the results of the inspection. If a problem
exists and is covered under warranty, your
dealer will perform the warranty repairs.
If you have any questions about your warranty
coverage or the nature of the repair, talk to the
Service Manager of your Honda dealer.
If a misunderstanding occurs and you aren’t
satisfied with your dealer’s handling of the
situation, we suggest you discuss your problem
with the appropriate member of the
dealership’s management team. If you are still
not satisfied, contact the owner of the
dealership or their designated representative.
Service
Honda Contacts
143
continued
Information
Honda Contacts
If you wish to contact Honda directly to
comment on your experiences with your
motorcycle or with your dealer, please send
your comments to the following address:
Honda Canada Inc., Customer
Relations Dept, 180 Honda Boulevard,
Markham, Ontario L6C 0H9, telephone: (888)
946-6329, facsimile: (877) 939-0909.
Please include the following information in your
letter:
● Name, address, and telephone number
● Product model, year, and VIN
● Date of purchase
● Dealer name and address
We will likely ask your Honda dealer to respond,
or possibly acknowledge your comments
directly.
American Honda Motor Co., Inc.
Motorcycle Division,
American Honda Motor Co., Inc.,
P.O. Box 2200, Torrance,
CA 90509-2200
Mailstop: 100-4C-7B,
Telephone: (866) 784-1870.
Canada
Honda Contacts
144
Information
The service department of your Honda dealer
offers trained personnel to perform regular
maintenance and most repairs. It has the latest
available service information from Honda and
also handles warranty inspections and repairs.
The parts department offers Honda Genuine
Parts, Pro Honda products, Honda Genuine
Accessories (USA only), and Honda accessories
and products (Canada only) that provide the
same quality that went into your motorcycle.
The sales department offers the Honda
Protection Plan to extend almost all of your
warranty coverage (USA only).
Your Honda dealer can also supply information
about, riding events, and information about
safety training available in your local area, and
the Honda Rider’s Club of America (USA only).
The Honda Rider's Club of America (HRCA)
sponsors local riding chapters at Authorized
Honda Dealerships across the country. You can
log on to the HRCA Clubhouse website for
more information at www.hrca.honda.com.
Your Honda Dealer
Honda Rider’s Club of America (HRCA)
Reporting Safety Defects
145
Information
Reporting Safety
Defects
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National
Highway Traffic Safety Administration
(NHTSA) in addition to notifying
American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, your dealer, or
American Honda Motor Co., Inc.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at:
1-888-327-4236
(TTY: 1-800-424-9153); go to
http://www.safercar.gov;
or write to:
Administrator, NHTSA,
1200 New Jersey Avenue, SE.,
Washington, DC 20590.
You can also obtain other information
about motor vehicle safety from:
http://www.safercar.gov.
USA
146
Specifications
Specifications
Specificatio ns
■ Main Components
*1 Including rider, passenger, all luggage, and accessories
Type RC63
Overall length 87.8 in (2,230 mm)
Overall width 32.7 in (830 mm)
Overall height
Windscreen position
Low 50.6 in (1,285 mm)
High 51.2 in (1,300 mm)
Wheelbase 60.6 in (1,540 mm)
Minimum ground
clearance
6.5 in (165 mm)
Caster angle 27º 00’
Trail 4.3 in (110 mm)
Curb weight
NC700X
474 lb (215 kg)
NC700XA
483 lb (219 kg)
NC700XD
505 lb (229 kg)
Maximum weight
capacity
*1
430 lb (195 kg)
Passenger capacity Rider and 1 passenger
Minimum turning radius 9.9 ft (3.0 m)
Displacement 40.9 cu-in (670 cm
3
)
Bore x stroke 2.87 × 3.15 in (73.0 x 80.0 mm)
Compression ratio 10.7:1
Fuel
Unleaded gasoline
Recommended: 86 PON or higher
Tank capacity 3.73 US gal (14.1 liters)
Battery
YTZ12S
12V-11.0Ah (10HR)
Gear ratios
NC700X/XA
1st 2.812
2nd 1.894
3rd 1.454
4th 1.200
5th 1.033
6th 0.837
NC700XD
1st 2.666
2nd 1.904
3rd 1.454
4th 1.200
5th 1.033
6th 0.837
Reduction ratios
(primary / final)
NC700X/XA
1.731 / 2.687
NC700XD
1.921 / 2.437
Specifications
147
Specifications
■ Service Data
Tire size
Front 120/70ZR17M/C (58W)
Rear 160/60ZR17M/C (69W)
Tire type Radial, tubeless
Recommended
Tires
Front
BRIDGESTONE BT023F G
METZELER ROADTEC Z8 INTERACT E
Rear
BRIDGESTONE BT023R G
METZELER ROADTEC Z8 INTERACT
Tire air pressure
Front 36 psi (250 kPa, 2.50 kgf/cm
2
)
Rear 42 psi (290 kPa, 2.90 kgf/cm
2
)
Minimum tread
depth
Front 0.06 in (1.5 mm)
Rear 0.08 in (2.0 mm)
Spark plugs
(standard)
IFR6G-11K (NGK)
Spark plug gap
(non-
adjustable)
0.039 to 0.043 in
(1.00 to 1.10 mm)
Idle speed 1,200 ± 100 rpm
Recommended
engine oil
API Service Classification SG or higher except
oils labeled as energy conserving or resource
conserving on the circular API service label,
SAE 10W-30, JASO T 903 standard MA, Pro
Honda GN4 4-stroke oil (USA & Canada) or
Honda 4-stroke oil, or an equivalent
motorcycle oil
Engine oil
capacity
NC700X/XA
After draining 3.3 US qt (3.1 liters)
After draining &
engine oil filter
change
3.6 US qt (3.4 liters)
After
disassembly
3.9 US qt (3.7 liters)
NC700XD
After draining 3.4 US qt (3.2 liters)
After draining &
engine oil filter
change
3.6 US qt (3.4 liters)
After draining,
engine & clutch
oil filter change
3.6 US qt (3.4 liters)
After
disassembly
4.3 US qt (4.1 liters)
Recommended
brake fluid
Honda DOT 4 Brake Fluid
Cooling system
capacity
1.79 US qt (1.69 liters)
Recommended
coolant
Pro Honda HP Coolant
Specifications
148
Specifications
■ Bulbs
■ Fuses
■ Torque Specifications
Recommended
drive chain
lubricant
Pro Honda HP Chain Lube or equivalent
Drive chain slack 1 3/16 to 1 9/16 in (30 to 40 mm)
Standard drive
chain
DID 520V0 or RK 520MKO
NC700X/XA
No. of links 114
NC700XD
No. of links 112
Standard
sprocket sizes
Engine sprocket 16T
NC700X/XA
Rear wheel
sprocket
43T
NC700XD
Rear wheel
sprocket
39T
Headlight 12V-60/55W
Brake/Tail light 12V-21/5W
Front turn signal lights 12V-21/5W x 2
Rear turn signal lights 12V-21W x 2
Main fuse 30A
Other fuses
NC700X
15A, 7.5A
NC700XA/XD
30A, 15A, 7.5A
Maintenance lid screws 2.2 lbf·ft (3 N·m, 0.3 kgf·m)
Engine oil drain bolt 22 lbf·ft (30 N·m, 3.1 kgf·m)
Oil filter 19 lbf·ft (26 N·m, 2.7 kgf·m)
Front wheel axle shaft 55 lbf·ft (74 N·m, 7.5 kgf·m)
Front wheel brake caliper
mounting bolts
22 lbf·ft (30 N·m, 3.1 kgf·m)
Front wheel axle pinch bolt 16 lbf·ft (22 N·m, 2.2 kgf·m)
Rear wheel axle nut 72 lbf·ft (98 N·m, 10.0 kgf·m)
Drive chain adjusting lock
nuts
15 lbf·ft (21 N·m, 2.1 kgf·m)
Parking brake caliper
mounting bolts
23 lbf·ft (31 N·m, 3.2 kgf·m)
Brake/tail light assembly
screw C
4.4 lbf·ft (6 N·m, 0.6 kgf·m)
149
Information Record
VIN
Engine No.
Color Label & Code
Owner’s Name
Address
City/State
Phone
Dealer’s Name
Address
City/State
Phone
Service Manager
150
Index
Index
Index
A
ABS (Anti-lock Brake System)
Indicator........................................... 26, 105
Accessories ................................................. 14
AT Mode .............................................. 39, 40
AT/MT Switch....................................... 31, 40
Authorized Manuals ............................... 140
B
Battery ................................................. 57, 72
Brake Light Switch .................................... 98
Brakes
Fluid ................................................... 61, 84
Pad Wear ................................................. 85
Parking Brake ........................................... 86
Braking....................................................... 10
Bulb
Brake/Tail Light....................................... 118
Front Turn Signal .................................... 119
Headlight ............................................... 117
Rear Turn Signal ..................................... 119
C
Caring for Your Motorcycle ....................127
Catalytic Converter ..................................138
Clutch Oil Filter..........................................80
Clutch System.............................................92
Color Label .................................................56
Coolant.................................................63, 82
Crankcase Breather....................................97
D
D Mode.................................................39, 40
Digital Clock Adjustment ..........................25
Drive Chain...........................................61, 88
E
Electrical Trouble .....................................116
Emission Control Systems ........................133
Engine
Number ..................................................132
Oil ......................................................60, 76
Oil Filter ....................................................78
Overheats ...............................................103
Starting...............................................32, 33
151
Index
Stop Switch.......................... 28, 31, 32, 125
Stopping ................................................ 125
Environment............................................ 131
Equipment
Owner’s Manual ...................................... 46
Tool Kit .................................................... 46
F
Flooded Engine................................... 32, 33
Fuel
Gauge................................................ 21, 22
Oxygenated ........................................... 139
Recommended......................................... 43
Remaining.......................................... 21, 22
Tank Capacity .......................................... 43
Fuses .................................................. 59, 120
G
Gasohol.................................................... 139
Gasoline..................................................... 43
Gear Position Indicator............................. 23
H
Hazard Switch...................................... 28, 30
Headlight Aim ........................................... 98
Headlight Dimmer Switch......................... 30
Helmet Holder ........................................... 47
High Beam Indicator ................................. 27
High Coolant Temperature
Indicator ........................................... 26, 103
Honda Contacts ....................................... 143
Horn Button......................................... 28, 31
I
Ignition Cut-off System
Banking Sensor....................................... 126
Side Stand ................................................ 87
Ignition Key ............................................. 124
Ignition Switch ............................ 29, 31, 125
Indicators ................................................... 26
Information Record................................. 149
Instruments................................................ 20
152
Index
L
Labels ........................................................... 7
Load Limits................................................. 15
Loading Guidelines ................................... 15
Low Oil Pressure Indicator ........................ 26
Lower Fairing............................................. 69
Luggage Box.............................................. 44
M
Maintenance
Fundamentals........................................... 54
Importance............................................... 49
Safety....................................................... 50
Schedule .................................................. 51
Maximum Weight Limit ............................ 15
Modifications............................................. 14
MT Mode ............................................. 39, 40
N
N-D Switch ........................................... 31, 40
Neutral Indicator ....................................... 27
O
Odometer.....................................21, 22, 125
Oil
Engine ................................................60, 76
Overheating .............................................103
Oxygenated Fuels ....................................139
P
Parking .......................................................12
Parking Brake.............................................86
Parking Brake Indicator.............................27
Parts Location ............................................16
PGM-FI (Programmed Fuel Injection)
malfunction indicator lamp (MIL)...26, 104
Protective Apparel.......................................9
R
Rear Seat ....................................................42
Recommended
Coolant ..............................................63, 82
Fuel ..........................................................43
Oil ............................................................60
Refueling....................................................42
153
Index
Removal
Battery ............................................... 68, 72
Clip.......................................................... 71
Lower Fairing ........................................... 69
Maintenance lid ....................................... 68
Repair Kit................................................. 108
Reporting Safety Defects (U.S.).............. 145
Riding Precautions .................................... 10
S
S Mode................................................. 39, 40
Safety Labels ............................................... 7
Safety Precautions ...................................... 9
Shift Switch ............................................... 30
Shifting Gears............................................ 35
Side Stand.................................................. 87
Side Stand Ignition Cut-off System.......... 87
Spark Plugs ................................................ 73
Specifications .......................................... 146
Speedometer....................................... 21, 22
Start Button................................... 28, 31, 32
Starting the Engine................................... 32
Steering Lock....................................... 29, 31
Stopping Engine...................................... 125
Storage
Equipment................................................ 44
Helmet ..................................................... 45
Luggage Box ............................................ 44
Owner’s Manual............................... 46, 125
Tool Kit .................................................... 46
Storing Your Motorcycle......................... 130
Switches ..................................................... 28
T
Tachometer.......................................... 21, 22
Throttle ...................................................... 95
Tires
Air Pressure .............................................. 64
Puncture................................................. 108
Replacing ......................................... 64, 108
Transporting Your Motorcycle ............... 130
Tripmeter..................................... 21, 22, 125
Troubleshooting...................................... 101
Turn signal indicators................................ 27
154
Index
V
Vehicle Identification Number ............... 132
W
Warning Indicators on ............................ 104
Warranty Coverage and Service ............. 141
Washing Your Motorcycle ...................... 127
Weight Limit...................................... 15, 146
Wheels
Front removal ......................................... 109
Rear removal .......................................... 112
Windscreen ................................................ 99
