P/No.:MFL42065435
Washing Machine
OWNER’S MANUAL
MODEL : WT-R854
Please read this manual carefully before operating your set.
Retain it for future reference.
Record model name and serial number of the set.
Quote this information to your dealer when you require
service.
P
roduct Features
The Turbo Drum DD washing machine does not operate with the lid open.
If the lid is opened during wash, rinse and spin cycles, the machine will stop
automatically.
Please close the door gently to avoid injury and machine damage.
Fuzzy Logic Control
•Abuilt-in load sensor automatically detects and measures the laundry load and a
microprocessor optimizes washing conditions such as ideal water consumption
and washing time.
• Advanced technology is built into the Electronic Control System which ensures
the best washing result.
Low Noise Direct Drive System
•
The advanced BLDC motor rotates the Tub or
Pulsator directly without belt and clutch, thereby
reducing the noise of the washer.
•
The washing machine adjusts to optimum speed
according to the type of clothing in the load.
Turbo Drum DD washing
Stains are removed by
pulsator movement
Stains are removed by
the tub movement
With high speed
spinning of the tub,
stains are removed
START
WASHING
AUTO
POWER
OFF
SENSING
Laundry Sensor
Water Level Sensor
SETTING
Optimum
Washing
Condition
C
ontents
READ THIS MANUAL
Inside you will find many helpful hints on how to use and maintain your washer properly.
Just a little preventive care on your part can save you a great deal of time and money over
the life of your washer.
You will find many answers to common problems in the Troubleshooting section. If you
review our chart of Troubleshooting Tips first, you may not need to call for service at all.
Introduction Safety Information 4
Identification of Parts 7
Before Starting to Wash Preparation Before Washing 8
Use of Water, Detergent, Bleach, Softener, Additives
9
Special Guide for Stain Removal 13
Function of each Button 14
Washing Programs
Fuzzy 16
Heavy Duty 16
Eco Cotton 16
Wool / Silk 16
Speed Wash 16
Rinse/ Spin 16
Option Programs Delay Wash(Reservation) 18
Soak Wash 19
Extra Rinse 20
Custom Program 21
Spin only 22
Child lock 23
Installation Placing and Leveling 24
Connecting Water Supply Hose 25
Connecting Drain Hose 28
Care and Maintenance Grounding Method 29
Cleaning and Maintenance 30
Troubleshooting Common Washing Problems 32
Troubleshooting 33
Terms of Warranty Terms of Warranty 34
Specification Specification 35
S
afety Information
Introduction
4
Read carefully and throughly through this booklet as it contains important safety information
that will protect the user from unexpected dangers and prevent potential damages to the product.
This booklet is divided into 2 parts : Warning and Caution.
: This is a warning sign specifying user’s applications which might
be dangerous.
: This is a sign specifying ‘Strictly Forbidden’ applications.
: Failure to comply with the instructions under this
sign may result in major physical injuries or death.
Warning
: Failure to comply with the instructions under this
sign may result in minor physical injuries or
damages to the product.
Caution
Warning
Caution
WATER
HEATER
SAFETY
PROPER
INSTALLATION
• The base opening must not be obstructed by carpeting when the washing machine is installed on a
carpeted floor.
• Install or store where it will not be exposed to temperatures below freezing or exposed to the weather.
If the product is exposed to such conditions, electric shock, fire, break down or
deformation may occur.
• Properly ground washer to conform with all governing codes and ordinances. Follow details in
Installation Instructions.
If not grounded properly, break down and leakage of electricity may occur, which may
cause electric shock.
• Must be positioned so that the plug is accessible.
If the plug is placed between the wall and the machine, it may get damaged, possibly
causing fire or electric shock.
• Make sure the plug is completely pushed into the outlet.
Failure to do so may cause electric shock and fire due to overheating.
• Under certain conditions hydrogen gas may be produced in a water heater that has not been
used for two weeks or more. Hydrogen gas can be explosive under these circumstances.
If the HOT water has not been used for two weeks or more, prevent the possibility of
damage or injury by turning on all Hot water faucets and allowing them to run for several
minutes. Do this before using any electrical appliance which is connected to the HOT
water system. This simple procedure will allow any built-up hydrogen gas to escape. Since
the gas is flammable, do not smoke or use an open flame or appliance during this process.
5
Introduction
S
afety Information
Warning
Caution
YOUR
LAUNDRY
AREA
WHEN USING
THE WASHER
• Keep the area underneath and around your appliances free of combustible
materials such as lint, paper, rags, chemical, etc.
Operating with such materials around the machine may trigger
explosion or fire.
• Close supervision is necessary if this appliance is used by or near children.
Do not allow children to play on, with, or inside this or any other appliance.
There is potential danger that children might drown in the tub.
Do not touch the power plug with a wet hand.
It will cause electric shock
Do not put your hand, foot or anything under the washing machine while
the washing machine is in operation.
There is a rotating mechanism under the machine, so you could be injured.
•
Use this appliance only for its intended purpose as described in this Owner’s Manual.
• The laundry process can reduce the flame retardancy of fabrics. To avoid such a result,
carefully follow the garment manufacturer’s wash and care instructions.
•To minimize the possibility of electric shock, unplug this appliance from the power
supply or disconnect the washer at the household distribution panel by removing the fuse
or switching off the circuit breaker before attempting any maintenance or cleaning.
• Make sure that drainage is working properly.
If water is not drained properly, your floor may get flooded. Flooded floors
may induce electricity leakage, further resulting in electric shock or fire.
• If, during spinning, opening the lid does not stop the tub within about 15 seconds,
immediately discontinue operating the machine.
Call for repair. A machine that spins with its door open may cause injuries.
NOTE
: Pressing Power button to turn off does NOT
disconnect the appliance from the power supply.
Never reach into washer while it is moving.
Wait until the machine has completely stopped before opening the lid.
Even slow rotation can cause injury.
Never attempt to operate this appliance if it is damaged, malfunctioning, partially
disassembled, or has missing or broken parts, including a damaged cord or plug.
Operating with a damaged plug may cause electric shock.
Do not use water hotter than 50°C.
Use of excessively hot water may cause damage to fabrics or cause
leakage of water.
S
afety Information
Introduction
6
Warning
Caution
WHEN USING
THE WASHER
WHEN NOT
IN USE
Do not use a plug socket and wiring equipment for more than their rated capacity.
Exceeding the limit may lead to electric shock, fire , break down, and/or
deformation of parts.
Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover.
Mixing different chemicals can produce toxic gases which may cause death.
Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted
with combustible or explosive substances (such as wax, oil, paint, gasoline, dry-
cleaning solvents, kerosene, etc). Do not add these substances to the wash water.
Do not use or place these substances around your washer or dryer during operation.
It may ignite or explode.
•
Turn off water faucets to relieve pressure on hoses and valves and to minimize leakage
if a break or rupture should occur. Check the condition of the fill hoses; they may need
replacement after 5years.
• When the air temperature is high and the water temperature is low, condensation may
occur and thus wet the floor.
•Wipe off dirt or dust on the contacts of the power plug.
Using unclean power plug may cause fire.
• Before discarding a washer, or removing it from service, remove the washer lid to
prevent children from hiding inside.
Children may be trapped and suffocated if the lid is left intact.
Do not attempt to repair or replace any part of this appliance unless specifically
recommended in this Owner’s Manual, or in published user-repair instructions that
you understand and have the skills to carry out.
Operating the machine with improperly replaced parts may be a
cause for fire or electric shock.
Do not tamper with controls.
It may lead to electric shock, fire , break down, deformation.
Do not yank the power cord in an attempt to disconnect the power plug. Securely
hold the power plug to unplug the machine.
Failure to observe these instructions may cause electric shock or fire
due to short-circuit .
When you are cleaning the washing machine, do not apply water directly to any
part of the washing machine.
It will cause short circuit and electric shock.
7
Introduction
I
dentification of Parts

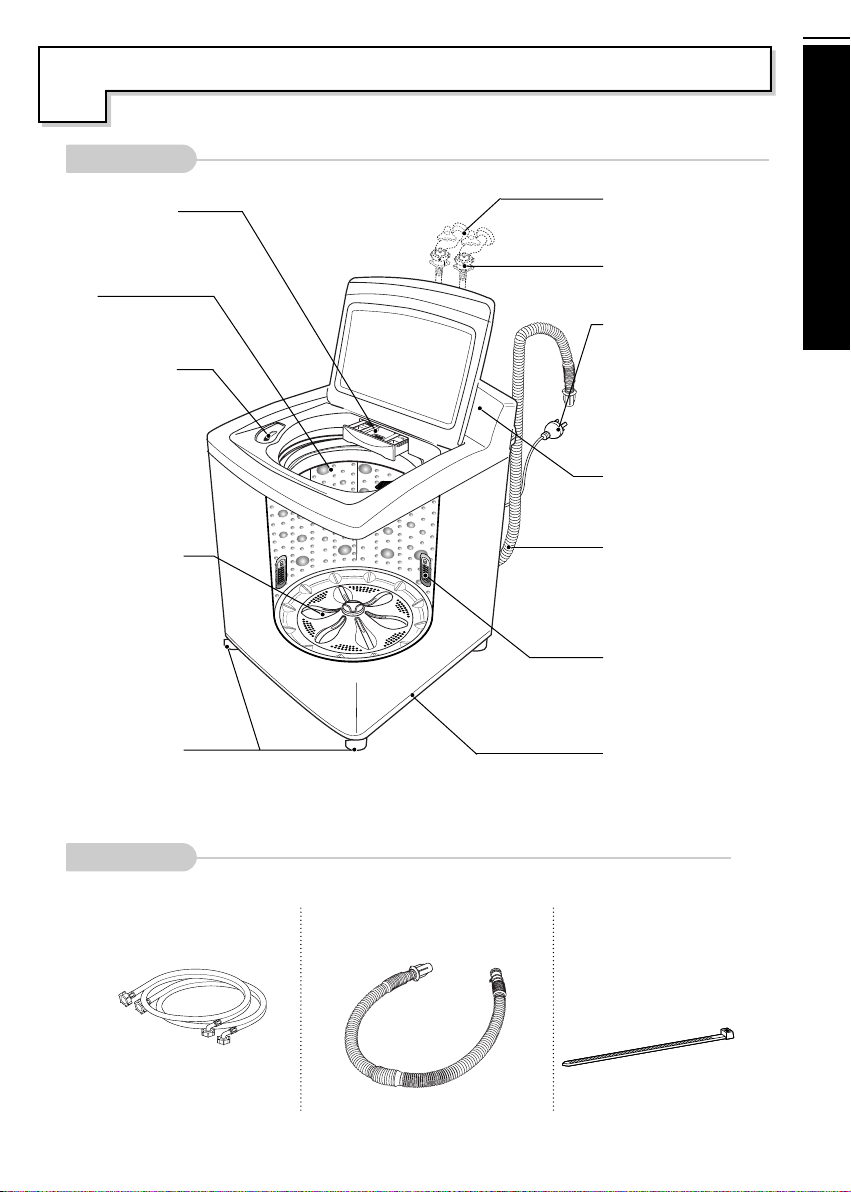

Body
Accessories

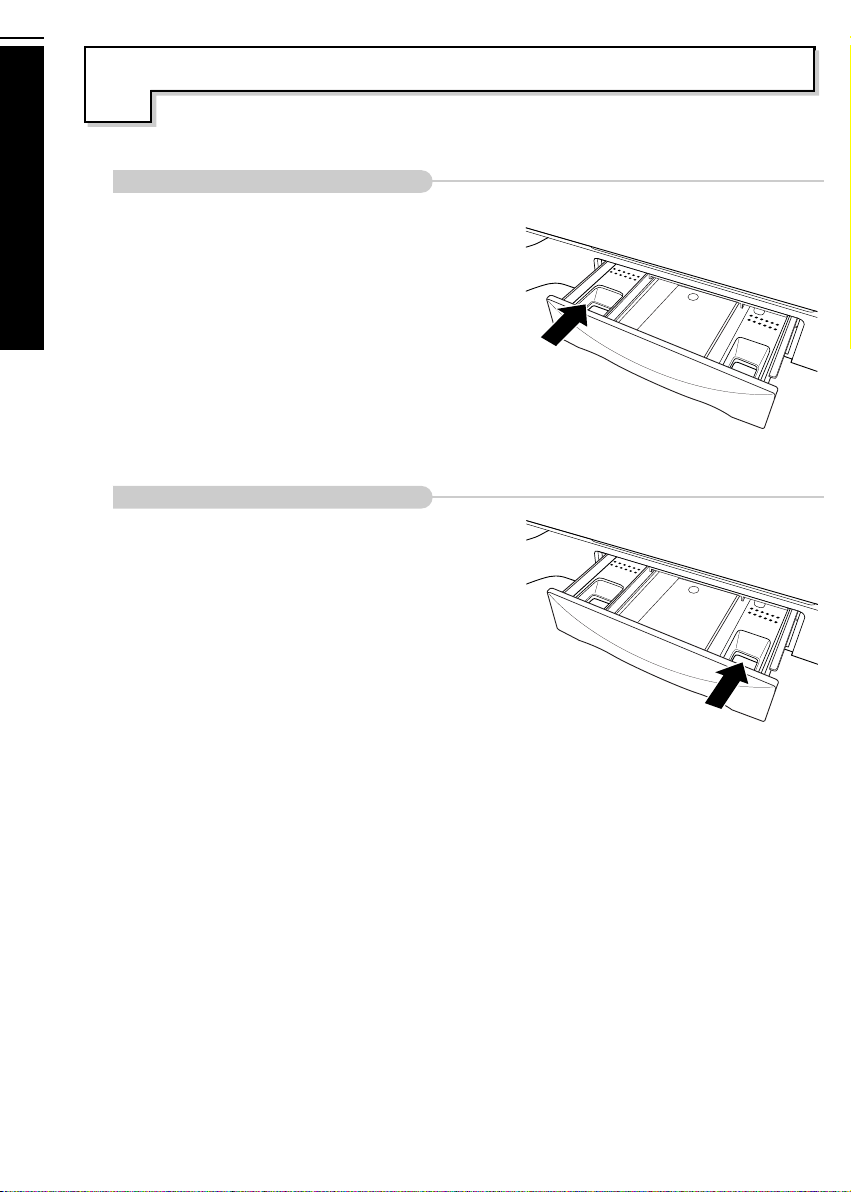

DETERGENT BOX
Detergent box for
delayed washing /
Softener box /
Additives box
INLET HOLE FOR
BLEACH
COLD WATER SUPPLY
HOSE
Make sure the water
does not leak.
HOT WATER SUPPLY
HOSE
POWER PLUG
If the supply cord is
damaged, it must be
replaced by the
manufacturer
or its service agents
or similarly qualified
person in order to
avoid a hazard.
FUNCTION SELECTOR
DRAIN HOSE
Check if the drain hose
is hung up before
operating the
washing machine.
BASE
TUB
PULSATOR
Vertical movement of
washing action can be
operated when a sufficient
amount of laundry is
deposited.
Set the proper water level,
an excessive amount of
water may increase
entanglement of laundry.
LEVELLING LEGS
Use to level the washing
machine for correct balance
& spin operation.
Inlet hose
1 Each for cold and
hot water
Drain hose
Cable tie
MULTI CLEAN
FILTER
P
reparation Before Washing
Before Starting to Wash
8
•
Look for a care label on your clothes. This will tell you about the fabric content of your garment and
how it should be washed.
Sort clothes into loads that can be washed with the same wash cycle, Water Temperature and spin speed.
Care Labels
To get the best results, different fabrics need to be washed in different ways.
• SOIL (Heavy, Normal, Light) Separate clothes according to the type and amount of soil.
• COLOR (Whites, Lights, Darks) Separate white fabrics from colored fabrics.
• LINT (Lint producers, Collectors) Separate lint producers and lint collectors.
Lint Producers Terry cloth, Chenille, Towels, Nappies
Lint Collectors Synthetics, Corduroy, Permanent Press, Socks
Sorting
•
Check all pockets to make sure that they are empty. Things such as nails, hairclips, matches,
pens, coins, and keys can damage both your washer and your clothes.
•
Mend any torn garments or loose buttons. Tears or holes may become larger during washing.
•
Remove belts, underwires, etc. to prevent damage to the machine or your clothes.
•
Pretreat any dirt and stains.
•
Make sure the clothes are washable in water.
•
Check the washing instructions.
•
Remove tissue in pockets.
Check before Loading
•
Pretreat shirt collars and cuffs with a pre-wash product or liquid Detergent when placing them in the washer.
Before washing treat special stains with bar soaps, liquid Detergent or a paste of water and granular Detergent.
•
Use a pretreat soil and stain remover.
Treat stains AS SOON AS POSSIBLE. The longer they are left the harder they are to remove.
(For more detail refer to page 13)
Pretreatment on stains or heavy soil
Do not wash fabrics containing flammable materials (waxes, cleaning fluids, etc.).
Load Size
The WATER LEVEL should just cover the clothes. Adjust the load size
accordingly. Loosely load clothes no higher than the top row of holes in the
washer tub. To add items after washer has started, press “START/PAUSE” button
and submerge additional items. Close the lid and press “START/PAUSE” button
again to restart.
Light and Large-sized clothing
Clothes like downs and woollens are light weight, large and float easily. Use a nylon net and
wash them in a small amount of water. If the laundry floats during the wash cycle, it may
become damaged. Use dissolved Detergent to prevent the Detergent from clumping.
Do not wash water-proof textilles (Suckling outfit, baby's nappy automobile seat covers.)
Long laundry items
Use nylon nets for long, DELICATES items. For laundry with long strings or long length, a net will prevent tangling
during washing. Fasten zippers, hook, and strings to make sure that these items don't snag on other clothes.
Nylon net is not supplied by LG.
Loading
WARNING
Fire Hazard
Never place items in the washer that are
dampened with gasoline or other flammable
fluids.
No washer can completely remove oil.
Do not dry anything that has ever had any type
of oil on it (including cooking oils).
Doing so can result in death, explosion, or fire.
9
Before Starting to Wash
U
se of Water, Detergent, Bleach, Softener, Additives
•
This machine detects the quantity of laundry automatically, then sets the proper amount of water.
Using Water
Amount of WATER LEVEL
• The machine sets the appropriate temperature automatically according to the wash program .
You can change the Water Temperature by pressing the WASH/RINSE button.
• The temperature of the water impacts the effectiveness of all laundry additives and therefore, the cleaning
results.
•We recommend temperatures of:
- HOT 49~60˚C ...(120-140˚F)
White items, diapers, underclothing and heavily soiled, colorfast items.
- WARM 29~40˚C ...(85-105˚F) Most items
- COLD* 18~24˚C ...(65-75˚F) Bright colors with light soil.
• When washing in COLD water additional steps may be needed:
- Adjust Detergent amount and pre-dissolve Detergent in WARM water
- Pretreat spots and stains
- Soak heavily soiled items
- Use appropriate bleach
*
Temperature below 18˚C ...(65˚F) will not activate laundry additives and may cause lint, residue, poor cleaning, etc.
In addition, Detergent manufactures and care labels define COLD water as 26~29˚C...(80-85˚F).
If the temperature of the water in the tub is too cold for your hands, the Detergent will not activate and clean
effectively.
Water Temperature
Note
If iron is present in the water the clothes may become an all-over yellow or they may be stained with brown or
orange spots or streaks. Iron is not always visible. Installation of water softener or an iron filter may be necessary
for severe cases.
10
Before Starting to Wash
U
se of Water, Detergent, Bleach, Softener, Additives
Using Detergent
Follow the Detergent package directions. Using too little Detergent is a common cause of laundry problems.
Use more Detergent if you have hard water, large loads, greasy or oily soils or lower Water Temperature.
Detergent
We recommend the use of drum type, low suding, high efficiency Detergent (powder, liquid or concentrated).
Soap flakes or granulated soap powders should not be used in your washing machine. When washing woolens
remember to use Detergent suitable for washing woolens.
Choosing the right Detergent
The bleach dispenser automatically dilutes and dispenses
liquid chlorine bleach at the proper time in the wash cycle.
1. Check clothing care labels for special instructions.
2. Measure liquid bleach carefully, following instructions on
the bottle.
• Never pour undiluted liquid chlorine bleach directly onto
clothes or into the wash basket.
• Do not pour powdered bleach into bleach dispenser.
•
Avoid overfilling or splashing when adding bleach to the
dispenser. The maximum capacity of the bleach dispenser
is one cup of bleach per wash cycle. Overfilling could
result in early dispensing of bleach.
3.
Before starting the washer, pour measured amount of
bleach directly into bleach dispenser. If you prefer to use
powdered bleach, add it into the wash basket directly before
adding clothes.
Using the Liquid Bleach Dispenser
WARNING!
Do not mix chlorine bleach with ammonia or acids such as vinegar
and/or rust remover. Mixing can produce a toxic gas which may cause death
The manufacturer's recommended amount of undiluted bleach goes into the bleach dispenser. During the
final "Infusor" wash action the bleach is added to the wash load. This ensures performance won't be
diminished. Two sequential flushe through the bleach dispenser completely removes the bleach from the
dispenser. Any residual liquid left in the dispenser at the end of the cycle is water, not bleach. To prevent
self-siphoning of the bleach into the wash basket and damage to your clothes, never add more than the
maximum fill level marked on the dispenser.
Also keep clothes away from the bleach dispenser so they don't absorb any bleach droplets left around the
bleach dispenser.
11
Before Starting to Wash
The dispenser drawer contains three compartments:
• Liquid Fabric Softener
• Powder Detergent
• Liquid Wash Boost Additives
The dispenser automatically dispenses additives at the proper
time in the wash cycle.
1. Slowly open the dispenser drawer by pulling the drawer out until
it stops.
2. After adding laundry products, slowly close the dispenser drawer.
Closing the drawer too quickly could result in early dispensing of
additives.
•Avoid overfilling or splashing when adding laundry products to
the dispenser. Doing so could result in early dispensing of
aundry products.
At the end of the cycle, you may see water in the compartments.
This is part of the normal operation of the washer.
NOTE: Do not use bleach in the dispenser drawer.
Using the Dispenser Drawer
Add measured detergent to the detergent compartment of the
dispenser drawer.
• Do not exceed the maximum fill line.
Detergent is flushed through the dispenser at the beginning
of the wash phase. Either powdered or liquid detergent can
be used.
Detergent usage may need to be adjusted for water
temperature, water hardness, size and soil level of the load.
Avoid using too much detergent in your washer, as it can
lead to oversudsing and detergent residue being left on the
clothes.
Adding Detergent
U
se of Water, Detergent, Bleach, Softener, Additives
Before Starting to Wash
12
If desired, pour the recommended amount of liquid fabric
softener into the left-hand compartment. Use only liquid
fabric softener.
Dilute with water to the maximum fill line.
• Do not exceed the maximum fill line.
Overfilling can cause early dispensing of the fabric
which could stain clothes.
NOTE: Do not pour fabric softener directly on the wash
load. It may stain the clothes.
Adding Fabric Softener
The Wash Boost dispenser may be used to clean heavily
soiled or stained garments more efficiently.
Place the additives for the wash Boost setting in the right-
hand compartment.
Using the Soak cycle add soaking detergent in the right-
hand compartment.
• Do not exceed the maximum fill line to avoid
Overfilling can cause early dispensing of soak additives,
which could result in damaged clothes.
NOTE: Do not pour additives directly on the wash load. It may stain the clothes.
Adding Wash Boost Additives
13
Before Starting to Wash
S
pecial Guide for Stain Removal
WARNING
Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or
products containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death.
To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below:
• Read and comply with all instructions on stain removal products.
• Keep stain removal products in their original labeled containers and out of children's reach.
• Thoroughly wash any utensil used.
• Do not combine stain removal products, especially ammonia and chlorine bleach. Dangerous fumes may result.
• Never wash items which have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry cleaning
solvents or other flammable or explosive substances because they give off vapors that could ignite or explode.
•
Never use highly flammable solvents, such as gasoline, inside the home. Vapors can explode on contact with flames or
sparks.
For successful stain removal:
• Remove stains promptly.
• Determine the kind of stain, then follow the recommended treatment in the
stain removal chart below.
• To pretreat stains, use a prewash product, liquid Detergent, or a paste made
from granular Detergent and water.
•
Use COLD water on unknown stains because HOT water can set stains.
• Check care label instructions for treatments to avoid on specific fabrics.
• Check for colorfastness by testing stain remover on an inside seam.
• Rinse and wash items after stain removal.
Follow fabric care label
instructions
Stain Removal
STAIN
TREATMENT
Adhesive tape, chewing gum,
rubber cement
Baby formula, dairy products, egg
Beverages (coffee, tea, soda,
juice, alcoholic beverages)
Blood
Candle wax, crayon
Chocolate
Collar or cuff soil, cosmetics
Dye transfer on white fabric
Grass
Grease, oil, tar (butter, fats,
salad dressing, cooking oils,
car grease, motor oils)
Ink
Mildew, scorch
Mud
Mustard, tomato
Nail polish
Paint, varnish
Rust, brown or yellow
discoloration
Shoe polish
Apply ice. Scrape off excess. Place stain face down on paper towels.
Saturate with prewash stain remover or nonflammable dry cleaning fluid.
Use product containing enzymes to pretreat or soak stains.
Pretreat stain. Wash using COLD water and bleach safe for fabric.
Rinse with COLD water. Rub with bar soap. Or pretreat or soak with product containing enzymes.
Wash using bleach safe for fabric.
Scrape off surface wax. Place stain face down between paper towels. Press with warm iron until wax is absorbed.
Replace paper towels frequently. Treat remaining stain with prewash stain remover or nonflammable dry cleaning fluid. Hand
wash to remove solvent. Wash using bleach safe for fabric.
Pretreat or soak in WARM water using product containing enzymes. Wash using bleach safe for fabric.
Pretreat with prewash stain remover or rub with bar soap.
Use packaged color remover. Wash using bleach safe for fabric.
Pretreat or soak in WARM water using product containing enzymes. Wash using bleach safe for fabric.
Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy stains and tar, apply nonflammable
dry cleaning fluid to back of stain. Replace towels under stain frequently. Rinse throughly. Wash using hottest water safe for
fabric.
Some inks may be impossible to remove. Washing may set some inks. Use prewash stain remover, denatured alcohol or
nonflammable dry cleaning fluid.
Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and HOT water before washing.
Badly mildewed fabrics may be permanently damaged.
Brush off dry mud. Pretreat or soak with product containing enzymes.
Pretreat with prewash stain remover. Wash using bleach safe for fabric.
May be impossible to remove. Place stain face down on paper towels. Apply nail polish remover to back of stain.
Repeat, replacing paper towels frequently. Do not use on acetate fabrics.
WATER BASED : Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it cannot be removed, OIL BASED
AND VARNISH : Use solvent recommended on can label. Rinse throughly before washing.
For spots, use rust remover safe for fabric. For discoloration of an entire load, use phosphate Detergent and nonchlorine
bleach. Do not use chlorine bleach because it may intensify discoloration.
LIQUID : Pretreat with a paste of granular Detergent and water. PASTE : Scrape residue from fabric. Pretreat with prewash
stain remover or nonflammable dry cleaning fluid. Rub Detergent into dampened area, Wash using bleach safe for fabric.
Note
F

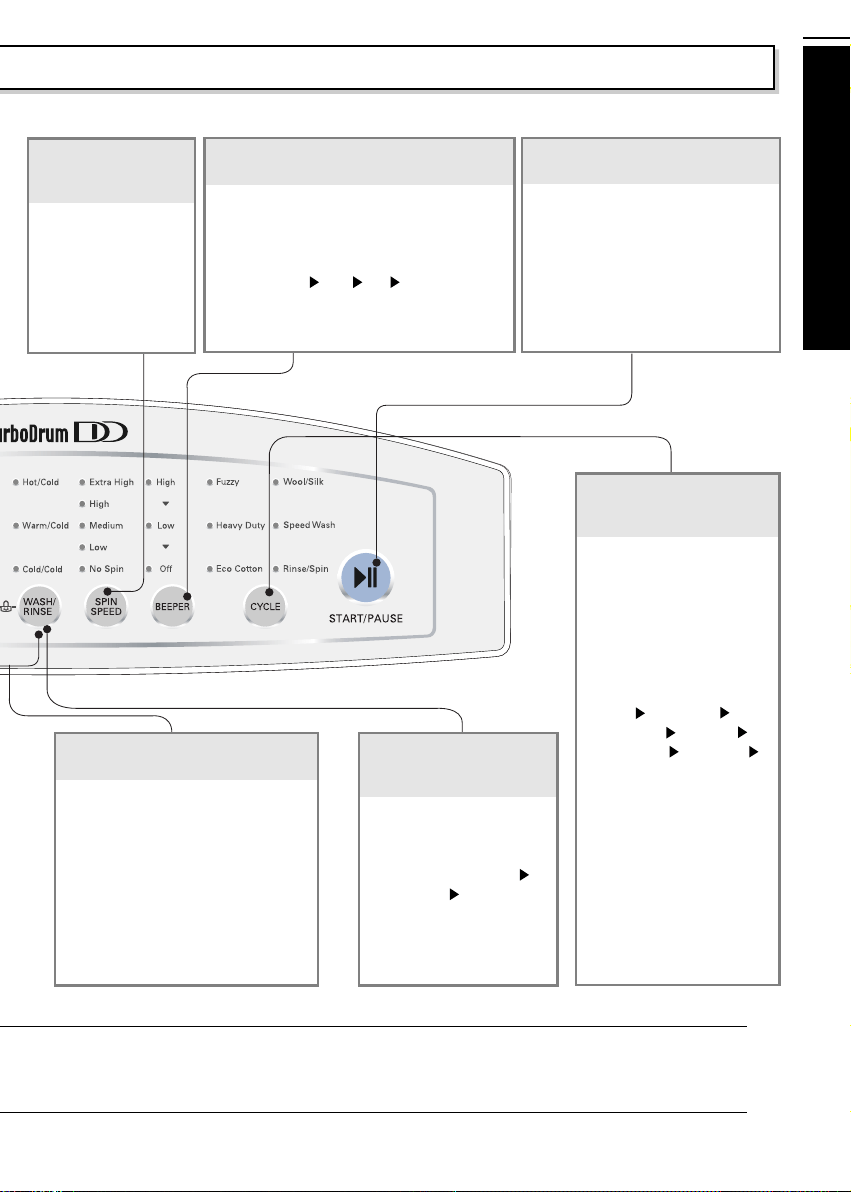

unction of each Button
* For optimizing the washing algorithm, the displaying time may be changed.
• Use to turn the power on or off.
• Push again and power goes on or off
• The power goes off automatically after the wash is
finished.
• After turning the power on, if you don’t push any
button the power goes off automatically.
POWER BUTTON
• Use to set a delayed finishing time.
• The time increases when the button is pushed.
•
The following settings are indicated as the button is pushed 1
2 3 4 ... 12 14 16 18 ... 24 HOUR
Reservation off 1 ...
•
To cancel delay time, turn the power switch off or push DELAY
WASH button until Reservation off. (refer to page 18)
• It operates in all program.
• During being detected by the sensor, the ‘LOAD SENSING’
LED flashes.
• It automatically sensing the quantity of laundries.
• During this step,the washing machine select optimized
washing algorithm.
LOAD SENSING
• This button allows you to select
the strength of the wash action.
• Power option selections light up
in sequence as follows Normal
Heavy Light Normal as the
button is pushed.
This can be selected for any
program.
• Adjustment can be made while
washing.
•
Default SOIL LEVEL is Normal.
SOIL LEVEL BUTTON
• This button
allows you to
store a
customized wash
cycle for future
use .
(refer to page 21)
Custom Program
BUTTON
• It gives additional Soak.
• The following settings are indicated as the
button is pushed 15 30 45 60
120 180min. Soak off 15
(refer to page 19)
SOAK BUTTON
• It gives additional rinse cycle.
(For better rinsing effect)
(refer to page 20)
EXTRA RINSE BUTTON
DELAY WASH (Reservation)
BUTTON
Before Starting to Wash
14
15
Before Starting to Wash
* The standard detected by the sensor changing the algorithm is set by the normal standard. It may not be same to
the washing habit of a specific user. So, it does not matter that the user uses it according to her/his washing habit.
• Beeper alerts you that the cycle is complete.
The clothes should be removed when the
beeper goes off so wrinkles won't set on.
• Beeper selection light up in sequence as
follows: Low High Off Low
•Touch "Beeper" to select the volume or to turn
the beeper off.
BEEPER BUTTON
• Use to select Water (Wash
/Rinse) Temperature.
• Pressing the button allows
you to select Cold/Cold
Warm/Cold Hot/Cold
respectively.
Default setting is
Warm/Cold.
WASH / RINSE
BUTTON
• Use to lock or unlock the control
buttons to prevent settings from being
changed by a child.
•To lock, push the SOIL LEVEL and
WASH / RINSE buttons
simultaneously during the wash mode
and to unlock push them one more
time during the washing process.
(refer to page 23)
CHILD LOCK FUNCTION
• Use to start or pause the wash cycle.
Changes can be made to the wash
settings whilst the machine is paused.
• Repeats start and pause by pushing the
button.
START/ PAUSE BUTTON
• Use for selecting wash
program.
• This button allows you to
select 6 different programs
for different kinds of
laundry and dirtiness.
• Program selections light up
in sequence as follows:
Fuzzy Heavy Duty
Eco Cotton Wool/Silk
Speed Wash Rinse/Spin
Fuzzy etc.
Select the desired program
by pressing the button.
CYCLE BUTTON
• Spin speed can be
selected from No Spin
to Extra high.
Default is “Low”.
(refer to page 22)
SPIN SPEED
2
W
ashing programs
Our machine provides various washing methods which suits various conditions and types
of laundry
Washing Programs
16
Function information
Add
the laundry
Close the lid
Add
the
Detergent
Fuzzy
This program is for mixed
fabrics and automatically
selects the most appropriate
wash conditions such as
wash action and cycle times
by utilizing the built-in load
sensor.
Heavy Duty
Use this Program for heavily
soiled durable garments e.g
overalls, jeans.
Eco Cotton
Eco Cotton is the program
for normally soiled cotton
material and designed to
minimize water
consumption.
Wool / Silk
Use this program for
washing delicate fabrics
such as lingerie and
woolens.(wash only "Water
washable" clothes) Before
washing your woolens check
the care label for the
washing instructions. (Wash
only water washable clothes)
1 3 4
21 3 4
21 3 4
21 3 4
Speed Wash
Use this program for lightly
soiled garments.
Rinse/Spin
When you only need the
Rinse/Spin cycle, these can
be set manually.
21 3 4
21 3 4
17
Washing Programs
Caution & Note
Finish
Select the program on
the Control panel.
• Usage of Water is already optimized
to every level.
•Thick and heavy clothes or those
which are excessively dirty like jeans
or working uniforms can be washed.
• Delicates clothes (lingerie, wool, etc)
which may be easily damaged can
be washed.
• The fibers of machine washable
woolens have been specifically
modified to prevent shrink when they
are machine washed.
• Most hand knitted garments are not
made of machine washable wool
and we recommend that you hand
wash them.
5 6
7
5 6
7
5 6
7
5 6
7
• It reduce the washing time.
5 6
7
5 6
7
Note
D
elay Wash (Reservation)
Option Programs
18
Delay Wash (Reservation) is used to delay the finishing time of the operation. The hours to
be delayed can be set by the user accordingly. The time on the display is the finishing
time, not the start time.
Add the laundry into the washing tub.
1
2
3
4
5
6
7
8
9
Add the Detergent
• When the lid is open the machine will not operate, and an alarm
Signal or “ ” will remind you to close the lid when it starts.
Close the lid
•
The light of 'Delay Wash' will be turned on and ‘TIME LEFT’
will be marked.
•
Press the button repeatedly to set the desired finishing time. For
example, To finish washing in 9 hours from now, by make the number
9:00 pressing the Delay Wash (Reservation) button repeatedly.
(RES.=Delay)
Press the Delay Wash (Reservation) button.
Press the POWER button to turn power on.
• Finishing time can be delayed from 1~24 hours. Delaying from 1~12 hours can be done in 1 hour time intervals and
from 12~24 hours in 2 hour time intervals.
• If the lid is open, the machine will not work, and an alarm Signal or “ ” will remind you to close the lid.
•To select Spin Speed, water temp. or soil level manually, press the Delay Wash (Reservation) button and select the
desired option. Then press the START/PAUSE button.
• When the laundry cannot be taken out immediately after the wash program ends, it is better to omit the spinning
program. (The laundry will be wrinkled if left for a long time after spinning.)
Press the CYCLE button to select the washing program.
Select desired Options.
SOIL LEVLE, WASH/RINSE, SPIN SPEED, BEEPER, SOAK, EXTRA RINSE
Press the START/PAUSE button.
• When you press the START/PAUSE button the light will
blink.
• The washing will be finished according to the delayed time.
Finish
Note
19
Option Programs
S
oak Wash
Use this mode to wash normal clothes or thick and heavy clothes which are excessively dirty.
Soak mode can be used all program except Rinse/Spin.
• Add the detergent in the right-hand compartment
for Soak Wash cycle and in the middle compartment
for main wash cycle.
Press the START/PAUSE button.
Add the laundry into the washing tub.
Selezionare il programma preferito.
•
The Soak wash cycle run prior to the main wash cycle.
• For some cycles,the water temperature for the soak cycle may not be the same as the water
temperature for the main wash cycle.
• When the lid is open the machine will not operate, and an alarm
Signal or “ ” will remind you to close the lid when it starts.
• Select the cycle for laundry on the Control Panel.
Close the lid
•
The following settings are indicated as the button is
pushed.
15 30 45 60 120 180min
SOAK OFF
Press the Soak button to change the soaking time.
Press the POWER button to turn power on.
Press the CYCLE button to select the washing program.
Select desired Options.
SOIL LEVLE, WASH/RINSE, SPIN SPEED, BEEPER, EXTRA RINSE
1
2
3
4
5
6
7
8
Note
E
xtra Rinse
Option Programs
20
This Program gives additional rinse cycle.
• This CYCLE is for better rinsing effect.
Press the START/PAUSE button.
Press the Extra Rinse button to give additional rinse cycle.
Press the POWER button to turn power on.
Press the CYCLE button to select the washing program.
Select desired Options.
SOIL LEVLE, WASH/RINSE, SPIN SPEED, BEEPER, SOAK, DELAY WASH
1
2
3
4
5
Note
21
Option Programs
C
ustom Program
To recall your Custom cycle.
1. Press POWER on.
2. Select the Custom cycle by pressing the Custom Program button.
3. Press the START/PAUSE button. Then the wash cycle starts.
Custom Program allows you to store a customized wash cycle for future use.
Add the laundry into the washing tub.
Add the Detergent
• When the lid is open the machine will not operate, and an alarm
Signal or “ ” will remind you to close the lid when it starts.
Close the lid
Press the Custom Program button for 3 seconds to store your Custom wash
cycle.
Press the POWER button to turn power on.
Press the CYCLE button to select the washing program.
Select desired Options.
SOIL LEVLE, WASH/RINSE, SPIN SPEED, BEEPER, SOAK, EXTRA RINSE, DELAY WASH
Press the START/PAUSE button.
1
2
3
4
5
6
7
8
Note
S
pin Only
Option Programs
22
When you only need the Spin cycles,this can be set manually.
Add the laundry into the washing tub.
Fill laundry uniformly in the inner tub
• When the lid is open the machine will not operate, and an alarm
Signal or “ ” will remind you to close the lid when it starts.
• The following settings are indicated as the button is
pushed Low Medium High Extra High
Low.
Close the lid
Press the POWER button to turn power on.
Press the SPIN SPEED button.
Press the START/PAUSE button.
1
2
3
4
5
Note
23
Option Programs
C
hild Lock
If you want to lock all the keys to prevent settings from being changed during the wash
operation by a child, you can use the child lock option.
•“ ” & the remaining time are alternatively shown on the display while they are locked.
Press the POWER button
Press the START/PAUSE button.
•Turn Power on.
• After all washing conditions are set according to the
manual.
• During the wash program,all the buttons are locked
until washing is completed or it is child-lock function
is deactivated manually.
If you want to unlock during wash, press both the SOIL LEVEL and the WASH/RINSE button
simultaneously again.
Press both the SOIL LEVEL button and the WASH/RINSE button
simultaneously.
How to Lock
How to Unlock
1
2
3
Caution
Caution
P
lacing and Leveling
Installation
24

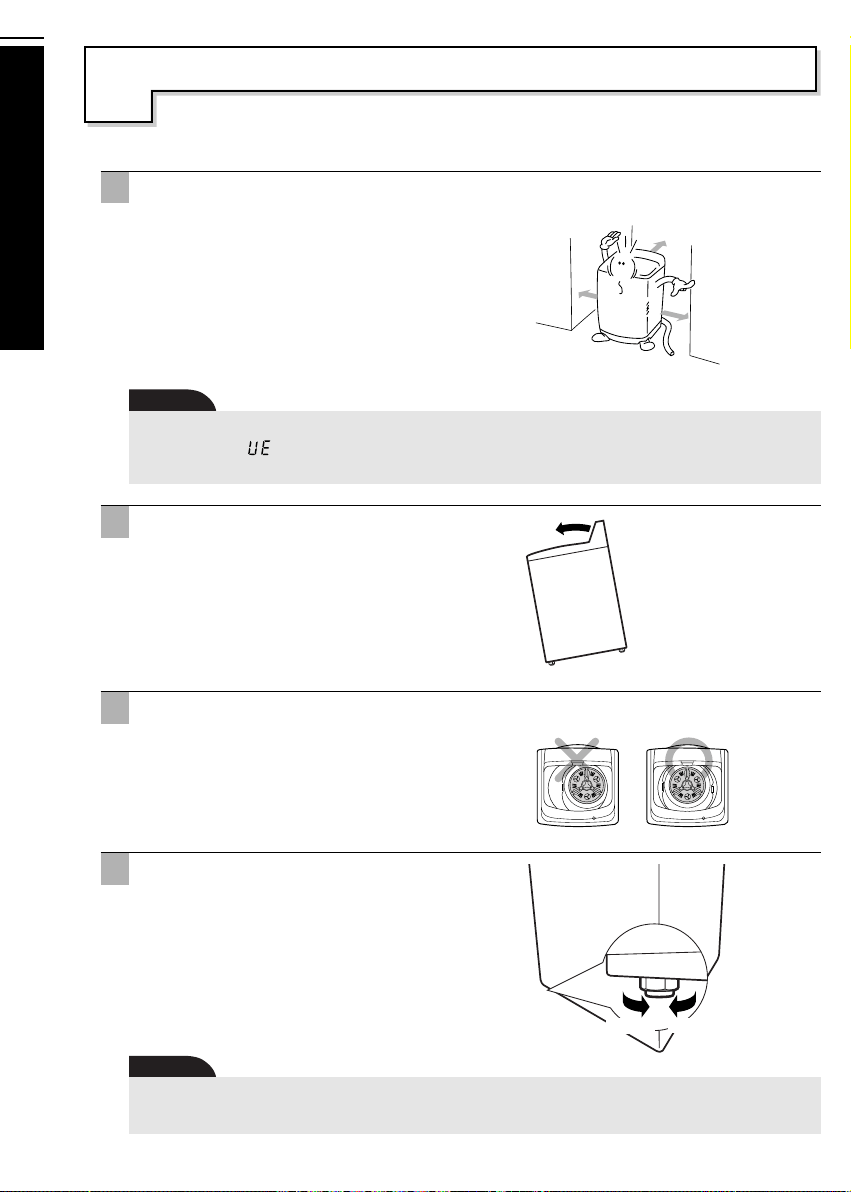

Please ensure that transit restraint has been removed before operating your machine.
Place the machine on a flat and firm surface which allows proper clearance.
more than 10 cm
more
than
2 cm
more than
2 cm
Top view of the machine
Lower
Raise
Set rear legs
We suggest a minimum clearance of 2 cm to the right
side and left sides of the machine for ease of
installation.
At the rear, a minimum clearance of 10 cm is
suggested.
Remove the level and tilt the washer forward (pivot on
front legs) about 4 to 6 inches and gently lower the rear
legs back onto the floor.
This action will set rear leg adjustments to correspond
to front settings.
Check that the machine is level
Open the lid and look from above to see if it is same as
shown.
Leveling the machine
Lift the front of the washing machine and twist the
Adjustable Leg until the surface bubble is placed in the
center.
If the washer is installed on a uneven, weak or tilted floor causing excessive vibration,
spin failure or " " error can happen to it.
It must be placed on a firm and level floor to prevent spin failure.
1
2
3
4
If the power is supplied from a cord extension set or generator, the cord extension set or electrical
portable outlet device should be positioned so that it is not exposed to splashing or ingress of moisture.
Note
The washing machine is to be connected to the water mains using new hose-sets and old hose-sets
should not be reused.
C
onnecting Water Supply Hose
25
Installation
Before connecting the Water Supply Hose to the water tap, check the hose type and then
choose the correct instruction here under.
Note that the Water Supply Hose supplied may vary from country to country, Make sure to
connect the blue inlet hose to the COLD water tap, and the orange inlet hose to the HOT
water tap.
Untighten the screw
Untighten the screw of the connector so that the tap
can be placed in the middle.
Connector
screw
Rubber packing
Connecting Water Supply Hose to water tap
Normal Type(Normal tap without thread & screw type inlet hose.)
Fixing the connector to the tap
Push the upper connector up till the rubber packing
is in tight contact with the tap. Then tighten the 4
screws.
Attach the water supply hose securely to the
connector
Push the water supply hose vertically upwards so
that the rubber seal within the hose can adhere
completely to the tap.
Connector
Water
Supply Hose
Fixing the connector to the water supply hose
Attach the water supply hose to the connector and
then tighten it by screwing it to the right.
Check the connection of water supply hose and the connector
After connecting the hose, open the tap to check for any
water leakage.
If the water leaks, close the tap and start again from step 1.
1
2
3
4
5
Note
C
onnecting Water Supply Hose
Installation
26
Loosen the fixed nuts to connect the connector to the tap
Rubber packing
Fixed sticker
screw
Rubber packing
Guide plate
Untighten the screw of the connector so that the tap can be
placed in middle.
In case tap is too large.
If the tap diameter is too large or is square, untighten
the 4 screws and remove the guide plate. Then follow step1.
Fixing Connectors to the Tap
Push the upper connector up till the rubber packing is in
tight contact with the tap. Then tighten the 4 screws.
Separate Middle connector from Water Supply Hose
Separate Middle connector from the Water Supply Hose by
pulling the Pressing Rod and the Pressing Handlre that is
attached to the Water Supply Hose.
Fixed Sticker
Pressing Handle
Pressing Rod
Water Supply Hose
Middle
Connector

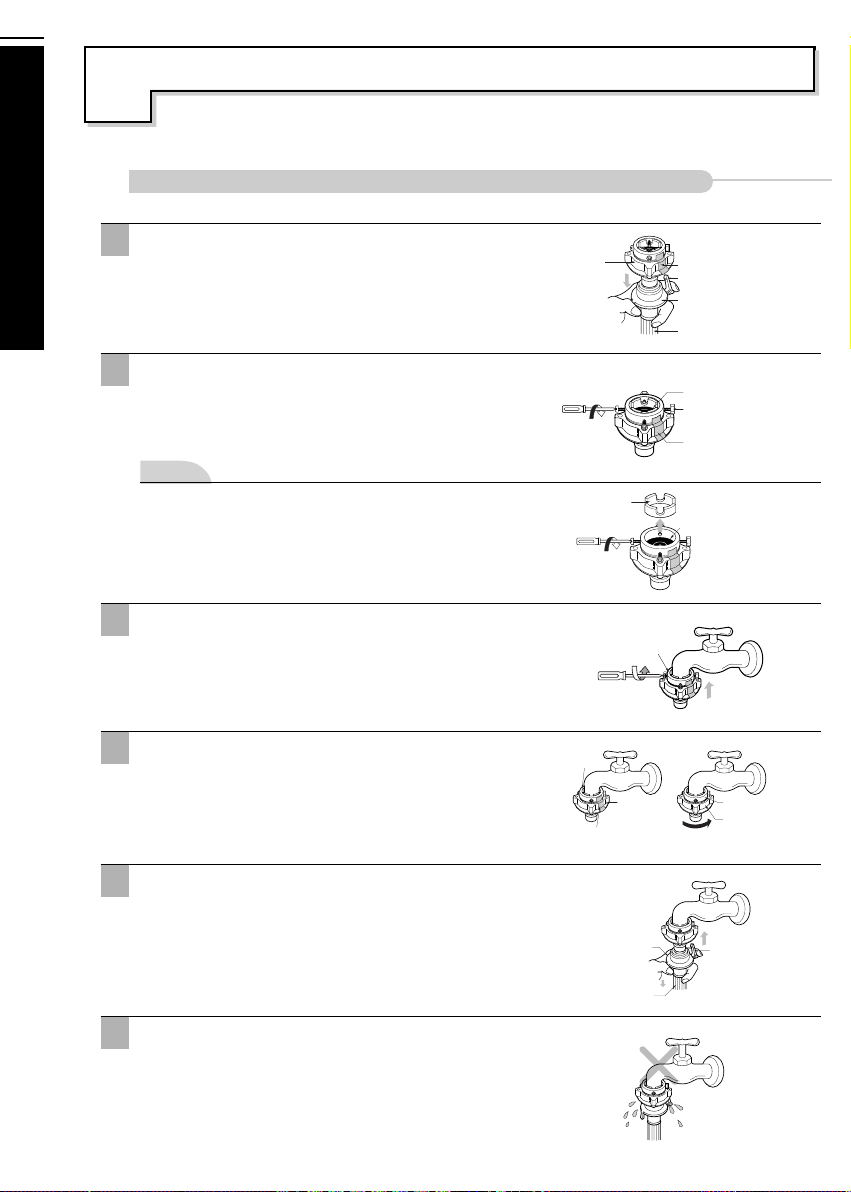

Normal Type (Normal tap without thread & one touch type inlet hose.)
Connector
Fixing Upper Connector and Middle Connector
Remove the fixed sticker in between the Upper and Middle
Connectors. Tighten the connectors by holding one
connector and twist middle connector to the right.
Connector
Fixed sticker
Middle
Connector
Middle
Connector
Connector
Connecting Middle Connector and water Supply Hose
Press down the pressing rod of the Water Supply Hose
whick was separated from middle connector
(refer to Step 1) and then join it to the middle connector.
Water Supply Hose
Pressing rod
Pressing handle
Check for water leakage
After connecting the hose, open the tap to check for any water
leakage.
If the connection leaks, close the tap and start again from step 1.
If you skip step 1, water leakage may occur.
1
2
3
4
5
6
27
C
onnecting Water Supply Hose
Installation
Attach the water supply hose to the tap.
Push the water supply hose up so that the rubber packing
within the hose can adhere completely to the tap.
Water Supply Hose
Rubber Packing
Water
tap
Connect the water supply hose to the tap.
Connect the water supply hose to the tap and then tighten it
by screwing it to the right.
Check water leakage.
After connecting the hose to both the tap and the washing
machine, open the tap to check for any water leakage.
Connecting Water Supply Hose to the machine
• Connect the water supply hose to inlet valve of the washing
machine, and then lock it by turning the hose connecting
part.
• Check to see if there is a rubber seal inside the connector
before screwing to the tap.
Cold
Hot
Hose connector
Rubber seal
Screw Type
1
2
3
Note
28
Installation
Before connecting Drain Hose, check your Drain Hose model and choose the correct
instructions.
Fit the end of the drain hose to the outlet of the drain pump and tighten the clamp.
Firmly insert the free end of the drain hose into the drain opening of your home.
Make sure the soft rubber end is completely inside the drain opening.
• If the water valves and drain are built into the wall, fasten the drain hose to one of the water hoses
with the cable tie (ribbed side on inside).
• If your drain is a standpipe, fasten the drain hose to the standpipe with the cable tie provided.
C
onnecting Drain Hose

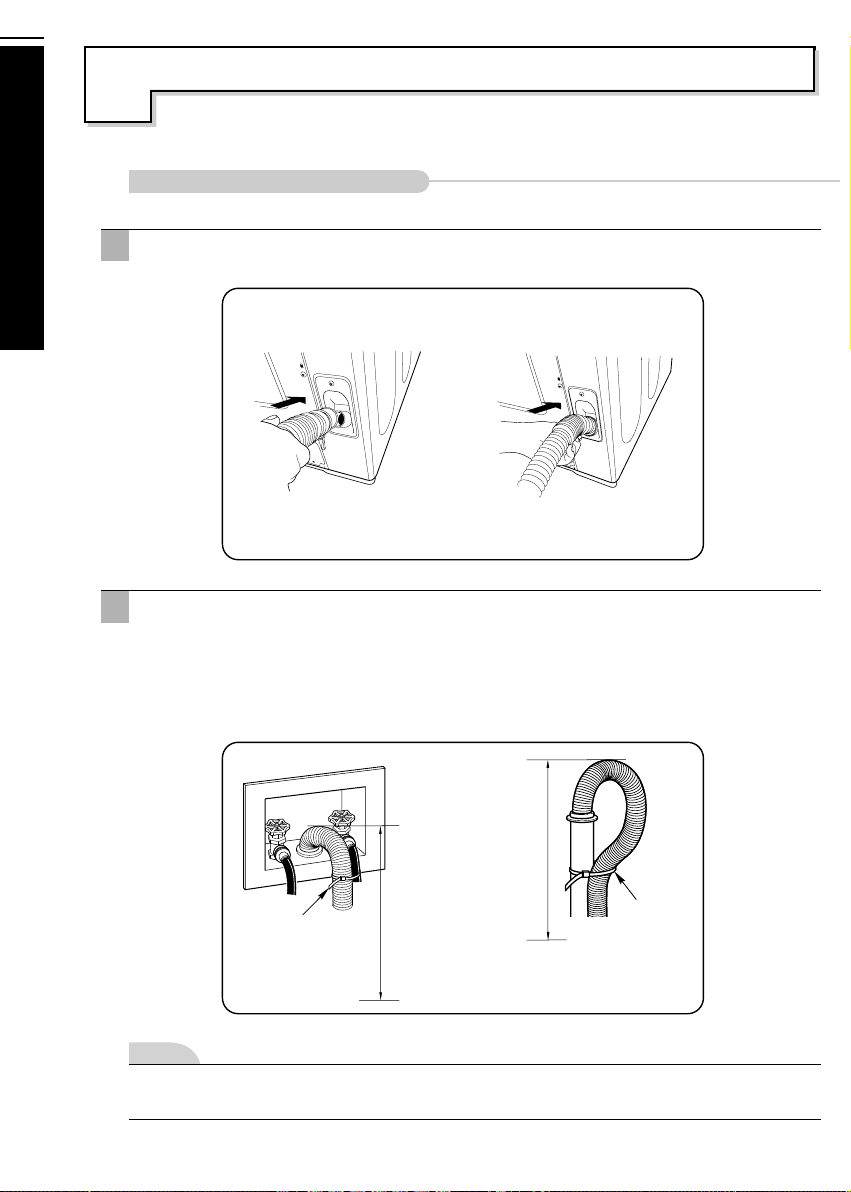

How to install the drain hose
The discharge height should be approximately 0.9~1.2m from the floor.
Do not lay down the drain hose during wash mode.
Cable Tie
0.9~1.2m
0.9~1.2m
Cable Tie
1
2
Caution
Caution
29
Care and Maintenance
G
rounding Method
Earth wire should be connected.
If the earth wire is not connected, there is possible a danger of electric shock caused by the
current leakage .

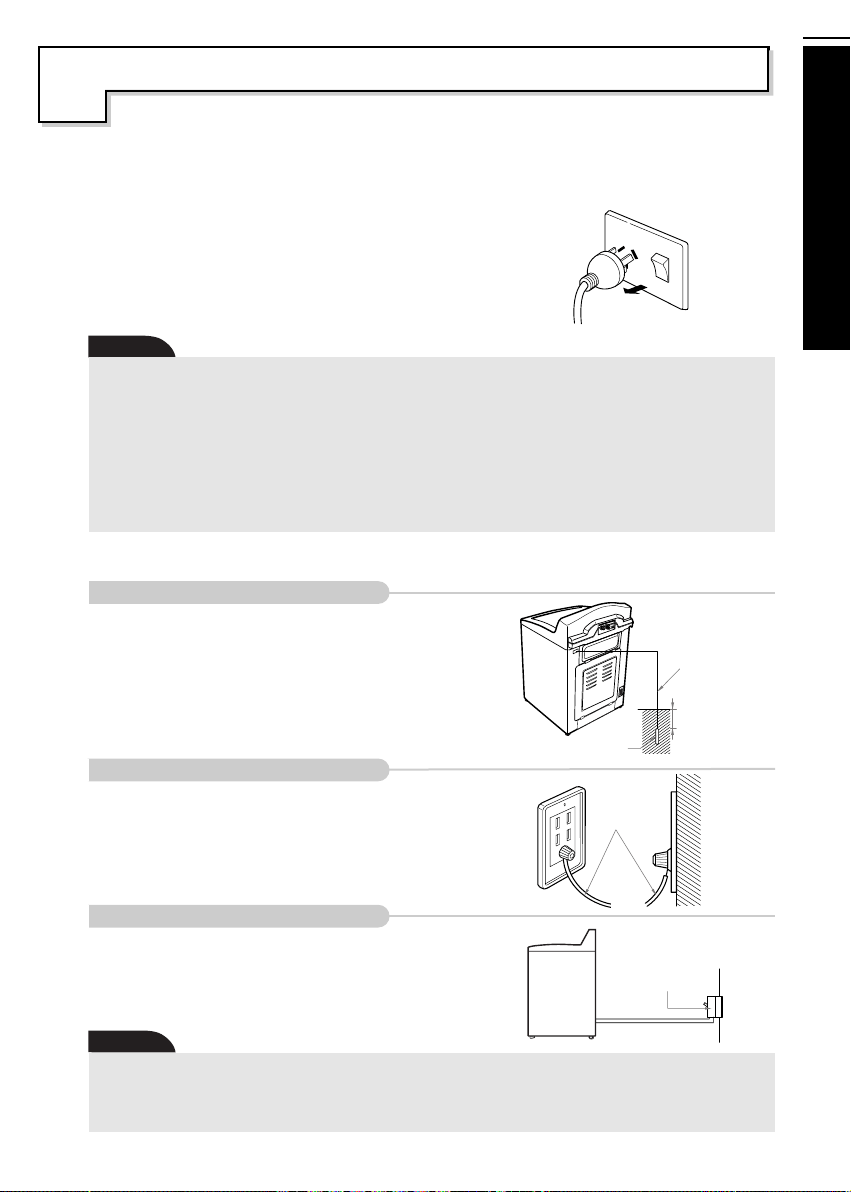

Grounding Method with Ground insert space Terminal
Other Grounding Method
If the AC current outlet has a ground terminal, then
separate grounding is not required. Note that AC power
outlet configurations may differ from country to
country.
Ground Wire
Ground Copper Plate
75cm
Connect the Ground Wire to a Ground Copper Plate and
bury it more than 75cm in the ground.
Burying Copper Plate
Ground
Wire
Connect the Ground Wire to a the socket provided
exclusively for grounding
Using Ground Wire
Short-circuit
breaker
If grounding methods described above are not possible,
a separate circuit breaker should be employed and
installed by a qualified electrician
Using a Short Circuit Breaker
•To prevent a possible explosion, do not connect ground to a gas pipe.
• Do not connect ground to telephone wires or lightning rods. This may be dangerous during electrical storms.
• Connecting ground to plastic has no effect.
• Ground wires should be connected when an extension cord is used.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which
powers only that appliance and has no additional outlets or branch circuits. Check the spercification page of
this owner's manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall
outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of
theseconditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its
appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord
replaced with an exact replacement part by an authorized servicer. Protect the power cord form physical or
machanical abuse, such as being twisted, kinked, pinched, colsed in a door, or walked upon. Pay particular
attention to plugs. wall outlets, and the point where the cord exits the appliance.
Caution
• Before cleaning the filter, the impurities in the water supply hose should be removed.
C
leaning and Maintenance
Care and Maintenance
30
Close the tap before turning off the power.
Select both Hot/Cold and then press the
[START/PAUSE] button to remove water
from the machine completely.
Turn off the power before pulling
out the cord.
• If you always use COLD water, we recommend that a WARM or HOT wash be used at a
regular intervals e.g. every 5th wash should be at least a WARM one.
Cold water washing
When water supply into the tub is not clean or the filter is clogged with particles (such as sand), clean the
filter in the inlet valve occasionally.
(The figure of power cord and water tap may vary according to the country)
•Turn off taps to prevent the chance of flooding should a hose burst.
• Always unplug the power cord after use.
When you have finished
To Clean the Filter in the Inlet Valve
After removing the water supply
hose pull out the filter.
Then use a brush to clean the
filter.
Replace the filter after cleaning it.
1 2
Push the upper part of
multi-clean filter down
and pull forward.
• Without multi clean filter, laundry may get damaged.
Open the lid and remove
lint and then wash out.
How to clean Multi clean Filter
1 2
Close the lid and at first get it back
to tub. First insert the lower part of
filter to washer tub and pull it down
until a click sounds.
3
3 4
Clean multi clean filter as often as possible. (Foreign objects accumulation may cause smell and filtering
performance will be worsened.
In order to reduce lint generation,
- laundry which creates lint easily should get turned inside out.
- Wash load sorted by color.
31
C
leaning and Maintenance
Care and Maintenance
• Remove the water supply hose, and immerse it in HOT water at approx..40°
• Pour approx..2 liters of HOT water at approx..40°C, into the bowl and let it stand for 10 minutes.
• Connect the water supply hose to the water tap and confirm that the washing machine performs the
supply and drainage of water.
If frozen
If you use fabric softener or do regular COLD water washing, it is very important that you
occasionally clean the inside of your washer.
• Fill your washer with HOT water.
• Add about two cups of a powdered Detergent that contains phosphate.
• Let it operate for several minutes.
• Stop the washer, open the lid and leave it to soak overnight.
• After soaking, drain the washer and run it through a normal cycle.
Cleaning the Inside of your Washer
• Close the water taps and remove the Water Supply Hose.
• Remove the water which remains in the water supply.
• Lower the drain hose and drain the water in the bowl and the drain hose by spinning.
When there is a fear of freezing
Wash Inner-Tub
Inlet Hoses
Exterior
Long Vacations
Leave the lid open after washing to allow moisture to evaporate. If you
want to clean the inner-tub use a clean soft cloth dampened with liquid
Detergent, then rinse. (Do not use harsh or gritty cleaners.)
Hoses connecting washer to faucet should be replaced every 5 years.
Immediately wipe off any spills. Wipe with damp cloth. Try not to hit
surface with sharp objects.
Be sure water supply is shut off at faucets. Drain all water from hoses if
weather will be below freezing.
• Concentrated bleaches and diaper sanitizer will cause damage to the paintwork and components of your washer.
• Hydrocarbon solvents i.e. petrol, paint thinners and lacquer thinners, etc. can dissolve plastic and blister paint
(Be careful when washing garments stained with these solvents as they are flammable DO NOT put them in
washer or dryer.)
• Some pretreatment sprays or liquids can damage your washer’s control panel.
• Use of dyes in your washer may cause staining of the plastic components. The dye will not damage the machine
but we suggest you thoroughly clean your washer afterwards. We do not recommend the use of dye strippers in
your washer.
• Do not use your washer lid as a work surface.
Products that might damage your washing machine
C
ommon washing problems
Troubleshooting
32
Many washing problems involve poor soil & stain removal, residues of lint and scum, and
fabric damage. For satisfactory washing results, follow these instructions.
WASH PROBLEM
Problems Possible Causes Solutions& Preventive Measures
Poor soil
removal
• Not enough Detergent
• Wash Water Temperature
too low.
Overloading the washer
Incorrect wash cycle
Incorrect sorting
Do not pretreat stain.
• Use correct amount of Detergent for load size,
amount of soil and water Hardness.
• Use WARM or HOT water for normal soil. Different
Water Temperature may be required according to
soil type. (refer to page 10)
• Reduce load size.
• Wash with Heavy or Soak & Heavy wash cycle for
heavy soiled laundry.
• Separate heavily soiled items from lightly soiled
ones.
• Pretreat stain and heavy soil according to directions
shown on page 9.
• Rub the stain with bar soap Wash.
• Do not overfill fabric softener dispenser and do not
pour liquid fabric softener directly onto fabric.
See page 12 for more instructions.
•
Keep the recommendations against Scrud(waxy
buildup).
• Use correct amount of Detergent for load size,
amount of soil and water Hardness.
• Wash lint givers eg towels, flannelette sheets,
separately from lint collectors e.g. synthetic fabrics
and remove tissues in pockets before wash. See
page 9 for sorting and caring before loading.
• Do not overload the washer
•
Do not overload the washer.
• Some Detergents need to be pre-dissolved, check
the Detergent instructions. Try pre-dissolving the
Detergent.
• Increase Water Temperature using HOT water safe
for fabric.
•
Use proper amount of Detergent.
• Never pour chlorine bleach directly on fabric.
See page 11 for adding liquid bleach.
• Fasten zippers, hooks, and buckles.
• Remove objects in pockets. See page 9 for caring
before loading.
• Do not overload the washer.
•
To restore discolored load of whites, use rust
remover safe for fabric.
• Install nonprecipitating water softener or an iron
filter in your water supply system for an ongoing
problem.
• Before washing, run water for a few minutes to
clear lines.a
Blue Stains
• Undiluted fabric softener
dispensed directly onto
fabric
Black or gray
marks on
clothes
•
A buildup caused by the
interaction of fabric
softener and Detergent can
flake off and mark clothes
Not enough Detergent
Yellow or
brown rust
stains
•
Iron or manganese in
water supply, water pipes,
or water heater
Lint
Residue or
Detergent
Holes, tears,
or snags
• Incorrect sorting
• Tissues left in pocket
• Overloading the washer
•
Overloading the washer
• Undissolved Detergent
• Use too much Dtergent
• Incorrect use of chlorine
bleach.
• Unfastened zippers, hooks,
buckles
• Ribs, tears and broken
threads
• Overloading the washer
• Degradation of fabric
33
Troubleshooting
T
roubleshooting
• If an abnormal symbol appears in the display window, check the following before asking for service.
• Request for the service center or agent in the case of failure or damage except for the following.
• This appliance is fitted with a safety function that automatically stops the operation of the washing
machine when it is exposed to heavy disturbance on the mains.
Symptom Error Message Check up
Water Supply
Failure
• Is the water tap shut off?
• Is the water supply cut off?
• Is the tap or water supply hose frozen?
•Is the water pressure low or is the filter of the inlet
valve clogged with impurities?
• Is the Hot hose connected to cold?
•Is the Cold hose connected to hot?
If the Washing Machine is working under bad
supply of water , " " is on the DISPLAY.
• Is th drain hose positioned correctly?
Is the drain hose bent or placed too high?
Is the internal part of the hose or drain pump (only
pump model) clogged with impurities?
Check if power has gone off.
• Is the laundry evenly balanced?
•Is the washing machine placed on a flat surface?
• Please call your nearest LG Electronics service
center for help.
• Is the lid closed?
Drainage Failure
Spin Failure
Door(Lid) Open
Abnormal level
sensing
Overflow failure
Abnormal motor
Brake Resister Error
Clutching Error
Coupling Error
T
erms of Warranty
Terms of Warranty
34
What Is Not Covered:
• Service trips to your home to teach you how to use the product.
• If the product is connected to any voltage other than that shown on the rating plate.
• If the fault is caused by accident, neglect, misuse or Act of God.
• If the fault is caused by factors other than normal domestic use or use in accordance
with the owner's manual.
• Provide instruction on use of product or change the set-up of the product.
• If the fault is caused by pests for example, rats or cockroaches etc..
• Noise or vibration that is considered normal for example water drain sound, spin
sound, or warming beeps.
• Correcting the installation for example, levelling the product, adjustment of drain.
• Normal maintenance which recommended by the owner's manual.
• Removal of foreign objects / substances from the machine, including the pump and
inlet hose filter for example, grit, nails, bra wires, buttons etc.
• Replace fuses in or correct house wiring or correct house plumbing.
• Correction of unauthorized repairs.
• Incidental or consequential damage to personal property caused by possible defects
with this appliance.
• If this product is used for commercial purpose, it is not warranted.
(Example : Public places such as public bathroom, lodging house, training center,
dormitory
If the product is installed outside the normal service area, any cost of transportation
involved in the repair of the product, or the replacement of a defective part, shall be
borne by the owner.
35
Specification
S
pecification
Model
WT-R854
Size
685(W) X 720(D) X 1095(H)
Weight
58kg
Water tap pressure
30-600 kPa(0.3-6.0 kgf/cm
2
)
W
D
H
Wash Capacity
8.5kg
In our continuing effort to improve the quality of our appliances, it may be necessary to make
changes to the appliance without revising this manual.
