KDL-26M3000
KDL-32M3000
KDL-37M3000
KDL-26ML130
KDL-32ML130
© 2007 Sony Corporation
3-213-437-14(1)
LCD Digital Color TV
Operating Instructions
2
WARNING
To reduce the risk of fire or electric shock, do
not expose this TV to rain or moisture.
This symbol is intended to
alert the user to the presence
of uninsulated “dangerous
voltage” within the
product’s enclosure that may
be of sufficient magnitude to
constitute a risk of electric
shock to persons.
This symbol is intended to
alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
The TV must not be exposed to dripping or
splashing. Do not place objects filled with
liquids, such as vases on the TV.
CAUTION
To prevent electric shock, do not use this
polarized AC plug with an extension cord,
receptacle or other outlet unless the blades can
be fully inserted to prevent blade exposure.
NOTIFICATION
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
s Reorient or relocate the receiving
antenna.
s Increase the separation between the
equipment and receiver.
s Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
s Consult the dealer or an experienced
radio/TV technician for help.
Safety
s Operate the TV only on 120 V AC.
s
Use the AC power cord specified by Sony
and suitable for the voltage where you use it.
s The plug is designed, for safety purposes,
to fit into the wall outlet only one way. If
you are unable to insert the plug fully into
the outlet, contact your dealer.
s If any liquid or solid object should fall
inside the cabinet, unplug the TV
immediately and have it checked by
qualified service personnel before
operating it further.
s If you will not be using the TV for several
days, disconnect the power by pulling the
plug itself. Never pull on the cord.
s When disconnecting AC power cord, the
power cord should easily accessible for
disconnection.
s For details concerning safety precautions,
see “Important Safety Instructions” on
page 4.
Installing
s The TV should be installed near an easily
accessible power outlet.

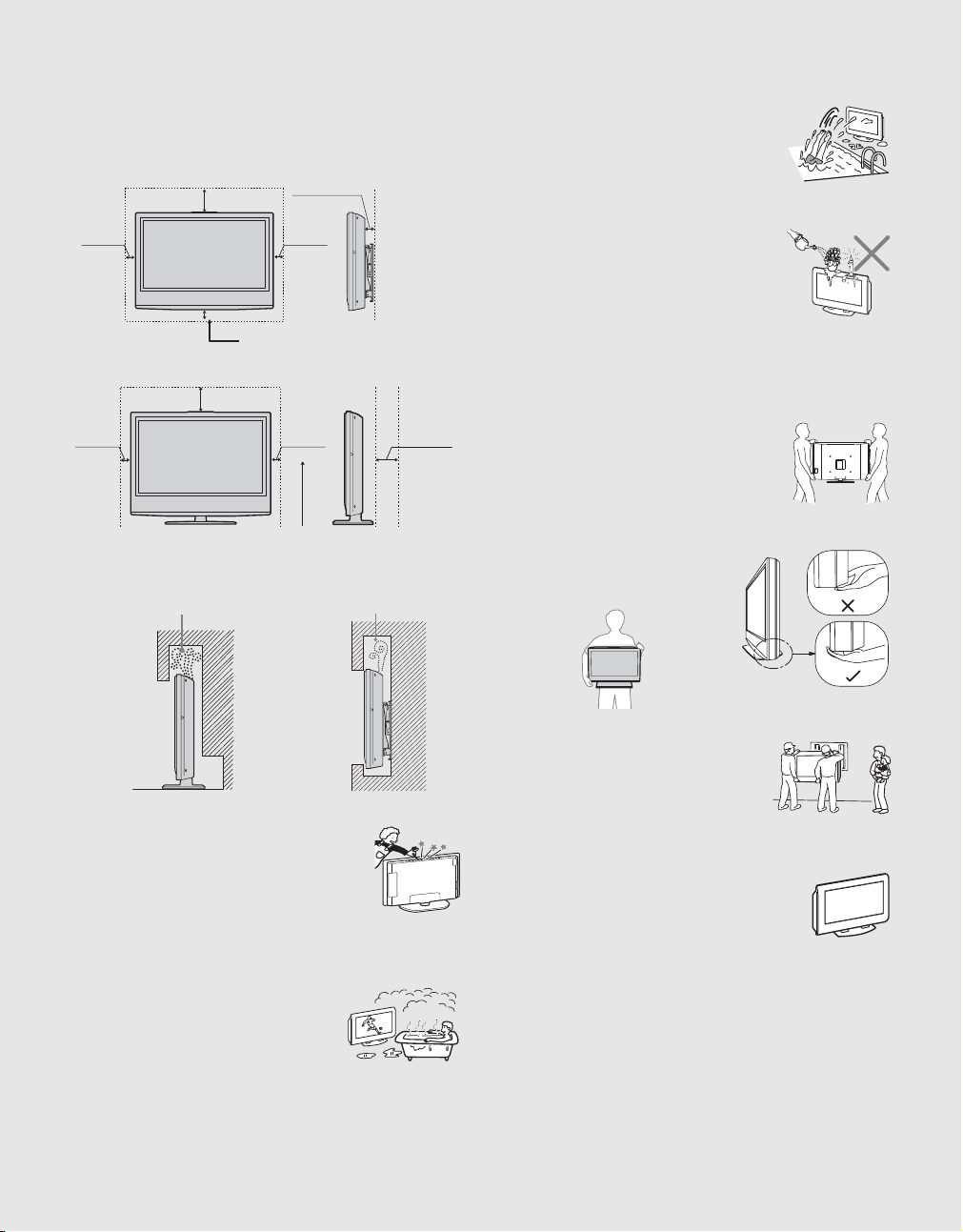

s To prevent internal heat buildup, do not
block the ventilation openings.
s Do not install the TV in a hot or humid
place, or in a place subject to excessive
dust or mechanical vibration.
s Avoid operating the TV at temperatures
below 41°F (5°C).
s If the TV is transported directly from a
cold to a warm location, or if the room
temperature changes suddenly, the picture
may be blurred or show poor color due to
moisture condensation. In this case,
please wait a few hours to let the moisture
evaporate before turning on the TV.
s To obtain the best picture, do not expose
the screen to direct illumination or direct
sunlight. It is recommended to use spot
lighting directed down from the ceiling or
to cover the windows that face the screen
with opaque drapery. It is desirable to
install the TV in a room where the floor
and walls are not of a reflective material.
CAUTION
Use the following Sony TV’s only with the
following WALL-MOUNT BRACKET.
Use with other WALL-MOUNT BRACKET
may cause instability and possibly result in
injury (see page 12).
To Customers
Sufficient expertise is required for installing the
specified TV. Be sure to subcontract the
installation to Sony dealer or licensed
contractors and pay adequate attention to safety
during the installation.
Note
This television includes a QAM demodulator
which should allow you to receive unscrambled
digital cable television programming via
subscription service to a cable service provider.
Availability of digital cable television
programming in your area depends on the type
of programming and signal provided by your
cable service provider.
For Customers in Canada
This Class B digital apparatus complies with
Canadian ICES-003.
Owner’s Record
The model and serial numbers are located at
the rear of the TV. Record these numbers in
the spaces provided below. Refer to them
whenever you call upon your Sony dealer
regarding this TV.
Model Name
Serial No.
Declaration of Conformity
Trade Name: SONY
Model: KDL-26M3000/KDL-26ML130/
KDL-32M3000/KDL-32ML130/
KDL-37M3000
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo
San Diego, CA 92127 U.S.A.
Telephone Number: 858-942-2230
This device complies with part 15 of the FCC
rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
NO ABRIR
Pursuant to FCC regulations, you are
cautioned that any changes or modifications
not expressly approved in this manual could
void your authority to operate this
equipment.
Sony TV Model No.
KDL-26M3000
KDL-26ML130
KDL-32M3000
KDL-32ML130
KDL-37M3000
Sony Wall-Mount
Bracket Model No.
SU-WL100 SU-WL500
3
Quick Setup Guide (separate volume)
Provides a variety of optional equipment
connection diagrams.
Customer Support
http://www.sony.com/tvsupport
On-line Registration
United States
http://productregistration.sony.com
Canada
http://www.SonyStyle.ca/registration
Contents
Important Safety Instructions ............................. 4
Welcome to the World of BRAVIA™
The Four Steps to Stunning HD Experience:
Set, Sound, Source, and Setup ................ 9
Picture Quality and Aspect Ratio .................. 9
Getting Started
1. Installing the TV ....................................... 11

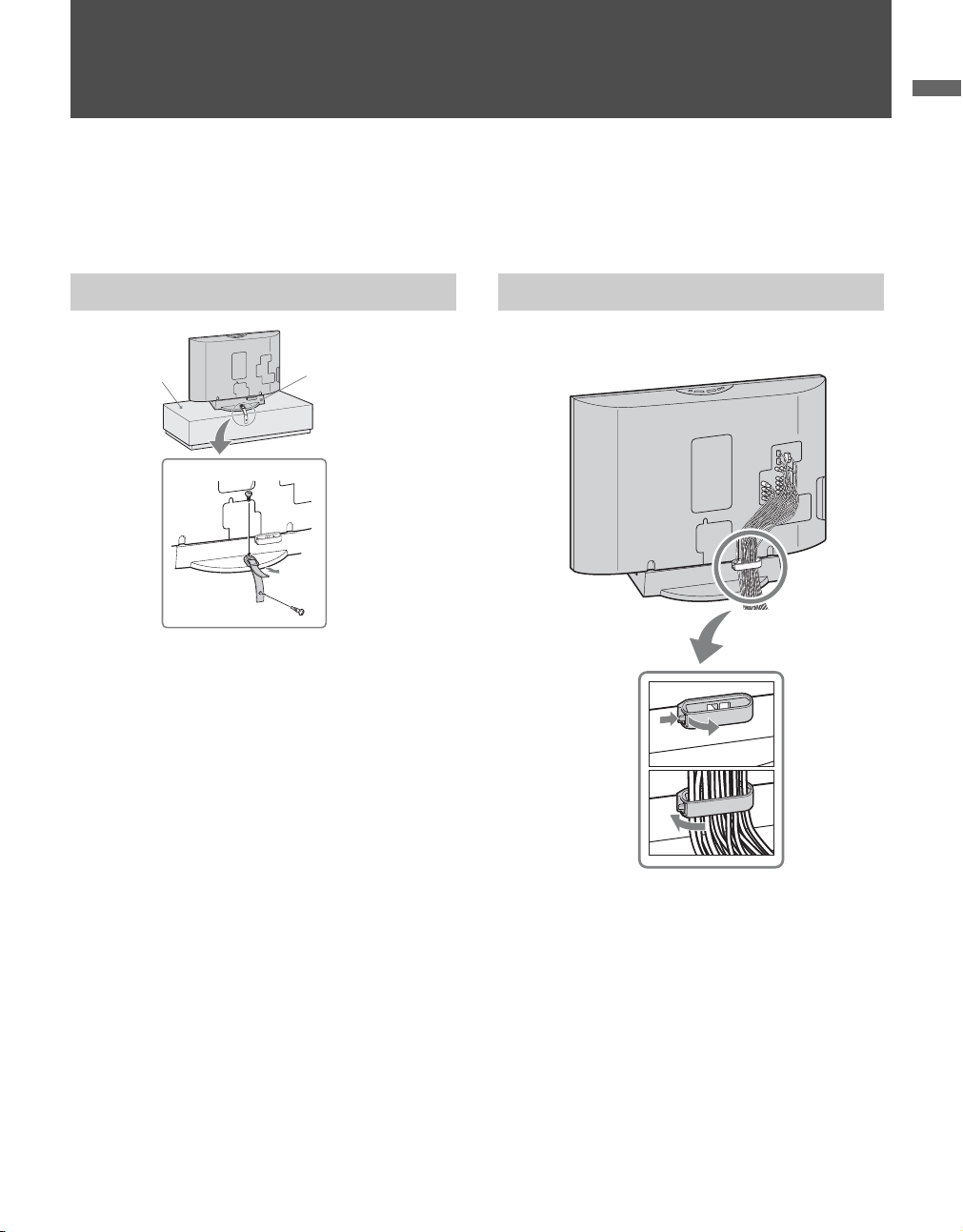

Preventing the TV from Toppling Over ...... 11
Bundling the Connecting Cables ............... 11

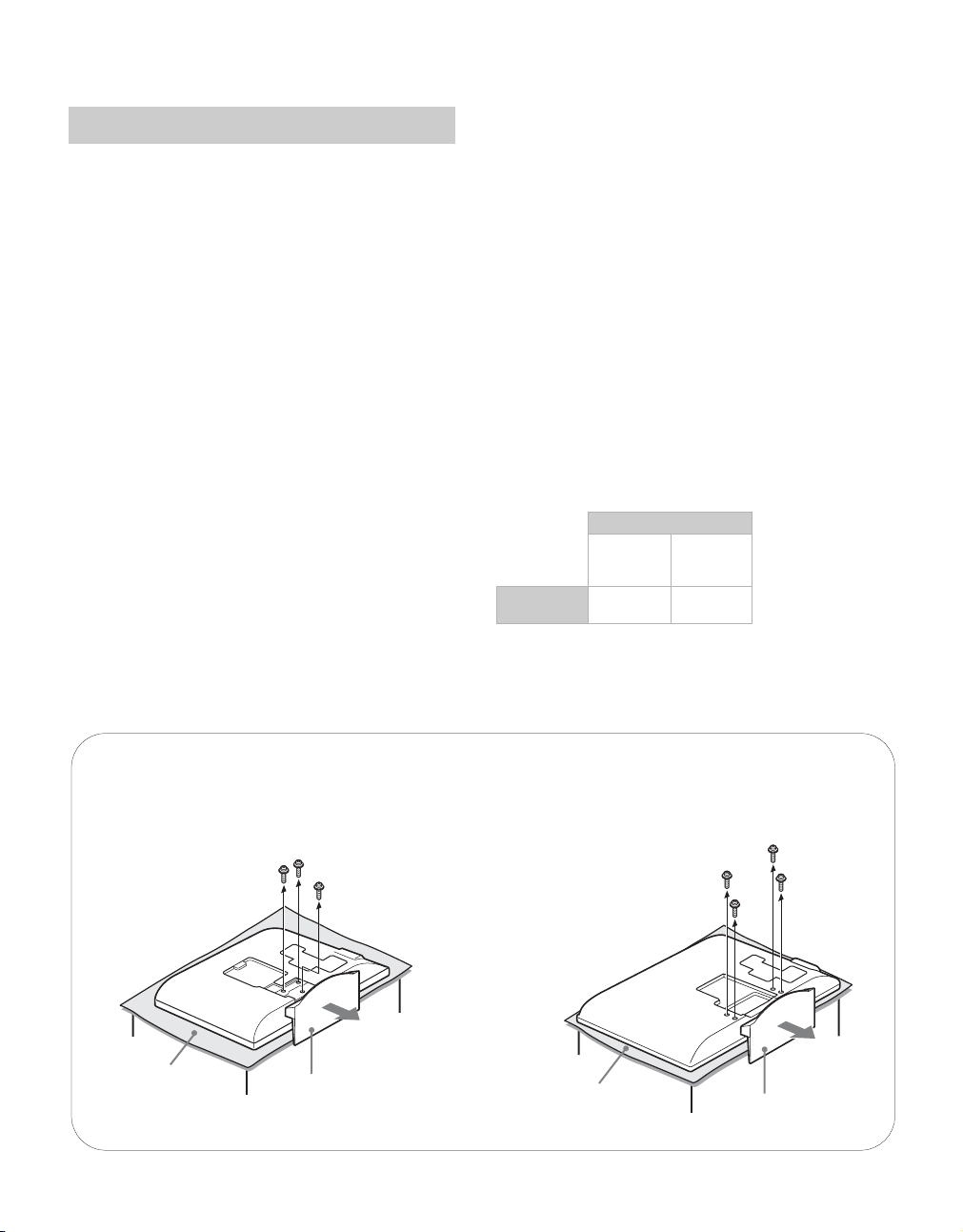

Preparation for Wall-Mounting ................... 12

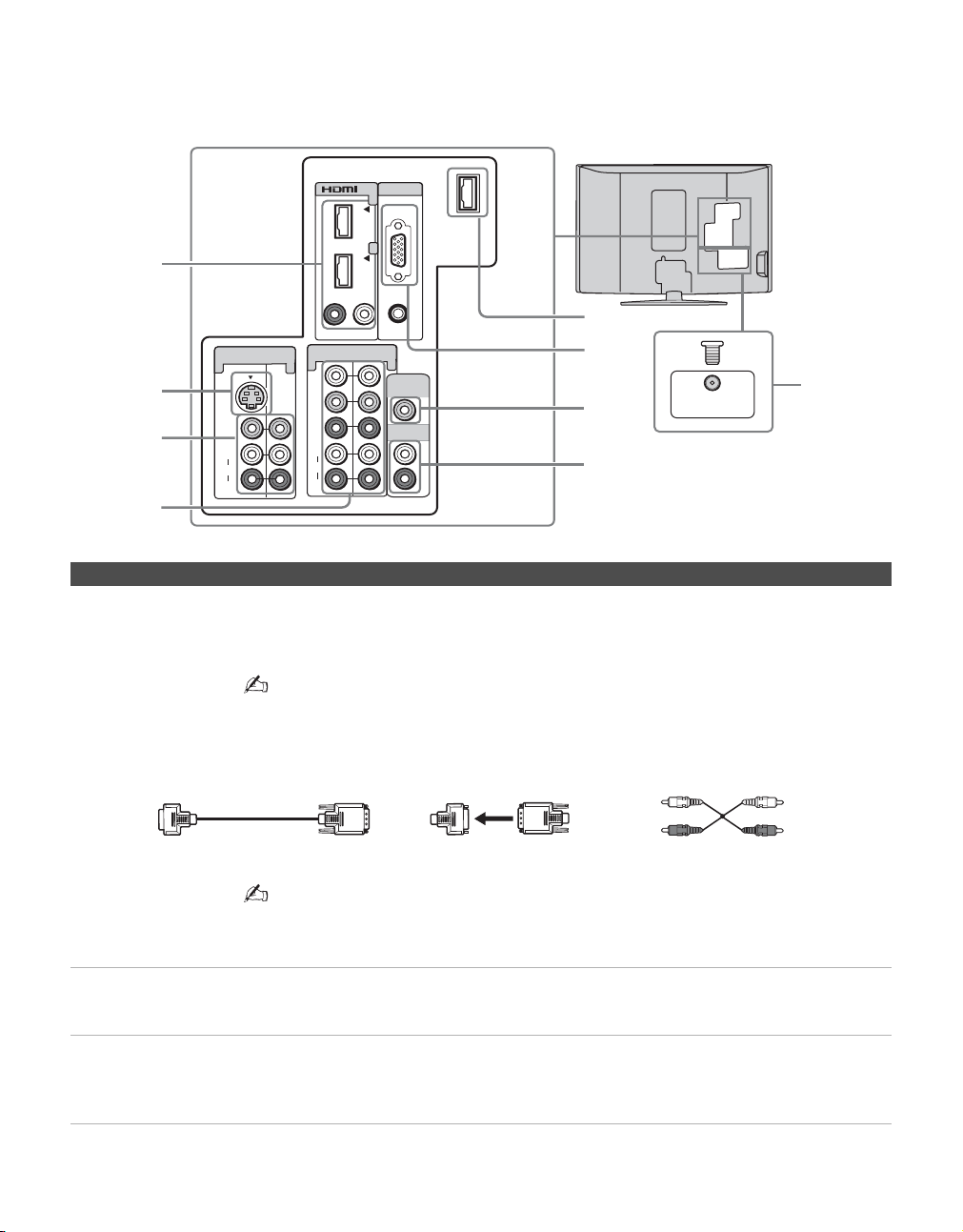

2. Locating outputs and inputs ................... 13
Left side ..................................................... 13
Rear ........................................................... 14

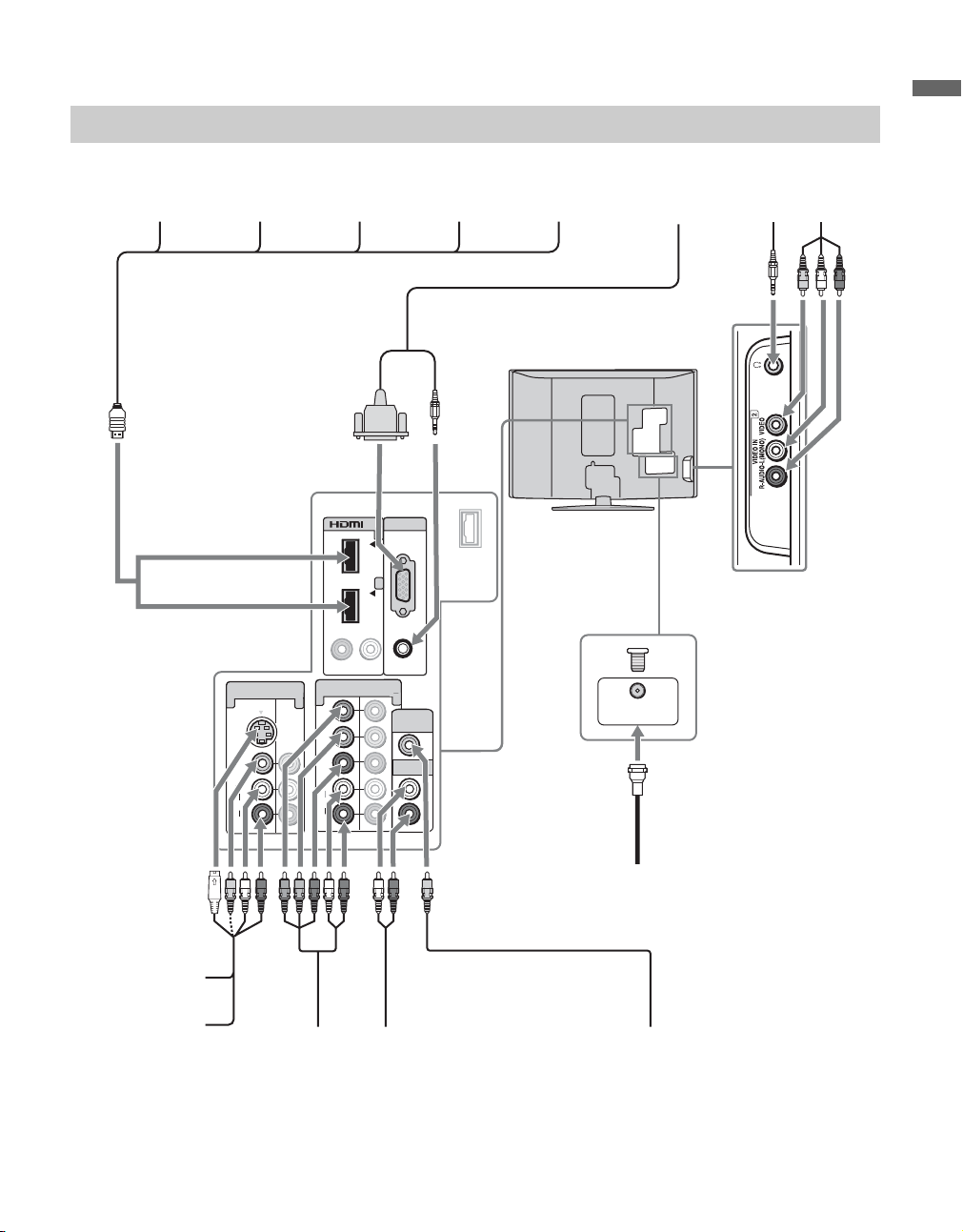

3. Connecting the TV ................................... 16

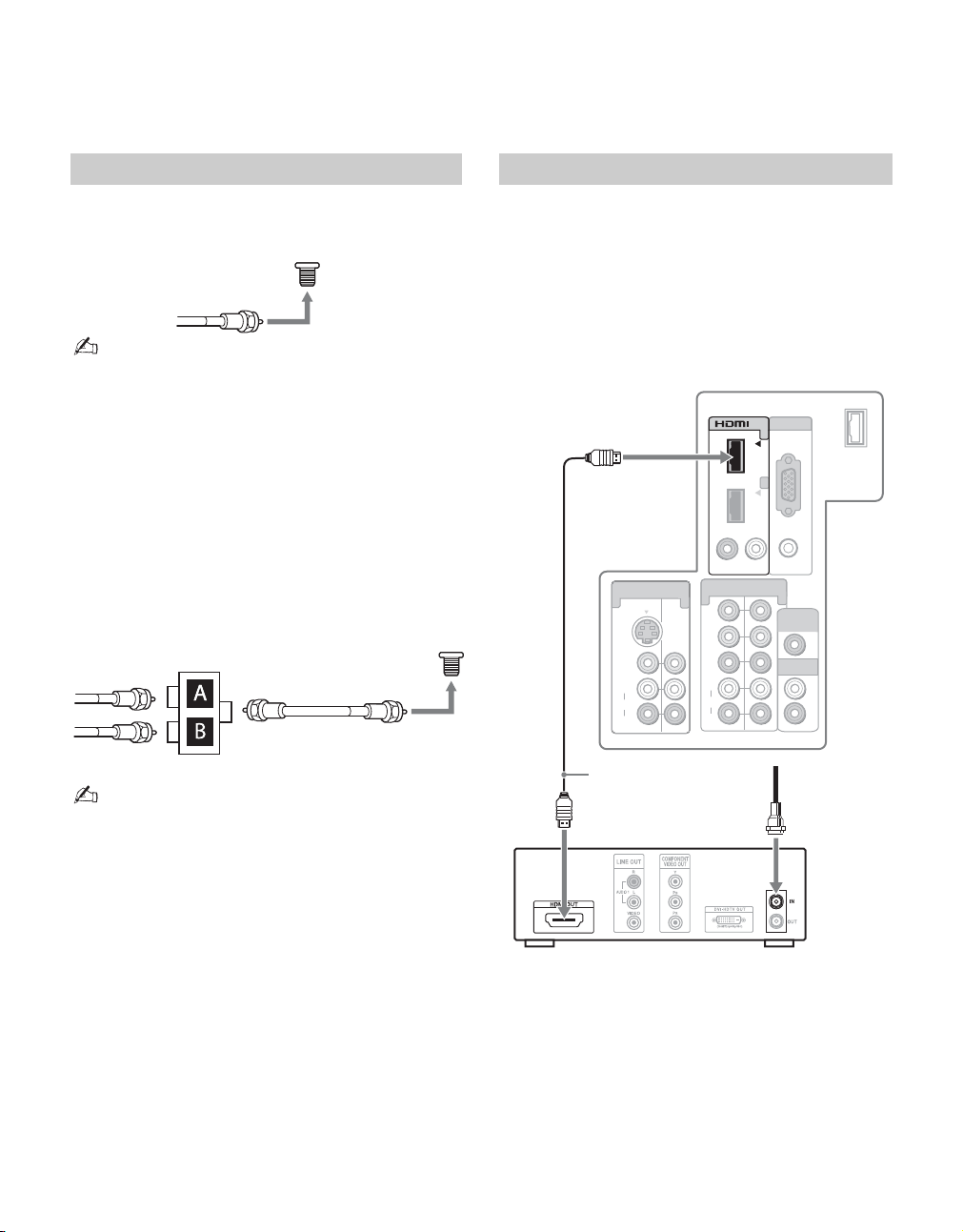

Cable system and/or VHF/UHF ................. 16
HD Cable Box/HD Satellite Box ................. 16

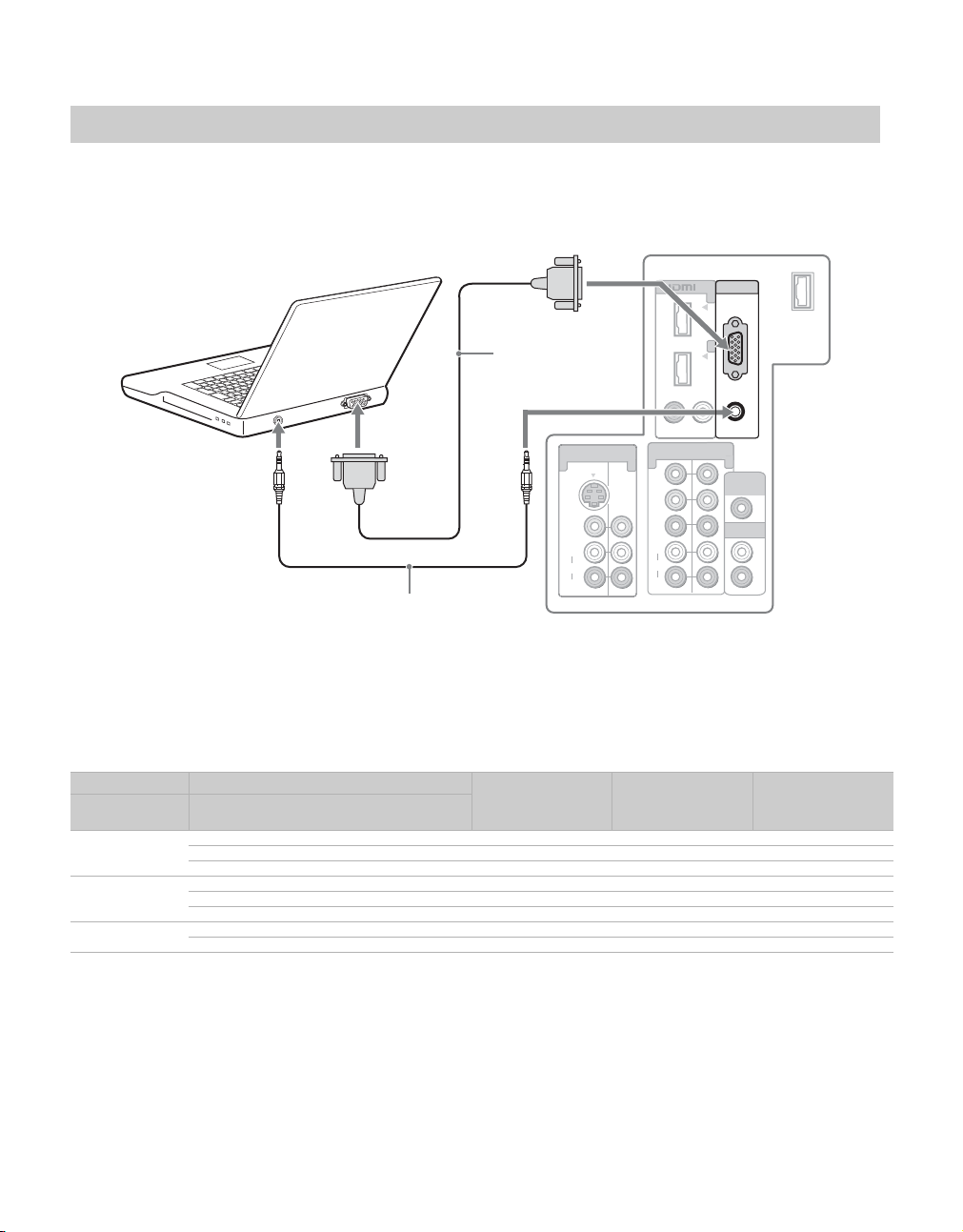

PC ................................................................... 18
Other Equipment........................................... 19
4. Setting Up the Channel List -
Initial Setup ............................................. 20
Basic Operations

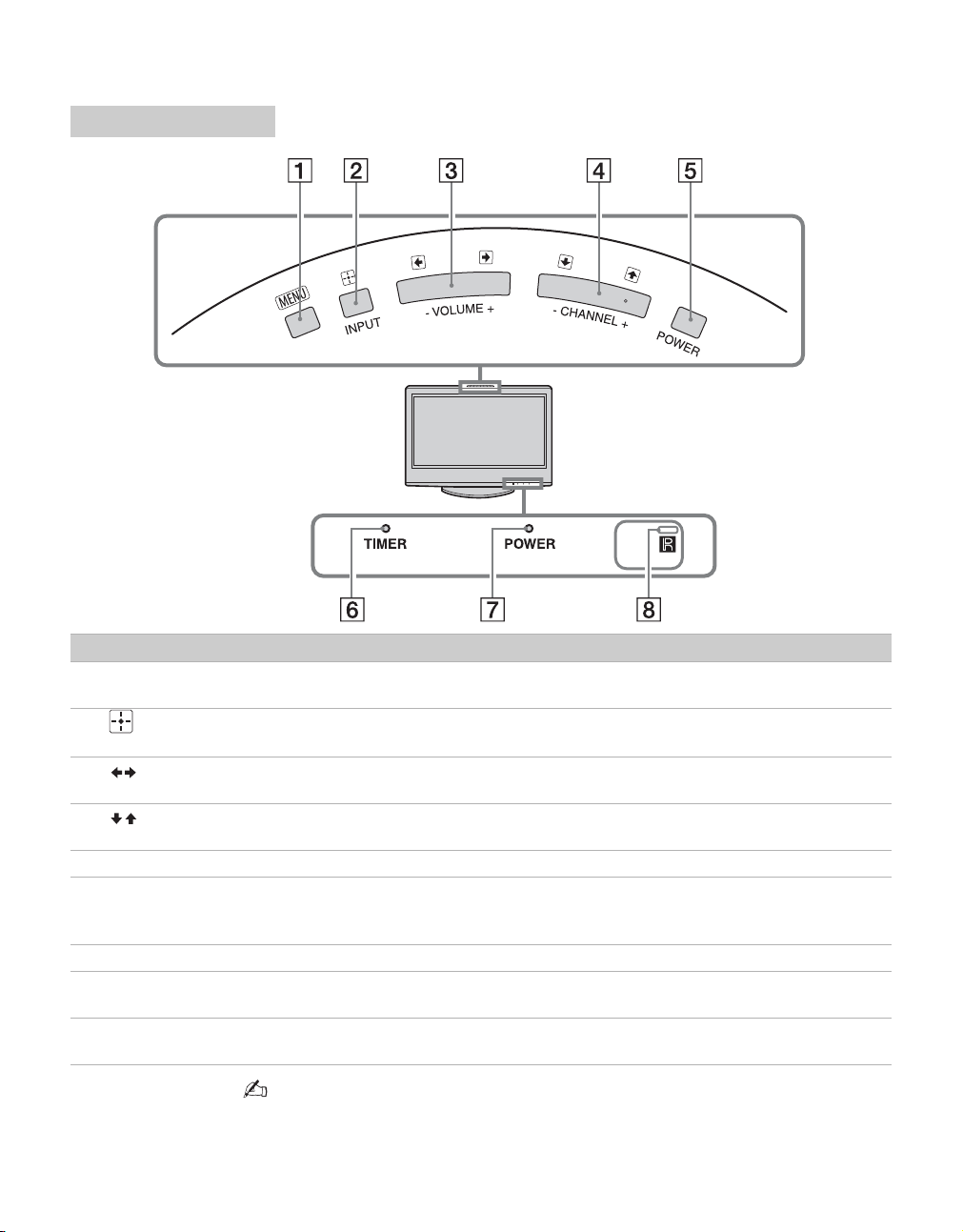

Remote Control and TV
Controls/Indicators ................................. 21

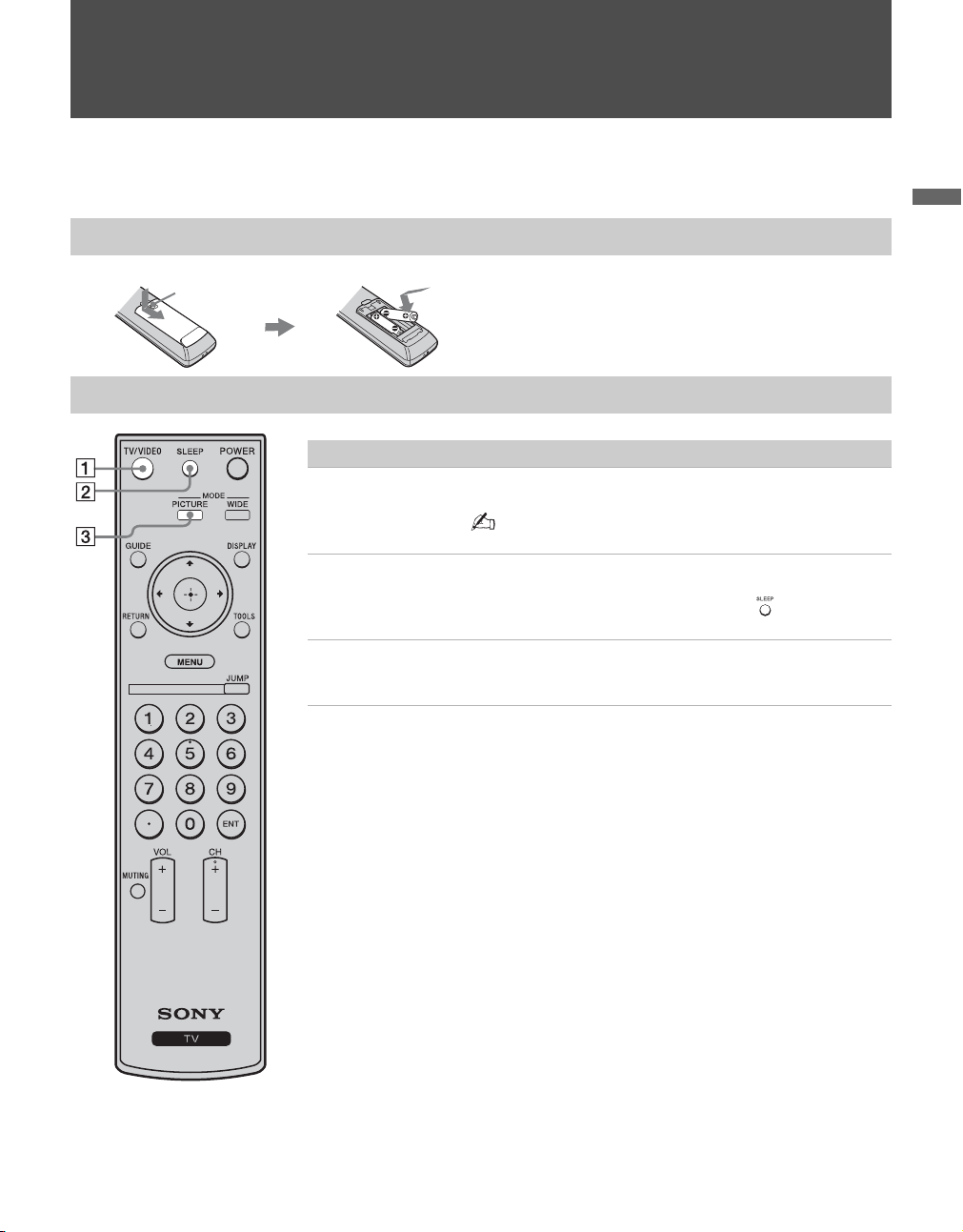

Inserting Batteries into the
Remote control ................................... 21

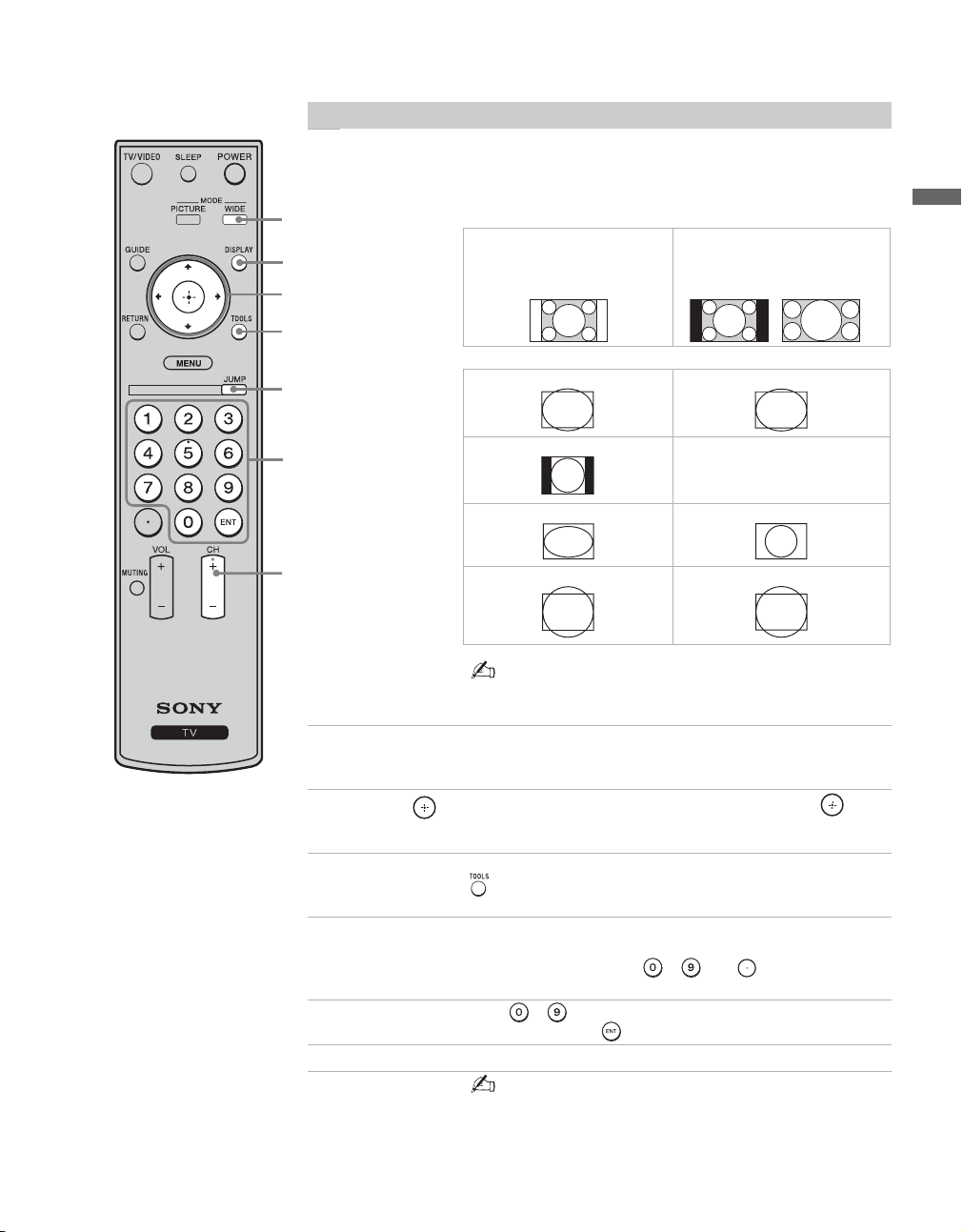

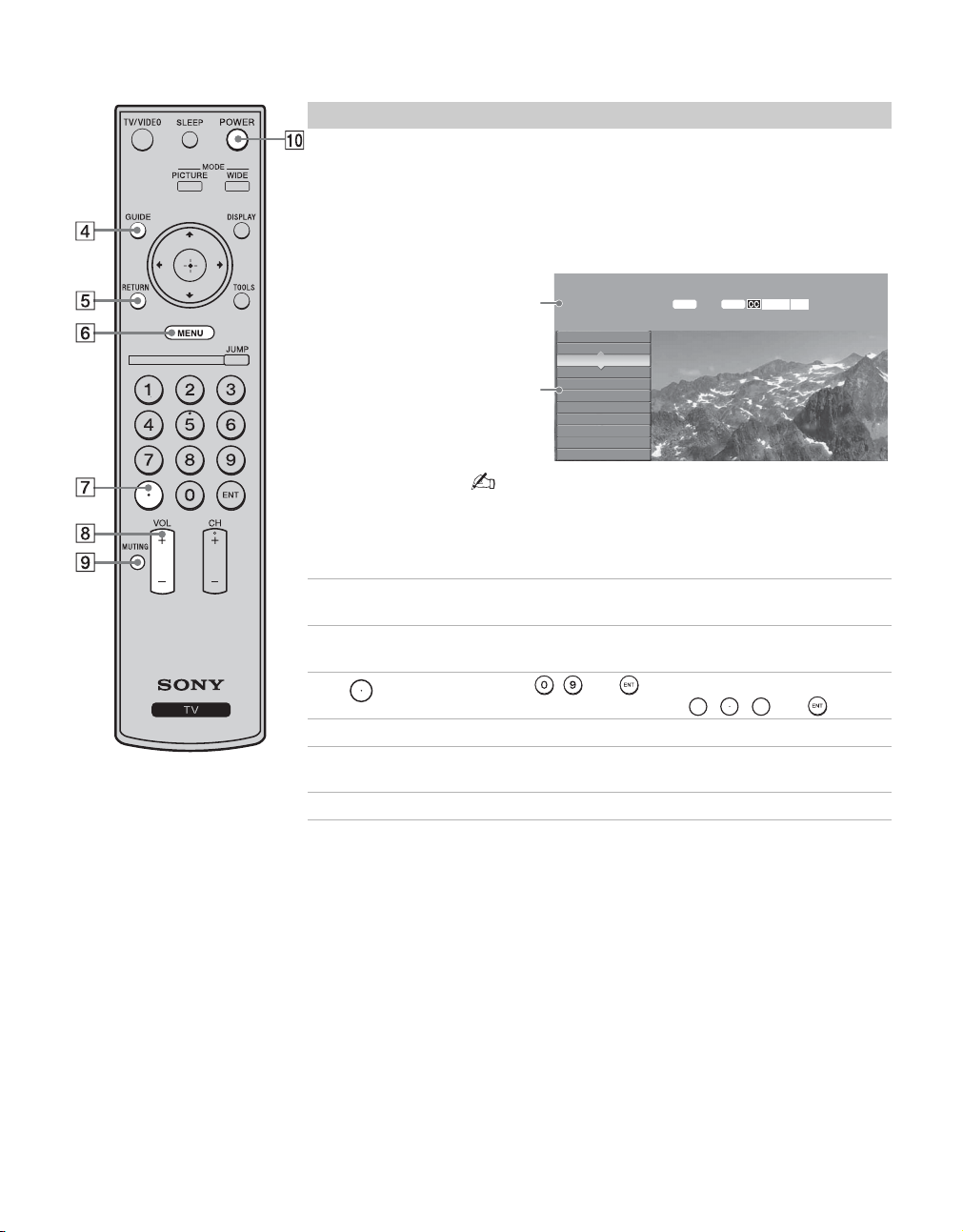

Remote Control ......................................... 21
Indicators ................................................... 24
Using the TV Menus

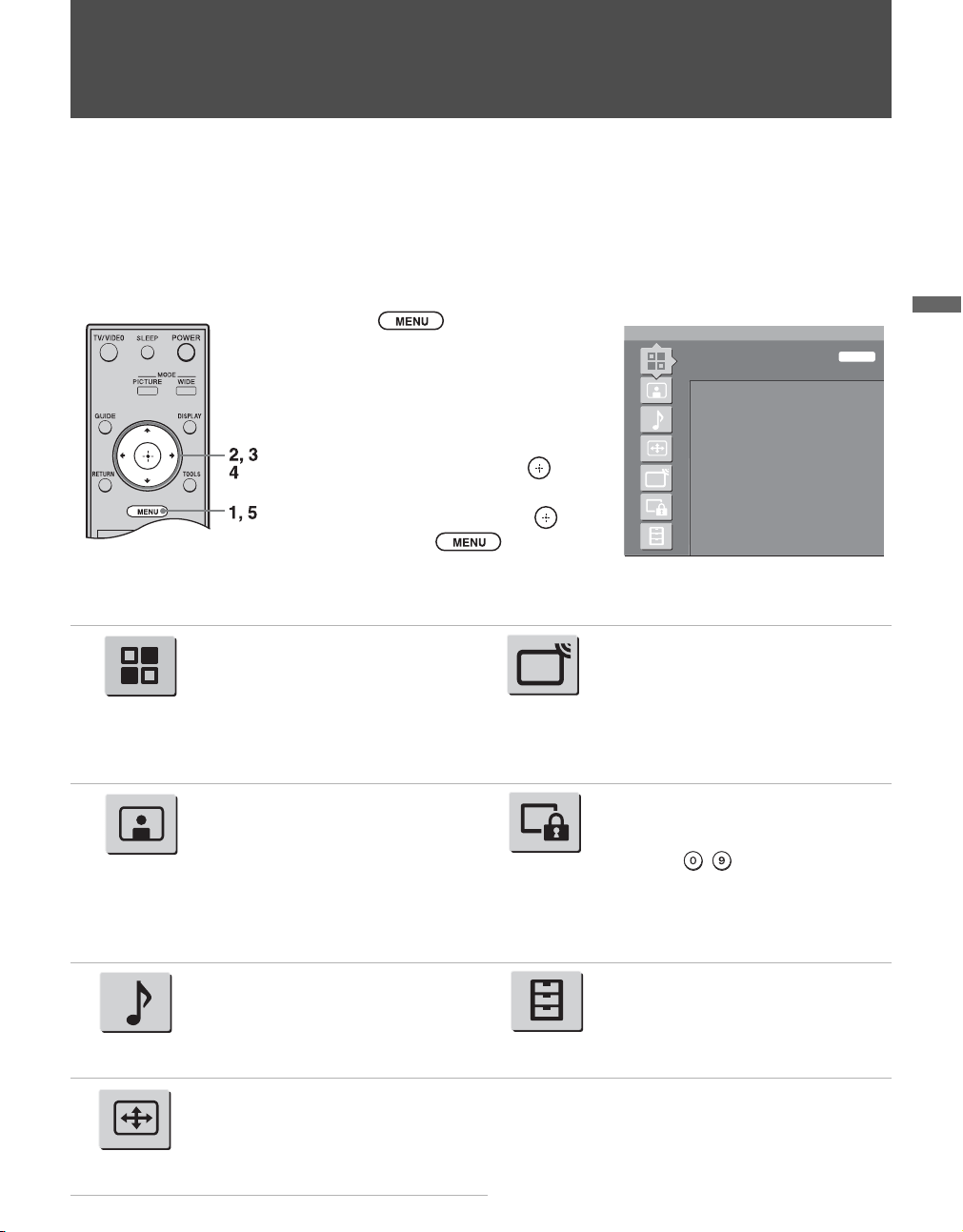

Navigating through TV Menus ..................... 25
Menu Descriptions........................................ 25
Using the Applications Menu....................... 26
Using the Picture Menu................................ 28
Using the Sound Menu................................. 28
Using the Screen Menu ................................ 29
Using the Channel Menu.............................. 30
Using the Parental Lock............................... 31
Using the Setup Menu .................................. 35
Other Information
Troubleshooting............................................ 38
Specifications................................................ 41
Index .............................................................. 42
Trademark Information
Macintosh is a trademark licensed to Apple, Inc., registered in the U.S.A.
and other countries.
Manufactured under license from Dolby Laboratories. “Dolby” and
double-D symbol are trademarks of Dolby Laboratories.
This TV incorporates High-Definition Multimedia Interface (HDMI™)
technology. HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI Licensing
LLC.
Blu-ray is a trademark. “BRAVIA” and , , and PS3 are
trademarks or registered marks of Sony Corporation.
4

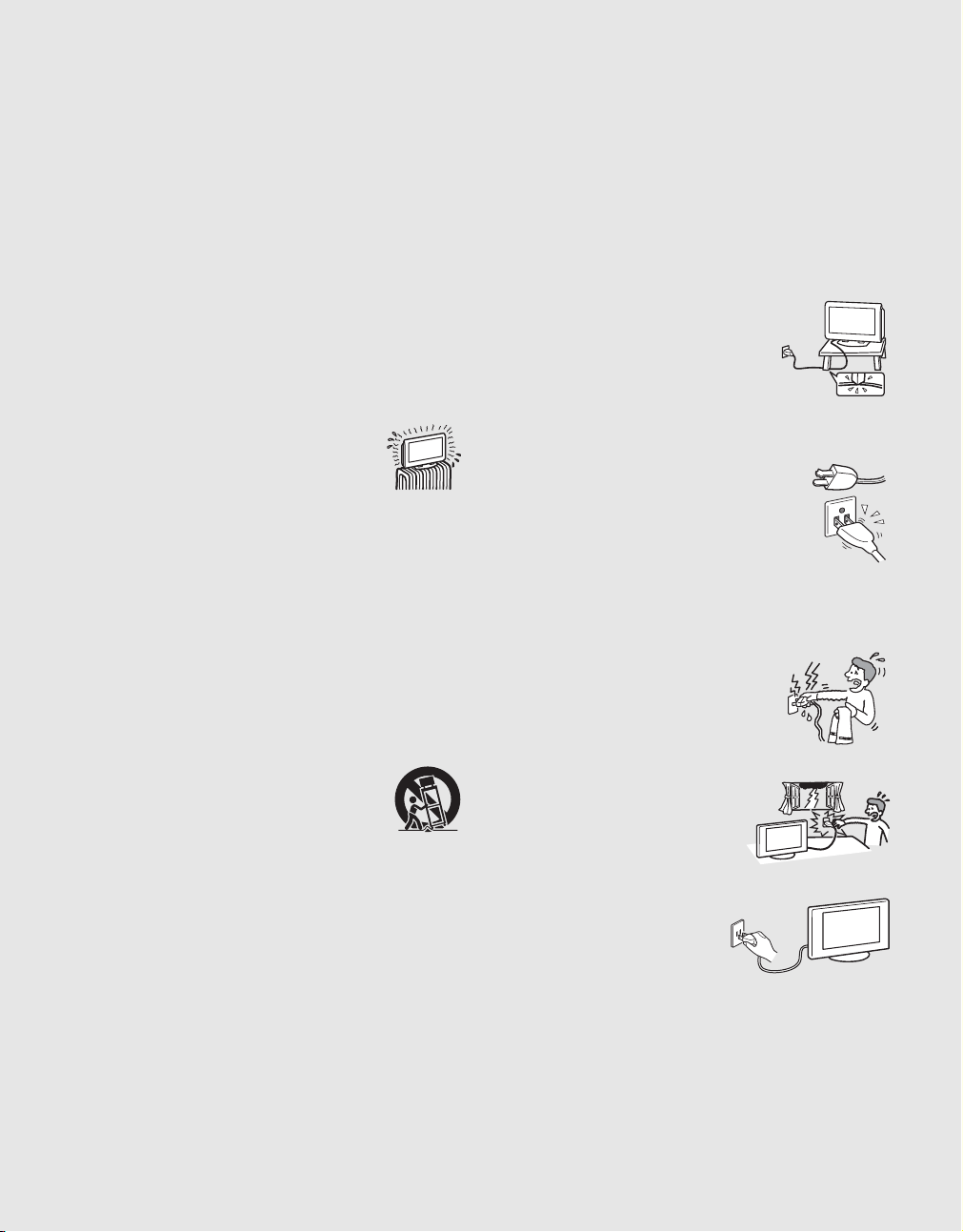

Important
Safety
Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that
produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete
outlet.
10) Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or
when unused for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
USE
AC power cord

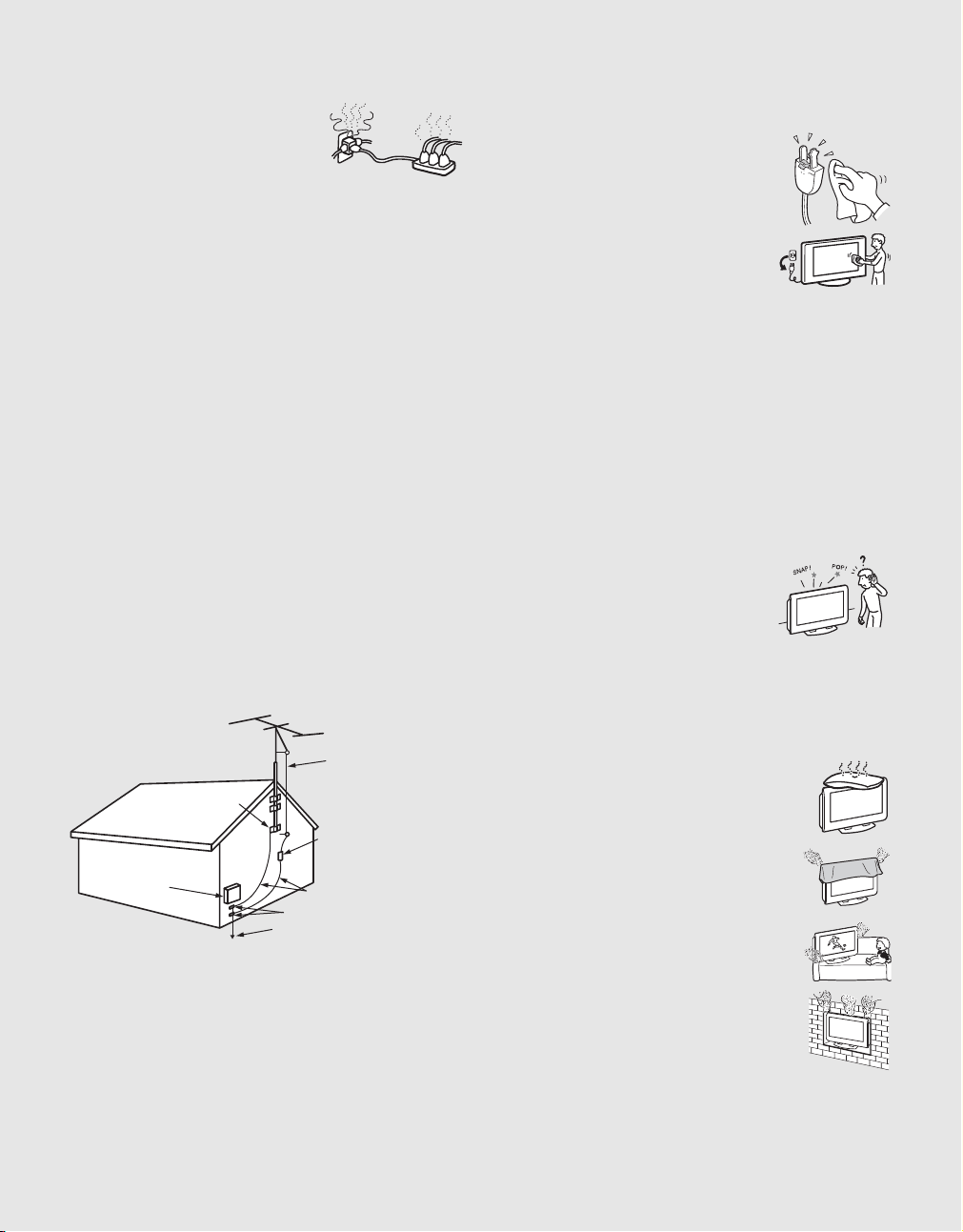

Observe the followings to prevent the AC power cord from being
damaged. If the AC power cord is damaged, it may result in a fire or an
electric shock. Stop using it and ask your dealer or Sony Service center to
exchange it.
s Do not place the TV where the power cord is subject to wear or
abuse.
s Do not pinch, bend, or twist the cord excessively. The core lines may
be bared and cut, and causing a short-circuit, resulting in a fire or an
electric shock.
s Do not convert or damage the power cord.
s Do not allow anything to rest on or roll over
the power cord.
s Do not pull the power cord.
s Do not move the TV with the power cord
plugged in.
s Keep the power cord away from heat sources.
s Be sure to grasp the plug when disconnecting
the power cord.
Wall outlet
Do not use a poor fitting outlet.
Insert the plug fully into the outlet. If it is loose, it may
cause arcing and result in a fire.
Contact your electrician to have the outlet changed.
Wiring
When connecting cables, be sure to unplug the AC power cord for your
safety.
Take care not to catch your feet on the cables, it may damage the TV set.
Electric shock
Do not touch the AC power cord or the TV with a wet
hand. If you plug/unplug the AC power cord from the
wall outlet with a wet hand, it may cause electric
shock.
Lightning storms
For added protection for this TV during a
lightning storm, or when it is left unattended
and unused for long periods of time, unplug it
from the wall outlet and disconnect the
antenna. This will prevent damage to the TV
due to lightning and power line surges.
When not in use
If you will not be using the TV set for
several days, the TV set should be
disconnected from the AC power outlet for
environmental and safety reasons. The TV
set is not disconnected from the AC power source when the TV set is
switched off. To disconnect the TV set completely, pull the plug from the
AC power outlet. However, some TV sets may have features which need
the TV set to be left in standby to work correctly. The instructions in this
manual will inform you if this applies.
5
Overloading
This TV set is designed to operate on a
120 V AC supply only. Take care not to
connect too many appliances to the same AC
power outlet as this could result in a fire or an
electric shock.
Optional equipment
Do not install optional equipment too close to the TV set. Picture distortion
and/or noisy sound may occur if the TV set is positioned in close proximity
to any equipment emitting electromagnetic radiation.
Small accessories
Keep small accessories out of children’s reach.
ANTENNAS
Outdoor antenna grounding
If an outdoor antenna is installed, follow the precautions below. An
outdoor antenna system should not be located in the vicinity of overhead
power lines or other electric light or power circuits, or where it can come
in contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM,
EXTREME CARE SHOULD BE TAKEN TO KEEP FROM
CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT
WITH THEM IS ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide some protection
against voltage surges and built-up static charges.
Section 810 of the National Electrical Code (NEC) in the USA and Section
54 of the Canadian Electrical Code in Canada provides information with
respect to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge unit, connection to
grounding electrodes, and requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
BATTERIES
s Do not dispose of batteries in a fire.
s Do not short circuit, disassemble or overheat the batteries.
s Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type.
Disposal of used batteries
To preserve our environment, dispose of used batteries according to your
local laws or regulations.
CLEANING
Cleaning the AC power plug
Unplug the AC power plug and clean it regularly. If
the plug is covered with dust and it picks up
moisture, its insulation may deteriorate and result in
a fire.
Cleaning the screen surface/
cabinet of the TV set
Unplug the AC power cord when cleaning this
TV. If not, it may result in electric shock. Clean
the cabinet of the TV with a dry soft cloth. To
remove dust from the screen, wipe it gently with a soft cloth. Stubborn
stains may be removed with a cloth slightly dampened with a solution of
mild soap and warm water. Never use strong solvents such as thinner or
benzine for cleaning. If using a chemically pretreated cloth, please follow
the instruction provided on the package. The ventilation holes can
accumulate dust over time. To ensure proper ventilation, we recommend
removing the dust periodically (once a month) using a vacuum cleaner.
MAGNETIC INFLUENCE
This TV contains a strong magnet in the speaker unit that generates a
magnetic field. Keep any items susceptible to magnetic fields away from
the speaker.
SOUND
If a snapping or popping sound from the TV is con-
tinuous or frequent while the TV is operating,
unplug the TV and consult your dealer or service
technician. It is normal for some TVs to make occa-
sional snapping or popping sounds, particularly
when being turned on or off.
VENTILATION
The slots and openings in the TV are provided for necessary ventilation.
To ensure reliable operation of the TV, and to protect it from overheating,
these slots and openings must never be blocked or covered.
Unless proper ventilation is provided, the TV may gather
dust and get dirty. For proper ventilation, observe the
following:
s Do not install the TV face up or down or sideways.
s Do not install the TV turned over or upside down.
s Never cover the slots and openings with a cloth or
other materials.
s Never block the slots and openings by placing the
TV on a bed, sofa, rug or other similar surface.
s Never place the TV in a confined space, such as a
bookcase or built-in cabinet, unless proper
ventilation is provided.
Antenna lead-in wire
Antenna discharge unit
(NEC Section 810-20)
Grounding conductors
(NEC Section 810-21)
Ground clamps
Power service grounding
electrode system
(NEC Art 250 Part H)
Ground clamps
Electric service
equipment
NEC: National Electrical Code
6
Objects and ventilation holes
Never push objects of any kind into the TV through the
cabinet slots as they may touch dangerous voltage points
or short out parts that could result in a fire or an electric
shock. Do not place any objects on the TV.
MOISTURE
Moisture and flammable objects
s
Do not use power-line operated TV sets near
water — for example, near a bathtub,
washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc. It
may result in a fire or an electric shock.
s Do not let this TV get wet. Never spill liquid of
any kind on the TV. If any liquid or solid object
does fall through, do not operate the TV. It may
result in electric shock or damage to the TV.
Have it checked immediately by qualified
personnel.
s To prevent fire, keep flammable objects or open flame (e.g. candles)
away from the TV.
s Do not place any objects on the TV.
s The TV must not be exposed to dripping or
splashing. Do not place objects filled with
liquids, such as vases, on the TV.
CARRYING THE TV
Carry the TV in the specified manner
To avoid dropping the TV and causing serious injury, be sure to follow
these guidelines:
s Before carrying the TV set, disconnect all cables.
s Carrying the large size (32/37 inches) TV
requires two or more people.
s When you carry the TV, place your hand as
illustrated and hold it securely. Do not put stress
on the LCD panel and the frame around the
screen.
s When lifting the TV set or moving the panel, hold it firmly from the
bottom. Place your palm directly under the panel
s When carrying the TV set, do not
subject it to shocks or vibration, or
excessive force.
INSTALLATION
Wall mount installation requires the use of a
Wall-Mount Bracket. When installing or removing
the TV, using the Wall-Mount Bracket, be sure to
use qualified contractors. If not properly secured
during installation or removal from the
Wall-Mount Bracket, the TV may fall and cause
serious injury.
Optional wall mount
Observe the following when installing the TV using a
wall-mount bracket. If the TV is not secured properly, it
may fall and cause injury.
s Be sure to follow the operating instructions supplied
with the wall-mount bracket when installing the TV.
s Be sure to attach the brackets supplied with the wall-mount bracket.
s Do not hang the TV from the ceiling. It may fall and cause serious
injury.
Placement for viewing
It is recommended to watch the TV at a distance of 3 - 7 times that of the
screen height, and in moderate brightness. Watching the TV for too long
or in a dark room may cause eye fatigue. To obtain a clear picture, do not
expose the screen to direct illumination or direct sunlight. If possible, use
spot lighting directed down from the ceiling.
Leave some space around the TV set as shown below.
Otherwise, air-circulation may be inadequate and cause
overheating, which may cause a fire or damage to the TV set.
2
3
/
8
inches
(6 cm)
11
7
/
8
inches
(30 cm)
4 inches
(10 cm)
4 inches
(10 cm)
11
7
/
8
inches
(30 cm)
4 inches
(10 cm)
4 inches
(10 cm)
4 inches (10 cm)
2
1
/
4
inches
(5.7 cm)
Never install the TV as follows:
Air circulation is blocked. Air circulation is blocked.
Installed on the wall
Installed with stand
Leave at least this much space
around the set.
Leave at least this much space
around the set.
7
Placement
The TV should be installed near an easily accessible AC power outlet.
Observe the following in placing the TV. Otherwise the
TV may fall from the stand or wall mount, causing
damage or serious injury.
s Place the TV on a stable, level surface.
s Do not hang anything on the TV. Do not allow
children to climb on the TV.
Do not install the TV in places subject to extreme temperatures, such as in
direct sunlight, near a radiator, or near a heating vent. If the TV is exposed
to extreme temperature, the TV may overheat and cause deformation of the
enclosure or cause the TV to malfunction. Do not install the TV in a place
exposed to direct air conditioning. If the TV is installed in such a location,
moisture may condense inside and may cause a malfunction.
s Never place the TV in hot, oily, humid or
excessively dusty places.
s Do not install the TV where insects may
enter.
s Do not install the TV where it may be
exposed to mechanical vibration.
s Do not install the TV in a location where it may protrude, such as on
or behind a pillar, or where you might bump your head on it.
Otherwise, it may result in injury.

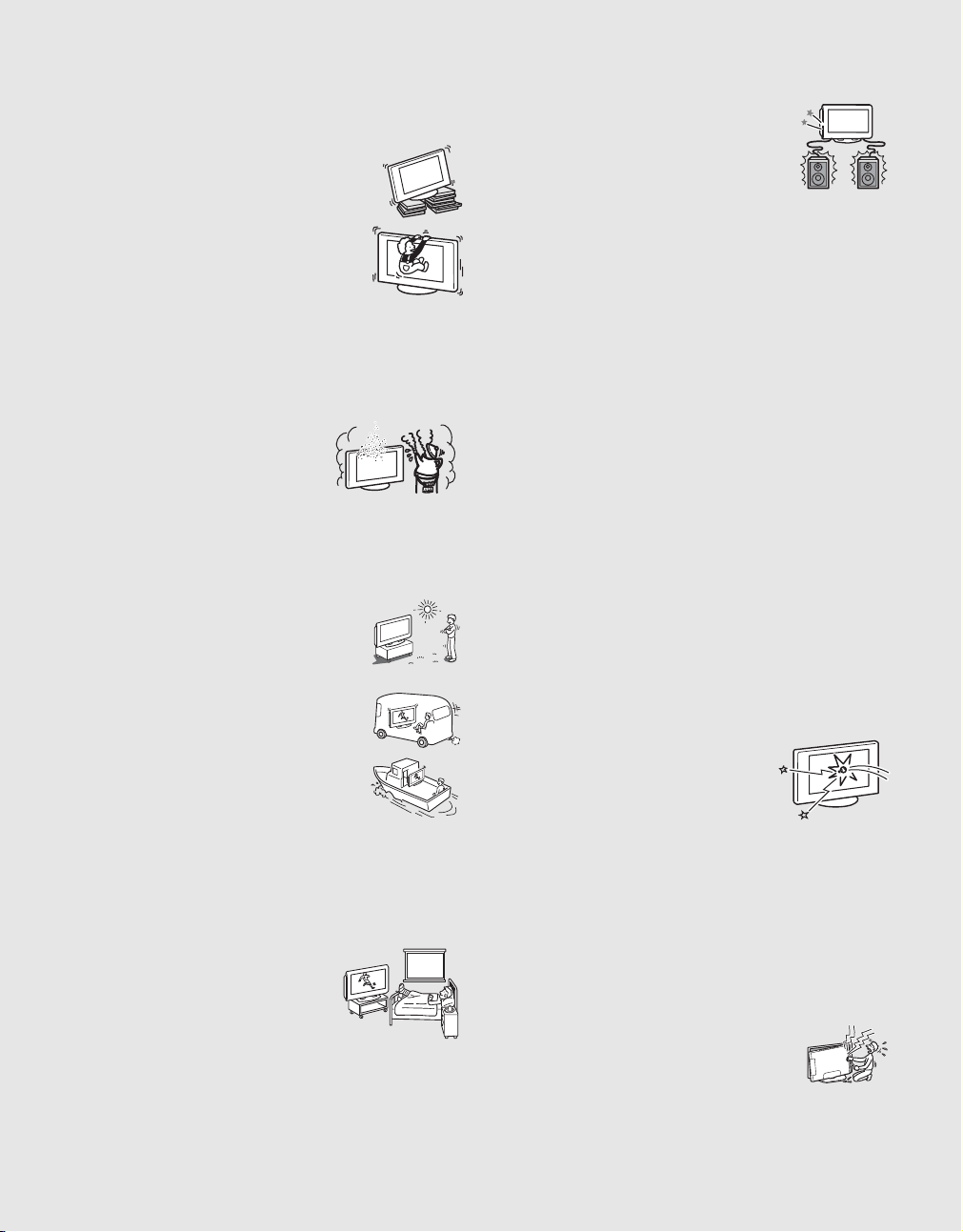

Outdoor use
Do not install this TV outdoors. If the TV is exposed to
rain, it may result in a fire or an electric shock. Do not
expose the TV to direct sunlight, it may heat up and
become damaged.
Vehicle, ships and other vessels
Do not install this TV in a vehicle. Bumping of the
vehicle may cause the TV to fall down and cause injury.
Do not install this TV in a ship or vessel. If the TV is
exposed to seawater, it may cause a fire or damage the
TV and also shorten the life of the TV.
Corrosion
If you use this TV near the seashore, salt may corrode metal parts of the
TV and cause internal damage or fire; it may also shorten the life of the TV.
Oils
Do not install this TV in restaurants where oily vapors occur. Dust
absorbing oil may enter and damage the TV.
Medical institution
Do not place this TV in a place where medical
equipment is in use. It may cause a malfunction of
medical equipment.
Preventing the TV from toppling over
Take measures to prevent the TV from toppling over and causing injury.
To prevent the TV from toppling over, secure the TV to a wall or stand.
Attachments
Do not use attachments not recommended by the
manufacturer, as they may cause hazards.
VOLUME ADJUSTMENT
s Adjust the volume so as not to trouble your neighbors. Sound carries
very easily at night. Therefore, closing the windows or using
headphones is suggested.
s When using headphones, adjust the volume so as to avoid excessive
levels, as hearing damage may result.
LCD SCREEN
s Although the LCD screen is made with high-precision technology
and has effective pixels of 99.99% or more, black dots or bright
points of light (red, blue, or green) may appear constantly on the
LCD screen. This is a structural property of the LCD panel and is not
a malfunction.
s The LCD screen is made with high-precision technology and to
achieve a high level of performance and picture quality, this TV’s
backlight setting is set to maximize the brightness of the TV.
However, uneven brightness may be observed when the LCD TV is
viewed in a dark ambient without an input source or blank screen.
This condition is normal and not a malfunction of the TV. Changing
the Picture mode, Backlight setting, or enabling the Light Sensor,
will improve this condition.
s Do not expose the LCD screen surface to direct sun light. Doing so
may damage the LCD panel.
s Do not push or scratch the LCD screen, or place objects on top of the
TV. The image may be uneven or the LCD panel may be damaged.
s If the TV is used in a cold place, a smear may occur in the picture or
the picture may become dark. This does not indicate a failure. These
phenomenon improve as the temperature rises.
s Ghosting may occur when still pictures are displayed continuously.
It should disappear after a few moments.
s The screen and cabinet get warm when the TV is in use. This is not
a malfunction.
s Avoid spraying insect repellent with volatile material on the screen.
s Avoid prolonged contact with rubber or plastic made material.
Broken pieces
Do not throw anything at the TV.
The screen glass may break by the impact and cause
serious injury.
If the surface of the TV cracks, do not touch it until
you have unplugged the AC power cord.
Otherwise electric shock may result.
Handling of broken glass and liquid crystal
leakage
If the LCD panel gets damaged, crystalline liquid leakage may occur, or
scattered broken glass may result. Do not touch broken glass or crystalline
liquid (which is toxic), with bare hands as cuts, poisoning or skin irritation
may occur. Also, do not let glass fragments or leaked crystalline liquid get
into your eyes or mouth. Should either contact your eyes or mouth, rinse
the contacted area thoroughly with water and consult your doctor.
SERVICING
Do not attempt to service the TV yourself since opening
the cabinet may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
8
Replacement parts
When replacement parts are required, be sure the service
technician certifies in writing that he/she has used
replacement parts specified by the manufacturer that
have the same characteristics as the original parts.
Unauthorized substitutions may result in a fire, an
electric shock or other hazards.
Safety check
Upon completion of any service or repairs to the TV, ask
the service technician to perform routine safety checks
(as specified by the manufacturer) to determine that the
TV is in safe operating condition, and to so certify.
Should the TV not be repairable, ask a qualified service technician to
dispose of the TV.
For Customers in the United States
Lamp in this product contains mercury. Disposal of
these materials may be regulated due to environmental
considerations. For disposal or recycling information,
please contact your local authorities or the Electronic
Industries Alliance (www.eiae.org).
9
Thank you for purchasing this Sony
™
high-definition television. The quality of the image you see
on your BRAVIA TV is only as good as the quality of the signal it receives. To experience the stunning detail
of your new BRAVIA TV, you need access to HD programming. Your BRAVIA TV can receive and display HD
programming from:
• Over-the-air broadcasting via HD-quality antenna
• HD cable subscription
• HD satellite subscription
• Blu-ray Disc™ player or other external equipment
Contact your cable or satellite provider for information on upgrading to HD programming.
To learn more about HDTV, visit: http://www.sony.com/HDTV
The Four Steps to Stunning HD Experience: Set, Sound, Source,
and Setup
Along with your BRAVIA TV set, a complete HD system requires an HD sound system, a source of HD
programming and proper setup connections. This manual explains basic setup connections (see page 16).
The Quick Setup Guide, enclosed separately, illustrates how to connect other optional equipment.
Picture Quality and Aspect Ratio
You can enjoy crisp, clear images, smooth movement and high-impact visuals from 1080i HD signals. When
you compare a high-definition signal to a standard analog signal, you will notice a big difference. The 1080i
HD signals provide more than twice the vertical resolution of the standard TV signal.
High-definition and standard-definition signals are transmitted with different aspect ratios (the width-to-height
ratio of the image). HDTV uses a wider screen than conventional standard-definition TV.
~
• You can use the Wide Mode function of the TV to adjust the 4:3 image to fit the entire screen (see pages 23 and 29).
• This TV supports signals up to 1080i.
16:9 (high-definition) source
Most HDTV signals use a wide screen aspect ratio of
16:9. The 16:9 fills your BRAVIA screen and maintains
a crisp, clear, vivid picture.
4:3 (standard-definition) source
Most standard-definition signals use a boxy 4:3 aspect
ratio. When a 4:3 image is displayed on an HDTV, you
will see black bars on the sides. The picture quality ma
y
not be as sharp as with HD sources.
Welcome to the World of BRAVIA™
11
Getting Started
Getting Started
1. Installing the TV
~
• The Table-Top Stand for this product is packaged separately (for models KDL-26M3000/KDL-26ML130/
KDL-37M3000). To install the TV unit to the Table-Top Stand before the connection and setup, refer to the
Table-Top Stand instructions (supplied with the TV set).
1 Screw the support belt (supplied) to the TV
stand (not supplied) with a wood screw
(supplied).
2 Attach the support belt to the Table-Top Stand
with the securing screw (supplied) using a
coin, etc.
3 Adjust the length by pulling the support belt
toward you while holding the Table-Top
Stand.
~
• Be sure to take measures to prevent the TV from
toppling over and causing injury.
• The supplied wood screw may not be used depending
on the type of TV stand. In this case, or when the
securing strength is not enough, use commercial screws
1
/8 to
3
/16 inch (3 to 4 mm) diameter to fit to the TV
stand. Consult your dealer about the types of screw(s).
You can bundle the connecting cables as illustrated
below.
~
• Do not bundle the AC power cord with other
connecting cables.
Preventing the TV from Toppling Over
2
3
1
TV
stand
Table-Top
Stand
Bundling the Connecting Cables
1
2
12
This TV can be installed on a wall by using a Wall-
Mount Bracket (sold separately). Before mounting
the TV on a wall, the Table-Top Stand must be
removed from the TV.
~
• Do not remove the Table-Top Stand for any reason
other than to wall-mount the TV.
Follow the simple steps below to remove the Table-
Top Stand:
1 Disconnect all the cables from the TV.
2 Gently lay the TV, face down, onto a level and
stable surface covered with a thick and soft
cloth. Make sure the Table-Top Stand is
hanging over the edge.
3 Remove the screws as shown in the illustration
for your model and pull the Table-Top Stand
out.
4 Do not remove any other screws from the TV.
~
• Be sure to store the removed screws and Table-Top
Stand in a safe place until you are ready to reattach the
Table-Top Stand. Keep the screws away from small
children.
• For bracket installation, refer to the Wall-Mount insert
(supplied in the accesories) and the instruction guide
provided by the Wall-Mount Bracket model for your
TV. Sufficient expertise is required in installing this
TV, especially to determine the strength of the wall for
withstanding the TV’s weight.
• For product protection and safety reasons, Sony
strongly recommends that you use the Wall-Mount
Bracket model designed for your TV and the wall-
mounting of your TV should be performed by a
Sony dealer or licensed contractor.
Use the following Sony TV’s only with the
following WALL-MOUNT BRACKET.
~
• Use with other WALL-MOUNT BRACKET may cause
instability and possibly result in injury.
Preparation for Wall-Mounting
Sony TV Model No.
KDL-26M3000
KDL-26ML130
KDL-32M3000
KDL-32ML130
KDL-37M3000
Sony Wall-Mount
Bracket Model No.
SU-WL100 SU-WL500
Model: KDL-37M3000
Remove 4 designated screws only.
Level surface
covered with a
soft cloth
Table-Top
Stand
Model: KDL-26M3000
KDL-26ML130
KDL-32M3000
KDL-32ML130
Remove 3 designated screws only.
Level surface
covered with a
soft cloth
Table-Top
Stand
13
Getting Started
2. Locating outputs and inputs
Item Description
1 Headphones
jack
Connects to your headphones. If your headphones do not match the jack, use a suitable plug
adapter (not supplied).
• While headphones are connected, the TV speakers are muted.
2
VIDEO IN 2
VIDEO/
L (MONO)-
R AUDIO
Connects to the composite video and audio output jacks on your camcorder or other video
equipment such as a VCR or video game equipment.
• If you have mono equipment, connect its audio output jack to the TV’s L (MONO) audio
input jack.
1
2
Left side
14
Item Description
3 HDMI IN 1/2
R-AUDIO-L
HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-digital
audio/video interface between this TV and any HDMI-equipped audio/video equipment, such
as DVD player, a set-top box, A/V receiver and Blu-ray disc player as well as PC. HDMI
supports enhanced or high definition video plus digital audio.
• If the equipment has a DVI and not a HDMI connector, use a HDMI to DVI cable or adapter
to connect the DVI output to either HDMI IN 1 or HDMI IN 2 input, and connect the audio
jacks to the AUDIO (L/R) jacks below the HDMI IN 2. (DVI connector is for video signals
only, the Audio jacks provide support for the audio.)
• For better PC view, use the PC IN (RGB IN) input.
• HDMI connection is necessary to view 480i, 480p, 720p, and 1080i formats. Note that this
TV displays all video input signals in a resolution of 1,366 dots × 768 lines.
4 VIDEO IN 1
S VIDEO
Connects to the S VIDEO output jack of your VCR or other video equipment that has
S VIDEO. S VIDEO provides better picture quality than composite video (5). S VIDEO
does not provide sound, you need to connect the audio cables.
5 VIDEO IN 1/3
VIDEO/
L(MONO)-
AUDIO-R
Connect to the composite video and audio output jacks on your A/V equipment such as a VCR
or other video equipment. A third composite video and audio (VIDEO IN 2) input is located
on the left side panel of the TV.
VIDEO
AUDIO
(MONO)
L
R
VIDEO IN
S VIDEO
1
3
R-A
UDIO-
L
RGB
AUDIO
SERVICE
ONLY
PC IN
Y
P
B
P
R
L
R
COMPONENT IN
(1080i/720p/480p/480i)
2
1
AUDIO
DIGITAL
AUDIO OUT
(COAXIAL)
AUDIO OUT
(FIX)
3
4
8
0
7
9
5
6
VHF/UHF/
CABLE
qa
IN
1
2
Rear
HDMI-to-DVI cable HDMI-to-DVI adapter Audio cable
15
Getting Started
6 COMPONENT
IN (1080i/720p/
480p/480i)/
L-AUDIO-R
Connect to your DVD player’s or digital set-top box’s component video (YP
B
P
R
) and audio
(L/R) jacks. Component video provides better picture quality than the S VIDEO (4) or the
composite video (5) connections.
7 AUDIO OUT
(FIX)
Connect to the left and right audio input jacks of your audio or video equipment. You can use
these outputs to listen to your TV’s audio through your stereo system.
8 DIGITAL AUDIO
OUT (COAXIAL)
Connects to the coaxial audio input of a digital audio equipment that is PCM/Dolby Digital
compatible.
9 PC IN
(RGB/AUDIO)
Connect to a personal computer’s video output connector using HD15-HD15 cable (analog
RGB, not supplied).
See PC Input Signal Reference Chart on page 18 for the signals that can be displayed.
• For some Apple Macintosh computers, it may be necessary to use an adapter (not supplied).
If this is the case, connect the adapter to the computer before connecting the HD15-HD15
cable.
0 SERVICE ONLY This USB port is for service only.
qa VHF/UHF/
CABLE
RF input that connects to your Cable or VHF/UHF antenna.
• Component video (YP
B
P
R
) or HDMI connection are necessary to view 480i, 480p, 720p, and 1080i formats. Note
that this TV displays all format types of picture in its native resolution of 1,366 dots × 768 lines.
Item Description
16
3. Connecting the TV
Cable or VHF/UHF (or VHF only)
• It is strongly recommended that you connect the
antenna/cable input using a 75-ohm coaxial cable (not
supplied) to receive optimum picture quality. A
300-ohm twin lead cable can be easily affected by radio
frequency interference, resulting in signal degradation.
Cable and VHF/UHF (or VHF only)
If you want to watch both cable and antenna (over-
the-air) programming, you will need to use an
optional A-B RF Switch (not supplied) to switch
between the cable and over-the air antenna
programming, as shown.
You can also enjoy high definition programming by
subscribing to high definition cable service or high
definition satellite service. For the best possible
picture, connect these components to your TV via the
HDMI or component video (with audio) input on the
back of your TV.
Cable system and/or VHF/UHF
• Be sure to set Cable setting to Cable On or Cable
Off in Channel menu for the type of input signal you
choose (see page 30 for more details.).
75-ohm coaxial cable
(not supplied)
Rear of TV
VHF/UHF/
CABLE input
A-B RF
Switch
Rear of TV
VHF/UHF/CABLE input
Cable
Antenna
HD Cable Box/HD Satellite Box
VIDEO
AUDIO
(MONO)
L
R
VIDEO IN
S VIDEO
1
3
R-A
UDIO-
L
RGB
AUDIO
SERVICE
ONLY
PC IN
Y
P
B
PR
L
R
COMPONENT IN
(1080i/720p/480p/480i)
2
1
AUDIO
DIGITAL
AUDIO OUT
(COAXIAL)
AUDIO OUT
(FIX)
IN
1
2
HD cable box/
HD satellite box
Rear of TV
HDMI cable
Shown with HDMI Connection
CATV/Satellite
antenna cable
17
Getting Started
Shown with DVI Connection
~
• If the equipment has a DVI and not a HDMI connector, use a HDMI to DVI cable or adapter to connect the DVI output
to either HDMI IN 1 or HDMI IN 2 input, and connect the audio jacks to the AUDIO (L/R) jacks below the HDMI IN
2. (DVI connector is for video signals only, the Audio jacks provide support for the audio)
VIDEO
AUDIO
(MONO)
L
R
VIDEO IN
S VIDEO
1
3
R-A
UDIO-
L
RGB
AUDIO
SERVICE
ONLY
PC IN
Y
P
B
PR
L
R
COMPONENT IN
(1080i/720p/480p/480i)
2
1
AUDIO
DIGITAL
AUDIO OUT
(COAXIAL)
AUDIO OUT
(FIX)
IN
1
2
Rear of TV
AUDIO-R
(red)
AUDIO-L
(white)
Audio cable
DVI-to-HDMI cable
HD cable box/HD satellite box
CATV/Satellite
antenna cable
VIDEO
AUDIO
(MONO)
L
R
VIDEO IN
S VIDEO
1
3
R-A
UDIO-
L
RGB
AUDIO
SERVICE
ONLY
PC IN
Y
P
B
P
R
L
R
COMPONENT IN
(1080i/720p/480p/480i)
2
1
AUDIO
DIGITAL
AUDIO OUT
(COAXIAL)
AUDIO OUT
(FIX)
IN
1
2
Rear of TV
CATV/Satellite antenna cable
P
B (blue)
AUDIO-L (white)
AUDIO-R (red)
HD cable box/HD satellite box
Y (green)
P
R (red)
Audio cable
Shown with Component Connection
Component
video cable
18
Use the TV as a monitor for your PC.
Shown below with the HD15 to HD15 connection. This TV can also be connected to a PC with DVI or
HDMI output. (Refer to the supplied Quick Setup Guide.)
~
• Connect the PC IN jack to the PC using the HD15-HD15 cable with ferrite core (analog RGB) and audio cable
(page 15).
PC Input Signal Reference Chart
After connecting the PC to the TV, set the output signal from the PC according to the chart below.
~
• This TV’s PC input does not support Sync on Green or Composite Sync.
• This TV’s PC VGA input does not support interlaced signals.
• For the best picture quality, it is recommended to use the signals (boldfaced) in the above chart with a 60 Hz vertical
frequency from a personal computer. In plug and play, signals with a 60 Hz vertical frequency will be detected
automatically. (PC reboot may be necessary.)
PC
Resolution
Horizontal
frequency (kHz)
Vertical
frequency (Hz)
Standard
Signals Horizontal
(Pixel)
×
Vertical
(Line)
VGA 640 × 480 31.5 60 VGA
640 × 480 37.9 73 VES A
640 × 480 37.5 75 VES A
SVGA
800 × 600 35.2 56 VESA
800 × 600 37.9 60 VESA Guidelines
800 × 600 46.9 75 VESA
XGA
1024 × 768 48.4 60 VESA Guidelines
1024 × 768 56.5 70 VESA
VIDEO
AUDIO
(MONO)
L
R
VIDEO IN
S VIDEO
1
3
R-A
UDIO-
L
RGB
AUDIO
SERVICE
ONLY
PC IN
Y
P
B
PR
L
R
COMPONENT IN
(1080i/720p/480p/480i)
2
1
AUDIO
DIGITAL
AUDIO OUT
(COAXIAL)
AUDIO OUT
(FIX)
IN
1
2
HD15-HD15
cable (analog
RGB)
Audio cable (stereo mini plugs)
Rear of TV
19
Getting Started
~
• Refer to the Quick Setup Guide (supplied) when connecting other equipment to your TV.
Other Equipment
VIDEO
AUDIO
(MONO)
L
R
VIDEO IN
S VIDEO
1
3
R-A
UDIO-
L
RGB
AUDIO
SERVICE
ONLY
PC IN
Y
P
B
PR
L
R
COMPONENT IN
(1080i/720p/480p/480i)
2
1
AUDIO
DIGITAL
AUDIO OUT
(COAXIAL)
AUDIO OUT
(FIX)
IN
1
2
VHF/UHF/
CABLE
Digital audio
equipment
Analog audio equipment
(A/V Receiver/Home Theater)
Digital
recorder
VCR
Headphones Camcorder
Game system
DVD
player
Personal
computer
Digital
satellite
receiver
Blu-ray
Disc Player/
“PS3”
Digital
cable box
Audio
system
VHF/UHF/CABLE
20
4. Setting Up the Channel List - Initial Setup
After you finish connecting your TV, you need to run Initial Setup, which automatically sets up available
channels. The Initial Setup screen appears when you turn on your TV for the first time. If you do not want to
set up the channels at this time, you can do it later by selecting the Auto Program option in the Channel
menu (see page 30).
To run Auto Program again at a later time
❑ Use the Auto Program feature as described on page 30.
To Display the Picture in your Preferred Aspect Ratio
❑
Select the proper Wide Mode as described on pages 23 and 29.
~
• You may want to set up convenient features such as Favorites (see page 26), Show/Hide Channels
(see page 30), Label Channels (see page 30) when Auto Program is completed.
1 Press to turn on the TV.
The Initial Setup screen appears.
2 Press V/v to highlight the desired language,
then press .
3 The message “First please connect cable
or antenna” and “Start auto program
now?” appears, make sure you already
connected Cable or Antenna, then select Yes
to start Auto Program. If you want to start
Auto Program later press No.
~
•If you have Cable and Antenna available, please connect Cable first.
4 The scanning of channels will start. If you
want to stop and run Auto Program later
press Cancel.
5 When Auto Program is complete, press
to continue
6 If the Initial Setup programming found
Cable channels, you will be able to scan
Antenna channels as well. Connect the
Antenna, you can use an A-B RF switch (not
supplied) and change the switch to Antenna,
then start Auto Program to search antenna
channels. If the Initial Setup programming
found Antenna channels, the Auto
Program process will finish. If you want to
scan Cable channels, you can do it later
using the Channel menu (see page 30).
POWER
Press to choose a language.
Initial Setup
Please select your language:
First please connect cable or antenna.
Allow 50+ minutes for completion.
Initial Setup
Start auto program now?
Yes
No
Auto Program
Please wait. Allow 50+ minutes for completion.
Analog Channels Found: 24
Digital Channels Found: 2
Searching....
Press Select button to cancel.
Cancel
Auto Program
Auto Program is complete.
Analog Channels Found: 43
Digital Channels Found: 5
Press Select button to exit
OK
If you want to use air signals, please connect antenna.
Allow 50+ minutes for completion.
Antenna Setup
Start auto program now?
Yes
No
Auto Program
Auto Program is complete.
Analog Channels Found: 43
Digital Channels Found: 5
Press Select button to exit
OK
21
Basic Operations
Basic Operations
Remote Control and TV Controls/Indicators
Inserting Batteries into the Remote control
Remote Control
Insert two size AA batteries (supplied) by matching
e and E on the batteries to the diagram inside the
battery compartment of the remote control.
Slide to open
z The 5 and CH + buttons have
a tactile dot. Use them as a
reference when operating the
TV.
Button Description
1 TV/VIDEO Press to display the External Inputs list, go through the list
and select the desired input.
• See page 26 on Applications menu the External Inputs.
2 SLEEP Press repeatedly until the TV displays the time in minutes
(Off, 15, 30, 60 or 120) that you want the TV to remain on
before shutting off. To cancel Sleep, press repeatedly until
Sleep Off appears.
3 PICTURE Press repeatedly to cycle through the available picture
modes: Vivid, Standard, Cinema. The picture modes can
be also accessed in the Picture menu (see page 28).
22
4 GUIDE
(For all
channels
including
Digital/Analog
channels)
Press to display the Guide when you are watching digital
channels (if it is available from the station).
Using the Guide
The Guide allows you to select the channels from a channel
list; also provides information about the current program
being shown on each channel.
• Program information in the guide is provided by the
broadcasters. As a result, it may sometimes include only
the channel number, without a program title or
description.
5 RETURN Press to go back to the previous screen when displaying
MENU items and settings.
6 MENU Press to display the MENU with TV functions and settings.
See Using the TV Menus on page 25.
7 Use with - and buttons to select digital channels.
For example, to enter 2.1, press , , and .
8 VOL +/– Press to adjust the volume.
9 MUTING Press to mute the sound. Press again or press VOL + to
restore the sound.
0 POWER Press to turn On and Off the TV.
Button Description
Amazing Places
Amazing Places
3
12
15.1
15.2
15.100
15.101
64
66
69.1
69.3
72
ONCE
XEWT
KPBS-HD
V-me
Upda TV1
Upda TV2
KSTW
KSWB
KSWB-BT
Tube
15.1
KPBS-HD
TV-PG
1080i 16:9
0:22 Remaining
DIGITAL
RATING
Channel
list
Information
banner
2
1
23
Basic Operations
Changing the Wide Screen Mode (see page 29 for details)
qa WIDE Press repeatedly to step through the Wide Mode settings:
Wide Zoom, Normal, Full, Zoom. The Wide Mode
settings can be also accessed in the Screen menu (see page 29).
Wide Mode
4:3
480i/480p
Standard definition source
Wide Mode
16:9
1080i/720p
High definition source
mm
Wide Zoom Wide Zoom
Normal Normal
Not Applicable
Full Full
Zoom Zoom
• When the TV receives a 720p or 1080i signal, Normal
cannot be selected.
qs DISPLAY Press once to display the current channel number, channel
label, remaining time, Wide Mode and current time. The on
screen display (OSD) will turn off after a few seconds.
qd V/v/B/b/ Press V/v/B/b to move the on-screen cursor. Press to
select/confirm an item. You can also use this button to see
your Favorites channels list.
qf TOOLS This function is only available when PC input is active. Press
to view a channel at the same time as a Picture in Picture
screen. (see page 27 for details)
qg JUMP Press to alternate between two channels. The TV will
alternate between the current channel and the last channel
tuned to with the buttons - and on the remote
control.
qh 0 - 9/ENT Press - to select a channel; the channel changes after
few seconds. Press to change channels immediately.
qj CH +/– Press to scan through channels.
• The CHANNEL + button has a tactile dot. Use it as a
reference when operating the TV.
Button Description
qg
qf
qh
qj
qa
qa
qd
qa
qs
24
Indicators
Item Description
1 MENU Press to display the MENU with TV functions and settings (see Using the TV Menus on
page 25).
2
INPUT
Press to display the External Inputs list, go through the list and select your desired input.
In the MENU screen, this button serves as confirming the selection or setting.
3
– VOLUME +
Press to adjust the volume. In the MENU screen, these buttons serve as left/right buttons.
4
– CHANNEL +
Press to scan through channels. In the MENU screen, these buttons serve as up/down buttons.
5 POWER Press to turn on and off the TV.
6 TIMER LED Lights up in amber when the timer is set. When the timer is set, this LED will remain lit even
if the TV is turned off. For details, see page 36. If the LED blinks in red continuously, this
may indicate the TV needs servicing (see contacting Sony information on the back cover).
7 POWER LED Lights up in green when the TV is turned on.
8 (IR) Infrared
Receiver/
Receives IR signals from the remote control.
Light Sensor Senses room light level and adjusts the screen brightness accordingly (see page 37 for
details). Do not put anything near the sensor, as its function may be affected.
• Make sure that the TV is turned off before unplugging the power cord. Unplugging the
power cord while the TV is turned on may cause the Power LED to remain lit for up to 20
seconds or may cause the TV to malfunction.
25
Using the TV Menus
Using the TV Menus
MENU provides one button access for controlling your TV. It enables you to perform a variety of tasks intuitively with
a control panel on the screen rather than a variety of remote control button presses.
Navigating through TV Menus
Menu Descriptions
The Applications menu lets you
select: External Inputs, Favorites,
and have shortcuts to Wide Mode,
Clock/Timers, Parental Lock and
Closed Captions (
CC
); also you can
select PC-PIP function from this menu.
The Channel menu is used to provide
maintenance to the channel options;
select from menu: Favorite
Channels, Cable, Add Channels,
Auto Program, Show/Hide
Channels, Label Channels or
Diagnostics.
The Picture Menu is used to fine tune
the image quality, allows you to
customize several parameters for
optimal viewing, select from menu:
Picture Mode, Reset, Backlight,
Picture, Brightness, Color, Hue,
Color Temp. (Color Temperature),
Noise Reduction or Sharpness.
The Parental Lock feature allows you
to set up the TV to block programs
according to their content and rating
levels; use - on the remote control
to enter a four-digit password. The first
time you create a password, confirm the
password by entering it again.
The Sound Menu allows you to fine
tune and change audio; select from
menu: Treble, Bass, Balance,
Speaker, MTS, Alternate Audio or
Reset.
The
Setup Menu
provides you additional
features like:
Closed Captions (CC),
Info Banner, Label Video Inputs,
Clock/Timers, Language
or
Light
Sensor
.
The Screen menu allows you to change
the proportions of the screen, select:
Wide Mode, 4:3 Default, Auto
Wide, Vertical Center, Vertical
Size or Phase.
TV 15.1 KPBS-HD
Wide Zoom
Exit:
MENU
External Inputs
Favorites
Wide Mode
Clock/Timers
Parental Lock
Closed Captions (CC)
PC-PIP
Applications
1 Press on the remote control
to display on screen the Menu
options.
2 To highlight a Menu option press B,
then press V/v to go through the
menus.
3 To select an option press or b.
4 Press V/v to select or adjust your
desired option, then press .
5 To exit press .
Applications
Channel
Parental Lock
Sound
Setup
Screen
26
Using the Applications Menu
Option Description
External inputs This feature lets you select the external inputs connected to your TV.
1 Press V/v to choose a external input from the list of 9 inputs.
2 To select press .
3 To exit from External inputs list, press .
• To change external inputs again, repeat steps 1-2.
• To go back to channels, press CH +/- to go through the channels; repeat steps 1-2 and
select TV; or press to select a channel from your
Favorites list.
• You can also select directly the external inputs list by pressing without having to
navigate through the Menu.
Favorites This feature lets you create and choose a list of up to 8 favorite channels.
1 Press V/v to select the option Add to Favorites, to add the current channel to your
Favorites list, and press .
2 To exit press
• You can also use button of the remote control to see your Favorites channel list.
Wide Mode This option is a direct shortcut to the Screen menu for adjust the picture size in the Wide
Mode option (see page 29).
Clock/Timers This option is a shortcut to adjust Clock/Timers on Setup menu (see page 36).
Parental Lock This option is a shortcut to the Parental Lock menu, it allows you to enter a password to
block channels (see page 31).
Closed Captions (CC) This option is a shortcut to Closed Captions (CC) screen on Setup menu (see page 35).
MENU
MENU
27
Using the TV Menus
PC-PIP This PIP (Picture In Picture) feature provides PC input signal and TV channels;
allows you to view two pictures simultaneously. When you select this feature from
Applications menu, the PC-PIP will appear with a Sub Window to see TV channels
at the same time.
• To turn Off or On the Sub Window on the screen press from the remote control, only
when you select PC input.
• You can also select PC input from the External Inputs list. Press , select
External Inputs, the External inputs list will appear, then select PC input.
To change channels in the Sub Window
Press CH +/– to change the channels or enter the channel number using the -
numeric buttons.
To Exit from PC-PIP (PC input)
1 Press and select External Inputs on Applications menu.
2 From External Inputs list, select TV input to return to TV Channels.
• To exit from PC-PIP, you can also select from Applications menu, the Favorites
channels list and select the channel of your preference; or just press to view your
Favorites channels list.
• When the PC input signal is selected with the Sub Window active, you can just see TV
Channels, other external inputs are not available for this view (like VCR/DVD).
• Closed Captions (CC) is not available in the Sub Window.
• Parental Lock feature will work in the Sub Window, a padlock will appear on the blocked
channels.
Option Description
MENU
MENU
Main Window
(PC)
Sub Window
(TV Channel)
28
Using the Picture Menu
Using the Sound Menu
Option Description
Picture Mode
Customized picture
viewing
Select a mode: Vivid (for enhanced picture contrast and sharpness), Standard (for standard
picture settings, is recommended for home entertainment); or Cinema (for viewing film-
based content. Most suitable for viewing in a theater-like environment).
Reset Resets the current Picture Mode setting to factory default values.
Backlight Press B/b to brighten or darken the backlight, then press to set.
Picture Press B/b to increase or decrease picture contrast, then press to set.
Brightness Press B/b to brighten or darken the picture, then press to set.
Color Press B/b to increase or decrease color intensity, then press to set.
Hue Press B/b to increase or decrease the green tones, then press to set.
Color Temp. (Color
Temperature)
Select an option: Cool (to give the white colors a bluish tint), Neutral (to give the white
colors a neutral tint) or Warm 1, 2 (to give the white colors a reddish tint).
Noise Reduction Sharpens picture definition to give every object a sharp, clean edge. Select from Off, Low,
Medium or High.
Sharpness Press B/b to sharpen or soften the picture, then press to set.
Option Description
Treble Press B/b to increase or decrease higher-pitched sounds, then press to set.
Bass Press B/b to increase or decrease lower-pitched sounds, then press to set.
Balance Press B/b to emphasize left or right speaker balance, then press to set.
Speaker Select to turn On or Off the internal speakers.
MTS Mono Select for mono reception. Use to reduce noise during weak stereo
broadcasts.
Stereo Select for stereo reception when viewing a program broadcast in
stereo.
Auto SAP Select to automatically switch the TV to second audio programs when
a signal is received. If no SAP signal is present, the TV remains in
Stereo mode.
Alternate Audio
(Audio selection for
current program)
This Audio feature for current program lets you select from 8 options of alternate audio (if it
is available). You can select from English, Español (Spanish), Français (French) or
Audio 4, 5, 6, 7, 8 audio available options.
• Alternate Audio is disabled for analog signals and for digital signals that do not have
altenate audio streams.
Reset Resets the current Sound settings to factory default values.
29
Using the TV Menus
Using the Screen Menu
Option Description
Wide Mode These options allow you to change the proportion of the screen.
Wide Zoom Select to enlarge the picture uniformly.
Normal Select to display 4:3 pictures in original size when the original source
is 4:3.
• Normal is not available when you are watching 1080i or 720p in High Definition source.
Full Select to enlarge the picture horizontally to fill the screen when the
original source is 4:3 (standard definition source). When the original
source is 16:9 (High definition source), select this mode to display 16:9
picture in original size.
Zoom Select to enlarge the original picture without distorting the aspect ratio.
• If you press
of the remote control you can also select these modes directly.
4:3 Default Select the default Screen Mode to use for 4:3 sources.
Wide Zoom Select to enlarge the 4:3 picture to fill the 16:9 screen, keeping the
original image as much as possible, with minimal distortion.
Normal Select to display the 4:3 picture in its original size.
Full Select to enlarge the picture horizontally to fill the screen when the
original source is 4:3 (standard definition source).
Zoom Select to enlarge the original picture without distorting the aspect ratio.
Off To turn Off automatic size for 4:3.
Auto Wide On Select to have the screen automatically change to the screen mode
based upon program’s content. If frequent screen changes are
disturbing to you, select Off.
Off Select to turn off the Auto Wide option.
Choose a screen mode from the Wide Mode option.
Vertical Center Allows you to move the position of the picture up and down.
Vertical Size Allows you to adjust the vertical size of the picture.
Phase Adjust to fine tune overall sharpness.
• Phase is disabled when the TV is receiving a different video input
30
Using the Channel Menu
Option Description
Favorite Channels Lets you set up a list of up to 8 of your favorite channels.
1 Press V/v to select the option Add to Favorites to add the current channel to your
Favorites list and press .
2 To exit press .
To select a favorite channel from the list, press V/v to go through the list and to select
the channel.
• To access quickly to Favorites channel list, press when there is no menu on the
screen.
Cable On: Select if you are receiving cable channels via Cable TV provider.
Off:Select if you are using an antenna.
Add Channels Select to add channels without replacing the original channel list. This option is useful for
antenna installations.
Auto Program Automatically sets up the channel list on the TV for all receivable channels (Digital and
Analogs).
• Before start Auto Program, be sure to change to On or Off on Cable option in the
Channel menu. When it is On, the TV will search Cable channels; and when it is
Off, the TV will search air signals with an Antenna connection.
• If you are using an A-B RF switch (not supplied) to switch between Cable or Antenna
connection, be sure to select the correct Cable option to Cable On or Cable Off in the
Channel Menu.
1 Select Auto Program.
2 Select OK to start Auto Program. When Auto Program is done, select OK.
Show/Hide Channels Allows you to show or hide channels that appear when you use the CH +/- button.
1 Press V/v to scroll through the channels until you find the channel you want to show or
hide.
2 Press to determine if the channel will be shown or hidden.
To show or hide more channels, repeat steps 1-2.
Label Channels Allows you to assign labels to channel numbers.
1 Press V/v to scroll through the channel numbers. Then press to select the channel
number that you want to assign a label.
2 Press B/b/V/v to move through the label characters (A-Z, 0-9) and press to select
it. To move to the next character press B/b/V/v. Repeat to add up to 7 characters to the
label. Then select to set it. To assign labels to more channels, repeat steps 1-2.
• To delete a character press .
• To have a space between characters press .
• To exit press .
Diagnostics Allows to confirm the current channel performance indicator.
MENU
31
Using the TV Menus
Using the Parental Lock
The Parental Lock feature allows you to block programs according to their content and rating levels and
block channels (regardless of the programs). Password is necessary in setting up blocking. Use - on
the remote control to enter a four digit password. The first time you create a password, confirm the password
by entering it again.
To View Blocked Programs
Press
when tuned to a blocked program, then enter the password. To reactive the Parental Lock
settings, turn off and on the TV.
Option Description
Rating Off Turn Parental Lock Off. No programs are blocked from viewing based on
their rating.
Child Maximum ratings permitted are:
U.S: TV-Y, TV-G, G
Canada: C, TV-Y
Youth Maximum ratings permited are:
U.S: TV-PG, PG
Canada: C8+, PG, 8 ans+, TV-PG
Young Adult Maximum ratings permitted are:
U.S: TV-14, PG-13
Canada: 14+, 13 ans+, TV-14
Custom Select to set ratings manually:
U.S: See page 33 for details.
Canada: See page 34 for details.
• If you are not familiar with the Parental Guideline rating system, you should select
Child, Youth or Young Adult to help simplify the rating selection. To set more specific
ratings, select Custom.
Digital Rating
(Available only in
U.S.A. where
advanced ratings exist)
Off Turn Digital Rating off. No programs containing digital ratings are
blocked from viewing.
Custom Select to customize the Parental Lock with downloadable digital ratings.
Clear All Select to clear the downloaded ratings.
To cancel just select Cancel.
Unrated
Block programs or
movies that are
broadcast without a
rating.
Allow Allows programs and movies that are broadcast without a rating.
Block Blocks all programs and movies that are broadcast without a rating.
• If you block unrated TV programs, be aware that the following types of programs may be
blocked: programs broadcast from another country, emergency broadcasts, political
programs, sports, news, public service announcements, religious programs and weather.
32
Channel Block This option allows you to block channels regardless of program ratings. The password needs
to be set up prior to blocking channels. The blocked channel can only be viewed by entering
the correct password.
To block a Channel
Press V/v to go through the channels and press to Block or Allow channels.
To View a Blocked Channel
Press when tuned to a blocked program, then enter the password. To reactive the
Parental Lock settings, turn off and on the TV.
External Input Block Allows you to block individual video inputs.
Press V/v to scroll through the video inputs and press to Block or Allow.
Change Password Select to change your password.
Use - buttons to select a four digit password; to confirm password enter it again.
• You need your password for any future access into the Parental lock settings. If you lose
your password, see Lost Password on page 40.
Select Country U.S.A Select to use U.S.A. ratings.
Canada Select to use Canadian ratings.
Option Description
33
Using the TV Menus
Custom Rating System Chart
US Models: Selecting Custom Parental Lock Rating Options
To select custom rating options for the U.S., select U.S.A. in the Select Country setting (see page 32).
Option Description
Movie Rating G All children and general audience.
PG Parental guidance suggested.
PG-13 Parental guidance for children under 13.
R Restricted viewing, parental guidance is suggested for children under
17.
NC-17 and X No one 17 or under allowed.
TV Rating
Block programs by
their rating, content or
both
Age-Based Ratings
TV-Y All children.
TV-Y7 Directed to children age 7 and older.
TV-G General audience.
TV-PG Parental guidance suggested.
TV-14 Parents strongly cautioned.
TV-MA Mature audience only.
Content-Based Ratings
FV Fantasy violence.
D Suggestive dialogue.
L Strong language.
S Sexual situations.
V Violence.
• To ensure maximum blocking capability, set the Age-Based Ratings.
34
Canadian Models: Selecting Custom Parental Lock Rating Options
To select custom rating options for Canada, select Canada in the Select Country setting (see page 32).
Option Description
English Rating C All children.
C8+ Children 8 years and older.
G General programming.
PG Parental guidance.
14+ Viewers 14 and older.
18+ Adult programming.
French Rating G General programming.
8 ans+ Not recommended for young children.
13 ans+ Not recommended for ages under 13.
16 ans+ Not recommended for ages under 16.
18 ans+ Programming restricted to adults.
U.S.A. Rating See TV Rating under U.S.A. for details on page 33.
35
Using the TV Menus
Using the Setup Menu
Option Description
Closed Captions (CC) Allows you to select from several closed captions modes (for programs that are broadcast
with closed captioning).
Select: Off (to turn off Closed Captions), On (to turn on Closed Captions), or
Program (to program Closed Captions).
Programming Closed Captions
If you select the Program option under Closed Captions, you can change the
following settings:
Basic Allows you to select basic closed caption options (EIA-608).
CC1, CC2,
CC3, CC4
Displays a printed version of the dialog or
sound effects of a program (should be set to
CC1 for most programs).
Text1, Text2,
Text3, Text4
Displays network/station information presented
using either half of the whole screen (if
available).
Digital CC Allows you to set digital closed captioning to Basic (digital EIA-608)
or Advanced (digital (EIA-708).
Advanced Allows you to select advanced digital (EIA-708) closed caption
options. Select from the available options.
Advanced
settings
Allows you to make additional settings for digital (EIA-708) closed
captions options. Select from As Broadcast or you can customize.
If you want to customize the following settings, select an option with
and return with button.
Character Style Select from 7 available styles.
Character Color 35 available colors.
Character Size Small, Standard, Large.
Edge color 35 available colors.
Background Color 35 available colors.
Window Color 35 available colors.
Character Opacity Solid, Translucent, Transparent, Flashing.
Character Align Left, Right, Center.
Edge Type None, Raised, Depressed, Uniform, Left
Shadow, Right Shadow.
Background
Opacity
Solid, Translucent, Transparent, Flashing.
Window Opacity Solid, Translucent, Transparent, Flashing
Info Banner Set On or Off. When On: displays the program name and the remaining time (if the
broadcaster offers this service). Displays for a few seconds when the channel is changed. If
you don’t want to display the Info Banner select Off.
36
Label Video Inputs Allows you to identify A/V equipment you connected to the TV, such as a VCR, DVD, etc.
For example, if you have a DVD player connected to the VIDEO 1 input, you can select the
label DVD for the VIDEO 1 input. Then when you press to change inputs, the Video
Label you assigned to that input appears on screen.
1 Press V/v to highlight the input (from 1 to 8) to which you want to assign a label, then
press to select it.
2 Press V/v to highlight one of the displayed labels, then press to select it.
You can select from the following labels for each input:
DVD, VCR, Blu-Ray, Cable Box, Satellite, DVR, Game, Camcorder, Skip (your TV skips
the input you selected when you press the button on the remote control).
• The skip label is useful for inputs to which no equipment is connected.
Clock/Timers Sleep Set the time in minutes (Off, 15, 30, 60 or 120 minutes) that you want
the TV to remain on before shutting off automatically.
Timer You can use the Timer to tune to a specific channel at a scheduled time.
Select Off (Select to turn off the timer; your previous settings are
saved); On (to turn on the timer; your previous settings are saved); or
Program (to set the timer by Time, Days, Duration, Channel and
Vol ume Setup that you want to tune to a specific channel at
scheduled time).
If you select Program, press V/v (change the values) or B/b (move
through the options) to set the hour, minutes, AM/PM, days, duration
and volume setup.
To set a channel press - (numeric values) and (if the
channel is digital) on the remote control.
To replace a channel press b on the remote control, then press B to go
back to the channel selection and enter a new channel number.
You can program External inputs as well instead of a channel. Press
on the remote control to go through the external inputs and select
the desired input that you want to program.
• Timer feature will be not available until you set the Current time.
Current Time Select to set the current time (day, hour, minutes and AM/PM).
1 Press to select Current Time.
2 Press V/v/B/b to set day, hour, minutes and AM/PM.
3 Press to exit.
Language Select to display all on-screen settings in your language of choice: English, Español
(Spanish), Français (French).
Option Description
MENU
37
Using the TV Menus
Light Sensor Select On to enable the automatic picture (screen) brightness control. The light sensor
measures the room brightness which allows the TV to automatically adjust the backlight
brightness based on the picture settings and the ambient room light conditions.
• Be sure not to put anything around the sensor, as its function may be affected.
• In low light the range of the backlight control is reduced when Light Sensor is set to
On.
Option Description
38
Other Information
Troubleshooting
If you have additional questions, service needs,
or required technical assistance related to the use
of your Sony TV, please visit our website or call
one of the following numbers:
http://www.sony.com/tvsupport
1-800-222-SONY(7669) for US Support
1-877-899-SONY(7669) for Canadian Support
Condition Explanation/Solution
No picture.
No picture.
❑ Confirm your external inputs list and make sure you select TV
(Cable/Antenna channels). See page 26 for more details.
❑ Perform Auto program to add receivable channels that are not presently in
the TV's memory (page 30).
Cannot receive any channels. ❑ Make sure the power cord is connected securely.
❑ Turn on the power of the TV.
❑ Check antenna/cable connections.
❑ Perform Auto Program to add receivable channels that are not presently in the
TV’s memory (page 30).
TV is locked to one channel.
❑ Perform Auto Program to add receivable channels that are not presently in the
TV’s memory (page 30).
Cannot receive or select channels.
❑ To receive or select cable channels, make sure that Cable in Channel settings
is set to On. To receive or select UHF channels over an antenna, make sure
Cable is set to Off. Perform Auto Program to add receivable channels that are
not presently in the TV’s memory (page 30).
The TV turns off automatically.
❑ Check if Sleep is activated, or confirm the Duration setting of Timer. (page
36).
❑ If there is no signal, the TV will turn off automatically.
No picture from some video
sources.
❑ Check the connection between the optional video equipment and the TV.
❑ Press on the remote control (page 21).
❑ Press on the remote control. Select your desired input from the External
Inputs list.
Poor picture.
Double images or ghosts.
❑ Check antenna/cable connections.
❑ Check the antenna location and direction.
Only snow and noise appear on the
screen.
❑ Check if the antenna is broken or bent.
❑ Check if the antenna has reached the end of its serviceable life. (3-5 years in
normal use, 1-2 years at the seaside.)
Dotted lines or stripes.
❑ Keep the TV away from noise sources such as cars, motorcycles, or hair-dryers.
❑ If using 300 ohm twin lead, move the excess lead away from the TV or try using
75 ohm coaxial cable instead.
No color/Dark picture/Color is not
correct/The picture is too bright.
❑ Press to select the desired picture mode (page 21).
❑ Adjust the Picture Mode options in the Picture menu (page 28).
MENU
39
Other Information
Noisy picture. ❑ Make sure that the antenna is connected using a 75-ohm coaxial cable (not
supplied).
❑ Keep the antenna cable away from other connecting cords.
❑ To avoid TV interference, make sure to use an undamaged antenna cable.
No sound/Noisy sound
Good picture, no sound. ❑ Check the volume control.
❑ Press or VOL + so that “Muting” disappears from the screen (page 22).
❑ Disconnect your headphones.
❑ Set Speaker to On in the Sound menu (page 28). If it is set to Off, sound
is not output from the TV’s speakers regardless of the TV’s volume control.
Audio noise. ❑ Make sure that the antenna is connected using a 75-ohm coaxial cable (not
supplied).
❑ Keep the antenna cable away from other connecting cords.
❑ To avoid TV interference, make sure to use an undamaged antenna cable.
No sound ❑ If you connected an audio device, it is necessary to have a video connection.
PC Input
No Picture/No Signal. ❑ Confirm the PC is correctly connected to the TV in the PC IN (not supplied
HD15 cable).
❑ Ensure the output signal from the PC is one of the formats listed on page 18.
❑ Turn the PC Off. Confirm the PC connection and restart the PC. Plug and
play will auto-detect the TV and correctly set up PC timing.
Poor picture. ❑ Adjust the resolution (see page 18).
❑ Adjust Phase (see page 29).
General
Wide Mode changes
automatically.
❑
The current
Wide Mode
setting is automatically replaced with the
4:3
Default
setting when you change the channel or video input, if
4:3 Default
in the
Screen
menu
is set to other than
Off
. If you want to lock in
Wide
Mode
selected with on the remote control, set
4:3 Default
to
Off
in
the
Screen
menu (page 29).
❑ Turn off the Auto Wide option in the Screen menu (page 29).
Suddenly the picture gets
smaller.
❑ The picture gets smaller during the commercials, this is due to the method
the provider broadcasts their contents. When HD content channels switch to
SD definition content (commercials), the picture may be small with a black
border.
“Black box” on screen. ❑ You have selected a text option and no text is available. (See page 35.) To
turn off this feature, set the Closed Captions option to Off. If you were
trying to select closed captioning, select CC1 instead of Text1-4.
Black bands appear at the top
and bottom of the screen.
❑ Some wide screen programs are filmed in aspect ratios that are greater than
16:9 (this is especially common with theatrical releases). Your TV will
show these programs with black bands at the top and bottom of the screen.
For more details, check the documentation that came with your DVD (or
contact your program provider).
❑ Programs in 4:3 aspect ratio will have bands on left and right sides of the
screen, to select full size see page 29.
Certain programs on DVD or
other digital sources display a
loss of detail, especially during
fast-motion or dark scenes.
❑ The compression used by certain digital broadcasts and DVDs may cause
your TV’s screen to display less detail than usual, or cause artifacts (small
blocks or dots, pixelations) to appear on your screen. This is due to your
TV’s large screen and ability to show very fine detail, and is normal for
certain digitally recorded programs.
Condition Explanation/Solution
40
Remote control does not operate. ❑ Check the polarity of the batteries or replace the batteries.
❑ Point the remote control at the remote control sensor of the TV.
❑ Fluorescent lamps can interfere with your remote control operation; try
turning off the fluorescent lamps.
❑ Keep the remote control sensor area clear from obstacles.
Some digital cable channels are
not being displayed.
❑ Certain cable companies have limitations on the broadcast of digital cable
channels. Check with your cable company for more information.
❑ The digital cable channel may be set to Hidden in the Show/Hide
Channels setting (see page 30).
Lost password. ❑ Select the Parental Lock menu, then enter the following master password:
4357. The master password clears your previous password and allows you to
enter a new password (page 31).
How to reset the TV to factory
settings.
❑ Turn on the TV. While holding down the V button on the remote control,
press the POWER button on the TV. Release the V button.
WARNING: The Reset will clear all of your customized settings including
Parental Lock setting.
Condition Explanation/Solution
41
Other Information
Specifications
~
• Design and specifications are subject to change without notice.
Model KDL-26M3000/
KDL-26ML130
KDL-32M3000/
KDL-32ML130
KDL-37M3000
System
Television system
NTSC: American TV standard
ATSC (8VSB terrestrial): ATSC compliant 8VSB
QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality)
Channel coverage
Analog terrestrial: 2-69 / Digital terrestrial: 2-69
Analog Cable: 1-125 / Digital Cable: 1-135
Panel system
LCD (Liquid Crystal Display) Panel
Speaker output
10 W + 10 W
Input/Output jacks
Antenna
75-ohm external terminal for VHF/UHF
VIDEO IN 1/2/3
S VIDEO (4-pin mini DIN)(VIDEO 1 only): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative /
C: 0.286 Vp-p (Burst signal), 75 ohms
VIDEO: 1 Vp-p, 75 ohms unbalanced, sync negative
AUDIO: 500 mVrms (100% modulation)/ Impedance: 47 kilohms
COMPONENT IN 1/2
YPBPR (Component Video): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative / PB: 0.7 Vp-p, 75 ohms /
P
R: 0.7 Vp-p, 75 ohms / Signal format: 480i, 480p, 720p, 1080i
AUDIO: 500 mVrms (100% modulation)/ Impedance: 47 kilohms
HDMI IN 1/2
HDMI: Video: 480i, 480p, 720p, 1080i / Audio: Two channel linear PCM 32, 44.1 and 48 kHz, 16, 20 and 24bits
AUDIO: 500 mVrms (100% modulation)/ Impedance: 47 kilohms
AUDIO OUT
500 mVrms (100% modulation)/ More than 500 mVrms (Fixed)
PC IN
D-sub 15-pin, analog RGB, 0.7 Vp-p, 75 ohms, positive
See the PC Input Signal Reference Chart on page 18.
PC AUDIO INPUT
Stereo mini jack, 500 mVrms, 47 kilohms
Headphones
Stereo mini jack / Impedance: 16 ohms
Power and others
Power requirement
120 V AC, 60 Hz
Power consumption
in use
135 W 170 W 180 W
in standby
All models less than 1 W
Screen size (inches
measured diagonally)
26 31.5 (32 class) 37
Display resolution
(horizontal × vertical)
1,366 dots × 768 lines
Speaker/Full range (2)
146 × 35 mm
5
3
/
4
× 1
3
/
8
inches
Dimensions (W × H × D)
with stand (mm)
(inches)
662 × 515 × 214
26
1
/
8
× 20
3
/
8
× 8
1
/
2
796 × 590 × 214
31
3
/
8
× 23
1
/
4
× 8
1
/
2
918 × 655 × 265
36
1
/
4
× 25
7
/
8
× 10
1
/
2
without stand (mm)
(inches)
662 × 468 × 108
26
1
/
8
× 18
1
/
2
× 4
3
/
8
796 × 544 × 100
31
3
/
8
× 21
1
/
2
× 4
918 × 609 × 108
36
1
/
4
× 24
× 4
3
/
8
wall-mount hole
pattern (mm)
200 × 100 200 × 200 300 × 200
Mass
with stand
13 kg
29 lb.
16 kg
36 lb.
22 kg
49 lb.
without stand
11 kg
25 lb.
14 kg
31 lb.
18.5 kg
41 lb.
Supplied accessories
Remote control RM-YD021 (1) / Size AA batteries (2) / Support belt (1) / Securing screw (1) / Wood screw (1) /
Cable holder (1 attached to the Table-Top Stand) /
Operating Instructions (1) / Quick Setup Guide (1) / Warranty Card
(1) / Online Registration Card (U.S.A. and Canada only) (1) / Wall-Mount Installation Instructions (1)
Optional accessories
Headphones plug adapter / Connecting cables / Wall-Mount Bracket: SU-WL100 (KDL-26M3000 and KDL-26ML130),
SU-WL500 (KDL-32M3000, KDL-32ML130, and KDL-37M3000) / 75-ohm coaxial cable (1) / HD15-HD15 cable (1)
42
Index
4:3 Default 29
A
AUDIO OUT jack, described 15
Auto Program 30
Auto Wide 29
B
Backlight 28
Balance 28
Bass 28
Brightness 28
C
Cable 30
Cable holder 11
Canadian Models 34
CH+/– button 23
Change Password 32
Channel Block 32
Clock/Timer 26
Closed Caption (CC) 26
Color 28
Color Temp. (Color Temperature) 28
COMPONENT IN jack (1080i/720p/
480p/480i), described
15
D
Diagnostics 30
DIGITAL AUDIO OUT (Coaxial),
described
15
Digital Rating 31
DISPLAY button 23
E
English Rating 34
ENT button 23
External Input Block 32
External inputs 26
F
Favorite Channels 30
Favorites 26
French Rating 34
G
GUIDE button 22
H
HDMI IN jack, described 14
Headphones jack, described 13
Hue 28
I
Infrared Receiver (IR) 24
INPUT 24
Installing the TV on a wall 12
J
JUMP button 23
L
Label Channels 30
Light Sensor
Described
24
M
Menu
Applications
26
Channel 30
Parental Lock 31
Picture 28
Screen 29
Setup 35
Sound 28
MENU button 22, 24
Movie Rating 33
MTS 28
MUTING button 22
N
Noise Reduction 28
P
Parental Lock 26, 31
PC IN 15
PC-PIP 27
Phase 29
Picture 28
PICTURE button 21
Picture Mode 28
POWER button 22, 24
POWER LED 24
R
Rating 31
Reset 28, 40
RETURN button 22
S
S VIDEO jack, described 14
Select Country 32
SERVICE ONLY 15
Setting up channels 20
Sharpness 28
Show/Hide Channels 30
SLEEP button 21
Speaker 28
T
TIMER LED 24
TOOLS button 23
Treble 28
Troubleshooting 38, 39, 40
Turning on/off the TV 24
TV Rating 33
TV/VIDEO button 21
U
U.S.A. Rating 34
Unrated 31
US Models 33
V
Vertical Center 29
Vertical Size 29
VHF/UHF input, described 15
VIDEO/AUDIO (L/R) jacks, described
13, 14
VOL+/– button 22, 24
W
WIDE button 23
Wide Mode 26, 29
For Your Convenience
Contact Sony Customer Support at:
http://www.sony.com/tvsupport
or to speak with a support representative:
United States
1-800-222-SONY (7669)
Canada
Please Do Not Return the Product to the Store
1-877-899-SONY (7669)
Please contact Sony directly if you:
Have questions on the use of your television after reading your operating instruction manual
and Quick Setup Guide
Experience difficulty operating your television
Sony will work to resolve your questions more quickly than your retailer or place of purchase.
z
z
Printed in U.S.A.
