Sony KDL-V40XBR1 Lcd Digital Color Tv User Manual

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US01COV.fm

masterpage:Right

2-662-199-12(1)

LCD Digital Color TV

Operating Instructions

KDL-V26XBR1

KDL-V32XBR1

KDL-V40XBR1

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US02Cov2.fm

masterpage:3 columns Right

Owner’s Record

The model and serial numbers are located at the rear of the LCD TV,

below the Sony logo, on the sticker, and also on the TV box (white

label). Record these numbers in the spaces provided below. Refer to

them whenever you call upon your Sony dealer regarding this product.

Model No.

Serial No.

Contacting Sony

If, after reading the following instructions, you have additional

questions related to the use of your Sony

TV, Please call one of the

following numbers.

Customers in the continental United States contact the Direct

Response Center at:

1-800-222-SONY (7669)

Customers in Canada contact the Customer Relations Center at:

1-877-899-SONY (7669)

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US02WAR.fm

masterpage:3 columns Right

WARNING

To reduce the risk of fire or electric shock, do

not expose this apparatus to rain or moisture.

This symbol is intended to

alert the user to the presence

of uninsulated “dangerous

voltage” within the

product’s enclosure that

may be of sufficient

magnitude to constitute a

risk of electric shock to

persons.

This symbol is intended to

alert the user to the presence

of important operating and

maintenance (servicing)

instructions in the literature

accompanying the

appliance.

The apparatus shall not be exposed to dripping

or splashing and no objects filled with liquids,

such as vases, shall be placed on the apparatus.

CAUTION

To prevent electric shock, do not use this

polarized AC plug with an extension cord,

receptacle or other outlet unless the blades can

be fully inserted to prevent blade exposure.

Note on Caption Vision

This TV provides display of TV closed

captioning in accordance with §15.119 of the

FCC rules.

NOTIFICATION

This equipment has been tested and found to

comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference in a

residential installation. This equipment

generates, uses and can radiate radio frequency

energy and, if not installed and used in

accordance with the instructions, may cause

harmful interference to radio communications.

However, there is no guarantee that interference

will not occur in a particular installation. If this

equipment does cause harmful interference to

radio or television reception, which can be

determined by turning the equipment off and on,

the user is encouraged to try to correct the

interference by one or more of the following

measures:

s Reorient or relocate the receiving

antenna.

s Increase the separation between the

equipment and receiver.

s Connect the equipment into an outlet on a

circuit different from that to which the

receiver is connected.

s Consult the dealer or an experienced

radio/TV technician for help.

For Customers in Canada

This Class B digital apparatus complies with

Canadian ICES-003.

Safety

s Operate the TV only on 120-240 V AC.

s Use the AC power cord specified by Sony

and suitable for the voltage where you use

it.

s The plug is designed, for safety purposes,

to fit into the wall outlet only one way. If

you are unable to insert the plug fully into

the outlet, contact your dealer.

s If any liquid or solid object should fall

inside the cabinet, unplug the TV

immediately and have it checked by

qualified service personnel before

operating it further.

s If you will not be using the TV for several

days, disconnect the power by pulling the

plug itself. Never pull on the cord.

s For details concerning safety precautions,

see “Important Safety Instructions” on

page 4 and “Important Safeguards” on

page 5.

Installing

s The TV should be installed near an easily

accessible power outlet.

s To prevent internal heat buildup, do not

block the ventilation openings.

s Do not install the TV in a hot or humid

place, or in a place subject to excessive

dust or mechanical vibration.

s Avoid operating the TV at temperatures

below 41°F (5°C).

s If the TV is transported directly from a

cold to a warm location, or if the room

temperature changes suddenly, the picture

may be blurred or show poor color due to

moisture condensation. In this case,

please wait a few hours to let the moisture

evaporate before turning on the TV.

s To obtain the best picture, do not expose

the screen to direct illumination or direct

sunlight. It is recommended to use spot

lighting directed down from the ceiling or

to cover the windows that face the screen

with opaque drapery. It is desirable to

install the TV in a room where the floor

and walls are not of a reflective material.

CAUTION

Use the following Sony appliance(s) only with

the following WALL-MOUNT BRACKET.

Use with other WALL-MOUNT BRACKET

may cause instability and possibly result in

injury.

SONY APPLIANCE MODEL NO.

KDL-V26XBR1

KDL-V32XBR1

KDL-V40XBR1

SONY WALL-MOUNT BRACKET MODEL NO.

SU-WL31 (KDL-V26XBR1/KDL-V32XBR1)

SU-PW2 (KDL-V40XBR1)

To Customers

Sufficient expertise is required for installing the

specified product. Be sure to subcontract the

installation to Sony dealers or licensed

contractors and pay adequate attention to safety

during the installation.

For Customers in the United

States

If you have any questions about this product,

you may call; Sony Customer Information

Services Center 1-800-222-7669 or

http://www.sony.com/

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION

RISQUE DE CHOC ELECTRIQUE,

NE PAS OUVRIR

PRECAUCION

RIESGO DE CHOQUE ELECTRICO

NO ABRIR

Declaration of Conformity

Trade Name: SONY

Model: KDL-V26XBR1/KDL-V32XBR1/

KDL-V40XBR1

Responsible Party: Sony Electronics Inc.

Address: 16450 W. Bernardo Dr,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC

rules. Operation is subject to the following

two conditions: (1) This device may not

cause harmful interference, and (2) this

device must accept any interference received,

including interference that may cause

undesired operation.

You are cautioned that any changes or

modifications not expressly approved in this

manual could void your authority to operate

this equipment.

(Continued)

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US02WAR.fm

masterpage:3 columns Right

For Customers in the United States

This product contains mercury. Disposal of this product may be regulated

if sold in the United States. For disposal or recycling information, please

contact your local authorities or the Electronics Industries Alliance

(http://www.eiae.org).

To Sony Dealers

For installation of SONY WALL-MOUNT BRACKET, be sure to read

and follow the instructions supplied with those optional products.

Note

This digital television is capable of receiving analog basic, digital basic

and digital premium cable television programming by direct connection to

a cable system providing such programming. A security card provided by

your cable operator is required to view encrypted digital programming.

Certain advanced and interactive digital cable services such as

video-on-demand, a cable operator’s enhanced program guide and

data-enhanced television services may require the use of a set-top box. For

more information call your local cable operator.

This television also includes a QAM demodulator which should allow you

to receive unscrambled digital cable television programming via

subscription service to a cable service provider. Availability of digital

cable television programming in your area depends on the type of

programming and signal provided by your cable service provider.

Trademark Information

CableCARD™ is a trademark of Cable Television Laboratories, Inc.

TruSurround XT, SRS 3D Mono and the symbol are trademarks of

SRS Labs, Inc. TruSurround XT and SRS 3D Mono technologies are

incorporated under license from SRS Labs, Inc.

Licensed by BBE Sound, Inc. under USP4638258, 4482866. “BBE” and

BBE symbol are trademarks of BBE Sound, Inc.

Macintosh is a trademark licensed to Apple Computer, Inc., registered in

the U.S.A and other countries.

WEGA, WEGA GATE, Steady Sound, Digital Reality Creation and

CineMotion are registered trademarks of Sony Corporation.

“PlayStation” is a trademark of Sony Computer Entertainment, Inc.

CompactFlash is a trademark of SanDisk Corporation.

Manufactured under license from Dolby

Laboratories. “Dolby” and the double-D symbol are

trademarks of Dolby Laboratories.

This TV incorporates High-Definition

Multimedia Interface (HDMI™) technology.

HDMI, the HDMI logo and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing LLC.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8) Do not install near any heat sources

such as radiators, heat registers,

stoves, or other apparatus (including

amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding

type plug has two blades and a third grounding

prong. The wide blade or the third prong are

provided for your safety. If the provided plug

does not fit into your outlet, consult an electrician

for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

11) Only use attachments/accessories specified by the

manufacturer.

12) Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or

when unused for long periods of time.

14) Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord

or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture,

does not operate normally, or has been dropped.

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US02WAR.fm

masterpage:3 columns Right

Important

Safeguards

Before using your TV, please read these instructions completely, and

keep this manual for future reference.

Carefully observe and comply with all warnings, cautions and

instructions placed on the unit or described in the operating instructions

or service manual.

WARNING

To guard against injury, the following basic safety precautions should be

observed in the installation, use and servicing of the unit.

Use

Power Sources

This unit should be operated only from the type of

power source indicated on the information label.

If you are not sure of the type of electrical power

supplied to your home, consult your dealer or

local power company.

Grounding or Polarization

This unit is equipped with a polarized AC power cord plug (a plug

having one blade wider than the other), or with a three-wire grounding

type plug (a plug having a third pin for grounding). Follow the

instructions below:

For the unit with a three-wire grounding type

AC power cord plug (Class 1 unit)

This unit must be connected to an AC power socket

outlet with a protective earthing connection.

For the unit with a polarized AC

power cord plug

This plug will fit into the power outlet only one way.

This is a safety feature. If you are unable to insert

the plug fully into the outlet, try reversing the plug.

If the plug still fails to fit, contact your electrician to have a suitable

outlet installed. Do not defeat the safety purpose of the polarized plug by

forcing it in.

Wall outlet

Do not use a poor fitting outlet.

Insert the plug fully into the outlet. If it is loose, it

may cause arcing and result in fire.

Contact your electrician to have the outlet

changed.

Wiring

For your safety, unplug the AC power cord when wiring cables.

Electric shock

Do not touch the AC power cord or the unit with a

wet hand. If you plug/unplug the AC power cord

from the unit with a wet hand, it may cause electric

shock.

Cleaning

s Clean the AC power plug regularly.

If the plug is covered with dust and it picks

up moisture, its insulation may deteriorate

and result in fire. Unplug the AC power

plug and clean it regularly.

120~240V AC

s Unplug the AC power cord when

cleaning this unit. If not, it may result

in electric shock.

s Clean the cabinet of the TV with a dry

soft cloth. To remove dust from the

screen, wipe it gently with a soft cloth.

Stubborn stains may be removed with

a cloth slightly dampened with a solution of mild soap and warm

water. Never use strong solvents such as thinner or benzine for

cleaning.

s If using a chemically pretreated cloth, please follow the

instruction provided on the package.

s If the picture becomes dark after using the TV for a long period of

time, it may be necessary to clean the inside of the TV. Consult

qualified service personnel.

Overloading

Do not overload wall outlets, extension cords or

convenience receptacles beyond their capacity,

since this can result in fire or electric shock.

Power

Always turn the unit off when it is not being used.

When the unit is left unattended and unused for

long periods of time, unplug it from the wall outlet

as a precaution against the possibility of an

internal malfunction that could create a fire

hazard.

Sound

If a snapping or popping sound from the TV is

continuous or frequent while the TV is operating,

unplug the TV and consult your dealer or service

technician. It is normal for TV’s to make

occasional snapping or popping sounds,

particularly when being turned on or off.

AC Power Cord

If you damage the AC power cord, it may result in fire or electric shock.

s Do not pinch, bend, or twist the cord excessively. The core lines

may be bared and cut, and cause short-circuit, resulting in fire or

electric shock.

s Do not convert or damage the AC power cord.

s Do not put anything heavy on the AC power cord. Do not pull the

AC power cord.

s Keep the AC power cord away from heat sources.

s Be sure to grasp the plug when disconnecting the AC power cord.

If the AC power cord is damaged, stop using it and ask your dealer or

Sony service center to exchange it.

Batteries

Do not dispose of batteries in a fire.

Do not short circuit, disassemble or overheat the batteries.

Disposal of used batteries

To preserve our environment, dispose of used batteries according to your

local laws or regulations.

Ventilation holes

Never push objects of any kind into the unit through

the cabinet slots as they may touch dangerous

voltage points or short out parts that could result in

a fire or electric shock. Never spill liquid of any kind

on the unit.

Objects and Liquid Entry

Do not place any objects on the unit.

The apparatus shall not be exposed to dripping or

splashing and no objects filled with liquids, such

as vases, shall be placed on the apparatus.

(Continued)

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US02WAR.fm

masterpage:3 columns Right

Attachments

Do not use attachments not recommended by the

manufacturer, as they may cause hazards.

Medical institution

Do not place this unit in a place where medical

equipment is in use.

It may cause malfunction of medical instruments.

Moisture and flammable objects

s Do not use plugged sets near water — for

example, near a bathtub, washbowl,

kitchen sink, or laundry tub, in a wet

basement, or near a swimming pool, etc. It

may result in fire or electric shock.

s Do not let this unit get wet. Never spill liquid

of any kind on the unit. If any liquid or solid

object does fall through, do not operate the

unit. It may result in electric shock or

damage to the unit. Have it checked

immediately by qualified personnel.

s To prevent fire, keep flammable objects or open flame (e.g.

candles) away from the unit.

Accessories

Do not place the unit on an unstable cart, stand, table

or shelf. The unit may fall, causing serious injury to a

child or an adult and serious damage to the unit. No

part of the TV should overhang any edge of the TV

cart or stand; any overhanging edge is a safety hazard.

An appliance and cart combination should be moved

with care. Quick stops, excessive force, and uneven

surfaces may cause the appliance and cart

combination to overturn.

Broken pieces

Do not throw anything at the unit.

The screen glass may break by the impact and cause serious injury.

Cable wiring

Take care not to catch your feet on the cables. It may damage the unit.

Heat

Do not touch the surface of the TV.

It remains hot, even for some time after the TV is turned off.

Volume adjustment

s Adjust the volume so as not to trouble your neighbors. Sound

carries very easily at night time. Therefore, closing the windows

or using headphones is suggested.

s When using headphones, adjust the volume so as to avoid

excessive levels, as hearing damage may result.

Disposal of the TV

s Do not dispose the TV with general household waste.

s The LCD contains a small amount of liquid crystal. The

fluorescent tube used in this display contains mercury. Follow

your local ordinances and regulations for disposal.

Handling of broken glass and liquid crystal

leakage

If the LCD panel gets damaged, crystalline liquid leakage may occur, or

scattered broken glass may result. Do not touch broken glass or

crystalline liquid (which is toxic), with bare hands as cuts or poisoning/

skin irritation may occur. Also, do not let glass fragments or leaked

crystalline liquid get into your eyes or mouth. Should either contact your

eyes or mouth, rinse the contacted area thoroughly with water and

consult your doctor.

LCD screen

s Although the LCD screen is made with high-precision technology

and has effective pixels of 99.99% or more, black dots may appear

or bright points of light (red, blue, or green) may appear constantly

on the LCD screen. This is a structural property of the LCD panel

and is not a malfunction.

s Do not expose the LCD screen surface to the sun. Doing so may

damage the screen surface.

s Do not push or scratch the LCD screen, or place objects on top of

the TV. The image may be uneven or the LCD panel may be

damaged.

s If the TV is used in a cold place, a smear may occur in the picture

or the picture may become dark. This does not indicate a failure.

These phenomena improve as the temperature rises.

s Ghosting may occur when still pictures are displayed

continuously. It may disappear after a few moments.

s The screen and cabinet get warm when the TV is in use. This is not

a malfunction.

s Avoid spraying insect repellent with volatile material to the

screen.

s Avoid prolonged contact with rubber or plastic made material.

Fluorescent lamp

This TV uses a special fluorescent lamp as its light source. If the screen

image becomes dark, flickers, or does not appear, the fluorescent lamp

has run down and should be replaced. For replacement, consult qualified

service personnel.

Installation and moving

Carry the TV in the specified manner

Carrying the TV requires at least two people.

If you carry the TV in a manner other than that specified and without the

specified number of persons, it may drop and a serious injury may result.

Be sure to follow the instructions given below.

s Carry the TV with the specified number of

persons.

s Carry the TV holding the upper and bottom

frames of the TV as illustrated.

s Hold the TV securely when carrying it.

s As the glass surface of the TV has a special

coating, be careful to avoid touching the glass surface as far as

possible.

s When transporting, do not subject the unit to shocks or vibration,

or excessive force.

Installation

s When installing or removing the TV

on the wall, be sure to use qualified

contractors. Wall mount installation

requires the use of a wall-mount

bracket. If the TV is installed or

removed from the wall by a person

other than a qualified contractor, the

unit may fall and cause serious injury if the unit is not installed

securely.

s To prevent injury, this apparatus must be securely attached to the

stand/wall in accordance with the installation instructions.

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US02WAR.fm

masterpage:3 columns Right

Placement for viewing

It is recommended to watch the TV at a distance of 3 to 7 times that of

the screen height, and in moderate brightness. Watching the TV for too

long or in a dark room will cause eye fatigue.

Optional accessories

Observe the following when installing the TV using a

wall-mount bracket. If the TV is not secured properly,

it may fall and cause injury.

s Be sure to follow the operating instructions

supplied with the wall-mount bracket when

installing the unit.

s Be sure to attach the brackets supplied with the

wall-mount bracket.

Protruding location

Do not install the TV in protruding locations. If you install the unit in the

following locations, injury may result.

s Do not install the unit in a location where the unit protrudes, such

as pillars.

s Do not install the unit in a location that may cause injury.

Oils

Do not install this unit in restaurants where oily vapors occur. Dust

absorbing oil may enter into the unit and damage the unit.

Corrosion

Use of this TV near the seashore may subject the set to excessive salt,

corrosion and internal damage and result in deterioration of the TV’s

performance. If the set will be subjected to these conditions, steps should

be taken to reduce the humidity and temperature of the area where the

TV is located.

Ventilation

The slots and openings in the TV are provided for necessary ventilation.

To ensure reliable operation of the unit, and to protect it from

overheating, these slots and openings must never be blocked or covered.

Unless proper ventilation is provided, the unit may

gather dust and get dirty. For proper ventilation,

observe the following:

s Do not install the unit turned backward or

sideways.

s Do not install the unit turned over or upside

down.

s Never cover the slots and openings with a

cloth or other materials.

s Never block the slots and openings by

placing the unit on a bed, sofa, rug or

other similar surface.

s Never place the unit in a confined space, such

as a bookcase or built-in cabinet, unless

proper ventilation is provided.

s Leave some space around the unit. Otherwise, adequate

air-circulation may be blocked causing overheating and cause fire

or damage the unit.

Outdoor use

Do not install this unit outdoors. If the unit is exposed

to rain, it may result in fire or electric shock. If the unit

is exposed to direct sunlight, the unit may heat up and

cause damage to the unit.

Vehicle and ceiling

Do not install this unit in a vehicle or hang from the

ceiling.

Bumping of the vehicle may cause the unit to fall down

and cause injury.

Ship and vessel

Do not install this unit in a ship or vessel. If the unit is

exposed to seawater, it may cause fire or damage the

unit.

When installing the unit on the wall, allow this much space.

15 cm

(6 inches)

30 cm

(11

inches)

10 cm

(4 inches)

10 cm

(4 inches)

When installing the unit using a stand, allow this much space.

30 cm

(11

inches)

10 cm

(4 inches)

10 cm

(4 inches)

10 cm (4 inches)

Never install the unit as follows:

Air circulation is blocked. Air circulation is blocked.

(Continued)

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US02WAR.fm

masterpage:3 columns Right

Preventing the TV from toppling over

Take measures to prevent the unit from toppling over and causing injury.

To prevent the unit from toppling over, secure the unit to the wall or

pillar.

Installing on a level surface

If you install the unit on a non-level surface, the unit

may fall or drop and cause injury or damage.

Placing on a stable surface

If you place the unit on an unstable surface, the unit

may fall and cause injury or damage.

Fall

Do not hang anything on the unit.

The unit may fall from the stand or wall-mount

bracket, causing damage or serious injury.

AC power cord

Unplug the AC power cord when moving the unit.

Do not move the unit with the AC power cord

plugged in. It may damage the AC power cord and

result in fire or electric shock.

Do not allow anything to rest on or roll over the

power cord, and do not place the unit where the

power cord is subject to wear or abuse.

Antennas

Outdoor Antenna Grounding

If an outdoor antenna is installed, follow the precautions below. An

outdoor antenna system should not be located in the vicinity of overhead

power lines or other electric light or power circuits, or where it can come

in contact with such power lines or circuits.

WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM,

EXTREME CARE SHOULD BE TAKEN TO KEEP FROM

CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT

WITH THEM IS ALMOST INVARIABLY FATAL.

Be sure the antenna system is grounded so as to provide some protection

against voltage surges and built-up static charges.

Section 810 of the National Electrical Code (NEC) in USA and Section

54 of the Canadian Electrical Code in Canada provides information with

respect to proper grounding of the mast and supporting structure,

grounding of the lead-in wire to an antenna discharge unit, size of

grounding conductors, location of antenna discharge unit, connection to

grounding electrodes, and requirements for the grounding electrode.

Antenna Grounding According to the National

Electrical Code, ANSI/NFPA 70

Lightning

For added protection for this TV during a lightning storm, or when it is

left unattended and unused for long periods of time, unplug it from the

wall outlet and disconnect the antenna. This will prevent damage to the

receiver due to lightning and power-line surges.

Service

Damage Requiring Service

Do not attempt to service the set by yourself since

opening the cabinet may expose you to dangerous

voltage or other hazards.

Unplug the set from the wall outlet and refer servicing to

qualified service personnel.

Replacement parts

When replacement parts are required, be sure the

service technician certifies in writing that he/she has

used replacement parts specified by the manufacturer

that have the same characteristics as the original parts.

Unauthorized substitutions may result in fire, electric

shock or other hazards.

Safety check

Upon completion of any service or repairs to the unit,

ask the service technician to perform routine safety

checks (as specified by the manufacturer) to

determine that the unit is in safe operating condition,

and to so certify. Ask a qualified service technician to

dispose of the unit.

Antenna lead-in wire

Antenna discharge unit

(NEC Section 810-20)

Grounding conductors

(NEC Section 810-21)

Ground clamps

Power service grounding

electrode system

(NEC Art 250 Part H)

Ground clamps

Electric service

equipment

NEC: National Electrical Code

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US02TOC.fm

masterpage:3 columns Right

Contents

Introducing the TV

Welcome.............................................................. 11

Package Contents.......................................... 11

Features......................................................... 11

Installing the TV.................................................. 13

Preventing the TV from Toppling Over .......... 13

Bundling the Connecting Cables.................... 14

Adjusting the Viewing Angle of the TV........... 14

TV Controls and Connectors ............................. 15

Front Panel .................................................... 15

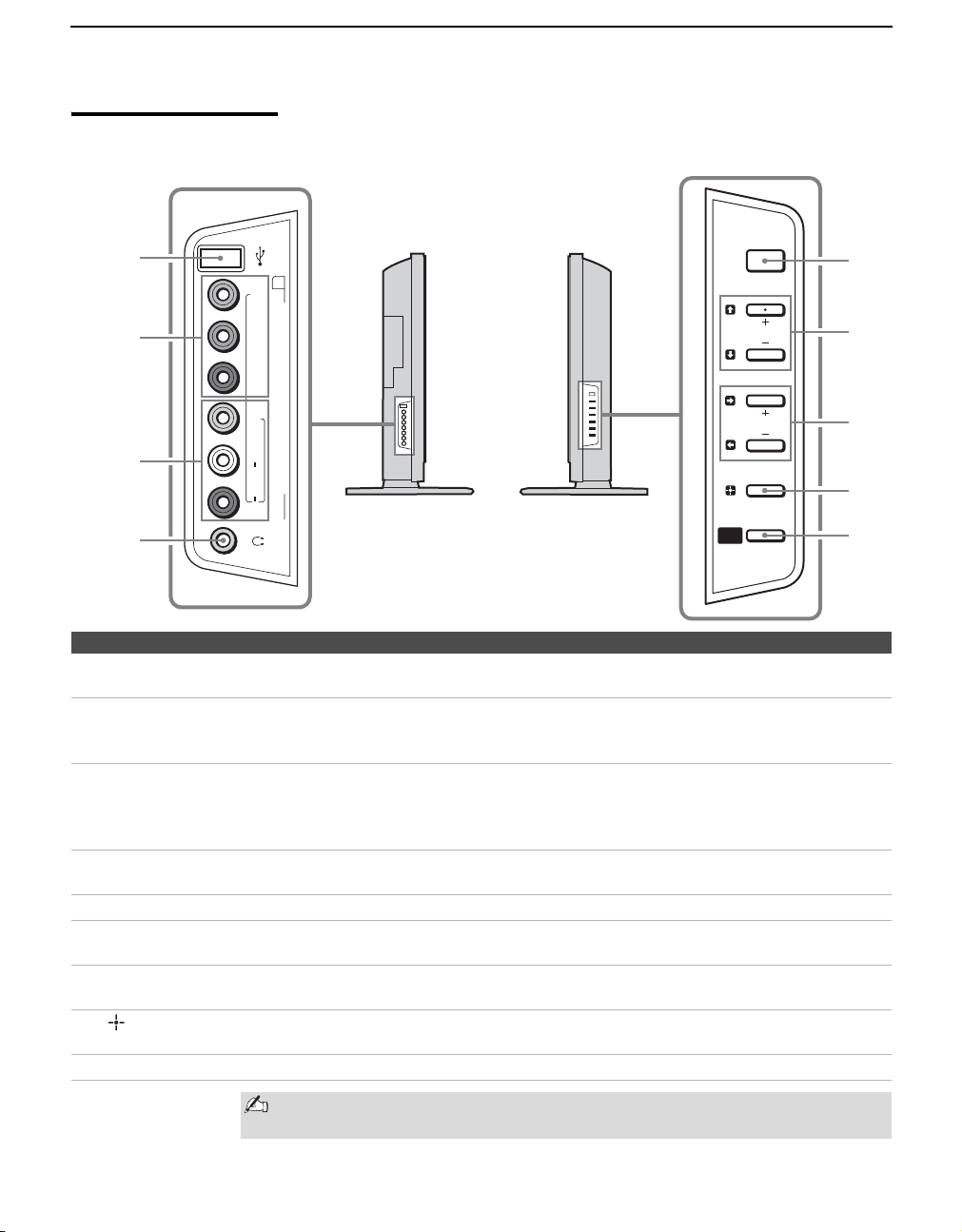

Side Panel...................................................... 16

Rear Panel..................................................... 17

Connecting the TV

Overview.............................................................. 19

Making Video and Audio Connections........... 19

About Using S VIDEO.................................... 20

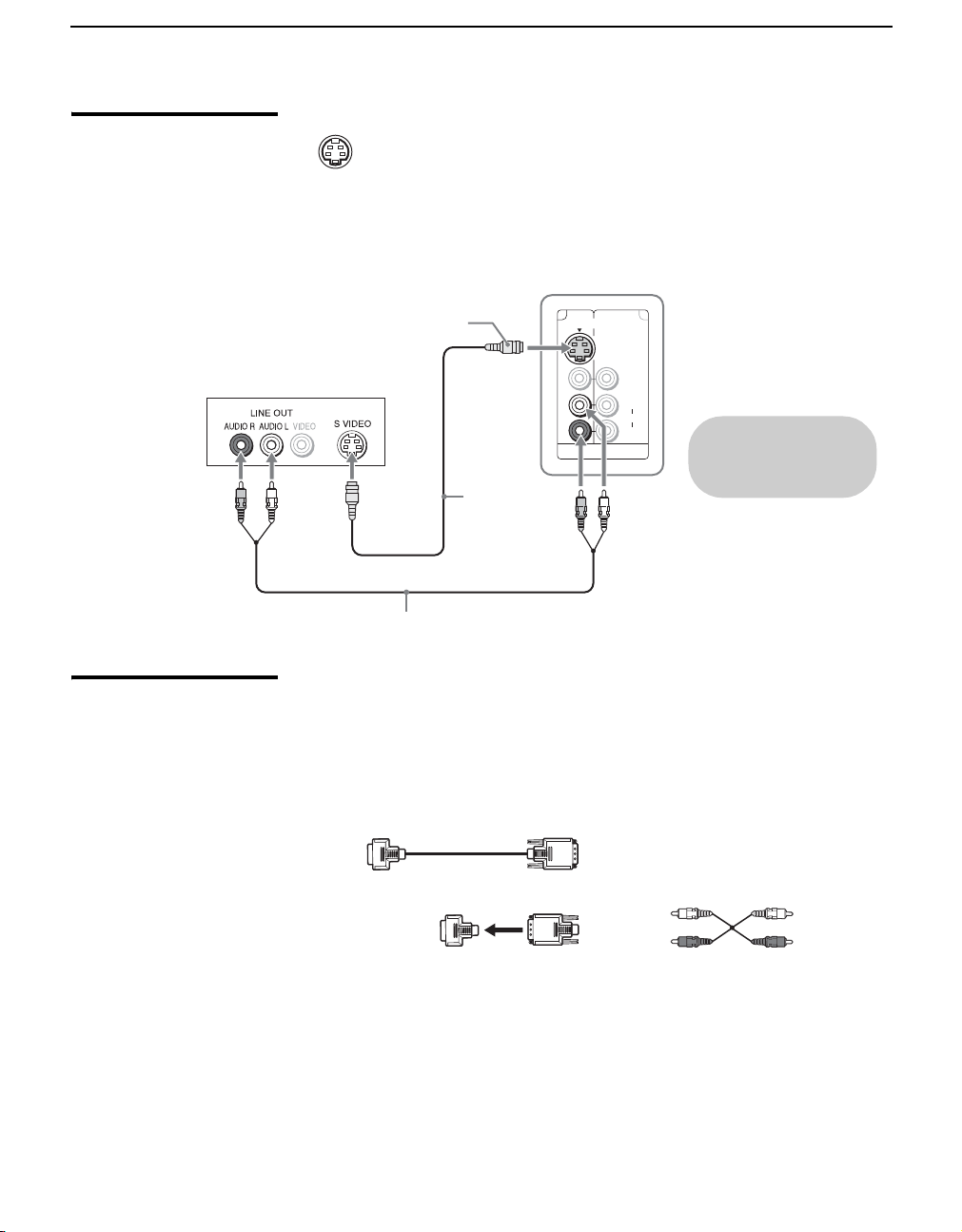

About Using HDMI to DVI Adapter................. 20

Basic Connections ............................................. 21

Cable System or VHF/UHF............................ 21

Cable Box and Antenna ................................. 22

Cable Box ...................................................... 23

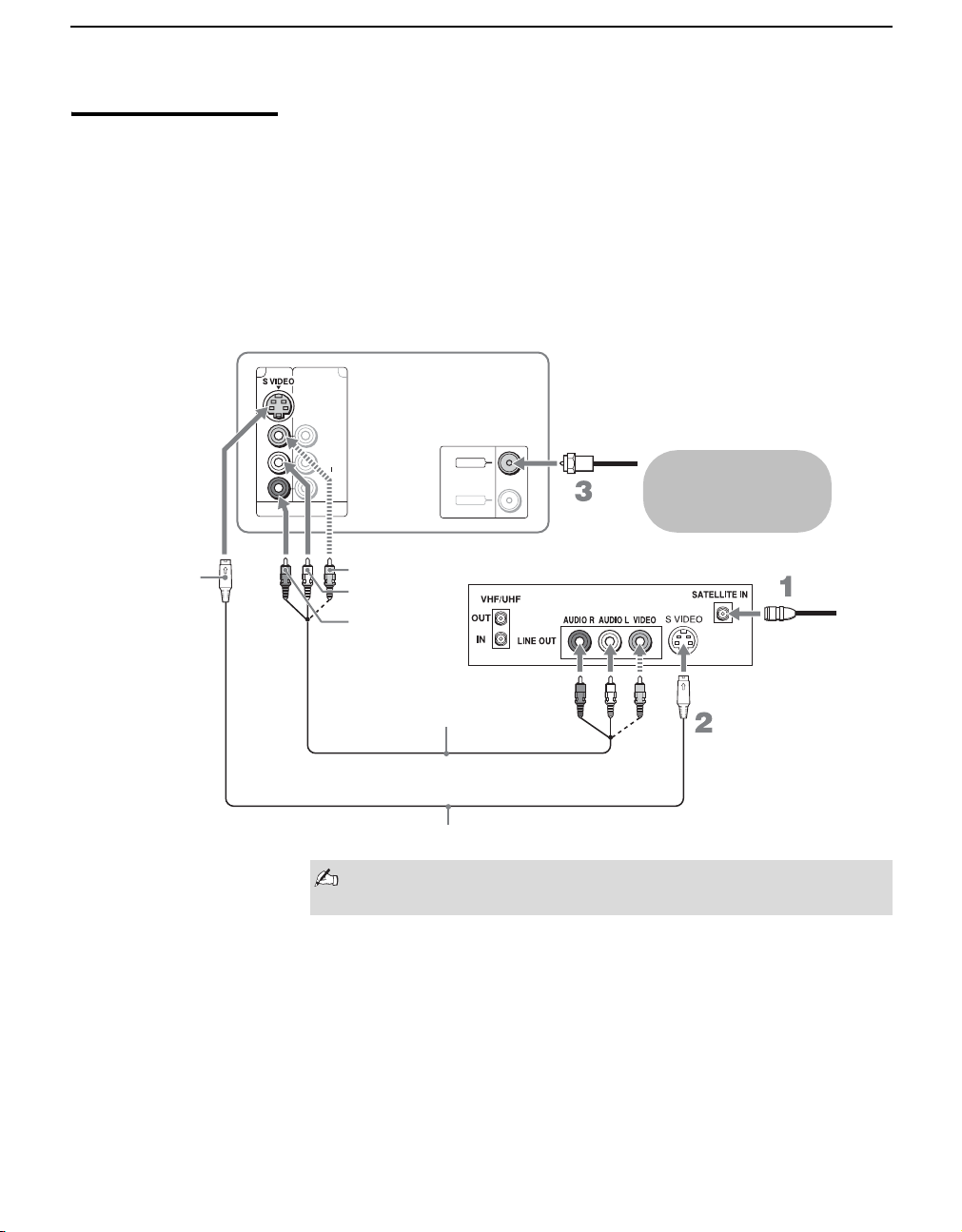

Satellite Receiver ........................................... 24

Digital Cable Box or Digital Satellite

Receiver......................................................... 25

Equipment with HDMI Connection................. 26

Equipment with DVI Connection .................... 27

Equipment with Digital Audio (OPTICAL) ...... 28

Using CableCARD Device .................................. 29

About Using CableCARD Device................... 29

Activating CableCARD Service...................... 29

Removing the CableCARD Device ................ 30

Setting Up the Channel List............................... 31

Using Initial Setup.......................................... 31

Connecting Optional Equipment....................... 32

VCR and Cable .............................................. 33

VCR and Cable Box....................................... 34

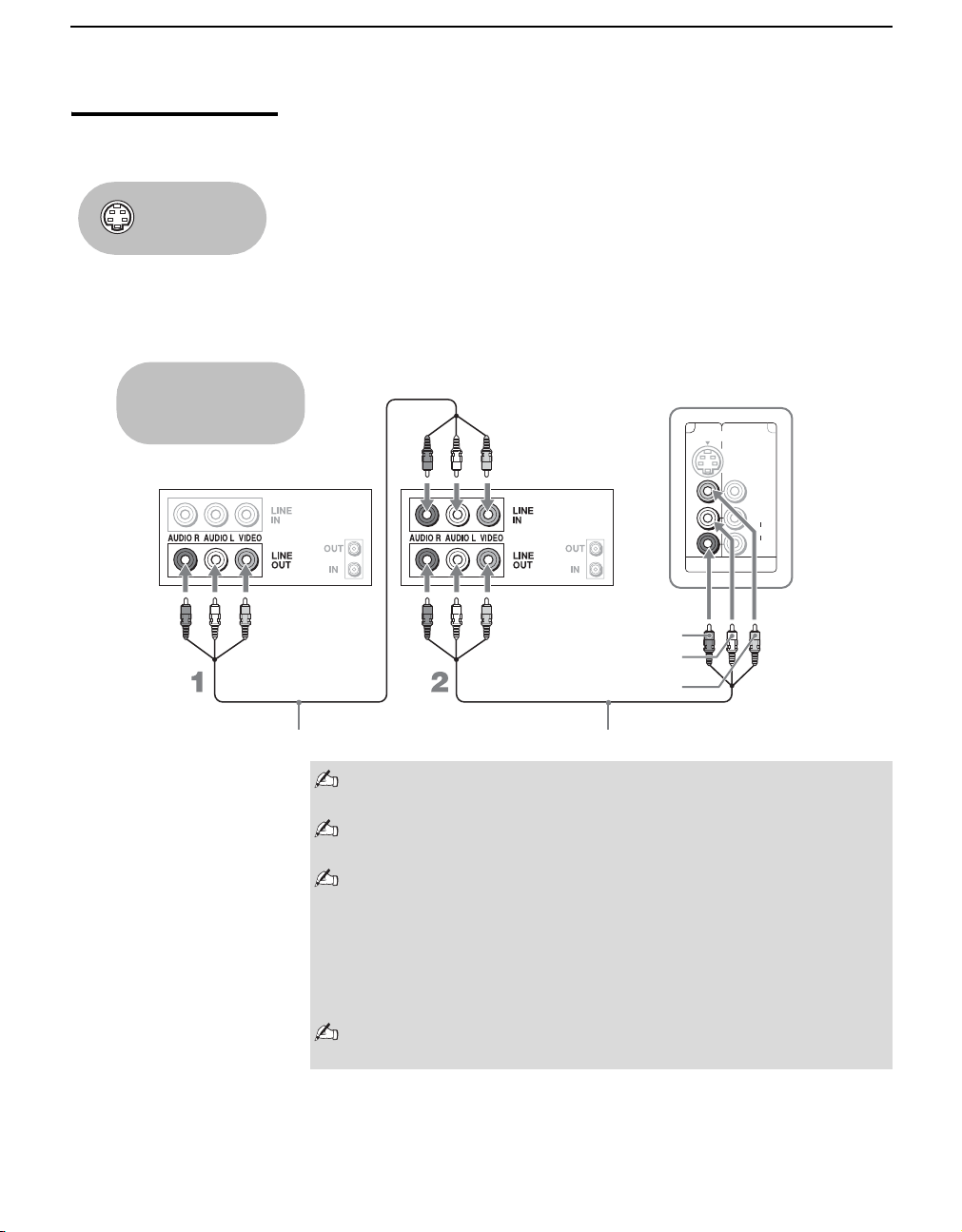

Two VCRs for Tape Editing ........................... 36

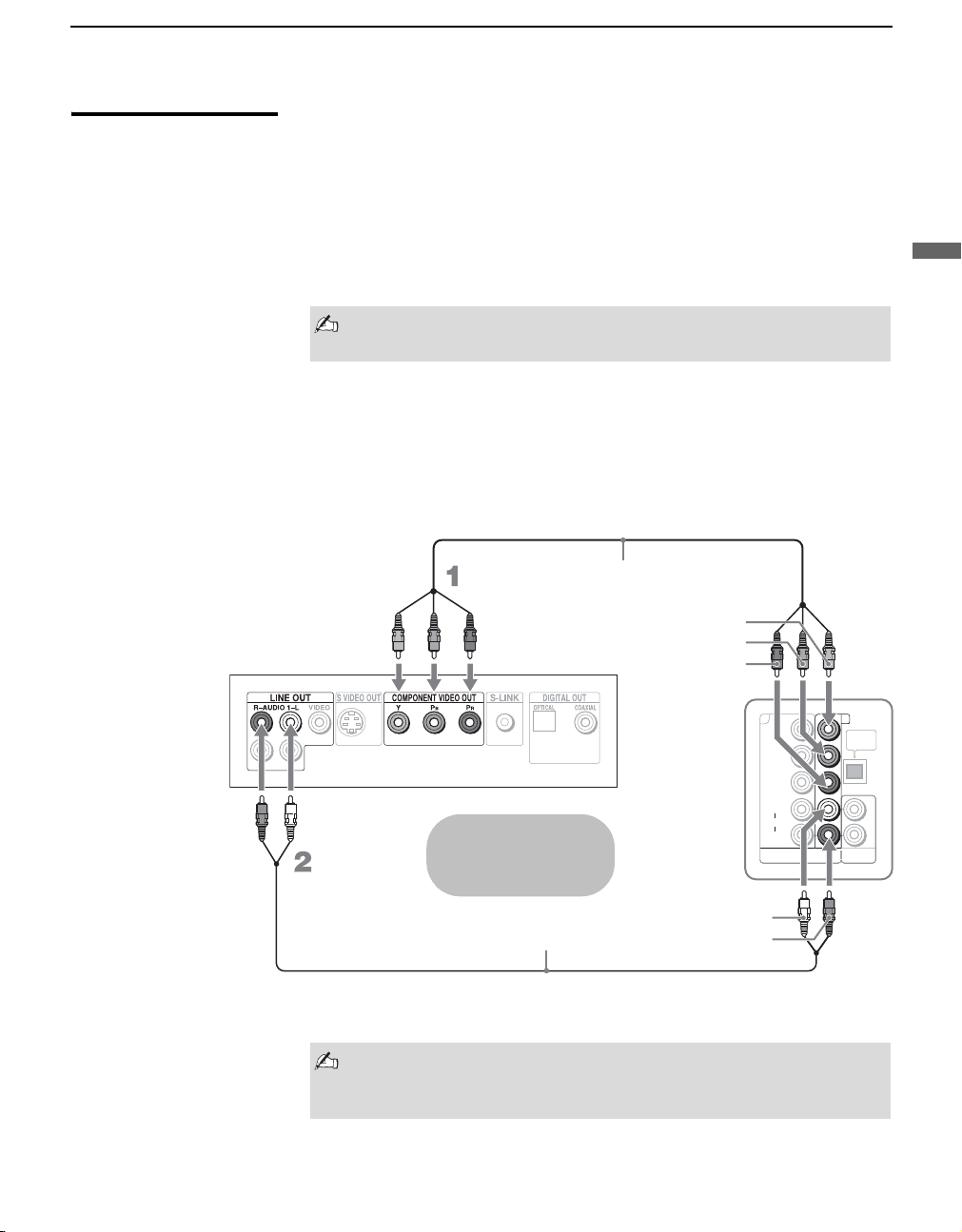

DVD Player with Component Video

Connectors..................................................... 37

DVD Player with S VIDEO and Audio

Connectors.....................................................38

Personal Computer ........................................39

Camcorder or “PlayStation”............................40

Audio Receiver...............................................40

Watching the TV

Overview ..............................................................41

Inserting Batteries into the Remote Control.....41

Button Descriptions............................................42

Programming the Remote Control ....................44

Using Other Equipment with Your Remote

Control...........................................................46

Special Buttons on the Remote Control ...........48

Using the GUIDE Button ................................48

Using the WIDE Button ..................................50

Using the JUMP Button..................................51

Using the FREEZE Button..............................51

Using the POWER SAVING Button................51

Introducing WEGA GATE

Overview of WEGA GATE...................................52

Navigating and Selecting Items.........................54

Using Favorites in WEGA GATE........................54

Using Cable in WEGA GATE..............................55

Using Antenna in WEGA GATE .........................55

Using External Inputs in WEGA GATE..............56

Using Photo in WEGA GATE..............................56

Using Video in WEGA GATE..............................56

Using Settings in WEGA GATE..........................56

(Continued)

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US02TOC.fm

masterpage:3 columns Right

Using the Photo/Video Viewer

About USB........................................................... 57

Features......................................................... 57

Connecting Your Camera via the USB

Interface ......................................................... 57

Connecting the USB Cable ............................ 58

File Compatibility............................................ 58

Using the Photo/Video Viewer Index ................ 59

Using the Photo/Video Viewer Index ............. 60

Viewing Photos ................................................... 61

Photo Controls ............................................... 61

Photo Menu Bar Options................................ 62

Using Zoom and Pan ..................................... 63

Using Rotate .................................................. 63

Playing Movies.................................................... 64

Movie Controls............................................... 64

Movie Menu Bar Options ............................... 65

Photo/Video Viewer Index Menu Bar

Options ......................................................... 66

Slide Show Menu Options.............................. 66

Contents Menu Options ................................. 67

USB Media Menu........................................... 67

Notes on Using USB Media................................ 68

About DCF File Names.................................. 68

Using the Settings

Overview.............................................................. 69

Accessing the Video Settings ........................... 71

Selecting Video Options................................. 71

Selecting PC Video Options........................... 73

Accessing the Audio Settings ........................... 74

Selecting Audio Options................................. 74

Selecting PC Audio Options........................... 76

Accessing the Screen Settings ......................... 77

Selecting Screen Options .............................. 77

Selecting PC Screen Options ........................ 79

Accessing the Channel Settings....................... 80

Selecting Channel Options ............................ 80

Accessing the Parental Lock Settings.............. 82

Selecting Parental Lock Options.................... 82

Viewing Blocked Programs ............................ 83

Selecting Custom Rating Options.................. 83

Accessing the Setup Settings ........................... 85

Selecting Setup Options ................................ 85

Programming Caption Vision ......................... 87

Selecting PC Setup Options .......................... 88

Accessing the Applications Settings ................90

Selecting Applications Options.......................90

Other Information

Overview ..............................................................92

Contacting Sony..................................................92

Troubleshooting..................................................92

Remote Control ..............................................92

CableCARD Device........................................93

Video ..............................................................93

Audio ..............................................................94

Channels ........................................................95

USB................................................................95

General...........................................................97

Specifications......................................................98

Index.....................................................................99

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US03WEL.fm

masterpage:3 columns Right

Introducing the TV

Welcome

Thank you for purchasing this Sony LCD digital TV. This manual is for

models KDL-V26XBR1, KDL-V32XBR1 and KDL-V40XBR1.

Package Contents Along with your new TV, the packing box contains a remote control, and

two AA (R6) batteries. See page 98 for the complete list of packaging

contents.

Features Some of the features that you will enjoy with your new TV include:

s WEGA GATE™: WEGA GATE is a new feature that allows you to

easily navigate to the most convenient TV functions: favorite channels,

cable channels, antenna channels, external input list, viewing photo and

movies or settings.

s WEGA Engine: Delivers superb picture quality from any video source

by minimizing the signal deterioration caused by digital-to-analog

conversion and stabilizing the signal processing. This engine features

unique Sony technology, including:

• The first step in the digital processing system, Composite

Component Processor (CCP-X), which enhances input signal-to-

noise ratio by chroma decoder digital processing.

• DRC

(Digital Reality Creation)-MF V1: Unlike conventional

line doublers, the DRC Multifunction feature replaces the signal’s

NTSC waveform with the near-HD equivalent by digital mapping

processing. The DRC Palette option lets you customize the level of

detail (Reality) and smoothness (Clarity) to create up to three

custom palettes.

s Integrated HDTV: You can watch digital television programs and

enjoy the improved audio/video quality offered by these programs.

s Wide Screen Mode: Watch conventional 4:3 aspect ratio broadcasts in

wide screen (16:9) mode.

s S-master Full Digital Amplifier: Delivers superb clear dialog and

reproduces the original sound quality while minimizing any sound

fragmentation or jitter noise.

s CineMotion

: Using the reverse 3-2 pull down technology, the

CineMotion feature provides smoother picture movement when playing

back movies or other video sources on film.

s Parental Control: V-Chip technology allows parents to block

unsuitable programming from younger viewers.

(Continued)

Introducing the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US03WEL.fm

masterpage:3 columns Right

s CableCARD™ slot: Provides cable subscribers with access to digitally

encrypted cable channels — without the need for a set-top box — that

will enable you to receive not only standard definition but also high

definition television. The CableCARD device, which is provided by

your cable TV company, is inserted into the TV’s rear panel

CableCARD slot. After the service is activated with your cable TV

company, the card replaces the need for a separate set-top box. (Check

with your cable TV company about CableCARD service details,

limitations, pricing, and availability. For more information about

CableCARD device in this manual, see page 29.)

s Component Video Input: Offers the best video quality for DVD (480p

and 480i), and digital set-top box (1080i, 720p, 480p and 480i)

connections.

s Favorite Channels: With the WEGA GATE function, allows you to

navigate a list of up to 16 favorite channels without leaving the current

channel.

s Steady Sound

: Equalizes volume levels so there is consistent output

between programs and commercials.

s HDMI (High-Definition Multimedia Interface): Provides an

uncompressed, all-digital audio/video interface between this TV and

any HDMI-equipped audio/video component, such as a set-top box,

DVD player, and A/V receiver. HDMI supports enhanced, or high-

definition video, plus two-channel digital audio.

s Light Sensor: Allows the picture brightness level to be optimized to

ambient light. The effect from the Light Sensor depends on the setting

of Picture Mode and Power Saving. The factory setting is Off.

s Caption Vision/ Info Banner: Allows Closed Caption and/or Channel

Programming Information to be displayed.

Introducing the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US03WEL.fm

masterpage:3 columns Right

Installing the TV

Preventing the TV

from Toppling Over

Attaching the Support Belt

1 Screw the support belt (supplied) to the TV stand with a wood screw

(supplied).

2 Attach the support belt to the stand, and screw the belt with a securing

screw (supplied) using a coin, etc.

3 Adjust the length by pulling the support belt towards you while holding

the TV stand.

When Mounting on a Wall

Be sure to use the following optional wall-mount brackets to hang the TV on

the wall.

KDL-V26XBR1/KDL-V32XBR1: SU-WL31

KDL-V40XBR1: SU-PW2

See the Instruction Guide supplied with the wall-mount bracket on how to

mount the TV on the wall.

Be sure to take measures to prevent the TV from toppling over and

causing injury.

If the supplied wood screw does not fit depending on the type of

TV stand, or when the securing strength is not enough, prepare

commercial screws (3 to 4 mm (1/8 to 3/16 inches) diameter) to fit

to the TV stand. Consult your dealer about the types of screw.

Introducing the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US03WEL.fm

masterpage:3 columns Right

Bundling the

Connecting Cables

After the connections are done, organize the cables as illustrated below.

1 Attach the cable holder (supplied) to the rear of the TV (

), then turn

the cable holder a quarter turn to the left (

2 Push the clasp lever in to release the lock and open the cover, and then

insert the cables.

3 Close the cover until it clicks shut and locks.

Adjusting the

Viewing Angle of the

This TV can be adjusted within the angles shown below.

When adjusting the angle, hold the stand with one

hand to avoid slipping or tipping the stand.

ust the angle back and

orth

(tilt) (KDL-V26/32XBR1 only)

3°

8°

Adjust the angle left and right

(swivel)

Right view

Front

Top view

Front

15°

Introducing the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US03WEL.fm

masterpage:3 columns Right

TV Controls and Connectors

Front Panel

23 4

PIC OFF TIMER POWER/STANDBY

Item Description

1 PIC OFF LED When lit, indicates that the Picture Off feature is activated. For details, see page 86.

2 TIMER LED When lit, indicates one of the timers or Sleep is set. When it is set, this LED will remain lit

even if the TV is turned off. For details, see page 90.

3 POWER/

STANDBY LED

Lights up in green when the TV is turned on. The LED lights up red when in standby mode for

both TV and PC input. The standby mode for PC input is set by setting Power Management

to On in the PC Setup settings. If the LED blinks in red continuously, this may indicate the TV

needs servicing (see “Contacting Sony” on page 2).

4 (IR) Infrared

Receiver/Light

Sensor

Receives IR signals from the remote control.

Senses room light level and adjusts the screen brightness accordingly (for details, see page 86).

Do not put anything near the sensor, as its function may be affected.

5 Speaker Outputs audio signal.

Introducing the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US03WEL.fm

masterpage:3 columns Right

Side Panel

AUDIO

VIDEO

(1080i/720p/480p/480i) VIDEO/HD/DVD IN

PR/CR PB/CB YL

(MONO)

CHANNEL

POWER

VOLUME

TV/VIDEO

WEGA

GATE

Left side

Right side

Item Description

USB jack Connects to the USB port on your USB device. Provides a secure digital connection between

your TV and USB device, such as digital video camcorders and digital cameras.

VIDEO/HD/DVD

2 IN

Y P

B/CB PR/CR

Connect to your component video (YPBPR) and audio (L/R) output jacks of your DVD player

or digital TV receiver.

Component video provides better picture quality than the composite video (3) connection.

VIDEO/HD/DVD

2 IN

VIDEO/(MONO)

L-AUDIO-R

Connect to the composite video and audio output jacks on your camcorder or other video

equipment. When Auto is selected for the Video 2 (Component) option in the Setup

settings, the component video function will be preferentially activated (see page 86).

Headphones

jack

Connects to your headphones. If your headphones do not match the jack, use a suitable plug

adaptor (not supplied).

POWER Press to turn on and off the TV.

+ CHANNEL –

Press to scan through channels. To scan quickly through channels, press and hold down either

+ or –. On the WEGA GATE screen, these buttons serve as up/down buttons.

+ VOLUME –

Press to adjust the volume. On the WEGA GATE screen, these buttons serve as right/left

buttons.

/TV/VIDEO Press to confirm the selection or setting in WEGA GATE.

Press repeatedly to cycle through the video equipment connected to the TV’s video inputs.

WEGA GATE Press to display WEGA GATE. Press again to exit WEGA GATE.

The CHANNEL + button has a tactile dot. Use the tactile dot as a reference

when operating the TV.

Introducing the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US03WEL.fm

masterpage:3 columns Right

Rear Panel

R AUDIO IN L

S VIDEO

VIDEO

AUDIO

VIDEO IN

HD/DVD IN

(1080i/720p/480p/480i)

AUDIO OUT

(VAR/FIX)

(MONO)

AUDIO

OPTICAL

OUT

CableCARD

AUDIO RGB

PC IN 7

AC IN

CABLE

VHF/UHF

AC IN

CABLE

VHF/UHF

KDL-V26XBR1

KDL-V32XBR1

KDL-V40XBR1

(Continued)

Introducing the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US03WEL.fm

masterpage:3 columns Right

* Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby

Laboratories.

Jack Description

1 HDMI 6 IN

HDMI/

R-AUDIO IN-L

HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-digital

audio/video interface between this TV and any HDMI-equipped audio/video component, such

as a set-top box, DVD player, and A/V receiver. HDMI supports enhanced, or high-definition

video, plus two-channel digital audio.

The AUDIO IN (L/R) of HDMI IN is for DVI connection. For details, see page 27.

2 VIDEO 1 IN

S VIDEO

Connects to the S VIDEO output jack of your VCR or other video equipment that has

S VIDEO. S VIDEO provides better picture quality than the composite video (3) connection.

3 VIDEO 1/3 IN

VIDEO/

L (MONO)-

AUDIO-R

Connect to the composite video and audio output jacks on your VCR or other video

component. A third composite video and audio (VIDEO/HD/DVD 2 IN) is located on the left

side panel of the TV.

4 HD/DVD 4/5 IN

(1080i/720p/

480p/480i)/

L-AUDIO-R

Connect to your DVD player’s or digital set-top box’s component video (YP

BPR) and audio

(L/R) jacks.

Component video provides better picture quality than the S VIDEO (2) or the composite

video (3) connections.

5 OPTICAL OUT

(PCM/DOLBY

DIGITAL)

Connects to the optical audio input of a digital audio component that is PCM/Dolby Digital

compatible.

6 AUDIO OUT

(VAR/FIX)

Connect to the left and right audio input jacks of your audio or video equipment. You can use

these outputs to listen to your TV’s audio through your stereo system.

7 PC 7 IN

(AUDIO/RGB)

Connects to personal computer’s video and audio output connectors.

Can be connected to other Analog RGB devices such as Video Conferencing or Set-top Boxes.

See “PC Input Signal Reference Chart” on page 89 for the signal to be displayed.

8 CableCARD slot CableCARD device provides cable subscribers with access to secure, digitally encrypted cable

channels

— without the need for a set-top box — that will enable you to receive not only

standard definition but also high definition television. For details, see page 29.

9 AC IN Connects the supplied AC power cord.

0 CABLE RF input that connects to your cable signal.

qa VHF/UHF RF input that connects to your VHF/UHF antenna.

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

Connecting the TV

Overview

Your new LCD TV can receive both analog and digital (HD and SD)

broadcasting signals from antenna, satellite and cable TV company.

To display clear crisp pictures, you must connect your TV correctly and

choose the correct display format (see “Using the WIDE Button” on page

50). It is strongly recommended to connect the cable and antenna inputs

using a 75-ohm coaxial cable to receive optimum picture quality signal. A

300-ohm twin lead cable can be easily affected by radio noise and the like,

resulting in signal deterioration. If you use a 300-ohm twin lead cable, keep

it as far away as possible from the TV.

Making Video and

Audio Connections

The signals that enter your TV and connected devices will need to output in

the correct format using the suitable connections. Below are different types

of video connectors available these days. Your TV comes with all types of

connectors with the exception of the DVI connector but your cable box or

satellite receiver may be equipped with this type. When connecting your TV,

use the inputs that are available on your devices that provide the best video

performance, as to below.

Best Video

Performance

Connector type

Separate audio

connection required

HDMI

(High-Definition Multimedia Interface)

DVI (Digital Visual Interface)

Ye s

Component video

(480i/480p/720p/1080i)

S VIDEO

Composite video

RF/Coaxial No

*An adapter is necessary when you are connecting a DVI-equipped device to this TV

(see page 20).

L-

AUDIO

-R

Connecting the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

About Using S

VIDEO

If the optional equipment you are connecting has an S VIDEO jack

(shown at left), you can use an S VIDEO cable for improved picture

quality (compared to an A/V cable). Because S VIDEO carries only

the video signal, you also need to connect audio cables for sound, as

shown below.

About Using HDMI

to DVI Adapter

If you are connecting equipment with DVI connector to this TV, you will

need to use an adapter. You can use an HDMI-to-DVI cable or an HDMI

adapter (not supplied). Both are available at your local electronics store.

When you use the adapter, you will also need to use separate audio cables

for sound as DVI connector is for video signals only.

S VIDEO

VIDEO

AUDIO

VIDEO IN

(MONO)

1 3

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

Audio cable

Rear of TV

Example of an S VIDEO Connection

S VIDEO

cable

Equipment with S VIDEO

S VIDEO

HDMI-to-DVI Cable

Audio cable

HDMI adapter

Connecting the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

Basic Connections

The way in which you connect your TV will vary, depending on how your

home receives a signal (antenna and satellite; cable and cable box) and

whether or not you plan to connect a VCR.

If you are connecting a VCR

s See the connection described on pages 33 and 34.

Cable System or

VHF/UHF

For best results, use this connection if:

s You have a cable and/or an antenna.

(This is convenient if you are using a separate rooftop antenna to receive

additional channels that are not provided by your cable TV company.)

s You do not have a cable box or VCR. (If you have a cable box, see

pages 22 and 23. If you have a VCR, see pages 33 and 34.)

Notes on Using This Connection

If You Are Connecting... See Page

Cable System or VHF/UHF

❑ No cable box or VCR

Cable Box and Antenna

❑ Cable box unscrambles only some

channels (usually premium channels)

❑ No VCR

Cable Box

❑ Cable box unscrambles all channels

❑ No VCR

Satellite Receiver

Digital Cable Box or Digital Satellite Receiver

Equipment with HDMI Connection

Equipment with DVI Connection

Equipment with Digital Audio (OPTICAL)

Antenna System

Cable Type Connect As Shown

Cable TV (CATV)

and Antenna

Antenna cable

CATV cable

To Do This... Do This ...

Switch

the TV’s input between

the cable and antenna

Press ANT to switch back and forth between the TV’s VHF/UHF and CABLE inputs.

Do not use an indoor antenna, which is especially susceptible to radio noise.

Connecting the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

Cable Box and

Antenna

For best results, use this connection if:

s Your cable company scrambles some channels, such as premium

channels (which requires you to use a cable box), but does not scramble

all channels.

s You do not have a VCR. (If you have a VCR, see pages 33 and 34.)

With this connection you can:

s Use the TV’s remote control to change channels coming through the

cable box to the TV’s CABLE input jack. (You must first program the

remote control for your specific cable box; see “Programming the

Remote Control” on page 44.)

s Use the TV’s remote control to change channels coming directly into

the TV’s VHF/UHF input jack.

Notes on Using This Connection

Before connecting a

cable box, see “Using

CableCARD Device” on

page 29.

IN OUT

VHF/UHF CABLE

CATV cable

Rear of TV

Cable box

Coaxial

cable

Antenna cable

To Do This ... Do This ...

Use the cable box Tune the TV to the channel the cable box is set to (usually channel 3

or 4) and then use the cable box to switch channels.

Set up the TV remote control to operate the cable

box

Program the remote control. See “Programming the Remote

Control” on page 44.

Activate the remote control to operate the cable

box

Press SAT/CABLE (FUNCTION).

Prevent the accidental switching of TV channels When using the cable box, ensure that the TV remains tuned to the

channel that the cable box is set to (usually channel 3 or 4).

Switch

the TV’s input between the cable box and

antenna

Press ANT to switch back and forth between the TV’s VHF/UHF

(scrambled channels) and CABLE (unscrambled) inputs.

Connecting the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

Cable Box For best results, use this connection if:

s Your cable company scrambles all channels, which requires you to use a

cable box.

s You do not have a VCR. (If you have a VCR, see pages 33 and 34.)

With this connection you can:

s Use the TV’s remote control to change channels coming through the

cable box to the TV’s VHF/UHF input jack. (You must first program the

remote control for your specific cable box.)

To connect the cable box

1 Connect the CATV cable to the cable box’s input jack.

2 Use a coaxial cable to connect the cable box’s output jack to the TV’s

VHF/UHF input jack.

3 Run Auto Program, as described in “Setting Up the Channel List” on

page 31.

Notes on Using This Connection

Before connecting a

cable box, see “Using

CableCARD Device” on

page 29.

VHF/UHF

CATV cable

Coaxial cable

Rear of TV

Cable box

OUT

To do this... Do This ...

Use the cable box Tune the TV to the channel the cable box is set to (usually channel 3

or 4) and then use the cable box to switch channels.

Set up the TV remote control to operate the cable

box

Program the remote control. See “Programming the Remote

Control” on page 44.

Activate the remote control to operate the cable

box

Press SAT/CABLE (FUNCTION).

Prevent the accidental switching of TV channels When using the cable box, ensure that the TV remains tuned to the

channel that the cable box is set to (usually channel 3 or 4).

Connecting the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

Satellite Receiver Disconnect all power sources before making any connections.

1 Connect the satellite antenna cable to the satellite receiver’s

SATELLITE IN jack.

2 Use A/V and S VIDEO cables to connect the satellite receiver’s AUDIO

and S VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks.

3 Use a coaxial cable to connect your cable to the TV’s CABLE jack, or

your antenna to the TV’s VHF/UHF jack.

CABLE

VHF/UHF

VIDEO

AUDIO

VIDEO IN

(MONO)

1 3

Satellite receiver

A/V cable

Rear of TV

Satellite

antenna

cable

S VIDEO

S VIDEO cable

VIDEO

AUDIO-L

AUDIO-R

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

Coaxial cable

If your satellite receiver is not equipped with S VIDEO, use a VIDEO

cable (yellow) instead of the S VIDEO cable.

Connecting the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

Digital Cable Box

or Digital Satellite

Receiver

Disconnect all power sources before making any connections.

1 Connect the RF coaxial cable from the CATV or satellite dish to the

input of the digital cable box or digital satellite receiver.

2 Use a component video cable to connect the YPBPR jacks of your

digital cable box or digital satellite receiver to the TV’s component

jacks.

3 Use an audio cable to connect the AUDIO OUT jack of the digital cable

box or digital satellite receiver to the TV’s AUDIO IN jacks.

Component video (Y PB/CB PR/CR) connection is necessary to view

digital broadcastings in 1080i, 720p, 480i and 480p. This TV

displays all format types of picture in a resolution of 1,366 dots ×

768 lines.

The component Jacks (Y PB/CB PR/CR) do not provide audio, so

audio cables must be connected to provide sound.

HD/DVD IN

(1080i/720p/480p/480i)

AUDIO OUT

(VAR/FIX)

AUDIO

4 5

OPTICAL

OUT

Rear of TV

B/CB

PR/CR

AUDIO-L

AUDIO-R

Audio cable

Digital cable box or Satellite receiver

Component video cable

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

RF coaxial cable

Connecting the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

Equipment with

HDMI Connection

For best results, use this connection if:

s Your equipment has a High-Definition Multimedia Interface (HDMI).

Disconnect all power sources before making any connections

Use an HDMI cable, connect the equipment’s HDMI OUT jack to the TV’s

HDMI IN jack.

z The HDMI jack provides

both video and audio

signals, so it is not

necessary to connect

the audio cable.

R AUDIO IN L

HD/DVD IN

(1080i/720p/480p/480i)

AUDIO OUT

(VAR/FIX)

AUDIO

OPTICAL

OUT

S VIDEO

VIDEO

AUDIO

VIDEO IN

(MONO)

1 3

Rear of TV

HDMI cable

Equipment with HDMI output

Connecting the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

Equipment with DVI

Connection

Disconnect all power sources before making any connections

If you are connecting with DVI-HDTV output, you can connect to the TV’s

HDMI IN jack by using an HDMI-to-DVI cable or an adaptor.

R AUDIO IN L

HD/DVD IN

(1080i/720p/480p/480i)

AUDIO OUT

(VAR/FIX)

AUDIO

OPTICAL

OUT

S VIDEO

VIDEO

AUDIO

VIDEO IN

(MONO)

1 3

Rear of TV

HDMI-to-DVI cable or adapter

Audio cable

Equipment with DVI output

AUDIO-R

AUDIO-L

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

When using an HDMI-to-DVI cable or an adapter, be sure to

connect the DVI output connector first; then connect to the HDMI

input on your TV.

Connecting the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

Equipment with

Digital Audio

(OPTICAL)

Disconnect all power sources before making any connections.

You can use the TV's OPTICAL OUT jack to connect a digital audio device

that is PCM/Dolby digital compatible, such as an audio amplifier.

Use an optical audio cable to connect the TV’s OPTICAL OUT jack to the

device’s OPTICAL IN jack.

HD/DVD IN

(1080i/720p/480p/480i)

AUDIO OUT

(VAR/FIX)

AUDIO

OPTICAL

OUT

OPTICAL

LINE

OUT

L AUDIO R

LINE

Optical audio cable

Rear of TV

Audio amplifier

The OPTICAL OUT jack is

available only when a

digital TV channel is

received.

Connecting the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

Using CableCARD Device

CableCARD device provides cable subscribers with access to digitally

encrypted cable channels — without the need for a set-top box — that will

enable you to receive not only standard definition but also high definition

television. The CableCARD device, which is provided by your cable TV

company, is inserted into the TV’s rear panel CableCARD slot. After the

service is activated with your cable TV company, the card replaces the need

for a separate set-top box.

About Using

CableCARD Device

If you are planning to use a separate cable box for digital cable TV services,

you may be able to receive programming using this TV with the

CableCARD device instead — except in the following circumstances:

s Your cable TV company does not provide CableCARD service in your

viewing area.

s You want to access your cable TV company’s interactive or advanced

features (such as video-on-demand or, in some cases, pay-per-view). At

this time, these services require a bidirectional link, which are only

available through the use of a separate set-top box. The CableCARD

device is currently a unidirectional device only, and cannot provide

these advanced services.

Check with your cable TV company for CableCARD service details,

limitations, pricing, and availability, all of which are determined by your

cable TV company — not Sony.

Activating

CableCARD Service

Before you can use CableCARD service, you need to insert the CableCARD

device (supplied by your cable TV company) and activate the service, as

described below:

1 Remove the cover and insert the CableCARD device into the TV’s

CableCARD slot.

CableCARD

(Continued)

Connecting the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

2 Gently push the card into the slot until it locks into place, and then

reattach the cover.

3 After 1-2 minutes, the CableCARD device setup screen is automatically

displayed. This screen includes information your cable TV company

will request before they can activate your service.

4 Follow the displayed instructions: Phone your cable TV company. A

representative will guide you through the activation process.

5 After your CableCARD device is activated, your cable TV company

will download the service information, including the channel list, to the

CableCARD device. After the CableCARD device has acquired

channels from your cable TV company, the TV tunes to the lowest

available channel.

Removing the

CableCARD Device

In the event you want to cancel your service, contact your cable TV

company.

1 Push the eject button on the TV’s CableCARD slot to release the card.

2 Pull the CableCARD device straight out of the slot to remove it.

To install a different CableCARD device, follow the instructions in

“Activating CableCARD Service” on page 29.

CAUTION: Inserting the CableCARD device incorrectly may result

in permanent damage to the card and the TV.

z You can also access

information about your

CableCARD device in

the Applications

settings (see page 91).

Once the CableCARD device is removed, your TV will no longer

decrypt digital cable TV programming services that require

CableCARD device.

CableCARD

Eject button

Connecting the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

Setting Up the Channel List

After you finish connecting the TV, you can run the Initial Setup to create a

list of available analog and digital channels. The Initial Setup screen appears

when you turn on the TV for the first time after hooking it up. If you choose

to set up the channels at a later time, select the Auto Program option in the

Channel setting to scan available channels (see below).

Using Initial Setup To run Initial Setup the first time you turn on your TV

1 Press to turn on the TV.

The Initial Setup screen appears.

2 Press V or v to highlight the on-screen

display language. Then press . The

message “First please connect cable

and/or antenna.” appears. This may

require 50+ minutes for completion and

“Start auto program now?” appears.

3 Press V or v to highlight “Yes” then press .

Auto Program performed through Initial Setup will automatically create a

list of receivable channels from both VHF/UHF antenna and cable TV

channels if both sources are connected.

To run Auto Program at a later time

1 Select Settings in WEGA GATE, and then go to Channel settings.

2 Select Auto Program then select Start.

The Initial Setup feature does not apply for installations that use a

cable box for all channel selection.

Auto Program may take a while (20 to 50 minutes) to complete. A

progress bar is displayed while available channels are being

scanned. If you cancel the Auto Program before all receivable

channels are scanned, you may want to perform the task later (see

“To run Auto Program at a later time” below).

If you selected “No” during the Initial Setup, the Initial Setup

message will appear each time you turn on the TV until you

complete the Auto Program as a reminder.

Auto Program will create a list of receivable channels for the

current input (VHF/UHF antenna or CABLE). You will be required to

run Auto Program for each RF input to create a list of available

channels from both inputs.

TV POWER

Connecting the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

Connecting Optional Equipment

You can connect a variety of optional equipment to your TV. This section

provides some of the individual connections you can make. For multiple

connections, please refer to the Quick Setup Guide.

If You Are Connecting... See Page

VCR and Cable

VCR and Cable Box

Two VCRs for Tape Editing

DVD Player with Component Video Connectors

DVD Player with S VIDEO and Audio Connectors

Personal Computer

Camcorder or “PlayStation”

Audio Receiver

Connecting the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

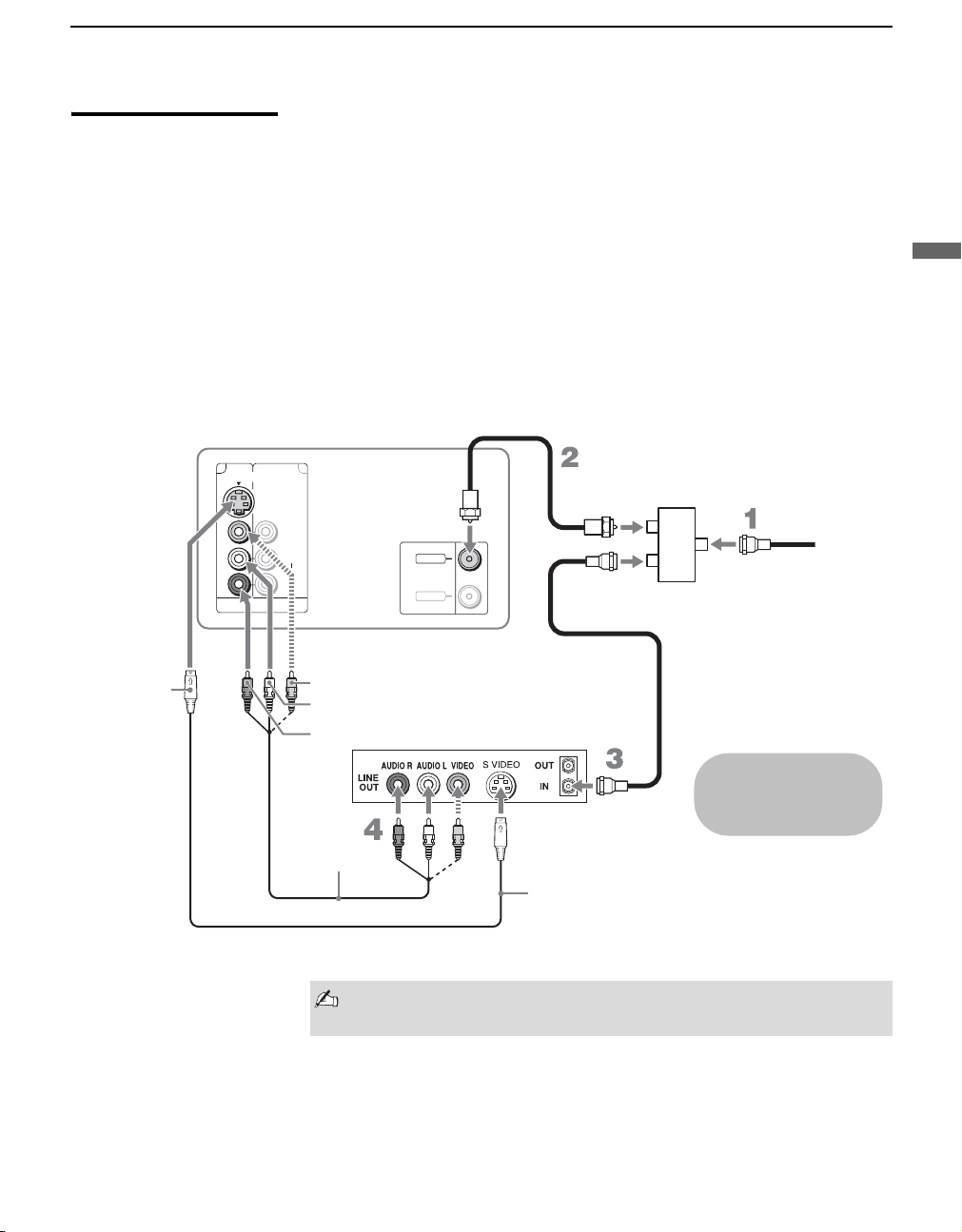

VCR and Cable For best results, use this connection if:

s You have cable TV that does not require a cable box.

Disconnect all power sources before making any connections.

1 Connect the CATV cable to the single (input) jack of the splitter.

2 Use a coaxial cable to connect one of the output jacks of the splitter to

the TV’s CABLE input jack.

3 Use a coaxial cable to connect the splitter’s other output jack to the

VCR’s input jack.

4 Use A/V and S VIDEO cables to connect the VCR’s AUDIO and

S VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks.

CABLE

VHF/UHF

S VIDEO

VIDEO

AUDIO

VIDEO IN

(MONO)

1 3

Coaxial cable

Rear of TV

VIDEO

CATV Cable

VCR

A/V cable

S VIDEO

S VIDEO cable

Coaxial cable

AUDIO-L

AUDIO-R

Splitter

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

If your VCR is not equipped with S VIDEO, use a VIDEO cable

(yellow) instead of the S VIDEO cable.

Connecting the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

VCR and Cable Box For best results, use this connection if:

s Your cable TV company scrambles some channels, but not all of them

(pay channels vs. regular cable channels) and you need to use a cable

box.

With this connection you can:

s Use the TV’s remote control to change channels on your cable box

when the signal is scrambled. To program your Sony remote control to

operate your cable box, see “Programming the Remote Control” on

page 44.

s Use the TV’s remote control to change channels on your TV when the

signal is not scrambled. Your TV’s tuner provides a better signal than

the cable box.

Disconnect all power sources before making any connections.

1 Connect the CATV cable to the single (input) jack of the splitter.

2 Use a coaxial cable to connect one of the output jacks of the splitter to

the TV’s CABLE input jack.

3 Use a coaxial cable to connect the splitter’s other output jack to the

cable box’s input jack.

4 Use a coaxial cable to connect the cable box’s output jack to the VCR’s

RF input jack.

5 Use an A/V cable to connect the cable box’s A/V output jacks to the

TV’s A/V input jacks.

6 Use A/V and S VIDEO cables to connect the VCR’s AUDIO and S

VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks.

7 Run Initial Setup, as described in “Setting Up the Channel List” on page

31.

Before connecting a

cable box, see “Using

CableCARD Device” on

page 29.

If your VCR is not equipped with S VIDEO, use a VIDEO cable

(yellow) instead of the S VIDEO cable.

Connecting the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

CABLE

VHF/UHF

S VIDEO

VIDEO

AUDIO

VIDEO IN

(MONO)

1 3

Cable box

VCR

Rear of

A/V cable

Coaxial

cable

S VIDEO

cable

CATV

cable

Coaxial cable

Splitter

If you are connecting a

digital cable box, you will

need a special bi-

directional splitter

designed to work with

your cable box.

Coaxial cable

AUDIO-R

AUDIO-L

VIDEO

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

A/V cable

Connecting the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

Two VCRs for Tape

Editing

If you connect two VCRs, you can record from one VCR to the other while

using your TV to monitor what is being recorded.

Disconnect all power sources before making any connections.

1 Use A/V cables to connect the playback VCR’s A/V output jacks to the

recording VCR’s A/V input jacks.

2 Use A/V cables to connect the recording VCR’s A/V output jacks to the

TV’s A/V input jacks.

Using

S VIDEO jacks?

See page 20.

S VIDEO

VIDEO

AUDIO

VIDEO IN

(MONO)

1 3

Rear of TV

VCR (playback)

VCR (recording)

A/V cable

AUDIO-R

AUDIO-L

VIDEO

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

To perform tape editing, set the TV to the video input intended for

playback by pressing TV/VIDEO on the remote control.

You may need to change the video input on your VCR. Consult

your VCR’s operating manual for instructions.

If your VCRs have S VIDEO jacks: For best picture quality, use an

S VIDEO connection instead of the video cable (yellow) on your

combined A/V cable.

Use an S VIDEO cable to connect the playback VCR’s S VIDEO OUT

jack to the recording VCR’s S VIDEO IN jack. S VIDEO does not

provide audio, so audio cables must be connected to provide

sound.

You cannot record signals from equipment connected to the

Y P

B/CB PR/CR input.

Connecting the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

DVD Player with

Component

Video Connectors

For best results, use this connection if:

s Your DVD player has component (YPBPR) jacks.

Disconnect all power sources before making any connections.

1 Use a component video cable to connect the DVD player’s YPBPR jacks

to the TV’s Y P

B/CB PR/CR jacks. Use the HD/DVD 4/5 IN or

VIDEO/HD/DVD 2 IN Y P

B/CB PR/CR input.

2 Use an audio cable to connect the DVD player’s AUDIO OUT jacks to

the TV’s AUDIO IN jacks. Be sure to use the same row of inputs that

you used for the video connection (HD/DVD 4/5 IN or

VIDEO/HD/DVD 2 IN Y P

B/CB PR/CR).

The YPBPR jacks on your DVD player are sometimes labeled

BCR, or Y, B-Y and R-Y. If so, connect the cables to like colors.

HD/DVD IN

(1080i/720p/480p/480i)

AUDIO OUT

(VAR/FIX)

AUDIO

4 5

OPTICAL

OUT

Component video cable

Rear of TV

Audio cable

DVD player

AUDIO-L

AUDIO-R

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

B/CB

PR/CR

To take advantage of the Wide Mode feature on your TV, set the

DVD player’s aspect ratio to 16:9. For details, refer to the operating

instructions supplied with your DVD player.

Connecting the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

DVD Player with

S VIDEO and Audio

Connectors

For best results, use this connection if:

s Your DVD player does not have component (YPBPR) jacks.

Disconnect all power sources before making any connections.

1 Use an A/V cable to connect the DVD player’s AUDIO OUT jacks to

the TV’s AUDIO IN jacks.

2 Use an S VIDEO cable to connect the DVD player’s S VIDEO OUT

jack to the TV’s S VIDEO IN jack.

S VIDEO

VIDEO

AUDIO

VIDEO IN

(MONO)

1 3

DVD player

Rear of TV

A/V cable

S VIDEO cable

S VIDEO

AUDIO-R

VIDEO

AUDIO-L

Cables are often

color-coded to connectors.

Connect red to red, white

to white, etc.

If your DVD player is not equipped with S VIDEO, use a VIDEO

cable (yellow) instead of the S VIDEO cable.

To watch the DVD, press TV/VIDEO repeatedly to select the

DVD input (VIDEO 1 in the illustration). If you have a non-Sony

DVD player, and want to set up the TV remote control to

operate the DVD player you must program the remote control.

See “Programming the Remote Control” on page 44.

To control DVD functions with the TV remote control, see

“Operating a DVD Player or DVD Changer” on page 46.

To easily identify equipment connected to the TV, see the

instructions for setting up Label Video Inputs on page 85.

Connecting the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

Personal Computer To connect a PC (personal computer)

If you connect your PC to the TV, you can watch your personal computer’s

display on the TV.

When your PC is connected to the TV with the HD15-HD15 cable and

optional audio cable, you can view and listen to the PC’s video and audio

output on the TV.

If the audio cable is unstable, use the supplied cable holder to

secure the cable as illustrated.

z When connecting to an

Apple Macintosh

computer, use the

supplied HD15-HD15

cable to connect PC IN

of the TV to video

output connector of the

computer. For some

Apple Macintosh

computers, it may be

necessary to use an

adapter (not supplied).

If this is the case,

connect the adapter to

the computer before

connecting the HD15-

HD15 cable.

z If the picture is noisy,

flickering or not clear,

adjust the Phase and

Pitch in the PC Screen

settings on page 79.

AUDIO RGB

PC IN 7

CableCARD

Rear of TV

HD15-HD15 cable

(analog RGB)

Audio cable

(stereo mini

plugs)

To monitor port

(15-pin D-Sub)

To audio output jack

To PC IN (RGB) jackTo PC IN

(AUDIO) jack

Cable

holder

Slacken

the cable

Connecting the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US04INS.fm

masterpage:3 columns Right

Camcorder or

“PlayStation”

Disconnect all power sources before making any connections.

For easy connection to a camcorder or “PlayStation,” the TV has left side

audio and video inputs (shown below). Select Off in the Video 2

(Component) option in the Setup settings (see page 86). Use an A/V cable

to connect the camcorder or “PlayStation” A/V output jacks to the TV’s A/V

input jacks.

Audio Receiver For improved sound quality, you may want to play the TV’s audio through

your stereo system (see page 75).

Disconnect all power sources before making any connections.

Use an audio cable to connect the TV’s AUDIO OUT (VAR/FIX) jacks to

the audio receiver’s audio LINE IN jacks.

If you have a mono camcorder, connect its audio output jack to the

TV’s L (MONO) audio input jack.

VIDEO

(1080i/720p/480p/480i) VIDEO/HD/DVD IN

AUDIO

(MONO)

VIDEO

To A/V output

AUDIO-L

AUDIO-R

A/V cable

Left of TV Camcorder “PlayStation”

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

HD/DVD IN

(1080i/720p/480p/480i)

AUDIO OUT

(VAR/FIX)

AUDIO

OPTICAL

OUT

Rear of TV

AUDIO-RAUDIO-L

Audio cable

Line input

Audio receiver

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US05REM.fm

masterpage:3 columns Right

Watching the TV

Overview

The table on the next page describes the buttons on the remote control.

Inserting Batteries into the Remote Control

Insert two size AA (R6) batteries (supplied) by matching the e and E on

the batteries to the diagram inside the battery compartment.

Topic See Page

Inserting Batteries into the Remote Control

Button Descriptions

Programming the Remote Control

Manufacturer’s Codes

Using Other Equipment with Your Remote Control

Special Buttons on the Remote Control

To avoid possible damage from battery leakage, remove the

batteries if you anticipate the remote control will not be used for an

extended period.

Handle the remote control with care. Avoid dropping it, getting it

wet, or placing it in direct sunlight, near a heater, or in high

humidity.

Your remote control can be programmed to operate most video

equipment. (See “Programming the Remote Control” on page 44.)

Watching the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US05REM.fm

masterpage:3 columns Right

Button Descriptions

Button Description

1 MUTING

Press to mute the sound. Press again or press

VOL +

to unmute.

2 TV/VIDEO

Press to cycle through the video equipment connected to your TV’s

video inputs.

3 FUNCTION

Buttons

The

FUNCTION

button indicator lights up momentarily when

pressed to show which external equipment the remote control is

operating. When the remote control is set to operate the external

equipment, these buttons will operate the equipment you choose.

You must first press one of these

FUNCTION

buttons to operate

the corresponding equipment. For details, see “Programming the

Remote Control” on page 44.

4 0-9, ENT

Press

0-9

to select a channel: the channel changes after 2 seconds.

Press

ENT

to change channels immediately.

Use with

0-9

and

ENT

buttons to select digital channels

(for example, 2.1).

6 JUMP

Press to jump back and forth between two channels. The TV

alternates between the current channel and the last channel that was

selected.

7 ANT

Press to change between the VHF/UHF input and the CABLE

input.

8 SOUND

Press to cycle through different sound settings:

Dynamic

for

enhance treble and bass,

Standard

for spoken dialog and

Custom

for flat setting.

9 PICTURE

Press repeatedly to cycle through the available video picture

modes:

Vivid, Standard,

Custom

. The video picture modes can be

also accessed in the Video settings. For details, see “Selecting

Video Options” on page 71.

0 GUIDE

Press to display the TV’s program guide.

qa RETURN

Press to return to normal viewing.

qs DVD/VCR

Operating

Buttons

When

FUNCTION

is switched on

DVR

DVD/VCR

, these

buttons operate the video equipment you have programmed into the

remote control. For details, see “Using Other Equipment with Your

Remote Control” on page 46.

: Press to replay the current program from the previous

Chapter Mark (if any) or from the beginning of the live TV cache.

REPLAY

: Press to replay the current program for a set period

of time.

ADVANCE

: Press to advance forward a set period of time

when playing back a recorded program.

: Press to advance forward to the next Chapter Mark (if

any) or to live TV when playing back a recorded program.

(

fast reverse)

: Press to play a program in fast rewind mode.

PLAY

: Press to play a program at a normal speed.

(fast forward)

: Press to play a program in fast forward mode.

PAU S E

: Press to pause playback.

STOP

: Press to stop the playback of a recorded program.

qd VISUAL

To be used only with your connected external equipment with

visual search function. (Non-operable button for TV)

qf VOL +/–

Press to adjust the volume.

ENT

RETURN

TOOLS

TV/VIDEO

MUTING

DVD /

VCR

SAT/

CABLE

FUNCTION

DVR

POWER TV POWER

JUMP ANT MTS/SAP FREEZE

SOUND PICTURE

TV/SAT

SUR

WIDE

VISUAL SEARCH

PAUSE

PLAY

STOP

REC REC PAUSE REC STOP

MENUTOP MENU F1 F2

POWER SAVING

REPLAY ADVANCE NEXTPREV

GATE

VOL

z The 5 button, CH + button,

MTS/SAP button and PLAY

button have a tactile dot.

Use the tactile dot as a

reference when operating

the TV.

Watching the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US05REM.fm

masterpage:3 columns Right

qg DVD/VCR

Record

Buttons

REC:

Press to record. By pressing this button alone will start

the recording.

REC PAUSE:

Press to pause the recording.

REC STOP:

Press to stop the recording.

qh TOP MENU

Press to display the disc menu from your connected DVD player.

qj MENU

Press to display the disc menu from your connected DVD player.

qk POWER

SAVING

Press to reduce the power consumption.

ql POWER

(GREEN)

Press to turn on/off the external equipment selected from the

FUNCTION

buttons

w; TV POWER

Press to turn on/off the TV.

wa MTS/SAP

Press repeatedly to cycle through the Multi-channel TV Sound

(MTS) options:

Stereo

Auto SAP

(Second Audio Program), and

Mono

. The MTS setting can be also accessed in the Audio setting.

For details, see “Selecting Audio Options” on page 74.

ws FREEZE

Press to freeze the current picture in a separate window. Press again

to restore the picture. For details, see “Using the FREEZE Button”

on page 51.

wd TV/SAT/SUR TV/SAT

: While in

SAT/CABLE (FUNCTION)

, press to switch

between the satellite receiver and antenna.

SUR

: Press

SUR

(Surround Sound) repeatedly to step through the

available audio effect models:

TruSurround XT

Simulated

Off

wf WIDE

Press repeatedly to step through the Wide screen mode setting:

Wide Zoom, Normal, Full

and

Zoom

. The Wide screen mode

setting can be also accessed in the Screen setting. For details, see

“Using the WIDE Button” on page 50.

wg DISPLAY

Press once to display channel number, label, current time and other

information. Press again to turn Display off. See page 90 for details

on setting the time.

wh V/v/B/b

Press

to move the on-screen cursor. To select an item,

press .

wj TOOLS

To be used only with your connected external equipment that

supports this

TOOLS

function. (Non-operable button for TV)

wk WEGA GATE

Press to access the following through WEGA GATE:

• Select channels from the Favorites Channels you stored (see

page 54).

• Watch TV (see page 55).

• View signals from external equipment such as DVD, VCR and

others (see page 56).

• View still images or movies from USB device (see page 56).

• Adjust or customize TV settings (see page 56).

wl CH +/–

Press to scan through channels. To scan quickly through channels,

press and hold down either

+/–

button.

e; F1/F2

Press to select the function of connected components. For details,

see “Using Other Equipment with Your Remote Control” on page

46.

Button Description

Watching the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US05REM.fm

masterpage:3 columns Right

Programming the Remote Control

The remote control is preset to operate Sony brand video equipment.

Follow the steps below to program your TV’s remote control to operate the

other video equipment.

Find the three-digit code for your equipment from the “Manufacturer’s

Codes” listed on page 45. If more than one code number is listed, try

entering from the code listed first.

1 Press and hold the , or

FUNCTION button you want to

program on the remote control and press the

DISPLAY button

simultaneously.

The selected

FUNCTION button (DVR, DVD/VCR or SAT/CABLE)

will flash.

2 Enter the three-digit manufacturer’s code number using the --9

buttons while the button is lit. If code is not entered within 10 seconds,

you must perform the step 1 again.

3 Press the button.

When the programming is correct, the selected

FUNCTION button will

flash twice, and when not, flashes five times.

To check if the code works

Aim your TV’s remote control at the equipment, and press the green

button. If the equipment responds, the programming is completed. If not, try

the next code listed.

Sony Equipment Programmable Code Number

DVR 772

DVD/VCR 601 (Sony Dream System)

SAT/CABLE 801 (Sony Satellite Receiver)

If no code is input within the above specified time, or an invalid or

incorrect code number is input, the remote control automatically

goes back to the previous setting.

In some cases, you may not be able to program your remote

control to operate other equipment. In such cases, use the

equipment’s own remote control.

Dead batteries or removing the batteries may cause the

programmable codes to be lost and revert back to factory settings.

Reprogramming the codes may be necessary.

ENT

RETURN

TOOLS

TV/VIDEO

MUTING

DVD /

VCR

SAT/

CABLE

FUNCTION

DVR

POWER TV POWER

JUMP ANT MTS/SAP FREEZE

SOUND PICTURE

TV/SAT

SUR

WIDE

VISUAL SEARCH

PAUSE

PLAY

STOP

VOL

REC REC PAUSE REC STOP

MENUTOP MENU F1 F2

POWER SAVING

REPLAY ADVANCE NEXTPREV

GATE

DVR

DVD /

VCR

SAT/

CABLE

POWER

Watching the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US05REM.fm

masterpage:3 columns Right

Manufacturer’s Codes

DVD Players

DVD Changers

DVD/VCR Combo Units

HDD/DVD Combo Units

5.1ch DVD AV System

AV Receivers

VCRs

Manufacturer Code

Sony 751

General Electric 755

Hitachi 758

JVC 756

Magnavox 757

Mitsubishi 761

Panasonic 753

Philips 757

Pioneer 752, 778

RCA/PROSCAN 755

Samsung 758

Toshi ba 754

Zenith 760

Manufacturer Code

Sony 765

Panasonic 766

Manufacturer Code

Sony 767

Broksonic 776

JVC 775

Panasonic 777

Samsung 774

Toshi ba 773

Zenith 768

Manufacturer Code

Sony 772, 771, 770

Manufacturer Code

Sony (DAV) 601, 602, 603, 604

Manufacturer Code

Sony 764

Manufacturer Code

Sony 301, 302, 303

Admiral (M. Ward) 327

Aiwa* 338, 344

Audio Dynamic 314, 337

Broksonic 319, 317

Canon 309, 308

Citizen 332

Craig 302, 332

Curtis Mathes 304, 338, 309

Daewoo 341, 312, 309

DBX 314, 336, 337

Dimensia 304

Emerson 319, 320, 316, 317,

318, 341

Fisher 330, 335

Funai 338

General Electric 329, 304, 309

Go Video 322, 339, 340

Goldstar 332

Hitachi 306, 304, 305, 338

Instant Replay 309, 308

JC Penney 309, 305, 304, 330,

314, 336, 337

JVC 314, 336, 337, 345,

346, 347

Kenwood 314, 336, 332, 337

LG 332

LXI (SEARS) 332, 305, 330, 335,

338

Magnavox 308, 309, 310

Marantz 314, 336, 337

Marta 332

Memorex 309, 335

Minolta 305, 304

Mitsubishi/MGA 323, 324, 325, 326

Multitech 325, 338, 321

NEC 314, 336, 337

Olympic 309, 308

Optimus 327

Orion 317

Panasonic 308, 309, 306, 307

Pentax 305, 304

Philco 308, 309

Philips 308, 309, 310

Pioneer 308

Quasar 308, 309, 306

RCA/PROSCAN 304, 305, 308, 309,

311, 312, 313, 310,

329

Realistic 309, 330, 328, 335,

324, 338

Sansui 314

Samsung 322, 313, 321

Sanyo 330, 335

Scott 312, 313, 321, 335,

323,

324,

325,

326

Manufacturer Code

Cable Boxes

Satellite Receivers

* If an Aiwa VCR does not work

even though you enter the code

for Aiwa, enter the code for Sony

instead.

Sharp 327, 328

Signature 2000 (M.

Ward)

338, 327

SV2000 338

Sylvania 308, 309, 338, 310

Symphonic 338

Tashiro 332

Tatung 314, 336, 337

Teac 314, 336, 338, 337

Technics 309, 308

Toshiba 312, 311

Wards 327, 328, 335, 331,

332

Yamaha 314, 330, 336, 337

Zenith 331

Manufacturer Code

Sony 230

Hamlin/Regal 222, 223, 224, 225,

226

Jerrold/

General Inst./

Motorola

201, 202, 203, 204,

205, 206, 207, 208,

218, 222

Oak 227, 228, 229

Panasonic 219, 220, 221

Pioneer 214, 215

Scientific Atlanta 209, 210, 211

Tocom 216, 217

Zenith 212, 213

Manufacturer Code

Sony 801

Dish Network 810

Echostar 810

General Electric 802

Hitachi 805

Hughes 804

Mitsubishi 809

Panasonic 803

Philips 811

RCA/PROSCAN

802, 808

Toshiba 806, 807

Samsung 812

Manufacturer Code

Watching the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US05REM.fm

masterpage:3 columns Right

Using Other Equipment with Your Remote Control

To operate other connected equipment with your TV, first turn to page 45

and program the necessary code. For operating video equipment, press

TV/VIDEO repeatedly until you see the video input on the screen for your

connected equipment. Remote control operation tips are provided below.

Operating a Cable Box

Operating a Satellite Receiver

Operating a VCR

Operating a DVD Player or DVD Changer

Some functions cannot be operated depending on the equipment.

In that case, operate by the remote control supplied with the

equipment.

To Do This ... Press ... To Do This ... Press ...

Activate the remote control to operate

the cable box

SAT/CABLE (FUNCTION)

Select a channel 0-9, ENT

Change channels CH +/–

Turn on/off POWER Back to previous channel JUMP

To Do This ... Press ... To Do This ... Press ...

Activate the remote control to operate

the satellite receiver

SAT/CABLE (FUNCTION) Display SAT Guide GUIDE

Turn on/off POWER Display SAT Menu MENU

Select a channel 0-9, ENT Move highlight (cursor) V v B b

Change channels CH +/– Select item

Back to previous channel JUMP

Switch between the TV and satellite

broadcasts

TV/SAT

Display channel number DISPLAY

To Do This ... Press ... To Do This ... Press ...

Activate the remote control to operate

the VCR

DVD/VCR (FUNCTION)

Fast forward M

Rewind the tape m

Turn on/off POWER

Pause

X (press again to resume

normal playback)

Change channels CH +/–

Record z

Search the picture forward or backward

M or m during playback

(release to resume normal

playback)

Play H

Stop x

To Do This ... Press ... To Do This ... Press ...

Activate the remote control to operate

the DVD

DVD/VCR (FUNCTION)

Step through different

tracks of the disc

m to fast reverse or M to

fast forward the disc when

pressed during playback

Turn on/off POWER

Step through different chapters of the

disc

> to step forward or . to

step backward

If you have a DVD changer,

to skip disc

Select a track directly 0-9, ENT

Play H Display the disc menu MENU

Stop

x Display the top menu TOP MENU

Pause

X (press again to resume

normal playback)

Operate the DVD menu V v B b,

Watching the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US05REM.fm

masterpage:3 columns Right

Operating a 5.1ch DVD AV System (Sony DAV)

Operating a DVD/VCR Combo Unit

Operating an HDD/DVD Combo Unit

Operating an AV Receiver

To Do This ... Press ... To Do This ... Press ...

Activate the remote control to operate

the DVD

DVD/VCR (FUNCTION)

Stop x

Pause X

Turn on/off POWER Search the picture forward or backward M or m during playback

Select other equipment connected to

the DAV

F1 Specify the previous chapter/track

Specify the next chapter/track

Disc skip F2 Move highlight (cursor) V v B b

Display the top menu TOP MENU

Select item

Display the disc menu MENU Change volume VOL +/–, MUTING

Play H

To Do This ... Press ... To Do This ... Press ...

Activate the remote control to operate

the DVD/VCR

DVD/VCR (FUNCTION) Search the picture forward or backward M or m during playback

Turn on/off POWER Replay

Select the DVD F 1

Select the VCR F 2

Advance

Display the top menu TOP MENU

Move highlight (cursor)

and select (DVD)

V v B b

Display the disc menu MENU

Play H Record (VCR) z

Stop x

Change channels (VCR)

CH +/– or 0-9, ENT (using

tuner)

Pause X Adjust tracking (VCR) CH +/– (during tape playback)

To Do This ... Press ... To Do This ... Press ...

Activate the remote control to operate

the HDD/DVD

DVR (FUNCTION)

Move highlight (cursor)

and select

V v B b

Turn on/off POWER Record z

Select the HDD

Select the DVD

F 1

F 2

Specify the previous chapter/track

Specify the next chapter/track

Play H Replay

Stop x Advance

Pause X Display the disc menu MENU

Search the picture forward or backward M or m during playback Display the top menu TOP MENU

To Do This ... Press ... To Do This ... Press ...

Turn on/off POWER

Select other input connected to AV

receiver

Master volume VOL +/–, MUTING

Watching the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US05REM.fm

masterpage:3 columns Right

Special Buttons on the Remote Control

This TV comes with convenient features. These features can be accessed

directly by pressing their buttons on your remote control.

Using the GUIDE

Button

This TV is equipped to show program information if it is available from the

station. The Program Guide lets you review program information, and select

both analog and digital channels.

To display the Program Guide:

1 Tune your TV to a channel by using the 0-9, , and ENT buttons.

2 Press GUIDE on the TV’s remote control. The Program Guide will

appear with the currently selected program showing in the background.

Program information in the guide is provided by the broadcasters.

As a result, it may sometimes include only the channel number,

without a program title or description.

Make Way for Ducks!

Series follows the aquatic misadventures of Henry and Riley, two

wayward ducks on a unique mission.

Time remaining: 1:26

FAM

TV-G

1 ABC

10 DISC

23.1

FAM

36 TLC

65 HIST

68 SHOW

C23.1

Channel number,

call letters, etc.

Program title and

description,

program duration,

time remaining,

rating information,

closed-caption

availability, etc.

Selectable

channel list.

Watching the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US05REM.fm

masterpage:3 columns Right

Using the Program Guide

The Program Guide allows you to select the channels from a drop down list.

The Guide also provides information about the current program being shown

on each channel.

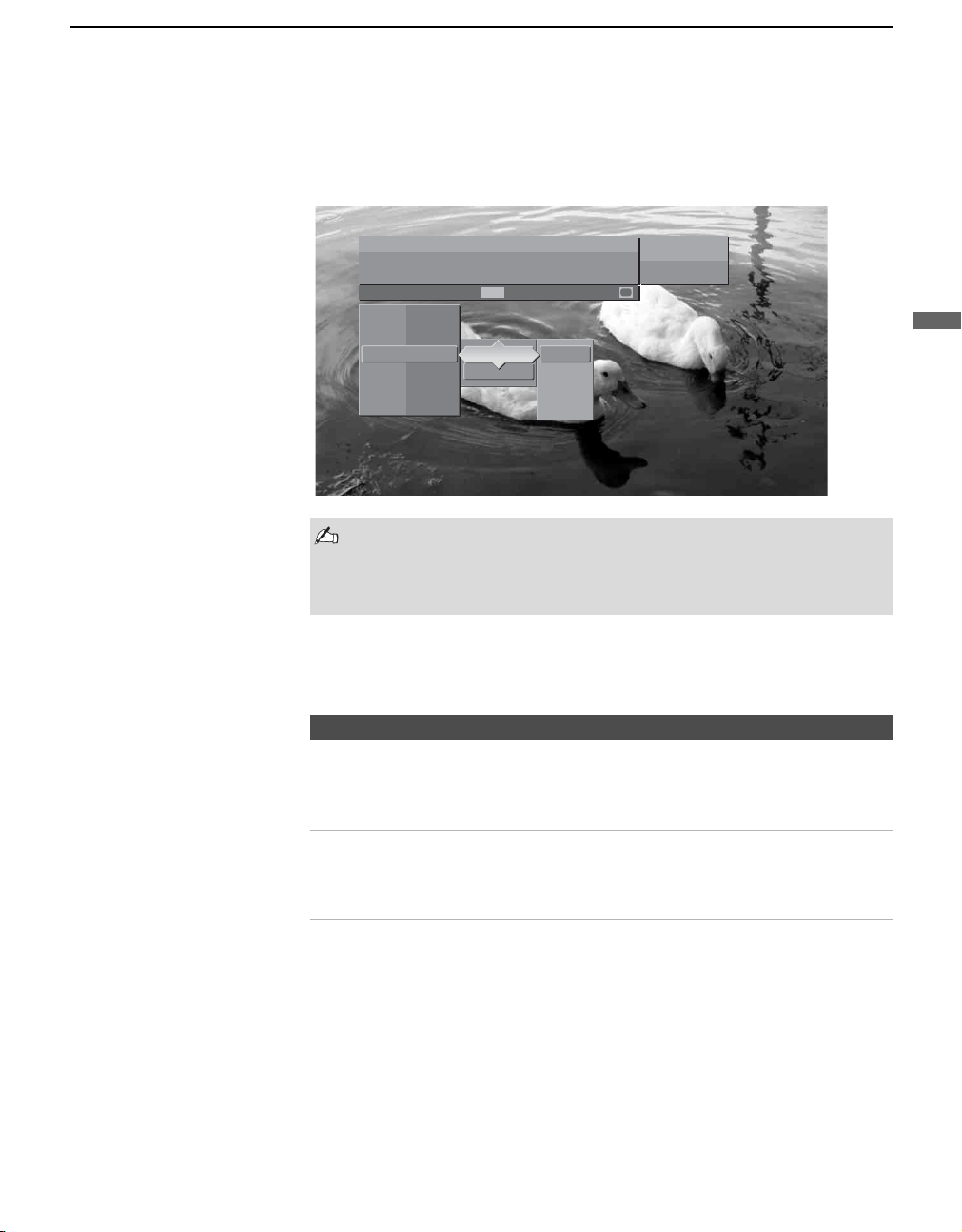

Using the Program Options Setting

The Program Options setting allows you to customize the program settings

on the currently tuned channel.

Subchannels are additional channels of programming broadcast

simultaneously. For example, channel 4 might include three

subchannels (4.1, 4.2, 4.3) that are showing programs at the same

time.

Option Description

Alternate

Video

(When

available)

Each program has a main video stream (the video that you see when

the channel is first tuned), and may have alternate video streams. This

option allows you to switch among these alternate video streams.

Alternate

Audio

(When

available)

Each program has a main audio stream (the audio you hear when the

channel is first tuned), and may have alternate audio streams. This

option allows you to switch among these alternate audio streams (e.g.,

for different languages).

Main

Video 1

Video 2

Video 3

Make Way for Ducks!

Series follows the aquatic misadventures of Henry and Riley, two

wayward ducks on a unique mission.

Time remaining: 1:26

TV-G

Alternate Video

Alternate Audio

FAM

C23.1

1 ABC

10 DISC

23.1

FAM

36 TLC

65 HIST

68 SHOW

Watching the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US05REM.fm

masterpage:3 columns Right

Using the WIDE

Button

Wide screen mode lets you watch 4:3 normal broadcasts in several wide

screen modes (16:9 aspect ratio).

Wide Mode :

Wide Zoom

Wide Mode :

Normal

Wide Mode :

Full

Wide Mode :

Zoom

Wide Mode :

Wide Zoom

Wide Mode :

Full

Wide Mode :

Zoom

WIDE

16:9 Original source

(High definition source)

4:3 Original source

(Standard definition source)

When the TV receives a 720p or 1080i signal, Normal cannot be

selected.

z When the TV receives a

720p or 1080i signal

that is 4:3 aspect ratio

picture with a black bar

at each side, Full

returns the picture to its

original size.

z You can also access the

Wide Mode settings in

the Screen settings. For

details, see page 77.

Changing the wide screen mode

4:3 Original source

This mode is not available

16:9 Original source

ide Zoom

Full

Zoom

Normal

Standard definition High definition

Watching the TV

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US05REM.fm

masterpage:3 columns Right

Using the JUMP

Button

The JUMP button allows you to jump back and forth between the current

channel and the last channel that was selected.

Using the FREEZE

Button

The FREEZE button allows you to temporarily capture a program’s picture.

You can use this feature to write down information such as phone numbers,

recipes, etc. To cancel

FREEZE and return to normal viewing, press the

FREEZE button again.

Using the POWER

SAVING Button

You can reduce the power consumption of the TV by selecting Reduced.

To cancel

Power Saving, press the POWER SAVING button repeatedly until

“Power Saving : Standard” appears.

JUMP

Previous channel

FREEZE

Freeze

Frozen picture

Current program in

progress

POWER SAVING

Power Saving :

Picture Off

Power Saving :

Reduced

Power Saving :

Standard

z If you turn off the TV

while the Power

Saving mode is on, the

mode stays on next

time you turn on the

TV except Picture Off.

z You can set the Power

Saving mode using the

Setup settings. For

details, see page 86.

z When Picture Off is

selected in the Power

Saving mode, the PIC

OFF LED lights.

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US06USI.fm

masterpage:3 columns Right

Introducing WEGA GATE

Overview of WEGA GATE

WEGA GATE provides one button access for controlling your TV. It enables

you to perform a variety of tasks intuitively with a control panel on the

screen rather than a variety of remote control button presses.

When you press , you can select from basic TV function: selecting

from Favorite Channels, watching TV, viewing external equipment signals,

viewing still images or movies from the USB device or adjusting TV

settings.

GATE

RETURN

SUR

VISUAL SEARCH

PAU SE

PLAY

STOP

VOL

GUIDE

DISPLAY

REPLAY ADVANCE NEXTPREV

GATE

Press to exit

WEGA GATE

Favorites

Cable

Antenna

External Inputs


Video

Settings

1 Press on the remote.

WEGA GATE control panel appears.

GATE

2 Press V/v to highlight the item.

3 Press to select.

4 Press to exit.

GATE

Introducing WEGA GATE

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US06USI.fm

masterpage:3 columns Right

The WEGA GATE screen gives you access to the following items:

Icon Description

Favorites

The Favorites feature lets you select programs from a list of up to 16 favorites

channels that you specify. For details, see page 54.

Cable

The Cable feature takes you to the most recently viewed channel on the cable input.

When tuned to the channel, the Program Banner and Channel number will be

displayed. For details, see page 55.

When this feature is active, a is displayed to the left of the icon.

Antenna

The Antenna feature takes you to the most recently viewed channel on the antenna

input. When tuned to the channel, the Program Banner and Channel number will be

displayed. For details, see page 55.

When this feature is active, a is displayed to the left of the icon.

External Inputs

The External Inputs feature lets you select equipment that is connected to your TV,

such as a DVD player. You can assign a label to your equipment or skip unused inputs

conveniently. For details, see page 56.

When this feature is active, a is displayed to the left of the icon.


The Photo feature takes you to the Photo/Video Viewer to view still images from the

connected USB devices. For details, see page 56.

Video

The Video feature takes you to the Photo/Video Viewer to view movies from the

connected USB devices. For details, see page 56.

Settings

The Settings feature lets you adjust the Video, Audio, Screen, Channel, Parental

Lock, Setup or Applications settings. For details, see page 56.

Introducing WEGA GATE

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US06USI.fm

masterpage:3 columns Right

Navigating and Selecting Items

Use your remote control to navigate through WEGA GATE and the settings.

Using Favorites in WEGA GATE

The Favorites feature lets you select programs from a list of up to 16

favorite channels that you specify. You can create a list using the Add to

Favorites option.

1 Select Favorites from the WEGA GATE control panel and press .

The Favorite Channels list appears. Make your selection.

2 Press M/m to highlight the desired channel and press .

• To add the current channel to the list of Favorite Channels, highlight

Add to Favorites and press .

• When the Favorite Channels list is full, select Edit Favorites to

remove a channel from the list or go to the Channel settings and

select Favorite Channels then edit the channel.

To Do This ... Press ...

Display WEGA GATE control panel Press .

Display Settings Press and select Settings.

Move through Settings Press V v B b.

Select an option to change Press .

Move back to normal viewing Press RETURN.

Select (confirm) changed setting Press .

Exit WEGA GATE control panel or Settings Press .

GATE

Favorite Channels

Add to Favorites

15.2 KPBS-DT

Edit Favorites

Exit

Introducing WEGA GATE

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US06USI.fm

masterpage:3 columns Right

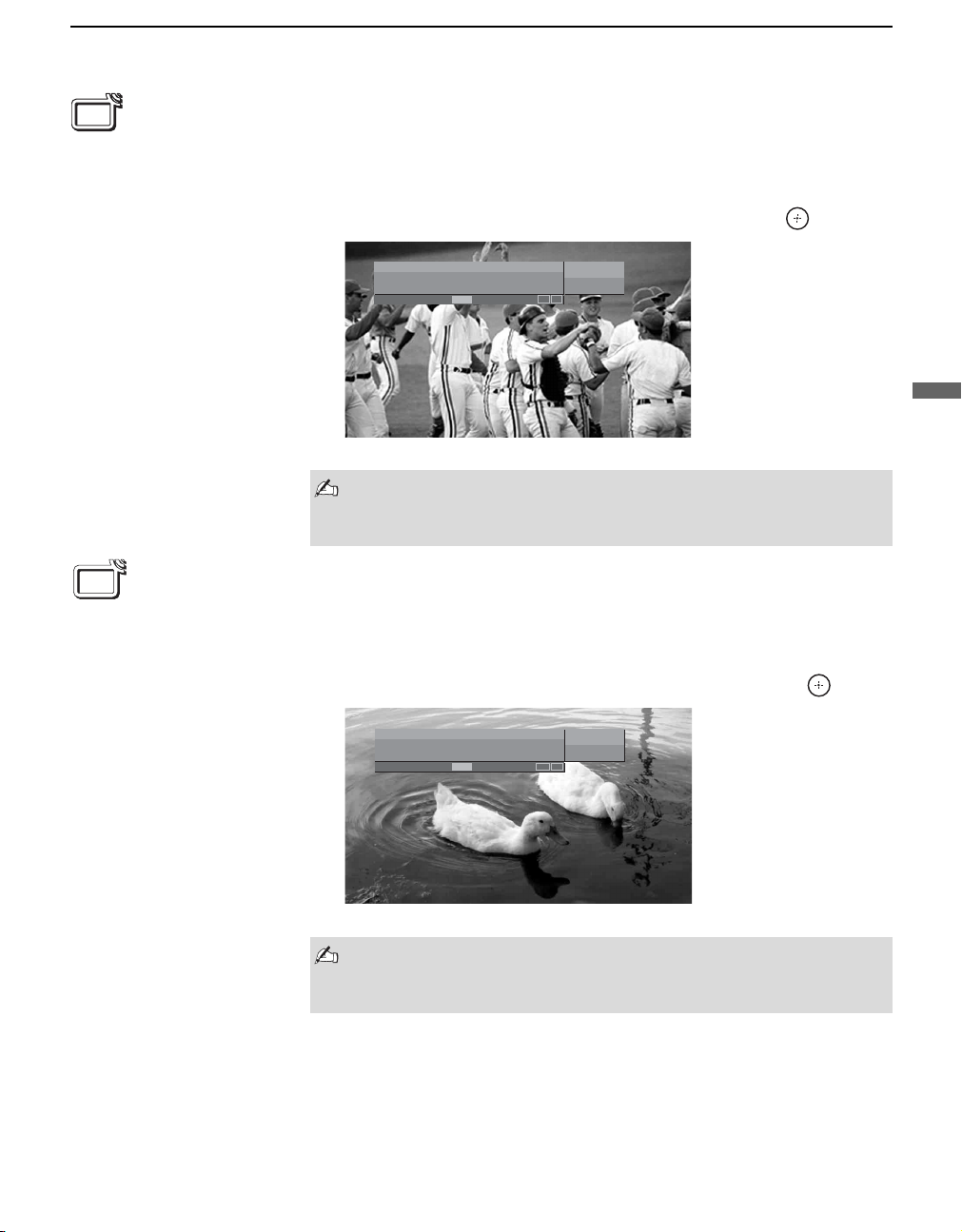

Using Cable in WEGA GATE

The Cable feature takes you to the most recently viewed channel on the

cable input. When tuned to the channel, the Program Banner and Channel

number will be displayed.

Select Cable from the WEGA GATE control panel and press .

Using Antenna in WEGA GATE

The Antenna feature takes you to the most recently viewed channel on the

antenna input. When tuned to the channel, the Program Banner and Channel

number will be displayed.

Select Antenna from the WEGA GATE control panel and press .

If you have not completed the initial channel setup (see page 31),

both Cable and Antenna will tune to the lowest channel number. To

run Auto Program see page 80.

Regularly Scheduled Programming

No program information is available.

0:24 Remaining 480i 4:3

KNSD-WX

Unrated

C39.2

If you have not completed the initial channel setup (see page 31),

both Cable and Antenna will tune to the lowest channel number. To

run Auto Program see page 80.

Full Focus

Sd Film Festivals Growth

0:29 Remaining 720p 16:9

KPBS-HD

Unrated

15.1

Introducing WEGA GATE

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US06USI.fm

masterpage:3 columns Right

Using External Inputs in WEGA GATE

The External Inputs feature lets you view from a selected external input

connected to your TV. You can assign a label or skip over unused inputs by

selecting Edit Video Labels. Input label assignment can also be done by

going to Setup settings and select Label Video Inputs (see page 85).

1 Select External Inputs from the WEGA GATE control panel and press

The External Inputs list appears. Make your selection.

2 Press M/m to highlight the desired external input and press .

Using Photo in WEGA GATE

The Photo feature takes you to the Photo/Video Viewer to view still images

from the connected USB devices. For details, see page 57.

Using Video in WEGA GATE

The Video feature takes you to the Photo/Video Viewer to view movies from

the connected USB devices. For details, see page 57.

Using Settings in WEGA GATE

The Settings feature lets you enter to the settings screen where most of

advanced settings and adjustments are performed. See “Overview” on page

69.

External Inputs

Exit

Video 1 VHS

Video 2

Video 3

Video 4

Video 5

Video 6

Video 7

Edit Video Labels

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US07USB.fm

masterpage:3 columns Right

Using the Photo/Video Viewer

About USB

You can enjoy still images and MPEG1 videos on your TV set with the

Photo/Video Viewer.

Features With the Photo/Video Viewer, you can:

s View still images (JPEG files) and still images with audio (JPEG voice

memo) in a thumbnail index or Slide Show

s View movies (MPEG1 files) in a thumbnail index or Slide Show

s Set customized Slide Show options, including transitions and background

audio

s Pan, zoom, and rotate photos

s Mark photos and set quantities of prints to be output when the USB device

is connected to your photo printer (not supplied)

s Lock (protect) or delete files on the USB media

s Play background music

Connecting Your

Camera via the

USB Interface

(USB device not supplied)

Sony recommends that you back up any files saved to your USB devices’

internal memory or portable memory device, prior to using the TV’s

Photo/Video Viewer. Sony cannot accept responsibility in the event that

such files are lost or damaged. Be sure to do the following to prevent the

possible loss of your files.

s Power off the TV (power button on the right side panel of the TV or on the

remote control) before connecting or disconnecting the USB device.

s Power off the USB device when switching between like memory devices

(e.g. when switching Memory Sticks cards).

s Power off the USB device when switching between different memory

devices (e.g. when switching between a Memory Stick card and

CompactFlash card, or between a Memory Stick card and the built-in

memory of the USB devices).

For more information about handling USB media, see “Notes on Using USB

Media” on page 68.

The USB interface on your TV will support many Sony digital still cameras

and video camera recorders (camcorders) in the market at the time of sale of

this product. Non-Sony brand cameras and video camera recorders are not

supported due to different implementations of the USB interface.

Non-camera devices are not supported.

Connection of unsupported devices may result in improper function of the TV

or the device itself. Should improper function occur, disconnect the USB

device. Should the TV fail to function properly after the USB device has been

disconnected, unplug the TV, and plug it back in to restore proper function.

Remember to disconnect the USB device when it’s not in use.

Not all products with USB connectors may communicate with each

other due to variations in the manufacturer’s implementation.

Using the Photo/Video Viewer

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US07USB.fm

masterpage:3 columns Right

Connecting the USB

Cable

Connect your USB device to the TV using a USB cable. The USB port for

the TV is on the left side panel (when viewed from the front of the TV) of

the TV and is identified by the USB symbol as shown below.

File Compatibility The Photo/Video Viewer is compatible with JPEG images taken with Sony

digital still cameras and MPEG1

movies taken with Sony digital cameras

and camcorders. To be viewable in the Photo/Video Viewer, files must have

the following file name extensions:

* Some variations of MPEG1 movies may not play back correctly.

Before connecting and disconnecting the USB connector, be sure

to turn off the TV (power button on the right side or the remote

control), otherwise USB media may not be displayed or data may

be damaged.

AUDIO

(MONO)

VIDEO

(1080i/720p/480p/480i) VIDEO/HD/DVD IN

Left side of TV

Sony digital still cameras

or video camera

recorders (camcorder)

with a USB interface

USB port

USB Cable

File Type Supported File Name Extensions

JPEG .jpg/.jpeg

MPEG1 .mpg/.mpeg

If your digital still camera has an internal memory, you can view the

files in the internal memory but cannot edit them. To edit the files,

make a copy to a media such as Memory Stick in your digital still

camera.

Using the Photo/Video Viewer

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US07USB.fm

masterpage:3 columns Right

Using the Photo/Video Viewer Index

Turn on the TV and connect your USB device that contains the photo or

movie files you want to view. To connect your USB device, see “Connecting

the USB Cable” on page 58.

Press on the remote control or on the right side panel, select


Video in the WEGA GATE control panel.

The Photo/Video Viewer Index appears, which displays thumbnail images of

the files stored on the USB media.

About the Icons on the Thumbnail Images

GATE

to move to view full screen

Summer 2005 / DSC0001

Jul 30, 2005 12:59PM 640x480

Slide Show Contents USB Media Exit

1 of 25

Thumbnails of photos and

movies

USB menu bar

Information about the

highlighted photo or movie

Highlighted thumbnail

Indicates the thumbnail is a movie (MPEG1) file instead of a photo (JPEG)

file.

Indicates the thumbnail is locked. Locked files cannot be changed or deleted.

For details, see “Protect” on pages 62 and 65.

Indicates that the photo is marked to be printed.

Indicates that the photo has an associated voice memo.

Using the Photo/Video Viewer

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US07USB.fm

masterpage:3 columns Right

Using the

Photo/Video Viewer

Index

The following describes how to use the Photo/Video Viewer Index.

To Do This ... Do This ...

Move the highlight to

a photo, voice memo

( ), or movie ( )

thumbnail

Press V v B b.

Display the

highlighted photo,

voice memo, or movie

file in full screen

Press .

For details, see “Viewing Photos” on page 61 and

“Playing Movies” on page 64.

Display the next page

of thumbnails

1 Press v to select V.

2 Press v to display the next page of thumbnails.

Display the previous

or next page of

thumbnails

1 Press v to select V.

2 Press B to select .

3 To go to the previous page, press V.

To go to the next page, press v.

Use the USB menu

bar to access

additional options

1 Press v to select V.

2 Press B or b to select Slide Show, Contents, or

USB Media.

3 Press V or v to select the option you want to

change.

For details on these options, see “Photo/Video Viewer

Index Menu Bar Options” on page 66.

Move the highlight

from the USB menu

bar back to the

thumbnails

1 Press B or b to select V.

2 Press V to return to the currently displayed

thumbnails, or v to display the next page of

thumbnails.

Exit Photo/Video

Viewer

Press v or b to select Exit, then press .

Using the Photo/Video Viewer

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US07USB.fm

masterpage:3 columns Right

Viewing Photos

When you select a photo from the Photo/Video Viewer Index (described on

page 59), it displays as shown below, with the following controls.

Photo Controls

Summer 2005 / DSC00012

Jul 30, 2005 12:59PM 640x480 12 of 25

Slide ShowIndex View File

to move to return to thumbnails to hide menu

Photo menu bar

Information about

selected photo

Selected photo

Previous/Next buttons

JPEGs captured using a digital video camera may appear to

display motion in full screen. This is a result of the way digital

video cameras record still images, and is not a result of a

malfunction with the TV.

To Do This ... Do This ...

Display the previous or

next file on the

USB media

Press V to highlight the (Previous/Next) button.

Then press B

to go to the previous file, or b to go to the

next file.

Hide the Photo menu bar,

displaying only the photo

With the highlight in the Photo menu bar, press v.

Display the hidden Photo

menu bar

Press V.

Play the JPEG voice memo

( files only)

Highlight B (Play) and then press . To pause the

voice memo, highlight X (Pause) and then press .

Display the Photo/Video

Viewer Index again

Press B or b to highlight Index in the Photo menu bar

and press .

For details on the Photo/Video Viewer Index, see page

60.

Access additional options

in the Photo menu bar

See “Photo Menu Bar Options” on page 62.

z When the menu is

hidden, press B or b to

go to the previous or

next photo.

Using the Photo/Video Viewer

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US07USB.fm

masterpage:3 columns Right

Photo Menu Bar

Options

The Photo menu bar lets you access additional photo viewing options.

To access the Photo menu bar

1 Press B or b to select Index, Slide Show, View, or File.

2 Use V v B b to select the desired option.

Option Description

Index Displays the Photo/Video Viewer Index, with the highlight on the

currently displayed photo’s thumbnail. For details, see “Using the

Photo/Video Viewer Index” on page 59.

Slide Show Displays the Slide Show menu. For details, see “Slide Show Menu

Options” on page 66.

View Zoom/Pan Allows you to magnify and pan across the photo.

For details, see “Using Zoom and Pan” on page 63.

Rotate Allows you to rotate the photo in 90 degree

increments clockwise or counterclockwise. For

details, see “Using Rotate” on page 63.

File Delete Deletes the JPEG file from the USB media.You

cannot delete a JPEG file that has been protected.

Quantity

Allows you to indicate the number of prints to

make of the specific photo when the USB device is

connected to a compatible photo printer (not

supplied).

Protect Allows you to protect the JPEG file from any

changes. When a JPEG file is protected, it cannot

be rotated or deleted. Select On or Off.

z JPEG files that are

protected are indicated

by the Lock icon.

z The Print Quantity

feature is also known as

DPOF (Digital Print

Order Format).

Using the Photo/Video Viewer

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US07USB.fm

masterpage:3 columns Right

Using Zoom and

Pan

To Zoom and Pan a photo

1 In the Photo menu bar, press B or b to highlight View.

2 Press V or v to highlight Zoom/Pan and press .

3 Specify the zoom center point by using V v B b; then press to set

the center.

The Zoom and Pan controls are displayed.

Using Rotate To Rotate a photo

1 In the Photo menu bar, press B or b to highlight View.

2 Press V or v to highlight Rotate.

3 To rotate clockwise, press V or v to highlight Clockwise and press .

To rotate counterclockwise, press V or v to highlight

Counterclockwise

and press .

The photo is rotated 90 degrees each time you press .

To Do This ... Do This ...

Zoom in (increase magnification)

or out (decrease magnification)

Press B or b to highlight Zoom 1.00. Then press V to zoom in or v to zoom

out.

Pan (left, right, up, down) (You can use Pan only when the photo is magnified using Zoom.)

Press

B or b to highlight Pan and press . Then press B b V v to pan

around the photo.

To stop using Pan, press .

Exit the Zoom/Pan controls Press B

or b to highlight Exit and press .

to move to set center

Done

z You cannot rotate a

photo that has been

protected. See “Protect”

on page 62.

Using the Photo/Video Viewer

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US07USB.fm

masterpage:3 columns Right

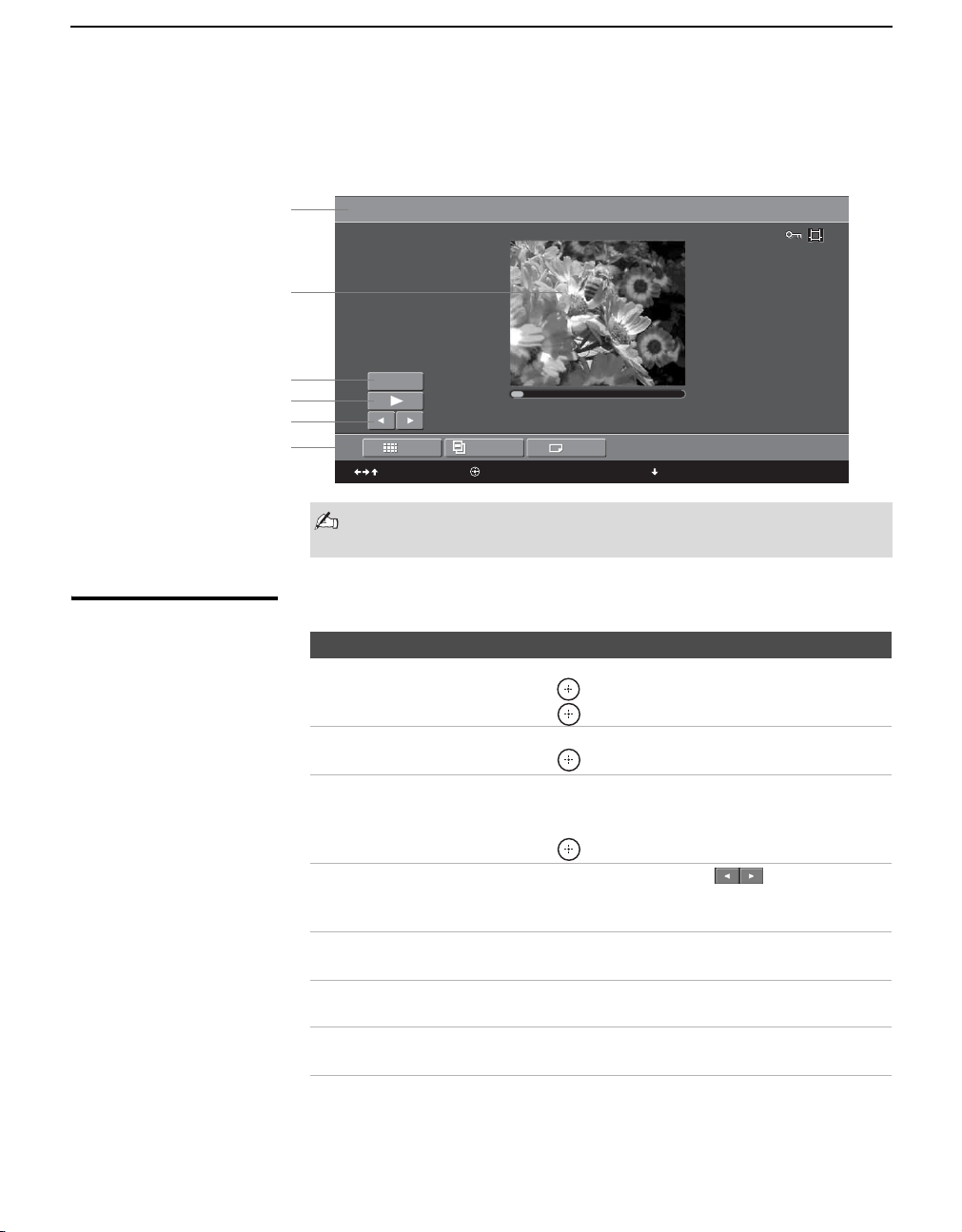

Playing Movies

When you select a movie from the Photo/Video Viewer Index (described on

page 59), it displays as shown below, with the following controls.

Movie Controls

Summer 2005 / MOV00012

Jul 30, 2005 12:59PM 640x480 12 of 25

Slide ShowIndex File

to return to thumbnails to hide menu

Enlarge

to move

Information about

selected movie

Selected movie

Enlarge button

Movie menu bar

Previous/Next buttons

Play/Pause button

Some USB devices/media may transfer video files at an insufficient

rate to allow for smooth video playback with some types of files.

To Do This ... Do This ...

Enlarge the movie window Press V or v to highlight Enlarge, and then

press

. To display the movie controls again,

press

Play the movie with the

movie controls displayed

Press V or v to highlight B (Play) and then

press

Pause the movie While the movie is playing, the B button changes to

the X (Pause) button.

Press V or v to highlight X (Pause) and then

press

Display the previous or next

file on the USB media

Press V or v to highlight the (Previous/Next)

button. Then press B

to go to the previous file, or b

to go to the next file.

Hide the Movie menu bar,

displaying only the movie

With the highlight in the Movie menu bar, press v.

Display the hidden Movie

menu bar

Press

Access additional options in

the Movie menu bar

See “Movie Menu Bar Options” on page 65.

z The quality of the movie

when enlarged depends

on the resolution of the

MPEG1 file. See your

camera’s instruction

manual for details.

Using the Photo/Video Viewer

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US07USB.fm

masterpage:3 columns Right

Movie Menu Bar

Options

To access the Movie menu bar

1 Press B or b to select Index, Slide Show, or File.

2 Press V or v to select the desired option.

Option Description

Index Displays the Photo/Video Viewer Index, with the highlight on the

currently displayed movie’s thumbnail. For details, see “Using the

Photo/Video Viewer Index” on page 59.

Slide

Show

Displays the Slide Show menu. For details, see “Slide Show Menu

Options” on page 66.

File Delete Deletes the MPEG1 file from the USB media. You

cannot delete an MPEG1 file that has been

protected.

Protect

Allows you to protect the MPEG1 file from any

changes. When an MPEG1 file is protected, it

cannot be deleted. Select On or Off.

z MPEG1 files that are

protected are indicated

by the Lock icon.

Using the Photo/Video Viewer

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US07USB.fm

masterpage:3 columns Right

Photo/Video Viewer Index Menu Bar Options

Slide Show Menu

Options

The Slide Show menu includes the following options:

Option Description

Repeat On Slide Show continuously loops.

Off Slide Show plays once through all files and ends.

File

Information

Determines whether file information is displayed. Select On or Off.

Slide

Advance

Allows you to specify when to advance to the next slide.

Fast Slide advances after about 3 seconds.

Medium Slide advances after about 6 seconds.

Slow Slide advances after about 12 seconds.

Manual

advance

Slide advances only after you press B or b.

Transition

Effect

Allows you to select an effect to be used when advancing to the

next file in the Slide Show.

Music Allows you to select background audio to play during the Slide

Show.

Off No additional background audio is played during

the Slide Show. Audio that is associated with the

JPEG or MPEG1 files will play.

Play Device Plays all MP3 files on the USB media. The Piano

(Built-in music) MP3 file is not played.

Piano

(Built-in

music)

Plays the MP3 file stored in the TV’s internal

memory.

(List of MP3

Files)

Displays a list of all MP3 files found at the top

level (root) of the USB media. To show additional

MP3 files stored in other folders on the USB

media, select Complete List.

Complete

List

Displays a list of all available MP3 files. The list is

sorted in alphabetical order, grouped by folder.

Start Starts the Slide Show.

z Some JPEG files may

take longer to display

than others, which may

make it seem longer

than the interval you

selected for Slide

Advance.

z The Slide Show menu is

the same whether you

select it from the

Photo/Video Viewer

Index (page 59), Photo

(page 61), or Movie

(page 64) menus.

z When you select

Complete List, it may

take a moment to

display the list of all

MP3 files.

Using the Photo/Video Viewer

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US07USB.fm

masterpage:3 columns Right

Contents Menu

Options

The Contents menu includes the following options:

USB Media Menu The USB Media menu displays the current status of the USB media,

including total capacity, used capacity, and free capacity.

Option Description

Filter Allows you to selectively display specific file types within the

selected folder.

Show Photos and

Movies

Displays all readable files.

Show Photos

Only

Displays only photo (JPEG) files.

Set by default if Photo is selected

from WEGA GATE menu.

Show Movies

Only

Displays only movie (MPEG1) files.

Set by default if Video is selected

from WEGA GATE menu.

Show All Print

Marks

Displays all JPEG files marked with the Print

Mark feature, regardless of the currently

selected folder. For details, see “Print

Quantity” on page 62.

File Order Allows you to change the order in which the USB files are

displayed.

Date Order Displays files in chronological order by

modification date.

Date Order

Reverse

Displays files in reverse chronological order

by modification date.

Alphabetical Displays files in alphabetical order by

filename.

Select

Folder

Allows you to select different folders to view in the Photo/Video

Viewer.

Digital Camera

Folders

Selects all folders within the directories

defined by the DCF rules used by Sony digital

cameras (see page 68). JPEG and MPEG1

files in those directories are recognized even

if they do not conform to the DCF file naming

rules.

Select a Folder Allows you to access individual folders on the

USB media.

z Selecting Photo in

WEGA GATE will show

still images (JPEG files),

and Video will show

movies (MPEG1 files),

by setting a contents

filter that selectively

shows only photos or

movies.

z The Rotate and Protect

functions do not change

the file’s modification

date.

Using the Photo/Video Viewer

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US07USB.fm

masterpage:3 columns Right

Notes on Using USB Media

About DCF File

Names

Most Sony brand digital still and video cameras automatically record still

photo and movie files using DCF compliant directory and file names.

If you selected the

Digital Camera Folders option, as described on page 67,

you might want to have your digital camera’s instruction manual handy in

order to check how files and directories are organized for your specific

model of digital camera.

DCF stands for “Design Rules for Camera File Systems,” which are

specifications established by the Japan Electronics and Information

Technology Industries Association (JEITA: formerly JEIDA).

Only DCF compliant directory and file names can be displayed on this TV

such as illustrated below.

Non-duplicated No.

from 100 to 999

5 capital letters

Folder name

Extension

Capital letters

Non-duplicated No.

from 0001 to 9999

100MSDCF

DCIM


KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

Using the Settings

Overview

The Settings give you access to the following features:

Depending on the signal tuned, you may see different Setting options on

your screen. Settings displayed here are with the 720p signal.

Settings Allows you to set/change

Video Picture Mode (page 71)

Reset (page 71)

Backlight (page 71)

Picture (page 71)

Brightness (page 71)

Color (page 71)

Hue (page 71)

Color Temp. (page 72)

Sharpness (page 72)

Noise Reduction

(

page 72

)

DRC Mode (page 72)

DRC Palette (page 72)

Advanced Video (page 73)

Audio Sound Mode (page 74)

Reset (page 74)

Tre bl e (page 74)

Bass (page 74)

Balance (page 74)

Steady Sound (page 74)

Volume Offset (page 74)

Effect (page 74)

BBE (page 74)

MTS (page 75)

Speaker (page 75)

Audio Out (page 75)

A/V Sync (page 75)

Screen Wide Mode (page 77)

Game Picture (page 77)

4:3 Default (page 78)

Display Area (page 78)

Vertical Center (page 78)

Ver tical Size (page 78)

Antenna

Video

Press WEGA GATE to exit

Picture Mode Vivid

Reset

Backlight Max

Picture Max

Brightness 50

Color 65

Hue 0

Color Temp. Cool

Sharpness 50

Antenna

Audio

Press WEGA GATE to exit

Sound Mode Custom

Reset

Treble 0

Bass 0

Balance 0

Steady Sound Off

Volume Offset 0

Effect Off

BBE Off

Antenna

Screen

Press WEGA GATE to exit

Wide Mode Wide Zoom

Game Picture 0

4:3 Default Off

Display Area Normal

Vertical Center 0

Vertical Size 0

(Continued)

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

Channel Favorite Channels (page 80)

Digital Channels (page 80)

Auto Program (page 80)

Show/Hide Channels (page 80)

Label Channels (page 81)

Parental Lock Parental Lock (page 82)

Change Password (page 82)

Select Country (page 82)

Setup Caption Vision (page 85)

Info Banner (page 85)

Game Mode (page 85)

Label Video Inputs (page 85)

Language (page 86)

Video 2 (Component) (page 86)

Menu Color (page 86)

Power Saving (page 86)

Light Sensor (page 86)

CineMotion (page 86)

Applications Clock/Timers (page 90)

Diagnostics (page 91)

CableCARD(page 91)

Settings Allows you to set/change

Antenna

Channel

Press WEGA GATE to exit

Digital Channels

Auto Program

Show/Hide Channels

Label Channels

Favorite Channels

Password

Antenna

Parental Lock

Press WEGA GATE to exit

Antenna

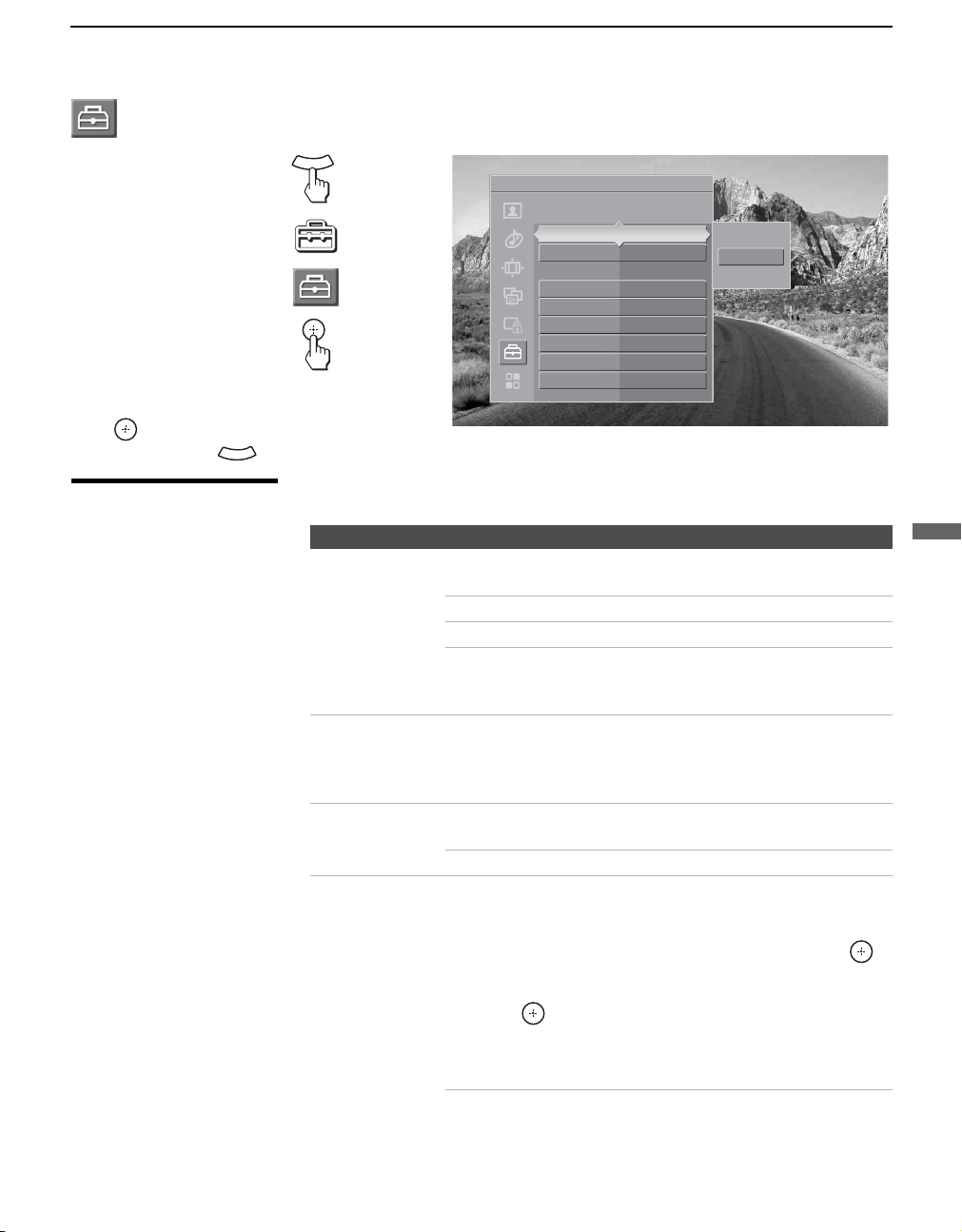

Setup

Press WEGA GATE to exit

Caption Vision Off

Info Banner On

Game Mode Off

Label Video Inputs

Language English

Video 2(Component) Off

Menu Color Gray

Power Saving Standard

Light Sensor Off

Antenna

Applications

Press WEGA GATE to exit

Clock/Timers

Diagnostics

CableCARD

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

Accessing the Video Settings

Selecting Video

Options

The Video settings includes the following options:

1. Press WEGA GATE.......

Select Settings..............

Highlight ......................

4. Press to select...............

To highlight an option and to change settings, press

V v B b.

Press to confirm the selection.

To exit Video, press .

Antenna

Video

Custom settings

Vivid

Standard

Custom

Picture Mode Vivid

Reset

Backlight Max

Picture Max

Brightness 50

Color 65

Hue 0

Color Temp. Cool

Sharpness 50

WEGA

GATE

Option Description


Mode

Customized

picture viewing

Vivid Select for enhanced picture contrast and

sharpness.

Standard Select for standard picture settings.

Recommended for home entertainment.

Custom Select to display a picture with minimum

enhancement.

You can alter the Video setting (Picture,

Brightness, Color, etc.) for each Picture Mode and

each video input.

You may set up a Picture Mode (Vivid, Standard,

Custom) independently for each Video input

(Video 1- Video 6, including the Antenna input).

Your Picture Mode settings are automatically

saved after each selection. This allows you to

customize the Picture Mode setting for each type

of signal source.

Reset Select OK to reset all settings and adjustments to the default

setting (except for Advanced Video).

Backlight Adjust to brighten or darken the backlight.

Picture Adjust to increase picture contrast and deepen the color or

decrease picture contrast and soften the color.

Brightness Adjust to brighten or darken the picture.

Color Adjust to increase or decrease color intensity.

Hue Adjust to increase or decrease the green tones.

z To change from one

Picture Mode to

another, use PICTURE

on the remote control.

(Continued)

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

Color Temp.

White adjustment

Choose from four color temperatures:

Cool Select to give the white colors a blue tint.

Neutral Select to give the white colors a neutral tint.

Warm 1/2 When selected Custom in Picture Mode, select

to give the white colors a red tint.

Sharpness Adjust to sharpen or soften the picture.

Noise Reduction Select to reduce the noise level of connected equipment. This

also reduces the noise level to the signal from the VHF/UHF

jack. Select from Auto, High, Medium, Low and Off.

DRC Mode High Density Creates a high-resolution picture with 4 ×

density, for high quality sources (i.e., DVD

player, satellite receiver).

Progressive Recommended for moving pictures.

Off

DRC Mode is not available when Game Mode is

On or using the Freeze feature or the Photo/Video

Viewer; also not available when watching 480p,

720p or 1080i sources.

DRC Palette Allows you to customize the level of detail (Reality) and

smoothness (Clarity) for up to three input sources. For example,

you can create one Custom setting to optimize your cable input's

picture, and create another to optimize your DVD player's

picture. You can switch among the three Custom settings.

1 Press the arrow buttons to highlight Custom then

press

The DRC palette appears.

2 Press the arrow buttons to adjust the position of the marker

(z). As you move the z higher along the Reality axis, the

picture becomes more detailed. As you move the z to the

right along the Clarity axis, the picture becomes smoother.

3 To save the setting, press .

DRC Palette is not available when Game Mode is

On, Noise Reduction is set to Auto, DRC Mode is

Off or using the Freeze feature or the Photo/Video

Viewer; also not available when watching 480p,

720p or 1080i sources.

Option Description

Custom

Press

Reality

(25)

Clarity

(1)

to exit

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

Selecting PC Video

Options

To display the PC screen:

Press TV/VIDEO repeatedly on

the remote control until Video 7

(PC) appears.

The PC Input Video setting includes the following options:

Advanced Video

Available in

“Custom Picture

Mode”

Program Select Program to choose among the options:

Black Corrector (High/Medium/Low/Off),

Contrast Enhancer (High/Low/Off), Gamma

(Max/High/Medium/Low/Off), Clear White

(High/Low/Off), Live Color (High/Medium/

Low/Off), Color Space (Wide/Normal).

Option Description

You can change the settings for the PC input while the TV is

displaying the PC screen.

Option Description

Display Mode Video Select to view video images.

Tex t Select to view text, charts or tables.

Reset Select to restore the factory default settings.

Backlight Select to adjust the brightness of the screen.

Picture Adjust to increase or decrease picture contrast.

Brightness Adjust to brighten or darken the picture.

Color Temp. Choose from four color temperatures:

Cool Select to give the white colors a blue tint.

Neutral Select to give the white colors a neutral tint.

Warm 1/2 Select to give the white colors a red tint.

Video 7 PC

Video

Press WEGA GATE to exit

Display Mode Video

Reset

Backlight 5

Picture Max

Brightness 50

Color Temp. Neutral

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

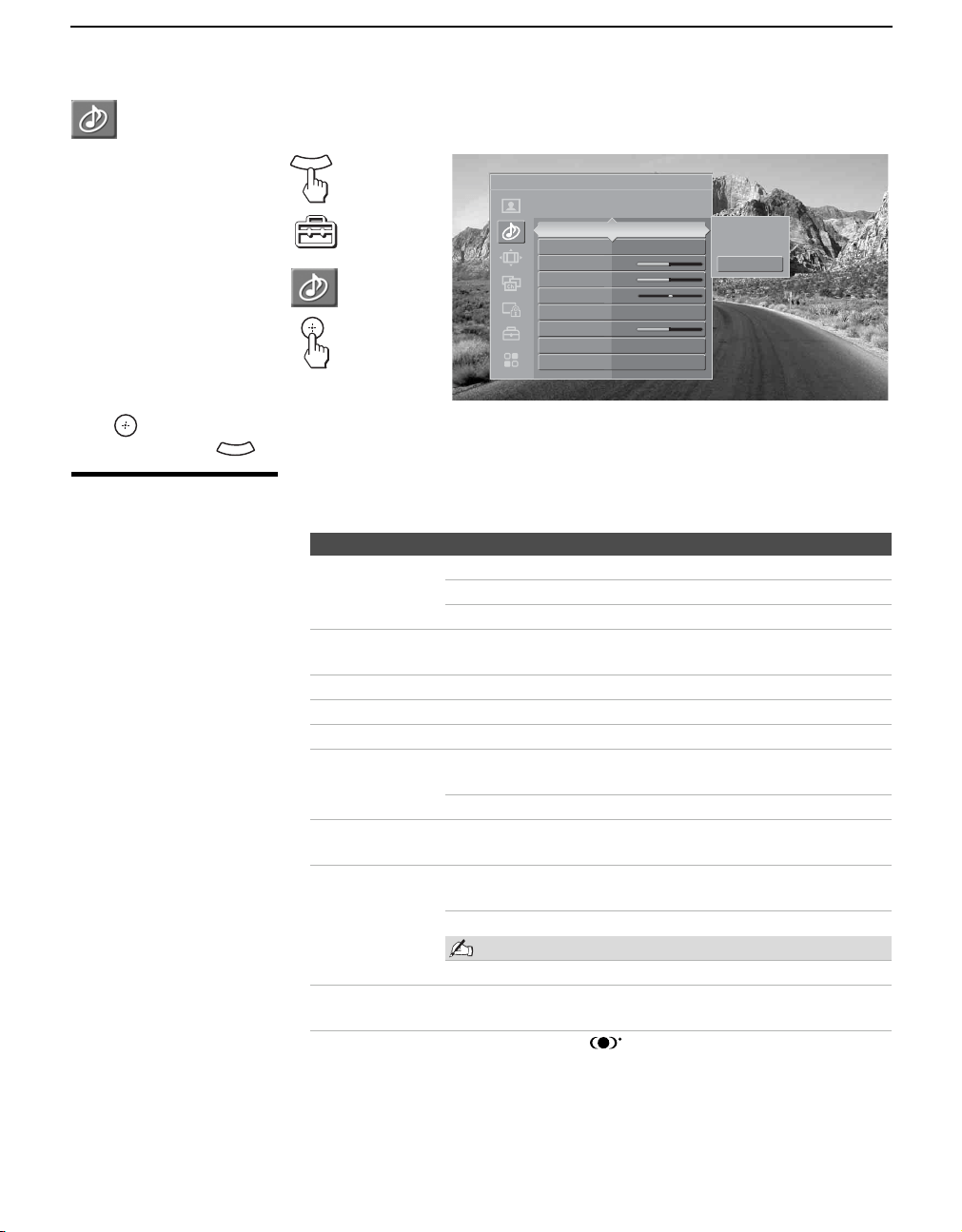

Accessing the Audio Settings

Selecting Audio

Options

The Audio settings includes the following options:

1. Press WEGA GATE.......

Select Settings..............

Highlight ......................

4. Press to select...............

To highlight an option and to change settings, press

V v B b.

Press to confirm the selection.

To exit Audio, press .

Antenna

Audio

Custom settings

Dynamic

Standard

Custom

Sound Mode Custom

Reset

Treble 0

Bass 0

Balance 0

Steady Sound Off

Volume Offset 0

Effect Off

BBE Off

WEGA

GATE

Option Description

Sound Mode

Customized

sound listening

Dynamic Select to enhance treble and bass.

Standard Suitable for spoken dialog.

Custom Flat setting.

Reset Reset the following options to the default setting: Tre bl e , Bass,

Balance, Steady Sound, Volume Offset, Effect and BBE.

Tr e bl e Adjust to increase or decrease higher-pitched sounds.

Bass Adjust to increase or decrease lower-pitched sounds.

Balance Adjust to emphasize left or right speaker balance.

Steady Sound On Select to stabilize the volume across all

programs and commercials.

Off Select to turn off Steady Sound.

Volume Offset Adjust to increase or decrease the sound level of the current

input (TV or video input) relative to other inputs.

Effect TruSurround

Select for surround sound (for stereo programs

only).

Simulated Adds a surround-like effect to mono programs.

Simulated function is using SRS 3D Mono.

Off Select for normal stereo or mono reception.

BBE

Select to give sound more impact by compensating for phase

effects in speakers. Select from High, Low, and Off.

*: TruSurround XT, SRS 3D Mono and the symbol are trademarks of SRS Labs, Inc.

TruSurround XT and SRS 3D Mono technologies are incorporated under license from

SRS Labs, Inc.

**: Licensed by BBE Sound, Inc. under USP4638258, 4482866. “BBE” and BBE symbol are

trademarks of BBE Sound, Inc.

z To change from one

Sound Mode option to

another, use SOUND on

the remote control.

z TruSurround XT

attempts to create the

same surround effect

produced by a

multichannel system

using the left and right

speakers.

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

MTS

Enjoy stereo,

bilingual and

mono programs

Stereo Select for stereo reception when viewing a

program broadcast in stereo.

Auto SAP Select to automatically switch the TV to second

audio programs when a signal is received. If no

SAP signal is present, the TV remains in Stereo

mode.

Mono Select for mono reception. Use to reduce noise

during weak stereo broadcasts.

MTS is available only for analog programs.

Speaker On Select to turn on the TV speakers.

Off Select to turn off the TV speakers and listen to

the TV’s sound only through your external audio

receiver and speakers.

The MUTING button on your remote control is

available when Audio Out is set to Variable, and

becomes nonfunctional when set to Fixed.

Audio Out

Easy control of

volume

adjustments

This option can be set only when the Speaker option is set to

Off.

Variable The TV’s speakers are turned off and the audio

output from your audio system can still be

controlled by the TV’s remote control.

Fixed The TV’s speakers are turned off and the audio

output of the TV is fixed. Use your audio

receiver’s volume control to adjust the volume

(and other audio settings) through your audio

system.

A/V Sync Off/1/2/3 Use this option to make adjustments to audio

and video synchronization when you have

external equipment connected to OPTICAL

OUT of the TV. Select Off (factory default

setting) to make no adjustments. Select 1, 2 or 3

to adjust so that the video and audio from your

connected external equipment are synchronized.

Option Description

To change from one

MTS option to another,

use MTS/SAP on the

remote control.

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

Selecting PC Audio

Options

To display the PC screen:

Press TV/VIDEO repeatedly on

the remote control until Video 7

(PC) appears.

The PC Input Audio setting includes the following options:

You can change the settings for the PC input while the TV is

displaying the PC screen.

Option Description

Sound Mode Dynamic Select to enhance treble and bass.

Standard Suitable for spoken dialog.

Custom Flat setting.

Reset Select to restore the factory default settings

Tr e bl e Adjust to increase or decrease higher-pitched sounds.

Bass Adjust to increase or decrease lower-pitched sounds.

Balance Adjust to emphasize left or right speaker balance.

Effect TruSurround

Select for surround sound (for stereo programs

only).

Simulated Adds a surround-like effect to mono programs.

Simulated function is using SRS 3D Mono.

Off Select for normal stereo or mono reception.

Speaker On Select to turn on the TV speakers.

Off Select to turn off the TV speakers and listen to

the TV’s sound only through your external

audio receiver and speakers.

Audio Out

Easy control of

volume

adjustments

This option can be set only when the Speaker option is set to

Off.

Variable The TV’s speakers are turned off and the audio

output from your audio system can still be

controlled by the TV’s remote control.

Fixed The TV’s speakers are turned off and the audio

output of the TV is fixed. Use your audio

receiver’s volume control to adjust the volume

(and other audio settings) through your audio

system.

Video 7 PC

Audio

Press WEGA GATE to exit

Sound Mode Custom

Reset

Treble 0

Bass 0

Balance 0

Effect Off

Speaker On

Audio Out Variable

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

Accessing the Screen Settings

Selecting Screen

Options

The Screen settings includes the following options:

1. Press WEGA GATE.......

Select Settings..............

Highlight ......................

4. Press to select...............

To highlight an option and to change settings, press

V v B b.

Press to confirm the selection.

To exit Screen, press .

Antenna

Screen

Automatic sizing for 4:3 pictures

Wide Zoom

Normal

Full

Zoom

Off

Wide Mode Wide Zoom

Game Picture 0

4:3 Default Off

Display Area Normal

Vertical Center 0

Vertical Size 0

WEGA

GATE

Option Description

Wide Mode

Select a Wide

Mode to use for

4:3 sources

Wide Zoom Select to enlarge the 4:3 picture to fill the 16:9

screen, keeping the original image as much as

possible.

Normal Select to return the 4:3 picture to its original size

and aspect ratio.

Normal is not available when you are watching

720p or 1080i sources.

Full Select to enlarge the 4:3 picture horizontally

only, to fill the display area.

Zoom Select to proportionally enlarge 1080i and 720p

sources. For 480p and 480i sources, Zoom will

vertically stretch the image to fill the screen.

To change from one Wide Mode setting to another, use the WIDE

button on the remote control (see page 43).

Game Picture Allows you to move the position of the picture left and right in

the window. (This feature also allows you to adjust the picture

from any connected equipment.) Select while watching the

picture to be adjusted. The TV stores the position in memory for

each input.

Press B or b and press to choose a correction.

Not available in Full and Normal modes when sources are in 720p

or 1080i, or using the Photo/Video Viewer.

Wide Mode is

unavailable while in the

Freeze feature (page51)

or using the

Photo/Video Viewer.

(Continued)

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

4:3 Default

Select the default

Screen Mode to

use for 4:3

sources

Wide Zoom Select to enlarge the 4:3 picture to fill the 16:9

screen, keeping the original image as much as

possible.

Normal Select to return the 4:3 picture to its original

size.

Full Select to enlarge the 4:3 picture horizontally

only, to fill the display area.

Zoom Select to enlarge the picture horizontally and

vertically to an equal aspect ratio that fills the

wide screen.

Off Select to continue using the current Wide Screen

Mode setting when the channel or input is

changed.

Display Area Select Normal to return to the default display area. Select -1 or

-2 to keep the edge of the picture out of screen.

Vertical Center Allows you to move the position of the picture up and down in

the window. (Available only in Zoom mode.)

Press V or v and press

to choose a correction.

Ver ti cal Si ze Allows you to adjust the vertical size of the picture. (Available

only in Zoom mode.)

Press V or v and press

to choose a correction.

Option Description

z 4:3 Default functions

only when the TV

receives 480i or 480p

signals.

z If 4:3 Default option is

set to anything but Off,

the Wide Mode setting

changes only for the

current channel. When

you change channels

(or inputs), Wide Mode

is automatically

replaced with the 4:3

Default setting for 4:3

sources. To retain the

current Wide Mode

setting as channels and

inputs are changed, set

4:3 Default to Off.

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

Selecting PC Screen

Options

To display the PC screen:

Press TV/VIDEO repeatedly on

the remote control until Video 7

(PC) appears.

The PC Input Screen setting includes the following options:

You can change the settings for the PC input while the TV is

displaying the PC screen.

Option Description

Wide Mode Normal Select to display the picture in its original size.

Full 1 Select to enlarge the picture to fill the display

area, keeping its original horizontal-to-vertical

aspect ratio.

A black frame will appear on the

surrounding of the picture.

Full 2 Select to enlarge the picture to fill the display

area.

A black frame will appear on the

surrounding of the picture.

Zoom Select to enlarge the picture horizontally and

vertically to an equal aspect ratio that fills the

wide screen.

Auto

Adjustment

Select to automatically adjust the display position and phase of

the picture when the TV receives an input signal from the

connected PC.

Note that Auto Adjustment may not work well with certain

input signals. In such cases, manually adjust the options below.

Phase Select to adjust the phase when the screen flickers.

Pitch Select to adjust the pitch when the picture has unwanted

vertical stripes.

Horizontal

Center

Select to adjust the horizontal position of the picture.

Allows you to move the picture left and right in the window.

Press

B or b and press to choose a correction.

Vertical Center Select to adjust the vertical position of the picture.

Allows you to move the picture up and down in the window.

Press

B or b and press to choose a correction.

Video 7 PC

Screen

Press WEGA GATE to exit

Wide Mode Full 1

Auto Adjustment

Phase Min

Pitch 0

Horizontal Center 0

Vertical Center 0

z When there is no signal

input, no options can be

selected.

z Select Zoom in the

Wide Mode option to

display movies and

other content on DVD,

using the entire

viewable area of the

screen.

z Adjustment range for

Horizontal Center and

Vertical Center is

adjusted according to

the input signal.

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

Accessing the Channel Settings

Selecting Channel

Options

The Channel settings includes the following options:

1. Press WEGA GATE.......

Select Settings..............

Highlight ......................

4. Press to select...............

To highlight an option and to change settings, press

V v B b.

Press to confirm the selection.

To exit Channel, press .

Antenna

Channel

Program favorite channels

Program

Favorite Channels

Digital Channels

Auto Program

Show/Hide Channels

Label Channels

WEGA

GATE

Option Description

Favorite

Channels

Lets you set up a list of your favorite channels.

For details, see “Using Favorites in WEGA GATE” on page 54.

Digital Channels Add Select to add digital channels.

Auto Program Automatically sets up the channel list on the TV for all

receivable channels for the current input (VHF/UHF or

CABLE). Select to start the Auto Program.

Auto Program may take a while (20 to 50 minutes)

to complete. A progress bar will display the

approximate progress of the Auto Program and

Digital Channels/Add sequences.

Show/Hide

Channels

Allows you to show or hide channels that appear in the Program

Guide and when you use the CH+/- buttons to channel surf.

Channels that are set to Hidden do not appear in the Program

Guide or when you use the CH+/- buttons.

1 Press V or v to highlight the channel that you want to show

or hide.

To move between the Major and Digital subchannel lists,

press B or b.

2 To change a channel’s setting to Shown or Hidden, press

3 To show or hide more channels, repeat steps 1 and 2.

z Also, you can access

the Favorite Channels

list on the WEGA GATE

control panel.

Channels that you set to

be hidden can be

accessed only with the

0-9 buttons.

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

If you select to hide or show a major digital channel, all the sub-

channels are automatically hidden or shown. To show or hide an

individual sub-channel within a digital channel, you must

individually select that sub-channel to show or hide.

If you hide all sub-channels of a major digital channel, that digital

channel is automatically set to Hidden.

Label Channels Allows you to assign labels (such as station call letters) to

channel numbers.

1 Press V or v to scroll through the channel numbers. Then

press to select the channel number that you want to

assign a label.

2 Press V or v to scroll through the label characters (A-Z,

0-9, etc.). Then press to select the highlighted

character. Repeat to add characters to the label.

3 To assign labels to more channels, repeat steps 1-2.

4 Press B to return to the Channel settings, or press WEGA

GATE to exit Settings.

Option Description

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

Accessing the Parental Lock Settings

Selecting Parental

Lock Options

The Parental Lock settings include the following options:

1. Press WEGA GATE.......

Select Settings..............

Highlight ......................

4. Press to select...............

To highlight an option and to change settings, press

V v B b.

Press to confirm the selection.

To exit Parental Lock, press .

The Parental Lock setting allows you to set up the TV to block programs according to their content and rating levels.

Antenna

Parental Lock

Press to change settings

Off

Child

You th

Y. Adult

Custom

Parental Lock Off

Change Password

Select Country U. S. A.

WEGA

GATE

You need your password for any future access into the Parental

Lock setting. If you lose your password, see “Lost password” on

page 97.

Option Description

Parental Lock

Turn ratings on/off and

select a rating system

Off Turn Parental Lock off. No programs are

blocked from viewing.

Child Maximum ratings permitted are:

U.S.: TV-Y, TV-G, G

Canada: C, G, TV-Y

Youth Maximum ratings permitted are:

U.S.: TV-PG, PG

Canada: C8+, PG, 8 ans+, TV-PG

Y. A d u l t Maximum ratings permitted are:

U.S.: TV-14, PG-13

Canada: 14+, 13 ans+, TV-14

Custom Select to set ratings manually.

U.S.: See page 83 for details.

Canada: See page 84 for details.

Change Password Select to change your password.

Select Country U.S.A. Select to use U.S.A. ratings (see page 83).

Canada Select to use Canadian ratings (see page 84).

z If you are not familiar

with the Parental

Guideline rating system,

you should select Child,

Youth, or Y.Adult to help

simplify the rating

selection. To set more

restrictive ratings, select

Custom.

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

To deactivate the parental control feature

s Set Parental Lock to Off when in the Parental Lock setting.

To change the password

1 In the Parental Lock setting, use the arrow buttons to highlight Change

Password

, and press to select it.

2 Enter a new four-digit password using the 0-9 buttons.

3 Confirm the new password by entering it again.

4 Press WEGA GATE to exit Settings.

Viewing Blocked

Programs

You can view a blocked program by entering the password.

1 Press ENT when tuned to a blocked program.

2 Enter your password using the 0-9 buttons.

Parental Lock will be canceled temporarily until you turn your TV off.

Selecting Custom

Rating Options

US custom rating options

If you selected U.S.A. as the country of residence on page 82, the Custom

Rating setting includes the following options. (If you selected

Canada, see

page 84.)

Option Description

Movie Rating G All children and general audiences.

PG Parental guidance suggested.

PG-13 Parental guidance for children under 13.

R Restricted viewing, parental guidance is suggested

for children under 17.

NC-17

and X

No one 17 and under.

TV Rating

Block programs

by their rating,

content or both

Age-Based Options

TV-Y All children.

TV-Y7 Directed to children age 7 and older.

TV-G General audience.

TV-PG Parental guidance suggested.

TV-14 Parents strongly cautioned.

TV-MA Mature audience only.

Content-Based Options

FV Fantasy violence.

D Suggestive dialog.

L Strong language.

S Sexual situations.

V Violence.

z To ensure maximum

blocking capability, the

age-based ratings

should be used.

(Continued)

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

Canadian custom rating options

If you selected Canada as the country of residence on page 82, the Custom

Rating setting includes the following options. (If you selected

U.S.A., see

page 83.)

Unrated

Block programs

or movies that are

broadcast without

a rating

Allow Allows programs and movies that are broadcast

without a rating.

Block Blocks all programs and movies that are broadcast

without a rating.

The content ratings will increase depending on the level of the age-

based rating. For example, a program with a

TV-PG V (Violence)

rating may contain moderate violence, while a

TV-14 V (Violence)

rating may contain more intense violence.

Option Description

English Rating C All children.

C8+ Children 8 years and older.

G General programming.

PG Parental guidance.

14+ Viewers 14 and older.

18+ Adult programming.

French Rating G General programming.

8 ans+ Not recommended for ages under 8.

13 ans+ Not recommended for ages under 13.

16 ans+ Not recommended for ages under 16.

18 ans+ Programming restricted to adults.

U.S.A. Rating See “TV Rating” on page 83 for details.

Option Description

z If you select Block, be

aware that the following

programs may be

blocked: news, sports,

weather, emergency

broadcasts, political

programs, public

service

announcements, and

religious programs.

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

Accessing the Setup Settings

Selecting Setup

Options

The Setup settings includes the following options:

1. Press WEGA GATE.......

Select Settings..............

Highlight ......................

4. Press to select...............

To highlight an option and to change settings, press

V v B b.

Press to confirm the selection.

To exit Setup, press .

Antenna

Setup

Select Caption Vision options

Off

Program

Caption Vision Off

Info Banner On

Game Mode Off

Label Video Inputs

Language English

Video 2(Component) Off

Menu Color Gray

Power Saving Standard

Light Sensor Off

WEGA

GATE

Option Description

Caption Vision Allows you to select from several closed caption modes (for

programs that are broadcast with closed caption).

On Caption Vision is turned on.

Off Caption Vision is turned off.

Program Allows you to set basic and advanced

Caption Vision options. See “Programming

Caption Vision” on page 87.

Info Banner Set to On or Off. Select On to display the program name, time

remaining and other information (if the broadcaster offers this

service). Also displays when the channel is changed or the

DISPLAY button is pressed.

Game Mode On Select to optimize the lipsync when playing

games.

Off Select to turn off the Game Mode.

Label Video

Inputs

Allows you to label the audio/video equipment you have

connected to the TV so you can identify them when using

TV/VIDEO. When in this setting:

1 Press V or v to highlight an input to label, then press

to select it.

2 Use the arrow buttons to scroll through the labels.

3 Press to select the equipment you connected to each of

the input jacks on the back of your TV.

Select Skip if you do not have any equipment connected to a

particular input.

z If you have assigned

video labels, you can

see the External Inputs

list on the WEGA GATE

control panel.

(Continued)

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

Video 1-6 Video 1-6, VHS, DVD, Receiver, Satellite,

Cable Box, 8mm, DTV, Game, LD, Beta,

HD, DVR, Camcorder, Skip

Video 7 Video 7, PC, DVD, HD, Game, Skip

If you select Skip, your TV skips this input when

you press the TV/VIDEO button.

Language Select to display all on-screen settings in your language of

choice: English, Español, Français.

Video 2

(Component)

Auto Select to switch automatically between the

component video jacks (Y P

B/CB PR/CR,

AUDIO L (MONO)/AUDIO R) and the

composite video jacks (VIDEO, AUDIO L

(MONO)/AUDIO R) on the left side of the

TV (VIDEO/HD/DVD 2 IN) depending on

the cable connection.

Off Select to activate the composite video jacks

(VIDEO/AUDIO L(MONO)/

AUDIO R) on the left side of the TV.

Menu Color Enables you to select a specific color for the on-screen settings.

Not available when using the Photo/Video Viewer.

Power Saving Standard Select to view picture without the benefit of

Power Saving.

Reduced Select to view picture with reduced power

consumption.

It also enhances the black level.

Picture Off Select to turn off the picture. Audio stays on

with your selected volume setting.

Picture Off is not available when using the

Photo/Video Viewer.

Light Sensor Select On to enable the automatic brightness control. The light

sensor measures the room brightness which allows the TV to

automatically adjust the picture brightness based on the picture

settings and the ambient room light conditions.

Be sure not to put anything around the sensor, as

its function may be affected.

See page 15 on the sensor.

CineMotion Select Auto to optimize the screen display automatically

detecting film content and applying a reverse 3-2 pull down

process. Moving picture will appear clearer and more natural

looking. Select

Off to disable the detection.

Option Description

z The Skip label is useful

for inputs to which no

equipment is

connected.

z If you use the

composite connection

when Video 2

(Component) is set to

Auto, do not connect

the component cable at

the same time.

Otherwise select Off.

z To change from one

Power Saving option to

another, use POWER

SAVING on the remote

control.

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

Programming

Caption Vision

If you selected the Program option under Caption Vision (see page 85), you

can change the following settings:

Option Description

Basic Allows you to select basic analog (EIA-608) closed caption options.

CC1, CC2,

CC3, CC4

Displays a printed version of the dialog or sound

effects of a program. (Should be set to CC1 for most

programs.)

Tex t 1 , Tex t 2,

Tex t 3 , Text 4

Displays network/station information presented using

either half or the whole screen (if available).

Digital CC Allows you to set digital closed captioning to Basic (digital EIA-608)

or Advanced (digital EIA-708).

Advanced Allows you to select advanced digital (EIA-708) closed caption

options. Select from the available options.

Advanced

Settings

Allows you to make additional settings for digital (EIA-708) closed

caption options. Select from As Broadcast, Small Tex t, Large Tex t

and Custom.

Custom Allows you to customize the following settings:

Character Size Small, Standard,

Large

Character Style Style 1-7

Character Color Color 1-8

Character Opacity Solid, Translucent

Edge Color Color 1-8

Edge Type None, Raised,

Depressed,

Outline,

Left Shadow,

Right Shadow

Background Color None, Color 1-8

Background Opacity Solid, Translucent

Window Color None, Color 1-8

Window Opacity Solid, Translucent

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

Selecting PC Setup

Options

To display the PC screen:

Press TV/VIDEO repeatedly on

the remote control until Video 7

(PC) appears.

The PC Input Setup setting includes the following options:

You can change the settings for the PC input while the TV is

displaying the PC screen.

Option Description

Power

Management

On Select to automatically switch to the standby

mode when there is no signal input for

approximately 30 seconds. Returns to the PC

screen when a signal is input.

Off Select to turn off Power Management.

Language Select to display all on-screen Settings in your language of

choice: English, Español, Français.

Menu Color Enables you to select a specific color for the on-screen menus

from Original, Gray, Red, Purple and Ta n.

Power Saving Standard Select to view picture without the benefit of

Power Saving.

Reduced Select to view picture with reduced power

consumption.

It also enhances the black level.

Picture Off Select to turn off the picture. Audio stays on

with your selected volume setting.

Light Sensor Set to On or Off. When on, the brightness of the screen is

automatically adjusted according to the brightness of the room.

Be sure not to put anything around the sensor, as

its function may be affected.

For details, see page 15.

Video 7 PC

Setup

Press WEGA GATE to exit

Power Management Off

Language English

Menu Color Gray

Power Saving Standard

Light Sensor Off

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

PC Input Signal Reference Chart

*: Corresponding to the VGA signal

Resolution

Horizontal frequency

(kHz)

Vertical frequency

(Hz)

VESA standard

Signals Horizontal

(Dot)

× Vertical

(Line)

VGA 640 × 480 31.5 60 –*

640 × 480 37.5 75 ✔

640 × 480 43.3 85 ✔

720 × 400 31.5 70 –*

SVGA 800 × 600 35.2 56 ✔

800 × 600 37.9 60 ✔

800 × 600 46.9 75 ✔

800 × 600 48.1 72 ✔

XGA 1024 × 768 48.4 60 ✔

1024 × 768 56.5 70 ✔

1024 × 768 60 75 ✔

WXGA 1280 × 768 47.4 60 ✔

1280 × 768 47.8 60 ✔

1360 × 768 47.7 60 ✔

This TV’s PC input does not support Sync on Green or Composite Sync.

This TV’s PC input does not support interlaced signals.

This TV’s PC input supports signals in the above chart with a 60Hz vertical frequency.

For other signals, you will see the message “Unsupported Signal”.

For the best picture quality, it is recommended to use signals with a 60Hz vertical frequency from a personal

computer.

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

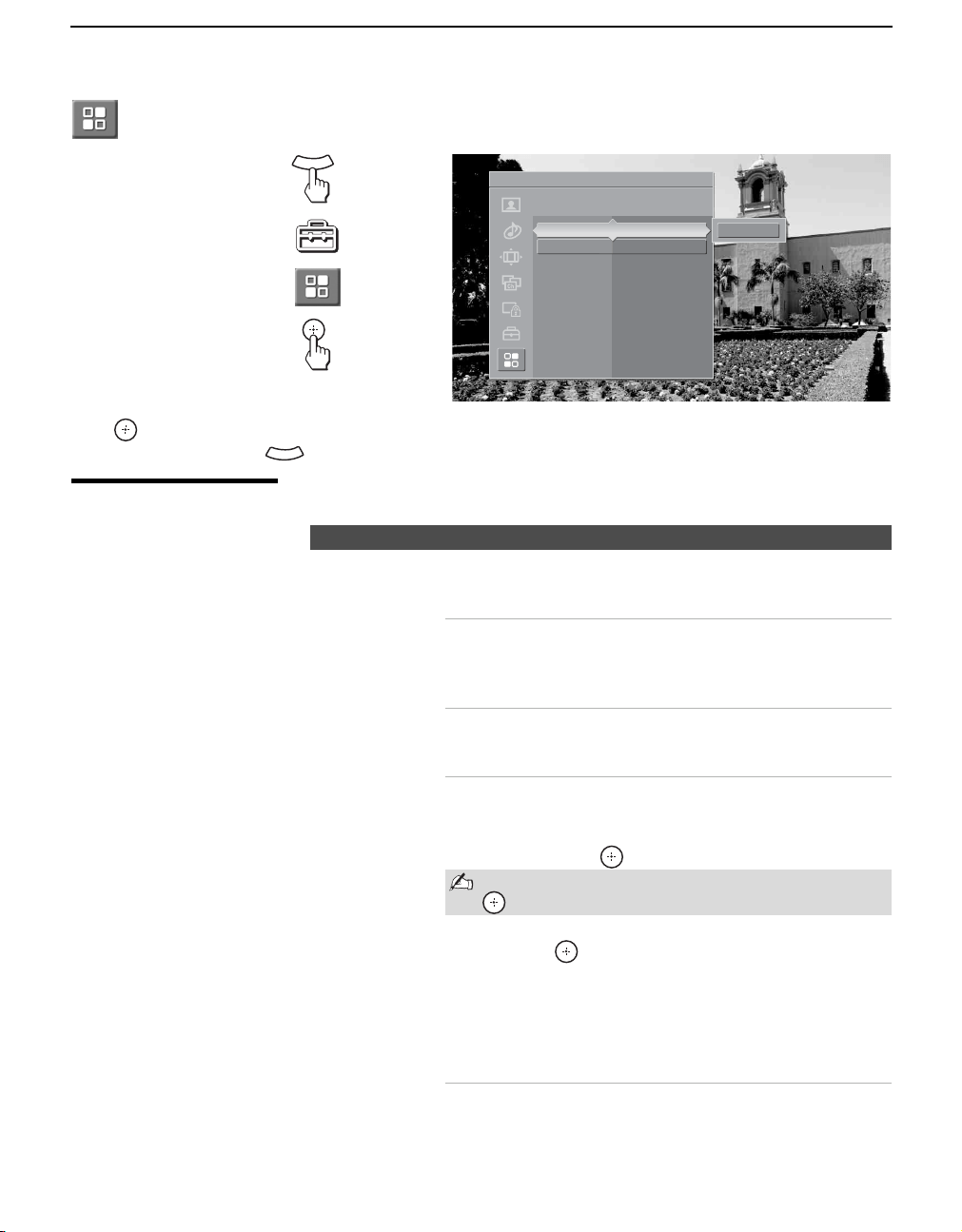

Accessing the Applications Settings

Selecting

Applications

Options

The Applications settings includes the following options:

1. Press WEGA GATE.......

Select Settings..............

Highlight ......................

4. Press to select...............

To highlight an option and to change settings, press

V v B b.

Press to confirm the selection.

To exit Applications, press .

Antenna

Applications

Change current time amd timer settings

Program

Clock/Timers

Diagnostics

CableCARD

WEGA

GATE

Option Description

Clock/Timers Select to set the clock and to program your TV to turn on and

off at two scheduled viewing times. Once the options are set,

TIMER LED lights up in red.

Sleep Allows you to select the amount of time (Off,

15 minutes, 30 minutes, 45 minutes, 60

minutes or 90 minutes) that you want the TV

to remain on before shutting off automatically.

Timer 1

Timer 2

You can use the Timers to program the TV to

turn on and off and tune to a specific channel at

two scheduled viewing times.

Timer 1 and Timer 2 cannot be set until you set the Current

Time.

1 Press V or v to highlight Timer 1 or Timer 2. To set the

timer, press b or .

To go directly to programming Timer 1 or 2, press

instead of pressing b.

2 Press V or v to highlight one of the following options,

then press .

Program

Select to set the Timer by day, time, duration,

and channel.

Off Select to turn off the Timer. (Your previous

settings are saved.)

z To return to the Timer

settings after

programming one of the

Timers or current time,

press B.

z Timer will be set to Off

when:

• Auto Program is

executed

• the AC power cord is

disconnected and

then reconnected to

turn the TV on and

the Current Time is

displayed as 12:00

AM.

Using the Settings

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US08MEN.fm

masterpage:3 columns Right

3 If you selected Program in step 2, press V and v to set the

day(s), hour, minute, AM/PM, duration, and channel

number. Press or b to confirm each setting and move

to the next setting. Press B to go back to the previous

setting.

4 Press WEGA GATE to exit Settings. An LED on the

front panel will light, indicating the Timer has been set.

Current

Time

Select to set the current time (day, hour, minute,

and AM/PM).

Program Select to set the Timer by day, time,

and AM/PM.

Off Select to turn off the Timer. (Your

previous settings are saved.)

1 Press to select Current Time.

2 Press V and v to set the current time (day,

hour, minute, and AM/PM). Press or

b to confirm each setting and move to the

next setting. Press B to go back to the

previous setting.

3 Press WEGA GATE to exit Settings.

Diagnostics Display diagnostics information about the TV. This can be

useful in providing information to an authorized technician or

repair person.

CableCARD This list of selectable CableCARD options will vary,

depending on your cable service provider.

Option Description

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US09OTH.fm

masterpage:3 columns Right

Other Information

Overview

This chapter includes the following topics:

Contacting Sony

If, after reading these operating instructions, you have additional questions related to the use of your Sony

television, please call our Customer Information Services Center.

For US residents: 1-800-222-SONY (7669)

For Canadian residents: 1-877-899-SONY (7669)

Before calling Sony customer support, please write down the model and serial numbers of your TV.

Troubleshooting

Remote Control

Topic See Page

Contacting Sony

Troubleshooting

Specifications

Optional accessories

Index

Problem Possible Remedies

Remote control does not

operate

❑ The batteries could be weak. Replace the batteries.

❑ Check the orientation of the batteries.

❑ Press TV (FUNCTION) once, and the TV indicator lights up. You may have

inadvertently pressed SAT/CABLE (FUNCTION), which changes the remote

control to SAT or CABLE mode.

❑ Make sure this unit’s power cord is connected securely to the wall outlet.

Cannot change channels with

the remote control

❑ If you are using the TV to change channels, first press TV (FUNCTION) once,

and the TV indicator lights up.

❑ If you are using another device to change channels, be sure you have not

inadvertently switched your TV from the channel 3 or 4 setting.

❑ If you are using another device to change channels, be sure to press FUNCTION

for that device. For example, if you are using your cable box to change channels,

be sure to press SAT/CABLE (FUNCTION) once, and the SAT/CABLE indicator

lights up.

Other Information

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US09OTH.fm

masterpage:3 columns Right

CableCARD Device

Video

Remote control does not

operate non-Sony video

equipment

❑ If you replaced the batteries to the remote recently, the code numbers for the video

equipment may need to be reset.

❑ There may be more than one code for the equipment that you are attempting to

operate.

❑ There is a possibility that some non-Sony equipment cannot be operated by your

Sony TV remote. You may need to use the equipment’s original remote control.

Problem Possible Remedies

Problems using CableCARD

device or CableCARD services

❑ Check that the CableCARD device is inserted properly (see pages 29-30).

❑ The CableCARD device must be activated by your local cable TV provider before

you can receive digital cable TV services. See the activation instructions on pages

29-30.

❑ Check the Diagnostics and CableCARD setting options (see page 91). (This can

be useful in providing information to an authorized technician or repair person.)

❑ Contact your cable TV provider.

Problem Possible Remedies

No picture (screen not lit), no

sound

❑ If your TV does not turn on and a red light keeps flashing, your TV may need

service. Call your local Sony Service Center.

❑ Make sure the power cord is plugged in.

❑ Press POWER on the right side of the TV.

❑ Press TV/VIDEO to cycle through the connected video sources.

❑ Try another channel; it could be station trouble.

Dark, poor or no picture

(screen lit), good sound

❑ Adjust the Picture Mode option in the Video setting (see page 71).

❑ Adjust the Brightness option in the Video setting (see page 71).

❑ Check the antenna/cable connections.

No color/dark picture/color is

not correct

❑ Adjust the Color option in the Video setting (see page 71).

Only snow and noise appear on

the screen

❑ Check the antenna/cable connections.

❑ Try another channel; it could be station trouble.

❑ Press ANT to change the input mode (see page 42).

Dotted lines or stripes ❑ Adjust the antenna.

❑ Move the TV away from noise sources such as cars, neon signs, or hair dryers.

Double images ❑ Using a highly directional outdoor antenna or a cable may solve the problem.

“Black box” on screen ❑ You have selected a text option in the Setup setting and no text is available. (See

page 85 to reset Setup selections.) To turn off this feature, set the Caption Vision

option to Off. If you were trying to select closed captioning, select CC1 instead of

Tex t1 -4.

(Continued)

Other Information

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US09OTH.fm

masterpage:3 columns Right

Audio

Black bands appear at the top

and bottom of the screen

❑ Some wide-screen programs are filmed in aspect ratios that are greater than 16:9

(this is especially common with theatrical releases). Your TV will show these

programs with black bands at the top and bottom of the screen. For more details,

check the documentation that came with your DVD (or contact your program

provider).

Certain programs on DVD or

other digital sources display a

loss of detail, especially during

fast-motion or dark scenes

❑ The compression used by certain digital broadcasts and DVDs may cause your

TV’s screen to display less detail than usual, or cause artifacts (small blocks or

dots, pixelations) to appear on your screen. This is due to your TV’s large screen

and ability to show very fine detail, and is normal for certain digitally recorded

programs. Adjust the reality/clarity in the DRC Palette setting (see page 72) to

optimize the picture while viewing these sources.

Problem Possible Remedies

Good picture, no sound ❑ Press MUTING so that Muting disappears from the screen (see page 42).

❑ Make sure the Speaker option is set to On in the Audio setting (see page 75).

❑ Make sure the MTS option is set to Stereo or Mono (see page 75).

❑ When the HDMI IN input is in use, surround sound, such as AC-3 and DTS,

cannot be input. Change the sound setting for the external input device to Linear

PCM.

Audio noise ❑ Communication problems may occur if infrared communication equipment (e.g.,

infrared cordless headphones) is used near the TV. Use headphones other than

infrared cordless headphones. Also, if you use infrared communication equipment

other than infrared cordless headphones, move the infrared transceiver away from

the TV until the noise is eliminated, or move the transmitter and receiver of the

infrared communication equipment closer together.

Cannot gain enough volume

when using a cable box

❑ Increase the volume of the cable box using the cable box’s remote control. Then

press TV (FUNCTION) once (the TV indicator lights up) and adjust the TV’s

volume.

Sound seems weak or

insufficient

❑ The TV’s audio might be set to Auto SAP or Mono, when it might be better set to

Stereo. In the Audio setting (see page 75), set the MTS setting to Stereo. If

already set to Stereo, switch to Mono (which may reduce background noise

during weak stereo broadcasts).

Cannot raise the volume on

external speakers

❑ If the Speaker option is set to Off and the Audio Out option is set to Fixed (in

order to output the sound to your audio system), use your audio receiver to adjust

the sound (see page 75). Or, to use the TV remote control, set the Audio Out

option to Variable.

❑ To turn on the TV speakers, set the Speaker option to On (see page 75).

Other Information

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US09OTH.fm

masterpage:3 columns Right

Channels

USB

Problem Possible Remedies

Cannot receive upper channels

(UHF) when using an antenna

❑ Press ANT to select the VHF/UHF input (see page 42).

❑ Use Auto Program in the Channel setting to add receivable channels that are not

presently in the TV’s memory (see page 80).

Cannot receive any channels

when using cable TV

❑ Use Auto Program in the Channel setting to add receivable channels that are not

presently in the TV’s memory (see page 80).

❑ Press ANT to select the CABLE input (see page 42).

Cannot receive or select

channels

❑ Use Auto Program in the Channel setting to add receivable channels that are not

presently in TV memory (see page 80).

Some digital cable channels are

not being displayed

❑ Certain cable companies have limitations on the broadcast of digital cable

channels. Check with your cable company for more information.

❑ The digital cable channel may be set to Hidden in the Channel setting (see page

80).

Problem Possible Remedies

USB device does not work ❑ Check the USB device connection. Most Sony digital still cameras and camcorders

in the market at the time of sale of this product are supported but some may not

work correctly.

❑ Cameras from other manufacturers, non-camera USB devices (printers, USB

readers, etc.) may not work correctly.

Cannot see files in Photo/Video

Viewer

❑ Check Filter and Select Folder settings (see page 67).

❑ The maximum number of files the Photo/Video Viewer can display is 2,000 files in

total, including all JPEG, MPEG1, and MP3 files.

Cannot edit the files ❑ If your digital still camera has an internal memory, you can view the files in the

internal memory but cannot edit them. To edit the files, make a copy to a media

such as Memory Stick in your digital still camera.

Image does not display ❑ Some variations of MPEG1 movies may not play back correctly.

❑ Make sure the image file is a JPEG (.jpg, .jpeg) file or an MPEG1 (.mpg, .mpeg)

file.

JPEG image displays

undesirable motion or flicker in

full screen

❑ JPEGs captured using a digital video camera may appear to display motion in full

screen. This is a result of the way digital video cameras record still images, and is

not a result of a malfunction with the TV.

(Continued)

Other Information

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US09OTH.fm

masterpage:3 columns Right

MPEG movie playback is

choppy and progress bar is not

accurate or MPEG1 movie does

not play back correctly

❑ High bit-rate MPEG movies, such as those recorded in high frame rates or high

resolution (such as VX Fine mode), may not play back correctly. To view such

movies, connect a camera or camcorder that supports USB 2.0 connection and

Memory Stick PRO media.

Rotation not saved after USB

device is disconnected or

Photo/Video Viewer is closed

❑ The file might not have information (EXIF data) that is usually generated when a

digital camera records a photo. In this case, it is not possible to save the rotation.

❑ There might be insufficient space on the USB media to save the rotated file. Try

deleting one or more files and rotating the image again.

Cannot show (or hide) file

information in full screen or

Slide Show

❑ Set the File Information option to On or Off (see page 66).

❑ After selecting the file, press the DISPLAY button on the remote control. The file

information will be displayed on the top of the TV screen.

Cannot see menu ❑ Press V to display the menu again.

Cannot hear audio while

using USB device

❑ Check the TV’s volume or Speaker (see page 75) settings.

❑ Check that the Music option is not set to Off (see page 66).

Not all MP3 files on USB media

are included when the Music/

Complete List option is

selected (page 66)

❑ The Photo/Video Viewer can display a maximum of 2,000 files in total, including

all JPEG, MPEG1, and MP3 files.

❑ Make sure that the file is named with the file extension (.mp3).

MP3 files on the USB media are

not listed

❑ Only MP3 files that are named with the file extension (.mp3) are displayed in the

list.

Music files are playing in wrong

order

❑ MP3 files are played in alphabetical order, according to the folder in which they

are stored. If you want to change the playlist order, rename your files

alphabetically in the order in which you want them to play or create a MP3 playlist

(.m3u file) on a PC.

Cannot see MP3 list to play

music

❑ MP3 files on your USB media only can be played as background music during a

Slide Show (page 66).

MPEG1 quality is poor when

enlarged (page 64)

❑ The quality of the movie when played back on the TV depends on the resolution

the movie was shot in, and the connection speed between the USB device and TV

(see above). See your camera’s instruction manual for details.

“No USB device or Media”

error message is displayed

❑ Check the USB device is connected properly.

❑ Check the USB device power is turned on.

❑ Not all USB devices are supported (see page 57).

Problem Possible Remedies

Other Information

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US09OTH.fm

masterpage:3 columns Right

General

Error icon is displayed The file is not a valid MPEG1 or JPEG format, or it is a

progressive JPEG (which is not supported).

The thumbnail is not DCF-compatible.

The file is a JPEG or an MPEG1, but the thumbnail is

unreadable.

The file is unreadable.

Problem Possible Remedies

How to reset the TV to factory

settings

❑ Turn on the TV. While holding down the V button on the remote control, press the

POWER button on the TV. (The TV will turn itself off, then back on again.)

Release the V button.

WARNING: The Reset will clear all of your customized settings including

Parental Lock setting.

How to restore Video settings

to factory settings

❑ Select Reset setting option while in the Video setting (see page 71).

How to restore Audio settings

to factory settings

❑ Select Reset setting option while in the Audio setting (see page 74).

Cannot cycle through the other

video equipment connected to

the TV

❑ Be sure the Label Video Inputs option is not set to Skip (see page 85).

Cannot operate the setting ❑ If a setting option appears in gray, this indicates that the setting option is not

available.

Lost password ❑ On the password screen (see page 82), enter the following master password:

4357. The master password clears your previous password; it cannot be used to

temporarily unblock channels.

TIMER LED on front panel is

lit

❑ When lit, indicates that the timer is set (see page 90). When the timer is set, this

LED will remain lit even when the TV is turned off.

Digital cable box does not work ❑ If you are connecting a VCR and digital cable box using a splitter, as described on

page 34, you must use a special bi-directional splitter that is designed to work

with your digital cable box. Contact your cable provider for details.

Cannot record digital channels

to VCR

❑ Only analog channels can be recorded to your VCR.

TV cabinet creaks ❑ When the TV is in use, there is a natural rise in temperature, causing the cabinet to

expand or contract and may be accompanied by a slight creaking noise. This is not

a malfunction.

Other Information

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US09OTH.fm

masterpage:3 columns Right

Specifications

Television system:

American TV standard

Channel coverage:

VHF: 2-13/UHF: 14-69/CATV: 1-125

Antenna:

75-ohm external terminal for VHF/UHF

Screen size (measured diagonally):

KDL-V26XBR1: 26 inches

KDL-V32XBR1: 32 inches

KDL-V40XBR1: 40 inches

Panel System:

LCD (Liquid Crystal Display) Panel

Display resolution (horizontal × vertical):

1,366 pixels × 768 lines

VIDEO IN 1/2/3:

S VIDEO (4-pin mini DIN):

Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative

C: 0.286 Vp-p (Burst signal), 75 ohms

VIDEO: 1 Vp-p, 75 ohms unbalanced, sync negative

AUDIO: 500 mVrms (100% modulation)

Impedance: 47 kilohms

HD/DVD IN 4/5:

YPB/CB PR/CR (Component Video):

Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative

B/CB:0.7 Vp-p, 75 ohms

R/CR:0.7 Vp-p, 75 ohms

Signal format: 480i, 480p, 720p, 1080i

AUDIO: 500 mVrms (100% modulation)

Impedance: 47 kilohms

HDMI IN 6:

HDMI: Video: 480i, 480p, 720p, 1080i

Audio: Two channel linear PCM 32, 44.1 and

48 kHz, 16, 20 and 24 bits

AUDIO: 500 mVrms (100% modulation)

Impedance: 47 kilohms

AUDIO OUT:

500 mVrms (100% modulation)

More than 1 Vrms at the maximum volume setting (Variable)

More than 500 mVrms (Fixed)

PC IN 7:

D-sub 15-pin, analog RGB, 0.7 Vp-p, 75 ohms, positive

See the PC Input Signal Reference Chart on page 89.

PC AUDIO INPUT:

Stereo mini jack, 0.5 Vrms, 1 kilohm

Headphones:

Stereo mini jack Impedance: 16 ohms

Speaker:

Woofer: 4.0 × 10 cm (4 inches) (2)

Tweeter: φ 4.0 cm (1

/8 inches) (2)

Speaker output:

13 W + 13 W

Power requirement:

120-240 V AC, 50/60 Hz

Power consumption:

In use: KDL-V26XBR1: 140 W

KDL-V32XBR1: 166 W

KDL-V40XBR1: 240 W

In standby: KDL-V26XBR1: Less than 0.15 W

KDL-V32XBR1: Less than 0.15 W

KDL-V40XBR1: Less than 0.15 W

Dimensions (W/H/D):

KDL-V26XBR1: (with stand) 674.8 × 511.5 × 308.2 mm

(26

/8 × 20

/4 × 12

/4 inches)

(without stand) 674.8 × 472.7 × 103 mm

(26

/8 × 18

/8 × 4

/8 inches)

KDL-V32XBR1: (with stand) 808 × 587.8 × 308.2 mm

(31

/8 × 23

/4 × 12

/4 inches)

(without stand) 808 × 549.4 × 110.5 mm

(31

/8 × 21

/4 × 4

/8 inches)

KDL-V40XBR1: (with stand) 1014.4 × 722.7 × 370.3 mm

(40 × 28

/2 × 14

/8 inches)

(without stand) 1014.4 × 683.3 × 121.3 mm

(40 × 27 × 4

/8 inches)

Mass:

KDL-V26XBR1: (with stand) 18.5 kg (40 lb. 13 oz.)

(without stand) 14.5 kg (32 lb.)

KDL-V32XBR1: (with stand) 23.7 kg (52 lb. 4 oz.)

(without stand) 19.7 kg (43 lb. 7 oz.)

KDL-V40XBR1: (with stand) 34.3 kg (75 lb. 10 oz.)

(without stand) 28.1 kg (62 lb.)

Supplied accessories:

Remote control RM-YD002 (1)

Size AA batteries (2)

AC power cord (1)

HD15-HD15 cable (ferrite core attached) (1)

Support belt (1), securing screw (1) and wood screw (1)

Cable holder (1)

Coaxial cable (1)

PC Audio cable holder (1)

Operating Instructions (1)

Quick Setup Guide (1)

Product Registration Card (1)

Warranty Card (1)

Optional accessories:

HDMI cable

HDMI-to-DVI cable

Component video cable

S VIDEO cable

A/V cable

Audio cable

Optical cable

Wall-Mount Bracket: SU-WL31(KDL-V26XBR1/KDL-

V32XBR1)

SU-PW2 (KDL-V40XBR1)

Design and specifications are subject to change

without notice.

The availability of optional accessories

depends on stock.

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US10IX.fm

masterpage:3 columns Right

Index

0-9 buttons 42

4:3 Default

5.1 Channel DVD using with remote

control 47

A/V Sync 75

About USB

57, 68

AC IN

Advanced Settings, Caption Vision

Advanced Video

Advanced, Caption Vision

Alternate Audio

Alternate Video

ANT button

Antenna, WEGA GATE

53, 55

Applications settings

70, 90

Audio Out

AUDIO OUT jack, described

Audio Out, PC Input

Audio receiver, connecting

Audio setting

69, 74

Auto Adjustment, PC Input

Auto Program

Backlight, adjusting 71

Backlight, PC Input

Balance, adjusting

Balance, PC Input

Basic, Caption Vision

Bass, adjusting

Bass, PC Input

Batteries, inserting in remote

BBE

Brightness, adjusting

Brightness, PC Input

Cable

connecting with VCR 33

using with remote control 46

Cable box

connecting with VCR 34

using with remote control 46

CABLE jack, described

Cable, WEGA GATE 53, 55

CableCARD

CableCARD device

CableCARD slot

Camcorder, connecting

Caption Vision

85, 87

CH +/–

Change Password

CHANNEL buttons

Channel setting

70, 80

CineMotion

Clock/Timers

Color Temp.

Color Temp., PC Input

Color, adjusting

Connecting

Audio receiver 40

Cable box 22–23

Camcorder 40

DVD player 37–38

Personal Computer 39

Satellite receiver 24

VCR 33–36

Delete 62, 65

Diagnostics

Digital CC, Caption Vision

Digital Channels

Digital subchannels

Digital Visual Interface (DVI)

Display Area

DISPLAY button

Display Mode, PC Input

DRC Mode

DRC Palette

DVD player

using with remote control 46

with A/V connectors, connecting

with component video connectors,

connecting

DVD/VCR Operating Buttons

DVD/VCR Record Buttons

Effect 74

Effect, PC Input

English Rating

ENT button

16, 42

Error messages, USB

External Inputs, WEGA GATE

53,

F1/F2 button 43

Favorite Channels

Favorites, WEGA GATE

53, 54

Features

File

62, 65

File Information

File Order

Filter

Freeze

FREEZE button

43, 51

French Rating

FUNCTION buttons

Game Mode 85

Game Picture

GUIDE button

42, 48

Guide, settings

HD/DVD IN jack (1080i/720p/480p/

480i), described

HDMI IN jack, described

Headphones jack, described

High-Definition Multimedia

Interface (HDMI) 19

Horizontal Center

Hue, adjusting

Index 62, 65

Info Banner

Infrared Receiver (IR)

J, K

JPEG 57

JUMP

JUMP button

42, 51

(Continued)

100

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US10IX.fm

masterpage:3 columns Right

Label Channels 81

Label Video Inputs

Language

Language, PC Input

Light Sensor

described 15

setting 86, 88

MENU button 43, 46

Menu Color

Menu Color, PC Input

Movie Rating

MPEG

MTS

MTS/SAP button

Music

MUTING button

Noise Reduction 72

OPTICAL OUT, described 18

P, Q

Parental Lock setting 70, 82

Password, changing

PC IN

Personal Computer

connecting 39

Phase, PC Input

Photo, WEGA GATE

53, 56, 61

Photo/Video Viewer

Index 59

index options 66

movie options 65

panning photos 63

photo options 62

playing movies 64

rotating photos 63

slide show options 66

viewing photos 61

zooming photos 63

PIC OFF LED

PICTURE button

Picture Mode, selecting

Picture, adjusting

Picture, PC Input

Pitch, PC Input

POWER (GREEN) button

POWER button

Power Management, PC Input

Power Saving

51, 86

POWER SAVING button 43, 51

Power Saving, PC Input

POWER/STANDBY LED

Print Quantity

Problems, Troubleshooting

92–97

Program Guide

Program Options

Protect

62, 65

Ratings

setting 83

viewing blocked programs 83

Remote control

inserting batteries 41

programming 44–45

Repeat

Reset, audio settings

Reset, video settings

RETURN button

Rotate

S VIDEO jack, described 18, 20

Satellite receiver

connecting 24

using with remote control 46

Screen setting

69, 77

Select Country

Select Folder

Settings

Applications 70, 90

Audio 69, 74

Channel 70, 80

Parental Lock 70, 82

Screen 69, 77

Setup 70, 85

Video 69, 71

Settings, WEGA GATE

53, 56

Setup setting

70, 85

Sharpness, adjusting

Show/Hide Channels

Slide Advance

Slide Show

62, 65

SOUND button

Sound Mode, PC Input

Sound Mode, selecting

Speaker

described 15

selecting 75

Speaker, PC Input

Start

Steady Sound

Support Belt

SUR button

Swivel

T, U

Tilt 14

TIMER LED

Timer, setting

TOOLS button

TOP MENU button

43, 46

Transition Effect

Treble, adjusting

Treble, PC Input

Troubleshooting

92–97

Turning on/off the TV

TV POWER button

TV Rating

TV/SAT button

TV/VIDEO button

16, 42

U.S.A. Rating

Unrated

USB jack, described

USB Media

VCR

using with remote control 46

with cable box, connecting 34

with cable, connecting 33

Vertical Center

78, 79

Vertical Size

VHF/UHF jack, described

Video 2 (Component)

Video setting

69, 71

Video, WEGA GATE

53, 56, 64

VIDEO/AUDIO (L/R) jacks,

described 18

VIDEO/HD/DVD jacks, described

View

VISUAL SEARCH button

VOL +/– button

VOLUME buttons

Volume Offset

W, X, Y

WEGA GATE 52

WEGA GATE button

16, 43

WIDE button

43, 50

Wide Mode

Wide Mode, PC Input

Wide Screen Mode

Zoom/Pan 62

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US10IX.fm

masterpage:3 columns Right

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US10IX.fm

masterpage:3 columns Right

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US10IX.fm

masterpage:3 columns Right

KDL-V26/32/40XBR1

2-662-199-12(1)

E:\Worker\mix\2662199121(101805)\01US11BOC.fm

masterpage:Right

Printed in U.S.A.
