Owner’s Manual
Coredy G850
1
1.1 Usage Restrictions ......................................................................................................
1.2 Battery and Charging ..................................................................................................
Important Safety Information
2.1 Robot ...............................................................................................................................
2.2 Accessories ....................................................................................................................
2.3 Charging Dock ..............................................................................................................
2.4 Remote Control .............................................................................................................
2.5 LED Indication ...............................................................................................................
3.1 Notes Before Cleaning ................................................................................................
3.2 Quick Start .....................................................................................................................
3.3 Use Your G850 with the “Coredy Robot” App .......................................................
3.4 How Coredy G850 Cleans Your Home ...................................................................
3.5 Wet/Dry Mopping System ..........................................................................................
3.6 Cleaning Schedule .......................................................................................................
4.1 Emptying Robot’s Bin and Cleaning Robot’s Filter...............................................
4.2 Cleaning Robot’s Water Tank and Mop Cloth (Sold Separately).......................
4.3 Cleaning Robot’s Side Brush ....................................................................................
4.4 Cleaning Robot’s Cliff Sensors and Charging Contacts .....................................
4.5 Cleaning Robot’s Floor Tracking Sensor ................................................................
4.6 Cleaning Robot’s Rolling Brush ................................................................................
4.7 Battery and Charging Information ............................................................................
01
02
04
06
07
07
08
09
10
12
18
21
24
27
28
29
29
30
30
31
2
Product Diagram
3
Operating and Programming
4
Regular Robot Care
5
Troubleshooting
01
04
09
26
33
6
Specifications
36
Table of Contents
EN
1.1 Usage Restrictions
1 Important Safety Information
This appliance can be used by children ages from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge only if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision. Children younger than 8 years old should not use this device.
The robot must be used in accordance with the directions in this Instruction Manual. Coredy Inc. cannot be held liable or
responsible for any damages or injuries caused by improper use.
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local
authority for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps,
hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. Please
contact your local or regional waste authority for more information on collection, reuse and recycling programs.
To reduce the risk of injury or damage, keep these safety precautions in mind when setting up, using and maintaining your
robot:
Your robot is for indoor use only. Do not use the robot in outdoor, commercial or industrial environments.
Before using this device, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords, and any
fragile objects. If the device passes over a power cord and drags it, there is a chance an object could be pulled off of a table
or shelf.
Read all safety and operating instructions before operating your robot.
Retain the safety and operating instructions for future reference.
Heed all warnings on your robot, battery, charging Dock and in the owner’s manual.
Follow all operating and use instructions.
The symbol on the product or its packaging indicates:
01
1.2 Battery and Charging
Your robot is not a toy. Do not sit or stand on this device. Small children and pets should be supervised when your robot is
operating.
Store and operate your robot in room temperature environments only.
Do not use this device to pick up anything that is burning or smoking.
Do not use this device to pick up spills of bleach, paint, or other chemicals, or anything wet.
If the room to be cleaned contains a balcony, a physical barrier should be used to prevent access to the balcony and ensure
safe operation.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure they do not play with the robot. Cleaning and maintenance shall not be performed
by children without supervision.
Do not place anything on top of your robot.
Be aware that the robot moves on its own. Take care when walking in the area in which the robot is operating in to avoid
stepping or tripping on it.
Do not operate the robot in areas with exposed electrical outlets in the floor.
Use only rechargeable battery packs with the correct specification approved by Coredy.
Charge using a standard outlet only. Product may not be used with any type of power converter. Use of other power convert-
ers will immediately void the warranty.
Do not use a Charging Dock with a damaged cord or plug. If the cord or plug is damaged, it must be serviced by the manu-
facturer or similarly qualified persons.
Always charge and remove the battery from your robot and accessories before long-term storage or transportation.
Charge indoors only.
02
Your robot’s Charging Dock may be protected with a surge protector in the event of severe electrical storms.
Never handle the Charging Dock with wet hands.
Always disconnect your robot from the Charging Dock before cleaning or maintaining it.
Please ensure voltage rating for enclosed Charging Dock matches standard outlet voltage.
Used battery packs should be placed in a sealed plastic bag and disposed of safely according to local environmental regula-
tions.
Before every use, check the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery
packs.
If the battery pack is leaking, contact Coredy Customer Service for disposal.
The battery pack must be removed from the robot before disposal.
Do not crush or dismantle battery packs. Do not heat or place the battery pack near any heat source.
Do not incinerate the battery pack. Do not short-circuit the battery pack.
Do not immerse the battery pack in any liquid.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
03
2 Product Diagram
2.1 Robot
Wi-Fi Status Indicator
Return to Charging Base
Spot Cleaning
Start/Stop
04
Press and hold & both buttons
for 5 seconds to reset Wi-Fi Connection
&
Anti-drop Sensors
Optical Flow Sensor
Power Switch
Dust Bin
Drive Wheels
Charging Contacts
Hall Sensors
Universal Wheel
Side Brush
Battery Pack
Brush Guard
Main Brush
05
Dust Bin Release Button Dust Bin
Infrared Sensor
Bumper
2.2 Accessories
1 x Charging Dock 1 x Adapter 1 x Remote Control
(with 2 x AAA batteries)
1 x Dust Bin2 x Side Brushes
1 x Cleaning Brush
1 x Main Brush
1 x Washable HEPA Filter
and Sponge Filter
06
MAX
2 x Boundary Strips 6.6 ft/2m Length
1 x Water Tank
(Sold Separately)
(Sold Separately) (Sold Separately)
2 x Cleaning Cloths
2.3 Charging Dock
07
Charging Indicator
Remote Control Storage Location
Signal Transmission Area
Charging Contacts
2.4 Remote Control
Mode and time display screen
Automatic re-charging button
Automatic cleaning
Direction buttons
Clock setup button
Scheduling button
Start / Pause button
Spot cleaning button
Edge cleaning button
Small-space button Changing cleaning suction button
*Install 2 AAA batteries (included in the package) before using the remote control for the first time.
MAX
08
2.5 LED Indication
You can see the status of Coredy G850 Robot from the LED indicators.
Light Status Status
Solid blue + Solid Red Low power (less than 15%) and returning to Charging Dock
Solid blue + Solid blue Charging Completed / Wi-Fi Connected
Error indication; Refer to the "Troubleshooting" section in this manual for solutions.
Solid blue
Standby / Cleaning (when not on Charging Dock) / Fully charged
Pulsating purple Charging
Flashing blue + Solid blue Wi-Fi Pairing Mode
Solid/Flashing red
3 Operating and Programming

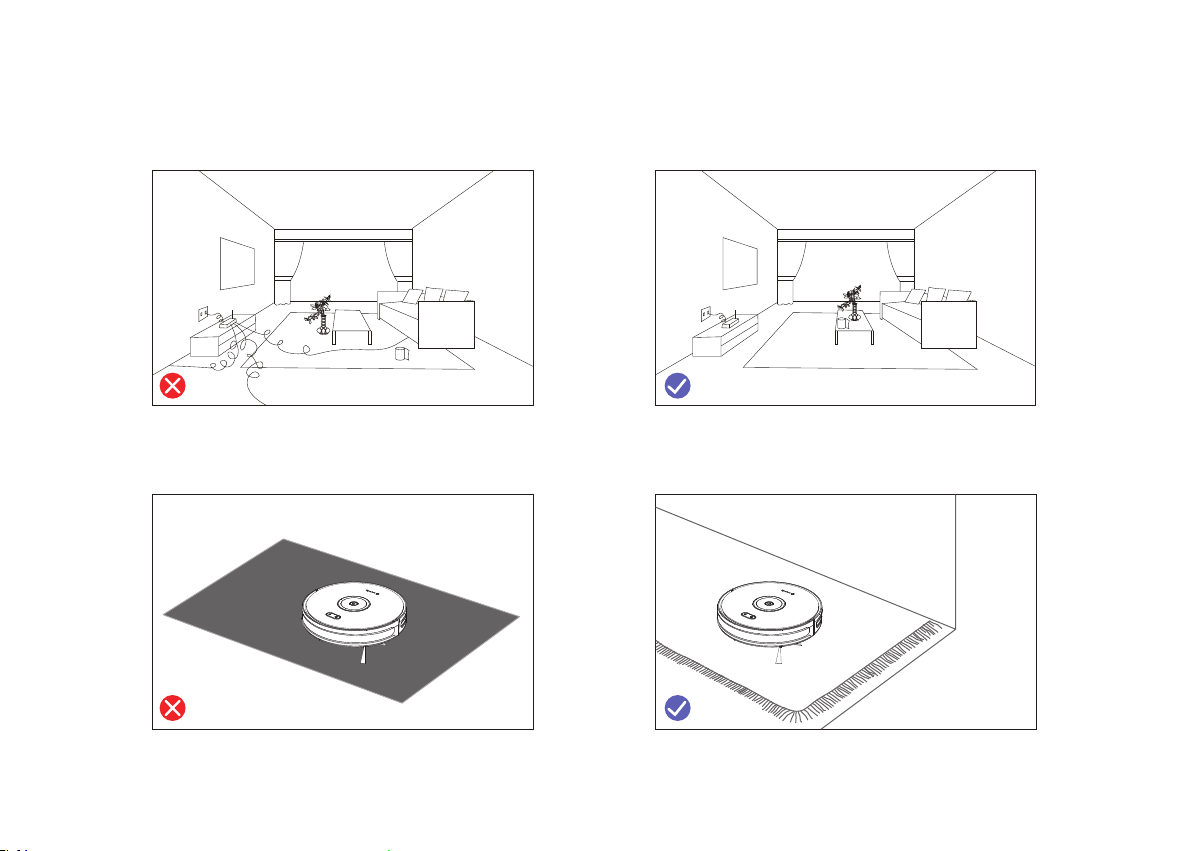

3.1 Notes Before Cleaning
Before using Robot, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords,
and any fragile objects. If the Robot passes over a power cord and drags it, there is a chance an object could be
pulled off of a table or shelf.
The robot may not run on certain dark or black colored surfaces since the Anti-drop Sensors that recognize an
edge or a stair may regard this color as an edge.
09
3.2 Quick Start
Charging Dock Position
Place the Charging Dock against the wall and make sure
it is in an open and uncluttered area leaving at least:
Place the Charging Dock on a hard
level surface and against a wall.
2 meters (6 feet) in the front of the Charging Dock.
1 meter (3 feet) on both sides of the Charging Dock.
Attach Side Brushes to the bottom of Coredy G850 by pressing a
brush into each slot until it clicks.
Plug in the Charging Dock and place
the remaining wire into the channel
at the bottom of the Charging Dock
1.
3.
2.
Install Side Brushes
4.
Activate the Robot
Place Coredy G850 onto the Charging Dock, making sure
the metal charging contacts on the Charging Dock match up
with those underneath the robot.
If successful, you will hear a series of tones. Once the Power
button illuminates, Coredy G850 is ready for use.
5.
10
On Initial Use, Switch on the Power Button on the Bottom
of the Robot.
Note:
Note: Failure to place the remaining wire
into the channel, may cause Robot to
become stuck while charging or cleaning.
If the Charging Dock is inaccessible, Robot will not be able to
recharge, please place the robot manually on Charging Dock for
charging. (Refer to Activate the Robot)
Start Cleaning Cycle
Press the power button once to wake up the robot.
Press the power button again to start a cleaning cycle (or
button on Remote Control).
Press the spot button to begin spot cleaning.
If the battery reaches low charge before finishing a cleaning cycle,
the robot will return to the Charging Dock to recharge.
6.
Pause
To pause the robot during a cleaning cycle press the button
on robot or press the button on the Remote Control.
To resume the cleaning cycle, press button again.
To send robot back to the Charging Dock, press button on
the Remote Control.
7.
Reset
Press and hold & both button on the Robot for around 5
seconds until you hear two beeps from the robot and the Wi-Fi
indicator light on Robot is rapidly blinking blue.
8.
11
Please refer to section 3.4 for more Cleaning Mode.
Note:
Note: The actions listed above can also be managed from
the buttons on the robot or via the Remote Control.
MAX
MAX
3.3 Use Your G850 with the “Coredy Robot” App
Before you start, make sure that：
To enjoy all available features, it is recommended to control your Robot via the Coredy Robot App.
1. Your smartphone or tablet is connected to a 2.4 GHz Wi-Fi network (Robot only supports 2.4 GHz network).
2. Your smartphone or tablet is running iOS 8.0 (or above) or Android 4.4 (or above).
4. The Robot docked on the Charging Base to ensure it has enough power during setup.
12
Coredy Robot
Coredy Robot
Scan the QR code shown below to download the latest version of the App or download from
the App Store (iOS devices) or Google Play (Android devices).
Create a user account
13
1. Open the App and create a
user account.
2. Agree to the “Privacy Policy”. 3. Create your account with the
mobile phone number
or E-mail address.
1.
14
Add Device
1. Press “Add Device” or tap the
“+” in the top right corner to
add.
2. Add a Coredy G850 Robot to
your Coredy account.
1. Check and set your phone Wi-Fi
to
select the same Wi-Fi on Coredy
App, enter Wi-Fi password, press
Wi-Fi Connec�on
5. Create a password 6-20
characters in length.
2. 3.
15
2. Turn on the main power
then press and hold & both
the Wi-Fi indicator light on Robot
is rapidly blinking, press “Next”.
progress to reach 100%.
4. When the Robot has
successfully connected, press
“Done”
5. Wait 1-2 seconds for the
Robot to go on standby.
16
Coredy App Control
Reset the Wi-Fi Connec�on
indicator light on Robot is rapidly blinking blue. Then you can
Using Amazon Alexa
Troubleshoo�ng.
Your Coredy Robot is connected to the Coredy Robot App.
You have an Alexa-enabled device (i.e., Amazon Echo, Echo Dot,
Echo Show).
The Amazon Alexa App is installed on your smart device and you
have created an account.
To control Coredy devices with Amazon Alexa:
For Robot only, do the following steps:
1. Open the Alexa App and select “Skills & Games” from the menu.
2. On the Skills screen, search for “ Smart Life”.
3. Select your Smart Life skill, then press "Enable".
4. Login with your Coredy Robot account so Alexa can control your
Coredy devices.
5. Using “Smart Life” skill (for Robot only):
You do not need to discover your device as you can control the
Alexa currently supports the following two commands:
Note: If you have any problems during the Wi-Fi setup process,
visit http://shop.coredy.com to contact our customer service team.
If the Coredy Robot gets lost somewhere in your home, tap “Seek
Robot” in the App to find the Robot. This function is available in
the App only.
To use your Robot with Amazon Alexa, please ensure the following:
4.
5.
6.
17
6. If you add two or more Robot devices to Coredy Robot App, you
can edit name for each Coredy Robot in either the Coredy App or
name. For example, if you name one Coredy Robot "Robot 1", then
you may use Alexa to control that device with the following
commands:
What do I do if Alexa fails to discover my devices?
Try to reboot the smart device and re-discover the device on Alexa.
Why does the device’s status Show “Offline” on Alexa?
device and re-discover on Alexa.
Internet access on your router could be unavailable. Check if your
router is connected to the Internet and try again.
Why can't I control Coredy devices with Amazon Alexa?
Check if you are using the proper commands when talking to Alexa.
request.
Make sure your Coredy device is at least eight inches away from
walls or other objects that may cause interference (such as
microwave ovens).
Troubleshoo�ng
"Alexa, turn on Robot 1"
Using Google Assistant
Your Coredy Robot is connected to the Coredy Robot App.
To use your Robot with Google Assistant, please ensure the following:
You have a Google Assistant enabled device (i.e. Google Home).
The Google Home App is already installed on your smart device,
and you have created an account.
To control Coredy devices with Google Assistant:
Google Assistant currently supports the following commands:
For Robot only, do the following steps:
1. Open the Google Home App.
2. Say “OK Google, talk to Robot” to the Google Assistant-enabled
Assistant with your Coredy Robot account.
Google Assistant:
5. If you add two or more Robot devices to Coredy Robot App, you
can edit name for each Coredy Robot on the Coredy App or Google
name. For example, if you name one Coredy Robot "Robot 2", then
you may use Google Assistant to control that device with the
following commands:
(Note: Only supports above commands currently.)
"OK Google, turn on Robot 2"
"OK Google, go home Robot 2"
7.
Cleaning Preferences
Spot Cleaning
When you select Spot Cleaning, robot intensely cleans a localized
area by spiraling outward about 3 feet (1 meter) in diameter and
then spiraling inward to where it started. When Spot Cleaning,
robot boosts its vacuum power to provide the best cleaning
possible where you need it. To use Spot Cleaning, place robot on
top of the localized debris and press on the Remote Control,
or press the spot button on the Robot.
2.
18
MAX
3.4 How Coredy G850 Cleans Your Home
Auto Cleaning
Coredy G850 continues this process until it has cleaned an entire level
of your home. If its battery gets low before finishing a cleaning cycle,
Coredy G850 returns to the Charging Dock to recharge.
Cleaning in Zig-zag routing for efficiently and thoroughly clean.
At various times throughout the cleaning cycle, Coredy G850 touches up
around the edges of the room, as well as chair legs and other furniture.
Coredy G850 continues this process until it has cleaned an entire
level of your home. If its battery gets low before finishing a cleaning
cycle, Coredy G850 returns to the Charging Dock to recharge.
Once Coredy G850 finishes its cleaning cycle, Coredy G850 returns to
the Charging Dock to recharge.
1.
MAX
Edge Cleaning
After robot finishes cleaning the open areas of your floor, it uses
Edge Clean to ensure that it has cleaned along walls and around
furniture legs. If you prefer a quicker edge cleaning, press the
button on Remote Control.
4.
Single Room Cleaning
Coredy G850 intensively cleans one single room and stops after 30
minutes. Select this mode only when one specific room needs to
be cleaned. Make sure to confine Coredy G850 to the room by
closing the door.
Press on the remote control to start cleaning in Single Room
Mode.
5.
19
MAX
MAX
Note:
Support Boost Intellect technology, when a carpet is
detected, suction is increased to 1500 Pa. Once off the
carpet, normal suction returns.
If the level of the suction power is the maximum level
before cleaning on a carpet, the robot will continue
cleaning the carpet with the maximum power after
moving on the carpet.
Changing Cleaning Suction Power
Change the cleaning suction by pressing the button on
remote control to reach 2500 Pa. Vacuuming cleaning suction
is 800 Pa by default.
3.
MAX
MAX
MAX
20
MAX
Move forward
Move backward
Turn left Turn right
Manual Cleaning
You can direct Coredy G850 to clean a particular area by using the
directional buttons on the remote control.
6.
Use the Boundary Strip
With the Boundary Strip, you can keep Coredy G850 away from any
area or item you do not want Coredy G850 to clean. Coredy G850
will recognize the Boundary Strip and will not cross into the
blocked-off area.
3. Apply adhesive tape to lay the Boundary Strip flat on the floor.
Make sure the strip is placed FLAT on the floor.
1. Identify the area or item you do not want Coredy G850 to get
close to.
2. If necessary, use scissors to cut the Boundary Strip to a shorter
length. Be sure to correctly measure the length before cutting.
7.
Note: If the Boundary Strip is rolled up, remove and
re-apply on the floor with adhesive tape. Otherwise, the
Boundary Strip may not work well.
Make sure the Boundary Strip is placed on the same
surface plane Coredy G850 is used on.
Be careful not to damage the floor when using adhesive
tape. It is not recommended for use on carpets.
Keep the Boundary Strip away from objects that emit
excessive heat.
21
Attach the mop cloth to the water tank and fill the water tank with water.1.
Remove the dust bin from the robot.
2.
3.5 Wet/Dry Mopping System
Coredy G850 supports wet/dry mopping function (Requires a water tank and mopping cloth, sold separately. Visit http://shop.coredy.com to
purchase). The robot has a mopping system with an electronically-controlled water pump, can automatically control water flow to start/stop,
offers 3 water flow levels (SMALL, AUTO, BIG), ensuring intelligent mopping cleaning for your home.
Note: Use the Coredy Robot App to select from 3 water flow levels for mopping cleaning.
Note: If you are using a dry sweeping cleaning, skip to fill water in water tank.
Put back the water tank to robot.3.
Press the power button to start mopping cleaning (or button on Remote Control, or button on Coredy Robot App).
MAX
22
Start Mopping Cleaning
4.
* Robot will automatically stop the water flow when it stops mopping cleaning.
* Robot cannot auto-detect and avoid carpet. Please manually relocate the robot if it travels to a carpeted area when mopping. For best
results, set a virtual barrier by using the included magnetic boundary strips.
The robot has 3 cleaning modes within the mopping cleaning
function: Auto, Spot and Edge. Use remote control or Coredy
Robot App to select the desired cleaning mode to achieve
optimal cleaning for your home.
MAX
23
Select a Cleaning Mode5.
Use the Coredy Robot App to select from 3 water flow levels for
mopping cleaning on the different surface floor.
Select a Mopping Level6.
Default cleaning mode: Auto
Default water flow level: AUTO
Cleaning Mode
Auto Mode
Adjustable Water Level
SMALL
AUTO
BIG
150mins
120mins
90mins
Runtime
24
3.6 Cleaning Schedule
Coredy G850 has cleaning schedule settings which allow you to customize when the robot cleans your home.
With the Coredy Robot App, you can schedule the G850 to start cleaning at any desired time from Sunday to Saturday (or certain days of the week).
Press button on Remote Control, and
then the hour section begins to flash in the
clock display setting window.
2.1 Set the Remote Control’s Clock
Schedule Cleaning from Coredy Robot App
1.
Press or button to select the desired
figures. Press the or button to select
the minute or hour section.
And then press the button, the Robot will
“BEEP” when the clock setting completed.
MAX
MAX MAX
1. You can set the time and customize the cleaning schedules from Sunday to Saturday on the Coredy Robot App.
2. Schedule accuracy is -/+ 30 seconds.
3. This function is available in the App only.
Note:
With the remote control, you can schedule G850 to start cleaning at a specified time.
Schedule Cleaning from Remote Control2.
1. Make sure the time is set correctly to your local time before setting a cleaning schedule.
2. Make sure AM/PM is set correctly.
3. Schedule accuracy is every 15 minutes.
4. Make sure the remote control is near the robot while setting the clock or schedule.
Note:
2.2 Setting Cleaning Schedule
2.3 Cancel the Cleaning Schedule
Press button on Remote Control, and
then the hour section begins to flash in the
Cleaning Schedule display setting window.
Press or button to select the desired
values. Press the or button to select
the minute or hour section.
And then press the button, the Robot will
“BEEP” when the Cleaning Schedule setting
completed.
Press and hold button approximately 4
seconds on Remote Control, the Robot will
“BEEP” when the Cleaning Schedule process
has cancelled completely.
25
MAX
PM
MAX
MAX
PM
MAX
PM
26
To keep robot running at peak performance, perform the following care procedures. If you notice robot picks up less debris from your floor, then
empty the bin, clean the filter and clean the rolling brush.
4 Regular Robot Care
Robot Part Care Frequency Replacement Frequency
Side Brush
Once per week (twice per week in homes
with pets)
Every 2-3 months (or when visibly worn)
Every 3-6 months
Every 3-6 months
Every 3-6 months (or when visibly worn)
Cliff Sensors
Charging Contacts
Floor Tracking Sensor
Front Driving Wheel
Unversal Wheel
Once per month
Filter
Once per week (twice per week in homes
with pets)
Every 2-3 months
Rolling Brush
Once per week (twice per week in homes
with pets)
Brush Guard Once per month
Mopping Cloth (Sold separately) After each use
Every 12 monthsDust Bin After each use
Every 12 months
Water Tank (Sold separately)
After each use
Note: Coredy manufactures various replacement parts and assemblies. If you think you need a replacement part, please contact Coredy
Customer Care for more information.
4.1 Emptying Robot’s Bin
and Cleaning Robot’s Filter
Press dust bin release button to remove it.
1.
Remove filter by grasping the white tab.
3.
Shake off debris by tapping the filter against your trash container.
4.
Open dust bin door to empty it.
2.
27
4.2 Cleaning Robot’s Water Tank
and Mop Cloth (Sold Separately)
Press water tank release button to remove it.
1.
Remove the cleaning mop cloth from water tank,
wash and lay flat to dry.
2.
Empty the remaining water from the water tank.
3.
Use soft and dry cloth to wipe the outside of water tank,
lay flat to dry. Avoid direct sunlight.
4.
28
4.3 Cleaning Robot’s Side Brush
4.4 Cleaning Robot’s Cliff Sensors
and Charging Contacts
Remove the brush
1.
Wipe Robot’s Cliff Sensors with a clean, dry cloth.1.
Wipe the charging contacts on Robot and the Charging
Base with a clean, dry cloth.
2.
Clean the brush and the brush stand and reinstall the brush.
2.
29
4.5 Cleaning Robot’s Floor Tracking
Sensor
4.6 Cleaning Robot’s Rolling Brush
Use a clean, dry microfiber or soft cotton cloth to wipe any
debris that has accumulated in the round sensor opening
on the right side of the bottom surface.
Do not spray cleaning solution directly into the sensor
entrance.
Pull on the release tabs to unlock the brush guard as shown.
1.
Lift the rolling brush to remove.
2.
Clean the rolling brush with the provided cleaning tool
or a vacuum cleaner.
3.
Reinstall the rolling brush by inserting the fixed protruding
end first and then clicking into place.
4.
Press down to snap the brush guard into place.
5.
30
31
Lithium-Ion Battery
Battery Charging
4.7 Battery and Charging Information
To extend battery life, always keep robot charged on the Home Base when not in use.
Battery Storage
If storing robot off the Charging Dock, remove the battery first. Then store robot and the battery in a cool, dry place.
Battery Disposal
Contact your local waste management authority for battery recycling and disposal regulations in your area.
Battery Replacement
You can visit Coredy’s website http://shop.coredy.com to purchase the battery or other accessories for the robot.
Remove the lithium-Ion battery from the product
Place a piece of tape over the battery’s metal charging contacts
Reinstall the battery (with the tape on it) in the product and secure the battery door
Package the product in its original packaging or in your own packaging that prevents any movement during transportation
Ship via ground transportation only (no air shipping)
Important: Lithium-Ion batteries and products that contain lithium-Ion batteries are subject to stringent transportation regulations.
If you need to ship this product (with the battery included) for service, travel or any other reason, you MUST comply with the following
shipping instructions:
Follow these instructions to remove and reinstall robot’s battery:
Unscrew the door and the two screws on the battery door,
then remove.
1.
Reinstall the battery with the battery label and tabs facing up.
2.
Reinstall the battery door and the two screws. Take care not to pinch
the side brush in the battery door when re-installing the battery.
3.
Battery Removal
32
Rebooting Instructions
Indicator Lighting Red
Robot will tell you something is wrong with a two-tone distress sound followed by message. The indicator will also blink, or illuminate red.
Refer to the chart as below to resolve Robot’s problem. If the problem is not resolved, please contact our customer service team for cost free
technical assistance.
For some errors, rebooting the Robot may resolve the problem. To reboot Robot, press the power button on the bottom on Robot. You will hear
an audible tone signifying a successful reboot.
5 Troubleshooting
33
Clean the front driving wheel, then press the
power button to restart the robot.
Robot's front driving wheel is stuck.
One beep
Clean the side brush, then press the power
button to restart the robot.
Robot's side brush is stuck.
Two beeps
Remove and empty robot's dust bin.
Clean robot's filter, then briskly tap the bin to
loosen any remaining trapped debris.
Make sure the vacuum inlet is not blocked by
any hair or debris.
Robot's vacuum fan is stuck
or its filter is clogged.
Three beeps
Robot's main rolling brush is stuck.
Four beeps
Indicator Lighting Red
Robot Blinks and Sounds Likely Cause What to Do
Remove and clean the main rolling brush and
brush guard, then press the power button to
restart the robot.
Indicator Flashing Red
34
Clean robot's cliff sensors gently with a dry cloth.
Start cleaning in a new location if robot is
hanging over a drop, or on a dark surface.
Use boundary strip or a physical barrier to block
off the problem area.
Robot's cliff sensors are dirty.
Robot is hanging over a drop,
or it is stuck on a dark surface.
Three beeps
Tap robot's bumper several times to dislodge
any debris that might be trapped underneath.
Press robot's bumper 5-10 times to ensure
bumper contracts freely.
Two beeps
Manually take the robot on the charging dock to
charge.
Ensure there are no obstacles in front of the
charging dock or starting position, wipe the
charging contacts on both charging dock and
robot with a clean, dry cloth.
Robot's battery power level is too low.
Robot cannot return to its charging
dock.
Four beeps
Indicator Flashing Red
Robot Blinks and Says Likely Cause What to Do
Robot's bumper is stuck.
Frequently asked questions
Coredy G850 cannot
be activated.
Make sure the main power switch is in the ON position.
Make sure the battery is fully charged.
Replace the batteries (2 AAA) in the remote control.
Make sure the remote control is within range (16 ft/5 m) of Coredy G850.
If you still have trouble, turn off the main power switch and then turn it back on.
35
The remote control
does not work.
Replace the batteries in the remote control.
Make sure Coredy G850 is turned on and fully charged.
Note: Limited workable range distance is 5m/16.5ft.
Coredy G850 stops
working suddenly.
Check if Coredy G850 is trapped or stuck on an obstacle.
Check if the battery level is too low.
If you still have trouble, turn off the main power switch, wait for 2 seconds, and then turn it back on.
You cannot schedule
cleanings.
Make sure the main power switch on the bottom of Coredy G850 is turned on.
Make sure the time, time of day (AM/PM), and the scheduled time have been set correctly.
Check if Coredy G850’s power is too low to start cleaning.
Suction power is
weak.
Check if any obstructions are blocking the suction inlet.
Empty the dust collector.
Clean the filters with a vacuum cleaner or a cleaning brush.
Check if the filters are wet due to water or other liquid on the floor. Air-dry the filters completely before use.
Coredy G850 cannot
be charged.
Check if the indicator on the Charging Base lights up. If not, contact the Coredy service center to repair or
replace the Charging Base.
Dust off the charging contact pins with a dry cloth.
Check if you can hear a beep when Coredy G850 is docked onto the Charging Base. If not, contact the
Coredy service center to repair or replace the Charging Base.
Problems Solutions
36
Coredy G850 cannot
return to the Charging
Base.
Remove objects within 3 ft/1 m to the left and right side and within 6 ft/2 m of the front of the Charging Base.
When Coredy G850 is in the vicinity of the Charging Base (distance within 26ft/8M), it returns more quickly.
However, if the Charging Base is located far away (distance over 26ft/8M), Coredy G850 needs more time to
return. Please be patient as it travels back.
Clean the charging contact pins.
The rolling brush does
not rotate.
Clean the rolling brush.
Check if the rolling brush and brush guard have been installed properly.
Coredy G850’s
movements or travel
path are abnormal.
Clean the sensors carefully with a dry cloth.
Restart Coredy G850 by turning the power switch off and on.
Problems Solutions
6 Specifications
Product Model G850
Input
19 V
0.6 A
Master Operating Voltage DC 14.4 V
Power Consumption 28 W
Battery Type
DC 14.4 V
Li-ion 3200 mAh
Dust Collector Capacity 0.5 L
Water Tank Capacity 0.3 L
Cleaning Time Max. 120 mins
Charging Time 300 - 360 mins
Input
19 V
0.6 A
Output
19 V
0.6 A
@coredytech @CoredyOfficial @coredy_robotvacuum @Coredy Official
V1.1
MODEL: G850
Website: http://shop.coredy.com
E-mail: [email protected]
US COST FREE Tech Support:
(PST Mon-Sun 06:00-24:00) (GMT Mon-Sun 14:00-08:00)
+1 (800) 999 8470
UK COST FREE Tech Support:
+44 (808) 134 9909
