Wallbox ControlsC•L® Dimmer
Maestro
®
Maestro® C•L® Dimmer
Dimmer for CFL and LED dimmable bulbs.
Features
• Large tapswitch with a rocker-style dimmer for a
standard designer wallplate opening
• Advanced dimming technology designed for
compatibility with a broader range of high effi cacy bulbs
• UL Listed to control:
— Dimmable Compact Fluorescent Lamps (CFL) with
integrated ballast
— Dimmable LED with integrated driver
— Halogen
— Incandescent
• Low-end adjustment to accommodate a wide range
of bulbs
• No neutral required for retrofi t applications
• Tapswitch returns load to previous level
• Can be used in single-pole, multi-location (using MA-R),
or 3-way mechanical switch
1
applications
• Coordinating Claro
® and Stainless Steel wallplates
available separately
• 100% factory tested
Colors and Finishes
Gloss Finishes
WH White IV Ivory
AL Almond LA Light Almond
GR Gray BR Brown
BL Black
Satin Colors
®
HT Hot MR Merlot
PL Plum TQ Turquoise
SG Sea Glass TP Taupe
ES Eggshell BI Biscuit
SW Snow PD Palladium
MN Midnight TC Terracotta
SI Sienna GB Green Briar
BG Bluestone MS Mocha Stone
GS Goldstone DS Desert Stone
ST Stone LS Limestone
Wallplate sold separately
Product Specifi c Features
• Capable of controlling up to 150 W Dimmable CFL / LED
or 600 W Incandescent / Halogen or Mixed bulb type per
Multigang and Mixed Bulb Type Ratings table
(see page 3)
Model Number
MACL-153M-XX
2
Single pole / 3-way
1
/ Multi-location
3
Notes:
1
An additional wiring and programming step is required for 3-way
mechanical switch applications. Not for use in 4-way mechanical
switch applications
2
XX Color codes, see section “Colors and Finishes” at left
3
For 3-way and 4-way dimming, use MaestroR companion dimmers
1
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
369-613a 2 05.15.12
Wallbox ControlsC•L® Dimmer
Maestro
®
Dimensions
Note: Requires a U.S. wallbox 2 1 in (57 mm)
deep minimum.
Warranty
• 1 Year Limited Warranty
For additional Warranty information, please visit
http://www.lutron.com/TechnicalDocumentLibrary/
369-119_Wallbox_Warranty.pdf
Specifi cations
Regulatory Approvals
• UL Listed to U.S. and Canadian safety
requirements (UL 1472 / CSA C22.2 184.1)
• NOM
Power and Ratings
• 120 V~ 60 Hz
• Maximum Load
- 150 W Dimmable CFL/LED
or
- 600 W Incandescent/Halogen
or
- Mixed bulb type per Multigang and Mixed Bulb
Type Ratings table (see page 3)
• Minimum Load
- See approved lamp list for CFL/LED
or
- 10 W Incandescent/Halogen
Environment
• For indoor use only
• Operating temperatures 32°F (0°C) to 104°F (40°C)
Performance
• Power-failure memory
• Raise / Lower Rocker
• Electrostatic discharge tested
• Precise color matching
• Includes a Front Accessible Service Switch (FASST)
for safe bulb replacement
Application Requirements
• When using CFLs or LEDs, only bulbs marked
or rated as Dimmable can be used.
• For a complete list of approved DIMMABLE CFLs
and LEDs please call 1.800.523.9466 or visit
www.lutron.com/dimcfl led
4 $ in
(119 mm)
2 ^ in
(75 mm)
2 # in
(66 mm)
5/16 in
(8 mm)
1 3 in
(29 mm)
2
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
369-613a 3 05.15.12
Wallbox ControlsC•L® Dimmer
Maestro
®
Total CFL•LED
Wattage Installed
(Watts per bulb X # of bulbs)
Maximum Allowable
Incandescent / Halogen Wattage
No sides removed 1 side removed 2 sides removed
0 W + 600 W 500 W 400 W
1 W – 25 W + 500 W 400 W 300 W
26 W – 50 W + 400 W 300 W 200 W
51 W – 75 W + 300 W 200 W 100 W
76 W – 100 W + 200 W 100 W 50 W
101 W – 125 W + 100 W 50 W 0 W
126 W – 150 W + 0 W 0 W 0 W
Operation
Multigang and Mixed-Bulb-Type Ratings
Tapswitch
- Tap on to favorite level
- Tap off
- Tap twice for full on
- Press, hold and release for gradual fade-to-off
Raise / Lower Rocker
- Press rocker to adjust light level
3
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
369-613a 4 05.15.12
Wallbox ControlsC•L® Dimmer
Maestro
®

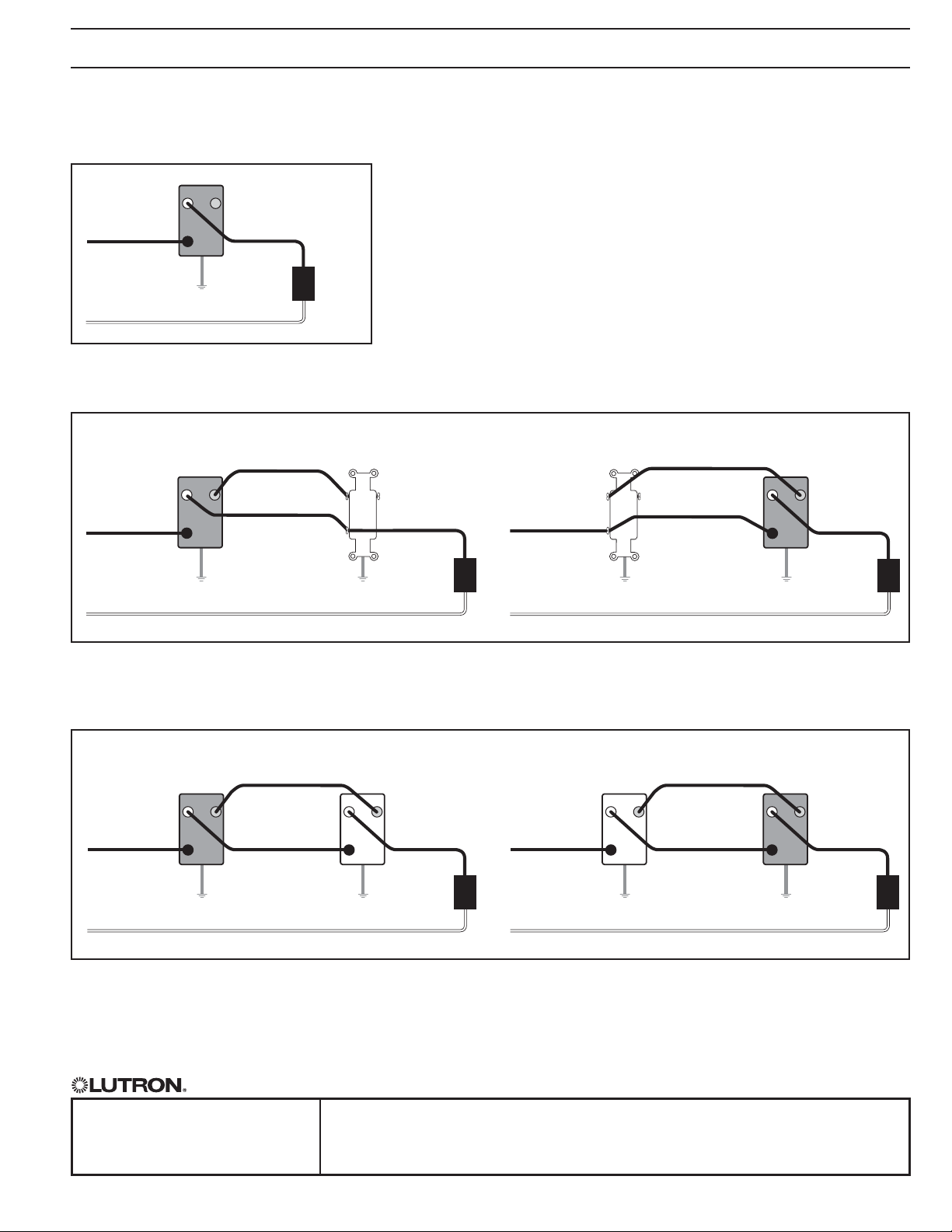

Wiring Diagrams
Single-Pole Wiring
3-Way Wiring (Using 3-Way Mechanical Switch)
3-Way Wiring (Using MA-R Companion Dimmer)
Live
Neutral
Neutral
Black
Brass
Dimmer
Blue
Green
Lighting
Load
120 V~
60 Hz
Live Black Black
Brass Brass
Dimmer
Companion
Dimmer
Blue Blue
Green Green
Lighting
Load
120 V~
60 Hz
Neutral Neutral
Neutral
Live Live
Live
Different Color
Different
Color
Black
Black
Black
Black
No connect
No connect
Brass
Brass
Brass
Brass
Dimmer Dimmer
Dimmer
3-Way
Mechanical
Switch*
3-Way
Mechanical
Switch*
Companion
Dimmer
Blue
Blue Blue
Blue
Green Green
Green
Green Green
Green
Lighting
Load
Lighting
Load
Lighting
Load
120 V~
60 Hz
120 V~
60 Hz
120 V~
60 Hz
Dimmer
Line Side
Dimmer
Line Side
Dimmer
Load Side
Dimmer
Load Side
Continued on next page...
*Note: Screw terminal positions on 3-way mechanical switches may vary.
Note: Dimmer can be installed on the
line side or load side of the circuit.
4
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
369-613a 5 05.15.12
Wallbox ControlsC•L® Dimmer
Maestro
®
Wiring Diagrams (continued)
Dimmer
Line Side
Dimmer
Load Side
Dimmer
in the
Middle

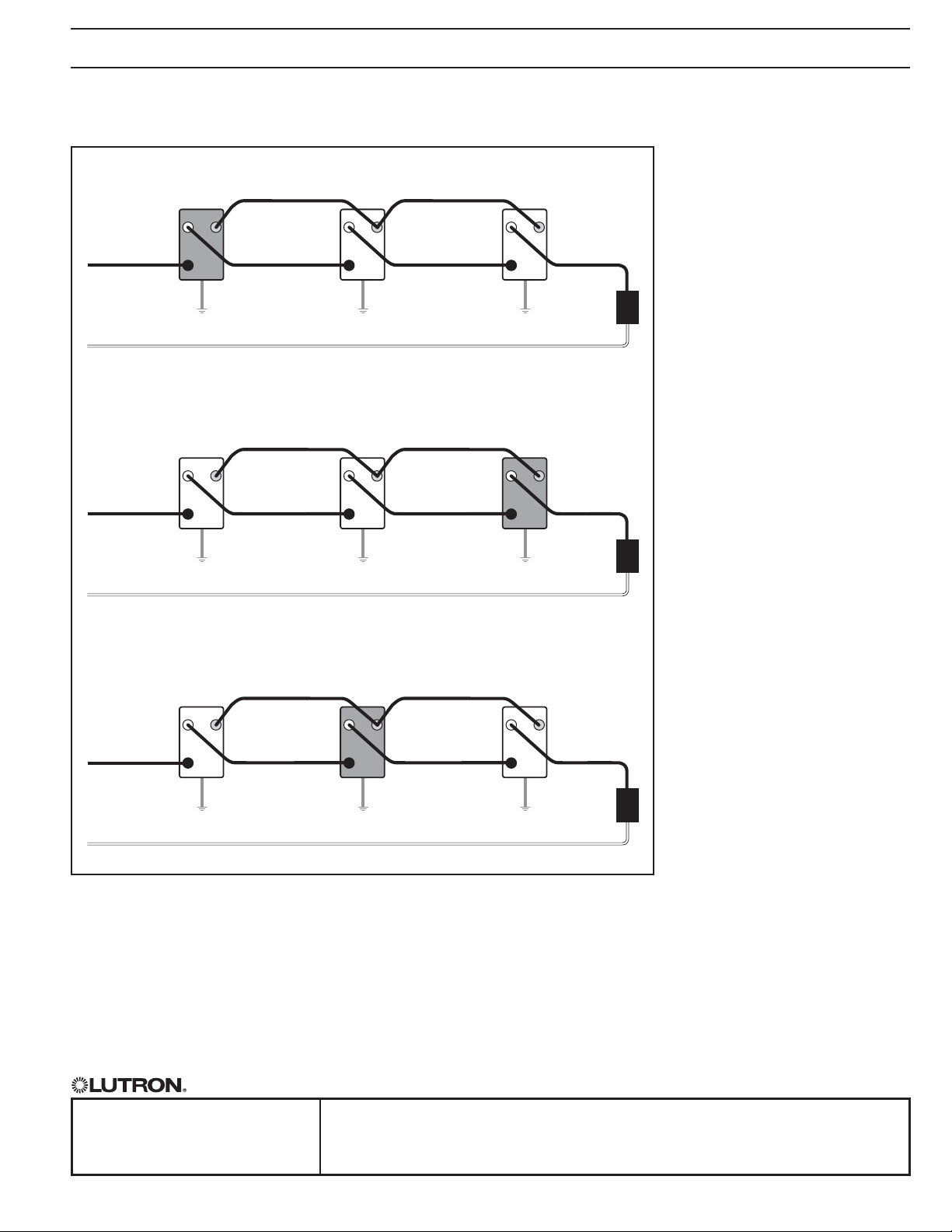

4-Way Wiring (Using MA-R Companion Dimmer)
Note: Dimmer can be installed on
the line side, load side, or in
the middle of the circuit.
Neutral
Live Black Black Black
Brass Brass Brass
Dimmer
Companion
Dimmer
Companion
Dimmer
Blue Blue Blue
Green Green Green
Lighting
Load
120 V~
60 Hz
Neutral
Neutral
Live
Live
Black
Black
Black
Black
Black
Black
Brass
Brass
Brass
Brass
Brass
Brass
Dimmer
Dimmer
Companion
Dimmer
Companion
Dimmer
Companion
Dimmer
Companion
Dimmer
Blue
Blue
Blue
Blue
Blue
Blue
Green
Green
Green
Green
Green
Green
Lighting
Load
Lighting
Load
120 V~
60 Hz
120 V~
60 Hz
