WF-T8582
MFL67783729
*MFL67783729*
Rev. : 00 (01T15)
ECO COTTON
Cold
ption Washing
O
23
Additional Function Program
When you only need the Wash, Wash/Rinse or Rinse cycles, these can be set manually.
Add the laundry into the washing tub.
Press the START/PAUSE button.
Press the WATER LEVEL button, to control the water level according to the
amount of laundry. If you do not choose anything, it is set the middle water
level automatically.
Add the detergent and close the lid.
STSTARART
PAUSE
USE
POWER
3
4
5
6
2
Press the POWER (AUTO OFF) button to turn power on.
START
PAUSE
POWERWER
AUTO OFF
• When a Wash, Wash/Rinse or Rinse only option is selected, after the wash is completed the water will not
be drained off. If you wish to drain the water, press SPIN button and wait until the water in the tub has drained
completely. Then press the START/PAUSE button.
• If you do not specify the water level, then Medium will be automatically selected.
• If only Rinse is selected, the process will start from Water Supply.
NOTE
Press the
RINSE
button to
select the desired times of
rinse.
Only Rinse
Press the
SPIN
button to
select the desired times of
spin.
Only Spin
START
PAUSE
POWER
1
Press the
WASH
button to
select the desired timing.
START
PAUSE
POWER
Only Wash
Press the
RINSE
button to
select the desired times of
rinse.
Press the
SPIN
button to
select the desired times of
spin.
Only Rinse,Spin
When you want to only
drain, wait until the water
in the washing tub drains
completely.
Only Drain
Press the
WASH
button to
select the desired timing.
Press the
RINSE
button to
select the desired times of
rinse.
You can use this option
for preventing wrinkles of
laundry
Only Wash,Rinse
START
PAUSE
POWER
START
PAUSE
POWER
START
PAUSE
POWER
START
PAUSE
POWER
START
PAUSE
POWER
roubleshooting
T
36
Troubleshooting
Before calling for service, check the problem against the list bellows.
Symptom Error Message
Check up
• Is the water tap shut off?
• Is the water supply cut off ?
• Is the tap or water supply hose frozen ?
• Is the water pressure low or is the filter of the inlet
valve clogged with impurities?
• Is the Hot hose connected to cold?
• Is the Cold hose connected to hot?
Drainage Failure
Water Supply
Failure
• Is the drain hose positioned correctly?
• Is the drain hose bent or placed too high?
• Is the internal part of the hose or drain pump
(only pump model) clogged with impurities?
• Check if electric power has gone off.
Spin Failure
• Is the laundry evenly balanced?
• Is the washing machine placed on a flat surface?
• Is the lid closed?
Door(Lid) Open
Internal sensing
failure
Power failure
Overflow failure
• Please call your nearest LG Electronics service center
for help.
erms of W arranty
T
38
Terms of Warranty
What Is Not Covered:
• Service trips to your home to teach you how to use the product.
• If the product is connected to any voltage other than that shown on the rating plate.
• If the fault is caused by accident, neglect, misuse or Act of God.
• If the fault is caused by factors other than normal domestic use or use in
accordance with the owner's manual.
• Provide instruction on use of product or change the set-up of the product.
• If the fault is caused by pests for example, rats or cockroaches etc..
• Noise or vibration that is considered normal for example water drain sound, spin
sound, or warming beeps.
• Correcting the installation for example, levelling the product, adjustment of drain.
• Normal maintenance which recommended by the owner's manual.
• Removal of foreign objects / substances from the machine, including the pump and
inlet hose filter for example, grit, nails, bra wires, buttons etc.
• Replace fuses in or correct house wiring or correct house plumbing.
• Correction of unauthorized repairs.
• Incidental or consequential damage to personal property caused by possible defects
with this appliance.
• If this product is used for commercial purpose, it is not warranted.
(Example : Public places such as public bathroom, lodging house, training center,
dormitory)
If the product is installed outside the normal service area, any cost of transportation
involved in the repair of the product, or the replacement of a defective part, shall be
borne by the owner.

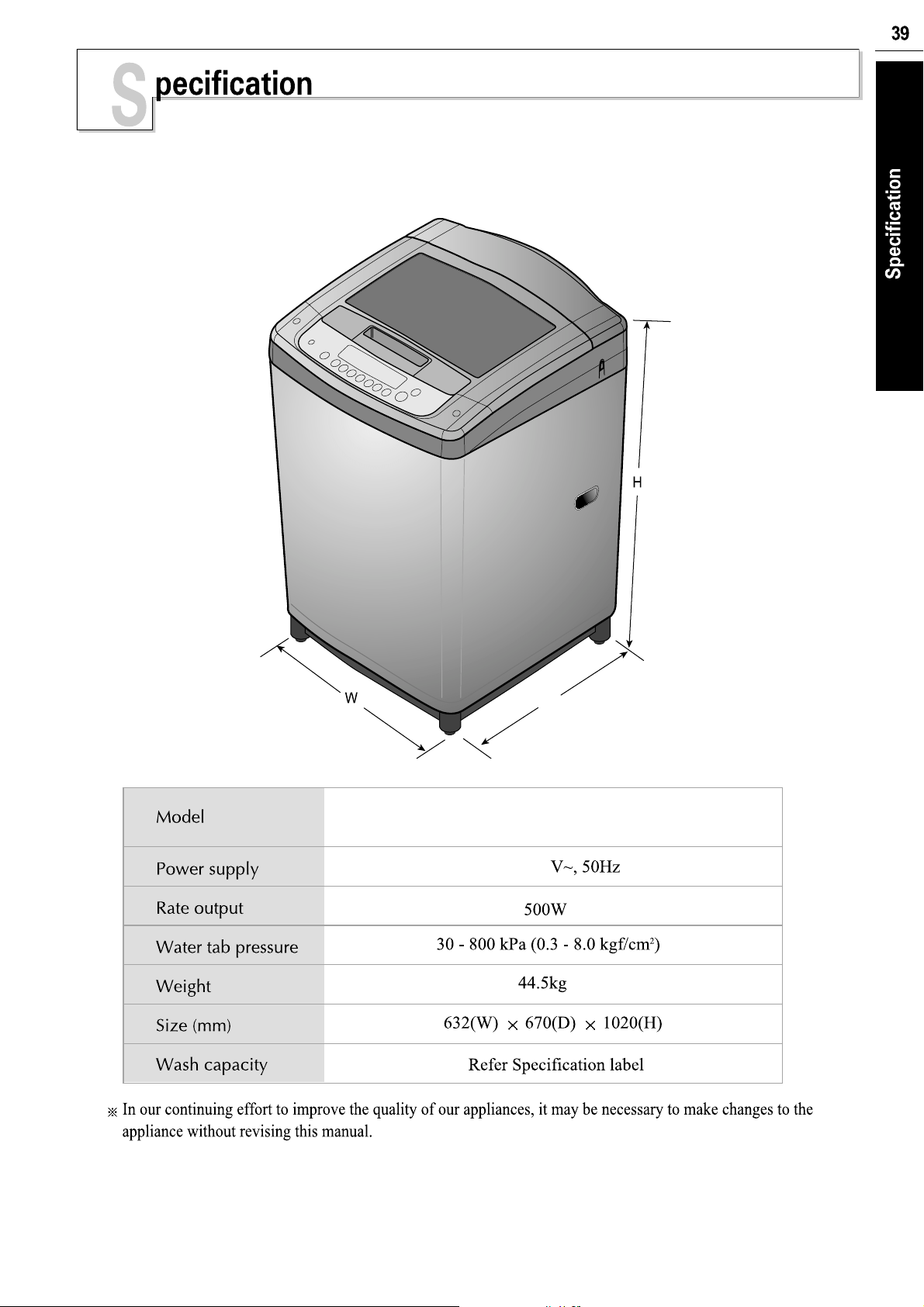

D
220-240
WF-T8582
