QUICK REFERENCE GUIDE
LED LCD TV
Please read this manual carefully before operating your set and retain it
for future reference.
P/NO : MFL67415402 (1211-REV06)
22LT560C
26LT560C
32LT560C
37LT560C
42LT560C
32LT560E
37LT560E
42LT560E
47LT560E
55LS460E
2
ENG
ENGLISH

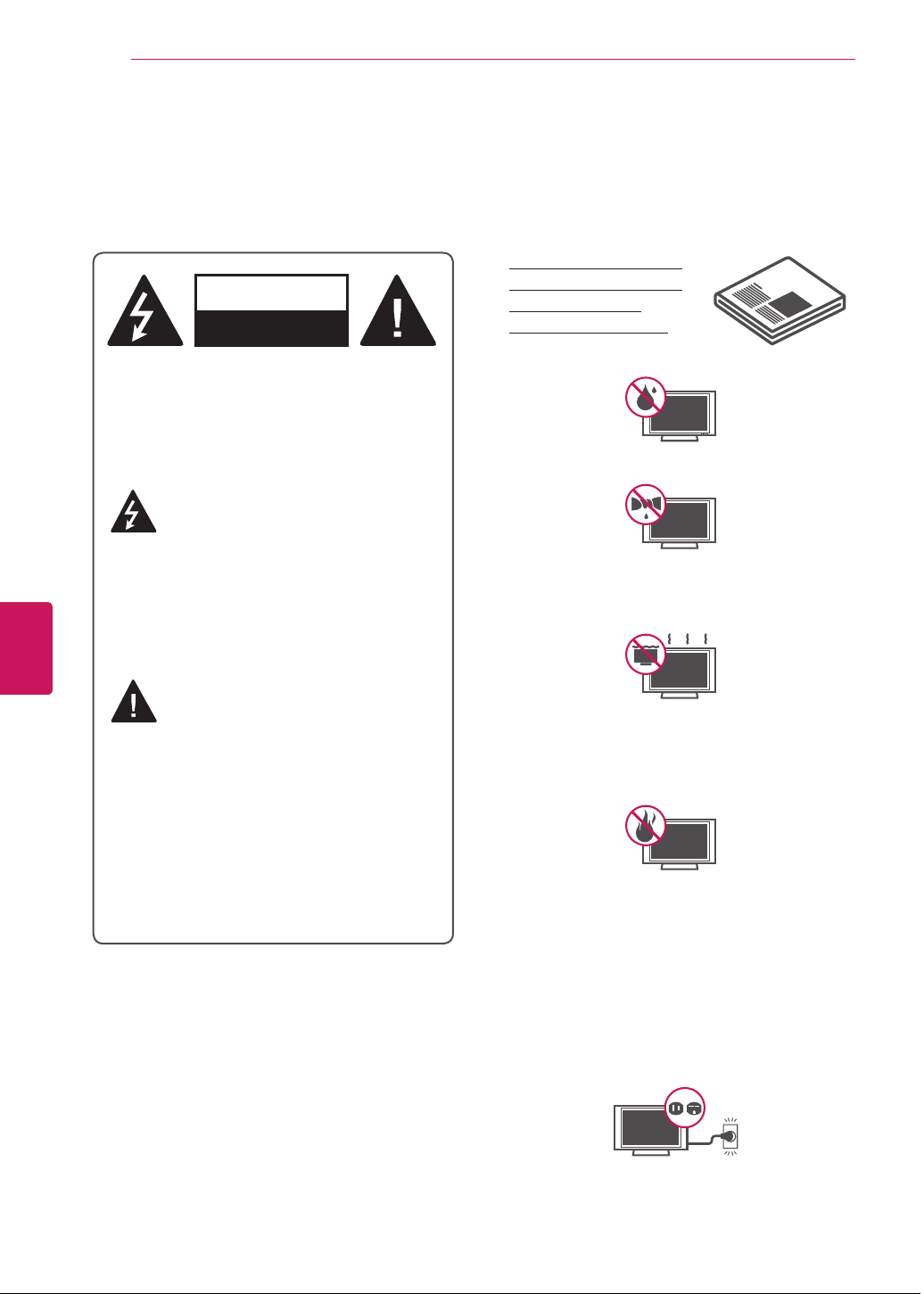

IMPORTANT SAFETY INSTRUCTIONS
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER
TO QUALIFIED SERVICE PERSONNEL.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompanying
the appliance.
WARNING/CAUTION
- TO REDUCE THE RISK OF FIRE AND
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
y
Do not use this apparatus near water.
Short-circuit
Breaker
Power Supply
y
Clean only with a dry cloth.
Short-circuit
Breaker
Power Supply
y
Do not block any ventilation openings. Install
in accordance with the manufacturer’s
instructions.
Short-circuit
Breaker
Power Supply
y
Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
Short-circuit
Breaker
Power Supply
y
Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade
or the third prong are provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for replacement
of the obsolete outlet (Can differ by country).
Short-circuit
Breaker
Power Supply
IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak performance
of your product.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Short-circuit
Breaker
Power Supply
WARNING
: This product contains chemicals
known to the State of California to cause cancer
and birth defects or other reproductive harm.
Wash hands after handling.
3
ENG
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
y
Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
Short-circuit
Breaker
Power Supply
y
Only use attachments/accessories specified
by the manufacturer.
Short-circuit
Breaker
Power Supply
y
Use only with a cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Short-circuit
Breaker
Power Supply
y
Unplug this apparatus during lightning
storms or when unused for long periods of
time.
Short-circuit
Breaker
Power Supply
y
Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
Short-circuit
Breaker
Power Supply
y
Do not stick metal objects or any other
conductive material into the power cord. Do
not touch the end of the power cord while it
is plugged in.
y
Keep the packing anti-moisture material or
vinyl packing out of the reach of children.
Anti-moisture material is harmful if
swallowed. If swallowed by mistake, force
the patient to vomit and visit the nearest
hospital. Additionally, vinyl packing can
cause suffocation. Keep it out of the reach of
children.
y
CAUTION concerning the Power Cord
(Can differ by country):
It is recommended that appliances be
placed upon a dedicated circuit; that is, a
single outlet circuit which powers only that
appliance and has no additional outlets or
branch circuits. Check the specification page
of this owner’s manual to be certain. Do not
connect too many appliances to the same
AC power outlet as this could result in fire or
electric shock. Do not overload wall outlets.
Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power
cords, or damaged or cracked wire insulation
are dangerous. Any of these conditions could
result in electric shock or fire. Periodically
examine the cord of your appliance, and
if its appearance indicates damage or
deterioration, unplug it, discontinue use of
the appliance, and have the cord replaced
with an exact replacement part by an
authorized service. Protect the power cord
from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a
door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where
the cord exits the appliance. Do not move
the TV with the power cord plugged in. Do
not use a damaged or loose power cord. Be
sure do grasp the plug when unplugging the
power cord. Do not pull on the power cord
to unplug the TV.
Short-circuit
Breaker
Power Supply
4
ENG
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
y
Warning
- To reduce the risk of fire or
electrical shock, do not expose this product
to rain, moisture or other liquids. Do not
touch the TV with wet hands. Do not install
this product near flammable objects such
as gasoline or candles, or expose the TV to
direct air conditioning.
Short-circuit
Breaker
Power Supply
y
Do not expose to dripping or splashing and
do not place objects filled with liquids, such
as vases, cups, etc. on or over the apparatus
(e.g. on shelves above the unit).
Short-circuit
Breaker
Power Supply
y
Grounding
(Except for devices which are not grounded.)
Ensure that you connect the earth ground
wire to prevent possible electric shock
(i.e. a TV with a three-prong grounded AC
plug must be connected to a three-prong
grounded AC outlet). If grounding methods
are not possible, have a qualified electrician
install a separate circuit breaker. Do not try to
ground the unit by connecting it to telephone
wires, lightening rods, or gas pipes.
Short-circuit
Breaker
Power Supply
y
DISCONNECTING DEVICE FROM THE MAIN
POWER
Mains plug is the disconnecting device. The
plug must remain readily operable.
y
As long as this unit is connected to the AC
wall outlet, it is not disconnected from the
AC power source even if the unit is turned
off.
y
Do not attempt to modify this product in any
way without written authorization from LG
Electronics. Unauthorized modification could
void the user’s authority to operate this
product.
y y
ANTENNAS Outdoor antenna grounding
(Can differ by country):
If an outdoor antenna is installed, follow
the precautions below. An outdoor antenna
system should not be located in the vicinity
of overhead power lines or other electric light
or power circuits, or where it can come in
contact with such power lines or circuits as
death or serious injury can occur. Be sure the
antenna system is grounded so as to provide
some protection against voltage surges
and built-up static charges. Section 810 of
the National Electrical Code (NEC) in the
U.S.A. provides information with respect to
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding
conductors, location of antenna discharge
unit, connection to grounding electrodes and
requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
Short-circuit
Breaker
Power Supply
NEC: National Electrical Code
Ground Clamp
Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Power Service Grounding
Electrode System
(NEC Art 250, Part H)
Electric Service
Equipment
Ground Clamp
y
Cleaning
When cleaning, unplug the power cord and
wipe gently with a soft cloth to prevent
scratching. Do not spray water or other
liquids directly on the TV as electric shock
may occur. Do not clean with chemicals
such as alcohol, thinners or benzine.
y
Moving
Make sure the product is turned off,
unplugged and all cables have been
removed. It may take 2 or more people to
carry larger TVs. Do not press or put stress
on the front panel of the TV.
y
Ventilation
Install your TV where there is proper
ventilation. Do not install in a confined
space such as a bookcase. Do not cover the
product with cloth or other materials while
plugged. Do not install in excessively dusty
places.
5
ENG
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
y
If you smell smoke or other odors coming
from the TV, unplug the power cord and
contact an authorized service center.
y
Do not press strongly upon the panel with a
hand or a sharp object such as a nail, pencil
or pen, or make a scratch on it.
y
Keep the product away from direct sunlight.
Short-circuit
Breaker
Power Supply
y
Never touch this apparatus or antenna during
a thunder or lightning storm.
y
When mounting a TV on the wall, make sure
not to install the TV by hanging the power
and signal cables on the back of the TV.
y
Do not allow an impact shock or any objects
to fall into the product, and do not drop
anything onto the screen.
y
Dot Defect
The Plasma or LCD panel is a high
technology product with resolution of two
million to six million pixels. In a very few
cases, you could see fine dots on the screen
while you’re viewing the TV. Those dots
are deactivated pixels and do not affect the
performance and reliability of the TV.
y
Generated Sound
“Cracking” noise: A cracking noise that
occurs when watching or turning off the TV
is generated by plastic thermal contraction
due to temperature and humidity. This noise
is common for products where thermal
deformation is required.
Electrical circuit humming/panel buzzing: A
low level noise is generated from a high-
speed switching circuit, which supplies a
large amount of current to operate a product.
It varies depending on the product.
This generated sound does not affect the
performance and reliability of the product.
y
Take care not to touch the ventilation
openings. When watching the TV for a long
period, the ventilation openings may become
hot. This does not affect the performance of
the product or cause defects in the product.
y
If the TV feels cold to the touch, there may
be a small “flicker” when it is turned on. This
is normal, there is nothing wrong with TV.
Some minute dot defects may be visible on
the screen, appearing as tiny red, green, or
blue spots. However, they have no adverse
effect on the TV’s performance. Avoid
touching the LCD screen or holding your
finger(s) against it for long periods of time.
Doing so may produce some temporary
distortion effects on the screen.
DISPOSAL (Hg lamp only used in LCD TVs)
The fluorescent lamp used in this product contains
a small amount of mercury. Do not dispose of this
product with general household waste. Disposal of
this product must be carried out in accordance to
the regulations of your local authority.
Preventing “Image burn” or “Burn-in” on your TV screen
y
If a fixed image displays on the TV screen
for a long period of time, it will be imprinted
and become a permanent disfigurement on
the screen. This is “image burn” or “burn-in”
and not covered by the warranty.
y
If the aspect ratio of the TV is set to 4:3 for
a long period of time, image burn may occur
on the letterboxed area of the screen.
y
Avoid displaying a fixed image on the TV
screen for a long period of time (2 or more
hours for LCD, 1 or more hours for the
Plasma TV) to prevent image burn.
For USA and Canada
NOTE TO CABLE/TV INSTALLER
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the
National Electric Code (U.S.A.). The code provides
guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected
to the grounding system of the building, as close
to the point of the cable entry as practical.
6
ENG
ENGLISH
LICENSES / OPEN SOURCE SOFTWARE NOTICE
LICENSES
Supported licenses may differ by model. For more information about licenses, 'visit www.lg.com'.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D
symbol are trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
ABOUT DIVX VIDEO: DivX
®
is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified
®
device that plays
DivX video. Visit divx.com for more information and software tools to convert your
files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified
®
device must be registered
in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your
registration code, locate the DivX VOD section in your device setup menu. Go to
vod.divx.com for more information on how to complete your registration.
“DivX Certified
®
to play DivX
®
video up to HD 1080p, including premium content.”
“DivX
®
, DivX Certified
®
and associated logos are trademarks of Rovi Corporation
or its subsidiaries and are used under license.”
“Covered by one or more of the following U.S. patents:
7,295,673; 7,460,668; 7,515,710; 7,519,274”
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this
product, please visit 'http://opensource.lge.com'.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are
available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of
performing such distribution (such as the cost of media, shipping and handling) upon email request to
[email protected]. This offer is valid for three (3) years from the date on which you purchased the
product.
OPEN SOURCE SOFTWARE NOTICE
7
ENG
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
2 IMPORTANT SAFETY INSTRUCTIONS
6 LICENSES
6 OPEN SOURCE SOFTWARE NOTICE
7 TABLE OF CONTENTS
8 INSTALLATION PROCEDURE
8 ASSEMBLING AND PREPARING
8 Unpacking
11 Optional Extras
(For LT560E, LS460E series)
12 Parts and buttons
14 Setting up the TV
14 - Attaching the stand
17 - Mounting on a table
18 - Mounting on a wall
20 - Tidying cables
21 - External Speaker Out
22 REMOTE CONTROL
24 GENERAL TROUBLESHOOTING
24 CAUTION FOR USING EzSIGN 2.0
25 SPECIFICATIONS
27 EXTERNAL CONTROL DEVICE SETUP
27 RS-232C Setup
27 Type of connector;
D-Sub 9-Pin Male
28 RS-232C configurations
29 Communication Parameters
29 Command reference list
30 Transmission / Receiving protocol
FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference and (2) this device must accept any
interference received, including interference that may cause undesired operation of the device.
Any changes or modifications in construction of this device which are not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
NOTE
y
Image shown may differ from your TV.
y
Your TV’s OSD (On Screen Display) may
differ slightly from that shown in this manual.
y
The available menus and options may differ
from the input source or product model that
you are using.
y
New features may be added to this TV in the
future.
8
ENG
ENGLISH
INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING
INSTALLATION PROCEDURE
1
Open the package and make sure all the accessories are included.
2
Attach the stand to the TV set.
3
Connect an external device to the TV set.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
CAUTION
y
To ensure safety and product life span, do not use any unapproved items.
y
Any damages or injuries sustained due to use of unapproved items are not covered by the warranty.
y
In the case of some models, the thin film on the screen is a part of TV and should not be removed.
NOTE
y
The items supplied with your product will vary depending on the model.
y
Product specifications and/or manual contents subject to change without prior notice due to upgrade
of product functions.
9
ENG
ENGLISH
ASSEMBLING AND PREPARING

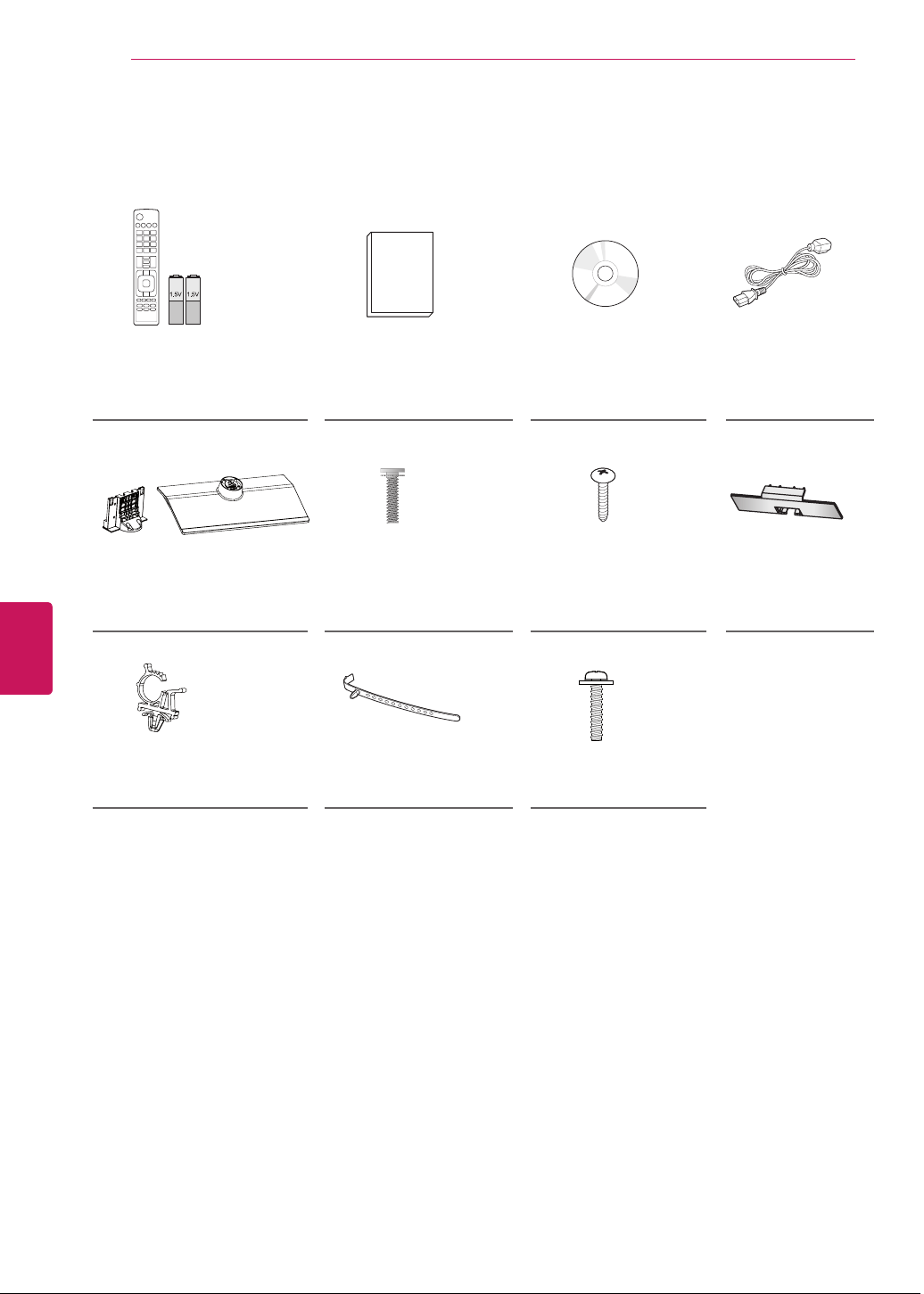

Remote control,
Batteries (AAA)
(See p.22)
Quick Reference Guide Power Cord
(For 32/37/42LT560C) (For 22LT560C) (For 26LT560C)
Stand body/Stand base
(See p.14)
Stand body/Stand base
(See p.15)
Stand body/Stand base
(See p.15)
(For 32/37/42LT560C) (For 22LT560C) (For 26LT560C)
Stand Screws
8 EA, M4 x 14
(See p.14)
Stand Screws
4 EA, M4 x 12
2EA, M4 x 16
(See p.15)
Stand Screws
8 EA, M4 x 12
(See p.15)
(For 32/37/42LT560C) (For 32/37/42LT560C)
Desk-mount Screw
(See p.17)
Cable holder
(See p.20)
Power Cord holder
(See p.20)
(For 22/26LT560C) (For 32/37/42LT560C)
AC/DC Adapter Protection cover
FREEZE
RATIO
L/R SELECT
ENTER
BACK
EXIT
Q.MENU
INFO
MENU
CHVOL
P
A
G
E
FAV
3D
MUTE
1 2 3
4 5 6
7 8
0
9
MARK
LIST
FLASHBK
ENERGY
SAVING
TV
AV MODE
INPUT
For LT560C series
10
ENG
ENGLISH
ASSEMBLING AND PREPARING
For LT560E series
Remote control,
Batteries (AAA)
(See p.22)
Quick Reference Guide EzSign 2.0 Editor CD Power Cord
Stand body/Stand base
(See p.14)
Stand Screws
8 EA, M4 x 14
(See p.14)
Desk-mount Screw
(See p.17)
Protection cover
(For 47LT560E)
Power Cord holder
(See p.20)
Cable holder
(See p.20)
Wall Mount Screw
4EA, M6 x L51
FREEZE
RATIO
L/R SELECT
ENTER
BACK
EXIT
Q.MENU
INFO
MENU
CHVOL
P
A
G
E
FAV
3D
MUTE
1 2 3
4 5 6
7 8
0
9
MARK
LIST
FLASHBK
ENERGY
SAVING
TV
AV MODE
INPUT
11
ENG
ENGLISH
ASSEMBLING AND PREPARING
Remote control,
Batteries (AAA)
(See p.22)
Quick Reference Guide EzSign 2.0 Editor CD Power Cord
Stand body/Stand base
(See p.14)
Stand Screws
8 EA, M4 x 14
(See p.14)
Desk-mount Screw
(See p.17)
Protection cover
(For 47LT560E)
Power Cord holder
(See p.20)
Cable holder
(See p.20)
Wall Mount Screw
4EA, M6 x L51

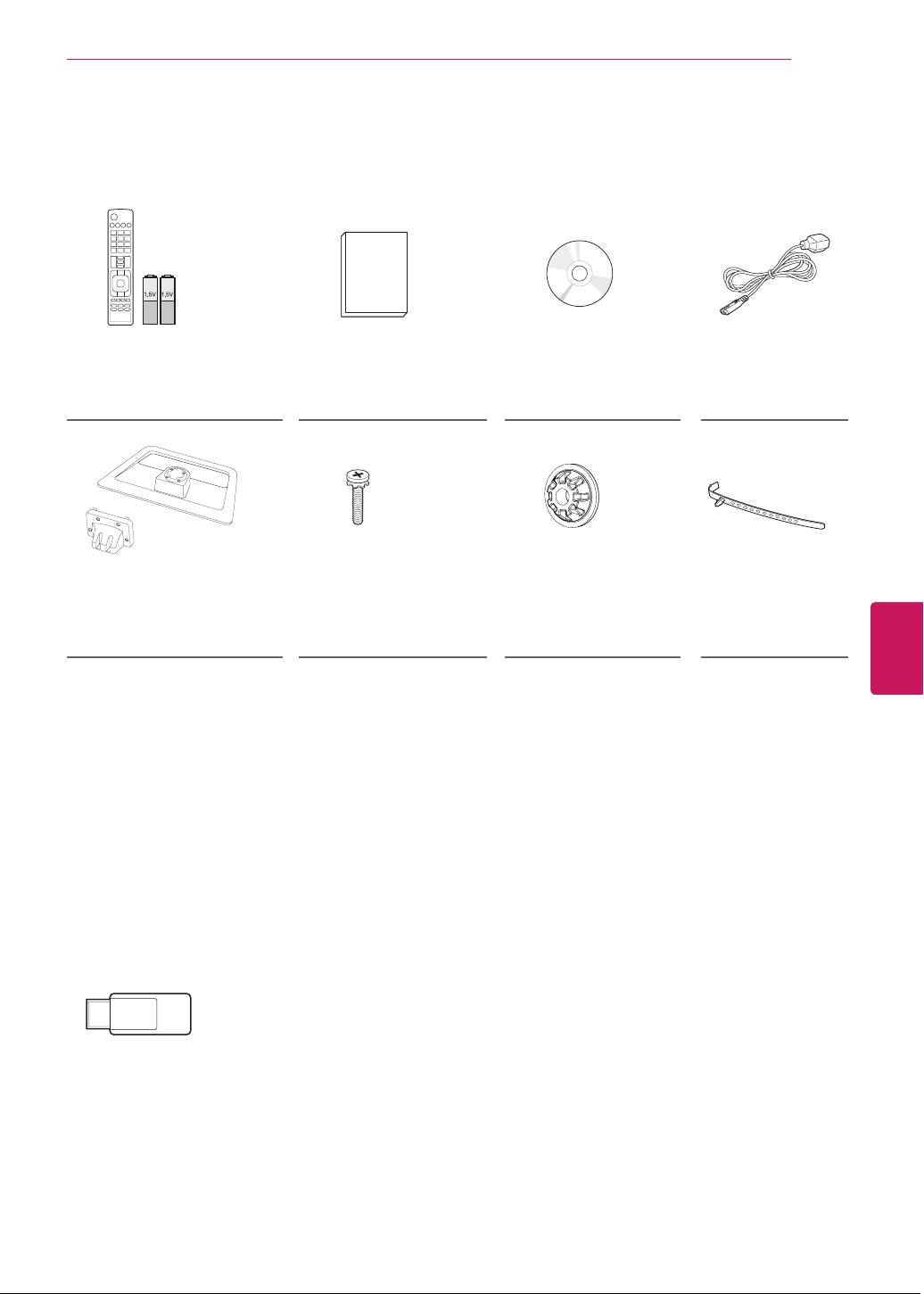

For LS460E series
Remote control,
Batteries (AAA)
(See p.22)
Quick Reference Guide EzSign 2.0 Editor CD Power Cord
Stand body/Stand base
(See p.16)
Stand Screws
8 EA, M4 x 20
(See p.16)
Wall Mount Inner
Spacers
4 EA
(See p.19)
Cable holder
(See p.20)
FREEZE
RATIO
L/R SELECT
ENTER
BACK
EXIT
Q.MENU
INFO
MENU
CHVOL
P
A
G
E
FAV
3D
MUTE
1 2 3
4 5 6
7 8
0
9
MARK
LIST
FLASHBK
ENERGY
SAVING
TV
AV MODE
INPUT
Optional Extras (For LT560E, LS460E series)
Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer to buy these items.
These devices only work with certain models.
AN-WF100
Wireless Dongle
12
ENG
ENGLISH
ASSEMBLING AND PREPARING
USB IN
IN
3
ANTENNA/
CABLE IN
RJP
INTERFACE
AV IN
VIDEO
L/MONO
-AUDIO-
R
L R
AUDIO IN
(RGB/DVI)
1
2
/ DVI IN
EXTERNAL
SPEAKER OUT
RS-232C IN
(CONTROL & SERVICE)
RGB IN (PC)
DC IN
CAUTION
y
Do not insert LAN cable in the RJP INTERFACE.

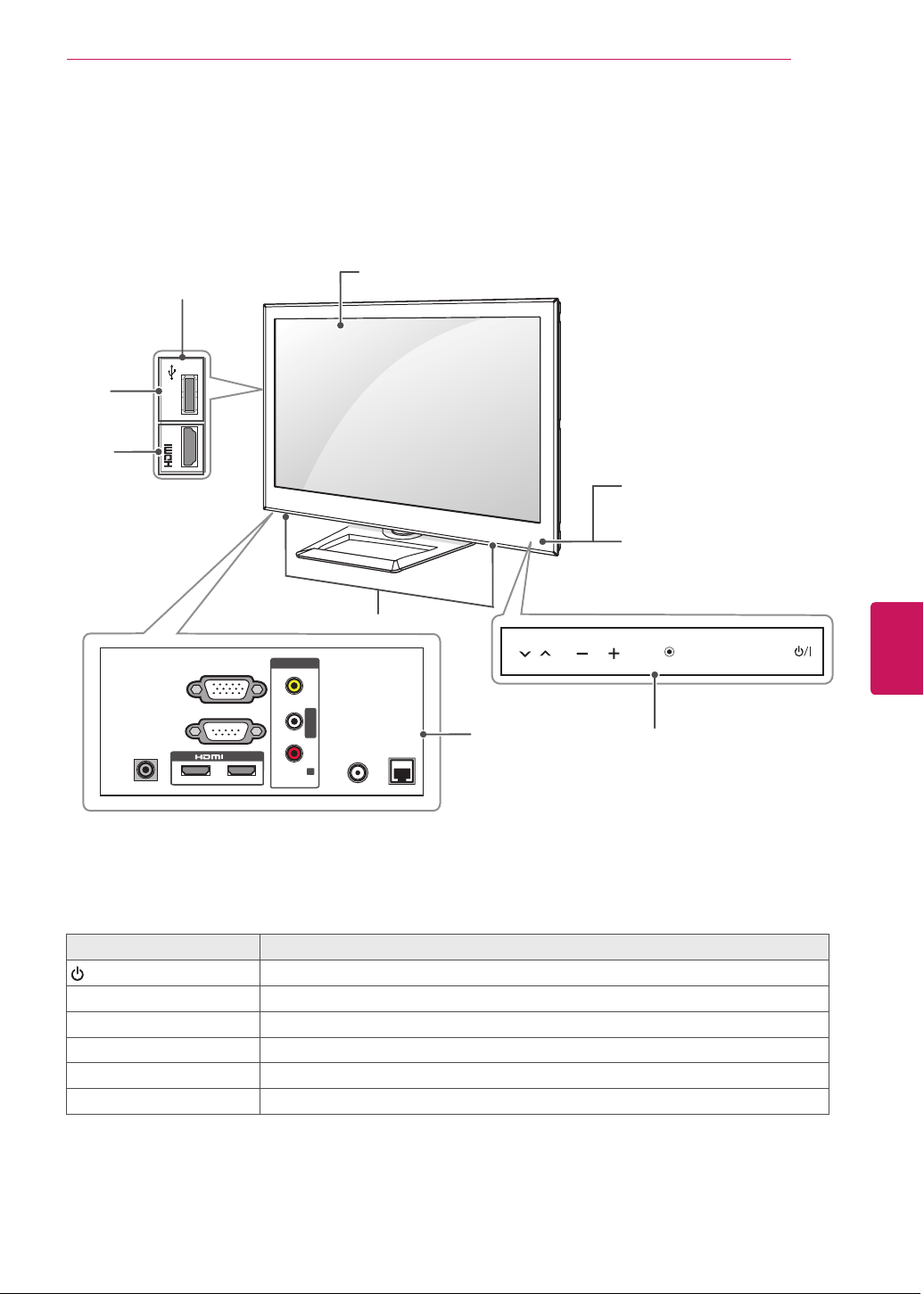

Parts and buttons
USB
input
HDMI
input
Screen
Rear Connection
panel
Buttons
(For 32/37/42LT560C,
32/37/42/47LT560E)
Side Connection panel
Speakers
Remote control
Power indicator
(For 22/26LT560C)
Button Description
^
v
Scrolls through the saved channels.
+ - Adjusts the volume level.
Turns the power on or off.
Buttons
(For 22/26LT560C)
(For 32/37/42LT560C,
32/37/42/47LT560E)
For LT560C, LT560E series
13
ENG
ENGLISH
ASSEMBLING AND PREPARING
Touch button Description
/
I
Turns the power on or off.
INPUT Changes the input source.
SETTINGS Accesses the Home menu, or saves your input and exits the menus.
OK
ꔉ
Selects the highlighted menu option or confirms an input
- + Adjusts the volume level.
v
^
Scrolls through the saved channels.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.
ANTENNA/
CABLE IN
RJP
INTERFACE
AV IN
VIDEO
L/MONO
-AUDIO-
R
L R
AUDIO IN (RGB DVI)
1 2
/ DVI IN
EXTERNAL
SPEAKER OUT
RS-232C IN
(CONTROL & SERVICE)
RGB IN (PC)
OK
SETTINGS
INPUT
USB IN
IN
3
Touch buttons
2
Power indicator
Remote control and
intelligent
1
sensors
Screen
For LS460E series
Rear Connection
panel
Speakers
Side Connection panel
USB
input
HDMI
input
14
ENG
ENGLISH
ASSEMBLING AND PREPARING
Setting up the TV
Put your TV on a pedestal stand and mount the TV on a table or wall.
Attaching the stand
If you are not mounting the TV to a wall, use the following instructions to attach the stand.
Front
1
3
2
M4 x 14
4 EA
Stand Body
Stand Base
M4 x 14
4 EA
CAUTION
y
When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
(For 32/37/42LT560C, 32/37/42/47LT560E)
CAUTION
y
Make sure that the screws are fastened
completely. (If they are not fastened
securely enough, the TV may tilt forward
after being installed.)
y
Do not fasten the screws with too much
force; otherwise they may be worn out
and get loosened.
15
ENG
ENGLISH
ASSEMBLING AND PREPARING
(For 22/26LT560C)
Front
1
3
2
CAUTION
y
When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
M4 x 12
4 EA
M4 x 16
2 EA
M4 x 12
4 EA
(For 22LT560C)
(For 26LT560C)
Stand Body
Stand Base
M4X20
Top View
CAUTION
y
Make sure that the screws are fastened
completely. (If they are not fastened
securely enough, the TV may tilt forward
after being installed.)
y
Do not fasten the screws with too much
force; otherwise they may be worn out
and get loosened.
16
ENG
ENGLISH
ASSEMBLING AND PREPARING
M4 x 20
4 EA
CAUTION
y
Make sure that the screws are fastened
completely. (If they are not fastened
securely enough, the TV may tilt forward
after being installed.)
y
Do not fasten the screws with too much
force; otherwise they may be worn out
and get loosened.
1
3
2
CAUTION
y
When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
NOTE
y
Remove the stand before installing the TV
on a wall mount by performing the stand
attachment in reverse.
Front
Top View
Stand Body
Stand Base
M4 x 20
4 EA
(For 55LS460E)
17
ENG
ENGLISH
ASSEMBLING AND PREPARING

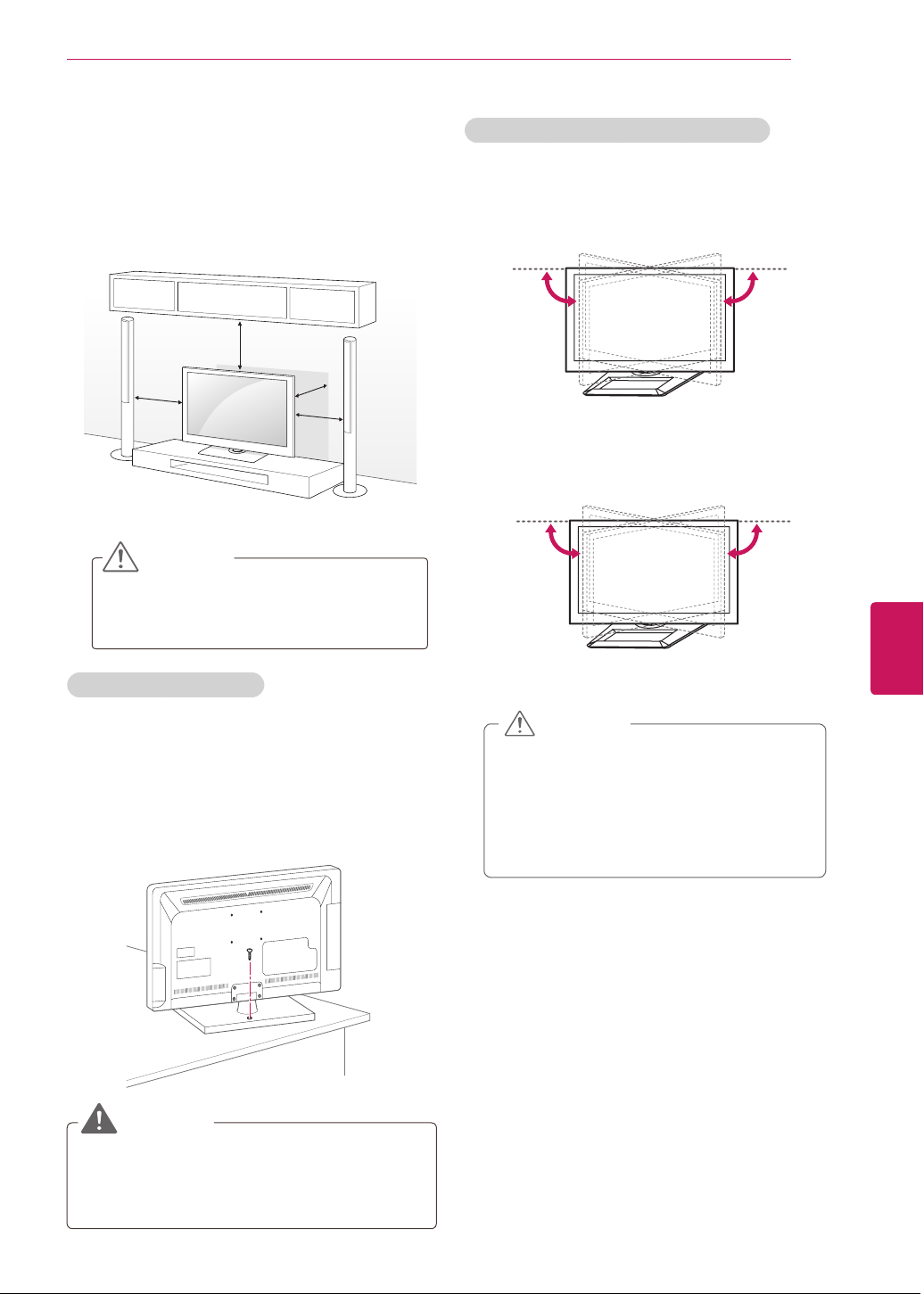

Mounting on a table
1
Lift and tilt the TV into its upright position on a
table.
- Leave a 10 cm (4 inch) (minimum) space from
the wall for proper ventilation.
10 cm
10 cm
10 cm
10 cm
(4 inch)
2
Connect the power cord to a wall outlet.
CAUTION
y
Do not place the TV near or on sources
of heat, as this may result in fire or other
damage.
Securing the TV to a table
(For 32/37/42LT560C, 32/37/42/47LT560E)
Fix the TV to a table to prevent from tilting forward,
damage, and potential injury.
To secure the TV to a table, insert and tighten the
supplied screw on the rear of the stand.
Adjusting the angle of the TV to suit view
(For 32/37/42LT560C, 32/37/42/47LT560E)
Swivel 90±4 degrees to the left or right and adjust
the angle of the TV to suit your view.
90˚90˚
(For 55LS460E)
Swivel 20±2 degrees to the left or right and adjust
the angle of the TV to suit your view.
20˚20˚
y
When adjusting the angle of the TV,
watch out for your fingers.
- Personal injury may occur if hands or
fingers are pinched. If the product is
tilted too much, it may fall, causing
damage or injury.
CAUTION
WARNING
y
To prevent TV from falling over, the TV should
be securely attached to the floor/wall per
installation instructions. Tipping, shaking, or
rocking the TV may cause injury.
18
ENG
ENGLISH
ASSEMBLING AND PREPARING
4-Screws
(Not provided as parts of the product)

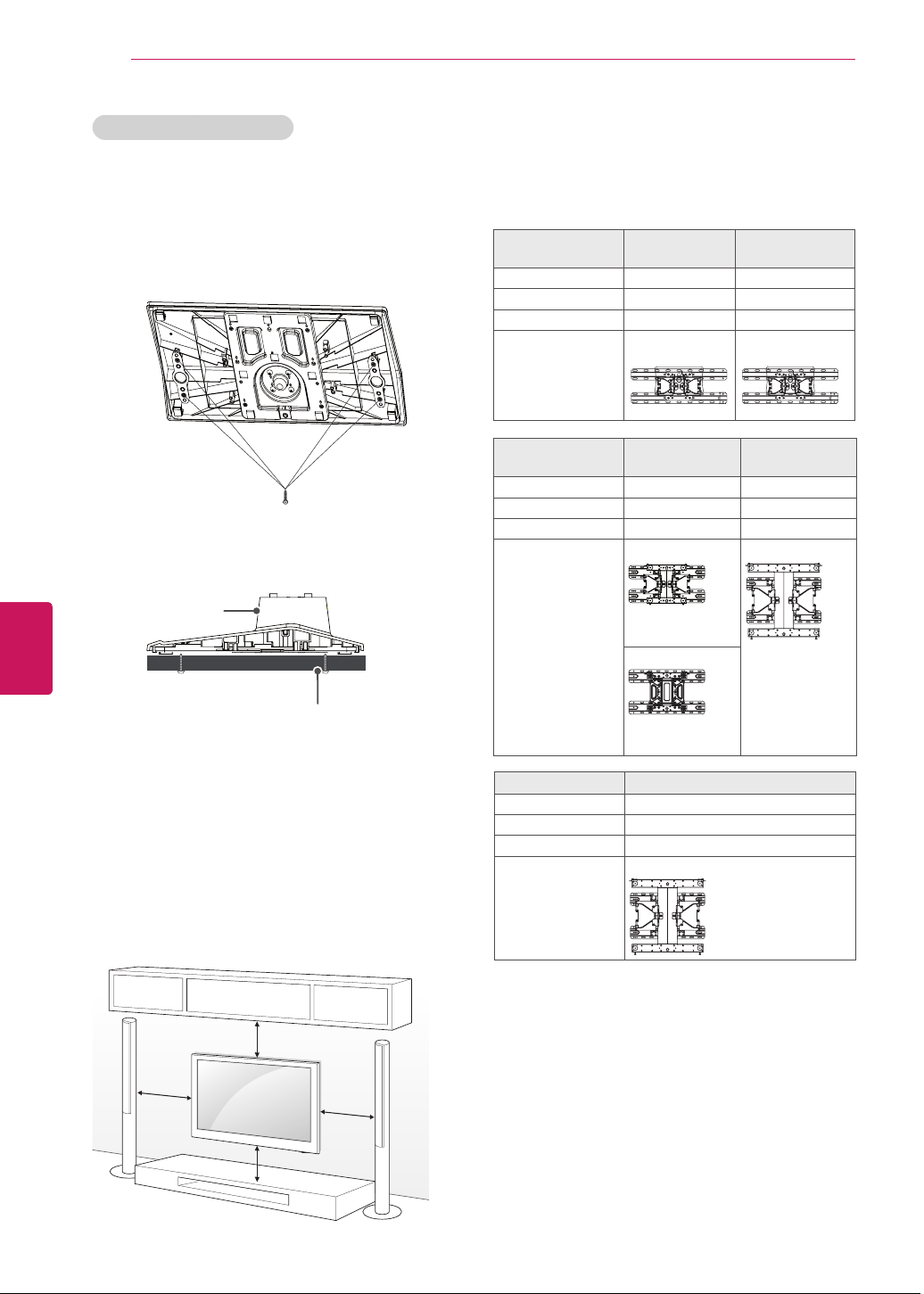

Attaching the TV to a desk
The TV should be attached to a desk so it cannot
be pulled in a forward/backward direction,
potentially causing injury or damaging the product.
(For 32/37/42LT560C, 32/37/42/47LT560E,
55LS460E)
Mounting on a wall
Attach an optional wall mount bracket at the rear
of the TV carefully and install the wall mount
bracket on a solid wall perpendicular to the
floor. When you attach the TV to other building
materials, please contact qualified personnel.
LG recommends that wall mounting be performed
by a qualified professional installer.
10 cm
10 cm
10 cm
10 cm
Desk
Stand
Make sure to use screws and wall mount
bracket that meet the VESA standard. Standard
dimensions for the wall mount kits are described
in the following table.
Model 22/26LT560C 32LT560C
32LT560E
VESA 100 x 100 200 x 100
Standard screw M4 M4
Number of screws 4 4
Wall mount bracket
(optional)
LSW100B(G)
LSW100B(G)
Model 37/42LT560C
37/42LT560E
47LT560E
VESA 200 x 200 400 x 400
Standard screw M6 M6
Number of screws 4 4
Wall mount bracket
(optional)
LSW200B(G)
LSW420BX
LSW220BX
CAUTION
y
Disconnect the power first, and then move
or install the TV. Otherwise electric shock
may occur.
y
If you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
Use an authorized LG wall mount and contact
the local dealer or qualified personnel.
y
Do not over tighten the screws as this may
cause damage to the TV and void your
warranty.
y
Only use screws and wall mounts that meet
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the warranty.
y
On the 47LT560E models, use M6 x L51
screws.
NOTE
y
Use screws that are listed on the VESA
standard screw specifications.
y
The wall mount kit includes an installation
manual and necessary parts.
y
The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
y
The length of screws may differ depending
on the wall mount. Make sure to use the
proper length.
y
For more information, refer to the manual
supplied with the wall mount bracket.
y
When attaching a third-party wall mounting
bracket to the TV, insert the wall mount
inner spacers into the TV wall mount holes
to move your TV in vertical angle. Please
make sure not to use the spacers for LG wall
mounting bracket. (For 55LS460E)
Model 55LS460E
VESA 400 x 400
Standard screw M6
Number of screws 4
Wall mount bracket
(optional)
LSW400BX(G)
(4 inch)
19
ENG
ENGLISH
ASSEMBLING AND PREPARING
CAUTION
y
Disconnect the power first, and then move
or install the TV. Otherwise electric shock
may occur.
y
If you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
Use an authorized LG wall mount and contact
the local dealer or qualified personnel.
y
Do not over tighten the screws as this may
cause damage to the TV and void your
warranty.
y
Only use screws and wall mounts that meet
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the warranty.
y
On the 47LT560E models, use M6 x L51
screws.
NOTE
y
Use screws that are listed on the VESA
standard screw specifications.
y
The wall mount kit includes an installation
manual and necessary parts.
y
The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
y
The length of screws may differ depending
on the wall mount. Make sure to use the
proper length.
y
For more information, refer to the manual
supplied with the wall mount bracket.
y
When attaching a third-party wall mounting
bracket to the TV, insert the wall mount
inner spacers into the TV wall mount holes
to move your TV in vertical angle. Please
make sure not to use the spacers for LG wall
mounting bracket. (For 55LS460E)
Wall Mount Inner Spacer

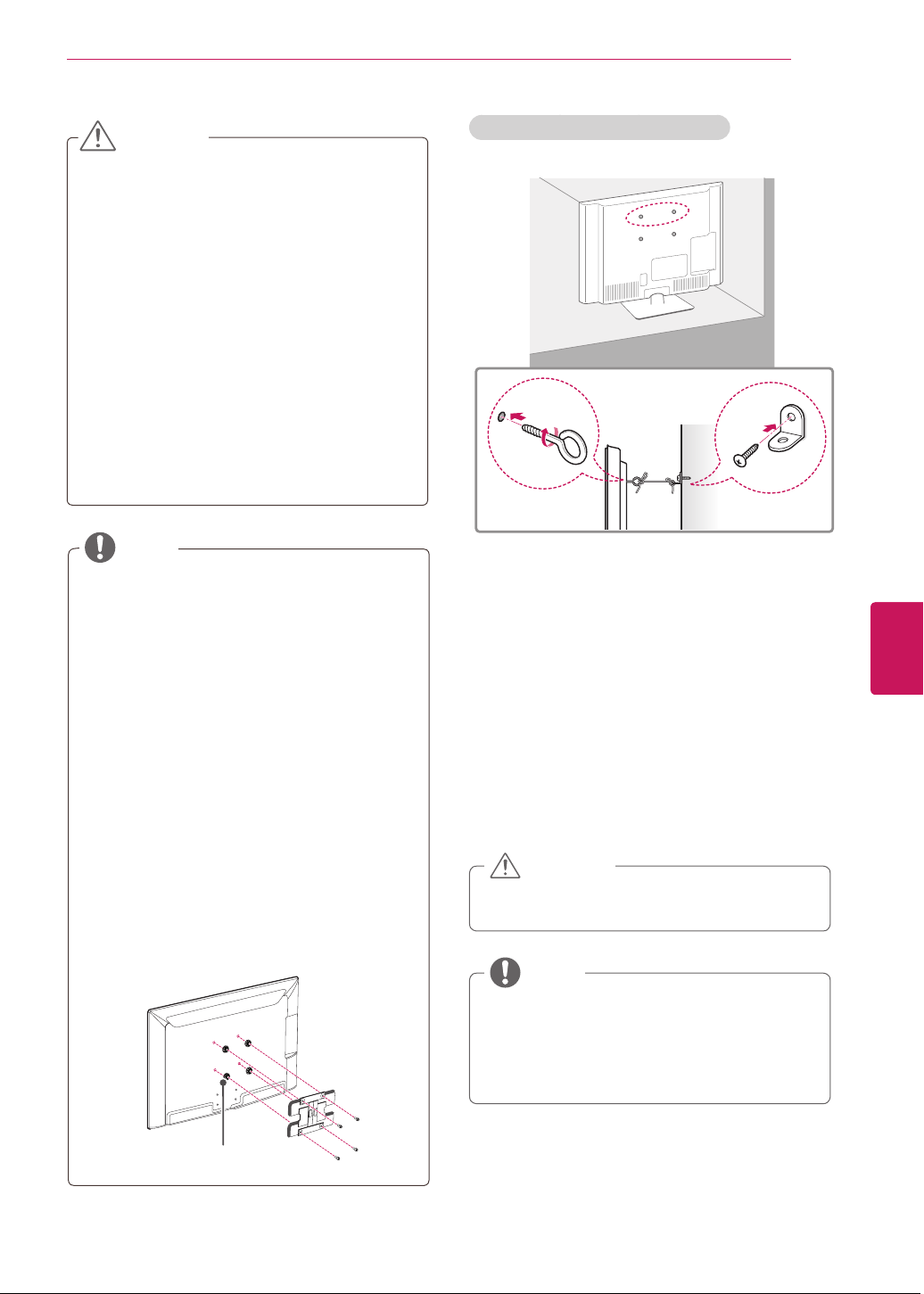

Securing the TV to a wall (optional)
(Depending on model)
1
Insert and tighten the eye-bolts, or TV brackets
and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2
Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and the
eye-bolts on the rear of the TV.
3
Connect the eye-bolts and wall brackets tightly
with a sturdy rope.
Make sure to keep the rope horizontal with the
flat surface.
y
Make sure that children do not climb on or
hang on the TV.
CAUTION
y
Use a platform or cabinet that is strong and
large enough to support the TV securely.
y
Brackets, bolts and ropes are optional. You
can obtain additional accessories from your
local dealer.
NOTE
20
ENG
ENGLISH
ASSEMBLING AND PREPARING

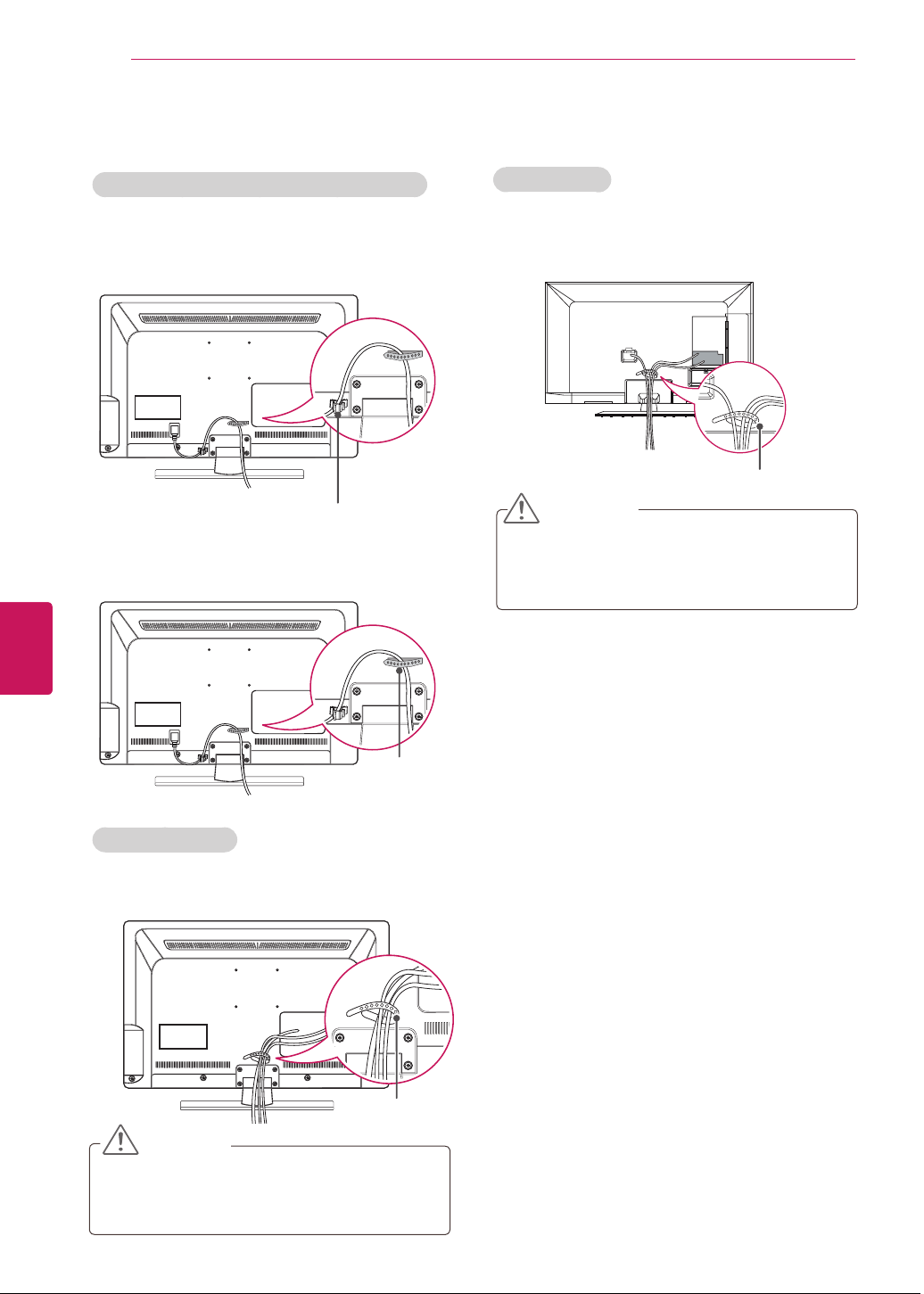

Tidying cables
For 32/37/42LT560C, 32/37/42/47LT560E
1
Install the power cord holder and power cord.
It will help prevent the power cable from being
removed by accident.
Power cord holder
2
Gather and bind the cables with the cable
holder.
Cable holder
For 22/26LT560C
1
Gather and bind the cables with the cable
holder.
Cable holder
CAUTION
y
Do not move the TV by holding the cable
holder, as the cable holders may break, and
injuries and damage to the TV may occur.
For 55LS460E
1
Gather and bind the cables with the cable
holder.
Cable holder
CAUTION
y
Do not move the TV by holding the cable
holder, as the cable holders may break, and
injuries and damage to the TV may occur.
21
ENG
ENGLISH
ASSEMBLING AND PREPARING
ANTENNA/
CABLE IN
RJP
INTERFACE
AV IN
VIDEO
L/MONO
-AUDIO-
R
L R
AUDIO IN
(RGB/DVI)
1
2
/ DVI IN
EXTERNAL
SPEAKER OUT
RS-232C IN
(CONTROL & SERVICE)
RGB IN (PC)
DC IN
R +
L -
L+
R -
External Speaker Out
Connect the external speaker.
(For 22/26/32/37/42LT560C, 32/37/42/47LT560E)
(For 55LS460E)
For 55LS460E
1
Gather and bind the cables with the cable
holder.
CAUTION
y
Do not move the TV by holding the cable
holder, as the cable holders may break, and
injuries and damage to the TV may occur.
y
Make sure that the external speaker should
be connected with TV under power-off
state.
y
Use EXT speaker with BTL type (4p)
NOTE
ANTENNA/
CABLE IN
RJP
INTERFACE
AV IN
VIDEO
L/MONO
-AUDIO-
R
L R
AUDIO IN (RGB DVI)
1
2
/ DVI IN
EXTERNAL
SPEAKER OUT
RS-232C IN
(CONTROL & SERVICE)
RGB IN (PC)
R +
L -
L+
R -
22
ENG
ENGLISH
REMOTE CONTROL
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching
the
and ends to the label inside the compartment, and close the battery cover. To
remove the batteries, perform the installation actions in reverse.
CAUTION
y
Do not mix old and new batteries, as this may damage the remote control.
Make sure to point the remote control toward the remote control sensor on the TV.
CHVOL
1 2 3
4 5 6
7 8
0
9
P
A
G
E
Q.MENU
INPUT
CHAR/NUM
FLASHBK
EXIT
OK
GUIDE
PORTAL
TV
DVD
MARK
CC
TIMER
MUTE
INFO
PIP PIPCH+ PIPCH
-
SWAP
PIP
INPUT
SAP
MENU
SETTINGS
abc def
ghi jkl mno
pqrs tuv wxyz
.,;
@
DELETE
ENTER
(POWER
)
Turns the TV on or off.
Q. MENU
Accesses the quick menu.
TV
Selects the remote’s operating mode: TV.
DVD
Selects the remote’s operating mode: DVD.
INPUT, BANK
Rotates through inputs. Also switches the TV on from standby.
MARK
Not functional
Number button
Enters channel numbers or other numbers required.
Also supports characters.
— (DASH)
Selects a program number for multiple program channels
such as 2-1, 2-2, etc.
FLASHBK
Tunes to the last channel or input viewed.
23
ENG
ENGLISH
REMOTE CONTROL
Color buttons
These access special functions in some menus.
VCR/DVD/USB control buttons
Controls video cassette recorders or DVD players or USB.
Not functional when EzSign contents is on.
Accesses the AV devices connected to the TV;
Opens the SIMPLINK menu.
PIP
Not functional
PIP CH +/-
Not functional
SWAP
Not functional
PIP INPUT
Not functional
SAP
Analog mode: Selects MTS sound (Mono, Stereo, or a SAP)
DTV mode: Changes the audio language.
CHVOL
1 2 3
4 5 6
7 8
0
9
P
A
G
E
Q.MENU
INPUT
CHAR/NUM
FLASHBK
EXIT
OK
GUIDE
PORTAL
TV
DVD
MARK
CC
TIMER
MUTE
INFO
PIP PIPCH+ PIPCH
-
SWAP
PIP
INPUT
SAP
MENU
SETTINGS
abc def
ghi jkl mno
pqrs tuv wxyz
.,;
@
DELETE
ENTER
VOL
Adjusts the volume level.
CC, CHAR/NUM
CC: Selects a closed caption.
CHAR/NUM: Switches between Letter and Number input modes.
TIMER
Turns the TV off in a set amount of time.
MUTE
, DELETE
MUTE: Mutes all sounds.
DELETE: Deletes letters and numbers.
^
CH
v
, PAGE
CH: Scrolls through the saved channels.
PAGE: Moves to the previous or next screen.
PORTAL
Displays and removes the interactive menu. (For LT560C series)
Displays the EzSign content on a TV Screen. (For LT560E, LS460E series)
INFO
Views the information of the current program and screen.
(For LT560C series)
Shows or hides the information on TV remote control buttons in EzSign
mode. (For LT560E, LS460E series)
GUIDE
Displays and removes the electronic program guide.
(For LT560C series)
Shows Contents List in EzSign mode. (For LT560E, LS460E series)
Navigation buttons
(up/down/left/right)
Scrolls through menus or options.
OK/ENTER
ꔉ
Selects menus or options and confirms your input.
ꕣ
(BACK)
Returns to the previous level.
MENU/SETTINGS
Accesses the main menu.
EXIT
ꕯ
Clears all on-screen displays and returns to TV viewing.
24
ENG
ENGLISH
GENERAL TROUBLESHOOTING / CAUTION FOR USING EZSIGN 2.0
GENERAL TROUBLESHOOTING
Display Panel Picture
Symptom Possible Cause(s) Possible Solution(s)
No picture.
y
Display panel is turned off.
y
Turn TV ON.
y
Power failure?
y
Antenna/cable not connected.
y
Connect antenna/cable signal to TV.
y
Connections incorrect.
y
Check connections on TV.
y
MPI not connected
y
If applicable, connect MPI cable to MPI device.
y
Encrypted program.
y
Try another channel.
y
Wrong tuning band.
y
Adjust Installer Menu settings.
Picture Reception
Symptom Possible Cause(s) Possible Solution(s)
Normal picture,
poor or no sound.
y
Wrong Installer Menu settings.
y
Press MUTE or use Volume Up key to increase
sound level.
y
Broadcast problem.
y
Try a different channel.
CAUTION FOR USING EzSIGN 2.0
For 32/37/42/47LT560E, 55LS460E
y
Do not remove a USB drive while data is being copied. It can corrupt the data and EzSign may not work properly.
y
While loading a USB device or dongle, your TV may function slower than normal.
y
While EzSign contents is running, the movie with internal subtitles is not supported in USB mode. EzSign TV supports
only external subtitles.
(External Subtitle format: *.smi/*.srt/*.sub(MicroDVD, Subviewer 1.0/2.0)/*.ass/*.ssa/*.txt(TMPlayer)/*.psb(PowerDivX)
y
Some user-created subtitles may not work properly.
y
Some special characters are not supported in subtitles.
y
HTML tags are not supported in subtitles.
y
Subtitles in languages other than the supported languages are not available.
y
EzSign 2.0 TV function does not work before completing the initial setup Wizard. Make sure to complete the initial
setup Wizard by turning on the TV after installation.
y
If the time is set according to the TV signal, it may not appeared exactly for some region. In that case, set the time
manually.
y
It is recommended that you copy files to the TV memory before playing them, as playing directly from the USB
memory for an extended period of time may cause the device to overheat.
y
In EzSign 2.0 TV mode, some remote control keys may not work.
y
EzSign 2.0 TV dose not support the USB HUB. It is recommended that you connect a USB device directly to the TV
without using a USB extension cable as it may not work properly.
y
It is recommended that you use EzSign 2.0 TV within 8 hours per day as it is standard.
y
Refer to the EzSign 2.0 Editor user guide for details.
y
EzSign 2.0 TV does not support Store Demo.
25
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
Power requirement AC100 - 240 V ~ 50/60 Hz
Television System NTSC-M, ATSC, 64 & 256 QAM
Program Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
External Antenna Impedance 75
Ω
Environment
condition
Operating
Temperature
0 - 40°C
Operating Humidity Less than 80%
Storage Temperature -20 - 60°C
Storage Humidity Less than 85%
MODELS
22LT560C
(22LT560C-UA)
26LT560C
(26LT560C-UA)
Dimensions
(W x H x D)
With stand 516.6 mm x 385.7 mm x 192.0 mm
(20.3 inch x 15.1 inch x 7.5 inch)
625.9 mm x 453.5 mm x 192.0 mm
(20.3 inch x 17.8 inch x 7.5 inch)
Without stand 516.6 mm x 332.2 mm x 41.6 mm
(20.3 inch x 13.0 inch x 1.6 inch)
625.9 mm x 393.2 mm x 46.6 mm
(20.3 inch x 15.4 inch x 1.8 inch)
Weight With stand 3.7 kg (8.1 lbs) 4.7 kg (10.3 lbs)
Without stand 3.1 kg (6.8 lbs) 4.1 kg (9.0 lbs)
MODELS
32LT560C
(32LT560C-UA)
37LT560C
(37LT560C-UA)
32LT560E
(32LT560E-UA)
37LT560E
(37LT560E-UA)
Dimensions
(W x H x D)
With stand 765.6 mm x 535.6 mm x 231.9 mm
(30.1 inch x 21.0 inch x 9.1 inch)
867.3 mm x 592.8 mm x 231.9 mm
(30.1 inch x 21.0 inch x 9.1 inch)
Without stand 765.6 mm x 475.8 mm x 68.5 mm
(30.1 inch x 18.7 inch x 2.6 inch)
867.3 mm x 532.8 mm x 68.6 mm
(30.1 inch x 18.7 inch x 2.6 inch)
Weight With stand 9.2 kg (20.2 lbs) 11.2 kg (24.6 lbs)
Without stand 8.0 kg (17.6 lbs) 10.0 kg (22.0 lbs)
MODELS
42LT560C
(42LT560C-UA)
47LT560E
(47LT560E-UA)
42LT560E
(42LT560E-UA)
Dimensions
(W x H x D)
With stand 991.7 mm x 666.5 mm x 273.1 mm
(39.0 inch x 26.2 inch x 10.7 inch)
1,101.0 mm x 728.5 mm x 273.1 mm
(43.3 inch
x 28.6 inch x 10.7 inch)
Without stand 991.7 mm x 604.0 mm x 55.0 mm
(39.0 inch x 23.7 inch x 2.1 inch)
1,101.0 mm x 665.4 mm x 54.5 mm
(43.3 inch
x 26.1 inch x 2.1 inch)
Weight With stand 15.5 kg (34.1 lbs) 17.3Kg (38.1 lbs)
Without stand 13.5 kg (29.7 lbs) 15.3Kg (33.7 lbs)
26
ENG
ENGLISH
SPECIFICATIONS
MODELS
55LS460E
(55LS460E-UA)
Dimensions
(W x H x D)
With stand 1,263.0 mm x 822.0 mm x 315.0 mm
(49.7 inch
x 32.4 inch x 12.4 inch)
Without stand 1,263.0 mm x 754.0 mm x 35.5 mm
(49.7 inch
x 29.7 inch x 1.4 inch)
Weight With stand 25.5 Kg (56.2 lbs)
Without stand 21.9 Kg (48.3 lbs)
RGB(PC), HDMI (PC) supported mode
Resolution
Horizontal
Frequency (KHz)
Vertical
Frequency (Hz)
720x400 31.46 70.08
640x480 31.46 59.94
800x600 37.87 60.31
1024x768 48.36 60.00
1360x768 47.71 60.01
1280x1024 63.98 60.02
1920x1080 67.50 60.00
HDMI (DTV) supported mode
Resolution
Horizontal
Frequency (KHz)
Vertical
Frequency (Hz)
720x480p
31.47
31.50
59.94
60.00
1280x720p
44.96
45.00
59.94
60.00
1920x1080i
33.72
33.75
59.94
60.00
1920x1080p
26.97
27.00
33.71
33.75
67.43
67.5
23.97
24.00
29.97
30.00
59.94
60.00
For 37/42LT560C,
37/42/47LT560E,
55LS460E
27
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
EXTERNAL CONTROL DEVICE SETUP
RS-232C Setup
Connect the RS-232C (serial port) input jack to
an external control device (such as a computer or
an A/V control system) to control the product’s
functions externally.
Connect the serial port of the control device to the
RS-232C jack on the product back panel.
RS-232C IN
(CONTROL & SERVICE)
NOTE
y
RS-232C on this unit is intended to be used
with third party RS-232C control hardware
and software. The instructions below
are provided to help with programming
software or to test functionality using telenet
software. RS-232C connection cables are not
supplied with the product.
Type of connector;
D-Sub 9-Pin Male
1 5
6 9
RS-232C IN
(CONTROL & SERVICE)
No. Pin name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
28
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
RS-232C configurations
7-Wire Configuration
(Serial female-female NULL modem cable)
PC TV
RXD
2 3
TXD
TXD
3 2
RXD
GND
5 5
GND
DTR
4 6
DSR
DSR
6 4
DTR
RTS
7 8
CTS
CTS
8 7
RTS
D-Sub 9 D-Sub 9
3-Wire Configurations(Not standard)
PC TV
RXD
2 3
TXD
TXD
3 2
RXD
GND
5 5
GND
DTR
4 6
DSR
DSR
6 4
DTR
RTS
7 8
CTS
CTS
8 7
RTS
D-Sub 9 D-Sub 9
Set ID
Set ID number.
OPTION
ꔂ Move ꔉ OK
ꔉ
• Language
• Caption : Off
• Standby Light : On
• My Media Setting
• Initial Setting
• Set ID : 1
• Mode Setting : Home Use
1
Press
Home
or
MENU
to access the main
menus.
2
Press the Navigation buttons to scroll to
OPTION
and press
ENTER
.
3
Press the Navigation buttons to scroll to
Set ID
and press
ENTER
.
4
Scroll left or right to select a set ID number and
select
CLOSE
. The adjustment range is 1-99.
5
When you are finished, press
EXIT
.
*Real data mapping
0 : Step 0
…
A : Step 10 (SET ID 10)
…
F : Step 15 (SET ID 15)
10 : Step 16 (SET ID 16)
…
63 : Step 99 (SET ID 99)
64 : Step 100
29
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
Communication Parameters
y
Baud rate: 9600 bps (UART)
y
Data length: 8 bits
y
Parity : None
y
Stop bit: 1 bit
y
Communication code: ASCII code
y
Use a crossed (reverse) cable.
Command reference list
COMMAND1 COMMAND2
DATA
(Hexadecimal)
COMMAND1 COMMAND2
DATA
(Hexadecimal)
01. Power k a 00 - 01 14. Treble k r 00 - 64
02. Input Select x b (See p.31) 15. Bass k s 00 - 64
03. Aspect
Ratio
k c (See p.31) 16. Balance k t 00 - 64
04. Screen
Mute
k d 00 - 01
17. 3D (For 3D
TV)
x t (See p.32)
05. Volume
Mute
k e 00 - 01
18. Color
Temperature
x u 00 - 64
06. Volume
Control
k f 00 - 64
19. Extended
3D (For 3D TV)
x v (See p.32)
07. Contrast k g 00 - 64
20. Energy
Saving
j q (See p.33)
08. Brightness k h 00 - 64
21. Auto
Configuration
j u (See p.33)
09. Color k i 00 - 64
23. Channel
Add/Del
m b 00 - 01
10. Tint k j 00 - 64 24. Key m c (See p.33)
11. Sharpness k k 00 - 64 25.. Backlight m g 00 - 64
12. OSD Select k l 00 - 01
13. Remote
Control
Lock Mode
k m 00 - 01
COMMAND1 COMMAND2
DATA00
(Hexadecimal)
DATA01
(Hexadecimal)
DATA02
(Hexadecimal)
DATA03
(Hexadecimal)
DATA04
(Hexadecimal)
DATA05
(Hexadecimal)
22. Channel
Tuning
m a
physical
program
high
major
program
low
major low minor high minor low attribute
30
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
Transmission / Receiving protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command 1] : First command to control the set.(j, k, m or x)
[Command 2] : Second command to control the set.
[Set ID] : You can adjust the set ID to choose desired set ID number in Option menu. Adjustment range is
1~ 99. When selecting Set ID ‘0’, every connected the set is controlled. Set ID is indicated as decimal (1~
99) on menu and as Hexa decimal (0x0~ 0x63) on transmission /receiving protocol.
[DATA] : To transmit the command data.
Transmit the ‘FF’ data to read status of command.
[Cr] : Carriage Return
ASCII code ‘0x0D’
[ ] : ASCII code ‘space (0x20)’
* In this model, set will not send the status during the standby mode.
OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,
if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the
data of the PC computer.
* In this model, set will not send the status during the standby mode.
* Data Format
[Command 2] : Use as command.
[Set ID] : Use the small character, if set ID is 10, it will send the ‘0’, ‘a’.
[DATA] : Use the small character, if data is 0 x ab, it will send the ‘a’, ‘b’.
[OK] : Use the large character.
Error Acknowledgement
[Command2][ ][Set ID][ ][NG][Data][x]
The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-
viable functions or communication errors.
Data01: Illegal Code
Data02: Not supported function
Data03: Wait more time
* In this model, set will not send the status during the standby mode.
* Data Format
[Command 2] : Use as command.
[Set ID] : Use the small character, if set ID is 10, it will send the ‘0’, ‘a’.
[DATA] : Use the small character, if data is 0 x ab, it will send the ‘a’, ‘b’.
[NG] : Use the large character
31
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
01. Power (Command: k a)
To control Power On/Off of the set.
Transmission [k][a][ ][Set ID][ ][Data][Cr]
Data 00: Power Off Data 01: Power On
Acknowledgement [a][ ][Set ID][ ][OK/NG][Data][x]
* In a like manner, if other functions transmit ‘FF’
data based on this format, Acknowledgement data
feedback presents status about each function.
* Note: In this model, set will send the Acknowledge
after power on processing completion.
There might be a time delay between command and
acknowledge.
02. Input Select (Command: x b)
To select input source for set.
Transmission [x][b][ ][Set ID][ ][Data][Cr]
Data 00: DTV (Antenna) Data 01: DTV (Cable)
Data 10: Analog (Antenna) Data 11: Analog (Cable)
Data 20: AV or AV1 Data 21: AV2
Data 40: Component or Component1
Data 41: Component2
Data 60: RGB-PC Data 90: HDMI1
Data 91: HDMI2 Data 92: HDMI3
Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]
* Use the feature depending on your model.
03. Aspect Ratio (Command: k c)
To adjust the screen format.
Transmission [k][c][ ][Set ID][ ][Data][Cr]
Data 01: 4:3 Data: 09: Just scan
Data 02: 16:9 Data: 10: Cinema Zoom 1
Data 04: Zoom
…
Data 06: Set by program Data 1F: Cinema Zoom16
Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]
04. Screen Mute (Command: k d)
To select screen mute on/off.
Transmission [k][d][ ][Set ID][ ][Data][Cr]
Data 00:
Screen mute off (Picture on), Video-out Mute off
Data 01: Screen mute on (Picture off)
Data 10: Video-out Mute on
Acknowledgement [d][ ][Set ID][ ][OK/NG][Data][x]
* In case of Video-out Mute on only,
TV will display On
Screen Display (OSD). But, in case of screen mute on,
TV will not display On Screen Display (OSD).
05. Volume Mute (Command: k e)
To control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission [k][e][ ][Set ID][ ][Data][Cr]
Data 00: Volume mute on (Volume off)
Data 01: Volume mute off (Volume on)
Acknowledgement [e][ ][Set ID][ ][OK/NG][Data][x]
06. Volume Control (Command: k f)
To adjust volume.
You can also adjust volume with the volume buttons on
remote control.
Transmission [k][f][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)
*Refer to “Real data mapping”.
Acknowledgement [f][ ][Set ID][ ][OK/NG][Data][x]
07. Contrast (Command: k g)
To adjust screen contrast.
You can also adjust contrast in the PICTURE menu.
Transmission [k][g][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)
*Refer to “Real data mapping”.
Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]
08. Brightness (Command: k h)
To adjust screen brightness.
You can also adjust brightness in the PICTURE menu.
Transmission [k][h][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)
*Refer to “Real data mapping”.
Acknowledgement [h][ ][Set ID][ ][OK/NG][Data][x]
09. Color (Command: k i)
To adjust screen color.
You can also adjust color in the PICTURE menu.
Transmission [k][i][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)
*Refer to “Real data mapping”.
Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]
10. Tint (Command: k j)
To adjust screen tint.
You can also adjust tint in the PICTURE menu.
Transmission [k][j][ ][Set ID][ ][Data][Cr]
Data Red: 00 ~ Green: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [ j ][ ][Set ID][ ][OK/NG][Data][x]
11. Sharpness (Command: k k)
To adjust screen sharpness.
You can also adjust sharpness in the PICTURE menu.
Transmission [k][k][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)
*Refer to “Real data mapping”.
Acknowledgement [k][ ][Set ID][ ][OK/NG][Data][x]
32
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
12. OSD Select (Command: k l)
To select OSD (On Screen Display) on/off.
Transmission [k][l][ ][Set ID][ ][Data][Cr]
Data 00: OSD off Data 01: OSD on
Acknowledgement [l][ ][Set ID][ ][OK/NG][Data][x]
13. Remote Control Lock Mode (Command: k m)
To lock the remote control and the front panel controls
on the set.
Transmission [k][m][ ][Set ID][ ][Data][Cr]
Data 00: Lock off Data 01: Lock on
Acknowledgement [m][ ][Set ID][ ][OK/NG][Data][x]
If you’re not using the remote control and front panel
controls on the Monitor set, use this mode. When main
power is on/off, remote control lock is released.
If Key Lock is on in the standby mode, TV will not turn on
by POWER button of remote control and on the TV.
14. Treble (Command: k r)
To adjust treble.
You can also adjust treble in the AUDIO menu.
Transmission [k][r][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)
*Refer to “Real data mapping”.
Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x]
15. Bass (Command: k s)
To adjust bass.
You can also adjust bass in the AUDIO menu.
Transmission [k][s][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)
*Refer to “Real data mapping”.
Acknowledgement [s][ ][Set ID][ ][OK/NG][Data][x]
16. Balance (Command: k t)
To adjust balance.
You can also adjust balance in the AUDIO menu.
Transmission [k][t][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)
*Refer to “Real data mapping”.
Acknowledgement [t][ ][Set ID][ ][OK/NG][Data][x]
17. 3D (Command: x t) (For 3D TV)
To change 3D mode for TV.
Transmission [x][t][ ][Set ID][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][Cr]
Data01
00: 3D On 01: 3D Off
02: 3D to 2D 03: 2D to 3D
Data02
00: Top and Bottom 01: Side by Side
02: Check Board 03: Frame Sequential
Data03
00: Right to Left
01: Left to Right
Data04
3D Depth: Min : 00 ~ Max : 14
(*transmit by Hexadecimal code)
*If data01 is 00(3D On), data04 has no meaning.
*If data01 is 01(3D Off) or 02(3D to 2D), data02, data03
and data04 have no meaning.
*If data1 is 03(2D to 3D), data2 has no meaning.
Data 01 Data 02 Data 03 Data 04
00 o o x
01 x x x
02 x x x
03 x o o
x : Don’t care
Acknowledgement [t][ ][OK][Data01][Data02]
[Data03][Data04][x][t][ ][NG][Data01][x]
18. Color Temperature (Command: x u)
To adjust color temperature.
You can also adjust color temperature in the
PICTURE menu.
Transmission [x][u][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]
19. Extended 3D (Command: x v) (For 3D TV)
To change 3D option for TV.
Transmission [x][v][ ][Set ID][ ][Data01][ ][Data02][Cr]
Data01: 3D option
00: 3D Picture Correction
01: 3D Depth (2D to 3D Only)
02: 3D Viewpoint
03: 3D Picture Size
04: 3D Picture Balance
05: 3D Optimization
Data02: It has own range for each 3D option
determined by Data1.
1) When Data1 is 00
00: Right to Left 01: Left to Right
2) When Data1 is 01, 02
Data Min: 00 ~ Max: 14 (*transmit by Hexadecimal
code)
3) When Data1 is 03
00: Just Scan 01: 16:9
4) When Data1 is 04
00: Off 01: On
5) When Data1 is 05
Data Min: 00 ~ Max: 02 (*transmit by Hexadecimal
code)
Acknowledgement [v][ ][OK][Data01][Data02][x]
[v][ ][NG][Data01][x]
* Use the feature depending on your model.
33
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
20. Energy Saving (Command: j q)
To control the energy saving function.
Transmission [ j ][q][ ][Set ID][ ][Data][Cr]
Data 00: off
01: Minimum
02: Medium
03: Maximum
04: Auto/Intelligent sensor
(depending on model)
05: Screen off
Acknowledgement [q][ ][Set ID][ ][OK/NG][Data][x]
21. Auto Configuration (Command: j u)
To adjust picture position and minimize image shaking
automatically. Auto configuration only works in RGB-PC
mode.
Transmission [ j ][u][ ][Set ID][ ][Data][Cr]
Data 01: To set
Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]
22. Channel Tuning (Command: m a)
To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][Set ID][ ][Data00][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
Digital channels have a Physical, Major, and Minor
channel number. The Physical number is the actual
digital channel number, the Major is the number that the
channel should be mapped to, and the Minor is the sub-
channel. Since the ATSC tuner automatically maps the
channel to the Major number, the Physical number is not
required when sending a command.
Data 00: Physical Channel Number
NTSC air: 02~45, NTSC cable: 01, 0E~7D
ATSC air: 01~45, ATSC cable: 01~87
Data 01 & 02: Major Channel Number
Data 01: High byte Data 02: Low byte
Two bytes are available for the Major and Minor,
normally only the second byte is used.
Data 03 & 04: Minor Channel Number
Not needed for NTSC.
The table above lists the binary code which must be
converted to Hexadecimal before sending. For example:
The binary code to tune the sub source to an NTSC cable
channel is “1000 0001”, which translates to “81” in
Hex.
* 7th bit : For which source do you want to change
the channel.
* 6th bit: Use a two part or one part channel. Most
cases just use 0 since it’s ignored when using
NTSC.
* 5th bit: Use 0 with NTSC since it can only use
the physical channel number. Normally use 1 for
ATSC since most times it doesn’t matter what the
physical number is.
* 4th bit: Set to 0.
* 3-0 bits: Choose signal type.
* Tune Command Examples:
1. Tune to the analog (NTSC) cable channel 35.
Data 00 = Physical of 35 = 23
Data 01 & 02 = No Major = 00 00
Data 03 & 04 = No Minor = 00 00
Data 05 = 0000 0001 in binary = 01
Total = ma 00 23 00 00 00 00 01
2. Tune to the digital (ATSC) local channel 30-3.
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Minor is 3 = 00 03
Data 05 = 0010 0010 in binary = 22
Total = ma 00 00 00 1E 00 03 22
* Use the feature depending on your model.
23. Channel Add/Del (Command: m b)
To add and delete the channels.
Transmission [m][b][ ][Set ID][ ][Data][Cr]
Data 00: Channel Delete Data 01: Channel Add
Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]
24. Key (Command: m c)
To send IR remote key code.
Transmission [m][c][ ][Set ID][ ][Data][Cr]
Data Key Code - See p.22
Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]
When TV is in the standby mode, TV will turn on by
POWER button of remote control only.
25. Backlight (Command: m g)
To adjust screen backlight.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min:00 ~ Max:64 (*transmit by Hexadecimal code)
*Refer to “Real data mapping”.
Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]
34
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
* Table List (Channel Tuning)
7
Main/Sub
6
Two/One
Part
Channel
5
Using
Physical
Channel
4
Reserved
3 2 1 0 Step
0 Main 0 Two 0 Use x 0 0 0 0 NTSC Air
1 Sub 1 One 1 No Use x 0 0 0 1 NTSC Cable
x 0 0 1 0 ATSC Air
x 0 0 1 1 ATSC Cable_std
x 0 1 0 0 ATSC Cable_hrc
x 0 1 0 1 ATSC Cable_irc
x 0 1 1 0 ATSC cable_auto
x 0 1 1 1 Reserved
x x x x x ...
x 1 1 1 1 Reserved
CHILD SAFETY:
It Makes A Difference How and Where
You Use Your Flat Panel Display
Congratulations on your purchase! As you enjoy your new product,
please keep these safety tips in mind:
THE ISSUE
y
The home theater entertainment experience is a growing trend and
larger flat panel displays are popular purchases. However, flat panel
displays are not always supported on the proper stands or installed
according to the manufacturer’s recommendations.
y
Flat panel displays that are inappropriately situated on dressers,
bookcases, shelves, desks, speakers, chests or carts may fall over and
cause injury.
THIS MANUFACURER CARES!
y
The consumer electronics industry is committed to making home
entertainment enjoyable and safe.
TUNE INTO SAFETY
y
O n e si z e do e s N O T fi t a l l . F o l l ow t h e ma n u f a c t u r e r ’ s
recommendations for the safe installation and use of your flat panel
display.
y
Carefully read and understand all enclosed instructions for proper use
of this product.
y
Don’t allow children to climb on or play with furniture and television
sets.
y
Don’t allow place flat panel displays on furniture that can easily be
used as steps, such as a chest of drawers.
y
Remember that children can become excited while watching
a program, especially on a “larger than life” flat panel display.
Care should be taken to place or install the display where it cannot be
pushed, pulled over, or knocked down.
y
Care should be taken to route all cords and cables connected to the
flat panel display so that they cannot be pulled or grabbed by curious
children.
WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT
YOUR FLAT PANEL DISPLAY, ALWAYS:
y
Use a mount that h as been recommende d by the dis play
man ufactur er and/ or list ed by an independ ent lab orat ory
(such as UL, CSA, ETL).
y
Follow all instructions supplied by the display and wall mount
manufacturers.
y
If you have any doubts about your ability to safely install your flat
panel display, contact your retailer about professional installation.
y
Make sure that the wall where you are mounting the display is
appropriate. Some wall mounts are not designed to be mounted
to walls with steel studs or old cinder block construction.
If you are unsure, contact a professional installer.
y
A mini m u m o f t w o p e o ple are requ i r e d f o r i n s tallati o n .
Flat panel displays can be heavy
NOTE
ENG
Some video codecs listed in the manual may not be
supported, depending on the region (country).
POR
Alguns codecs de vídeo listados no manual podem não
ser suportados, dependendo da região (país).
POL
Niektóre kodeki wideo wymienione w instrukcji mogą
nie być obsługiwane, w zależności od regionu (kraju).
SPA
Algunos códecs de vídeo que figuran en el manual
pueden no ser compatibles, dependiendo de la región
(país).
THA
The model and serial numbers of the TV are
located on the back and/or one side of the TV.
Record them below should you ever need service.
MODEL
SERIAL
LG Customer Information Center
For inquires or comments, visit www.lg.com or call:
1-888-865-3026
1-888-542-2623
USA, Commercial User
CANADA
Pro:Centric is a trademark of LG Electronics U.S.A., Inc.
All other trademarks or registered trademarks are the property of
their respective owners.
This product qualifies for ENERGY STAR in the
“factory default (Home Use)” setting.
Changing the factory default settings or enabling other
features may increase power consumption that could
exceed the limits necessary to quality for ENERGY STAR.
(For LT560C series)
