OWNER’S MANUAL
CLEANING ROBOT
VR6260 Ser.
VR6270 Ser.
Before using, please carefully read the Safety Precautions pages to
allow for safe operation of the product. After reading the operation
manual, please keep it in an easily accessible location.
www.lg.com

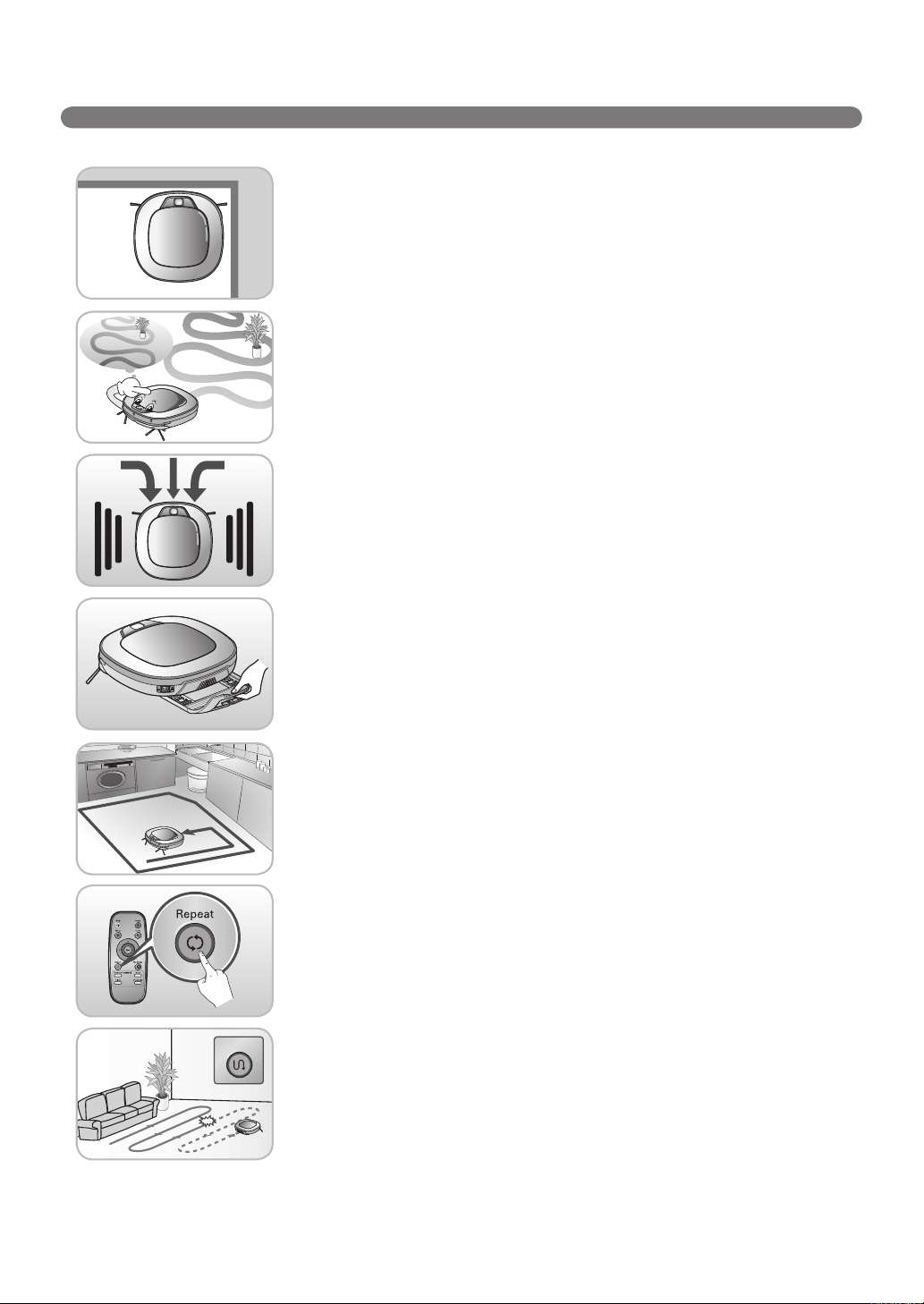

FEATURES
Corner Master
By having adopted a brand new concept design that is appropriate for walls,
the Robot Cleaner's cleaning performance is incredibly efficient.
Learning Mode
The Robot Cleaner is capable of memorizing the cleaning environment via
its Smart Operation feature for smarter cleaning.
Turbo Mode
In the "Turbo" mode, the Robot Cleaner runs more powerful giving cleaner
results.
When selected, the "Turbo" mode is automatically activated on carpets,
which enables the Robot Cleaner to run more efficiently.
Drawer Mop Plate
The "Drawer mop plate" makes it much easier for users to change the mop
without having to flip the device over.

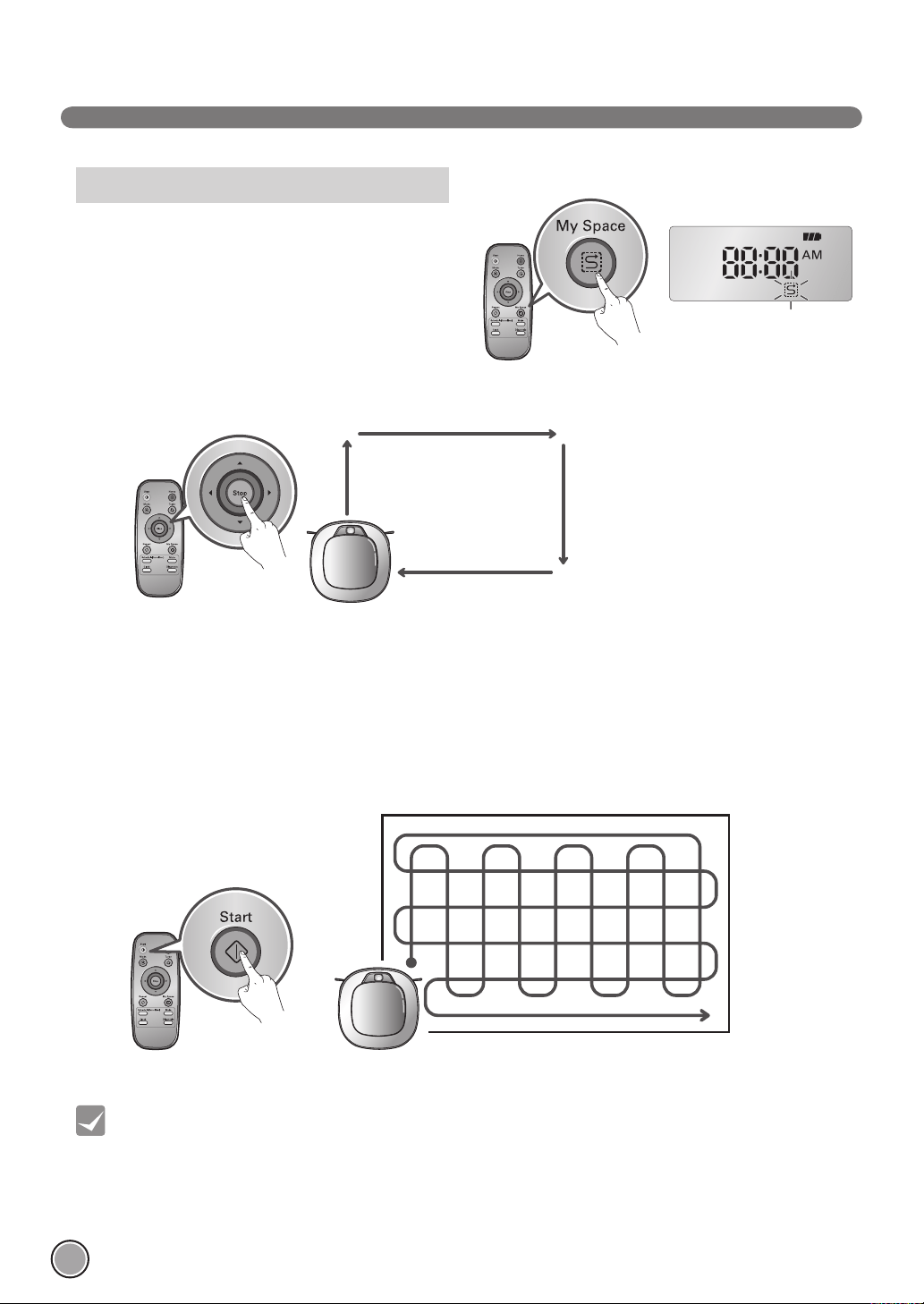

My Space Mode
By commanding it to clean a particular space, the Robot Cleaner quickly
cleans the desired space.
Repeat Cleaning
The Robot Cleaner will continuously clean until the battery runs out.
Location Search Function
When the Robot Cleaner is moved from a spot while operating, the device
will automatically search for the previous location and return to the spot from
where it was interrupted.
Zigzag
CONTENTS
Safety precautions

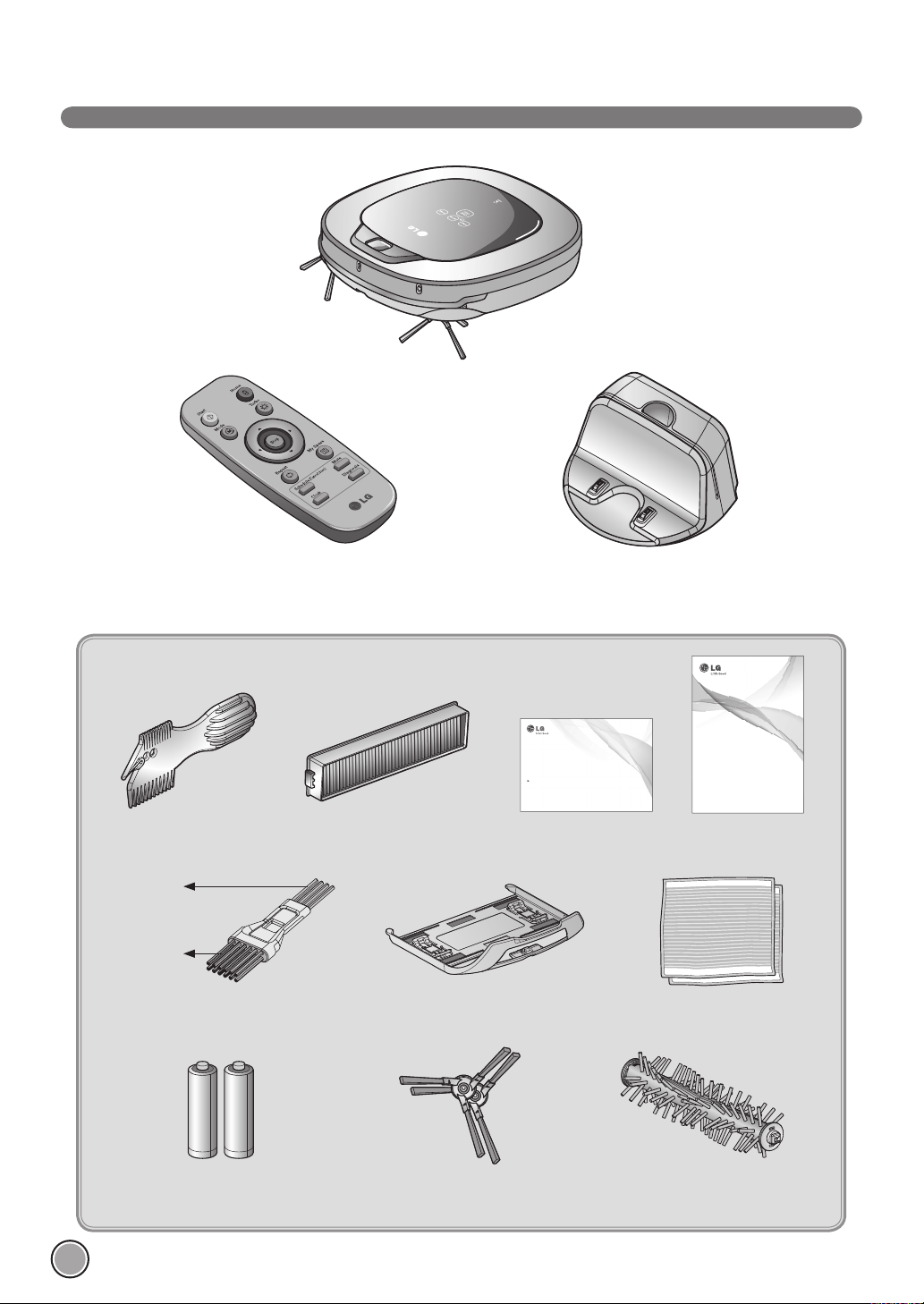

Included with product

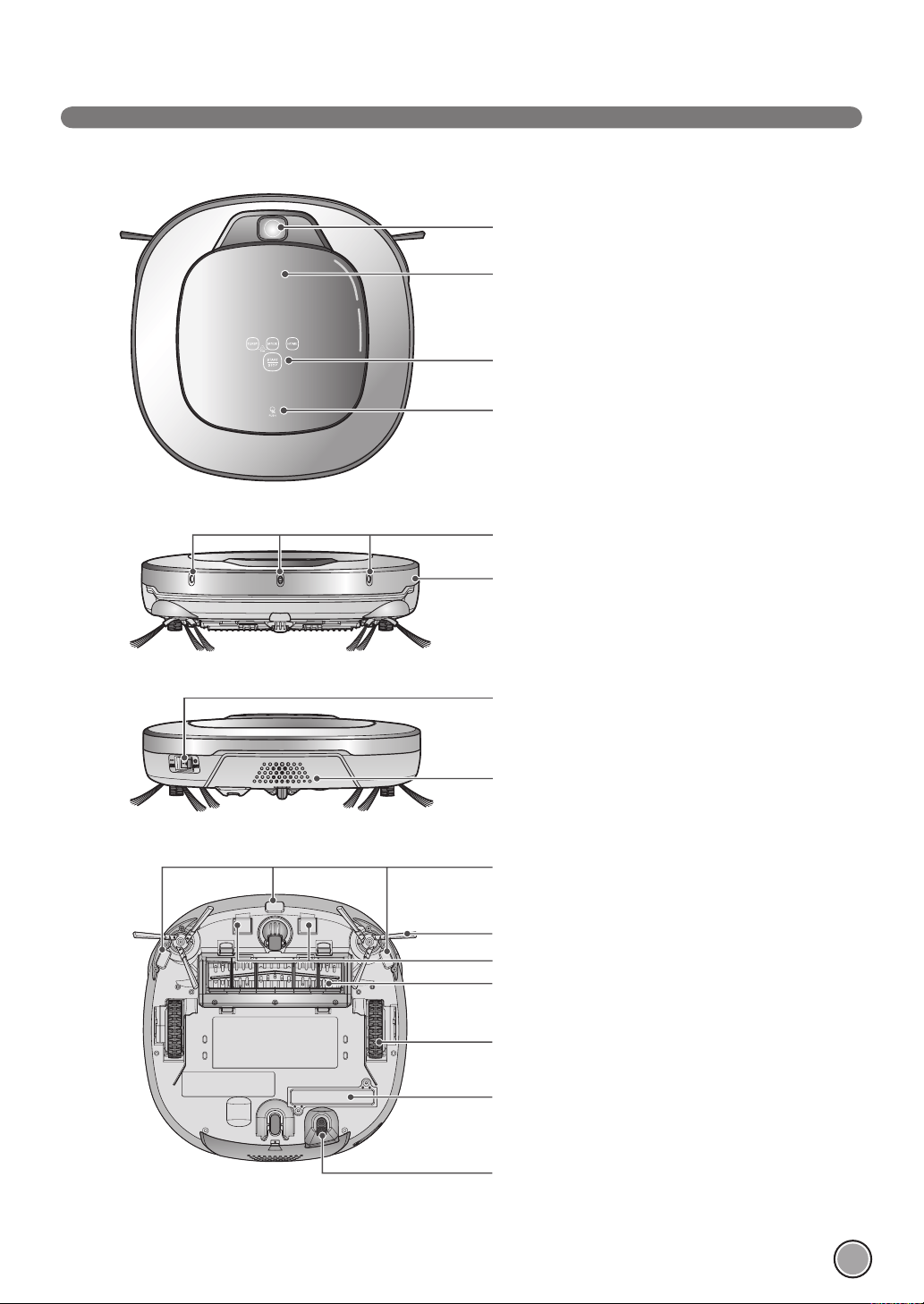

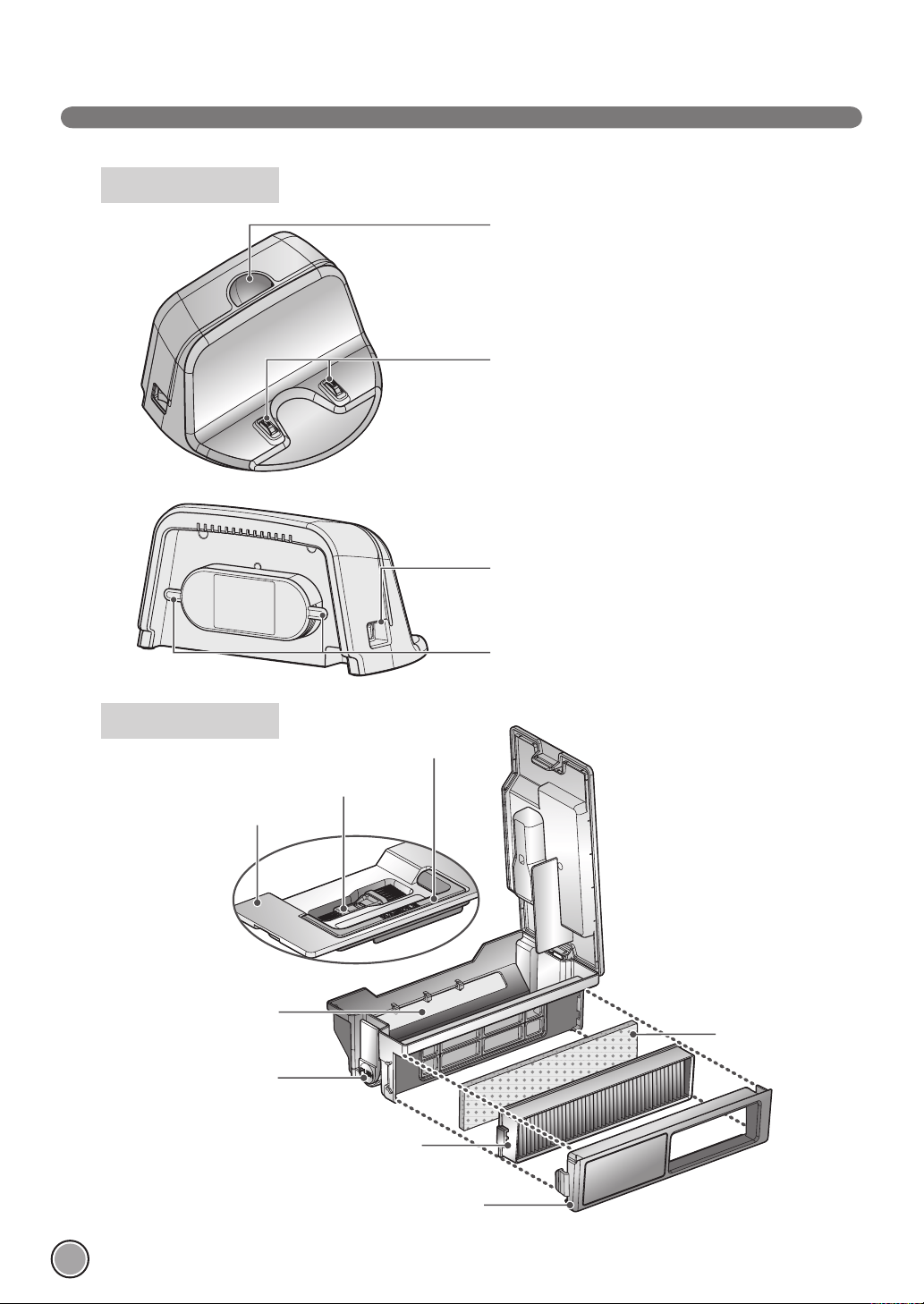

Parts description

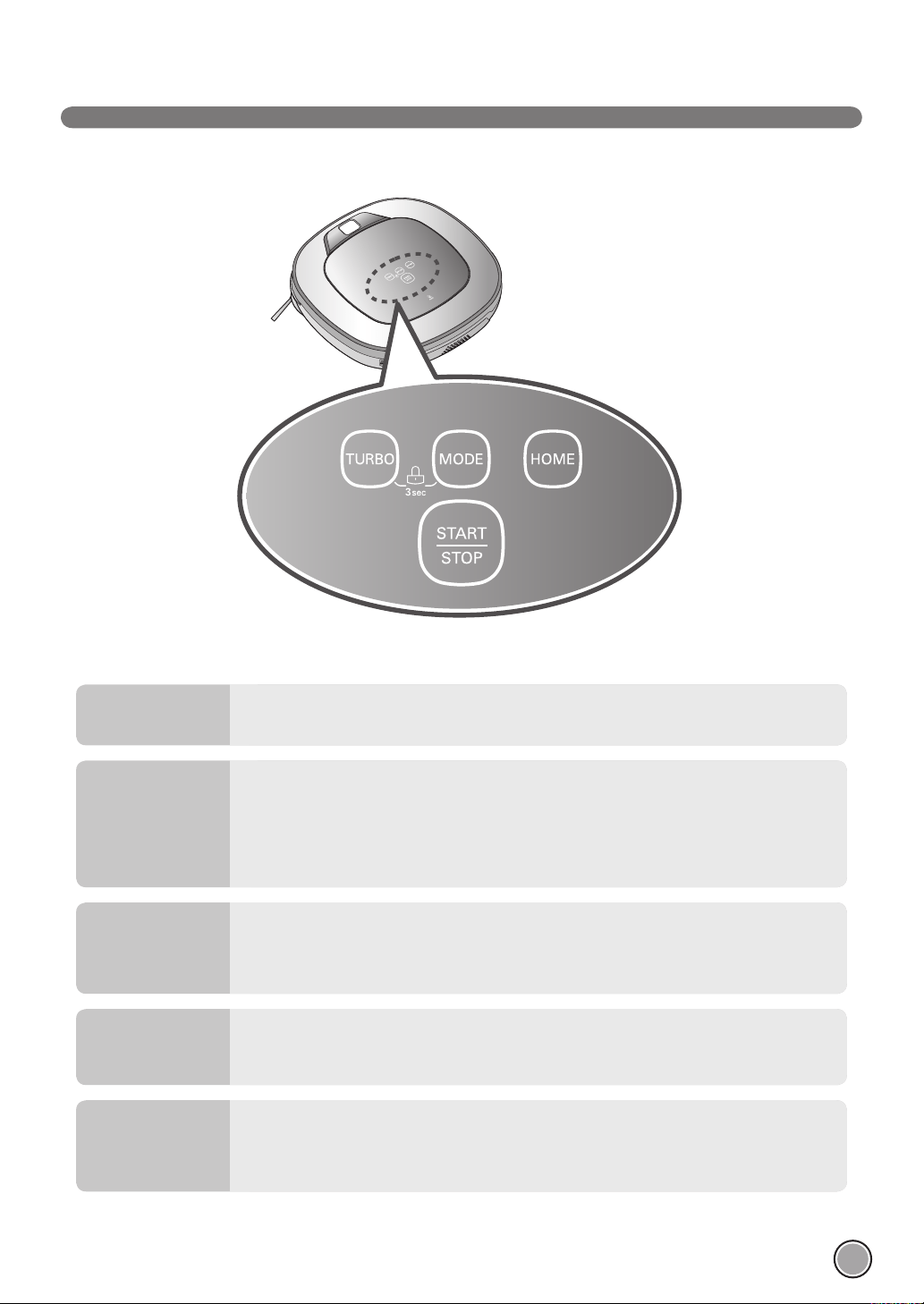

Button functions

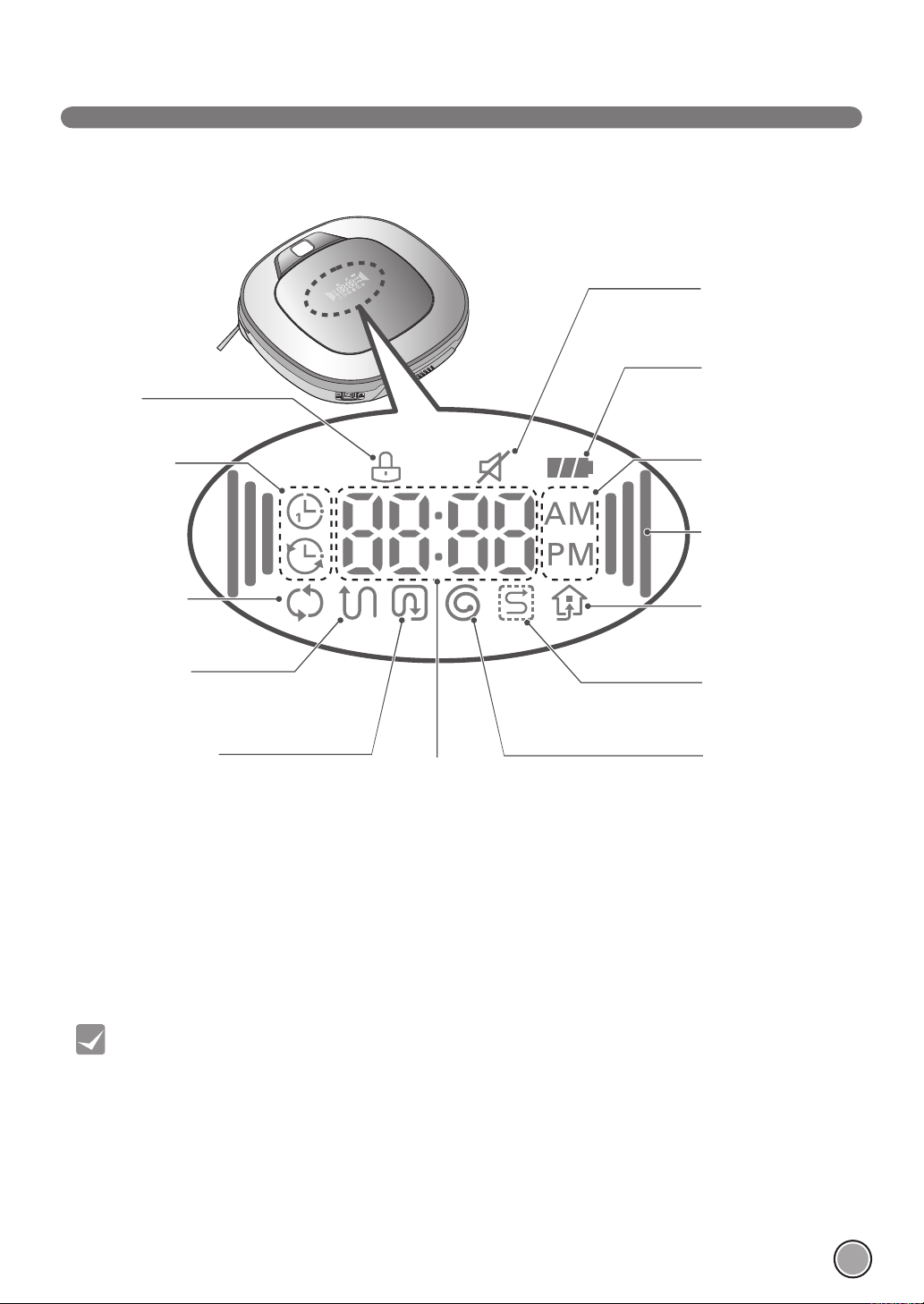

Display status information
Before you start

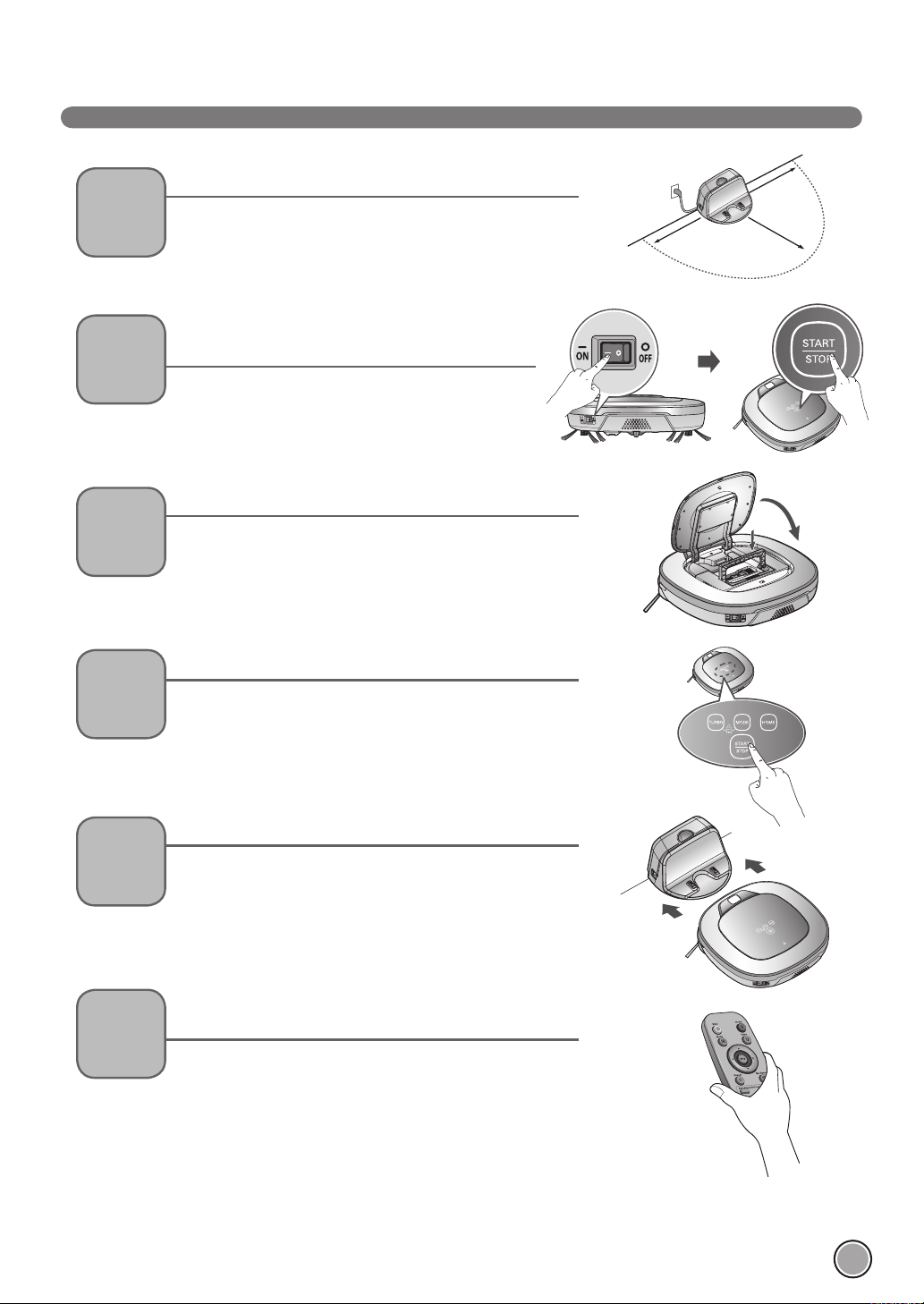

Overview
1
BEFORE USING
2
METHOD OF USE
3
HANDLING METHOD AFTER USE
35~37
38

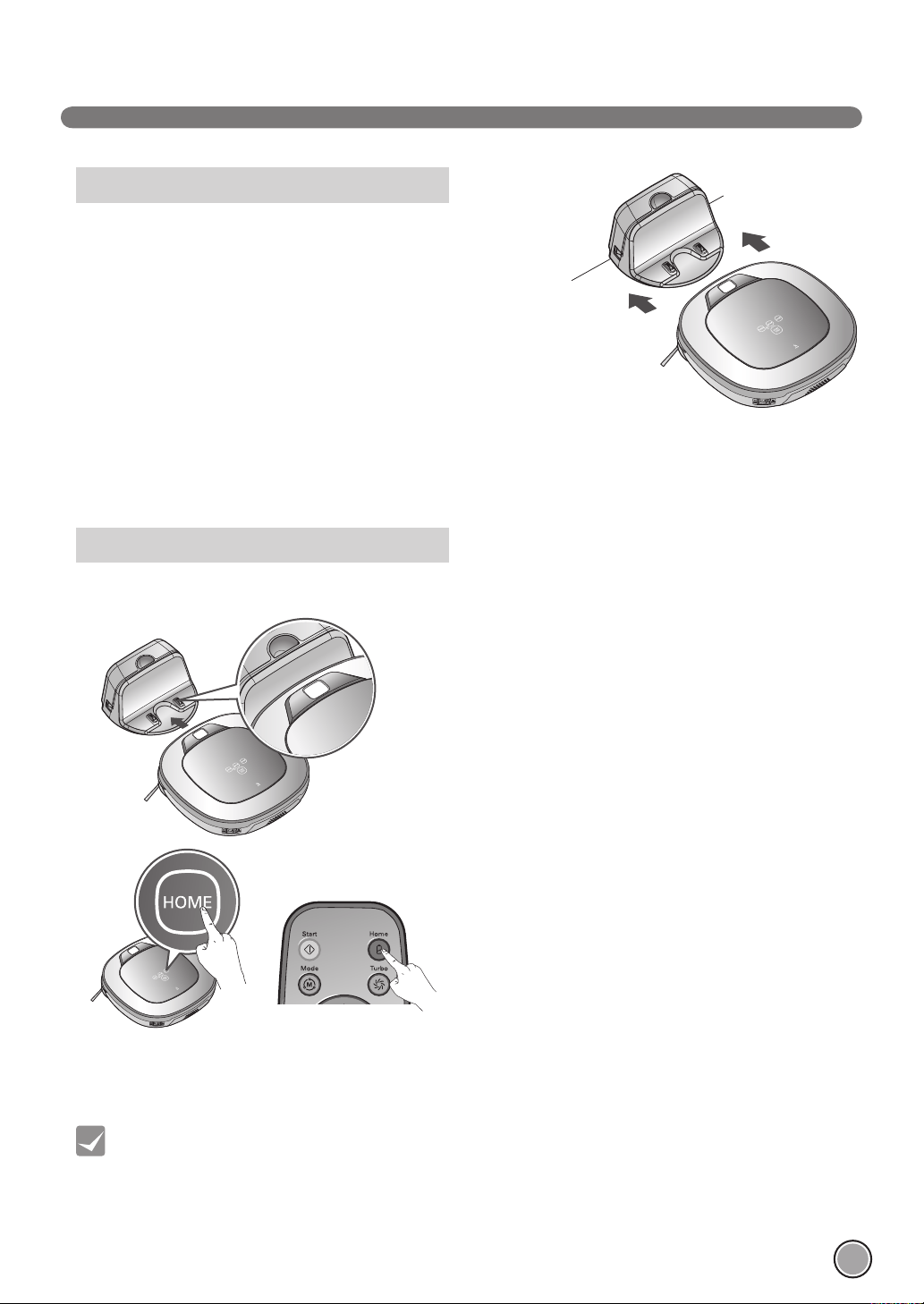

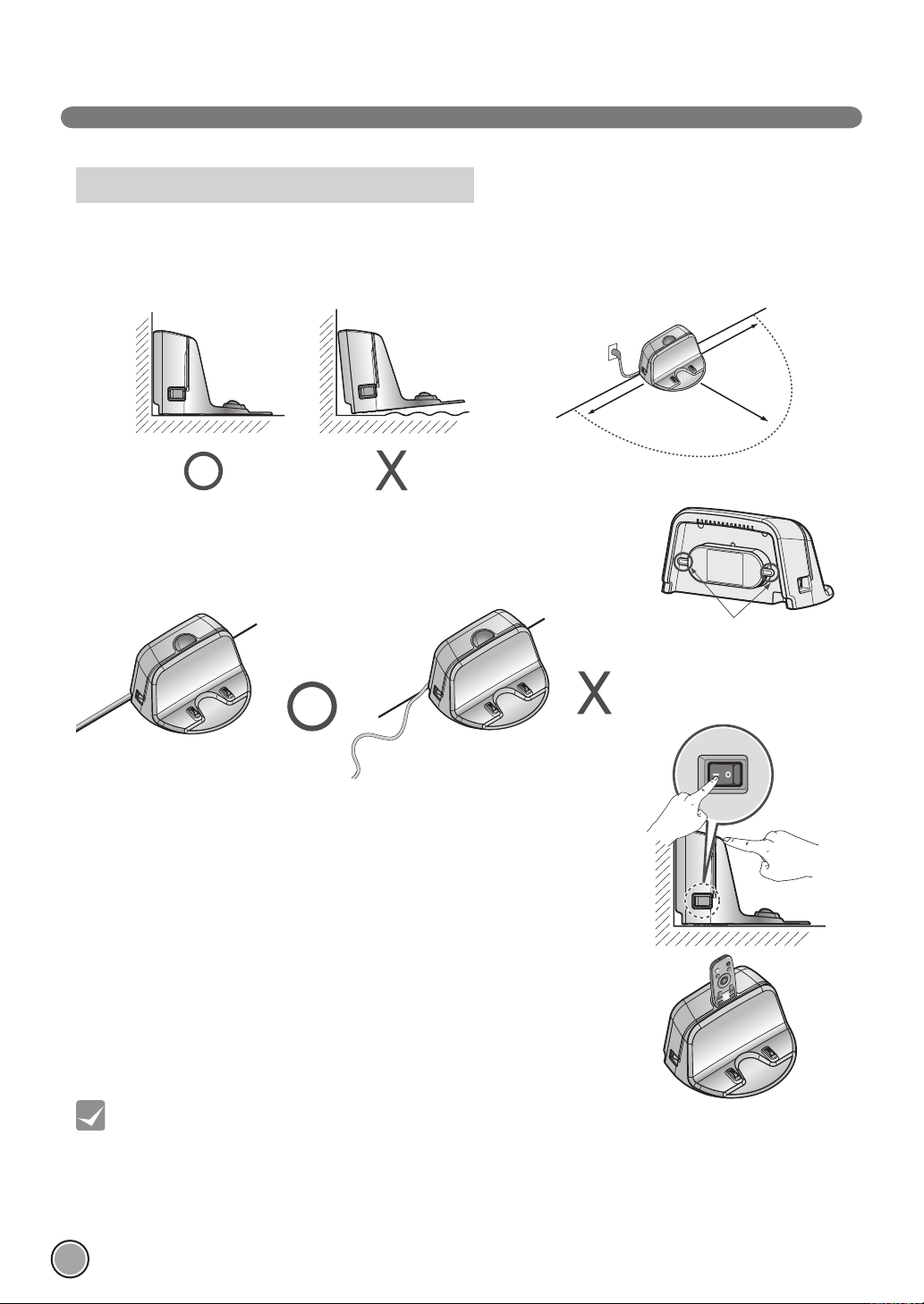

How to install the home station

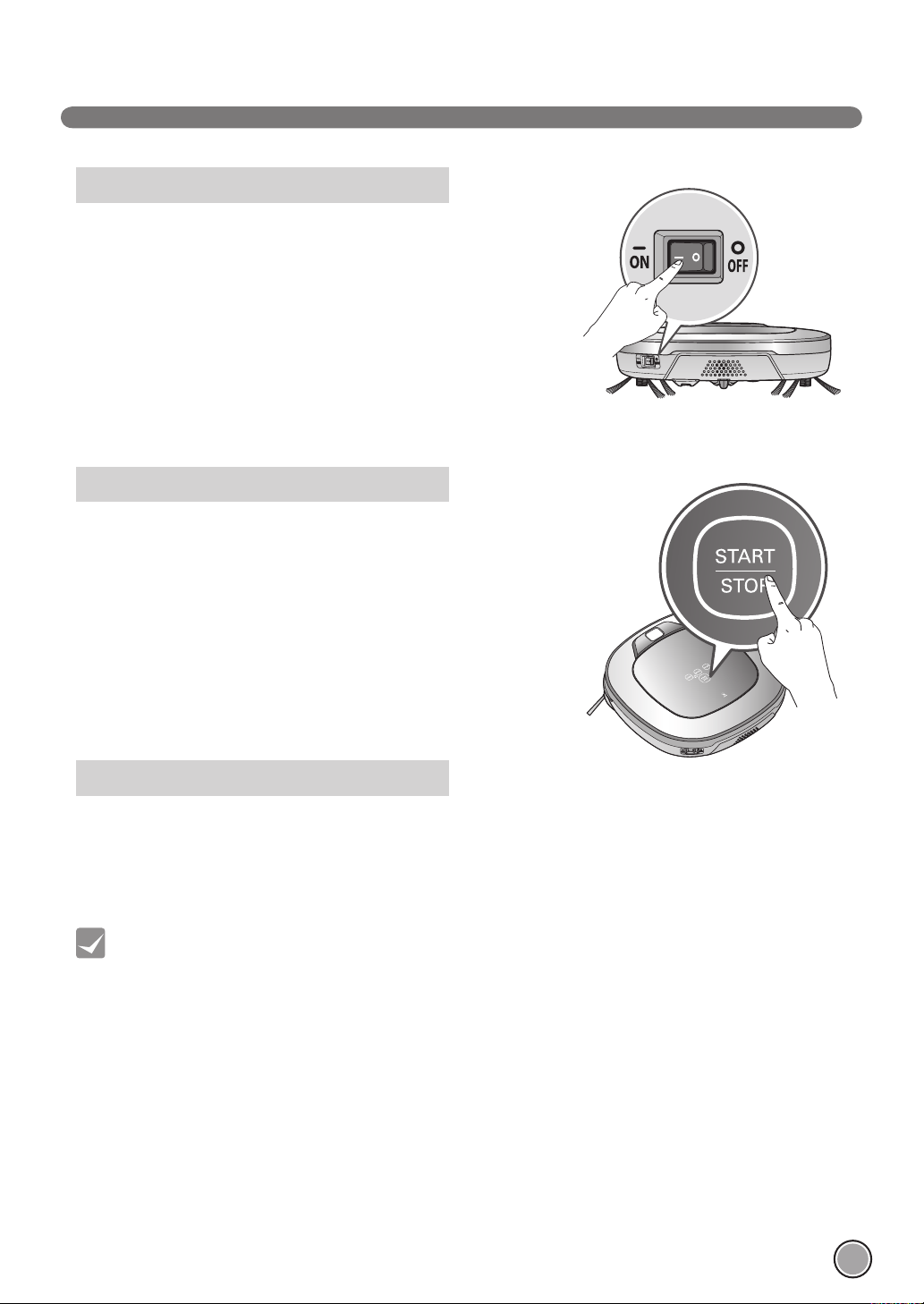

How to turn the Robot Cleaner power supply on & off

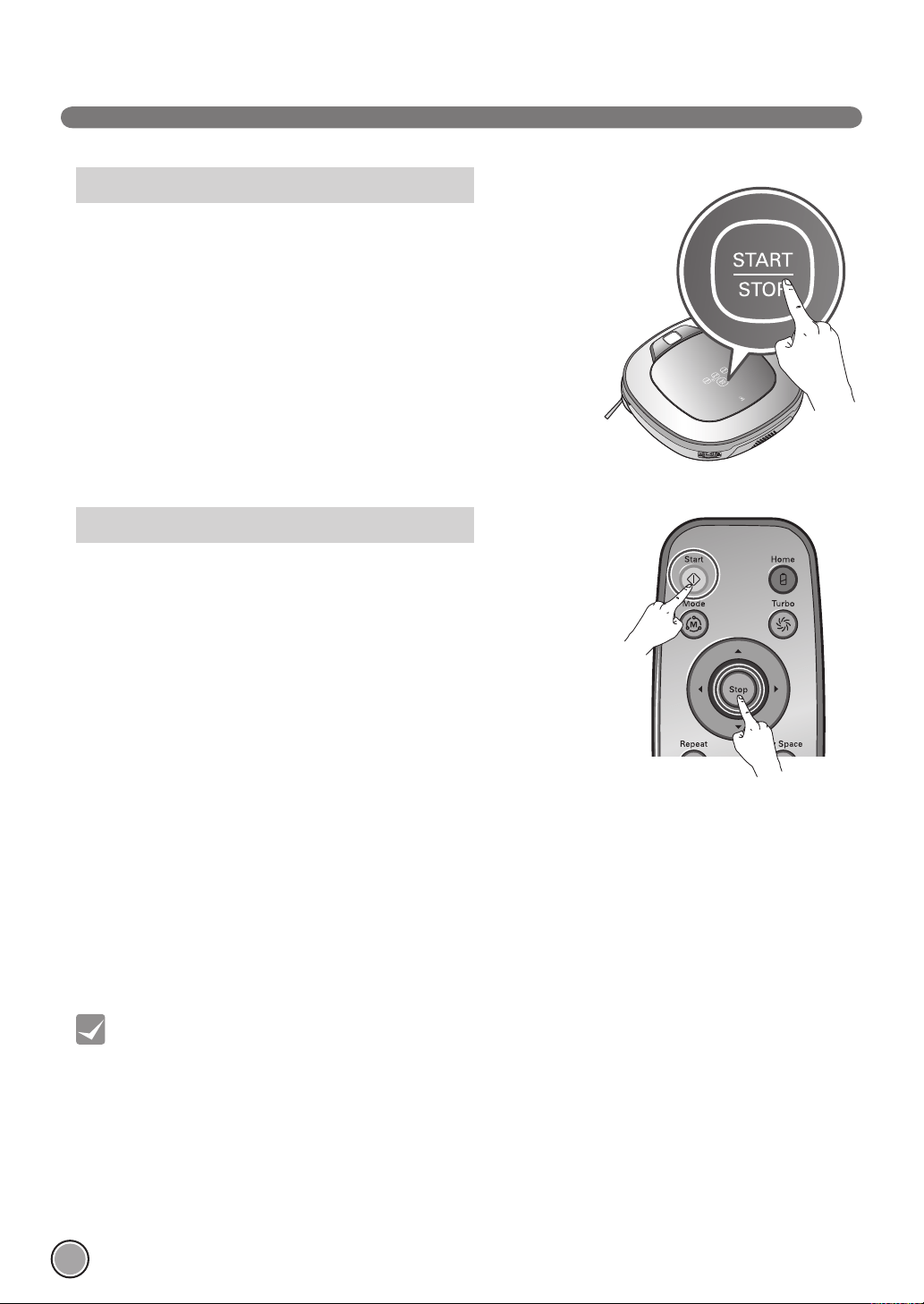

How to start and stop cleaning
How to charge the battery

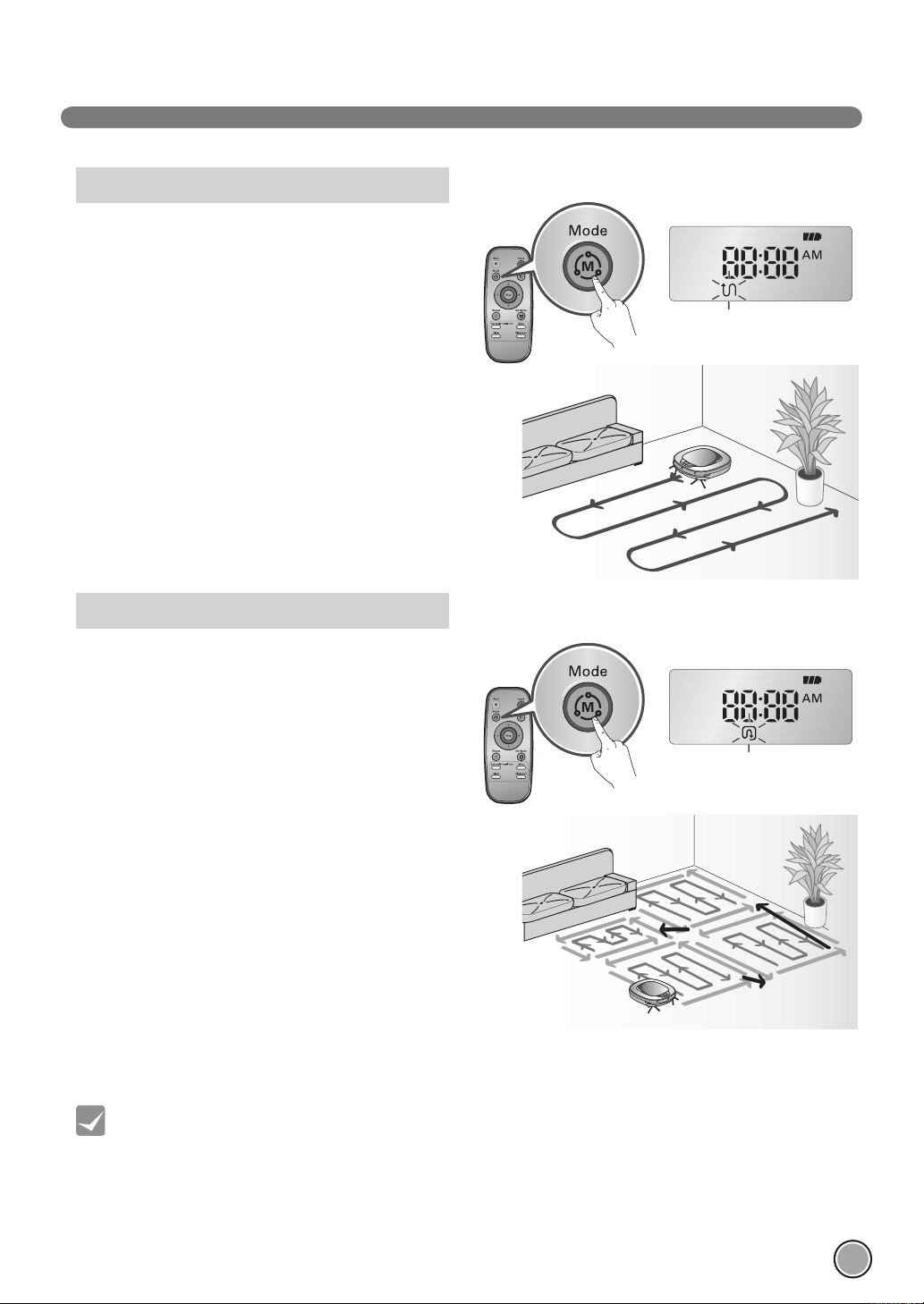

Cleaning modes

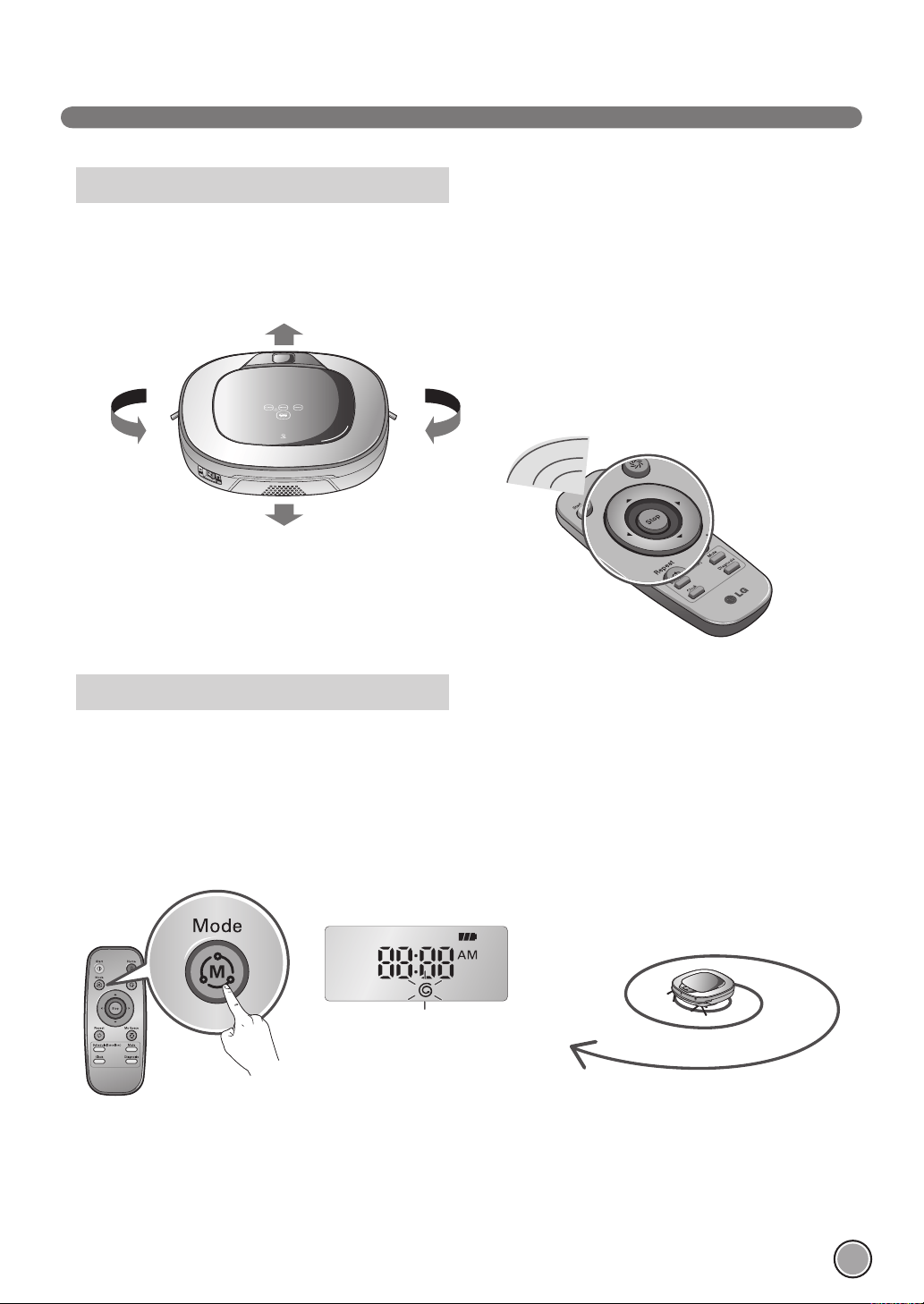

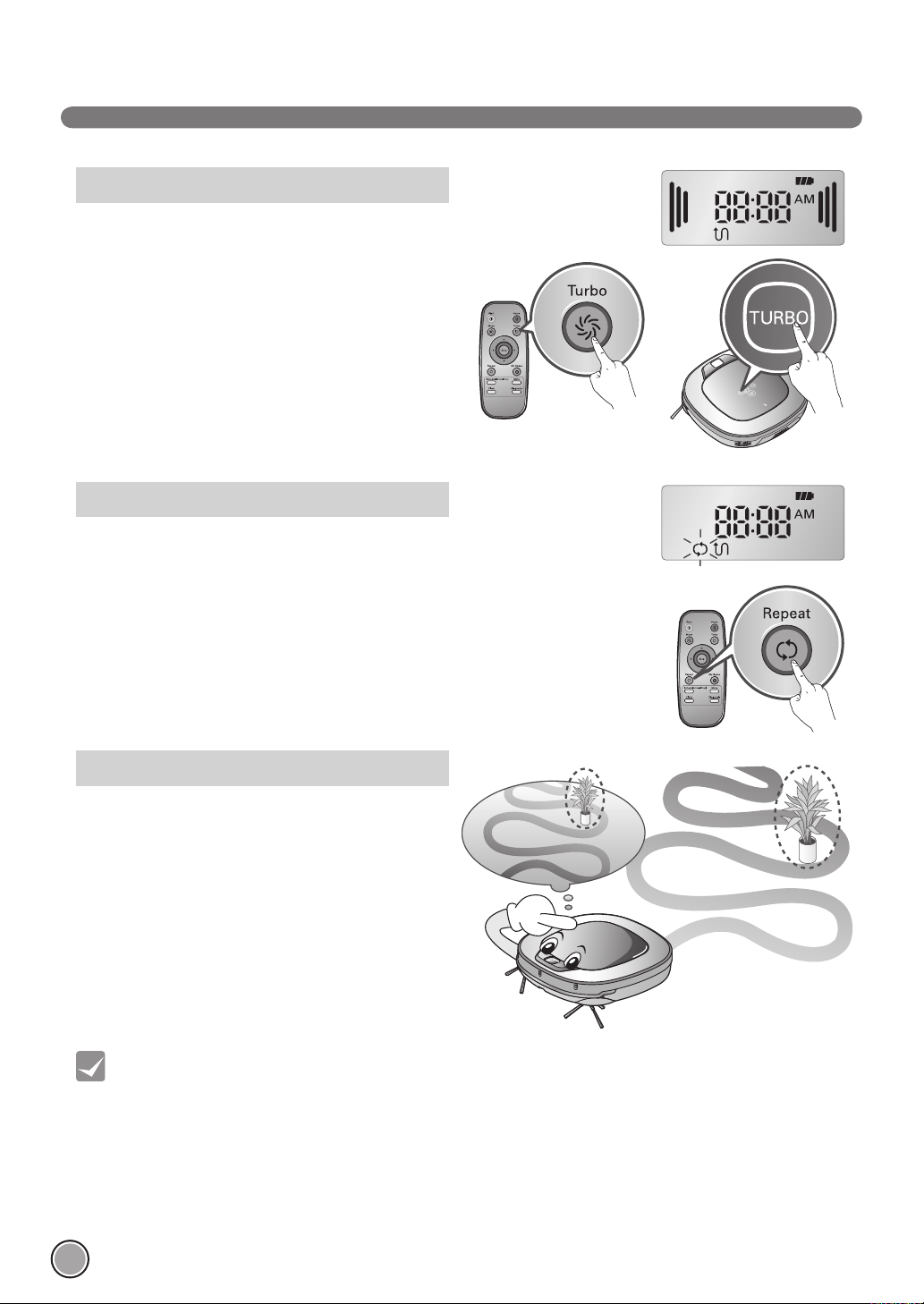

Auxiliary cleaning modes

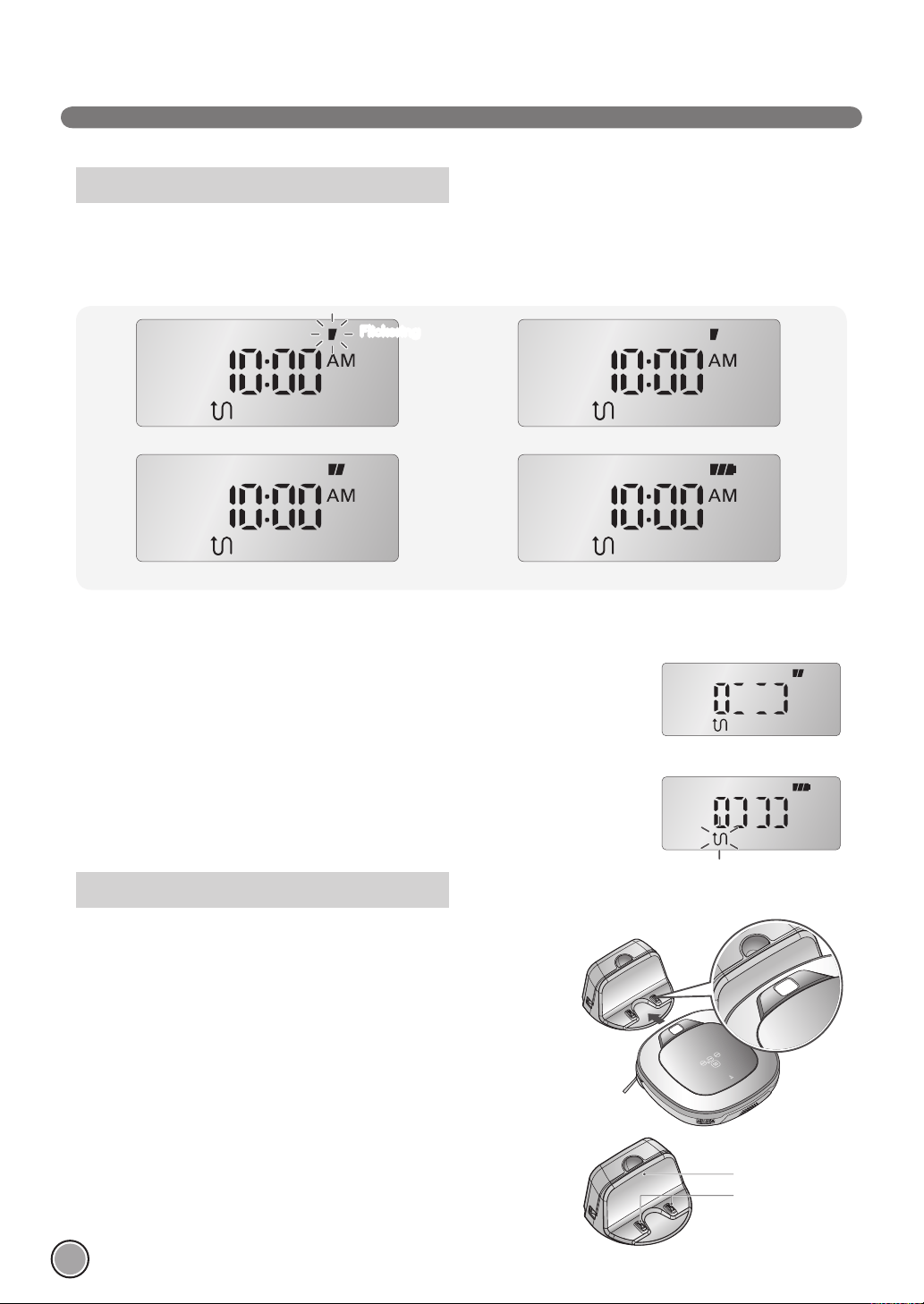

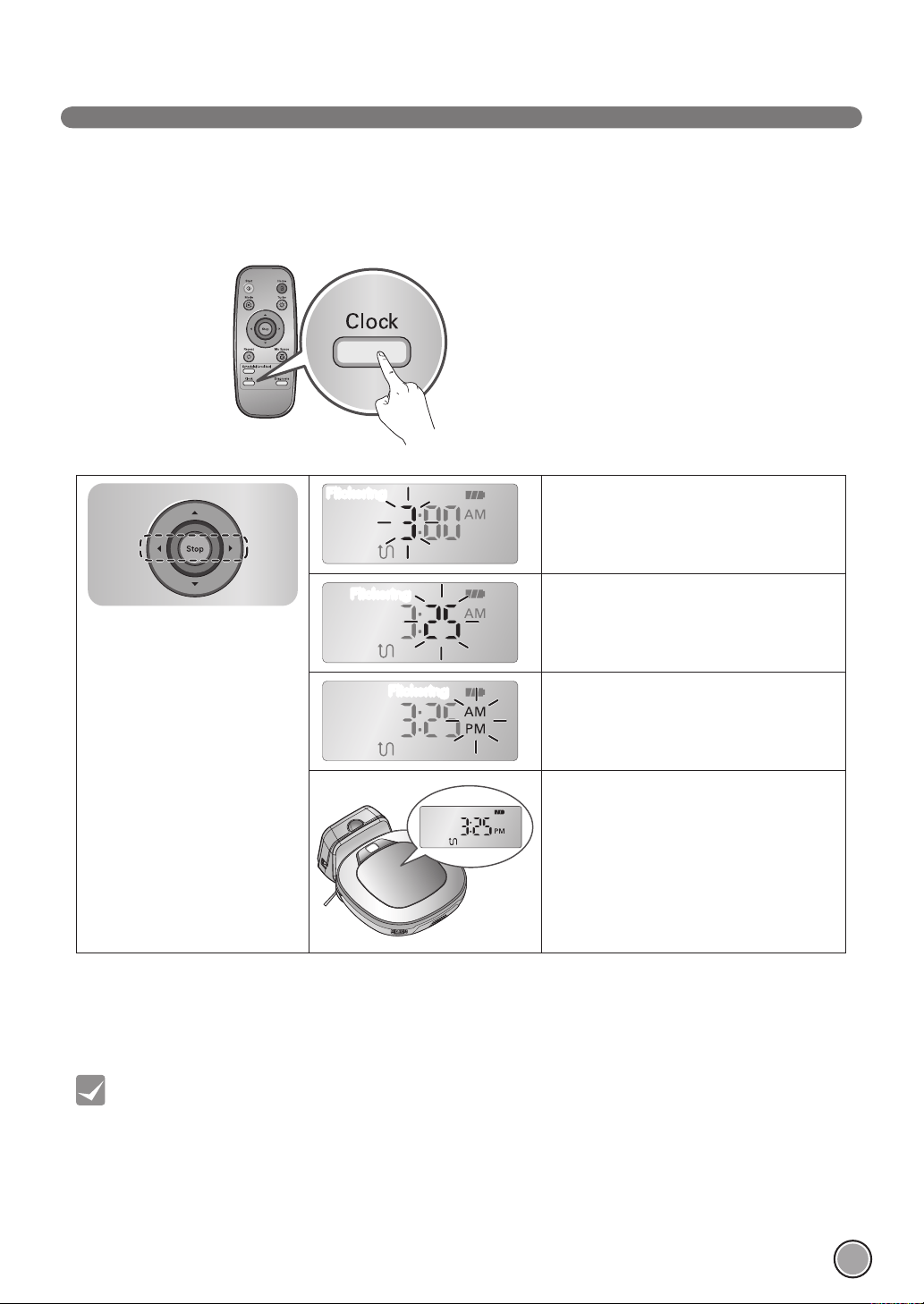

Time setting

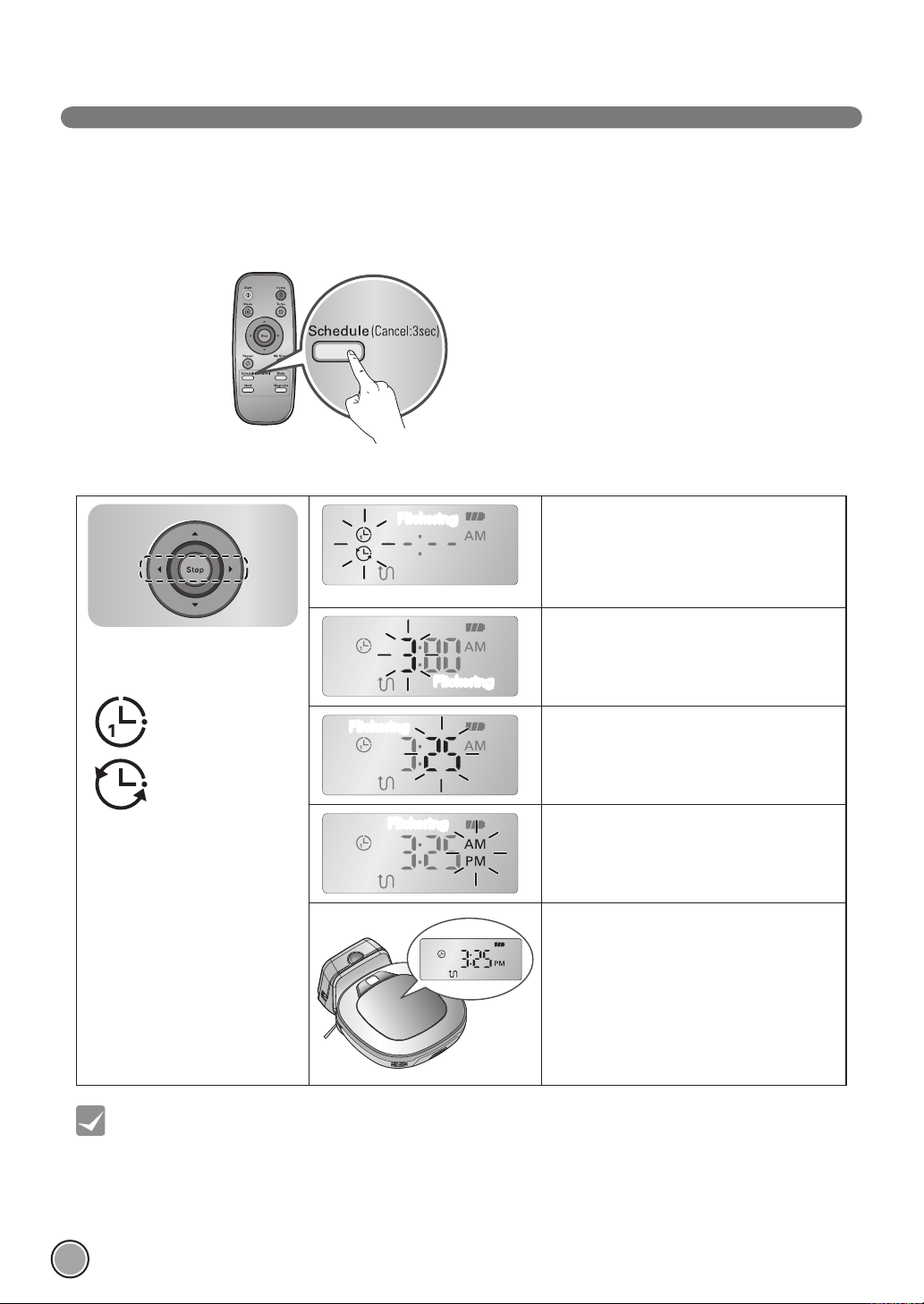

Scheduled cleaning

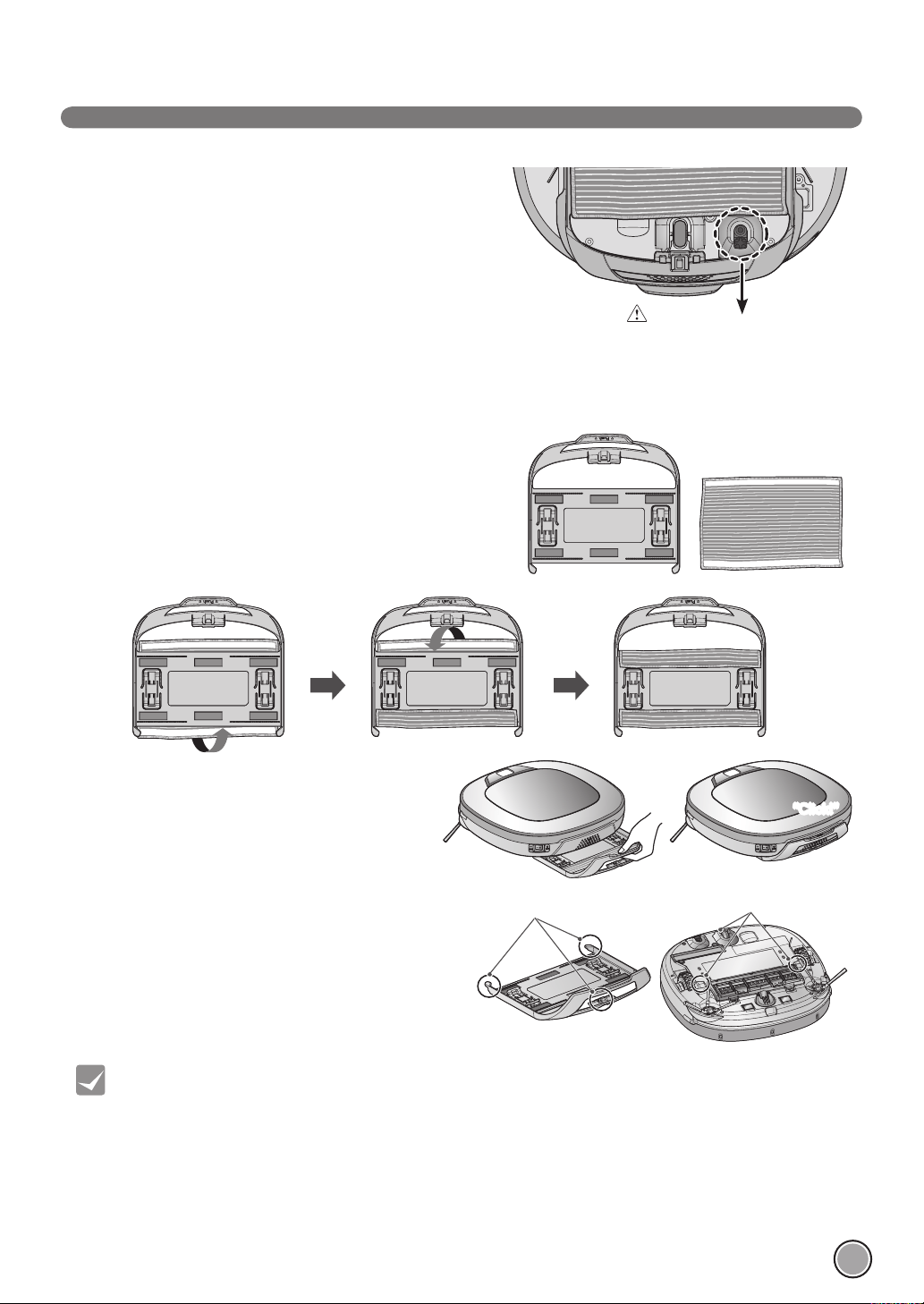

Mop cleaning (option)

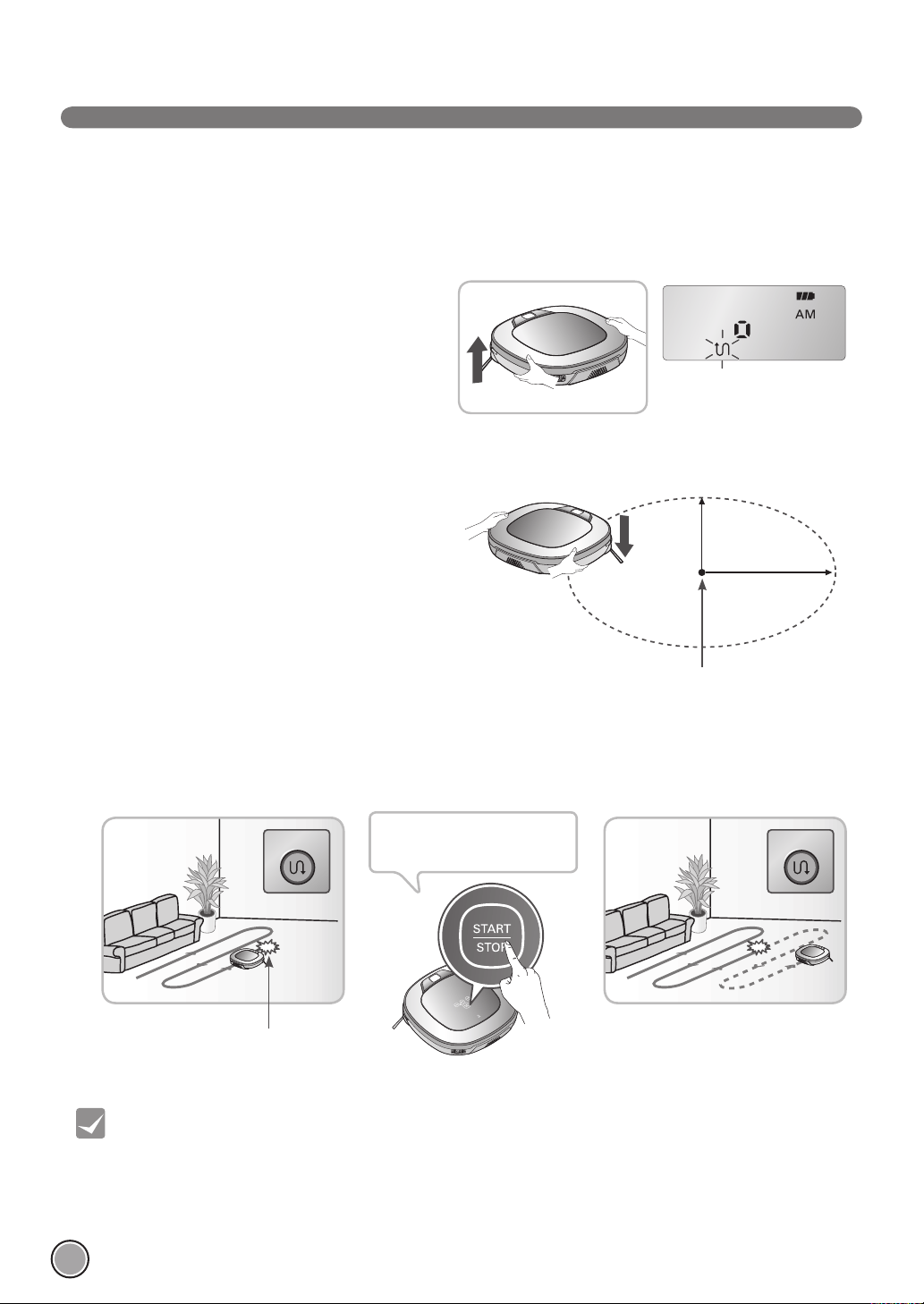

Location search function

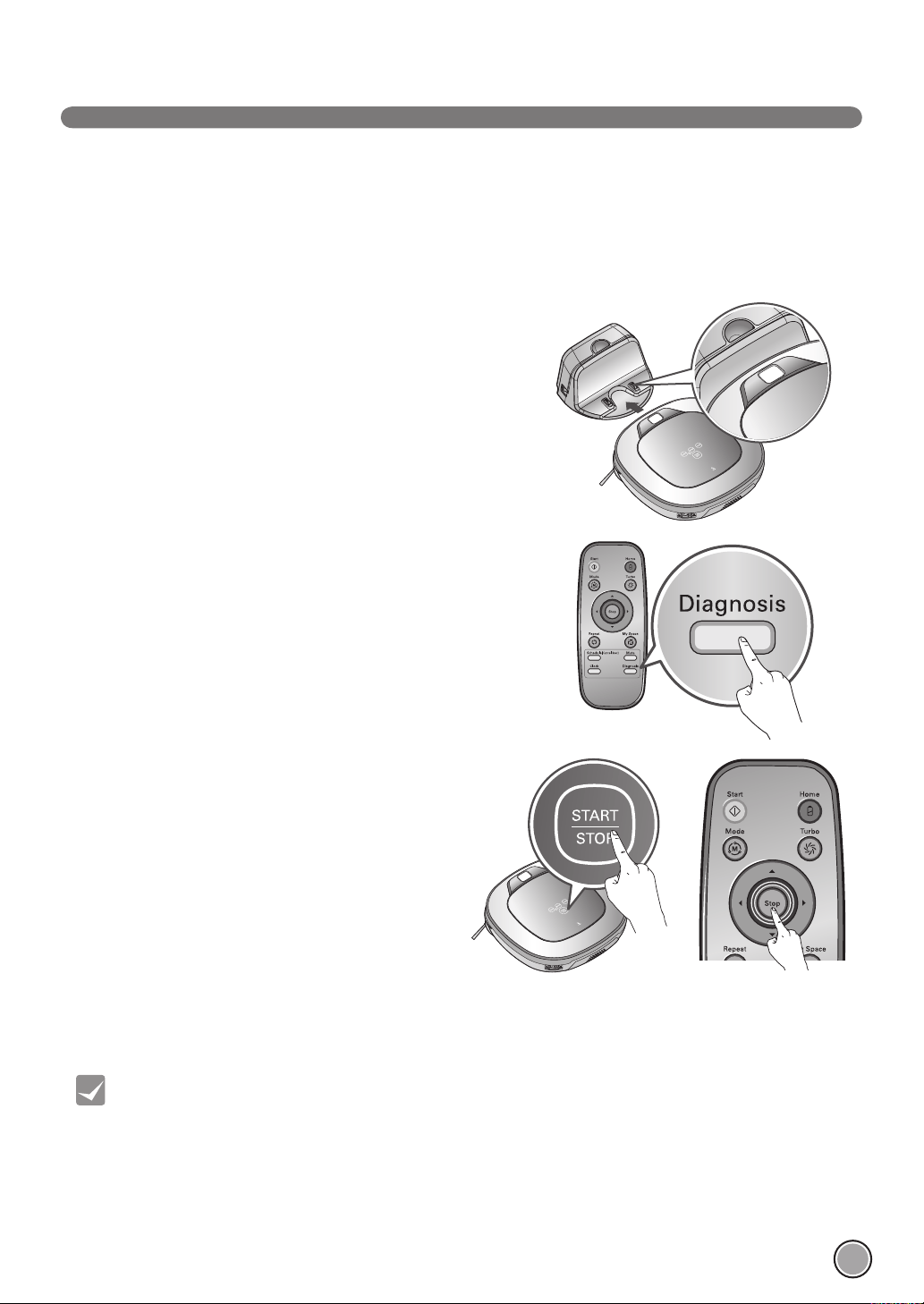

Smart diagnosis

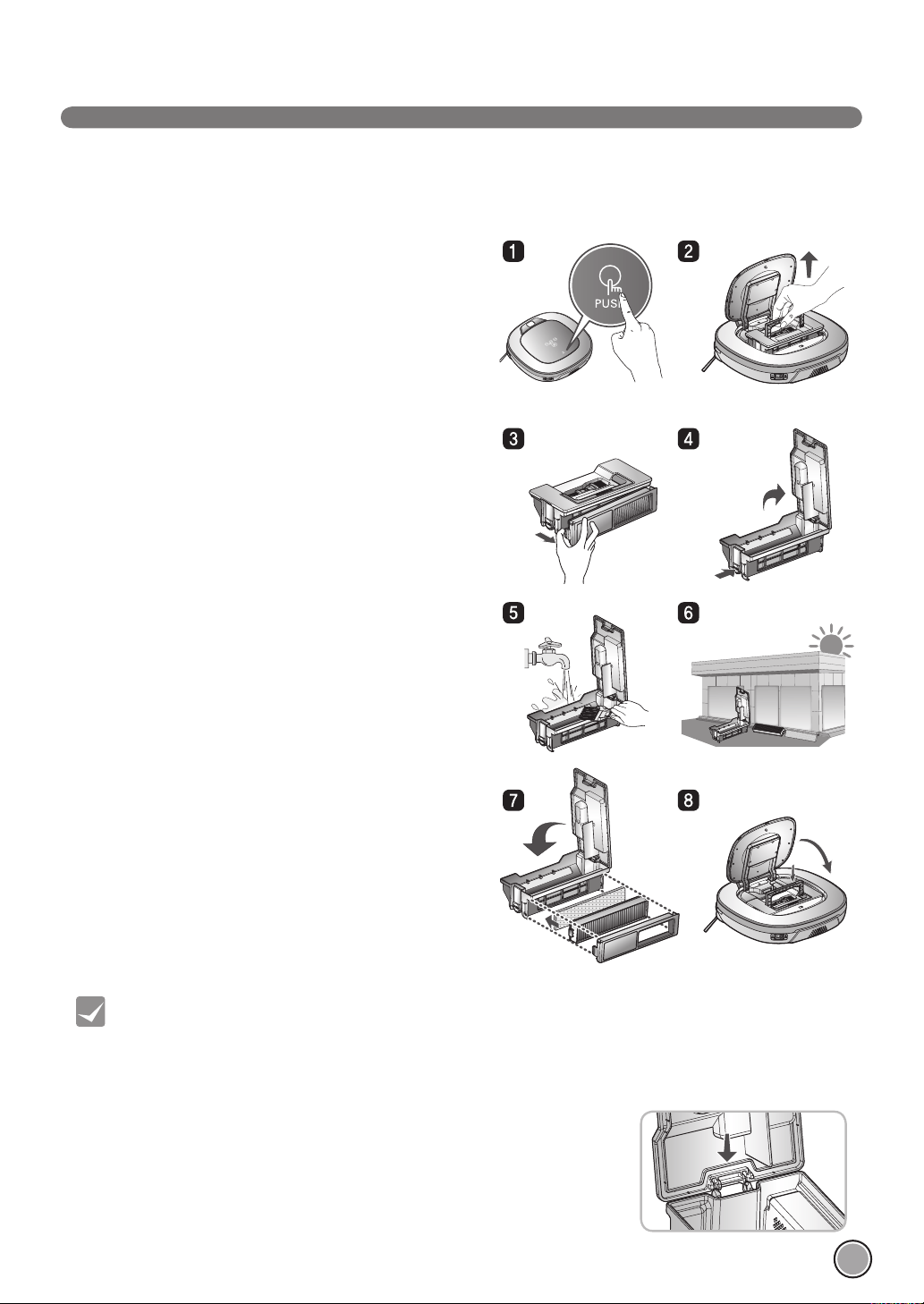

Cleaning the dust bin

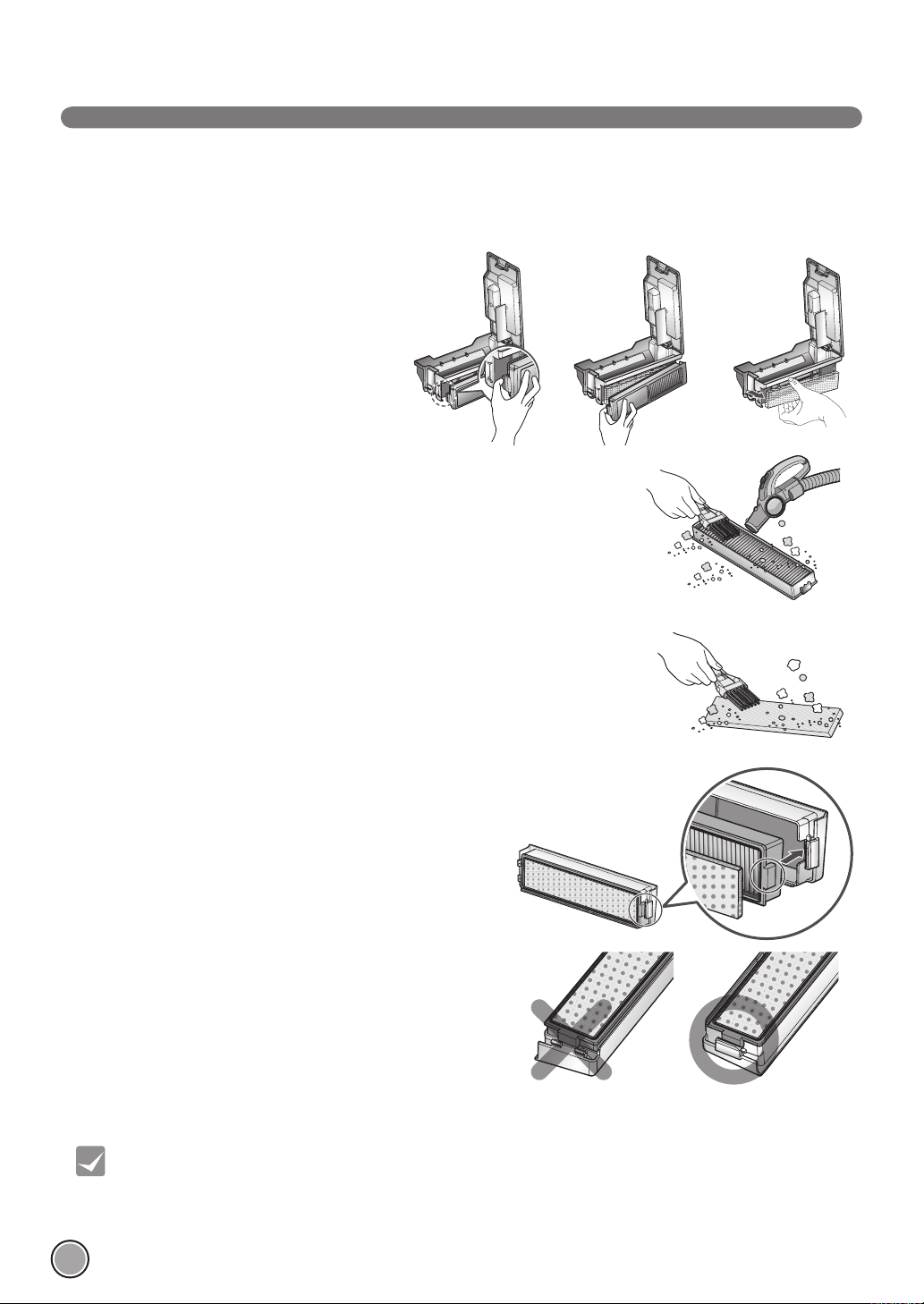

Cleaning the dust bin filter

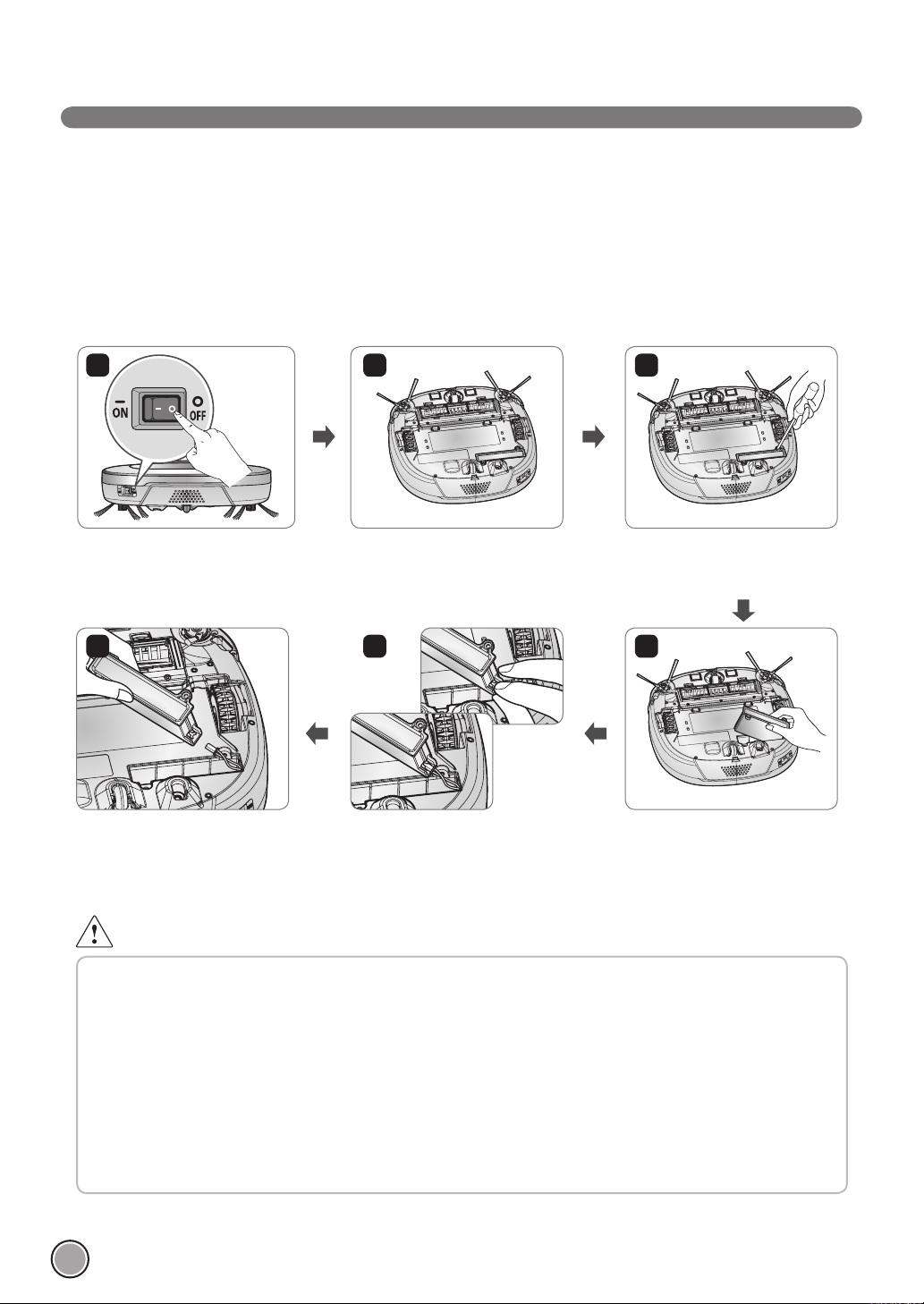

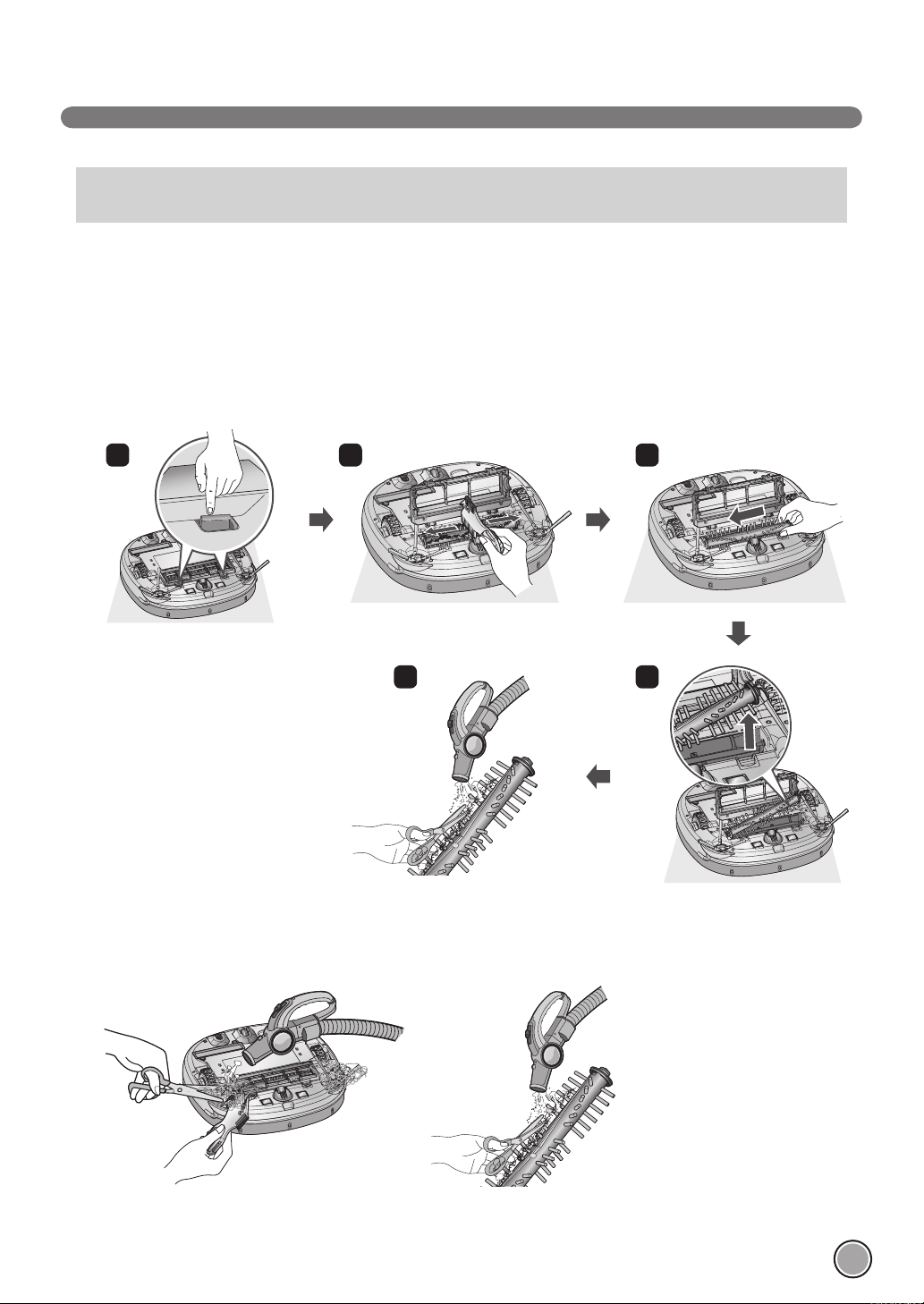

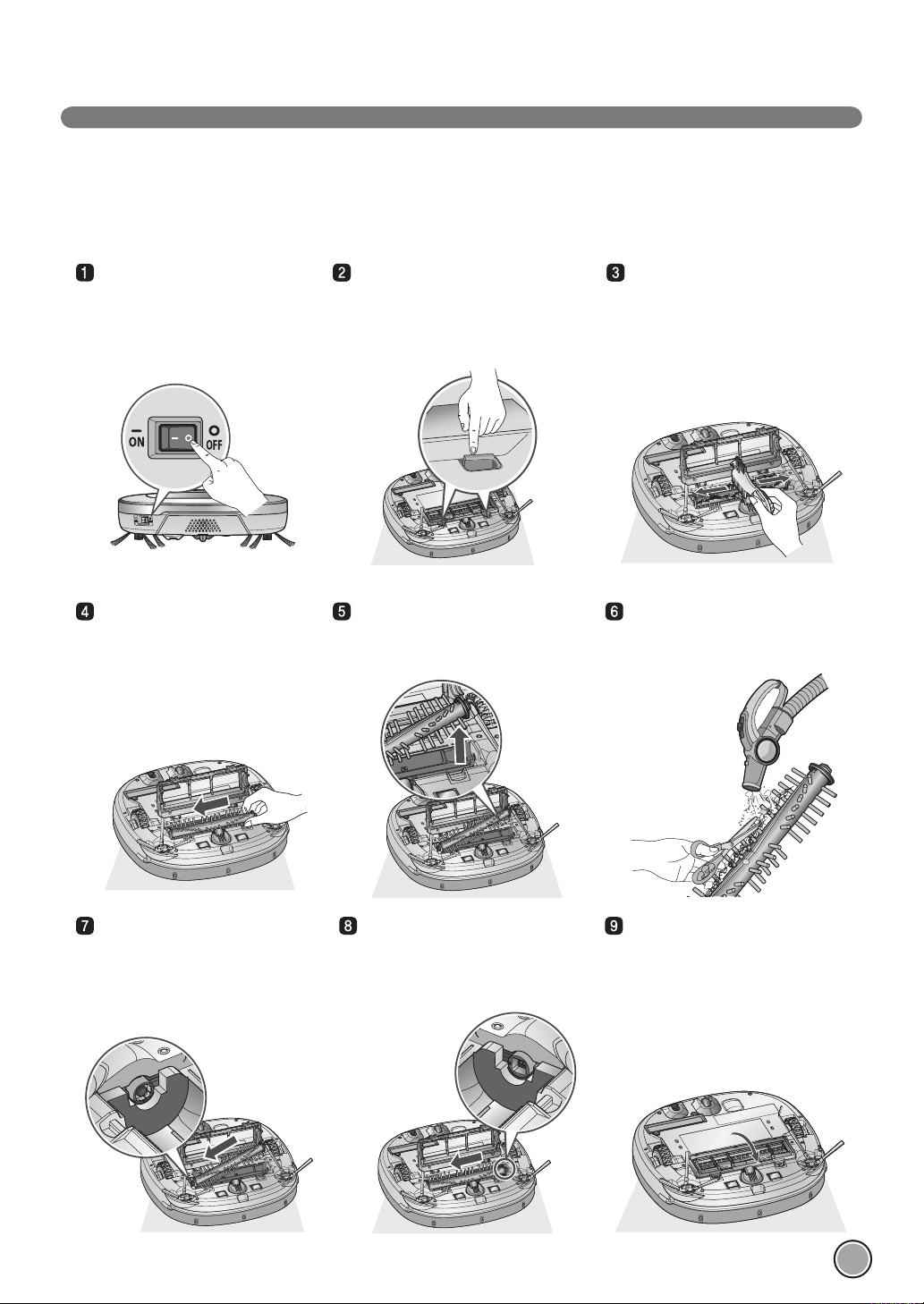

Cleaning the brush

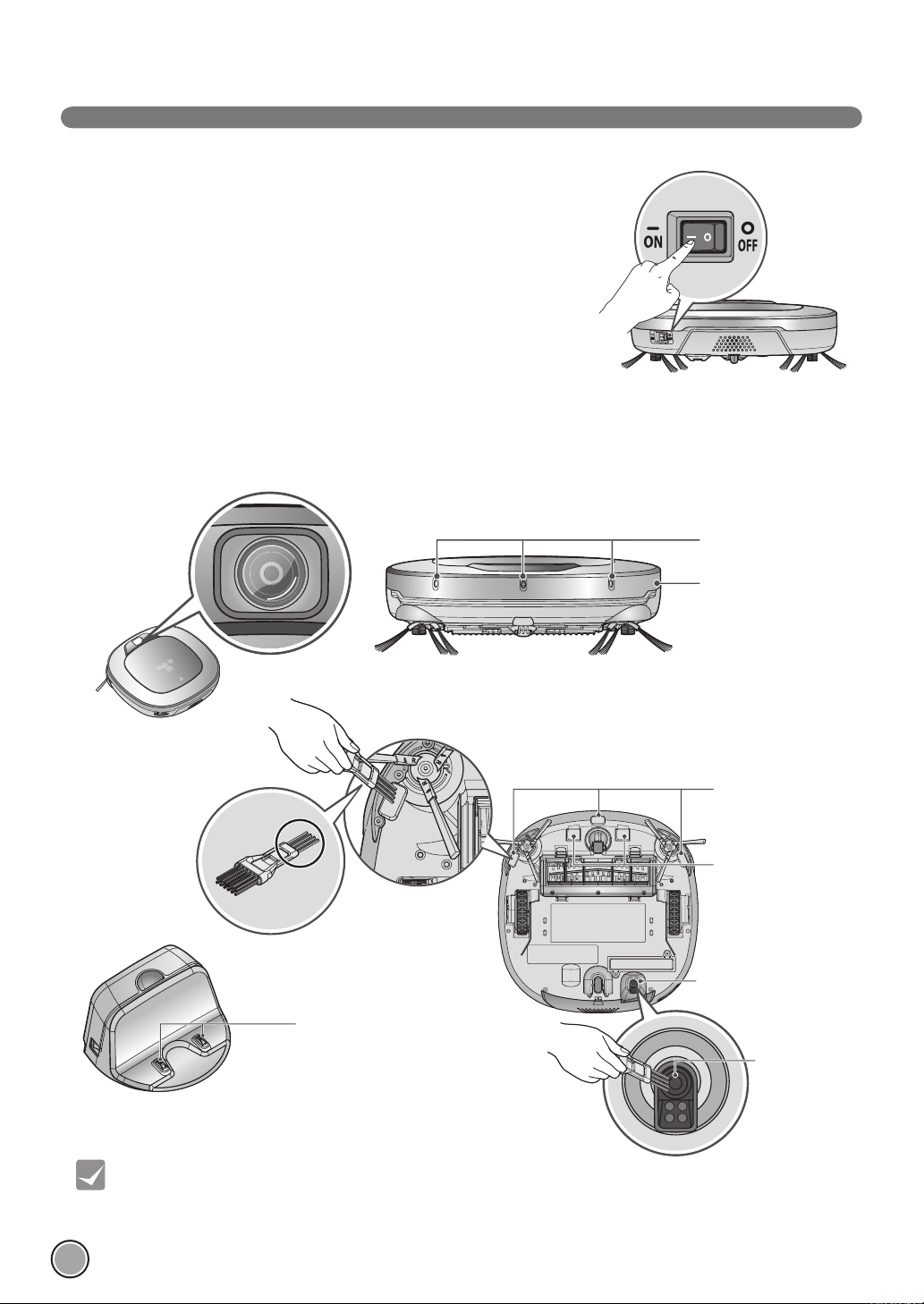

Cleaning the sensor/charging terminal
Cleaning the side brush

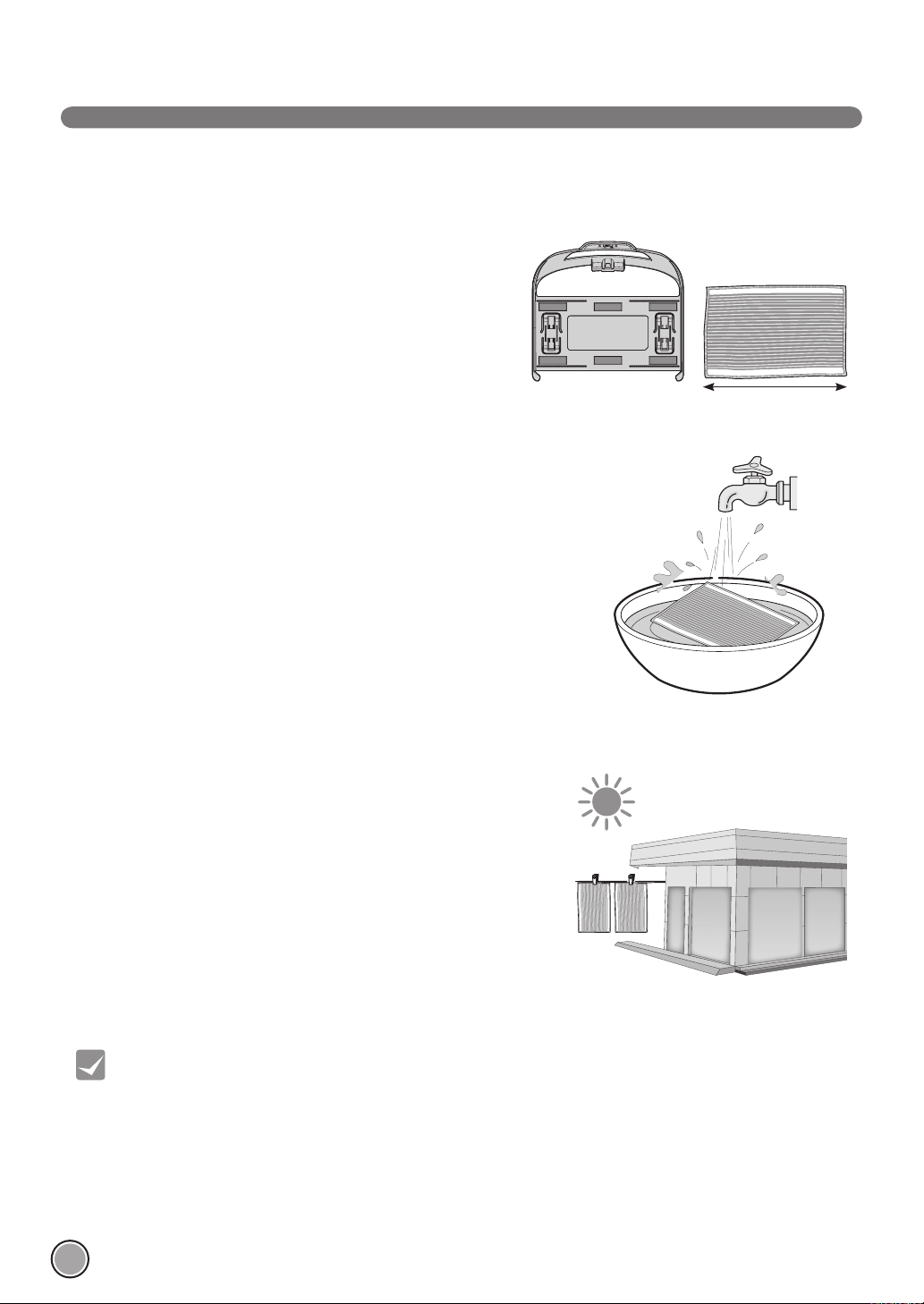

Cleaning the ultra microfiber mop (option)
4
ADDITIONAL INFORMATION
5
REFERENCE
2~5
6
7~8
9~10
11
12
13
14
15
16
17~18
19~20
21~22
23
24
25
26
27~28
29
30
31
32
33
34
Troubleshooting
Before you call for service

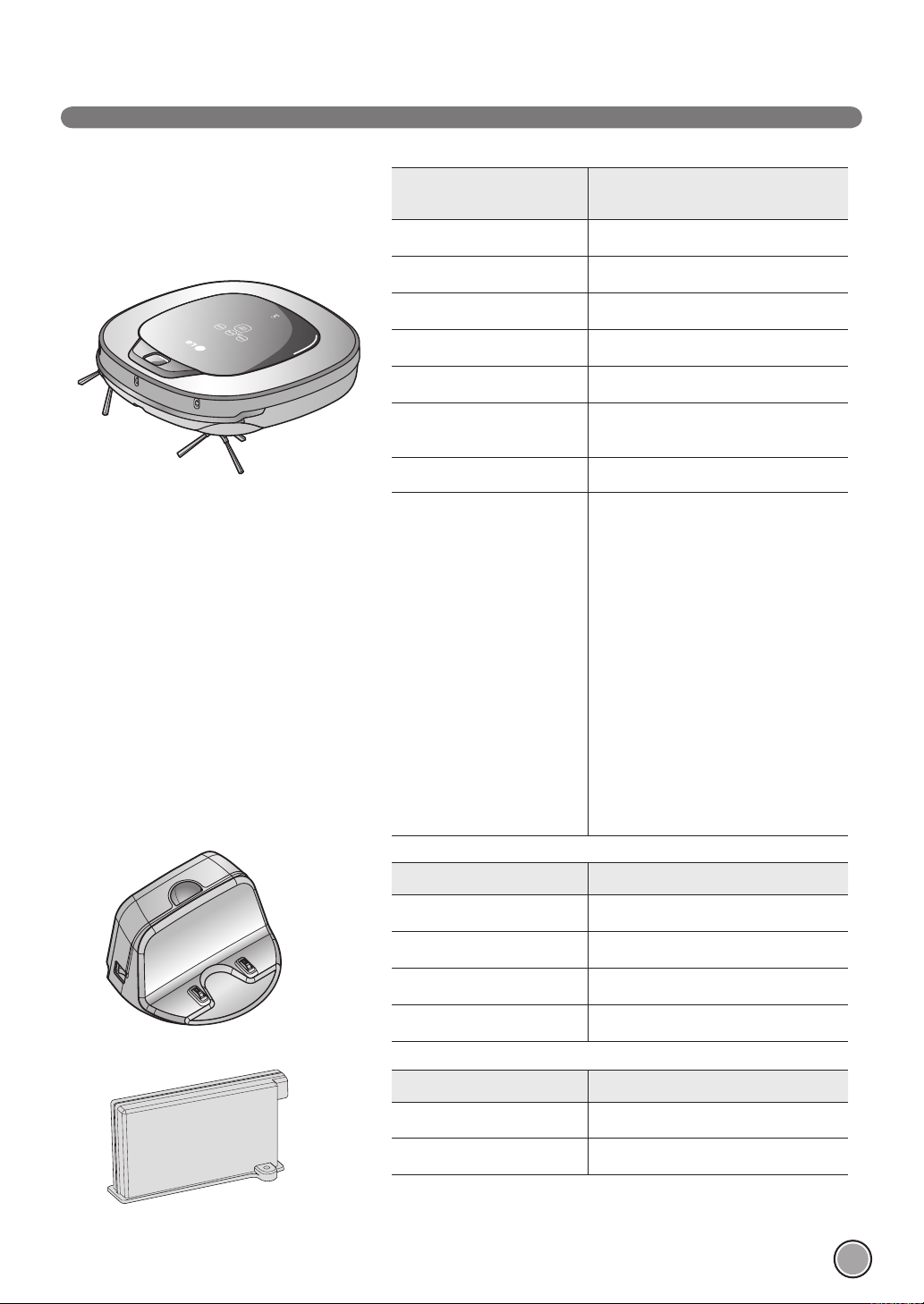

Product specifications
Open source software notice
39
40
2

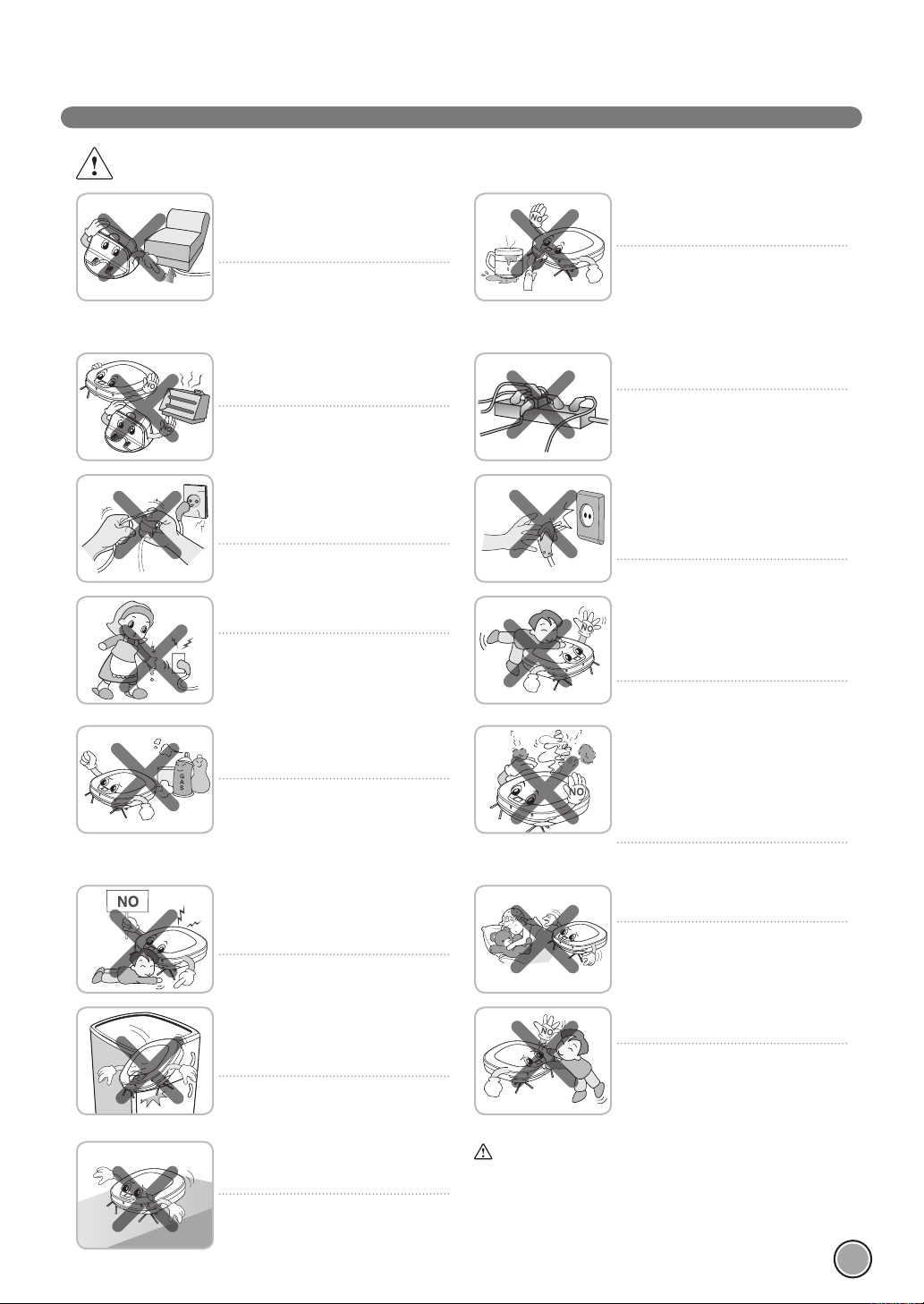

SAFETY PRECAUTIONS
The purpose of the safety precautions described below is for the user to use the product safely and
correctly to prevent any unexpected risk of injury or damage.
Basic safety precautions
After reading this manual, please keep it in an easily accessible location.
This is the safety alert symbol. This symbol alerts you to potential hazards that can result in
property damage and/or serious bodily harm or death.
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in minor or moderate
injury.
WARNING
WARNING
CAUTION
1. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
2. Children should be supervised to ensure that they do
not play with the appliance.
3. If the supply cord is damaged, it must be replaced by
LG Electronics Service Agent in order to avoid a hazard
4. This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
must not be made by children without supervision.
For your safety, do not remove the
battery from the Robot Cleaner. If
you need to replace the battery or the
Robot Cleaner, take it to the nearest
authorized LG Electronics service
center or dealer for assistance.
Failure to follow this warning can
cause fire or product failure.
Never use the Robot Cleaner with
a battery and/or home station from
any other product than the
Robot Cleaner.
Doing so can cause fire or product
failure.
3
SAFETY PRECAUTIONS
WARNING
Make sure the power cord of the
home station is not crushed under a
heavy object or damaged by contact
with sharp objects.
Failure to follow this warning can cause
electric shock, fire or product failure.
If the power cord is broken, do not
plug it in. Take the product to an LG
Electronics Authorised service repairer.
Do not place the home station and
the Robot Cleaner near a heating
device.
Doing so can cause product
deformation, fire, or product failure.
Do not touch the power plug with
wet hands.
Doing so can cause electric shock.
Do not force the power plug to
bend. Do not use the power plug
when it has been damaged or
loosened.
Doing so can cause fire or product
failure.
Do not use the Robot Cleaner when
candles or fragile objects are placed
on the floor.
Doing so can cause fire or product
failure.
Always use a dedicated power
outlet with a 10 amp rating.
If multiple appliances are connected
to an outlet simultaneously, they
can generate enough heat to cause
a fire.
Do not allow children or pets to play
with or rest upon the Robot Cleaner
at any time. Do not use the Robot
Cleaner while an object is hanging
from it.
Doing so can cause injury or
product damage.
When pulling out the home station
power plug, always pull it out by
grabbing the plug, not the cord. When
pulling out the power plug, do not to
touch the prongs with your fingers.
Doing so can cause an electric shock.
Do not spray or use inflammable
materials, surfactants, or drinking water
in the vicinity of the Robot Cleaner.
Doing so can cause fire or product
failure.
* Inflammable materials: gasoline,
thinner, etc.
* Surfactant: detergent, articles for
bath, etc.
Do not insert any part of the body,
such as a hand or foot, below the
brush or wheels of the
Robot Cleaner while in use.
Doing so can cause injury or
product damage.
Do not operate the Robot Cleaner
on narrow and high furniture such
as a wardrobe, refrigerator, desk,
table, etc.
Doing so can cause injury, product
failure or damage which is not
covered by the warranty.
Turn the power supply off
immediately if any abnormal sound,
odor, or smoke is generated from
the Robot Cleaner by removing it
from the home station and turning
off the main switch on the rear side
of the unit.
Failure to do so can cause fire or
product failure.
Do not operate the Robot Cleaner
in a room where a child is sleeping.
Doing so can cause injury or
product damage.
Do not leave Children or pets near
the Robot Cleaner unsupervised.
Doing so can cause injury or
product damage.
This product is intended for indoor domestic home
use and should not be used in mobile applications. it
should not be used in commercial applications such as
workshops or garage, etc.
Gasoline
Detergent
Do not activate the device on a floor
that has more than a 10 degree
incline.
The device may not work properly.
4
SAFETY PRECAUTIONS

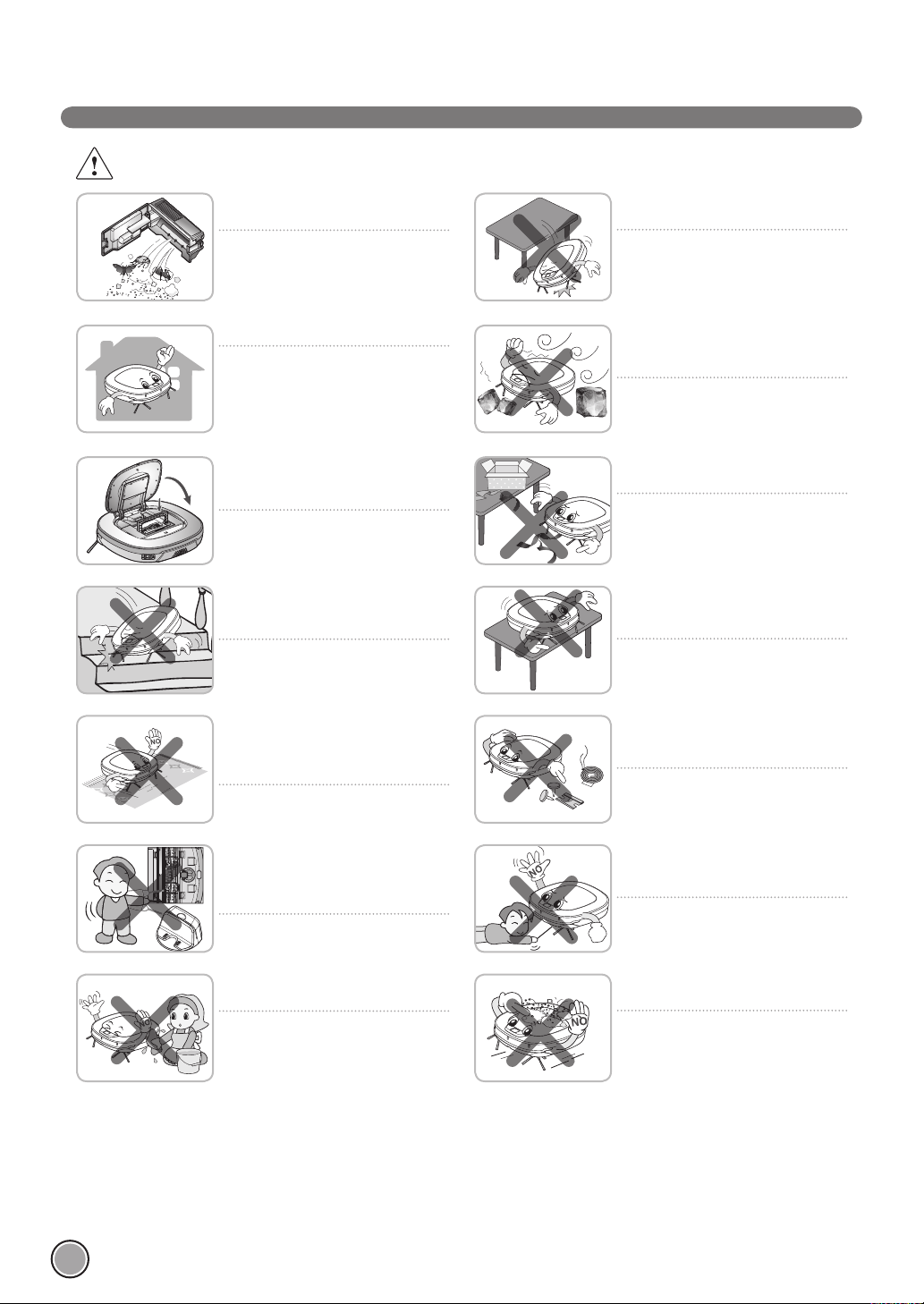

Frequently empty the dust bin and
maintain its cleanliness.
The dust collected in the dust
bin can trigger allergies and may
contain harmful insects.
Use the Robot Cleaner indoors only.
Using it outdoors can cause product
failure and irreparable damage to
the unit.
Close the cover of the dust bin
on the main unit before starting
cleaning.
If the cover is not closed, it can
cause injury or product damage.
DO NOT use the Robot Cleaner
around a banister, staircase or any
other dangerous place.
Otherwise, the user or the product
can be exposed to damage.
Do not drop the Robot Cleaner or
subject it to strong impacts.
Doing so can cause injury or
product failure not covered by the
warranty.
Do not expose the Robot Cleaner to
cold temperatures (less than -5 C)
for a long period of time.
Doing so can cause product failure.
Remove any cables or string from
the floor before starting.
Cable or string can get tangled in
the wheels of Robot Cleaner and
cause product failure or the cord of
an appliance can be disconnected.
Make sure the Robot Cleaner is
not put on a table or desk, with the
power ON.
It may result in injury of the user or
damage in the product.
CAUTION
In rare cases, the Robot Cleaner’s
brush can damage the carpet. If
this happens, immediately stop the
cleaning operation.
When a carpet has long tassels, the
tassels can be damaged.
Do not let the main unit and
charging terminal of the home
station come into contact with
metallic objects.
Doing so can cause product failure.
Do not put water, detergent, etc.
into the Robot Cleaner.
Doing so can cause product failure.
Do not put any water or detergent
on the Robot Cleaner. If liquids get
inside of the Robot Cleaner, turn off
the power supply and contact an LG
Electronics sales agent or customer
care center.
Do not allow the Robot Cleaner to
sweep up liquids, blades, thumb
tacks, kindling, etc.
These items can cause product
failure.
Do not put sharp objects into the
opening of the Robot Cleaner’s
ultrasonic sensor.
Doing so can cause product failure.
Do not use the Robot Cleaner when
the dust bin is completely filled up.
Doing so can cause product failure.
5
SAFETY PRECAUTIONS
CAUTION
Check the following items before use:
• Empty the dust bin after each operation or prior to it filling up.
• Remove any cables or long strings from the floor.
• Remove any moisture from the floor before cleaning.
• Close the cover of the dust bin before cleaning.
• Remove fragile or unnecessary objects from the room to be cleaned.
For example, remove expensive ceramics and valuables from the floor.
• Confirm whether the battery has sufficient power, and if it is low, recharge it.
• Close the doors of any room that you do not want the Robot Cleaner to enter.
During cleaning, the Robot Cleaner may enter another room and continue cleaning.
• Do not use this product in the room where a child is sleeping alone. The child can be hurt or
woken.
• Remove towels, foot towel or any other thin cloth from the floor as they can get caught by the
brush.
• Before starting the device, it's better to remove carpets that are thicker than 20 mm as they
may cause it to malfunction.
• Please close any balcony doors. The wheels may get stuck while cleaning.

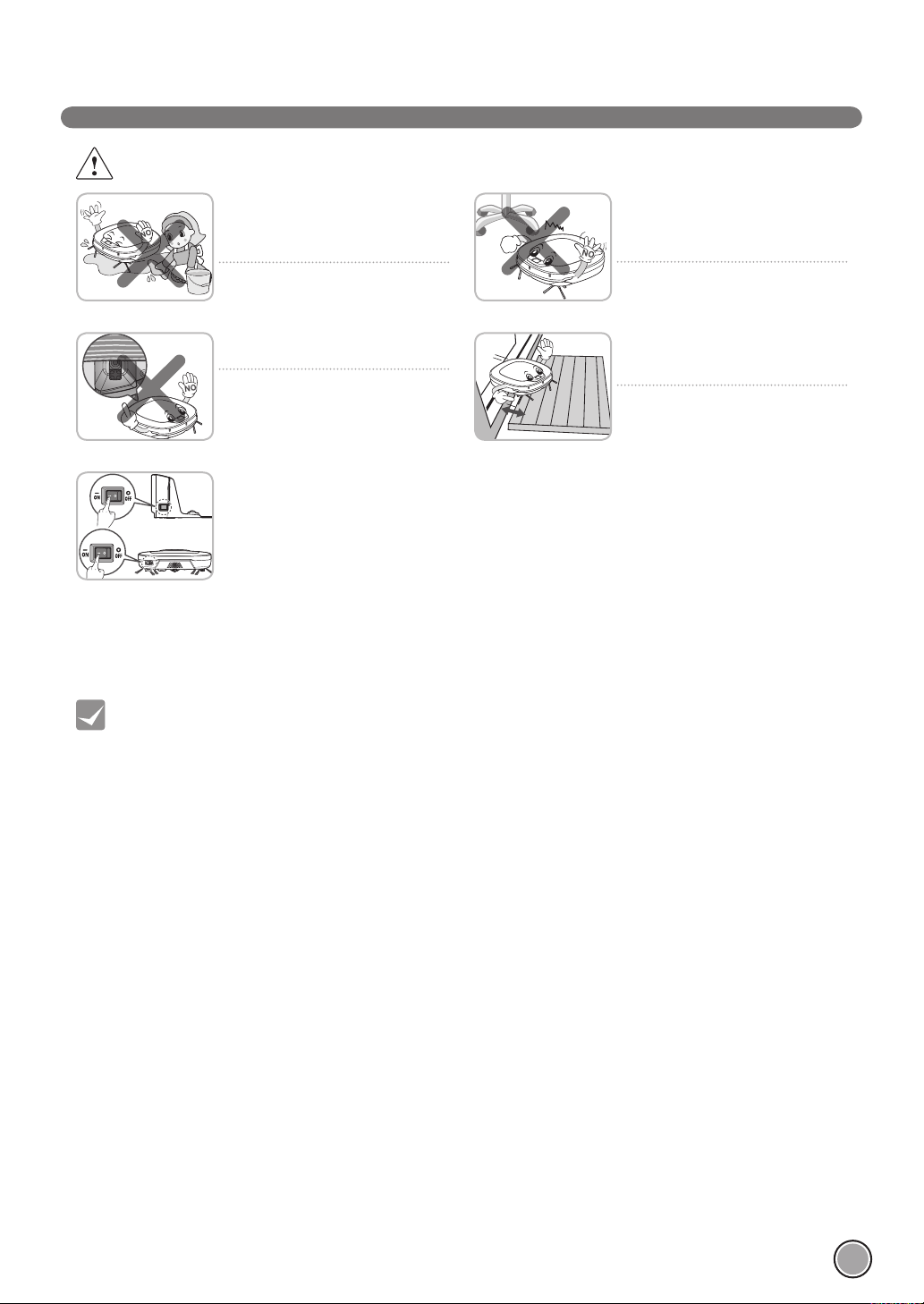

If the floor is wet or has wet spots,
wipe them up before using the
Robot Cleaner. Do not use the
Robot Cleaner on a wet surface.
Failure to do so can cause product
failure.
When attaching the mop, do not
block the bottom camera sensor.
Blocking the bottom camera sensor
may not allow the product to work
smoothly.
When the robot cleaner is
operating, it may hit the chair leg,
desk leg, table leg or other narrow
pieces of furniture.
For quicker and better cleaning,
place the dining chairs on top of the
dining table.
Make sure the plate on the floor is
higher than 2 cm from the ground
before starting the cleaning.
If the threshold is low, the Robot
Cleaner can go over it and perhaps
into an undesirable location. Make
sure that all the doors of the rooms
that are not to be cleaned are closed.
Tip
If you do not use it to save the
energy, turn off the power switch,
and turn on the power switch when
you are cleaning or recharging it.
6
INCLUDED WITH PRODUCT
Figures can be different from actual objects.
Dust bin filter (spare)
(option)
Cleaning Tool
Cleaning brush
(It’s on the dust bin cover)
Mop plate (option)
for cleaning
sensors
for cleaning
the filter
Ultra microfiber mop
(2 pieces) (option)
Dry cell for remote controller
(2 units of AAA size)
Quick guide Operation manual
Home station
Robot Cleaner
www.lg.com
GUIDE RAPIDE
ASPIRATEUR ROBOT
Ce guide décrit brièvement comment utiliser l'aspirateur robot.
Pour plus de détails, veuillez consulter le manuel de l'utilisateur.a
Veuillez lire attentivement ce qui suit avant d'installer et de mettre en service le produit.
GUIDE D'UTILISATION
ASPIRATEUR ROBOT
Avant toute utilisation, lisez attentivement la rubrique "Précautions
relatives à la sécurité" pour le bon fonctionnement du produit.
Après avoir lu le manuel d'utilisation, conservez-le dans un endroit
facilement accessible à tout moment.
www.lg.com
Remote controller
Side brush (2 pieces)
(option)
Carpet Master
(option)
7
PARTS DESCRIPTION - ROBOT CLEANER
Figures can be different from actual objects.
Plan view
Upper camera sensor
Dust bin cover
Display & Manipulation button
Dust bin cover button
Ultrasonic sensors
Obstacle detecting sensor window
Detecting sensors of home station &
Receiving sensors of remote controller
Power switch
Ventilation port
Cliff detection sensor
Side brush
Charging terminal
Brush
Wheel
Battery
Lower camera sensor
Front view
Rear view
Bottom view
8
PART DESCRIPTION – HOME STATION / DUST BIN
Figures can be different from actual objects.
Home station
Dust bin
Remote controller holder
Charging terminal
Sponge filter
Dust bin handle
Cleaning brush
Dust bin cover
Suction port flap
HEPA filter
Filter cover
Dust bin cover
opening button
Power cord fixing hook
Power switch
9
BUTTON FUNCTIONS – ROBOT CLEANER
• If the button is pressed, ‘Turbo Mode’ will be set with a voice confirmation.
• If the button is pressed whilst in ‘Turbo Mode’, it will be canceled.
• Used to change the clean mode setting.
• If the machine is at the Home Station, ‘Spot Clean’ option is not available.
• The 'My Space' mode can only be selected by remote control (when the Robot
Cleaner is not on the home station).
• Used to return the Robot Cleaner back to the home station for charging.
• If cleaning is finished or the battery is low, the Robot Cleaner will return to the
Home Station by itself to recharge its battery.
• Pressing the ‘Turbo' and 'Mode' button for 3 seconds will activate or deactivate
the Lock function.
• If 'Lock' is ON, a voice announcement "Key has been locked" will be heard each
time a button is pressed.
• Used to turn the power ON, start or stop cleaning.
• If the button is pressed whilst the unit is powered ON, it will start cleaning.
• If button is pressed during the cleaning, it will stop the cleaning.
• If the button is pressed for about 2 sec. whilst the power is ON, the power will be
OFF.
• If the button is pressed in 'Smart Diagnosis' mode, it will end the diagnosis.
TURBO
MODE
HOME
BUTTON LOCK
On/Off
START/STOP
10

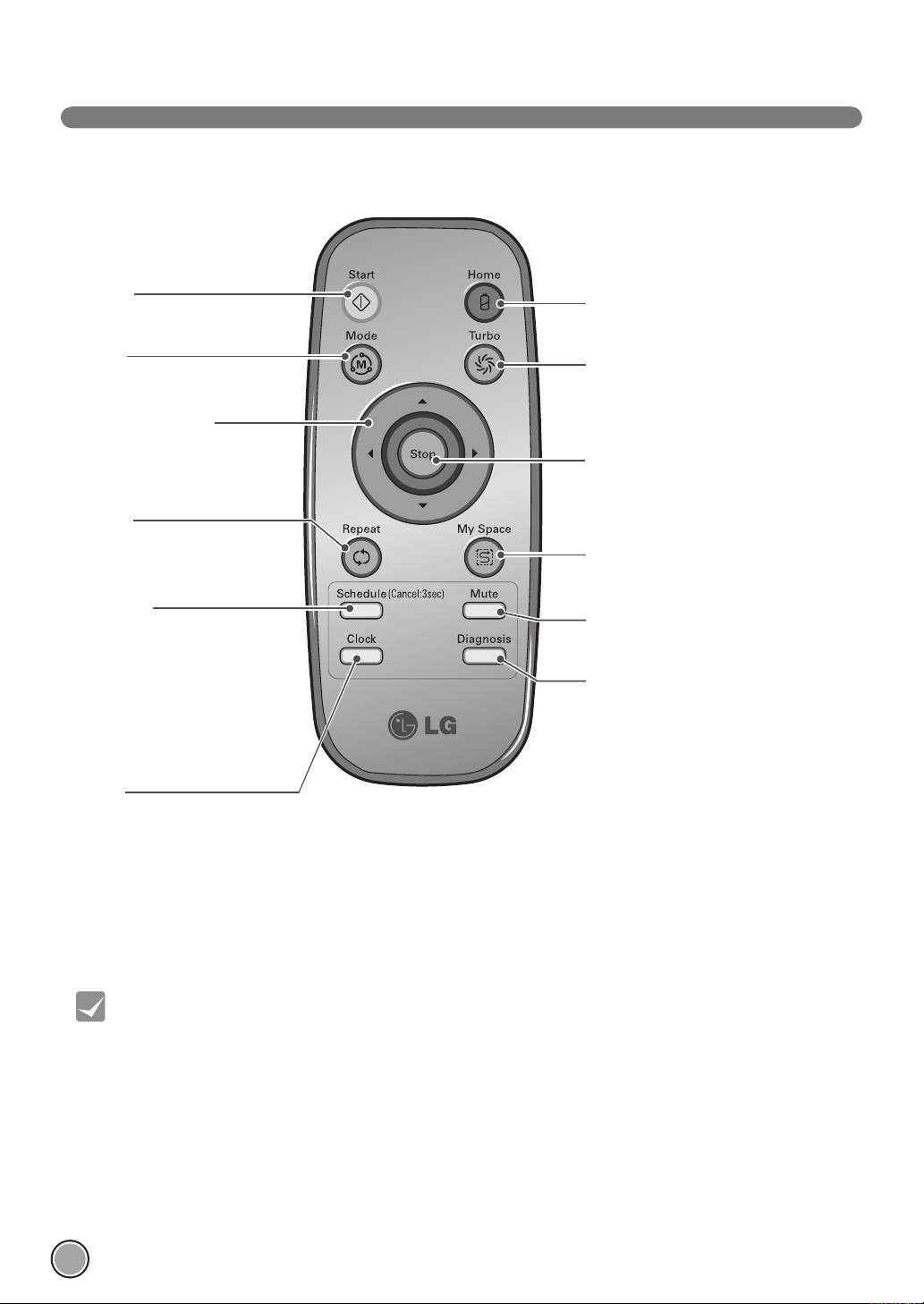

BUTTON FUNCTIONS – REMOTE CONTROLLER
• Remote Controller does NOT provide a Power ON function.
• With the machine's power OFF, the Remote Controller will not work.
• To turn the power ON/OFF, use the 'Start/Stop' button on the upper section of
the Robot Cleaner.
• Only use the 'Mode', 'My Space' or 'Clock' button after stopping Robot Cleaner.
Start
Pressing this button will
start the cleaning. (p16)
Home
Used to recharge the Robot Cleaner by
making it return to the Home Station. (p17)
Turbo
Used to activate or deactivate
'Turbo' mode. (p22)
Stop
Pressing the button will stop the
Robot Cleaner, or cancel a cleaning
schedule or time setting.
My Space
Used to put the Robot Cleaner in
'My Space clean' mode. (p20)
Mute
Used to activate or deactivate
'Mute' mode. (p11)
Diagnosis
Used to run Smart Diagnosis.
Available only when Robot Cleaner
is recharging. (p27)
Mode
Change the cleaning mode.
(p19)
Directional button
This button enables Manual
Operation and selection
of an area in 'My Space
cleaning' mode.
Repeat
This button allows activating
or deactivating 'Repeat
Cleaning' mode. (p22)
Clock
Used to set the current
time indicated on the Robot
Cleaner. (p23)
Schedule
Used to start cleaning at a
scheduled time.
Pressing the button for
3 sec. will cancel the scheduled
cleaning.
※
Schedule Setting/Cancel
options are available only in
'Charge' mode. (p24)
Tip
11
DISPLAY STATUS INFORMATION
• Once the clean mode is selected (Zigzag or Cell by Cell) it will be remembered even if the
power is OFF.
• To cancel the reservation, please press the 'Schedule' button on the remote for 3 seconds
while the Robot Cleaner is recharging.
Lock icon
Indicates whether 'Lock‘ is
activated or not.
Mute icon
This icon indicates
whether the Mute is
ON or OFF.
Battery icon
This icon indicates the
residual battery level,
it flickers if the battery
needs recharging.
AM/PM icon
This indicates whether it's
a.m. or p.m. according to
the clock setting.
Turbo icon
This display is ON
if Turbo Mode is
activated.
Homing icon
This icon is displayed
if Robot Cleaner is in
'Homing' mode.
My Space cleaning
Displayed when the
Robot Cleaner runs
My Space clean.
Spot cleaning
This icon appears
when Robot cleaner
starts Spot cleaning.
Time display
This indicates the current and
scheduled time.
Repeat cleaning
Displayed if the
machine is in 'Repeat
Cleaning' mode.
Zigzag cleaning
This icon is displayed to
indicate Robot Cleaner is
working in a Zigzag Clean.
Cell by Cell cleaning
This icon is displayed to indicate
Robot Cleaner is working in a
Cell by Cell cleaning mode.
Schedule icon
Indicates
the status of
Schedule/'One
time', or
'Everyday' setting.
Tip
12
BEFORE YOU START
• Do not use this device in a room where a child is left alone. The child could be injured.
• Remove fragile or unnecessary objects from the room to be cleaned.
Especially, remove expensive ceramics and valuables from the floor.
• Close the cover of the dust bin before cleaning.
• Remove any moisture that might be on the floor.
• Remove cables, strips, towels, mats etc. from the floor so they will not get caught by the brush.
• Confirm whether the battery charge is sufficient, and if it is low, recharge it.
• Empty the dust bin before or after each clean, or before it becomes full.
• Close the doors of any room that you do not want the Robot Cleaner to enter. During cleaning,
the Robot Cleaner may enter another room and continue cleaning.
• When the mop is attached, Robot Cleaner will not be able to go over thresholds of 5 mm or higher.
If you are not planning to use the mop for cleaning, separate the mop before using Robot Cleaner.
• Before starting the device, it's better to remove carpets that are thicker than 20 mm as they may cause it
to malfunction.
• Please close any balcony doors. The wheels may get stuck while cleaning.
1. Open the battery cover by lifting the rear hook of the remote controller.
2. Insert two AAA batteries, checking for +, - nodes while loading.
3. Close the battery cover completely so that the batteries will not fall out.
• Only press one button at a time.
• Do not drop or subject it to forceful impact.
• Do not store it near devices that give off heat, fire or hot air.
• Certain fluorescent lamps, such as the three band radiation lamp, can interfere with the activation of the
remote control. Therefore, use it as far away as possible from such lamps.
• If the remote control is far from the Robot Cleaner when activated, it may fail to operate properly. Use the
device within 3 m of the Robot Cleaner if possible.
Check these items before cleaning

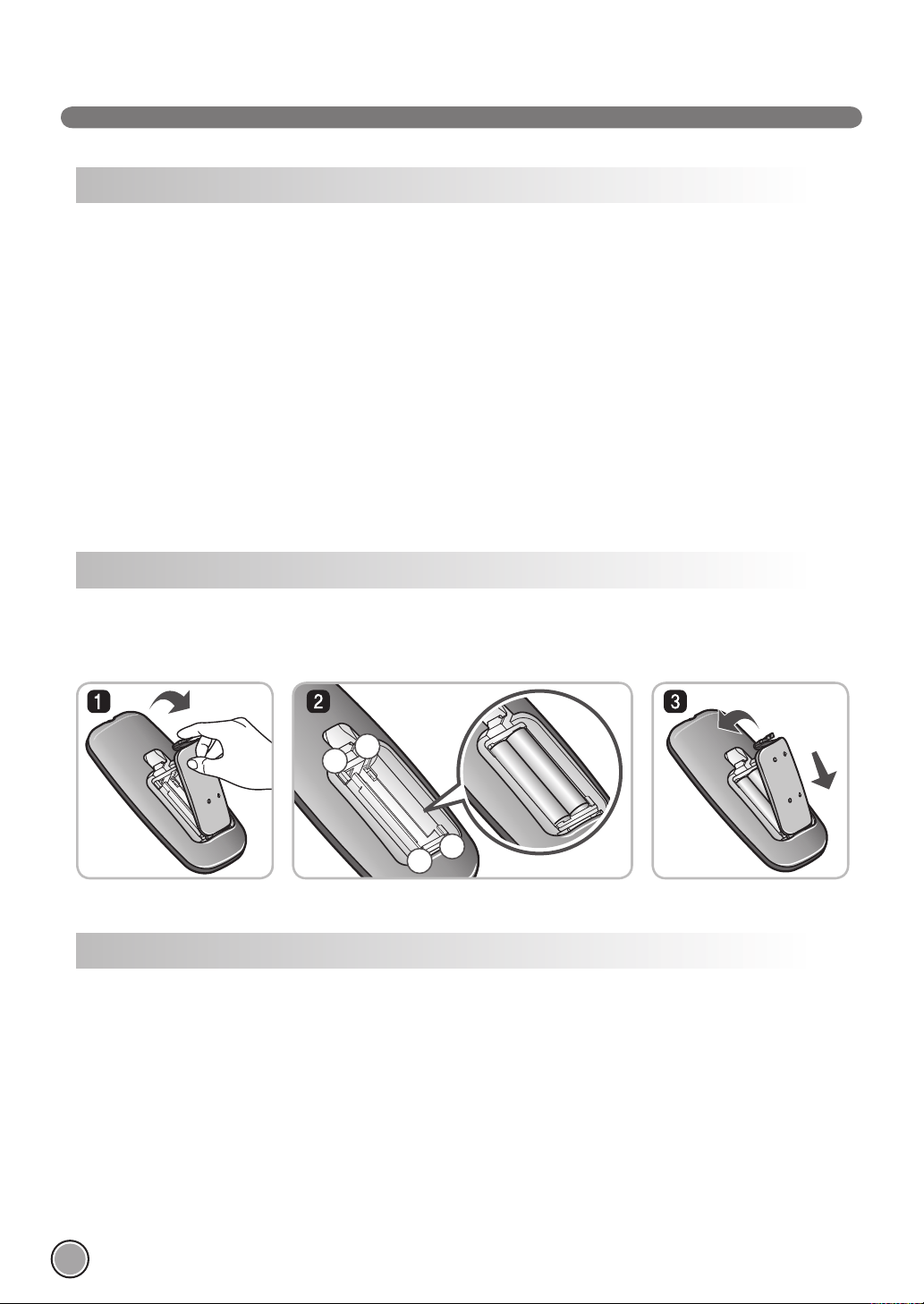

Loading the remote controller battery
Precautions while using the remote control
–
+
+
–
–
+
+
–
–
+
+
–
13
OVERVIEW
1.5
1.5
2
1
Install the home station. (p14)
Insert the power cord plug into an outlet and locate the
station against a wall. If power is not supplied to the
home station, the Robot Cleaner will not charge.
2
Turn on the power supply of the Robot
Cleaner. (p15)
Turn ON the power switch on the rear-left of
Robot Cleaner, and press the 'Start/Stop' button
on the top.
※
If the power supply is not turned on, refer to
page 15.
3
Check the dust bin.
Check the cleanness of the dust bin before start
cleaning and close the cover of the dust bin on the
main unit.
4
Start cleaning. (p16)
Press the START/STOP button once again while the
Robot Cleaner is turned on. You will hear the sound of
cleaning and cleaning will begin.
5
6
Automatic charge. (p17~18)
Use the cleaning mode and auxiliary functions.
(p19~25)
The Robot Cleaner will self-diagnose and automatically
return to the home station to recharge before the
complete discharge of the battery. It takes approximately
three hours to charge the battery.
Use the buttons on Robot cleaner and Remote
Controller to use each cleaning mode and supporting
feature.
Cleaning modes include ZigZag, Cell by Cell, Spot, My
space, and Repeat cleaning; supporting features include
Manual, Scheduled and Microfiber Mop cleaning.
< Warning > When Robot Cleaner is operated with the cover of the dust bin open,
it can cause an injury or serious damage to the product.
14
HOW TO INSTALL THE HOME STATION
1. Position the home station against a wall on hard level flooring to
prevent sliding during docking.
Remove objects within 1.5 m to the right and left side and within
2 m to the front.
2. Plug the power cord into an outlet.
Wrap the power cord around the fixed hook on the back side of
the home station or along the wall surface so that the travel path
of the Robot Cleaner will not be obstructed.
3. Fix the home station against the wall so that it does not move.
Please turn on the power switch.
4. When the remote controller is not used, store it on the remote
controller holder on the home station.
1.5
1.5
2
Fixing hook of power cord
• Always keep the home station plugged in. If the home station is not plugged in, the
Robot Cleaner will not return to the station to charge automatically.
How to Install the Home Station
< Warning > Do not operate the Robot Cleaner if the Home Station has a damaged cord or plug, if
it is not working properly, or if it has been damaged or dropped. To avoid hazard, the
cord must be replaced by LG Electronics, Inc. or a qualified service person.
Tip
15
HOW TO TURN THE ROBOT CLEANER POWER SUPPLY ON & OFF
Make sure the Power Switch on the rear-left of the Robot Cleaner.
If the power is OFF, turn the switch ON.
※
When turning on the power switch, do not press the button
located at the upper section of the Robot Cleaner. Operation of
the button can be delayed.
※
Turn off the power switch if the Robot Cleaner will not be used
for a long period of time, in order to protect the battery. The
Robotic Cleaner cannot charge if the main switch is in the
"OFF" position.
With the power of Robot Cleaner OFF, press 'Start/Stop' button
for 1 second until a "Ting" sound is heard. In about 10 seconds,
the power will be on and a melody will sound.
※
If 10 minutes elapse without the Robot Cleaner having being
given an active command after being turned on, the power will
automatically turn OFF.
Press the START/STOP button for two seconds while the
Robot Cleaner is turned on. A melody will sound when the power
is turned off.
• If the power cannot be turned on, do the following.
- Turn on the power switch and wait for more than 3 seconds.
- Press the ‘START/STOP’ button when the power switch is turned on.
- If the power is not turned on or if there is no display but only the “Ting” sound, put
the Robot Cleaner manually on to the home station.
Turning on the main power supply
Turning on from Stand By power.
Turning off the power supply
Tip
16
HOW TO START AND STOP CLEANING
After the Robot Cleaner is turned on, press the START/STOP button
to begin cleaning. A melody will sound and cleaning will begin.
Press the START/STOP button during the cleaning cycle to stop
cleaning.
※
When the ‘START/STOP’ button is pressed while the power supply
of the Robot Cleaner is turned off, the power will be turned on.
Press the ‘START/STOP’ button one more time to start cleaning.
After the Robot Cleaner is turned on from the Robotic Cleaner, press
the START button on the remote control. A melody will sound and
cleaning will begin.
Press the STOP button during the cleaning cycle to stop cleaning.
※
The Robot Cleaner cannot be turned on from Stand By, by using
the remote controller when the power of the Robot Cleaner is off.
When the power is off, press the ‘START/STOP’ button on the
upper side of Robot Cleaner to turn the power on and to allow the
remote to be used.
※
During cleaning, collisions can happen when the sensor cannot detect objects because of their shape (Thin
chairs and table legs, furniture corner). When this happens, the internal impact detecting sensor will react
by using a backward motion.
※
If the Robot Cleaner is set to start cleaning at a location away from the home station, put the Robot
Cleaner on a flat floor in order to prevent a malfunction of the obstacle detecting sensor. In addition, start
cleaning from a location where there are no obstacles such as curtains or walls within 30 cm of the Robot
Cleaner.
For best results:
• Briefly scan the area to be cleaned for big and small objects that will cause difficulty for the
Robot Cleaner.
• If cleaning is started when the Robot Cleaner is at the home station, the device can rapidly
be returned to the home station as the current home position has been accurately read.
• When the mop plate is installed, to prevent a 2
nd
contamination from the contaminated mop,
it will not go over door sills of 5 mm or higher.
Using the buttons on the Robot Cleaner
Using the remote controller
Tip
17
HOW TO CHARGE THE BATTERY
The Robot Cleaner returns to the home station at the end of a
cleaning cycle or when its battery is running low.
※
If 10 minutes elapse without the Robot Cleaner moving or the
battery is too low, the power will automatically be turned OFF.
※
Do NOT turn OFF the Main Power Switch as the battery will not be
recharged. If the machine is returned manually with the Main Power
Switch OFF, it shows an error message, "Main power switch on the
back of the Roboking is turned off. Please turn the switch on."
※
In the event that the unit returns to the Home Station due to a
low battery during the cleaning, cleaning will be started, after the
charging, from the nearest place of the area which has not been cleaned before. (Page 18)
※
If Robot Cleaner is unable to dock to the home station on its first attempt, it will try again until it docks
successfully.
※
When Robot Cleaner has completed all areas that it can clean, it will return to the home station even when
the battery level is not low.
If using the Robot Cleaner for the first time or when charging the battery during cleaning, you can manually
charge the battery.
Method 1. Attach the Robot Cleaner to the home
station by aligning to the front side of the
home station. A melody sound will be
generated along with an audio message to
start charging.
※
If a voice message, "Main power switch
on the back of the Roboking is turned off.
Please turn the switch on." is announced
repeatedly, then turn on the Main Power
Switch.
Method 2. When the 'HOME' button of the remote
control or the Robot Cleaner is pressed,
charging will be prompted by automatically
generating a searching signal and returning
the Robot Cleaner to the home station.
※ If the Robot Cleaner did not start cleaning from the home station or if the Robot Cleaner is manually
charged by pressing the Home button, it may take slightly longer to find the home station.
※
If the Robot Cleaner is within 10 cm of the front of the charging terminal while the power supply is turned
on, it will automatically be returned to the home station and charging will begin.
Automatic charging
Manual charging
Take the following precautions when using the home station:
• If foreign material is caught in the charging terminal, charging may not proceed smoothly.
Wipe the terminal from time to time with a dry cloth after the power plug is disconnected.(p32)
• To prevent electric shock or damage to the home station, do not touch the charging terminal
with any metallic objects.
• To avoid fire or electric shock, never disassemble or modify the home station.
• Do not to place the home station or power plug near a heating source.
Tip
18
HOW TO CHARGE THE BATTERY
Check 1:
If the battery is not charging even when the Robot Cleaner is
attached to the home station, check the following items.
- Turn the power switch on the rear-left of the Robot Cleaner
off once and then on again.
- Check the power lamp of the home station.
- Wipe the terminal on the home station with a dry cloth. (p32)
Battery level is indicated on Status Display, as follows.
• If recharging is in progress, the Battery Level Lamp ickers.
• If recharging is complete, only the 'Battery' and 'Clean Mode' icons are displayed to save the energy.
• Upon the need for recharging, only the rst level of Battery Level Lamp will be on and ickering.
The status indication lamp
while the robot is charged
(In spatial Zigzag mode)
※
If Robot Cleaner goes back to Home Station, with a low level of battery
while it is the 'Clean Mode' lamp starts to flicker.
- When the 'Clean Mode' lamp starts to flicker after recharging is
complete, Robot Cleaner will then resume cleaning the areas which
were not covered.
- Pressing the 'Start' button on the Remote Controller or 'Stop' button on
main unit whilst it is recharging, with the 'Clean Mode' lamp flickering,
will also make Robot Cleaner find and clean uncovered spots.
- Pressing the "Start" button on the remote control or the "Start/Stop"
button on the device after changing the mode will make the Robot
Cleaner start to clean from beginning again.
Remaining Battery Charge Indicator
If the Battery is Not Charging
Flickering
In the case of no existing
area to be cleaned
In the case of an existing area
to be cleaned (Flickering)
Power lamp
Charge terminal
Charging is required
Middle
Low
High
19
CLEANING MODES
In 'Zigzag Clean' mode, Robot Cleaner repeats a
zigzag operation to clean every and each spot in the
cleaning area.
If you need to quickly clean an area choose 'Zigzag
Clean' mode.
Press ‘Mode’ button on Remote Controller or main
unit to select 'Zigzag Clean' mode and press 'Start'
button.
※
Factory release default setting is 'Zigzag Clean.'
In 'Cell by Cell' mode, Robot Cleaner cleans the
area by dividing it into rectangular spaces.
For meticulous cleaning, select this mode.
Press ‘Mode’ button on Remote Controller to select
'Cell by Cell' mode and press 'Start' button.
The 1st stage:
The maximum outline of 3 m x 3 m of cleaning
area will be cleaned. (The size of the outline may
vary in accordance with the shape of the area to
be cleaned.)
The 2nd stage:
The 2nd stage of Cell by Cell cleaning engages a
Zigzag mode automatically.
When the 1st, 2nd stages are completed, the
cleaned area will be cleaned through the repetition
of the above cleaning method as the device is being
moved to the next part of cleaning area.
• Once set up, the cleaning mode(Zigzag, Cell by Cell) setting will be maintained even after
the power supply is turned off.
• During operation, if a mode change is required, press the STOP button and then select the
mode. Cleaning will then start from the beginning.
Zigzag Cleaning
Cell by Cell Cleaning
Tip
20
CLEANING MODES
Pressing 'My Space' on Remote Controller will set the
My Space cleaning mode with a voice message.
For cleaning of particular spaces, select this mode.
The 1st stage:
Use the Remote Controller to manually run
the cleaning on outskirts of each cleaning block.
※
This cleaning mode will be accepted when the distance of the start and end position is less than 1 m.
The 2nd stage:
Pressing the 'Start' button will then make the Robot Cleaner clean the manually outlined area by itself.
※
Upon failure to correctly outline a zone, a voice will announce, which says "Area does not meet the
specified conditions. Please continue to make specified area for cleaning process."
Use the Remote Controller to assign a zone, again.
※
Upon completion of cleaning for all selected areas, the Robot Cleaner will be placed in the cleaning mode
(Zigzag or Cell by Cell) which was run, right before.
• While recharging, you cannot activate 'My Space clean' mode.
• To change the cleaning mode while Robot Cleaner is in operation, press 'Stop' button first to
select a mode The cleaning will the start from the begining.
My Space Cleaning
Tip
My Space
21
AUXILIARY CLEANING MODES
By pressing a direction key on Remote Controller, you can move Robot Cleaner in a Manual mode.
Robot Cleaner will clean the area, moving forward/backward/left/right, according to the input of the direction
key.
While in 'Manual' mode, the robot cleaner will run into obstacles placed behind it if the backward key on the
remote remains held down.
Is best used used to clean certain parts of the house.
Press 'Mode’ button on Remote Controller to select 'Spot Clean' mode, indicated on Status Display, and
'Start' button, then Robot Cleaner will start Spot cleaning for a space within a 1.5 m diameter.
※
While recharging, 'Spot Clean' cannot be selected.
※
Upon completion of Spot Clean, the machine will be placed in the cleaning mode (Zigzag or Cell by Cell)
which was run, right before.
Manual cleaning
Spot Cleaning
It stops at the started position after
completing the cleaning(takes 4~5 min.).
22
AUXILIARY CLEANING MODES
Pressing 'Turbo' button on Remote Controller or main
unit will activate 'Turbo' mode, with a voice message.
While in 'Turbo' mode, pressing the same button will
cancel 'Turbo' mode, with a voice message.
In 'Turbo' mode, Robot Cleaner runs more intensely
for a powerful clean.
※
<Turbo Mode (Floor Master Function)>
‘Turbo mode’ will automatically operate when the
Robot Cleaner cleans carpets.
Pressing 'Repeat' button on Remote Controller will activate 'Repeat'
mode, with a voice message.
While in 'Repeat' mode, pressing the same button will cancel 'Repeat'
mode, with a voice message.
In 'Repeat' mode, Robot Cleaner repeats the cleaning in progress until
the battery runs out.
Robot Cleaner is capable of memorising the
cleaning environment through its Learning mode for
an intelligent cleaning operation.
※
'Learning Mode' is available only when the
machine starts cleaning from the Home Station.
Turbo Mode
Repeat Mode
Learning Mode
• Precautions with Smart Operation
- This Learning mode enables memorizing locations with obstacles to bypass them. Robot
Cleaner memorizes every aspect of the environment it was put under from when it started
cleaning from the Home Station to the moment it finishes its course.
- Robot Cleaner learns the new conditions when the location of Home Station has been
changed.
- If the learning mode is accepted, a voice message will say "The learning cleaning process is
complete."
Tip
23
TIME SETTING
You can set the current time on the Robot Cleaner.
Pressing ‘Clock' button on Remote Controller, when Robot Cleaner is waiting, will start
the current time setting.
• Any scheduled cleaning will be activated based on the time on the Robot Cleaner. You must
set the clock before setting scheduled cleaning.
• If there is no input for 10 seconds, the clock setting is canceled.
Tip
Select by using '
' buttons
on the Remote Controller.
The function can be heard
through the voice guide.
Set the time units by using '' buttons
on Remote Controller.
Set the unit of minutes using ''
buttons on Remote Controller.
Set the AM/PM using '' buttons on
Remote Controller.
Pressing 'Clock' button on Remote
Controller will complete the time setting
process.
Flickering
Flickering
Flickering
24
SCHEDULED CLEANING
You can schedule a cleaning so that the Robot Cleaner starts cleaning at a scheduled
time.
Pressing 'Schedule' button on Remote Controller, when the battery is recharging, will
start the scheduled cleaning setting.
• When the scheduled time comes up, Robot Cleaner will start cleaning by itself.
• Scheduled cleaning can only be set when the Robot Cleaner is recharging.
• While recharging, by pressing the 'Schedule' button on the Remote Controller for 3 seconds
will cancel the set schedule.
• If there is no input when setting the schedule time within 10 seconds, the setting is canceled.
Tip
Setting/Cancelling the reservation is only possible when the unit is recharging.
Select a level by using '
'
buttons on Remote Controller.
'One time'
'Everyday'
Select 'One Time' or 'Everyday' option
by using '' buttons on Remote
Controller.
A voice message will confirm the
schedule.
Set the hour units by using the ''
buttons on Remote Controller.
Set the minutes by using the ''
buttons on Remote Controller.
Set the AM/PM using the '' buttons
on Remote Controller.
Pressing 'Schedule' button on Remote
Controller will then complete the
scheduling process.
Flickering
Flickering
Flickering
Flickering
25
MOP CLEANING (OPTION)
1. Attach the ultra microfiber mop to the Velcro
of the mop plate as shown in the figure.
2. Firmly push the Mop Plate into the furrows
until you hear a 'click' sound.
※
Note that, if the Mop Plate is not secured
correctly, it may separate during the
cleaning.
3. It is essential that the fixing hooks on the Mop
Plate align correctly on to the fixing grooves
on the underside of the cleaner.
For mop cleaning, mount the mop and mop plate to the Robot Cleaner according to the following instructions:
By attaching the ultra microfiber mop, you can
effectively use the Robot Cleaner to remove dust.
When the mop plate is attached, the Robot Cleaner
will not climb on to carpets or over thresholds, in
order to prevent transferring dirt from the mop.
• To avoid odors, wash any foreign material or dust off the mop after cleaning is complete.
• To avoid staining floors, do not use the ultra microfiber mop to clean when dirt is mixed with
liquids such as coffee or ink.
• To avoid damage to carpets from the Velcro or dirt transfer from the mop, do not clean the
carpet while the mop plate or mop is attached.
• Keep the ultra microfiber mop dry. Do not use it on wet surfaces.
If there is moisture, it can interfere with the navigation.
• Smart Diagnosis feature is not available, when the Mop Plate is attached.
Fixing hook
Fixing groove
“Click!”
Tip
Caution
Do not cover the bottom camera
sensor by mop.
26
LOCATION SEARCH FUNCTION
※
The navigating function will be activated after the
Robot Cleaner adequately recognizes the cleaning
environment.
Manual Relocation.
1. Locate the Robot Cleaner near the location where
it was originally moved from.
※
The location search is more effective when the
Robot Cleaner is closer to the location where it
was moved from.
※
If it is moved from its original cleaning position
by more than 1 m, it becomes difficult for
the Robot Cleaner to search for it's previous
location.
2. Press the START/STOP button on the Robot Cleaner or START button on the remote controller.
Robot Cleaner will then start the location search function along with an audio guide.
※
When the location search is successfully completed, it will continue cleaning from where it was moved.
If the location search fails, it will start again from the beginning.
The Robot Cleaner remembers its location while cleaning.
If the user moves the Robot Cleaner while it is operating, it will search for the location it
was moved from by using its navigational location search function before continuing to
clean.
Zigzag Zigzag
Zigzag Zigzag
Change location
Location of incident
Location of incident
1 m
1 m
When the location search
function is activated, the
cleaning mode of the status
indicator will flash
To improve its accuracy, do not
stand near the Roboking when
it is in location search mode.
• When the power is turned off after the location search function is set, the location search
function will be canceled.
• Location search will be more effective when the Robot Cleaner is closer to the location where
it was moved from.
Tip
27
SMART DIAGNOSIS
1. Turn ON the Main Power Switch on the back after making
sure the Robot Cleaner is attached to the Home Station.
※
Smart Diagnosis is only possible when the Robot
Cleaner is attached to the Home Station.
2. Press 'Diagnosis' button on the Remote Controller, then
the process will start with a voice message which says
"Starting Roboking smart diagnosis. Please step away and
remove any items within 1 meter, or about 3 feet."
※
If the Mop Plate is attached, the process will not be
activated.
3. When the Smart Diagnosis has successfully
finished, Robot Cleaner will return back to the
Home Station and inform the result through a
voice message. After the voice message, pressing
the 'HOME' button on the Remote Controller
or main unit will allow the voice message to be
repeated. To terminate the diagnosing process,
press the 'Stop' button on the Remote Controller
or main unit.
※
After the Smart Diagnosis voice message,
the Robot Cleaner will start recharging after
1minute.
※
If an error is detected with any of the Sensors
whilst in Smart Diagnosis, a voice message will
announce, and the unit will not return to the
home station.
Robot Cleaner uses this Smart Diagnosis feature to run a self-diagnosis.
If any irregularity is found from the diagnosis, please contact the local LG Electronics
service center.
※
During Smart Diagnosis, the Robot Cleaner will move about within a 50 cm radius. So, make sure no
objects are in the way within a 1 m radius around the Home Station, before starting Smart Diagnosis.
• Be careful not to touch the Robot Cleaner or disturb its operation before Smart Diagnosis
is complete. If it is accidently interrupted, turn the main power switch OFF then ON again to
resume the diagnosis.
• Smart Diagnosis will not be activated in each of the following cases. In each case, check the
problem and try again.
- Robot Cleaner is detached from Home Station
- Battery level is insufficient
- No Dust Bin Filter is fitted.
- Mop Plate is attached
Tip
28
SMART DIAGNOSIS
If a voice message is announced after Smart Diagnosis, refer to the following table to take proper actions.
Voice message Measures (for reference)
Roboking smart diagnosis will be started. Please step away and
clear around 1 meter around the home station.
Clear any object within a 1 m radius around Home Station,
and stay back until the diagnosis is complete.
Smart diagnosis can start when it is being charged. Please dock
RoboKing to the home station to charge.
Move Robot cleaner to the Home Station to recharge it.
No defect found during diagnosis.
Diagnosis mode cannot be operated due to a low battery. Please try
again after the battery is charged.
Try the Smart Diagnosis again after recharging the battery.

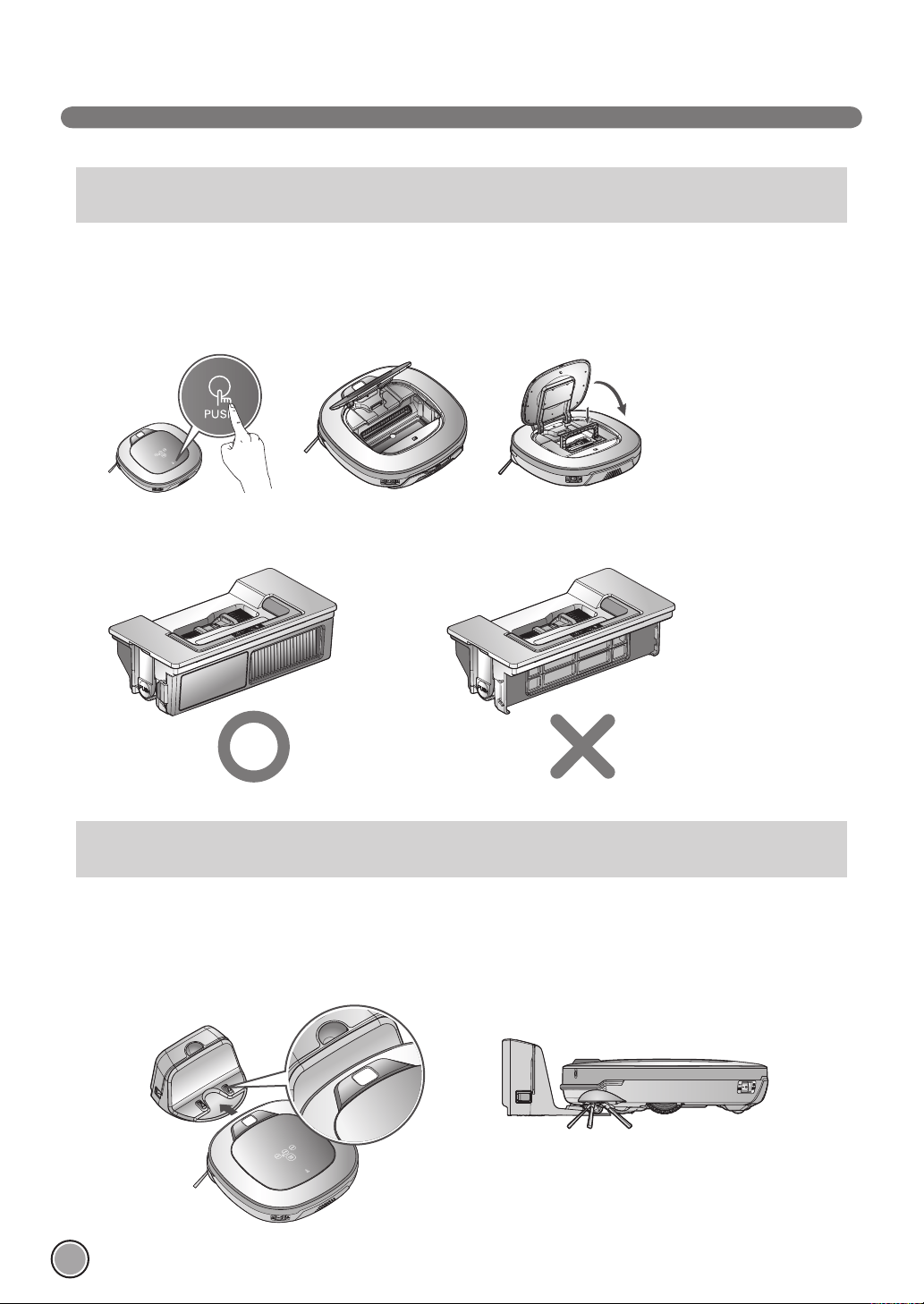

Please check if the dust bin is installed with the filter.
Open the Dust Bin Cover and examine the bin.
Charging cannot be done due to a problem in infrared sensor.
Please try smart diagnosis again after turning off and back on
from the main power switch on the bottom of the RoboKing. If the
problem continues, please contact LG Electronics customer care.
Run Smart Diagnosis again and, if the same message is
announced, contact an LG Electronics service center.
Charging cannot be done due to a problem in ultrasonic sensor.
Please try smart diagnosis again after turning off and back on
from the main power switch on the bottom of the RoboKing. If the
problem continues, please contact LG Electronics customer care.
Run Smart Diagnosis again and, if the same message is
announced, contact an LG Electronics service center.
Charging cannot be done due to a problem in the cliff detection
sensors on the bottom. Please clean the sensors.
Clean the three Cliff Sensors on the bottom at the front of
the unit.
Please wipe the lower camera sensor on the right bottom of the
RoboKing.
Clean the lens of Camera Sensor on the bottom-right.
Please wipe the obstacle detecting sensor window on the left and
right side of the RoboKing.
Clean the lens of the Obstacle Sensors on both the left and
right hand sides.
A problem has been found on the Gyro Sensor. Please try smart
diagnosis again after turning off and back on from the main power
switch on the bottom of the RoboKing. If the problem continues,
please contact LG Electronics customer care.
Run Smart Diagnosis again and, if the same message is
announced, contact an LG Electronics service center.
Please check for dirt on the left wheel.
Check for foreign materials on the left wheel.
Please check for dirt on the right wheel.
Check for foreign materials on the right wheel.
A problem has been found on the left wheel sensor. Please try
smart diagnosis again after turning off and back on from the
main power switch on the bottom of the RoboKing. If the problem
continues, please contact LG Electronics customer care.
Run Smart Diagnosis again and, if the same message is
announced, contact an LG Electronics service center.
A problem has been found on the right wheel sensor. Please try
smart diagnosis again after turning off and back on from the
main power switch on the bottom of the RoboKing. If the problem
continues, please contact LG Electronics customer care.
Run Smart Diagnosis again and, if the same message is
announced, contact an LG Electronics service center.
Please check the turbo brush for obstructions.
Check for any foreign material stuck in the Brush.
A problem has been found in the suction motor. Please try smart
diagnosis again after turning off and back on from the main power
switch on the bottom of the RoboKing. If the problem continues,
please contact LG Electronics customer care.
Run Smart Diagnosis again and, if the same message is
announced, contact an LG Electronics service center.
A problem has been found in the acceleration sensor. Please try
smart diagnosis again after turning off and back on from the
main power switch on the bottom of the RoboKing. If the problem
continues, please contact LG Electronics customer care.
Run Smart Diagnosis again and, if the same message is
announced, contact an LG Electronics service center.
In order to listen to the smart diagnosis result again, please press
the charging button. To stop, please press the stop button.
If you need to repeat the diagnosis result, press the 'Home'
button, or press 'Stop' button to finish the diagnosis.
Smart diagnosis mode will be turned off.
Smart Diagnosis mode cannot be operated with mop plate being
attached. Please try again after removing it.
Run Smart Diagnosis again after removing the Mop Plate.
Smart diagnosis has failed to operate. Please try it again after
turning on and off the main power switch on the bottom of the
Roboking.
Turn the main power switch OFF and then ON again to
resume the diagnosis. Do NOT touch the robot or disturb its
operation until the diagnosis is complete.
Please check if the charging terminal is damaged or dirty.
Clean the bottom of the machine and Charging Terminal
on Home Station.
29
CLEANING THE DUST BIN
1. Open the dust bin cover by pressing the PUSH
button on the Robot Cleaner.
2. Grab the handle of the dust bin and pull it
upward.
3. Pull the hook on the left of Filter Cover on the
rear of Dust Bin to separate the filter and the
sponge.
※
Note that separating the filter may result in
dust dropping.
※
Refer to p.30 when cleaning the Dust Bin Filter.
4. Lift the cover upward while pressing the
separation button on the dust bin.
5. Empty the dust bin and clean it with a cleaning
brush or under running water.
6. After cleaning with water, completely dry the
dust bin in a well-ventilated area out of the direct
sunlight.
7. When reassembling or fitting the cleaned Dust
Bin, close the cover and put in the Sponge and
HEPA Filter.
※
Refer to p.30 for detailed assembly guides.
8. Put the dust bin into the Robot Cleaner and close
the dust bin cover.
If the dust bin is full, suction power can be reduced. Clean the dust bin before and after each cleaning
session. Clean the dust bin using the following sequence:
• Operating the unit without Filters fitted to the dust bin can cause a motor malfunction not
covered by warranty.
• After cleaning the Dust Bin, make sure to assemble the filter and fit it to the Dust Bin.
If you initiate cleaning, with no filters fitted to the dust bin or Filter Cover not assembled,
a voice message will be announced which says "Please check that the dust bin and filter are
properly installed."
• Always ensure that the dust bin cover is refitted correctly after
cleaning the dust bin so that it closes easily and accurately.
Tip
30
CLEANING THE DUST BIN FILTER
The Dust Bin Filter consists of a HEPA Filter and Sponge Filter.
Clean both the HEPA and Sponge filters as per the following sequence.
3. Use a cleaning brush to clean the Sponge Filter.
If using water to clean it, allow it to dry completely
in the shade before refitting.
4. Assemble the HEPA and Sponge filters back onto
the Filter Cover as per the following sequence.
※
Fit the rectangular locator on the HEPA Filter
into the locating slot of the filter body.
※
Be careful not to incorrectly assemble HEPA
and Sponge Filter onto the Filter Cover.
2. Thoroughly clean out the fine dust particles on the
HEPA Filter, with a vacuum cleaner or cleaning brush.
※
Do NOT wash the HEPA Filter with water.
Its suction power will be reduced.
• To preserve the performance of Robot Cleaner, clean the HEPA Filter at least once a week,
with a brush or vacuum cleaner.
• If you run Robot Cleaner, with the Filter Cover assembled onto Dust Bin and without no filters
inserted, it may involve dusts coming inside to cause a failure.
Tip
1. Pull the hook on the left of the HEPA Filter
module on the rear side of Dust Bin to separate
the HEPA Filter and the sponge.
31
CLEANING THE BRUSH
Fit the Fixing Hook
(rectangular shape) on
the side of the Brush into
the slots, with the colors
matching.
While pushing the Brush to the
arrow direction, fit the Fixing
Hook (rectangular shape) on
the opposite side into the slot.
Press down and close the
Cover until a 'crack' sound
is heard from both sides of
Fixing Hook.
※
Be careful not to trap the
side brush bristles under
the cover when closing it.
Push the Brush all the way
into the yellow protrusion.
While pushing the Brush, lift
the white protrusion part up to
separate it from the main unit.
Carefully clean the Brush with
a vacuum cleaner or scissors.
Turn the Main Power Switch
OFF before starting the clean.
Put the Robot Cleaner upside
down on a soft cloth.
After checking for foreign
materials, press down the Fixing
Hook and pull it up to separate
the brush Cover.
By using a cleaning tool, clear
hairs and other debris and
foreign materials on the Brush
and from the 2 smaller jockey
wheels.
The rotating Brush, located on the bottom of Robot Cleaner, helps collect the dust. Clean the Brush as per
the following sequence.
※
Before turning over the main unit, lay a soft cloth on the floor and remove the Dust Bin.
Otherwise, the main unit can get scratches and dust will fall from Dust Bin.
32
CLEANING THE SENSOR/CHARGING TERMINAL
Upper camera
sensor
• Do not clean the Robot Cleaner by directly spraying it with water, thinner, benzene, or any
other liquids.
• Call the service center if the sensor or charging terminal is damaged. Sensor and terminal
damage can cause the product to malfunction.
• To clean the sensor/charging terminal, use the cleaning brush.
There are sensors on the Robot Cleaner that detect obstacles,
stairways and the home station for charging the battery. In order to
maintain the performance of the Robot Cleaner, regularly clean the
sensors and charging terminal as follows:
1. Turn off the power switch on the bottom of the Robot Cleaner. Injury
can be caused by the activation of the Robot Cleaner if the main
power is not turned off.
2. Lay a smooth cloth on the floor, overturn the Robot Cleaner and put
it on the cloth.
※
Please make sure to remove the dust bin before rotating the main
body. Otherwise, the dust in the dust bin may fall out.
3. Use a smooth cloth or cleaning brush to wipe the dust off each cliff sensors, camera sensors and
ultrasonic sensors and the charging terminal as described below.
Charging terminal
Ultrasonic sensors
Obstacle detecting
sensor window
Detecting sensors
of home station &
Receiving sensors of
remote controller
Cliff detection
sensor
Charging terminal
Bottom camera
sensor
Lens
Tip
33

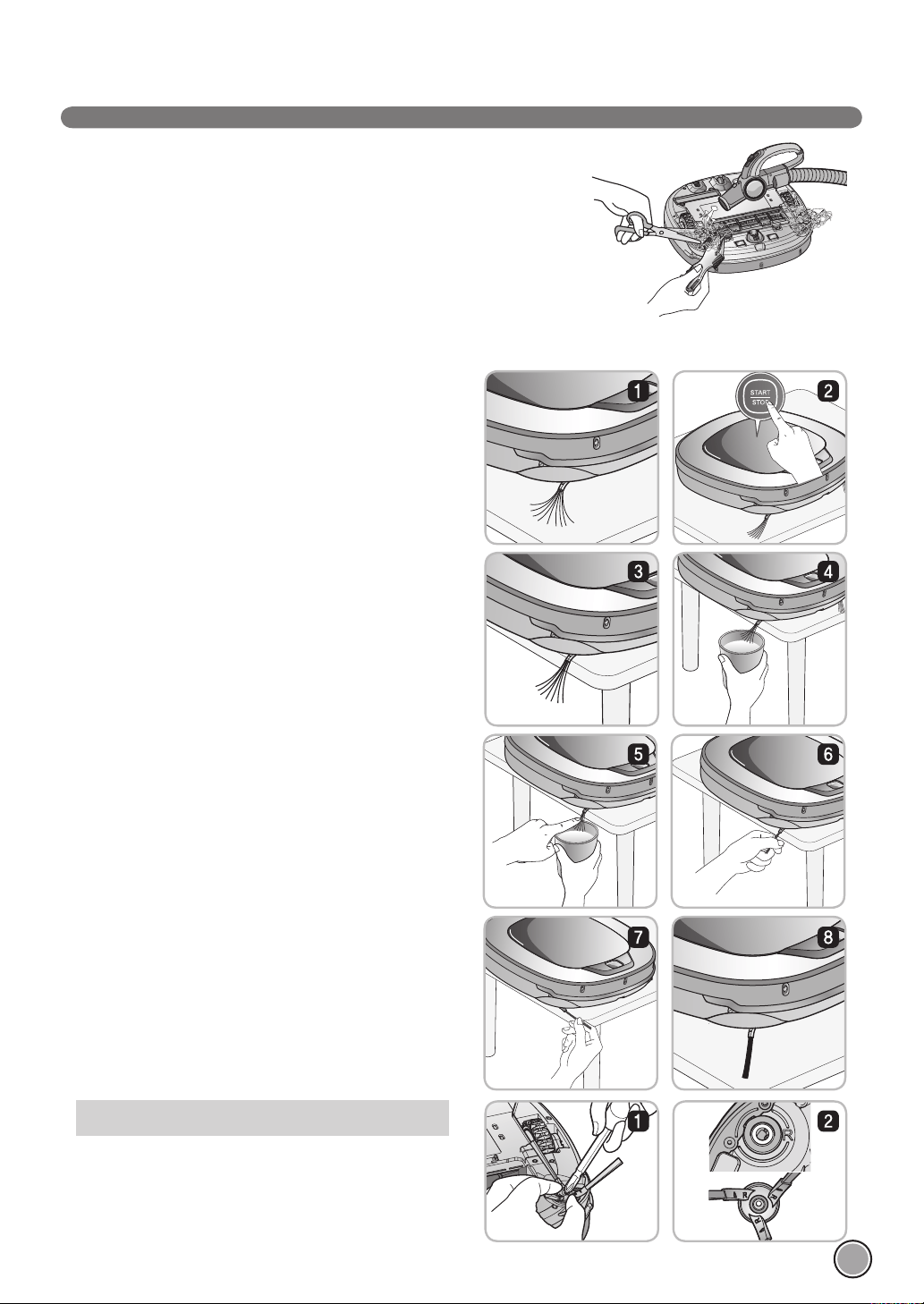

CLEANING THE SIDE BRUSH
Foreign objects/materials such as hair can easily adhere to the side
brush. Remove such materials at least once a week.
If excessive amounts of foreign materials are stuck to the brush,
there is the risk of damage to the brushes.
If the floor is rough or walls are frequently cleaned, the side brush may bend or become damaged. In this
case, use the following method to straighten the side brush.
1. The following procedure is helpful in restoring
deformed brushes.
2. Turn off the power by switching the main switch
off on the rear off the unit.
3. Place the Robot Cleaner at the end of a table to
make cleaning the side brush easier. Make sure
that the Robot Cleaner is not in danger of falling.
4. Soak the side brush in warm water.
5. Press down on the side brush for about ten
seconds so that it is completely submerged in
the water.
6. Slowly wipe the side brush by sliding it through
your hand.
7. Rotate the side brush and repeat steps 4-6 for
each section of the brush.
8. Use the side brush only after it has completely
dried.
1. Remove the screws by using a driver and separate
the Side Brush from the main unit.
2. Remove any hair after the separation.
3. Assemble the Side Brush by replacing it onto the
bottom of the Robot Cleaner, with the 'R' and 'L'
marking of the Brush matching the counterparts
on Robot Cleaner.
Side Brush management
34
CLEANING THE ULTRA MICROFIBER MOP (OPTION)
1. Separate the ultra microfiber mop from the mop plate.
2. Carefully clean it with warm water.
3. Use the Mop after completely drying it in direct sunlight.
※
If the Mop is used in a damp or wet state, it will cause the
Robot Cleaner to malfunction.
To avoid odors, dirt and dust should be washed off the mop after it is used for cleaning. Follow these
directions to wash the ultra microfiber mop:
• To avoid product malfunction, only use the ultra microfiber mop provided with
the Robot Cleaner.
• Additional microfiber mops can be purchased by visiting a nearby LG Electronics service
center.
Tip
210 mm
35

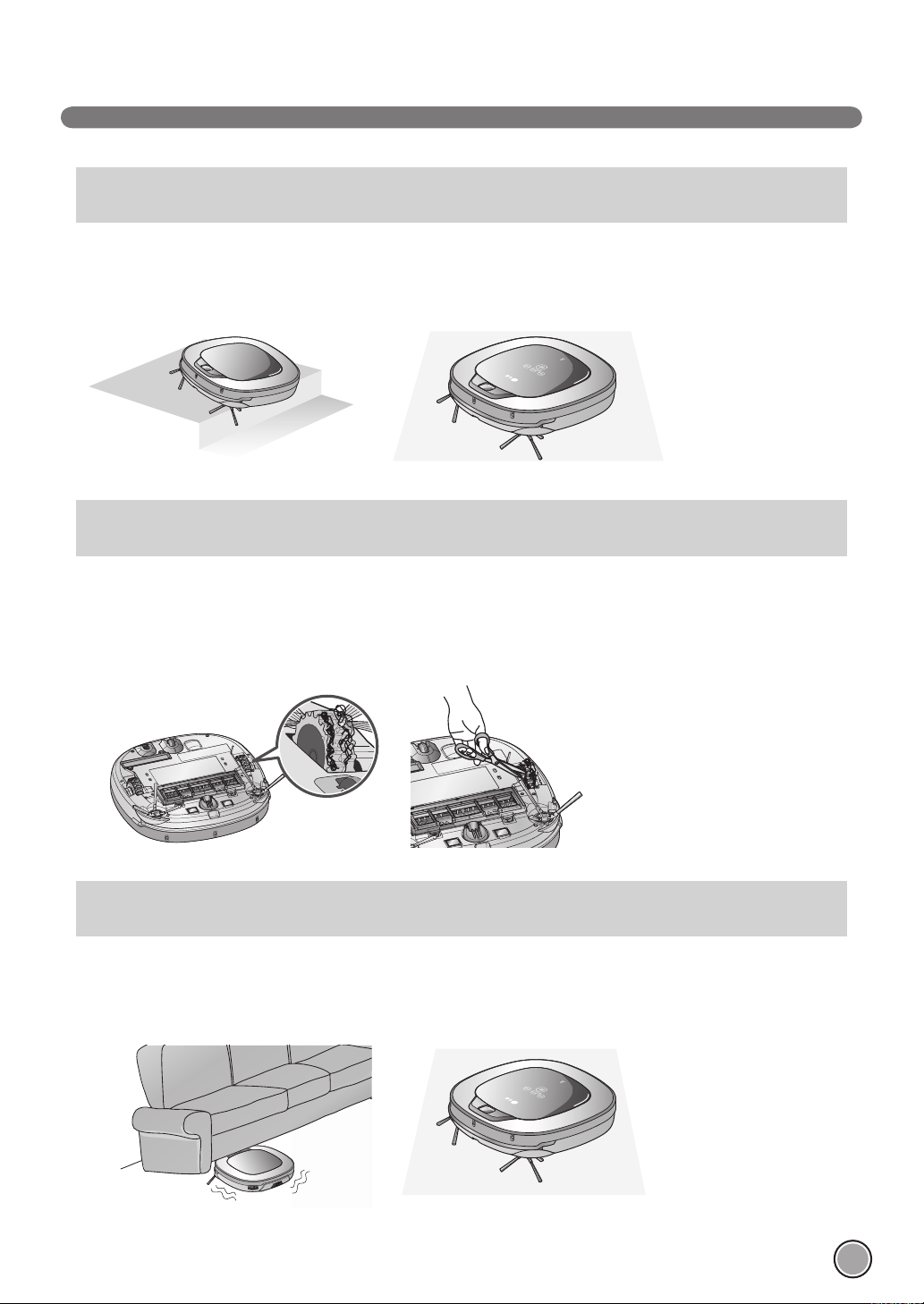

TROUBLESHOOTING
A warning message will be given if a wheel does not contact the floor surface for any reason.
• Is a wheel trapped in the front door, balcony, stairway, etc?
Move the Robot Cleaner on to the flat floor.
• Is any foreign material wound around the wheel?
Lay smooth cloth on the floor, overturn the Robot Cleaner, and put it on the cloth.
Remove foreign material after observing the wheel.
※
Please make sure to remove the dust bin before flipping the main body.
Otherwise, the dust in the dust bin may fall out.
A warning message will be given if Robot Cleaner cannot go on cleaning due to any unfavourable condition.
• Is the Robot Cleaner stuck?
After removing the part that is stuck, place the Robot Cleaner on flat floor.
Upon a voice message, "The wheels are not touching the floor. Please move
Roboking onto flat floor."
Upon a voice message, "Please remove any foreign material on the left/right
wheel."
Upon a voice message, "Roboking cannot continue cleaning. Please check the
area around it."
36
TROUBLESHOOTING
A warning message will be given if there is no Dust Bin or Filter Cover fitted.
• Is the Dust Bin tted to the Robot Cleaner?
Open the Dust Bin Cover and check to ensure the Dust Bin is in place.
Do NOT leave the Dust Bin Cover open.
• Make sure the Filter Cover is assembled onto the Dust Bin.
When the remaining amount of battery power is almost nil, the voice, “Battery is low”, is generated.
• Initiate battery charging of the Robot Cleaner by moving it to the home station.
When the Robot Cleaner is attached to the docking station successfully, it will start the recharging with
the recharging start melody.
Upon a voice message, "Please check that the dust bin and filter are properly
installed."
Upon a voice message, "Battery is low. Please move Roboking onto the home
station to charge."
37
TROUBLESHOOTING
※
For a more detailed description of this process, refer to the instructions on page 31, 33.
A warning message will be given if foreign materials restrict the Brush's rotation.
Lay a soft cloth on the floor and put the Robot Cleaner upside down on it.
※
Before turning over the main unit, remove the Dust Bin.
Otherwise, it will cause dust to fall from Dust Bin.
• The brush is making a loud, abnormal sound.
Confirm the correct assembly of the brush by checking the separation groove of the brush
Remove the brush from Robot Cleaner and remove any foreign material from the brush.
• The brush or side brush is stuck.
Remove any foreign materials such as cables, thread of hair caught in the side brush or the brush.
Upon a voice message, "Please remove any foreign material from the brush
on the bottom of the Roboking."
1 2 3
45
38
BEFORE YOU CALL FOR SERVICE
Confirm before reporting the failure of Robot Cleaner.
Problem Solutions (Reference page)
The power supply cannot be
turned on.
Check that the power switch is turned on. (Page 15)
The power supply
automatically turns off.
This is not a failure. Robot Cleaner has its own power saving function.
If it is not used for ten minutes after the power supply is turned on,
the power will automatically turn off. (Page 17)
The Robot Cleaner will not
charge.
Check whether the main power switch is turned on.
Remove objects around the home station. (Page 15)
Confirm that the power supply is connected to the home station.
(Page 14)
Wipe the charging terminal with a dry cloth.
Suction power becomes weak. Check whether there is foreign material blocking the suction port.
(Page 31)
Empty the dust bin. (Page 29)
Clean the dust bin filter. (Page 30)
Noise becomes louder. Confirm that the dust bin has been mounted properly.
Confirm that the dust bin filter has been mounted properly.
(Page 30)
Check whether foreign material is caught in the brush. (Page 31)
The Robot Cleaner will not
activate.
Conrm that the power switch is turned on. (Page 15)
Confirm that the battery has been charged. (Page 18)
The brush does not rotate. Clean the brush. (Page 31)
Confirm that the brush has been mounted properly. (Page 31)
Movements or travel path are
abnormal.
Carefully wipe the sensor with a smooth cloth. (Page 32)
If the ultra microfiber mop is attached, confirm that it is mounted
properly. (Page 25)
Turn the power switch off and on.
The Robot Cleaner cannot
be activated with the remote
control.
Replace the remote control batteries. (Page 12)
Confirm that the control is within the coverage area of the main unit,
which is less than 3
m
. (Page 12)
Check whether the main power switch is turned on. (Page 15)
39
PRODUCT SPECIFICATIONS
Item/Model LG Robot Cleaner
VR6260 Ser. / VR6270 Ser.
External Dimensions
340 mm × 340 mm × 89 mm
Weight
3 kg
Power Consumption
13 W
Battery (Fully Charging)
DC 16.8 V
Traveling Velocity
350 mm/s (Maximum)
Use Time Approx. 100 minutes
(Based on general wooden floor)
Charging Time 3 hours
Main Functions Turbo Mode
Learning Mode
Obstacle Sensing
Anti-Plunge function
Scheduled Cleaning
Error Displaying
Navigation
Auto/Manual Recharging
Dry Mopping (cleaning)
Corner Clean
Voice Messaging
Map Drawing
Spot Cleaning
Repeat Cleaning
My Space Cleaning
Cell by Cell cleaning
Zigzag Cleaning
Item/Model Home Station (VR621)
External Dimensions
236 mm
×
181 mm
×
128 mm
Rating
220-240 V~ 50 Hz
Output Voltage/Current
DC 17.1 V / 1.1 A
Power Consumption
23 W
Item/Model Battery
Type Lithium Ion Polymer Battery
Rating
DC 14.8 V / 1900 mAh
40
REFERENCE ITEMS
Open source software notice
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this
product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available
for download.
Dis/Assembling the battery
1 3
456
Turn off the main power switch
on the back-left side of the
Robot Cleaner.
Please assemble the battery
in the reverse order.
Place a soft cloth on the floor,
remove the dust bin, and flip
the Robot Cleaner over.
Separate the wire from the
battery while pressing the
connector hook.
Remove the screw by using
the screwdriver.
Remove the battery from the
device.
2
WARNING
Please be careful of fire, explosion, electric shock, or breakdown.
• Do not charge this Battery Pack(Pack hereafter) with any other type of charger than the one originally
provided whit the charger.
• Do not damage the Pack in such ways as drop, crush, puncture, cut or short extemal contacts.
• Do not attempt to disassembly the pack In any case. When the Pack is damaged or malfunctioning,
bring it to the service center.
• Do not place this pack near a heat source or do not dispose of in fire or water.
• Please keep the Pack away from damp or wet environment when the pack is charged.
• Please keep away from children, infant or pets.
Disposal of waste batteries/accumulators
1. When this crossed-out wheeled bin symbol is attached to batteries/accumulators of Your product it means they
are covered by European Directive 2006/66/CE.
2. This symbol may be combined with chemical symbols for mercury(Hg), cadmium(Cd) or lead(Pb) if the battery
Contains more that 0.0005% of mercury, 0.002% of cadmium or 0.004% of lead.
3. All batteries/accumulators should be disposed separately from the municipal waste stream via designated
collection facilities appointed by the government or the local authorities.
4. The correct disposal of Your old batteries/accumulators will help to prevent potential negative consequences for
the environment, animal and human health.
5. For more detailed information about disposal of Your old batteries/accumulators, please contact Your city ofce,
waste disposal service or the shop where You purchased the product.
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the
European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via
designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment
and human health.
4. For more detailed information about disposal of your old appliance, please contact your city ofce, waste
disposal service or the shop where you purchased the product.
Made in Korea
