VT750C2B
Shadow Phantom
Owner’s Manual
This manual should be considered a permanent part of the vehicle
and should remain with the vehicle when it is resold.
This publication includes the latest production information available
before printing. Honda Motor Co., Ltd. reserves the right to make
changes at any time without notice and without incurring any
obligation.
No part of this publication may be reproduced without written
permission.
The vehicle pictured in this owner’s manual may not match your
actual vehicle.
© 2021 Honda Motor Co., Ltd.
Welcome
Congratulations on your purchase of a new
Honda vehicle. Your selection of a Honda
makes you part of a worldwide family of
satisfied customers who appreciate Honda's
reputation for building quality into every
product.
To ensure your safety and riding pleasure:
● Read this owner's manual carefully.
● Follow all recommendations and
procedures contained in this manual.
● Pay close attention to safety messages
contained in this manual and on the
vehicle.
To protect your investment, we urge you to
take responsibility for keeping your vehicle
well-serviced and maintained. Also, observe
the break-in guidelines and always perform
the pre-ride inspection and other periodic
checks in this manual.
When service is required, remember that
your Honda dealer knows your vehicle best.
If you have the required mechanical “know-
how” and tools, you can purchase an official
Honda Service Manual to help you perform
many maintenance and repair tasks. 2 P. 100
Read the warranty information thoroughly so
that you understand the warranty coverage
and are aware of your rights and
responsibilities. 2 P. 101
You may also want to visit our website at
www.powersports.honda.com.
Happy riding!
A Few Words About Safety
Your safety, and the safety of others, is very
important. Operating this vehicle safely is an
important responsibility.
To help you make informed decisions about
safety, we have provided operating
procedures and other information on safety
labels and in this manual. This information
alerts you to potential hazards that could
hurt you or others.
Of course, it is not practical or possible to
warn you about all hazards associated with
operating or maintaining a vehicle. You must
use your own good judgment.
You will find important safety information in a
variety of forms, including:
● Safety labels on the vehicle
●
Safety Messages preceded by a safety alert
symbol and one of three signal words:
DANGER, WARNING, or CAUTION.
These signal words mean:
3DANGER
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3WARNING
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3CAUTION
You CAN be HURT if you don’t follow
instructions.
Other important information is
provided under the following titles:
NOTICE
Information to help you avoid
damage to your vehicle, other
property, or the environment.
Safety Guidelines................................................. P. 3
Safety Labels.........................................................P. 7
Safety Precautions............................................... P. 9
Riding Precautions ............................................ P. 10
Accessories & Modifications........................... P. 14
Loading ................................................................ P. 15
This section contains important information for safe riding of your vehicle.
Please read this section carefully.
Vehicle Safety
Safety Guidelines
Follow these guidelines to enhance your safety:
● Perform all routine and regular inspections
specified in this manual.
● Stop the engine and keep sparks and flames
away before filling the fuel tank.
● Do not run the engine in enclosed or partly
enclosed areas. Carbon monoxide in
exhaust gases is toxic and can kill you.
Always Wear a Helmet
It's a proven fact: helmets and protective
apparel significantly reduce the number and
severity of head and other injuries. So always
wear an approved helmet and protective
apparel. 2 P. 9
Before Riding
Make sure that you are physically fit, mentally
focused and free of alcohol and drugs. Check
that you and your passenger are both wearing
an approved helmet and protective apparel.
Instruct your passenger on holding onto the
seat strap or your waist, leaning with you in
turns, and keeping their feet on the footpegs,
even when the vehicle is stopped.
Take Time to Learn & Practice
Even if you have ridden other vehicles, practice
riding in a safe area to become familiar with
how this vehicle works and handles, and to
become accustomed to the vehicle's size and
weight.
Safety Guidelines
Vehicle Safety
3
Continued
We recommend that all riders take a certified
course approved by the Motorcycle Safety
Foundation (MSF) or a state approved training
course. New riders should start with the basic
course, and even experienced riders will find the
advanced course beneficial.
For information about the MSF training course
nearest you, call the national toll-free number:
(800) 446-9227.
Other riding tips can be found in the You and
Your Motorcycle Riding Tips booklet that came
with your vehicle.
Ride Defensively
Always pay attention to other vehicles around
you, and do not assume that other drivers see
you. Be prepared to stop quickly or perform an
evasive maneuver.
Make Yourself Easy to See
Make yourself more visible, especially at night,
by wearing bright reflective clothing, positioning
yourself so other drivers can see you, signaling
before turning or changing lanes, and using
your horn when necessary.
Ride within Your Limits
Never ride beyond your personal abilities or
faster than conditions warrant. Fatigue and
inattention can impair your ability to use good
judgment and ride safely.
Safety Guidelines
Vehicle Safety
4
Don't Drink or Use Drugs and Ride
Alcohol or drugs and riding don't mix. Even one
alcoholic drink can reduce your ability to
respond to changing conditions, and your
reaction time gets worse with every additional
drink. The same is true for drug use. Don't drink
or use and ride, and don't let your friends do it
either.
Keep Your Honda in Safe Condition
It's important to keep your vehicle properly
maintained and in safe riding condition.
Inspect your vehicle before every ride and
perform all recommended maintenance. Never
exceed load limits (2 P. 15), and do not modify
your vehicle or install accessories that would
make your vehicle unsafe (2 P. 14).
If You are Involved in a Crash
Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether it
is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable laws
and regulations if another person or vehicle is
involved in the crash.
If you decide to continue riding, first turn the
ignition switch to the OFF position, and evaluate
the condition of your vehicle. Inspect for fluid
leaks, check the tightness of critical nuts and
bolts, and check the handlebar, control levers,
brakes, and wheels. Ride slowly and cautiously.
Your vehicle may have suffered damage that is
not immediately apparent. Have your vehicle
thoroughly checked at a qualified service facility
as soon as possible.
Safety Guidelines
Vehicle Safety
5
Continued
Carbon Monoxide Hazard
Exhaust contains poisonous carbon monoxide, a
colorless, odorless gas. Breathing carbon
monoxide can cause loss of consciousness and
may lead to death.
If you run the engine in confined or even partly
enclosed area, the air you breathe could
contain a dangerous amount of carbon
monoxide.
Never run your vehicle inside a garage or other
enclosure.
3WARNING
Running the engine of your vehicle
while in an enclosed or even partially
enclosed area can cause a rapid build-
up of toxic carbon monoxide gas.
Breathing this colorless, odorless gas
can quickly cause unconsciousness and
lead to death.
Only run your vehicle's engine when it
is located in a well ventilated area
outdoors.
Safety Guidelines
Vehicle Safety
6
Safety Labels

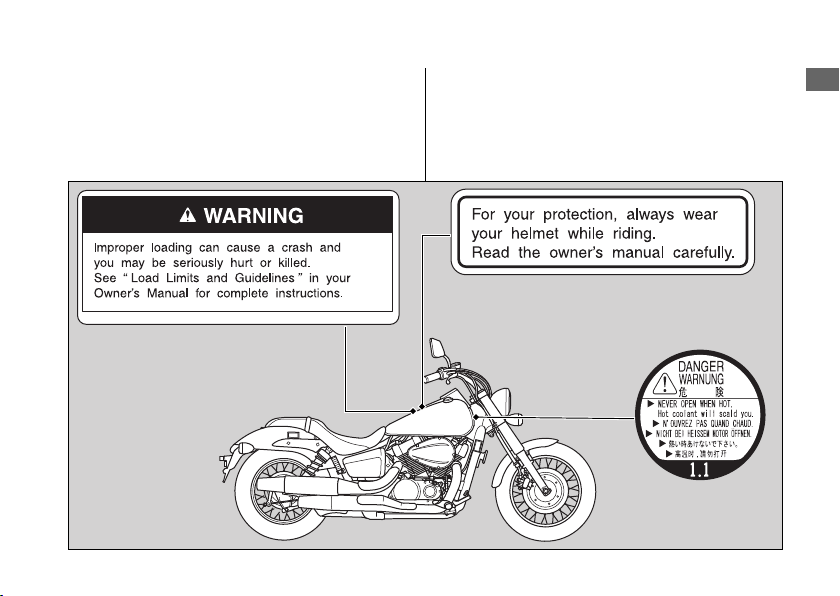

Safety and information labels on your vehicle
provide important safety information and may
warn you of potential hazards that could cause
serious injury. Read these labels carefully and
don't remove them.
If a label comes off or becomes hard to read,
contact your dealer for a replacement.
Safety Labels
Vehicle Safety
7
Continued
Safety Labels
Vehicle Safety
8
Safety Precautions
● Ride cautiously and keep your hands on the
handlebar and feet on the footpegs.
● Keep passenger's hands onto the seat strap
or your waist, passenger's feet on the
footpegs while riding.
● Always consider the safety of your
passenger, as well as other drivers and
riders.
Protective Apparel
Make sure that you and any passenger are
wearing an approved helmet, eye protection,
and high-visibility protective clothing. Avoid
wearing loose clothes that could get caught on
any part of the vehicle. Ride defensively in
response to weather and road conditions.
#
Helmet
Should be safety-standard certified, high-
visibility, and the correct size for your head
● Must fit comfortably but securely, with the
chin strap fastened.
● Face shield with unobstructed field of vision
or other approved eye protection
Look for a DOT (Department of Transportation)
certification label on any helmet you buy.
3WARNING
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Make sure that you and any passenger
always wear an approved helmet and
protective apparel.
#
Gloves
Full-finger leather gloves with high abrasion
resistance
Safety Precautions
Vehicle Safety
9
Continued
#
Boots or Riding Shoes
Sturdy boots with non-slip soles and ankle
protection
#
Jacket and Pants
Protective, highly visible, long-sleeved jacket
and durable long pants for riding (or a
protective suit)
Riding Precautions
Break-in Period
During the first 300 miles (500 km) of running,
follow these guidelines to ensure your vehicle's
future reliability and performance.
● Avoid full-throttle starts and rapid
acceleration.
● Avoid hard braking and rapid down-shifts.
● Ride conservatively.
Brakes
Observe the following guidelines:
●
Avoid excessively hard braking and
downshifting.
u Sudden braking can reduce the vehicle's
stability.
u Where possible, reduce speed before
turning; otherwise you risk sliding out.
Riding Precautions
Vehicle Safety
10
● Exercise caution on low traction surfaces.
u The tires slip more easily on such
surfaces and braking distances are
longer.
● Avoid continuous braking.
u Repeated braking, such as when
descending long, steep slopes can
seriously overheat the brakes, reducing
their effectiveness. Use engine braking
with intermittent use of the brakes to
reduce speed.
● For full braking effectiveness, operate both
the front and rear brakes together.
#
Engine Braking
Engine braking helps slow your vehicle down
when you release the throttle. For further
slowing action, downshift to a lower gear. Use
engine braking with intermittent use of the
brakes to reduce speed when descending long,
steep slopes.
#
Wet or Rainy Conditions
Road surfaces are slippery when wet, and wet
brakes further reduce braking efficiency.
Exercise extra caution when braking in wet
conditions.
If the brakes get wet, apply the brakes while
riding at low speed to help them dry.
Riding Precautions
Vehicle Safety
11
Continued
Parking
● Park on a firm, level surface.
● If you must park on a slight incline or loose
surface, park so that the vehicle cannot
move or fall over.
● Make sure that high-temperature parts
cannot come into contact with flammable
materials.
● Do not touch the engine, muffler, brakes
and other high-temperature parts until they
cool down.
● To reduce the likelihood of theft, always lock
the handlebar and remove the key when
leaving the vehicle unattended.
Use of an anti-theft device is also
recommended.
#
Parking with the Side Stand
1.
Stop the engine.
2.
Push the side stand down.
3.
Slowly lean the vehicle to the left until its
weight rests on the side stand.
4.
Turn the handlebar fully to the left.
u Turning the handlebar to the right
reduces stability and may cause the
vehicle to fall.
5.
Turn the ignition switch to the OFF position
and remove the key.
6.
Lock the steering. 2 P. 24
Riding Precautions
Vehicle Safety
12
Refueling and Fuel Guidelines
Follow these guidelines to protect the engine,
fuel system and catalytic converter:
● Use only unleaded gasoline.
● Use the recommended octane number.
Using lower octane gasoline will result in
decreased engine performance.
● Do not use fuels containing a high
concentration of alcohol. 2 P. 99
● Do not use stale or contaminated gasoline
or an oil/gasoline mixture.
● Avoid getting dirt or water in the fuel tank.
Riding Precautions
Vehicle Safety
13
Accessories &
Modifications
We strongly advise that you do not add any
accessories that were not specifically designed
or approved for your vehicle by Honda or make
modifications to your vehicle from its original
design. Doing so can make it unsafe.
Modifying your vehicle may also void your
warranty and make your vehicle illegal to
operate on public roads. Before deciding to
install accessories on your vehicle, be certain
the modification is safe and legal.
3WARNING
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner's
manual regarding accessories and
modifications.
Do not pull a trailer with, or attach a sidecar to,
your vehicle. Your vehicle was not designed for
these attachments, and their use can seriously
impair your vehicle's handling.
Accessories & Modifications
Vehicle Safety
14
Loading
● Carrying extra weight affects your vehicle's
handling, braking and stability.
Always ride at a safe speed for the load you
are carrying.
● Avoid carrying an excessive load and keep
within specified load limits.
Maximum weight capacity / Maximum
luggage weight 2 P. 107
● Tie all luggage securely, evenly balanced,
and close to the center of the vehicle.
● Do not place objects near the lights or the
muffler.
3WARNING
Overloading or improper loading can
cause a crash and you can be seriously
hurt or killed.
Follow all load limits and other loading
guidelines in this manual.
Loading
Vehicle Safety
15
Instruments
Operation Guide
18
Odometer

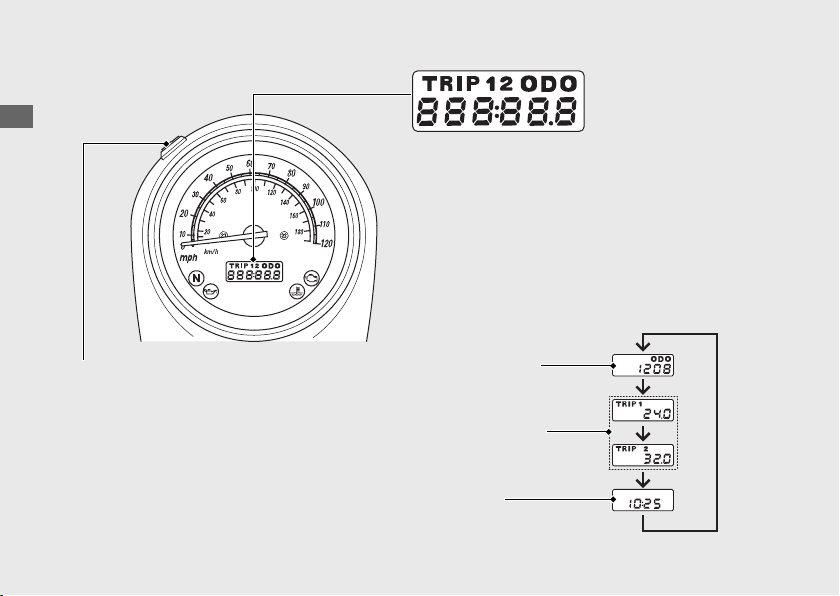

Odometer [ODO]/Tripmeter [TRIP 1/2]/
Clock (24-hour display)
Select/Reset button
Tripmeters
Clock
Select/Reset button switches between the
odometer, tripmeters and clock.
• Odometer: Total distance ridden.
• Tripmeter: Distance ridden since tripmeter
was reset (press and hold Select/Reset button
to reset to 0.0).
Operation Guide
19
To set the clock:
a
Turn the ignition switch to the ON position.
b
Select the digital clock mode.
c
Press and hold the Select/Reset button until
the hour digits start flashing.
d
Press the Select/Reset button until the
desired hour is displayed.
e
Press and hold the Select/Reset button. The
minute digits start flashing.
f
Press the Select/Reset button until the
desired minute is displayed.
g
Press and hold the Select/Reset button until
the display stops flashing. The clock is set.
u The time can also be set by turning the
ignition switch to the OFF position.
u The display will stop flashing
automatically and the adjustment will be
cancelled if the button is not pressed for
about 30 seconds.
Indicators
Operation Guide
20
Comes on briefly when the ignition switch is turned to
the ON position with the engine stop switch in the
(Run) position.
If one of these indicators does not come on when it should, have your dealer check for
problems.
Low oil pressure indicator
Comes on when the ignition switch is turned to the
ON position. Goes off when the engine starts.
If it comes on while engine is running: (P.74)
PGM-FI (Programmed Fuel Injection)
malfunction indicator lamp (MIL)
If it comes on while engine is running: (P.74)
If it comes on while riding: (P.73)
High coolant temperature indicator
Comes on briefly when the ignition switch is turned to
the ON position.
Operation Guide
21
Turn signal indicator
High beam indicator
Neutral indicator
Comes on when the transmission is in Neutral.
Fuel reserve indicator
When this indicator comes on, remaining fuel is
approximately 0.87 US gal (3.3 L).
Comes on briefly when the ignition switch is turned to
the ON position.
Switches
Operation Guide
22
Should normally remain in the
(Run) position.
u In an emergency, switch to the
(Stop) position (the starter motor will
not operate) to stop the engine.
Engine stop switch
Headlight dimmer switch
• : High beam
• : Low beam
Start button
Turn signal switch
u Pressing the switch turns the
turn signal off.
Horn button
Headlight turns off when operating
the starter motor.
Operation Guide
23
Continued
Ignition switch
Switches the electrical system on/off.
u Key can be removed when in the OFF position.
ON
Turns electrical system
on for starting/riding.
OFF
Turns engine off.
Steering Lock
Lock the steering when parking to help
prevent theft.
A U-shaped wheel lock or similar device is
also recommended.
#
Locking
a
Turn the handlebar all the way to the left.
b
Insert the key in the steering lock and turn it
180 degrees clockwise.
c
Remove the key.
#
Unlocking
Insert the key and turn it 180 degrees
counterclockwise.
Operation Guide
24
Switches (Continued)
a
b
Turn
Ignition
key
Starting the Engine
Start your engine using the following
procedure, regardless of whether the engine
is cold or warm.
NOTICE
• If the engine does not start within 5 seconds,
turn the ignition switch to the OFF position
and wait 10 seconds before trying to start
the engine again to recover battery voltage.
• Extended fast idling and revving the engine
can damage the engine and the exhaust
system.
•
Snapping the throttle or fast idling for more
than about 5 minutes may cause exhaust
pipe discoloration.
a
Make sure the engine stop switch is in the
(Run) position.
b
Turn the ignition switch to the ON position.
c
Shift the transmission to Neutral (
N
indicator comes on). Alternatively, pull in the
clutch lever to start your vehicle with the
transmission in gear so long as the side
stand is raised.
Operation Guide
25
Continued
a
b
c
d
d
Press the start button with the throttle
completely closed.
u If you cannot start the engine, open the
throttle slightly (about 0.1 in [3 mm],
without freeplay) and press the start
button.
If the engine does not start:
a
Open the throttle fully and press the start
button for 5 seconds.
b
Repeat the normal starting procedure.
c
If the engine starts, open the throttle slightly
if idling is unstable.
d
If the engine does not start, wait 10 seconds
before trying steps a & b again.
#
If Engine Will Not Start (P.72)
Operation Guide
26
Starting the Engine (Continued)
About 0.1 in (3 mm), without freeplay
Shifting Gears
Your vehicle transmission has 5 forward
gears in a one-down, four-up shift pattern.
If you put the vehicle in gear with the side
stand down, the engine will shut off.
#
Recommended Shift Points
Shifting Up
From 1st to 2nd 12 mph (20 km/h)
From 2nd to 3rd 19 mph (30 km/h)
From 3rd to 4th 25 mph (40 km/h)
From 4th to 5th 31 mph (50 km/h)
Shifting Down
From 5th to 4th 22 mph (35 km/h)
From 4th to 3rd 16 mph (25 km/h)
NOTICE
Improper shifting can damage the engine,
transmission, and drive train. Also, coasting or
towing the vehicle for long distances with the
engine off can damage the transmission.
Operation Guide
27
Refueling
Do not fill with fuel above the lower edge of
the filler neck.
Fuel type: Unleaded gasoline only
Recommended fuel octane number:
Pump Octane Number (PON) 86 or higher.
Tank capacity: 3.70 US gal (14.0 L)
#
Refueling and Fuel Guidelines (P.13
)
Opening the Fuel Fill Cap
Open the lock cover, insert the ignition key,
and turn it clockwise to open the fuel fill cap.
Closing the Fuel Fill Cap
a
After refueling, align the fuel fill cap latch with
the slot in the filler neck. Push the fuel fill cap
into the filler neck until it snaps closed and locks.
b
Remove the ignition key and close the lock cover.
u The ignition key cannot be removed if
the fuel fill cap is not locked.
3WARNING
Gasoline is highly flammable and
explosive. You can be burned or
seriously injured when handling fuel.
•
Stop the engine, and keep heat,
sparks, and flames away.
•
Only handle fuel outdoors.
•
Wipe up spills immediately.
Operation Guide
28
Lock cover
Lower edge of
filler neck
Ignition key
Fuel fill cap
Storage Equipment
Helmet holder is located on the left side
below the seat.
#
Unlocking
Insert the ignition key and turn it
counterclockwise.
#
Locking
a
Hang your helmet on the holder pin and
push it in to lock.
b
Remove the key.
u Use the helmet holder only when parked.
3WARNING
Riding with a helmet attached to the
holder can interfere with the rear wheel
or suspension and could cause a crash
in which you can be seriously hurt or
killed.
Use the helmet holder only while
parked. Do not ride with a helmet
secured by the holder.
Operation Guide
29
Continued
Ignition key Holder pin
Helmet holder
Space to store a document bag is located
under the seat.
#
Removing the Seat (P.51)
The tool kit is in the compartment box
behind the left side cover.
u Insert the ignition key and turn it
counterclockwise to unlock.
#
Removing the Side Cover (P.52
)
Operation Guide
30
Storage Equipment (Continued)
Document bag
Ignition key
Tool kit
Compartment box
Importance of Maintenance ........................... P. 32
Maintenance Schedule.....................................P. 34
Maintenance Record......................................... P. 37
Maintenance Fundamentals ...........................P. 38
Removing & Installing Body Components..P. 50
Battery.................................................................... P. 50
Seat ......................................................................... P. 51
Side Cover.............................................................P. 52
Engine Oil ............................................................ P. 53
Coolant.................................................................P. 55
Final Drive Oil..................................................... P. 57
Brakes................................................................... P. 58
Side Stand ........................................................... P. 65
Clutch ...................................................................P. 66
Throttle ................................................................ P. 69
Other Adjustments............................................ P. 70
Adjusting the Rear Suspension ........................ P. 70
Please read “Importance of Maintenance” and “Maintenance Fundamentals” carefully
before attempting any maintenance. Refer to “Specifications” for service data.
An optional larger tool kit may be available.
Check with your Honda dealer's parts department.
Maintenance
Importance of Maintenance
Importance of Maintenance
Keeping your vehicle well-maintained is
absolutely essential to your safety and to
protect your investment, obtain maximum
performance, avoid breakdowns, and reduce air
pollution. Maintenance is the owner's
responsibility. Be sure to inspect your vehicle
before each ride and perform the periodic
checks specified in the Maintenance Schedule.
2 P. 34
3WARNING
Improperly maintaining your vehicle or
failing to correct a problem before you
ride can cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner's manual.
For information about the exhaust emission and
noise emission requirements of the U.S.
Environmental Protection Agency (EPA), and the
California Air Resources Board (CARB). 2 P. 93
Maintenance, replacement or repair of the
emission control devices and systems may
be performed by any vehicle repair
establishment or individual using parts
that are “certified” to EPA standards.
Maintenance
32
Maintenance Safety
Always read the maintenance instructions
before you begin each task and make sure that
you have the tools, parts, and skills required.
We cannot warn you of every conceivable
hazard that can arise in performing
maintenance. Only you can decide whether or
not you should perform a given task.
Follow these guidelines when performing
maintenance.
● Stop the engine and remove the key.
● Place your vehicle on a firm, level surface
using the side stand or a maintenance stand
to provide support.
● Allow the engine, muffler, brakes, and other
high-temperature parts to cool before
servicing as you can get burned.
● Run the engine only when instructed, and
do so in a well-ventilated area.
Importance of Maintenance
Maintenance
33
Maintenance Schedule
The maintenance schedule specifies the
maintenance requirements necessary to ensure
safe, dependable performance, and proper
emission control.
Maintenance work should be performed in
accordance with Honda's standards and
specifications by properly trained and equipped
technicians. Your dealer meets all of these
requirements. All scheduled maintenance is
considered a normal owner operating cost and
will be charged to you by your dealer. Keeping
an accurate maintenance record will help
ensure your vehicle is properly maintained.
2 P. 37
Make sure whoever performs the scheduled
maintenance completes the maintenance
record. Retain all service documents. If you sell
your vehicle, these service documents should
be transferred with the vehicle to the new
owner.
Honda recommends that your dealer should
road test your vehicle after each periodic
maintenance is carried out.
Maintenance
34
Frequency
Items
Odometer Reading
*1
× 1,000 mi 0.6 4 8 12 16 20 24
Refer to
page
× 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Emission-Related Items
Fuel Line –
Throttle Operation 69
Air Cleaner
*2
–
Crankcase Breather
*3
–
Spark Plug –
Valve Clearance –
Engine Oil
Initial = 600 mi (1,000 km) or 1 month:
Regular = Every 8,000 mi (12,800 km) or 12 months:
–
Engine Oil Filter –
Engine Idle Speed –
Radiator Coolant
*4
55
Cooling System –
Secondary Air Supply System –
Evaporative Emission Control System
*5
–
Maintenance Level Maintenance Legend
: Intermediate. We recommend service by your
dealer, unless you have the necessary tools and are
mechanically skilled.
Procedures are provided in an official Honda Service
Manual (2 P. 100).
:
:
:
Inspect (clean, adjust, lubricate, or replace, if necessary)
Replace
Clean
: Technical. In the interest of safety, have your vehicle
serviced by your dealer.
Maintenance Schedule
Maintenance
35
Continued
Frequency
Items
Odometer Reading
*1
× 1,000 mi 0.6 4 8 12 16 20 24
Refer to
page
× 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Non-Emission-Related Items
Final Drive Oil 57
Brake Fluid
*4
58
Brake Shoes/Pads Wear 59, 63
Brake System 38
Brake Light Switch 64
Headlight Aim –
Clutch System 66
Side Stand 65
Suspension 70
Nuts, Bolts, Fasteners –
Wheels/Tires 46
Steering Head Bearings –
Notes:
*
1 : At higher odometer readings, repeat at the frequency interval established here.
*
2 : Service more frequently when riding in unusually wet or dusty areas.
*
3 : Service more frequently if the vehicle is ridden often at full throttle or in the rain.
*
4 : Replace every 2 years, or at indicated odometer intervals, whichever comes first. Replacement requires mechanical skill.
*
5 : 50 STATE (meets California requirements).
Maintenance Schedule
Maintenance
36
Maintenance Record
Distance Odometer Date Performed By: Notes
600 miles (1,000 km)
4,000 miles (6,400 km)
8,000 miles (12,800 km)
12,000 miles (19,200 km)
16,000 miles (25,600 km)
20,000 miles (32,000 km)
24,000 miles (38,400 km)
28,000 miles (44,800 km)
32,000 miles (51,200 km)
36,000 miles (57,600 km)
40,000 miles (64,000 km)
44,000 miles (70,400 km)
48,000 miles (76,800 km)
52,000 miles (83,200 km)
56,000 miles (89,600 km)
60,000 miles (96,000 km)
64,000 miles (102,400 km)
68,000 miles (108,800 km)
Maintenance
37
Maintenance Fundamentals
Pre-ride Inspection
To ensure safety, it is your responsibility to
perform a pre-ride inspection and make sure
that any problem you find is corrected. A pre-
ride inspection is a must, not only for safety, but
because having a breakdown, or even a flat tire,
can be a major inconvenience.
Check the following items before you get on
your vehicle:
● Tire tread wear and air pressures are within
limits 2 P. 46
●
Lights, horn, and turn signals operate
normally
Check the following items if you are carrying a
passenger or cargo:
●
Combined weight is within load limits
2 P. 107
●
Cargo is secured properly
●
Suspension is adjusted to suit load 2 P. 70
Check the following items after you get on your
vehicle:
● Throttle action moves smoothly without
binding 2 P. 69
● Brake lever and pedal operate normally
● Refuel when needed 2 P. 13, 2 P. 28
● Engine stop switch functions properly
2 P. 22
Check the following items at regular intervals:
● Oil level is between the upper and lower
level marks 2 P. 53
●
Brake fluid level is above the LOWER level
mark 2 P. 58
●
Engine coolant level is between the UPPER
and LOWER level marks 2 P. 55
●
Side stand functions properly 2 P. 65
Maintenance
38
Tires and wheels
Check the air pressure (2 P. 46), examine tread for wear and damage
(2 P. 46), and check the wheels for damage.
Fluid levels
Check the engine oil level (2 P. 53), engine coolant level (2 P. 55),
brake fluid level (2 P. 58) and final drive oil level (2 P. 57).
Lights
Check that the headlight, brake light, taillight, turn signals and license
plate light are working properly.
Controls
Check the freeplay of the clutch lever (2 P. 67), throttle grip (2 P. 69),
and rear brake pedal (2 P. 60).
Fuses Check that you have a full supply of spare fuses.
Nuts & bolts Check the major nuts and bolts, and tighten as needed.
Periodic Checks
You should also perform other periodic
maintenance checks at least once a month
regardless of how often you ride, or more often
if you ride frequently.
Also, check the odometer reading against the
Maintenance Schedule and perform all
maintenance that is due. 2 P. 34
Maintenance Fundamentals
Maintenance
39
Replacing Parts
Always use Honda Genuine Parts or their
equivalents to ensure reliability and safety.
When ordering colored components, specify
the model name, color, and code mentioned on
the color label.
The color label is attached to the frame behind
the left side cover. 2 P. 52
3WARNING
Installing non-Honda parts may make
your vehicle unsafe and cause a crash in
which you can be seriously hurt or
killed.
Always use Honda Genuine Parts or
equivalents that have been designed
and approved for your vehicle.
Maintenance Fundamentals
Maintenance
40
Color label
Battery
Your vehicle has a maintenance-free type
battery. You do not have to check the battery
electrolyte level or add distilled water. Clean the
battery terminals if they become dirty or
corroded.
Do not remove the battery cap seals. There is
no need to remove the cap when charging.
NOTICE
An improperly disposed of battery can be
harmful to the environment and human health.
Always confirm local regulations for proper
battery disposal instruction.
#
What to do in an emergency
If any of the following occur, immediately see
your doctor.
●
Electrolyte splashes into your eyes:
u
Wash your eyes repeatedly with cool
water for at least 15 minutes. Using water
under pressure can damage your eyes.
● Electrolyte splashes onto your skin:
u Remove affected clothing and wash your
skin thoroughly using water.
● Electrolyte splashes into your mouth:
u Rinse mouth thoroughly with water, and
do not swallow.
3WARNING
The battery gives off explosive
hydrogen gas during normal operation.
A spark or flame can cause the battery
to explode with enough force to kill or
seriously hurt you.
Wear protective clothing and a face
shield, or have a skilled mechanic do
the battery servicing.
WARNING: Battery posts, terminals, and
related accessories contain lead and lead
compounds.
Wash your hands after handling.
Maintenance Fundamentals
Maintenance
41
Continued
#
Cleaning the Battery Terminals
1.
Remove the battery. 2 P. 50
2.
If the terminals are starting to corrode and
are coated with a white substance, wash
with warm water and wipe clean.
3.
If the terminals are heavily corroded, clean
and polish the terminals with a wire brush or
sandpaper. Wear safety glasses.
4.
After cleaning, reinstall the battery.
The battery has a limited life span. Consult your
dealer about when you should replace the
battery. Always replace the battery with another
maintenance-free battery of the same type.
#
Charging
If you use electrical accessories that drain the
battery or you do not ride frequently, we
recommend that you charge the battery every
30 days using a charger designed specifically for
your Honda, which can be purchased from your
dealer. Read the information that came with
your battery charger and follow the instructions
on the battery. Avoid using an automobile-type
battery charger, as these can overheat a
motorcycle battery and cause permanent
damage.
Make sure the ignition switch is in the OFF
position before charging the battery.
NOTICE
Improper charging can damage the battery. If
you can’t charge the battery or it appears unable
to hold a charge, contact your dealer.
Maintenance Fundamentals
Maintenance
42
NOTICE
Jump starting using an automobile battery can
damage your vehicle's electrical system and is
not recommended. Bump starting is also not
recommended.
NOTICE
Installing non-Honda electrical accessories can
overload the electrical system, discharging the
battery and possibly damaging the system.
Fuses
Fuses protect the electrical circuits on your
vehicle. If something electrical on your vehicle
stops working, check for and replace any blown
fuses. 2 P. 80
#
Inspecting and Replacing Fuses
Turn the ignition switch to the OFF position to
remove and inspect fuses. If a fuse is blown,
replace with a fuse of the same rating. For fuse
ratings, see “Specifications.” 2 P. 109
NOTICE
Replacing a fuse with one that has a higher
rating greatly increases the chance of damage to
the electrical system.
If a fuse fails repeatedly, you likely have an
electrical fault. Have your vehicle inspected by
your dealer.
Maintenance Fundamentals
Maintenance
43
Blown fuse
Engine Oil
Engine oil consumption varies and oil quality
deteriorates according to riding conditions and
time elapsed.
Check the engine oil level regularly, and add the
recommended engine oil if necessary. Dirty oil
or old oil should be changed as soon as
possible.
#
Selecting the Engine Oil
For recommended engine oil, see
“Specifications.” 2 P. 108
If you use non-Honda engine oil, check the
label to make sure that the oil satisfies all of the
following standards:
● JASO T 903 standard
*1
: MA
● SAE standard
*2
: 10W-30
● API classification
*3
: SJ or higher
*1.
The JASO T 903 standard is an index for engine
oils for 4-stroke motorcycle engines. There are
two classes: MA and MB. For example, the
following label shows the MA classification.
*2.
The SAE standard grades oils by their viscosity.
*3.
The API classification specifies the quality and
performance rating of engine oils. Use SJ or higher
oils, excluding oils marked as “Energy Conserving”
or “Resource Conserving” on the circular API
service symbol.
Maintenance Fundamentals
Maintenance
44
Oil code
Oil classification
Not recommended Recommended
Brake Fluid
Do not add or replace brake fluid, except in an
emergency. Use only fresh brake fluid from a
sealed container. If you do add fluid, have the
brake system serviced by your dealer as soon as
possible.
NOTICE
Brake fluid can damage plastic and painted surfaces.
Wipe up spills immediately and wash thoroughly.
Recommended brake fluid:
Honda DOT 4 Brake Fluid or equivalent
Final Drive Oil
Recommended final drive oil:
Hypoid gear oil SAE 80
Recommended Coolant
Pro Honda HP Coolant is a pre-mixed solution
of antifreeze and distilled water.
Concentration:
50% antifreeze and 50% distilled water
A concentration of antifreeze below 40% will
not provide proper corrosion and cold
temperature protection.
A concentration of up to 60% will provide better
protection in colder climates.
NOTICE
Using coolant not specified for aluminum engines
or tap/mineral water can cause corrosion.
Maintenance Fundamentals
Maintenance
45
Crankcase Breather
Service more frequently when riding in rain, at
full throttle, or after the vehicle is washed or
overturned. Service if the deposit level can be
seen in the transparent section of the drain
tube.
If the drain tube overflows, the air filter may
become contaminated with engine oil, causing
poor engine performance.
Tires (Inspecting/Replacing)
#
Checking the Air Pressure
Visually inspect your tires and use an air
pressure gauge to measure the air pressure at
least once a month or any time you think the
tires look low. Always check air pressure when
your tires are cold.
#
Inspecting for Damage
Inspect the tires for
cuts, slits, or cracks that
expose fabric or cords,
or nails or other
foreign objects
embedded in the side
of the tire or the tread.
Also inspect for any unusual bumps or bulges in
the side walls of the tires.
#
Inspecting for Abnormal Wear
Inspect the tires for
signs of abnormal wear
on the contact surface.
Maintenance Fundamentals
Maintenance
46
#
Inspecting Tread Depth
Inspect the tread wear indicators. If they
become visible, replace the tires immediately.
For safe riding, you should replace the tires
when the minimum tread depth is reached.
3WARNING
Riding on tires that are excessively worn
or improperly inflated can cause a crash
in which you can be seriously hurt or
killed.
Follow all instructions in this owner's
manual regarding tire inflation and
maintenance.
Maintenance Fundamentals
Maintenance
47
Continued
Wear indicator
location mark
or TWI
Have your tires replaced by your dealer.
For recommended tires, air pressure and
minimum tread depth, see “Specifications.”
2 P. 108
Follow these guidelines whenever you replace
tires:
● Use the recommended tires or equivalents
of the same size, construction, speed rating,
and load range.
● Have the wheel balanced with Honda
Genuine balance weights or equivalent after
the tire is installed.
●
Remember to replace the inner tube
whenever you replace a tire. The old tube
will probably be stretched, and it could fail if
installed in a new tire.
3WARNING
Installing improper tires on your vehicle
can adversely affect handling and
stability, and can cause a crash in which
you can be seriously hurt or killed.
Always use the size and type of tires
recommended in this owner's manual.
Maintenance Fundamentals
Maintenance
48
Tire Service Life
The service life of your tires is dependent on
many factors, including, but not limited to,
riding habits, road conditions, vehicle loading,
tire air pressure, maintenance history, speed,
and environmental conditions (even when the
tires are not in use).
In addition to your regular inspections and
maintenance, it is recommended that you have
annual inspections performed once the tires
reach 5 years old. It is also recommended that
all tires be removed from service after 10 years
from the date of manufacture, regardless of
their condition or state of wear.
The last four digits of the TIN (tire identification
number) indicate the date of manufacture.
#
Tire Identification Number (TIN)
The tire identification number (TIN) is a group
of numbers and letters located on the sidewall
of the tire.
a b c
DOT XXXX XXXX 22 09
DOT: This indicates that the tire meets all
requirements of the U.S.
Department of Transportation.
a XXXX:
Factory code
b XXXX:
Tire type code
c 22 09: Date of manufacture (week & year).
Example: week 22 in year 09.
Maintenance Fundamentals
Maintenance
49

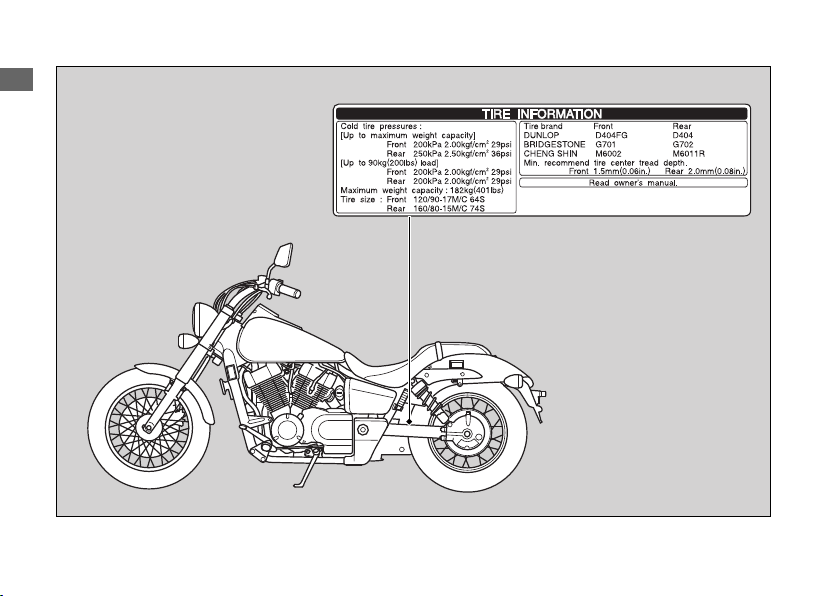

Tire Labeling Example
Tire identification
number (TIN)
Removing & Installing Body Components
Battery
#
Removal
Make sure the ignition switch is in the OFF
position.
1.
Remove the seat. 2 P. 51
2.
Remove the battery cover by removing
the screw.
3.
Disconnect the negative - terminal from
the battery.
4.
Disconnect the positive + terminal from
the battery.
5.
Remove the battery, taking care not to
drop the terminal nuts.
#
Installation
Install the parts in the reverse order of
removal. Always connect the positive +
terminal first. Make sure that bolts and nuts
are tight.
Tighten the battery cover screw.
Torque: 0.7 lbf·ft (1 N·m, 0.1 kgf·m)
Make sure the clock information is correct
after the battery is reconnected. 2 P. 19
For proper handling of the battery, see
“Maintenance Fundamentals.” 2 P. 41
“Battery Goes Dead.” 2 P. 76
Maintenance
50
Battery cover
Positive
terminal
Negative
terminal
Battery
Battery cover screw
Seat
#
Removal
1.
Remove the seat mounting bolt A and
bolts B.
2.
Pull the seat back and up.
#
Installation
1.
Insert the tab into the frame cross member.
2.
Tighten the seat mounting bolts B.
Torque: 19 lbf·ft (26 N·m, 2.7 kgf·m)
3.
Tighten the seat mounting bolt A
securely.
Removing & Installing Body Components u Seat
Maintenance
51
Tab
Seat
Frame
cross
member
Seat mounting bolt A
Seat
mounting
bolts B
Side Cover
The right and left side covers can be
removed in the same way.
#
Removal
1.
Grasp the side cover.
2.
Remove the prongs from the grommets.
3.
Remove the side cover.
#
Installation
Install the parts in the reverse order of
removal.
Removing & Installing Body Components u Side Cover
Maintenance
52
Prongs
Grommets
Side cover
Engine Oil
Checking the Engine Oil
1.
If the engine is cold, idle the engine for 3
to 5 minutes.
2.
Turn the ignition switch to the OFF
position and wait for 2 to 3 minutes.
3.
Place your vehicle in an upright position
on a firm, level surface.
4.
Remove the oil fill cap/dipstick and wipe it
clean.
5.
Insert the oil fill cap/dipstick until it seats,
but don't screw it in.
6.
Check that the oil level is between the
upper level and lower level marks on the
oil fill cap/dipstick.
7.
Securely install the oil fill cap/dipstick.
Maintenance
53
Upper
level
Lower
level
Oil fill cap/
dipstick
Adding Engine Oil
If the engine oil is below or near the lower
level mark, add the recommended engine oil.
2 P. 44, 2 P. 108
1.
Remove the oil fill cap/dipstick. Add the
recommended oil until it reaches the
upper level mark.
u Place your vehicle in an upright
position on a firm, level surface when
checking the oil level.
u
Do not overfill above the upper level
mark.
u
Make sure no foreign objects enter the
oil filler opening.
u
Wipe up any spills immediately.
2.
Securely reinstall the oil fill cap/dipstick.
NOTICE
Overfilling with oil or operating with insufficient
oil can cause damage to your engine. Do not mix
different brands and grades of oil. They may
affect lubrication and clutch operation.
For the recommended oil and oil selection
guidelines, see “Maintenance Fundamentals.”
2 P. 44
Engine Oil u Adding Engine Oil
Maintenance
54
Coolant
Checking the Coolant
Check the coolant level in the reserve tank
while the engine is cold.
1.
Place your vehicle on a firm, level surface.
2.
Hold your vehicle in an upright position.
3.
Check that the coolant level is between
the UPPER level and LOWER level marks
on the reserve tank.
If the coolant level is dropping noticeably or
the reserve tank is empty, you likely have a
serious leak. Have your vehicle inspected by
your dealer.
Maintenance
55
UPPER level
LOWER level
Reserve tank
Reserve tank cap
Adding Coolant
If the coolant level is below the LOWER level
mark, add the recommended coolant
(2 P. 45) until the level reaches the UPPER
level mark.
Add fluid only from the reserve tank cap and
do not remove the radiator cap.
1.
Remove the reserve tank cap and add
fluid while monitoring the coolant level.
u Do not overfill above the UPPER level
mark.
u Make sure no foreign objects enter the
reserve tank opening.
2.
Securely reinstall the reserve tank cap.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to
spray out, potentially scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Coolant u Adding Coolant
Maintenance
56
Final Drive Oil
Checking the Final Drive Oil
1.
Place your vehicle on the side stand on a
level surface.
2.
Remove the oil fill hole cap and O-ring.
3.
Check the oil level. It should be flush with
the lower edge of the oil fill hole.
Adding Final Drive Oil
If the final drive oil level is low, check for oil
leaks. Add the recommended final drive oil
(2 P. 45) until it reaches the lower edge of
the opening.
1.
Pour the final drive oil into the oil fill hole
until it reaches the lower edge of the
opening.
u Do not over fill above the lower edge
of oil fill hole.
u
Make sure no foreign objects enter the
oil fill hole.
u
Wipe up any spills immediately.
2.
Install a new O-ring onto the oil fill hole
cap. Tighten the oil fill hole cap.
Torque: 9 lbf·ft (12 N·m, 1.2 kgf·m)
Maintenance
57
Lower edge
Oil fill
hole cap
O-ring
Brakes
Checking the Front Brake Fluid
1.
Place your vehicle in an upright position
on a firm, level surface.
2.
Check that the brake fluid reservoir is
horizontal and that the fluid level is above
the LOWER level mark.
If the brake fluid level in the reservoir is
below the LOWER level mark or the brake
lever freeplay becomes excessive, inspect the
brake pads for wear.
If the brake pads are not worn, you most
likely have a leak. Have your vehicle
inspected by your dealer.
Maintenance
58
Front brake fluid
reservoir
LOWER
level mark
Inspecting the Front Brake
Pads
Check the condition of the brake pad wear
indicators.
The pads need to be replaced if a brake pad
is worn to the indicator.
Inspect the brake pads from the bottom of
the brake caliper.
If necessary, have the pads replaced by your
dealer.
Always replace both left and right brake pads
at the same time.
Brakes u Inspecting the Front Brake Pads
Maintenance
59
Pad
Disc
Pad
Wear indicators
Adjusting the Rear Brake Pedal
Height
The stopper bolt is provided to allow
adjustment of the pedal height.
1.
Place your vehicle on its side stand on a
firm, level surface.
2.
Loosen the lock nut and turn the stopper bolt.
3.
Tighten the lock nut and check the freeplay.
Inspecting the Rear Brake
Pedal Freeplay
1.
Place your vehicle on its side stand on a
firm, level surface.
2.
Measure the distance the rear brake
pedal moves before the brake takes hold.
Freeplay at the tip of the brake pedal:
13/16 - 1 3/16 in (20 - 30 mm)
Make sure the brake rod, brake arm, spring
and fastener are in good condition.
Brakes u Adjusting the Rear Brake Pedal Height
Maintenance
60
Stopper
bolt
Lock nut
Freeplay
Adjusting the Rear Brake Pedal
Freeplay
Make sure the cut-out on the adjusting nut is
seated on the brake arm pin when adjusting
the freeplay.
If proper adjustment cannot be obtained by
this method, see your dealer.
1.
Adjust by turning the rear brake adjusting
nut a half-turn at a time.
2.
Apply the brake several times and check
for free wheel rotation after the brake
pedal is released.
Brakes u Adjusting the Rear Brake Pedal Freeplay
Maintenance
61
Continued
Adjusting nut
Brake arm pin
Increase
Freeplay
Adjusting nut
Brake
arm pin
Decrease
Freeplay
3.
Push the brake arm to confirm that there
is a gap between the rear brake adjusting
nut and brake arm pin.
After adjustment, confirm the freeplay of the
brake pedal.
Make sure the brake rod, brake arm, spring
and fastener are in good condition.
NOTICE
Do not turn the adjuster beyond its natural limits.
Brakes u Adjusting the Rear Brake Pedal Freeplay
Maintenance
62
Adjusting nut
Gap
Brake arm pin
Push
Brake arm
Inspecting the Rear Brake Shoe
Wear
The rear brake is equipped with a brake wear
indicator.
When the brake is applied, an arrow attached
to the brake arm moves toward a reference
mark on the brake panel. If the arrow aligns
with the reference mark on full application of
the brake, the brake shoes must be replaced.
See your dealer for this service.
When brake service is necessary, see your
dealer. Use only Honda Genuine Parts or
their equivalent.
Brakes u Inspecting the Rear Brake Shoe Wear
Maintenance
63
Reference
mark
Arrow
Brake arm
Brake
panel
Adjusting the Brake Light
Switch
Check the operation of the brake light switch.
Hold the brake light switch and turn the
adjusting nut in the direction A if the switch
operates too late, or turn the nut in the
direction B if the switch operates too soon.
Brakes u Adjusting the Brake Light Switch
Maintenance
64
Brake light
switch
Adjusting nut
A
B
Side Stand
Checking the Side Stand
1.
Check that the side stand operates
smoothly. If the side stand is stiff or
squeaky, clean the pivot area and
lubricate the pivot bolt with clean grease.
2.
Check the spring for damage or loss of
tension.
3.
Sit on the vehicle, shift the transmission to
Neutral, and raise the side stand.
4.
Start the engine, pull the clutch lever in,
and shift the transmission into gear.
5.
Lower the side stand all the way. The
engine should stop as you lower the side
stand. If the engine doesn't stop, have
your vehicle inspected by your dealer.
Maintenance
65
Side stand
spring
Clutch
Checking the Clutch
#
Checking the Clutch Lever Freeplay
Check the clutch lever freeplay.
Freeplay at the clutch lever:
3/8 - 13/16 in (10 - 20 mm)
Check the clutch cable for kinks or signs of
wear. If necessary, have it replaced by your
dealer.
Lubricate the clutch cable with a
commercially available cable lubricant to
prevent premature wear and corrosion.
NOTICE
Improper freeplay adjustment can cause
premature clutch wear.
Maintenance
66
Freeplay
Clutch lever
Adjusting the Clutch Lever
Freeplay
#
Upper Adjustment
Attempt adjustment with the upper clutch
cable adjuster first.
1.
Loosen the upper lock nut.
2.
Turn the upper clutch cable adjuster until
the freeplay is 3/8 - 13/16 in (10 - 20 mm).
3.
Tighten the upper lock nut and check the
freeplay again.
#
Lower Adjustment
If the upper clutch cable adjuster is threaded
out near its limit, or the correct freeplay
cannot be obtained, attempt adjustment with
the lower clutch cable adjusting nut.
Clutch u Adjusting the Clutch Lever Freeplay
Maintenance
67
Continued
Upper clutch cable adjuster
Upper lock nut
+
–
1.
Loosen the upper lock nut and turn the
upper clutch cable adjuster all the way in
(to provide maximum freeplay).
Tighten the upper lock nut.
2.
Loosen the lower lock nut.
3.
Turn the lower clutch cable adjusting nut
until the clutch lever freeplay is 3/8 - 13/16
in (10 - 20 mm).
4.
Tighten the lower lock nut and check the
clutch lever freeplay.
5.
Start the engine, pull the clutch lever in,
and shift into gear. Make sure the engine
does not stall and the vehicle does not
creep. Gradually release the clutch lever
and open the throttle. Your vehicle should
move smoothly and accelerate gradually.
If proper adjustment cannot be obtained or
the clutch does not work correctly, see your
dealer.
Clutch u Adjusting the Clutch Lever Freeplay
Maintenance
68
Lower clutch cable adjusting nut
Lower lock nut
+
–
Throttle
Checking the Throttle
With the engine off, check that the throttle
rotates smoothly from fully closed to fully
open in all steering positions and throttle
freeplay is correct. If the throttle does not
move smoothly, close automatically, or if the
cable is damaged, have the vehicle inspected
by your dealer.
Freeplay at the throttle grip flange:
1/16 - 1/4 in (2 - 6 mm)
Adjusting the Throttle Freeplay
1.
Slide the cable boot.
2.
Loosen the lock nut.
3.
Turn the adjuster until the freeplay is 1/16
- 1/4 in (2 - 6 mm).
4.
Tighten the lock nut, return the cable
boot, and inspect the throttle action
again.
Maintenance
69
Freeplay
Flange
Throttle grip
Lock nut
Adjuster
Cable boot
+
-
Other Adjustments
Adjusting the Rear Suspension
Adjusting the suspension requires a pin
spanner. We recommend that you have your
vehicle serviced by your dealer.
#
Spring Preload
You can adjust the spring preload by the
adjuster to suit the load or the road surface.
Use the pin spanner to turn the adjuster.
Position 1 is for a decrease spring preload
(soft), or turn the position 3 to 5 increase
spring preload (hard). The standard position
is 2.
NOTICE
Attempting to adjust directly from 1 to 5 or 5 to 1
may damage the shock absorber.
NOTICE
Do not turn the adjuster beyond its limits.
Adjust both left and right shock absorbers to the
same spring preload.
Maintenance
70
Pin spanner
1 2 3 4 5
Engine Will Not Start........................................ P. 72
Overheating (High coolant temperature
indicator is on) ................................................. P. 73
Warning Indicators On or Flashing...............P. 74
Low Oil Pressure Indicator ................................ P. 74
PGM-FI (Programmed Fuel Injection)
Malfunction Indicator Lamp (MIL).................P. 74
Tire Puncture ...................................................... P. 75
Electrical Trouble............................................... P. 76
Battery Goes Dead ..............................................P. 76
Burned-out Light Bulb........................................ P. 76
Blown Fuse ............................................................ P. 80
Troubleshooting
Engine Will Not Start
Starter Motor Operates But
Engine Does Not Start
Check the following items:
● Check the correct engine starting
sequence. 2 P. 25
●
Check that there is gasoline in the fuel
tank.
● Check if the PGM-FI malfunction indicator
lamp (MIL) is on.
u If the indicator lamp is on, contact
your dealer as soon as possible.
Starter Motor Does Not
Operate
Check the following items:
● Check the correct engine starting
sequence. 2 P. 25
●
Make sure engine stop switch is in the
(Run) position. 2 P. 22
● Check for a blown fuse. 2 P. 80
●
Check for a loose battery connection
(2 P. 50) or battery terminal corrosion
(2 P. 41).
● Check the condition of the battery.
2 P. 76
If the problem continues, have your vehicle
inspected by your dealer.
Troubleshooting
72
Overheating (High coolant temperature indicator is on)
The engine is overheating when the following
occurs:
● High coolant temperature indicator
comes on.
● Acceleration becomes sluggish.
If this occurs, pull safely to the side of the
road and perform the following procedure.
Extended fast idling may cause the high
coolant temperature indicator to come on.
NOTICE
Continuing to ride with an overheated engine
can cause serious damage to the engine.
1.
Stop the engine using the ignition switch,
and then turn the ignition switch to the
ON position.
2.
Check that the radiator fan is operating,
and then turn the ignition switch to the
OFF position.
If the fan is not operating:
Suspect a fault. Do not start the engine.
Transport your vehicle to your dealer.
If the fan is operating:
Allow the engine to cool with the ignition
switch in the OFF position.
3.
After the engine has cooled, inspect the
radiator hose and check if there is a leak.
2 P. 55
If there is a leak:
Do not start the engine. Transport your
vehicle to your dealer.
4.
Check the coolant level in the reserve
tank. 2 P. 55
u
Add coolant as necessary.
5.
If 1-4 check normal, you may continue
riding, but closely monitor the high
coolant temperature indicator.
Troubleshooting
73
Warning Indicators On or Flashing
Low Oil Pressure Indicator
If the low oil pressure indicator comes on,
pull safely to the side of the road and stop
the engine.
NOTICE
Continuing to ride with low oil pressure can
cause serious damage to the engine.
1.
Check the engine oil level, and add oil as
necessary. 2 P. 53, 2 P. 54
2.
Start the engine.
u
Only continue riding if the low oil
pressure indicator goes off.
Rapid acceleration may momentarily cause
the low oil pressure indicator to come on,
especially if the oil is at or near the low level.
If the low oil pressure indicator stays on when
the oil level is at the proper level, stop the
engine and contact your dealer.
If the engine oil level goes down rapidly, your
vehicle may have a leak or another serious
problem. Have your vehicle inspected by
your dealer.
PGM-FI (Programmed Fuel
Injection) Malfunction
Indicator Lamp (MIL)
If the indicator comes on while riding, you
may have a serious problem with the PGM-FI
system. Reduce speed and have your vehicle
inspected by your dealer as soon as possible.
Troubleshooting
74
Tire Puncture
Repairing a puncture or removing a wheel
requires special tools and technical expertise.
We recommend you have this type of service
performed by your dealer.
After an emergency repair, always have the
tire inspected/replaced by your dealer.
Tube Repair and Replacement
If a tube is punctured or damaged, you
should replace it as soon as possible. A tube
that is repaired may not have the same
reliability as a new one, and it may fail while
you are riding.
If you need to make a temporary repair by
patching a tube or using an aerosol sealant,
ride cautiously at reduced speed and have
the tube replaced before you ride again.
Anytime a tube is replaced, the tire should be
carefully inspected as described.
3WARNING
Riding your vehicle with a temporary
tire or tube repair can be risky. If the
temporary repair fails, you can crash
and be seriously injured or killed.
If you must ride with a temporary tire or
tube repair, ride slowly and carefully
and do not exceed 30 mph (50 km/h)
until the tire or tube is replaced.
Troubleshooting
75
Electrical Trouble
Battery Goes Dead
Charge the battery using a motorcycle
battery charger.
Remove the battery from the vehicle before
charging.
Do not use an automobile-type battery
charger, as these can overheat a motorcycle
battery and cause permanent damage. If the
battery does not recover after recharging,
contact your dealer.
NOTICE
Jump starting using an automobile battery can
damage your vehicle's electrical system and is
not recommended.
Bump starting is also not recommended.
Burned-out Light Bulb
Follow the procedure below to replace a
burned-out light bulb.
Turn the ignition switch to the OFF position.
Allow the bulb to cool before replacing it.
Do not use bulbs other than those specified.
Check the replacement bulb for correct
operation before riding.
For the light bulb wattage, see
“Specifications.” 2 P. 109
Troubleshooting
76
#
Headlight Bulb
1.
Remove the headlight bolts from the
headlight case.
2.
Gently pull the lower end of the headlight
forward and remove the headlight.
3.
Disconnect the connector.
4.
Remove the seat rubber.
5.
Unhook the pin and remove the bulb.
6.
Install a new bulb and parts in the reverse
order of removal.
u
Install the seat rubber with its TOP
mark facing up.
7.
Tighten the headlight bolts.
Torque: 3.0 lbf·ft (4.1 N·m, 0.4 kgf·m)
Do not touch the glass surface with your
fingers. If you touch the bulb with your bare
hands, clean it with a cloth moistened with
isopropyl (rubbing) alcohol.
Electrical Trouble u Burned-out Light Bulb
Troubleshooting
77
Continued
Connector
Headlight
Headlight bolts
Seat rubber
TOP
mark
Pin
Bulb
#
Brake Light/Taillight Bulb
1.
Remove the taillight lens by removing the
screws.
2.
Slightly press the bulb in and turn it
counterclockwise.
3.
Install a new bulb and parts in the reverse
order of removal.
u
After putting back the lens packing in
place, install the taillight lens.
#
Front/Rear Turn Signal Bulb
1.
Remove the turn signal lens and lens
packing by removing the screw.
2.
Slightly press the bulb and turn it
counterclockwise.
3.
Install a new bulb and parts in the reverse
order of removal.
u
After putting back the lens packing in
place, install the turn signal lens.
Electrical Trouble u Burned-out Light Bulb
Troubleshooting
78
Taillight lens
ScrewsBulb
Turn signal
lens
Lens packing
Screw Bulb
#
License Plate Light Bulb
1.
Remove the screws and license light
cover.
2.
Pull the bulb out of the socket without
turning it.
3.
Install a new bulb and parts in the reverse
order of removal.
u After putting back the cover packing in
place, install the license light cover.
Electrical Trouble u Burned-out Light Bulb
Troubleshooting
79
Bulb
Screws
License light
cover
Blown Fuse
Before handling fuses, see “Inspecting and
Replacing Fuses.” 2 P. 43
#
Fuse Box Fuses
1.
Remove the right side cover. 2 P. 52
2.
Open the fuse box cover.
3.
Pull the fuses out one by one to check for
a blown fuse. Always replace a blown fuse
with a spare fuse of the same rating.
4.
Close the fuse box cover.
5.
Reinstall the right side cover.
Electrical Trouble u Blown Fuse
Troubleshooting
80
FI fuse
Fuse box covers Spare fuses
#
Main Fuse
1.
Remove the right side cover. 2 P. 52
2.
Disconnect the wire connector of the
starter magnetic switch.
3.
Pull the main fuses out and check for a
blown fuse. Always replace a blown fuse
with a spare fuse of the same rating.
u Spare main fuse is located under the
starter magnetic switch.
4.
Reinstall parts in the reverse order of
removal.
NOTICE
If a fuse fails repeatedly, you likely have an
electrical problem. Have your vehicle inspected
by your dealer.
Electrical Trouble u Blown Fuse
Troubleshooting
81
Main
fuse
Wire connector
Starter magnetic
switch
Spare main fuse
Keys....................................................................... P. 83
Instruments, Controls, & Other Features..... P. 84
Caring for Your Vehicle.................................... P. 85
Storing Your Vehicle......................................... P. 88
Transporting Your Vehicle .............................. P. 90
You & the Environment.................................... P. 91
Vehicle Identification Number....................... P. 92
Emission Control Systems ............................... P. 93
Catalytic Converter ........................................... P. 98
Oxygenated Fuels..............................................P. 99
Authorized Manuals ....................................... P. 100
Warranty Coverage and Service .................. P. 101
Honda Contacts ............................................... P. 104
Reporting Safety Defects .............................. P. 106
Information
Keys
Ignition Key/Steering Lock Key
Be sure to record the key number provided with
the original keys. Store the spare key and key
number in a safe location.
To make a duplicate, take the spare key or the
key number to your dealer.
If you lose all ignition keys and the key number,
the ignition switch assembly will probably have
to be removed by your dealer to determine the
key number.
A metal key holder may cause damage to the
area surrounding the ignition switch.
Keys
Information
83
Instruments, Controls, &
Other Features
Ignition Switch
Leaving the ignition switch in the ON position
with the engine stopped will drain the battery.
Do not turn the key while riding.
Engine Stop Switch
Do not use the engine stop switch except in an
emergency. Doing so when riding will cause the
engine to suddenly turn off, making riding unsafe.
If you stop the engine using the engine stop
switch, turn the ignition switch to the OFF
position. Failing to do so will drain the battery.
Odometer
The display remains at 999,999 when the
odometer exceeds 999,999.
Tripmeter
Each tripmeter resets to 0.0 when the trip
mileage exceeds 999.9.
Document Bag
The owner’s manual, registration, and insurance
information can be stored in the plastic
document bag located under the seat.
Ignition Cut-off System
A banking (lean angle) sensor automatically
stops the engine and fuel pump if the vehicle
falls over. To reset the sensor, you must turn the
ignition switch to the OFF position and back to
the ON position before the engine can be
restarted.
Instruments, Controls, & Other Features
Information
84
Caring for Your Vehicle
Frequent cleaning and polishing is important to
ensure the life of your Honda. A clean vehicle
makes it easier to spot potential problems.
In particular, seawater and salts used to prevent
ice on roads promote the formation of
corrosion. Always wash your vehicle thoroughly
after riding on coastal or treated roads.
Washing
Allow the engine, muffler, brakes, and other
high-temperature parts to cool before washing.
1.
Rinse your vehicle thoroughly using a low
pressure garden hose to remove loose dirt.
2.
If necessary, use a sponge or a soft towel
with mild cleaner to remove road grime.
u Clean the headlight lens, panels, and
other plastic components with extra care
to avoid scratching them.
Avoid directing water into the air cleaner,
muffler, and electrical parts.
3.
Thoroughly rinse your vehicle with plenty of
clean water and dry with a soft, clean cloth.
Caring for Your Vehicle
Information
85
Continued
4.
After the vehicle dries, lubricate any moving
parts.
u Make sure that no lubricant spills onto
the brakes or tires. Brake discs, pads,
drum or shoes contaminated with oil will
suffer greatly reduced braking
effectiveness and can lead to a crash.
5.
Apply a coat of wax to prevent corrosion.
u
Avoid products that contain harsh
detergents or chemical solvents. These
can damage the metal, paint, and plastic
on your vehicle.
Keep the wax clear of the tires and
brakes.
u If your vehicle has any matte painted
parts, do not apply a coat of wax to the
matte painted surface.
#
Washing Precautions
Follow these guidelines when washing:
● Do not use high-pressure washers:
u High-pressure water cleaners can
damage moving parts and electrical
parts, rendering them inoperable.
u Water in the air intake can be drawn into
the throttle body and/or enter the air
cleaner.
● Do not direct water at the muffler:
u Water in the muffler can prevent starting
and causes rust in the muffler.
● Dry the brakes:
u Water adversely affects braking
effectiveness. After washing, apply the
brakes intermittently at low speed to
help dry them.
● Do not direct water under the seat:
u Water in the under seat compartment
can damage your documents and other
belongings.
Caring for Your Vehicle
Information
86
● Do not direct water at the air cleaner:
u Water in the air cleaner can prevent the
engine from starting.
● Do not direct water near the headlight:
u The headlight's inside lens may fog
temporarily after washing or while riding
in the rain. This does not impact the
headlight function.
u
Any condensation inside the headlight
should dissipate after a few minutes of
running the engine with the headlight(s)
on.
However, if you see a large amount of
water or ice accumulated inside the
lens(es), have your vehicle inspected by
your dealer.
●
Do not use wax or polishing compounds on
matte painted surfaces:
u Use a soft cloth or sponge, plenty of
water, and a mild detergent to clean
matte painted surfaces. Dry with a soft
clean cloth.
Aluminum Components
Aluminum will corrode from contact with dirt,
mud, or road salt. Clean aluminum parts
regularly and follow these guidelines to avoid
scratches:
● Do not use stiff brushes, steel wool, or
cleaners containing abrasives.
● Avoid riding over or scraping against curbs.
Panels
Follow these guidelines to prevent scratches
and blemishes:
● Wash gently using a soft sponge and plenty
of water.
● To remove stubborn stains, use diluted
detergent and rinse thoroughly with plenty
of water.
● Avoid getting gasoline, brake fluid, or
detergents on the instruments, panels, or
headlight.
Caring for Your Vehicle
Information
87
Continued
Exhaust Pipe and Muffler
The exhaust pipe and muffler are stainless steel
but may become stained by mud or dust.
To remove mud or dust, use a wet sponge and
a liquid kitchen abrasive, then rinse well with
clean water. Dry with chamois or a soft towel.
If necessary, remove heat stains by using a
commercially available fine texture compound.
Then, rinse by the same manner as removing
mud or dust.
NOTICE
Even though the exhaust is made of stainless
steel, it can become stained. Remove all marks
and blemishes as soon as they are noticed.
Storing Your Vehicle
If you store your vehicle outdoors, you should
consider using a full-body cover.
If you won't be riding for an extended period,
follow these guidelines:
● Wash your vehicle and wax all painted
surfaces (except matte painted surfaces).
Coat chrome pieces with rust-inhibiting oil.
● Place your vehicle on a maintenance stand
and position a block so that both tires are
off the ground.
●
After rain, remove the body cover and allow
the vehicle to dry.
●
Remove the battery (2 P. 50) to prevent
discharge. Fully charge the battery and then
place it in a shaded, well-ventilated area.
u If you leave the battery in place,
disconnect the negative - terminal to
prevent discharge.
Storing Your Vehicle
Information
88
After removing your vehicle from storage,
inspect all maintenance items required by the
Maintenance Schedule.
For more information about storage, refer to
the Honda Winter Storage Guide, available from
your dealer.
Storing Your Vehicle
Information
89
Transporting Your Vehicle
If your vehicle needs to be transported, it
should be carried on a motorcycle trailer or a
flatbed truck or trailer that has a loading ramp
or lifting platform, and motorcycle tie-down
straps. Never try to tow your vehicle with a
wheel or wheels on the ground.
NOTICE
Towing your vehicle with a wheel or wheels on
the ground can cause serious damage to the
transmission.
Transporting Your Vehicle
Information
90
You & the Environment
Owning and riding a vehicle can be enjoyable,
but you must do your part to protect the
environment.
Choose Sensible Cleaners
Use a biodegradable detergent when you wash
your vehicle. Avoid aerosol spray cleaners that
contain chlorofluorocarbons (CFCs) which
damage the atmosphere's protective ozone
layer.
Recycle Wastes
Put oil and other toxic wastes in approved
containers and take them to a recycling center.
Call your local or state office of public works or
environmental services to find a recycling center
in your area and to get instructions on how to
dispose of non-recyclable wastes. Do not place
used engine oil in the trash or pour it down a
drain or on the ground. Used oil, gasoline,
coolant, and cleaning solvents contain poisons
that can hurt refuse workers and contaminate
drinking water, lakes, rivers, and oceans.
You & the Environment
Information
91
Vehicle Identification
Number
The VIN and engine serial number uniquely
identify your vehicle and are required in order
to register your vehicle. They may also be
required when ordering replacement parts.
You should record these numbers and keep
them in a safe place.
Vehicle Identification Number
Information
92
VIN
VIN
Emission Control Systems
Your vehicle engine emits combustion
byproducts, including carbon monoxide (CO),
oxides of nitrogen (NOx), and hydrocarbons
(HC). Gasoline evaporation also emits
hydrocarbons. Controlling the production of
NOx, CO, and HC is important for the
environment.
Emission Control Systems
Information
93
Continued
Engine
number
Exhaust Emission Requirements
The U.S. Environmental Protection Agency (EPA)
and the California Air Resources Board (CARB)
require that your vehicle comply with applicable
exhaust, crankcase, and fuel permeation
emission standards during its useful life, when
operated and maintained according to the
instructions provided.
CARB also requires that your vehicle comply
with applicable evaporative emission
requirements during its useful life, when
operated and maintained according to the
instructions provided.
Compliance with the terms of the Distributor's
Warranties for Honda Motorcycle Emission
Control Systems is necessary in order to
maintain a valid emissions system warranty.
The Vehicle Emission Control Information label
is attached to the left side of the frame.
Noise Emission Requirements
The EPA requires that vehicles built after
January 1, 1983 comply with applicable noise
emission standards for one year or 3,730 miles
(6,000 km) after the time of purchase when
operated and maintained according to the
instructions provided.
Emission Control Systems
Information
94
Vehicle emission control information label
Exhaust Emission Control System
The exhaust emission control system includes
the following components that should not need
adjustment, although periodic inspection by
your dealer is recommended.
#
PGM-FI System
The PGM-FI (programmed fuel injection) system
uses sequential multiport fuel injection, and is
comprised of air intake, engine control, fuel
control, and exhaust control subsystems. The
engine control module (ECM) uses sensors to
determine how much air enters the engine, and
then controls how much fuel to inject.
#
Ignition Timing Control System
The ignition timing control system adjusts the
ignition timing to reduce the amount of HC,
CO, and NOx produced.
#
Secondary Air Injection System
The secondary air injection system adds filtered
air into the exhaust gas to help improve
emission control performance.
#
Catalytic Converters
The exhaust system contains one or more
catalytic converters. Catalytic converters use a
catalyst to convert most of the harmful exhaust
gas compounds into harmless compounds.
Evaporative Emission Control System
50 STATE (meets California requirements)
An evaporative emissions control system uses a
canister filled with charcoal to adsorb fuel vapor
from the fuel tank while the engine is off. The
vapor is drawn into the engine and burned
while riding.
Emission Control Systems
Information
95
Continued
Crankcase Emissions Control System
The engine is equipped with a closed crankcase
system to prevent discharging crankcase
emissions into the atmosphere. Blow-by gas is
returned to the combustion chamber through
the air cleaner and throttle body.
Fuel Permeation Emission Control
The fuel tank, fuel hoses, and fuel vapor charge
hoses use fuel permeation control technologies
to prevent fuel vapor emissions. Tampering with
these components to reduce or defeat the
effectiveness of the fuel permeation
technologies is prohibited.
Noise Emission Control System
#
TAMPERING WITH THE NOISE CONTROL
SYSTEM IS PROHIBITED:
U. S. federal law prohibits the following acts or
the causing thereof: (1) The removal or
rendering inoperative by any person, other than
for purposes of maintenance, repair or
replacement, of any device or element of
design incorporated into any new vehicle for
the purpose of noise control prior to its sale or
delivery to the ultimate purchaser or while it is
in use; or (2) the use of the vehicle after such
device or element of design has been removed
or rendered inoperative by any person.
Emission Control Systems
Information
96
#
AMONG THOSE ACTS PRESUMED TO
CONSTITUTE TAMPERING ARE THE
FOLLOWING ACTS:
● Removal of, or puncturing the muffler,
baffles, header pipes or any other
component which conducts exhaust gases.
● Removal of, or puncturing of any part of the
intake system.
● Lack of proper maintenance.
● Removing or disabling any emissions
compliance component, or replacing any
compliance component with a noncompliant
component.
Problems Affecting Vehicle Exhaust
Emissions
Have your vehicle inspected and repaired by
your dealer if you experience any of the
following symptoms:
● Hard starting or stalling after starting
● Rough idling
● Misfiring or backfiring during acceleration
● Poor engine performance and poor fuel
economy
Emission Control Systems
Information
97
Catalytic Converter
This vehicle is equipped with two oxidation
catalytic converters. Each catalytic converter
contains precious metals that serve as catalysts
in high temperature chemical reactions that
convert hydrocarbons (HC) and carbon
monoxide (CO) in the exhaust gases into safe
compounds.
A defective catalytic converter contributes to air
pollution and can impair your engine's
performance. A replacement unit must be an
original Honda part or equivalent.
Follow these guidelines to protect your vehicle's
catalytic converters:
● Always use unleaded gasoline. Leaded
gasoline will damage the catalytic
converters.
● Keep the engine in good running condition.
A poorly running engine can cause the
catalytic converter to overheat, causing
damage to the converter or the vehicle.
● If your engine is misfiring, backfiring, stalling,
or otherwise not running properly, stop
riding and turn off the engine. Have your
vehicle serviced as soon as possible.
Catalytic Converter
Information
98
Oxygenated Fuels
Some conventional fuels blended with alcohol
or an ether compound are available in some
locales to help reduce emissions to meet clean
air standards. These gasolines are collectively
referred to as oxygenated fuels. If you plan to
use oxygenated fuel, check that it is unleaded
and meets the minimum octane rating and
blend requirement.
The following fuel blends have been approved
for use in your vehicle:
●
Ethanol (ethyl alcohol) up to 10% by volume.
u Gasoline containing ethanol may be
marketed under the name Gasohol.
●
Do not use gasoline containing methanol
(methyl alcohol).
If you accidentally fill your fuel tank with an
oxygenated fuel containing higher percentages,
you may experience performance problems. To
resolve the problem, have your dealer drain the
fuel tank and replace with the correct fuel. Fuel
system or performance problems resulting from
the use of an oxygenated fuel containing higher
percentages are not covered by your warranty.
NOTICE
Improper use of oxygenated fuels can damage
metal, rubber, and plastic parts of your fuel
system.
Oxygenated fuel can also damage paint.
Damage caused by spilled fuel is not covered by
warranty.
If you notice any undesirable operating
symptoms or performance problems, try a
different brand of gasoline.
Oxygenated Fuels
Information
99
Description
2022 VT750C2B Service Manual
Common Service Manual (61CSM00)
Winter Storage Guide (S9507)
2022 VT750C2B Owner’s Manual
Authorized Manuals
The Service Manual used by your authorized
dealer is available from your Honda dealer or
Helm, Inc.
Also available, but not necessary to service your
model, is the Honda Common Service Manual,
which explains basic service information for
various systems on Honda motorcycles,
scooters, ATV, and SxS.
The Winter Storage Guide in conjunction with
the Owner's Manual and Service Manual can
help you prepare your Honda motorcycle,
scooter, ATV, and SxS for winter storage.
These Honda manuals are written for the
professional technician. However, if you possess
the proper tools, observe the safety standards,
and are mechanically capable, you should find
them easy to use.
Special Honda tools are necessary for some
procedures.
Order online: www.helminc.com
Order Toll Free: 1-888-CYCLE93
(1-888-292-5393)
(NOTE: For Credit Card Orders Only)
Monday - Friday 8:00 AM - 6:00 PM ET
Authorized Manuals
Information
100
Warranty Coverage and
Service
Coverage
Your new Honda is covered by the following
warranties:
● Vehicle Limited Warranty
● Emission Control System Warranty
● Noise Control Warranty
The responsibilities, restrictions, and exclusions
that apply to these warranties are explained in
the Warranties Booklet given to you by your
Honda dealer at the time of purchase. Always
keep your Honda owner's card with your
Warranties Booklet.
It is important to realize that your warranty
applies only to defects in material or
workmanship of your Honda. Your warranty
coverage does not apply to the normal wear
and deterioration associated with use of the
vehicle.
Your warranty coverage is not voided if you
perform your own maintenance. However,
failures that occur due directly to improper
maintenance are not covered by these
warranties.
You can extend almost all of your warranty
coverage through the HondaCare
®
Protection
Plan. For more information, see your Honda
dealer.
Warranty Coverage and Service
Information
101
Continued
Statement on Warranty Coverage for
Aftermarket and Recycled Parts
The Magnuson-Moss Warranty Act, 15 U.S.C. s.
2301 et seq., makes it illegal for motor vehicle
manufacturers to void a motor vehicle warranty
or deny warranty coverage solely because an
aftermarket or recycled part has been used to
repair the vehicle or someone other than the
authorized service provider performed service
on the vehicle. This provision does not apply to
a new motor vehicle purchased solely for
commercial or industrial use.
Under federal law, a manufacturer may deny
warranty coverage and charge for repairs to a
vehicle if it is discovered that an aftermarket or
recycled part installed on the vehicle is defective
or was installed incorrectly and caused damage
to another part of the vehicle otherwise covered
under warranty. The Federal Trade Commission
requires that a manufacturer demonstrate that
an aftermarket or recycled part or service
performed by a person other than an
authorized service provider caused damage to
another part of the vehicle otherwise covered
under warranty before denying warranty
coverage. Additionally, federal law allows a
manufacturer to void a motor vehicle warranty
or deny warranty coverage if the manufacturer
provides the article or service to consumers free
of charge under the warranty or the
manufacturer has secured a waiver from the
Federal Trade Commission.
Warranty Coverage and Service
Information
102
Service
Please remember that maintenance
recommended in the Maintenance Schedule is
not included in your warranty coverage.
If you believe you have a problem with your
vehicle, call the service department of your
Honda dealer. Make an appointment for an
inspection and diagnosis. You will be asked to
authorize that inspection, and your dealer will
return the results of the inspection. If a problem
exists and is covered under warranty, your
dealer will perform the warranty repairs. If you
have any questions about your warranty
coverage or the nature of the repair, talk to the
Service Manager of your Honda dealer.
If a misunderstanding occurs and you aren't
satisfied with your dealer's handling of the
situation, we suggest you discuss your problem
with the appropriate member of the
dealership's management team. If you are still
not satisfied, contact the owner of the
dealership or their designated representative.
Warranty Coverage and Service
Information
103
Honda Contacts
American Honda Motor Co., Inc.
If you wish to contact Honda directly to
comment on your experiences with your vehicle
or with your dealer, please send your comments
using one of the following methods:
Powersports Customer Relations
American Honda Motor Co., Inc.
P.O. Box 2200, Torrance, CA 90509-2200
Mailstop: 100-4W-5F
Telephone: (866) 784-1870
Website: https://powersports.honda.com/
contact-us
Please include the following information in your
letter:
● Name, address, and telephone number
● Product model, year, and VIN
● Date of purchase
● Dealer name and address
We will likely ask your Honda dealer to respond,
or possibly acknowledge your comments
directly.
Honda Contacts
Information
104
Your Honda Dealer
The service department of your Honda dealer
offers trained personnel to perform regular
maintenance and unexpected repairs. It has the
latest available service information from Honda
and also handles warranty inspections and
repairs.
The parts department offers Honda Genuine
Parts, Pro Honda products and Honda
Accessories that provide the same quality that
went into your vehicle.
The sales department offers the HondaCare
®
Protection Plan to extend almost all of your
warranty coverage.
Your Honda dealer can also supply information
about riding events and information about
safety training available in your local area.
Honda Contacts
Information
105
Reporting Safety Defects
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National
Highway Traffic Safety Administration
(NHTSA) in addition to notifying
American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it
may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you, your
dealer, or American Honda Motor Co.,
Inc.
To contact NHTSA, you may call the Vehicle
Safety Hotline toll-free at:
1-888-327-4236
(TTY: 1-800-424-9153); go to
https://www.safercar.gov;
or write to:
Administrator, NHTSA,
1200 New Jersey Avenue, SE.,
Washington, DC 20590.
You can also obtain other information about
motor vehicle safety from:
https://www.safercar.gov.
Reporting Safety Defects
Information
106
Specifications
■ Main Components
Overall length 94.3 in (2,395 mm)
Overall width 32.5 in (825 mm)
Overall height 42.9 in (1,090 mm)
Wheelbase 64.6 in (1,640 mm)
Minimum ground
clearance
5.1 in (130 mm)
Caster angle 34° 00’
Trail 6.3 in (161 mm)
Curb weight
50 STATE (meets
California)
552 lb (250 kg)
49 STATE 549 lb (249 kg)
Maximum weight
capacity
*1
401 lb (182 kg)
Passenger capacity Rider and 1 passenger
Minimum turning
radius
10.8 ft (3.3 m)
Displacement 45.4 cu-in (745 cm
3
)
Bore x stroke 3.11 x 2.99 in (79.0 x 76.0 mm)
Compression ratio 9.6 : 1
Fuel
Unleaded gasoline
Recommended fuel octane number:
Pump Octane Number (PON) 86 or
higher.
Tank capacity 3.70 US gal (14.0 L)
Battery
YTZ14S
12 V-11.2 Ah (10 HR)
Gear ratio
1st 2.400
2nd 1.550
3rd 1.173
4th 0.960
5th 0.851
Reduction ratio
(primary /
secondary / final)
1.763 / 0.868 / 3.090
*1 : Including rider, passenger, all luggage, and accessories
Specifications
107
■ Service Data
Tire size
Front 120/90-17M/C 64S
Rear 160/80-15M/C 74S
Tire type bias-ply, tube
Recommended
tire
Front
DUNLOP D404 FG
BRIDGESTONE G701
CHENG SHIN M6002
Rear
DUNLOP D404
BRIDGESTONE G702
CHENG SHIN M6011R
Tire air
pressure
Front
29 psi (200 kPa, 2.00 kgf/cm
2
)
Rear
29 psi (200 kPa, 2.00 kgf/cm
2
)
*1
36 psi (250 kPa, 2.50 kgf/cm
2
)
*2
Minimum
tread depth
Front 0.06 in (1.5 mm)
Rear 0.08 in (2.0 mm)
Spark plug
(standard)
DPR7EA-9 (NGK) or
X22EPR-U9 (DENSO)
(high speed
riding)
DPR8EA-9 (NGK) or
X24EPR-U9 (DENSO)
Spark plug
gap
0.031 - 0.035 in (0.80 - 0.90 mm)
Idle speed (non-adjustable) 1,200 ± 100 rpm
Recommended
engine oil
API Service Classification SJ or higher except
oils labeled as energy conserving or resource
conserving on the circular API service label,
SAE 10W-30, JASO T 903 standard MA, Pro
Honda GN4 4-stroke oil (USA & Canada) or
Honda 4-stroke oil, or an equivalent
motorcycle oil
Engine oil
capacity
After draining
2.6 US qt (2.5 L)
After draining &
filter change
2.7 US qt (2.6 L)
After disassembly
3.4 US qt (3.2 L)
Recommended
final drive oil
Hypoid gear oil SAE 80
Final drive oil
capacity
After draining 5.4 US oz (160 cm
3
)
After disassembly 5.7 US oz (170 cm
3
)
Recommended
brake fluid
Honda DOT 4 Brake Fluid
Cooling system
capacity
2.07 US qt (1.96 L)
Recommended
coolant
Pro Honda HP Coolant
*1 : With less than 200 lb (90 kg) of added weight.
*2 : With more than 200 lb (90 kg) of added weight.
Specifications
Specifications
108
■ Bulbs
Headlight 12 V-60/55 W
Brake light/Taillight 12 V-21/5 W
Front turn signal 12 V-21/5 W x 2
Rear turn signal 12 V-21 W x 2
License plate light 12 V-5 W
■ Fuses
Main fuse 30 A
FI fuse 15 A
Other fuse 20 A, 10 A
■ Torque Specifications
Battery cover screw 0.7 lbf·ft (1 N·m, 0.1 kgf·m)
Seat mounting bolt B 19 lbf·ft (26 N·m, 2.7 kgf·m)
Final drive oil fill hole cap 9 lbf·ft (12 N·m, 1.2 kgf·m)
Headlight bolt 3.0 lbf·ft (4.1 N·m, 0.4 kgf·m)
Specifications
Specifications
109
Information Record
VIN
Engine No.
Color Label & Code
Owner's Name
Address
City/State
Phone
Dealer's Name
Address
City/State
Phone
Service Manager
110
California Proposition 65 Warning
WARNING: Operating, servicing and maintaining a passenger vehicle
or off-highway motor vehicle can expose you to chemicals including
engine exhaust, carbon monoxide, phthalates, and lead, which are known
to the State of California to cause cancer and birth defects or other
reproductive harm. To minimize exposure, avoid breathing exhaust, do
not idle the engine except as necessary, service your vehicle in a well-
ventilated area and wear gloves or wash your hands frequently when
servicing your vehicle. For more information go to
www.P65Warnings.ca.gov/passenger-vehicle.
00X31-MJA-8300
31MJA830
PRINTED IN USA
