Operation Manual
Embroidery Machine
Product Code: 884-T23
Be sure to read this document before using the machine.
We recommend that you keep this document nearby for future reference.
1
Thank you for purchasing this machine. Before using this
machine, carefully read the “IMPORTANT SAFETY
INSTRUCTIONS”, and then study this manual for the
correct operation of the various functions.
In addition, after you have finished reading this manual,
store it where it can quickly be accessed for future
reference.
Failure to follow these instructions may result in an
increased risk of personal injury or damage to property,
including through fire, electrical shock, burns or
suffocation.
Please read these safety instructions before attempting to
use the machine.
DANGER
- To reduce the risk of electric shock
1Always unplug the machine from the
electrical outlet immediately after using,
when cleaning, when making any user
servicing adjustments mentioned in this
manual, or if you are leaving the
machine unattended.
WARNING
- To reduce the risk of burns, fire, electric shock, or
injury to persons.
2Always unplug the machine from the electrical
outlet when lubricating it or when making any other
user servicing adjustments mentioned in the
Operation Manual.
• To unplug the machine, switch the machine to the
symbol “O” position to turn it off, then grasp the
plug and pull it out of the electrical outlet. Do not
pull on the cord.
• Plug the machine directly into the electrical outlet.
Do not use an extension cord.
• Always unplug your machine if the power is cut.
3Electrical Hazards:
• This machine should be connected to an AC power
source within the range indicated on the rating
label. Do not connect it to a DC power source or
inverter. If you are not sure what kind of power
source you have, contact a qualified electrician.
• This machine is approved for use in the country of
purchase only.
4Never operate this machine if it has a damaged cord
or plug, if it is not working properly, if it has been
dropped or damaged, or water is spilled on the unit.
Return the machine to the nearest authorized
Brother dealer or service center for examination,
repair, electrical or mechanical adjustment.
• To avoid electric shock or fire; do not use a
damaged power supply plug or loose electrical
outlet, and ensure that the power supply plug is fully
inserted and secure.
• While the machine is stored or in use if you notice
anything unusual, such as an odor, heat,
discoloration or deformation, stop using the
machine immediately and unplug the power cord.
• When transporting the machine, be sure to lift it
from the bottom positions. Lifting the machine by
any other part may damage the machine or result in
the machine falling, which could cause injuries.
• When lifting the machine, be careful not to make
any sudden or careless movements, otherwise you
may injure your back or knees.
• While the machine is being transported, be careful
not to touch the operation panel, thread guides or
any other part, otherwise injuries may result.
5Always keep your work area clear:
• Never operate the machine with any air openings
blocked. Keep ventilation openings of the machine
free from the build up of lint, dust, and loose cloth.
• Do not use extension cords. Plug the machine
directly into the electrical outlet.
• Never drop or insert any object into any opening.
• Keep fingers out of all machine openings, such as
near the carriage, otherwise injuries may result.
• Do not operate where aerosol (spray) products are
being used or where oxygen is being administered.
• Do not use the machine near a heat source, such as
a stove or iron; otherwise, the machine, power cord
or garment being embroidered may ignite, resulting
in fire or an electric shock.
• Do not use this machine near an open flame; the
movement of the embroidery frame could cause the
garment being embroidered to catch fire.
INTRODUCTION
IMPORTANT SAFETY
INSTRUCTIONS
2
• Do not place this machine on an unstable surface,
such as an unsteady or slanted table, otherwise the
machine may fall, resulting in injuries.
• While attaching or detaching an embroidery frame
or other included accessory or while maintaining
the machine, be careful not to hit the machine with
your body or any other part of it.
6Special care is required when embroidering:
• Always pay close attention to the needle. Do not use
bent or damaged needles.
• Keep fingers away from all moving parts. Special
care is required around the machine needle.
• While the machine is in operation, keep your hands
away from the needle bar case and all moving parts
near the needle bar case, otherwise injuries may
result.
• Switch the machine to the symbol “O” position to
turn it off when making any adjustments in the
needle area, such as changing the needle.
• Do not use a damaged or incorrect needle plate, as
it could cause the needle to break.
7This machine is not a toy:
• Your close attention is necessary when the machine
is used by or near children.
• This machine is not intended for use by young
children or infirm persons without supervision.
• Young children should be supervised to ensure that
they do not play with this machine.
• Do not use the included scissors or seam ripper in
any other way than how they are intended. In
addition, when opening a hole with the seam ripper,
do not place your hands or fingers in the cutting
path, otherwise injuries may result if the seam ripper
slips.
• The plastic bag that this machine was supplied in
should be kept out of the reach of children or
disposed of. Never allow children to play with the
bag due to the danger of suffocation.
• Do not use outdoors.
8For a longer service life:
• When storing this machine, avoid direct sunlight
and high humidity locations. Do not use or store the
machine near a space heater, iron, halogen lamp, or
other hot objects.
• Do not use cleansers or organic solvents, such as
thinner, petroleum ether or alcohol, to clean the
machine. Otherwise, the finish may peel off or
become scratched.
• Always consult the Operation Manual when
replacing or installing any assemblies, the presser
feet, needle, or other parts to assure correct
installation.
9For repair or adjustment:
• Do not try to disassemble, repair or alter this
machine in any way, otherwise a fire, electric shock
or injuries may result.
• If the light unit is damaged, it must be replaced by
an authorized Brother dealer.
• In the event a malfunction occurs or adjustment is
required, first follow the troubleshooting table in the
back of the Operation Manual to inspect and adjust
the machine yourself. If the problem persists, please
consult your local authorized Brother dealer.
Use this machine only for its intended use as described
in the manual.
Use accessories recommended by the manufacturer as
contained in this manual.
Use the interface cable (USB cable) included with this
machine.
The contents of this manual and specifications of this
product are subject to change without notice.
For additional product information and updates, visit
our website at www.brother.com
3
SAVE THESE
INSTRUCTIONS
This machine is intended
for household use.
FOR USERS IN COUNTRIES EXCEPT
CENELEC COUNTRIES
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to
ensure that they do not play with the
appliance.
FOR USERS IN CENELEC COUNTRIES
This appliance can be used by children
aged from 8 years and above and
persons with reduced physical, sensory
or mental capabilities or lack of
experience and knowledge if they have
been given supervision or instruction
concerning use of the appliance in a
safe way and understand the hazards
involved. Children shall not play with
the appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
FOR USERS IN THE UK,
EIRE, MALTA AND
CYPRUS ONLY
IMPORTANT
• In the event of replacing the plug fuse, use a fuse
approved by ASTA to BS 1362, i.e. carrying the
mark, rating as marked on plug.
• Always replace the fuse cover. Never use plugs with
the fuse cover omitted.
• If the available electrical outlet is not suitable for the
plug supplied with this equipment, you should
contact your authorized Brother dealer to obtain the
correct lead.
Federal Communications
Commission (FCC)
Supplier’s Declaration of
Conformity (For U.S.A.
Only)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
• Consult the authorized Brother dealer or an
experienced radio/TV technician for help.
Responsible Party: Brother International Corporation
200 Crossing Boulevard
P.O. Box 6911
Bridgewater, NJ 08807-0911
USA
TEL : (908) 704-1700
declares that the product
Product Name:
Model Number:
Brother Embroidery Machine
PR680W
4
• This transmitter must not be co-located or operated
in conjunction with any other antenna or
transmitter.
Important
Changes or modifications not expressly approved by
Brother Industries, Ltd. could void the user’s authority
to operate the equipment.
This equipment complies with FCC/IC radiation
exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF)
Exposure Guidelines and RSS-102 of the IC radio
frequency (RF) Exposure rules. This equipment should
be installed and operated keeping the radiator at least
20cm or more away from person’s body.
For Users in Canada
This device complies with Industry Canada’s licence-exempt
RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including
interference that may cause undesired operation of the
device.
This equipment complies with FCC/IC radiation exposure
limits set forth for an uncontrolled environment and meets the
FCC radio frequency (RF) Exposure Guidelines and RSS-102
of the IC radio frequency (RF) Exposure rules. This equipment
should be installed and operated keeping the radiator at least
20cm or more away from person’s body.
For Users in Mexico
The operation of this equipment is subject to the following
two conditions:
(1) it is possible that this equipment or device may not cause
harmful interference, and
(2) this equipment or device must accept any interference,
including interference that may cause undesired
operation.
Declaration of Conformity
(Europe and Turkey only)
We, Brother Industries, Ltd. 15-1 Naeshiro-cho, Mizuho-ku,
Nagoya 467-8561 Japan declare that this product is in
conformity with the essential requirements of all relevant
directives and regulations applied within the European
Community.
The Declaration of Conformity (DoC) can be downloaded
from Brother support website. Visit support.brother.com
Declaration of Conformity
for RE Directive 2014/53/
EU (Europe and Turkey
only)
(Applicable to models with
radio interfaces)
We, Brother Industries, Ltd. 15-1 Naeshiro-cho, Mizuho-ku,
Nagoya 467-8561 Japan declare that these products are in
conformity with the provisions of the RE Directive 2014/53/
EU. The Declaration of Conformity (DoC) can be downloaded
from Brother support website. Visit support.brother.com
Wireless LAN (Models with
Wireless LAN function
only)
This machine supports wireless interface.
Frequency band(s): 2400-2483.5 MHz
Maximum radio-frequency power transmitted in the
frequency band(s): Less than 20 dBm(e.i.r.p)
UK Declaration of
Conformity
(Great Britain only)
We, Brother Industries Ltd. 15-1 Naeshiro-cho, Mizuho-ku,
Nagoya 467-8561 Japan declare that these products are in
conformity with the relevant UK legislation.
The Declaration of Conformity (DoC) can be downloaded
from Brother support website. Visit support.brother.com
UK Declaration of
Conformity for Radio
Equipment Regulation
2017
(Great Britain only)
(Applicable to models with
radio interfaces)
We, Brother Industries Ltd. 15-1 Naeshiro-cho, Mizuho-ku,
Nagoya 467-8561 Japan declare that these products are in
conformity with the provisions of the Radio Equipment
Regulation 2017.
The Declaration of Conformity (DoC) can be downloaded
from Brother support website. Visit support.brother.com
5
For Users in Norway
This subsection does not apply for the geographical area
within a radius of 20 km from the centre of Ny-Alesund on
Svalbard.
Dette underavsnittet gjelder ikke for det geografiske området
innenfor en radius av 20 km fra sentrum av Ny-Ålesund på
Svalbard.
For Users in Thailand
This telecommunication equipment conforms to NTC
technical requirement.
Laser Notices (For U.S.A.
only)
Laser Safety
This machine is certified as a Class 1 laser product under the
U.S. Department of Health and Human Services (DHHS)
Radiation Performance Standard according to the Radiation
Control for Health and Safety Act of 1968. This means that the
sewing machine does not produce hazardous laser radiation.
IEC 60825-1 Specification
This machine is a Class 1 laser product as defined in IEC
60825-1:2007 and IEC 60825-1:2014 specifications.
The laser beam emitted by the laser unit installed in this
machine is restricted to an output at a safe level. However, the
machine contains 6-milliwatt, 630-640 nanometer
wavelength, 6-12 degree at parallel divergence angle, 28-40
degree at perpendicular divergence angle, InGaAlP laser
diodes. Therefore, eye damage may result from disassembling
or altering this machine.
Safety precautions have been designed to prevent any
possible laser beam exposure to the operator.
FDA Regulations
U.S. Food and Drug Administration (FDA) has implemented
regulations for laser products manufactured on and after
August 2, 1976. Compliance is mandatory for products
marketed in the United States. The label shown on the back of
the sewing machine indicates compliance with the FDA
regulations and must be attached to laser products marketed
in the United States.
Brother Industries, Ltd.
15-1, Naeshiro-cho, Mizuho-ku, Nagoya 467-8561, JAPAN
This product complies with FDA performance standards for
laser products except for conformance with IEC 60825-1 Ed.
3., as described in Laser Notice No. 56, dated May 8, 2019.
CAUTION
• Use of controls, adjustments or the
performance of procedures other than those
specified in this manual may result in
hazardous radiation exposure.
6
Laser Notices (For
countries except U.S.A.)
IEC 60825-1 Specification
This machine is a Class 1 laser product as defined in IEC
60825-1:2007 and IEC 60825-1:2014 specifications.
The laser beam emitted by the laser unit installed in this
machine is restricted to an output at a safe level. However, the
machine contains 6-milliwatt, 630-640 nanometer
wavelength, 6-12 degree at parallel divergence angle, 28-40
degree at perpendicular divergence angle, InGaAlP laser
diodes. Therefore, eye damage may result from disassembling
or altering this machine.
Safety precautions have been designed to prevent any
possible laser beam exposure to the operator.
The enclosed machine includes data, software and/or
documentation (collectively “CONTENT”) that are
proprietary products of Brother Industries, Ltd.
(“BROTHER”). BY USING THE CONTENT, THE
CUSTOMER ACCEPTS THE TERMS AND CONDITIONS
OF THIS AGREEMENT. BROTHER retains ownership of all
rights to CONTENT and to the copies of the CONTENT
included in this package. The CONTENT are licensed (not
sold) to you (“CUSTOMER”) under the terms and
conditions of this Agreement.
CUSTOMER is licensed to:
• Use the CONTENT in combination with an
embroidery machine to create embroidery.
• Use the CONTENT in combination with an
embroidery machine that CUSTOMER owns or uses,
provided that the CONTENT is not used on more
than one embroidery machine at a time.
Except as otherwise provided herein, CUSTOMER may
not:
• Allow more than one copy of the CONTENT to be
available for use at any one time.
• Reproduce, modify, publish, distribute, sell, rent,
sublicense or otherwise make available to others
CONTENT.
• Distribute, rent, sublicense, lease, sell, transfer or
assign the media card or CONTENT.
• Decompile, disassemble or otherwise reverse
engineer the CONTENT or assist others to do the
same.
• Alter, translate, modify or adapt the CONTENT or
any part thereof for business, commercial or
industrial purposes.
• Sell or otherwise distribute the EMBROIDERY
created by use of the CONTENT, WHICH
ORIGINALLY BEARS CERTAIN COPYRIGHT
NOTICE UNDER THE NAME OF ANY THIRD
PARTIES OTHER THAN BROTHER (e.g.
“©DISNEY”).
BROTHER retains all rights not expressly granted to
CUSTOMER herein.
Nothing in this agreement constitutes a waiver of the rights
of BROTHER under any law. This agreement shall be
governed by the laws of Japan.
Please direct all inquiries concerning this Agreement in
writing by regular mail, to Brother Industries, Ltd., 1-1-1
Kawagishi, Mizuho-ku, Nagoya 467-8562, Japan,
Attention: P&H business division Sales and Marketing
Dept.
CAUTION
• This machine has a Class 3B Laser Diode in the
Laser Unit. The Laser Unit should not be
opened under any circumstances.
• Use of controls, adjustments or the
performance of procedures other than those
specified in this manual may result in
hazardous radiation exposure.
LICENSE AGREEMENT
7
The following warning labels are on the machine.
Be sure to observe the precautions described in the labels.
IBM is a registered trademark or a trademark of
International Business Machines Corporation.
WPA™ and WPA2™ are trademarks of Wi-Fi Alliance®.
Any trade names and product names of companies appearing on
Brother products, related documents and any other materials are all
trademarks or registered trademarks of those respective companies.
This product includes open-source software.
To see the open source licensing remarks, please go to the
manual download section on your model’s home page of
Brother support website at http://s.brother/cpban/
.
This product includes software developed by the following
vendor:
©2008 Devicescape Software, Inc.
Make sure you use a router or firewall when connecting
your machine to the Internet to protect it against
unauthorized access from the Internet.

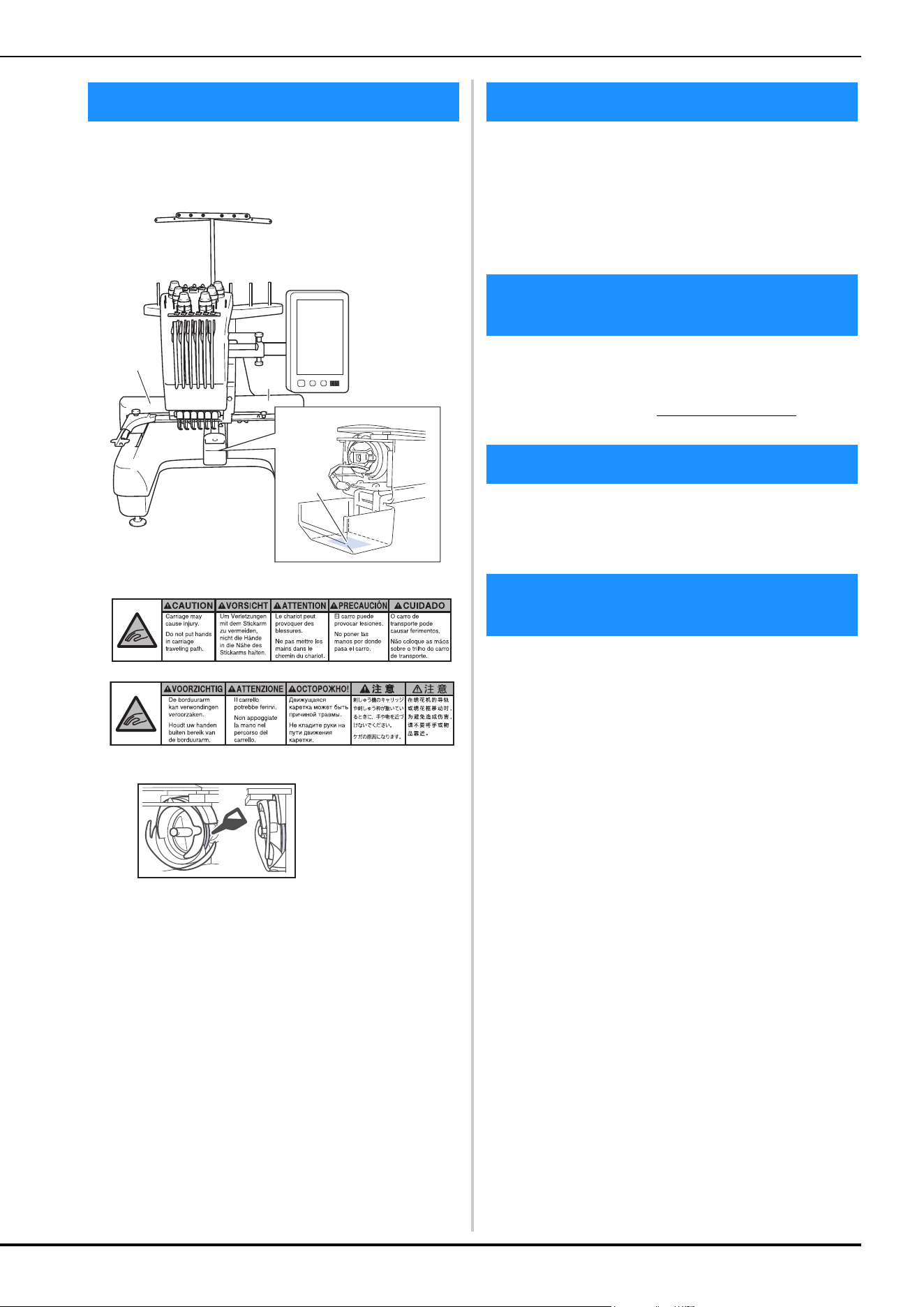

WARNING LABELS
Label locations
1
2
Please put a drop of oil onto the hook
once a day before use.
a
a
b
TRADEMARKS
OPEN SOURCE LICENSING
REMARKS
COPYRIGHT AND LICENSE
PRECAUTION FOR WIRELESS
CONNECTION
8
Chapter 1 GETTING READY 11

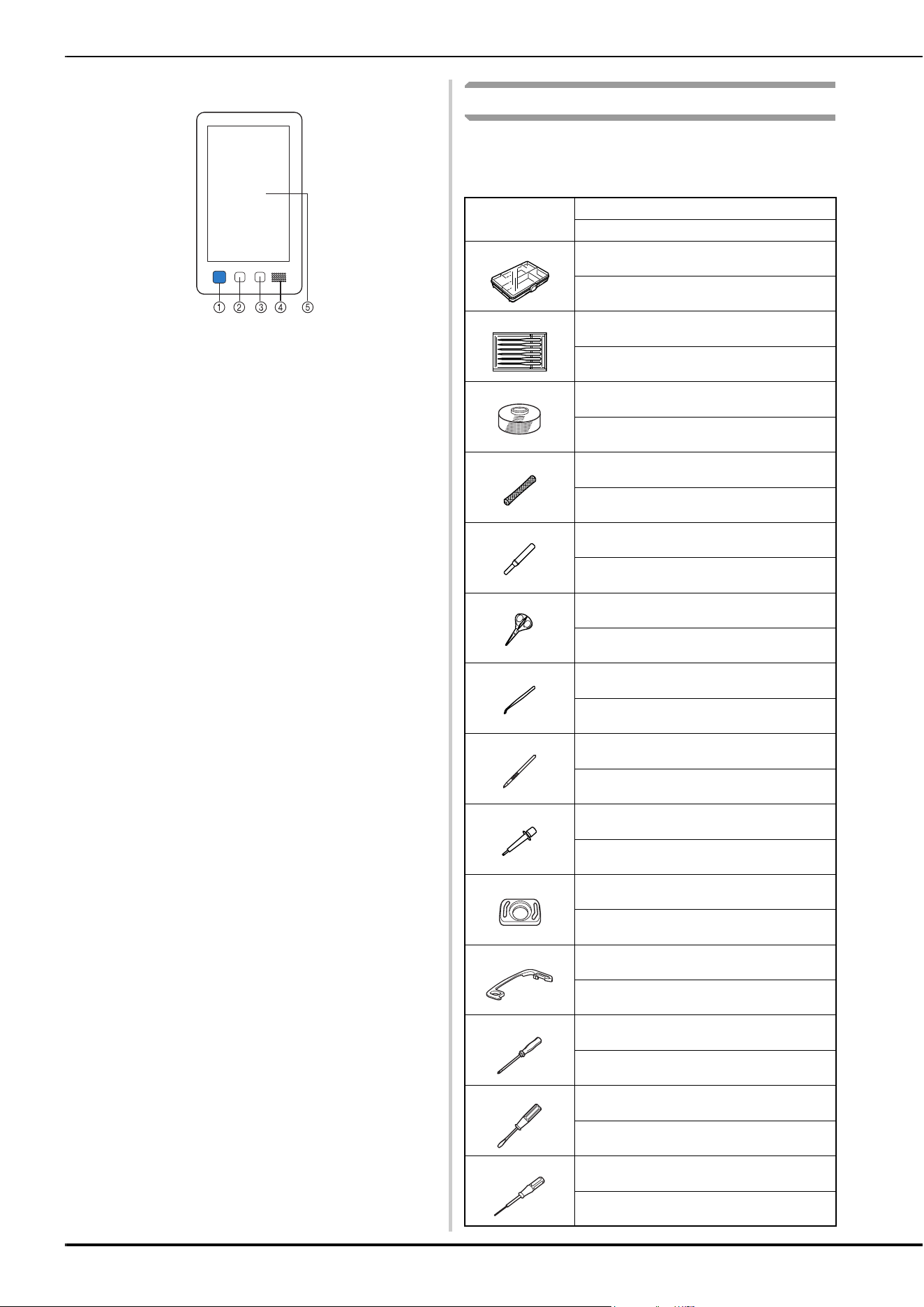

NAMES OF MACHINE PARTS ............................ 11

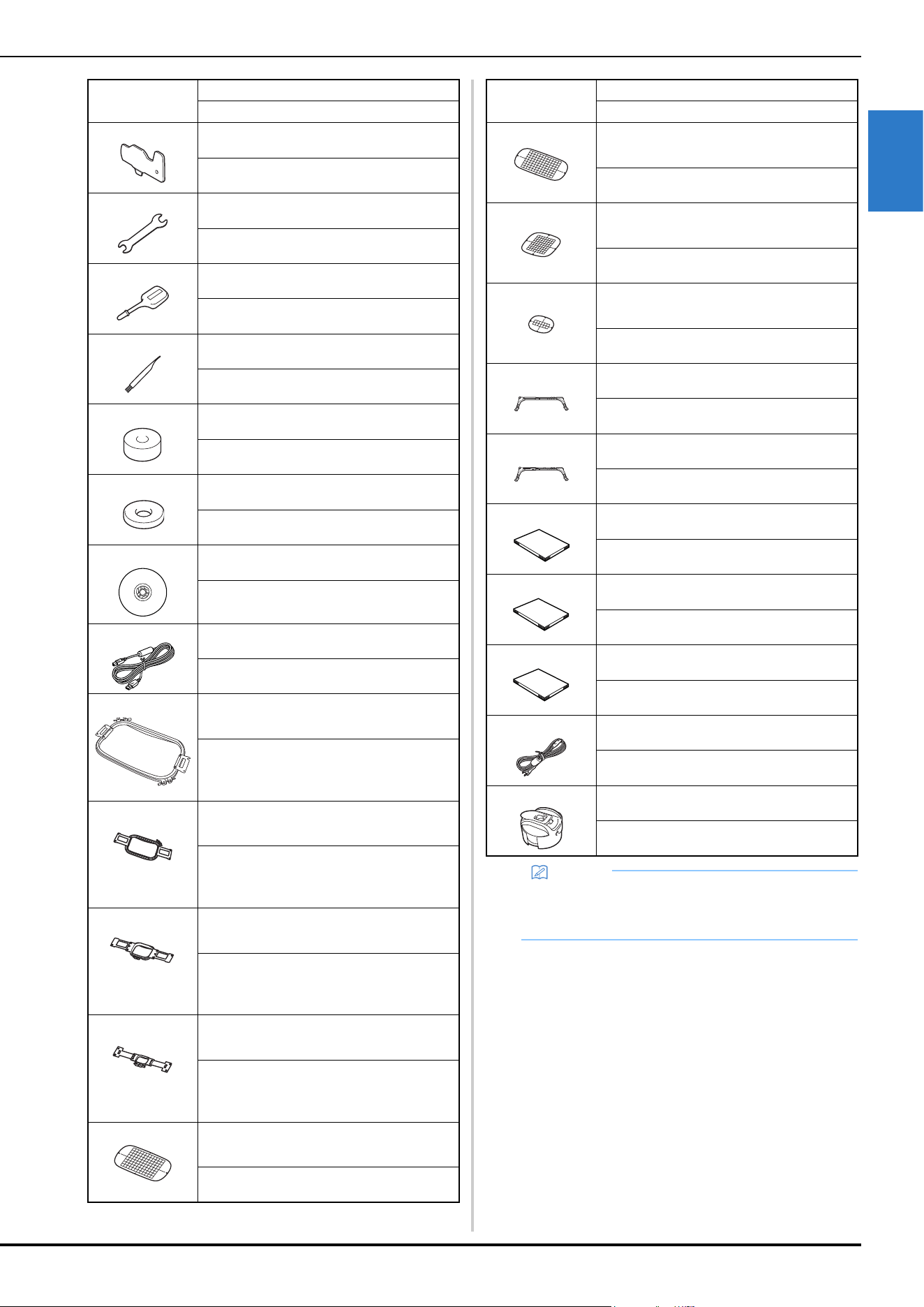

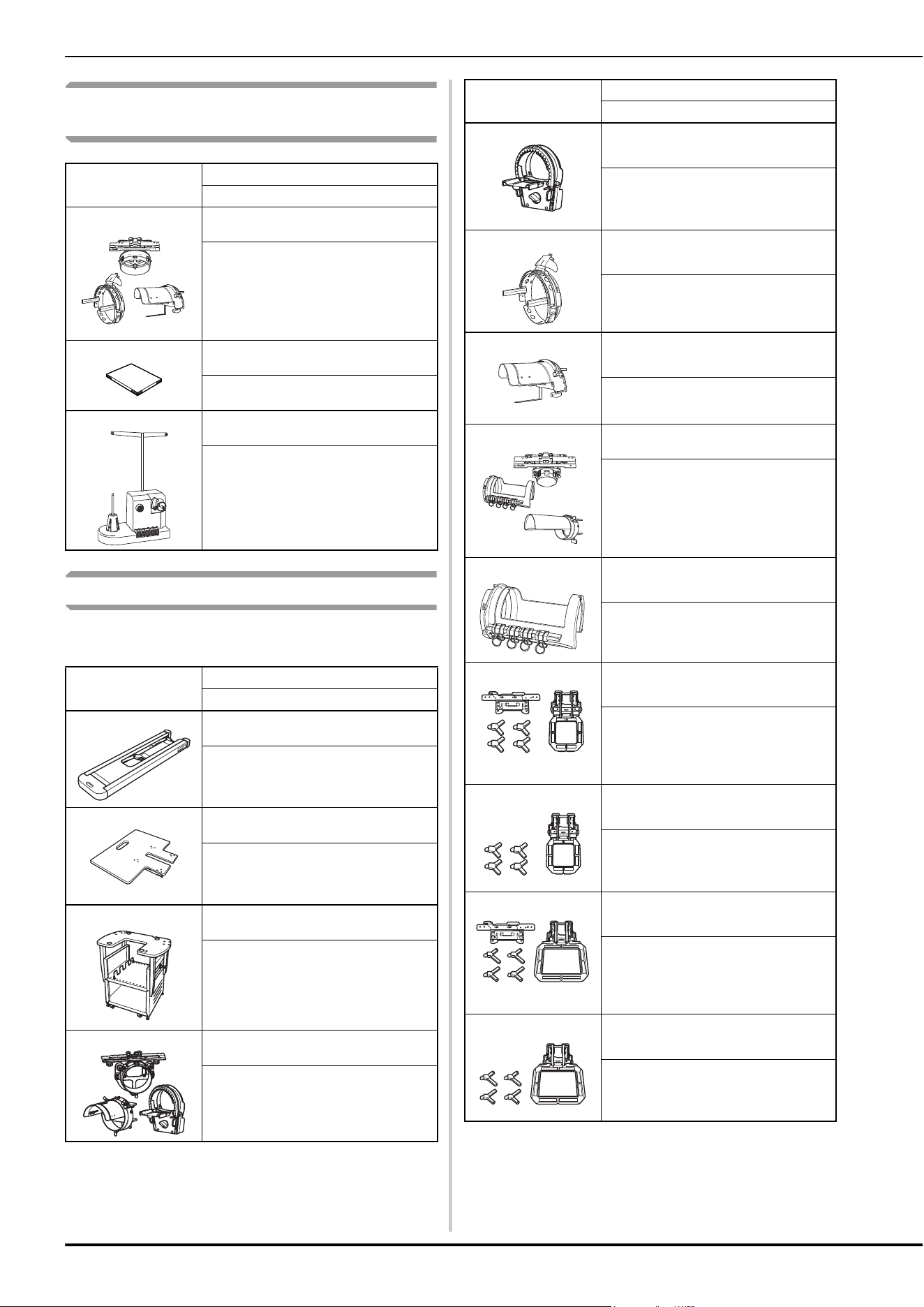

Included accessories ............................................................ 12
Accessories that are included in some countries or
regions ................................................................................. 14
Optional accessories ............................................................ 14
SETTING UP THE MACHINE.............................. 16
Setup and transporting precautions....................................... 16
Setup location ...................................................................... 17
Setting up the machine......................................................... 18
Adjusting the operation panel position ................................. 18
Preparing the thread guide assembly .................................... 19

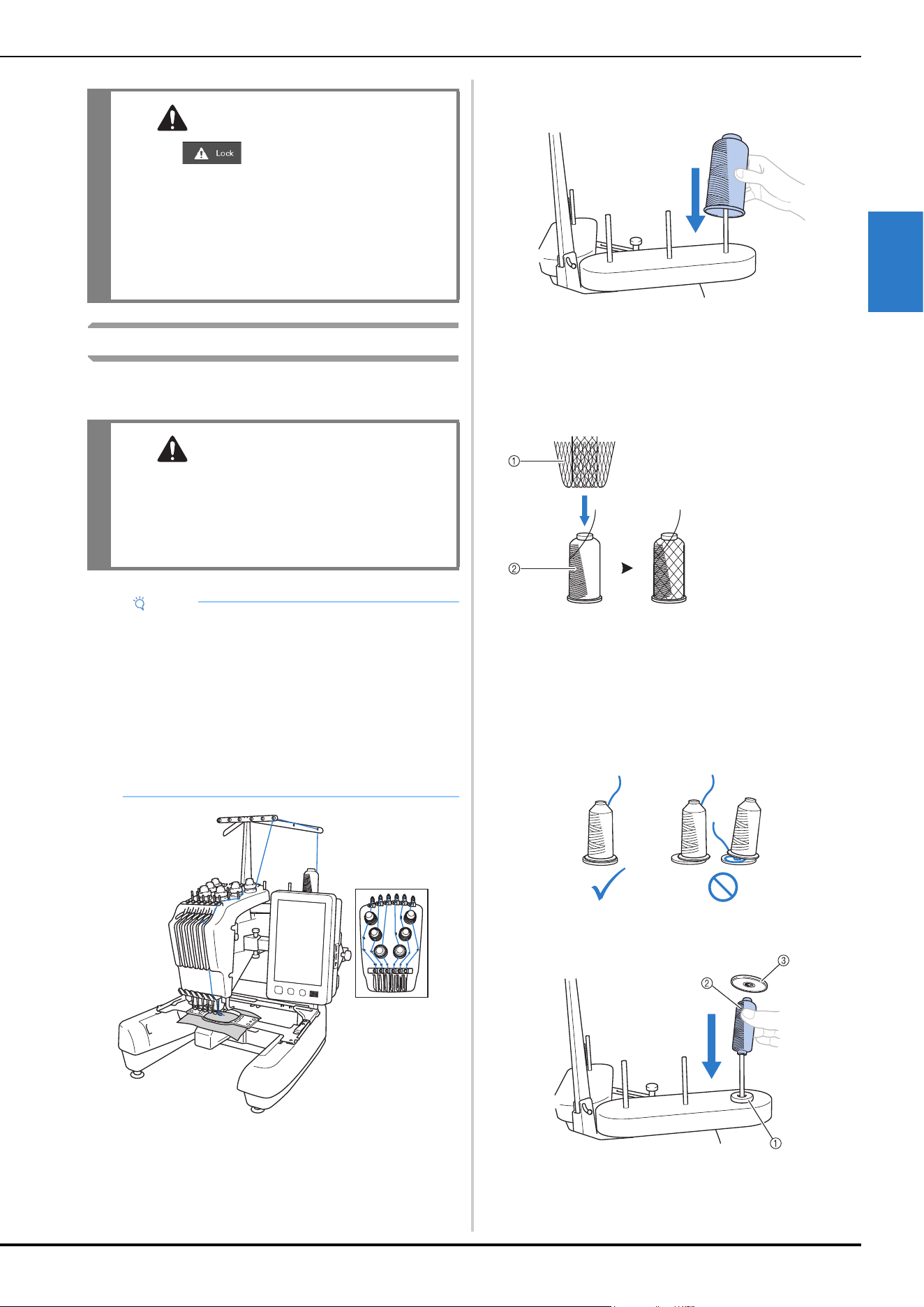

Preparing the spool stand ..................................................... 20

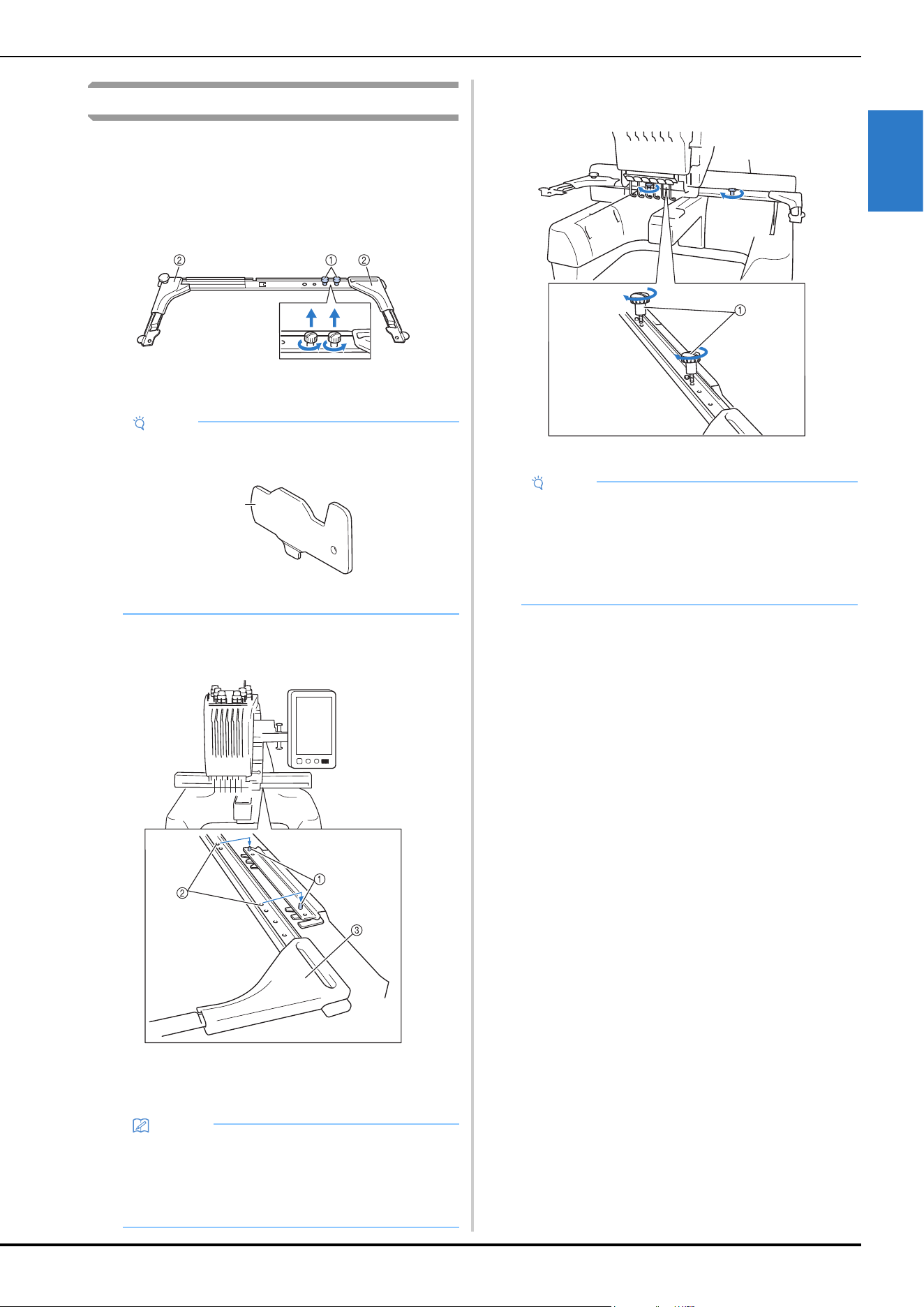

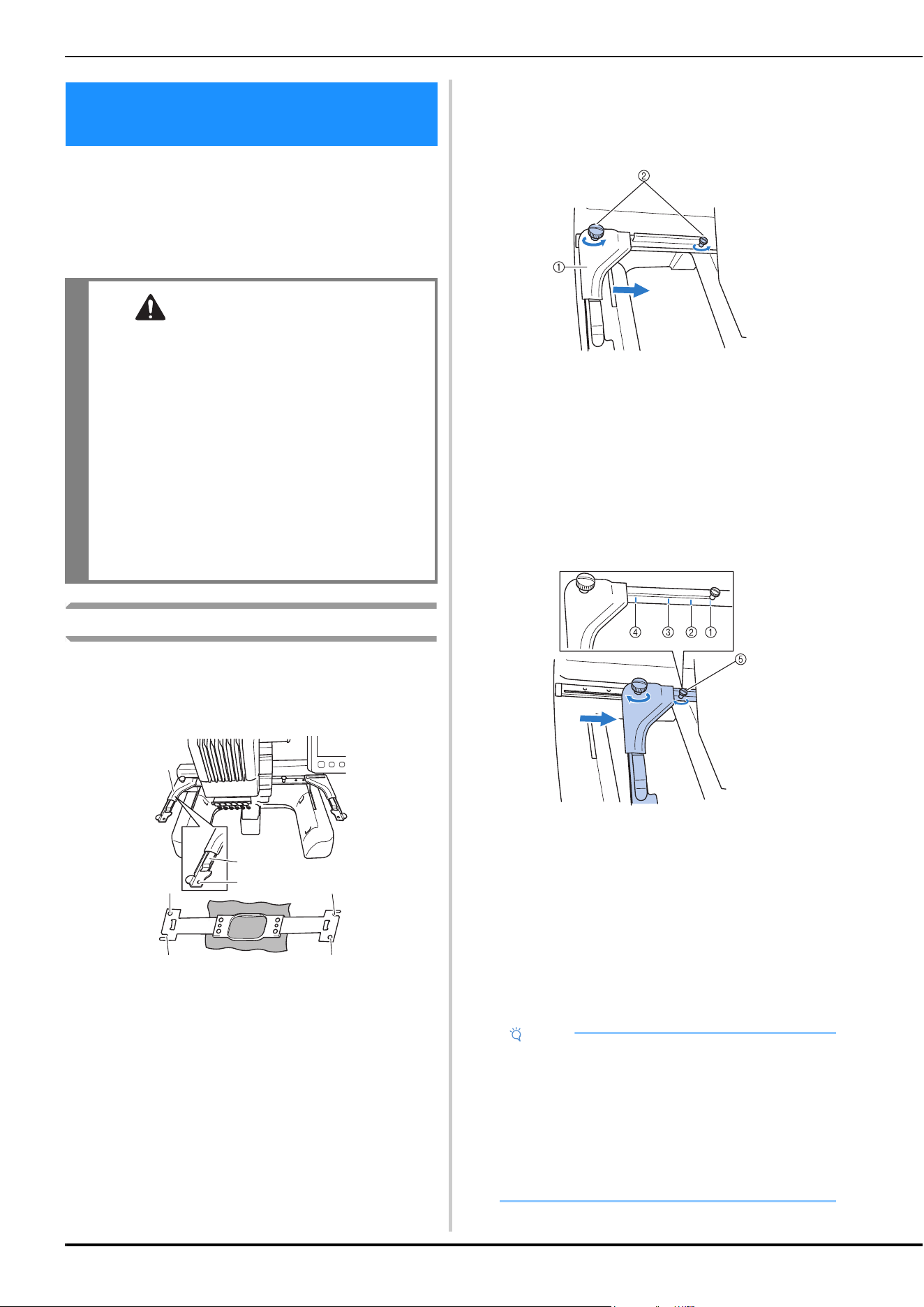

Attaching the embroidery frame holder ................................ 21
TURNING ON THE MACHINE........................... 22
LCD SCREEN ...................................................... 24
Using the settings key........................................................... 25
Using the machine help ....................................................... 29

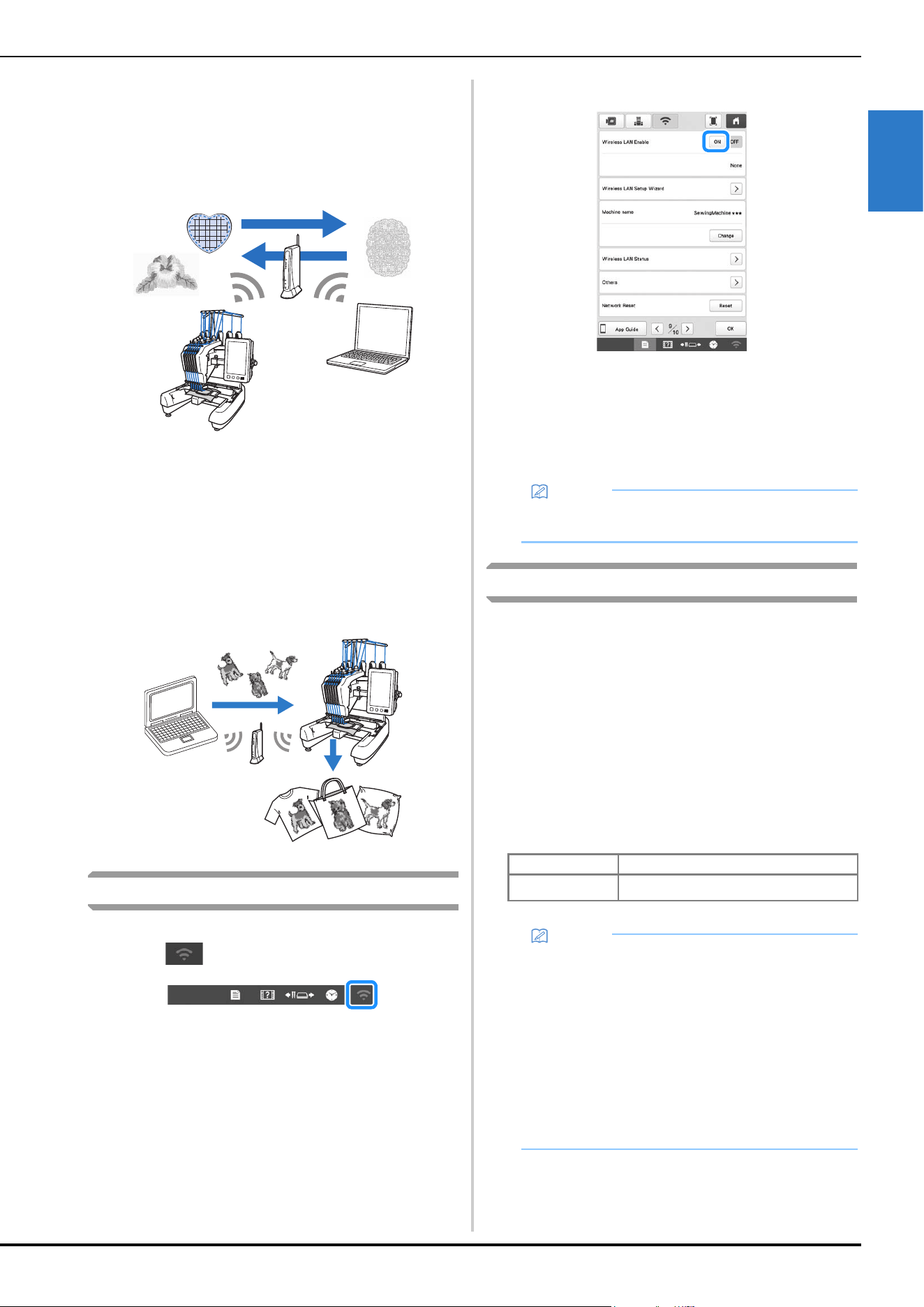

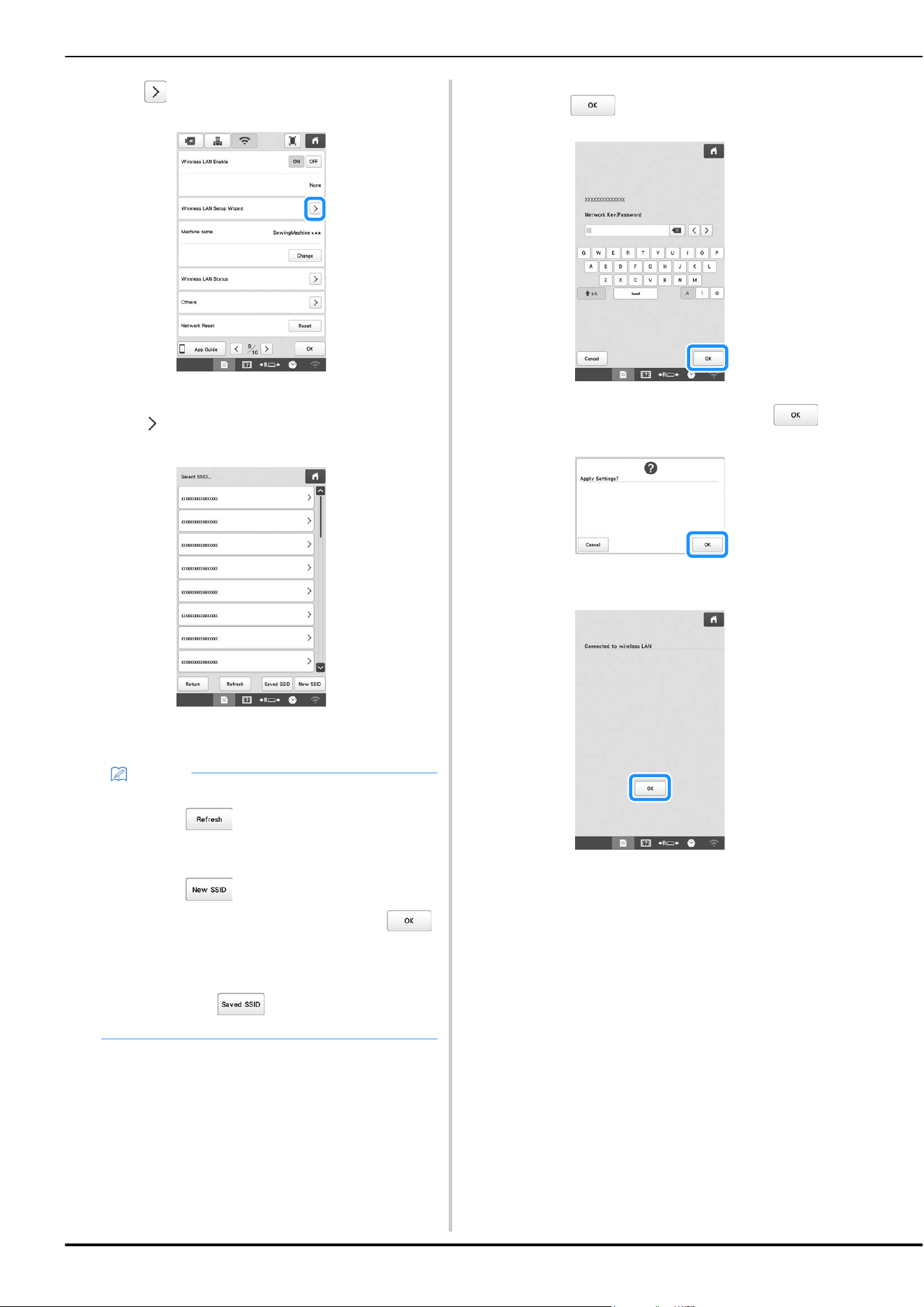

WIRELESS NETWORK CONNECTION
FUNCTIONS....................................................... 30
Operations available with a wireless network connection .... 30
Enabling a wireless network connection............................... 31
Setting up the wireless network connection.......................... 31
MONITORING APP............................................ 33
Chapter 2 BASIC EMBROIDERY 35
BASIC PROCEDURES ......................................... 35
INSTALLING THE BOBBIN ................................ 35
Removing the bobbin case ................................................... 35
Installing the bobbin............................................................. 36
Installing the bobbin case..................................................... 37
SELECTING AN EMBROIDERY PATTERN........... 37
General pattern selection ..................................................... 37
Embroidery patterns ............................................................. 38
Frame patterns...................................................................... 39
Utility embroidery patterns/Large buttonhole patterns .......... 39

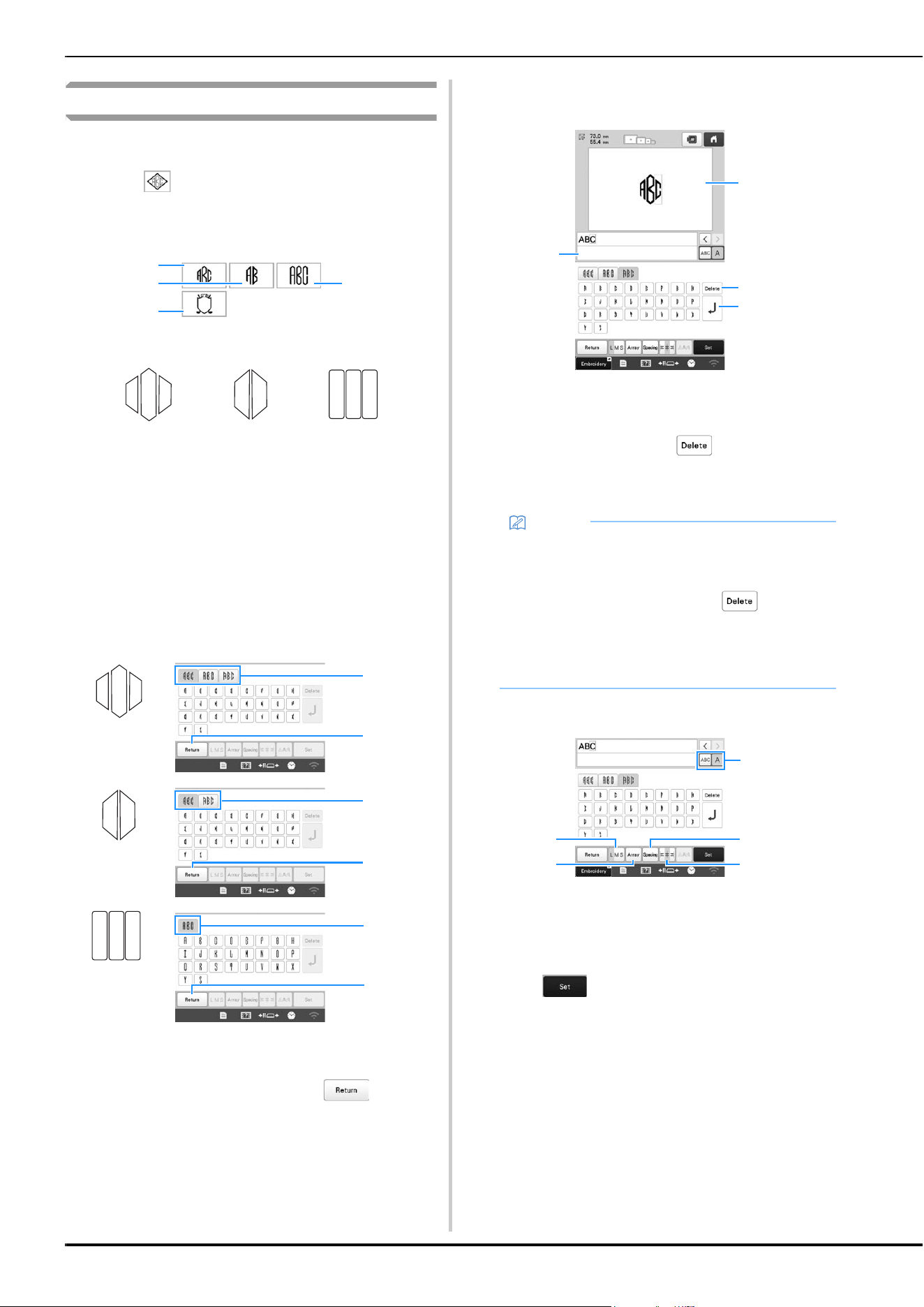

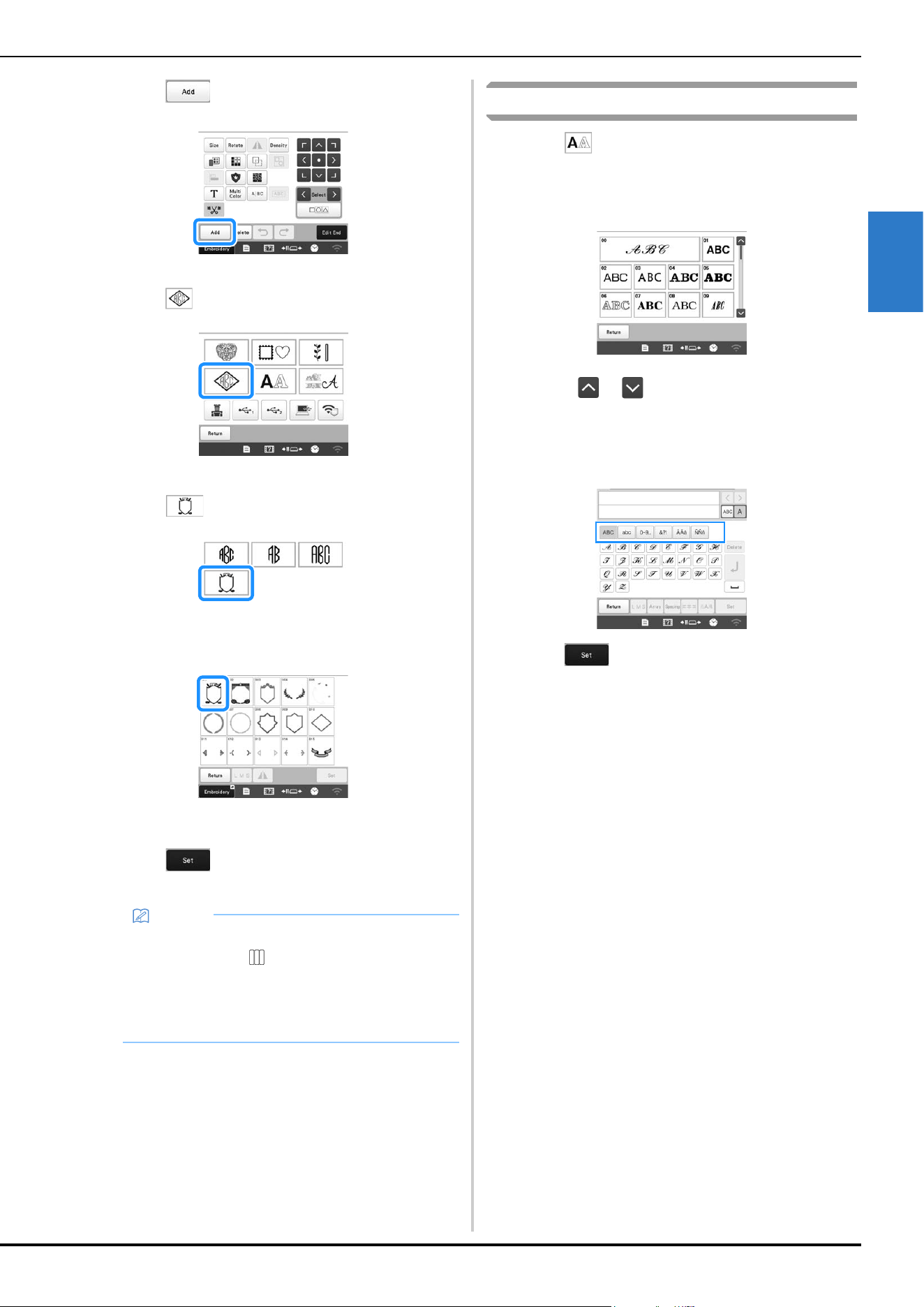

Monogram and frame designs .............................................. 40

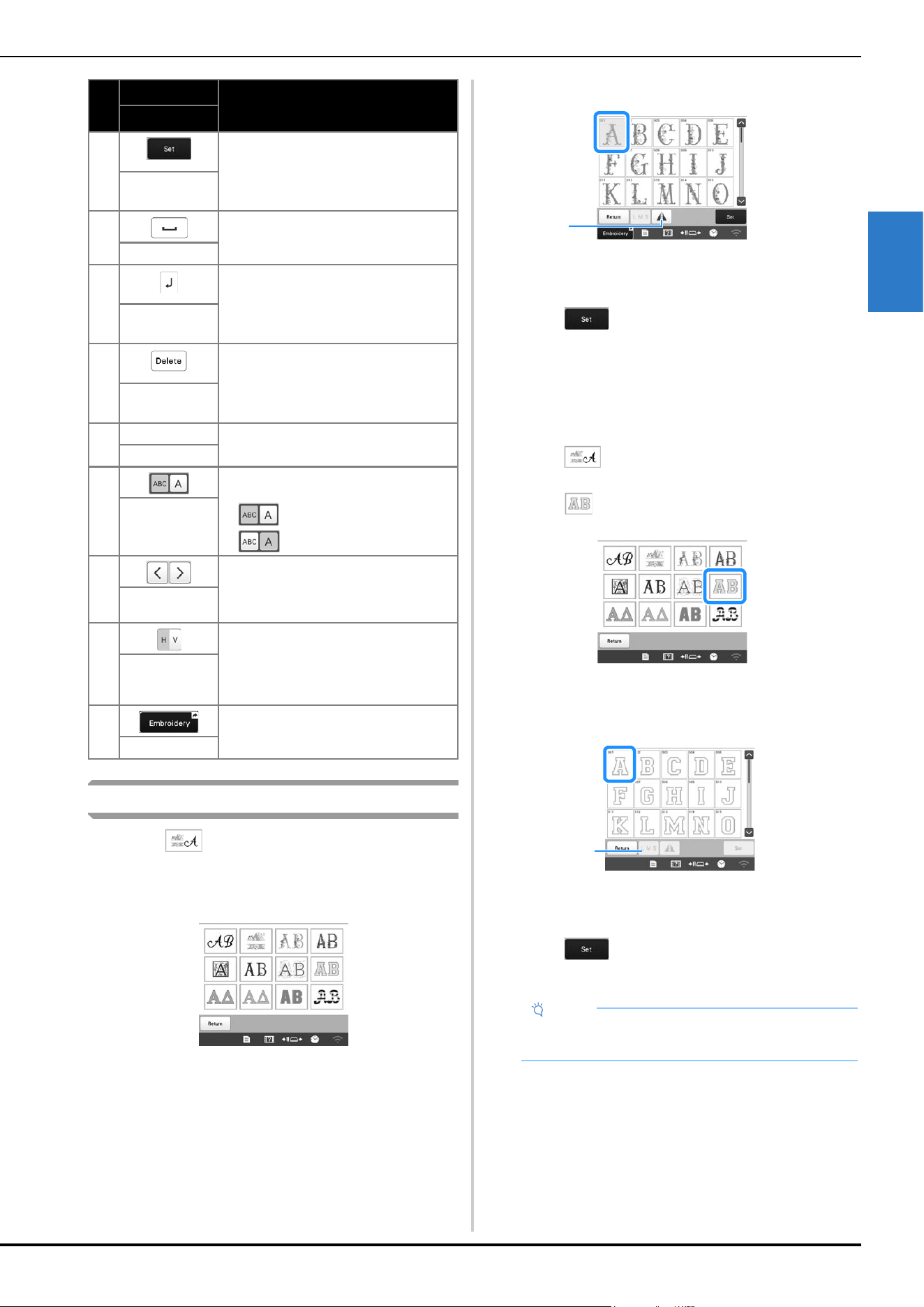

Character patterns ................................................................ 41

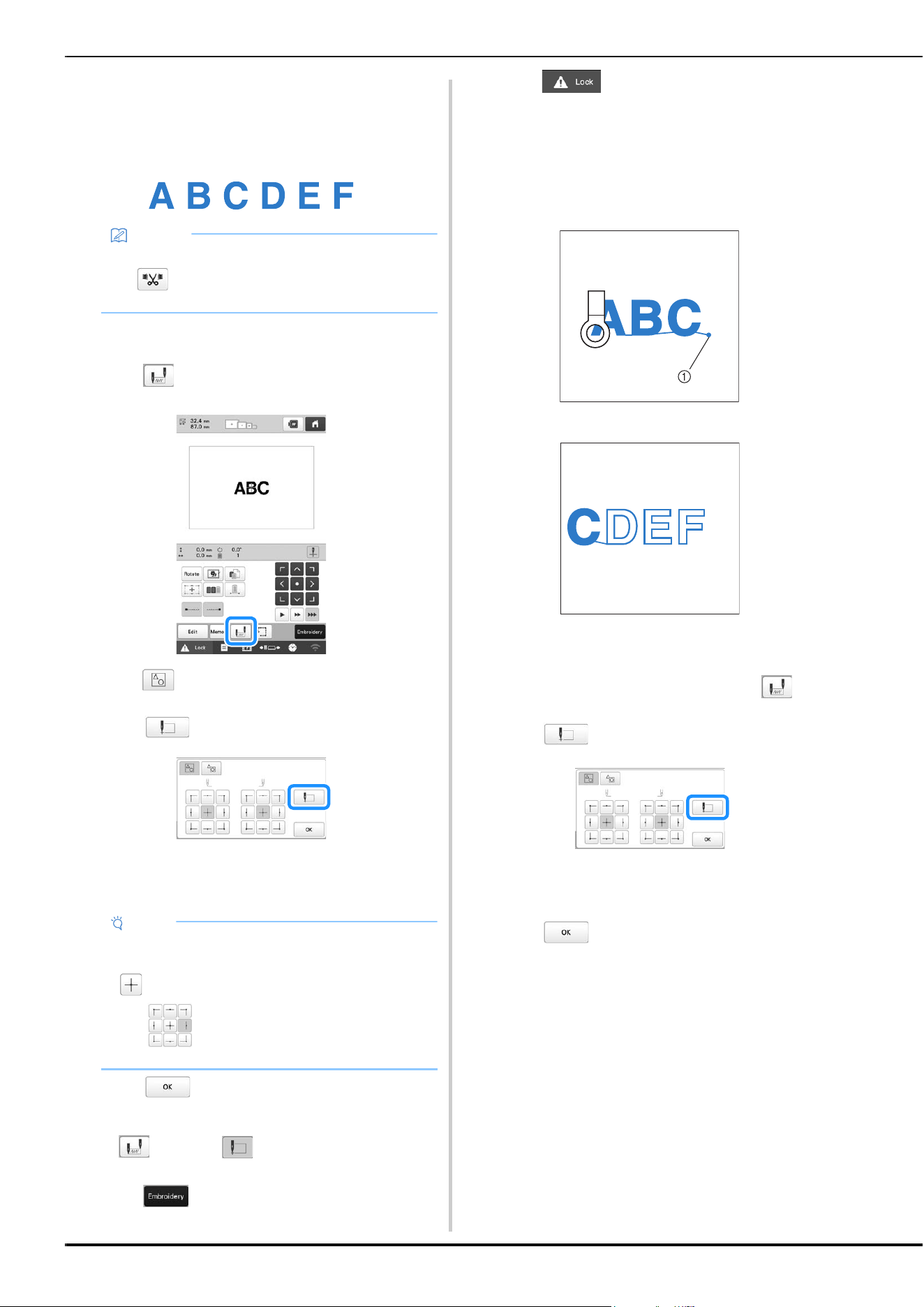

Decorative alphabet patterns................................................ 43
Combining patterns.............................................................. 44
EDITING THE EMBROIDERY PATTERN ............. 46

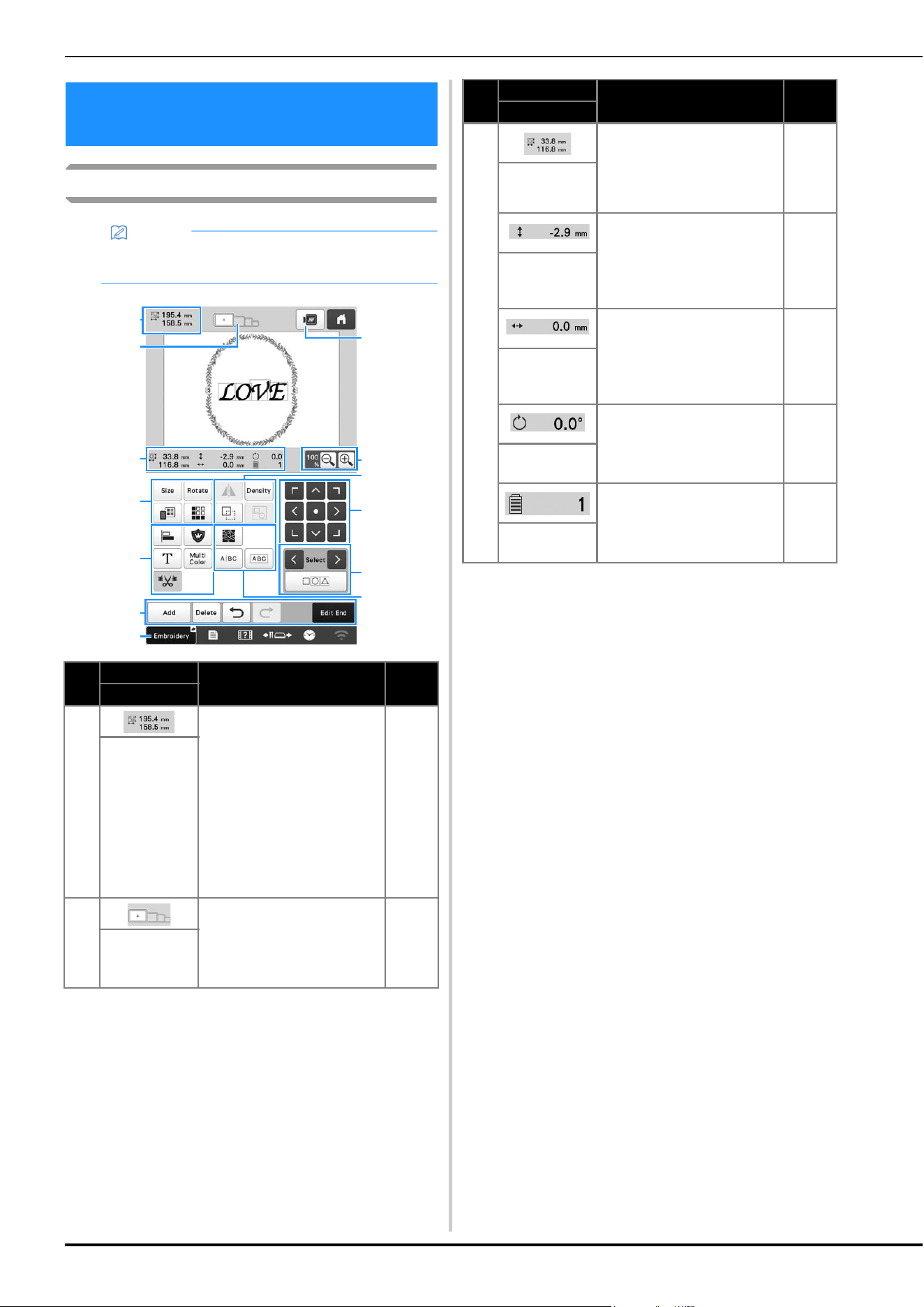

Understanding the pattern editing screen ............................. 46
Changing the size and the density of the pattern................... 49
Trimming jump stitches ........................................................ 49
Combining the separated character patterns ......................... 50
Changing the thread density................................................. 50

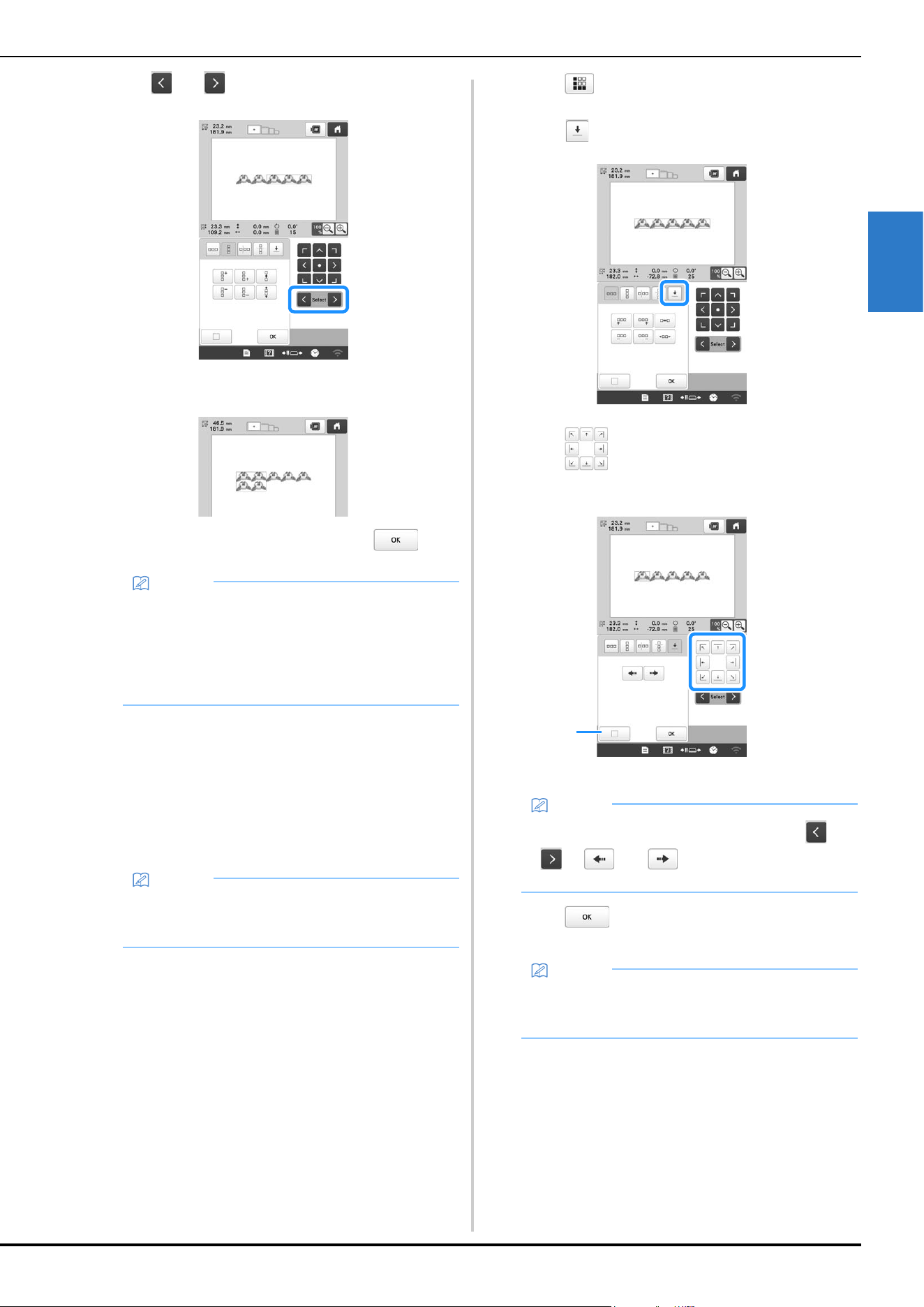

Aligning the embroidery patterns.......................................... 51
Designing repeated patterns ................................................. 51
EDITING COLORS ............................................. 55
Specifying multi-color text.................................................... 55
Changing the colors of the pattern........................................ 55

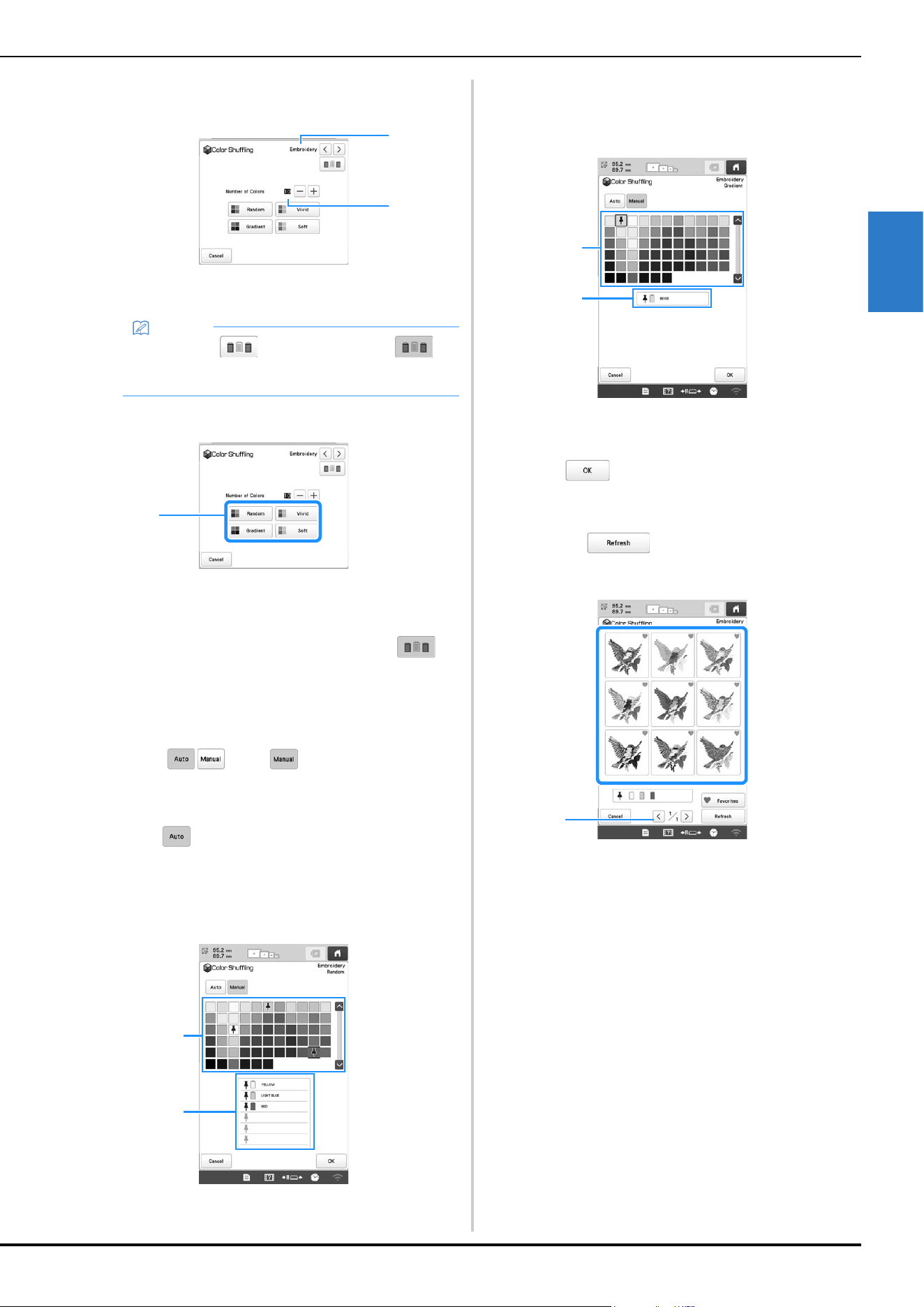

Finding new color schemes with the Color Shuffling
function................................................................................ 56
SWITCHING THE THREAD COLORS ON THE
SCREEN .............................................................. 58
SELECTING/MANAGING THREAD COLORS FOR

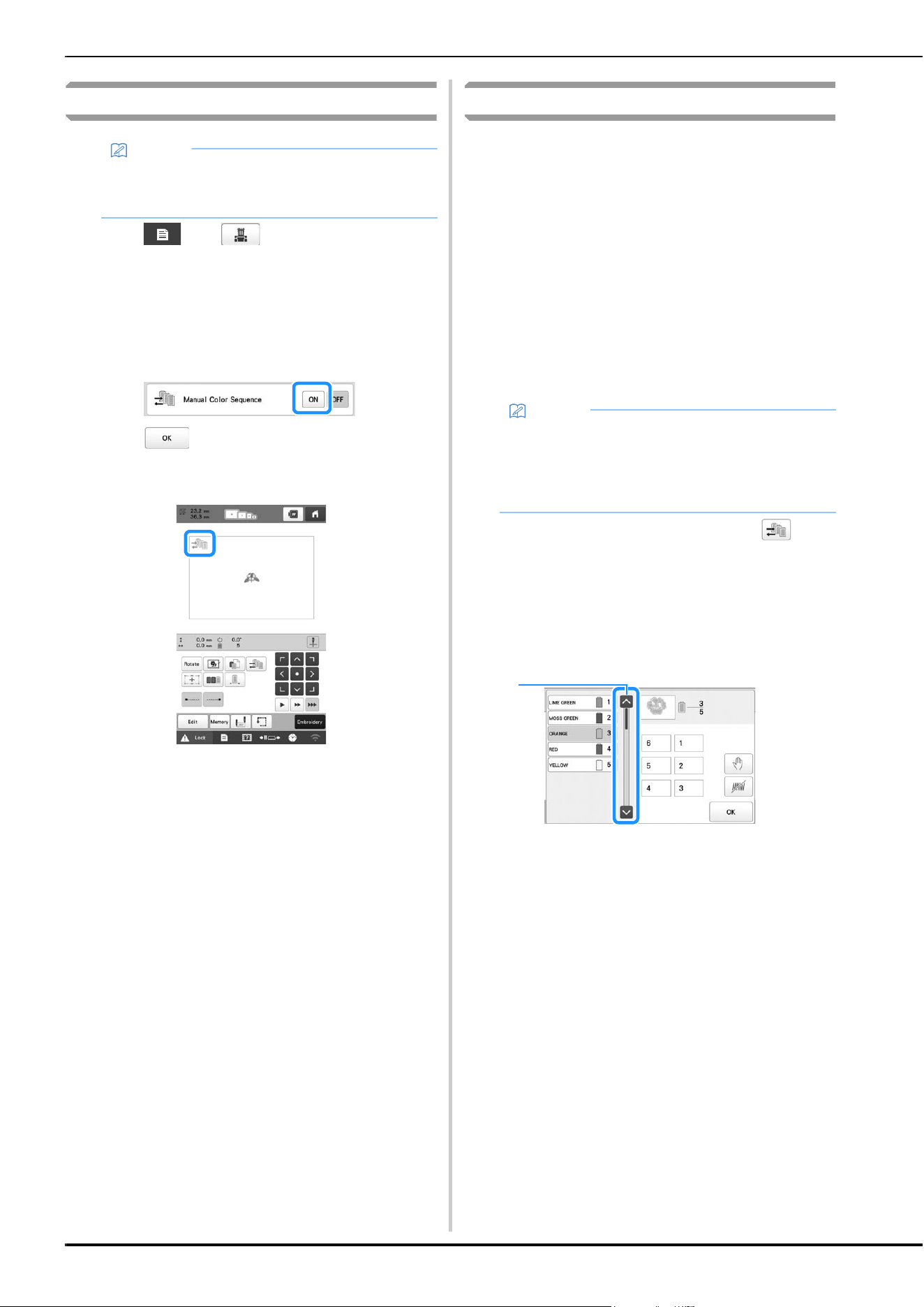

EACH NEEDLE BAR [Manual Color Sequence] ... 59
Convenience of the manual color sequence ......................... 59
Specifying the manual color sequence ................................. 60
Using the manual color sequence ........................................ 60
Precautions on the manual color sequence .......................... 61

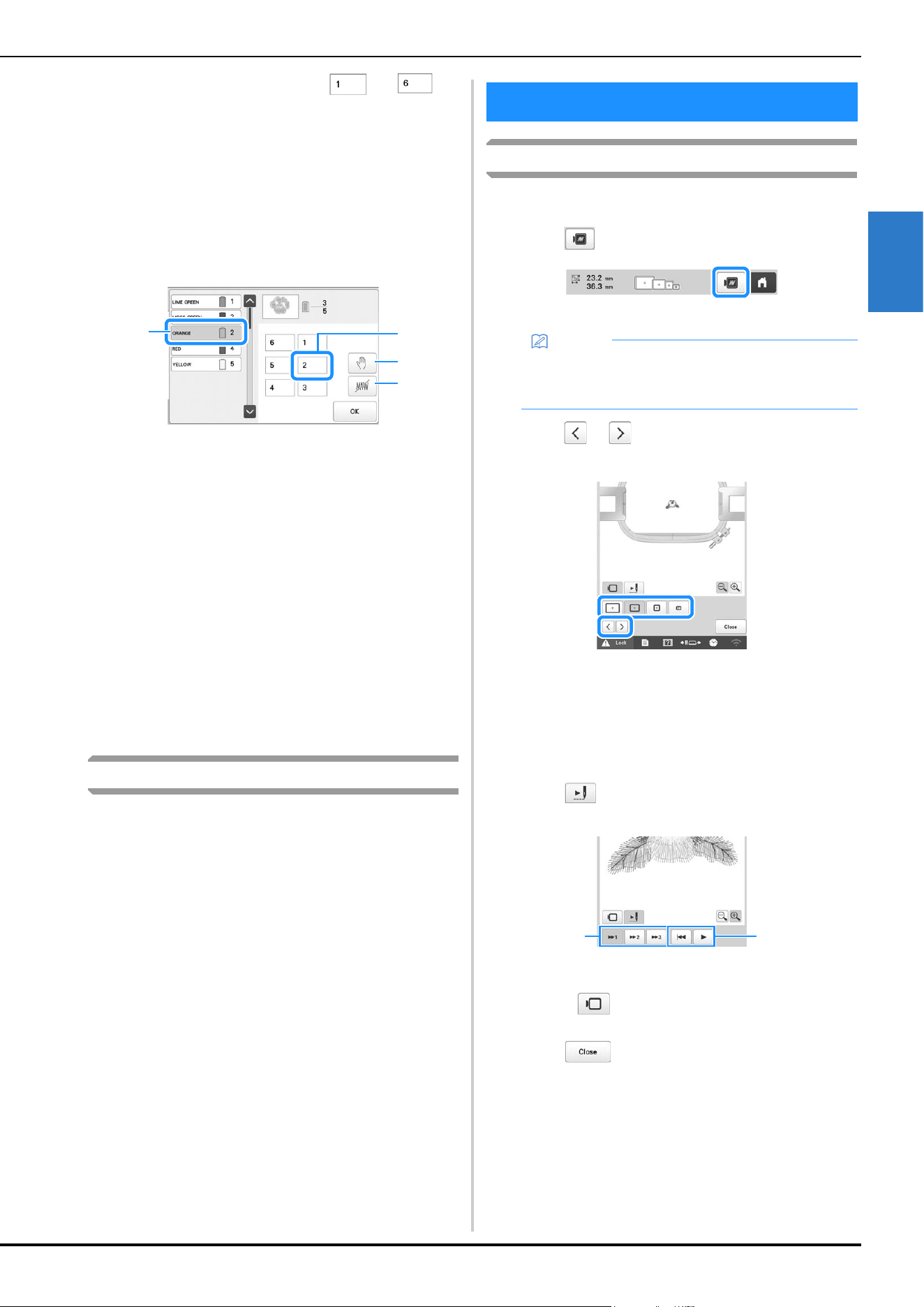

PREVIEWING THE IMAGE ................................. 61
Checking a preview image ................................................... 61
PREPARING THE FABRIC ................................... 62
Attaching stabilizer (backing) to fabric.................................. 62
Fabric/stabilizer compatibility chart ..................................... 62
Hooping the fabric in the embroidery frame ........................ 63
ATTACHING THE EMBROIDERY FRAME TO
THE MACHINE .................................................. 66
Attaching the embroidery frame........................................... 66
Correctly using the embroidery frames................................. 67
SPECIFYING EMBROIDERING SETTING ........... 70
Understanding the embroidering settings screen .................. 70
Automatic lock stitch setting................................................ 72
Thread color sorting............................................................. 73
CHECKING THE POSITION OF THE
PATTERN ........................................................... 74
Checking the needle drop point with the embroidery crosshair
positioning laser .................................................................. 74
Checking the embroidery pattern......................................... 74
UPPER THREADING .......................................... 76
Checking the needle bars and thread colors......................... 76
Upper threading .................................................................. 77

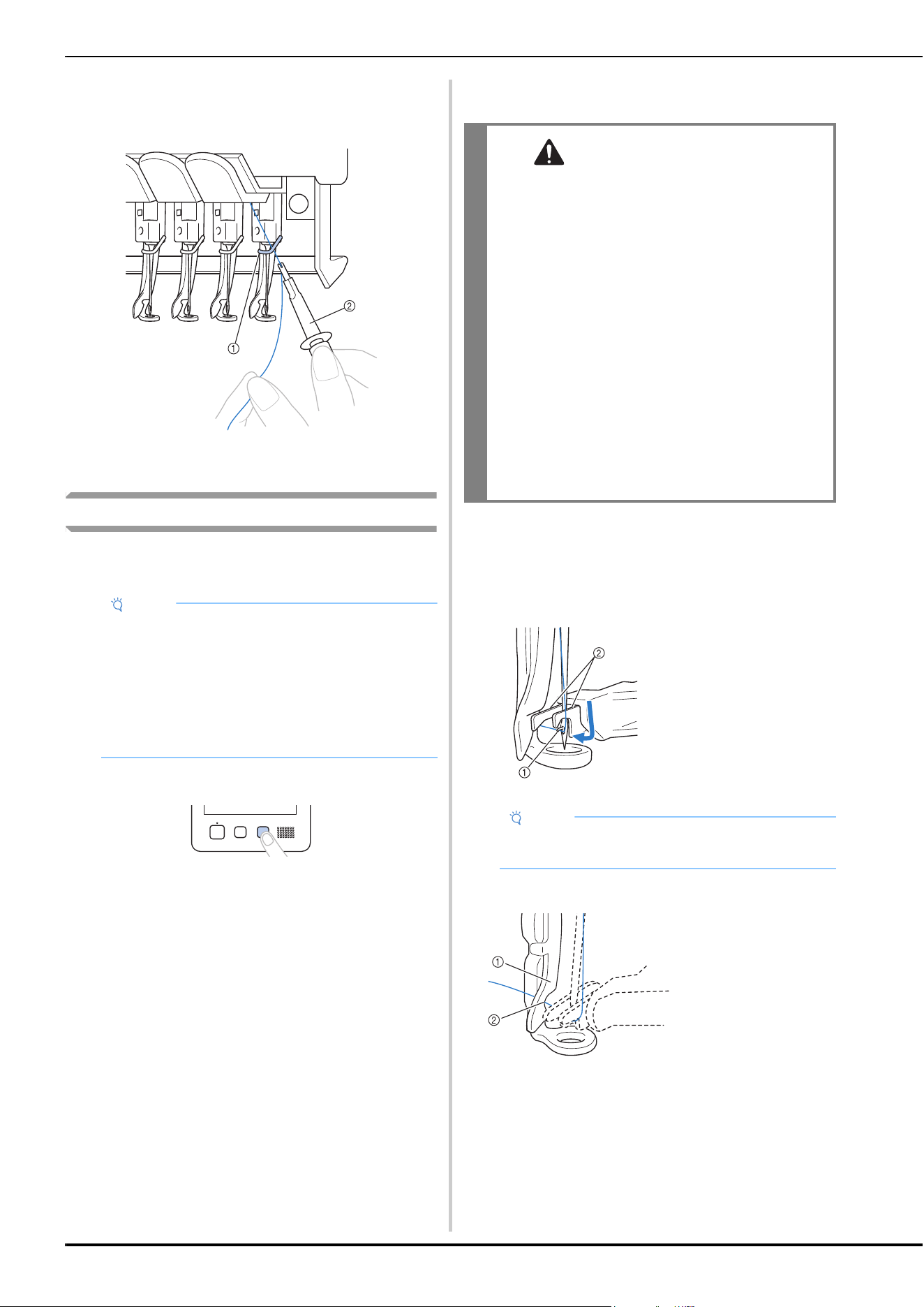

Threading the needle........................................................... 80
PERFORMING THE EMBROIDERY .................... 82
Starting embroidering .......................................................... 82
Stopping embroidering ........................................................ 83
Understanding the embroidering screen .............................. 84
REMOVING THE EMBROIDERY FRAME............ 86
EMBROIDERING A PATTERN CONTAINING
SEVEN OR MORE COLORS ............................... 86
Checking if thread spool changes are necessary................... 86
CHANGING THE THREAD SPOOLS.................. 87
About spool thread indicators .............................................. 87
Easily changing the thread spools ........................................ 88
ADJUSTING WHILE EMBROIDERING .............. 89
If the thread breaks or the bobbin thread runs out while
embroidering....................................................................... 89
Embroidering from the beginning or middle of the pattern ... 91
Resume embroidering after turning off the machine............. 92
Chapter 3 ADVANCED EMBROIDERY 93
VARIOUS EMBROIDERY FUNCTIONS.............. 93
Basting embroidery.............................................................. 93

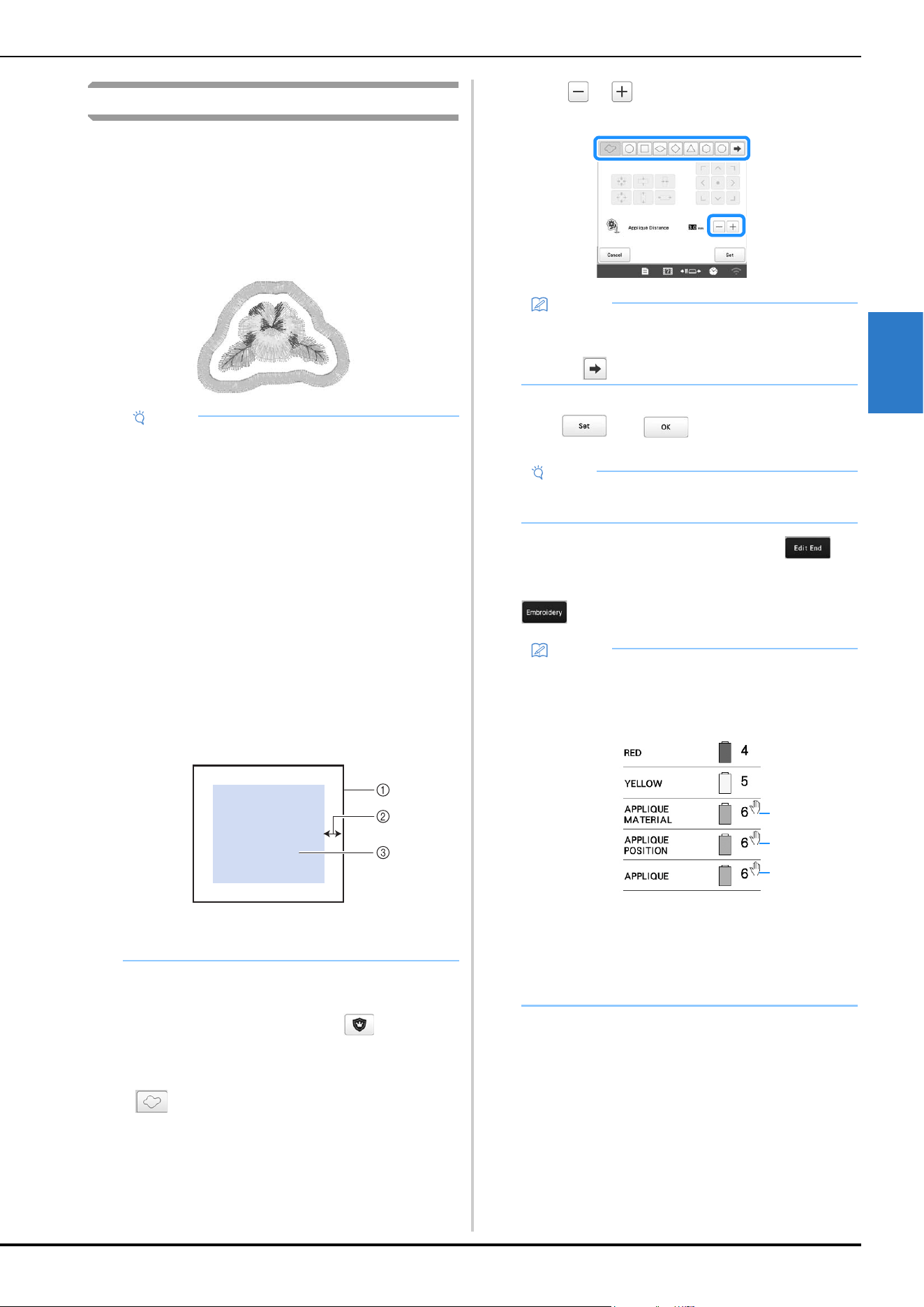

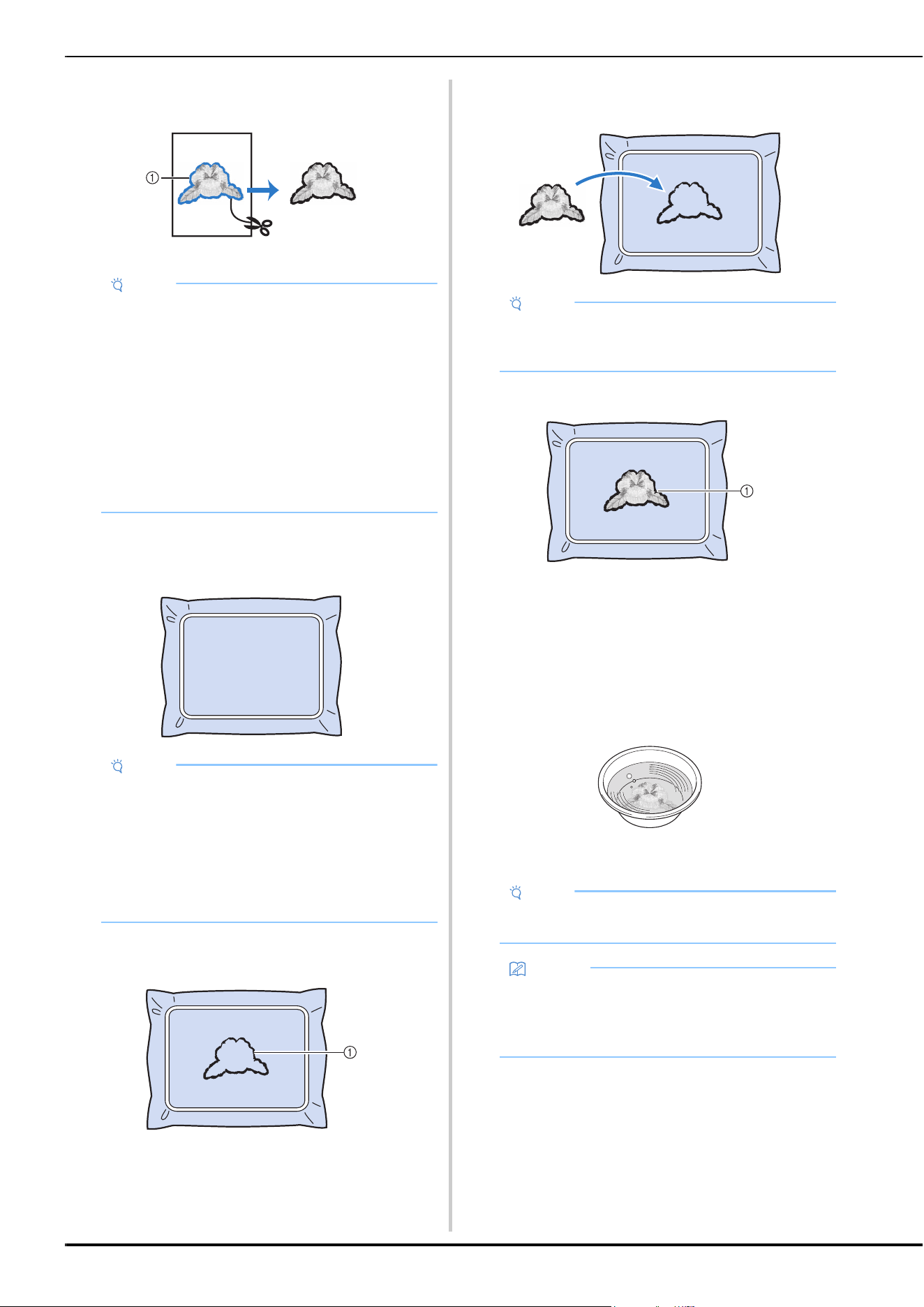

Embroidering appliqué patterns ........................................... 94
Creating an appliqué piece.................................................. 95
Using a frame pattern to create appliqués............................ 97
Creating stippling or echo quilting patterns automatically.... 98

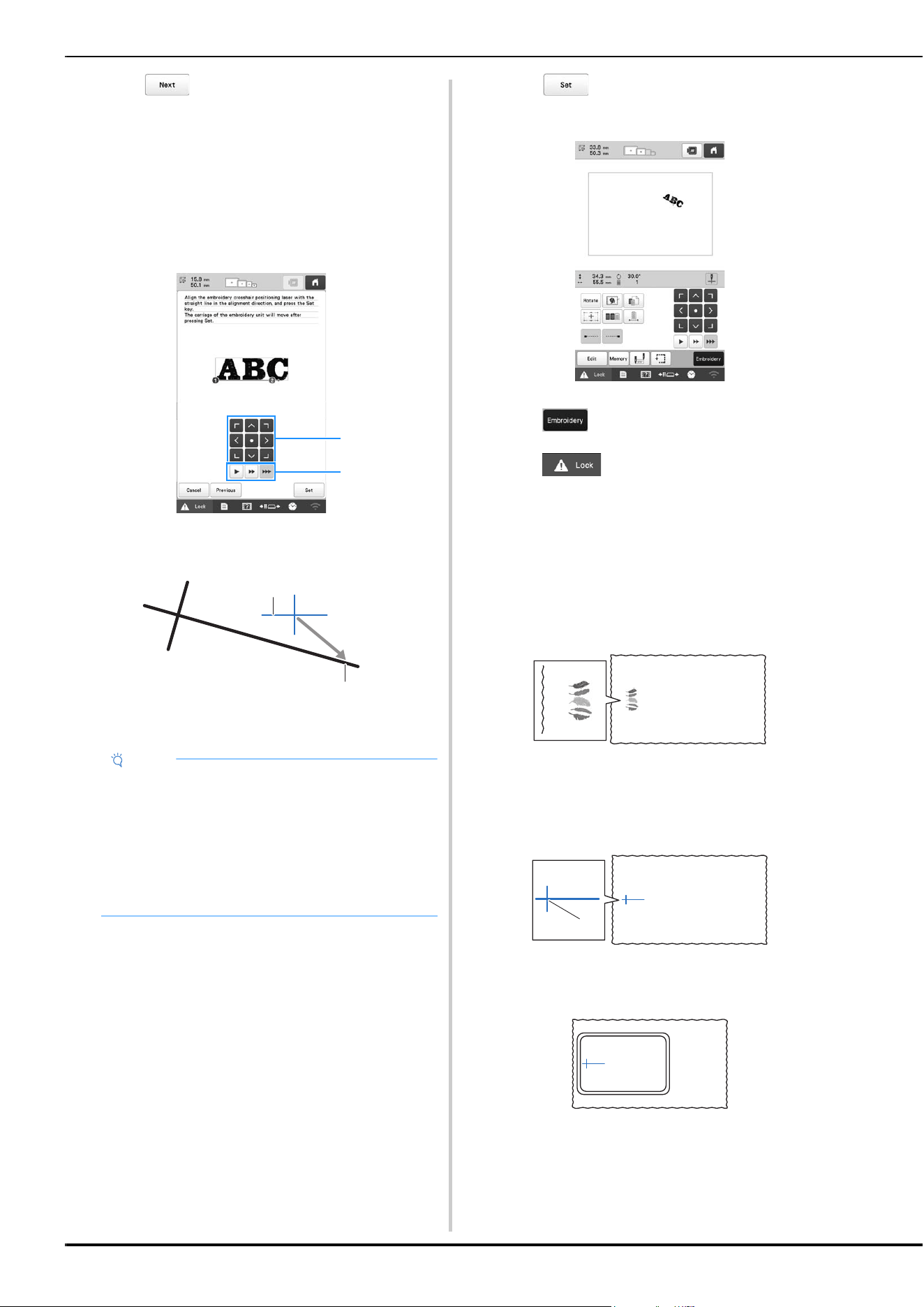

USING THE EMBROIDERY CROSSHAIR
POSITIONING LASER FUNCTION TO ALIGN
THE EMBROIDERING POSITION...................... 98
MAKING EMBROIDERY ADJUSTMENTS......... 102

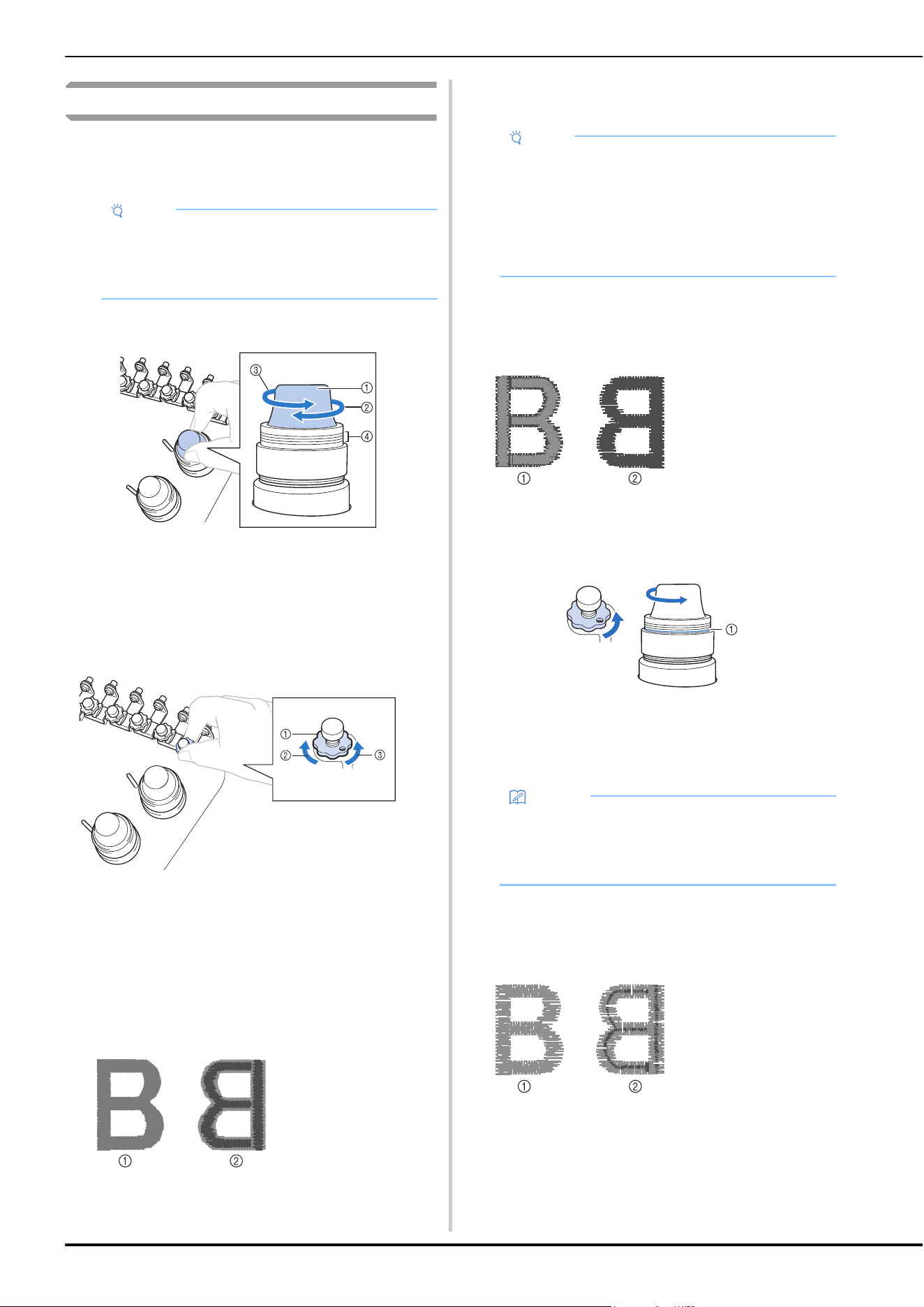

Adjusting the tension of the bobbin thread......................... 102
Adjusting the tension of the upper thread........................... 104
Setting the machine to stop at color changes ..................... 105
Temporary needle bar setting............................................. 106
Uninterrupted embroidering (one color) ............................ 106
Reserved needle bar and embroidery speed settings .......... 107

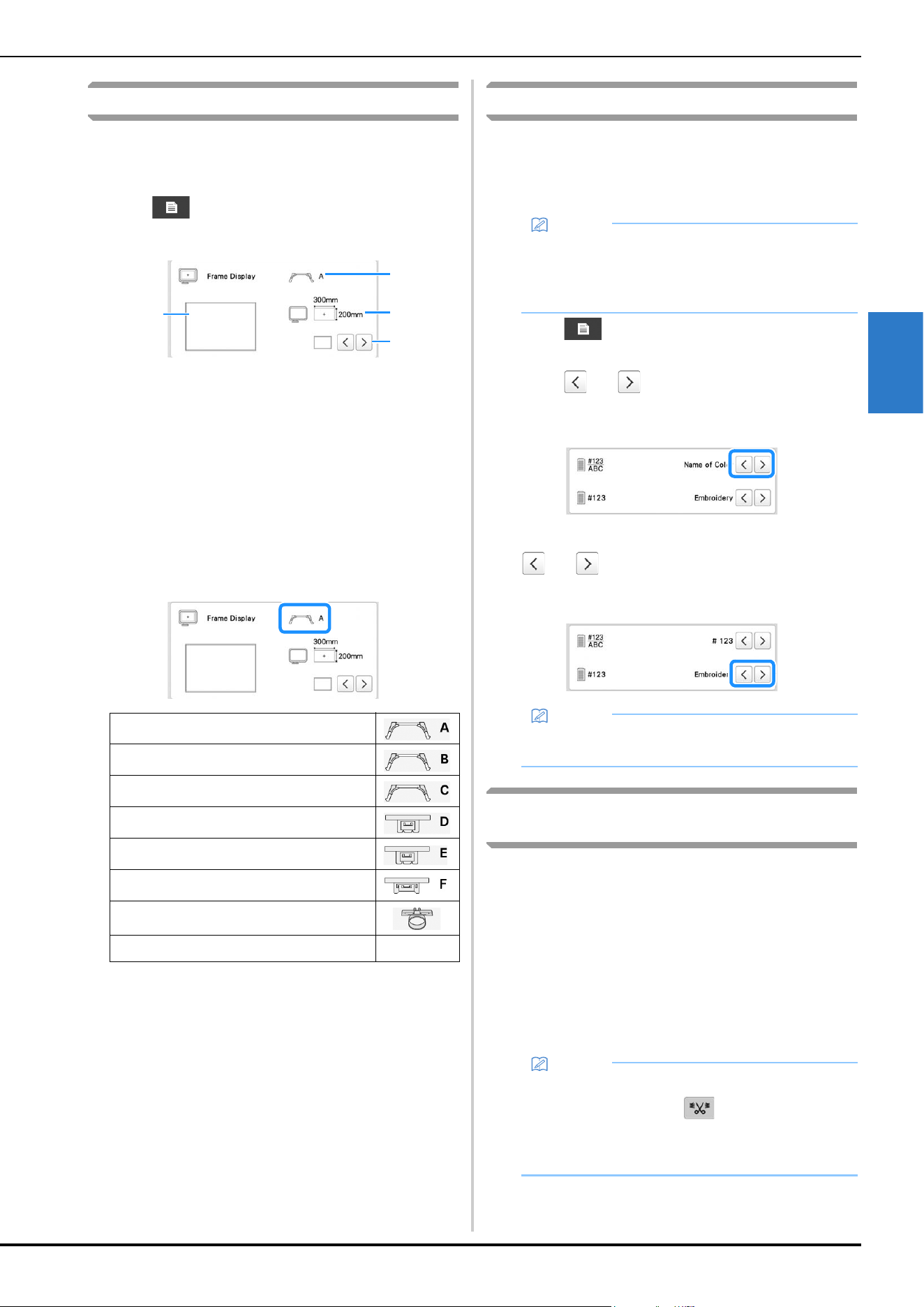

Changing the display guides .............................................. 109
Changing the thread color information .............................. 109
Specifying jump stitch trimming / “DST” jump codes for
trimming............................................................................ 109
Deleting short stitches........................................................ 110
Specifying the remaining length of thread .......................... 110
Changing the embroidery basting distance......................... 110
Deselect region setting....................................................... 111
Starting/ending position settings......................................... 112

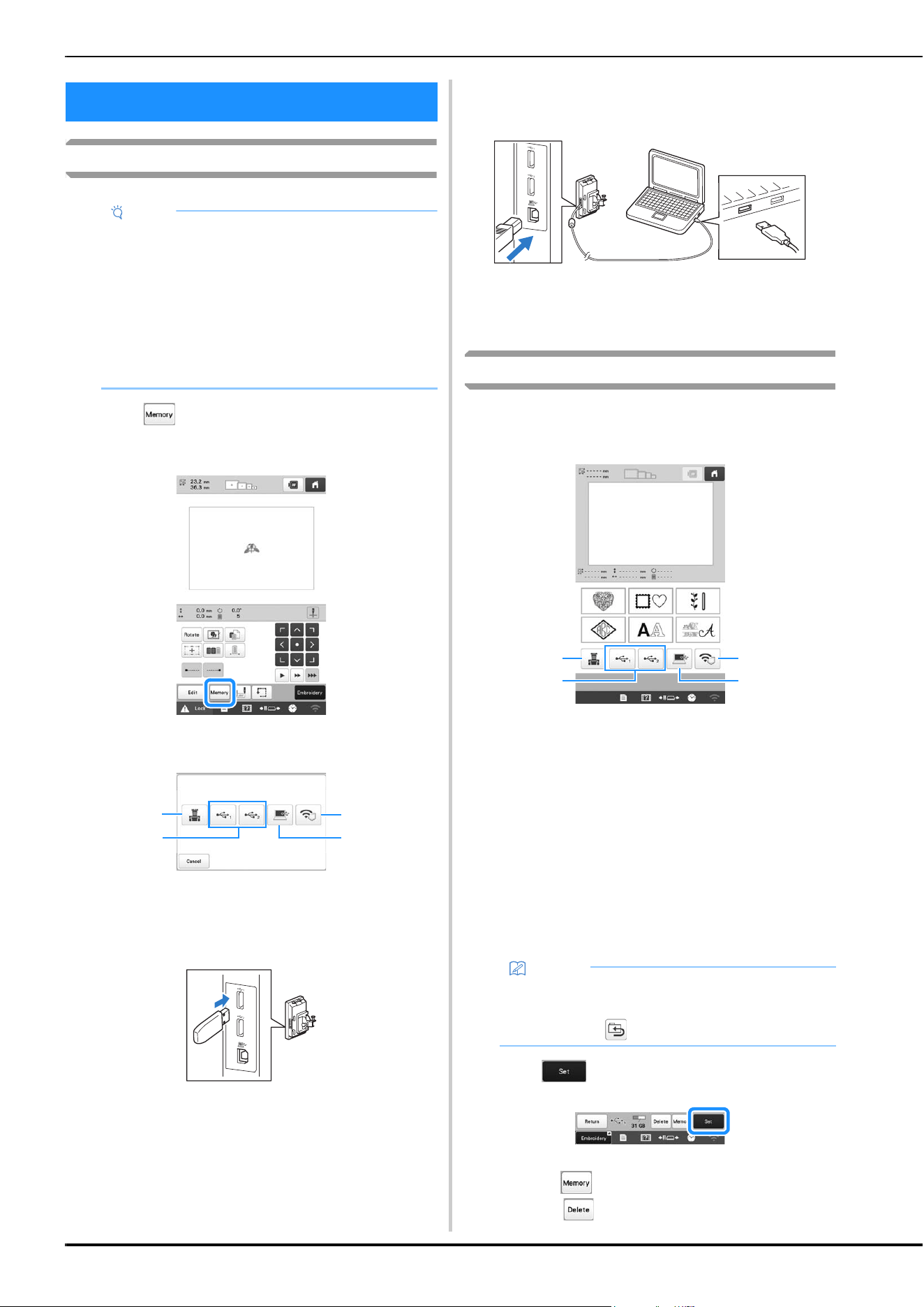

USING THE MEMORY FUNCTION ................. 116
Saving embroidery patterns................................................ 116
Retrieving embroidery patterns .......................................... 116
CONTENTS
9

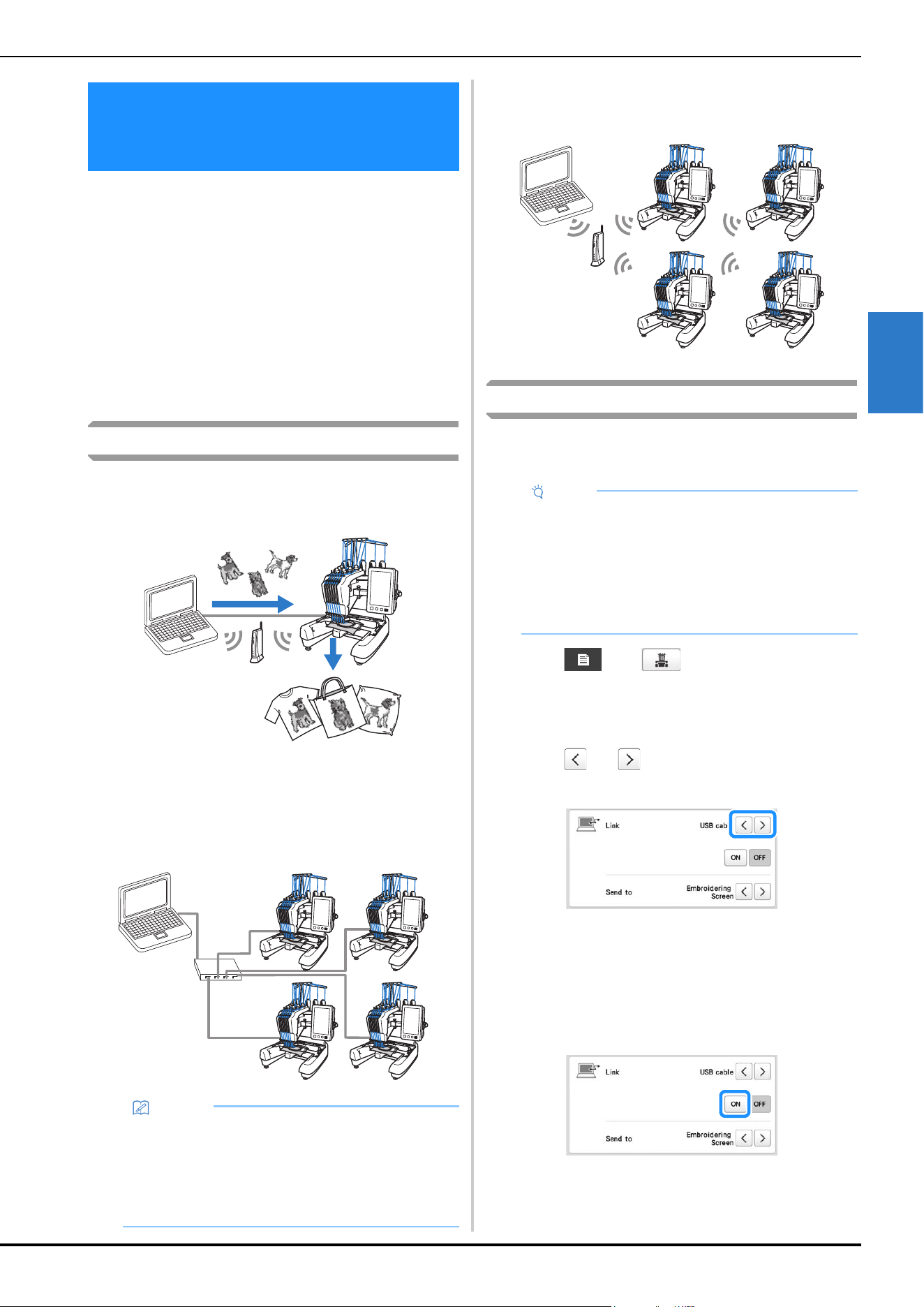

SENDING EMBROIDERY PATTERNS FROM A
COMPUTER TO THE MACHINE
(LINK FUNCTION)........................................... 117
Operations available with the Link function....................... 117

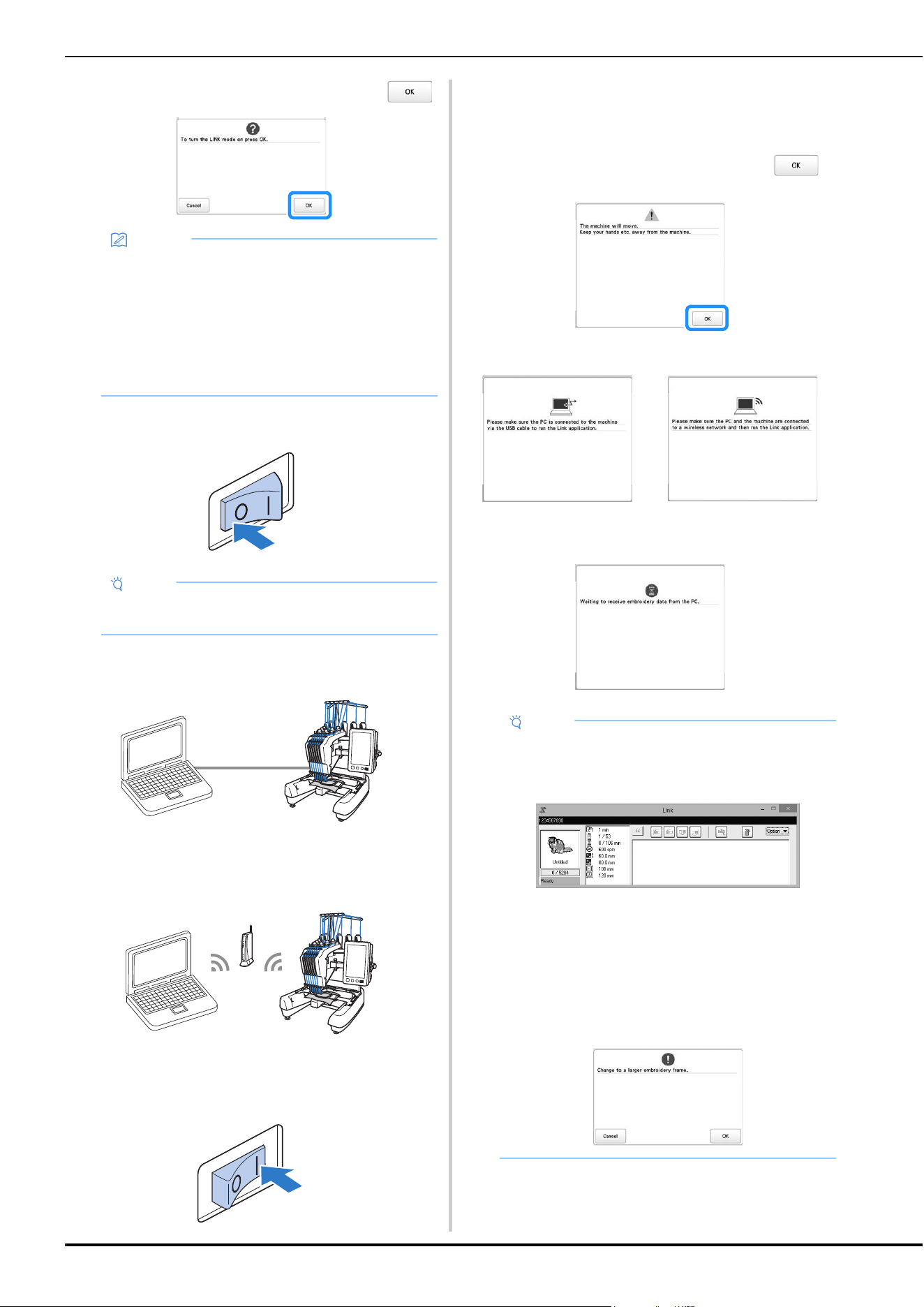

Embroidering using the Link function................................. 117
Disabling the Link function................................................ 120
EMBROIDERY APPLICATIONS ........................ 121
Embroidering split (large-size) patterns............................... 121

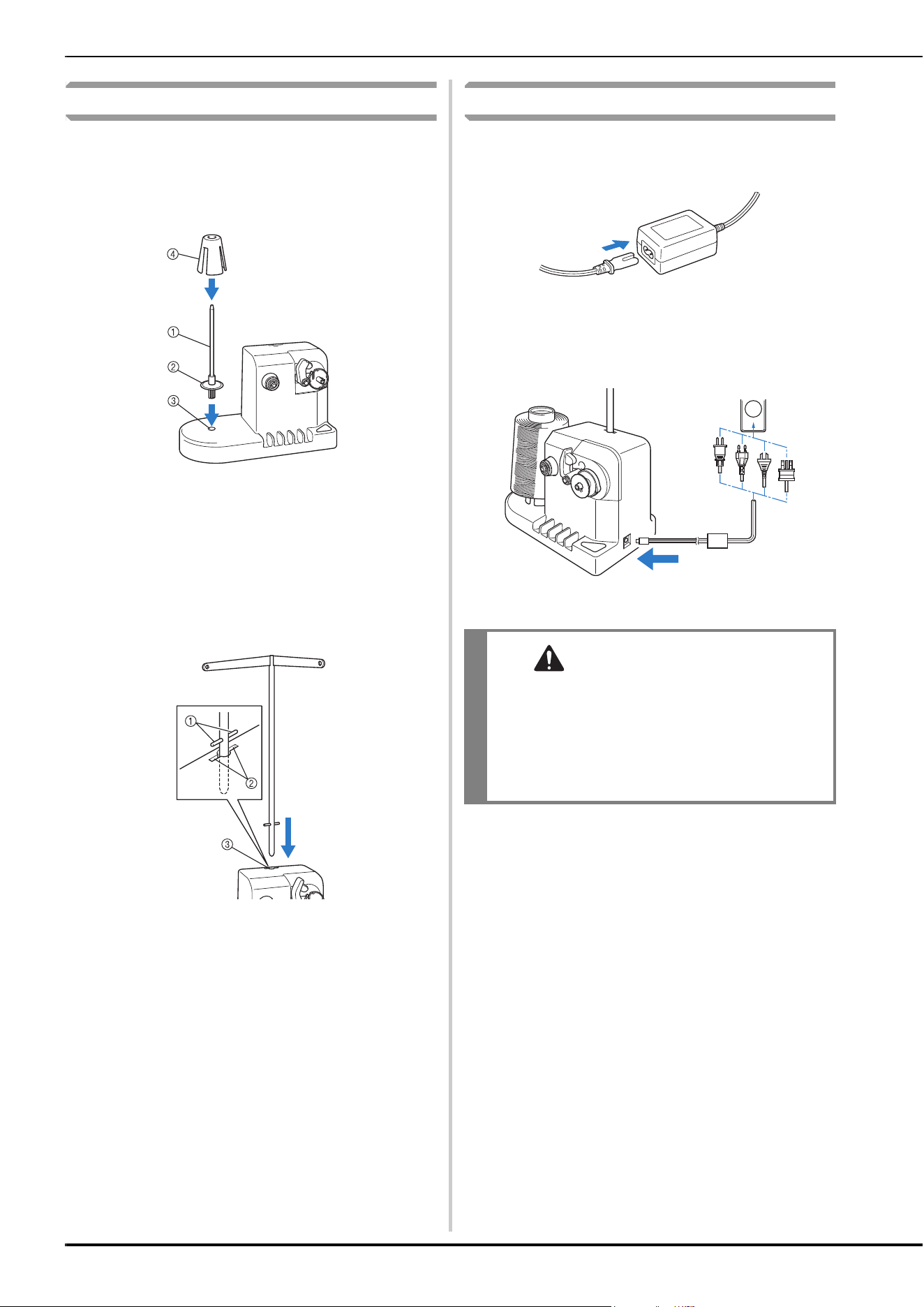

USING THE OPTIONAL BOBBIN WINDER..... 123

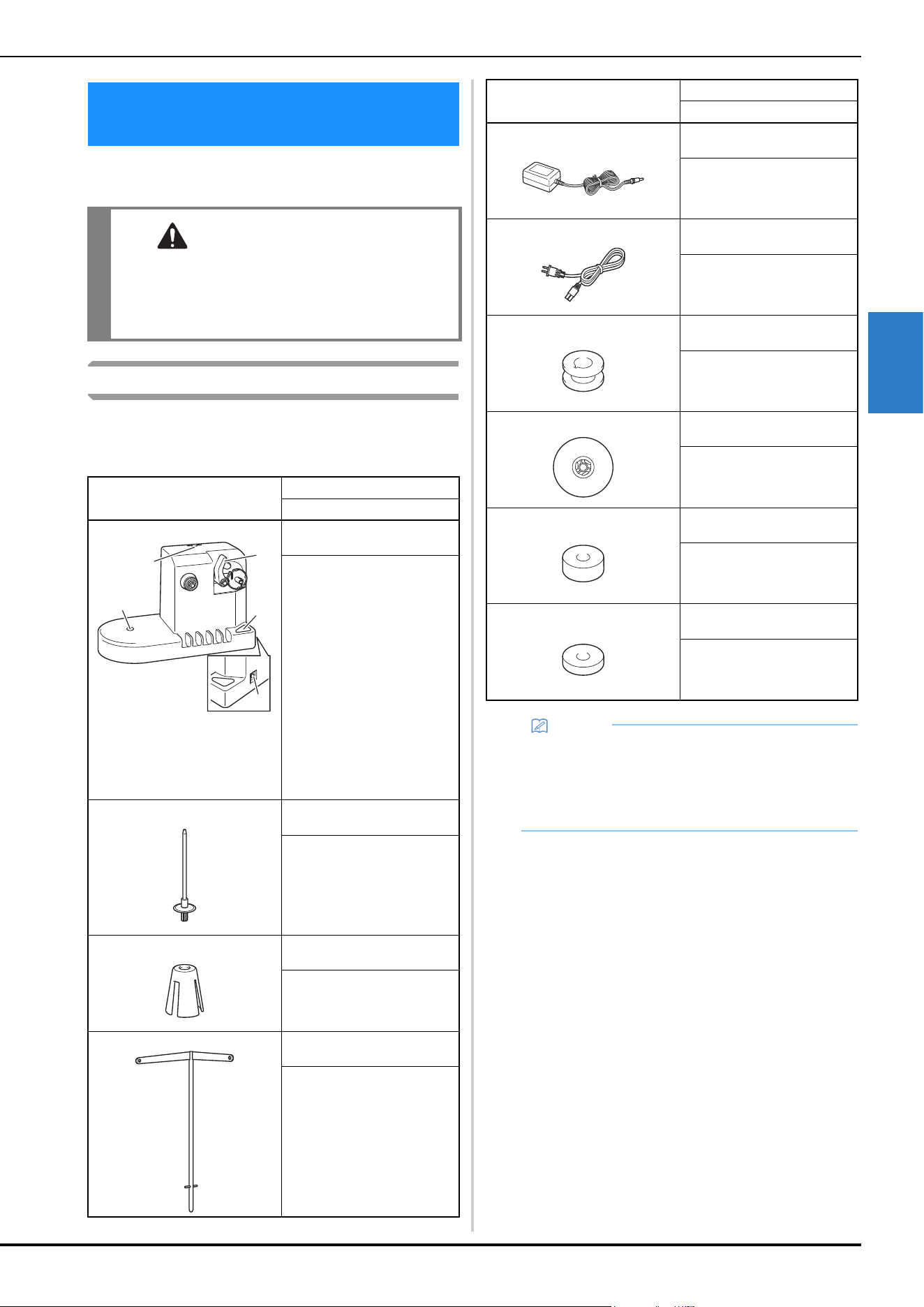

Optional bobbin winder and its accessories....................... 123
Setting up the optional bobbin winder ............................... 124
Connecting the AC adapter ................................................ 124

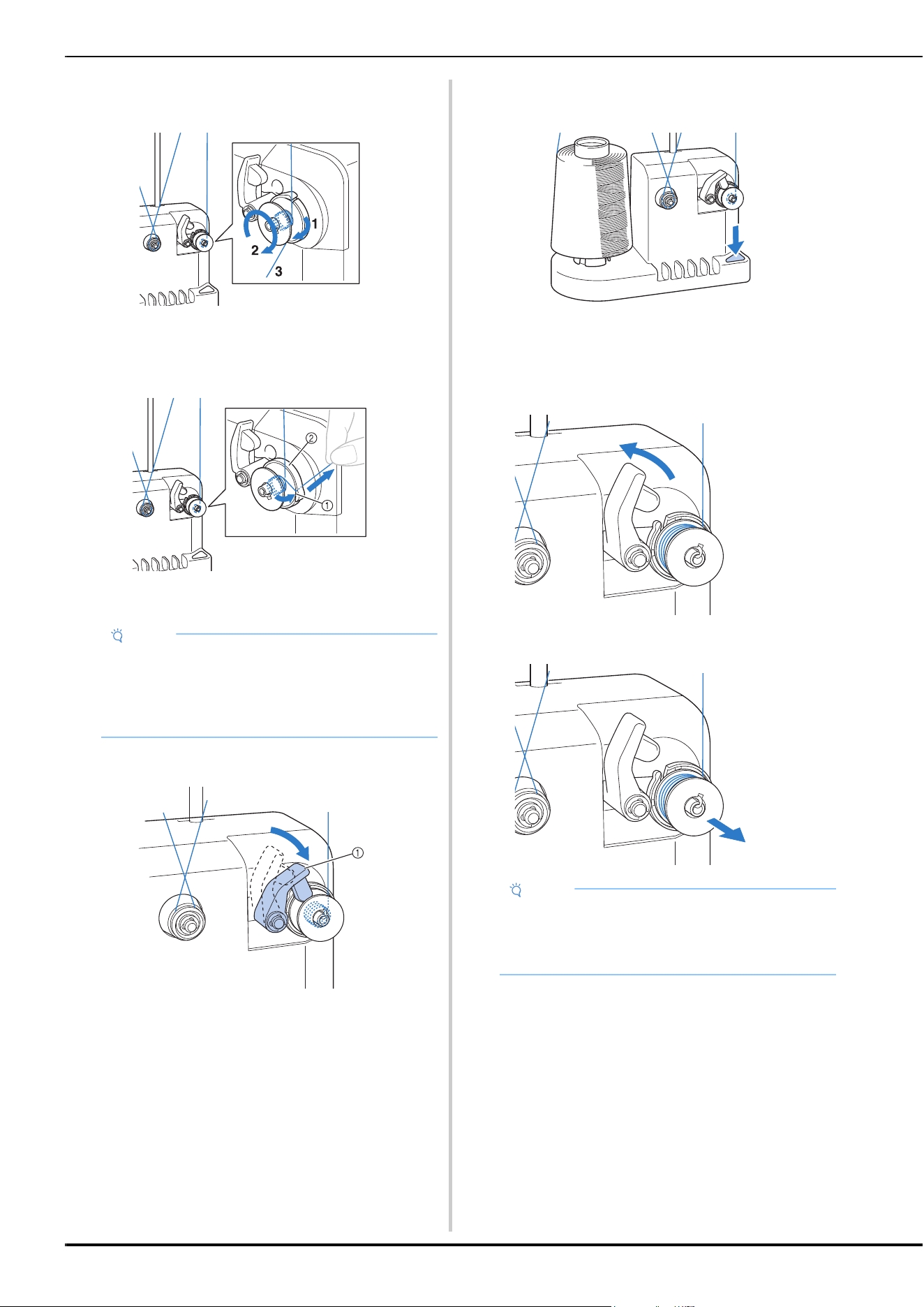

Winding the bobbin........................................................... 125
Chapter 4 ADMINISTRATOR MODE 129

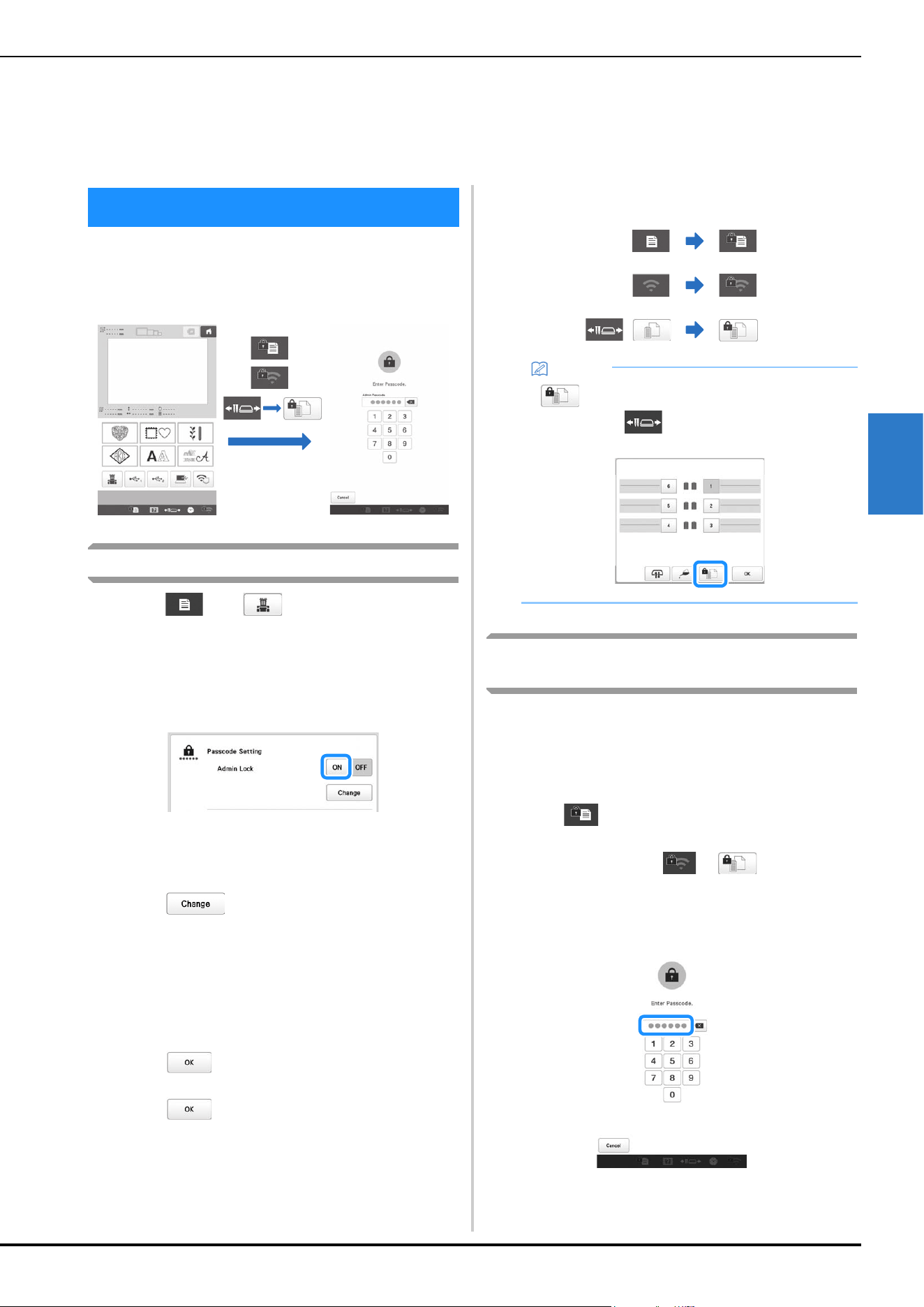

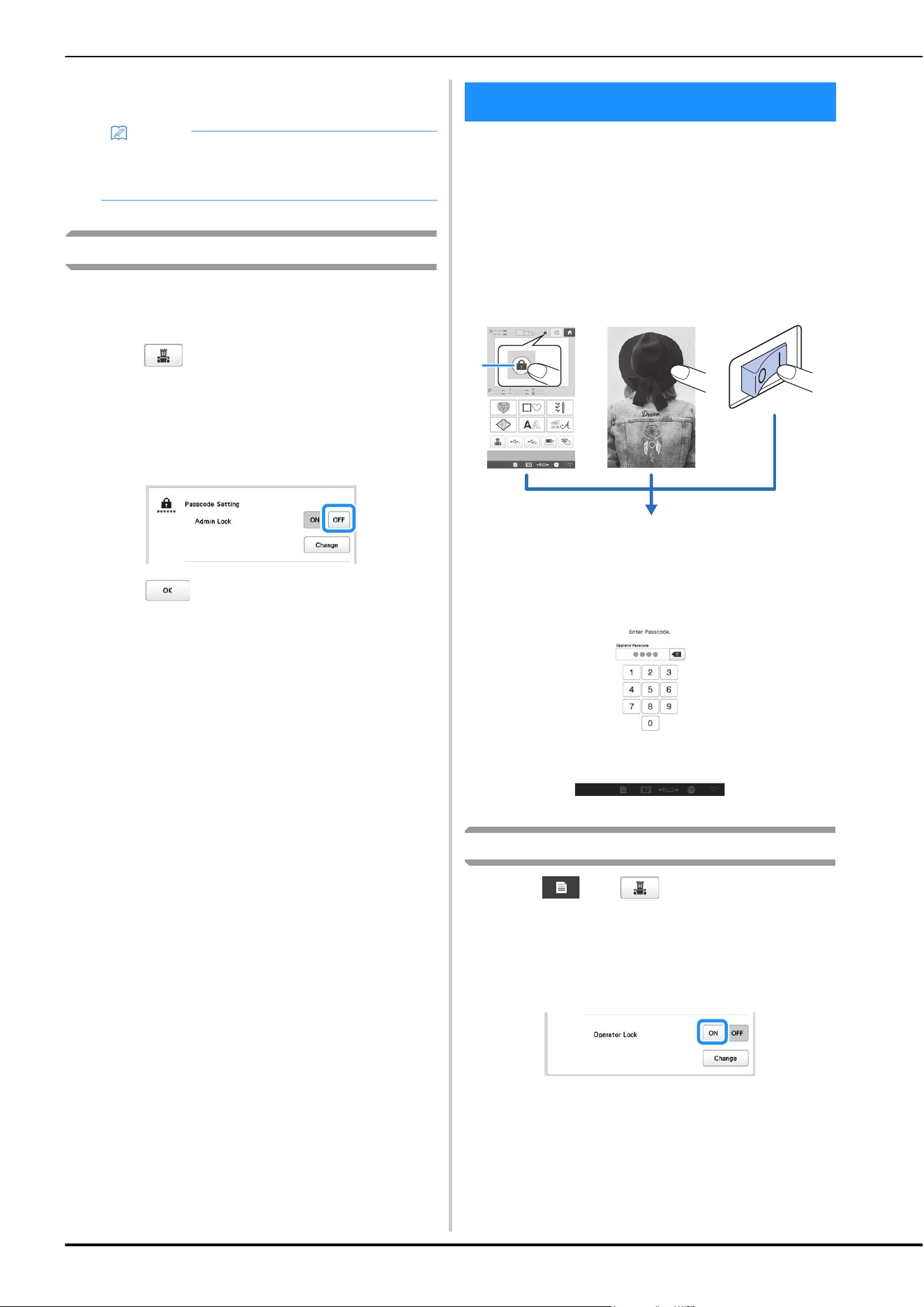

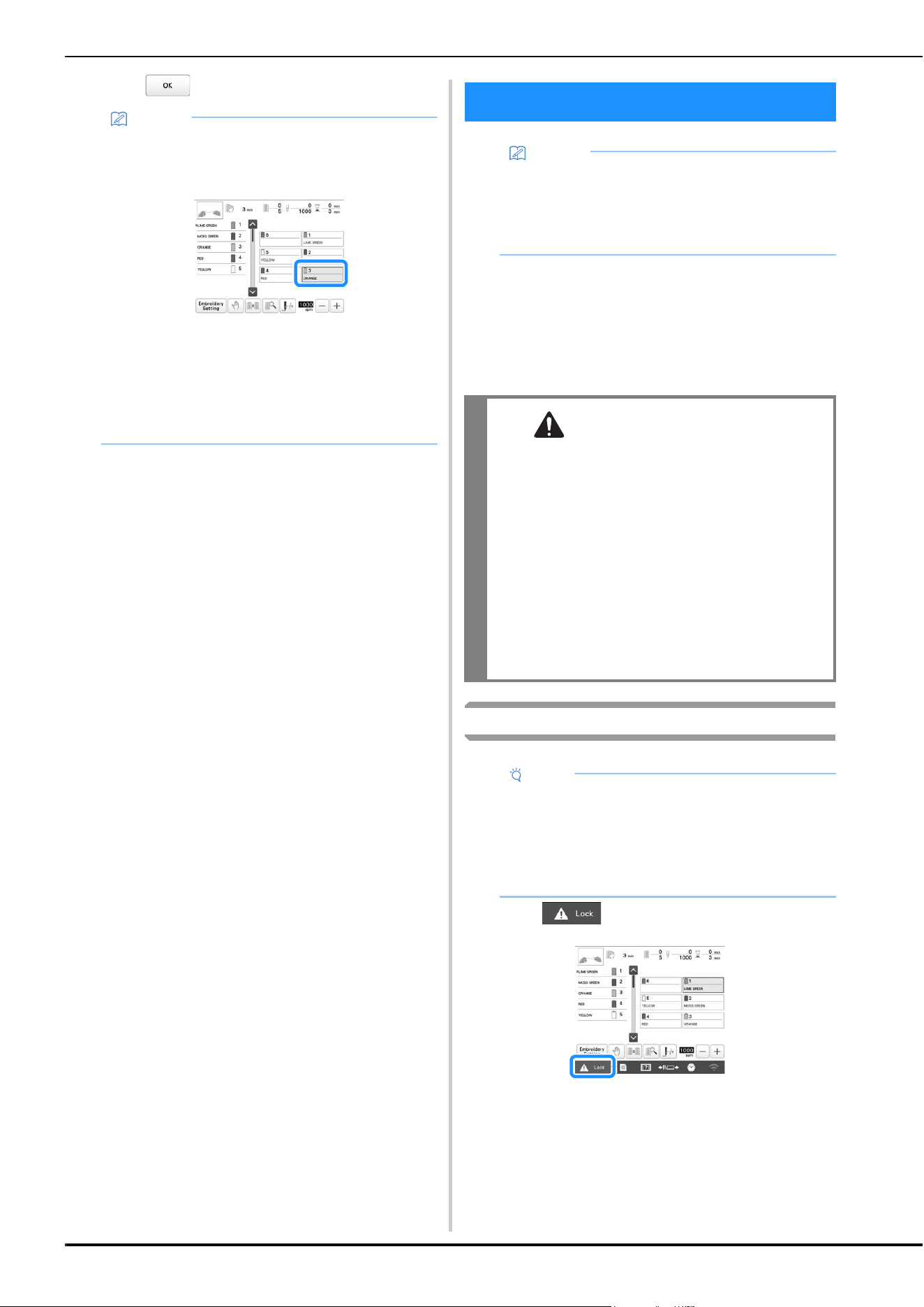

ADMINISTRATOR LOCK ................................. 129
Configuring administrator lock........................................... 129
Accessing settings screens when administrator lock is
enabled.............................................................................. 129
Canceling administrator lock ............................................. 130
OPERATOR LOCK ............................................ 130
Configuring operator lock .................................................. 130
Accessing screens when the LCD screen is locked ............. 131

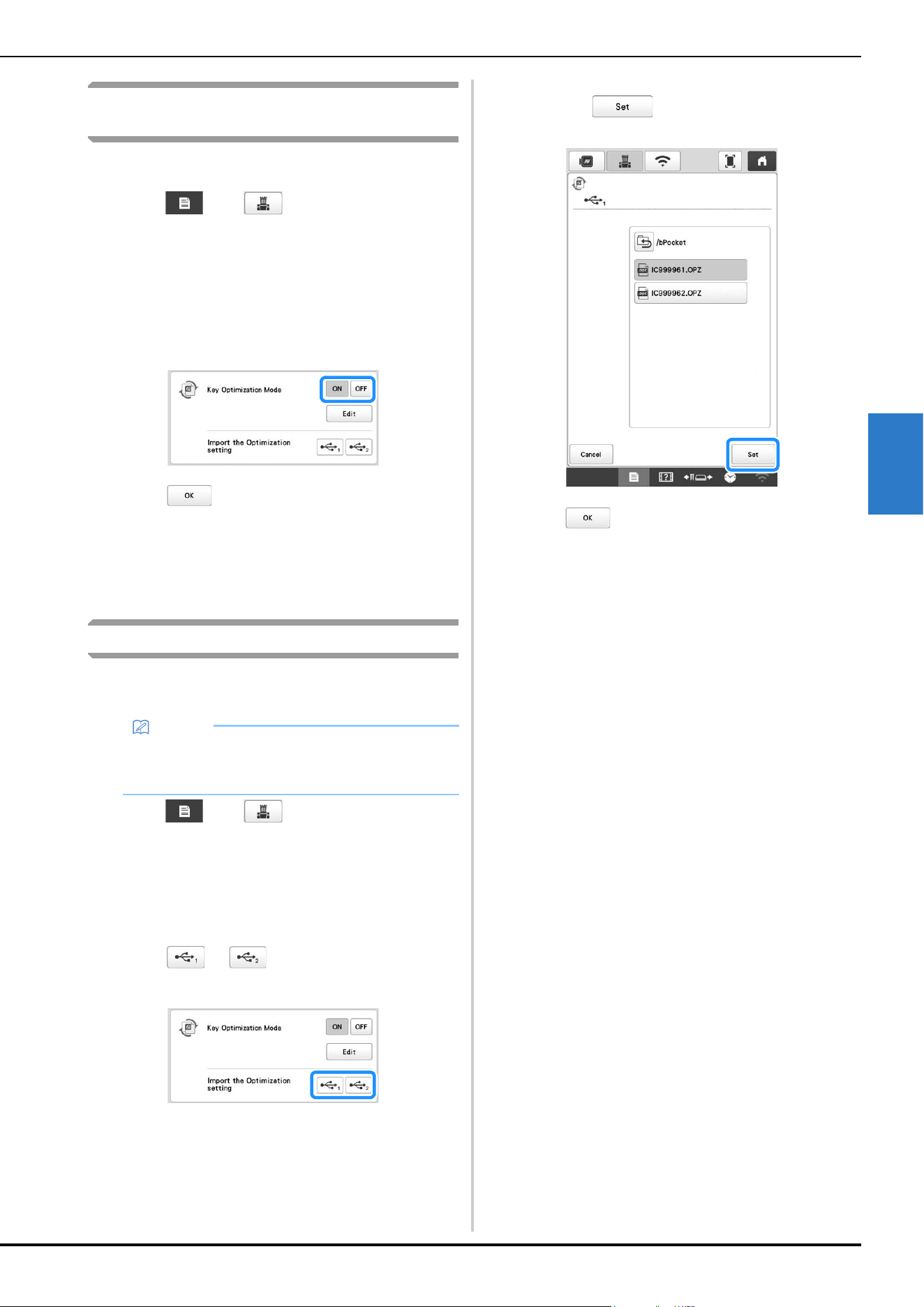

KEY OPTIMIZATION MODE............................ 132
Specifying/changing key display optimization.................... 132
Activating/deactivating key display optimization................ 135
Recalling key display optimization settings ........................ 135
Chapter 5 APPENDIX 137
MAINTENANCE ............................................... 137
Cleaning the LCD .............................................................. 137
Cleaning the machine surface............................................ 137

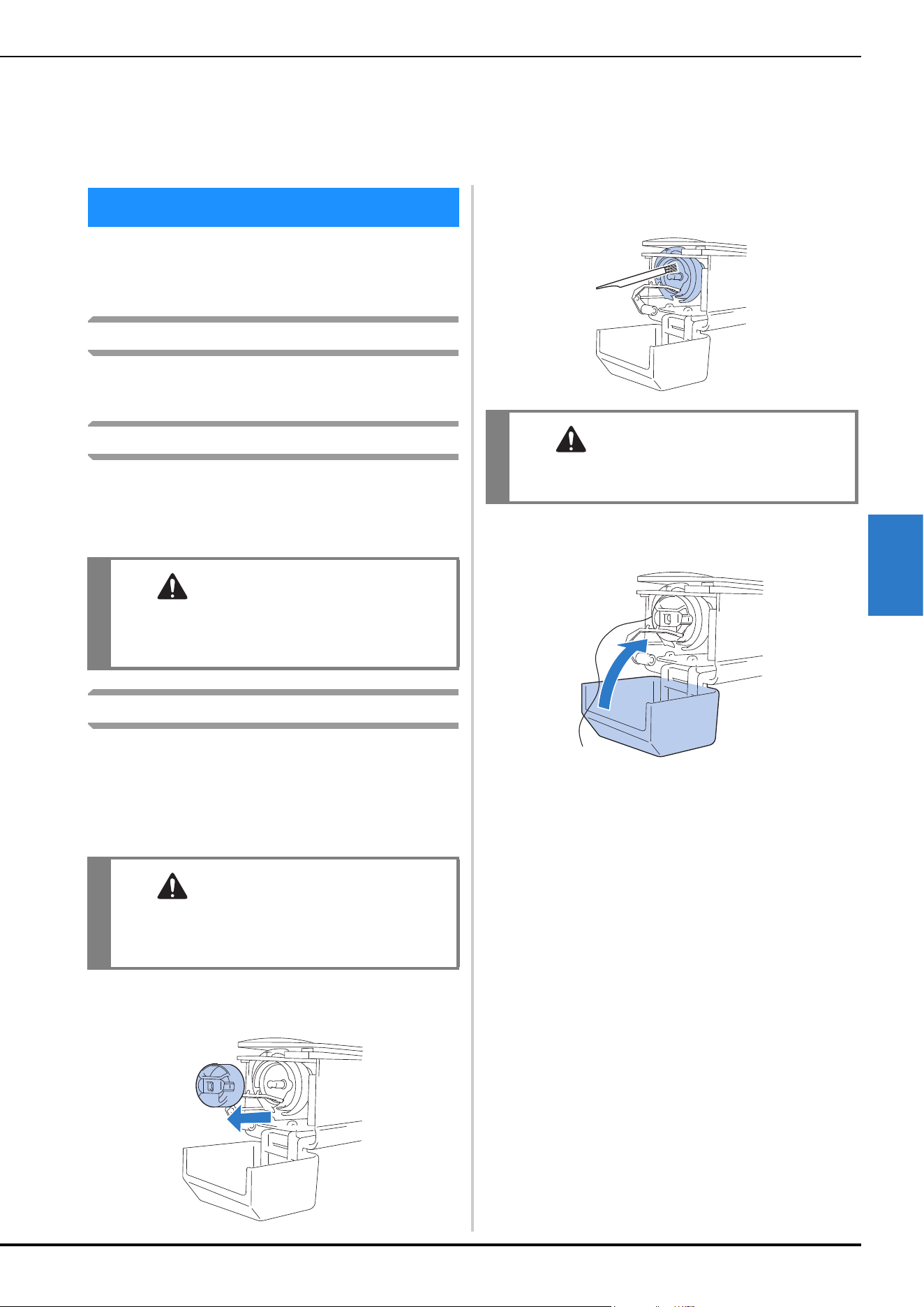

Cleaning the hook.............................................................. 137
Cleaning around the needle plate ...................................... 138
Cleaning the bobbin case................................................... 139
Cleaning the thread paths of the upper threads .................. 139
Replacing the needle ......................................................... 140
Oiling the machine ............................................................ 142
About the maintenance message........................................ 143

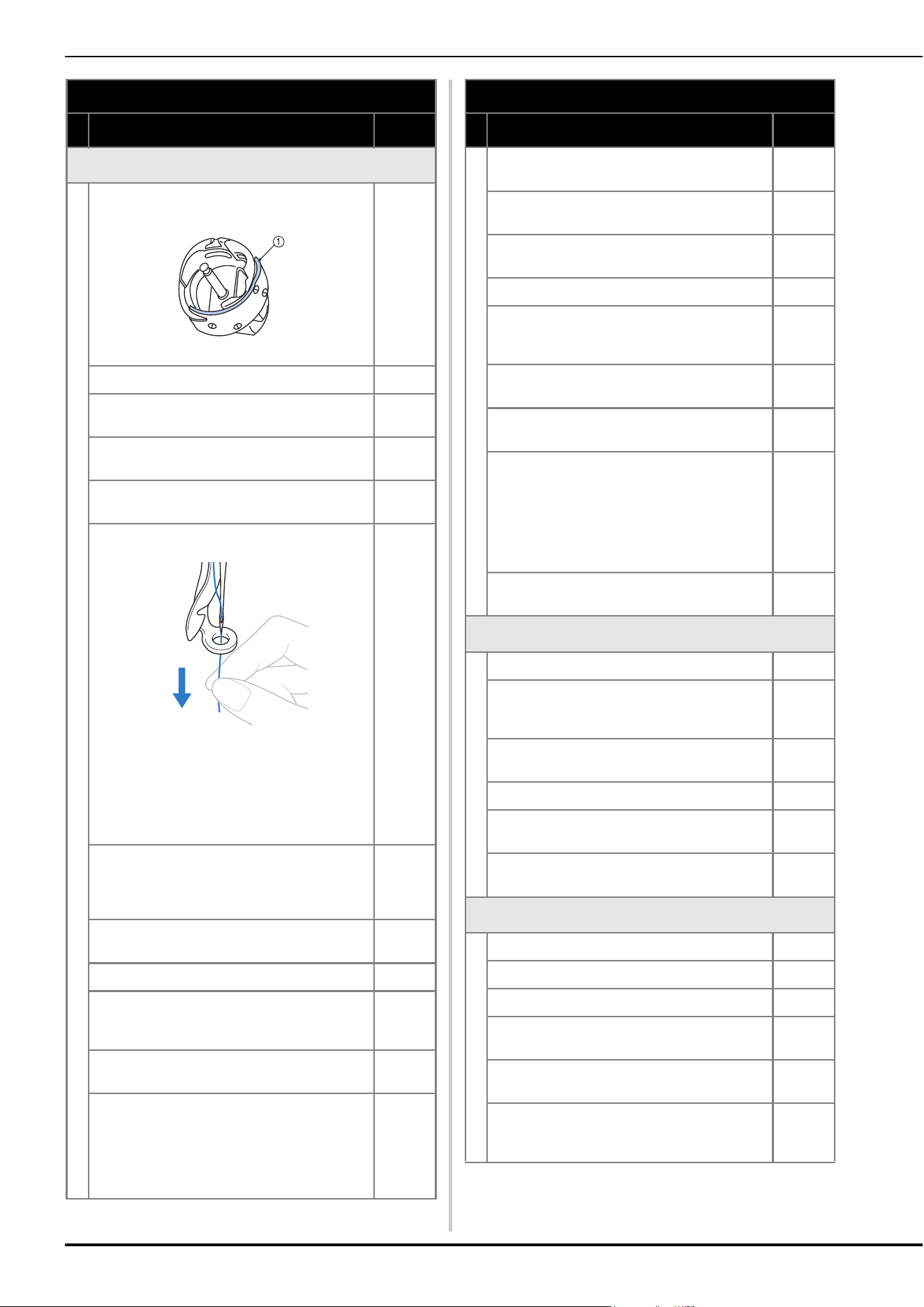

TROUBLESHOOTING...................................... 144
List of Symptoms................................................................ 144
Error messages ................................................................... 150
How can I find the wireless security information (SSID and
network key) ...................................................................... 154
If the machine does not respond when a key is touched .... 155
SPECIFICATIONS ............................................. 156
Machine specifications ...................................................... 156
UPDATING YOUR MACHINE’S SOFTWARE ... 158
Using a wireless LAN connection to update....................... 158

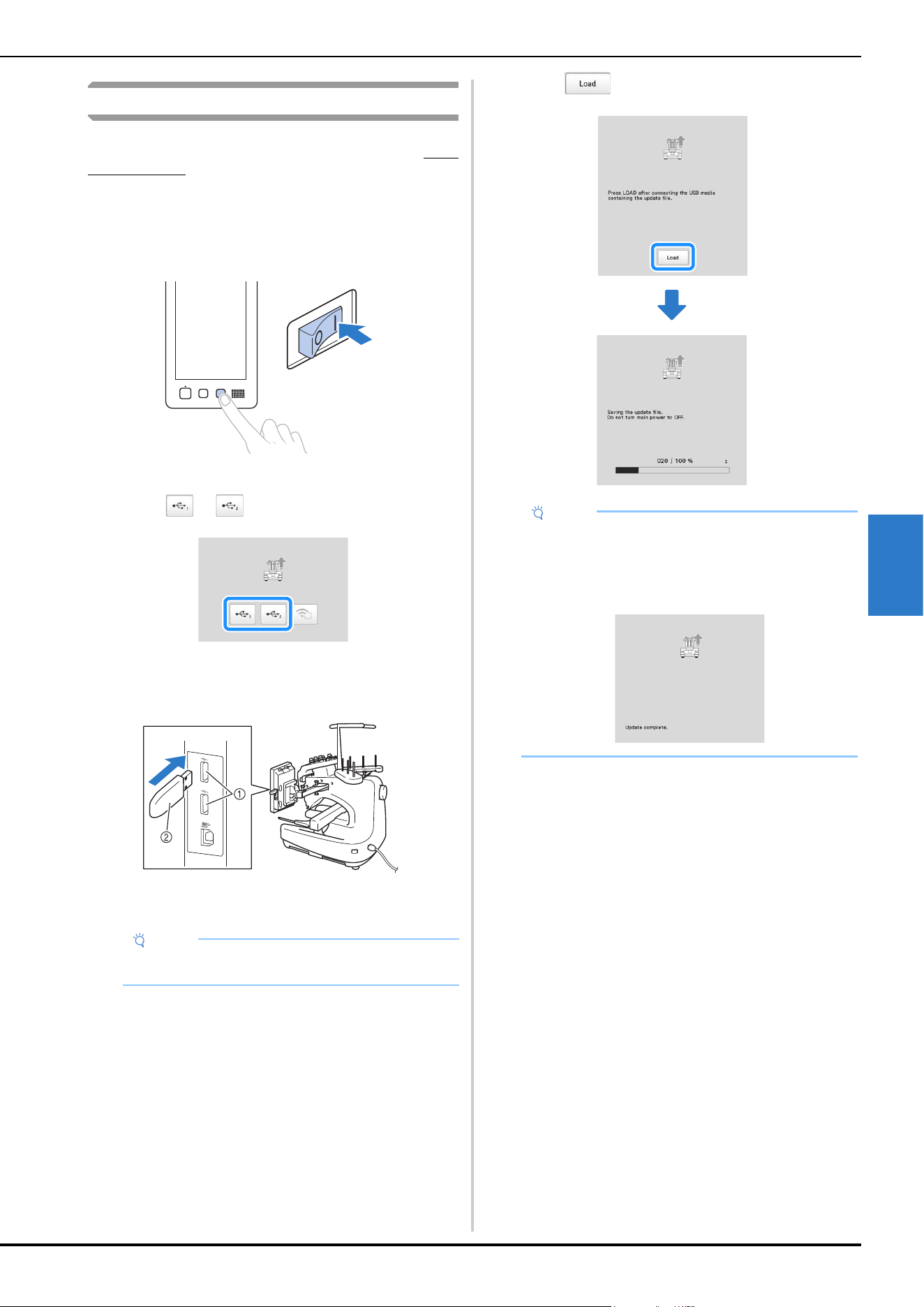

Using USB media to update ............................................... 159
INDEX .............................................................. 160
10
GETTING READY
11
1

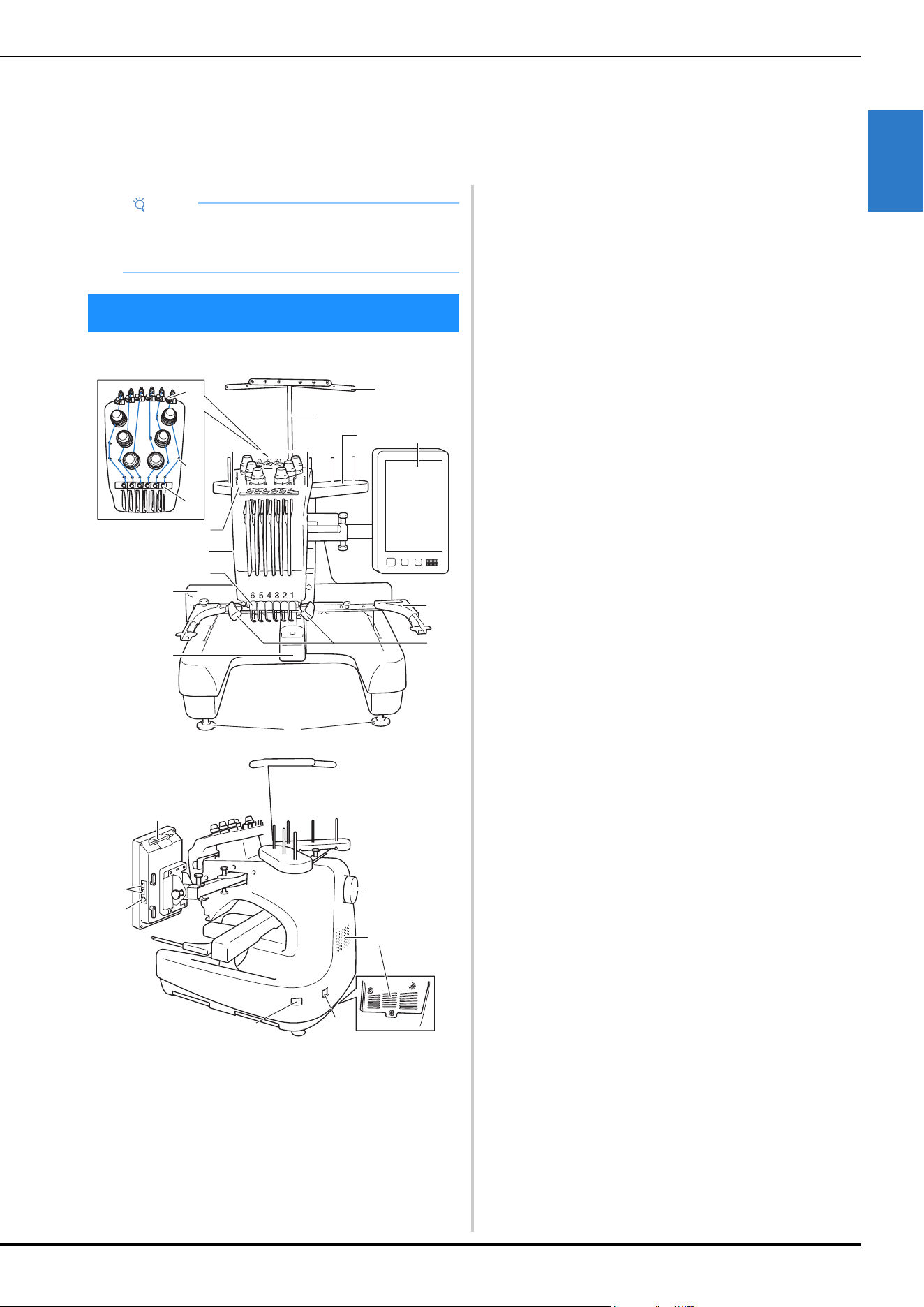

■ Main parts
1 Thread tension knobs (page 104)
2 Needle bar case
Moves to the left and right to move the needle to the
embroidering position.
3 Lower thread guide
4 Carriage
Attach the embroidery frame to the carriage. When the
machine is turned on or when the machine is embroidering, the
carriage moves forward, backward, left and right.
5 Hook cover/Hook (page 35)
6 Feet (page 18)
7 Embroidery light
The brightness of the embroidery light can be adjusted in the
settings screen.
8 Embroidery frame holder (page 21)
9 Operation panel (page 12)
0 Spool stand (page 20)
A Thread guide assembly support
B Thread guide (page 78)
C Upper thread guide (page 78)
D Thread guide pins (page 79)
E Middle thread guide (page 79)
F Touch pen holder
Use the touch pen holder to hold the touch pen when not in
use.
G USB port for media (page 116, page 159)
In order to send patterns from/to USB media, plug the USB
media directly into the USB port.
H USB port for computer (page 116)
In order to import/export patterns between a computer and the
machine, plug the USB cable into the USB port.
I Main power switch (page 22)
Use the main power switch to turn the machine on (“I”) and off
(“O”).
Do not turn the power on soon after turning the power off. It is
recommended that you wait 5 seconds before turning the
power back on.
J Power cord receptacle (page 22)
K Ventilation slots
The ventilation slots allow the air surrounding the motor to
circulate. Do not cover the ventilation slots while the machine is
being used.
L Handwheel
Rotate the handwheel to move the needle up and down. Be
sure to rotate the handwheel toward the LCD panel.
Chapter 1
GETTING READY
Note
• Be sure to install the latest software.
Refer to “UPDATING YOUR MACHINE’S
SOFTWARE” on page 158.
NAMES OF MACHINE PARTS
Bottom
a
b
c
d
e
f
g
h
ij
k
l
m
n
o
p
q
r
s
t
u
v
12
■ Operation panel
1 “Start/Stop” button
Press the “Start/Stop” button to start or stop the machine. The
lighting status and color of the button changes depending on
the operation condition of the machine.
2 Thread trimming button
Press the thread trimming button to trim both the upper and
the bobbin threads.
3 Automatic needle-threading button
Press the automatic needle threading button to thread the
needle.
4 Speaker
5 LCD (touch panel)
Touch the keys that appear on the touch panel to select and
edit patterns and confirm various information.
Included accessories
After opening the box, check that the following accessories
are included. If any item is missing or damaged, contact your
authorized Brother dealer.
Lit in red : When the machine cannot start
embroidering
Flashing in green : When the machine can start
embroidering
Lit in green : While the machine is embroidering
Flashing in orange : When the machine can cut the
thread
Off : When the machine is turned off
Part Name
Part Code
1. Accessory case
XC6482-051
2. Needle set × 2
XC6469-001
3. Prewound bobbin × 6
XH3619-001
4. Spool net × 6
S34455-000
5. Seam ripper
XF4967-001
6. Scissors
XF2052-001
7. Tweezers
XC6542-051
8. Touch pen
XA9940-051
9. Needle changing tool (Threader)
XF2212-101
10. Needle plate cover
XC6499-151
11. Spacer (on machine)
XF1978-001
12. Phillips screwdriver
XC6543-051
13. Standard screwdriver
X55468-051
14. Allen screwdriver
XC5159-051
GETTING READY
13
1
15. 3-way screwdriver
XH4670-001
16. Wrench 13 mm × 10 mm
XC6159-051
17. Oiler
D01H2M-001 (Korea)
D01H2N-001 (other areas)
18. Cleaning brush
X59476-051
19. Weight (L)
XC5974-151
20. Spool mat × 6
XC7134-051
21. Spool cap × 6
130012-057
22. USB cable
XD1851-051
23. Embroidery frame (extra-large)
300 mm (W) × 200 mm (H)
(11-3/4 inches (W) × 7-7/8 inches (H))
PRH300 (Americas)
PRH300: XG6645-001 (Europe)
PRH300CN: 115D02E6019 (China)
PRH300: 115D02E7019 (other areas)
24. Embroidery frame (large)
180 mm (W) × 130 mm (H)
(7-1/8 inches (W) × 5-1/8 inches (H))
PRH180 (Americas)
PRH180: XG6647-001 (Europe)
PRH180CN: 115D02E6018 (China)
PRH180: 115D02E7018 (other areas)
25. Embroidery frame (medium)
100 mm (W) × 100 mm (H)
(4 inches (W) × 4 inches (H))
PRH100 (Americas)
PRH100: XG6649-001 (Europe)
PRH100CN: 115D02E6017 (China)
PRH100: 115D02E7017 (other areas)
26. Embroidery frame (small)
60 mm (W) × 40 mm (H)
(2-3/8 inches (W) × 1-1/2 inches (H))
PRH60 (Americas)
PRH60: XG6651-001 (Europe)
PRH60CN: 115D02E6020 (China)
PRH60: 115D02E7020 (other areas)
27. Embroidery sheet (extra large)
300 mm (W) × 200 mm (H)
(11-3/4 inches (W) × 7-7/8 inches (H))
XC5704-051
Part Name
Part Code
28. Embroidery sheet (large)
180 mm (W) × 130 mm (H)
(7-1/8 inches (W) × 5-1/8 inches (H))
XC5721-051
29. Embroidery sheet (medium)
100 mm (W) × 100 mm (H)
(4 inches (W) × 4 inches (H))
XC5759-051
30. Embroidery sheet (small)
60 mm (W) × 40 mm (H)
(2-3/8 inches (W) × 1-1/2 inches (H))
XC5761-051
31. Embroidery frame holder A
(with white corner covers)
XF2222-001
32. Embroidery frame holder B
(with light gray corner covers)
XF2223-001
33. Operation Manual
This manual
34. Quick Reference Guide
Visit your authorized Brother dealer.
35. Embroidery Design Guide
Visit your authorized Brother dealer.
36. Power cord
Visit your authorized Brother dealer.
37. Bobbin case (on machine)
XC7206-001
Memo
• The included touch pen can be stored in the touch
pen holder on the back of the operation panel.
(page 11)
Part Name
Part Code
14
Accessories that are included in some
countries or regions

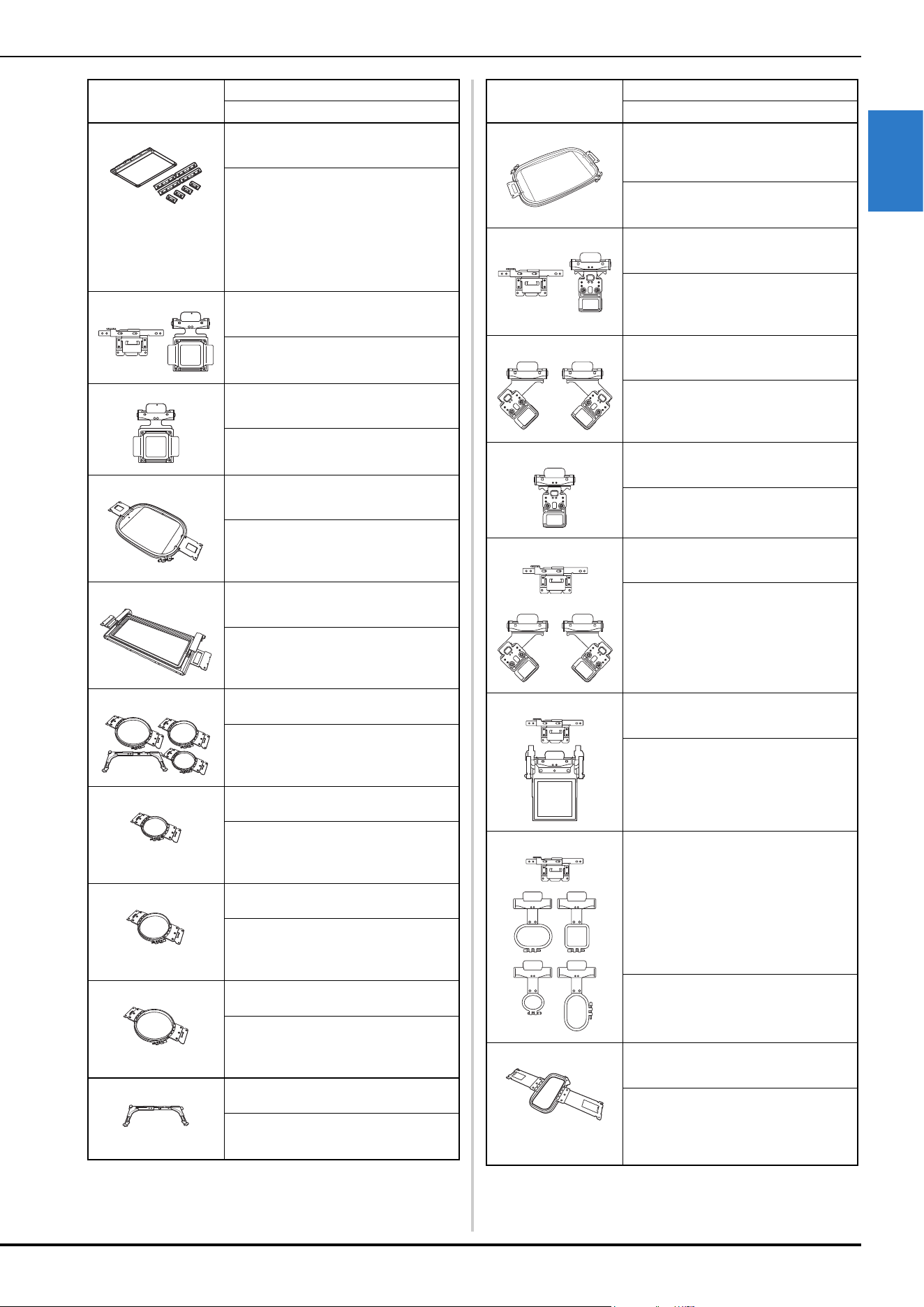

Optional accessories
The following are available as optional accessories to be
purchased separately.
Part Name
Part Code
1. Cap frame set
PRCF3 (Americas)
PRCF3: XE2158-201 (Europe)
PRCF3CN: 115D02E6002 (China)
PRCF3: 115D02E7002 (other areas)
2. Embroidery Design Guide
(additional)
Visit your authorized Brother dealer.
3. Bobbin winder set
(Refer to page 123.)
PRBW1
Part Name
Part Code
1. Tubular frame table
PRTT1 (Americas)
PRTT1: D01FAF-001 (Europe)
PRTT1CN: 115K02E6002 (China)
PRTT1AP: 115K02E7002 (other areas)
2. Wide table
PRWT1 (Americas)
PRWT1: XG6731-001 (Europe)
PRWT1CN: 115K02E6001 (China)
PRWT1: 115K02E7001 (other areas)
3. Embroidery Stand
PRNSTD2 (Americas)
VRPRNSTD: XG3199-001 (Europe)
VRPRNSTDCN: 115Z05E6005 (China)
VRPRNSTD: 115Z05E7005 (other areas)
4. Flat brim cap frame set
PRCF5 (Americas)
PRCF5: D01FAB-001 (Europe)
PRCF5CN: 115D02E600J (China)
PRCF5AP: 115D02E700J (other areas)
5. Flat brim cap frame
130 mm (W) × 60 mm (H)
(5-1/8 inches (W) × 2-3/8 inches (H))
PRCFH5 (Americas)
PRCFH5: D01FA5-001 (Europe)
PRCFH5CN: 115D02E600G (China)
PRCFH5AP: 115D02E700G (other areas)
6. Cap frame
130 mm (W) × 60 mm (H)
(5-1/8 inches (W) × 2-3/8 inches (H))
PRCFH3 (Americas)
PRCFH3: XG6695-001 (Europe)
PRCFH3: 115D02E7008 (other areas)
7. Mounting jig
(for cap frame (PRCFH1/PRCFH2/
PRCFH3))
PRCFJ2 (Americas)
PRCFJ2: XG6661-001 (Europe)
PRCFJ2: 115D02E7009 (other areas)
8. Cylinder frame set
PRCL1 (Americas)
PRCL1: XG6697-001 (Europe)
PRCL1CN: 115D02E6011 (China)
PRCL1: 115D02E7011 (other areas)
9. Cylinder frame
90 mm (W) × 80 mm (H)
(3-1/2 inches (W) × 3 inches (H))
PRCLH1 (Americas)
PRCLH1: XG6699-001 (Europe)
PRCLH1: 115D02E7010 (other areas)
10. Versatile magnetic frame M kit
100 mm (W) × 100 mm (H)
(4 inches (W) × 4 inches (H))
PRVMFMKIT (Americas)
PRVMFMKIT: D01XJY-001 (Europe)
PRVMFMKITCN: 115D02E600M (China)
PRVMFMKITAP: 115D02E700M (other
areas)
11. Versatile magnetic frame M
100 mm (W) × 100 mm (H)
(4 inches (W) × 4 inches (H))
PRVMFM (Americas)
PRVMFM: D01XK7-001 (Europe)
PRVMFMCN: 115D02E600N (China)
PRVMFMAP: 115D02E700N (other areas)
12. Versatile magnetic frame L kit
180 mm (W) × 130 mm (H)
(7-1/8 inches (W) × 5-1/8 inches (H))
PRVMFLKIT (Americas)
PRVMFLKIT: D01XHD-001 (Europe)
PRVMFLKITCN: 115D02E600P (China)
PRVMFLKITAP: 115D02E700P (other
areas)
13. Versatile magnetic frame L
180 mm (W) × 130 mm (H)
(7-1/8 inches (W) × 5-1/8 inches (H))
PRVMFL (Americas)
PRVMFL: D01XHM-001 (Europe)
PRVMFLCN: 115D02E600L (China)
PRVMFLAP: 115D02E700L (other areas)
Part Name
Part Code
GETTING READY
15
1
14. Magnetic sash frame
360 mm (W) × 200 mm (H)
(14 inches (W) × 7-7/8 inches (H))
PRMS360 (Americas)
PRMS360: D01FAN-001 (Europe)
PRMS360CN: 115D02E600K (China)
PRMS360AP: 115D02E700K (other
areas)
* Embroidery area: 300 mm (W) × 200
mm (H) (11-3/4 inches (W) × 7-7/8
inches (H))
15. Magnetic frame set
50 mm (W) x 50 mm (H)
(2 inches (W) x 2 inches (H))
PRMHA50 (Americas)
PRMFA50: XG8593-001 (Europe)
PRMFA50AP: 115D02E700E (other areas)
16. Magnetic frame
50 mm (W) x 50 mm (H)
(2 inches (W) x 2 inches (H))
PRMH50 (Americas)
PRMF50: XG8597-001 (Europe)
PRMF50AP: 115D02E700F (other areas)
17. Quilt frame
200 mm (W) × 200 mm (H)
(7-7/8 inches (W) × 7-7/8 inches (H))
PRPQF200 (Americas)
PRPQF200: XG6727-001 (Europe)
PRPQF200CN: 115D02E6025 (China)
PRPQF200: 115D02E7025 (other areas)
18. Border frame
300 mm (W) × 100 mm (H)
(11-3/4 inches (W) × 4 inches (H))
PRPBF1 (Americas)
PRPBF1: XG6729-001 (Europe)
PRPBF1CN: 115D02E6022 (China)
PRPBF1: 115D02E7022 (other areas)
19. Round frame set
PRPRFK1 (Americas)
PRPRFK1: XG6725-001 (Europe)
PRPRFK1CN: 115D02E6029 (China)
PRPRFK1: 115D02E7029 (other areas)
20. Round frame
(100 mm (4 inches))
PRPRF100 (Americas)
PRPRF100: XG6737-001 (Europe)
PRPRF100CN: 115D02E6026 (China)
PRPRF100: 115D02E7026 (other areas)
21. Round frame
(130 mm (5 inches))
PRPRF130 (Americas)
PRPRF130: XG6739-001 (Europe)
PRPRF130CN: 115D02E6027 (China)
PRPRF130: 115D02E7027 (other areas)
22. Round frame
(160 mm) (6 inches))
PRPRF160 (Americas)
PRPRF160: XG6741-001 (Europe)
PRPRF160CN: 115D02E6028 (China)
PRPRF160: 115D02E7028 (other areas)
23. Embroidery frame holder C (with
dark gray corner covers)
PRPARMC (Americas)
PRPARMC: XG6743-001 (Europe)
PRPARMC: 115D02E7021 (other areas)
Part Name
Part Code
24. Flat frame
300 mm (W) × 200 mm (H)
(11-3/4 inches (W) × 7-7/8 inches
(H))
PRF300 (Americas)
PRF300: XG6693-001 (Europe)
PRF300: 115D02E7016 (other areas)
25. Clamp frame S straight set
45 mm (W) × 24 mm (H)
(1-3/4 inches (W) × 7/8 inches (H))
PRCLP45B (Americas)
PRCLP45B: XF2251-001 (Europe)
PRCLP45BCN: 115D02E6012 (China)
PRCLP45B: 115D02E7012 (other areas)
26. Clamp frames S L & R
45 mm (W) × 24 mm (H)
(1-3/4 inches (W) × 7/8 inches (H))
PRCLP45LR (Americas)
PRCLP45LR: XF2255-001 (Europe)
PRCLP45LRCN: 115D02E6013 (China)
PRCLP45LR: 115D02E7013 (other areas)
27. Clamp frame S straight
45 mm (W) × 24 mm (H)
(1-3/4 inches (W) × 7/8 inches (H))
PRCLP45S (Americas)
PRCLP45S: 115D02E7015 (other areas*)
* Not available in Europe
28. Clamp frames S L & R set
45 mm (W) × 24 mm (H)
(1-3/4 inches (W) × 7/8 inches (H))
PRCLP45LRD (Americas)
PRCLP45LRD: 115D02E7014 (other
areas*)
* Not available in Europe
29. Clamp frame M set
100mm (W) × 100 mm (H)
(4 inches (W) × 4 inches (H))
PRCLPM1 (Americas)
PRCLP100B: XG6235-001 (Europe)
PRCLPM1CN: 115D02E600B (China)
PRCLPM1AP: 115D02E700B (other
areas)
30. Compact frame set
70: 70 mm (W) × 41 mm (H) (2-3/4
inches (W) × 1-5/8 inches (H))
50: 50 mm (W) × 50 mm (H) (2
inches (W) × 2 inches (H))
44: 44 mm (W) × 38 mm (H) (1-3/4
inches (W) × 1-1/2 inches (H))
Portrait orientation:
33 mm (W) × 75 mm (H) (1-5/16
inches (W) × 2-15/16 inches (H))
PRHCK1 (Americas)
PRSFK1: XG6209-001 (Europe)
PRHCK1CN: 115D02E600A (China)
PRHCK1AP: 115D02E700A (other areas)
31. Sleeve frame
70 mm (W) × 200 mm (H)
(2-3/4 inches (W) × 7-7/8 inches (H))
PRHSL200 (Americas)
PRHSL200: XG5284-001 (Europe)
PRHSL200CN: 115D02E600C (China)
PRHSL200AP: 115D02E700C (other
areas)
Part Name
Part Code
16
Setup and transporting precautions

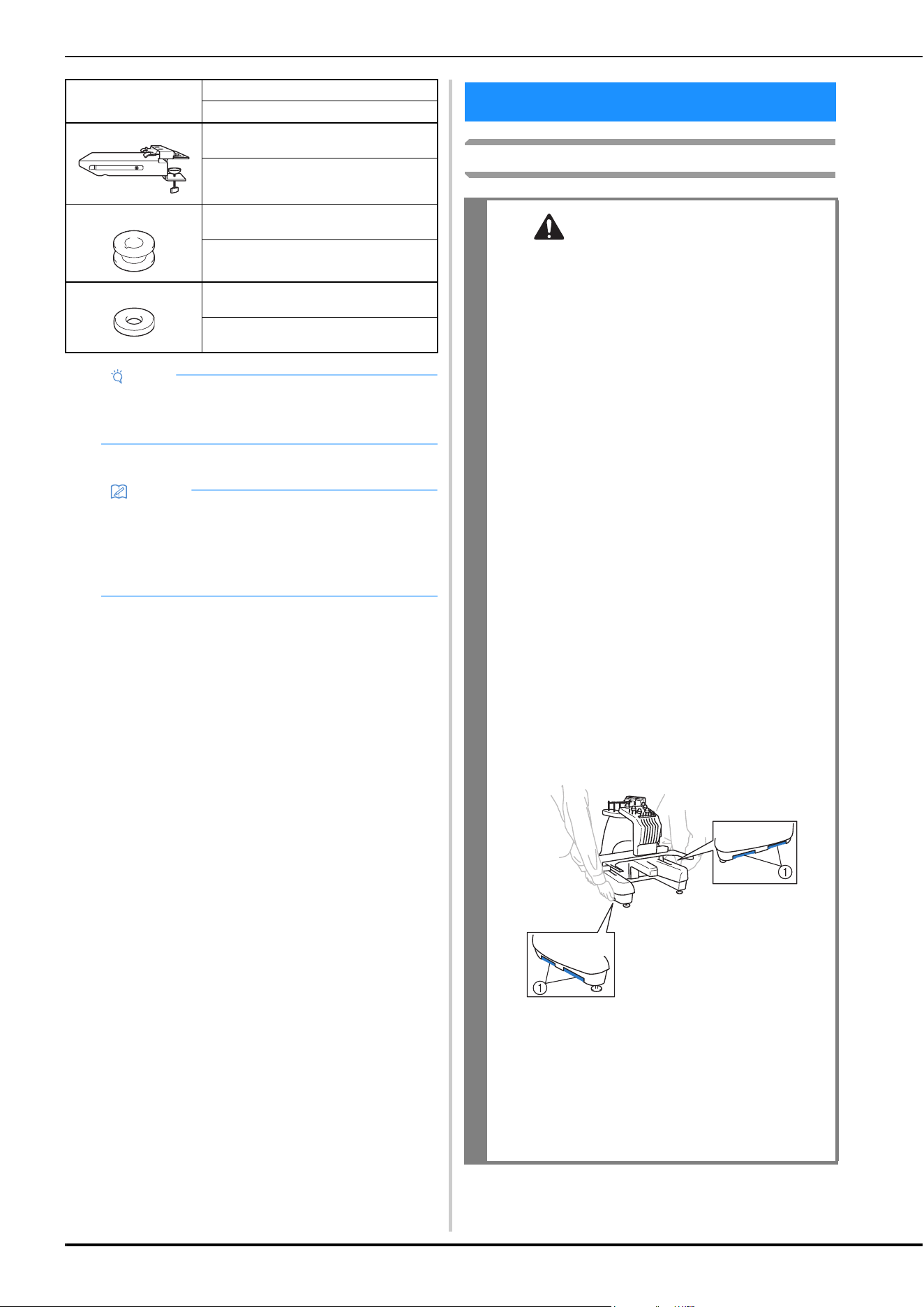

32. Free-arm mounting jig
PRMHJ1 (Americas)
PRMFJ1: XH1533-001 (Europe)
PRMFJ1AP: 115D02E700H (other areas)
33. Metal bobbin
100376-051
34. Weight (S)
XC6631-051
Note
• Visit your nearest authorized Brother dealer for a
complete listing of optional accessories for your
machine.
Memo
• Always use accessories recommended for this
machine.
• All specifications are correct at the time of printing.
Please be aware that some specifications may
change without notice.
Part Name
Part Code

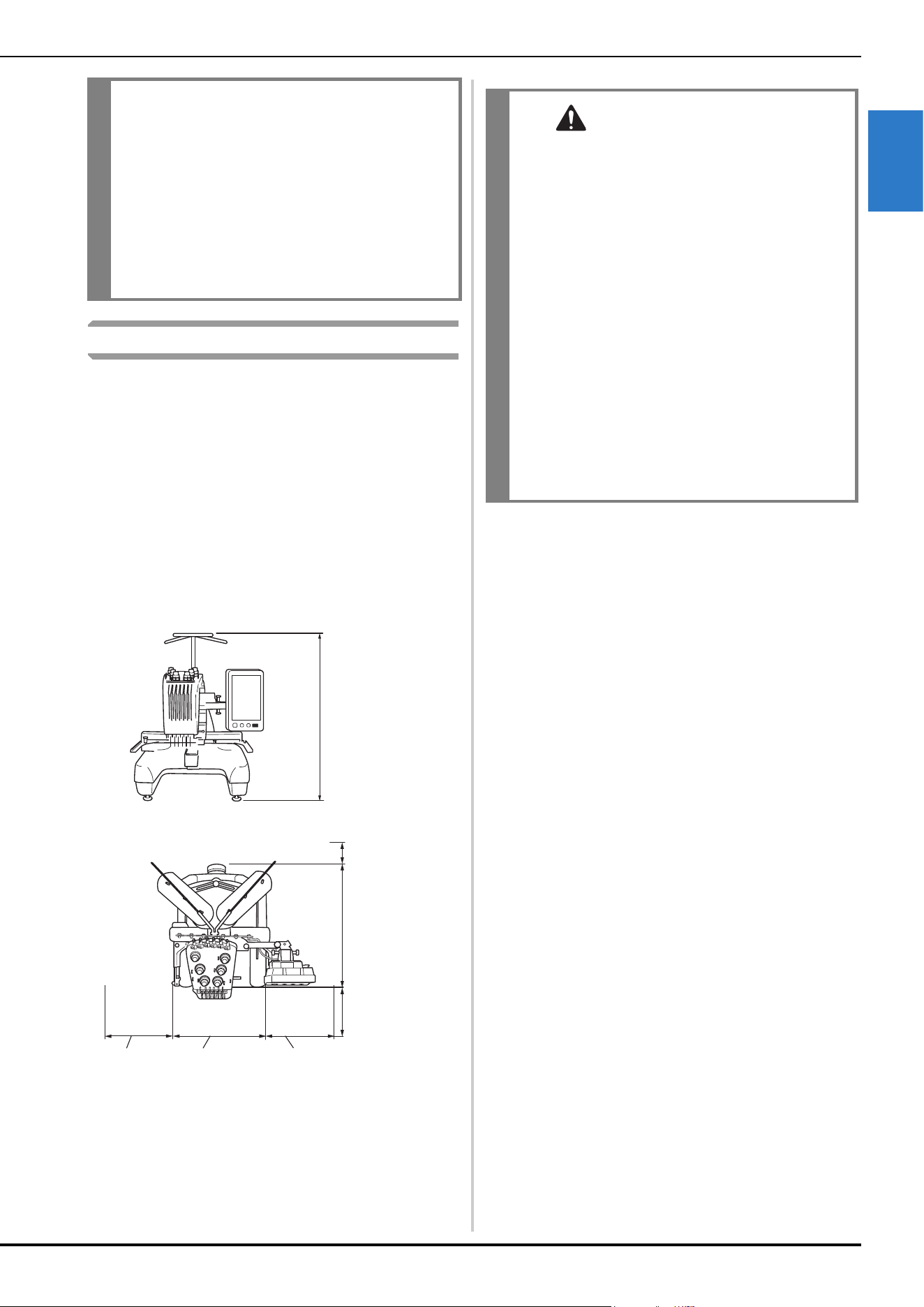

SETTING UP THE MACHINE
CAUTION
• The temperature of the operating environment
should be between 5 °C (40 °F) and 40 °C
(104 °F). If the machine is operated in an
environment that is either too cold or too hot,
the machine may malfunction.
• Do not use the machine in a location where it
will be exposed to direct sunlight, otherwise
the machine may malfunction.

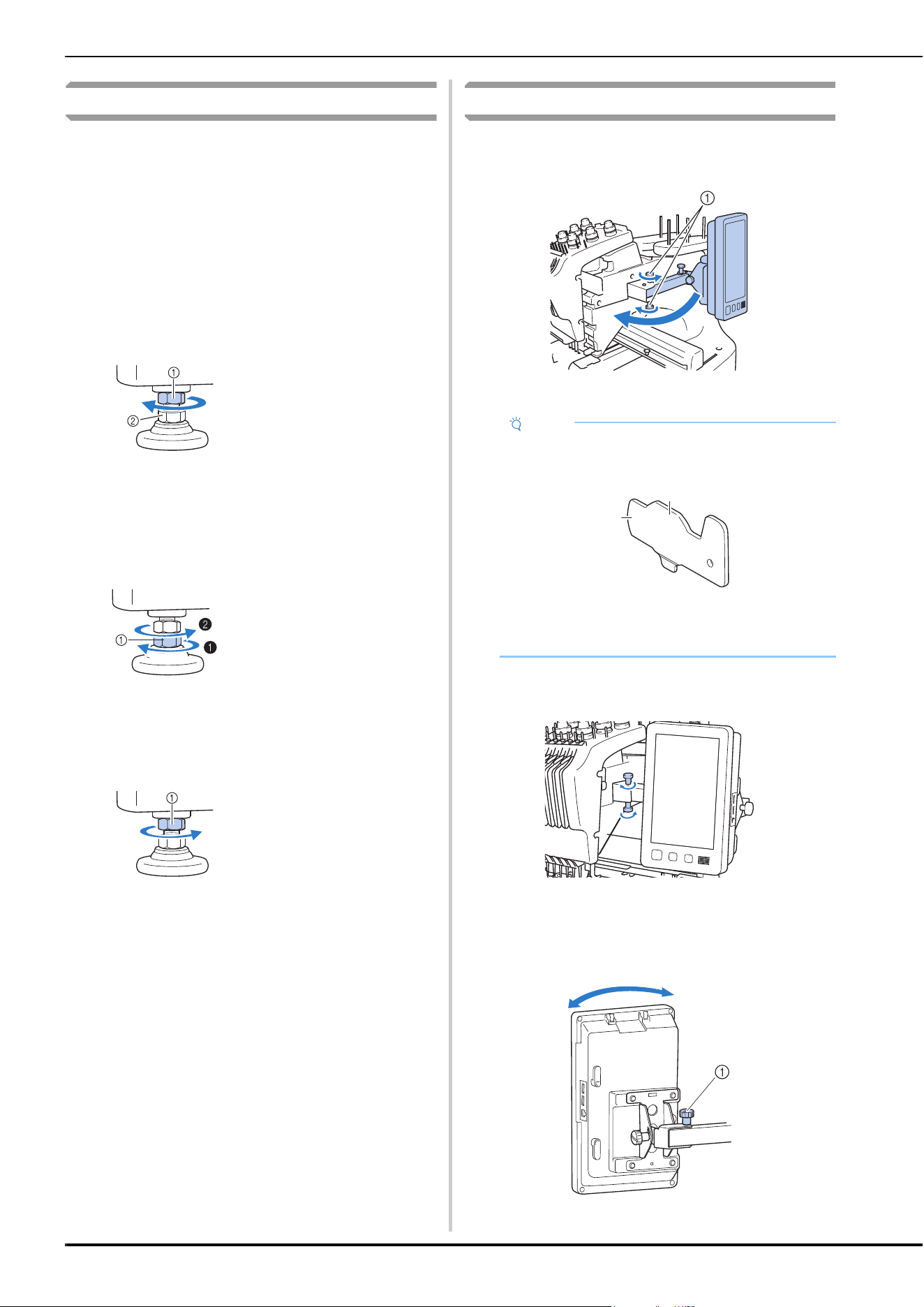

• Set up the machine with its four adjustable feet
completely in contact with the desk or table,
so that the machine is level.
• Do not block the ventilation slots at the back
and on the rear underside of the machine, such
as by putting anything under the machine, and
do not allow lint or dust to accumulate in the
ventilation slots, otherwise the machine’s
motor may overheat, resulting in a fire or in
damage to the machine.
• The machine weight is approximately 38 kg (83
lb). The transporting or setting up of the
machine should be performed by two people.
• When transporting the machine, be sure to
have two people lift the machine from the
bottom at the indicated slots (1). Lifting the
machine from any other area may damage the
machine or result in the machine falling, which
could cause injuries.
• When lightning occurs, turn off the machine
and unplug the power supply cord. Lightning
may cause the machine to malfunction.
• Do not plug in the power supply cord until
setup of the machine is completed, otherwise
injuries may result if the “Start/Stop” button is
accidentally pressed and the machine starts
embroidering.
GETTING READY
17
1
Setup location
Set up the machine in a location that meets the following
requirements.
• Position the machine a minimum of 50 mm (2 inches)
away from the wall.
• Allow sufficient space around the machine.
• Place no objects within the moving range of the
embroidery frame.
• Set-up machine near an electrical outlet.
• Use a level and stable surface, such as a desk or stand.
• Use a surface that can support the weight of the machine
(about 38 kg (83 lb)).
• Allow open space around the ventilation slots at the back
and on the rear underside of the machine
• When lubricating the machine, wear protective
eyeglasses and gloves to prevent the oil or
grease from getting into your eyes or on your
skin. Do not put the oil or grease into your
mouth. Keep the oil and grease out of the reach
of children.
• While attaching or detaching an embroidery
frame or other included accessory or while
maintaining the machine, be careful nothing
interferes with the moving parts of the
machine.
762 mm
(30 inches)
Minimum of
50 mm
(2 inches)
587 mm
(23-7/64
inches)
More than
350 mm
(13-3/4 inches)
More than
250 mm
(9-27/32
inches)
512 mm
(20-5/32
inches)
More than
250 mm
(9-27/32 inches)
CAUTION
• In order to prevent malfunctions or damage,
do not set up the machine in a location
exposed to the following conditions.
- Liquids, such as water
-Extreme dust
- Direct sunlight
- Extremely high or extremely low
temperatures. The operating environment
should be between 5 °C (40 °F) and 40 °C
(104°F).
- Insufficient space
- Objects within the moving range of the
embroidery frame
- Blocked ventilation slots at the back and on
the rear underside of the machine
- An unstable surface
• Do not use extension cords or multi-plug
adapters with any other appliances plugged in
to them.
18
Setting up the machine
When setting up the machine, adjust the legs so that the
machine is steady.
a
Make sure that all packing tape affixed to the machine
is peeled off and that all packing material is removed.
b
Set up the machine while making sure that there is
sufficient space around it.
For details on the setup location, refer to page 17.
c
Adjust the legs so that the machine is steady.
Use the included wrench to loosen the lock nut on the
leg that you wish to adjust.
The foot can be turned.
d
Use the included wrench to turn the adjustable foot
nut on the foot.
Turning the nut in direction 1 lengthens the leg; turning
the nut in direction 2 shortens the leg.
• Adjust all four legs so that they securely contact the
desk or table, and the machine is level.
e
After adjusting the legs to the desired length, use the
included wrench to tighten the nuts.
f
Press down on each corner of the machine to check
that it is stable.
If it is still unstable, perform steps
c through e again
to adjust the legs.
Adjusting the operation panel position
a
Loosen 2 thumb screws to bring the operation panel
forward.
1 Thumb screws
b
Adjust the operation panel to an easy-to-operate
position, and then tighten the thumb screws.
c
Adjust the orientation of the operation panel.
Loosen the thumb screw, adjust the operation panel to
an easy-to-view orientation, and then tighten the thumb
screw.
1 Thumb screw
1 Lock nut
2 Adjustable foot nut
1 Adjustable foot nut
1 Lock nut
Note
• Using the 3-way screwdriver included, loosen and
firmly tighten the thumb screws.
1 Use this part to tighten the upper and lower
thumb screws.
2 Use this part to tighten the left and right thumb
screws.
a
b
GETTING READY
19
1

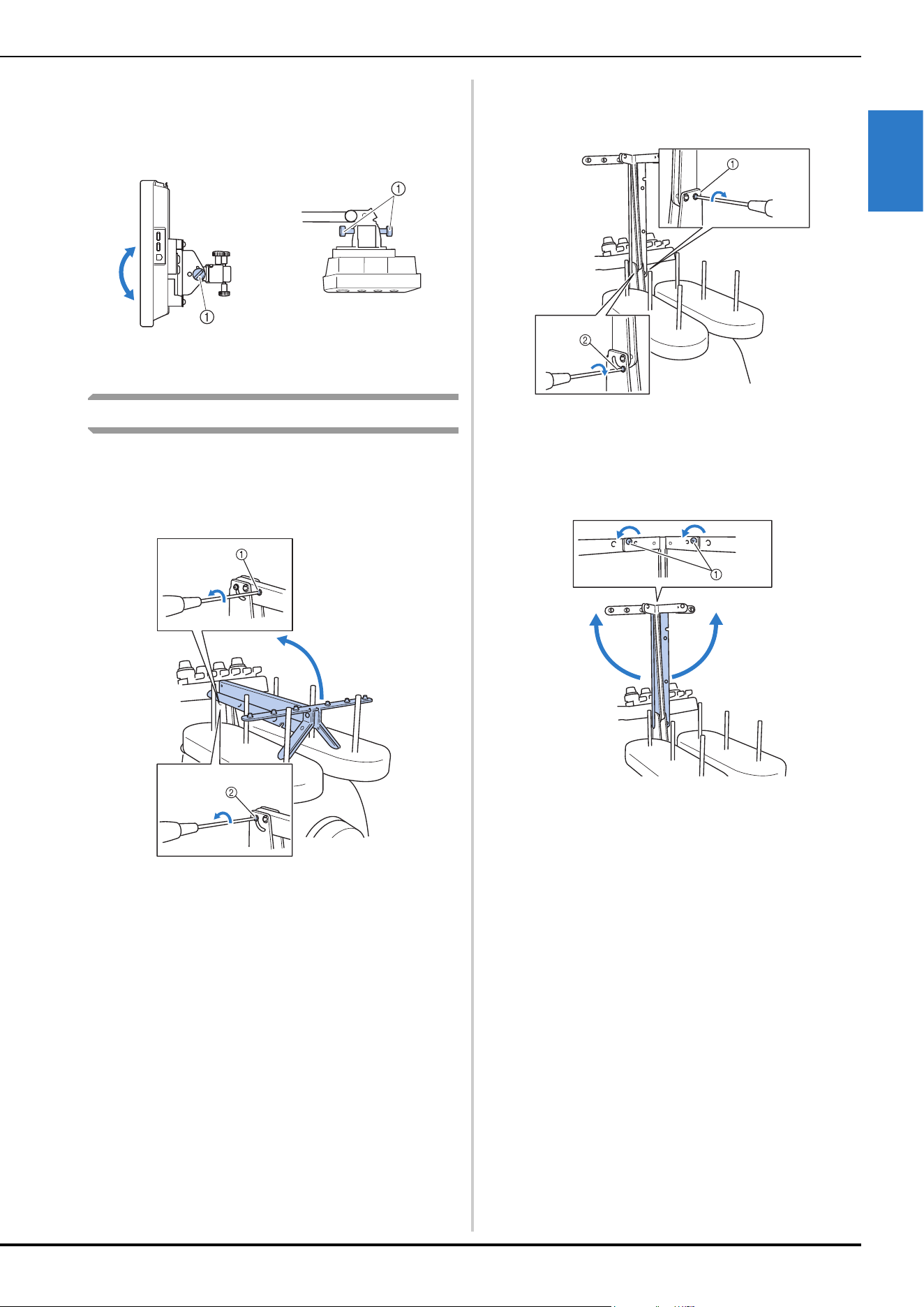

d
Adjust the angle of the operation panel.
Loosen the 2 thumb screws behind the operation panel,
adjust the operation panel to an easy-to-view angle, and
then tighten the thumb screws.
1 Thumb screws
Preparing the thread guide assembly
a
Using the included Phillips screwdriver, loosen the two
screws on the left side of the thread guide assembly
support so that the thread guide assembly can be
raised.
1 Remove the screw.
2 Turn the screw three or four times to loosen it.
b
Raise thread guide into position and tighten screw 2
on the left. Insert screw 1 into right side of the thread
guide assembly support and tighten.
1 Insert screw and tighten.
2 Tighten screw.
c
Using the Phillips screwdriver, loosen the screws on
the left and right sides of the thread guide assembly
and lift up the thread guide so that it is level.
1 Loosen screws.
(Side view) (Top view)
20
d
Tighten the screws on the left and right sides of the
thread guide assembly.
1 Tighten screws.

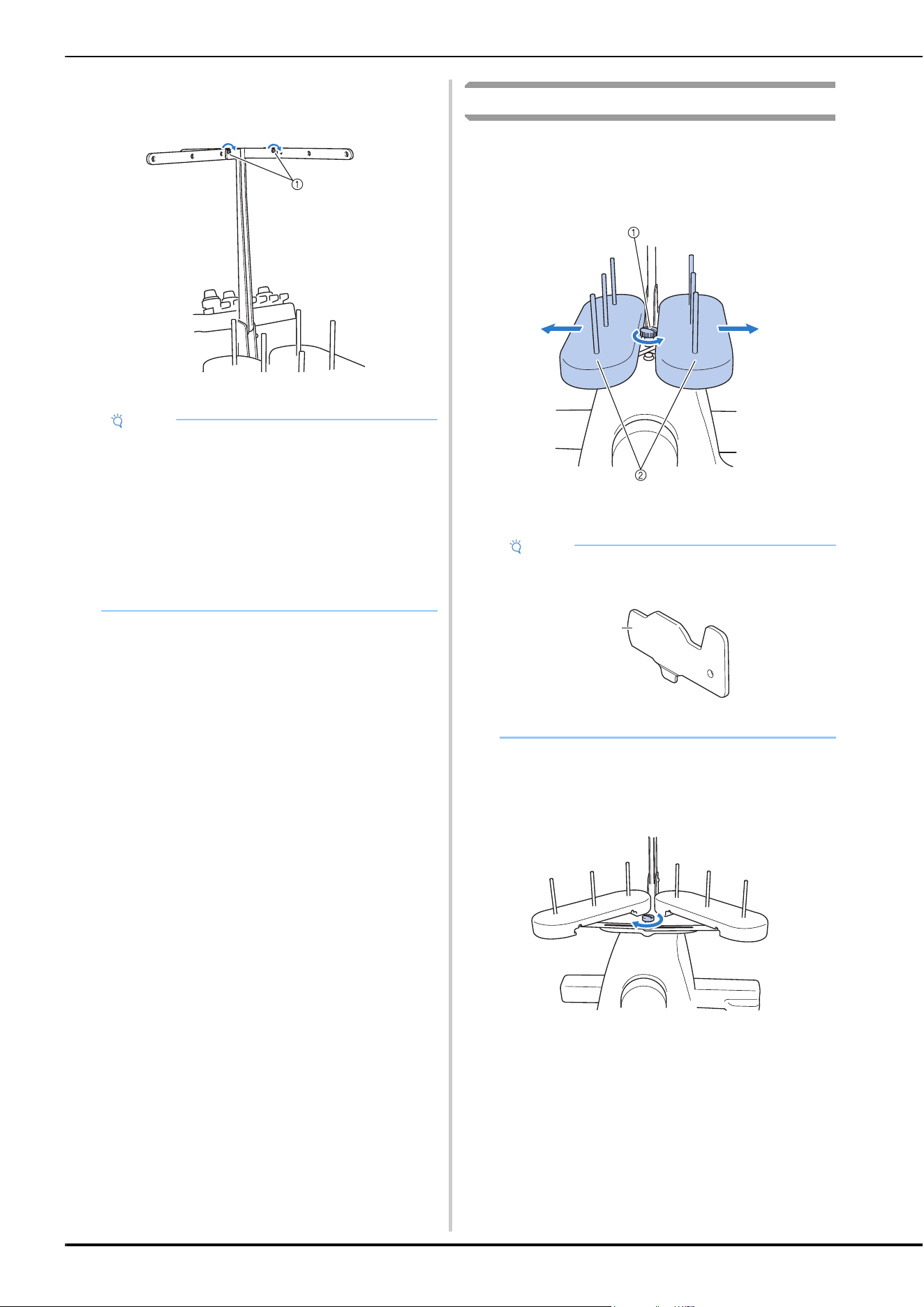

Preparing the spool stand
a
Loosen the thumb screw two or three turns, and then
open up the spool stand to the left and right.
Rear view
1 Thumb screw
2 Spool stand
b
After the spool stand is fully opened up, tighten the
thumb screw.
Rear view
Secure the spool stand in the opened position.
Note
• If the screws are not loosened enough, it may not
be easy to move the thread guide assembly
support and the thread guide. Do not apply
extreme force when moving the thread guide
assembly support and the thread guide. Be sure
that the screws are loosened well enough before
moving these parts.
• Be sure to tighten each screw well enough that the
thread guide assembly support and the thread
guide are secured.
Note
• Using the 3-way screwdriver included, loosen and
firmly tighten the thumb screws.
1 Use this part to tighten the thumb screws of the
spool stand.
a
GETTING READY
21
1

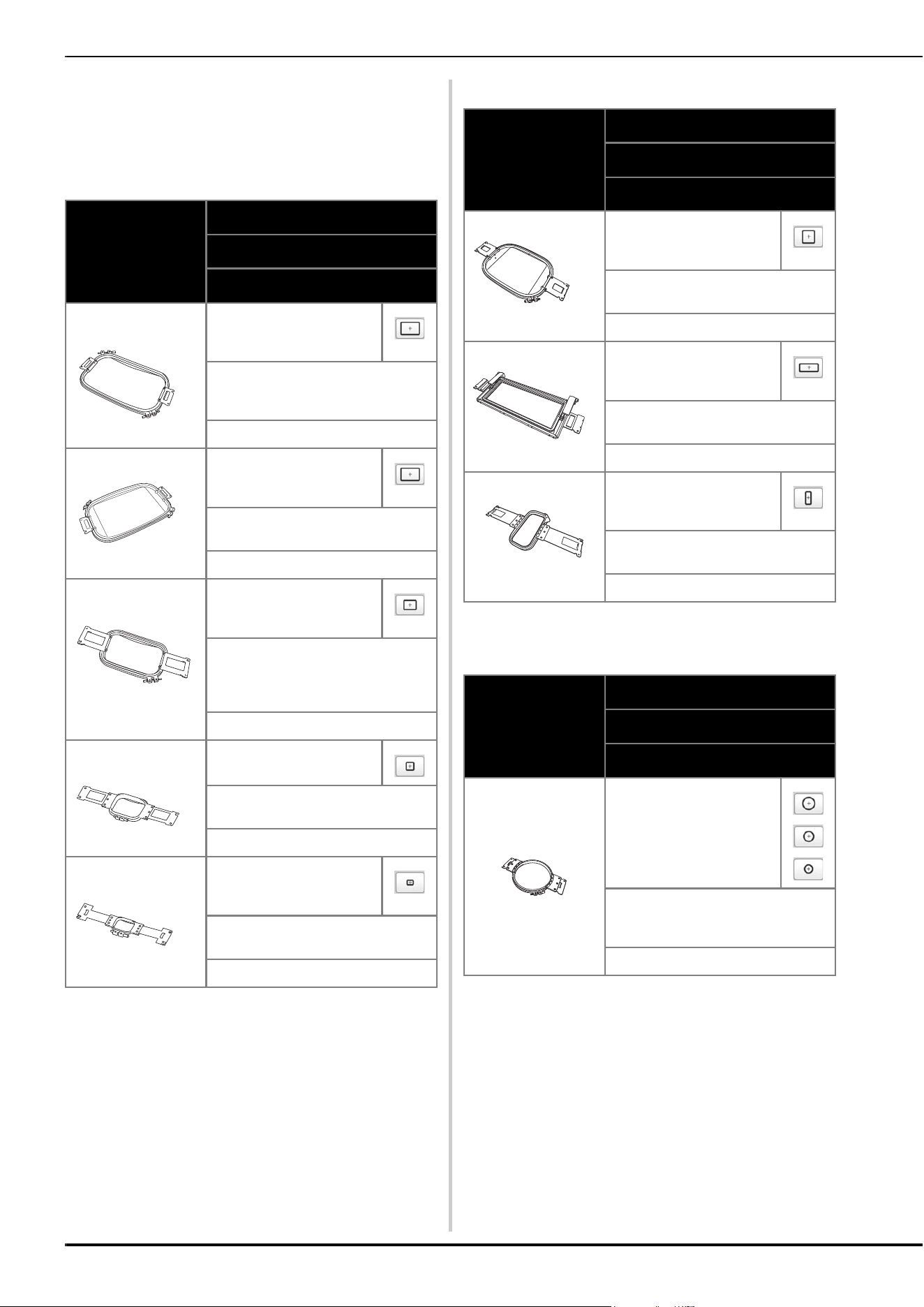

Attaching the embroidery frame holder
a
Use the embroidery frame holder appropriate for the
embroidery frame that you are using. (page 67 to
page 70)
b
Remove the two thumb screws of the embroidery
frame holder.
1 Thumb screws
2 Corner covers
c
Align the holes in the embroidery frame holder with
the pins on the frame-mounting plate of the carriage.
1 Pins on the frame-mounting plate
2 Holes in the embroidery frame holder
3 Corner covers
d
Secure the embroidery frame holder with the two
thumb screws removed in step
b.
1 Thumb screws
This completes the preparation of the machine.
Note
• Using the 3-way screwdriver included, loosen and
firmly tighten the thumb screws.
1 Use this part to tighten the thumb screws of the
embroidery frame holder.
Memo
• Each embroidery frame holder has different color of
corner cover.
Holder A: White corner covers
Holder B: Light gray corner covers
Holder C: Dark gray corner covers (Optional)
a
Note
• Two types of embroidery frame holders are
included with this machine. Embroidery frame
holder A is used with the four included embroidery
frames. (page 67)
• Refer to page 68 for hoops used with frame holder
B and other optional frame holders.
22

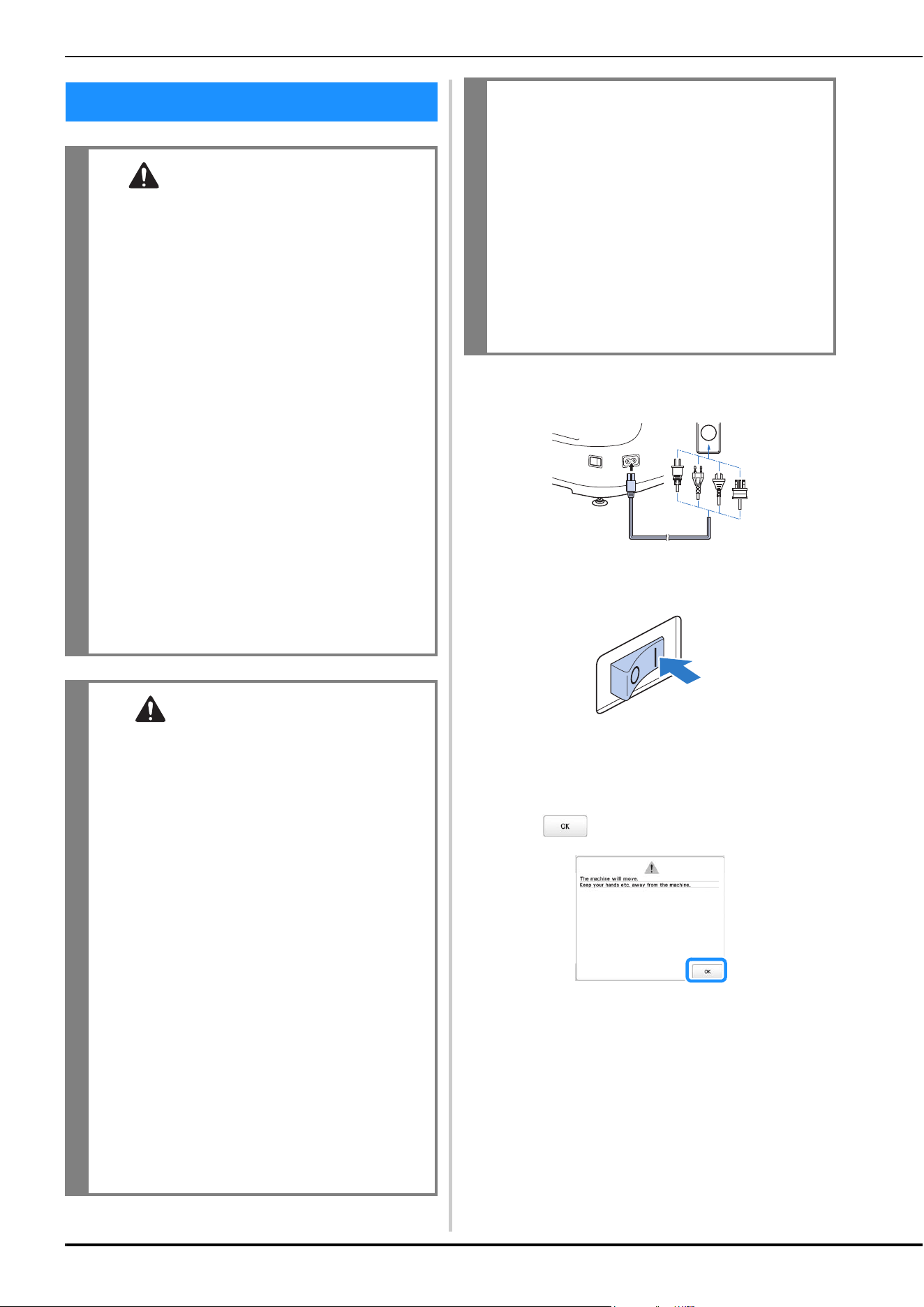

a
Insert the power supply cord into the power cord
receptacle, then insert the plug into a wall outlet.
b
Switch on the main power switch on the right side of
the machine to “I”.
The LCD screen comes on.
c
When the machine is turned on, the opening movie is
played. Touch anywhere on the screen to display the
message below.
d
Touch .
The pattern type selection screen appears, and the
“Start/Stop” button lights up in red.
TURNING ON THE MACHINE
WARNING
• Use only regular household electricity for the
power source. Using other power sources may
result in fire, electric shock, or damage to the
machine.
• Make sure that the plugs on the power supply
cord are firmly inserted into the electrical
outlet and the power supply cord receptacle
on the machine. Otherwise, a fire or electrical
shock may result.
• Do not insert the plug on the power supply
cord into an electrical outlet that is in poor
condition.
• If any of the following occur, turn off the
machine and unplug the power supply cord,
otherwise a fire, an electric shock or damage
to the machine may result.
• When you are away from the machine.
• After using the machine.
• If a power outage occurs while the machine is
being operated.
• If the machine is not operating properly, for
example, when there is a loose or cut
connection.
• During electrical storms.
CAUTION
• Be sure to use the included power cord for this
machine.
• Do not plug this machine in with extension
cords or multi-plug adapters with any other
appliances plugged into them, otherwise a fire
or an electric shock may result.
• Do not plug in or unplug the power supply
cord with wet hands, otherwise an electric
shock may result.
• When unplugging the power supply cord, be
sure to first turn off the machine, and then
grasp the plug when unplugging the cord.
Pulling on the cord may damage it or result in
a fire or an electric shock.
• Do not allow the power supply cord to be cut,
damaged, modified, forcefully bent, pulled,
twisted, or bundled. In addition, do not place
heavy objects on the cord or expose it to heat,
otherwise damage to the cord, fire or an
electric shock may result. If the power supply
cord or its plug is damaged, stop using the
machine, and then take the machine to your
authorized Brother dealer for repairs before
continuing use.
• If the machine is not to be used for a long
period of time, unplug the power supply cord,
otherwise a fire may result.
•For U.S.A. only
This appliance has a polarized plug (one blade
wider than the other). To reduce the risk of
electrical shock, this plug is intended to fit in a
polarized outlet only one way.
If the plug does not fit fully in the electrical
outlet, reverse the plug. If it still does not fit,
contact a qualified electrician to install the
proper electrical outlet. Do not modify the
plug in any way.
GETTING READY
23
1
e
The carriage moves to its initial position.
• If the number 1 needle bar is not already at the
embroidering position, the needle bar case moves
and the number 1 needle bar moves to the
embroidering position.
f
Set the main power switch to “O” to turn off the
machine.

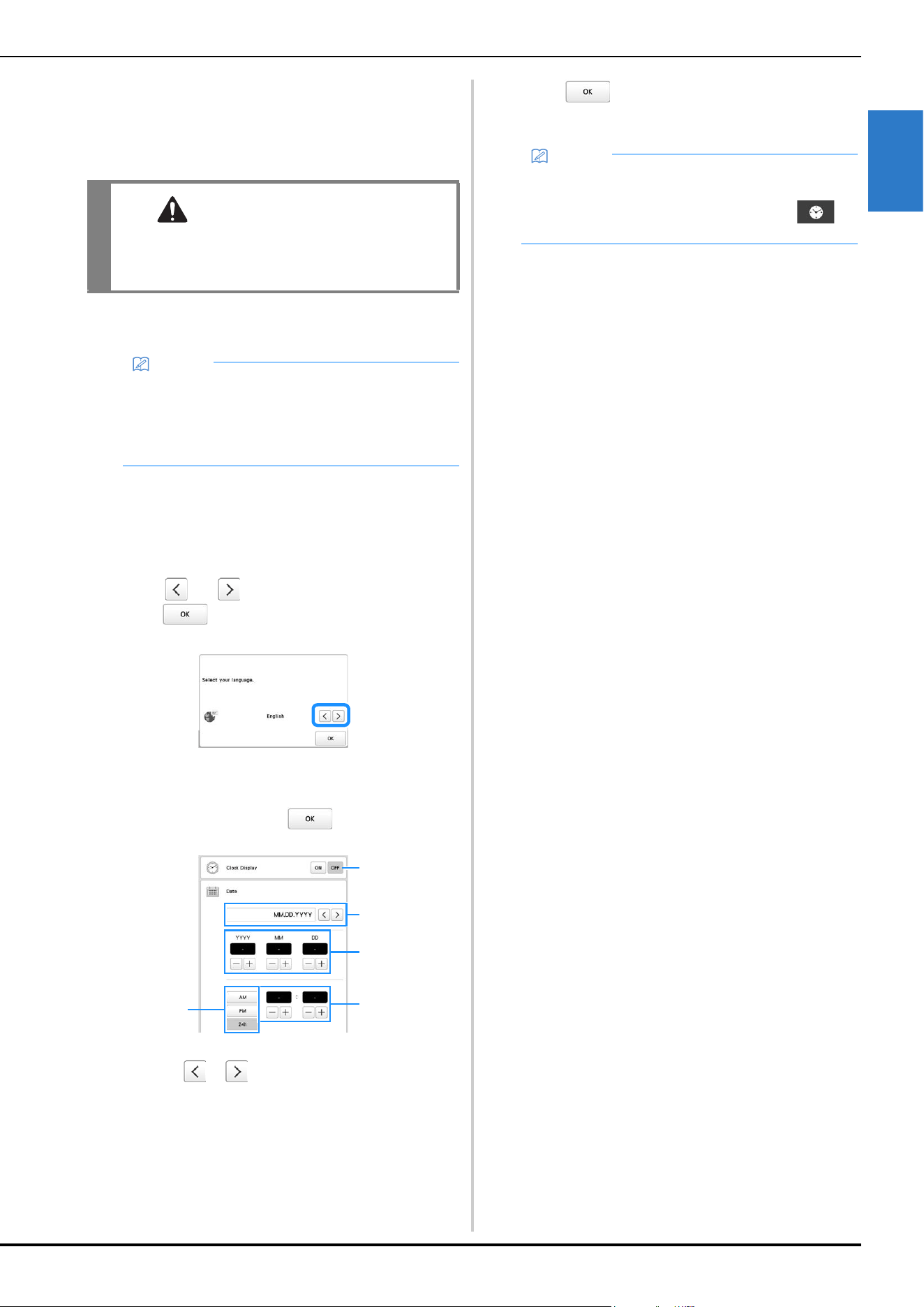

■ Setting your machine for the first time
When you first turn on the machine, set the language and
time/date to your language and local time/date. Follow the
procedure below when the settings screen appears
automatically.
a
Touch and to set your local language and then
touch .
The carriage moves to its initial position.
b
The message screen, confirming if you want to set
time/date, appears. Touch .
1 Select [ON] to display time/date on the screen.
2 Touch or to select the date display format.
3 Set the year [YYYY], month [MM] and date [DD].
4 Select whether 24h or 12h setting to display.
5 Set the current time.
c
Touch to start using your machine.
The clock starts from 0 second of the time you set.
CAUTION
• Make sure to keep your hands and other items
away from the carriage, in order to prevent
any injuries.
Memo
• If the machine is turned off in the middle of
embroidering, the machine will automatically save
the design position when turned on again. At that
time, you will be asked if you wish to continue
embroidering or begin a new operation. (page 92)
4
3
5
2
1
Memo
• The time/date you set may be cleared if you don't
turn on the machine for an extended period of time.
• Time setting is also available by touching on
the bottom right of the LCD screen.
24

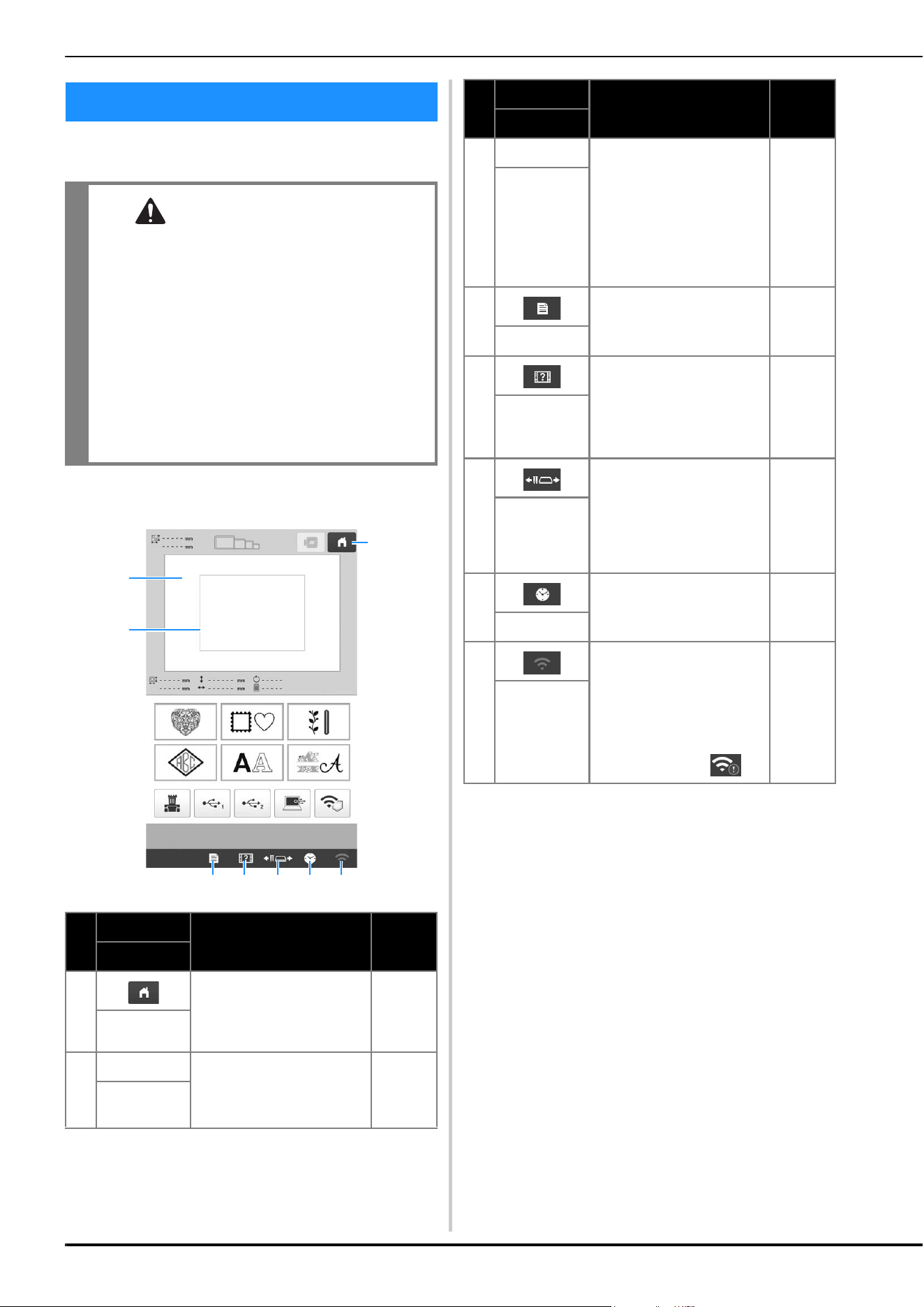

Touch the LCD screen, or a key, with your finger or the
included touch pen to select a machine function.
■ Pattern type selection screen
* The keys in the table above appear and can be used
in most of the screens described later in this manual.
LCD SCREEN
CAUTION
• Only touch the screen with your finger or the
touch pen included with the machine. Do not
use a mechanical pencil, screwdriver or any
other hard or sharp object. In addition, do not
touch the screen with extreme pressure.
Otherwise the screen may be damaged.
• All or part of the screen may sometimes
become darker or lighter due to changes in the
surrounding temperature or other changes in
the environment. This is not a sign of a
malfunction. If the screen is difficult to read,
adjust its brightness.
No.
Display
Function Page
Key Name
1 Cancel all operations
previously performed and
return to the initial pattern
type selection screen.
–
Home key
2 – This area displays the
selected pattern.
109
Pattern
display area
3
1
2
4 5 6 7 8
3 – Shows the available
embroidering area for the
attached embroidery frame.
The embroidery frame
indications, the grid lines
and other display settings
can be specified from the
machine settings screen.
109
Embroidering
area line
4 Change the machine
settings.
25
Settings key
5 Check a machine
operation.
29
Machine
operations
guide key
6 Move or thread a selected
needle bar, to position the
carriage, or to oil the
machine so the embroidery
frame can easily be
removed or attached.
67, 81
Needle bar/
Frame move
key
7 Set the clock to your local
time.
23
Clock key
8 Specify the wireless LAN
settings. Also, this key
shows the machine’s
wireless LAN signal
strength.
If there is a new update file,
the key appears as .
27, 158
Wireless LAN
key
No.
Display
Function Page
Key Name
GETTING READY
25
1
Using the settings key
Touch to change the default machine settings (light,
volume, speaker volume, opening display etc.). To display the
different settings screens, touch for “Embroidery
settings”, for “General settings”, or for
“Wireless LAN settings”.

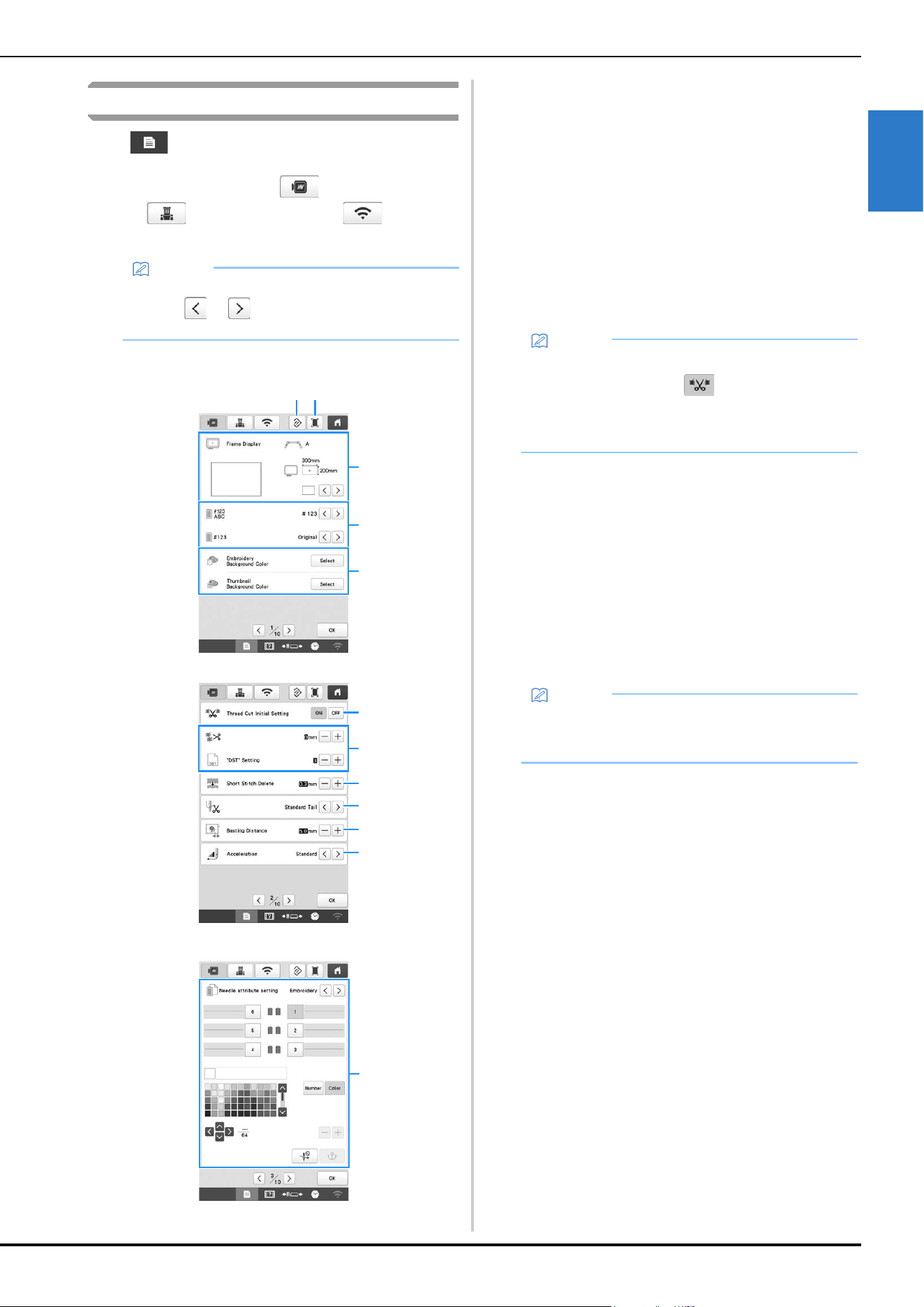

■ Embroidery settings
1 The settings on the page containing this key will be
reverted to their defaults.
2 An image of the current settings screen can be saved on
USB media.
3 The guides (center point marker and grid) for the pattern
display area can be specified. (page 109)
4 The color information in the thread color sequence
display and the needle bar thread information can be
switched to the color name, the thread brand and color
number or the embroidering time. (page 109)
5 Depending on the color of the embroidery, changing the
background color of the pattern display area and
thumbnails may make them more visible and easier to
select.
6 Selects whether or not jump stitches are trimmed in
imported patterns. (page 109)
7 Specifies the jump stitch length. When using Tajima
embroidery data (.dst), you can specify whether or not
the thread is cut according to the jump codes.
(page 109)
8 Specifies the length of short stitches that are to be
deleted. (page 110)
9 Specifies the length of upper thread that remains
threaded through the needle after the thread is trimmed
(length of thread passed through the eye of the needle).
(page 110)
0 Specify the distance between the pattern and the
basting stitching. (page 110)
A Specifies the acceleration from the initial speed (when
embroidery begins) until the maximum embroidery
speed is reached.
B A specific thread color can be set to a needle bar. The
specified color remains assigned to the needle bar until
the setting is canceled. You can also specify the
maximum embroidery speed for a needle bar as well as
cancel automatic needle threading. This feature is not
accessible through the embroidering screen. (page 107)
Memo
• The machine default setting is highlighted.
• Touch or to display the previous or next
page.
5
4
3
21
A
0
9
8
7
6
B
Memo
• On the pattern editing screen, if the jump stitch trim
setting key is selected ( ), the jump stitches will
be trimmed even if [Thread Cut Initial Setting] is set
to [OFF]. For details, refer to “Trimming jump
stitches” on page 49.
Memo
• If the setting for [Short Stitch Delete] 8 is changed
from the previous setting, the new setting is
applied to the subsequent embroidery.
26

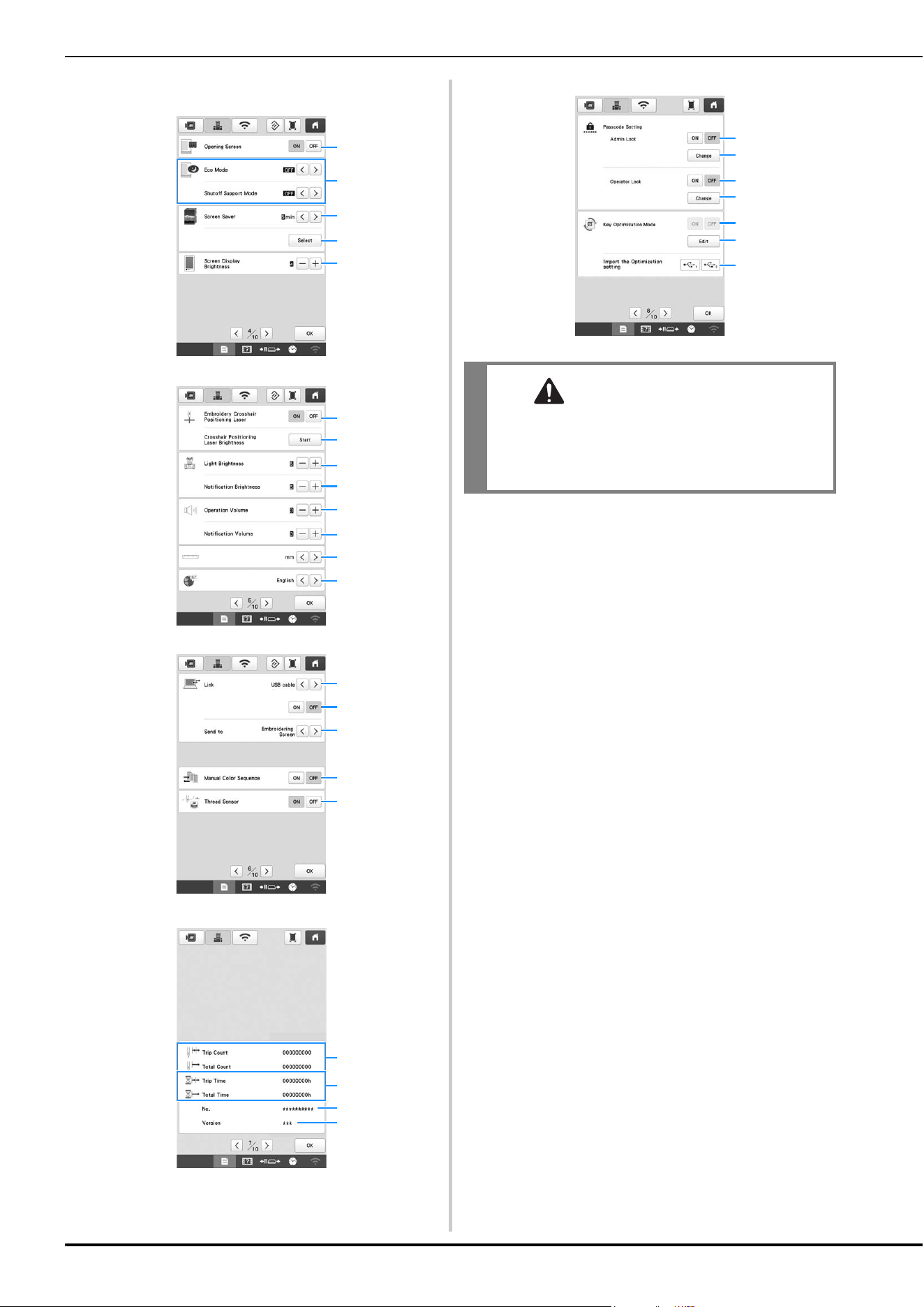

■ General settings
1 The machine can be set so that the opening screen is
either displayed ([ON]) or not displayed ([OFF]) when the
machine is turned on.
2 Select settings for the [Eco Mode] and [Shutoff Support
Mode]. (page 28)
3 Select the length of time until the screen saver appears.
4 Select the image of the screen saver. (page 28)
5 Adjust the brightness of the screen display.
6 Set [Embroidery Crosshair Positioning Laser] to [ON] or
[OFF].
7 Set the brightness of the embroidery crosshair
positioning laser. (page 74)
8 Adjust the brightness of the embroidery light.
9 Adjust the brightness of the embroidery light when
lighting effects are used to notify that the thread spool
must be changed or an error has occurred.
0 Adjust the volume of operation beep. Increase the
number for louder volume, decrease for softer volume.
A Adjust the volume of error notification. Increase the
number for louder volume, decrease for softer volume.
B Select the display units for embroidering (mm/inch).
C Select the display language. The keys and messages
appear in the selected language.
D Set the connection method for the Link mode to USB
cable or wireless LAN. (page 117)
E Select the Link function [ON] or [OFF]. (page 117)
F Select in which screen on the machine the embroidery
pattern from the computer is received in Link mode.
(page 117)
G Set the [Manual Color Sequence] [ON] or [OFF].
(page 60)
H Turn both the upper and bobbin thread sensors [ON] or
[OFF]. If it is turned [OFF], the machine can be used
without upper thread.
I [Total Count] shows the total number of stitches
embroidered, and [Trip Count] shows the number of
stitches that have been embroidered since the
machine’s last maintenance.
J [Total Time] shows the total amount of time that the
machine has been used, and [Trip Time] shows the
amount of time that the machine has been used since
the machine’s last maintenance.
*Use counters I and J as a standard for
performing periodic maintenance and for
scheduling professional maintenance for the
machine.
2
4
5
3
1
A
0
6
7
8
9
B
C
H
G
D
E
F
I
L
K
J
CAUTION
• When [Thread Sensor] is set to [OFF], the
machine cannot detect tangled upper thread.
Continuing to use the machine with tangled
thread may cause damage.
R
Q
M
N
O
P
S
GETTING READY
27
1
K Shows the internal machine number for this machine.
L Shows the version of the software installed on this
machine.
M Set administrator lock to [ON] or [OFF]. (page 129)
N The administrator code can be changed. (page 129)
O Set operator lock to [ON] or [OFF]. (page 130)
P The operator code can be changed. (page 130)

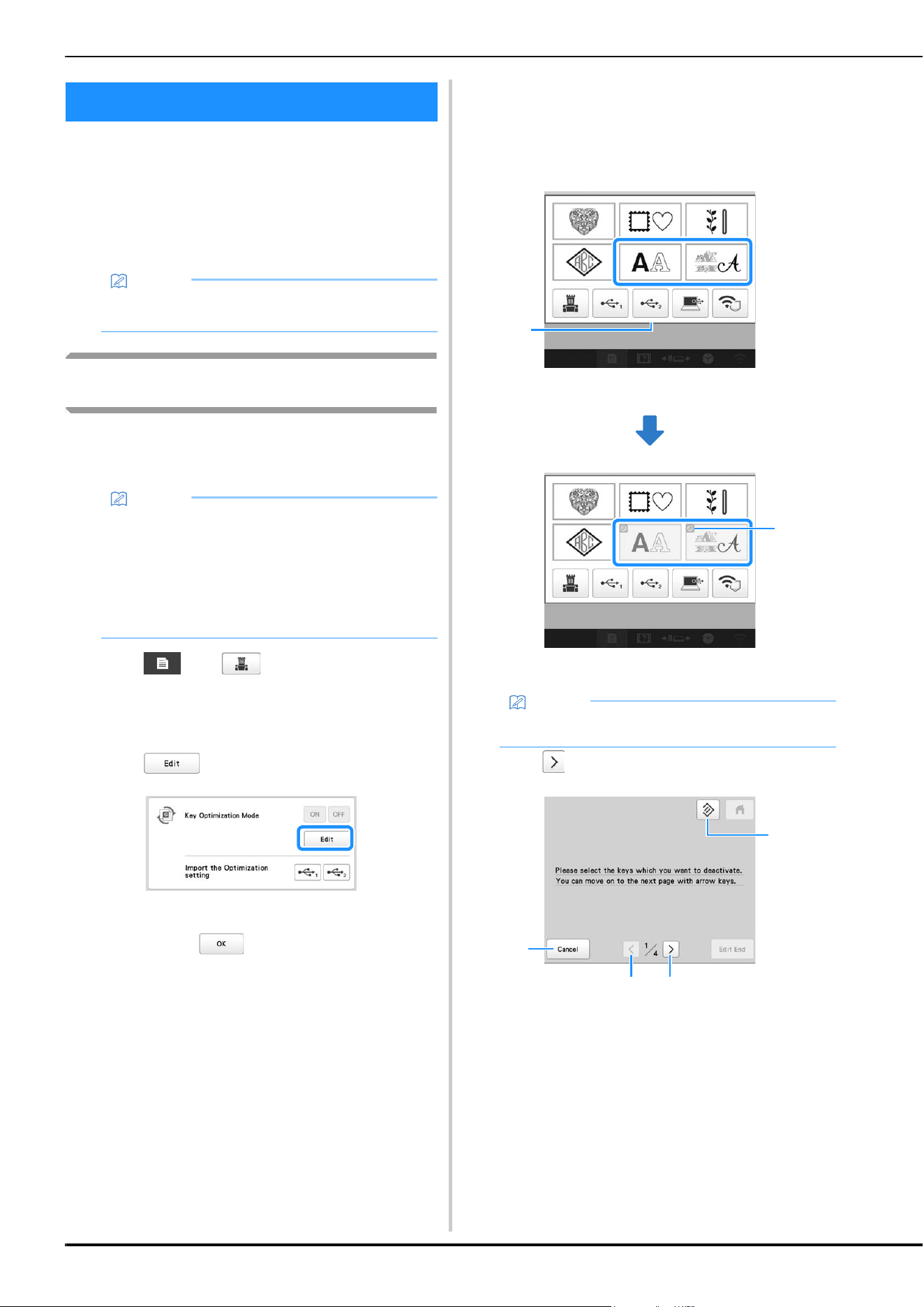

Q Set key display optimization to [ON] or [OFF]. (page 135)
[ON] or [OFF] cannot be selected when there is no
display optimization for the keys.
R Optimize display of keys. (page 132)
S Recall key display optimization settings saved on USB
media. (page 135)

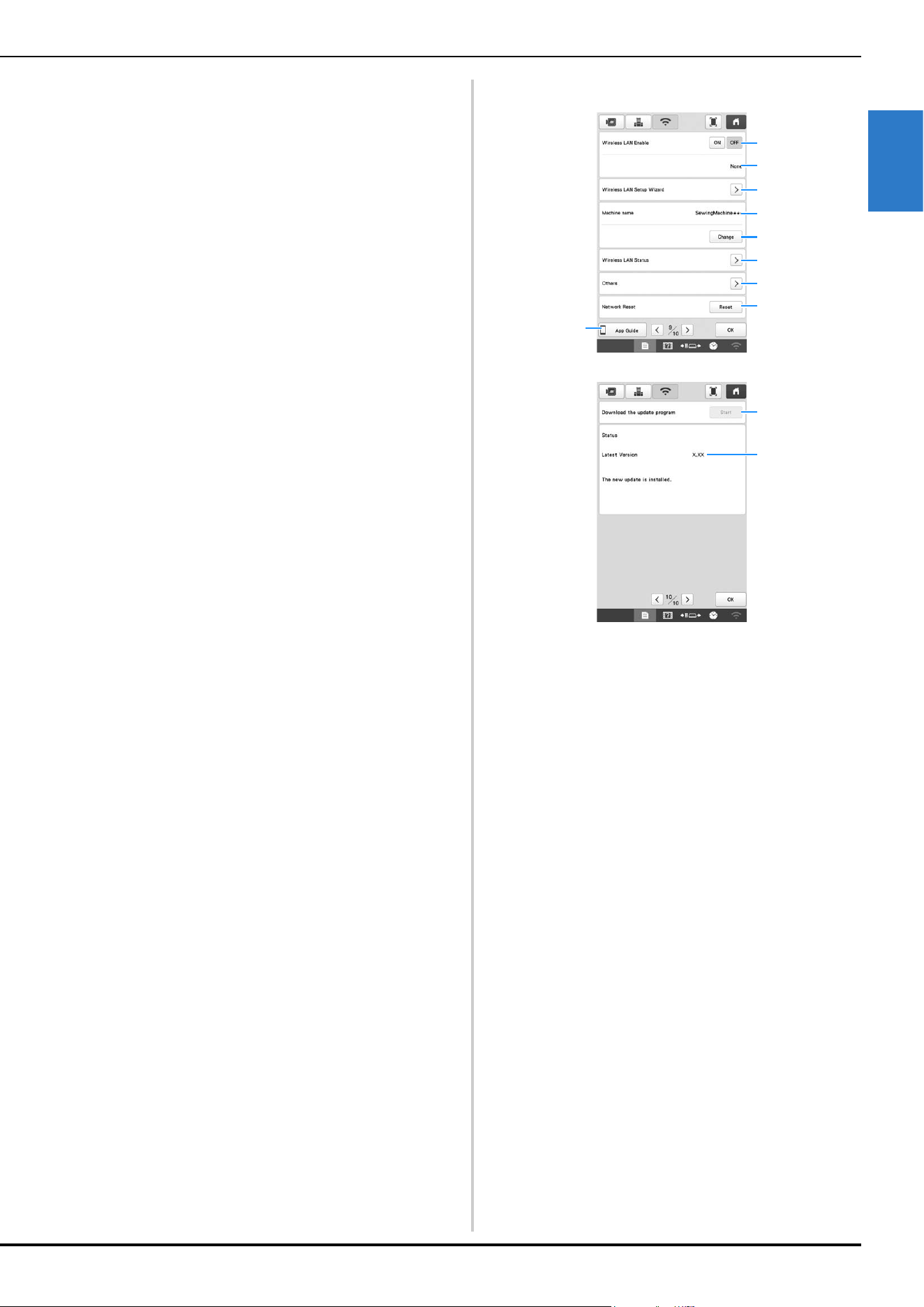

■ Wireless LAN settings
1 Enable/Disable the wireless LAN function. (page 31)
2 Shows the connected SSID.
3 Set the machine to connect the wireless LAN function.
(page 31)
4 Shows the machine name used on the wireless LAN
function.
5 Change the machine name used on the wireless
network.
6 Check the wireless LAN status.
7 Display other menus. (page 33)
8 Reset network operations.
9 Display the introduction to the application.
0 If there is a new program, download the update file.
(page 158)
A Shows the program information. (page 158)
5
6
4
1
2
3
7
8
9
0
A
28
■ Setting the [Eco Mode] and the [Shutoff
Support Mode]
You can save the machine power by setting the [Eco
Mode] and the [Shutoff Support Mode]. Touch to
display [Eco Mode] and [Shutoff Support Mode]. (page 26)
If you leave the machine turned on without using it for the
set period of time, the machine enters in each mode.
[Eco Mode]:
Machine will enter a sleep mode after the set period of
time. Touch the screen or press the “Start/Stop” button to
continue operating.
[Shutoff Support Mode]:
Machine will turn off after set period of time. Turn the
machine off and then back on to restart operating.

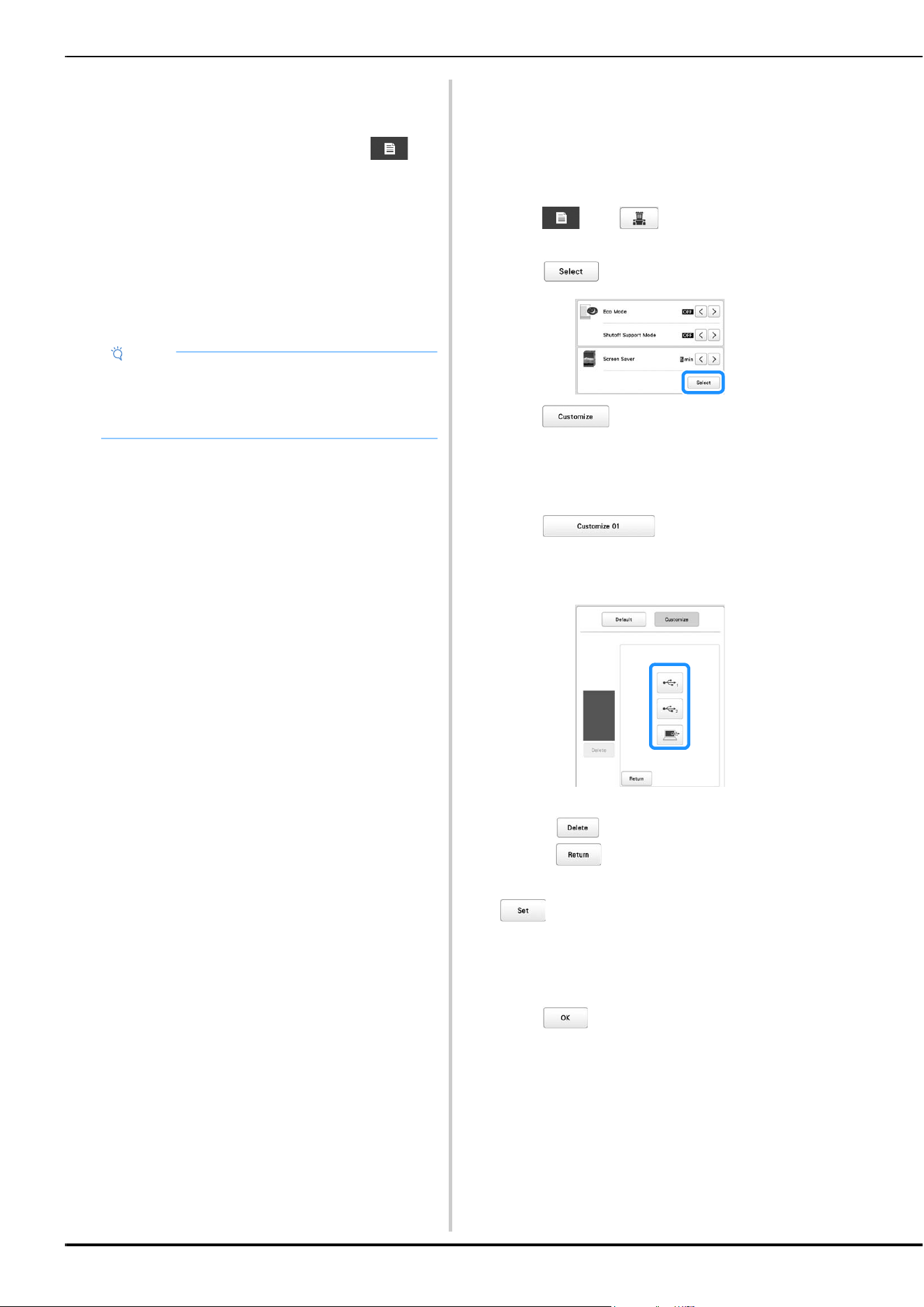

■ Changing the screen saver image
You can select your own personal images for the screen
saver of your machine.
Before changing the screen saver image, prepare the
image on your computer or USB media.
For details on compatible image files, refer to
“SPECIFICATIONS” on page 156.
a
Touch , then .
The general settings screen appears.
b
Touch in [Screen Saver].
c
Touch .
d
Connect the USB media or the computer (using a USB
cable) that contains your personal image to the USB
port of the machine.
e
Touch to select the first image.
f
Select the device that is connected.
A list of your personal images appear on the screen.
• Touch to delete the selected image.
• Touch to return to the previous screen.
g
Touch a file name to select image and then touch
.
The selected image is stored on your machine.
h
Repeat steps e through g to set the remaining
images.
i
Touch to return to the original screen.
Note
• If you turn off the machine while the machine is in
the [Eco Mode] or the [Shutoff Support Mode], wait
for about 5 seconds before turning on the machine
again.
GETTING READY
29
1

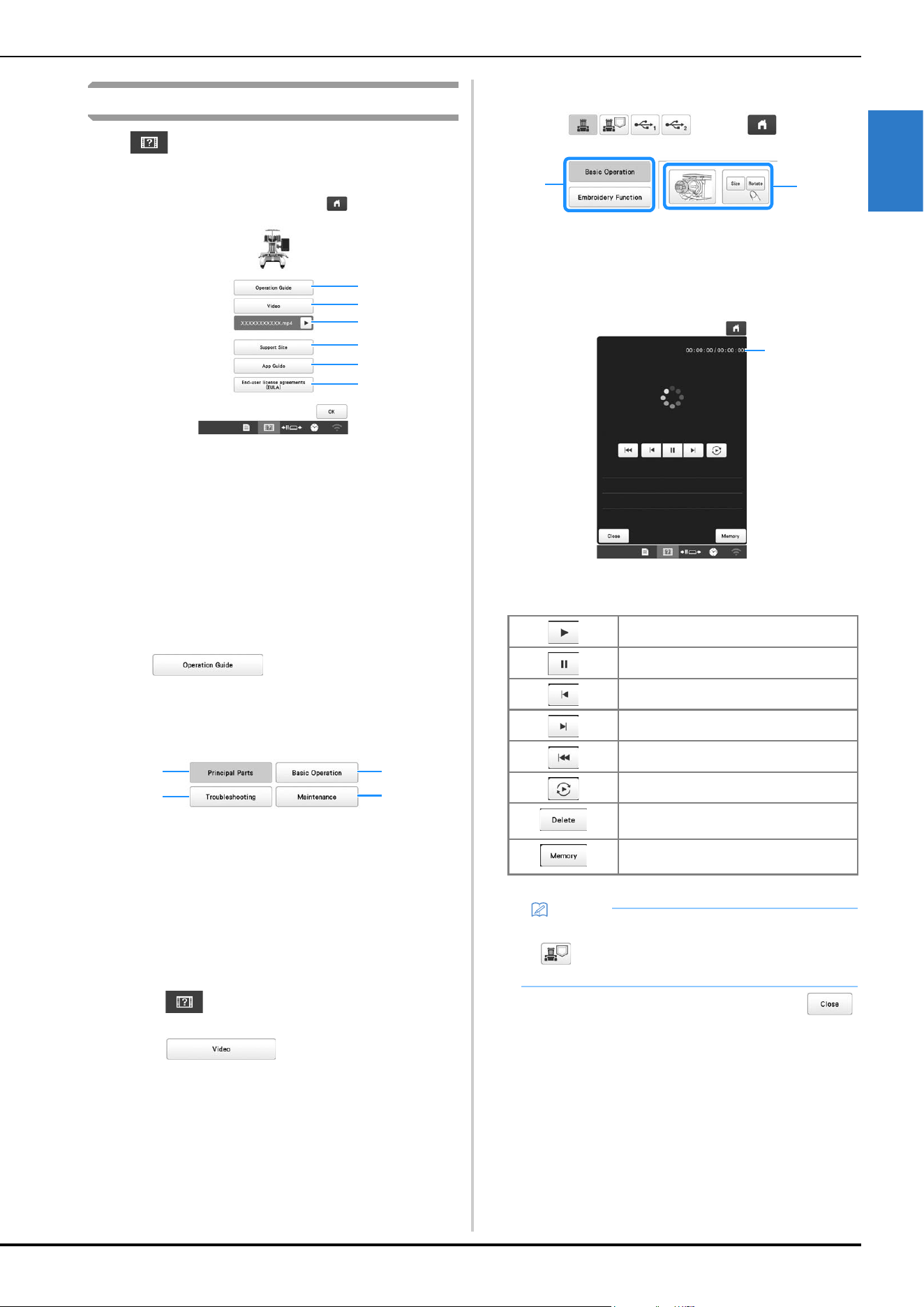

Using the machine help
Touch to display the machine help screen.
Functions are available from the screen shown below.
1 Explanation for upper threading, installing the bobbin,
preparing to embroider a pattern, and how to use the
machine (page 29)
2 Tutorial videos or MPEG-4 (MP4) videos from USB
media (page 29, page 30)
3 Appears immediately before playback of your MP4 video
on USB media begins. Touch to resume paused video
playback.
4 Display the link information to Brother support website.
5 Display the introduction to the application.
6 Display the Terms of Use for this machine.
■ Using the operation guide function
Touch to display the screen shown
below. Categories are displayed at the top of the screen.
Touch a key to see more information about that category.
Some of the functions are described in the movies. Watch
these movies for a better understanding of the functions.
1 Information about the main parts of the machine and
their functions
2 Information about threading the machine, hooping the
fabric in the embroidery frame, etc.
3 Information about troubleshooting
4 Information about cleaning the machine, etc.
■ Playing a tutorial video
This machine provides tutorial videos on how to use the
machine.
a
Touch .
b
Touch .
c
Select the category and the tutorial video.
1 Category
2 Tutorial video
The selected tutorial video begins playing.
d
Play the tutorial video.
1 Number of seconds elapsed/Total number of seconds
Operation keys
e
After you are finished playing the video, touch .
1
2
3
4
5
6
2
4
1
3
Play
Pause
Skip back 10 seconds
Skip forward 10 seconds
Return to beginning
Repeat
Delete video (when playing from the
machine’s memory)
Save to machine (when playing from USB
media)
Memo
• A frequently viewed tutorial video can be saved to
(favorites) of the machine, from where it can
be played.
2
1
1
30

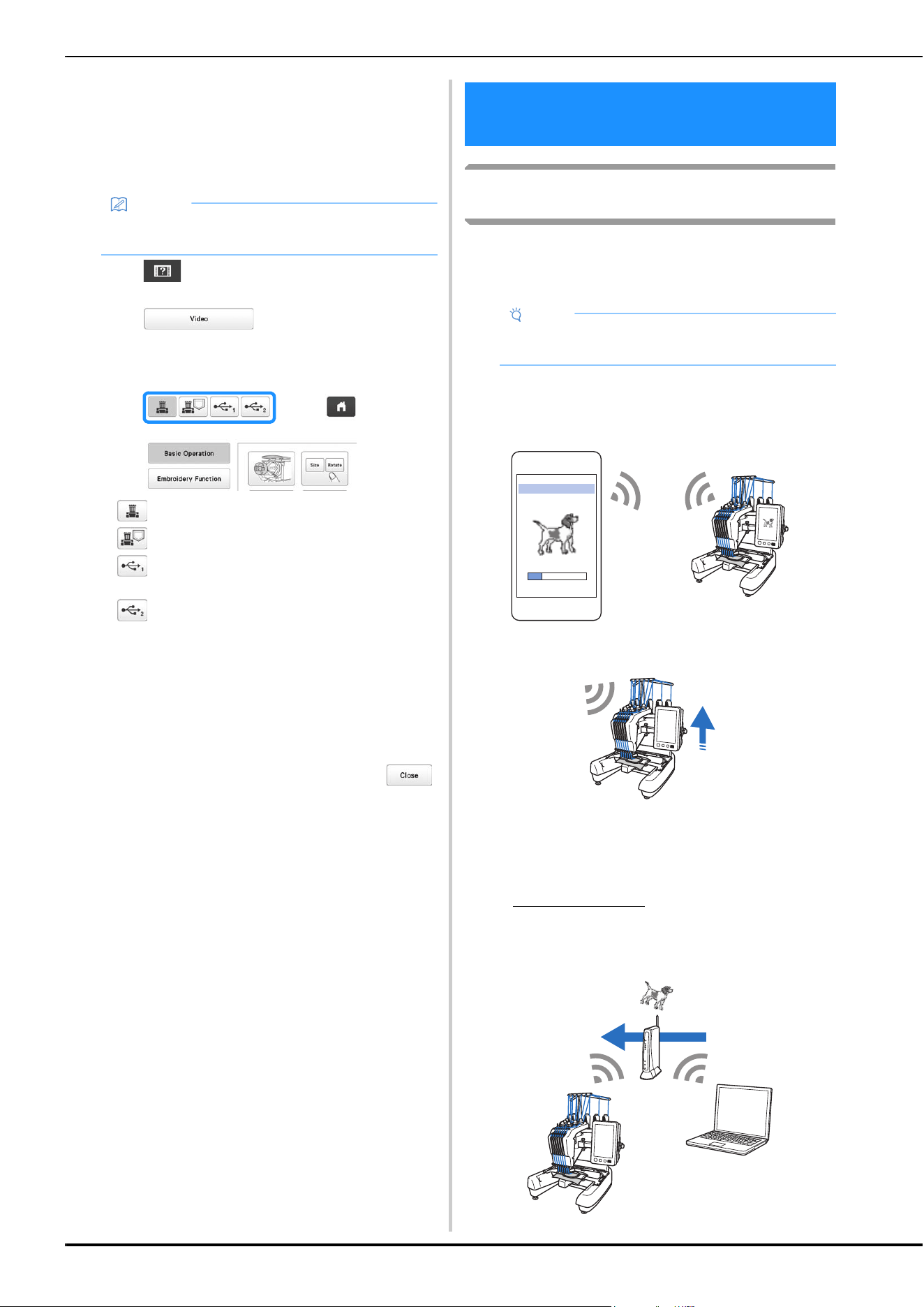

■ Playing MPEG-4 (MP4) videos
Your MP4 videos can be played from USB media. In
addition, the MP4 video can be saved to the machine so
that a tutorial video on creating a project, for example,
can be viewed at any time. For details on compatible
video files, refer to “SPECIFICATIONS” on page 156.
a
Touch .
b
Touch .
c
Select the device where the video is saved.
• : play a tutorial video
• : Play a video saved on the machine (favorites)
• : Play a video from USB media plugged into the
USB port 1
• : Play a video from USB media plugged into the
USB port 2
d
Select the video that you want to play.
e
Play the video.
* Use the operation keys as described in “Playing a
tutorial video” on page 29.
f
After you are finished playing the video, touch .
Operations available with a wireless
network connection
This machine supports a wireless network connection. The
following useful operations will be available if the machine is
connected to a wireless network.
• Conveniently check the operating status of the
machine from your smart device by using the
dedicated mobile application (My Stitch Monitor).
(page 33)
• Directly download the update file to the machine.
(page 158)
• Wirelessly transfer an embroidery pattern from your
computer to the machine by using the dedicated
Windows application (Design Database Transfer).
The application can be downloaded from the
following URL.
http://s.brother/cabkb/
* Settings must be specified in Design Database
Transfer. For more information, refer to the manual
for Design Database Transfer.
Memo
• Some type of MP4 files cannot be viewed with the
machine.
WIRELESS NETWORK
CONNECTION FUNCTIONS
Note
• Connect the machine and your computer or smart
device to the same network.
GETTING READY
31
1
• Wirelessly transfer to the machine an embroidery
pattern edited with embroidery editing software (PE-
DESIGN version 11 or later) on a computer. Also,
transfer to PE-DESIGN an embroidery pattern edited
on the machine.
* Settings must be specified in PE-DESIGN. For more
information, refer to the manual for PE-DESIGN.
• Using the Wireless Link function, wirelessly transfer
to the machine an embroidery pattern edited with
embroidery editing software (PE-DESIGN version 11.2
or later) on a computer. Also, check the embroidering
status of the machine from the computer. (page 117)
* Settings for the Wireless Link function must be
specified on the machine and in PE-DESIGN. For
details, refer to “SENDING EMBROIDERY
PATTERNS FROM A COMPUTER TO THE
MACHINE (LINK FUNCTION)” on page 117 and to
the manual for PE-DESIGN.
Enabling a wireless network connection
The machine can be connected to your wireless network.
a
Touch .
The wireless LAN settings screen appears.
b
Set [Wireless LAN Enable] to [ON].
The machine prepares for wireless transmission.
■ Requirements for a wireless network
connection
The wireless network connection complies with IEEE
802.11 b/g/n standards and uses the 2.4 GHz frequency.
Setting up the wireless network connection
There are multiple ways to set up the wireless network
connection. We recommend the method that uses the wizard
on this machine.
■ Using the wizard to set up the wireless
network connection
a
In order to connect your machine to a wireless
network, the security information (SSID and network
key) for your network will be required. The network
key may also be called a password, security key or
encryption key. Find your security information and
note it in the table below.
Memo
• A wireless network cannot be set up with WPA/
WPA2 Enterprise.
SSID Network Key (Password)
Memo
• The wireless network connection cannot be set up
if you do not have the security information.
• How to find the security information
1 Check the manual provided with your network.
2 The default SSID may be the manufacturer's
name or the model name.
3 If you cannot find the security information,
contact the manufacturer of the router, your
network administrator or your Internet provider.
4 SSIDs and network keys (passwords) may be
case-sensitive.
32
b
Touch beside [Wireless LAN Setup Wizard].
A list of available SSIDs appears.
c
Touch beside the SSID that was noted.
The screen for entering the network key (password)
appears.
d
Enter the network key (password) that was noted, and
then touch .
e
When the following message appears, touch .
When a connection is established, the following
message appears.
Memo
• If the SSID that was noted does not appear in the
list, touch .
• If the SSID that was noted is not displayed, specify
it as described below.
1 Touch .
2 Enter the desired SSID, and then touch .
3 Select the authentication method and
encryption mode.
• If the machine had already been connected to the
network, touch , and then select the saved
SSID.
GETTING READY
33
1

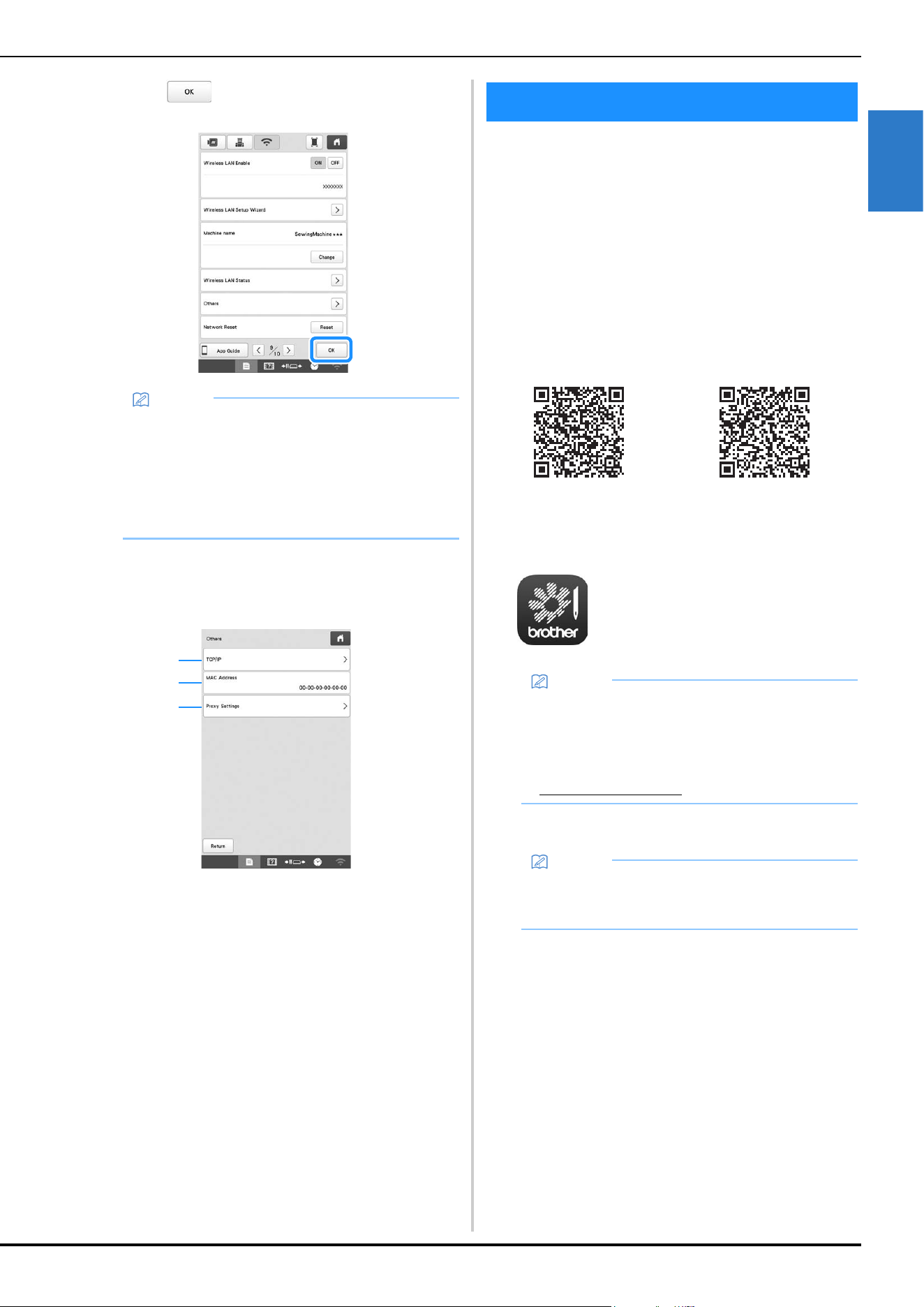

f
Touch to exit the setup.
■ Using the [Others] menu to set up the wireless
network connection
The [Others] menu contains the following items.
1 TCP/IP settings can be manually entered.
2 Shows the MAC address.
3 Use when proxy settings are required.
With the monitoring app installed on your smart device
and the machine and smart device connected to the same
wireless network, you can check the operating status of the
machine. You can also check when to change the thread
spool and what thread spool color to change to. In
addition, you can receive notifications when the machine
stops.
■ Installing App
a
Use your smart device to visit the Google Play™ or
App Store.
b
Install [My Stitch Monitor] to monitor embroidering.
■ Monitoring
a
Connect the machine to your wireless network.
(page 30)
b
Confirm that your smart device and your machine are
connected to the same network.
c
Touch the icon for [My Stitch Monitor] on the smart
device to start the app.
d
Follow the instructions that appear in the app to
connect the app to your machine.
* Select the name that appears beside [Machine
name] in the wireless LAN settings screen on your
machine.
The machine can now be monitored.
Memo
• While connected, the signal strength is indicated
by the icon in the lower-right corner of the display.
• Once a wireless network connection has been set
up, a connection will be established each time the
machine is turned on. However, [Wireless LAN
Enable] in the network settings screen must remain
set to [ON].
1
2
3
MONITORING APP
Google Play™ App Store
My Stitch Monitor
Memo
• To download and install the app, you can also
search for [My Stitch Monitor] in Google Play™ or
the App Store.
• Visit the following web site for support information
on the app.
http://s.brother/cpban/
Memo
• The app will be updated from time to time. The
following descriptions may differ from the actual
screens and operations.
34

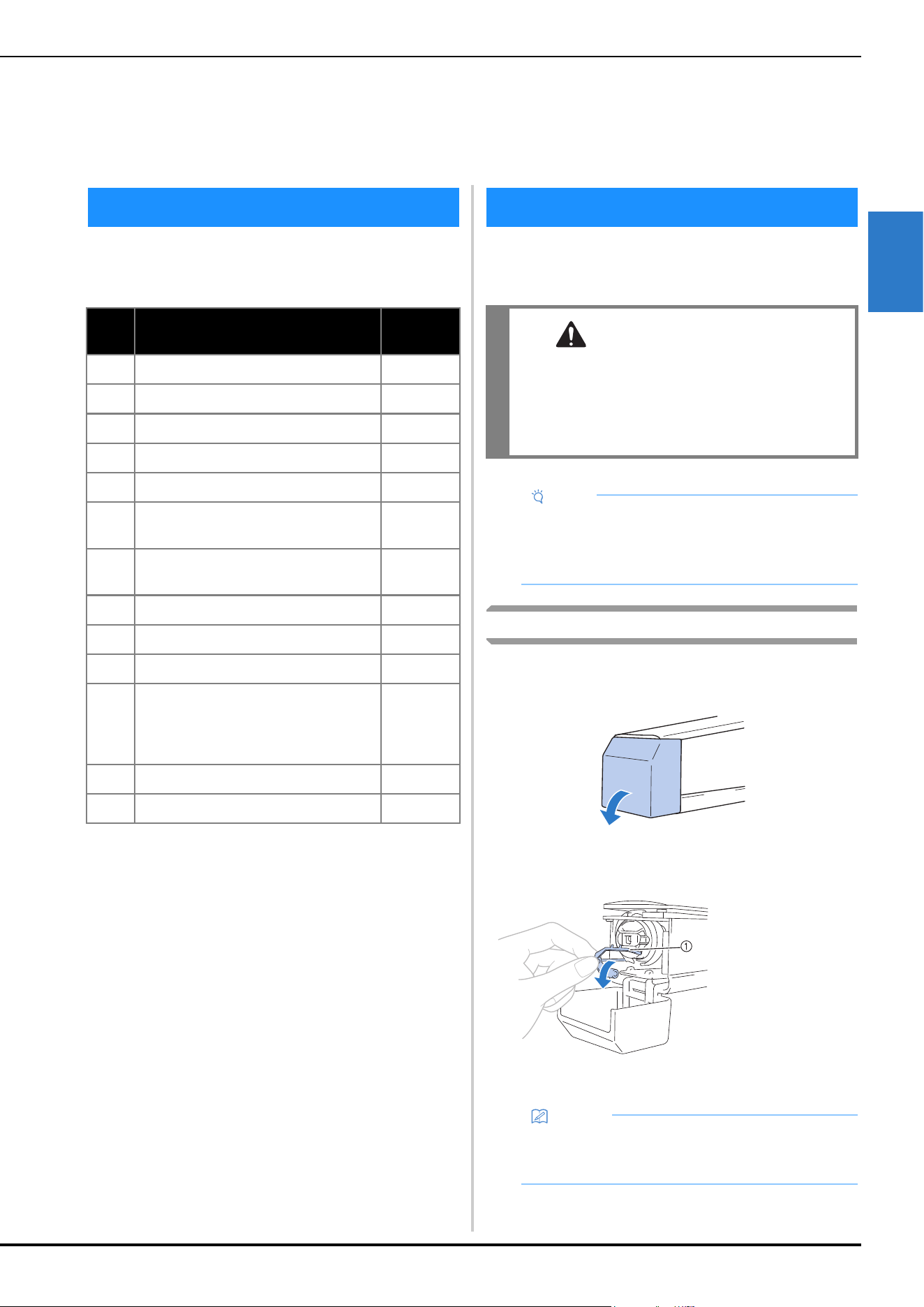

BASIC EMBROIDERY
35
2
Basic embroidering procedures are described below.
Check the overall procedure below, before operating the
machine.
When the machine is purchased, only the bobbin case is
installed in the hook. Insert a bobbin wound with bobbin
thread for embroidering.

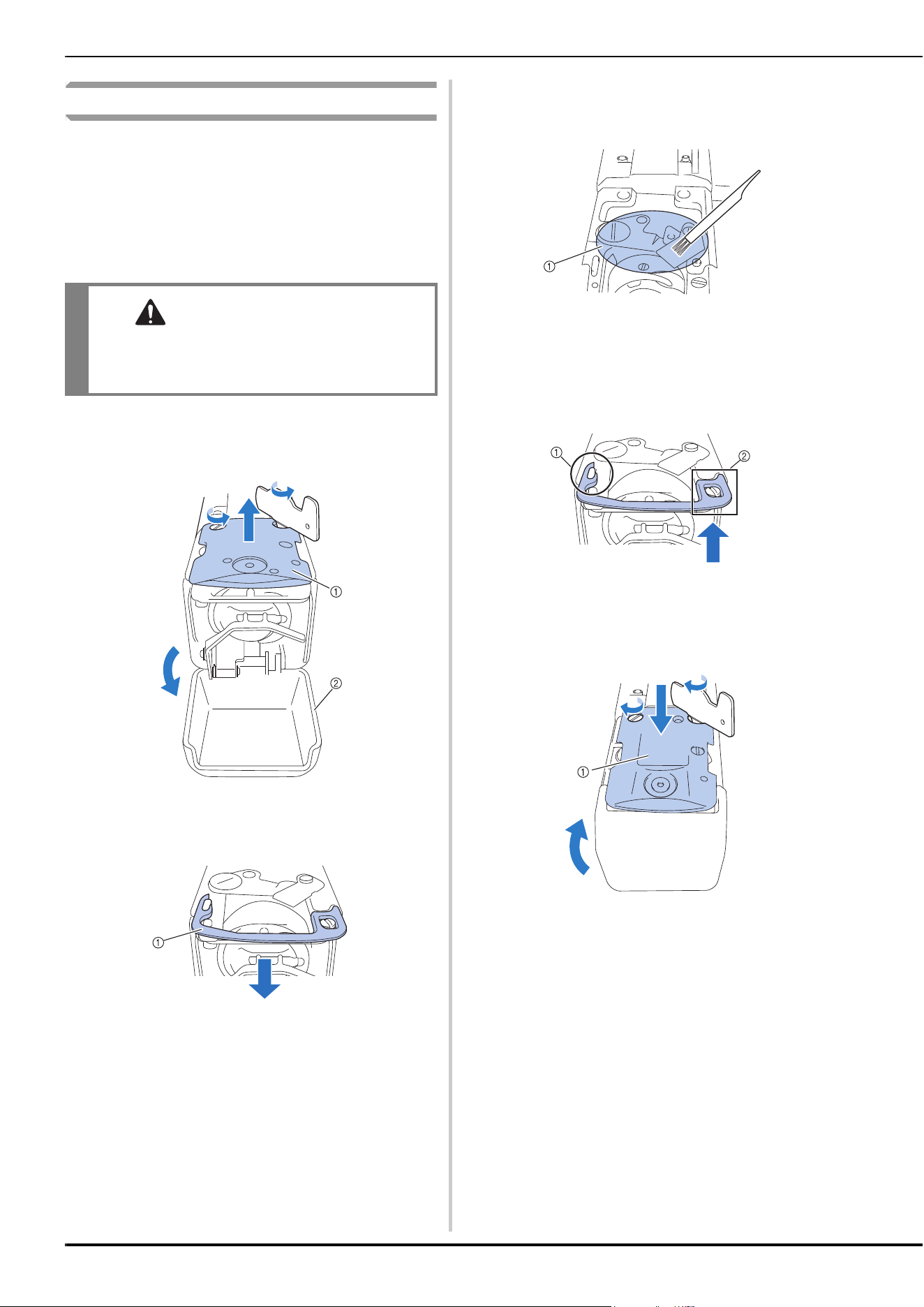

Removing the bobbin case
a
Open the hook cover.
Pull the hook cover toward you.
b
Pull the thread picker toward you if it was not pulled
toward the front.
To gain access to the bobbin case easily, pull the thread
picker toward front.
Chapter 2
BASIC EMBROIDERY
BASIC PROCEDURES
Step Operation
Reference
Page
1 Install the bobbin. 35
2 Turn on the machine. 22
3 Select an embroidery pattern. 37
4 Edit the embroidery pattern. 46
5 Check the previewed image. 61
6
Hoop the fabric in the embroidery
frame.
63
7
Attach the embroidery frame to the
machine.
66
8 Specify the embroidering settings. 70
9 Check the embroidery area. 74
10 Thread the upper threads. 76
11
Touch the “Start/Stop” button to start
embroidering.
(Once embroidering is completed, the
machine automatically stops.)
82
12 Remove the embroidery frame. 86
13 Turn off the machine. 23

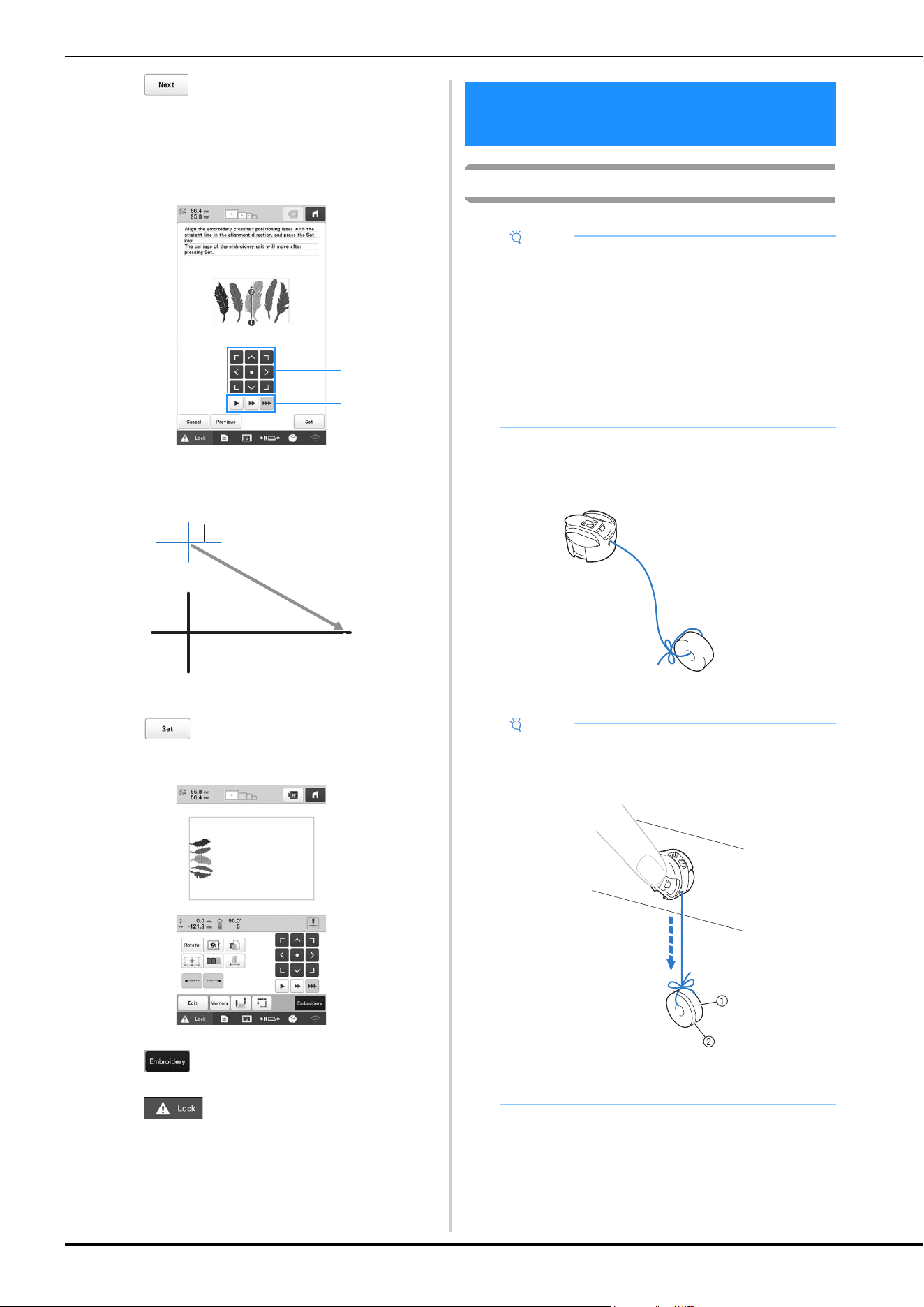

INSTALLING THE BOBBIN
CAUTION
• Be sure to use prewound bobbins (Fil-Tec/
TRU-SEW POLYESTER “Filaments”) or metal
bobbins designed specifically for this machine.
• When winding a bobbin, use optional bobbin
winder (page 123) and metal bobbins.
Note
• Before starting to embroider make sure that there
is enough bobbin thread for the pattern.
• Make sure to clean the bobbin case every time the
bobbin is changed. (page 139)
1 Thread picker
Memo
• Thread picker is a device that is used to hold the
thread when beginning to embroider or when
trimming the thread.
36
c

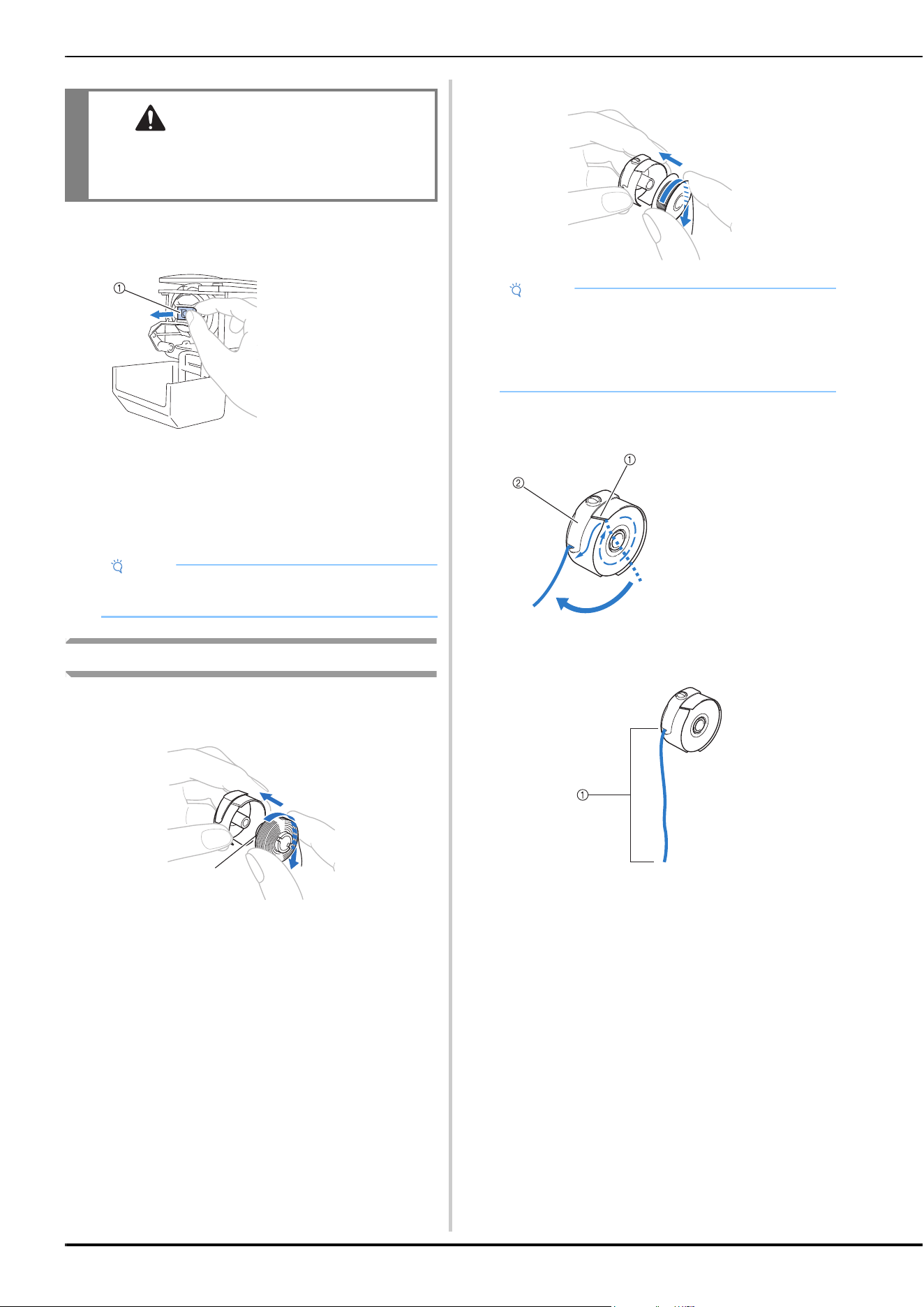

Grab the bobbin case latch, and remove the bobbin
case.

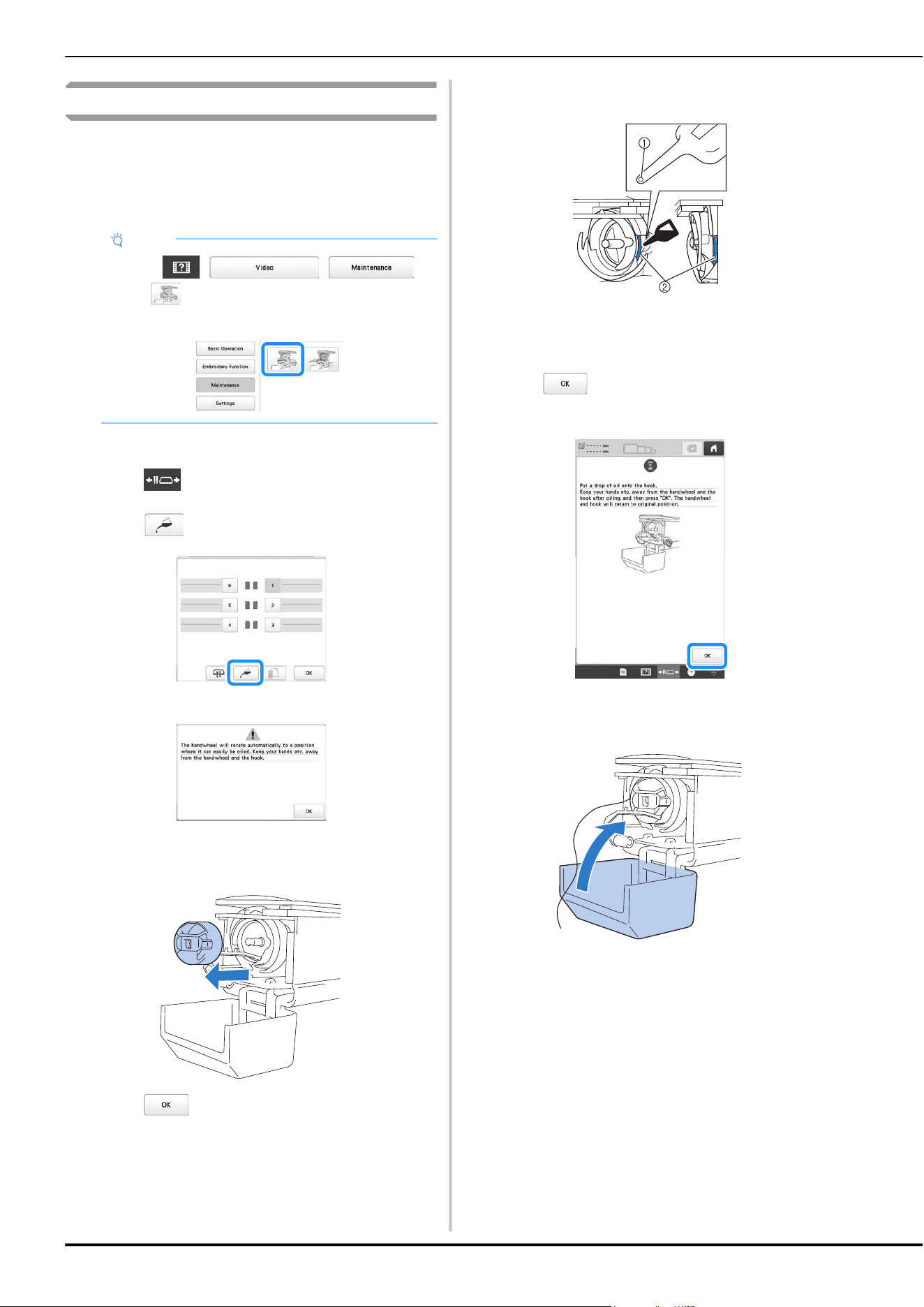

■ Oiling the machine
After removing the bobbin case, apply oil to the machine.
You need to apply oil onto the race hook. For details on
oiling the machine, refer to “Oiling the machine” on
page 142.
Installing the bobbin
a
Insert the bobbin into the bobbin case.
• Prewound bobbin
1 Magnet Tip
• Metal bobbin (page 123)
b
Pass the thread through the thread slit and under the
tension-adjusting spring.
c
Pull the thread through the opening in the tension-
adjusting spring.
1 About 5 cm (2 inches).
• For details, refer to “Adjusting the tension of the
bobbin thread” on page 102.
CAUTION
• The thread picker can only be moved within a
certain range. Do not pull it with extreme
force.
1 Latch
Note
• Put a drop of oil onto the hook once a day before
use.
a
Note
• Check that the thread winds off the bobbin
clockwise as shown in the illustration. If the bobbin
is installed with the thread winding off in the
opposite direction, the embroidery will not be
stitched correctly.
1 Thread slit
2 Tension-adjusting
spring
BASIC EMBROIDERY
37
2

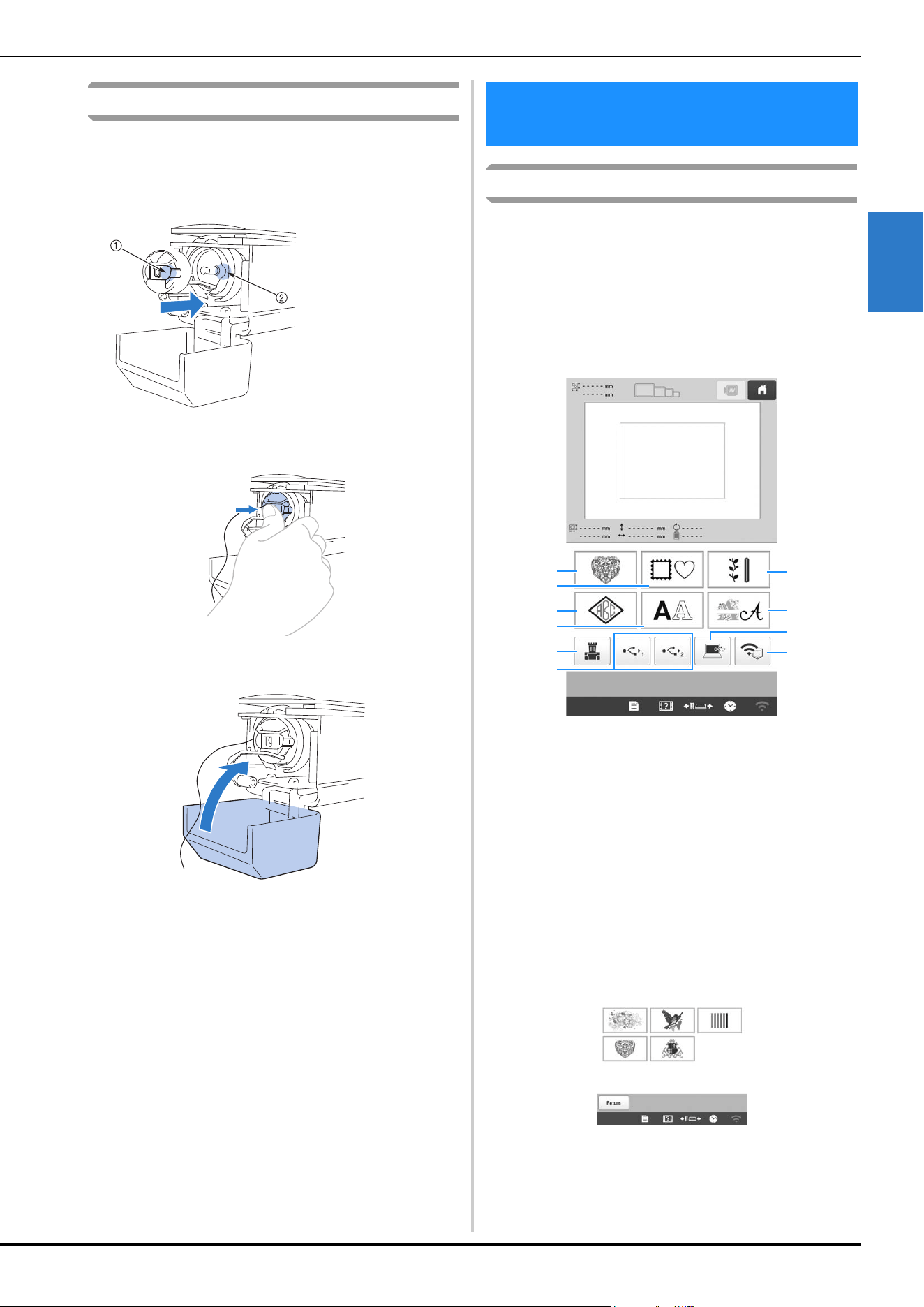

Installing the bobbin case
a
Insert the bobbin case into the hook.
Insert the bobbin case while aligning the tab on the
bobbin case with the notch in the hook, as shown in the
illustration.
• Fully insert the bobbin case until it snaps into place.
b
Close the hook cover.
General pattern selection
The procedure for selecting a pattern differs depending on the
type of pattern; however, the general procedure for selecting a
pattern is described below.
a
In the pattern type selection screen, touch the key for
the desired category.
■ Pattern type selection screen
b
In the pattern category list screen, which appears next,
touch the desired pattern category to select it.
c
In the pattern list screen, which appears next, touch
the desired pattern to select it.
1 Tab
2 Notch
SELECTING AN EMBROIDERY
PATTERN
1 Embroidery patterns (page 38)
2 Frame patterns (page 39)
3 Monogram and frame patterns (page 40)
4 Character patterns (page 41)
5 Utility embroidery patterns/Large buttonhole patterns
(page 39)
6 Decorative alphabet patterns (page 43)
7 Patterns stored in the machine’s memory (page 116)
8 Patterns saved on USB media (page 116)
9 Patterns saved on a computer (page 116)
0 Patterns to be transferred via the wireless network
(page 116)
3
2
1
5
0
9
4
6
7
8
38

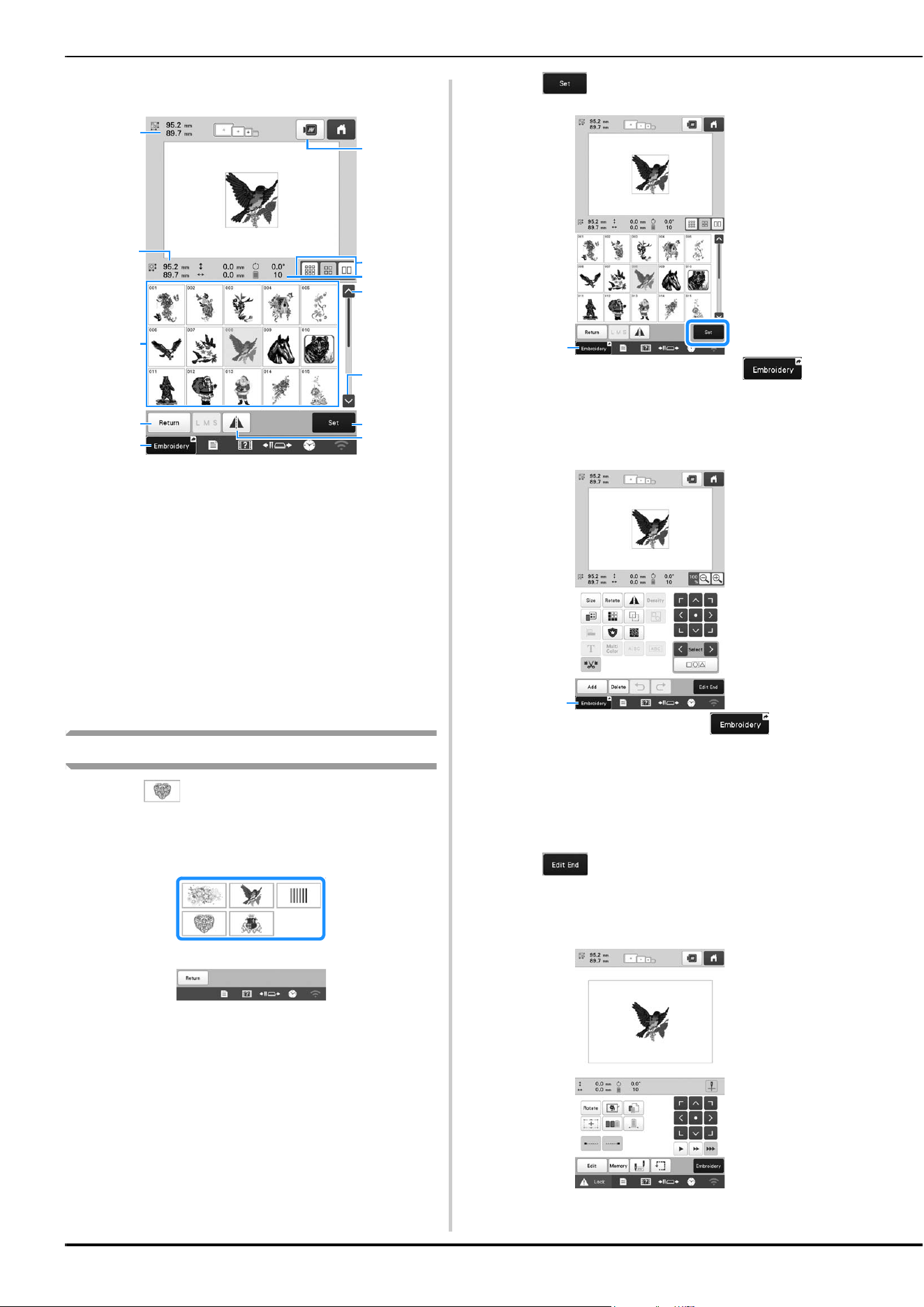

■ Pattern list screen
1 Size of the entire combined pattern
2 Size of the pattern being selected
3 Touch a pattern to display the information of the pattern.
4 Return to pattern category list screen to change
category.
5 Shortcut to the embroidering screen.
6 Preview the embroidery image.
7 Select the size of pattern thumbnails from small, medium
and large sizes.
8 Number of thread color changes
9 Touch until the desired page is displayed if there is more
than one page.
0 Confirm the pattern, and move to the pattern editing
screen.
A Flip the pattern being edited horizontally.
Embroidery patterns
a
Touch .
b
Select an embroidery pattern category.
The list of embroidery patterns appears.
c
Select an embroidery pattern.
The selected pattern appears in the pattern display
area.
d
Touch .
1 If no pattern editing is necessary, touch . This
takes you to the embroidering screen (illustrated in
k).
The pattern editing screen appears.
e
Edit the selected pattern. (page 46)
1 When editing is completed, touch . This takes
you to the embroidering screen (illustrated in
k).
f
Hoop the stabilizer and fabric in the embroidery
frame. (page 63)
g
Attach the embroidery frame to the machine. (page 66)
h
Touch .
The embroidering settings screen appears.
i
Edit the entire pattern. (page 70)
8
3
9
9
A
6
1
4
2
0
7
5
1
1
BASIC EMBROIDERY
39
2
j
Touch .
The embroidering screen appears.
k
Check the embroidering screen and thread the upper
threads. (page 76)
l
Start embroidering. (page 82)

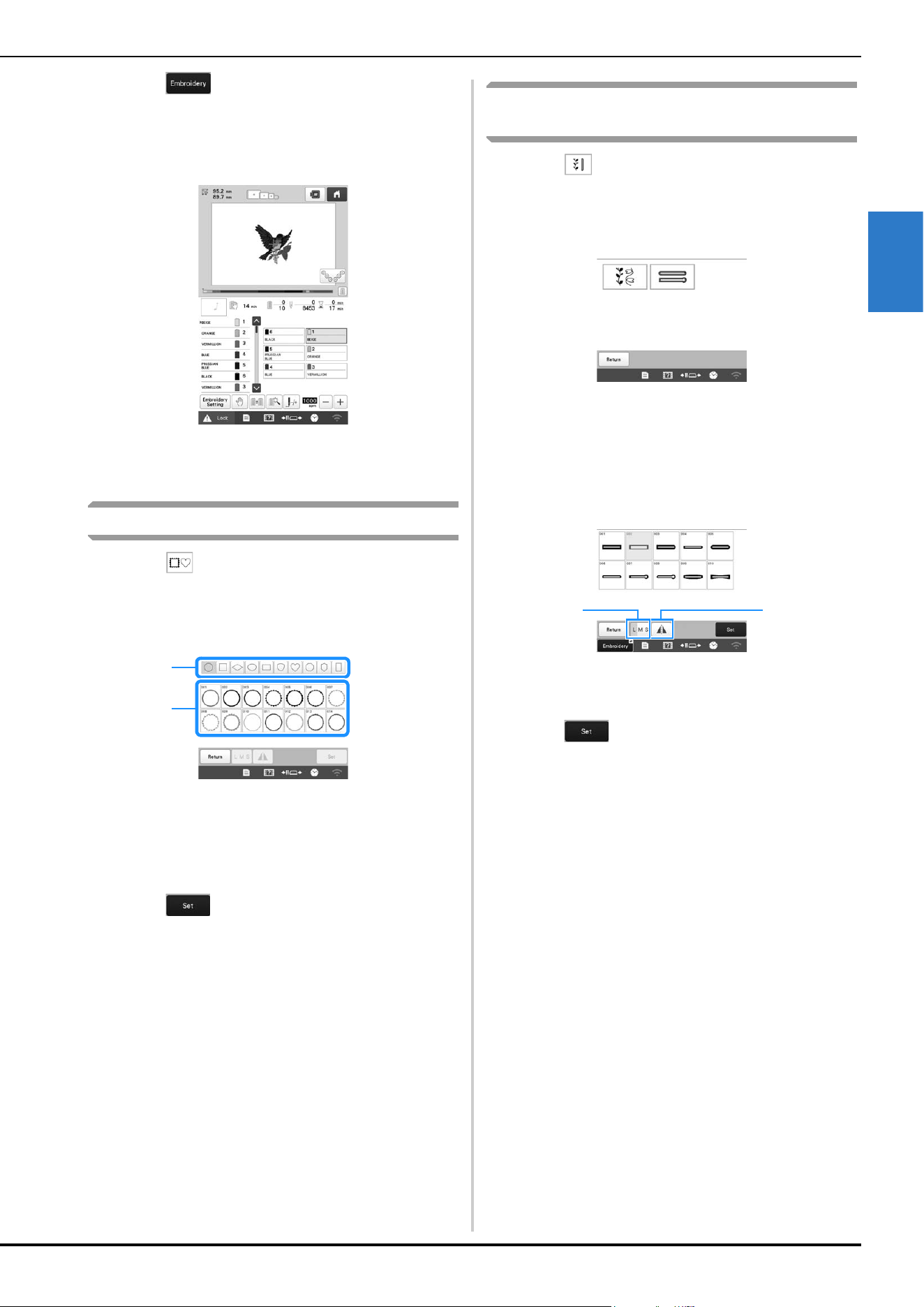

Frame patterns
a
Touch .
b
From the upper tabs, select the desired frame shape.
Frame patterns appear below.
1 Frame shapes
2 Frame patterns
c
Touch the desired frame pattern.
The selected pattern appears in the pattern display
area.
d
Touch .
The pattern editing screen appears.
e
Follow the procedure from step e to l of
“Embroidery patterns” on page 38.
Utility embroidery patterns/Large
buttonhole patterns
a
Touch .
b
Select the desired category of the utility embroidery
patterns or the large buttonhole patterns.
The list of patterns of the selected category appears.
c
Select a pattern.
The selected pattern appears in the pattern display
area.
d
If necessary, edit the pattern.
1 Large buttonhole patterns can be selected from small,
medium and large sizes.
2 Flip the pattern horizontally.
e
Touch .
The pattern editing screen appears.
f
Follow the procedure from step e to l of
“Embroidery patterns” on page 38.
1
2
21
40
Monogram and frame designs
Monogram designs can be created by combining two or three
letters.
a
Touch .
b
Touch the button for the desired character style.
The text input screen appears.
• If 4 is selected, the frame pattern list appears. When
creating a pattern by combining letters with a frame, it
does not matter which of the two, the letters or the
frame, is selected first. The embroidering order
follows the order in which the parts of the monogram
are selected. For this example, we will select the
letters first.
c
Select the characters.
Touch the tabs to select different character shapes, and
then touch the key for one letter on each tab.
* Since the shapes of the letters are the same with this
design, there are no tabs to select.
1 Tabs
2 To change the character font, touch to return to
the design selection screen.
The selected characters appear in the text preview
area and the pattern display area.
1 Text preview area
2 Pattern display area
3 If the wrong character was selected or you wish to select
a different character, touch to delete the last
character selected, and then touch the desired
character.
4 Line feed key
d
If necessary, edit the characters. (page 42)
1 Select to edit all characters or one character.
2 Change the size of the characters.
3 Change the text arrangement.
4 Change the spacing of the character patterns.
5 Change the text alignment.
e
Touch .
The pattern editing screen appears.
Next, we will combine the letters with a frame.
1
2
3
*
4
1
2
3
2
1
2
1
2
1
Memo
• Depending on the monogram style, there is a
preset number of letters; however, more than the
preset number of letters can be entered. If too
many letters are selected, touch to delete
the letters.
• If desired, multiple letters can be selected to use
these characters in the same way as any other
character pattern without creating a monogram.
2
3
4
1
4
5
1
2
3
BASIC EMBROIDERY
41
2
f
Touch .
The pattern type selection screen appears.
g
Touch .
The design selection screen appears.
h
Touch .
The list of frame patterns appears.
i
Touch the desired pattern.
The selected frame pattern appears in the pattern
display area.
j
Touch .
The pattern editing screen appears.
k
Follow the procedure from step e to l of
“Embroidery patterns” on page 38.
Character patterns
a
Touch .
b
Touch the desired character font.
• Touch or for additional selections.
The text input screen appears.
c
Select the character category and then select the
characters. (page 42)
d
Touch .
The pattern editing screen appears.
e
Follow the procedure from step e to l of
“Embroidery patterns” on page 38.
Memo
• Due to size or shape, some frame patterns cannot
be used with the design.
• The frame patterns are just some of the patterns
that can be used. Character patterns other than the
3-letter monogram patterns can be used in the
combination.
42

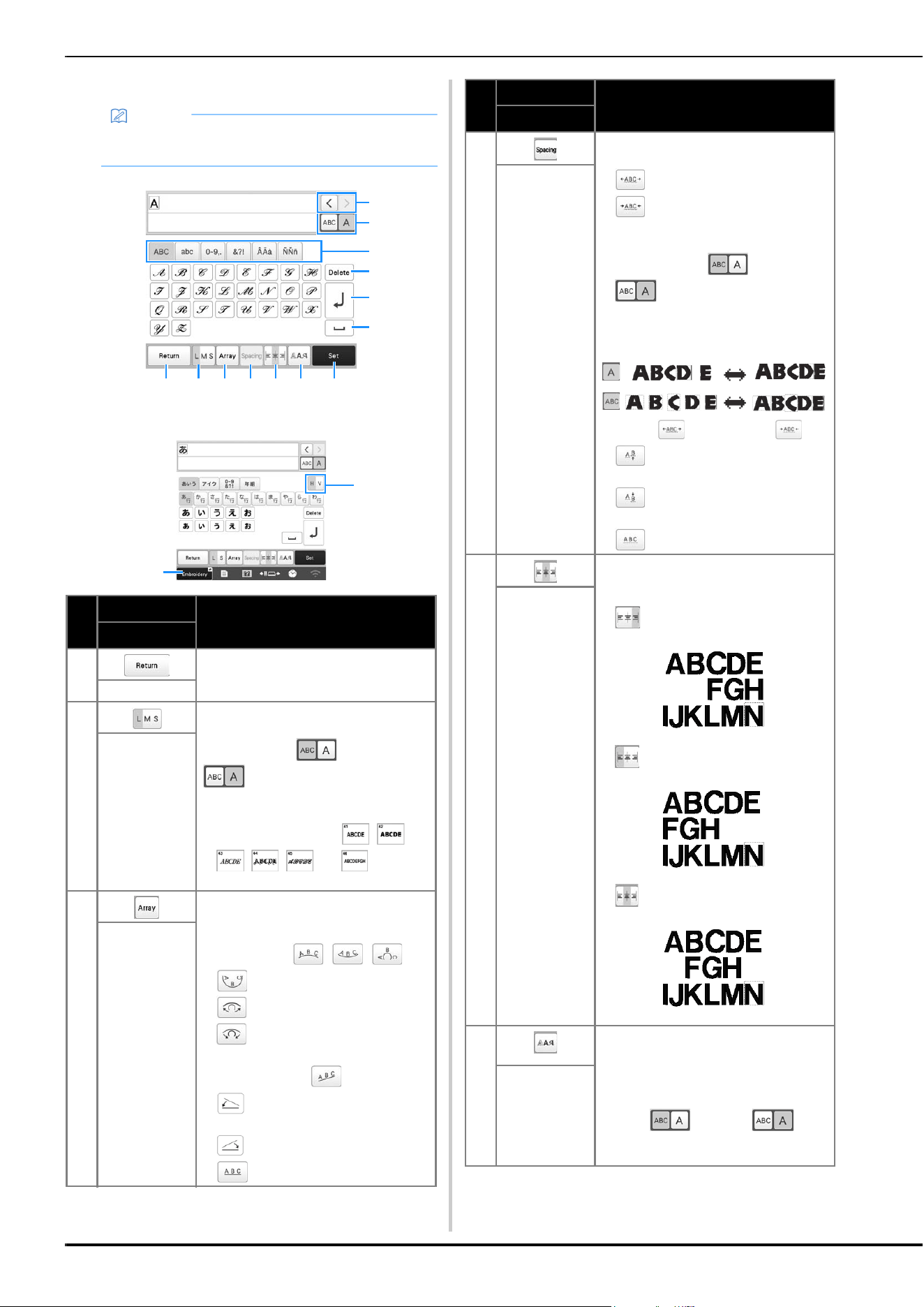

■ Character pattern input keys
Memo
• If a key display is grayed out, you cannot use that
function with the selected pattern.
No.
Display
Function
Key Name
1 Return to the previous screen.
Return key
2 Change the size of the character
patterns. To change the size of one
character, touch to display
and then select the character.
The size of the selected character is
changed.
• Size of the small fonts , ,
, , and cannot be
changed.
Size key
3 Change the layout of the character
patterns.
• To arrange the character patterns on
an arc, touch , , or
.
: Make the arc flatter.
: Make the arc rounder.
• To arrange the character patterns on
an incline, touch .
: Change the incline
counterclockwise.
: Change the incline clockwise.
• : Reset the layout.
Array key
B
A
0
9
4 51 2 3
8
6 7
C
D
E
4 Change the spacing of the character
patterns.
• : Increase the character spacing.
• : Decrease the character
spacing.
• To change the spacing after one
character, touch to display
and then select the character.
The spacing between the selected
character and the next character is
changed.
• : Move the one selected
character up.
• : Move the one selected
character down.
• : Reset the spacing.
Character
spacing key
5 Switch alignment. This function is
available when multiple lines of
characters are input.
• : Right alignment
• : Left alignment
• : Center alignment
Alignment key
6 Change the font of the characters.
Depending on the font that was selected,
it may not be possible to change the
font.
• To change the font of one character,
touch to display and
then select the character. The font of
the selected character is changed.
Font type key
No.
Display
Function
Key Name
BASIC EMBROIDERY
43
2
Decorative alphabet patterns
a
Touch .
b
Touch the desired category.
c
Touch the desired pattern.
1 Flip the pattern horizontally, if desired.
The selected pattern appears in the pattern display
area.
d
Touch .
The pattern editing screen appears.
e
Follow the procedure from step e to l of
“Embroidery patterns” on page 38.
■ Appliqué alphabet
a
Touch .
b
Touch .
The list of appliqué alphabets appears.
c
Touch the desired pattern.
1 Change the character size.
The selected pattern appears in the pattern display
area.
d
Touch .
The pattern editing screen appears.
7 Apply the character pattern editing to go
to the editing screen.
Set key
8 Enter a space.
Space key
9 Make a new line.
Line feed key
0 Delete the character.
Delete key
A — Select the category of character.
Category keys
B Select to edit all characters or one
character.
• : Edit all characters.
• : Edit one character.
Select one/all
key
C Move the cursor and select a character.
Character
selection keys
D Switch between text written vertically
and horizontally. (Japanese font only)
Vertical/
horizontal text
key
E Shortcut to the embroidering screen.
Shortcut key
No.
Display
Function
Key Name
Note
• For details on embroidering appliqués, refer to
“Embroidering appliqué patterns” on page 94.
1
1
44

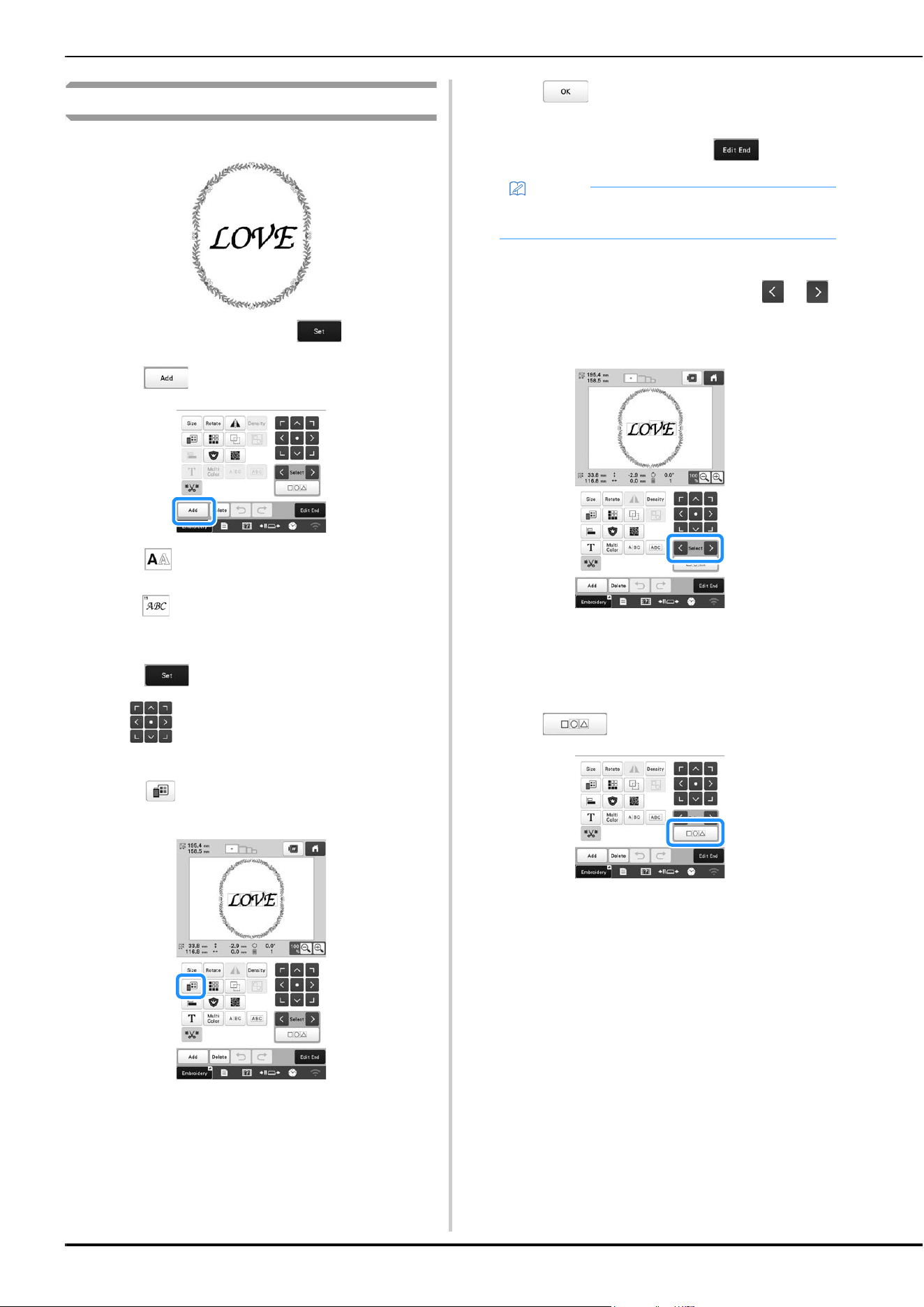

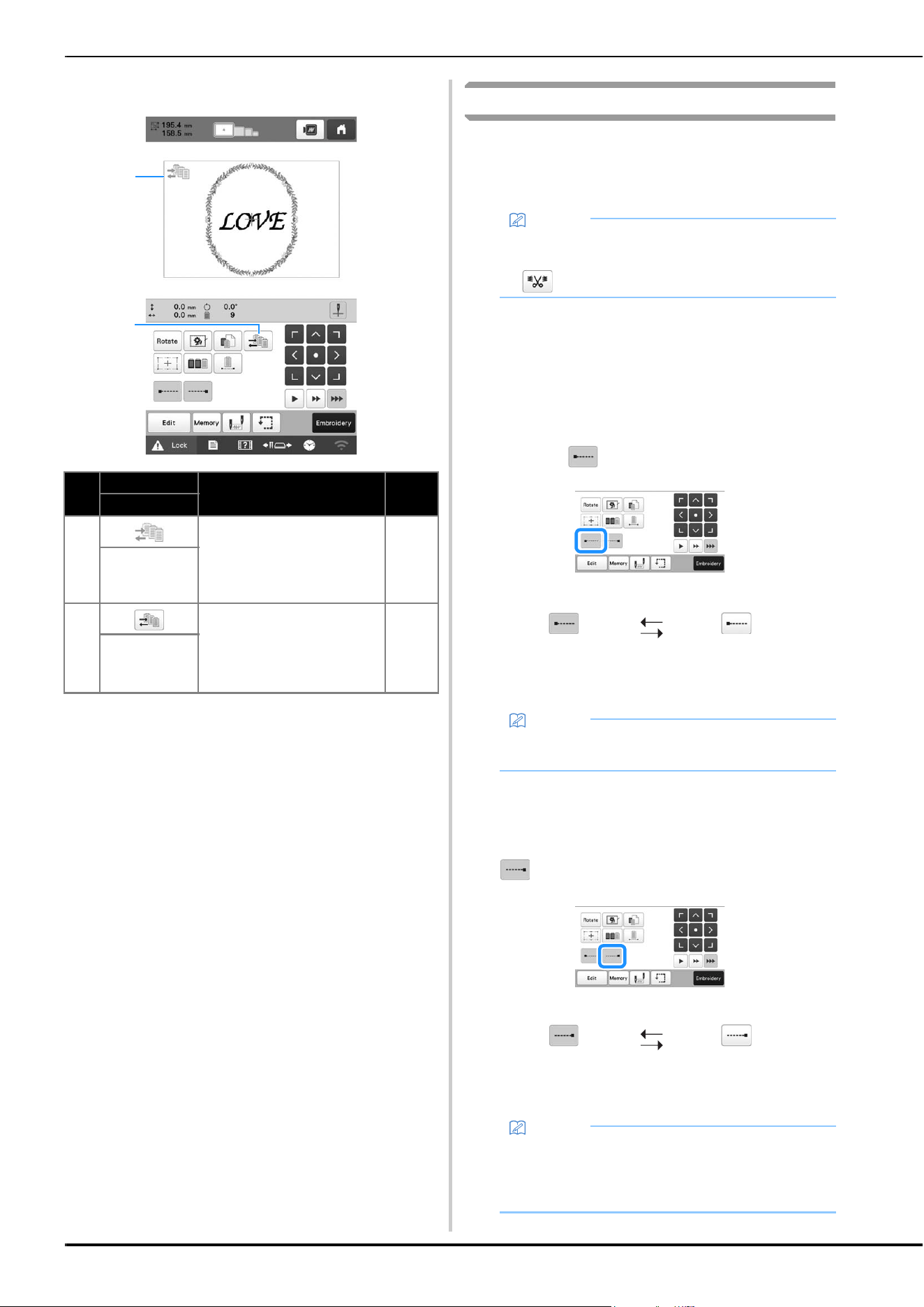

Combining patterns
Example:
a
Select a pattern and then touch .
b
Touch .
c
Touch .
d
Select and enter “LOVE”.
The characters you enter will be displayed in the
center of the embroidery pattern area.
e
Touch .
f
Use to move the characters.
*
Characters can also be moved by directly dragging them
with your finger or the touch pen.
g
Touch to change the color of the characters.
(page 55)
h
Touch .
i
When all editing is finished, touch .
■ Selecting the pattern to be edited
If multiple patterns have been combined, use or
to select the pattern to be edited. Patterns can also be
selected by directly touching the screen with your finger
or touch pen.
■ Selecting multiple patterns at the same time
Multiple patterns can easily be edited, for example, when
moving patterns that are combined, if they are all selected
together.
a
Touch .
The multiple selection screen appears.
Memo
• Combined patterns will be embroidered in the
order they were entered.
BASIC EMBROIDERY
45
2

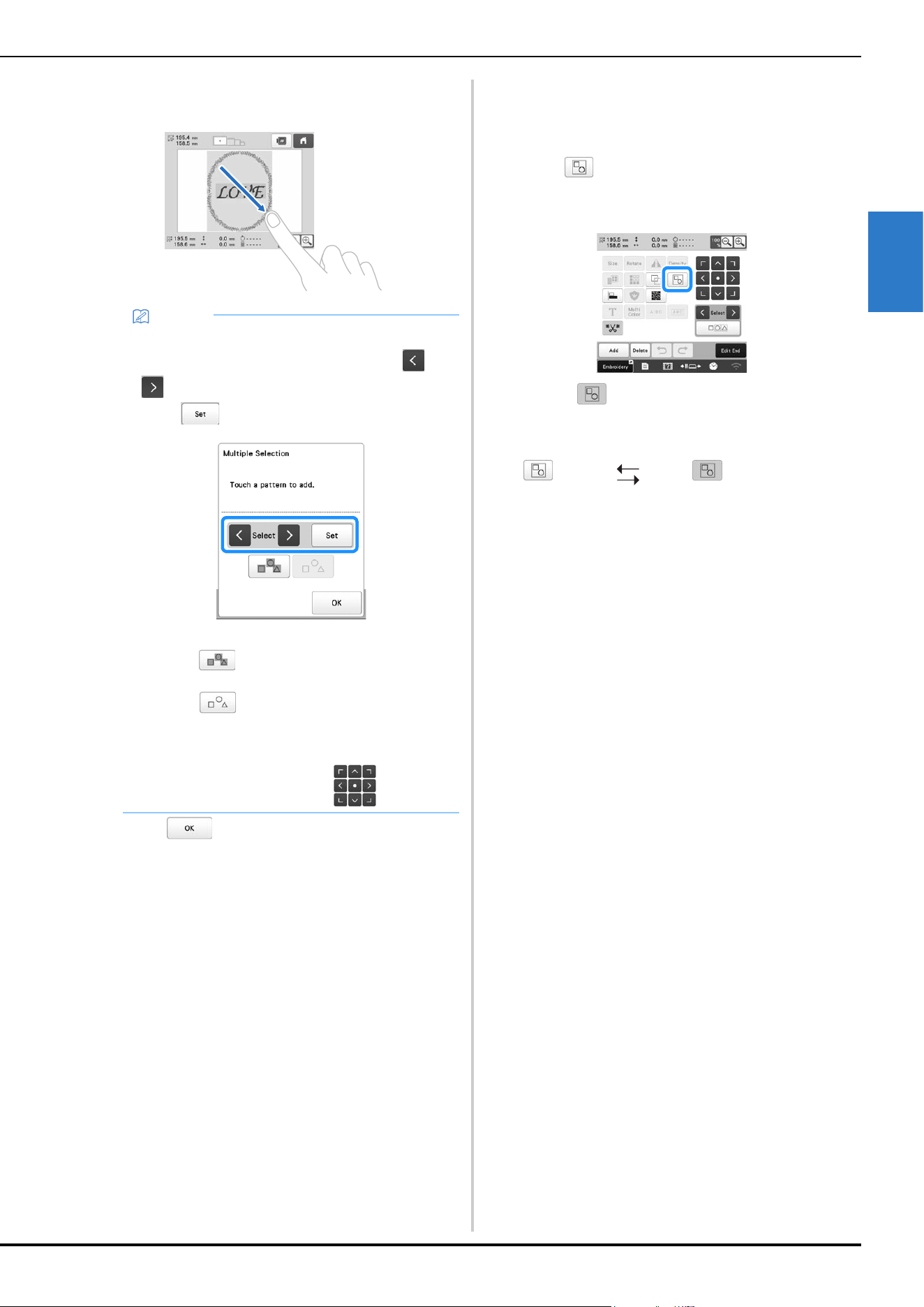

b
Select the multiple patterns by dragging your finger in
the screen to create a box around the desired patterns.
c
Touch to return to the pattern editing screen.
• The multiple selected patterns are surrounded with a
red box.
■ Grouping multiple selected patterns
If the multiple patterns selected in “Selecting multiple
patterns at the same time” on page 44 are grouped, they
can be edited as a single pattern.
a
Touch .
The selected patterns are grouped.
• Touch to ungroup the patterns. If there are
multiple grouped patterns, the selected pattern group
is ungrouped.
Memo
• Multiple patterns can be selected or deselected
from the multiple selection screen. Touch or
to check the patterns to be selected, and then
touch .
The selected pattern is surrounded with a red box.
- Touch to select all patterns in the pattern
display area.
- Touch to deselect all selected patterns.
- The patterns can also be selected by touching
them in the screen.
- While the multiple selection screen is displayed,
patterns can be moved with .
Ungrouped Grouped
46

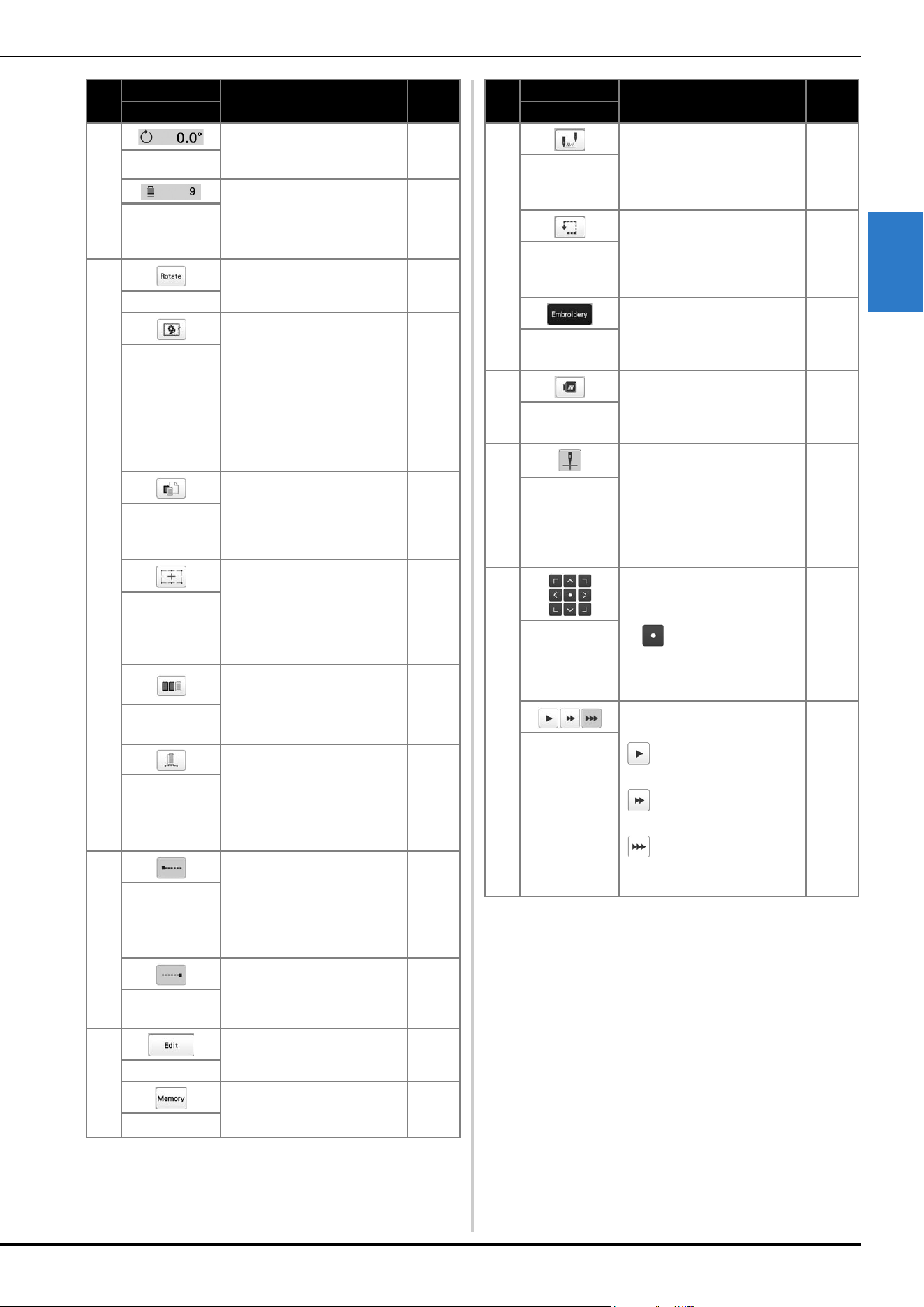

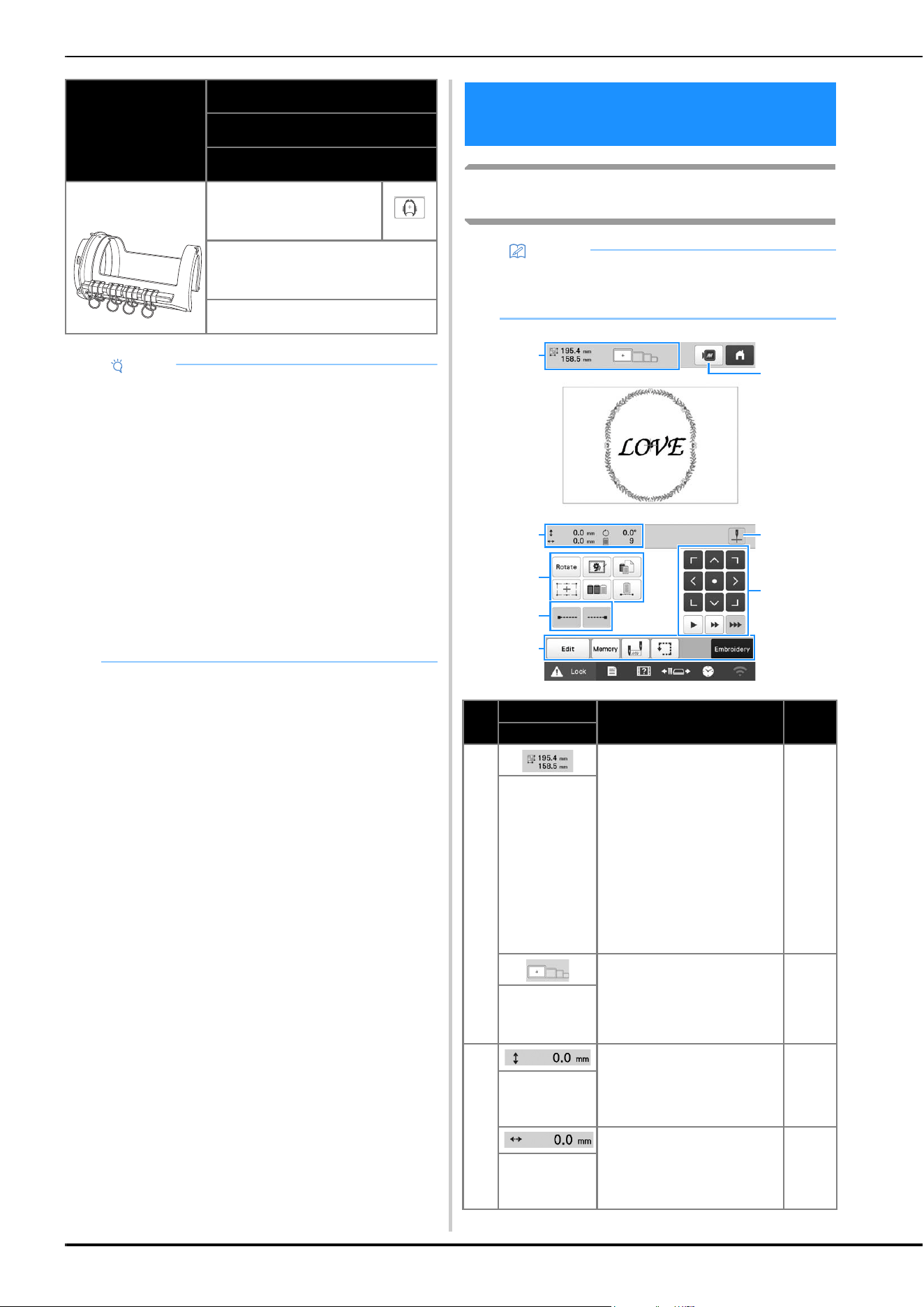

Understanding the pattern editing screen
EDITING THE EMBROIDERY
PATTERN
Memo
• If a key display is grayed out, you cannot use that
function with the selected pattern.
No.
Display
Function Page
Key Name
1
Shows the size of the
embroidery pattern currently
displayed in the pattern
display area. The top value
shows the height and the
bottom value shows the
width. If the embroidery
pattern consists of multiple
patterns that have been
combined, the size will
include all patterns.
—
Pattern size
2
Shows the sizes of
embroidery frames that can
be used to embroider the
pattern currently displayed
in the pattern display area.
63
Embroidery
frame
indicators
2
0
A
7
1
9
B
3
4
5
6
8
C
3
Shows the size of the pattern
being edited. The top value
shows the height and the
bottom value shows the
width.
—
Size
Shows the vertical distance
that the pattern being edited
is moved.
—
Distance from
center
(vertical)
Shows the horizontal
distance that the pattern
being edited is moved.
—
Distance from
center
(horizontal)
Shows the rotation angle that
the pattern being edited is
rotated.
—
Rotation angle
Shows the total number of
thread colors for the pattern
that is being edited.
—
Number of
thread colors
No.
Display
Function Page
Key Name
BASIC EMBROIDERY
47
2

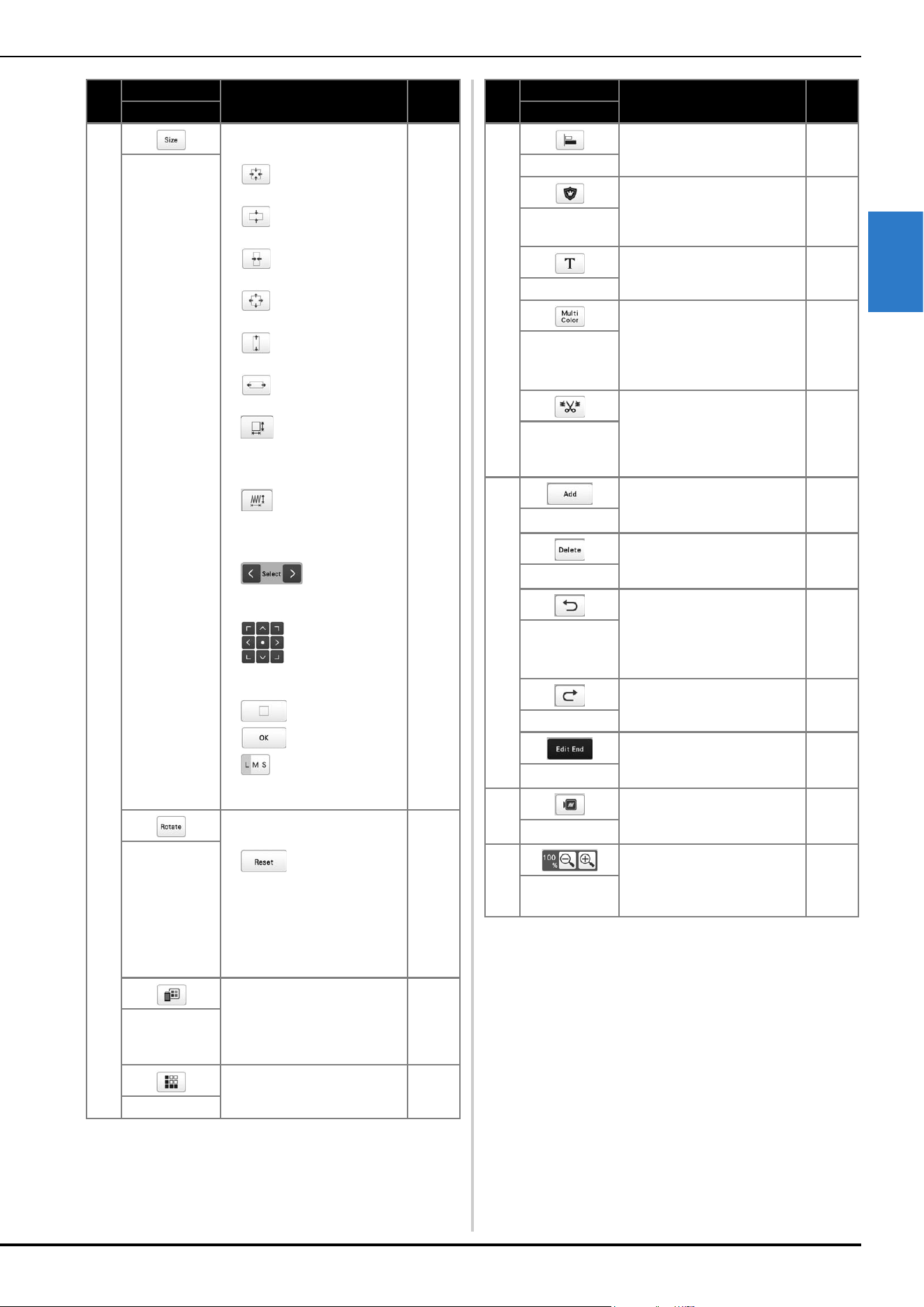

4
Display the pattern sizing
window.
• : Decrease the pattern
proportionately.
• : Decrease the pattern
vertically.
• : Decrease the pattern
horizontally.
• : Enlarge the pattern
proportionately.
• : Stretch the pattern
vertically.
• : Stretch the pattern
horizontally.
• : Change the pattern
size while maintaining the
number of stitches. (normal
resizing mode)
• : Change the pattern
size while maintaining the
thread density. (stitch
recalculator mode)
• : Select the
pattern that you want to
change.
• : Move the pattern in
the direction shown by the
arrow.
• : Reset the size.
• : Close this screen.
• : Change the size of the
pattern (character patterns
only).
—
Size key
Display the pattern rotating
window.
• : Reset the angle.
Rotate the pattern using the
rotate keys or by dragging
the red point at the corner of
the pattern. You can also use
the move keys during the
rotation process.
—
Rotate key
Change the color of the
pattern.
55
Change
thread color
key
Make and edit the repeated
pattern.
51
Border key
No.
Display
Function Page
Key Name
5
Arrange multiple patterns on
a line.
51
Alignment key
Change the pattern being
edited into an appliqué
pattern.
95
Embroidery
appliqué key
Edit characters. 48
Letter Edit key
Enable the thread color of
each character in a character
pattern to be changed; can
only be used when a
character is selected.
55
Multi color
key
Select whether or not jump
stitches in the selected
pattern will be trimmed.
49
Jump stitch
trim setting
key
6
Add a pattern. If touched, the
pattern type selection screen
appears.
44
Add key
Deletes the pattern. If
touched, the pattern being
edited is deleted.
—
Delete key
Undo the last operation that
was performed and return to
the previous state. Each
touch of this key will undo
one operation.
—
Undo key
Redo the operation that was
undone.
—
Redo key
Finish editing and continue
to the embroidering settings
screen.
—
Edit end key
7
Display an image of the
pattern so that it can be
previewed.
—
Preview key
8
Select from 100%, 125%,
150% or 200% to adjust
how the pattern being edited
is displayed.
—
Enlarge key
No.
Display
Function Page
Key Name
48

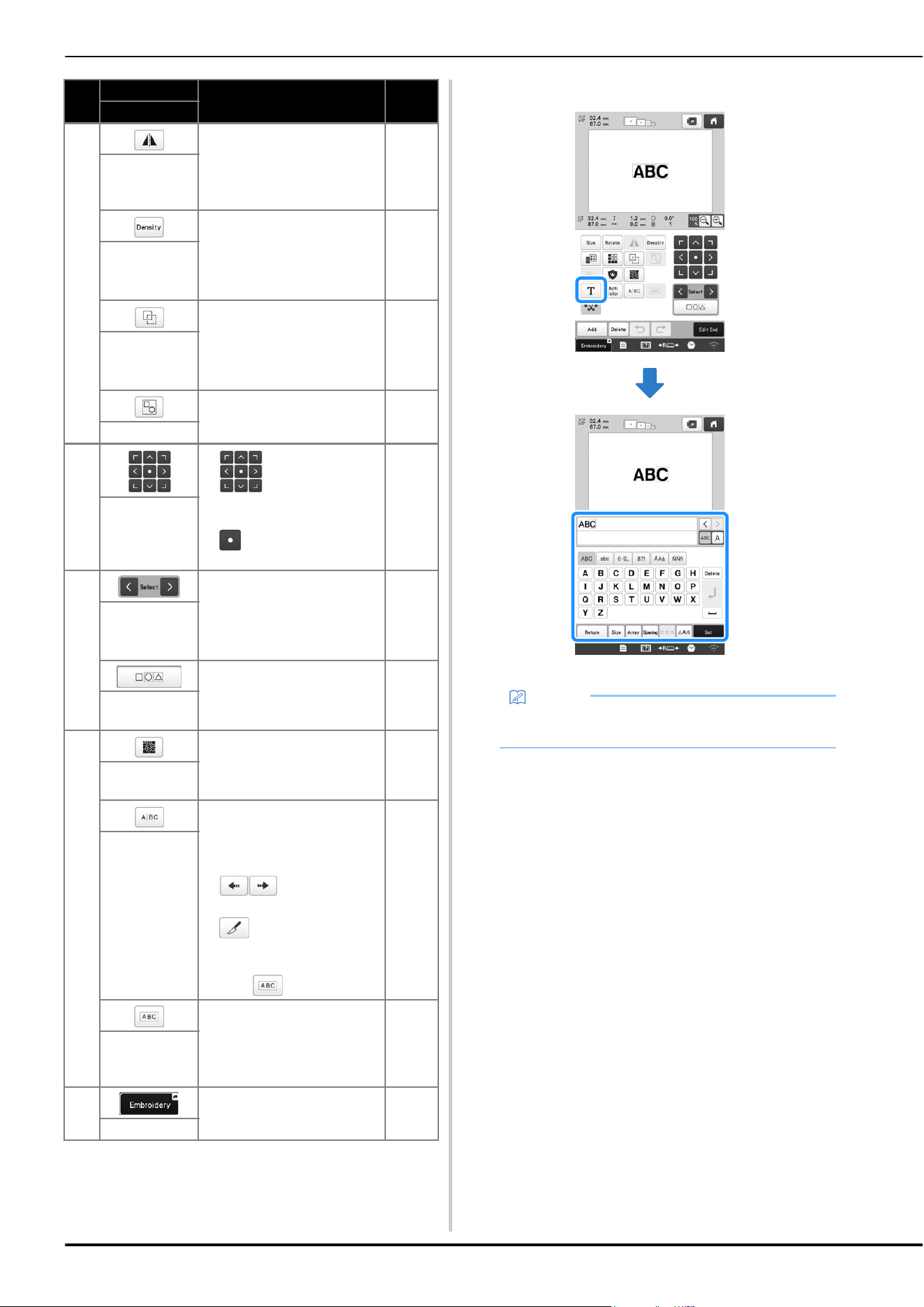

■ Editing letters
For details on input keys, refer to page 42.
9
Change the pattern to a
horizontal mirror image.
—
Horizontal
mirror image
key
Change thread density for
some character and frame
patterns. Other patterns'
density can be adjusted in
the stitch recalculator mode.
50
Density key
Duplicate the pattern.
The duplicated pattern will
be positioned slightly lower
and to the right from the
original pattern.
—
Duplicate key
Group selected multiple
patterns.
45
Group key
0
• : Move the pattern in
the direction shown by the
arrow.
• : Move to the center of
the embroidering area.
44
Positioning
keys
A
Selects the pattern that is
being edited when the
embroidery pattern consists
of multiple patterns that have
been combined.
44
Pattern
selection keys
Choose multiple patterns to
be edited at the same time.
44
Multiple
selection key
B
Create stippling or echo
quilting around the pattern.
98
Stippling/Echo
Quilting key
Separate the continuous
character patterns to adjust
the spacing or edit separately
afterwards.
• : Select where the
patterns is to be separated.
• : Separate the pattern.
A separated character
pattern can be combined by
using .
—
Text dividing
key
Combine the selected
character patterns.
50
Text
combining
key
C
Shortcut to the embroidering
screen.
38
Shortcut key
No.
Display
Function Page
Key Name
Memo
• To edit character patterns with multiple lines in the
edit screen, ungroup the pattern. (page 45)
BASIC EMBROIDERY
49
2

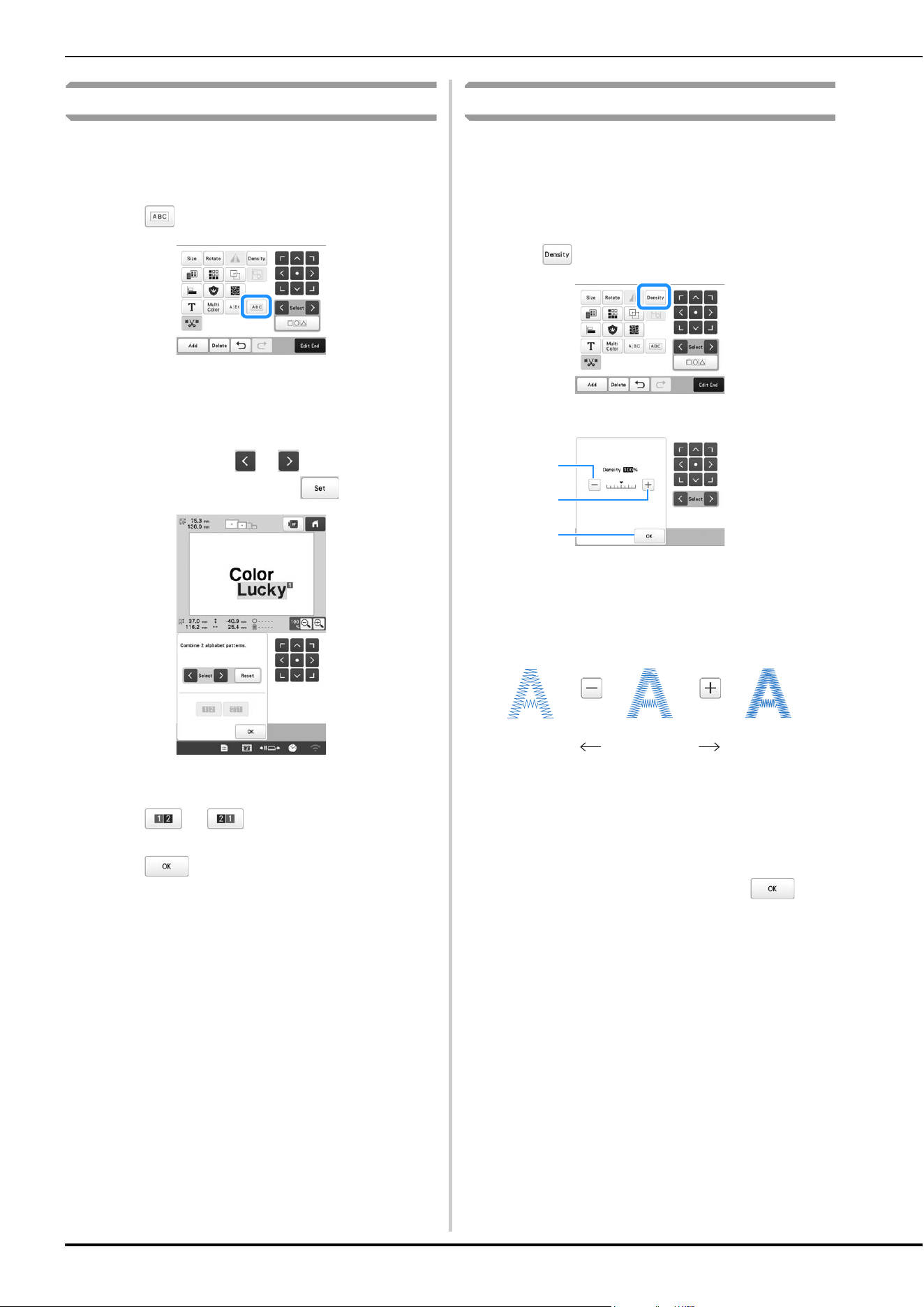

Changing the size and the density of the
pattern
There are two methods to change the pattern size.
If is selected, you can change the pattern size while
maintaining the thread density. The machine recalculates the
number of stitches automatically. With this function, the
pattern can be enlarged or reduced at a larger ratio than with
normal pattern resizing.
a
Touch to select or .
*
: Change the pattern size while maintaining the
number of stitches. The thread density for the pattern
increases or decreases.
*
: Change the pattern size while maintaining the
thread density. After the pattern size is changed, the thread
density can be changed. The number of stitches is
recalculated depending on the pattern size.
b
When you select in step a, the message to reset
the pattern to its original size, angle and position will
appear. Touch .
c
Touch each key to change the pattern size, as desired.
d
Touch .
Trimming jump stitches
When jump stitches are set to be trimmed, embroidering will no longer
need to be cleaned up after stitching. However, the embroidering time
will increase since the jump stitches will be trimmed.
You can select whether or not jump stitches in the selected
pattern will be trimmed.
a
Select the pattern whose jump stitches are to be
trimmed.
b
Make sure that the jump stitch trim setting key appears
as .
• Each touch of the key turns the setting either on or off.
•
On the pattern editing screen, if the jump stitch trim
setting key is selected ( ), the jump stitches will be
trimmed even if [Thread Cut Initial Setting] is set to [OFF].

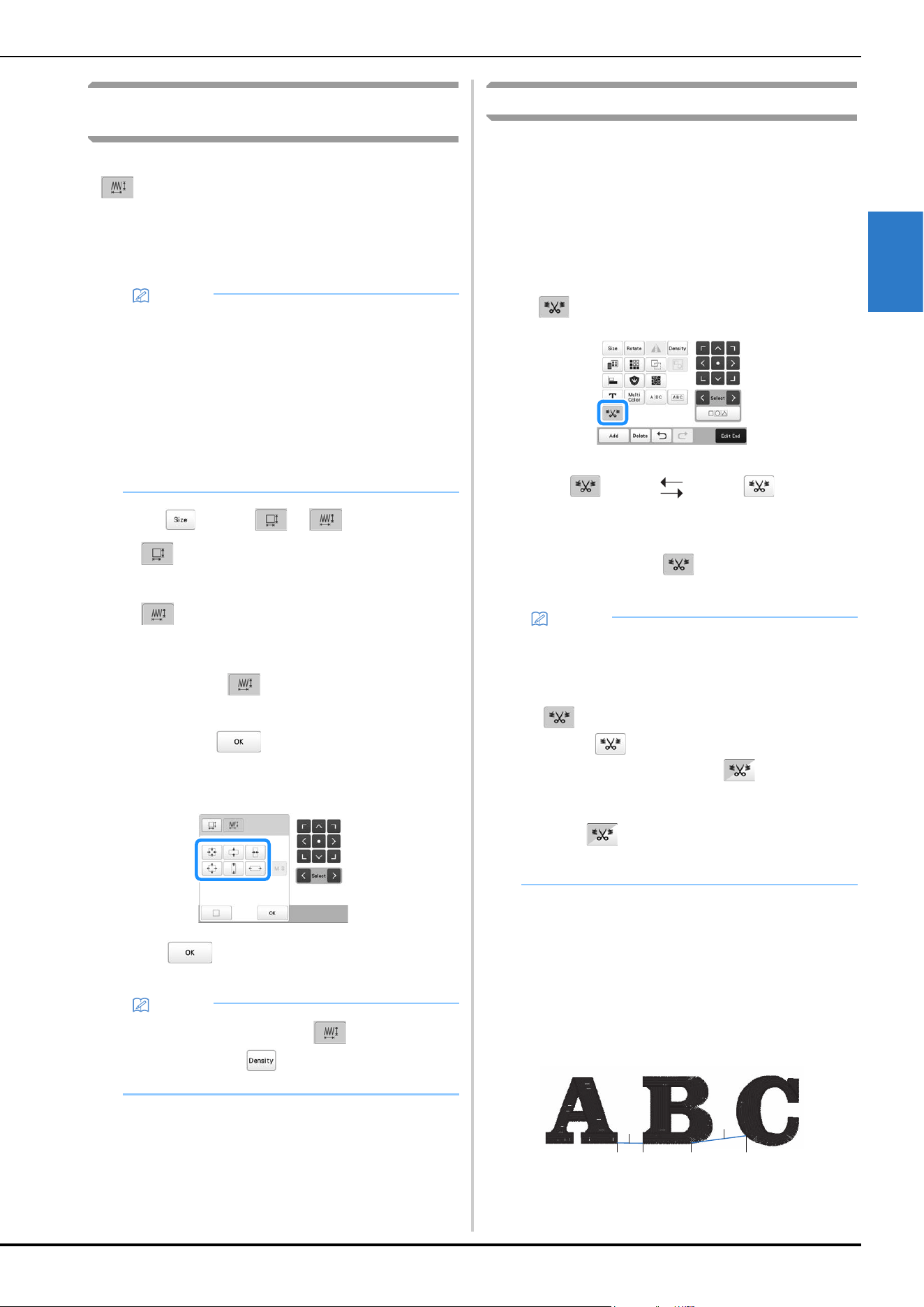

■ Trimming jump stitches between characters
The lengths of jump stitches between characters (from the
end point of one character to the start point of the next
character) differ depending on the font used and the
character spacing. If the length is longer than the specified
setting for trimming jump stitches, jump stitch trimming is
performed. For details on specifying the length for
trimming jump stitches, refer to page 110.
Example:
1 End point
2 Start point
3 Length of jump stitch
Memo
• This function cannot be used with character
patterns, frame patterns, repeated patterns or large
buttonhole patterns.
• Patterns with a large number of stitches (100,001
or more) cannot be resized while maintaining a
thread density.
• Depending on the pattern, the size of the pattern
increases up to 200% or reduces to 60%.
• You can also change the size by dragging the red
point around the pattern.
Memo
• After resizing pattern using function in step
a, by touching in the edit screen, you can
adjust the thread density, if desired.
Threads are
trimmed.
Threads are
not trimmed.
Memo
•
As you combine patterns, you can select whether or not
jump stitches will be trimmed for each pattern.
•
If you have selected multiple patterns, and the patterns
include some whose jump stitches will be trimmed
( ) and some whose jump stitches will not be
trimmed ( ), the jump stitch trim setting key for the
combined patterns appears as ( ). For details on
selecting multiple patterns, refer to “Selecting multiple
patterns at the same time” on page 44.
• Touch ( ) to apply the setting the same as for
[Thread Cut Initial Setting] in the settings screen for
all patterns.
a
b
c
c
a
b
50

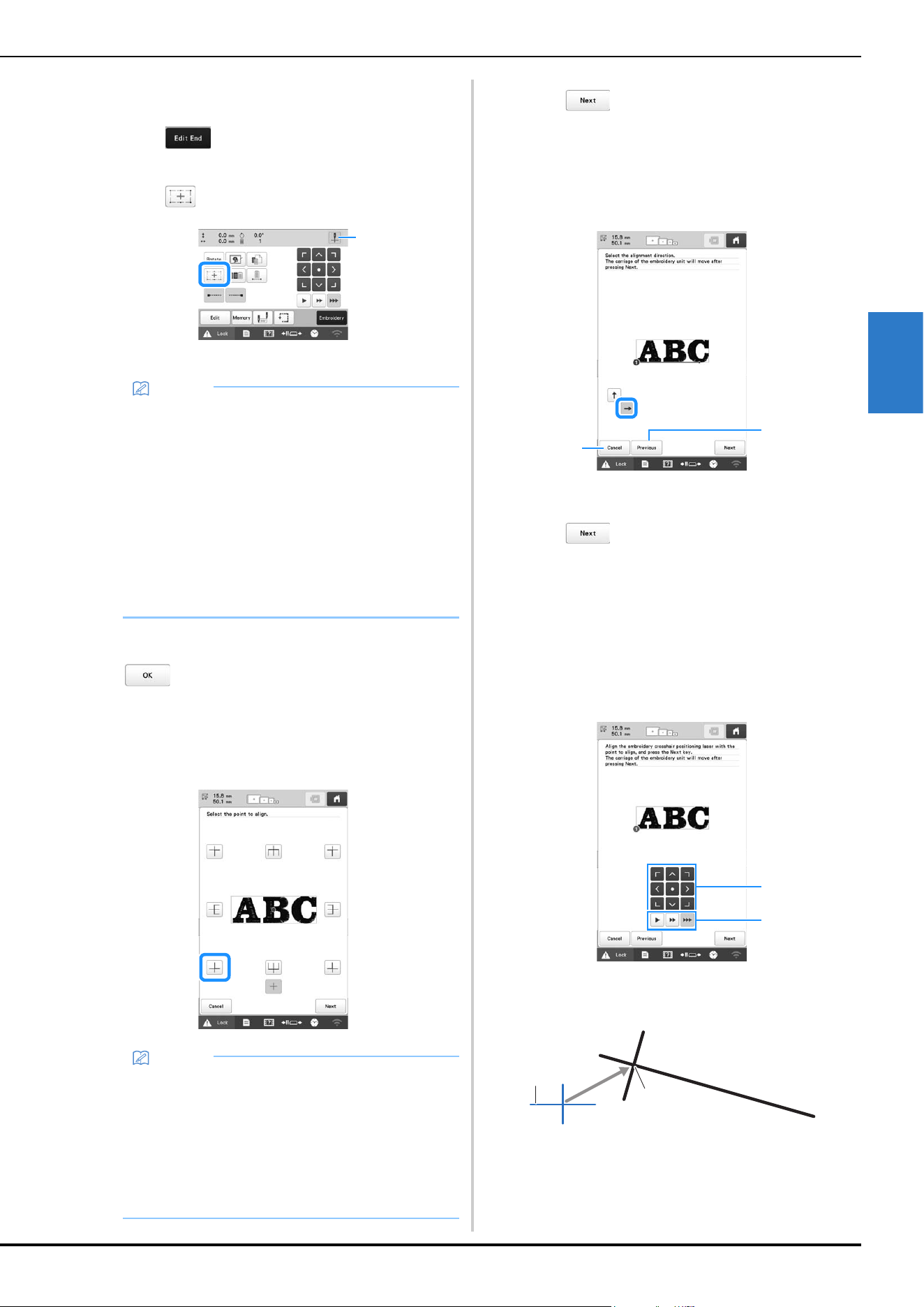

Combining the separated character patterns
Two separated lines of character patterns can be combined.
The characters can be aligned to the specified order. You
cannot combine the lines of character patterns if the text
contains a line feed using the Line Feed function.
a
Touch .
b
Select the group of character patterns that you want to
combine.
• The selected character is assigned as Number [1].
• You can select the patterns by touching them on the
screen, or touching or to check the patterns
to be selected, and then touch .
Numbers [1] and [2] are assigned temporarily to the
patterns.
c
Touch or to choose the order of the 2
patterns.
d
Touch to return to the previous screen.
Changing the thread density
The thread density for some character and frame patterns can
be changed. With certain types of patterns, the thread density
can be changed by recalculating the number of stitches in the
pattern. (page 49)
A setting between 80% and 120% in 5% increments can be
specified.
a
Touch .
The screen shown below appears.
1 Make the pattern less dense.
2 Make the pattern more dense.
3 Close this screen.
■ Selects a less/more thread density
a
Touch the keys to select the desired thread density.
Each touch of a key slightly increases or decreases the
thread density.
• To return to the original thread density (standard),
select [100%].
b
After making the desired changes, touch .
Less Standard More
3
1
2
BASIC EMBROIDERY
51
2

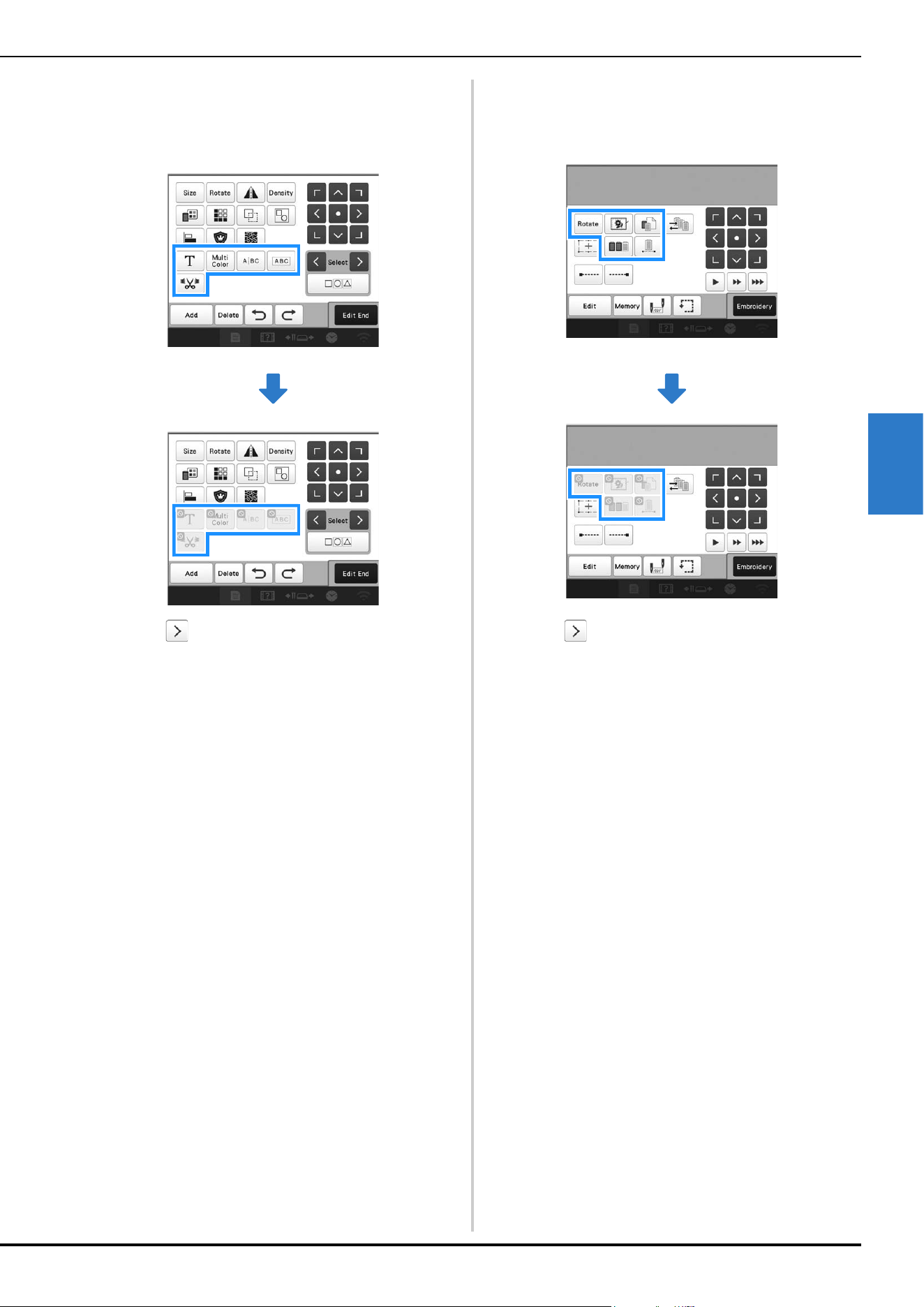

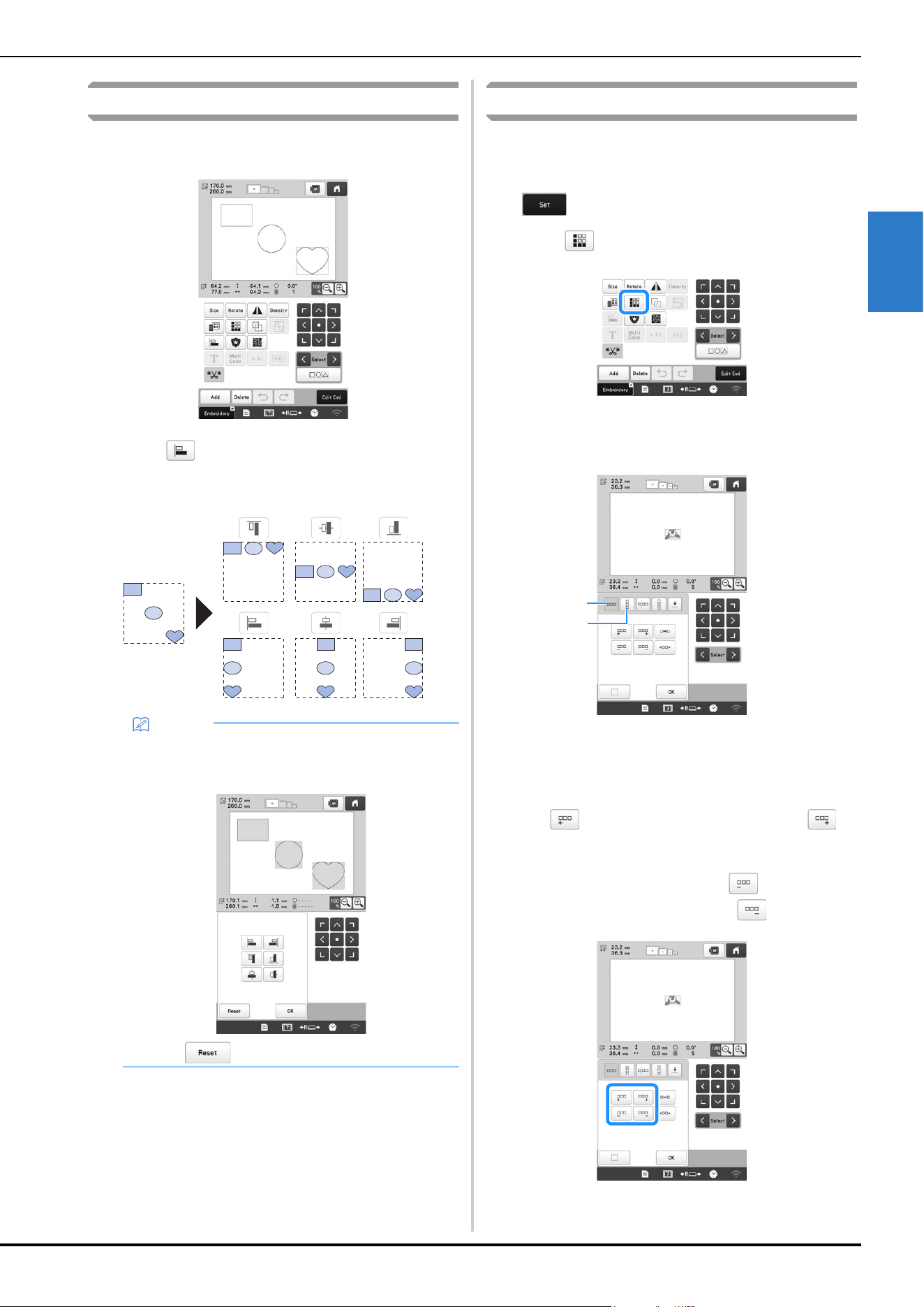

Aligning the embroidery patterns
a
Select patterns that you want to align. (page 44)
b
Touch , and then select the key for the desired
alignment.
Example

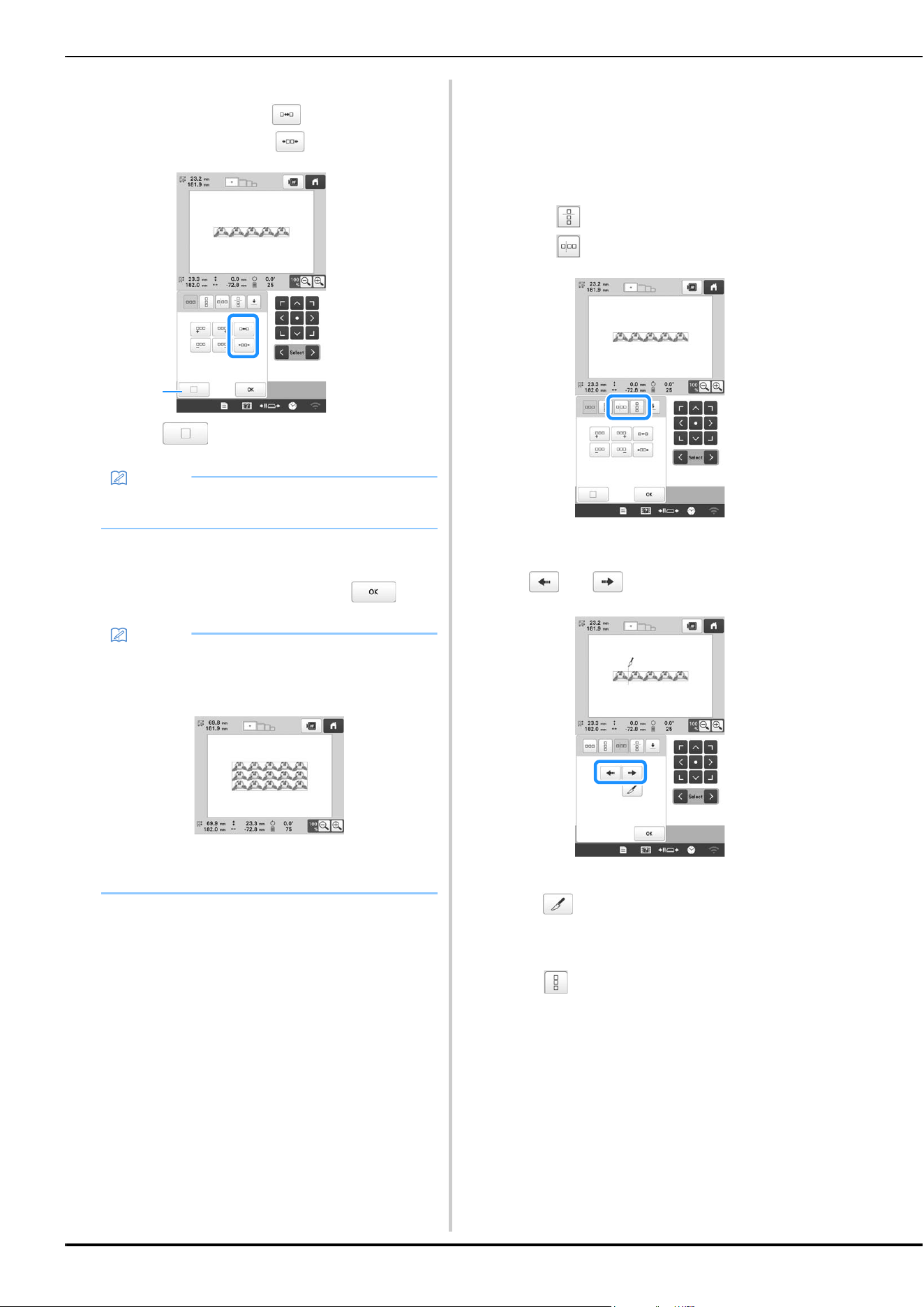

Designing repeated patterns
Using the border function, you can create an arrangement
using repeated patterns.
a
Select the pattern that you want to repeat and touch
.
b
Touch .
c
Select the direction in which the pattern will be
repeated.
1 Horizontal direction
2 Vertical direction
The pattern direction indicator will change
depending on the direction selected.
d
Use to repeat the pattern on the left and to
repeat the pattern on the right.
• To delete the left pattern, touch .
• To delete the right pattern, touch .
Memo
• You can select desired multiple patterns by directly
touching each pattern on this screen.
• Touch to reset the alignment.
2
1
52
e
Adjust the spacing of the repeated pattern.
• To widen spacing, touch .
• To tighten spacing, touch .
1 Touch to change a repeated pattern back to
one single pattern.
f
Complete repeated patterns by repeating steps c
through
e.
g
After making the desired changes, touch .
■ Repeating one element of a repeated pattern
By using the Cut function, you can select one element of a
repeated pattern and repeat only that single element. This
function allows you to design complex repeated patterns.
a
Choose the direction in which the repeated pattern will
be cut.
• Touch to cut horizontally.
• Touch to cut vertically.
The pattern direction indicator will change
depending on the direction selected.
b
Use and to select the cut line.
The cut line will move.
c
Touch .
The repeated pattern will be divided into separate
elements.
d
Touch .
Memo
• You can only adjust the spacing of patterns
included in the red frame.
Memo
• When there are two or more patterns, all patterns
will be grouped together as one pattern in the red
frame.
• When changing the direction in which the pattern
will be repeated, all of the patterns in the red frame
will automatically be grouped as one repeating unit.
1
BASIC EMBROIDERY
53
2
e
Use and to select the element to repeat.
f
Repeat the selected element.
g
After making the desired changes, touch .
■ Assigning thread marks
By embroidering thread marks, you can easily align
patterns when embroidering a series. When embroidery is
finished on a pattern, a thread mark in the shape of an
arrow will be embroidered using the final thread. When
embroidering a series of patterns, use the point of this
arrow for positioning the following designs to be
embroidered.
a
Touch .
b
Touch .
c
Touch to select the thread mark to be
embroidered.
1 Touch to cancel thread mark setting.
d
Touch .
Memo
• Once you have cut a repeated pattern into separate
elements, you cannot return to the original
repeated pattern.
• Each element can be edited separately in the edit
screen. Refer to “Selecting the pattern to be
edited” on page 44.
Memo
• When repeatedly embroidering individual patterns,
thread marks can be embroidered around the
perimeter of the pattern only.
Memo
• When there are two or more elements, use and
or and to select a pattern that you
want to assign a thread mark(s) to.
Memo
• If the combined border pattern is rotated in the
embroidering settings screen, the thread mark will
be removed.
1
54

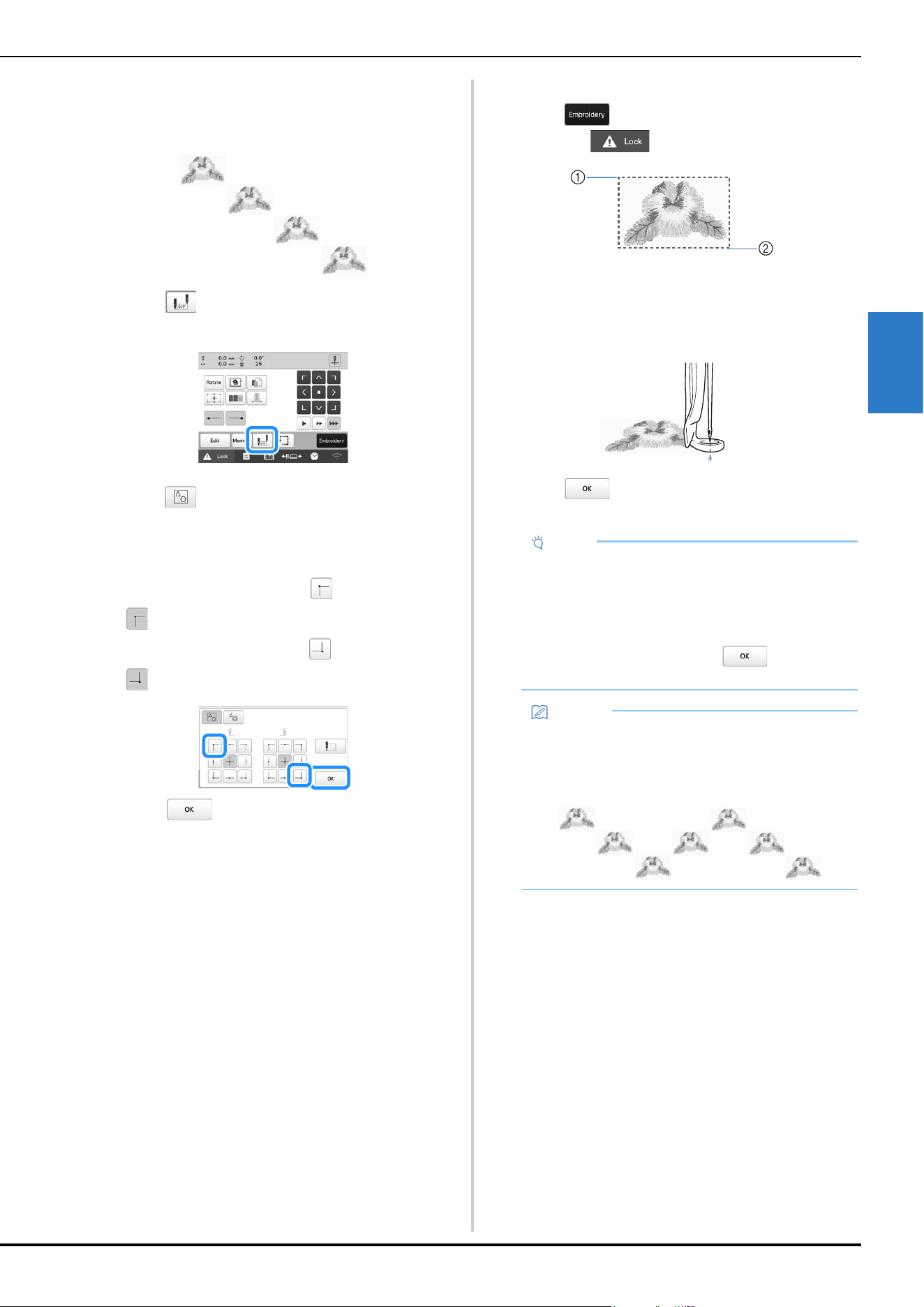

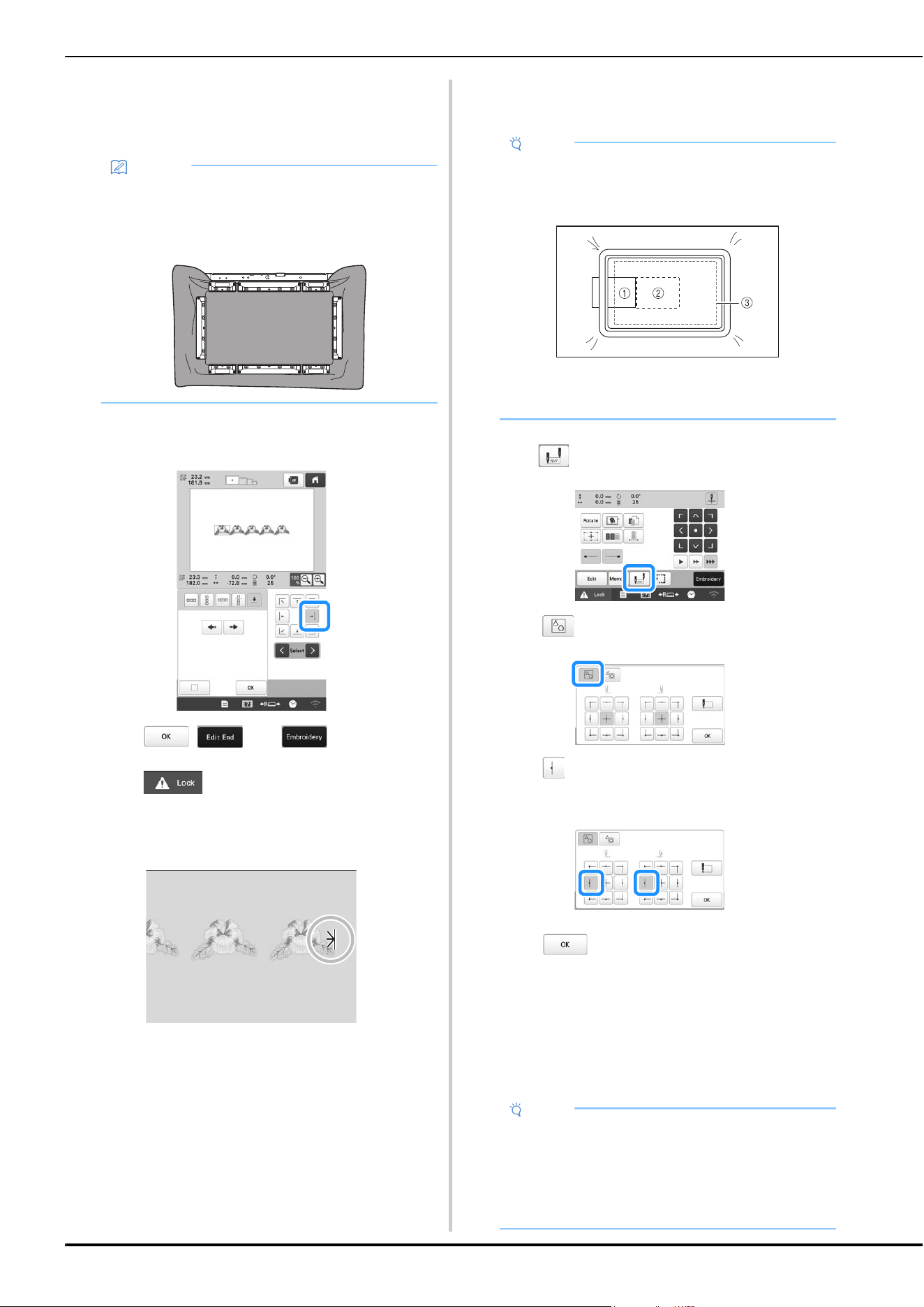

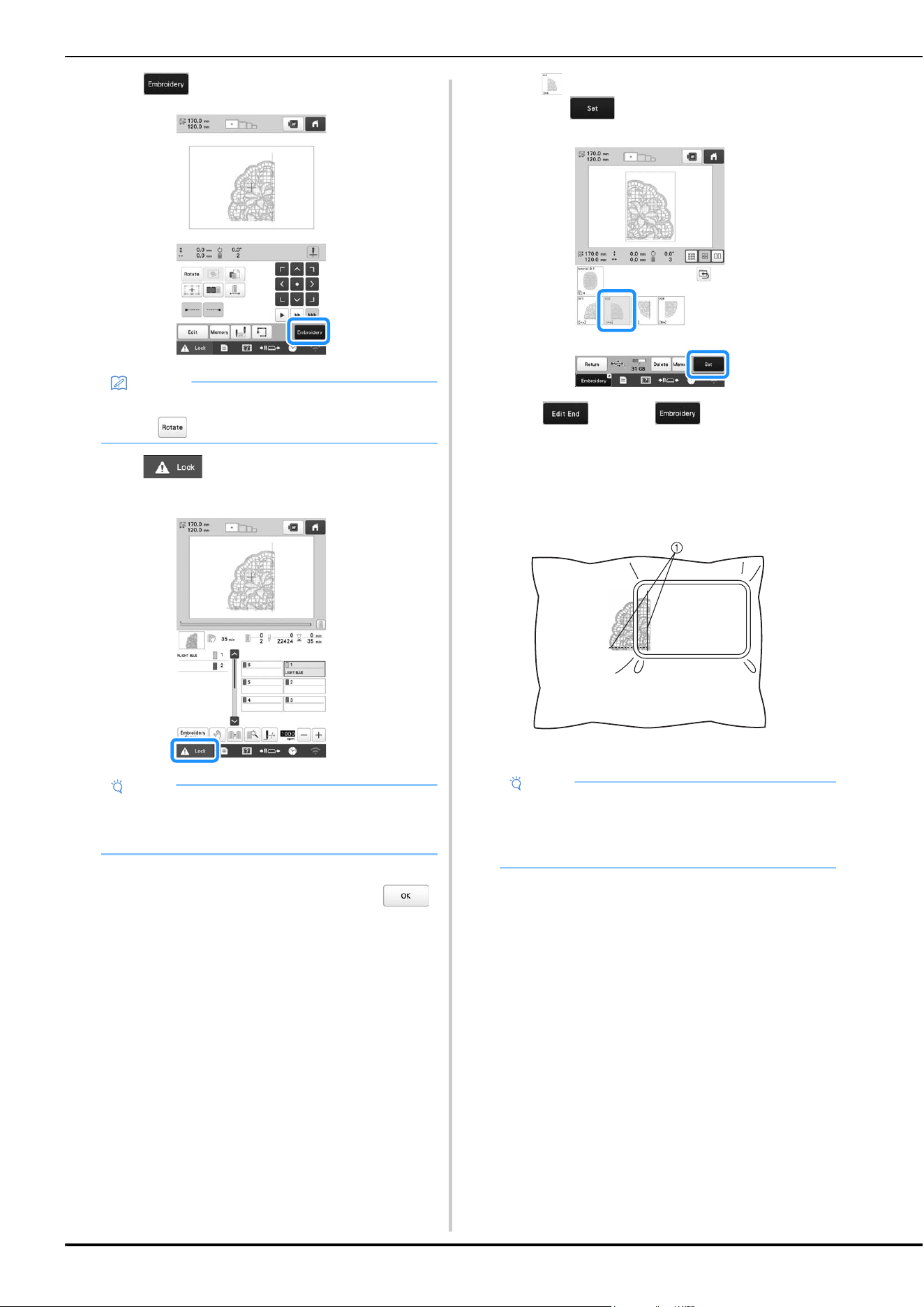

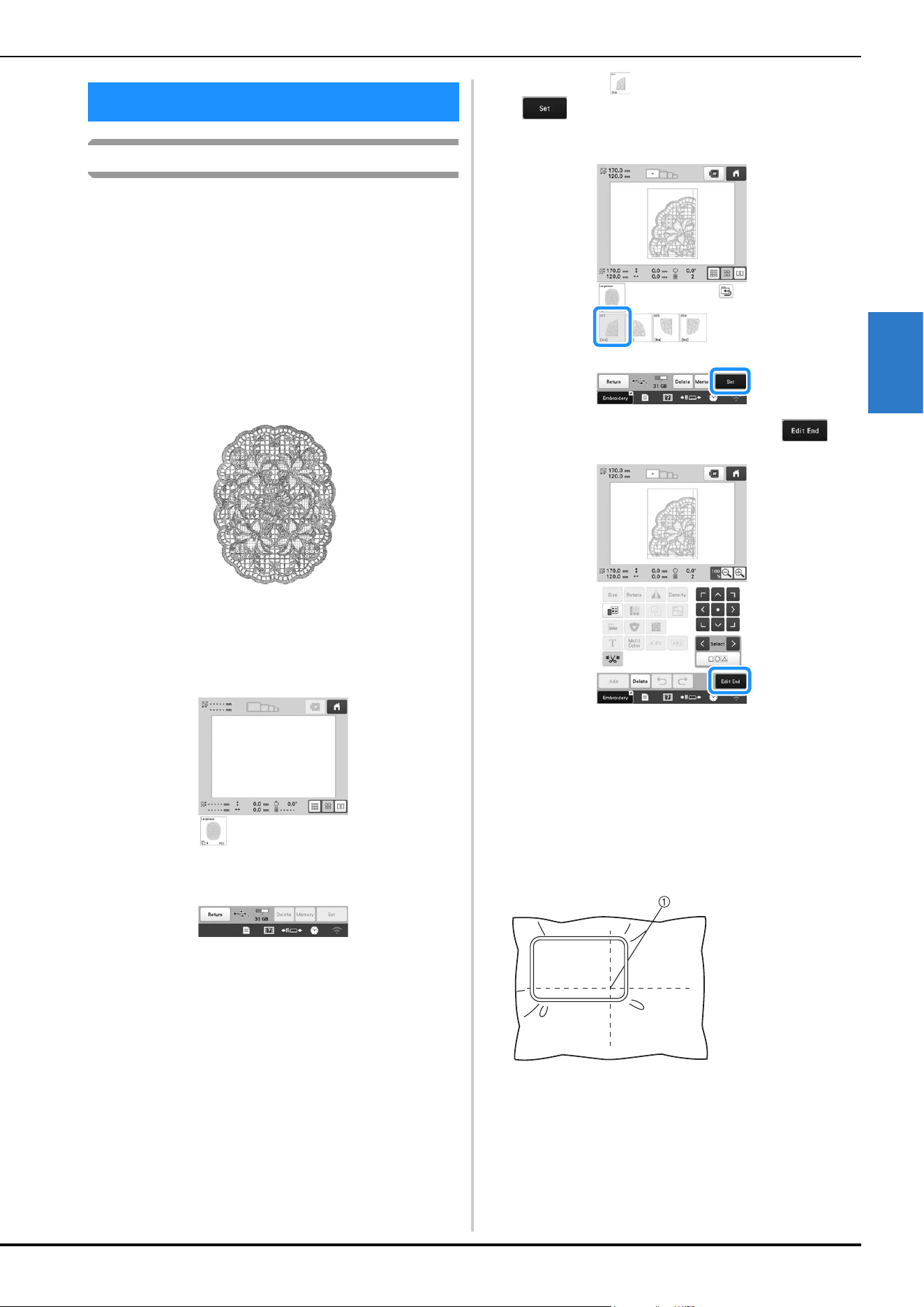

■ Embroidering the pattern repeatedly
After creating the repeated pattern, rehoop the fabric in
the embroidery frame and keep embroidering for the next
pattern.
a
Create the repeated pattern with the thread mark at
the center of the end of the pattern. (page 53)
b
Touch , , then .
c
Touch , and then press the “Start/Stop”
button to start embroidering.
When embroidering is finished, the thread mark is
embroidered with the last thread color.
d
Remove the embroidery frame.
e
Rehoop the fabric in the embroidery frame.
f
Attach the embroidery frame to the machine, and then
touch in the embroidering settings screen.
g
Touch .
h
Touch to set the starting point to the left side of
the pattern.
i
Touch .
j
Align the needle drop point with the thread mark on
the fabric.
k
If the pattern position cannot be aligned using the
positioning keys, rehoop the fabric, and then try again
to align the position with the positioning keys.
Memo
• Using the optional magnetic sash frame, the fabric
can be easily rehooped without removing the frame
from the machine. For details, refer to the manual
included with magnetic sash frame.
Note
• Adjust the position of the fabric so that the
embroidering area for the next pattern is within the
embroidering area of the embroidery sheet.
1 Pattern embroidered first
2 Position of pattern to be embroidered next
3 Embroidering area of embroidery sheet
Note
• After you have aligned the position of the combined
border pattern, do not rotate the pattern in the
embroidering settings screen. If the pattern is
rotated in the embroidering settings screen after
alignment, the pattern will not be properly aligned
with the thread mark or starting point.
BASIC EMBROIDERY
55
2
l
Remove the thread mark.
m
Touch .
n
Touch , and then press the “Start/Stop”
button to start embroidering.

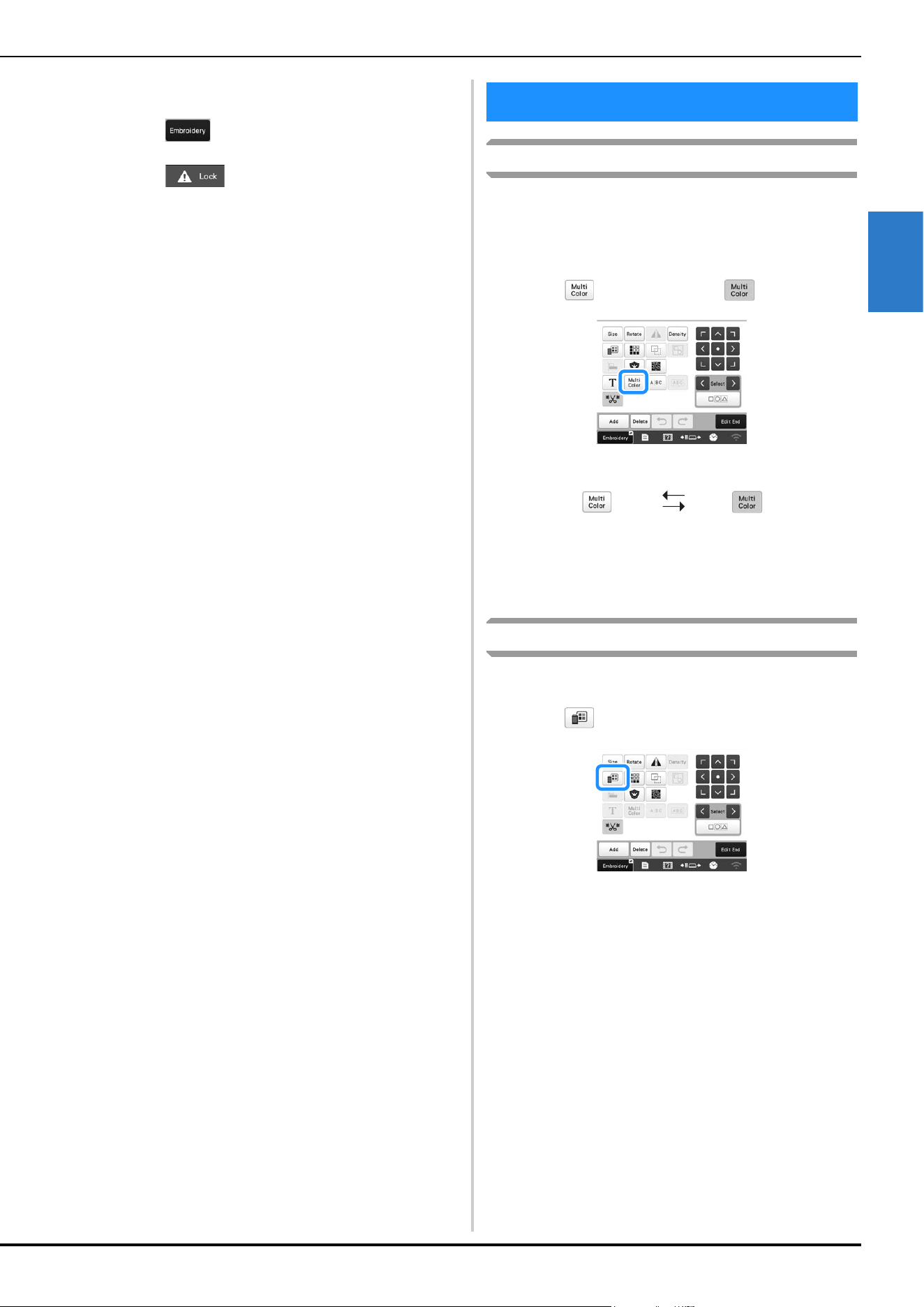

Specifying multi-color text
The alphabet pattern characters selected on page 41 are set to
black. The color of the characters can be changed using the
change thread color key; however, to change the color of
individual characters, touch the Multi Color key to turn it on,
and then specify the color for each character.
a
Touch so that it changes to .
• Each touch of the key turns the setting either on or off.
• For details on changing the thread color, refer to
“Changing the colors of the pattern” below.

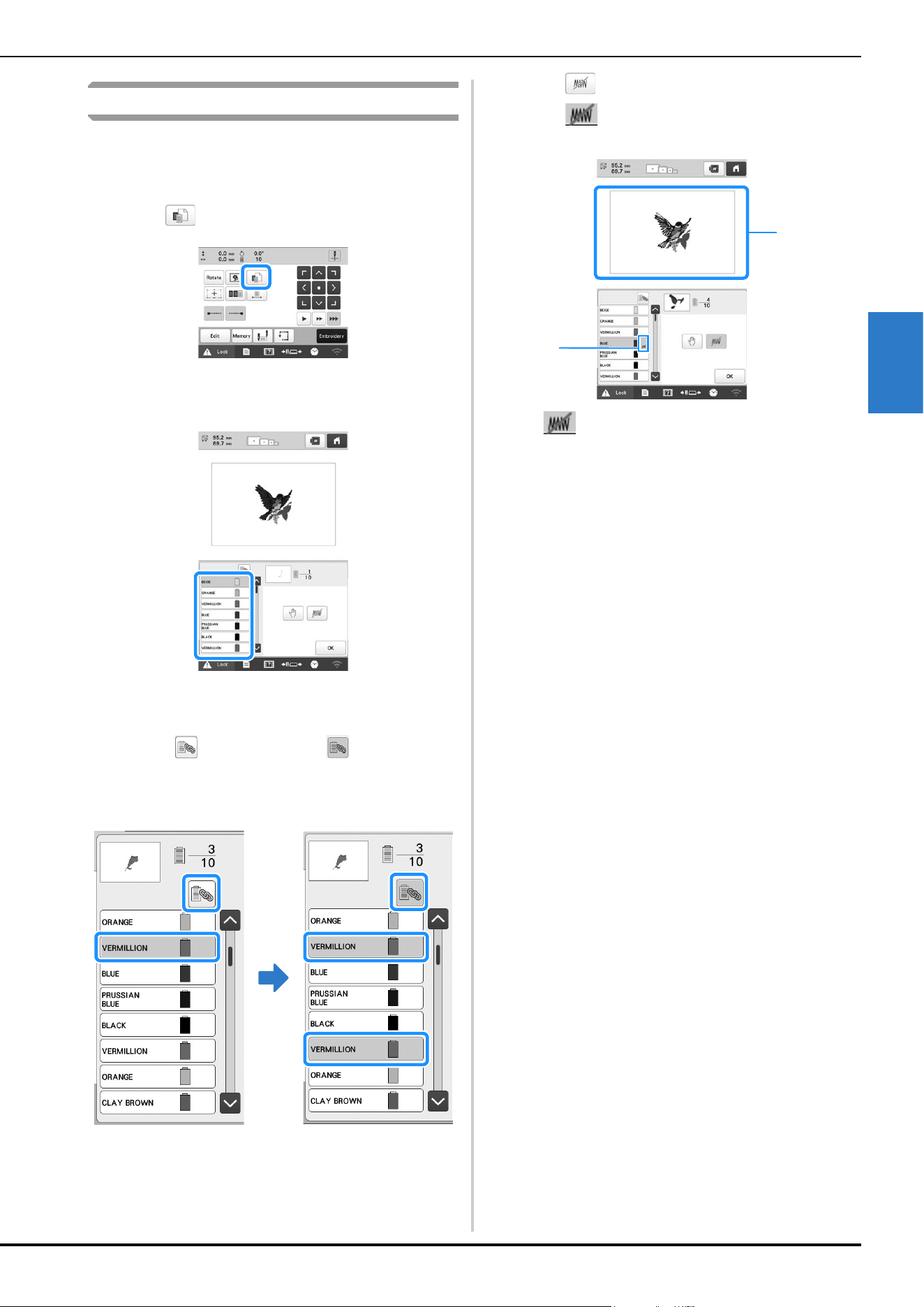

Changing the colors of the pattern
The colors of the pattern can be changed and previewed on
the screen.
a
Touch .
The change thread color screen appears.
b
From the thread color sequence display, select the
thread color whose color is to be changed.
• If the desired thread color is not displayed, use the
scroll bar on the right side to display it.
EDITING COLORS
Multi-color text
turned off
Multi-color text
turned on
56
The selected thread color image appears.
1 Selected thread color image
2 Scroll bar
• To combine the same thread color when it is used
more than once, select the thread color, and then
touch . The key changes to , and all thread
colors in the thread color sequence display that are
the same as the one that was selected are highlighted
in blue.
• The part of the pattern whose thread color is to be
changed can be directly selected in the pattern.
c
Select the thread brand, and then touch , ,
or , or directly touch the desired color, to select
the new color from the color palette.
1 Select the thread brand.
2 The color in the box is the color that is selected.
3 Return to the original color.
4 Displays the name of the selected thread color.
In the pattern display area, the color of the selected
part of the pattern is changed.
d
After changing the colors, touch .

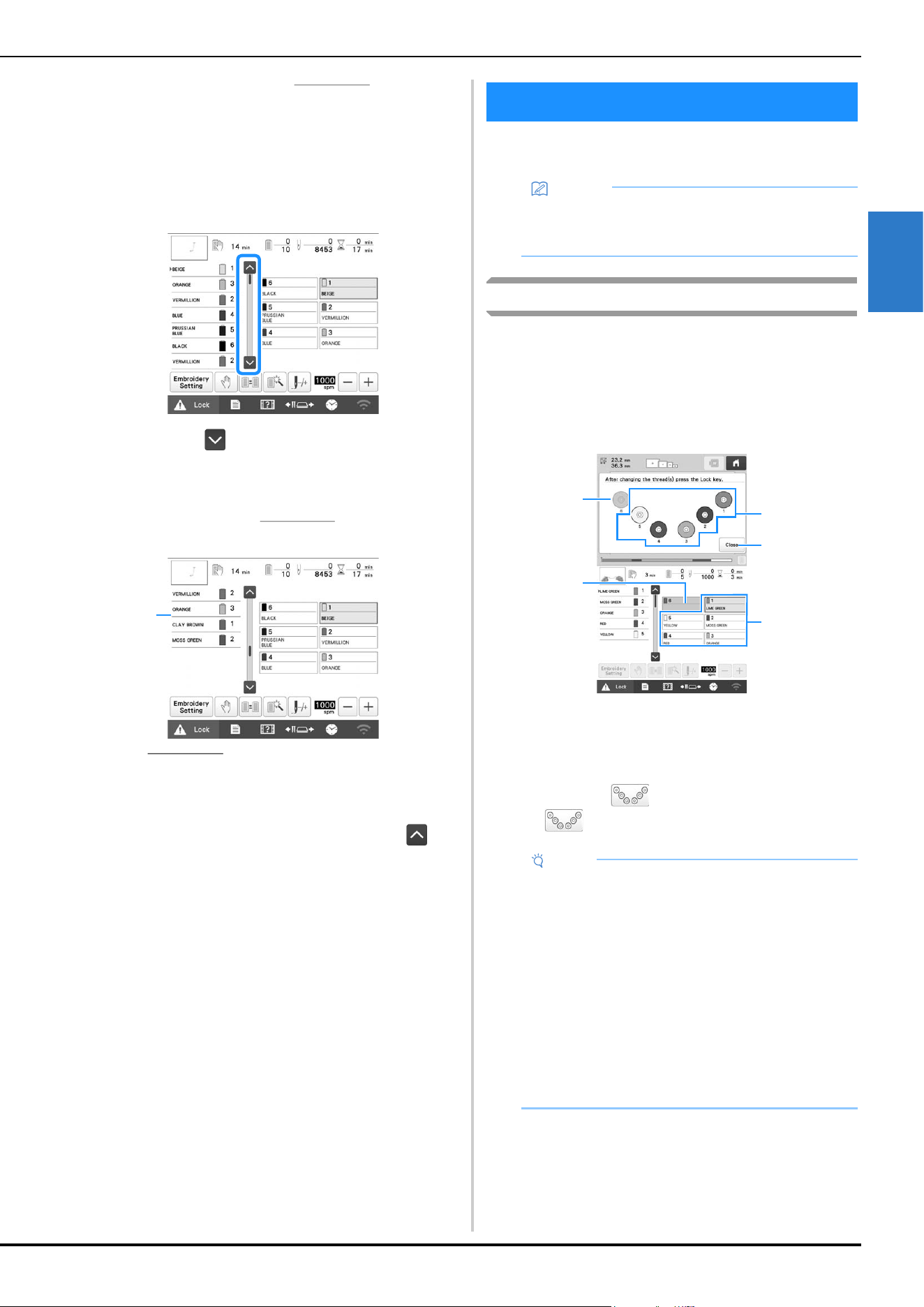

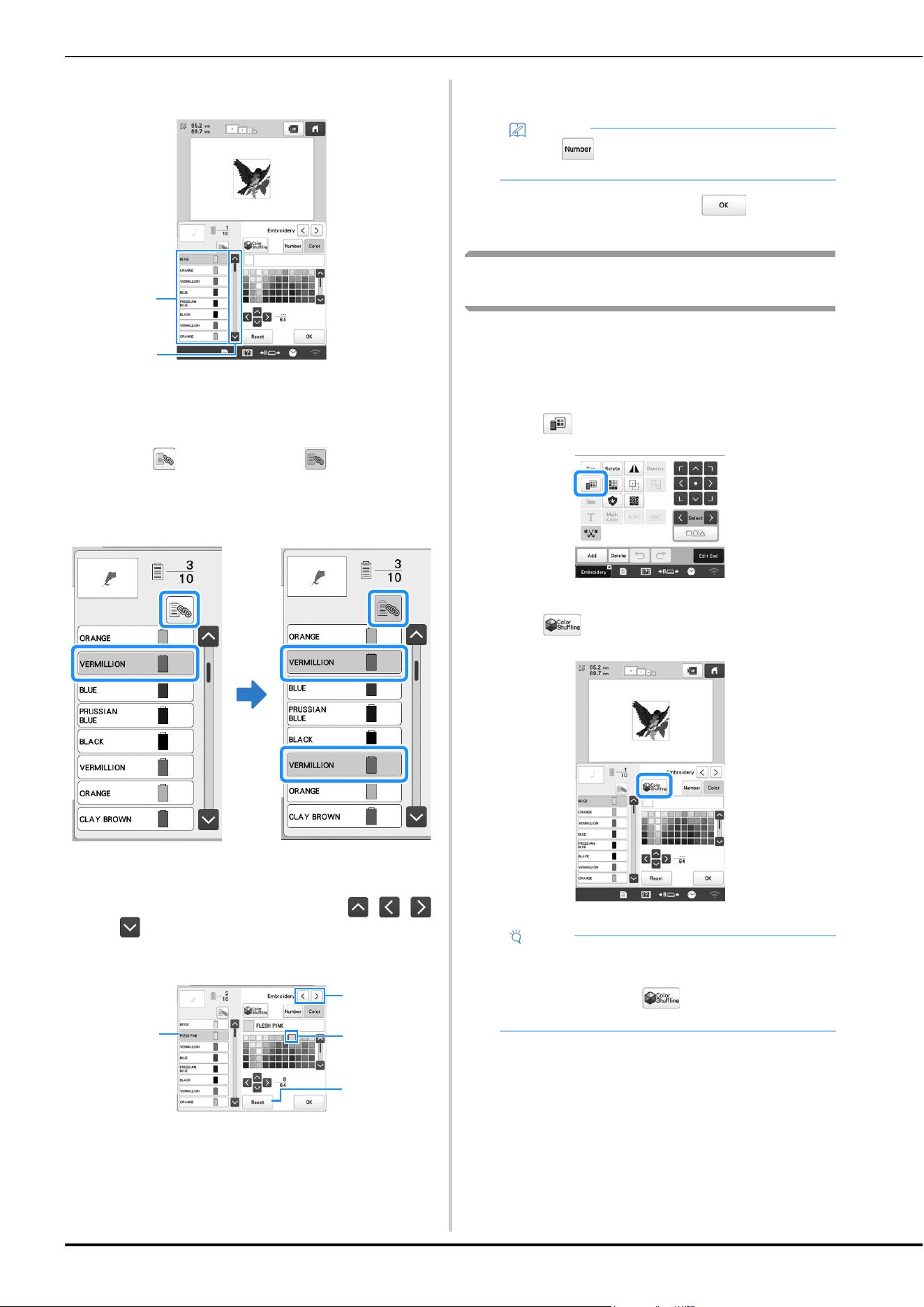

Finding new color schemes with the Color
Shuffling function
With the Color Shuffling function, the machine suggests new
color schemes for the embroidery pattern that you have
selected. After you select the desired effect from one of the
four available color schemes ([Random], [Vivid], [Gradient]
and [Soft]), the sample for the selected effect is displayed.
a
Touch .
The change thread color screen appears.
b
Touch .
1
2
4
2
1
3
Memo
• Touch to specify a thread color by entering
its number.
Note
• This function may not be available depending on
the pattern you select (ex. a bordered pattern,
licensed pattern). If is grayed out, select
another pattern.
BASIC EMBROIDERY
57
2
c
Select the thread brand for colors and the number of
colors you want to create the pattern with.
1 Thread brand for colors
2 Number of colors to be used
d
Select the desired effect.
1 Effects for schemes
If you select [Random] or [Gradient], the color
specifying screen will appear.
* If the thread spool priority key appears as ,
there is no color specifying screen. Proceed to
step
g.
If you select [Vivid] or [Soft], there is no color
specifying screen. Proceed to step
g.
e
Touch to set and specify the thread
color to use in the effect.
* If you don’t need to specify the thread color, just set
to .
[Manual] setting for [Random]
You can select up to 6 colors to be used in the [Random]
effect. The effect will be created using the selected colors.
1 Select colors from the palette.
2 Selected colors are listed.
[Manual] setting for [Gradient]
You can select one color to be used in the [Gradient] effect.
The effect will be created with the color you select.
1 Select a color from the palette.
2 Selected color is displayed.
f
Touch .
g
Select the color scheme from samples.
* Touch to add the new schemes.
Maximum 20 pages of schemes can be reviewed.
1 Touch to review the previous schemes.
Memo
• If you touch so that it changes to ,
thread colors currently on the spool stand will be
selected.
1
2
1
1
2
1
2
1
58

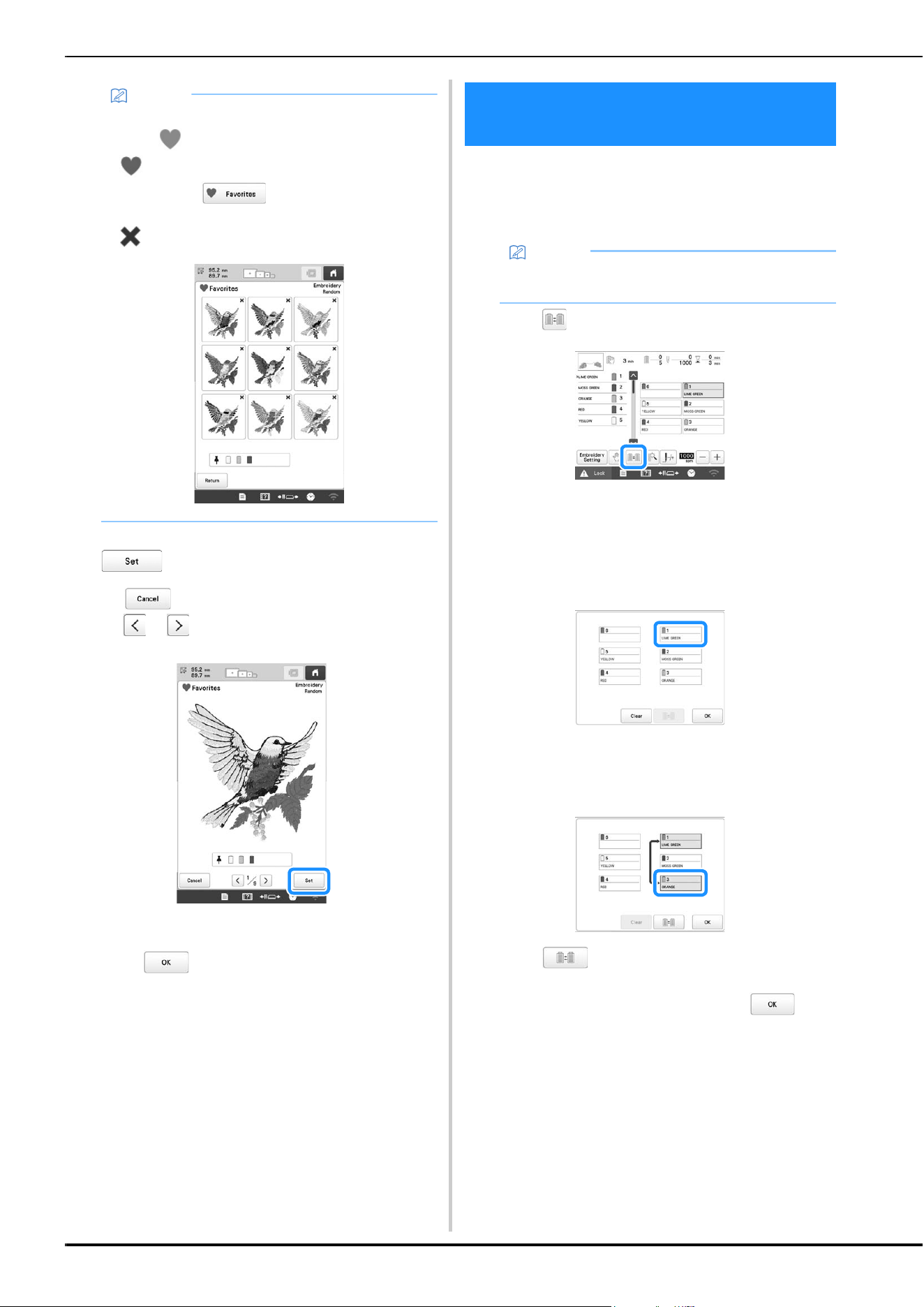

h
Check the displayed color scheme, and then touch
.
* : Return to the previous screen.
* or : Display the other color schemes.
The change thread color screen will appear.
i
Touch to display the pattern editing screen.

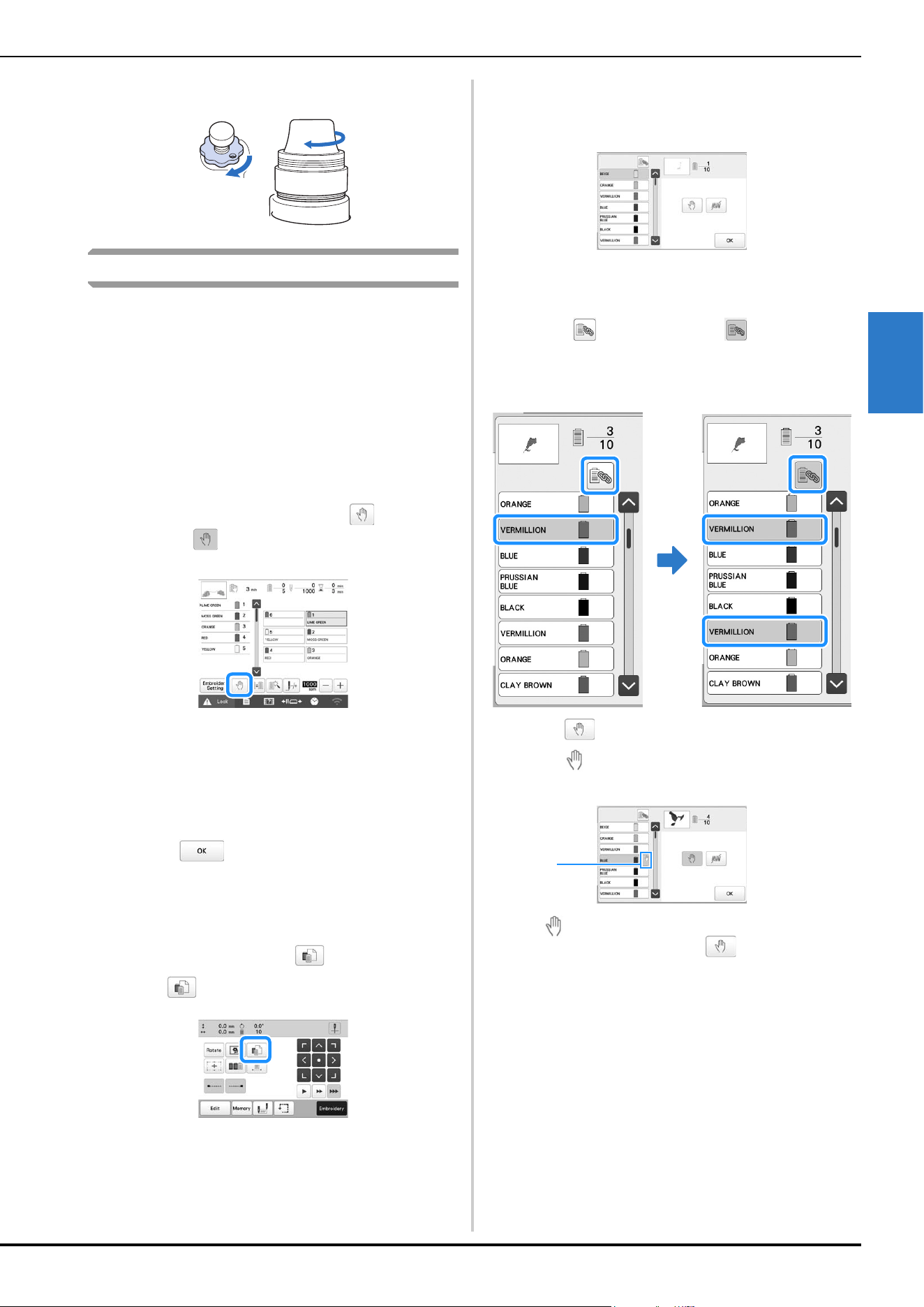

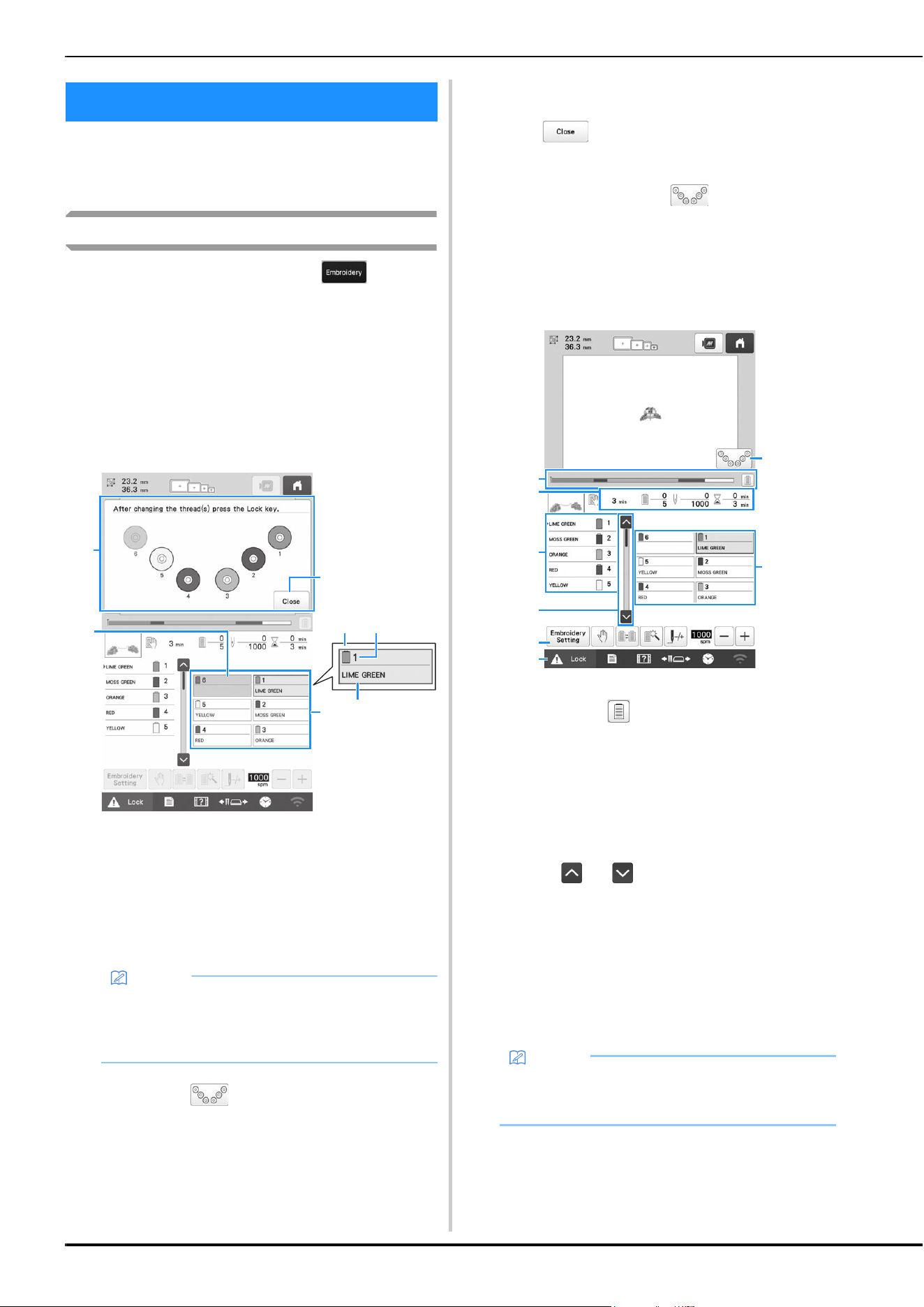

If a thread color on the spool stand is different than the
needle position thread color on the screen, the thread
colors on the screen can be switched to match the spool
stand thread color position.
a
Touch in the embroidering screen.
The spool selection screen appears.
b
Touch the number of the first needle bar that will be
switched.
• To cancel the selection, touch the same needle
number again.
c
Touch the number of the other needle bar that will be
switched. The two needle numbers are connected with
an arrow.
d
Touch to switch the two thread colors.
e
After making the desired changes, touch .
Memo
• To temporarily register your favorite schemes,
touch (to release your favorite schemes, touch
again). 9 color schemes can be saved on the
page. Touch to check the registered
favorite schemes. To cancel the registration, touch
.

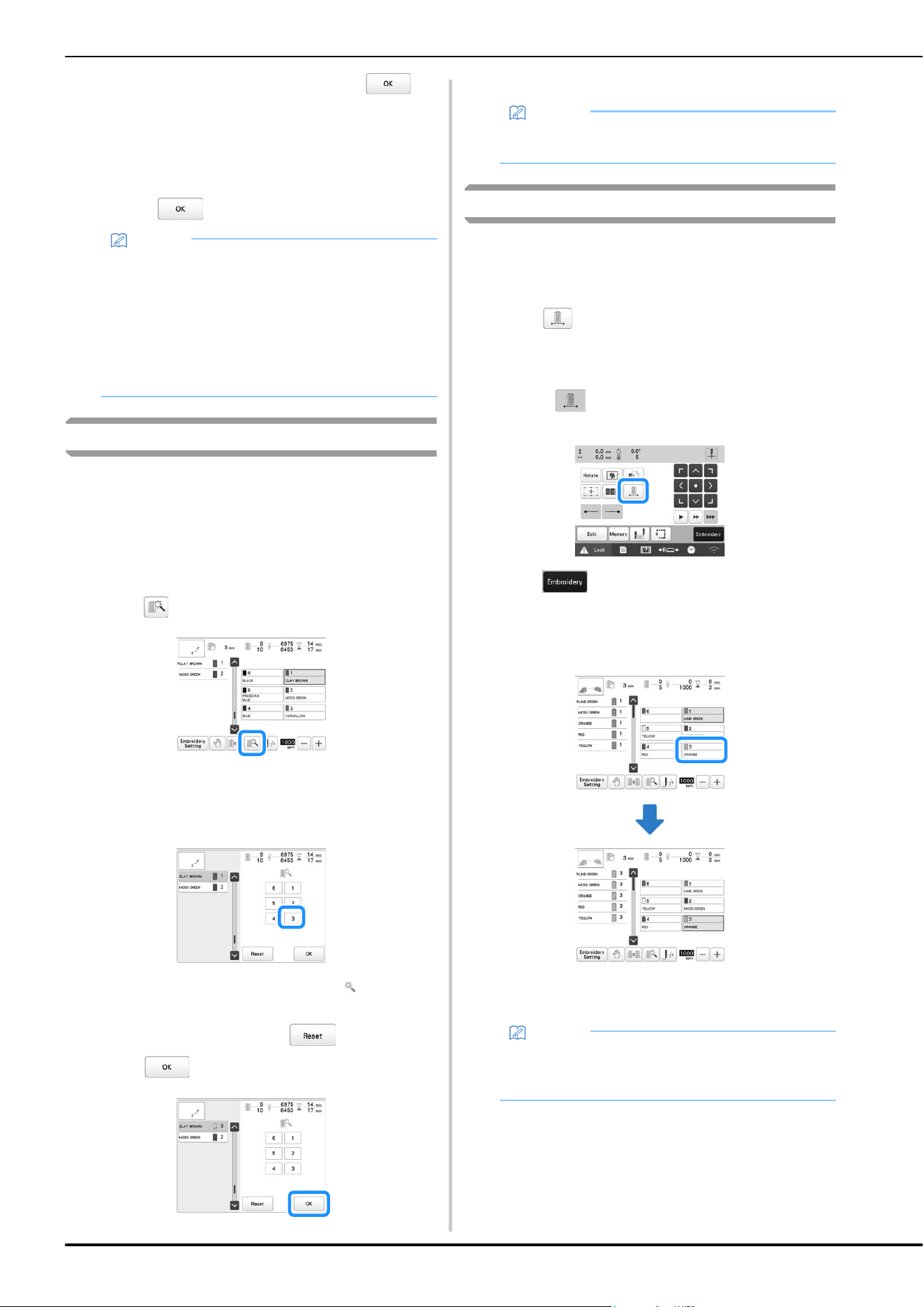

SWITCHING THE THREAD COLORS
ON THE SCREEN
Memo
• This function is not available when you set [Manual
Color Sequence] to [ON] in settings screen.
BASIC EMBROIDERY
59
2

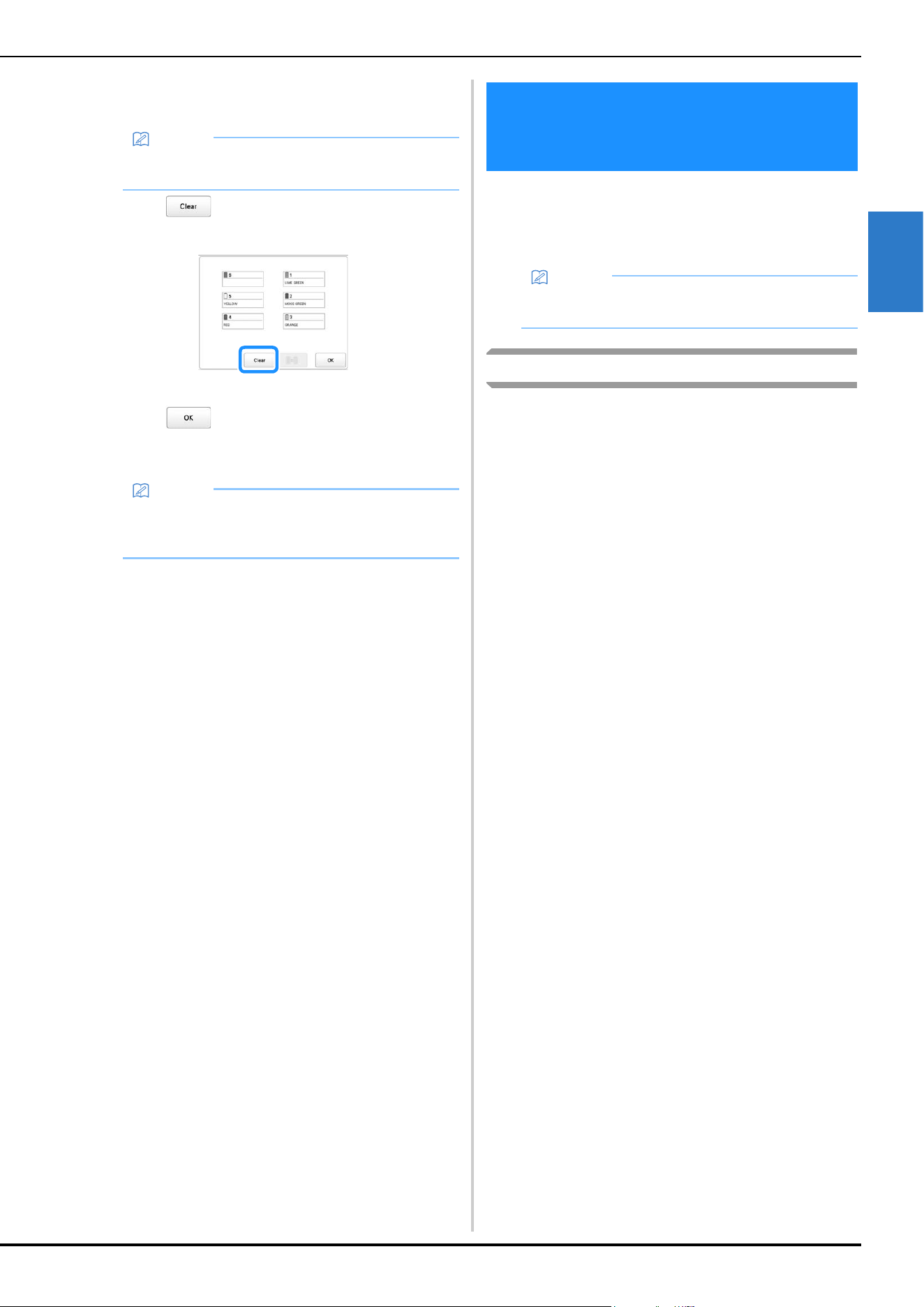

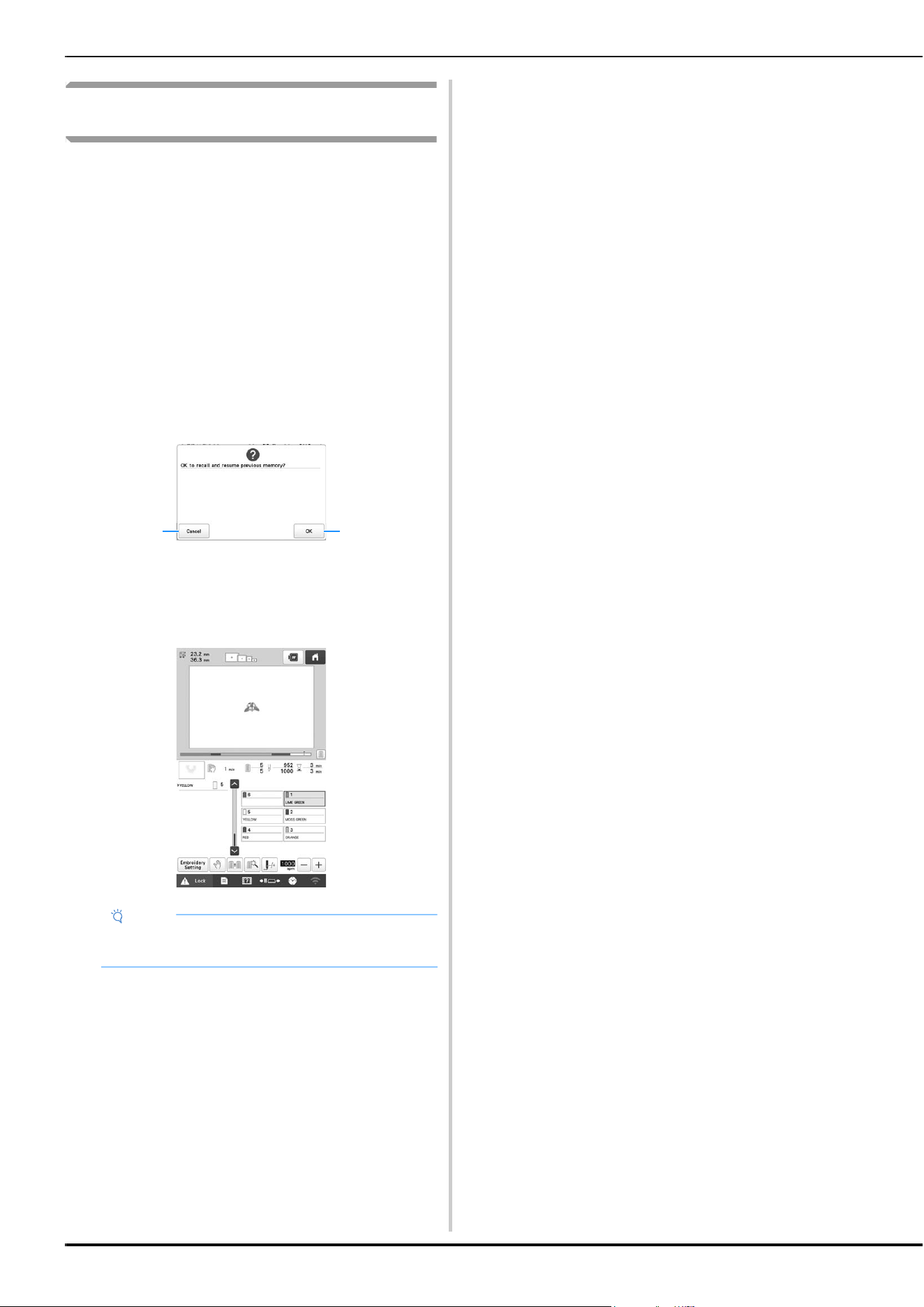

■ To cancel the thread color settings for all
previously stitched design
a
Touch .
The thread color setting is canceled.
b
Touch .
Thread colors are assigned by the machine again,
regardless of the previous spool setting.
The thread colors assigned to each needle bar can be
manually specified/managed. In addition, the thread colors
can be assigned to needle bars automatically and more
efficiently than when the settings are normally specified.
Convenience of the manual color sequence
The manual color sequence is convenient when the machine
is being used under the following conditions.
■ When using embroidery data that has no
thread color information, such as with DST
files
The thread spools to be used can easily be selected for
data with no thread color information. (For details, refer to
“SPECIFICATIONS” on page 156.)
■ When the same combination of thread colors
is always used
If specific thread colors are assigned to certain needle
bars, the thread color settings can be changed with the
needle bar number assignments, even when the pattern is
changed. The operation is simplified if the same thread
colors are always used.
■ When continuously embroidering with the
same needle bar settings
If the settings are specified normally, the needle bar
settings are canceled when the embroidering settings
screen appears after embroidering stops. However, with
[Manual Color Sequence], the needle bar settings
continue to be applied unless the pattern is deleted or the
machine is turned off.
This is useful if the same pattern is to be embroidered
continuously multiple times.
Memo
• The color settings will be completely canceled even
if the machine is in the middle of the embroidery.
Memo
• This function will not clear anchor settings of any of
the needles which have been assigned a thread
color. (page 107)
SELECTING/MANAGING THREAD
COLORS FOR EACH NEEDLE BAR
[Manual Color Sequence]
Memo
• This function cannot be used when the machine is
in Link mode.
60
Specifying the manual color sequence
a
Touch , then .
The general settings screen appears.
b
Locate [Manual Color Sequence] in the Settings pages.
c
Touch [ON] to select the manual color sequence.
• When the machine is purchased, [OFF] is selected.
d
Touch to return to the previous screen.
The icon for [Manual Color Sequence] appears in the
screen.
Using the manual color sequence
■ Manually assign thread colors to all needle
bars
By specifying the thread colors used with this machine,
embroidery can continue more efficiently simply by
changing the needle bar assignments after a pattern is
selected. With the normal method of specifying settings,
only a maximum of 5 needle bars can be manually
assigned thread colors; however, with the manual color
sequence, all 6 needle bars can be assigned thread colors.
(For details on specifying the settings, refer to page 107.)

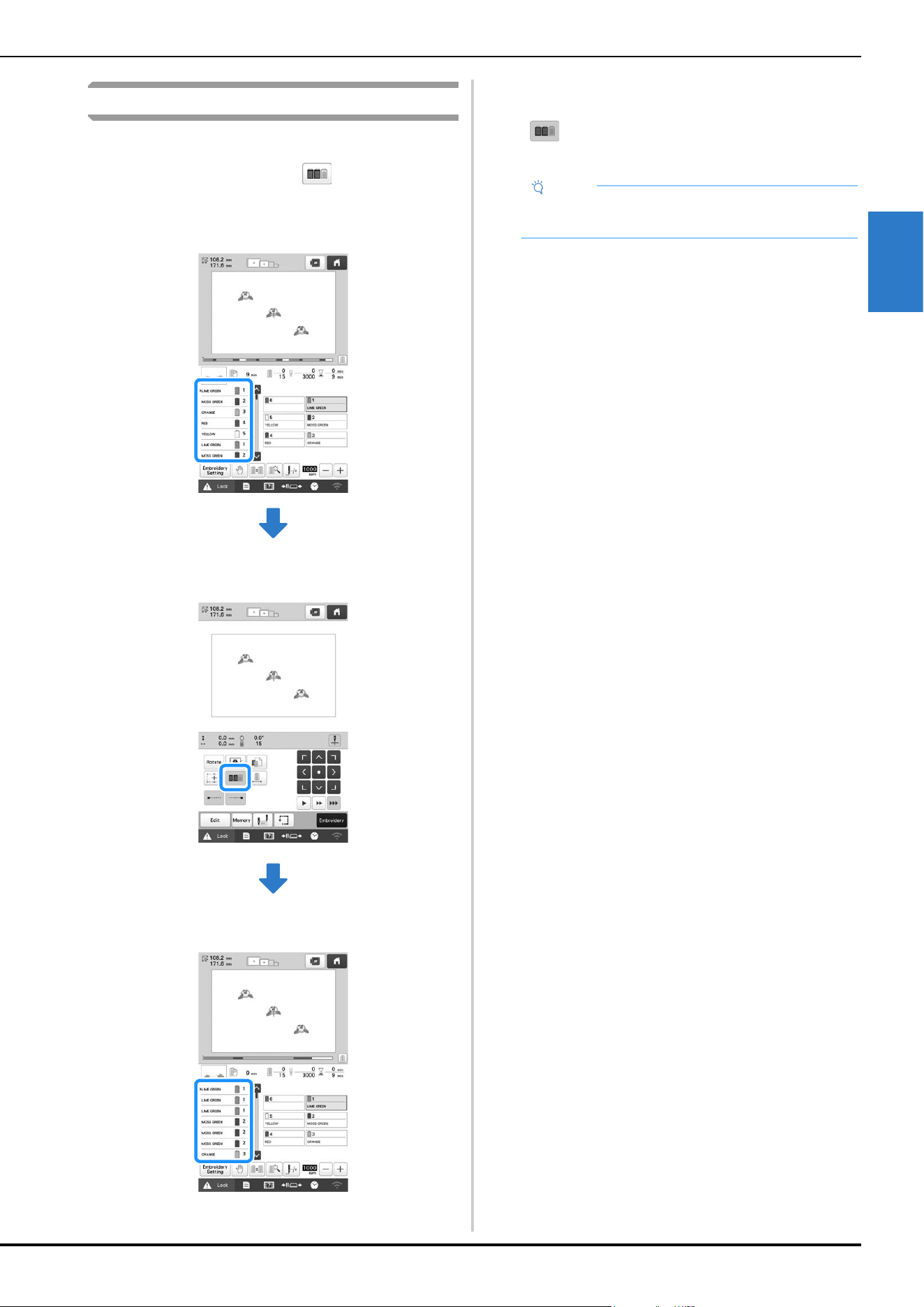

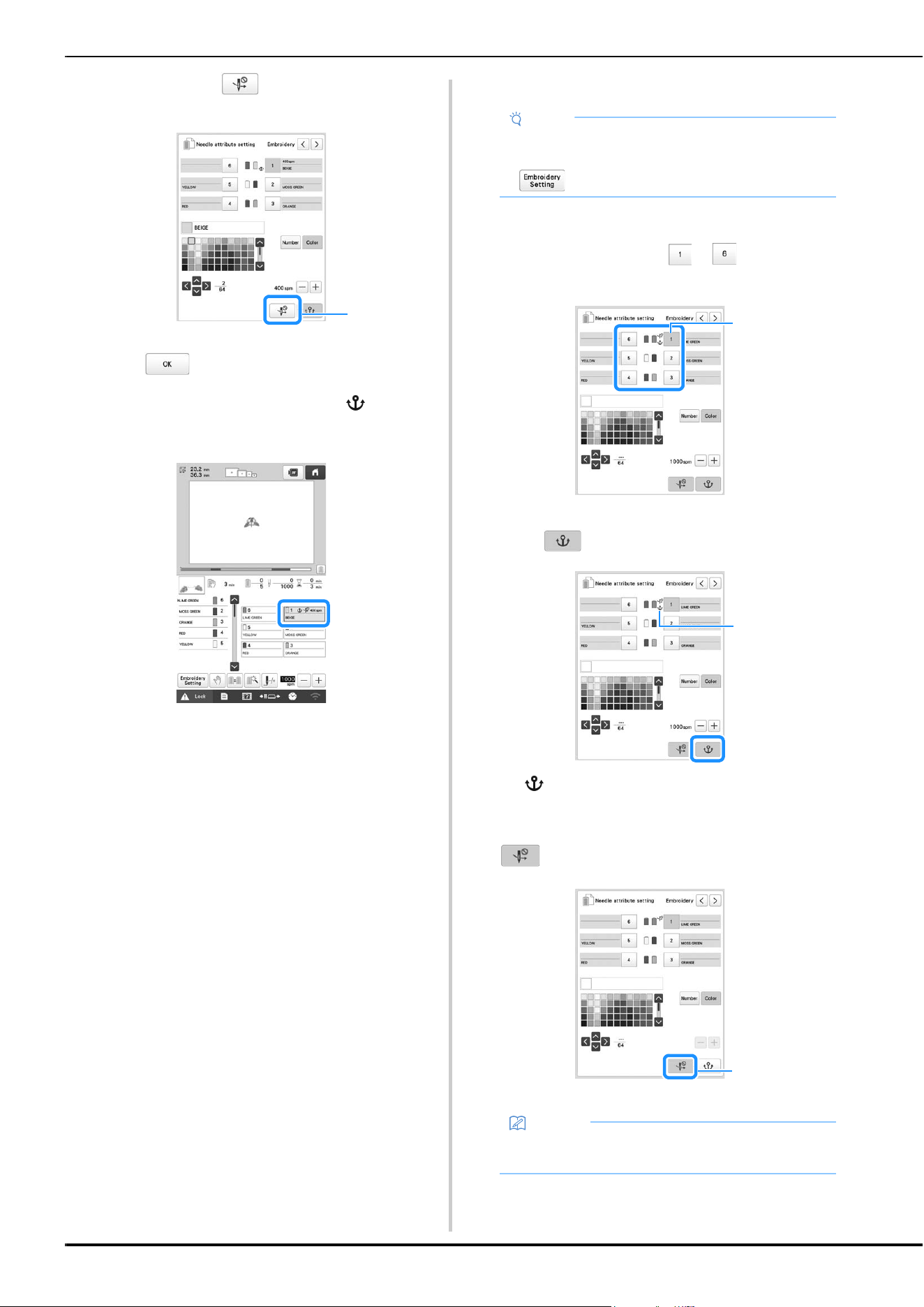

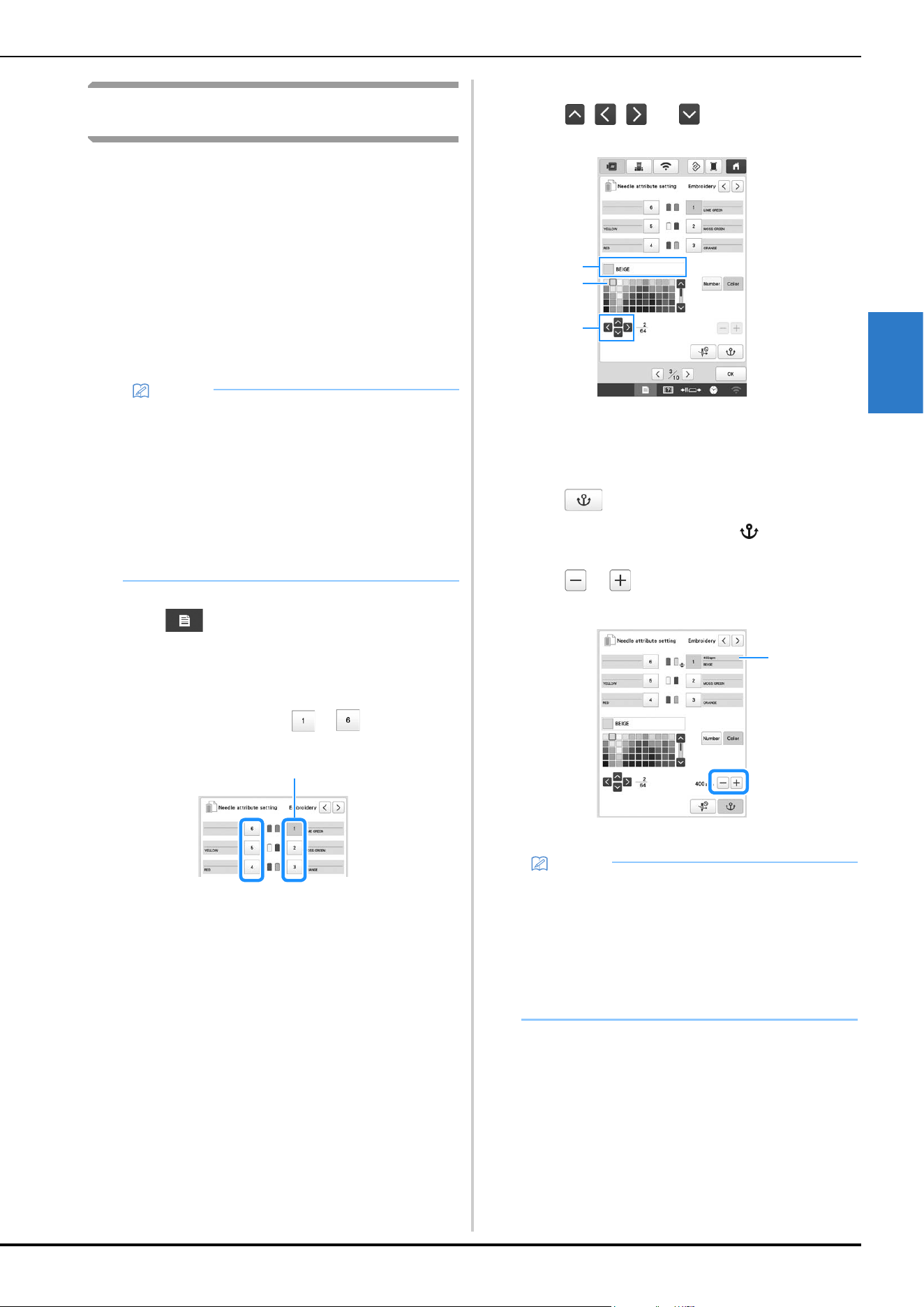

■ Needle bar number settings
The needle bar used with each thread color can be
specified.
a
In the embroidering settings screen, touch .
A screen appears, allowing the needle bar numbers
to be selected.
b
From the thread color sequence display, select the
thread color whose needle bar is to be changed.
• If the desired thread color is not displayed, use the
scroll bar on the right side to display it.
1 Scroll bar
Memo
• The [Manual Color Sequence] cannot be changed
while operations are being performed in the
embroidering screen.
Memo
• Using the procedure described in “Reserved
needle bar and embroidery speed settings” on
page 107, the finished embroidery colors can be
checked in the screen if thread colors are assigned
to thread spools.
1
BASIC EMBROIDERY
61
2
c
Touch a number button (between and ) to
select the number of the needle bar whose settings are
to be specified.
The needle bar number for the thread color selected
in step
b changes to the selected needle bar
number.
If the needle bar number was specified with reserved
needle bar settings, the color of the thread spool on
the left side changes to the specified thread color,
and the pattern in the pattern display area also
changes to the color of the specified needle bar.
1 Needle bar number specified with reserved needle bar
settings
2 Needle bar set to a different number (needle bar 2)
3 If a color is selected by touching this key, the machine
stops before embroidering the selected color.
4 If a color is selected by touching this key, the machine
does not embroider the selected color when
embroidering.
• 4 takes precedence if 3 and 4 are set at the same
time.
■ Initializing thread color settings
With the manual color sequence, the thread color
information on the machine can be initialized each time a
new pattern is selected, and then the needle bars can be
assigned. This allows the needle bar settings to be
specified without being affected by the thread color
information from the previous pattern.
Precautions on the manual color sequence
■ When embroidering a pattern containing seven
or more colors
With the manual color sequence, the machine does not
monitor the timing for replacing thread spools. Since the
machine does not automatically stop and no message
indicating that the thread spool be changed appears, as
with the normal needle bar settings, follow the procedure
below to set the machine to stop with thread spools that
must be changed.
•Step
c of “Using the manual color sequence” on
page 60
• “Stopping the machine at the next color change” on
page 105
• “Specifying pause locations before embroidering” on
page 105

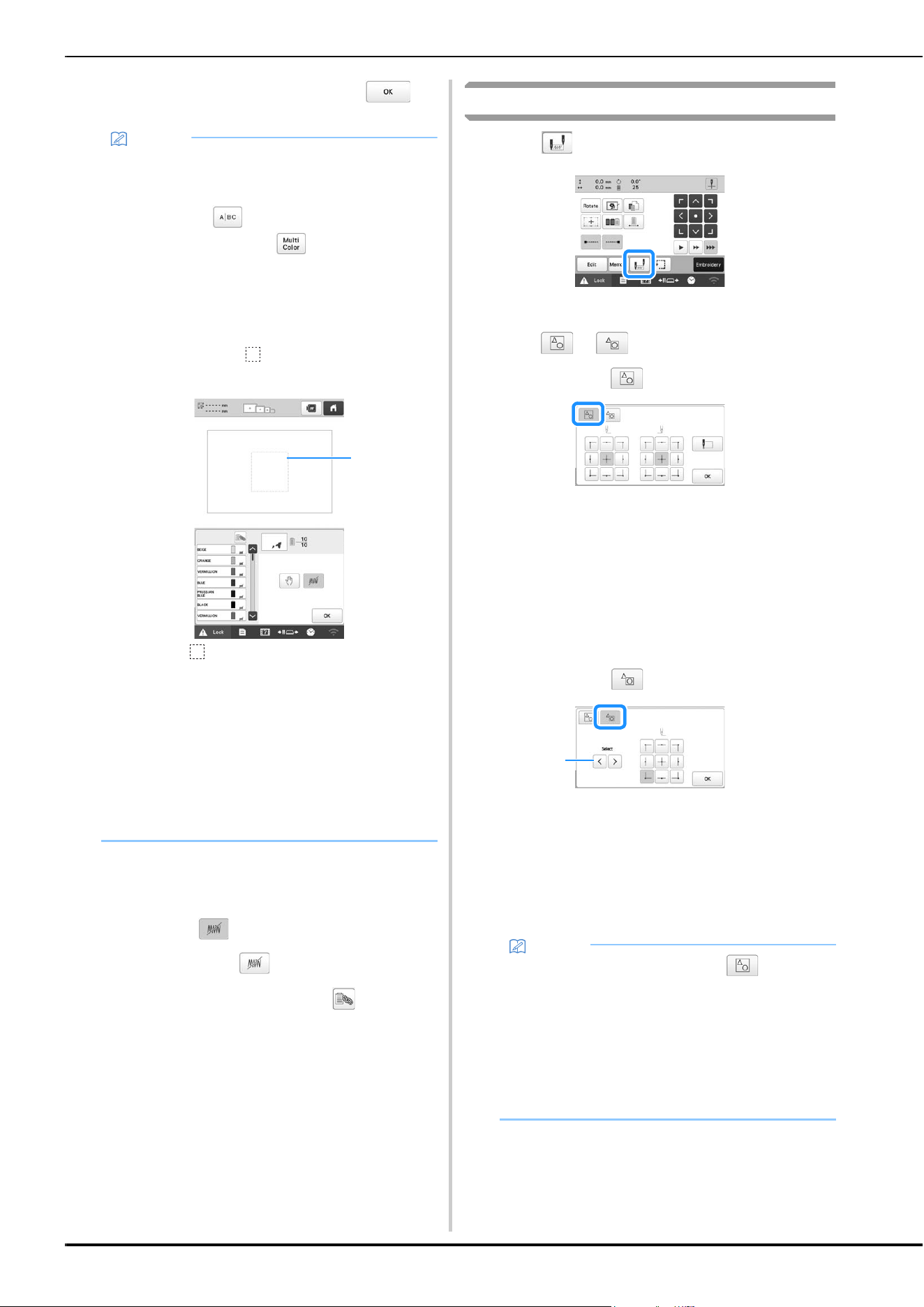

Checking a preview image
Display the preview image to check that the embroidery will
be performed as desired.
a
Touch .
The preview image is displayed.
b
Touch or to display the desired type of frame,
and then select the embroidery frame.
• After determining the type of embroidery frame
holder and size of embroidery frame that are best for
your embroidery, change the embroidery frame
holder and embroidery frame that are installed. The
machine will automatically detect the embroidery
frame holder and embroidery frame and change the
display.
c
Touch to check the embroidering order.
The stitch simulator screen appears.
1 Select the simulation speed.
2 Operation keys
• Touch to return to the embroidery frame
holder/embroidery frame selection screen.
d
Touch to return to the previous screen.
2
3
4
1
PREVIEWING THE IMAGE
Memo
• A preview image in a landscape orientation cannot
be rotated to a portrait orientation, even if there is
space at the top and bottom.
1
2
62

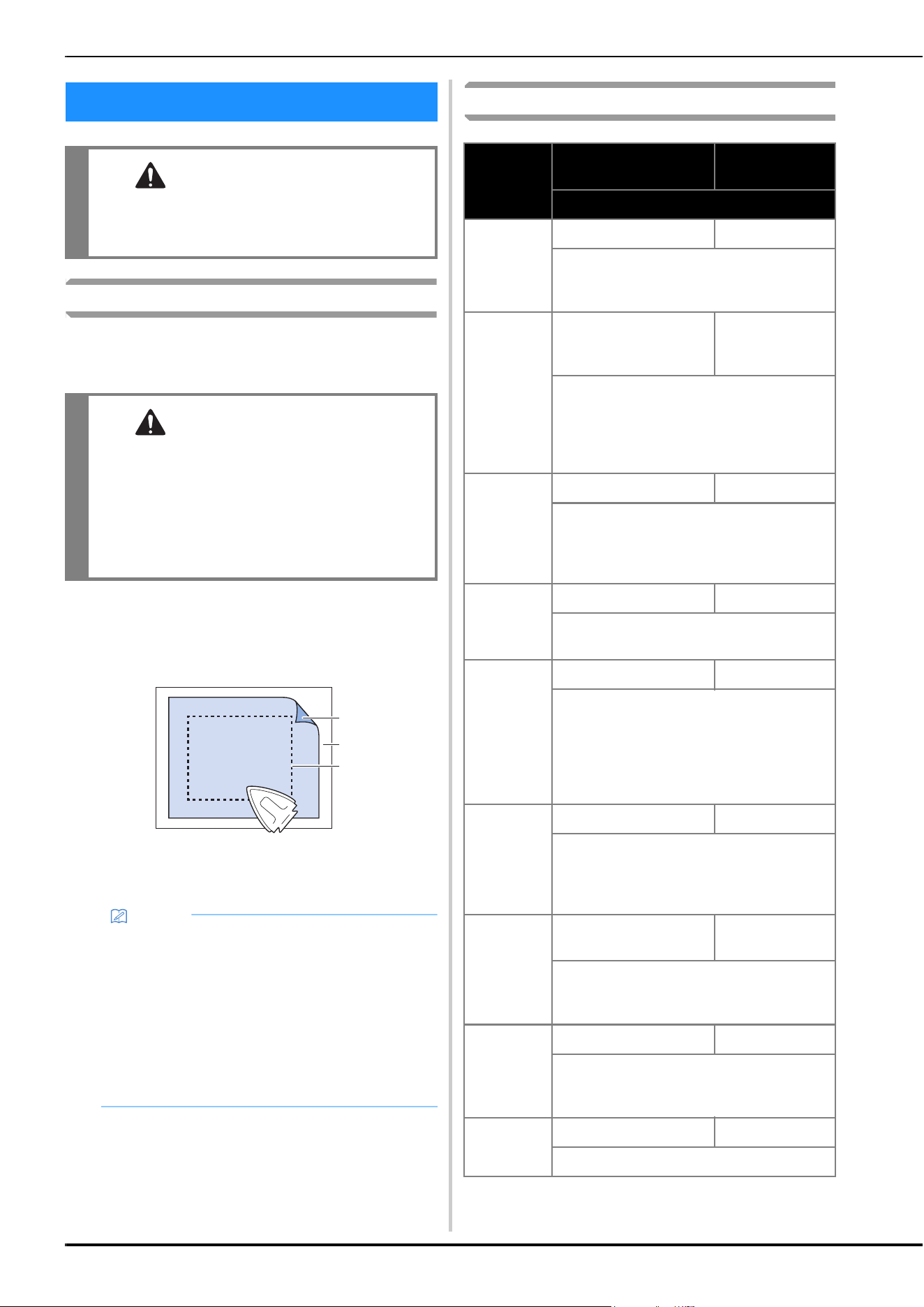

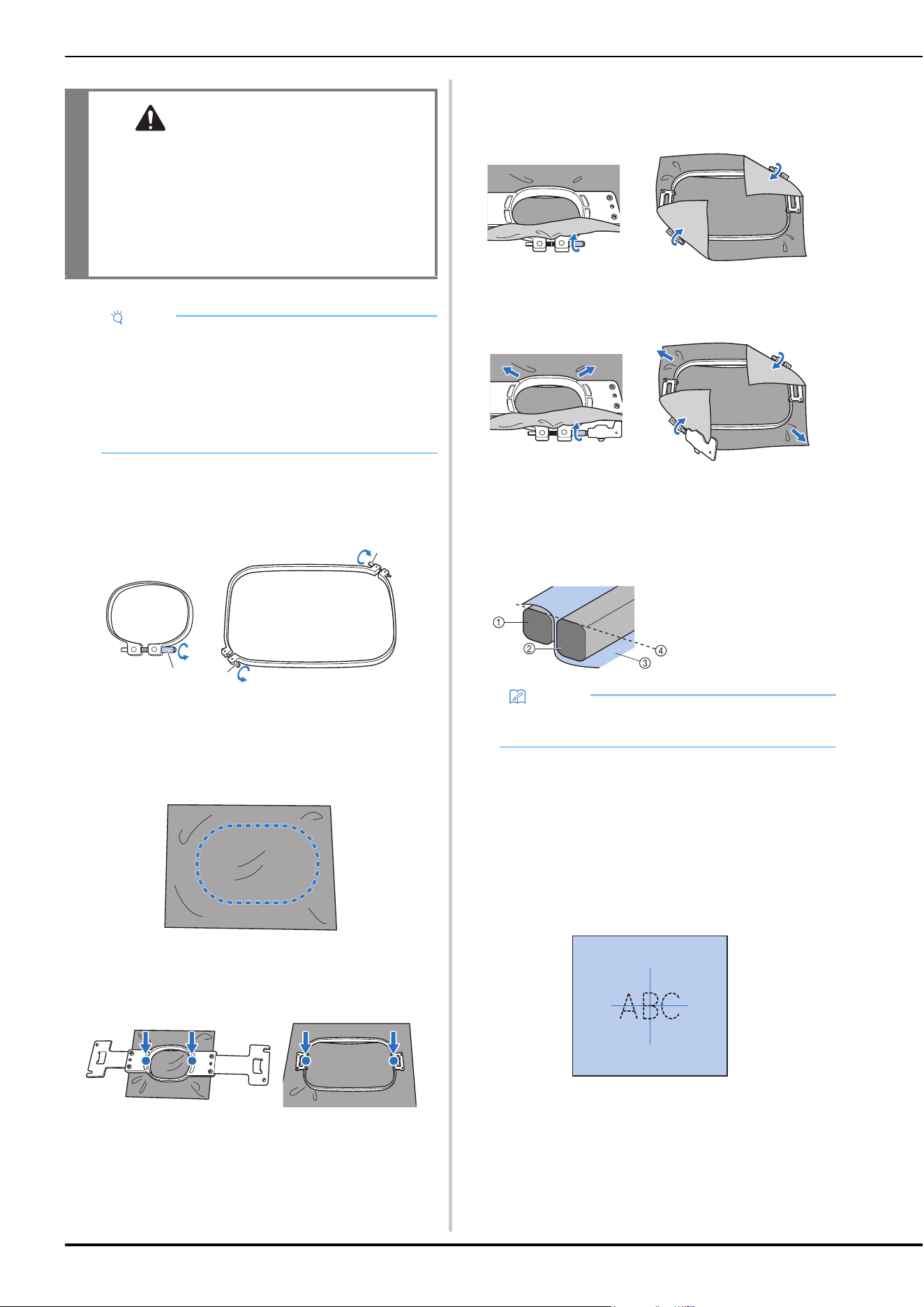

Attaching stabilizer (backing) to fabric
In order to prevent shrinkage of the stitching or misaligned
patterns, we recommend that stabilizer (backing) be used for
embroidering.
a
Using a steam iron, affix the iron-on stabilizer
(backing) to the back of the fabric.
• Use a piece of stabilizer which is larger than the
embroidery frame being used.
1 Adhesive side of iron-on stabilizer (backing)
2 Fabric (wrong side)
3 Size of the embroidery frame
Fabric/stabilizer compatibility chart
PREPARING THE FABRIC
CAUTION
• Your machine can embroider fabric that is up
to 2 mm (5/64 inch) thick. If thicker fabric is
embroidered, the needle may bend or break.
CAUTION
• When embroidering on thin or stretch fabrics,
fabrics with a coarse weave or fabrics that
easily allow the stitching to shrink, be sure to
use stabilizer (backing) for embroidering. If
stabilizer (backing) is not used while
embroidering, the needle may bend or break
or the pattern may become misaligned.
Memo
• When embroidering light or open designs on thin
fabrics, such as organza or lawn, use a water-
soluble stabilizer (backing). Water-soluble
stabilizers dissolve when washed, allowing you to
create beautiful embroidery that is not stiff.
• When embroidering fabric that should not be
ironed or when embroidering an area that is difficult
to iron, hoop a layer of the stabilizer (backing)
under the fabric in the embroidery frame without
ironing it.
b
a
c
Fabric/
Garment
No. of Backing Pieces
No. of Topping
Pieces
Comments
Terry cloth
1 tear-away 1 water-soluble
Increase density and/or satin stitch width.
Fine details and small lettering tend to get
caught in the terry loops.
Satin jacket
Heavy lining: None
Light or no lining: 1 tear-
away
None
If garment slips in frame, causing alignment
problems, wrap inner frame with masking
tape or fabric bias tape. This provides a rough
surface to grip garment and also helps
minimize frame burn.
Cotton
sheeting
1 tear-away None
High-density or highly detailed designs may
require more backing. If so, use two pieces of
lightweight backing instead of one piece of
heavy backing.
Denim
1 tear-away None
Reduce speed if needle begins to heat up and
the thread breaks.
Headwear
Optional Optional
Change needles more often than usual
because the buckram backing dulls needles
faster. A lightweight tear-away backing helps
reduce thread breaks and regulates thread
tension. Use a topping on corduroy or foam
cap fronts.
Dress shirt
(woven)
1 tear-away None
High-density or highly detailed designs may
require more backing. If so, use two pieces of
lightweight backing instead of one piece of
heavy backing.
Golf shirt
1 cut-away or iron-on
cut-away
Optional
Use topping for designs containing small
lettering or a lot of detail, and also for piqué
knits.
Canton
fleece
1 tear-away Optional
Use a topping if the garment has a textured
surface, such as a basketweave or
pronounced twill.
Canvas
1 tear-away None
Frame tightly.
BASIC EMBROIDERY
63
2

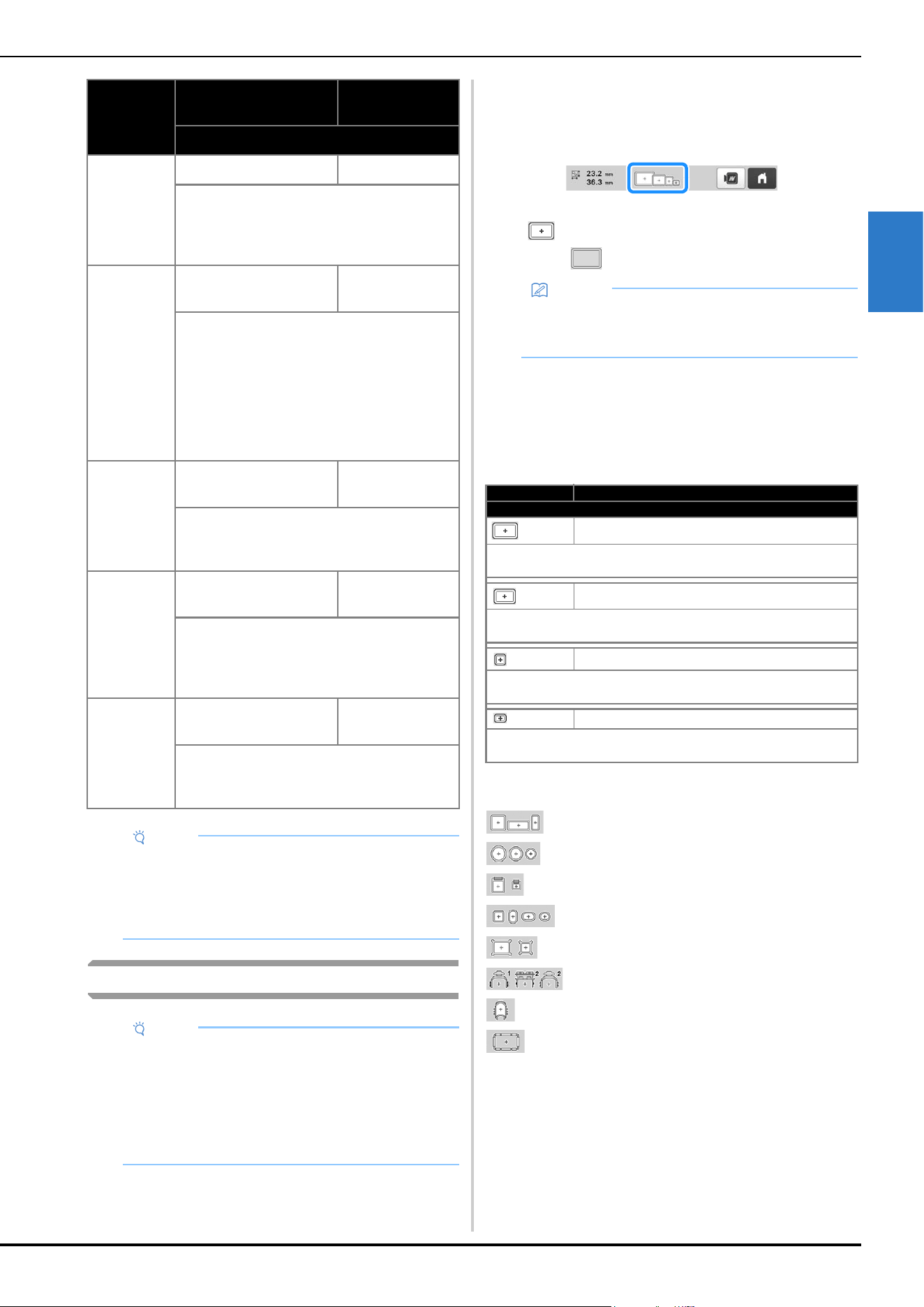

Hooping the fabric in the embroidery frame
a
Select an embroidery frame.
From the sizes of embroidery frames indicated in the
screen, select the embroidery frame that you wish to
use.
Embroidery frames that can be used appear lighter
( ) embroidery frames that cannot be used appear
darker ( ).
■ Embroidery frame types
There are four sizes of embroidery frames included with
this machine, which are used with the included
embroidery frame holder A. For details on the uses for
each frame, refer to “Correctly using the embroidery
frames” on page 67.
If you use any of the optional embroidery frames, the
following icons appear in the screen.
: Embroidery frame holder B
: Embroidery frame holder C
: Embroidery frame holder D
: Embroidery frame holder E
: Embroidery frame holder F
: Cap frame
: Cylinder frame
: Magnetic sash frame
Corduroy
1 tear-away 1 water-soluble
A higher stitch density or more under
stitches, as well as a topping, may be
necessary to prevent stitches from sinking
into the fabric.
Lingerie or
silk
1 or 2 lightweight tear-
away
Optional
Reduce embroidery speed. The thread
tension should be low. Use topping for
designs with high detail or small lettering. For
very fine fabrics, use a thinner thread. Avoid
extremely narrow satin stitching on letters or
details; instead increase satin stitch width or
use a bean stitch. Gently remove (don’t pull)
backing and topping from garment.
Sweater knit
1 cut-away or iron-on
cut-away
1 water-soluble
Use tightly woven organza or curtain fabric
in a matching color as a backing for bulky or
“holey” knits.
Sweatshirt
1 cut-away or adhesive
tear-away
Optional
Highly detailed designs may require two
layers of lightweight cut-away stabilizer. Use
a topping on extra-thick fabrics or with fine-
detail designs.
T-shirt
1 light-weight cut-away
or iron-on cut-away
Optional
Use a topping on designs with fine detail or
small lettering. Tensions should be light.
Avoid stitch-heavy designs.
Note
• Due to the wide variety of fabrics and stabilizers
available, the above information should be used as
guideline only. If unsure of a particular fabric/
stabilizer combination, please embroider a test
sample prior to the finished garment.
Note
• If the fabric is not taut, the pattern may be
misaligned or the fabric may pucker. Follow the
procedure described below to firmly smooth the
fabric in the embroidery frame so that the fabric is
not loose. In addition, be sure to work on a level
surface when putting the fabric in the embroidery
frame.
Fabric/
Garment
No. of Backing Pieces
No. of Topping
Pieces
Comments
Memo
• If the embroidery frame holder is not attached to
the machine, the embroidering area will not display
the correct frame size. (page 66)
Icon Name
Embroidery area
Extra-large embroidery frame
300 mm (W) × 200 mm (H)
(11-3/4 inches (W) × 7-7/8 inches (H))
Large embroidery frame
180 mm (W) × 130 mm (H)
(7-1/8 inches (W) × 5-1/8 inches (H))
Medium embroidery frame
100 mm (W) × 100 mm (H)
(4 inches (W) × 4 inches (H))
Small embroidery frame
60 mm (W) × 40 mm (H)
(2-3/8 inches (W) × 1-1/2 inches (H))
64
■ Hooping the fabric in the embroidery frame
a
Loosen the screw on the outer frame.
1 Small or medium embroidery frame
2 Extra-large or large embroidery frame
3 Screw
b
Place the stabilizer and fabric with right side up on top
of the outer frame.
• The outer frame does not have a front or back side.
Either side can be used as the front.
c
Press the inner frame into the outer frame.
• Be sure that there are no wrinkles in the fabric after it
is hooped in the embroidery frame.
d
Lightly tighten the screw.
• Align the inner and outer frames so that their tops are
even.
e
Securely tighten the screw, and then check to make
sure that the fabric is taut.
• Use the 3-way screwdriver to tighten the screw
securely.
• After securing the fabric, lightly tapping it should
produce a drum-like sound.
• Firmly clamp together the inner and outer frames so
that their tops are even.
■ Using the embroidery sheet
In order to hoop the fabric so that the pattern will be
embroidered in the correct position, use the guidelines on
the embroidery sheet to accurately align the fabric in the
frame.
a
With a fabric marker, mark the area of the fabric you
want to embroider.
CAUTION
• Use the four included frames or recommended
optional frames.
• If the size of the embroidery frame is wrong,
the embroidery frame may hit the presser foot
and damage the machine or cause injury to the
user. (For details on embroidery frames, refer
to page 68.)
Note
• The embroidery frame indicators show all
embroidery frame sizes in which the embroidery
pattern can be embroidered. Be sure to use an
embroidery frame of the most suitable size. If an
embroidery frame that is too large is used, the
pattern may be misaligned or the fabric may
pucker. (page 67)
c c
c
a
b
1 Outer frame
2 Inner frame
3 Right side of fabric
4 Top of inner and
outer frames are
even
Memo
• To correctly frame the fabric in the embroidery
frame, we recommend using a flat surface.
BASIC EMBROIDERY
65
2
b

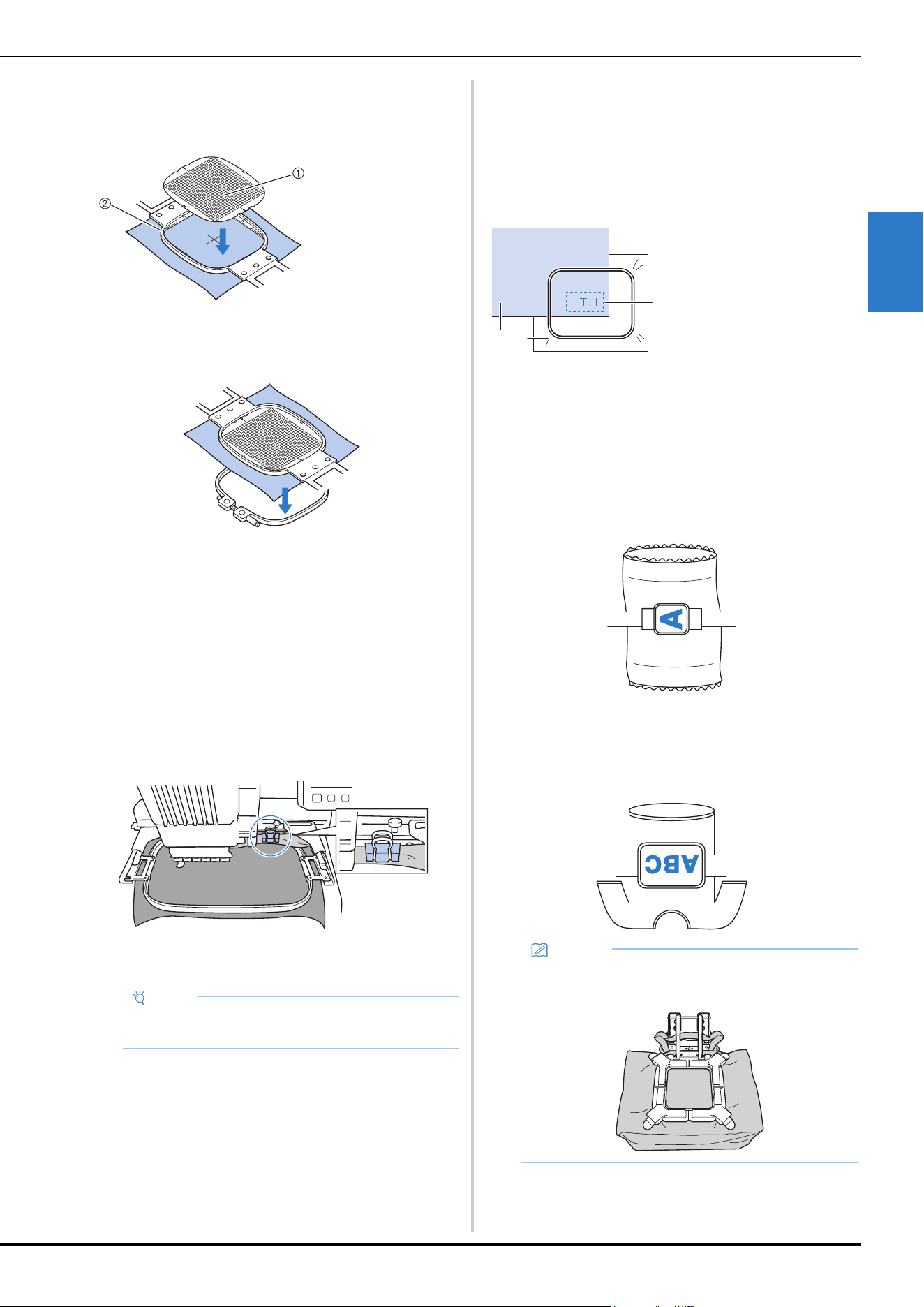

Place the embroidery sheet on the inner frame. Align
the guidelines on the embroidery sheet with the marks
that you drew on the fabric.
c
Gently stretch the fabric, so that there are no folds or
wrinkles.
d
Remove the embroidery sheet.
■ Embroidering large pieces of fabric or heavy
clothing
When embroidering large pieces of fabric or heavy pieces
of clothing, use a clothespin or binder clip to fasten the
excess fabric to the embroidery frame so that it does not
hang down from the frame. Embroidering with excess
fabric hanging down from the embroidery frame may
prevent the frame from moving properly and may result in
a misaligned pattern.
• Use a clothespin or binder clip to fasten the excess
fabric to the embroidery frame.
■ Embroidering small pieces of fabric
When embroidering small pieces of fabric that cannot be
hooped in an embroidery frame, use stabilizer material as
a base. After lightly ironing the fabric to the stabilizer
material, hoop it in the embroidery frame. If stabilizer
material cannot be ironed onto the fabric, attach it with a
basting stitch. After completing the embroidery, remove
the stabilizer material carefully.
■ Embroidering items, such as bags and tubular
items, that have limitations to being hooped in
the embroidery frame
Rotate the pattern before embroidery. For details on
rotating the pattern, refer to “Understanding the pattern
editing screen” on page 46.
Example: When embroidering a pillowcase
Rotate the pattern 90 degrees to the left before
embroidering.
Example: When embroidering a T-shirt
Rotate the pattern 180 degrees. Pass the machine bed
through from the waist of the T-shirt, not from the neck,
and attach the embroidery frame to the machine. This will
prevent the neck of the shirt from being stretched when
the embroidery frame is moving.
1 Guidelines
2 Inner frame
Note
• We recommend installing the optional wide table to
support large and heavy clothing.
1 Fabric
2 Stabilizer (backing)
3 Basting
Memo
• The optional versatile magnetic frame is useful for
embroidering tubular items.
a
c
b
66
After hooping the fabric in the embroidery frame, attach
the frame to the machine. Embroidery frame holders A and
B are included accessories with this machine.
Install embroidery frame holder A when an included
embroidery frame is to be used. (For details on the
embroidery frame holders, refer to page 67.)

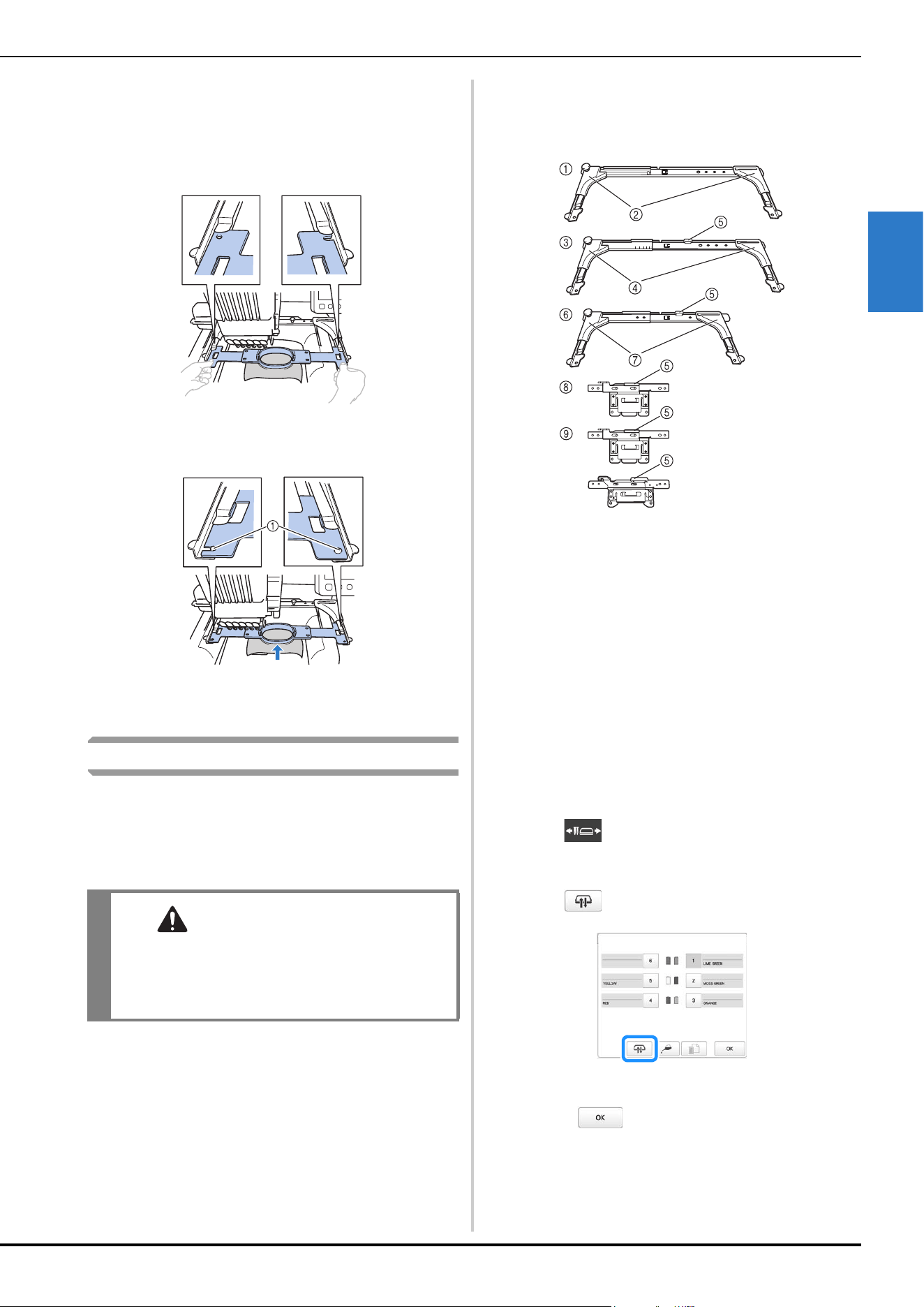

Attaching the embroidery frame
Adjust the width of the embroidery frame holder to the size of
the embroidery frame, and then attach the embroidery frame
to the machine. As an example, the procedure for attaching
the small embroidery frame is described below.
1 Left arm of embroidery frame holder
Move the arm of the embroidery frame holder to the left
or right to adjust it to the size of the embroidery frame.
2 Clip on embroidery frame holder
Insert the embroidery frame into the clips on the
embroidery frame holder.
3 Positioning pin
4 Holes
5 Positioning slots
a
Loosen the two left thumb screws on the embroidery
frame holder.
If the screw is too tight, please use the included 3-way
screwdriver. (page 21)
1 Left arm
2 Thumb screws
The left arm of the embroidery frame holder can be
moved.
• Only loosen the thumb screws a maximum of 2 turns
counterclockwise. Do not remove the screw.
b
Move the left arm to align the screw on the right side
with the mark for the embroidery frame to be installed,
and then tighten the thumb screws.
For this example, align with mark 4.
1 Mark for extra-large embroidery frame
300 mm (W) × 200 mm (H)
(11-3/4 inches (W) × 7-7/8 inches (H))
2 Mark for large embroidery frame
180 mm (W) × 130 mm (H)
(7-1/8 inches (W) × 5-1/8 inches (H))
3 Mark for medium embroidery frame
100 mm (W) × 100 mm (H)
(4 inches (W) × 4 inches (H))
4 Mark for small embroidery frame
60 mm (W) × 40 mm (H)
(2-3/8 inches (W) × 1-1/2 inches (H))
5 Align the screw with the mark.
ATTACHING THE EMBROIDERY
FRAME TO THE MACHINE
CAUTION
• If the embroidery frame is not correctly
attached, it may hit the presser foot and
damage the machine or cause injury to the
user.
• When attaching the embroidery frame, make
sure that the “Start/Stop” button is lit in red. If
the “Start/Stop” button is flashing in green,
the machine may start embroidering. If the
machine accidentally starts operating, injuries
may result.
• When attaching the embroidery frame, make
sure that the embroidery frame does not hit
any other part of the machine.
a
b
c
d
e
e
d
Note
• Please firmly tighten the two thumb screws with
included 3-way screwdriver. If the thumb screws
are not tightened, any of the following problems
may occur.
- The machine will detect the embroidery frame
size incorrectly.
- The starting position for the embroidery frame is
misaligned.
- The embroidery pattern is misaligned.
BASIC EMBROIDERY
67
2
The embroidery frame holder is ready for the
embroidery frame to be attached.
c
Hold the embroidery frame level, and then
simultaneously align both the left and right mounts
with the embroidery frame holder clips.
• The inner frame should be on top.
d
Insert the embroidery frame until it snaps into place.
1 Make sure that the pins on the left and right arms of the
embroidery frame holder fit into the positioning slot and
hole on the embroidery frame.
Correctly using the embroidery frames
The various types of embroidery frames and their uses are
described below.
In addition to the included embroidery frames, there are many
frames that can be used with this machine. (Refer to “Optional
accessories” on page 14.)
■ Embroidery frame holders
Two types of embroidery frame holders (embroidery frame
holder A and embroidery frame holder B) are included
with this machine.
Embroidery frame holder A is used with the four included
embroidery frames and the optional 300 mm (W) × 200
mm (H) (11-3/4 inches (W) × 7-7/8 inches (H)) Flat frame.
Embroidery frame holder B is used with the optional
embroidery frames. In addition, if you purchase optional
round frame set, clamp frame set, compact frame set or
versatile magnetic frame kit, specified frame holder C, D,
E or F is included. For details on which embroidery frame
can be installed on each embroidery frame holder, refer to
“Types of embroidery frames/frame holders and their
applications” on page 68.
1 Embroidery frame holder A
2 White corner covers
3 Embroidery frame holder B
4 Light gray corner covers
5 Magnet
6 Embroidery frame holder C (optional)
7 Dark gray corner covers
8 Embroidery frame holder D (optional)
9 Embroidery frame holder E (optional)
0 Embroidery frame holder F (optional)
■ When difficult to replace the embroidery
frame
Depending on the position of the needle bars, it may be
difficult to replace the embroidery frame. In that case,
follow the procedure described below to move the
embroidery frame.
a
Touch .
The needle bar move screen appears.
b
Touch .
The carriage automatically moves to a position
where the embroidery frame can easily be replaced.
• Touch to close the needle bar move screen
and to move the carriage to the previous position.
CAUTION
• Only use embroidery frames of the sizes
indicated in the screen, otherwise the
embroidery frame may hit the presser foot,
which may result in injuries.
j
68
■ Types of embroidery frames/frame holders and
their applications
When the reference page is “*”, contact your authorized
Brother dealer.
Embroidery frames that use embroidery frame holder A
Embroidery frames that use embroidery frame holder B
Embroidery frames that use embroidery frame holder C
(optional)
Embroidery frame
Embroidering area
Usage
Reference page
Extra-large embroidery
frame
300 mm (W) × 200 mm (H)
(11-3/4 inches (W) × 7-7/8
inches (H))
Use when embroidering connecting
characters or patterns, combined
patterns or large patterns.
page 64
Flat frame (optional) 300 mm (W) × 200 mm (H)
(11-3/4 inches (W) × 7-7/8
inches (H))
Use when embroidering jackets and
other thick garments.
*
Large embroidery
frame
180 mm (W) × 130 mm (H)
(7-1/8 inches (W) × 5-1/8
inches (H))
Use when embroidering patterns with a
size less than 180 mm (W) × 130 mm
(H) (7-1/8 inches (W) × 5-1/8 inches
(H)).
page 64
Medium embroidery
frame
100 mm (W) × 100 mm (H)
(4 inches (W) × 4 inches (H))
Use when embroidering standard-sized
patterns.
page 64
Small embroidery
frame
60 mm (W) × 40 mm (H)
(2-3/8 inches (W) × 1-1/2
inches (H))
Use when embroidering small-sized
patterns, such as name tags.
page 64
Embroidery frame
Embroidering area
Usage
Reference page
Quilt frame (optional) 200 mm (W) × 200 mm (H)
(7-7/8 inches (W) × 7-7/8
inches (H))
Use when embroidering pieces for
quilts.
*
Border frame (optional) 300 mm (W) × 100 mm (H)
(11-3/4 inches (W) × 4 inches
(H))
Use when embroidering a long string of
characters or patterns.
*
Sleeve frame (optional) 70 mm (W) × 200 mm (H)
(2-3/4 inches (W) × 7-7/8
inches (H))
Use when embroidering long items
such as shirt sleeves.
*
Embroidery frame
Embroidering area
Usage
Reference page
Round frame (optional)
=diameter
160 mm (6 inches)
130 mm (5 inches)
100 mm (4 inches)
Use when adding a built-in embroidery
pattern to a sleeve. Select the frame
appropriate for the size of the pattern.
*
BASIC EMBROIDERY
69
2

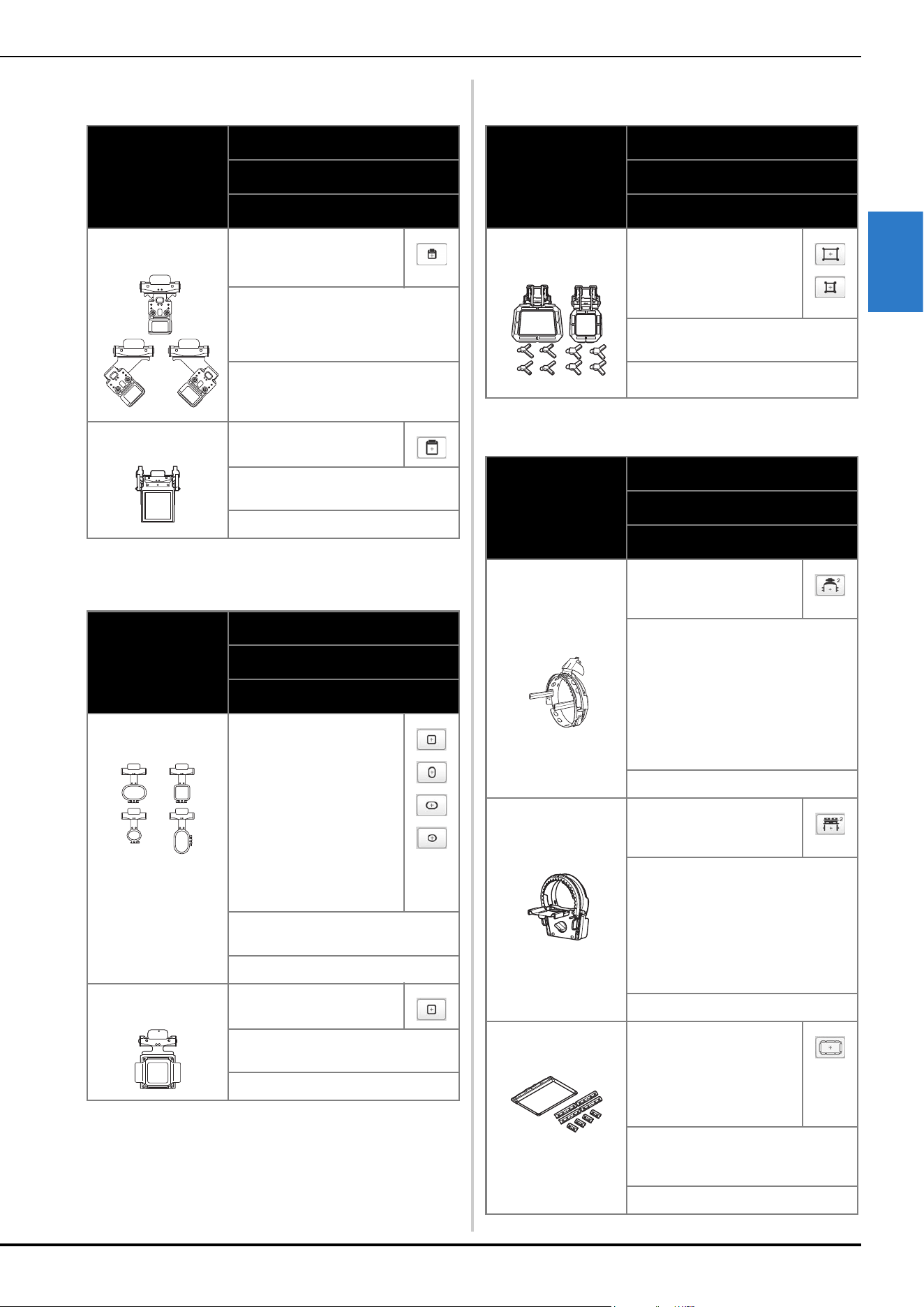

Embroidery frames that use embroidery frame holder D
(optional)
Embroidery frames that use embroidery frame holder E
(optional)
Embroidery frames that use embroidery frame holder F
(optional)
Embroidery frames that do not use embroidery frame
holders
Embroidery frame
Embroidering area
Usage
Reference page
Clamp frame S
(optional)
45 mm (W) × 24 mm (H)
(1-3/4 inches (W) × 7/8
inches (H))
Use when embroidering specialty
shaped items that cannot be held in
normal frames, such as shoes and
gloves.
*
Clamp frame M
(optional)
100 mm (W) × 100 mm (H)
(4 inches (W) × 4 inches (H))
Use when embroidering specialty
shaped items, such as narrow bags.
*
Embroidery frame
Embroidering area
Usage
Reference page
Compact frame
(optional)
70: 70 mm (W) × 41 mm (H)
(2-3/4 inches (W) × 1-5/8
inches (H))
50: 50 mm (W) × 50 mm (H)
(2 inches (W) × 2 inches (H))
44: 44 mm (W) × 38 mm (H)
(1-3/4 inches (W) × 1-1/2
inches (H))
Vertical: 33 mm (W) × 75 mm
(H)
(1-5/16 inches (W) × 2-15/16
inches (H))
Use when embroidering logos or
patterns on small items.
*
Magnetic frame
(optional)
50 mm (W) × 50 mm (H)
(2 inches (W) × 2 inches (H))
Use to prevent the embroidery frame
from leaving traces in the fabric.
*
Embroidery frame
Embroidering area
Usage
Reference page
Versatile magnetic
frame (optional)
180 mm (W) × 130 mm (H)
(7-1/8 inches (W) × 5-1/8
inches (H))
100 mm (W) × 100 mm (H)
(4 inches (W) × 4 inches (H))
A variety of fabrics can be easily and
firmly secured in the frame.
*
Embroidery frame
Embroidering area
Usage
Reference page
Cap frame
(PRCFH3)
(included in some
countries or regions)
130 mm (W) × 60 mm (H)
(5-1/8 inches (W) × 2-3/8
inches (H))
Use when embroidering caps. Baseball
(golf) caps, tulip hats and bucket hats
can be embroidered with these frames.
This frame cannot be used with hats
having a front area of 50 mm (2 inches)
or less, such as sun visors and
children’s hats. In addition, this frame
cannot be used with hats that have a
brim longer than 80 mm (3-1/8 inches).
*
Flat brim cap frame
(PRCFH5)
(optional)
130 mm (W) × 60 mm (H)
(5-1/8 inches (W) × 2-3/8
inches (H))
Use when embroidering caps. In
addition to caps compatible with cap
frame (PRCFH3), this frame can be
used to embroider flat brim caps and
children’s caps. Compared with cap
frame (PRCFH3), this frame can be
used to embroider closer to the cap
brim.
*
Magnetic sash frame
(optional)
360 mm (W) × 200 mm (H)
(14 inches (W) × 7-7/8 inches
(H))
Embroidery area: 300 mm (W)
× 200 mm (H) (11-3/4 inches
(W) × 7-7/8 inches (H))
Use when embroidering connecting
characters or patterns, combined
patterns or large patterns.
*
70
Understanding the embroidering settings
screen
Cylinder frame
(optional)
90 mm (W) × 80 mm (H)
(3-1/2 inches (W) × 3 inches
(H))
Use when embroidering tubular and
curved fabric, such as shirt sleeves and
turtlenecks.
*
Note
• The embroidery frame indicators show all
embroidery frame sizes in which the embroidery
pattern can be embroidered. Be sure to use an
embroidery frame of the most suitable size. If the
embroidery frame that is used is too large, the
pattern may be misaligned or the fabric may
pucker.
• When embroidering with an optional embroidery
frame (border frame, quilt frame, flat frame or
magnetic sash frame), the optional wide table must
be installed onto the machine.
• Due to the weight of the embroidery frame and
fabric, it is recommended that the optional wide
table be used to prevent the frame holder from
bending, which may result in the distortion of your
design or machine damage.
Embroidery frame
Embroidering area
Usage
Reference page
SPECIFYING EMBROIDERING
SETTING
Memo
• Keys available in this screen differ when you set
[Manual Color Sequence] to [ON] in settings
screen. (page 60, page 72)
No.
Display
Function Page
Key Name
1
Shows the size of the
embroidery pattern currently
displayed in the pattern
display area. The top value
shows the height and the
bottom value shows the
width. If the embroidery
pattern consists of multiple
patterns that have been
combined, the size of the
entire pattern, including all
patterns, is shown.
—
Pattern size
Shows the sizes of
embroidery frames that can
be used to embroider the
pattern currently displayed
in the pattern display area.
63
Embroidery
frame
indicators
2
Shows the vertical distance
that the pattern being
combined/edited is moved.
—
Distance from
center
(vertical)
Shows the horizontal
distance that the pattern
being combined/edited is
moved.
—
Distance from
center
(horizontal)
6
1
2
3
4
5
8
7
BASIC EMBROIDERY
71
2
2
Shows the rotation angle that
the pattern being edited is
rotated.
—
Rotation angle
Shows the total number of
thread colors for the pattern
that is being edited.
—
Number of
thread colors
changes
3
Rotate the entire embroidery
pattern.
—
Rotate key
When embroidering fabric
that stabilizer cannot be
attached to, embroider
basting stitches around the
pattern to prevent the
stabilizer from moving.
Stabilizer prevents shrinkage
of the stitching and
misaligned patterns.
93
Embroidery
basting key
Change the settings for
individual thread colors,
such as temporarily stopping
or skipping embroidering.
105
Individual
thread color
setting key
Align the pattern position
using the the embroidery
crosshair positioning laser.
99
Embroidery
crosshair
positioning
laser key
Touch to rearrange the
stitching sequence for
combined patterns.
73
Color sorting
key
Touch to embroider the
pattern in the same color,
regardless of specified color
changes. The entire thread
color sequence display will
appear in the same color.
106
Uninterrupted
embroidery
key/
Monochrome
4
Specify that automatic lock
stitch is embroidered at the
beginning of the pattern and
at the beginning of
embroidering after thread
trimming.
72
Lock stitching
(beginning)
key
Specify that automatic lock
stitch is embroidered when
the thread is trimmed.
72
Lock stitching
(end) key
5
Return to the pattern editing
screen.
—
Edit key
Save a pattern in the
machine’s memory, USB
media or a computer.
116
Memory key
No.
Display
Function Page
Key Name
5
Specify the needle position
at the beginning of
embroidering and at the end.
112
Starting/
ending
position key
Move the embroidery frame
so that the embroidering
position can be checked.
74
Trial
embroidery
key
Finish all operations in the
embroidering settings screen
and continue to the
embroidering screen.
—
Embroidery
key
6
Display an image of the
pattern that is to be
embroidered so it can be
previewed.
61
Preview key
7
Switch on/off the embroidery
crosshair positioning laser.
74
Embroidery
crosshair
positioning
laser on/off
key
8
Move the embroidering
position of the whole pattern
in the direction of the arrow.
(If is touched, the
embroidering position is
moved to the center of the
embroidering area.)
—
Positioning
keys
Select the speed to move the
frame.
: Touch to move the
frame by 0.1 mm (1/64 inch).
: Touch to move the
frame by 0.5 mm (1/32 inch).
: Keep touching to
move the frame at maximum
speed.
—
Frame
movement
speed keys
No.
Display
Function Page
Key Name
72
■ In the [Manual Color Sequence] mode
Automatic lock stitch setting
When the machine is purchased, it is set to automatically
embroider lock stitches at the beginning of the pattern, before
embroidering after each thread color change, and before
trimming the thread.
■ To change the lock stitches being embroidered
at the beginning of the pattern, at the
beginning of embroidering each thread color
change and at the beginning of embroidering
after the thread trim.
a
Make sure that the lock stitching (beginning) key
appears as .
• Each touch of the key turns the setting either on or off.
■ To change the lock stitches being embroidered
before the thread is trimmed.
a
Make sure that the lock stitching (end) key appears as
.
• Each touch of the key turns the setting either on or off.
No.
Display
Function Page
Key Name
1
This icon appears when the
machine is in the [Manual
Color Sequence] mode.
60
Manual color
sequence
mode icon
2
Change the needle bar color
setting.
This key appears when you
set [Manual Color Sequence]
to [ON] in settings screen.
60
Manual color
sequence key
1
2
Memo
• Automatic lock stitching cannot be applied to
patterns whose jump stitches will not be trimmed
(). (page49)
Automatic lock
stitch setting turned
on
Automatic lock
stitch setting turned
off
Memo
• If the first stitch length is less than 0.8 mm (1/32
inch), the lock stitch won’t be inserted.
Automatic lock
stitch setting turned
on
Automatic lock
stitch setting turned
off
Memo
• The automatic lock stitch setting stays the same
until the key is touched again. The setting specified
before the machine is turned off remains selected
the next time that the machine is turned on.
BASIC EMBROIDERY
73
2
Thread color sorting
You can embroider more efficiently by sorting combined
designs’ thread colors.
Before starting to embroider, touch in the embroidering
settings screen to rearrange the embroidering order and sort it
by thread colors.
Embroidering screen
Embroidering settings screen
Embroidering screen
The embroidery color order is rearranged and sorted by thread
colors.
Touch to cancel the color sorting and embroider with
the embroidery color order.
Note
• This function does not work on overlapping
designs.
74

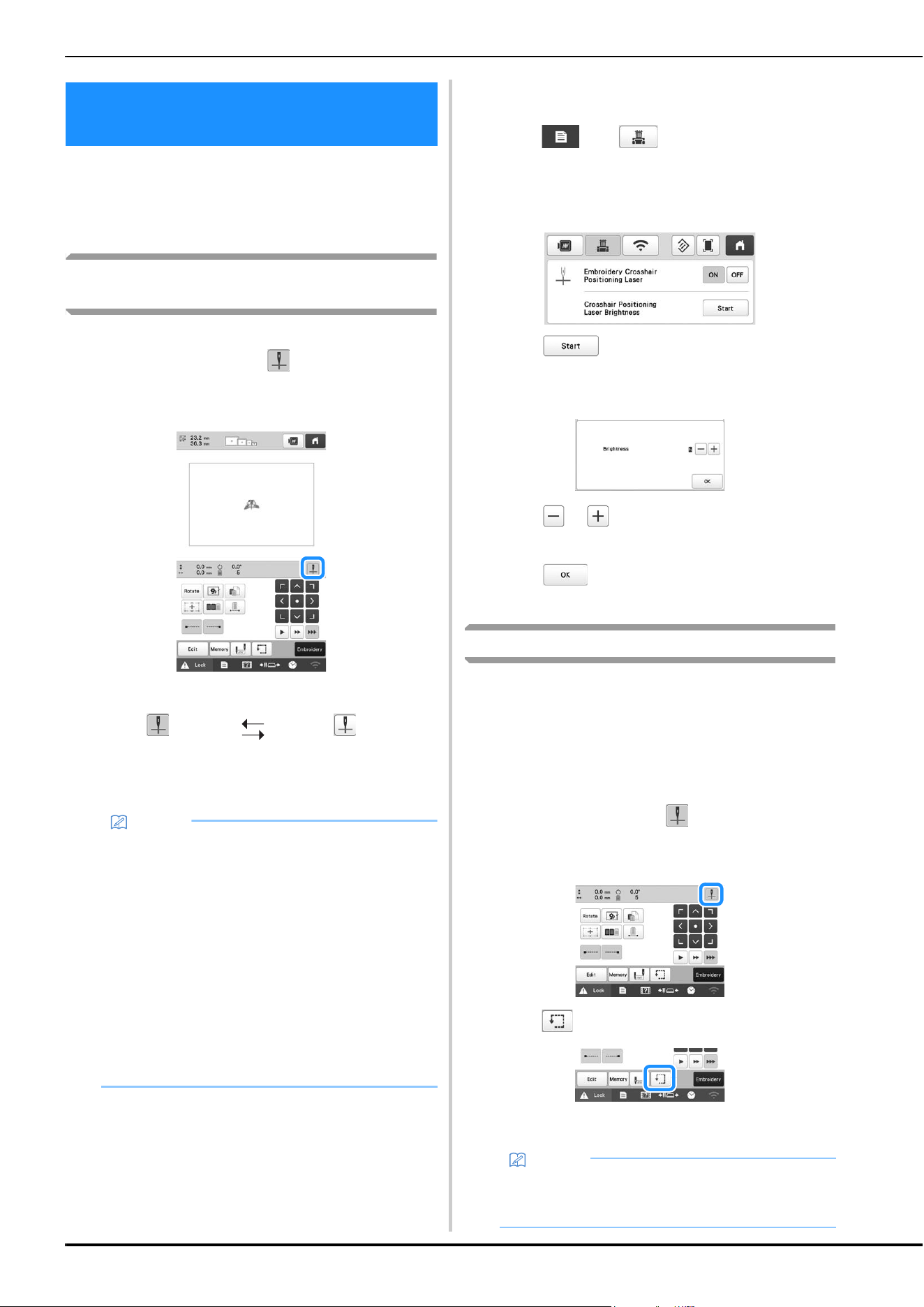

The pattern is usually placed at the center of the
embroidery frame. If you want to change where in the
fabric the pattern will be embroidered, you can check the
position before starting embroidering.
Checking the needle drop point with the
embroidery crosshair positioning laser
a
Make sure that the embroidery crosshair positioning
laser on/off key appears as .
The embroidery crosshair positioning laser indicates
the needle drop point.
• Each touch of the key turns the setting either on or off.
■ Adjusting the brightness of the embroidery
crosshair positioning laser
a
Touch , then .
The general settings screen appears.
b
Locate [Crosshair Positioning Laser Brightness] in the
Settings pages.
c
Touch .
The embroidery crosshair positioning laser lights up,
and the brightness adjustment screen for the
embroidery crosshair positioning laser appears.
d
Touch or to adjust the brightness of the
embroidery crosshair positioning laser.
e
Touch twice to return to the previous screen.
Checking the embroidery pattern
The carriage moves and shows the pattern position. Watch the
embroidery frame closely to make sure the pattern will be
embroidered in the right place. At this time, using the
embroidery crosshair positioning laser function, the pattern
position is projected on the fabric and you can check it more
clearly.
a
Make sure that the embroidery crosshair positioning
laser on/off key appears as .
The embroidery crosshair positioning laser indicates
the needle drop point.
b
Touch .
The embroidery frame moves to show the
embroidery area.
CHECKING THE POSITION OF THE
PATTERN
Embroidery crosshair
positioning laser lights
up.
Embroidery crosshair
positioning laser lights
off.
Memo
• With certain types of embroidery frames, the
embroidery crosshair positioning laser function
cannot be used.
• If the surface of the fabric is too uneven or rough,
check and adjust the alignment of the embroidery
crosshair positioning laser and the needle drop
point before starting to embroider.
• When using the cap frame, check and adjust the
alignment of the embroidery crosshair positioning
laser and the needle drop point before starting to
embroider.
• You can align the embroidering position with the
embroidery crosshair positioning laser function.
(page 98)
Memo
• The presser foot is slightly lowered when the
embroidery crosshair positioning laser function is
set to [OFF].

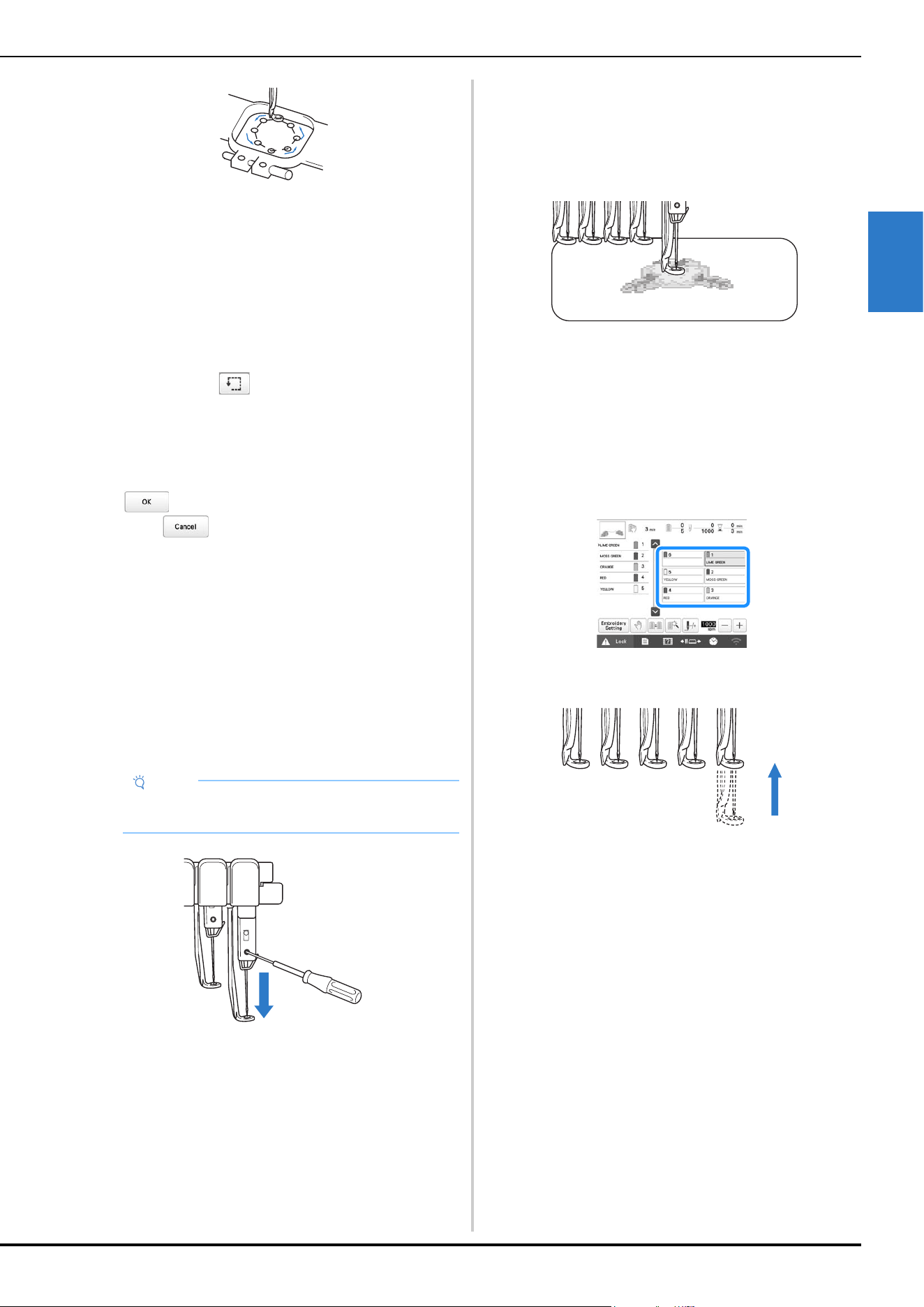

BASIC EMBROIDERY
75
2
Carefully watch the movement of the embroidery frame
and check that the embroidery will stitch in the desired
location and that the embroidery frame does not hit the
presser foot.
■ Temporarily stopping to check the area
The embroidery frame can be temporarily stopped at a
desired position or the checking of the embroidering area
can be stopped.
a
When the embroidery frame moves to the desired
position, touch
again.
The embroidery frame stops moving, and the
message asking if you want to continue the trial
appears.
b
To continue moving the embroidery frame, touch
. To stop checking the embroidering area,
touch .
■ Finding the embroidering position
By locking the needle bar (securing the needle and presser
foot in the down position), the needle drop point can
easily be seen.
a
The embroidery crosshair positioning laser will be
aligned with the needle that is over the opening in the
needle plate. As shown in the illustration, insert the
Allen screwdriver into the hole in this needle clamp to
slowly lower the needle bar down until needle bar
stops then clicks into the lock position.
The needle and presser foot are locked in the down
position.
b
Touch the arrow keys in the embroidering settings
screen to move the embroidery frame so that the
needle drop point is at the center of the area where
you wish to embroider.
• With your finger or the touch pen, drag the pattern to
move it.
• When specifying the starting of stitching, align the
needle drop point with the point specified as the
starting of stitching. (For details on specifying the
starting/ending of stitching, refer to page 112.)
■ Unlocking the needle bar
a
Display the embroidering screen, and then touch the
key for any needle bar other than the one that is
locked.
The needle bar is unlocked and will return to original
position.
Note
• Make sure that the needle is not lowered beyond
the positioning click into the fabric.
76
Check the embroidering screen for information on which
needle bars should be threaded with specified thread
colors, and then thread the upper threads.
Checking the needle bars and thread colors
In the embroidering settings screen, touch to display
the embroidering screen. A screen indicating that the spools
need to be changed will appear if the thread colors from the
previous embroidery project will not be used. If you set
[Manual Color Sequence] to [ON] in the settings screen, the
message does not appear even if the thread spools need to be
changed. (Refer to “SELECTING/MANAGING THREAD
COLORS FOR EACH NEEDLE BAR [Manual Color
Sequence]” on page 59.)
Embroidering screen (For details on the screen, refer to
page 84.)
1 Thread information for the first to sixth needle bars
2 If no thread color name is displayed, that needle bar has
not been used.
If a thread color had been assigned to the needle bar on
a previously embroidered design, the needle bar will
show the previously assigned color.
3 Screen indicating that the spools be changed. (page 87)
This message appears when it is necessary for the
thread spools to be changed.
4 Minimize the screen indicating that the spools be
changed to .
5 Thread color
6 Needle bar number
7 Thread color name or number
If the thread color number [#123] is selected in the
settings screen, the thread brand will also be displayed.
(page 109)
Thread with the color name that appears below each needle
bar number is threaded on that needle bar.
a
Touch .
Current assigned colors are stored in the machine’s
memory, and the screen indicating that the spools be
changed is minimized to .
• In addition to checking the thread colors, information
such as the number of stitches and the embroidering
time can be checked, and various embroidering
settings can be specified in the embroidering screen.
1 The embroidering progress is shown by the red mark in
the bar. Touch to display (in the indicator) only the
thread color being embroidered.
2 Shows the length of time until the machine will stop, the
number of thread color changes, the number of stitches,
and the total embroidering time.
3 Shows the thread colors, embroidering order and
number of the needle bar assigned to the thread colors.
A red triangle appears beside the thread color being
embroidered. In addition, the parts where embroidering
is finished change to gray and scroll up.
4 Touch and to view the embroidering order and
needle bar number for thread colors that cannot be seen
in the screen.
5 Return to the embroidering settings screen.
6 When starting the machine or cutting the threads, touch
this button to unlock the machine, and then press the
“Start/Stop” button or thread trimming button.
7 Touch a key to move the selected needle bar to the
embroidering position. Use when threading the needle
with the automatic needle-threading mechanism.
8 Displays screen indicating that the spools be changed.
UPPER THREADING
Memo
• The thread spools for needle bars whose keys do
not appear in gray must be changed. When the
automatic needle-threading button is pressed, the
needle bar keys appear in gray.
2
1
4
3
56
7
Memo
• Available keys are not the same if you set [Manual
Color Sequence] to [ON] in the settings screen.
(page 60)
1
2
5
3
7
6
8
4
BASIC EMBROIDERY
77
2
Upper threading
Use machine embroidery thread to thread the needle bars in
order, starting with needle bar 1.
a
On the spool pin 1, place a spool with the thread color
specified for the spool pin 1.
• When using thread that winds off quickly, such as
metallic thread, place the included spool net over the
spool.
If the spool net is too long, fold it once to match the
size of the spool before placing it over the spool.
It may be necessary to adjust thread tension when
using the spool net.
• Make sure that the spool stand is opened in the shape
of a V.
• When using small spools of thread, be sure to place
the included spool mat on the spool pin before
placing the spool on the pin.
• Place the thread in the center of the spool stand so
that the thread feeds off of the spool correctly and
does not get tangled around the spool pin directly
under the thread spool.
• Use spool cap on all spools of thread shorter than the
height of the spool pin.
1 Spool mat
2 Small spool
3 Spool cap
CAUTION
• When (unlock key) in the
embroidering screen is touched, the “Start/
Stop” button begins flashing in green and the
machine can start embroidering. If the upper
threading is being performed or the needle is
being threaded, be careful that the machine is
not accidentally started, otherwise injuries
may result.
CAUTION
• When threading the upper thread, carefully
follow the instructions. If the upper threading
is not performing correctly, the thread may
break or become tangled, causing the needle
to bend or break.
Note
• It is recommended that rayon or polyester machine
embroidery thread be used (120 den/2, 135 dtex/2,
40 weight (in Americas and Europe), #50 (in
Japan)).
• Certain types of thread may break or have
improper tension. In such a case, change the
thread.
• The path that the machine should be threaded is
indicated by a line on the machine. Be sure to
thread the machine as indicated.
1 Spool net
2 Thread
78

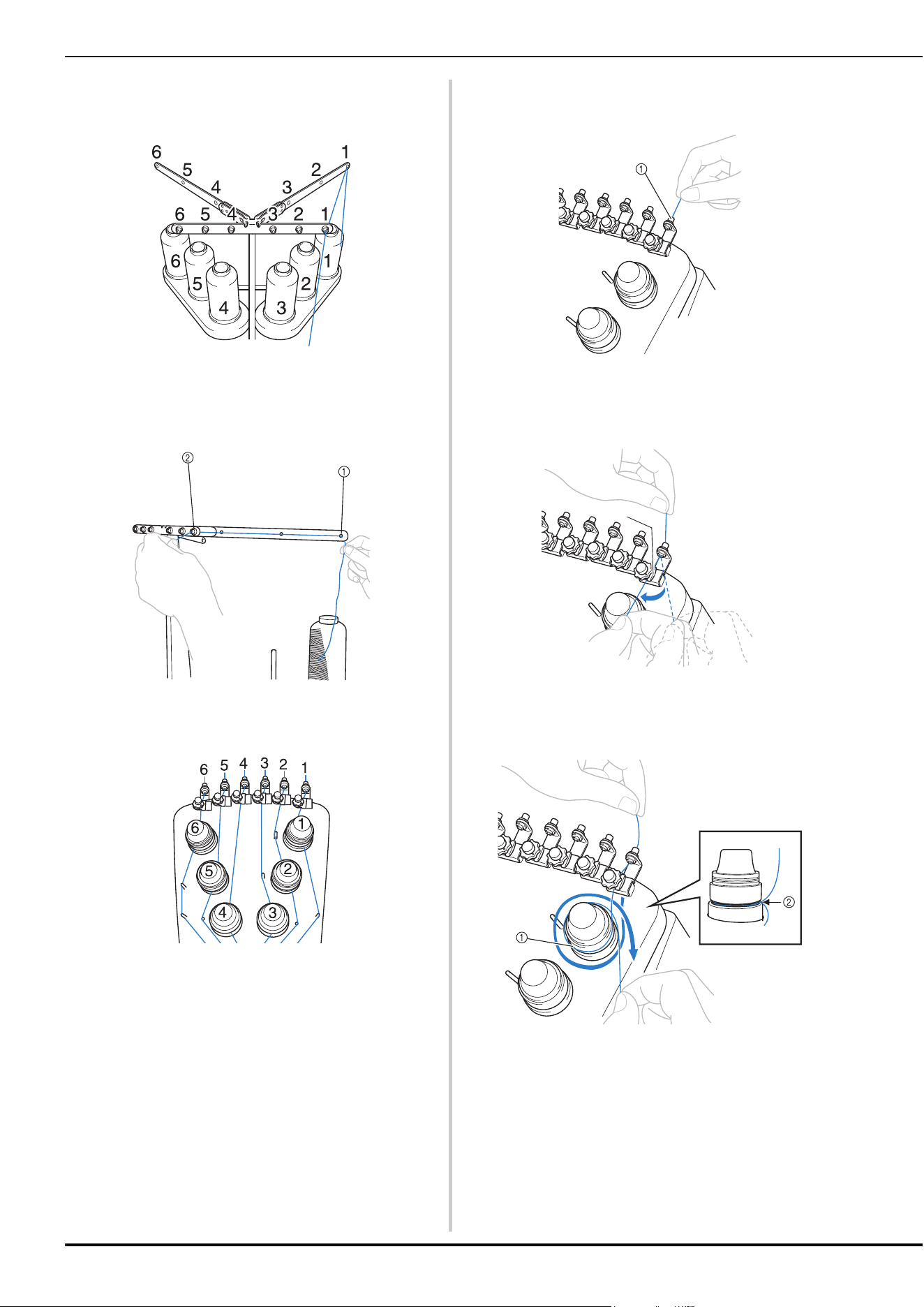

The numbers indicate the thread path for each of the
numbered needle bars. Be very careful to correctly thread the
needle bars.
b
Pass the thread through the number 1 hole in the
thread guide just above the spool, and then pass the
thread through the number 1 hole in the thread guide
toward the front of the machine.
1 Number 1 hole in the thread guide above the spool
2 Number 1 hole in the thread guide toward the front of the
machine
c
Pass the thread through the hole in the number 1 upper
thread guide and pull the thread toward you.
1 Hole in upper thread guide
d
Hold the thread with both hands, and then pass it
under the guide plate from the right.
1 Upper thread guide plate
e
Wind the thread clockwise once around the number 1
thread tension disc.
1 Thread tension disc
2 Pass thread in a clockwise direction at this location on
the tension disc.
a

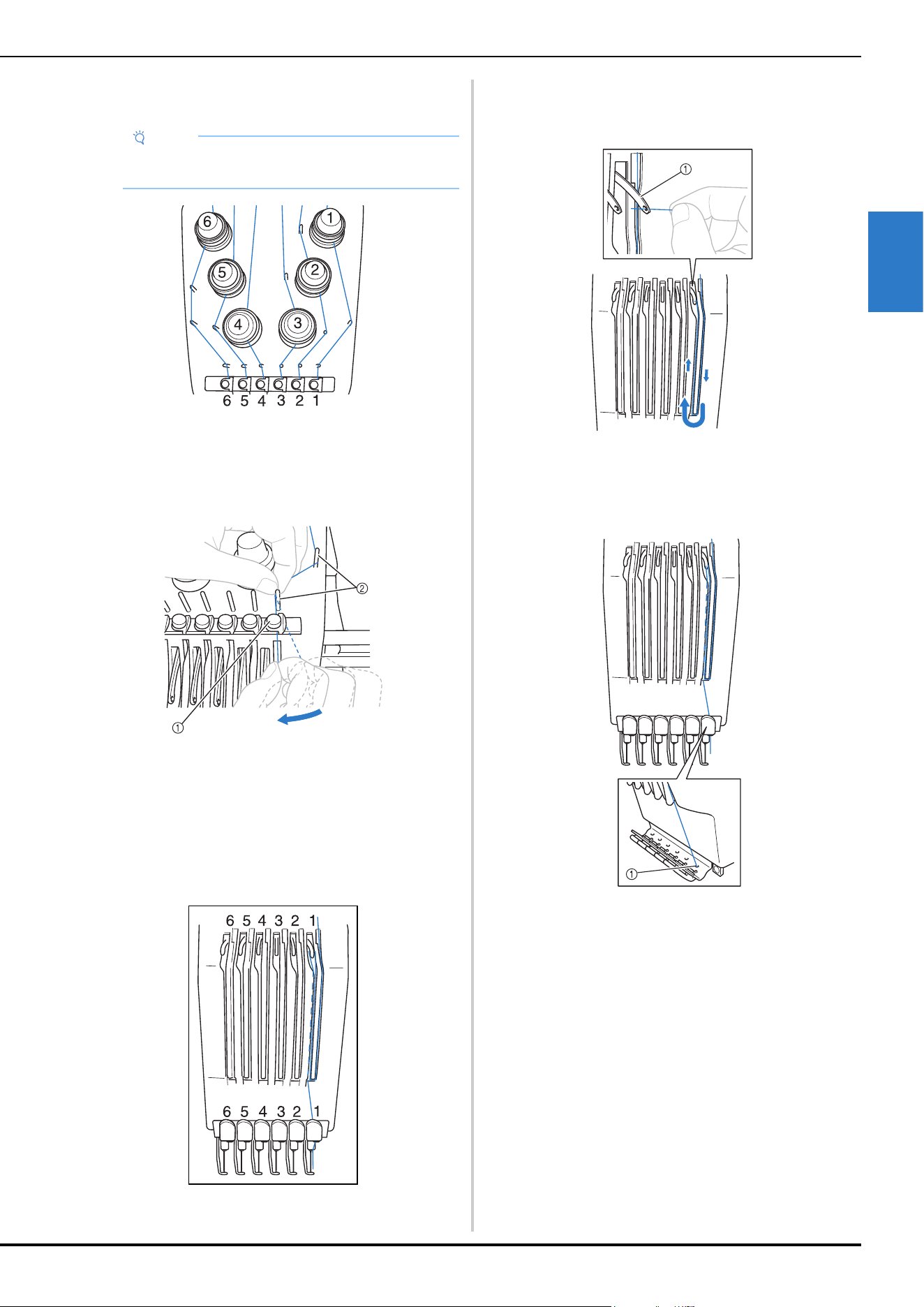

BASIC EMBROIDERY
79
2
• Make sure that the thread is securely positioned in the
thread tension disc.
f
Lead the thread along the thread path and around the
correct thread guide pins as indicated on the machine.
g
Slip the thread under the number 1 middle thread
guide plate from the right.
1 Middle thread guide
2 Thread guide pin
• The path from the upper thread guide around the
thread tension disc and to the middle thread guide
(steps e through g) differs depending on the spool
number. Passing the thread from the left to the right
through the thread guide pins is designed to prevent
the thread from becoming tangled. Be sure to follow
the thread path indicated on the machine.
h
Pass the thread along the number 1 slot to pass it
through the number 1 take-up lever hole from right to
left.
1 Thread take-up lever
i
Pass the thread down through the slot to the lower
thread guide, and then through the hole in the number
1 lower thread guide.
1 Hole in lower thread guide
Note
• All thread tension discs are threaded in clockwise
direction.
80
j
Use the included needle changing tool (threader) to
pass the thread into the number 1 needle bar thread
guide.
1 Needle bar thread guide
2 Needle changing tool (Threader)
Threading the needle
Use the automatic needle-threading mechanism to thread the
needle.
a
Press the automatic needle-threading button.
The hook on the automatic needle-threading
mechanism passes through the eye of the needle.
b
Pull out about 15 cm (6 inches) of thread. Then, as
shown in the illustration, pass the thread under the
fork of the automatic needle-threading mechanism
from the right, and then catch the thread with the hook
that passes through the eye of the needle.
c
Pass the thread under the guide on the presser foot.
• Make sure that the thread securely passes through the
notch in the guide on the presser foot.
Note
• The automatic needle-threading mechanism can
thread one needle at the embroidering position.
When this mechanism is used, be sure that the
needle bar that you want to thread is positioned at
the embroidering position, otherwise the automatic
needle-threading mechanism cannot be used at
the particular needle. If the needle bar is not at the
embroidering position, move it there. (page 81)
CAUTION
• If the needle is not fully inserted, the hook of
the automatic needle-threading mechanism
will not pass through the eye of the needle
during automatic needle threading, and the
hook may bend or the needle cannot be
threaded.
• If the hook of the automatic needle-threading
mechanism is bent or damaged, contact your
authorized Brother dealer.
• While the hook of the automatic needle-
threading mechanism is passed through the
eye of the needle, do not rotate the
handwheel. The automatic needle-threading
mechanism may be damaged. If you turn the
handwheel, the automatic needle-threading
mechanism will return to its initial position to
avoid damage.
1 Hook
2 Fork
Note
• When catching the thread with the hook, be careful
that the thread does not become loose.
1 Guide on presser
foot
2 Notch in guide on
presser foot

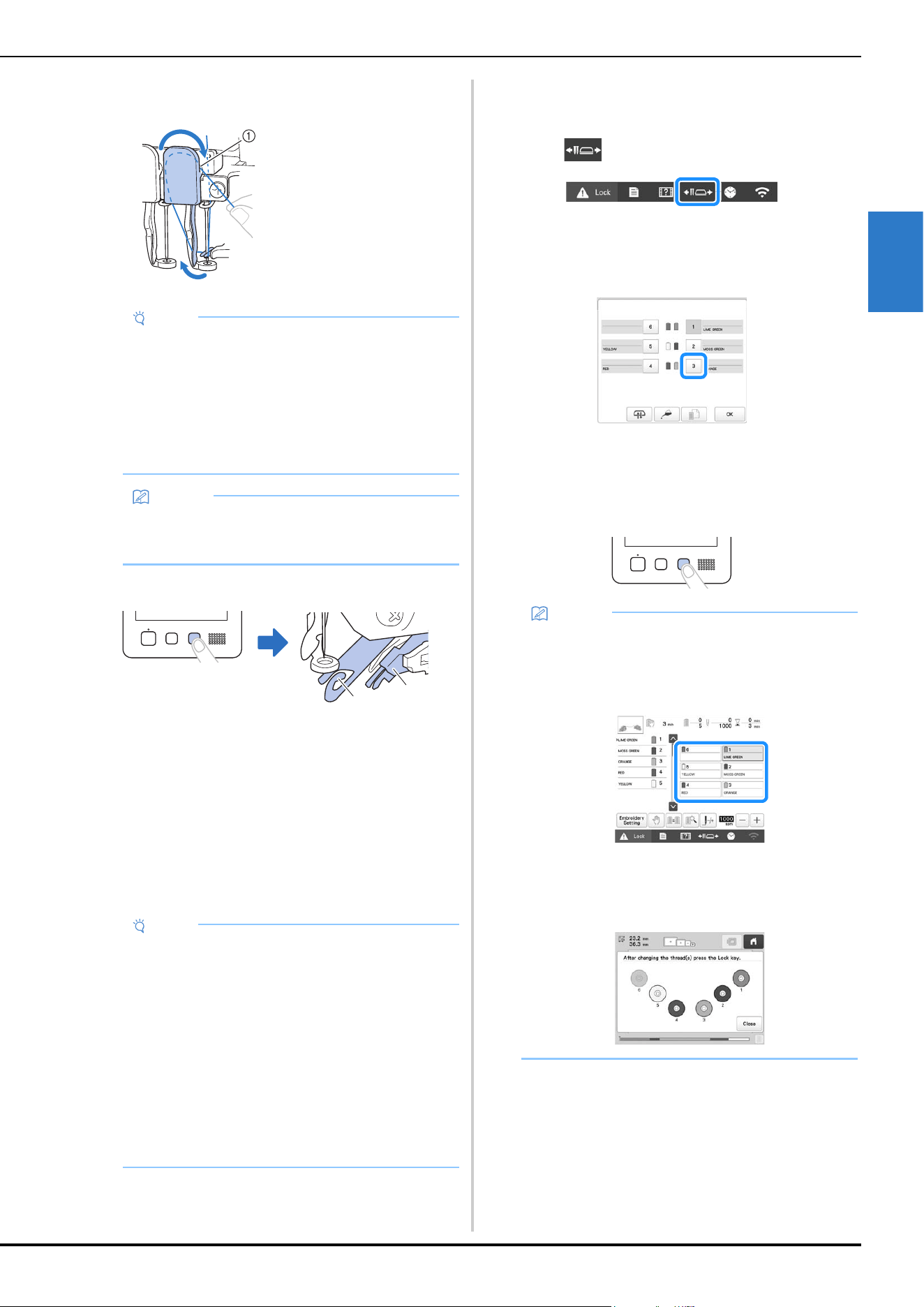

BASIC EMBROIDERY
81
2
d
Securely pass the thread through the groove in the
thread cutter, and then lightly pull the thread to cut it.
e
Press the automatic needle-threading button.
1 Automatic needle-threading mechanism
2 Wiper
• The threader moves back away from the needle. The
thread is pulled through the needle eye.
• The wiper comes out and catches the thread between
the needle and the threader.
• The threader goes back to the original home position.
This completes the upper threading for needle bar 1.
Thread the remaining needle bars in the same way.
■ Moving and threading a selected needle bar
You can move and thread a selected needle bar to the
embroidering position at any time.
a
Touch .
The needle bar move screen appears.
b
Touch the key for the needle bar that you wish to move
or thread.
The selected needle bar moves to the position for
threading.
c
Press the automatic needle-threading button while the
needle bar move screen appears.
1 Groove in thread
cutter
Note
• If the thread is not correctly passed through the
groove in the thread cutter, the message [Wiper
error] appears and the needle cannot be threaded.
Be sure to securely pass the thread through the
groove.
• Pull out enough thread. If enough thread is not
pulled out, the thread cannot be pulled through the
thread cutter.
Memo
• The Wiper is the mechanism for pulling the thread
to back when the needle threader is used and
when the thread is trimmed during embroidery.
Note
• If the needle bar to be threaded is not moved to the
embroidering position, the needle cannot be
threaded with the automatic needle-threading
mechanism.
For the remaining needle bars, perform the
following operation to move the needle bar to the
embroidering position before trying to thread the
needle.
• If the thread is not taut, it may come out of the
thread tension disc. After upper threading is
finished, check again to make sure that the thread
is correctly passed into the thread tension disc.
(step e on page 78)
a
b
Memo
Additional methods to move the needle bar:
• In the embroidering screen, touching the number of
the needle bar to be threaded will move the needle
bar to the threading position.
• In the threading diagram at the top of the screen,
touching any spool other than those shown in gray
will also move the corresponding needle into
position for threading.
82
d
Touch to return to the previous screen.
Now, the machine is ready to begin embroidering.
When the machine starts embroidering, the presser foot is
automatically lowered, the necessary thread trimming
operations at the beginning of stitching and at the end of
stitching are performed, the threads are changed as
necessary while the embroidery is performed, and the
machine stops when the end of the stitching is reached.
Starting embroidering
a
Touch to unlock the machine.
The “Start/Stop” button changes from lit in red
(locked machine) to flashing in green (unlocked
machine), and the machine is ready to begin
embroidering.
• If the “Start/Stop” button is not pressed within 10
seconds after unlocking the machine, the machine
becomes locked again.
Memo
• In the embroidering screen, a blue frame appears
around the thread information box of the selected
needle bar.
• When changing one of the upper thread colors, it is
easy to re-thread by cutting the thread currently
being used between the spool and the thread guide
above the spool. Place the new spool on the spool
pin and tie the end of the new thread to the end of
the previous thread. Then pull the thread through to
the needle (page 88).
PERFORMING THE EMBROIDERY
Memo
• With the Monitoring App [My Stitch Monitor]
installed on your smart device and the machine and
smart device connected to the same wireless
network, you can check the operating status of the
machine. (page 33)
CAUTION
• For safety reasons, the machine must not be
left unattended while it is embroidering.
• While the machine is in operation, pay special
attention to the needle location. In addition,
keep your hands away from all moving parts
such as the needle, needle bar case, thread
take-up lever and carriage, otherwise injuries
may result.
• When embroidering overlapping stitches, it is
difficult for the needle to penetrate the fabric,
possibly resulting in the needle bending or
breaking.
Note
• Make sure that there are no objects within the
moving area of the embroidery frame. If the
embroidery frame hits another object, the pattern
may become misaligned.
• When embroidering large pieces of fabric, make
sure that the fabric is not caught in the carriage.
BASIC EMBROIDERY
83
2
b

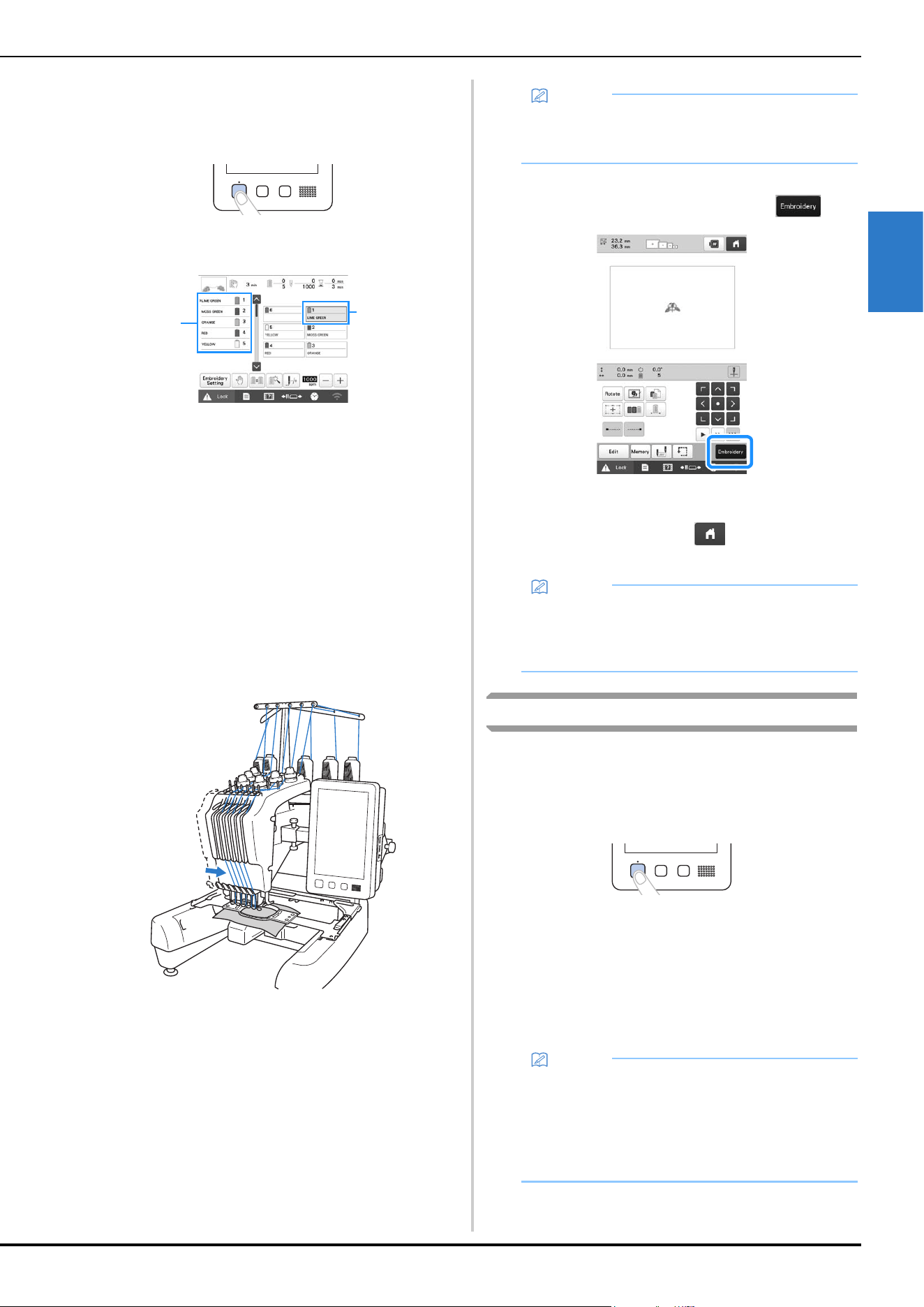

Press the “Start/Stop” button.
Press the “Start/Stop” button while it is flashing in green.
If the “Start/Stop” button returns to being lit in red,
perform this procedure again from step
a.
The “Start/Stop” button lights up in green and begins
embroidering the first color.
1 The thread color for the needle bar that is currently being
used for embroidery or will soon be used for embroidery
appears at the top of the thread color sequence display.
The remaining thread colors are listed in embroidering
order, starting from the top.
2 A blue frame appears around the thread information box
of the needle bar currently being selected.
• While the machine is embroidering, the point being
embroidered is indicated by the green cross hairs in
the pattern display area. In addition, the number of
stitches and the time count up.
c
After embroidery of the first color is finished, the
machine automatically stops and trims the thread. The
needle bar case moves to the second color position and
embroidery of the second color begins.
The thread color display in the screen continues to
the second color, and the thread information for the
second needle bar is surrounded by the blue frame.
d
This continues until the last color is embroidered, and
the machine automatically stops.
The embroidering settings screen reappears.
The “Start/Stop” button lights up in red.
• No thread trimming operations at the beginning of
stitching and at the end of stitching are necessary.
■ Continuing embroidering
To embroider the same pattern again, touch .
The embroidering screen appears so the same pattern
can be embroidered again.
To select a new pattern, touch .
The pattern type selection screen appears.
Stopping embroidering
The machine can be stopped during embroidering.
■ Temporarily pausing
a
Press the “Start/Stop” button.
The machine stops and the “Start/Stop” button lights
up in red.
• Embroidering can also be stopped by touching an
area displaying the pattern.
• The thread is not trimmed.
• To continue embroidering, after checking that the
upper thread is taut, touch the unlock key, and then
press the “Start/Stop” button.
1
2
Memo
• When embroidering a pattern that contains seven
or more colors, it is necessary to change the thread
spools. (page 86)
Memo
• Automatic lock stitch setting can be set so that it is
performed at the beginning of the embroidery,
when starting to embroider after changing thread
colors, and when trimming the thread. (page 72)
Memo
• If the reserve stop key is touched while embroidery
is being performed, the machine stops
embroidering before the next color begins.
(page 105)
• Before starting to embroider, the machine can be
set to stop at any thread color change. (page 105)
84

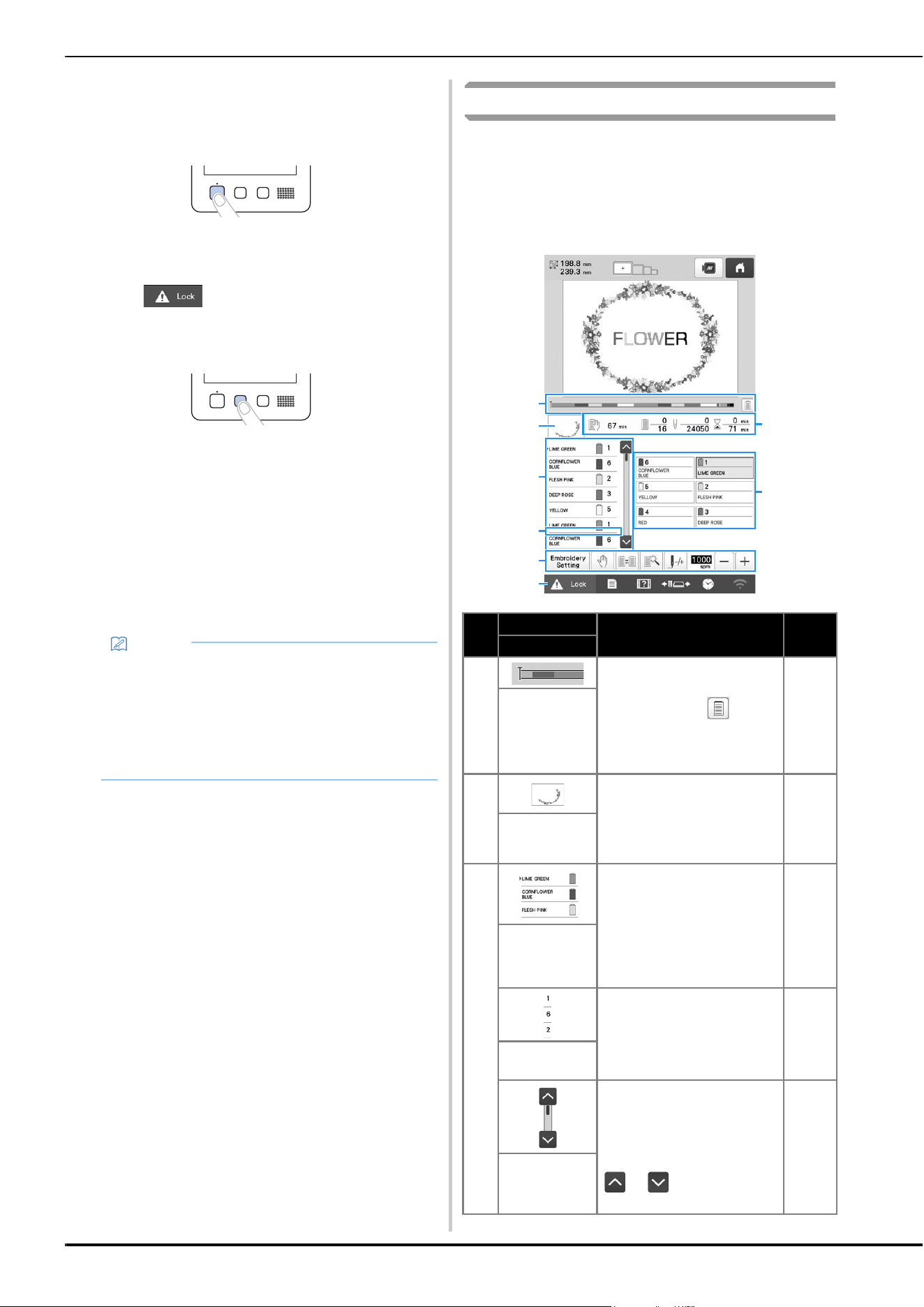

■ Temporarily pausing for extended periods of
time
a
Press the “Start/Stop” button.
The machine stops and the “Start/Stop” button lights
up in red.
• The thread is not trimmed.
b
Touch to unlock the machine.
c
Press the thread trimming button.
The bobbin and upper threads are trimmed.
• Before turning off the machine, be sure to trim the
threads.
d
Set the main power switch to “O” to turn off the
machine.
The display and the “Start/Stop” button indicator go
off.
• Embroidery can resume after the machine is turned on
again. Back up several stitches to overlap the
stitching. (page 92)
■ If the thread breaks while embroidering
If a problem occurs while embroidering, such as if the
thread breaks, the machine stops automatically.
Re-thread the broken thread, back up several stitches, and
then continue embroidering. (page 89)
Understanding the embroidering screen
From this screen, the total number of thread colors, the
embroidering order and embroidering time can be checked,
the needle bar settings can be specified, and the needle
placement forward or backward can be done. Keys available
in this screen differ when you set [Manual Color Sequence] to
[ON] in settings screen. (page 60)
Memo
• The machine can be stopped at any time, even
while it is embroidering; however, if the machine is
stopped at a thread color change, it is not
necessary to go back through the stitching when
embroidering is continued. The machine can be set
to stop when the thread color is changed.
(page 105)
No.
Display
Function Page
Key Name
1
The embroidering progress is
shown by the red mark in the
indicator. Touch to
display (in the indicator) only
the thread color being
embroidered.
—
Progress bar
2
Shows the part of the pattern
that will be embroidered
with the thread color shown
first in the thread color
sequence display.
—
Region
display
3
Shows the order for the
thread color changes. During
embroidering, this display
scrolls automatically so that
the color of the thread
currently being embroidered
appears at the top.
—
Thread color
sequence
display
Indicates the needle bar
number where the thread
color at the left is assigned.
—
Needle bar
number
The thread color sequence
display shows the first seven
thread colors. To check the
sequence for the eighth and
later thread colors, touch
or , or touch the
scroll bar.
—
Scroll bar
1
2
3
8
6
7
5
4
BASIC EMBROIDERY
85
2
4
This red line indicator shows
when the thread spools will
need to be changed.
87
Spool change
indicator
5
Quit embroidering and
return to the embroidering
settings screen.
—
Embroidery
setting key
While embroidering, touch
this key for the machine to
stop prior to the next color
beginning.
105
Reserve stop
key
Change the needle bar
settings from the screen
without changing the thread
spools on the machine.
58
Switch spool
key
(Not available
in the
[Manual
Color
Sequence]
mode)
Enable the needle bar
settings to manually be
specified.
106
Temporary
needle bar
settings key
Move the needle forward or
backward through the
stitching. Use this key in the
following situations:
• If the thread breaks or runs
out while embroidering
• To restart embroidering
from the beginning
• To continue embroidering
after the machine was
turned off
89
Forward/
Backward
stitch key
Specify the maximum
embroidery speed.
• Specify a low speed for
thin, thick or heavy
fabrics.
• When using a weak thread
such as metallic thread,
specify an embroidery
speed of 400 spm.
156
Maximum
embroidery
speed key
6
Unlocks the machine so it
can start embroidering
within 10 seconds. When
this key is touched, the
“Start/Stop” button flashes in
green.
82
Unlock key
No.
Display
Function Page
Key Name
7
Shows the amount of time
until the machine will stop.
When the last thread spool is
being embroidered, the
number appears in red.
If the thread color needs to
be changed, this shows the
time until the thread spool
will need to be changed.
86
Time until the
machine stops
The bottom value shows the
total number of thread colors
in the pattern and the top
value shows the thread color
that is currently being
embroidered.
—
Embroidering
order
The bottom value shows the
total number of stitches in
the pattern and the top value
shows how many stitches
have already been
embroidered.
—
Stitch count
The bottom value shows the
total amount of time required
to embroider the pattern and
the top value shows how
much time has already
passed embroidering.
—
Embroidering
time
8
Move the needle bar position
to the selected needle bar
number. Use when threading
the needle with the
automatic needle-threading
mechanism.
—
Needle bar
key
Thread color
set up display
Shows the color and the
thread color name (number)
for the thread on the needle
bar indicated on the key.
Thread the machine as
indicated here.
76
Memo
• The thread color numbers in the thread color
sequence display and the thread color set up
display can be changed, for example, to the color
name or the thread color number for other brands.
(page 109)
No.
Display
Function Page
Key Name
86

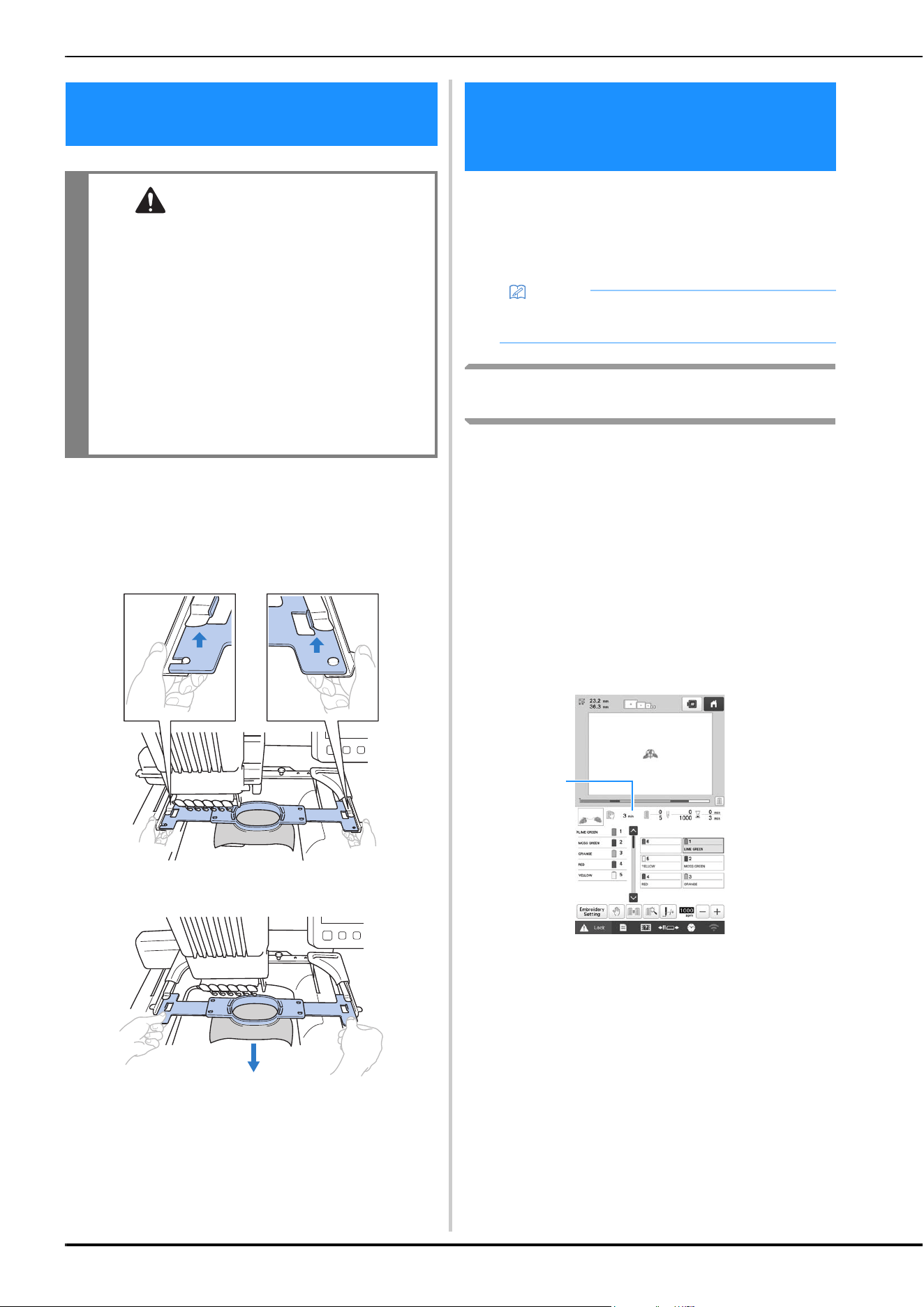

a
With both hands, grab the left and right sides of the
arms of the embroidery frame holder, and then slightly
lift up the frame.
The pins on the arms of the embroidery frame holder
should come out of the holes in the sides of embroidery
frame.
b
Pull off the embroidery frame toward you.
Remove the fabric from the frame.
When embroidering a pattern that uses seven or more
thread colors, it is necessary to change the thread spools.
When changing the thread spools, instruction to change
the thread spools will appear with the machine
automatically stopping.
Checking if thread spool changes are
necessary
When selecting a pattern, the number of thread changes can
be viewed; however, which thread colors are used in the
pattern cannot be checked on this screen. Whether or not,
and when, thread spools will need to be changed can be
checked with the following indicators.
■ Time until the machine stops embroidering
This indicator shows the amount of time until the machine
stops embroidering. The machine stops when a spool
change is required or when the machine is set to be
stopped by other settings.
If the spool change indicator appears, the machine will
require a spool change. When the time is indicated in red,
it is the last color embroidering before the machine stops.
1 Time until the machine stops
REMOVING THE EMBROIDERY
FRAME
CAUTION
• When removing the embroidery frame, make
sure that the “Start/Stop” button is lit in red. If
the “Start/Stop” button is flashing in green,
the machine may start embroidering. If the
machine accidentally starts operating, injuries
may result.
• When removing the embroidery frame, be
careful that the embroidery frame does not hit
any other part of the machine.
• Do not lift up the embroidery frame holder
with extreme force, otherwise it may be
damaged.
EMBROIDERING A PATTERN
CONTAINING SEVEN OR MORE
COLORS
Memo
• This function is not available when you set [Manual
Color Sequence] to [ON] in settings screen.
1
BASIC EMBROIDERY
87
2
■ Spool change indicator ( )
The spool change indicator in the stitch navigating screen
indicates the number of times that the thread spools will
need to be changed and the amount of time between
changes.
a
Use the scroll bar on the right side of the thread color
sequence display in the embroidering screen.
Each time is touched, the thread color sequence
display scrolls down to the next color. After reaching
the last color in the thread color sequence display,
the first color is selected.
b
Check the position of .
1 indicates when the thread spools will
need to be changed. The thread spools will need to be
changed the number of times that this indicator is
displayed and between the two thread colors at the point
where it is displayed.
c
After checking the desired information, touch or
the top of the scroll bar to return to the first color.
This section provides details on the spool thread indicators
in addition to the procedure for easily changing the spools.
About spool thread indicators
When it is necessary to replace the thread spool, the machine
automatically stops embroidering and the screen shown
below appears.
In addition, when a new pattern is selected, the screen shown
below appears. Change the thread spools according to their
new assignments.
1 The thread spools needing to be changed appear in
other than gray.
2 The thread spools needing not to be changed appear in
gray.
3 Minimize the screen indicating that the spools be
changed to . To display the screen again, touch
.
1
CHANGING THE THREAD SPOOLS
Memo
• This feature is not available if [Manual Color
Sequence] has been set to [ON] in the settings
screen.
Note
• Touch needle bar key to move the needle into the
correct position for threading with the new thread
color. (page 81)
• When the embroidering screen appears, the needle
bar settings are saved.
• If the needle bar settings are saved and the next
pattern that is opened contains thread colors that
are the same as those from the previous pattern,
the needle bars will be assigned the same thread
colors from the previous pattern.
• If you wish to delete all assigned colors on display,
refer to “To cancel the thread color settings for all
previously stitched design” on page 59.
1
1
2
3
2
88

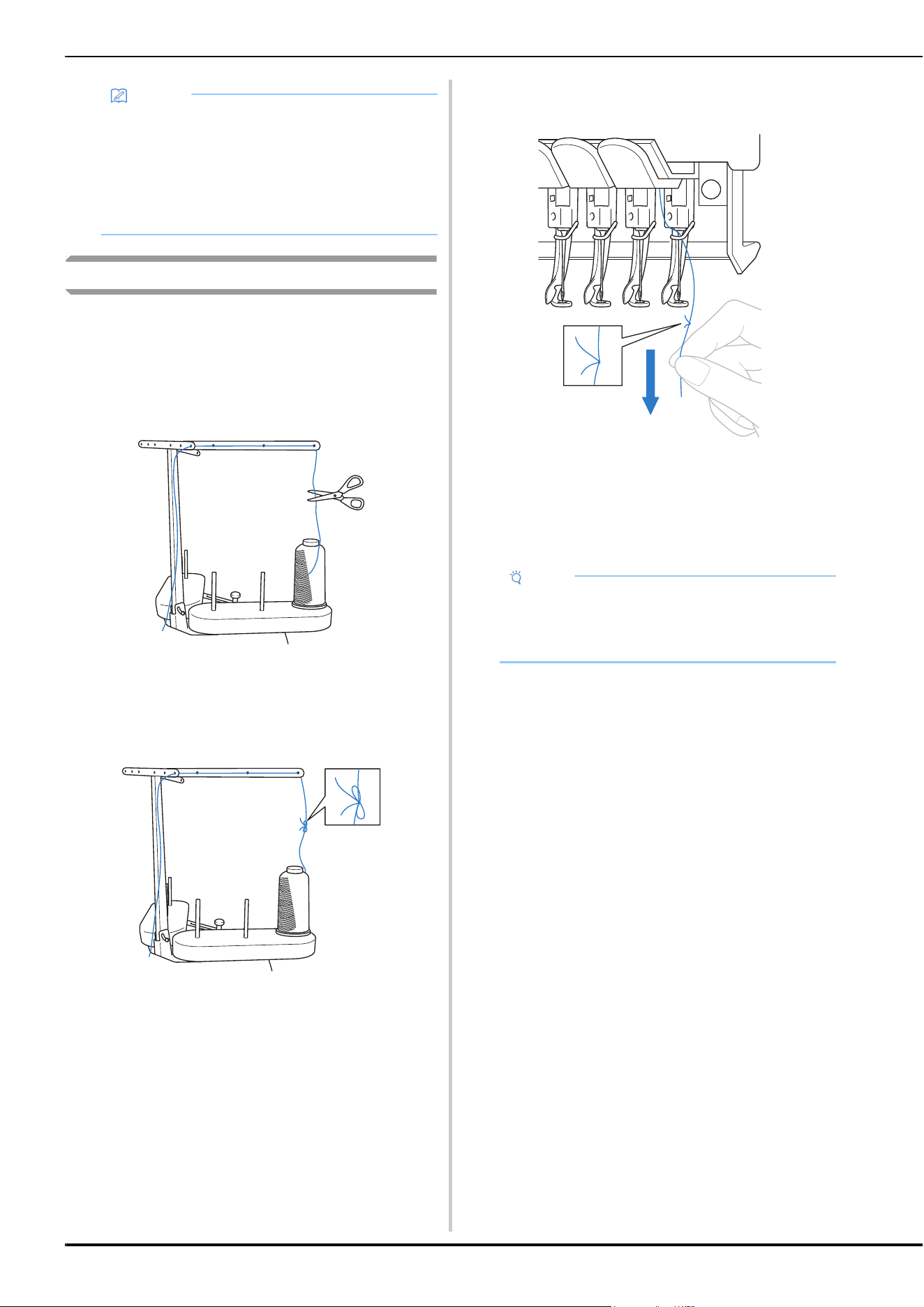

Easily changing the thread spools
When replacing the thread spools, it is necessary to re-thread
the upper thread. However, the thread spools can easily be
changed when replacing a thread spool whose thread is
correctly threaded through the machine.
a
Cut the thread between the thread spool and the
thread guide.
b
Change the thread spool.
c
Tie the end of the thread on the new spool with the end
of the thread remaining from the previous color.
d
Pull out the old thread just after the needle bar thread
guide.
Continue pulling the thread until the knot is below the
needle. Cut the knot.
e
Use the automatic needle-threading mechanism to
thread the needle with the new thread. (page 80)
This completes the changing of the thread spool.
Memo
• To use a different thread color than the one that
was specified, use the temporary needle bar
setting key, and then change the thread color
setting. (page 106)
• To minimize changing the thread spools, frequently
used thread colors can be specifically assigned to
certain needle bars. (page 107)
Note
• When pulling out the thread, do not pull the knot
through the eye of the needle. If the knot is pulled
through the eye of the needle, the needle may be
damaged.
BASIC EMBROIDERY
89
2

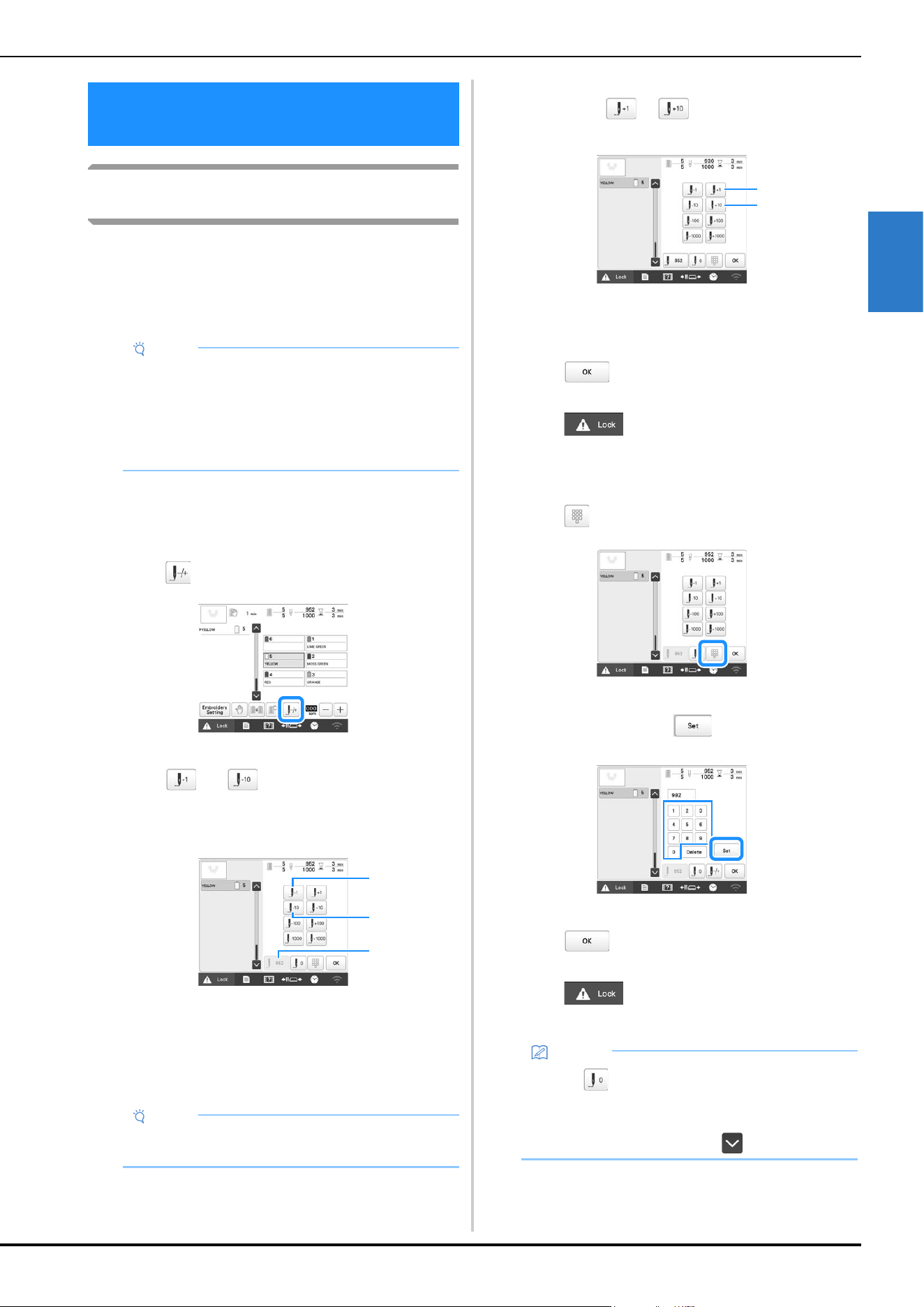

If the thread breaks or the bobbin thread
runs out while embroidering
If the thread breaks or the bobbin thread runs out while
embroidering, the machine will automatically stop. Since
some stitches may be embroidered with only one thread, go
back through the stitching to a point prior to the stoppage
before continuing embroidering.
■ If the upper thread breaks
a
Re-thread the upper thread. (page 77)
b
Touch .
The stitch navigating screen appears.
c
Touch and to go back through the stitching
to a point where stitches have already been
embroidered.
1 Each touch of this key moves one stitch back through
the stitching.
2 Each touch of this key moves ten stitches back through
the stitching.
3 Touch this key to cancel the changes and return to the
point in the stitching before the changes.
You can also touch the specific point of the embroidery
progress bar to move the stitch count to the desired point.
If the needle bar is moved back too far through the
stitching, touch or to go forward through the
stitching.
1 Each touch of this key moves one stitch forward through
the stitching.
2 Each touch of this key moves ten stitches forward
through the stitching.
d
Touch .
The embroidering screen appears again.
e
Touch , and then press the “Start/Stop”
button to continue embroidering.
■ Specifying a stitch number
a
Touch .
b
Use the number keys to enter the desired stitch
number, and then touch .
The embroidery frame moves to the specified stitch.
c
Touch .
The embroidering screen appears again.
d
Touch , and then press the “Start/Stop”
button to continue embroidering.
ADJUSTING WHILE
EMBROIDERING
Note
• If [Thread Sensor] is set to [OFF], the machine does
not stop until embroidering is finished. Normally,
the [Thread Sensor] should be set to [ON].
• Be careful when going back or forward through the
stitching since the embroidery frame moves at the
same time.
Note
• It is recommended to stitch over the top of the last
two or three stitches for complete coverage.
1
2
3
Memo
• Touch to reset the stitch number and
embroider from the first stitch.
• To specify the last stitch number, select the last
thread color, and then touch .
1
2
90

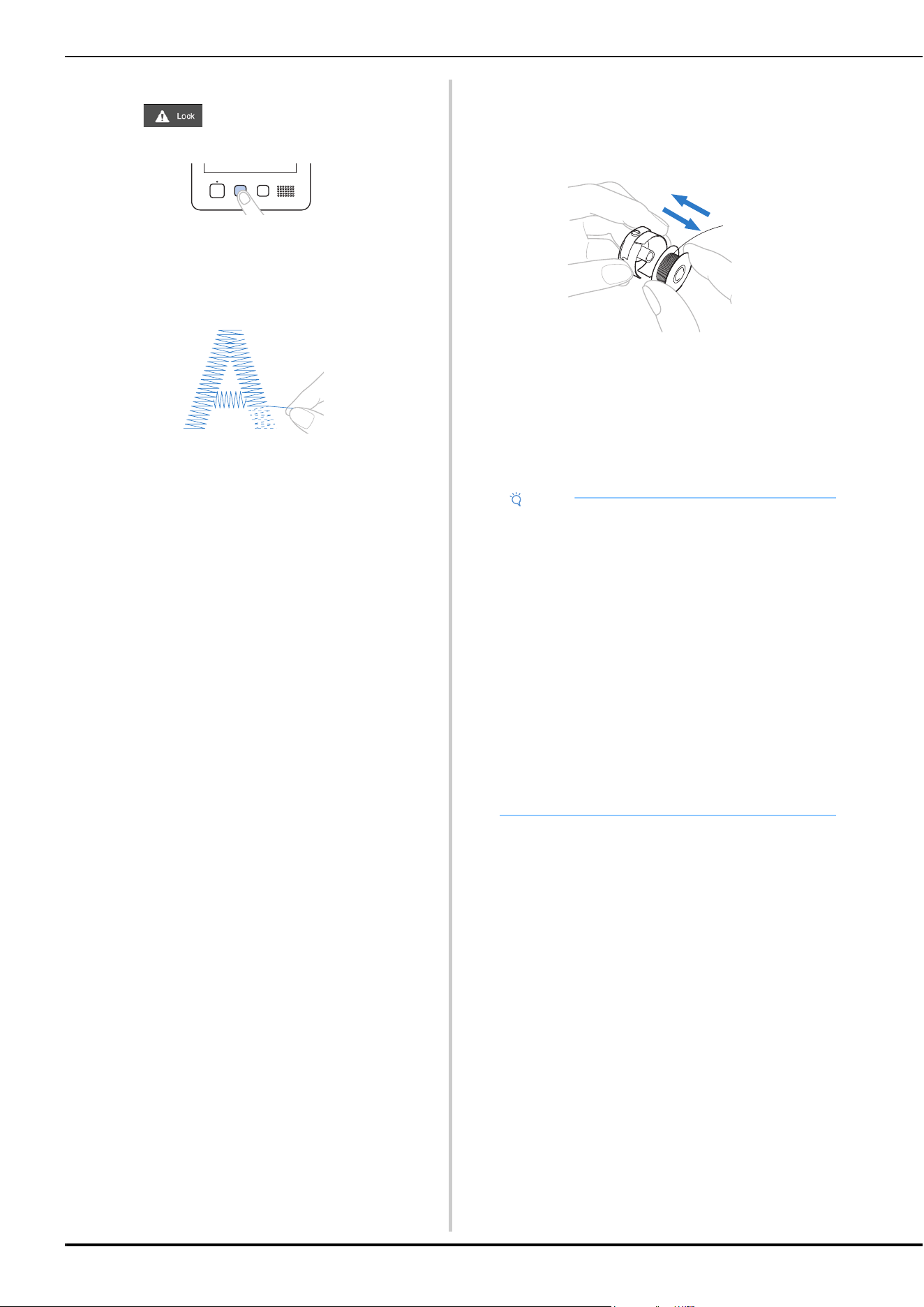

■ If the bobbin thread breaks or runs out
a
Touch , and then press the thread trimming
button.
The upper thread is trimmed.
b
Remove the stitches embroidered only with the upper
thread.
Pull the trimmed end of the upper thread.
• If the stitches cannot be cleanly removed, trim the
thread with scissors.
■ If the bobbin thread ran out, replace the
bobbin at this point in the procedure.
c
Replace the bobbin with a bobbin wound with bobbin
thread. (page 35)
• If the hook cover can be opened, replace the bobbin
without removing the embroidery frame from the
machine.
• If the machine bed is hidden, for example, with a bag-
shaped piece of fabric, or if the hook cover cannot be
opened, temporarily remove the embroidery frame.
(page 86) After replacing the bobbin, re-attach the
embroidery frame. (page 66)
d
Go back through the stitching in the same way as that
described in step
b through e of “If the upper
thread breaks” on page 89, and then continue
embroidering.
Note
If the embroidery frame is removed before
embroidering of the pattern is finished, take caution,
otherwise the pattern may become misaligned.
• Do not apply extreme pressure to the framed fabric
and cause it to become loose.
• When removing and re-attaching the embroidery
frame, do not allow the frame to hit the carriage or
the presser feet.
If the carriage is hit and moves, turn the machine
off, then on again. The correct frame position at the
time that the machine was stopped is stored in the
machine’s memory, and the embroidery frame is
returned to the correct position.
• When the embroidery frame is re-attached, make
sure that the pins on the left and right arms of the
embroidery frame holder securely fit into the holes
in the handles on the embroidery frame.
BASIC EMBROIDERY
91
2

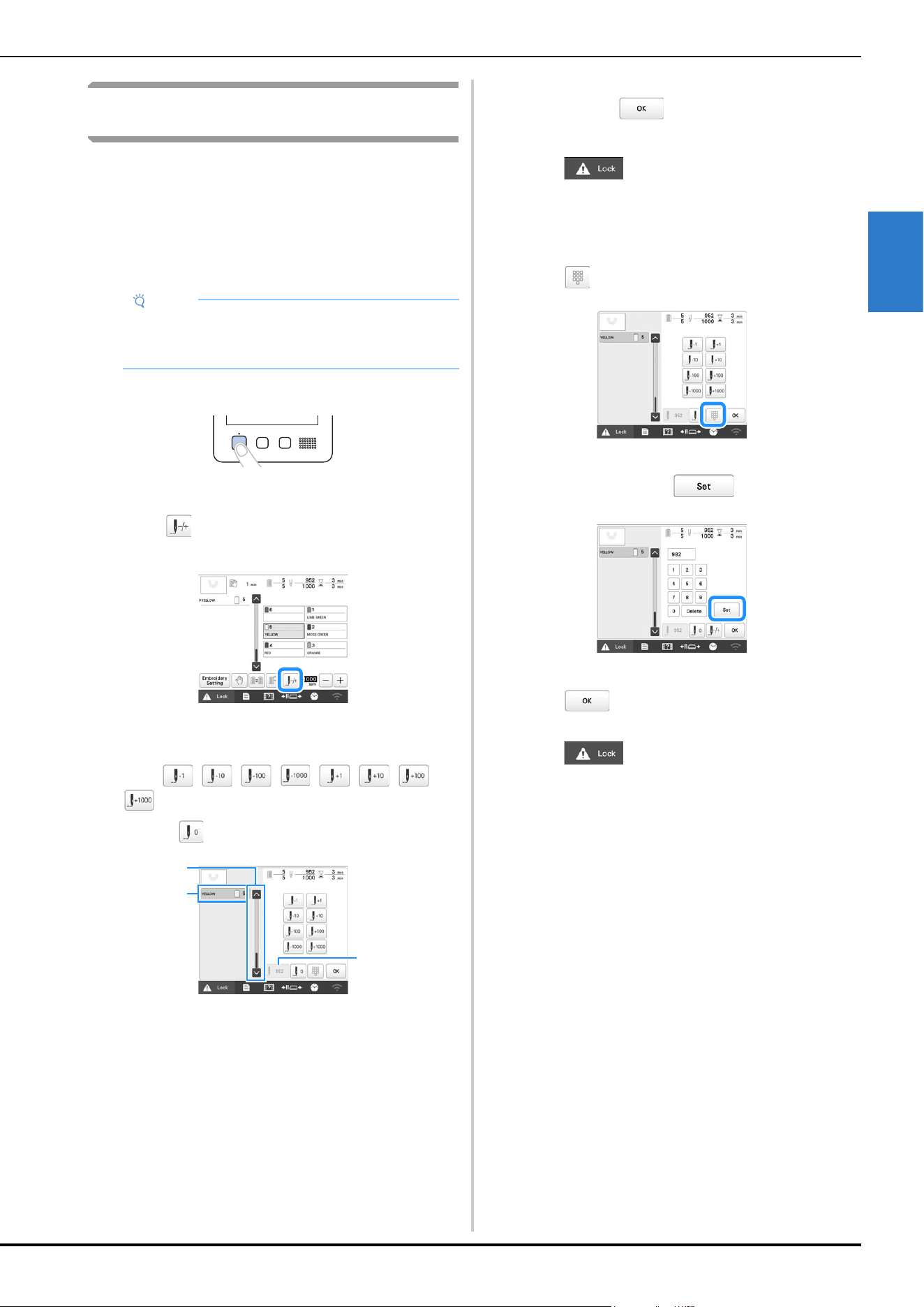

Embroidering from the beginning or middle
of the pattern
If you wish to restart embroidering from the beginning, for
example, if trial embroidery was performed and an incorrect
thread tension was used or if the wrong thread color was
used, restart the embroidering using the forward/backward
stitch key. In addition, you can go forward or back through
the stitching by thread color or by stitch to start stitching at
any position of the pattern.
a
Press the “Start/Stop” button to stop the machine.
• If necessary, trim and remove the embroidered
stitches.
b
Touch .
The stitch navigating screen appears.
c
Use the scroll bar to select the thread color, and then
touch , , , , , , and
to select the specific stitch.
• Touch to embroider from the beginning.
1 Touch this key to cancel the changes and return to the
point in the stitching before the changes.
2 The stitch from where embroidering is to begin can also
be specified by using the scroll bar.
3 The thread color at the top of the thread color sequence
display is the color of the area currently selected.
Touch this area to specify the stitch from where
embroidering is to begin.
The needle bar case moves and the current needle
bar moves to the embroidering position, and then the
embroidery frame moves and current needle position
is indicated.
d
After selecting the stitch from where embroidering is
to begin, touch .
The embroidering screen appears again.
e
Touch , and then press the “Start/Stop”
button to begin embroidering.
Embroidering begins from the specified point.
■ Specifying a stitch number
a
Touch .
b
Use the number keys to enter the desired stitch
number, and then touch .
The embroidery frame moves to the specified stitch.
c
Touch .
The embroidering screen appears again.
d
Touch , and then press the “Start/Stop”
button to continue embroidering.
Note
• Be careful when going back or forward through the
stitching since the embroidery frame moves at the
same time.
3
2
1
92
Resume embroidering after turning off the
machine
In either of the following cases, the remaining stitches of the
embroidery are stored in the machine’s memory.
• If the machine’s power switch is pressed to turn off
before stopping embroidering:
Cut the thread before the machine’s main power
switch is turned off, otherwise the thread may be
pulled or may catch when the carriage returns to its
initial position after the machine is turned on again.
• If the machine was accidentally turned off, for
example, due to a power outage, while it was
embroidering:
The remainder of the embroidery can be performed
when the machine is turned on again; however, some
of the stitches that were already embroidered may be
embroidered again.
1 Cancel embroidering and display the pattern type
selection screen to select a new pattern.
2 Continue embroidering.
The embroidering screen displayed before the
machine was turned off appears.
Note
• You may need to advance or reverse through the
stitches to get to the correct needle drop position.
21
ADVANCED EMBROIDERY
93
3

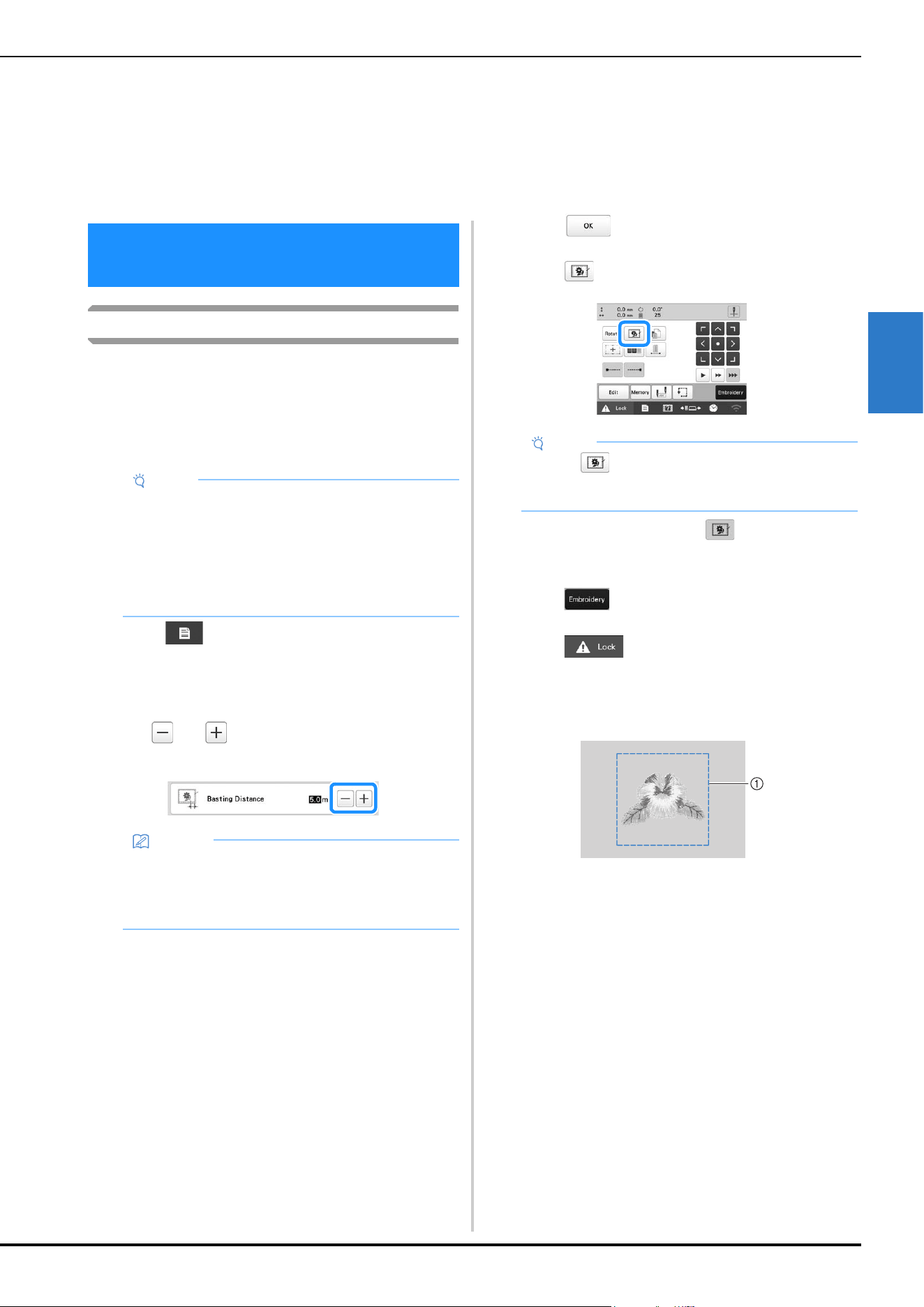

Basting embroidery
Before embroidering, basting stitches can be embroidered
along the outline of the pattern. This is useful for
embroidering fabric that cannot have stabilizer material
affixed with an iron or adhesive. By stitching stabilizer
material to the fabric, shrinkage of the stitching or misaligned
patterns can be minimized.
a
Touch .
The embroidery settings screen appears.
b
Locate [Basting Distance] in the Settings pages.
c
Use and to specify the distance from the
pattern to the basting stitching.
d
Touch to return to the embroidering settings
screen.
e
Touch to select the basting setting.
• To cancel the setting, touch .
Basting is added to the beginning of the
embroidering order.
f
Touch to continue to the embroidering screen.
g
Touch , and then press the “Start/Stop”
button to begin embroidering.
h
When embroidering is finished, remove the basting
stitching.
1 Basting stitching
Chapter 3
ADVANCED
EMBROIDERY
VARIOUS EMBROIDERY
FUNCTIONS
Note
• It is recommended to finish combining and editing
the pattern before selecting the basting setting. If
the pattern is edited after selecting the basting
setting, the basting and pattern may become
misaligned, and the basting under the pattern may
be difficult to remove after embroidering is
complete.
Memo
• The higher the setting, the farther the basting is
from the pattern.
• The setting remains selected even if the machine is
turned off.
Note
• When is touched, the pattern is moved to the
center. After selecting the basting setting, move the
pattern to the desired position.
94

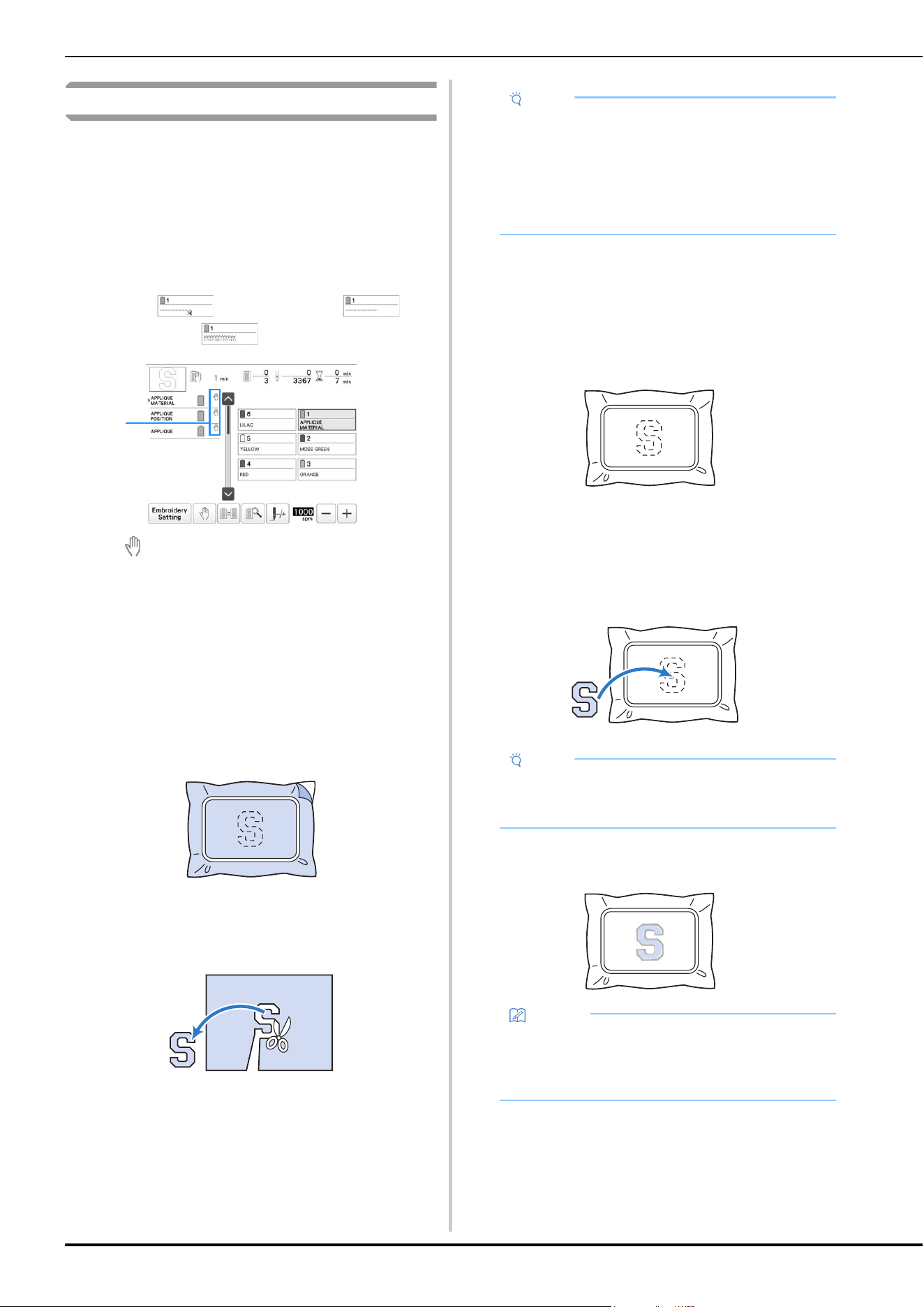

Embroidering appliqué patterns
Some of the built-in embroidery patterns can be used for
embroidering appliqués. Follow the procedures described
below to embroider appliqués using the patterns with
[APPLIQUE MATERIAL], [APPLIQUE POSITION] or
[APPLIQUE] in the region display at the top of the thread
color sequence display.
[APPLIQUE MATERIAL], [APPLIQUE POSITION] and
[APPLIQUE] are assigned to a specific needle bar number.
*Depending on the thread color display setting, the display
may appear as (Appliqué Material),
(Appliqué Position) or (Appliqué).
1 appears in the screen at places where the machine
is stopped.
■ Procedure for embroidering appliqués
a
Place stabilizer on the back of the appliqué fabric/
material.
b
Frame the fabric for the appliqué (from step a) in the
embroidery frame, and then embroider an [APPLIQUE
MATERIAL] pattern. The line that indicates where the
appliqué will be cut out is embroidered, and then the
machine stops.
c
Remove the appliqué fabric from the embroidery
frame, and then carefully cut along the embroidered
cut line.
d
Attach stabilizer material to the wrong side of the
fabric for the appliqué base.
e
Frame the base fabric or garment in the embroidery
frame, and then embroider an “APPLIQUE POSITION”
pattern. The appliqué position is embroidered, and
then the machine stops.
f
Lightly apply fabric glue or spray adhesive to the back
of the appliqué piece that was cut out, and then attach
the appliqué piece to the base fabric at the position
embroidered using the [APPLIQUE POSITION] pattern
in step
e.
g
After attaching the appliqué piece, embroider an
[APPLIQUE] pattern. The appliqué is finished.
1
Note
• If the appliqué is cut out along the inside of the
embroidered cut line, the appliqué may not be
correctly attached to the fabric. Therefore, carefully
cut out the appliqué along the embroidered cut
line. If this step is not performed carefully, the
appliqué will not be cleanly finished. In addition,
carefully remove any excess threads.
Note
• Do not remove the fabric from the embroidery
frame when attaching the appliqué piece to the
base fabric.
Memo
• Depending on the pattern, an [APPLIQUE] pattern
may not be available. In this case, embroider the
appliqué using thread in the color of a part of the
embroidery.
ADVANCED EMBROIDERY
95
3
Creating an appliqué piece
Appliqué pieces can be created from the built-in patterns and
patterns from other sources. This is convenient for fabrics that
cannot be embroidered or when you wish to attach an
appliqué to a garment.
■ Creating an appliqué piece
The following pattern will be used to create an appliqué
piece.
a
Select the pattern to be used for the appliqué.
b
In the pattern editing screen, touch .
c
Select the outline.
If is selected, an outline is created which echoes
the edges of the pattern.
Use or to specify the distance between the
pattern and the appliqué outline.
d
Check and adjust the preview in the screen, and then
touch then .
e
After specifying the various settings, touch .
f
Specify the embroidering settings, and then touch
to continue to the embroidering screen.
g
Fuse or stick a piece of stabilizer to the back of the felt
or denim fabric to be used as the appliqué piece.
h
Hoop the appliqué fabric in the embroidery frame,
attach the embroidery frame to the machine, and then
start embroidering.
i
After the cutting line [APPLIQUE MATERIAL] is
embroidered, stop the machine and remove the
appliqué material from the embroidery frame.
Note
• Felt or denim fabrics are recommended to make
the appliqué piece. Depending on the pattern and
fabric used, lighter weight fabrics may cause the
stitching to appear smaller.
• For best results, be sure to use stabilizer material
for embroidering.
• Select a frame that matches the pattern shape.
Frame options are displayed on the LCD screen.
• Finish combining and editing the pattern before
selecting the appliqué setting. If the pattern is
edited after selecting the appliqué setting, the
appliqué stitching and pattern may become
misaligned.
• Since an outline is added, the pattern for an
appliqué piece (when the appliqué setting is
selected) will be larger than the original pattern.
First, adjust the size and position of the pattern as
shown below.
1 Embroidering area
2 Approx. 10 mm (3/8 inch)
3 Pattern size
Memo
• If a frame pattern is selected for the outline, the
frame pattern can be enlarged, reduced or moved.
• Touch to select a different outline pattern.
Note
• At this time, the pattern and outline will be
grouped.
Memo
• Three steps are added to the embroidering order:
appliqué cutting line, position of pattern placement
on the garment, and appliqué stitching.
1 Cutting line for appliqué
2 Position of pattern placement on garment
3 Appliqué stitching (outline)
• We recommend using thread for the cutting line
[APPLIQUE MATERIAL] that is closest to the color
of the fabric.
1
2
3
96

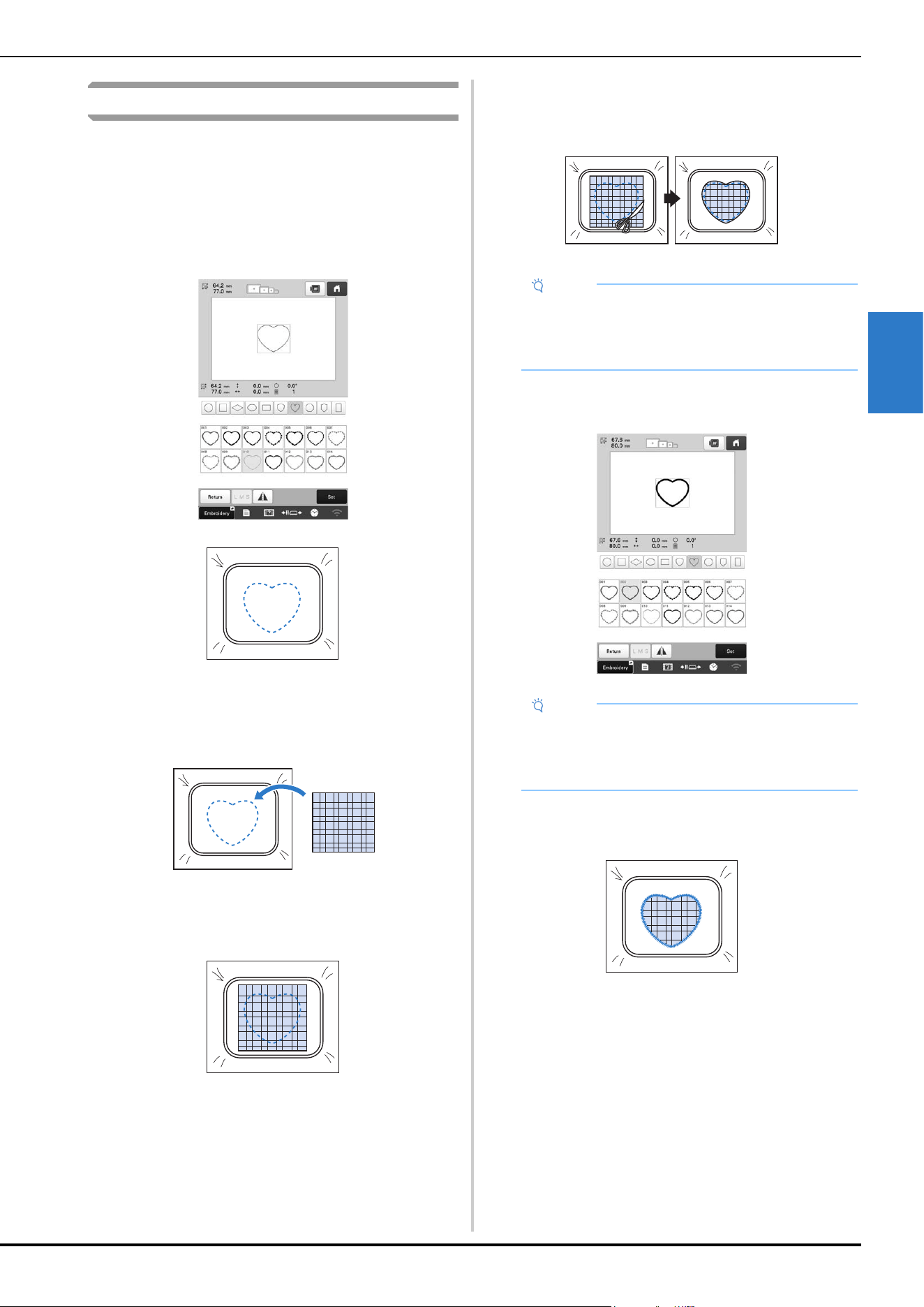

j
Carefully cut along the stitching. After cutting,
carefully remove all of the cutting line thread.
1 Cutting line for appliqué
k
Use two layers of adhesive water-soluble stabilizer
material with their sticky sides together, and then hoop
them in the embroidery frame.
l
Embroider the placement line for the appliqué position
[APPLIQUE POSITION].
1 Pattern placement line
m
Lightly apply glue or spray adhesive, and paste the
appliqué piece so that it aligns with the placement line.
n
Embroider the outline [APPLIQUE].
1 Outline of appliqué piece
o
After embroidering is finished, remove the water-
soluble stabilizer material from the embroidery frame.
p
Use scissors to cut the excess water-soluble stabilizer
from outside the appliqué outline.
q
Soak the appliqué piece in water to dissolve the water-
soluble stabilizer.
r
Dry the appliqué piece, and then iron it if necessary.
Note
• Depending on the pattern density and fabric used,
there may be shrinking of the pattern or the
appliqué may be misaligned with the placement
line. We recommend cutting slightly outside of the
cutting line.
• When using patterns that are vertically and
horizontally symmetrical, use a chalk pencil to
indicate the pattern orientation before cutting it out.
• Carefully cut out the pattern on the outline you just
embroidered. Do not cut inside the cutting line,
otherwise the appliqué fabric will not be caught by
the appliqué stitch.
Note
• If water-soluble stabilizer is used, it is not
necessary to remove the stabilizer material after
embroidering the appliqué outline. To reduce
shrinkage of the pattern, we recommend using
water-soluble stabilizer.
• Put together two layers of water-soluble stabilizer,
otherwise the stabilizer material may tear during
embroidering.
Note
• Before pasting the appliqué piece down, make sure
the appliqué piece is positioned correctly within the
placement line.
Note
• Do not apply a strong force when ironing,
otherwise the stitching may be damaged.
Memo
• The outline is embroidered using satin stitching.
• Some glue may get onto the presser foot, needle,
and needle plate at this time. Finish embroidering
the appliqué pattern, and then clean off the glue.
ADVANCED EMBROIDERY
97
3
Using a frame pattern to create appliqués
With this method, there is no need to change the fabric in the
embroidery frame. The appliqué can be created by
embroidering two frame patterns of the same size and
shape—one embroidered with straight stitches and the other
embroidered with satin stitches.
a
Select a frame pattern embroidered with straight
stitches and embroider onto the base fabric.
b
Place the appliqué fabric over the embroidery stitched
in step
a. Make sure that the appliqué fabric is larger
than the embroidered area.
c
Embroider over the appliqué fabric using the same
frame pattern.
d
Remove the embroidery frame from the machine, and
then cut off the excess appliqué fabric along the
outside of the stitching.
e
Select the satin-stitched frame pattern with the same
shape.
f
Attach the embroidery frame removed in step d, and
then finish embroidering the appliqué.
Note
• Leave the fabric in the embroidery frame when
cutting off the excess appliqué fabric. In addition,
do not apply extreme pressure to the framed fabric,
otherwise the fabric could become loose.
Note
• If the size or embroidering position of the straight-
stitched frame pattern is changed, be sure to
change the size or embroidering position of the
satin-stitched frame pattern in the same way.
98
Creating stippling or echo quilting patterns
automatically
Stippling or echo quilting patterns can be created around the
machine’s built-in patterns or original embroidery data.
a
Select the pattern that stippling will be added around.
b
Touch in the pattern editing screen.
Stippling is automatically applied around the
selected pattern.
To select multiple patterns, refer to page 44.
c
After specifying the stitch settings for the stippling,
touch .
1 To create a stippling pattern, touch . To create an
echo quilting pattern, touch .
2 If an embroidery frame size is selected, the stippling is
added within the area of the selected frame size. If the
pattern is larger than the selected frame size, the area
indicating the frame size will appear in gray.
3 Specify the distance from the outline of the pattern to the
stippling.
4 Specify the spacing for the stippling.
By using the embroidery crosshair positioning laser function,
the embroidering position can easily be aligned. This is useful
when embroidering in an area where it is necessary to align
the pattern, as shown below.
a
Use a chalk pencil to mark the desired embroidering
position.
The line drawn for the reference direction should be
longer.
1 Chalk pencil mark
b
Hoop the fabric in the embroidery frame.
2
1
3
4
USING THE EMBROIDERY
CROSSHAIR POSITIONING LASER
FUNCTION TO ALIGN THE
EMBROIDERING POSITION
Memo
• If the desired position of the pattern can be clearly
established, such as when embroidering along a
pocket, it is not necessary to mark the position with
a chalk pencil.
Note
• When hooping the fabric in the embroidery frame,
make sure that the embroidery pattern will fit within
the embroidering area of the frame being used.
1 Embroidering area
2 Embroidery pattern size
3 Chalk pencil mark
a
a
b
c
ADVANCED EMBROIDERY
99
3
c
Select the pattern.
d
Touch to display the embroidering settings
screen.
e
Touch in the embroidering settings screen.
1 Switch on/off the embroidery crosshair positioning laser.
f
If a message appears, indicating that the move and
rotate settings will return to the original ones, touch
.
g
From the reference points shown in the screen, select
the point to be used for aligning the pattern.
For this example, select the point in the lower-left
corner of the pattern.
h
Touch .
i
Select the direction (from the reference point) to be
used as a reference for aligning the pattern.
For this example, select the arrow pointing to the right
as the reference direction.
1 Cancel the pattern alignment settings.
2 Return to the previous screen.
j
Touch .
k
Touch the positioning keys to move the embroidery
frame until the embroidery crosshair positioning laser
and the center of the mark are aligned.
To change the speed that the frame moves, use the
frame movement speed keys. If it is difficult to make a
precision alignment, touch a frame movement speed
key for a slower speed.
1 Positioning keys
2 Frame movement speed keys
3 Center of mark
4 Embroidery crosshair positioning laser
Memo
• The embroidery crosshair positioning laser lights
up to indicate the needle drop point.
• With certain types of embroidery frames, the
embroidery crosshair positioning laser function
cannot be used.
• If the surface of the fabric is too uneven or rough,
check and adjust the alignment of the embroidery
crosshair positioning laser and the needle drop
point before starting to embroider.
• When using the cap frame, check and adjust the
alignment of the embroidery crosshair positioning
laser and the needle drop point before starting to
embroider.
Memo
• Even if the embroidery crosshair positioning laser
function is set to [OFF], the embroidery crosshair
positioning laser appears so that the pattern can be
aligned. When pattern alignment is completed, the
embroidery crosshair positioning laser goes off.
• In order for the embroidery crosshair positioning
laser to be easily seen, the brightness of the
embroidery light will be slightly decreased if it was
set at a high setting.
1
2
1
1
2
c
d
100
l
Touch .
m
Touch the positioning keys to move the embroidery
frame until the embroidery crosshair positioning laser
is aligned with the mark in the reference direction.
To change the speed that the frame moves, use the
frame movement speed keys. If it is difficult to make a
precision alignment, touch a frame movement speed
key for a slower speed.
1 Positioning keys
2 Frame movement speed keys
3 Reference direction of mark
4 Embroidery crosshair positioning laser
n
Touch .
The pattern is repositioned.
o
Touch .
p
Touch , and then press the “Start/Stop”
button to start embroidering.
■ Another example
By specifying an alignment point and direction,
embroidery patterns can be positioned and aligned for
various purposes.
In this example, a pattern is aligned at the left center of the
towel.
a
Use a chalk pencil to mark the desired embroidering
position.
The line drawn for the reference direction should be
longer.
1 Chalk pencil mark
b
Hoop the fabric in the embroidery frame.
Note
• Do not set the position of the embroidery crosshair
positioning laser too close to the center of the
mark. If it is too close, a message will appear,
prompting you to reposition it.
• For best accuracy, set the position of the
embroidery crosshair positioning laser on the
reference direction of mark (3) as far away from
the center of the mark as possible.
1
2
c
d
a
ADVANCED EMBROIDERY
101
3
c
Select the pattern.
d
Touch to display the embroidering settings
screen.
e
Touch in the embroidering settings screen.
1 Switch on/off the embroidery crosshair positioning laser.
f
If a message appears, indicating that the move and
rotate settings will return to the original ones, touch
.
g
From the reference points shown in the screen, select
the point to be used for aligning the pattern.
For this example, select the point in the lower-center of
the pattern.
h
Touch .
i
Select the direction (from the reference point) to be
used as a reference for aligning the pattern.
For this example, select the arrow pointing upward as
the reference direction.
1 Cancel the pattern alignment settings.
2 Return to the previous screen.
j
Touch .
k
Touch the positioning keys to move the embroidery
frame until the embroidery crosshair positioning laser
and the center of the mark are aligned.
1 Positioning keys
2 Frame movement speed keys
3 Center of mark
4 Embroidery crosshair positioning laser
1
2
1
1
2
c
d
102
l
Touch .
m
Touch the positioning keys to move the embroidery
frame until the embroidery crosshair positioning laser
is aligned with the mark in the reference direction.
1 Positioning keys
2 Frame movement speed keys
3 Reference direction of mark
4 Embroidery crosshair positioning laser
n
Touch .
The pattern is repositioned.
o
Touch .
p
Touch , and then press the “Start/Stop”
button to start embroidering.
Adjusting the tension of the bobbin thread
a
Tie the included weight to the end of the thread
extending from the bobbin case.
Prewound bobbins
1 Weight (L)
1
2
c
d
MAKING EMBROIDERY
ADJUSTMENTS
Note
• Be sure to check the tension of the bobbin thread
each time that the bobbin is changed.
Depending on the bobbin thread type and whether
a prewound bobbin is used, the tension of the
bobbin thread may differ. For example, when
replacing an empty prewound bobbin with one of
the same type, be sure to check the tension of the
bobbin thread and adjust the tension if necessary.
• Be sure to adjust the tension of the bobbin thread
before adjusting the tension of the upper thread.
Note
• Different weights are used to adjust prewound
bobbins and metal bobbins.
Metal bobbins:
1 Weight (L)
2 Weight (S) (included with the optional bobbin
winder)
a
ADVANCED EMBROIDERY
103
3
b
As shown in the illustration, hold the bobbin case
against a smooth vertical surface.
• If the thread with the weight attached is slowly pulled
out, the thread tension is correct.
c
Use the included standard screwdriver to turn the
tension-adjusting screw and adjust the thread tension.
d
After making the adjustments, try embroidering with
all needle bars to check the thread tension.
1 Tension-adjusting
screw
2 Tighter
3 Looser
Memo
• In the built-in embroidery patterns, one pattern is
used for checking the thread tension. By
embroidering this pattern, the thread tension can
easily be checked. From the wrong side of the
fabric, the bobbin thread should be adjusted to be
about one third of the stitch width.
104
Adjusting the tension of the upper thread
When embroidering, the thread tension should be set so that
the upper thread can be seen slightly on the wrong side of the
fabric.
a
Turn the thread tension knobs.
1 Thread tension knobs
2 Tighter
3 Looser
4 Mark
If the thread tension is not still correctly adjusted,
turn the upper thread guide pretension knob.
1 Upper thread guide pretension knob
2 Tighter
3 Looser
■ Correct Thread Tension
The pattern can be seen from the wrong side of the fabric.
If the thread tension is not set correctly, the pattern will
not finish well. The fabric may pucker or the thread may
break.
• Light gray color represents upper thread.
• Dark gray color represents bobbin thread.
Follow the operations described below to adjust thread
tension according to the situation.
■ Upper thread is too tight
The tension of the upper thread is too tight, resulting in the
bobbin thread being visible from the right side of the
fabric.
• Light gray color represents upper thread.
• Dark gray color represents bobbin thread.
Turn the knob in the direction of the arrow to decrease the
tension of the upper thread.
1 Red line
If the red line is visible, the thread tension cannot be
decreased any further. Increase the tension of the bobbin
thread. (page 102)
■ Upper thread is too loose
The tension of the upper thread is too loose, resulting in a
loose upper thread, loose thread locks or loops appearing
on the right side of the fabric.
• Light gray color represents upper thread.
• Dark gray color represents bobbin thread.
Note
• Always embroider a test sample prior to the final
project. Adjust the thread tension if necessary.
• The thread tension knobs have a very wide range
for adjusting the thread tension.
1 Right side
2 Wrong side
Note
• If you decrease the thread tension further than the
red line, the tension knob may be disassembled.
This is not a sign of a malfunction. Increase the
thread tension slightly, and begin embroidering
again.
• If necessary, refer to page 140 for reassembling the
tension unit.
1 Right side
2 Wrong side
Memo
• If you decrease the thread tension further than the
red line, the tension knob may be disassembled.
• If necessary, refer to page 140 for reassembling the
tension unit.
1 Right side
2 Wrong side
ADVANCED EMBROIDERY
105
3
Turn the knob in the direction of the arrow to increase the
tension of the upper thread.
Setting the machine to stop at color changes
The machine can be stopped at any time; however, if the
machine is stopped while it is embroidering, it is better to go
back a few stitches before continuing embroidering to overlap
the stitching. If the machine stops at a color change, it is not
necessary to go back through the stitching before continuing
embroidering.
■ Stopping the machine at the next color change
The machine can be set to stop before embroidering the
next color.
a
While embroidering the color before the point where
you wish to stop the machine, touch so that it
changes to .
b
After finishing embroidering the area for the current
color, the next needle bar moves into position and the
machine stops before embroidering the next color.
• If the machine is temporarily turned off, you will be
asked if you wish to continue embroidering or select a
new pattern when the machine is turned on again.
Touch to continue embroidering. (page 92)
■ Specifying pause locations before
embroidering
Pause locations can be specified in the pause setting
screen, displayed by touching .
a
Touch in the embroidering settings screen.
The pause setting screen appears.
b
From the thread color sequence display, select the
thread color where you wish to stop the machine
before continuing to embroider.
The selected thread color is highlighted in blue.
• If the same thread color is used more than once, they
can be combined. After selecting a thread color,
touch . The key changes to , and all thread
colors in the thread color sequence display that are
the same as the one that was selected are highlighted
in blue.
c
Touch .
The mark appears to indicate where the machine
will stop.
1 mark
• To cancel the setting, touch again.
d
Repeat steps b and c for each pause that you wish
to specify.
• Any number of pauses can be specified.
1
106
e
After specifying the desired settings, touch .
• If the machine is temporarily turned off when it is
stopped at the specified location after embroidering,
you will be asked if you wish to continue
embroidering or select a new pattern when the
machine is turned on again.
Touch to continue embroidering. (page 92)
Temporary needle bar setting
After embroidering begins, the machine can be stopped at a
color change and a different needle bar can be specified for
the next color to be embroidered.
By substituting an upper thread color already threaded on a
different needle bar, the time for embroidering can be saved.
For example, similar color thread can be substituted for
temporary use.
a
Touch .
The temporary needle bar setting screen appears.
b
Touch the key for the needle bar threaded with the
thread that you wish to embroider with.
The needle bar number changes and appears to
indicate the selected needle bar.
To cancel the setting, touch .
c
Touch .
The embroidering screen appears again.
Uninterrupted embroidering (one color)
A selected pattern can be stitched out in one color instead of
multiple colors. The machine will hesitate but not stop
between color steps, and then continue until the pattern is
completed.
a
Touch in the embroidering settings screen.
• The selected pattern will be embroidered in one
color, instead of changing the thread while
embroidering.
• Touch again to return to the pattern’s original
settings.
b
Touch to continue to the embroidering screen.
c
Touch the key for the needle bar threaded with the
thread you wish to embroider uninterruptedly.
The thread color sequence display and pattern for the
thread color of the selected needle bar appear.
Memo
• If the machine is temporarily turned off, the settings
to stop the machine at color changes specified
before the machine was turned off are not
canceled. However, the settings are canceled if a
new pattern is selected.
• If a pattern with the settings to stop the machine at
color changes is saved, the settings to stop the
machine at color changes are also saved.
Memo
• The thread color (needle bar) cannot be changed in
the middle of an area that is being embroidered.
Memo
• Even if uninterrupted embroidering has been set,
the DST thread trimming function can be used.
(page 109)
ADVANCED EMBROIDERY
107
3
Reserved needle bar and embroidery speed
settings
Normally, the machine automatically assigns thread colors to
the needle bars; however, a specific thread color can be
manually assigned to a certain needle bar. If a needle bar is
reserved, that needle bar is removed from the machine’s
automatic assignments and the specified color remains
assigned to it.
By specifically assigning often used thread colors to certain
needle bars, the trouble of changing the thread spools can be
reduced.
Also, the maximum embroidery speed can be specified to the
assigned needle bar. It is useful when you specially set a weak
thread such as a metallic thread to the assigned needle bar.
Needle bar settings remain until the setting is canceled.
a
Touch .
The embroidery settings screen appears.
b
Locate [Needle attribute setting] in the Settings pages.
c
Touch any of the keys from to for the number
of the needle bar that you wish to specify.
1 The number of the selected needle bar turns blue.
d
Select the color to be assigned to the needle bar.
Touch , , and , or directly touch a color,
to select the desired color.
1 Displays the color that is selected and its name.
2 The box that appears enlarged is the color that is
selected.
3 The box moves in the direction of the arrow on the key
that is touched.
e
Touch .
The selected color of thread and appear on the
selected spool.
f
Touch or to set the maximum embroidery
speed for the assigned needle bar.
1 Value of maximum embroidery speed setting
Memo
• This feature is not accessible through the
embroidering screen.
• You can assign thread colors up to 5 needle bars in
normal mode. When you set [Manual Color
Sequence] to [ON] in settings screen, it is available
to assign up to 6 needle bars. If you assign all the 6
needle bars in the [Manual Color Sequence] mode,
and then you set the machine to the normal mode,
the setting of needle bar 6 is canceled
automatically.
(page 60)
1
Memo
• Decrease the embroidery speed to 400 spm when
using a specialty thread, such as a metallic thread,
assigned to a needle bar. (“spm” is the number of
stitches embroidered in one minute.)
• The maximum embroidery speed specified here is
always in effect for the assigned needle bar, even if
you set the faster speed in the embroidering
screen. (page 84)
1
3
2
1
108
g
If necessary, touch to cancel automatic needle
threading.
1 Disable needle threader key
h
Touch .
• Specified needle bar is indicated with and the
specified maximum embroidery speed in the
embroidering screen.
■ Canceling the setting
To change the setting, first cancel it, and then select the
new setting.
a
Touch any of the keys from to for the number
of the needle bar whose setting you wish to cancel.
1 The number of the selected needle bar turns blue.
b
Touch .
1 disappears from the thread spool.
The manual needle bar setting is canceled.
c
To cancel the cancel needle threading setting, touch
again.
1 Disable needle threader key
1
Note
• The needle bar setting cannot be canceled from
the embroidering screen. You must first select
to change these settings.
Memo
• Follow the procedure from step d on page 107, to
assign another thread color to a needle bar.
1
1
1
ADVANCED EMBROIDERY
109
3
Changing the display guides
The guides in the pattern display area can be specified. The
machine automatically detects the type of embroidery frame
holder and embroidery frame that are installed and displays
them.
Touch .
The embroidery settings screen appears.
1 How the guides will appear with the specified settings
can be previewed here.
2 Displays the type of the embroidery frame holder.
3 Displays the size of the embroidery frame that is actually
installed. (page 68)
4 Select the type of the center point marker and the grid
lines and whether or not to display them.
■ Type of embroidery frame holder
The machine automatically detects the type of embroidery
frame holder that is installed.
If no embroidery frame holder is installed, the setting for
“Cap frame/Cylinder frame” is displayed.
* No icon appears since this frame is installed without
an embroidery frame holder.
Changing the thread color information
You can display the name of the thread colors, embroidery
thread number or the embroidering time.
When the machine is purchased, the thread color number
[#123] is selected.
a
Touch .
The embroidery settings screen appears.
b
Touch and to display the name of the thread
colors, the embroidery thread number or the
embroidering time.
c
When the thread number [#123] is displayed, touch
and to select from the embroidery thread
brand.
Specifying jump stitch trimming / “DST”
jump codes for trimming
You can select whether or not jump stitches are trimmed in
imported patterns. In addition, when using Tajima embroidery
data (.dst), you can select whether or not the thread is
trimmed according to a specified number of jump codes.
[ON]: The machine converts the “jump” code to a trim code,
based on the number specified in the settings screen.
[OFF]: The machine does not convert the “jump” code to a
trim code.
When the machine is purchased, [ON] is selected and the
number of jumps is set to [3].
Embroidery frame holder A (included)
Embroidery frame holder B (included)
Embroidery frame holder C (Optional)
Embroidery frame holder D (Optional)
Embroidery frame holder E (Optional)
Embroidery frame holder F (Optional)
Cap frame/Cylinder frame (Optional)
Magnetic sash frame (Optional)
*
1
4
3
2
Memo
• Colors on the screen may vary slightly from actual
spool colors.
• [Original], imported data retains the brand thread
created with the software, is set as a default.
Memo
• The thread brand setting will be applied with the
next pattern that is loaded.
Memo
• On the pattern editing screen, if the jump stitch trim
setting key is selected ( ), the jump stitches will
be trimmed even if [Thread Cut Initial Setting] is set
to [OFF]. For details, refer to “Trimming jump
stitches” on page 49.
110
a
Touch .
The embroidery settings screen appears.
b
Locate [Thread Cut Initial Setting] in the Setting pages.
c
Touch [ON] or [OFF] to select the desired setting.
Touch and to specify the jump stitch length.
For example, when the value is set to [5 mm], jump
stitches will be cut at 5 mm (13/64 inch), but not at 4
mm (5/32 inch).
■ When using Tajima embroidery data (.dst)
d
Touch and to select the number of jump
codes.
• A value between [1] and [8] can be specified. For
example, if [3] is specified, sequential 3 jump codes
will be converted to the trim code. But sequential 2
jump codes will not be converted to the trim code, it
will be embroidered as the feed (jump) stitch.
Deleting short stitches
If embroidery data other than our original patterns are used,
the stitch length may be too short, possibly resulting in the
thread or the needle breaking. In order to prevent this
problem from occurring, the machine can be set to delete
stitches with a short stitch length. Stitches with a length less
than that specified in this function can be deleted.
When the machine is purchased, [0.3] is selected.
a
Touch .
The embroidery settings screen appears.
b
Locate [Short Stitch Delete] in the Settings pages.
c
Touch and to select the stitch length.
• A value between 0 and 1 millimeters if the units of
measurements is set to “mm” (or a value between 0
and 0.04 inch if the units of measurements is set to
“inch”) can be specified.
Specifying the remaining length of thread
This setting specifies whether the length of upper thread that
remains threaded through the needle after the thread is
trimmed (length of thread passed through the eye of the
needle) has a standard tail or long tail.
When the machine is purchased, [Standard Tail] is selected.
a
Touch .
The embroidery settings screen appears.
b
Locate in the Settings pages.
c
Touch and to select the setting.
• If the machine misses stitches with a standard length
of thread after it is trimmed, select [Long Tail].
• When using metallic thread, select [Long Tail].
Changing the embroidery basting distance
The distance from the pattern to the basting stitching can be
set to 0.0 mm (0 inch) to 12.0 mm (1/2 inch).
When the machine is purchased, [5.0 mm] is selected. Refer
to page 93 when using this setting.
a
Touch .
The embroidery settings screen appears.
b
Locate [Basting Distance] in the Settings pages.
c
Use and to specify the distance from the
pattern to the basting stitching.
Memo
• The length of jump stitch trimming cannot be
specified to Tajima embroidery data (.dst).
Note
• You need to set the jump number same as the
number that was used when the particular Tajima
data was created.
If the jump number is not matched, either
unexpected trim or no trimming at trim expected
point will happen.
Note
• If the setting is changed from the previous setting,
the new setting is applied to the subsequent
embroidery.
ADVANCED EMBROIDERY
111
3
Deselect region setting
The deselect region setting (which specifies that a thread color
will not to be embroidered) can be applied to a part of the
pattern with a specific color. In this way, you can arrange the
embroidery without actually editing the pattern.
a
Touch in the embroidering settings screen.
b
From the thread color sequence display, select the
thread color that will not be embroidered.
The selected thread color is highlighted in blue.
• If the same thread color is used more than once, they
can be combined. After selecting a thread color,
touch . The key changes to , and all thread
colors in the thread color sequence display that are
the same as the one that was selected are highlighted
in blue.
c
Touch .
The mark appears to indicate that the selected
thread color will not be embroidered.
1 mark
2 The parts of the pattern that will not be embroidered are
hidden.
d
Repeat steps b and c for all thread colors that will
not be embroidered.
1
2
112
e
After specifying the desired settings, touch .
■ Canceling the deselect region setting
a
Select the thread color whose setting is to be canceled,
and then touch .
The key changes to , and the deselect region
setting is canceled.
• If thread colors were combined with , the deselect
region setting will also be canceled for all thread
colors that are the same as the one that was selected.
Starting/ending position settings
a
Touch in the embroidering settings screen.
The starting/ending position settings screen appears.
b
Select or .
• When selecting
The machine can set the starting point and the ending
point separately from the 9 points of the whole pattern.
Those are upper-left corner, upper-center, upper-right
corner, center-left, center, center-right, lower-left
corner, lower-center and lower-right corner. When
embroidering of the pattern is finished, the pattern is
automatically moved so that the embroidering starting
position overlaps the embroidering ending position.
This function can be used to repeatedly embroider a
pattern along a diagonal. (page 113)
• When selecting
1 If there are multiple patterns, select the pattern to be
used as the reference for the embroidering starting
position.
Set the embroidering starting position for the selected
pattern. The position is based on a mask from before the
pattern has been rotated. The embroidering ending
position is the same as the embroidering starting
position.
Memo
• If the deselect region setting is applied to a
character pattern, all characters in the pattern will
not be embroidered. To deselect region for a single
character, use to separate the character
pattern (page 46), or use (page 55).
• The parts with the deselect region setting applied
are not deleted. They can be reverted to being
embroidered (refer to “Canceling the deselect
region setting” on page 112).
• If the deselect region setting has been applied to all
thread colors, a red appears at the location of
the pattern.
1 Red
• If the machine is temporarily turned off, the settings
to deselect region that were specified before the
machine was turned off are not canceled. However,
the settings are canceled if the same pattern is
selected again.
• When a pattern with the deselect region setting
applied is saved, the deselect region setting is also
saved. However, the pattern cannot be saved if the
deselect region setting is applied to all thread
colors.
1
Memo
• When the machine is purchased, is selected
and both the starting position and the ending
position are set to the center of the pattern.
• The starting/ending position settings do not
change until the key for a new setting is touched.
The settings specified before the machine is turned
off remain selected the next time that the machine
is turned on. (Basting is added or removed, the
setting will return to its default.)
1
ADVANCED EMBROIDERY
113
3
■ Repeatedly embroidering a pattern along a
diagonal
Example
a
Touch in the embroidering settings screen to
display the starting/ending position settings screen.
b
Select .
c
Specify the upper-left corner as the starting position
and the lower-right corner as the ending position.
For the starting position, touch so that it changes to
.
For the ending position, touch so that it changes to
.
Touch to close the starting/ending position
settings screen.
d
Embroider the first pattern.
Touch to display the embroidering screen, and
then touch and press the “Start/Stop” button.
1 Starting position
2 Ending position
e
After embroidering is finished, the machine stops at the
lower-right corner of the pattern.
f
Touch and repeat steps d and e three
times.
Note
• If the next embroidery pattern of the series will be
stitched outside the embroidery field, the message
to inform you that it cannot set the starting/ending
position will appear.
Rehoop the fabric to continue to repeat the
embroidering pattern. Touch and repeat
steps
d and e.
Memo
• If the starting position and ending position settings
are changed, instead of embroidering the patterns
in a fixed direction, various pattern designs are
possible.
114
■ Embroidering aligned characters
Follow the procedure described below to embroider
aligned characters in a single row when the pattern
extends beyond the embroidery frame.
Example: Aligning “DEF” to the characters “ABC”
a
Select the character patterns for “ABC”.
b
Touch in the embroidering settings screen.
c
Select .
d
Touch .
The needle bar is positioned in the lower-left corner
of the pattern. The embroidery frame moves so that
the needle is positioned correctly.
e
Touch to return to the embroidering settings
screen.
changes to while the starting point is set
in the lower-left corner of the pattern.
f
Touch .
g
Touch , and then press the “Start/Stop”
button to begin embroidering.
h
After the characters are embroidered, cut the threads,
remove the embroidery frame, shift the fabric in the
frame, and then attach the embroidery frame again so
that the remaining characters (“DEF”) can be
embroidered.
1 End of the embroidering
i
As in step a, select the character patterns for “DEF”.
j
In the embroidering settings screen, touch .
k
Touch .
The needle bar is positioned in the lower-left corner
of the pattern. The embroidery frame moves so that
the needle is positioned correctly.
l
Touch .
Memo
• Ensure that the jump stitch trim setting key appears
as to provide a positioning point for the
second group of characters.
Note
• To cancel the starting point setting and return the
starting point to the center of the pattern, touch
.
• Use to select a different starting point for
embroidering.
ADVANCED EMBROIDERY
115
3
m
Use to align the needle with the end of
embroidering for the previous pattern.
n
Touch .
o
Touch , and then press the “Start/Stop”
button to begin embroidering the remaining character
patterns.
■ Embroidering a pattern aligned with a mark on
the fabric
By specifying the beginning of stitching and the end of
stitching, the exact position of the pattern can be checked.
a
Touch in the embroidering settings screen.
b
Select .
c
Set the beginning of stitching in the lower-left corner.
The frame moves so that the needle drop point aligns
with the beginning of stitching.
d
With a fabric marker, mark this point on the fabric.
e
Set the beginning of stitching in the lower-right corner.
The frame moves so that the needle drop point aligns
with the beginning of stitching.
f
With a fabric marker, mark this point on the fabric.
g
Remove the embroidery frame from the machine, and
then connect these two points to check the
embroidering position.
• If the baseline is misaligned or intersects another line,
reframe the fabric in the embroidery frame or adjust
the position of the pattern.
Note
• You can also follow the procedure of “Finding the
embroidering position” on page 75, by directly
place the needle over the end of the previous
pattern.
Memo
• If [Embroidery Crosshair Positioning Laser] is set to
[ON], the embroidery crosshair positioning laser will
be displayed to indicate the needle drop point.
116
Saving embroidery patterns
a
Touch when the pattern you want to save is in
the embroidering settings screen.
b
Touch the desired destination to start saving.
1 Save to the machine’s memory.
2 Save to the USB media. The pattern is saved in a folder
labeled [bPocket].
When saving the embroidery pattern in a USB media,
insert the USB media into the USB port on the machine.
3 Save to the computer.
When saving the embroidery pattern to a computer, use
the included USB cable to connect the machine to the
computer. The machine will be recognized as a
temporary, removable disk on the computer.
• The file will be saved to the removable disk. To save
the file to a more permanent folder in the computer,
open File Explorer, select the removable disk, then
copy the PHX file to the destination folder.
4 Save the pattern to the computer via the wireless
network connection. For detailed procedures, refer to
PE-DESIGN manual (version 11 or later).
Retrieving embroidery patterns
a
Touch the desired destination, and then select the
desired embroidery pattern.
1 Retrieve from the machine’s memory.
2 Retrieve from a USB media.
When retrieving the patterns from a USB media, insert
the USB media into the USB port on the machine.
3 Retrieve from a computer.
When retrieving the patterns from a computer, use the
included USB cable to connect the computer and the
machine. Plug the USB cable connector into the
corresponding USB ports for the computer and for the
machine. Copy the embroidery pattern file to the
removable disk that has been assigned to the
embroidery machine.
4 Retrieve the pattern via the wireless network connection.
For detailed procedures, refer to the manual of PE-
DESIGN (version 11 or later) or Design Database
Transfer.
b
Touch .
* To save embroidery patterns to another memory,
touch , and then select the desired destination.
* Touch to delete the embroidery pattern.
USING THE MEMORY FUNCTION
Note
• Do not turn the main power to OFF while the
[Saving…] screen is displayed. You will lose the
pattern you are saving.
• Embroidery patterns cannot be transferred via
wireless transmission if the computer and machine
are connected to different networks. Be sure to
connect to the same network.
• For details on supported computers, refer to
“SPECIFICATIONS” on page 156.
1
4
3
2
Memo
• If the embroidery pattern to be retrieved is in a
folder of the USB media, touch the key for that
folder. Touch to return to the previous screen.
1
4
3
2
ADVANCED EMBROIDERY
117
3
This machine is compatible with the Link function. This
function allows embroidery patterns edited in embroidery
software with the Link function, such as PE-DESIGN NEXT
or later, to be transferred from a computer to multiple
machines. As many as 100 embroidery patterns can be
transferred to a machine, and the embroidering status of
the patterns being transferred can be viewed from the
computer monitor.
Use the included USB cable or the wireless LAN function
to connect the machine to a computer. To transfer patterns
via the wireless network connection, use PE-DESIGN
version 11.2 or later.
Operations available with the Link function
■ Send multiple embroidery patterns to
connected machines
■ Check the embroidering status of the machine
(this model) from the computer
(Example of multiple machines connected by the USB
cable)
• A maximum of four machines can be connected.
(Example of multiple machines connected by the wireless
LAN function)
• A maximum of ten machines can be connected.
Embroidering using the Link function
First, use the embroidery editing software to create the
embroidery pattern to be sent to the machine.
a
Touch , then .
The general settings screen appears.
b
Locate [Link] in the Settings pages.
c
Touch and to select [USB cable] or [Wireless
LAN].
d
Set [Send to] to [Embroidering Screen] or
[Embroidering Settings Screen].
• This sets the screen where the machine receives the
embroidery pattern from the computer.
e
Touch [ON] to enable the Link function.
SENDING EMBROIDERY PATTERNS
FROM A COMPUTER TO THE
MACHINE (LINK FUNCTION)
Memo
• When connecting multiple machines to the
computer, use a commercially available USB hub.
Please note that we recommend you use a self-
powered USB hub. Do not use USB extension
cables or repeater cables. For details on using the
USB hub, refer to its operating instructions.
Note
• Embroidery data in the PES format (.pes) and PEN
format (.pen) can be embroidered using the Link
function.
• The Link function cannot be used with split (large-
size) patterns. (page 121)
• Attach to the machine the embroidery frame for the
size of the pattern to be sent.
118
When the following message appears, touch .
f
Turn off the machine.
g
Connect the machine to the computer.
• USB cable connection
When connecting the machine to the computer, use the
included USB cable.
• Wireless LAN connection
For details on the wireless LAN connection, refer to
page 30.
h
Turn on the machine.
i
Using embroidery editing software with the Link
function, such as PE-DESIGN NEXT or later from a
computer, send the pattern to the machine in the Link
mode.
j
When the following message appears, touch .
A message appears in the machine’s LCD while the
machine is connecting to computer.
Memo
• When the Link function by the USB cable
connection is turned on while [Wireless LAN
Enable] is set to [ON], the message to set [Wireless
LAN Enable] to [OFF] appears.
• When the Link function by the wireless LAN
connection is turned on while [Wireless LAN
Enable] is set to [OFF], the message to set
[Wireless LAN Enable] to [ON] appears.
Note
• When you turn off the machine, wait for about 5
seconds before turning on the machine again.
• USB cable connection • Wireless LAN connection
Note
• For details on using the embroidery editing
software, refer to the Instruction Manual included
with it.
* This Link dialog box is found in PE-DESIGN
NEXT software.
• If the following error message appears, the type of
embroidery frame installed on the machine is not
compatible with the size of the pattern. Replace the
embroidery frame with one compatible with the
size of the pattern.
ADVANCED EMBROIDERY
119
3
k
The embroidery pattern is sent to the machine.
• If [Send to] is set to [Embroidering Screen], the
embroidery pattern sent to the machine will appear in
the embroidering screen. Refer to “Embroidering a
pattern received in the embroidering screen” on
page 119, and continue the operation with the
machine.
• If [Send to] is set to [Embroidering Settings Screen],
the embroidery pattern sent to the machine will
appear in the embroidering settings screen. Refer to
“Embroidering a pattern received in the embroidering
settings screen” on page 120, and continue the
operation with the machine.
■ Embroidering a pattern received in the
embroidering screen
If [Send to] is set to [Embroidering Screen], the embroidery
pattern sent to the machine will appear in the
embroidering screen.
a
After the embroidery pattern has been sent to the
machine, the embroidering screen appears.
The opened embroidery pattern appears in the
pattern display area with the icon for the Link
function.
b
To change the embroidering settings for the opened
embroidery pattern, touch . If the settings will
not be changed, continue with step
d.
• Touch when the following message appears.
Touch to return to the embroidering screen.
The embroidering settings screen appears.
c
After the desired settings have been specified, touch
to return to the embroidering screen.
d
Touch , and then press the “Start/Stop”
button to start embroidering.
When embroidering is finished, the following
message appears.
e
To open another pattern sent from the computer,
touch , and then repeat the procedure starting
from step
a to continue embroidering.
To stop embroidering or to embroider the same pattern
again, touch .
• USB cable connection • Wireless LAN connection
1 Icon for Link function
2 10-digit machine ID
3 Number of the pattern in
the queue
1 Icon for Link function
2 The machine’s name
3 Number of the pattern in
the queue
Memo
• While the machine is connected to the computer,
the machine’s status can be displayed by using a
function of the embroidery editing software. If
multiple machines are connected at the same time,
check the status of the machines using the 10-digit
machine ID or machine’s name that appears in the
machine’s screen. The following information can be
viewed from the computer.
- Machine’s status
- Information on the embroidery data being
embroidered and received by the machine (time
until the next time that the machine stops,
number of color changes, embroidering time,
maximum embroidery speed, pattern size, size of
frame being used on the machine)
2
1
3
2
1
3
• USB cable connection • Wireless LAN connection
120
■ Embroidering a pattern received in the
embroidering settings screen
If [Send to] is set to [Embroidering Settings Screen], the
embroidery pattern sent to the machine will appear in the
embroidering settings screen.
a
After the embroidery pattern has been sent to the
machine, the embroidering settings screen appears.
The opened embroidery pattern appears in the
pattern display area with the icon for the Link
function.
b
After the desired settings have been specified, touch
to continue to the embroidering screen.
c
Touch , and then press the “Start/Stop”
button to start embroidering.
When embroidering is finished, the following
message appears.
d
To open another pattern sent from the computer,
touch , and then repeat the procedure starting
from step
a to continue embroidering.
To stop embroidering or to embroider the same pattern
again, touch .
Disabling the Link function
a
Touch , then .
The general settings screen appears.
b
Locate [Link] in the Settings pages.
c
Touch [OFF] to disable the Link function.
When the message to finish the Link mode appears,
touch .
d
Turn off the machine.
Memo
• The embroidering screen settings specified in step
c are saved even if was touched to
continue embroidering after embroidering is
finished.
• If the machine is turned off while it is embroidering,
the resume operation can be used the next time it
is turned on.
• USB cable connection • Wireless LAN connection
1 Icon for Link function
2 10-digit machine ID
3 Number of the pattern in
the queue
1 Icon for Link function
2 The machine’s name
3 Number of the pattern in
the queue
Memo
• While the machine is connected to the computer,
the machine’s status can be displayed by using a
function of the embroidery editing software. If
multiple machines are connected at the same time,
check the status of the machines using the 10-digit
machine ID or machine’s name that appears in the
machine’s screen. The following information can be
viewed from the computer.
- Machine’s status
- Information on the embroidery data being
embroidered and received by the machine (time
until the next time that the machine stops,
number of color changes, embroidering time,
maximum embroidery speed, pattern size, size of
frame being used on the machine)
2
1
3
2
1
3
Memo
• If the machine is turned off while it is embroidering,
the resume operation can be used the next time it
is turned on.
• The embroidering screen settings specified in step
a are saved even if was touched to
continue embroidering after embroidering is
finished.
Note
• When you turn off the machine, wait for about 5
seconds before turning on the machine again.
ADVANCED EMBROIDERY
121
3
Embroidering split (large-size) patterns
Split (large-size) patterns created with PE-DESIGN version 7 or
later, or PE-DESIGN NEXT can be embroidered. With large-
size patterns, embroidery designs larger than the embroidery
hoop are divided into multiple sections, which combine to
create a single pattern after each section is embroidered.
For details on creating large-size embroidery patterns and for
more detailed embroidering instructions, refer to the manual
included with PE-DESIGN version 7 or later, or PE-DESIGN
NEXT.
The following procedure describes how to read the large-size
embroidery pattern shown below from USB media and
embroider it.
a
Connect to the machine the media containing the
created large-size embroidery pattern, and then select
the large-size embroidery pattern to be embroidered.
* For details on retrieving patterns, refer to page 116.
A screen appears so that a section of the large-size
embroidery pattern can be selected.
b
Select section to be embroidered, then touch
.
• Select the sections in alphabetical order.
c
If necessary, edit the pattern. Then, touch .
• For details, refer to “EDITING THE EMBROIDERY
PATTERN” on page 46.
d
Confirm the pattern size, and then select the
appropriate fabric and the embroidery frame.
• Be sure to select fabric of the size of combined
pattern.
e
Hoop the appropriate part of the fabric. In this case,
hoop upper-left part of the fabric.
EMBROIDERY APPLICATIONS
1 Center of fabric
122
f
Touch .
g
Touch , and then press the “Start/Stop”
button to embroider the section.
h
When embroidering is finished, the message to confirm
to embroider the next section appears. Touch .
A screen appears so that a section of the large-size
embroidery pattern can be selected.
i
Touch to select the next section of the pattern, and
then touch .
j
Touch , and then .
k
Hoop the fabric for the next section aligning on the
alignment stitching. In this case, align the left side of
the hoop on the right side of the section embroidered
in step
f.
1 Alignment stitching
l
Repeat steps g to j to embroider and combine the
remaining sections of the pattern.
Memo
• The pattern can be rotated to either the left or right
when is touched.
Note
• The last step of the stitching of the section will be
an alignment stitching. Use this stitching for
placement of adjacent section.
Note
• For details on aligning and stitching split, large-size
embroidery patterns, refer to the manual included
with PE-DESIGN version 7 or later, or PE-DESIGN
NEXT.
ADVANCED EMBROIDERY
123
3
When winding the bobbin thread onto a metal bobbin, use
the optional bobbin winder.
Optional bobbin winder and its accessories
Check that the following bobbin winder and accessories are
included. When the part code is “*”, contact your authorized
Brother dealer.
USING THE OPTIONAL BOBBIN
WINDER
CAUTION
• Be sure to place the bobbin winder on a level,
stable surface.
• Be sure to use the bobbins supplied with this
bobbin winder.
Part Name
Part Code
1.
1 Main power switch
2 Bobbin winder shaft
3 Hole for thread guide
4 Hole for spool pin
5 DC input connector
Bobbin winder
PRBW1
2. Spool pin
XC5949-051
3. Spool cushion
XA0679-050
4. Thread guide
XC6644-151
a
b
c
d
e
5. AC adapter
*
6. Power supply cord
*
7. Metal bobbin × 5
100376-051
8. Spool cap
130012-057
9. Weight (L)
XC5974-151
10. Weight (S)
XC6631-051
Memo
• The part code of the bobbin winder set may differ
depending on the country/area where the machine
was purchased.
• Depending on the model you purchased, the
bobbin winder may be included with the machine.
Part Name
Part Code
124
Setting up the optional bobbin winder
a
Insert the spool pin and the spool cushion.
Insert the spool pin holder, and then insert the spool pin
straight into the hole. Place the spool cushion on the
spool pin.
1 Spool pin
2 Spool pin holder
3 Hole for spool pin
4 Spool cushion
b
Insert the thread guide.
Insert the thread guide straight into the hole with the
pins on the thread guide aligned with the notches on the
sides of the hole.
1 Pins on thread guide
2 Notches on hole for thread guide
3 Hole for thread guide
• Firmly insert the thread guide as far as possible and
make sure that it is secure.
Connecting the AC adapter
a
Insert the plug of the power supply cord into the AC
adapter.
b
Plug the cord on the AC adapter into the DC input
connector of the bobbin winder, and then insert the
plug of the power supply cord into a household
electrical outlet.
• Be sure to firmly insert the plug on the AC adapter
into the DC input connector of the bobbin winder.
CAUTION
• Be sure to use the included AC adapter and
power cord of the bobbin winder.
• Before connecting or disconnecting the AC
adapter, be sure that the unit is not operating.
• After using the bobbin winder, disconnect it
from the electrical outlet.
ADVANCED EMBROIDERY
125
3
Winding the bobbin
Prepare the bobbin and the spool of bobbin thread. Use
cotton or spun polyester bobbin thread (from 74 dtex/2 to 100
dtex/2).
a
Align the groove in the bobbin with the spring on the
bobbin winder shaft, and set the bobbin on the shaft.
1 Groove in the bobbin
2 Spring on the shaft
b
Set the thread spool on the spool pin.
1 Thread spool
2 Spool pin
c
Pass the thread through the hole in the left of the
thread guide toward the front of the winder.
1 Hole in the thread guide
d
Pass the thread around the tension disc as shown in the
illustration. Make sure that the thread is correctly fed
into the tension disc.
1 Tension disc
e
Pass the thread through the hole in the right of the
thread guide toward the back of the machine.
1 Hole in the thread guide
Note
• When using a small spool, remove the spool
cushion and set the spool directly onto the spool
pin. Also use the included spool cap to keep the
small spool stable.
126
f
Wind the thread clockwise around the bobbin 4 or 5
times, as shown in the illustration.
g
Pass the end of the thread through the guide slit in the
bobbin winder seat, and pull the thread. The cutter will
cut the thread.
1 Guide slit
2 Bobbin winder seat
h
Slide the bobbin holder, until it clicks into place.
1 Bobbin holder
i
Press the main power switch to start winding the
bobbin.
Start winding the bobbin.
j
The bobbin will stop rotating automatically when it is
done winding, and the bobbin holder will return to its
original position.
k
Remove the bobbin.
Note
• Be sure to follow the procedure described. If the
bobbin is wound without the thread being cut with
the cutter, when the bobbin thread runs low, the
thread may become tangled around the bobbin
and cause the needle to break.
Note
• When removing the bobbin, do not pull on the
bobbin winder seat. Doing so could loosen or
remove the bobbin winder seat, resulting in
damage to the bobbin winder.
ADVANCED EMBROIDERY
127
3
l
Pull the thread through the guide slit in the bobbin
winder seat to cut the thread with the cutter.
■ If bobbin winding is stopped before it is
finished
The bobbin winder stops automatically if the thread does
not feed, for example, if it becomes tangled on the spool
pin. If this occurs, correctly thread the bobbin winder, and
then wind the bobbin correctly.
CAUTION
• Check that the bobbin thread has been wound
correctly, otherwise the needle may break or
the thread tension will be incorrect.
• Be sure to clean the bobbin case each time
that the bobbin is changed. For details, refer to
“Cleaning the bobbin case” on page 139.
• Be sure to check the tension of the bobbin
thread each time that the bobbin is changed.
For detailed instructions on how to adjust the
bobbin tension, refer to page 102.
128
ADMINISTRATOR MODE
129
4
Settings screens can be locked so that only the
administrator can change the settings.
In order to access the settings screens, the 6-digit passcode
specified by the administrator must be entered.
Configuring administrator lock
a
Touch , then .
The general settings screen appears.
b
Locate [Passcode Setting] in the Settings pages.
c
Touch [ON] beside [Admin Lock].
• To change the passcode, continue with step d.
• If the passcode will not be changed, continue with
step
h. (The initial passcode is 999999.)
d
Touch beside [Admin Lock].
e
Type in the new passcode (6 digits).
f
Type it in again for confirmation.
• If a mistake was made while typing, start over with the
first digit.
g
Touch .
h
Touch .
Administrator lock is enabled, and key symbols
appear on the settings keys.
Afterwards, each time a settings key is touched, the
6-digit passcode must be entered.
Accessing settings screens when
administrator lock is enabled
When administrator lock is enabled, key symbols appear on
the settings keys.
A 6-digit passcode must be entered in order to access the
settings screen after touching its settings key.
a
Touch .
The administrator passcode input screen appears.
• The same happens if or is touched.
b
Type in the 6-digit passcode.
Chapter 4
ADMINISTRATOR MODE
ADMINISTRATOR LOCK
Memo
• is the key in the following screen, which
appears after is touched.
130
If the correct passcode was entered, the settings
screen can be accessed.
Canceling administrator lock
a
Follow the procedure described in “Accessing settings
screens when administrator lock is enabled” on page
129 to display the settings screen.
b
Touch .
The general settings screen appears.
c
Locate [Passcode Setting] in the Settings pages.
d
Touch [OFF] beside [Admin Lock].
e
Touch .
Administrator lock is canceled, and the key symbols
are removed from the settings keys.
The LCD screen can be locked so that only the designated
operator can use it. In order to use the LCD screen, the 4-
digit passcode specified by the administrator must be
entered.
The LCD screen will be locked in the following situations.
• The lock screen key is touched.
• The LCD screen is touched after the set length of time
has passed, causing the screen saver to appear.
• The machine is turned off, then on again.
1 Lock screen key
Configuring operator lock
a
Touch , then .
The general settings screen appears.
b
Locate [Passcode Setting] in the Settings pages.
c
Touch [ON] beside [Operator Lock].
• To change the passcode, continue with step d.
• If the passcode will not be changed, continue with
step
h. (The initial passcode is 9999.)
Memo
• If the wrong passcode is entered 10 times, the
passcode will be reset and return to the initial
passcode (999999).
OPERATOR LOCK
1
ADMINISTRATOR MODE
131
4
d
Touch beside [Operator Lock].
e
Type in the new passcode (4 digits).
f
Type it in again for confirmation.
• If a mistake was made while typing, start over with the
first digit.
g
Touch .
h
Touch .
Afterwards, each time the LCD screen is locked, the
4-digit passcode must be entered to continue
operation.
• For details on the procedure when the LCD screen is
locked, refer to “OPERATOR LOCK” on page 130.
Accessing screens when the LCD screen is
locked
When the LCD screen is locked, the passcode input screen
will appear.
In order to access screens, the 4-digit passcode specified by
the administrator must be entered.
Type the 4-digit passcode in the passcode input screen.
If the correct passcode was entered, the screen
displayed before the LCD screen was locked
appears, and the LCD screen can be used.
■ Canceling operator lock
a
Touch , then .
The general settings screen appears.
b
Locate [Passcode Setting] in the Settings pages.
c
Touch [OFF] beside [Operator Lock].
d
Touch .
Memo
• If the wrong passcode is entered 10 times, the
passcode will be reset and return to the initial
passcode (9999).
132
You can select the functions (keys) not to be available
according to the purpose and conditions of the job, and
optimize the key display in the screen to the minimum
necessary. By optimizing the key display, errors can be
reduced, job efficiency increased, and the machine used
more easily. Once specified, the key display optimization
settings can be saved and recalled at any time.
Specifying/changing key display
optimization
Follow the procedure below to specify key display
optimization for the first time or to change the optimization
settings specified on the machine.
a
Touch , then .
The general settings screen appears.
b
Locate [Key Optimization Mode] in the Settings pages.
c
Touch .
d
Confirm the information in the message that appears,
and then touch .
e
In the pattern type selection screen, touch the keys not
to be available.
• The keys in the red box can be set to not be available.
The selected key changes to gray, and the prohibition
symbol appears in the upper-left corner of the key.
f
Touch to continue to the pattern editing screen.
1 Cancel the optimization settings.
2 Return to the previous screen of settings. (Not available
while specifying settings on screen 1/4.)
3 Continue to the next screen of settings. (Not available
while specifying settings on screen 4/4.)
4 Return the keys in this screen to their original settings.
KEY OPTIMIZATION MODE
Memo
• This function cannot be used when the machine is
in Link mode.
Memo
• Only one set of optimization settings can be saved
on the machine. If the settings are changed, the
saved settings will be overwritten with the newest
ones.
• Your favorite optimization settings can be saved on
USB media and recalled at any time. (Refer to
steps
m through n.)
1 Red box
2 Symbol indicating key that is not available
Memo
• Touch a gray key to make it available again.
1
2
4
1
2 3
ADMINISTRATOR MODE
133
4
g
In the pattern editing screen, touch the keys not to be
available.
The selected key changes to gray, and the prohibition
symbol appears in the upper-left corner of the key.
h
Touch to continue to the embroidering settings
screen.
* For details on the keys, refer to step f.
i
In the embroidering settings screen, touch the keys not
to be available.
The selected key changes to gray, and the prohibition
symbol appears in the upper-left corner of the key.
j
Touch to continue to keys used when retrieving
embroidery patterns.
* For details on the keys, refer to step f.
134
k
Of (delete pattern) and (save pattern in
other storage destination), touch the keys not to be
available when retrieving an embroidery pattern.
The selected key changes to gray, and the prohibition
symbol appears in the upper-left corner of the key.
l
After all key display optimization settings have been
specified, touch .
* For details on the keys, refer to step
f.
The key display optimization settings are specified
on the machine.
• To save these settings on USB media, continue with
step
m.
• If the settings will not be saved on USB media, touch
, and then continue to step o.
m
Insert USB media into USB port 1 or USB port 2.
n
Touch the key for the USB port used in step m .
The key display optimization settings are saved in a
folder labeled “bPocket” on the USB media. Touch
.
o
Touch .
The screens will appear with the specified key
display optimization.
Memo
• The key settings specified here are applied when
retrieving patterns in the following situations.
- When retrieving from the machine’s memory
- When retrieving from USB media
- When retrieving from a computer
- When retrieving via a wireless network
connection
ADMINISTRATOR MODE
135
4
Activating/deactivating key display
optimization
Key display optimization specified on the machine can be
activated or deactivated.
a
Touch , then .
The general settings screen appears.
b
Locate [Key Optimization Mode] in the Settings pages.
c
Do one of the following.
• To activate the optimization settings, touch [ON].
• To deactivate the optimization settings, touch [OFF].
d
Touch .
• When the optimization settings are activated, the
screens will appear with the specified key display
optimization.
• When the optimization settings are deactivated, the
screens will appear normally.
Recalling key display optimization settings
Key display optimization settings saved on USB media can be
recalled.
a
Touch , then .
The general settings screen appears.
b
Locate [Key Optimization Mode] in the Settings pages.
c
Insert the USB media containing the optimization
settings into USB port 1 or USB port 2.
d
Touch or beside [Import the
Optimization setting].
e
Select the optimization settings to be recalled, and
then touch .
f
Touch .
The recalled optimization settings are applied to the
machine.
Memo
• Key display optimization settings cannot be
recalled from the embroidering settings screen or
embroidering screen.
136
APPENDIX
137
5
Simple machine maintenance operations are described
below. Always keep the machine clean, otherwise
malfunctions may occur.
Cleaning the LCD
If the surface of the LCD is dirty, lightly wipe it with a soft dry
cloth.
Cleaning the machine surface
To remove dirt from the machine, use a soft cloth that has
been soaked in lukewarm water and then thoroughly wrung
dry.
After cleaning the machine, dry it with a soft, dry cloth.
Cleaning the hook
Periodically remove lint and dust for better performance from
Hook race area.
Use the included cleaning brush.
a
Set the main power switch to “O” to turn off the
machine.
b
Open the hook cover, and remove the bobbin case.
(page 35)
c
Use the included cleaning brush to remove any lint and
dust from the hook and its surrounding area.
d
After cleaning is finished, insert the bobbin case into
the hook, and then close the hook cover. (page 37)
Chapter 5
APPENDIX
MAINTENANCE
CAUTION
• Unplug the power supply cord before cleaning
the machine, otherwise injuries or an electric
shock may occur.
CAUTION
• Unplug the power supply cord before cleaning
the machine, otherwise injuries or an electric
shock may occur.
CAUTION
• If the hook is scratched or damaged, consult
your authorized Brother dealer.
138
Cleaning around the needle plate
If lint and dust collect around the moving knife, the fixed knife
or the thread retaining plate, the thread may not be cut
correctly and various parts of the machine may be damaged.
Make sure to clean around the needle plate once a month.
Use the included 3-way screwdriver and cleaning brush.
a
Set the main power switch to “O” to turn off the
machine.
b
Remove the needle plate.
With the 3-way screwdriver, loosen the screws, remove
the needle plate, and then open the hook cover.
1 Needle plate
2 Hook cover
c
Remove the spacer.
1 Spacer
d
Use the included cleaning brush to remove any lint and
dust from the moving knife, the fixed knife, the thread
retaining plate, and their surrounding areas.
1 Remove all lint in this area
e
After cleaning is finished, install the spacer back.
First, position the spacer so that it hooks around the
elliptical notch, then position the spacer so that it
surrounds the screw head. Slide the spacer in the
direction of the arrow to secure it.
1 Elliptical notch
2 Screw head
f
Attach the needle plate in the opposite way that it was
removed in step b, and then close the hook cover.
1 Needle plate
CAUTION
• Unplug the power supply cord before cleaning
the machine, otherwise injuries or an electric
shock may occur.
APPENDIX
139
5
Cleaning the bobbin case
Thread wax and dust easily collect around the hole in the
tension-adjusting spring on the bobbin case, resulting in an
incorrect thread tension. Therefore, it should be cleaned each
time when the bobbin is changed.
Use a piece of paper with the thickness of a business card.
a
Open the hook cover, remove the bobbin case, and
then remove the bobbin. (page 35)
b
Slide the paper under the tension-adjusting spring to
remove any dust.
Use a corner of the paper to remove any dust from
around the hole.
1 Tension-adjusting spring
2 Hole
3 Paper
c
Use the included cleaning brush to remove any lint and
dust from inside the bobbin case.
d
After cleaning is finished, insert the bobbin into the
bobbin case and the bobbin case into the hook, and
then close the hook cover. (page 36)
Cleaning the thread paths of the upper
threads
If dust or lint has accumulated in the thread guides or tension
unit in the paths of the upper threads, the thread may break
while embroidery is being performed. Periodically clean the
thread paths.
■ Cleaning the thread guides
a
Use the included cleaning brush to remove any lint and
dust from below the thread guide plates.
Clean the thread guide plates for both the upper thread
guides and the middle thread guides.
1 Upper thread guide
2 Middle thread guide
1 Thread guide plate
Note
• Do not bend the tension-adjusting spring. In
addition, do not use anything other than thick
paper or paper of the specified thickness to clean
the bobbin case.
140
■ Disassembling and cleaning the tension unit
a
To remove tension dial, turn dial counterclockwise as
shown on illustration.
1 Tension dial
b
Using the included cleaning brush, remove any lint and
dust from the two pieces of tension disc washers (top,
bottom) inside the tension dial.
1 Tension dial
2 Nylon shoulder washer
3 Nylon washer (only for tension number 4)
4 Tension spring
5 Tension base spring
6 Tension disc washer (top) (thinner than nylon washer)
7 Tension disc
8 Tension disc washer (bottom) (thinner than nylon washer)
c
Reassembling the tension unit.
Replacing the needle
a
Set the main power switch to “O” to turn off the
machine.
b
Loosen the needle set screw and remove the needle.
Hold the needle with your left hand, and then hold the
Allen screwdriver in your right hand and turn the needle
set screw counterclockwise.
Note
• When reassembling the tension unit, be sure not to
install the tension disc upside-down.
There is a magnet on the bottom.
Bottom Top
1 Magnet
• When reassembling the tension unit, be careful not
to lose any parts or install any parts in an incorrect
order. The machine may not operate correctly if the
tension units are incorrectly reassembled.
a
b
c
d
e
f
g
h
CAUTION
• Be sure to turn off the machine before
replacing the needle, otherwise injuries may
result if the machine starts embroidering.
• Your machine is designed to use household
embroidery needles. The factory
recommended needle is “HAX 130 EBBR”
(Organ). Schmetz needles 130/705 H-E may
be used as a substitute.
• Never use bent needles. Bent needles can
easily break, possibly resulting in injuries.
Memo
• To check the needle correctly, place the flat side of
the needle on a flat surface. Check the needle from
the top and the sides. Throw away any bent
needles.
1 Parallel space
2 Flat surface (glass, etc.)
Note
• Be sure to use the included Allen screwdriver to
replace the needle.
a
b
APPENDIX
141
5
• Do not apply extreme force when loosening or
tightening the needle set screw, otherwise the
machine may be damaged.
c
With the flat side of the needle toward the back of the
machine, insert the needle all the way up until it
touches the needle bar stopper.
Pass the needle through the hole in the presser foot, and
then use the needle changing tool to lift up the needle.
1 Needle bar stopper
2 Needle
3 Flat side of needle
4 Needle changing tool
Hold the needle changing tool and press the end of the
needle changing tool 1 in to extend the needle-
mounting clamp 2. Attach the clamp to the needle, and
then release the pressed area to clamp the needle. To
unclamp the needle, press 1 again.
1 End of the needle changing tool
2 Needle mounting clamp
d
While holding the needle in place with your left hand,
tighten the needle set screw.
Use the Allen screwdriver to turn the needle set screw
clockwise.
CAUTION
• Be sure to insert the needle in the needle bar
chamber until it reaches the needle bar
stopper and securely tighten the needle set
screw with the Allen screwdriver, otherwise
the needle may break or the machine may be
damaged.
• If the needle is not fully inserted, the hook of
the automatic needle-threading mechanism
will not pass through the eye of the needle
during automatic needle threading, and the
hook may bend or the needle cannot be
threaded.
• If the hook of the automatic needle-threading
mechanism is bent or damaged, contact your
authorized Brother dealer.
142
Oiling the machine
In order to extend the life of the machine’s parts and keep the
machine operating correctly, be sure to oil the machine
before the first time that it is used.
Afterward, put a drop of oil onto the hook once a day before
use.
■ Oiling the race
a
Touch .
b
Touch .
Following message appears.
c
Open the hook cover, and remove the bobbin case.
(page 35)
d
Touch .
The race moves to the correct position for oiling.
e
Put a drop of oil onto the hook.
1 Punch a small hole in oil bottle.
2 Apply oil here.
f
Touch in the following screen.
The race returns to its original position.
g
After oiling, insert the bobbin case into the hook, and
then close the hook cover. (page 37)
Note
• Touch , , ,
then , in that order, to see a video of how to oil
the machine.
Front angle view Side view
APPENDIX
143
5
■ Oiling the needle bars
From embroidering screen, select one needle bar at a
time. (page 81) Rotate the handwheel toward the LCD
panel, bringing the needle bar to its lowest position. Put
one drop of oil, as high as possible, on the needle bar
above the felt washer.
1 Apply oil here.
• Too much oil may drip onto embroidery project.
About the maintenance message
Once this message appears, it is recommended to take your
machine to your nearest authorized Brother dealer for a
regular maintenance check. Although this message will
disappear and the machine will continue to function once
you touch , the message will display several more
times until the appropriate maintenance is performed.
Please take the time to arrange for the maintenance that your
machine requires as soon as this message appears. Such steps
will help to ensure you receive continued, uninterrupted
hours of machine operation for the future.
Note
• Put a drop of oil onto the hook once a day before
use.
• Apply one drop of oil on the lower needle bar
above the felt washer every 40 – 50 hours of
embroidering time.
• Apply only machine oil. Use of any other type of oil
may result in damage to the machine.
• Do not apply too much oil. Fabric or thread may get
contaminated. If too much oil is applied, wipe off
any excess with a rag.
• If the thread breaks while embroidering or the
operating noise of the hook becomes loud, apply
oil onto the race hook.
144
If the machine stops operating correctly, check the
following possible problems before requesting service.
You can solve most problems by yourself. If you need
additional help, the Brother Support website offers the
latest FAQs and troubleshooting tips. Visit us at http://
s.brother/cpban/ .
If the problem persists, contact your authorized Brother
dealer or the nearest Brother authorized service center.
List of Symptoms
If you have a minor problem with your machine, check the
following solutions.
If the reference page is “*” or the suggested remedy does not
correct the problem, contact your authorized Brother dealer.
Touch
for
advice about minor embroidering problems during
embroidering.
Touch at any time to return to the original screen.
TROUBLESHOOTING
Symptom
Probable Cause/Remedy Page
The machine does not operate.
The machine is not turned on. 22
The machine has not been unlocked. 82
The “Start/Stop” button was not pressed. 82
The embroidery frame cannot be attached to the
machine.
The embroidery frame holder attached to the
machine is not appropriate for the selected
embroidery frame.
67
The embroidery frame cannot be removed or
attached.
Depending on the position where the machine’s
carriage has stopped, it may be difficult to
remove or attach the embroidery frame.
• Touch the Needle bar/Frame move key to
position the carriage, so the embroidery frame
can easily be removed or attached.
67
The needle breaks.
The needle is not installed correctly. 140
The needle set screw is loose. 140
The needle is bent or blunt. 140
The area around the hole in the needle plate is
damaged.
1 Scratches/Burrs
• Replace the needle plate.
*
The needle hits/touches the needle plate.
1 Needle
2 Hole in needle plate
3 Needle hits hole
• Replace the needle.
140
*
The presser foot is set too high and not correctly
positioned.
The needle hits/touches the presser foot.
*
The area around the presser foot hole is
damaged.
1 Scratches/Burrs
• Replace the presser foot.
*
Sliding surface on hook race is not smooth. There
are scratches or burrs on it.
1 Hook race area
*
The bobbin or bobbin case is not correctly
installed.
35, 37
The hook is not correctly installed. *
Symptom
Probable Cause/Remedy Page
APPENDIX
145
5
The needle breaks.
The hook stopper is not correctly installed, the
hook is making a complete rotation.
*
The upper thread is not threaded correctly.
The upper thread is catching somewhere.
• Pull the upper thread by hand from below the
presser foot, and check that the thread moves
smoothly. If the thread does not move, it is not
threaded correctly. Thread the upper thread
correctly. Make sure the thread is caught by
the needle bar thread guide.
77
The upper thread tension is set too high. 104
A bobbin designed specifically for this machine is
not used.
35
The needle and the hook are not correctly
passing each other.
• Hook timing may be OFF.
*
There is backlash play (forward/backward) in the
needle bar case.
*
The thread density of the embroidery data is too
fine.
Three or more overlapping stitches are being
embroidered.
• Using a data design system, correct the thread
density and overstitching settings in the
embroidery data.
156
The thread is not cut automatically.
Lint or dust has accumulated around the needle
plate (moving knife, fixed knife or thread retaining
plate).
138
A bobbin case designed specifically for this
machine is not used.
• Use the correct bobbin case.
—
Lint or dust has accumulated in the thread
tension disc.
140
After the threads are automatically cut, the upper
thread is too short and comes out of the needle.
Lint or dust has accumulated around the needle
plate (moving knife, fixed knife or thread retaining
plate).
138
Symptom
Probable Cause/Remedy Page
The upper thread breaks.
The needle is not correctly installed. 140
The needle set screw is loose. 140
The needle is bent or blunt. 140
The area around the hole in the needle plate is
damaged.
1 Scratches/Burrs
• Replace the needle plate.
*
The needle is touching the needle plate.
1 Needle
2 Needle plate hole
3 Needle touching hole
*
The presser foot is set too high and not correctly
positioned.
The needle hits/touches the presser foot.
*
The area around the presser foot hole is
damaged.
1 Scratches/Burrs
• Replace the presser foot.
*
Using a specialty thread like a metallic thread.
• Slow down the machine embroidery speed.
84
Symptom
Probable Cause/Remedy Page
146
The upper thread breaks.
Sliding surface on hook is not smooth. There are
burns on it.
1 Hook race area
*
The thread is loose in the hook area. 137
The play between the hook and the race is too
much.
*
The hook does not rotate smoothly.
• Remove lint, clean and apply oil.
137, 142
The space between the hook stopper and the
hook cannot be adjusted.
*
The upper thread is not threaded correctly.
• Pull the upper thread by hand from below the
presser foot, and check that the thread moves
smoothly. If the thread does not move
smoothly, it is not correctly threaded. Un-
thread the machine and re-thread the machine.
Make sure the thread is correctly positioned in
the needle bar thread guide.
77
Upper thread is not positioned in upper or middle
thread guide.
• Make sure thread passes completely under
upper and middle thread guide.
77
There are knots or tangles in the thread.
• Remove any knots or tangles.
—
The upper thread tension is too high. 104
The bobbin thread tension is incorrect.
The thread does not roll out of the bobbin case
smoothly.
102
The bobbin case is damaged.
• Replace the bobbin case with a new one.
35
The bobbin thread is not wound correctly.
• Check that the bobbin is wound so that it is
about 80% full and that the thread is evenly
wound. If the bobbin is not correctly wound,
replace the bobbin with one that is correctly
wound or rewind the bobbin.
35
Symptom
Probable Cause/Remedy Page
A bobbin designed specifically for this machine is
not used.
35
The automatic needle-threading mechanism is
broken.
*
Adhesive is attached to the needle.
• Replace the needle.
140
The fabric is not taut. 63, 64
The thread quality is poor.
• The thread quality is too weak due to age of
thread. Replace thread.
—
The embroidery data contains stitches with a
pitch of zero.
110
The embroidery data contains many stitches with
an extremely small pitch.
110
The thread density of the embroidery data is too
fine.
Three or more overlapping stitches are being
embroidered.
• Using a data design system, correct the thread
density and overstitching settings in the
embroidery data.
156
Lint or dust has accumulated in the thread
tension disc.
140
The bobbin thread breaks.
The bobbin thread is not correctly threaded. 36
The bobbin is scratched or does not rotate
smoothly.
• Replace the bobbin.
35
The bobbin case is damaged.
• Replace the bobbin case.
35
The thread is tangled. 137
A bobbin designed specifically for this machine is
not used.
35
Lint or dust has accumulated in the thread
tension disc.
140
Stitches are skipped.
The upper thread is not threaded correctly. 77
The needle is bent or blunt. 140
The needle is not installed correctly. 140
Dust has accumulated under the needle plate or
in the hook.
137, 138
The needle and the hook are not correctly
passing each other.
*
The thread twist is either too tight or too loose.
• Improper twisting results in irregular loop
formation. Try using a new spool.
—
Symptom
Probable Cause/Remedy Page
APPENDIX
147
5
The embroidery pattern is misaligned.
The thread is tangled.
• Use tweezers to remove any tangled thread
from the hook.
—
The fabric is not secured in the embroidery frame
(for example, the fabric is not taut).
63, 64
The embroidery frame is too large for the size of
the embroidery.
67
The thumb screws on the embroidery frame
holder are loose.
21
Appropriate stabilizer (backing) is not used. 62
The embroidery frame is not correctly attached to
the carriage.
• Correctly attach the embroidery frame to the
carriage. Make sure that the pins on the left
and right arms of the embroidery frame holder
securely fit into the holes in the handles on the
embroidery frame.
66
The carriage or the embroidery frame is hitting
objects.
• The pattern may become misaligned if the
carriage or embroidery frame is hitting objects.
—
The fabric is caught or pinched.
• Stop the machine, and then correctly position
the fabric.
—
The carriage moved while removing embroidery
frame.
• The pattern may become misaligned if the
presser foot was hit or the carriage was moved
while embroidery.
• Be careful when removing and reattaching the
embroidery frame while embroidery.
If the carriage is moved, turn the machine off,
then on again. The correct frame position at the
time that the machine was stopped is stored in
the machine’s memory, and the embroidery
frame is returned to the correct position.
—
The design was not digitized correctly.
• The design may need more pull compensation
or underlay to accommodate stretchy or high-
napped fabrics.
—
The size of the installed embroidery frame is not
correctly detected.
The thumb screws on the embroidery frame
holder are loose.
21
The starting position for the embroidery frame is
horizontally misaligned.
The thumb screws on the embroidery frame
holder are loose.
21
Symptom
Probable Cause/Remedy Page
There are loops in the upper thread.
The upper thread tension is low.
• After passing the upper thread through the hole
in the presser foot, pull the thread by hand to
check the thread tension. If it is difficult to
determine, compare it with other needle bars
where looping does not occur.
—
The thread tension does not correspond to the
amount that the thread tension knob was
tightened.
• If the thread tension cannot be adjusted,
thread wax and dust may have collected in the
upper or middle thread guides, causing the
thread guide plates to rise. Clean the thread
guide plates.
139
Thread is not correctly threaded around thread
tension discs.
• Clean thread tension discs. Rethread and
make sure thread tension discs rotate when
pulling on thread.
140
The thread quality is poor.
• Try embroidery with different thread. If the
problem no longer occurs after the thread is
changed, the thread quality is the problem.
Replace the thread with one of good quality.
—
The machine is noisy.
Lint may be wound in the hook. 137
The upper thread is not threaded correctly. 77
The hook is damaged.
• Replace the hook.
*
Not enough oil was applied. 142
The needle threader cannot be used.
The needle is not at the correct position.
• Touch the key to move the desired needle bar
to be threaded into embroidering position.
81
Recommended needles are not used on this
machine.
140
The needle is not installed correctly. 140
The hook on the automatic needle-threading
mechanism is bent.
*
Symptom
Probable Cause/Remedy Page
148
The thread tension is incorrect.
The upper thread is not threaded correctly. 77
The bobbin thread is not correctly threaded. 36
The bobbin thread tension is incorrect. 102
Lint or dust has accumulated in the thread
tension disc.
140
The upper thread comes out of the needle when
embroidering begins.
If a short length of thread remains after the thread
is trimmed, the needle may become unthreaded
when embroidering begins again.
• Set the remaining length of thread to [Long Tail]
on settings screen.
110
The upper thread does not reach the bobbin thread
when embroidering begins.
There is no more thread in the bobbin, the thread
does not feed from the bobbin, or the thread that
is fed from the bobbin is too short.
• Correctly thread the bobbin thread.
36
Although the thread is not broken, a broken thread
error occurs and the machine stops.
If the thread breakage sensor in the thread
tension disc of the thread tension knobs cannot
detect that the thread is being fed, even if the
machine is running, a broken thread error occurs
and the machine is stopped.
• Correctly pass the thread through the thread
tension disc. If the broken thread error occurs
after the machine is rethreaded, the sensor
may be damaged.
140
*
The thread is worn.
Lint or dust has accumulated in the thread
tension disc.
140
Jump stitches are long.
Lint or dust has accumulated in the thread
tension disc.
140
Long jump stitches have been specified. 109
There are needle cuts or holes in the garment.
The needle is dull.
• Replace the needle. Dull needles have a
difficult time passing through the garment,
causing fabrics to tear.
140
The fabric is too delicate.
• The simple penetration of the needle could
damage delicate fabrics. Use stabilizer on top
of fabric.
—
Symptom
Probable Cause/Remedy Page
Fabric is puckering.
The thread tension is too tight.
• Adjust the tension according to the type of
fabric and thread being used. Polyester thread
will stretch during embroidery especially if the
tensions are set too high. After the stitching is
complete, the thread returns to its original
strength, causing puckers in the fabric.
104
The framing tension of the fabric is incorrect.
• Tightly frame non-stretchable, woven fabrics.
Loose framing will cause the fabric to bunch up
under the stitching. Tautly frame soft knits
using a stable backing. Overstretching the
garment will cause it to look puckered when
the frame is removed.
—
The column stitches are too long.
• Re-digitize the design with fill stitching or with
multiple rows of column stitching.
—
The needle is dull.
• Dull needles push fabric down and damage
material. Replace the needle.
140
The design density is too heavy.
• Too many stitches in an area pull fabric,
causing it to pucker. Slightly decrease the
design density by 5% to 10%.
110
The LCD cannot be read.
The LDC screen is too bright or too dark.
• Adjust the brightness of the screen display.
—
When embroidering thick fabric, the fabric cannot be
correctly hooped.
Fabric slips within the frame because of its
thickness.
• Wrap masking tape or bias tape around the
outer frame. The tape will provide resistance so
that the fabric does not easily slip.
—
The embroidery crosshair positioning laser is hard to
see.
The embroidery crosshair positioning laser is too
bright or too dim.
• Adjust the brightness of the embroidery
crosshair positioning laser.
74
I forgot my administrator lock passcode.
• Check with the administrator who specified the
passcode.
• If the wrong passcode is entered 10 times, the
passcode will be reset. The initial passcode is
999999.
129
I forgot my operator lock passcode.
• Check with the administrator who specified the
passcode.
• If the wrong passcode is entered 10 times, the
passcode will be reset. The initial passcode is
9999.
130
Symptom
Probable Cause/Remedy Page
APPENDIX
149
5
CAUTION
• This machine is equipped with a thread
detecting mechanism. If the machine is not
threaded with the upper thread, the machine
will not operate correctly, even if the “Start/
Stop” button is pressed after unlocking the
machine.
• If the machine suddenly stops:
• Turn off the machine, and unplug the
power cord.
• Restart the machine with the correct
operating procedure. (page 22)
150
Error messages
If the “Start/Stop” button is pressed while the machine is not correctly set up or if an incorrect operation is performed, the
machine stops and informs you of the error with a buzzer and an error message. If an error message appears, correct the problem
according to the instructions in the message.
To close the message, touch or perform the correct operation, then touch . If the message appears again, consult
your nearest authorized Brother dealer.
Error messages Cause/solution
1 Cannot change the configuration of the characters. This message is displayed when there are too many characters in the curved
text arrangement. Change the text arrangement or the embroidery frame.
2 Cannot communicate between PC and machine.
Please check the USB cable connections to run the
Link application.
This message is displayed when the machine cannot receive any data from
the computer in the Link mode with the USB cable connection. Turn off the
machine, and check the USB connection. After connecting the USB cord
securely, turn on the machine again. (page 117)
3 Cannot connect to the PC. Please check the
wireless network connection.
This message is displayed when the machine cannot receive any data from
the computer in the Link mode with the wireless LAN connection. Check the
wireless LAN connection between the computer and the machine, and then
turn off and on the machine. (page 117)
4 Cannot recognize the data for the selected pattern.
The data may be corrupted. Please turn off the
power and turn on again.
This message is displayed when trying to recall damaged pattern data or
data created using another manufacturer’s data design system. Turn the
machine off, then on again to return it to its normal condition.
5 Change to a larger embroidery frame. This message is displayed when the thumb screws of the embroidery frame
holder are loose. Using the included 3-way screwdriver, firmly tighten the
two thumb screws. (page 66)
This message is displayed when the installed embroidery frame is too small.
Check which embroidery frames can be used, and then install a larger
embroidery frame. (page 63)
6 Check upper and bobbin thread. This message is displayed when the thread tension is too tight. Check the
tensions of the upper thread and bobbin thread, and then adjust them.
(page 102)
This message is displayed when the upper thread breaks or the thread
comes out of the thread tension disc or a thread guide. Check that the thread
passes under the upper and middle thread guides, and correctly thread the
upper thread. (page 77)
This message is displayed when lint or dust has accumulated in the thread
tension disc. Remove the tension dials, and then remove any lint or dust
accumulated between the tension disc washers. (page 140)
This message is displayed when the bobbin thread breaks or runs out.
Check that there is thread on the bobbin and that approximately 50 mm (2
inches) of thread has been pulled out, and then re-install the bobbin.
(page 35)
This message is displayed when there may be another cause. Refer to “The
upper thread breaks.” on page 145 or “The bobbin thread breaks.” on
page 146. Touch to advance or reverse through the stitching. (page 89)
7 Communication error. When this message is displayed, consult your nearest authorized Brother
dealer.
8 Communication time out error. When this message is displayed, consult your nearest authorized Brother
dealer.
9 Data receiving command error. When this message is displayed, consult your nearest authorized Brother
dealer.
10 EEPROM read/write error. When this message is displayed, consult your nearest authorized Brother
dealer.
11 Embroidering stop. When this message is displayed, consult your nearest authorized Brother
dealer.
APPENDIX
151
5
12 Failed to save file. This message is displayed when you try to save more than 100 settings
screen image files in the USB media. In this case, delete a file from the USB
media or use different USB media.
13 Go to Embroidering Screen and press the unlock
key.
This message is displayed when the thread trimming button is pressed while
a screen other than the embroidering screen or embroidering settings screen
is displayed. Display either the embroidering screen or embroidering settings
screen.
14 Impossible to set the start & the end points. This message is displayed when embroidery cannot begin from the specified
starting position. Change the starting position or move the frame and change
the embroidering position. (page 112)
15 Inappropriate needle stop position This message is displayed when the needle has stopped at an incorrect
position. Turn the handwheel so that the mark on the handwheel is at the top,
and then touch .
16 Includes a special pattern that cannot be saved to
external memory. Save the pattern in the machine’s
memory.
This message is displayed when you try to save a copyright protected
pattern to USB media or computer.
According to copyright laws, patterns that are illegal to reproduce or edit
cannot be saved to USB media or computer. If this message is displayed,
save the pattern in the machine’s memory.
17 Machine PCB power off. When this message is displayed, consult your nearest authorized Brother
dealer.
18 Machine PCB reset. When this message is displayed, consult your nearest authorized Brother
dealer.
19 Main motor current error. When this message is displayed, consult your nearest authorized Brother
dealer.
20 Main motor encoder connect error. When this message is displayed, consult your nearest authorized Brother
dealer.
21 Main motor encoder signal error. When this message is displayed, consult your nearest authorized Brother
dealer.
22 Main motor rotate error. When this message is displayed, consult your nearest authorized Brother
dealer.
23 Main motor speed error. When this message is displayed, consult your nearest authorized Brother
dealer.
24 Needle bar case home position error. This message is displayed when the needle bar case cannot be moved to its
initial position. Touch to automatically reset the needle bar case.
25 Needle bar case position error This message is displayed when the needle bar case has stopped at an
incorrect position. Touch to automatically reset the needle bar case.
26 Needle case motor has been locked. This message is displayed when the needle bar case motor has locked up.
Touch to automatically reset the needle bar case.
27 Needle threader error This message is displayed when the automatic needle-threading mechanism
does not operate correctly. Remove the thread entangled in the automatic
needle-threading mechanism, and then touch .
28 Needle threader is in threading position. This message is displayed when another operation is performed while the
automatic needle-threading mechanism is threading the needle. Press the
automatic needle-threading button, and then perform the other operation
after the needle is threaded. (page 80)
29 No more patterns can be added to this
combination.
This message is displayed when trying to combine 101 or more patterns. Up
to 100 patterns can be combined.
30 Not enough available memory to save the pattern.
Delete another pattern?
This message is displayed when the pattern cannot be saved because the
memory is full. Delete some patterns.
31 Not enough space. Delete some patterns or use a
different USB media.
This message is displayed when the memory capacity of the USB media has
been exceeded. Delete some patterns or use a different USB media.
Error messages Cause/solution
152
32 OK to recall and resume previous memory? This message is displayed when the machine is turned off, then on again
before embroidering is completed. Touch to resume embroidering.
If the embroidering screen was displayed before the machine was turned off,
back up several stitches, and then continue embroidering. (page 92)
33 OK to revert to previous color changes?
This message is displayed when is touched while thread colors are
being changed.
34 OK to separate the combined border pattern? This message is displayed when a combined border pattern is being rotated
in the embroidering settings screen.
35 Panel communication error. When this message is displayed, consult your nearest authorized Brother
dealer.
36 Pattern extends to the outside of embroidery frame.
Add no additional characters.
This message is displayed when the entered character patterns exceed the
width of the embroidery frame.
37 Pattern extends to the outside of embroidery frame.
This function cannot be used at this time.
This message is displayed when the font of the character pattern is changed
to one with a larger size, causing the pattern to extend beyond the
embroidery frame.
38 Picker error This message is displayed when the thread picker (page 35) does not
operate correctly. Remove the thread entangled on the thread picker, and
then touch .
39 Please set up the “Thread antenna” This message is displayed when thread guide assembly support is not
prepared. Prepare the thread guide assembly. (page 19)
40 Power supply voltage error.(24V high) When this message is displayed, consult your nearest authorized Brother
dealer.
41 Power supply voltage error.(24V low) When this message is displayed, consult your nearest authorized Brother
dealer.
42 Power supply voltage error.(40V high) When this message is displayed, consult your nearest authorized Brother
dealer.
43 Power supply voltage error.(40V low) When this message is displayed, consult your nearest authorized Brother
dealer.
44 Press the unlock key to unlock the machine. This message is displayed when the thread trimming button is pressed
before the machine is unlocked. Touch to use the thread
trimming function.
45 Preventive maintenance is recommended. This message is displayed when the machine needs maintenance.
(page 143)
46 Select a pattern. This message is displayed when there is no embroidery pattern selected and
the “Start/Stop” button is pressed.
47 Set the clock. This message is displayed when the time/date is not set. Set time/date.
(page 23)
48 Stop while needle bar case transferring. This message is displayed when the machine has stopped while the needle
bar case is moving. Touch to automatically reset the needle bar
case.
Error messages Cause/solution
APPENDIX
153
5
49 The authentication and encryption methods used
by the selected wireless LAN access point/router
are not supported by your machine.
The authentication/encryption methods used by the selected wireless
access point/router are not supported by your machine.
For infrastructure mode, change the authentication and encryption methods
of the wireless access point/router.
Your machine supports the following authentication methods:
If your problem is not solved, the SSID or network settings you entered may
be incorrect. Reconfirm the wireless network settings.
Refer to “How can I find the wireless security information (SSID and network
key)” on page 154.
50 The machine is still trying to connect to your
wireless network.
The machine is still trying to connect to your wireless network. Please wait a
few minutes, and then check the WLAN status.
51 The pattern combination is too large for the extra
large embroidery frame. If you plan to add more
patterns, rotate the pattern combination.
This message is displayed when a long vertical pattern is recalled and no
longer fits in the embroidery frame. Rotate the pattern 90 degrees.
52 The safety device has been activated. Is the thread
tangled? Is the needle bent?
This message is displayed when a malfunction occurred, such as the thread
becoming tangled or the needle is bent. The machine stops when it detects a
malfunction. Check that the machine is correctly threaded (page 77) and that
the needle is not bent.
53 The SSID and Network Key are incorrect. The security information (SSID and network key (password)) is incorrect.
Reconfirm the security information (SSID and network key (password)).
Refer to “How can I find the wireless security information (SSID and network
key)” on page 154.
54 The wireless LAN access point/router cannot be
detected.
The wireless access point/router cannot be detected.
1. Check the following 4 points.
- Make sure that the wireless access point/ router is powered on.
- Move your machine to an area with no items which obstruct the wireless
network signal, such as metal doors or walls, or closer to the wireless
access point/router.
- Temporarily place your machine within about 1 m (3.3 feet) from the
wireless access point when you are configuring the wireless settings.
- If your wireless access point/router is using MAC address filtering,
confirm the MAC address of this machine is allowed in the filter.
2. If you manually entered the SSID and security information (SSID/
authentication method/encryption method/ network key (password)), the
information may be incorrect. Reconfirm the SSID and security information
and re-enter the correct information as necessary.
Refer to “How can I find the wireless security information (SSID and network
key)” on page 154.
55 The wireless security information (Authentication
method, Encryption method, Network Key) is
incorrect.
The wireless security information (authentication method/encryption
method/ network key (password)) is incorrect.
Reconfirm the wireless security information (authentication method/
encryption method/ network key (password)) in the table of the error
message “The authentication and encryption methods used by the selected
wireless LAN access point/router are not supported by your machine.”
Refer to “How can I find the wireless security information (SSID and network
key)” on page 154.
56 The wireless setting is not activated. The wireless network setting is not activated.
Activate the wireless network. (page 31)
Error messages Cause/solution
Authentication
method
Encryption method
WPA-Personal TKIP
AES
WPA2-Personal TKIP
AES
Open WEP
None (without encryption)
Shared key WEP
154
How can I find the wireless security information (SSID and network key)
* The network key may also be described as the password, security key or encryption Key.
* If the wireless access point/router is not broadcasting the SSID, the SSID will not automatically be detected. You will have to manually
enter the SSID.
57 This file cannot be used. This message is displayed when the file format is incompatible with this
machine. Check the list of compatible file formats. (page 156)
58 This pattern cannot be used since it exceeds the
data capacity.
This message is displayed when the pattern has too many stitches and
cannot be used. Data with stitches that exceed specifications (500,000
stitches) cannot be displayed. Use data design software to reduce the
number of stitches.
59 This pattern cannot be used. This message is displayed when you try to retrieve a pattern that was
downloaded for a different machine.
60 This pattern cannot combine. This message is displayed when a split (large-size) pattern is selected to be
combined with another embroidery pattern.
61 Trimming sensor error. This message is displayed when lint or dust may have accumulated within
the moving knife, the fixed knife, the thread retaining plate, and their
surrounding areas. Clean them. (page 138)
62 USB media error This message is displayed when USB media cannot be read correctly or
when USB media is damaged. Touch and try again.
63 USB media is not loaded. Load USB media. This message is displayed when you tried to recall or save a pattern while no
USB media is loaded. Load USB media.
This message is displayed when you try to use incompatible USB media. For
a list of compatible USB media, visit http://s.brother/cpban/
.
64 Wiper error This message is displayed when thread is tangled on the wiper. Remove the
tangled thread.
This message is displayed when lint or dust may have accumulated within
the moving knife, the fixed knife, the thread retaining plate, and their
surrounding areas. Clean them. (page 138)
This message is displayed when the thread does not pass through the
groove in the thread cutter. Pass the thread through the groove securely.
65 X-axis home position error. When this message is displayed, consult your nearest authorized Brother
dealer.
66 XY moving error. When this message is displayed, either replace the embroidery frame with a
larger one or return to the pattern editing screen and move the pattern
position.
67 Y-axis home position error. When this message is displayed, consult your nearest authorized Brother
dealer.
1.You should see the documentation provided with your wireless access point/router.
2.The default SSID (wireless network name) could be the manufacturer’s name or the model name.
3.If you do not know the security information, please consult the router manufacturer, your system administrator, or Internet
provider.
4.Some SSIDs and network keys (passwords) are case (upper case and lower case) sensitive. Please properly record your
information.
1 SSID
2 Network key (password)
Error messages Cause/solution
a
b
APPENDIX
155
5
If the machine does not respond when a key
is touched
If nothing happens when a key on the screen is touched (no
key can be selected or the keys are misaligned), adjust the
touch panel as described below.
a
Touch anywhere inside the touch panel, and turn the
machine off, then on again.
• Continue touching the touch panel until the screen
shown below appears.
• The “Start/Stop” button is red.
The adjustments screen appears.
b
Use the included touch pen to touch the center of the
numbered crosses on the screen, in numerical order
from 1 to 13.
c
After making the necessary touch panel adjustment,
[SUCCESS] will show on the screen.
• If the buzzer sounds when cross number 13 is
touched, an error occurred during setting, and
[ERROR] appears on the screen. Touch the crosses
again, starting with the number indicated on the
screen.
d
Turn the machine off, and on again.
CAUTION
• Be sure to use the included touch pen to adjust
the touch panel. Do not use a mechanical
pencil, screwdriver or any other hard or sharp
object. Do not apply pressure to the LCD
screen display, otherwise damage to the
display may result.
Note
• If the keys still do not respond, even after the touch
panel is adjusted, or if the touch panel cannot be
adjusted, contact your nearest authorized Brother
dealer.
156
Machine specifications
SPECIFICATIONS
Item Specification
Weight 38 kg (83 lb)
Machine size 512 (W) × 587 (D) × 762 (H) mm
(20-5/32 (W) × 23-7/64 (D) × 30 (H) inches)
Embroidery speed Speed range / Max.: 1,000 spm, Min.: 400 spm
Depending on the embroidery frame, maximum stitches in one minute is 600.
Hook Type Vertical fully rotary hook
Hook size Normal size (Type L)
Needle HA130EBBR / #11
Number of needle 6 needles
Thread tension Manual
Thread trimming Upper and bobbin thread
Thread breakage sensor Yes / Upper thread and bobbin thread
Automatic needle
threader
Yes
Connecting your
machine to PC
Compatible interfaces
USB
*1
/ Wireless LAN
*2
Compatible models IBM PC with a USB port as standard equipment
IBM PC-compatible computer equipped with a USB port as standard equipment
Compatible operating
systems
Microsoft Windows 8.1, Windows 10
Memory Embroidery patterns 10 MB
Data Types
Embroidery patterns
*3
.pes .phc .phx .dst .pen
Data Size Embroidery patterns Up to 300 mm (W) × 200 mm (H)
(approx. 11-3/4 inches (W) × 7-7/8 inches (H))
.pes files that can be
displayed
Up to 500,000 stitches
Up to 127 color changes
Types of USB Devices/
Media that can be Used
*4
Embroidery patterns Embroidery data can be saved to or recalled from USB media. Use media that
meets the following specifications:
• USB Flash drive (USB Flash memory)
Embroidery data can be recalled only:
• USB external CD/DVD drives
Condition of the [Eco
Mode] and [Shutoff
Support Mode]
[Eco Mode] Available time [OFF], 10 - 120 (minute)
“Start/Stop” button Green flashing
Suspended function Machine light, Embroidery crosshair positioning laser,
Screen display
After recovering The machine starts from the previous operation.
[Shutoff Support Mode] Available time [OFF], 1 - 12 (hour)
“Start/Stop” button Green slow flashing
Suspended function All functions
After recovering An error message appears.
You need to turn off and on the machine to restart.
APPENDIX
157
5
*1
Do not create folders in “Removable Disk” on a computer.
If embroidery data is stored in a folder in “Removable Disk”, that embroidery data cannot be retrieved by the machine.
*2
The wireless network connection complies with IEEE 802.11 b/g/n standards and uses the 2.4 GHz frequency.
A wireless network cannot be set up with WPA/WPA2 Enterprise.
*3
Using data other than that saved using our data design systems or this machine may cause this machine to malfunction.
When the machine is used to save a file with any extension, it is saved as a .phx data file.
Since Tajima (.dst) data does not contain specific thread color information, it is displayed with our default thread color sequence.
Check the preview and change the thread colors as desired.
*4
USB media is commercially available, but some USB media may not be usable with this machine.
Please visit our website http://s.brother/cpban/
for more details.
* Depending on the type of USB devices/media being used, either directly plug the USB device into the machine’s USB port or plug the
USB media Reader/Writer into the machine’s USB port.
* Please be aware that some specifications may change without notice.
Compatible image files of
the Screen Saver Image
Format JPEG format (.jpg)
File size Max. 2 MB for each image
File dimension 1280 (H) × 1200 (W) pixels or less (If the size is more
than 1280 (H) × 800 (W) pixels, the image will be
displayed in a smaller size.)
Number allowed 5 or less
Videos that can be
played
MP4 file format Video - H.264/MPEG-4 AVC, Audio – AAC
Size 1280 (H) × 800 (W) pixels or less (If the size is more
than 450 (H) × 800 (W) pixels, the video will be
displayed in a smaller size.)
Maximum file size 100 MB
Item Specification
CAUTION
• When using embroidery data other than our original patterns, the thread or needle may break when
embroidering with a stitch density that is too fine or when embroidering three or more overlapping
stitches. In that case, use one of our original data design systems to edit the embroidery data.
158
You can update your machine’s software using the
following two procedures.
• Using a wireless LAN connection to update
• Using USB media to update
Using a wireless LAN connection to update
When the machine is connected to a wireless network, update
files can be downloaded directly to the machine. For details
on the wireless LAN connection, refer to page 30.
a
Touch .
b
Touch beside [Download the update
program].
The machine starts to download the update file.
1 When the wireless LAN key in the lower-right corner of
the screen appears as , touching
causes the machine to check if there is a new update
file. If there is a new file, downloading begins.
c
Turn off the machine after downloading is complete.
d
While pressing the automatic needle-threading button,
turn the main power on.
The following screen will appear on the LCD.
e
Touch to update the machine.
f
Touch to update the machine.
g
Turn the machine off and on again.
UPDATING YOUR MACHINE’S
SOFTWARE
Memo
• The machine periodically checks if there is a new
update file on the server. When there is a new
update file, the wireless LAN key is displayed as
in the lower-right corner of the screen.
Note
• Do not turn off the machine during the download.
• Touch to pause the download. To restart,
touch .
1
Note
• Do not turn off the machine during the update.
• If an error occurs, a red text error message will
appear. When the update is performed
successfully, the following message will appear.
APPENDIX
159
5
Using USB media to update
The machine’s software can be updated using USB media. For
update information, refer to the Brother support website http://
s.brother/cuban/ . If an update file is posted, download the
file, and then update the machine according to the following
procedure.
a
While pressing the automatic needle-threading button,
turn the main power on.
The following screen will appear on the LCD.
b
Touch or .
c
Insert the USB media into the USB port selected in step
b.
1 USB port
2 USB media
d
Touch to update the machine.
e
Remove the USB media, and turn the machine off and
on again.
Note
• Save only the update file on the USB media.
Note
• Do not turn off the machine during the update.
• If an error occurs, a red text error message will
appear. When the update is performed
successfully, the following message will appear.
160
Symbols
“DST” Setting ............................................................................. 109
A
AC adapter ................................................................................. 124
Adjusting
legs
.......................................................................................... 18
operation panel
........................................................................ 18
touch panel
............................................................................ 155
Administrator mode
................................................................... 129
administrator lock
.................................................................. 129
key display optimization
........................................................ 132
operator lock
.......................................................................... 130
Aligned characters
..................................................................... 114
Appliqué alphabet
....................................................................... 43
Appliqué embroidery
................................................................... 94
Automatic lock stitch
................................................................... 72
Automatic needle-threading button
...................................... 12, 80
Automatic needle-threading mechanism
...................................... 80
B
Basic procedures .......................................................................... 35
Basting
......................................................................................... 93
Bobbin case
....................................................................... 35, 139
removing
.................................................................................. 35
Bobbin winder
........................................................................... 123
Border function
............................................................................ 51
C
Canton fleece ............................................................................... 62
Canvas
......................................................................................... 62
Carriage
....................................................................................... 11
Change thread color key
.............................................. 47, 55, 56
Changing
basting distance
..................................................................... 110
colors of the pattern
................................................................. 55
display guides
........................................................................ 109
thread color display
............................................................... 109
thread density
.......................................................................... 50
Checking
needle bars and thread colors
.................................................. 76
preview image
......................................................................... 61
thread spool changes
............................................................... 86
Cleaning
around the needle plate
......................................................... 138
bobbin case
........................................................................... 139
hook
...................................................................................... 137
LCD
....................................................................................... 137
machine surface
..................................................................... 137
maintenance message
............................................................ 143
oiling machine
....................................................................... 142
thread paths
........................................................................... 139
Clock set
.............................................................................. 23, 24
Color Shuffling
............................................................................. 56
Combining patterns
...................................................................... 44
Corduroy
..................................................................................... 63
Cotton sheeting
............................................................................ 62
D
Delete key ................................................................................... 47
Deleting
short stitches
.......................................................................... 110
Denim
......................................................................................... 62
Density key
.......................................................................... 48, 50
Display guides
........................................................................... 109
Distance from center (horizontal)
................................................ 46
Distance from center (vertical)
..................................................... 46
Dress shirt (woven)
...................................................................... 62
E
Edit end key ................................................................................ 47
Edit key
....................................................................................... 71
Editing
......................................................................................... 46
restart from beginning or middle
.............................................. 91
Embroidering screen
............................................................. 76, 84
Embroidering settings screen
....................................................... 70
Embroidering time
....................................................................... 85
Embroidery
.................................................................................. 82
aligned characters
................................................................. 114
baseline on the fabric
............................................................ 115
repeating along a diagonal
.................................................... 113
small fabric
.............................................................................. 65
Embroidery crosshair positioning laser
................................. 74, 98
Embroidery frame
attaching to the machine
......................................................... 66
types
........................................................................................ 68
Embroidery frame holder
attaching
................................................................................. 21
Embroidery frame holders
........................................................... 67
Embroidery frame indicators
......................................... 46, 63, 70
Embroidery key
........................................................................... 71
Embroidery light
.......................................................................... 11
Embroidery patterns
editing
..................................................................................... 46
selecting
.................................................................................. 37
Embroidery setting key
................................................................ 85
Embroidery sheet
......................................................................... 64
Embroidery thread
....................................................................... 77
Error messages
........................................................................... 150
F
Fabric/stabilizer compatibility chart ............................................. 62
Feet
............................................................................................. 11
Forward/Backward stitch key
........................................ 85, 89, 91
G
Going back through the stitching .......................................... 89, 91
Golf shirt
..................................................................................... 62
Grouping
..................................................................................... 45
H
Handwheel ................................................................................. 11
Headwear
................................................................................... 62
Hook
......................................................................................... 137
Hook cover/Hook
........................................................................ 11
Hooping
...................................................................................... 64
Horizontal mirror image key
....................................................... 48
I
Included accessories ................................................................... 12
J
Jump code ................................................................................. 109
Jump stitch trim setting key
.......................................................... 49
Jump stitch trimming
.......................................................... 49, 109
K
Key display optimization ........................................................... 132
INDEX
APPENDIX
161
5
L
LCD ..................................................................................... 12, 24
Lingerie or silk
............................................................................. 63
Link function
............................................................................. 117
Lock screen key
......................................................................... 130
Lock stitching key
................................................................ 71, 72
Locking the needle bar
................................................................ 75
Lower thread guide
...................................................................... 11
M
Main power switch .............................................................. 11, 22
Manual color sequence
............................................................... 59
Maximum embroidery speed key
................................................. 85
Middle thread guide
.................................................................... 11
Monitoring App
........................................................................... 33
N
Needle
threading
................................................................................. 80
Needle bar case
........................................................................... 11
Needle bar key
.................................................................... 76, 85
Needle bar/Frame move key
........................................................ 24
Number of thread color changes
................................................. 71
O
Oiling ........................................................................................ 142
Operation panel
........................................................... 11, 12, 18
Operator lock
............................................................................ 130
Optional accessories
................................................................... 14
P
Pattern display area ..................................................................... 24
Pattern editing screen
.................................................................. 46
Pattern selection keys
.................................................................. 48
Pattern size
.......................................................................... 46, 70
Positioning keys
................................................................... 48, 71
Power cord receptacle
................................................................. 11
Power supply cord
............................................................. 22, 124
Preview key
......................................................................... 47, 71
Previewing the image
.................................................................. 61
R
Region display ............................................................................. 84
Remaining length
...................................................................... 110
Reserve stop key
................................................................ 85, 105
Reserved needle
........................................................................ 107
Restart from beginning
................................................................. 91
Resume embroidering
.................................................................. 92
Rotate key
........................................................................... 47, 71
Rotation angle
............................................................................. 46
S
Satin jacket .................................................................................. 62
Selecting
embroidery pattern
.......................................................... 37, 44
Setting remaining length
............................................................ 110
Setting up
.................................................................................... 16
Short stitch delete
...................................................................... 110
Shortcut key
................................................................. 38, 43, 48
Silk
.............................................................................................. 63
Size (horizontal)
.......................................................................... 46
Size (vertical)
............................................................................... 46
Size key
....................................................................................... 47
Speaker
....................................................................................... 12
Specifications
............................................................................ 156
Split (large-size) patterns
............................................................ 121
Spool
........................................................................................... 77
Spool change indicator
........................................................ 85, 87
Spool stand
.......................................................................... 11, 20
Stabilizer
...................................................................................... 62
Start/Stop button
.................................................................. 12, 83
Starting/ending position key
..................................... 71, 112, 113
Stitch count
.................................................................................. 85
Stitch simulator screen
................................................................. 61
Stopping embroidering
................................................................. 83
at color changes
..................................................................... 105
pause
..................................................................................... 105
Sweater knit
................................................................................. 63
Sweatshirt
.................................................................................... 63
T
Tajima data ................................................................................ 109
Temporary needle bar settings key
..................................... 85, 106
Terms of Use
................................................................................ 29
Terry cloth
................................................................................... 62
Thread
......................................................................................... 77
Thread color display
.................................................................. 109
Thread color sequence display
..................................................... 84
Thread color set up display
.......................................................... 85
Thread density
............................................................................. 50
Thread guide
........................................................................ 11, 78
Thread guide assembly
................................................................ 19
Thread guide pins
........................................................................ 11
Thread mark
................................................................................ 53
Thread spools
easily changing
........................................................................ 88
Thread tension disc
...................................................................... 78
Thread tension knobs
......................................................... 11, 104
Thread trimming button
....................................................... 12, 84
Threading
bobbin thread
.......................................................................... 35
needle
...................................................................................... 80
upper thread
............................................................................ 76
Touch pen holder
........................................................................ 11
Trial embroidery key
.................................................................... 71
Troubleshooting
......................................................................... 144
T-shirt
.......................................................................................... 63
