HR6BMFF320
HR6BMFF320S
2
Hisense Refrigerator
Brief introduction
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to
ensure that they do not play with the
appliance.
Do not store explosive substances
such as aerosol cans with a flammable
propellant in this appliance.
WARNING—Keep ventilation openings,
in the appliance enclosure or in the
built-in structure, clear of obstruction.
WARNING—Do not use mechanical
devices or other means to accelerate
the defrosting process, other than those
recommended by the manufacturer.
WARNING—Do not damage the
refrigerant circuit.
WARNING—Do not use electrical
appliances inside the food storage
compartments of the appliance, unless
they are of the type recommended by
the manufacturer.
WARNING—When disposing of the
appliance do so only at an authorized
waste disposal centre. Do not expose to
flame.
WARNING—If the supply cord is
damaged, it must be replaced by the
manufacturer, its service agent or
similarly qualified persons in order to
avoid a hazard.
●
Thank you for your choosing our
products. We are sure you will find
your new appliance a pleasure to use.
Before you use the appliance, we
recommend that you read through
these instructions carefully, which
provides details about its usage and
functions.
Please ensure that all people using
this appliance are familiar with its
operations and safety features. It is
important that you install the appliance
correctly and pay attention to the safety
instructions carefully.
We recommend that you keep this
user's manual with the appliance for
future reference and retain it to any
future users.
This appliance is intended to be used
in household and similar applications
such as:
-Staff kitchen- areas in shops, offices
and other working environments;
-Farmhouses by clients in hotels,
motels and other residential types of
environment;
- B e d a n d b r e a k f a s t t y p e o f
environments;
-Catering and similar non-retail
applications.
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
●
●
●
●
3
5
7
8
10
10
12
14
16
220~240V/50Hz.
Safety for children and infirm persons
Safety about electricity
●
●
●
●
●
●
●
●
●
Unpack the appliance and check
through the appliance. Should any
damage be evident, don't plug in the
appliance but contact the shop
immediately from which you purchased
it. Keep all packing materials in this
case.
We recommend that you wait for 4
hours before connecting the appliance
to allow the refrigerant to flow back into
the compressor.
The appliance must be applied with
single phase alternating current of
The mains plug must be accessible
when the appliance is installed.
This appliance must be earthed.
-This appliance is fitted with a plug in
accordance with local standard. The
plug should be suitable for use in all
houses fitted with sockets in
a c c o r d a n c e w i t h c u r r e n t
specifications.
-If the fitted plug is not suitable for
your socket outlets, it should be cut
off and carefully disposed of. To avoid
a possible shock hazard, do not insert
the discarded plug into a socket. If in
doubt contact a qualified, registered
electrician.
Do not use extension cords or
multiple sockets which could cause
overloading of wiring circuits and could
cause a fire.
Always plug your appliance into its
own individual electrical socket which
has a voltage rating that matched the
rating plate.
recommend that you follow the
guidelines below.
Store any food in accordance with the
s t o ra g e i n st r uct i ons f r o m t he
manufacturer.
Don't try to repair the appliance
yourself. It is dangerous to alter the
specifications or modify this product in
any way. Any damage to the cord may
cause short circuit, fire or electric
shock.
Don't place too much food directly
against the air outlet on the rear wall of
both the refrigerator and freezer
compartment, as it affects sufficient air
circulation.
Don't place hot items near the plastic
components of this appliance.
Frozen food must not be refrozen
once it has been thawed out.
Don't store bottled or canned drinks
(especially carbonated drinks) in the
freezer compartment. Bottles and cans
may explode.
Do not consume ice popsicles or ice
cubes straight from the freezer as this
can cause freezer burn to the mouth
and lips.
●
●
Keep all packaging away from
children to avoid risk of suffocation.
Protect children from being scalded
by touching the very hot compressor at
the rear bottom of appliance.
Don't place items on top of the
appliance as this could cause injury
should they fall off.
Never allow children to play with the
appliance by hanging or standing over
or on the doors, racks, shelves and
drawers etc.
●
●
●
To avoid the risks that are
always present when using an
electric appliance, we recommend that
you pay more attention to the
instructions about electricity below.
Hisense Refrigerator
3
Important safety instructions
●
It is important to use your
appliance safely. We
General safety and daily use
●
Refrigerant
●
●
●
●
●
●
●
●
The refrigerant isobutene (R600a) is
contained within the refrigerant circuit
of the appliance, a natural gas with a
h i g h l e v e l o f e n v i r o n m e n t a l
compatibility, which is nevertheless
flammable. During transportation and
installation of the appliance, ensure
that none of the components of the
refrigerant circuit becomes damaged.
The refrigerant (R600a) is flammable.
Don't store products which contain
flammable propellants(e.g. spray cans )
or explosive substances in the
appliance.
Should the refrigerant circuit be
damaged:
Avoid opening flames(candles,
lamps etc.) and sources of ignition.
Thoroughly ventilate the room in
which the appliance is situated.
Service Note
This appliance employs
Hydrocarbon Refrigerant type
R600a.
It is hazardous for anyone other
than an Authorized Service Person
to service this applian. In
Queensland the authorized Service
Person MUST hold a Gas Work
Authorization for hydrocarbon
refrigerants to carry out servicing or
repairs which involve removal of
covers.
Make sure that the plug is not
squashed or damaged. Otherwise, it
may cause short circuit, electric shock
or overheat and even cause a fire.
Do not insert the mains plug if the
socket is loose, there is a risk of
electric shock or fire.
Switch off the appliance and
disconnect it from the mains power
before you clean or move it.
Never unplug the appliance by pulling
on the electrical cord. Always grip the
plug firmly and pull straight out from
the socket to prevent damaging the
power cord.
Do not operate the appliance without
the light cover of interior lighting.
Any electrical component must be
replaced or repaired by a qualified
electrician or authorized service
engineer. Only genuine spares should
be used.
Do not use electrical appliances such
as ice cream makers inside the food
s t or a ge c o m p a r t m e nt s o f t he
appliance, unless they are approved
by the manufacturer.
Do not look direct into the LED light
located in the refrigerator compartment
with optical instruments to avoid eye
injuries. If it is not functioning correctly,
co nsu lt a qu ali fied, registe red
electrician or replace it in accordance
with the “cleaning and care” chapter.
Caution: risk of fire
Hisense Refrigerator
4
●
●
●
●
●
5
Installing your new appliance
Ventilation of appliance
Before using the appliance
for the first time, you should
be informed of the following
tips.
In order to improve
efficiency of the cooling
system and save energy, it
is necessary to maintain
good ventilation around the
appliance for the dissipation
of heat. For this reason,
sufficient clear space
should be available around
the refrigerator.
Suggest :It is advisable for
there to be at least 75mm of
space from the back to the
wall, at least 100mm from its
top,at last 100mm from its
side to the wall and a clear
space in front to allow the
doors to open 130°. As
shown in following diagrams.
Note:
This appliance performs
well within the climate class
from SN to T showed in the
table below.
●
It may not work properly if
being left at a temperature
above or below the
indicated range for a long
period.
Climate class
Ambient temperature
SN
N
ST
T
+10°C to +32°C
+16°C to +32°C
+16°C to +38°C
+16°C to +43°C
Hisense Refrigerator
100
100
7
2
2
.5
1
2
67
956
130
。
75
10
0
100
Stand your appliance in a
dry place to avoid high
moisture.
Keep the appliance out of
direct sunlight rain or frost.
Stand the appliance away
from heat sources such as
stoves, fires or heaters.
Leveling of appliance
For sufficient leveling and
air circulating in the lower
rear section of the
appliance, the bottom feet

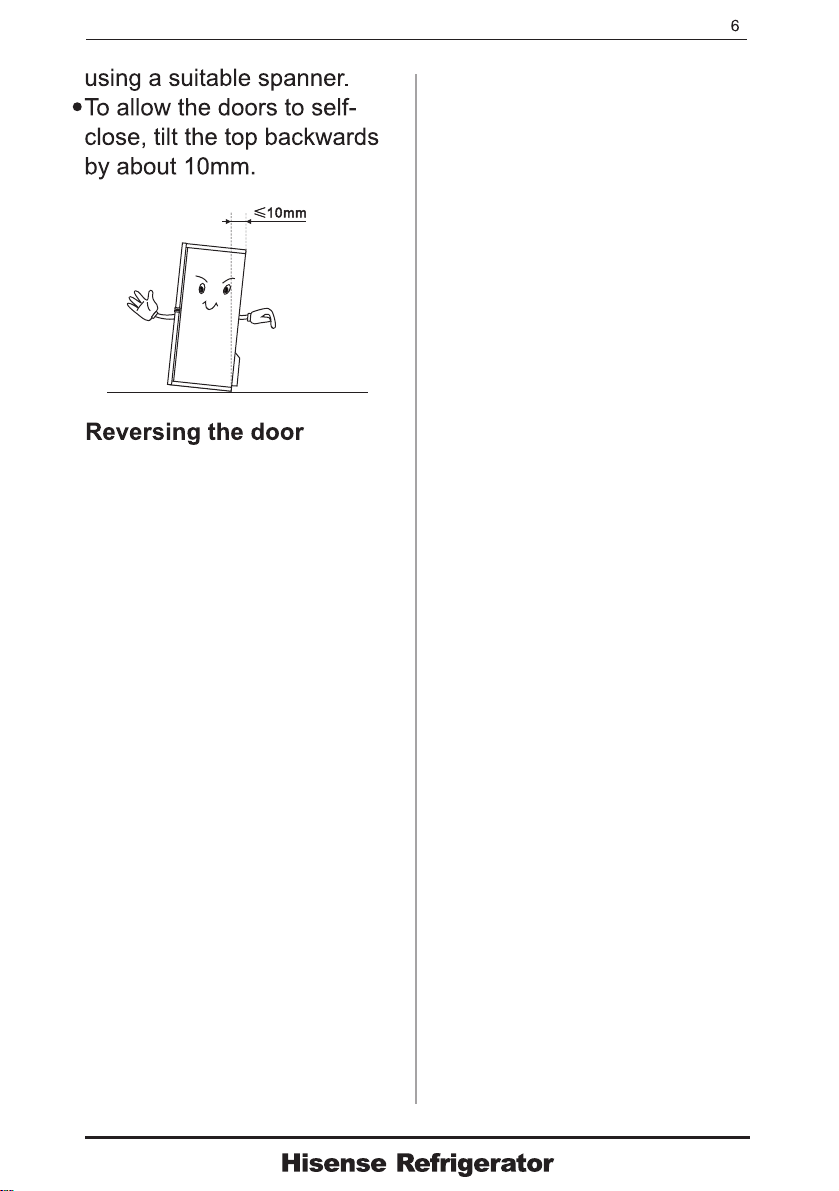

may need to be adjusted.
You can adjust them
manually by hand or by
●
●
●
Doors are reversible and
Hisense recommend this
be carried out by qualified
Technician. For further
information please contact
Hisense on 1800 447 367
Description of the appliance
Hisense Refrigerator
9
10
11
13
14
15
17
18
19
20
12
9
10
11
13
14
15
17
18
19
20
12
2.
3.
4.
5.
6. )
7.
9.
11.
12.
13.
14.
15.
16.
17.
18.
19. Freezer door
20. Freezer door
1. Cabinet
LED light
Glass shelf
Crisper cover
Fruit and vegetables crisper
(inside
Upper freezer drawer
8. Upper freezer glass shelf
Middle freezer drawer(huge box)
10. Middle freezer glass shelf
Lower freezer drawer
Adjustable bottom feet
Fridge door
Upper rack
Egg tray (inside)
Middle rack
Lower rack
Fridge door seal
seal
ice tray
View 1 of the appliance
Note: Due to unceasing modification of our products, your
refrigerator may be slightly different from this instruction
manual, but its functions and using methods remain the
same. To get more space in the freezer, you can remove
drawers (except lower freezer drawer), ice tray.
8
9
10
11
13
14
15
16
17
18
19
20
12
7
1. Fridge
Press the middle part of
button to set fridge
temperature between 2℃
and 8℃ as needed, and
control panel will display
corresponding figures
according to the following
sequence.
Control panel
Use your appliance according to the following control
regulations, your appliance has the corresponding functions
as the control panels showed in the pictures below.
Hisense Refrigerator
Controlling the temperature
We recommend that when
you start your refrigerator
for the first time, the
temperature for the
refrigerator is set to 4°C and
the freezer to -18°C. If you
want to change the
temperature, follow the
instructions below.
Caution! When you set a
temperature, you set an
average temperature for the
whole refrigerator cabinet.
Temperatures inside each
compartment may vary from
the temperature values
displayed on the panel,
depending on how much
food you store and where
you place them. Ambient
temperature may also affect
the actual temperature
inside the appliance.
8
3
8
2. Freezer
Press the middle part of
button to set fridge
temperature between -16℃
and -24℃ as needed, and
control panel will display
corresponding figures
according to the following
sequence.
Hisense Refrigerator
-16
-18
-20
-24
-22
3. Super Freeze
Super Freeze will
quickly lower the
temperature within
the freezer so food will
freeze vitamins and faster.
This can lock in the
nutrients of fresh food and
keep food fresh longer.
Press the middle part of
button for 3 seconds to
activate the super freeze
function. The light will
come on.
Super freeze automatically
switches off after 26 hours .
When super freeze function
is on, you can switch off
super freeze function by
●
●
●
pressing the middle part of
button and the freezer
temperature setting will
revert back to the previous
setting.
If you are going to
be away for a long
period of time, you
4. Holiday
can activate this function by
pressing the middle part of
button for 3 seconds
until the light comes on.
When the holiday function is
activated, the temperature
of the refrigerator is
automatically switched to
15℃ to minimize the
energy consumption.
Important! Do not store any
food in the fridge during this
time.
When the holiday function is
on, you can switch it off by
pressing the middle part of
button. The fridge
temperature setting will
revert back to the previous
setting.
●
●
9
Shelf in Refrigerator
chamber
There are shelves in
refrigerator chamber, and
they can be taken out to be
cleaned.
●
Hisense Refrigerator
Your appliance has the accessories as the "Description of
the appliance”showed in general, with this part instruction
you can have the right way to use them.
Using your appliance
Door rack
It is suitable for the storage
of eggs, canned liquid,
bottled drinks and packed
food, etc. Do not place too
many heavy things in the
racks.
●
Helpful hints and tips
Energy saving tips
We recommend that you
follow the tips below to save
energy.
Try to avoid keeping the
door open for long periods
in order to conserve energy.
Ensure the appliance is
away from any sources of
heat (Direct sunlight,
electric oven or cooker
etc).
Don't set the temperature
colder than necessary.
Don't store warm food or
evaporating liquid in the
appliance.
Installing your new
appliance chapter.
If the diagram shows the
correct combination for the
drawers, crisper and
shelves, do not adjust the
combination as this is
designed to be the most
Place the appliance in a
well ventilated, humidity
free, room. Please refer to
●
●
●
●
●
●
10
●
●
●
●
●
●
Hisense Refrigerator
●
●
●
airtight
Iced products, if consumed
immediately after removal
from the freezer compartment,
will probably cause frost burns
to the skin.
foil or plastic film
wrap.
Milk bottles:
Should have a lid and be
stored in the door racks.
Hints for freezing
When first starting-up or
after a period out of use, let
the appliance run at least 2
hours on the higher settings
before putting food in the
compartment.
Prepare food in small
portions to enable it to be
rapidly and completely
frozen and to make it
possible to subsequently
thaw only the quantity
required.
Wrap up the food In aluminum
foil or polyethylene food wraps
which are airtight.
Do not allow fresh，
unfrozen food to touch the
food which is already frozen
to avoid temperature rise of
the latter.
●
●
energy efficient configuration.
Hints for fresh food
refrigeration
Do not place hot food
directly into the refrigerator
or freezer, the internal
temperature will increase
resulting in the compressor
having to work harder and
will consume more energy.
Do cover or wrap the food,
articularly if it has a strong
flavor.
Place food properly so that
air can circulate freely
around it.
Hints for refrigeration
Meat (All Types) Wrap in
polythene food: wrap and
place on the glass shelf
above the vegetable
drawer. Always follow food
storage times and use by
dates suggested by
manufacturers.
Cooked food, cold dishes,
etc.:
They should be covered
and may be placed on any
shelf.
Fruit and vegetables:
They should be stored in
the special drawer provided.
Butter and cheese:
Shoul d be wrap ped i n
●
●
11
Cleaning and care
For hygienic reasons the
appliance (including exterior
and interior accessories)
should be cleaned regularly
at least every two months.
Caution! The appliance
must not be connected to
the mains during cleaning.
Danger of electrical shock!
Before cleaning switch the
appliance off and remove
the plug from the mains
socket.
Exterior cleaning
To maintain good appearance
of your appliance, you should
clean it regularly.
Hisense Refrigerator
It is recommended to label
and date each frozen
package in order to keep
track of the storage time.
Hints for the storage of
frozen food
Ensure that frozen food has
been stored correctly by the
food retailer.
Once defrosted, food will
deteriorate rapidly and
should not be re-frozen. Do
not exceed the storage
period indicated by the food
manufacturer.
Switching off your
appliance
If the appliance needs to be
switched off for an extended
period, the following steps
should be taken prevent
mould on the appliance.
1. Remove all food.
2. Remove the power plug
from the mains socket.
3. Clean and dry the interior
thoroughly.
4. Ensure that all the doors
are wedged open slightly to
allow air to circulate.
●
●
●
-Wipe the control panel with
a clean, soft cloth.
-Spray water onto the
cleaning cloth instead of
spraying directly on the
surface of the appliance.
This helps ensure an even
distribution of moisture to
the surface.
-Clean the doors, handles
and cabinet surfaces with a
mild detergent and then
wiped dry with a soft cloth.
Caution!
-Don't use sharp objects as
they are likely to scratch
the surface.
12
unplug the appliance from
the mains power and leave
the doors open. Ventilate
the room thoroughly to
accelerate the thawing
process.
2. When defrosting is
completed, clean your
freezer as described above.
Caution! Don't use sharp
objects to remove frost from
the freezer compartment.
Only after the interior is
completely dry should the
appliance be switched back
on and plugged back into
the mains socket.
Door seals cleaning
Take care to keep door
seals clean. Sticky food and
drinks can cause seals to
stick to the cabinet and tear
when you open the door.
Wash seal with a mild
detergent and warm water.
Rinse and dry it thoroughly
after cleaning.
Caution! Only after the
door seals are completely
dry should the appliance be
powered on.
Hisense Refrigerator
-
detergent, Clorox, ethereal
oil, abrasive cleansers or
organic solvent such as
Benzene for cleaning. They
may damage the surface of
the appliance and may
cause fire.
Interior cleaning
You should clean the
appliance interior regularly.
It will be easier to clean
when food stocks are low.
Wipe the inside of the fridge
freezer with a weak solution
of bicarbonate of soda, and
then rinse with warm water
using a wrung-out sponge
or cloth. Wipe completely
dry before replacing the
shelves and baskets.
Thoroughly dry all surfaces
and removable parts.
Although this appliance
automatically defrosts, a
layer of frost may occur on
the freezer compartment's
interior frequently or kept
Don't use Thinner, Car
open too long. If the frost is
too thick, choose a time
when the supply of food
stocks are low and proceed
as follows:
1.Remove existing food and
accessories baskets,
13
Troubleshooting
If you experience a problem with your appliance or are
concerned that the appliance is not functioning correctly, you
can carry out some easy checks before calling for service,
please see below. You can carry out some easy checks
according to this section before calling for service.
Warning! Don't try to repair the appliance yourself. If the
problem persists after you have made the checks mentioned
below, contact a qualified electrician, authorized service
engineer or the shop where you purchased the product.
Hisense Refrigerator
Replacing the LED light:
Warning: The LED light
must not be replaced by the
user! If the LED light is
damaged, contact the
customer helpline for
assistance. To replace the
LED light, the below steps
can be followed:
1. Unplug your appliance.
2. Remove light cover by
pushing up and out.
3. Hold the LED cover with
one hand and pull it with the
other hand while pressing
the connector latch.
4. Replace LED light and
snap it correctly in place.
Problem
Possible cause & Solution
Appliance is
not working
correctly
Check whether the power cord is plugged
into the power outlet properly.
The ambient temperature is too low. Try
setting the chamber temperature to a
colder level to solve this problem.
Check the fuse or circuit of your power
supply, replace if necessary.
14
Hisense Refrigerator
It is normal that the refrigerator is not
operating during the automatic defrost
cycle, or for a short time after the
appliance is switched on to protect the
compressor.
Appliance is
not working
correctly
Odours from the
compartments
The interior may need to be cleaned.
Some food, containers or wrapping cause
odours.
Noise from the
appliance
The sounds below are quite normal:
Compressor running noises.
Air movement noise from the small fan
motor in the fridge compartment or other
compartments.
Gurgling sound similar to water boiling.
Popping noise during automatic
defrosting.
Clicking noise before the compressor
starts.
●
●
●
Other unusual noises are due to the
reasons below and may need you to
check and take action:
The cabinet is not level.
The back of appliance touches the wall.
Bottles or containers fallen or rolling.
The motor runs
continuously
●
●
●
●
It is normal to frequently hear the sound
of the motor, it will need to run more
when in following circumstances:
Temperature setting is set colder than
necessary
Large quantity of warm food has
recently been stored within the appliance.
The temperature outside the appliance
is too high.
Doors are kept open too long or too
often.
15
Hisense Refrigerator
The motor runs
continuously
After your installing the appliance or it
has been switched off for a long time.
A layer of frost
occurs in the
compartment
Check that the air outlets are not blocked
by food and ensure food is placed within
the appliance to allow sufficient
ventilation. Ensure that door is fully
closed. To remove the frost, please refer
to cleaning and care chapter.
Tem per atu re
inside is too
warm
You may have left the doors open too
long or too frequently; or the doors are
kept open by some obstacle; or the
appliance is located with insufficient
clearance at the sides, back and top.
●
It is prohibited to dispose of this appliance as household
waste.
Packaging materials
Packaging materials with the recycle symbol are
recyclable. Dispose of the packaging into a suitable
waste collection container to recycle it.
Before disposal of the appliance
1. Pull out the mains plug from the mains socket.
2. Cut off the power cord and discard with the mains
plug.
Warning! Refrigerators contain refrigerant and gases in
the insulation. Refrigerant and gases must be disposed
of professionally as they may cause eye injuries or
ignition. Ensure that tubing of the refrigerant circuit is
not damage prior to proper disposal.
16
Hisense Refrigerator
This marking indicates that this product
should not be disposed with other household
wastes throughout the EU. To prevent
possible harm to the environment or human
health from uncontrolled waste disposal,
recy c le it resp o nsib l y t o p romo t e t he
sustainable reuse of material resources. To
return your used device, please use the
return and collection systems or contact the
retailer where the product was purchased.
They can take this product for environmental
safe recycling.
Correct Disposal of this product
17
