The following symbols are used throughout the manual and they have the following meanings:
Information, advice, tip, or recommendation
Warning – general danger
Warning – danger of electric shock
Warning – danger of hot surface
Warning – danger of fire
It is important that you carefully read the instructions.
Life is complicated today. Let's make at least laundry care simple!
Your new WaveActive dryer uses innovative technology and
the latest achievements in laundry care to help you simplify your
daily household chores. The WaveActive technology offers the
gentlest care for any garment, with minimum creasing. Moreover,
your new dryer is also friendly to the environment as it uses power
in the most economical way possible.
This dryer is intended solely for household use. Please do not use
it to dry clothes that are not suitable for machine drying.
3
TABLE OF CONTENTS
718585
DRYING
PROCESS,
STEP BY STEP
INTRODUCTION
TROUBLE-
SHOOTING
PREPARING
THE DRYER
BEFORE FIRST
USE
MISCELLANE-
OUS
4 IMPORTANT SAFETY INSTRUCTIONS
14 DESCRIPTION OF THE DRYER
15 Technical information
16 Control unit
18 INSTALLATION AND CONNECTION
20 Selecting the room
23 Adjusting the dryer feet
24 Evacuation of humid air
25 Connecting to the power mains
26 Moving and transport after installation
27 BEFORE USING THE APPLIANCE FOR THE FIRST TIME
28 DRYING PROCESS, STEP BY STEP (1 - 6)
28 Step 1: Heed the labels on the laundry
29 Step 2: Preparing for the laundry drying process
33 Step 3: Choosing the drying programme
36 Step 4: Drying mode and extra functions
41 Step 5: Starting the drying programme
41 Step 6: End of the drying programme
42 INTERRUPTIONS AND CHANGING THE PROGRAMME
44 MAINTENANCE & CLEANING
45 Cleaning the net filter in the door
46 Cleaning the exhaust duct
47 Cleaning the dryer
48 TROUBLESHOOTING
48 What to do ...?
49 Troubleshooting table
52 Servicing
53 TIPS FOR DRYING AND ECONOMIC USE YOUR DRYER
54 DISPOSAL
55 TYPICAL CONSUMPTION TABLE
DRYER
CLEANING AND
MAINTENANCE
4
IMPORTANT SAFETY
INSTRUCTIONS
718585
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE!
WARNING – To reduce the risk of fire, electric shock, or
injury to persons when using your appliance, follow basic
precautions, including the following:
1. Read all instructions before using the appliance.
2. Do not dry articles that have been previously cleaned
in, washed in, soaked in, or spotted with gasoline,
dry-cleaning solvents, or other flammable or explosive
substances, as they give off vapours that could ignite or
explode.
3. Do not allow children to play on or in the appliance.
Close supervision of children is necessary when the
appliance is used near children.
4. Before the appliance is removed from service or
discarded, remove the door to the drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be
exposed to the weather.
7. Do not tamper with controls.
8. Do not repair or replace any part of the appliance or
attempt any servicing unless specifically recommended
in the user-maintenance instructions or in published
user-repair instructions that you understand and have the
skills to carry out.
5
718585
9. Do not use fabric softeners or products to eliminate static
unless recommended by the manufacturer of the fabric
softener or product.
10. Do not use heat to dry articles containing foam rubber or
similarly textured rubber-like materials.
11. Clean lint screen before or after each load.
12. Keep area around the exhaust opening and adjacent
surrounding areas free from the accumulation of lint,
dust, and dirt.
13. The interior of the appliance and exhaust duct should be
cleaned periodically by qualified service personnel.
14. Do not place items exposed to cooking oils in your dryer.
Items contaminated with cooking oils may contribute
to a chemical reaction that could cause a load to catch
fire. To reduce the risk of fire due to contaminated loads,
the final part of a tumble dryer cycle occurs without heat
(cool down period). Avoid stopping a tumble dryer before
the end of the drying cycle unless all items are quickly
removed and spread out so that the heat is dissipated.
15. WARNING: Improper connection of the equipment-
grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service
representative or personnel if you are in doubt as to
whether the appliance is properly grounded.
Carefully read the instructions for use before using the
dryer.
Please, do not use the dryer without reading and
understanding these instructions for use first.
6
718585
These instructions for use of a dryer are supplied with
different types or models of dryers. Therefore, they may
include descriptions of settings or equipment that are not
available in your dryer.
Failure to observe the instructions for use or inappropriate
use of the dryer may result in damage to the laundry or the
appliance, or injury to the user. Keep the instruction manual
handy, near the dryer.
Instructions for use are available on our website at
www.gorenje.com.
Your dryer is intended solely for household use. If the
dryer is used for professional, for-profit purpose or purpose
exceeding normal use in a household, or if the dryer is used
by a person who is not a consumer, the warranty period shall
be equal to the shortest warranty period required by relevant
legislation.
Follow the instructions for correct installation of the Gorenje
dryer and connection to the power mains (see chapter
»INSTALLATION AND CONNECTION«).
All and any repairs or maintenance tasks on the dryer should
only be done by trained experts. Unprofessional repair may
result in an accident or major malfunction.
7
718585
To avoid danger, a damaged power cord may only be
replaced by the manufacturer, a service technician, or an
authorized person.
After installation, the dryer should stand still for two
hours before it is connected to the power mains.
At least two persons are required to install the tumble dryer
on top of a washing machine.
WARNING: The dryer may not be connected to the power
mains using an extension cord.
Do not connect the tumble dryer to an electrical outlet
intended for an electric shaver or a hair dryer.
Do not connect the dryer to power mains using an external
switching device such as a programme timer, or connect it
to power mains that is regularly switched on and off by the
power supply provider.
WARNING: In case of a defect, only use approved spare
parts by authorized manufacturers.
WARNING: In case of incorrect dryer connection,
incorrect use, or servicing by an unauthorized person, the
user shall bear the cost of any damage as such damage shall
not be covered by warranty.
8
718585
Always use the ducts or hoses supplied with the dryer.
WARNING: As this is an evacuation dryer, it does not
have a condensate tank. The handle has solely a decorative
purpose and it is fixed; it is not intended for opening. If
excessive force is applied, the handle may break.
Install the dryer in a room with adequate ventilation and a
temperature between 50°F (10°C) and 77°F (25°C).
Place the dryer on a level and stable solid (concrete) base.
WARNING: Do not place the dryer behind lockable or
sliding door, or door with a hinge on the opposite side of the
dryer door hinge. Install the dryer in such way that the door
can always be freely opened.
Never block the air exhaust (evacuation opening).
WARNING: Do not place the dryer on a carpet with long
fibres as this may impede air circulation.
Do not connect the dryer to a chimney or a duct that is also
used to extract products of combustion of natural gas or
other fuels from other appliances.
Air in the dryer environment should not contain dust
particles. The air where the dryer is installed should be
thoroughly ventilated to prevent reverse flow of gases
released from the gas appliances with open fire (e.g. a
fireplace).
9
718585
Make sure the fibres do not accumulate around the dryer.
Do not evacuate the air from the dryer through channels or
ducts used for appliances or devices that use natural gas or
other fuels for their operation.
The appliance may not be in contact with a wall or adjacent
furniture.
Do not use the dryer to dry any laundry that has not been
washed.
Laundry stained with oil, acetone, alcohol, oil derivatives,
stain removers, turpentine, wax, and wax removers should be
washed in a washing machine with hot water and detergent
before it is dried in the dryer.
Clothing that includes latex, rubber parts, shower and
bathing caps, and laundry or covers with rubber foam may
not be dried in the dryer.
Use laundry conditioners or similar products in compliance
with manufacturer's instructions.
WARNING: Remove all objects such as lighters and
matches from the pockets.
If the dryer is connected to an air exhaust system already
used for another appliance, a non-return valve must be
installed. Return flow into the dryer could damage the
appliance and the non-return valve prevents such flow.
10
718585
Clean the dryer filter after each drying cycle. If you have
removed the filter, replace it before the next drying cycle.
WARNING: Do not use any solvents or cleaning
agents that could damage the dryer (please observe
the recommendations and warnings provided by the
manufacturers of the cleaning agents).
After the drying process, unplug the dryer power cord
from the power outlet.
The dryer is not intended for use by persons (including
children) with physical or mental impairments, or persons
with lacking experience and knowledge. These persons
should be instructed about the use of the dryer by a person
responsible for their safety.
The warranty does not cover consumables, minor
deviations in colour, increased noise that results from
appliance age and which does not affect the functionality of
the dryer, and aesthetic defects on components, which do
not affect the dryer's functionality and safety.
11
718585
CHILD SAFETY
Do not allow children to play with the dryer.
Prevent your children and pets from entering the dryer drum.
Before closing the dryer door and running the programme,
make sure there is nothing except laundry in the drum (e.g. if
a child climbed into the dryer drum and closed the door from
the inside).
Activate the child lock. See chapter »STEP 4: DRYING
MODE AND EXTRA FUNCTIONS/Child lock«.
Do not let children younger than three years to come
near the tumble dryer, unless they are under constant
supervision.
The dryer is made in compliance with all relevant safety
standards.
This dryer may be used by children aged 8 years and above
and by persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge, but only
if they are supervised during the use of the appliance, if
they have been provided relevant instructions regarding
safe use of the dryer, and if they understand the hazards
of inappropriate use. Make sure children do not play with
the dryer. Children may not clean the dryer or perform any
maintenance tasks without supervision.
12
718585
WARNING: DANGER OF HOT SURFACE
The back of the dryer may get very hot during operation.
Wait for the dryer to cool down completely before
touching its back side.
If you open the dryer door during the drying process, the
clothes may be very hot and there is a risk of burning.
Never stop the drying process before it is completed; if
you do interrupt the cycle for any reason, be careful when
removing the laundry from the drum as it is very hot. Quickly
remove the laundry from the drum and spread it to allow it to
cool down as quickly as possible.
SAFETY
WARNING: Only use the dryer to dry laundry that was
washed with water. Do not dry any laundry that was washed
or cleaned with flammable cleaners or substances (such
as gasoline, trichloroethylene etc.) as this may result in an
explosion.
If you have cleaned your clothes with industrial cleaners or
chemical substances, do not dry them in the dryer.
The air exhaust hose may not be connected to an active
chimney used to evacuate smoke or waste gases; into
a shaft intended for ventilating rooms with combustion
equipment; or into a chimney used by third parties. If
smoke or waste gases return to the room where the dryer is
installed, there is a danger of poisoning.
13
718585
The dryer is protected with an automatic switch-off system
in case of overheating. This system will switch off the dryer if
the temperature is too high.
If the net filter is clogged, the overheating automatic switch-
off system may be activated. Clean the filter, wait for the
dryer to cool down, and try running it again. If the dryer still
fails to start, call a service technician.
14
DESCRIPTION OF THE DRYER
718585
FRONT
1 On/off button
2 Programme selector knob
3 Start/pause button
4 Control unit
5 Door
6 Net filter
7 Rating plate
8 Air exhaust opening
BACK
1 Air exhaust opening
2 Power cord
3 Adjustable feet
2 3 41
578 6
2
1
3
2
15
TECHNICAL INFORMATION
(DEPENDING ON THE MODEL)
TYPE: SP15/XXX MODEL: XXXXXX/X
Art.No.: XXXXXX Ser.No.: XXXXXXXX
220-240 V ~ XX Hz XX A
IPX4
MADE IN SLOVENIA
Pmax.: XXXX W XXXX W
X kg
718585
Width 23½" (600 mm)
Height 33½" (850 mm)
Dryer depth (a) 24½" (625 mm)
Depth with door closed 25½" (653 mm)
Depth with door open (b) 44½" (1134 mm)
Weight XX/YY lb (XX/YY kg) (depending on the model)
Rated voltage See rating plate
Fuse See rating plate
Nominal power See rating plate
Maximum load See rating plate
Rating plate
Rating plate with basic information about the dryer is fitted on the front wall of the dryer door
opening (see chapter »DESCRIPTION OF THE DRYER«).
16

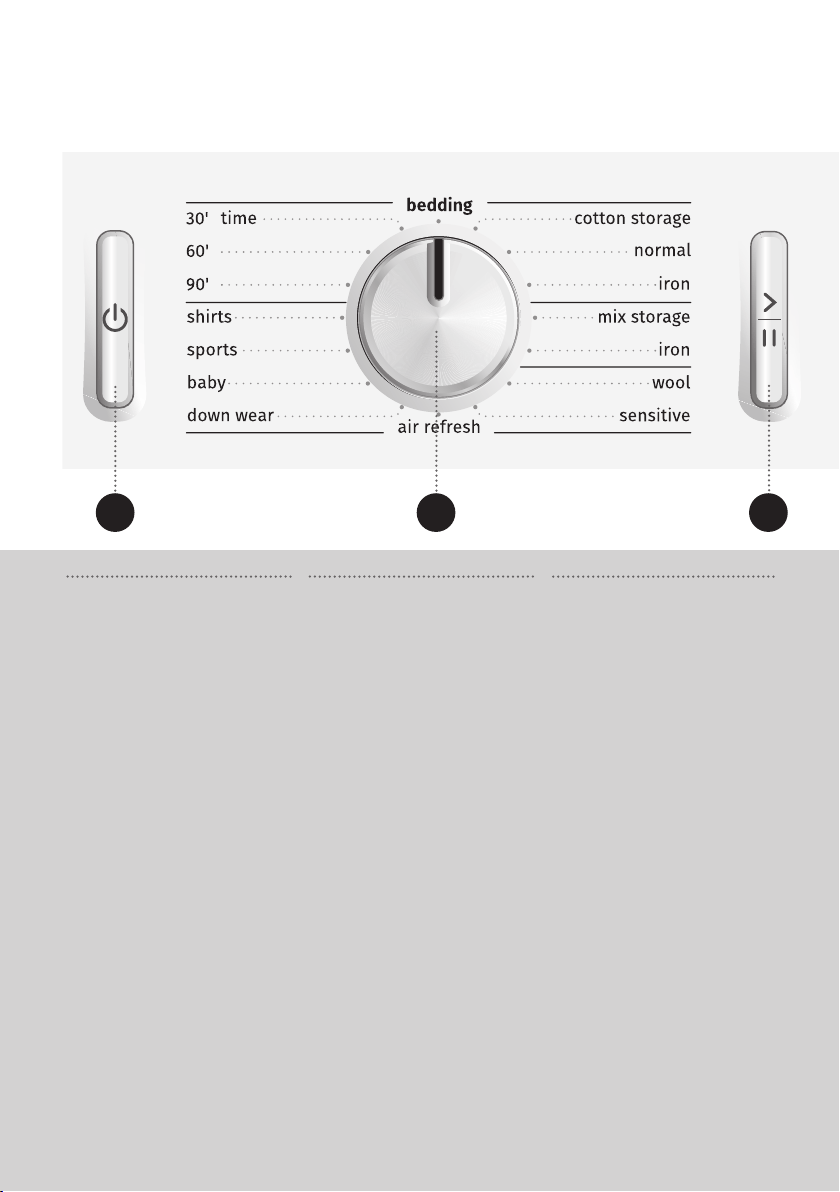

CONTROL UNIT
718585
3
START/PAUSE BUTTON
Use this button to start or
stop the programme.
Upon start-up or during pause,
the button light will flash; when
the programme is started
and in progress, it will be lit
continuously.
1
ON/OFF BUTTON
Switching the dryer on and
off.
2
PROGRAMME
SELECTOR KNOB
1 2 3
17
718585
4 76 8 8a
4a 4b
5
4
MODE (DRYING MODE)
4a EXTRADRY
4b GENTLECARE (LOWER
TEMPERATURE)
5
START DELAY
Option to set a start delay
6
CLEAN THE FILTER
symbol lighting
7
CHILD LOCK symbol
lighting
Press the positions 4+8 and
hold them for 3 seconds.
8
ANTI CREASE
8a Anti crease time
indicator light
18
718585
INSTALLATION AND CONNECTION
WARNING: Install the clothes dryer according to the
manufacturer’s instructions and local codes.
WARNING: Clothes dryer installation must be performed by a
qualified installer.
WARNING: To reduce the risk of severe injury or death, follow
all installation instructions.
WARNING: Save these instructions.
WARNING: Do not install a clothes dryer with flexible plastic
venting materials. If flexible metal (foil type) duct is installed, it must be of a specific type
identified by the appliance manufacturer as suitable for use with clothes dryers. Flexible venting
materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct
clothes dryer airflow and increase the risk of fire.
19
718585
Remove all packaging. When removing the packaging, make sure not to damage the dryer with a
sharp object.
WARNING:
• The appliance shall not be exhausted into a chimney, a wall, a ceiling, an attic, a crawl
space, or a concealed space of a building;
• Only rigid or flexible metal duct shall be used for exhausting;
• In CANADA foil-type flexible ducts that comply with the UL 2158A, shall be used;
• In CANADA the exhaust duct shall be 102 mm in diameter;
• Maximum duct length shall be 2.4 m and maximum number of bends shall be 4;
• The total length of flexible metal duct shall not exceed 2.4 m;
• The duct shall not be assembled with screws or other fastening means that extend into the
duct and catch lint.
20
718585
4" (10 cm)2" (5 cm)
4" (10 cm)
The dryer may not be in contact with a wall or adjacent furniture. For optimum dryer operation,
we recommend observing the clearance from the walls as indicated in the figure. In case of failure
to heed the required minimum clearance, the dryer may overheat.
Vents on the appliance back wall, and humid air exhaust opening on the side or back wall may
not be obstructed.
Place the appliance in a thoroughly ventilated room with a window or ventilation fan.
Connect the exhaust duct to the air exhaust opening. Do not connect the exhaust to a duct that is
also used for evacuation of combustion gases from other appliances or gases from appliances that
use other combustible substances for their operation.
The dryer emits heat. Therefore, do not place it in a very small room, as the drying process may
take longer due to limited amount of available air.
Lighting in the room should be sufficient to allow reading the information on the display unit on the
control panel.
WARNING: Appliances are not intended to be installed in a
closet.
SELECTING THE ROOM
21
718585
DRYER PLACEMENT
If you also have a Gorenje dryer of corresponding (same) dimensions, it can be placed on top of the
Gorenje washing machine; in this case, vacuum feet must be used. Alternatively, the dryer can be
placed next to the washing machine (figures 1 and 3).
If your Gorenje washing machine is smaller (minimum depth 21½" (545 mm)) than your Gorenje
dryer, then the dryer support has to be purchased extra (figure 2). The supplied vacuum feet must
be used; they are designed to prevent the dryer from slipping.
Additional equipment (dryer support (a) and vacuum feet (b) if they are not supplied) are available for
purchase at the service units.
The surface on which the appliance is placed should be clean and level.
Gorenje washing machine onto which you intend to place the Gorenje dryer should be able to
hold the weight of the Gorenje dryer (see chapter »DESCRIPTION OF THE DRYER/Technical
information«).
Opening the dryer door (bird's-eye view)
b
a
180°
See chapter »DESCRIPTION OF THE DRYER/
Technical information«.
a = 24½" (625 mm)
b = 44½" (1134 mm)
At least two persons are required to install the tumble dryer on top of a washing machine.
12 3
4X
b
a
22
718585
Do not place the dryer behind lockable or sliding door, or door with a hinge on the opposite
side of the dryer door hinge. Install the dryer in such way that the door can always be freely
opened.
Do not place the dryer on a carpet with long fibres as this may impede air circulation.
23
718585
Floor on which the dryer is placed must have a concrete base. It should be clean and dry;
otherwise, the dryer may slide. Also clean the adjustable feet.
The dryer must stand level and stable on a solid base.
Incorrect levelling of the dryer with the adjustable legs may cause vibration, appliance sliding
across the room, and loud operation. Incorrect levelling of the dryer shall not be subject to warranty.
Sometimes, unusual or louder noise may appear during appliance operation; these are mostly
the result of improper installation.
ADJUSTING THE DRYER FEET
Level the dryer in longitudinal and traverse direction by rotating the adjustable feet which allow
levelling by +/- ½" (+/- 1 cm). Use a spirit level and spanner No. 22.
24
ab
max ½" (max 2m)
max ½" (max 2m)
2
718585
EVACUATION OF HUMID AIR
The dryer has two humid air exhaust openings (options a/b). Close one of them with a cap and
connect the air exhaust duct to the other one.
The distance between the dryer and the air evacuation opening (ventilation opening, window)
may not exceed 2 metres. Otherwise, moisture could accumulate in the air exhaust duct.
Do not evacuate the air from the dryer through channels used for appliances or devices that use
natural gas or other fuels for their operation.
25
CONNECTING TO THE POWER MAINS
2 h
718585

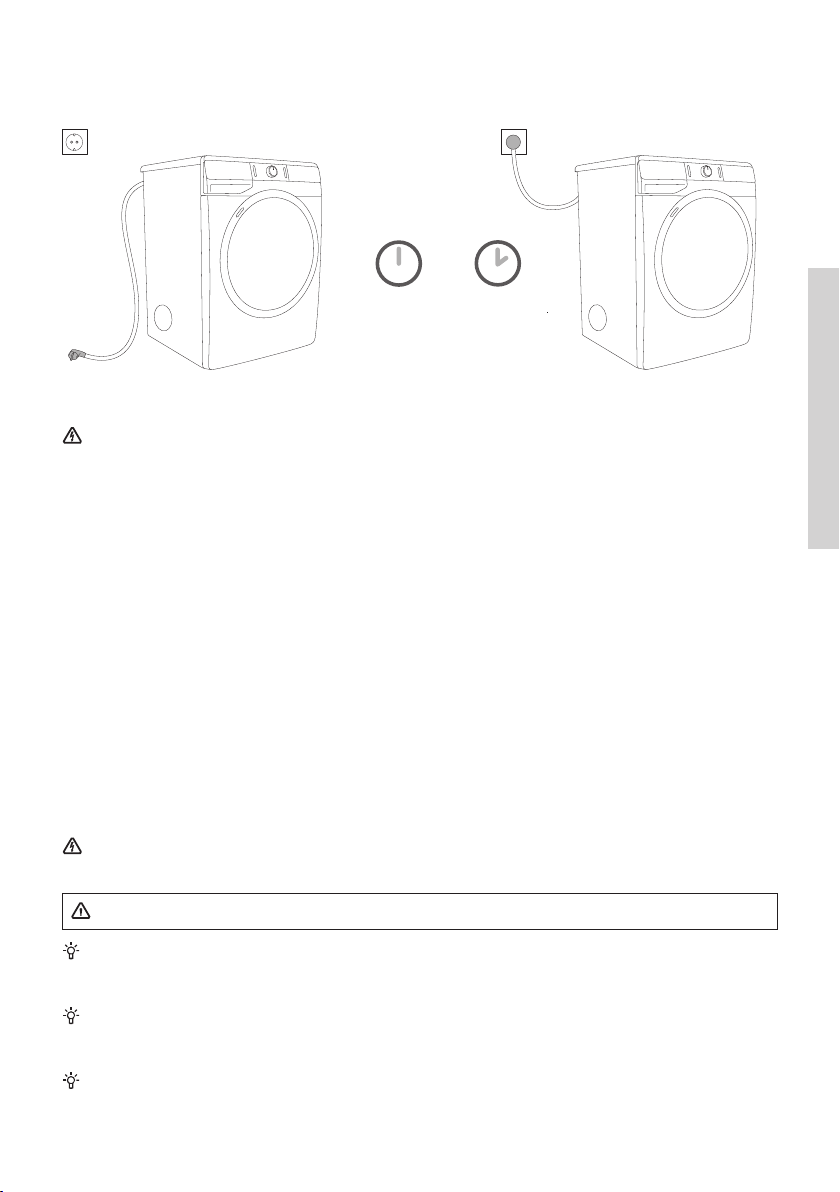

After installation, the dryer should stand still for two hours before it is connected to the
power mains; this allows the dryer to stabilize.
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of least resistance for electric current. This appliance
is equipped with a cord having an equipment grounding conductor and a grounding plug. The plug
must be plugged into an appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
Do not modify the plug provided with the appliance: if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
Connect the dryer to a grounded power outlet. After installation, the wall outlet should be freely
accessible. The outlet should be fitted with an earth contact (in compliance with the relevant
regulations).
Information on your dryer is indicated on the rating plate (see chapter »DESCRIPTION OF THE
DRYER/Technical information«).
We recommend using over-voltage protection to protect the appliance in case of a
lightning strike.
The dryer may not be connected to the power mains using an extension cord.
Do not connect the tumble dryer to an electrical outlet intended for an electric shaver or a hair
dryer.
Any repair and maintenance pertaining to safety or performance should be done by trained
experts.
A damaged power cord may only be replaced by a person authorized by the manufacturer.
26
718585
MOVING AND TRANSPORT AFTER INSTALLATION
After every drying cycle, a small amount of condensed water will remain in the dryer. Switch on the
dryer and choose one of the programmes, then let the appliance operate for approximately half a
minute. This will pump out the remaining water and prevent damage to the dryer during transport.
After transport, the dryer should be left to stand still for at least two hours before it is
connected to the power mains. The appliance should be installed and connected by a trained
technician.
If the appliance was not transported in compliance with the instructions, the dryer should be left
to stand still at least two hours before it is reconnected to the power mains.
Carefully read the instructions for use before connecting the dryer. Repair or any warranty
claim resulting from incorrect connection or use of the dryer shall not be covered by the
warranty.
The belt may only be replaced by a service technician authorized by the manufacturer, who can
supply the original spare part with the code OPTIBELT EPH 1906, code 104265; OPTIBELT 8 EPH
1941, code 160165; POLY-V 7PH 1956 HUTCHINSON, code 562038; HUTCHINSON 8 PHE 1942,
šifra 270313 (depending on the model).
27
718585
Do not use any solvents or cleaning agents that could damage the dryer (please observe the
recommendations and warnings provided by the manufacturers of the cleaning agents).
BEFORE USING THE APPLIANCE
FOR THE FIRST TIME

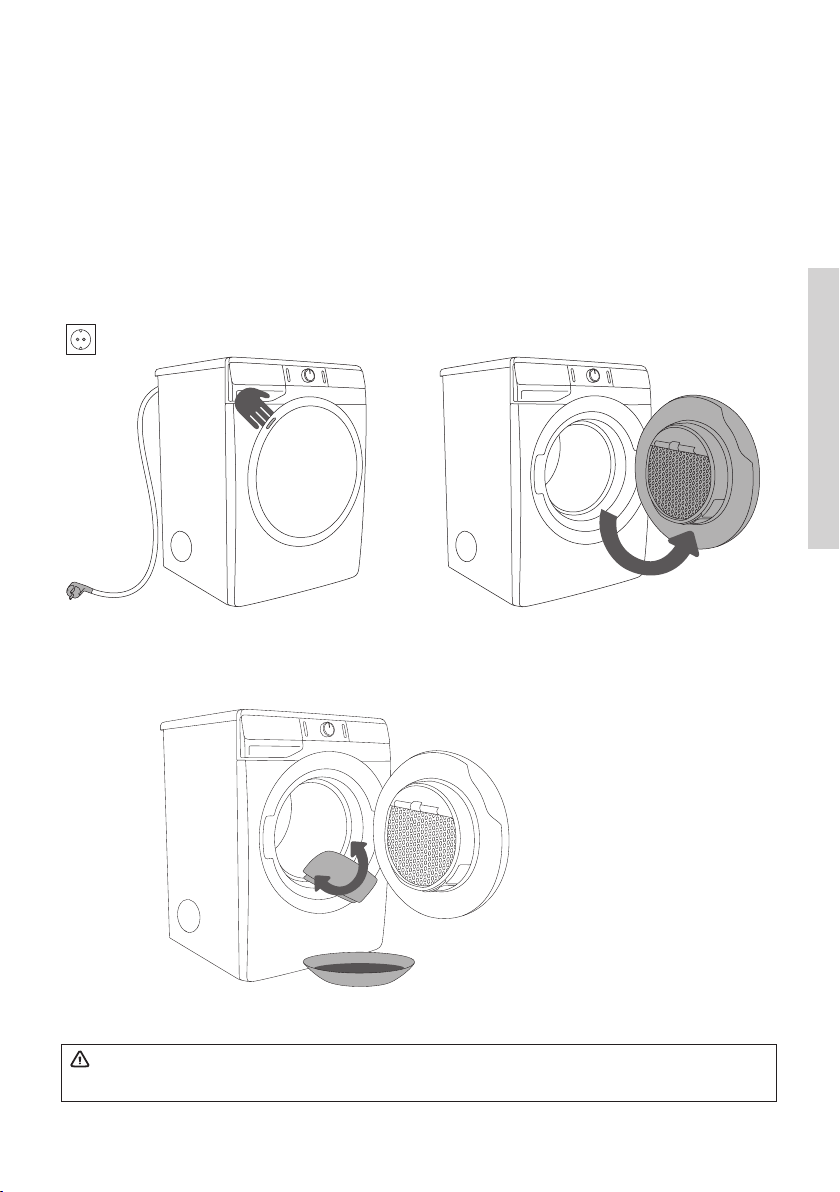

Make sure the dryer is disconnected from the power mains; then, open the door by pulling the left
side of the door towards you (figures 1 and 2).
Before using the dryer for the first time, clean the dryer drum using a soft damp cotton cloth and
water (figure 3).
1
3
2
28
718585
DRYING PROCESS,
STEP BY STEP (1 - 6)
STEP 1: HEED THE LABELS ON THE LAUNDRY
Normal wash;
Sensitive laundry
Max. washing
temperature
EXTRA HOT
Max. washing
temperature
HOT
Max. washing
temperature
WARM
Hand wash
only
COLD
Do not
wash
Bleaching Bleaching in cool water
c1
Bleaching not allowed
Dry cleaning Dry cleaning
with all agents
A
Petroleum
solvent
R11, R113
P
Dry cleaning in
kerosene, pure
alcohol, and in
R113
F
Dry cleaning not
allowed
Ironing Hot ironing,
max. HIGH
temperature
Hot ironing,
max.
MEDIUM
temperature
Hot ironing,
max. LOW
temperature
Ironing not allowed
Drying Dry flat (place
on a flat
surface)
Drip dry
Line dry
High temperature
Low temperature
Do not tumble dry
29
718585
STEP 2: PREPARING FOR THE LAUNDRY DRYING
PROCESS

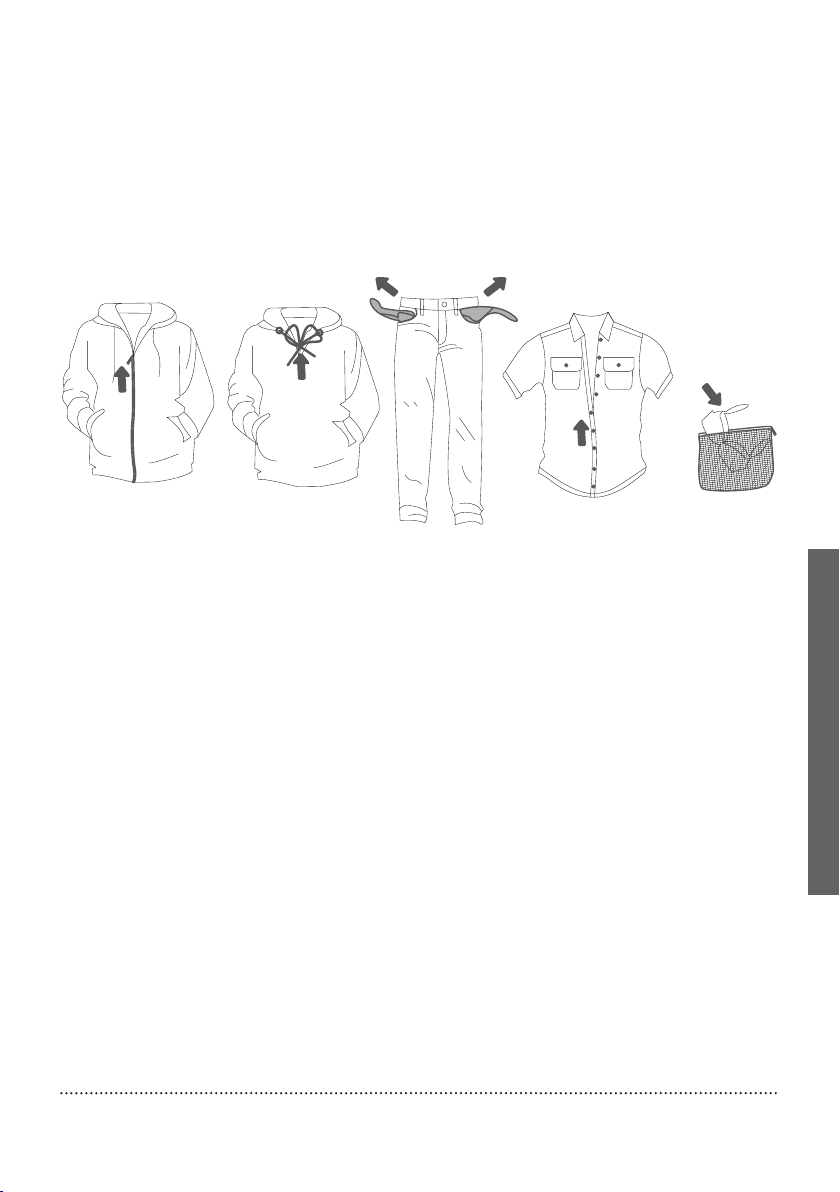

1. Sort the laundry by type and thickness of the fabric (see PROGRAMME TABLE).
2. Close the buttons and zips, tie any ribbons, and turn the pockets inside out.
3. Place very sensitive clothes in a special-purpose laundry bag.
(The special-purpose laundry bag is available as an optional accessory.)
Drying laundry made of particularly delicate fabrics that may be deformed is not
recommended. The following types of laundry may not be dried in the dryer as this may cause
your garments to deform:
• leather garments and other leather products;
• garments that are waxed or treated in any other way;
• garments with major wooden, plastic, or metal parts;
• garments with spangles;
• garments with metal parts subject to rusting.
30
718585
DRYING IN A BASKET (DEPENDING ON THE MODEL)
Before the first drying cycle, remove the basket and all packaging from the drum.
Laundry may only be dried in the basket when using the timed drying programme. (The basket is
available for purchase as an optional accessory at the service centre.)
Only dry clean sports shoes or slippers that have been wrung just enough to prevent water from
dripping from them.
As the drum rotates, the laundry basket will be still. Therefore, make sure the items you are drying
in the basket are not in contact with the drum, as this could result in damage to the item and the
dryer.
1
Open the dryer
door and insert the
laundry.
2
Insert the drying
basket by
securing it to the door
gasket (as shown in
the figure).
3
The basket can be
used for drying of
sports shoes, slippers,
or any other item you
do not wish tumbled
around the dryer drum
during the drying
process (max. load:
5,5 lb (2,5 kg)).
4
After the drying
process, remove
the drying basket and
close the dryer door.
31
718585

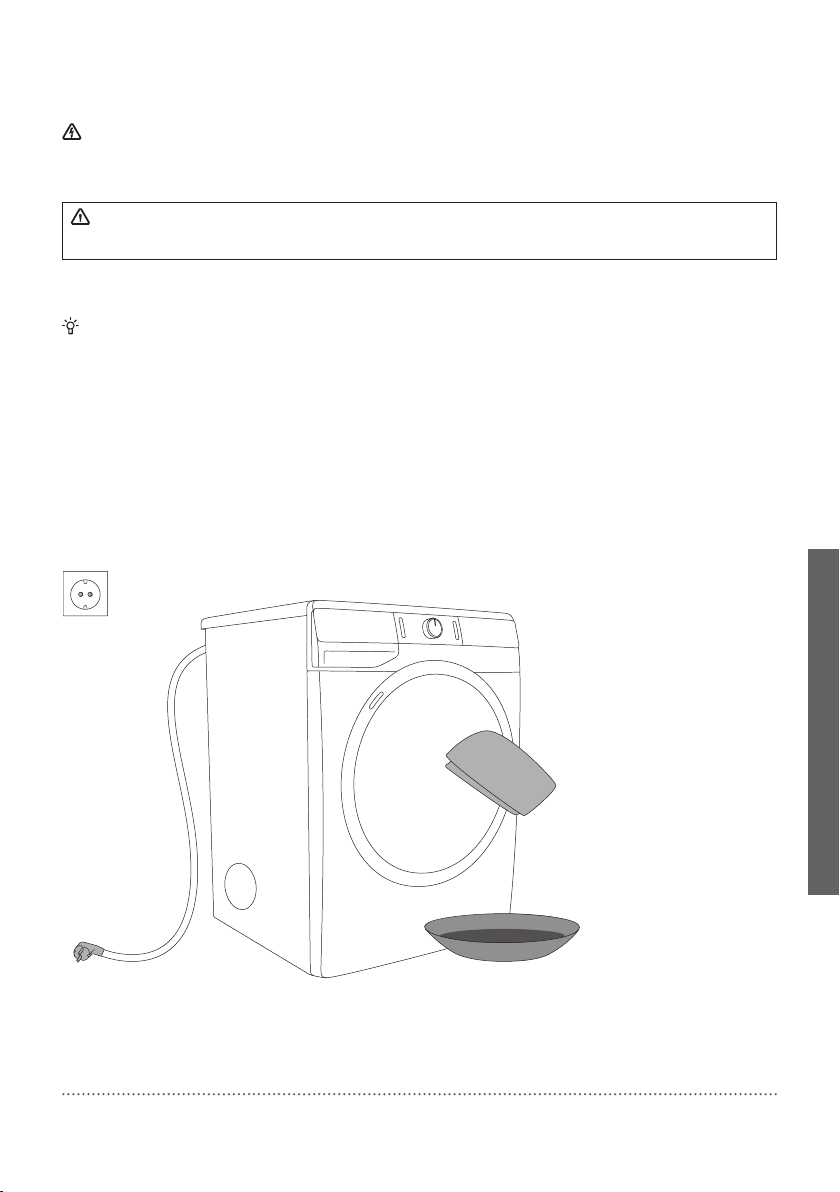

SWITCHING ON THE DRYER
Connect the dryer to the power mains by plugging in the power cord.
Press the (1) ON/OFF button to switch on the dryer (figures 1 and 2).
12
1
32
718585
LOADING THE DRYER

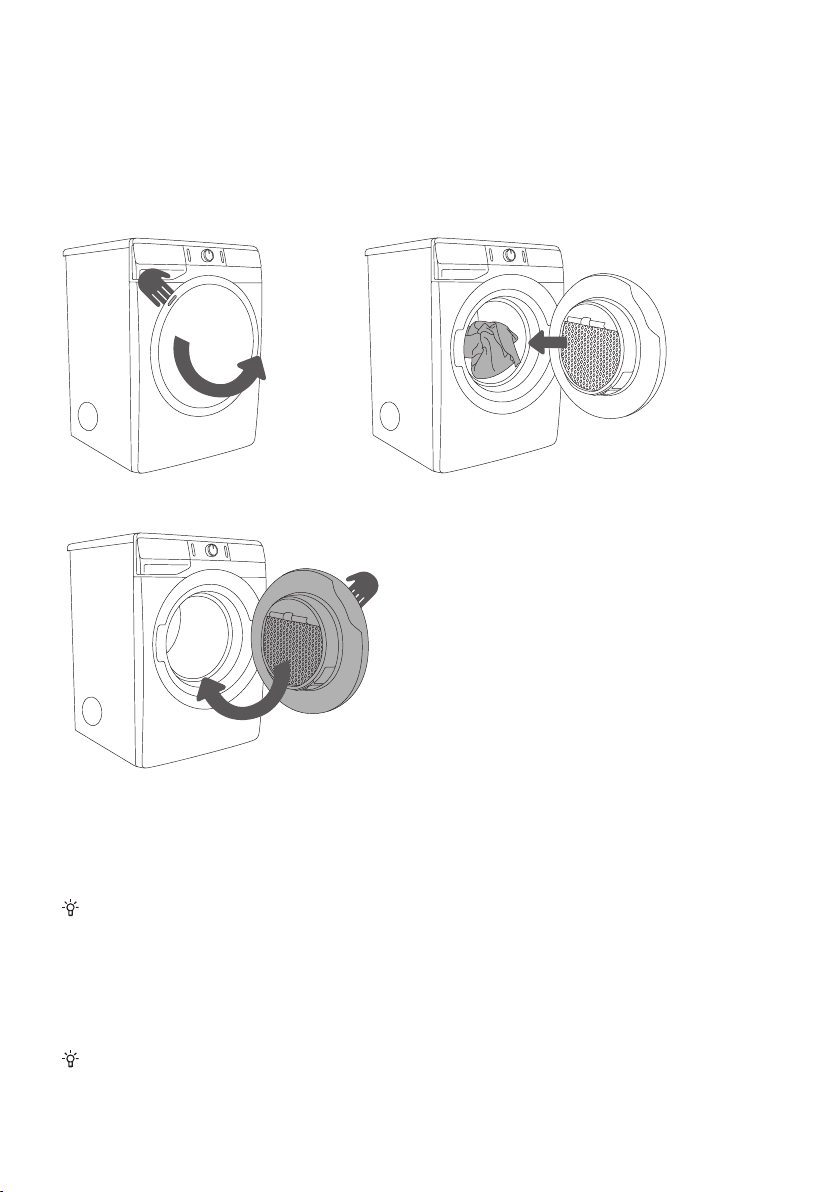

Open the dryer door by pulling the left side of the door towards you (figure 1).
Insert the laundry into the drum (after making sure the drum is empty) (figure 2).
Close the dryer door (figure 3).
Do not insert laundry into the dryer if it has not been wrung or spun (recommended minimum
spinning cycle: 800 rpm).
Do not overload the drum! See PROGRAMME TABLE and observe your nominal load as indicated
on the rating plate.
If the dryer drum is overloaded, the laundry will be more wrinkled and perhaps unevenly dried.
When drying larger items (bedding, towels, tablecloths etc.), loosen them and then insert them
into the dryer drum.
3
1 2
33
718585

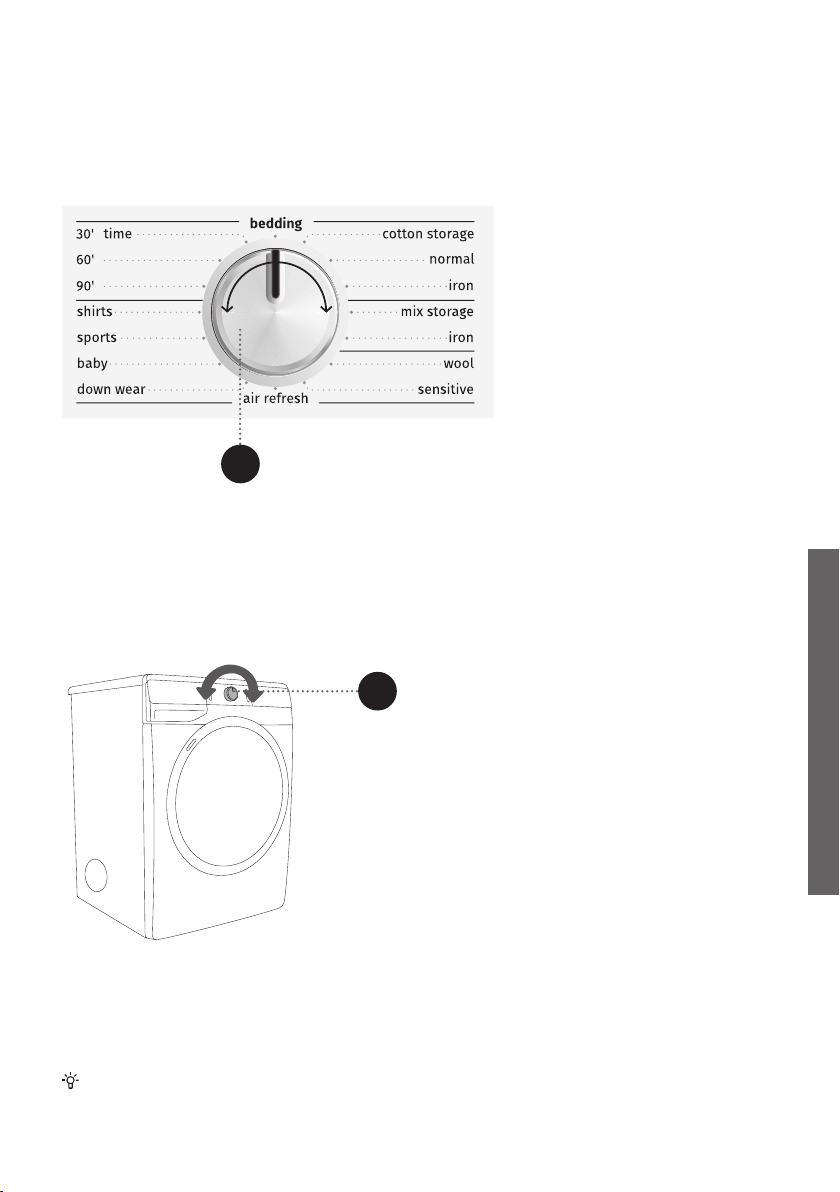

STEP 3: CHOOSING THE DRYING PROGRAMME
Choose the programme by rotating the programme selector knob (2) to the left or to the right
(depending on the type of laundry and the desired level of dryness). See PROGRAMME TABLE.
2
The programme selector knob (2) will not rotate automatically during operation.
2
34
718585
PROGRAMME TABLE
Programme
Dryness levels
Max.
load
Programme description
Cotton
Storage
(Cupboard dry)
15,4 lb
(7 kg)
Use this programme for thicker non-sensitive cotton
laundry. After drying, it will be dry and ready to be stored
in the cupboard.
Normal * 15,4 lb
(7 kg)
Use this programme for thicker non-sensitive cotton
laundry of approximately the same thickness. After drying,
it will be dry.
Iron
(Moist for ironing)
15,4 lb
(7 kg)
Use this programme for non-sensitive cotton laundry. After
drying, it will be ready for ironing.
Mix (Mixed laundry/Synthetics)
Storage
(Cupboard dry)
7,7 lb
(3,5 kg)
Use this programme for sensitive laundry made of a
mixture of synthetic and cotton fibres. After the drying
cycle, the laundry will be dry.
Iron
(Moist for ironing)
7,7 lb
(3,5 kg)
Use this programme for sensitive laundry made of a
mixture of synthetic and cotton fibres. After drying, the
laundry will be slightly moist.
Wool 4,4 lb
(2 kg)
This short programme is intended for softening or fluffing
of clothes made of wool and silk, which have to be dried
thoroughly according to manufacturer s instructions.
Sensitive 2,2 lb
(1 kg)
Use this programme to dry highly delicate laundry made
of synthetic fibres, which may be slightly moist after the
drying process. We recommend using a special-purpose
laundry bag.
Air refresh 4,4 lb
(2 kg)
In this programme, the heater is switched off. The
programme is suitable for refreshing your laundry.
Down wear 3,3 lb
(1,5 kg)
Use this programme to dry textiles stuffed or padded
with down (pillows, duvets, jackets etc.). Dry large items
separately and use the EXTRADRY function or the Time
Programme if necessary.
Baby
(Baby clothes)
8,8 lb
(4 kg)
Use this programme to dry baby clothes. Clothes dried
with this programme are usually normally dry.
Sports
(Sportswear)
6,6 lb
(3 kg)
Use this programme for clothing with a membrane, for
sportswear made of mixed materials, and breathable
fabrics.
Shirts 4,4 lb
(2 kg)
Use this programme to dry shirts and blouses. Adjusted
drum rotation prevents the laundry from creasing.
35
718585
Programme
Dryness levels
Max.
load
Programme description
Time
(Timed drying program)
90´
60´
30´
8,8 lb
(4 kg)
Use this programme for non-sensitive laundry that is
still slightly moist and has to be thoroughly dried. In the
time programme, remaining moisture is not detected
automatically. If the laundry is still damp after the
programme is complete, repeat the programme; if it is too
dry and therefore creased and rough to touch, the drying
time you selected was too long.
Bedding 11 lb
(5 kg)
Use this programme for larger items. When the
programme is complete, they will be dry. Adjusted drum
rotation prevents the laundry from tangling.
* Testing programme according to EN 61121
If your laundry is not dried to the desired dryness level, use extra functions or use a more suitable
programme.
36
718585
4 4a
MODE (DRYING MODE)
EXTRADRY (4a)
GENTLECARE (LOWER TEMPERATURE) (4b)
The signal light will light up to confirm the selection of the relevant extra
function.
EXTRADRY
Press on the EXTRADRY position to adjust the dryness level – the dryer
the laundry, the longer the drying cycle. This setting can be adjusted
before the start of the drying process. After the drying programme, this
setting is not stored.
4
4a
STEP 4: DRYING MODE AND EXTRA FUNCTIONS
Adjust the settings by pressing the relevant function button (before pressing the (3) START/PAUSE
button).
Functions that can be changed or adjusted with the selected drying programme are partly lit
(dimmed).
Certain settings cannot be selected with some programmes. Such settings will not be lit, and the
button will flash when pressed (see FUNCTION TABLE).
Description of lighting of functions for the selected drying programme:
• Lit (Basic/preset setting);
• Dimmed (Functions that can be adjusted) and
• Unlit (Functions that cannot be selected).
37
718585
GENTLECARE (LOWER TEMPERATURE)
For delicate laundry. Lower temperature depends on the programme for
which the function was selected. This setting can be adjusted before the
start of the drying process. After the drying programme, this setting is not
stored.
START DELAY
Desired time when the drying programme should start can be set in
advance, which allows more flexibility.
Press the position (5) START DELAY to choose between 2h, 4h, 6h, and
8h (5a) start delay. The selected time is displayed when you press the
(3) START/PAUSE button. When the set delay time expires, the selected
drying programme will start automatically.
To deactivate the start delay, press the position (5) START DELAY and
hold for 3 seconds.
In case of a power supply failure before the delay time has elapsed, press
the START/PAUSE (3) button to resume the countdown.
5 5a4b
4b
5
38
718585
ANTI CREASE
If you do not intend or cannot remove the laundry from the dryer
immediately after the completion of the drying cycle, we recommend using
the (8) ANTI CREASE function which has to be selected before the start of
the drying process.
Press on the position (8) ANTI CREASE to choose between 1h, 2h
(8a) or deactivating this function. When you open the dryer door after
the completion of the drying programme, the function is automatically
deactivated.
8 8a
8
39
718585
Some functions are not available and cannot be selected with certain programmes; an acoustic
signal and a flashing light will indicate such cases (see EXTRA FUNCTION TABLE).
After disconnecting the dryer from the power mains, all settings will be reset to their default
factory values, except for the child lock setting.
CHILD LOCK
To activate or deactivate the child lock, press the positions (4) MODE
(DRYING MODE) and (8) ANTI CREASE simultaneously and hold them
for at least 3 seconds until the symbol (7) lights up or goes off,
respectively.
If the child lock is activated, programme or additional functions cannot
be changed. The child lock remains active after the dryer is switched
off. Therefore, it has to be deactivated before a new programme can be
selected. It can also be switched off during the drying process.
4 87
4 8
+
40
718585
EXTRA FUNCTION TABLE
Programmes
GENTLECARE
(LOWER TEM-
PERATURE)
EXTRADRY
START DELAY
ANTI CREASE
Cotton
Storage (Cupboard dry) ••••
Normal ••••
Iron (Moist for ironing) ••••
Mix (Mixed laundry/Synthetics)
Storage (Cupboard dry) ••••
Iron (Moist for ironing) ••••
Wool
Sensitive
•••
Air refresh
Down wear
••••
Baby (Baby clothes)
••••
Sports (Sportswear)
•••
Shirts
••••
Time
(Timed drying program)
90´
••
60´
••
30´
••
Bedding
••••
• Extra functions can be used
If your laundry is not dried to the desired dryness level, use extra functions or use a more suitable
programme.
41
718585
STEP 5: STARTING THE DRYING PROGRAMME
Press the button (3) START/PAUSE.
3
STEP 6: END OF THE DRYING PROGRAMME
At the end of the drying programme, a red indicator light will light up, and the (3) START/PAUSE
button light and ANTI CREASE (8a) time indicator, if activated or selected, will flash.
1

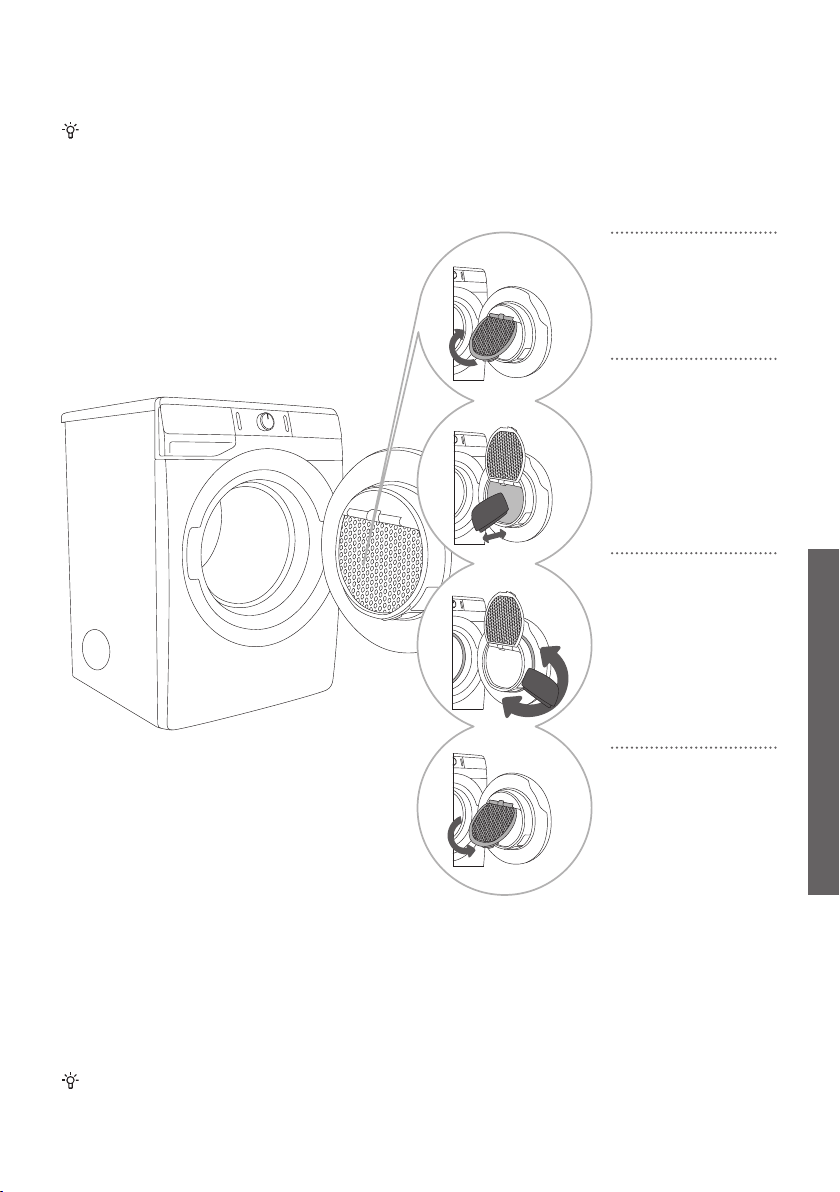

1. Open the dryer door.
2. Clean the filter (see section »CLEANING« ...).
3. Take the laundry from the drum.
4. Close the door!
5. Switch off the dryer (press the (1) ON/OFF button).
6. Empty the condensate tank.
7. Unplug the power cord from the outlet.
After the end of the drying programme, immediately remove the laundry from the dryer to
prevent it from creasing again.
42
718585
INTERRUPTIONS AND CHANGING
THE PROGRAMME
INTERRUPTIONS
Interrupting the programme process
Press the (3) START/PAUSE button to pause/resume a programme.
To stop and cancel the drying programme, press the (3) START/PAUSE button and hold it for 3
seconds. The selected programme will stop, and the dryer will start to cool down. Cooling down
time depends on the selected programme. After this process, the drying programme can be
selected again.
Open door
If the dryer door is opened during the drying process, the drying cycle will be interrupted.
When the door is closed and the (3) START/PAUSE button is pressed, the drying will resume from
the point at which it was interrupted.
The dryer door will heat up during the drying process. Make sure you do not burn yourself
when opening the dryer door.
Power supply failure
When power supply is resumed, the signal light on the (3) START/PAUSE button will flash.
To resume the drying process, press the (3) START/PAUSE button.
CHANGING THE PROGRAM/FUNCTIONS
Switch off the dryer by pressing the button (1) ON/OFF; then, switch it on again by pressing the
button (1) ON/OFF and rotate the (2) programme selector knob to the desired programme, or
choose extra functions.
Select another program/function and press the (3) START/PAUSE button again.
ADDING LAUNDRY AFTER THE START OF THE PROGRAM
Open the dryer door and press the (3) START/PAUSE button. Insert the laundry and press the
button (3) START/PAUSE.
When loading the laundry, make sure you do not burn yourself when you open the dryer
door.
Drying time may be extended.
43
718585
PERSONAL SETTINGS MENU
Switch on the dryer by pressing the (1) ON/OFF button. To open the personal settings menu,
simultaneously press the positions (8) ANTI CREASE and (5) START DELAY and hold them for
3 seconds. The indicator lights (4a) EXTRADRY, (4b) GENTLECARE (LOWER TEMPERATURE),
and (8) ANTI CREASE will light up on the display unit. In the Personal settings menu, all personal
programme settings may be reset to factory defaults by pressing the (5) START DELAY position; to
return to the programme, press the (4) MODE (DRYING MODE) position. If the desired settings are
not selected in 20 seconds, the programme will automatically return to main menu.
44
718585
1
Net filter
2
Air exhaust
opening
As this is an evacuation dryer, it does not have a condensate tank. The handle has solely a
decorative purpose and it is fixed; it is not intended for opening. If excessive force is applied, the
handle may break.
The dryer may never be operated without the filter in place, or with damaged filter, as excessive
amount of accumulated fibres from the fabric could cause malfunction or failure of the dryer.
MAINTENANCE & CLEANING
Before cleaning, make sure to switch off the dryer and disconnect it from the power mains
(unplug the power cord from the outlet).
The dryer is fitted with a filtering system consisting of one filter.
12
45
718585
1
Lift the filter cover.
2
Gently scrape the
filter to remove
the lint, i.e. the lining
of fibres and threads,
with your hand or with
a cloth.
3
If necessary, clean
the filter housing
and door gasket as
well.
4
Close the filter
cover.
CLEANING THE NET FILTER IN THE DOOR
Clean the net filter after each drying cycle.
Make sure you do not pinch your fingers with the filter cover.
46
2
718585
CLEANING THE EXHAUST DUCT
Occasionally clean (vacuum) the interior of the air exhaust opening and the air exhaust duct.
47
718585
CLEANING THE DRYER
Always disconnect the dryer from the power mains before cleaning.
Clean the dryer exterior using a soft damp cotton cloth.
Do not use any solvents or cleaning agents that could damage the dryer (please observe the
recommendations and warnings provided by the manufacturers of the cleaning agents).
Wipe all parts of the dryer with a soft cloth until dry.
Do not clean the dryer with a jet of water!
48
718585
The warranty does not cover the errors or failures resulting from disturbances from the
environment (lightning strike, power grid failures, natural disasters etc.).
TROUBLESHOOTING
WHAT TO DO ...?
Disturbances from the environment (e.g. the power grid) may result in various error reports (see
TROUBLESHOOTING TABLE). In such case:
• Switch off the dryer and wait at least one minute.
• Switch on the dryer and repeat the drying programme.
• Most errors during operation can be resolved by the user (see TROUBLESHOOTING TABLE).
• If the error persists, call an authorized service unit.
• Repairs may only be carried out by an adequately trained person.
• Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not
be covered by the warranty. In such cases, the costs of repair shall be charged to the user.
49
718585
TROUBLESHOOTING TABLE
Problem/error Cause What to do?
The machine will not
start.
• The main switch is not switched
on.
• Check whether the main switch is
on.
• There is no voltage in the power
outlet.
• Check the fuse.
• Check if the power cord plug is
correctly inserted into the power
outlet.
There is voltage in
the outlet, but the
drum does not spin
and the appliance
does not work.
• Open the door. • Check if the door is closed
properly.
• Perhaps the START DELAY
function was set.
• Programme was not started in
accordance with the instructions.
• To cancel the start delay, press the
position (5) START DELAY and
hold for 3 seconds.
• Re-read the instructions for use
again.
The appliance
stops heating
completely during a
programme.
• The net filter may be clogged. As
a result, the temperature in the
dryer rises, which in turn causes
overheating, and therefore
heating is switched off.
• Clean the net filter (see chapter
»CLEANING AND MAINTENANCE/
Cleaning the net filter in the door«).
• Wait for the appliance to cool
down, and try running it again. If
the dryer still fails to start, call a
service technician.
A slight hitting noise
appears.
• If the dryer is out of use for a
long period of time, the support
elements are under stress at the
same point.
• The noise will subside without any
intervention.
The door opens
during drying.
• Excessive load on the door (too
much laundry in the drum).
• Reduce the amount of laundry.
Unevenly dried
laundry.
• Laundry of varying types and
thickness, or excessive amount
of laundry.
• Make sure you have sorted the
laundry by type and thickness,
whether you have added a suitable
amount of laundry to the drum,
and whether you have selected
a suitable programme (see
PROGRAMME TABLE).
50
718585
Problem/error Cause What to do?
Laundry not dried
or drying takes too
long
• Filter is not cleaned. • Clean the filter (see chapter
»CLEANING AND MAINTENANCE/
Cleaning the net filter in the door«).
• Dryer is placed in a closed room;
room that is too cold; or room
that is too small and the air
overheats as a result.
• Make sure there is adequate
supply of fresh air to the dryer; for
example, open the door and/or
window.
• Check if the temperature in the
room where the dryer is installed is
too high or too low.
• Laundry was not sufficiently
wrung or spun.
• If the laundry is still wet after the
drying cycle, repeat the drying
and select an appropriate drying
programme (after cleaning the
filter).
• Amount of laundry dried in
the appliance is too large or
insufficient.
• Use a suitable programme or extra
functions.
• Laundry (such as bedding) gets
tangled into large balls.
• Close the buttons or zippers on
the laundry before drying. Select
a suitable programme (e.g. the
Bedding program).
• After the drying process, loosen
the laundry and select an additional
drying programme (e.g. Time
(Timed drying program).
Errors indicated on the display unit may include the following:
Problem/error Error description What to do?
E0 Control unit failure
The START DELAY signal lights (5)
flash continuously.
Call service centre.
E1 Temperature sensor failure
The START DELAY signal lights (5)
flash 1 time..
Call service centre.
E2 Communication error
The START DELAY signal lights (5)
flash 2 times.
Call service centre.
51
718585
Problem/error Error description What to do?
E6 Control unit failure
The START DELAY signal lights (5)
flash 6 times.
Disconnect the tumble dryer from
the power supply.
Call service centre.
E7 Control unit failure
The START DELAY signal lights (5)
flash 7 times.
E8 Control unit failure
The START DELAY signal lights (5)
flash 8 times.
Warnings indicated on the display unit may include the following:
Warning Indication on the display unit and
warning description
What to do?
Indicator lights on
the display unit flash
All lights on the display unit
continuously flash 3 times.
The door is open. Close the dryer
door before starting or resuming a
drying programme.
Write down the error code (e.g. E0, E1), switch off the dryer, and call the nearest authorized service
(call centre).
Sound
Rumbling or rattling noise: during drying when the laundry also includes hard parts (such as
buttons, zippers etc.)
52
718585
SERVICING
Before calling a service technician
When you contact a service centre, please state your dryer's type (1), code/ID (2), model number
(3), and serial number (4).
Type, code/ID, model, and serial number are indicated on the rating (type) plate located on the front
side of the dryer door opening.
In case of a failure, only use approved spare parts by authorized manufacturers.
Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not
be covered by the warranty. In such cases, the costs of repair shall be charged to the user.
Additional equipment and accessories for maintenance can be viewed on our website at:
www.gorenje.com.
1 2 3 4
TYPE: SP15/XXX MODEL: XXXXXX/X
Art.No.: XXXXXX Ser.No.: XXXXXXXX
220-240 V ~ XX Hz XX A
IPX4
MADE IN SLOVENIA
Pmax.: XXXX W XXXX W
X kg
431 2
53
718585
TIPS FOR DRYING AND ECONOMIC
USE YOUR DRYER
The most economical way of drying is to dry the recommended amount of laundry in each batch
(see PROGRAMME TABLE).
Drying laundry made of particularly delicate fabrics that may be deformed is not recommended.
Use of conditioner in the washing cycle is not necessary as the laundry is soft and smooth after
drying in the dryer. Drying time will be shorter and power consumption will be lower if the garments
are thoroughly wrung or spun before drying. By selecting the appropriate drying programme, you
will avoid over-drying your laundry and problems with ironing or shrinkage of fabric.
Regular cleaning of the filters will lead to optimum drying time and minimum power consumption.
When drying smaller amounts of laundry or individual garments, the sensor may not perceive the
actual level of moisture in the laundry. In such cases, it is recommended to dry smaller items or
amounts with programmes for dryer laundry or with the timed programme.
54
DISPOSAL
718585
Packaging is made of environmentally friendly materials that can
be recycled, disposed of, or destroyed without any hazard to the
environment. To this end, packaging materials are labelled appropriately.
The symbol on the product or its packaging indicates that the product
should not be treated as normal household waste. Take the product to an
authorized collection centre for waste electric and electronic equipment
processing.
When disposing of the dryer at the end of its useful life, remove all power
cords, and destroy the door latch and switch to prevent the door from
locking or latching (child safety).
Correct disposal of the product will help prevent any negative effects
on the environment and health of people, which could occur in case
of incorrect product removal. For detailed information on removal and
processing of the product, please contact the relevant municipal body in
charge of waste management, your waste disposal service, or the store
where you bought the product.
55
718585
TYPICAL CONSUMPTION TABLE
The table lists the values for drying time and power consumption for drying of a test batch of
laundry with various spinning rpm in the washing machine.
SPO
Load
Spinning
[rpm]
Electric
energy
consumption
[kWh]
Drying time
[min]
Programme 15,4 lb (7 kg)
Cotton Standard Total 1000 3,98 105
Partial 1400 2,40 70
Low 1000 2,19 61
Low 1400 1,60 55
Cotton moist for ironing Total 1000 2,70 80
Partial 1400 2,15 59
Low 1400 1,20 45
Mixed laundry/Synthetics
moist for ironing
Partial 1000 1,15 40
measured by standard EN 61121
Standard programmes for cotton laundry in compliance with the currently effective regulation EU
392/2012
Programme Amount of laundry
Max./half load
lb [kg]
Programme duration
[min]
Electric energy
consumption
[kWh]
Cotton Standard
15,4/7,7 (7/3,5) 105/61 3,98/2,19
The Cotton Standard programme
, is intended for drying of normally wet cotton laundry. It is the
most efficient programme for drying cotton laundry in terms of power consumption.
Due to deviations in terms of type and amount of laundry, power supply oscillation, and
environment temperature and humidity, the values measured at the end user may differ from the
one stated in the table.
en (05-19)SP15 LP PRIMARY SPO CA
We reserve the right to any changes and errors in the instructions for use.
LOW STANDBY MODE
If you do not run a programme or do anything else after switching on the dryer, the dryer will switch
off automatically after 5 minutes to save energy. Indicator light on the (3) START/PAUSE button will
flash.
The display will be reactivated if you rotate the programme selector knob or press the (1) ON/
OFF button or open the dryer door. If you do not do anything for 5 minutes after the end of the
programme, the display unit will be switched off as well. Indicator light on the (3) START/PAUSE
button will flash.
P o = weighted power when off [W] < 0,5
P I = weighted power when in standby [W] < 0,5
T I = standby time [min] 5,00
Low mains voltage and different drying loads may affect the drying time; the remaining time
displayed is adjusted accordingly during the drying process.
