Product may vary slightly from the item pictured due to model upgrades.
Read all instructions carefully before using this product.
Retain this owner’s manual for future reference.
NOTE:
This manual may be subject to updates or changes. Up to date manuals are available through our
website at www.lifespanfitness.com.au
PR-2 HALF RACK
USER MANUAL
2
3
TABLE OF
CONTENTS
I. Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 04
II. Care Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05
III. Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06
IV. Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08
V. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
TABLE OF CONTENTS |
4 | IMPORTANT SAFETY INSTRUCTIONS
I. IMPORTANT SAFETY
INSTRUCTIONS
WARNING: Read all instructions before using this machine.
• Install the product on a flat level surface
• Place your unit on a solid, level surface when in use.
• Never allow children on or near the machine.
• Keep hands away from all moving parts.
• Never drop or insert any object into any openings.
• Care must be taken when lifting or moving the equipment so as not to injure your back. Always
use proper lifting techniques and/or seek assistance if necessary.
• Keep children and pets away from the machine at all times. DO NOT leave children unattended in
the same room with the machine.
• Only 1 person at a time should use the machine.
• If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, STOP the
workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
• Do not use the machine near water or outdoors.
• Keep hands away from all moving parts.
• Always wear appropriate workout clothing when exercising. DO NOT wear robes or other clothing that
could become caught in the machine. Running or aerobic shoes are also required when using
the machine.
• Use the machine only for its intended use as described in this manual. DO NOT use attachments not
recommended by the manufacturer.
• Do not place any sharp objects around the machine.
• Disabled person should not use the machine without a qualified person or physician in attendance.
• Never operate the machine if the machine is not functioning properly.
• A spotter is recommended during exercise.
5CARE INSTRUCTIONS |
II. CARE INSTRUCTIONS
IMPORTANT
• Where necessary, lubricate any moving joints with silicon spray after periods of usage.
• Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects.
• The machine can be kept clean by wiping it down using dry cloth.
• Regularly check all moving parts and make sure there are signs of wear and damage, if any the
use of the device must be stopped immediately and contact our after-sales department.
• During inspection, it is necessary to make sure that all bolts and nuts are completely fixed. If
any bolt or nut connection is loosened, please re-tighten.
• Check weld for cracks.
• Failure to perform daily maintenance may result in personal injury or equipment damage.
6 | PARTS LIST

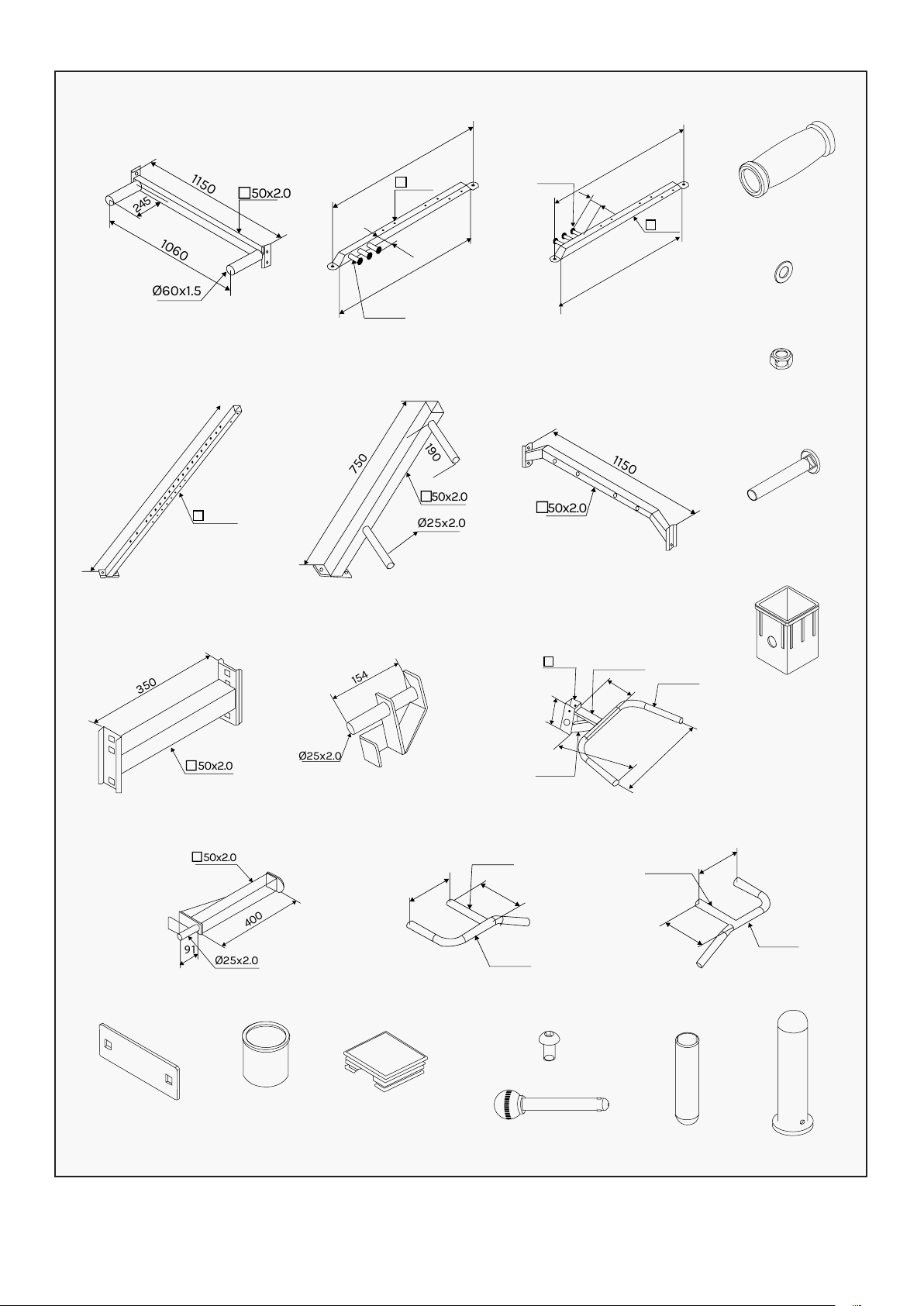

III. PARTS LIST
Part No. Item No. Name Qty N.W.
1
PR2-1 Main Base Frame 1 4.948
2
PR2-2 Right Base Frame 1 4.489
3
PR2-3 Left Base Frame 1 4.489
4
PR2-4 Tall Vertical Frame 2 6.611x2
5
PR2-5 Short Vertical Frame 2 2.827x2
6
PR2-6 Lat Support 1 4.033
7
PR2-7 Center Cross Support 2 1.498x2
8
PR2-8 Plate Support 2 2.967
9
PR2-9 Dip Frame 1 0.158x12
10
PR2-10 Strengthen Board 12
11
60 Middle Sheet 2
12 50 End Cap 4
13
32 Handle Cover 2
14 Washer Ф10 28
15 M10mm Aircraft Nut 24
16 Carriage Bolt M10x70mm 24
17 60x50 Middle Sheet 2
19 PR2-11 Bar Support 2 2.193x2
20 PR2-12 Lat Handle A 1 0.837
21 PR2-13 Lat Handle B 1 0.837
22 Allen Bolt M10x20mm 4
23 Handle Cover 2
24 Plate Rest 4
25 Ball Pin 1
7PARTS LIST |
1
4
7
10 11 12
13
14
15
16
17
19 20 21
22
25
23 24
8 9
5 6
2 3
115
0
10
6
0
2
4
5
5
0
x
2
.0
Ø60x1.5
5
0
x
2
.0
Ø25x2.0
1230
1313
100
5
0
x
2
.0
Ø25x2.0
1230
1313
100
5
0
x
2
.0
2235
5
0
x
2
.0
Ø25x2.0
750
19
0
1150
5
0
x
2
.0
350
5
0
x
2
.0
Ø25x2.0
154
Ø25x50x2.0
25x50x2.0
Ø32x2.0
200
654
513
162
6
0
x
1.5
Ø25x2.0
Ø25x2.0
180
178
Ø25x2.0
Ø25x2.0
180
178
Ø25x2.0
91
5
0
x
2
.0
40
0
8 | ASSEMBLY INSTRUCTIONS
STEP 1

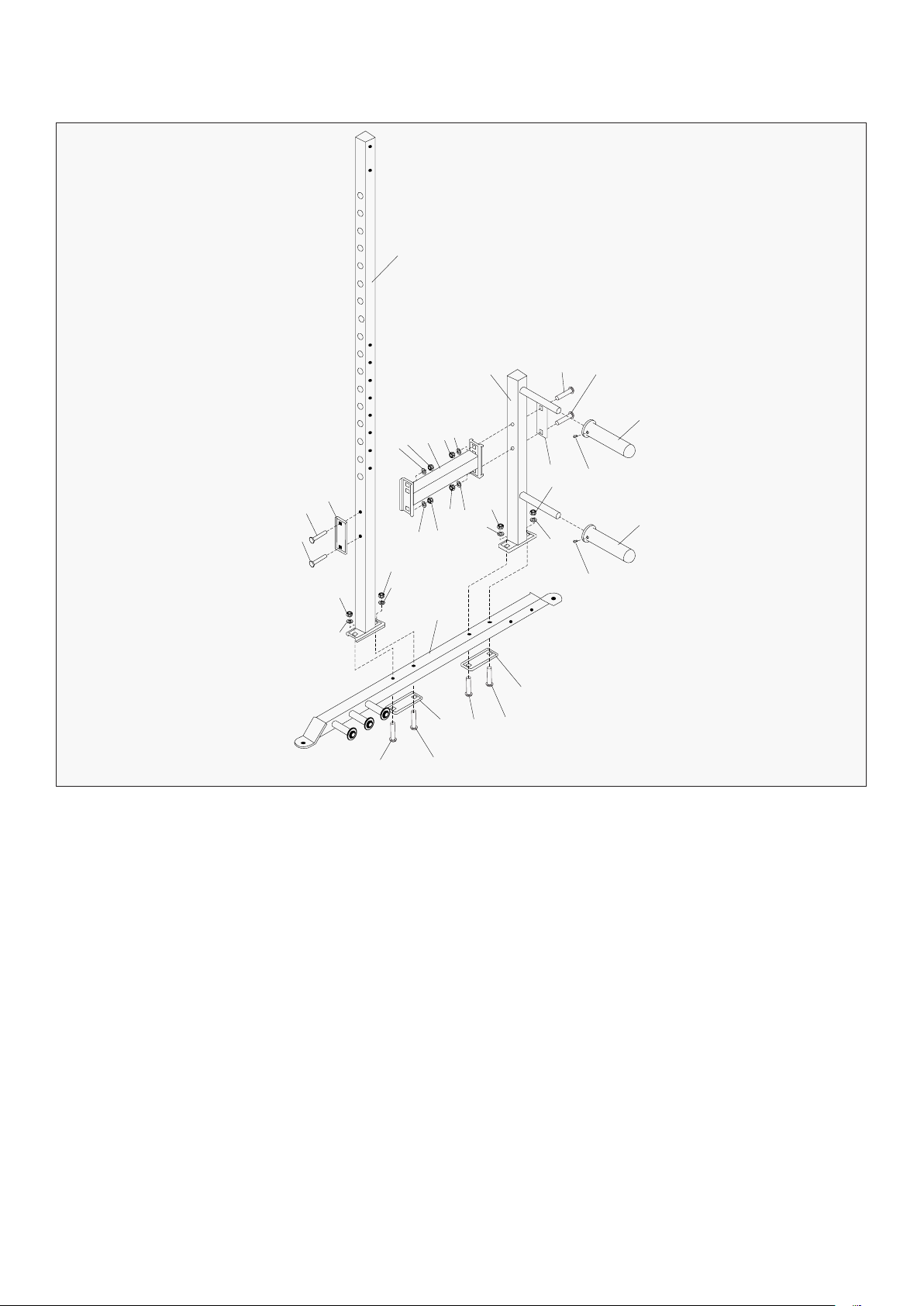

1. Attach the Tall Vertical Frame (4#) and Short Vertical Frame (5#) to the Right Base Frame (2#).
2. Attach the Tall Vertical Frame (4#) and Short Vertical Frame (5#) to the Center Cross Support (7#).
3. Tighten all the bolts and nuts.
4. Loosen the screw (M) on the Plate Rest (24#) and push them onto
the Ø25 Circular Steel Tube of the Short Vertical Frame (5#) then tighten the screw (M).
Secure it with:
- 2x Strengthen Board (10#)
- 4x Carriage Bolt M10*70mm (16#)
- 4x Washer 10 (14#)
- 4x M10mm Aircraft Nut (15#)
Secure it with:
- 2x Strengthen Board (10#)
- 4x Carriage Bolt M10*70mm (16#)
- 4x Washer 10 (14#)
- 4x M10mm Aircraft Nut (15#)
IV. ASSEMBLY INSTRUCTIONS
4
5
16
16
24
24
M
M
15
15
15
15
15
15
15
15
7
14
14
14
14
14
2
10
10
16
16
16
16
14
14
16
16
10
14
10
9ASSEMBLY INSTRUCTIONS |
STEP 2

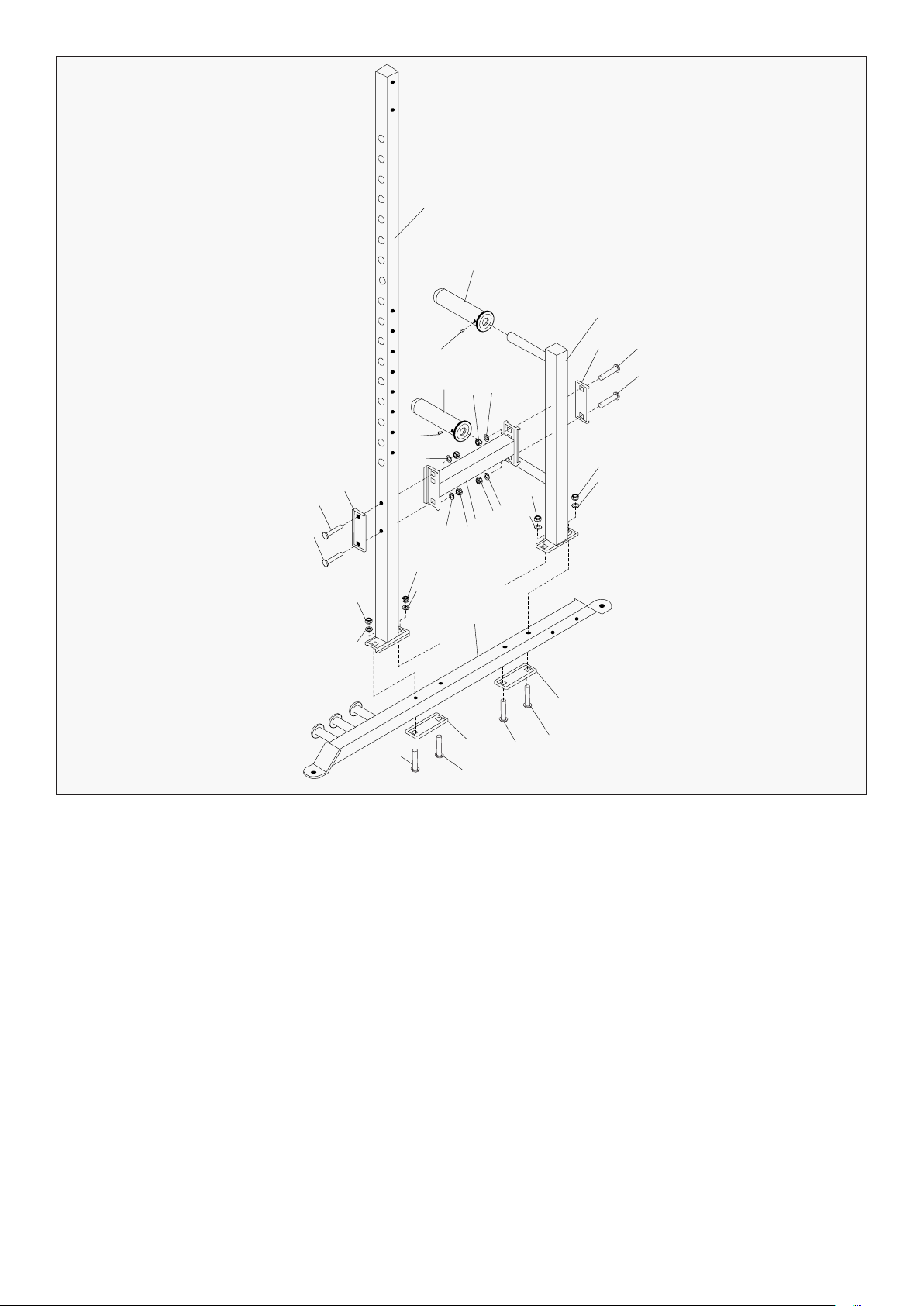

1. Attach the Tall Vertical Frame (4#) and Short Vertical Frame (5#) to the Left Base Frame (3#).
2. Attach the Tall Vertical Frame (4#) and Short Vertical Frame (5#) to the Center Cross Support (7#).
3. Tighten all the bolts and nuts.
4. Loosen the screw (M) on the Plate Rest (24#) and push them onto
the Ø25 Circular Steel Tube of the Short Vertical Frame (5#) then tighten the screw (M).
Secure it with:
-2x Strengthen Board (10#)
-4x Carriage Bolt M10*70mm (16#)
-4x Washer Ø10 (14#)
-4x M10mm Aircraft Nut (15#)
Secure it with:
- 2x Strengthen Board (10#)
- 4x Carriage Bolt M10*70mm (16#)
- 4x Washer Ø10 (14#)
- 4x M10mm Aircraft Nut (15#)
4
24
M
5
10
16
16
15
15
15
15
15
15
15
3
10
10 16
16
16
16
15
16
10
16
14
14
14
14
14
14
14
14
24
M
10 | ASSEMBLY INSTRUCTIONS
STEP 3

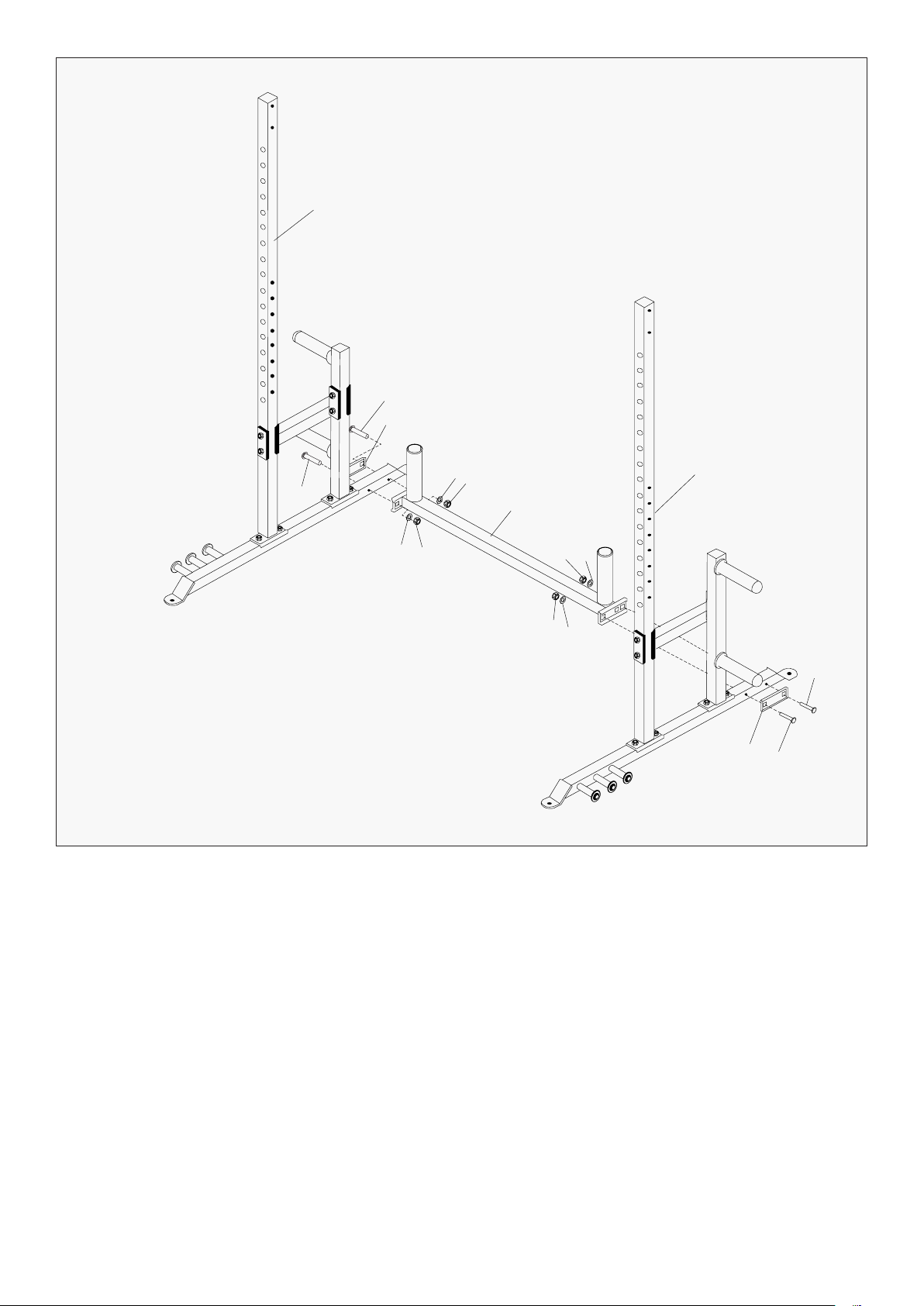

1. Attach P and Q to the Main Base Frame (1#).
2. Tighten all the bolts and nuts.
Secure it with:
- 2x Strengthen Board (10#)
- 4x Carriage Bolt M10*70mm (16#) - 4x Washer Ø10 (14#)
- 4x M10mm Aircraft Nut (15#)
P
16
16
10
14
14
14
16
Q
16
10
14
15
15
15
15
1
11ASSEMBLY INSTRUCTIONS |
STEP 4

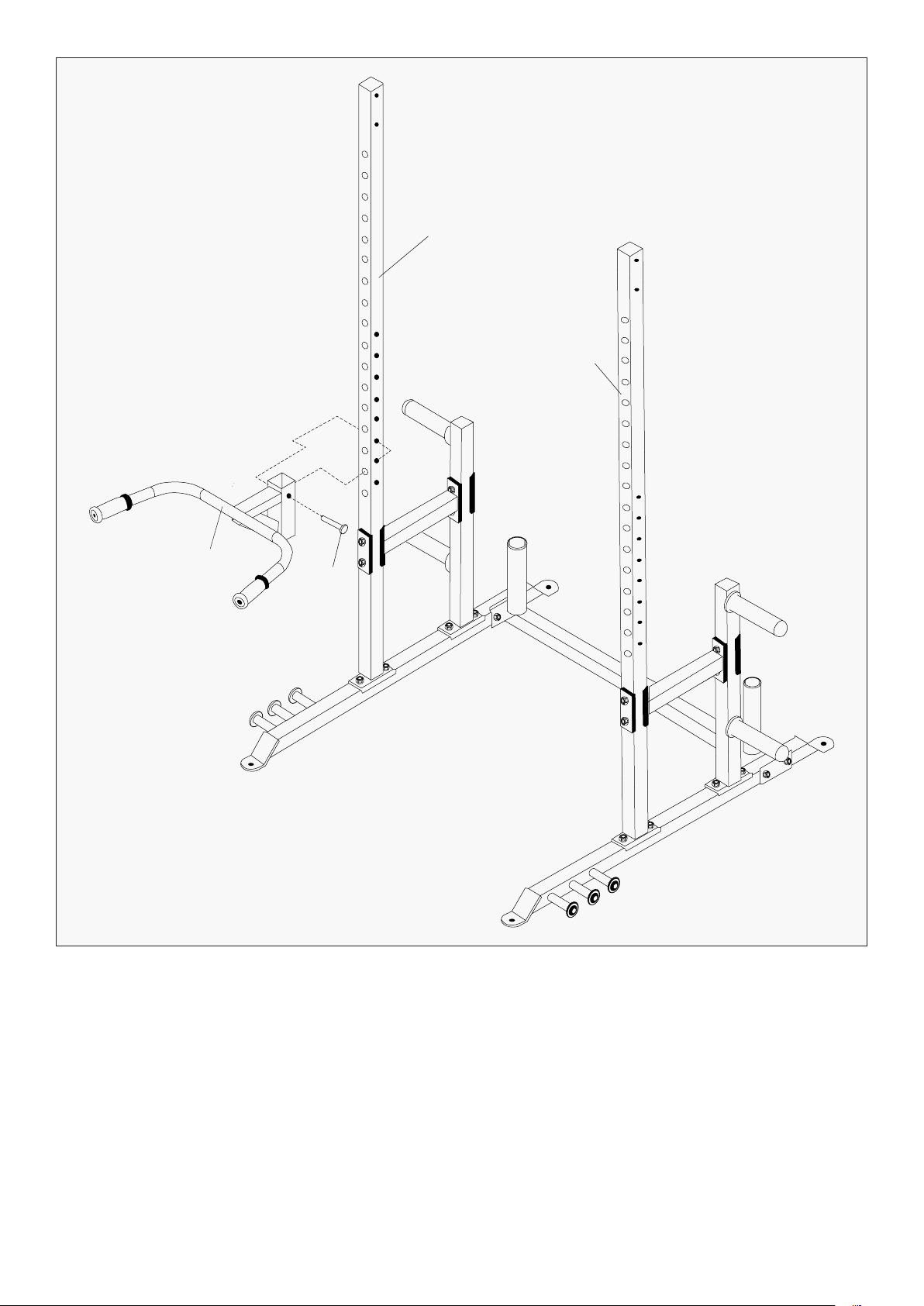

1. Plug the Dip Frame (9#) into the Tall Vertical Frame (4#). You can choose the left side or right side.
Push the Ball Pin (25#) into the holes on Tall Vertical Frame (4#).
4
25
9
4
12
STEP 5

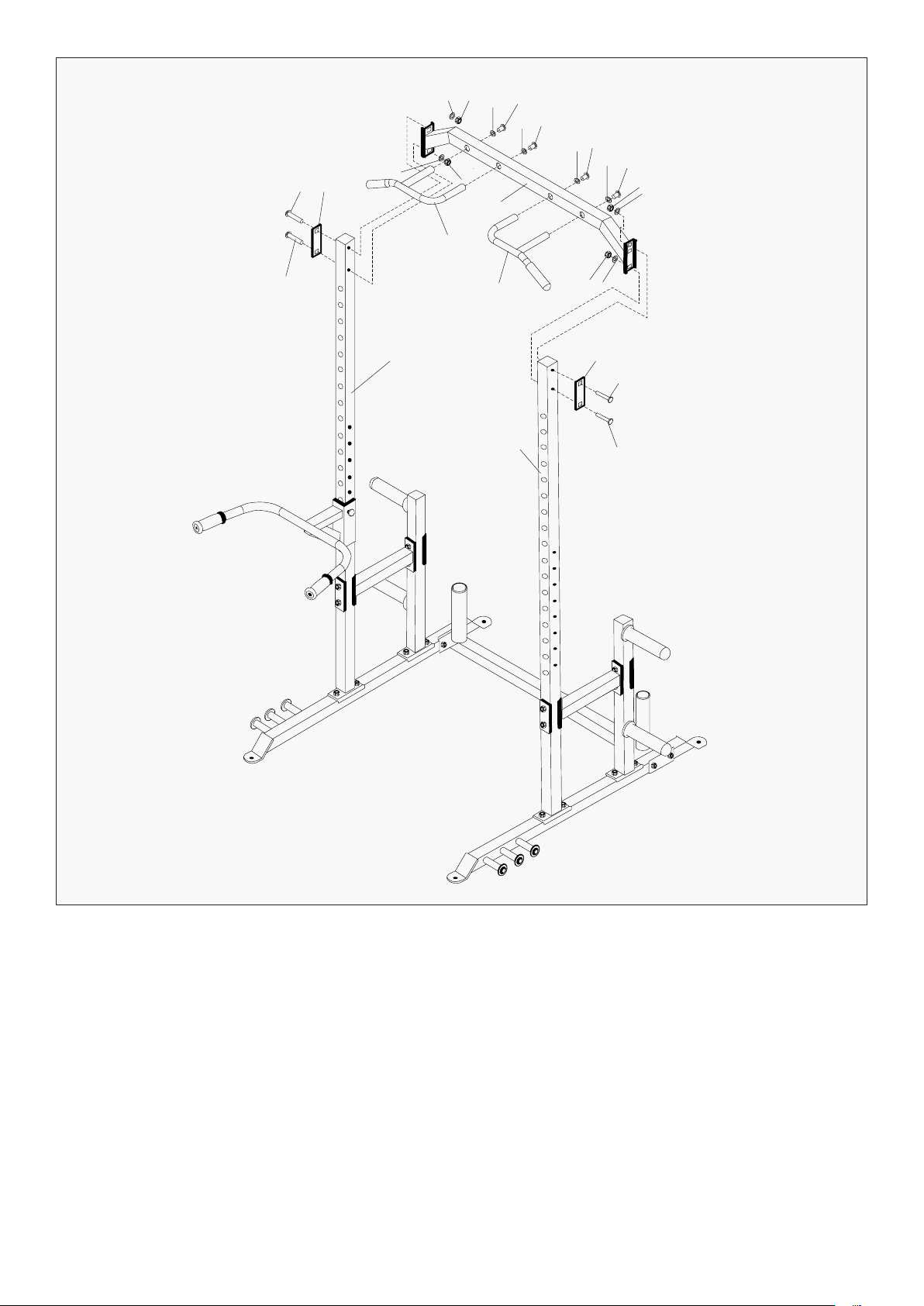

1. Attach the Lat Support (6#) to the left and right Tall Vertical Frame (4#).
2. Tighten all the bolts and nuts.
3. Attach the Lat Handle A, B (20#, 21#) to the Lat Support (6#).
Secure it with:
- 2x Strengthen Board (10#)
- 4x Carriage Bolt M10*70mm (16#)
- 4x Washer Ø10 (14#)
- 4x M10mm Aircraft Nut
Secure it with:
- 4x Allen Bolt M10*20mm (22#)
- 4x Washer Ø10 (14#)
16
4
4
10
10
14
15
6
20
21
15
15
22
22
22
22
15
14
14
14
14
14
14
14
16
16
16
| ASSEMBLY INSTRUCTIONS
13ASSEMBLY INSTRUCTIONS |
STEP 6

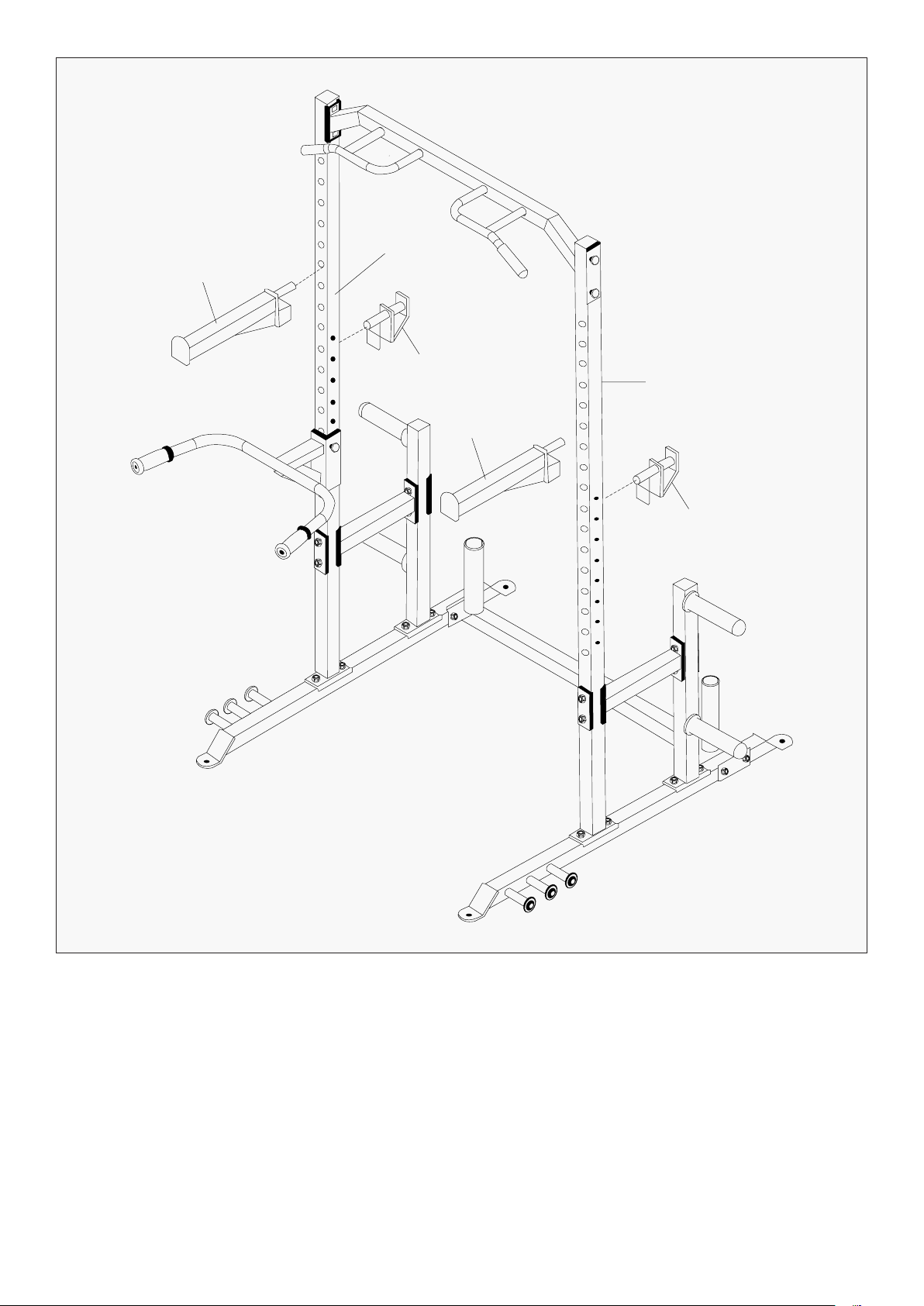

1. Plug the 2x Bar Support (8#) into the Left and Right Tall Vertical Frame (4#).
2. Plug the 2x Bar Rest (19#) into the Left and Right Tall Vertical Frame (4#).
4
4
8
8
19
19
14
V. WARRANTY
| WARRANTY
AUSTRALIAN CONSUMER LAW
Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come
with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss
or damage.
You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and
the failure does not amount to a major failure. Full details of your consumer rights may be found at
www.consumerlaw.gov.au.
Please visit our website to view our full warranty terms and conditions:
http://www.lifespanfitness.com.au/warranty-repairs
WARRANTY AND SUPPORT
Any claim against this warranty must be made through your original place of purchase.
Proof of purchase is required before a warranty claim may be processed.
If you have purchased this product from the Official Lifespan Fitness website, please visit
https://lifespanfitness.com.au/warranty-form
For support outside of warranty, if you wish to purchase replacement parts or request a repair or
service, please visit https://lifespanfitness.com.au/warranty-form and fill in our Repair/Service
Request Form or Parts Purchase Form.
Scan this QR code with your device to go to lifespanfitness.com.au/warranty-form
