59115B 08.17
INSTALLATION GUIDE
US CA
DD24DA & DD24DCT
models
DOUBLE DISHDRAWER
TM
DISHWASHER
1
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please go to our
website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.
IMPORTANT SAFETY INSTRUCTIONS
●
Installation of this dishwasher requires basic mechanical and electrical skills.
●
Be sure to leave these Instructions with the Customer.
●
Installation must comply with your local building, electricity, and plumbing regulations.
●
At the completion of the dishwasher installation, the Installer must perform the Final
Checklist.
●
Remove all packaging materials supplied with the dishwasher.
●
This dishwasher is manufactured for indoor use only.
●
Ensure all water connections are turned OFF. It is the responsibility of the plumber and
electrician to ensure that each installation complies with all Codes and Regulations.
●
The dishwasher MUST be installed to allow for future removal from the enclosure if
service is required.
●
The switched power outlet must be outside the dishwasher cavity, so that it is accessible
after installation.
●
Care should be taken when the appliance is installed or removed to reduce the likelihood
of damage to the power supply cord and hoses.
●
If the dishwasher is to be relocated from one installation to another it must be kept
upright to avoid damage from water spillage.
●
Make sure only new hoses are used for connection (supplied with the dishwasher). Old
hoses should not be reused.
●
Failure to install the dishwasher correctly could invalidate any warranty or liability claims.
●
If the product is installed in a motor vehicle, boat or similar mobile facility, you must
bring the vehicle, boat or mobile facility containing the product to the service shop at
your expense or pay the service technician’s travel to the location of the product.
●
This dishdrawer is intended for connection to the hot-water supply.
WARNING!
Electrical Shock Hazard
Before installing the dishwasher, remove the house fuse or open the circuit
breaker. If permanently connecting the dishwasher, be sure the power is
isolated and the dishwasher unplugged.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of a malfunction or breakdown,
grounding will reduce the risk of electric shock by providing a path of least
resistance for electric current. This appliance is equipped with a cord having
an equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is installed and grounded in
accordance with all local codes and ordinances. WARNING - Improper
connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or service representative if
you are in doubt as to whether the appliance is properly grounded.
If the dishwasher is installed as a permanently connected appliance:
GROUNDING INSTRUCTIONS - This appliance must be connected to a
grounded metal, permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and connected to the
equipment-grounding terminal or lead on the appliance.
Do not modify the power supply plug provided with the appliance - if it will
not fit the outlet, have a proper outlet installed by a qualified electrician. Do
not use an extension cord, adapter plug or multiple outlet box.
Failure to follow this advice may result in electrical shock or death.
WARNING!
Cut Hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
!
!
1 SAFETY AND WARNINGS
2
2 PARTS SUPPLIED
If the Drain hoses supplied are not long enough to reach your services, you must use a Drain Hose Extension Kit P/N 525798 which will extend the drain hoses by 11’ 10” (3.6m).
The kit is available from the nearest Fisher & Paykel Authorized Service Center, or Toll free 1.888.936.7872 or www.fisherpaykel.com
Clamp (1)
(for securing
Drain hose joiner)
Wire clip (2)
(for securing
Drain hose joiner)
Phillips
5⁄8” (16 mm)
screws (9)
Drain hose
support (1)
Moisture protection
tape (1)
(to prevent moisture
damage to cabinetry)
Drain hose
joiner (1)
Top
mounting
brackets (2)
OPTIONAL
Prefinished
toekick (1)
Edge Protector (1)
(If the services hole
is through a metal
partition, the hole must
be protected with the
Edge Protector supplied
to prevent damage to the
power cord or hoses.)
Rubber washer
for inlet hose (1)
(comes already
fitted)
Hexagonal
socket for feet
adjustment (2)
(long & short)
Side mounting
bracket kit
(A and B) (2)
OPTIONAL
3
3 OPTIONALLY HARD WIRING PRIOR TO INSTALLATION
3-A REMOVE THE LOWER DRAWER 3-B REMOVE THE ACCESS COVER & REMOVE POWER
Access cover
Clip
Clip
Electronics
module
Terminal
Block cover
Remove existing
power cord
1 With a flat-bladed screwdriver, push
in the clips and slide out the access
cover.
2 Unscrew the electronics module
cover.
3 Carefully pull out the electronics
module and rest on the chassis base
out of the way.
4 With a screwdriver, unclip the plastic
harness cover and hinge open.
5 Slide the terminal block cover
sideways to unlock and hinge open
to access the terminal block.
6 Unscrew the Live, Neutral and Earth
wires as shown.
7 Unscrew the three screws on the
base as shown and remove the cord
from the product.
1
1
2
3
4
5
6
7
7
1
2
4
4
3
3
4” (100 mm)

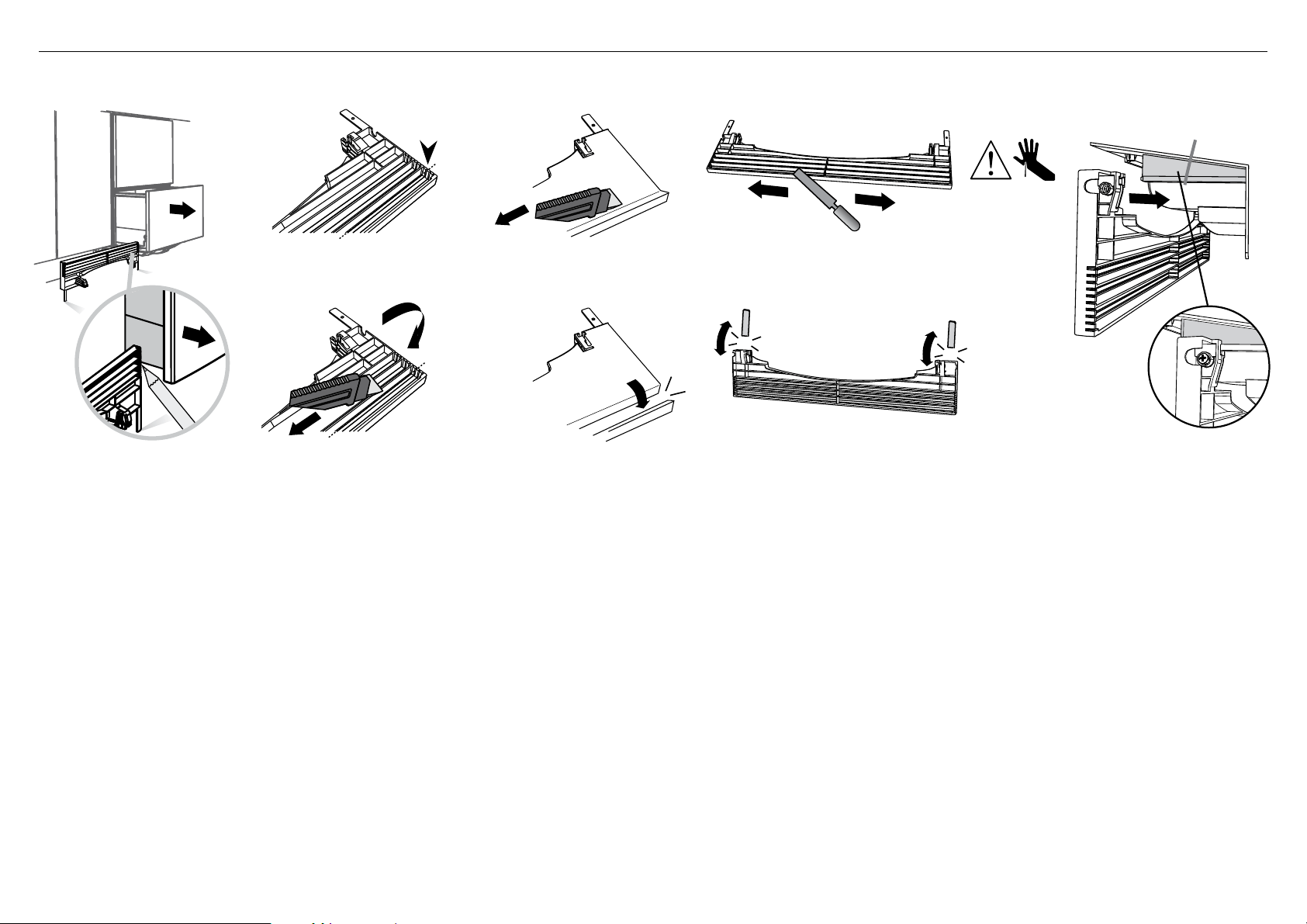

To prevent kinked hoses
Either sit the drawer down on the left
hand side (recommended) or rotate the
drawer clockwise, resting it on its side after
removal.
Press the release tabs
in on either side and
push back to release
drawer from runners.
Lift drawer off runners.
Push drawer
runners back in
on either side.
Push drawer
runners back in
on either side.
Sit the drawer down
Rotate the drawer
clockwise (max. 90
o
)
and rest on side.
4
3 OPTIONALLY HARD WIRING PRIOR TO INSTALLATION
IMPORTANT!
Ensure the mains wires are routed
UNDERNEATH all other harness
wiring from the electronics module.
3-D REFIT THE DRAWER ONTO THE RUNNERS & CLOSE
3-C TERMINATE MAINS WIRING AS SHOWN AND REPLACE MODULE AND COVERS
4” (100 mm)
Pull the release tabs forward on both
sides 4” (100 mm). Ensure the tabs are
fully pulled forward and click into place.
8
9
10
11
12
13
14
8 Fit a suitable cable clamp for the
conduit through the metal knockout.
Ensure wiring is routed through or
under under housing ribs.
9 Screw down the Live, Neutral and
Earth wires correctly.
10 Push the plastic harness cover back
over. It should clip back into place
11 Fold down and slide back the
terminal block cover.
12 Refit the electronics module back
into position, being careful of wiring.
13 Replace the screw securing the
electronics module.
14 Slide the access cover back,
ensuring the 2 clips shown are fully
locked in place.
NOTE: Use copper conductors
only.
1
2
3
4
Before refitting the
drawer, ensure the hoses
are not twisted and the
latches at the rear of
each drawer runner are
facing forward.
Lift or rotate counter-clockwise the
drawer back onto the drawer runners
on either side.
Release tab
5
4 PRODUCT DIMENSIONS
DD24DA DD24DCT
PRODUCT DIMENSIONS INCHES (MM) INCHES (MM)
A
Overall height of product
1
32 5/16 - 34 5/8” (820-880)
2
34 - 36 3/8” (864-924)
2
B
Overall width of product
23 9/16” (599) 23 9/16” (599)
C
Overall depth of product
22 9/16” (573) 22 9/16” (573)
D
Depth of chassis (to back of front drawer panel)
21 3/4” (553) 21 3/4” (553)
E
Depth of drawer front panel
13/16” (20) 13/16” (20)
F
Height of chassis
1
31 15/16” (811) 33 11/16” (855)
G
Height of drawer front panels
29 3/4” (756) 29 3/4” (756)
H
Height of upper drawer front panel
15 1/2” (393) 17 3/16” (437)
I
Height of lower drawer front panel
14” (356) 12 1/4” (312)
J
Height from top of drawer front panel to top of chassis
5/16” (8) 5/16” (8)
K
Ventilation gap between drawer front panels
1/4” (7) 1/4” (7)
L
Height of toekick (customisable)
2 13/16 - 5” (72-127) 2 13/16 - 5” (72-127)
M
Depth from front of drawer panel to front of toekick (adjustable)
3
1 1/2 - 4” (38-102) 1 1/2 - 4” (38-102)
N
Height of leveling feet (adjustable)
3/8 - 2 11/16” (9-69)
2
3/8 - 2 11/16” (9-69)
2
O
Maximum extension of drawer
21 9/16” (547) 21 9/16” (547)
1
includes 1/16” (2mm) high bracket slots
2
depending on adjustment of leveling feet
3
adjustable to match toekick recess on adjoining cabinetry
N
F
C
L
M
A
G
B
E
D
O
I
H
J
K
PLAN
PROFILE
FRONT
6
5 CABINETRY DIMENSIONS
Minimum clearances from adjacent cabinetry
min. 1/2” (13 mm)
clearance from a
corner cupboard
Bracket slots
min. 1/16” (2 mm)
clearance
to adjacent
cupboard door
R
Q
P
S
T
PROFILE
PLAN
DD24DA DD24DCT
CABINETRY DIMENSIONS INCHES (MM) INCHES (MM)
P
Inside height of cavity* min. 32 5/16” (820) min. 34” (864)
Q
Inside width of cavity 23 5/8” (600) 23 5/8” (600)
R
Inside depth of cavity min. 22 1/16” (560) min. 22 1/16” (560)
S
Recommended height of adjacent cabinet space 30” (762) 30” (762)
T
Height of toekick space*
2 3/8 - 4 3/4” (60-120) 3 15/16” - 6 5/16” (100-160)
* depending on adjustment of leveling feet
7

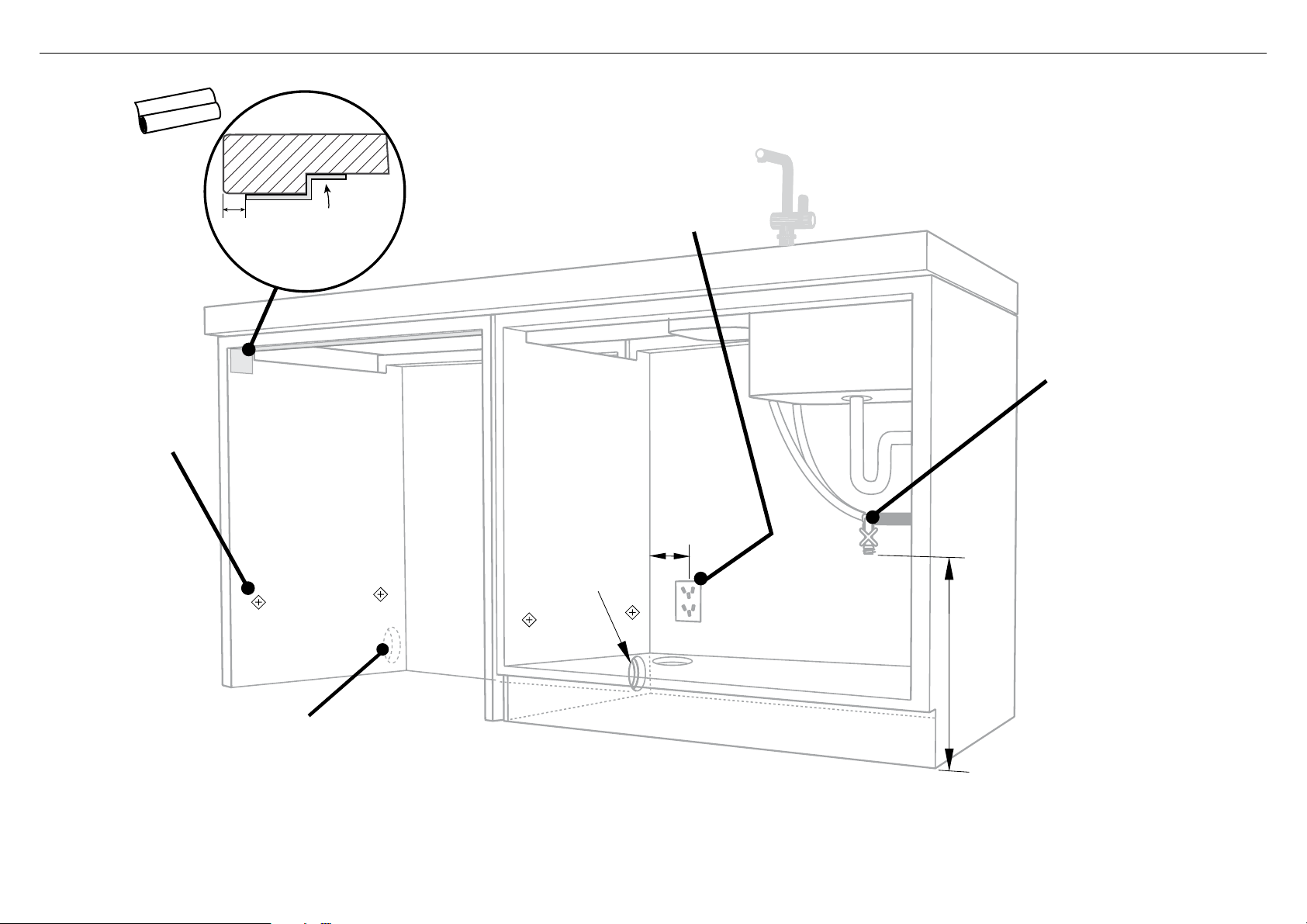

6 CAVITY PREPARATION
Water Connection
Recommended HOT
(Maximum 140°F/60°C).
Supplied hose to
suit 3⁄8” (9 mm) male
compression fitting.
Kosher requirements
Drains will need to be
separated to satisfy
kosher requirements.
We suggest you confirm
acceptability with your
local rabbi in respect to
kosher installations.
Water Pressure
Water softener models
Max. 1 MPa (145 psi)
Min. 0.1 MPa (14.5 psi)
Models without water softener
Max. 1 MPa (145 psi)
Min. 0.03 MPa (4.3 psi)
IMPORTANT!
The power outlet
must be located in a
cabinet adjacent to the
dishwasher cavity.
110-120 VAC max. 15 A
ø max. 1 1/2”
(38 mm)
max. 17 11⁄16”
(450 mm)
min. 7 7⁄8” (200 mm)
Moisture
protection
tape must
be applied.
Services hole
Can be located either side of dishwasher, preferably
at the bottom of the cavity, as shown. If adequate
clearance, services hole can be made higher to clear
toekick space. If hole is higher, ensure drain hose(s)
are routed straight into the waste connection.
●
If the hole is through wood, make sure its edges are
smooth and rounded.
●
If the hole is through metal, ensure you fit the supplied
Edge Protector to prevent damage to the power cord.
These marks indicate
formed bracket screw
locations, if securing by
drawer removal.
If there is no side
partition, you can
construct timber
bracing as something
to secure into.
3/8”
(10 mm)
COUNTERTOP
8
LEFT HAND SIDE RIGHT HAND SIDE
7 MAXIMUM DISTANCE OF HOSES & CORD FROM CHASSIS EDGE
Drain hoses - 78 1/2” (2000 mm)
Drain hoses - 70 1/2” (1800 mm)
Inlet hose - 64 3/4” (1650 mm)
Inlet hose - 49” (1250 mm)
Power cord (excl.plug) - 29 1/2” (750 mm)
Power cord (excl.plug) - 27 1/2” (700 mm)
9

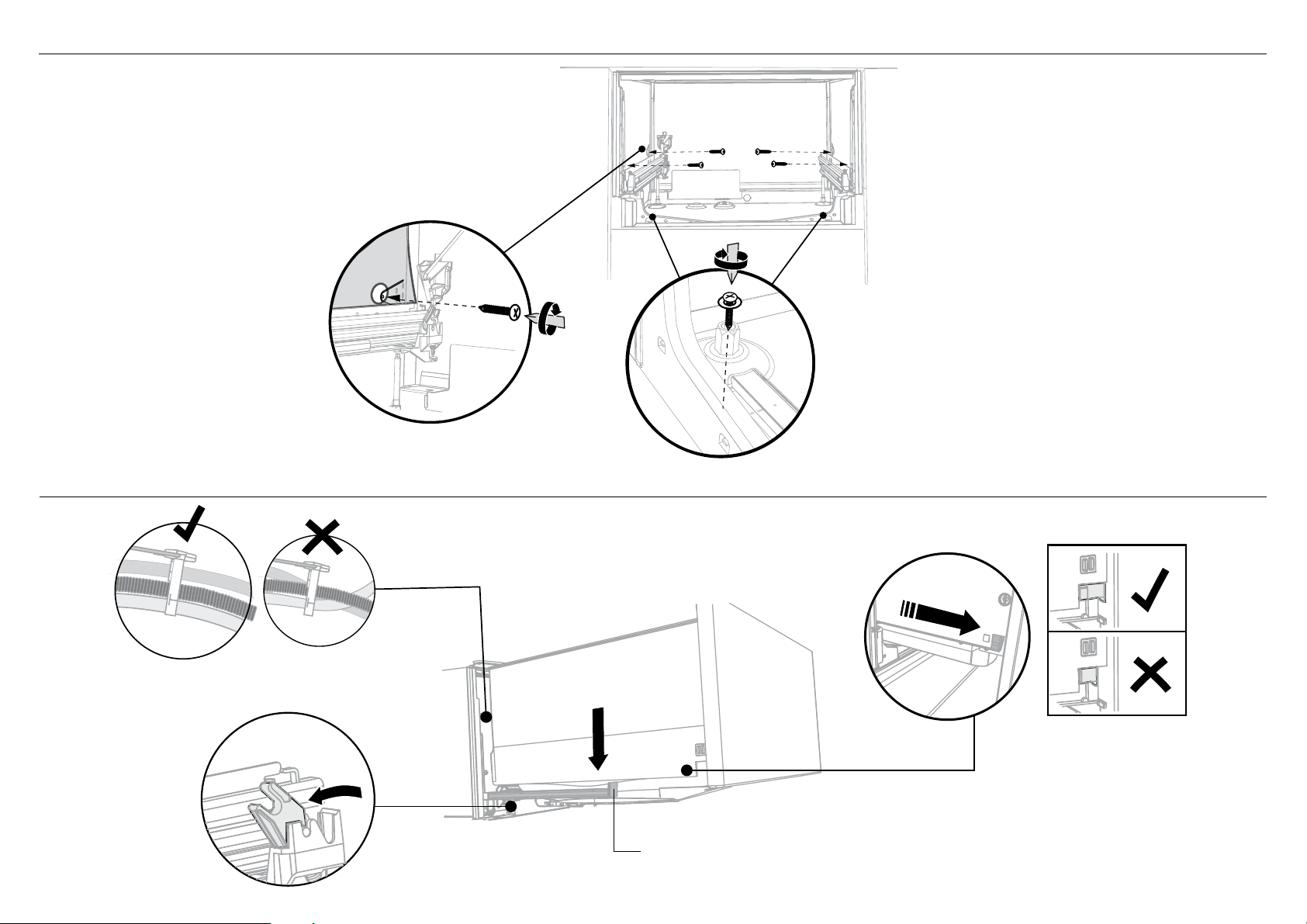

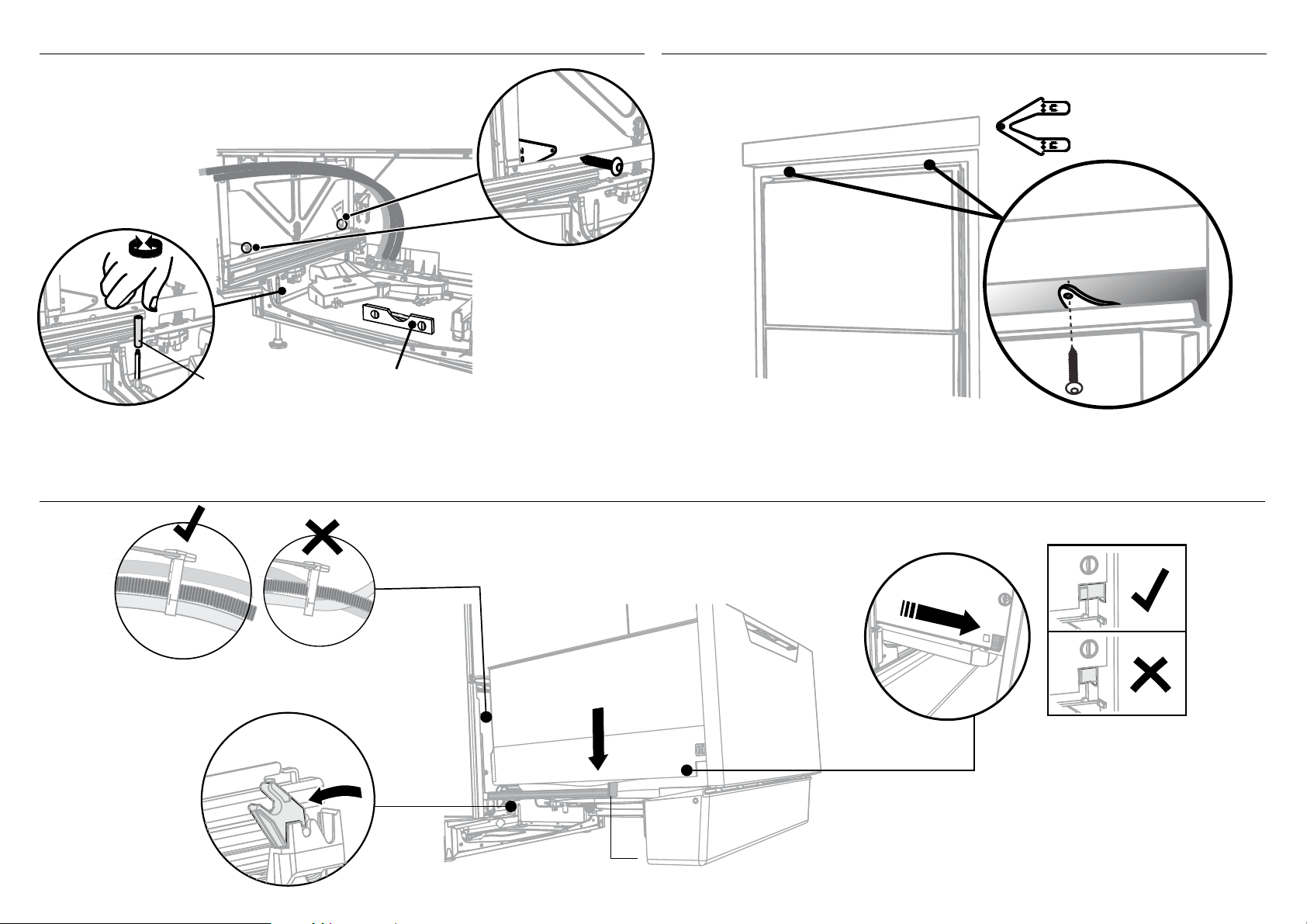

8 RECOMMENDED METHOD (A) - SECURE WITHOUT DRAWER REMOVAL (FRAMELESS CABINETRY ONLY)
NOW CHOOSE WHICH INSTALLATION METHOD (A) OR (B)
IS MORE SUITABLE FOR YOUR CABINETRY...
(x2)
As you push product
in, pull through hoses
and cord, ensuring
they don’t get kinked
or twisted.
optionally attach the
two top mounting brackets
Initially level the product
A
A
A
B
B
Clip all four side mounting brackets
into their slots using a flat-bladed
screwdriver. Ensure they’re securely
fitted before sliding product into cavity.
The mounting slots are in pairs, one on
each side diagonally across the product. A
bracket must match A slot and B bracket
must match B slot.
B
AB
You can raise or lower
the product by twisting
the feet. Then take
care when pushing the
product into the cavity
that you do not bend the
feet.
9-A ATTACH SIDE MOUNTING BRACKETS !0-A PULL THROUGH HOSES & PUSH INTO THE CAVITY
10
!1-A SECURE TO THE CABINETRY ON THE SIDES !2-A OPTIONALLY SECURE TO THE CABINETRY ABOVE
2
1
3
Open the
drawer halfway.
Using a flat
bladed
screwdriver,
prise the gray
rubber plug out
of the trim
moulding.
Replace the gray
rubber plug back into
the trim moulding
and ensure the trim
seal is facing forward.
Repeat for all
four brackets.
Using a small
Philips screwdriver,
screw through the
trim moulding,
securing the side
mounting bracket
to the cabinetry.
Do not damage
the rubber
trimseal.
(x2)
The top mounting
brackets will only
bend upwards a
maximum of 3/8”
(10 mm).
!3-A FIT THE SUPPLIED TOEKICK PANEL
19
1
3
5
7
8
9
2
6
4
19
IMPORTANT!
Do not overtighten screw.
Where the toekick
meets the bottom
of the tub is the
cut-off point
Mark this point on the
toekick with a pencil
Lay the toekick face down on
a chopping board or similiar
Smooth the edge with a file.
Be careful of sharp edges.
Snap off the two end tabs
Slide the toekick onto
the mounting rails
either side and screw
the toekick onto the
bottom of tub on
either side.
Mounting rail
Score along the marked
cutoff line with a knife
Turn the toekick over and
score along the same line
Gently snap off the excess
11
8 ALTERNATIVE METHOD (B) - SECURE BY DRAWER REMOVAL
(x2)
As you push product
in, pull through hoses
and cord, ensuring
they don’t get kinked
or twisted.
optionally attach the
two top mounting brackets
Initially level the product
You can raise or lower
the product by twisting
the feet. Then take
care when pushing the
product into the cavity
that you do not bend the
feet.
9-B PULL THROUGH HOSES & PUSH INTO THE CAVITY !0-B REMOVE THE LOWER DRAWER
4” (100 mm)
1
2
4
4
3
3
To prevent kinked hoses
Either sit the drawer down on the left
hand side (recommended) or rotate the
drawer clockwise, resting it on its side after
removal.
Press the release tabs
in on either side and
push back to release
drawer from runners.
Lift drawer off runners.
Push drawer
runners back in
on either side.
Push drawer
runners back in
on either side.
Sit the drawer down
Rotate the drawer
clockwise (max. 90
o
)
and rest on side.
12
1
2
3
4
!1-B SECURE TO THE CABINETRY ON THE SIDES !2-B OPTIONALLY SECURE TO THE CABINETRY ABOVE
x4
Secure using two pairs
of formed brackets
(use 5⁄8” (16 mm)
screws). Repeat on
the other side of the
chassis.
For further adjustment,
using the most appropriate
length Hexagonal socket
supplied, fully extend
leveling feet up to required
distance by hand.
Ensure product is level and
aligning with cabinetry.
Hexagonal
socket
(x2)
!3-B REFIT THE DRAWER ONTO THE RUNNERS
The top mounting
brackets will only
bend upwards a
maximum of 3/8”
(10 mm).
4” (100 mm)
Pull the release tabs forward on both
sides 4” (100 mm). Ensure the tabs are
fully pulled forward and click into place.
Before refitting the
drawer, ensure the hoses
are not twisted and the
latches at the rear of
each drawer runner are
facing forward.
Lift or rotate counter-clockwise the
drawer back onto the drawer runners
on either side.
Release tab
13
!4-B FIT THE SUPPLIED TOEKICK PANEL
19
1
3
5
7
8
9
2
6
4
19
IMPORTANT!
Do not overtighten screw.
Where the toekick
meets the bottom
of the tub is the
cut-off point
Mark this point on the
toekick with a pencil
Lay the toekick face down on
a chopping board or similiar
Smooth the edges with a file.
Be careful of sharp edges.
Snap off the two end tabs
Slide the toekick onto
the mounting rails
either side and screw
the toekick onto the
bottom of tub on
either side.
Mounting rail
Score along the marked
cutoff line with a knife
Turn the toekick over and
score along the same line
Gently snap off the excess
14
1
2
!5 THERE ARE THREE DIFFERENT PLUMBING AND DRAINAGE OPTIONS. CHOOSE WHICH IS MORE SUITABLE.
DRAINAGE OPTION 1
Dishwasher and Ø 1 1/2” (38 mm) Standpipe
IMPORTANT!
Ensure that drain
connection will comply with
local plumbing regulations.
min. R 8”
(200 mm)
29 1/2”-34 3/4”
(750-882.5 mm)
1 1/2po
(38mm)
29 1/2 - 34 3/4” (750-883 mm)
Screw Drain hose
support to back wall
at correct height
If space is limited
for fixing, push
hose through drain
hose support
to required height
max.
4 3/4po
(120mm)
step 16
min. 19 11/16” (500 mm)
15
min. R 8”
(200 mm)
IMPORTANT!
Ensure that drain
connection will comply with
local plumbing regulations.
IMPORTANT!
We recommend the use of a
commercially available Dual
(Double) Air Gap/Break Kit.
This provides totally
separate draining for each
drawer and eliminates
possible “cross draining”
problems
DRAINAGE OPTION 2
Dishwasher using Dual Air Gap/Break with Drain Hose Joiner
37 3/8” (950 mm)
Max. height to top
of Air Break
(countertop or
wall mounted)
1
2
step 16
Drain hose Drain hose
Secure both drain
hoses to a Dual Air
Gap/Break
16
1
2
3
min. R 8”
(200 mm)
IMPORTANT!
Ensure that drain
connection will comply with
local plumbing regulations.
DRAINAGE OPTION 3
Dishwasher using drain hose joiner onto sink trap/waste tee
29 1/2 - 34 3/4” (750-883 mm)
step 16
Supplied drain
hose joiner to suit
Ø 3/4” (19 mm)
waste tee
Ensure drain hose is routed
straight to joiner. Remove excess
drain hose material if necessary.
Do not shorten the inlet hose.
29 1/2”-34 3/4”
(750-882.5 mm)
Screw Drain hose
support to back wall
at correct height
If space is limited
for fixing, push
hose through drain
hose support
to required height
max.
4 3/4po
(120mm)
min. 19 11/16” (500 mm)
17

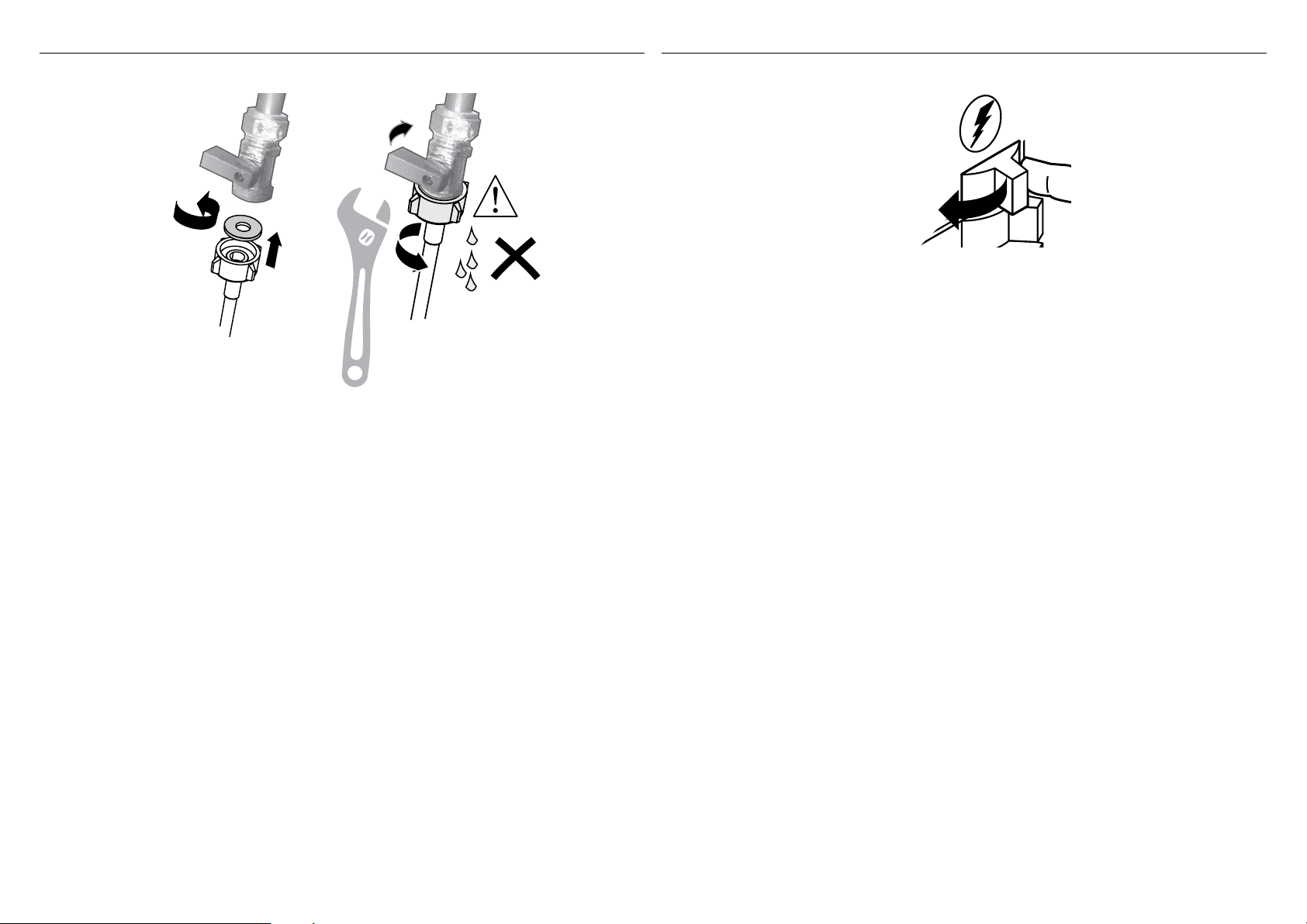

Ensure the supplied
rubber washer is
fitted inside the
coupling.
Tighten coupling
with spanner.
180
o
No leaks!
1
2
!8 TROUBLESHOOTING
●
Excessive water remaining above the filter plate, after the rinse cycle. (This is displayed as an A3 fault)
Check for a kinked drain hose, blocked waste connection, highloop not properly installed, drain hose not routed correctly or spray arms not in place.
●
No water supply. (This is displayed as an A1 fault
Check water is connected and turned on.
●
The dishwasher is beeping continuously
There is a fault. See section ‘If there is a fault’ in the User guide for further information and instructions.
●
No program indicator lights up when the drawer is opened
Ensure power is connected and is switched on. If it is and still no indicator ligths up, see the ‘Preference options’ section of the ‘Quick start guide’.
An option called ‘Open drawer auto power-on’ may need to be turned on.
●
Water around water supply and drainage connections
Check connections, existing plumbing and hoses for leaks. Check rubber washer and hose clamp are correctly fitted.
●
If product is tipping
Ensure the product is secured to the cabinetry.
●
If front panels are misaligned
Check and relevel product. Check the cabinetry is square. For Integrated models, check and adjust front panel alignment if necessary.
●
Drawer doesn’t close properly
Ensure nothing is obstructing the drawer from closing properly eg hoses or drawer latches.
●
If a problem occurs, consult the ‘Troubleshooting’ section of the User guide.
●
If after checking these points you still need assistance, please refer to the Service & Warranty book for warranty details and your nearest Authorized Service Center, or contact us through our
website, listed below.
!6 CONNECT INLET HOSE TO HOT WATER !7 SWITCH PRODUCT ON
18
!9 FINAL CHECKLIST
TO BE COMPLETED BY THE INSTALLER
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer Address
Installer’s Name
Installer’s Signature
Installation Company
Installation Date
Check all parts are installed.
Ensure that all panels and parts thereof are secure and final electrical tests have been
conducted in accordance with local electrical regulations.
Ensure product is level, securely fastened to the cabinetry and opens and closes freely.
The drawers must be free to fully close with no resistance from the cabinetry.
Ensure inlet hose to water supply has supplied rubber washer fitted, and that it’s
tightened a further half turn after seal contact.
Ensure any knockouts or plugs in drain connection have been drilled out and drain
connection has been made.
The drain hose joiner must not support the weight of excess hose material. Keep drain
hose as fully extended as possible to prevent sagging. Any excess length of drain hose
should be kept on the dishwasher side of the highloop.
If connecting the drain hose to the sink trap, ensure the Highloop is a minimum 150 mm
higher than the drain hose joiner.
Ensure any packaging or tape securing the racks is removed from the drawers.
Water softener models only: adjust the water softener setting from the default setting to
suit the water hardness of the area.
See the Quick start guide and section ‘Water softener’ in the User guide.
Turn on the power and water supplies, then open the drawers. You should hear a
beep and see a program indicator light up on the internal control panel.
Check the spray arms are in place, mounted correctly and free to rotate, by
physically rotating by hand.
Add three cups of water into the drawer. Press
until the indicator of the ‘Rinse’
program lights up. Close the drawer and press to start the program.
Repeat for the other drawer.
After the Rinse program has finished, ensure the dishwasher has run and drained
correctly.
Check the water supply has correctly shut off and drainage connection for leakage.
Spray arm
Copyright © Fisher & Paykel Appliances 2017. All rights reserved.
The product specifications in this booklet apply to the specific products
and models described at the date of issue. Under our policy of continuous
product improvement, these specifications may change at any time. You
should therefore check with your Dealer to ensure this booklet correctly
describes the product currently available.
FISHERPAYKEL.COM
59115B 08.17
INSTALLATION GUIDE
US CA
DD24SA & DD24SCT
models
SINGLE DISHDRAWER
TM
DISHWASHER
1
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please go to our
website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.
IMPORTANT SAFETY INSTRUCTIONS
●
Installation of this dishwasher requires basic mechanical and electrical skills.
●
Be sure to leave these Instructions with the Customer.
●
Installation must comply with your local building, electricity, and plumbing regulations.
●
At the completion of the dishwasher installation, the Installer must perform the Final
Checklist.
●
Remove all packaging materials supplied with the dishwasher.
●
This dishwasher is manufactured for indoor use only.
●
Ensure all water connections are turned OFF. It is the responsibility of the plumber and
electrician to ensure that each installation complies with all Codes and Regulations.
●
The dishwasher MUST be installed to allow for future removal from the enclosure if
service is required.
●
The switched power outlet must be outside the dishwasher cavity, so that it is accessible
after installation.
●
Care should be taken when the appliance is installed or removed to reduce the likelihood
of damage to the power supply cord and hoses.
●
If the dishwasher is to be relocated from one installation to another it must be kept
upright to avoid damage from water spillage.
●
Make sure only new hoses are used for connection (supplied with the dishwasher). Old
hoses should not be reused.
●
Failure to install the dishwasher correctly could invalidate any warranty or liability claims.
●
If the product is installed in a motor vehicle, boat or similar mobile facility, you must
bring the vehicle, boat or mobile facility containing the product to the service shop at
your expense or pay the service technician’s travel to the location of the product.
●
This dishdrawer is intended for connection to the hot-water supply.
WARNING!
Electrical Shock Hazard
Before installing the dishwasher, remove the house fuse or open the circuit
breaker. If permanently connecting the dishwasher, be sure the power is
isolated and the dishwasher unplugged.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of a malfunction or breakdown,
grounding will reduce the risk of electric shock by providing a path of least
resistance for electric current. This appliance is equipped with a cord having
an equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is installed and grounded in
accordance with all local codes and ordinances. WARNING - Improper
connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or service representative if
you are in doubt as to whether the appliance is properly grounded.
If the dishwasher is installed as a permanently connected appliance:
GROUNDING INSTRUCTIONS - This appliance must be connected to a
grounded metal, permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and connected to the
equipment-grounding terminal or lead on the appliance.
Do not modify the power supply plug provided with the appliance - if it will
not fit the outlet, have a proper outlet installed by a qualified electrician. Do
not use an extension cord, adapter plug or multiple outlet box.
Failure to follow this advice may result in electrical shock or death.
WARNING!
Cut Hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
!
!
1 SAFETY AND WARNINGS
2
2 PARTS SUPPLIED
If the Drain hoses supplied are not long enough to reach your services, you must use a Drain Hose Extension Kit P/N 525798 which will extend the drain hoses by 3.6 m.
The kit is available from the nearest Fisher & Paykel Authorized Service Center or our local website listed at the end of this document.
Clamp (1)
(for securing
Drain hose joiner)
Wire clip (1)
(for securing
Drain hose joiner)
Phillips
5/8” (16mm)
screws (7)
1 1/2” (38mm)
bottom fixing
screws & metal
washers (2)
Drain hose
support (1)
Moisture protection
tape (1)
(to prevent moisture
damage to cabinetry)
Drain hose
joiner (1)
Top
mounting
brackets (2)
OPTIONAL
Rubber washer
for inlet hose (1)
(comes already
fitted)
Side mounting
bracket kit
(A and B) (2)
OPTIONAL
3
2
1
3
3 OPTIONALLY HARD WIRING PRIOR TO INSTALLATION
3-A REMOVE THE DRAWER 3-B REMOVE THE ACCESS COVER & REMOVE POWER
Access cover
Clip
Clip
Electronics
module
Terminal
Block cover
Remove existing
power cord
1 With a flat-bladed screwdriver, push
in the clips and slide out the access
cover.
2 Unscrew the electronics module
cover.
3 Carefully pull out the electronics
module and rest on the chassis base
out of the way.
4 With a screwdriver, unclip the plastic
harness cover and hinge open.
5 Slide the terminal block cover
sideways to unlock and hinge open
to access the terminal block.
6 Unscrew the Live, Neutral and Earth
wires as shown.
7 Unscrew the three screws on the
base as shown and remove the cord
from the product.
1
1
2
3
4
5
6
7
7
4
4
3
3
4” (100 mm)
To prevent kinked hoses
Either sit the drawer down on the left
hand side (recommended) or rotate the
drawer clockwise, resting it on its side after
removal.
Press the release tabs
in on either side and
push back to release
drawer from runners.
Lift drawer off runners.
Push drawer
runners back in
on either side.
Push drawer
runners back in
on either side.
Sit the drawer down
Rotate the drawer
clockwise (max. 90
o
)
and rest on side.
4
3 OPTIONALLY HARD WIRING PRIOR TO INSTALLATION
IMPORTANT!
Ensure the mains wires are routed
UNDERNEATH all other harness
wiring from the electronics module.
3-D REFIT THE DRAWER ONTO THE RUNNERS & CLOSE
3-C TERMINATE MAINS WIRING AS SHOWN AND REPLACE MODULE AND COVERS
4” (100 mm)
Pull the release tabs forward on both
sides 4” (100 mm). Ensure the tabs are
fully pulled forward and click into place.
8
9
10
11
12
13
14
8 Fit a suitable cable clamp for the
conduit through the metal knockout.
Ensure wiring is routed through or
under under housing ribs.
9 Screw down the Live, Neutral and
Earth wires correctly.
10 Push the plastic harness cover back
over. It should clip back into place
11 Fold down and slide back the
terminal block cover.
12 Refit the electronics module back
into position, being careful of wiring.
13 Replace the screw securing the
electronics module.
14 Slide the access cover back,
ensuring the 2 clips shown are fully
locked in place.
NOTE: Use copper conductors
only.
1
2
3
4
Before refitting the
drawer, ensure the hoses
are not twisted and the
latches at the rear of
each drawer runner are
facing forward.
Lift or rotate anti-clockwise the
drawer back onto the drawer runners
on either side.
Release tab
5
4 PRODUCT DIMENSIONS
DD24SA DD24SCT
PRODUCT DIMENSIONS INCHES (MM) INCHES (MM)
A
Overall height of product
1
16 1/8” (410) 17 7/8” (454)
B
Overall width of product
23 9/16” (599) 23 9/16” (599)
C
Overall depth of product
22 9/16” (573) 22 9/16” (573)
D
Depth of chassis (to back of front drawer panel)
21 3/4” (553) 21 3/4” (553)
E
Depth of drawer front panel
13/16” (20) 13/16” (20)
F
Height of drawer front panel
15 1/2” (393) 17 3/16” (437)
G
Height of chassis
1
16 1/8” (410) 17 7/8” (454)
H
Height from top of drawer front panel to top of chassis
5/16” (8) 5/16” (8)
I
Ventilation gap below drawer front panel
1/4” (7) 1/4” (7)
J
Maximum extension of drawer
21 9/16” (547) 21 9/16” (547)
1
includes 1/16” (2mm) high bracket slots
D
J
G
H
I
E
B
F
C
A
PLAN
PROFILE
FRONT
6
5 CABINETRY DIMENSIONS
DD24SA DD24SCT
CABINETRY DIMENSIONS INCHES (MM) INCHES (MM)
K
Inside height of cavity min. 16 1/4” (412) min. 18” (456)
L
Inside width of cavity 23 5/8” (600) 23 5/8” (600)
M
Inside depth of cavity min. 22 1/16” (560) min. 22 1/16” (560)
()
min.
16 1/4”
(412mm)
min.
18”
(456mm)
K
K
Dishwasher Dishwasher
DD24SA
(Standard height models)
DD24SCT
(Tall height models)
Oven
Cavity height options allow you to match dishwasher with your cabinetry or companion products
M
L
K
PROFILE
PLAN
Minimum clearances from adjacent cabinetry
min. 1/2” (13 mm)
clearance from a
corner cupboard
min. 1/16” (2 mm)
clearance
to adjacent
cupboard door
Bracket slots
7
6 CAVITY PREPARATION
Water Connection
Recommended HOT
(Maximum 140°F/60°C).
Supplied hose to suit
3/8” (9 mm) male
Water Pressure
Water softener models
Max. 1 MPa (145 psi)
Min. 0.1 MPa (14.5 psi)
Models without
water softener
Max. 1 MPa (145 psi)
Min. 0.03 MPa (4.3 psi)
IMPORTANT!
The power outlet
must be located in a
cabinet adjacent to the
dishwasher cavity.
110-120 VAC max. 15 A
min. 7 7/8” (200 mm)
Moisture
protection
tape must
be applied.
Services can be
located either side
of dishwasher.
COUNTERTOP
IMPORTANT!
Adjacent cabinetry must not
extend above cavity base.
These marks indicate
formed bracket
screw locations, if
securing by drawer
removal.
If there is no side
partition, you can
construct timber
bracing as something
to secure into.
3/8”
(10mm)
max. 17 11/16”
(450mm)
ø max. 1 1/2” (38mm)
Services hole
Can be located either side of dishwasher, preferably
at the bottom of the cavity, as shown. If adequate
clearance, services hole can be made higher to clear
toekick space. If hole is higher, ensure drain hose(s) are
routed straight into the waste connection.
●
If the hole is through wood, make sure its edges are
smooth and rounded.
●
If the hole is through metal, ensure you fit the supplied
Edge Protector to prevent damage to the power cord.
8
7 MAXIMUM DISTANCE OF HOSES & CORD FROM CHASSIS EDGE
LEFT HAND SIDE RIGHT HAND SIDE
Drain hose - 78 1/2” (2000 mm) Drain hose - 70 1/2” (1800 mm)
Inlet hose - 64 3/4” (1650 mm)
Inlet hose - 49” (1250 mm)
Power cord (excl.plug) - 78 1/2” (2000 mm) Power cord (excl.plug) - 78 1/2” (2000 mm)
9
8 RECOMMENDED METHOD (A) - SECURE WITHOUT DRAWER REMOVAL (FRAMELESS CABINETRY ONLY)
NOW CHOOSE WHICH INSTALLATION METHOD (A) OR (B)
IS MORE SUITABLE FOR YOUR CABINETRY...
As you push product in, pull through
hoses and cord, ensuring they don’t
get kinked or twisted.
IMPORTANT!
If product cannot be pushed in far
enough, pull out again and rearrange
hoses and cord. Do not use excessive
force, as doing so may squash the
hoses and lead to incorrect operation.
A
A
A
B
B
Clip all four side mounting
brackets into their slots using a
flat-bladed screwdriver. Ensure
they’re securely fitted before
sliding product into cavity.
The mounting slots are in pairs,
one on each side diagonally
across the product. A bracket
must match A slot and B bracket
must match B slot.
When fitting brackets, ensure the
ends are not pushed down into
the chassis.
B
AB
9-A ATTACH SIDE MOUNTING BRACKETS !0-A PULL THROUGH HOSES & PUSH INTO THE CAVITY
10
2
1
3
!1-A SECURE TO THE CABINETRY ON THE SIDES
Open the
drawer halfway.
Using a flat
bladed
screwdriver,
prise the grey
rubber plug out
of the trim
moulding.
Replace the grey
rubber plug back into
the trim moulding
and ensure the trim
seal is facing forward.
Repeat for all
four brackets.
Using a small
Philips screwdriver,
screw through the
trim moulding,
securing the side
mounting bracket
to the cabinetry.
Do not damage
the rubber
trimseal.
11
8 ALTERNATIVE METHOD (B) - SECURE BY DRAWER REMOVAL
9-B PULL THROUGH HOSES & PUSH INTO THE CAVITY !0-B REMOVE THE LOWER DRAWER
As you push product in, pull through
hoses and cord, ensuring they don’t
get kinked or twisted.
IMPORTANT!
If product cannot be pushed in far
enough, pull out again and rearrange
hoses and cord. Do not use excessive
force, as doing so may squash the
hoses and lead to incorrect operation.
2
1
3
4
4
3
3
4” (100 mm)
To prevent kinked hoses
Either sit the drawer down on the left
hand side (recommended) or rotate the
drawer clockwise, resting it on its side after
removal.
Press the release tabs
in on either side and
push back to release
drawer from runners.
Lift drawer off runners.
Push drawer
runners back in
on either side.
Push drawer
runners back in
on either side.
Sit the drawer down
Rotate the drawer
clockwise (max. 90
o
)
and rest on side.
12
1
2
1
2
3
4
!2-B REFIT THE DRAWER ONTO THE RUNNERS
!1-B SECURE TO THE CABINETRY ON THE SIDES
Before refitting the
drawer, ensure the hoses
are not twisted and the
latches at the rear of
each drawer runner are
facing forward.
Lift or rotate anti-clockwise the
drawer back onto the drawer runners
on either side.
Pull the release tabs forward on both
sides 4” (100mm). Ensure the tabs are
fully pulled forward and click into place.
Release tab
The product has three
pairs of fixing points:
Ensure the sound insulation
is repositioned correctly.
a pair of fixing
holes either side
on the bottom
(use 1 1/2” (38mm)
fixing screws & washers)
two pairs of formed
brackets on either side
of the chassis
(use 5/8” (16mm) screws)
4” (100 mm)
13
1
2
!3 THERE ARE THREE DIFFERENT PLUMBING AND DRAINAGE OPTIONS. CHOOSE WHICH IS MORE SUITABLE.
DRAINAGE OPTION 1
Dishwasher and Ø 1 1/2” (38 mm) Standpipe
IMPORTANT!
Ensure that drain
connection will comply with
local plumbing regulations.
min. R 8”
(200mm)
29 1/2” - 34 3/4”
(750 - 882.5 mm)
1 1/2”
(38mm)
29 1/2 - 34 3/4” (750 - 883mm)
Screw Drain hose
support to back wall
at correct height
If space is limited
for fixing, push
hose through drain
hose support
to required height
max.
4 3/4“
(120mm)
step 14
min. 19 11/16” (500mm)
14
1
2
min. R 8”
(200mm)
IMPORTANT!
Ensure that drain
connection will comply with
local plumbing regulations.
DRAINAGE OPTION 2
Dishwasher using Air Break with Drain Hose Joiner
37 3/8” (950mm)
Max. height to top
of Air Break
(countertop or
wall mounted)
step 14
Secure drain hose to
drain hose joiner and
secure to Air Break
15
3
1
2
min. R 8”
(200mm)
IMPORTANT!
Ensure that drain
connection will comply with
local plumbing regulations.
DRAINAGE OPTION 3
Dishwasher using drain hose joiner onto sink trap/waste tee
29 1/2 - 34 3/4” (750 - 883mm)
step 14
Supplied drain
hose joiner to suit
Ø 3/4” (19 mm)
waste tee
Ensure drain hose is routed
straight to joiner. Remove excess
drain hose material if necessary.
Do not shorten the inlet hose.
29 1/2”- 34 3/4”
(750 - 882.5mm)
Screw Drain hose
support to back wall
at correct height
If space is limited
for fixing, push
hose through drain
hose support
to required height
max.
4 3/4”
(120mm)
min. 19 11/16” (500mm)
16
Ensure the supplied
rubber washer is
fitted inside the
coupling.
Tighten coupling
with spanner.
180
o
No leaks!
1
2
!4 CONNECT INLET HOSE TO HOT WATER !5 SWITCH PRODUCT ON
17
!6 TROUBLESHOOTING
●
Excessive water remaining above the filter plate, after the rinse cycle. (This is displayed as an A3 fault)
Check for a kinked drain hose, blocked waste connection, highloop not properly installed, drain hose not routed correctly or spray arms not in place.
●
No water supply (This is displayed as an A1 fault)
Check water is connected and turned on.
●
The dishwasher is beeping continuously
There is a fault. See section ‘If there is a fault’ in the User guide for further information and instructions.
●
No program indicator lights up when the drawer is opened
Ensure power is connected and is switched on. If it is and still no indicator lights up, see the ‘Preference options’ section of the ‘Quick start guide’. An option called ‘Open drawer auto power-on’
may need to be turned on.
●
Water around water supply and drainage connections
Check connections, existing plumbing and hoses for leaks. Check rubber washer and hose clamp are correctly fitted.
●
If product is tipping
Ensure the product is secured to the cabinetry.
●
Drawer doesn’t close properly
Ensure nothing is obstructing the drawer from closing properly eg hoses or drawer latches.
●
If a problem occurs, consult the ‘Troubleshooting’ section of the User guide.
●
If after checking these points you still need assistance, please refer to the Service & Warranty book for warranty details and your nearest Authorized Service Center, or contact us through our
website, listed below.
18
!7 FINAL CHECKLIST
TO BE COMPLETED BY THE INSTALLER
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer Address
Installer’s Name
Installer’s Signature
Installation Company
Installation Date
Check all parts are installed.
Ensure that all panels and parts thereof are secure and final electrical tests have been
conducted in accordance with local electrical regulations.
Ensure product is level, securely fastened to the cabinetry and opens and closes freely.
The drawers must be free to fully close with no resistance from the cabinetry.
Ensure inlet hose to water supply has supplied rubber washer fitted, and that it’s
tightened a further half turn after seal contact.
Ensure any knockouts or plugs in drain connection have been drilled out and drain
connection has been made.
The drain hose joiner must not support the weight of excess hose material. Keep drain
hose as fully extended as possible to prevent sagging. Any excess length of drain hose
should be kept on the dishwasher side of the highloop.
If connecting the drain hose to the sink trap, ensure the Highloop is a minimum 150 mm
higher than the drain hose joiner.
Ensure any packaging or tape securing the racks is removed from the drawers.
Water softener models only: adjust the water softener setting from the default
setting to suit the water hardness of the area.
See the Quick start guide and section ‘Water softener’ in the User guide.
Turn on the power and water supplies, then open the drawer. You should hear a
beep and see a program indicator light up on the control panel.
Check the spray arm is in place, mounted correctly and free to rotate, by physically
rotating by hand.
Add three cups of water into the drawer. Press
until the indicator of the ‘Rinse’
program lights up. Close the drawer and press to start the program.
After the Rinse program has finished, ensure the dishwasher has run and drained
correctly.
Check the water supply has correctly shut off and drainage connection for leakage.
Spray arm
Copyright © Fisher & Paykel Appliances 2017. All rights reserved.
The product specifications in this booklet apply to the specific products
and models described at the date of issue. Under our policy of continuous
product improvement, these specifications may change at any time. You
should therefore check with your Dealer to ensure this booklet correctly
describes the product currently available.
FISHERPAYKEL.COM
