[en]
Instruction manual
Extractor hood
DHI623GAU
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch DHI623GAU:
[en] Instruction manual
1
à Table of contents[en] Instruction manual
3
: Important safety information
3
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
3
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
3
This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improp...
3
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
3
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsi...
3
Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 15 years old and are being supervised.
3
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
3
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
3
This appliance is not intended for operation with an external clock timer or a remote control.
3
Danger of suffocation!
3
Packaging material is dangerous to children. Never allow children to play with packaging material.
3
Danger of death!
3
Risk of poisoning from flue gases that are drawn back in.
3
Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated.
3
Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coal- operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air t...
3
In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked ...
3
â Adequate incoming air must therefore always be ensured.
4
â An incoming/exhaust air wall box alone will not ensure compliance with the limit.
4
Safe operation is possible only when the partial vacuum in the place where the heat- producing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that can...
4
In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.
4
Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode.
4
Risk of fire!
4
â Grease deposits in the grease filter may catch fire.
4
Clean the grease filter at least every 2 months.
4
Never operate the appliance without the grease filter.
4
Risk of fire!
4
â Grease deposits in the grease filter may catch fire. Never work with naked flames close to the appliance (e.g. flambéing). Do not install the appliance near a heat- producing appliance for solid fuel (e.g. wood or coal) unless a closed, non- rem...
4
Risk of fire!
4
â Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.
4
Risk of fire!
4
â When gas burners are in operation without any cookware placed on them, they can build up a lot of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Only operate the gas burners with cookware on them.
4
Risk of fire!
4
â Operating several gas burners at the same time gives rise to a great deal of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Never operate two gas burners simultaneously on the highest flame for longer t...
4
Risk of burns!
4
The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance.
4
Risk of injury!
4
â Components inside the appliance may have sharp edges. Wear protective gloves.
4
Risk of injury!
4
â Items placed on the appliance may fall down. Do not place any objects on the appliance.
4
Risk of injury!
4
â The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1). Do not look directly into the switched on LED lights for longer than 100 seconds.
4
Risk of electric shock!
4
â A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
4
Risk of electric shock!
4
â Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker...
4
Risk of electric shock!
4
â Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.
4
Causes of damage
5
Caution!
5
Environmental protection
5
Saving energy
5
Environmentally-friendly disposal
5
Operating modes
5
Exhaust air mode
5
Note
5
Circulating-air mode
5
Note
5
Operating the appliance
6
Note
6

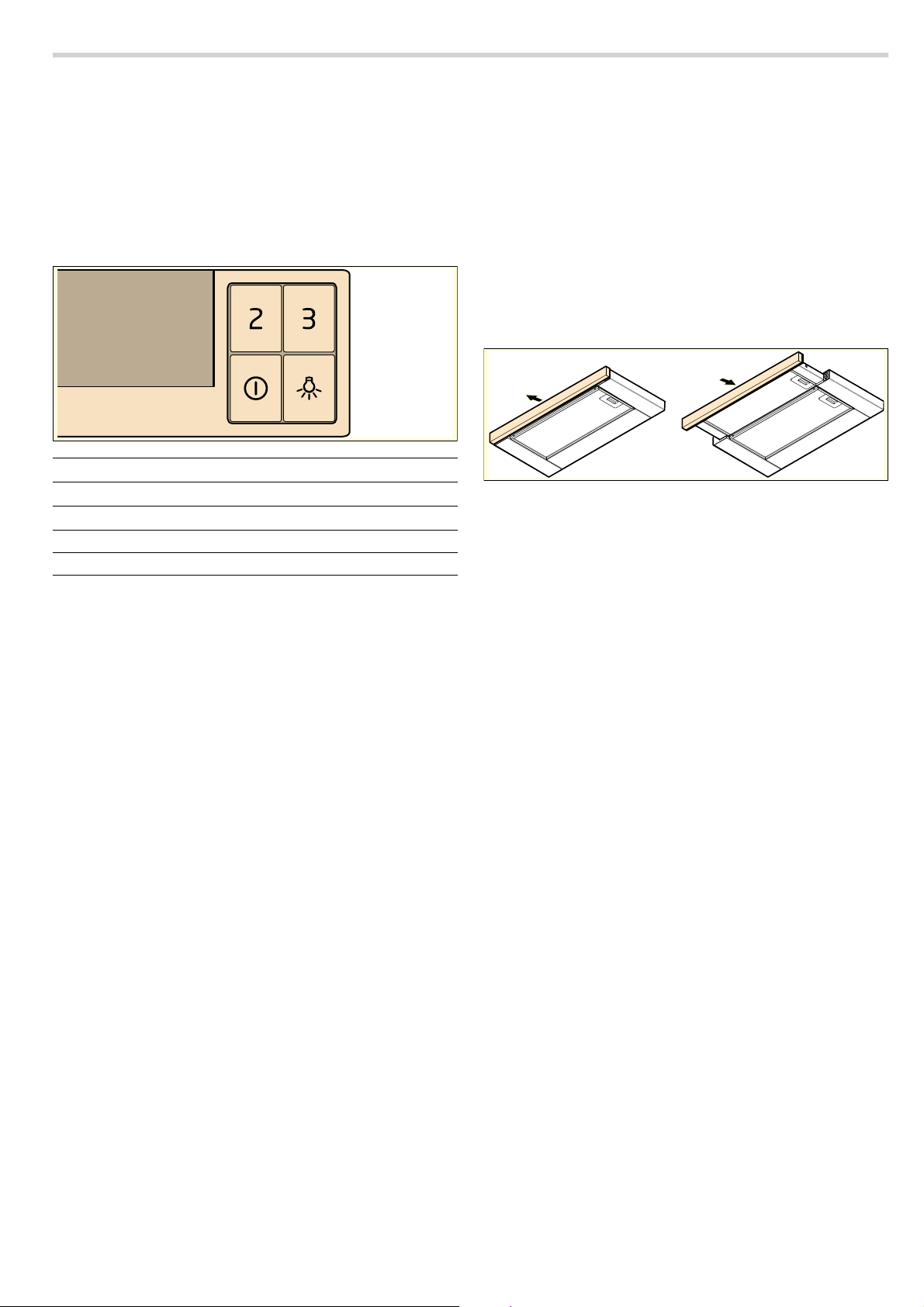

Control panel
6
Filter drawer
6
Note
6
Note
6
Setting the fan
6
Note
6
Lighting
6
Cleaning and maintenance
7
: Risk of burns!
7
: Risk of electric shock!
7
: Risk of electric shock!
7
: Risk of injury!
7
Cleaning agents
7
Cleaning the metal mesh grease filters
7
: Risk of fire!
7
Notes
7
By hand:
7
Note
7
In the dishwasher:
7
Note
7
Removing metal grease filter
7

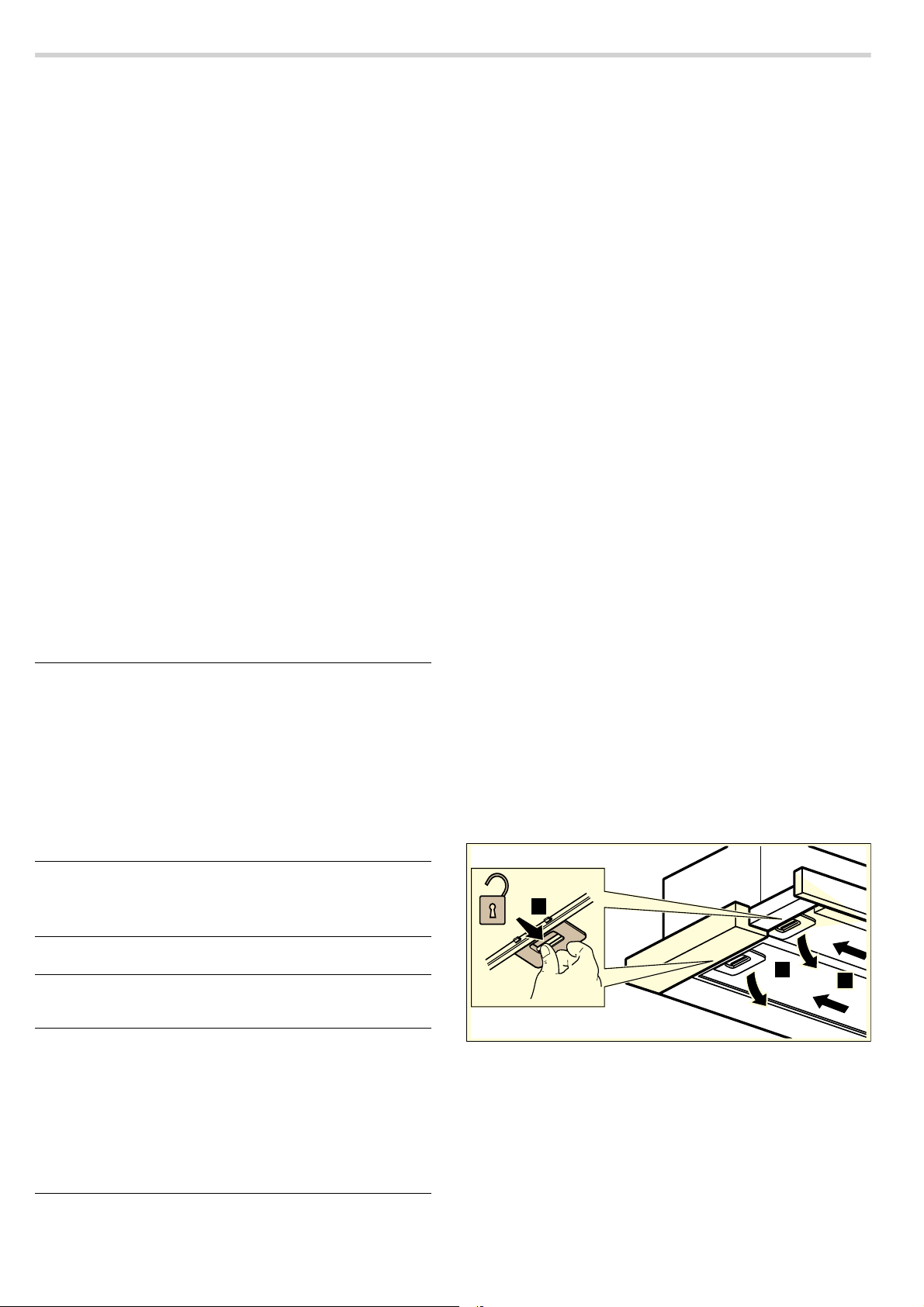

1. Open the lock and swing down the metal grease filter. When you do this, take hold of the metal grease filter from underneath with your other hand.
7
2. Take the metal grease filter out of the holder.
7
Note
7
3. Clean the metal grease filters.
7
4. After removing the filters, clean the inside of the appliance.
7
Installing the metal mesh grease filter
8
1. Insert the metal mesh grease filter.
8
2. Fold the metal mesh grease filter upwards, locking it in place.
8
Changing the activated charcoal filter (only in circulating-air mode)
8
Notes
8
1. For removing the metal grease filter, see above.
8
2. Withdraw the old activated charcoal filters from the holder.
8

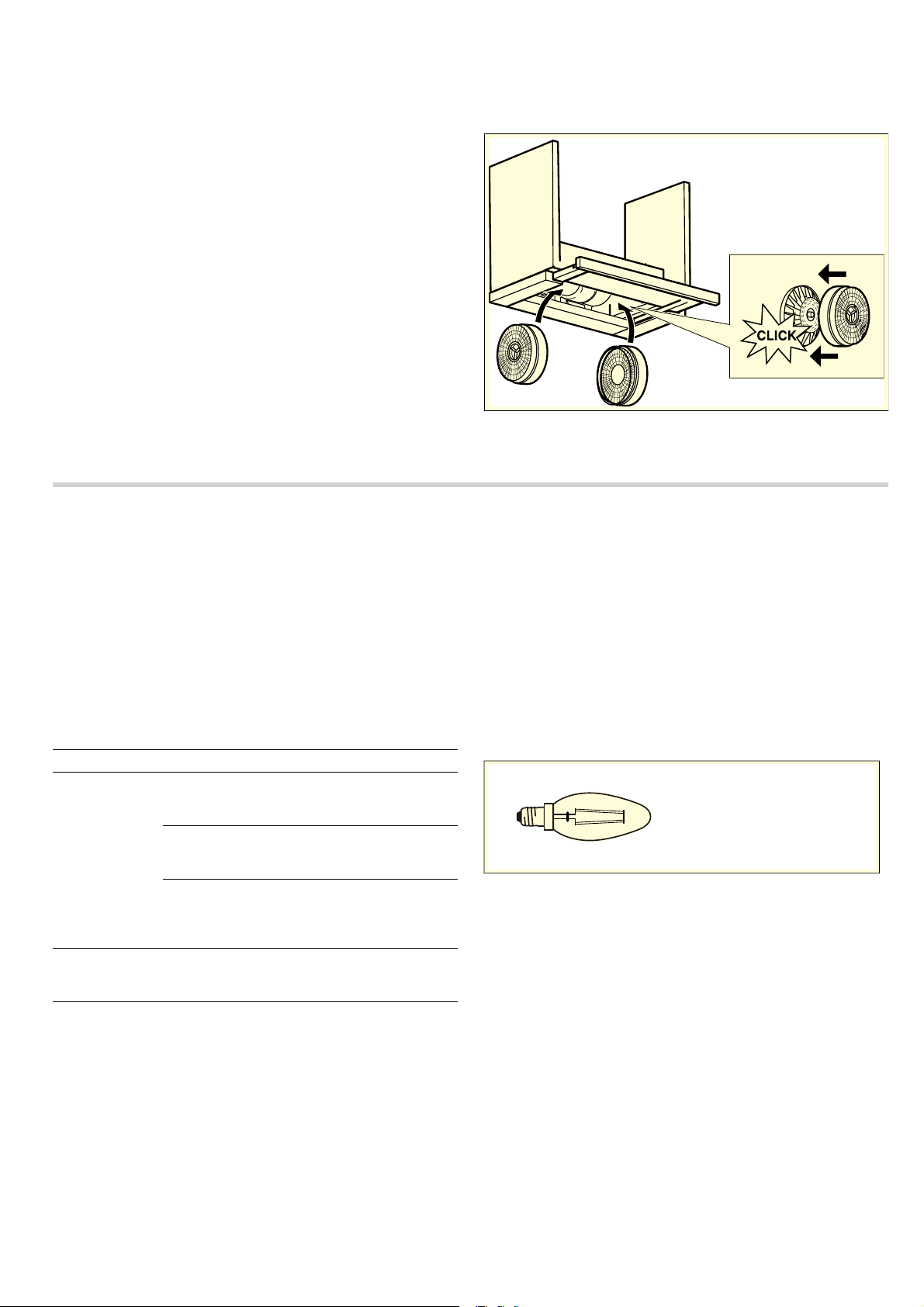

3. Press the new activated charcoal filters onto the holder until they can be heard to lock in place.
8
4. For fitting the metal grease filter, see above.
8
Trouble shooting
8
: Risk of electric shock!
8
Fault table
8
Replacing the LED lights
8
: Risk of electric shock!
8
: Risk of injury!
8
1. Disconnect the appliance from the power supply.
8
2. Remove the metal grease filter.
8
3. Unscrew the bulb and replace it with a bulb of the same type.
8
4. Fit the metal grease filters.
8
5. Plug in the mains plug and switch the circuit breaker back on.
8
After-sales service
9
To book an engineer visit and product advice
9
Accessories for circulating-air mode
9
File type: PDF
File name: 85123937_dhi623gau.pdf
File size: 1.57 MB
File Language: English
Pages: 12
Author: Bosch
File created: 2018-06-05
Published: 2021-04-20
Updated: 2023-05-22
Verified by
Shany D'Amore
on 2023-05-22
Download File
