Summary of Contents for Bosch DWB65BC50A:
[en] Instruction manual Extractor hood
1
Extractor hood
1
Table of contents
3
[en] Instruction manual Extractor hood
3
7 Environmental protection 6
3
à Operating modes 6
3

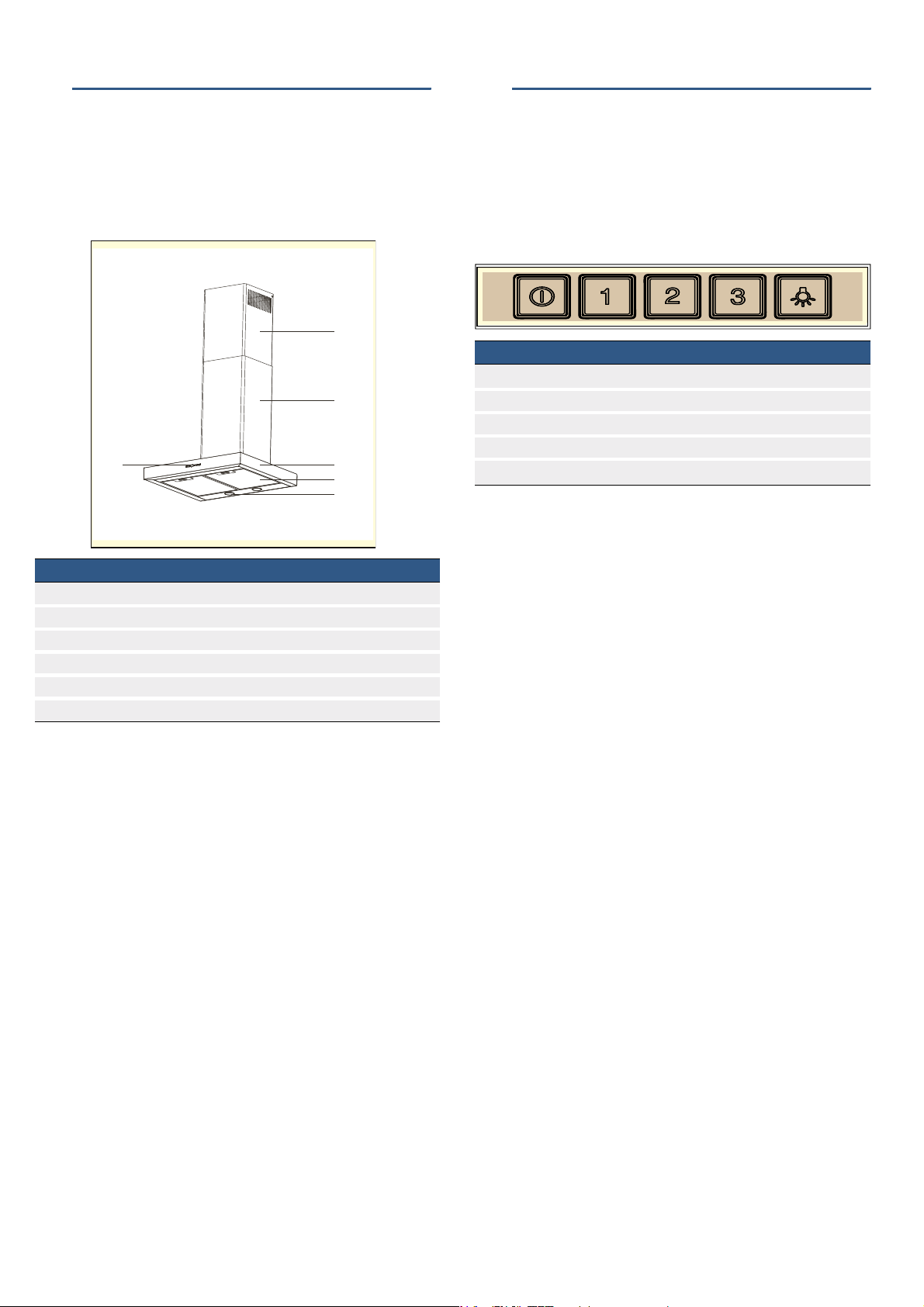

*Your new appliance 7
3
1 Operating the appliance 7
3
2 Cleaning and maintenance 8
3
3 Trouble shooting 10
3
4 Customer service 11
3
_ Accessories 11
3
( Important safety information
4
Important safety information
4
: Warning
4
Danger of suffocation!
4
Packaging material is dangerous to children. Never allow children to play with packaging material.
4
: Warning
4
Danger of death!
4
Risk of poisoning from flue gases that are drawn back in.
4
Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated.
4
Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coal-operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air th...
4
In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked ...
4
Safe operation is possible only when the partial vacuum in the place where the heat-producing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that cann...
4
In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.
4
Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode.
4
: Warning
4
Risk of fire!
4
: Warning
5
Risk of burns!
5
The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance.
5
: Warning
5
Risk of injury!
5
: Warning
5
Danger of death!
5
There is a risk of electric shock if you touch live components.
5
Notes
5
Causes of damage
5
Caution!
5
7 Environmental protection
6
Environmental protection
6
Saving energy
6
Environmentally-friendly disposal
6
à Operating modes
6
Operating modes
6
Exhaust air mode
6
Note:
6
Air recirculation
6
Note:
6
*Your new appliance
7
Your new appliance
7
1 Operating the appliance
7
Operating the appliance
7
Note:
7
Control panel
7
Switching the appliance on and off
7
Switching on the appliance
7
Selecting the fan setting
7
Switching off the appliance
7
Lighting
7
2 Cleaning and maintenance
8
Cleaning and maintenance
8
: Warning
8
Risk of burns!
8
The appliance becomes hot during operation. Allow the appliance to cool down before cleaning.
8
: Warning
8
Risk of electric shock!
8
Penetrating moisture may result in an electric shock. Clean the appliance using a damp cloth only. Before cleaning, pull out the mains plug or switch off the circuit breaker in the fuse box.
8
: Warning
8
Risk of electric shock!
8
Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.
8
Cleaning agents
8
Area
8
Cleaning agent
8
Removing and installing the filter
8
Metal grease filter
8
: Warning
8
Risk of fire!
8
Grease deposits in the grease filter may catch fire.
8
Clean the grease filter at least every 2 months.
8
Never operate the appliance without the grease filter.
8
Removing metal grease filter
8
1. Open the lock on the metal grease filters and remove the filters from the retainer.
8
Notes
8
2. Clean the metal grease filters.
8
3. Clean the inside of the appliance.
8
Cleaning the metal grease filter
9
Notes
9
By hand:
9
Note:
9
In the dishwasher:
9
Note:
9
Installing the metal mesh grease filter
9
1. Insert metal grease filter.
9
2. Fold up metal grease filter and engage the lock.
9
Note:
9
Activated charcoal filter (only in circulating-air mode)
9
Notes
9
Changing the activated charcoal filter (only in circulating-air mode)
9
Notes
9
1. Remove the metal grease filter. To do this, refer to the section entitled "Removing the metal grease filter".
9
2. First, insert the activated charcoal filter, rear first, into the housing.
9
3. Press the clamp for the activated charcoal filter in order to move the lugs on the carbon filter
9
4. Fit the metal grease filter. To do this, refer to the section entitled "Removing the metal grease filter".
9
3 Trouble shooting
10
Trouble shooting
10
: Warning
10
Risk of electric shock!
10
Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in ...
10
Fault table
10

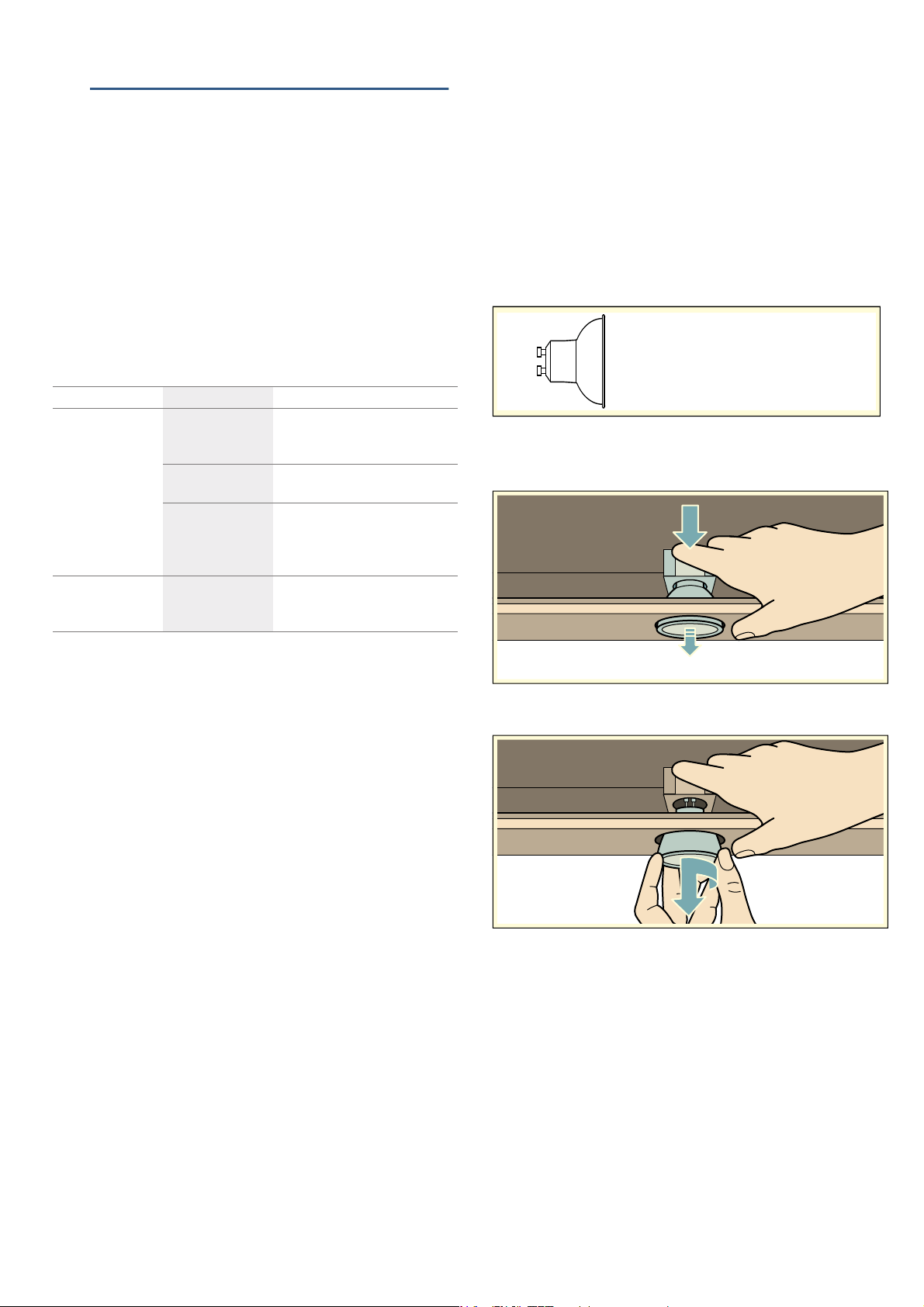

Replacing the LED lights
10
: Warning
10
Risk of electric shock!
10
When changing the bulbs, the bulb socket contacts are live. Before changing the bulb, unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
10
: Warning
10
Risk of injury!
10
The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1). Do not look directly into the switched on LED lights for longer than 100 seconds.
10
1. Disconnect the appliance from the power supply.
10
2. Remove the metal grease filter.
10
3. Push the bulb out of the appliance from the rear.
10
4. Turn the bulb a quarter turn anti-clockwise and remove it.
10
5. Replace the bulb with one of the same type.
10
6. Insert the metal grease filter.
10
7. Plug in the mains plug and switch the fuse back on.
10
4 Customer service
11
Customer service
11
To book an engineer visit and product advice
11
_ Accessories
11
Accessories
11
Special accessories
11
Accessories
11
Order number
11
*9001338908*
12
File type: PDF
File name: 80381449_dwb65bc50a.pdf
File size: 924.95 KB
File Language: English
Pages: 12
Author: Bosch
Published: 2020-12-21
Updated: 2023-06-16
Download File
