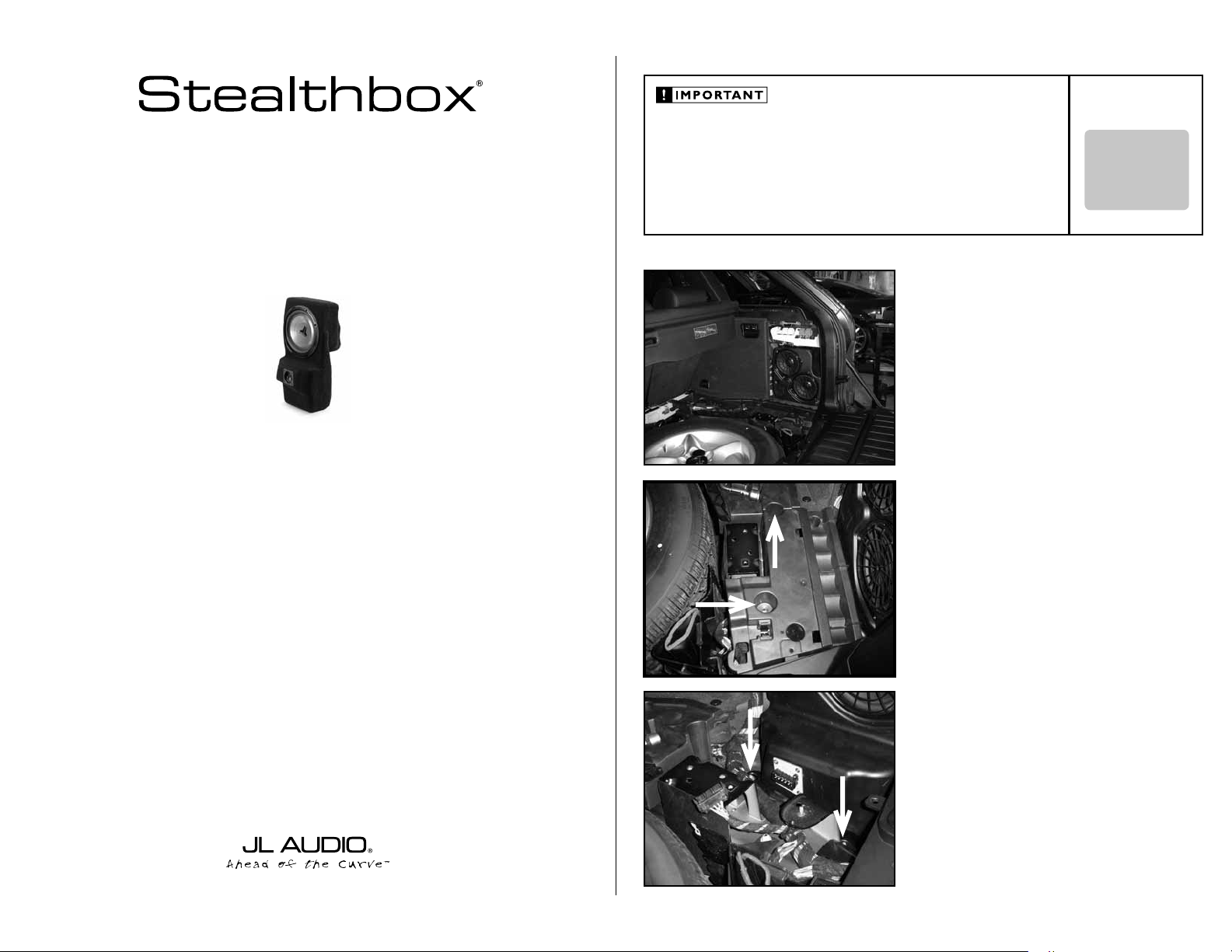

INSTALLATION
DIFFICULTY:
INSTALLATION GUIDE
for the
SB-B-X5/10W1v2
SB-B-X5/10W1v2
2000 - 2006
2000 - 2006
BMW X5
BMW X5
Thank you for choosing a JL Audio Stealthbox
®
for your automotive sound system. With proper
installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
®
installed by your authorized JL Audio
dealer. The installation professionals employed by your dealer have the necessary tools and experience
to disassemble and reassemble your vehicle properly. Also, keep in mind that your warranty coverage
extends to 1 year if your system is installed or approved by your authorized JL Audio dealer. If you
prefer to perform your own installation, please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox
®
be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
STEP 1
Remove the flooring and the passenger side storage/woofer
cover from the vehicle.
Continued on Next Page
STEP 2
With an 10mm socket, remove the pair of nuts that are
pictured.
Remove this plastic flooring panel.
STEP 3
If equipped with the factory woofer system.
Disconnect the factory woofer system.
With an 10mm socket, remove the pair of nuts that secure
the factory woofer enclosure’s footing to the floor.
SB-B-X5/10W1v2_INSTR_SKU#011221
SB-B-X5/10W1v2_INSTR_SKU#011221
1
5
OUT
OF
Continued on Next Page
SB-B-X5/10W1v2_INSTR_SKU#011221
SB-B-X5/10W1v2_INSTR_SKU#011221
STEP 7(OPTIONAL)
If you have the factory woofer system. You can use the
factory footing, instead of the supplied footing for the next
step.
With an 5mm allen key, remove the pair of bolts that secure
the plastic footing to the factory woofer enclosure.
STEP 6
If equipped with the factory woofer system.
Grab the top of the factory woofer enclosure and pull out.
Guide the factory fuse/relay box, up and over the factory
woofer enclosure.
STEP 5
If equipped with the factory woofer system.
With an 6mm allen key, remove the bolt that secures the top
of the factory woofer enclosure.
STEP 4
With an 7mm socket, remove the five bolts that secure the
factory fuse/relay box.
Page 2 • JL Audio, Inc 2006
STEP 9
Place the bottom of the Stealthbox
®
into the mounting
area .
Guide the factory fuse/relay box up and over the top of the
Stealthbox
®
.
Secure the plastic mounting flange to the floor area. Using
the two factory 10mm nuts that were removed in STEP 3.
STEP 11
Place a supplied lock washer and then flat washer onto the
last supplied 8mm x 30mm bolt. Secure the L-bracket to the
top of the Stealthbox
®
STEP 10
If equipped with the factory woofer system.
Secure the supplied L-bracket to the vehicle using the
factory bolt that was removed in STEP 5.
If not equipped with the factory woofer system,
but does have the threaded insert . Place a supplied
flat washers onto the supplied 8mm x 30mm bolt. Secure
the L-bracket to the vehicle with this bolt assembly.
If no threaded insert is found. Place a supplied flat
washer onto the supplied 8mmx30mm bolt. Place this
bolt through the L-bracket and hole. Place a supplied flat
washer and then lock washer and 8mm nut onto the bolt
and secure.
STEP 8
If equipped with the factory woofer system.
Using the factory hardware, secure the factory footing to
the Stealthbox.
If not equipped with the factory woofer system.
Using an 5mm allen key, secure the supplied plastic footing
to the Stealthbox
®
with the pair of supplied black flat socekt
screws.
Attach desired length of speaker wire to the Stealthbox
®
.
double check the woofer for proper operation.
SB-B-X5/10W1v2_INSTR_SKU#011221
SB-B-X5/10W1v2_INSTR_SKU#011221
CONGRATULATIONS
You have completed the installation for this model!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.

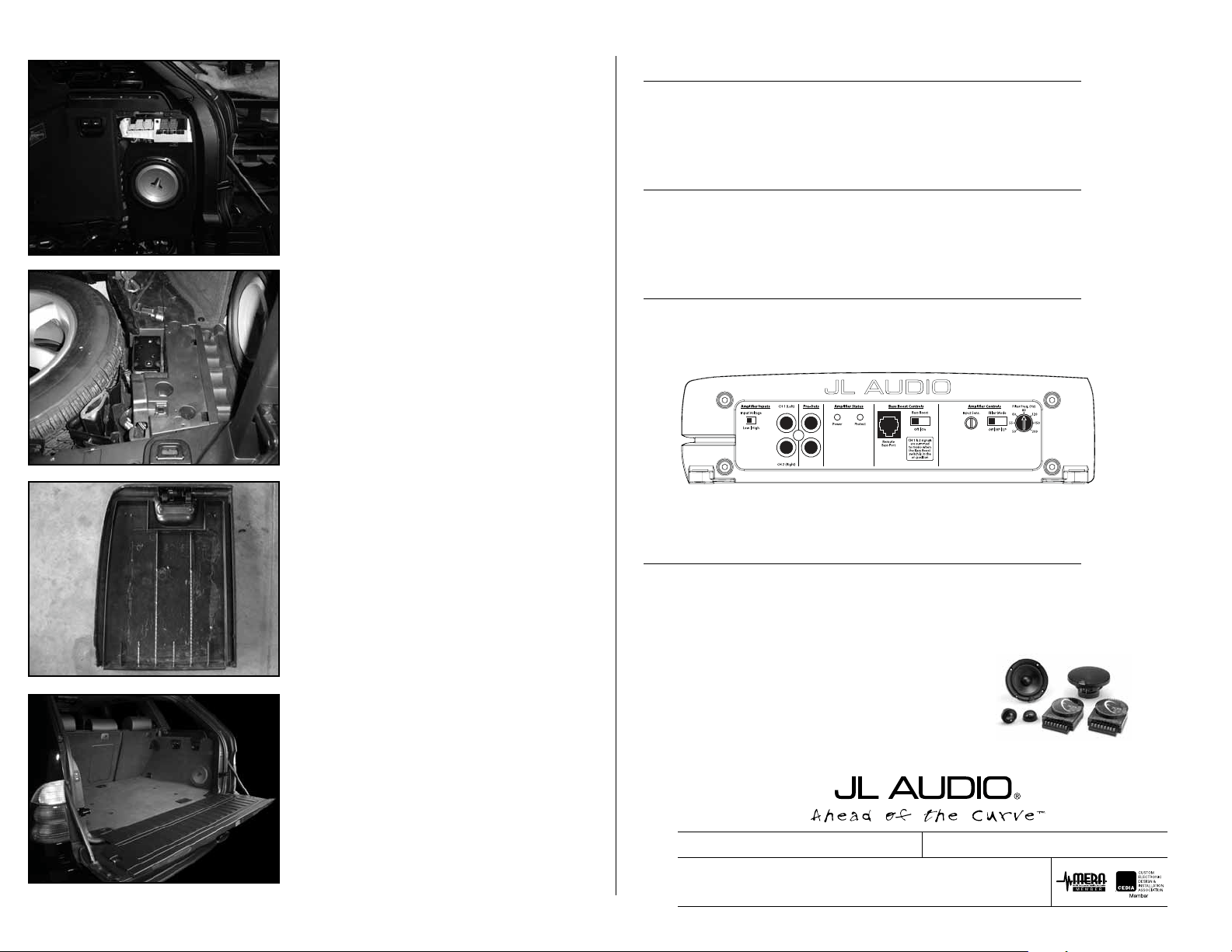

STEP 14
With a knife, carefully slice off the five tabs that secure the
fabric panel to the backside of the storage/woofer cover.
After the fabric panel has been removed. Grind off the two
long ribs (A) and two short ribs (B).
STEP 13
If you are using the factory plastic footing, use the factory
mounting nuts to secure the plastic footing to the floor.
If you are using the supplied plastic footing, use the supplied
pair of speed nuts to secure the plastic footing to the floor.
Place the plastic panel that was removed and use the 10mm
nuts that were removed in STEP 2.
STEP 12
Uisng the factory bolts, secure the factory fuse/relay box to
the vehicle.
Page 3 • JL Audio, Inc 2006
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU#011221-11-20-200
JLA-SKU#011221-11-20-200
6
6 • Printed in USA • ©2005 JL Audio, Inc. • U.S. PATENTS: #5,734,734 #5,949,898 #6,118,884 #6,229,902
#6,243,479 #6,294,959 #6,501,844 #6,496,590 #6,441,685 #5,687,247 #6,219,431 #6,625,292 #D472,891 #D480,709 Other U.S. & Foreign
patents pending. For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
www.jlaudio.com
10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA
INCLUDED HARDWARE
(2)
(2)
8mm Split Lock Washer
8mm Split Lock Washer
(1)
(1)
Plastic Foot Mount
Plastic Foot Mount
(3)
(3)
8mm Flat Washer
8mm Flat Washer
(2)
(2)
Speed Nuts
Speed Nuts
(1)
(1)
8mm Hex Nut
8mm Hex Nut
(2)
(2)
8mm x 30mm Hex Cap Screw
8mm x 30mm Hex Cap Screw
(1)
(1)
L-Bracket
L-B ra ck et
(2)
(2)
8mm -20 Black Flat Socket Caps
8mm -20 Black Flat Socket Caps
SPECIFICATIONS
Enclosure Type:
Acoustic Suspension (sealed)
Acoustic Suspension (sealed)
Driver Type:
10W1v2-4
10W1v2-4
Nominal Impedance:
4 ohms mono
4 ohms mono
Continuous Power Handling:
150 Watts
150 Watts
POWER RECOMMENDATION
JL Audio recommends using a high quality amplifier such as the JL Audio A2150.
The diagram below shows the recommended crossover, infrasonic filter and equalizer settings for the A2150 when
being used to power your Stealthbox
®
.
The JL Audio A2150 is a very versatile audio component. Please consult the owner’s manual for even more
detailed information about installing and tuning this amplifier.
MID/HIGH FREQUENCY DRIVER FITMENT
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location:
6.5-inch / Front Doors
6.5-inch / Front Doors
Fits JL Audio Models: TR650-CSi,
TR650-CXi, VR650-CSi, VR650-CXi, XR650-CSi, XR650-CXi & ZR650-CSi
TR650-CXi, VR650-CSi, VR650-CXi, XR650-CSi, XR650-CXi & ZR650-CSi
Rear Speaker Size / Location:
6.5-inch / Rear Doors
6.5-inch / Rear Doors
Fits JL Audio Models:
TR650-CXi, VR650-CXi & XR650-CXi
TR650-CXi, VR650-CXi & XR650-CXi
