WEEE Number: 80133970
2D LED BULK HEAD
Model
No
Power
Input
Lumens
Protection
Rating
Microwave
Sensor
Emergency
Battery
Back-Up
VT-15
15W
AC200-240V
50/60 Hz
1200LM
IP65
NO
NO
VT-16
YES
NO
VT-17
NO
YES
VT-19
YES
YES

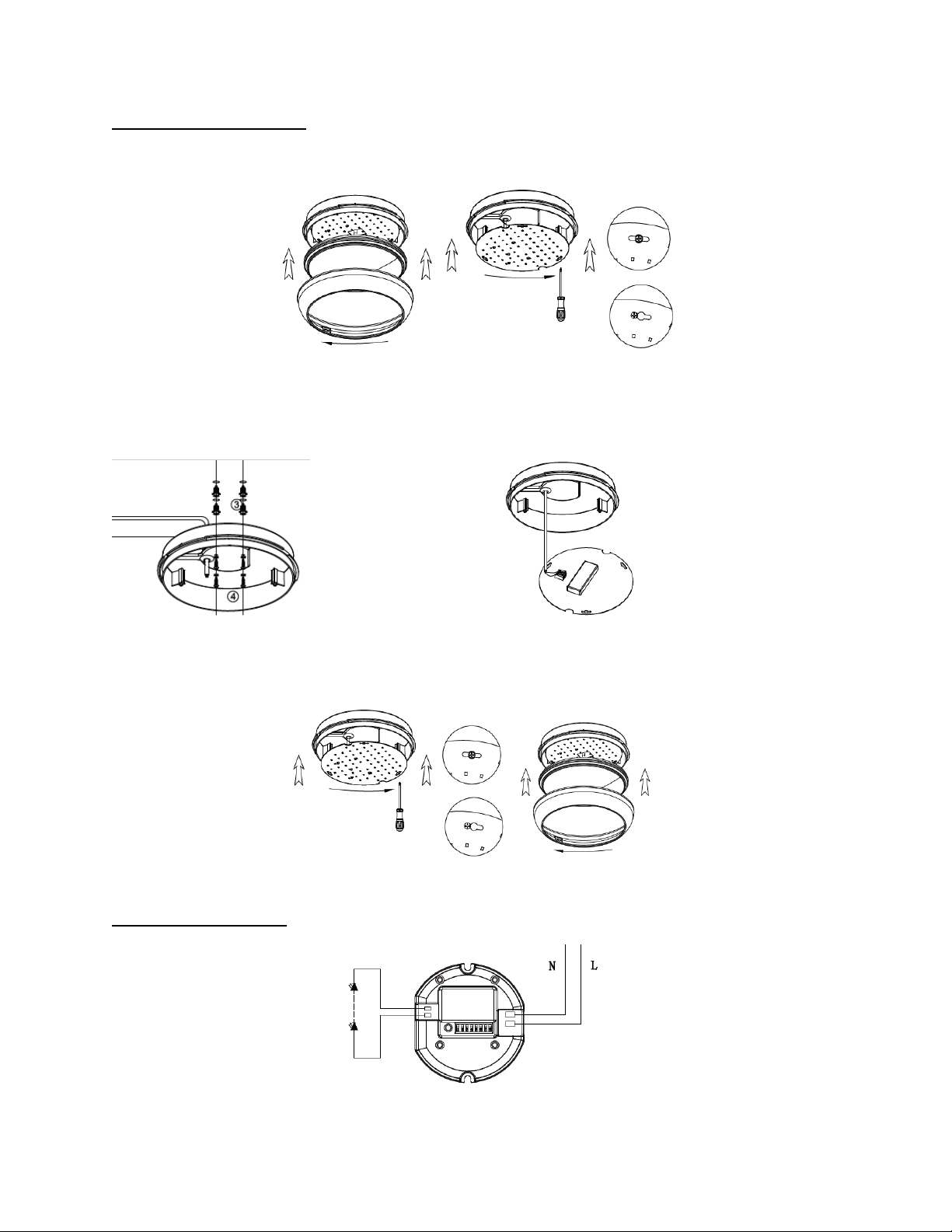

INSTALLATION INSTRUCITONS
STEP 1
Remove the cover by twisting the diffuser anti-clockwise and set aside. Carefully remove the LED tray and unplug it
from the LED driver, and set aside
STEP 2 STEP 3
Hold the product in place, mark & drill the holes Make the AC Power connection through the
into the wall and nail the alligator into the hole. waterproof rubber cap.
STEP 4
Install the LED tray and diffuser back and switch on.
SENSOR WIRING DIAGRAM
SENSOR SETTINGS
Detection Hold Daylight Stand-by Stand-by
Area Time Threshold Period dimming level
It can be The time period Daylight sensor The is the time period the is the dimming
adjusted by the light will priors motion the light keeps dimming level, the light keeps
combining be ON after the sensor. Set down after the last during the stand-by
DIP switches for last detection. Threshold for detection. Period.
specific application. Specific needs.
If disabled, only
motion sensor
will work
APPLICATION (Function Demo – Dimmable Control/Corridor function)
When motion is detected, when motion is detected, After last detection, the After stand-by period,
but the daylight is sufficient, and the daylight is light will be dimmed down the light will be OFF.
enough, the light will insufficient, the light to stand-by dimming level
remain OFF. will be ON. (10%, 30%).
SPECIFICATION FOR EMERGENCY FUNCTION
Battery Type
Ni-CD
Battery Charging
60 mA, 90% in 24 hours.
Discharging
200 mA, >3 hours automony time.
Test Button
With
Charging Indicate
Green Light
Pre-Install Emergency function test.
- Connect the AC cable according to the below diagram
- Press the test button on the driver. The emergency function will be activated, and the charging indication will be off.
- Disconnect the battery pack, the charging indicated LED off.
NOTE: After installation, allow 36 hours to ensure full battery charge and then interrupt the supply.
In case of any query/issue with the product, please reach to us at [email protected]
For more product range, kindly contact our nearest dealer or distributor.
V-TAC Europe LTD, Bulgaria, Plovdiv 4000, bul. L. Karavelow 9B.
